Triple Stores

Triple Stores

Dr. Stephan Volmer

Slide 1 of 34

sparkler! by Vicky Brock
http://www.flickr.com/photos/vickyb/2105951692/
Attribution-ShareAlike 2.0 Generic

C

Dr. Stephan Volmer
© Zühlke 2013

Triple Stores
No talk without agenda!

• NoSQL

• Semantic

Web

• RDF
• SPARQL
• Triple

Stores

• Conclusions

Triple Stores | Dr. Stephan Volmer

Slide 2 of 34

© Zühlke 2013

NoSQL
New generation of modern web-scale databases!

big data

distributed
schema-free

relaxed consistency
open source

non-relational

simple interface
semi-structured data

eventually consistent
easy replication

Slide 3 of 34

© Zühlke 2013

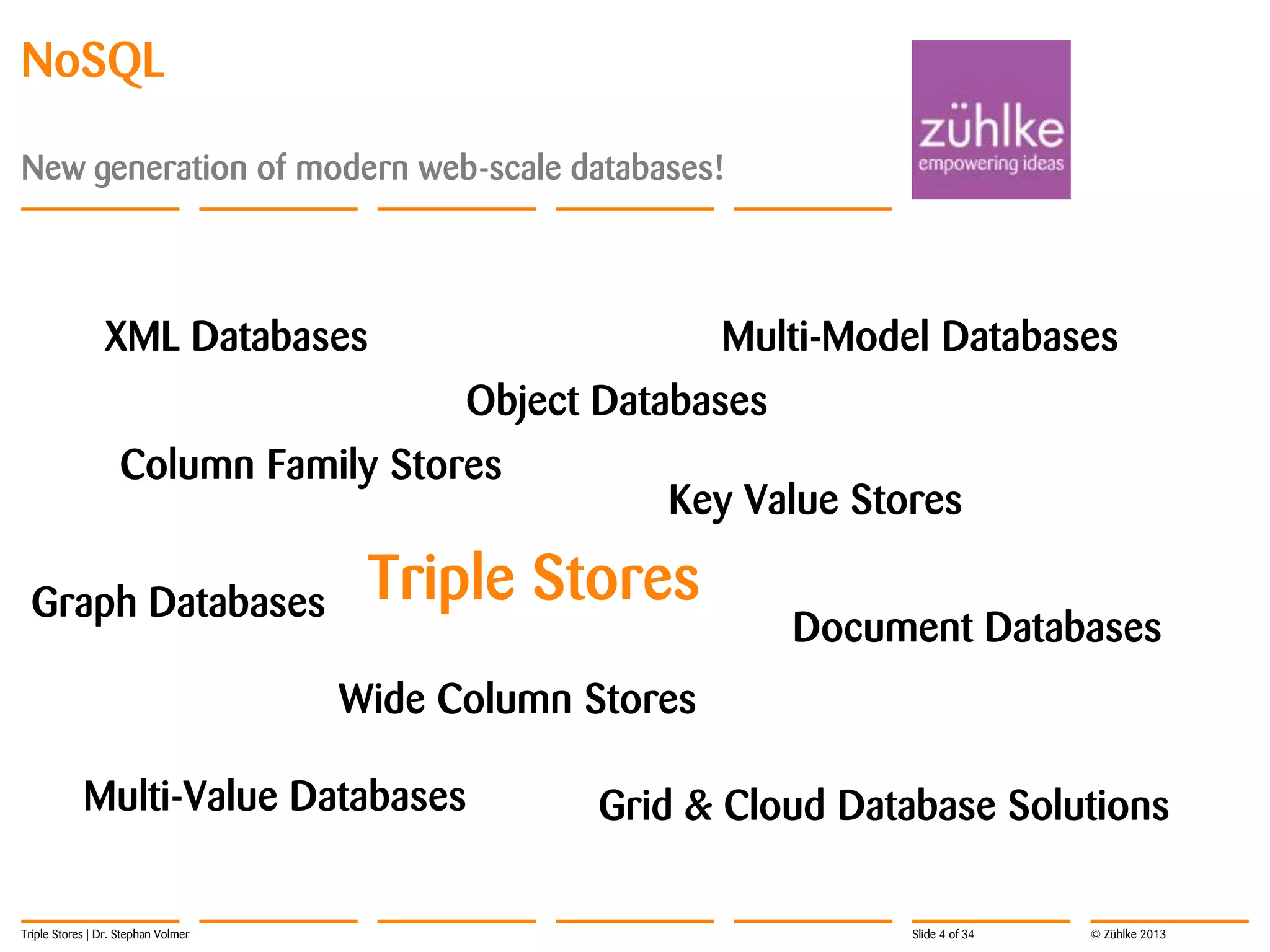

NoSQL
New generation of modern web-scale databases!

XML Databases

Multi-Model Databases
Object Databases

Column Family Stores
Graph Databases

Key Value Stores

Triple Stores

Document Databases

Wide Column Stores
Multi-Value Databases

Grid & Cloud Database Solutions
Slide 4 of 34

© Zühlke 2013

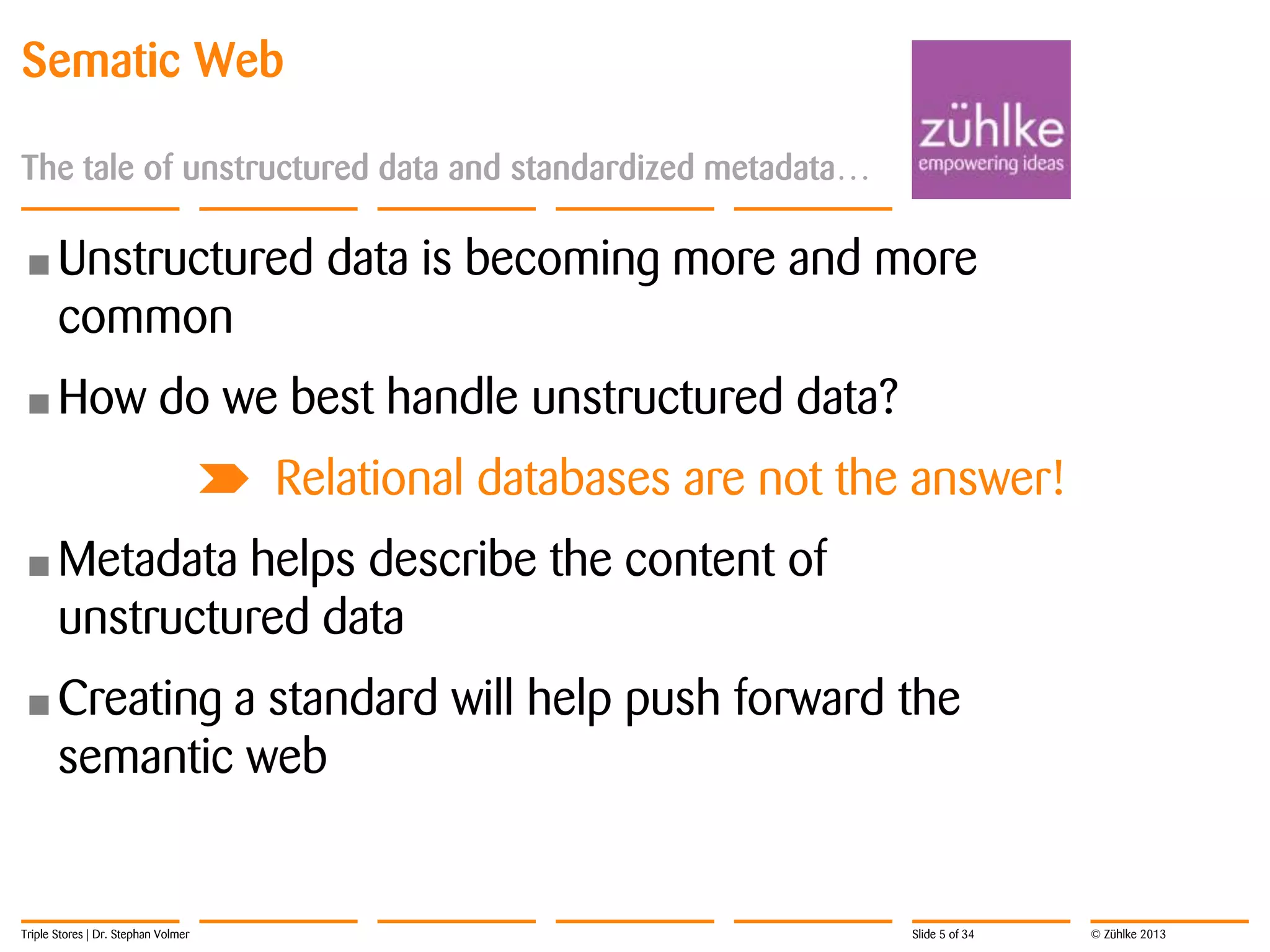

Sematic Web
The tale of unstructured data and standardized metadata…

• Unstructured

common

• How

data is becoming more and more

do we best handle unstructured data?
Relational databases are not the answer!

• Metadata

helps describe the content of
unstructured data

• Creating

a standard will help push forward the
semantic web


Slide 5 of 34

© Zühlke 2013

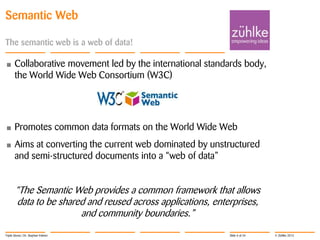

Semantic Web
The semantic web is a web of data!
•

Collaborative movement led by the international standards body,
the World Wide Web Consortium (W3C)

•

Promotes common data formats on the World Wide Web

•

Aims at converting the current web dominated by unstructured
and semi-structured documents into a “web of data”

“The Semantic Web provides a common framework that allows
data to be shared and reused across applications, enterprises,
and community boundaries.”

Slide 6 of 34

© Zühlke 2013

Semantic Web
The semantic web stack!

User Interface & Applications
Trust

Proof
Logic
Querying

Rules

Taxonomies

Data Interchange

Cryptography

Ontologies

Syntax
Identifiers

Character Set
Slide 7 of 34

© Zühlke 2013

Semantic Web
The semantic web stack!

Trust

Proof
Logic


Rules

Cryptography

Ontologies

Slide 8 of 34

© Zühlke 2013

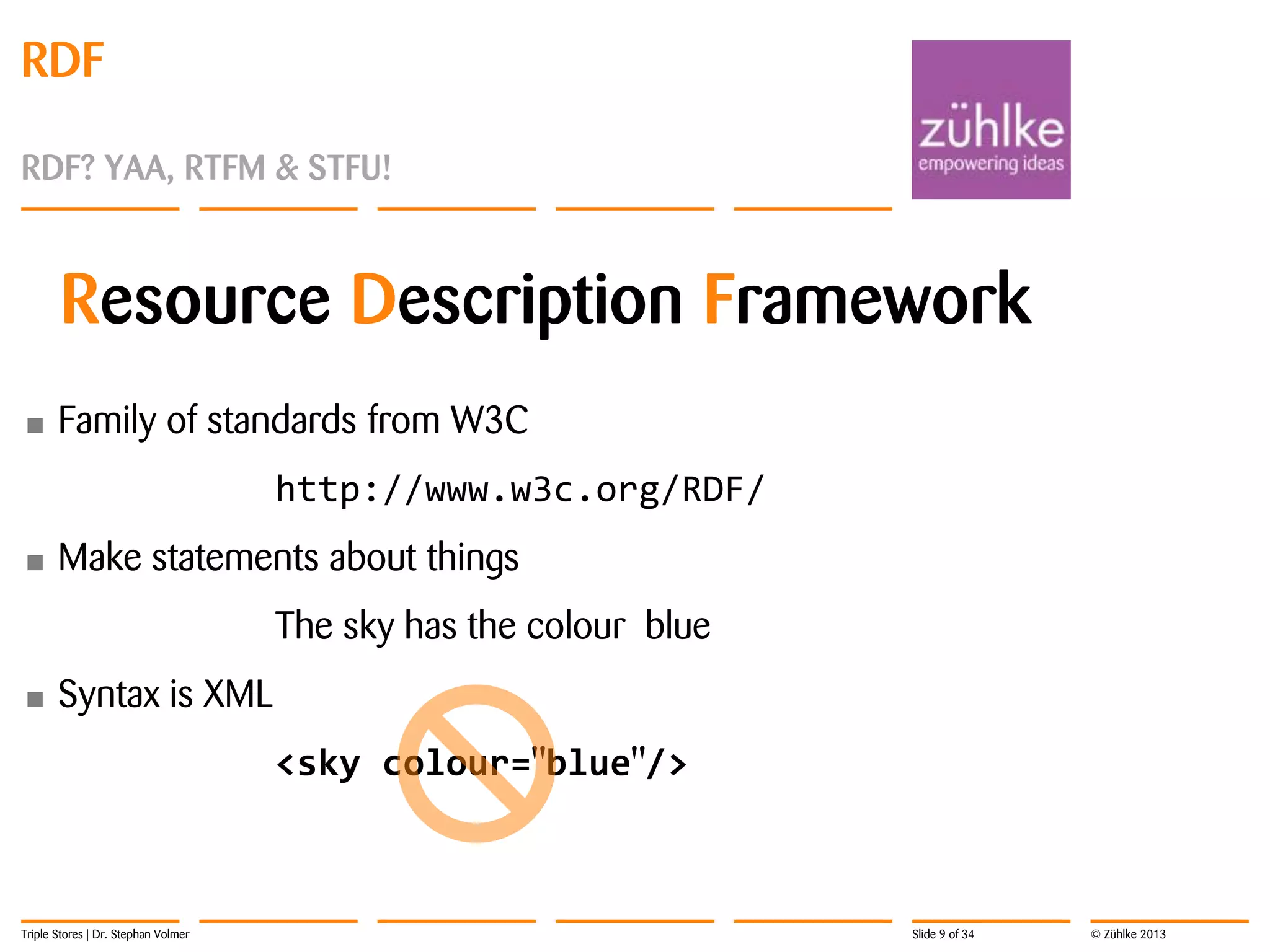

RDF
RDF? YAA, RTFM & STFU!

Resource Description Framework
•

Family of standards from W3C
http://www.w3c.org/RDF/

•

Make statements about things
The sky has the colour blue

•

Syntax is XML
<sky colour="blue"/>


Slide 9 of 34

© Zühlke 2013

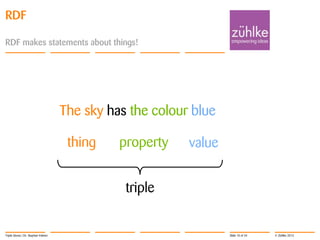

RDF
RDF makes statements about things!

The sky has the colour blue
thing

property

value

triple


Slide 10 of 34

© Zühlke 2013

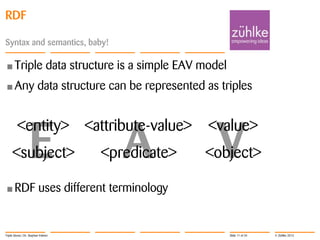

RDF
Syntax and semantics, baby!

• Triple
• Any

data structure is a simple EAV model

data structure can be represented as triples

E

A

V

<entity>

<attribute-value>

<value>

<subject>

<predicate>

<object>

• RDF

uses different terminology


Slide 11 of 34

© Zühlke 2013

RDF
URIs in RDF – we no speak americano!

• Provide

namespaces to uniquely name the things
we want to talk about

• Provide

a way to identify the properties and types
of things in a way that is sharable and unique

• Anyone

can say anything about any things with a
shared URI identifier


Slide 12 of 34

© Zühlke 2013

RDF
URIs in RDF – we no speak americano!

• Subject
• Object

and Predicate are always URIs

is either a literal or another URI

<http://www.zuehlke.com/person/stv>
subject
<http://www.zuehlke.com/properties/name>
predicate
"Stephan Volmer"
object
<http://www.zuehlke.com/properties/business-unit>
<http://www.zuehlke.com/business-units/dns>
<http://www.zuehlke.com/properties/email>
"stephan.volmer@zuehlke.com"

Slide 13 of 34

© Zühlke 2013

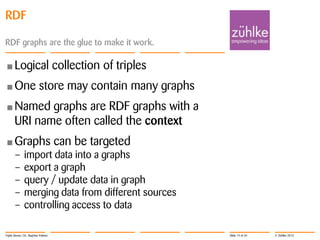

RDF
RDF graphs are the glue to make it work.

• Logical
• One

collection of triples

store may contain many graphs

• Named

graphs are RDF graphs with a
URI name often called the context

• Graphs

–
–
–
–
–

can be targeted

import data into a graphs
export a graph
query / update data in graph
merging data from different sources
controlling access to data


Slide 14 of 34

© Zühlke 2013

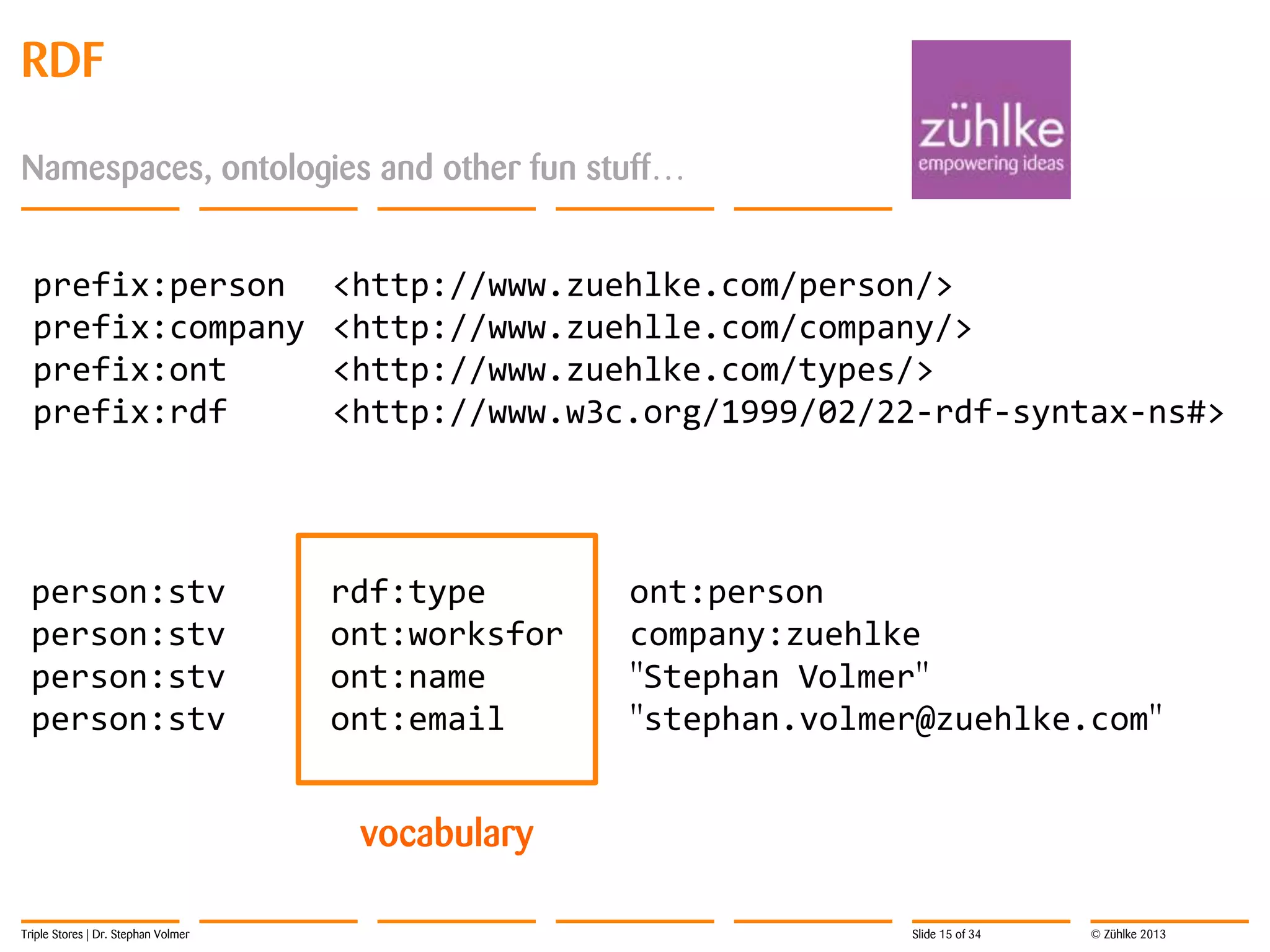

RDF
Namespaces, ontologies and other fun stuff…
prefix:person
prefix:company
prefix:ont
prefix:rdf

<http://www.zuehlke.com/person/>
<http://www.zuehlle.com/company/>
<http://www.zuehlke.com/types/>
<http://www.w3c.org/1999/02/22-rdf-syntax-ns#>

person:stv
person:stv
person:stv
person:stv

rdf:type
ont:worksfor
ont:name
ont:email

ont:person
company:zuehlke
"Stephan Volmer"
"stephan.volmer@zuehlke.com"

vocabulary

Slide 15 of 34

© Zühlke 2013

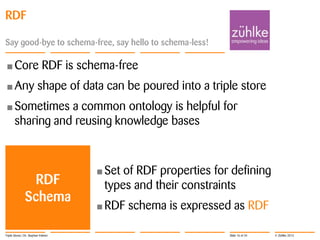

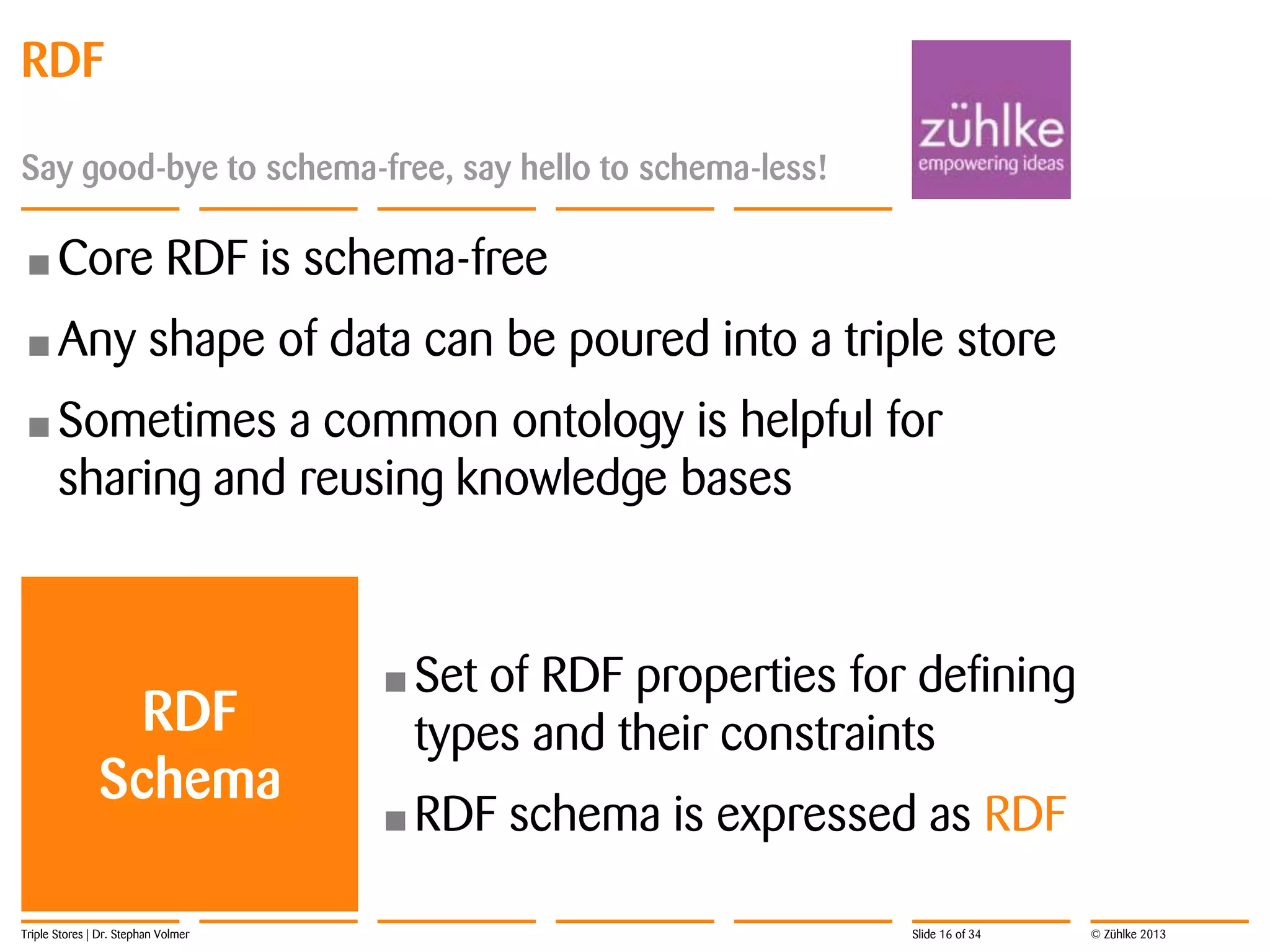

RDF
Say good-bye to schema-free, say hello to schema-less!

• Core
• Any

RDF is schema-free

shape of data can be poured into a triple store

• Sometimes

a common ontology is helpful for
sharing and reusing knowledge bases

RDF
Schema

• Set

of RDF properties for defining
types and their constraints

• RDF

schema is expressed as RDF
Slide 16 of 34

© Zühlke 2013

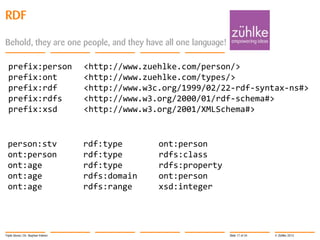

RDF
Behold, they are one people, and they have all one language!
prefix:person
prefix:ont
prefix:rdf
prefix:rdfs
prefix:xsd

<http://www.zuehlke.com/person/>
<http://www.zuehlke.com/types/>
<http://www.w3c.org/1999/02/22-rdf-syntax-ns#>
<http://www.w3.org/2000/01/rdf-schema#>
<http://www.w3.org/2001/XMLSchema#>

person:stv
ont:person
ont:age
ont:age
ont:age

rdf:type
rdf:type
rdf:type
rdfs:domain
rdfs:range


ont:person
rdfs:class
rdfs:property
ont:person
xsd:integer

Slide 17 of 34

© Zühlke 2013

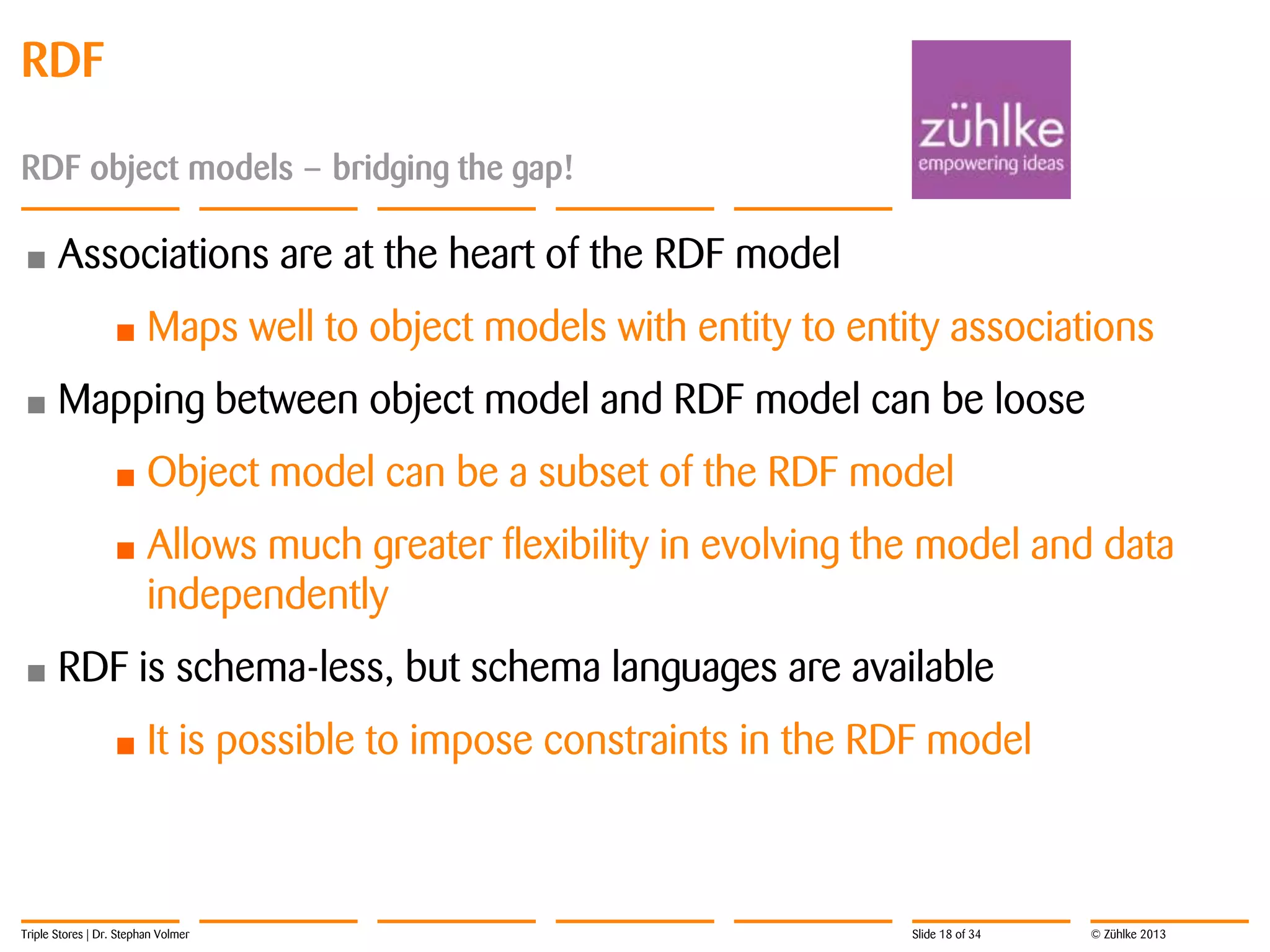

RDF
RDF object models – bridging the gap!
• Associations
• Maps

• Mapping

are at the heart of the RDF model

well to object models with entity to entity associations

between object model and RDF model can be loose

• Object

model can be a subset of the RDF model

• Allows

much greater flexibility in evolving the model and data
independently

• RDF

is schema-less, but schema languages are available

• It

is possible to impose constraints in the RDF model


Slide 18 of 34

© Zühlke 2013

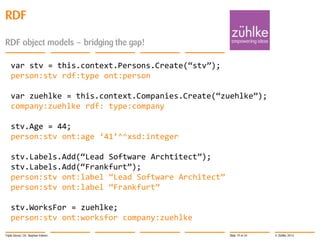

RDF
RDF object models – bridging the gap!
var stv = this.context.Persons.Create(‚stv‛);
person:stv rdf:type ont:person
var zuehlke = this.context.Companies.Create(‚zuehlke‛);
company:zuehlke rdf: type:company
stv.Age = 44;
person:stv ont:age ‘41’^^xsd:integer
stv.Labels.Add(‚Lead Software Archtitect‛);
stv.Labels.Add(‚Frankfurt‛);
person:stv ont:label ‚Lead Software Architect‛
person:stv ont:label ‚Frankfurt‛
stv.WorksFor = zuehlke;
person:stv ont:worksfor company:zuehlke

Slide 19 of 34

© Zühlke 2013

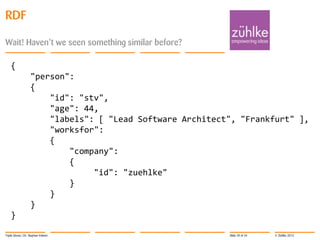

RDF
Wait! Haven’t we seen something similar before?

{
"person":
{
"id": "stv",
"age": 44,
"labels": [ "Lead Software Architect", "Frankfurt" ],
"worksfor":
{
"company":
{
"id": "zuehlke"
}
}
}
}

Slide 20 of 34

© Zühlke 2013

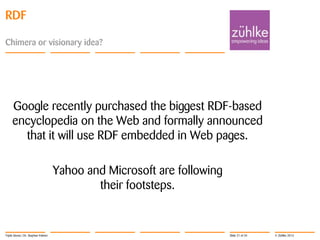

RDF
Chimera or visionary idea?

Google recently purchased the biggest RDF-based
encyclopedia on the Web and formally announced
that it will use RDF embedded in Web pages.
Yahoo and Microsoft are following
their footsteps.


Slide 21 of 34

© Zühlke 2013

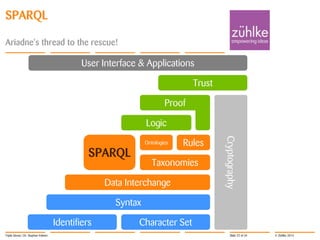

SPARQL
Ariadne's thread to the rescue!

Trust

Proof
Logic
Rules

Taxonomies
Data Interchange

Cryptography

Ontologies

Syntax
Identifiers

Character Set
Slide 22 of 34

© Zühlke 2013

SPARQL
The Babel fish is probably the oddest thing in the universe.

• SPARQL

is pronounced “sparkle”

• SPARQL

is a recursive acronym for

SPARQL Protocol and RDF Query Language
• SPARQL

became an offical W3C recommendation

• SPARQL

allows for a query to consist of

in 2008
–
–
–
–

triple patterns,
conjunctions,
disjunctions, and
optional patterns


Slide 23 of 34

© Zühlke 2013

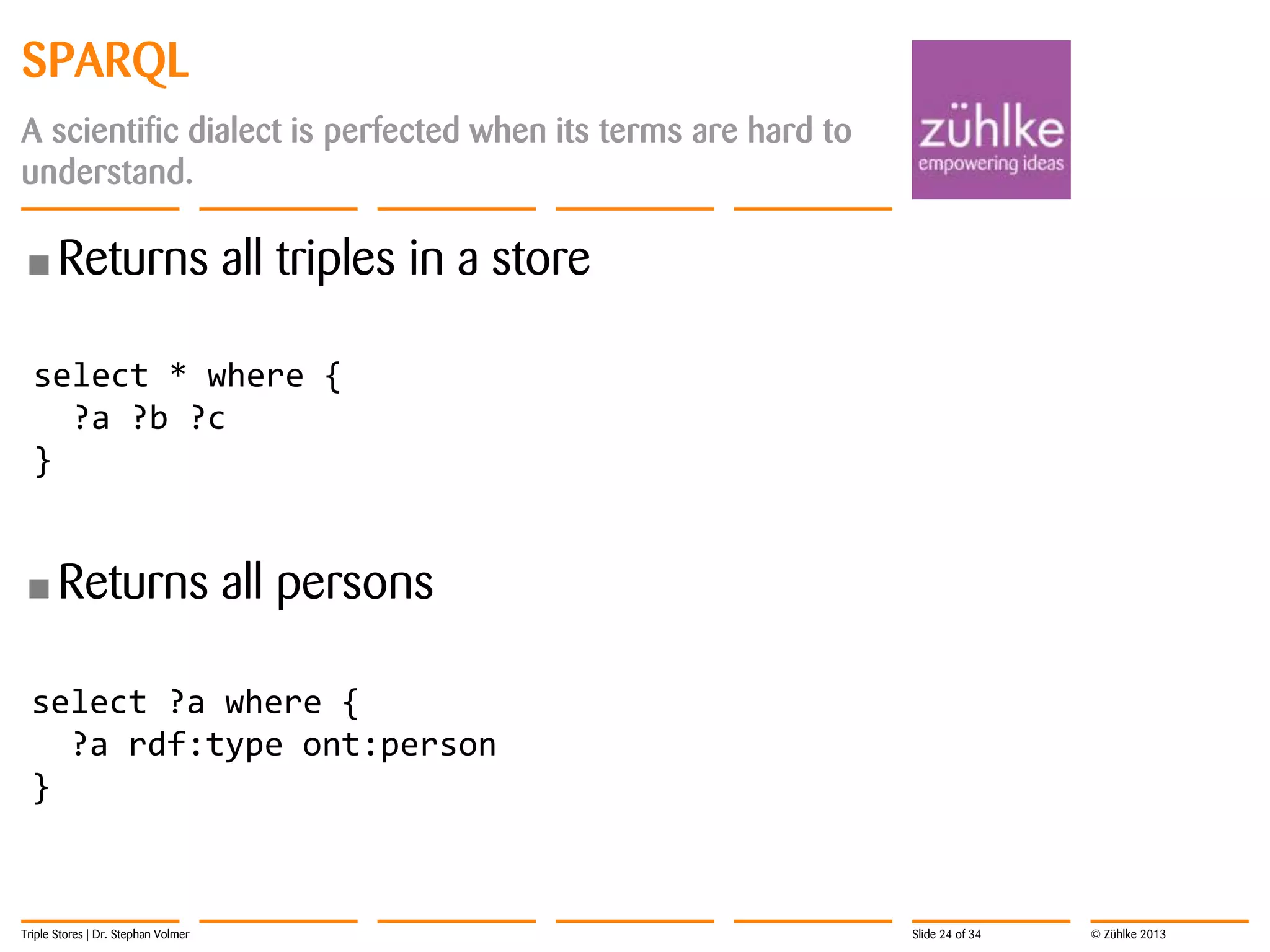

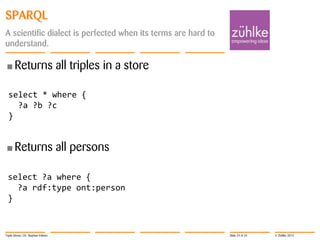

SPARQL
A scientific dialect is perfected when its terms are hard to
understand.

• Returns

all triples in a store

select * where {
?a ?b ?c
}

• Returns

all persons

select ?a where {
?a rdf:type ont:person
}


Slide 24 of 34

© Zühlke 2013

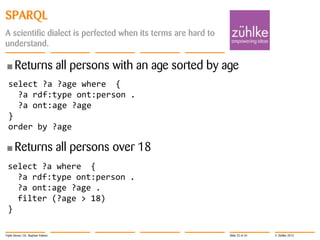

SPARQL
A scientific dialect is perfected when its terms are hard to
understand.

• Returns

all persons with an age sorted by age

select ?a ?age where {
?a rdf:type ont:person .
?a ont:age ?age
}
order by ?age

• Returns

all persons over 18

select ?a where {
?a rdf:type ont:person .
?a ont:age ?age .
filter (?age > 18)
}

Slide 25 of 34

© Zühlke 2013

SPARQL
Finally, bringing matters to the head…

• Change

all Bills to Williams

FOAF Vocabulary Specification 0.98
prefix:foaf

<http://xmlns.com/foaf/0.1/>

delete {
?person foaf:givenName ‚Bill‛
}
insert {
?person foaf:givenName ‚William‛
}
where {
?person foaf:givenName ‚Bill‛
}


Slide 26 of 34

© Zühlke 2013

SPARQL
Finally, bringing matters to the head…

• Delete

old book records

Dublin Core Metadata Initiative
prefix:dcmi
prefix:xsd

<http://purl.org/dc/elements/1.1/>
<http://www.w3.org/2001/XMLSchema#>

delete {
?book ?p ?v
}
where {
?book dcmi:date ?date .
filter ( ?date < ‚1970-01-01T00:00-02:00‛^^xsd:dateTime )
?book ?p ?v
}


Slide 27 of 34

© Zühlke 2013

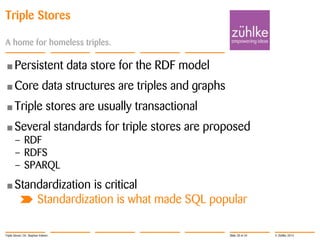

Triple Stores
A home for homeless triples.

• Persistent
• Core

data store for the RDF model

data structures are triples and graphs

• Triple

stores are usually transactional

• Several

standards for triple stores are proposed

– RDF
– RDFS
– SPARQL

• Standardization

is critical
Standardization is what made SQL popular


Slide 28 of 34

© Zühlke 2013

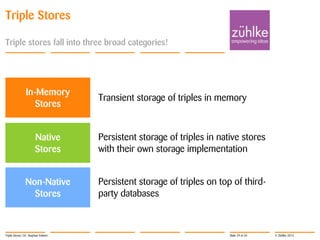

Triple Stores
Triple stores fall into three broad categories!

In-Memory
Stores

Transient storage of triples in memory

Native
Stores

Persistent storage of triples in native stores
with their own storage implementation

Non-Native
Stores

Persistent storage of triples on top of thirdparty databases


Slide 29 of 34

© Zühlke 2013

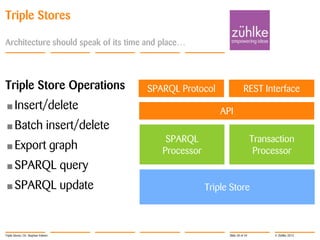

Triple Stores
Architecture should speak of its time and place…

Triple Store Operations

SPARQL Protocol

• Insert/delete
• Batch

REST Interface
API

insert/delete

• Export

graph

• SPARQL

update

Transaction
Processor

query

• SPARQL

SPARQL
Processor


Triple Store

Slide 30 of 34

© Zühlke 2013

Conclusions
Do triple stores offer an advantage over relational
databases?

• No

need to create schemas

• No

need to link tables because you can have one
to many relationships directly

• Can

create new predicates (columns) on the fly

• Can

run queries off of this data just like in a
relational database model


Slide 32 of 34

© Zühlke 2013

Conclusions
Will triple stores eventually replace relational databases?

• Triple

stores offer more flexibility

• More

powerful and complex queries can be written

• In

the short term relational databases and triple
stores will live side by side

• Many

companies are already using triple stores on
top of their existing relational databases


Slide 33 of 34

© Zühlke 2013

Dr. Stephan Volmer

stephan.volmer@zuehlke.com

linkedin.com/in/svolmer/
 @stvzeg

Triple Stores

Recommended

Recommended

More Related Content

What's hot

What's hot (19)

Similar to Triple Stores

Similar to Triple Stores (20)

Recently uploaded

Recently uploaded (20)

Triple Stores

Editor's Notes
