KIISE:SIGDB Workshop presentation.

MapReduce: Model, Internals, and
Its Improvements

June 29, 2012

Kyong-Ha Lee
bart7449@gmail.com

Copyright © KAIST Database Lab. All Rights Reserved.

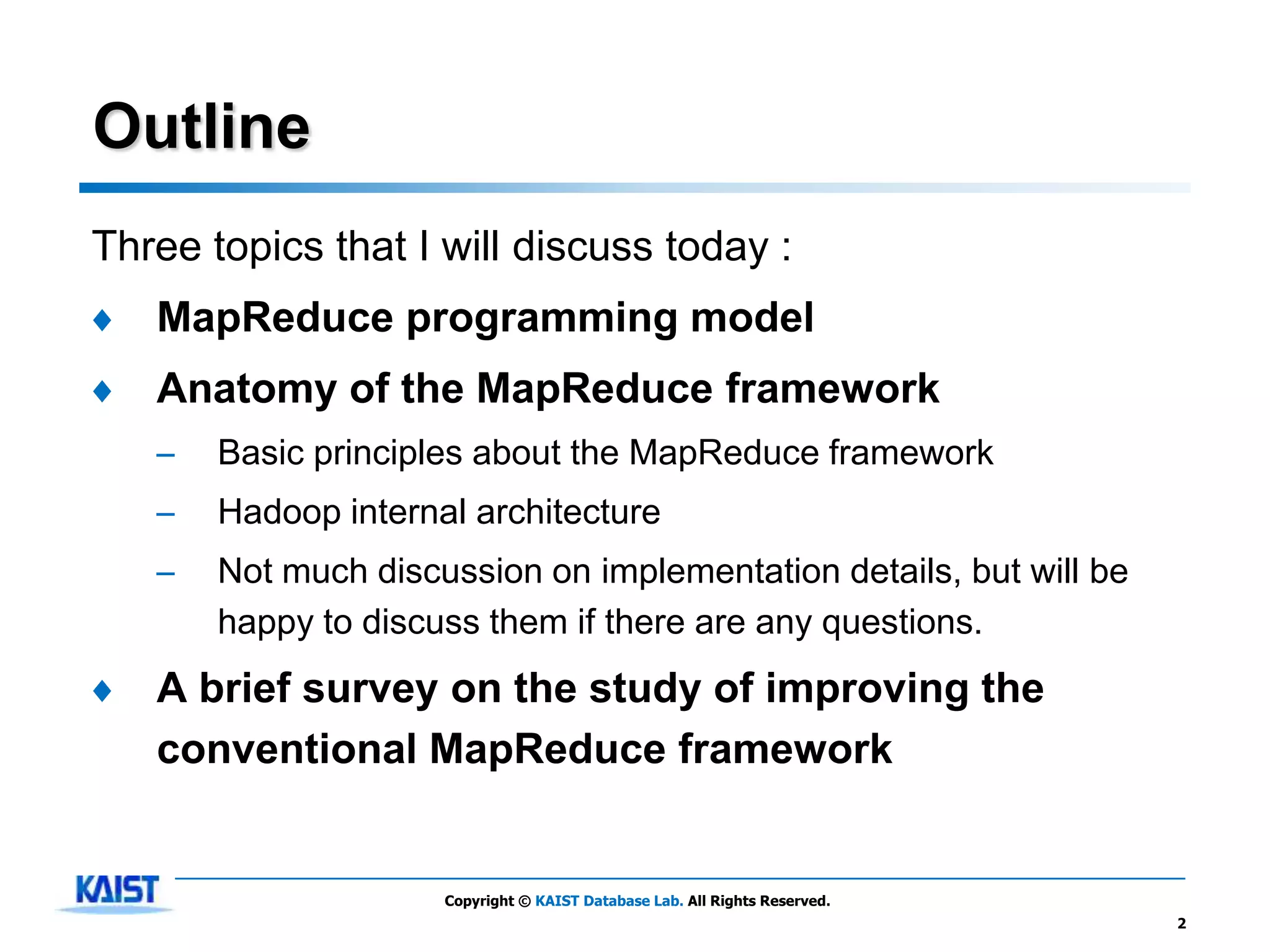

Outline
Three topics that I will discuss today :
♦ MapReduce programming model
♦ Anatomy of the MapReduce framework
– Basic principles about the MapReduce framework
– Hadoop internal architecture
– Not much discussion on implementation details, but will be
happy to discuss them if there are any questions.
♦ A brief survey on the study of improving the
conventional MapReduce framework

2

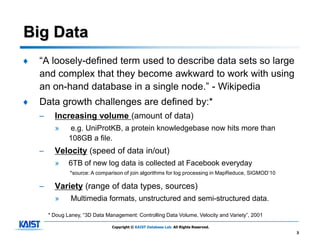

Big Data
♦ “A loosely-defined term used to describe data sets so large
and complex that they become awkward to work with using
an on-hand database in a single node.” - Wikipedia
♦ Data growth challenges are defined by:*
– Increasing volume (amount of data)
» e.g. UniProtKB, a protein knowledgebase now hits more than
108GB a file.
– Velocity (speed of data in/out)
» 6TB of new log data is collected at Facebook everyday
*source: A comparison of join algorithms for log processing in MapReduce, SIGMOD’10

– Variety (range of data types, sources)
» Multimedia formats, unstructured and semi-structured data.

* Doug Laney, “3D Data Management: Controlling Data Volume, Velocity and Variety”, 2001

3

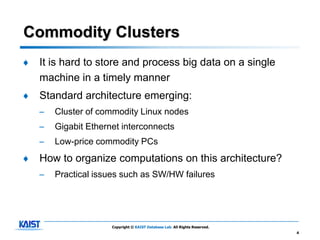

Commodity Clusters
♦ It is hard to store and process big data on a single
machine in a timely manner
♦ Standard architecture emerging:
– Cluster of commodity Linux nodes
– Gigabit Ethernet interconnects
– Low-price commodity PCs
♦ How to organize computations on this architecture?
– Practical issues such as SW/HW failures

4

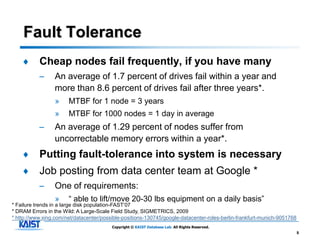

Fault Tolerance
♦ Cheap nodes fail frequently, if you have many
– An average of 1.7 percent of drives fail within a year and
more than 8.6 percent of drives fail after three years*.
» MTBF for 1 node = 3 years
» MTBF for 1000 nodes = 1 day in average
– An average of 1.29 percent of nodes suffer from
uncorrectable memory errors within a year*.
♦ Putting fault-tolerance into system is necessary
♦ Job posting from data center team at Google *
– One of requirements:
» “ able to lift/move 20-30 lbs equipment on a daily basis”
* Failure trends in a large disk population-FAST’07
* DRAM Errors in the Wild: A Large-Scale Field Study, SIGMETRICS, 2009
* http://www.xing.com/net/datacenter/possible-positions-130745/google-datacenter-roles-berlin-frankfurt-munich-9051768
5

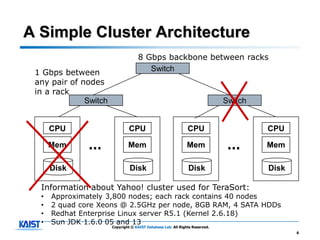

A Simple Cluster Architecture
8 Gbps backbone between racks
1 Gbps between Switch
any pair of nodes
in a rack
Switch Switch

CPU CPU CPU CPU

Mem … Mem Mem … Mem

Disk Disk Disk Disk

Information about Yahoo! cluster used for TeraSort:
• Approximately 3,800 nodes; each rack contains 40 nodes
• 2 quad core Xeons @ 2.5GHz per node, 8GB RAM, 4 SATA HDDs
• Redhat Enterprise Linux server R5.1 (Kernel 2.6.18)
• Sun JDK 1.6.0 05 and 13
6

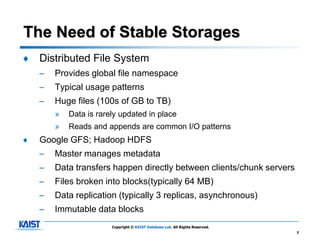

The Need of Stable Storages
♦ Distributed File System
– Provides global file namespace
– Typical usage patterns
– Huge files (100s of GB to TB)
» Data is rarely updated in place
» Reads and appends are common I/O patterns
♦ Google GFS; Hadoop HDFS
– Master manages metadata
– Data transfers happen directly between clients/chunk servers
– Files broken into blocks(typically 64 MB)
– Data replication (typically 3 replicas, asynchronous)
– Immutable data blocks
7

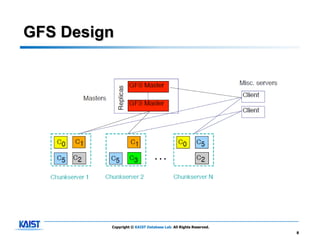

GFS Design

8

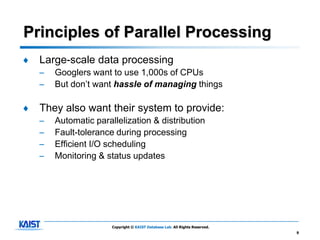

Principles of Parallel Processing
♦ Large-scale data processing
– Googlers want to use 1,000s of CPUs
– But don’t want hassle of managing things

♦ They also want their system to provide:
– Automatic parallelization & distribution
– Fault-tolerance during processing
– Efficient I/O scheduling
– Monitoring & status updates

9

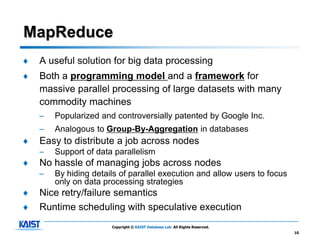

MapReduce
♦ A useful solution for big data processing
♦ Both a programming model and a framework for
massive parallel processing of large datasets with many
commodity machines
– Popularized and controversially patented by Google Inc.
– Analogous to Group-By-Aggregation in databases
♦ Easy to distribute a job across nodes
– Support of data parallelism
♦ No hassle of managing jobs across nodes
– By hiding details of parallel execution and allow users to focus
only on data processing strategies
♦ Nice retry/failure semantics
♦ Runtime scheduling with speculative execution
10

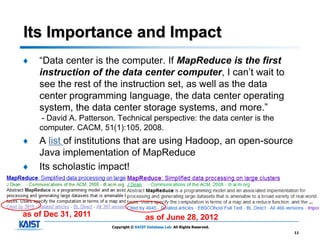

Its Importance and Impact
♦ “Data center is the computer. If MapReduce is the first
instruction of the data center computer, I can’t wait to
see the rest of the instruction set, as well as the data
center programming language, the data center operating
system, the data center storage systems, and more.”
- David A. Patterson. Technical perspective: the data center is the
computer. CACM, 51(1):105, 2008.
♦ A list of institutions that are using Hadoop, an open-source
Java implementation of MapReduce
♦ Its scholastic impact!

as of Dec 31, 2011 as of June 28, 2012
11

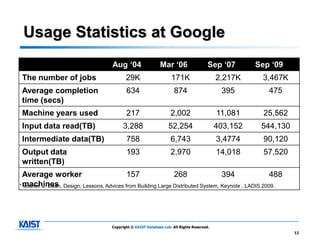

Usage Statistics at Google
Aug ‘04 Mar ‘06 Sep ‘07 Sep ‘09
The number of jobs 29K 171K 2,217K 3,467K
Average completion 634 874 395 475
time (secs)
Machine years used 217 2,002 11,081 25,562
Input data read(TB) 3,288 52,254 403,152 544,130
Intermediate data(TB) 758 6,743 3,4774 90,120
Output data 193 2,970 14,018 57,520
written(TB)
Average worker 157 268 394 488
* machines Design, Lessons, Advices from Building Large Distributed System, Keynote , LADIS 2009.
source: J. Dean,

12

MapReduce Programming Model
♦ Input: a set of key/value pairs
♦ A user implements two functions:
– map(key1, value1)  (key2, value2)
– reduce(key2, a list of value2)  (key3, value3)
♦ (key2, value2) is an intermediate key/value pair
♦ Output is the set of (k3,v3) pairs
♦ Many problems can be phrased in this way
– But not for all!

13

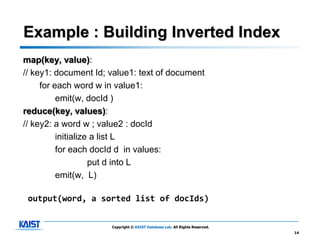

Example : Building Inverted Index
map(key, value):
// key1: document Id; value1: text of document
for each word w in value1:
emit(w, docId )
reduce(key, values):
// key2: a word w ; value2 : docId
initialize a list L
for each docId d in values:
put d into L
emit(w, L)

output(word, a sorted list of docIds)

14

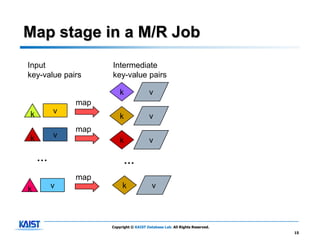

Map stage in a M/R Job
Input Intermediate
key-value pairs key-value pairs

k v
map
k v
k v
map
k v
k v

… …
map
k v k v

15

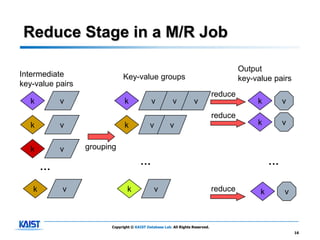

Reduce Stage in a M/R Job

Output
Intermediate Key-value groups key-value pairs
key-value pairs
reduce
k v k v v v k v
reduce
k v k v v k v

k v grouping
… …
…

k v k v reduce k v

16

Data in a M/R Job
♦ Input and final output are stored on DFS
– Scheduler tries to schedule map tasks “close” to physical
storage location of input data
– Fault tolerance guaranteed by replicas.
♦ Intermediate results are stored on local disks of map and
reduce workers for fault tolerance.
– Until the next tasks are fully completed.
♦ Outputs of a M/R job often become inputs of another MR
job
– Consecutive or iterative M/R jobs for a single work
» e.g. binary joins and PageRank

17

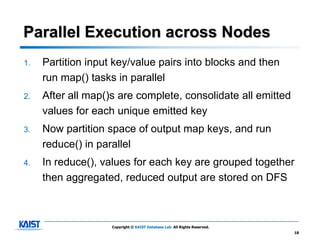

Parallel Execution across Nodes
1. Partition input key/value pairs into blocks and then
run map() tasks in parallel
2. After all map()s are complete, consolidate all emitted
values for each unique emitted key
3. Now partition space of output map keys, and run
reduce() in parallel
4. In reduce(), values for each key are grouped together
then aggregated, reduced output are stored on DFS

18

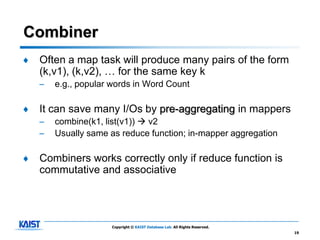

Combiner
♦ Often a map task will produce many pairs of the form
(k,v1), (k,v2), … for the same key k
– e.g., popular words in Word Count

♦ It can save many I/Os by pre-aggregating in mappers
– combine(k1, list(v1))  v2
– Usually same as reduce function; in-mapper aggregation

♦ Combiners works correctly only if reduce function is
commutative and associative

19

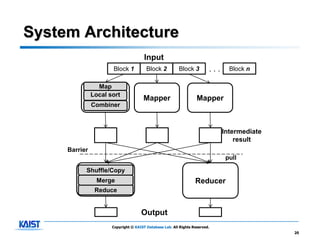

System Architecture
Input
Block 1 Block 2 Block 3 ... Block n

Map
Local sort
Mapper Mapper Mapper
Combiner

Intermediate
result
Barrier
pull

Shuffle/Copy
Reduce
Merge Reducer
Reduce

Output
20

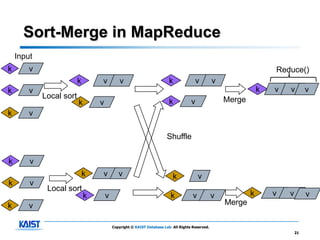

Sort-Merge in MapReduce
Input
k v Reduce()
k v v k v v
k v k v v v
Local sort Merge
k v k v
k v

Shuffle

k v
k v v k v
k v
Local sort
k v k v v k v v v
k v Merge

21

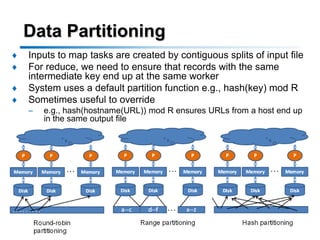

Data Partitioning
♦ Inputs to map tasks are created by contiguous splits of input file
♦ For reduce, we need to ensure that records with the same
intermediate key end up at the same worker
♦ System uses a default partition function e.g., hash(key) mod R
♦ Sometimes useful to override
– e.g., hash(hostname(URL)) mod R ensures URLs from a host end up
in the same output file


22

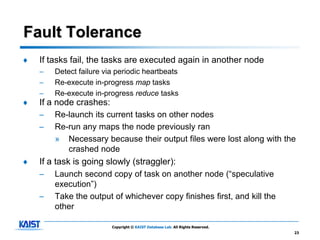

Fault Tolerance
♦ If tasks fail, the tasks are executed again in another node
– Detect failure via periodic heartbeats
– Re-execute in-progress map tasks
– Re-execute in-progress reduce tasks
♦ If a node crashes:
– Re-launch its current tasks on other nodes
– Re-run any maps the node previously ran
» Necessary because their output files were lost along with the
crashed node
♦ If a task is going slowly (straggler):
– Launch second copy of task on another node (“speculative
execution”)
– Take the output of whichever copy finishes first, and kill the
other

23

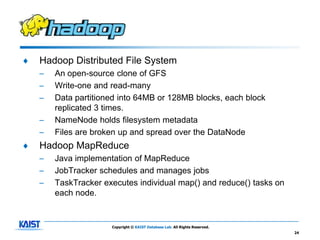

♦ Hadoop Distributed File System
– An open-source clone of GFS
– Write-one and read-many
– Data partitioned into 64MB or 128MB blocks, each block
replicated 3 times.
– NameNode holds filesystem metadata
– Files are broken up and spread over the DataNode
♦ Hadoop MapReduce
– Java implementation of MapReduce
– JobTracker schedules and manages jobs
– TaskTracker executes individual map() and reduce() tasks on
each node.

24

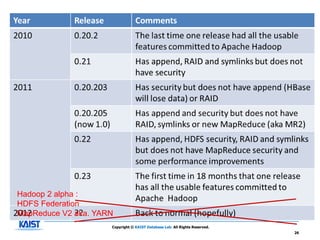

A Brief History of Apache Hadoop
Branches & Releases

*source: http://www.cloudera.com/blog/2012/01/an-update-on-apache-hadoop-1-0/

25

Hadoop 2 alpha :
HDFS Federation
MapReduce V2 aka. YARN
26

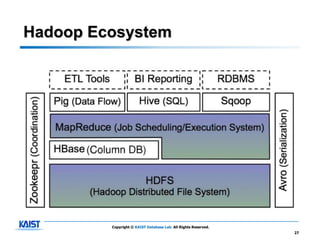

Hadoop Ecosystem

27

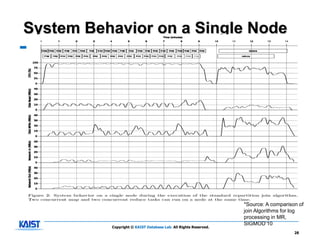

System Behavior on a Single Node

*Source: A comparison of
join Algorithms for log
processing in MR,
SIGMOD’10
28

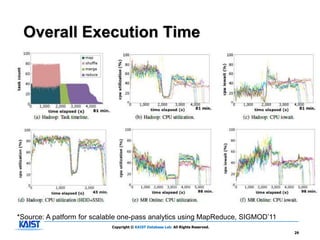

Overall Execution Time

*Source: A patform for scalable one-pass analytics using MapReduce, SIGMOD’11
29

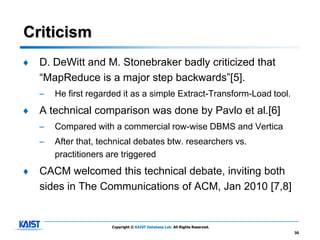

Criticism
♦ D. DeWitt and M. Stonebraker badly criticized that
“MapReduce is a major step backwards”[5].
– He first regarded it as a simple Extract-Transform-Load tool.
♦ A technical comparison was done by Pavlo et al.[6]
– Compared with a commercial row-wise DBMS and Vertica
– After that, technical debates btw. researchers vs.
practitioners are triggered
♦ CACM welcomed this technical debate, inviting both
sides in The Communications of ACM, Jan 2010 [7,8]

30

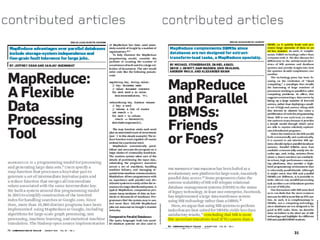

The Technical Debate

31

*Source: A Comparison of
Approaches to Large-Scale
Data Analysis, SIGMOD’09

32

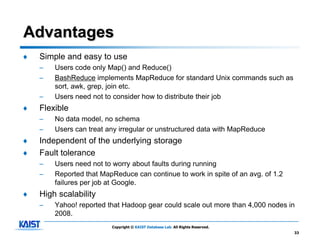

Advantages
♦ Simple and easy to use
– Users code only Map() and Reduce()
– BashReduce implements MapReduce for standard Unix commands such as
sort, awk, grep, join etc.
– Users need not to consider how to distribute their job
♦ Flexible
– No data model, no schema
– Users can treat any irregular or unstructured data with MapReduce
♦ Independent of the underlying storage
♦ Fault tolerance
– Users need not to worry about faults during running
– Reported that MapReduce can continue to work in spite of an avg. of 1.2
failures per job at Google.
♦ High scalability
– Yahoo! reported that Hadoop gear could scale out more than 4,000 nodes in
2008.
33

Pitfalls
♦ No high-level language
– M/R itself does not support any high-level language li and also query optimization
♦ Schema-free and index-free
– Impromptu data processing throws away the benefits of data modeling
– Requires data parsing and full scan
♦ A single fixed dataflow
– Ease of use with a simple abstraction
– Complex algorithms are hard to be phrased in a single M/R jobs.
♦ Low efficiency
– Sacrifice of disk I/O for fault-tolerance
» Result materialization on local disks in each step -> no pipelining
» Three replicas on DFS
– Block level restarts; a simple heuristic runtime scheduling with speculative execution
♦ Blocking operators
– Caused by merge-sort for grouping values
– Reduce()begins after all map tasks end
♦ Very young compared to over 40 years of database
– Not mature yet and third-party tools are still relatively few
34

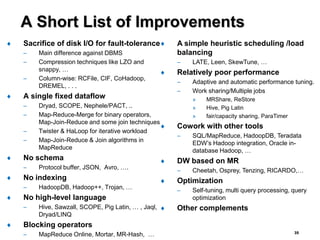

A Short List of Improvements
♦ Sacrifice of disk I/O for fault-tolerance ♦ A simple heuristic scheduling /load
– Main difference against DBMS balancing
– Compression techniques like LZO and – LATE, Leen, SkewTune, …
snappy, …
♦ Relatively poor performance
– Column-wise: RCFile, CIF, CoHadoop,
– Adaptive and automatic performance tuning.
DREMEL, . . .
– Work sharing/Multiple jobs
♦ A single fixed dataflow » MRShare, ReStore
– Dryad, SCOPE, Nephele/PACT, .. » Hive, Pig Latin
– Map-Reduce-Merge for binary operators, » fair/capacity sharing, ParaTimer
Map-Join-Reduce and some join techniques
♦ Cowork with other tools
– Twister & HaLoop for iterative workload
– SQL/MapReduce, HadoopDB, Teradata
– Map-Join-Reduce & Join algorithms in EDW’s Hadoop integration, Oracle in-
MapReduce database Hadoop, …
♦ No schema ♦ DW based on MR
– Protocol buffer, JSON, Avro, …. – Cheetah, Osprey, Tenzing, RICARDO,…
♦ No indexing ♦ Optimization
– HadoopDB, Hadoop++, Trojan, … – Self-tuning, multi query processing, query
♦ No high-level language optimization
– Hive, Sawzall, SCOPE, Pig Latin, … , Jaql, ♦ Other complements
Dryad/LINQ
♦ Blocking operators
– MapReduce Online, Mortar, MR-Hash, … 35

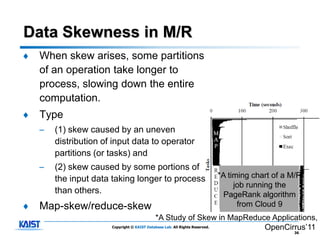

Data Skewness in M/R
♦ When skew arises, some partitions
of an operation take longer to
process, slowing down the entire
computation.
♦ Type
– (1) skew caused by an uneven
distribution of input data to operator
partitions (or tasks) and
– (2) skew caused by some portions of
the input data taking longer to process *A timing chart of a M/R
job running the
than others. PageRank algorithm
♦ Map-skew/reduce-skew from Cloud 9
*A Study of Skew in MapReduce Applications,
Copyright © KAIST Database Lab. All Rights Reserved. OpenCirrus’11
36

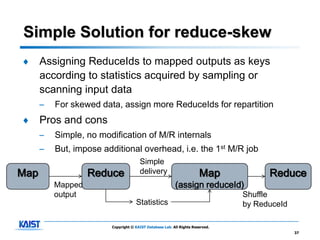

Simple Solution for reduce-skew
♦ Assigning ReduceIds to mapped outputs as keys
according to statistics acquired by sampling or
scanning input data
– For skewed data, assign more ReduceIds for repartition
♦ Pros and cons
– Simple, no modification of M/R internals
– But, impose additional overhead, i.e. the 1st M/R job
Simple
Map Reduce delivery Map Reduce
Mapped (assign reduceId)
output Shuffle
Statistics by ReduceId

37

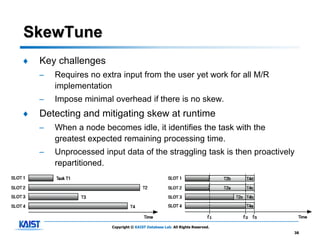

SkewTune
♦ Key challenges
– Requires no extra input from the user yet work for all M/R
implementation
– Impose minimal overhead if there is no skew.
♦ Detecting and mitigating skew at runtime
– When a node becomes idle, it identifies the task with the
greatest expected remaining processing time.
– Unprocessed input data of the straggling task is then proactively
repartitioned.

38

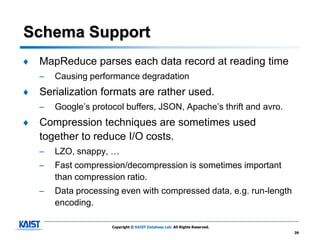

Schema Support
♦ MapReduce parses each data record at reading time
– Causing performance degradation
♦ Serialization formats are rather used.
– Google’s protocol buffers, JSON, Apache’s thrift and avro.
♦ Compression techniques are sometimes used
together to reduce I/O costs.
– LZO, snappy, …
– Fast compression/decompression is sometimes important
than compression ratio.
– Data processing even with compressed data, e.g. run-length
encoding.

39

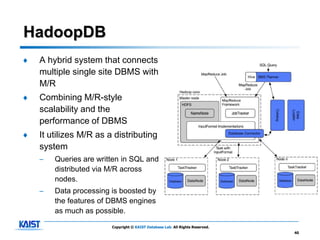

HadoopDB
♦ A hybrid system that connects
multiple single site DBMS with
M/R
♦ Combining M/R-style
scalability and the
performance of DBMS
♦ It utilizes M/R as a distributing
system
– Queries are written in SQL and
distributed via M/R across
nodes.
– Data processing is boosted by
the features of DBMS engines
as much as possible.

40

Twister and HaLoop
♦

41

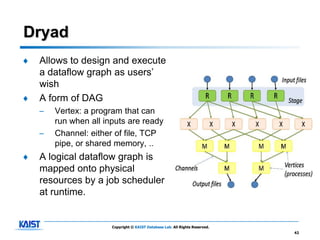

Dryad
♦ Allows to design and execute
a dataflow graph as users’
wish
♦ A form of DAG
– Vertex: a program that can
run when all inputs are ready
– Channel: either of file, TCP
pipe, or shared memory, ..
♦ A logical dataflow graph is
mapped onto physical
resources by a job scheduler
at runtime.

42

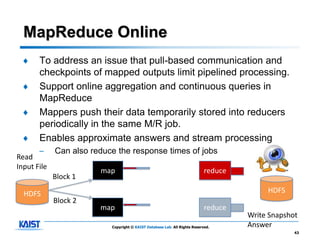

MapReduce Online
♦ To address an issue that pull-based communication and
checkpoints of mapped outputs limit pipelined processing.
♦ Support online aggregation and continuous queries in
MapReduce
♦ Mappers push their data temporarily stored into reducers
periodically in the same M/R job.
♦ Enables approximate answers and stream processing
– Can also reduce the response times of jobs
Read
Input File
map reduce
Block 1

HDFS HDFS
Block 2
map reduce
Write Snapshot
Copyright © KAIST Database Lab. All Rights Reserved. Answer
43

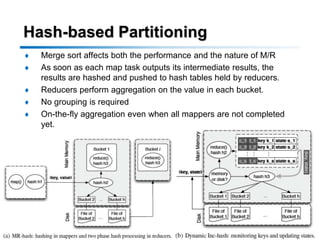

Hash-based Partitioning
♦ Merge sort affects both the performance and the nature of M/R
♦ As soon as each map task outputs its intermediate results, the
results are hashed and pushed to hash tables held by reducers.
♦ Reducers perform aggregation on the value in each bucket.
♦ No grouping is required
♦ On-the-fly aggregation even when all mappers are not completed
yet.

44

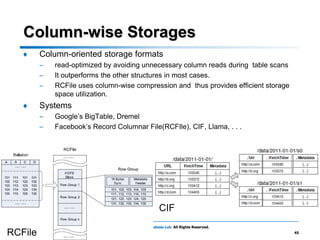

Column-wise Storages
♦ Column-oriented storage formats
– read-optimized by avoiding unnecessary column reads during table scans
– It outperforms the other structures in most cases.
– RCFile uses column-wise compression and thus provides efficient storage
space utilization.
♦ Systems
– Google’s BigTable, Dremel
– Facebook’s Record Columnar File(RCFIle), CIF, Llama, . . .

CIF
RCFile 45

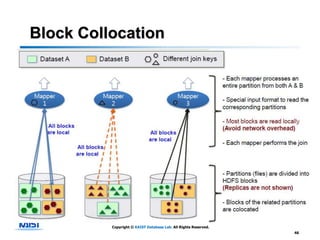

Block Collocation

46

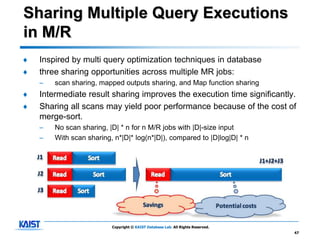

Sharing Multiple Query Executions
in M/R
♦ Inspired by multi query optimization techniques in database
♦ three sharing opportunities across multiple MR jobs:
– scan sharing, mapped outputs sharing, and Map function sharing
♦ Intermediate result sharing improves the execution time significantly.
♦ Sharing all scans may yield poor performance because of the cost of
merge-sort.
– No scan sharing, |D| * n for n M/R jobs with |D|-size input
– With scan sharing, n*|D|* log(n*|D|), compared to |D|log|D| * n

47

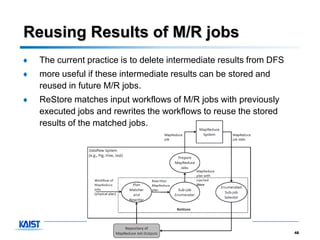

Reusing Results of M/R jobs
♦ The current practice is to delete intermediate results from DFS
♦ more useful if these intermediate results can be stored and
reused in future M/R jobs.
♦ ReStore matches input workflows of M/R jobs with previously
executed jobs and rewrites the workflows to reuse the stored
results of the matched jobs.

48

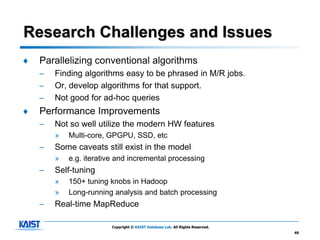

Research Challenges and Issues
♦ Parallelizing conventional algorithms
– Finding algorithms easy to be phrased in M/R jobs.
– Or, develop algorithms for that support.
– Not good for ad-hoc queries
♦ Performance Improvements
– Not so well utilize the modern HW features
» Multi-core, GPGPU, SSD, etc
– Some caveats still exist in the model
» e.g. iterative and incremental processing
– Self-tuning
» 150+ tuning knobs in Hadoop
» Long-running analysis and batch processing
– Real-time MapReduce

49

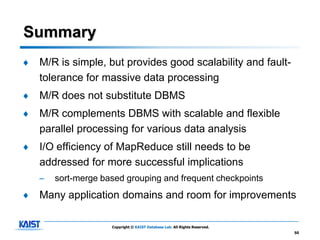

Summary
♦ M/R is simple, but provides good scalability and fault-
tolerance for massive data processing
♦ M/R does not substitute DBMS
♦ M/R complements DBMS with scalable and flexible
parallel processing for various data analysis
♦ I/O efficiency of MapReduce still needs to be
addressed for more successful implications
– sort-merge based grouping and frequent checkpoints
♦ Many application domains and room for improvements

50

Thank you!
Questions or comments?

51

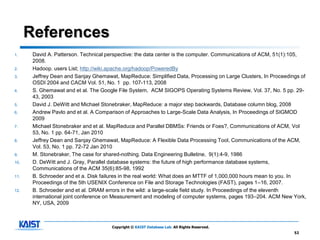

References
1. David A. Patterson. Technical perspective: the data center is the computer. Communications of ACM, 51(1):105,
2008.
2. Hadoop. users List; http://wiki.apache.org/hadoop/PoweredBy
3. Jeffrey Dean and Sanjay Ghemawat, MapReduce: Simplified Data, Processing on Large Clusters, In Proceedings of
OSDI 2004 and CACM Vol. 51, No. 1 pp. 107-113, 2008
4. S. Ghemawat and et al. The Google File System, ACM SIGOPS Operating Systems Review, Vol. 37, No. 5 pp. 29-
43, 2003
5. David J. DeWitt and Michael Stonebraker, MapReduce: a major step backwards, Database column blog, 2008
6. Andrew Pavlo and et al. A Comparison of Approaches to Large-Scale Data Analysis, In Proceedings of SIGMOD
2009
7. Michael Stonebraker and et al. MapReduce and Parallel DBMSs: Friends or Foes?, Communications of ACM, Vol
53, No. 1 pp. 64-71, Jan 2010
8. Jeffrey Dean and Sanjay Ghemawat, MapReduce: A Flexible Data Processing Tool, Communications of the ACM,
Vol. 53, No. 1 pp. 72-72 Jan 2010
9. M. Stonebraker, The case for shared-nothing. Data Engineering Bulletine, 9(1):4-9, 1986
10. D. DeWitt and J. Gray, Parallel database systems: the future of high performance database systems,
Communications of the ACM 35(6):85-98, 1992
11. B. Schroeder and et a. Disk failures in the real world: What does an MTTF of 1,000,000 hours mean to you. In
Proceedings of the 5th USENIX Conference on File and Storage Technologies (FAST), pages 1–16, 2007.
12. B. Schroeder and et al. DRAM errors in the wild: a large-scale field study. In Proceedings of the eleventh
international joint conference on Measurement and modeling of computer systems, pages 193–204. ACM New York,
NY, USA, 2009

52

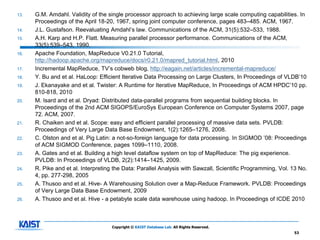

13. G.M. Amdahl. Validity of the single processor approach to achieving large scale computing capabilities. In
Proceedings of the April 18-20, 1967, spring joint computer conference, pages 483–485. ACM, 1967.
14. J.L. Gustafson. Reevaluating Amdahl’s law. Communications of the ACM, 31(5):532–533, 1988.
15. A.H. Karp and H.P. Flatt. Measuring parallel processor performance. Communications of the ACM,
33(5):539–543, 1990.
16. Apache Foundation, MapReduce V0.21.0 Tutorial,
http://hadoop.apache.org/mapreduce/docs/r0.21.0/mapred_tutorial.html, 2010
17. Incremental MapReduce, TV’s cobweb blog, http://eagain.net/articles/incremental-mapreduce/
18. Y. Bu and et al. HaLoop: Efficient Iterative Data Processing on Large Clusters, In Proceedings of VLDB’10
19. J. Ekanayake and et al. Twister: A Runtime for Iterative MapReduce, In Proceedings of ACM HPDC’10 pp.
810-818, 2010
20. M. Isard and et al. Dryad: Distributed data-parallel programs from sequential building blocks. In
Proceedings of the 2nd ACM SIGOPS/EuroSys European Conference on Computer Systems 2007, page
72. ACM, 2007.
21. R. Chaiken and et al. Scope: easy and efficient parallel processing of massive data sets. PVLDB:
Proceedings of Very Large Data Base Endowment, 1(2):1265–1276, 2008.
22. C. Olston and et al. Pig Latin: a not-so-foreign language for data processing. In SIGMOD ’08: Proceedings
of ACM SIGMOD Conference, pages 1099–1110, 2008.
23. A. Gates and et al. Building a high level dataflow system on top of MapReduce: The pig experience.
PVLDB: In Proceedings of VLDB, 2(2):1414–1425, 2009.
24. R. Pike and et al. Interpreting the Data: Parallel Analysis with Sawzall, Scientific Programming, Vol. 13 No.
4, pp. 277-298, 2005
25. A. Thusoo and et al. Hive- A Warehousing Solution over a Map-Reduce Framework. PVLDB: Proceedings
of Very Large Data Base Endowment, 2009
26. A. Thusoo and et al. Hive - a petabyte scale data warehouse using hadoop. In Proceedings of ICDE 2010

53

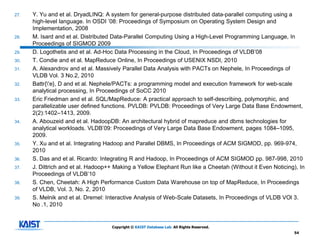

27. Y. Yu and et al. DryadLINQ: A system for general-purpose distributed data-parallel computing using a
high-level language. In OSDI ’08: Proceedings of Symposium on Operating System Design and
Implementation, 2008
28. M. Isard and et al. Distributed Data-Parallel Computing Using a High-Level Programming Language, In
Proceedings of SIGMOD 2009
29. D. Logothetis and et al. Ad-Hoc Data Processing in the Cloud, In Proceedings of VLDB’08
30. T. Condie and et al. MapReduce Online, In Proceedings of USENIX NSDI, 2010
31. A. Alexandrov and et al. Massively Parallel Data Analysis with PACTs on Nephele, In Proceedings of
VLDB Vol. 3 No.2, 2010
32. Battr{'e}, D and et al. Nephele/PACTs: a programming model and execution framework for web-scale
analytical processing, In Proceedings of SoCC 2010
33. Eric Friedman and et al. SQL/MapReduce: A practical approach to self-describing, polymorphic, and
parallelizable user defined functions. PVLDB: PVLDB: Proceedings of Very Large Data Base Endowment,
2(2):1402–1413, 2009.
34. A. Abouzeid and et al. HadoopDB: An architectural hybrid of mapreduce and dbms technologies for
analytical workloads. VLDB’09: Proceedings of Very Large Data Base Endowment, pages 1084–1095,
2009.
35. Y. Xu and et al. Integrating Hadoop and Parallel DBMS, In Proceedings of ACM SIGMOD, pp. 969-974,
2010
36. S. Das and et al. Ricardo: Integrating R and Hadoop, In Proceedings of ACM SIGMOD pp. 987-998, 2010
37. J. Dittrich and et al. Hadoop++ Making a Yellow Elephant Run like a Cheetah (Without it Even Noticing), In
Proceedings of VLDB’10
38. S. Chen, Cheetah: A High Performance Custom Data Warehouse on top of MapReduce, In Proceedings
of VLDB, Vol. 3, No. 2, 2010
39. S. Melnik and et al. Dremel: Interactive Analysis of Web-Scale Datasets, In Proceedings of VLDB VOl 3.
No .1, 2010

54

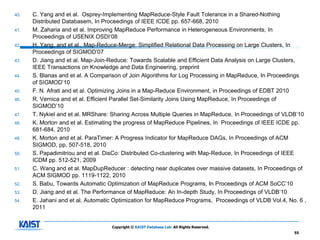

40. C. Yang and et al. Osprey-Implementing MapReduce-Style Fault Tolerance in a Shared-Nothing
Distributed Databasem, In Proceedings of IEEE ICDE pp. 657-668, 2010
41. M. Zaharia and et al. Improving MapReduce Performance in Heterogeneous Environments, In
Proceedings of USENIX OSDI’08
42. H. Yang, and et al., Map-Reduce-Merge: Simplified Relational Data Processing on Large Clusters, In
Proceedings of SIGMOD’07
43. D. Jiang and et al. Map-Join-Reduce: Towards Scalable and Efficient Data Analysis on Large Clusters,
IEEE Transactions on Knowledge and Data Engineering, preprint
44. S. Blanas and et al. A Comparison of Join Algorithms for Log Processing in MapReduce, In Proceedings
of SIGMOD’10
45. F. N. Afrati and et al. Optimizing Joins in a Map-Reduce Environment, in Proceedings of EDBT 2010
46. R. Vernica and et al. Efficient Parallel Set-Similarity Joins Using MapReduce, In Proceedings of
SIGMOD’10
47. T. Nykiel and et al. MRShare: Sharing Across Multiple Queries in MapReduce, In Proceedings of VLDB’10
48. K. Morton and et al. Estimating the progress of MapReduce Pipelines, In Proceedings of IEEE ICDE pp.
681-684, 2010
49. K. Morton and et al. ParaTimer: A Progress Indicator for MapReduce DAGs, In Proceedings of ACM
SIGMOD, pp. 507-518, 2010
50. S. Papadimitriou and et al. DisCo: Distributed Co-clustering with Map-Reduce, In Proceedings of IEEE
ICDM pp. 512-521, 2009
51. C. Wang and et al. MapDupReducer : detecting near duplicates over massive datasets, In Proceedings of
ACM SIGMOD pp. 1119-1122, 2010
52. S. Babu, Towards Automatic Optimization of MapReduce Programs, In Proceedings of ACM SoCC’10
53. D. Jiang and et al. The Performance of MapReduce: An In-depth Study, In Proceedings of VLDB’10
54. E. Jahani and et al. Automatic Optimization for MapReduce Programs, Proceedings of VLDB Vol.4, No. 6 ,
2011

55

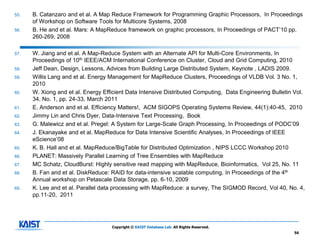

55. B. Catanzaro and et al. A Map Reduce Framework for Programming Graphic Processors, In Proceedings
of Workshop on Software Tools for Multicore Systems, 2008
56. B. He and et al. Mars: A MapReduce framework on graphic processors, In Proceedings of PACT’10 pp.
260-269, 2008

57. W. Jiang and et al. A Map-Reduce System with an Alternate API for Multi-Core Environments, In
Proceedings of 10th IEEE/ACM International Conference on Cluster, Cloud and Grid Computing, 2010
58. Jeff Dean, Design, Lessons, Advices from Building Large Distributed System, Keynote , LADIS 2009.
59. Willis Lang and et al. Energy Management for MapReduce Clusters, Proceedings of VLDB Vol. 3 No. 1,
2010
60. W. Xiong and et al. Energy Efficient Data Intensive Distributed Computing, Data Engineering Bulletin Vol.
34, No. 1, pp. 24-33, March 2011
61. E. Anderson and et al. Efficiency Matters!, ACM SIGOPS Operating Systems Review, 44(1):40-45, 2010
62. Jimmy Lin and Chris Dyer, Data-Intensive Text Processing, Book
63. G. Malewicz and et al. Pregel: A System for Large-Scale Graph Processing, In Proceedings of PODC’09
64. J. Ekanayake and et al. MapReduce for Data Intensive Scientific Analyses, In Proceedings of IEEE
eScience’08
65. K. B. Hall and et al. MapReduce/BigTable for Distributed Optimization , NIPS LCCC Workshop 2010
66. PLANET: Massively Parallel Learning of Tree Ensembles with MapReduce
67. MC Schatz, CloudBurst: Highly sensitive read mapping with MapReduce, Bioinformatics, Vol 25, No. 11
68. B. Fan and et al. DiskReduce: RAID for data-intensive scalable computing, In Proceedings of the 4th
Annual workshop on Petascale Data Storage, pp. 6-10, 2009
69. K. Lee and et al. Parallel data processing with MapReduce: a survey, The SIGMOD Record, Vol 40, No. 4,
pp.11-20, 2011

56

KIISE:SIGDB Workshop presentation.

More Related Content

What's hot

Similar to KIISE:SIGDB Workshop presentation.

More from Kyong-Ha Lee

Recently uploaded

KIISE:SIGDB Workshop presentation.
