1. Java Server Faces

2. Agenda
 What is JSF?
 JSF Component Model and Binding mechanism
 JSF Request Lifecycle
 IOC and Managed Beans
 Navigations
 Internalization and Resource Bundles
 Extending JSF
 Integration with Other Frameworks (Spring Framework
Example)
 Ajax with JSF
 Facelets
 Apache MyFaces
 IDE Support
 Future of JSF
 Questions

3. What is JSF?
 a component oriented and event
driven web framework to build up
web applications.
 a Standard
 various implementations
 Sun Reference Implementation
 Apache MyFaces
 Oracle ADF
 IBM

4. Architecture

5. Similar Concepts
 Asp.net
 Tapestry
 Wicket
 Swing

6. JSF vs Struts
 Struts is an action framework
 Controller of the MVC pattern
 JSF is an event driven and component
oriented framework.
 JSF contains all the members of the
MVC.
 Model : Managed Beans
 View : Components
 Controller : Faces Servlet

7. JSF Component Model
 Covers a wide range components.
 Reusable
 Customizable
 State aware
 Easy to plug in third party components.
 Easy to create custom components of your
own.
 Renderers brings abstraction

8. Simple Example: HtmlInputText
 Declared as;
 <h:inputText id=“id1” value=“xxx” />
 Gives the output
 <input type=“text”
id=“parentformid:id1” value=“xxx” />
 Customization attributes like;
 Styleclass
 Javascript events (onmousover etc...)

9. Binding makes JSF powerful
 Value binding; binds a bean’s variable
to a component.
 <h:inputText
value=“#{person.name}” />
 Action binding, binds a method to an
action component.
 <h:commandButton
action=“{personSavePage.savePerson}”
/>

10. JSF Component Tree
 Components are represented using a tree.
 <f:view>
<h:form id=“form1”>
<h:outputText id=“lbl_name” value=“Name”>
<h:inputText id=“txt_name” value=“NameValue”>
</h:form>
</f:view>

11. Event Handling
 Events are created based on the
request parameters.
 Each event is broadcasted to the
related listeners.

12. State Management
 JSF saves and restores the state of
the components in each faces
request.
 Client
 As a hidden variable
 Server
 As a session entry

13. JSF Request LifeCycle

14. Conversion and Validation
 Submitted form values are strings
 Conversion takes place to convert
these values to java objects
 Validation mechanism validates these
converted objects
 Built-in converters and validators
 Easy to write custom converters and
validators

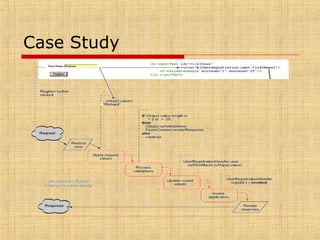

15. Case Study

16. IOC and Managed Beans
 JSF uses it’s own container to manage the beans in it’s context.
 <managed-bean>
<managed-bean-name>pc_Index</managed-bean-name>
<managed-bean-class>demo.Index</managed-bean-class>
<managed-bean-scope>request</managed-bean-scope>
<managed-property>
<property-name>someVariable</property-name>
<value>#{pc_DB}</value>
</managed-property>
</managed-bean>
<managed-bean>
<managed-bean-name>pc_DB</managed-bean-name>
<managed-bean-class>demo.Db</managed-bean-class>
<managed-bean-scope>session</managed-bean-scope>
</managed-bean>

17. Navigations
 <navigation-rule>
<from-view-id>/login.jsp</from-view-id>
<navigation-case>
<from-outcome>success</from-outcome>
<to-view-id>/mainmenu.jsp</to-view-id>
</navigation-case>
<navigation-case>
<from-outcome>failure</from-outcome>
<to-view-id>/login.jsp</to-view-id>
</navigation-case>
</navigation-rule>
 Action specific
 <from-action>#{loginBean.loginAction}</from-action>
 Supports patterns
 <from-view-id>*</from-view-id>

18. Extending JSF
 Navigation Handler
 View Handler
 Custom Resolvers
 Phaselisteners
 Custom Components

19. Multilanguage
 Support for resource bundles
 <application>
<locale-config>
<default-locale>tr</default-locale>
<supported-locale>en</supported-locale>
<supported-locale>en_US</supported-locale>
<supported-locale>de</supported-locale>
</locale-config>
<message-bundle>
jsfsunum.messages
</message-bundle>
</application>
 jsfsunum/messages.tr
 msg_welcome = Merhaba
 Bundles on faces pages
 <f:loadBundle basename=“jsfsunum.labels" var="msg"/>

20. Integration with Spring
 JSF-Spring
 Using a delegating variable resolver
 <application>
<variable-resolver>
org.springframework.web.jsf.DelegatingVariableResolver
</variable-resolver>;
</application>
<managed-bean>
<managed-bean-name>backingBeanName</managed-bean-name>
<managed-bean-class>
yourpackagename.backingBeanClass
</managed-bean-class>
<managed-bean-scope>request</managed-bean-scope>
<managed-property>
<property-name>facadeService</property-name>
<property-class>
packagename.FacadeService
</property-class>
<value>#{facadeService}</value>
</managed-property>
</managed-bean>

21. Ajax with JSF
 Components with ajax support
 JSF ajax frameworks
 JSF Avatar
 Ajax Anywhere
 Ajax4jsf
 IceFaces
 Ajax enabled myFaces components

22. Facelets
 Replacing jsp markup with xhtml
 Templating
 Composite components
 Powerful view handler than jsf 1.1
 No need for tag handlers of jsp

23. JSF IDE Support
 Exadel Studio
 IBM RSA
 Oracle JDeveloper
 Sun Studio Creator
 MyEclipse
 Bea Workshop
 Macromedia jsftoolbox
 Netbeans

24. Introducing Apache MyFaces
 Open source implementation of JSF
 Contains extended tomahawk library
 Oracle ADF donation

25. MyFaces Component Demo
 Basic form components
 Datatable
 File upload
 Date and Calendar
 Jscookmenu
 Schedule
 Accordion panel
 Tabbed Panel
 Ajax components
 Tree
 Dojo Toolkit
 Fisheye
 Html Editor
 Chart Creator (jsf-comp component)

26. Future
 JSF 1.2 and later JSF 2.0
 More powerful IDE support
 More components
 Integrated Ajax Support
