Say hello to the Angular CLI from new perspective. Get to know what schematics are and how you can use them for your purpose. Make use of ng add, ng update, ng new command and much more. Learn how to create read update and delete files automatically in your project, and how to execute npm tasks such as installing dependencies.

1. @maciejtreder

2. @maciejtreder
Angular Schematics
Develop for developers

3. @maciejtreder
@maciejtreder
• Kraków, Poland
• Senior Software Development Engineer in Test
Akamai Technologies
• Angular passionate
• Open source contributor (founder of @ng-toolkit project)
• Articles author

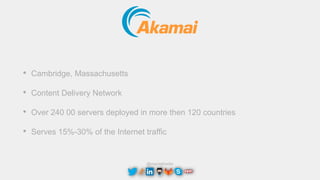

4. @maciejtreder
• Cambridge, Massachusetts
• Content Delivery Network
• Over 240 00 servers deployed in more then 120 countries
• Serves 15%-30% of the Internet traffic

5. @maciejtreder
Innovation Begins With an Idea
• SEO friendly
• Works offline
• Cheap environment
- Angular Universal
- PWA
- Serverless

6. @maciejtreder

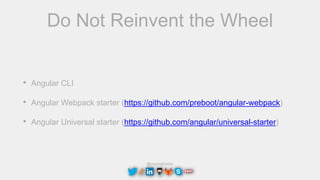

Do Not Reinvent the Wheel
• Angular CLI
• Angular Webpack starter (https://github.com/preboot/angular-webpack)
• Angular Universal starter (https://github.com/angular/universal-starter)

7. @maciejtreder
Yet Another Boilerplate…
• Progressive Web App
• Server-Side Rendering
• Hosted on AWS Lambda
• Uploaded to GitHub
• ~30 clones weekly
angular-universal-serverless-pwa

8. @maciejtreder

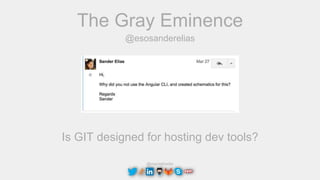

The Gray Eminence
Is GIT designed for hosting dev tools?
@esosanderelias

9. @maciejtreder
Schematics

10. @maciejtreder
Schematics
• Set of instructions (rules) consumed by the Angular CLI to manipulate the
file-system and perform NodeJS tasks
• Extensible - possible to combine multiple internal and external rules
• Atomic - “commit approach”/“all or nothing”
ng add/update/init/something

11. @maciejtreder

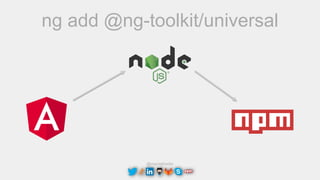

ng add @ng-toolkit/universal

12. @maciejtreder
package.json
{
"author": "Maciej Treder <contact@maciejtreder.com>",
"name": "@ng-toolkit/universal",
"main": "dist/index.js",
"version": "1.1.50",
"description": "Adds Angular Universal support for any Angular CLI project",
"repository": {
"type": "git",
"url": "git+https://github.com/maciejtreder/ng-toolkit.git"
},
"license": "MIT",
"schematics": "./collection.json",
"peerDependencies": {
},
"dependencies": {
},
"devDependencies": {
},
"publishConfig": {
"access": "public"
"schematics": "./collection.json",

13. @maciejtreder
collection.json
{
"$schema": "../node_modules/@angular-devkit/schematics/collection-schema.json",
"schematics": {
"ng-add": {
"factory": "./schematics",
"description": "Update an application with server side rendering (Angular Universal)",
"schema": "./schema.json"
}
}
}
"factory": "./schematics",
"schema": "./schema.json"

14. @maciejtreder

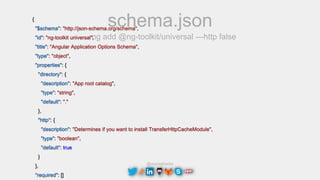

schema.json{
"$schema": "http://json-schema.org/schema",
"id": "ng-toolkit universal",
"title": "Angular Application Options Schema",
"type": "object",
"properties": {
"directory": {
"description": "App root catalog",
"type": "string",
"default": "."
},
"http": {
"description": "Determines if you want to install TransferHttpCacheModule",
"type": "boolean",
"default": true
}
},
"required": []
ng add @ng-toolkit/universal —http false

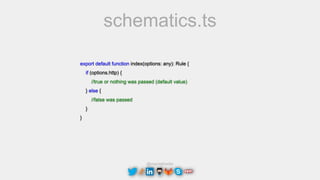

15. @maciejtreder
schematics.ts
export default function index(options: any): Rule {
if (options.http) {
//true or nothing was passed (default value)
} else {
//false was passed
}
}

16. @maciejtreder

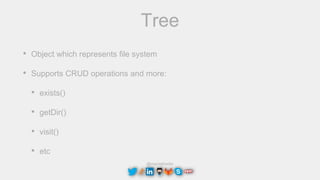

Tree
• Object which represents file system
• Supports CRUD operations and more:
• exists()
• getDir()
• visit()
• etc

17. @maciejtreder

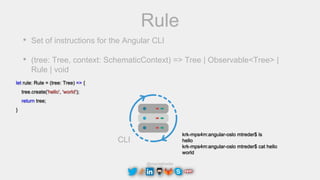

Rule
• Set of instructions for the Angular CLI
• (tree: Tree, context: SchematicContext) => Tree | Observable<Tree> |
Rule | void
let rule: Rule = (tree: Tree) => {
tree.create('hello', 'world');
return tree;
}
krk-mps4m:angular-oslo mtreder$ ls
hello
krk-mps4m:angular-oslo mtreder$ cat hello
world
CLI

18. @maciejtreder
tree

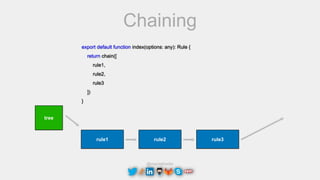

Chaining
export default function index(options: any): Rule {
return chain([
rule1,
rule2,
rule3
])
}
rule1 rule2 rule3

19. @maciejtreder

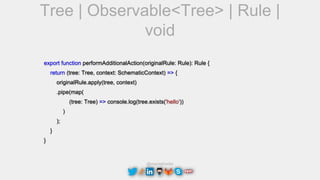

Tree | Observable<Tree> | Rule |
void
export function performAdditionalAction(originalRule: Rule): Rule {
return (tree: Tree, context: SchematicContext) => {
originalRule.apply(tree, context)
.pipe(map(
(tree: Tree) => console.log(tree.exists('hello'))
)
);
}
}

20. @maciejtreder

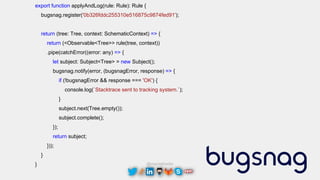

export function applyAndLog(rule: Rule): Rule {
bugsnag.register('0b326fddc255310e516875c9874fed91');
return (tree: Tree, context: SchematicContext) => {
return (<Observable<Tree>> rule(tree, context))
.pipe(catchError((error: any) => {
let subject: Subject<Tree> = new Subject();
bugsnag.notify(error, (bugsnagError, response) => {
if (!bugsnagError && response === 'OK') {
console.log(`Stacktrace sent to tracking system.`);
}
subject.next(Tree.empty());
subject.complete();
});
return subject;
}));
}
}

21. @maciejtreder

22. @maciejtreder

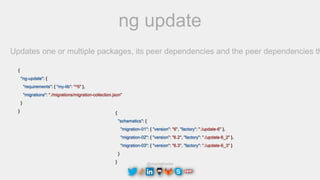

ng update
{
"ng-update": {
"requirements": { "my-lib": "^5" },
"migrations": "./migrations/migration-collection.json"
}
} {
"schematics": {
"migration-01": { "version": "6", "factory": "./update-6" },
"migration-02": { "version": "6.2", "factory": "./update-6_2" },
"migration-03": { "version": "6.3", "factory": "./update-6_3" }
}
}
Updates one or multiple packages, its peer dependencies and the peer dependencies th

23. @maciejtreder

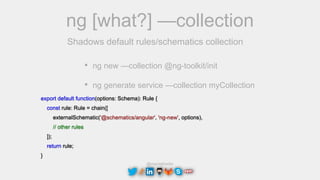

ng [what?] —collection
export default function(options: Schema): Rule {
const rule: Rule = chain([
externalSchematic('@schematics/angular', 'ng-new', options),
// other rules
]);
return rule;
}
Shadows default rules/schematics collection
• ng new —collection @ng-toolkit/init
• ng generate service —collection myCollection

24. @maciejtreder
Working with source-code
import * as ts from 'typescript';
export default function(options: any): Rule {
return (tree: Tree, context: SchematicContext) => {
const filePath = `${options.directory}/sourceFile.ts`;
const recorder = tree.beginUpdate(filePath);
let fileContent = getFileContent(tree, filePath);
let sourceFile: ts.SourceFile = ts.createSourceFile('temp.ts', fileContent, ts.ScriptTarget.Latest);
sourceFile.forEachChild(node => {
if (ts.isClassDeclaration(node)) {
node.members.forEach(node => {
if (ts.isConstructorDeclaration(node)) {
if (node.body) {
recorder.insertRight(node.body.pos + 1, 'console.log('constructor!');')
}
}
});
}
});
tree.commitUpdate(recorder);
const recorder = tree.beginUpdate(filePath);
let sourceFile: ts.SourceFile = ts.createSourceFile(
import * as ts from 'typescript';
recorder.insertRight(node.body.pos + 1, 'console.log('constructor!');')
tree.commitUpdate(recorder);

25. @maciejtreder

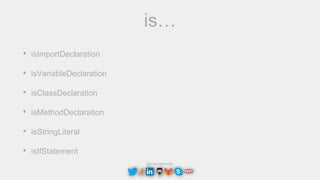

is…
• isImportDeclaration
• isVariableDeclaration
• isClassDeclaration
• isMethodDeclaration
• isStringLiteral
• isIfStatement

26. @maciejtreder
tree.
tree.create('path', 'content');
tree.exists('path')
tree.overwrite('path', 'new file content');
tree.getDir(`${options.directory}/src/environments`).visit( (path: Path) => {
if (path.endsWith('.ts')) {
addEntryToEnvironment(tree, path, 'line to be inserted');
}
});
const recorder = tree.beginUpdate(‘filePath’);
tree.commitUpdate(recorder);

27. @maciejtreder

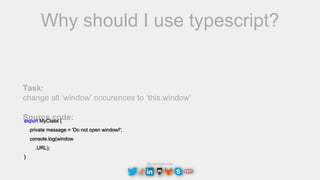

Why should I use typescript?
Task:
change all ‘window’ occurences to ‘this.window’
Source code:export MyClass {
private message = 'Do not open window!';
console.log(window
.URL);
}

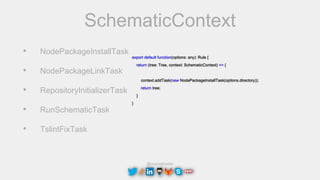

28. @maciejtreder
SchematicContext
export default function(options: any): Rule {
return (tree: Tree, context: SchematicContext) => {
context.addTask(new NodePackageInstallTask(options.directory));
return tree;
}
}
• NodePackageInstallTask
• NodePackageLinkTask
• RepositoryInitializerTask
• RunSchematicTask
• TslintFixTask

29. @maciejtreder

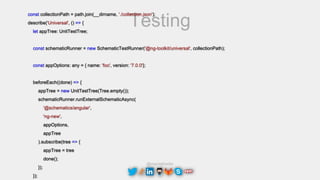

Testing
const collectionPath = path.join(__dirname, './collection.json');
describe('Universal', () => {
let appTree: UnitTestTree;
const schematicRunner = new SchematicTestRunner('@ng-toolkit/universal', collectionPath);
const appOptions: any = { name: 'foo', version: '7.0.0'};
beforeEach((done) => {
appTree = new UnitTestTree(Tree.empty());
schematicRunner.runExternalSchematicAsync(
'@schematics/angular',
'ng-new',
appOptions,
appTree
).subscribe(tree => {
appTree = tree
done();
});
});

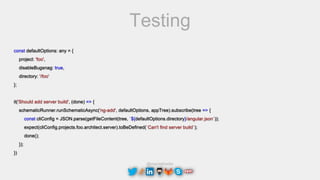

30. @maciejtreder
Testing
const defaultOptions: any = {
project: 'foo',
disableBugsnag: true,
directory: '/foo'
};
it('Should add server build', (done) => {
schematicRunner.runSchematicAsync('ng-add', defaultOptions, appTree).subscribe(tree => {
const cliConfig = JSON.parse(getFileContent(tree, `${defaultOptions.directory}/angular.json`));
expect(cliConfig.projects.foo.architect.server).toBeDefined(`Can't find server build`);
done();
});
})

31. @maciejtreder

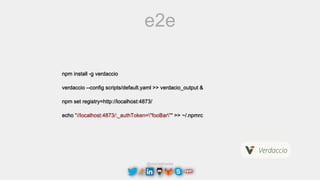

e2e
npm install -g verdaccio
verdaccio --config scripts/default.yaml >> verdacio_output &
npm set registry=http://localhost:4873/
echo "//localhost:4873/:_authToken="fooBar"" >> ~/.npmrc

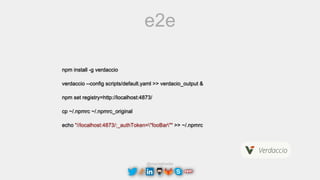

32. @maciejtreder
e2e
npm install -g verdaccio
verdaccio --config scripts/default.yaml >> verdacio_output &
npm set registry=http://localhost:4873/
cp ~/.npmrc ~/.npmrc_original
echo "//localhost:4873/:_authToken="fooBar"" >> ~/.npmrc

33. @maciejtreder

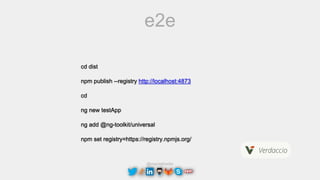

e2e
cd dist
npm publish --registry http://localhost:4873
cd
ng new testApp
ng add @ng-toolkit/universal
npm set registry=https://registry.npmjs.org/

34. @maciejtreder
Use cases

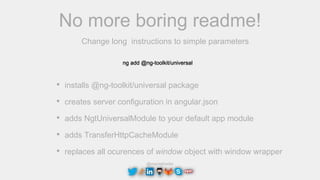

35. @maciejtreder
No more boring readme!
Change long instructions to simple parameters
ng add @ng-toolkit/universal
• installs @ng-toolkit/universal package
• creates server configuration in angular.json
• adds NgtUniversalModule to your default app module
• adds TransferHttpCacheModule
• replaces all ocurences of window object with window wrapper

36. @maciejtreder

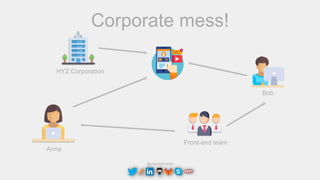

Corporate mess!
Anna
HYZ Corporation
Front-end team
Bob

37. @maciejtreder

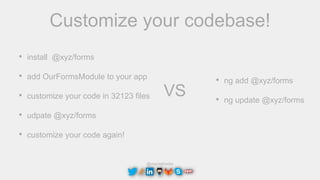

Customize your codebase!
• install @xyz/forms
• add OurFormsModule to your app
• customize your code in 32123 files
• udpate @xyz/forms
• customize your code again!
• ng add @xyz/forms
• ng update @xyz/forms
VS
