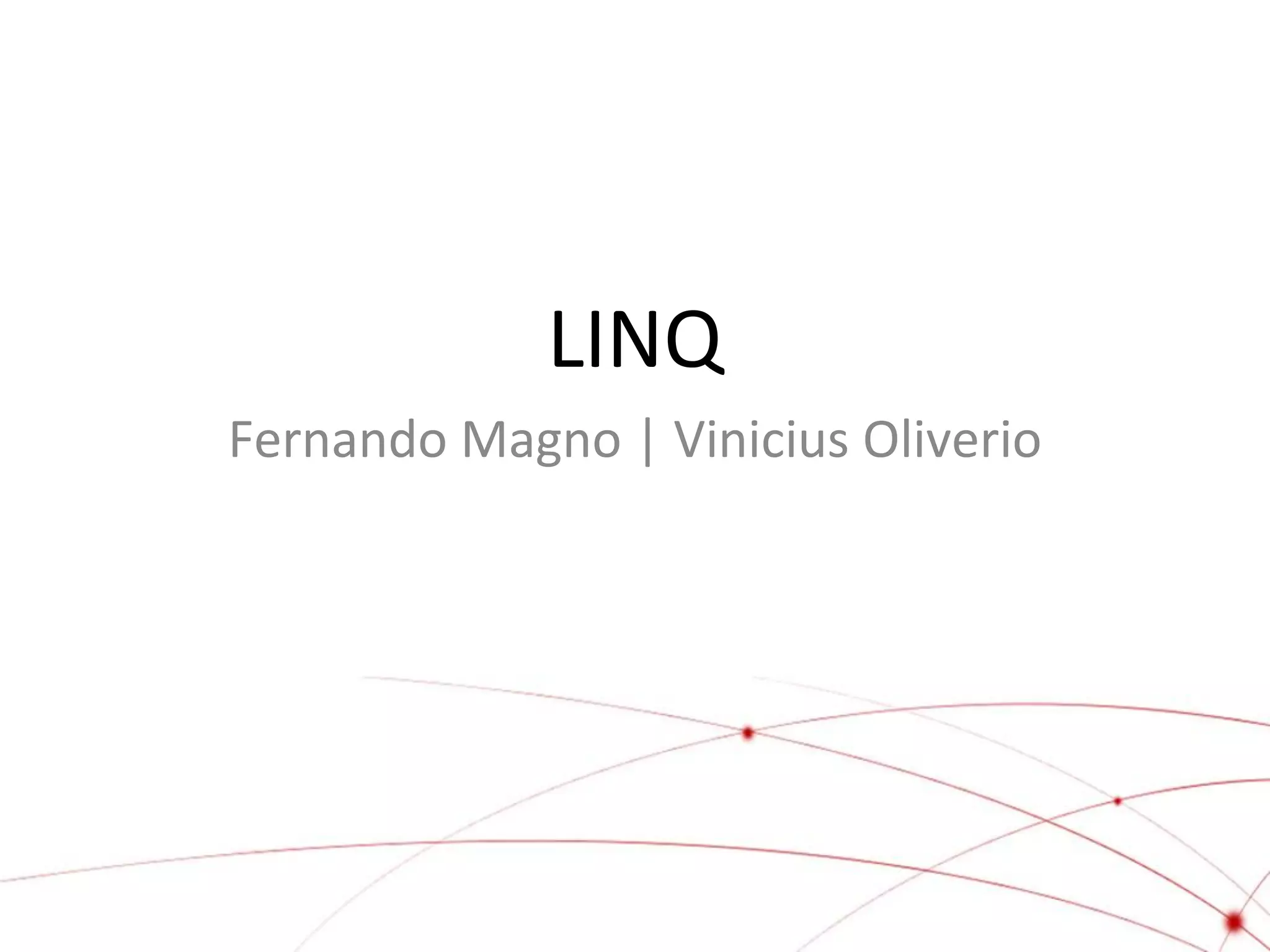

LINQ
Fernando Magno | Vinicius Oliverio

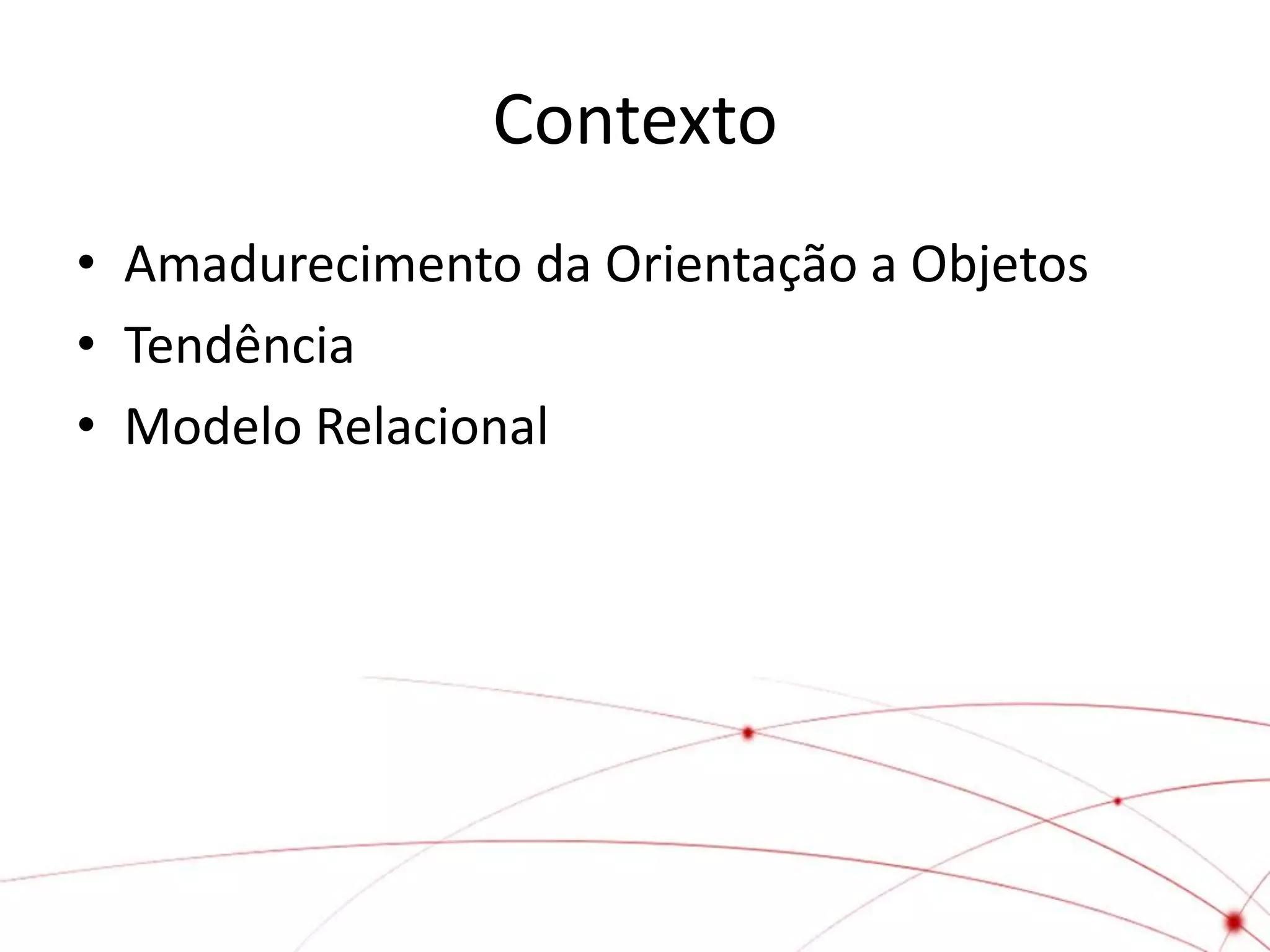

Contexto
• Amadurecimento da Orientação a Objetos
• Tendência
• Modelo Relacional

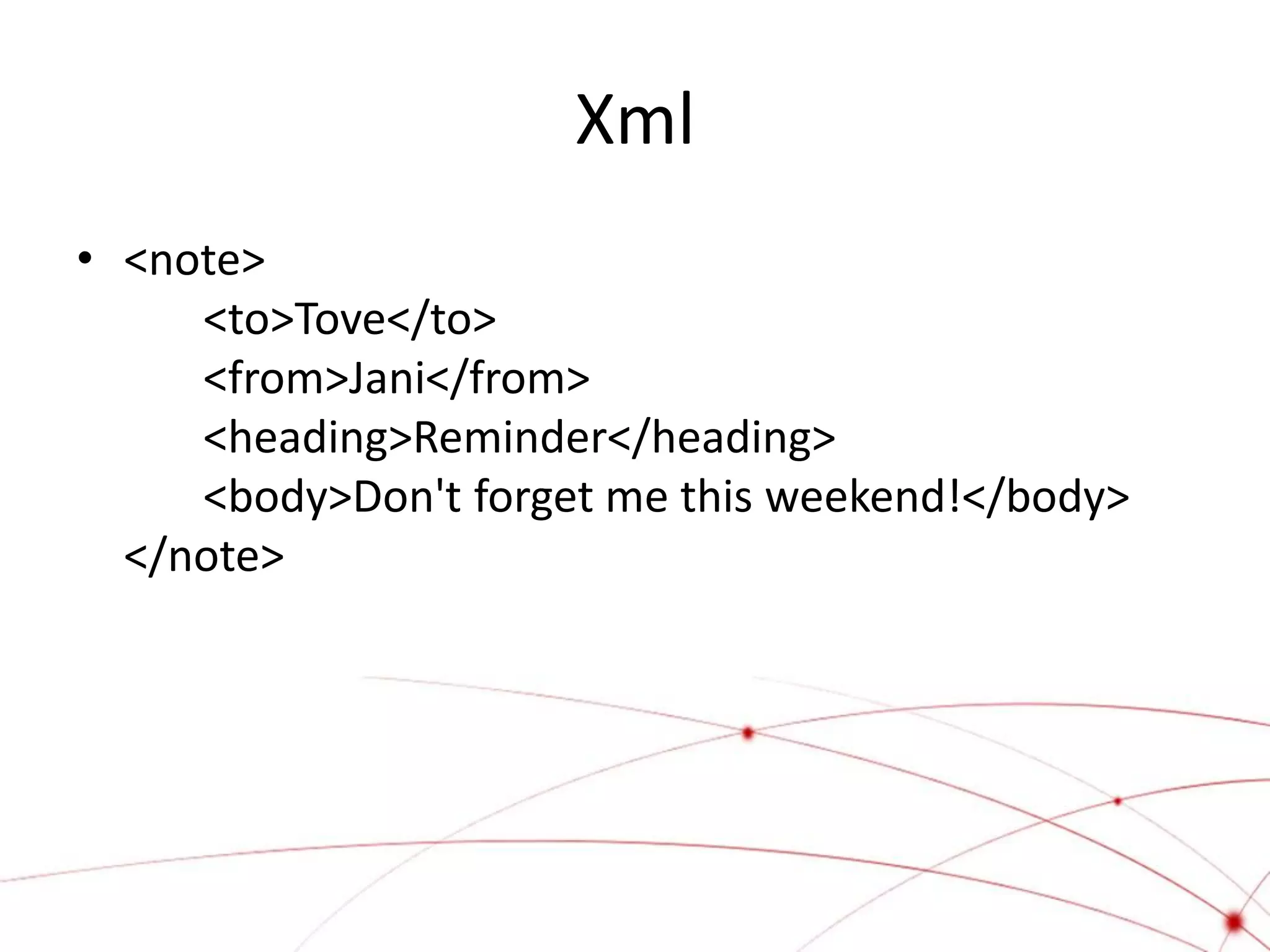

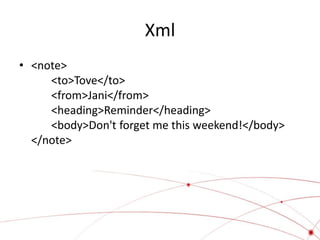

Xml
• <note>
     <to>Tove</to>
     <from>Jani</from>
     <heading>Reminder</heading>
     <body>Don't forget me this weekend!</body>
  </note>

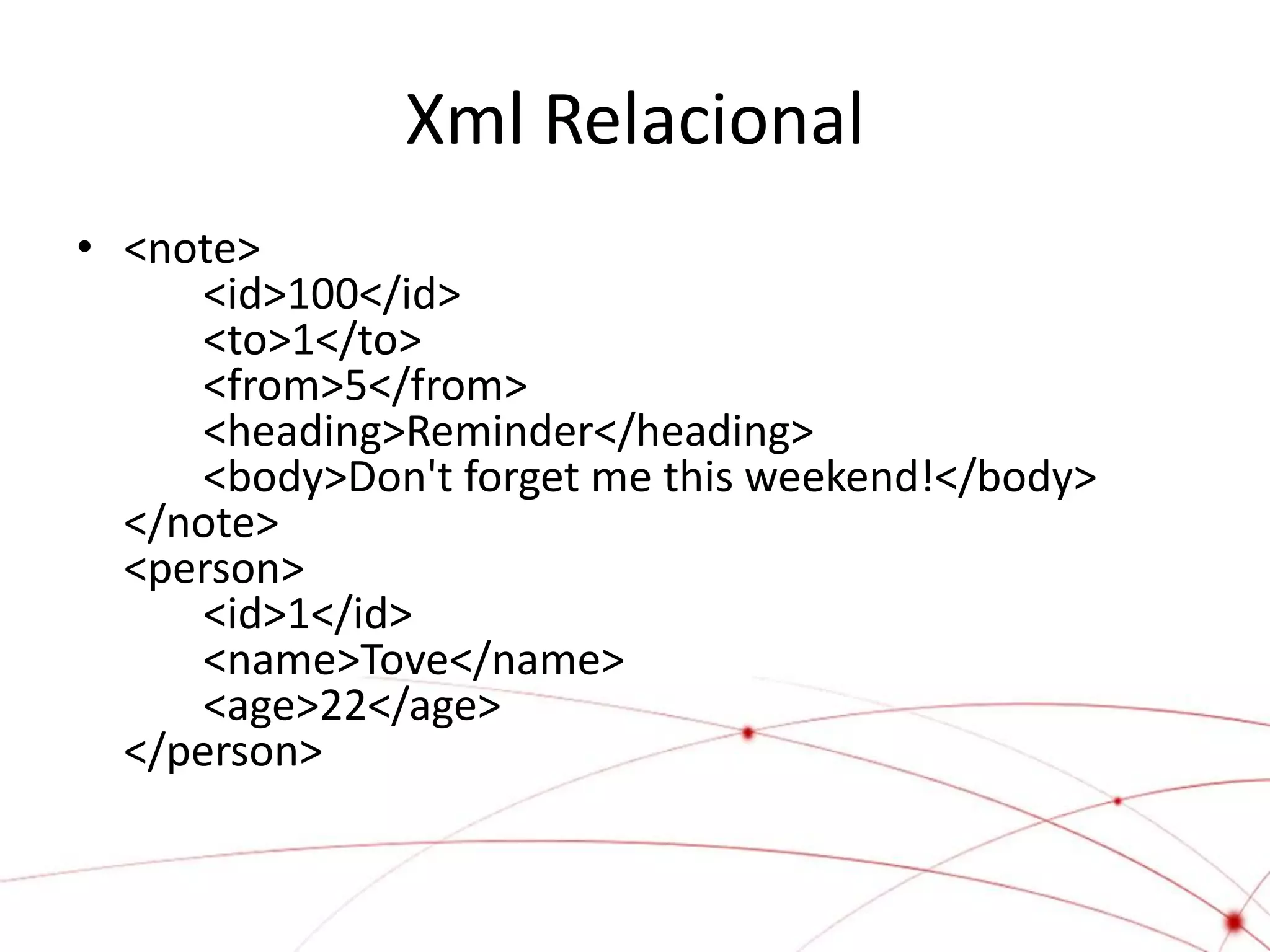

Xml Relacional
• <note>
      <id>100</id>
      <to>1</to>
      <from>5</from>
      <heading>Reminder</heading>
      <body>Don't forget me this weekend!</body>
  </note>
  <person>
      <id>1</id>
      <name>Tove</name>
      <age>22</age>
  </person>

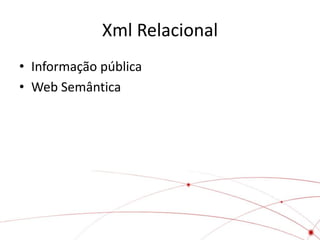

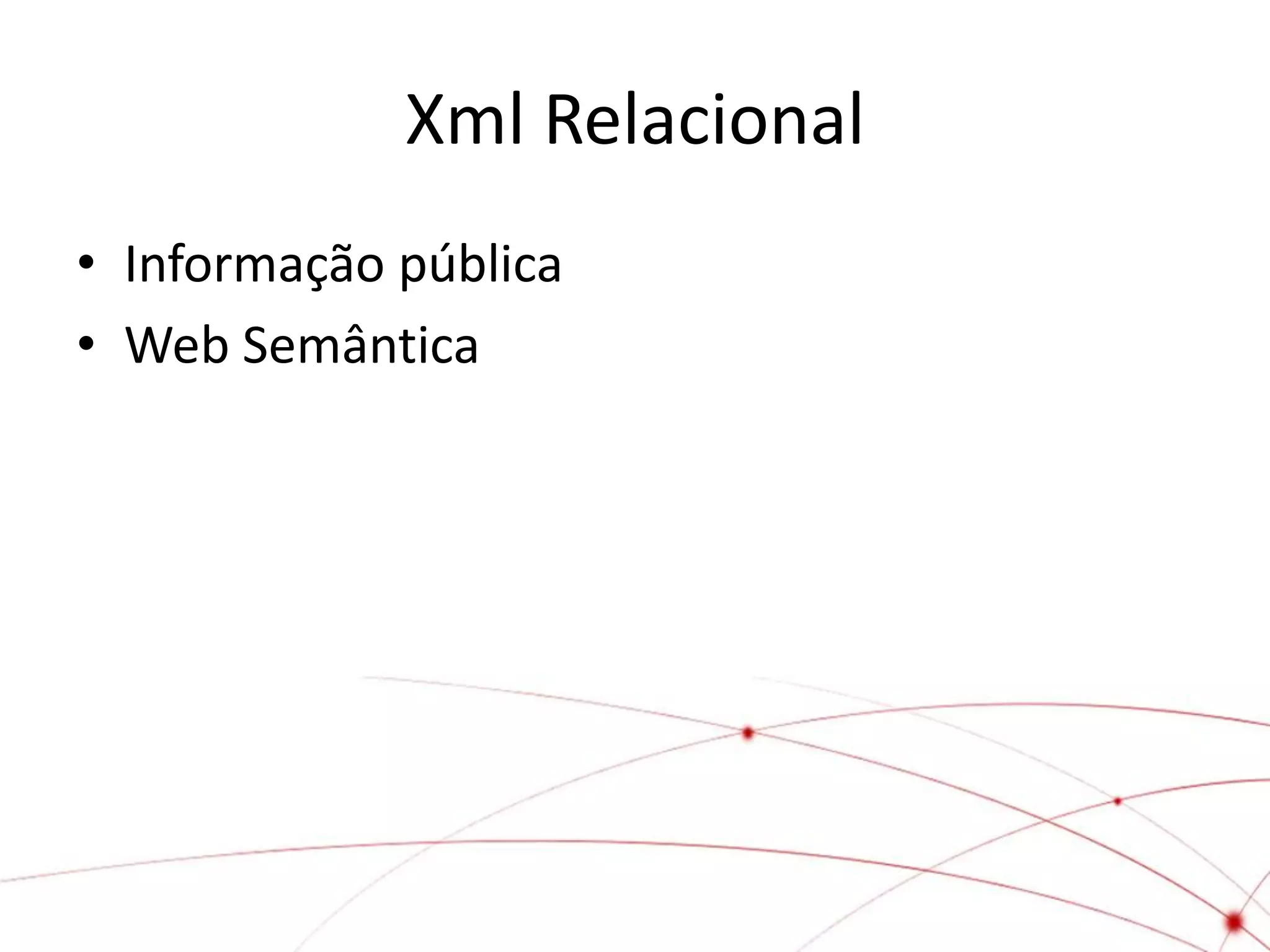

Xml Relacional
• Informação pública
• Web Semântica
Banco de Dados Relacional

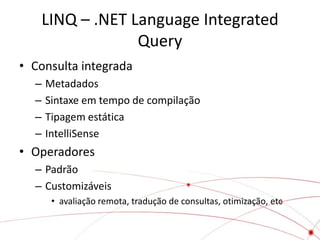

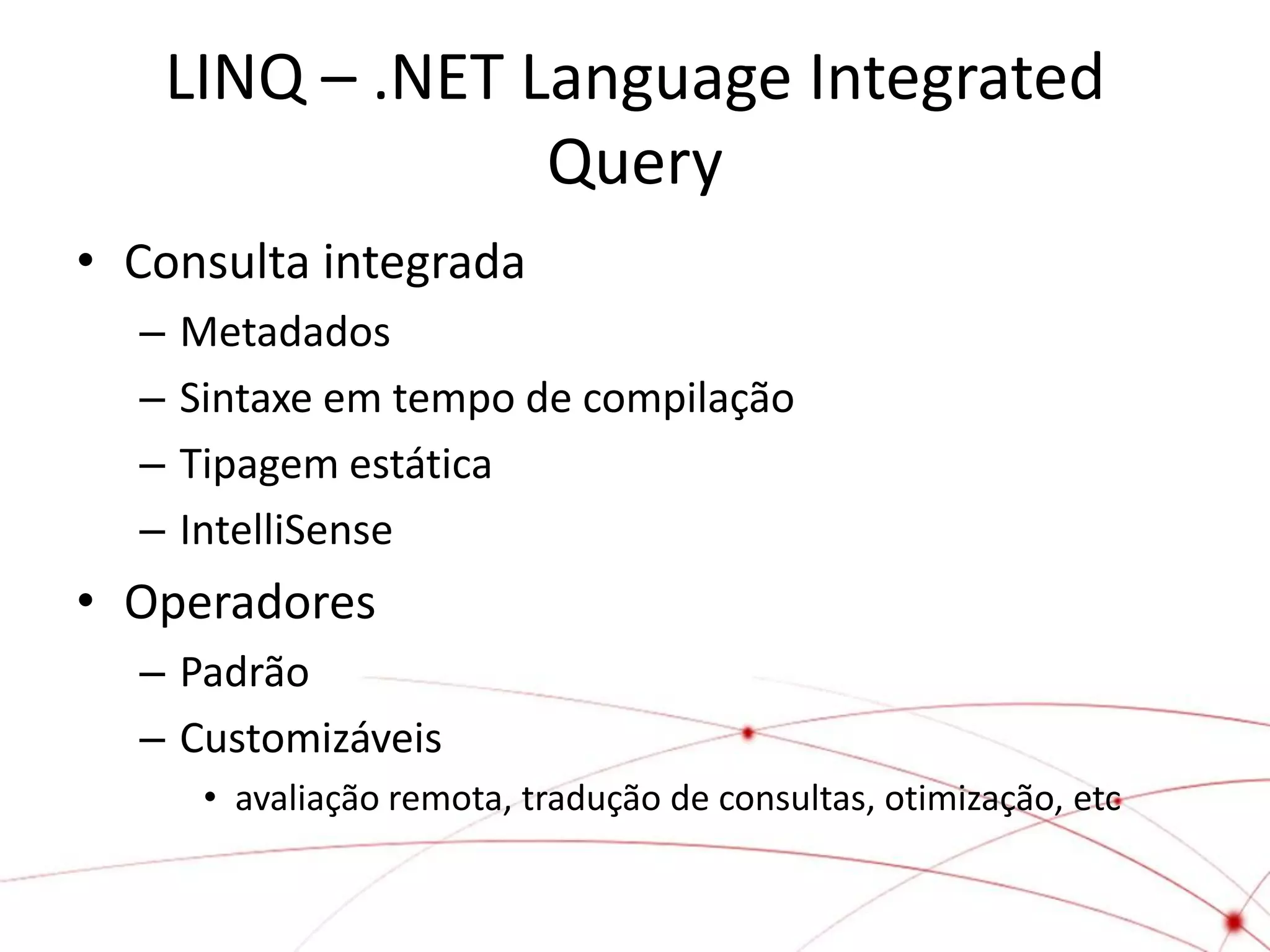

LINQ – .NET Language Integrated
                Query
• Consulta integrada
  –   Metadados
  –   Sintaxe em tempo de compilação
  –   Tipagem estática
  –   IntelliSense
• Operadores
  – Padrão
  – Customizáveis
       • avaliação remota, tradução de consultas, otimização, etc

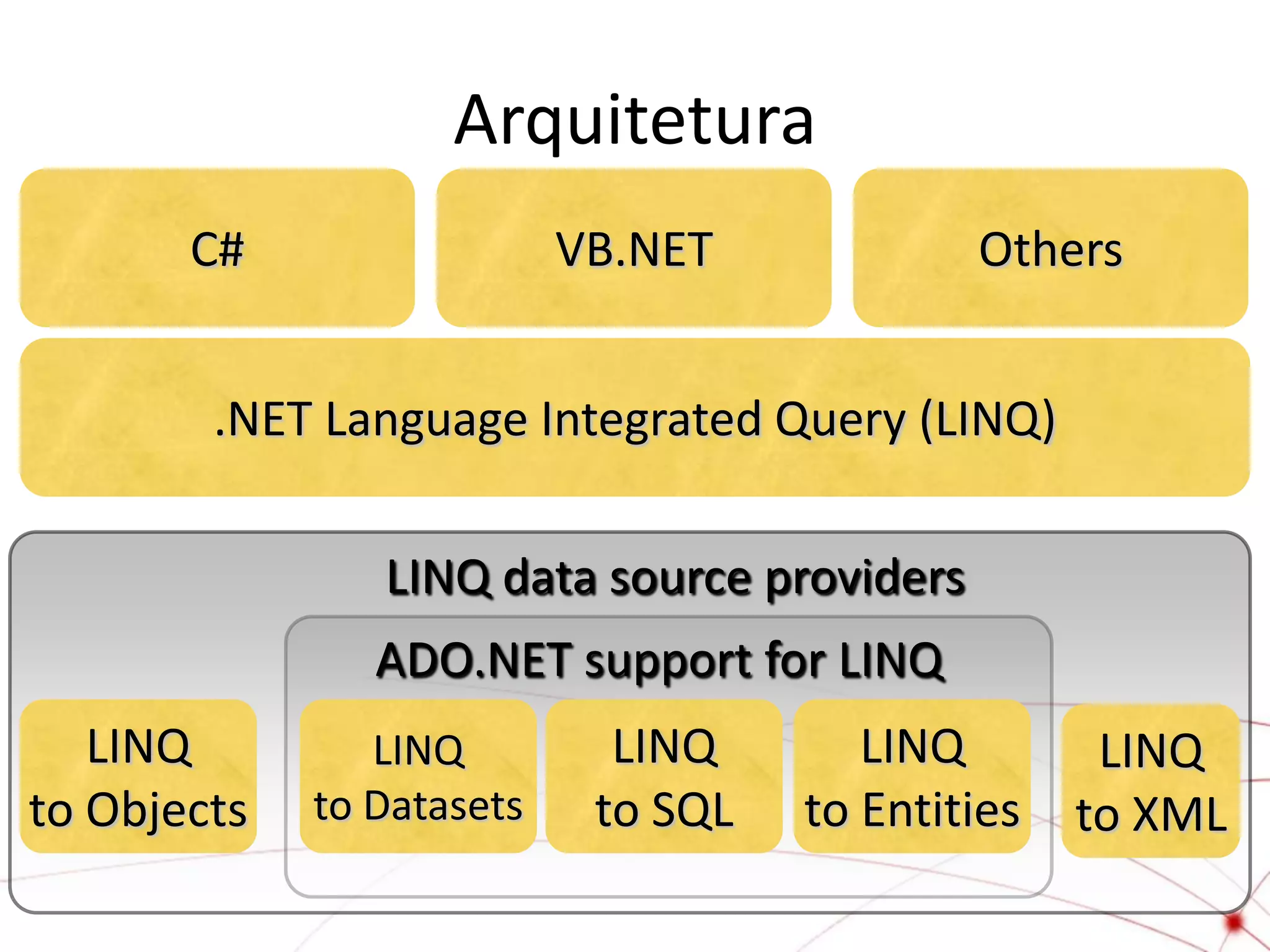

Arquitetura
       C#                  VB.NET            Others


        .NET Language Integrated Query (LINQ)

                LINQ data source providers
                ADO.NET support for LINQ
   LINQ         LINQ         LINQ       LINQ        LINQ
to Objects   to Datasets    to SQL   to Entities   to XML

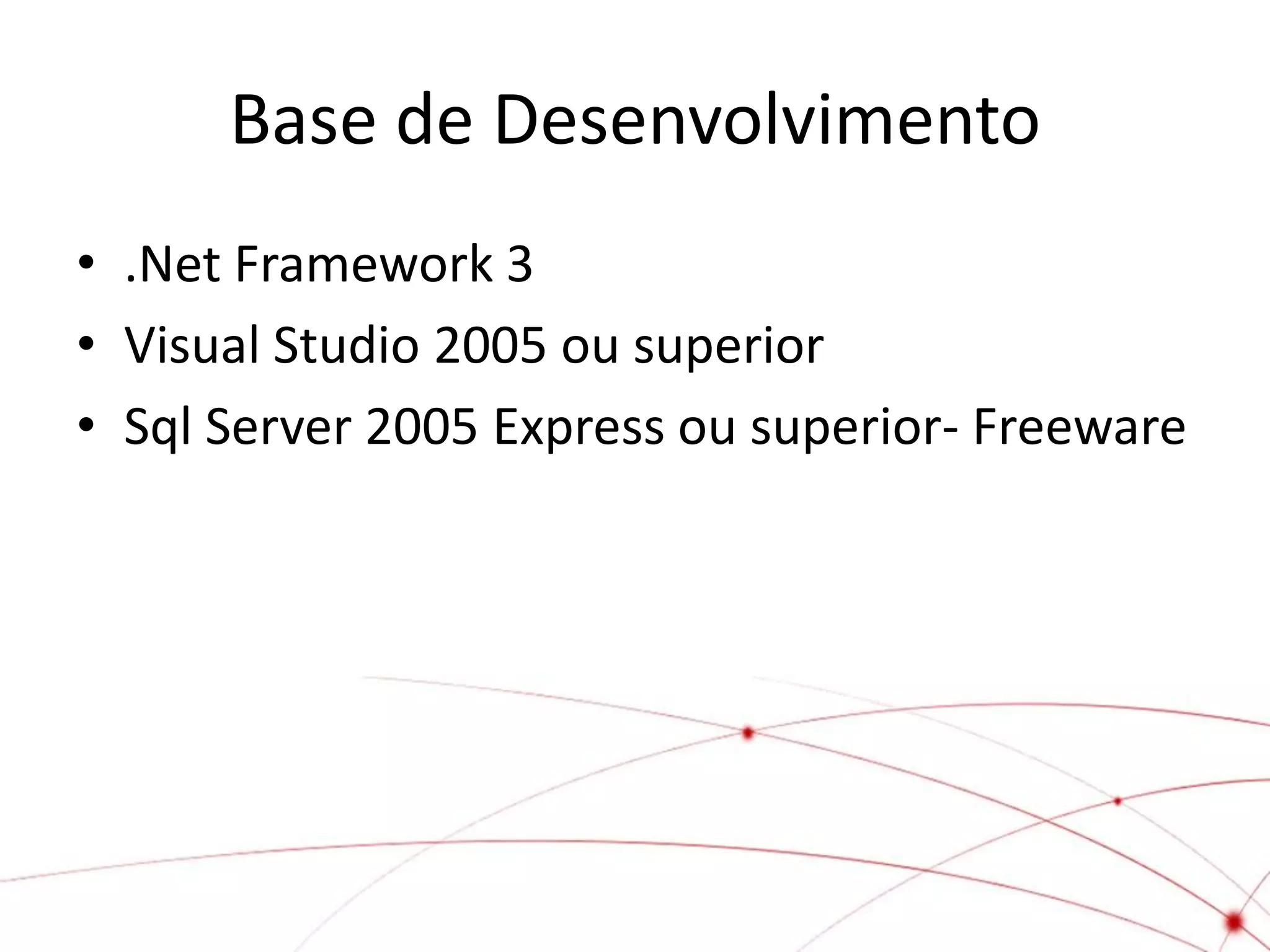

Base de Desenvolvimento
• .Net Framework 3
• Visual Studio 2005 ou superior
• Sql Server 2005 Express ou superior- Freeware

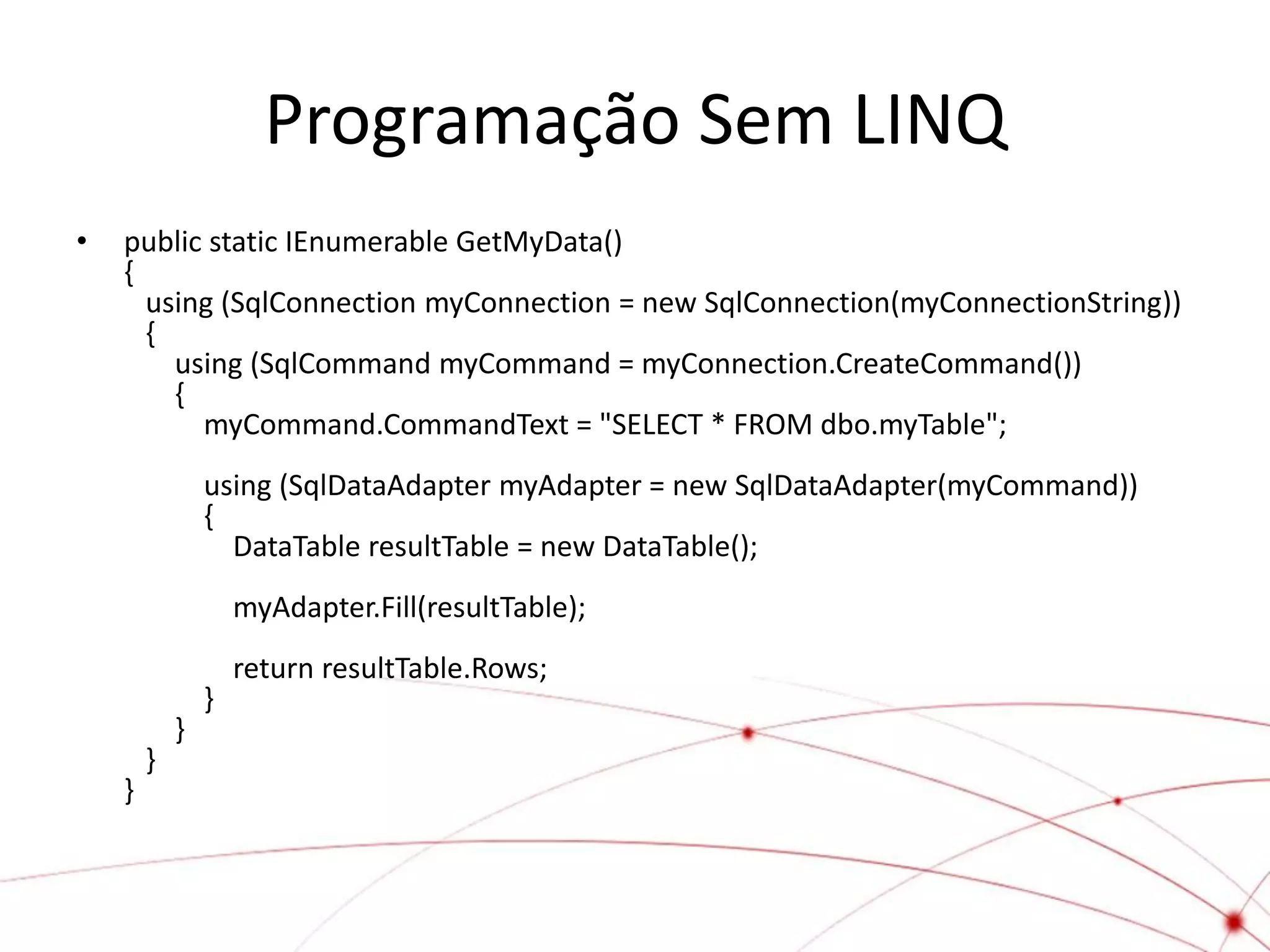

Programação Sem LINQ
•   public static IEnumerable GetMyData()
    {
      using (SqlConnection myConnection = new SqlConnection(myConnectionString))
      {
        using (SqlCommand myCommand = myConnection.CreateCommand())
        {
          myCommand.CommandText = "SELECT * FROM dbo.myTable";
                using (SqlDataAdapter myAdapter = new SqlDataAdapter(myCommand))
                {
                  DataTable resultTable = new DataTable();
                    myAdapter.Fill(resultTable);
                    return resultTable.Rows;
                }
            }
        }
    }

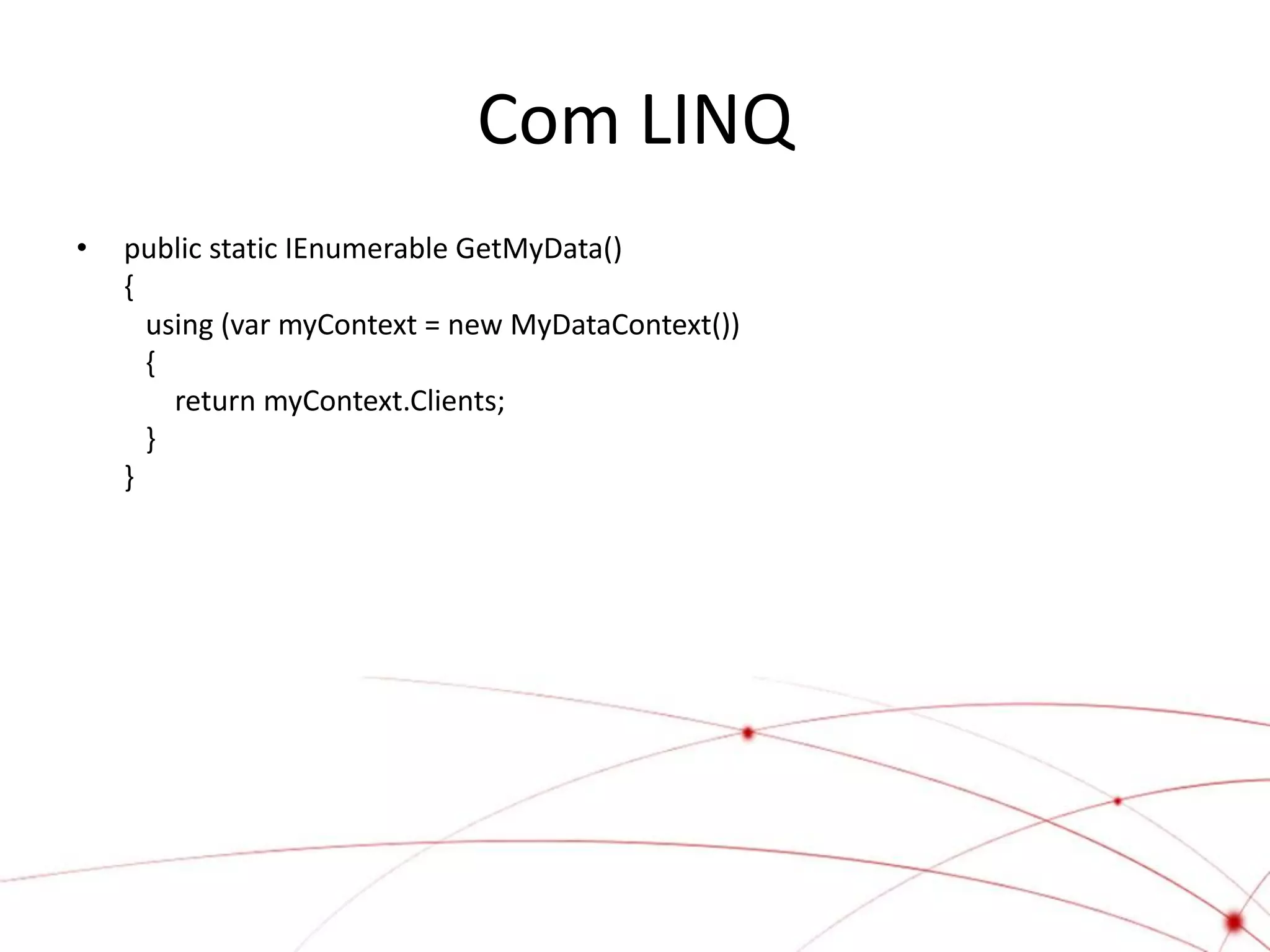

Com LINQ
•   public static IEnumerable GetMyData()
    {
      using (var myContext = new MyDataContext())
      {
        return myContext.Clients;
      }
    }

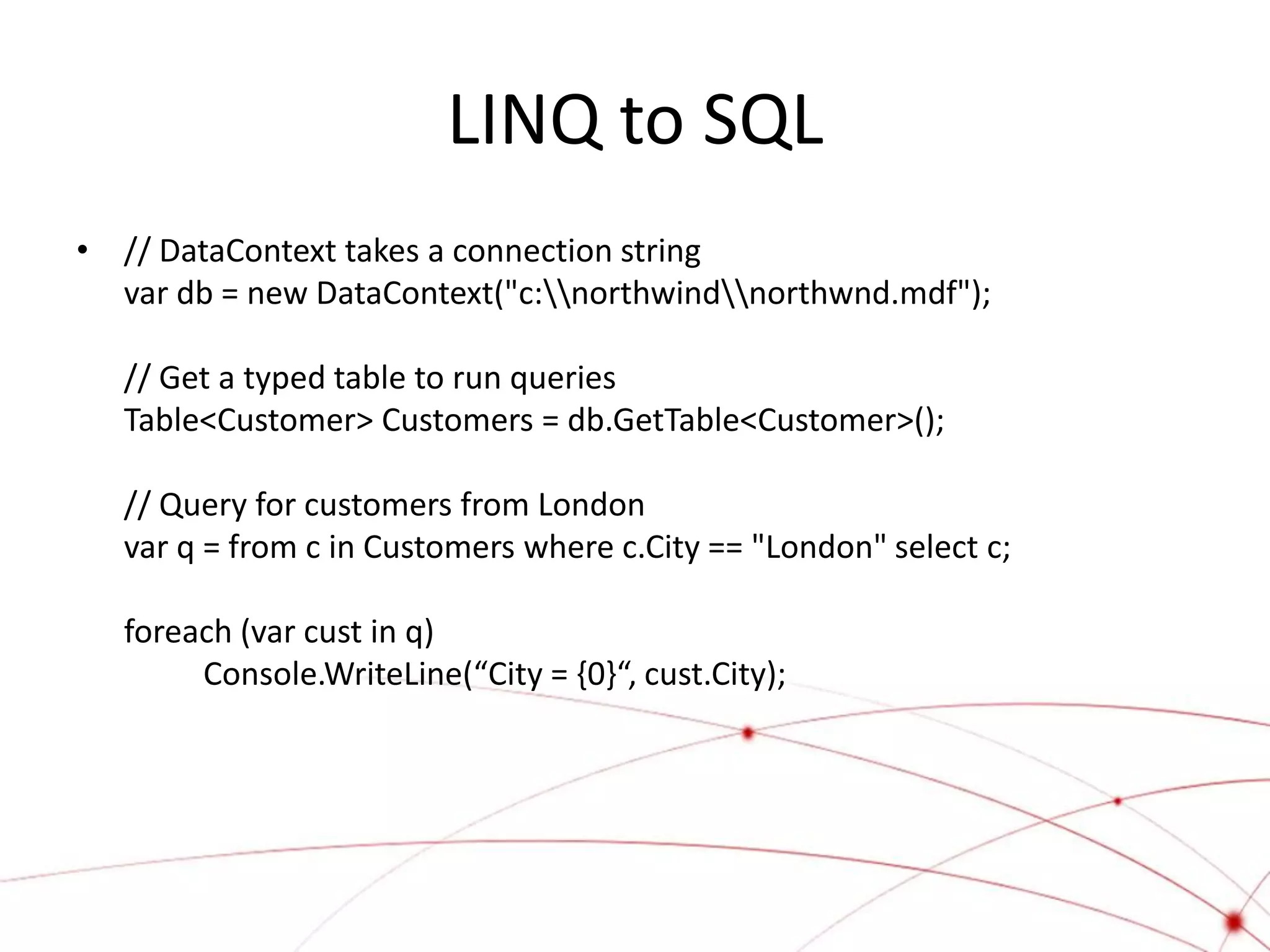

LINQ to SQL
• // DataContext takes a connection string
  var db = new DataContext("c:northwindnorthwnd.mdf");

   // Get a typed table to run queries
   Table<Customer> Customers = db.GetTable<Customer>();

   // Query for customers from London
   var q = from c in Customers where c.City == "London" select c;

   foreach (var cust in q)
        Console.WriteLine(“City = {0}“, cust.City);

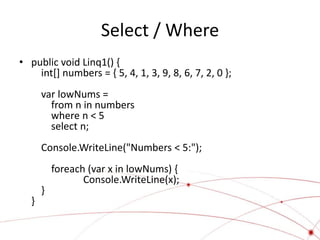

Select / Where
• public void Linq1() {
    int[] numbers = { 5, 4, 1, 3, 9, 8, 6, 7, 2, 0 };
      var lowNums =
        from n in numbers
        where n < 5
        select n;
      Console.WriteLine("Numbers < 5:");
          foreach (var x in lowNums) {
                 Console.WriteLine(x);
      }
  }

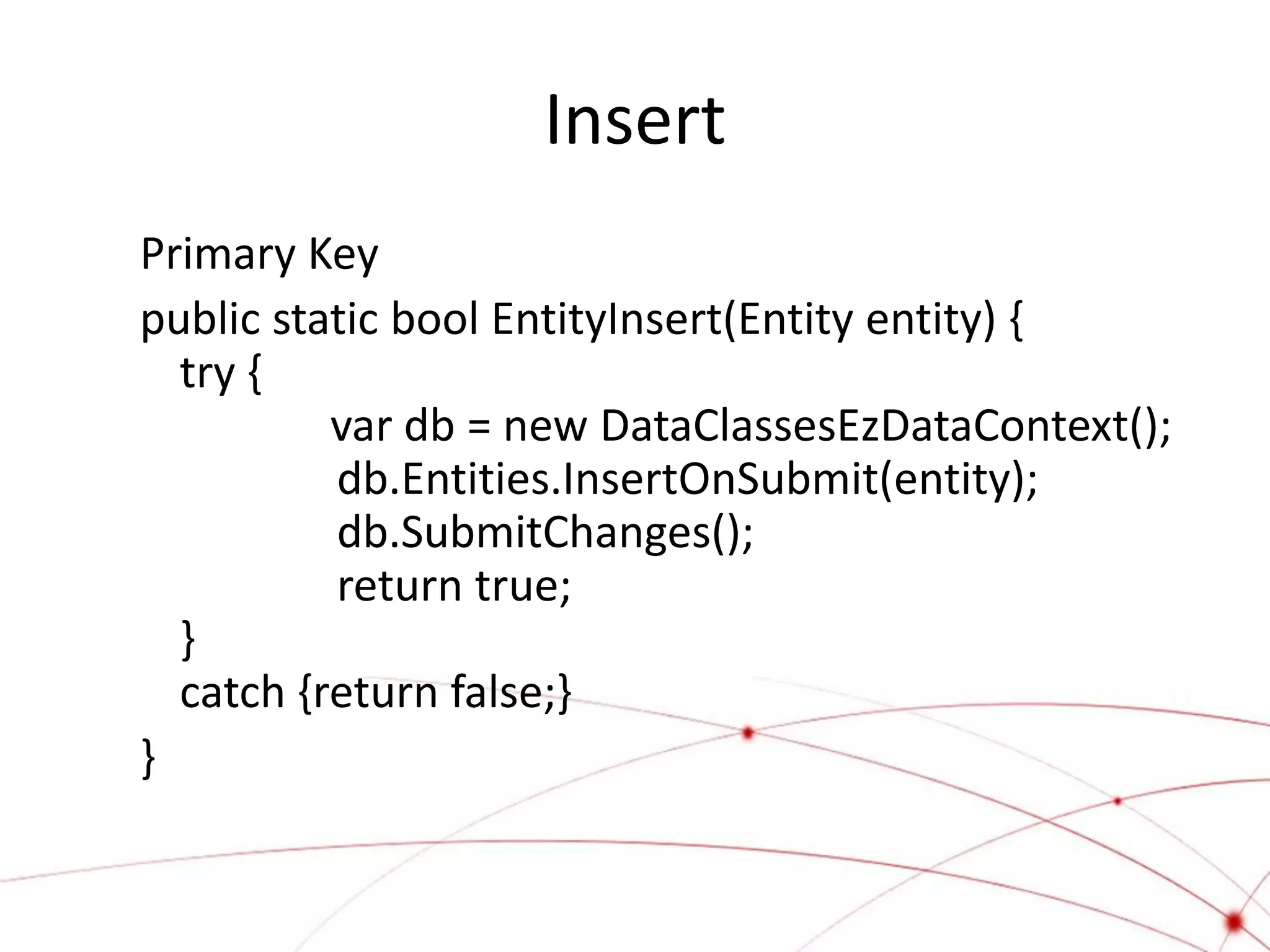

Insert
Primary Key
public static bool EntityInsert(Entity entity) {
  try {
          var db = new DataClassesEzDataContext();
          db.Entities.InsertOnSubmit(entity);
          db.SubmitChanges();
          return true;
  }
  catch {return false;}
}

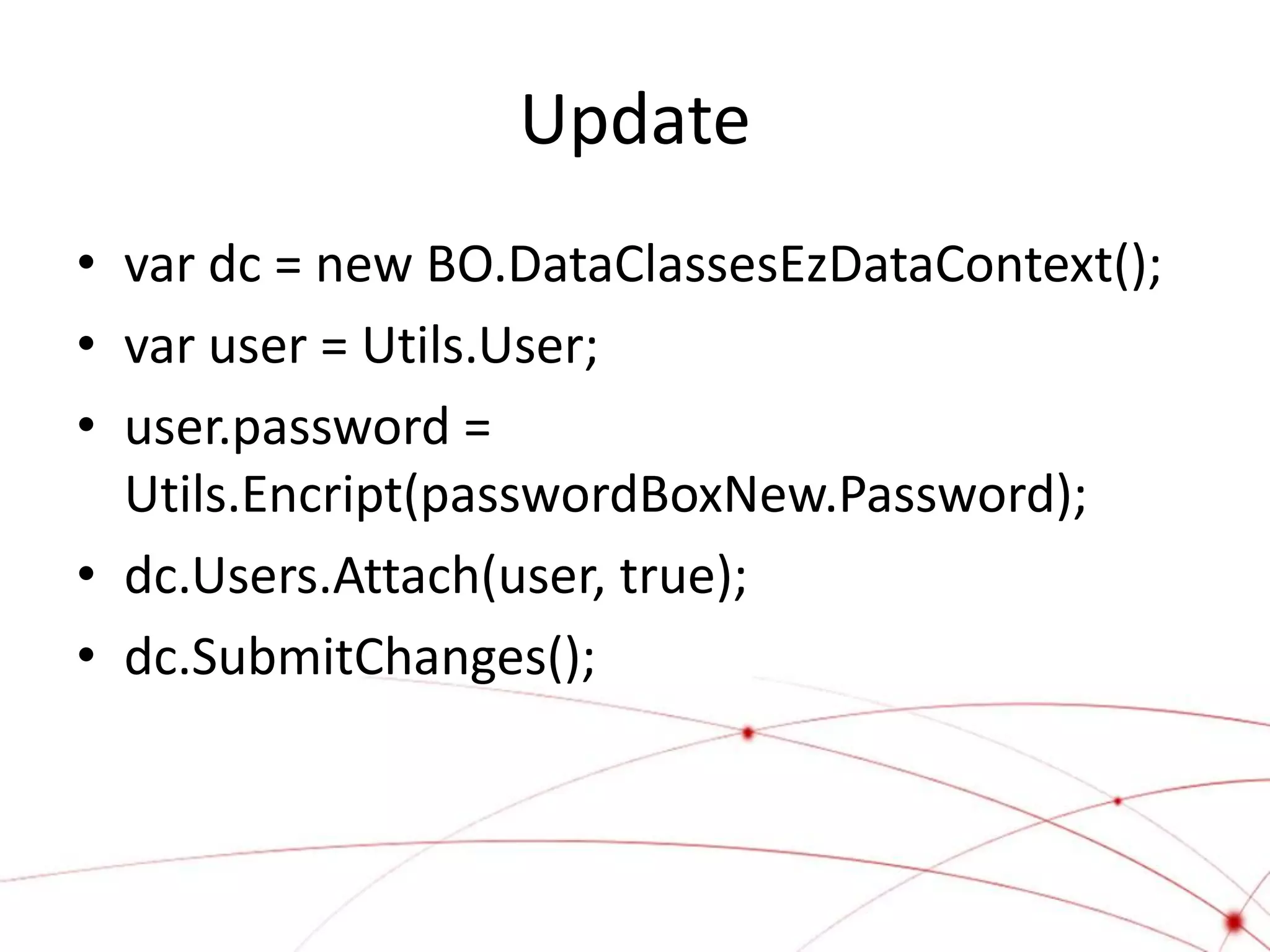

Update
• var dc = new BO.DataClassesEzDataContext();
• var user = Utils.User;
• user.password =
  Utils.Encript(passwordBoxNew.Password);
• dc.Users.Attach(user, true);
• dc.SubmitChanges();

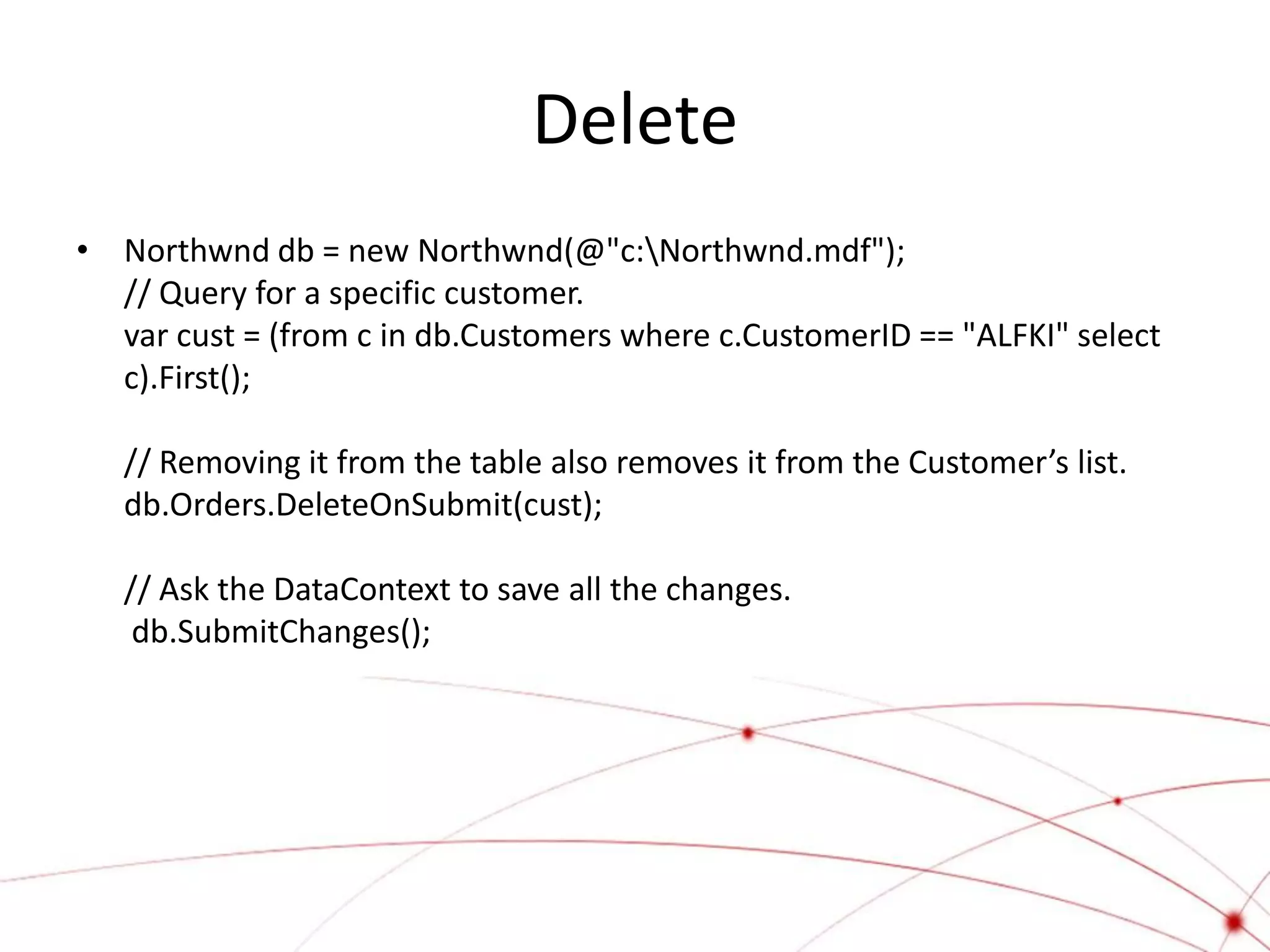

Delete
• Northwnd db = new Northwnd(@"c:Northwnd.mdf");
  // Query for a specific customer.
  var cust = (from c in db.Customers where c.CustomerID == "ALFKI" select
  c).First();

   // Removing it from the table also removes it from the Customer’s list.
   db.Orders.DeleteOnSubmit(cust);

   // Ask the DataContext to save all the changes.
    db.SubmitChanges();

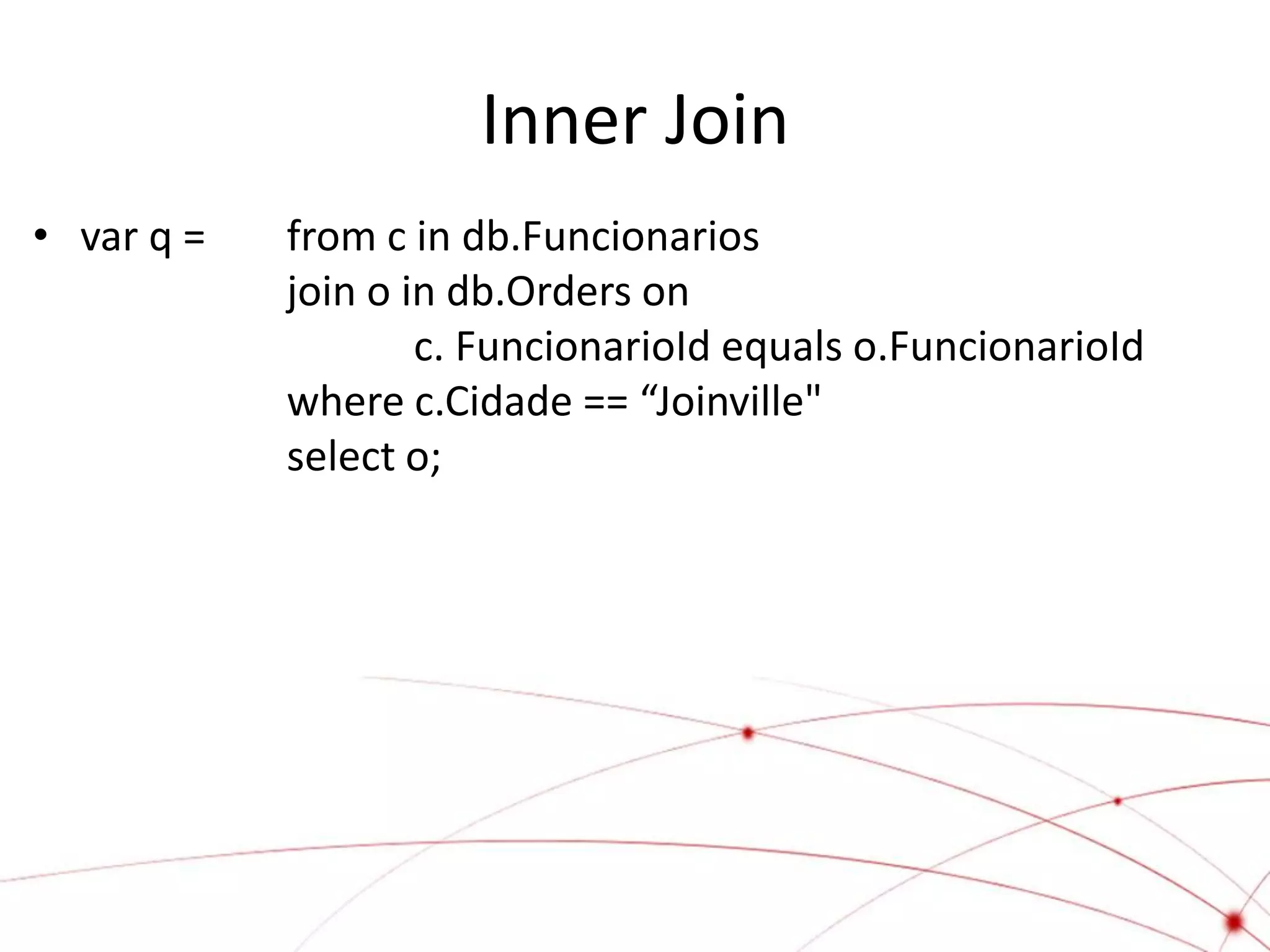

Inner Join
• var q =   from c in db.Funcionarios
            join o in db.Orders on
                    c. FuncionarioId equals o.FuncionarioId
            where c.Cidade == “Joinville"
            select o;

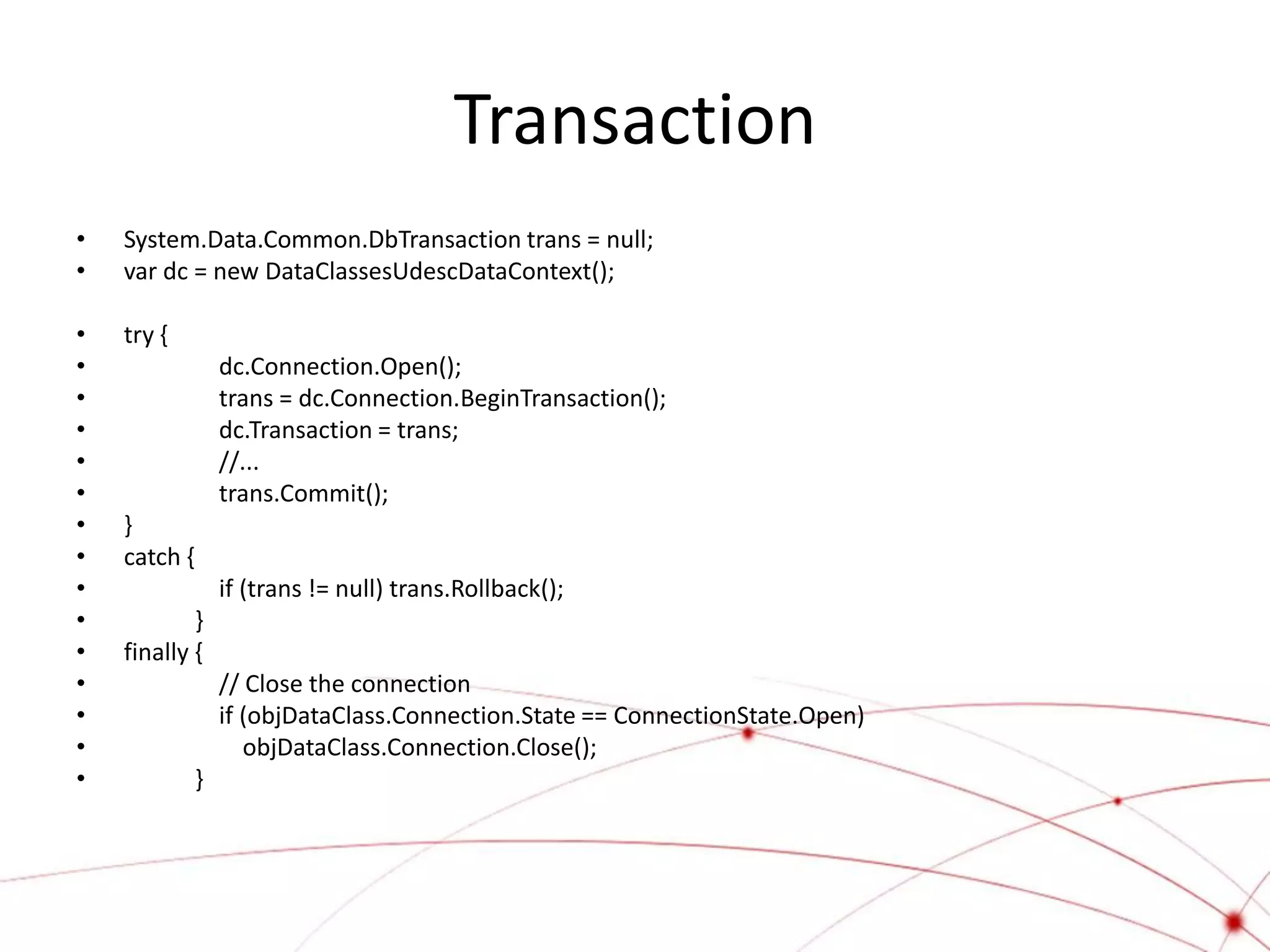

Transaction
•   System.Data.Common.DbTransaction trans = null;
•   var dc = new DataClassesUdescDataContext();

•   try {
•                 dc.Connection.Open();
•                 trans = dc.Connection.BeginTransaction();
•                 dc.Transaction = trans;
•                 //...
•                 trans.Commit();
•   }
•   catch {
•                 if (trans != null) trans.Rollback();
•           }
•   finally {
•                 // Close the connection
•                 if (objDataClass.Connection.State == ConnectionState.Open)
•                    objDataClass.Connection.Close();
•             }

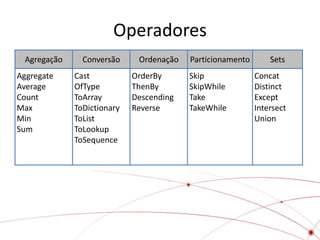

Operadores
 Agregação     Conversão     Ordenação   Particionamento       Sets
Aggregate    Cast           OrderBy      Skip              Concat
Average      OfType         ThenBy       SkipWhile         Distinct
Count        ToArray        Descending   Take              Except
Max          ToDictionary   Reverse      TakeWhile         Intersect
Min          ToList                                        Union
Sum          ToLookup
             ToSequence
Performance
Performance
Performance
Performance
Performance

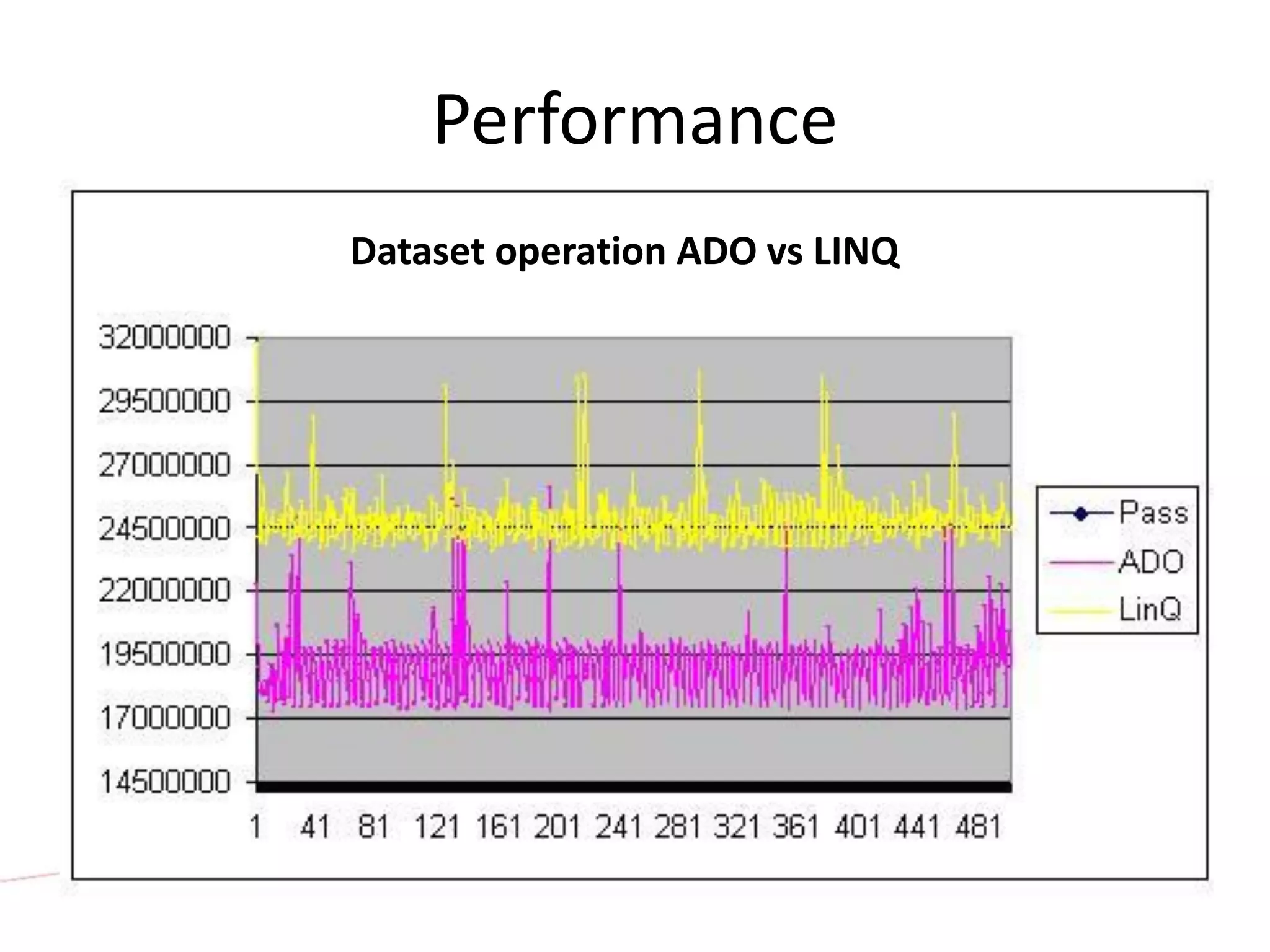

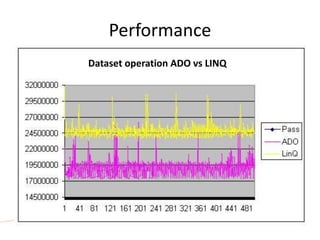

Dataset operation ADO vs LINQ

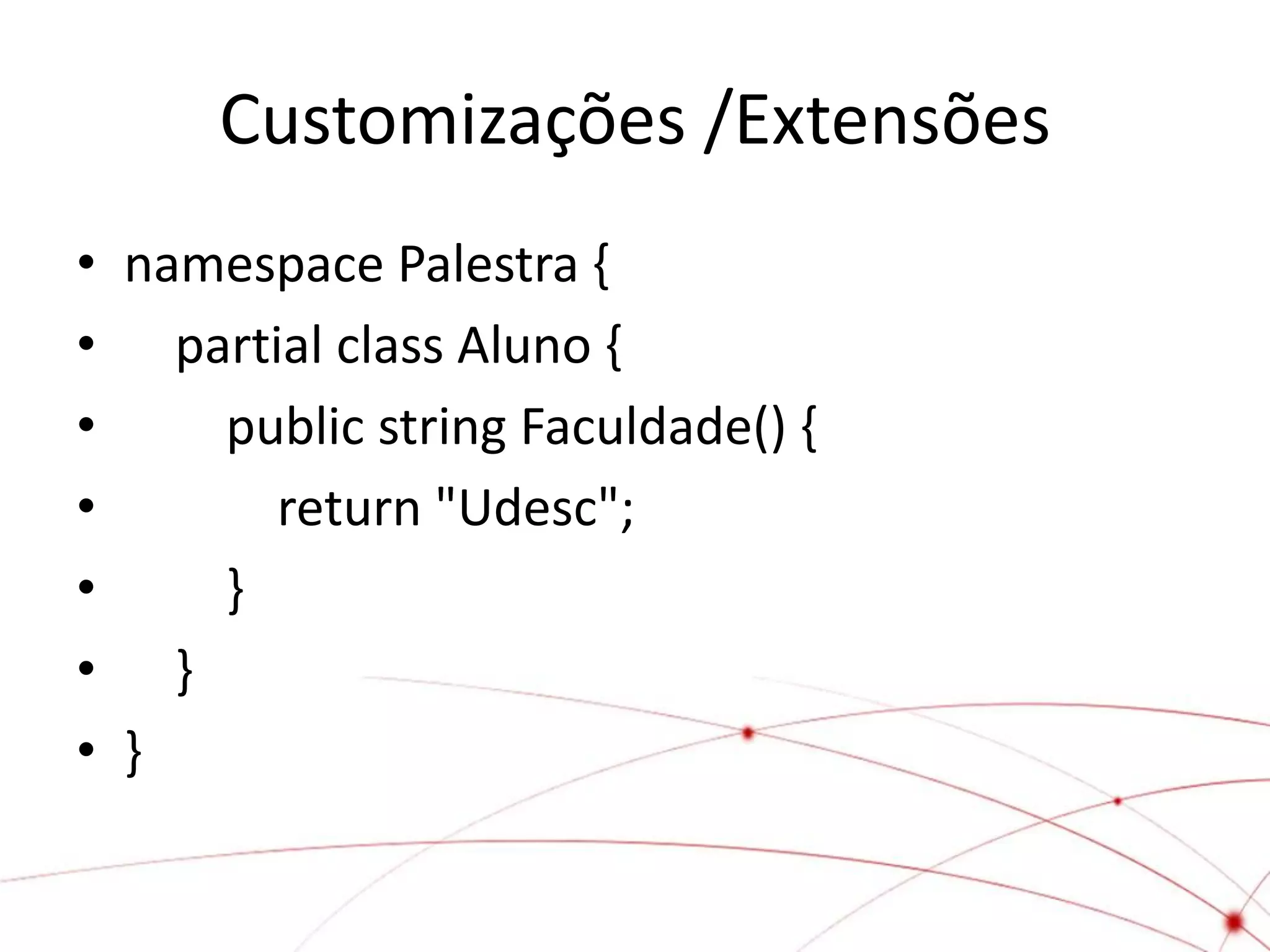

Customizações /Extensões
• namespace Palestra {
• partial class Aluno {
•    public string Faculdade() {
•      return "Udesc";
•    }
• }
• }

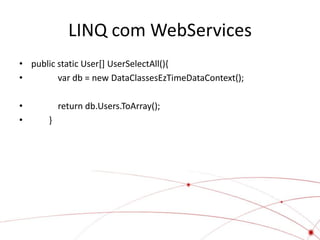

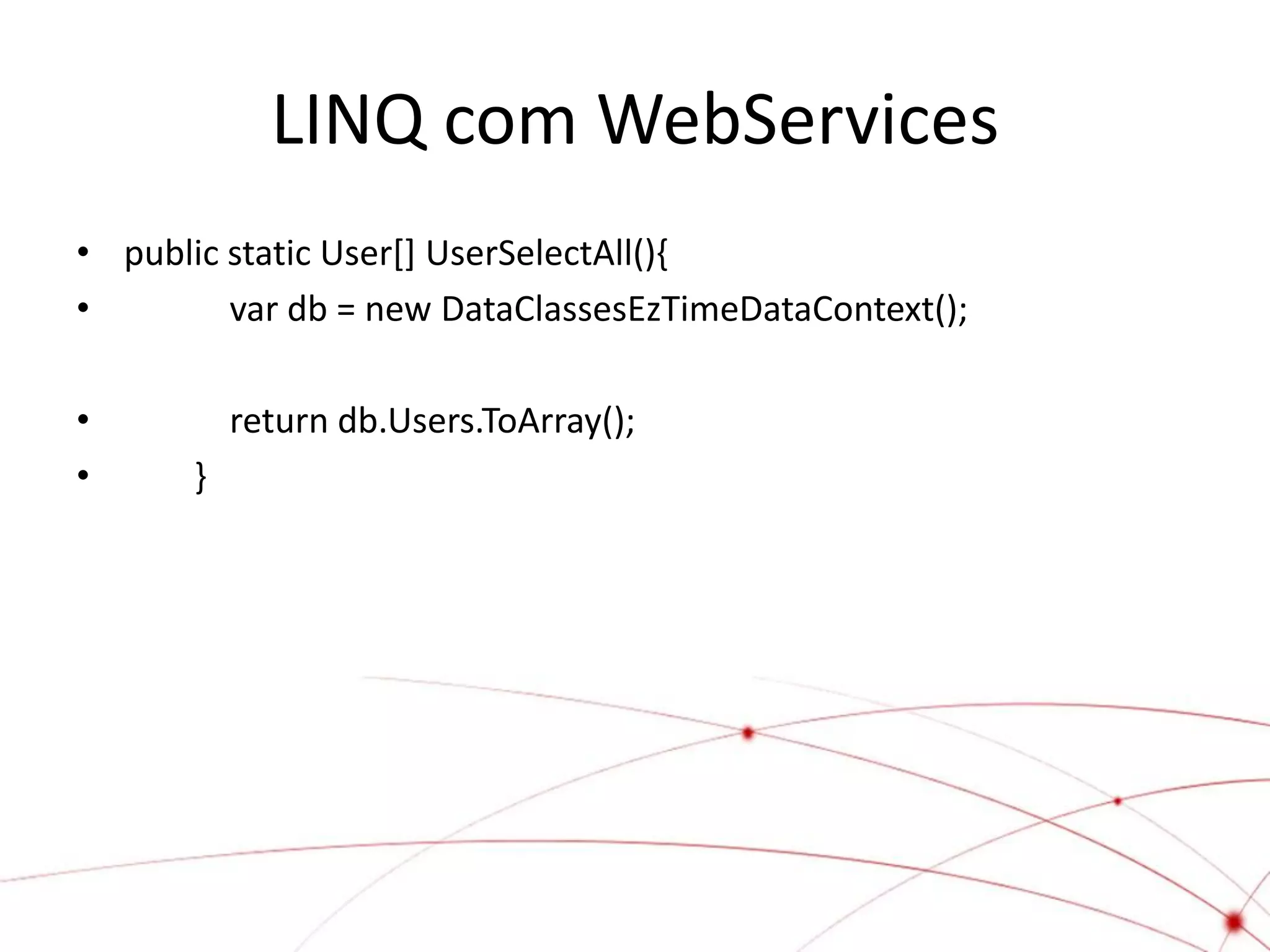

LINQ com WebServices
• public static User[] UserSelectAll(){
•        var db = new DataClassesEzTimeDataContext();

•          return db.Users.ToArray();
•      }

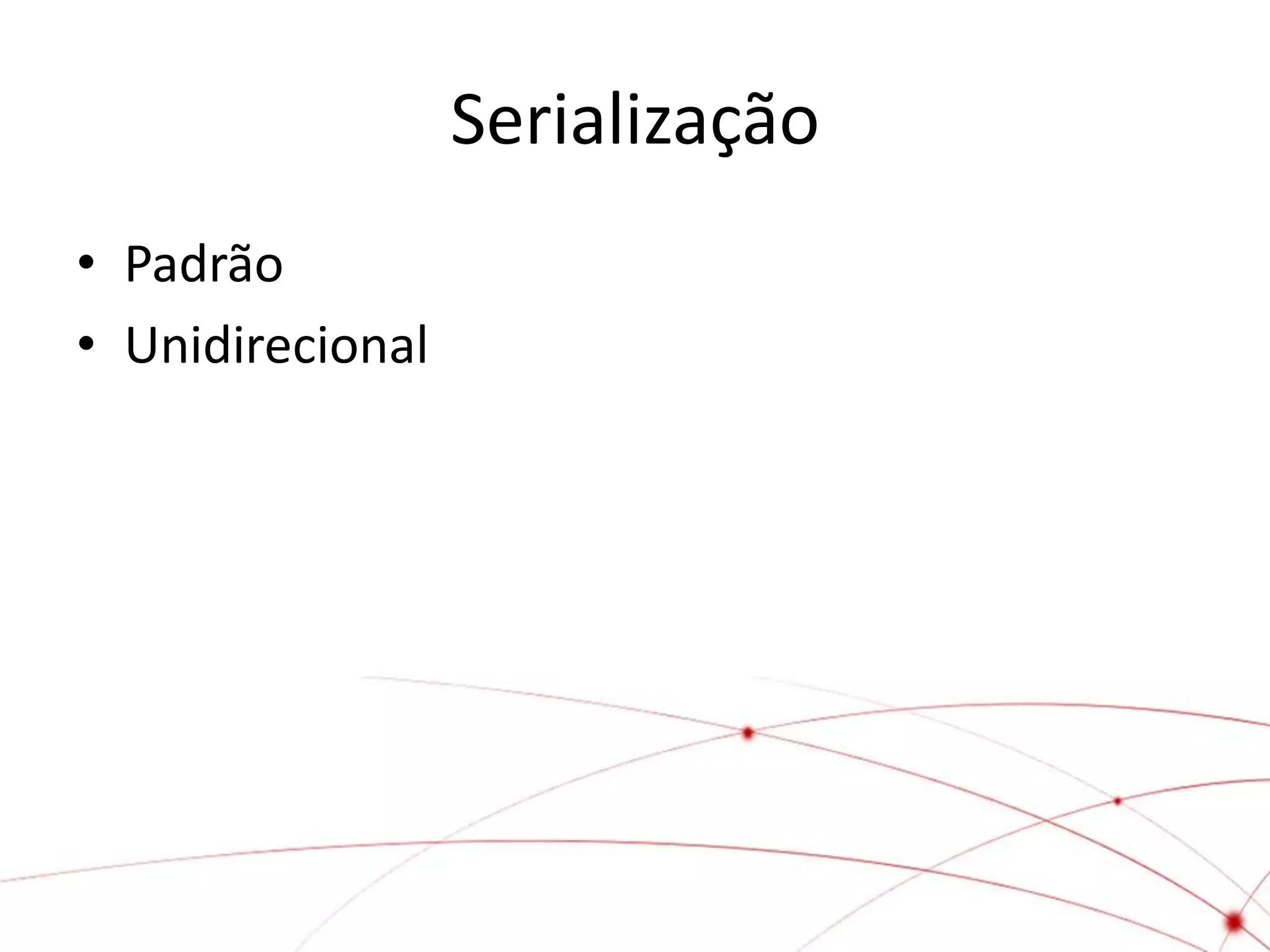

Serialização
• Padrão
• Unidirecional

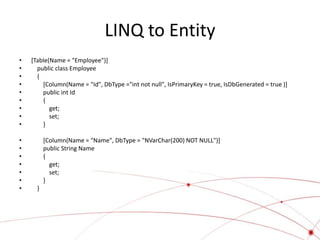

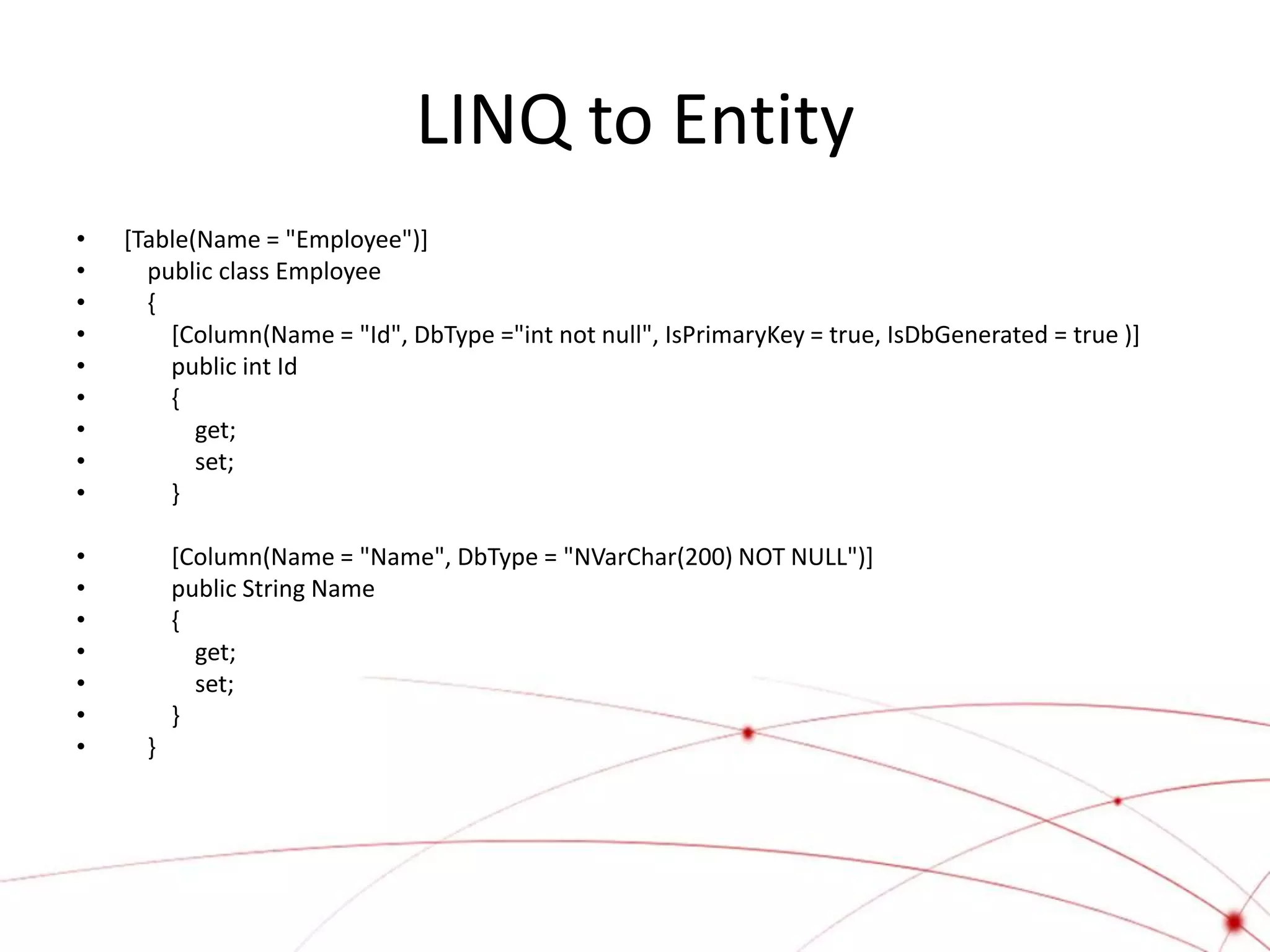

LINQ to Entity
•   [Table(Name = "Employee")]
•     public class Employee
•     {
•       [Column(Name = "Id", DbType ="int not null", IsPrimaryKey = true, IsDbGenerated = true )]
•       public int Id
•       {
•          get;
•          set;
•       }

•         [Column(Name = "Name", DbType = "NVarChar(200) NOT NULL")]
•         public String Name
•         {
•           get;
•           set;
•         }
•     }

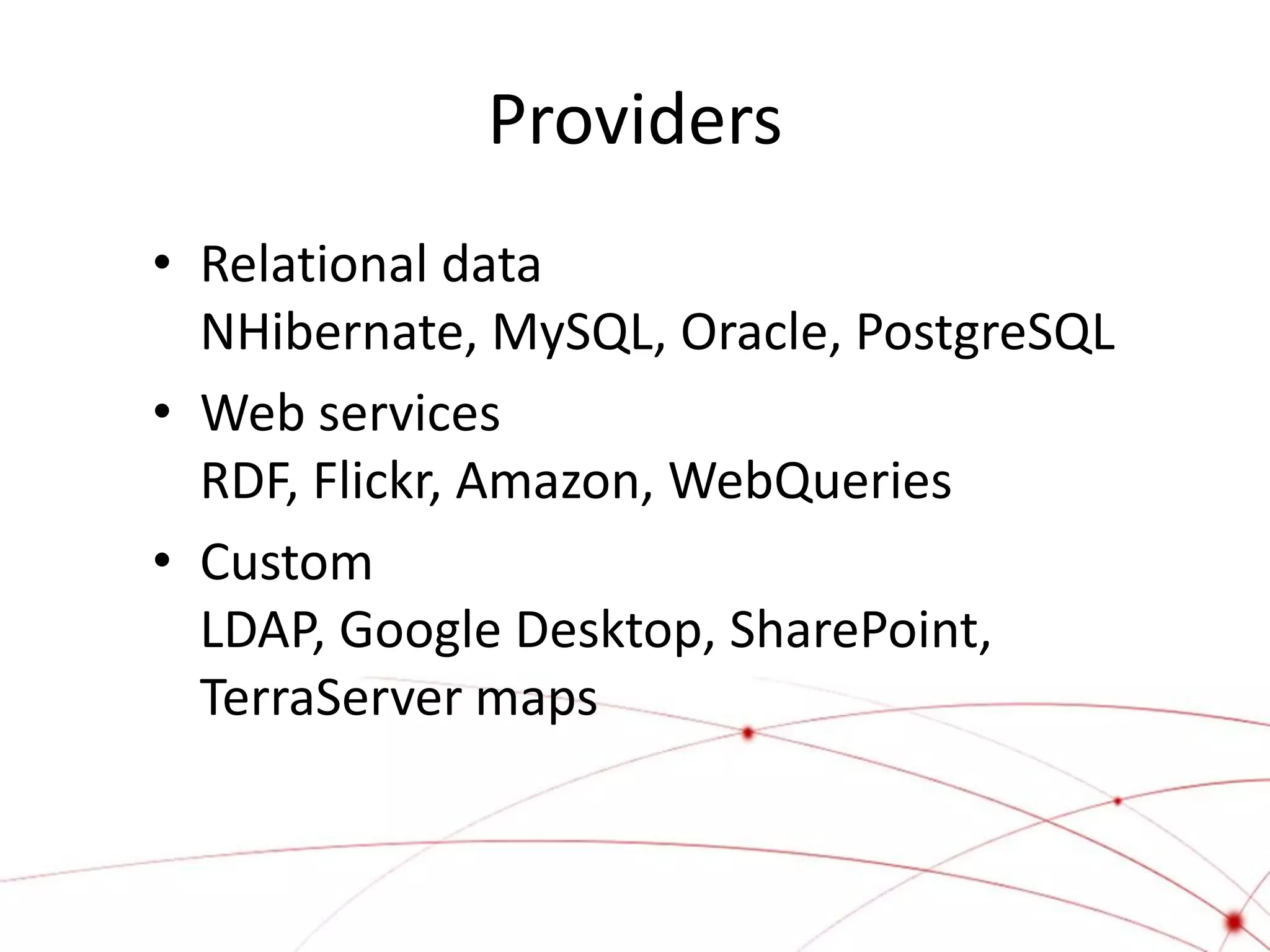

Providers
• Relational data
  NHibernate, MySQL, Oracle, PostgreSQL
• Web services
  RDF, Flickr, Amazon, WebQueries
• Custom
  LDAP, Google Desktop, SharePoint,
  TerraServer maps

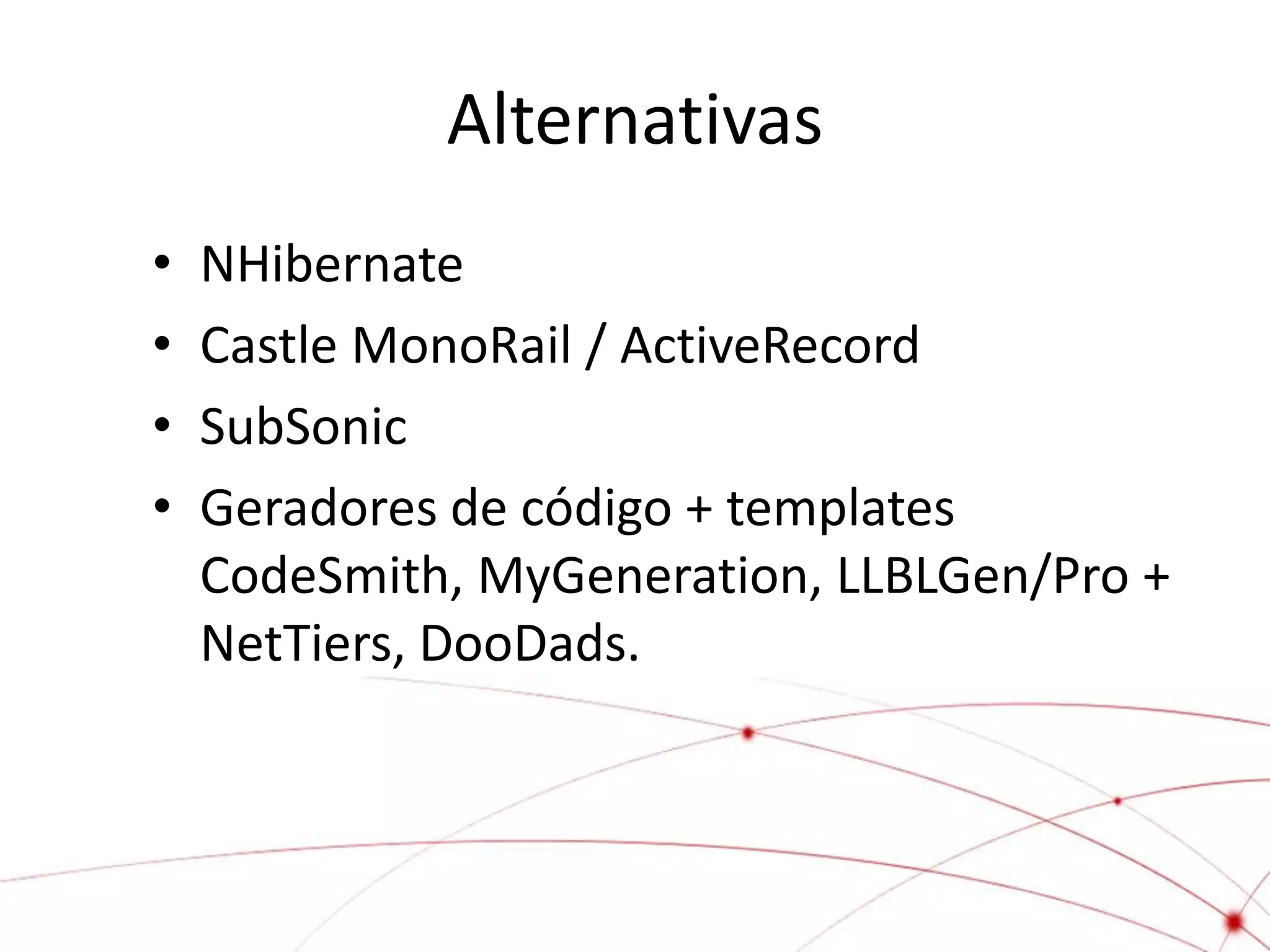

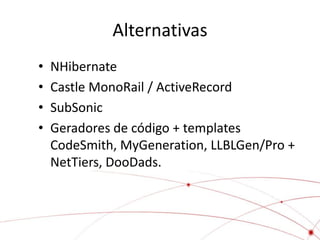

Alternativas
•   NHibernate
•   Castle MonoRail / ActiveRecord
•   SubSonic
•   Geradores de código + templates
    CodeSmith, MyGeneration, LLBLGen/Pro +
    NetTiers, DooDads.

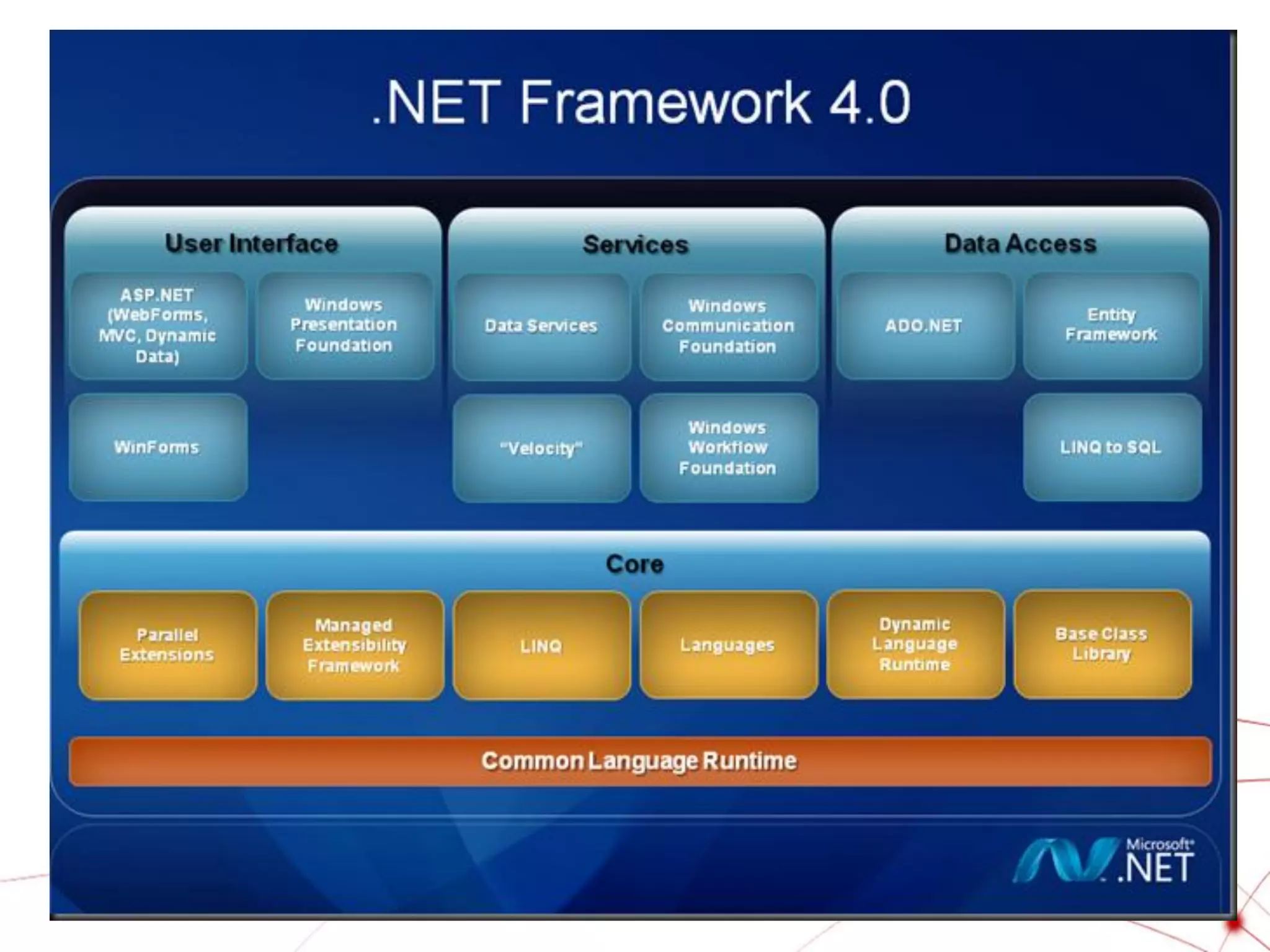

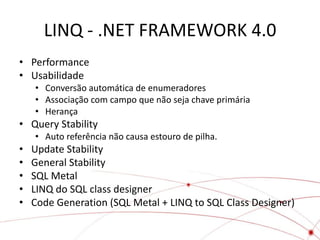

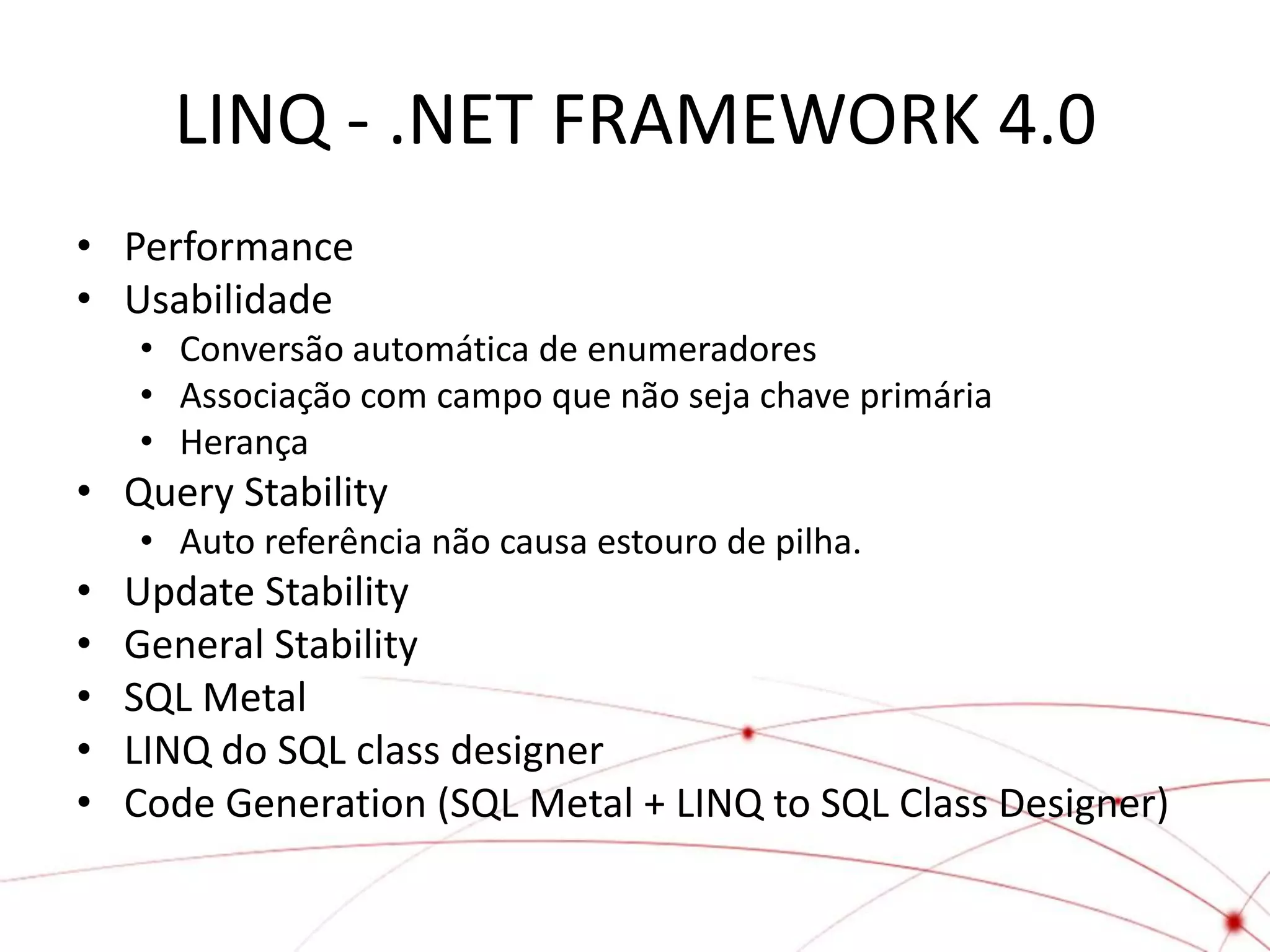

LINQ - .NET FRAMEWORK 4.0
• Performance
• Usabilidade
    • Conversão automática de enumeradores
    • Associação com campo que não seja chave primária
    • Herança
• Query Stability
    • Auto referência não causa estouro de pilha.
•   Update Stability
•   General Stability
•   SQL Metal
•   LINQ do SQL class designer
•   Code Generation (SQL Metal + LINQ to SQL Class Designer)

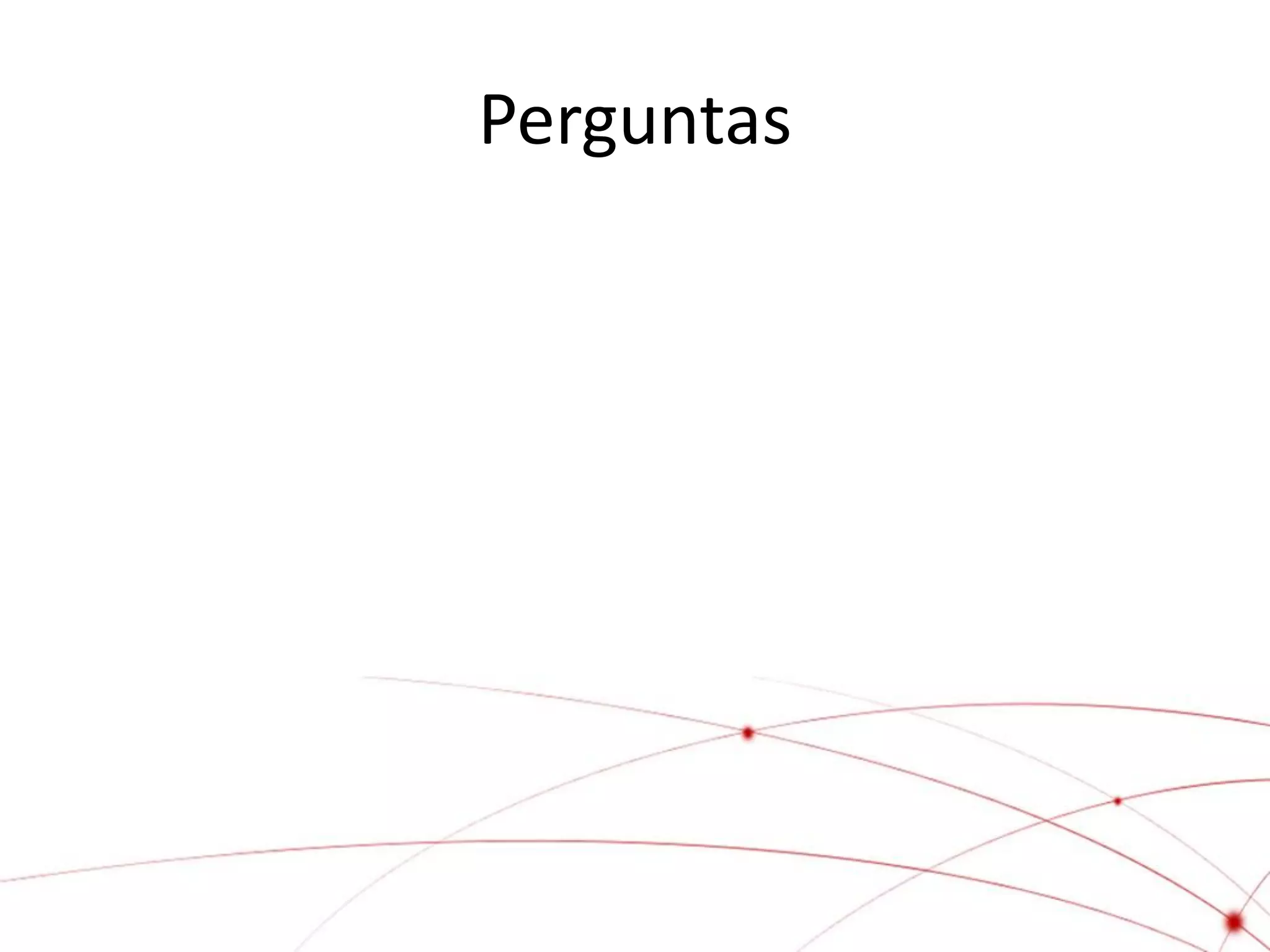

Perguntas
