jclouds is an open source Java framework that provides a consistent API for connecting tools and applications to various cloud services. It helps simplify modeling of cloud services and provides sample patterns, integrations and abstractions to help projects integrate with clouds. Code examples show how to use jclouds to interact with cloud storage (BlobStore) and compute services.

1. an overview

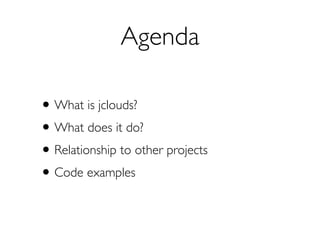

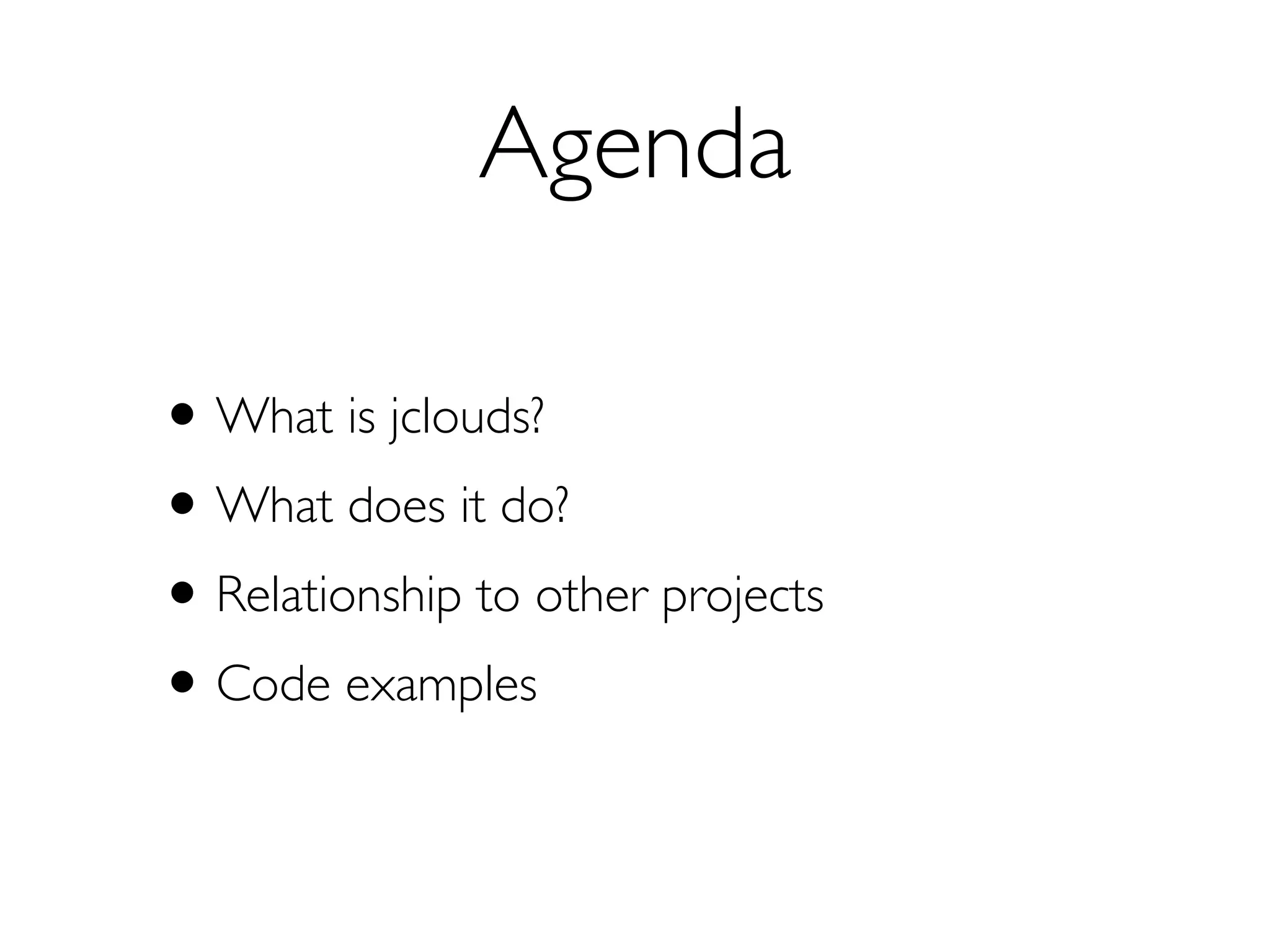

2. Agenda
• What is jclouds?
• What does it do?
• Relationship to other projects
• Code examples

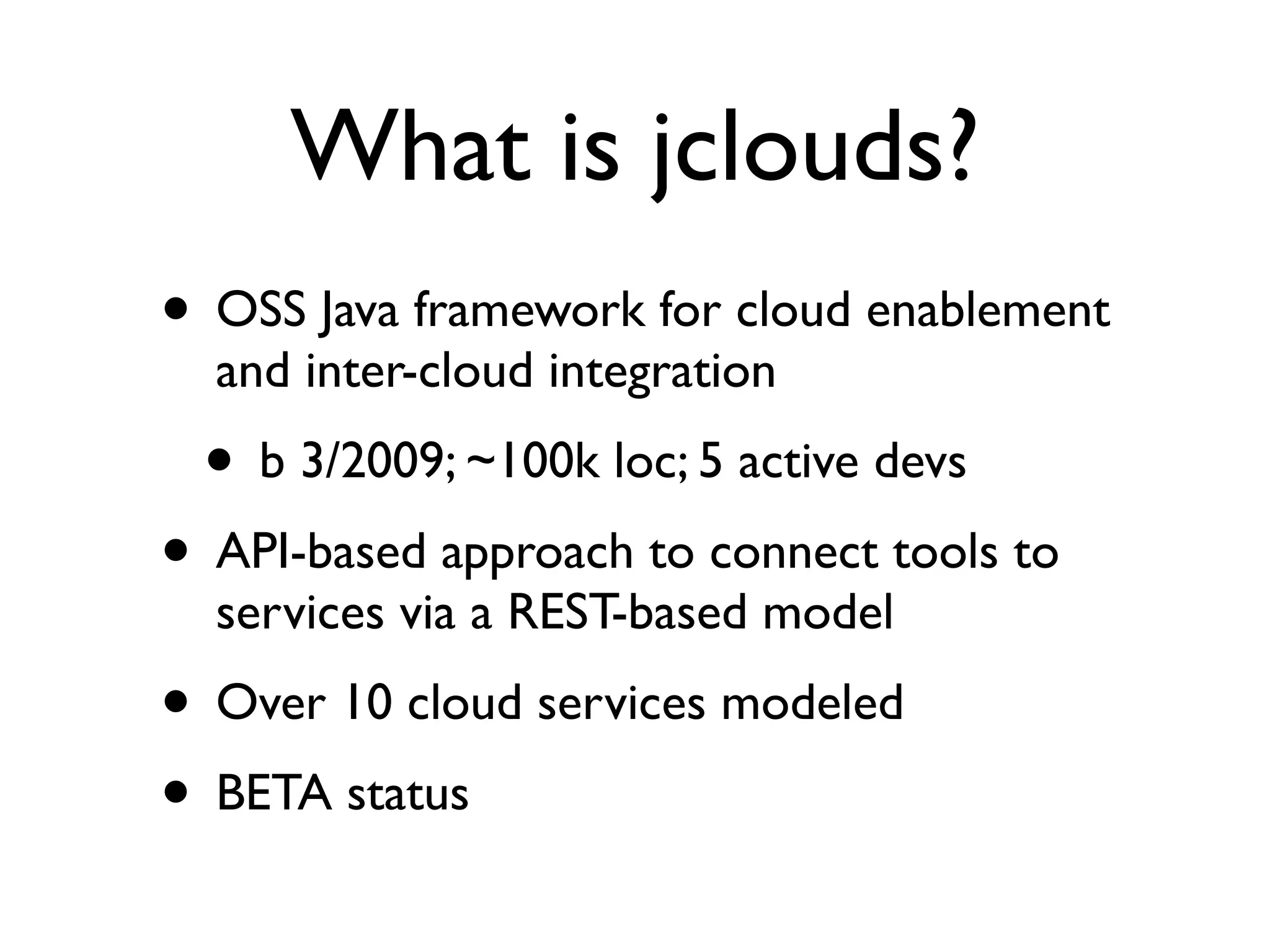

3. What is jclouds?
• OSS Java framework for cloud enablement
and inter-cloud integration
• b 3/2009; ~100k loc; 5 active devs
• API-based approach to connect tools to
services via a REST-based model
• Over 10 cloud services modeled
• BETA status

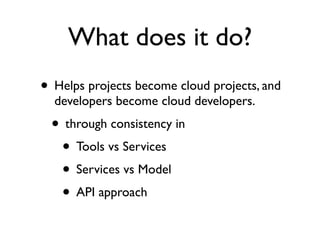

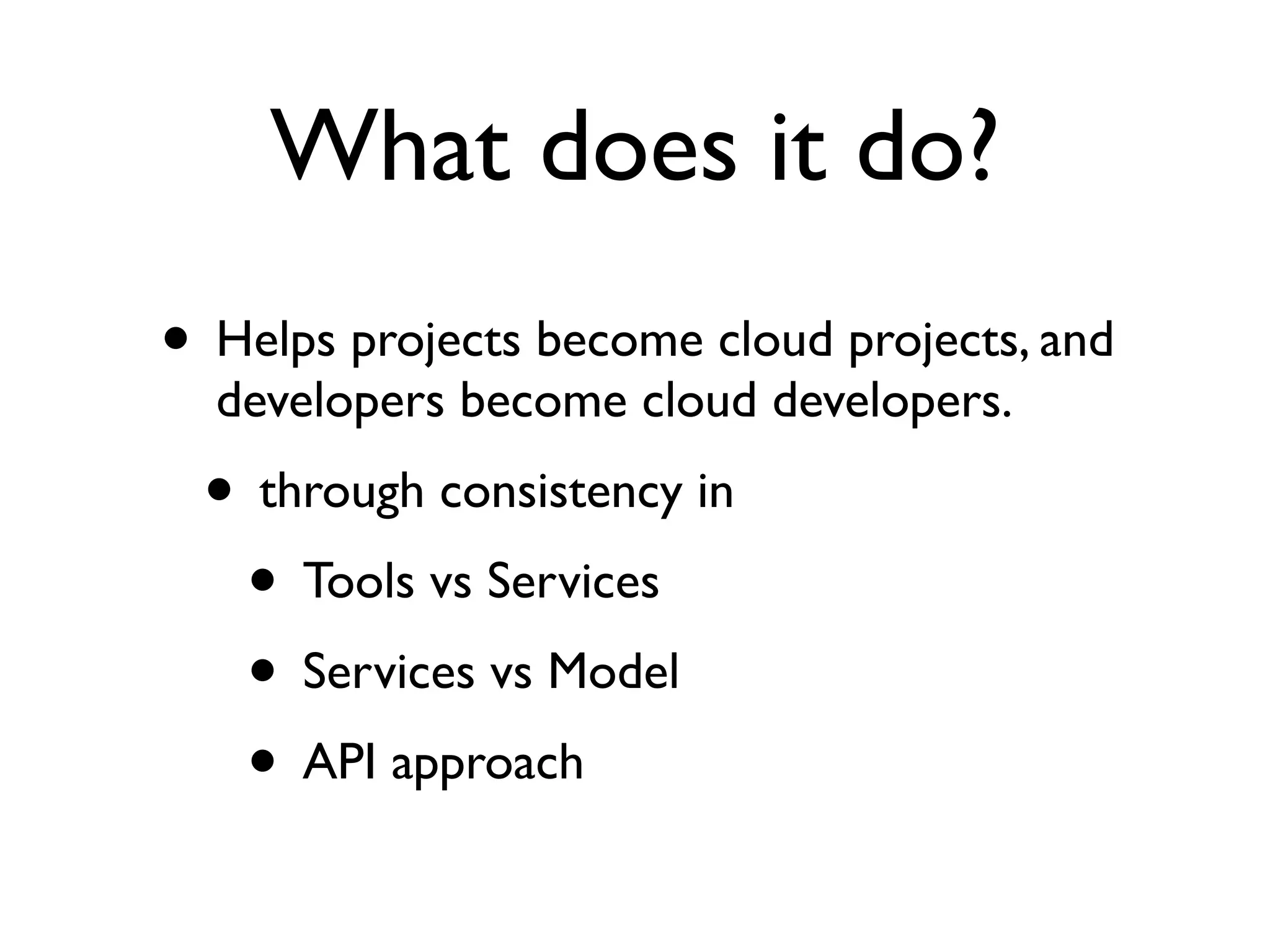

4. What does it do?
• Helps projects become cloud projects, and
developers become cloud developers.
• through consistency in
• Tools vs Services
• Services vs Model
• API approach

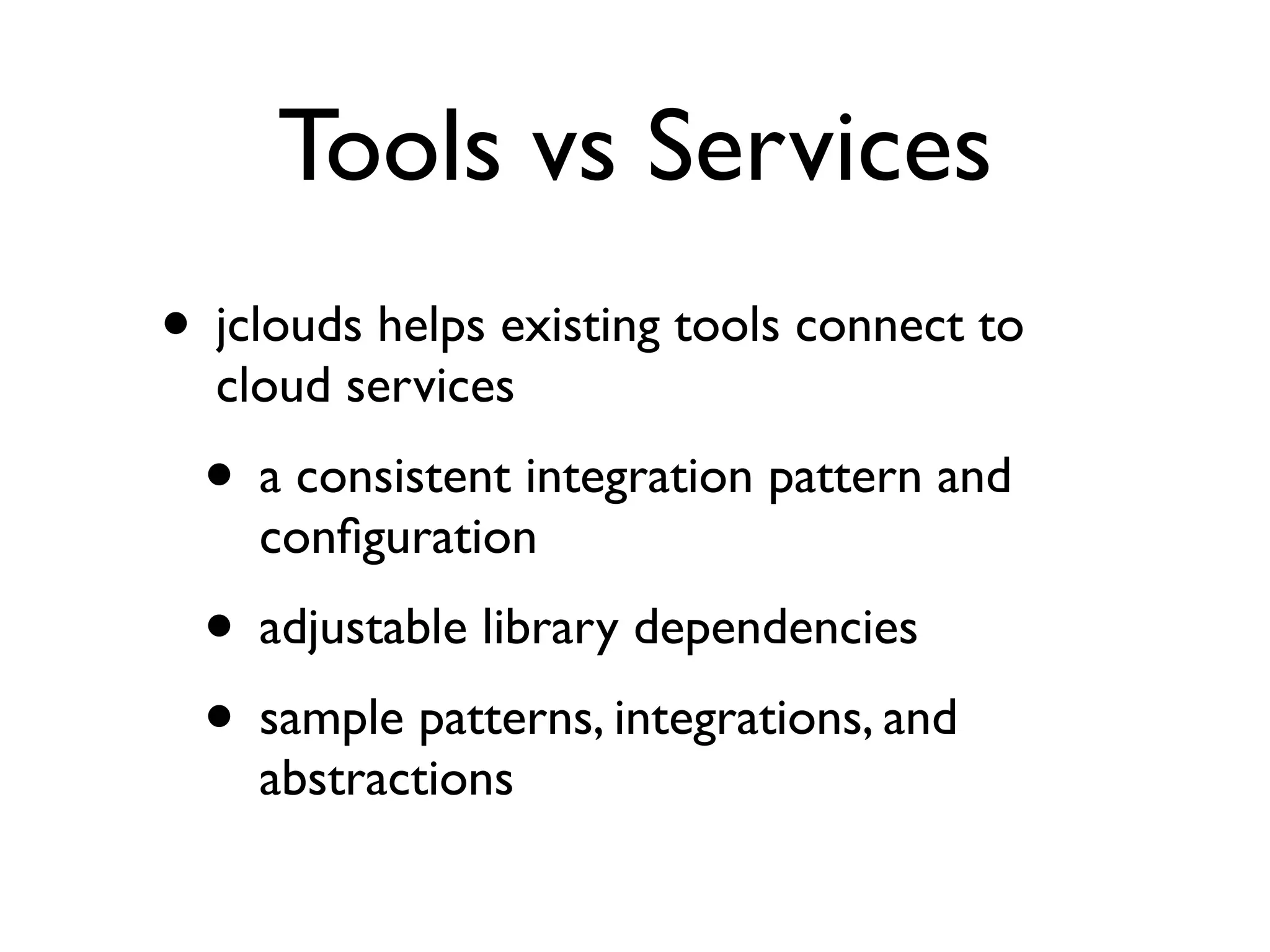

5. Tools vs Services
• jclouds helps existing tools connect to
cloud services
• a consistent integration pattern and
configuration
• adjustable library dependencies
• sample patterns, integrations, and
abstractions

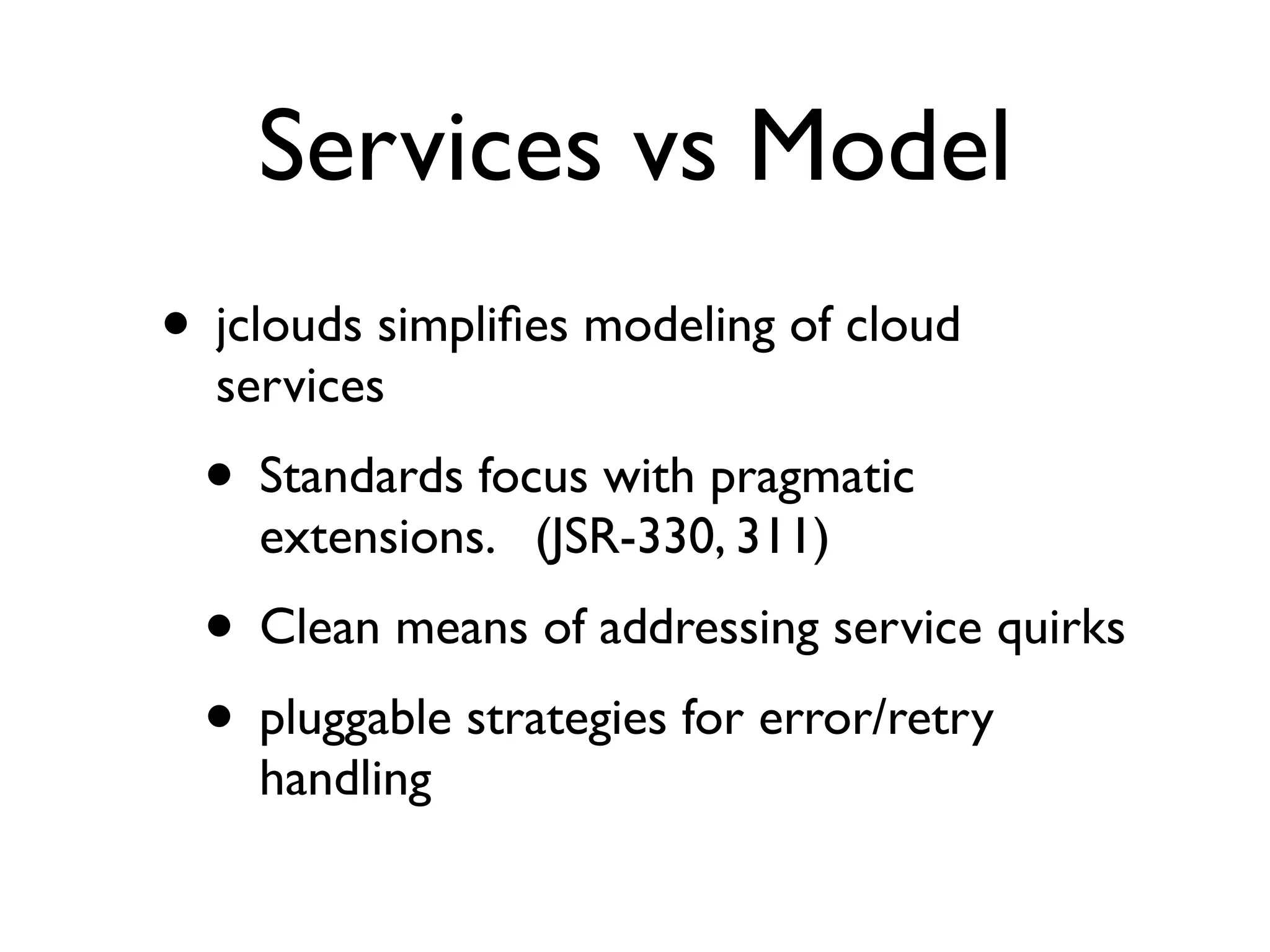

6. Services vs Model
• jclouds simplifies modeling of cloud
services
• Standards focus with pragmatic
extensions. (JSR-330, 311)
• Clean means of addressing service quirks
• pluggable strategies for error/retry
handling

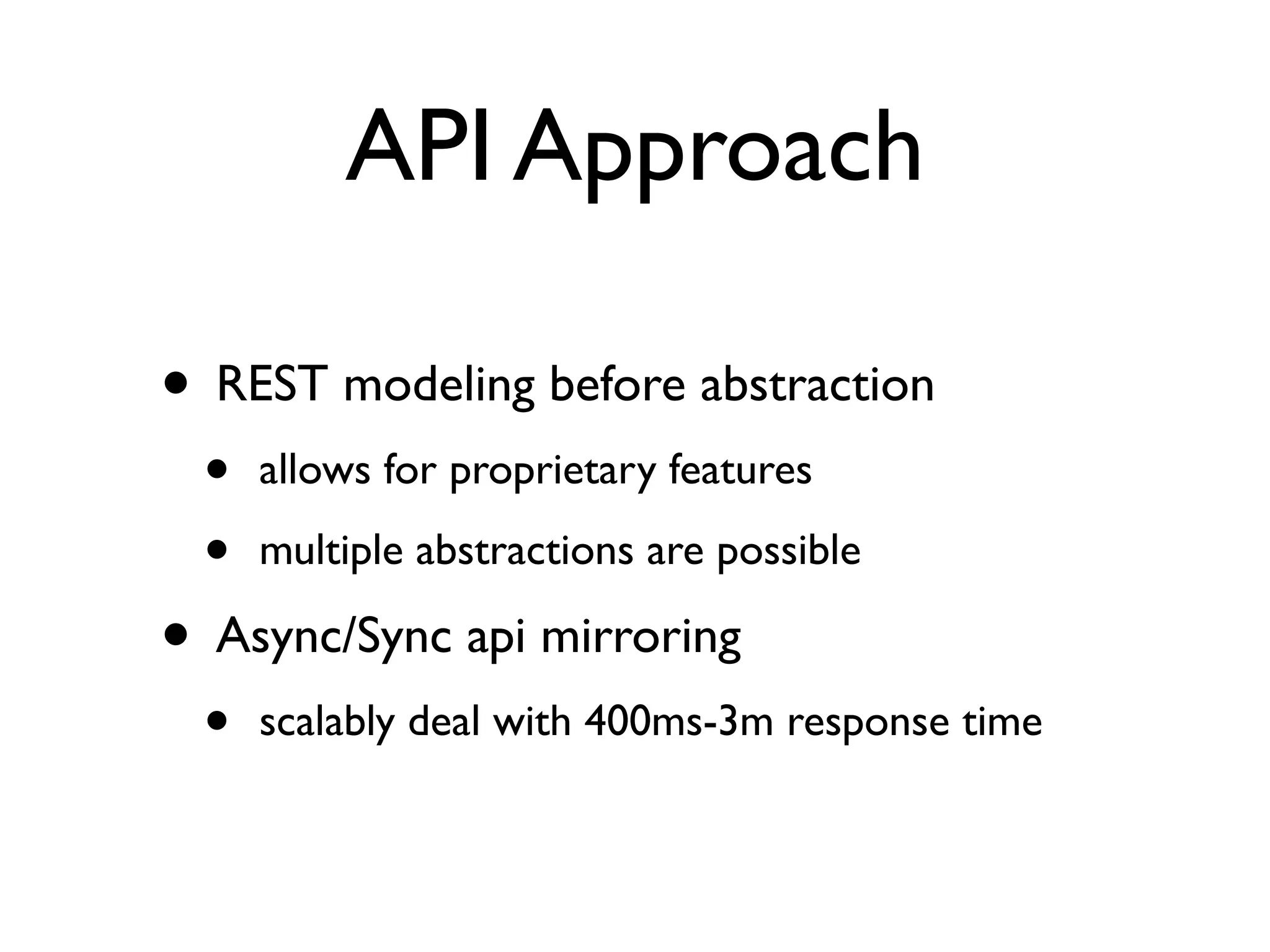

7. API Approach
• REST modeling before abstraction
• allows for proprietary features
• multiple abstractions are possible
• Async/Sync api mirroring
• scalably deal with 400ms-3m response time

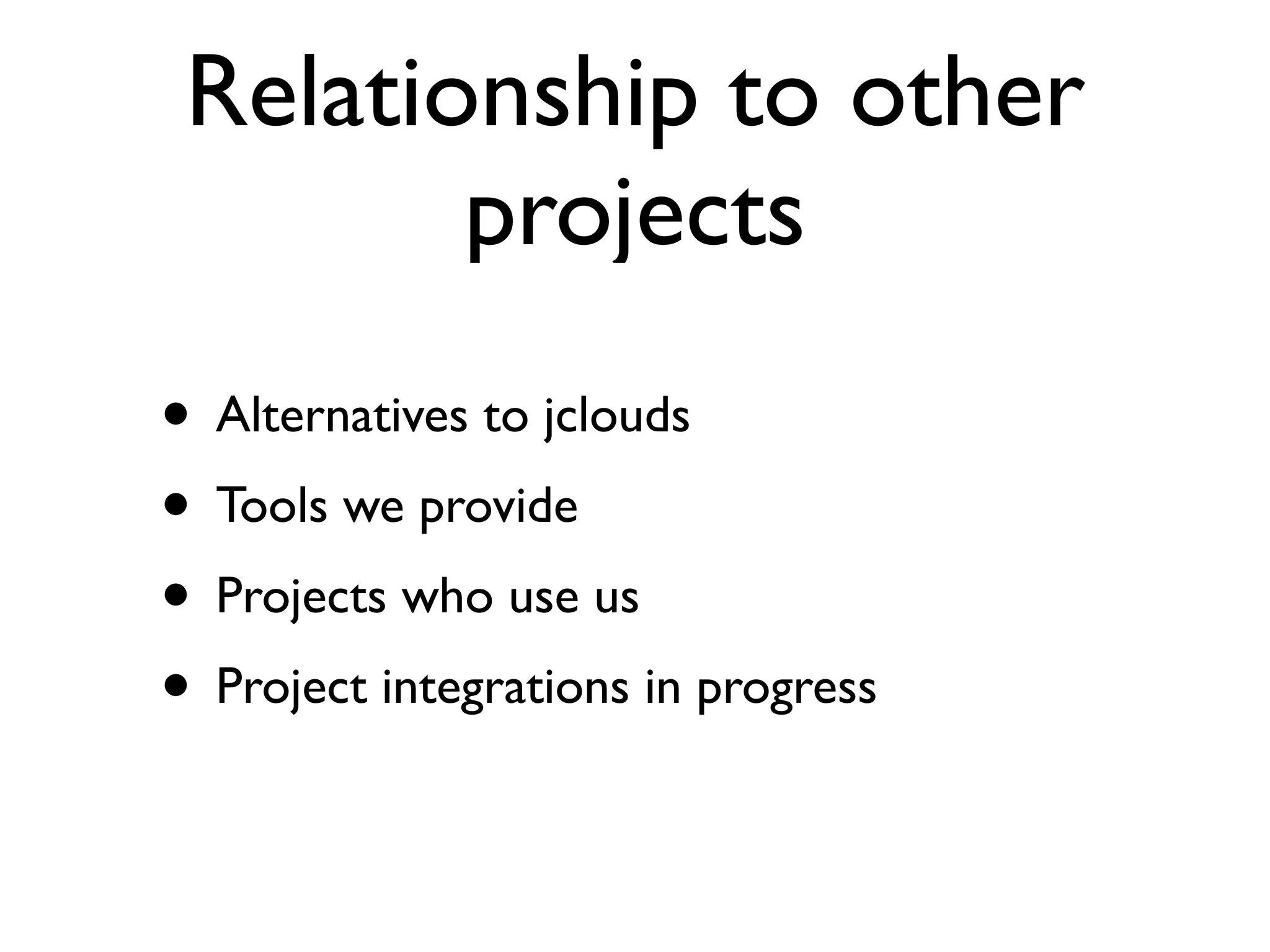

8. Relationship to other
projects
• Alternatives to jclouds
• Tools we provide
• Projects who use us
• Project integrations in progress

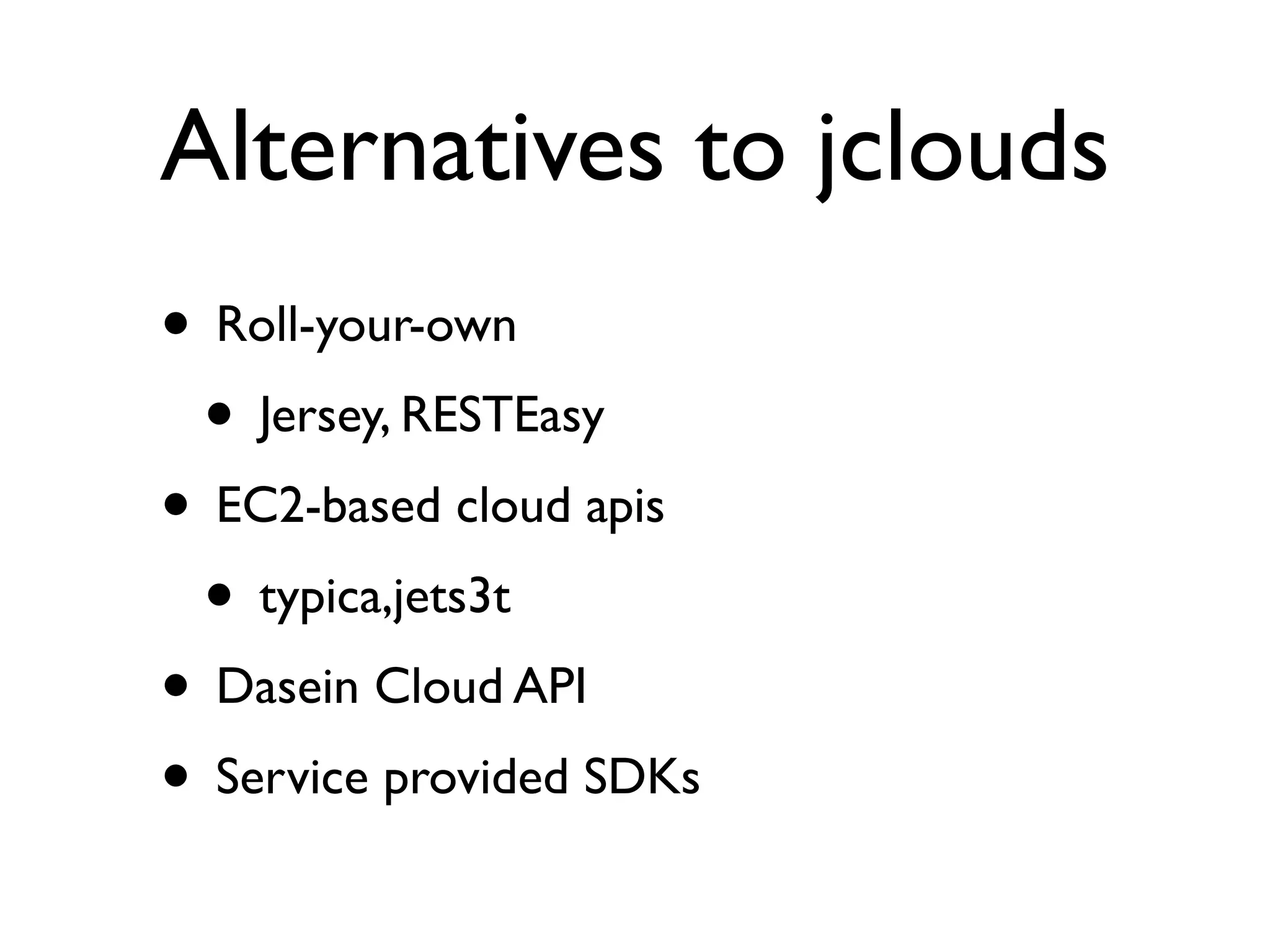

9. Alternatives to jclouds
• Roll-your-own
• Jersey, RESTEasy
• EC2-based cloud apis
• typica,jets3t
• Dasein Cloud API
• Service provided SDKs

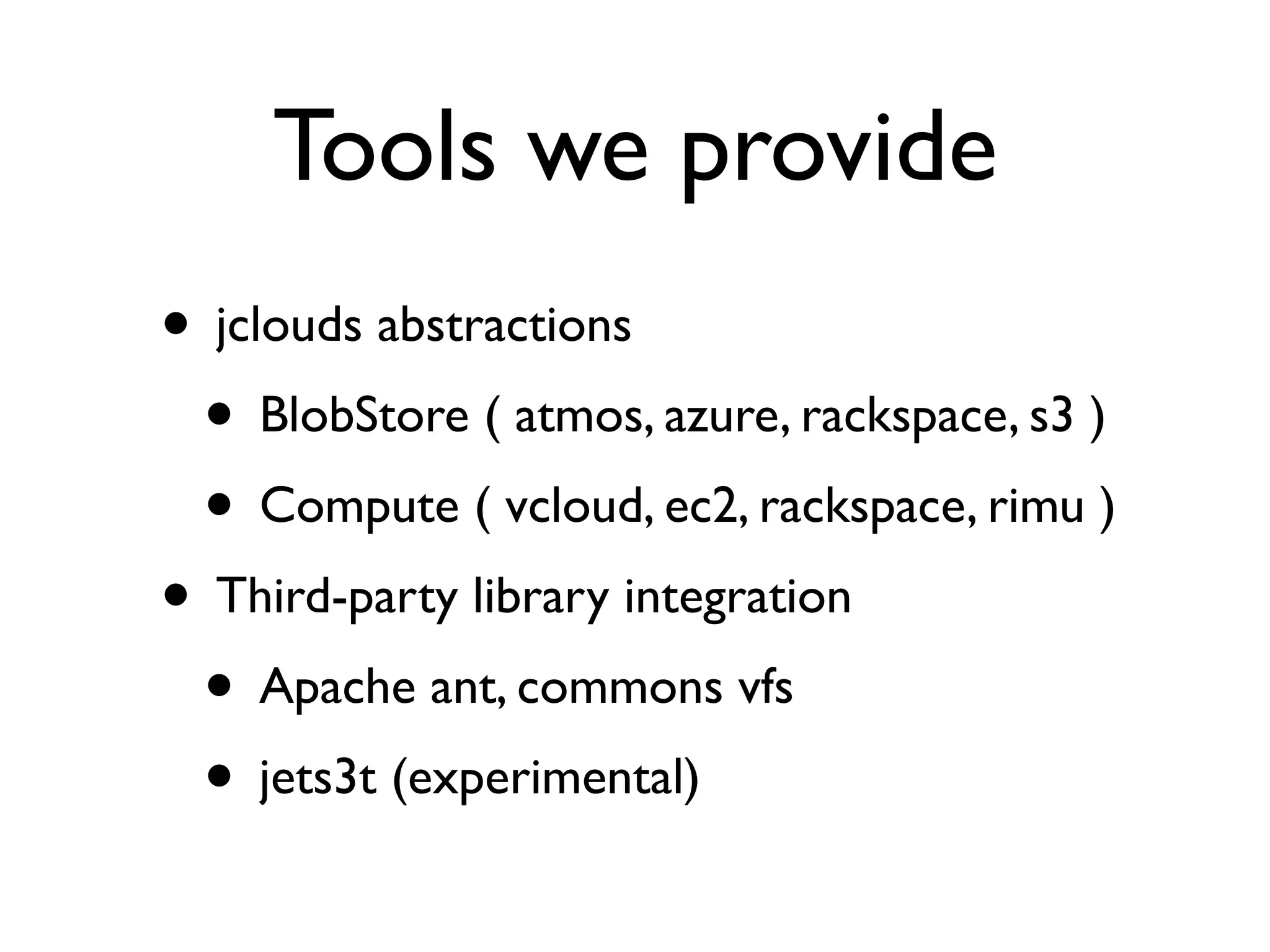

10. Tools we provide
• jclouds abstractions
• BlobStore ( atmos, azure, rackspace, s3 )
• Compute ( vcloud, ec2, rackspace, rimu )
• Third-party library integration
• Apache ant, commons vfs
• jets3t (experimental)

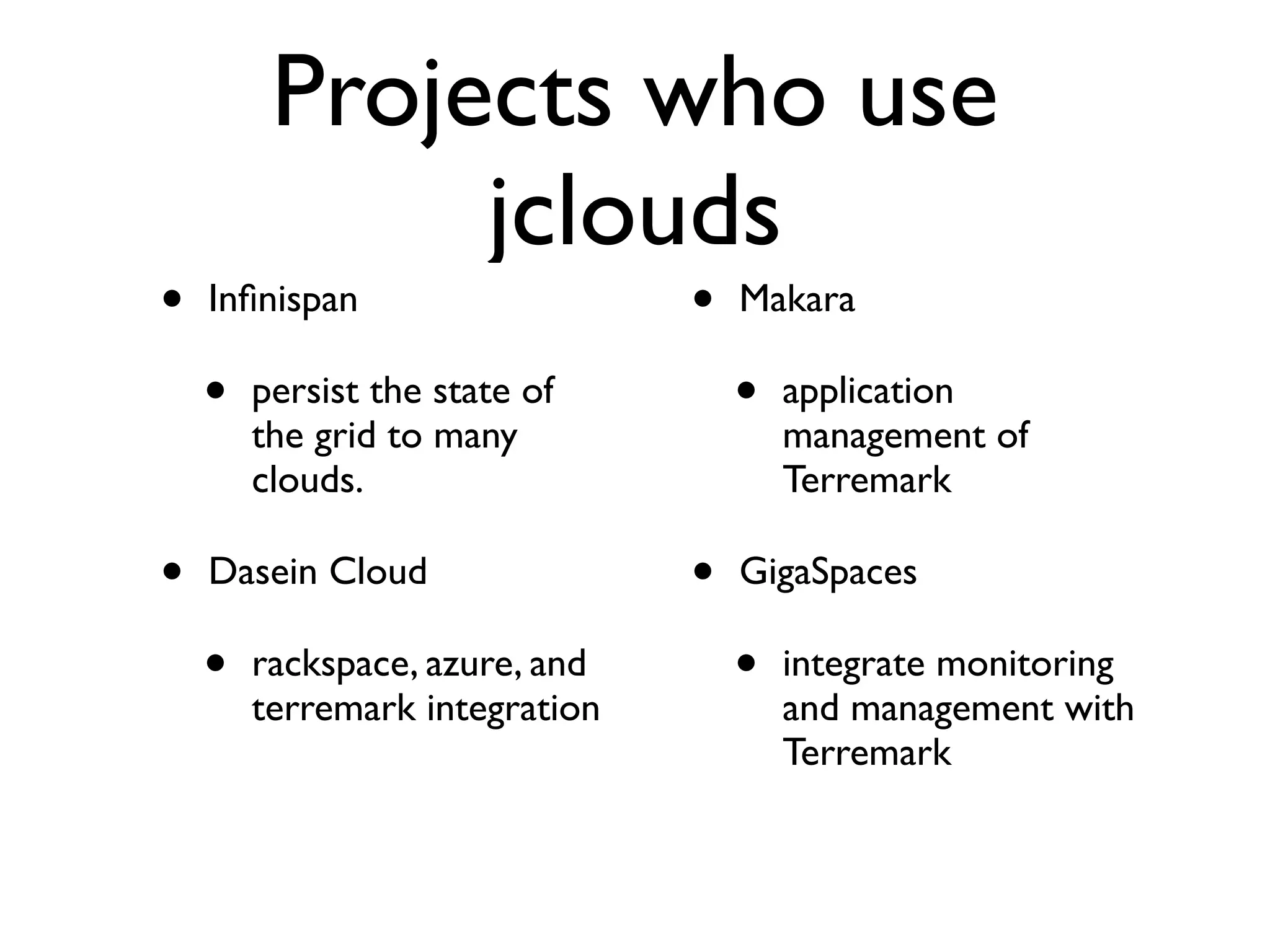

11. Projects who use
jclouds
• Infinispan • Makara
• persist the state of • application
the grid to many management of
clouds. Terremark
• Dasein Cloud • GigaSpaces
• rackspace, azure, and • integrate monitoring
terremark integration and management with
Terremark

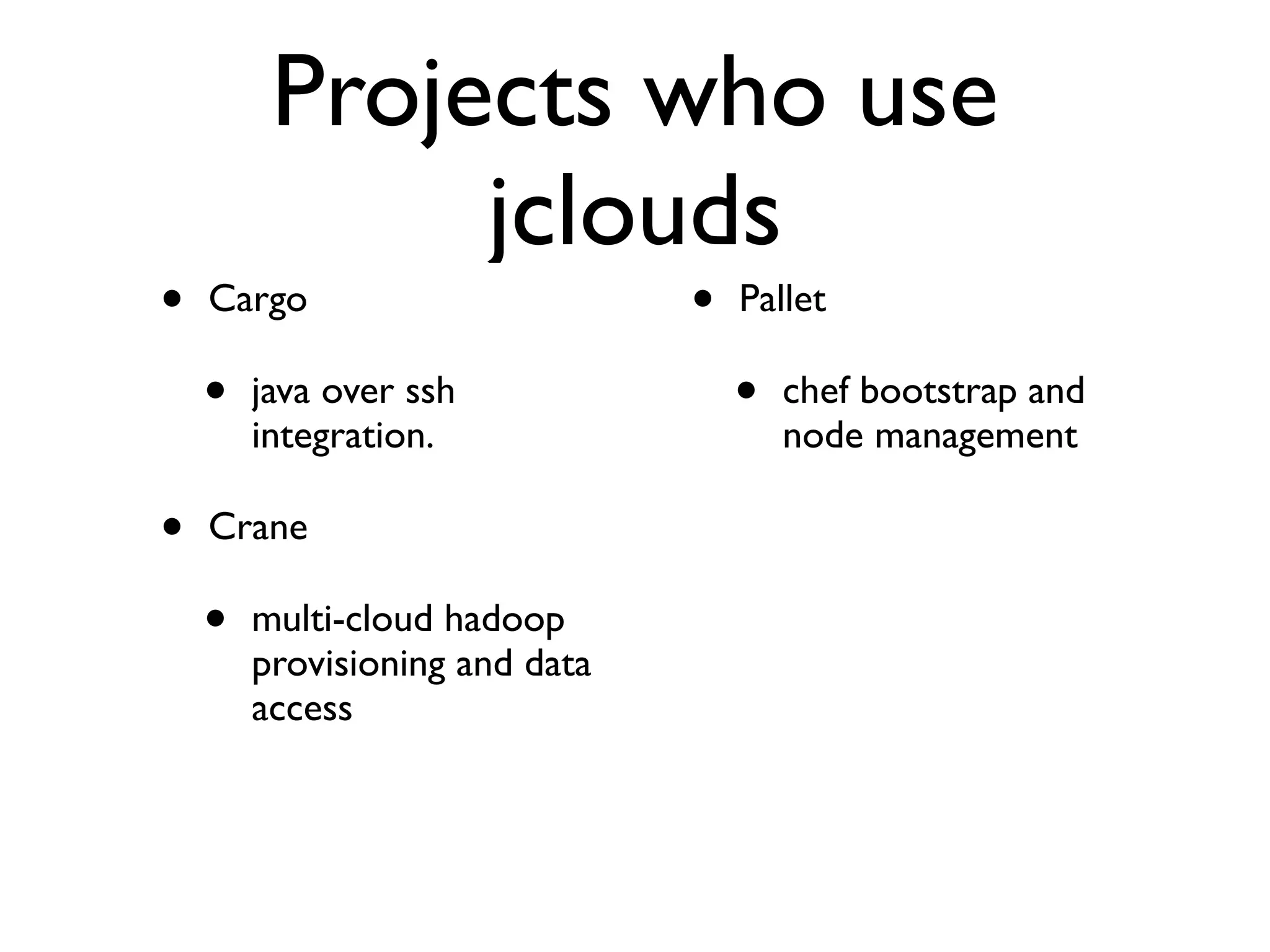

12. Projects who use
jclouds
• Cargo • Pallet
• java over ssh • chef bootstrap and
integration. node management
• Crane
• multi-cloud hadoop
provisioning and data
access

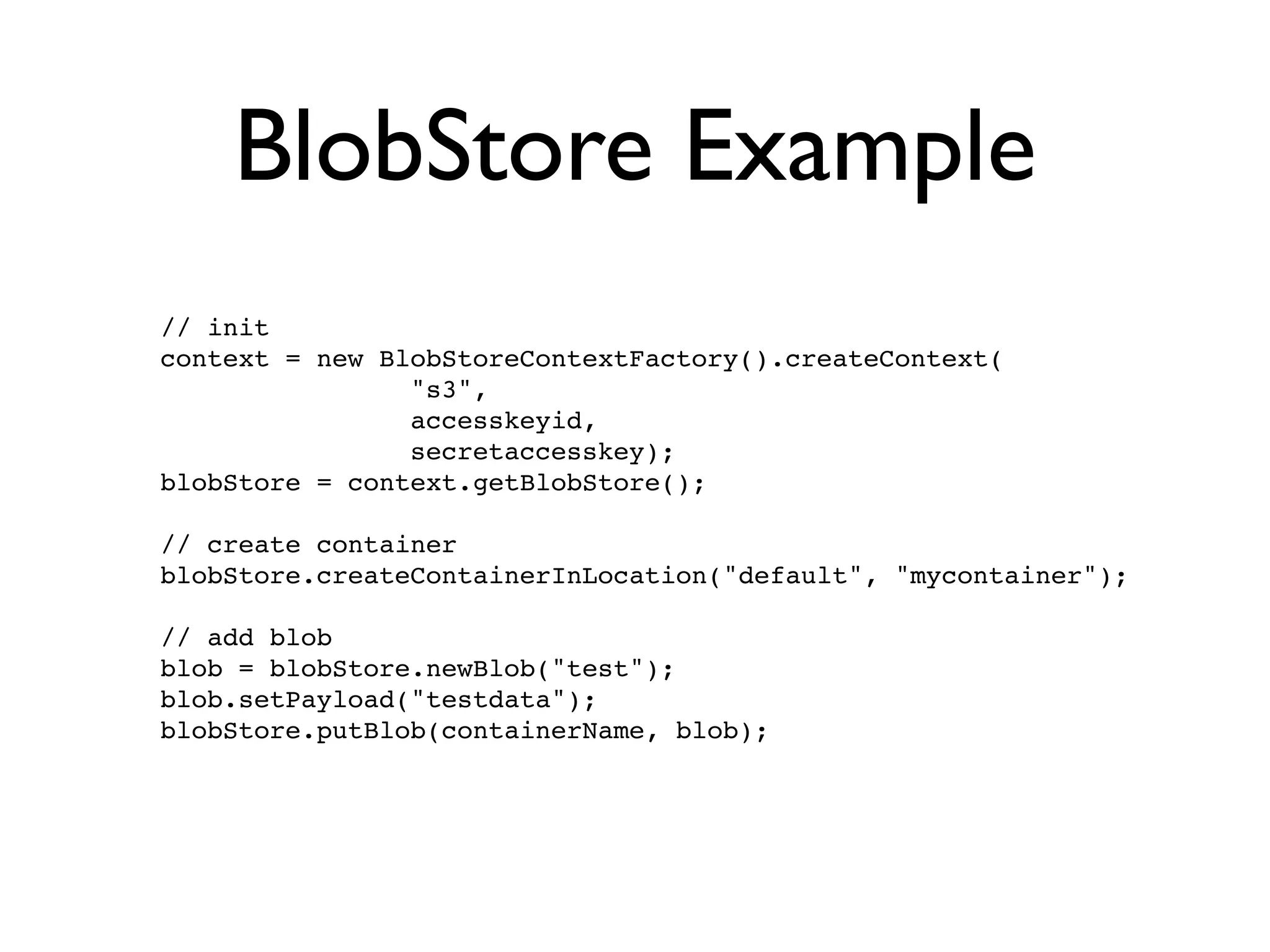

13. BlobStore Example
// init
context = new BlobStoreContextFactory().createContext(
"s3",
accesskeyid,
secretaccesskey);
blobStore = context.getBlobStore();
// create container
blobStore.createContainerInLocation("default", "mycontainer");
// add blob
blob = blobStore.newBlob("test");
blob.setPayload("testdata");
blobStore.putBlob(containerName, blob);

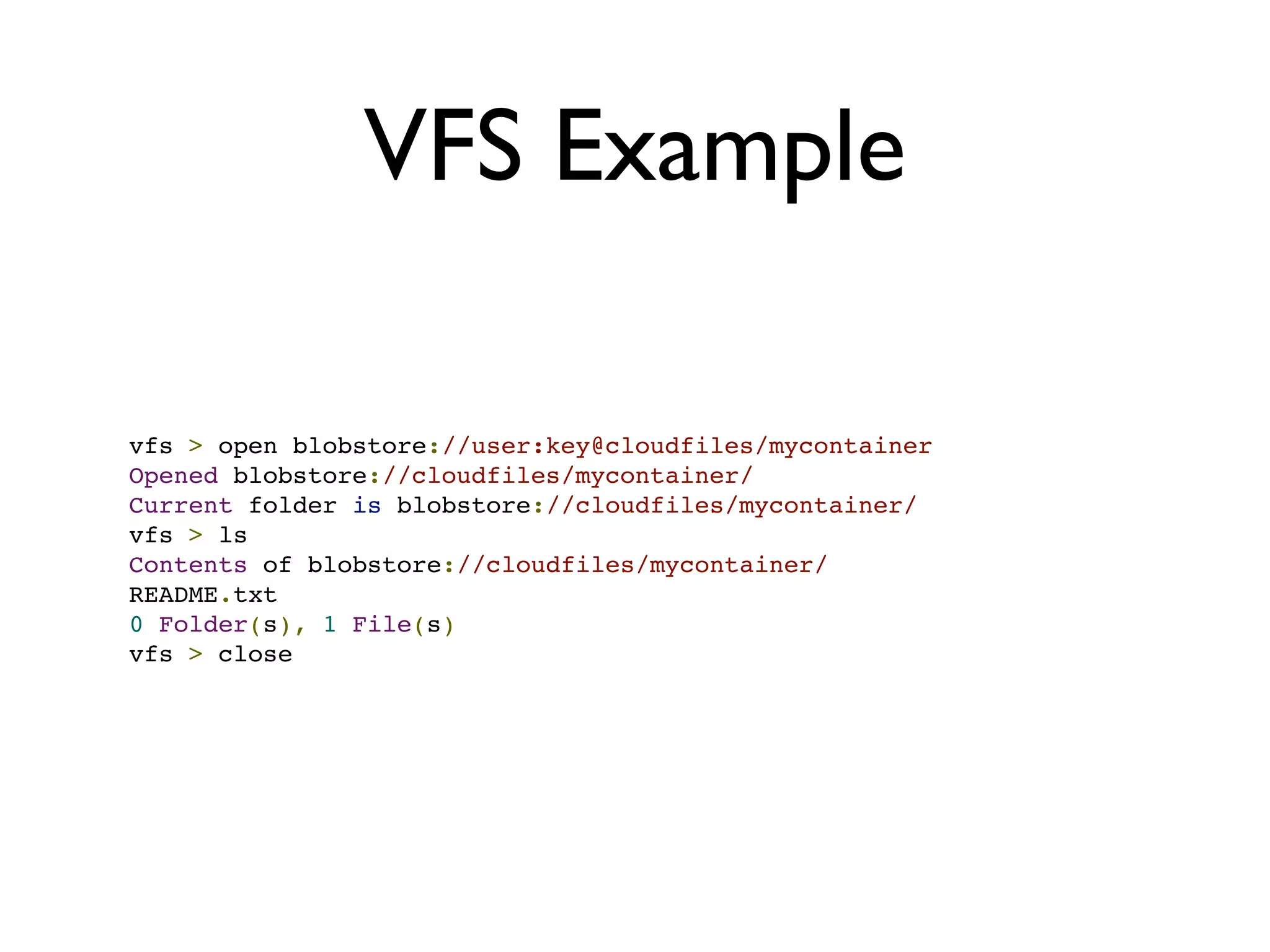

14. VFS Example
vfs > open blobstore://user:key@cloudfiles/mycontainer
Opened blobstore://cloudfiles/mycontainer/
Current folder is blobstore://cloudfiles/mycontainer/
vfs > ls
Contents of blobstore://cloudfiles/mycontainer/
README.txt
0 Folder(s), 1 File(s)
vfs > close

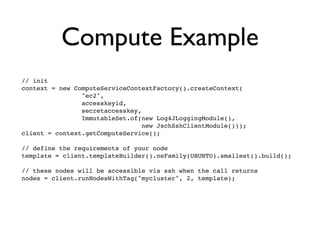

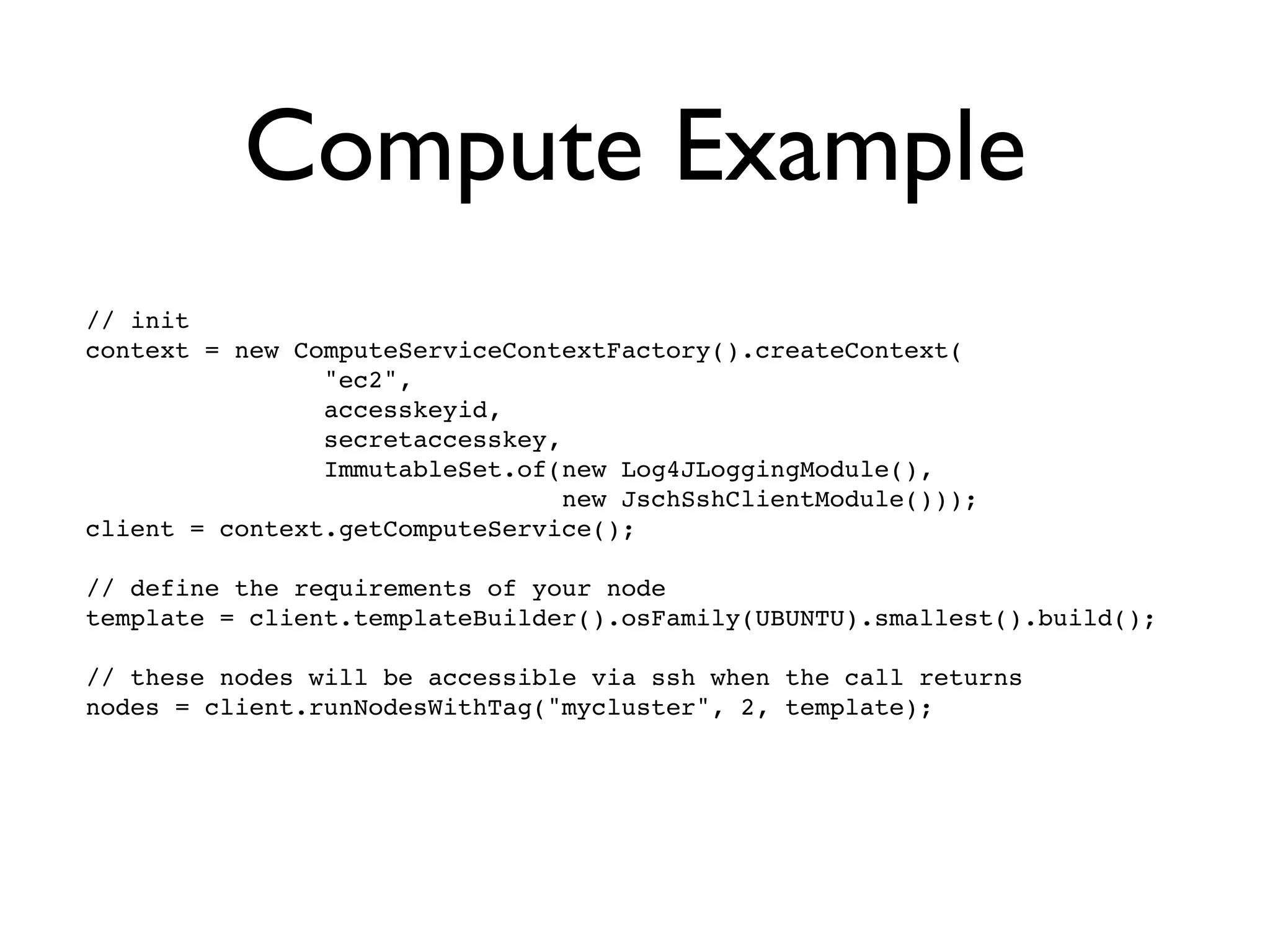

15. Compute Example
// init
context = new ComputeServiceContextFactory().createContext(
"ec2",
accesskeyid,
secretaccesskey,
ImmutableSet.of(new Log4JLoggingModule(),
new JschSshClientModule()));
client = context.getComputeService();
// define the requirements of your node
template = client.templateBuilder().osFamily(UBUNTU).smallest().build();
// these nodes will be accessible via ssh when the call returns
nodes = client.runNodesWithTag("mycluster", 2, template);

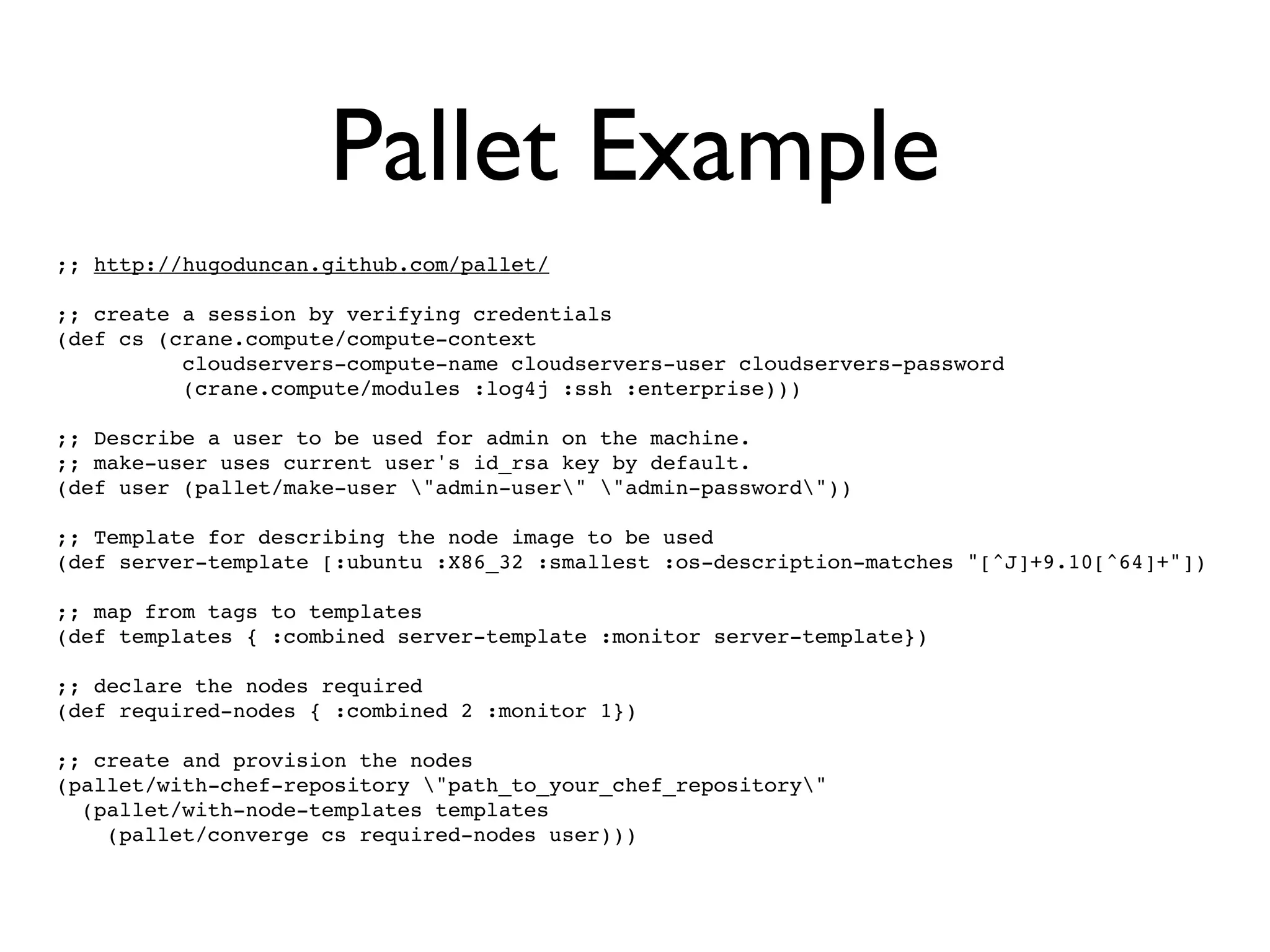

16. Pallet Example
;; http://hugoduncan.github.com/pallet/
;; create a session by verifying credentials
(def cs (crane.compute/compute-context
cloudservers-compute-name cloudservers-user cloudservers-password
(crane.compute/modules :log4j :ssh :enterprise)))
;; Describe a user to be used for admin on the machine.
;; make-user uses current user's id_rsa key by default.
(def user (pallet/make-user "admin-user" "admin-password"))
;; Template for describing the node image to be used
(def server-template [:ubuntu :X86_32 :smallest :os-description-matches "[^J]+9.10[^64]+"])
;; map from tags to templates
(def templates { :combined server-template :monitor server-template})
;; declare the nodes required
(def required-nodes { :combined 2 :monitor 1})
;; create and provision the nodes
(pallet/with-chef-repository "path_to_your_chef_repository"
(pallet/with-node-templates templates
(pallet/converge cs required-nodes user)))
