jclouds is a Java multi-cloud SDK that connects tools portably to over 40 cloud providers through consistent APIs. It helps projects become cloud projects by simplifying modeling of cloud services through standards-focused APIs and strategies for addressing service differences. Code examples show initializing contexts for the CloudFiles blob store and OpenStack Nova compute service to create containers, upload blobs, and launch virtual machines across different cloud providers using a common API approach.

1. Overview
@jclouds

2. Agenda
•What is jclouds?
•What does it do?
•Relationship to other projects
•Code examples
•Extras

3. What is jclouds?
• Java multi-cloud SDK
• b 3/2009; currently apache incubator
• connects tools portably, yet also
availing backend
• Over 40 cloud providers supported

4. What does it do?
• Helps projects become cloud projects,
and developers become cloud
developers.
• through consistency in
• Tools vs Services
• Services vs Model
• API approach

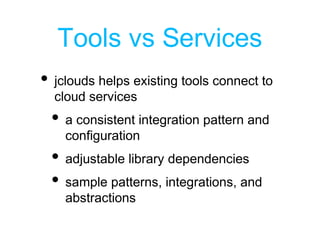

5. Tools vs Services
• jclouds helps existing tools connect to
cloud services
• a consistent integration pattern and
configuration
• adjustable library dependencies
• sample patterns, integrations, and
abstractions

6. Services vs Model
• jclouds simplifies modeling of cloud
services
• Standards focus with pragmatic
extensions. (JSR-330, 311)
• Clean means of addressing service
quirks
• pluggable strategies for error/retry
handling

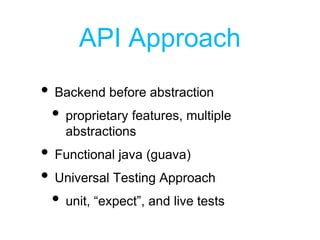

7. API Approach
• Backend before abstraction
• proprietary features, multiple
abstractions
• Functional java (guava)
• Universal Testing Approach
• unit, “expect”, and live tests

8. BlobStore LoadBalancer
Compute
DNS, Block Storage,
Network, Identity
Portable APIs
Embeddable
Provider-Specific Hooks
40 built-in providers & 20 apis and dialects!

9. Who’s integrating?
YOU?

10. // init
context = ContextBuilder.newBuilder(“cloudfiles-us”)
.credentials(apikey, secret)
.buildView(BlobStoreContext.class);
blobStore = context.getBlobStore();// create
containerblobStore.createContainerInLocation(null, “adriansmovies”);
// add blob
blob = blobStore.blobBuilder("sushi.avi").payload(file).build();
blobStore.putBlob(“adriansmovies”, blob);
java overview github jclouds/jclouds

11. 11@jclouds
java overview github jclouds/jclouds
// init
context = ContextBuilder.newBuilder(“openstack-nova”)
.endpoint(“https://keystone:5000/v2.0”)
.credentials(tenantUser, password)
.modules(singleton(new SshjSshClientModule()))
.buildView(ComputeServiceContext.class);
compute = context.getComputeService();
// create a couple nodes and open a couple ports
nodes = compute.createNodesInGroup(“hbase-master”, 1,
runScript(install).
inboundPorts(60000, 60010));
// gather my ip addresses
for (NodeMetadata node : nodes) {
node.getPublicAddresses();
node.getPrivateAddresses();
}
11

12. CLI github jclouds/jclouds-cli

13. jclouds locations
Location helps
normalize placement
across resource types
All top-level resources
have a location
Location metadata is
extensible

14. jclouds modularity
APIs are software
focused Providers are
offering focused
API + location + defaults
= Provider

15. @jclouds
What’s new?
• Apache incubator graduation vote!
• Portable Multi-part Upload (big blobs)
• Portable security groups

16. Lessons Learned
• Cloud providers are generally quite helpful
• Not everyone rolls their own, but many do
• Extensions are an api-visible way to
differentiate on products like OpenStack
• Nothing’s really compatible for long
• Plan to refactor testing approach every year

17. Alternatives
• Roll-your-own
• Cloud-specific SDKs
• Dasein Cloud API
• Netflix Denominator (DNS only)

18. @jclouds
Where now?
• jclouds.incubator.apache.org
• github/jclouds/jclouds-examples
• IRC #jclouds on freenode
