iWebkit is a file package that helps users create iPhone, iPod Touch, and iPad compatible websites or web apps without needing HTML knowledge. It includes tutorials and pre-made styles and elements to build a full-featured mobile site quickly. The kit uses simple HTML that is easy to edit and compatible across devices. It provides various interface elements like navigation bars, buttons, lists and forms to construct the look of a mobile app in a few minutes.

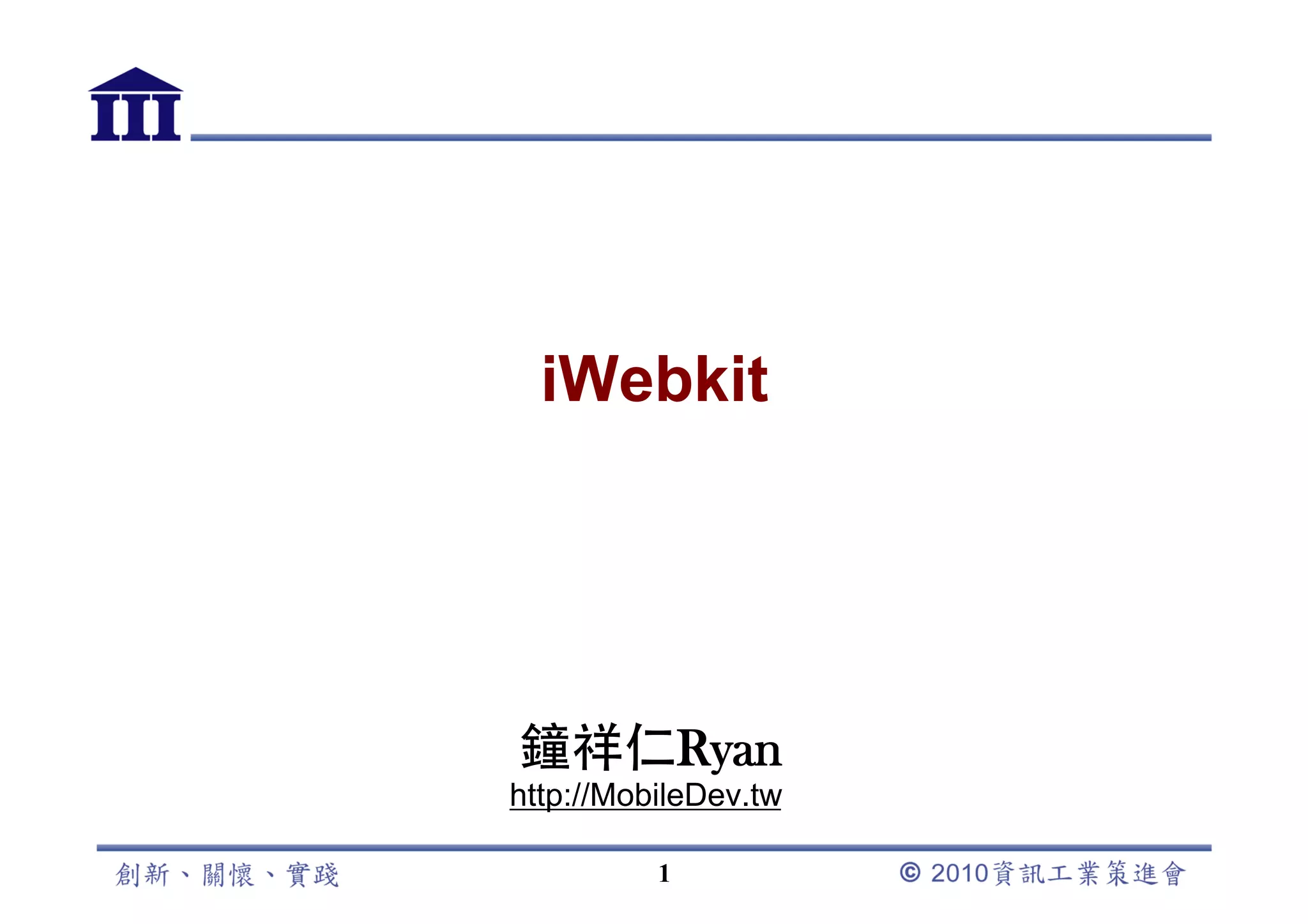

1. iWebkit
Ryan
http://MobileDev.tw
1

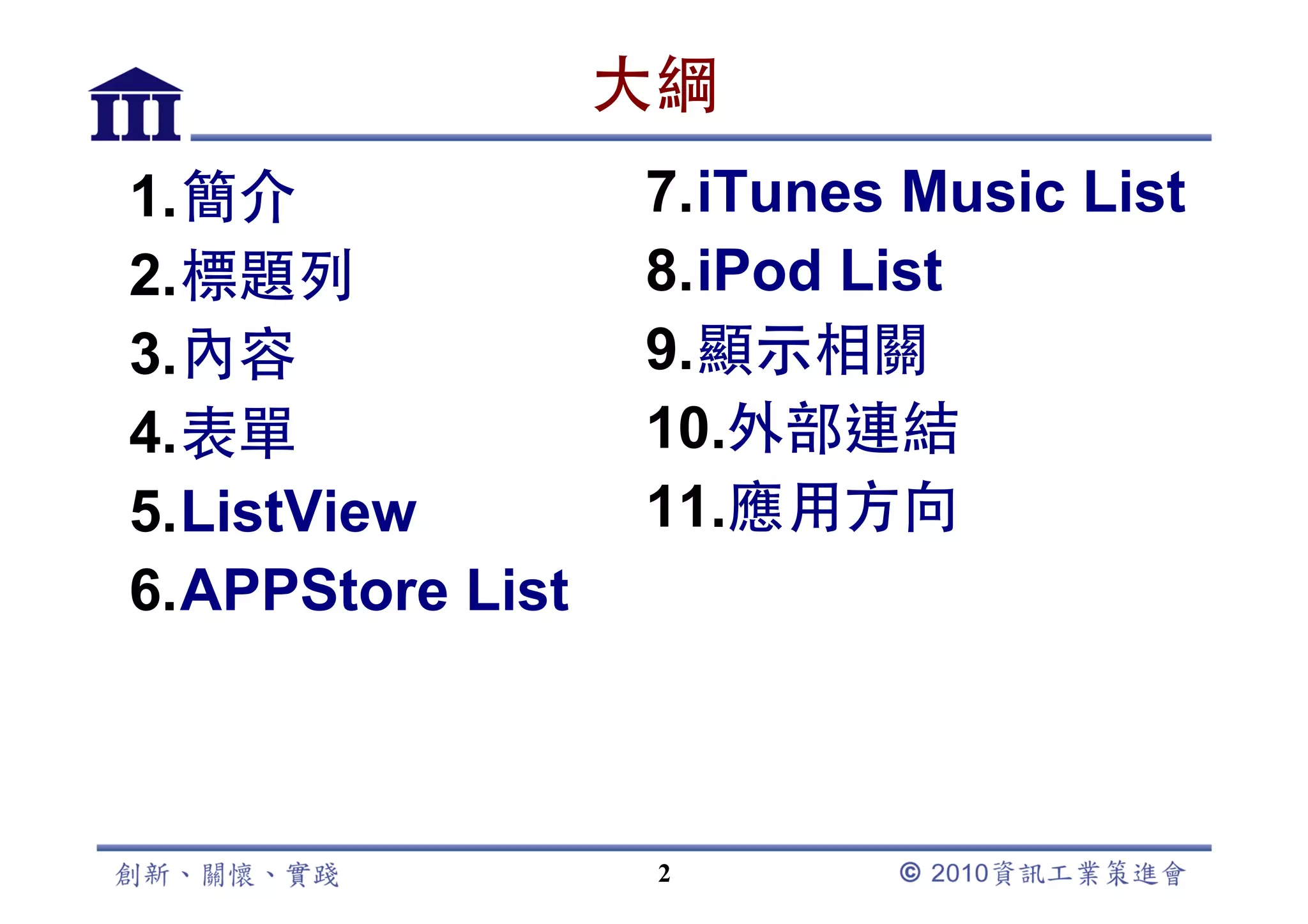

2. 1. 7. iTunes Music List
2. 8. iPod List
3. 9.
4. 10.
5. ListView 11.
6. APPStore List
2

3. iWebKit
http://iwebkit.net/
iwebkit/iwebkit5.04.zip
Framework/index.html
What is iWebkit
iWebKit is a file package designed to help you create your own iPhone, iPod
Touch and iPad compatible website or webapp. The kit is accessible to anyone
even people without any html knowledge and is simple to understand thanks to
the included tutorials. In a couple of minutes you will have created a full and
professional looking website. iWebKit is a great tool because it is very easy to
use, extremely fast, compatible & extendable. It is simple html that anyone can
edit contrary to some other very complicated solutions based on ajax. Simplicity
is the key!
3

4. iWebKit – (1/3)
•
<div id="topbar">
<div id="title">My Title</div>
</div>
•
<div id="topbar" class="black"></div>
<div id="topbar" class="transparent"></div>
4

5. iWebKit – (2/3)
Arrows, buttons, tri/duobuttons
<div id="topbar">
<div id="title">Ryan iWeb</div>
<div id="leftnav">
<a href="page.html">
<img alt="home" src="images/home.png" />
</a></div>
<div id="rightnav">
<a href="page2.html">Next</a>
</div>
</div>
<div id="rightnav">
<a href="page2.html">Next</a>
<a href="page2.html">Next2</a>
</div>
5

6. iWebKit – (3/3)
Arrows, buttons, tri/duobuttons
<div id="topbar">
<div id="title">Ryan iWeb</div>
<div id="leftbutton">
<a href="page.html">Home</a>
</div>
<div id="rightbutton">
<a href="page2.html">Option</a>
</div>
</div>
<div id="blueleftbutton">
<a href="page.html">Home</a></div>
<div id="bluerightbutton">
<a href="page2.html">Option</a></div>
6

7. iWebKit – (1/2)
<div id="content">
<span class="graytitle">my title </span>
</div>
<ul class="pageitem">
<li class="textbox">
<span class="header">blue title</span>
<p>123</p>
</li>
<li class="menu">
<a href="page.html">
<img alt="Desrciption" src="thumbs/other.png" />
<span class="name">Name1111111111</span>
<span class="comment">Comment</span>
<span class="arrow"></span>
</a>
</li>
</ul>
7

8. iWebKit – (2/2)
iTunes classic list view
<li class="store">
<a href="page.html">
<span class="image" style="background-
image:url('thumbs/youtube.png')"></span>
<span class="comment">comment</span>
<span class="name">Nema</span>
<span class="stars5"></span>
<span class="starcomment">5 ratings</span>
<span class="arrow"></span>
</a>
</li>
90x90 px
8

9. iWebKit – (1/4)
( topbar content )
<div class="searchbox">
<form action="http://www.iiiedu.org.tw/taipei/aspro/c.asp"
method="get">
<fieldset>
<input id="search" placeholder="search" type="text"
name="qcno"/>
<input id="submit" type="hidden" />
</fieldset>
</form>
</div>
9

10. iWebKit – (2/4)
( <ul class="pageitem"> )
<li class="bigfield">
<input placeholder="Username" type="text" />
</li>
<li class="smallfield">
<span class="name">Name</span>
<input placeholder="Enter Text" type="text" />
</li>
<li class="textbox">
<textarea name="TextArea" rows="4"></textarea>
</li>
10

11. iWebKit – (3/4)
( <ul class="pageitem"> )
checkbox
<li class="checkbox">
<span class="name">my text</span>
<input name="checkbox" type="checkbox" />
</li>
radiobutton
<li class="radiobutton">
<span class="name">text</span>
<input name="GroupName" type="radio" value="A" />
</li>
<li class="select">
<select name="example">
<option value="1">Option1</option>
<option value="2">Option2</option>
</select>
<span class="arrow"></span>
</li>
11

12. iWebKit – (4/4)
Double add
( topbar content )
<div id="doublead">
<a href="page.html" style="background-color:gray"></a>
<a href="page2.html" style="background-color:gray"></a>
</div>
background-image:url(‘pic.png’)
147x83 px
<li class="button">
<input name="name" type="submit" value="Submit input" />
</li>
12

13. iWebKit – ListView (1/2)
1. <body> -> <body class="list">
2. content div <ul>….</ul>
3. code <ul>…..</ul>
<li class="title">My List View</li>
<li>
<a href="page.html">
<span class="name">name</span>
<span class="arrow"></span>
</a>
</li>
13

14. iWebKit – ListView (2/2)
( 90x90 px)
<li class="withimage">
<a href="page.html">
<img alt="description" src="thumbs/ipod.png" />
<span class="name">name</span>
<span class="comment">comment</span>
<span class="arrow"></span>
</a>
</li>
14

15. iWebKit – Appstore List (1/2)
1. <body> -> <body class="applist">
2. content div <ul>….</ul>
3. code <ul>…..</ul>
<li>
<a href="page.html">
<span class="image" style="background-image:url('pic.png')"></span>
<span class="comment">Comment111</span>
<span class="name">Name</span>
<span class="stars4"></span>
<span class="starcomment">1Rating</span>
<span class="arrow"></span>
<span class="price">$12</span>
</a>
</li>
57x57px
15

16. iWebKit – Appstore List (2/2)
doublead
<li id="doublead">
<a href="page.html" style="background-image:url('pic1.png')"></a>
<a href="page.html" style="background-image:url('pic1.png')"></a>
</li>
147x83px
16

17. iWebKit – iTunes Music List
1. <body> -> <body class="musiclist">
2. content div <ul>….</ul>
3. code <ul>…..</ul>
<ul>
<li><a href="page.html">
<span class="number">1</span>
<span class="name">Name</span>
<span class="time">(1:33)</span>
<span class="arrow"></span>
</a>
</li>
</ul>
17

18. iWebKit – iPod List
1. <body> -> <body class="ipodlist">
2. content div <ul>….</ul>
3. code <ul>…..</ul>
<ul>
<li><a href="page.html">
<span class="number">1</span>
<span class="auto"></span>
<span class="name">Name</span>
<span class="time">(1:33)</span>
</a>
</li>
</ul>
18

19. iWebKit –
<meta content="yes" name="apple-mobile-web-app-capable" />
iPhone
<meta name="apple-mobile-web-app-status-bar-style"
content="default" />
<meta name="apple-mobile-web-app-status-bar-style"
content="black" />
<meta name="apple-mobile-web-app-status-bar-style"
content="black-translucent" />
iPhone
<link rel="apple-touch-icon" href="logo.png" />
( 320x460px)
<link href="startup.png" rel="apple-touch-startup-image" />
19

20. iWebKit –
<meta name="format-detection" content="telephone=yes" />
(iPhone)/ (iPod Touch)
<a class="noeffect" href="tel:123-456-7890">call now</a>
Youtube
<a class="noeffect" href="http://www.youtube.com/yourvideo">Watch</a>
<a class="noeffect" href="sms:12125551212">Send</a>
<a class="noeffect" href="http://maps.google.com/?ie=UTF8&ll=...">Look Map</a>
iTune Appstore
<a class="noeffect" href="http://itunes.apple.com/us/app/zinio-magazine
-newsstand-reader/id364297166?mt=8">Open App</a>
RSS
<script src="http://rssxpress.ukoln.ac.uk/lite/viewer/?rss=http://rss.news.yahoo.com/rss/topstories"
type="text/javascript"></script>
20

21. •
•
•
• Next Step
•
• PhoneGap
• Real APP
21
