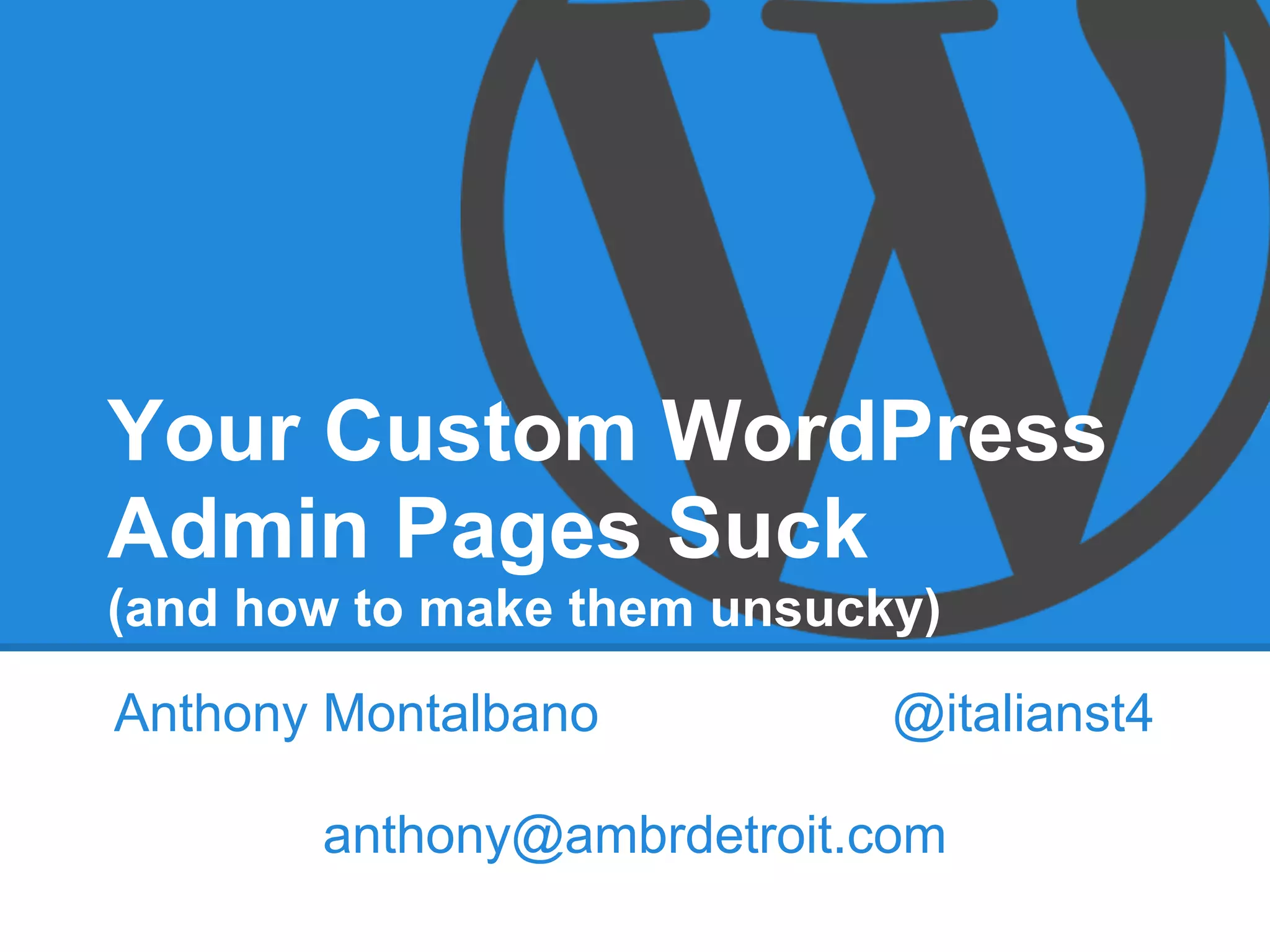

1. Your Custom WordPress
Admin Pages Suck
(and how to make them unsucky)
Anthony Montalbano @italianst4
anthony@ambrdetroit.com

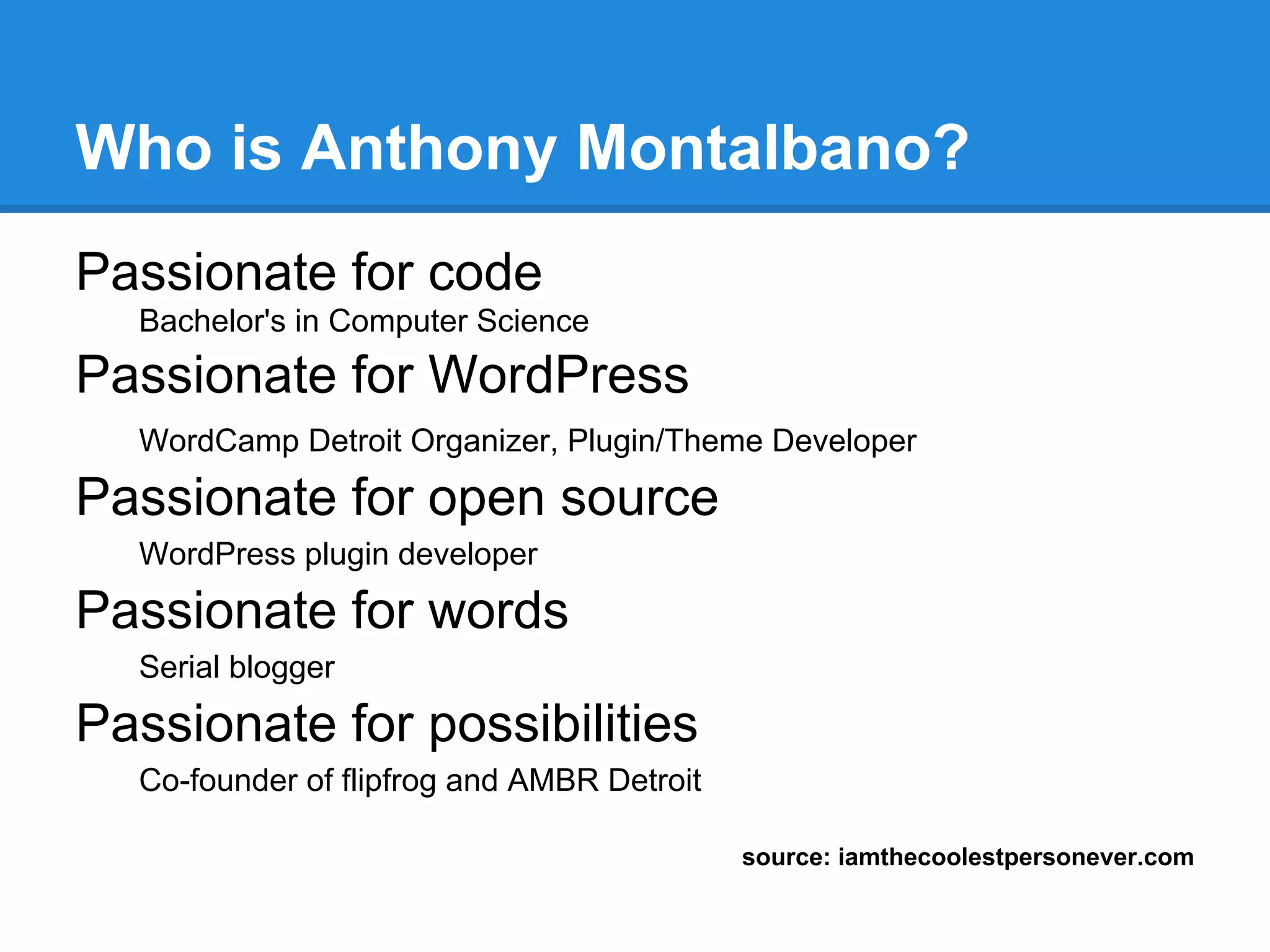

2. Who is Anthony Montalbano?
Passionate for code
Bachelor's in Computer Science
Passionate for WordPress
WordCamp Detroit Organizer, Plugin/Theme Developer
Passionate for open source
WordPress plugin developer
Passionate for words
Serial blogger
Passionate for possibilities
Co-founder of flipfrog and AMBR Detroit
source: iamthecoolestpersonever.com

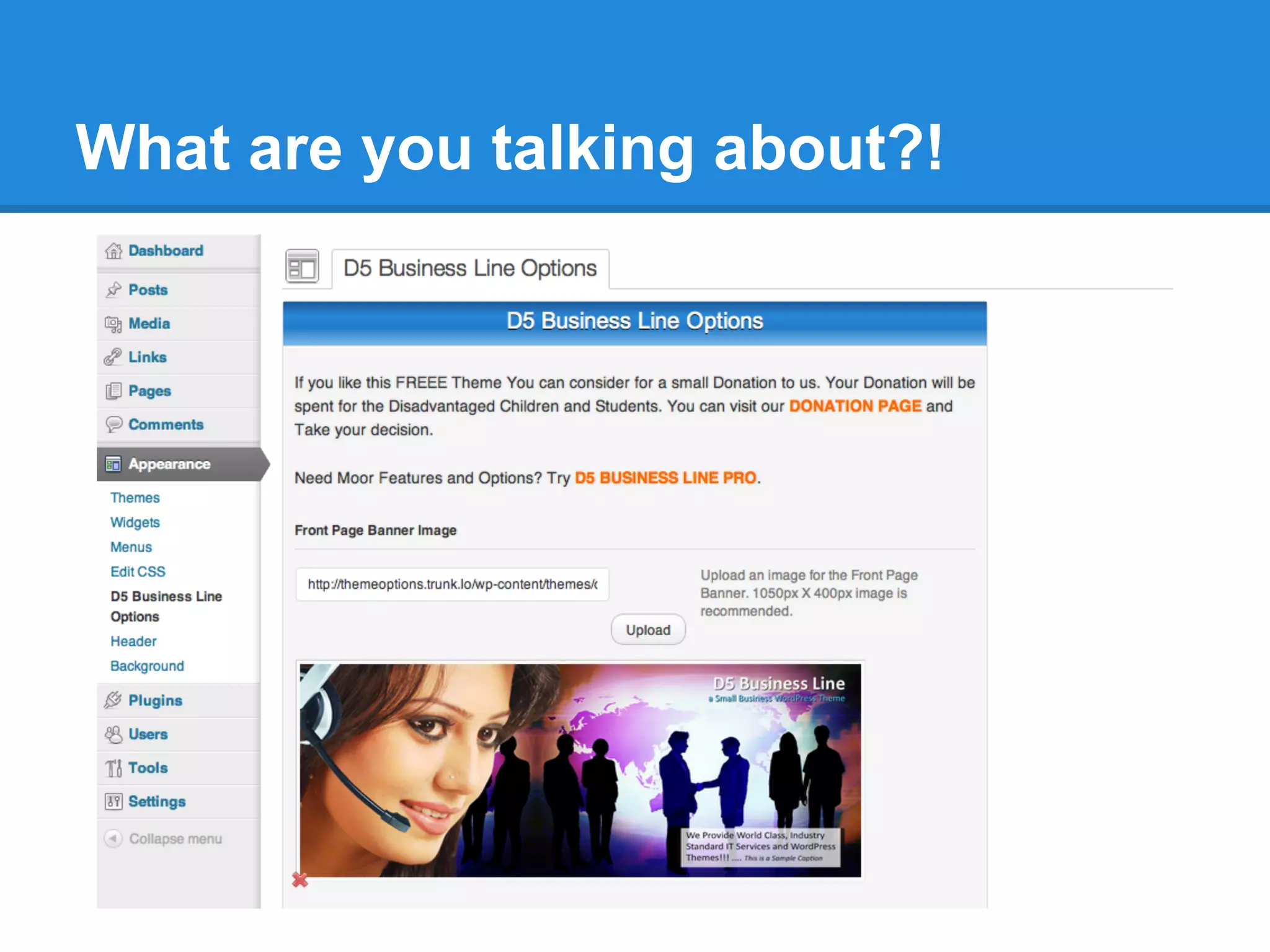

3. What are you talking about?!

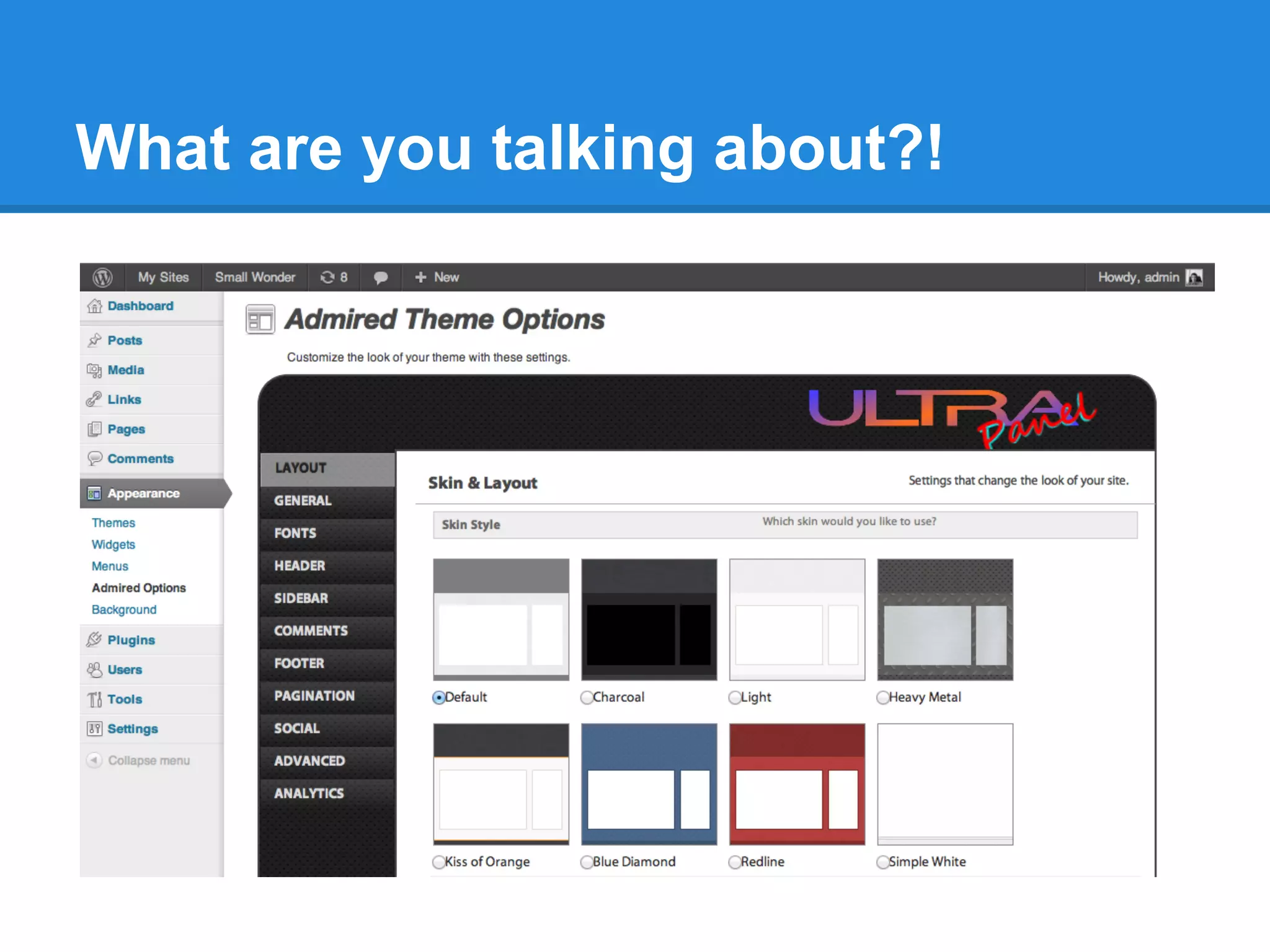

4. What are you talking about?!

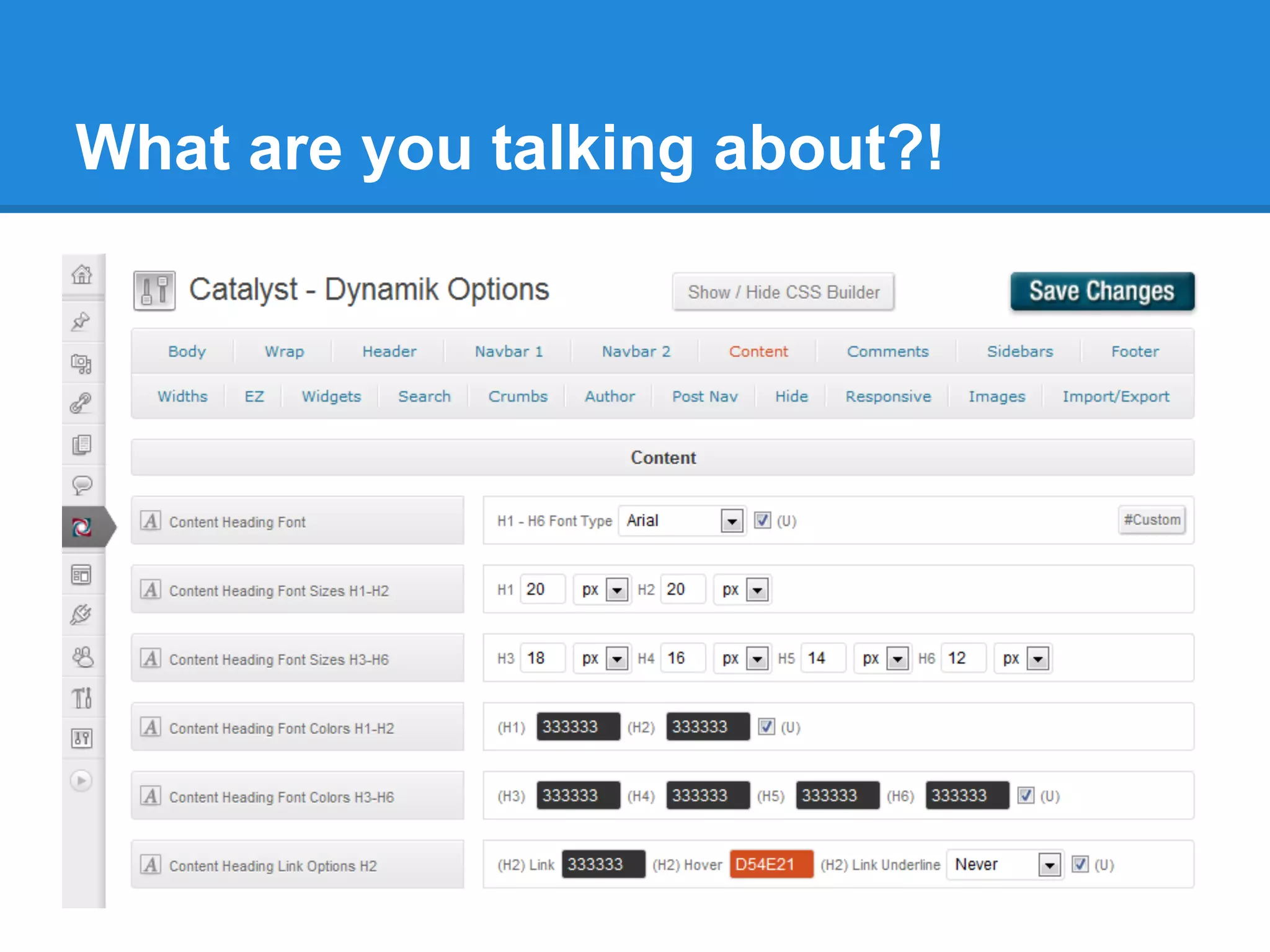

5. What are you talking about?!

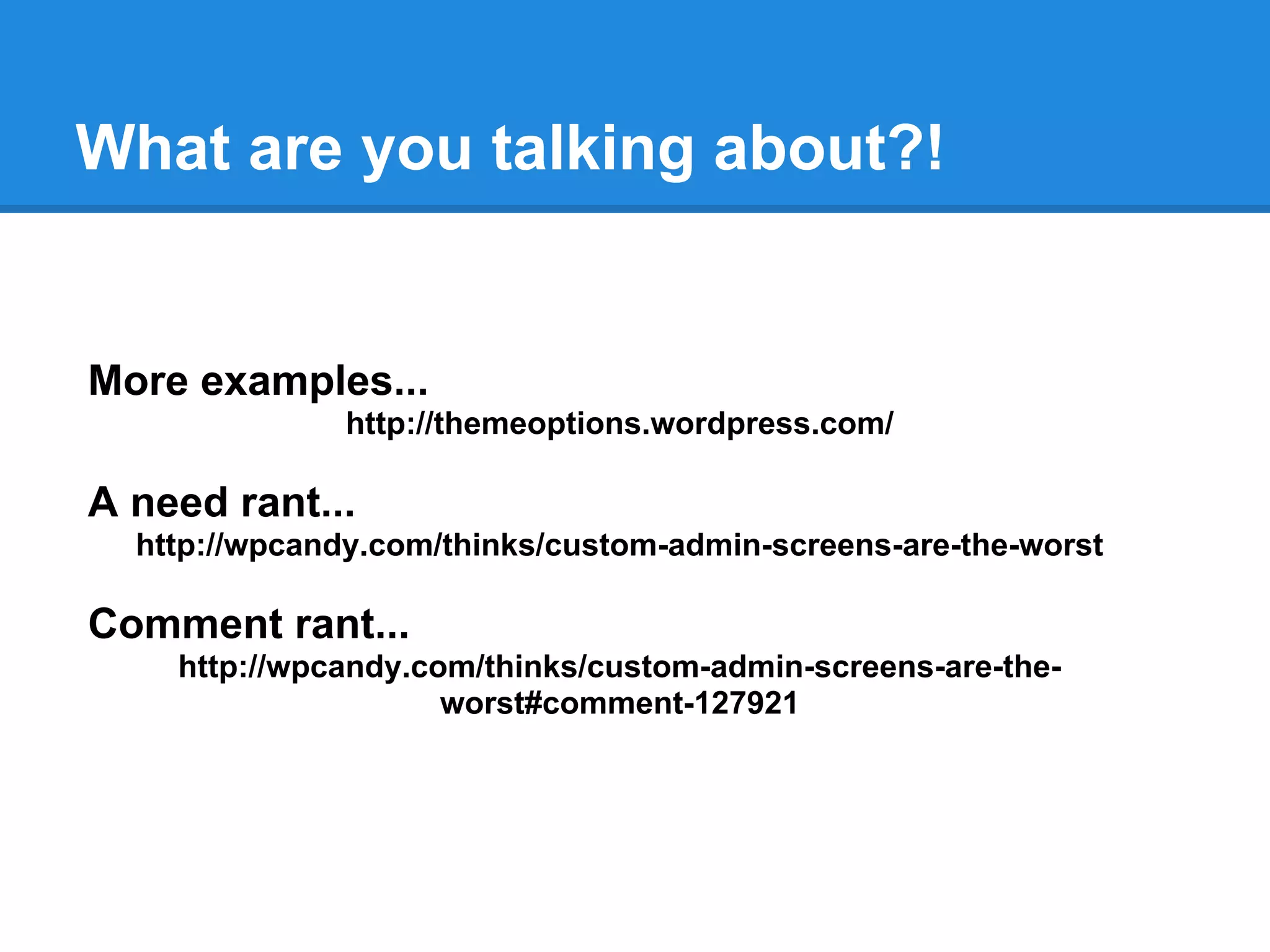

6. What are you talking about?!
More examples...
http://themeoptions.wordpress.com/
A need rant...
http://wpcandy.com/thinks/custom-admin-screens-are-the-worst
Comment rant...
http://wpcandy.com/thinks/custom-admin-screens-are-the-
worst#comment-127921

7. What are you talking about?!
"This stuff needs
to stop."
~Ryan Imel

8. First World Problem?

9. Be a Good Guy Greg!

10. The WordPress
Admin
It's in the details...

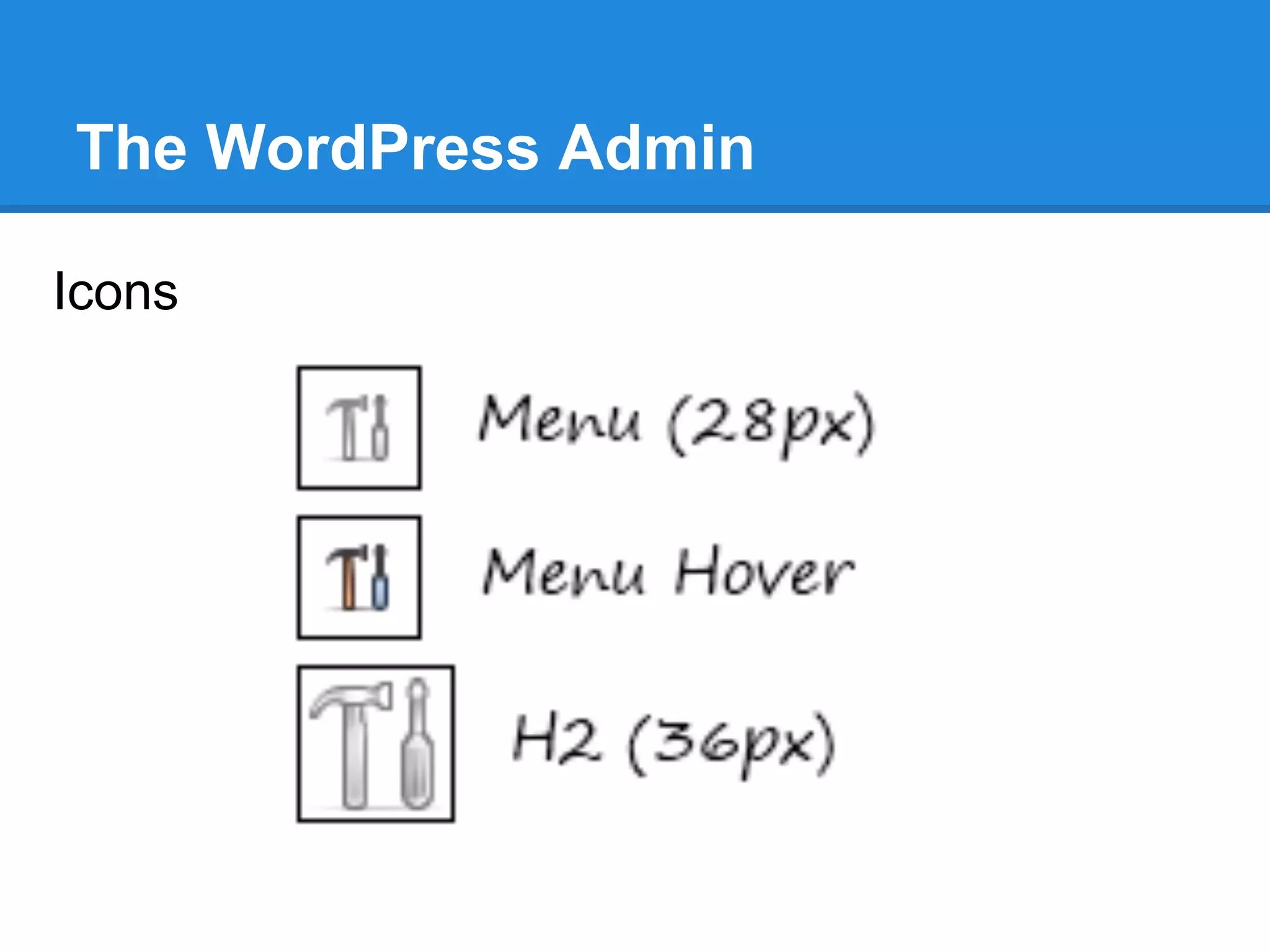

11. The WordPress Admin
Icons

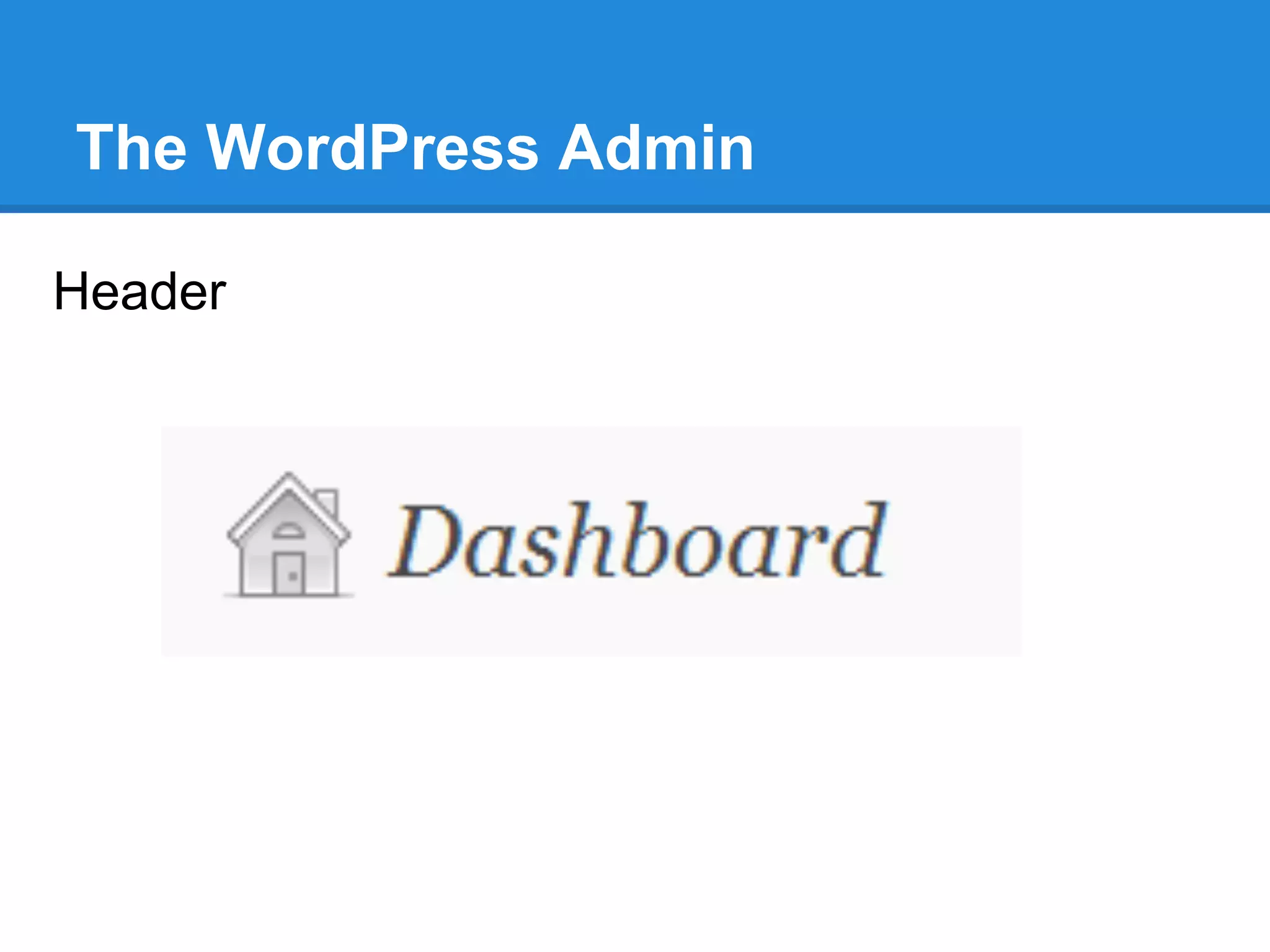

12. The WordPress Admin
Header

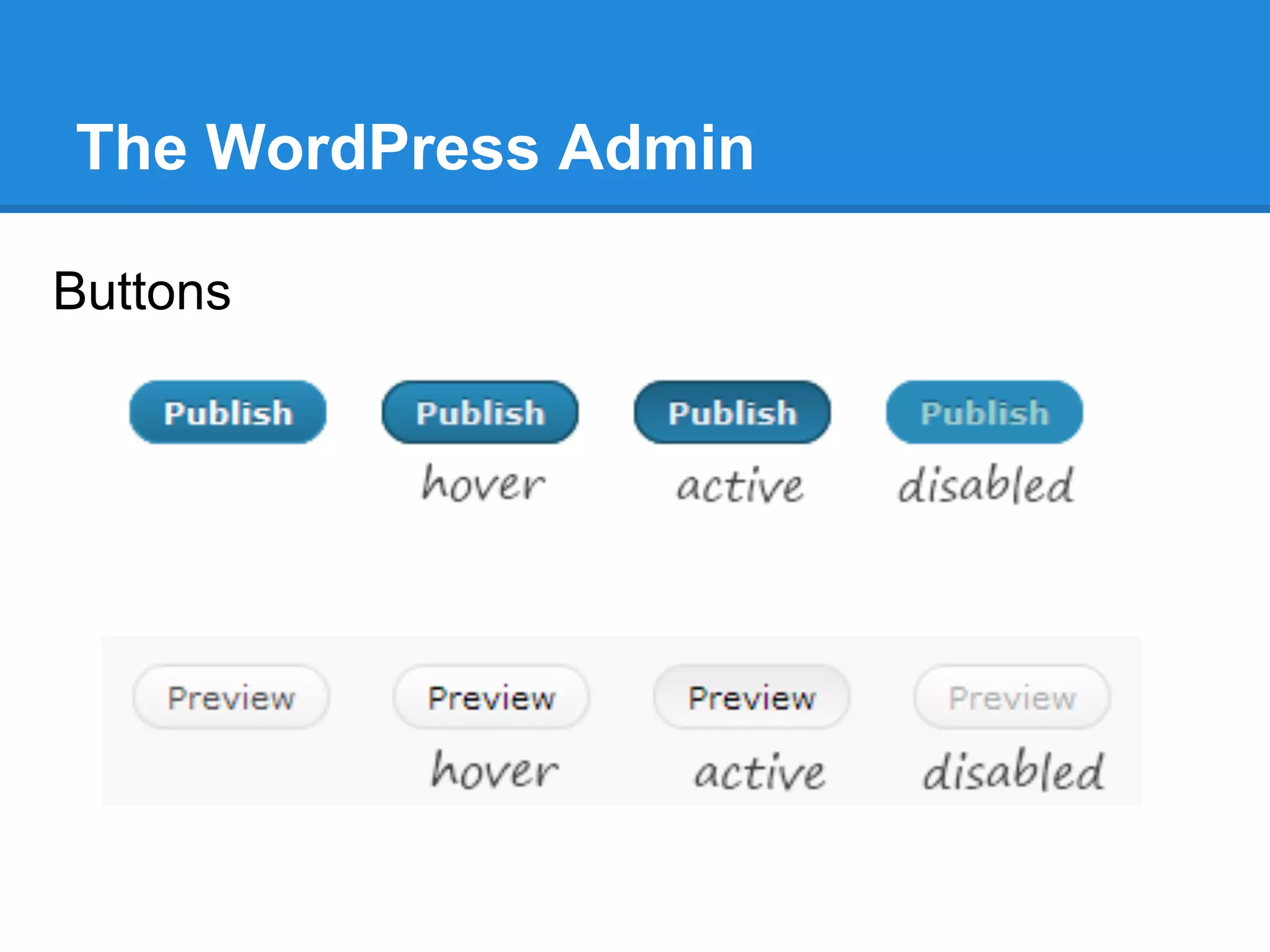

13. The WordPress Admin
Buttons

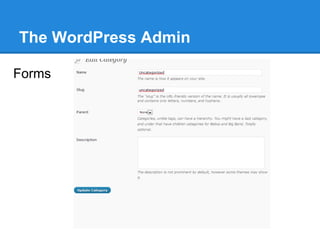

14. The WordPress Admin
Forms

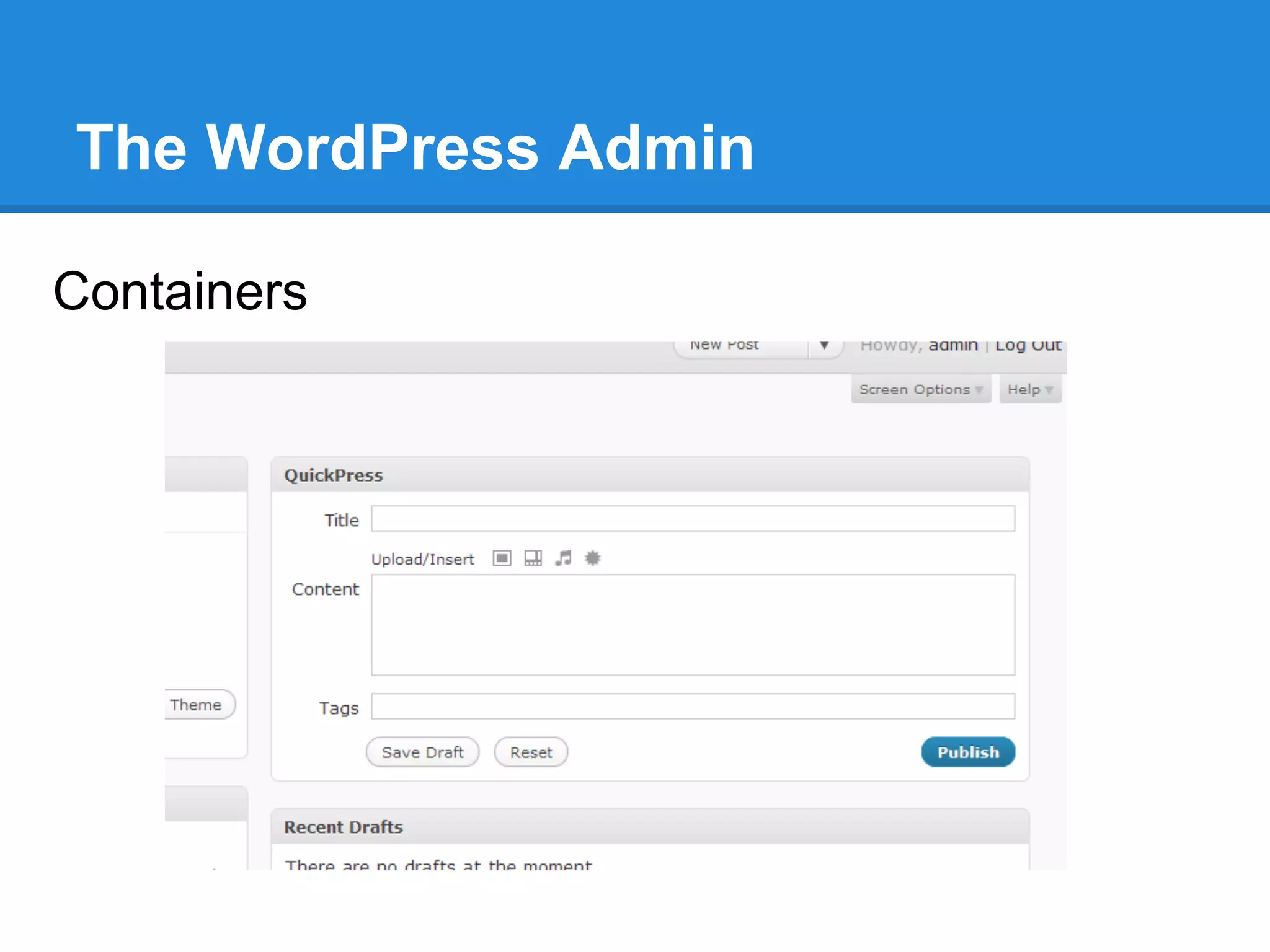

15. The WordPress Admin
Containers

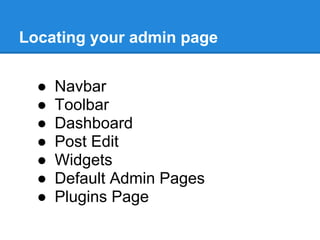

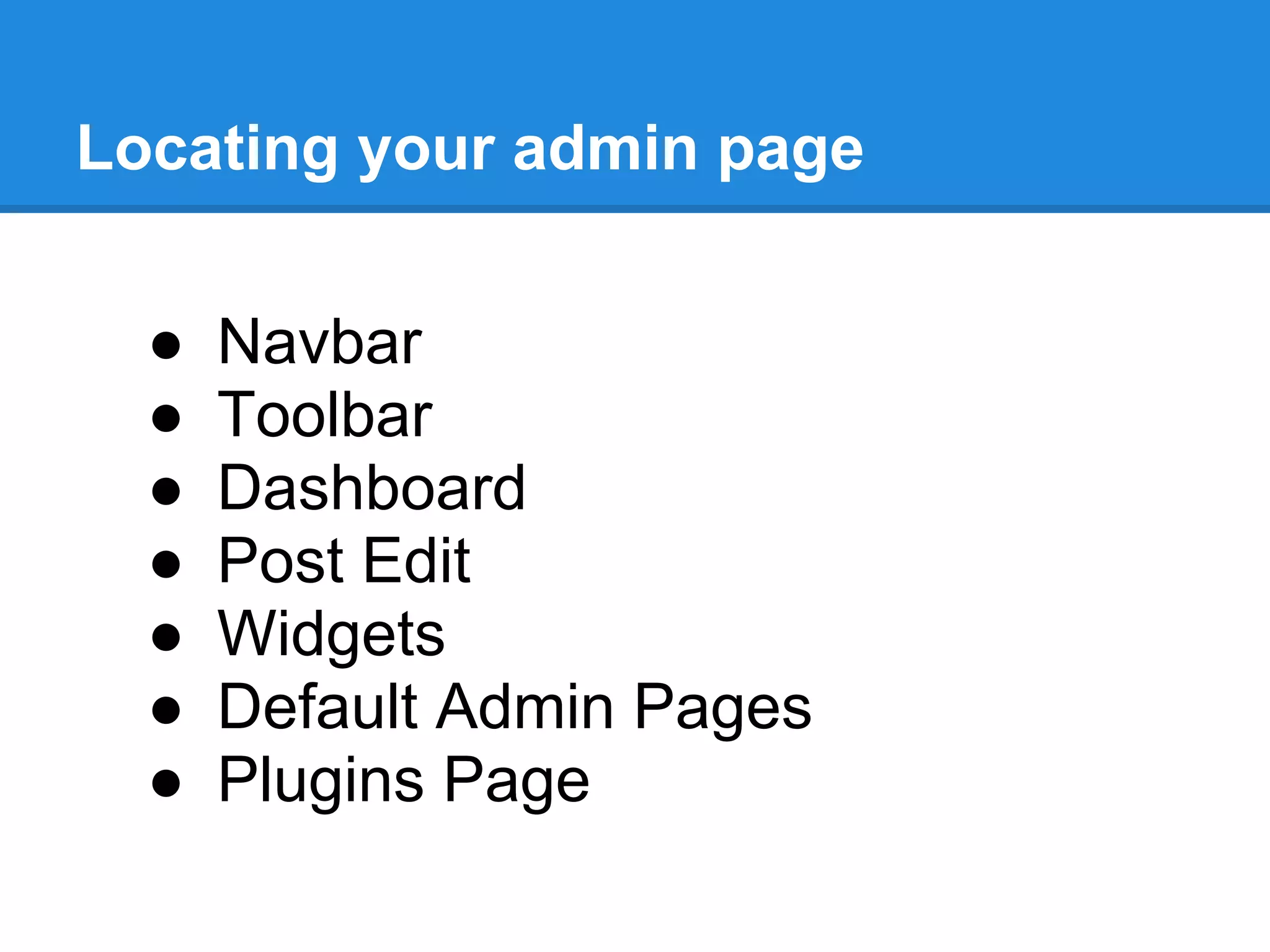

16. Locating your admin page
● Navbar
● Toolbar
● Dashboard
● Post Edit
● Widgets
● Default Admin Pages
● Plugins Page

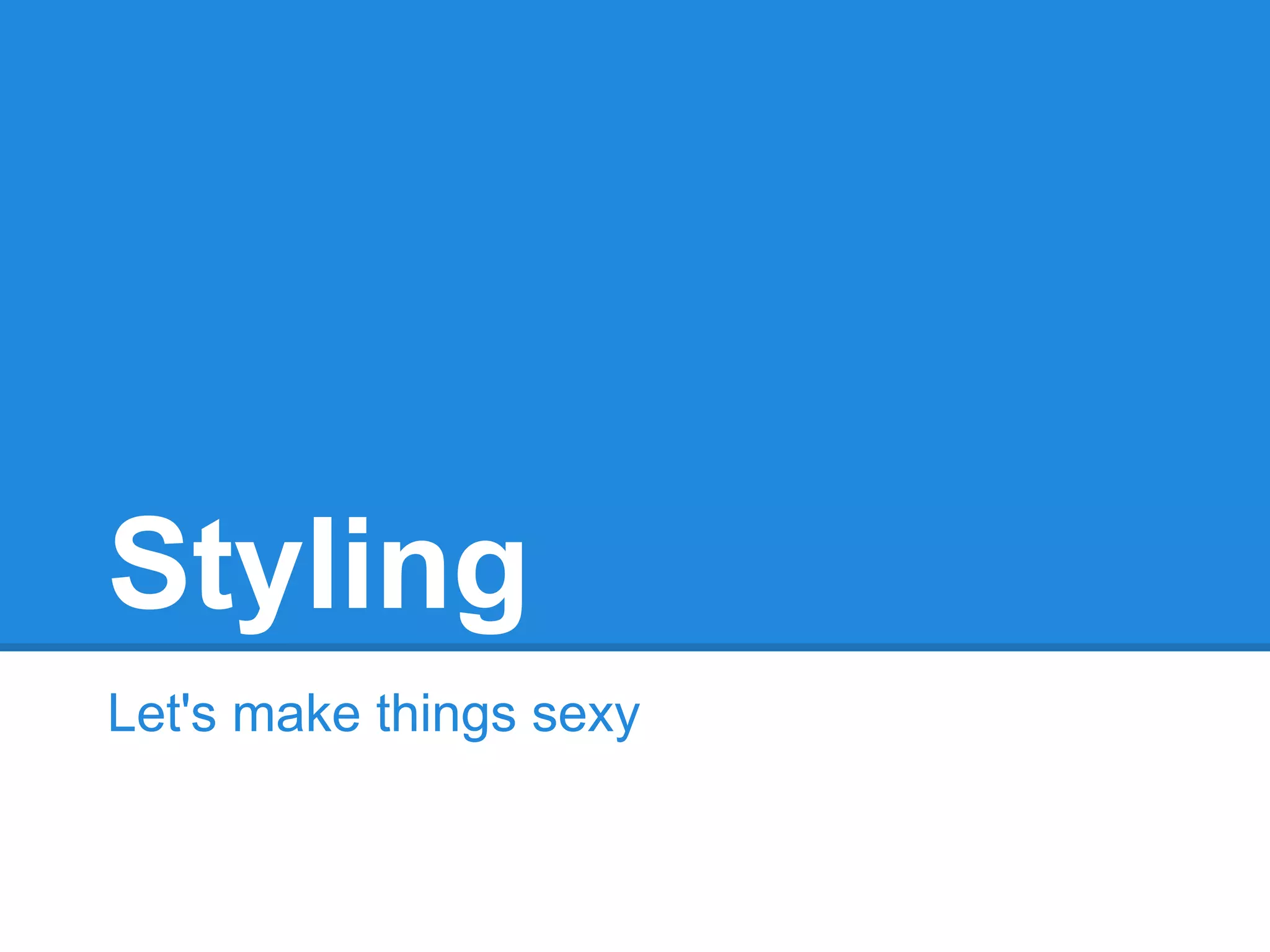

17. Styling
Let's make things sexy

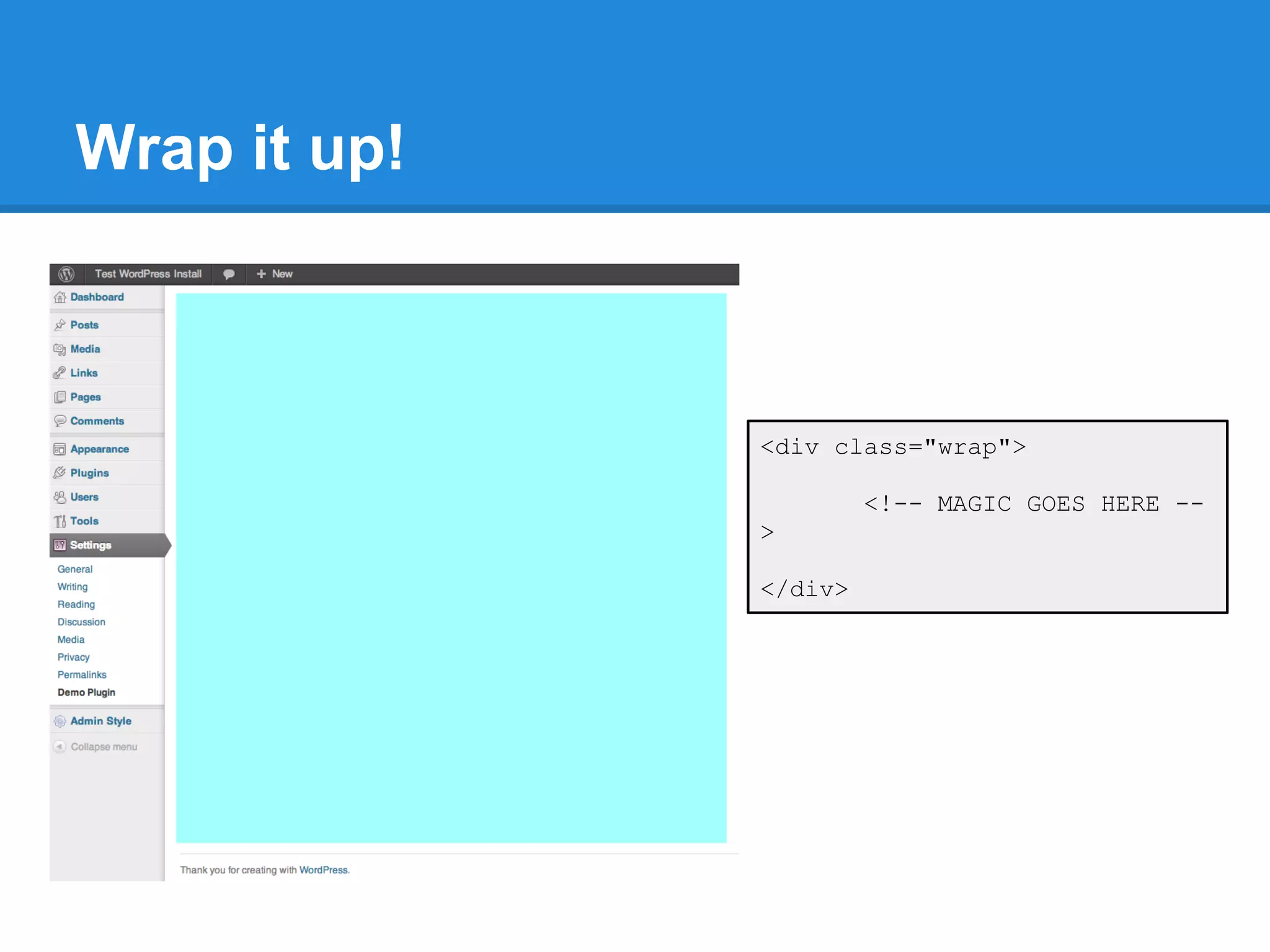

18. Wrap it up!
<div class="wrap">
<!-- MAGIC GOES HERE --
>
</div>

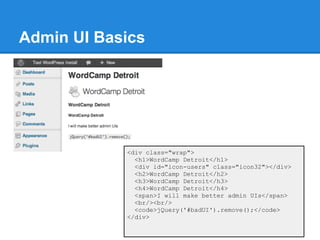

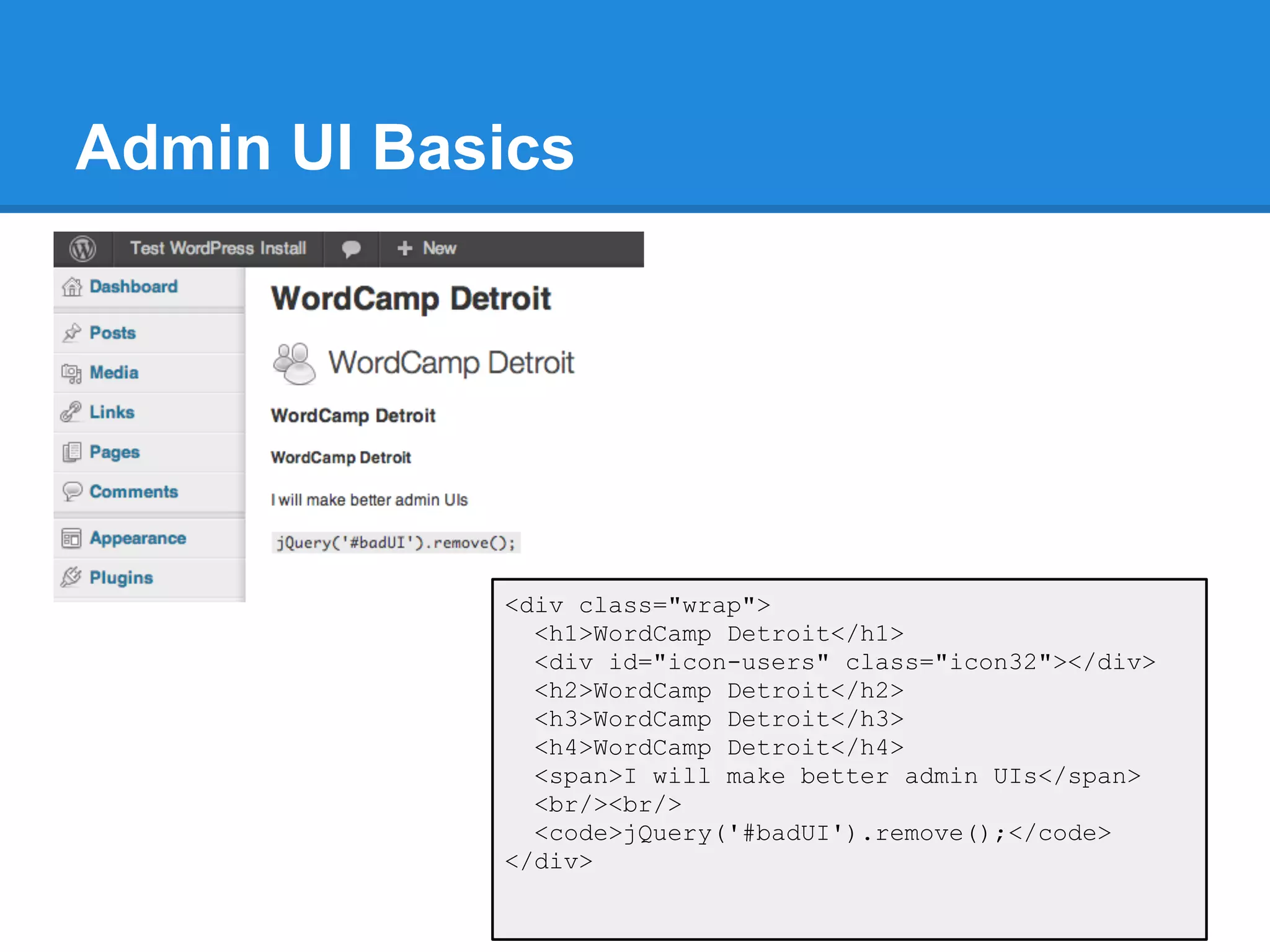

19. Admin UI Basics
<div class="wrap">
<h1>WordCamp Detroit</h1>
<div id="icon-users" class="icon32"></div>
<h2>WordCamp Detroit</h2>
<h3>WordCamp Detroit</h3>
<h4>WordCamp Detroit</h4>
<span>I will make better admin UIs</span>
<br/><br/>
<code>jQuery('#badUI').remove();</code>
</div>

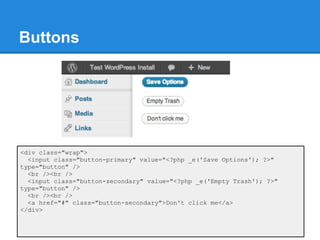

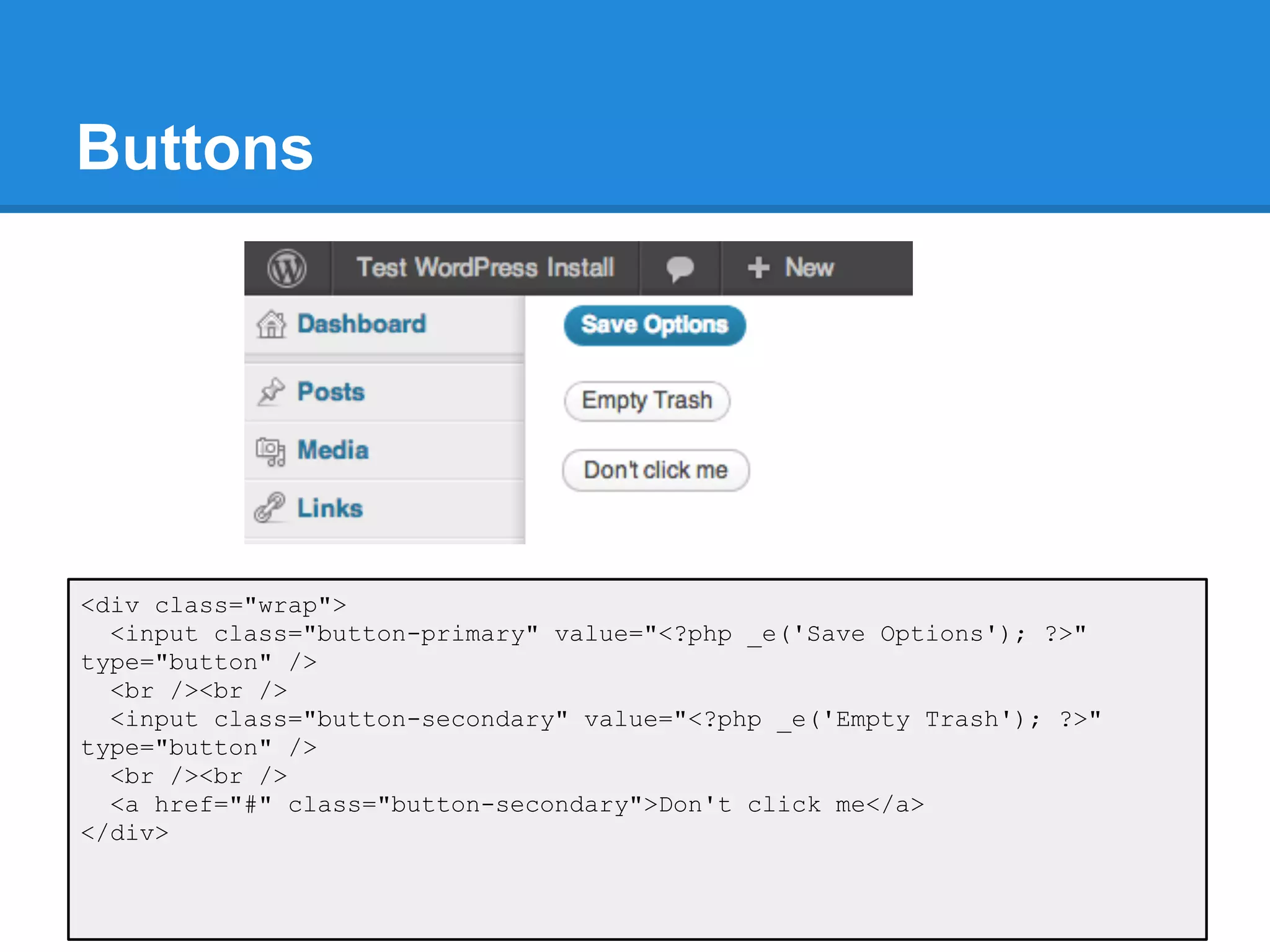

20. Buttons
<div class="wrap">
<input class="button-primary" value="<?php _e('Save Options'); ?>"
type="button" />
<br /><br />
<input class="button-secondary" value="<?php _e('Empty Trash'); ?>"
type="button" />
<br /><br />
<a href="#" class="button-secondary">Don't click me</a>
</div>

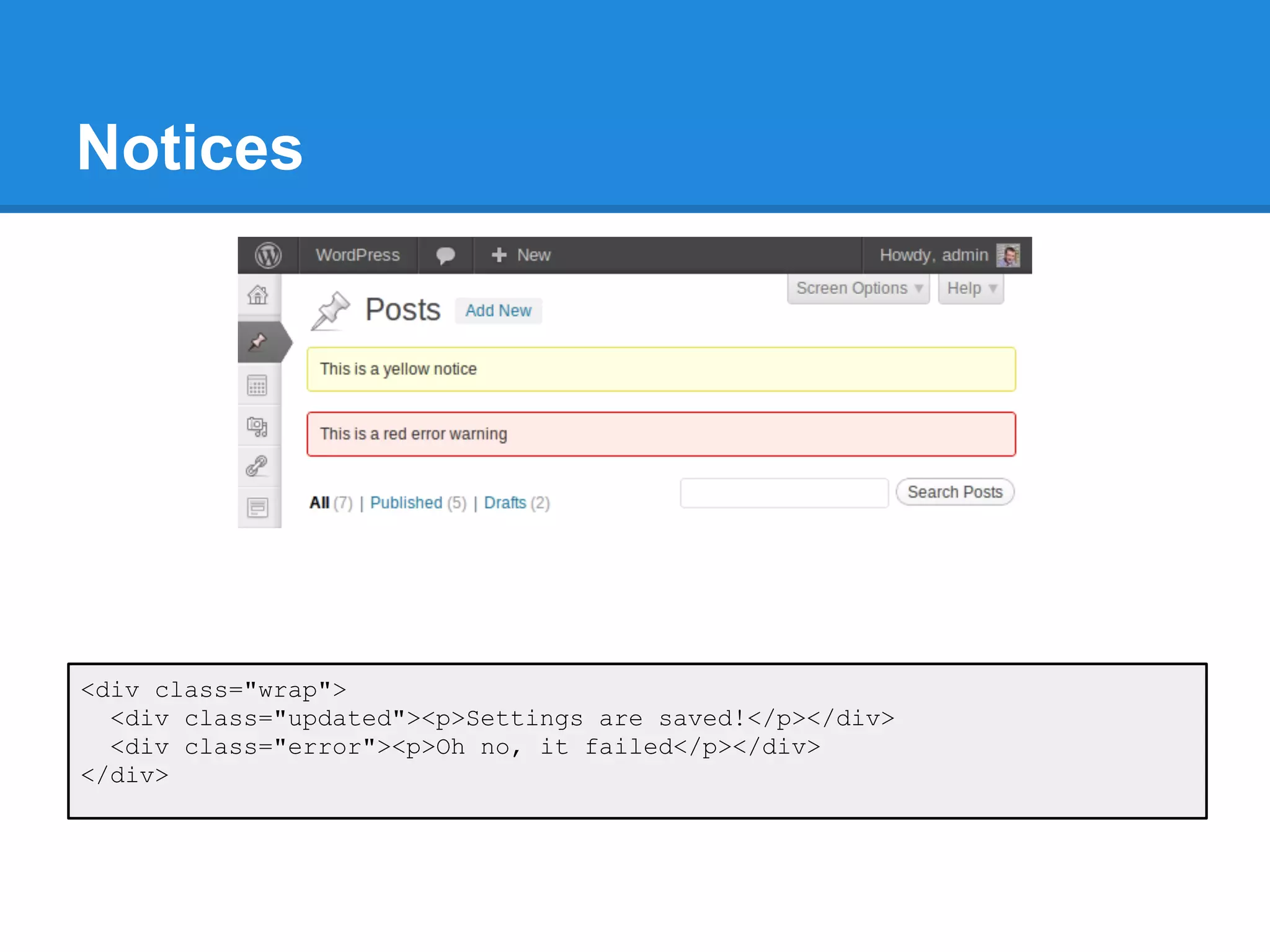

21. Notices
<div class="wrap">
<div class="updated"><p>Settings are saved!</p></div>
<div class="error"><p>Oh no, it failed</p></div>
</div>

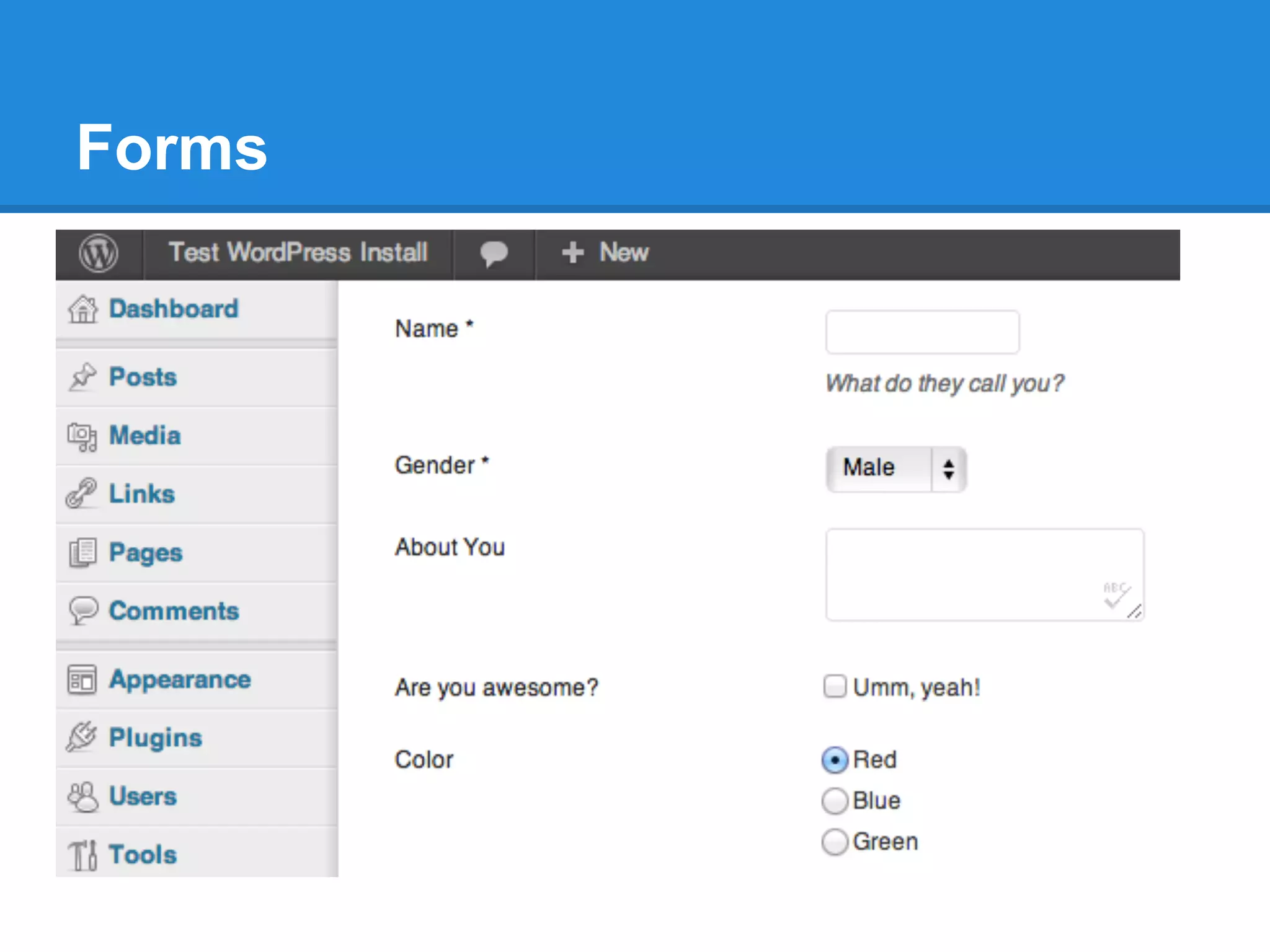

22. Forms

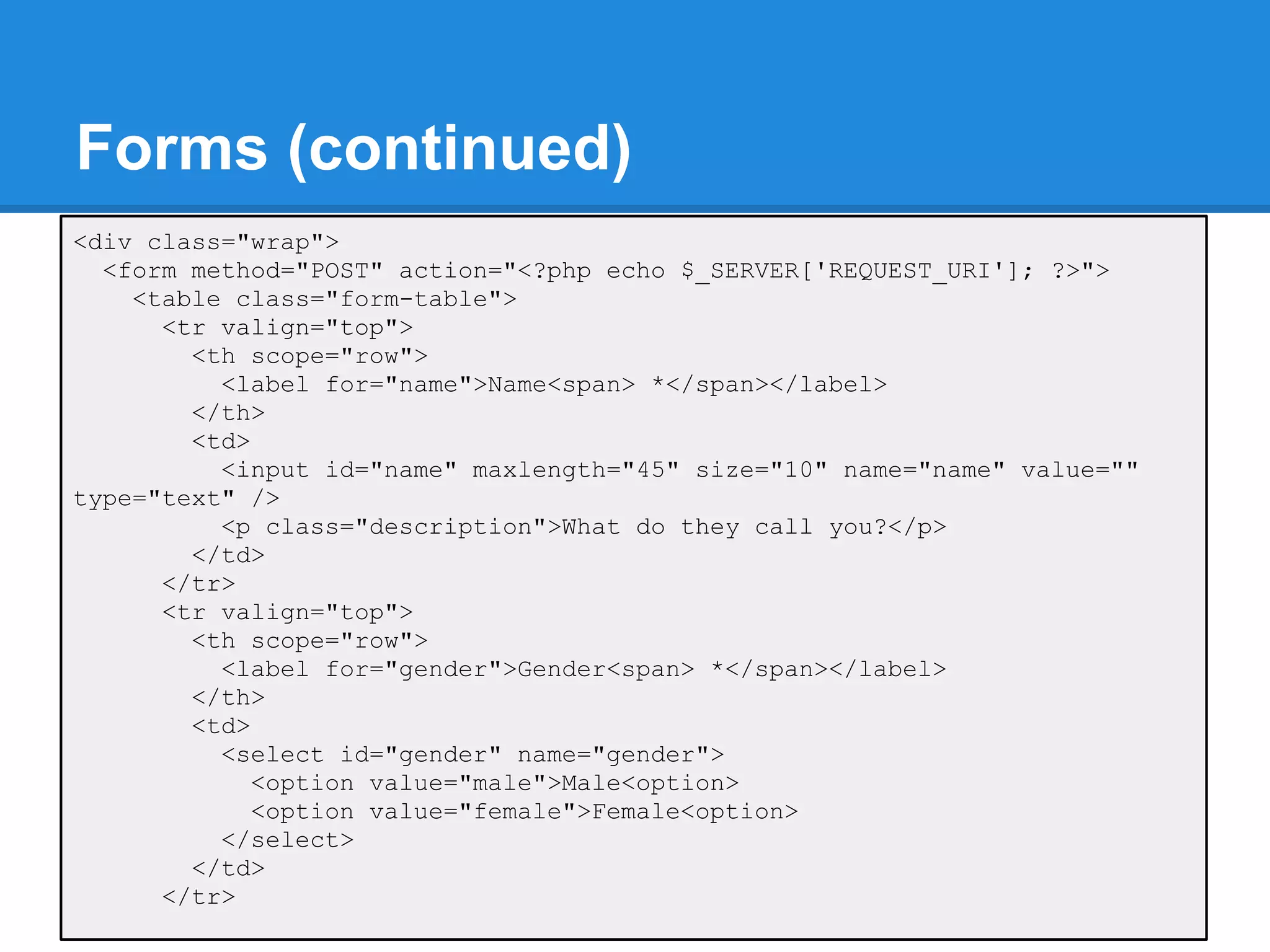

23. Forms (continued)
<div class="wrap">
<form method="POST" action="<?php echo $_SERVER['REQUEST_URI']; ?>">
<table class="form-table">
<tr valign="top">
<th scope="row">
<label for="name">Name<span> *</span></label>
</th>
<td>
<input id="name" maxlength="45" size="10" name="name" value=""
type="text" />
<p class="description">What do they call you?</p>
</td>
</tr>
<tr valign="top">
<th scope="row">
<label for="gender">Gender<span> *</span></label>
</th>
<td>
<select id="gender" name="gender">
<option value="male">Male<option>
<option value="female">Female<option>
</select>
</td>
</tr>

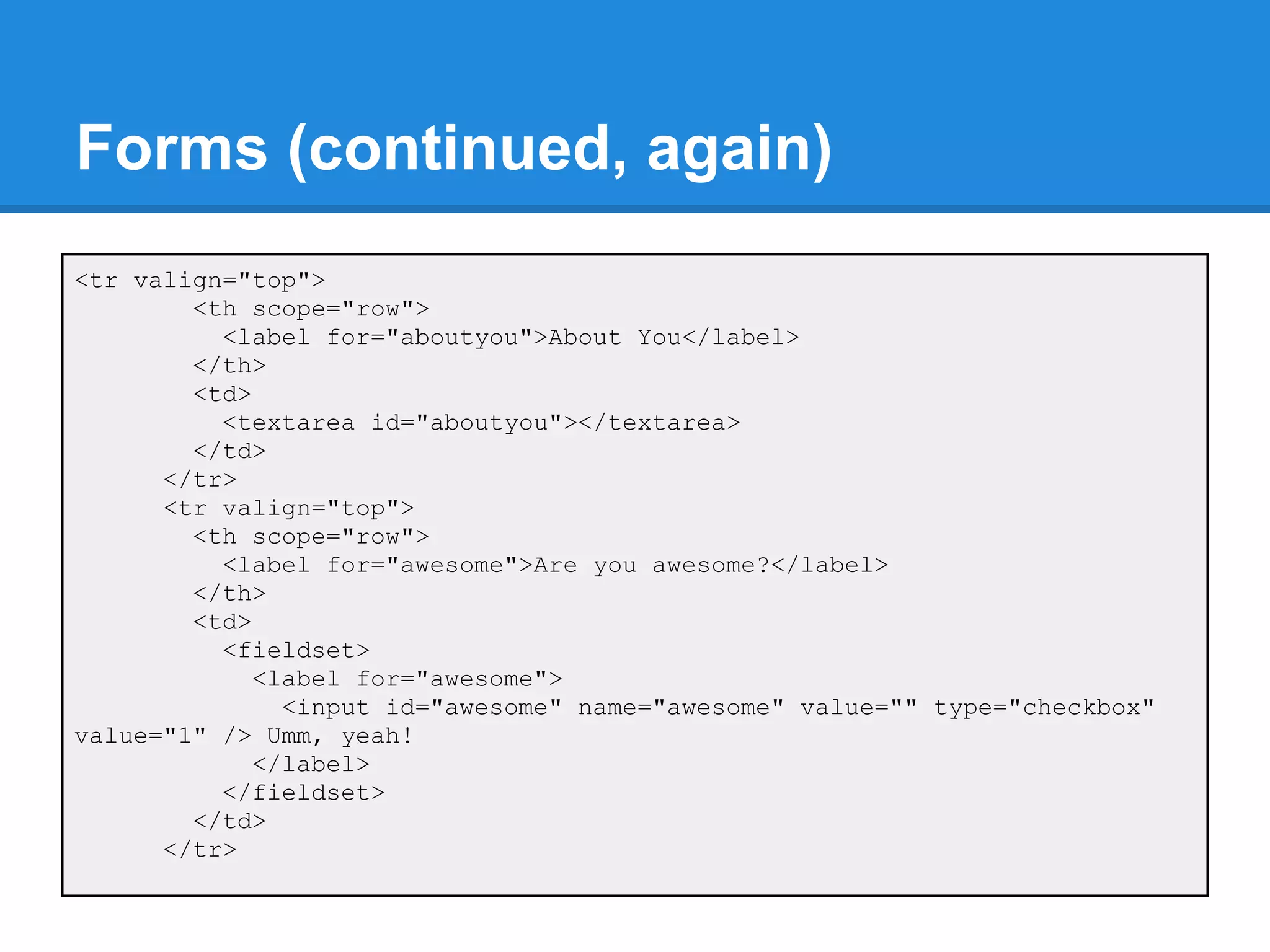

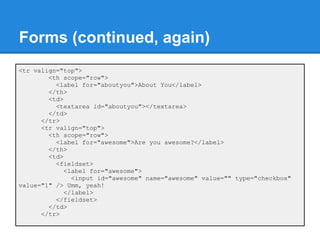

24. Forms (continued, again)
<tr valign="top">
<th scope="row">
<label for="aboutyou">About You</label>
</th>
<td>
<textarea id="aboutyou"></textarea>
</td>
</tr>
<tr valign="top">
<th scope="row">
<label for="awesome">Are you awesome?</label>
</th>
<td>
<fieldset>
<label for="awesome">
<input id="awesome" name="awesome" value="" type="checkbox"
value="1" /> Umm, yeah!
</label>
</fieldset>
</td>
</tr>

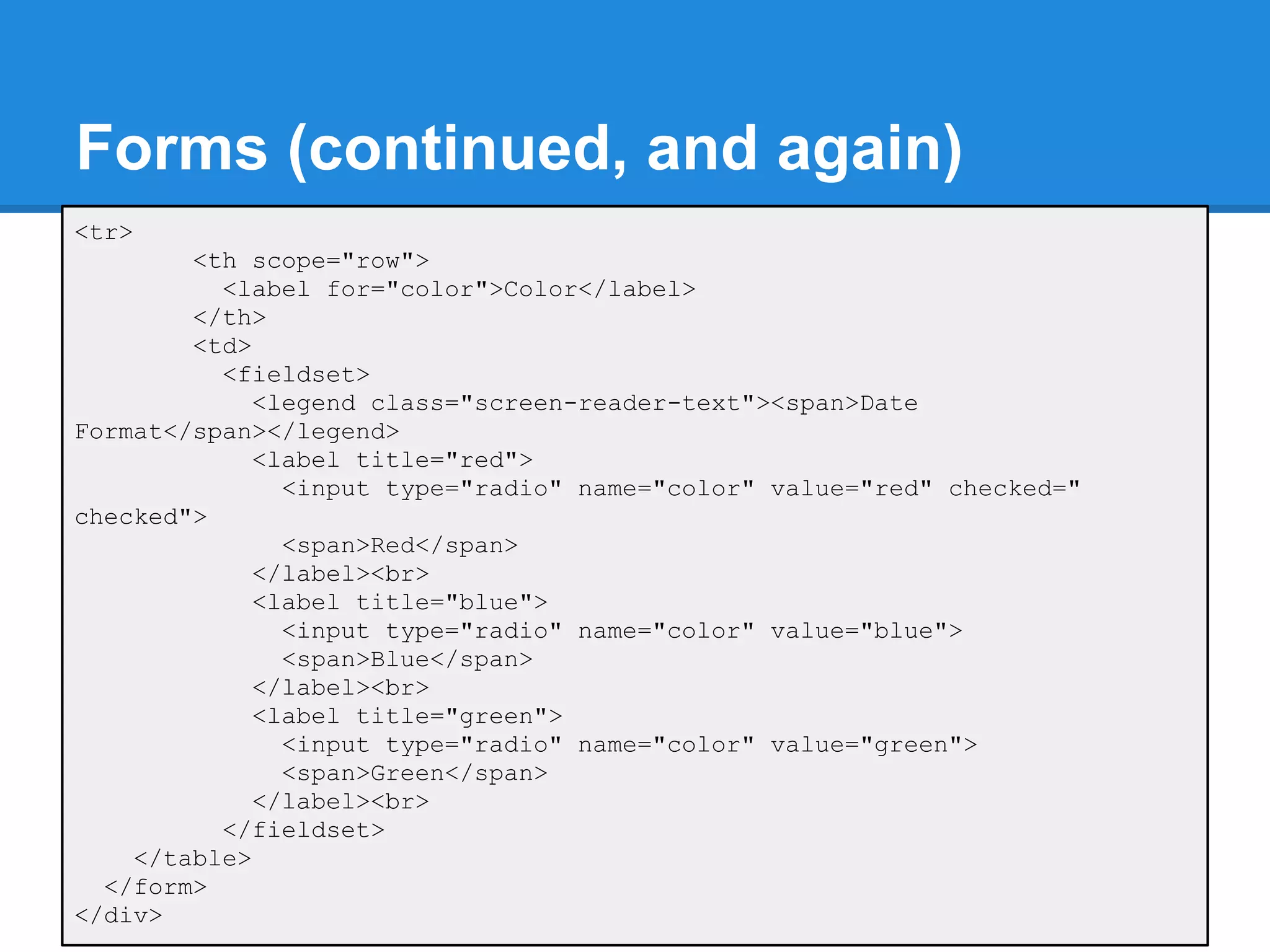

25. Forms (continued, and again)
<tr>
<th scope="row">
<label for="color">Color</label>
</th>
<td>
<fieldset>
<legend class="screen-reader-text"><span>Date
Format</span></legend>
<label title="red">
<input type="radio" name="color" value="red" checked="
checked">
<span>Red</span>
</label><br>
<label title="blue">
<input type="radio" name="color" value="blue">
<span>Blue</span>
</label><br>
<label title="green">
<input type="radio" name="color" value="green">
<span>Green</span>
</label><br>
</fieldset>
</table>
</form>
</div>

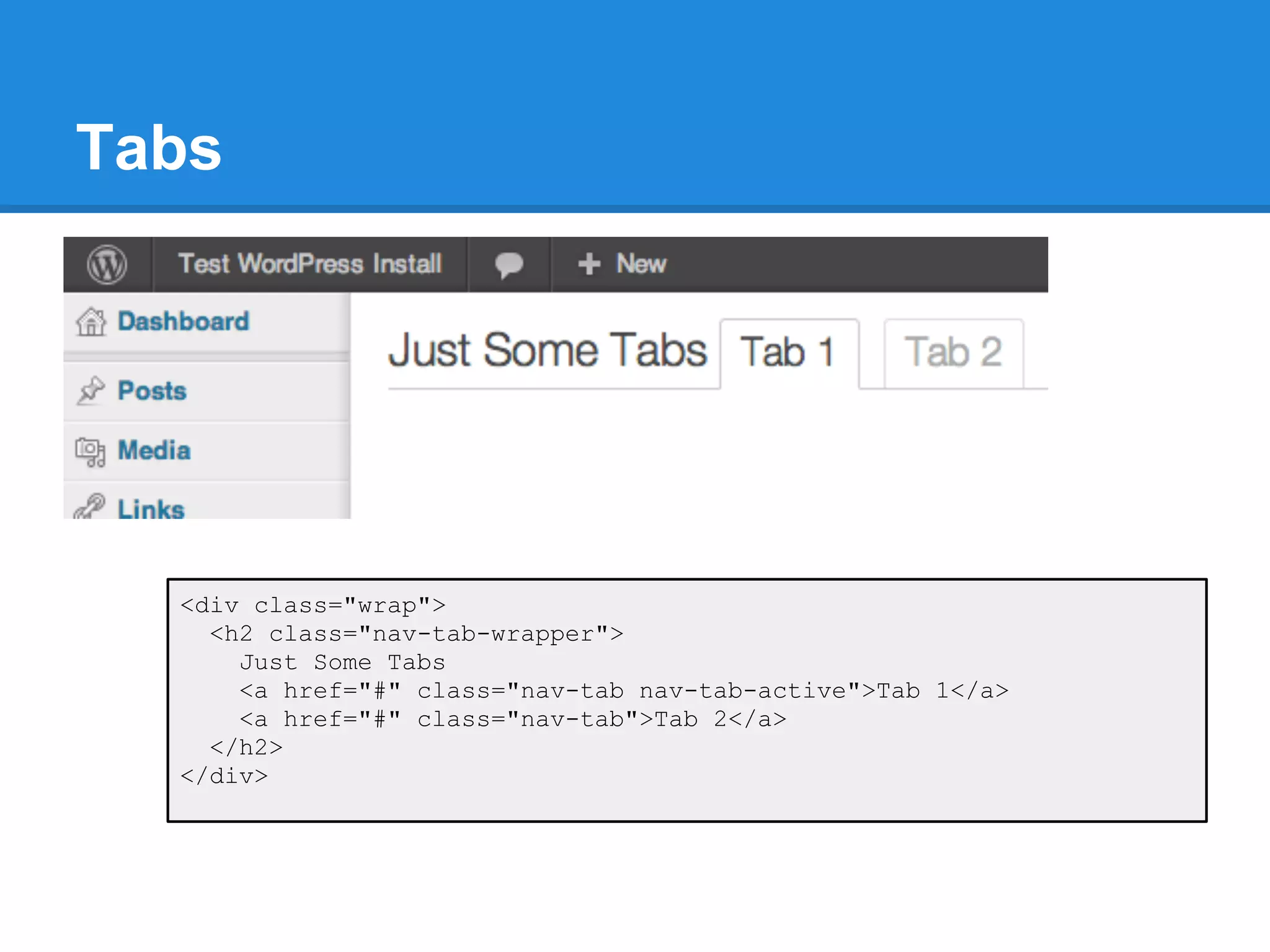

26. Tabs
<div class="wrap">
<h2 class="nav-tab-wrapper">
Just Some Tabs
<a href="#" class="nav-tab nav-tab-active">Tab 1</a>
<a href="#" class="nav-tab">Tab 2</a>
</h2>
</div>

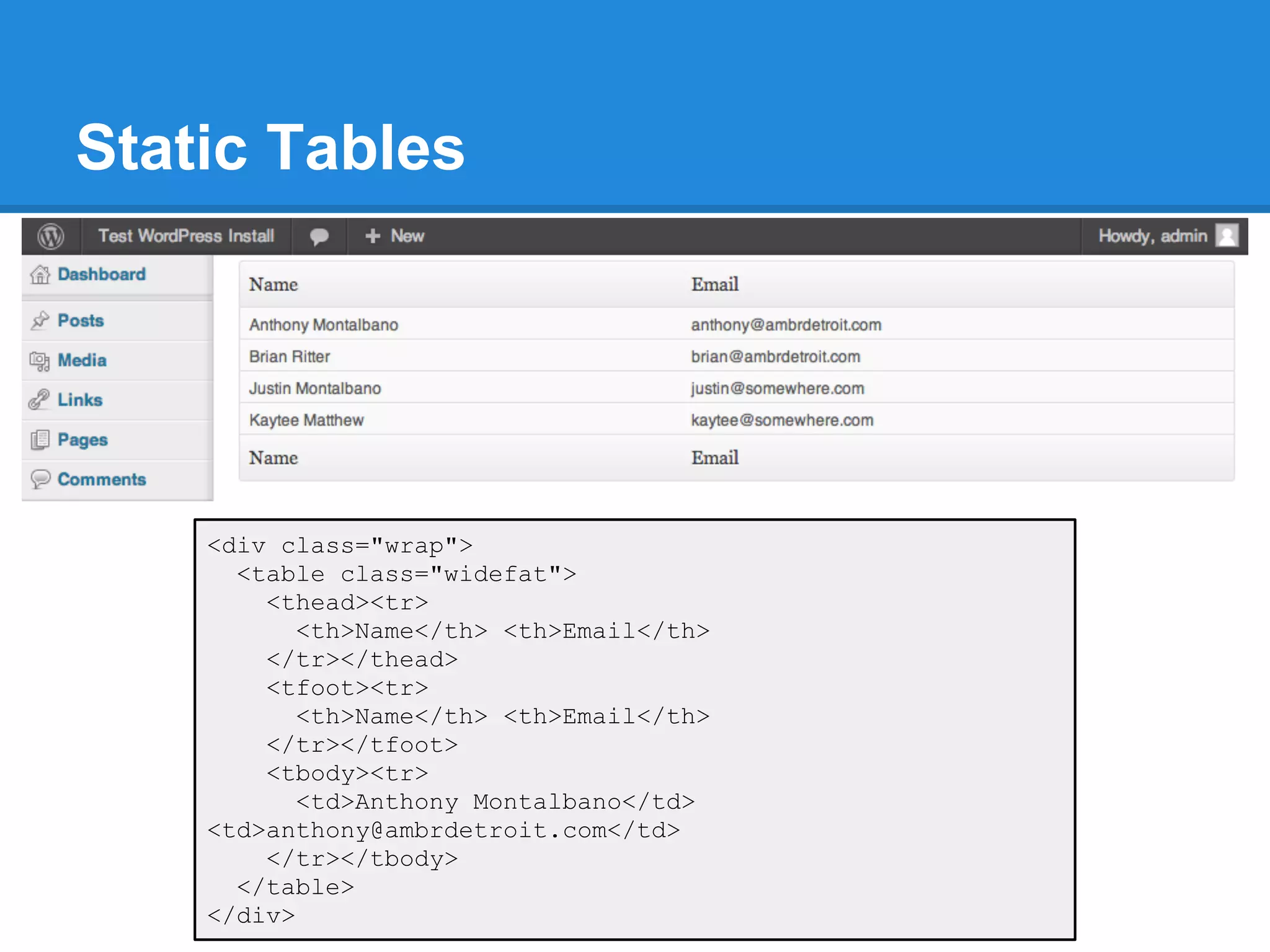

27. Static Tables
<div class="wrap">
<table class="widefat">
<thead><tr>
<th>Name</th> <th>Email</th>
</tr></thead>
<tfoot><tr>
<th>Name</th> <th>Email</th>
</tr></tfoot>
<tbody><tr>
<td>Anthony Montalbano</td>
<td>anthony@ambrdetroit.com</td>
</tr></tbody>
</table>
</div>

28. Interactive
Elements
Click, click, drag, clickity, click!

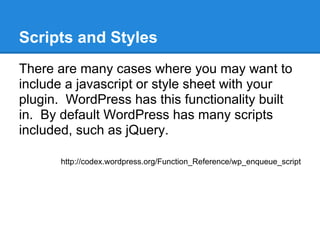

29. Scripts and Styles
There are many cases where you may want to
include a javascript or style sheet with your
plugin. WordPress has this functionality built
in. By default WordPress has many scripts
included, such as jQuery.
http://codex.wordpress.org/Function_Reference/wp_enqueue_script

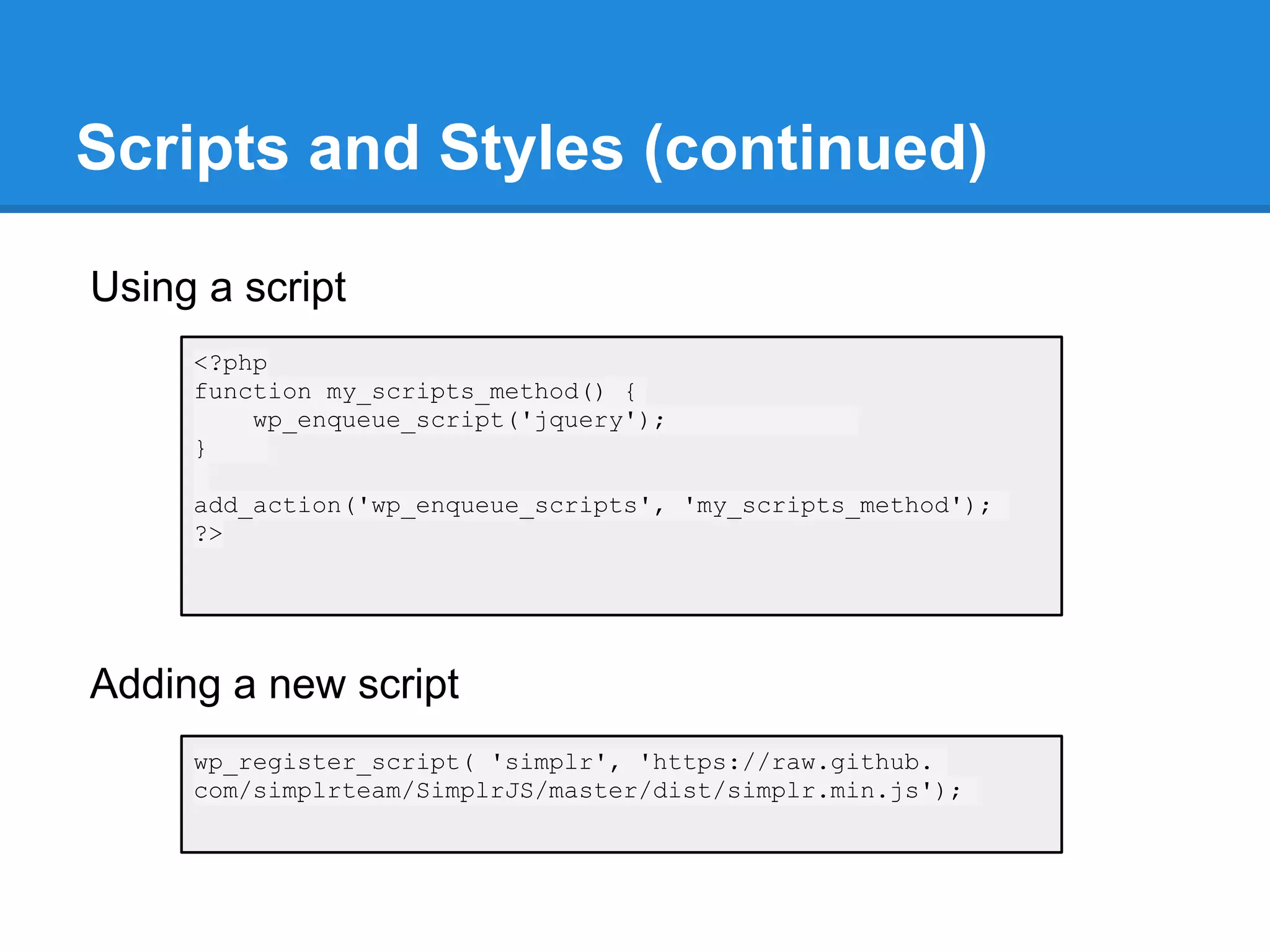

30. Scripts and Styles (continued)
Using a script
<?php
function my_scripts_method() {
wp_enqueue_script('jquery');
}
add_action('wp_enqueue_scripts', 'my_scripts_method');
?>
Adding a new script
wp_register_script( 'simplr', 'https://raw.github.
com/simplrteam/SimplrJS/master/dist/simplr.min.js');

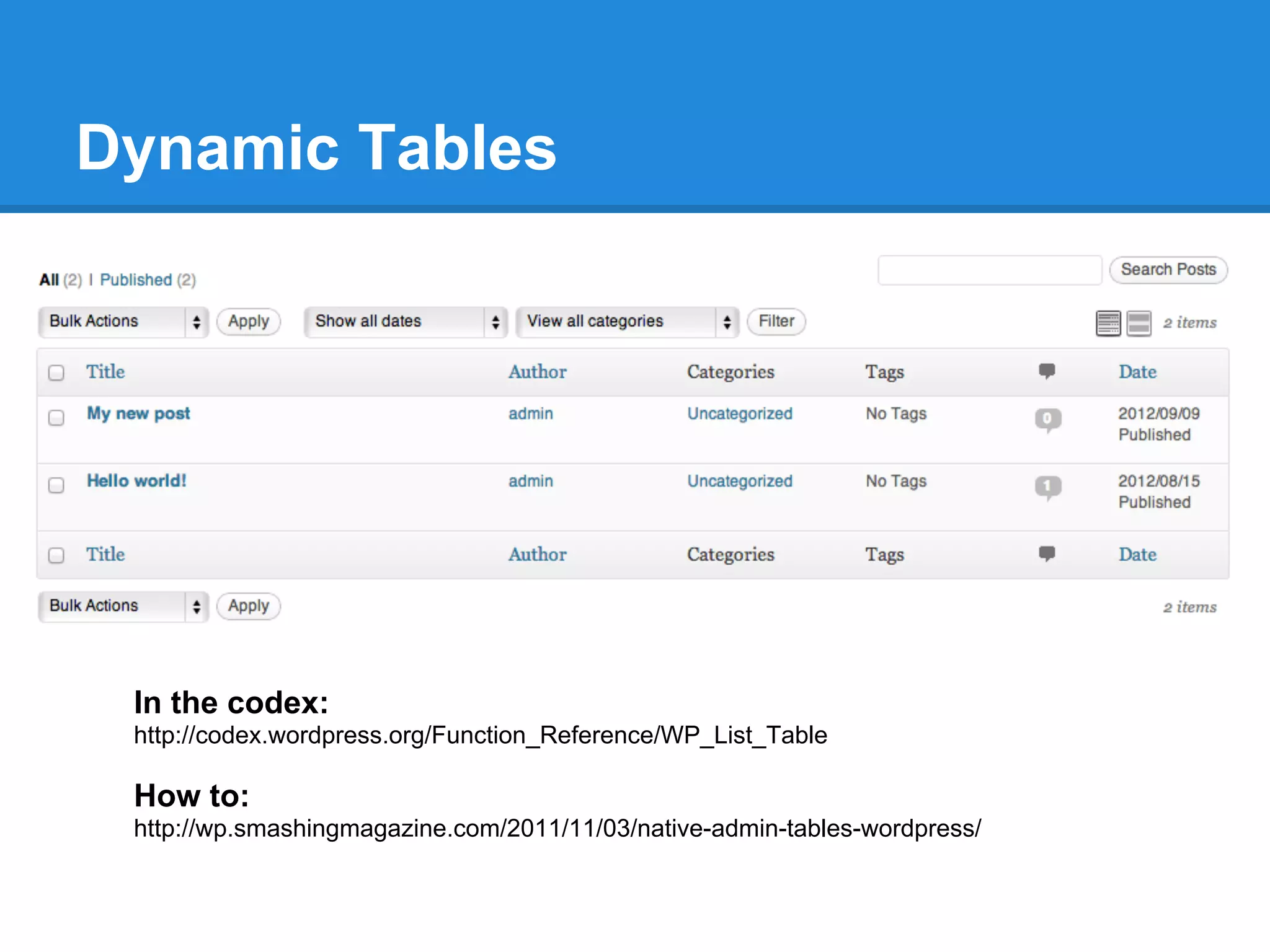

31. Dynamic Tables
In the codex:
http://codex.wordpress.org/Function_Reference/WP_List_Table
How to:
http://wp.smashingmagazine.com/2011/11/03/native-admin-tables-wordpress/

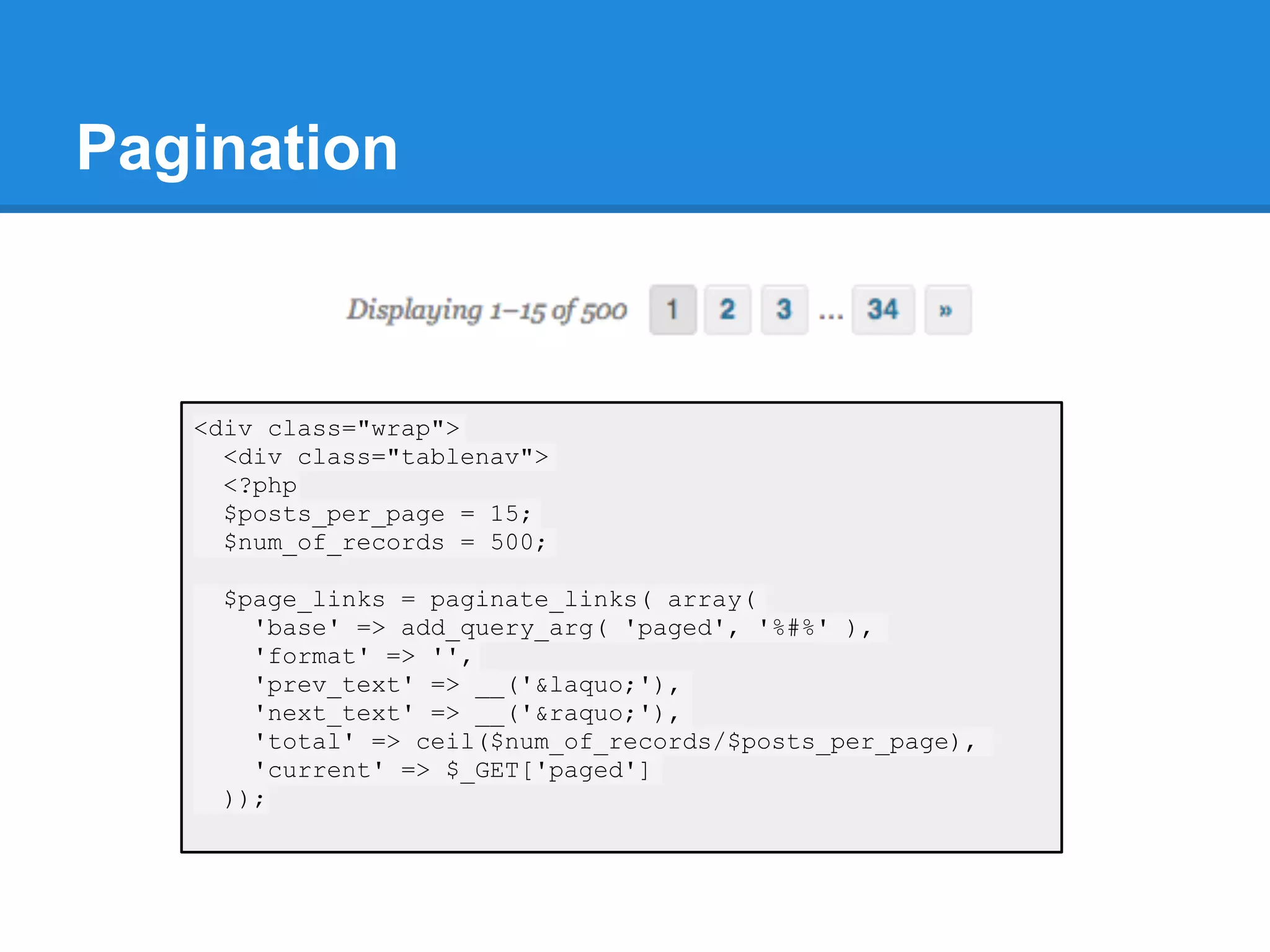

32. Pagination
<div class="wrap">
<div class="tablenav">
<?php
$posts_per_page = 15;
$num_of_records = 500;
$page_links = paginate_links( array(
'base' => add_query_arg( 'paged', '%#%' ),
'format' => '',
'prev_text' => __('&laquo;'),
'next_text' => __('&raquo;'),
'total' => ceil($num_of_records/$posts_per_page),
'current' => $_GET['paged']
));

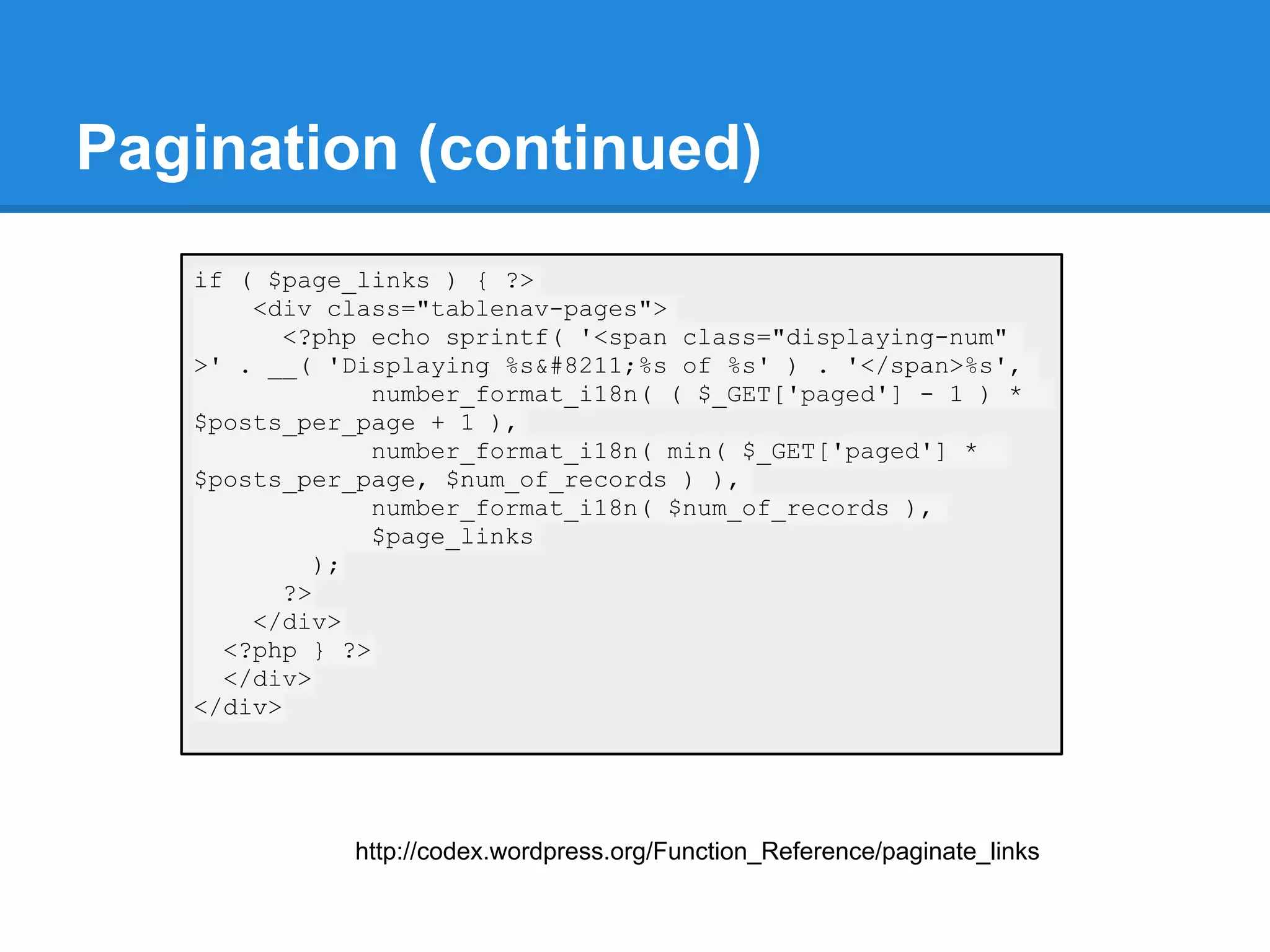

33. Pagination (continued)
if ( $page_links ) { ?>
<div class="tablenav-pages">
<?php echo sprintf( '<span class="displaying-num"
>' . __( 'Displaying %s&#8211;%s of %s' ) . '</span>%s',
number_format_i18n( ( $_GET['paged'] - 1 ) *
$posts_per_page + 1 ),
number_format_i18n( min( $_GET['paged'] *
$posts_per_page, $num_of_records ) ),
number_format_i18n( $num_of_records ),
$page_links
);
?>
</div>
<?php } ?>
</div>
</div>
http://codex.wordpress.org/Function_Reference/paginate_links

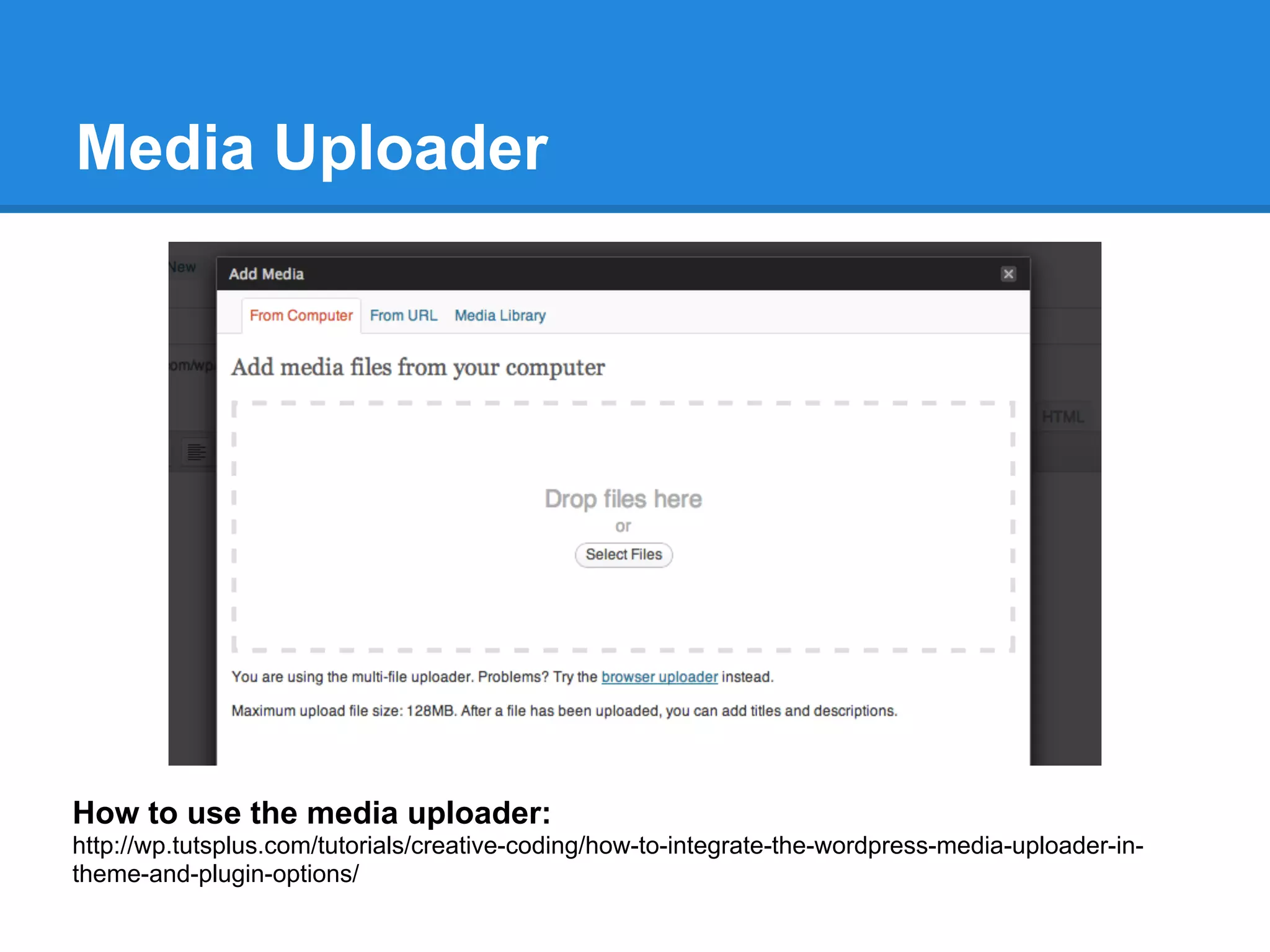

34. Media Uploader
How to use the media uploader:
http://wp.tutsplus.com/tutorials/creative-coding/how-to-integrate-the-wordpress-media-uploader-in-
theme-and-plugin-options/

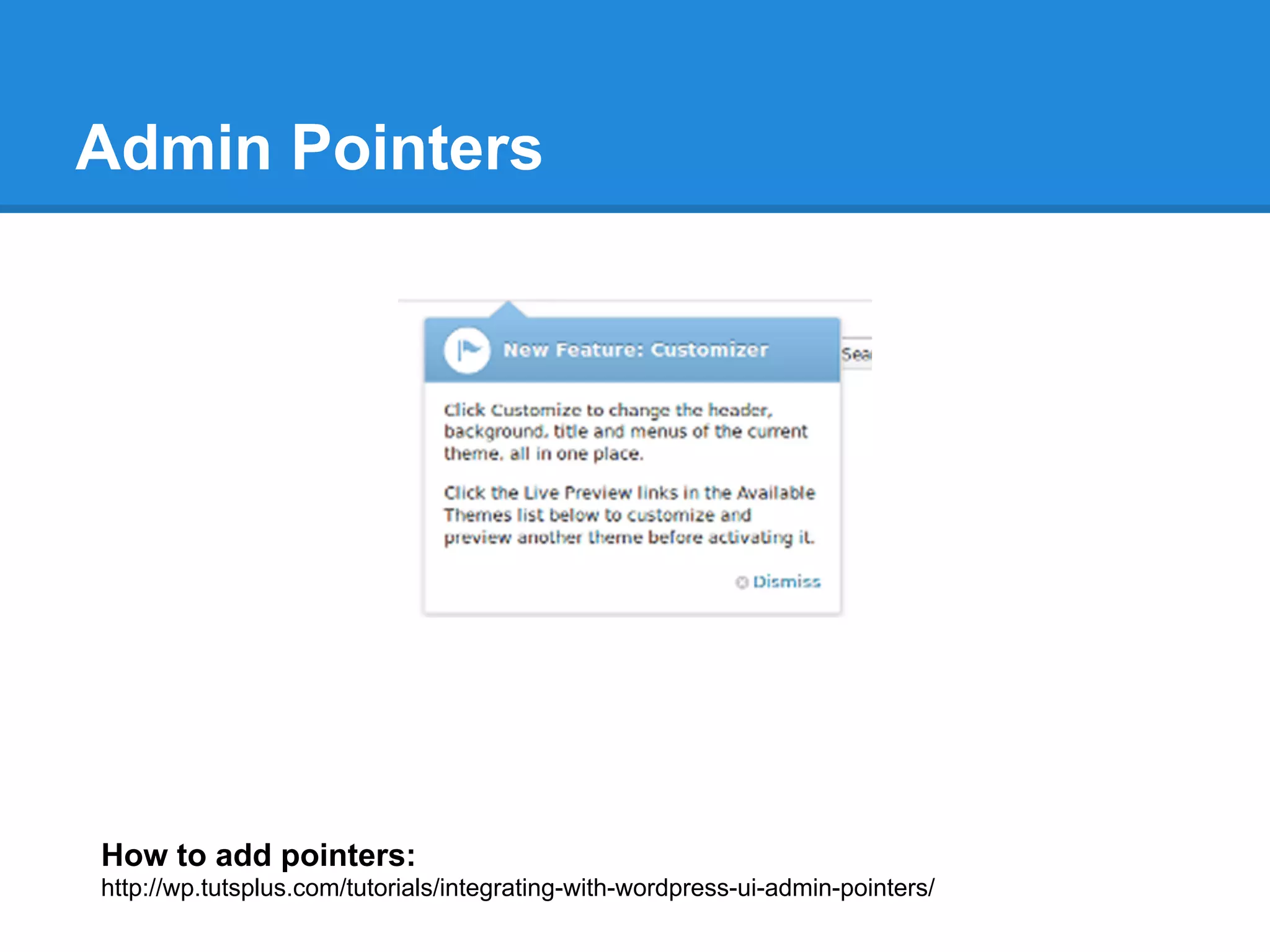

35. Admin Pointers
How to add pointers:
http://wp.tutsplus.com/tutorials/integrating-with-wordpress-ui-admin-pointers/

36. Data Retention
Maybe we should save that...

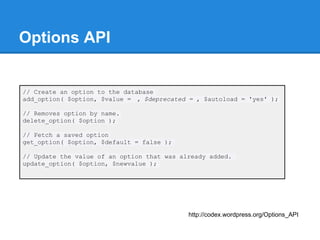

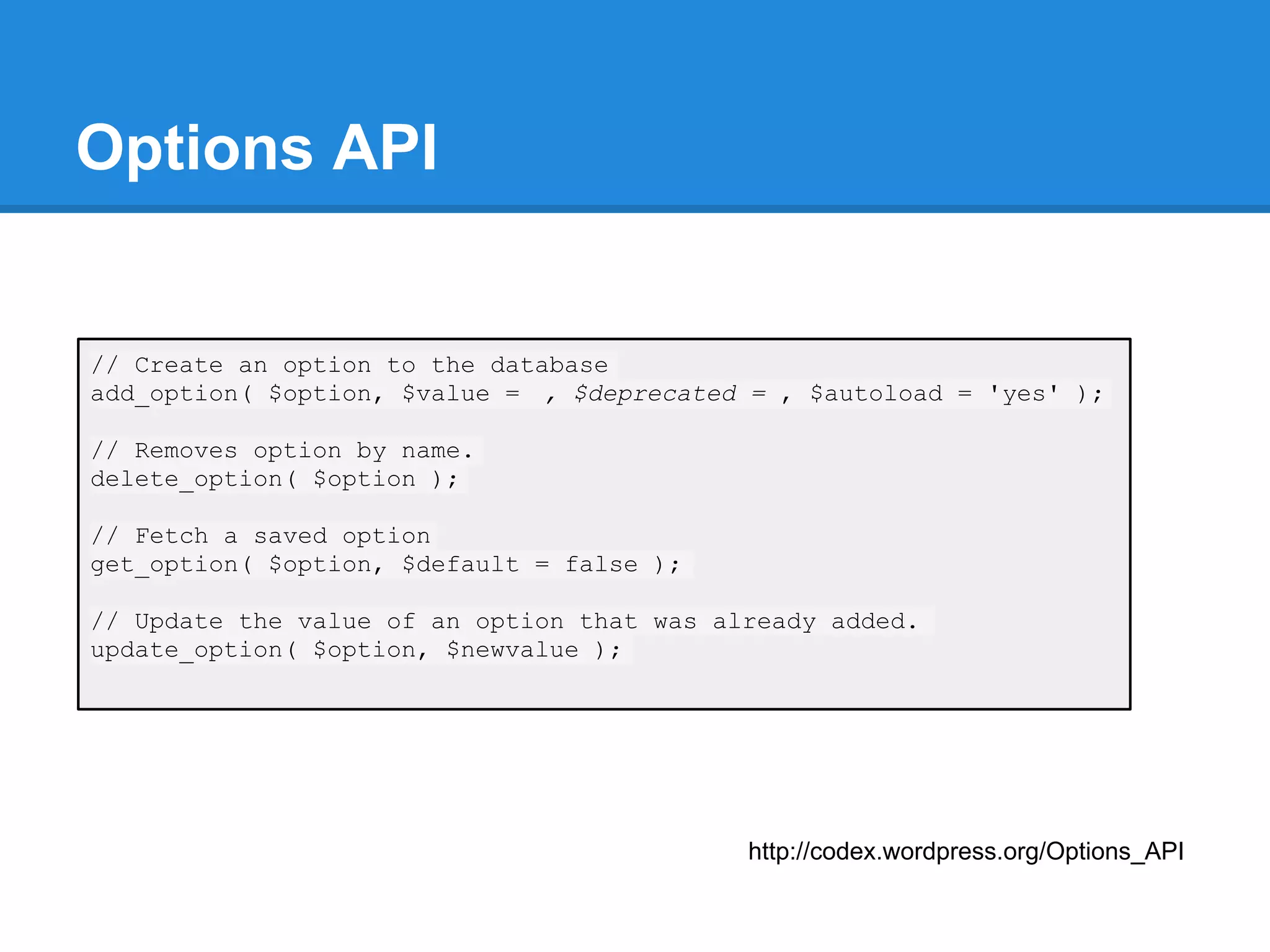

37. Options API
// Create an option to the database
add_option( $option, $value = , $deprecated = , $autoload = 'yes' );
// Removes option by name.
delete_option( $option );
// Fetch a saved option
get_option( $option, $default = false );
// Update the value of an option that was already added.
update_option( $option, $newvalue );
http://codex.wordpress.org/Options_API

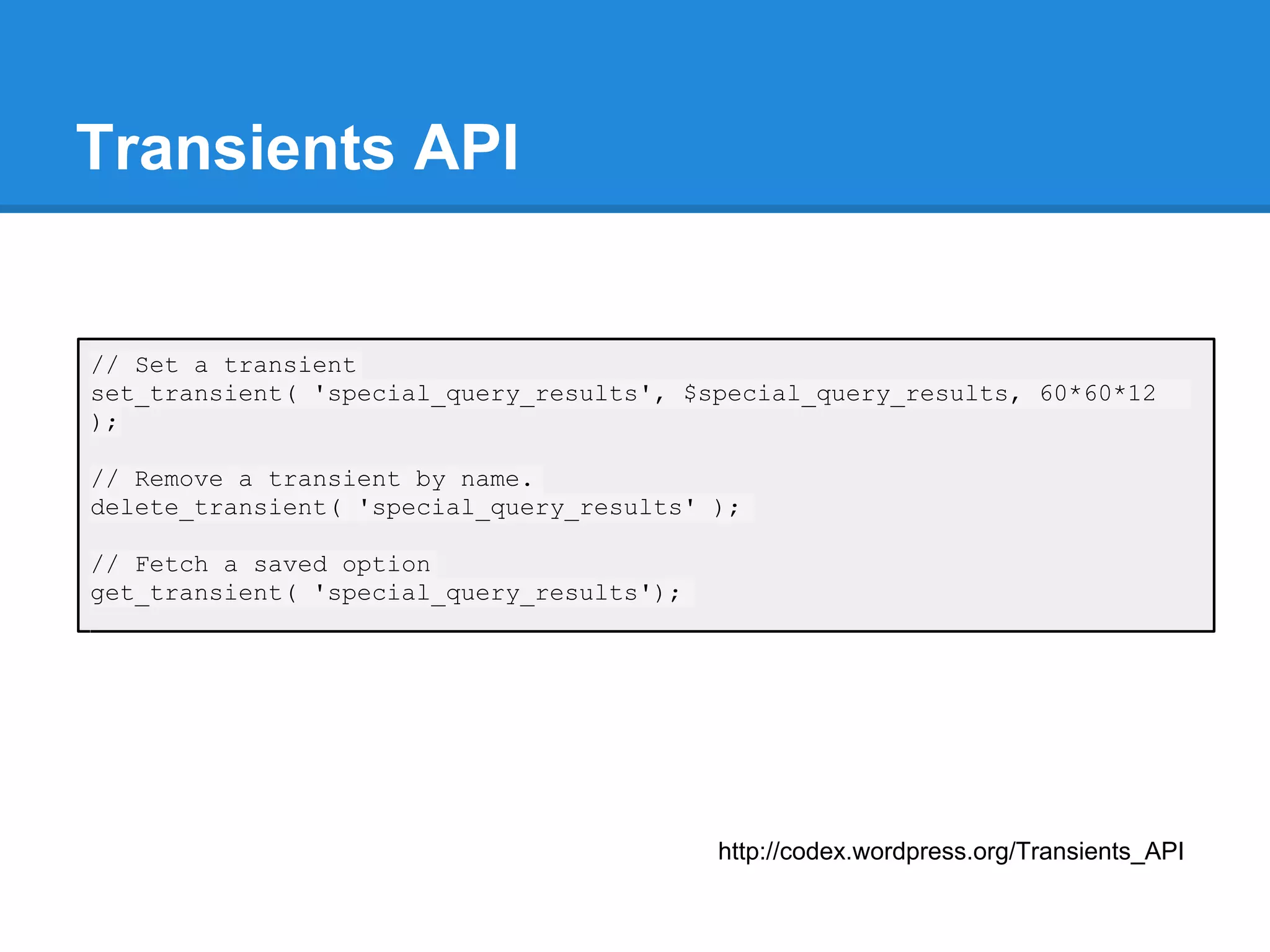

38. Transients API
// Set a transient
set_transient( 'special_query_results', $special_query_results, 60*60*12
);
// Remove a transient by name.
delete_transient( 'special_query_results' );
// Fetch a saved option
get_transient( 'special_query_results');
http://codex.wordpress.org/Transients_API

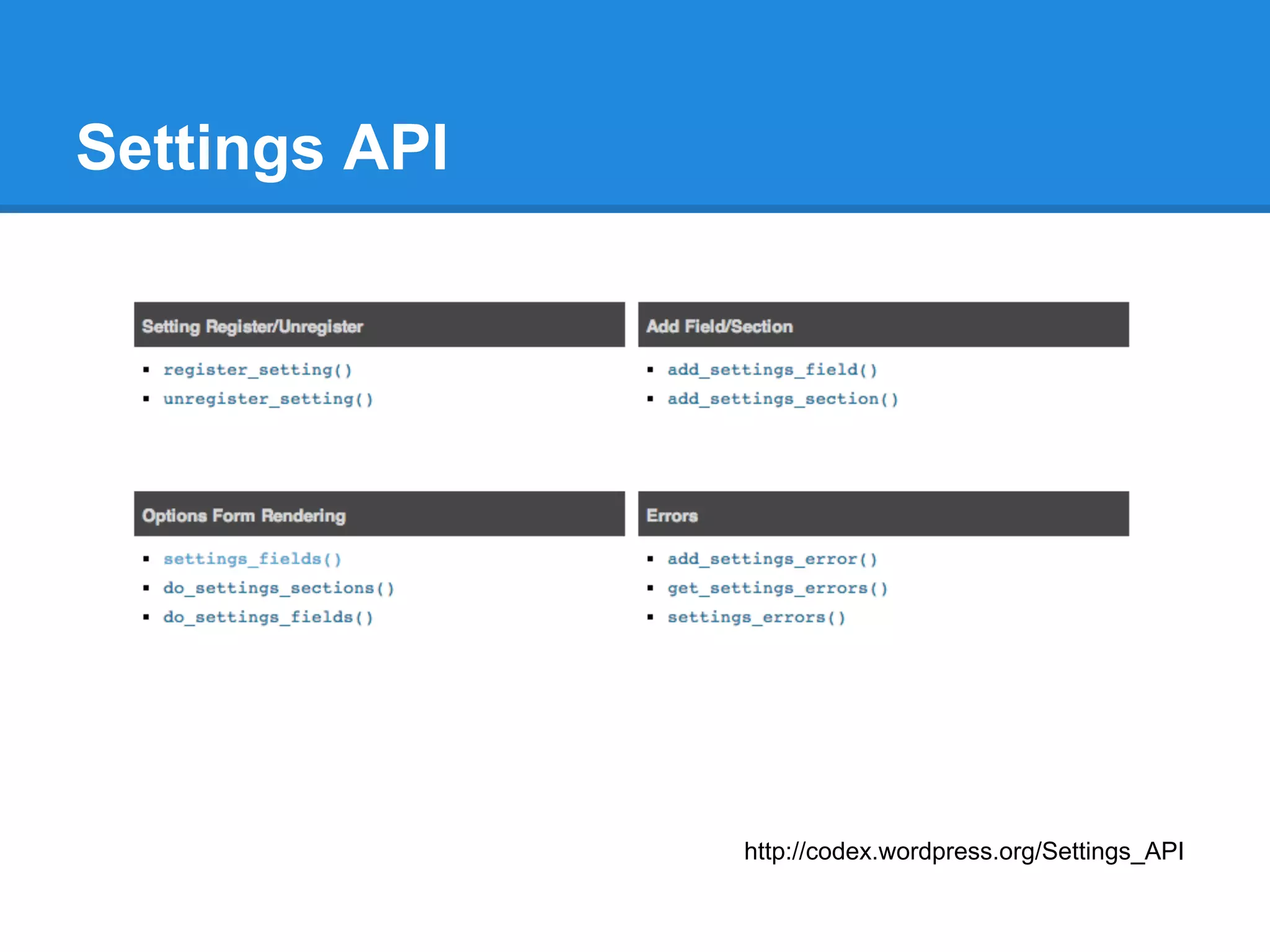

39. Settings API
http://codex.wordpress.org/Settings_API

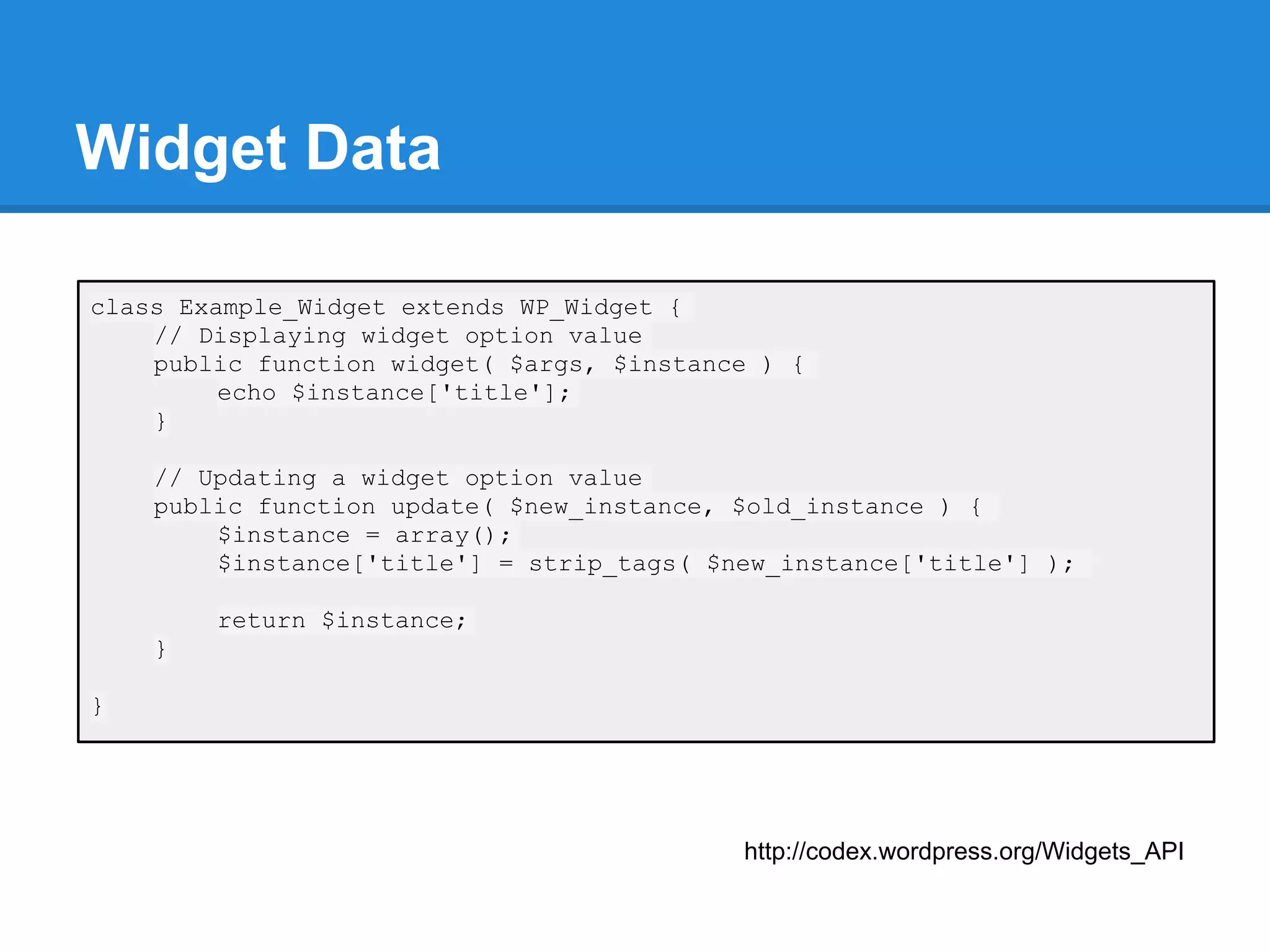

40. Widget Data
class Example_Widget extends WP_Widget {
// Displaying widget option value
public function widget( $args, $instance ) {
echo $instance['title'];
}
// Updating a widget option value
public function update( $new_instance, $old_instance ) {
$instance = array();
$instance['title'] = strip_tags( $new_instance['title'] );
return $instance;
}
}
http://codex.wordpress.org/Widgets_API

41. Explore more
It's only just begun...

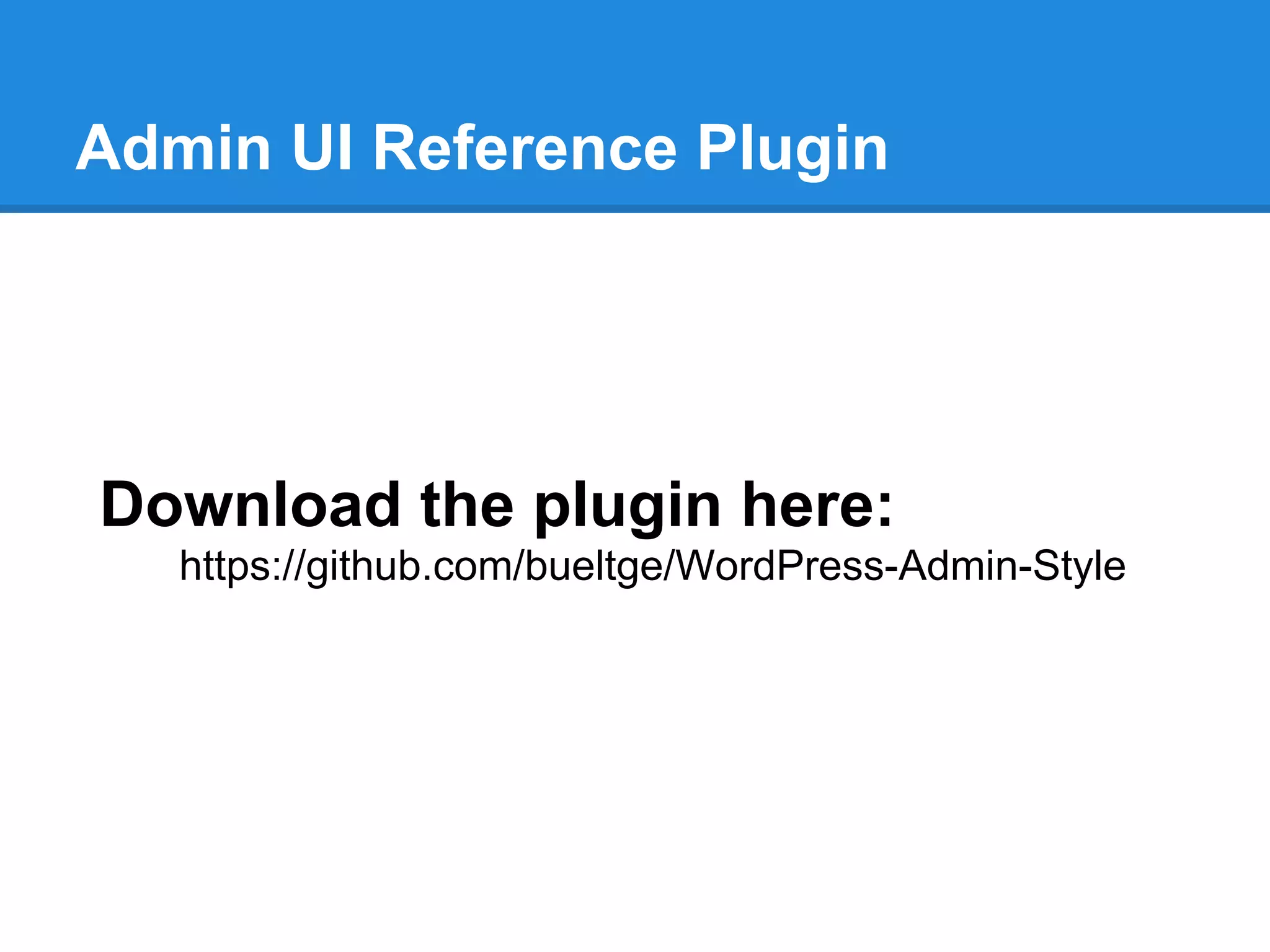

42. Admin UI Reference Plugin
Download the plugin here:
https://github.com/bueltge/WordPress-Admin-Style

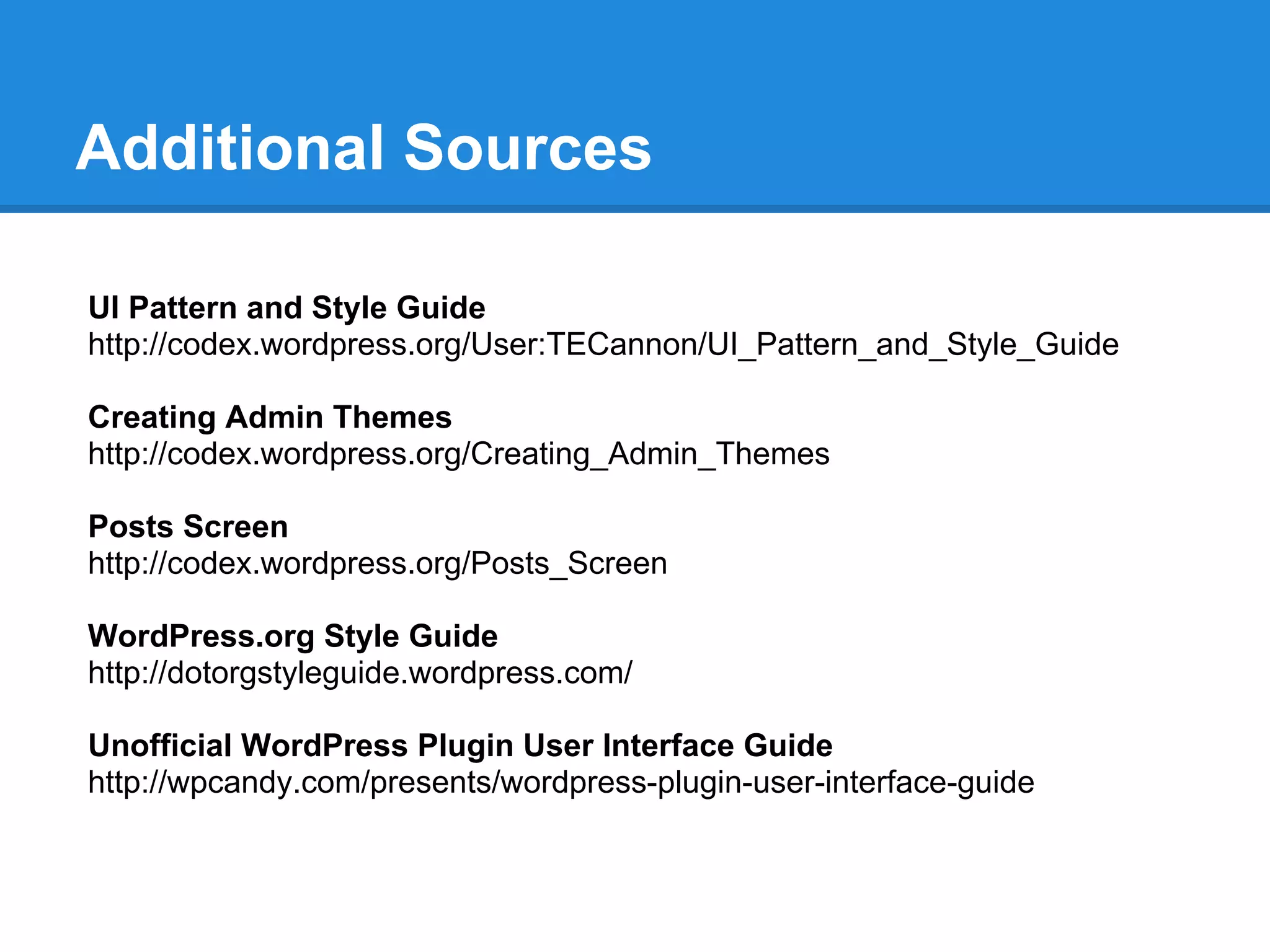

43. Additional Sources
UI Pattern and Style Guide
http://codex.wordpress.org/User:TECannon/UI_Pattern_and_Style_Guide
Creating Admin Themes
http://codex.wordpress.org/Creating_Admin_Themes
Posts Screen
http://codex.wordpress.org/Posts_Screen
WordPress.org Style Guide
http://dotorgstyleguide.wordpress.com/
Unofficial WordPress Plugin User Interface Guide
http://wpcandy.com/presents/wordpress-plugin-user-interface-guide

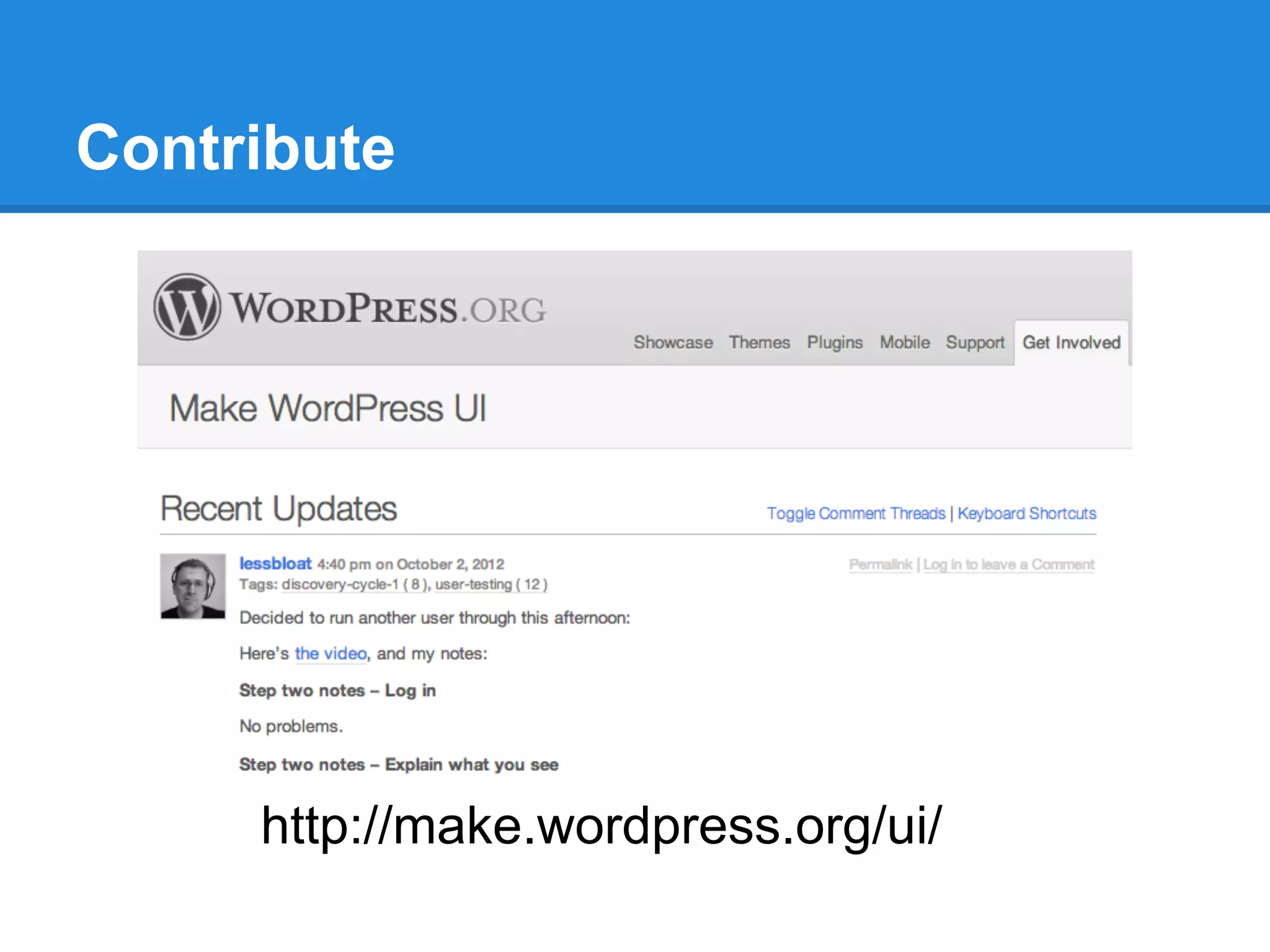

44. Contribute
http://make.wordpress.org/ui/

45. Some final thoughts
Keep it simple.

46. Some final thoughts

47. Thank you!
Anthony Montalbano
@italianst4
anthony@ambrdetroit.com
