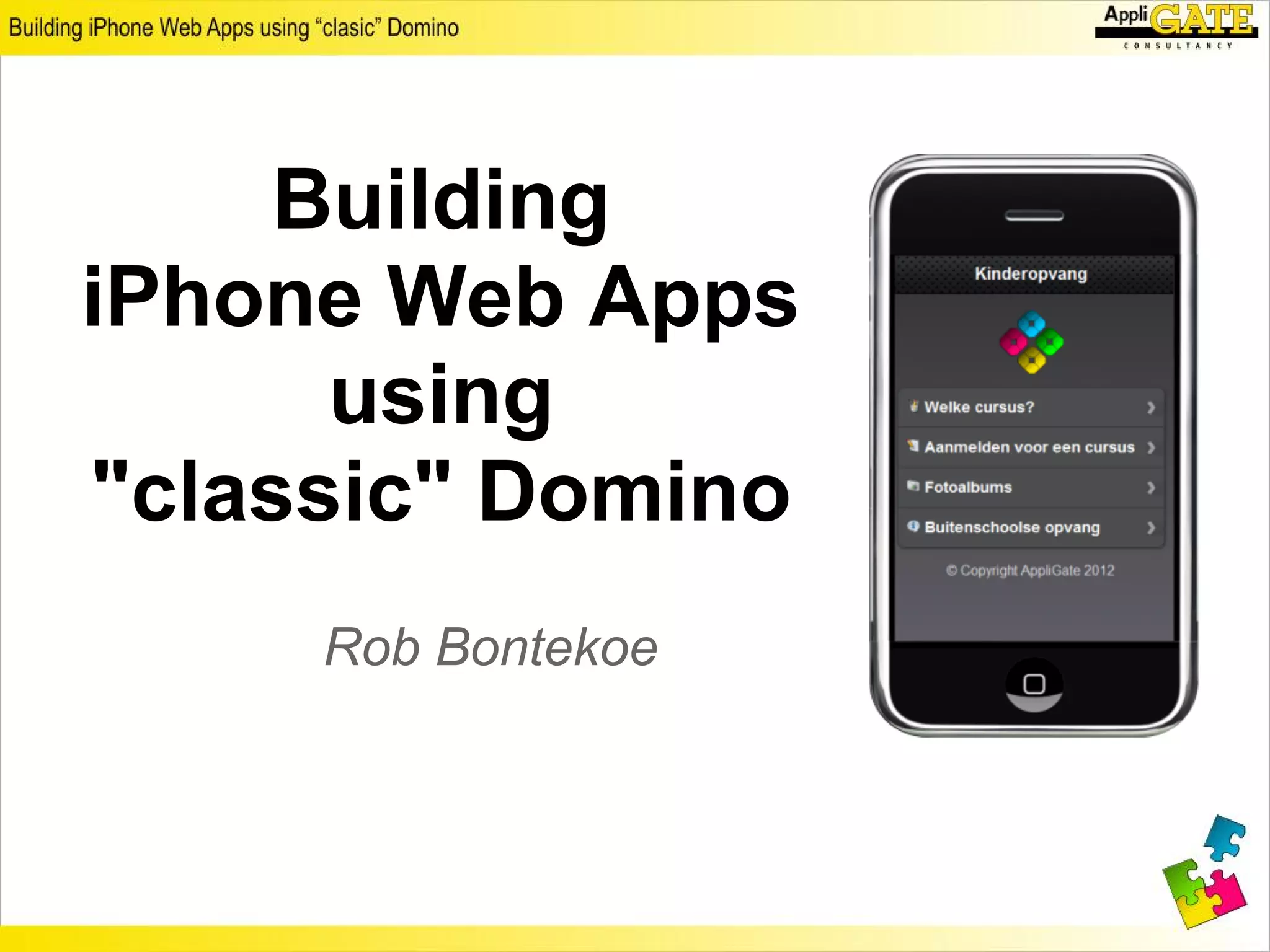

Building iPhone Web Apps using "classic" Domino

Building
iPhone Web Apps
using
"classic" Domino
Rob Bontekoe

AppliGate's Working Area
● Since 1994 Domino courses
● Since 2009 XPages courses
and since 2011...
● GAE Restful web apps
● GAE Servlet + JSP
○ Mobile Web 2.0 Apps
■ HTML5 + JavaScript +
jQuery + jqTouch
■ Also possible with "classic" Domino

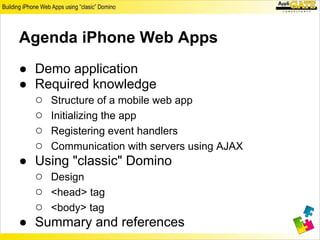

Agenda iPhone Web Apps
● Demo application
● Required knowledge
○ Structure of a mobile web app
○ Initializing the app
○ Registering event handlers
○ Communication with servers using AJAX
● Using "classic" Domino
○ Design
○ <head> tag
○ <body> tag
● Summary and references

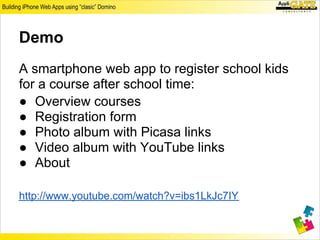

Demo
A smartphone web app to register school kids
for a course after school time:
● Overview courses
● Registration form
● Photo album with Picasa links
● Video album with YouTube links
● About

Structure of a Web App

<html> <ul class="rounded">
<head></head> <li class="arrow">
<body> <a class="flip" href="#infoCursussen">
Page Header
<img src="pens.png" />
<div id="home" class="current"> Welke cursus?
<div class="toolbar"><h1>Kinderopvang</h1></div> </a>
 </li>
</div> </ul>

<div id="infoCursussen">
<div class="toolbar">
<h1>Info cursussen</h1><a class="back" href="#">Back</a></div>

</div>

</body> JavaScript frameworks, here jQTouch,
</html> takes care of displaying one <div>-section
(= page) at a time

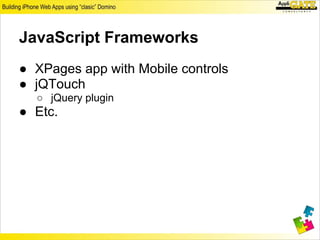

JavaScript Frameworks
● XPages app with Mobile controls
● jQTouch
jQuery plugin
● Etc.

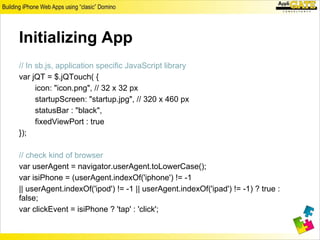

Initializing App
// In sb.js, application specific JavaScript library
var jQT = $.jQTouch( {
icon: "icon.png", // 32 x 32 px
startupScreen: "startup.jpg", // 320 x 460 px
statusBar : "black",
fixedViewPort : true
});

// check kind of browser
var userAgent = navigator.userAgent.toLowerCase();
var isiPhone = (userAgent.indexOf('iphone') != -1
|| userAgent.indexOf('ipod') != -1 || userAgent.indexOf('ipad') != -1) ? true :
false;
var clickEvent = isiPhone ? 'tap' : 'click';

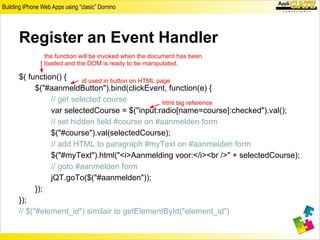

Register an Event Handler
the function will be invoked when the document has been
loaded and the DOM is ready to be manipulated.

$( function() { id used in button on HTML page
$("#aanmeldButton").bind(clickEvent, function(e) {
// get selected course html tag reference
var selectedCourse = $("input:radio[name=course]:checked").val();
// set hidden field #course on #aanmelden form
$("#course").val(selectedCourse);
// add HTML to paragraph #myText on #aanmelden form
$("#myText").html("<i>Aanmelding voor:</i><br />" + selectedCourse);
// goto #aanmelden form
jQT.goTo($("#aanmelden"));
});
});
// $("#element_id") similair to getElementById("element_id")

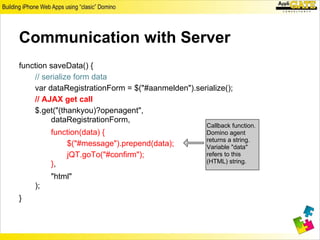

Communication with Server
function saveData() {
// serialize form data
var dataRegistrationForm = $("#aanmelden").serialize();
// AJAX get call
$.get("(thankyou)?openagent",
dataRegistrationForm,
Callback function.
function(data) { Domino agent
returns a string.
$("#message").prepend(data); Variable "data"
jQT.goTo("#confirm"); refers to this
}, (HTML) string.

"html"
);
}

Multiple Elements with Same ID
<a id="showImage" href="#" path="" link="1.jpg,2.jpg "
pictureTitle="Striptekenschool" caption="Gerben,Rob">
<img src="cover.jpg" height="200" class="pic"></img>
</a>

// Attach handler to one/more events for all elements that match #showImage
var gallery, captions;
$(document).delegate(
"#showImage",
clickEvent,
function() { // remove old gallery
// build photo array
// code // build captions array
} // create dynamically <div> section for gallery
// show <div> section
);

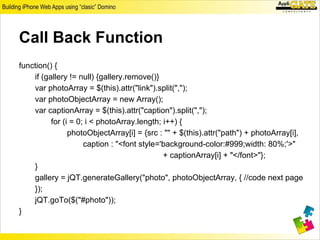

Call Back Function
function() {
if (gallery != null) {gallery.remove()}
var photoArray = $(this).attr("link").split(",");
var photoObjectArray = new Array();
var captionArray = $(this).attr("caption").split(",");
for (i = 0; i < photoArray.length; i++) {
photoObjectArray[i] = {src : "" + $(this).attr("path") + photoArray[i],
caption : "<font style='background-color:#999;width: 80%;'>"
+ captionArray[i] + "</font>"};
}
gallery = jQT.generateGallery("photo", photoObjectArray, { //code next page
});
jQT.goTo($("#photo"));
}

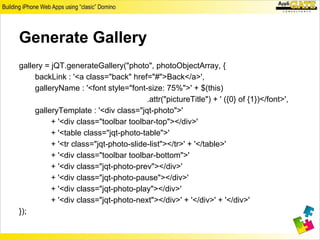

Generate Gallery
gallery = jQT.generateGallery("photo", photoObjectArray, {
backLink : '<a class="back" href="#">Back</a>',
galleryName : '<font style="font-size: 75%">' + $(this)
.attr("pictureTitle") + ' ({0} of {1})</font>',
galleryTemplate : '<div class="jqt-photo">'
+ '<div class="toolbar toolbar-top"></div>'
+ '<table class="jqt-photo-table">'
+ '<tr class="jqt-photo-slide-list"></tr>' + '</table>'
+ '<div class="toolbar toolbar-bottom">'
+ '<div class="jqt-photo-prev"></div>'
+ '<div class="jqt-photo-pause"></div>'
+ '<div class="jqt-photo-play"></div>'
+ '<div class="jqt-photo-next"></div>' + '</div>' + '</div>'
});

HTML5 <input> Tag Attributes
<input type="text" placeholder="Vul naam deelnemer in" name="student1" id="
student1" autocapitalize="on" autocorrect="off" autocomplete="off" />

placeholder
● instructions in field itself
New type values:
● tel
● email
● url
● number

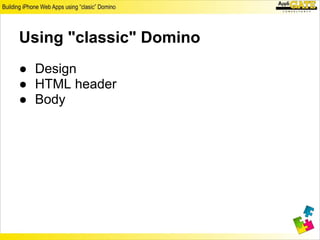

Using "classic" Domino
● Design
● HTML header
● Body

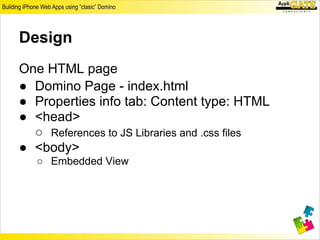

Design
One HTML page
● Domino Page - index.html
● Properties info tab: Content type: HTML
● <head>
○ References to JS Libraries and .css files
● <body>
○ Embedded View

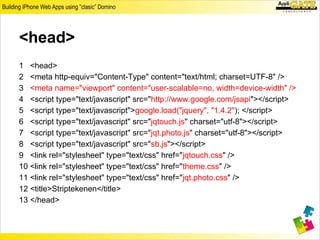

<head>
1 <head>
2 <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" />
3 <meta name="viewport" content="user-scalable=no, width=device-width" />
4 <script type="text/javascript" src="http://www.google.com/jsapi"></script>
5 <script type="text/javascript">google.load("jquery", "1.4.2"); </script>
6 <script type="text/javascript" src="jqtouch.js" charset="utf-8"></script>
7 <script type="text/javascript" src="jqt.photo.js" charset="utf-8"></script>
8 <script type="text/javascript" src="sb.js"></script>
9 <link rel="stylesheet" type="text/css" href="jqtouch.css" />
10 <link rel="stylesheet" type="text/css" href="theme.css" />
11 <link rel="stylesheet" type="text/css" href="jqt.photo.css" />
12 <title>Striptekenen</title>
13 </head>

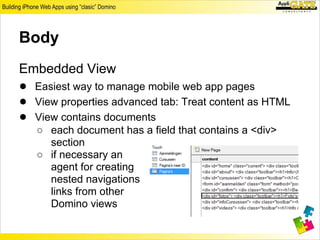

Body
Embedded View
● Easiest way to manage mobile web app pages
● View properties advanced tab: Treat content as HTML
● View contains documents
○ each document has a field that contains a <div>
section
○ if necessary an
agent for creating
nested navigations
links from other
Domino views

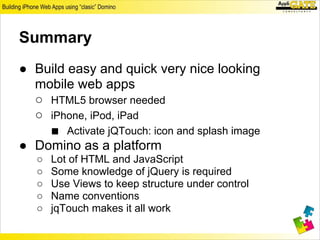

Summary
● Build easy and quick very nice looking
mobile web apps
○ HTML5 browser needed
○ iPhone, iPod, iPad
■ Activate jQTouch: icon and splash image
● Domino as a platform
○ Lot of HTML and JavaScript
○ Some knowledge of jQuery is required
○ Use Views to keep structure under control
○ Name conventions
○ jqTouch makes it all work

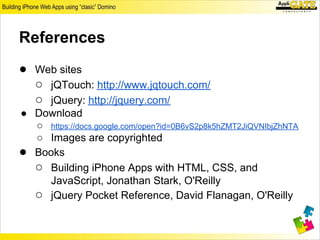

References
● Web sites
○ jQTouch: http://www.jqtouch.com/
○ jQuery: http://jquery.com/
○ AppliGate: http://www.appligate.nl
● Download
○ https://docs.google.com/open?id=0B6vS2p8k5hZMT2JiQVNIbjZhNTA
○ Images are copyrighted
● Books
○ Building iPhone Apps with HTML, CSS, and
JavaScript, Jonathan Stark, O'Reilly
○ jQuery Pocket Reference, David Flanagan, O'Reilly
