1. Android in Practice
José Manuel Ortega
Techfest uc3m February 2014

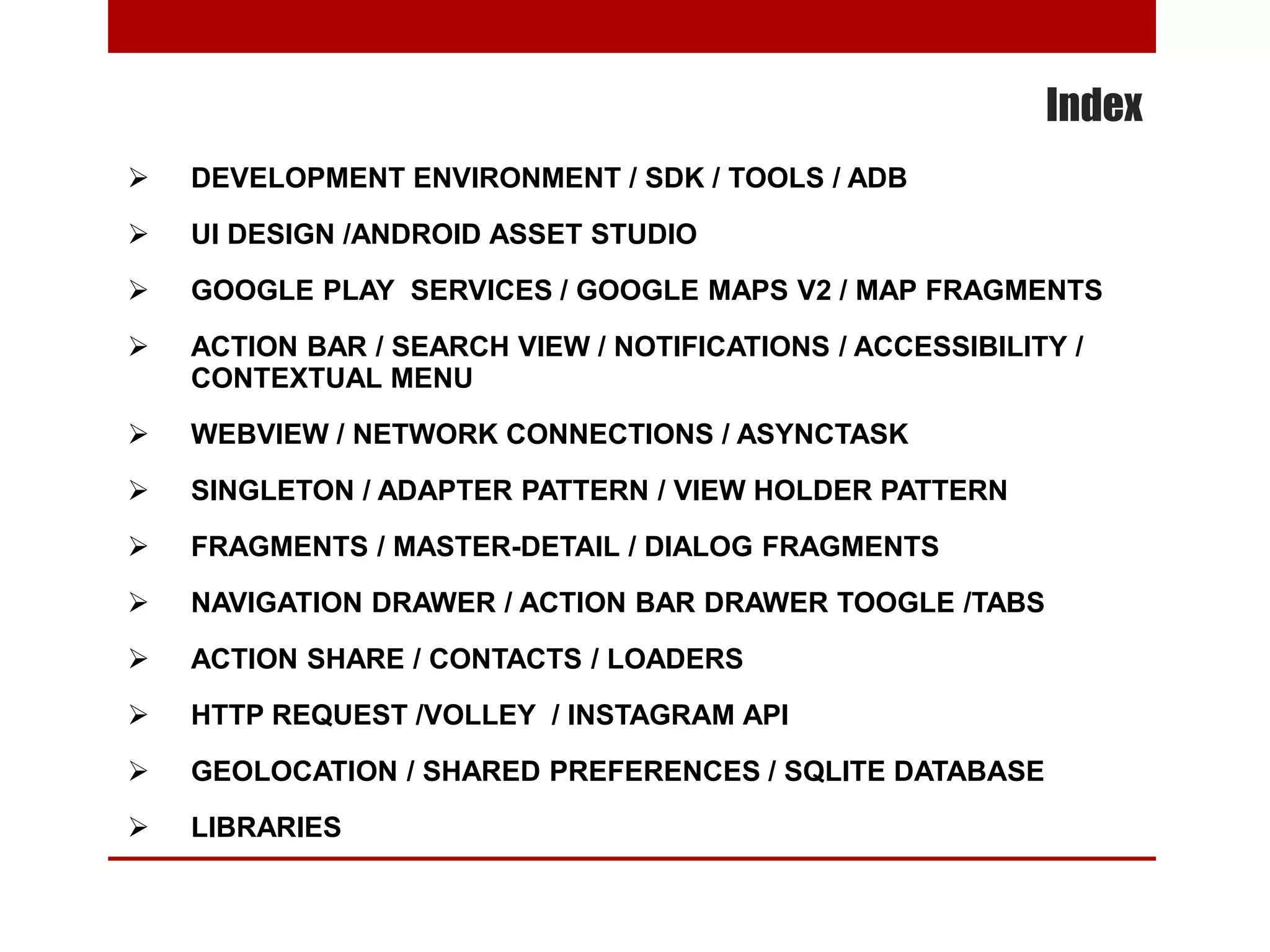

2. Index
 DEVELOPMENT ENVIRONMENT / SDK / TOOLS / ADB
 UI DESIGN /ANDROID ASSET STUDIO
 GOOGLE PLAY SERVICES / GOOGLE MAPS V2 / MAP FRAGMENTS
 ACTION BAR / SEARCH VIEW / NOTIFICATIONS / ACCESSIBILITY /

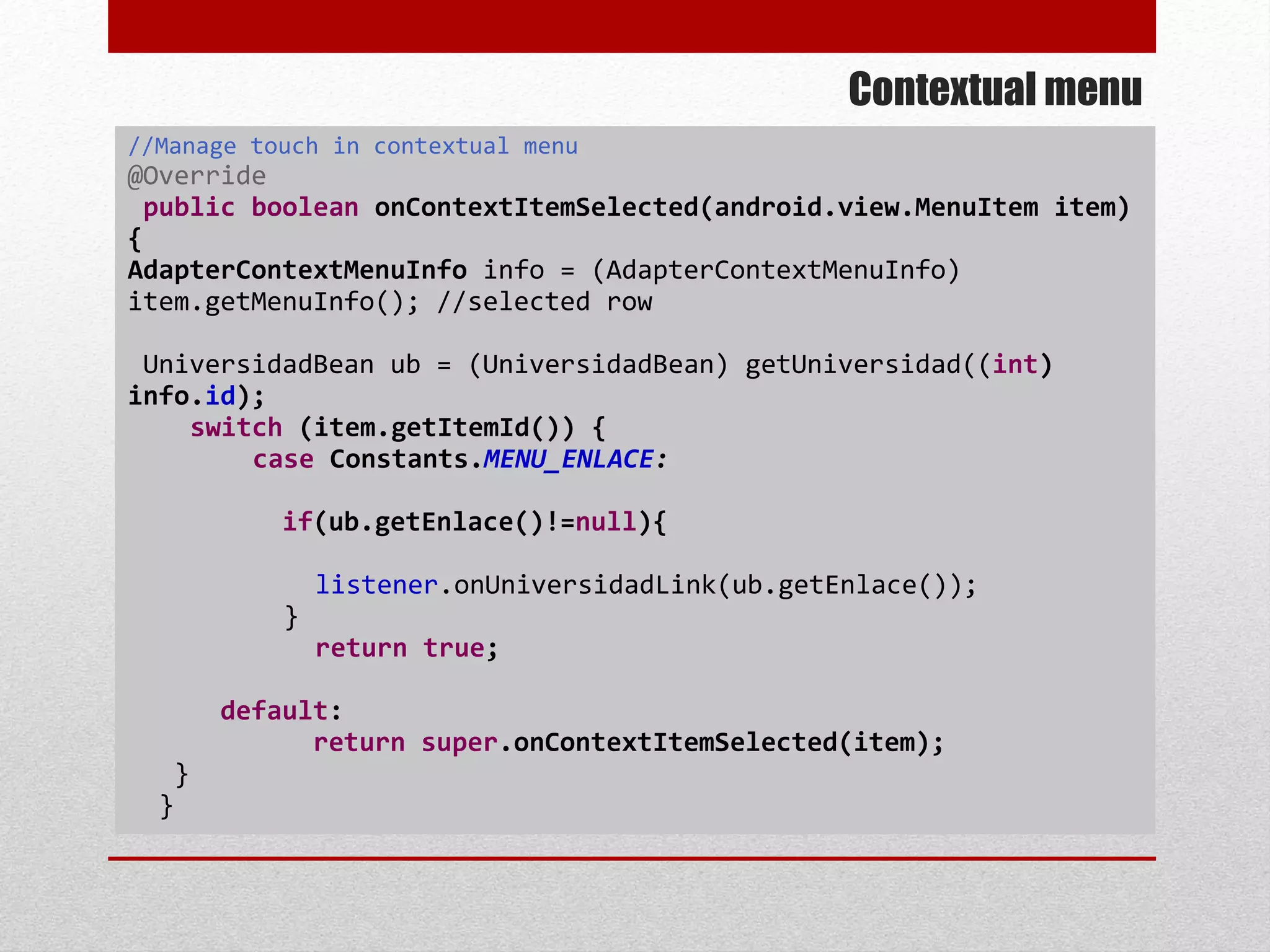

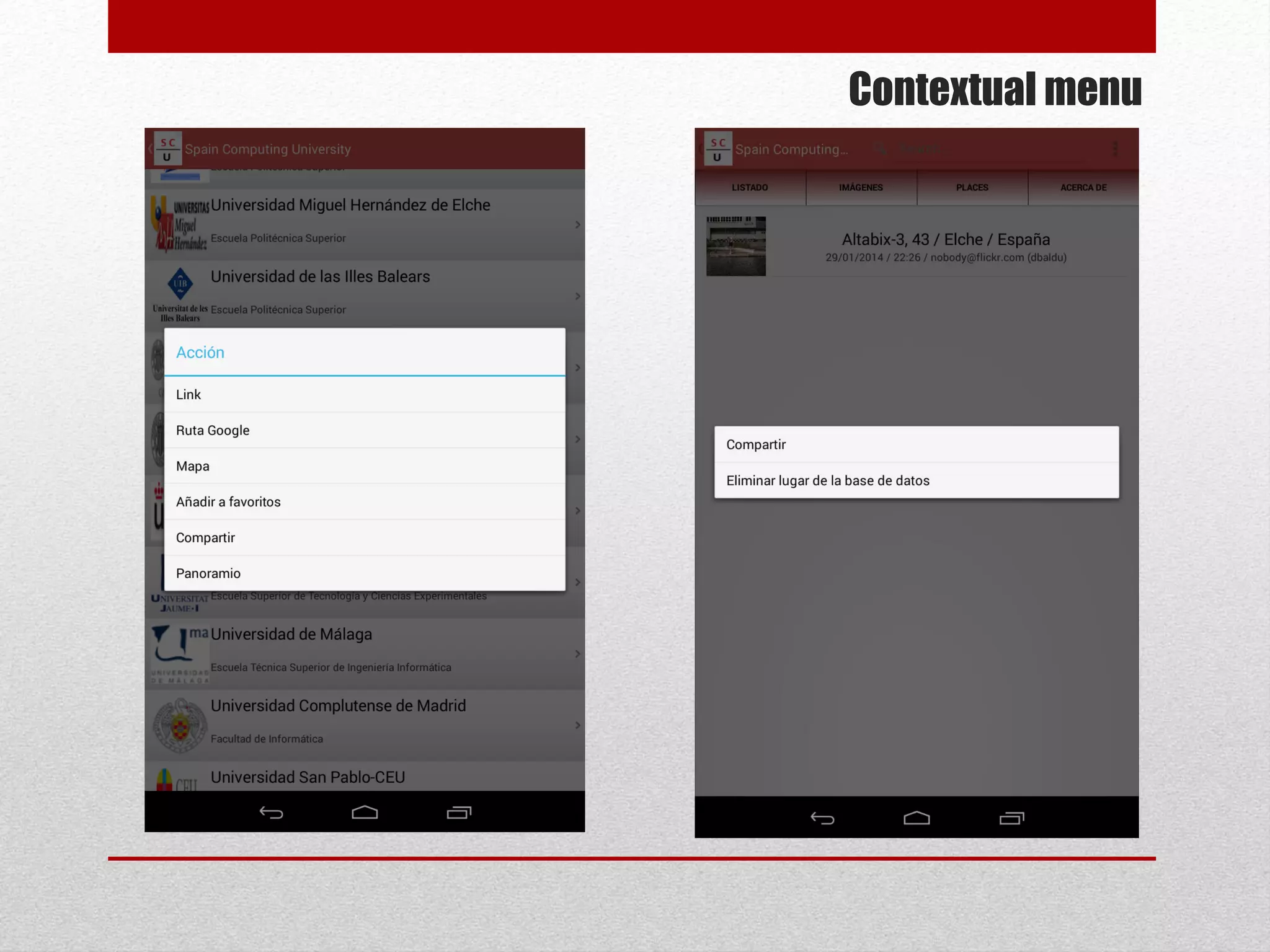

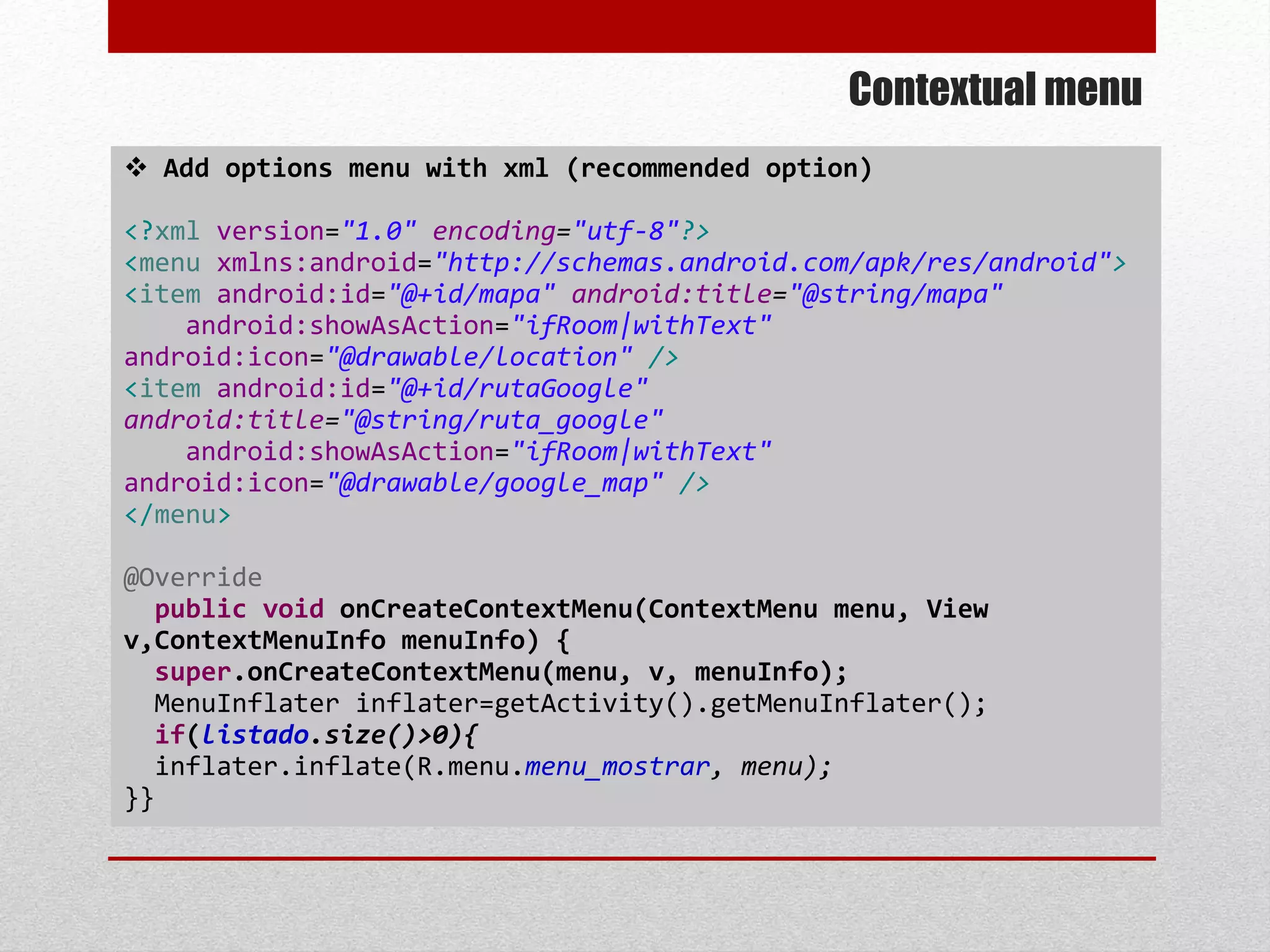

CONTEXTUAL MENU

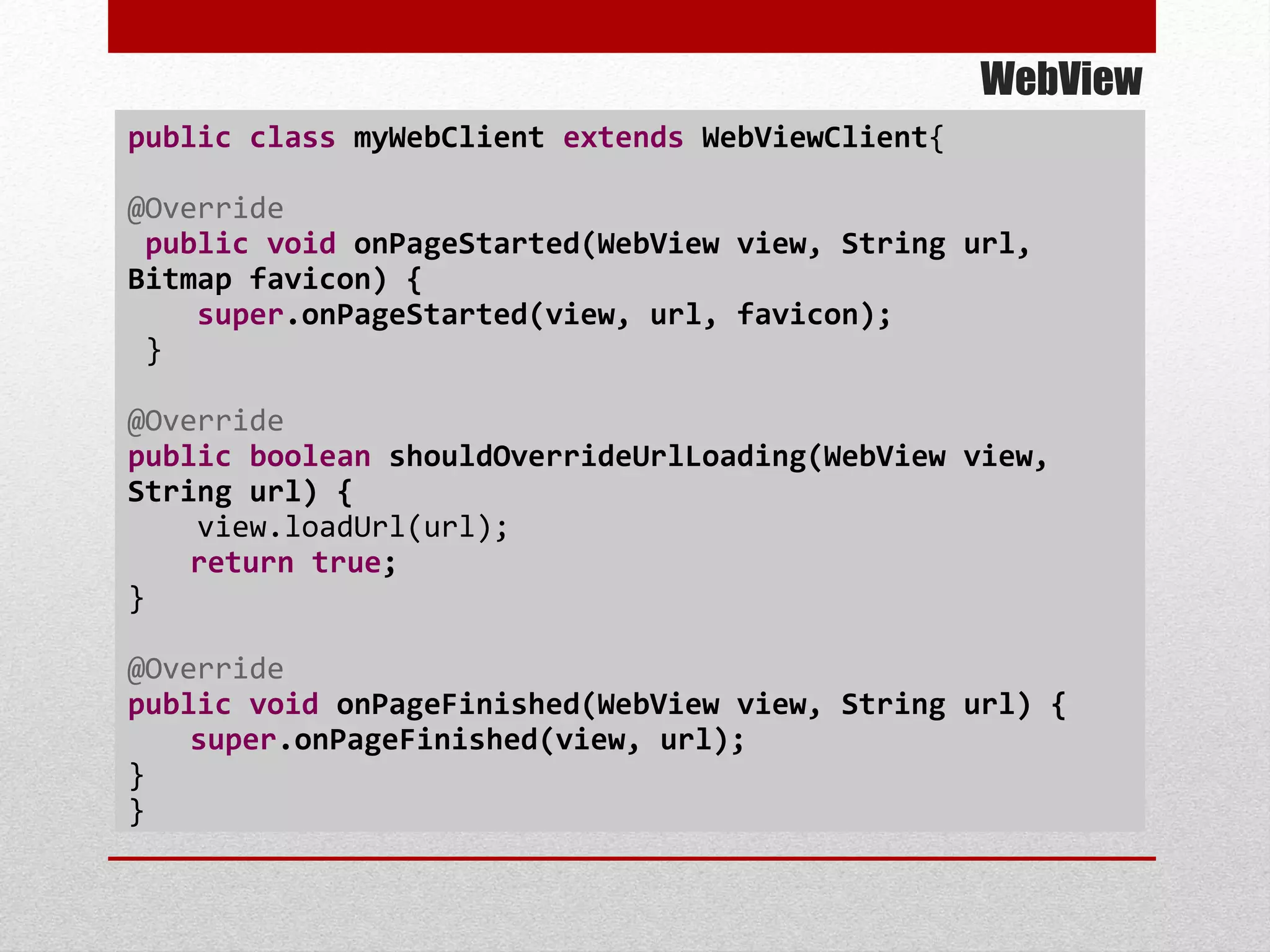

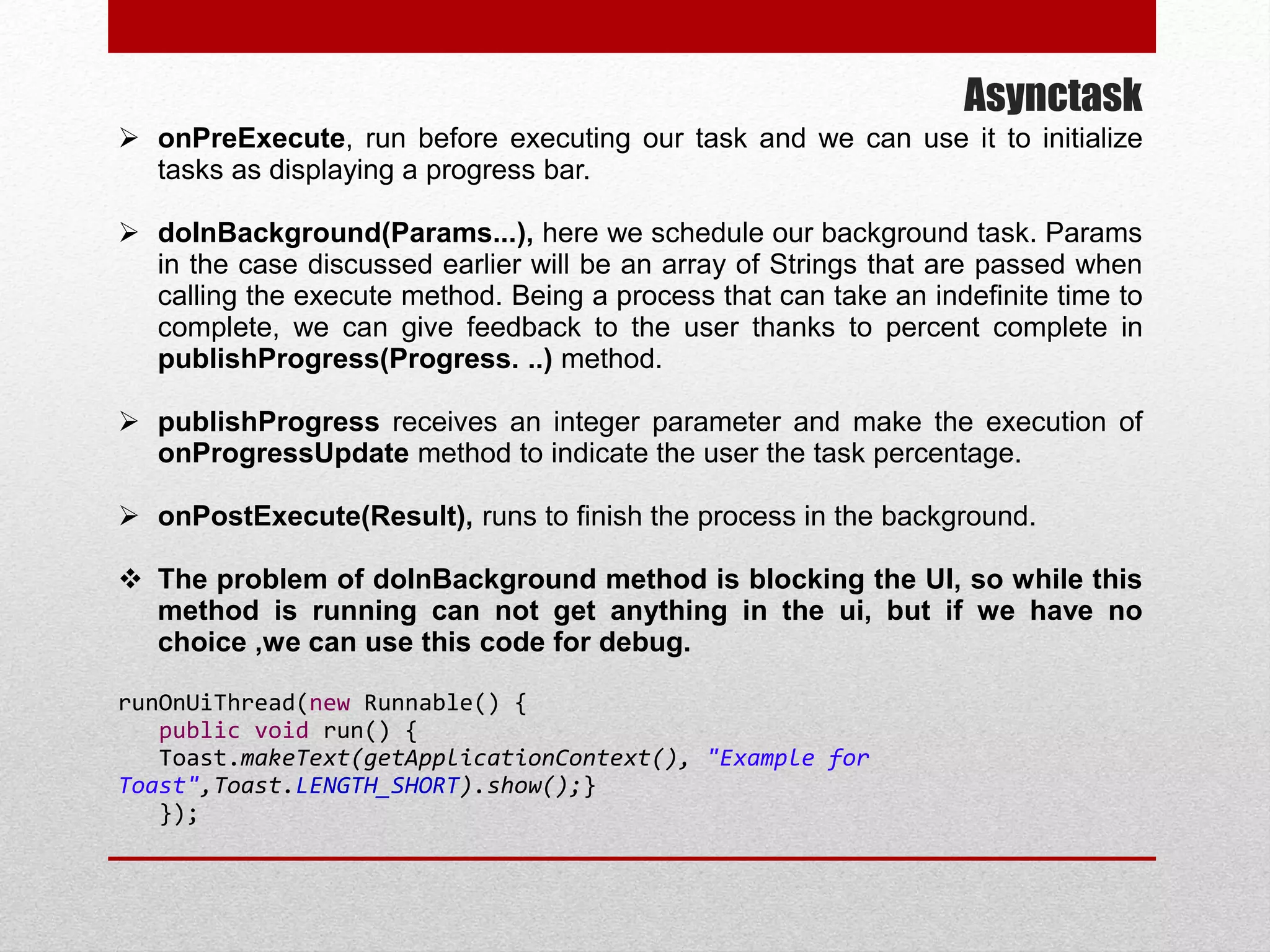

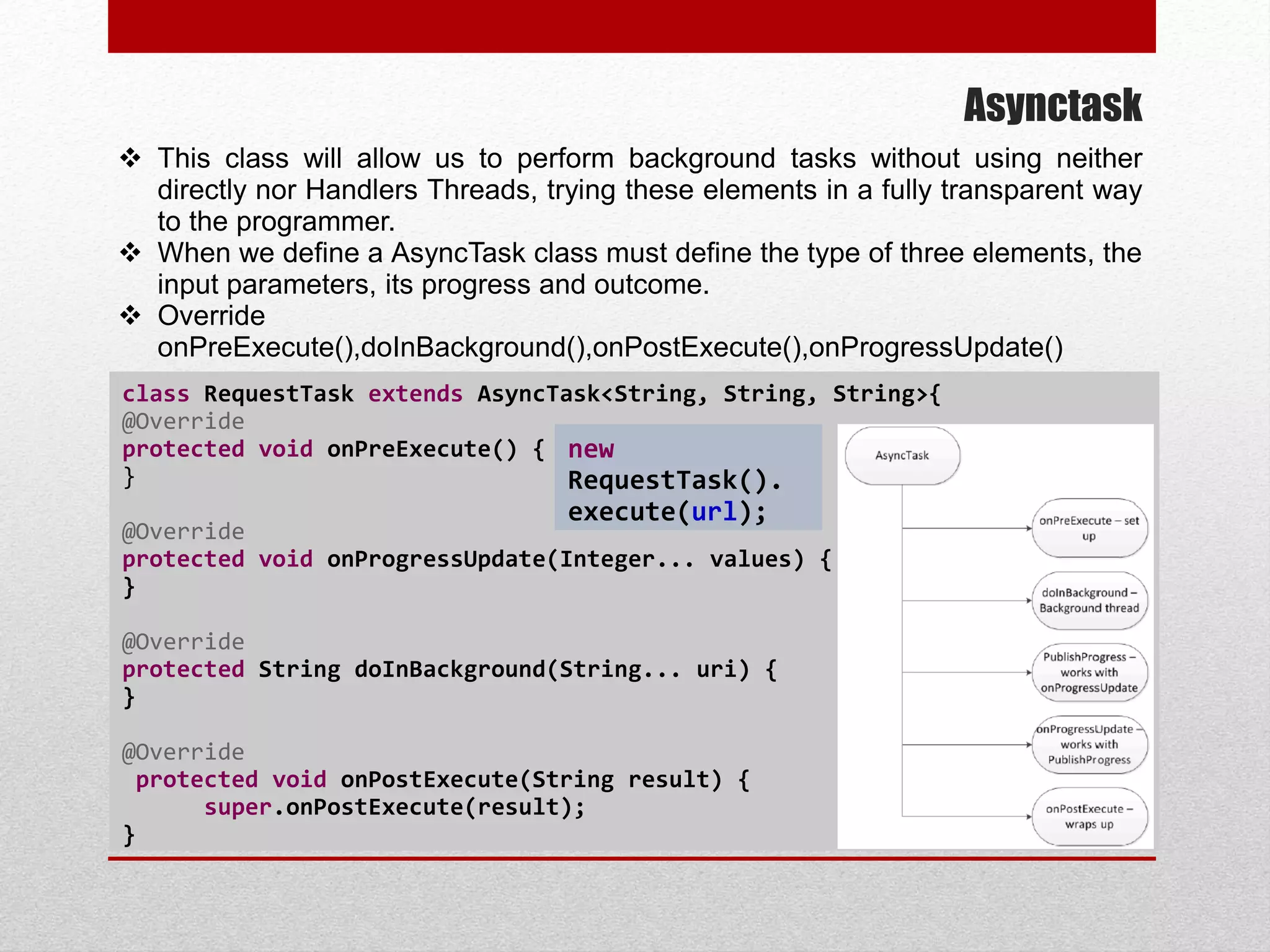

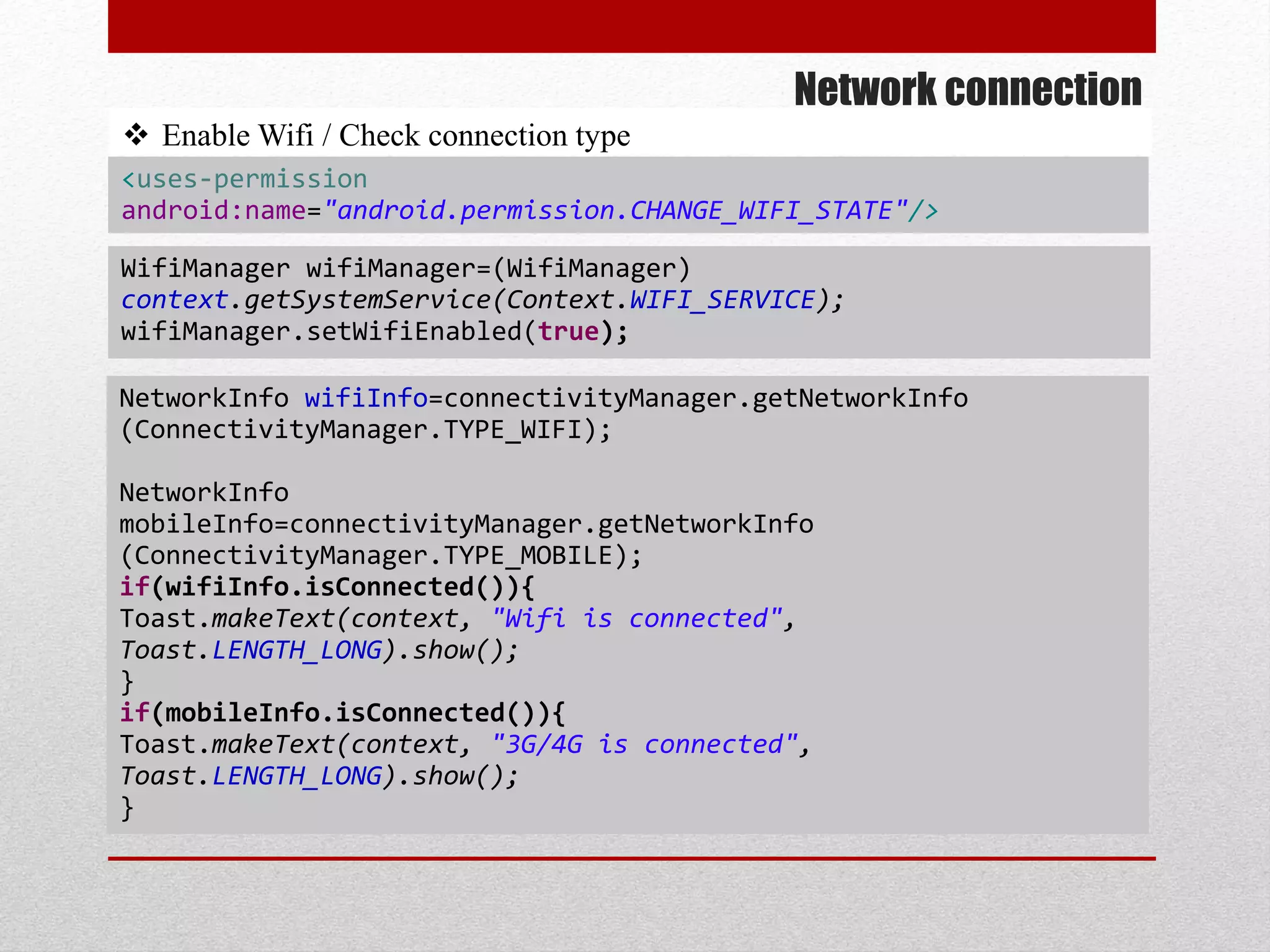

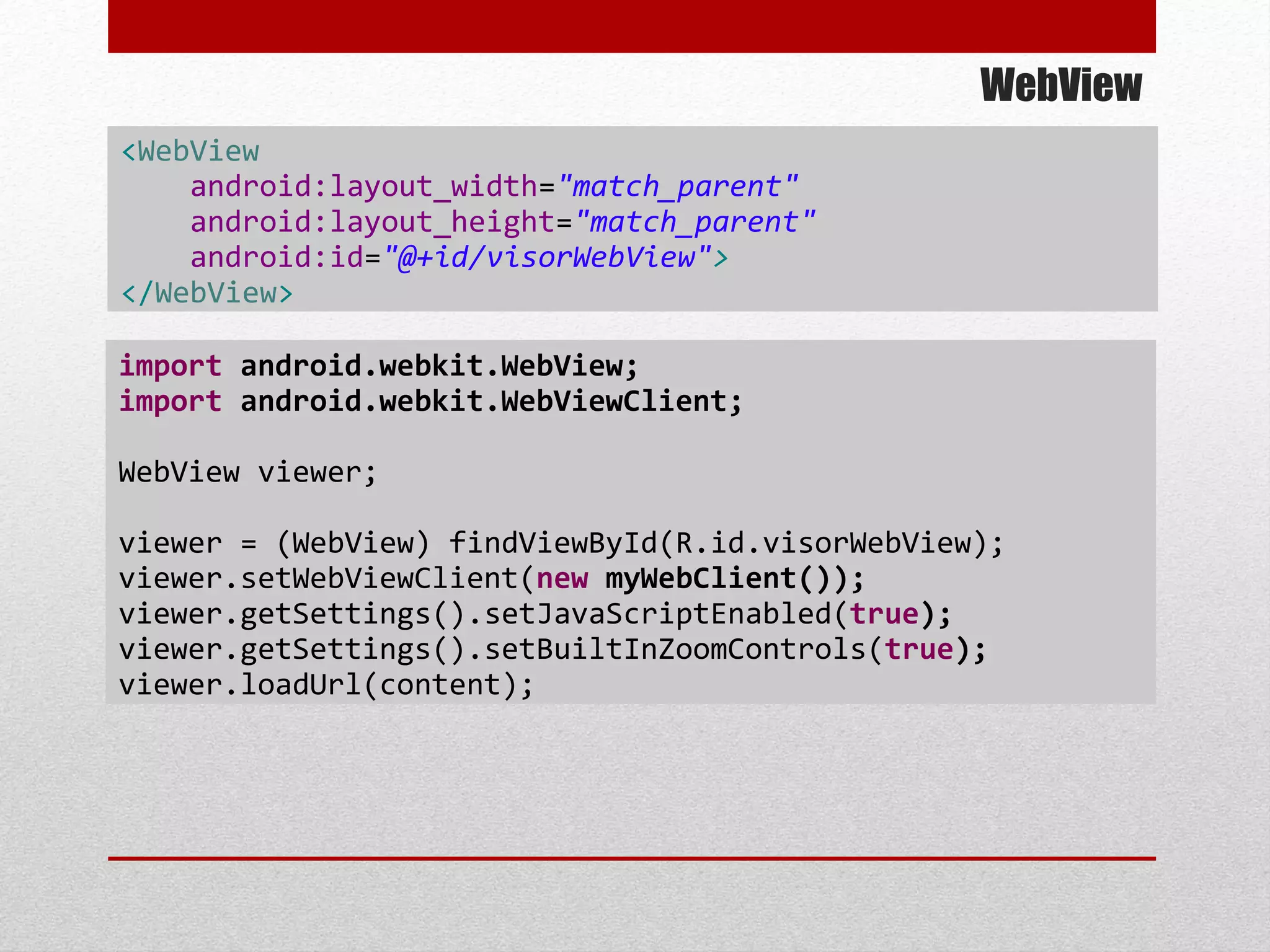

 WEBVIEW / NETWORK CONNECTIONS / ASYNCTASK

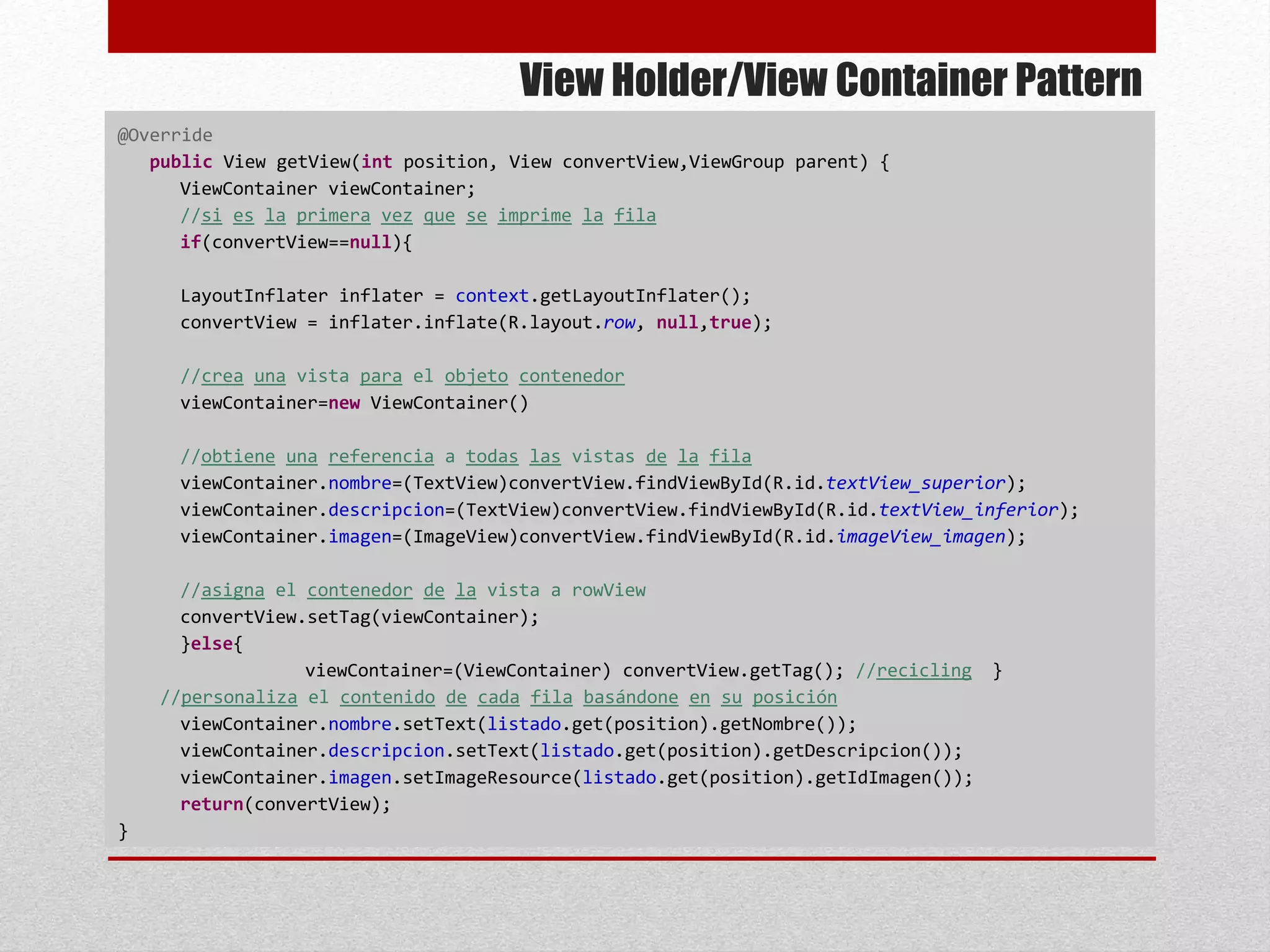

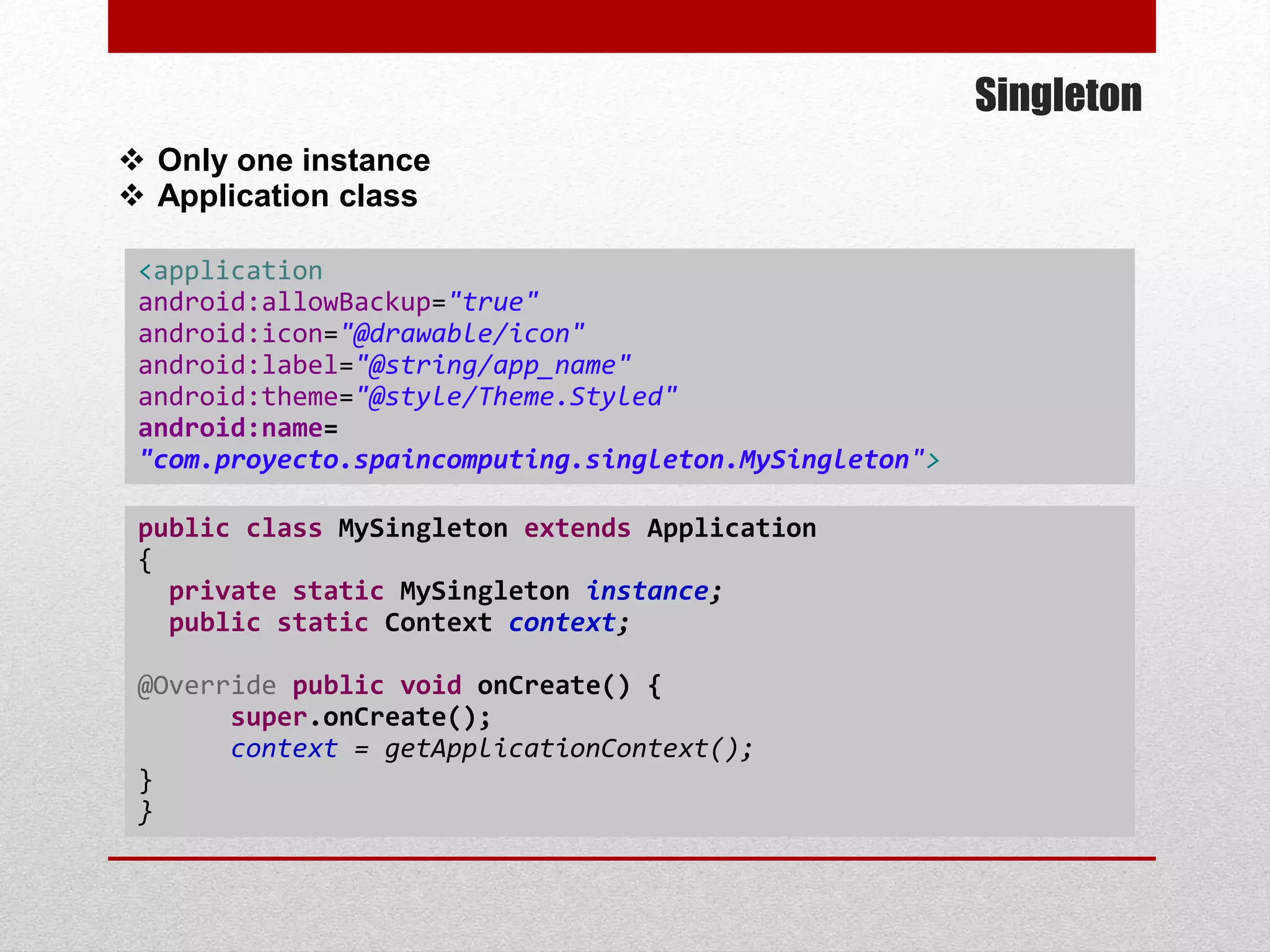

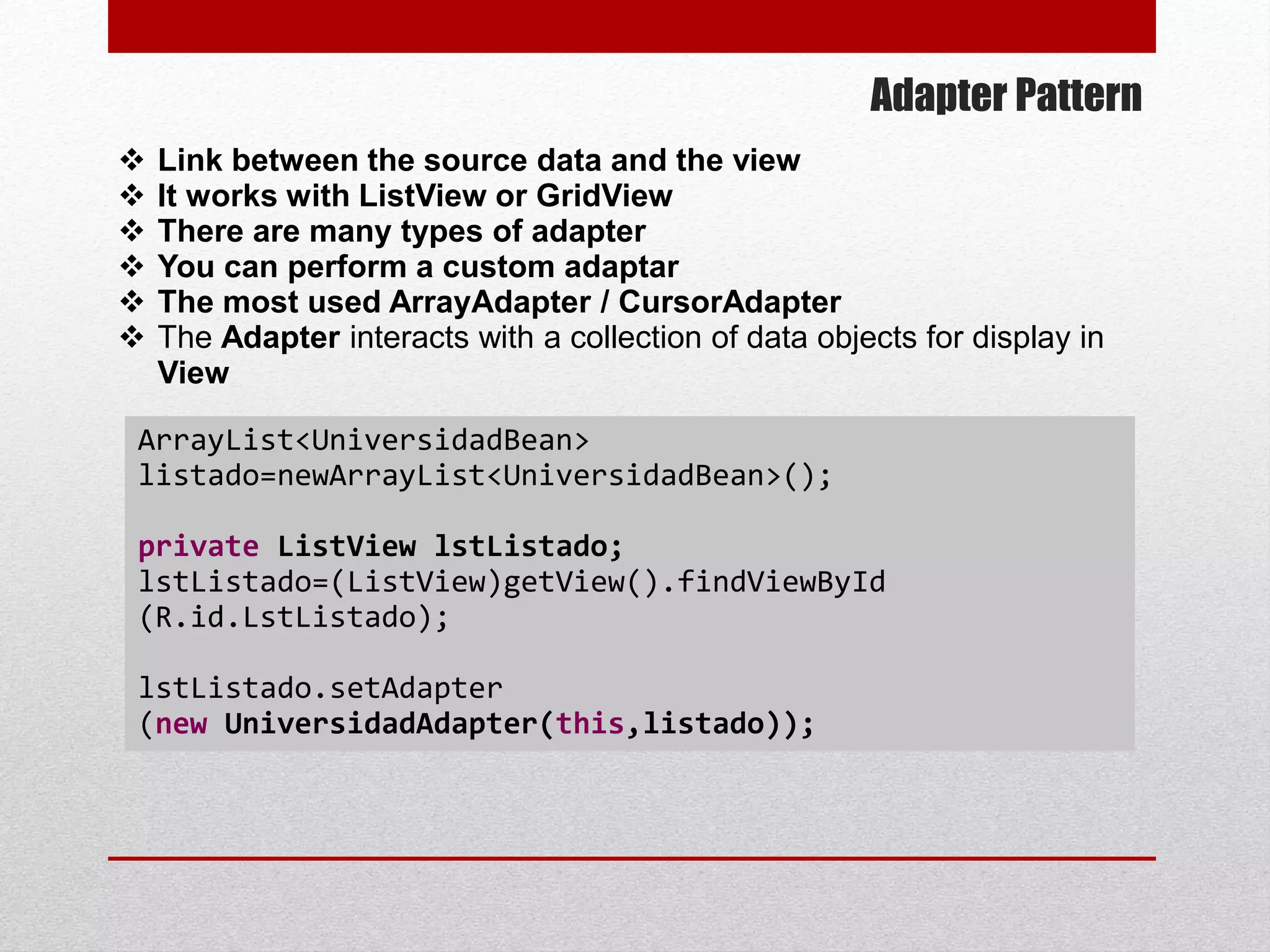

 SINGLETON / ADAPTER PATTERN / VIEW HOLDER PATTERN

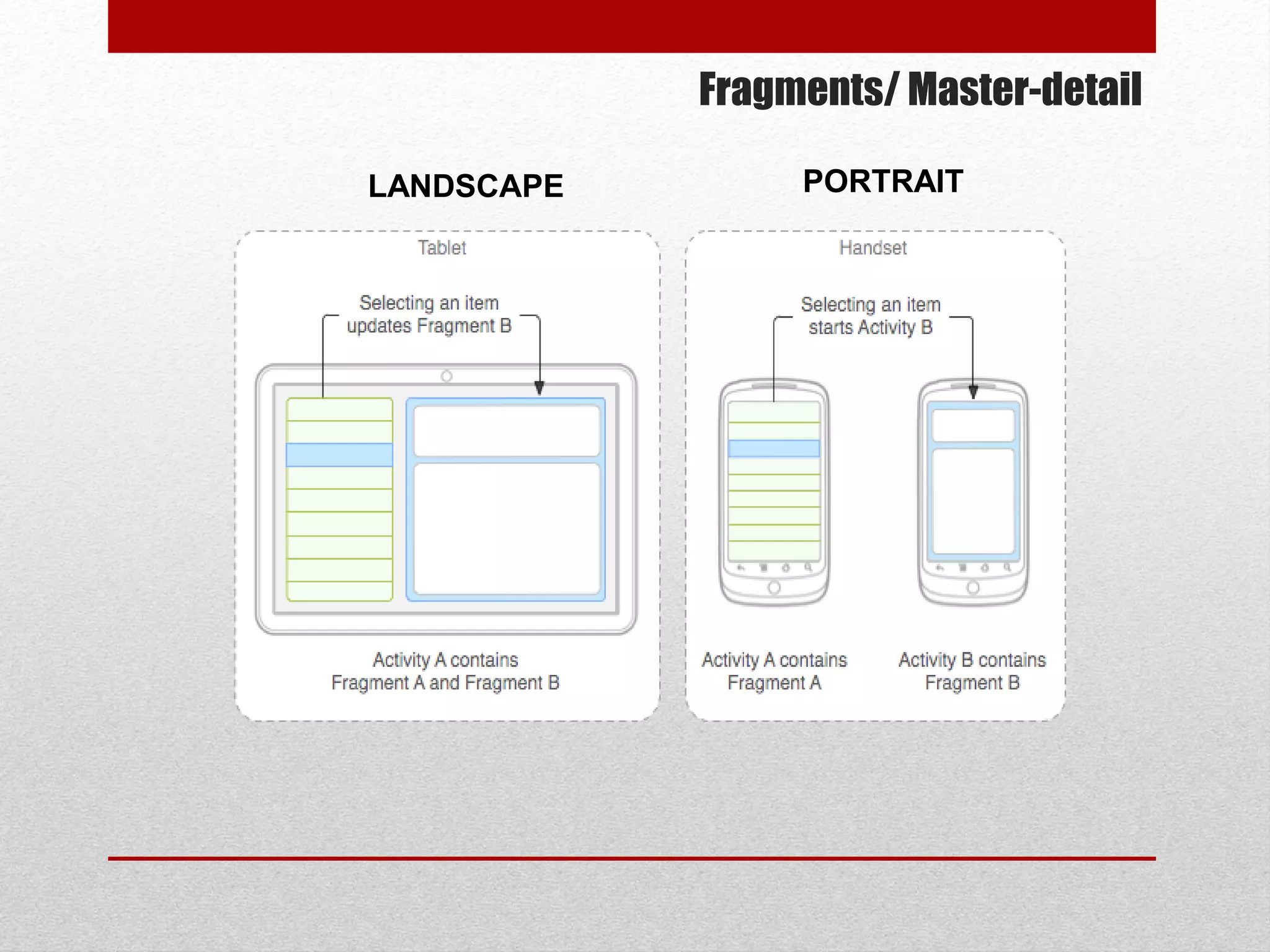

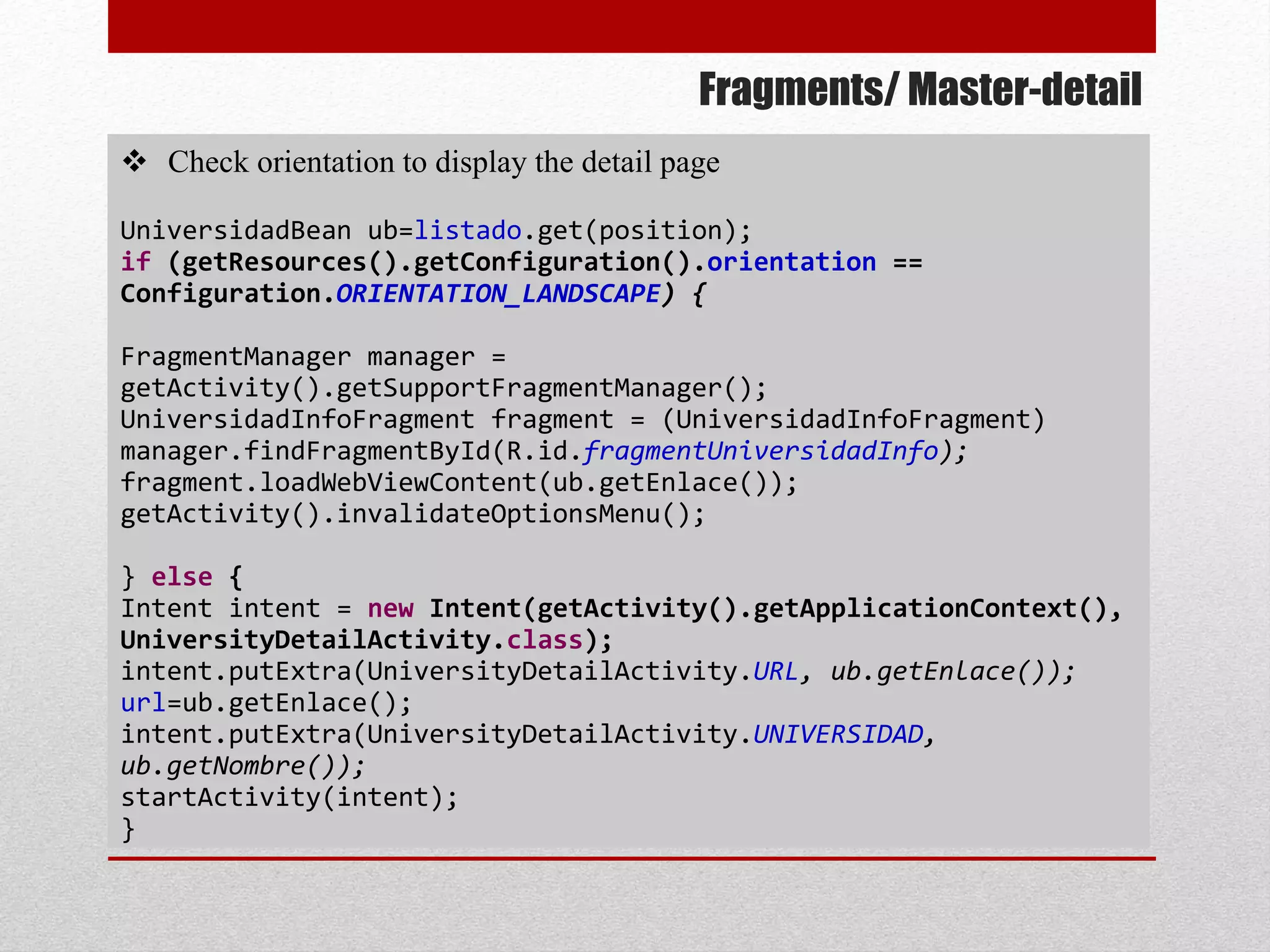

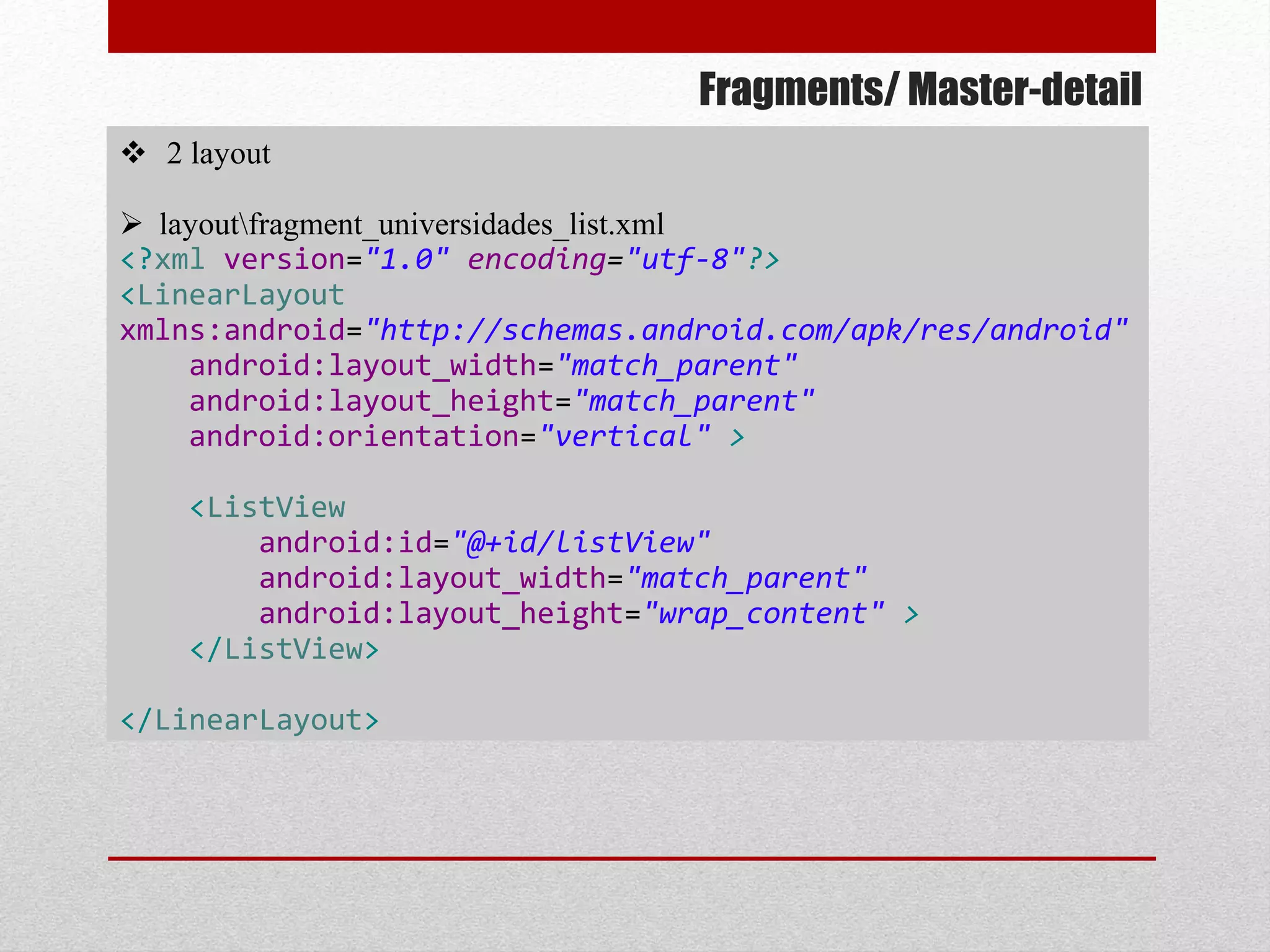

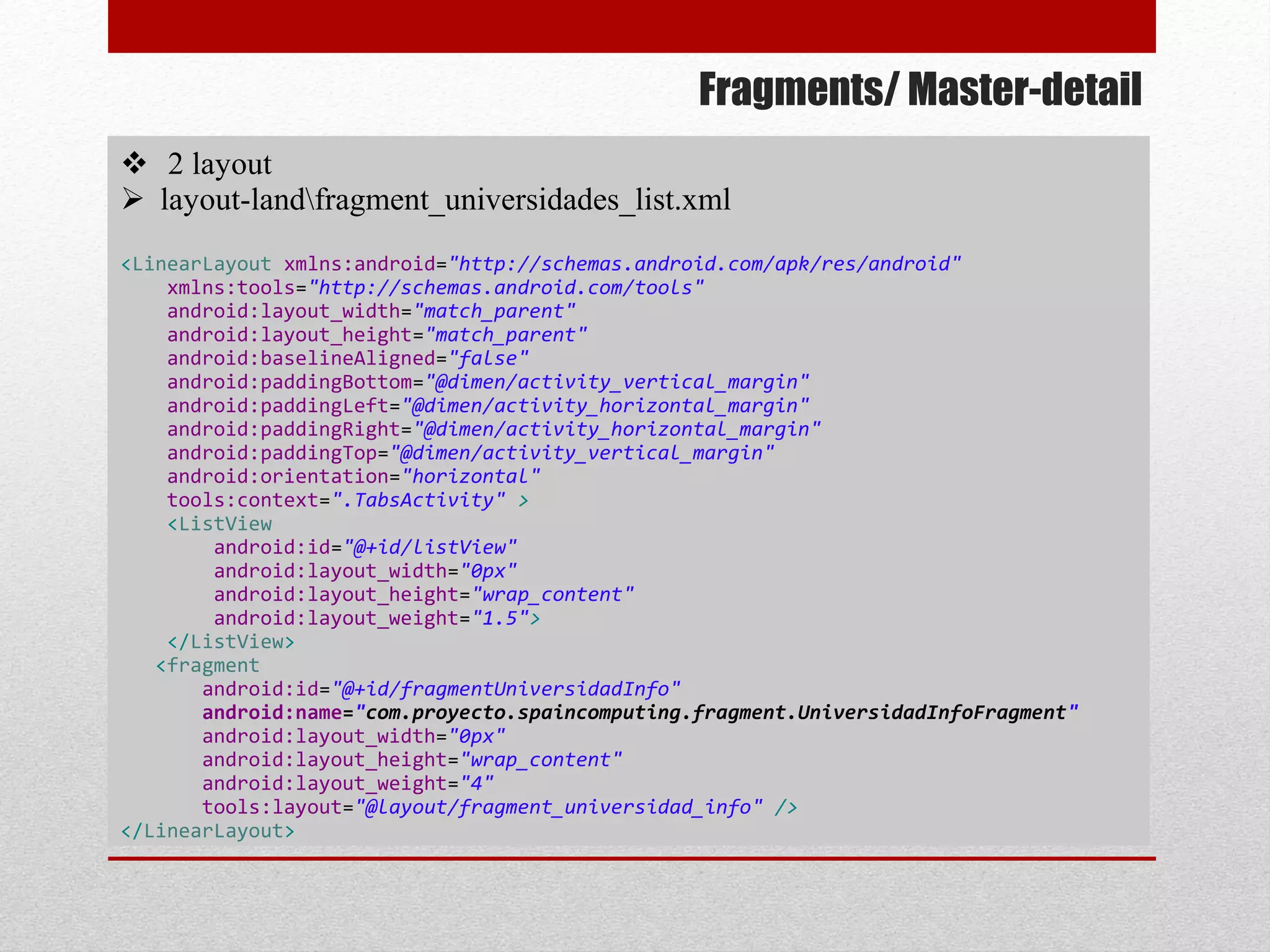

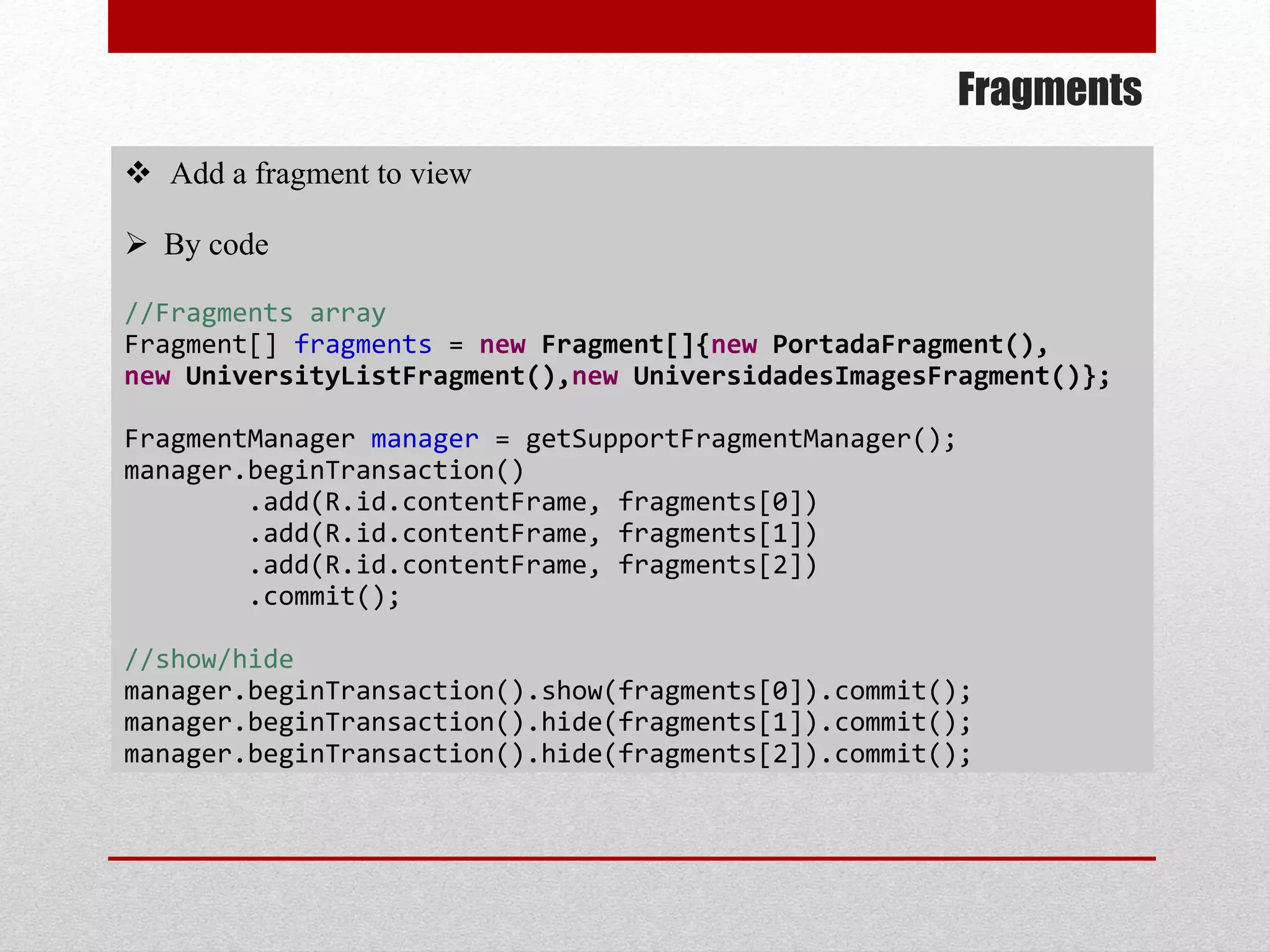

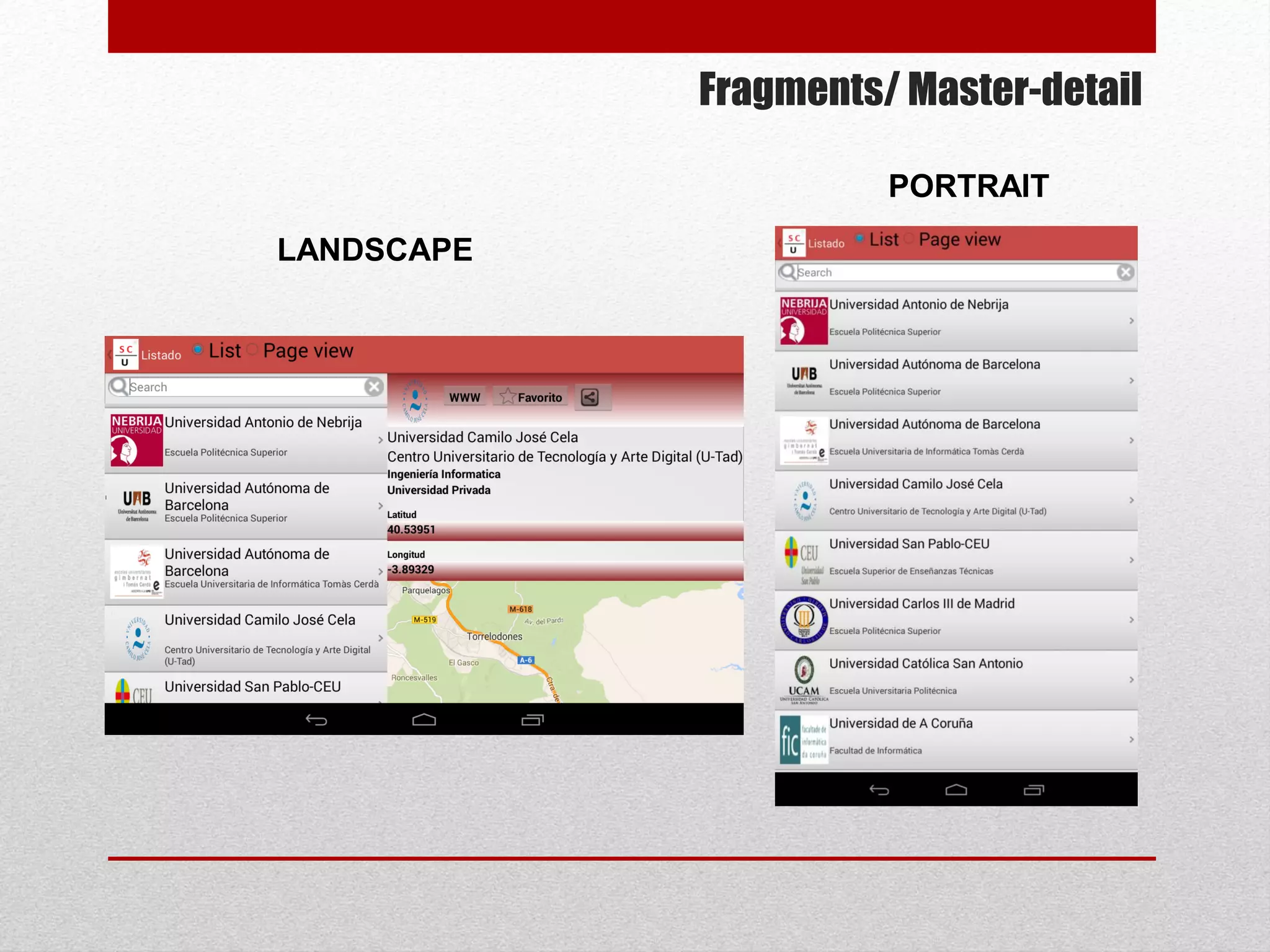

 FRAGMENTS / MASTER-DETAIL / DIALOG FRAGMENTS

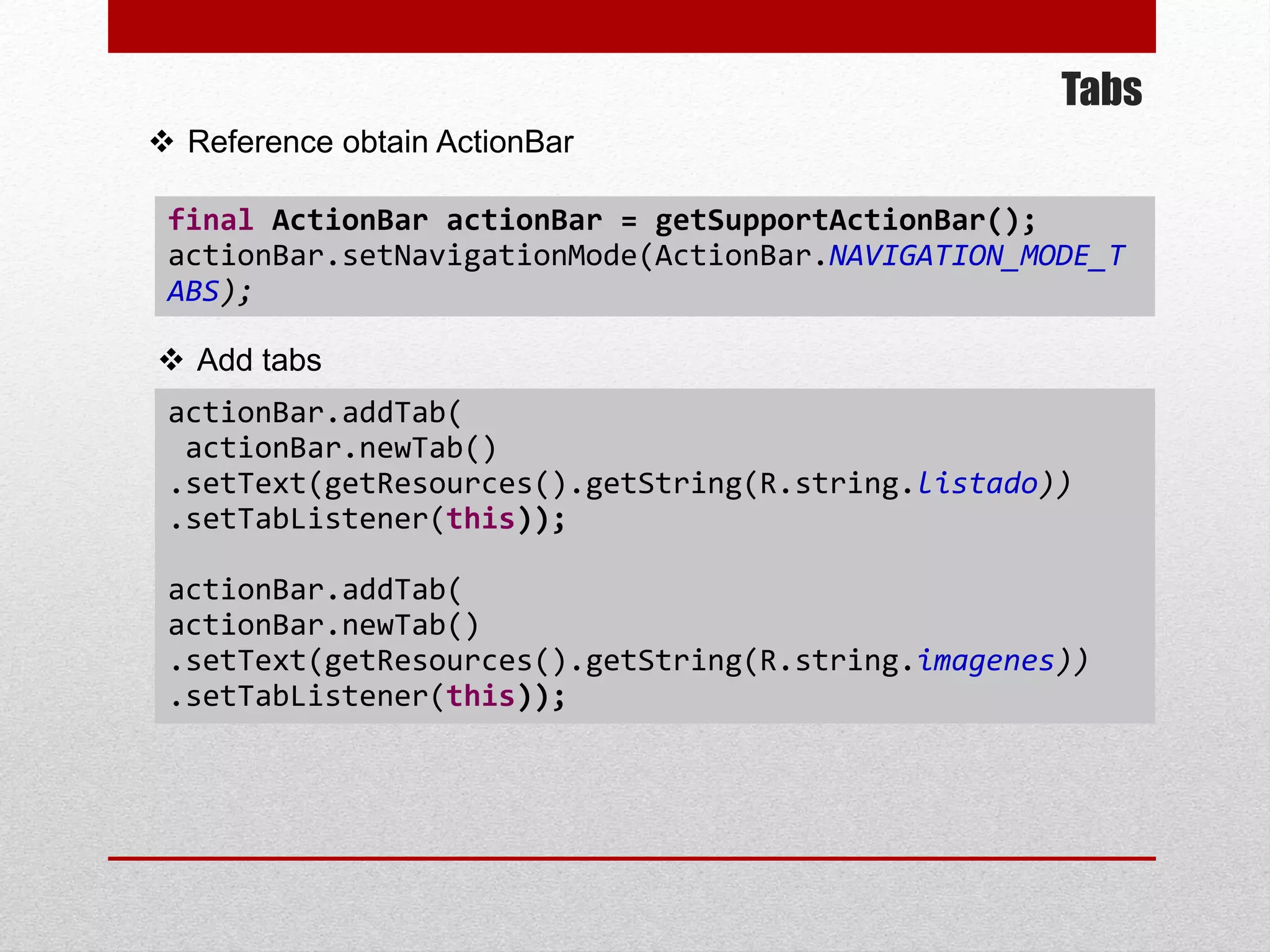

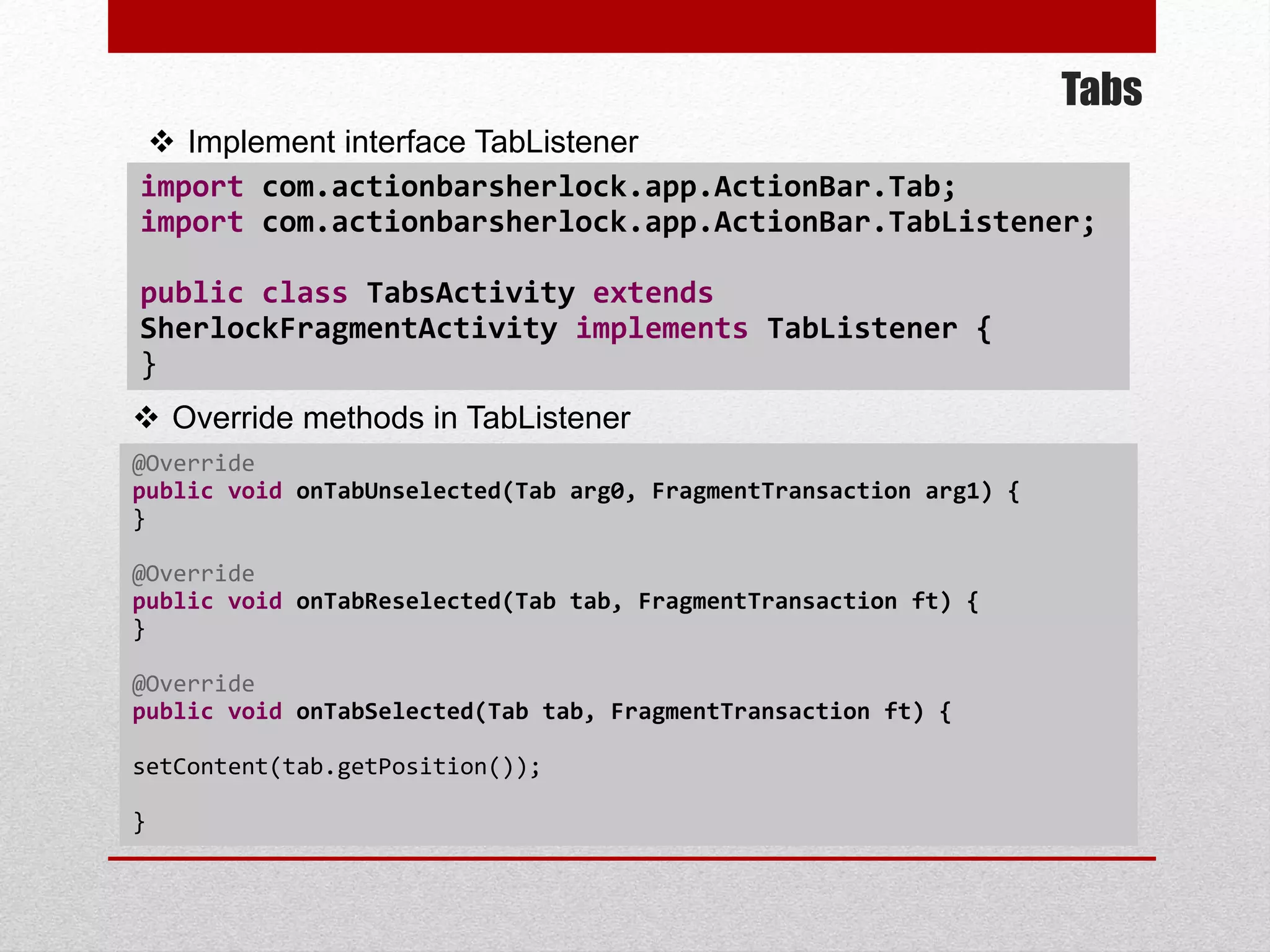

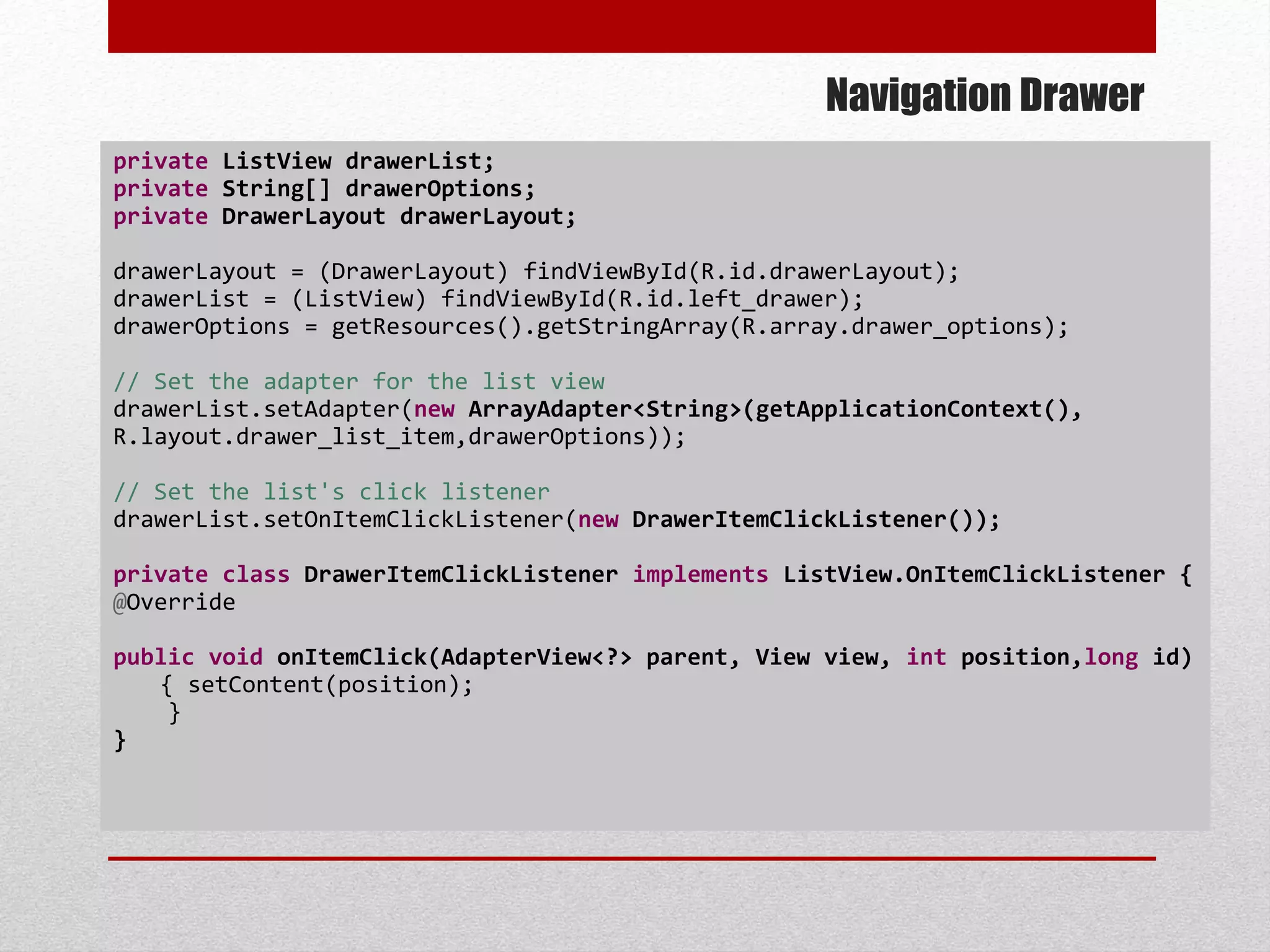

 NAVIGATION DRAWER / ACTION BAR DRAWER TOOGLE /TABS

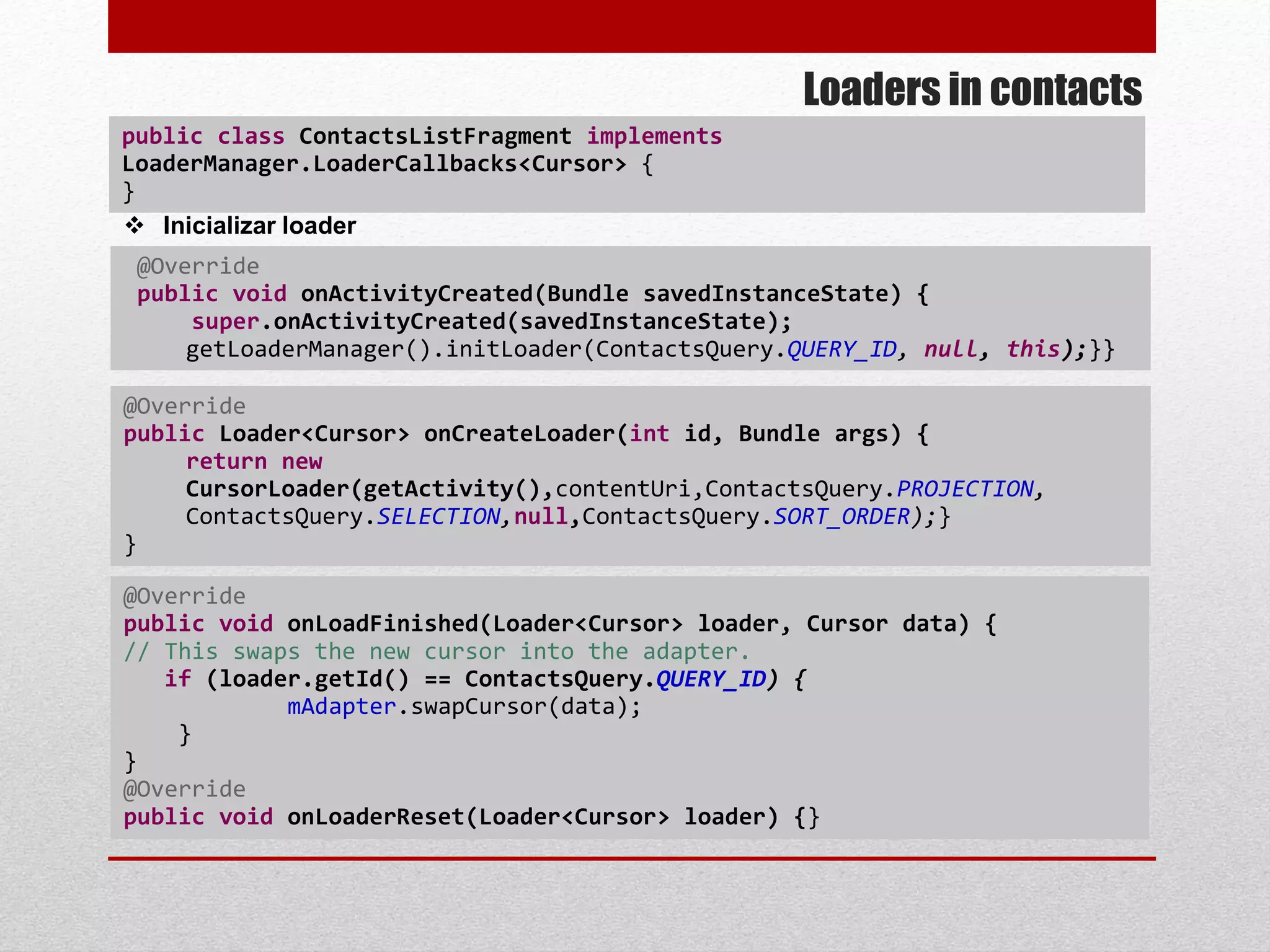

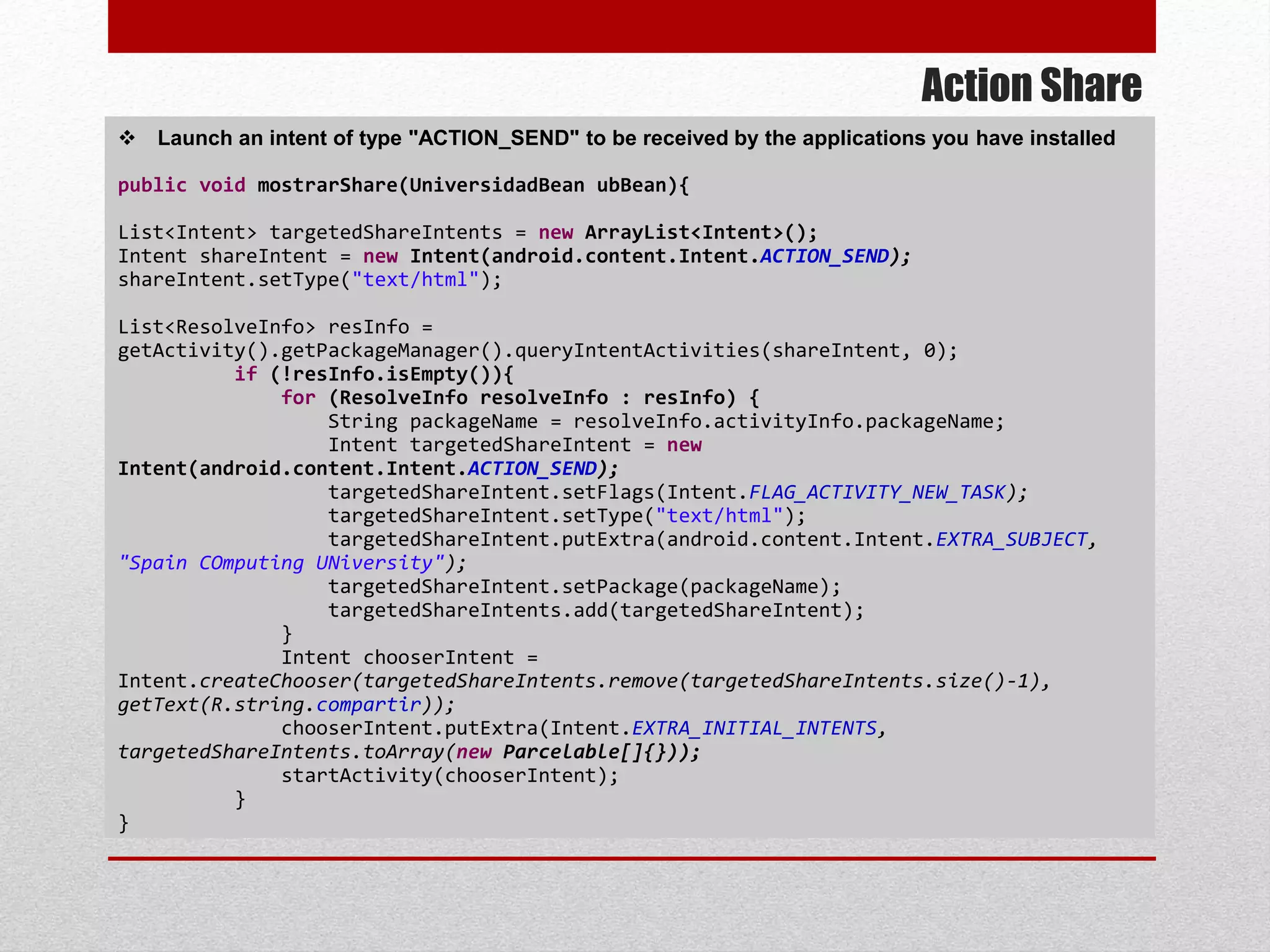

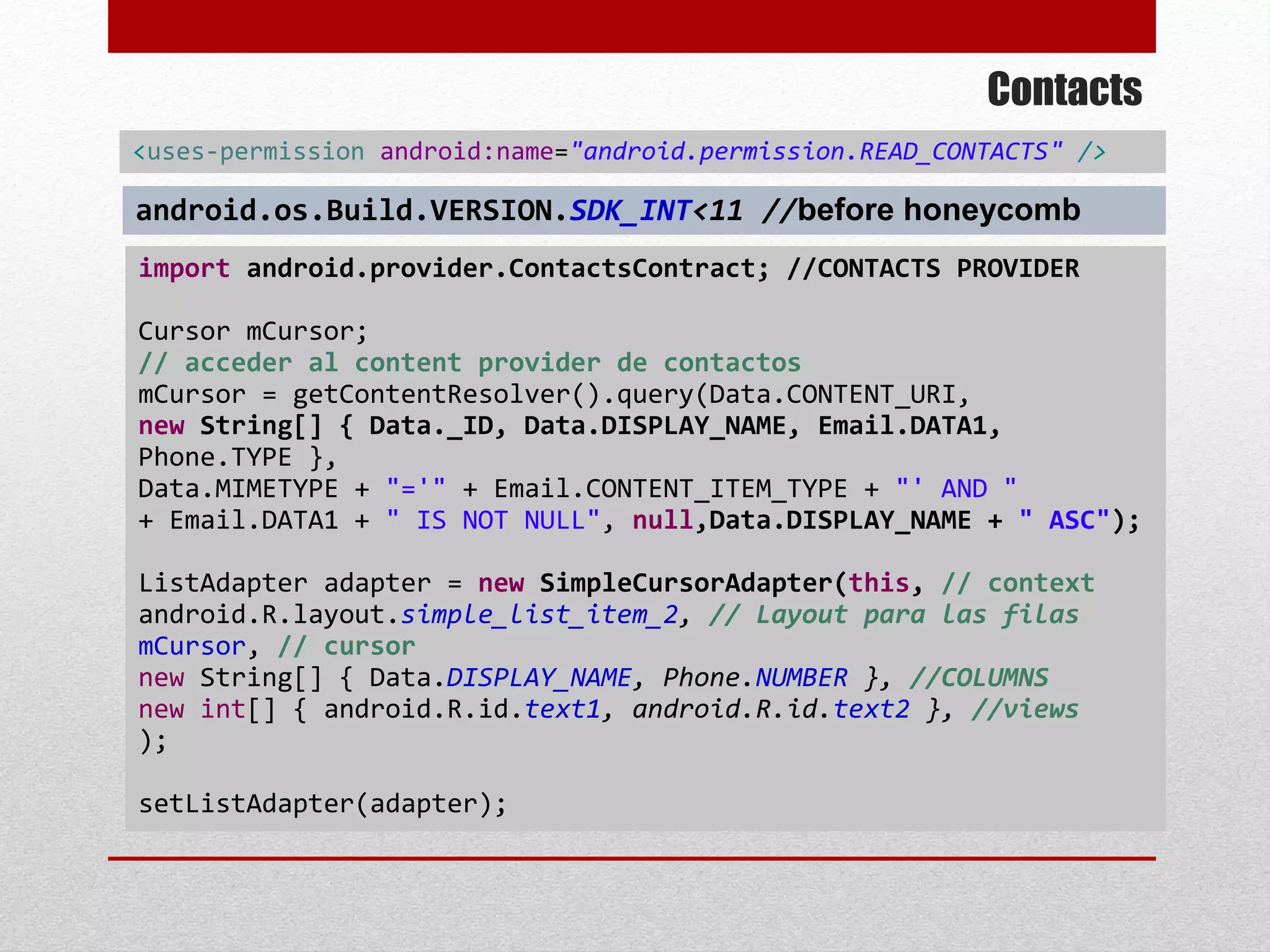

 ACTION SHARE / CONTACTS / LOADERS

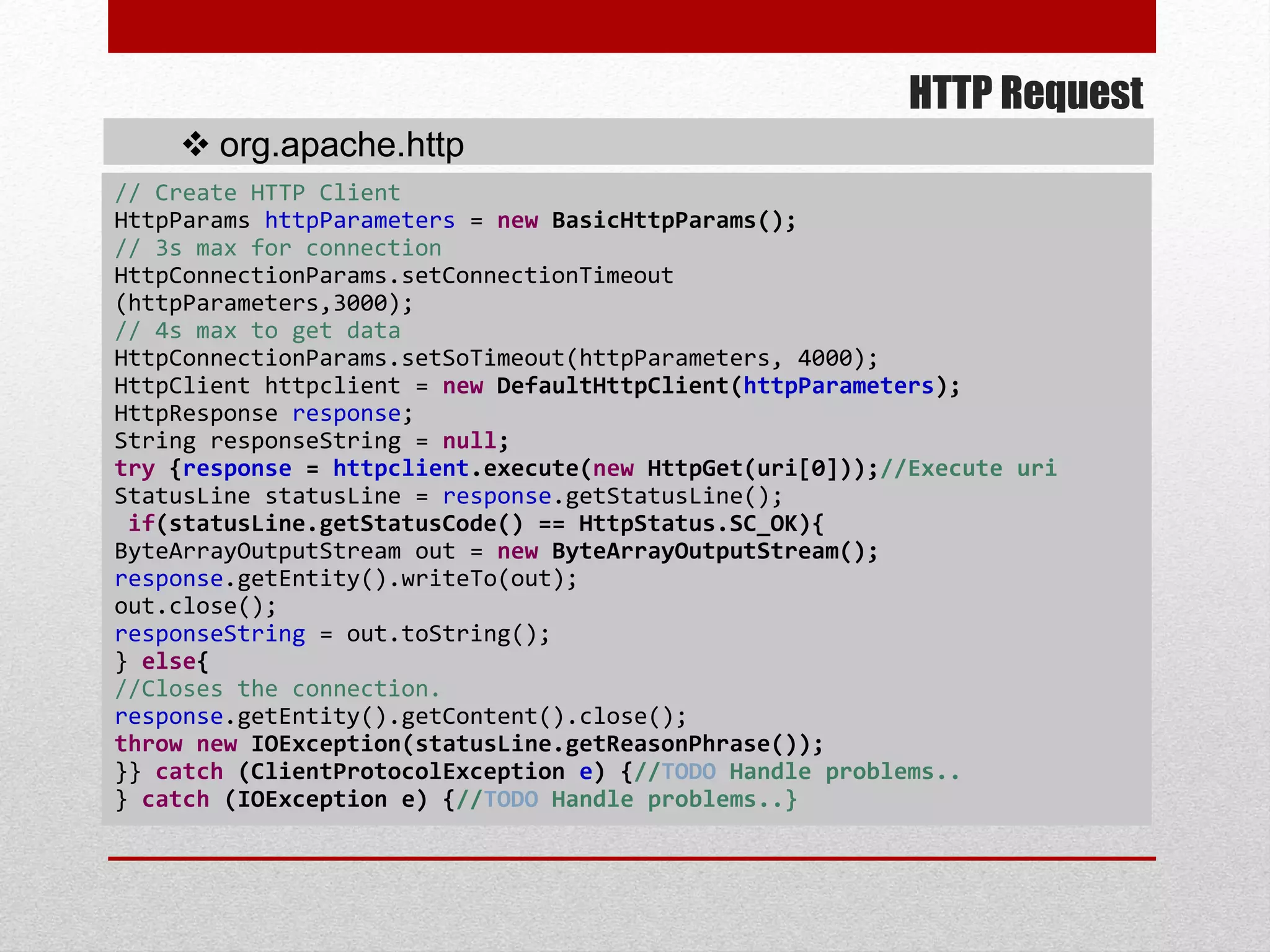

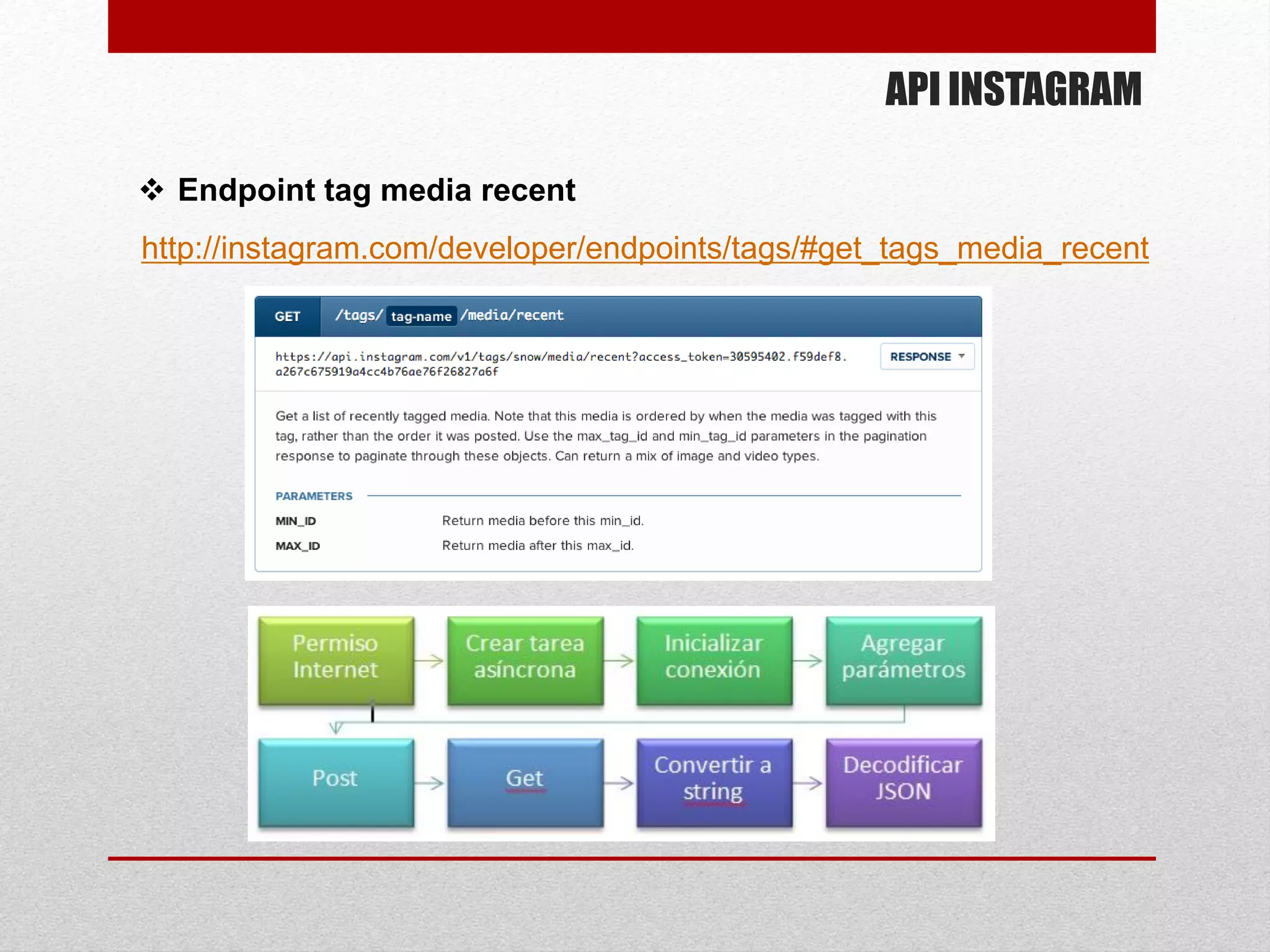

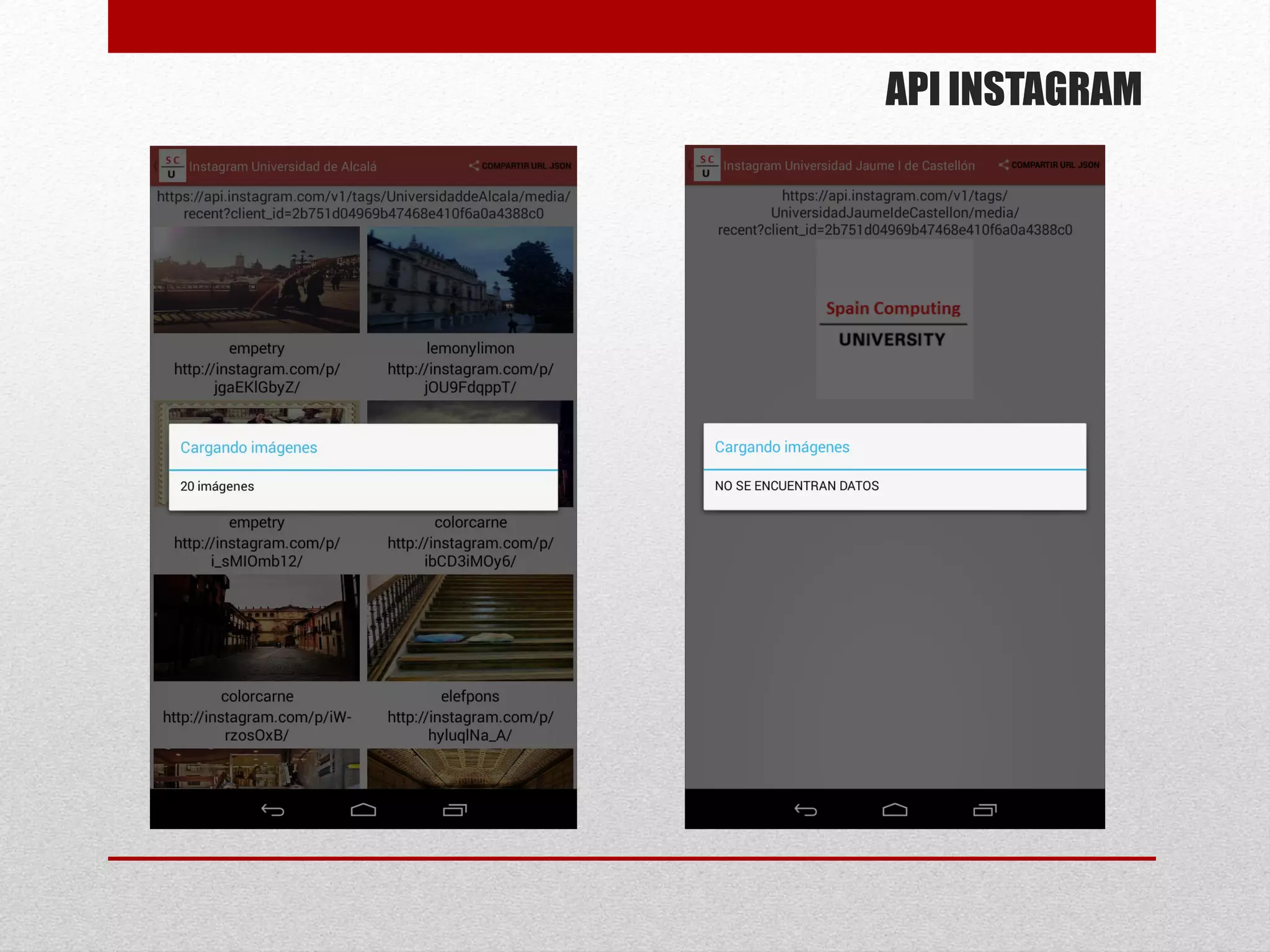

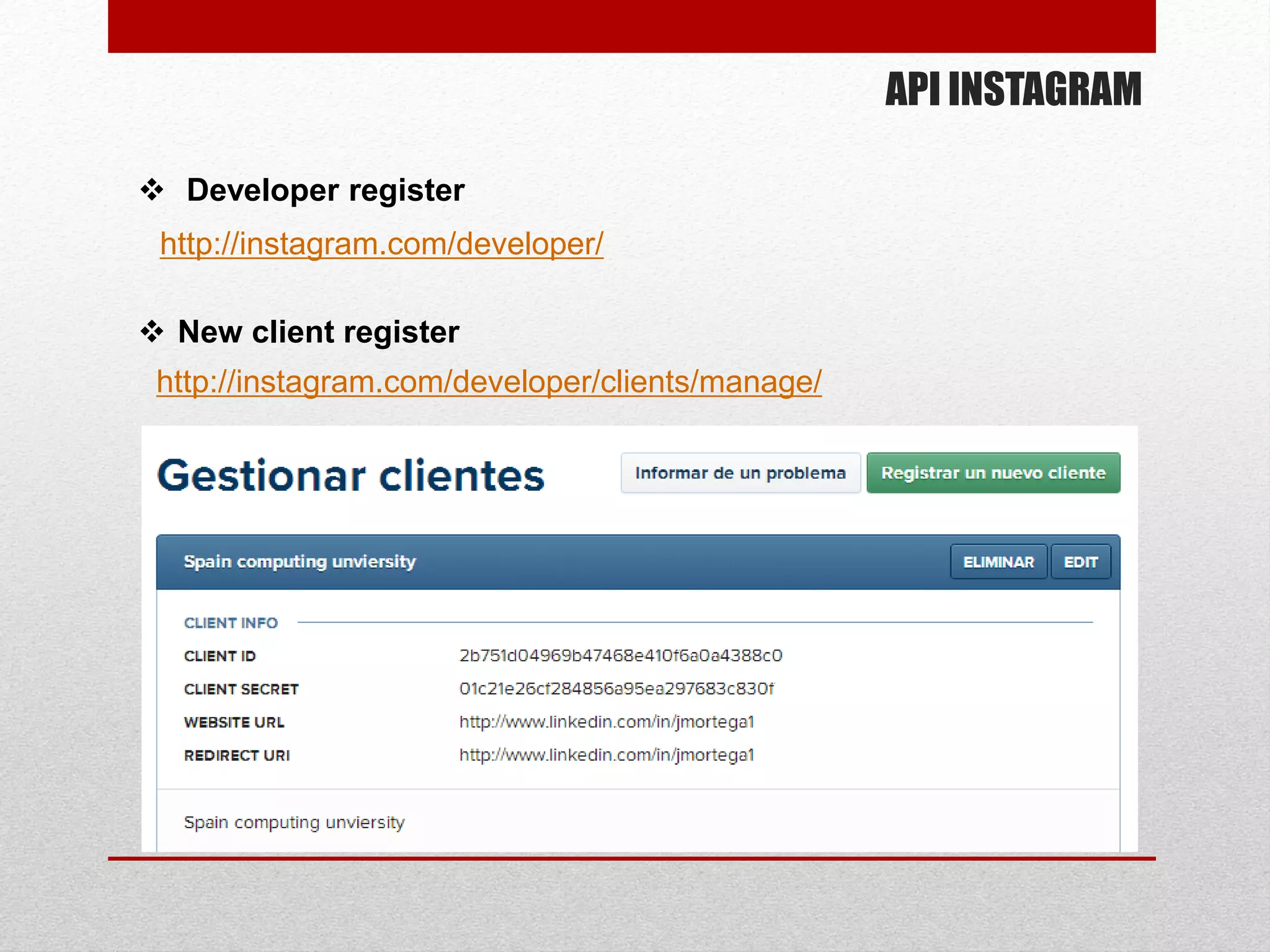

 HTTP REQUEST /VOLLEY / INSTAGRAM API

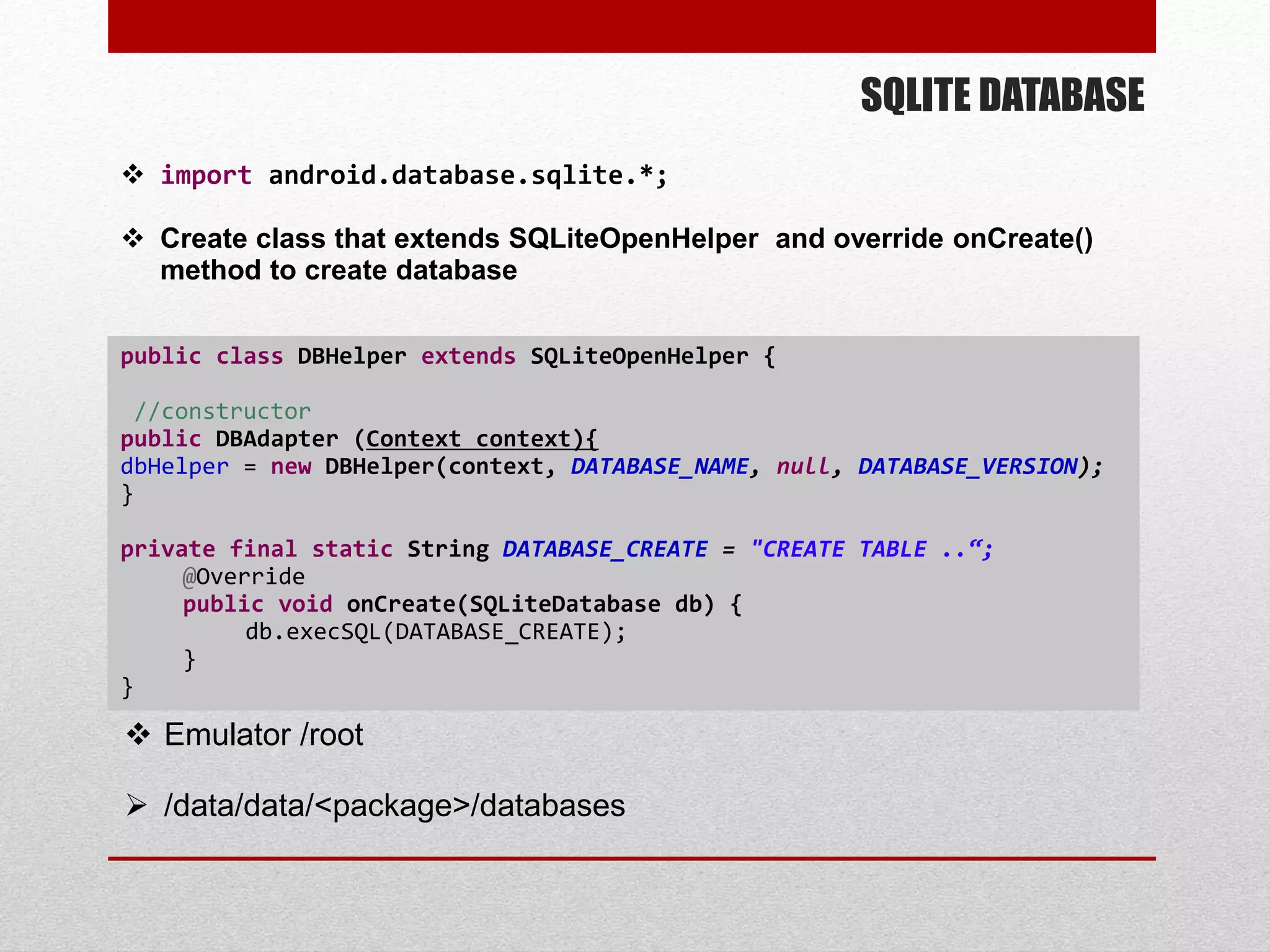

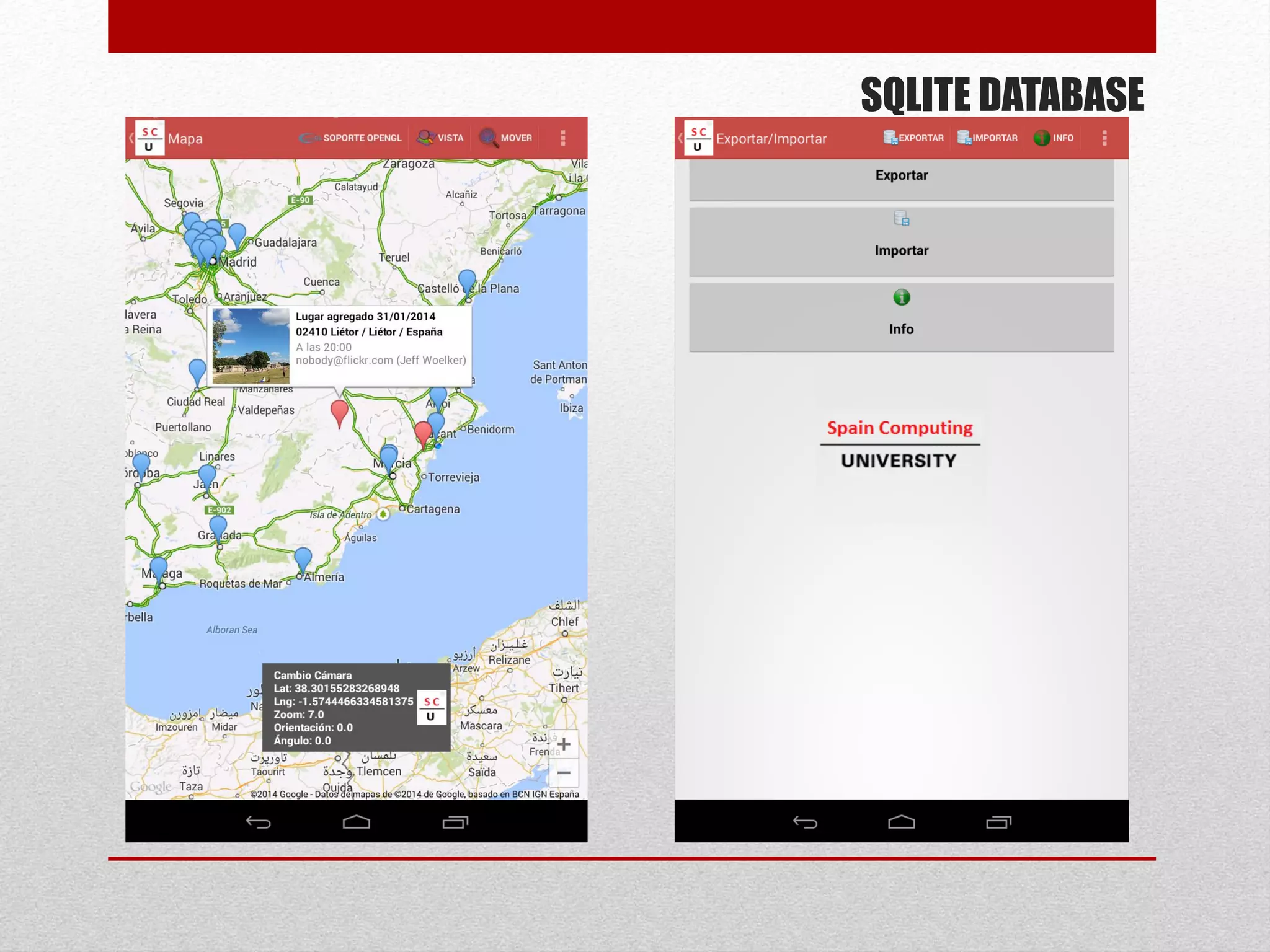

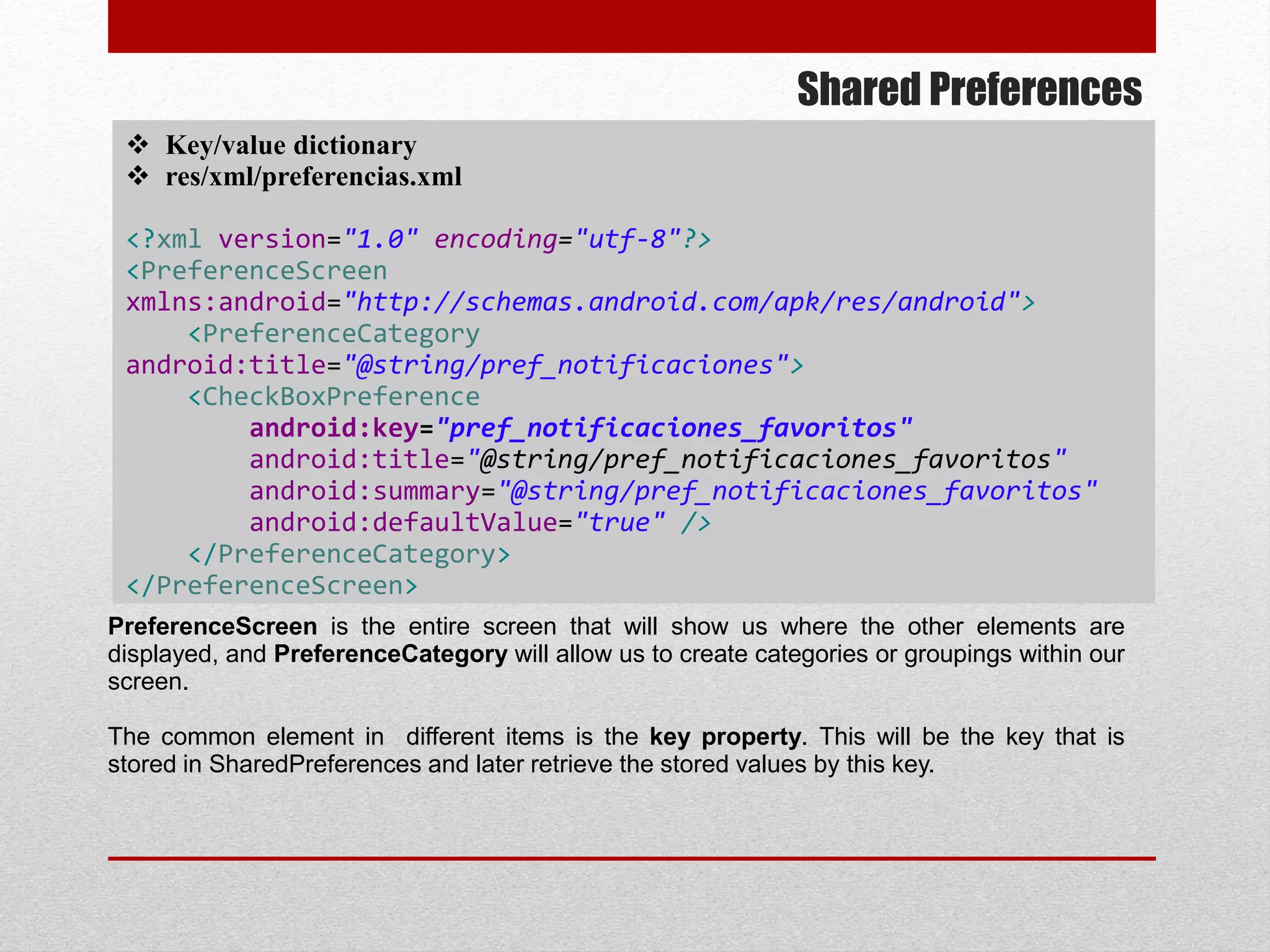

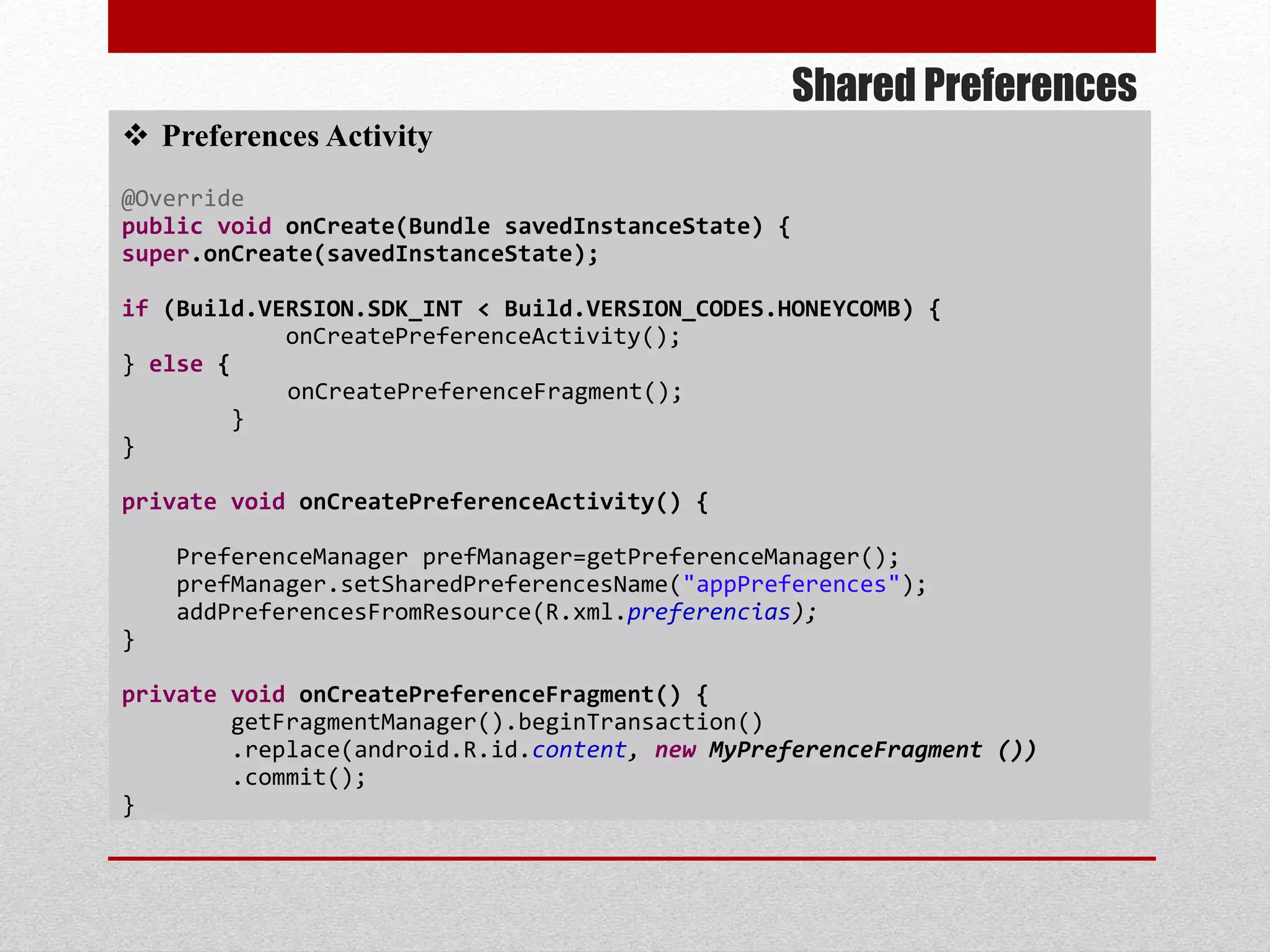

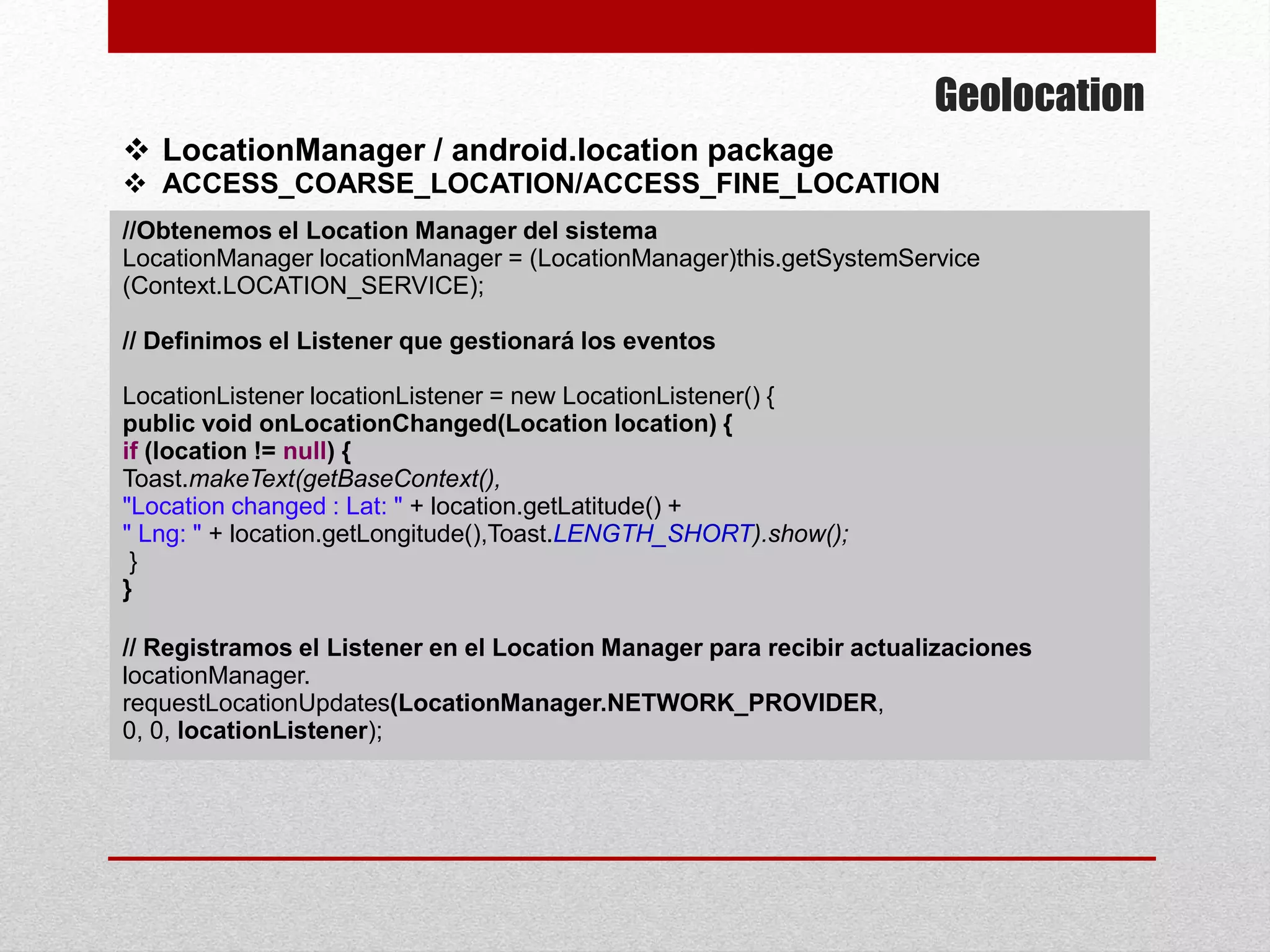

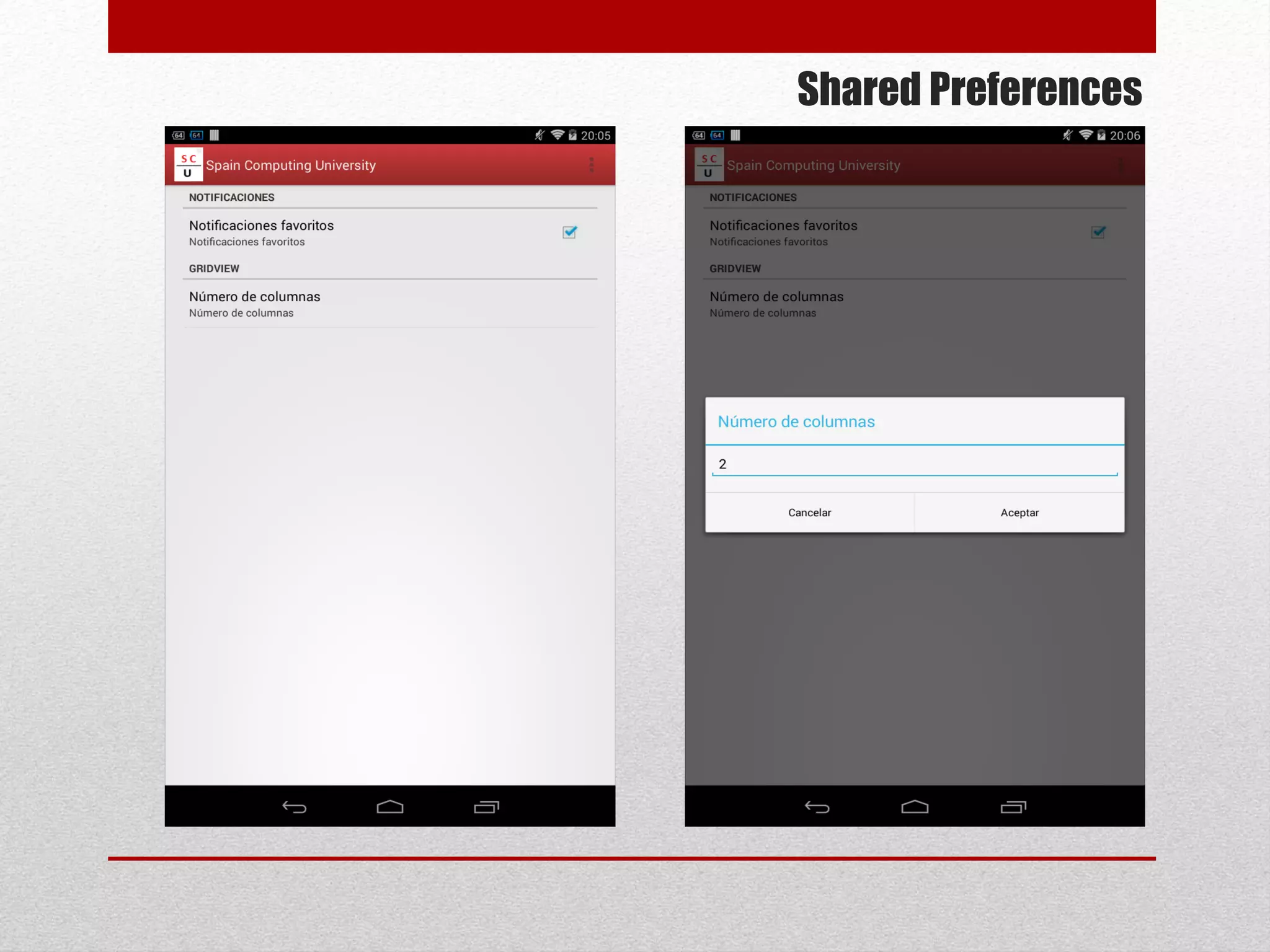

 GEOLOCATION / SHARED PREFERENCES / SQLITE DATABASE

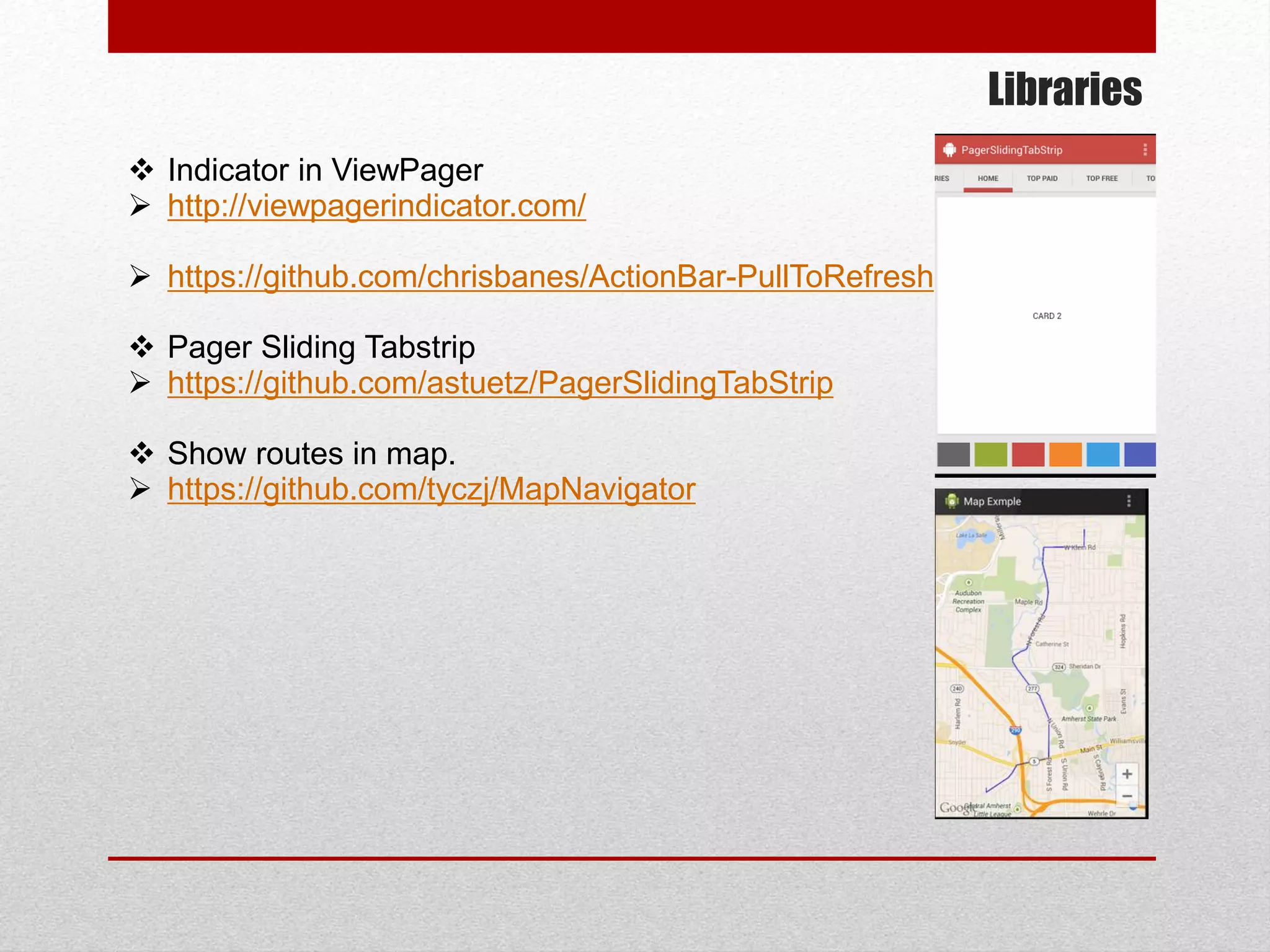

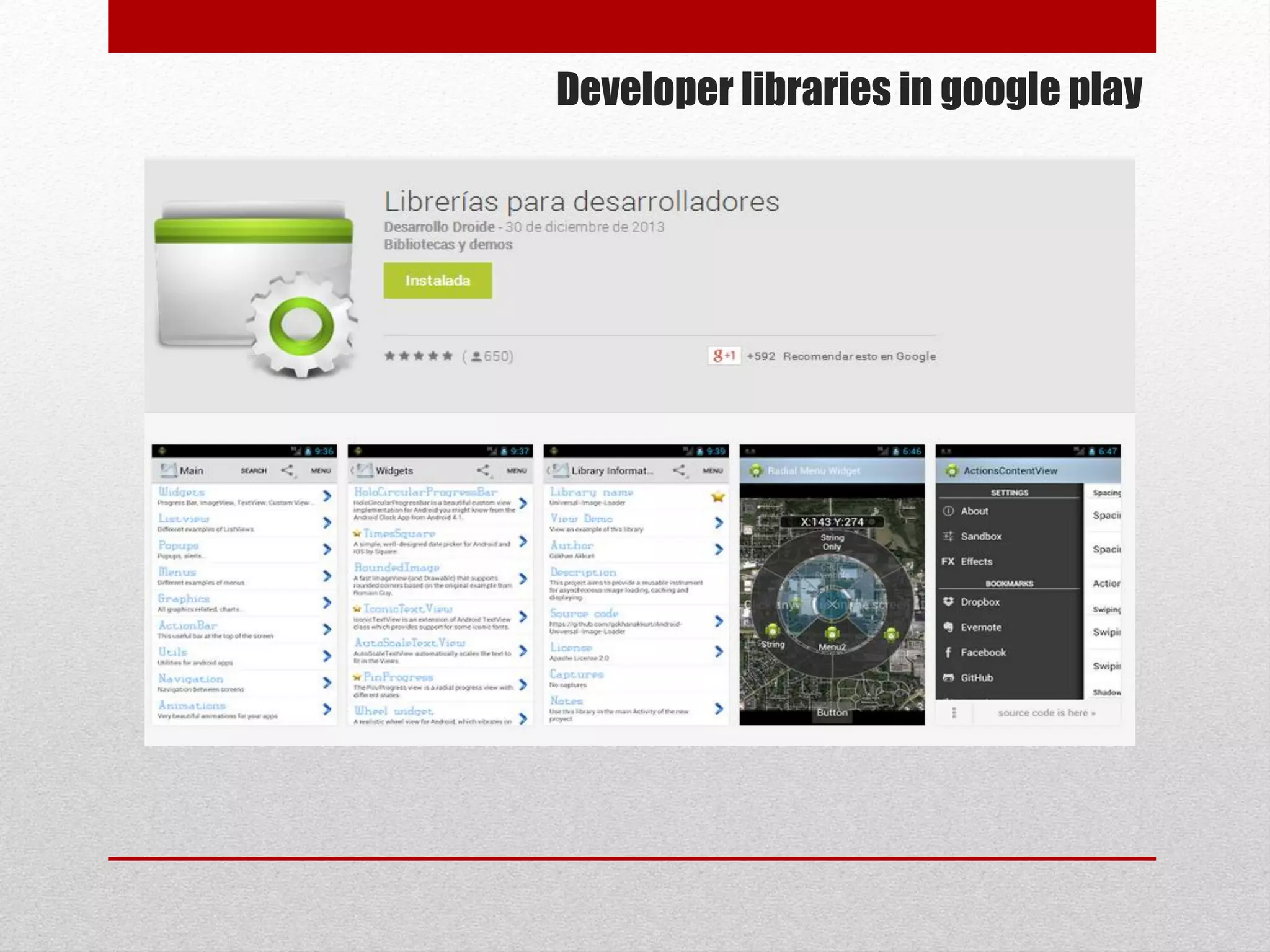

 LIBRARIES

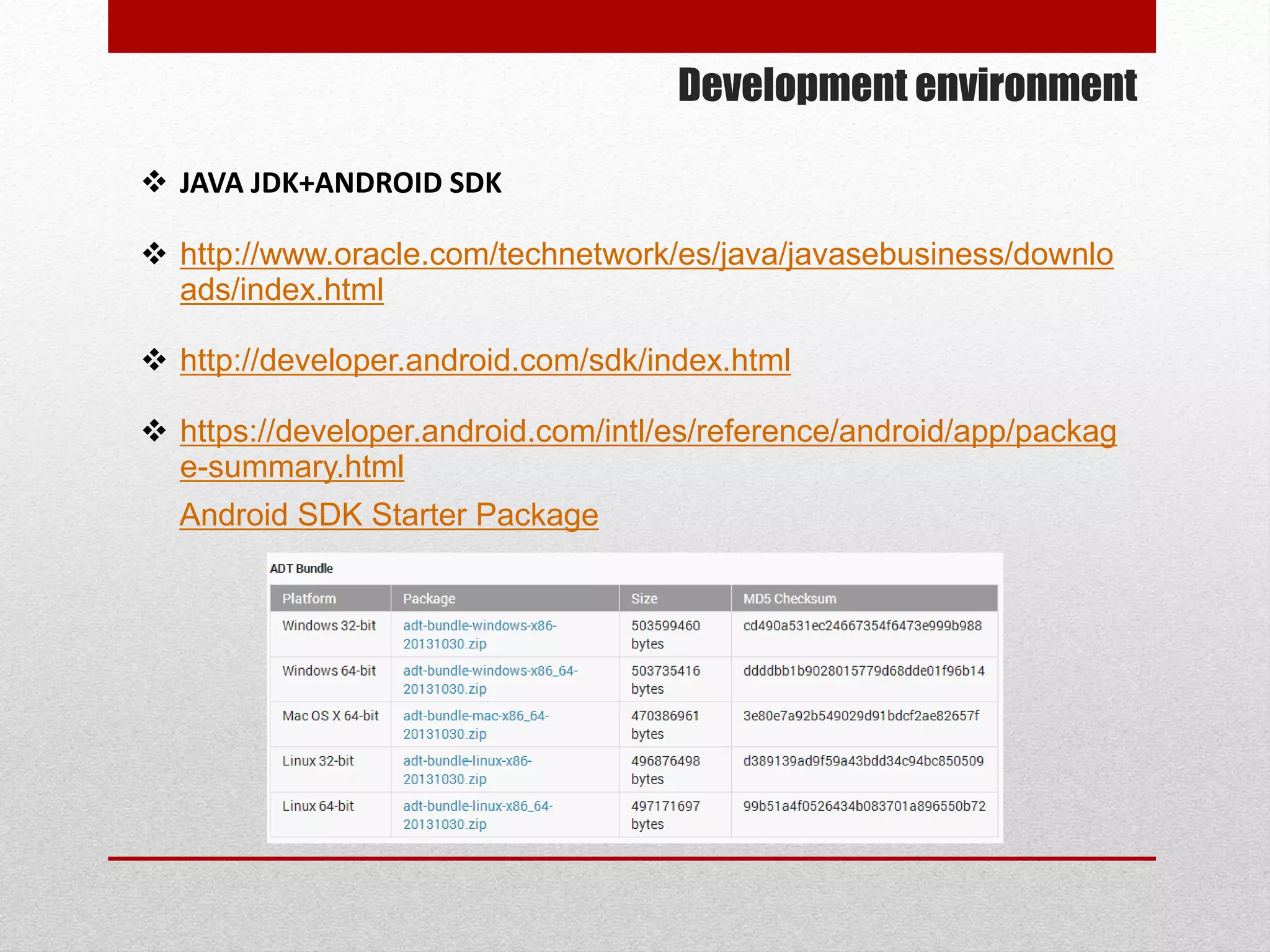

3. Development environment
 JAVA JDK+ANDROID SDK
 http://www.oracle.com/technetwork/es/java/javasebusiness/downlo
ads/index.html
 http://developer.android.com/sdk/index.html
 https://developer.android.com/intl/es/reference/android/app/packag
e-summary.html
Android SDK Starter Package

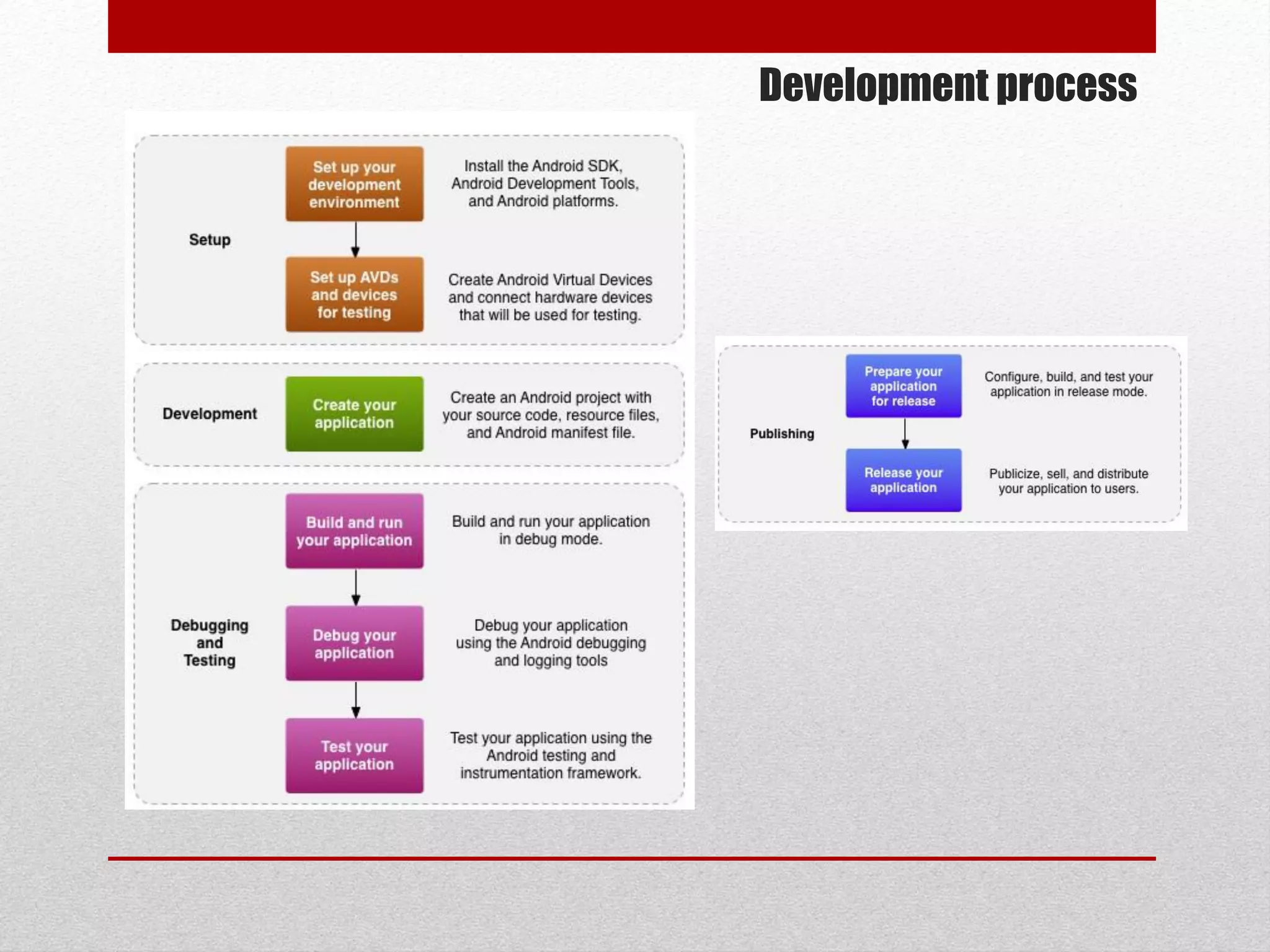

4. Development process

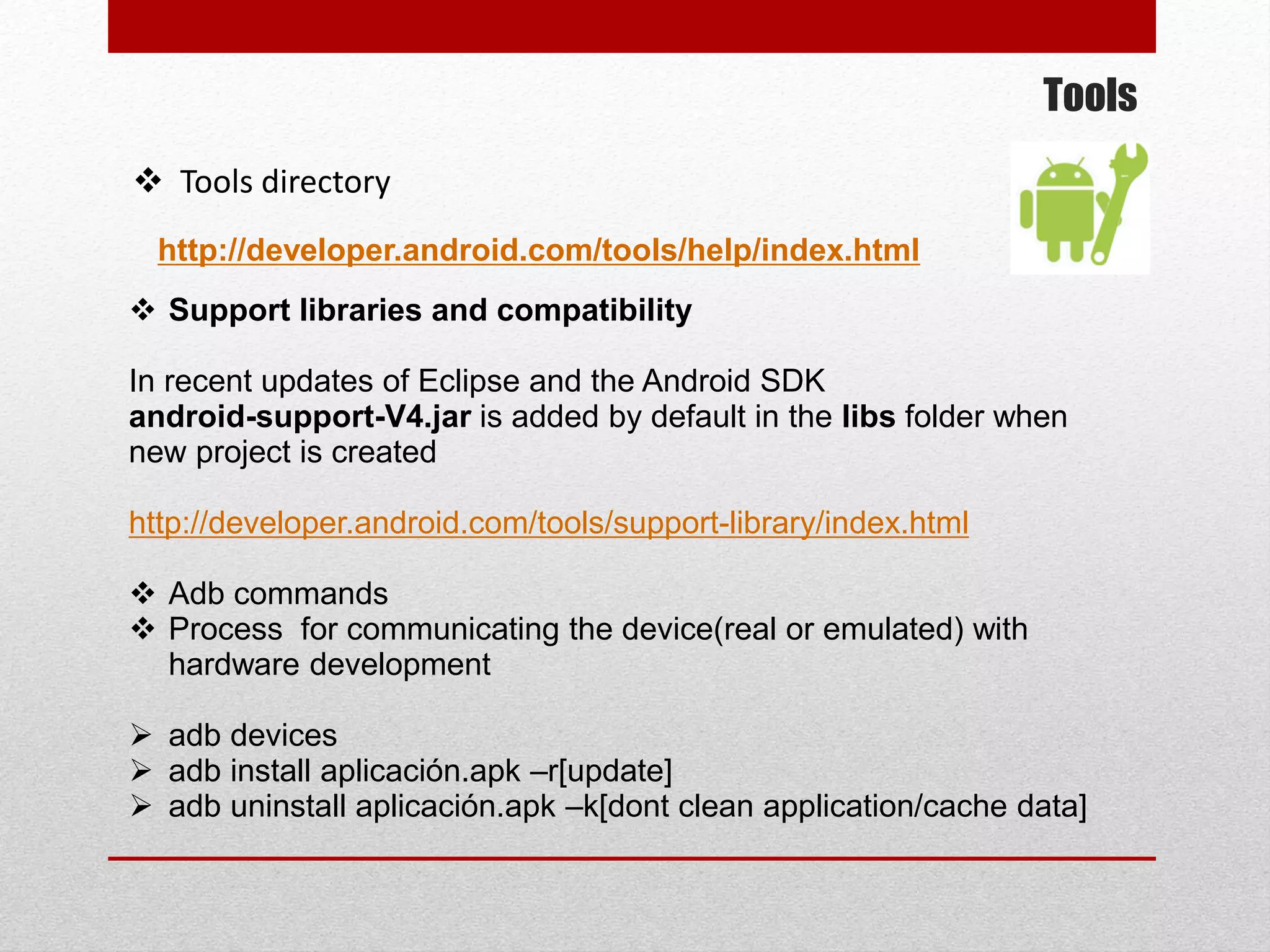

5. Tools
 Tools directory
http://developer.android.com/tools/help/index.html
 Support libraries and compatibility
In recent updates of Eclipse and the Android SDK
android-support-V4.jar is added by default in the libs folder when
new project is created
http://developer.android.com/tools/support-library/index.html
 Adb commands
 Process for communicating the device(real or emulated) with
hardware development
 adb devices
 adb install aplicación.apk –r[update]
 adb uninstall aplicación.apk –k[dont clean application/cache data]

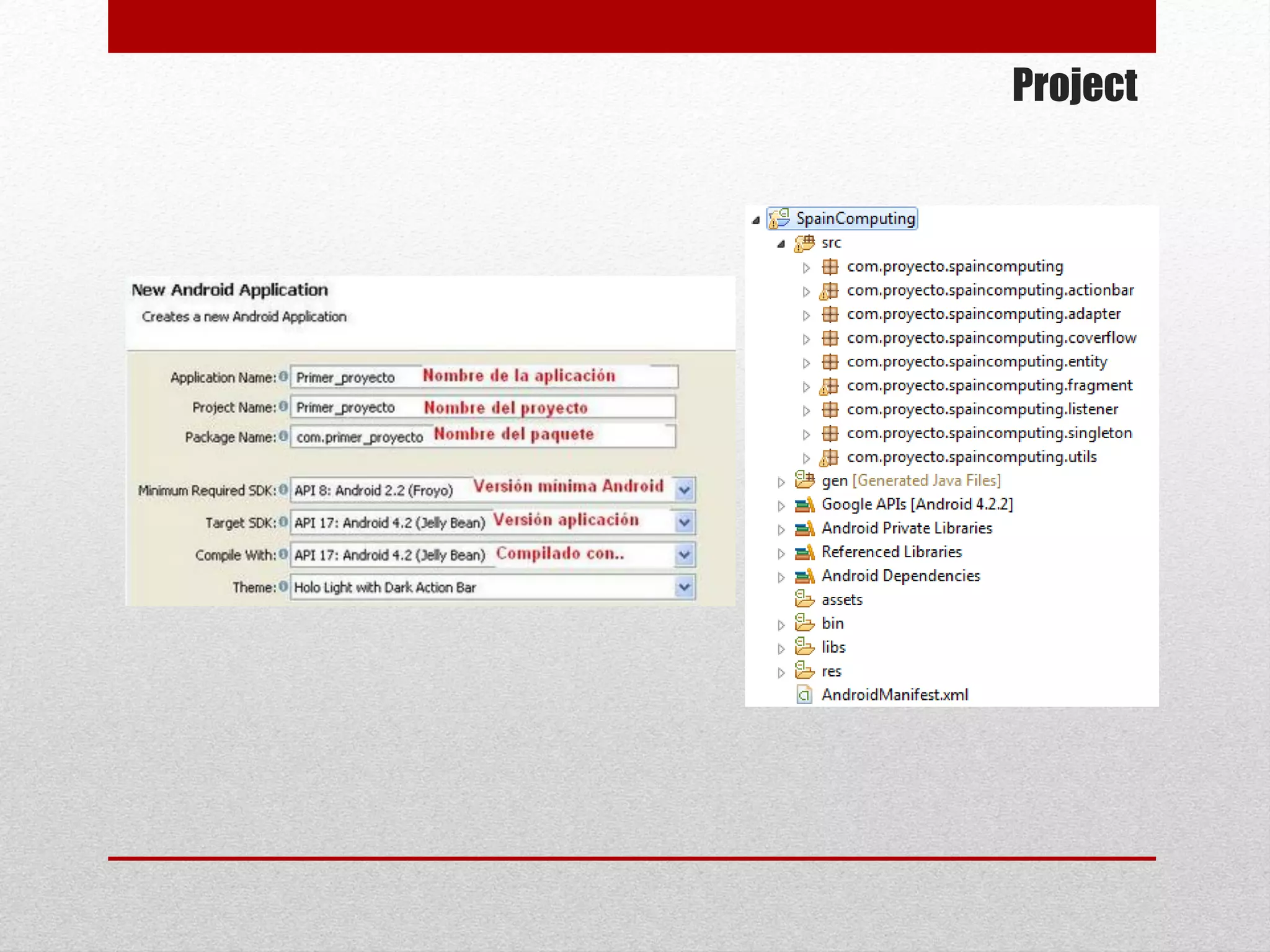

6. Project

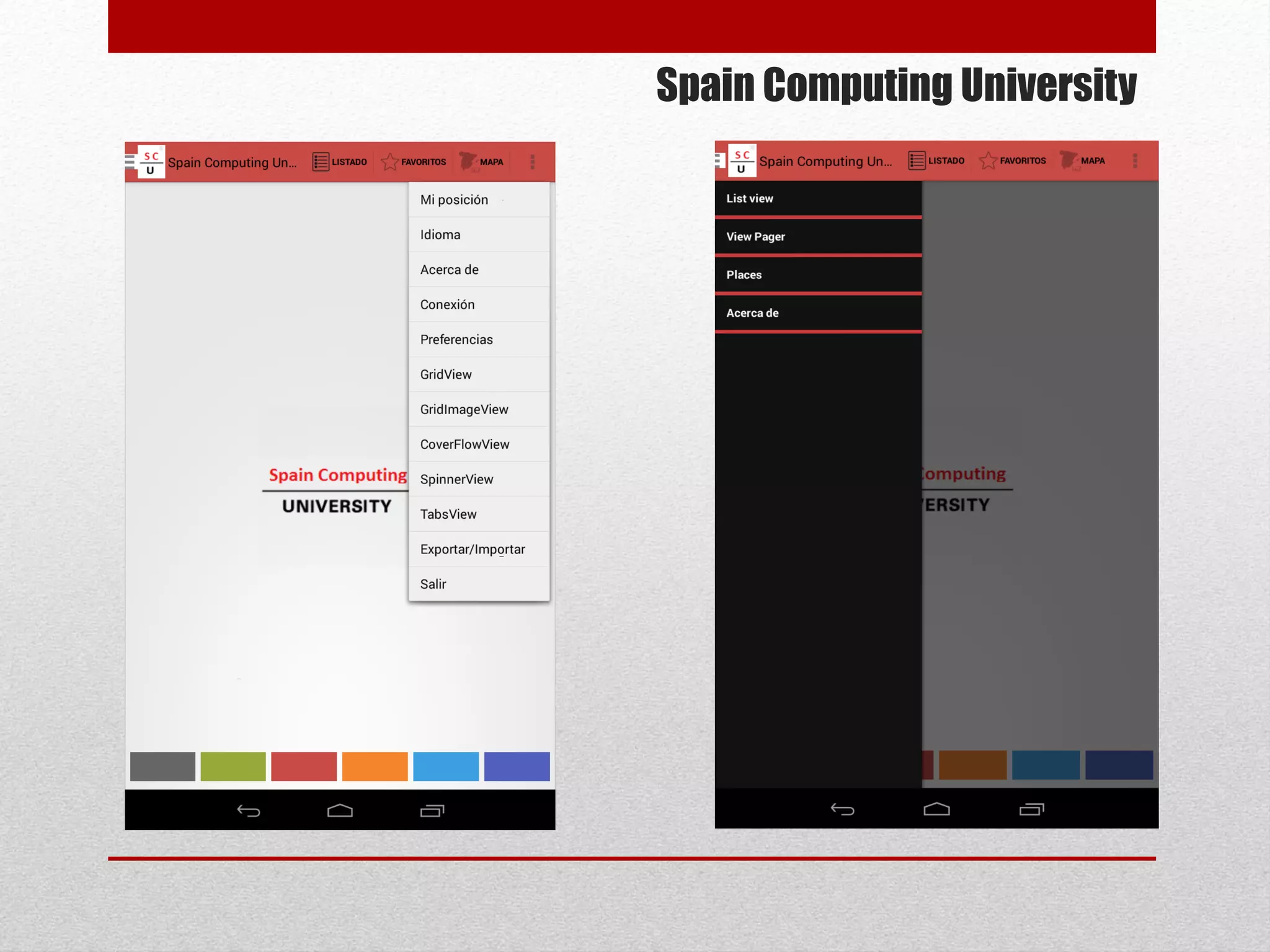

7. Spain Computing University

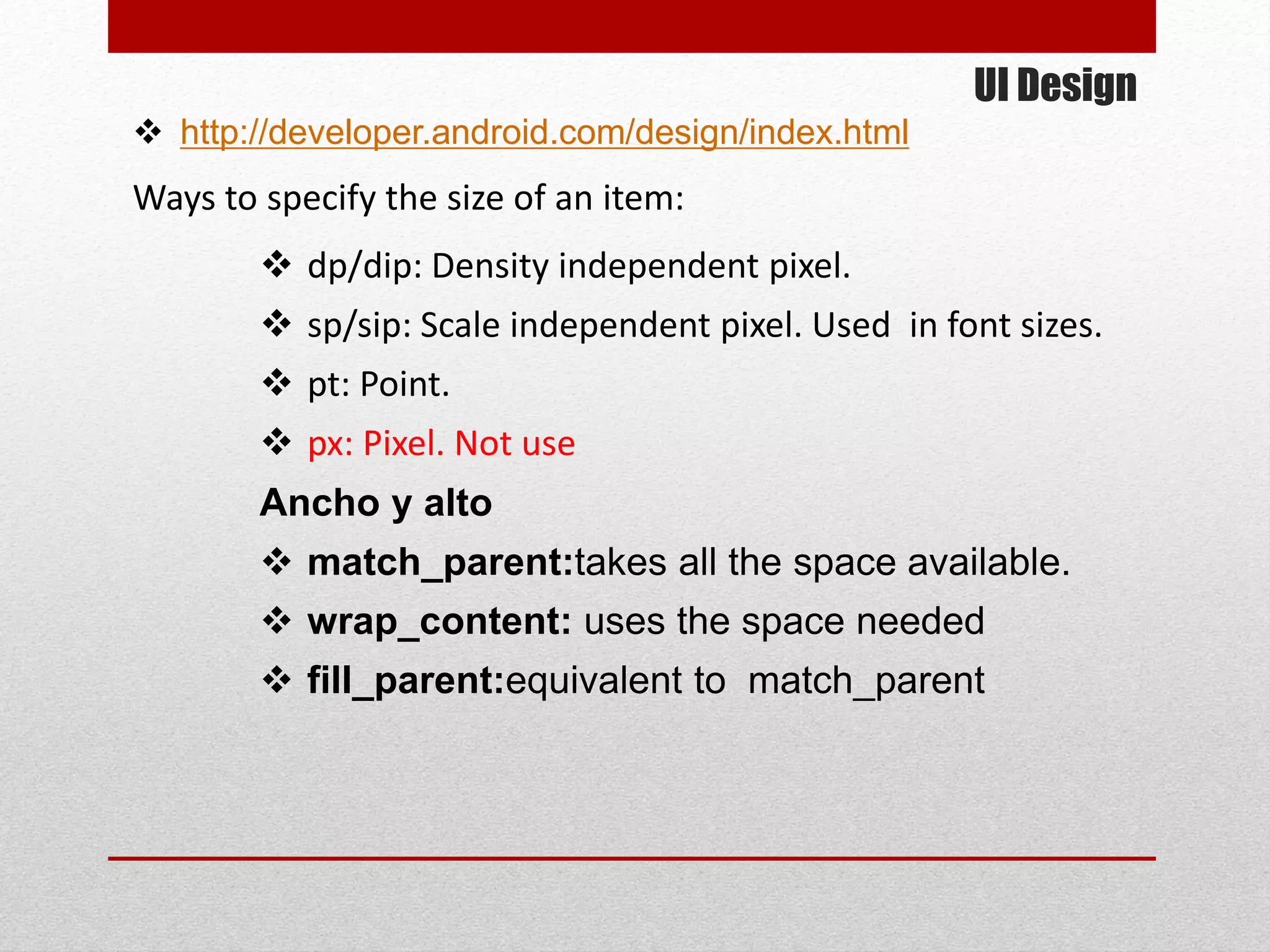

8. UI Design
 http://developer.android.com/design/index.html
Ways to specify the size of an item:
 dp/dip: Density independent pixel.
 sp/sip: Scale independent pixel. Used in font sizes.
 pt: Point.
 px: Pixel. Not use
Ancho y alto
 match_parent:takes all the space available.
 wrap_content: uses the space needed
 fill_parent:equivalent to match_parent

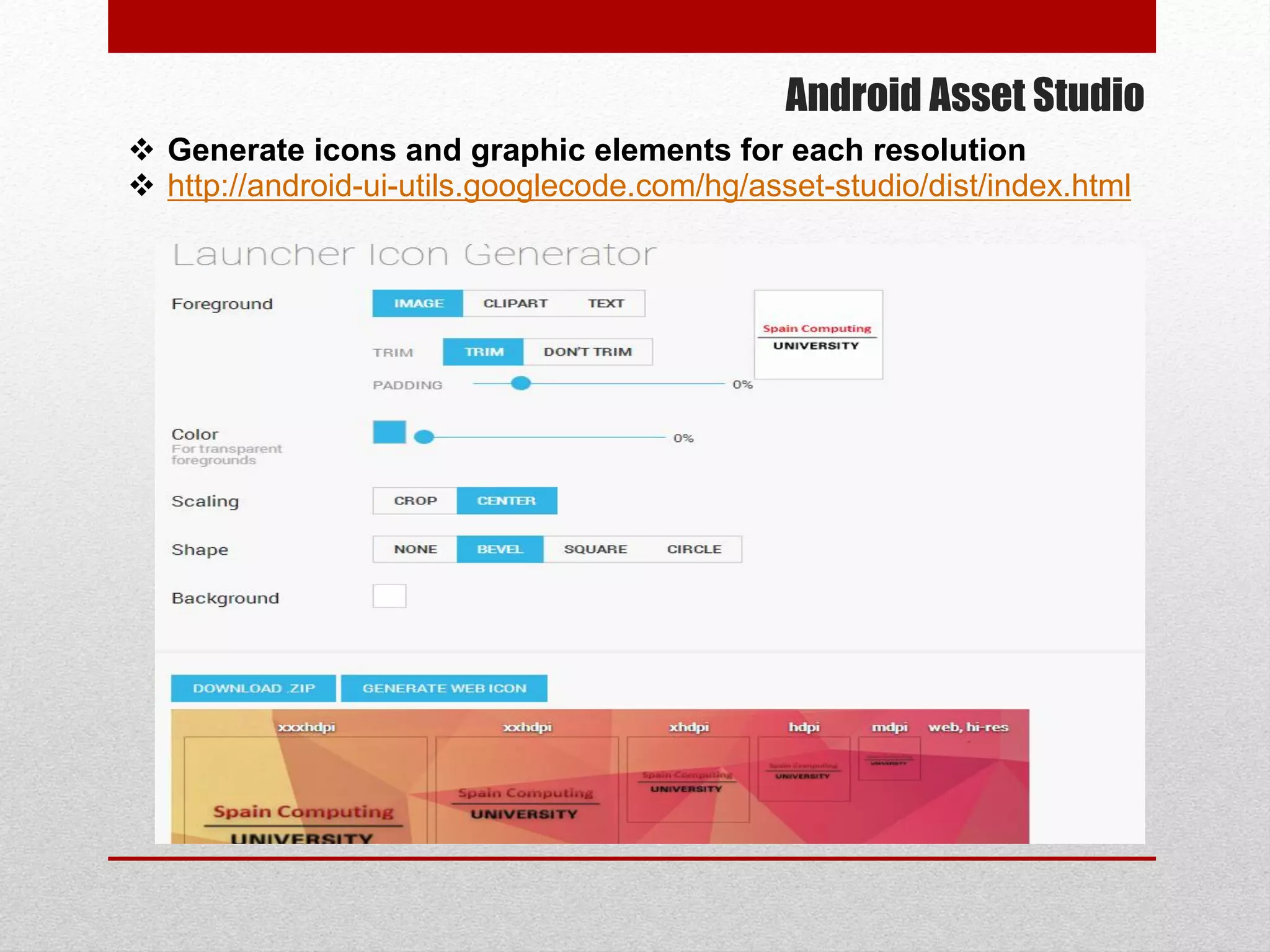

9. Android Asset Studio
 Generate icons and graphic elements for each resolution
 http://android-ui-utils.googlecode.com/hg/asset-studio/dist/index.html

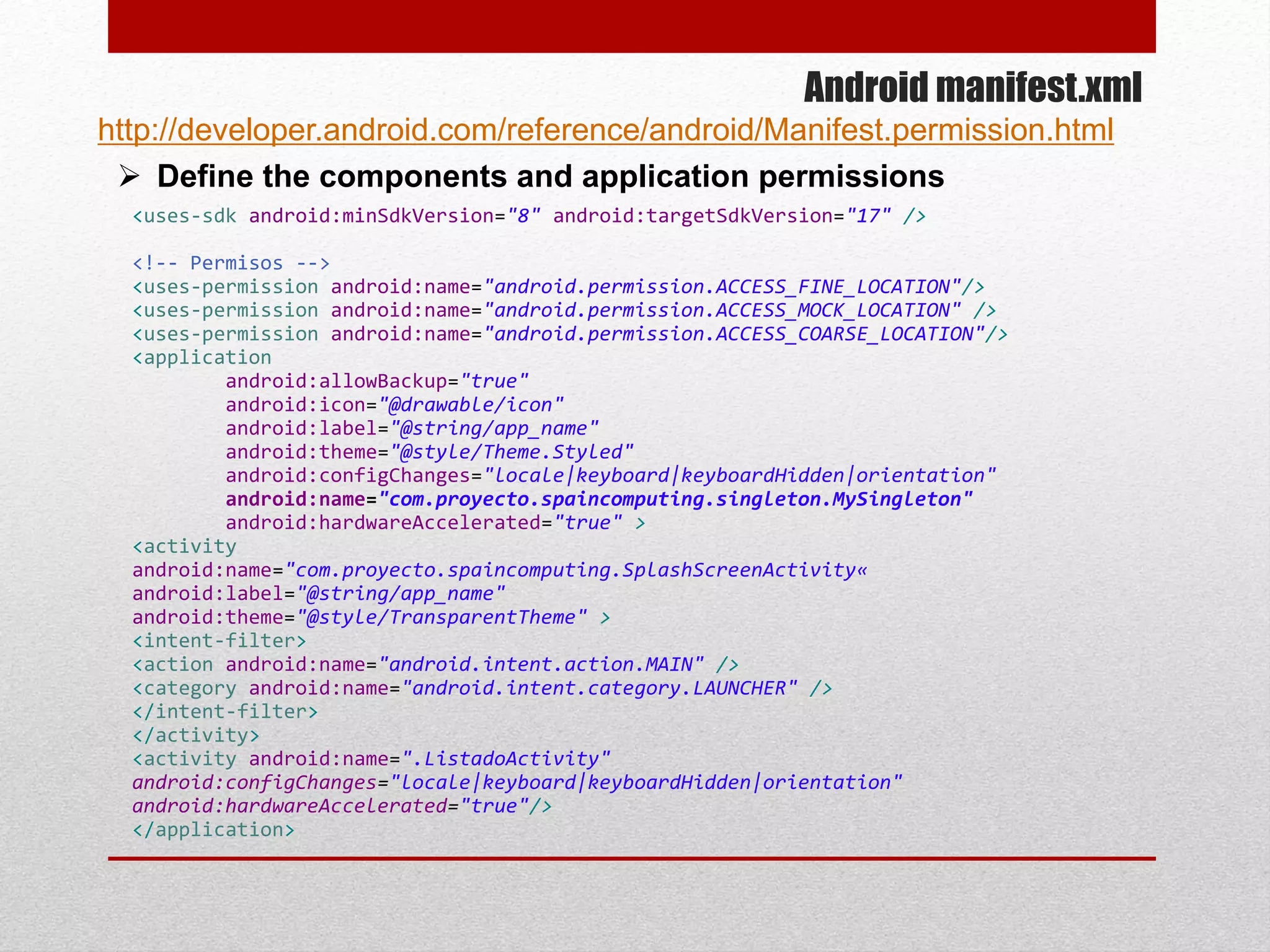

10. Android manifest.xml
 Define the components and application permissions
<uses-sdk android:minSdkVersion="8" android:targetSdkVersion="17" />
<!-- Permisos -->
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION"/>
<uses-permission android:name="android.permission.ACCESS_MOCK_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION"/>
<application
android:allowBackup="true"
android:icon="@drawable/icon"
android:label="@string/app_name"
android:theme="@style/Theme.Styled"
android:configChanges="locale|keyboard|keyboardHidden|orientation"
android:name="com.proyecto.spaincomputing.singleton.MySingleton"
android:hardwareAccelerated="true" >
<activity
android:name="com.proyecto.spaincomputing.SplashScreenActivity«
android:label="@string/app_name"
android:theme="@style/TransparentTheme" >
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<activity android:name=".ListadoActivity"
android:configChanges="locale|keyboard|keyboardHidden|orientation"
android:hardwareAccelerated="true"/>
</application>
http://developer.android.com/reference/android/Manifest.permission.html

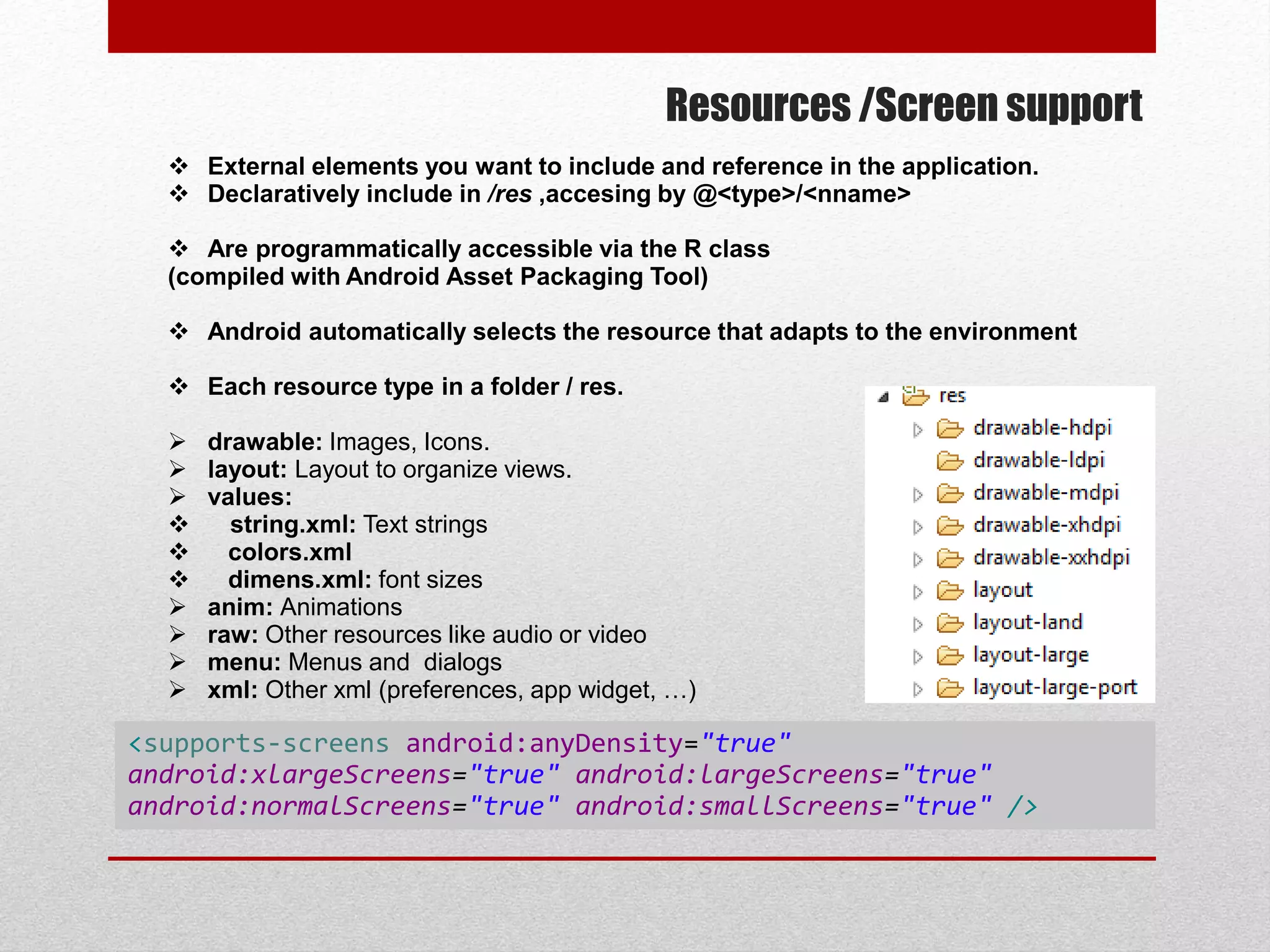

11. Resources /Screen support
 External elements you want to include and reference in the application.
 Declaratively include in /res ,accesing by @<type>/<nname>
 Are programmatically accessible via the R class
(compiled with Android Asset Packaging Tool)
 Android automatically selects the resource that adapts to the environment
 Each resource type in a folder / res.
 drawable: Images, Icons.
 layout: Layout to organize views.
 values:
 string.xml: Text strings
 colors.xml
 dimens.xml: font sizes
 anim: Animations
 raw: Other resources like audio or video
 menu: Menus and dialogs
 xml: Other xml (preferences, app widget, …)
<supports-screens android:anyDensity="true"
android:xlargeScreens="true" android:largeScreens="true"
android:normalScreens="true" android:smallScreens="true" />

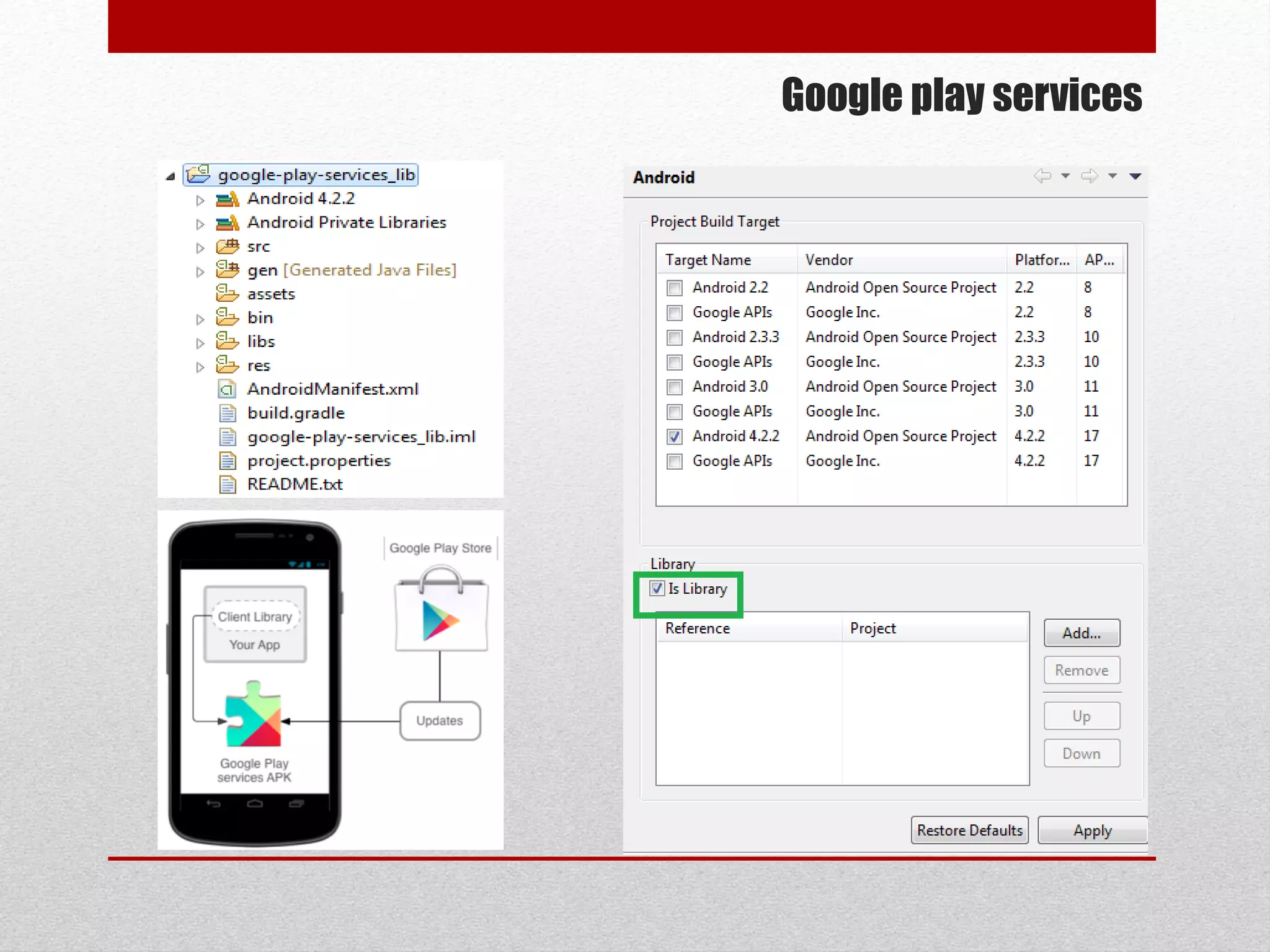

12. Google play services

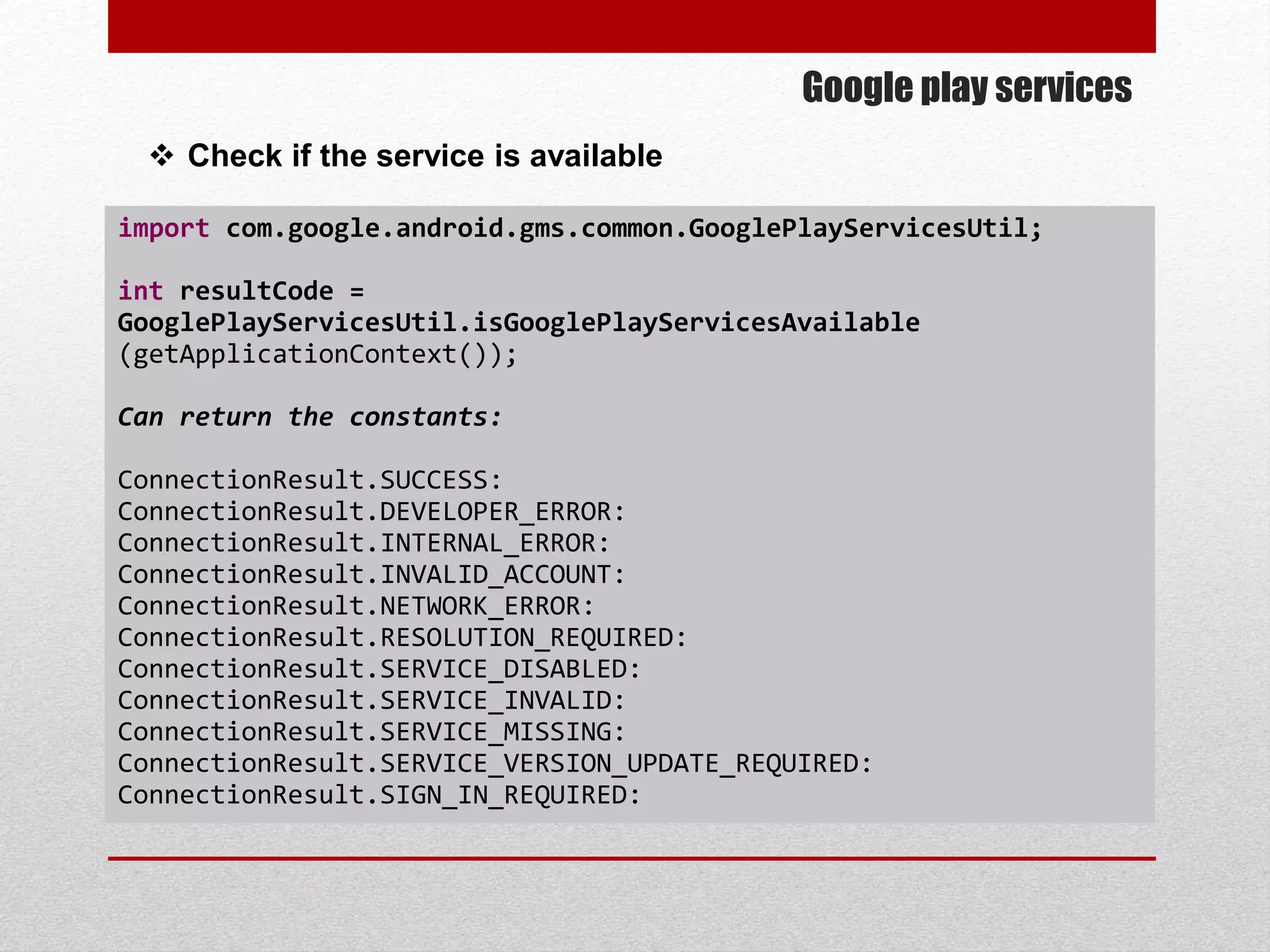

13. Google play services
 Check if the service is available
import com.google.android.gms.common.GooglePlayServicesUtil;
int resultCode =
GooglePlayServicesUtil.isGooglePlayServicesAvailable
(getApplicationContext());
Can return the constants:
ConnectionResult.SUCCESS:
ConnectionResult.DEVELOPER_ERROR:
ConnectionResult.INTERNAL_ERROR:
ConnectionResult.INVALID_ACCOUNT:
ConnectionResult.NETWORK_ERROR:
ConnectionResult.RESOLUTION_REQUIRED:
ConnectionResult.SERVICE_DISABLED:
ConnectionResult.SERVICE_INVALID:
ConnectionResult.SERVICE_MISSING:
ConnectionResult.SERVICE_VERSION_UPDATE_REQUIRED:
ConnectionResult.SIGN_IN_REQUIRED:

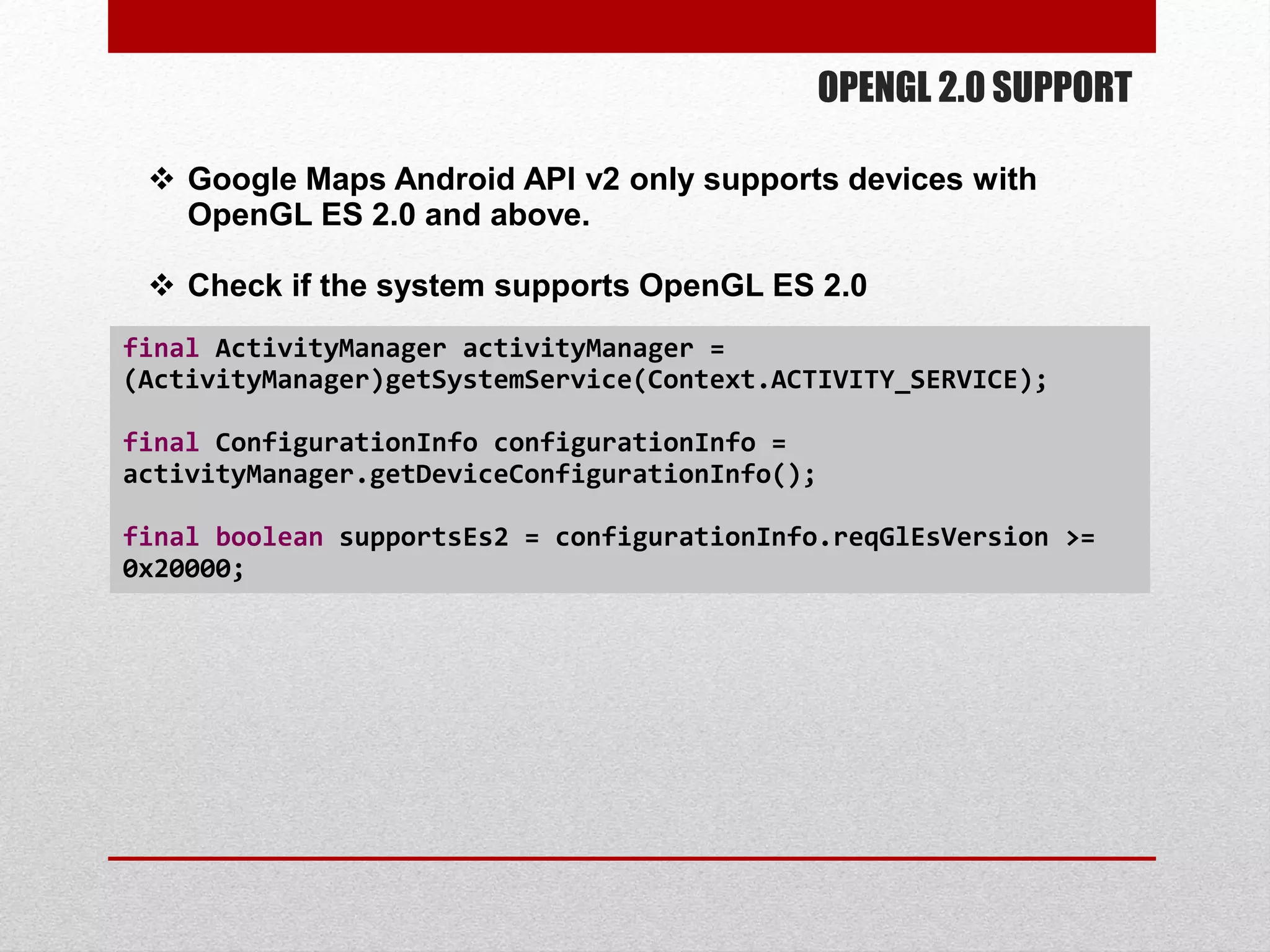

14. OPENGL 2.0 SUPPORT
 Google Maps Android API v2 only supports devices with
OpenGL ES 2.0 and above.
 Check if the system supports OpenGL ES 2.0
final ActivityManager activityManager =
(ActivityManager)getSystemService(Context.ACTIVITY_SERVICE);
final ConfigurationInfo configurationInfo =
activityManager.getDeviceConfigurationInfo();
final boolean supportsEs2 = configurationInfo.reqGlEsVersion >=
0x20000;

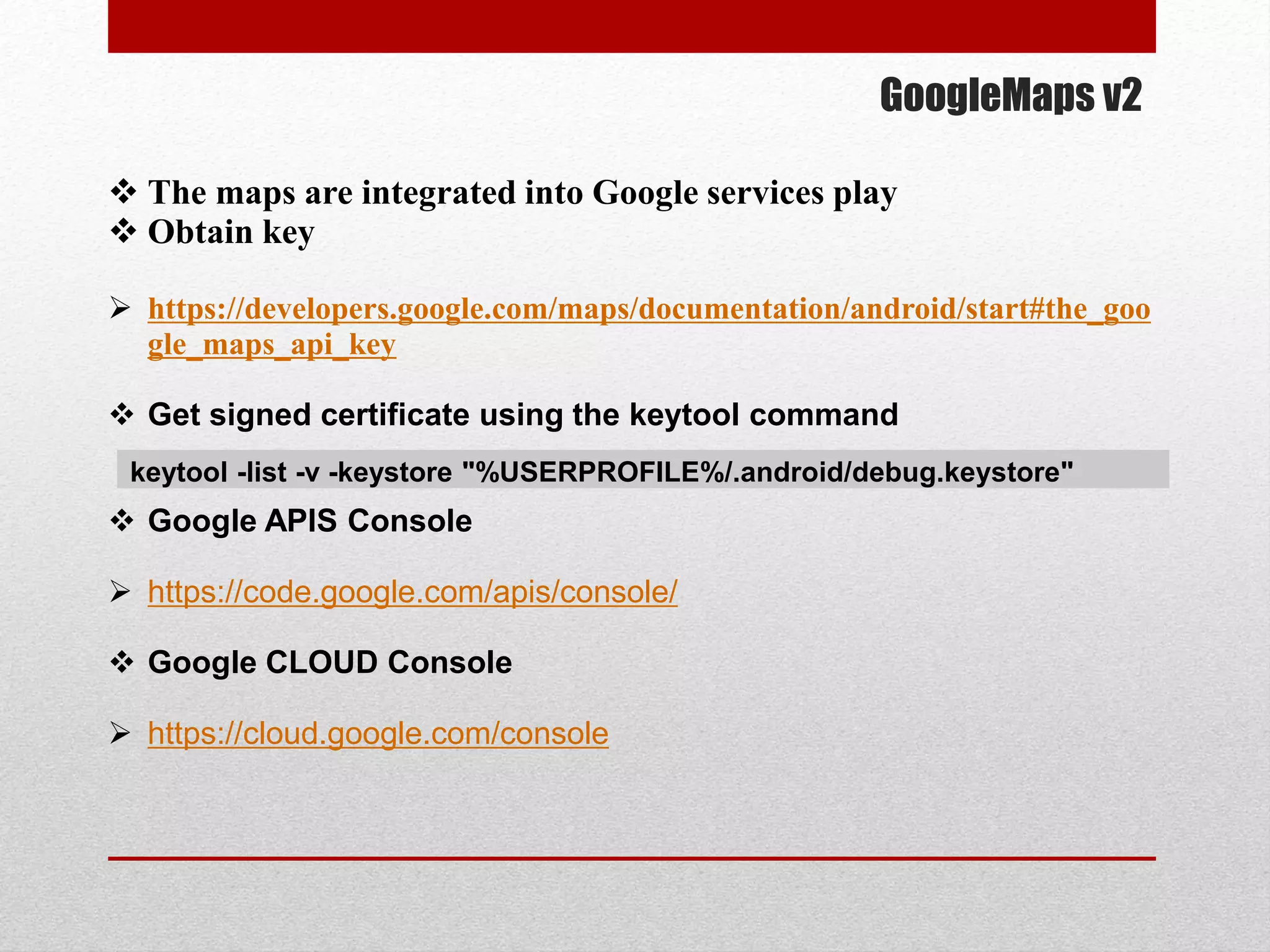

15. GoogleMaps v2
 The maps are integrated into Google services play
 Obtain key
 https://developers.google.com/maps/documentation/android/start#the_goo
gle_maps_api_key
 Get signed certificate using the keytool command
 Google APIS Console
 https://code.google.com/apis/console/
 Google CLOUD Console
 https://cloud.google.com/console
keytool -list -v -keystore "%USERPROFILE%/.android/debug.keystore"

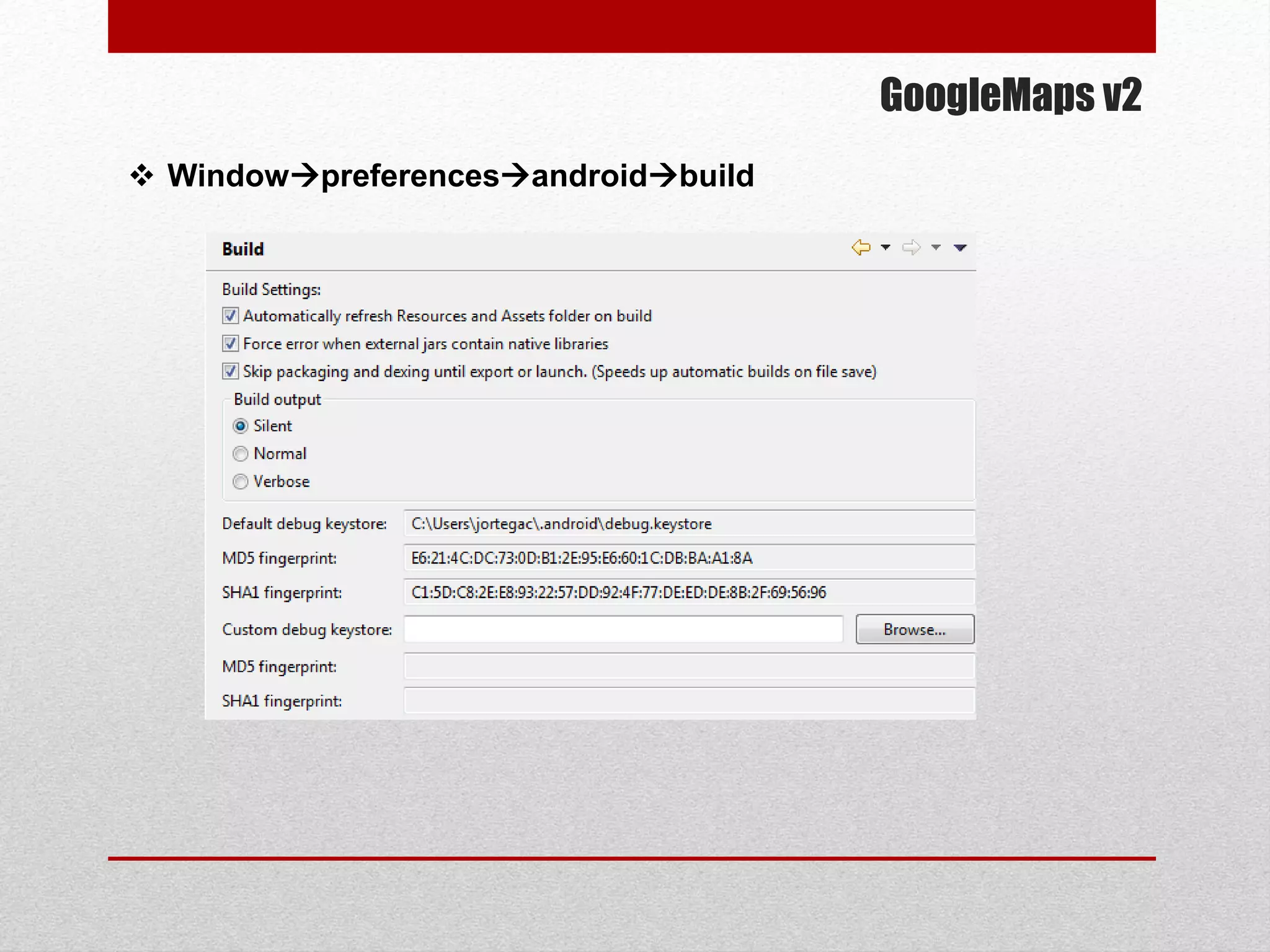

16. GoogleMaps v2
 Windowpreferencesandroidbuild

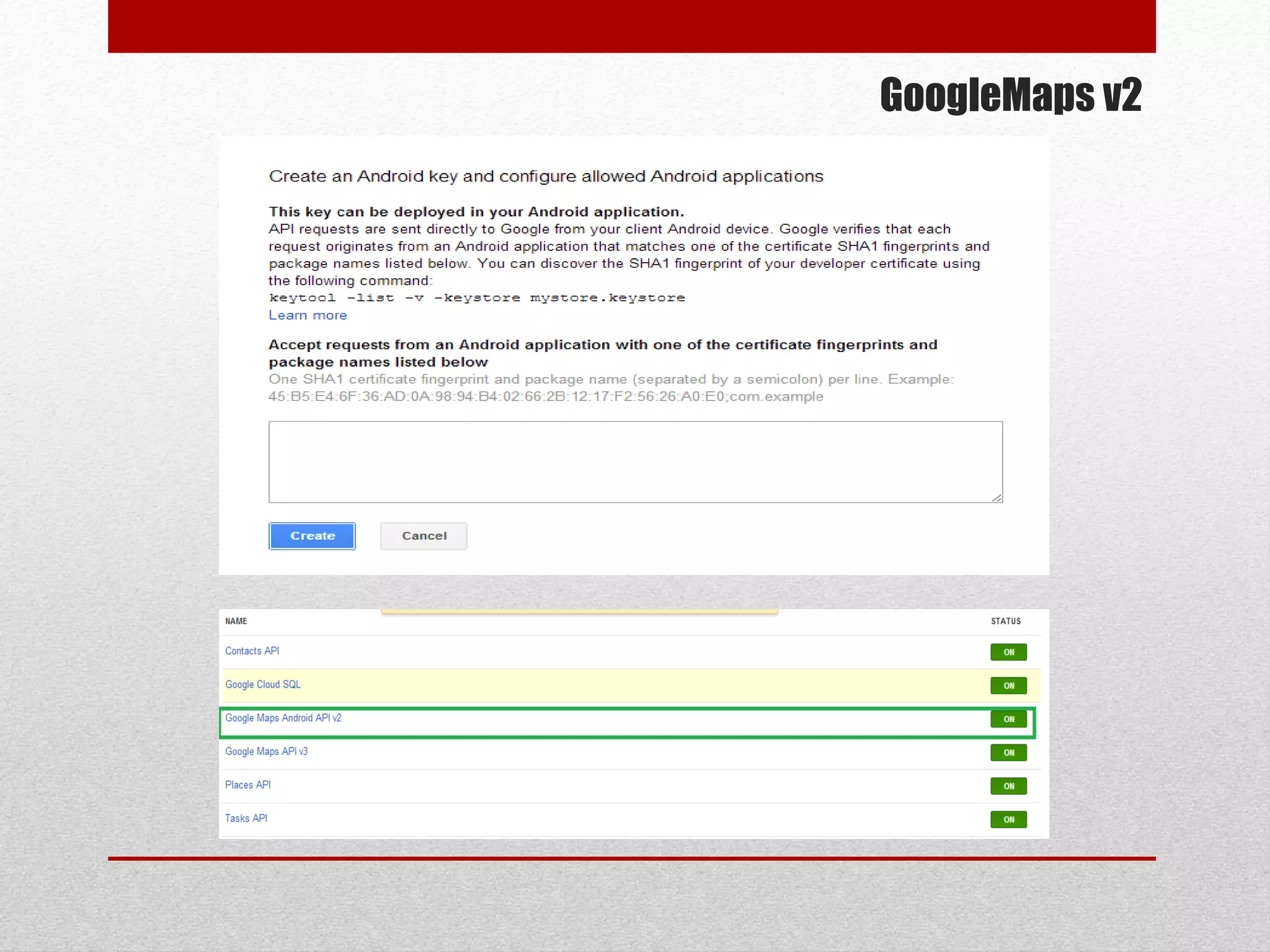

17. GoogleMaps v2

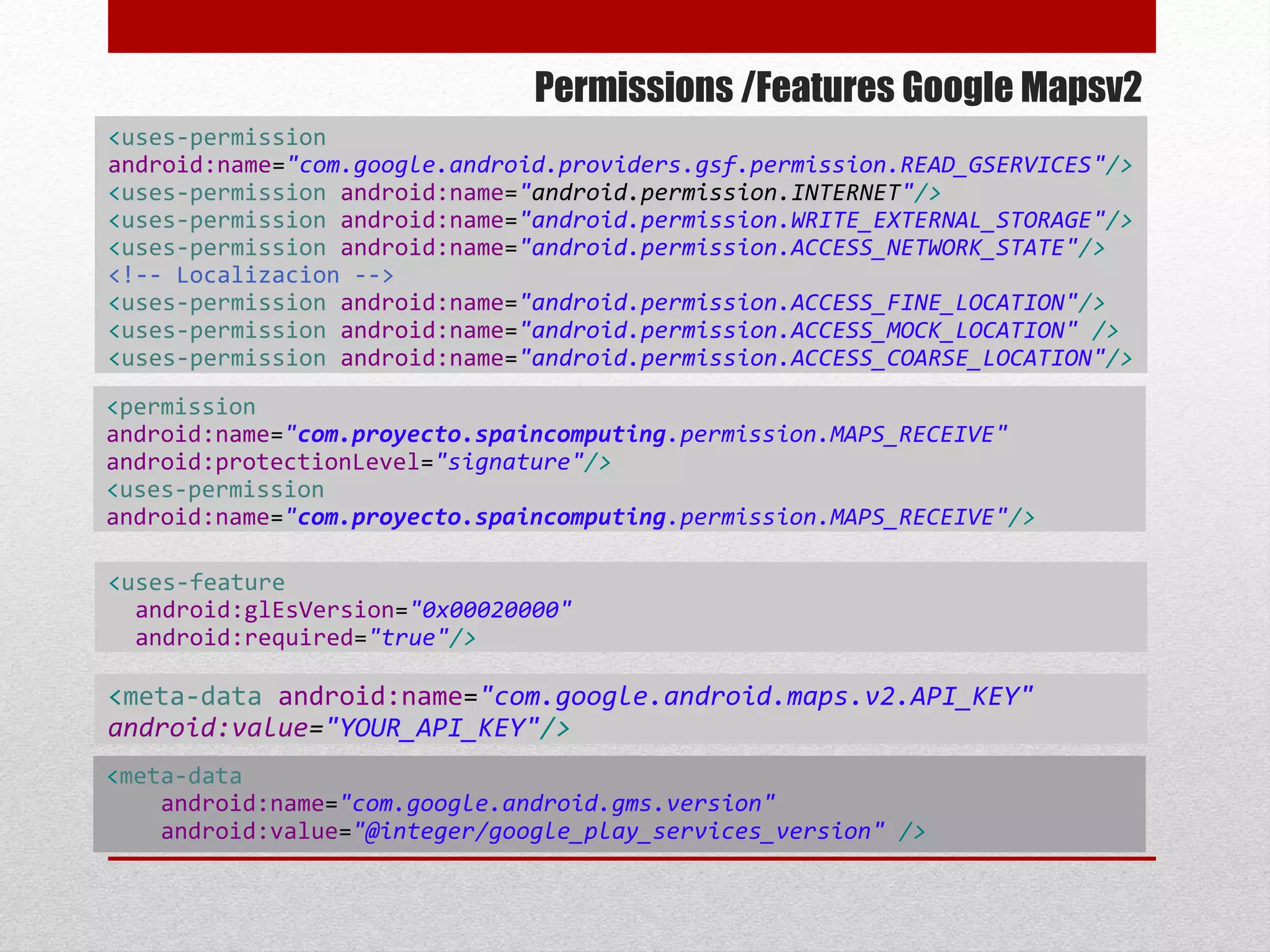

18. Permissions /Features Google Mapsv2
<uses-permission
android:name="com.google.android.providers.gsf.permission.READ_GSERVICES"/>
<uses-permission android:name="android.permission.INTERNET"/>
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>
<!-- Localizacion -->
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION"/>
<uses-permission android:name="android.permission.ACCESS_MOCK_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION"/>
<uses-feature
android:glEsVersion="0x00020000"
android:required="true"/>
<permission
android:name="com.proyecto.spaincomputing.permission.MAPS_RECEIVE"
android:protectionLevel="signature"/>
<uses-permission
android:name="com.proyecto.spaincomputing.permission.MAPS_RECEIVE"/>
<meta-data android:name="com.google.android.maps.v2.API_KEY"
android:value="YOUR_API_KEY"/>
<meta-data
android:name="com.google.android.gms.version"
android:value="@integer/google_play_services_version" />

19. Map fragments
 layout/fragment_mapa.xml
<fragment
android:id="@+id/map"
android:layout_width="match_parent"
android:layout_height="match_parent"
class="com.google.android.gms.maps.SupportMapFragment"/>
 MapaActivity. FragmentActivity from android.support.v4
import android.support.v4.app.FragmentActivity;
public class MapaActivity extends FragmentActivity{
private GoogleMap mapa=null;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.fragment_mapa);
mapa = ((SupportMapFragment)
getSupportFragmentManager().findFragmentById(R.id.map))
.getMap();
}}

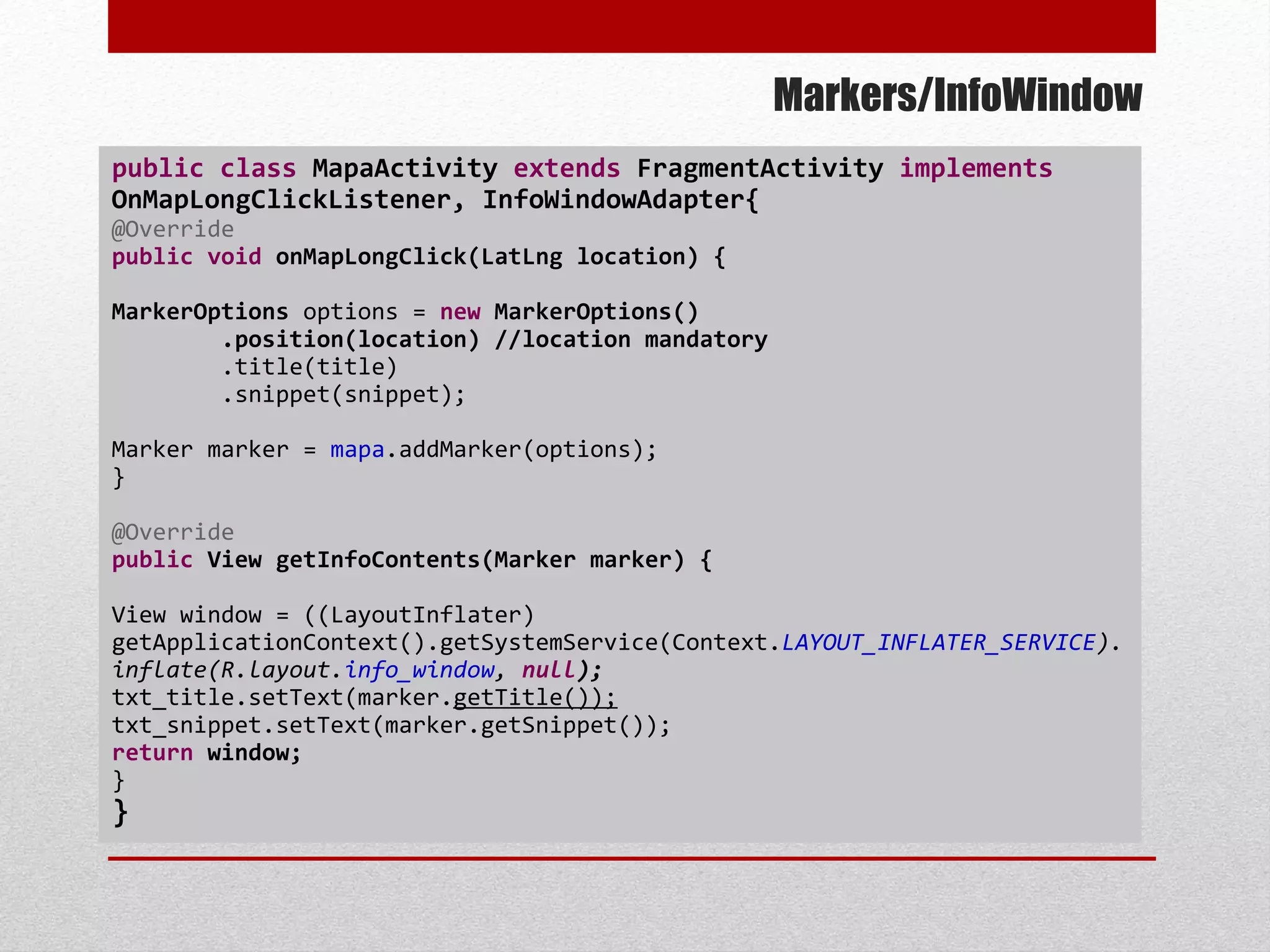

20. Markers/InfoWindow
public class MapaActivity extends FragmentActivity implements
OnMapLongClickListener, InfoWindowAdapter{
@Override
public void onMapLongClick(LatLng location) {
MarkerOptions options = new MarkerOptions()
.position(location) //location mandatory
.title(title)
.snippet(snippet);
Marker marker = mapa.addMarker(options);
}
@Override
public View getInfoContents(Marker marker) {
View window = ((LayoutInflater)
getApplicationContext().getSystemService(Context.LAYOUT_INFLATER_SERVICE).
inflate(R.layout.info_window, null);
txt_title.setText(marker.getTitle());
txt_snippet.setText(marker.getSnippet());
return window;
}
}

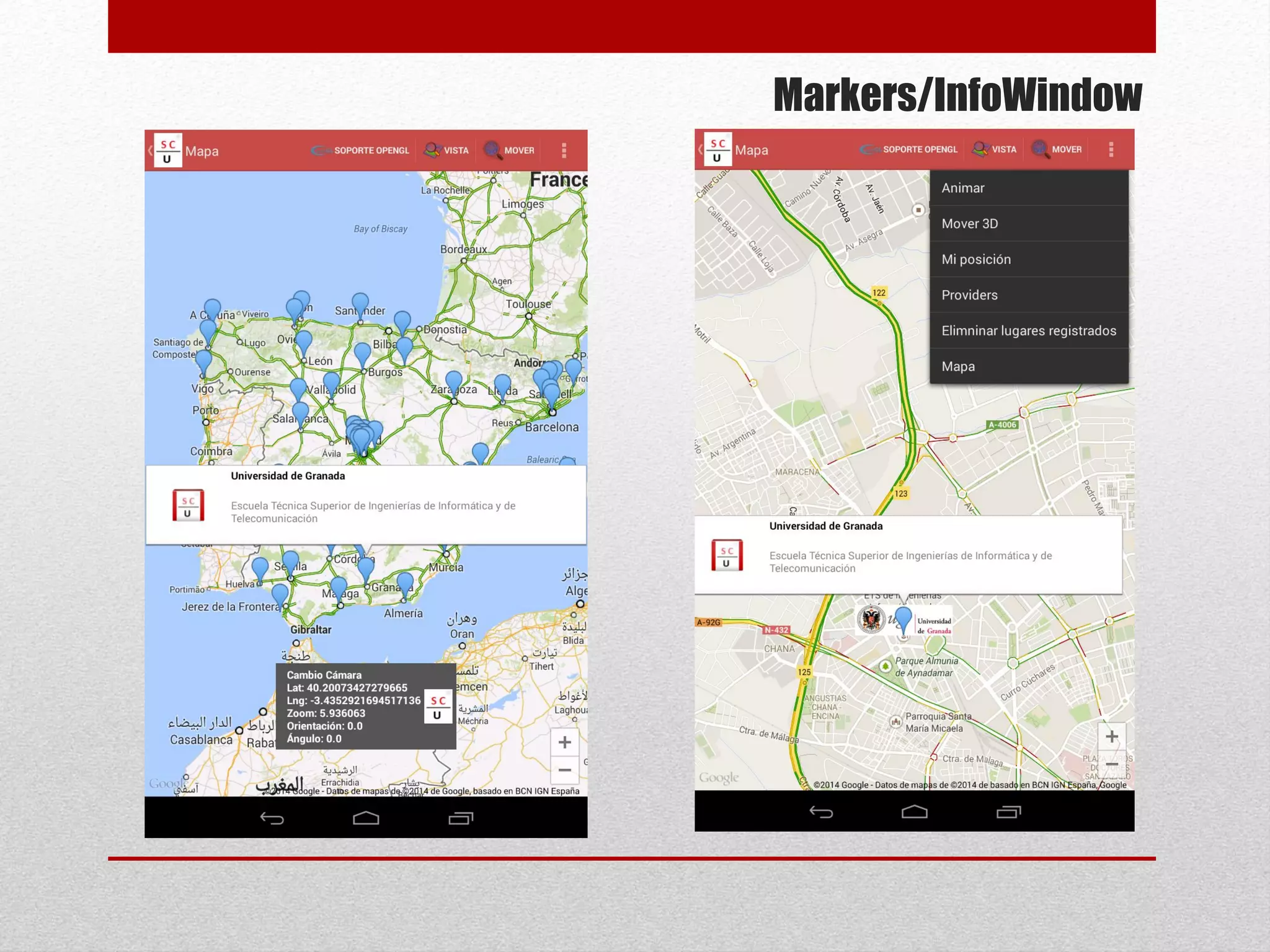

21. Markers/InfoWindow

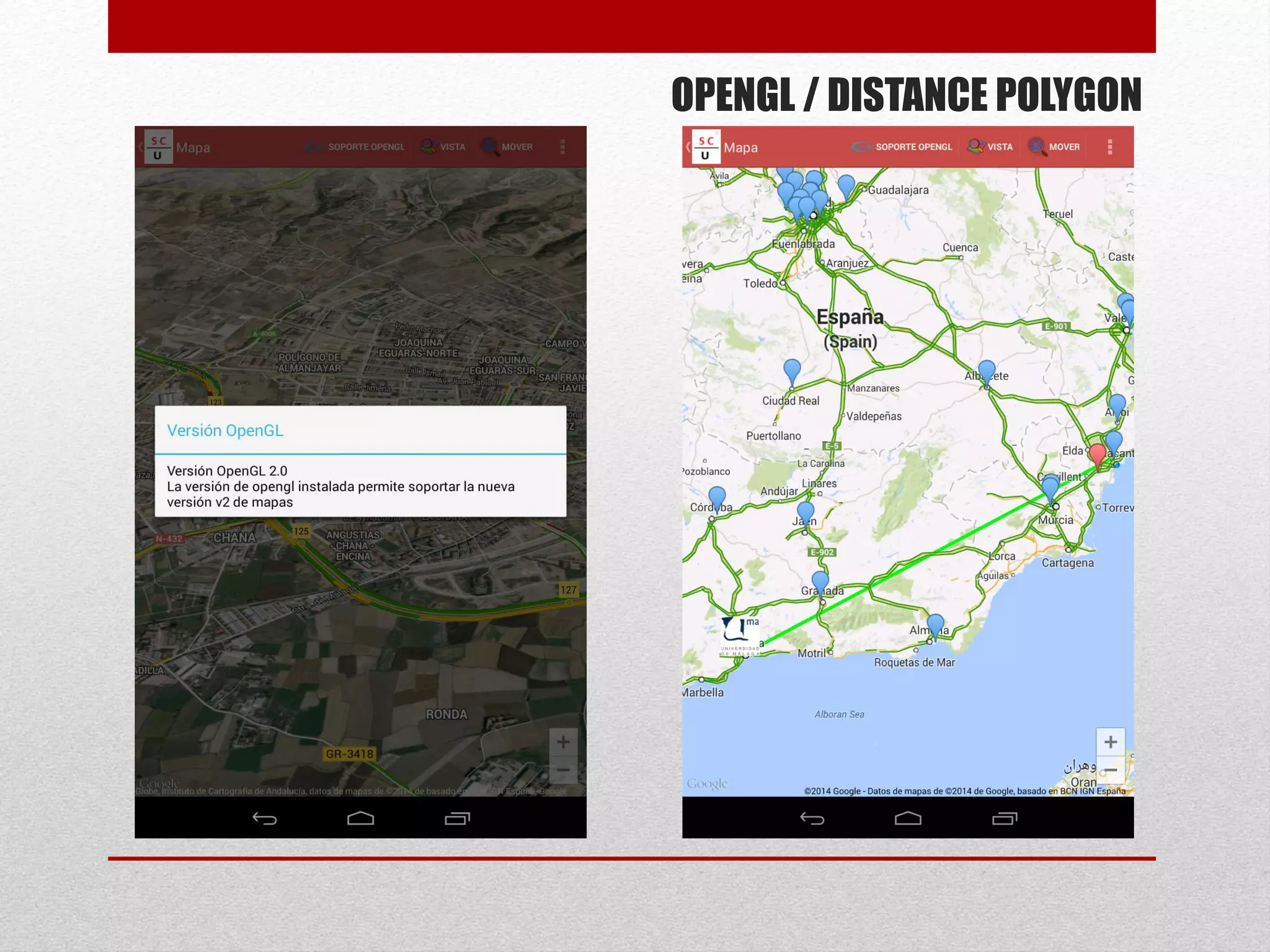

22. OPENGL / DISTANCE POLYGON

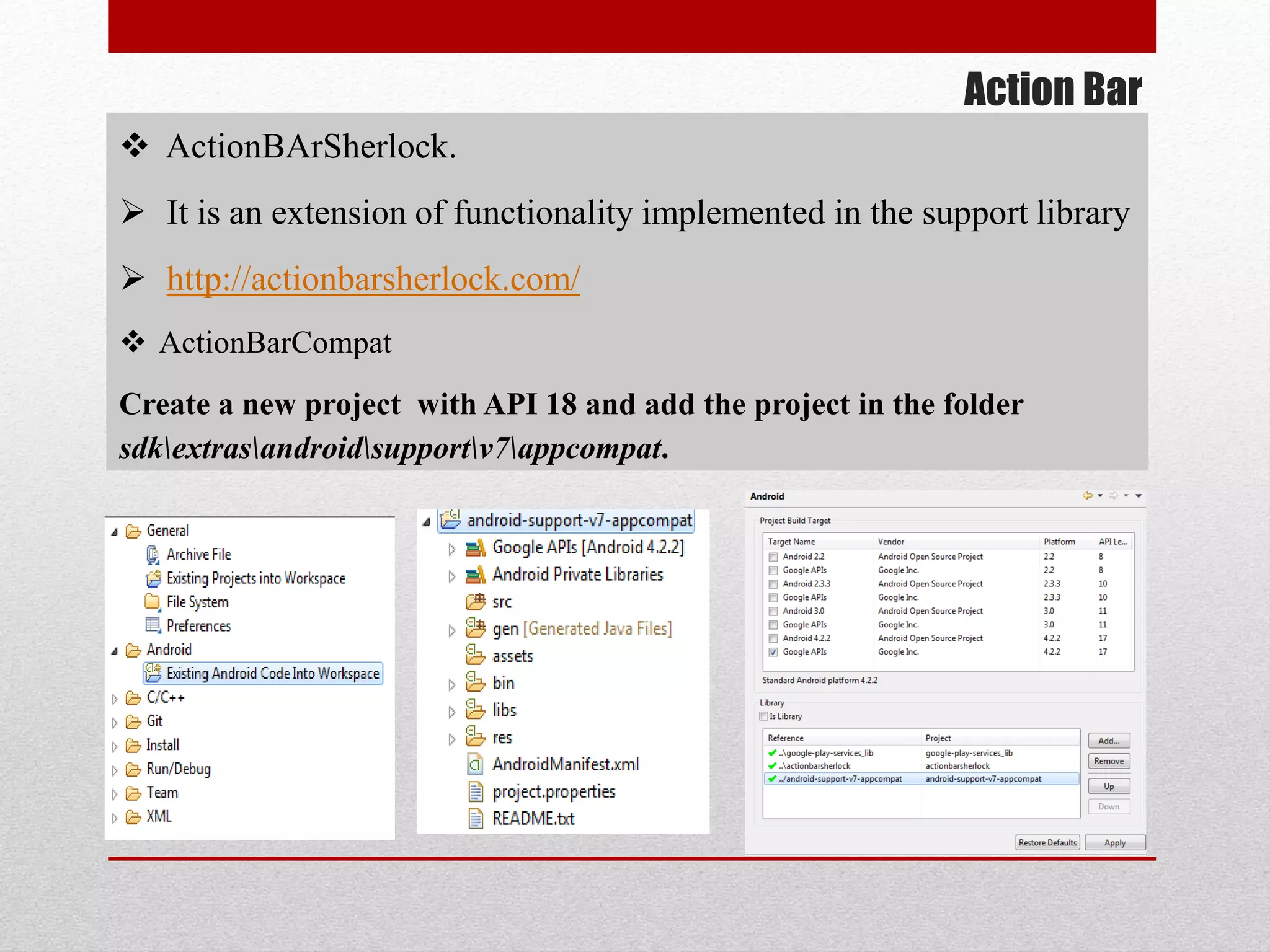

23. Action Bar
 ActionBArSherlock.
 It is an extension of functionality implemented in the support library
 http://actionbarsherlock.com/
 ActionBarCompat
Create a new project with API 18 and add the project in the folder
sdkextrasandroidsupportv7appcompat.

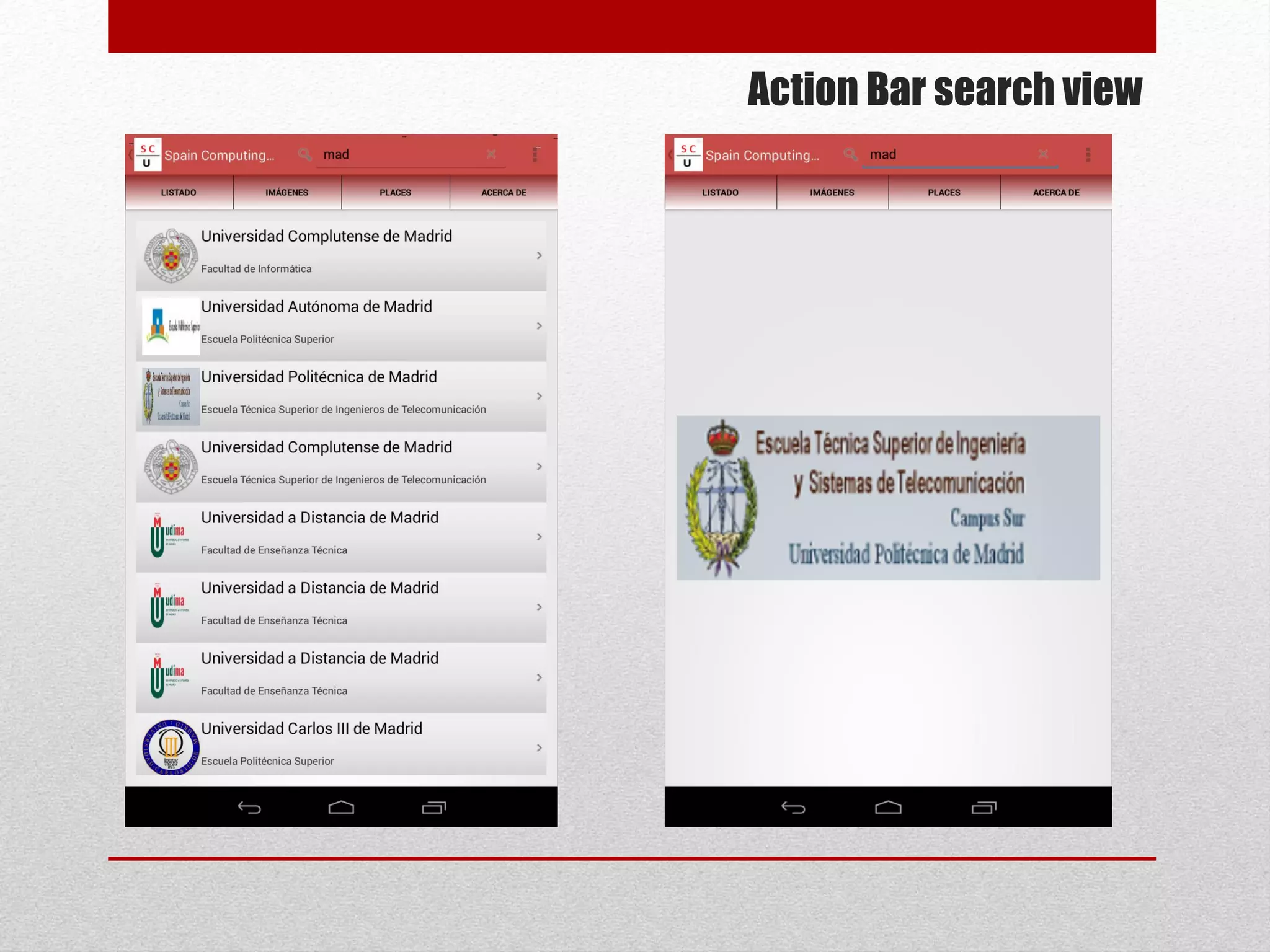

24. Action Bar search view

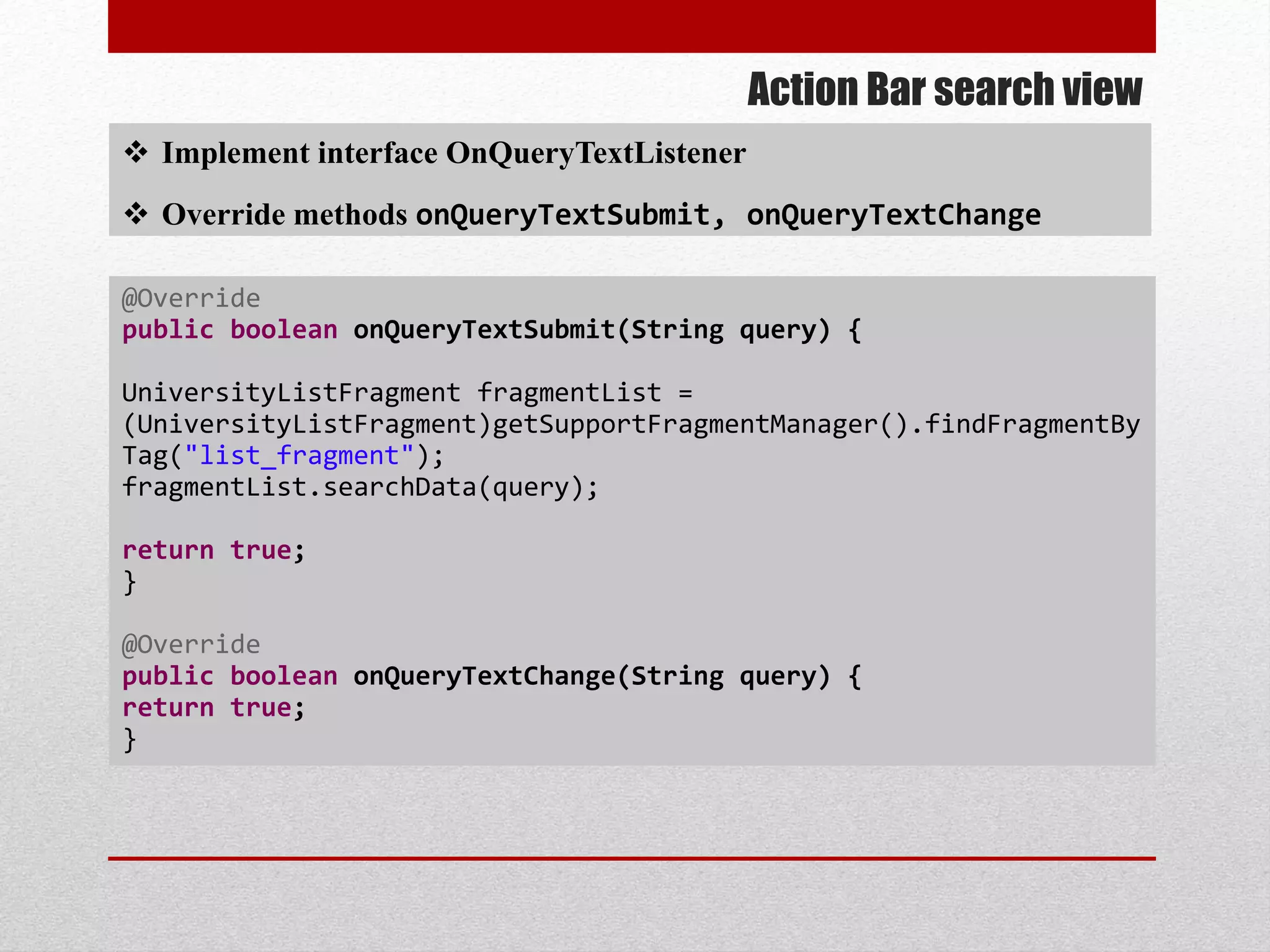

25. Action Bar search view
 Implement interface OnQueryTextListener
 Override methods onQueryTextSubmit, onQueryTextChange
@Override
public boolean onQueryTextSubmit(String query) {
UniversityListFragment fragmentList =
(UniversityListFragment)getSupportFragmentManager().findFragmentBy
Tag("list_fragment");
fragmentList.searchData(query);
return true;
}
@Override
public boolean onQueryTextChange(String query) {
return true;
}

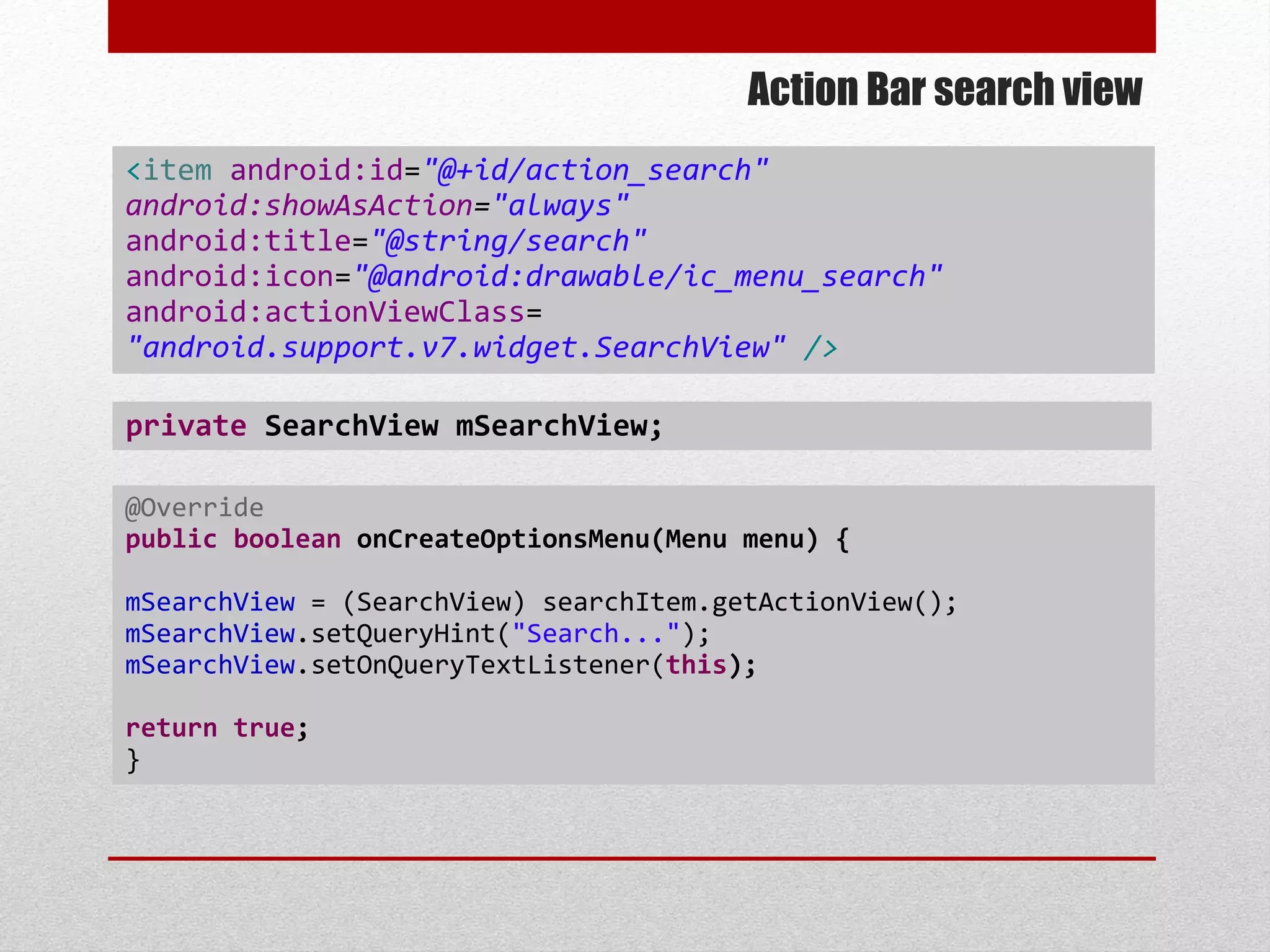

26. Action Bar search view
@Override
public boolean onCreateOptionsMenu(Menu menu) {
mSearchView = (SearchView) searchItem.getActionView();
mSearchView.setQueryHint("Search...");
mSearchView.setOnQueryTextListener(this);
return true;
}
<item android:id="@+id/action_search"
android:showAsAction="always"
android:title="@string/search"
android:icon="@android:drawable/ic_menu_search"
android:actionViewClass=
"android.support.v7.widget.SearchView" />
private SearchView mSearchView;

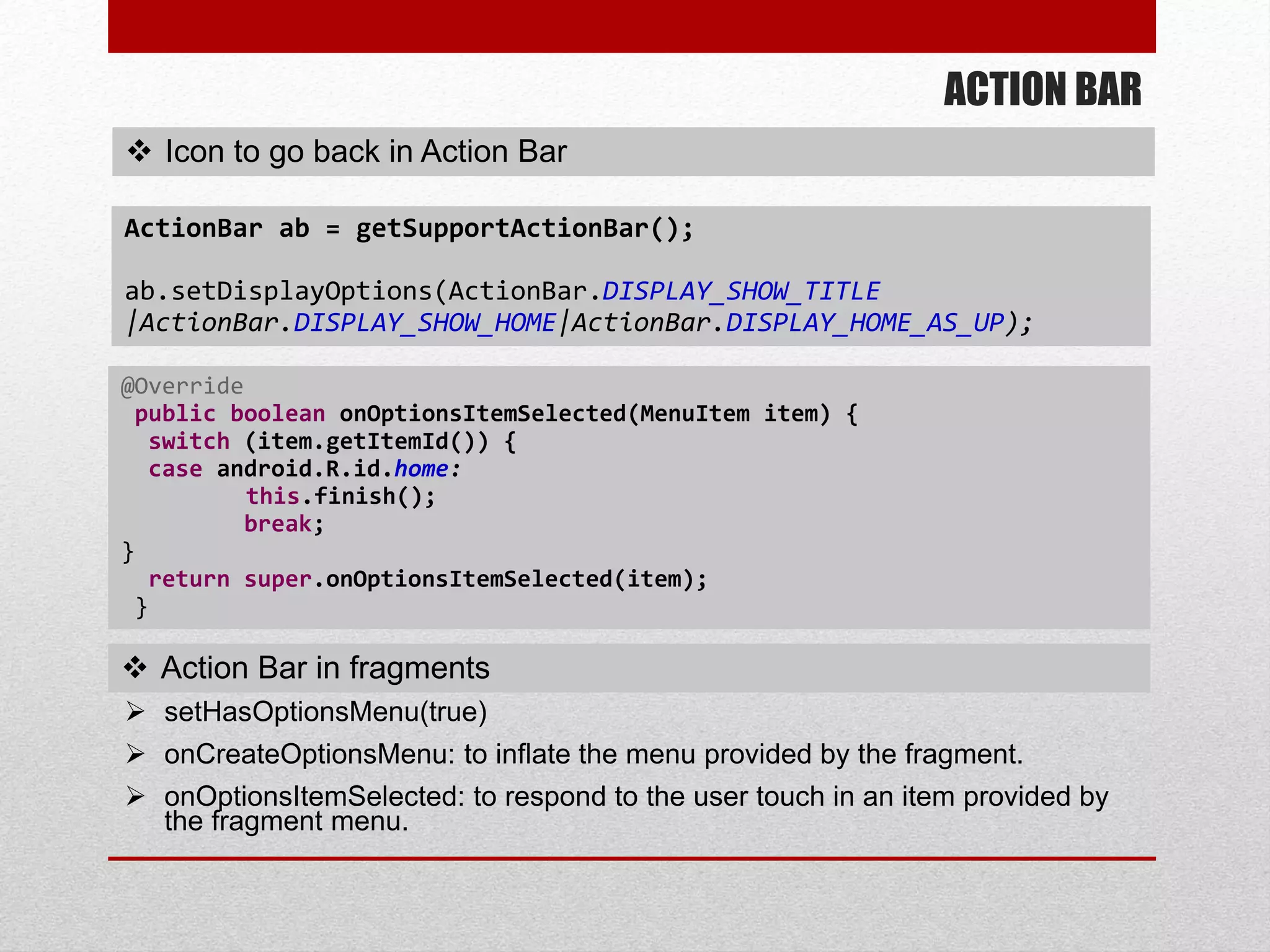

27. ACTION BAR
 Icon to go back in Action Bar
ActionBar ab = getSupportActionBar();
ab.setDisplayOptions(ActionBar.DISPLAY_SHOW_TITLE
|ActionBar.DISPLAY_SHOW_HOME|ActionBar.DISPLAY_HOME_AS_UP);
@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case android.R.id.home:
this.finish();
break;
}
return super.onOptionsItemSelected(item);
}
 Action Bar in fragments
 setHasOptionsMenu(true)
 onCreateOptionsMenu: to inflate the menu provided by the fragment.
 onOptionsItemSelected: to respond to the user touch in an item provided by
the fragment menu.

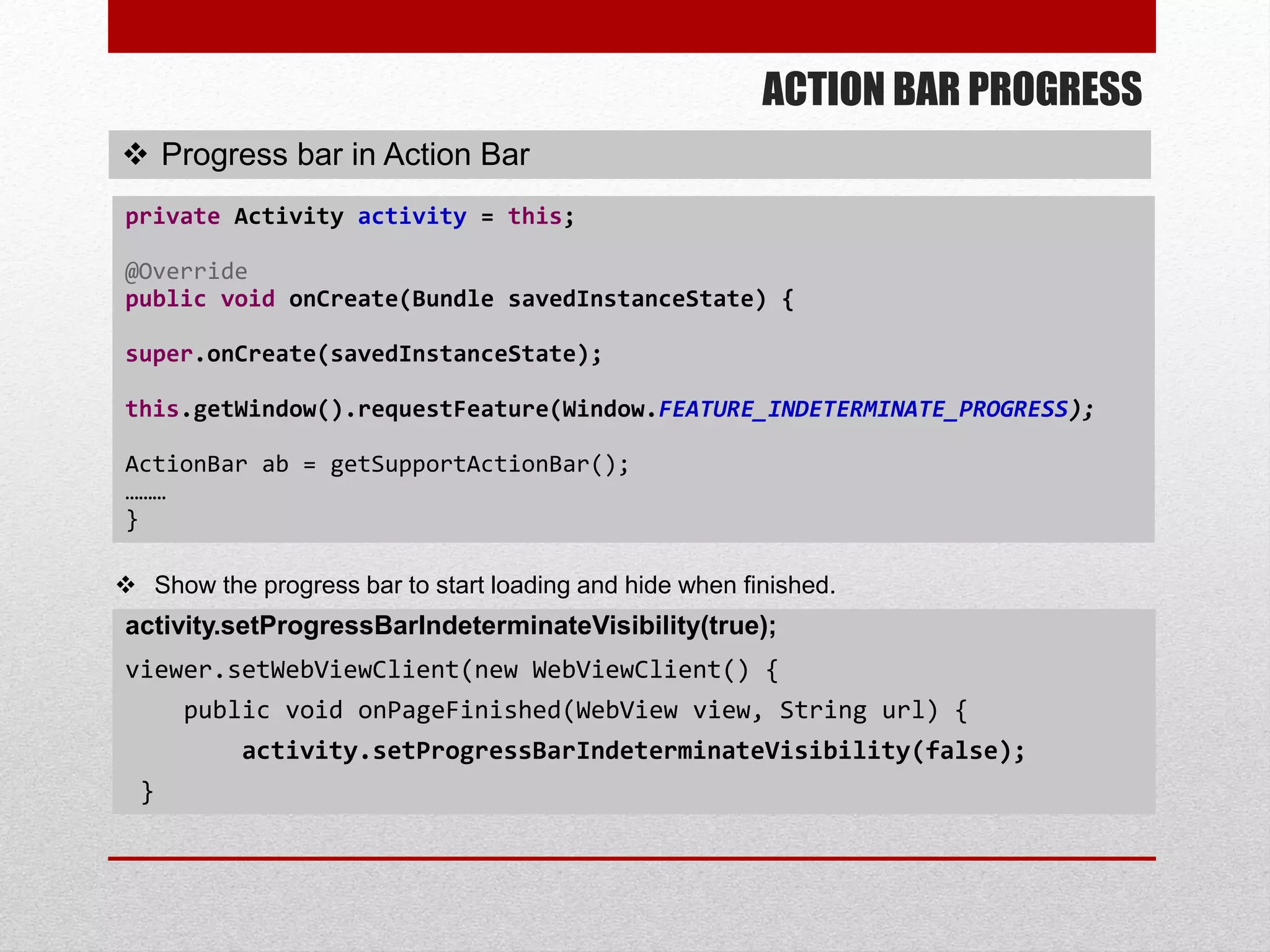

28. ACTION BAR PROGRESS
 Progress bar in Action Bar
private Activity activity = this;
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
this.getWindow().requestFeature(Window.FEATURE_INDETERMINATE_PROGRESS);
ActionBar ab = getSupportActionBar();
………
}
activity.setProgressBarIndeterminateVisibility(true);
viewer.setWebViewClient(new WebViewClient() {
public void onPageFinished(WebView view, String url) {
activity.setProgressBarIndeterminateVisibility(false);
}
 Show the progress bar to start loading and hide when finished.

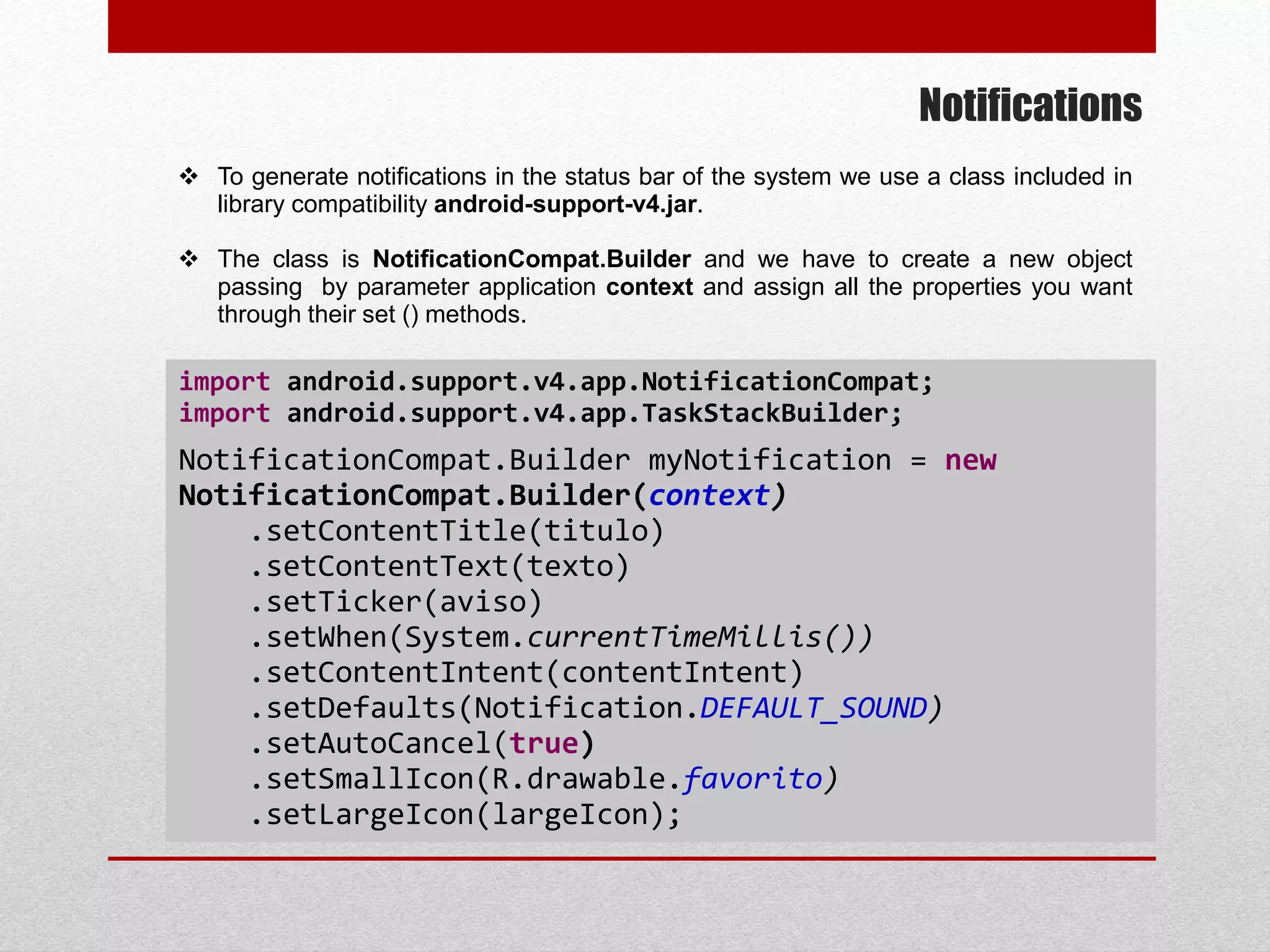

29. Notifications
 To generate notifications in the status bar of the system we use a class included in
library compatibility android-support-v4.jar.
 The class is NotificationCompat.Builder and we have to create a new object
passing by parameter application context and assign all the properties you want
through their set () methods.
import android.support.v4.app.NotificationCompat;
import android.support.v4.app.TaskStackBuilder;
NotificationCompat.Builder myNotification = new
NotificationCompat.Builder(context)
.setContentTitle(titulo)
.setContentText(texto)
.setTicker(aviso)
.setWhen(System.currentTimeMillis())
.setContentIntent(contentIntent)
.setDefaults(Notification.DEFAULT_SOUND)
.setAutoCancel(true)
.setSmallIcon(R.drawable.favorito)
.setLargeIcon(largeIcon);

30. Notifications
 Create and launch notification via object NotificationManager
TaskStackBuilder
stackBuilder=TaskStackBuilder.create(context);
stackBuilder.addParentStack(PrincipalActivity.class);
stackBuilder.addNextIntent(notificationIntent);
PendingIntent
resultPendingIntent=stackBuilder.getPendingIntent(0,
PendingIntent.FLAG_UPDATE_CURRENT);
 Associating action to notification
NotificationManager notificationManager;
notificationManager =(NotificationManager)
context.getSystemService(Context.NOTIFICATION_SERVICE);
/*Create notification with builder*/
Notification notification=myNotification.build();
notificationManager.notify((int)
System.currentTimeMillis(), notification);

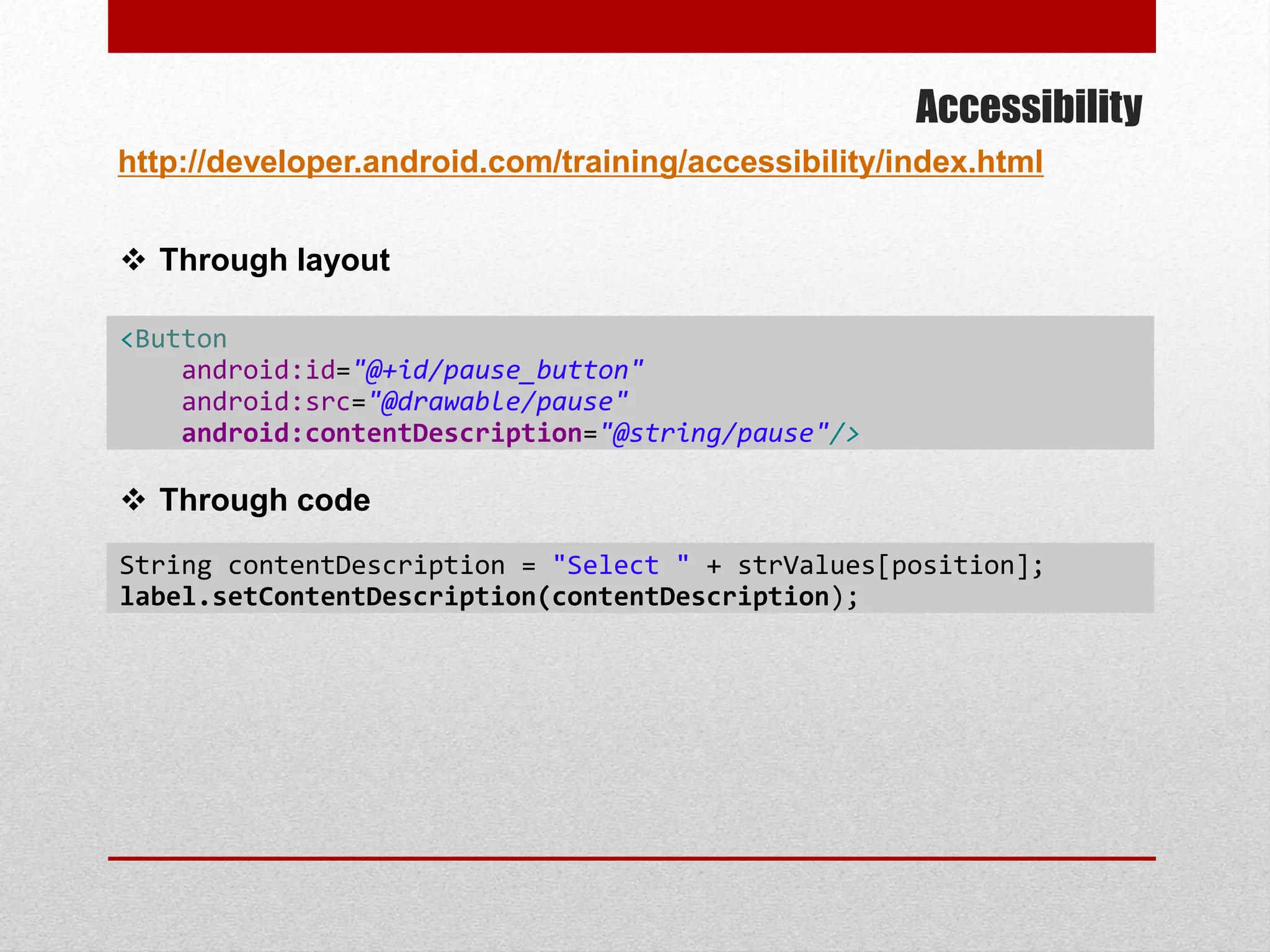

31. Accessibility
http://developer.android.com/training/accessibility/index.html
<Button
android:id="@+id/pause_button"
android:src="@drawable/pause"
android:contentDescription="@string/pause"/>
 Through layout
 Through code
String contentDescription = "Select " + strValues[position];
label.setContentDescription(contentDescription);

32. Contextual menu

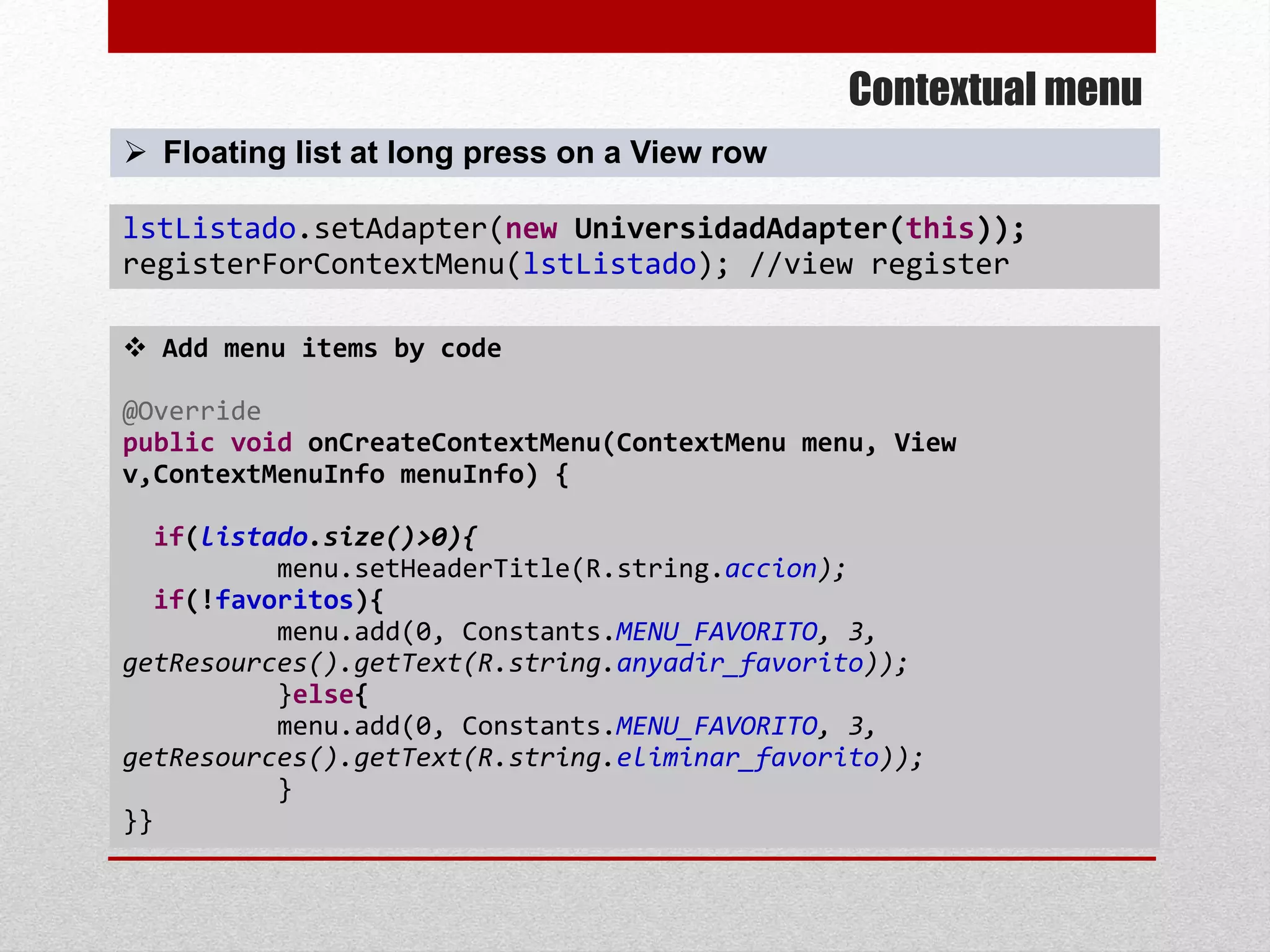

33. Contextual menu
 Add menu items by code
@Override
public void onCreateContextMenu(ContextMenu menu, View
v,ContextMenuInfo menuInfo) {
if(listado.size()>0){
menu.setHeaderTitle(R.string.accion);
if(!favoritos){
menu.add(0, Constants.MENU_FAVORITO, 3,
getResources().getText(R.string.anyadir_favorito));
}else{
menu.add(0, Constants.MENU_FAVORITO, 3,
getResources().getText(R.string.eliminar_favorito));
}
}}
lstListado.setAdapter(new UniversidadAdapter(this));
registerForContextMenu(lstListado); //view register
 Floating list at long press on a View row

34. Contextual menu
 Add options menu with xml (recommended option)
<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android">
<item android:id="@+id/mapa" android:title="@string/mapa"
android:showAsAction="ifRoom|withText"
android:icon="@drawable/location" />
<item android:id="@+id/rutaGoogle"
android:title="@string/ruta_google"
android:showAsAction="ifRoom|withText"
android:icon="@drawable/google_map" />
</menu>
@Override
public void onCreateContextMenu(ContextMenu menu, View
v,ContextMenuInfo menuInfo) {
super.onCreateContextMenu(menu, v, menuInfo);
MenuInflater inflater=getActivity().getMenuInflater();
if(listado.size()>0){
inflater.inflate(R.menu.menu_mostrar, menu);
}}

35. Contextual menu
//Manage touch in contextual menu
@Override
public boolean onContextItemSelected(android.view.MenuItem item)
{
AdapterContextMenuInfo info = (AdapterContextMenuInfo)
item.getMenuInfo(); //selected row
UniversidadBean ub = (UniversidadBean) getUniversidad((int)
info.id);
switch (item.getItemId()) {
case Constants.MENU_ENLACE:
if(ub.getEnlace()!=null){
listener.onUniversidadLink(ub.getEnlace());
}
return true;
default:
return super.onContextItemSelected(item);
}
}

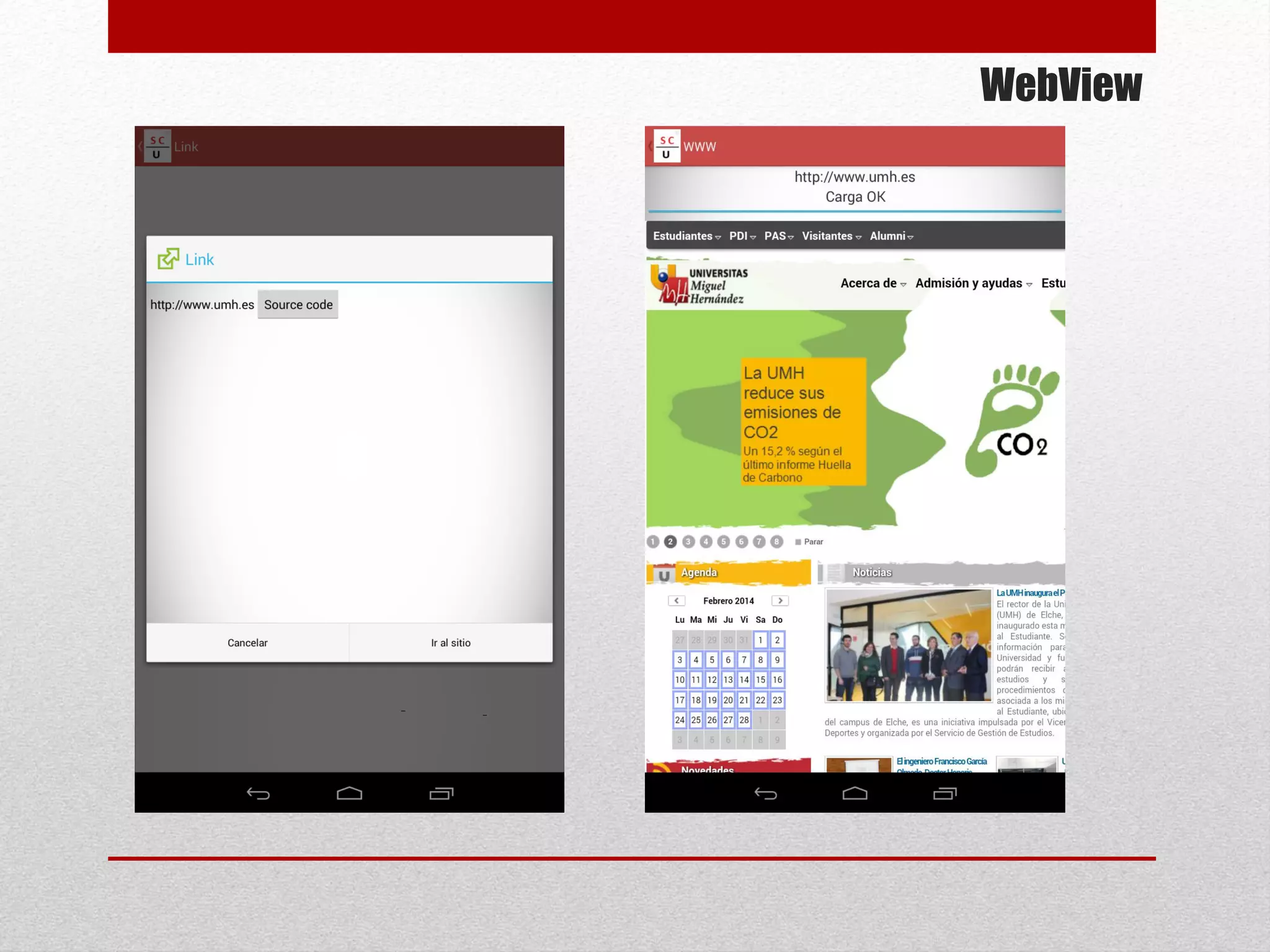

36. WebView

37. WebView
<WebView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:id="@+id/visorWebView">
</WebView>
import android.webkit.WebView;
import android.webkit.WebViewClient;
WebView viewer;
viewer = (WebView) findViewById(R.id.visorWebView);
viewer.setWebViewClient(new myWebClient());
viewer.getSettings().setJavaScriptEnabled(true);
viewer.getSettings().setBuiltInZoomControls(true);
viewer.loadUrl(content);

38. WebView
public class myWebClient extends WebViewClient{
@Override
public void onPageStarted(WebView view, String url,
Bitmap favicon) {
super.onPageStarted(view, url, favicon);
}
@Override
public boolean shouldOverrideUrlLoading(WebView view,
String url) {
view.loadUrl(url);
return true;
}
@Override
public void onPageFinished(WebView view, String url) {
super.onPageFinished(view, url);
}
}

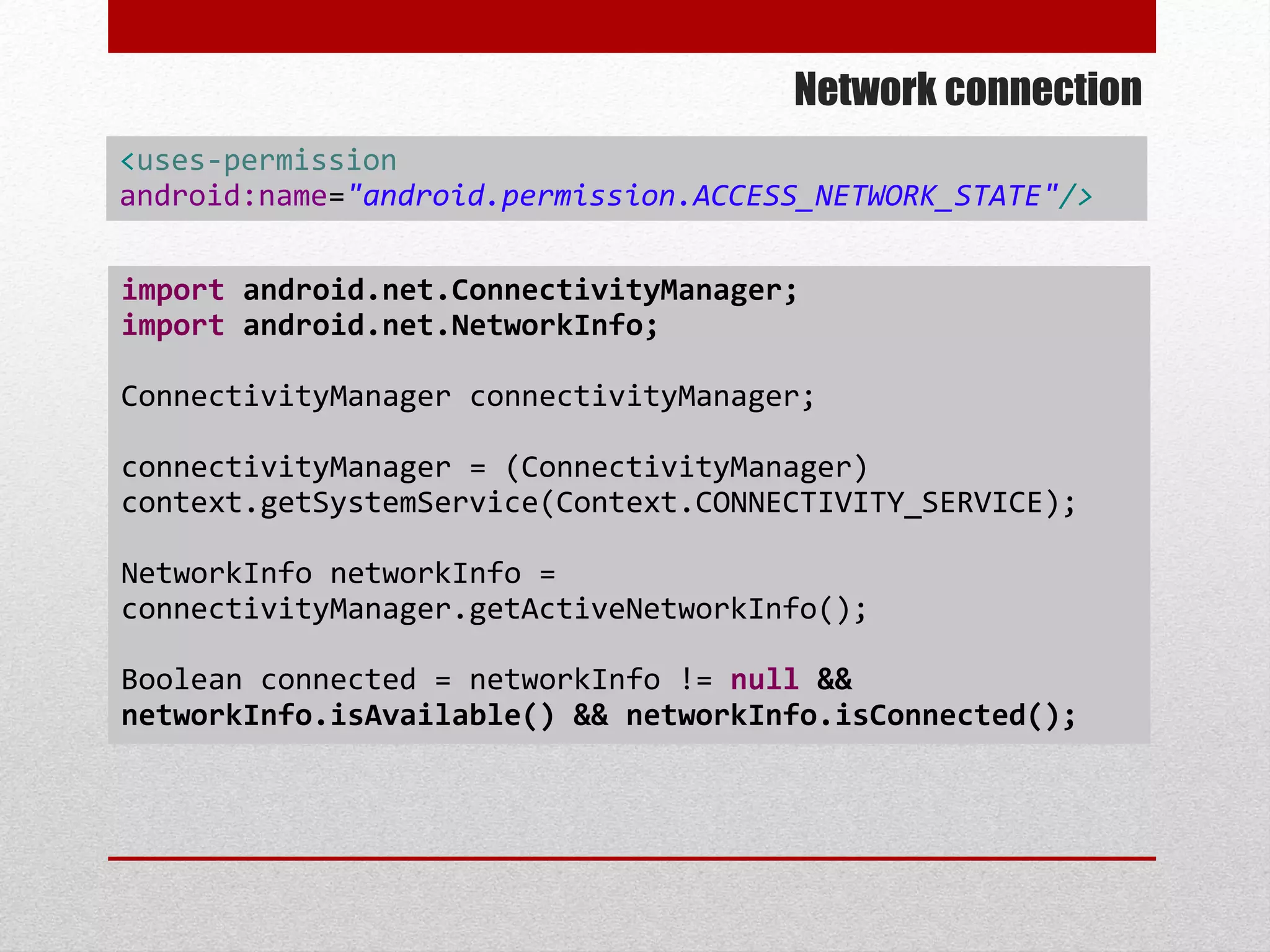

39. Network connection
import android.net.ConnectivityManager;
import android.net.NetworkInfo;
ConnectivityManager connectivityManager;
connectivityManager = (ConnectivityManager)
context.getSystemService(Context.CONNECTIVITY_SERVICE);
NetworkInfo networkInfo =
connectivityManager.getActiveNetworkInfo();
Boolean connected = networkInfo != null &&
networkInfo.isAvailable() && networkInfo.isConnected();
<uses-permission
android:name="android.permission.ACCESS_NETWORK_STATE"/>

40. Network connection
 Enable Wifi / Check connection type
NetworkInfo wifiInfo=connectivityManager.getNetworkInfo
(ConnectivityManager.TYPE_WIFI);
NetworkInfo
mobileInfo=connectivityManager.getNetworkInfo
(ConnectivityManager.TYPE_MOBILE);
if(wifiInfo.isConnected()){
Toast.makeText(context, "Wifi is connected",
Toast.LENGTH_LONG).show();
}
if(mobileInfo.isConnected()){
Toast.makeText(context, "3G/4G is connected",
Toast.LENGTH_LONG).show();
}
WifiManager wifiManager=(WifiManager)
context.getSystemService(Context.WIFI_SERVICE);
wifiManager.setWifiEnabled(true);
<uses-permission
android:name="android.permission.CHANGE_WIFI_STATE"/>

41. Asynctask
 This class will allow us to perform background tasks without using neither
directly nor Handlers Threads, trying these elements in a fully transparent way
to the programmer.
 When we define a AsyncTask class must define the type of three elements, the
input parameters, its progress and outcome.
 Override
onPreExecute(),doInBackground(),onPostExecute(),onProgressUpdate()
class RequestTask extends AsyncTask<String, String, String>{
@Override
protected void onPreExecute() {
}
@Override
protected void onProgressUpdate(Integer... values) {
}
@Override
protected String doInBackground(String... uri) {
}
@Override
protected void onPostExecute(String result) {
super.onPostExecute(result);
}
new
RequestTask().
execute(url);

42. Asynctask
 onPreExecute, run before executing our task and we can use it to initialize
tasks as displaying a progress bar.
 doInBackground(Params...), here we schedule our background task. Params
in the case discussed earlier will be an array of Strings that are passed when
calling the execute method. Being a process that can take an indefinite time to
complete, we can give feedback to the user thanks to percent complete in
publishProgress(Progress. ..) method.
 publishProgress receives an integer parameter and make the execution of
onProgressUpdate method to indicate the user the task percentage.
 onPostExecute(Result), runs to finish the process in the background.
 The problem of doInBackground method is blocking the UI, so while this
method is running can not get anything in the ui, but if we have no
choice ,we can use this code for debug.
runOnUiThread(new Runnable() {
public void run() {
Toast.makeText(getApplicationContext(), "Example for
Toast",Toast.LENGTH_SHORT).show();}
});

43. Singleton
 Only one instance
 Application class
<application
android:allowBackup="true"
android:icon="@drawable/icon"
android:label="@string/app_name"
android:theme="@style/Theme.Styled"
android:name=
"com.proyecto.spaincomputing.singleton.MySingleton">
public class MySingleton extends Application
{
private static MySingleton instance;
public static Context context;
@Override public void onCreate() {
super.onCreate();
context = getApplicationContext();
}
}

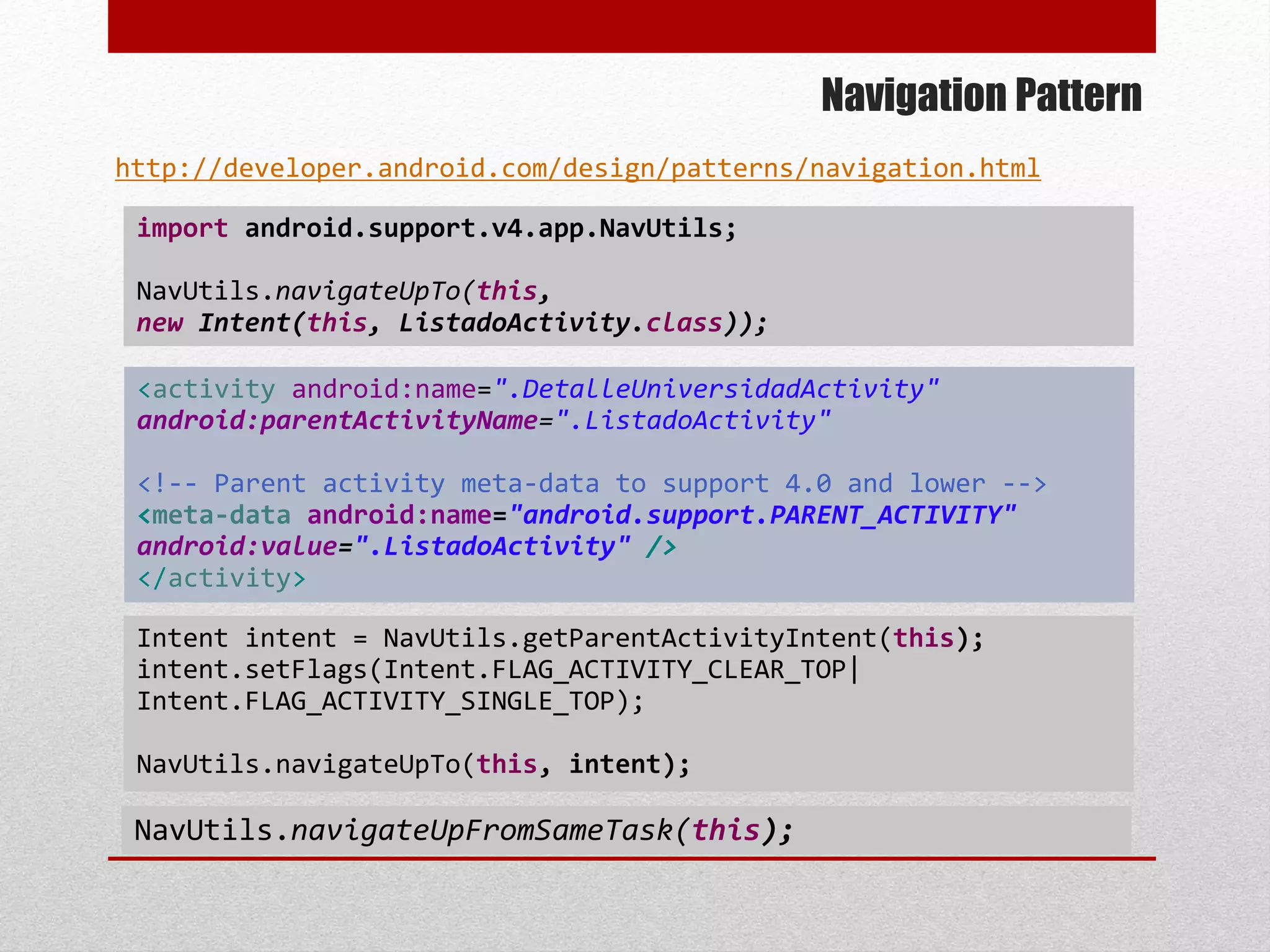

44. Navigation Pattern
import android.support.v4.app.NavUtils;
NavUtils.navigateUpTo(this,
new Intent(this, ListadoActivity.class));
http://developer.android.com/design/patterns/navigation.html
Intent intent = NavUtils.getParentActivityIntent(this);
intent.setFlags(Intent.FLAG_ACTIVITY_CLEAR_TOP|
Intent.FLAG_ACTIVITY_SINGLE_TOP);
NavUtils.navigateUpTo(this, intent);
NavUtils.navigateUpFromSameTask(this);
<activity android:name=".DetalleUniversidadActivity"
android:parentActivityName=".ListadoActivity"
<!-- Parent activity meta-data to support 4.0 and lower -->
<meta-data android:name="android.support.PARENT_ACTIVITY"
android:value=".ListadoActivity" />
</activity>

45. Adapter Pattern
 Link between the source data and the view
 It works with ListView or GridView
 There are many types of adapter
 You can perform a custom adaptar
 The most used ArrayAdapter / CursorAdapter
 The Adapter interacts with a collection of data objects for display in
View
ArrayList<UniversidadBean>
listado=newArrayList<UniversidadBean>();
private ListView lstListado;
lstListado=(ListView)getView().findViewById
(R.id.LstListado);
lstListado.setAdapter
(new UniversidadAdapter(this,listado));

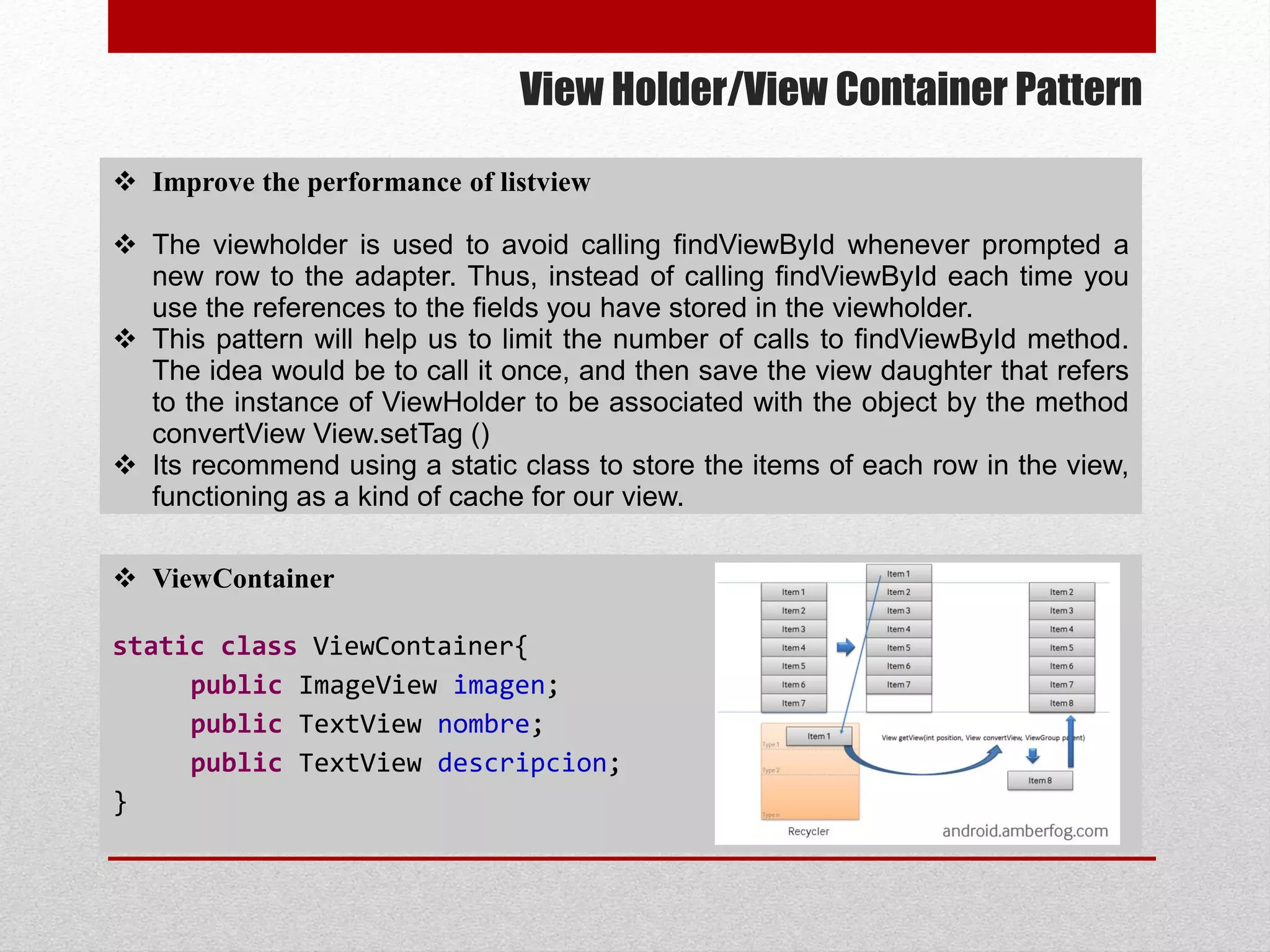

46. View Holder/View Container Pattern
 ViewContainer
static class ViewContainer{
public ImageView imagen;
public TextView nombre;
public TextView descripcion;
}
 Improve the performance of listview
 The viewholder is used to avoid calling findViewById whenever prompted a
new row to the adapter. Thus, instead of calling findViewById each time you
use the references to the fields you have stored in the viewholder.
 This pattern will help us to limit the number of calls to findViewById method.
The idea would be to call it once, and then save the view daughter that refers
to the instance of ViewHolder to be associated with the object by the method
convertView View.setTag ()
 Its recommend using a static class to store the items of each row in the view,
functioning as a kind of cache for our view.

47. View Holder/View Container Pattern
@Override
public View getView(int position, View convertView,ViewGroup parent) {
ViewContainer viewContainer;
//si es la primera vez que se imprime la fila
if(convertView==null){
LayoutInflater inflater = context.getLayoutInflater();
convertView = inflater.inflate(R.layout.row, null,true);
//crea una vista para el objeto contenedor
viewContainer=new ViewContainer()
//obtiene una referencia a todas las vistas de la fila
viewContainer.nombre=(TextView)convertView.findViewById(R.id.textView_superior);
viewContainer.descripcion=(TextView)convertView.findViewById(R.id.textView_inferior);
viewContainer.imagen=(ImageView)convertView.findViewById(R.id.imageView_imagen);
//asigna el contenedor de la vista a rowView
convertView.setTag(viewContainer);
}else{
viewContainer=(ViewContainer) convertView.getTag(); //recicling }
//personaliza el contenido de cada fila basándone en su posición
viewContainer.nombre.setText(listado.get(position).getNombre());
viewContainer.descripcion.setText(listado.get(position).getDescripcion());
viewContainer.imagen.setImageResource(listado.get(position).getIdImagen());
return(convertView);
}

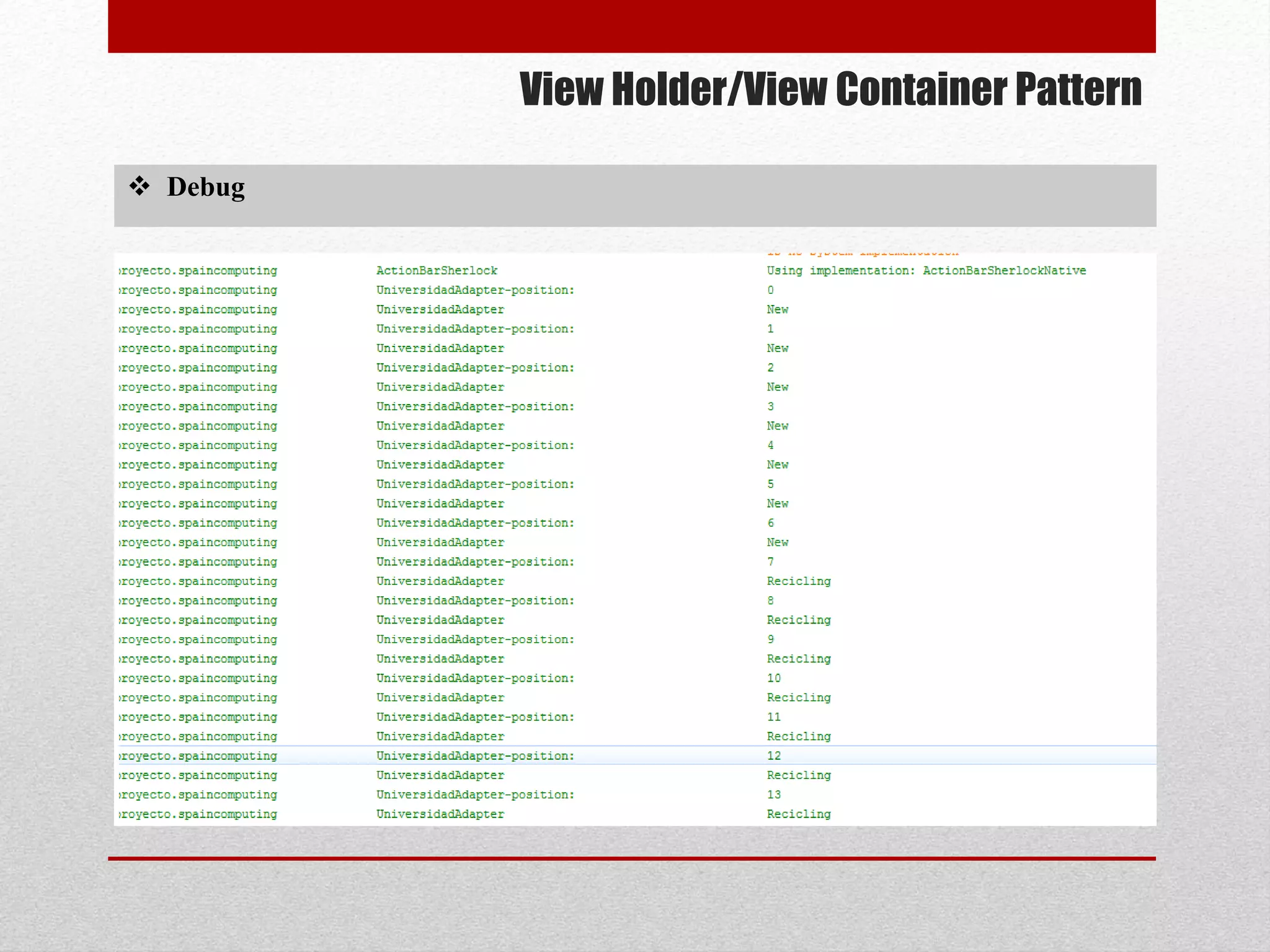

48. View Holder/View Container Pattern
 Debug

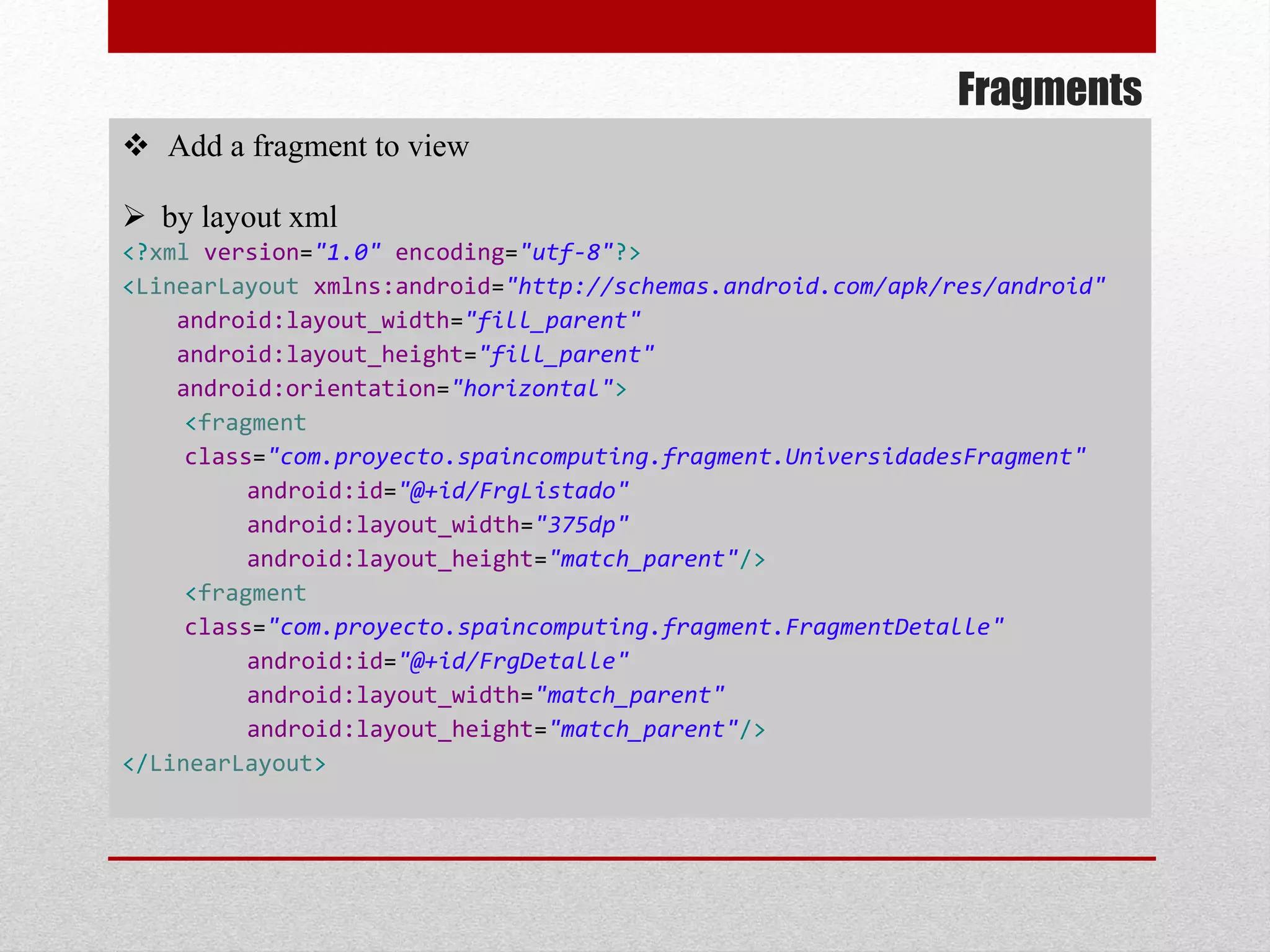

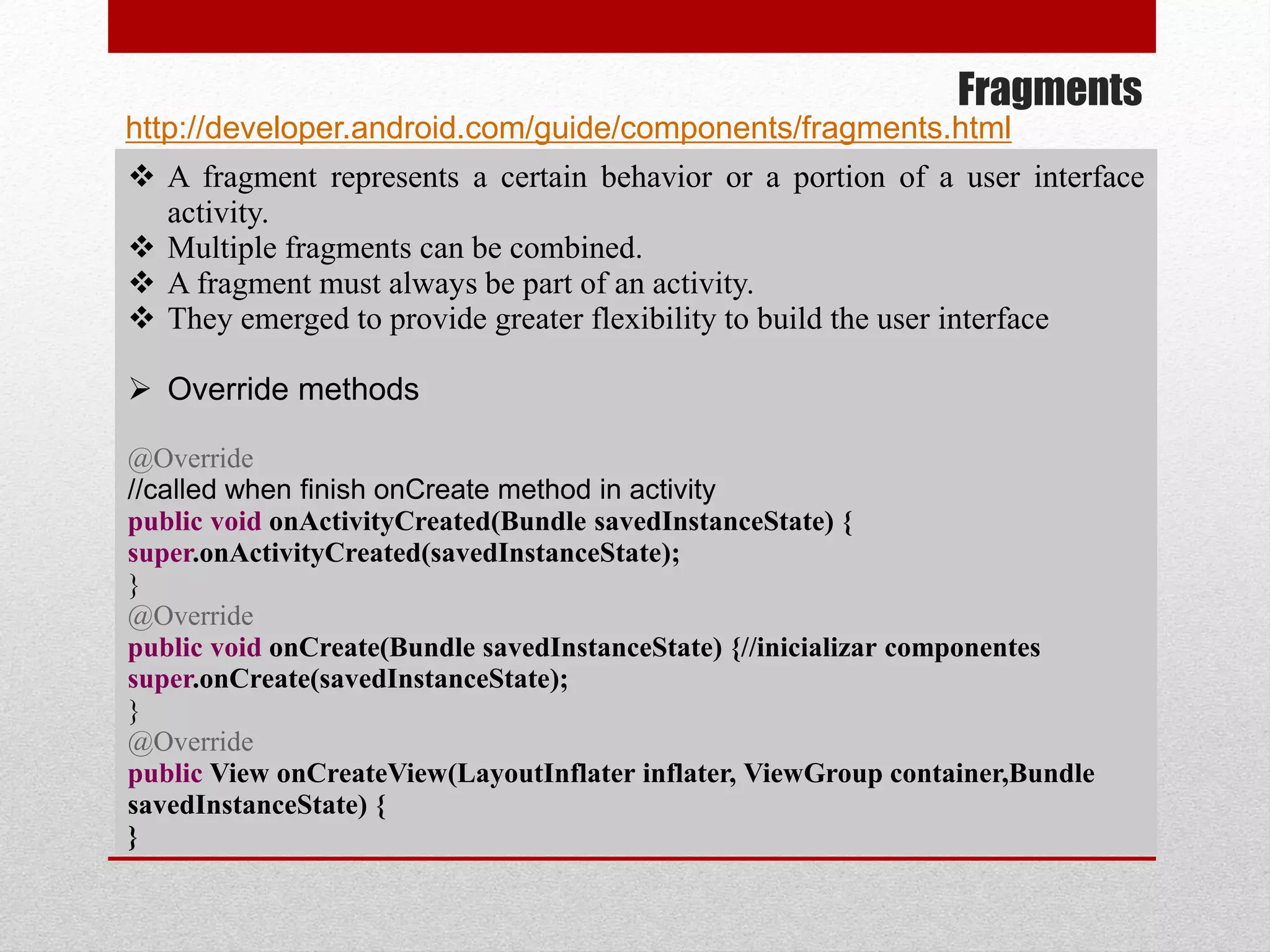

49. Fragments
 A fragment represents a certain behavior or a portion of a user interface
activity.
 Multiple fragments can be combined.
 A fragment must always be part of an activity.
 They emerged to provide greater flexibility to build the user interface
 Override methods
@Override
//called when finish onCreate method in activity
public void onActivityCreated(Bundle savedInstanceState) {
super.onActivityCreated(savedInstanceState);
}
@Override
public void onCreate(Bundle savedInstanceState) {//inicializar componentes
super.onCreate(savedInstanceState);
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,Bundle
savedInstanceState) {
}
http://developer.android.com/guide/components/fragments.html

50. Fragments
 Add a fragment to view
 by layout xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:orientation="horizontal">
<fragment
class="com.proyecto.spaincomputing.fragment.UniversidadesFragment"
android:id="@+id/FrgListado"
android:layout_width="375dp"
android:layout_height="match_parent"/>
<fragment
class="com.proyecto.spaincomputing.fragment.FragmentDetalle"
android:id="@+id/FrgDetalle"
android:layout_width="match_parent"
android:layout_height="match_parent"/>
</LinearLayout>

51. Fragments
 Add a fragment to view
 By code
//Fragments array
Fragment[] fragments = new Fragment[]{new PortadaFragment(),
new UniversityListFragment(),new UniversidadesImagesFragment()};
FragmentManager manager = getSupportFragmentManager();
manager.beginTransaction()
.add(R.id.contentFrame, fragments[0])
.add(R.id.contentFrame, fragments[1])
.add(R.id.contentFrame, fragments[2])
.commit();
//show/hide
manager.beginTransaction().show(fragments[0]).commit();
manager.beginTransaction().hide(fragments[1]).commit();
manager.beginTransaction().hide(fragments[2]).commit();

52. Fragments/ Master-detail
PORTRAITLANDSCAPE

53. Fragments/ Master-detail
PORTRAIT
LANDSCAPE

54. Fragments/ Master-detail
 2 layout
 layoutfragment_universidades_list.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical" >
<ListView
android:id="@+id/listView"
android:layout_width="match_parent"
android:layout_height="wrap_content" >
</ListView>
</LinearLayout>

55. Fragments/ Master-detail
 2 layout
 layout-landfragment_universidades_list.xml
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:baselineAligned="false"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
android:orientation="horizontal"
tools:context=".TabsActivity" >
<ListView
android:id="@+id/listView"
android:layout_width="0px"
android:layout_height="wrap_content"
android:layout_weight="1.5">
</ListView>
<fragment
android:id="@+id/fragmentUniversidadInfo"
android:name="com.proyecto.spaincomputing.fragment.UniversidadInfoFragment"
android:layout_width="0px"
android:layout_height="wrap_content"
android:layout_weight="4"
tools:layout="@layout/fragment_universidad_info" />
</LinearLayout>

56. Fragments/ Master-detail
 Check orientation to display the detail page
UniversidadBean ub=listado.get(position);
if (getResources().getConfiguration().orientation ==
Configuration.ORIENTATION_LANDSCAPE) {
FragmentManager manager =
getActivity().getSupportFragmentManager();
UniversidadInfoFragment fragment = (UniversidadInfoFragment)
manager.findFragmentById(R.id.fragmentUniversidadInfo);
fragment.loadWebViewContent(ub.getEnlace());
getActivity().invalidateOptionsMenu();
} else {
Intent intent = new Intent(getActivity().getApplicationContext(),
UniversityDetailActivity.class);
intent.putExtra(UniversityDetailActivity.URL, ub.getEnlace());
url=ub.getEnlace();
intent.putExtra(UniversityDetailActivity.UNIVERSIDAD,
ub.getNombre());
startActivity(intent);
}

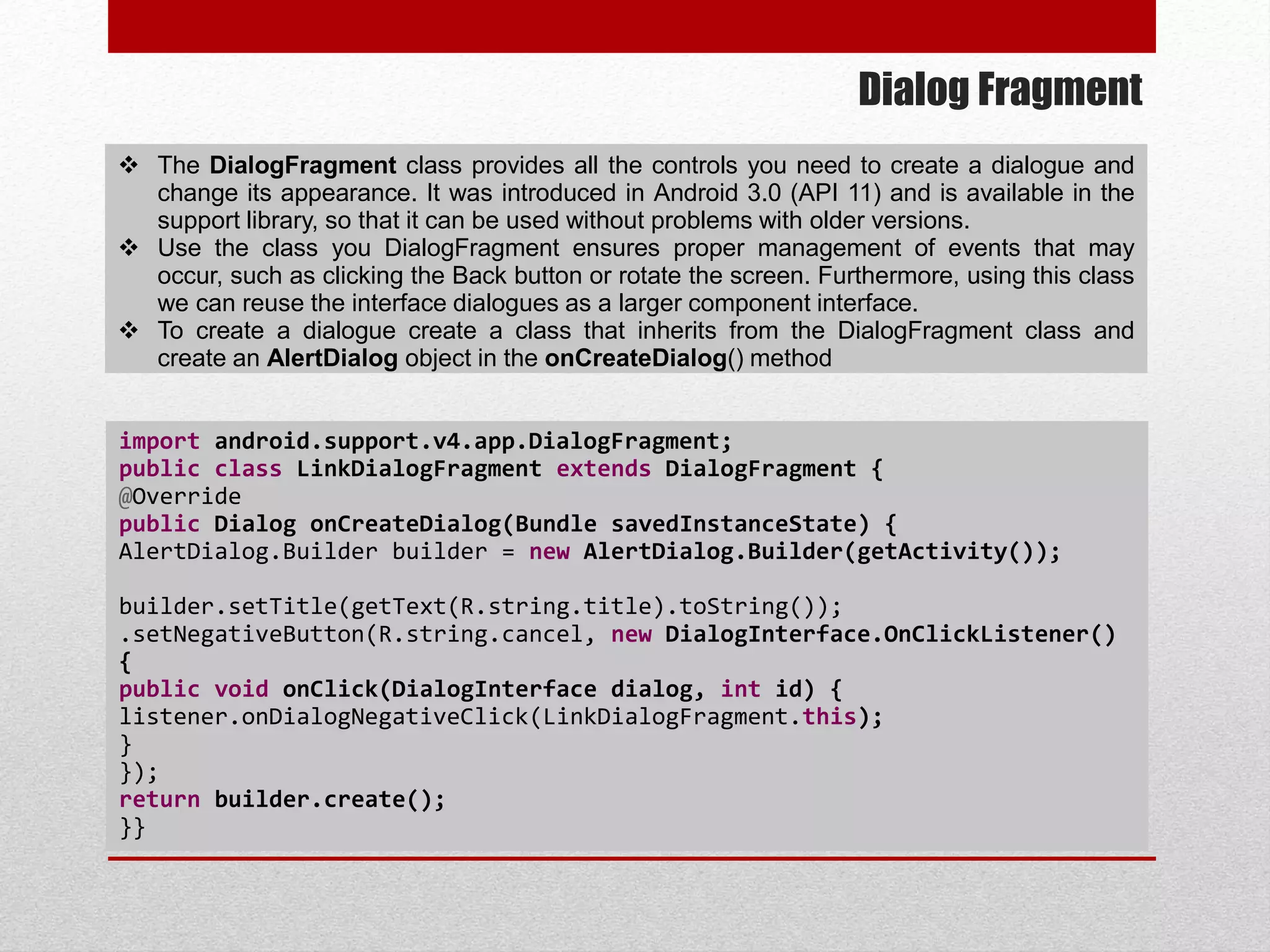

57. Dialog Fragment
 The DialogFragment class provides all the controls you need to create a dialogue and
change its appearance. It was introduced in Android 3.0 (API 11) and is available in the
support library, so that it can be used without problems with older versions.
 Use the class you DialogFragment ensures proper management of events that may
occur, such as clicking the Back button or rotate the screen. Furthermore, using this class
we can reuse the interface dialogues as a larger component interface.
 To create a dialogue create a class that inherits from the DialogFragment class and
create an AlertDialog object in the onCreateDialog() method
import android.support.v4.app.DialogFragment;
public class LinkDialogFragment extends DialogFragment {
@Override
public Dialog onCreateDialog(Bundle savedInstanceState) {
AlertDialog.Builder builder = new AlertDialog.Builder(getActivity());
builder.setTitle(getText(R.string.title).toString());
.setNegativeButton(R.string.cancel, new DialogInterface.OnClickListener()
{
public void onClick(DialogInterface dialog, int id) {
listener.onDialogNegativeClick(LinkDialogFragment.this);
}
});
return builder.create();
}}

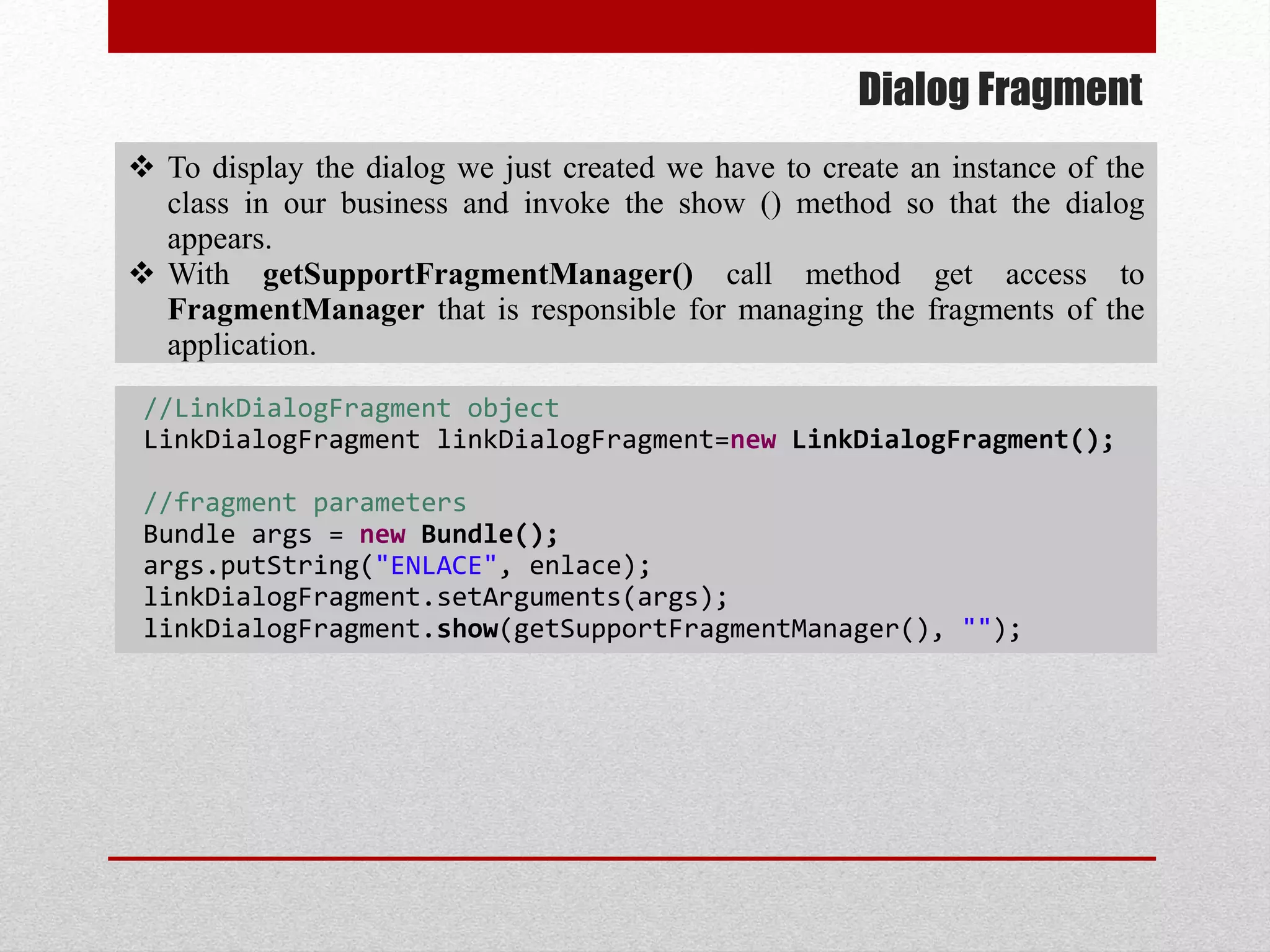

58. Dialog Fragment
 To display the dialog we just created we have to create an instance of the
class in our business and invoke the show () method so that the dialog
appears.
 With getSupportFragmentManager() call method get access to
FragmentManager that is responsible for managing the fragments of the
application.
//LinkDialogFragment object
LinkDialogFragment linkDialogFragment=new LinkDialogFragment();
//fragment parameters
Bundle args = new Bundle();
args.putString("ENLACE", enlace);
linkDialogFragment.setArguments(args);
linkDialogFragment.show(getSupportFragmentManager(), "");

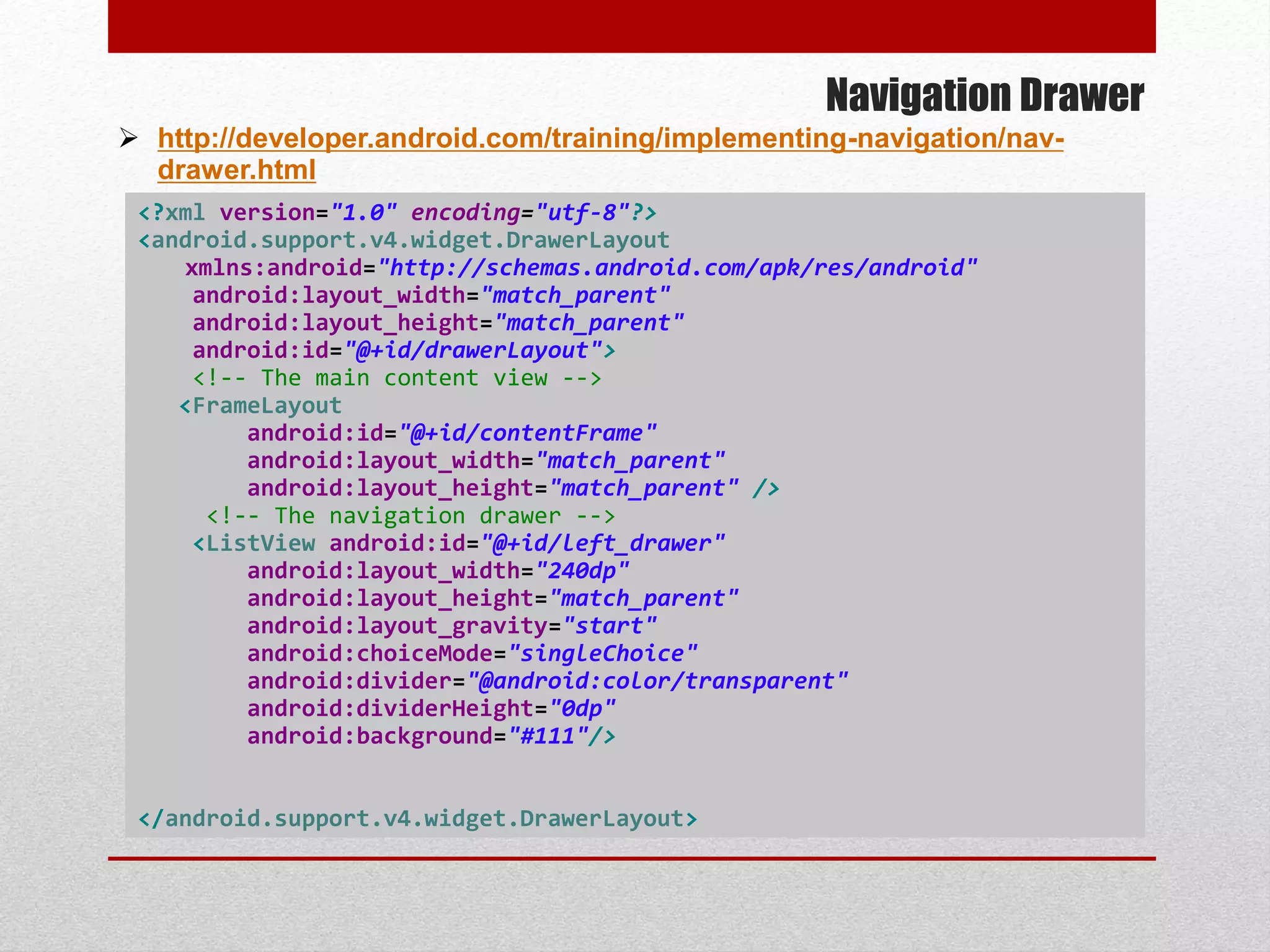

59. Navigation Drawer
<?xml version="1.0" encoding="utf-8"?>
<android.support.v4.widget.DrawerLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:id="@+id/drawerLayout">
<!-- The main content view -->
<FrameLayout
android:id="@+id/contentFrame"
android:layout_width="match_parent"
android:layout_height="match_parent" />
<!-- The navigation drawer -->
<ListView android:id="@+id/left_drawer"
android:layout_width="240dp"
android:layout_height="match_parent"
android:layout_gravity="start"
android:choiceMode="singleChoice"
android:divider="@android:color/transparent"
android:dividerHeight="0dp"
android:background="#111"/>
</android.support.v4.widget.DrawerLayout>
 http://developer.android.com/training/implementing-navigation/nav-
drawer.html

60. Navigation Drawer
private ListView drawerList;
private String[] drawerOptions;
private DrawerLayout drawerLayout;
drawerLayout = (DrawerLayout) findViewById(R.id.drawerLayout);
drawerList = (ListView) findViewById(R.id.left_drawer);
drawerOptions = getResources().getStringArray(R.array.drawer_options);
// Set the adapter for the list view
drawerList.setAdapter(new ArrayAdapter<String>(getApplicationContext(),
R.layout.drawer_list_item,drawerOptions));
// Set the list's click listener
drawerList.setOnItemClickListener(new DrawerItemClickListener());
private class DrawerItemClickListener implements ListView.OnItemClickListener {
@Override
public void onItemClick(AdapterView<?> parent, View view, int position,long id)
{ setContent(position);
}
}

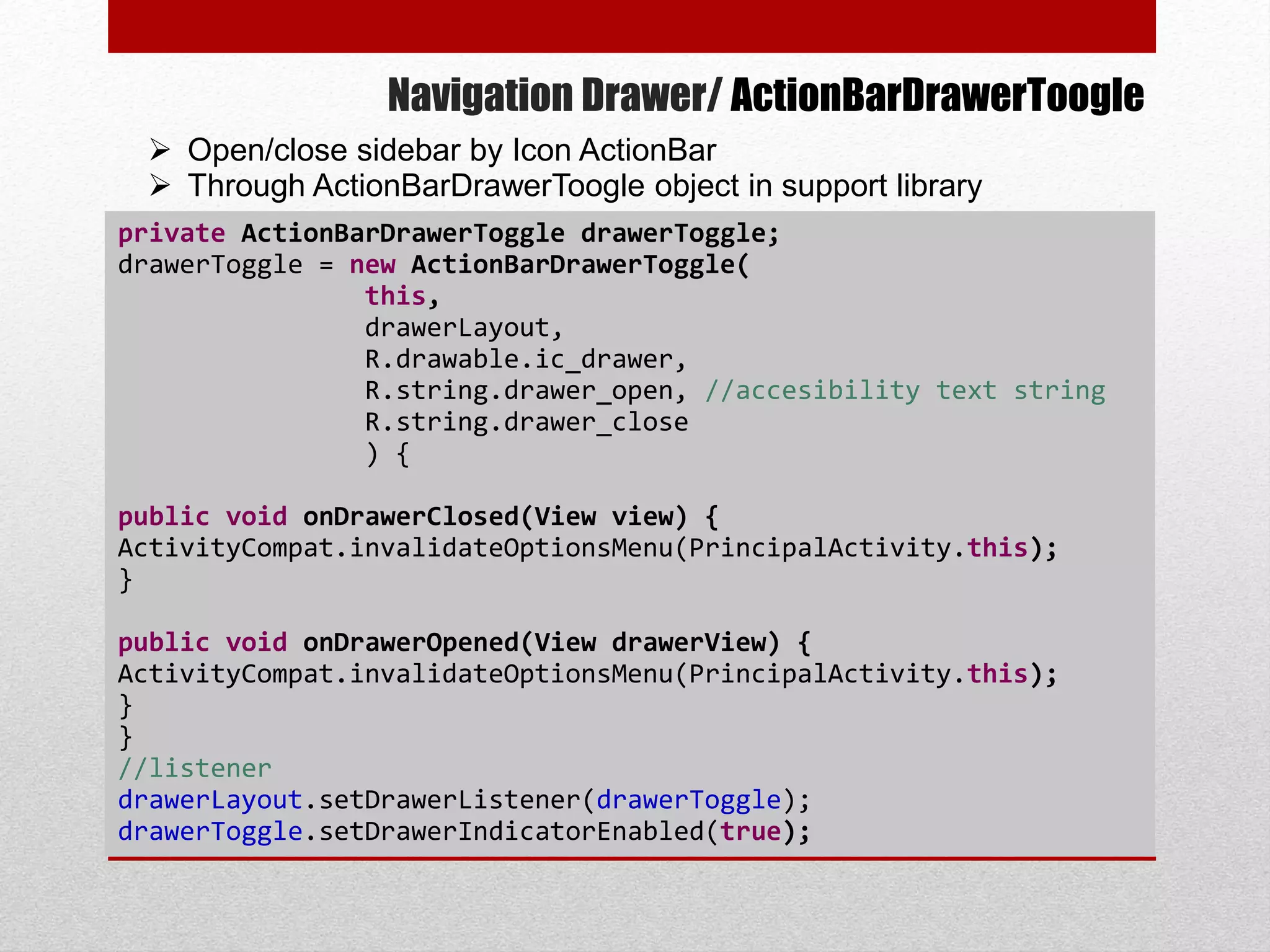

61. Navigation Drawer/ ActionBarDrawerToogle
private ActionBarDrawerToggle drawerToggle;
drawerToggle = new ActionBarDrawerToggle(
this,
drawerLayout,
R.drawable.ic_drawer,
R.string.drawer_open, //accesibility text string
R.string.drawer_close
) {
public void onDrawerClosed(View view) {
ActivityCompat.invalidateOptionsMenu(PrincipalActivity.this);
}
public void onDrawerOpened(View drawerView) {
ActivityCompat.invalidateOptionsMenu(PrincipalActivity.this);
}
}
//listener
drawerLayout.setDrawerListener(drawerToggle);
drawerToggle.setDrawerIndicatorEnabled(true);
 Open/close sidebar by Icon ActionBar
 Through ActionBarDrawerToogle object in support library

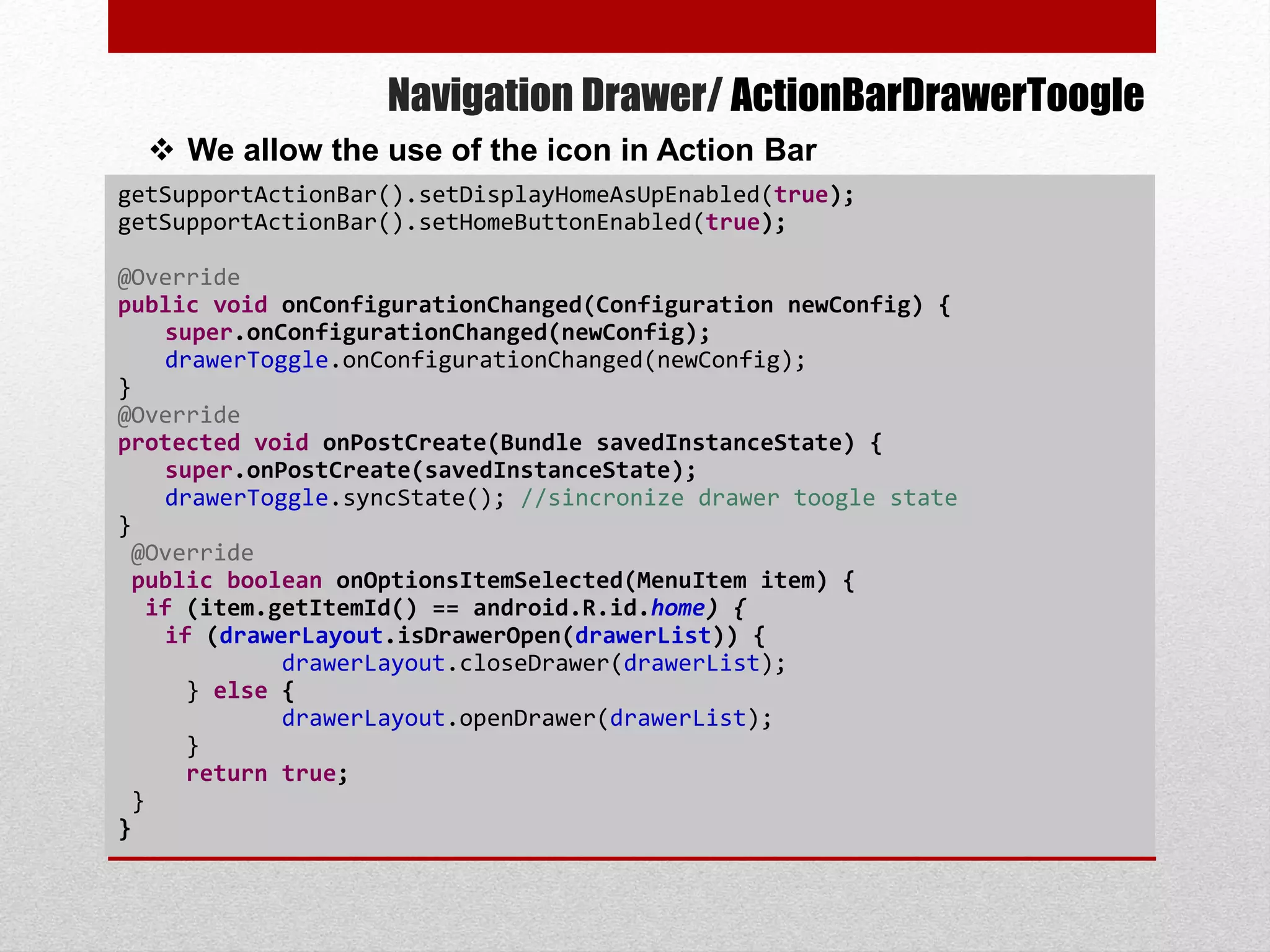

62. Navigation Drawer/ ActionBarDrawerToogle
getSupportActionBar().setDisplayHomeAsUpEnabled(true);
getSupportActionBar().setHomeButtonEnabled(true);
@Override
public void onConfigurationChanged(Configuration newConfig) {
super.onConfigurationChanged(newConfig);
drawerToggle.onConfigurationChanged(newConfig);
}
@Override
protected void onPostCreate(Bundle savedInstanceState) {
super.onPostCreate(savedInstanceState);
drawerToggle.syncState(); //sincronize drawer toogle state
}
@Override
public boolean onOptionsItemSelected(MenuItem item) {
if (item.getItemId() == android.R.id.home) {
if (drawerLayout.isDrawerOpen(drawerList)) {
drawerLayout.closeDrawer(drawerList);
} else {
drawerLayout.openDrawer(drawerList);
}
return true;
}
}
 We allow the use of the icon in Action Bar

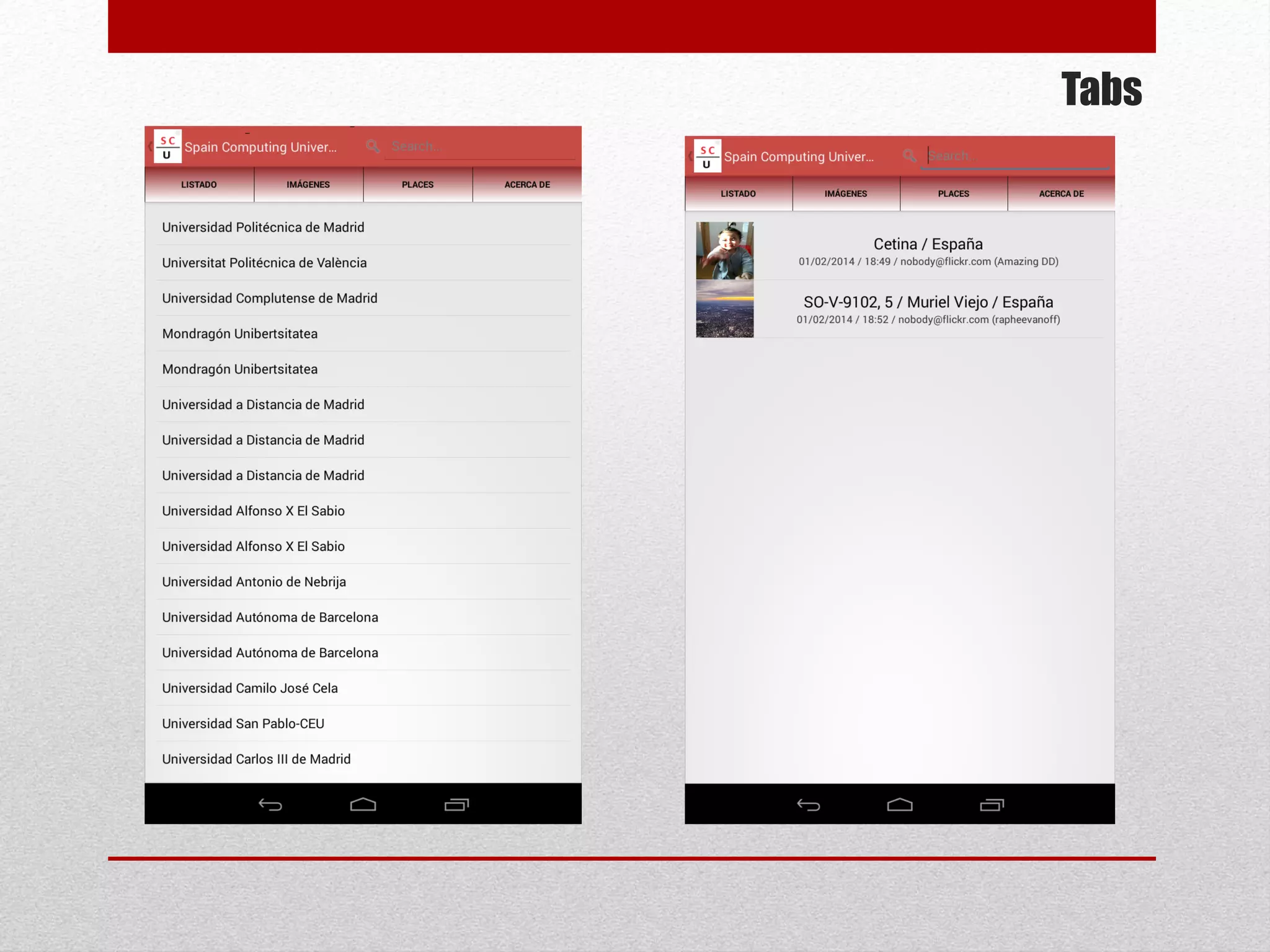

63. Tabs

64. Tabs
 Implement interface TabListener
 Override methods in TabListener
@Override
public void onTabUnselected(Tab arg0, FragmentTransaction arg1) {
}
@Override
public void onTabReselected(Tab tab, FragmentTransaction ft) {
}
@Override
public void onTabSelected(Tab tab, FragmentTransaction ft) {
setContent(tab.getPosition());
}
import com.actionbarsherlock.app.ActionBar.Tab;
import com.actionbarsherlock.app.ActionBar.TabListener;
public class TabsActivity extends
SherlockFragmentActivity implements TabListener {
}

65. Tabs
 Reference obtain ActionBar
final ActionBar actionBar = getSupportActionBar();
actionBar.setNavigationMode(ActionBar.NAVIGATION_MODE_T
ABS);
 Add tabs
actionBar.addTab(
actionBar.newTab()
.setText(getResources().getString(R.string.listado))
.setTabListener(this));
actionBar.addTab(
actionBar.newTab()
.setText(getResources().getString(R.string.imagenes))
.setTabListener(this));

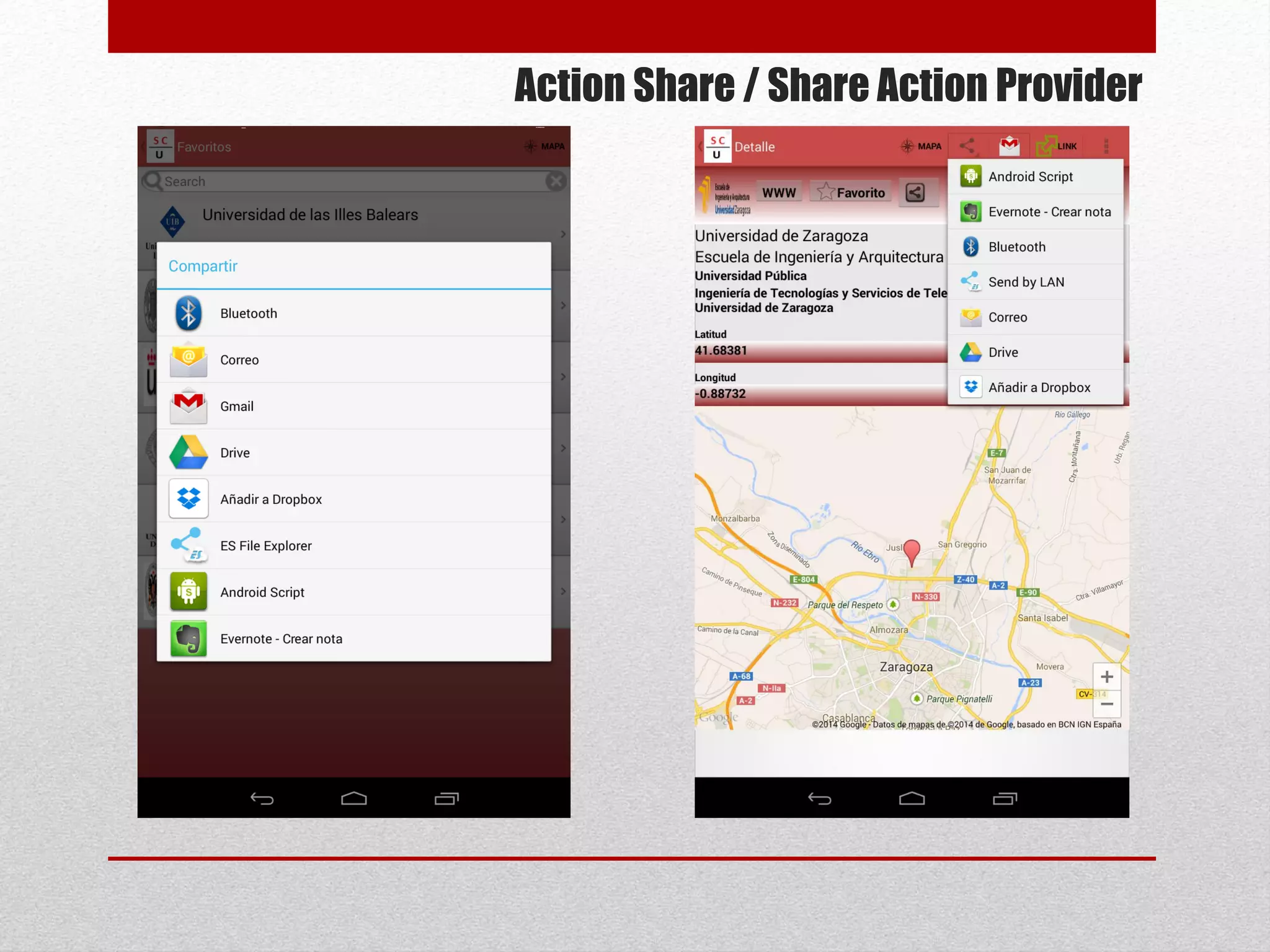

66. Action Share / Share Action Provider

67. Action Share
 Launch an intent of type "ACTION_SEND" to be received by the applications you have installed
public void mostrarShare(UniversidadBean ubBean){
List<Intent> targetedShareIntents = new ArrayList<Intent>();
Intent shareIntent = new Intent(android.content.Intent.ACTION_SEND);
shareIntent.setType("text/html");
List<ResolveInfo> resInfo =
getActivity().getPackageManager().queryIntentActivities(shareIntent, 0);
if (!resInfo.isEmpty()){
for (ResolveInfo resolveInfo : resInfo) {
String packageName = resolveInfo.activityInfo.packageName;
Intent targetedShareIntent = new
Intent(android.content.Intent.ACTION_SEND);
targetedShareIntent.setFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
targetedShareIntent.setType("text/html");
targetedShareIntent.putExtra(android.content.Intent.EXTRA_SUBJECT,
"Spain COmputing UNiversity");
targetedShareIntent.setPackage(packageName);
targetedShareIntents.add(targetedShareIntent);
}
Intent chooserIntent =
Intent.createChooser(targetedShareIntents.remove(targetedShareIntents.size()-1),
getText(R.string.compartir));
chooserIntent.putExtra(Intent.EXTRA_INITIAL_INTENTS,
targetedShareIntents.toArray(new Parcelable[]{}));
startActivity(chooserIntent);
}
}

68. Share Action Provider
<item android:id="@+id/action_share"
android:title="@string/compartir"
spaincomputing:showAsAction="ifRoom"
spaincomputing:actionProviderClass=
"android.support.v7.widget.ShareActionProvider"/>
private Intent createShareIntent() {
Intent shareIntent = new Intent(Intent.ACTION_SEND);
shareIntent.setType("text/html");
shareIntent.putExtra(android.content.Intent.EXTRA_SUBJECT,
"Spain COmputing UNiversity");
UniversidadBean ub=new UniversidadBean(id, idImagen, nombre,
descripcion, enlace, tipo, grado, latitud, longitud);
shareIntent.putExtra(android.content.Intent.EXTRA_TEXT,
Html.fromHtml(ub.getNombre()+"n"+ub.getDescripcion()+"n"+ub.getGrado()+"
nn"+ub.getEnlace()+"nn"+ub.getLatitud()+"n"+ub.getLongitud()));
return shareIntent;
}
private ShareActionProvider mShareActionProvider;
MenuItem shareItem = menu.findItem(R.id.action_share);
mShareActionProvider =
(ShareActionProvider)MenuItemCompat.getActionProvider(shareItem);
mShareActionProvider.setShareIntent(createShareIntent());

69. Contacts
import android.provider.ContactsContract; //CONTACTS PROVIDER
Cursor mCursor;
// acceder al content provider de contactos
mCursor = getContentResolver().query(Data.CONTENT_URI,
new String[] { Data._ID, Data.DISPLAY_NAME, Email.DATA1,
Phone.TYPE },
Data.MIMETYPE + "='" + Email.CONTENT_ITEM_TYPE + "' AND "
+ Email.DATA1 + " IS NOT NULL", null,Data.DISPLAY_NAME + " ASC");
ListAdapter adapter = new SimpleCursorAdapter(this, // context
android.R.layout.simple_list_item_2, // Layout para las filas
mCursor, // cursor
new String[] { Data.DISPLAY_NAME, Phone.NUMBER }, //COLUMNS
new int[] { android.R.id.text1, android.R.id.text2 }, //views
);
setListAdapter(adapter);
<uses-permission android:name="android.permission.READ_CONTACTS" />
android.os.Build.VERSION.SDK_INT<11 //before honeycomb

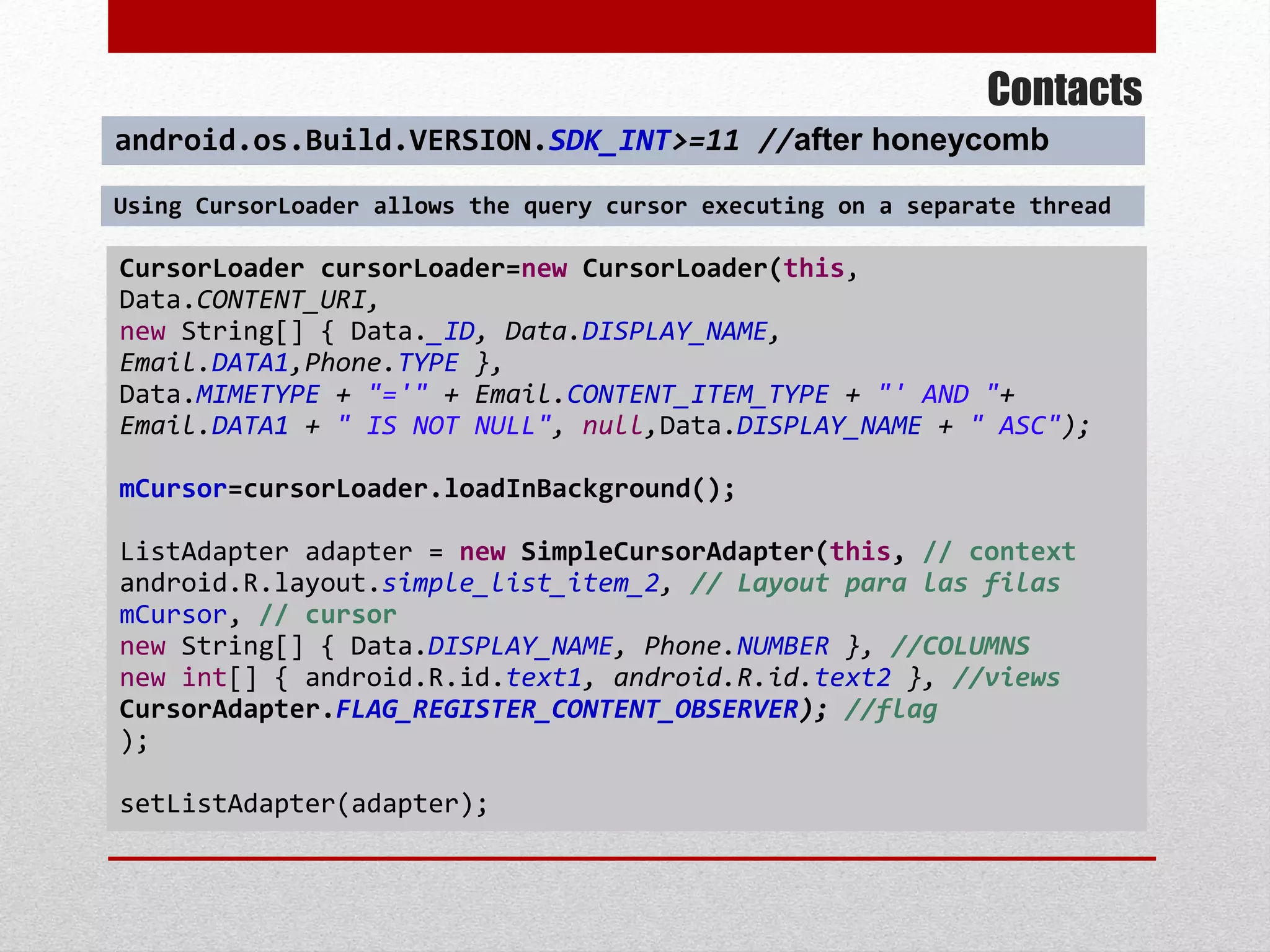

70. Contacts
CursorLoader cursorLoader=new CursorLoader(this,
Data.CONTENT_URI,
new String[] { Data._ID, Data.DISPLAY_NAME,
Email.DATA1,Phone.TYPE },
Data.MIMETYPE + "='" + Email.CONTENT_ITEM_TYPE + "' AND "+
Email.DATA1 + " IS NOT NULL", null,Data.DISPLAY_NAME + " ASC");
mCursor=cursorLoader.loadInBackground();
ListAdapter adapter = new SimpleCursorAdapter(this, // context
android.R.layout.simple_list_item_2, // Layout para las filas
mCursor, // cursor
new String[] { Data.DISPLAY_NAME, Phone.NUMBER }, //COLUMNS
new int[] { android.R.id.text1, android.R.id.text2 }, //views
CursorAdapter.FLAG_REGISTER_CONTENT_OBSERVER); //flag
);
setListAdapter(adapter);
android.os.Build.VERSION.SDK_INT>=11 //after honeycomb
Using CursorLoader allows the query cursor executing on a separate thread

71. Loaders in contacts
public class ContactsListFragment implements
LoaderManager.LoaderCallbacks<Cursor> {
}
@Override
public void onActivityCreated(Bundle savedInstanceState) {
super.onActivityCreated(savedInstanceState);
getLoaderManager().initLoader(ContactsQuery.QUERY_ID, null, this);}}
 Inicializar loader
@Override
public Loader<Cursor> onCreateLoader(int id, Bundle args) {
return new
CursorLoader(getActivity(),contentUri,ContactsQuery.PROJECTION,
ContactsQuery.SELECTION,null,ContactsQuery.SORT_ORDER);}
}
@Override
public void onLoadFinished(Loader<Cursor> loader, Cursor data) {
// This swaps the new cursor into the adapter.
if (loader.getId() == ContactsQuery.QUERY_ID) {
mAdapter.swapCursor(data);
}
}
@Override
public void onLoaderReset(Loader<Cursor> loader) {}

72. HTTP Request
 org.apache.http
// Create HTTP Client
HttpParams httpParameters = new BasicHttpParams();
// 3s max for connection
HttpConnectionParams.setConnectionTimeout
(httpParameters,3000);
// 4s max to get data
HttpConnectionParams.setSoTimeout(httpParameters, 4000);
HttpClient httpclient = new DefaultHttpClient(httpParameters);
HttpResponse response;
String responseString = null;
try {response = httpclient.execute(new HttpGet(uri[0]));//Execute uri
StatusLine statusLine = response.getStatusLine();
if(statusLine.getStatusCode() == HttpStatus.SC_OK){
ByteArrayOutputStream out = new ByteArrayOutputStream();
response.getEntity().writeTo(out);
out.close();
responseString = out.toString();
} else{
//Closes the connection.
response.getEntity().getContent().close();
throw new IOException(statusLine.getReasonPhrase());
}} catch (ClientProtocolException e) {//TODO Handle problems..
} catch (IOException e) {//TODO Handle problems..}

73. API INSTAGRAM
 .Developer register
 New client register
http://instagram.com/developer/clients/manage/
http://instagram.com/developer/

74. API INSTAGRAM

75. API INSTAGRAM
 Endpoint tag media recent
http://instagram.com/developer/endpoints/tags/#get_tags_media_recent

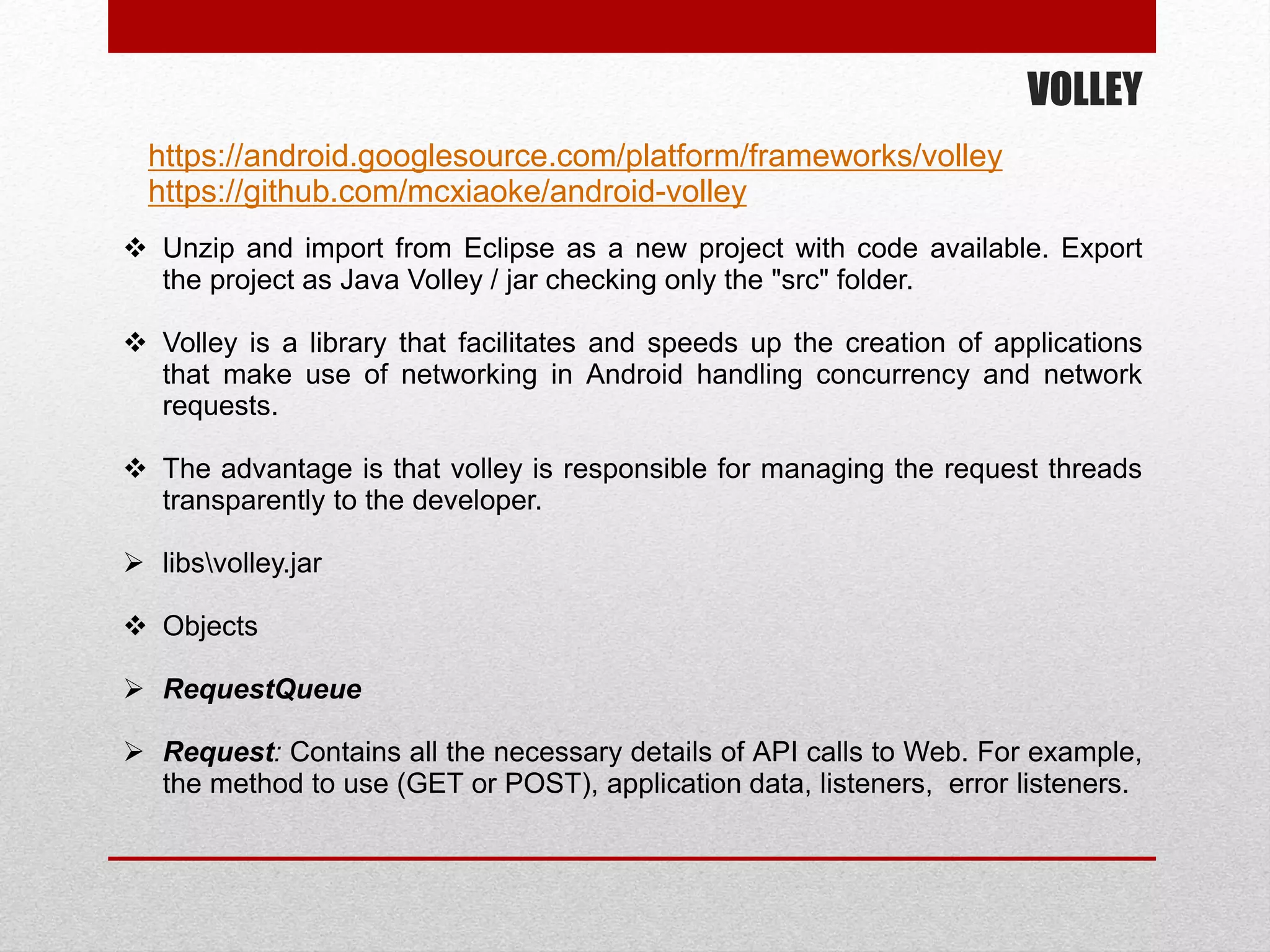

76. VOLLEY
https://android.googlesource.com/platform/frameworks/volley
https://github.com/mcxiaoke/android-volley
 Unzip and import from Eclipse as a new project with code available. Export
the project as Java Volley / jar checking only the "src" folder.
 Volley is a library that facilitates and speeds up the creation of applications
that make use of networking in Android handling concurrency and network
requests.
 The advantage is that volley is responsible for managing the request threads
transparently to the developer.
 libsvolley.jar
 Objects
 RequestQueue
 Request: Contains all the necessary details of API calls to Web. For example,
the method to use (GET or POST), application data, listeners, error listeners.

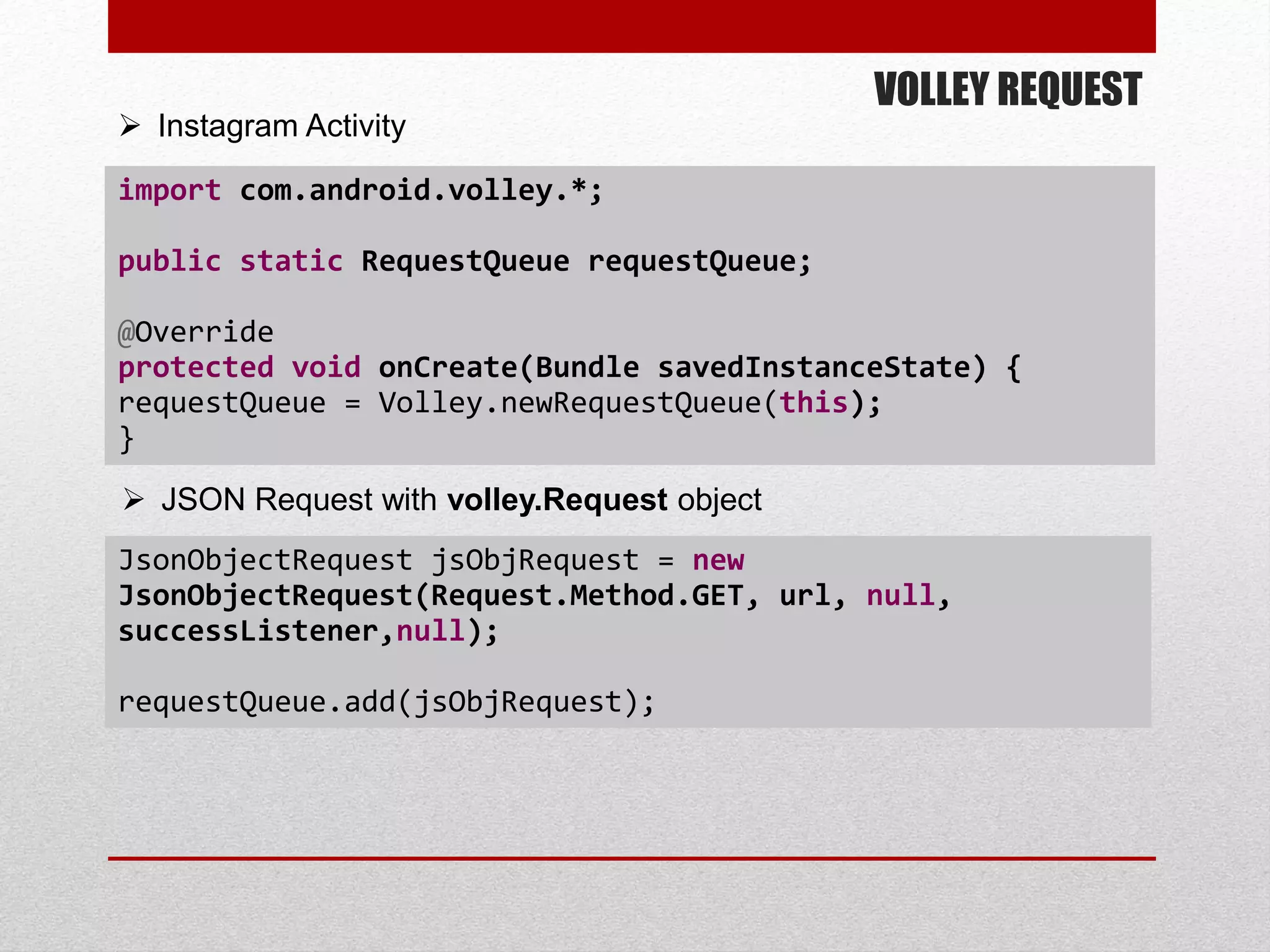

77. VOLLEY REQUEST
import com.android.volley.*;
public static RequestQueue requestQueue;
@Override
protected void onCreate(Bundle savedInstanceState) {
requestQueue = Volley.newRequestQueue(this);
}
 JSON Request with volley.Request object
JsonObjectRequest jsObjRequest = new
JsonObjectRequest(Request.Method.GET, url, null,
successListener,null);
requestQueue.add(jsObjRequest);
 Instagram Activity

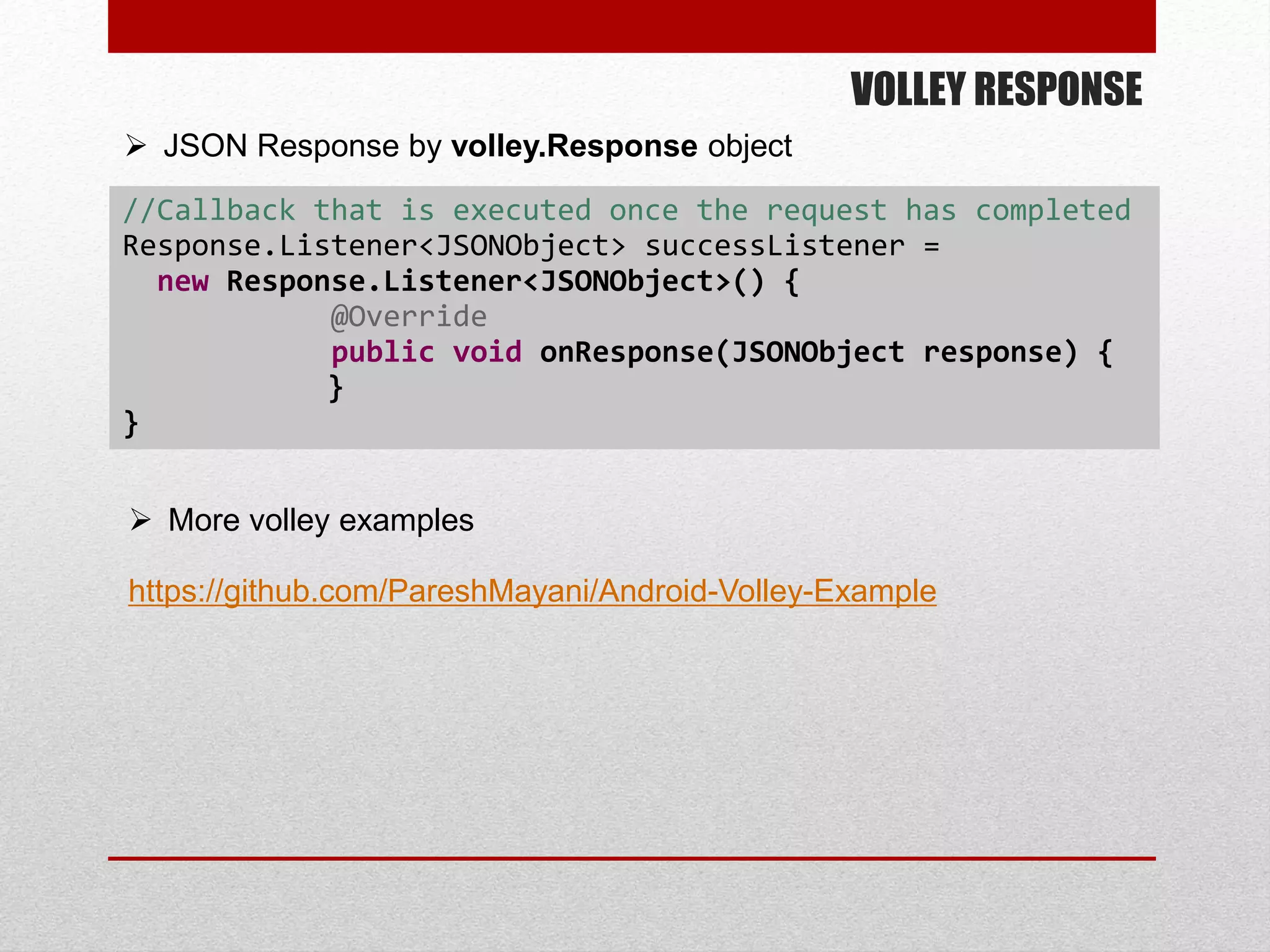

78. VOLLEY RESPONSE
//Callback that is executed once the request has completed
Response.Listener<JSONObject> successListener =
new Response.Listener<JSONObject>() {
@Override
public void onResponse(JSONObject response) {
}
}
 JSON Response by volley.Response object
 More volley examples
https://github.com/PareshMayani/Android-Volley-Example

79. Geolocation
 LocationManager / android.location package
 ACCESS_COARSE_LOCATION/ACCESS_FINE_LOCATION
//Obtenemos el Location Manager del sistema
LocationManager locationManager = (LocationManager)this.getSystemService
(Context.LOCATION_SERVICE);
// Definimos el Listener que gestionará los eventos
LocationListener locationListener = new LocationListener() {
public void onLocationChanged(Location location) {
if (location != null) {
Toast.makeText(getBaseContext(),
"Location changed : Lat: " + location.getLatitude() +
" Lng: " + location.getLongitude(),Toast.LENGTH_SHORT).show();
}
}
// Registramos el Listener en el Location Manager para recibir actualizaciones
locationManager.
requestLocationUpdates(LocationManager.NETWORK_PROVIDER,
0, 0, locationListener);

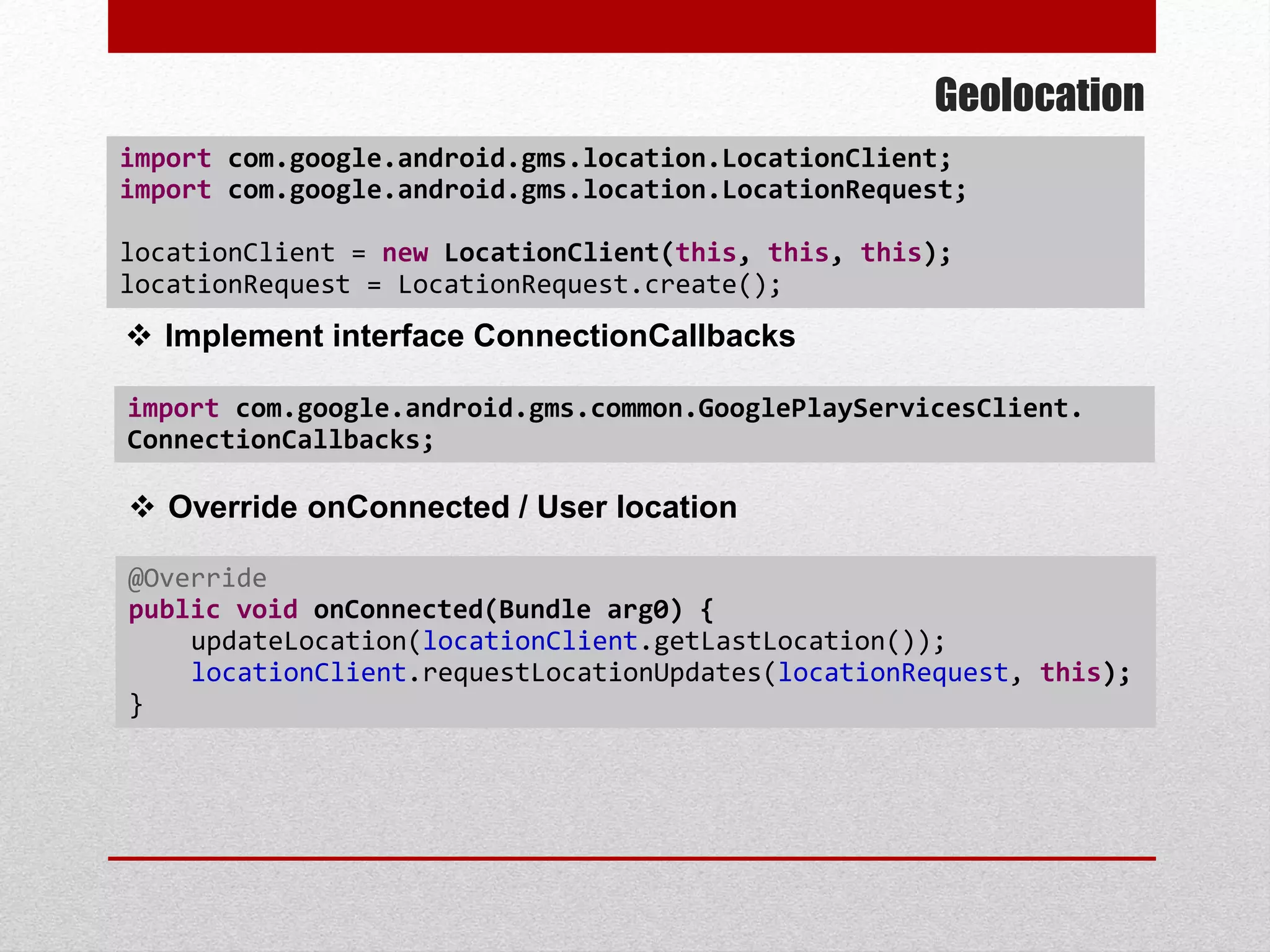

80. Geolocation
 Implement interface ConnectionCallbacks
import com.google.android.gms.common.GooglePlayServicesClient.
ConnectionCallbacks;
 Override onConnected / User location
@Override
public void onConnected(Bundle arg0) {
updateLocation(locationClient.getLastLocation());
locationClient.requestLocationUpdates(locationRequest, this);
}
import com.google.android.gms.location.LocationClient;
import com.google.android.gms.location.LocationRequest;
locationClient = new LocationClient(this, this, this);
locationRequest = LocationRequest.create();

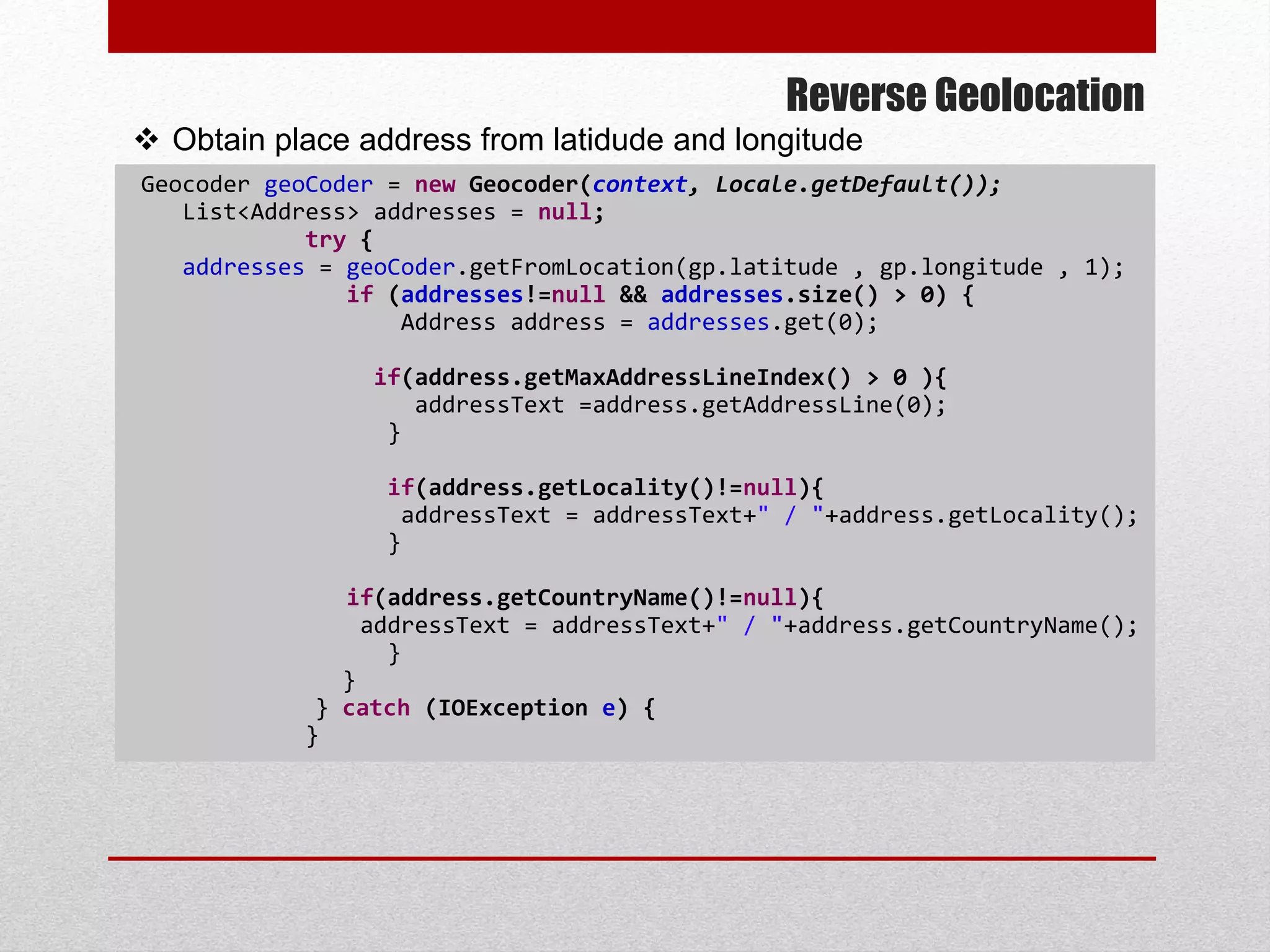

81. Reverse Geolocation
Geocoder geoCoder = new Geocoder(context, Locale.getDefault());
List<Address> addresses = null;
try {
addresses = geoCoder.getFromLocation(gp.latitude , gp.longitude , 1);
if (addresses!=null && addresses.size() > 0) {
Address address = addresses.get(0);
if(address.getMaxAddressLineIndex() > 0 ){
addressText =address.getAddressLine(0);
}
if(address.getLocality()!=null){
addressText = addressText+" / "+address.getLocality();
}
if(address.getCountryName()!=null){
addressText = addressText+" / "+address.getCountryName();
}
}
} catch (IOException e) {
}
 Obtain place address from latidude and longitude

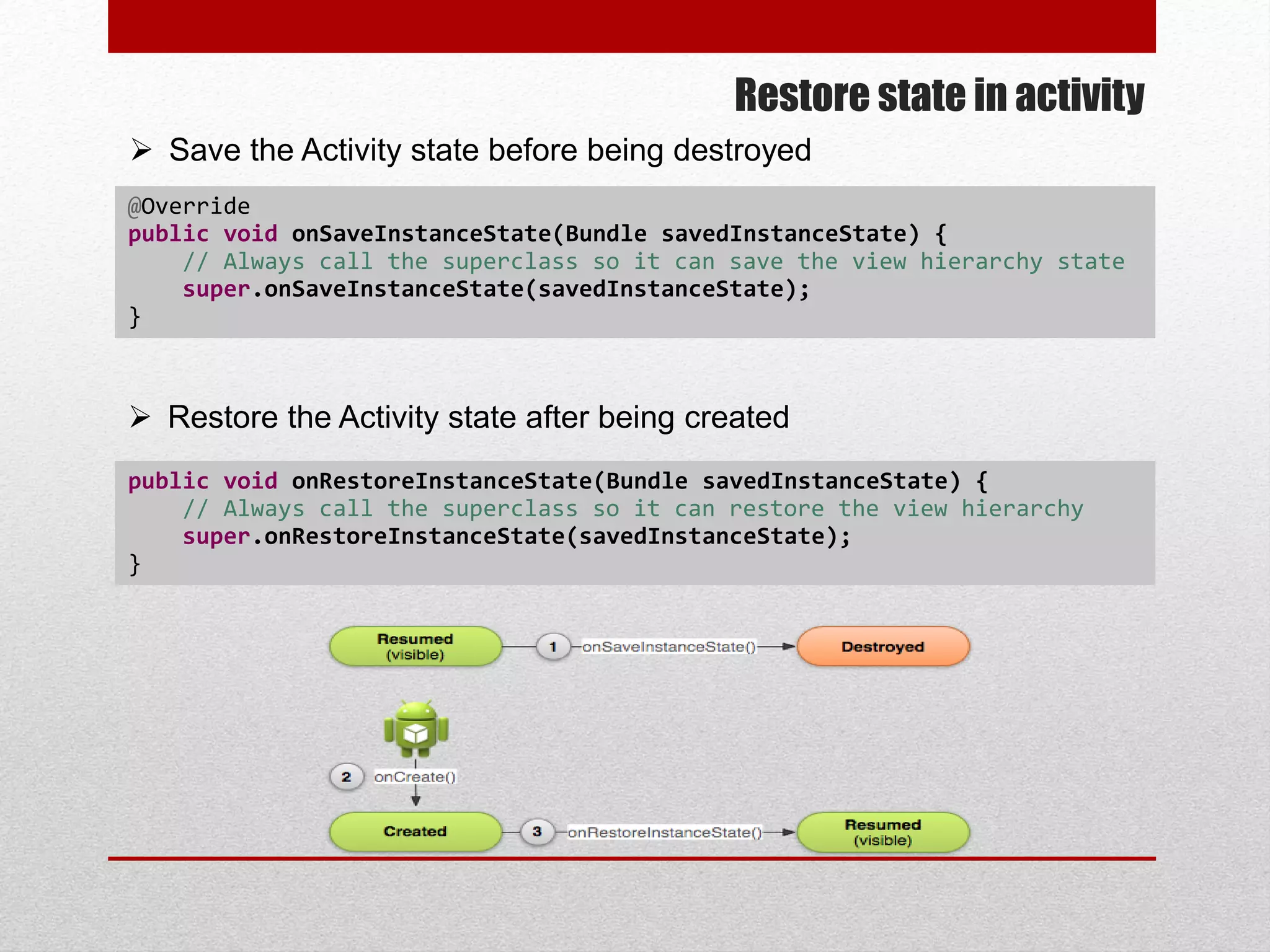

82. Restore state in activity
@Override
public void onSaveInstanceState(Bundle savedInstanceState) {
// Always call the superclass so it can save the view hierarchy state
super.onSaveInstanceState(savedInstanceState);
}
 Save the Activity state before being destroyed
 Restore the Activity state after being created
public void onRestoreInstanceState(Bundle savedInstanceState) {
// Always call the superclass so it can restore the view hierarchy
super.onRestoreInstanceState(savedInstanceState);
}

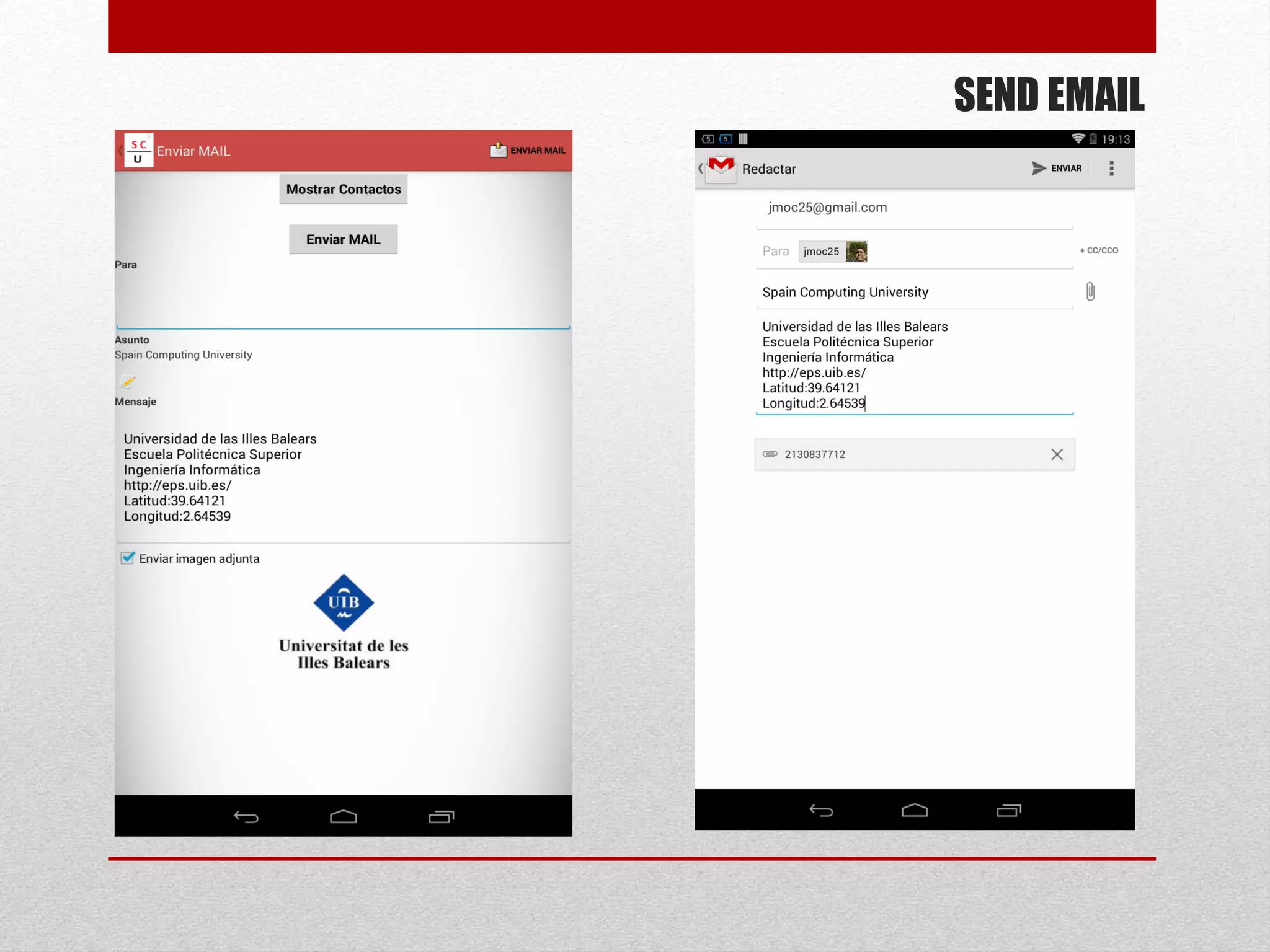

83. SEND EMAIL

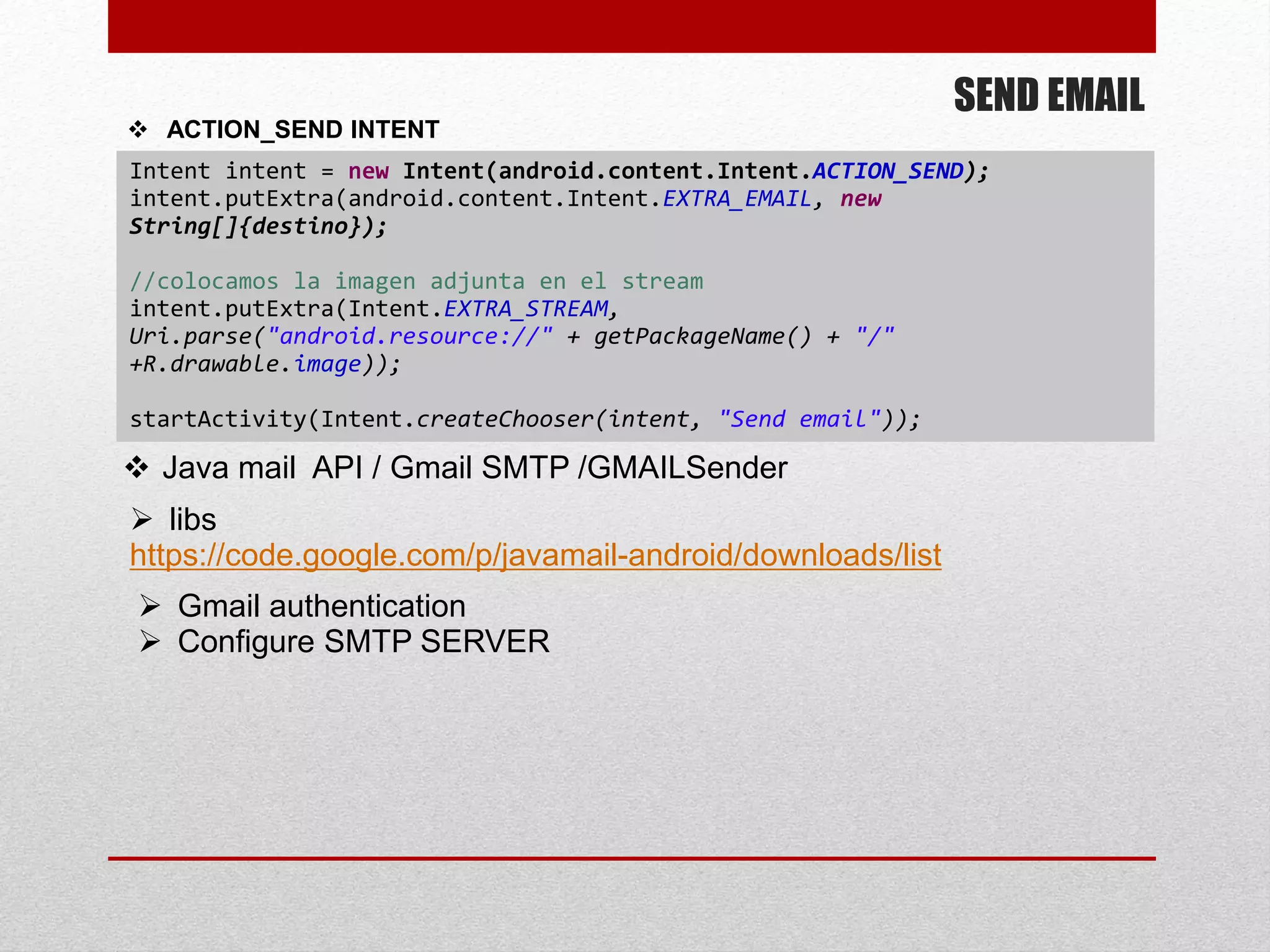

84. SEND EMAIL
 ACTION_SEND INTENT
Intent intent = new Intent(android.content.Intent.ACTION_SEND);
intent.putExtra(android.content.Intent.EXTRA_EMAIL, new
String[]{destino});
//colocamos la imagen adjunta en el stream
intent.putExtra(Intent.EXTRA_STREAM,
Uri.parse("android.resource://" + getPackageName() + "/"
+R.drawable.image));
startActivity(Intent.createChooser(intent, "Send email"));
 libs
https://code.google.com/p/javamail-android/downloads/list
 Java mail API / Gmail SMTP /GMAILSender
 Gmail authentication
 Configure SMTP SERVER

85. Shared Preferences
 Key/value dictionary
 res/xml/preferencias.xml
<?xml version="1.0" encoding="utf-8"?>
<PreferenceScreen
xmlns:android="http://schemas.android.com/apk/res/android">
<PreferenceCategory
android:title="@string/pref_notificaciones">
<CheckBoxPreference
android:key="pref_notificaciones_favoritos"
android:title="@string/pref_notificaciones_favoritos"
android:summary="@string/pref_notificaciones_favoritos"
android:defaultValue="true" />
</PreferenceCategory>
</PreferenceScreen>
PreferenceScreen is the entire screen that will show us where the other elements are
displayed, and PreferenceCategory will allow us to create categories or groupings within our
screen.
The common element in different items is the key property. This will be the key that is
stored in SharedPreferences and later retrieve the stored values by this key.

86. Shared Preferences

87. Shared Preferences
 Preferences Activity
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
if (Build.VERSION.SDK_INT < Build.VERSION_CODES.HONEYCOMB) {
onCreatePreferenceActivity();
} else {
onCreatePreferenceFragment();
}
}
private void onCreatePreferenceActivity() {
PreferenceManager prefManager=getPreferenceManager();
prefManager.setSharedPreferencesName("appPreferences");
addPreferencesFromResource(R.xml.preferencias);
}
private void onCreatePreferenceFragment() {
getFragmentManager().beginTransaction()
.replace(android.R.id.content, new MyPreferenceFragment ())
.commit();
}

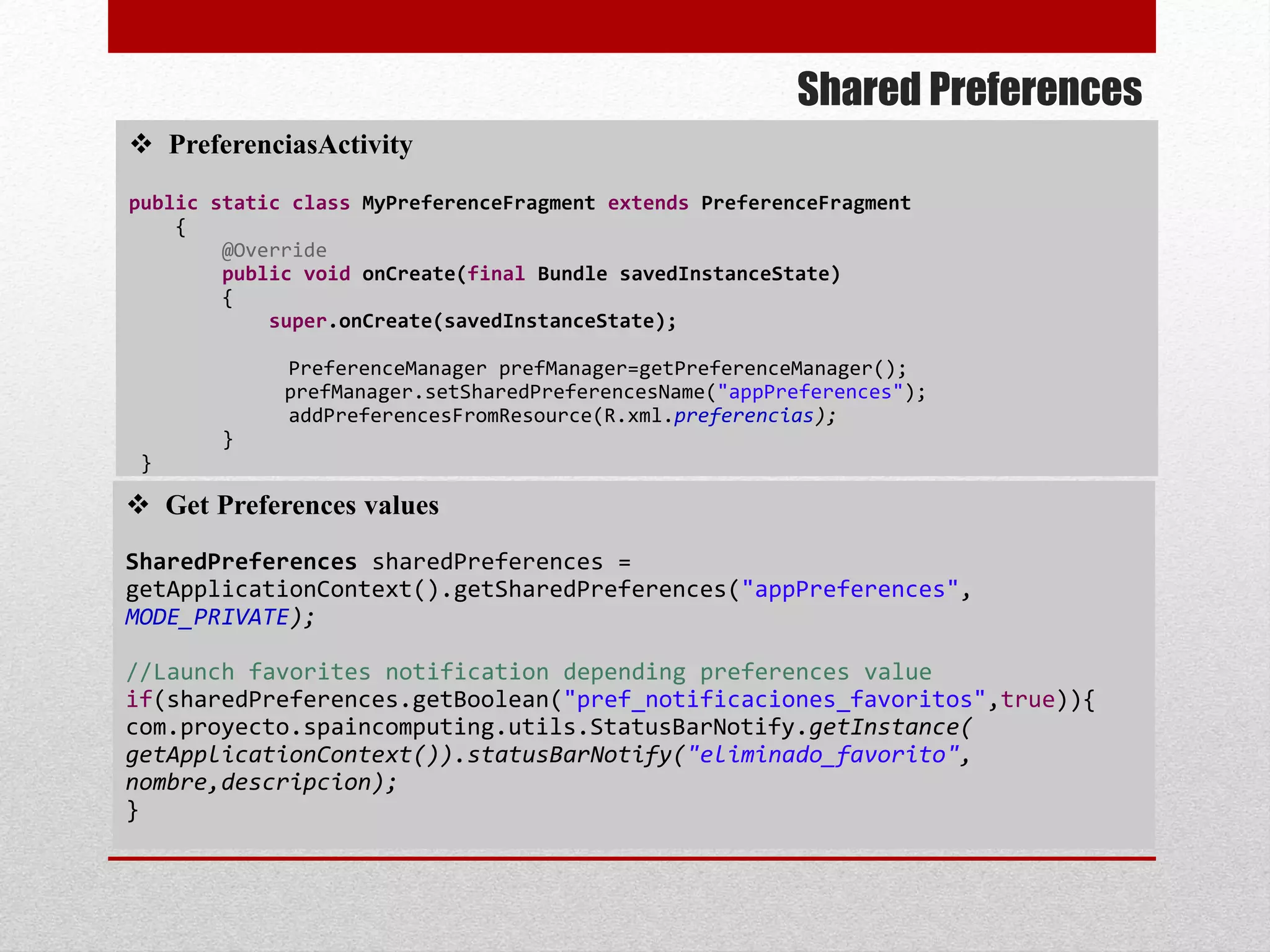

88. Shared Preferences
 PreferenciasActivity
public static class MyPreferenceFragment extends PreferenceFragment
{
@Override
public void onCreate(final Bundle savedInstanceState)
{
super.onCreate(savedInstanceState);
PreferenceManager prefManager=getPreferenceManager();
prefManager.setSharedPreferencesName("appPreferences");
addPreferencesFromResource(R.xml.preferencias);
}
}
 Get Preferences values
SharedPreferences sharedPreferences =
getApplicationContext().getSharedPreferences("appPreferences",
MODE_PRIVATE);
//Launch favorites notification depending preferences value
if(sharedPreferences.getBoolean("pref_notificaciones_favoritos",true)){
com.proyecto.spaincomputing.utils.StatusBarNotify.getInstance(
getApplicationContext()).statusBarNotify("eliminado_favorito",
nombre,descripcion);
}

89. SQLITE DATABASE

90. SQLITE DATABASE
 import android.database.sqlite.*;
 Create class that extends SQLiteOpenHelper and override onCreate()
method to create database
public class DBHelper extends SQLiteOpenHelper {
//constructor
public DBAdapter (Context context){
dbHelper = new DBHelper(context, DATABASE_NAME, null, DATABASE_VERSION);
}
private final static String DATABASE_CREATE = "CREATE TABLE ..“;
@Override
public void onCreate(SQLiteDatabase db) {
db.execSQL(DATABASE_CREATE);
}
}
 Emulator /root
 /data/data/<package>/databases

91. SQLITE DATABASE
 INSERT,UPDATE,DELETE
SQLiteDatabase db = dbHelper.getWritableDatabase();
 QUERY
SQLiteDatabase db = dbHelper.getReadableDatabase();
Cursor cursor= myDatabase.query(DATABASE_TABLE, null,
where,null, null, null, order);
// Create a new row of values to insert.
ContentValues newValues = new ContentValues();
// Assign values for each row.
newValues.put(COLUMN_NAME, newValue);
[ ... Repeat for each column ... ]
// Insert
myDatabase.insert(DATABASE_TABLE, null, newValues);
// Update
myDatabase.update(DATABASE_TABLE, updatedValues, where,
null);
// Delete
myDatabase.delete(DATABASE_TABLE, null, null);

92. Developer libraries in google play

93. Libraries
 Indicator in ViewPager
 http://viewpagerindicator.com/
 https://github.com/chrisbanes/ActionBar-PullToRefresh
 Pager Sliding Tabstrip
 https://github.com/astuetz/PagerSlidingTabStrip
 Show routes in map.
 https://github.com/tyczj/MapNavigator

94. Sliding Menu
 Library to implement a sliding flyout with similar behavior to
navigation drawer
 https://github.com/jfeinstein10/SlidingMenu
MessageBar
 Library to improve toast messages
 http://simonvt.github.io/MessageBar/

95. Fading Action Bar
 Used in Google play music
 https://github.com/ManuelPeinado/FadingActionBar
+
 http://www.androidviews.net/

96. About me
https://github.com/jmortega/apps
https://github.com/jmortega/android
https://www.linkedin.com/in/jmortega1
jmoc25@gmail.com
https://play.google.com/store/apps/developer?id=Jos%C3%A9+Manuel+Ortega+Candel

97. Google play
