The document discusses modernizing plugin UIs for Atlassian products. It covers using Soy for templating, implementing pretty URLs, using pushstate for navigation history, rendering templates on both the server and client, injecting page data, defining JavaScript modules, and asynchronously loading resources to improve performance. Examples are provided for how to implement these techniques in Atlassian plugins.

1. @atlassian #atlascamp

2. Modernizing Your
Plugin UI
Jonathon Creenaune, Front End Architect, Atlassian

3. Build more features

4. Build more features
Make features better

5. Make features better

6. Beauty

7. Beauty
Interactivity

9. Beauty

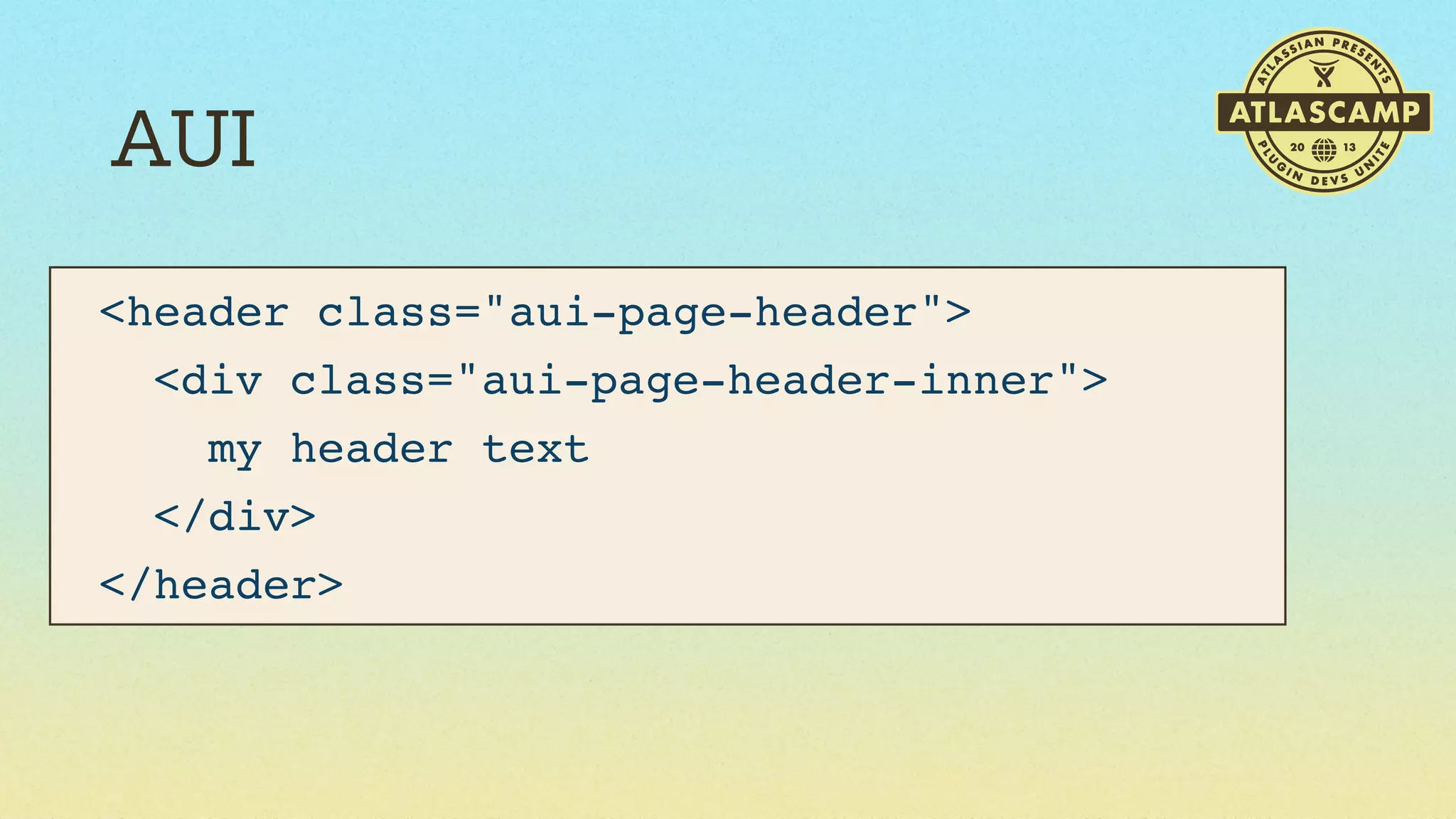

11. AUI
<header class="aui-page-header">
<div class="aui-page-header-inner">
my header text
</div>
</header>

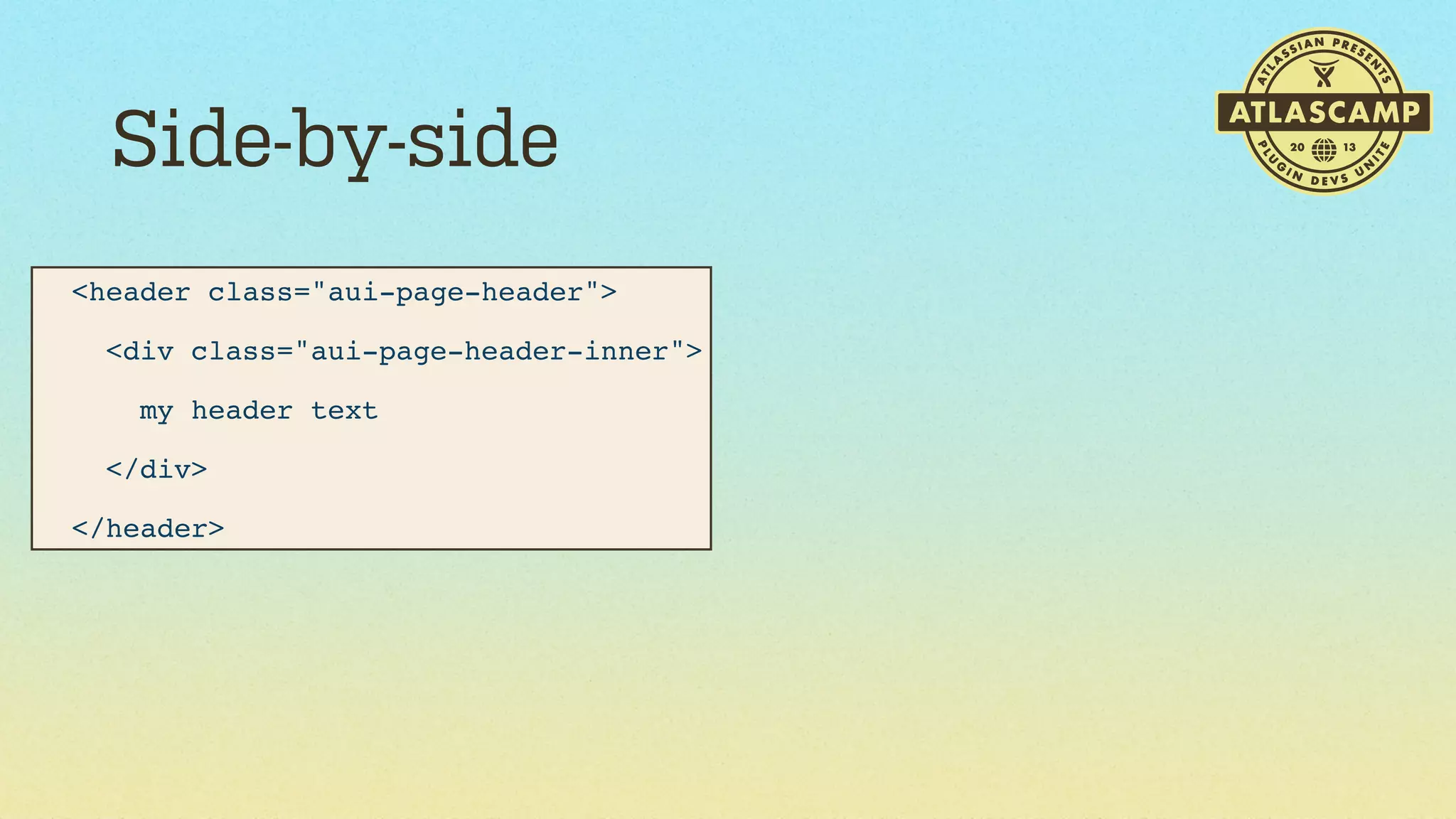

14. Side-by-side
<header class="aui-page-header">
<div class="aui-page-header-inner">
my header text
</div>
</header>

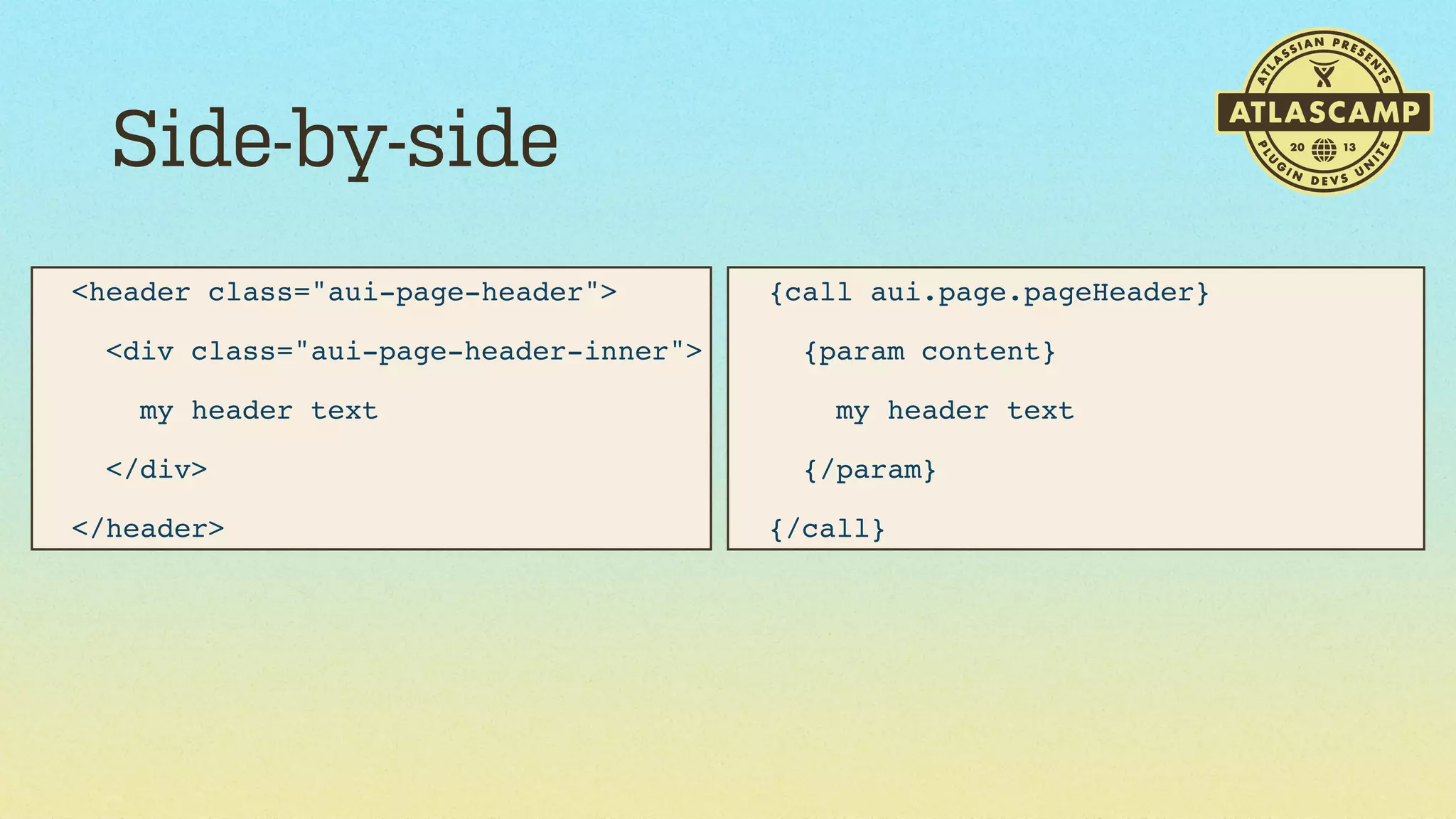

15. Side-by-side
<header class="aui-page-header">
{call aui.page.pageHeader}
<div class="aui-page-header-inner">
{param content}
my header text
my header text
</div>
{/param}
</header>
{/call}

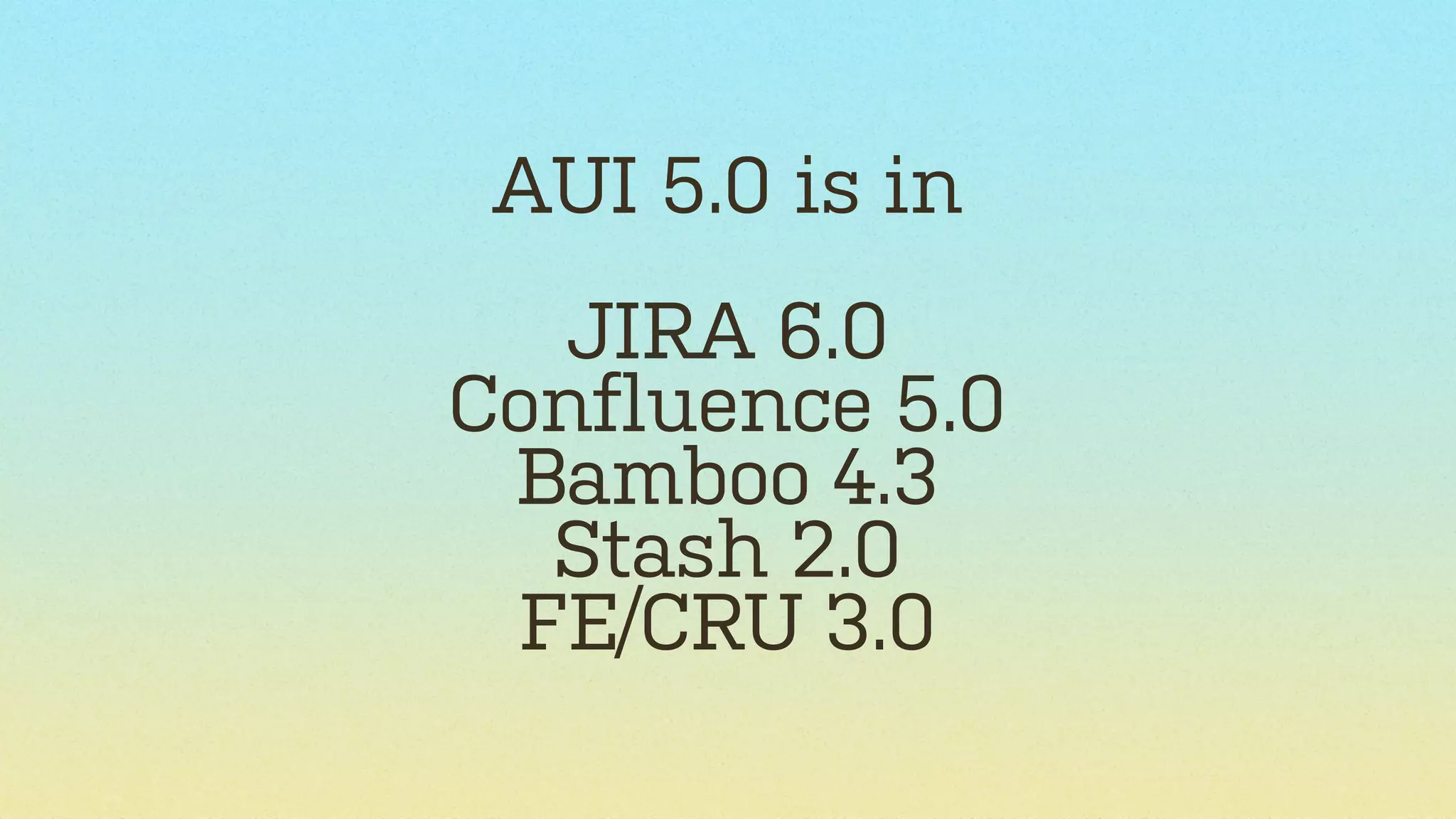

16. AUI 5.0 is in
JIRA 6.0
Confluence 5.0
Bamboo 4.3
Stash 2.0
FE/CRU 3.0

17. Targeting non-soy
platforms

21. “ not just a side-effect of the technology
you used to create a page
”
URLs should be designed for the user,

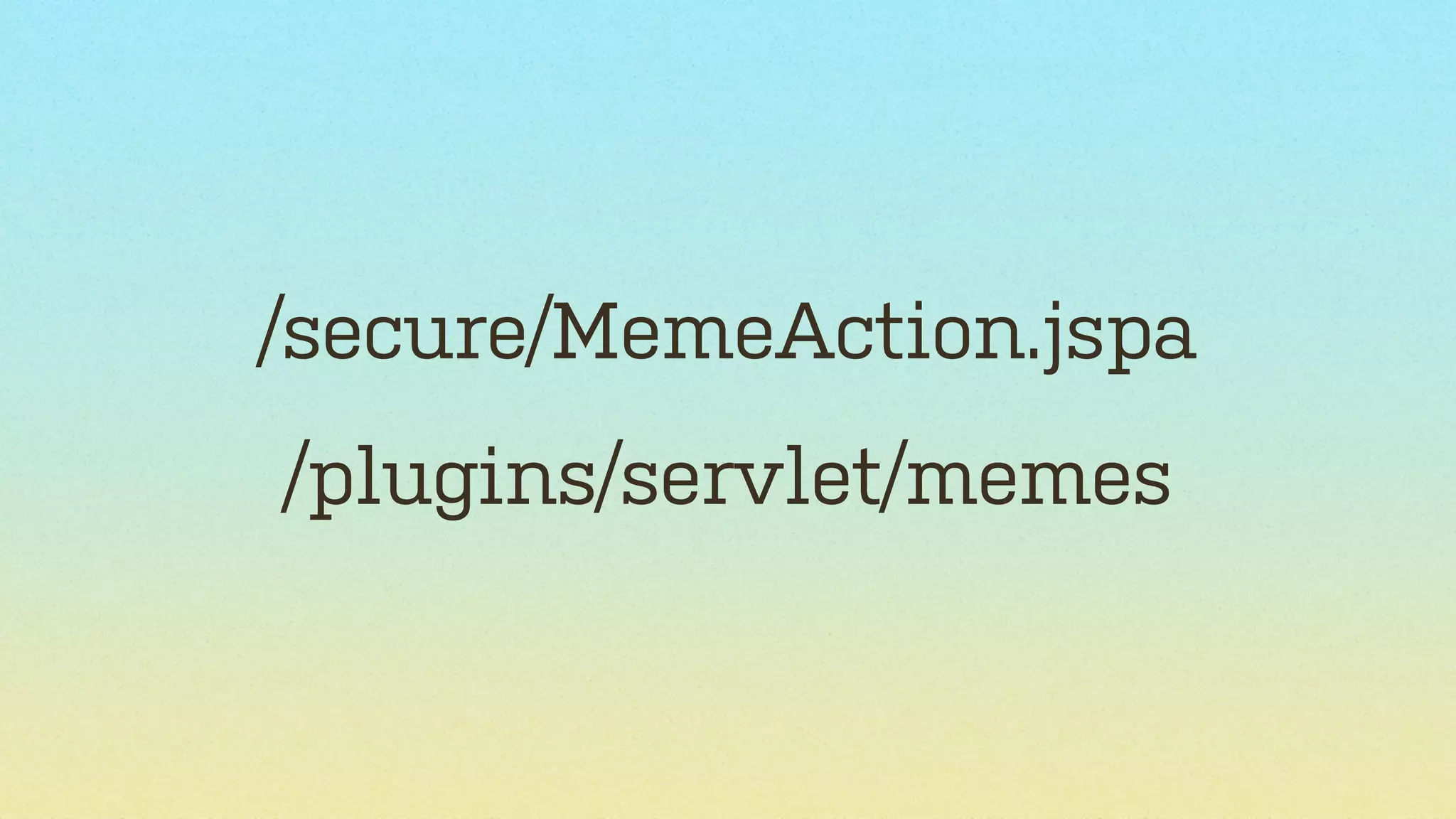

22. /secure/MemeAction.jspa
/plugins/servlet/memes

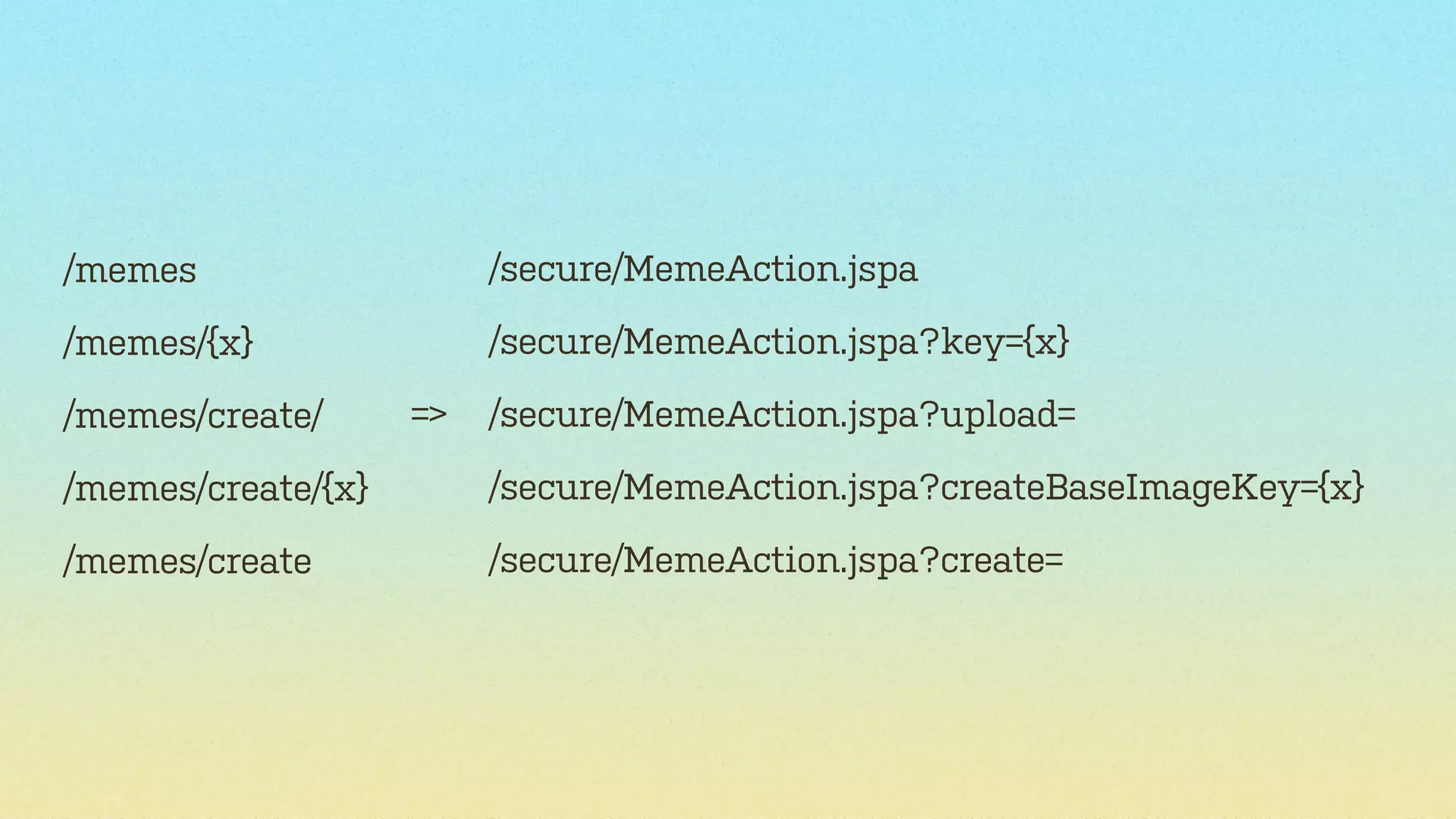

23. /memes
/secure/MemeAction.jspa
/memes/{x}
/secure/MemeAction.jspa?key={x}
/memes/create/
=>
/secure/MemeAction.jspa?upload=
/memes/create/{x}
/secure/MemeAction.jspa?createBaseImageKey={x}
/memes/create
/secure/MemeAction.jspa?create=

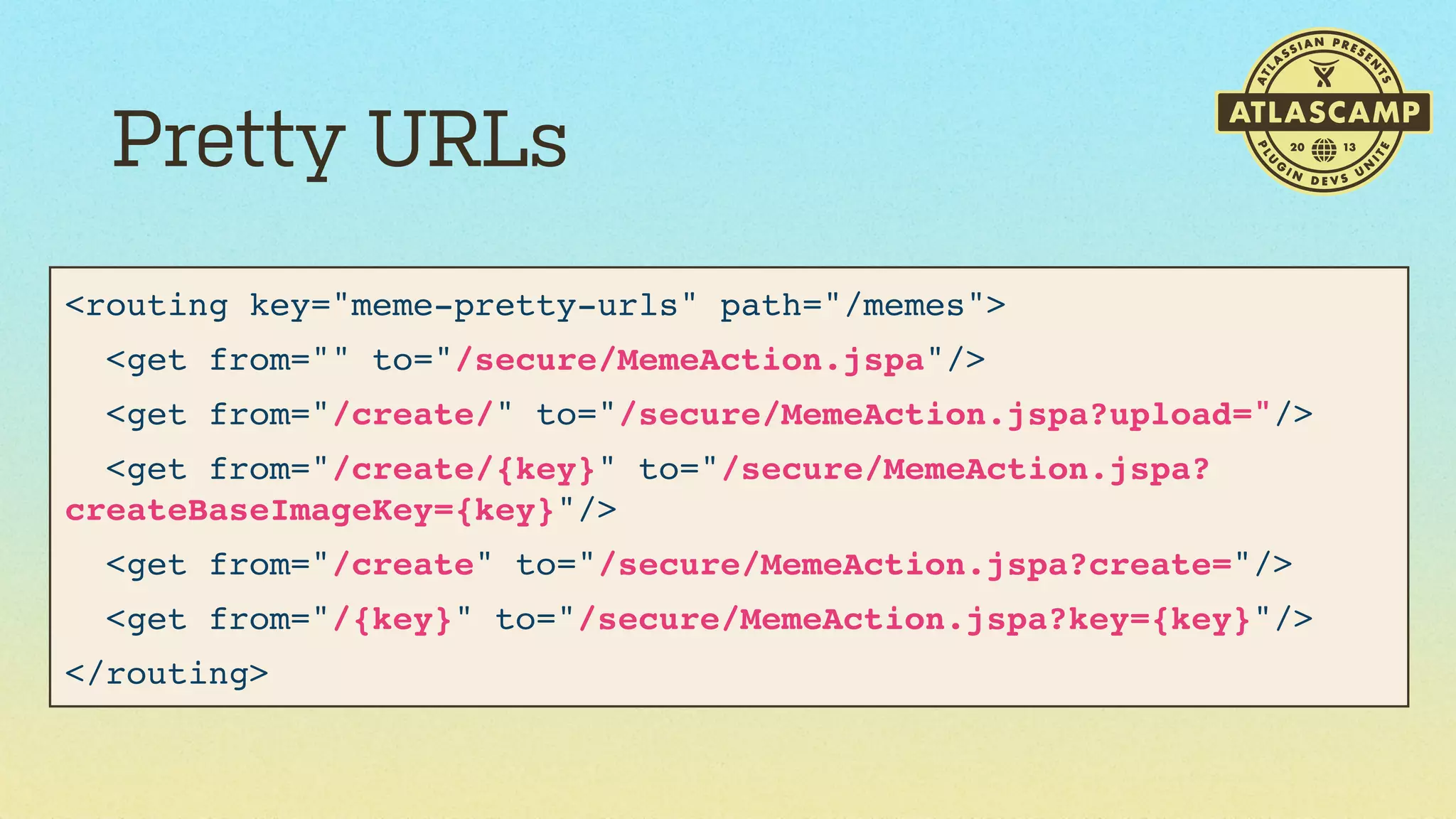

24. Pretty URLs
<routing key="meme-pretty-urls" path="/memes">
<get from="" to="/secure/MemeAction.jspa"/>
<get from="/create/" to="/secure/MemeAction.jspa?upload="/>
<get from="/create/{key}" to="/secure/MemeAction.jspa?
createBaseImageKey={key}"/>
<get from="/create" to="/secure/MemeAction.jspa?create="/>
<get from="/{key}" to="/secure/MemeAction.jspa?key={key}"/>
</routing>

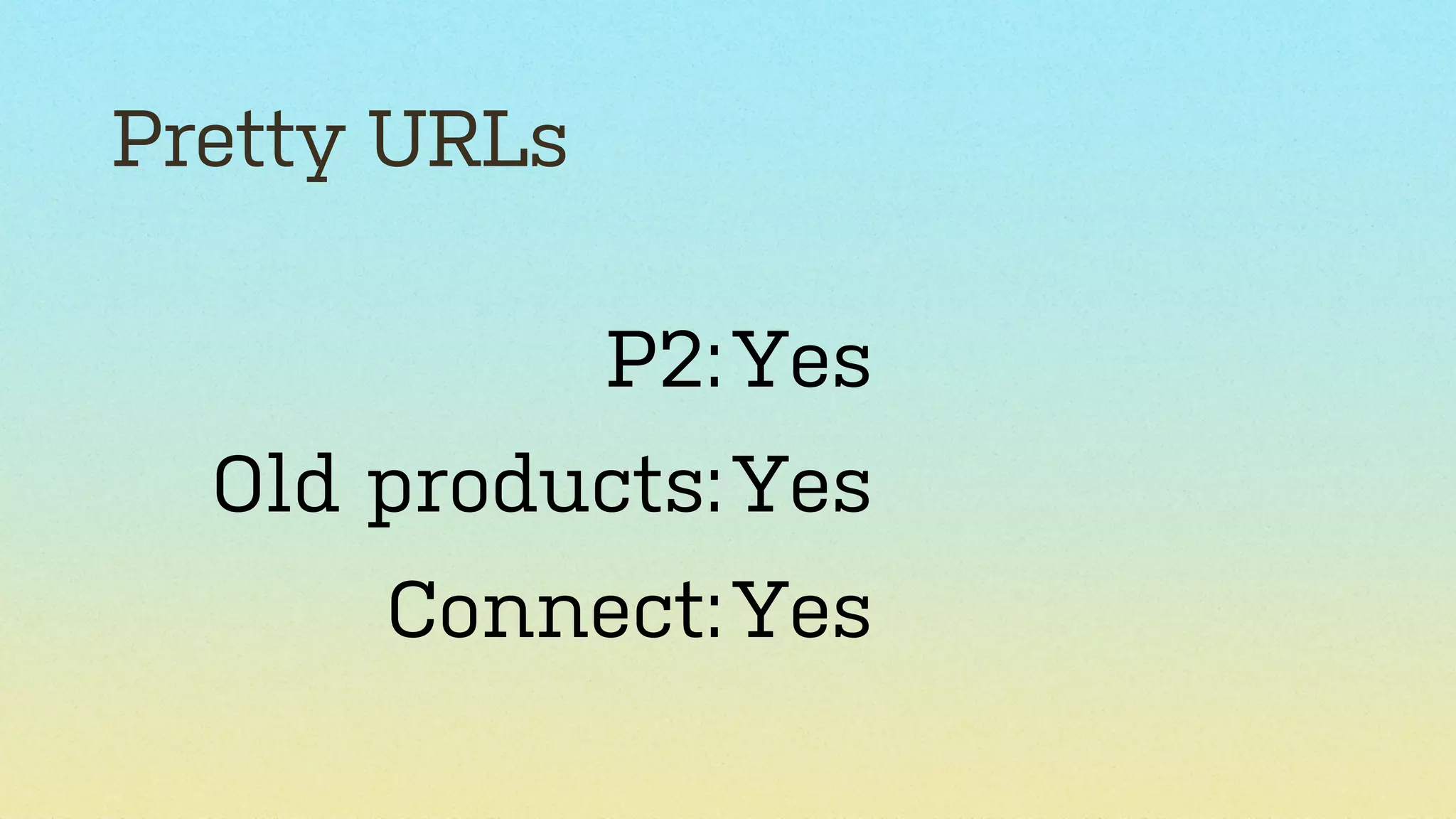

25. Pretty URLs
P2: Yes
Old products: Yes
Connect: Yes

26. Interactivity

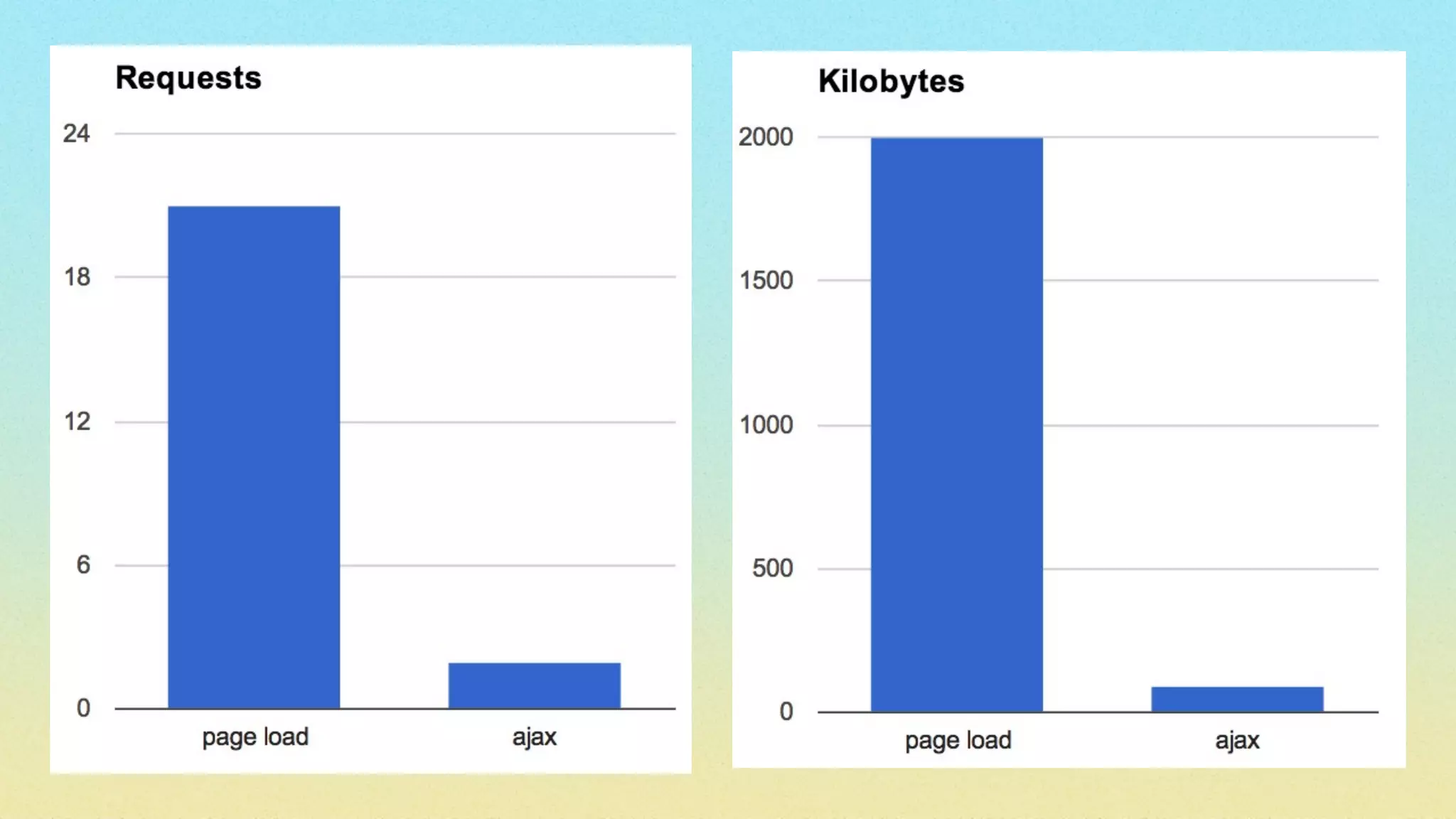

27. Getting code closer to the user

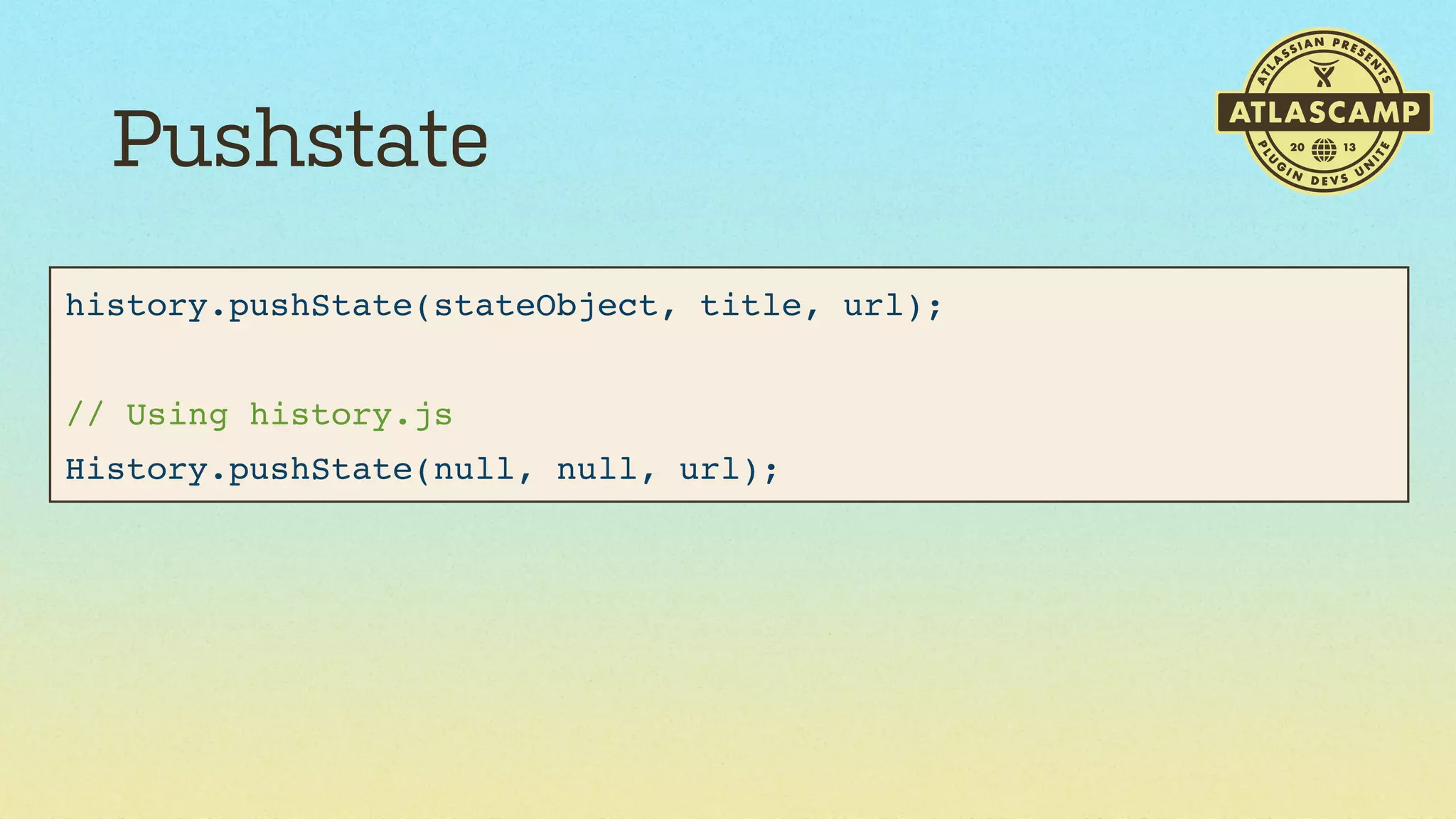

29. Pushstate
history.pushState(stateObject, title, url);
// Using history.js
History.pushState(null, null, url);

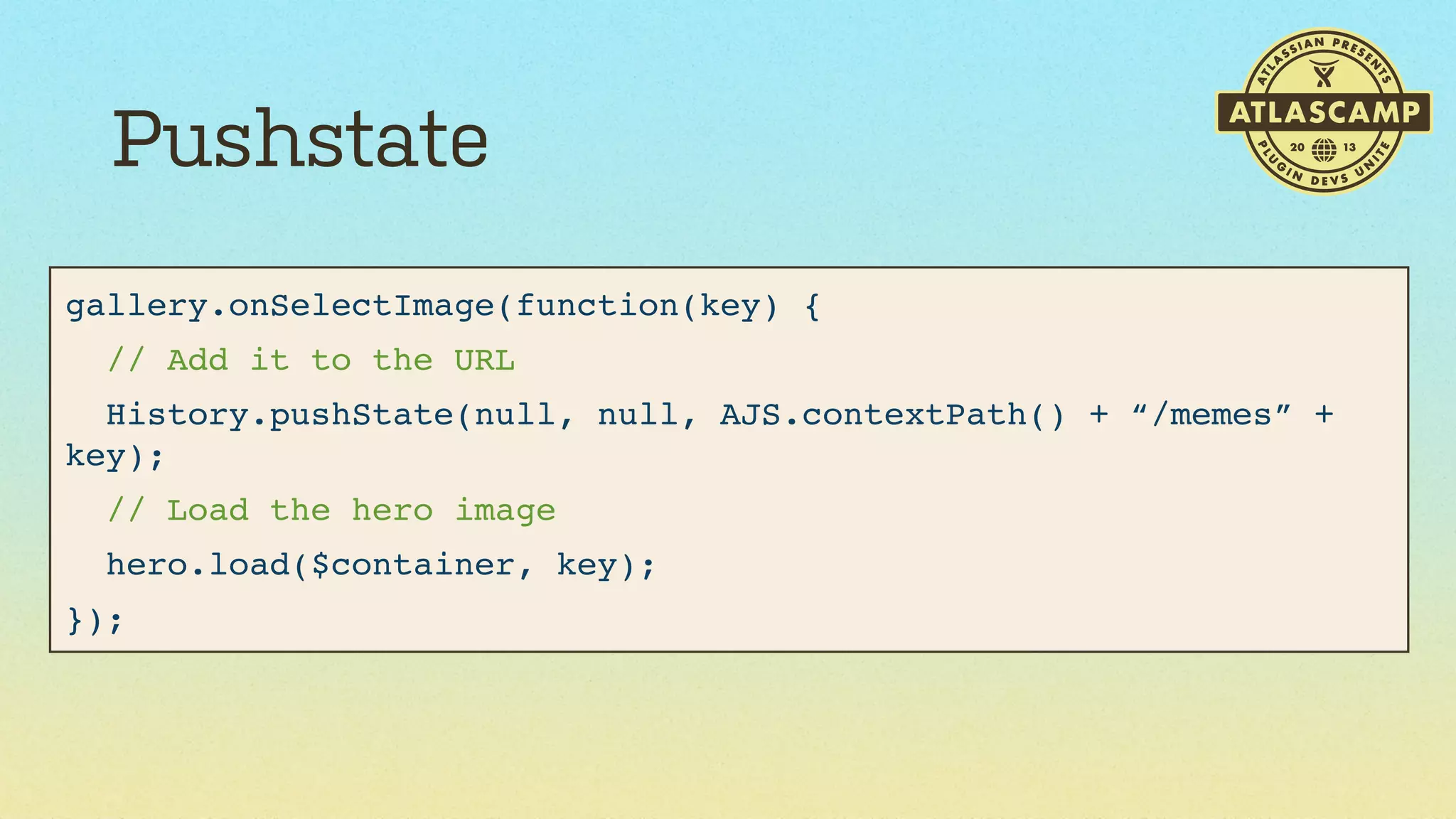

30. Pushstate
gallery.onSelectImage(function(key) {
// Add it to the URL
History.pushState(null, null, AJS.contextPath() + “/memes” +
key);
// Load the hero image
hero.load($container, key);
});

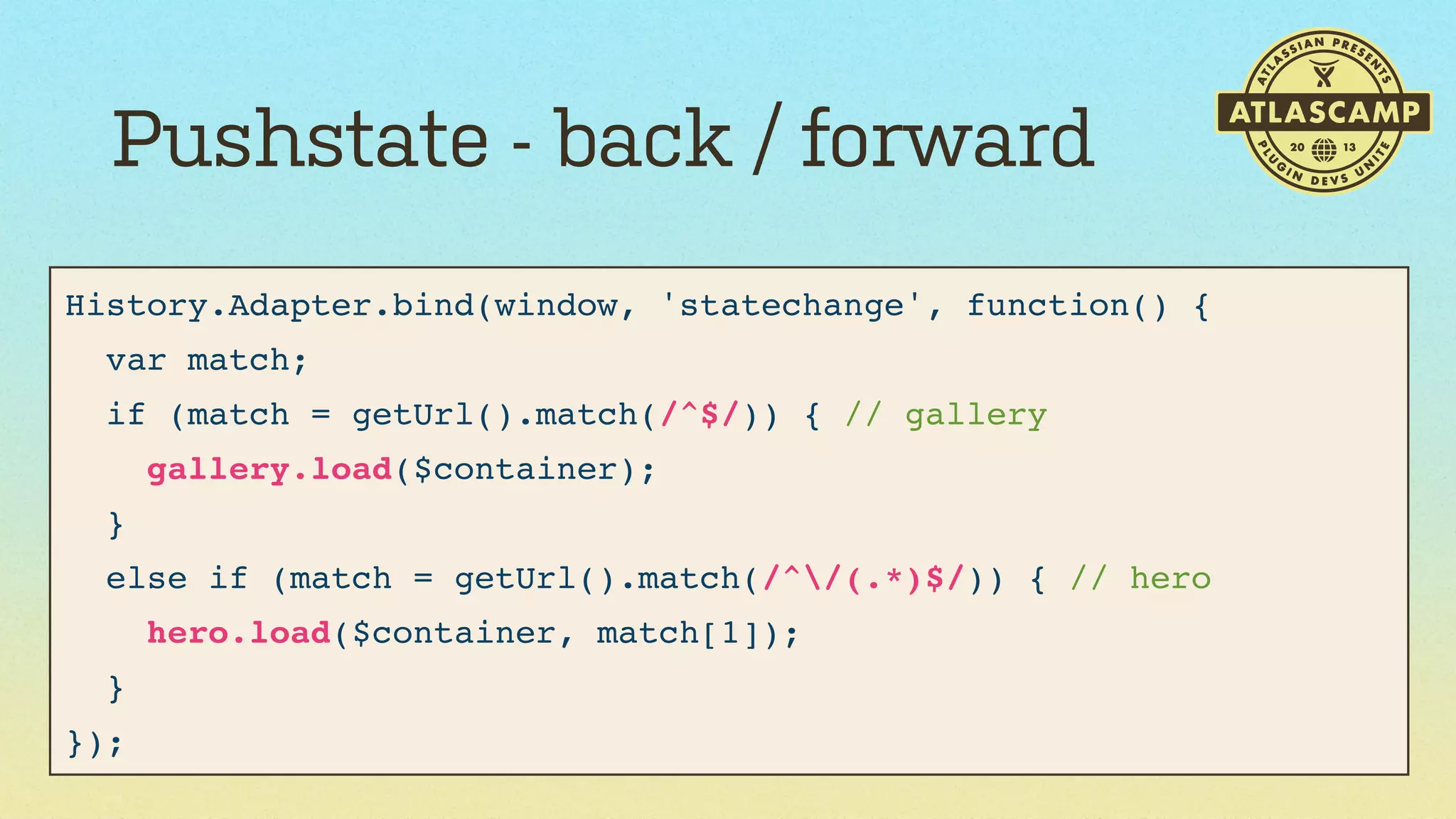

31. Pushstate - back / forward
History.Adapter.bind(window, 'statechange', function() {
var match;
if (match = getUrl().match(/^$/)) { // gallery
gallery.load($container);
}
else if (match = getUrl().match(/^/(.*)$/)) { // hero
hero.load($container, match[1]);
}
});

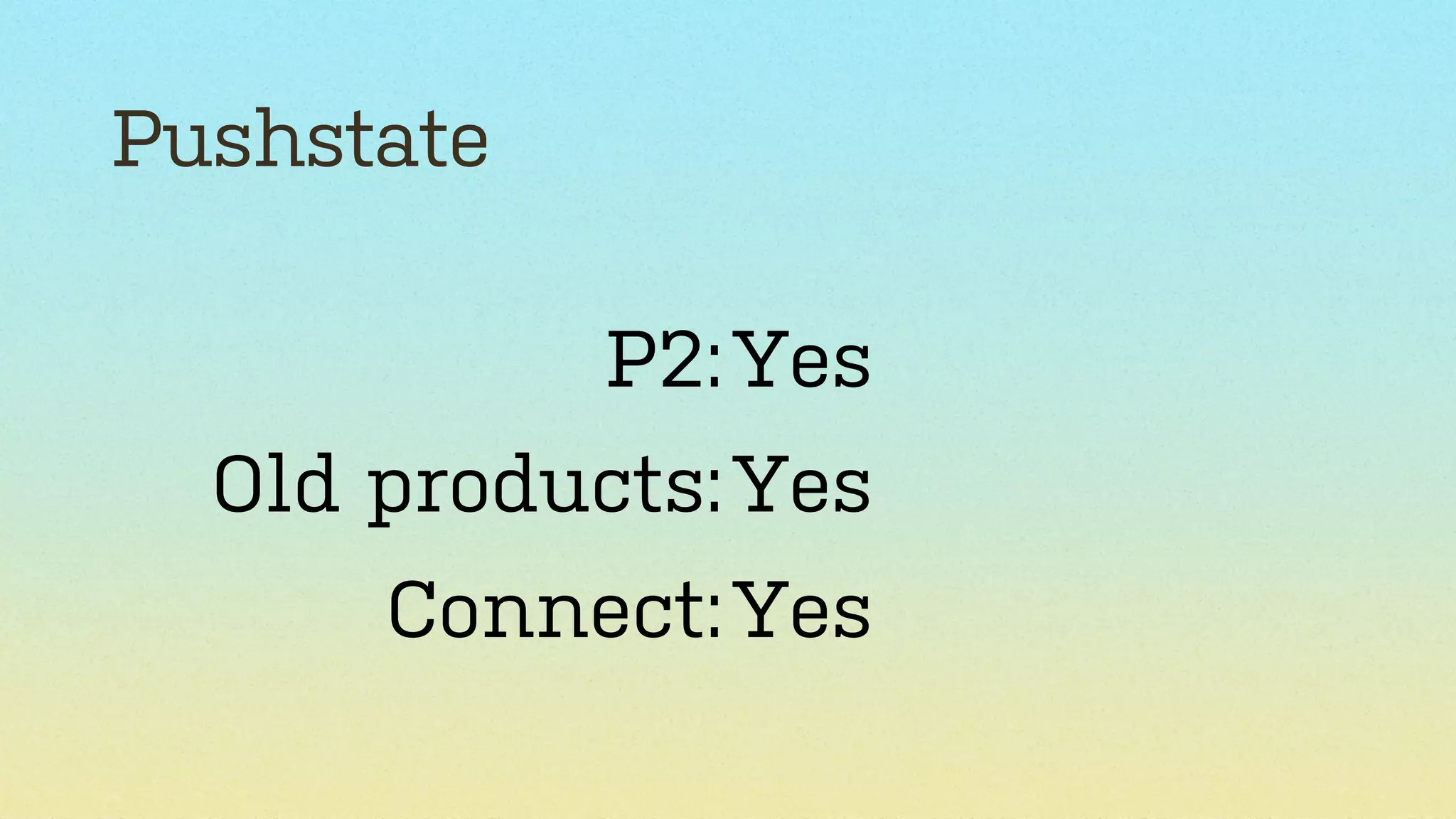

32. Pushstate
P2: Yes
Old products: Yes
Connect: Yes

33. Soy renders on server
and on client

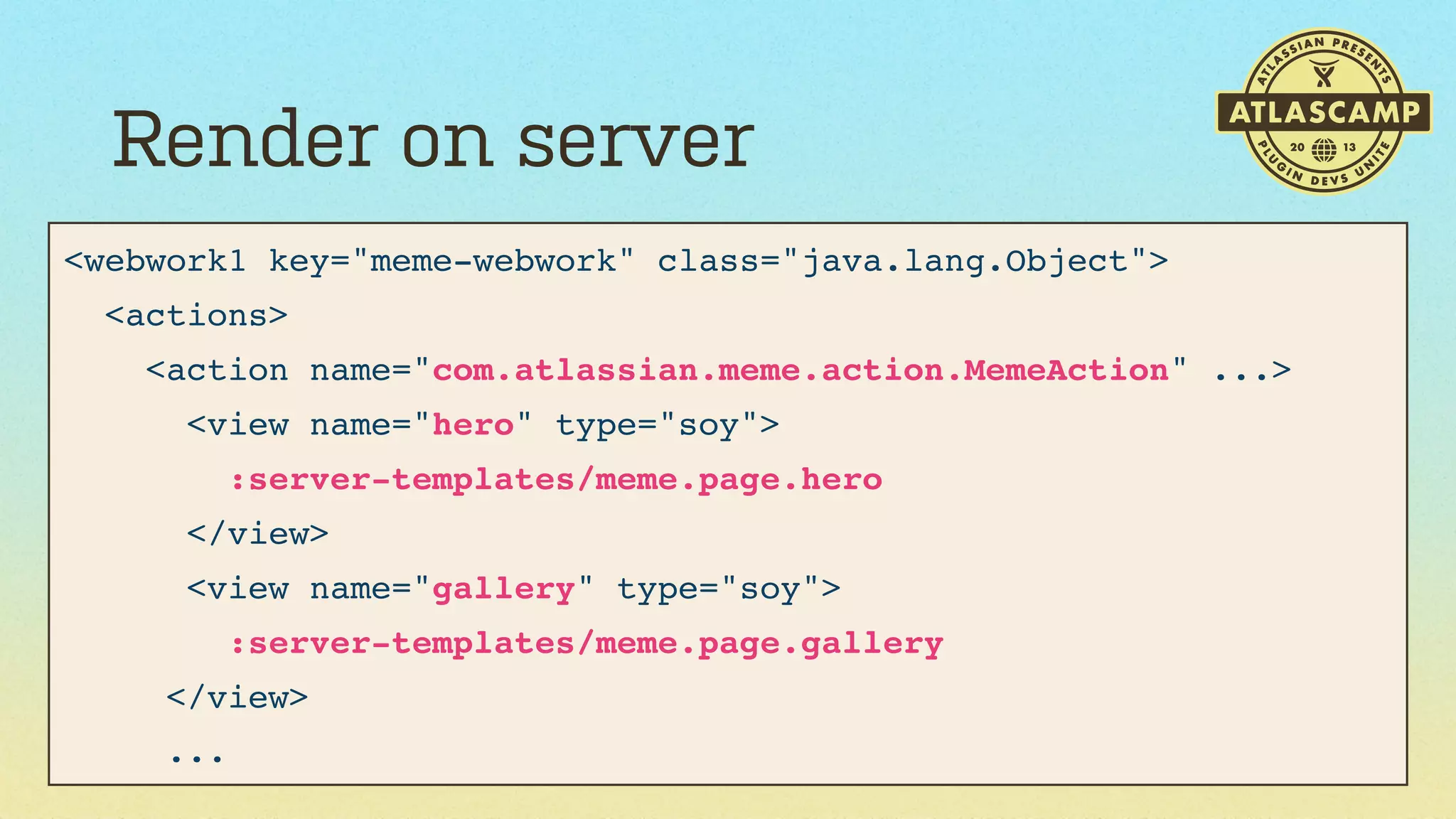

34. Render on server
<webwork1 key="meme-webwork" class="java.lang.Object">
<actions>
<action name="com.atlassian.meme.action.MemeAction" ...>
<view name="hero" type="soy">
:server-templates/meme.page.hero
</view>
<view name="gallery" type="soy">
:server-templates/meme.page.gallery
</view>
...

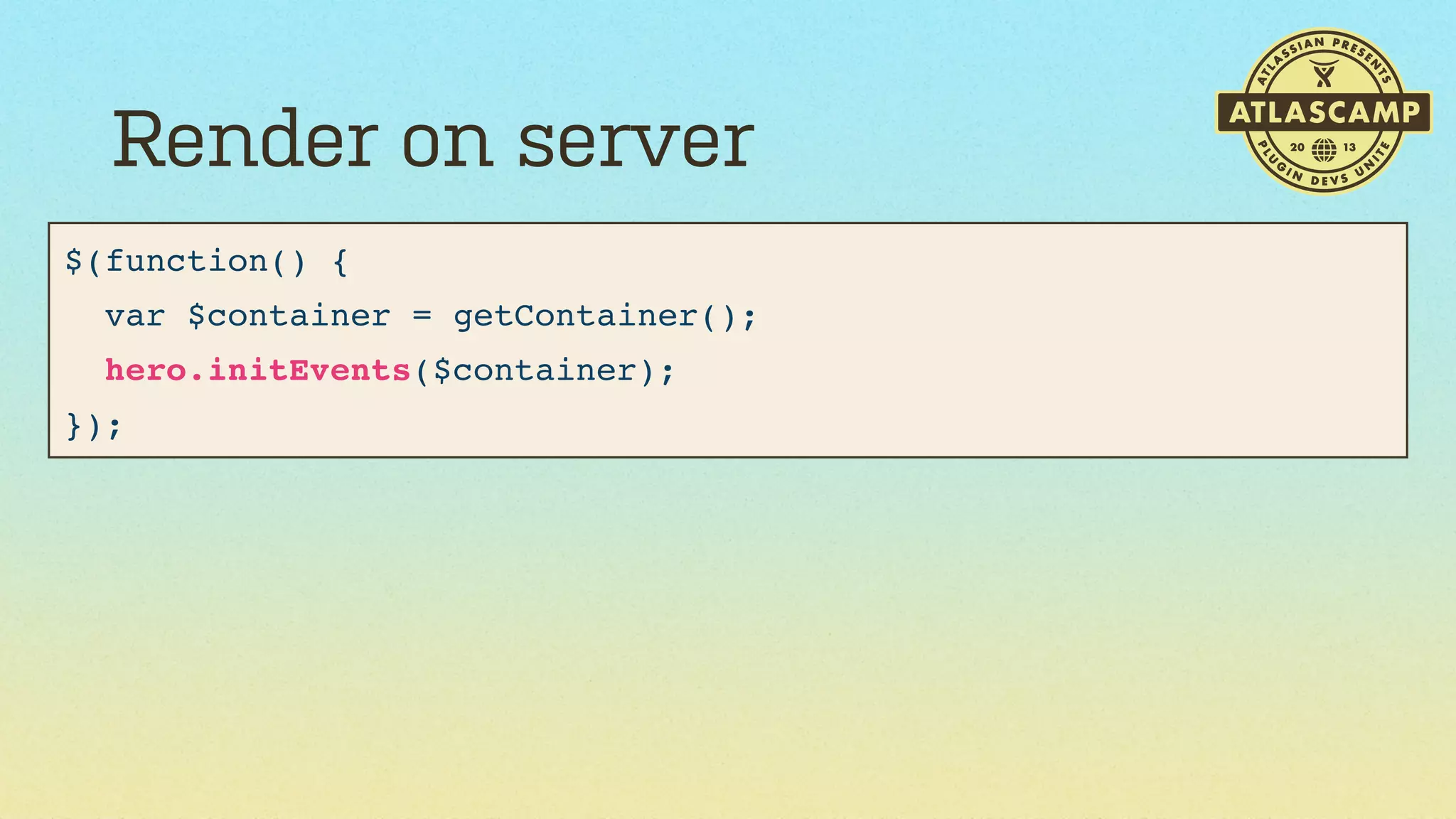

35. Render on server
$(function() {
var $container = getContainer();
hero.initEvents($container);
});

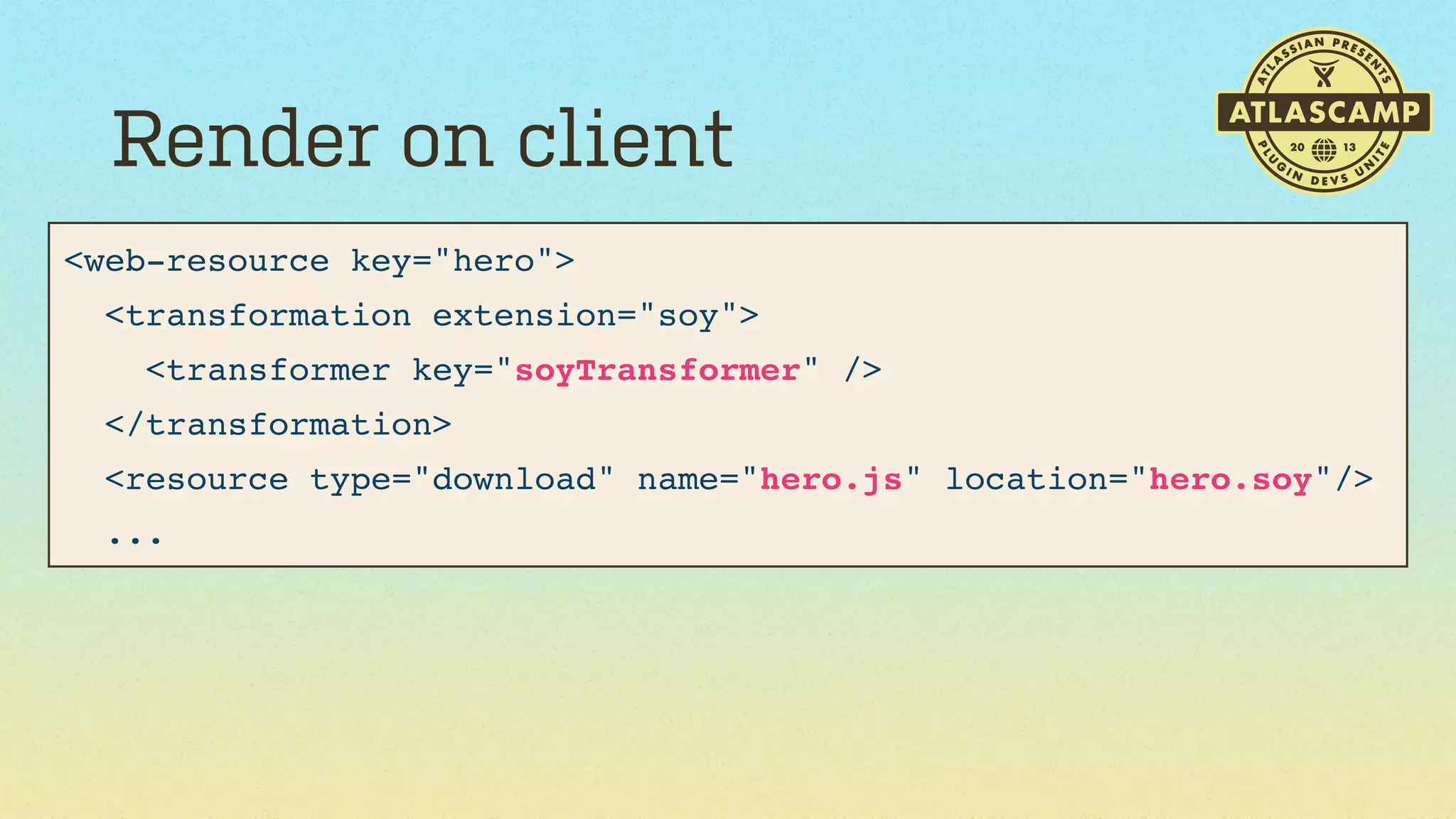

36. Render on client
<web-resource key="hero">
<transformation extension="soy">
<transformer key="soyTransformer" />
</transformation>
<resource type="download" name="hero.js" location="hero.soy"/>
...

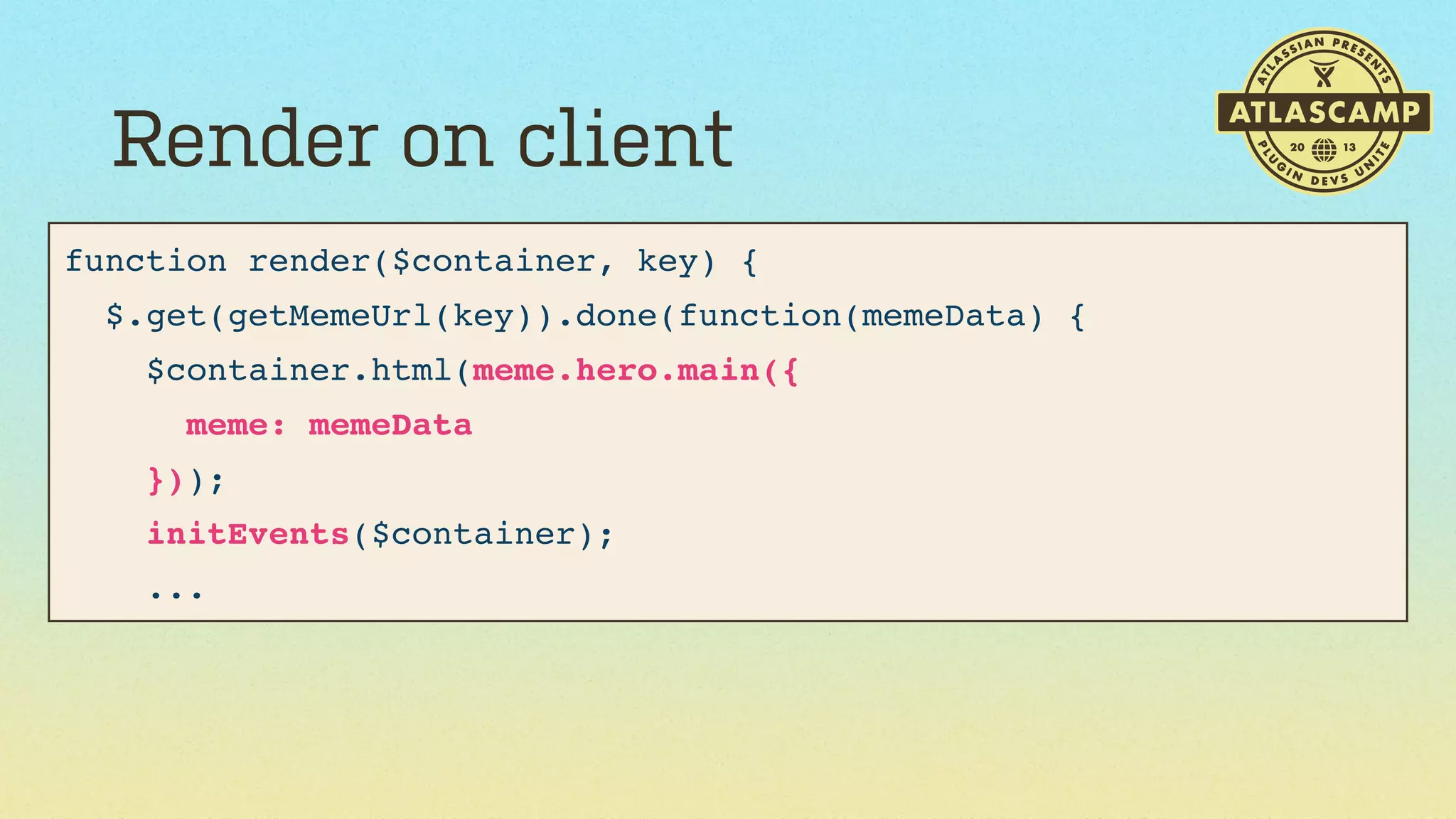

37. Render on client
function render($container, key) {
$.get(getMemeUrl(key)).done(function(memeData) {
$container.html(meme.hero.main({
meme: memeData
}));
initEvents($container);
...

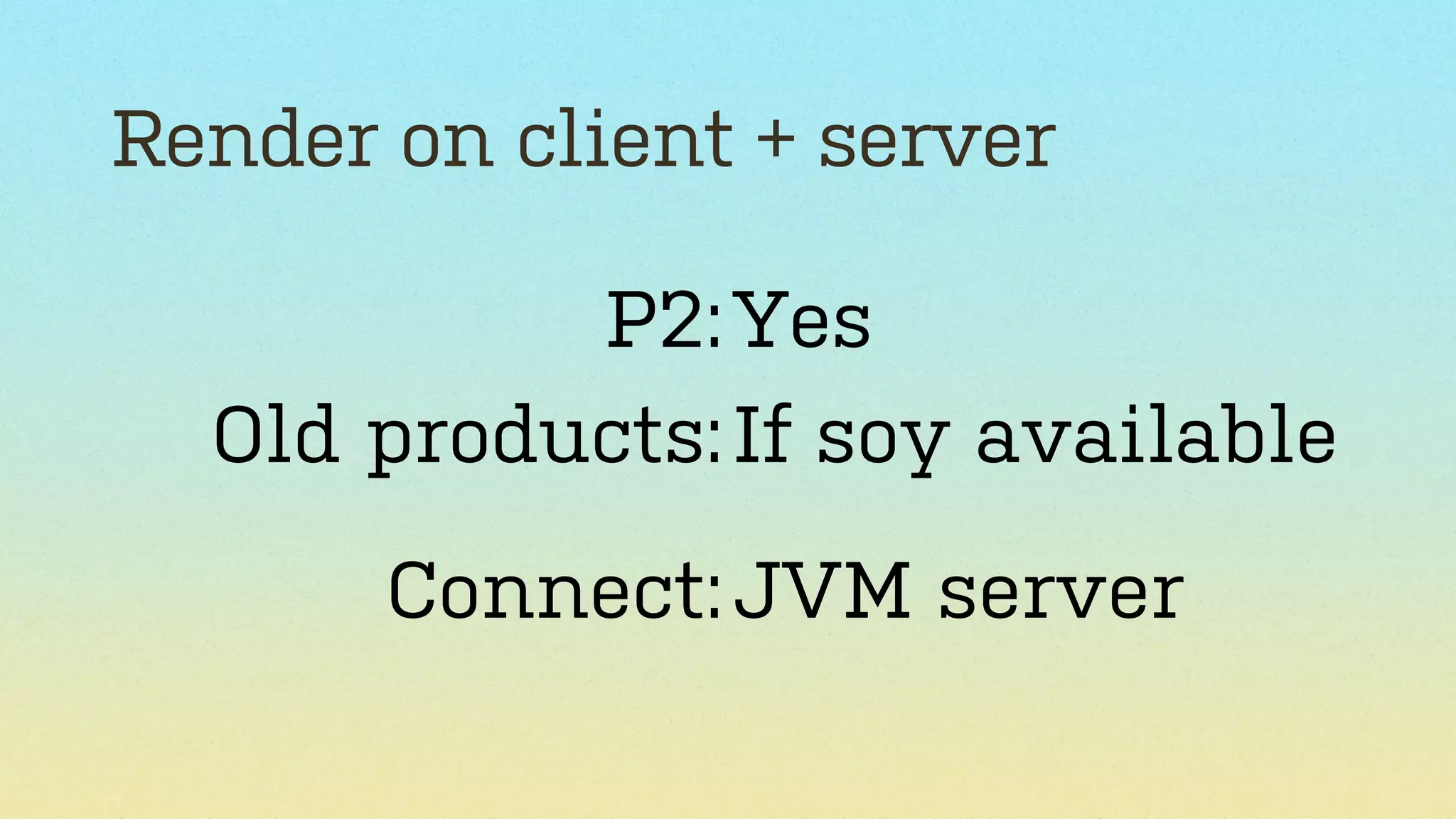

38. Render on client + server
P2: Yes
Old products: If soy available
Connect: JVM server

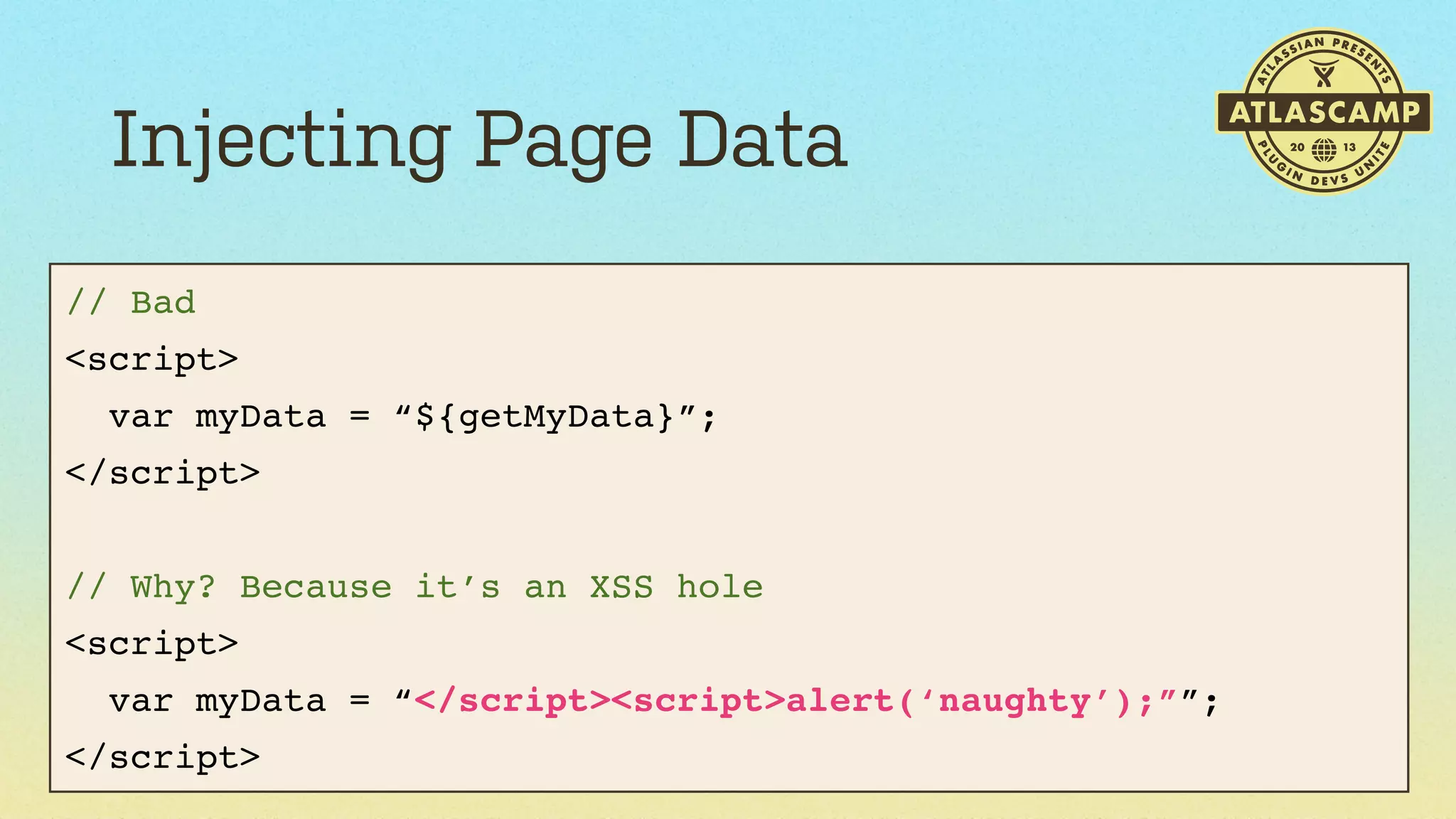

39. Injecting Page Data
// Bad
<script>
var myData = “${getMyData}”;
</script>
// Why? Because it’s an XSS hole
<script>
var myData = “</script><script>alert(‘naughty’);””;
</script>

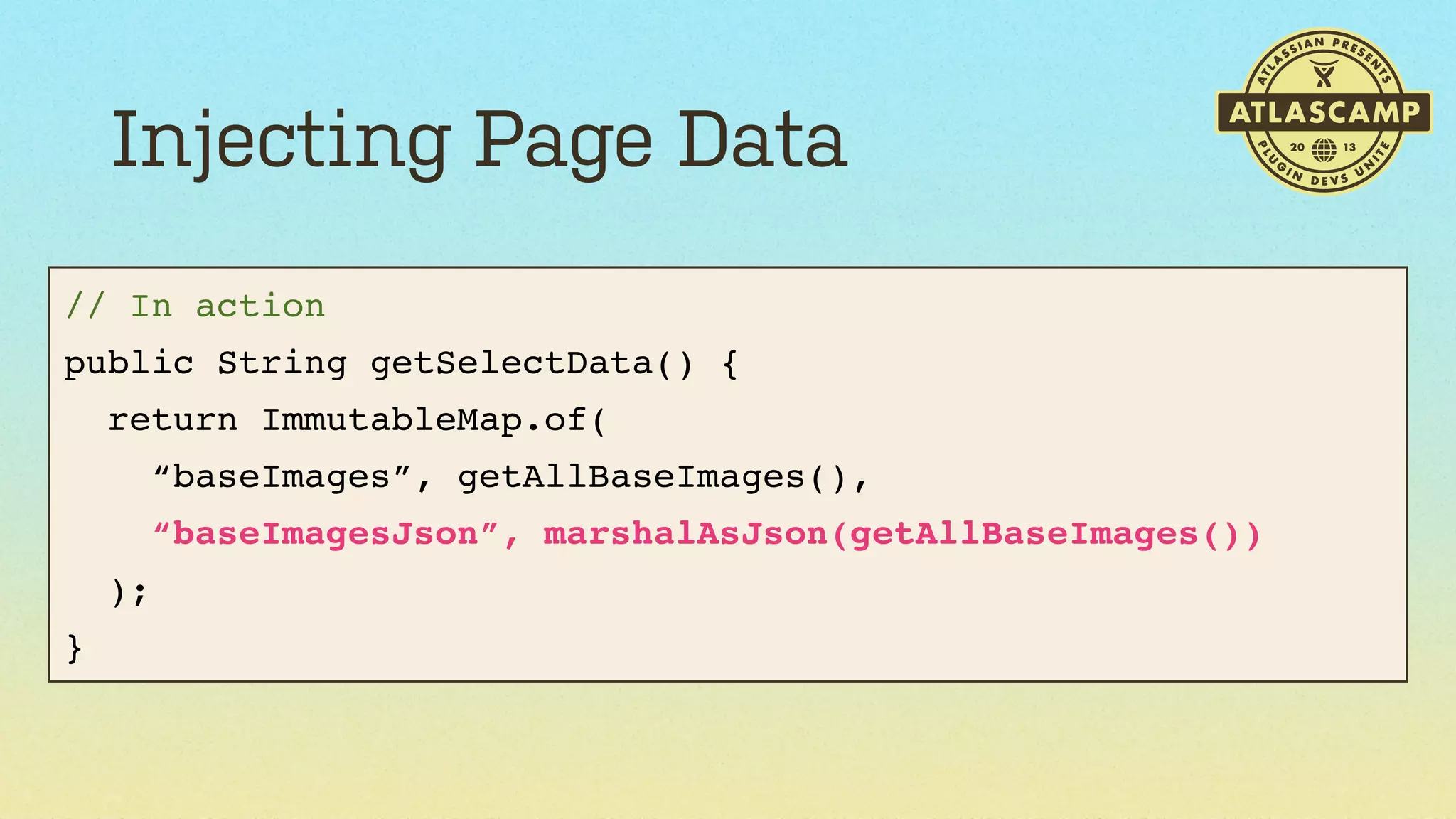

40. Injecting Page Data
// In action
public String getSelectData() {
return ImmutableMap.of(
“baseImages”, getAllBaseImages(),
“baseImagesJson”, marshalAsJson(getAllBaseImages())
);
}

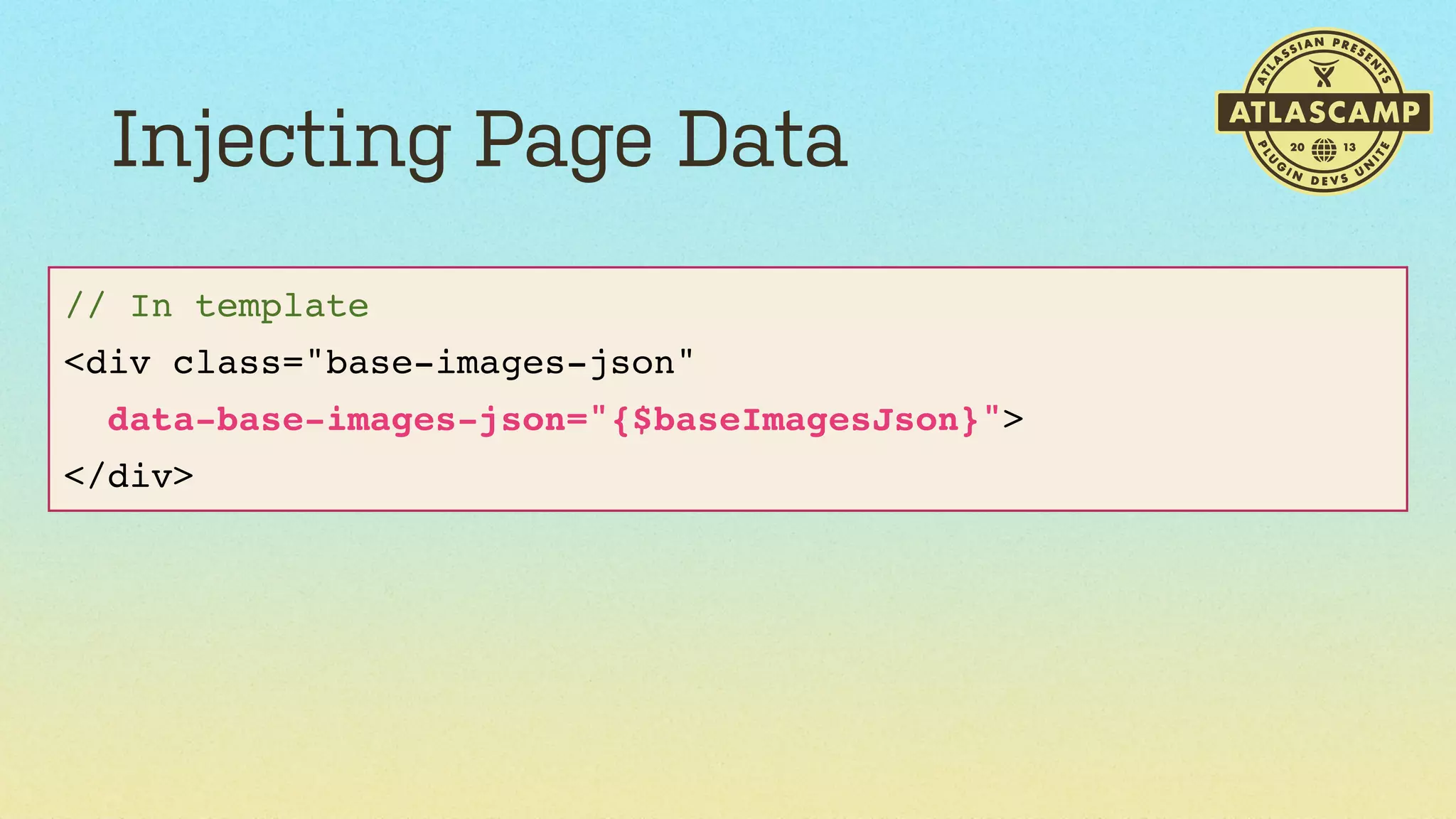

41. Injecting Page Data
// In template
<div class="base-images-json"
data-base-images-json="{$baseImagesJson}">
</div>

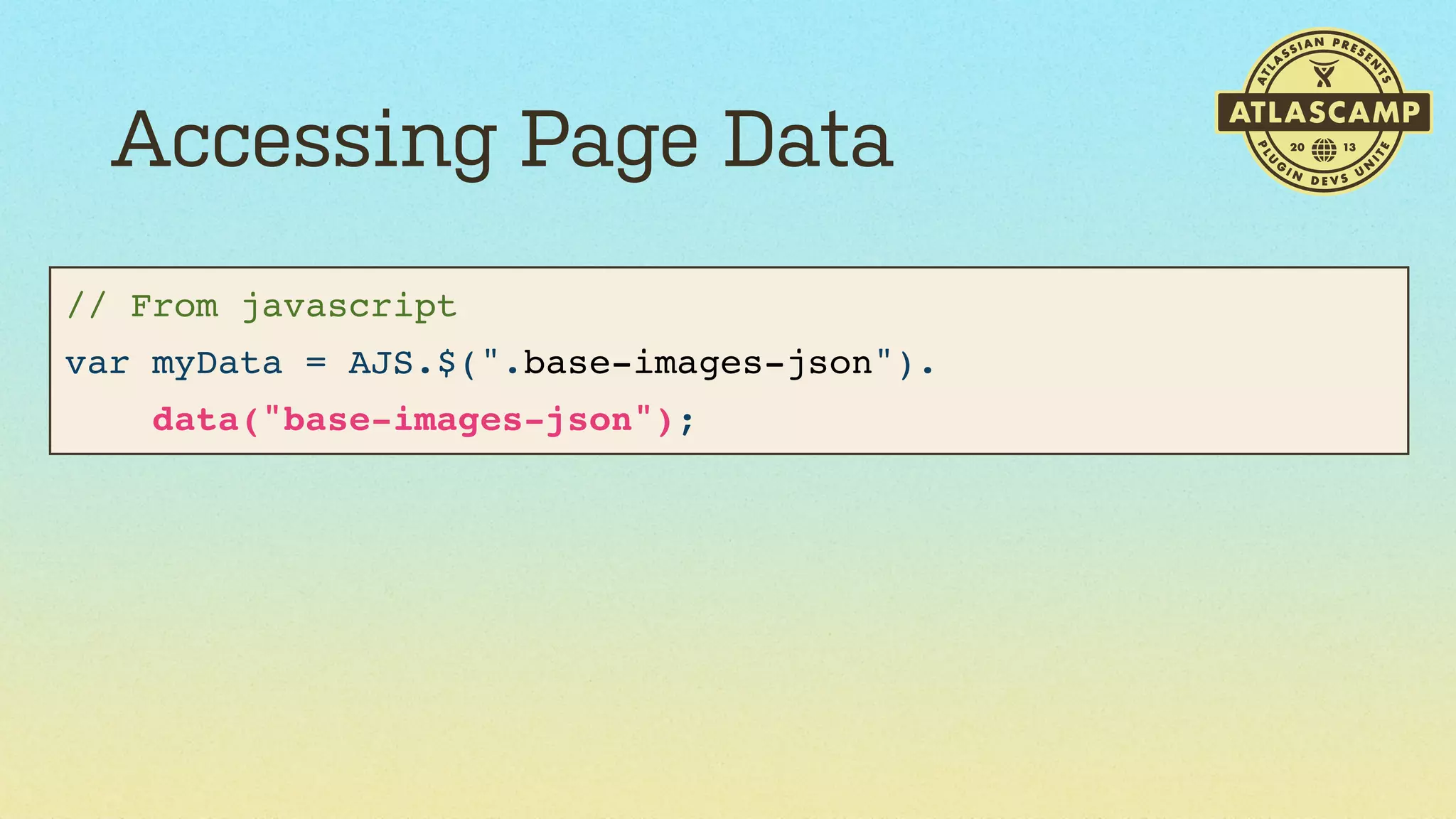

42. Accessing Page Data
// From javascript
var myData = AJS.$(".base-images-json").
data("base-images-json");

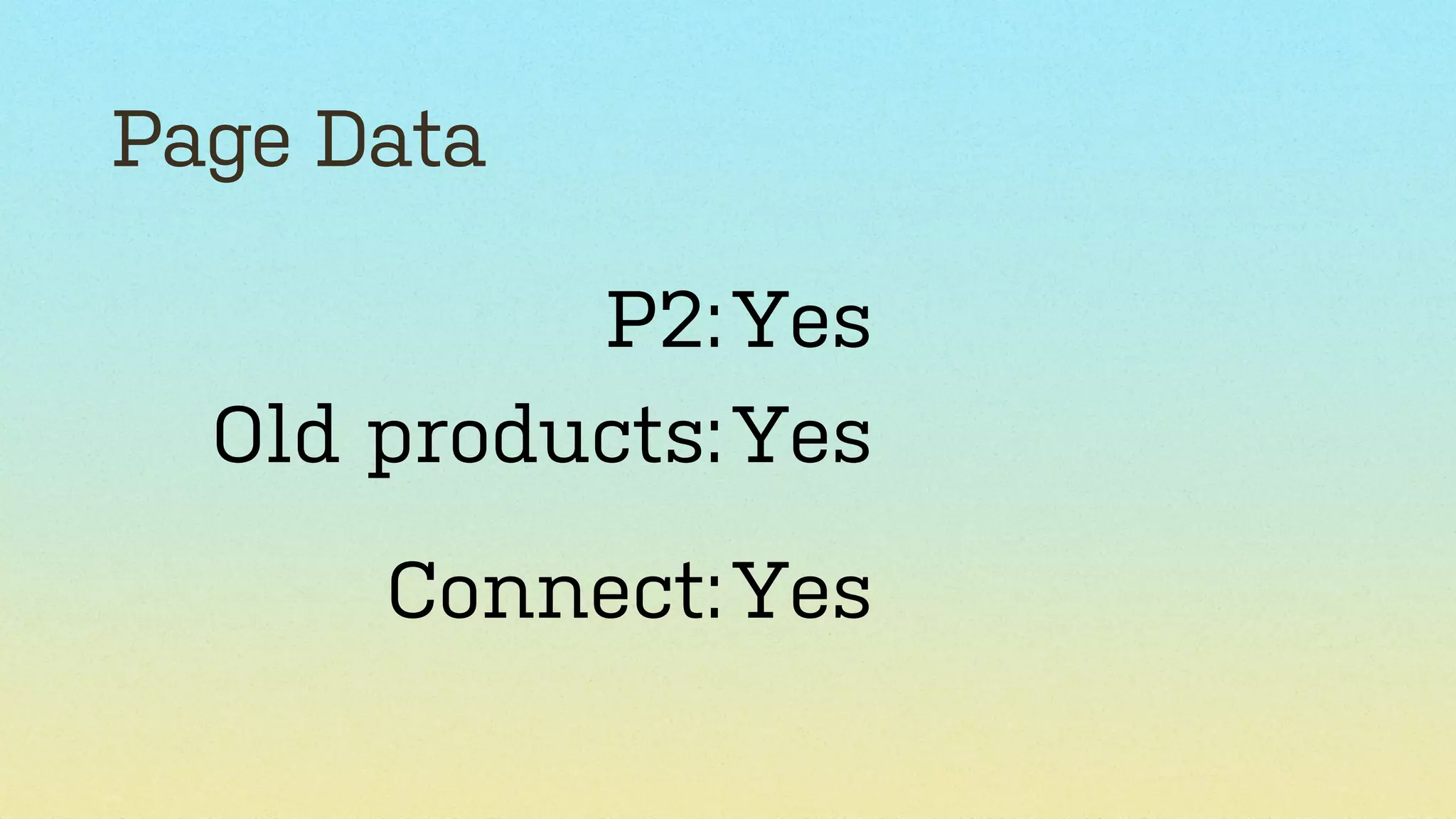

43. Page Data
P2: Yes
Old products: Yes
Connect: Yes

44. Future ...

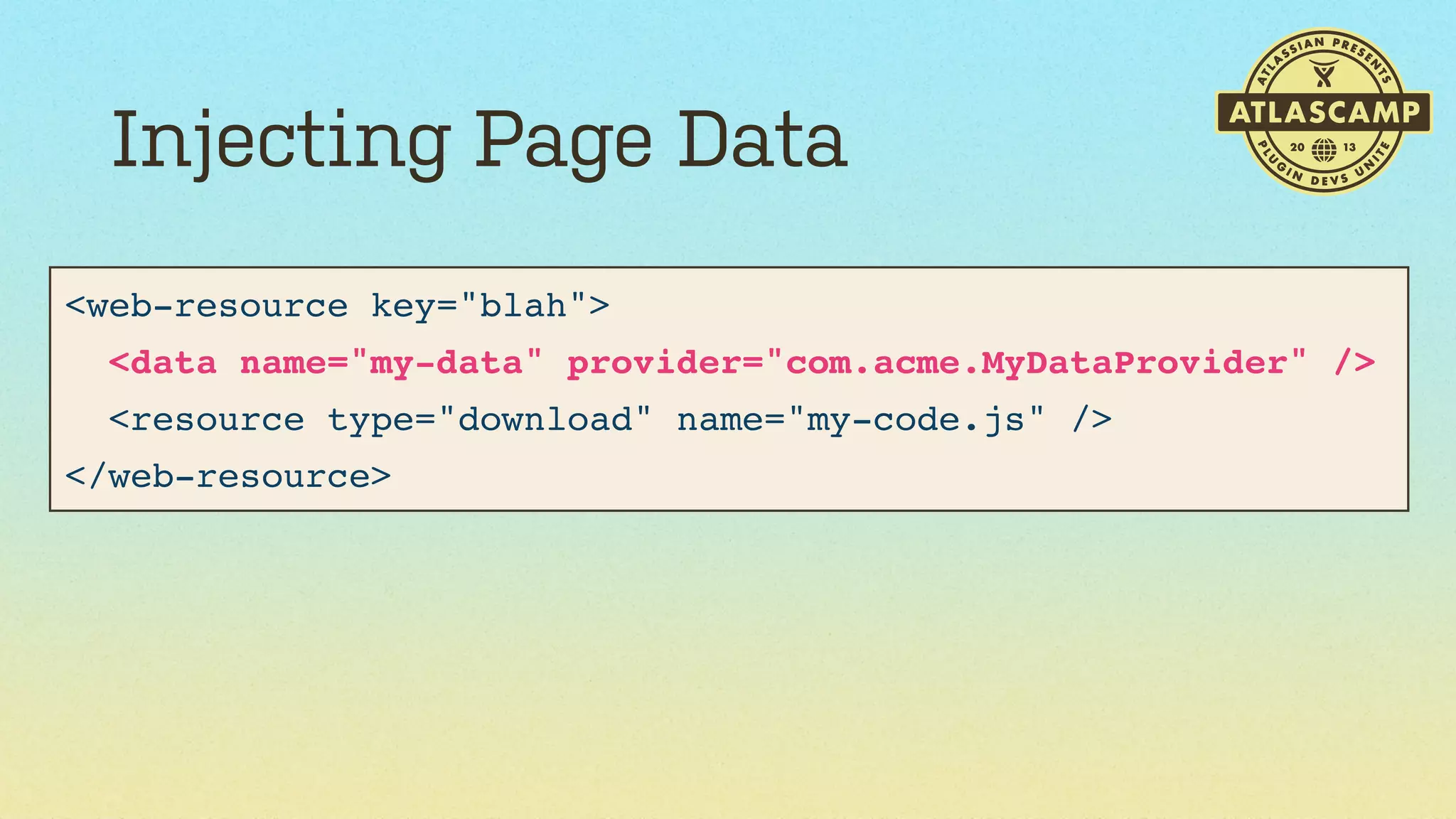

45. Injecting Page Data
<web-resource key="blah">
<data name="my-data" provider="com.acme.MyDataProvider" />
<resource type="download" name="my-code.js" />
</web-resource>

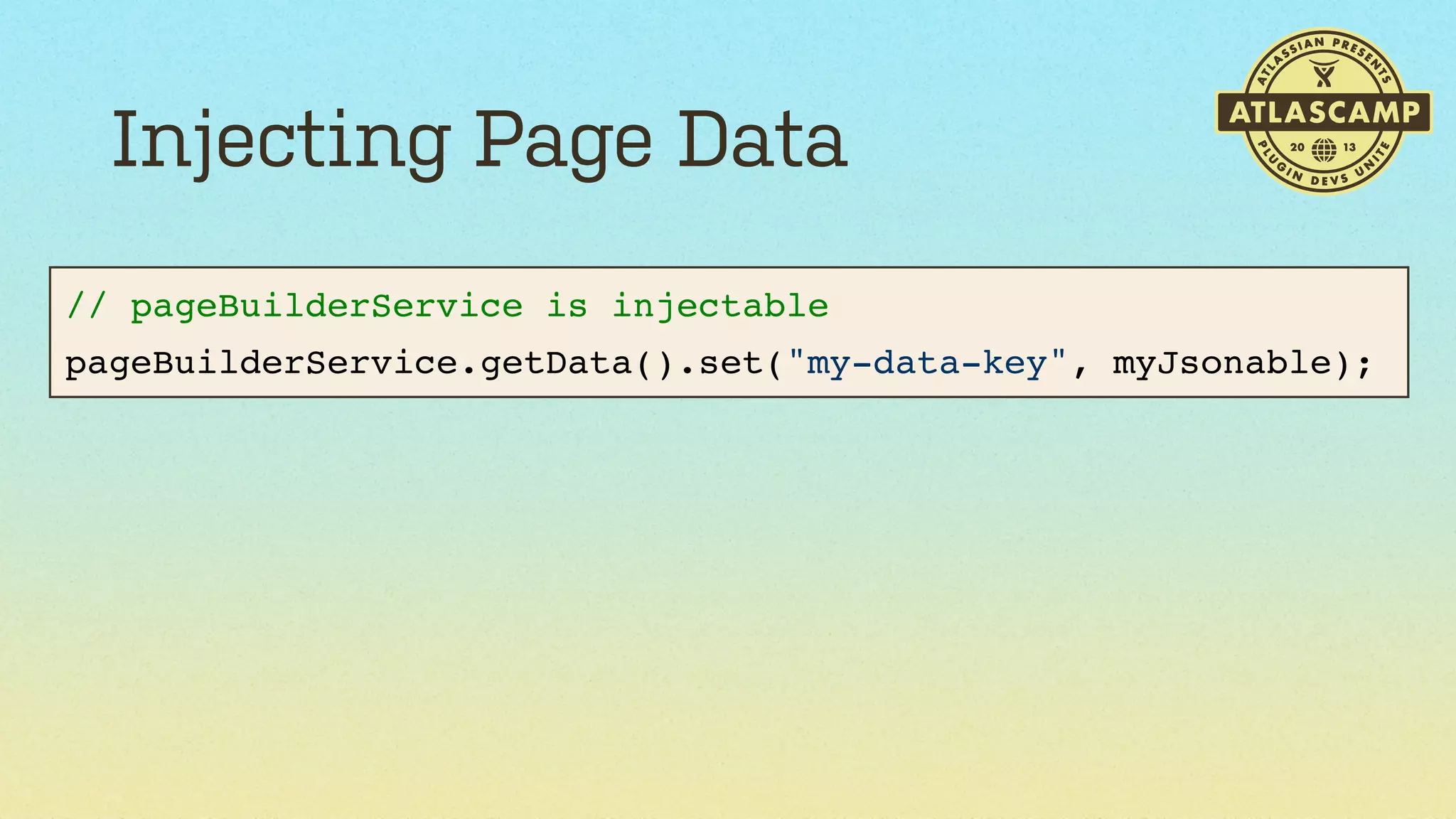

46. Injecting Page Data
// pageBuilderService is injectable
pageBuilderService.getData().set("my-data-key", myJsonable);

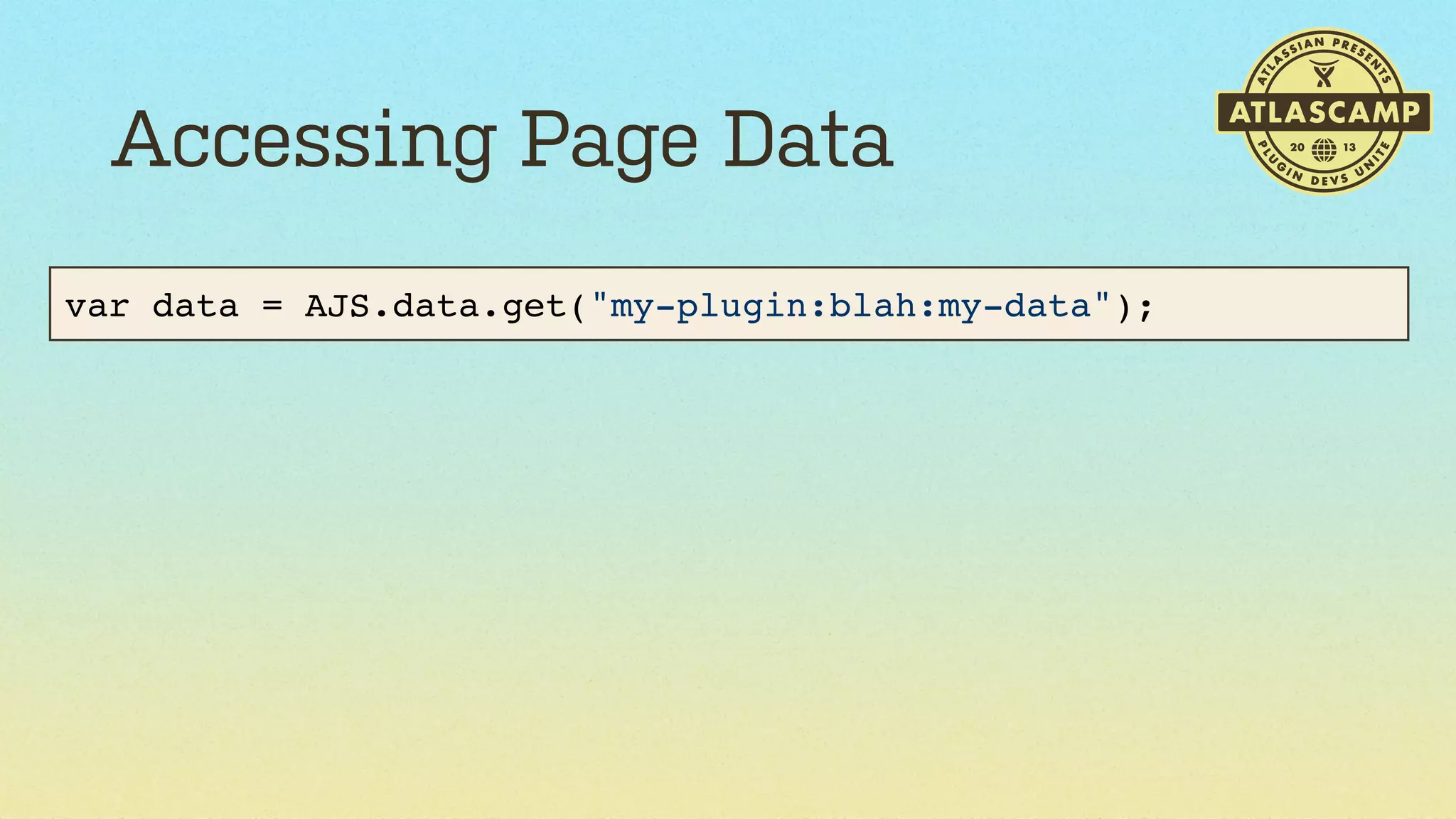

47. Accessing Page Data
var data = AJS.data.get("my-plugin:blah:my-data");

48. Gallery
Hero
Main
Select
Create
Read files
Form
Utils
Render Meme

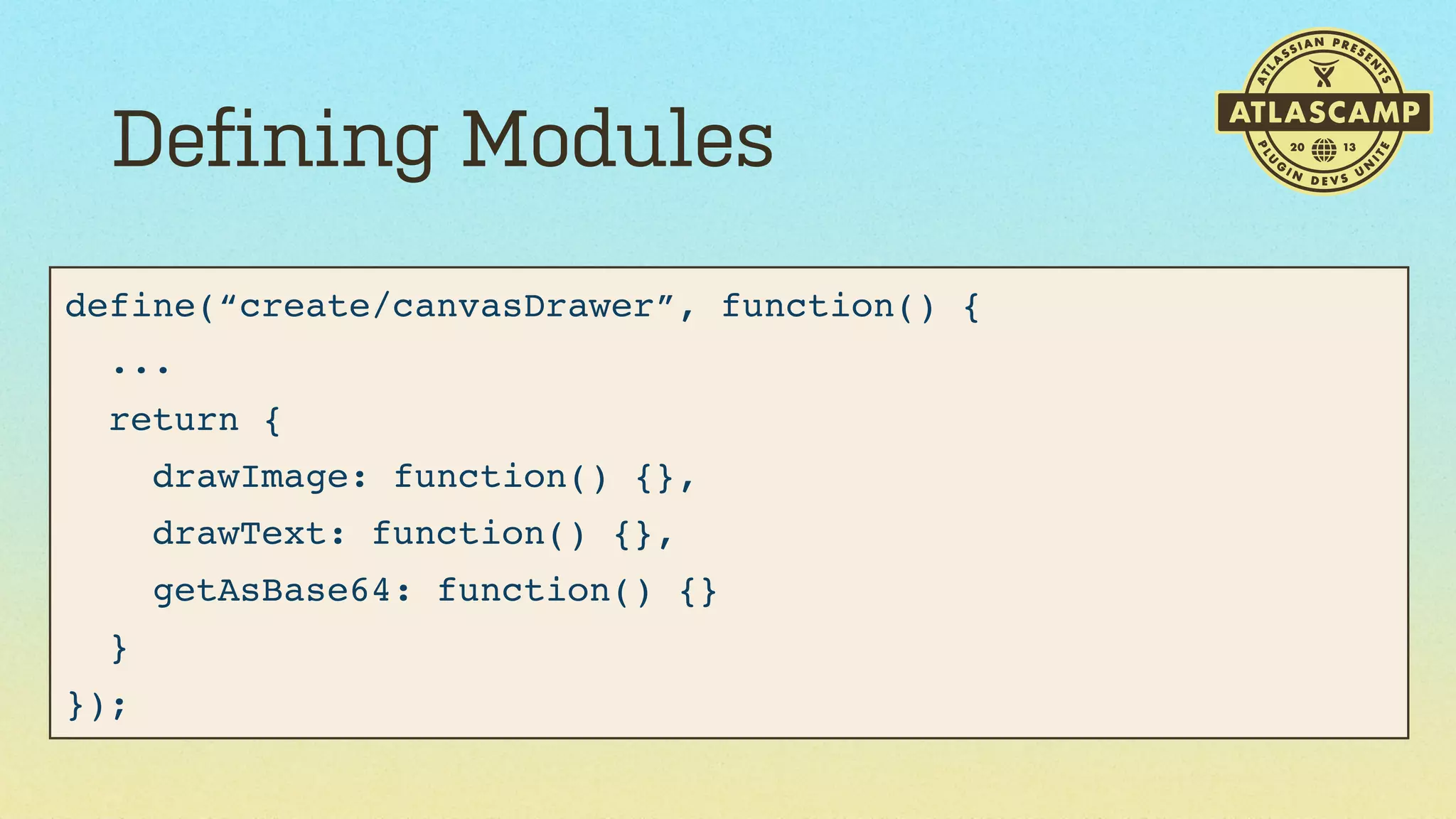

49. Defining Modules
define(“create/canvasDrawer”, function() {
...
return {
drawImage: function() {},
drawText: function() {},
getAsBase64: function() {}
}
});

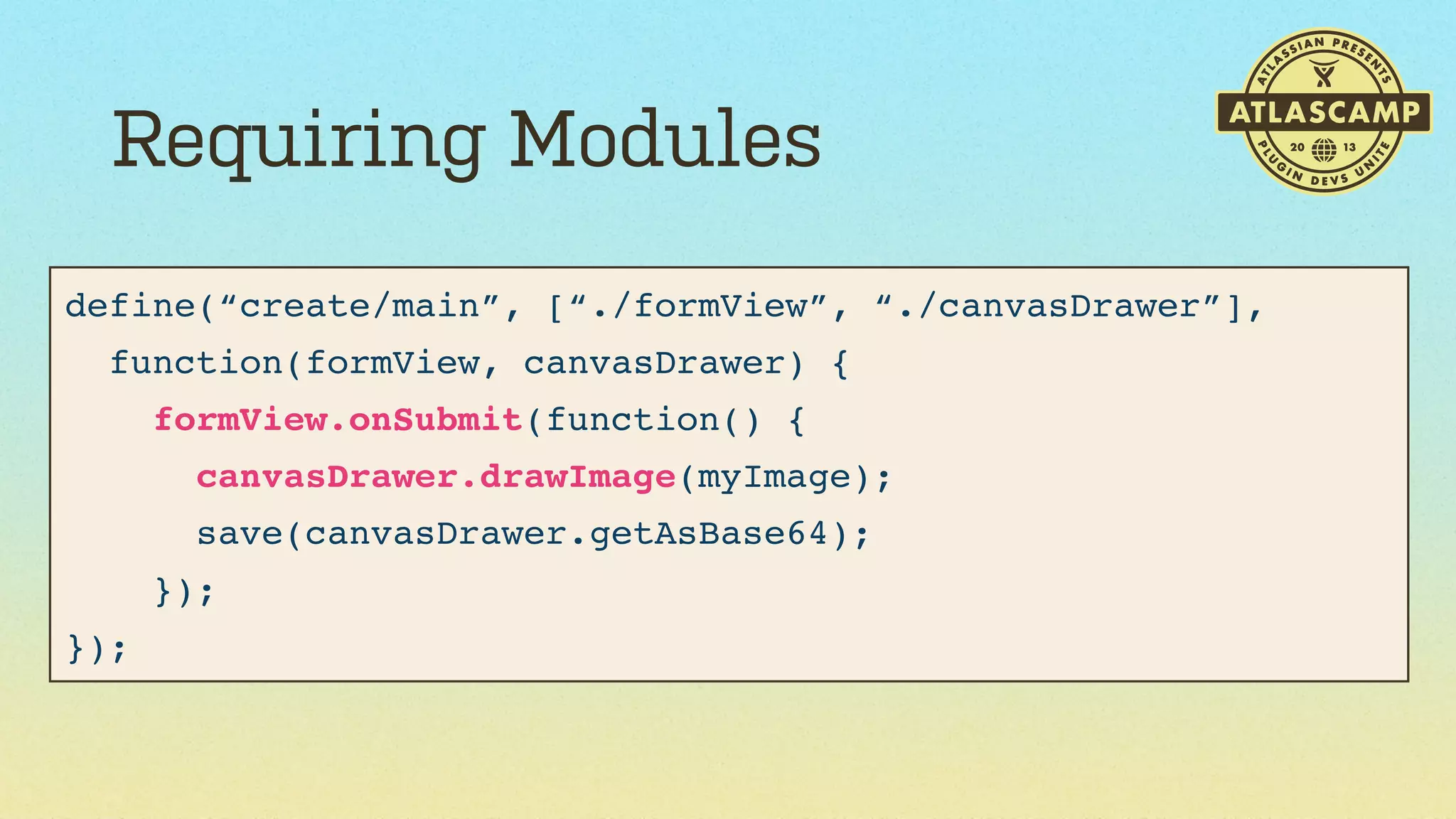

50. Requiring Modules
define(“create/main”, [“./formView”, “./canvasDrawer”],
function(formView, canvasDrawer) {
formView.onSubmit(function() {
canvasDrawer.drawImage(myImage);
save(canvasDrawer.getAsBase64);
});
});

51. almond.js

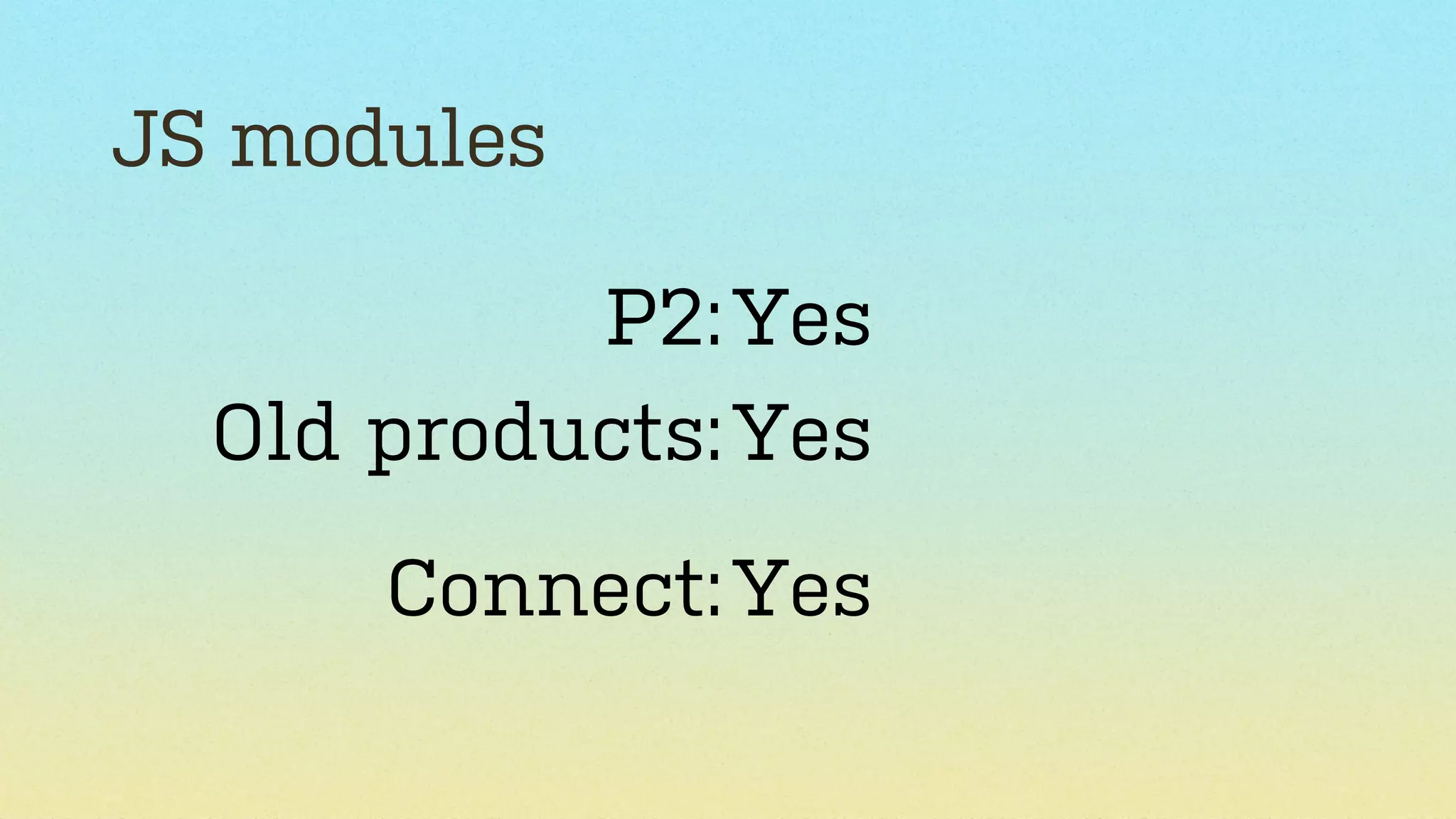

52. JS modules
P2: Yes
Old products: Yes
Connect: Yes

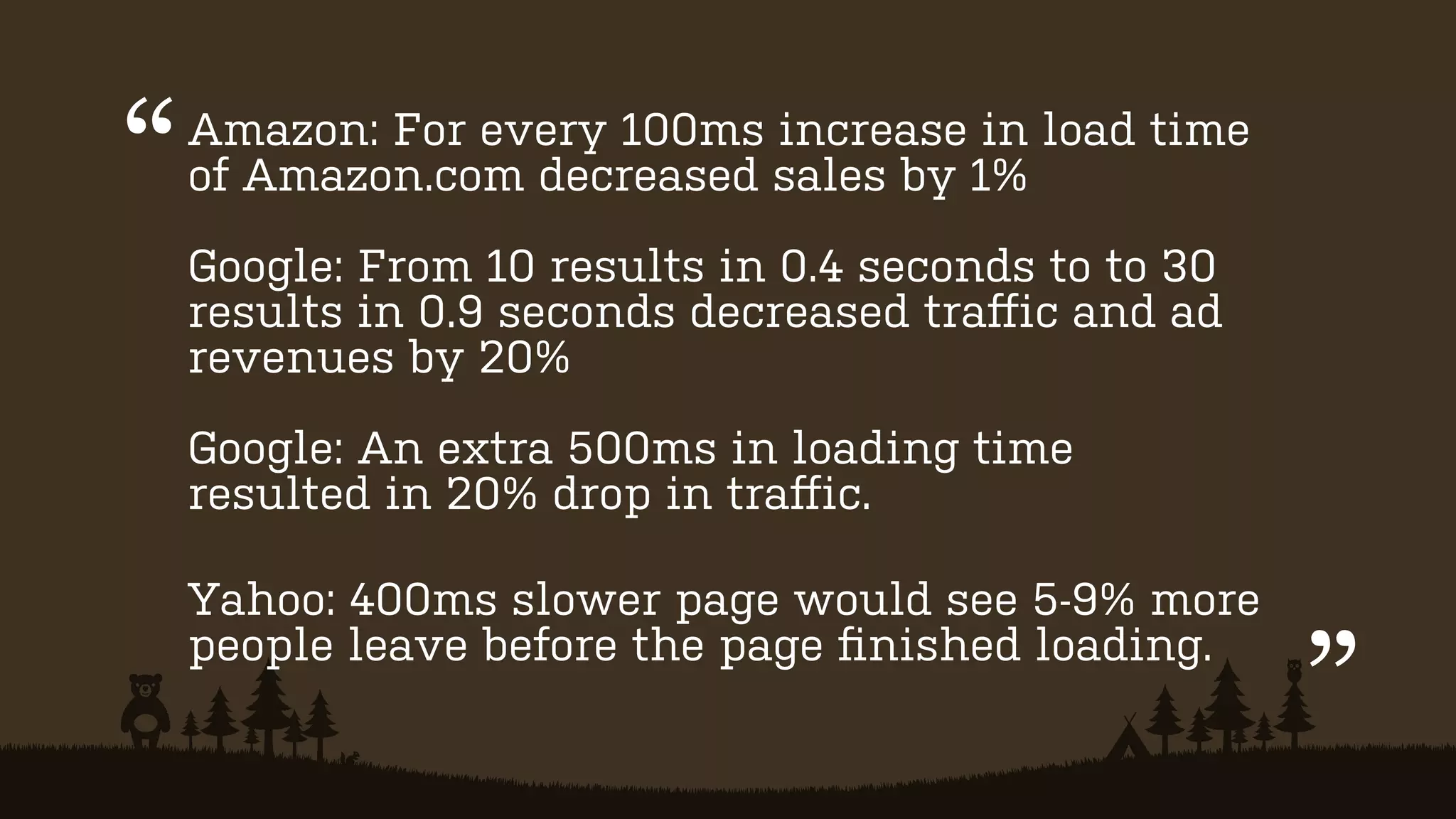

53. “
Amazon: For every 100ms increase in load time
of Amazon.com decreased sales by 1%
Google: From 10 results in 0.4 seconds to to 30
results in 0.9 seconds decreased traffic and ad
revenues by 20%
Google: An extra 500ms in loading time
resulted in 20% drop in traffic.
Yahoo: 400ms slower page would see 5-9% more
people leave before the page finished loading.
”

54. Gallery
Hero
Main
Select
Create
Read Files
Form
Utils
Render Meme

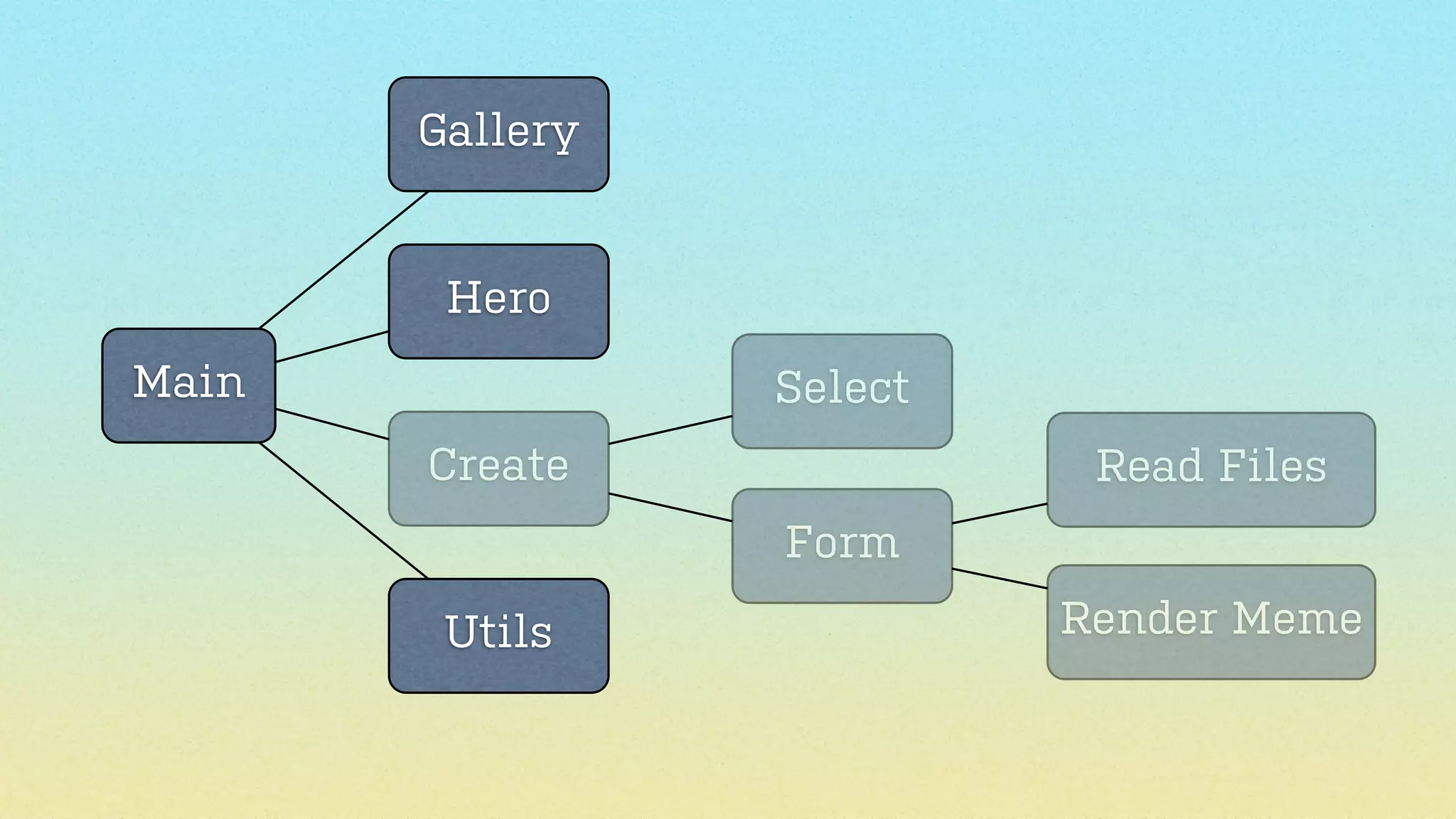

55. Gallery
Hero
Main
Select
Create
Read Files
Form
Utils
Render Meme

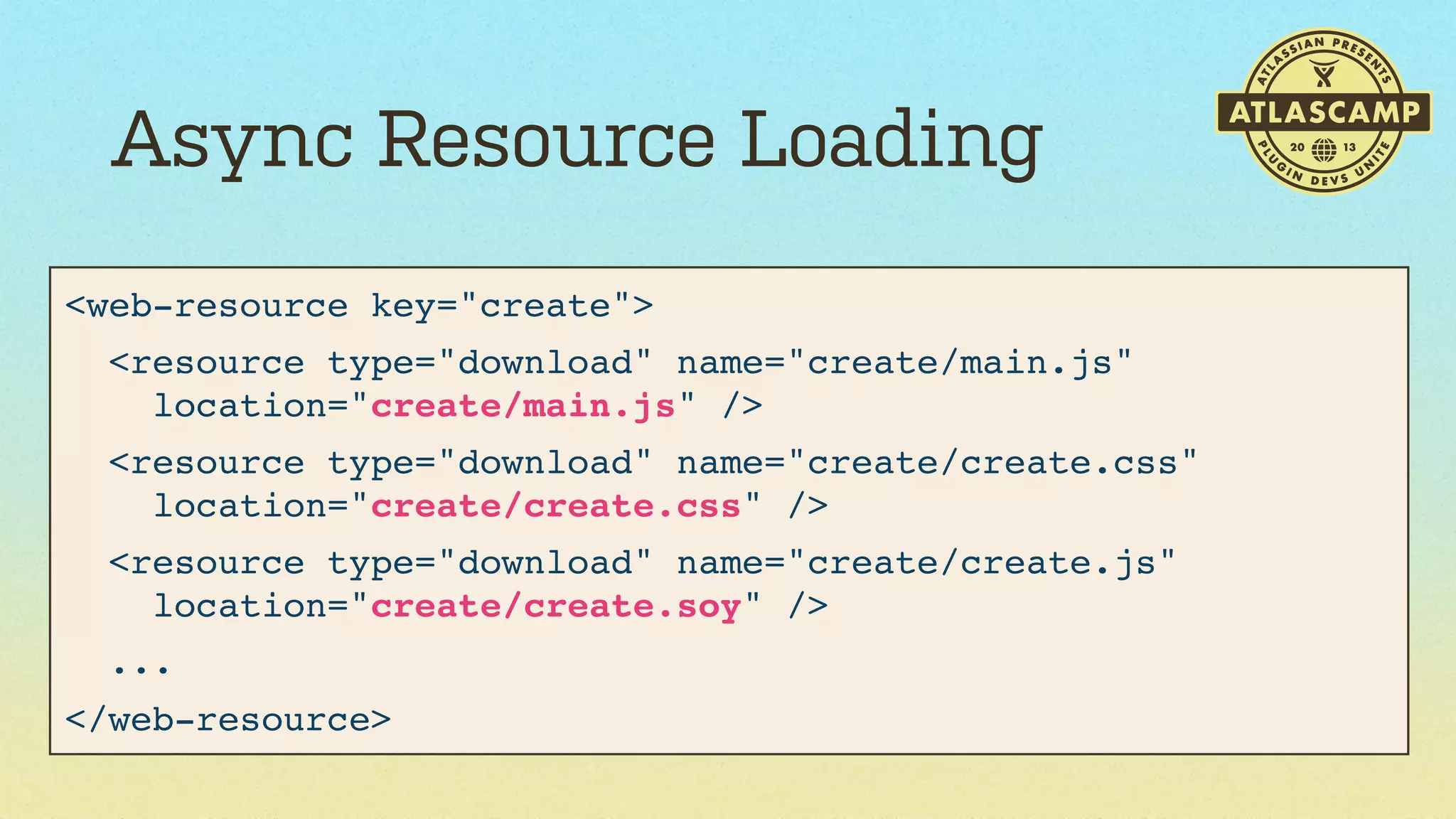

56. Async Resource Loading
<web-resource key="create">
<resource type="download" name="create/main.js"
location="create/main.js" />
<resource type="download" name="create/create.css"
location="create/create.css" />
<resource type="download" name="create/create.js"
location="create/create.soy" />
...
</web-resource>

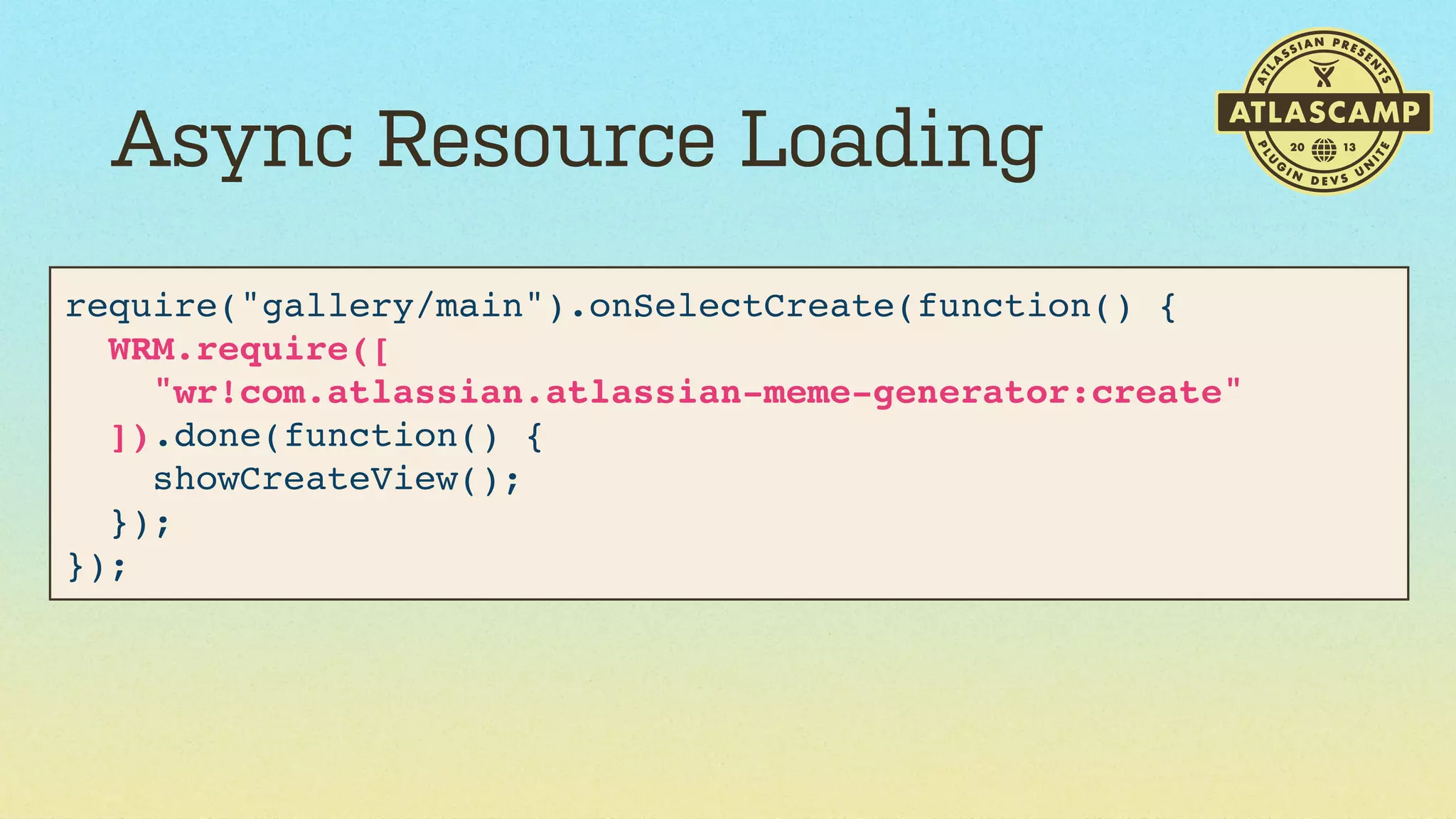

57. Async Resource Loading
require("gallery/main").onSelectCreate(function() {
WRM.require([
"wr!com.atlassian.atlassian-meme-generator:create"
]).done(function() {
showCreateView();
});
});

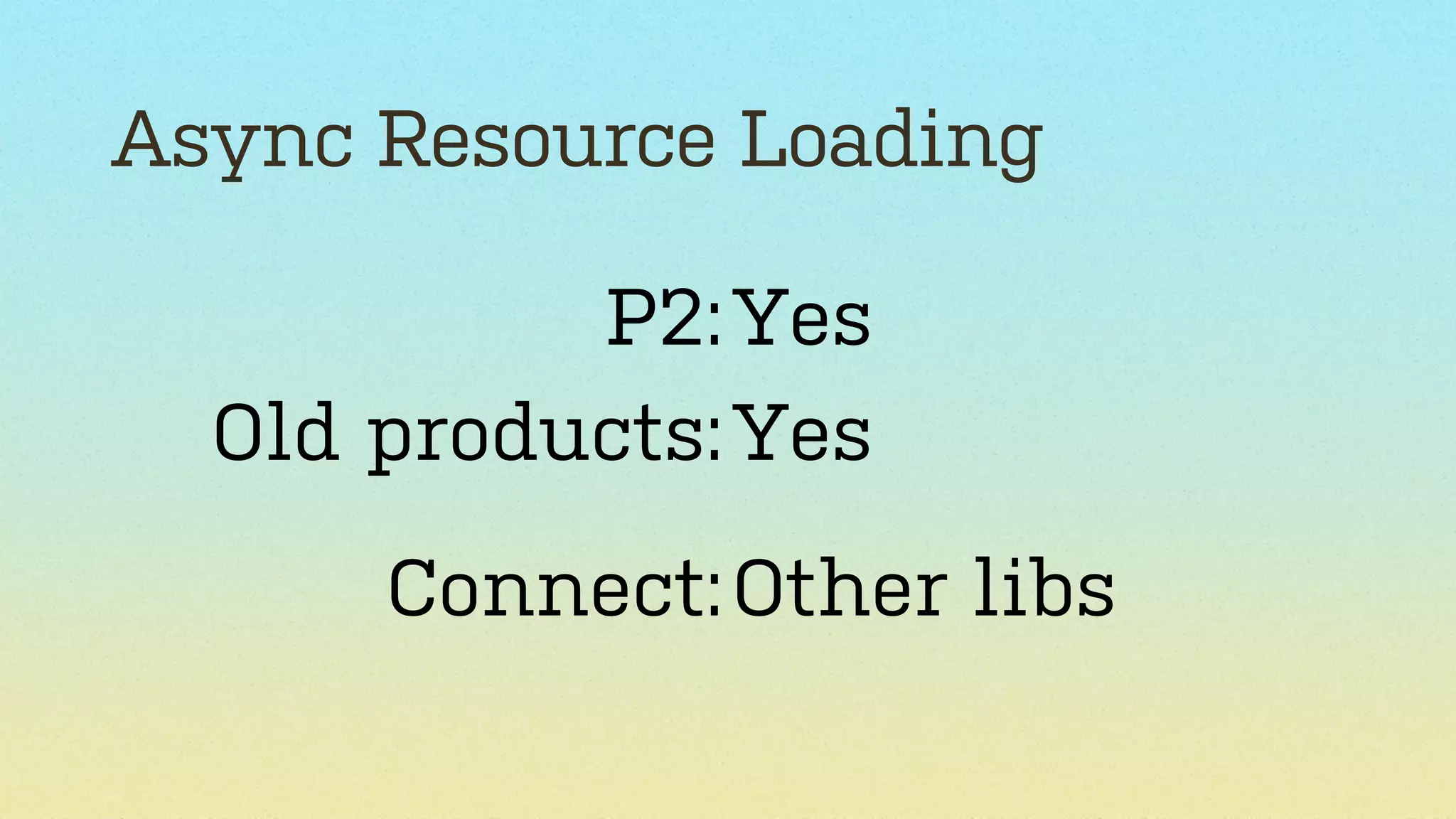

58. Async Resource Loading
P2: Yes
Old products: Yes
Connect: Other libs

59. Beauty:
Soy
Pretty URLs

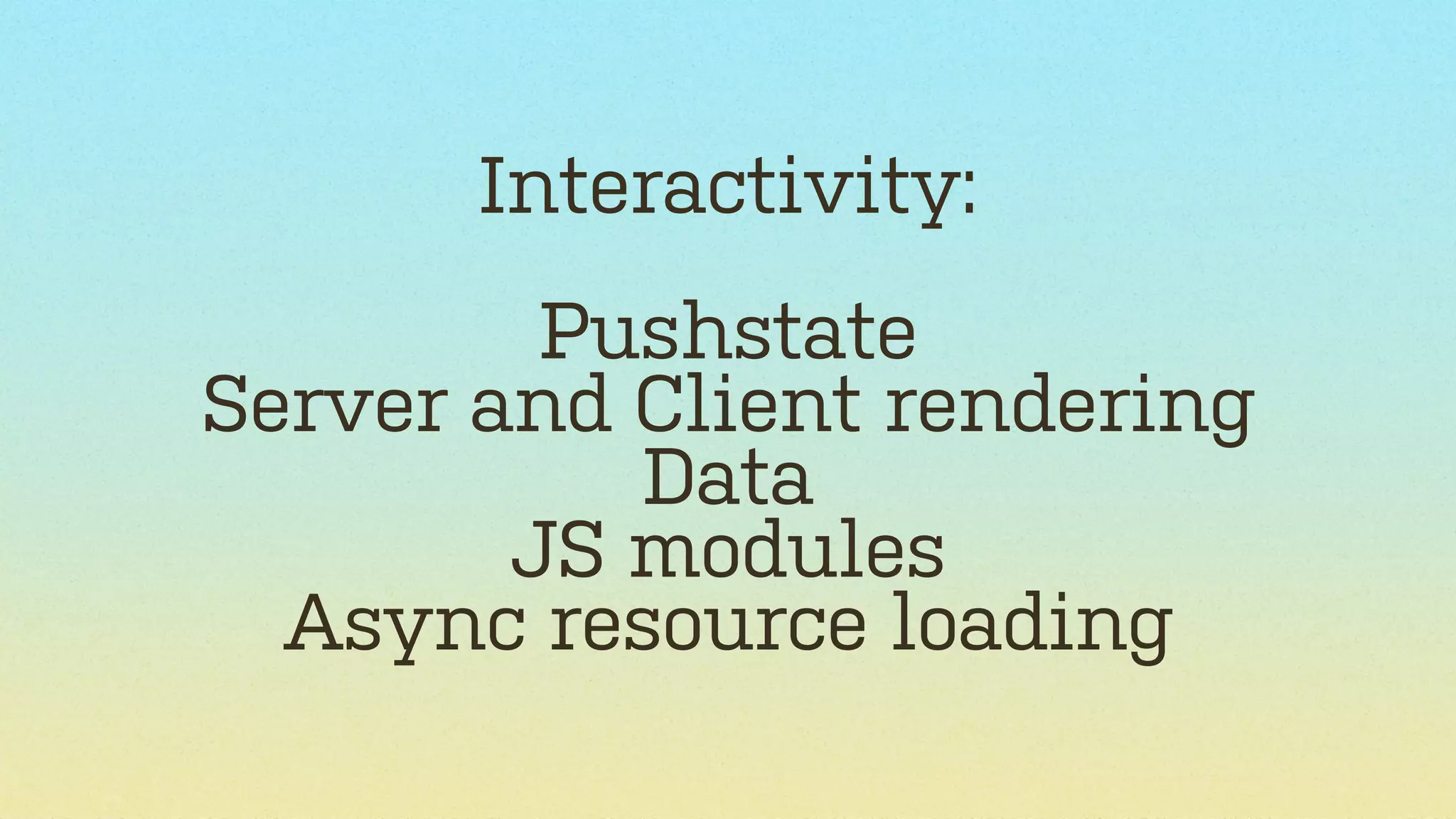

60. Interactivity:
Pushstate
Server and Client rendering
Data
JS modules
Async resource loading

61. Sample App:
http://bitbucket.org/jcreenaune/atlassian-memegenerator
AUI Debugger:
http://bit.ly/10DXYlG

62. Thank you!

63. Party Starts at 19.00!
SkyLounge, Oosterdoksstraat 4, 11th Floor
