1. IPv6 deployment status
update
Enabling IPv6 in Mobile Networks Workshop
Kuala Lumpur, Malaysia, 21 – 22 Oct 2015
Miwa Fujii <miwa@apnic.net>

2. Agenda
• Update on IPv6 end user readiness in the world
– Review of statistics as examples
• Trend on new organizations with IPv6
– Source: IPv6 ready end users measurement:
http://labs.apnic.net/ipv6-measurement/
– Case studies: enabling IPv6 in mobile networks
– Observation on iOS and Android devices
– Conclusion
2

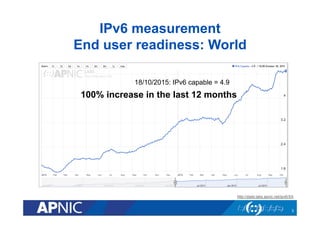

3. IPv6 measurement
End user readiness: World
http://stats.labs.apnic.net/ipv6/XA
3
18/10/2015: IPv6 capable = 4.9
100% increase in the last 12 months

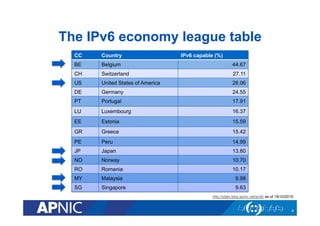

4. The IPv6 economy league table
4
http://stats.labs.apnic.net/ipv6/ as of 19/10/2015
CC Country IPv6 capable (%)
BE Belgium 44.67
CH Switzerland 27.11
US United States of America 26.06
DE Germany 24.55
PT Portugal 17.91
LU Luxembourg 16.37
EE Estonia 15.59
GR Greece 15.42
PE Peru 14.99
JP Japan 13.80
NO Norway 10.70
RO Romania 10.17
MY Malaysia 9.98
SG Singapore 9.63

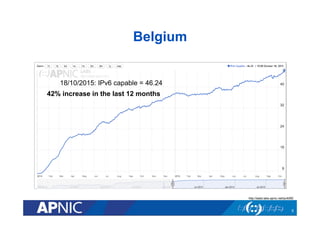

5. Belgium
5
18/10/2015: IPv6 capable = 46.24
42% increase in the last 12 months
http://stats.labs.apnic.net/ipv6/BE

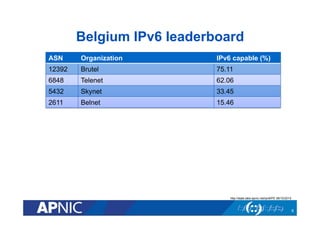

6. Belgium IPv6 leaderboard
6
ASN Organization IPv6 capable (%)
12392 Brutel 75.11
6848 Telenet 62.06
5432 Skynet 33.45
2611 Belnet 15.46
http://stats.labs.apnic.net/ipv6/PE 06/10/2015

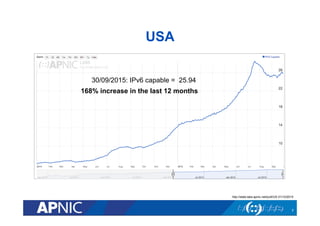

7. USA
7
http://stats.labs.apnic.net/ipv6/US 01/10/2015
168% increase in the last 12 months
30/09/2015: IPv6 capable = 25.94

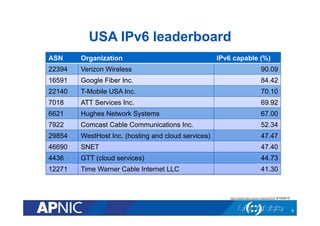

8. USA IPv6 leaderboard
8
ASN Organization IPv6 capable (%)
22394 Verizon Wireless 90.09
16591 Google Fiber Inc. 84.42
22140 T-Mobile USA Inc. 70.10
7018 ATT Services Inc. 69.92
6621 Hughes Network Systems 67.00
7922 Comcast Cable Communications Inc. 52.34
29854 WestHost Inc. (hosting and cloud services) 47.47
46690 SNET 47.40
4436 GTT (cloud services) 44.73
12271 Time Warner Cable Internet LLC 41.30
http://stats.labs.apnic.net/ipv6/US 6/10/2015

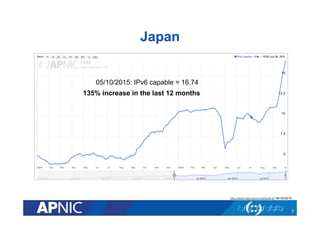

9. Japan
9
05/10/2015: IPv6 capable = 16.74
135% increase in the last 12 months
http://stats.labs.apnic.net/ipv6/JP 06/10//2015

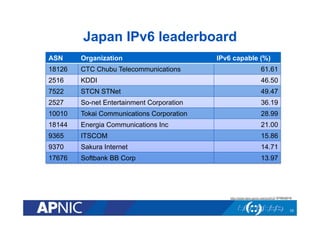

10. Japan IPv6 leaderboard
10
ASN Organization IPv6 capable (%)
18126 CTC Chubu Telecommunications 61.61
2516 KDDI 46.50
7522 STCN STNet 49.47
2527 So-net Entertainment Corporation 36.19
10010 Tokai Communications Corporation 28.99
18144 Energia Communications Inc 21.00
9365 ITSCOM 15.86
9370 Sakura Internet 14.71
17676 Softbank BB Corp 13.97
http://stats.labs.apnic.net/ipv6/US 07/05/2015

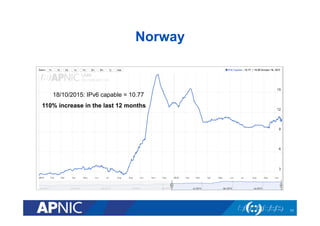

11. Norway
11
18/10/2015: IPv6 capable = 10.77
110% increase in the last 12 months

12. Norway IPv6 leaderboard
12
ASN Organization IPv6 capable (%)
41164 GET Norway 28.36
2119 Telenor 10.86
http://stats.labs.apnic.net/ipv6/NO 19//10/2015

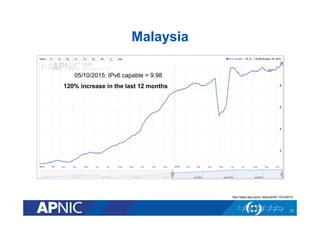

13. Malaysia
13
05/10/2015: IPv6 capable = 9.98
120% increase in the last 12 months
http://stats.labs.apnic.net/ipv6/MY 1910/2015

14. Malaysia IPv6 leaderboard
14
ASN Organization IPv6 capable (%)
4788 TMTNET 14.84
38044 GITN Network 3.16
http://stats.labs.apnic.net/ipv6/MY 07/05/2015)

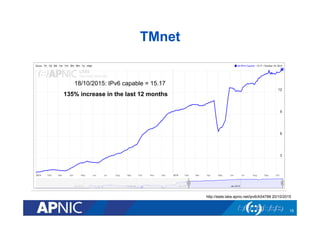

15. TMnet
15
18/10/2015: IPv6 capable = 15.17
135% increase in the last 12 months
http://stats.labs.apnic.net/ipv6/AS4788 20/10/2015

16. GITN
16
http://stats.labs.apnic.net/ipv6/AS38044 20/10/2015
18/10/2015: IPv6 capable = 2.79

17. Singapore
17
20/10/2015: IPv6 capable = 9.83
140% increase in the last 12 months
http://stats.labs.apnic.net/ipv6/SG 18/10/2015

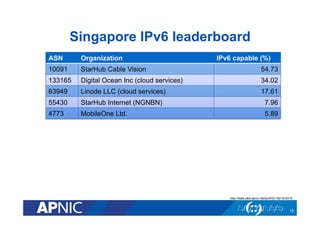

18. Singapore IPv6 leaderboard
18
ASN Organization IPv6 capable (%)
10091 StarHub Cable Vision 54.73
133165 Digital Ocean Inc (cloud services) 34.02
63949 Linode LLC (cloud services) 17.61
55430 StarHub Internet (NGNBN) 7.96
4773 MobileOne Ltd. 5.89
http://stats.labs.apnic.net/ipv6/SG 06/10//2015

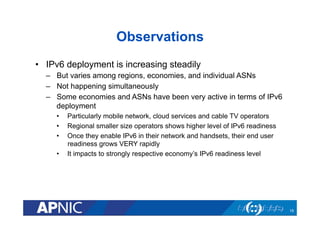

19. Observations
• IPv6 deployment is increasing steadily
– But varies among regions, economies, and individual ASNs
– Not happening simultaneously
– Some economies and ASNs have been very active in terms of IPv6
deployment
• Particularly mobile network, cloud services and cable TV operators
• Regional smaller size operators shows higher level of IPv6 readiness
• Once they enable IPv6 in their network and handsets, their end user
readiness grows VERY rapidly
• It impacts to strongly respective economy’s IPv6 readiness level
19

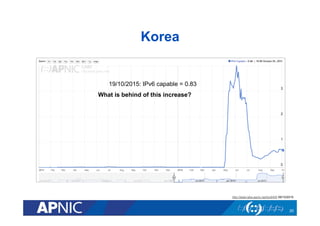

20. Korea
20
19/10/2015: IPv6 capable = 0.83
What is behind of this increase?
http://stats.labs.apnic.net/ipv6/KR 06/10/2015

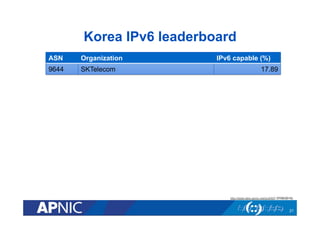

21. Korea IPv6 leaderboard
21
ASN Organization IPv6 capable (%)
9644 SKTelecom 17.89
http://stats.labs.apnic.net/ipv6/MY 07/05/2015)

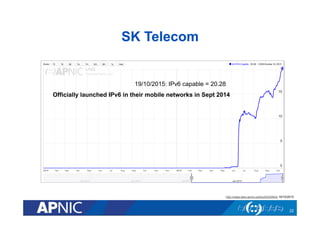

22. SK Telecom
22
19/10/2015: IPv6 capable = 20.28
Officially launched IPv6 in their mobile networks in Sept 2014
http://stats.labs.apnic.net/ipv6/AS9644 19/10/2015

23. 4th Largest userbase provider
Rank
ASN
AS
Name
Users
(est.)
%
Of
Economy
IPv6
Capable
%
1
AS4766
KIXS-­‐AS-­‐KR
Korea
Telecom
19462848
45.6
0
2
AS9318
HANARO-­‐AS
Hanaro
Telecom
Inc.
7968011
18.67
0
3
AS17858
KRNIC-­‐ASBLOCK-­‐AP
KRNIC
4199534
9.84
0
4
AS9644
SKTELECOM-­‐NET-­‐AS
SK
Telecom
2756148
6.46
10.66
5
AS17853
LGTELECOM-­‐AS-­‐KR
LG
Telecom
2018127
4.73
0
6
AS3786
LGDACOM
LG
DACOM
CorporaIon
1280106
3
0

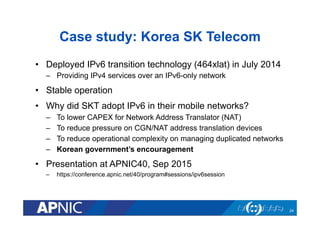

24. Case study: Korea SK Telecom
• Deployed IPv6 transition technology (464xlat) in July 2014
– Providing IPv4 services over an IPv6-only network
• Stable operation
• Why did SKT adopt IPv6 in their mobile networks?
– To lower CAPEX for Network Address Translator (NAT)
– To reduce pressure on CGN/NAT address translation devices
– To reduce operational complexity on managing duplicated networks
– Korean government’s encouragement
• Presentation at APNIC40, Sep 2015
– https://conference.apnic.net/40/program#sessions/ipv6session
24

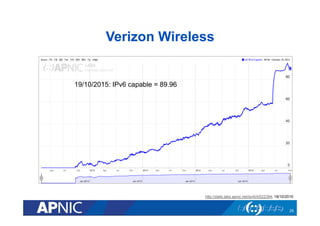

25. Verizon Wireless
25
http://stats.labs.apnic.net/ipv6/AS22394, 18/10/2015
19/10/2015: IPv6 capable = 89.96

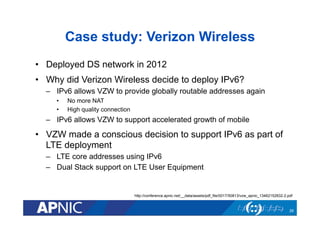

26. Case study: Verizon Wireless
• Deployed DS network in 2012
• Why did Verizon Wireless decide to deploy IPv6?
– IPv6 allows VZW to provide globally routable addresses again
• No more NAT
• High quality connection
– IPv6 allows VZW to support accelerated growth of mobile
• VZW made a conscious decision to support IPv6 as part of
LTE deployment
– LTE core addresses using IPv6
– Dual Stack support on LTE User Equipment
26
http://conference.apnic.net/__data/assets/pdf_file/0017/50813/vzw_apnic_13462152832-2.pdf

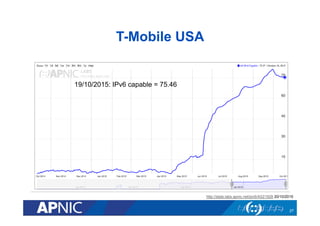

27. T-Mobile USA
27
http://stats.labs.apnic.net/ipv6/AS21928 20/10/2015
19/10/2015: IPv6 capable = 75.46

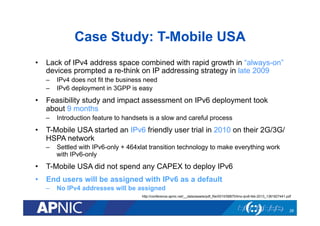

28. Case Study: T-Mobile USA
• Lack of IPv4 address space combined with rapid growth in “always-on”
devices prompted a re-think on IP addressing strategy in late 2009
– IPv4 does not fit the business need
– IPv6 deployment in 3GPP is easy
• Feasibility study and impact assessment on IPv6 deployment took
about 9 months
– Introduction feature to handsets is a slow and careful process
• T-Mobile USA started an IPv6 friendly user trial in 2010 on their 2G/3G/
HSPA network
– Settled with IPv6-only + 464xlat transition technology to make everything work
with IPv6-only
• T-Mobile USA did not spend any CAPEX to deploy IPv6
• End users will be assigned with IPv6 as a default
– No IPv4 addresses will be assigned
28
http://conference.apnic.net/__data/assets/pdf_file/0010/58870/tmo-ipv6-feb-2013_1361827441.pdf

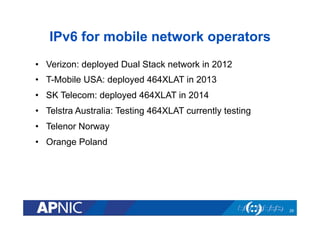

29. IPv6 for mobile network operators
• Verizon: deployed Dual Stack network in 2012
• T-Mobile USA: deployed 464XLAT in 2013
• SK Telecom: deployed 464XLAT in 2014
• Telstra Australia: Testing 464XLAT currently testing
• Telenor Norway
• Orange Poland
29

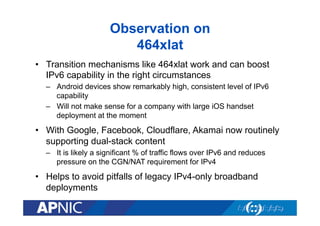

30. Observation on
464xlat
• Transition mechanisms like 464xlat work and can boost
IPv6 capability in the right circumstances
– Android devices show remarkably high, consistent level of IPv6
capability
– Will not make sense for a company with large iOS handset
deployment at the moment
• With Google, Facebook, Cloudflare, Akamai now routinely
supporting dual-stack content
– It is likely a significant % of traffic flows over IPv6 and reduces
pressure on the CGN/NAT requirement for IPv4
• Helps to avoid pitfalls of legacy IPv4-only broadband
deployments

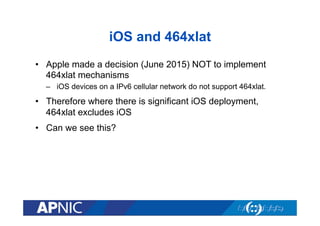

31. iOS and 464xlat
• Apple made a decision (June 2015) NOT to implement
464xlat mechanisms
– iOS devices on a IPv6 cellular network do not support 464xlat.
• Therefore where there is significant iOS deployment,
464xlat excludes iOS
• Can we see this?

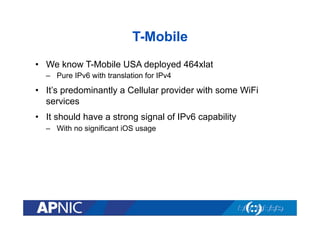

32. T-Mobile
• We know T-Mobile USA deployed 464xlat
– Pure IPv6 with translation for IPv4
• It’s predominantly a Cellular provider with some WiFi
services
• It should have a strong signal of IPv6 capability
– With no significant iOS usage

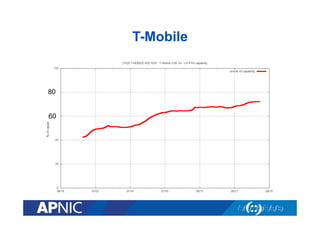

33. T-Mobile
80
60

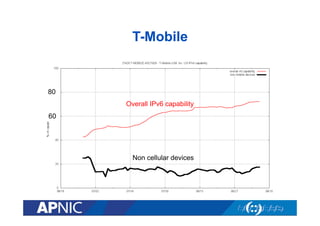

34. T-Mobile
Overall IPv6 capability
Non cellular devices
80
60

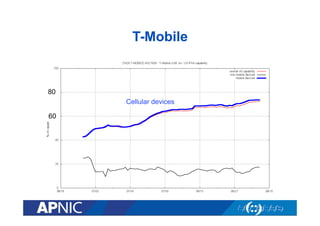

35. T-Mobile
Cellular devices
80
60

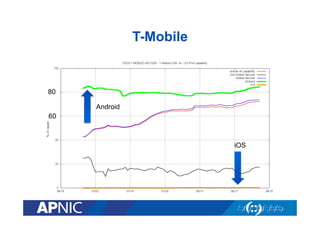

36. T-Mobile
iOS
Android
80
60

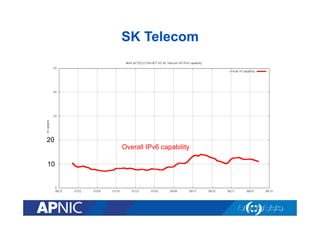

37. SK Telecom
20
10
Overall IPv6 capability

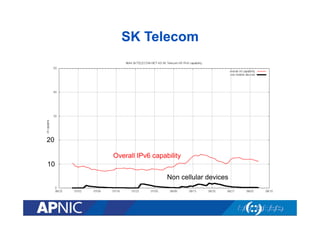

38. SK Telecom
20
10
Non cellular devices
Overall IPv6 capability

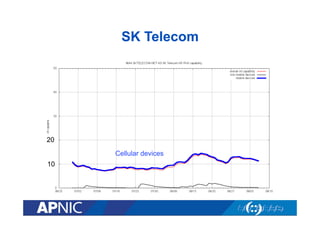

39. SK Telecom
20
10
Cellular devices

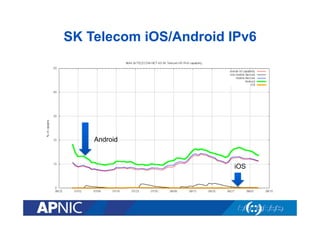

40. SK Telecom iOS/Android IPv6
iOS
Android

41. Verizon
100
60
80

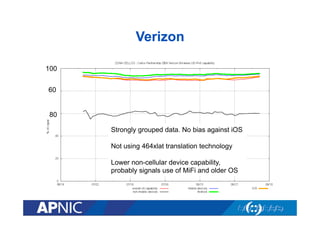

42. Verizon
Strongly grouped data. No bias against iOS
Not using 464xlat translation technology
Lower non-cellular device capability,
probably signals use of MiFi and older OS
100
60
80

43. Conclusion

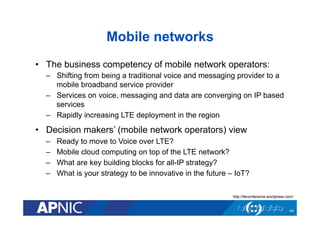

44. Mobile networks
• The business competency of mobile network operators:
– Shifting from being a traditional voice and messaging provider to a
mobile broadband service provider
– Services on voice, messaging and data are converging on IP based
services
– Rapidly increasing LTE deployment in the region
• Decision makers’ (mobile network operators) view
– Ready to move to Voice over LTE?
– Mobile cloud computing on top of the LTE network?
– What are key building blocks for all-IP strategy?
– What is your strategy to be innovative in the future – IoT?
44
http://lteconference.wordpress.com/

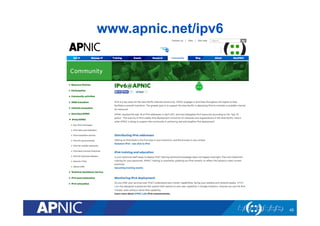

45. www.apnic.net/ipv6
45

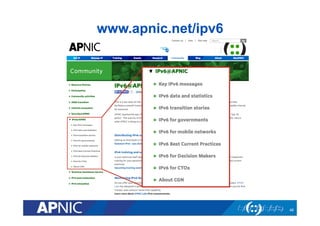

46. www.apnic.net/ipv6
46

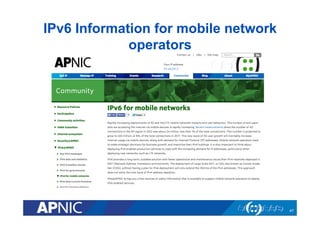

47. IPv6 Information for mobile network
operators
47
