Presentation given by Sunny Chendi, Senior Internet Development Advisor for APNIC, at IPv6 Adoption by ASEAN Government Agencies workshop, 9 May 2016.

1. IPv6 Status among ASEAN
Member States (AMS)
ASEAN TELSOM-ATRC JWG Meeting, Jakarta, Indonesia
9 May 2016
Srinivas (Sunny) Chendi
sunny@apnic.net

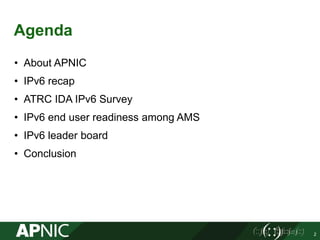

2. Agenda
• About APNIC
• IPv6 recap
• ATRC IDA IPv6 Survey
• IPv6 end user readiness among AMS
• IPv6 leader board
• Conclusion
2

3. 3

4. 4
IPv6 recap

5. Setting the scene
5
• The Internet has become a fundamental infrastructure,
worldwide, for economic and social activity, and its usage
continues to grow exponentially:
– More users
– New applications (e.g. mobile, Internet of Things etc.)
• The transition from IPv4 to IPv6 is the only sustainable
option in the long run.
• A smooth transition requires understanding the challenges
and a timely start.
The Internet is changing…

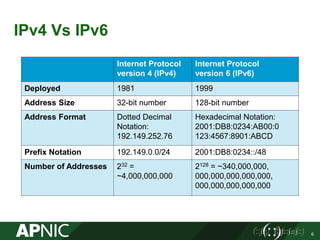

6. IPv4 Vs IPv6
Internet Protocol
version 4 (IPv4)
Internet Protocol
version 6 (IPv6)
Deployed 1981 1999
Address Size 32-bit number 128-bit number
Address Format Dotted Decimal
Notation:
192.149.252.76
Hexadecimal Notation:
2001:DB8:0234:AB00:0
123:4567:8901:ABCD
Prefix Notation 192.149.0.0/24 2001:DB8:0234::/48
Number of Addresses 232 =
~4,000,000,000
2128 = ~340,000,000,
000,000,000,000,000,
000,000,000,000,000
6

7. But how is deployment going?
• This varies around the world in terms of…
– Address deployment
• Have the networks got addresses?
– Routing deployment
• Do they show in the routing table?
– Traffic
• Are the routes being used?
– User capability and usefulness
• Can end-users use IPv6 and access content?
• And these are business decisions.
7

8. BGP Table
IPv4 IPv6
• Around 30000 IPv6 routes compare to 600000 IPv4 routes
but IPv6 is steadily growing
8
http://bgp.potaroo.net/index-bgp.html as of 05/052016

9. IPv6 measurement End user
readiness: World
9
http://stats.labs.apnic.net/ipv6/XA as of 26/04/2016
IPv6 capable = 4.9%
100% increase in the last 12 months

10. 10
ATRC IDA IPv6
Survey

11. ATRC IDA IPv6 Survey 2016
• Aims to investigate the technical and regulatory readiness
of ASEAN Member States (AMS) in adopting IPv6 to
support the future growth and expansion of the Internet
• Prepared and carried out by IDA Singapore in close
collaboration with APNIC
• IDA Singapore and ASEC communicated to all ATRC focal
points
• Survey was kept short, focused on essentials and available
in two formats - online and offline
• As of 4 May 2016, we received responses from 8 AMS
– BN, KH, LA, MY, MM, SG, TH, VN
– Thanks for the contributions
11
https://fluidsurveys.com/s/atrc-ida-ipv6-survey/

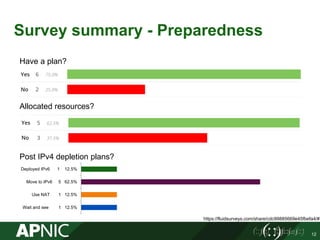

12. Survey summary - Preparedness
12
https://fluidsurveys.com/share/cdc99885669e45fbefa4/#
Have a plan?
Allocated resources?
Post IPv4 depletion plans?
Wait and see 1 12.5%
Use NAT 1 12.5%
Move to IPv6 5 62.5%
Deployed IPv6 1 12.5%

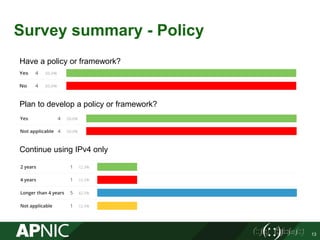

13. Survey summary - Policy
13
Have a policy or framework?
Plan to develop a policy or framework?
Continue using IPv4 only

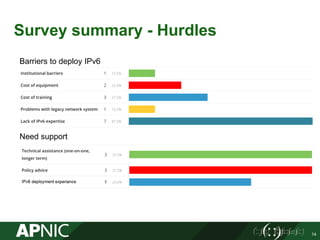

14. Survey summary - Hurdles
14
Barriers to deploy IPv6
Need support

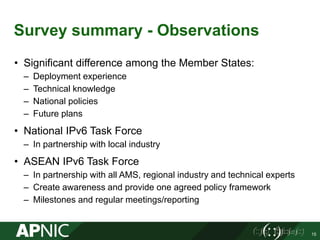

15. Survey summary - Observations
• Significant difference among the Member States:
– Deployment experience
– Technical knowledge
– National policies
– Future plans
• National IPv6 Task Force
– In partnership with local industry
• ASEAN IPv6 Task Force
– In partnership with all AMS, regional industry and technical experts
– Create awareness and provide one agreed policy framework
– Milestones and regular meetings/reporting
15

16. 16
IPv6 end user
readiness among
AMS

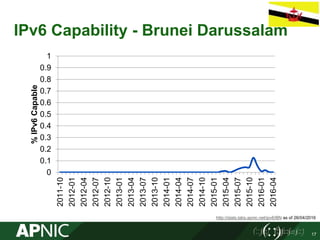

17. IPv6 Capability - Brunei Darussalam
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
2011-10
2012-01
2012-04
2012-07
2012-10
2013-01
2013-04
2013-07
2013-10
2014-01
2014-04
2014-07
2014-10
2015-01
2015-04
2015-07
2015-10
2016-01
2016-04
%IPv6Capable
http://stats.labs.apnic.net/ipv6/BN as of 26/04/2016
17

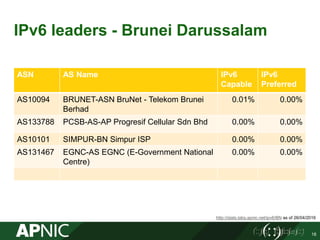

18. IPv6 leaders - Brunei Darussalam
ASN AS Name IPv6
Capable
IPv6
Preferred
AS10094 BRUNET-ASN BruNet - Telekom Brunei
Berhad
0.01% 0.00%
AS133788 PCSB-AS-AP Progresif Cellular Sdn Bhd 0.00% 0.00%
AS10101 SIMPUR-BN Simpur ISP 0.00% 0.00%
AS131467 EGNC-AS EGNC (E-Government National
Centre)
0.00% 0.00%
http://stats.labs.apnic.net/ipv6/BN as of 26/04/2016
18

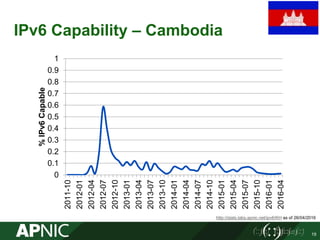

19. IPv6 Capability – Cambodia
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
2011-10
2012-01
2012-04
2012-07
2012-10
2013-01
2013-04
2013-07
2013-10
2014-01
2014-04
2014-07
2014-10
2015-01
2015-04
2015-07
2015-10
2016-01
2016-04
%IPv6Capable
http://stats.labs.apnic.net/ipv6/KH as of 26/04/2016
19

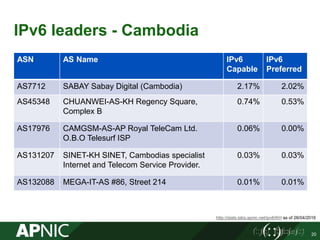

20. IPv6 leaders - Cambodia
ASN AS Name IPv6
Capable
IPv6
Preferred
AS7712 SABAY Sabay Digital (Cambodia) 2.17% 2.02%
AS45348 CHUANWEI-AS-KH Regency Square,
Complex B
0.74% 0.53%
AS17976 CAMGSM-AS-AP Royal TeleCam Ltd.
O.B.O Telesurf ISP
0.06% 0.00%
AS131207 SINET-KH SINET, Cambodias specialist
Internet and Telecom Service Provider.
0.03% 0.03%
AS132088 MEGA-IT-AS #86, Street 214 0.01% 0.01%
http://stats.labs.apnic.net/ipv6/KH as of 26/04/2016
20

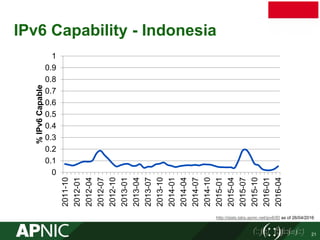

21. IPv6 Capability - Indonesia
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
2011-10
2012-01
2012-04
2012-07
2012-10
2013-01
2013-04
2013-07
2013-10
2014-01
2014-04
2014-07
2014-10
2015-01
2015-04
2015-07
2015-10
2016-01
2016-04
%IPv6Capable
http://stats.labs.apnic.net/ipv6/ID as of 26/04/2016
21

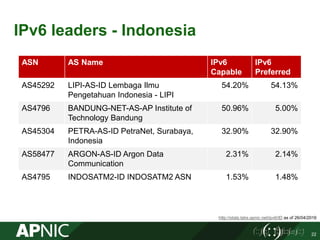

22. IPv6 leaders - Indonesia
ASN AS Name IPv6
Capable
IPv6
Preferred
AS45292 LIPI-AS-ID Lembaga Ilmu
Pengetahuan Indonesia - LIPI
54.20% 54.13%
AS4796 BANDUNG-NET-AS-AP Institute of
Technology Bandung
50.96% 5.00%
AS45304 PETRA-AS-ID PetraNet, Surabaya,
Indonesia
32.90% 32.90%
AS58477 ARGON-AS-ID Argon Data
Communication
2.31% 2.14%
AS4795 INDOSATM2-ID INDOSATM2 ASN 1.53% 1.48%
http://stats.labs.apnic.net/ipv6/ID as of 26/04/2016
22

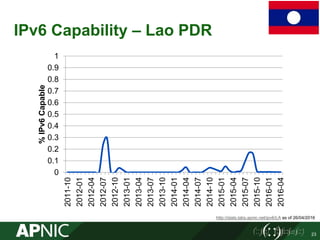

23. IPv6 Capability – Lao PDR
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
2011-10
2012-01
2012-04
2012-07
2012-10
2013-01
2013-04
2013-07
2013-10
2014-01
2014-04
2014-07
2014-10
2015-01
2015-04
2015-07
2015-10
2016-01
2016-04
%IPv6Capable
http://stats.labs.apnic.net/ipv6/LA as of 26/04/2016
23

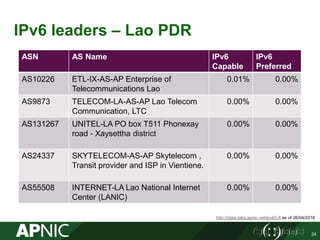

24. IPv6 leaders – Lao PDR
ASN AS Name IPv6
Capable
IPv6
Preferred
AS10226 ETL-IX-AS-AP Enterprise of
Telecommunications Lao
0.01% 0.00%
AS9873 TELECOM-LA-AS-AP Lao Telecom
Communication, LTC
0.00% 0.00%
AS131267 UNITEL-LA PO box T511 Phonexay
road - Xaysettha district
0.00% 0.00%
AS24337 SKYTELECOM-AS-AP Skytelecom ,
Transit provider and ISP in Vientiene.
0.00% 0.00%
AS55508 INTERNET-LA Lao National Internet
Center (LANIC)
0.00% 0.00%
http://stats.labs.apnic.net/ipv6/LA as of 26/04/2016
24

25. IPv6 Capability - Malaysia
0
5
10
15
20
25
2011-10
2012-01
2012-04
2012-07
2012-10
2013-01
2013-04
2013-07
2013-10
2014-01
2014-04
2014-07
2014-10
2015-01
2015-04
2015-07
2015-10
2016-01
2016-04
%IPv6Capable
http://stats.labs.apnic.net/ipv6/MY as of 26/04/2016
25

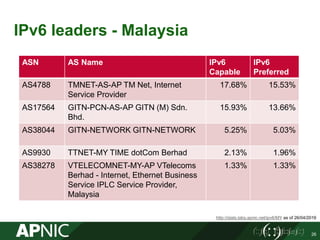

26. IPv6 leaders - Malaysia
ASN AS Name IPv6
Capable
IPv6
Preferred
AS4788 TMNET-AS-AP TM Net, Internet
Service Provider
17.68% 15.53%
AS17564 GITN-PCN-AS-AP GITN (M) Sdn.
Bhd.
15.93% 13.66%
AS38044 GITN-NETWORK GITN-NETWORK 5.25% 5.03%
AS9930 TTNET-MY TIME dotCom Berhad 2.13% 1.96%
AS38278 VTELECOMNET-MY-AP VTelecoms
Berhad - Internet, Ethernet Business
Service IPLC Service Provider,
Malaysia
1.33% 1.33%
http://stats.labs.apnic.net/ipv6/MY as of 26/04/2016
26

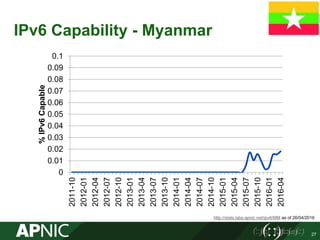

27. IPv6 Capability - Myanmar
0
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.08
0.09
0.1
2011-10
2012-01
2012-04
2012-07
2012-10
2013-01
2013-04
2013-07
2013-10
2014-01
2014-04
2014-07
2014-10
2015-01
2015-04
2015-07
2015-10
2016-01
2016-04
%IPv6Capable
http://stats.labs.apnic.net/ipv6/MM as of 26/04/2016
27

28. IPv6 leaders - Myanmar
ASN AS Name IPv6
Capable
IPv6
Preferred
AS131322 YTCL-AS-AP Yatanarpon Teleport
Company Limited
0.04% 0.00%
AS9988 MPT-AP Myanmar Posts and
Telecommunications
0.01% 0.00%
AS132167 OML-MM OOREDOO MYANMAR 0.01% 0.00%
AS133385 TELENORMYANMAR-AS Telenor
Myanmar
0.01% 0.00%
AS133384 RCCL-AS-AP RedLink
Communications Co., Ltd.
0.00% 0.00%
http://stats.labs.apnic.net/ipv6/MM as of 26/04/2016
28

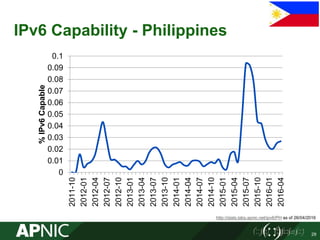

29. IPv6 Capability - Philippines
0
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.08
0.09
0.1
2011-10
2012-01
2012-04
2012-07
2012-10
2013-01
2013-04
2013-07
2013-10
2014-01
2014-04
2014-07
2014-10
2015-01
2015-04
2015-07
2015-10
2016-01
2016-04
%IPv6Capable
http://stats.labs.apnic.net/ipv6/PH as of 26/04/2016
29

30. IPv6 leaders - Philippines
ASN AS Name IPv6
Capable
IPv6
Preferred
AS17721 IRRI-AS-AP International Rice
Research Institute
21.02% 13.24%
AS45209 UPLB-AS-AP University of the
Philippines, Los Banos Campus
16.06% 15.49%
AS45600 UPM-AS-AP University of the
Philippines, Manila
9.81% 6.95%
AS9821 DOST-PH-AP Department of Science
and Technology
3.27% 2.10%
AS23862 DILNET-AS-AP University of the
Philippines Diliman
0.72% 0.10%
http://stats.labs.apnic.net/ipv6/PH as of 26/04/2016
30

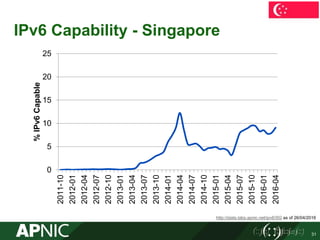

31. IPv6 Capability - Singapore
0
5
10
15
20
25
2011-10
2012-01
2012-04
2012-07
2012-10
2013-01
2013-04
2013-07
2013-10
2014-01
2014-04
2014-07
2014-10
2015-01
2015-04
2015-07
2015-10
2016-01
2016-04
%IPv6Capable
http://stats.labs.apnic.net/ipv6/SG as of 26/04/2016
31

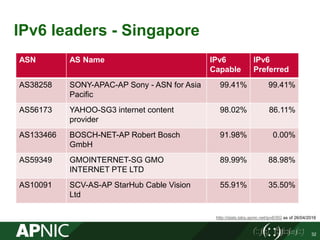

32. IPv6 leaders - Singapore
ASN AS Name IPv6
Capable
IPv6
Preferred
AS38258 SONY-APAC-AP Sony - ASN for Asia
Pacific
99.41% 99.41%
AS56173 YAHOO-SG3 internet content
provider
98.02% 86.11%
AS133466 BOSCH-NET-AP Robert Bosch
GmbH
91.98% 0.00%
AS59349 GMOINTERNET-SG GMO
INTERNET PTE LTD
89.99% 88.98%
AS10091 SCV-AS-AP StarHub Cable Vision
Ltd
55.91% 35.50%
http://stats.labs.apnic.net/ipv6/SG as of 26/04/2016
32

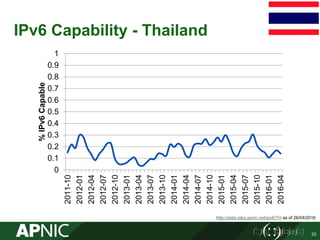

33. IPv6 Capability - Thailand
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
2011-10
2012-01
2012-04
2012-07
2012-10
2013-01
2013-04
2013-07
2013-10
2014-01
2014-04
2014-07
2014-10
2015-01
2015-04
2015-07
2015-10
2016-01
2016-04
%IPv6Capable
http://stats.labs.apnic.net/ipv6/TH as of 26/04/2016
33

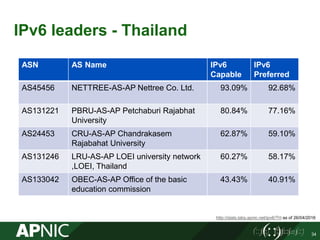

34. IPv6 leaders - Thailand
ASN AS Name IPv6
Capable
IPv6
Preferred
AS45456 NETTREE-AS-AP Nettree Co. Ltd. 93.09% 92.68%
AS131221 PBRU-AS-AP Petchaburi Rajabhat
University
80.84% 77.16%
AS24453 CRU-AS-AP Chandrakasem
Rajabahat University
62.87% 59.10%
AS131246 LRU-AS-AP LOEI university network
,LOEI, Thailand
60.27% 58.17%
AS133042 OBEC-AS-AP Office of the basic
education commission
43.43% 40.91%
http://stats.labs.apnic.net/ipv6/TH as of 26/04/2016
34

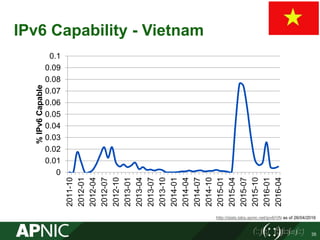

35. IPv6 Capability - Vietnam
0
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.08
0.09
0.1
2011-10
2012-01
2012-04
2012-07
2012-10
2013-01
2013-04
2013-07
2013-10
2014-01
2014-04
2014-07
2014-10
2015-01
2015-04
2015-07
2015-10
2016-01
2016-04
%IPv6Capable
http://stats.labs.apnic.net/ipv6/VN as of 26/04/2016
35

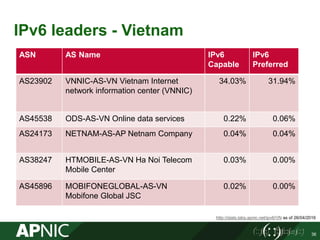

36. IPv6 leaders - Vietnam
ASN AS Name IPv6
Capable
IPv6
Preferred
AS23902 VNNIC-AS-VN Vietnam Internet
network information center (VNNIC)
34.03% 31.94%
AS45538 ODS-AS-VN Online data services 0.22% 0.06%
AS24173 NETNAM-AS-AP Netnam Company 0.04% 0.04%
AS38247 HTMOBILE-AS-VN Ha Noi Telecom
Mobile Center
0.03% 0.00%
AS45896 MOBIFONEGLOBAL-AS-VN
Mobifone Global JSC
0.02% 0.00%
http://stats.labs.apnic.net/ipv6/VN as of 26/04/2016
36

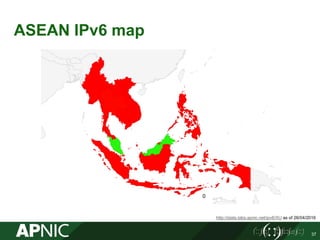

37. ASEAN IPv6 map
37
http://stats.labs.apnic.net/ipv6/XU as of 26/04/2016

38. IPv6 leaders - AMS
38
CC Country IPv6 Capable IPv6 Preferred Samples
MY Malaysia 12.84% 11.20% 7117512
SG Singapore 8.13% 5.43% 3907500
TH Thailand 0.14% 0.12% 16544312
ID Indonesia 0.06% 0.03% 11841883
PH Philippines 0.02% 0.01% 19406119
MM Myanmar 0.01% 0.00% 716128
VN Vietnam 0.01% 0.01% 34909782
KH Cambodia 0.01% 0.00% 4893642
BN Brunei Darussalam 0.01% 0.00% 1315345
LA Lao PDR 0.00% 0.00% 1122088
http://stats.labs.apnic.net/ipv6/XU as of 26/04/2016

39. 39
IPv6 leader
board

40. IPv6 league table - world
40
http://stats.labs.apnic.net/ipv6/ as of 26/04/2016
CC Country IPv6 Capable IPv6 Preferred
BE Belgium 51.49% 49.18%
PT Portugal 29.02% 28.15%
CH Switzerland 28.96% 27.84%
US United States of America 28.93% 26.33%
GR Greece 24.47% 23.88%
DE Germany 21.73% 19.03%
PE Peru 18.53% 17.77%
LU Luxembourg 16.80% 15.64%
EE Estonia 16.18% 15.58%
EC Ecuador 15.98% 15.52%

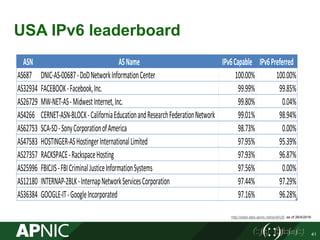

41. USA IPv6 leaderboard
41
http://stats.labs.apnic.net/ipv6/US as of 26/4/2016
ASN ASName IPv6Capable IPv6Preferred
AS687 DNIC-AS-00687-DoDNetworkInformationCenter 100.00% 100.00%
AS32934 FACEBOOK-Facebook,Inc. 99.99% 99.85%
AS26729 MW-NET-AS-MidwestInternet,Inc. 99.80% 0.04%
AS4266 CERNET-ASN-BLOCK-CaliforniaEducationandResearchFederationNetwork 99.01% 98.94%
AS62753 SCA-SD-SonyCorporationofAmerica 98.73% 0.00%
AS47583 HOSTINGER-ASHostingerInternationalLimited 97.95% 95.39%
AS27357 RACKSPACE-RackspaceHosting 97.93% 96.87%
AS25996 FBICJIS-FBICriminalJusticeInformationSystems 97.56% 0.00%
AS12180 INTERNAP-2BLK-InternapNetworkServicesCorporation 97.44% 97.29%
AS36384 GOOGLE-IT-GoogleIncorporated 97.16% 96.28%

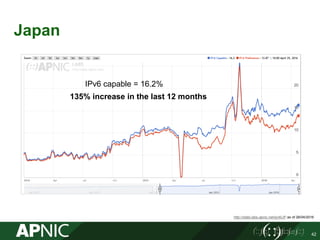

42. Japan
42
IPv6 capable = 16.2%
135% increase in the last 12 months
http://stats.labs.apnic.net/ipv6/JP as of 26/04/2016

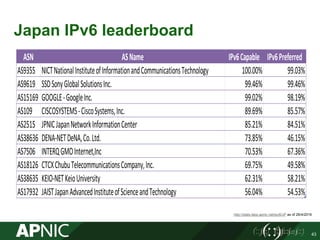

43. Japan IPv6 leaderboard
43
http://stats.labs.apnic.net/ipv6/JP as of 26/4/2016
ASN ASName IPv6Capable IPv6Preferred
AS9355 NICTNationalInstituteofInformationandCommunicationsTechnology 100.00% 99.03%
AS9619 SSDSonyGlobalSolutionsInc. 99.46% 99.46%
AS15169 GOOGLE-GoogleInc. 99.02% 98.19%
AS109 CISCOSYSTEMS-CiscoSystems,Inc. 89.69% 85.57%
AS2515 JPNICJapanNetworkInformationCenter 85.21% 84.51%
AS38636 DENA-NETDeNA,Co.Ltd. 73.85% 46.15%
AS7506 INTERQGMOInternet,Inc 70.53% 67.36%
AS18126 CTCXChubuTelecommunicationsCompany,Inc. 69.75% 49.58%
AS38635 KEIO-NETKeioUniversity 62.31% 58.21%
AS17932 JAISTJapanAdvancedInstituteofScienceandTechnology 56.04% 54.53%

44. Korea
44
IPv6 capable = 0.66%
What is behind of this increase?
http://stats.labs.apnic.net/ipv6/KR as of 26/04/2016

45. Korea IPv6 leaderboard
45
http://stats.labs.apnic.net/ipv6/KR 26/04/2016
ASN ASName IPv6Capable IPv6Preferred
AS9644 SKTELECOM-NET-ASSKTelecom 24.68% 23.52%
AS9642 KISAKoreaInformationSecurityAgency 4.92% 3.28%
AS1237 KREONET-AS-KRKoreaInstituteofScienceandTechnologyInformation 2.08% 2.08%
AS10166 KOWANET-AS-KRKoreaWaterResourcesCorporation 1.39% 0.00%
AS9753 DAU-ASDong-AUniversirty 0.90% 0.00%
AS10036 CNM-AS-KRCMCommunicationCo.,Ltd. 0.66% 0.66%
AS9848 GNGASEnterpriseNetworks 0.64% 0.00%
AS45365 URINET-AS-KRKoreaCableTVJeonboogBroadcast 0.62% 0.62%
AS23576 NHN-AS-KRNHN 0.55% 0.55%
AS9686 SKKUNET-ASSungKyunKwanUniversity(SKKU) 0.29% 0.23%

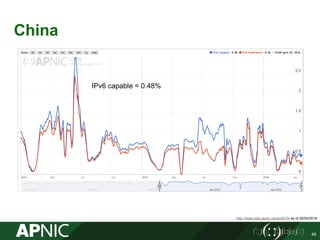

46. China
46
http://stats.labs.apnic.net/ipv6/CN as of 26/04/2016
IPv6 capable = 0.48%

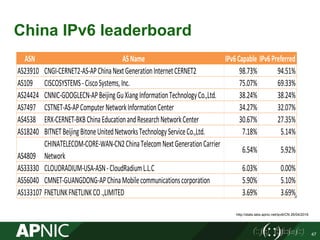

47. China IPv6 leaderboard
47
ASN ASName IPv6Capable IPv6Preferred
AS23910 CNGI-CERNET2-AS-APChinaNextGenerationInternetCERNET2 98.73% 94.51%
AS109 CISCOSYSTEMS-CiscoSystems,Inc. 75.07% 69.33%
AS24424 CNNIC-GOOGLECN-APBeijingGuXiangInformationTechnologyCo.,Ltd. 38.24% 38.24%
AS7497 CSTNET-AS-APComputerNetworkInformationCenter 34.27% 32.07%
AS4538 ERX-CERNET-BKBChinaEducationandResearchNetworkCenter 30.67% 27.35%
AS18240 BITNETBeijingBitoneUnitedNetworksTechnologyServiceCo.,Ltd. 7.18% 5.14%
AS4809
CHINATELECOM-CORE-WAN-CN2ChinaTelecomNextGenerationCarrier
Network
6.54% 5.92%
AS33330 CLOUDRADIUM-USA-ASN-CloudRadiumL.L.C 6.03% 0.00%
AS56040 CMNET-GUANGDONG-APChinaMobilecommunicationscorporation 5.90% 5.10%
AS133107 FNETLINKFNETLINKCO.,LIMITED 3.69% 3.69%
http://stats.labs.apnic.net/ipv6/CN 26/04/2016

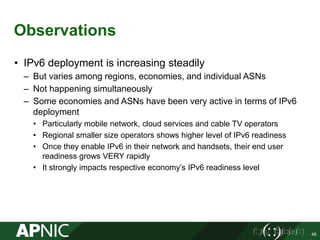

48. Observations
• IPv6 deployment is increasing steadily
– But varies among regions, economies, and individual ASNs
– Not happening simultaneously
– Some economies and ASNs have been very active in terms of IPv6
deployment
• Particularly mobile network, cloud services and cable TV operators
• Regional smaller size operators shows higher level of IPv6 readiness
• Once they enable IPv6 in their network and handsets, their end user
readiness grows VERY rapidly
• It strongly impacts respective economy’s IPv6 readiness level
48

49. 49
Conclusion

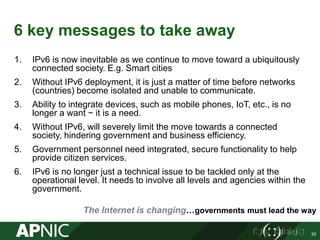

50. 6 key messages to take away
1. IPv6 is now inevitable as we continue to move toward a ubiquitously
connected society. E.g. Smart cities
2. Without IPv6 deployment, it is just a matter of time before networks
(countries) become isolated and unable to communicate.
3. Ability to integrate devices, such as mobile phones, IoT, etc., is no
longer a want − it is a need.
4. Without IPv6, will severely limit the move towards a connected
society, hindering government and business efficiency.
5. Government personnel need integrated, secure functionality to help
provide citizen services.
6. IPv6 is no longer just a technical issue to be tackled only at the
operational level. It needs to involve all levels and agencies within the
government.
55
The Internet is changing…governments must lead the way

51. www.facebook.com/APNIC
www.twitter.com/apnic
www.youtube.com/apnicmultimedia
www.flickr.com/apnic
www.weibo.com/APNICrir
THANK YOU
