This document introduces IoT agents, which act as intermediaries between IoT devices and the Orion Context Broker. It discusses the IoT architecture and how agents allow different device protocols to communicate with NGSI via a common interface. It also describes APIs for provisioning devices and interacting with their active and lazy attributes as well as commands. Finally, it provides recommendations for getting started, such as installing an IoT agent like UL 2.0 using Docker and testing it with tools like figway.

1. Introduction to the IoT Agents
Contact email
daniel.moranjimenez@telefonica.com
(Reference Orion Context Broker version: 0.24.0)

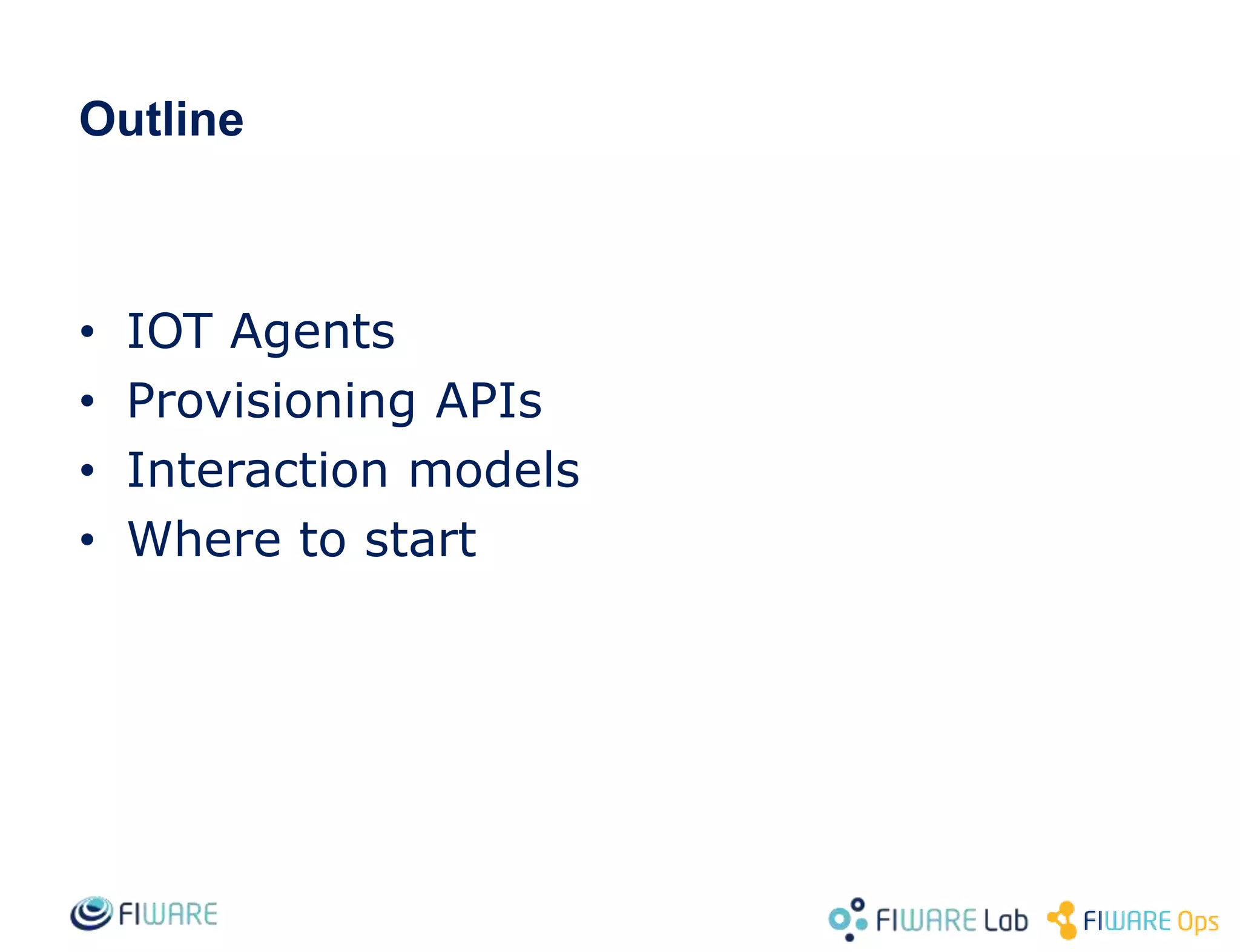

2. • IOT Agents
• Provisioning APIs
• Interaction models
• Where to start
Outline

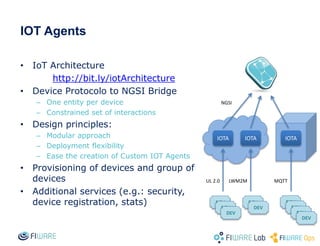

3. IOT Agents
• IoT Architecture
http://bit.ly/iotArchitecture
• Device Protocolo to NGSI Bridge
– One entity per device
– Constrained set of interactions
• Design principles:
– Modular approach
– Deployment flexibility
– Ease the creation of Custom IOT Agents
• Provisioning of devices and group of
devices
• Additional services (e.g.: security,
device registration, stats)
IOTA IOTA IOTA
DEV
DEV
DEV
DEV
DEV
DEV
DEV
DEV
DEV
UL 2.0 LWM2M MQTT
NGSI

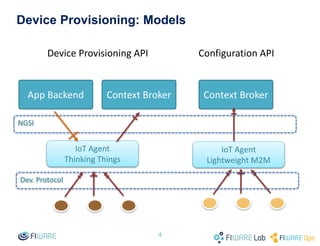

4. Device Provisioning: Models
4
Context Broker
IoT Agent
Lightweight M2M
NGSI
Dev. Protocol
IoT Agent
Thinking Things
Context BrokerApp Backend
Configuration APIDevice Provisioning API

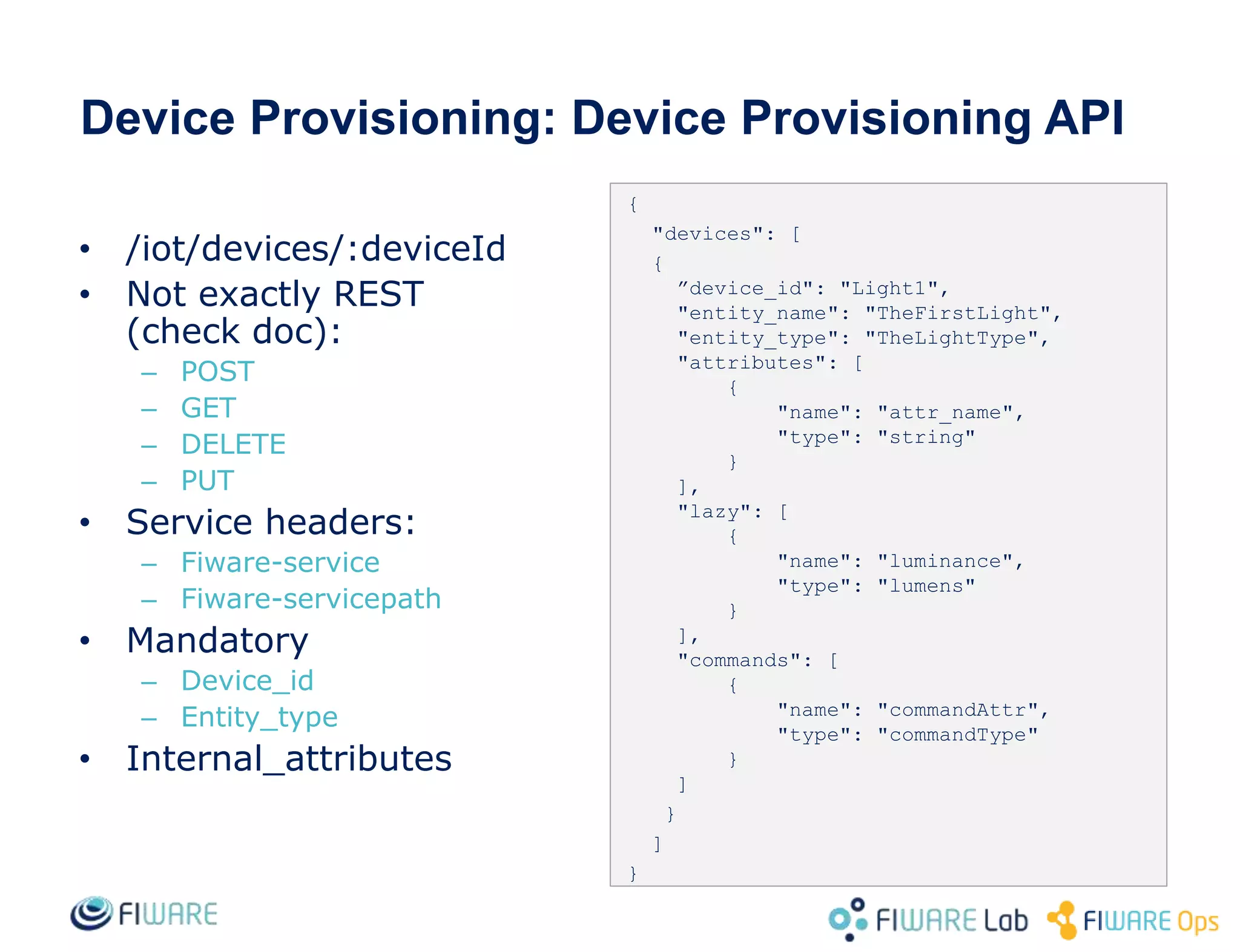

5. Device Provisioning: Device Provisioning API
{
"devices": [
{
”device_id": "Light1",
"entity_name": "TheFirstLight",
"entity_type": "TheLightType",
"attributes": [
{
"name": "attr_name",
"type": "string"
}
],
"lazy": [
{
"name": "luminance",
"type": "lumens"
}
],
"commands": [
{
"name": "commandAttr",
"type": "commandType"
}
]
}
]
}
• /iot/devices/:deviceId
• Not exactly REST
(check doc):
– POST
– GET
– DELETE
– PUT
• Service headers:
– Fiware-service
– Fiware-servicepath
• Mandatory
– Device_id
– Entity_type
• Internal_attributes

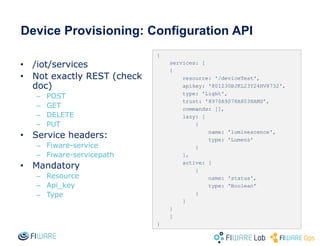

6. Device Provisioning: Configuration API
{
services: [
{
resource: '/deviceTest',
apikey: '801230BJKL23Y24HV8732',
type: 'Light',
trust: '8970A9078A803HAMS’,
commands: [],
lazy: [
{
name: 'luminescence',
type: 'Lumens'
}
],
active: [
{
name: 'status',
type: 'Boolean'
}
]
}
]
}
• /iot/services
• Not exactly REST (check
doc)
– POST
– GET
– DELETE
– PUT
• Service headers:
– Fiware-service
– Fiware-servicepath
• Mandatory
– Resource
– Api_key
– Type

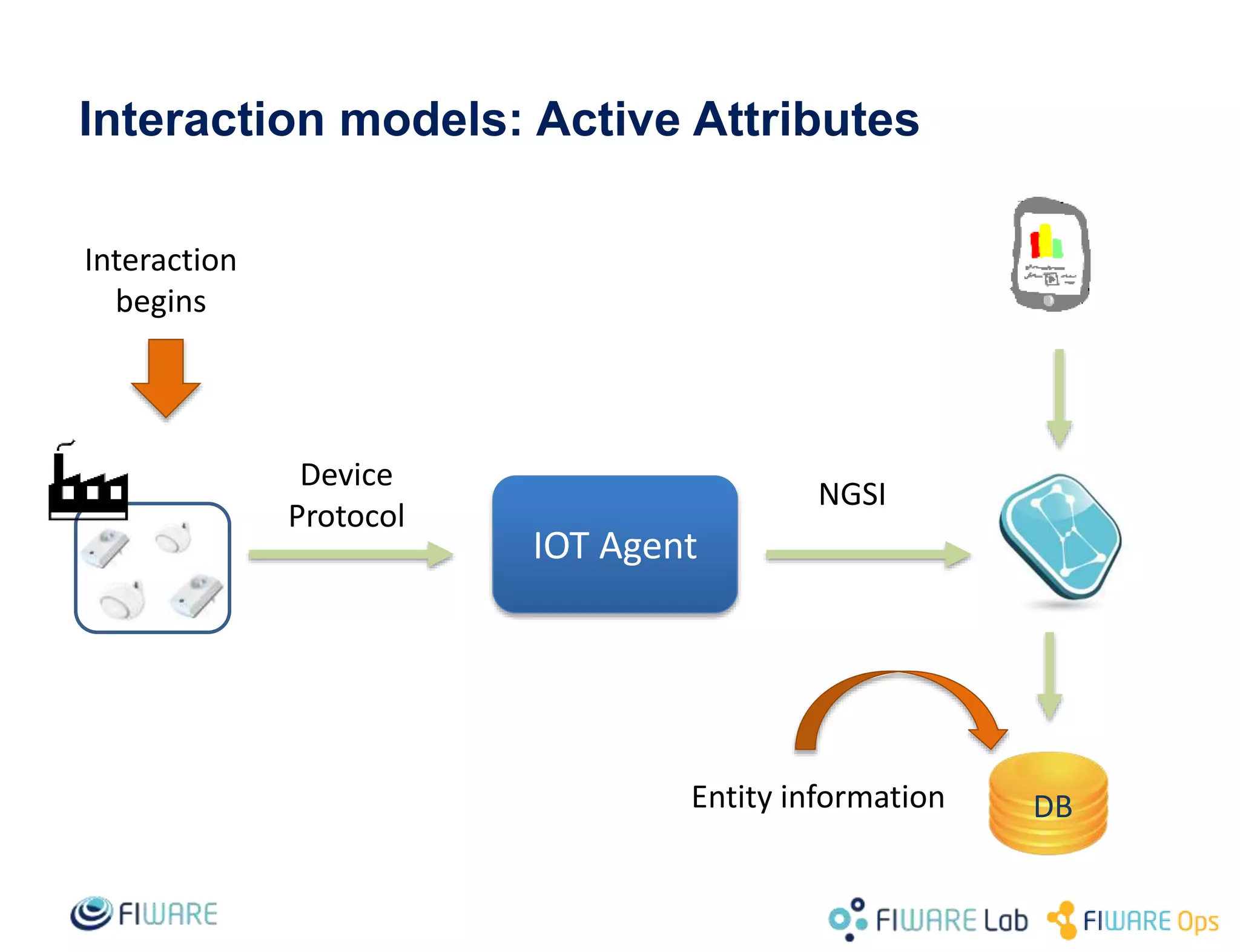

7. Interaction models: Active Attributes
IOT Agent
DB
Device
Protocol
NGSI
Entity information
Interaction
begins

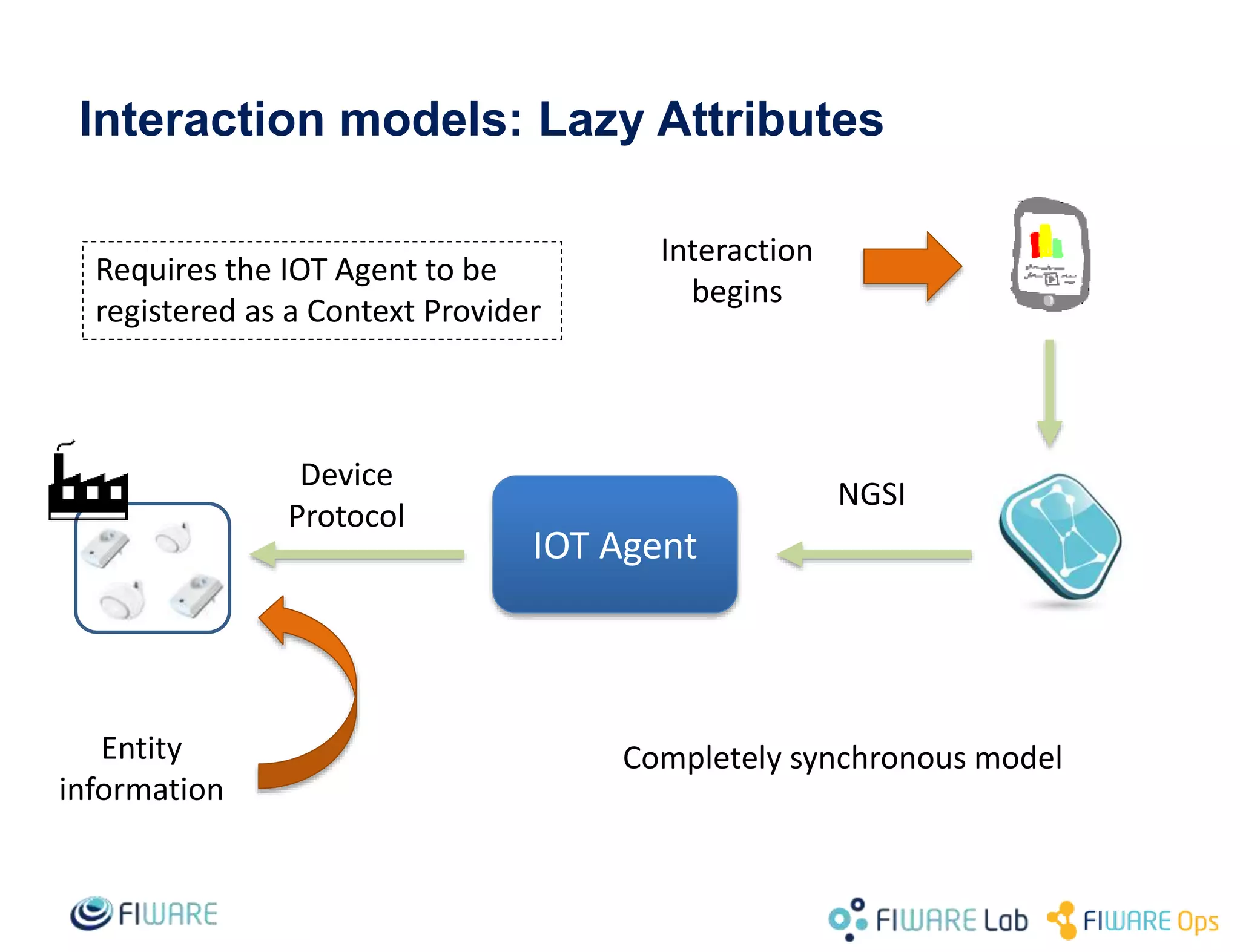

8. Interaction models: Lazy Attributes
IOT Agent
Device
Protocol
NGSI
Entity
information
Interaction
begins
Requires the IOT Agent to be
registered as a Context Provider
Completely synchronous model

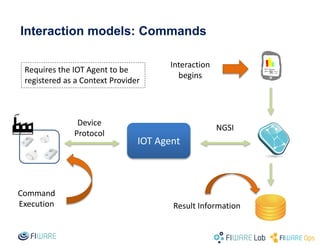

9. Interaction models: Commands
IOT Agent
Device
Protocol
NGSI
Command
Execution
Interaction
begins
Result Information
Requires the IOT Agent to be
registered as a Context Provider

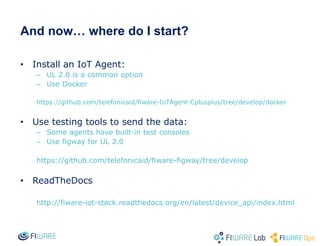

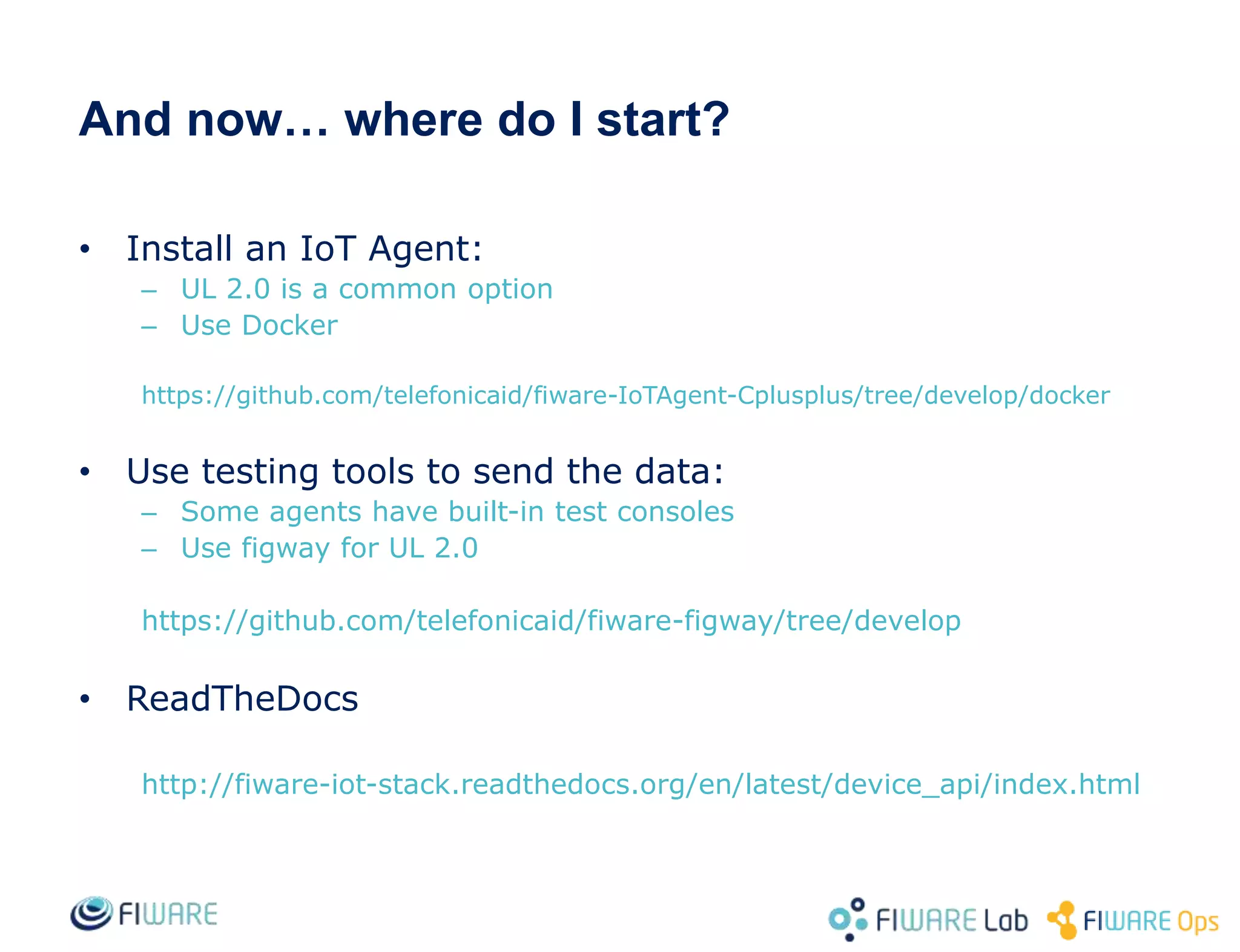

10. And now… where do I start?
• Install an IoT Agent:
– UL 2.0 is a common option
– Use Docker
https://github.com/telefonicaid/fiware-IoTAgent-Cplusplus/tree/develop/docker
• Use testing tools to send the data:
– Some agents have built-in test consoles
– Use figway for UL 2.0
https://github.com/telefonicaid/fiware-figway/tree/develop
• ReadTheDocs
http://fiware-iot-stack.readthedocs.org/en/latest/device_api/index.html

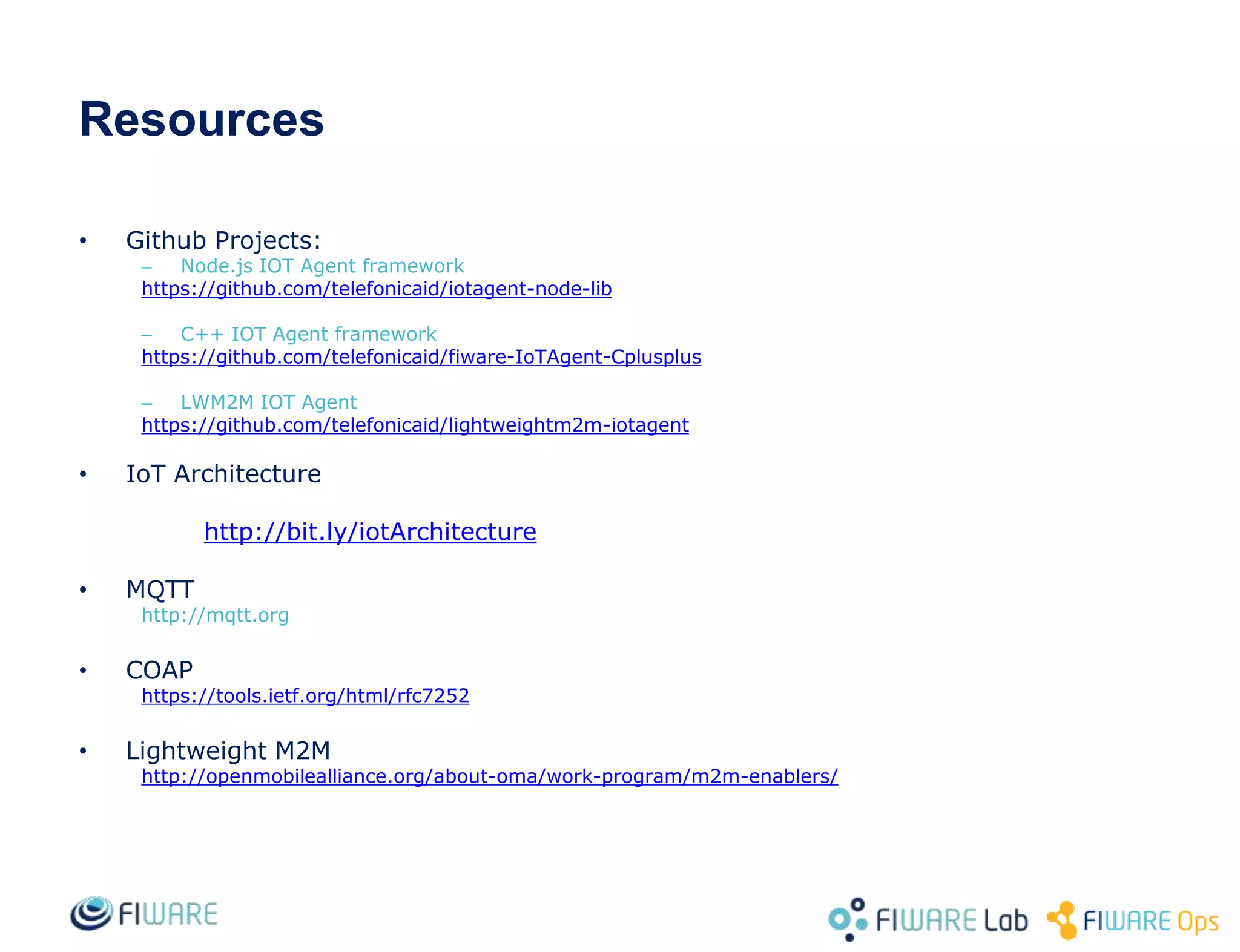

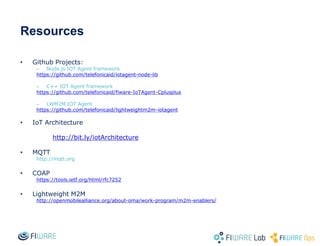

11. Resources
• Github Projects:
– Node.js IOT Agent framework
https://github.com/telefonicaid/iotagent-node-lib
– C++ IOT Agent framework
https://github.com/telefonicaid/fiware-IoTAgent-Cplusplus
– LWM2M IOT Agent
https://github.com/telefonicaid/lightweightm2m-iotagent
• IoT Architecture
http://bit.ly/iotArchitecture
• MQTT
http://mqtt.org
• COAP
https://tools.ietf.org/html/rfc7252
• Lightweight M2M
http://openmobilealliance.org/about-oma/work-program/m2m-enablers/

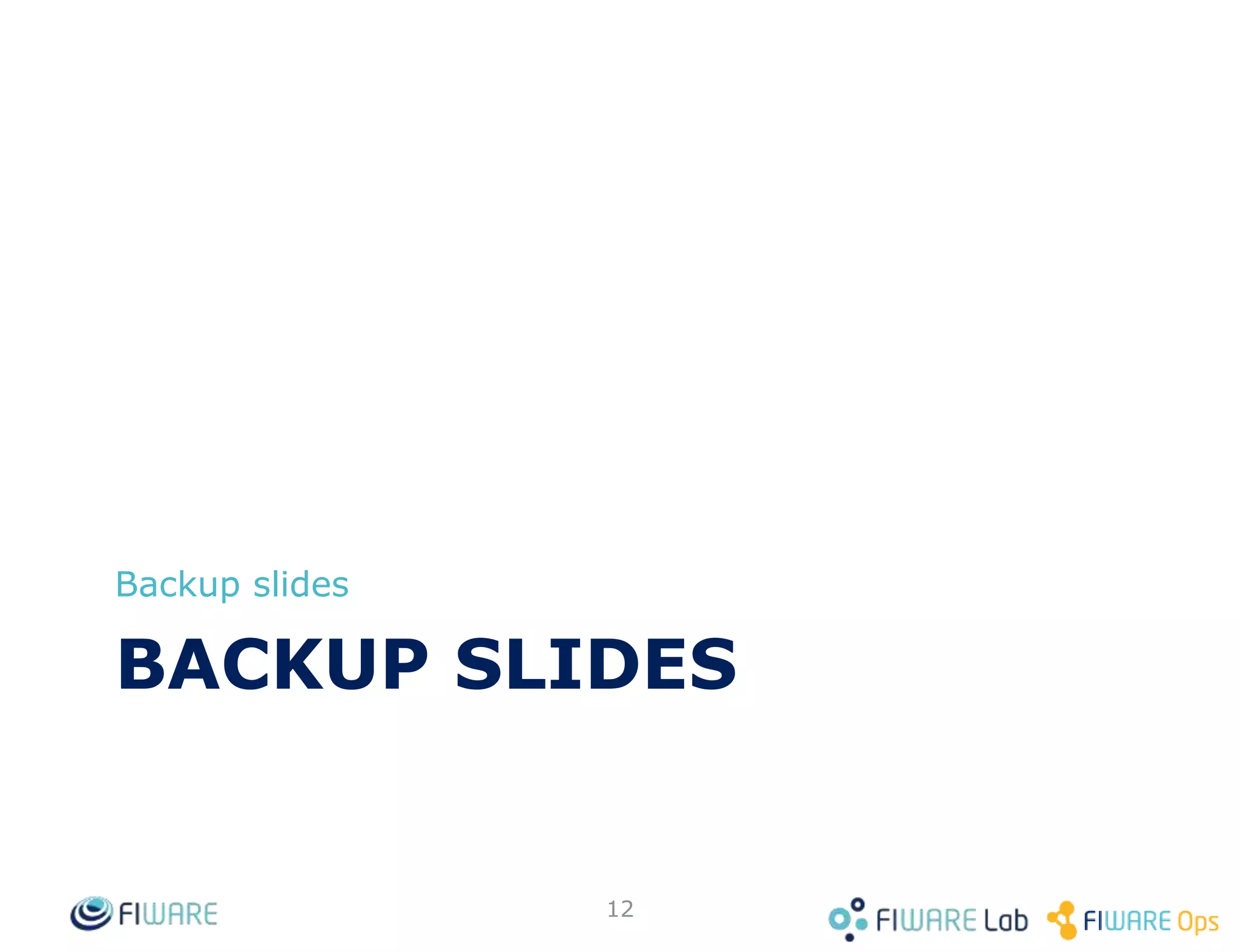

12. BACKUP SLIDES
