1. FIWARE Building your own IoT Agent
Daniel Calvo
IoE Lab. ATOS Research & Innovation
daniel.calvo@atos.net
@danicalvoalonso

2. Building your own IoT Agent: overview
§ Frameworks: Node.js and C++
• https://github.com/Fiware/iot.IoTagent-node-lib
• https://github.com/telefonicaid/fiware-IoTAgent-Cplusplus
§ North bound features provided by the platform:
• NGSI Context Provision server
• NGSI Client
• Device Provisioning API
• Configuration API
§ All South bound features are protocol specific
• External library
• Ad-hoc development
1

3. Building your own IoT Agent: Node.js
§ Module provided in NPM Registry:
• Add iotagent-node-lib to your package.json
• Require it as any other module
§ https://github.com/telefonicaid/iotagent-node-lib/blob/master/doc/howto.md
§ Possible in few days/weeks:
• Current agents: ~ 1000 lines of source code (supporting several transport protocols)
2
Context Server
NGSI Client
Device
Protocol
Device
Registry
Group
Registry
Provision Server
IoT Agent

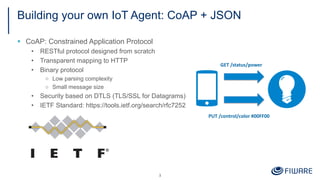

4. Building your own IoT Agent: CoAP + JSON
3
§ CoAP: Constrained Application Protocol
• RESTful protocol designed from scratch
• Transparent mapping to HTTP
• Binary protocol
□ Low parsing complexity
□ Small message size
• Security based on DTLS (TLS/SSL for Datagrams)
• IETF Standard: https://tools.ietf.org/search/rfc7252
GET /status/power
PUT /control/color #00FF00

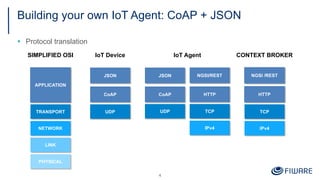

5. Building your own IoT Agent: CoAP + JSON
4
APPLICATION
TRANSPORT
SIMPLIFIED OSI
NETWORK
LINK
PHYSICAL
CoAP
UDP
IoT Device
JSON
IoT Agent
UDP
IPv4
TCP
CoAP
JSON
HTTP
NGSI/REST
TCP
CONTEXT BROKER
IPv4
HTTP
NGSI /REST
§ Protocol translation

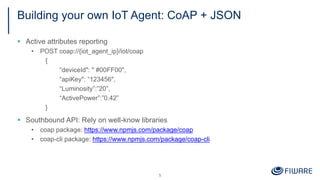

6. Building your own IoT Agent: CoAP + JSON
§ Active attributes reporting
• POST coap://{iot_agent_ip}/iot/coap
{
“deviceId": " #00FF00",
“apiKey": “123456",
“Luminosity”:”20”,
“ActivePower”:”0.42”
}
§ Southbound API: Rely on well-know libraries
• coap package: https://www.npmjs.com/package/coap
• coap-cli package: https://www.npmjs.com/package/coap-cli
5

7. Building your own IoT Agent: CoAP + JSON
1. Create a new node project
• npm init
2. Add iotagent-node-lib dependency
• npm install --save https://github.com/Fiware/iot.IoTagent-node-lib
3. Add your Southbound library
• npm install –save coap
4. Add some usefull packages:
• npm install –save async
• npm install –save logops
• npm install coap-cli -g
6

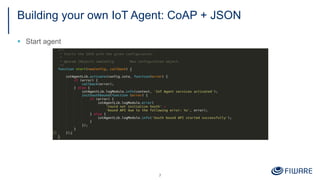

8. Building your own IoT Agent: CoAP + JSON
§ Start agent
7

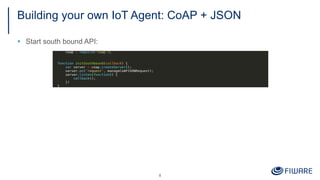

9. Building your own IoT Agent: CoAP + JSON
§ Start south bound API:
8

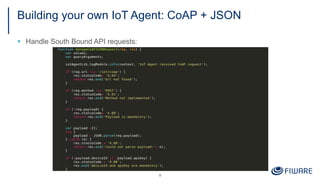

10. Building your own IoT Agent: CoAP + JSON
§ Handle South Bound API requests:
9

11. Building your own IoT Agent: CoAP + JSON
§ Update attributes in IoT Agent and CB:
10

12. Building your own IoT Agent: CoAP + JSON
§ From JSON to NGSI:
11

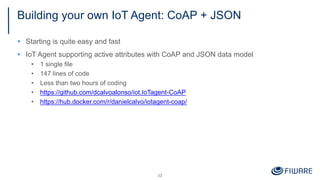

13. Building your own IoT Agent: CoAP + JSON
§ Starting is quite easy and fast
§ IoT Agent supporting active attributes with CoAP and JSON data model
• 1 single file
• 147 lines of code
• Less than two hours of coding
• https://github.com/dcalvoalonso/iot.IoTagent-CoAP
• https://hub.docker.com/r/danielcalvo/iotagent-coap/
12

14. Thank you!
http://fiware.org
Follow @FIWARE on Twitter
Daniel Calvo
IoE Lab. ATOS Research &
Innovation
daniel.calvo@atos.net
