- 1. Managing Context Informationat large scale Fermín Galán Márquez - fermin.galanmarquez@telefonica.com (@fermingalan) March 2nd, 2015 – 4YFN

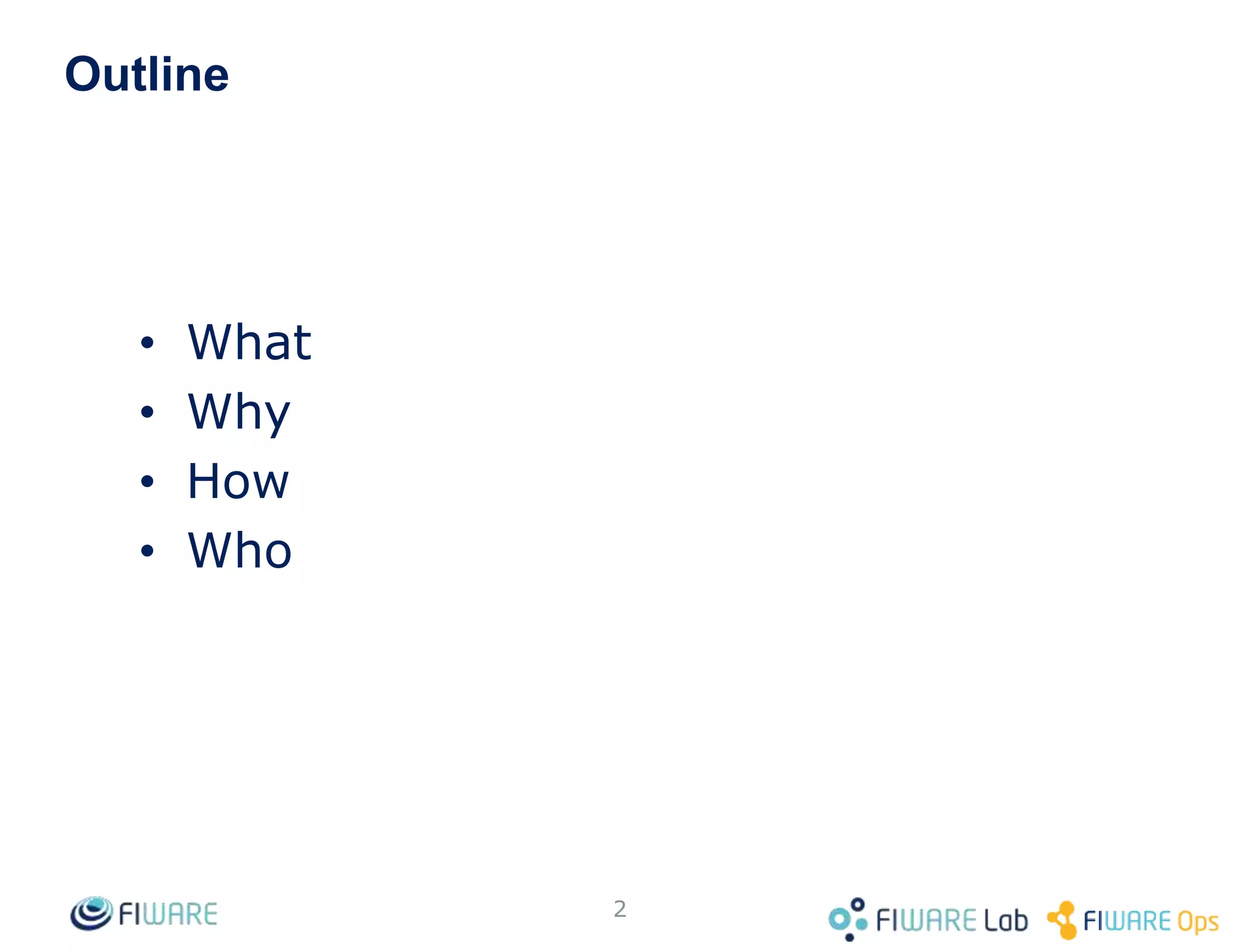

- 2. • What • Why •How • Who 2 Outline
- 3.

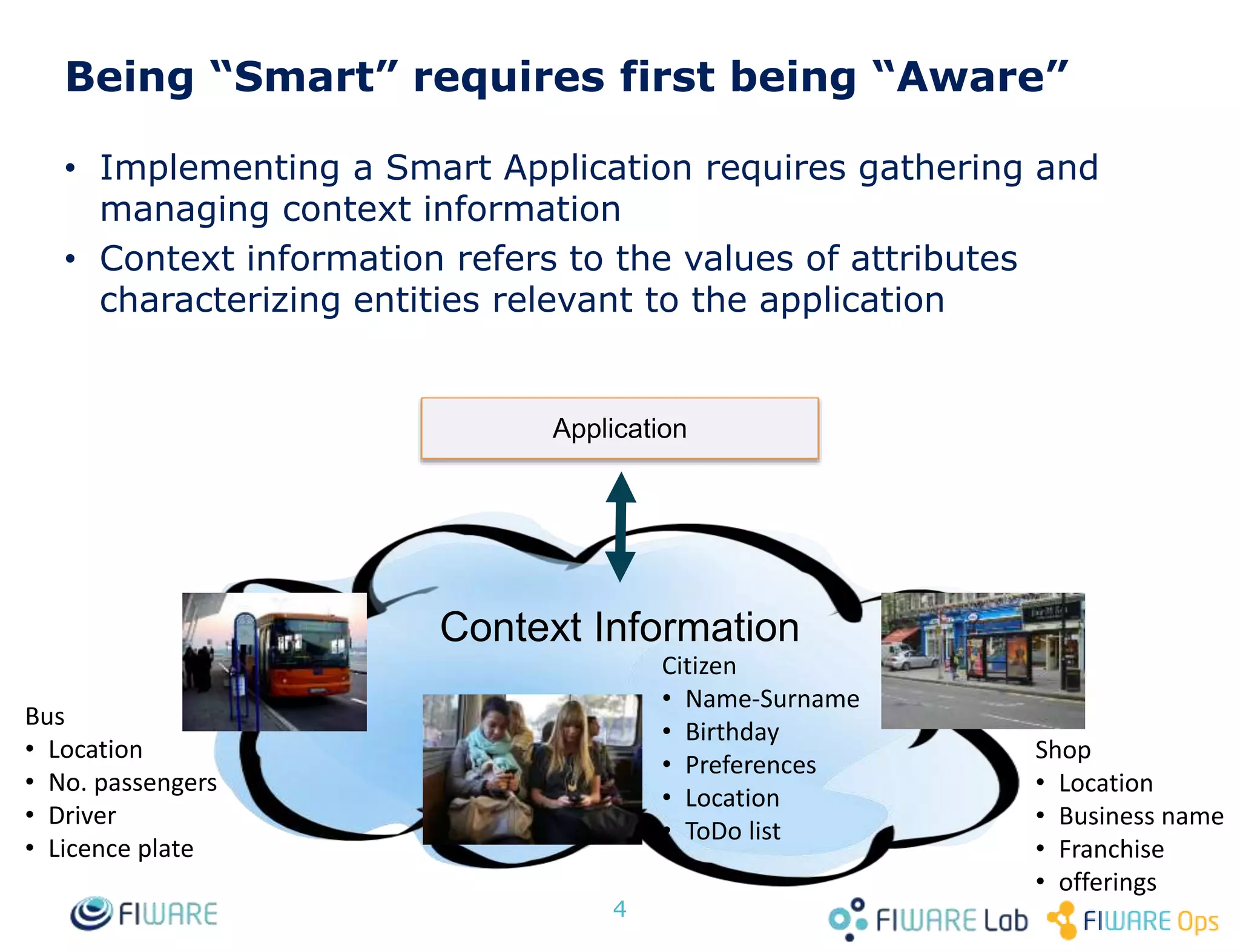

- 4. Being “Smart” requiresfirst being “Aware” • Implementing a Smart Application requires gathering and managing context information • Context information refers to the values of attributes characterizing entities relevant to the application 4 Bus • Location • No. passengers • Driver • Licence plate Citizen • Name-Surname • Birthday • Preferences • Location • ToDo list Shop • Location • Business name • Franchise • offerings Context Information Application

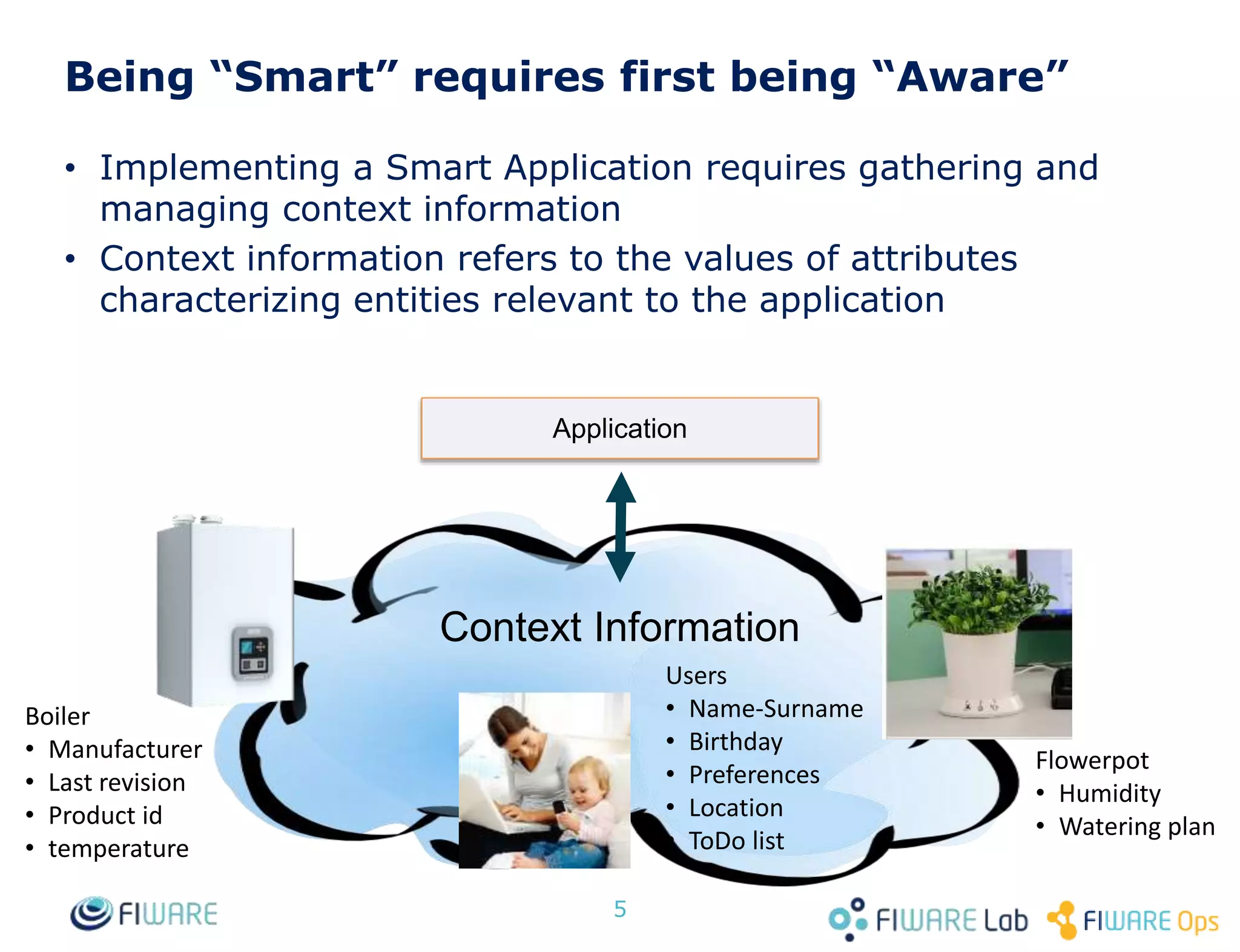

- 5. Being “Smart” requiresfirst being “Aware” • Implementing a Smart Application requires gathering and managing context information • Context information refers to the values of attributes characterizing entities relevant to the application 5 Boiler • Manufacturer • Last revision • Product id • temperature Users • Name-Surname • Birthday • Preferences • Location • ToDo list Flowerpot • Humidity • Watering plan Context Information Application

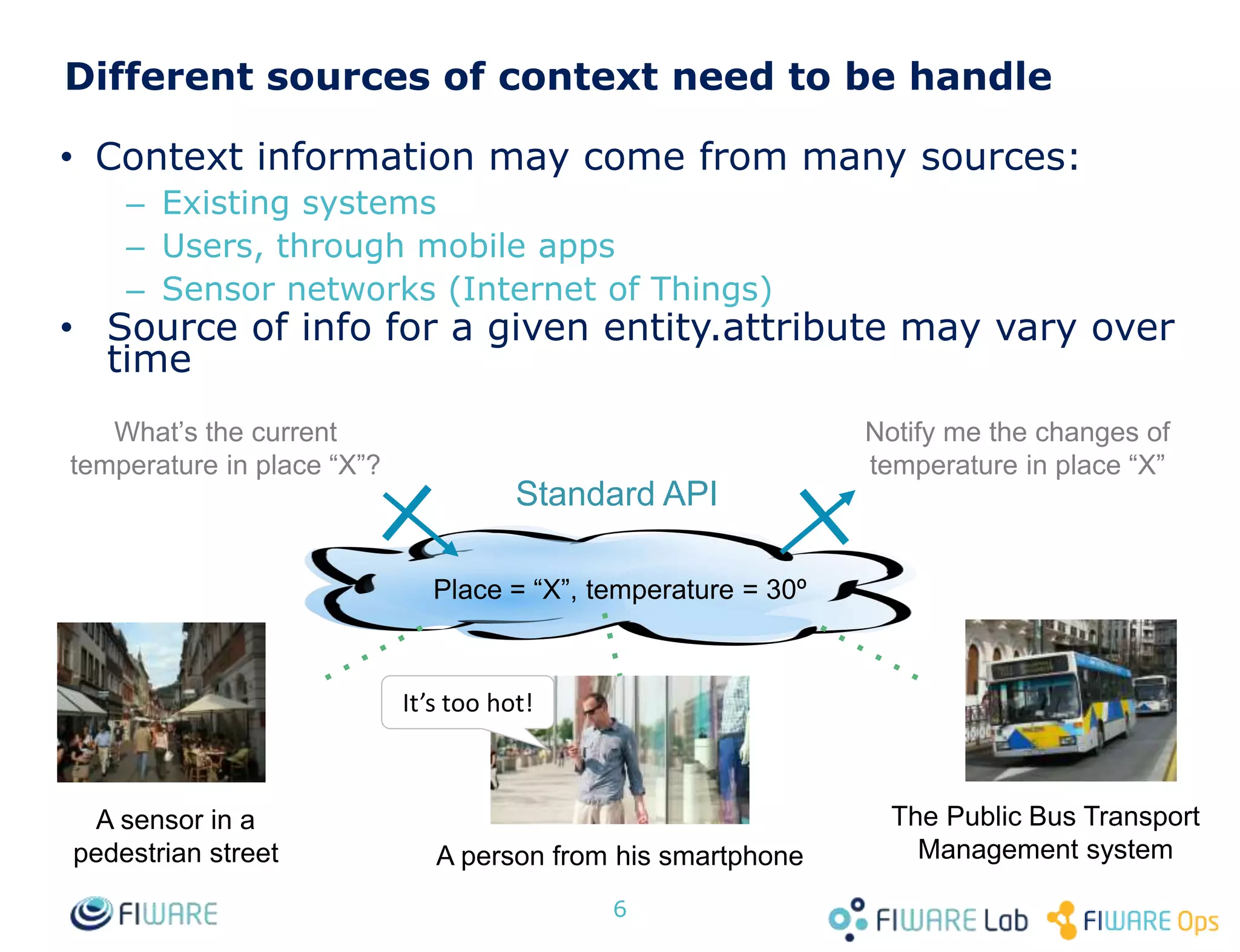

- 6. Different sources ofcontext need to be handle • Context information may come from many sources: – Existing systems – Users, through mobile apps – Sensor networks (Internet of Things) • Source of info for a given entity.attribute may vary over time 6 Place = “X”, temperature = 30º What’s the current temperature in place “X”? Standard API A sensor in a pedestrian street The Public Bus Transport Management systemA person from his smartphone It’s too hot! Notify me the changes of temperature in place “X”

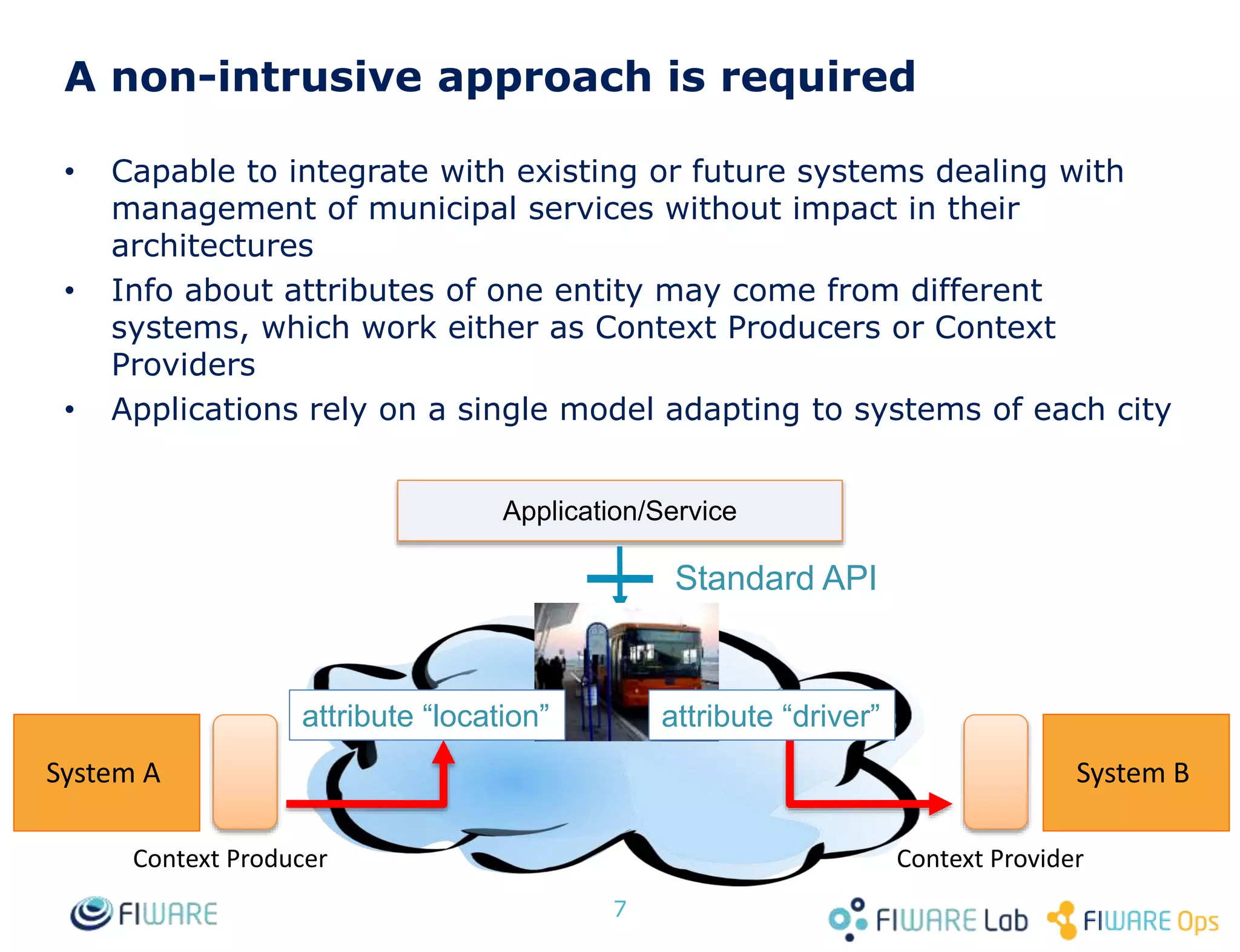

- 7. A non-intrusive approachis required • Capable to integrate with existing or future systems dealing with management of municipal services without impact in their architectures • Info about attributes of one entity may come from different systems, which work either as Context Producers or Context Providers • Applications rely on a single model adapting to systems of each city 7 Application/Service Standard API System A System B Context Producer Context Provider attribute “location” attribute “driver”

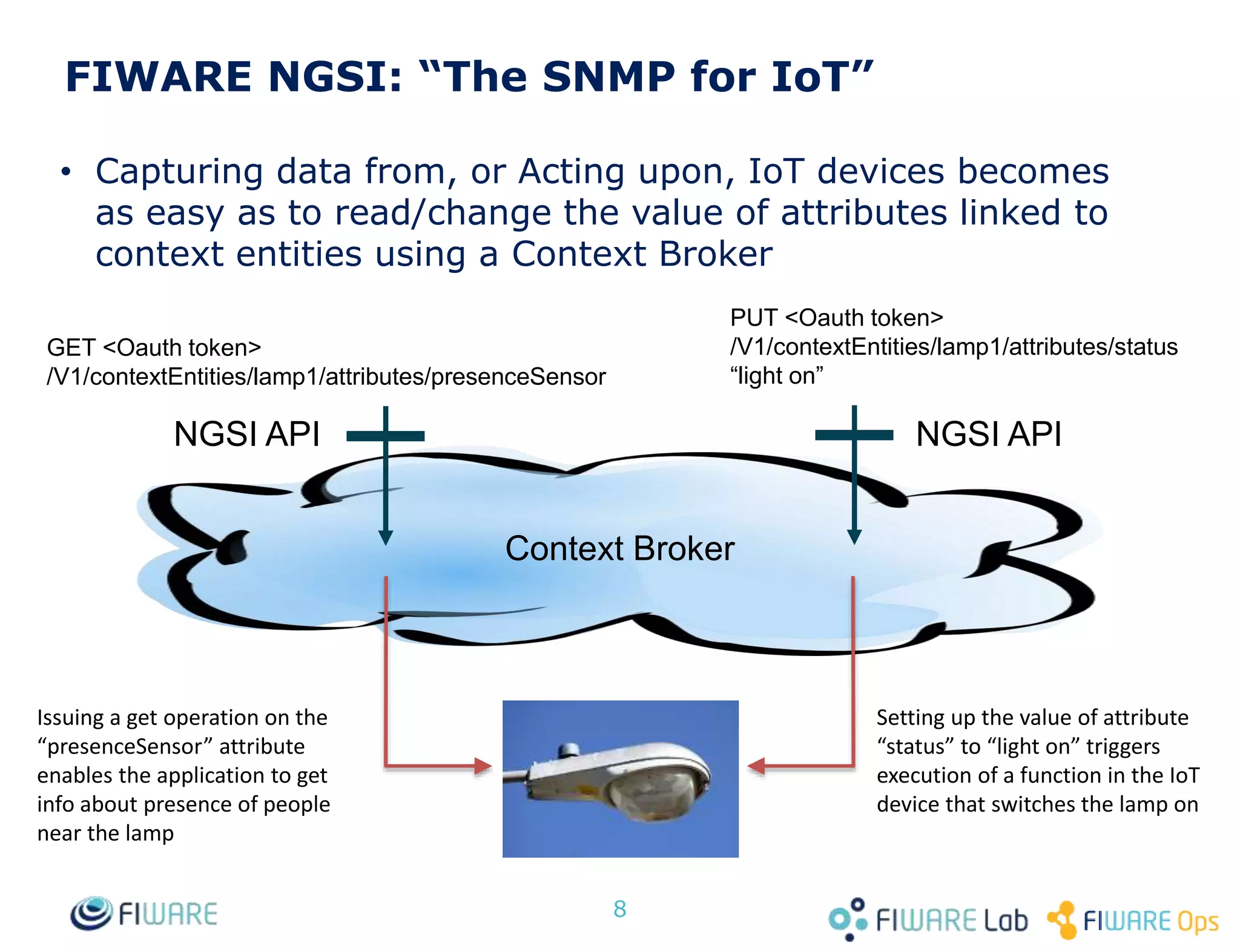

- 8. FIWARE NGSI: “TheSNMP for IoT” • Capturing data from, or Acting upon, IoT devices becomes as easy as to read/change the value of attributes linked to context entities using a Context Broker 8 Context Broker NGSI APINGSI API GET <Oauth token> /V1/contextEntities/lamp1/attributes/presenceSensor PUT <Oauth token> /V1/contextEntities/lamp1/attributes/status “light on” Setting up the value of attribute “status” to “light on” triggers execution of a function in the IoT device that switches the lamp on Issuing a get operation on the “presenceSensor” attribute enables the application to get info about presence of people near the lamp

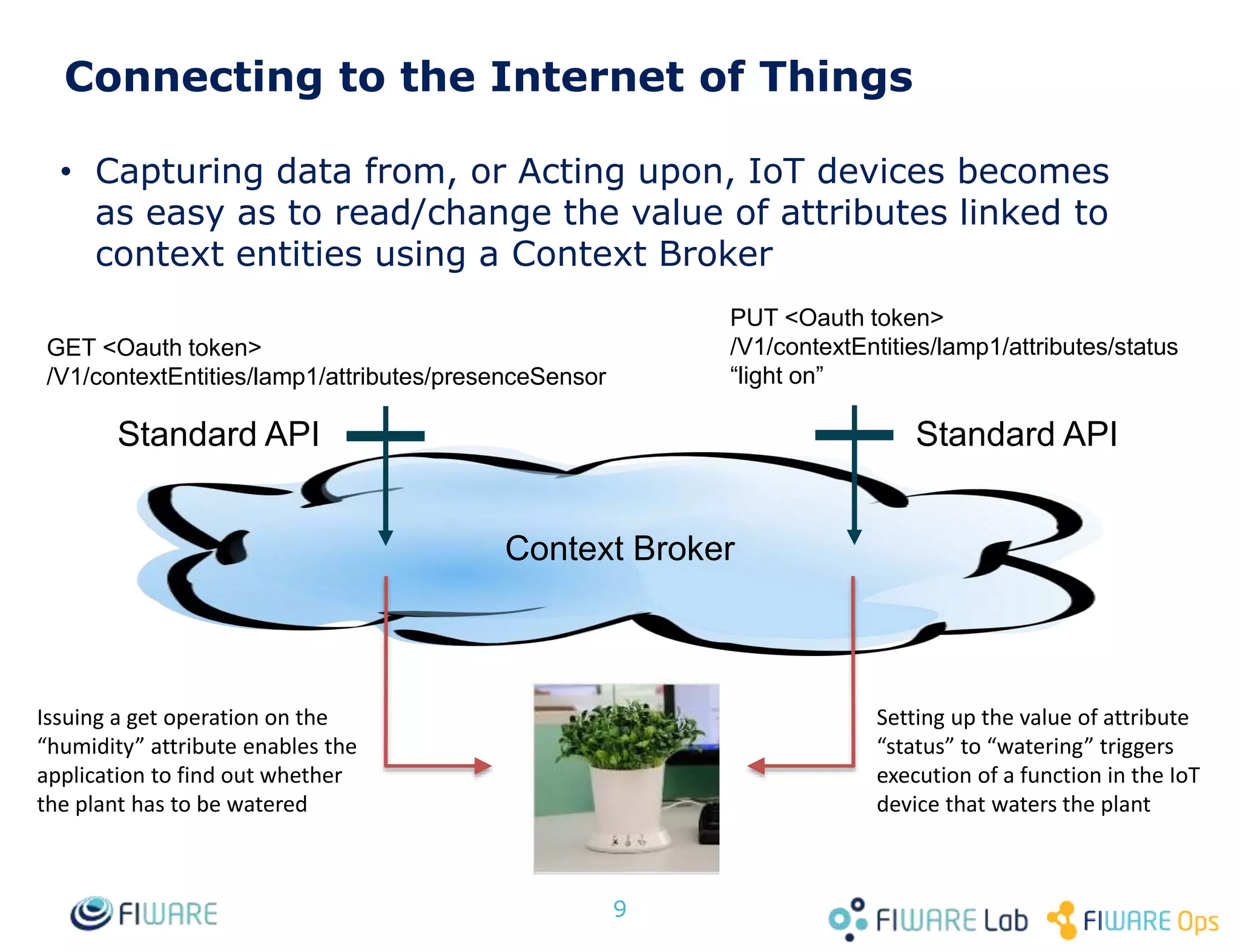

- 9. Connecting to theInternet of Things • Capturing data from, or Acting upon, IoT devices becomes as easy as to read/change the value of attributes linked to context entities using a Context Broker 9 Context Broker Standard APIStandard API GET <Oauth token> /V1/contextEntities/lamp1/attributes/presenceSensor PUT <Oauth token> /V1/contextEntities/lamp1/attributes/status “light on” Setting up the value of attribute “status” to “watering” triggers execution of a function in the IoT device that waters the plant Issuing a get operation on the “humidity” attribute enables the application to find out whether the plant has to be watered

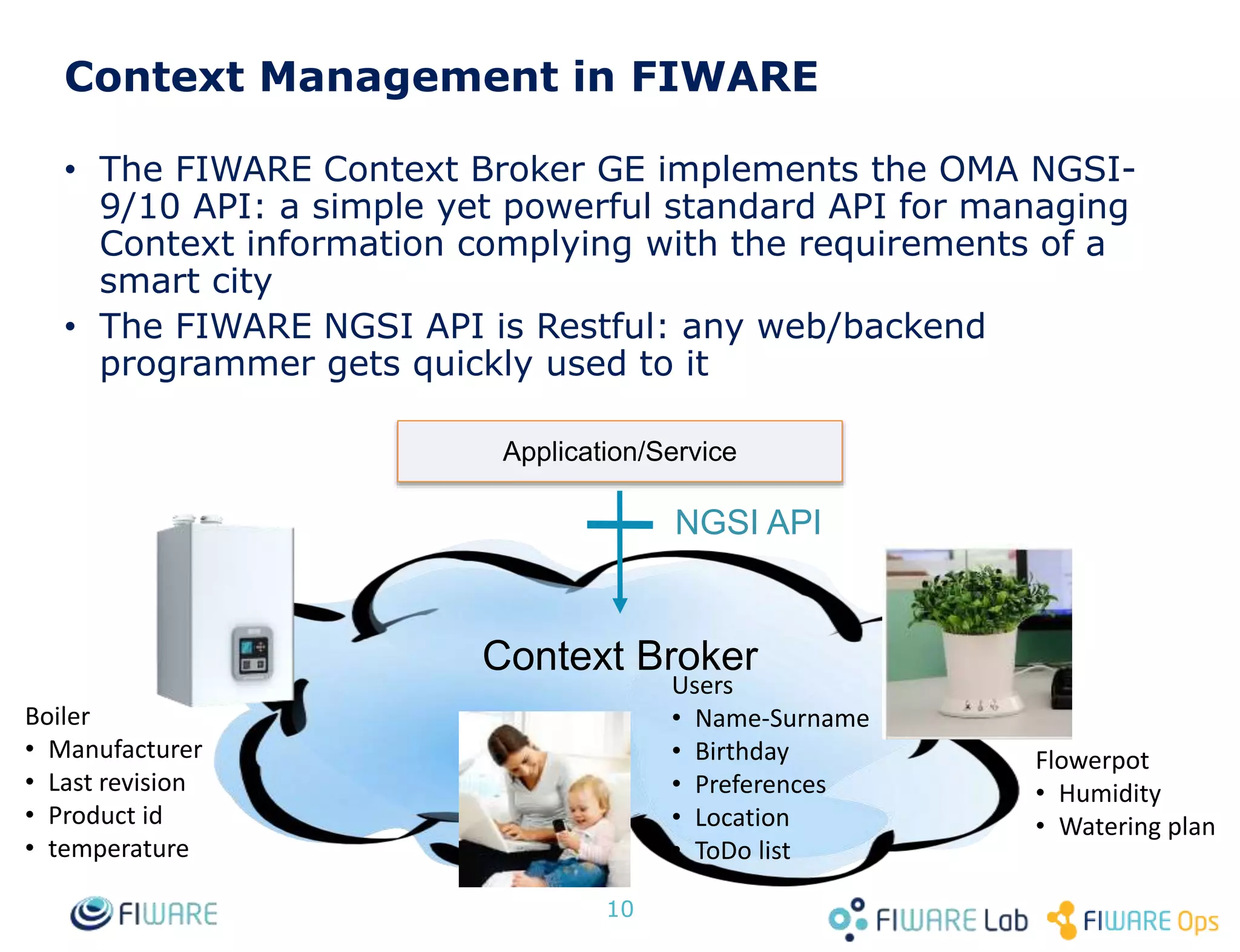

- 10. Context Management inFIWARE • The FIWARE Context Broker GE implements the OMA NGSI- 9/10 API: a simple yet powerful standard API for managing Context information complying with the requirements of a smart city • The FIWARE NGSI API is Restful: any web/backend programmer gets quickly used to it 10 Application/Service Context Broker NGSI API Boiler • Manufacturer • Last revision • Product id • temperature Users • Name-Surname • Birthday • Preferences • Location • ToDo list Flowerpot • Humidity • Watering plan
- 11.
- 12.
- 13.
- 14. Seamless interconnection with FIWAREplatform (more on this later)
- 15.

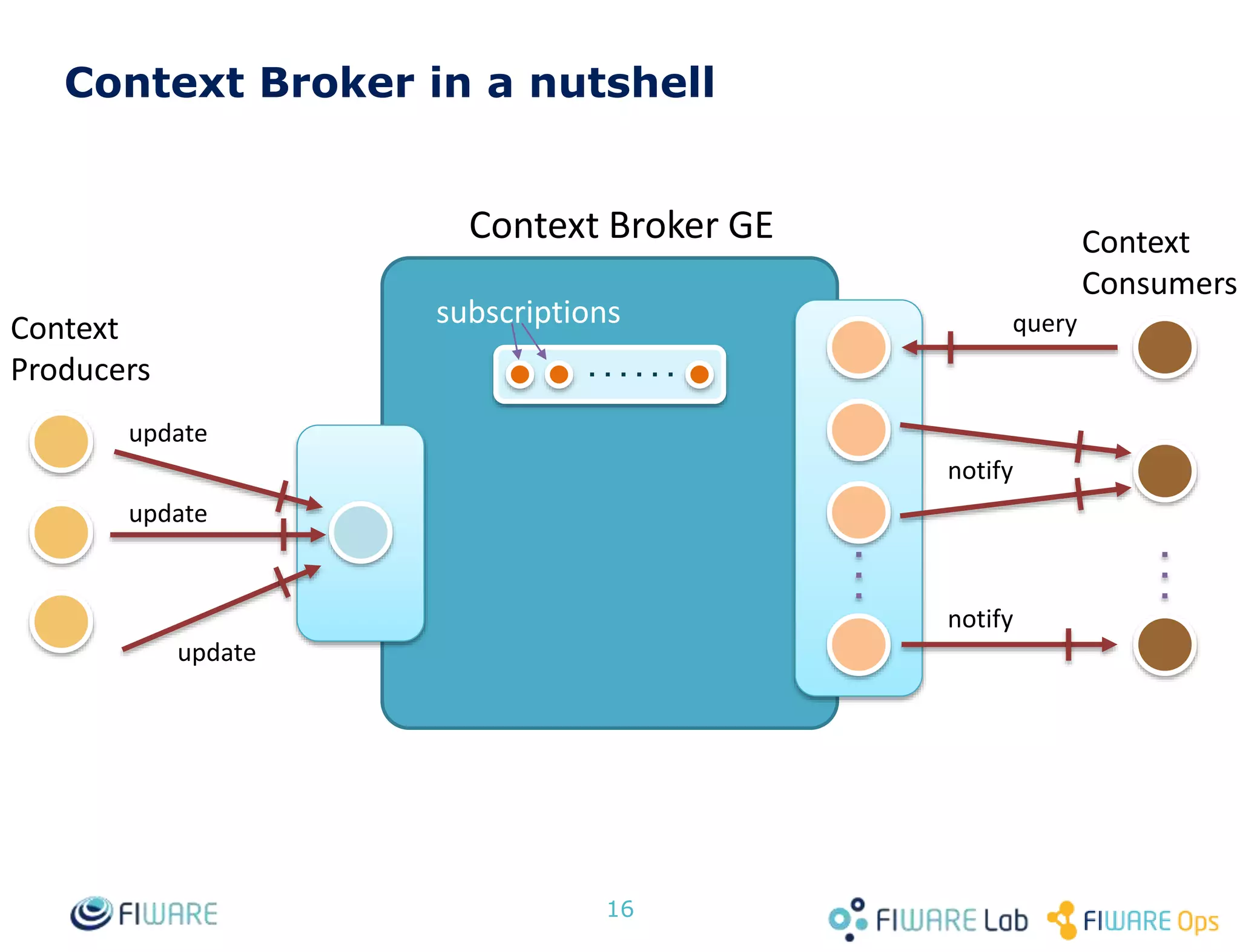

- 16. Context Broker ina nutshell 16 Context Broker GE Context Producers Context Consumers subscriptions update query notify notify update update
- 17. Context Management atthe heart of FIWARE 17 CKAN Big Data Context Broker Accounting&Payment&Billing IDM&Auth Short-term historic data BigData Processing Data Quering/Action, Publish/Subscr Open Data publishing Real-time processing BI ETL RULES DEFINITION TOOL OPERATIONAL DASHBOARD KPI GOVERNANCE OPEN DATA PORTALS Service orchestrator Context Adapters CEP IoT Backend Device Management measures / commands IoT Broker & Config Management (from sensors to things) IoT/Senso r Open Dataactuators Media streams Real Time Media Stream Processing City Services GIS Inventory Specific Enablers Generic Enablers

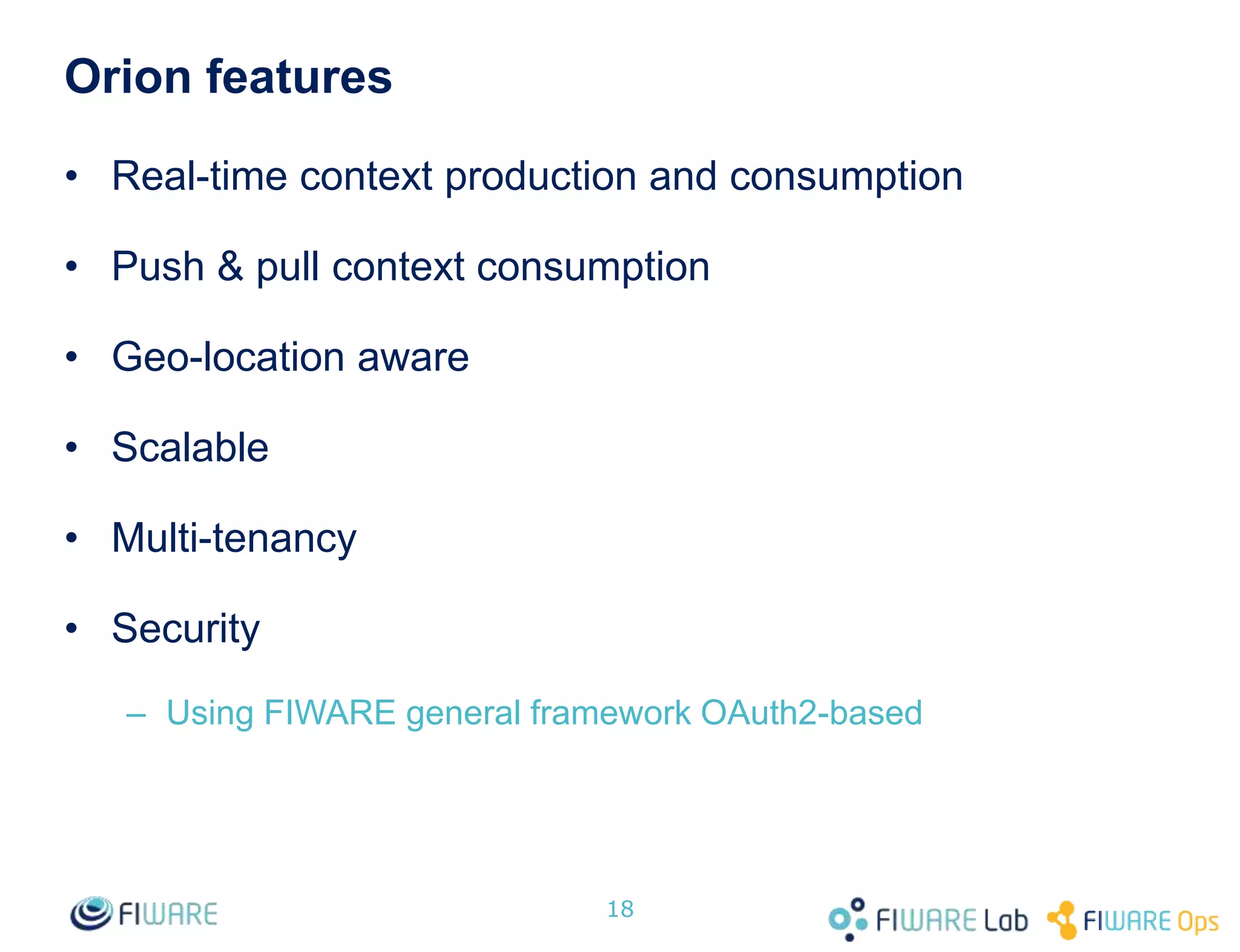

- 18. Orion features • Real-timecontext production and consumption • Push & pull context consumption • Geo-location aware • Scalable • Multi-tenancy • Security – Using FIWARE general framework OAuth2-based 18
- 19.
- 20.
- 21.
- 22.

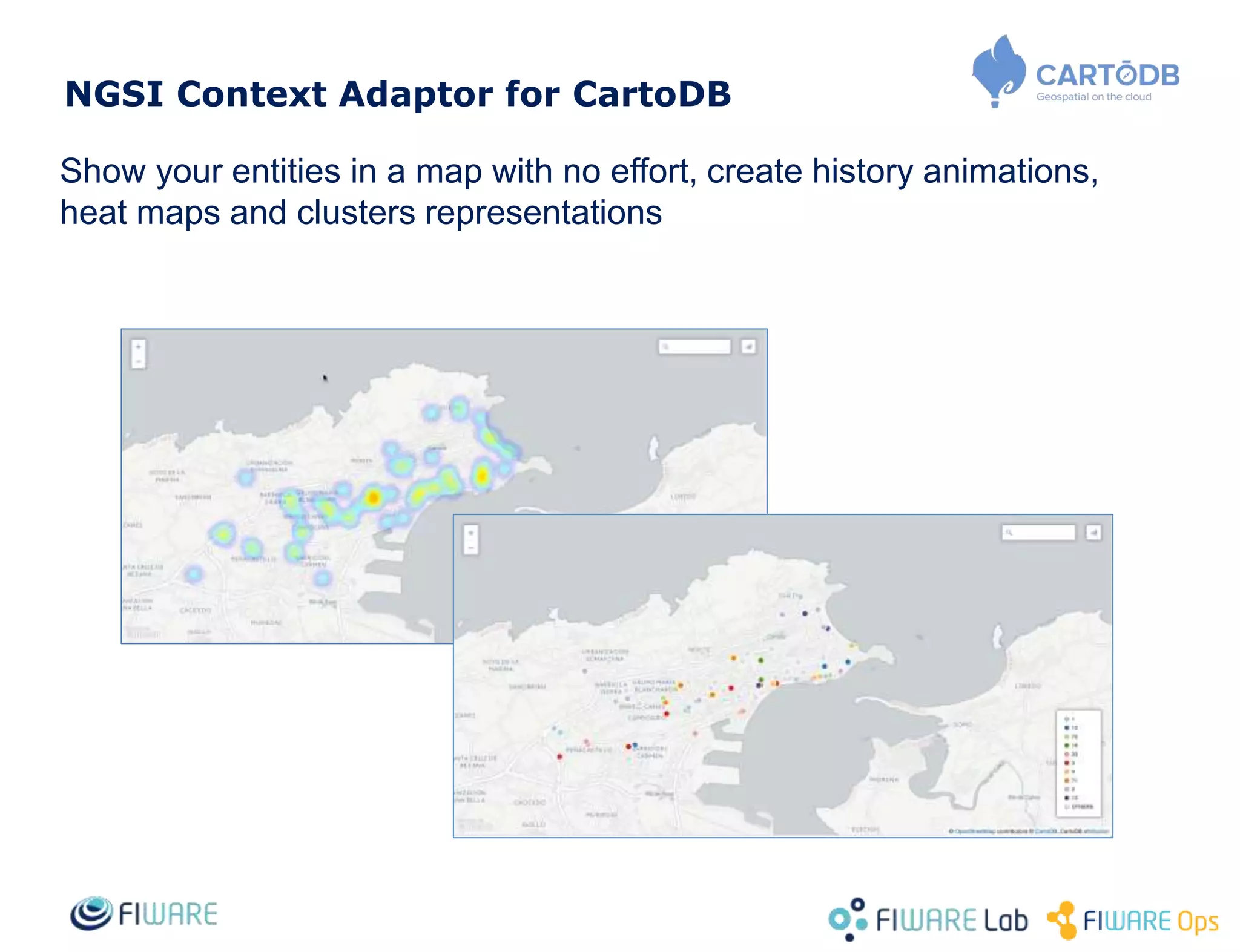

- 23. NGSI Context Adaptorfor CartoDB Show your entities in a map with no effort, create history animations, heat maps and clusters representations

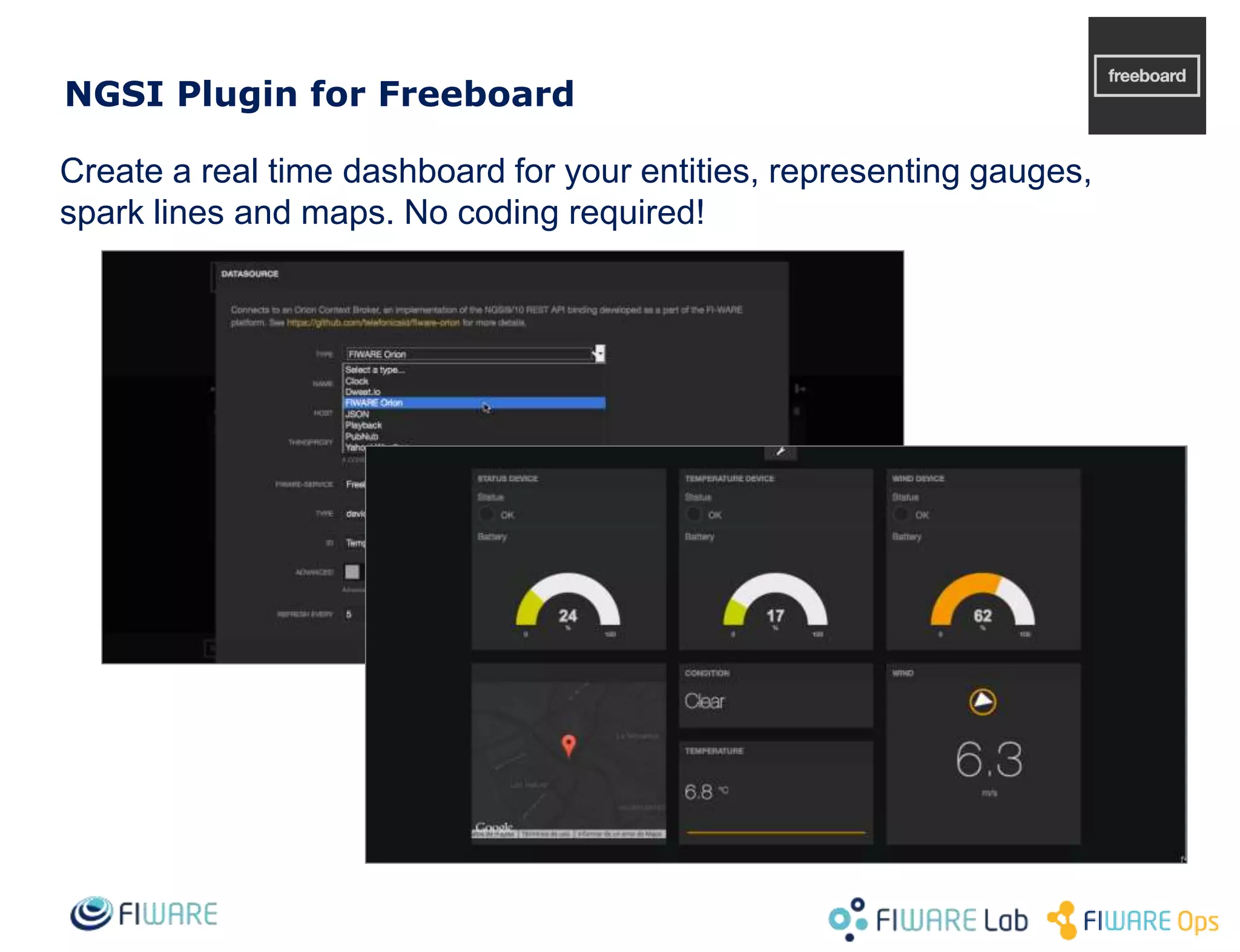

- 24. NGSI Plugin forFreeboard Create a real time dashboard for your entities, representing gauges, spark lines and maps. No coding required!
- 25.

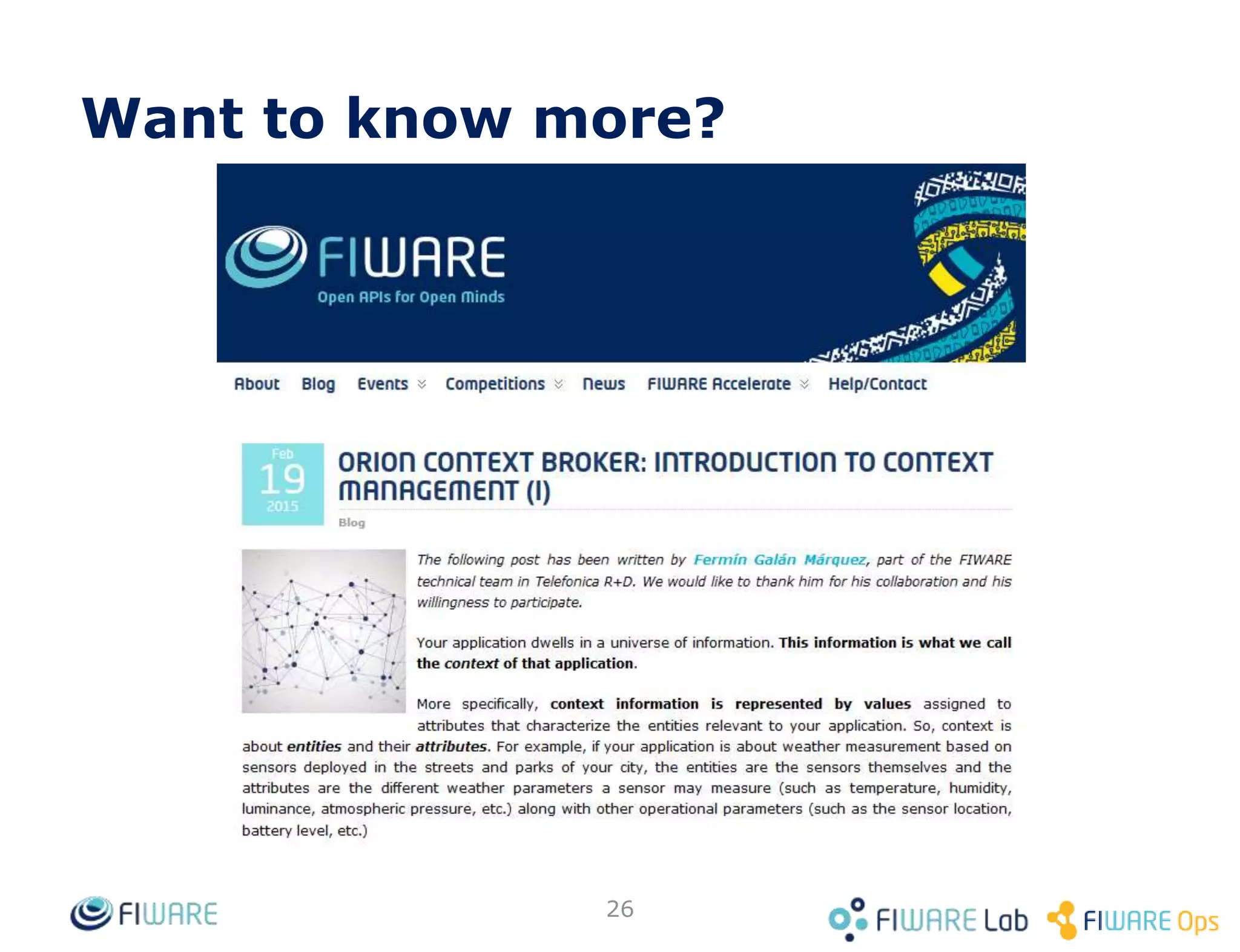

- 26. Want to knowmore? 26

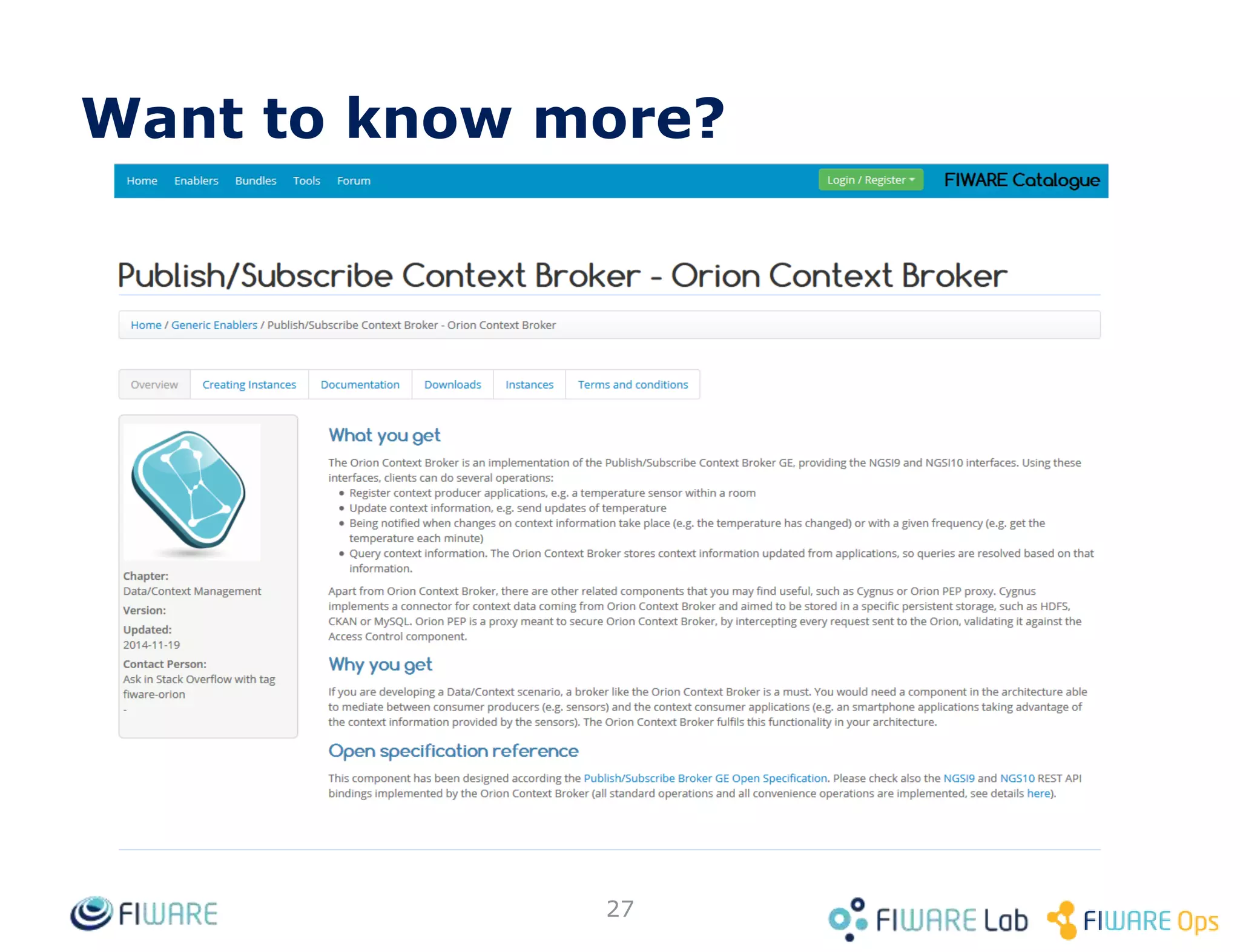

- 27. Want to knowmore? 27
- 28.

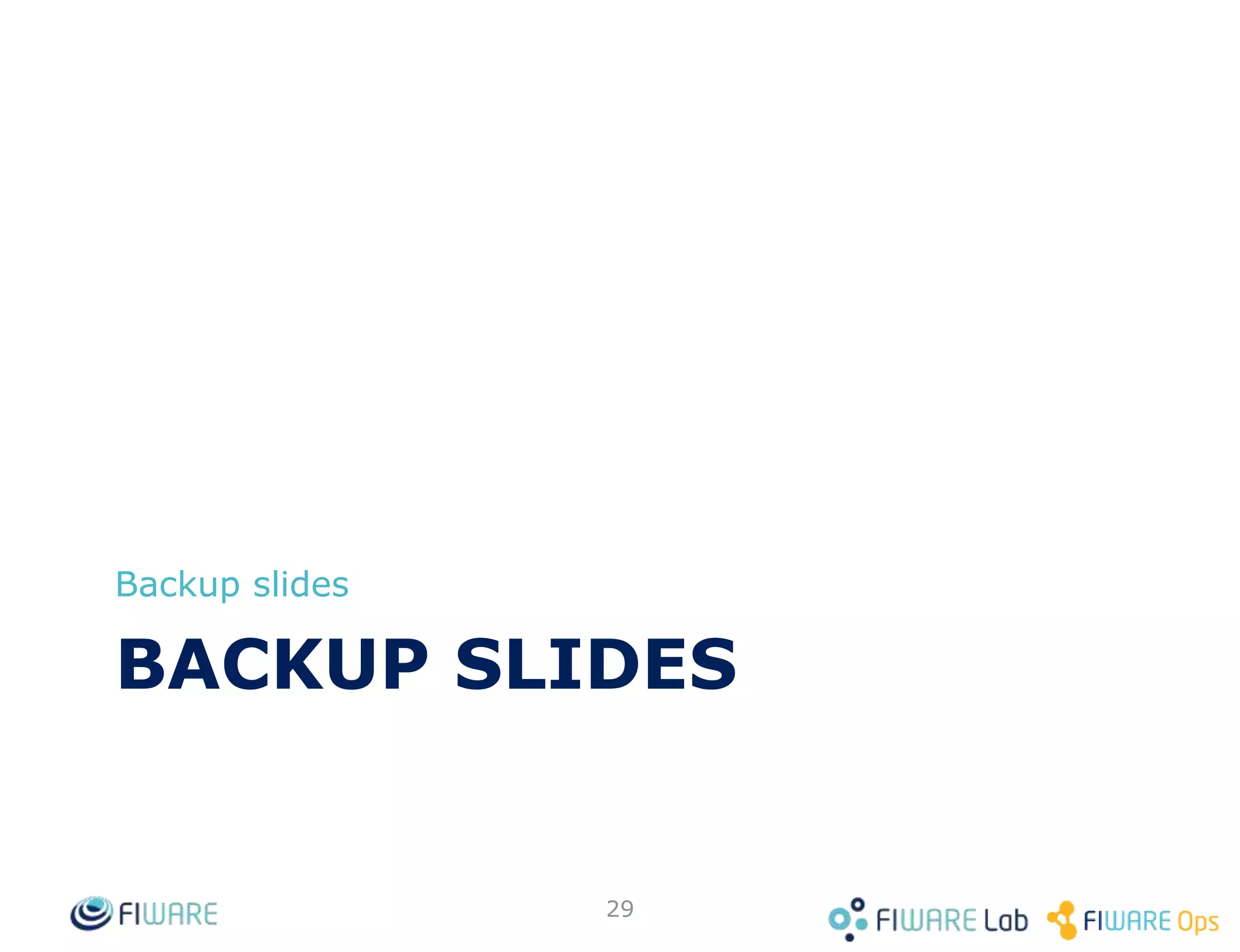

- 29.

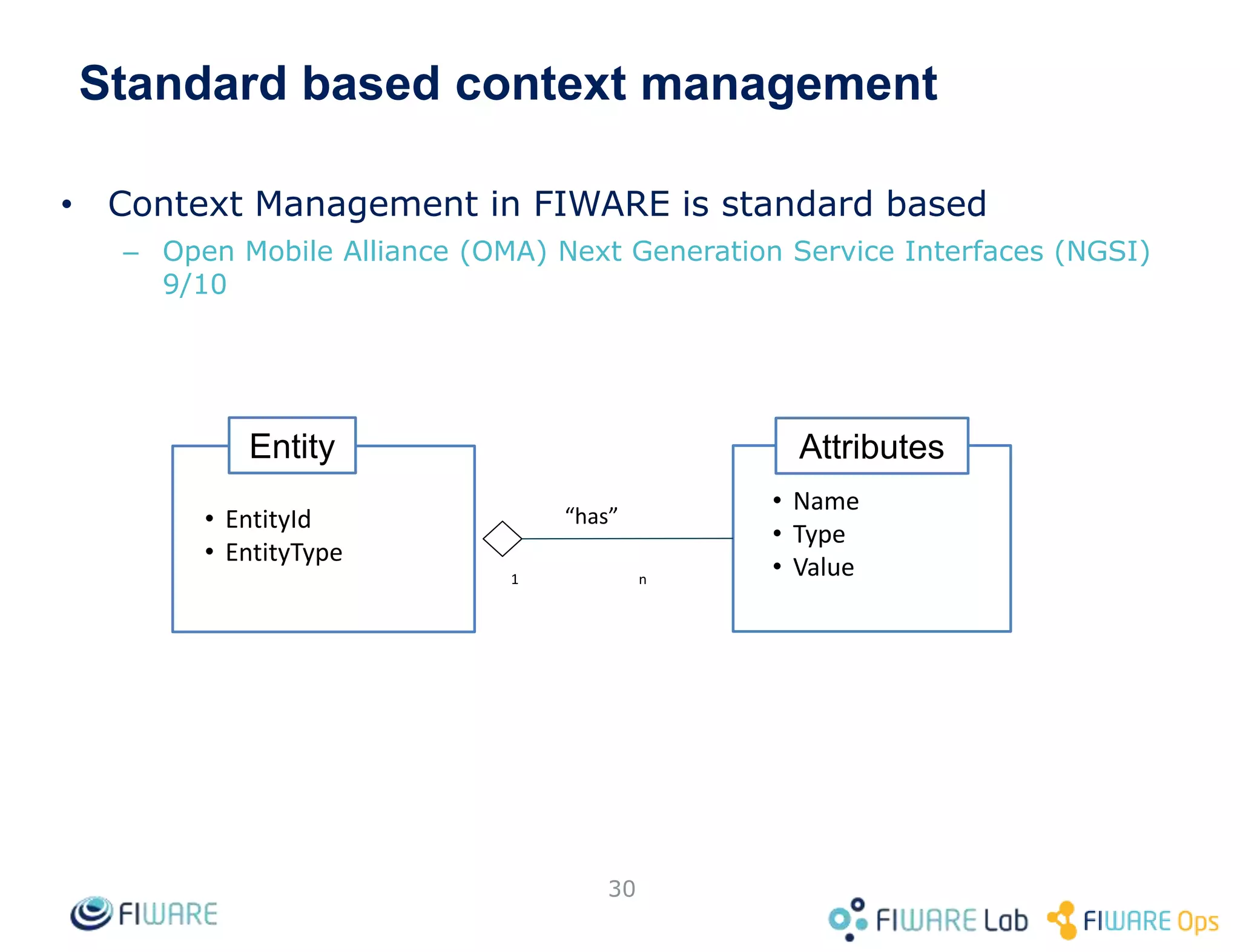

- 30. Standard based contextmanagement • Context Management in FIWARE is standard based – Open Mobile Alliance (OMA) Next Generation Service Interfaces (NGSI) 9/10 30 Attributes • Name • Type • Value Entity • EntityId • EntityType 1 n “has”

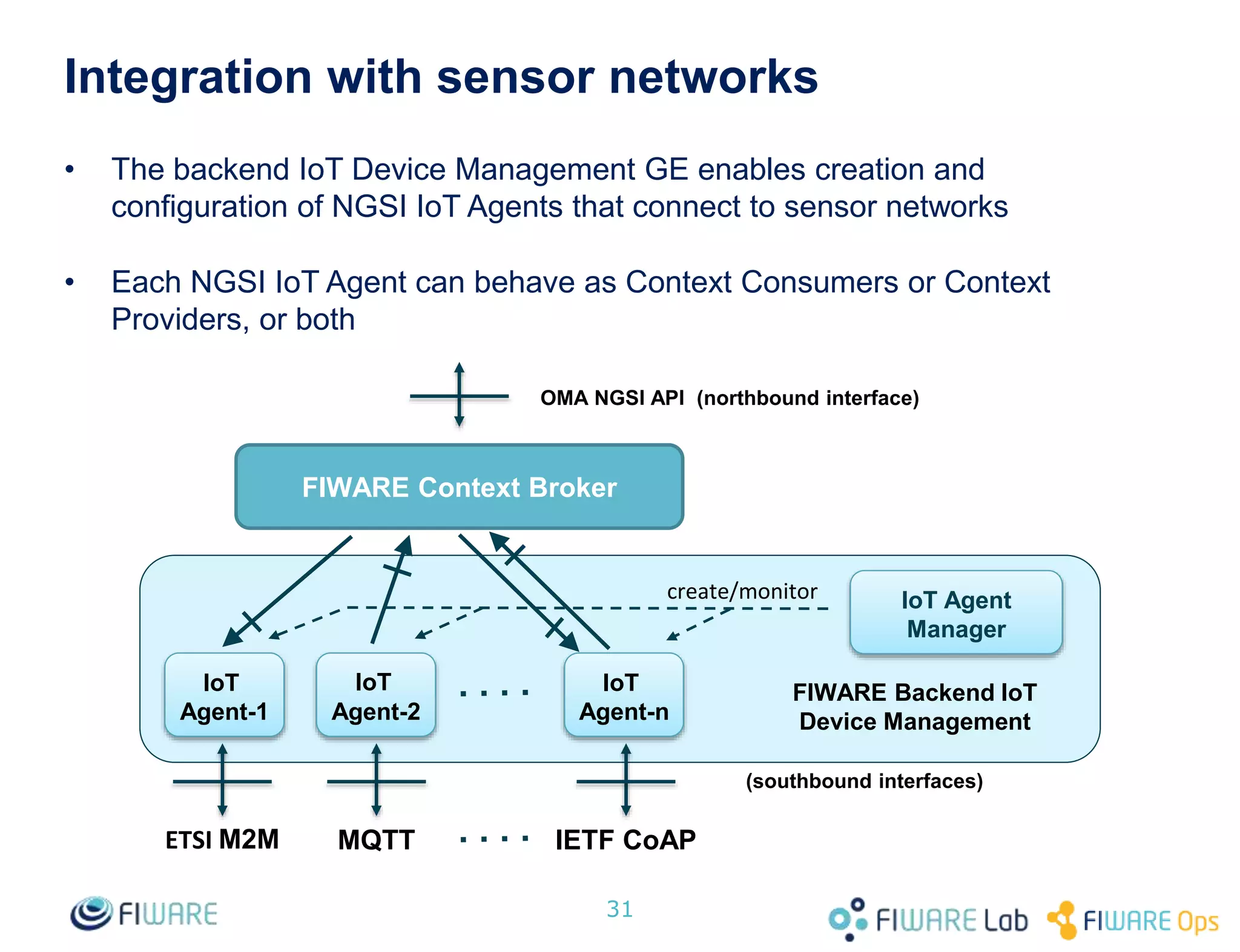

- 31. Integration with sensornetworks • The backend IoT Device Management GE enables creation and configuration of NGSI IoT Agents that connect to sensor networks • Each NGSI IoT Agent can behave as Context Consumers or Context Providers, or both 31 FIWARE Context Broker IoT Agent-1 IoT Agent-2 IoT Agent-n IoT Agent Manager create/monitor FIWARE Backend IoT Device Management OMA NGSI API (northbound interface) (southbound interfaces) MQTTETSI M2M IETF CoAP

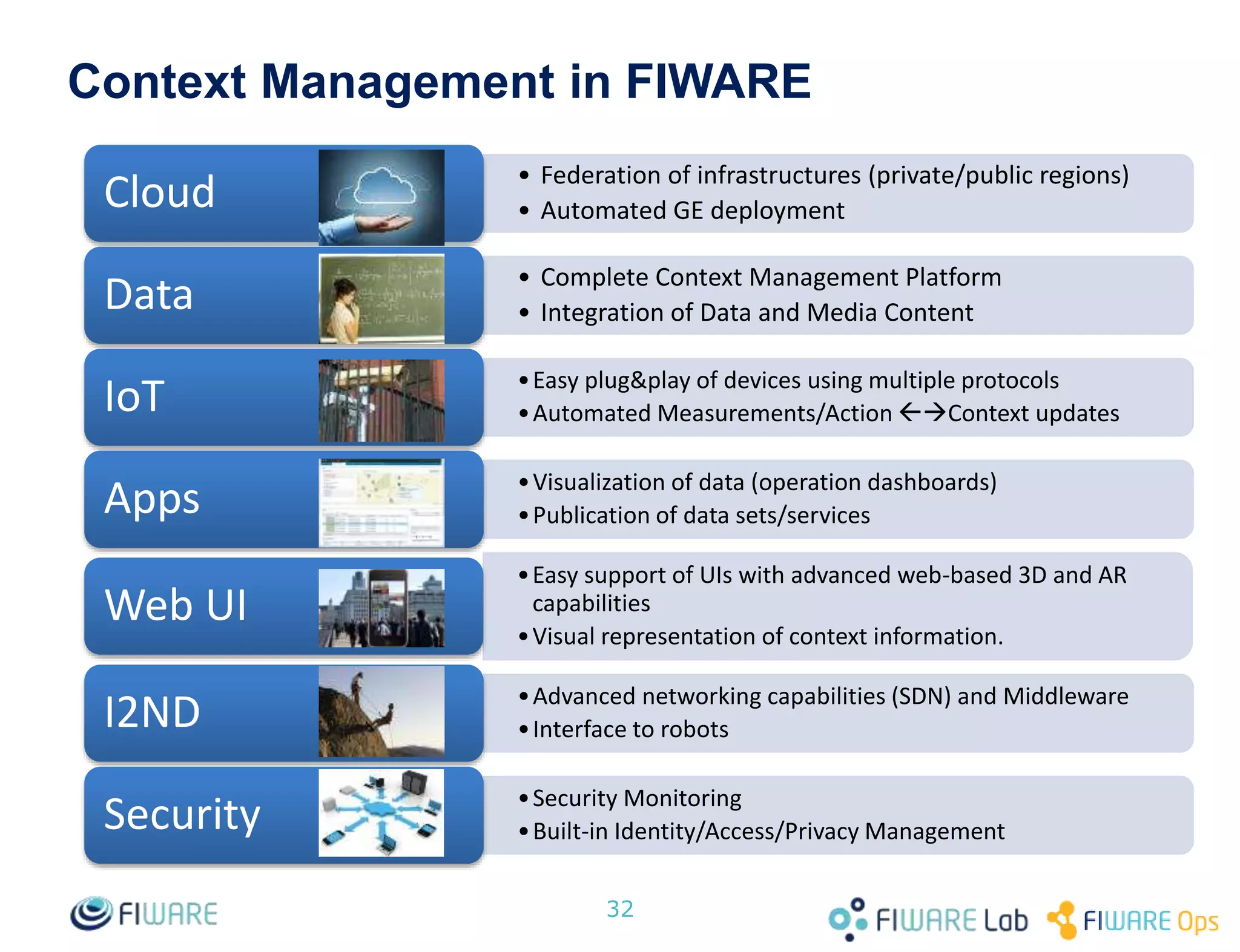

- 32. 32 • Federation ofinfrastructures (private/public regions) • Automated GE deploymentCloud • Complete Context Management Platform • Integration of Data and Media ContentData •Easy plug&play of devices using multiple protocols •Automated Measurements/Action Context updatesIoT •Visualization of data (operation dashboards) •Publication of data sets/servicesApps •Easy support of UIs with advanced web-based 3D and AR capabilities •Visual representation of context information. Web UI •Advanced networking capabilities (SDN) and Middleware •Interface to robotsI2ND •Security Monitoring •Built-in Identity/Access/Privacy ManagementSecurity Context Management in FIWARE
- 33. FI-WARE Context/Data ManagementPlatform 33 Context/Data Management Platform Applications OMA NGSI-9/10 Processing/Analysis Algorithms Gathered data is injected for processing/analysis Distributed Context Sources Complex Event Processing (PROTON) BigData (COSMOS) Processed data is injected for processing/analysi s Data generated either by CEP or BigData is published Gathered data injected for CEP-like processing Direct bigdata injection Programming of rules

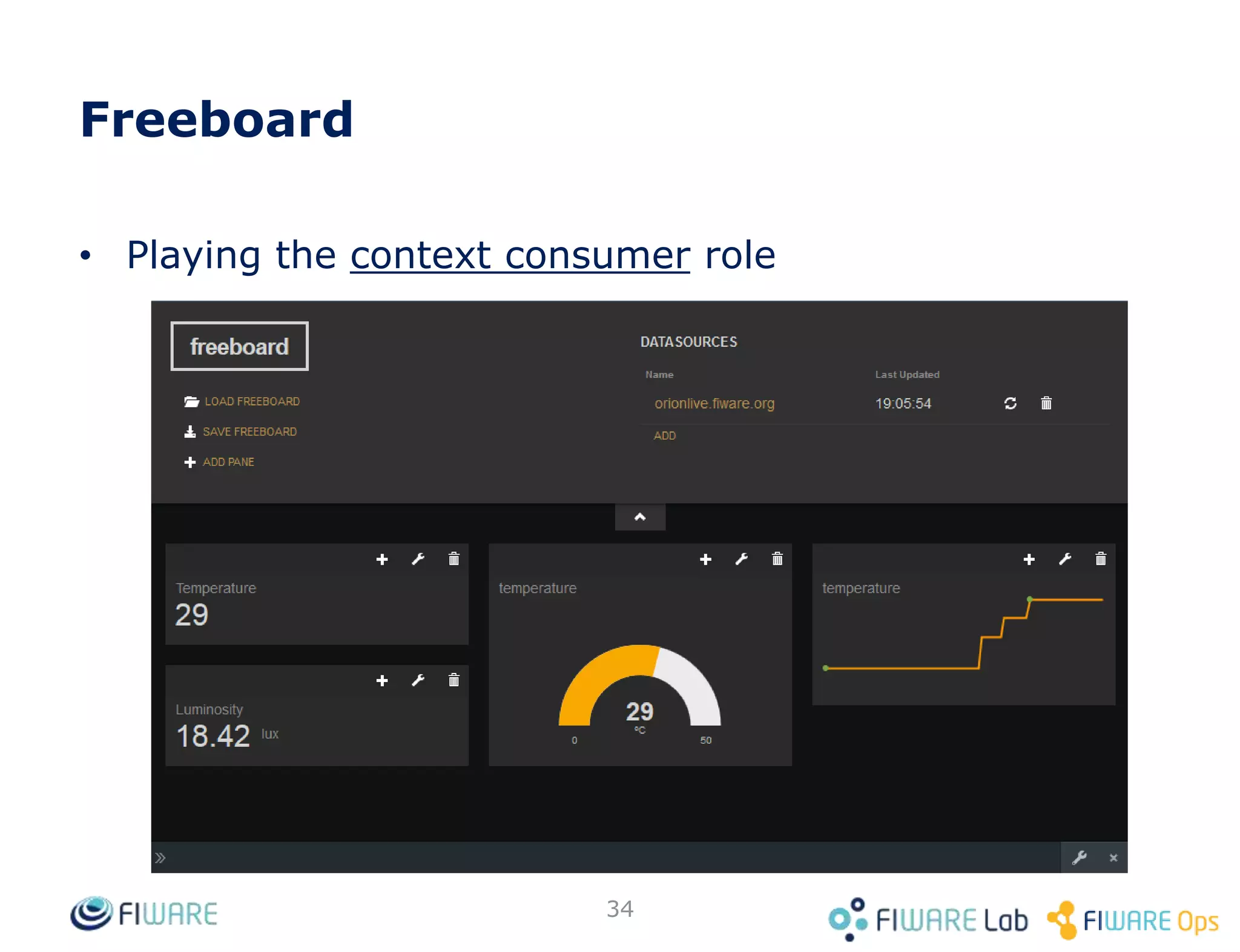

- 34. Freeboard • Playing thecontext consumer role 34

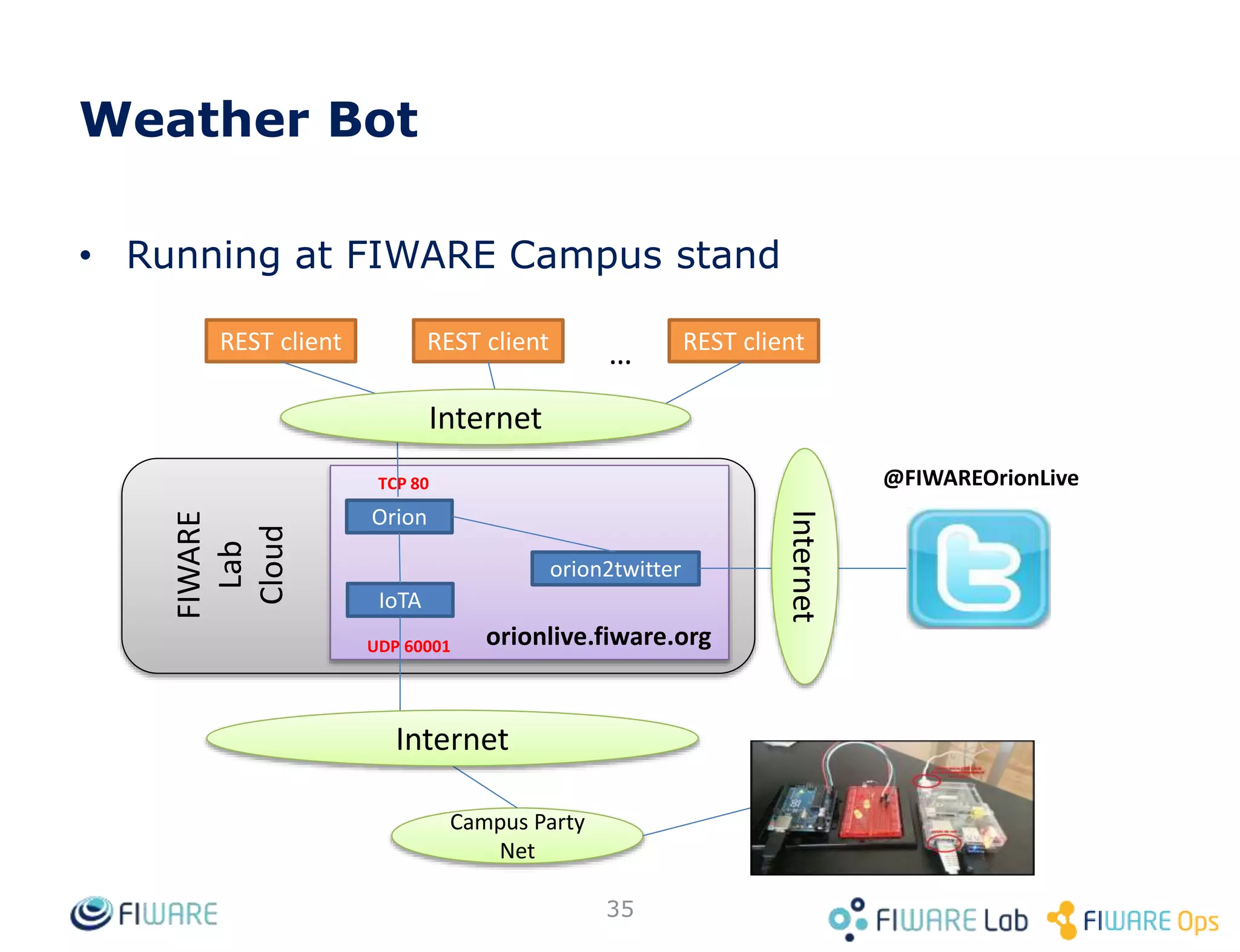

- 35. Weather Bot • Runningat FIWARE Campus stand 35 FIWARE Lab Cloud IoTA Orion orionlive.fiware.org Campus Party Net Internet REST client REST client REST client … UDP 60001 orion2twitter Internet Internet @FIWAREOrionLiveTCP 80

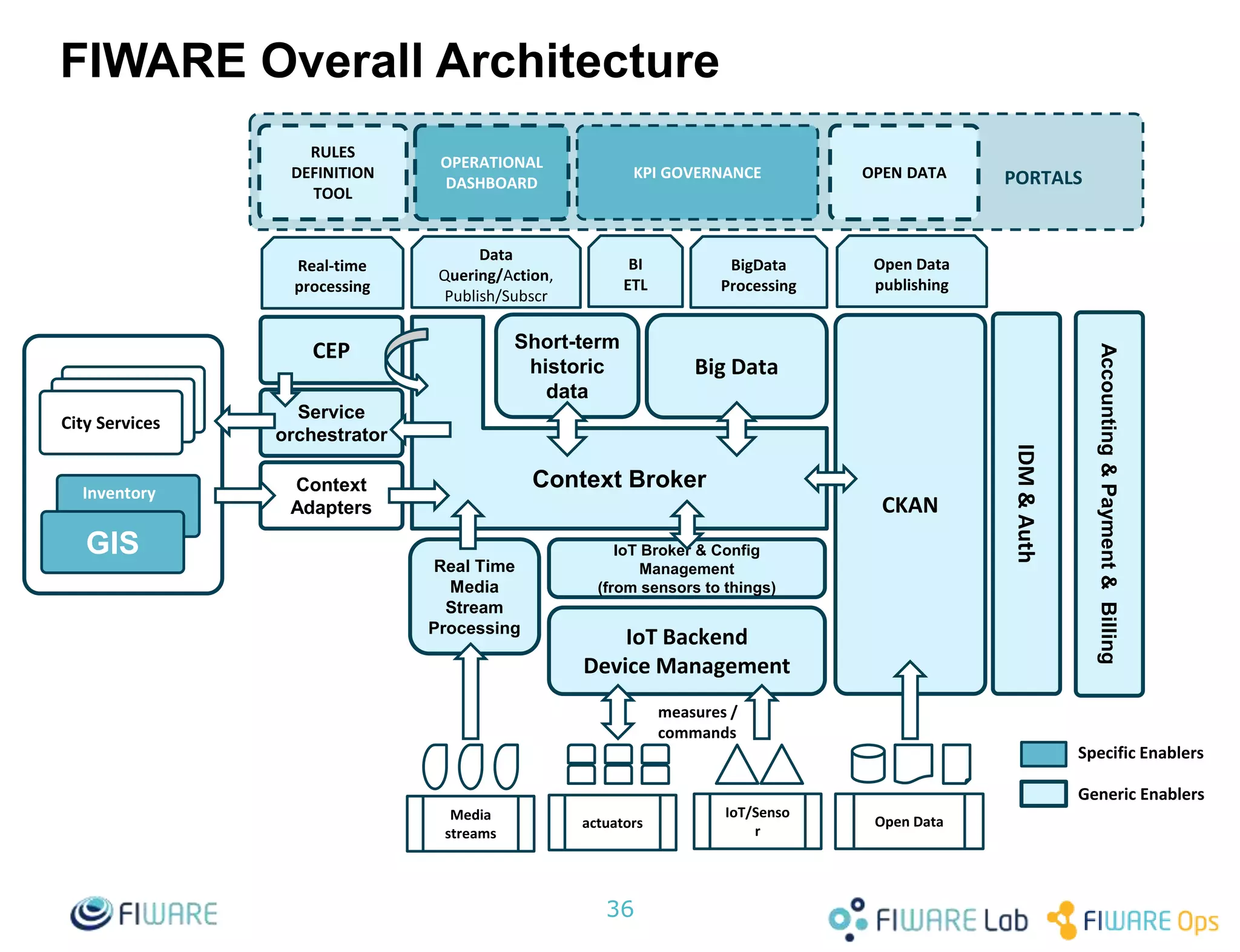

- 36. FIWARE Overall Architecture 36 CKAN BigData Context Broker Accounting&Payment&Billing IDM&Auth Short-term historic data BigData Processing Data Quering/Action, Publish/Subscr Open Data publishing Real-time processing BI ETL RULES DEFINITION TOOL OPERATIONAL DASHBOARD KPI GOVERNANCE OPEN DATA PORTALS Service orchestrator Context Adapters CEP IoT Backend Device Management measures / commands IoT Broker & Config Management (from sensors to things) IoT/Senso r Open Dataactuators Media streams Real Time Media Stream Processing City Services GIS Inventory Specific Enablers Generic Enablers
Editor's Notes
- #4 What is context management?
- #12 Why use the context management parading in applications?
- #13 Taking into account these two cases, we can see two of the main values of context management as design paradigm for applications. First, its simplicity. Everything is about entities and attributes. No complex modeling needed. No complex data relationships or complicated SQL statements to get your data. Modeling your application in terms of entities and attributes is generally easy, as these concepts naturally arise from your application design. Second, its flexibility. Context is a rather generic concept, so it is suited for many applications, no matter whether the application is related to weather measurement, traffic or whatever other domain. As part of this flexibility, take into account that an entity doesn’t necessarily model things in the real world (such as sensors or cars). It can also model things in the virtual world, such as an “alarm” in a trouble ticket system (which doesn’t have any physical representation and only exists within the IT system which manages alarms).
- #14 Taking into account these two cases, we can see two of the main values of context management as design paradigm for applications. First, its simplicity. Everything is about entities and attributes. No complex modeling needed. No complex data relationships or complicated SQL statements to get your data. Modeling your application in terms of entities and attributes is generally easy, as these concepts naturally arise from your application design. Second, its flexibility. Context is a rather generic concept, so it is suited for many applications, no matter whether the application is related to weather measurement, traffic or whatever other domain. As part of this flexibility, take into account that an entity doesn’t necessarily model things in the real world (such as sensors or cars). It can also model things in the virtual world, such as an “alarm” in a trouble ticket system (which doesn’t have any physical representation and only exists within the IT system which manages alarms).
- #15 Why use the context management parading in applications?

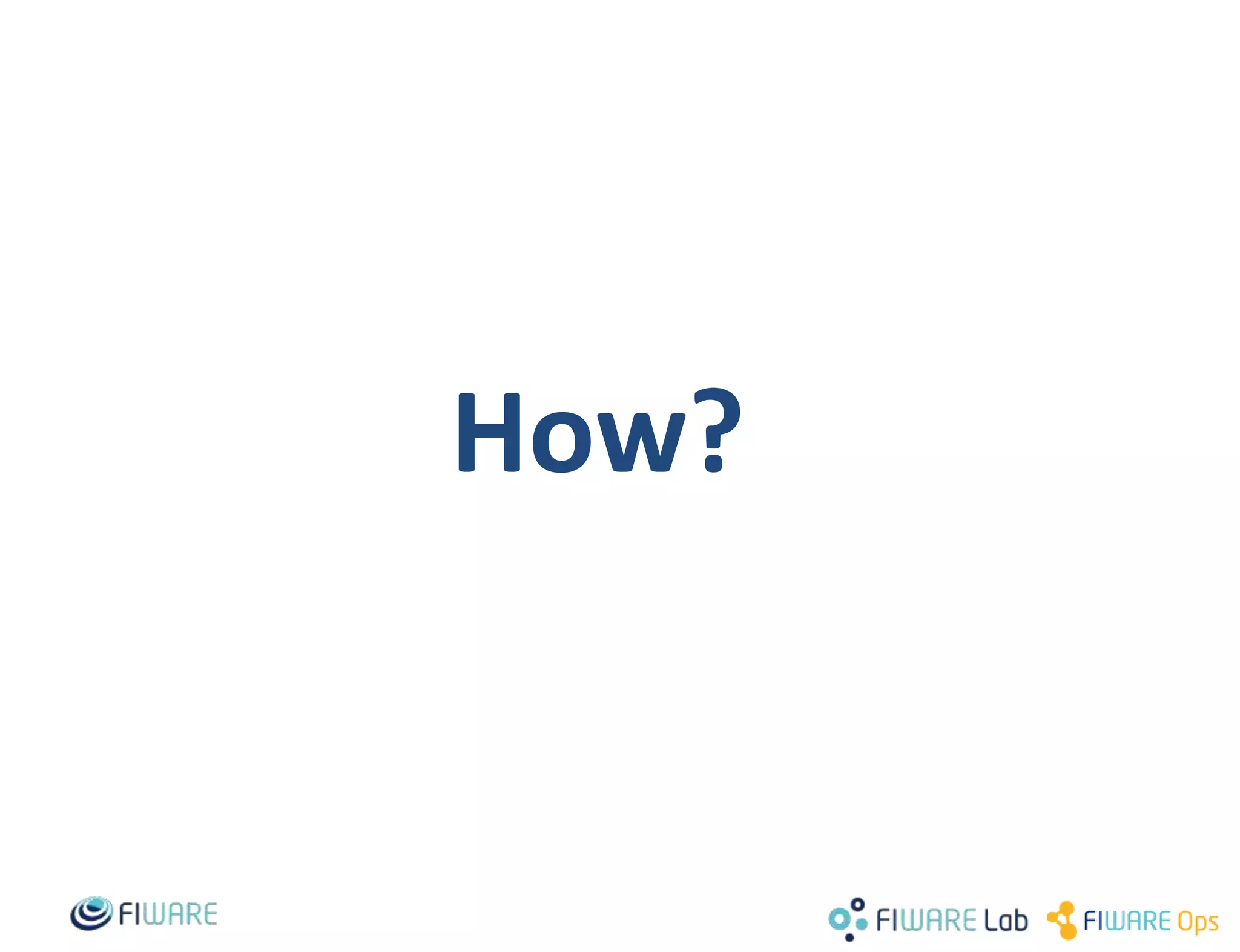

- #16 How to implement context management? -> Orion Context Broker
- #17 Context management as provided by FIWARE introduces two basic actors: context producers and context consumers. Context producers are the sources of context, the ones that create or update context information. A typical case of context producer is a sensor measuring some metrics. On the other side, context consumers are the sinks for context, the ones that receive context information and do something interesting with it. Of course, the particular actions to do depend on the application. For example, it could draw the temperature evolution over time in a chart or provide dress tips to users (“don’t forget your coat, it’s cold out there!”) depending on the weather context in the case of a weather application. Another example could be recommending alternative routes to a driver based on the overall traffic context of the city, in the case of a traffic application. It is important to note that producer and consumer are independent roles. Although a given application may play both roles at the same time (for example, a smartphone application running in a smartphone that at the same time produces some context information measured by the phone and consumes context coming from other sources), context consumers don’t need to know about producers and vice versa. Some big applications have some parts playing the producer role and others playing the consumer role to provide a global service. For example, a weather application could have two parts: the first one runs in the sensors (context producers) and the second in the users’ smartphones (context consumers) to provide real-time weather information and recommendations.
- #20 How to implement context management? -> Orion Context Broker

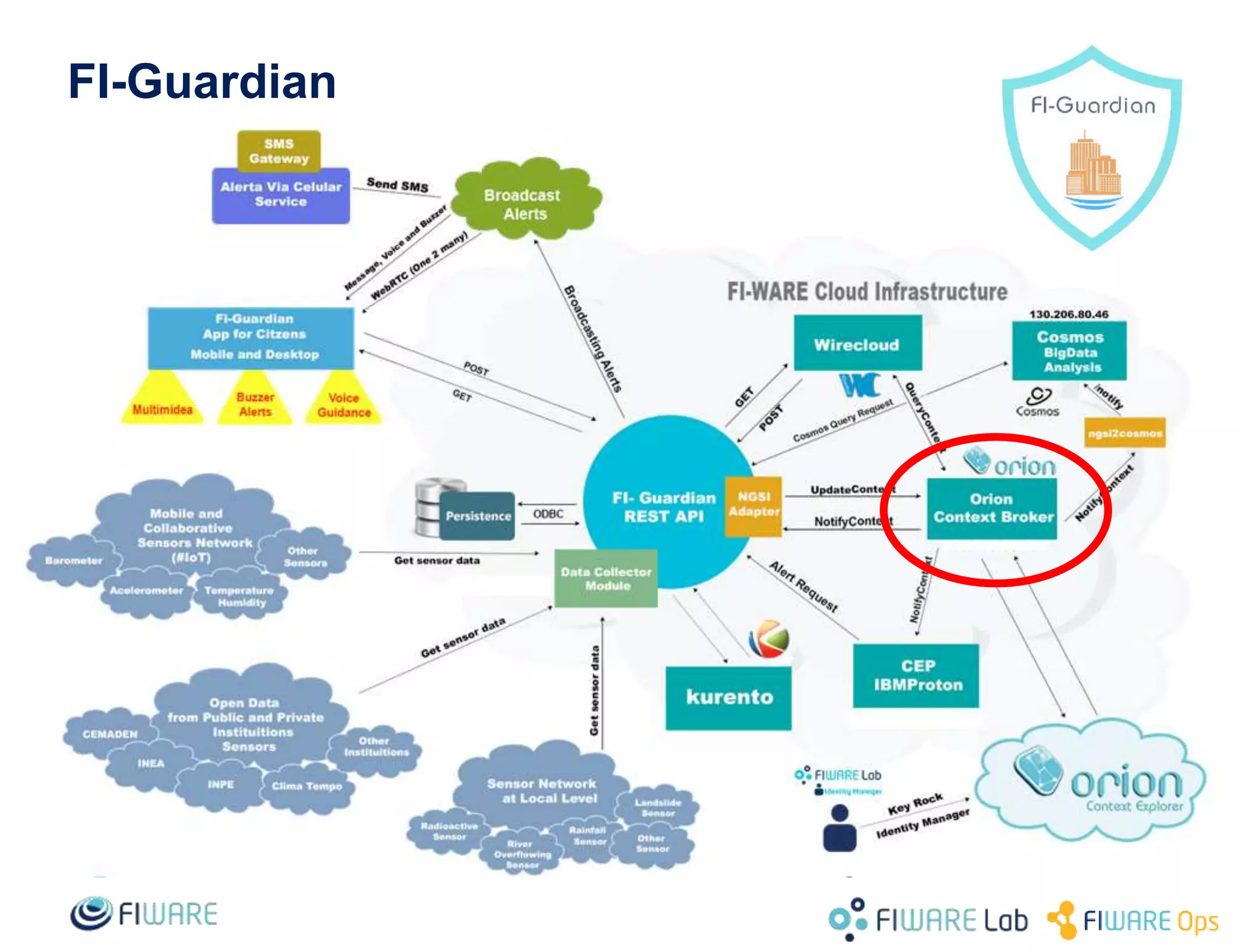

- #21 References: Málaga City Sense: Video: https://www.youtube.com/watch?v=2kkJb7VpwB8 Blogpost: http://www.fiware.org/2014/11/19/malaga-citysense-citizen-as-a-sensor/ FI-Guardian Video: https://www.youtube.com/watch?v=UKfHfZRbZZA FoneSense: Vídeo: https://www.youtube.com/watch?v=1GdfIJslF_0 EsAccesible Video (Spanish): https://www.youtube.com/watch?v=Md2ZRL10PNM
- #24 References: http://docs.cartodb.com/cartodb-platform/sql-api.html#libraries-in-different-languages https://github.com/telefonicaid/fiware-dataviz/tree/develop/orion2cartodb http://telefonica.cartodb.io/
- #25 References: https://github.com/telefonicaid/fiware-dataviz/tree/develop/FreeBoard-Orion-Plugin
- #26 References: Málaga City Sense: Video: https://www.youtube.com/watch?v=2kkJb7VpwB8 Blogpost: http://www.fiware.org/2014/11/19/malaga-citysense-citizen-as-a-sensor/ FI-Guardian Video: https://www.youtube.com/watch?v=UKfHfZRbZZA FoneSense: Vídeo: https://www.youtube.com/watch?v=1GdfIJslF_0 EsAccesible Video (Spanish): https://www.youtube.com/watch?v=Md2ZRL10PNM
- #27 http://www.fiware.org/2015/02/19/orion-context-broker-introduction-to-context-management-i/
- #28 http://catalogue.fiware.org/enablers/publishsubscribe-context-broker-orion-context-broker
- #31 NGSI = Next Generation Service Interfaces
