Azure storage
- 1. Azure Storage • byAdam Skibicki
- 2. Who am I? •Billennium .NET developer • Speaker • programowanienaostro.pl • https://github.com/adamki bicki
- 3.

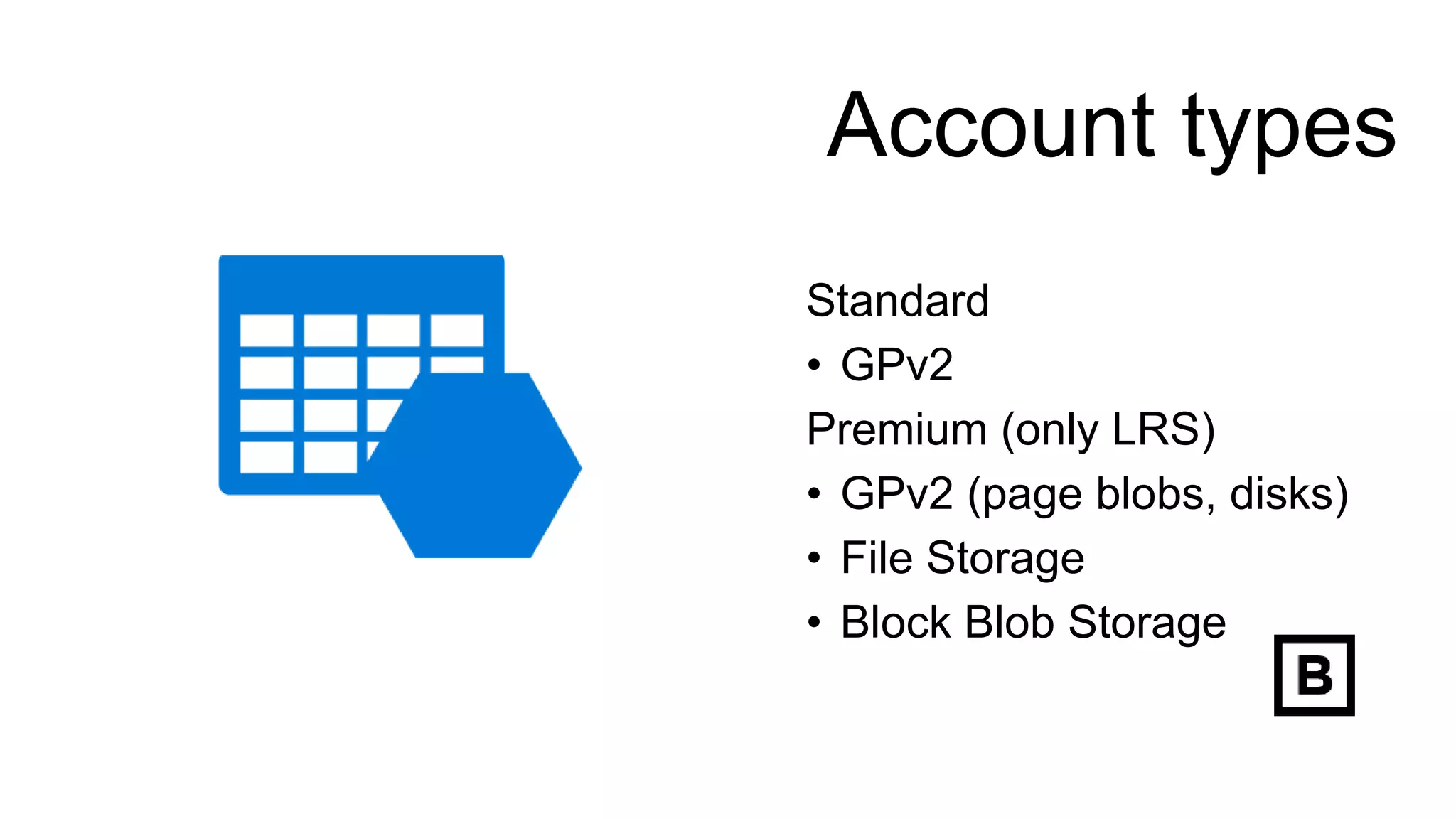

- 4. Account types Standard • GPv2 Premium(only LRS) • GPv2 (page blobs, disks) • File Storage • Block Blob Storage
- 5. Redundancy • LRS • ZRS •GRS • RA-GRS
- 8.
- 9. Blob storage • Servingfiles directly to browser • Distributed access • Streaming video, audio • Logs • Backups, restore, disaster recovery, archive data
- 10.
- 11. Block blob • Consistsof blocks up to 100 MB each • We operate on entire blocks • We cannot modify part of the block
- 12. Page blob • Consistsof 512-byte pages • Random read and write • Virtual machine disks are based on them
- 13. Append blob • Consistsof blocks up to 4 MB each • Cannot modify or delete single blocks • Each write operation creates new block at the end of blob
- 14. Blob access tiers • Hot– frequently accessed data • Cool – infrequently accessed data • Archive – flexible latency (several hours)
- 15. Storage per GB/month • Hot– $0.0196 • Cool –$0.0100 • Archive – $0.0018
- 16. 10k reads • Hot– $0.043 • Cool –$0.100 • Archive – $6.000 • Archive High Priority - $32.50
- 17. Lifecycle management • Reduce storagecosts • Automate migrating blobs between access tiers • Automate deletions and snapshots • Run once per day
- 18. Early deletion Payment forreserved data storage time.
- 19. Snapshots • Built inblob versioning • Readonly blob copies
- 20. Soft delete • Snapshotsbefore blob modification or deletion
- 21. Static hosting • Staticwebsite • JS, CSS, HTML. • Frontend – SPA, backend - API
- 22. Table storage • NoSQL •Key-value pairs • Schemaless • Structured data • No relations
- 23. Use scenarios • Largedata volumes • Cheaper than SQL database • It depends
- 24.
- 25. Table structure • Partitionkey • Row key • Timestamp • Up to 252 other columns • Max. 1 MB per entity
- 26. Partitioning • Blob service– blob • Queue service – queue • Table service – partition key
- 27. Partition key • Keyselection problem • Querying in scope of single partition key value are atomic
- 28. Row key • Idenitfiesrecord in partition
- 29. • More partitions– scaling • Problems with atomic operations and data consistency • Tradeoff Partitioning
- 30. Entity Group Transactions • Builtin atomic batch transactions (up to 100 entities per transaction) • Operates on records in single partition
- 31. • Simple queue •Max. 64 KB per message • Max. 7 days • FIFO – not guaranteed • Other services - Event Grid, Event Hub, Service Bus Queue storage
- 32.
- 33. Operations • Put • Get •Peek • Delete • Clear • Update
- 34. File service • Fullymanaged file share in cloud • Can be connected with every system (Windows, MacOS, Linux)
- 35. Use scenarios • Fileserver • Lift and shift • Cloud development (sharing application settings, diagnostic data and tools)
- 36. Structure • File system •Consists of file shares (like blob containers)
- 37. Shared Access Signature (SAS) •Generated URI • Permissions for selected resources • Time range • Cannot be directly canceled
- 38. Stored Access Policy • Policywith similar settings as SAS • SAS can be based on it • Easily cancelable • Cannot be set on Storage Account level (like SAS)
- 39. Storage analytics • Already definedtables and blob containers • 20 TB storage independent of storage account limits • Some analytics operations are billed
- 40.
Editor's Notes
- #25 Demo – portal azure – konkretne zasoby np. Kontener.
- #26 Demo – portal azure – konkretne zasoby np. Kontener.
- #27 Demo – portal azure – konkretne zasoby np. Kontener.
- #28 Demo – portal azure – konkretne zasoby np. Kontener.
- #30 Demo – portal azure – konkretne zasoby np. Kontener.
- #32 Demo – portal azure – konkretne zasoby np. Kontener.
- #40 Demo – portal azure
- #41 Demo – portal azure – konkretne zasoby np. Kontener.
- #42 Demo portal azure – pokazać przeglądanie Demo azure storage – pokazać gdzie są przechowywane
