The document discusses wireframes and interaction design documents (IDDs). It defines wireframes as illustrations of content hierarchy, relationships, and presentation that do not include aesthetics or graphics. It also discusses different types of wireframes and their purposes. The document then defines IDDs as collections of high-fidelity wireframes that describe content, behavior, interactions, and scenarios of an interface. It provides tips for creating effective wireframes and IDDs.

1. Peter Conradie | Joel Laumans | Hans Kemp | Rolf den Otter | Rest of the IAD Team that is NOT a wireframe What the &%$! is an IDD? Wireframes and Interaction Design Documents

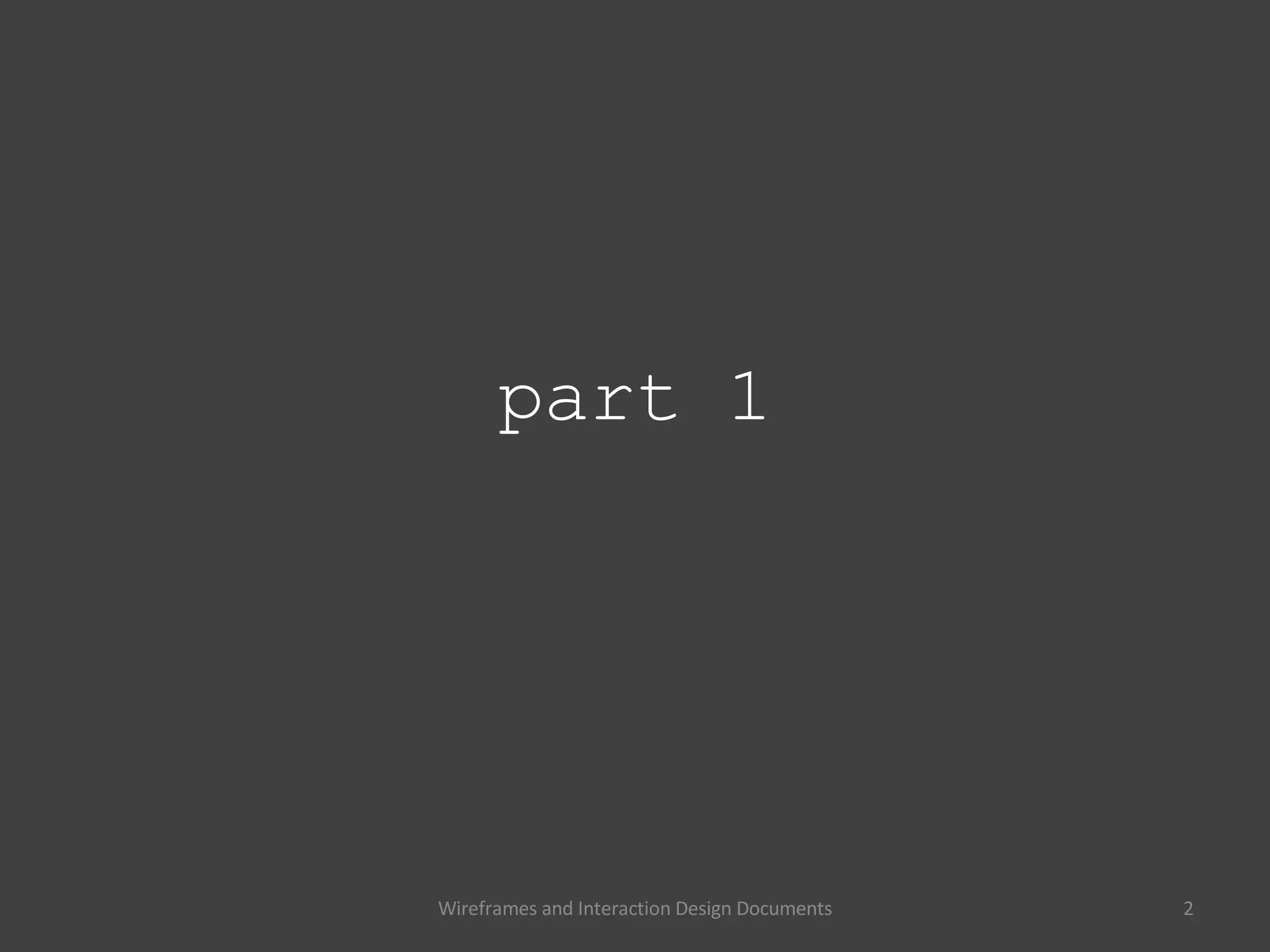

2. part 1 Wireframes and Interaction Design Documents

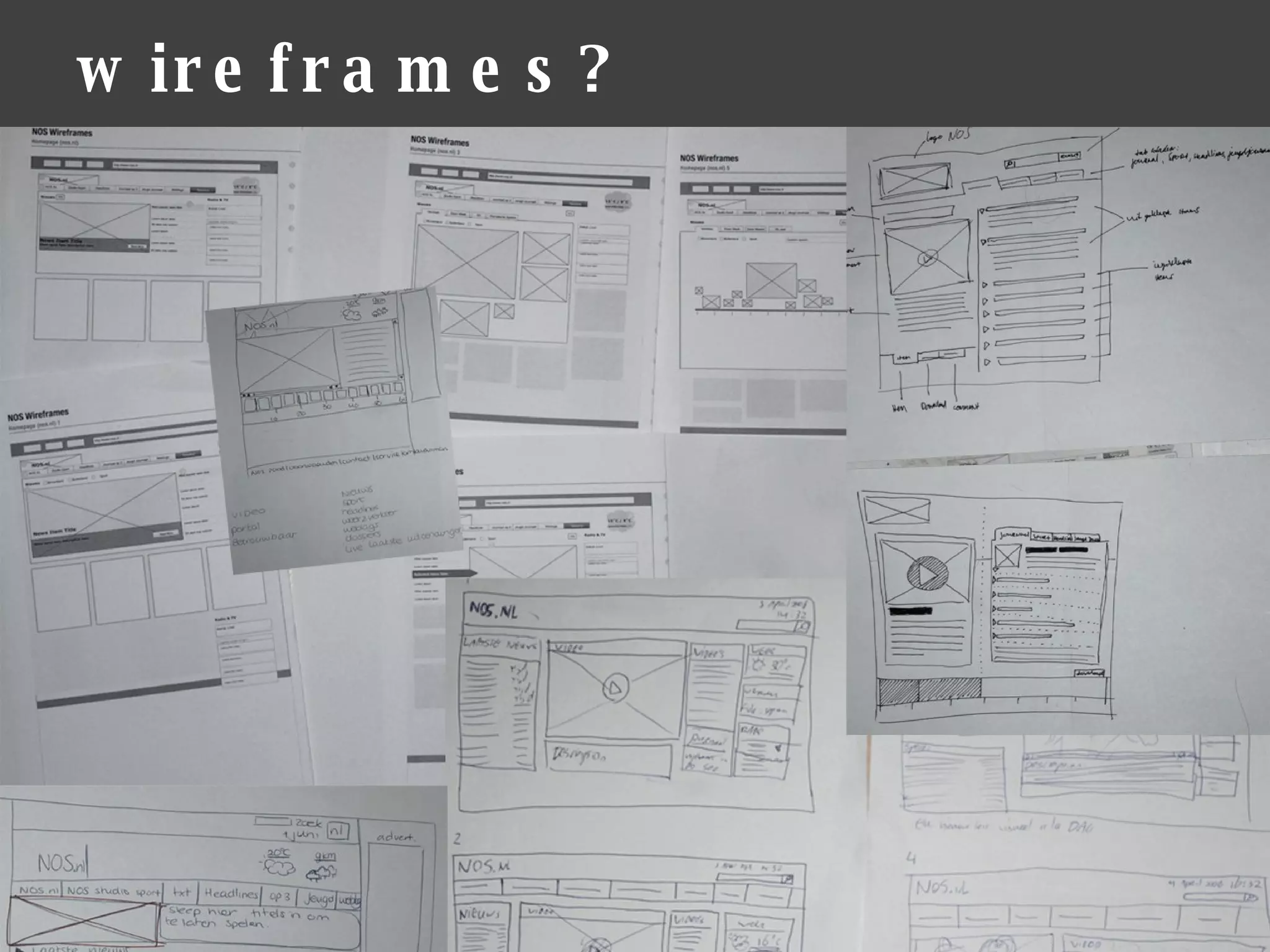

3. wireframes? Wireframes and Interaction Design Documents

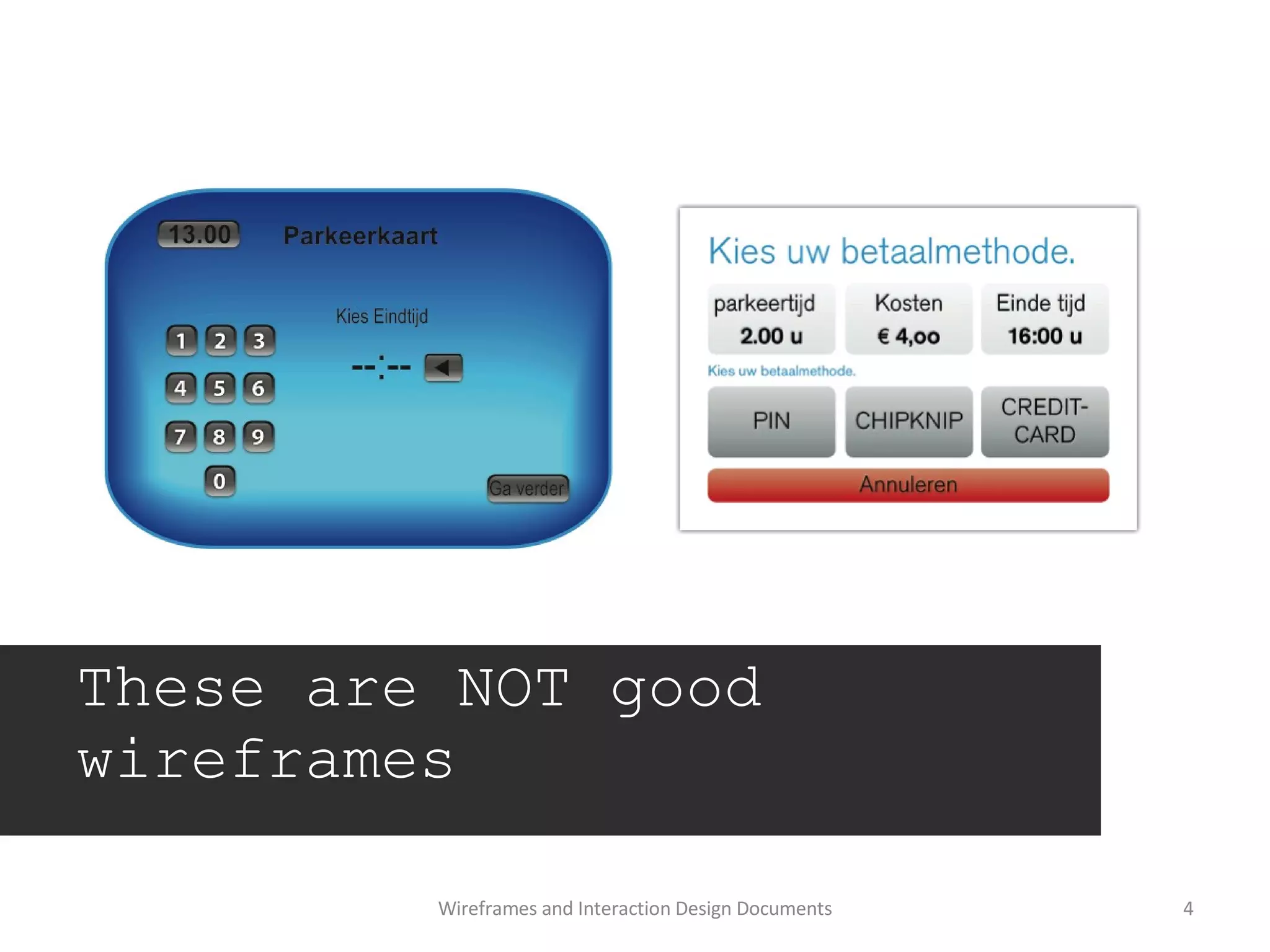

4. Wireframes and Interaction Design Documents These are NOT good wireframes

5. Not everyone knows exactly what they are doing Wireframes and Interaction Design Documents

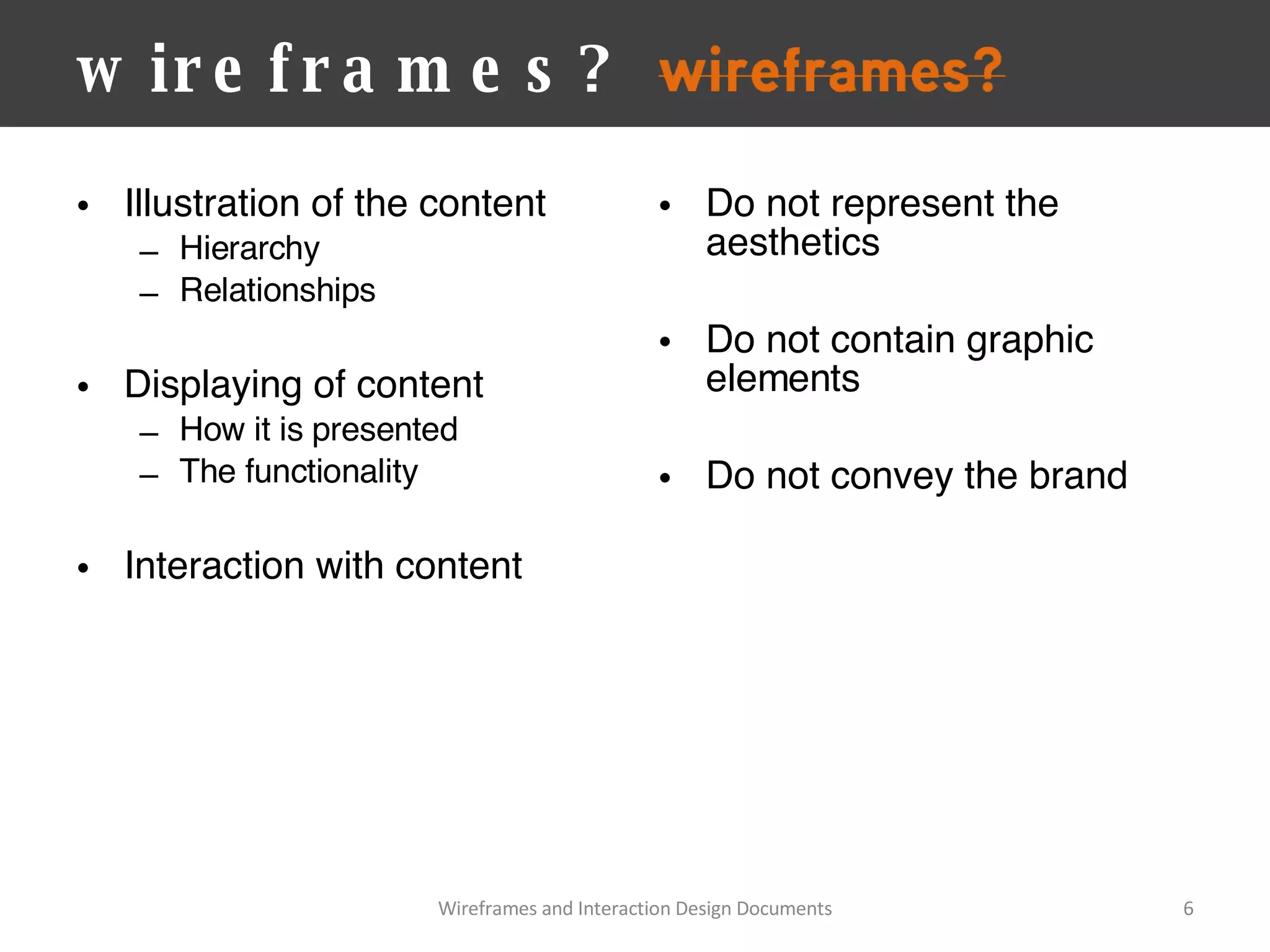

6. wireframes? Illustration of the content Hierarchy Relationships Displaying of content How it is presented The functionality Interaction with content Wireframes and Interaction Design Documents Do not represent the aesthetics Do not contain graphic elements Do not convey the brand

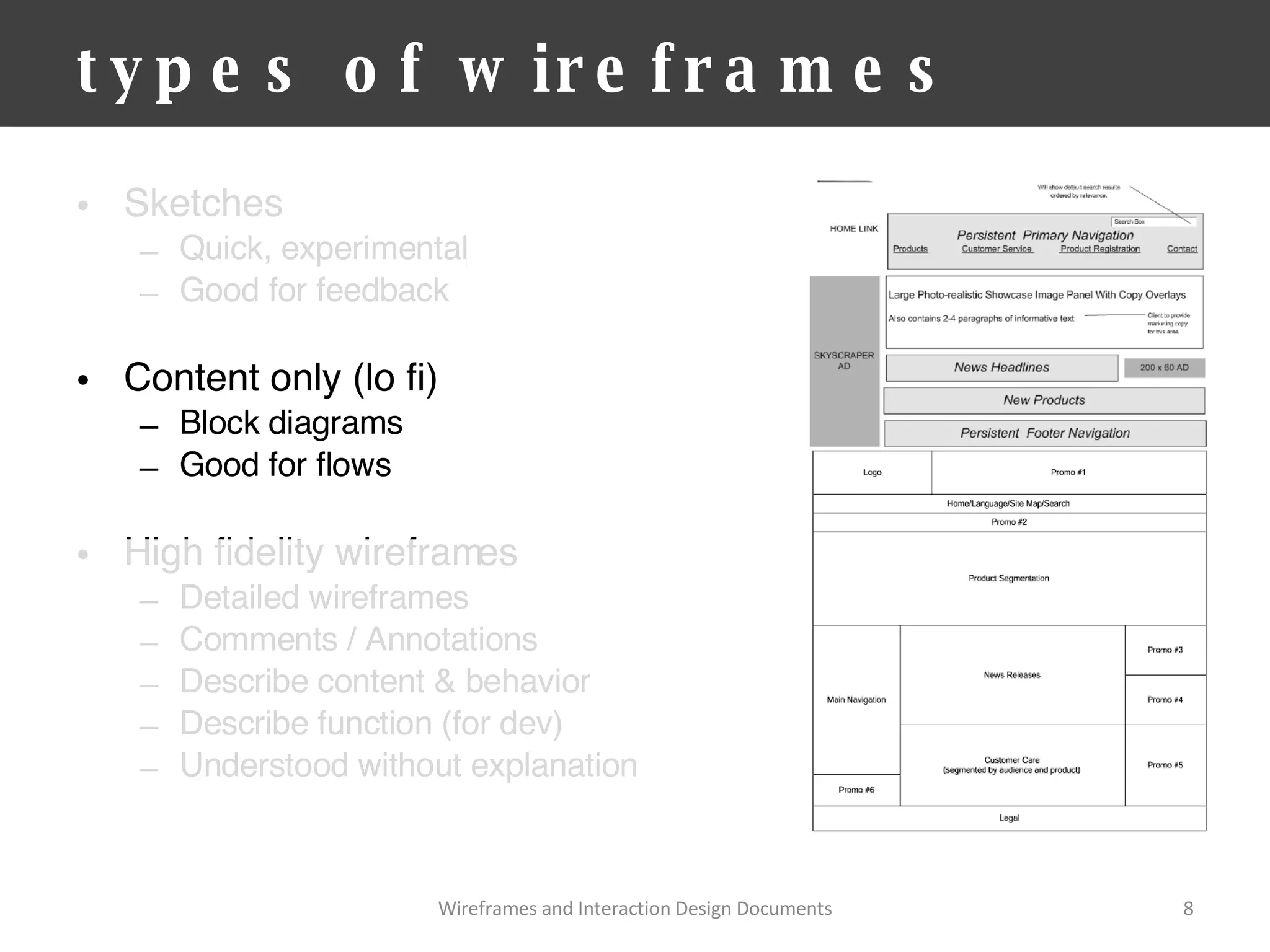

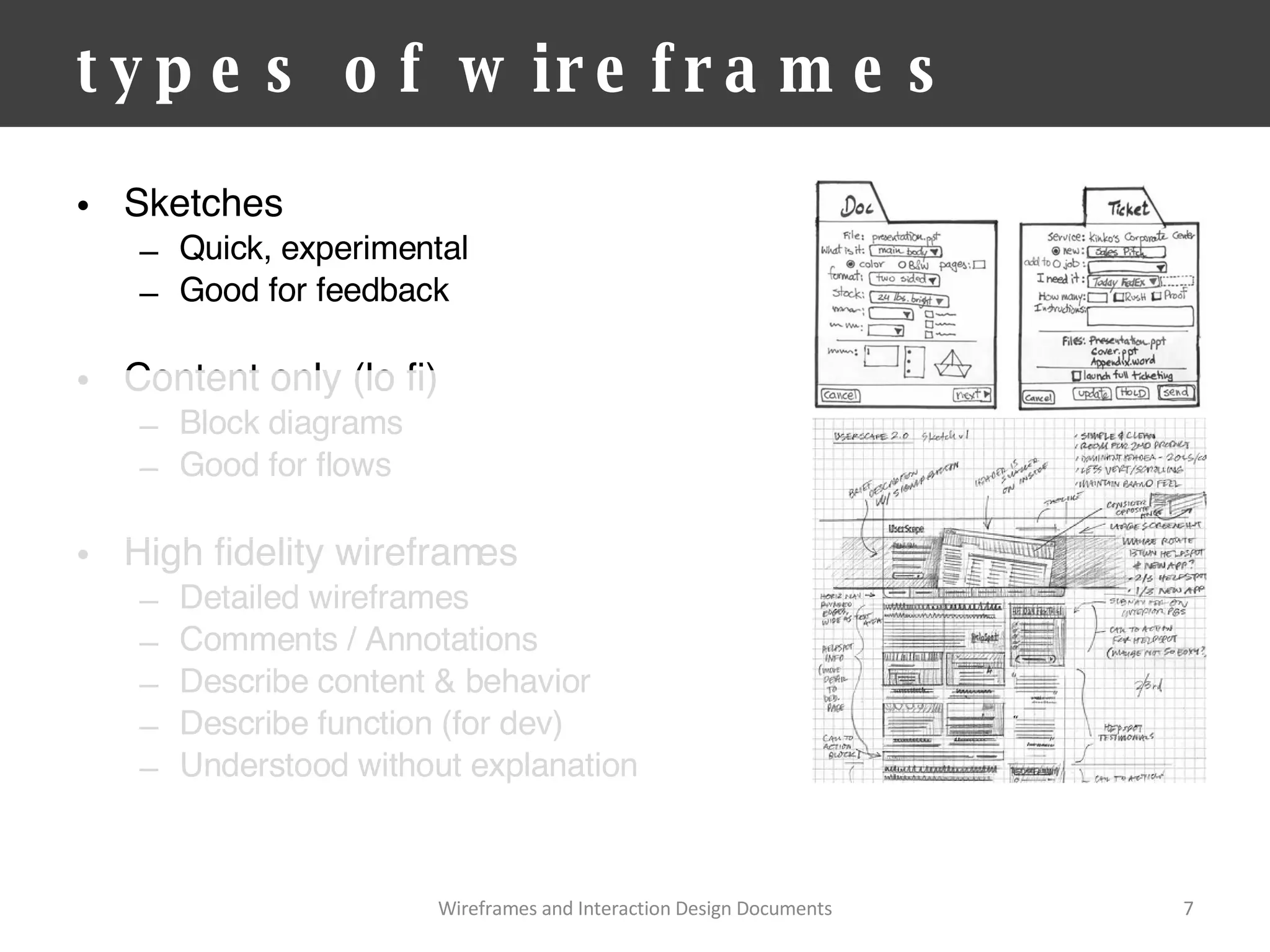

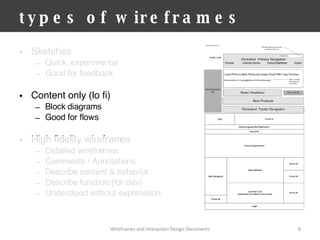

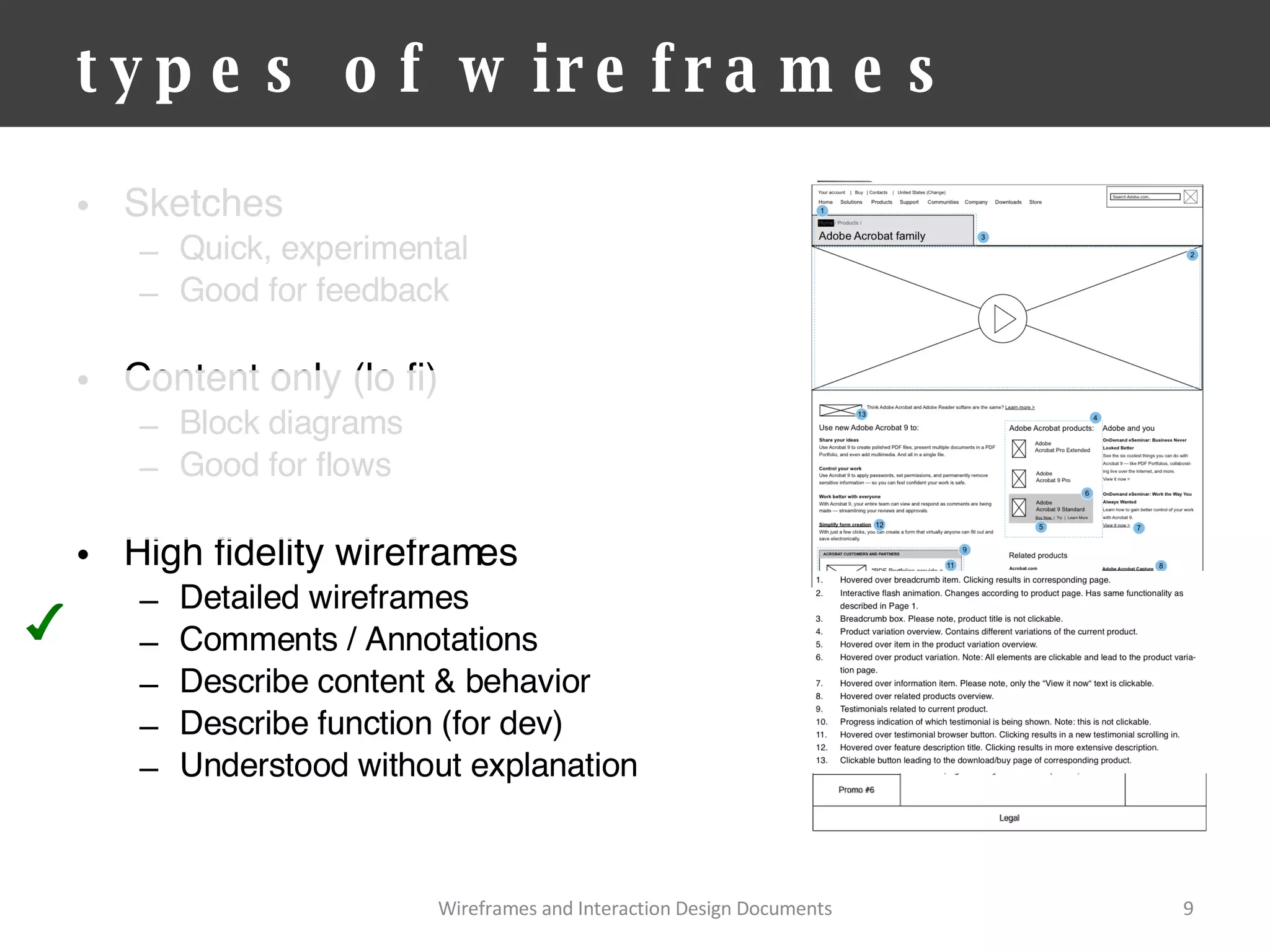

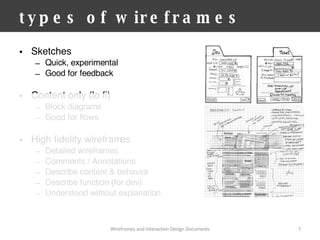

7. types of wireframes Sketches Quick, experimental Good for feedback Content only (lo fi) Block diagrams Good for flows High fidelity wireframes Detailed wireframes Comments / Annotations Describe content & behavior Describe function (for dev) Understood without explanation Wireframes and Interaction Design Documents

8. types of wireframes Sketches Quick, experimental Good for feedback Content only (lo fi) Block diagrams Good for flows High fidelity wireframes Detailed wireframes Comments / Annotations Describe content & behavior Describe function (for dev) Understood without explanation Wireframes and Interaction Design Documents

9. types of wireframes Sketches Quick, experimental Good for feedback Content only (lo fi) Block diagrams Good for flows High fidelity wireframes Detailed wireframes Comments / Annotations Describe content & behavior Describe function (for dev) Understood without explanation Wireframes and Interaction Design Documents

10. Wireframes and Interaction Design Documents

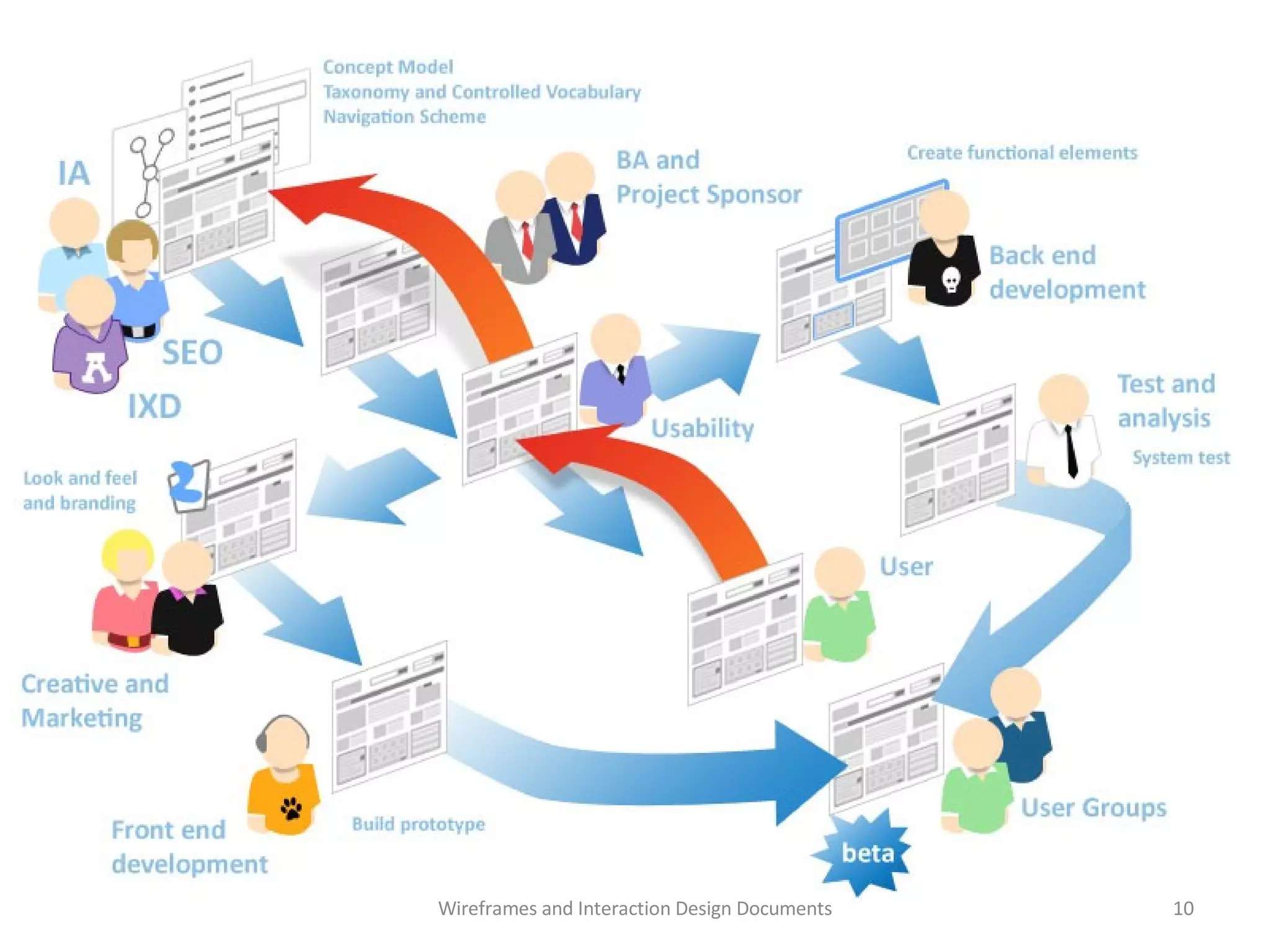

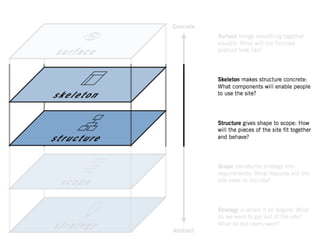

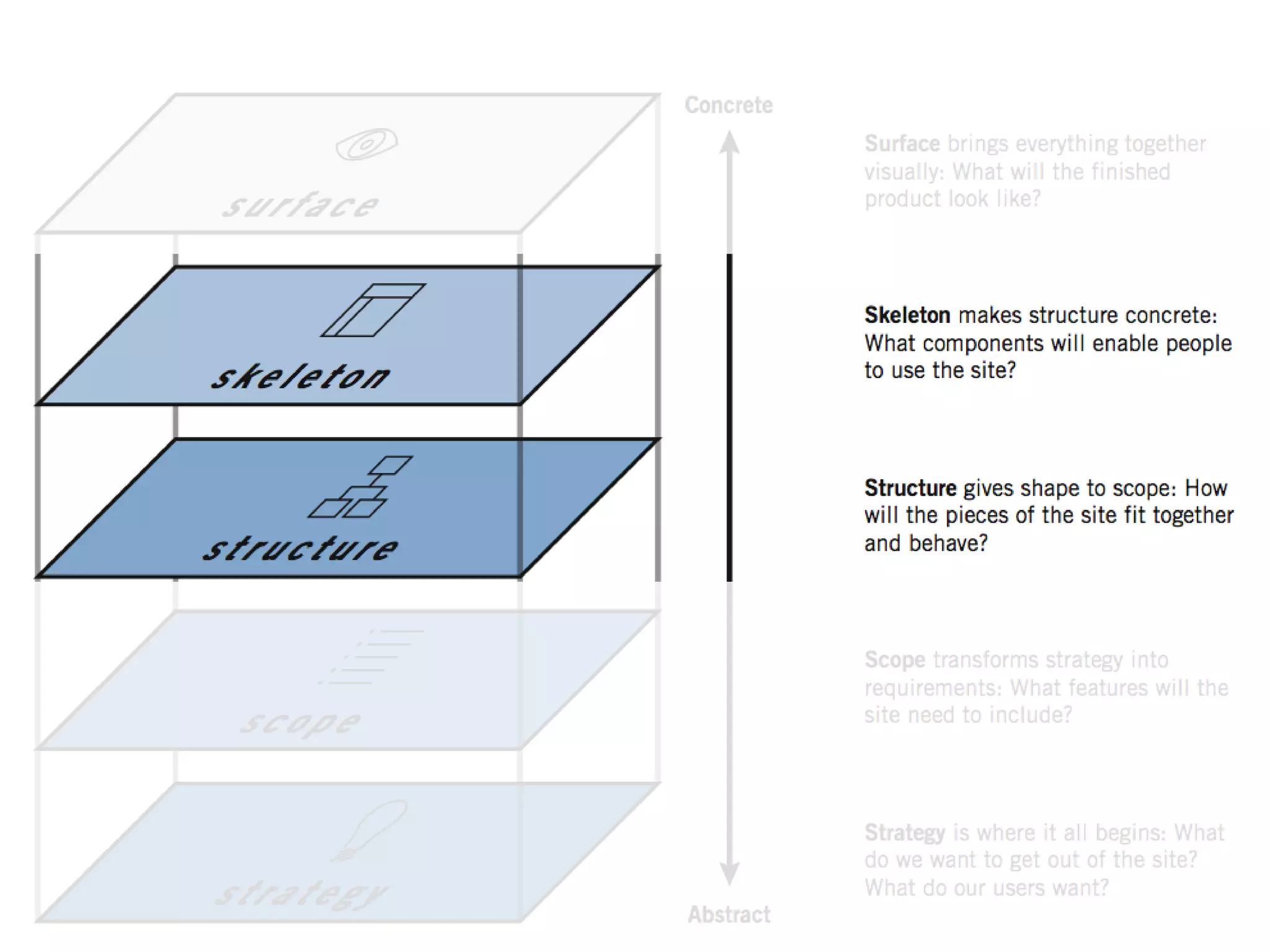

11. DESIGN TIMELINE Wireframes and Interaction Design Documents

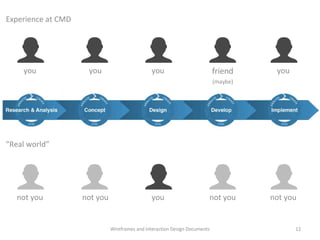

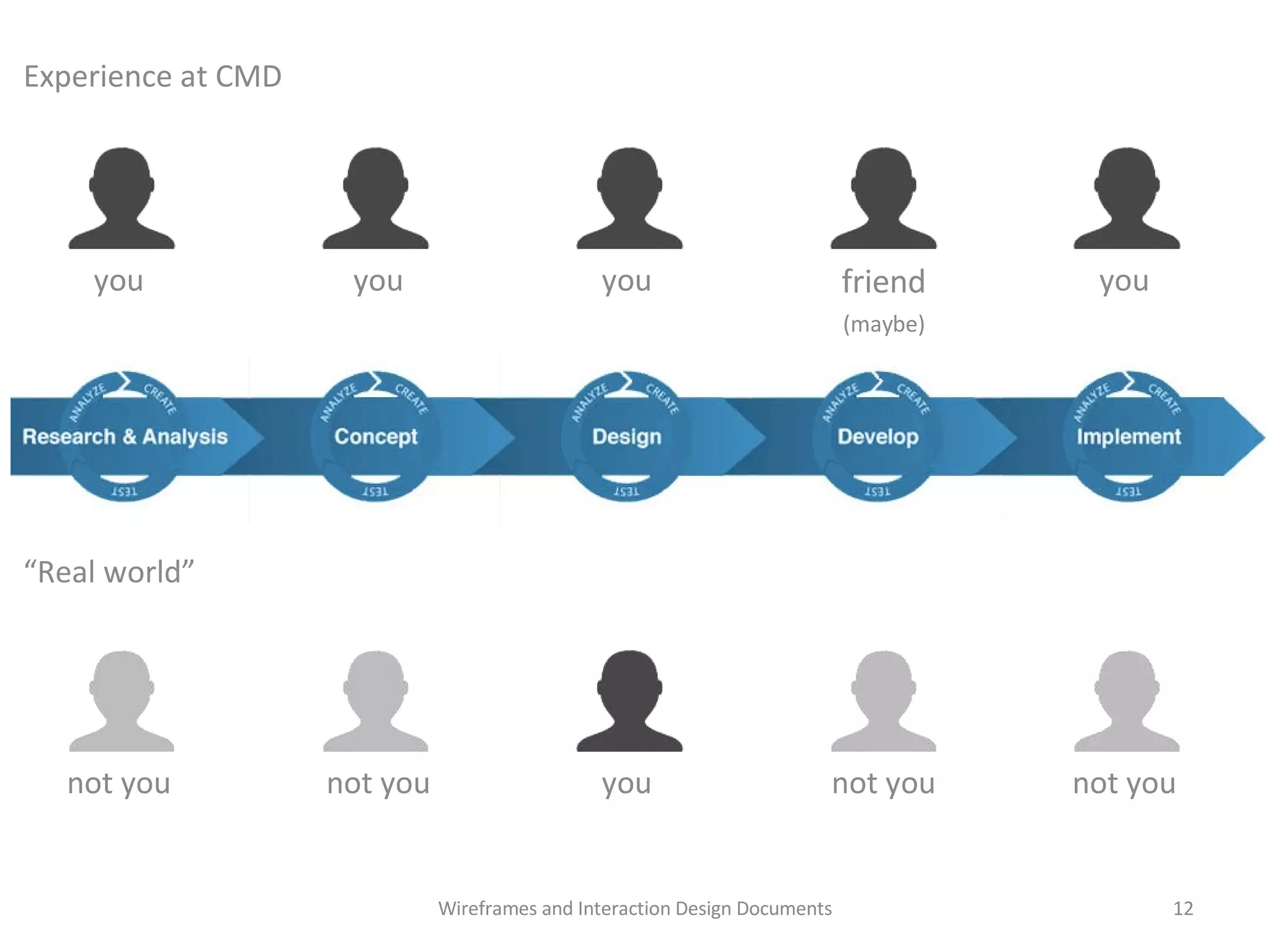

12. Experience at CMD Wireframes and Interaction Design Documents “ Real world” you you you friend (maybe) you not you not you you not you not you

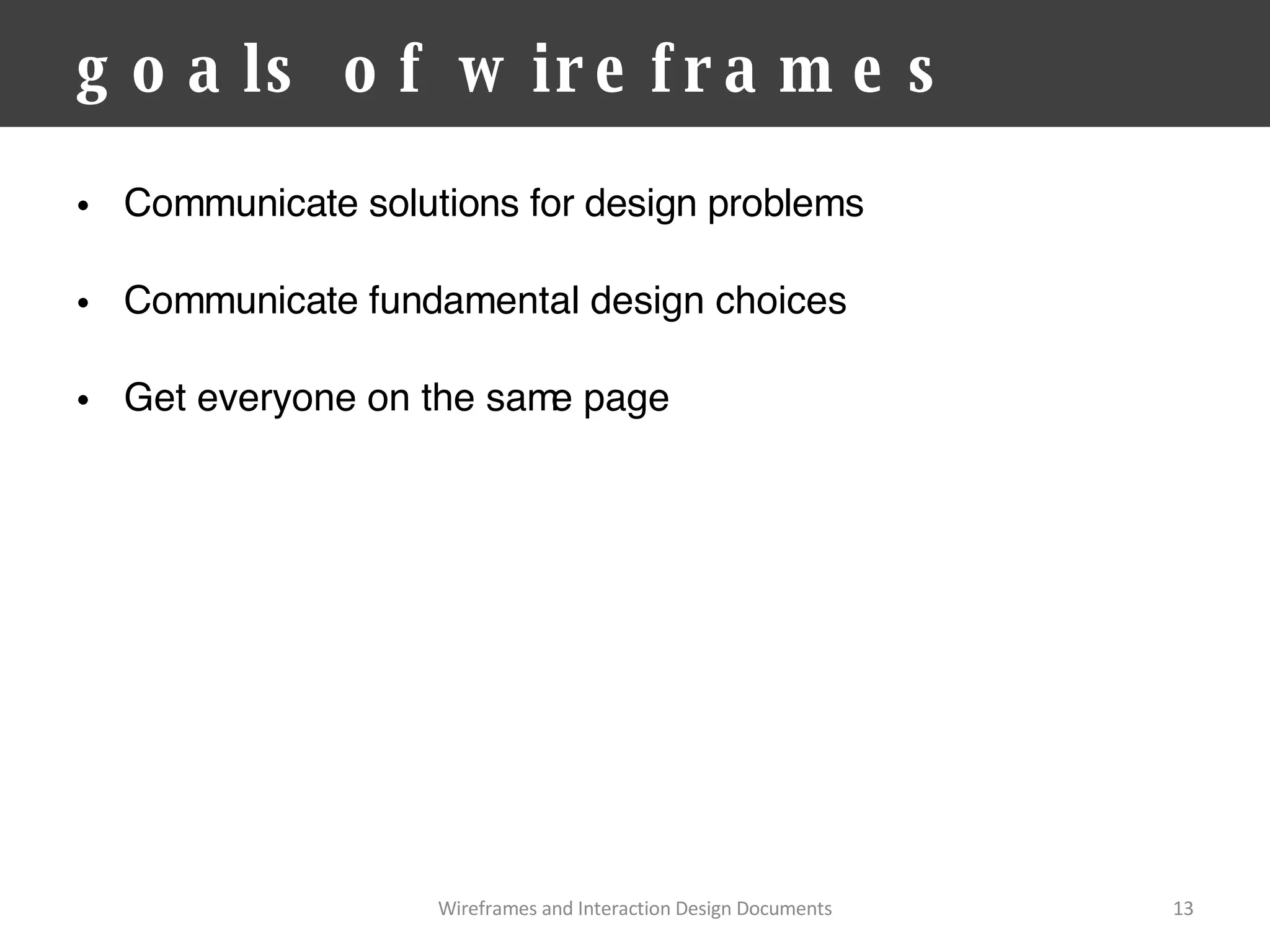

13. goals of wireframes Communicate solutions for design problems Communicate fundamental design choices Get everyone on the same page Wireframes and Interaction Design Documents

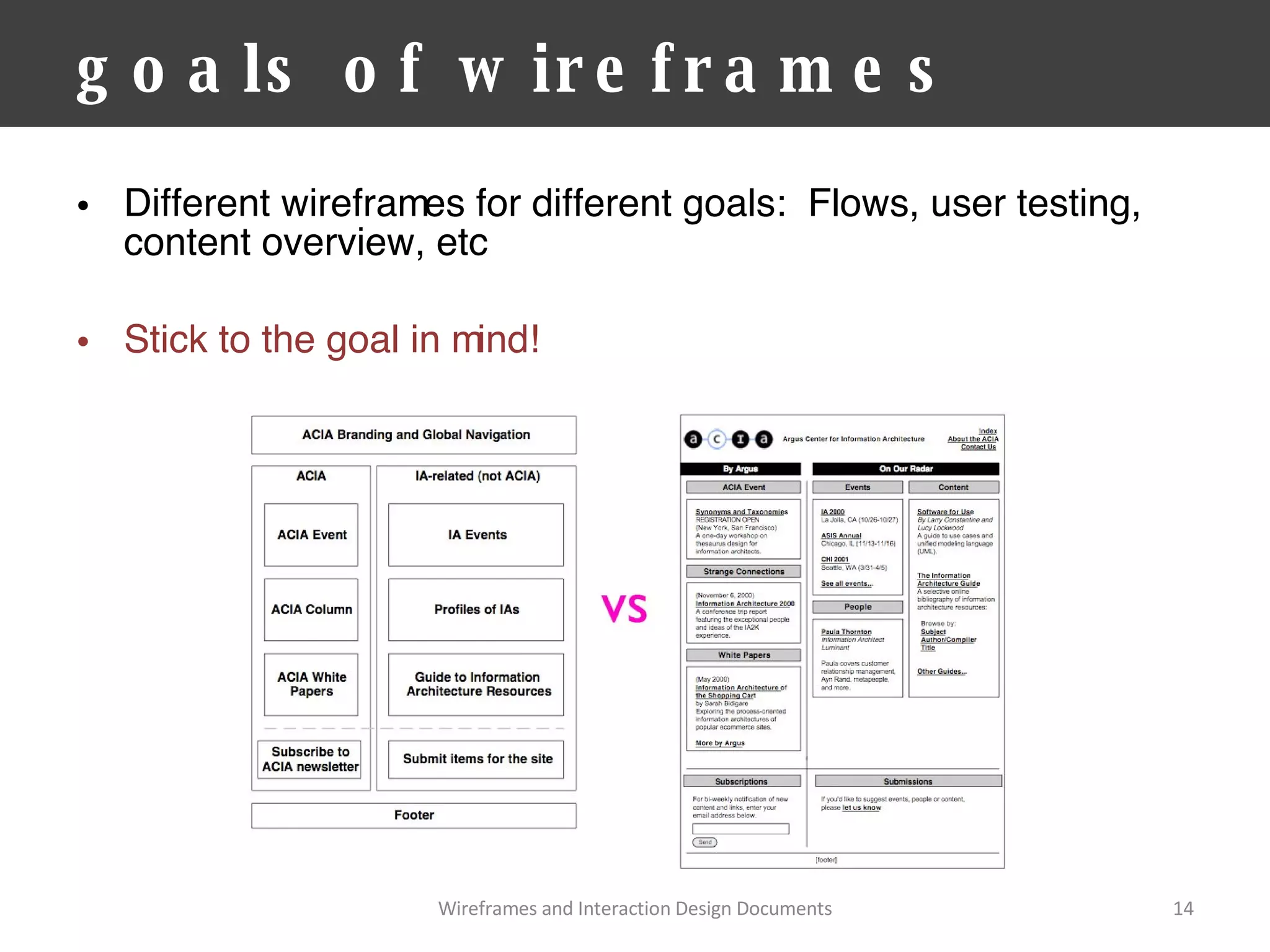

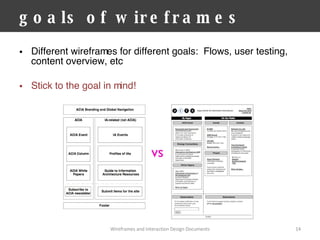

14. goals of wireframes Different wireframes for different goals: Flows, user testing, content overview, etc Stick to the goal in mind! Wireframes and Interaction Design Documents

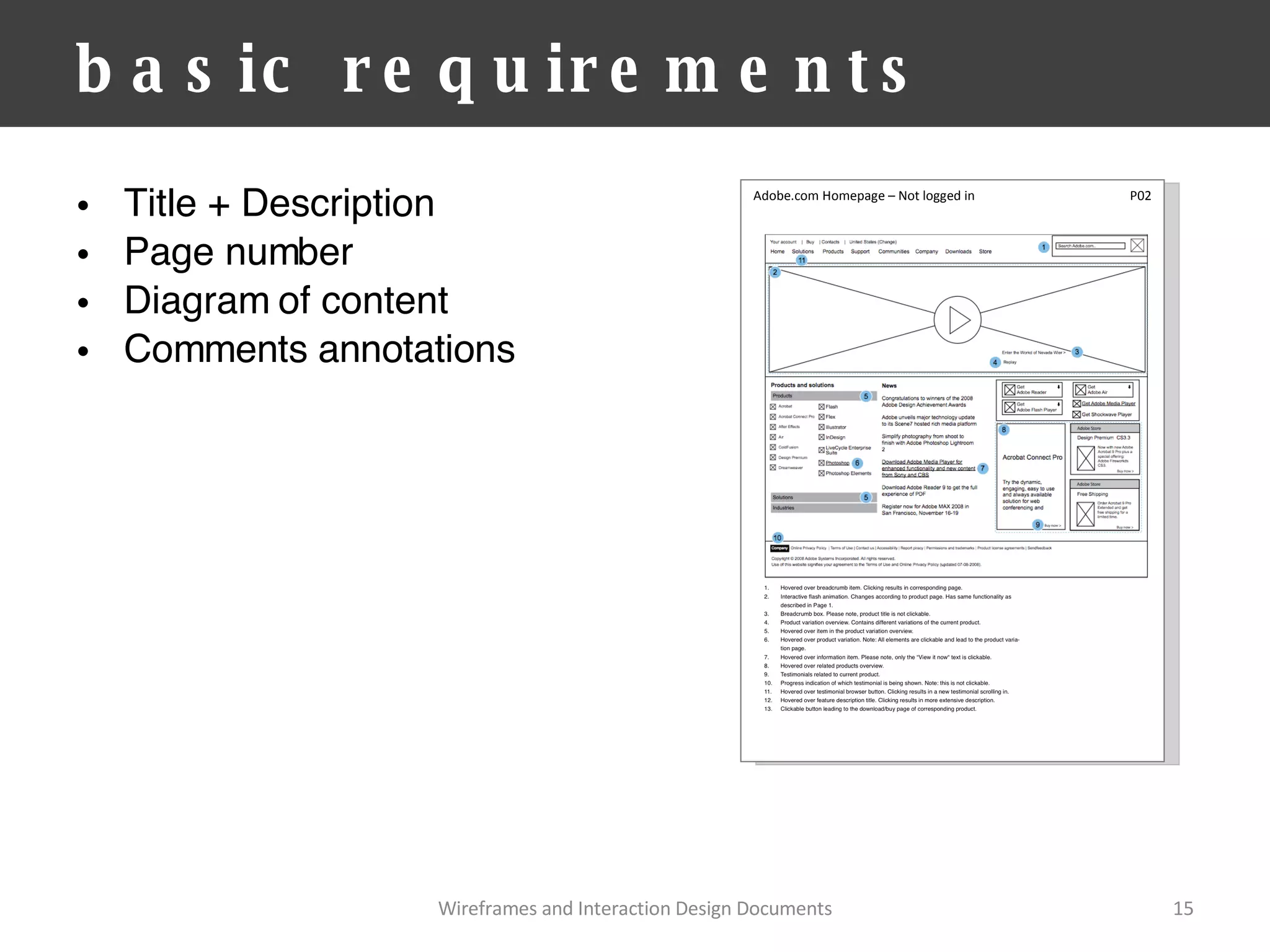

15. basic requirements Title + Description Page number Diagram of content Comments annotations Wireframes and Interaction Design Documents Adobe.com Homepage – Not logged in P02

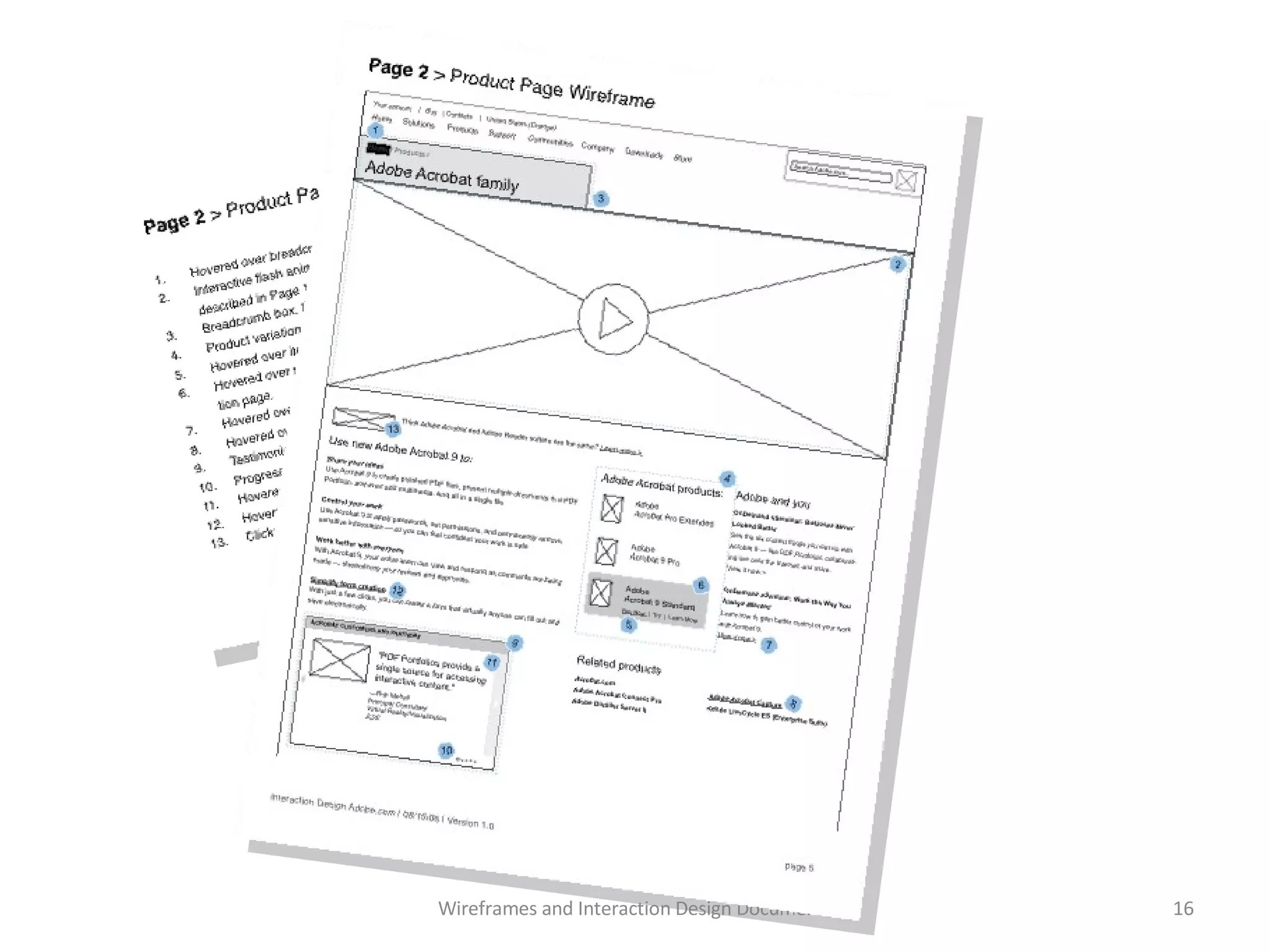

16. Wireframes and Interaction Design Documents

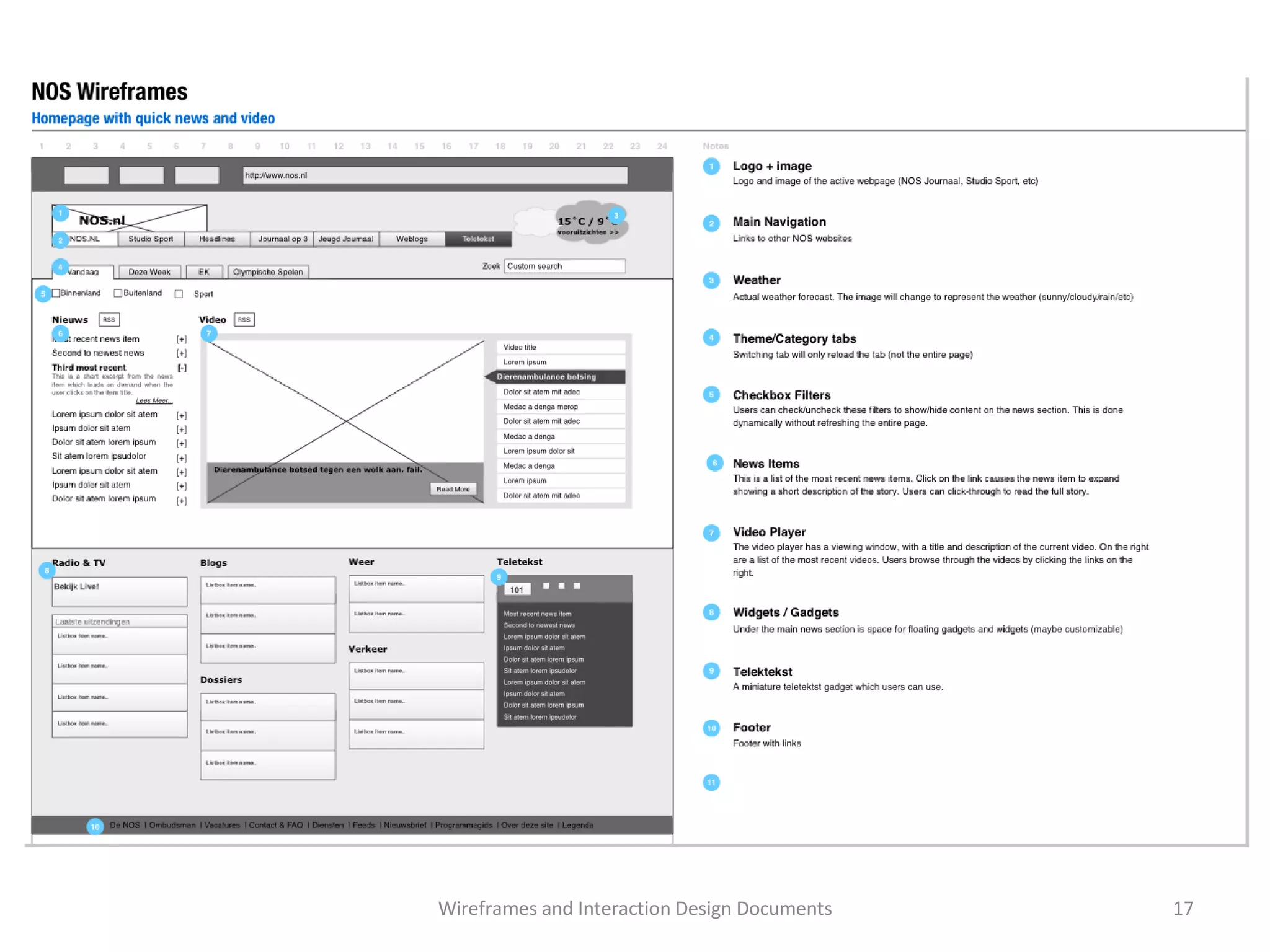

17. Wireframes and Interaction Design Documents

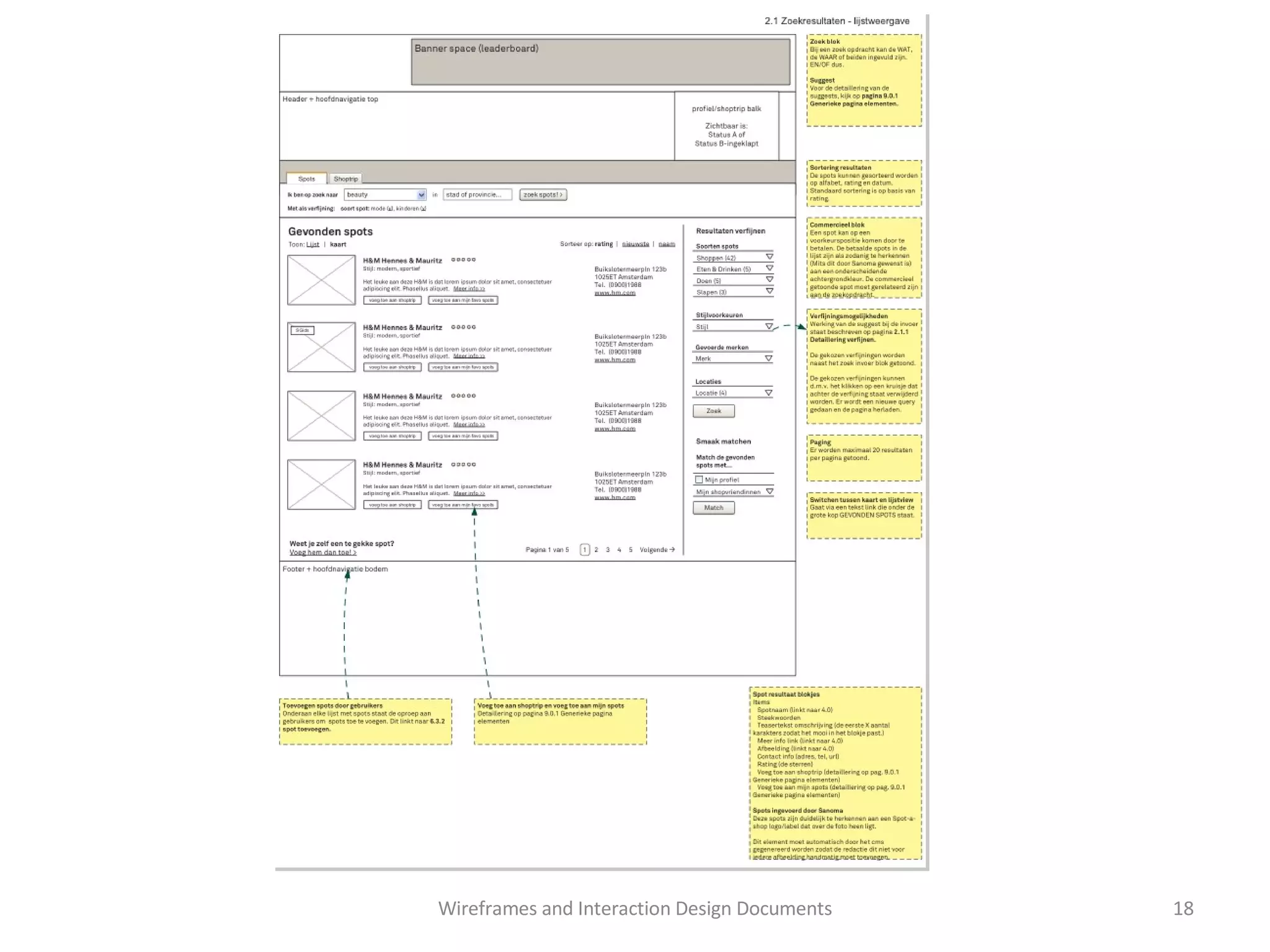

18. Wireframes and Interaction Design Documents

19. part 2 Wireframes and Interaction Design Documents

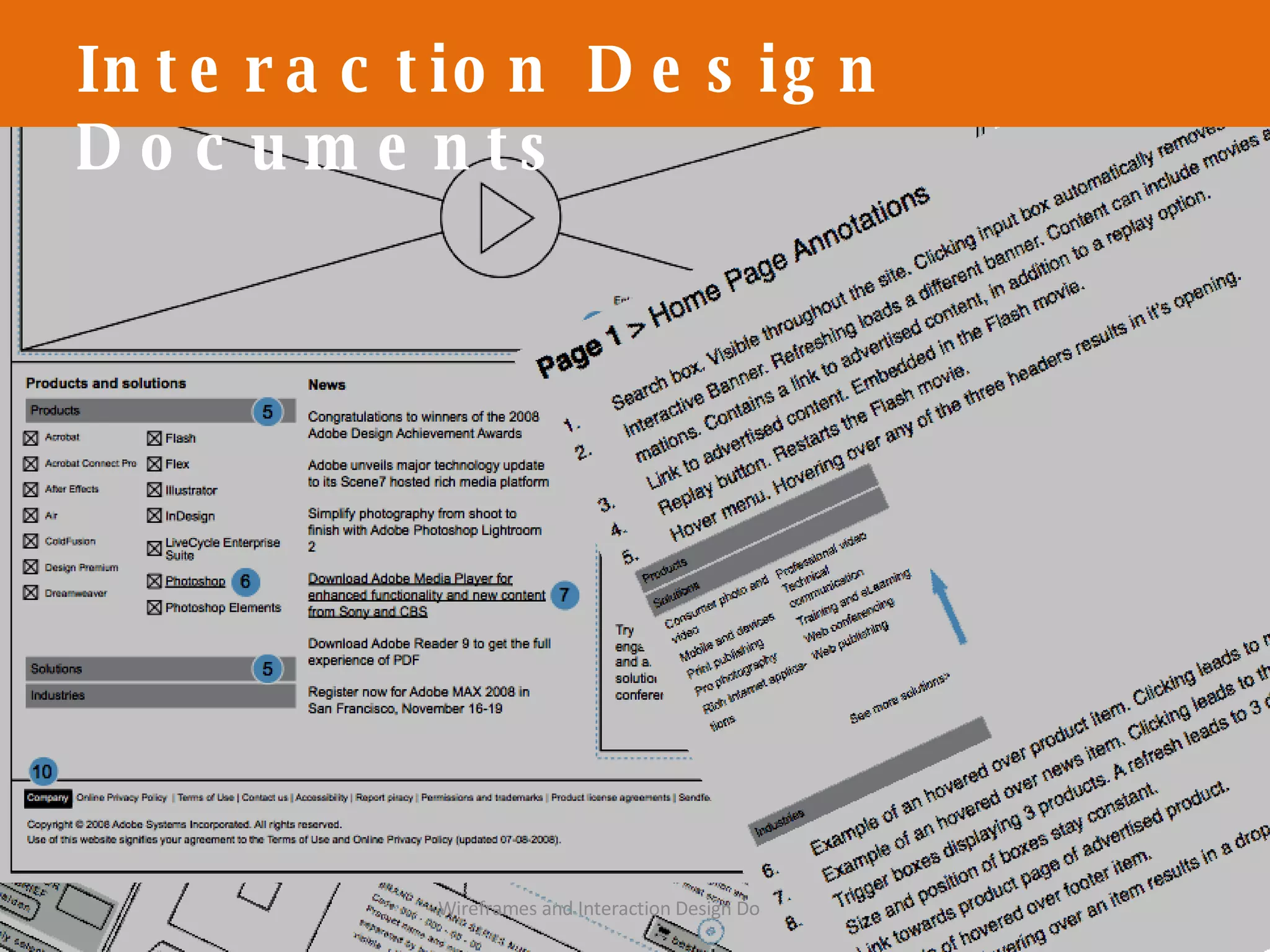

20. Interaction design documents Wireframes and Interaction Design Documents Interaction Design Documents

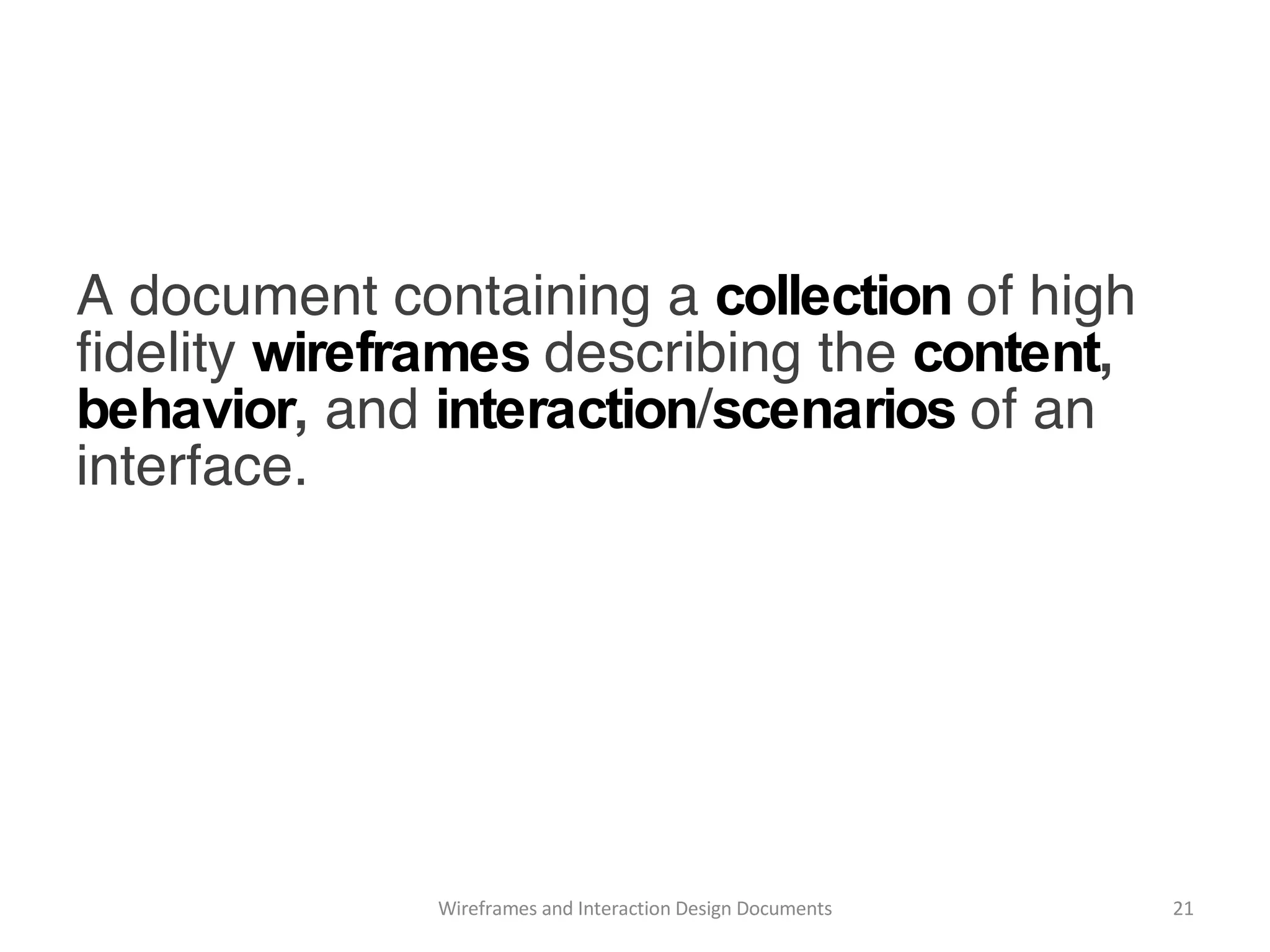

21. what are they? Wireframes and Interaction Design Documents A document containing a collection of high fidelity wireframes describing the content , behavior , and interaction / scenarios of an interface.

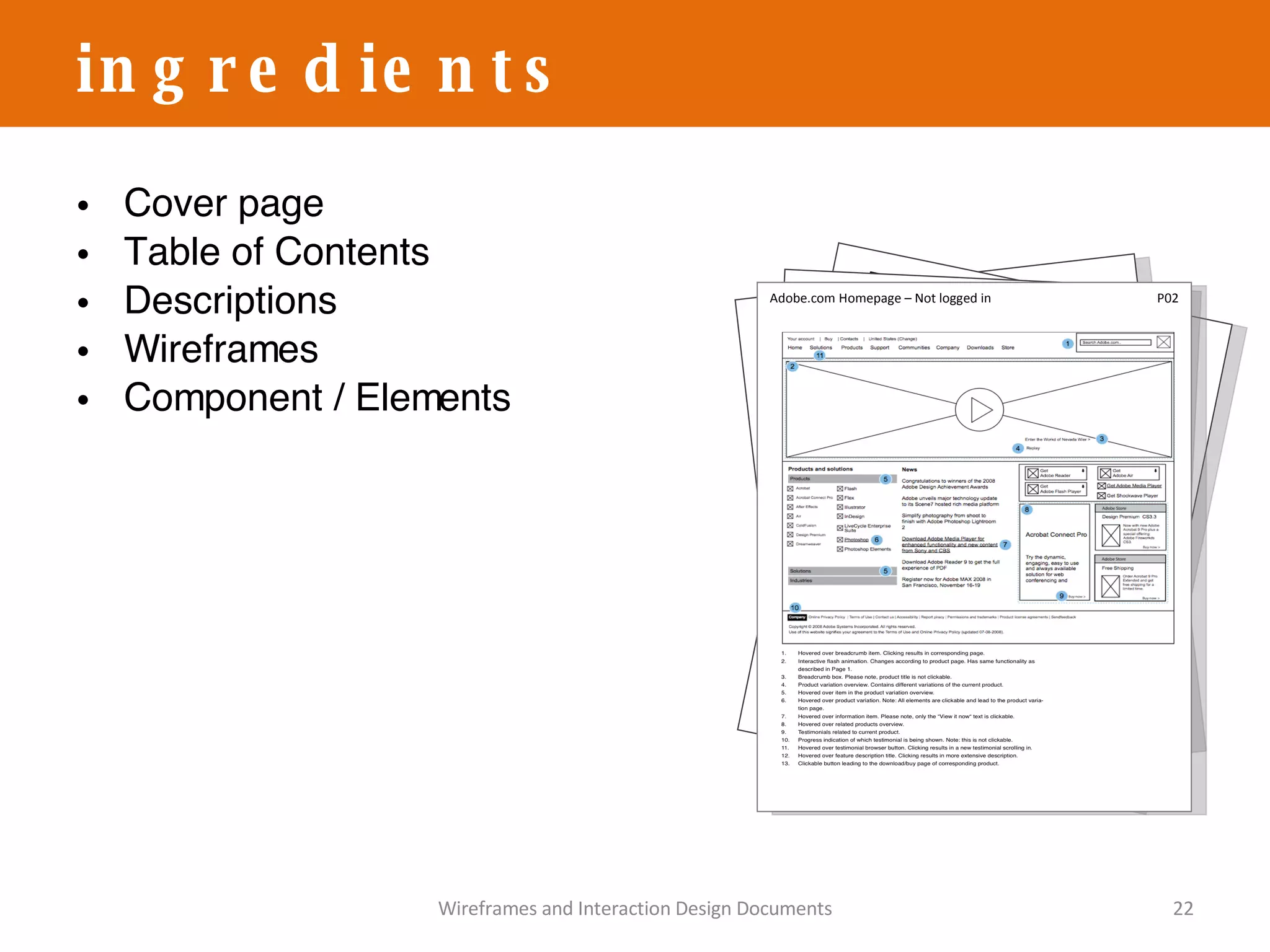

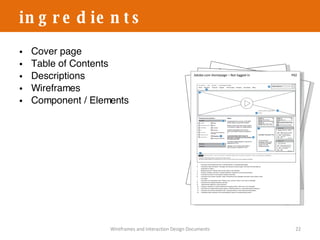

22. Cover page Table of Contents Descriptions Wireframes Component / Elements ingredients Wireframes and Interaction Design Documents Cover page Table of Contents Descriptions & Scenarios Adobe.com Homepage – Not logged in P02

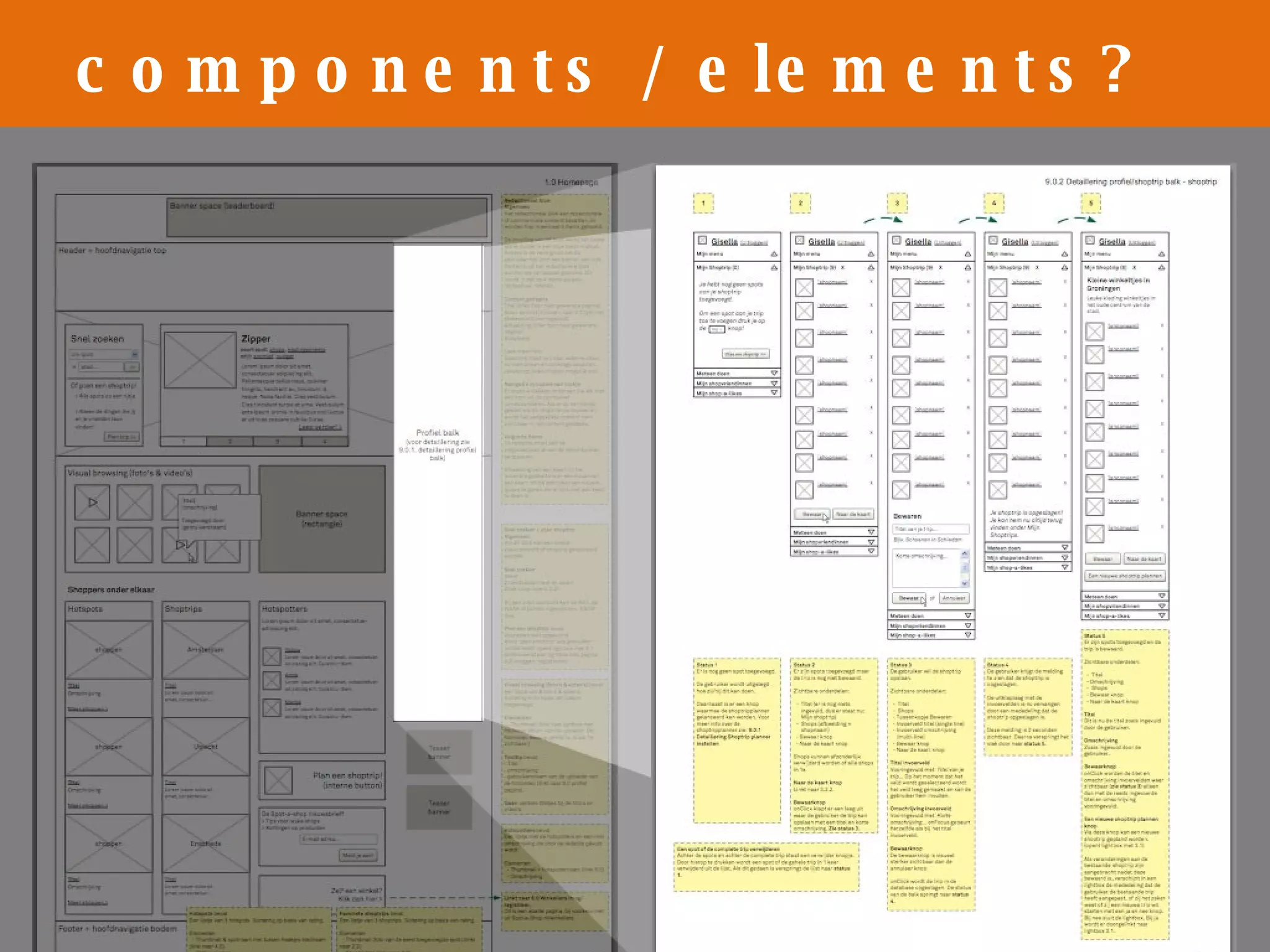

23. components / elements? Wireframes and Interaction Design Documents

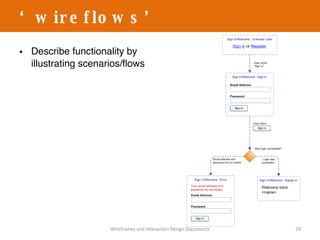

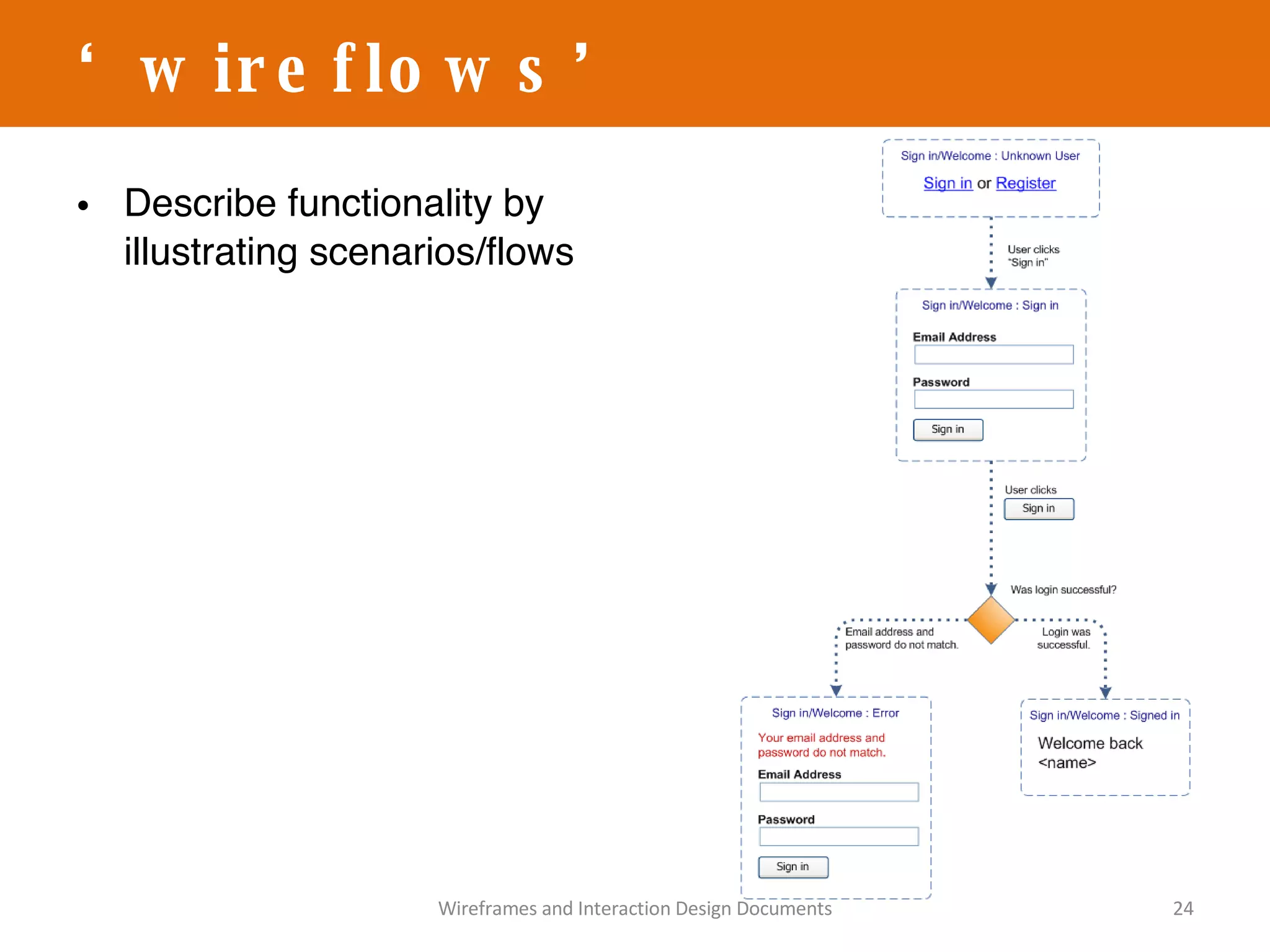

24. Describe functionality by illustrating scenarios/flows ‘ wireflows’ Wireframes and Interaction Design Documents

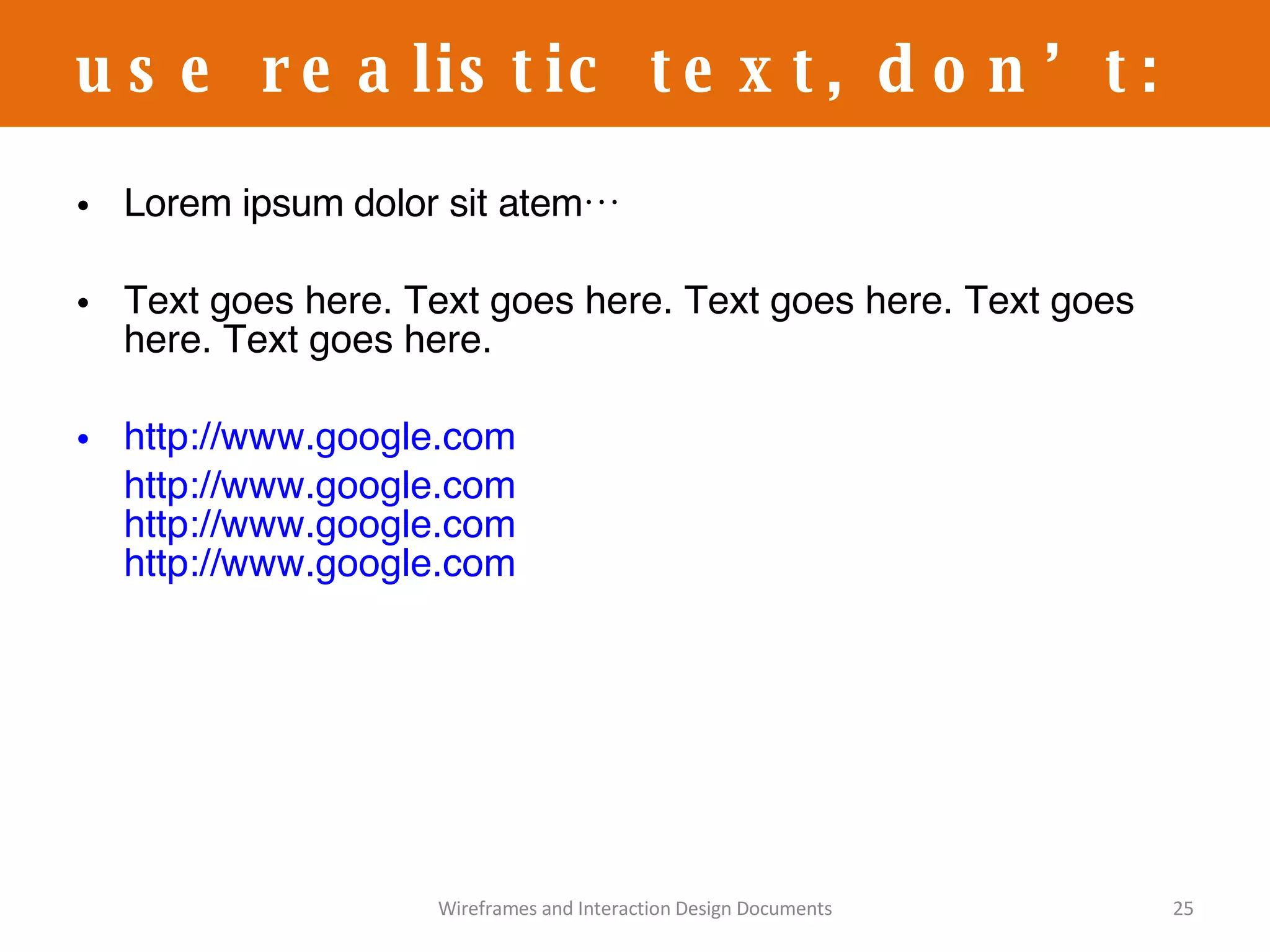

25. Lorem ipsum dolor sit atem… Text goes here. Text goes here. Text goes here. Text goes here. Text goes here. http://www.google.com http://www.google.com http://www.google.com http://www.google.com use realistic text, don’t: Wireframes and Interaction Design Documents

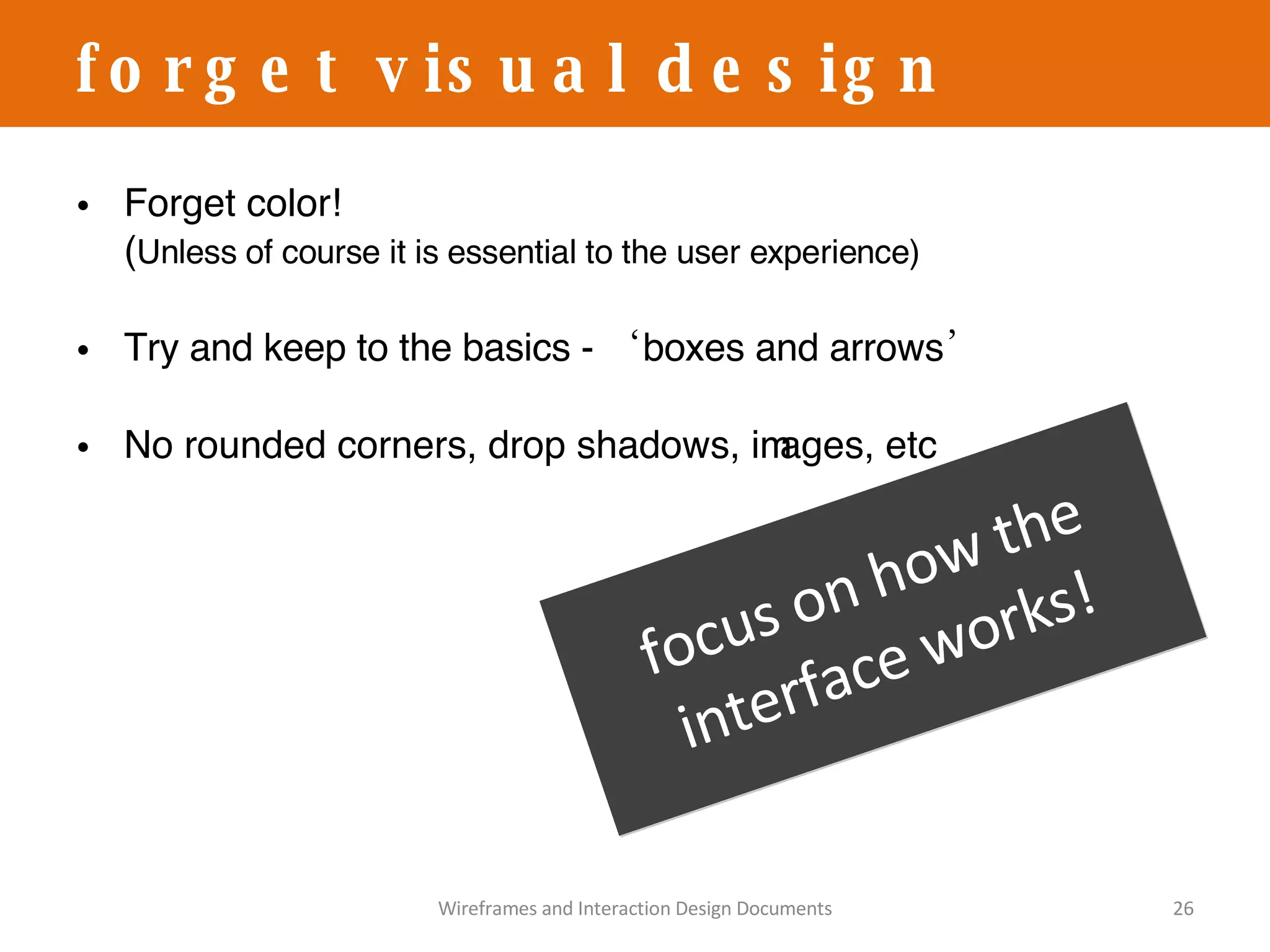

26. Forget color! ( Unless of course it is essential to the user experience) Try and keep to the basics - ‘boxes and arrows’ No rounded corners, drop shadows, images, etc forget visual design Wireframes and Interaction Design Documents focus on how the interface works!

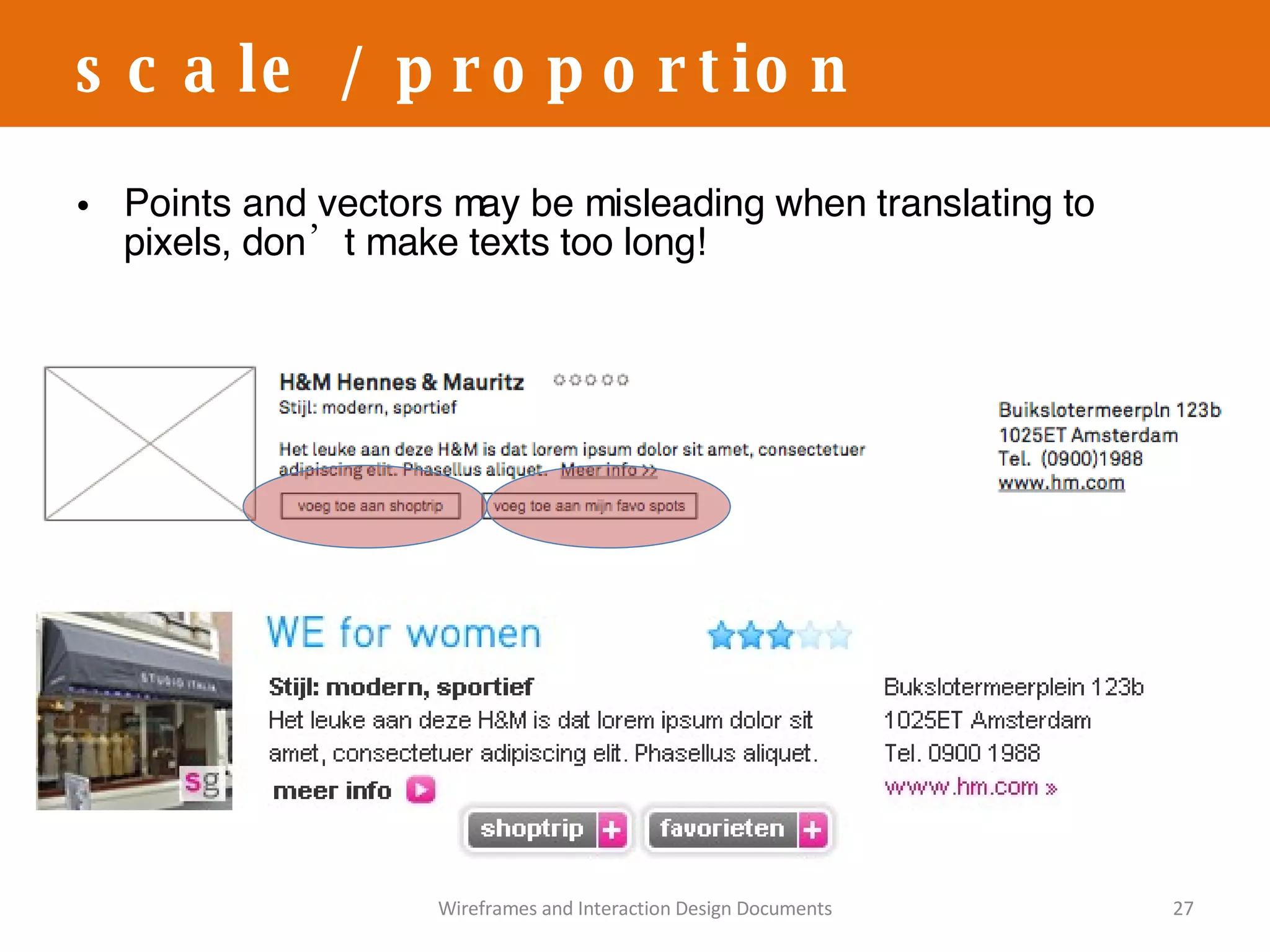

27. Points and vectors may be misleading when translating to pixels, don’t make texts too long! scale / proportion Wireframes and Interaction Design Documents

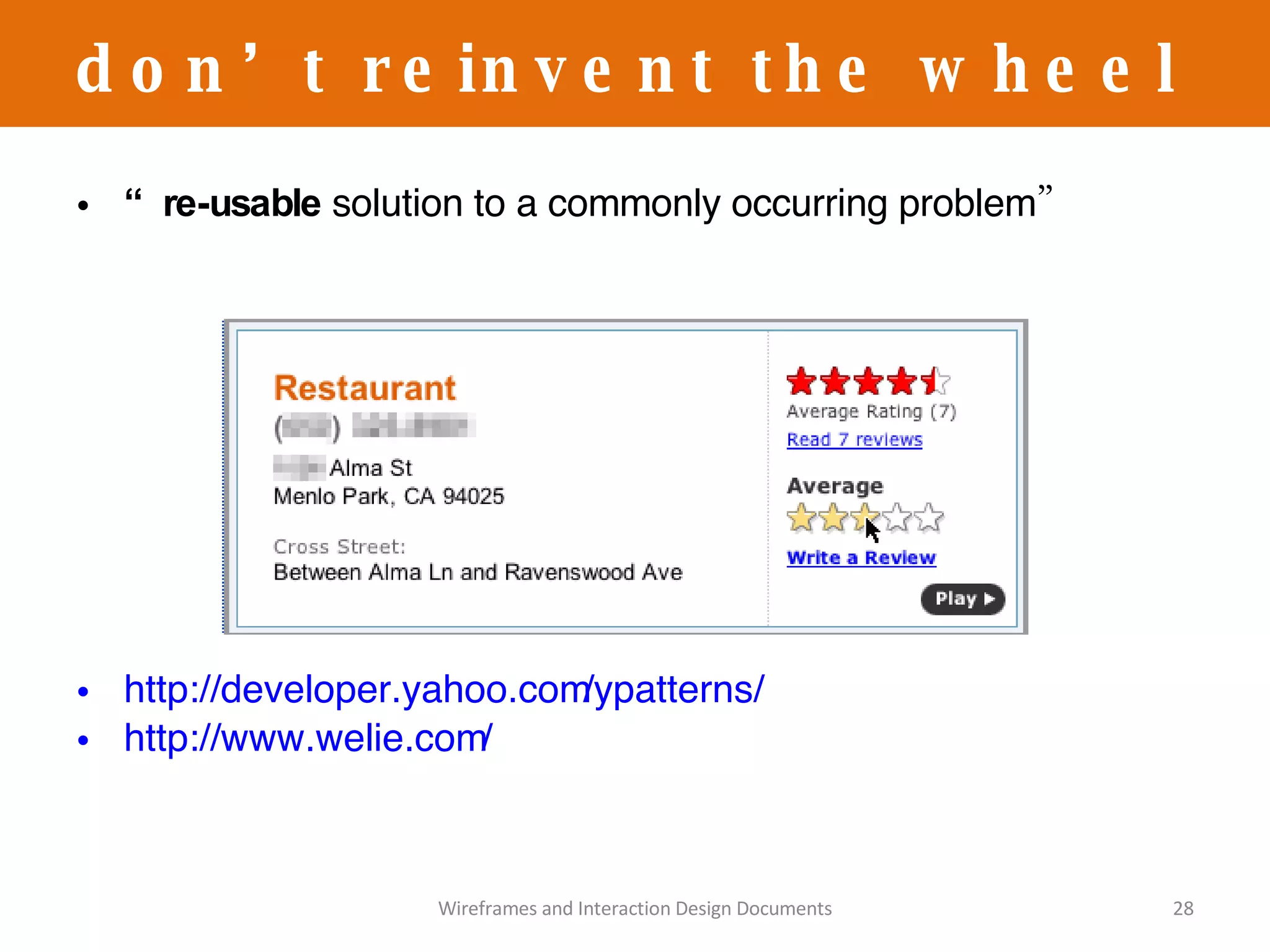

28. “ re-usable solution to a commonly occurring problem” http://developer.yahoo.com/ypatterns/ http://www.welie.com/ don’t reinvent the wheel Wireframes and Interaction Design Documents

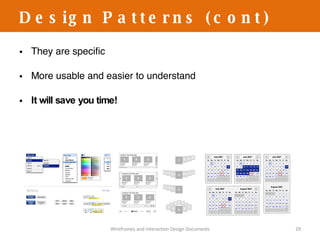

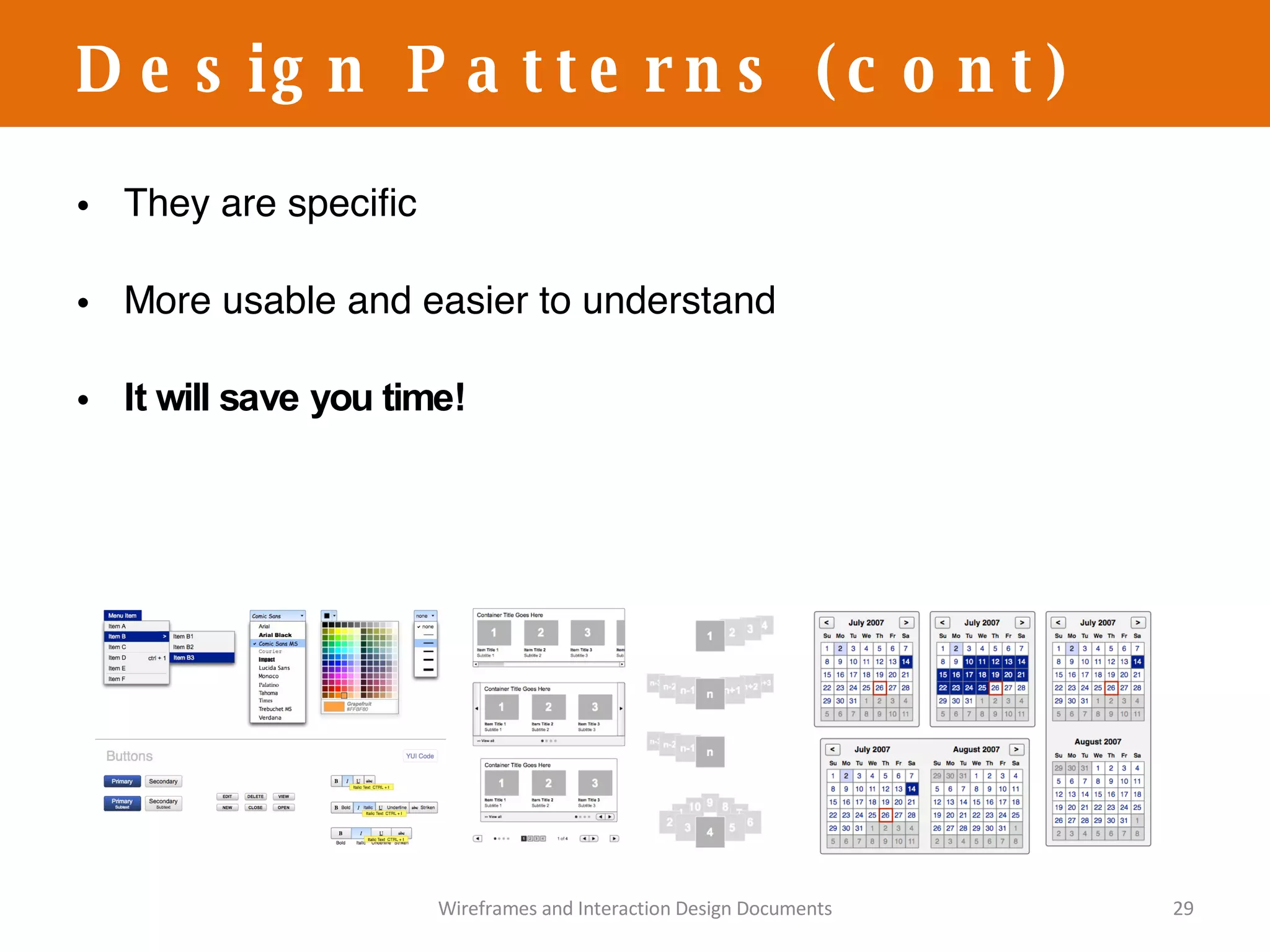

29. They are specific More usable and easier to understand It will save you time! Design Patterns (cont) Wireframes and Interaction Design Documents

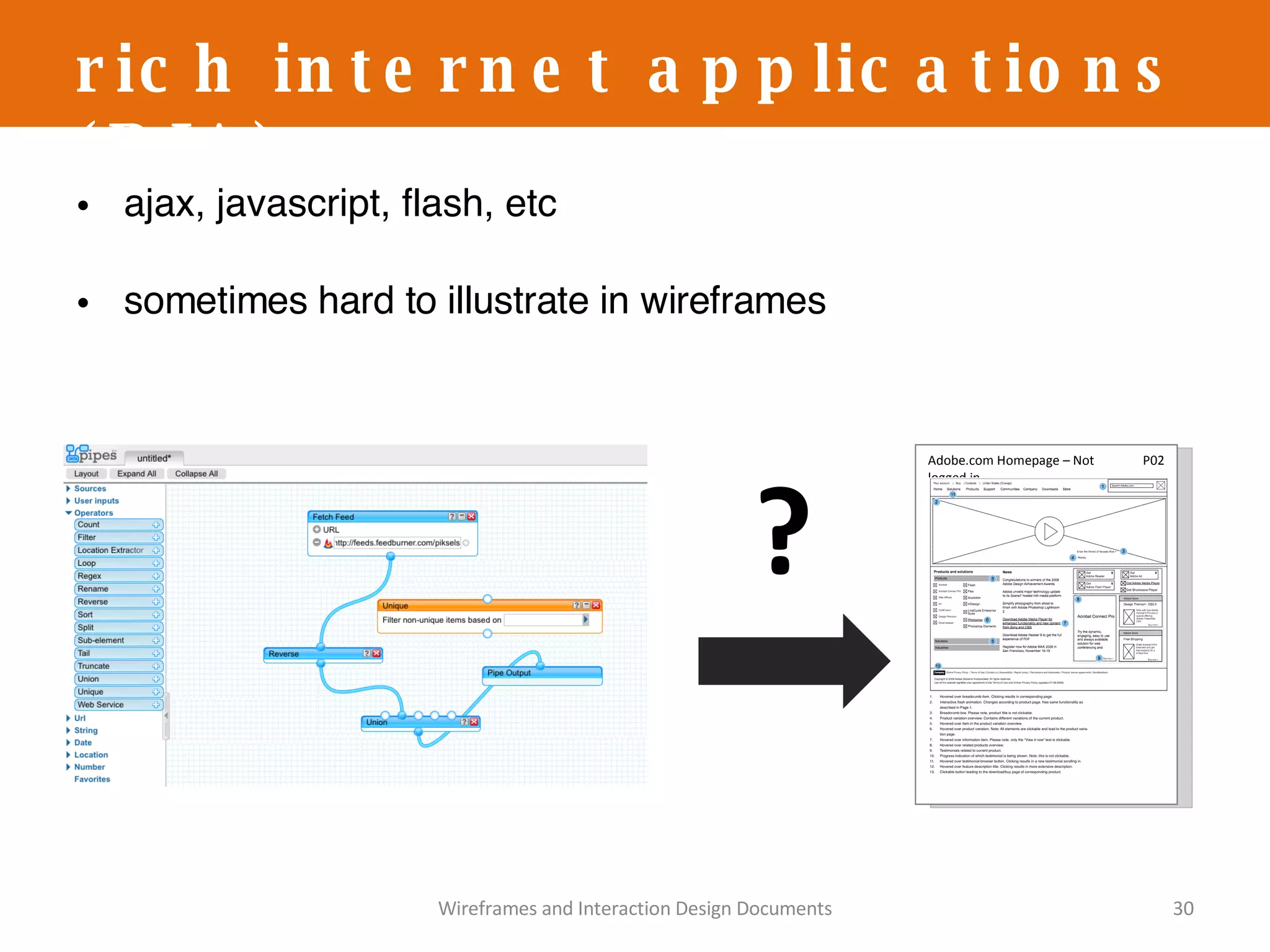

30. ajax, javascript, flash, etc sometimes hard to illustrate in wireframes rich internet applications (RIA) Wireframes and Interaction Design Documents ? Adobe.com Homepage – Not logged in P02

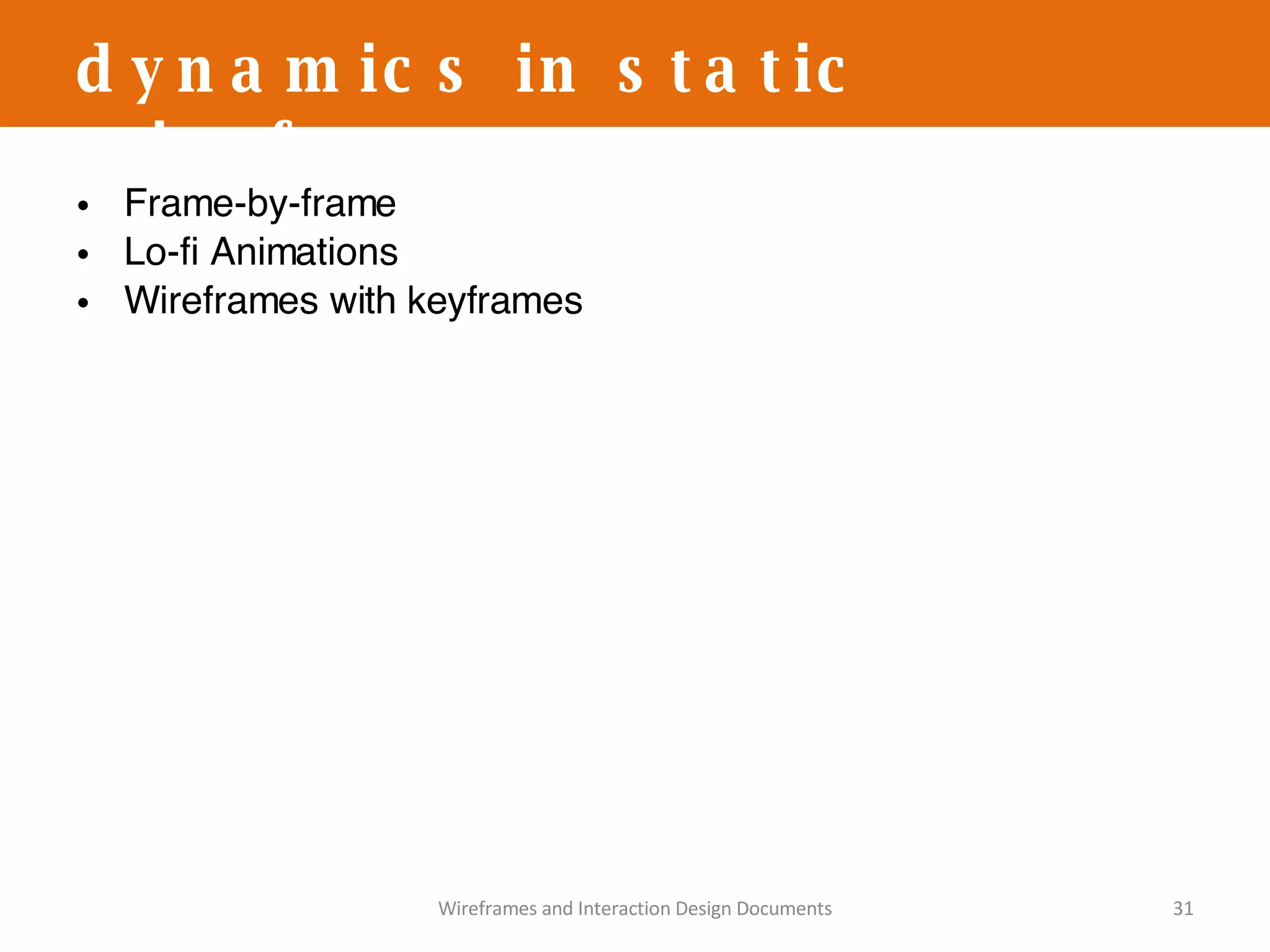

31. Frame-by-frame Lo-fi Animations Wireframes with keyframes dynamics in static wireframes Wireframes and Interaction Design Documents

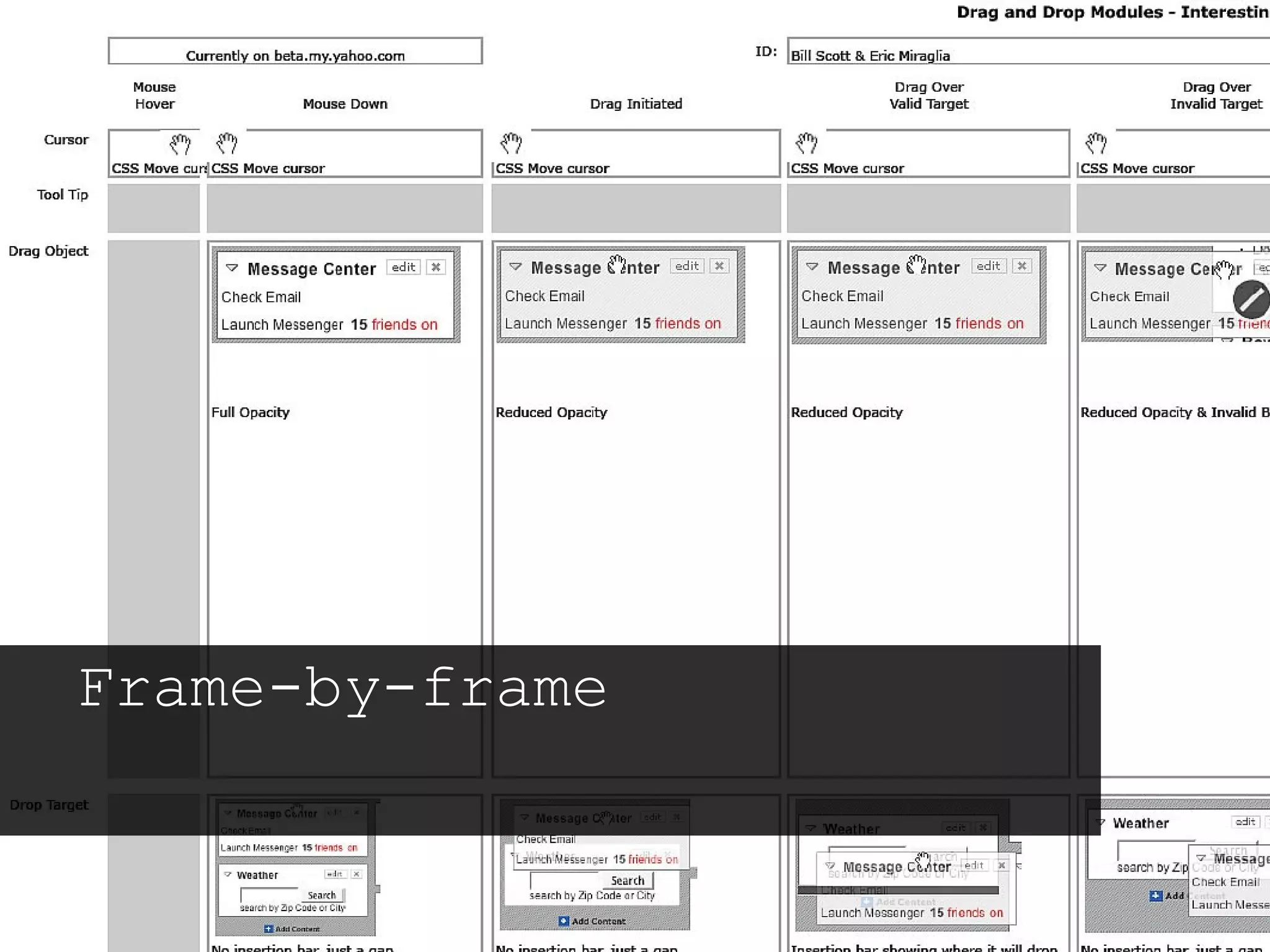

32. Wireframes and Interaction Design Documents Frame-by-frame

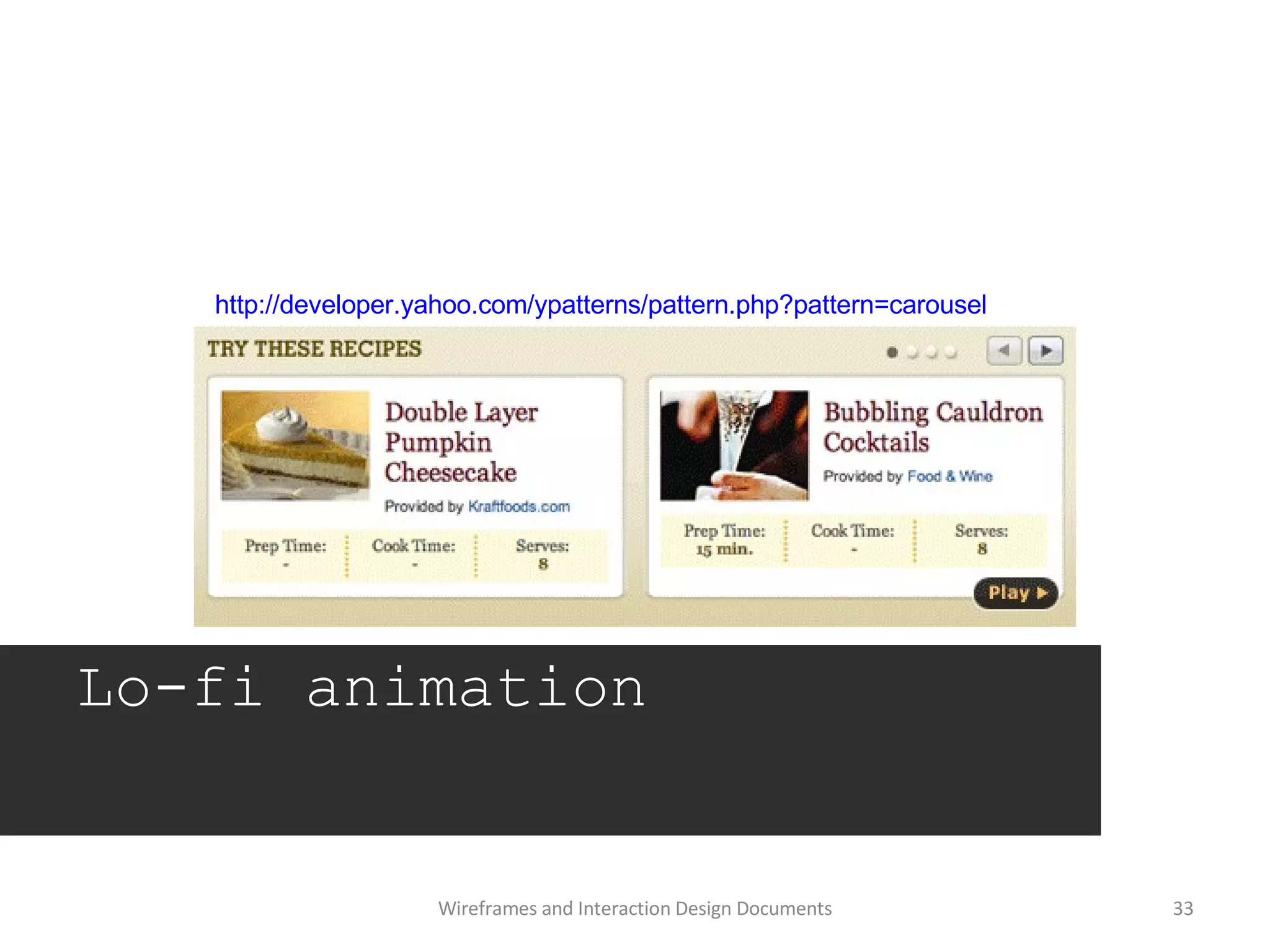

33. Wireframes and Interaction Design Documents Lo-fi animation http://developer.yahoo.com/ypatterns/pattern.php?pattern=carousel

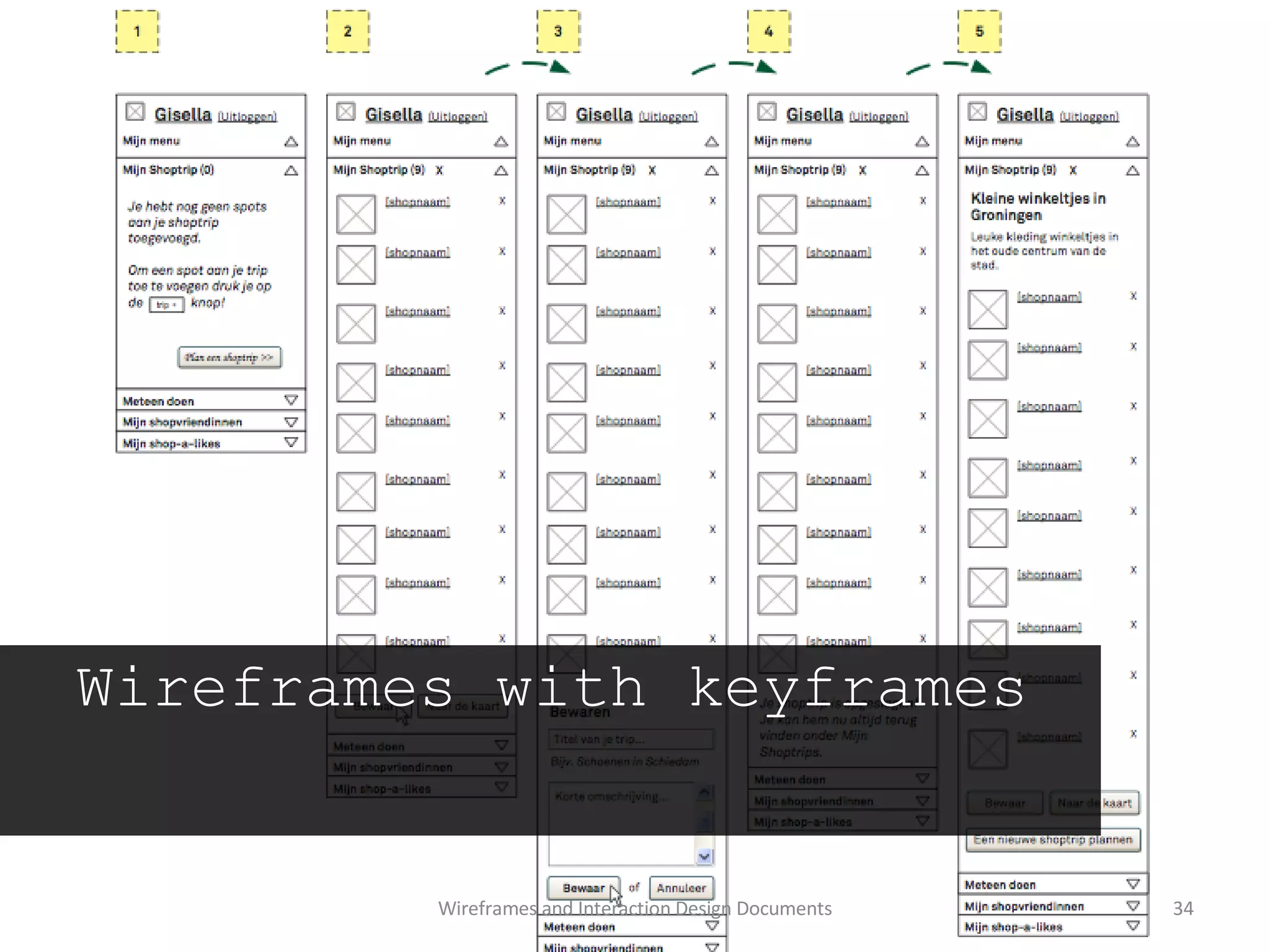

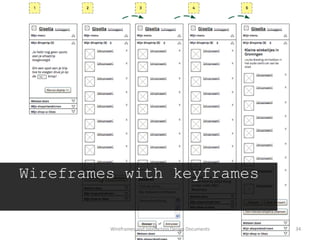

34. Wireframes and Interaction Design Documents Wireframes with keyframes

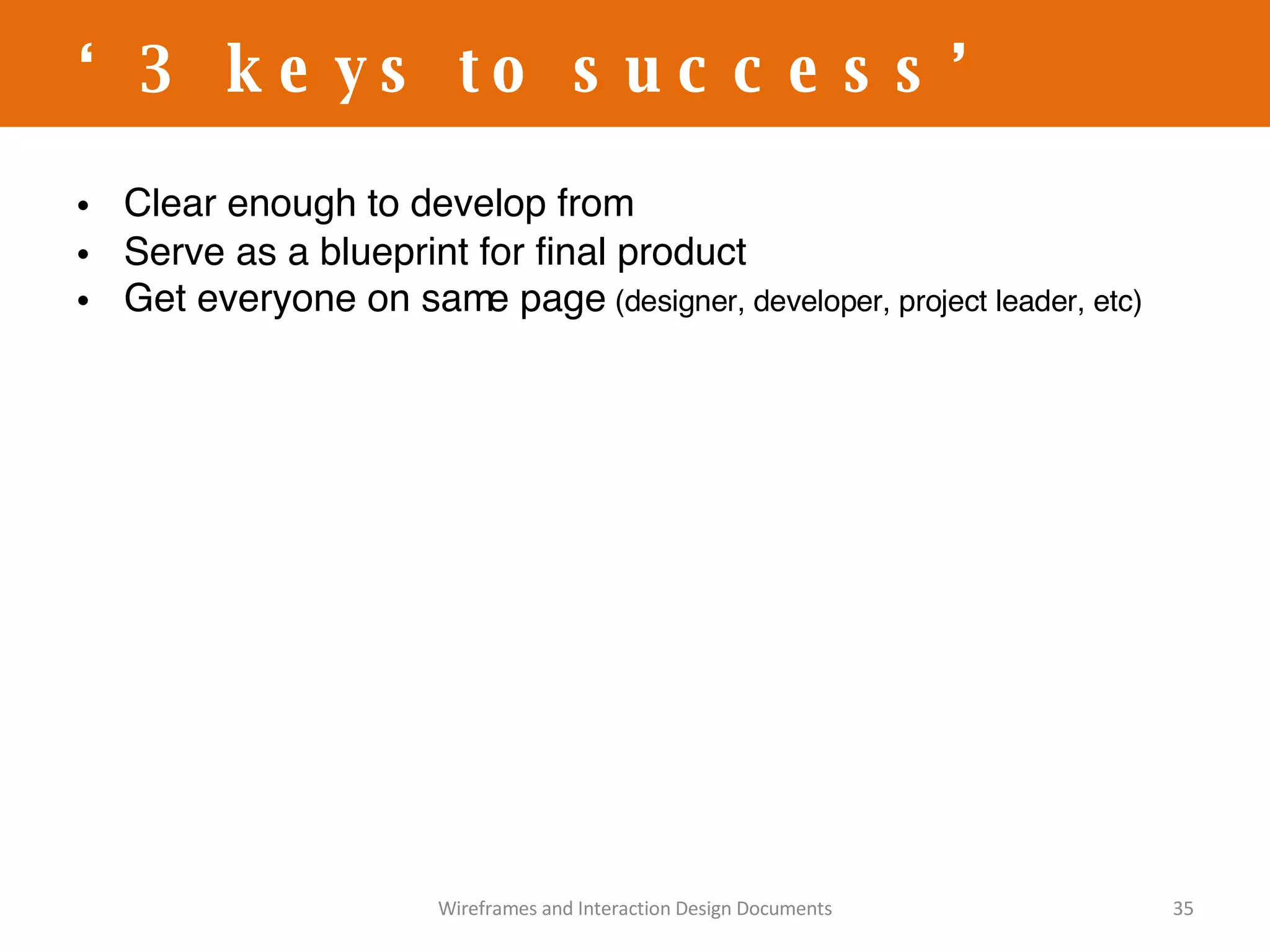

35. Clear enough to develop from Serve as a blueprint for final product Get everyone on same page (designer, developer, project leader, etc) ‘ 3 keys to success’ Wireframes and Interaction Design Documents

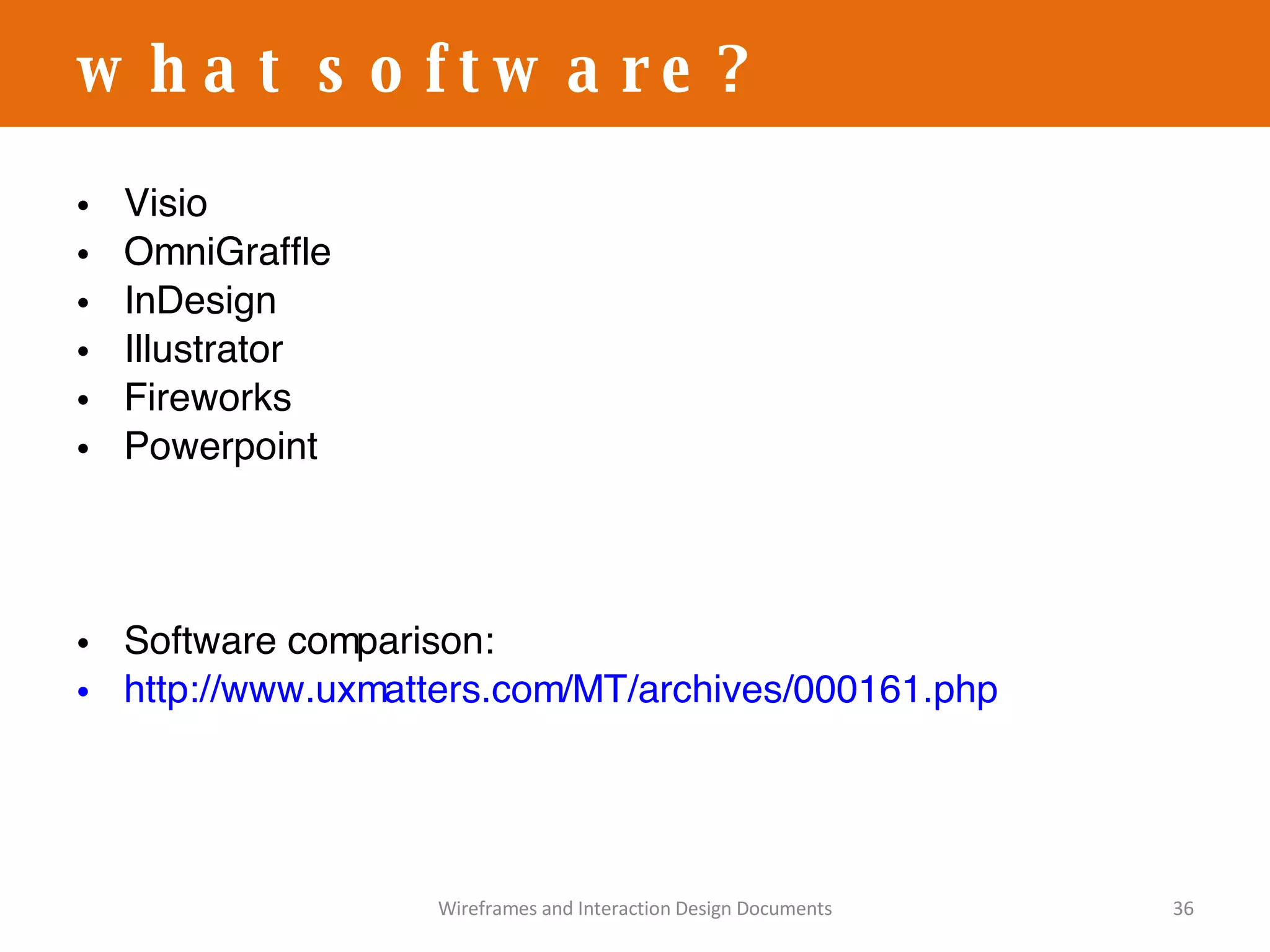

36. Visio OmniGraffle InDesign Illustrator Fireworks Powerpoint Software comparison: http://www.uxmatters.com/MT/archives/000161.php what software? Wireframes and Interaction Design Documents

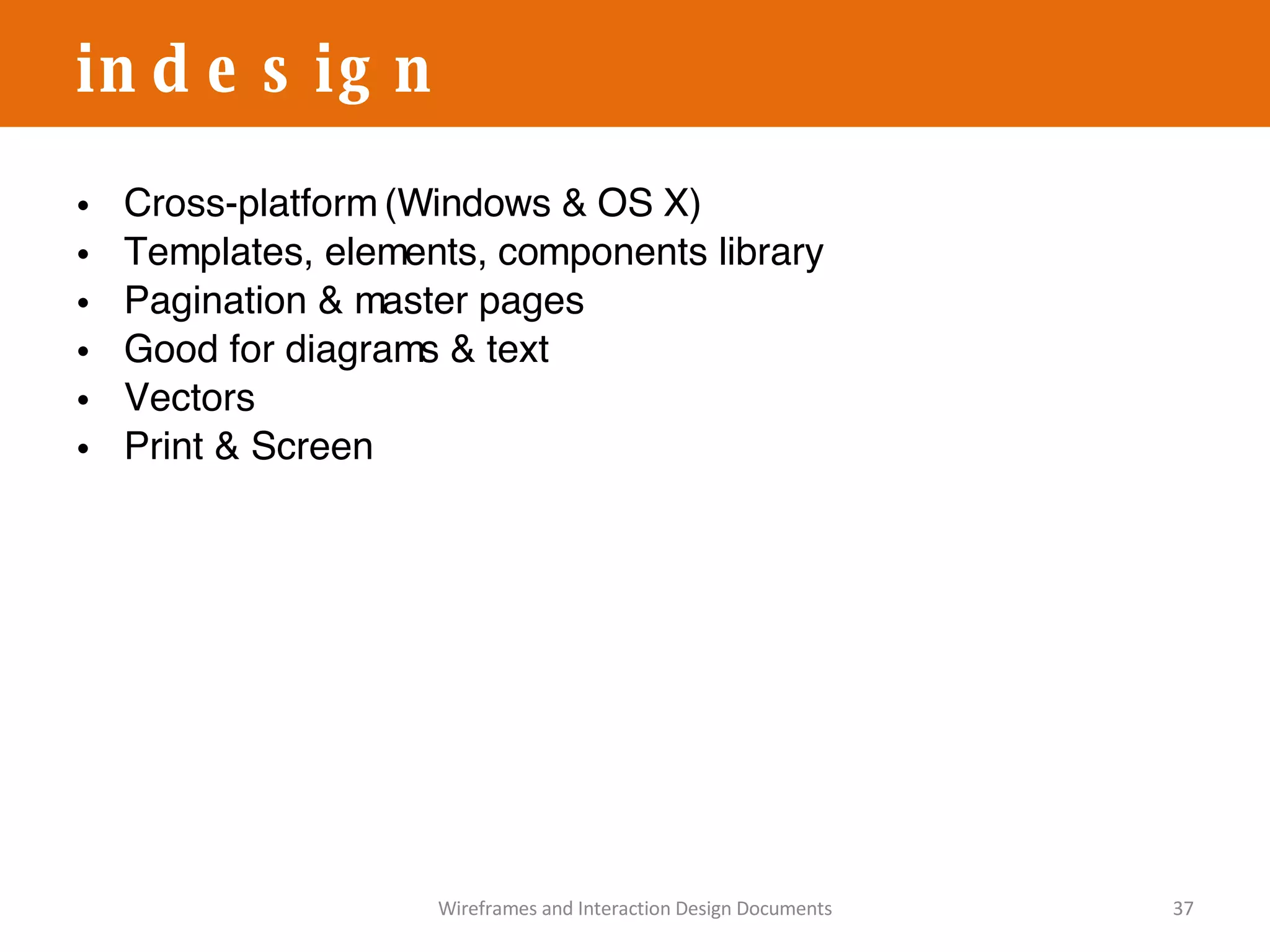

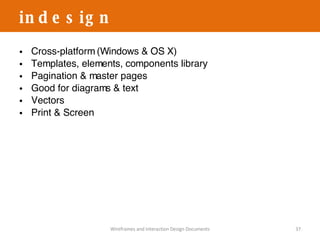

37. Cross-platform (Windows & OS X) Templates, elements, components library Pagination & master pages Good for diagrams & text Vectors Print & Screen indesign Wireframes and Interaction Design Documents

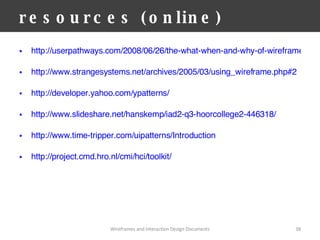

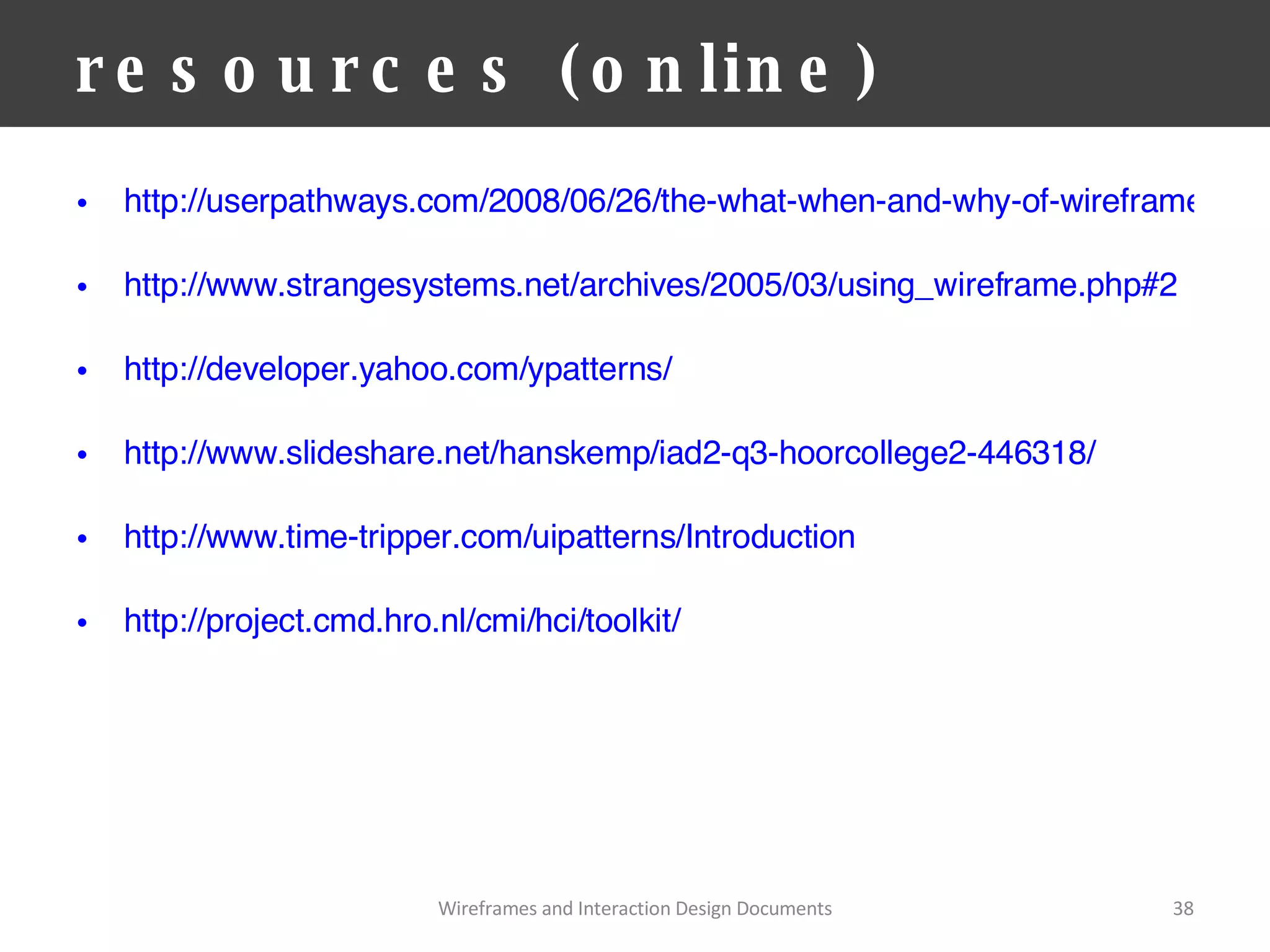

38. resources (online) http://userpathways.com/2008/06/26/the-what-when-and-why-of-wireframes/ http://www.strangesystems.net/archives/2005/03/using_wireframe.php#2 http://developer.yahoo.com/ypatterns/ http://www.slideshare.net/hanskemp/iad2-q3-hoorcollege2-446318/ http://www.time-tripper.com/uipatterns/Introduction http://project.cmd.hro.nl/cmi/hci/toolkit/ Wireframes and Interaction Design Documents

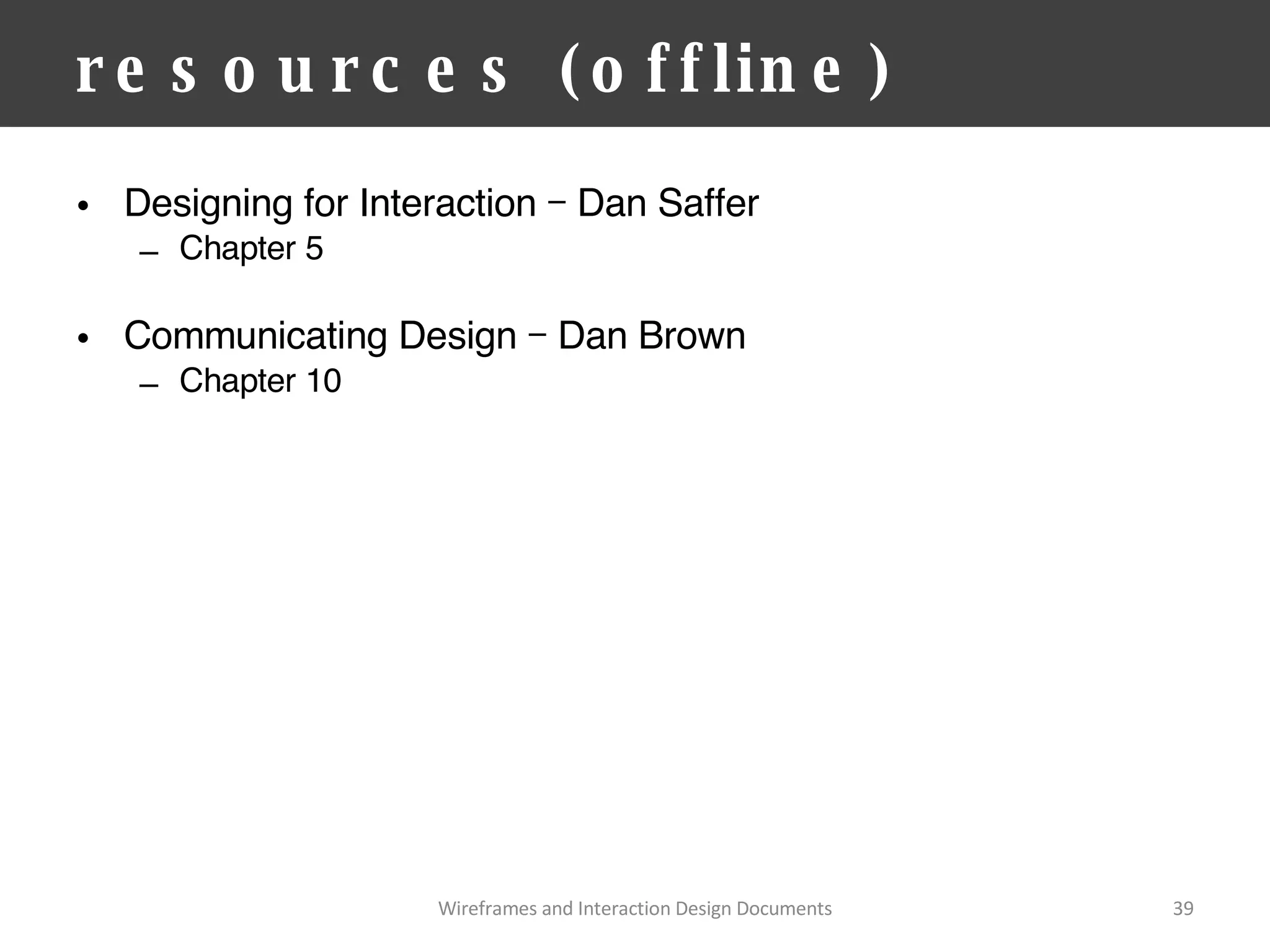

39. resources (offline) Designing for Interaction – Dan Saffer Chapter 5 Communicating Design – Dan Brown Chapter 10 Wireframes and Interaction Design Documents

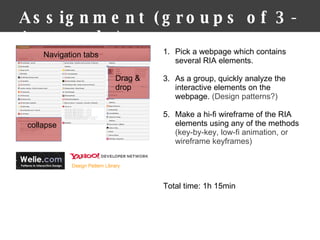

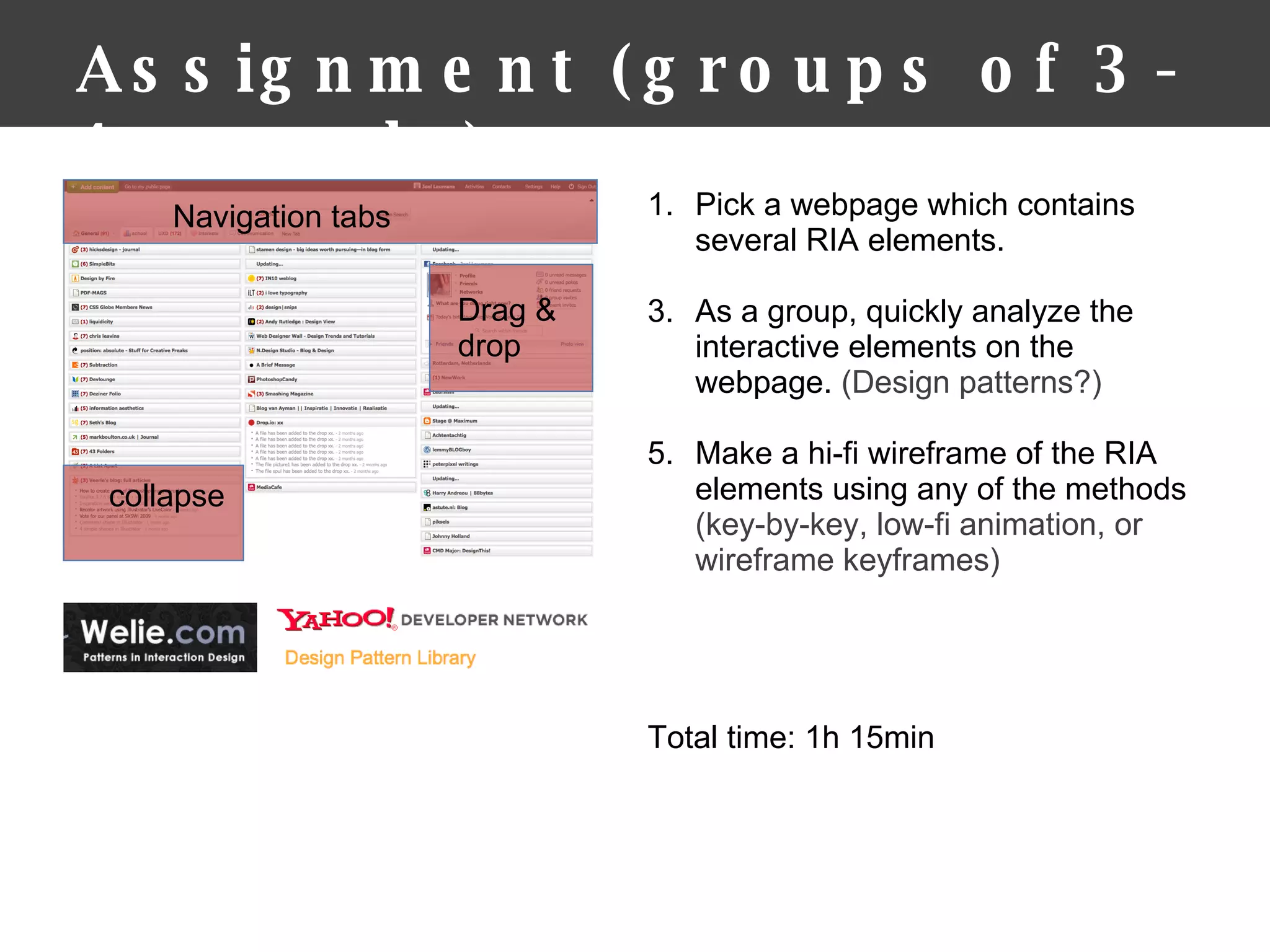

40. Assignment (groups of 3-4 people) Pick a webpage which contains several RIA elements. As a group, quickly analyze the interactive elements on the webpage. (Design patterns?) Make a hi-fi wireframe of the RIA elements using any of the methods (key-by-key, low-fi animation, or wireframe keyframes) Total time: 1h 15min Drag & drop collapse Navigation tabs
