Introduction to Information Architecture & Design - SVA Workshop 10/04/14

Introduction to Information Architecture & Design
School of Visual Arts | October 4, 2014 Robert Stribley

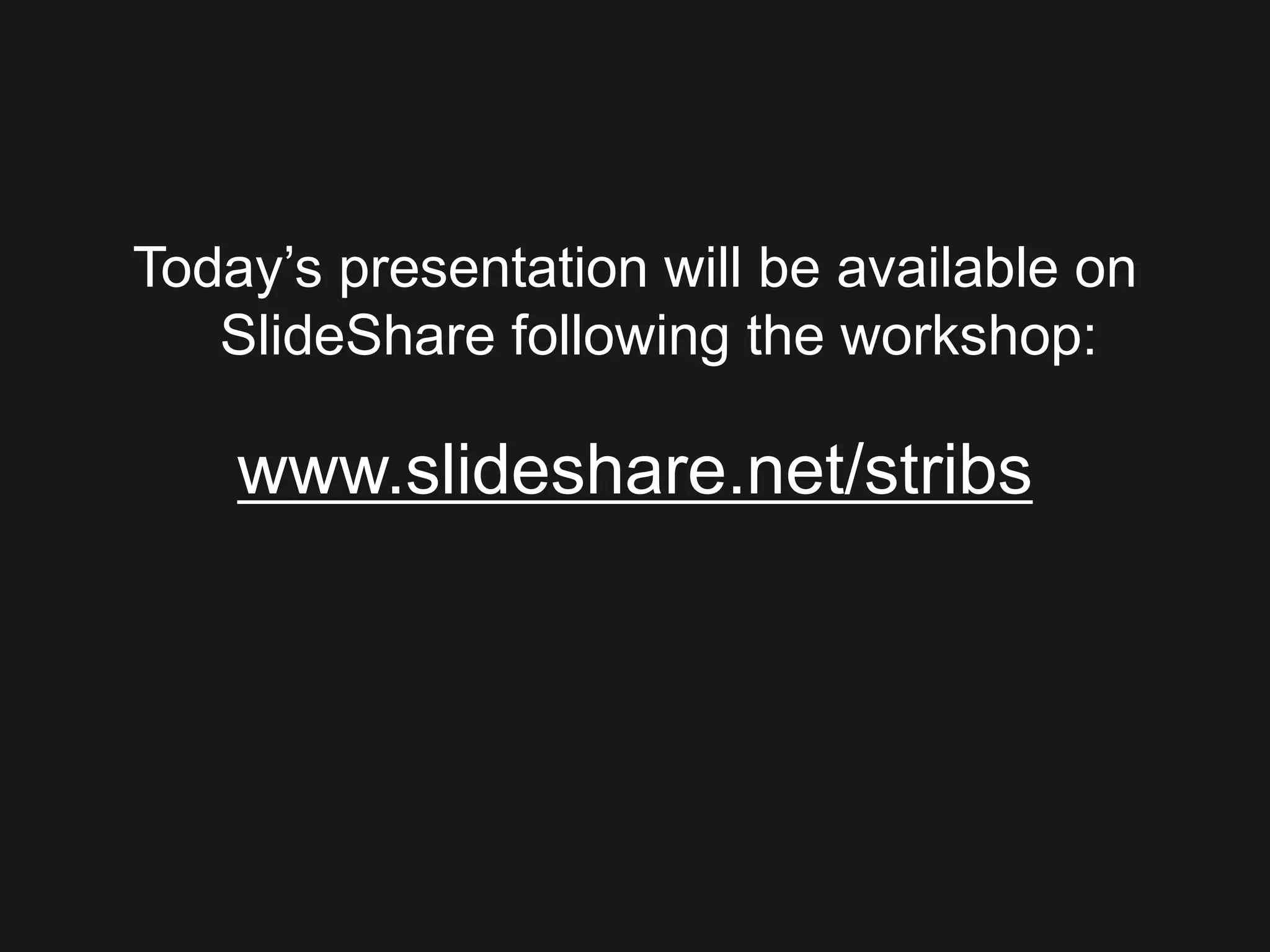

Today’s presentation will be available on
SlideShare following the workshop:
www.slideshare.net/stribs

Pattern
Recognition:
In cognitive
psychology, the
ability to identify
familiar forms
within a complex
arrangement of
sensory stimuli
Butterfly on the New York City Highline

Butterflies Labeled by Species

Introduction
Intro

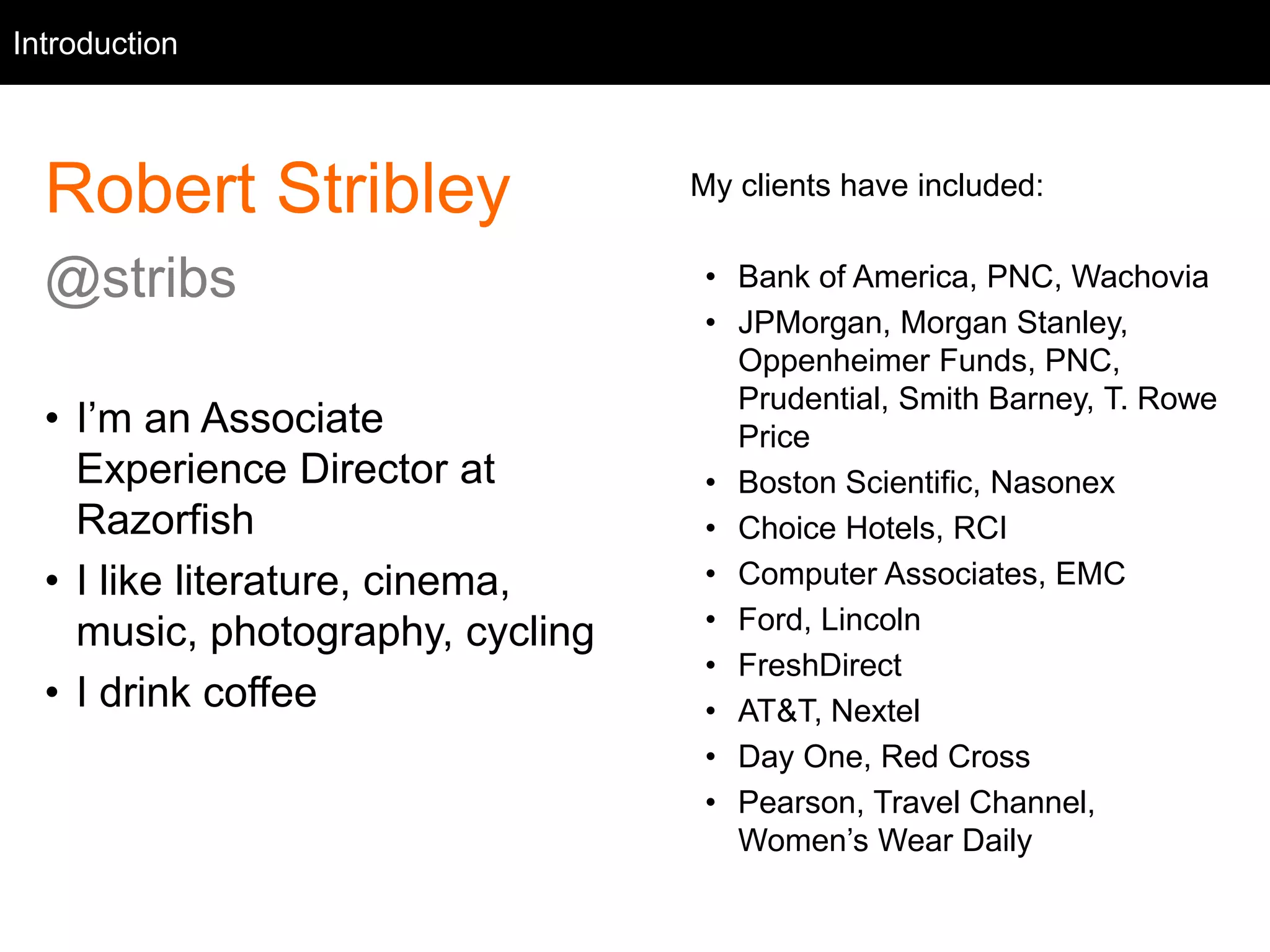

Robert Stribley
@stribs
• I’m an Associate
Experience Director at
Razorfish
• I like literature, cinema,
music, photography, cycling
• I drink coffee
My clients have included:
• Bank of America, PNC, Wachovia
• JPMorgan, Morgan Stanley,
Oppenheimer Funds, PNC,
Prudential, Smith Barney, T. Rowe
Price
• Boston Scientific, Nasonex
• Choice Hotels, RCI
• Computer Associates, EMC
• Ford, Lincoln
• FreshDirect
• AT&T, Nextel
• Day One, Red Cross
• Pearson, Travel Channel,
Women’s Wear Daily

Introduction
Intro

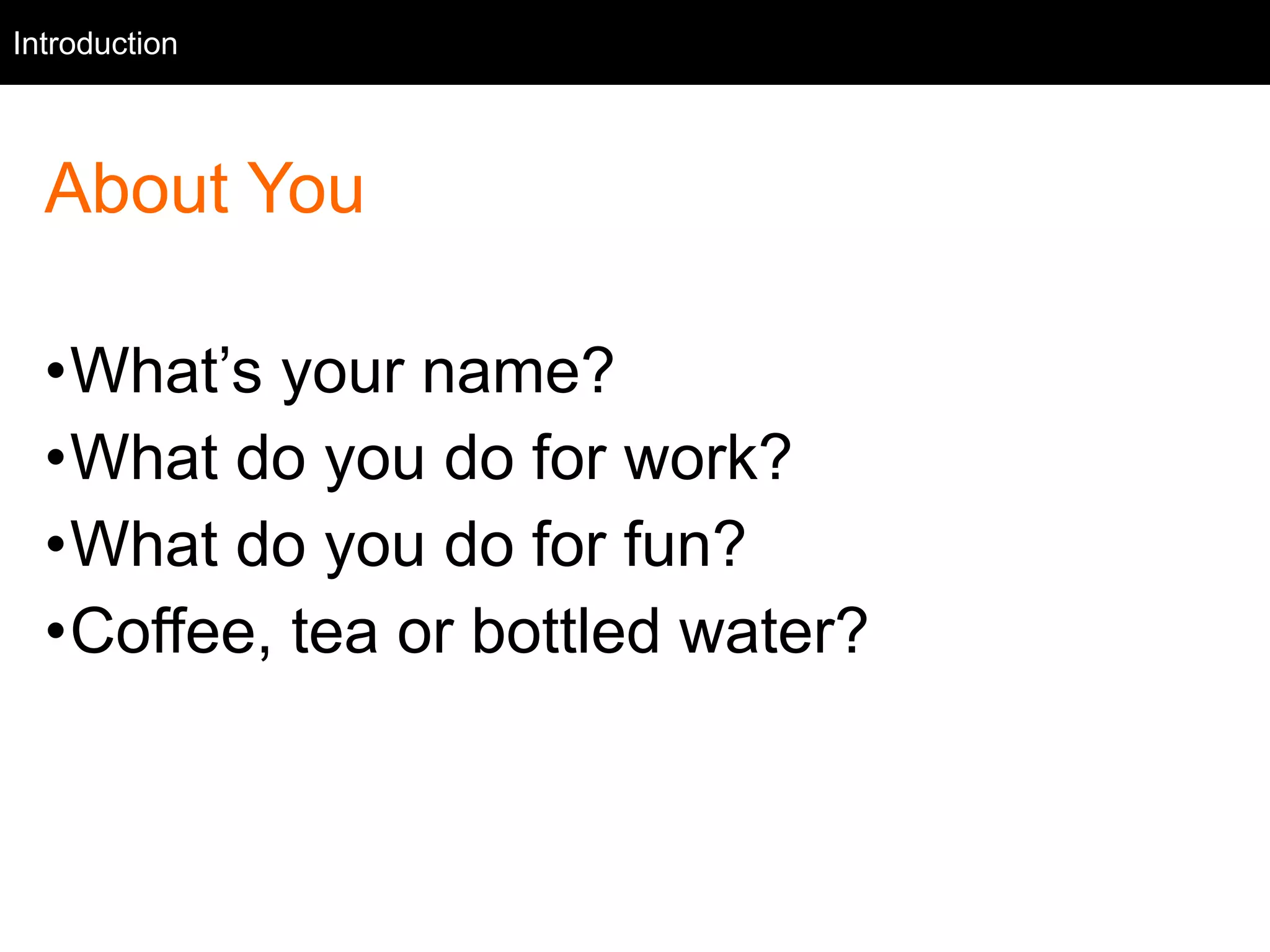

About You
•What’s your name?
•What do you do for work?
•What do you do for fun?
•Coffee, tea or bottled water?

Introduction
Intro

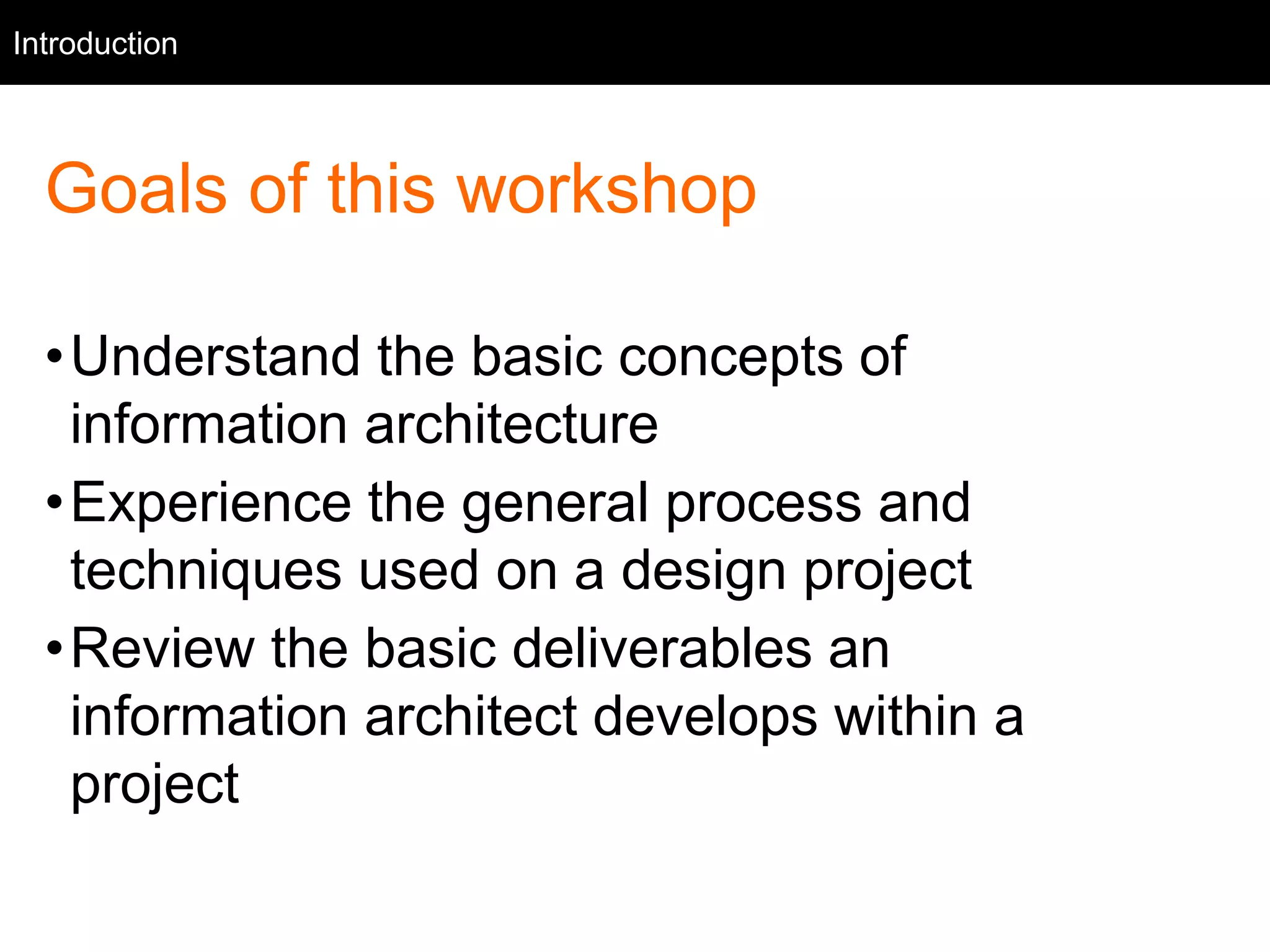

Goals of this workshop
•Understand the basic concepts of
information architecture
•Experience the general process and
techniques used on a design project
•Review the basic deliverables an
information architect develops within a
project

Agenda

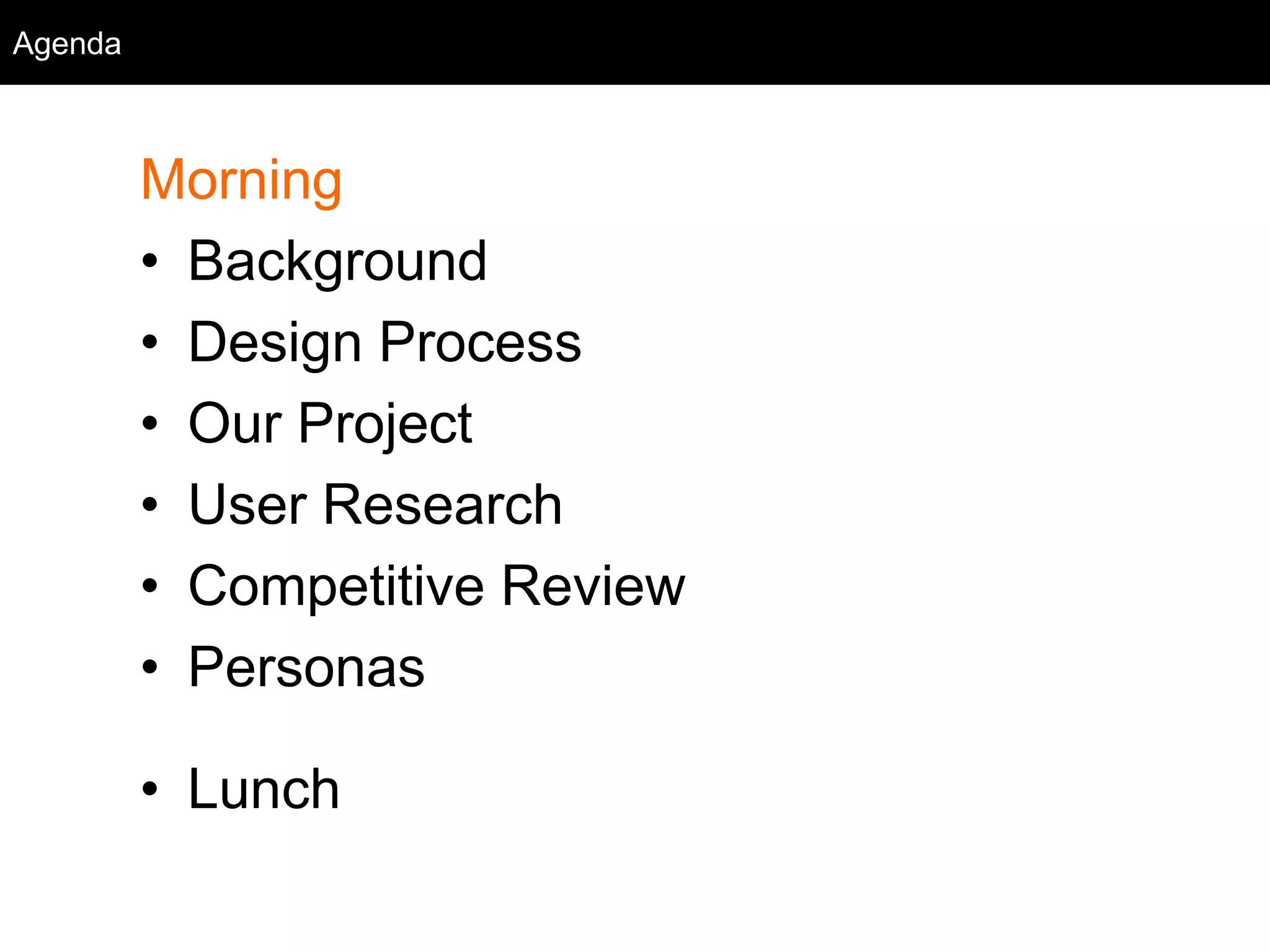

Morning
• Background
• Design Process
• Our Project
• User Research
• Competitive Review
• Personas
• Lunch

Agenda

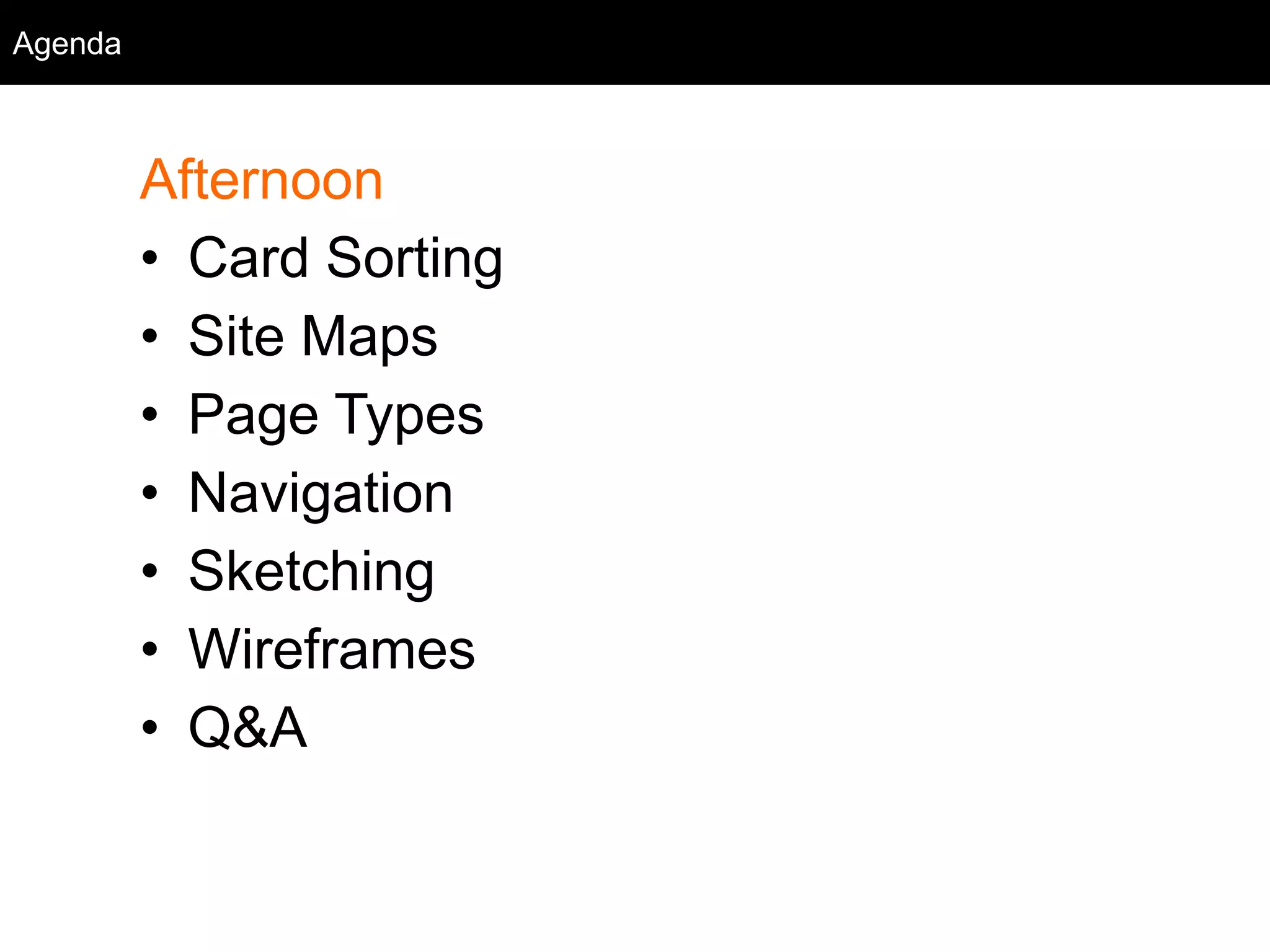

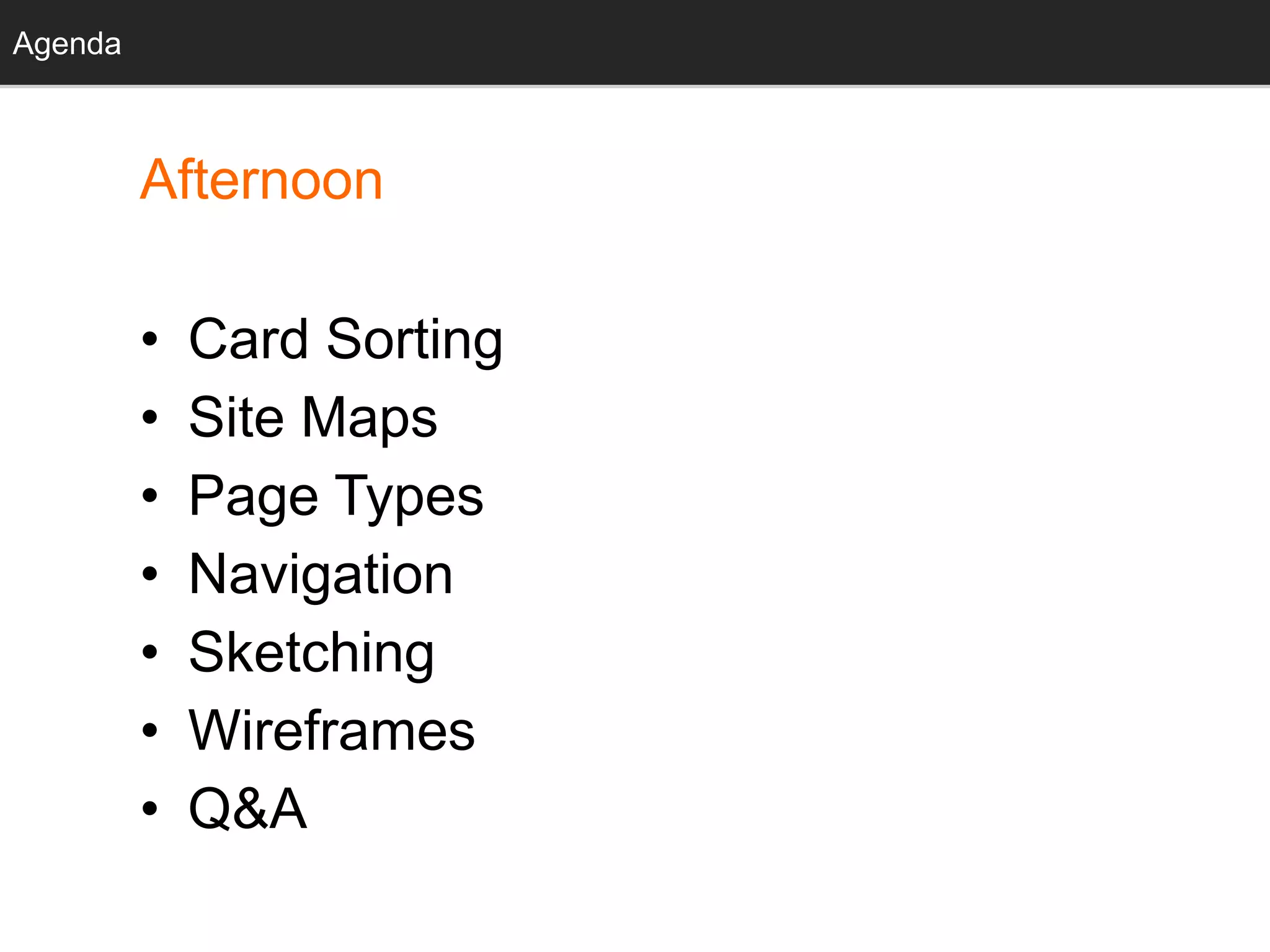

Afternoon
• Card Sorting
• Site Maps
• Page Types
• Navigation
• Sketching
• Wireframes
• Q&A
Agenda

Background: Background
Defining IA

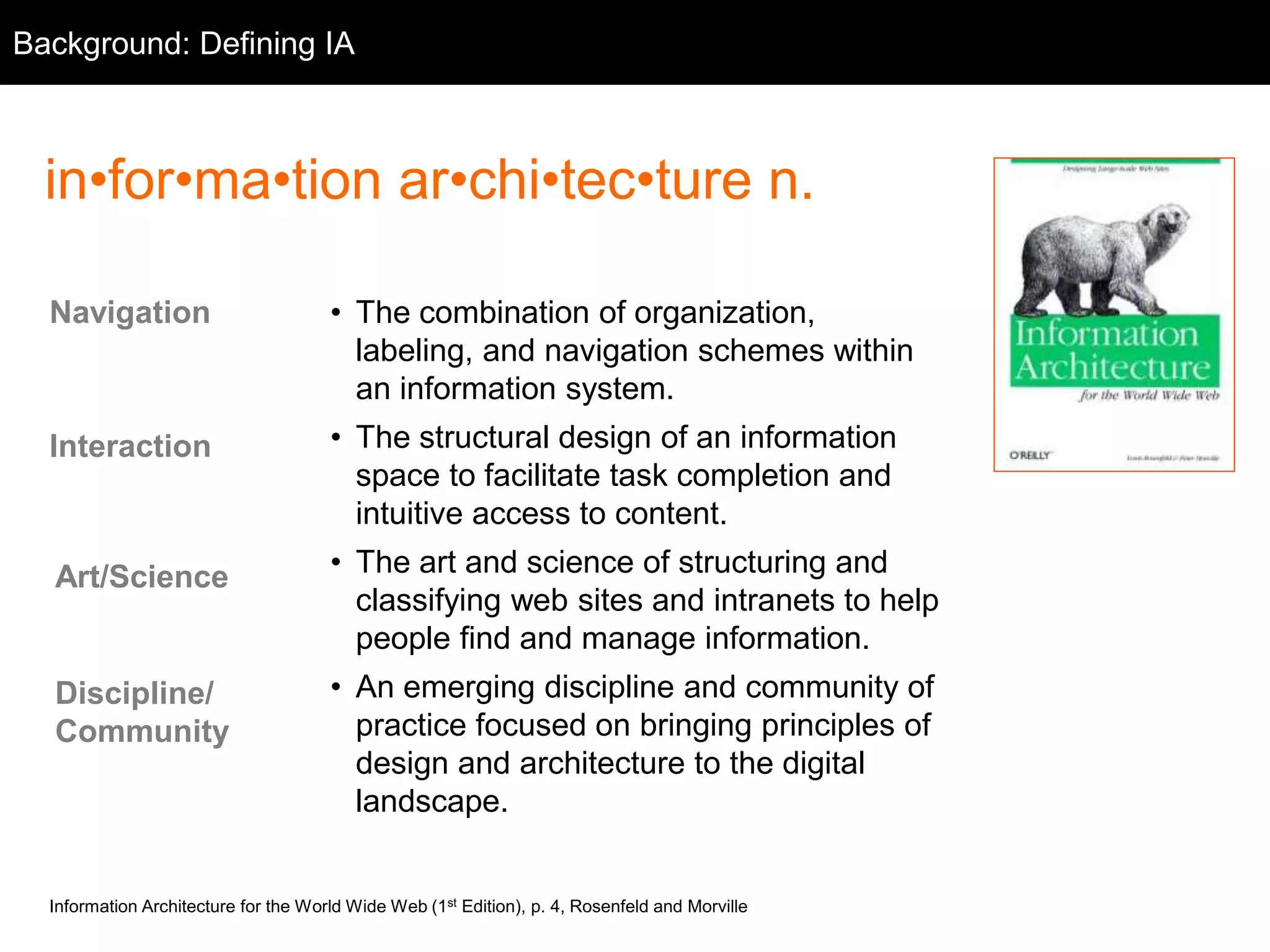

in•for•ma•tion ar•chi•tec•ture n.
• The combination of organization,
labeling, and navigation schemes within
an information system.
• The structural design of an information
space to facilitate task completion and
intuitive access to content.
• The art and science of structuring and
classifying web sites and intranets to help
people find and manage information.
• An emerging discipline and community of
practice focused on bringing principles of
design and architecture to the digital
landscape.
Navigation
Interaction
Art/Science
Discipline/
Community
Information Architecture for the World Wide Web (1st Edition), p. 4, Rosenfeld and Morville

Background: Background
Defining IA

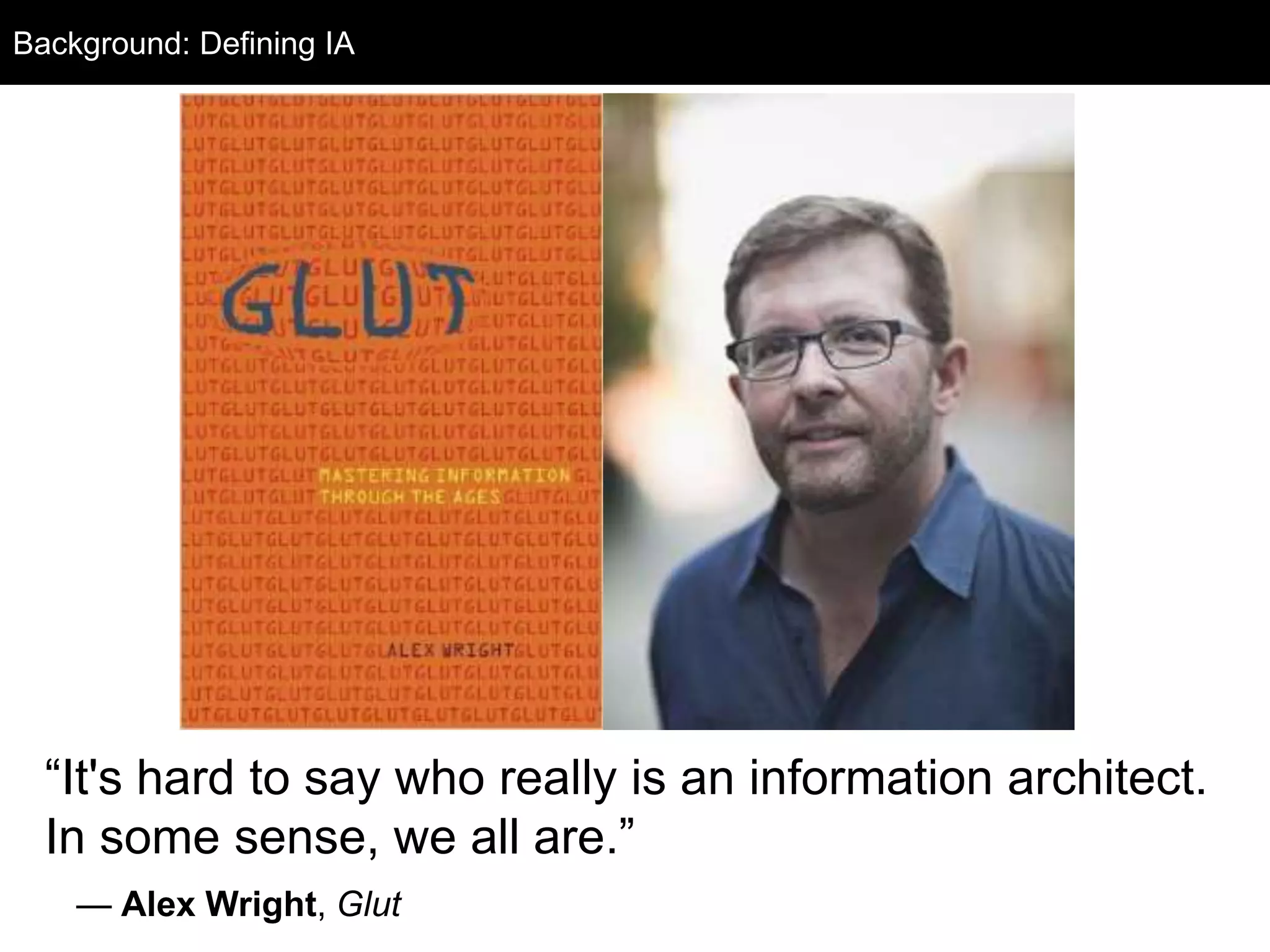

“It's hard to say who really is an information architect.
In some sense, we all are.”
— Alex Wright, Glut

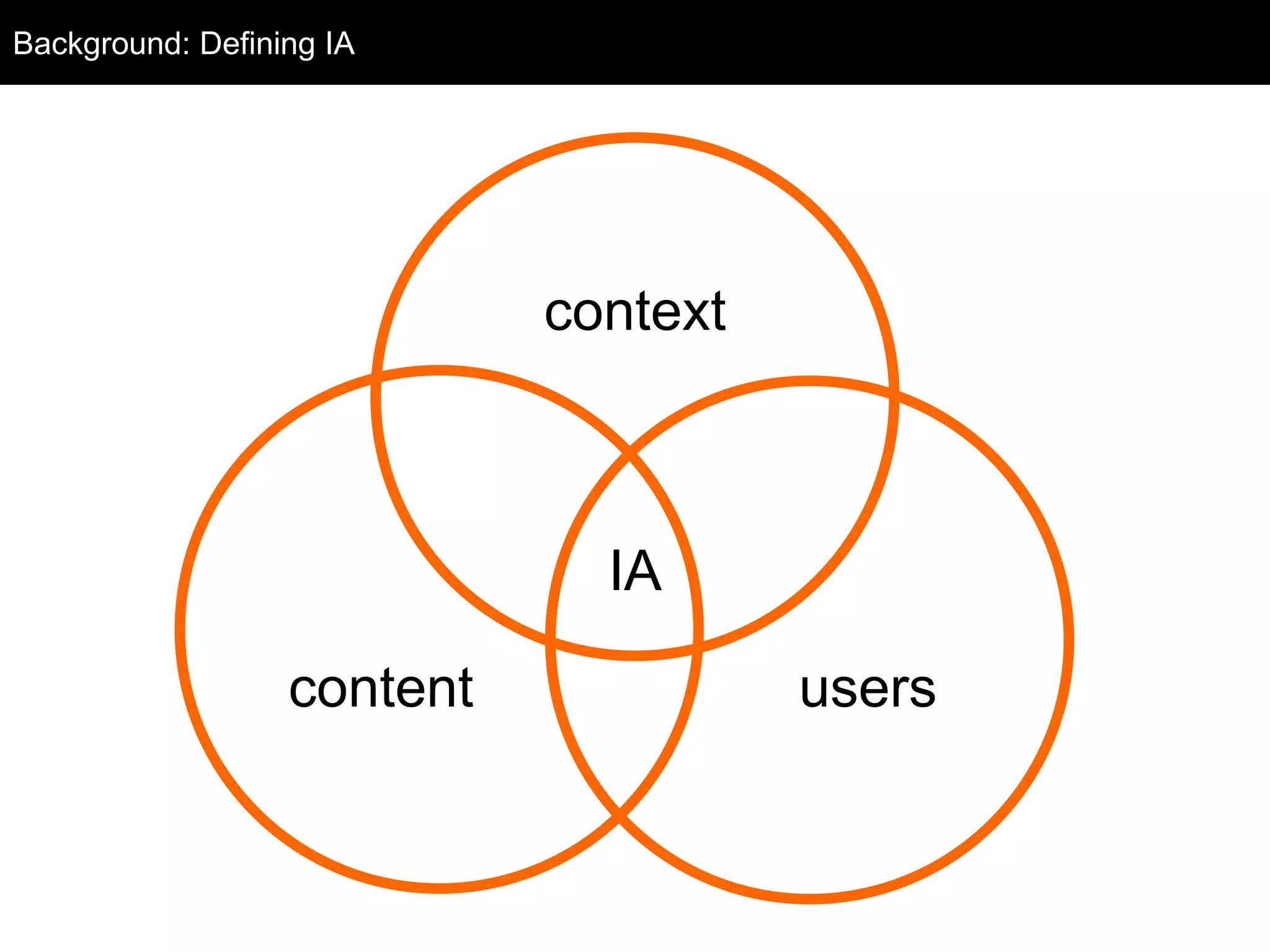

context
IA

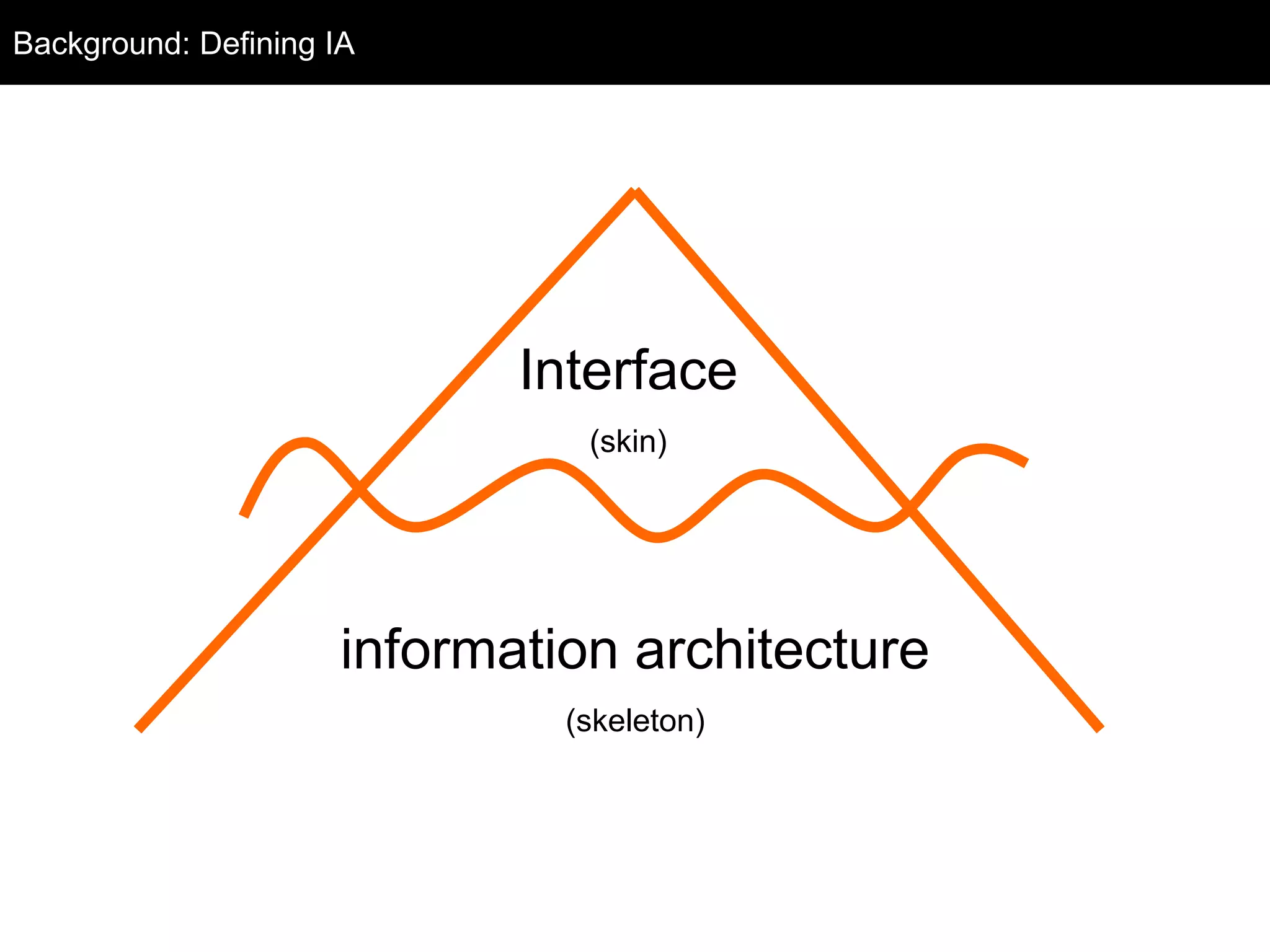

Background: Defining IA
content users

Interface
(skin)
information architecture
(skeleton)

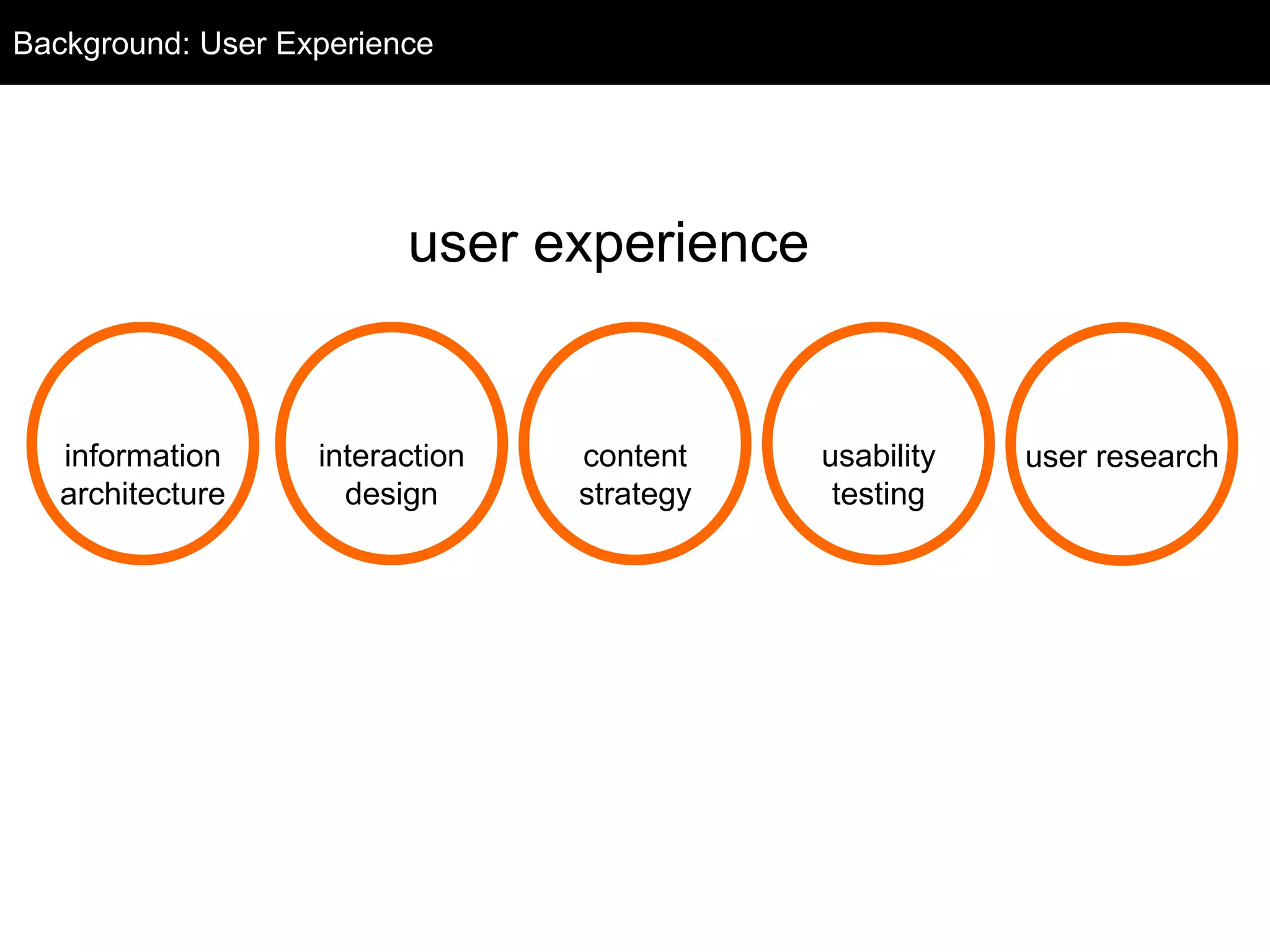

Background: User Experience
user experience
information
architecture
interaction
design
content
strategy
usability
testing
user research

Design Process

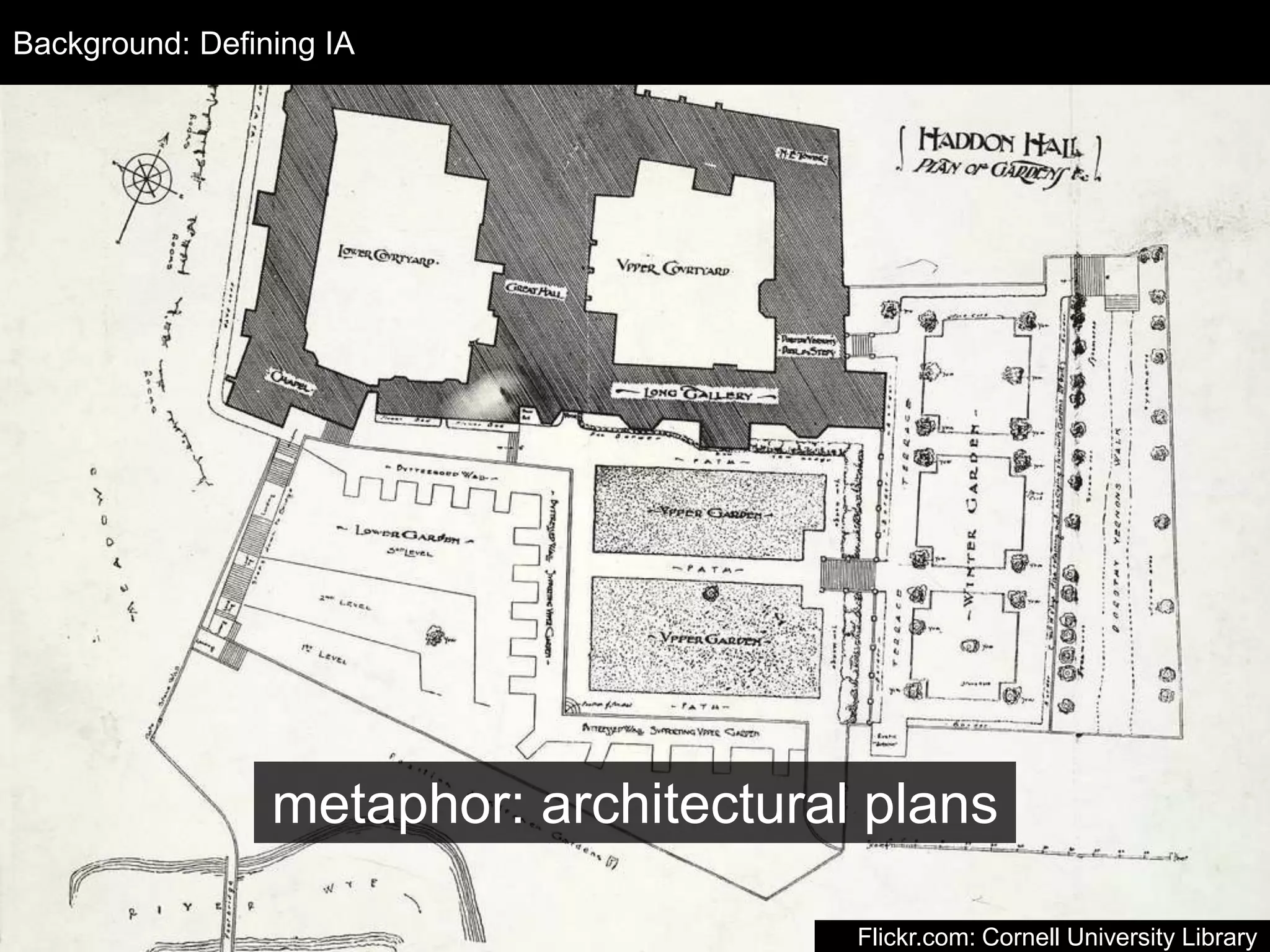

metaphor: architectural plans
Flickr.com: Cornell University Library

Background: History

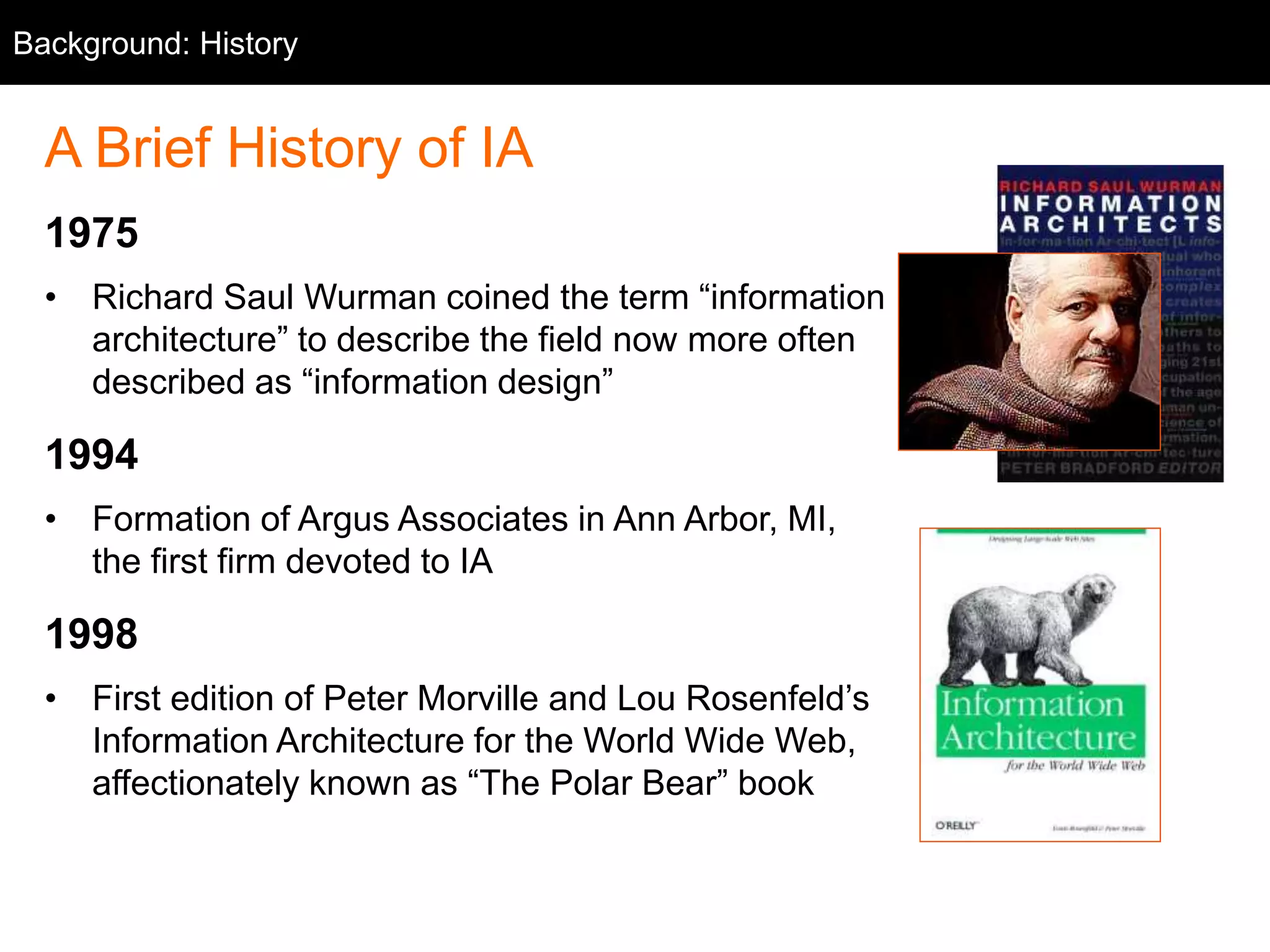

A Brief History of IA
1975
• Richard Saul Wurman coined the term “information
architecture” to describe the field now more often
described as “information design”
1994
• Formation of Argus Associates in Ann Arbor, MI,
the first firm devoted to IA
1998
• First edition of Peter Morville and Lou Rosenfeld’s
Information Architecture for the World Wide Web,
affectionately known as “The Polar Bear” book

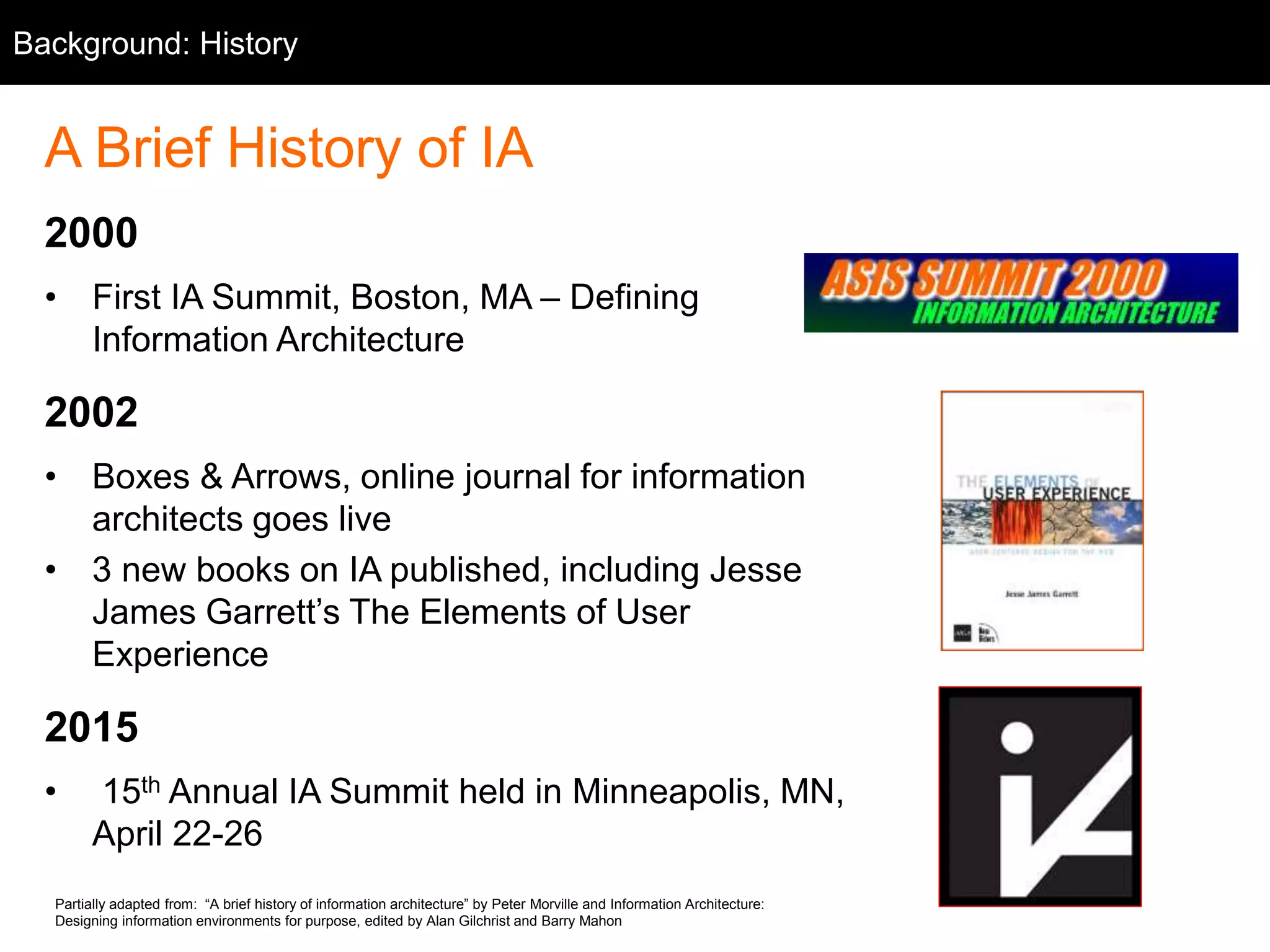

Background: History
A Brief History of IA
2000
• First IA Summit, Boston, MA – Defining
Information Architecture
2002
• Boxes & Arrows, online journal for information
architects goes live
• 3 new books on IA published, including Jesse
James Garrett’s The Elements of User
Experience
2015
• 15th Annual IA Summit held in Minneapolis, MN,
April 22-26
Partially adapted from: “A brief history of information architecture” by Peter Morville and Information Architecture:
Designing information environments for purpose, edited by Alan Gilchrist and Barry Mahon

Design Process

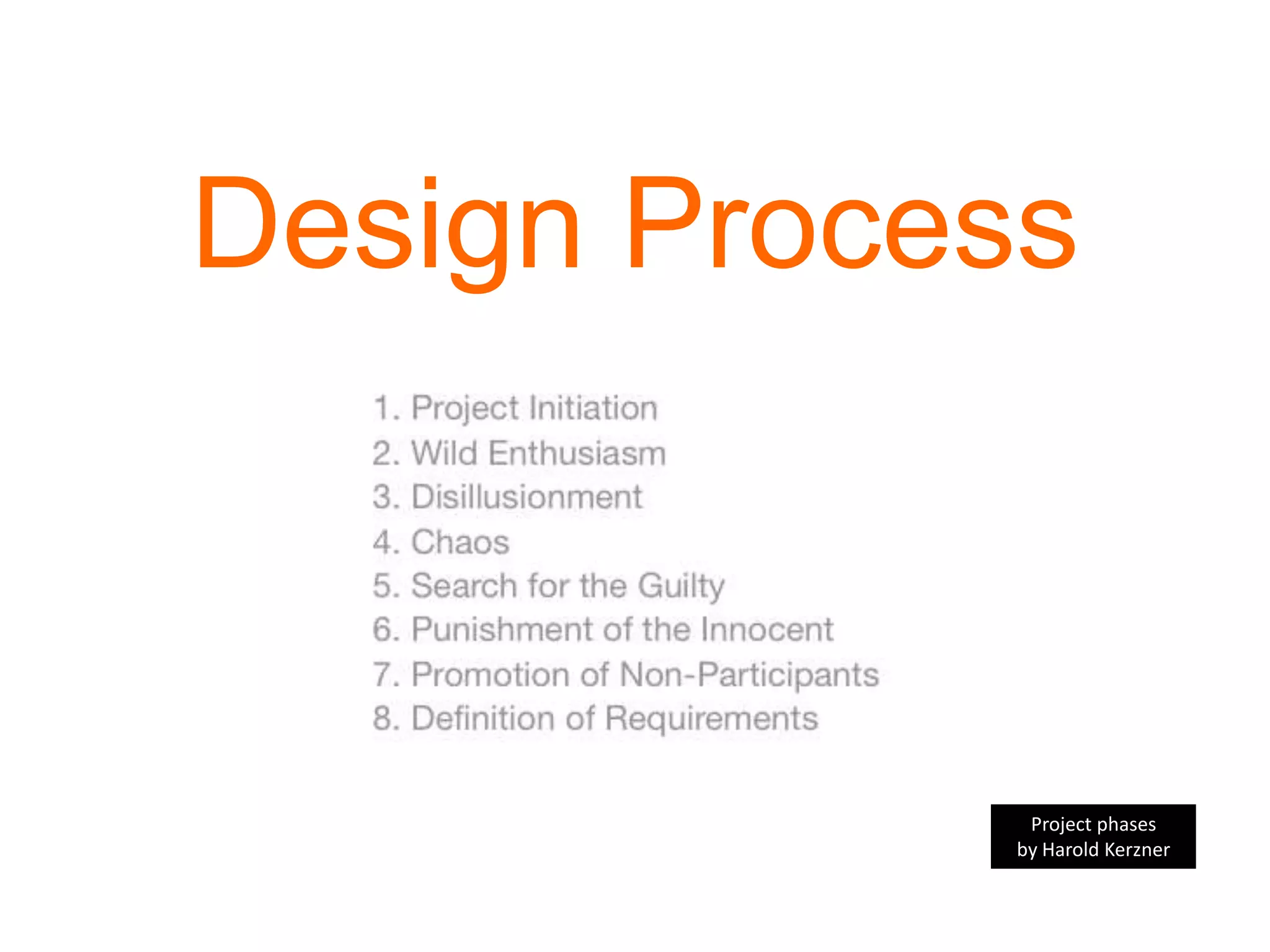

Project phases
by Harold Kerzner

Design Process

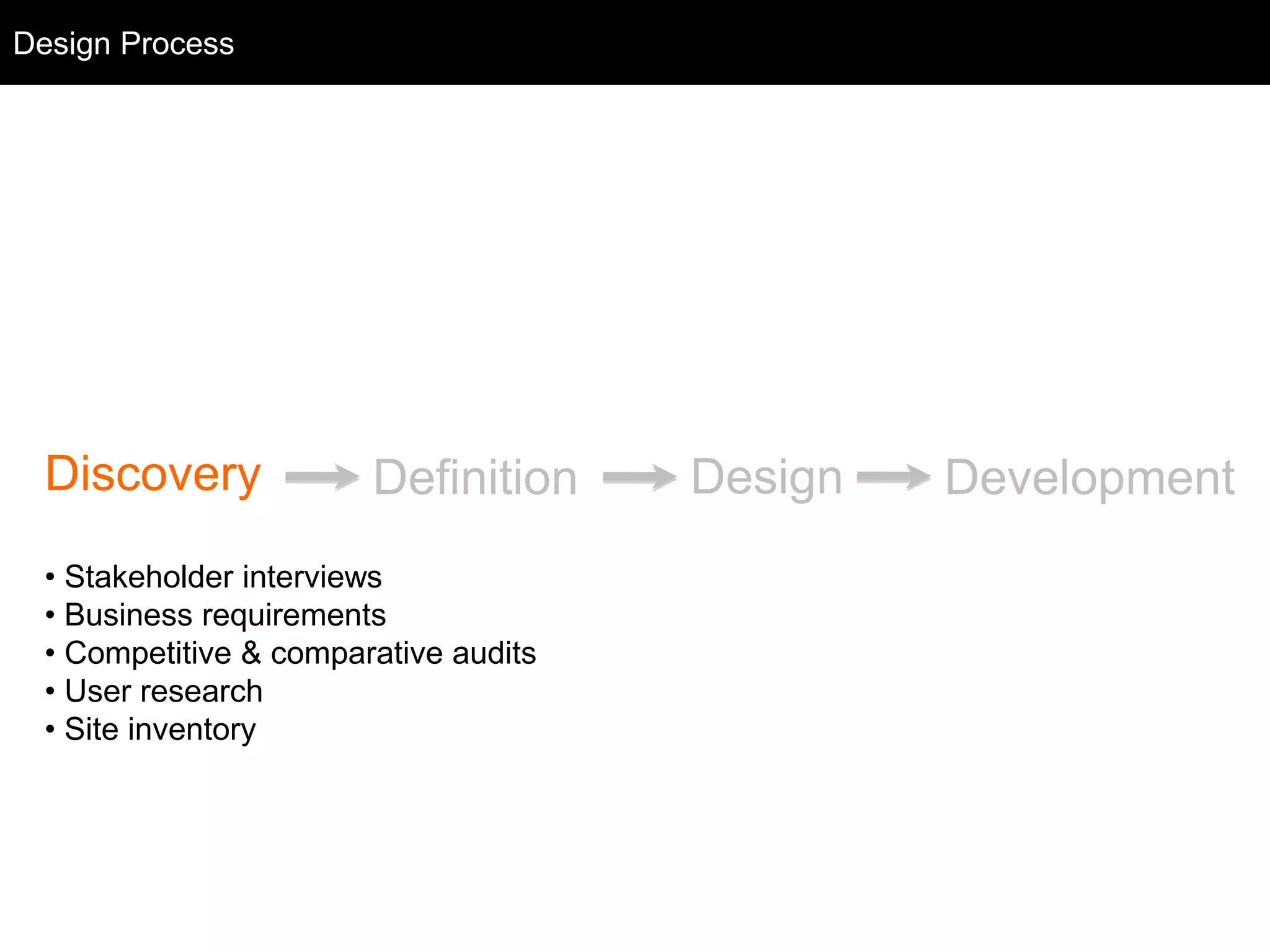

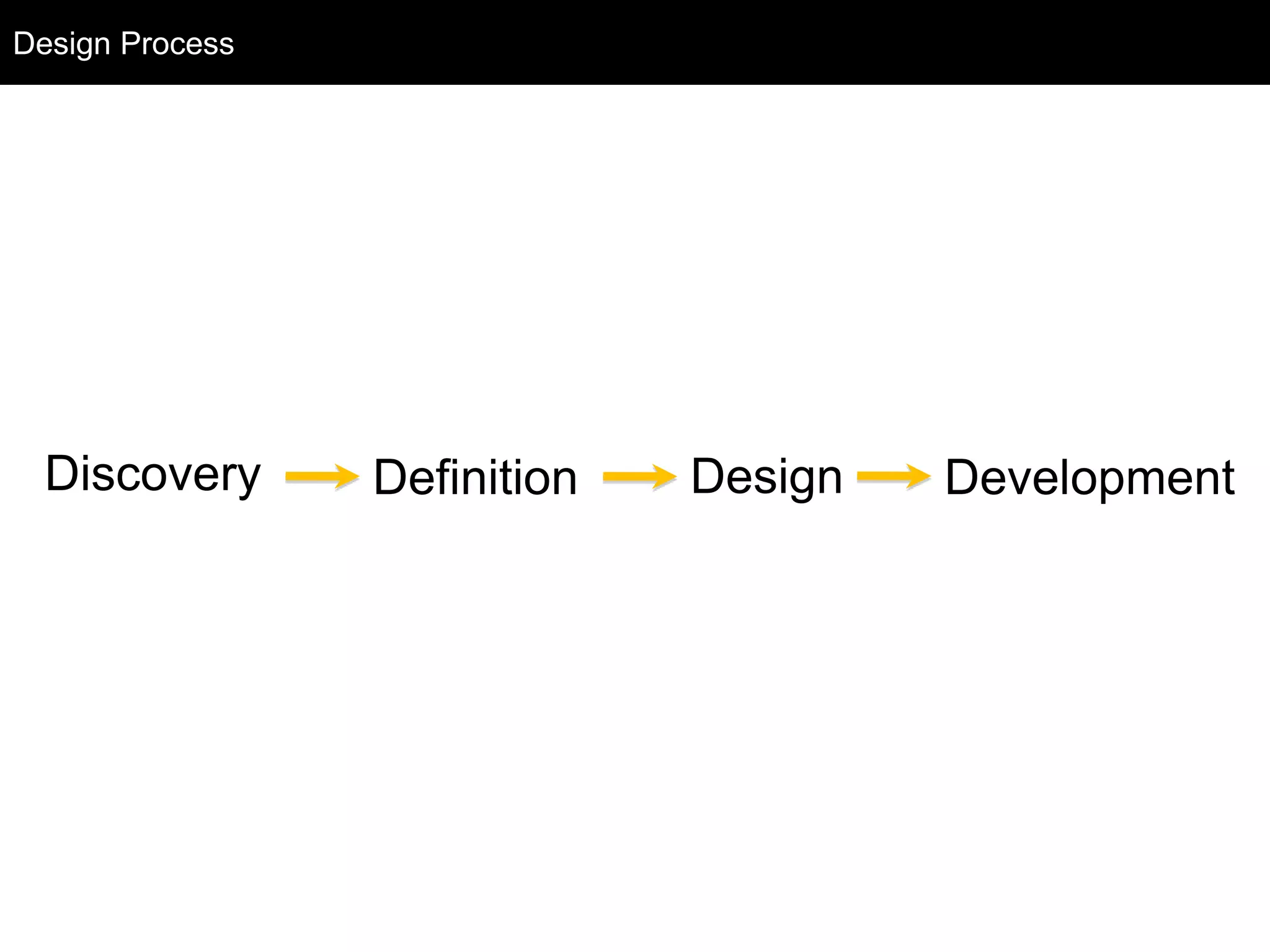

Discovery Definition Design Development

Design Process
• Stakeholder interviews
• Business requirements
• Competitive & comparative audits
• User research
• Site inventory

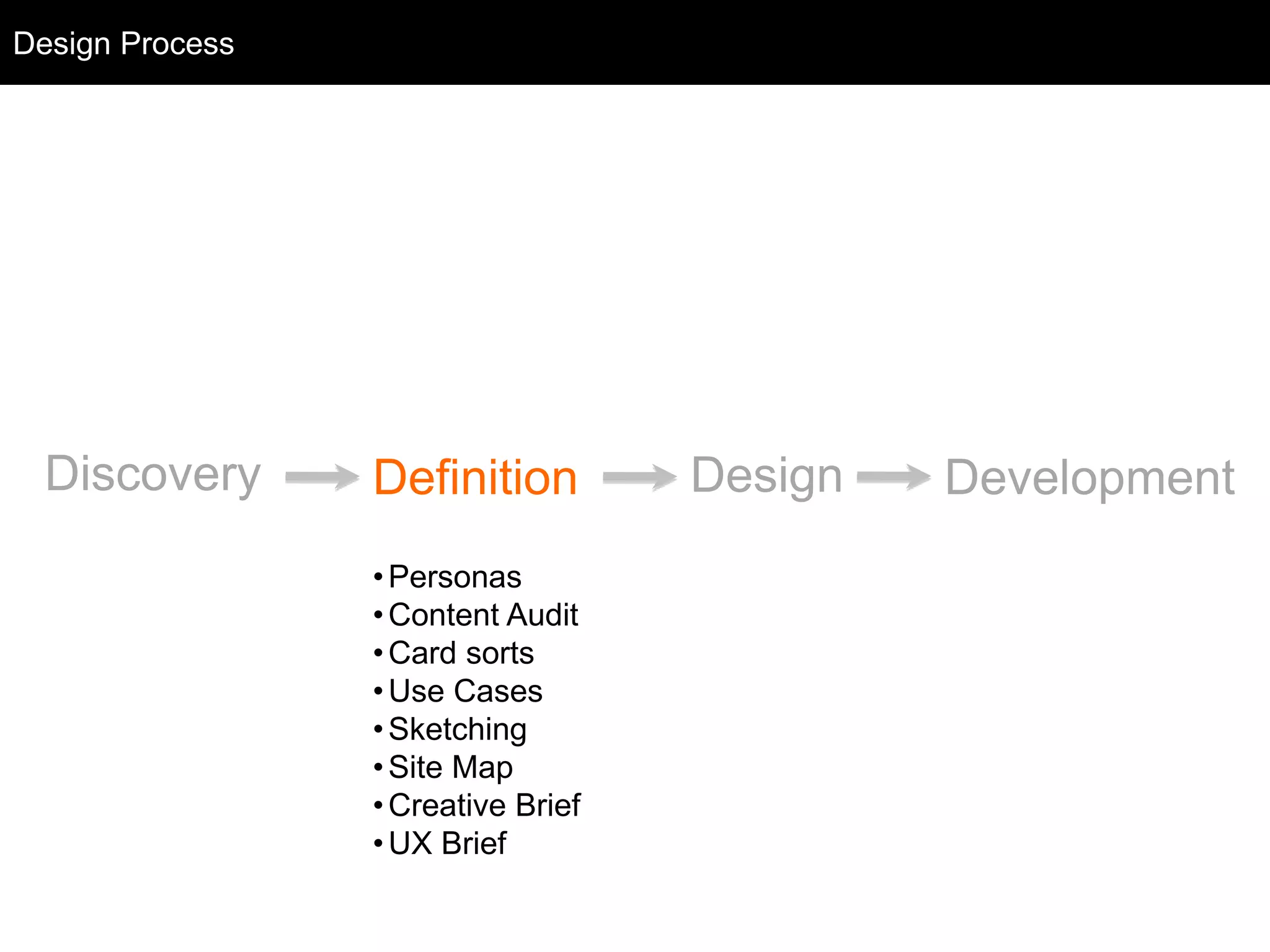

Design Process
•Personas
•Content Audit
•Card sorts
•Use Cases
•Sketching
• Site Map
• Creative Brief
•UX Brief

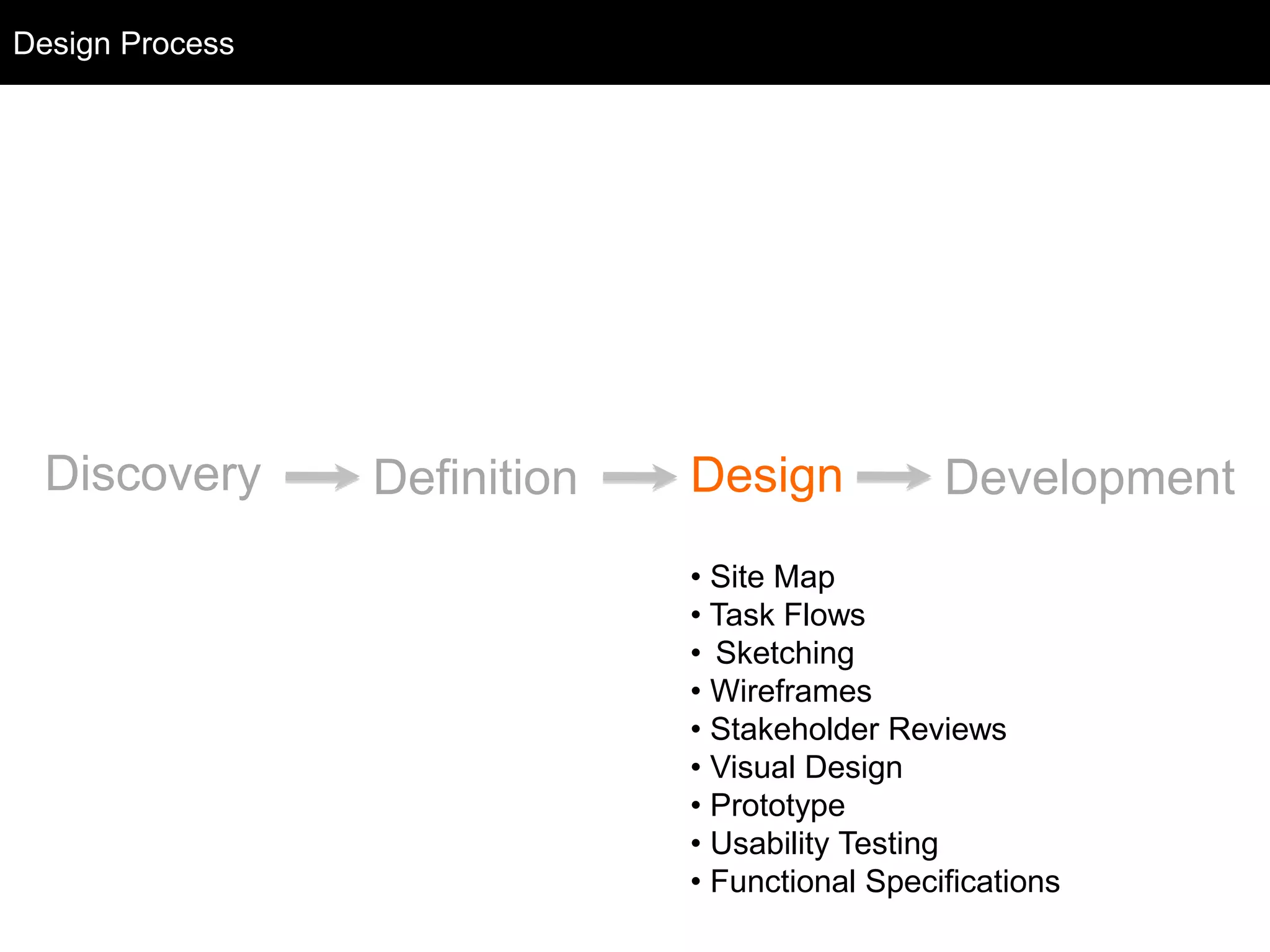

Design Process
• Site Map
• Task Flows
• Sketching
• Wireframes
• Stakeholder Reviews
• Visual Design
• Prototype
• Usability Testing
• Functional Specifications

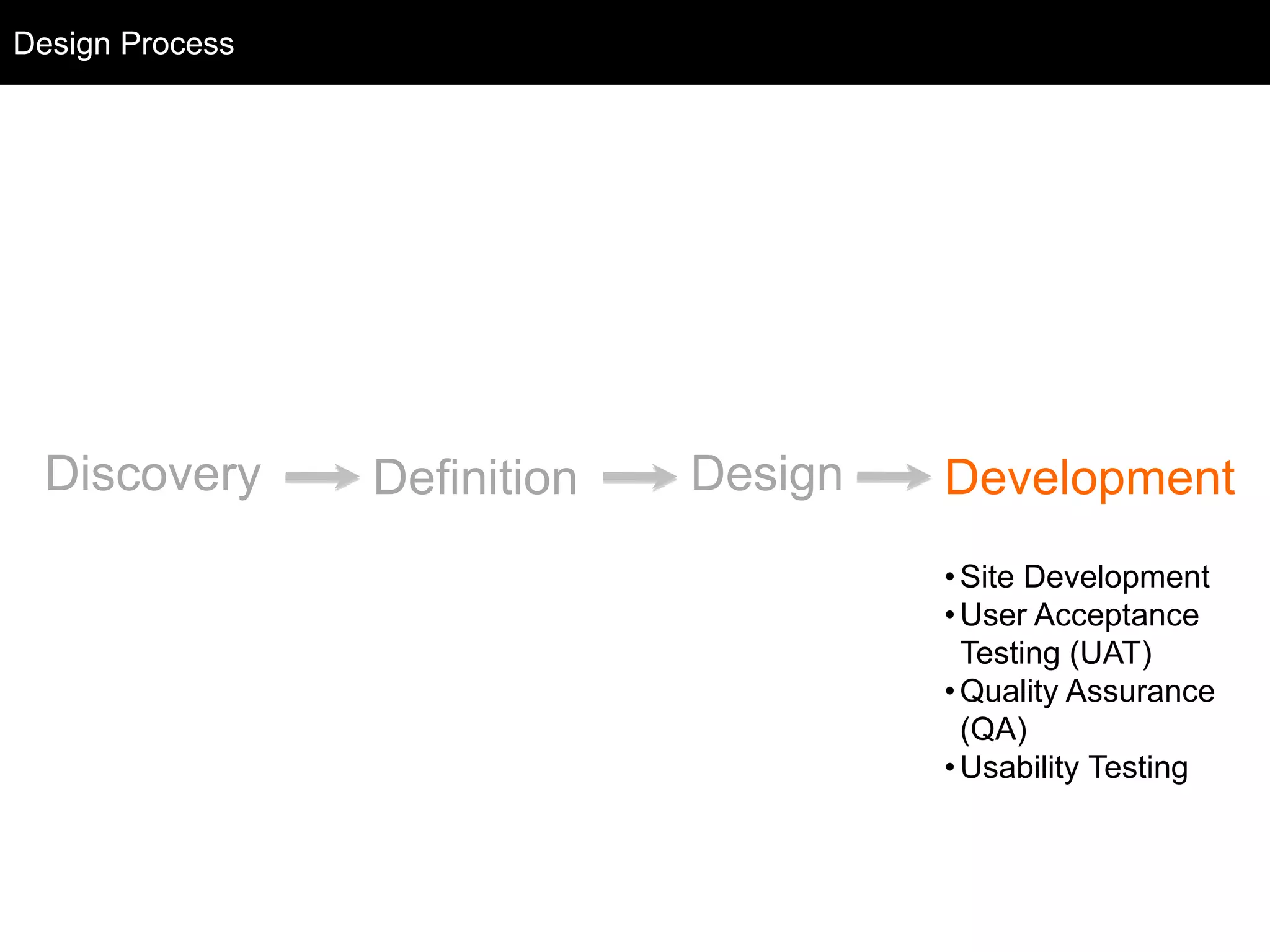

Design Process
• Site Development
•User Acceptance
Testing (UAT)
•Quality Assurance
(QA)
•Usability Testing

Deliverables
Background

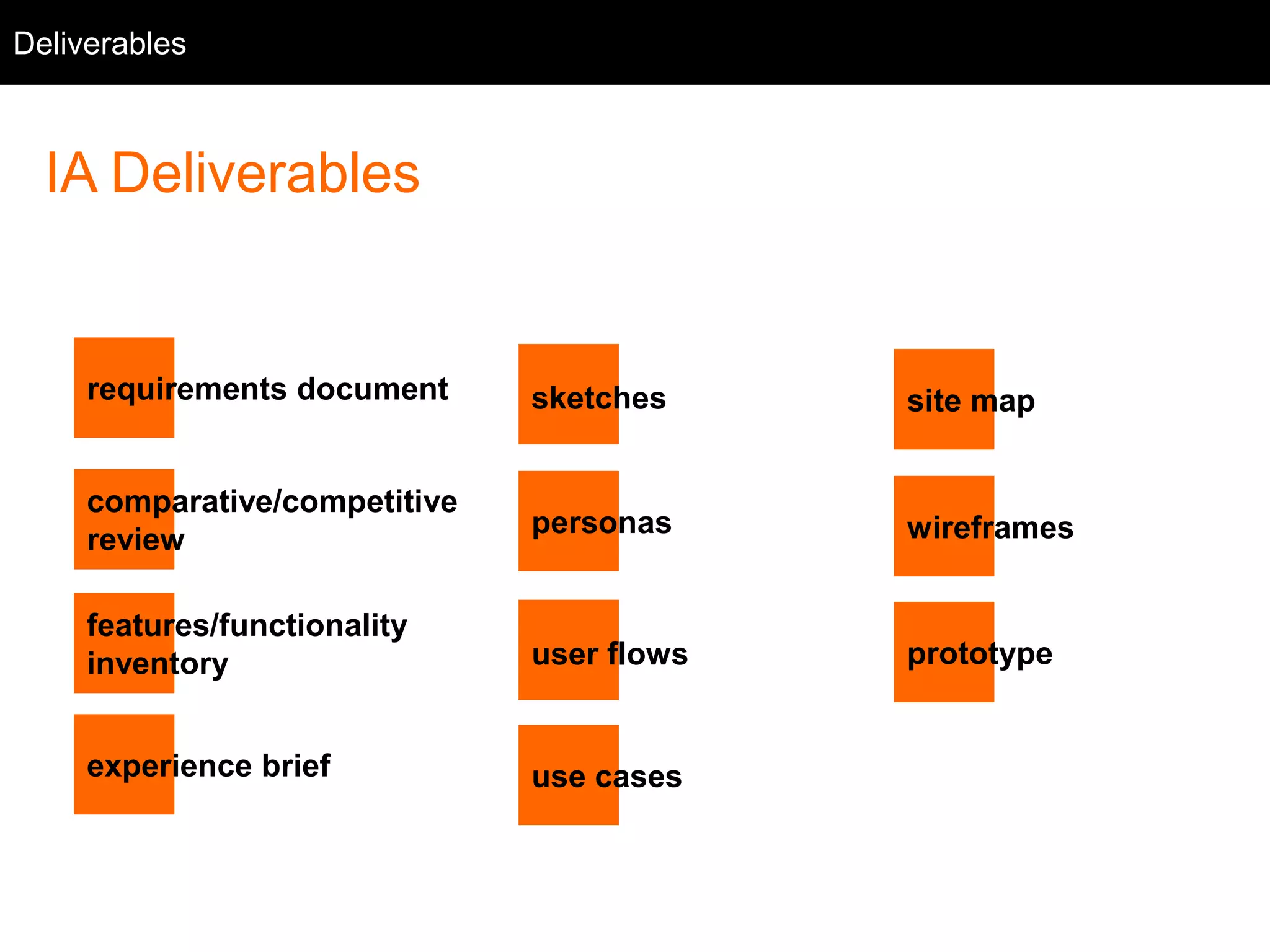

IA Deliverables
discover define design
site map
requirements document
comparative/competitive
review
features/functionality
inventory
sketches
personas
user flows prototype
use cases
wireframes
experience brief

Our Project
Our Project

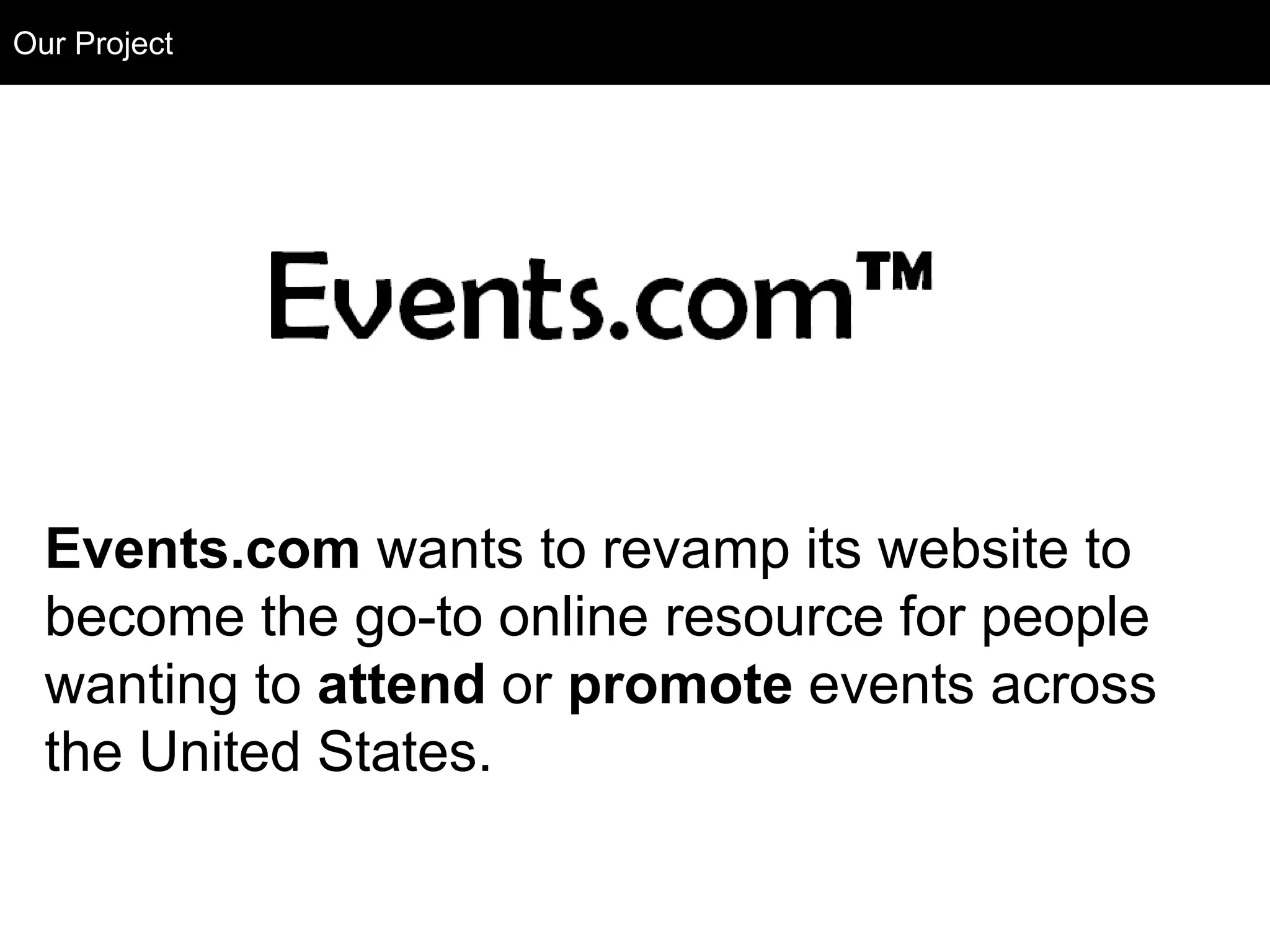

Events.com wants to revamp its website to
become the go-to online resource for people
wanting to attend or promote events across
the United States.

User Research
User Research in Copenhagen’s Elderly Homes

User Discovery: Research
User Research

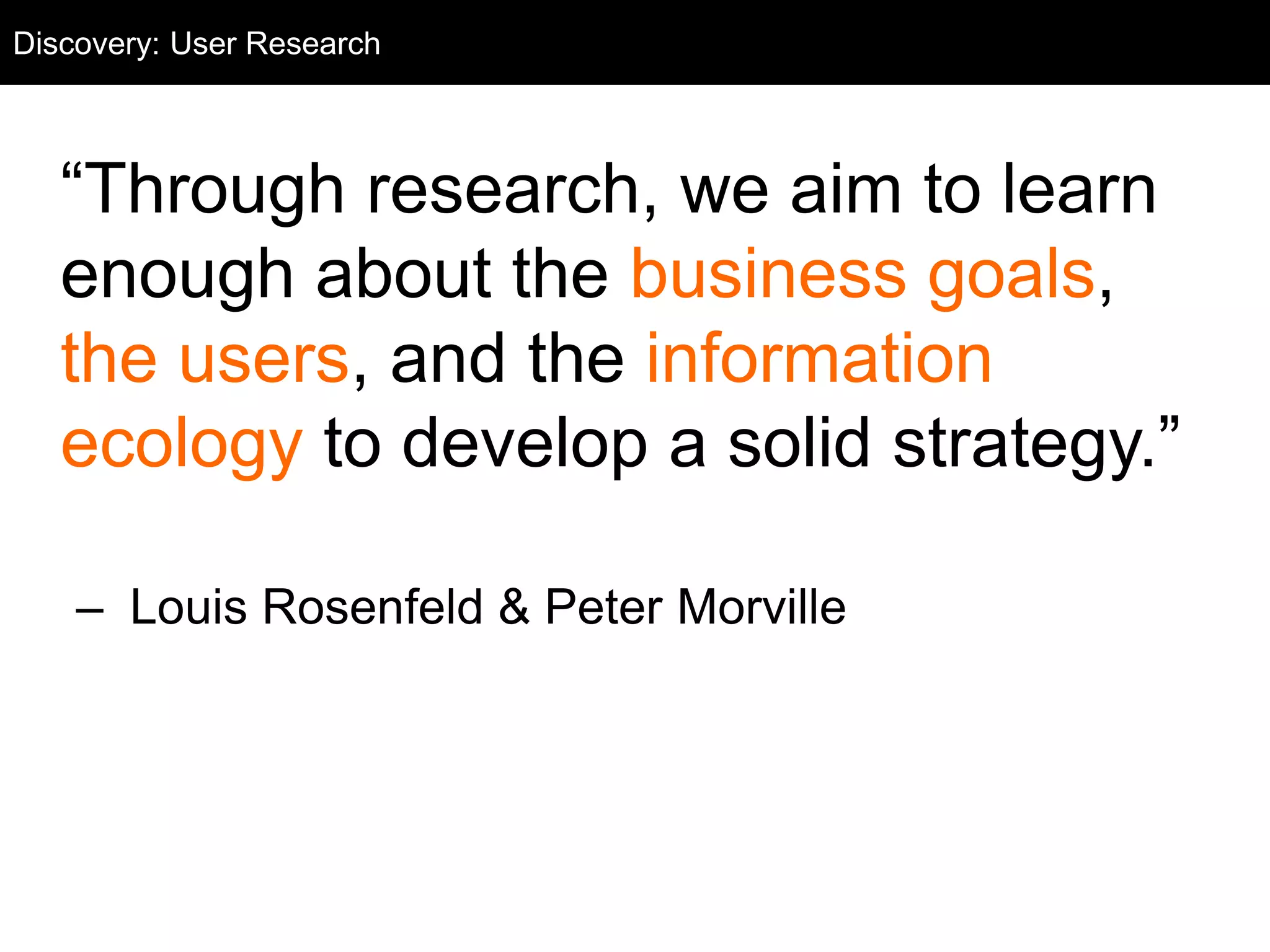

“Through research, we aim to learn
enough about the business goals,
the users, and the information
ecology to develop a solid strategy.”
– Louis Rosenfeld & Peter Morville

Discovery: User Research
User Research

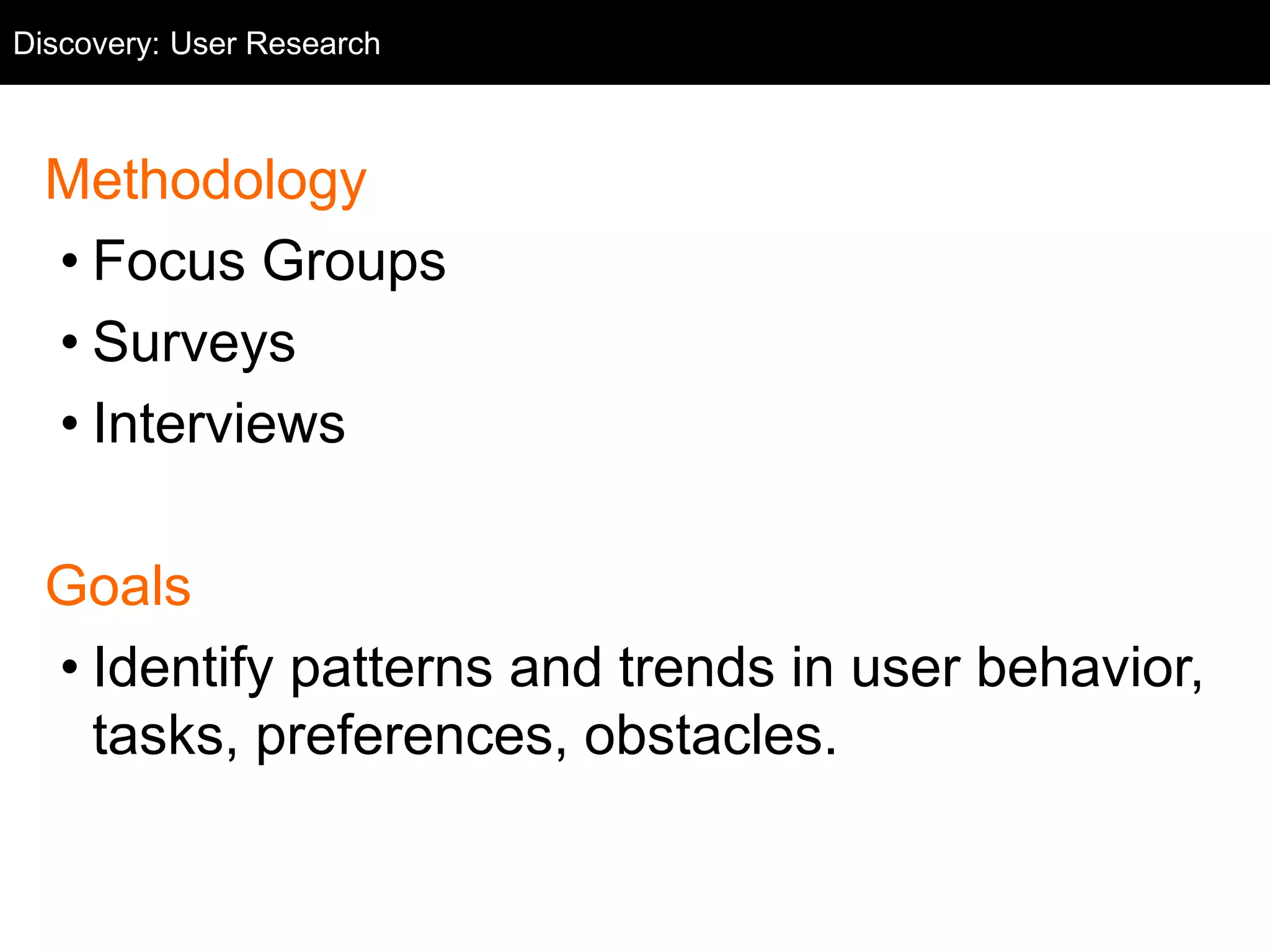

Methodology
• Focus Groups
• Surveys
• Interviews
Goals
• Identify patterns and trends in user behavior,
tasks, preferences, obstacles.

Discovery: User Research
User Research

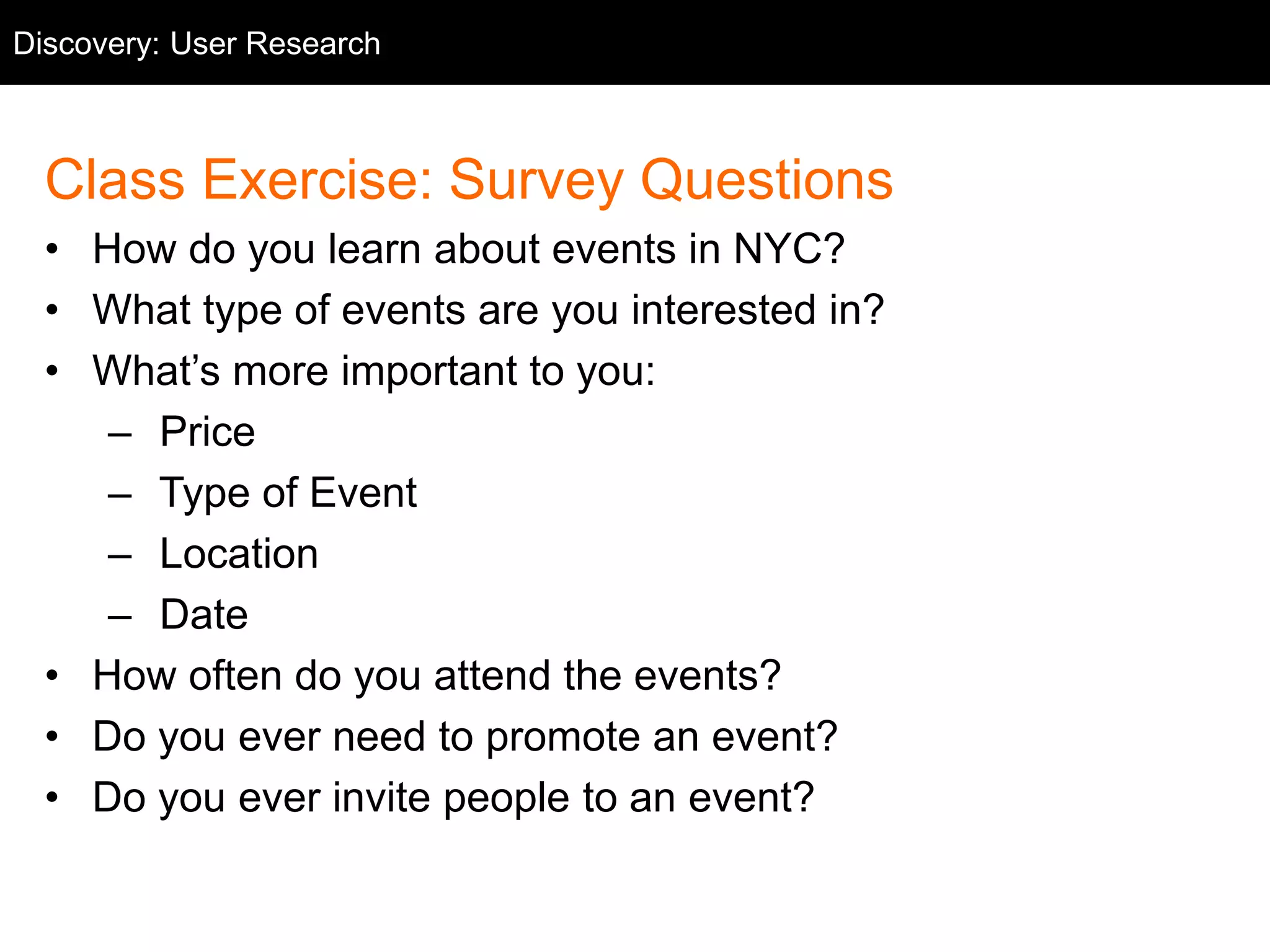

Class Exercise: Survey Questions
• How do you learn about events in NYC?
• What type of events are you interested in?
• What’s more important to you:
– Price
– Type of Event
– Location
– Date
• How often do you attend the events?
• Do you ever need to promote an event?
• Do you ever invite people to an event?

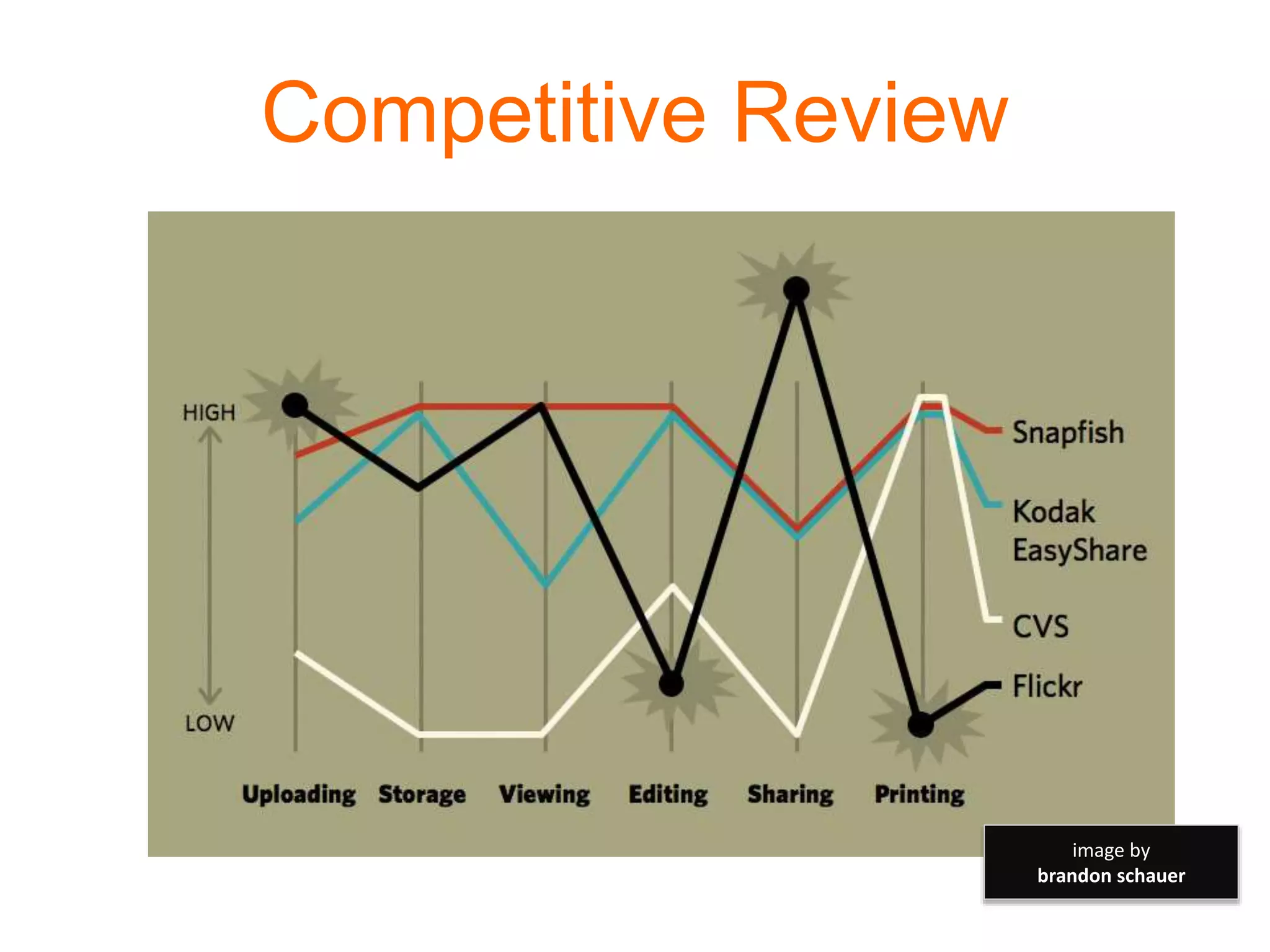

Competitive Review
image by
brandon schauer

Discovery: Competitive Audit
Review

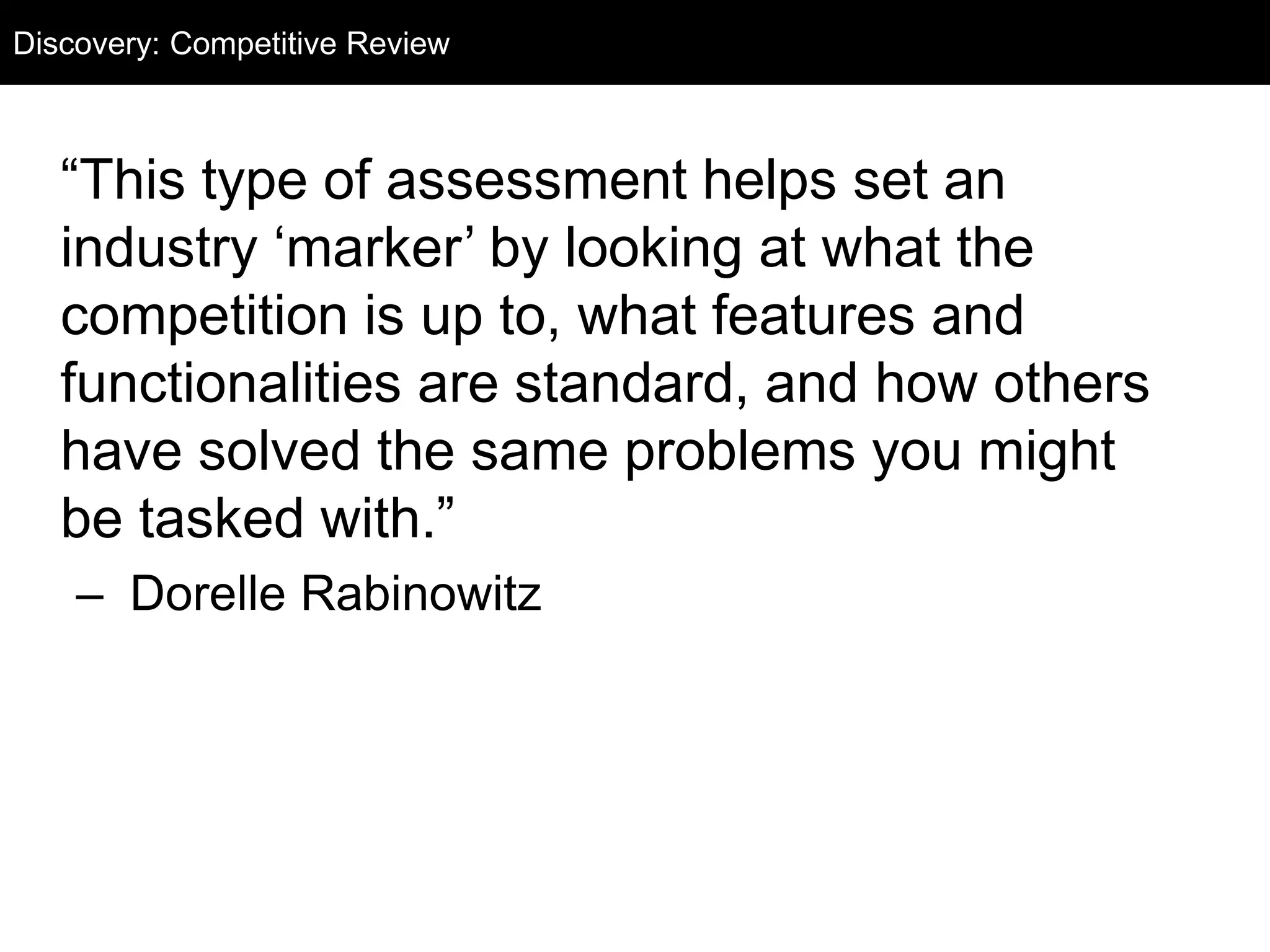

“This type of assessment helps set an
industry ‘marker’ by looking at what the
competition is up to, what features and
functionalities are standard, and how others
have solved the same problems you might
be tasked with.”
– Dorelle Rabinowitz

Discovery: Competitive Competitive Review
Review

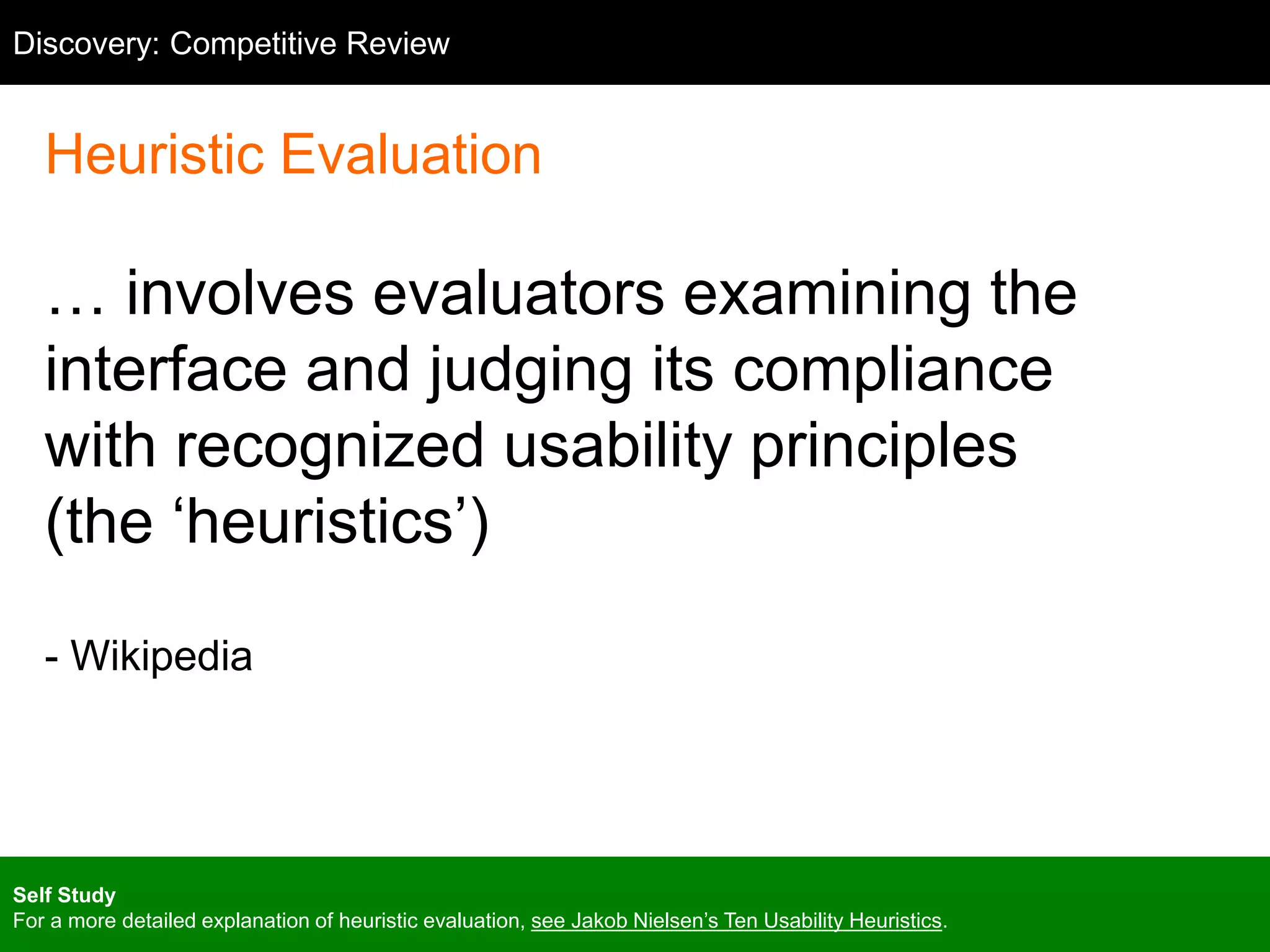

Heuristic Evaluation
… involves evaluators examining the
interface and judging its compliance
with recognized usability principles
(the ‘heuristics’)
- Wikipedia
Self Study
For a more detailed explanation of heuristic evaluation, see Jakob Nielsen’s Ten Usability Heuristics.

Review

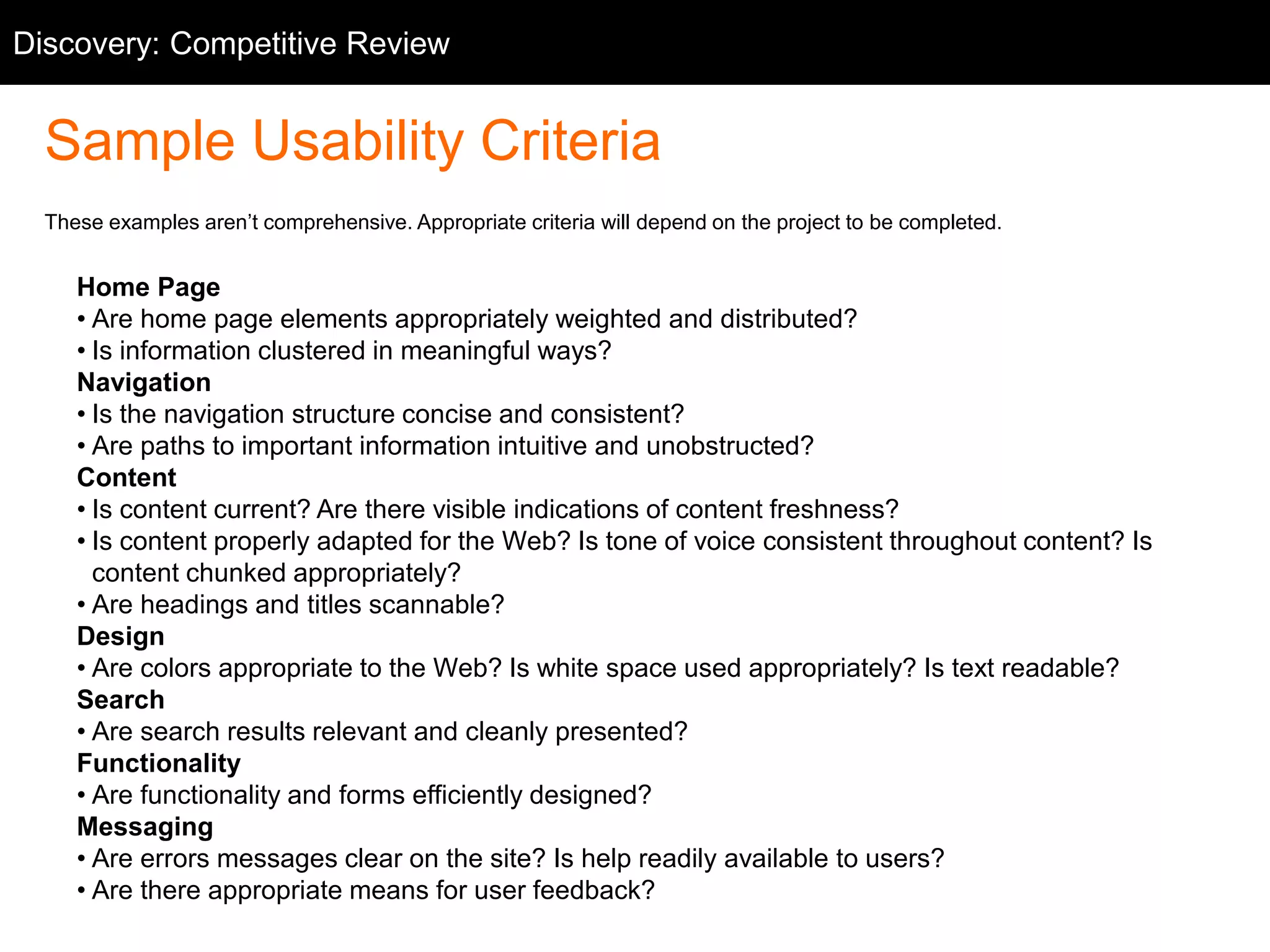

Sample Usability Criteria
These examples aren’t comprehensive. Appropriate criteria will depend on the project to be completed.
Home Page
• Are home page elements appropriately weighted and distributed?
• Is information clustered in meaningful ways?
Navigation
• Is the navigation structure concise and consistent?
• Are paths to important information intuitive and unobstructed?
Content
• Is content current? Are there visible indications of content freshness?
• Is content properly adapted for the Web? Is tone of voice consistent throughout content? Is
content chunked appropriately?
• Are headings and titles scannable?
Design
• Are colors appropriate to the Web? Is white space used appropriately? Is text readable?
Search
• Are search results relevant and cleanly presented?
Functionality
• Are functionality and forms efficiently designed?
Messaging
• Are errors messages clear on the site? Is help readily available to users?
• Are there appropriate means for user feedback?

Review

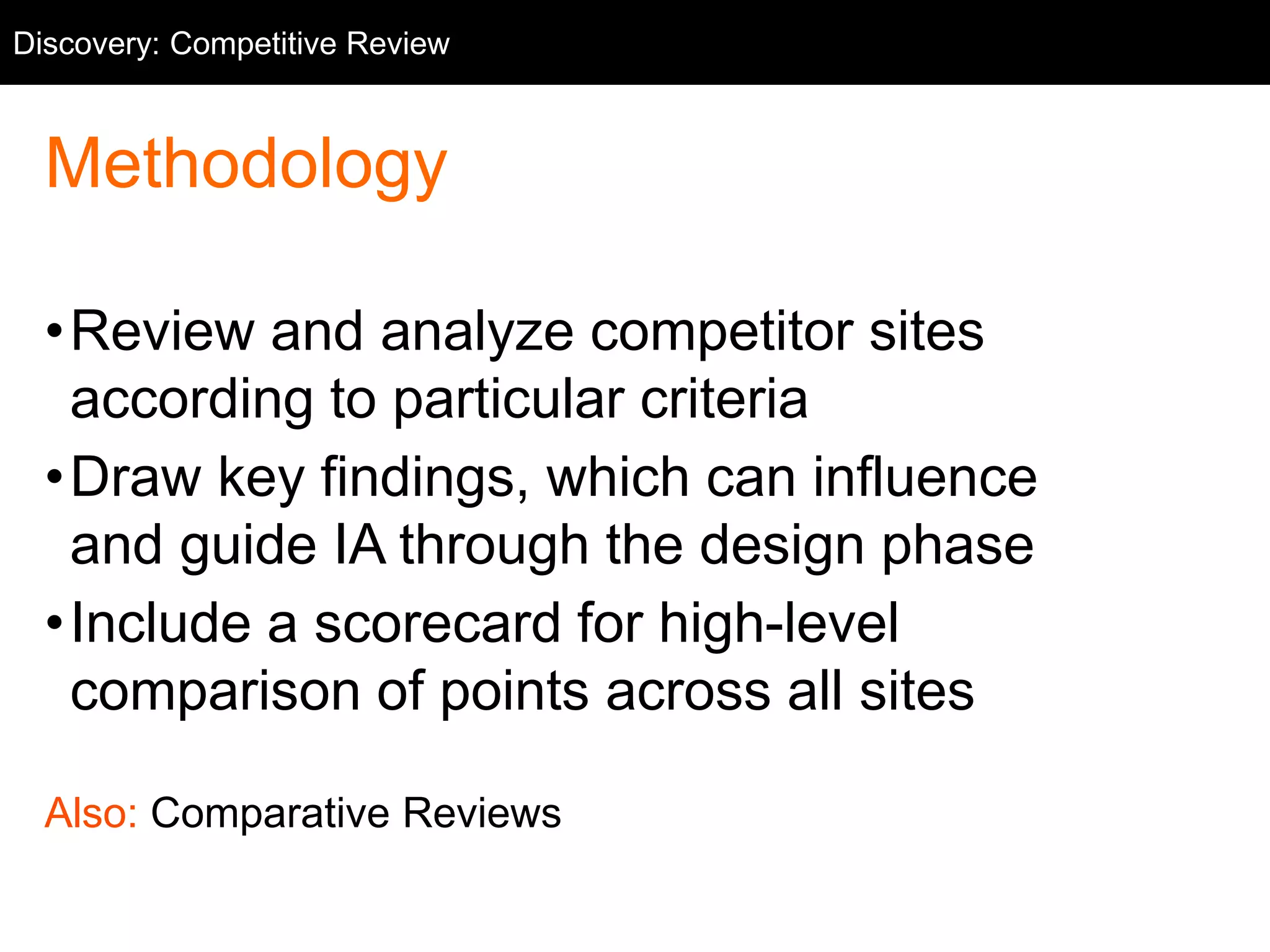

Methodology
•Review and analyze competitor sites
according to particular criteria
•Draw key findings, which can influence
and guide IA through the design phase
•Include a scorecard for high-level
comparison of points across all sites
Also: Comparative Reviews

Competitive Discovery: Competitive Review
Review

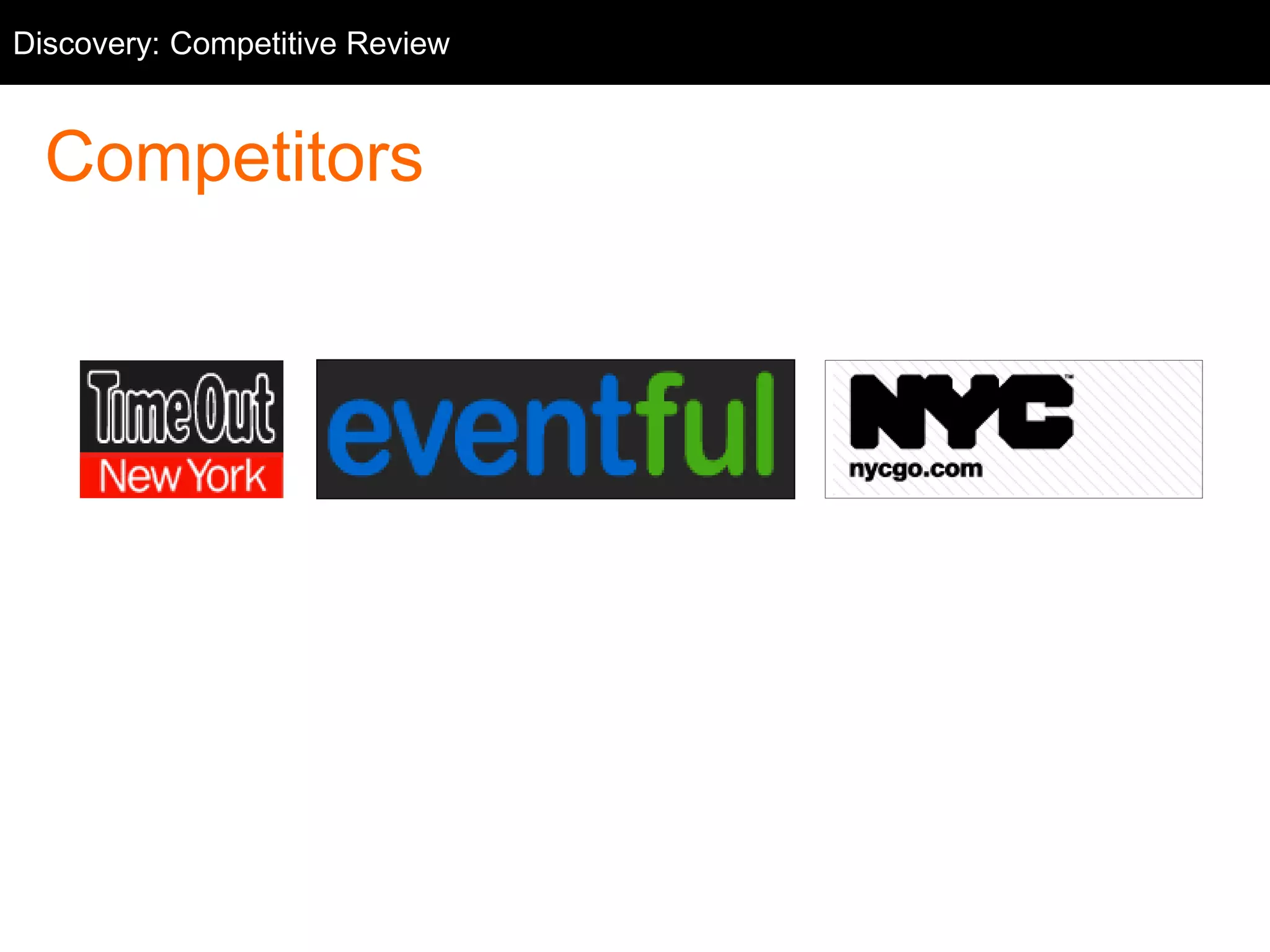

Competitors

Review
Key Findings

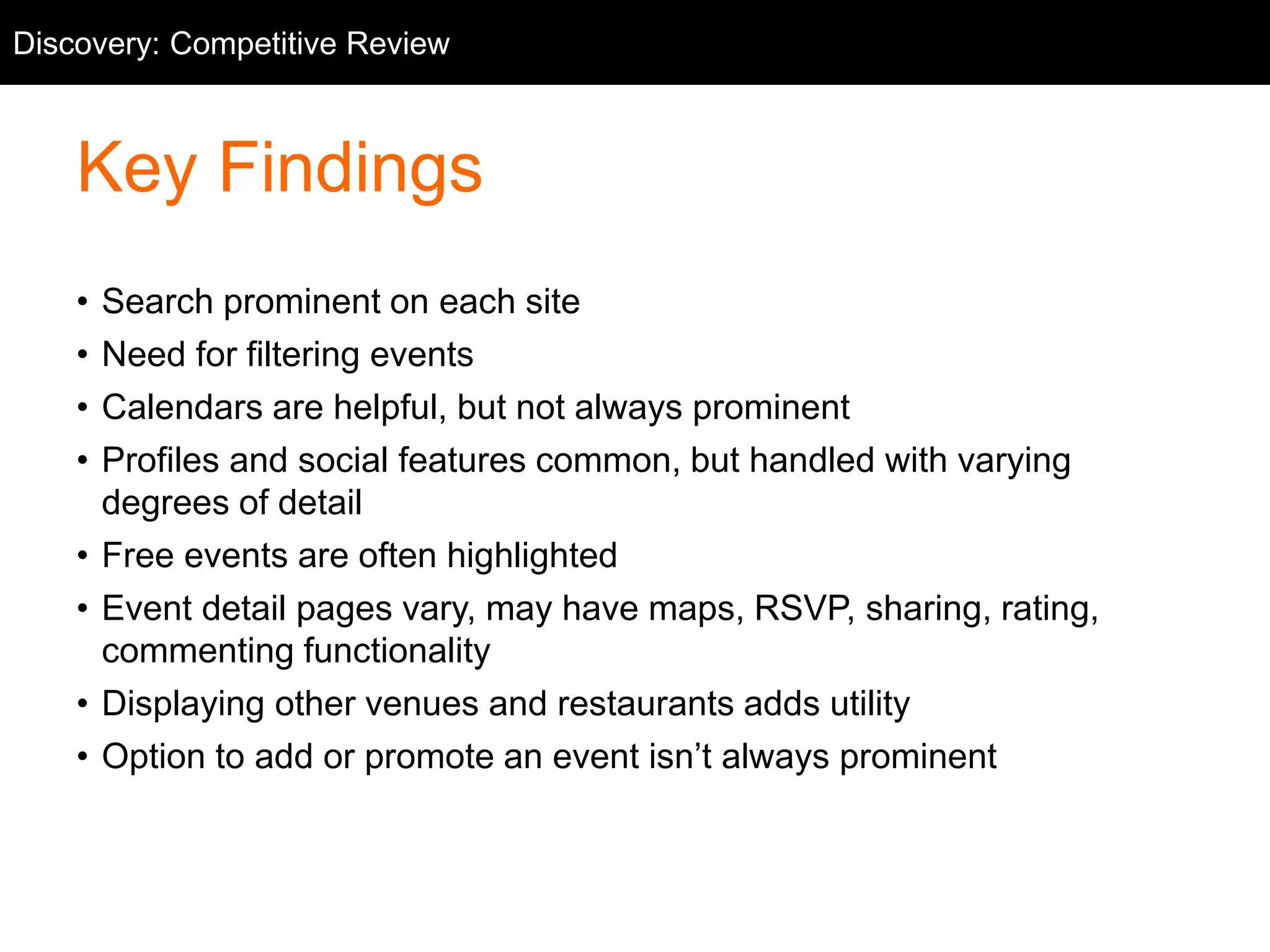

• Search prominent on each site
• Need for filtering events
• Calendars are helpful, but not always prominent
• Profiles and social features common, but handled with varying
degrees of detail
• Free events are often highlighted
• Event detail pages vary, may have maps, RSVP, sharing, rating,
commenting functionality
• Displaying other venues and restaurants adds utility
• Option to add or promote an event isn’t always prominent

Review

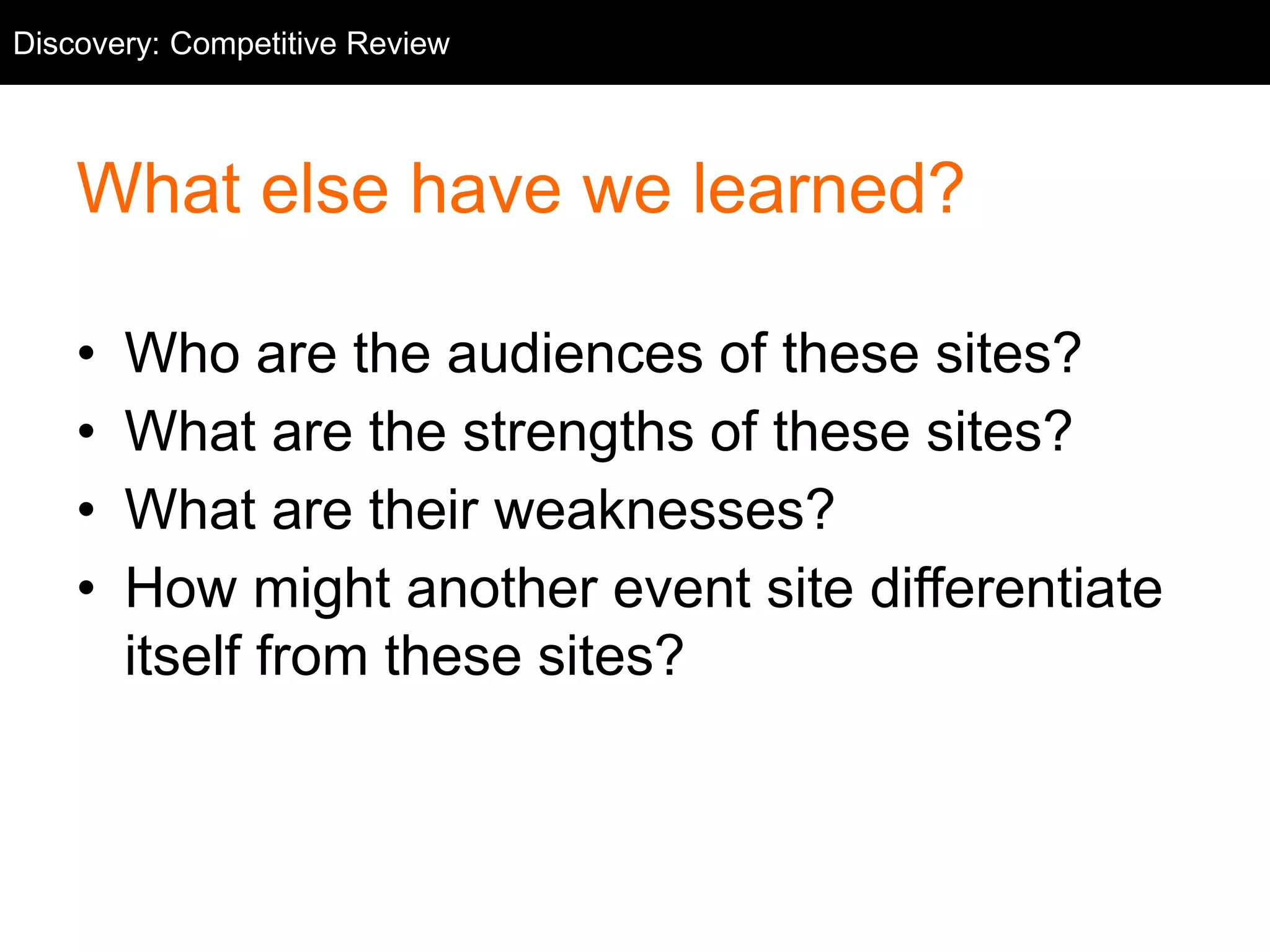

What else have we learned?
• Who are the audiences of these sites?
• What are the strengths of these sites?
• What are their weaknesses?
• How might another event site differentiate
itself from these sites?

Personas

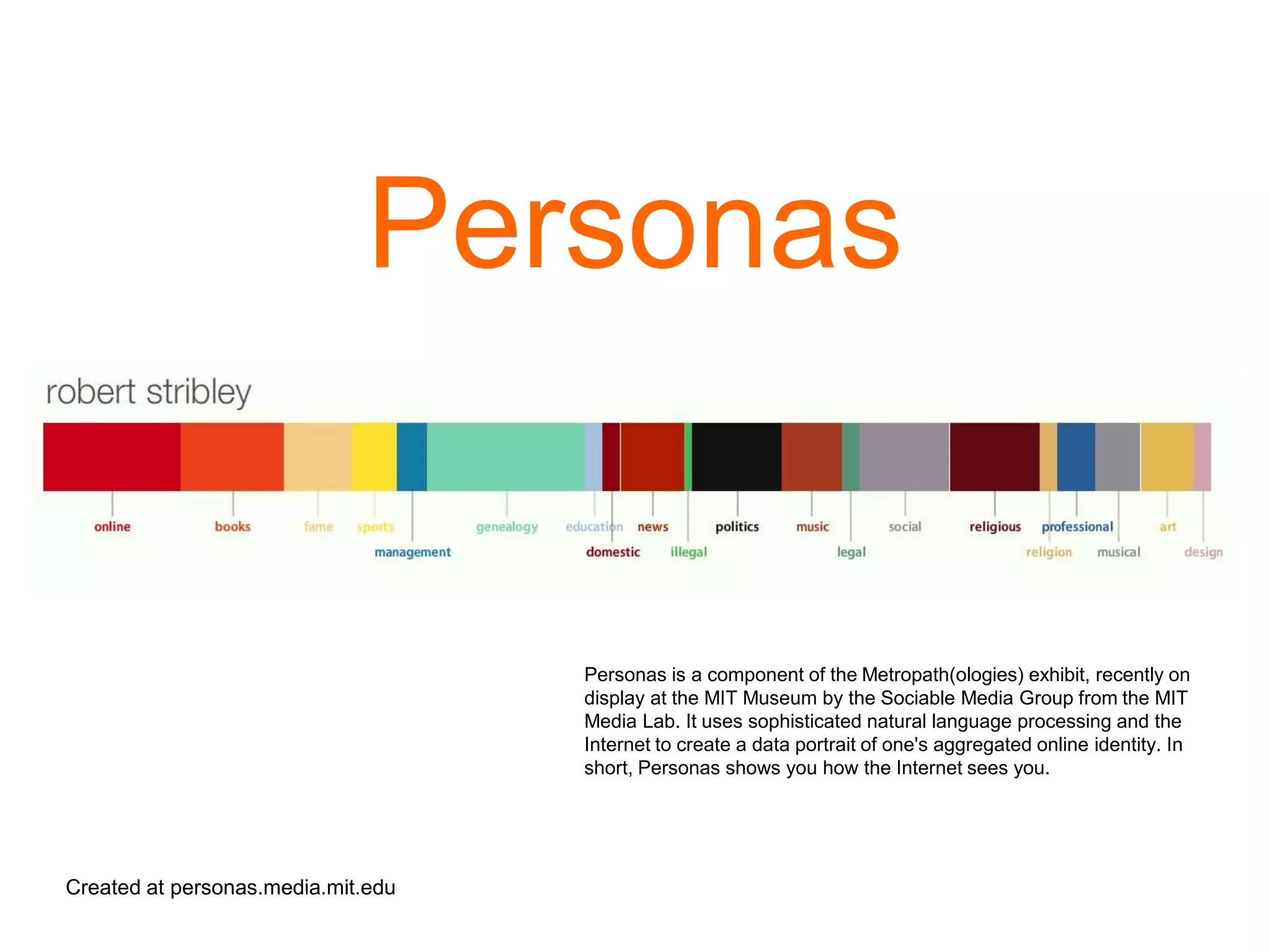

Created at personas.media.mit.edu
Personas is a component of the Metropath(ologies) exhibit, recently on
display at the MIT Museum by the Sociable Media Group from the MIT
Media Lab. It uses sophisticated natural language processing and the
Internet to create a data portrait of one's aggregated online identity. In
short, Personas shows you how the Internet sees you.

Definition: Personas
Personas

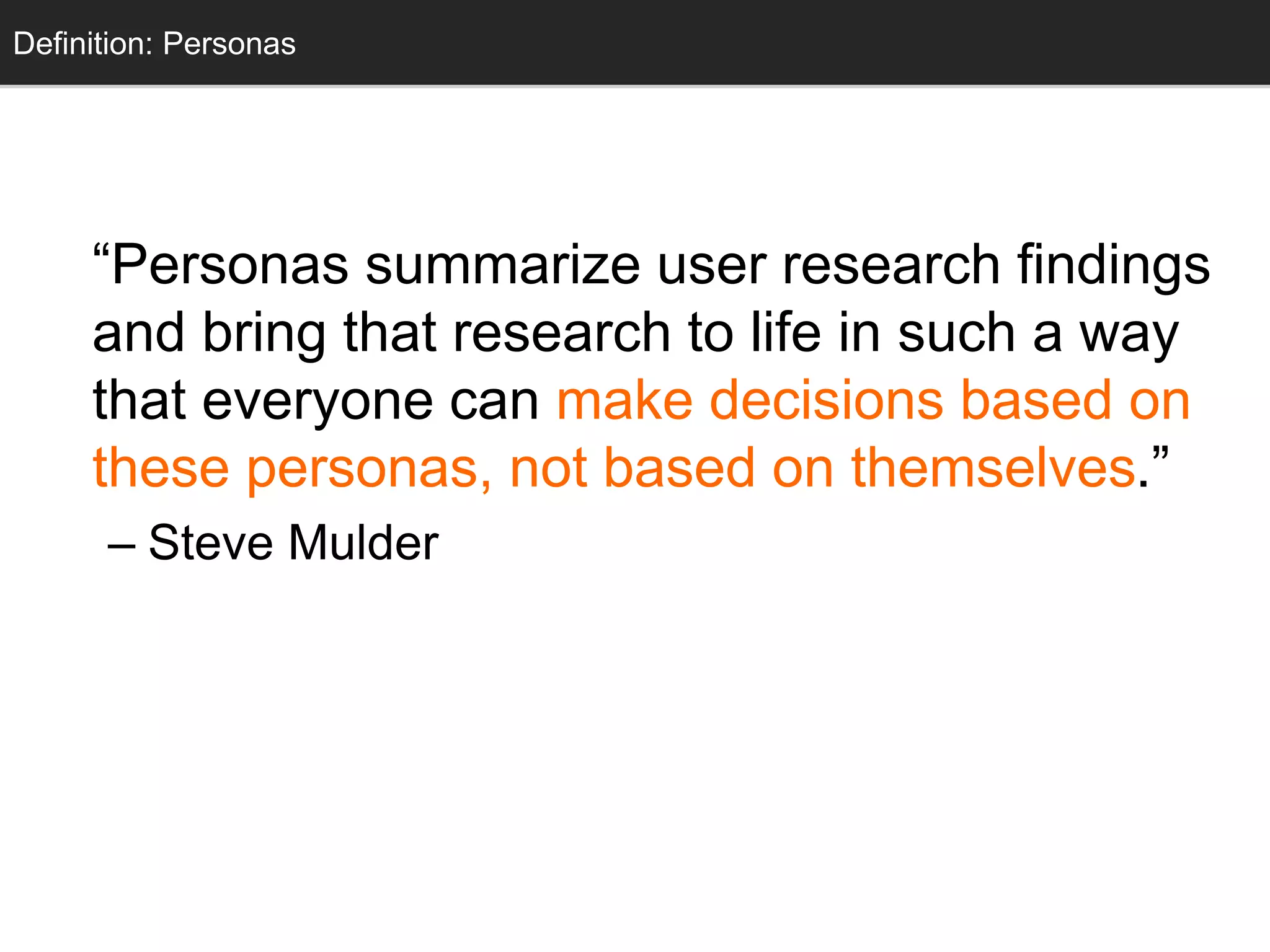

“Personas summarize user research findings
and bring that research to life in such a way
that everyone can make decisions based on
these personas, not based on themselves.”
– Steve Mulder

Personas

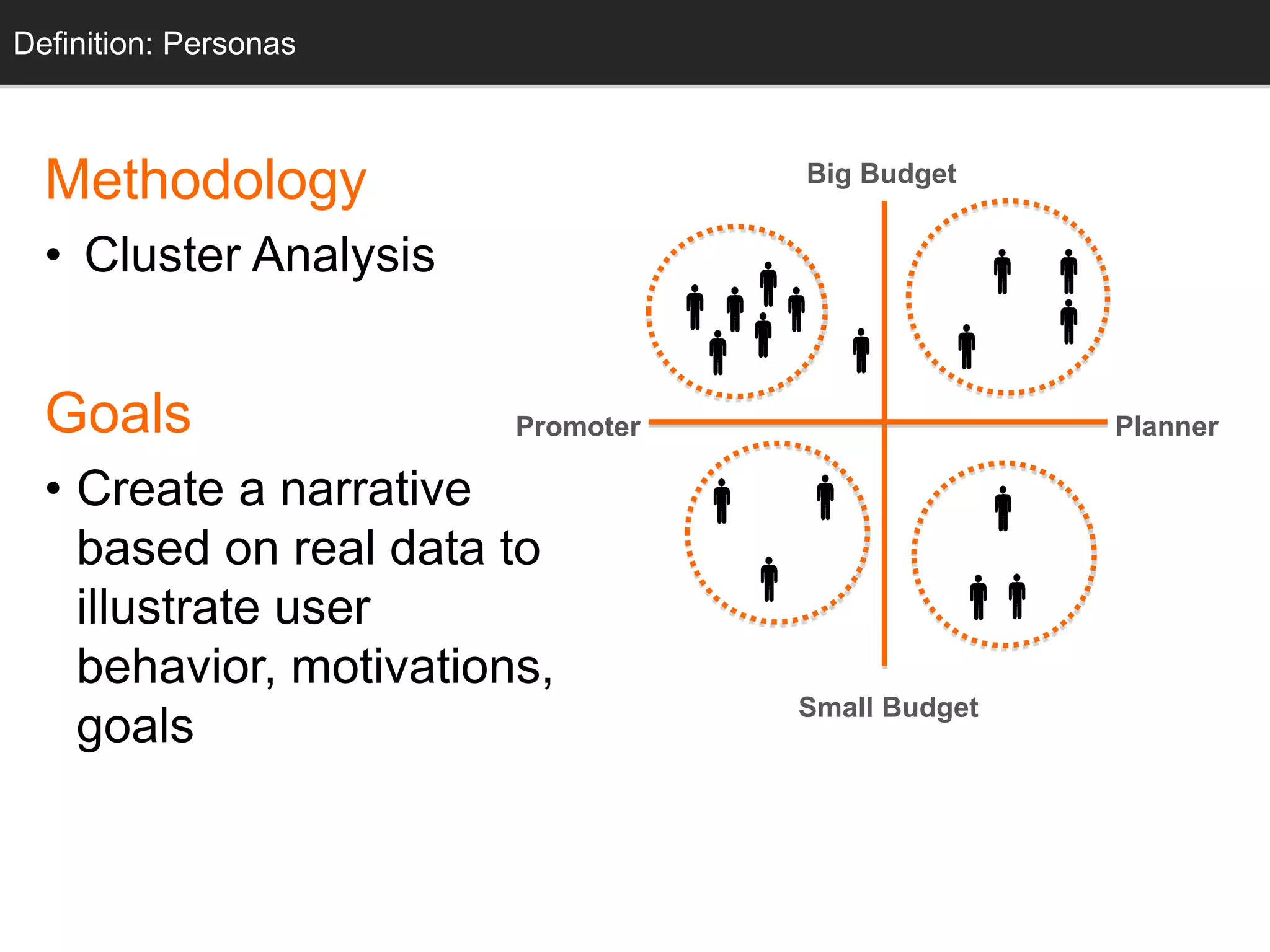

Methodology
• Cluster Analysis
Goals
• Create a narrative
based on real data to
illustrate user
behavior, motivations,
goals
Big Budget
Promoter Planner
Small Budget

Personas

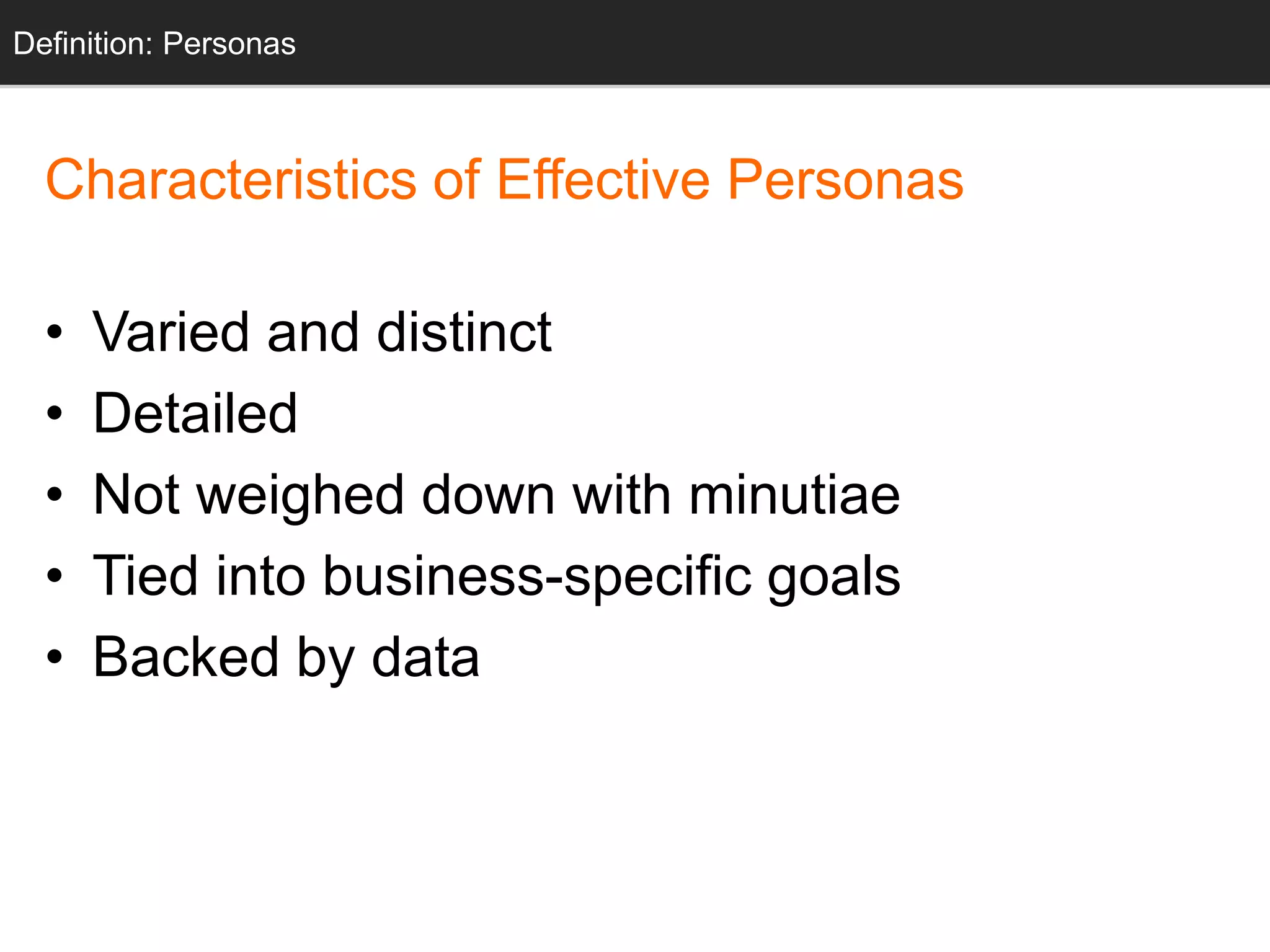

Characteristics of Effective Personas
• Varied and distinct
• Detailed
• Not weighed down with minutiae
• Tied into business-specific goals
• Backed by data

Jerry Jenny Donny Sabrina

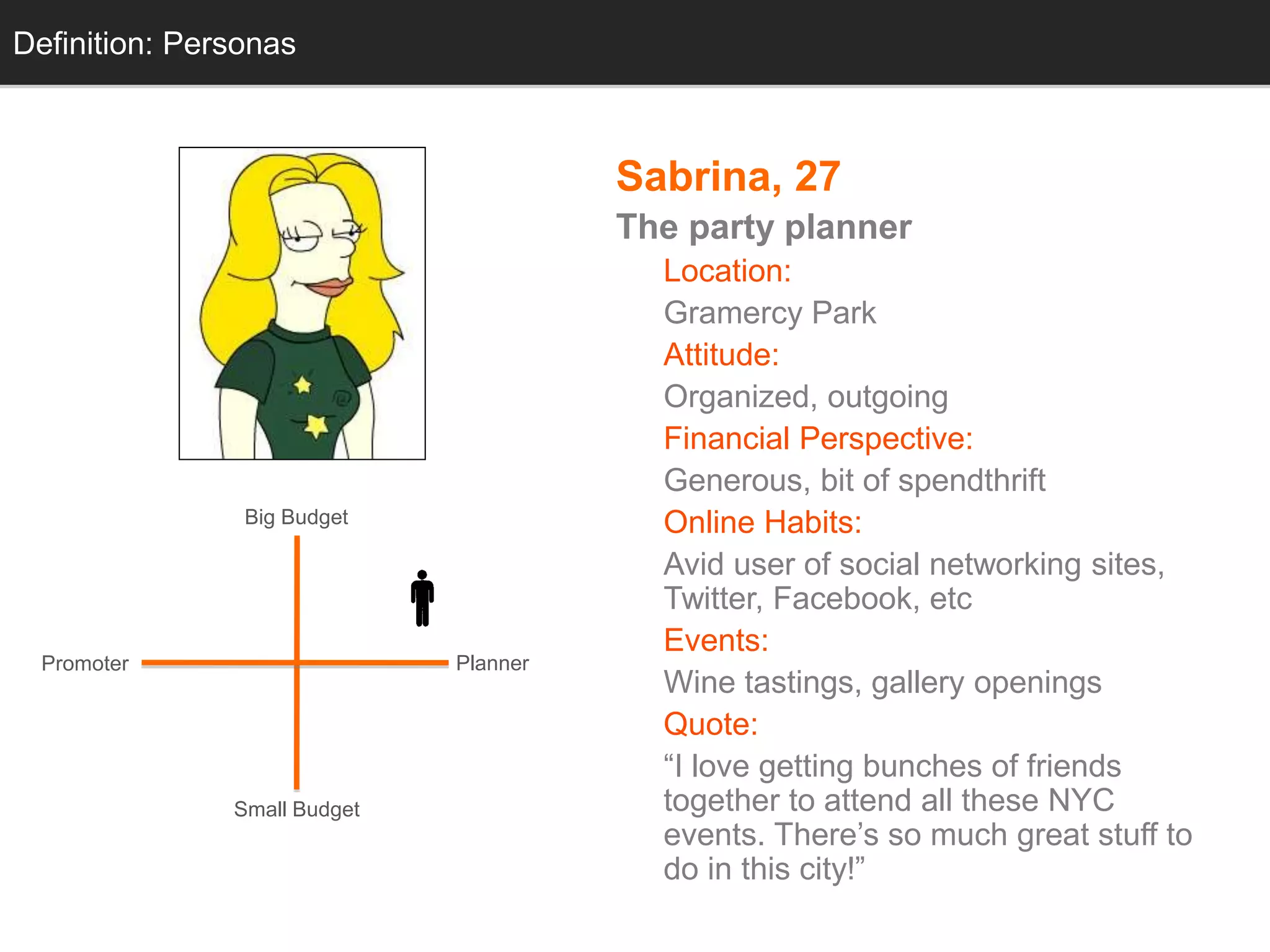

Sabrina, 27
The party planner
Location:
Gramercy Park
Attitude:
Organized, outgoing
Financial Perspective:
Generous, bit of spendthrift
Online Habits:
Avid user of social networking sites,
Twitter, Facebook, etc
Events:
Wine tastings, gallery openings
Quote:
“I love getting bunches of friends
together to attend all these NYC
events. There’s so much great stuff to
do in this city!”
DePfienritsion:a Ps ersonas
Big Budget
Promoter Planner
Small Budget

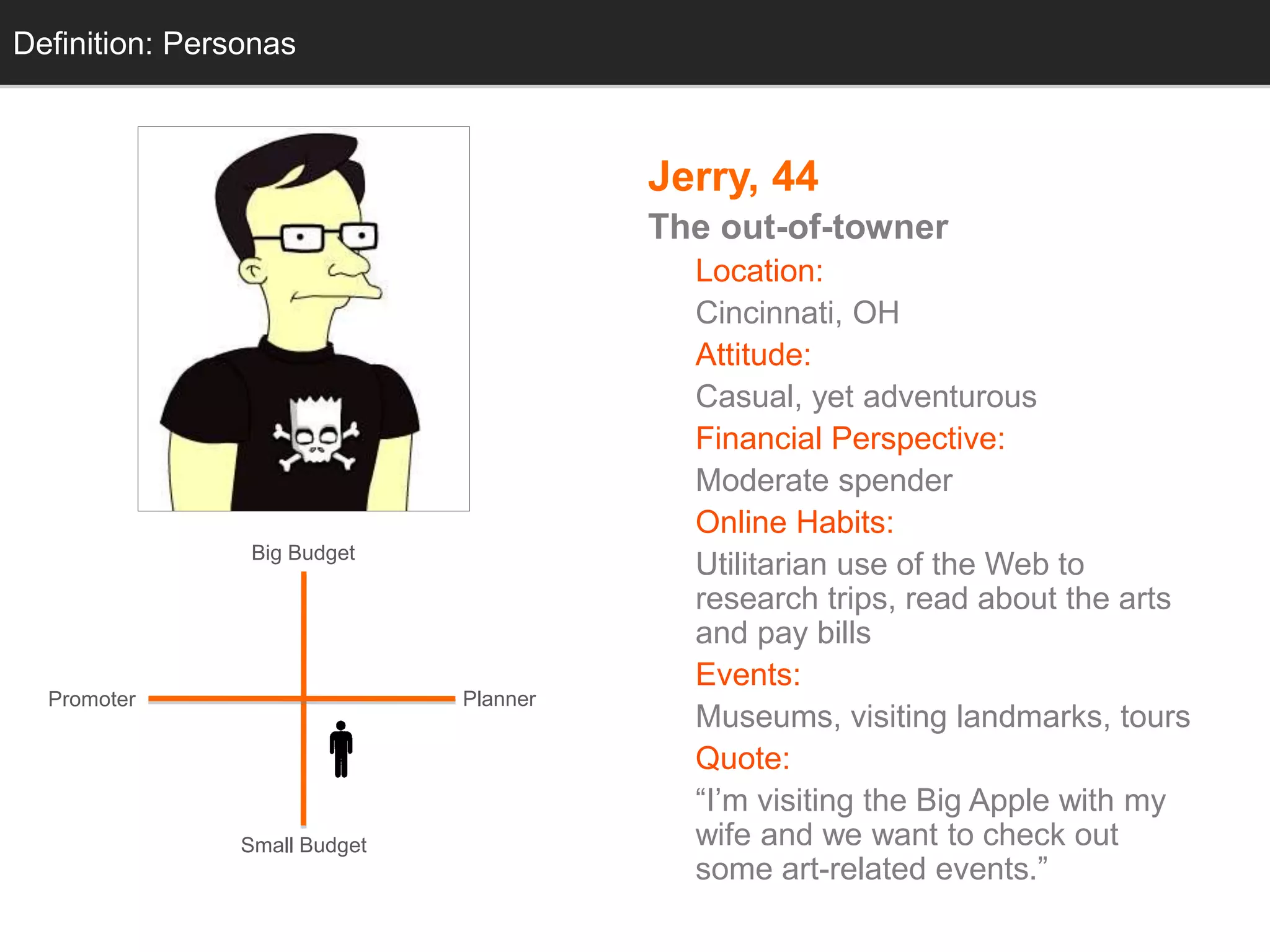

Jerry, 44
The out-of-towner
Location:
Cincinnati, OH
Attitude:
Casual, yet adventurous
Moderate spender
Online Habits:
Utilitarian use of the Web to
research trips, read about the arts
and pay bills
Events:
Museums, visiting landmarks, tours
Quote:
“I’m visiting the Big Apple with my
wife and we want to check out
some art-related events.”
Big Budget
Promoter Planner
Small Budget

Personas

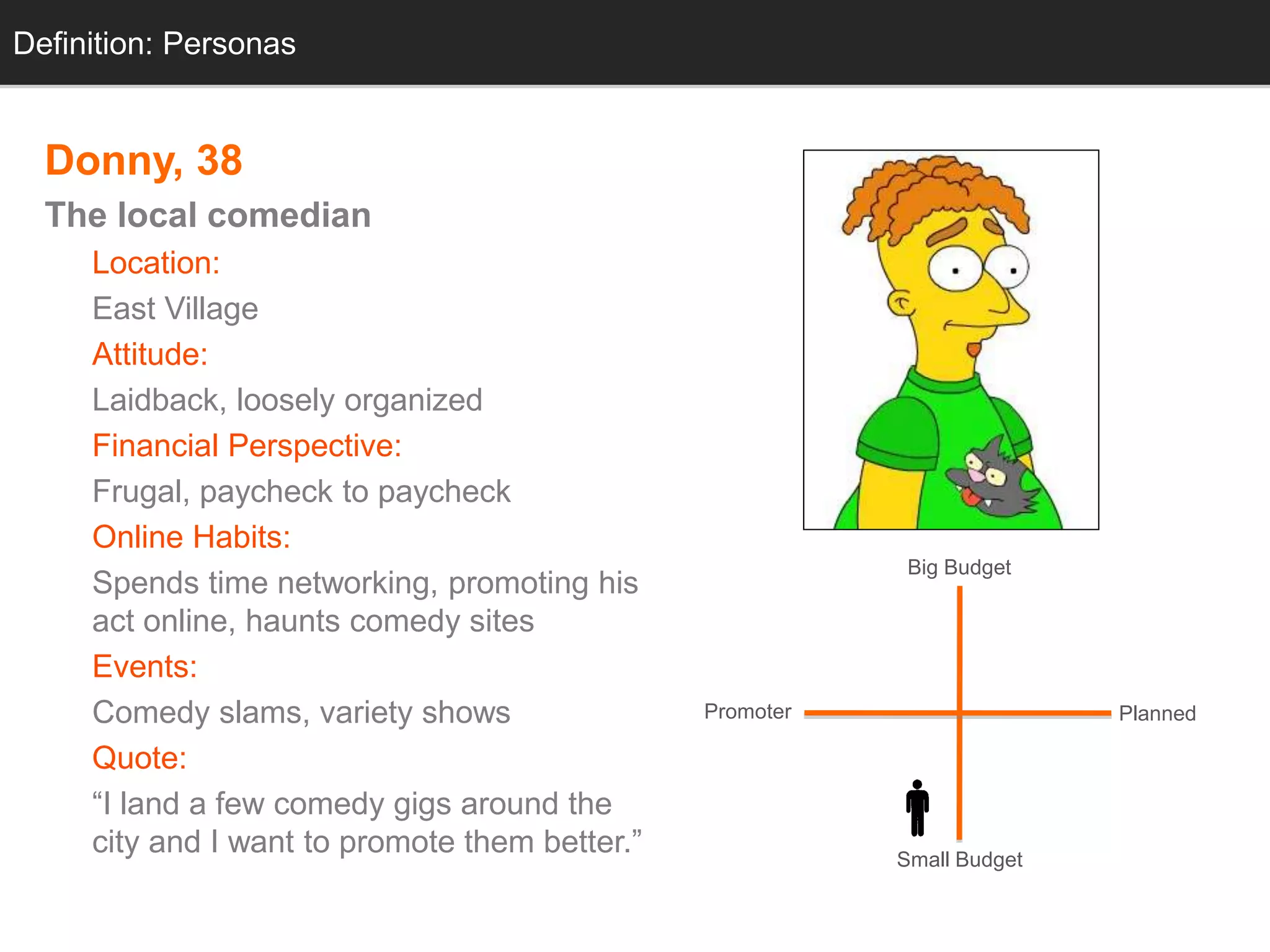

Donny, 38
The local comedian
Location:
East Village
Attitude:
Laidback, loosely organized
Frugal, paycheck to paycheck
Online Habits:
Spends time networking, promoting his
act online, haunts comedy sites
Events:
Comedy slams, variety shows
Quote:
“I land a few comedy gigs around the
city and I want to promote them better.”
Big Budget
Promoter Planned
Small Budget

Personas

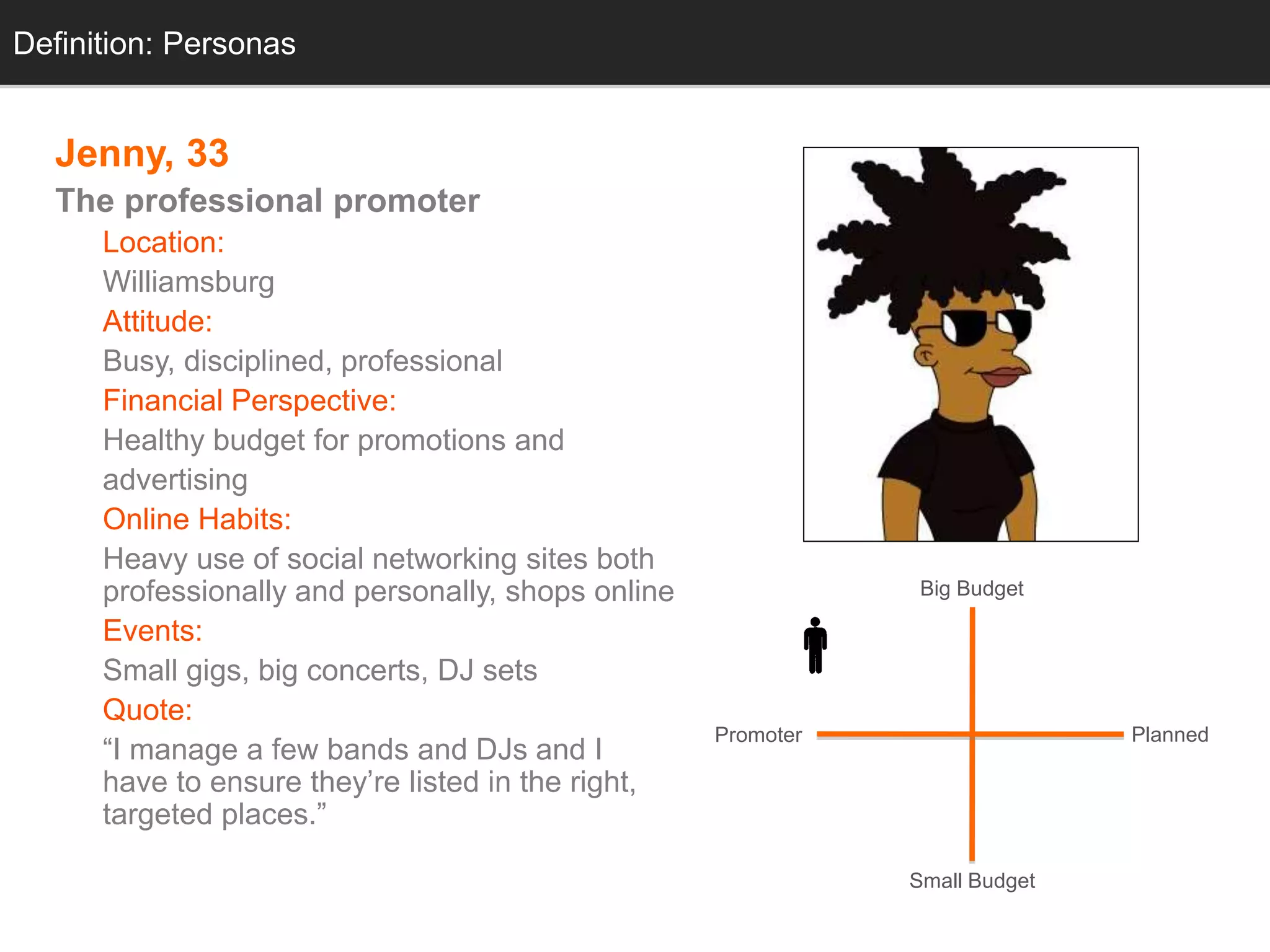

Jenny, 33
The professional promoter
Location:
Williamsburg
Attitude:
Busy, disciplined, professional
Healthy budget for promotions and
advertising
Online Habits:
Heavy use of social networking sites both
professionally and personally, shops online
Events:
Small gigs, big concerts, DJ sets
Quote:
“I manage a few bands and DJs and I
have to ensure they’re listed in the right,
targeted places.”
Big Budget
Promoter Planned
Small Budget

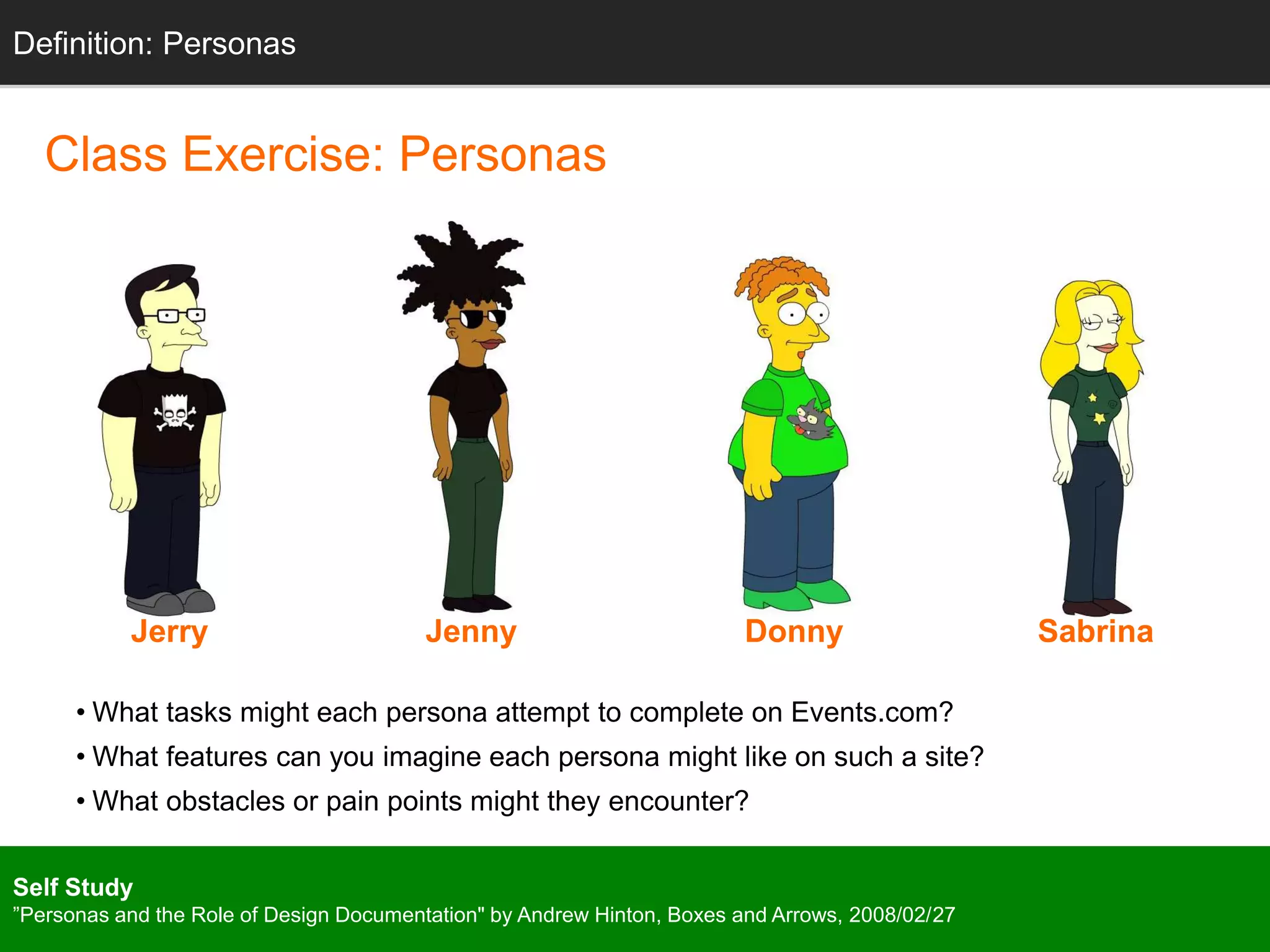

Class Exercise: Personas
• What tasks might each persona attempt to complete on Events.com?
• What features can you imagine each persona might like on such a site?
• What obstacles or pain points might they encounter?
Self Study
”Personas and the Role of Design Documentation" by Andrew Hinton, Boxes and Arrows, 2008/02/27

Definition: Card Sorting
Card Sorting

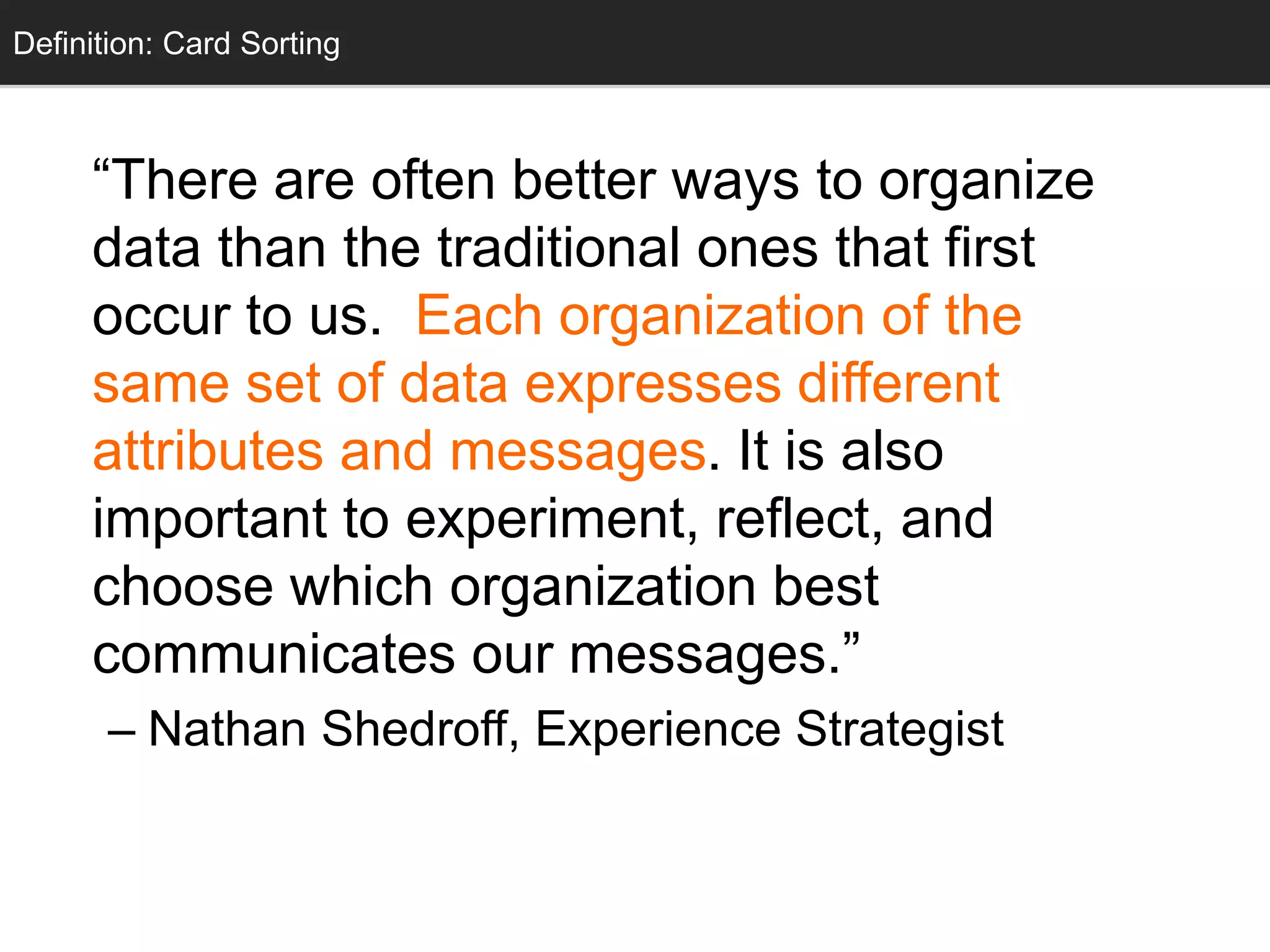

“There are often better ways to organize
data than the traditional ones that first
occur to us. Each organization of the
same set of data expresses different
attributes and messages. It is also
important to experiment, reflect, and
choose which organization best
communicates our messages.”
– Nathan Shedroff, Experience Strategist

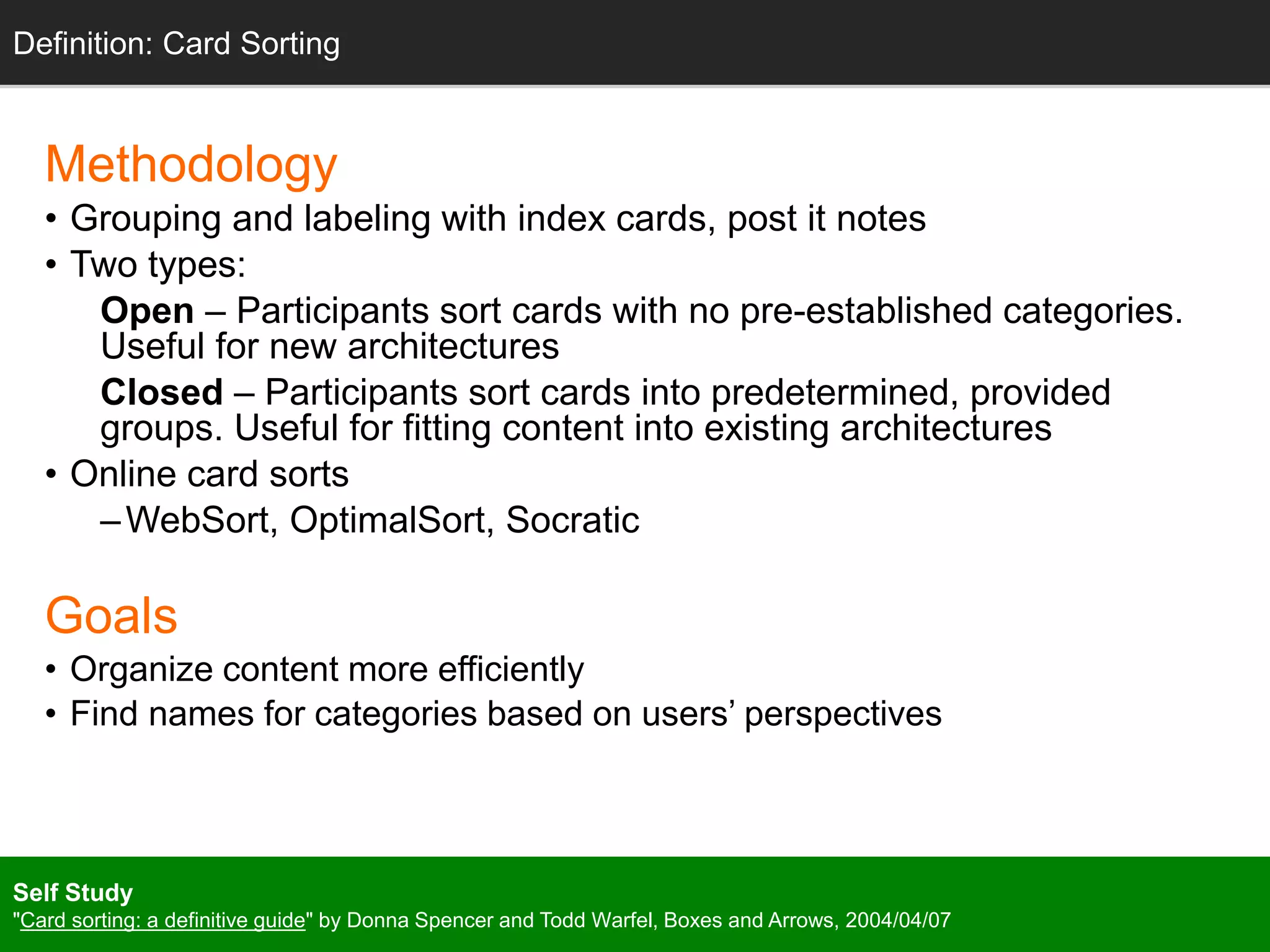

Methodology
• Grouping and labeling with index cards, post it notes
• Two types:
Open – Participants sort cards with no pre-established categories.
Useful for new architectures
Closed – Participants sort cards into predetermined, provided
groups. Useful for fitting content into existing architectures
• Online card sorts
–WebSort, OptimalSort, Socratic
Goals
• Organize content more efficiently
• Find names for categories based on users’ perspectives
Self Study
"Card sorting: a definitive guide" by Donna Spencer and Todd Warfel, Boxes and Arrows, 2004/04/07

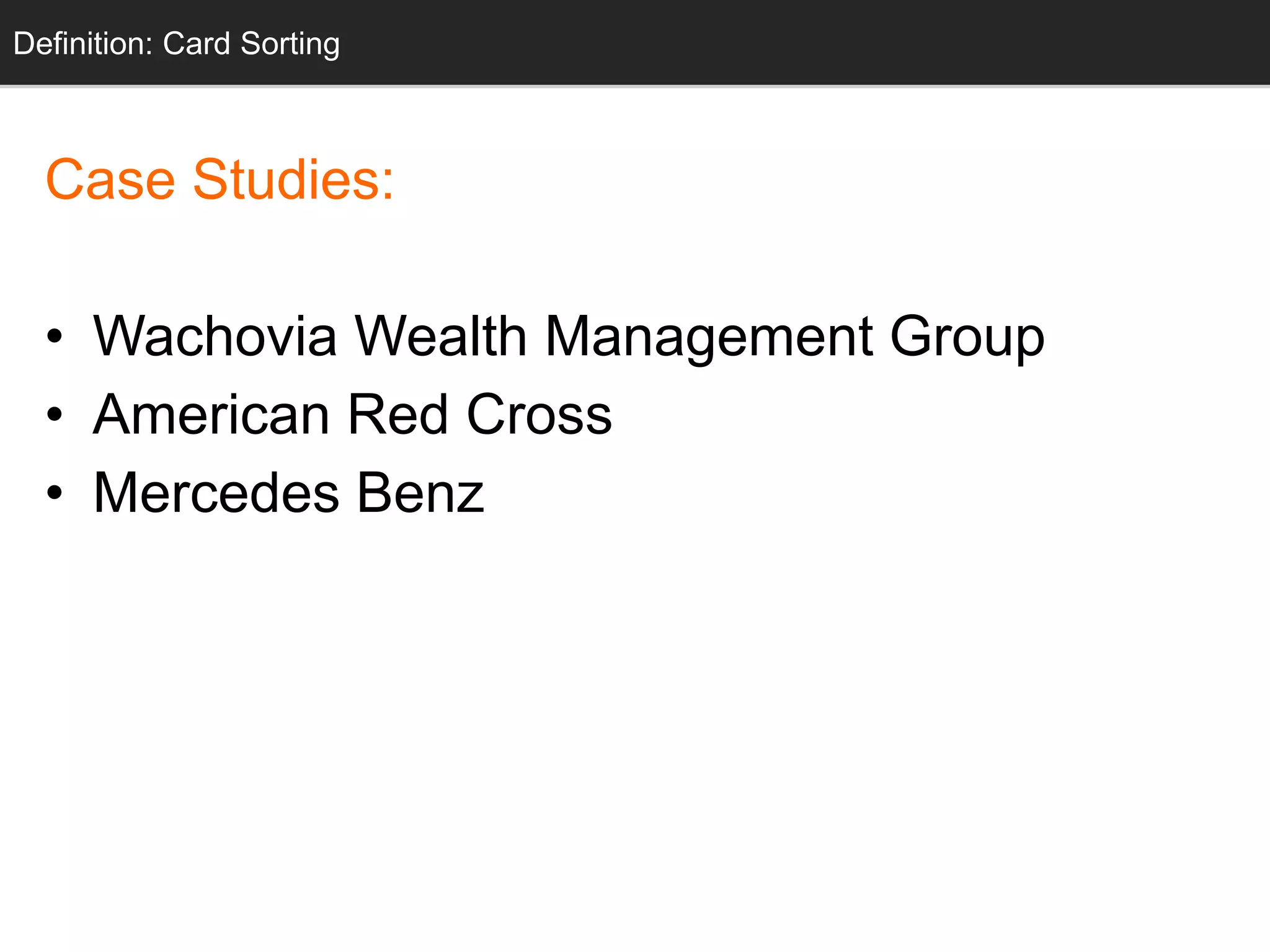

Case Studies:
• Wachovia Wealth Management Group

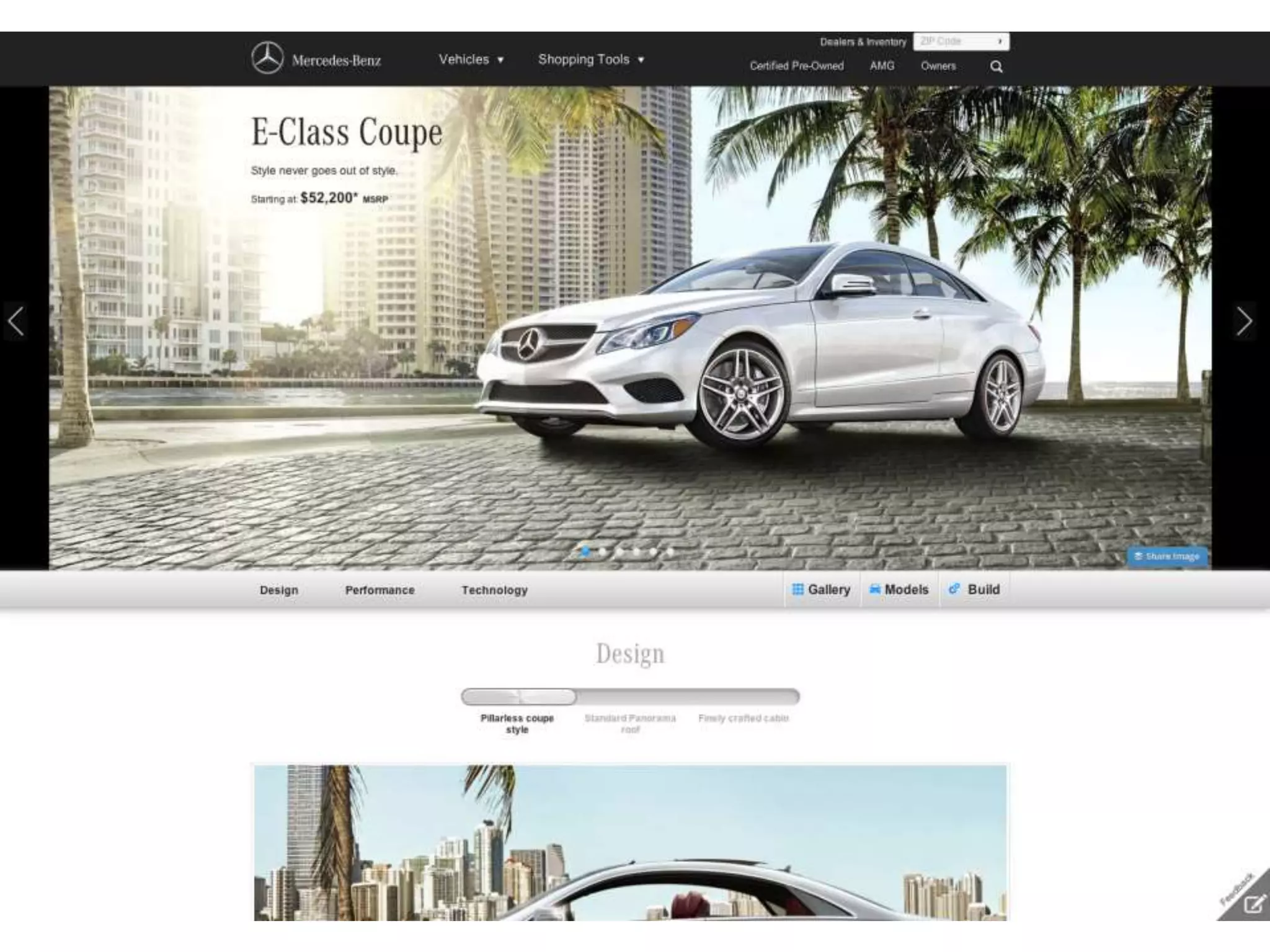

• American Red Cross

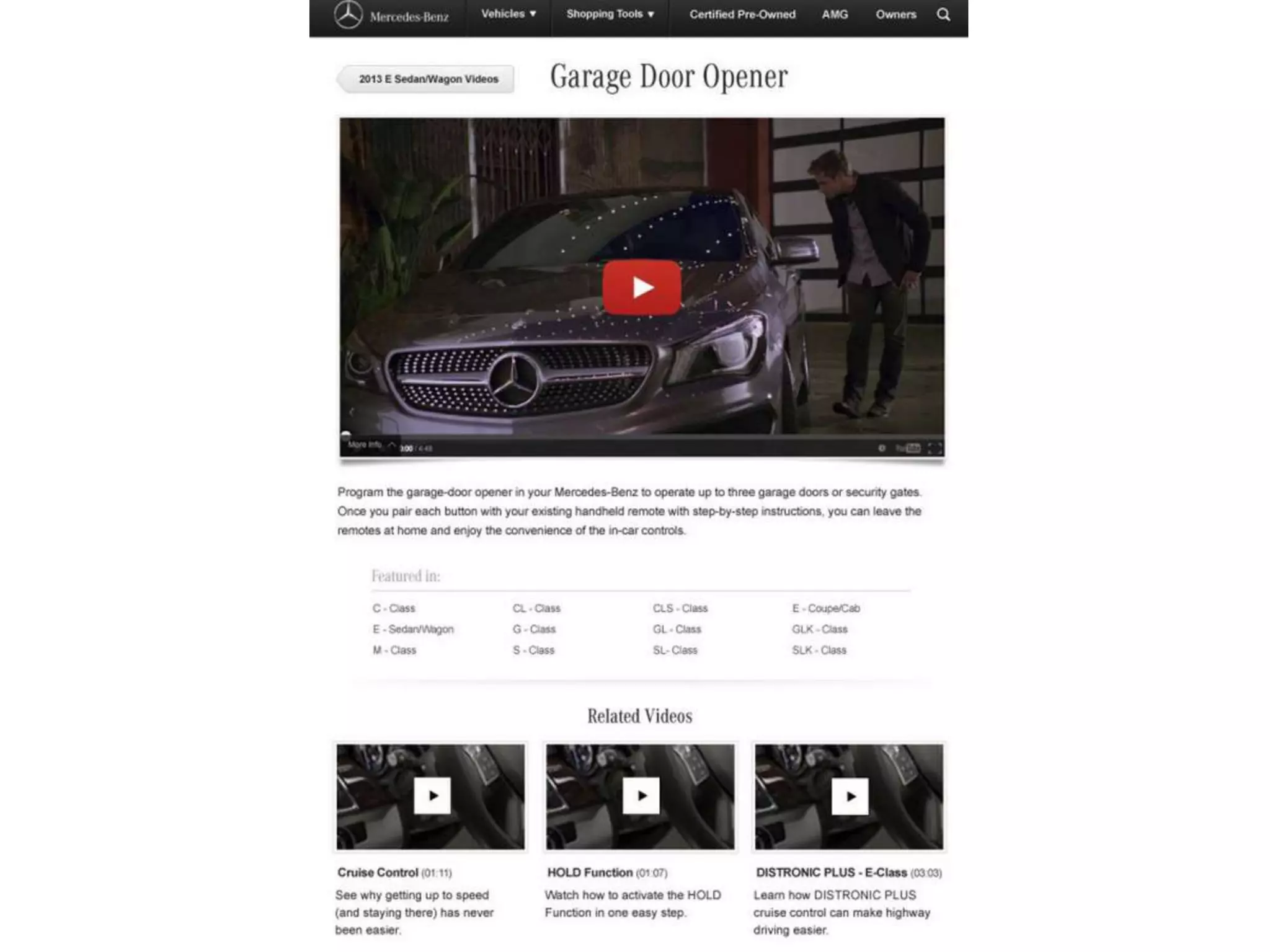

• Mercedes Benz

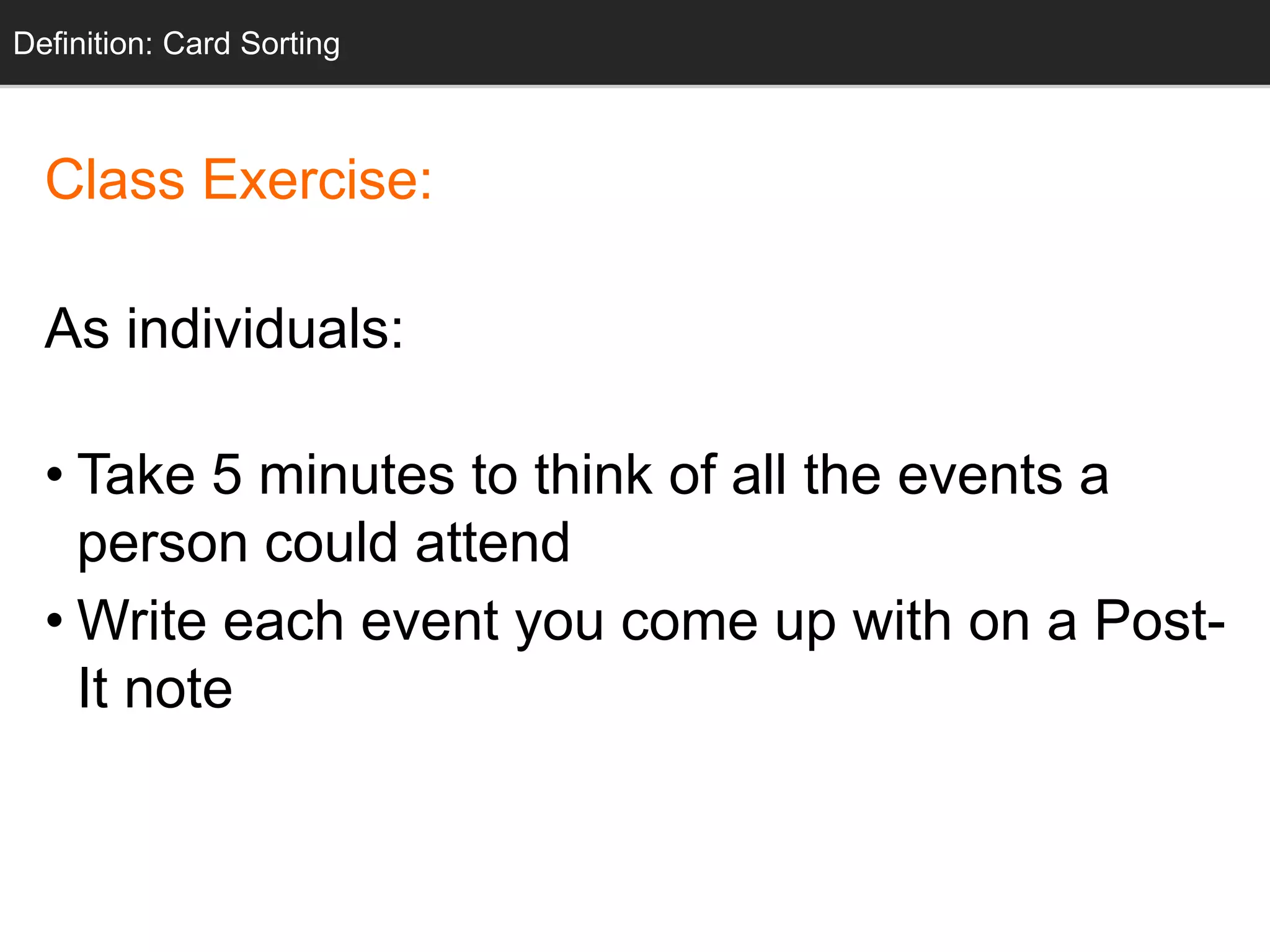

Class Exercise:
As individuals:
• Take 5 minutes to think of all the events a
person could attend
•Write each event you come up with on a Post-
It note

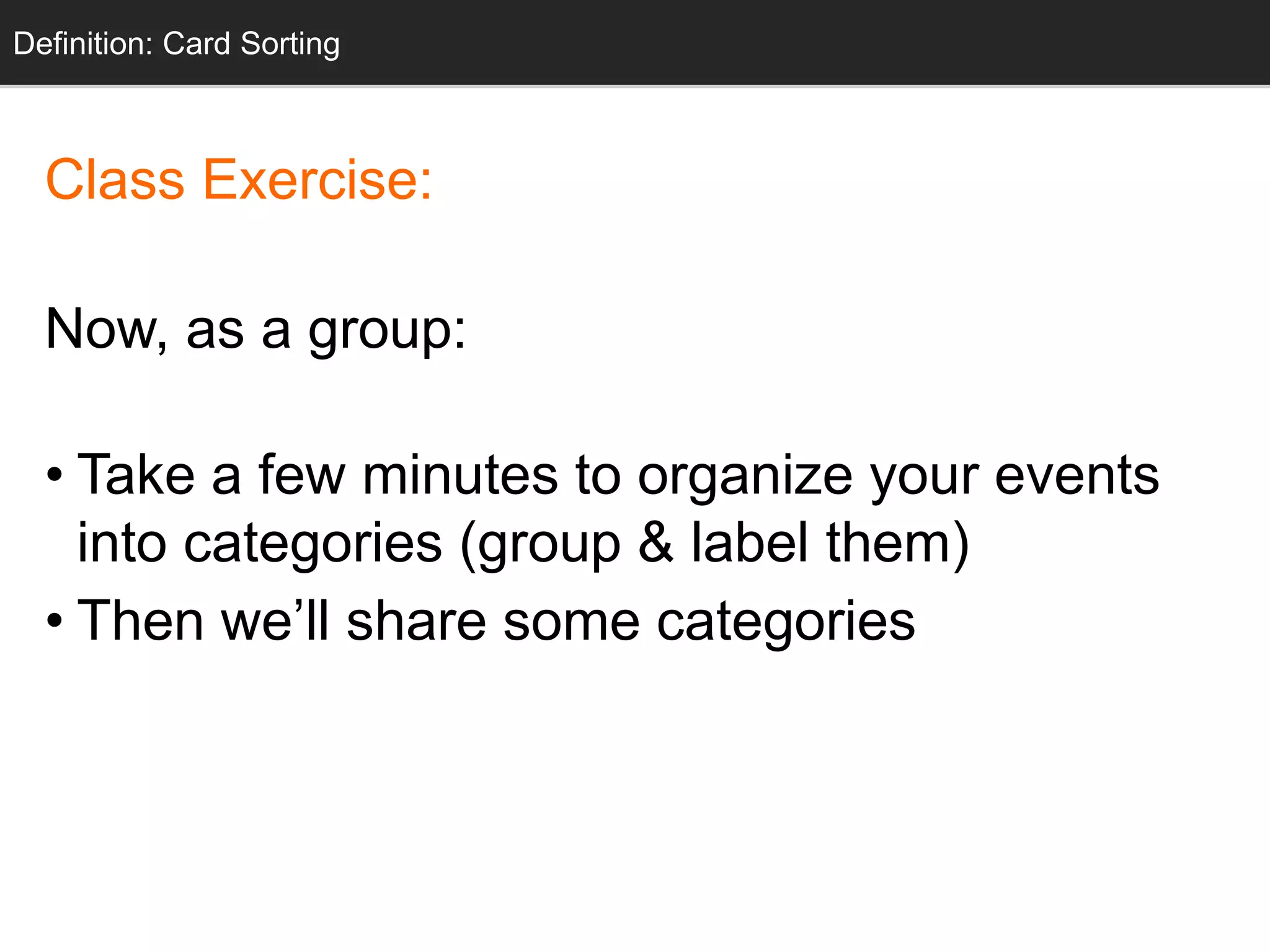

Class Exercise:
Now, as a group:
• Take a few minutes to organize your events
into categories (group & label them)
• Then we’ll share some categories

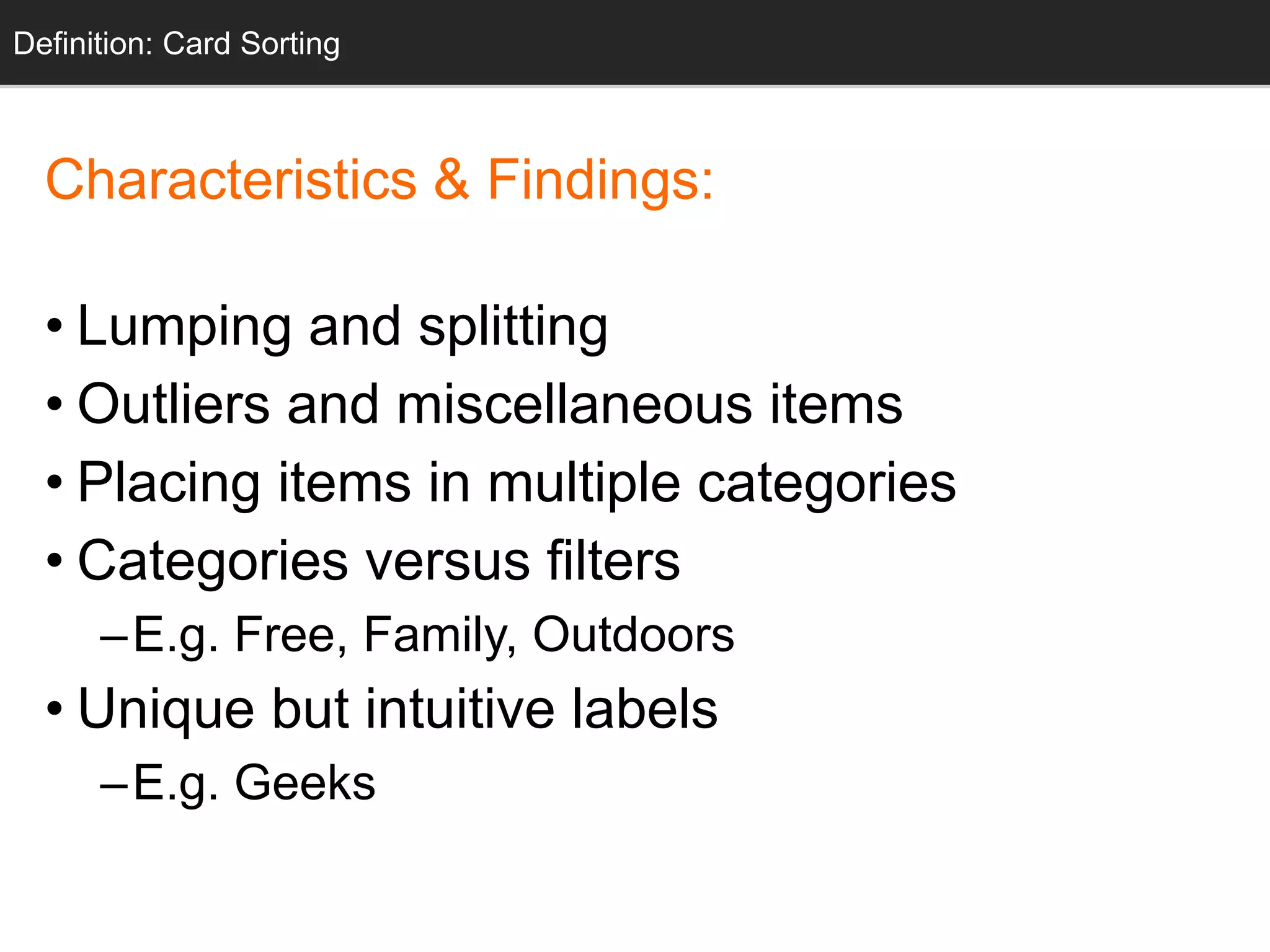

Characteristics & Findings:
• Lumping and splitting
• Outliers and miscellaneous items
• Placing items in multiple categories
• Categories versus filters
–E.g. Free, Family, Outdoors
• Unique but intuitive labels
–E.g. Geeks

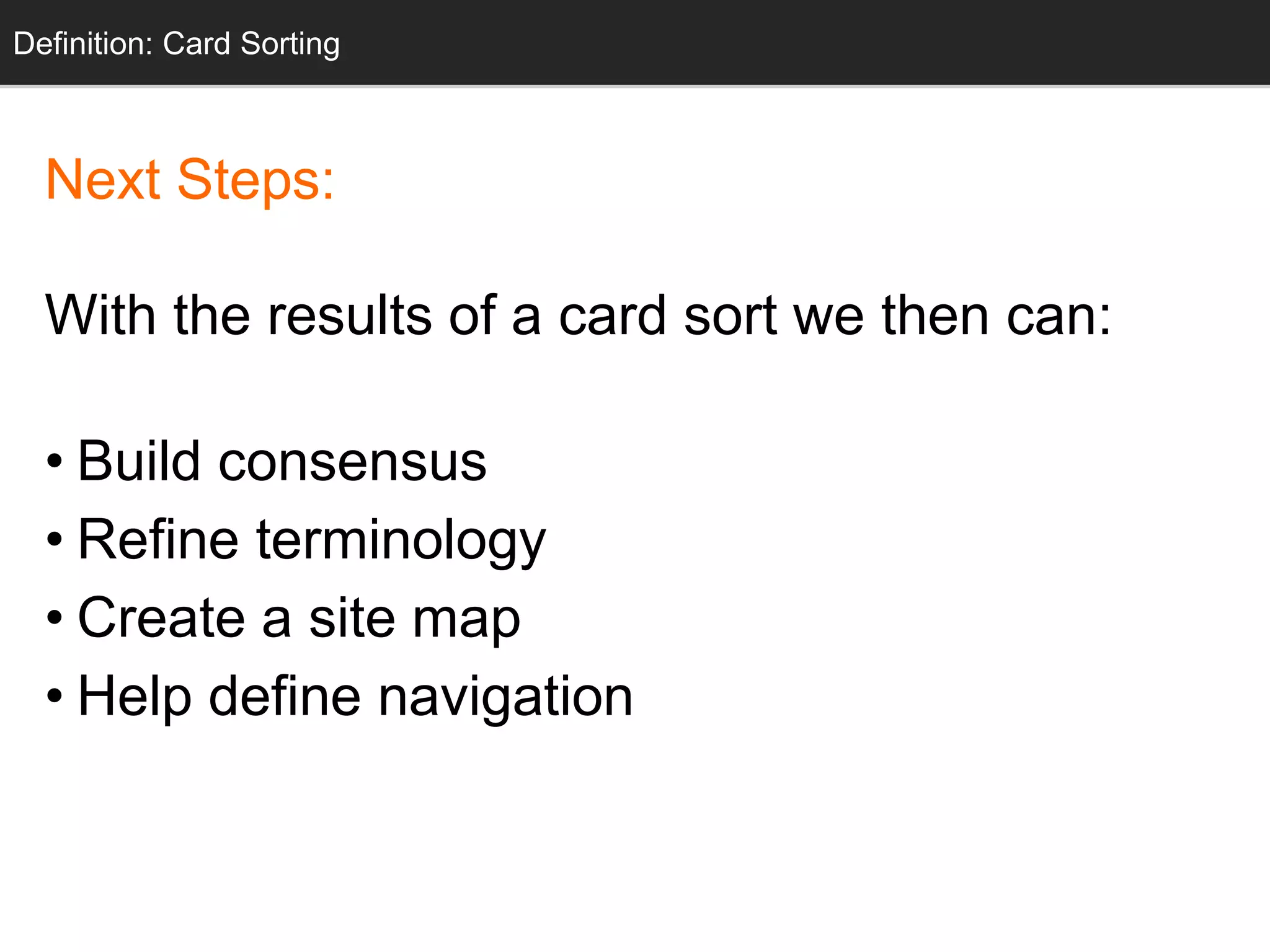

Next Steps:
With the results of a card sort we then can:
• Build consensus
• Refine terminology
• Create a site map
• Help define navigation

IDnefofinition: Card Sort Tools

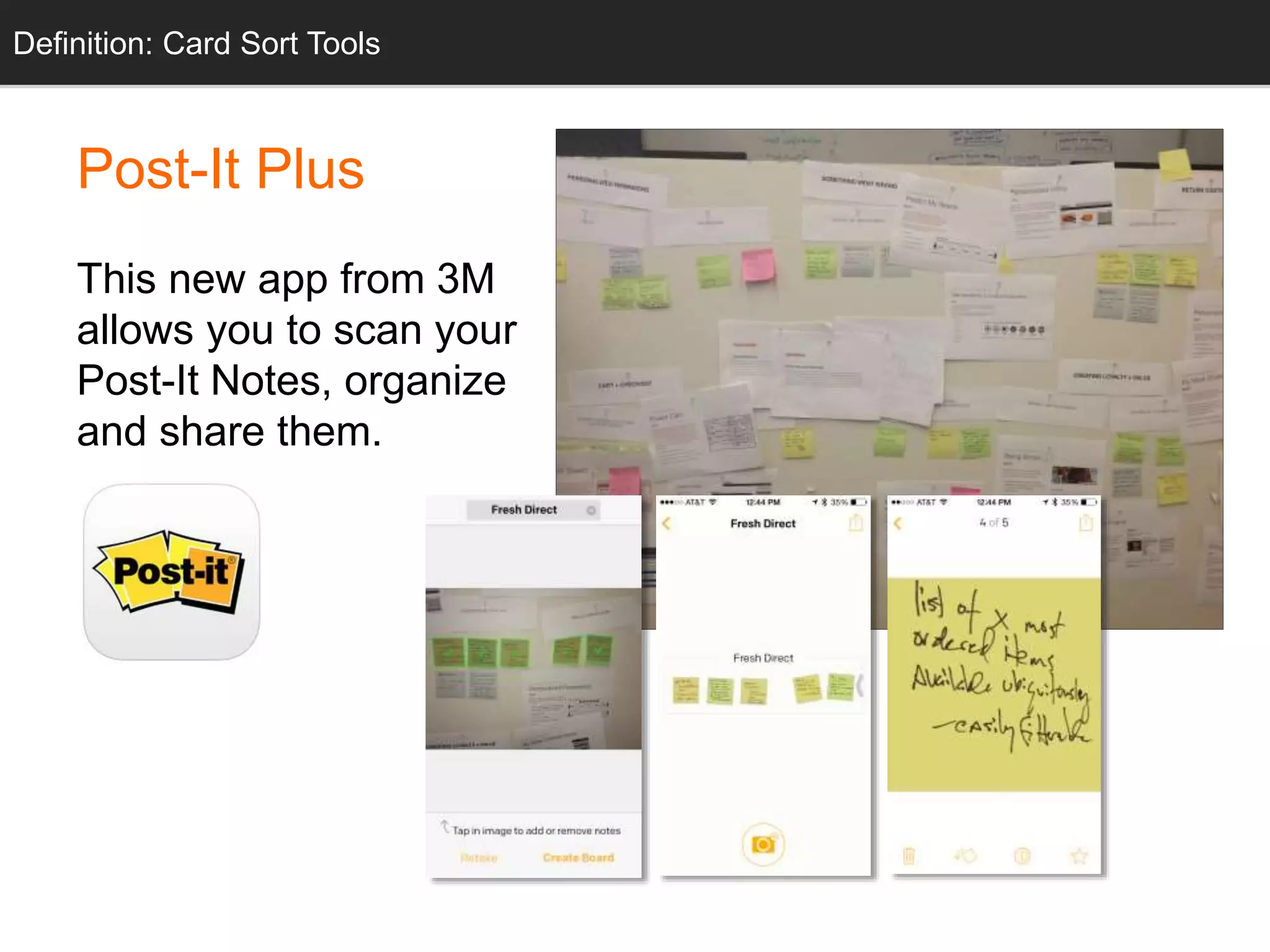

Post-It Plus
This new app from 3M
allows you to scan your
Post-It Notes, organize
and share them.

CDeosnicgenp: tSuaitle D Measpigsn

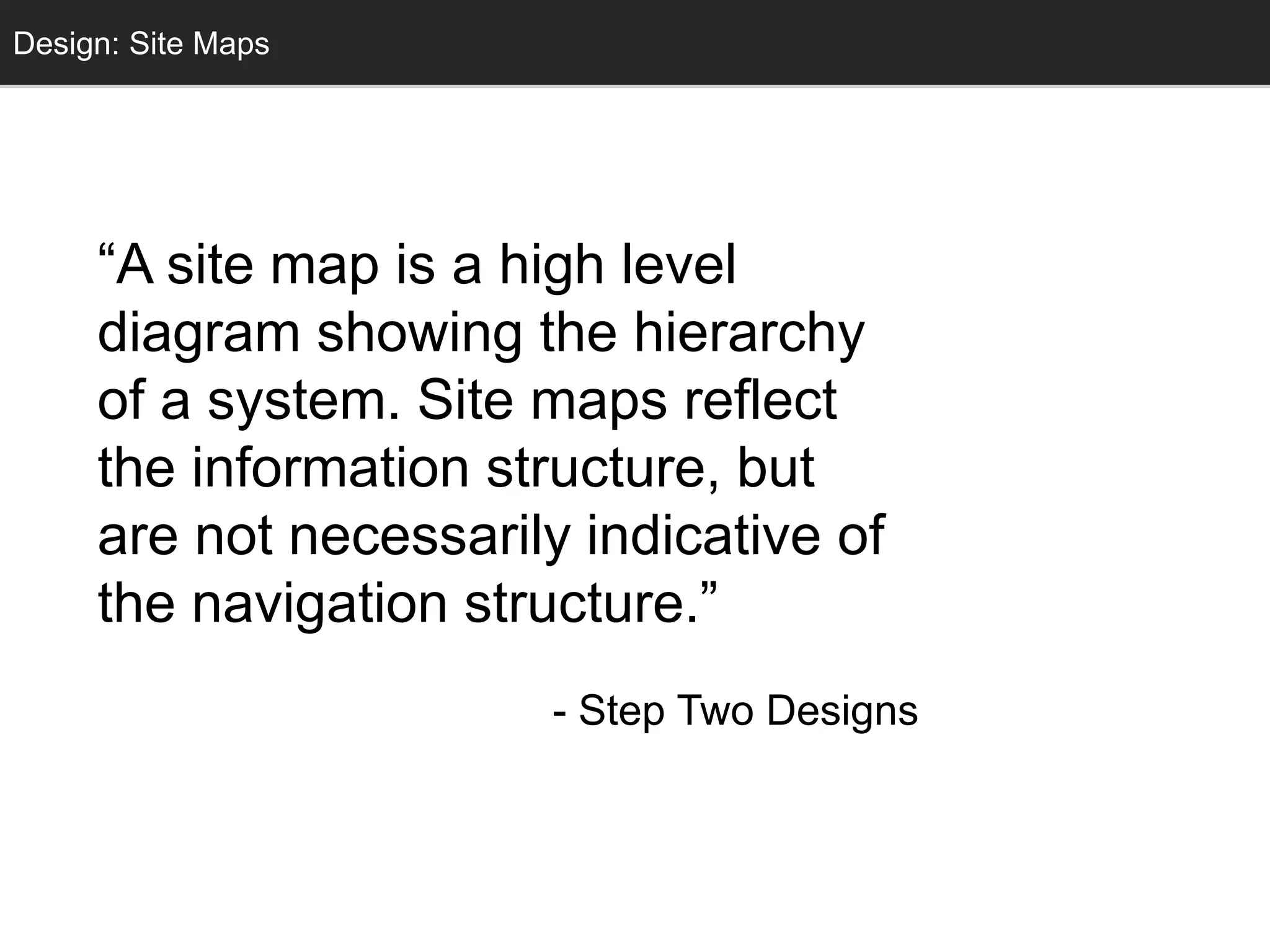

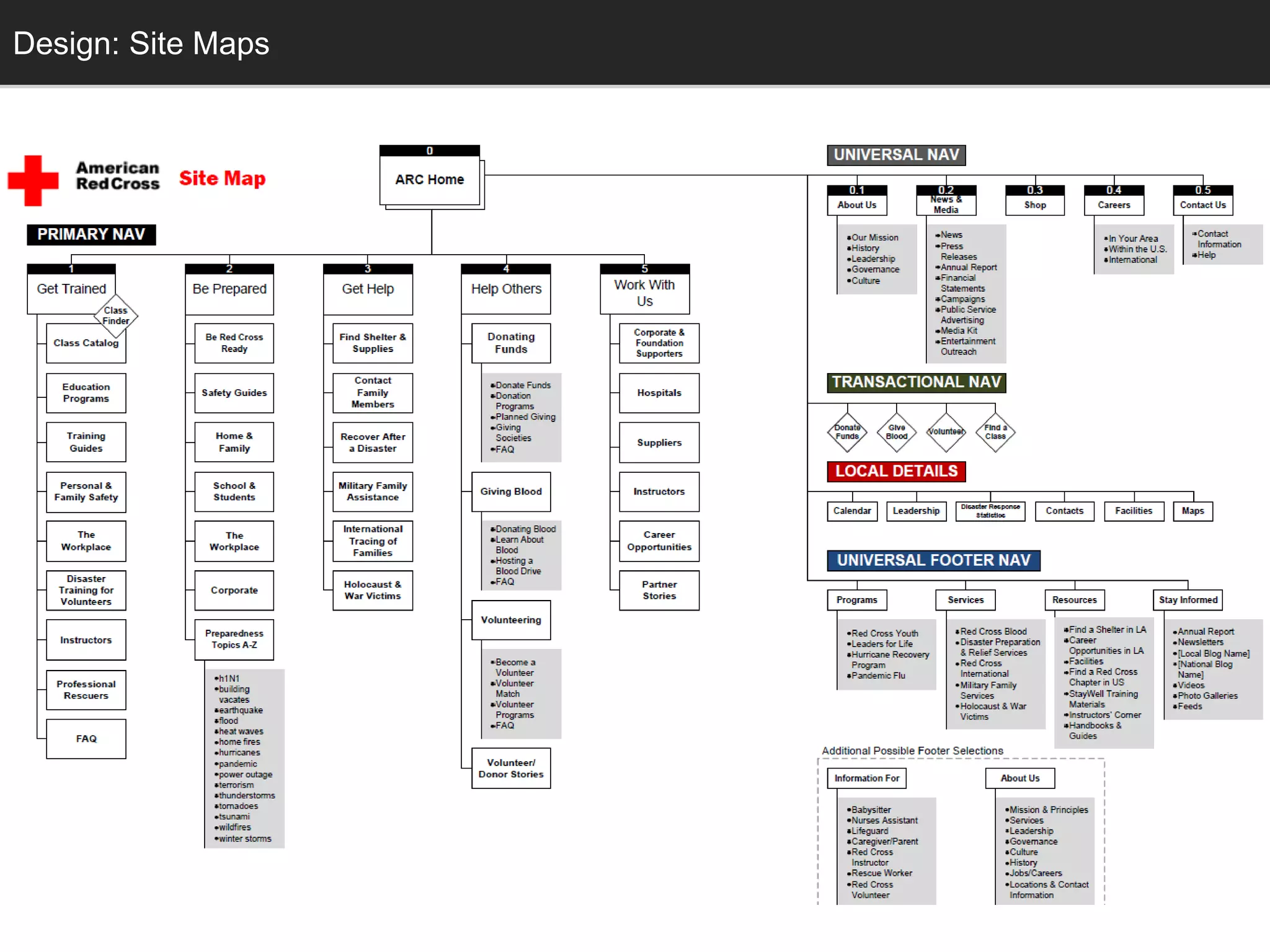

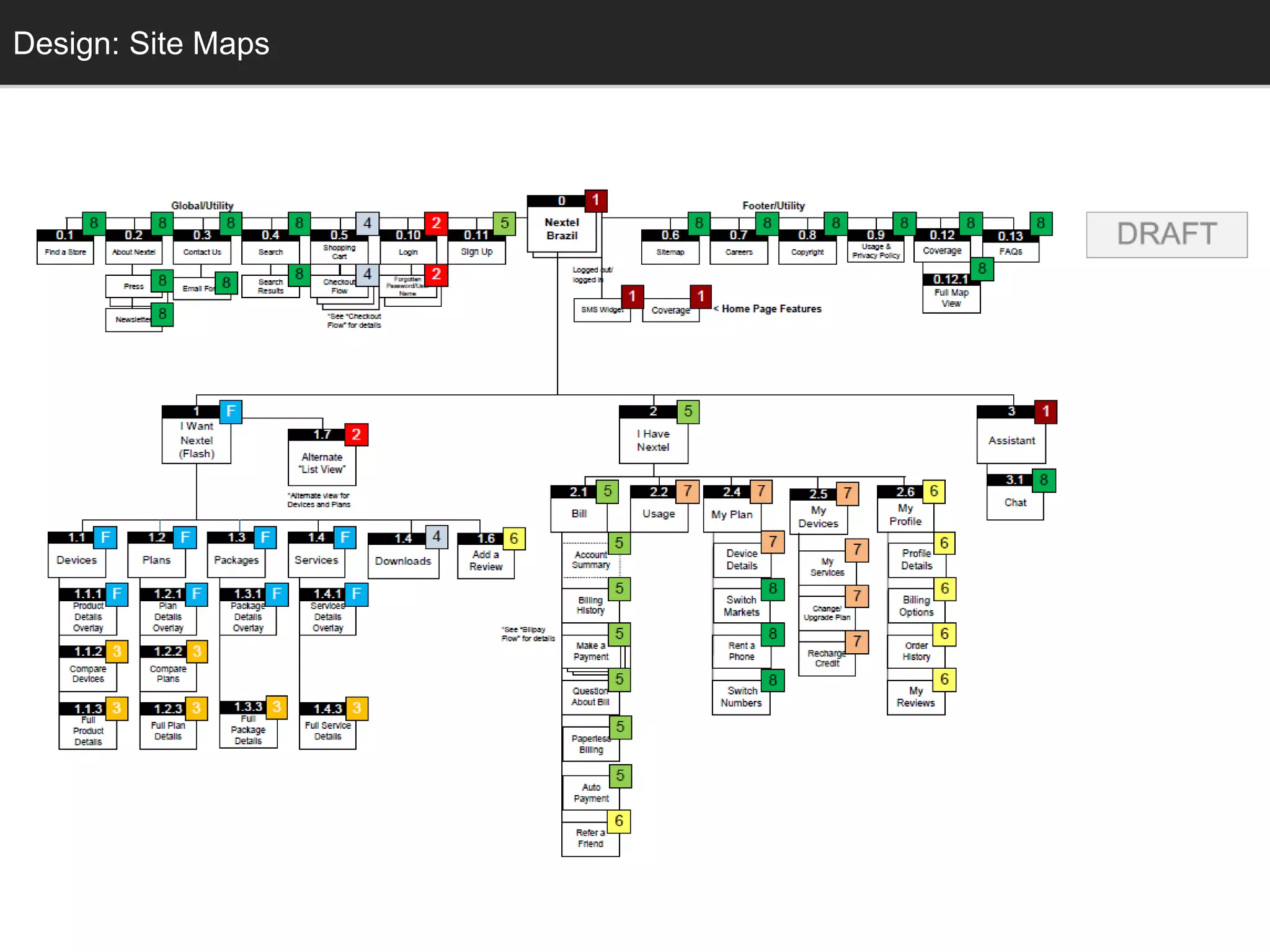

“A site map is a high level
diagram showing the hierarchy
of a system. Site maps reflect
the information structure, but
are not necessarily indicative of
the navigation structure.”
- Step Two Designs

CDeosnicgenp: tSuaitle D Measpigsn

Page Types
The Mercator Atlas of Europe
From The British Library

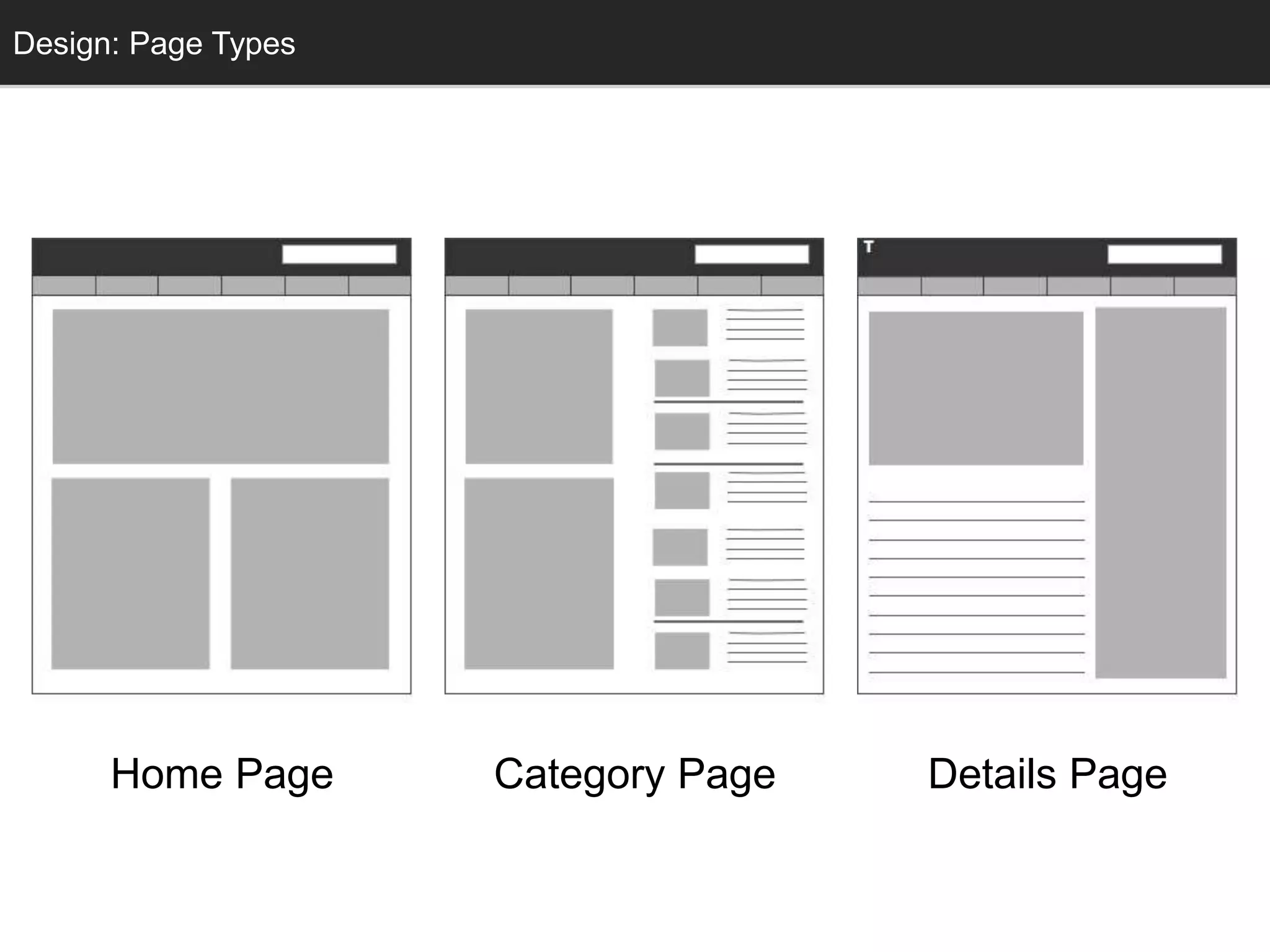

Conceptual Design: Page Design
Types
Home Page Category Page Details Page

Navigation
Navigation Bridge, USS Enterprise
by Serendigity, Flickr

Design: Grids

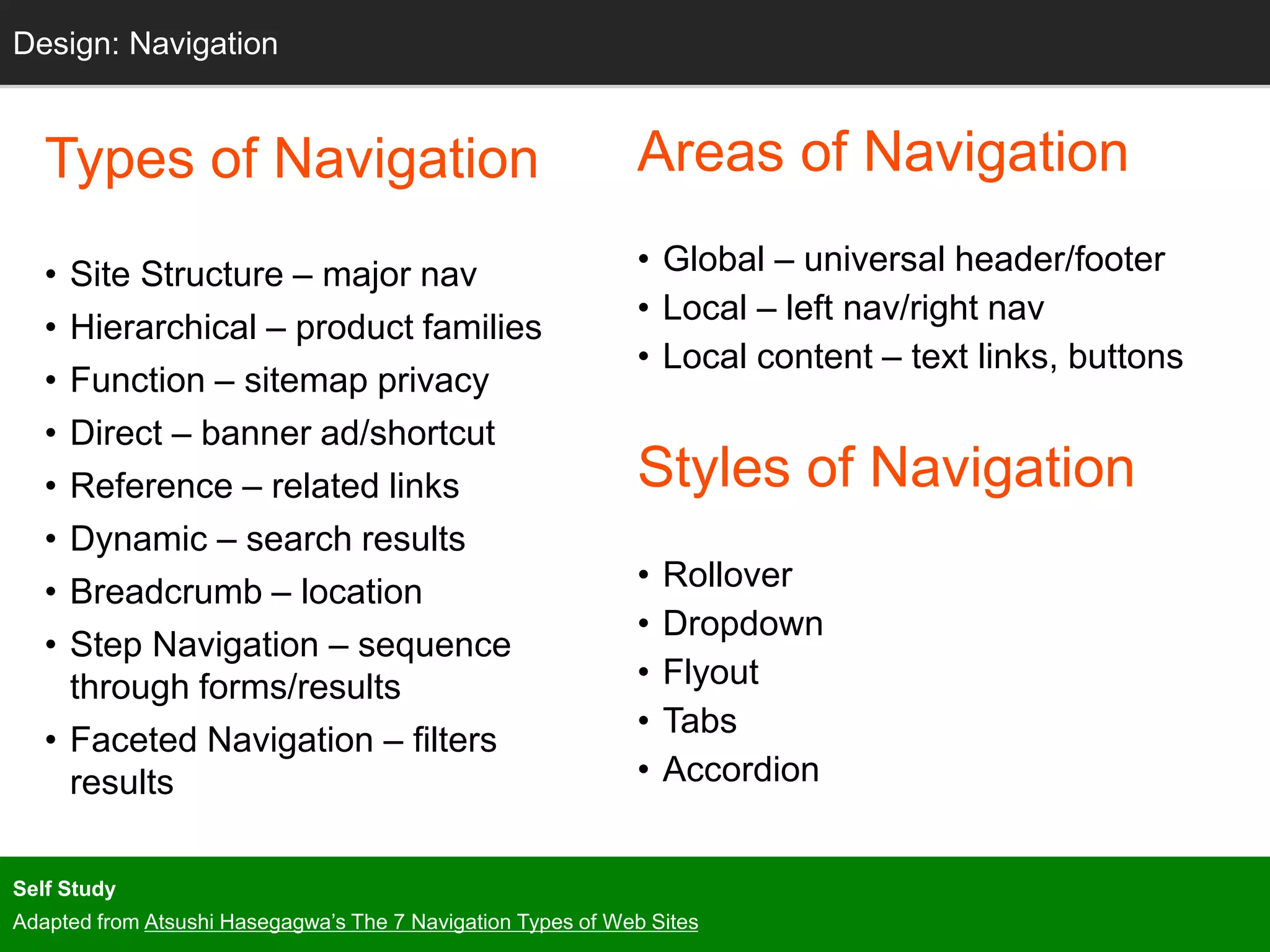

Navigation
Types of Navigation
• Site Structure – major nav
• Hierarchical – product families
• Function – sitemap privacy
• Direct – banner ad/shortcut
• Reference – related links
• Dynamic – search results
• Breadcrumb – location
• Step Navigation – sequence
through forms/results
• Faceted Navigation – filters
results
Areas of Navigation
• Global – universal header/footer
• Local – left nav/right nav
• Local content – text links, buttons
Styles of Navigation
• Rollover
• Dropdown
• Flyout
• Tabs
• Accordion
Self Study
Adapted from Atsushi Hasegagwa’s The 7 Navigation Types of Web Sites

Design: Grids
Navigation

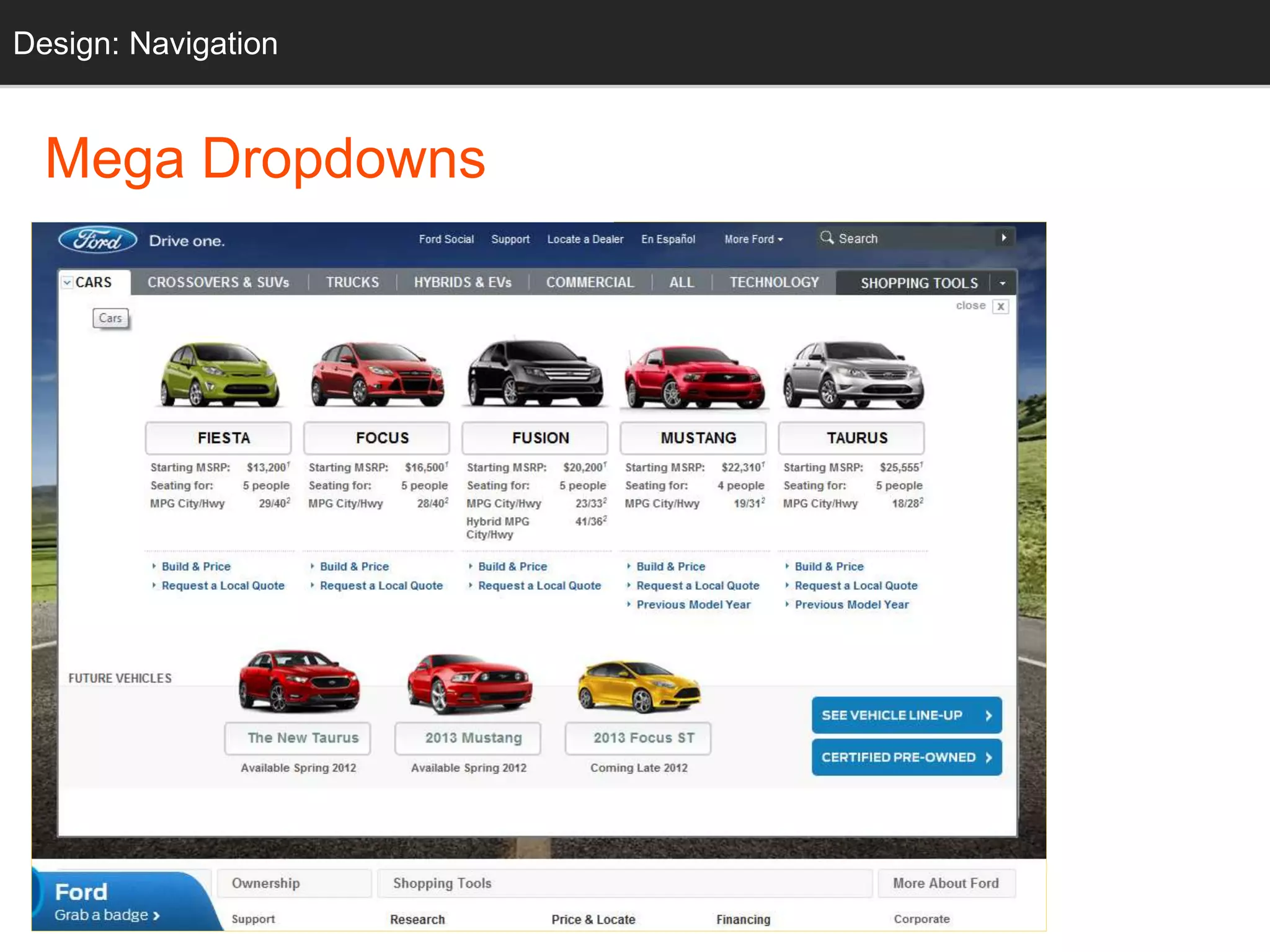

Mega Dropdowns

Design: Grids
Navigation

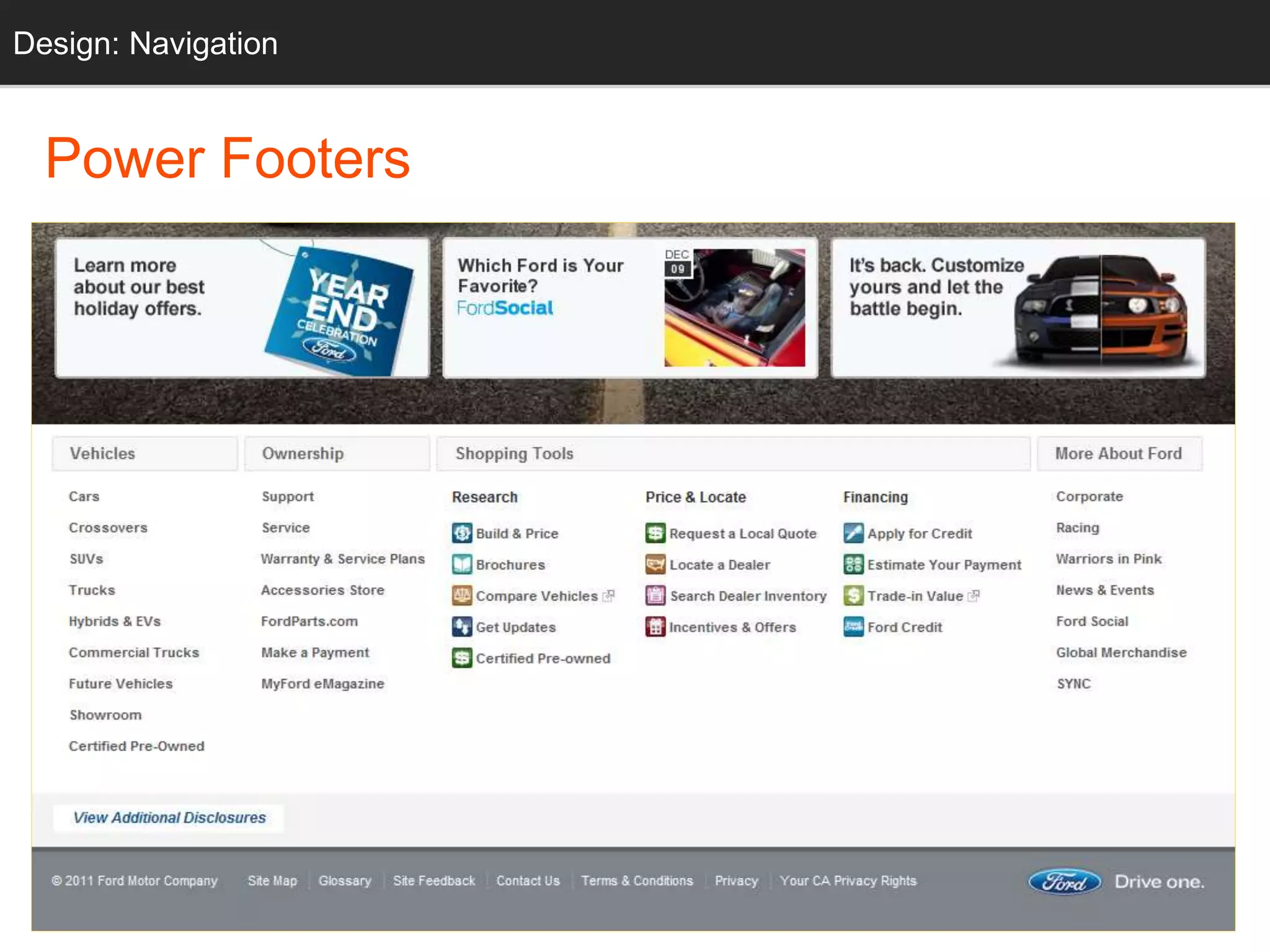

Power Footers

Sketching

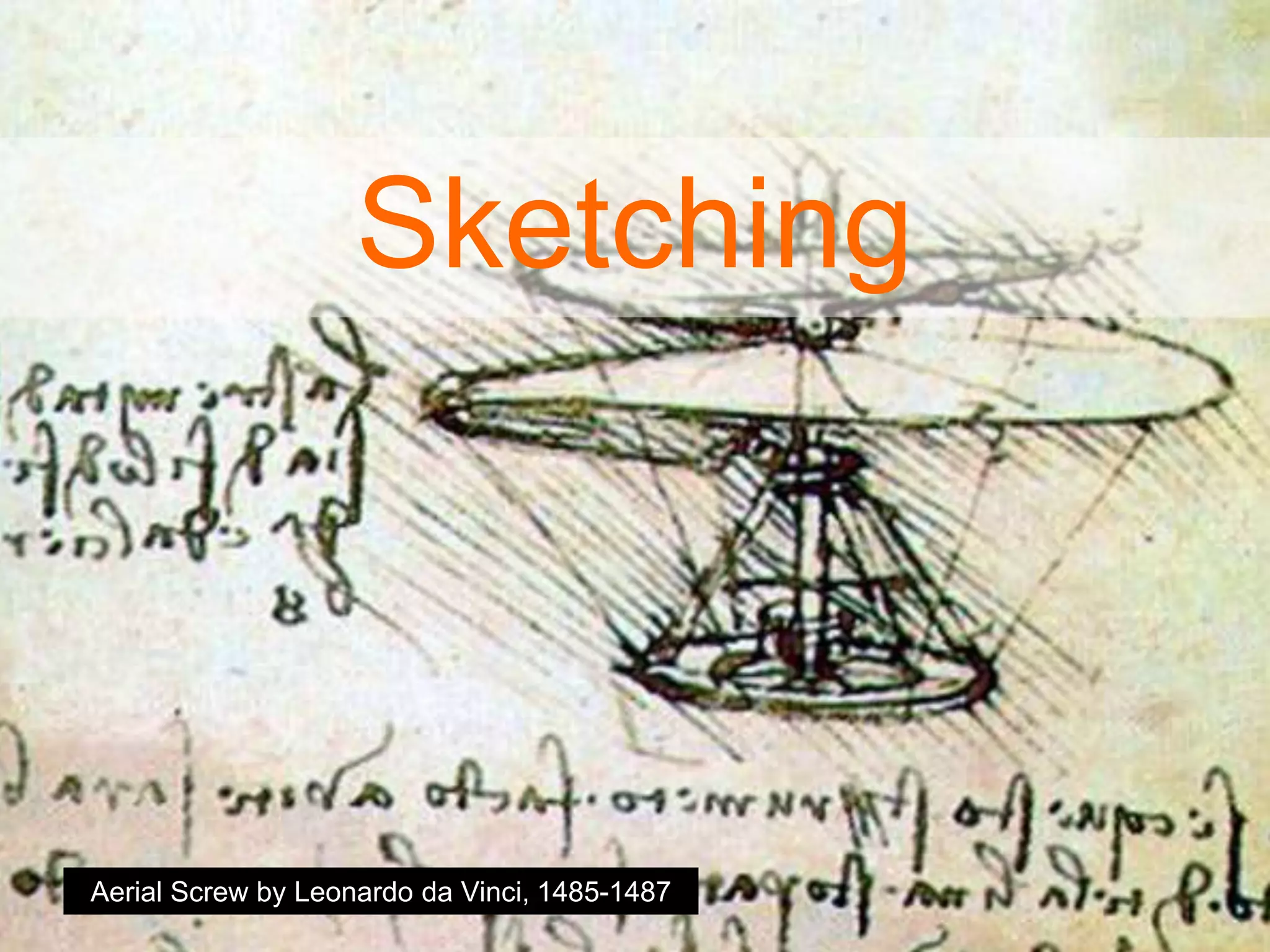

Aerial Screw by Leonardo da Vinci, 1485-1487

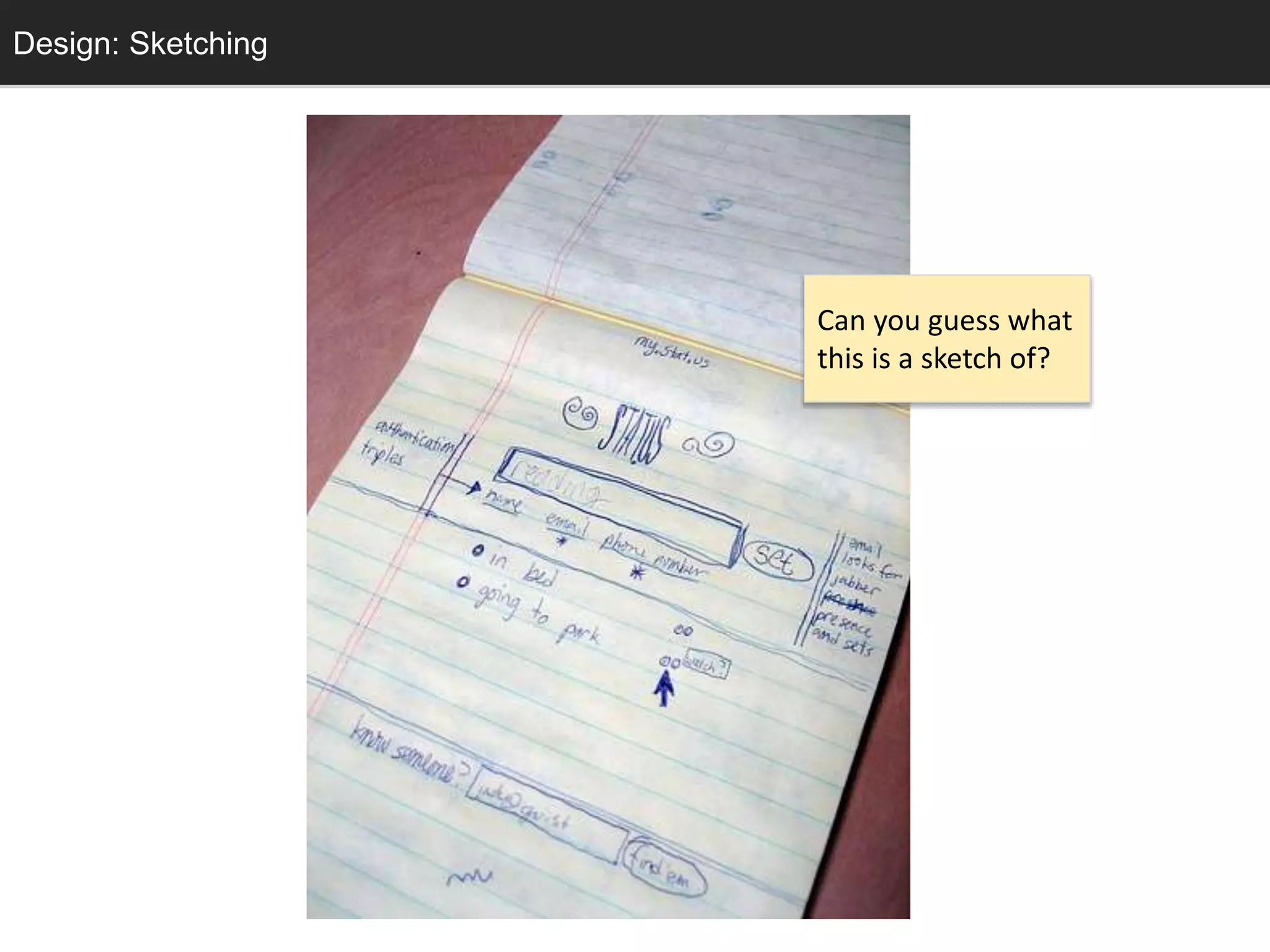

Sketching
Can you guess what
this is a sketch of?

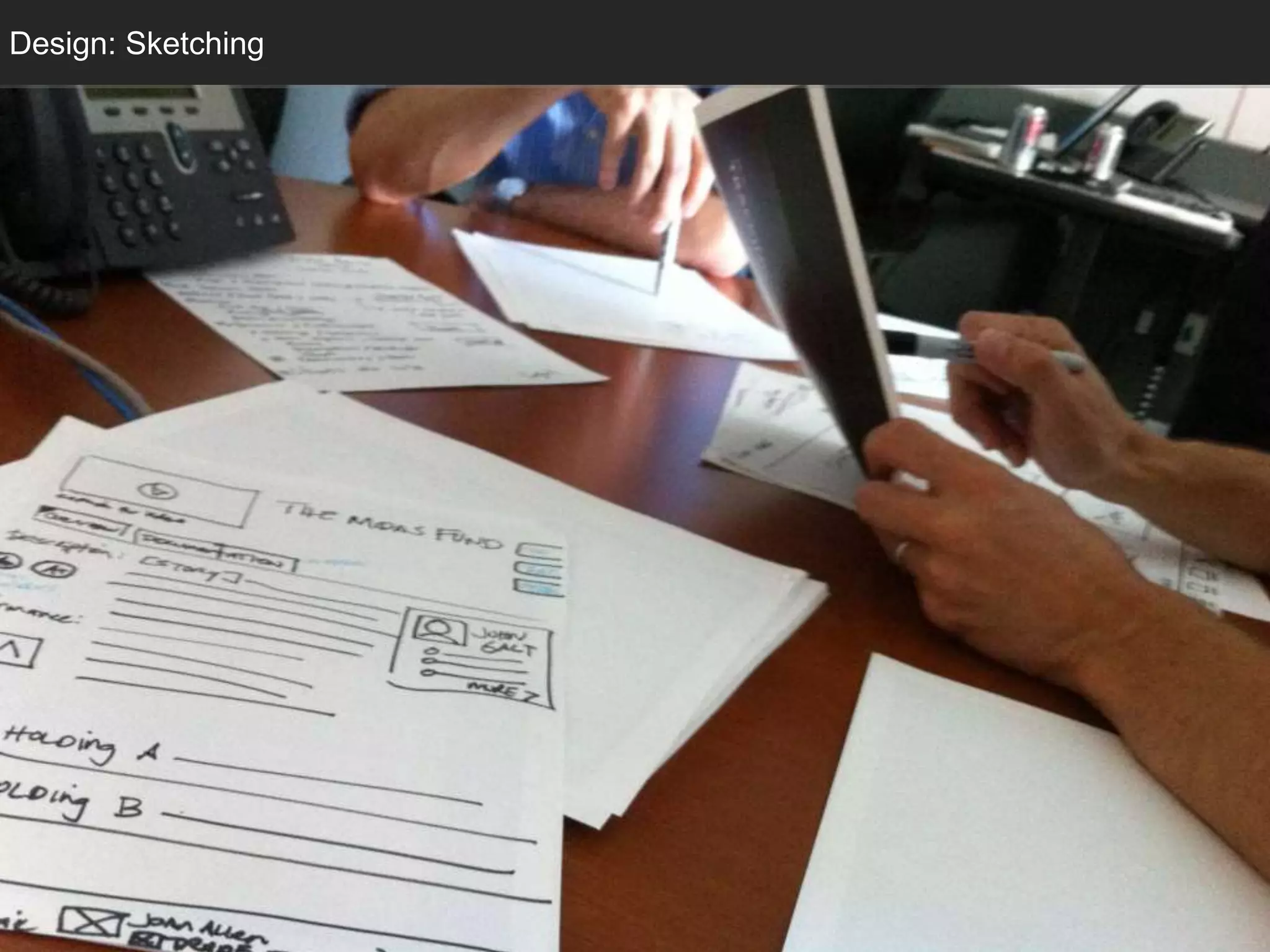

Design: Sketching

Design: Sketching

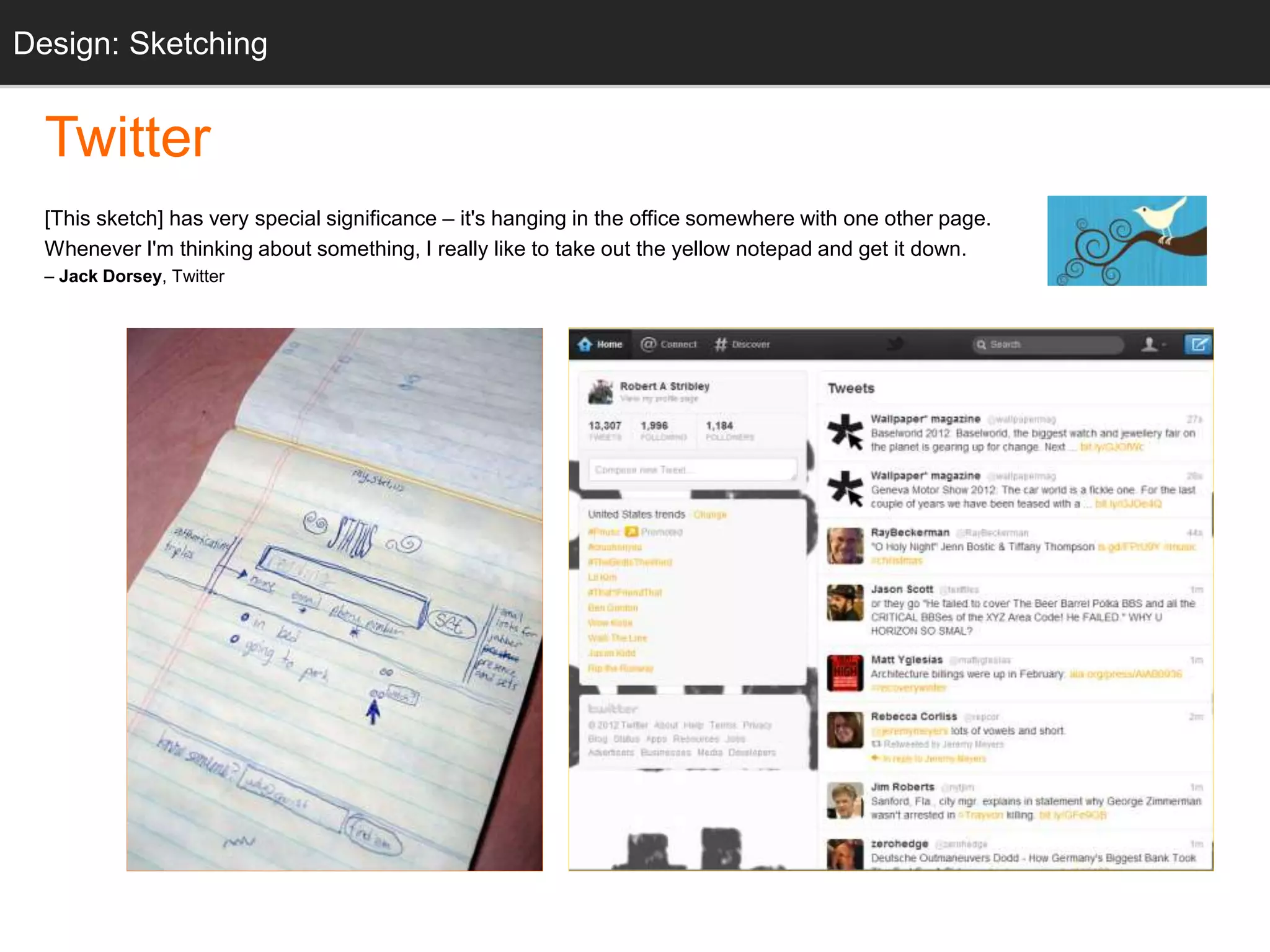

“twttr sketch” Twitter.com
Sketching
Twitter
[This sketch] has very special significance – it's hanging in the office somewhere with one other page.
Whenever I'm thinking about something, I really like to take out the yellow notepad and get it down.
– Jack Dorsey, Twitter

Design: Sketching
Sketching

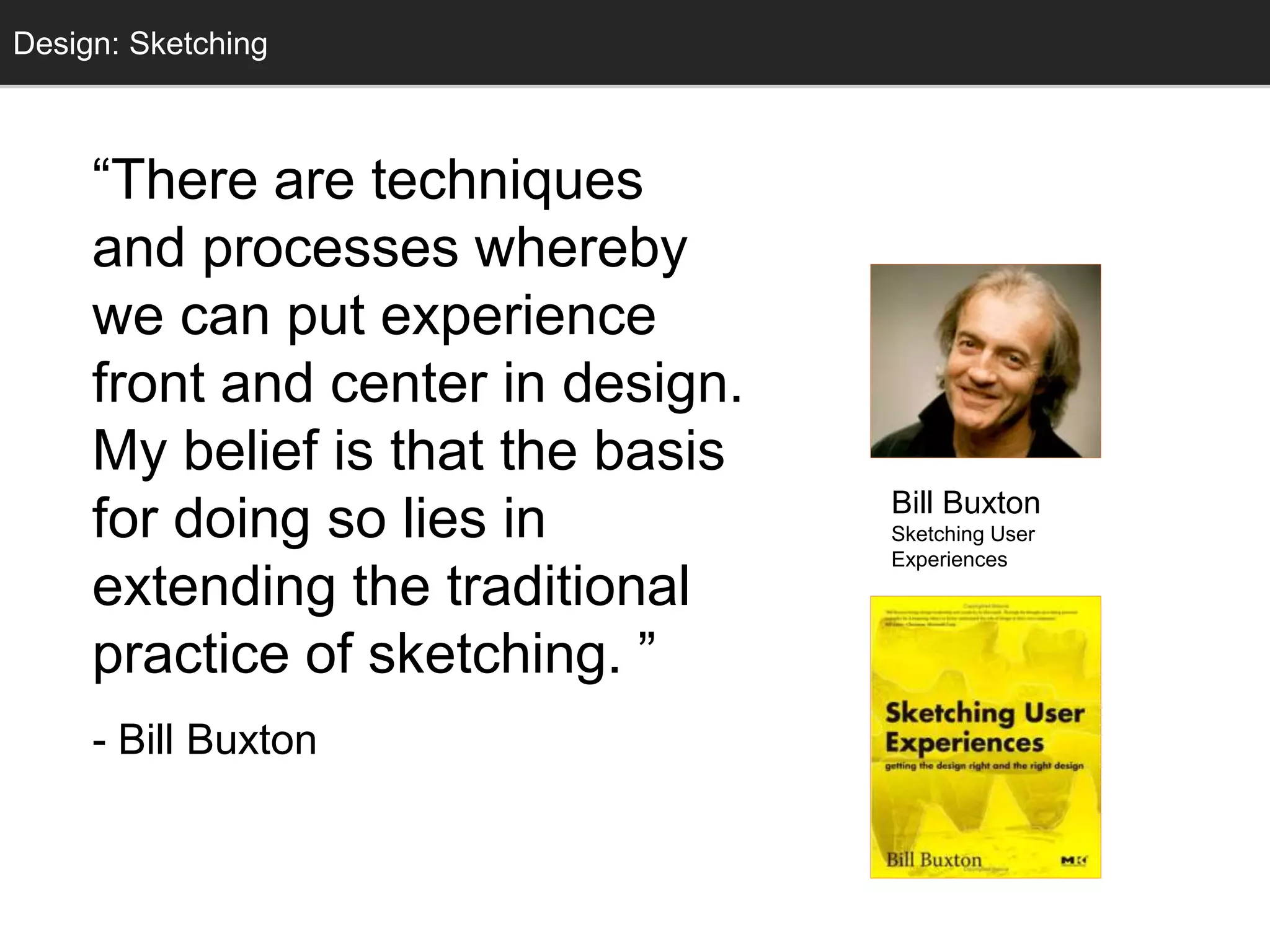

“There are techniques
and processes whereby
we can put experience
front and center in design.
My belief is that the basis
for doing so lies in
extending the traditional
practice of sketching. ”
- Bill Buxton
Bill Buxton
Sketching User
Experiences

Bill Buxton
Sketching User
Experiences
Design: Sketching
Sketching

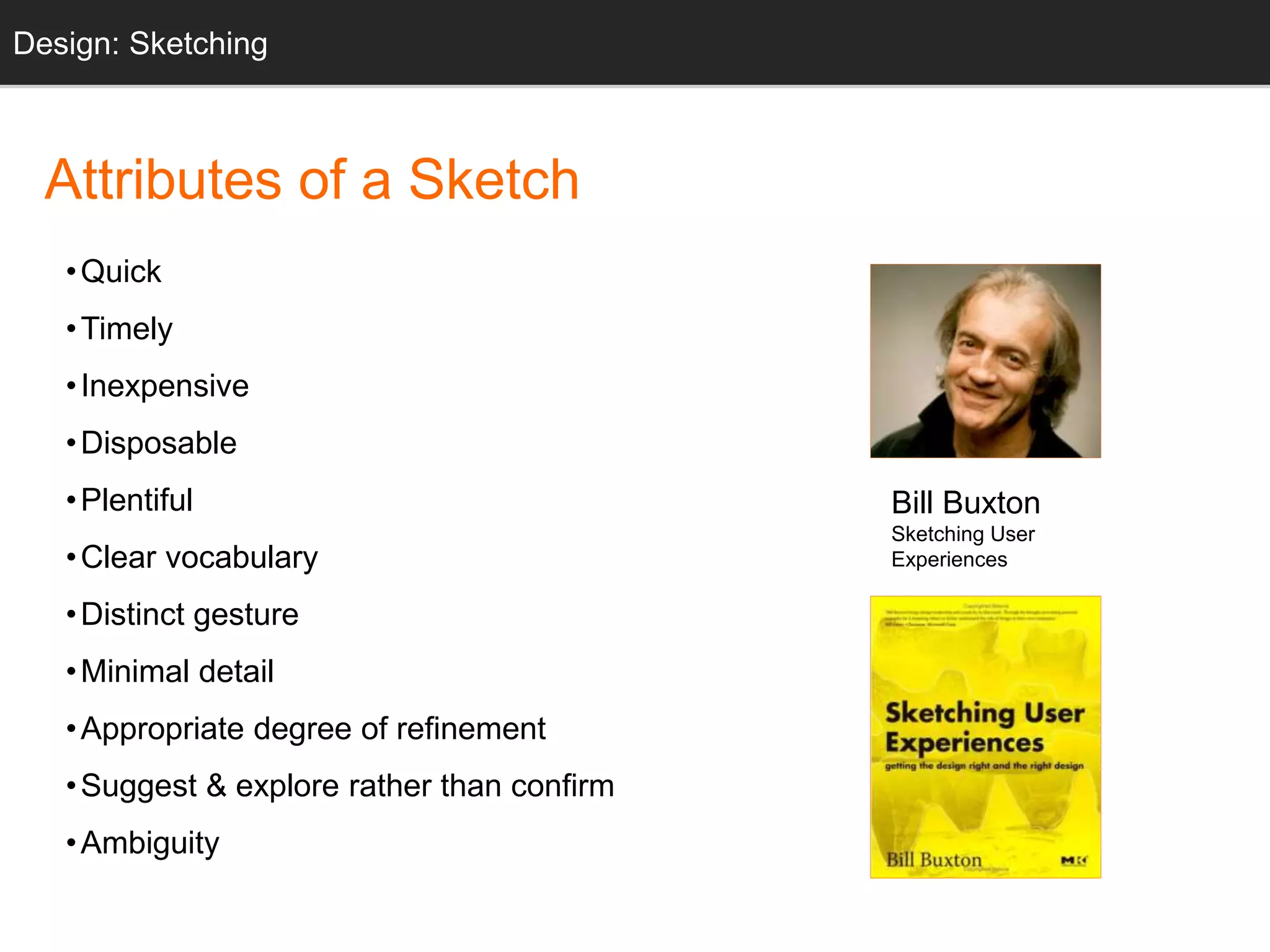

Attributes of a Sketch
•Quick
•Timely
• Inexpensive
• Disposable
• Plentiful
• Clear vocabulary
• Distinct gesture
•Minimal detail
•Appropriate degree of refinement
•Suggest & explore rather than confirm
•Ambiguity

Design: Sketching
Sketching

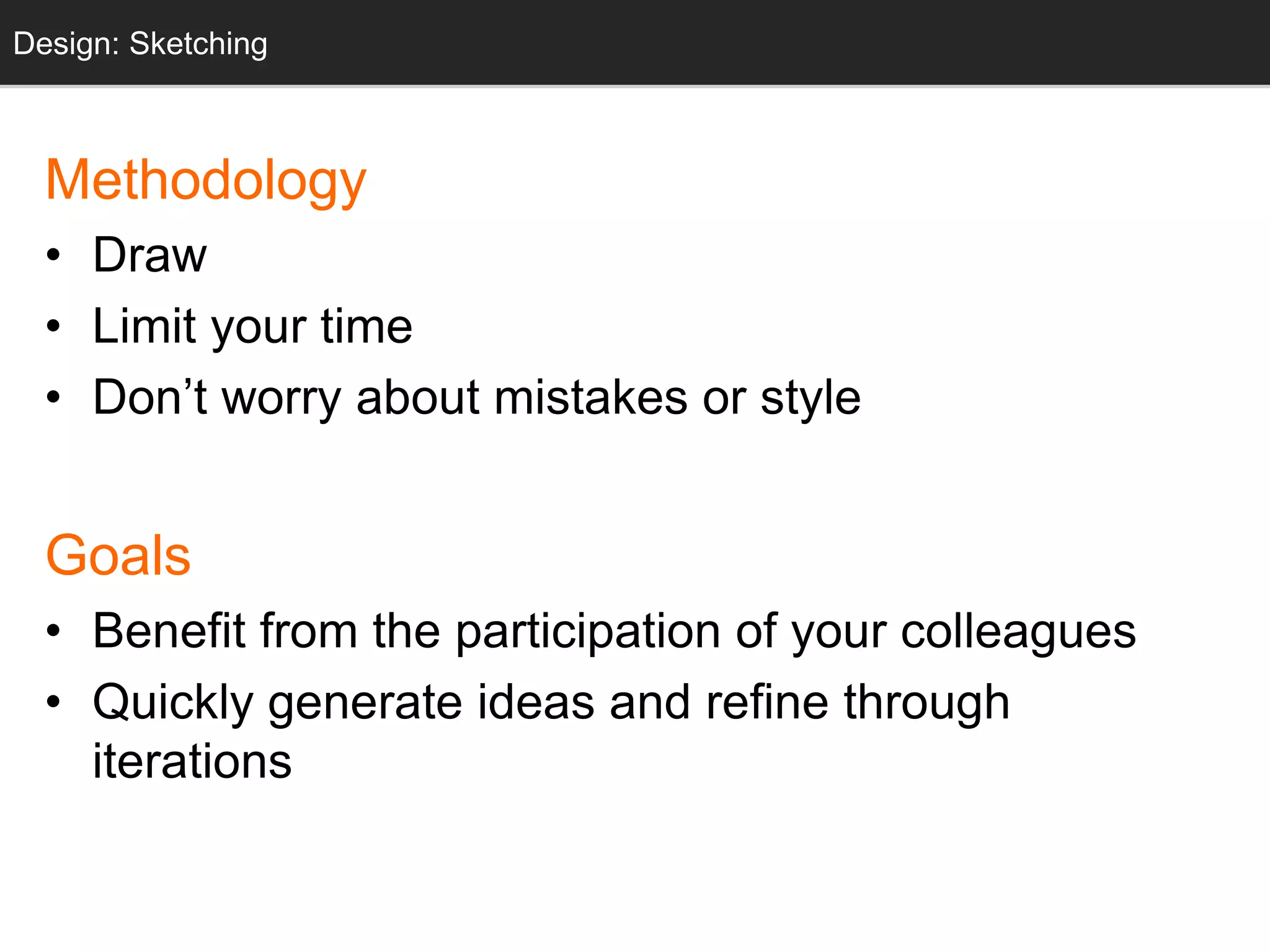

Methodology
• Draw
• Limit your time
• Don’t worry about mistakes or style
Goals
• Benefit from the participation of your colleagues
• Quickly generate ideas and refine through
iterations

Design: Sketching
Sketching

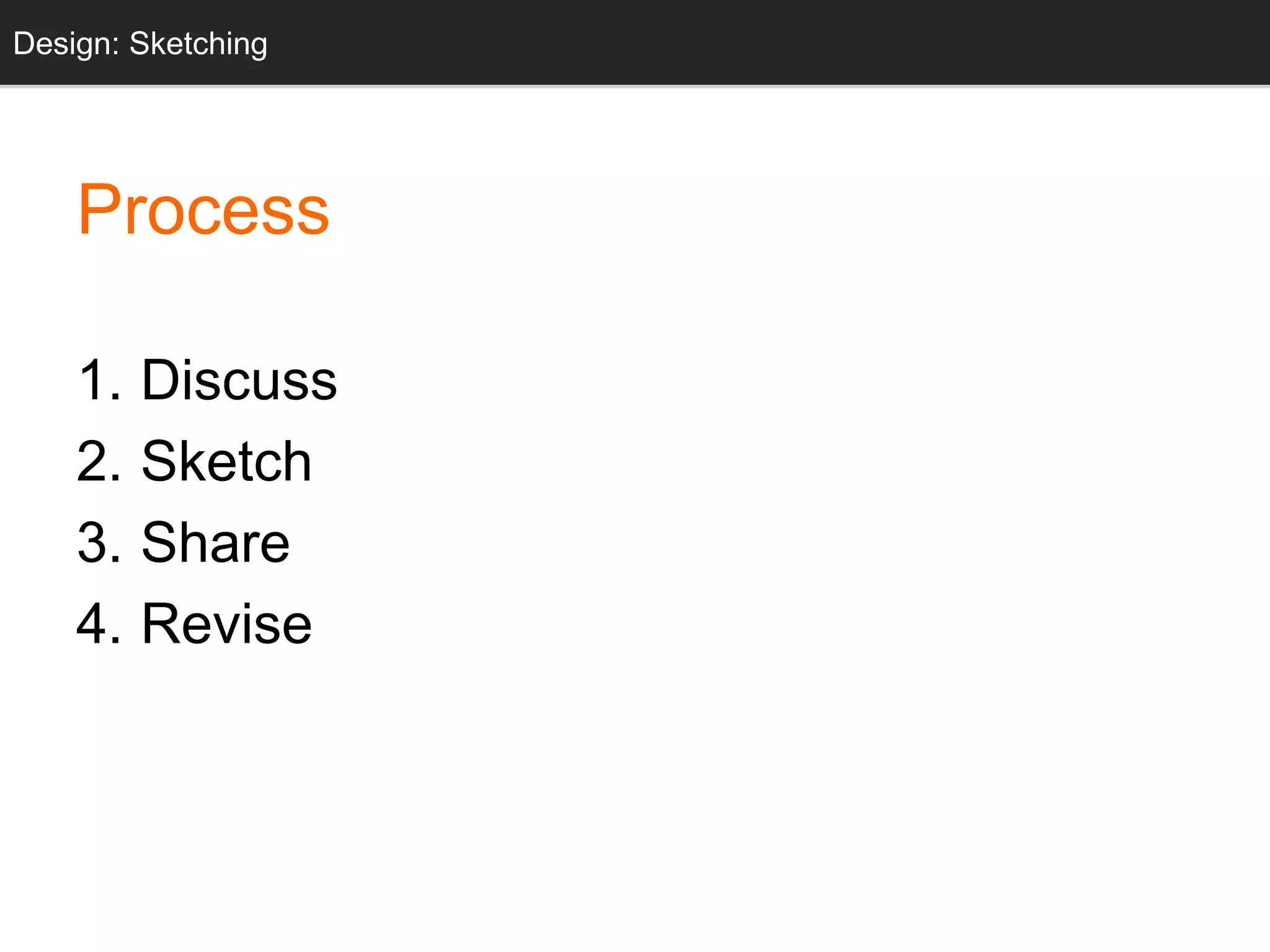

Process
1. Discuss
2. Sketch
3. Share
4. Revise

Design: Sketching

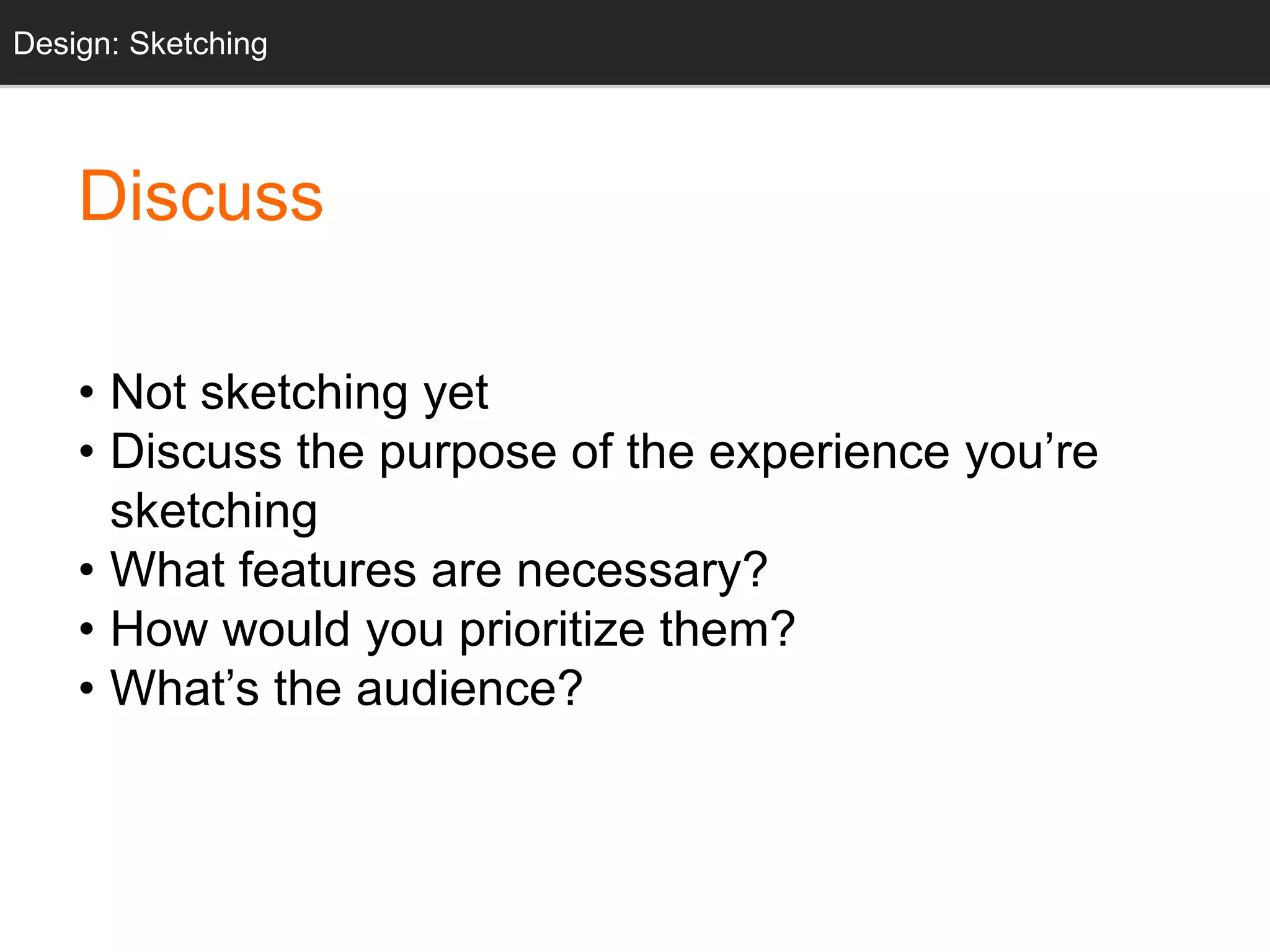

Discuss
• Not sketching yet
• Discuss the purpose of the experience you’re
sketching
• What features are necessary?
• How would you prioritize them?
• What’s the audience?

Design: Sketching

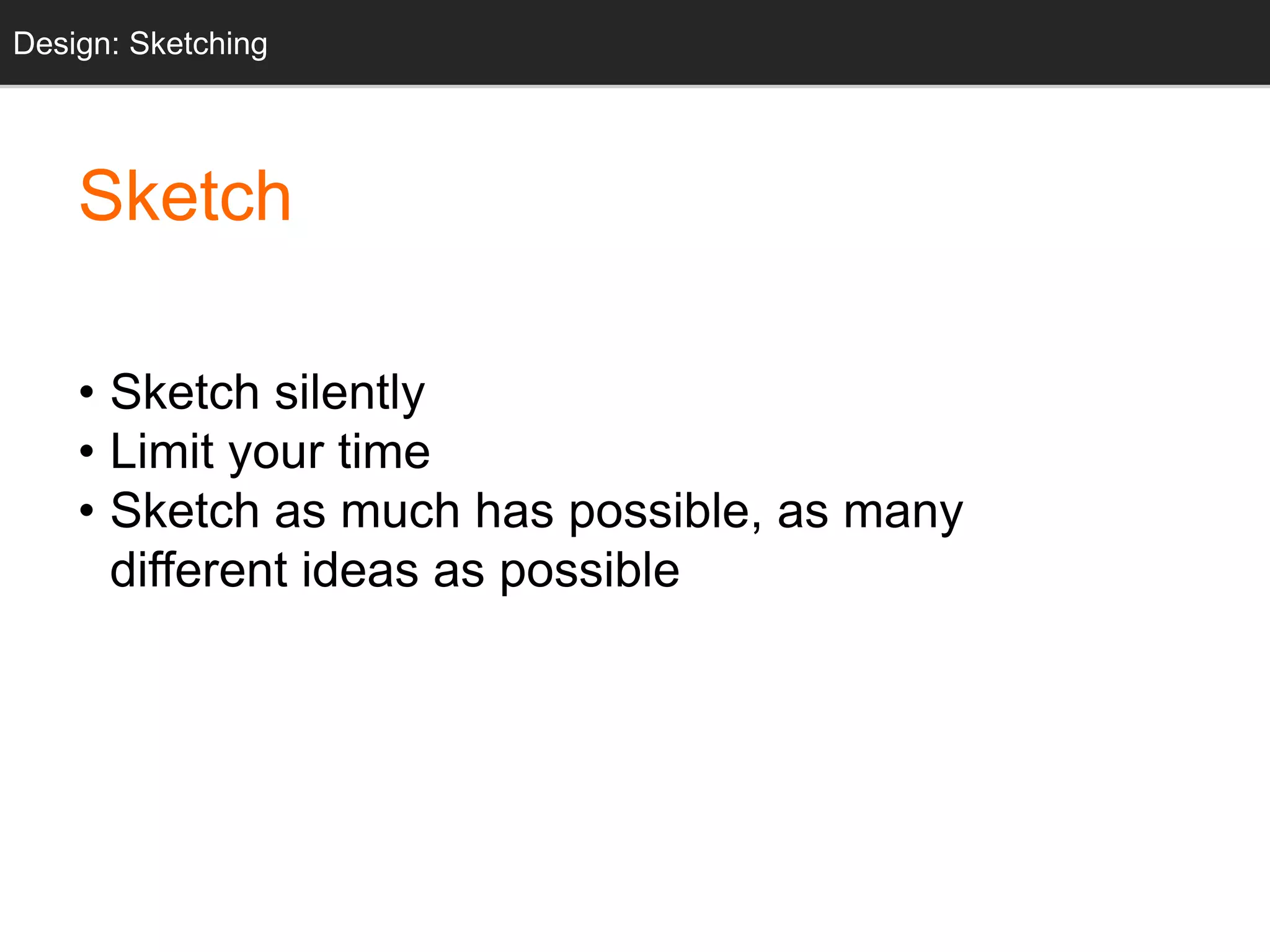

Sketch
• Sketch silently
• Limit your time
• Sketch as much has possible, as many
different ideas as possible

Design: Sketching

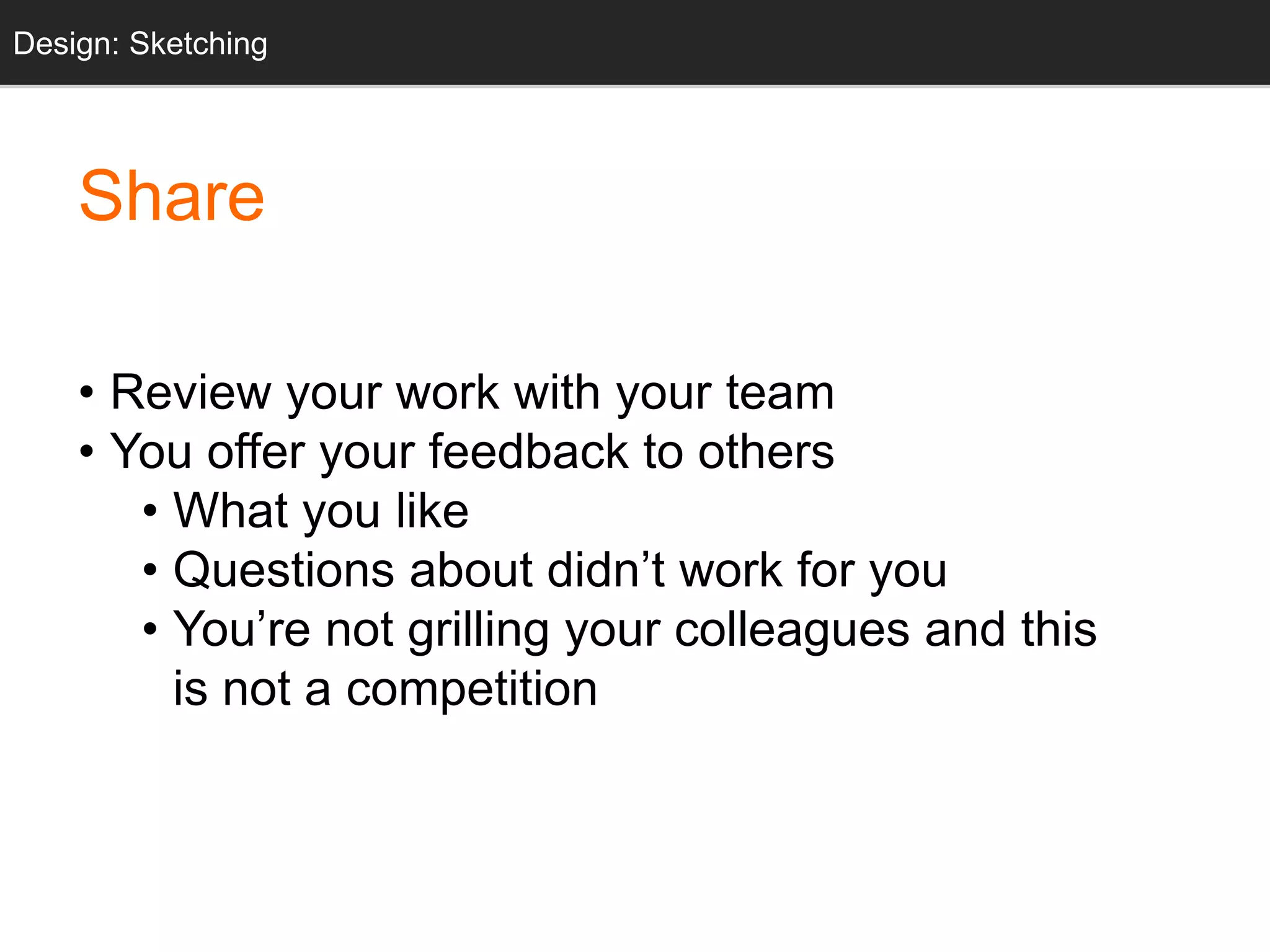

Share
• Review your work with your team
• You offer your feedback to others
• What you like
• Questions about didn’t work for you
• You’re not grilling your colleagues and this
is not a competition

Design: Sketching

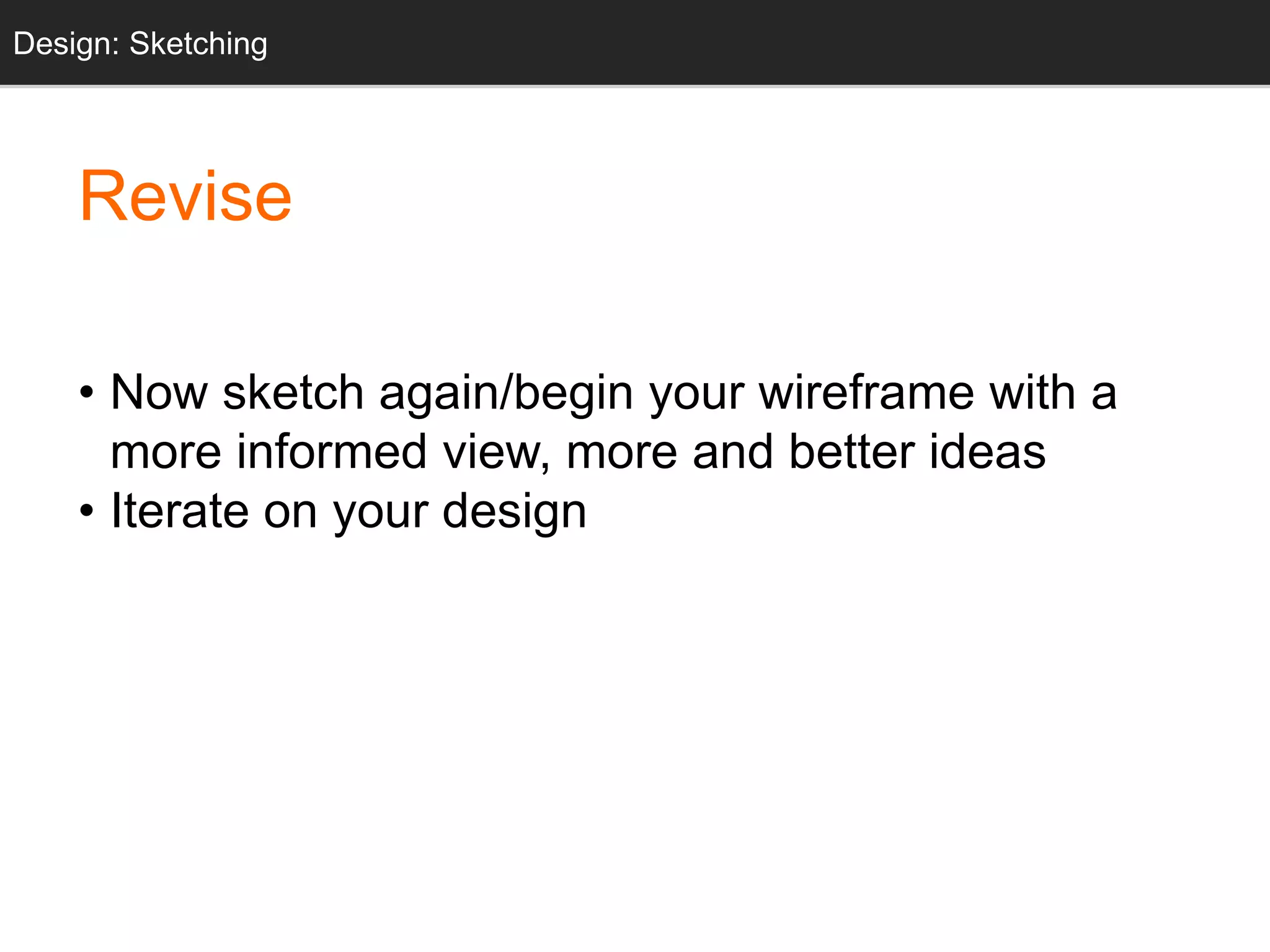

Revise
• Now sketch again/begin your wireframe with a
more informed view, more and better ideas
• Iterate on your design

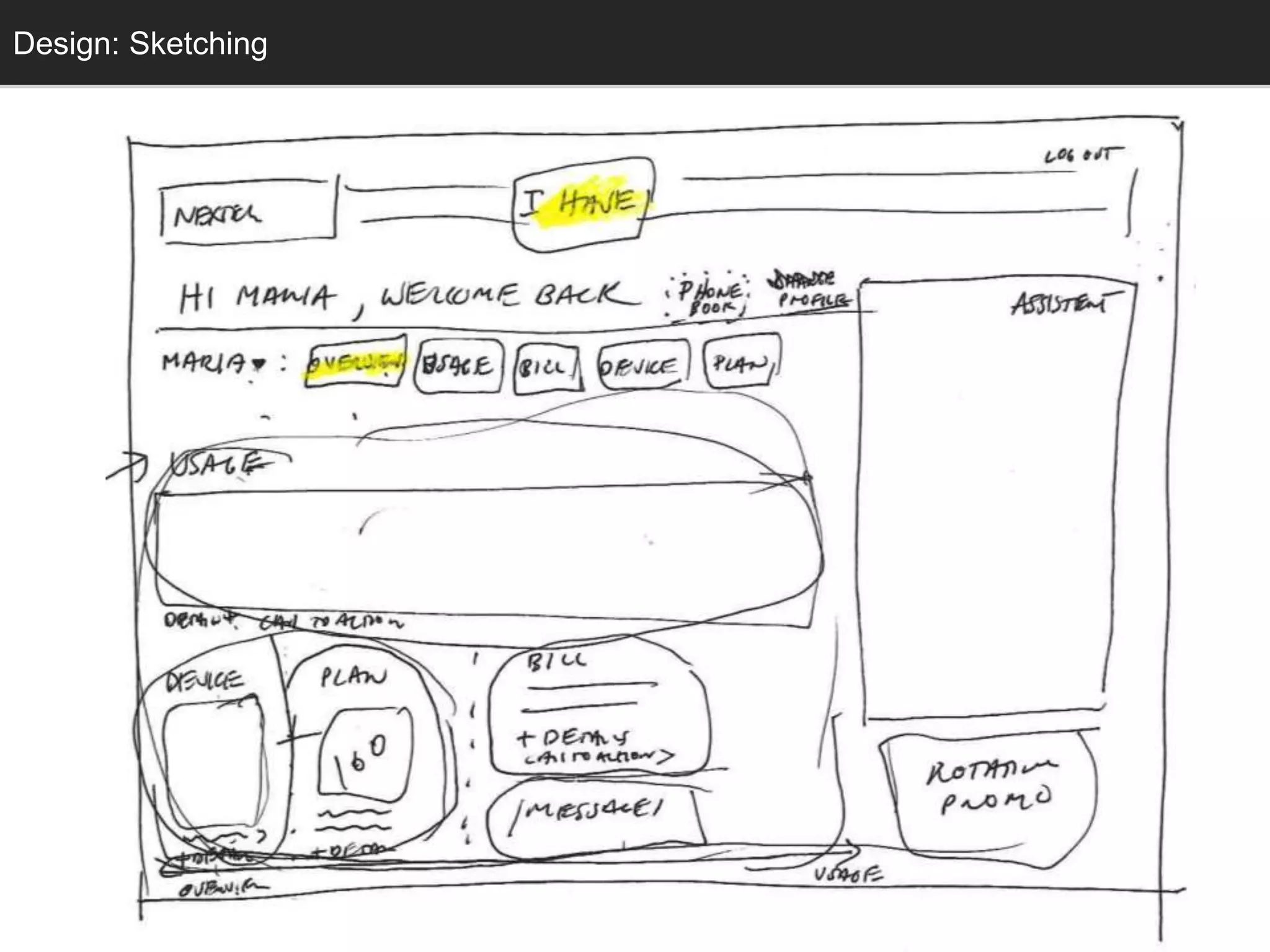

Design: Sketching
Design: Sketching

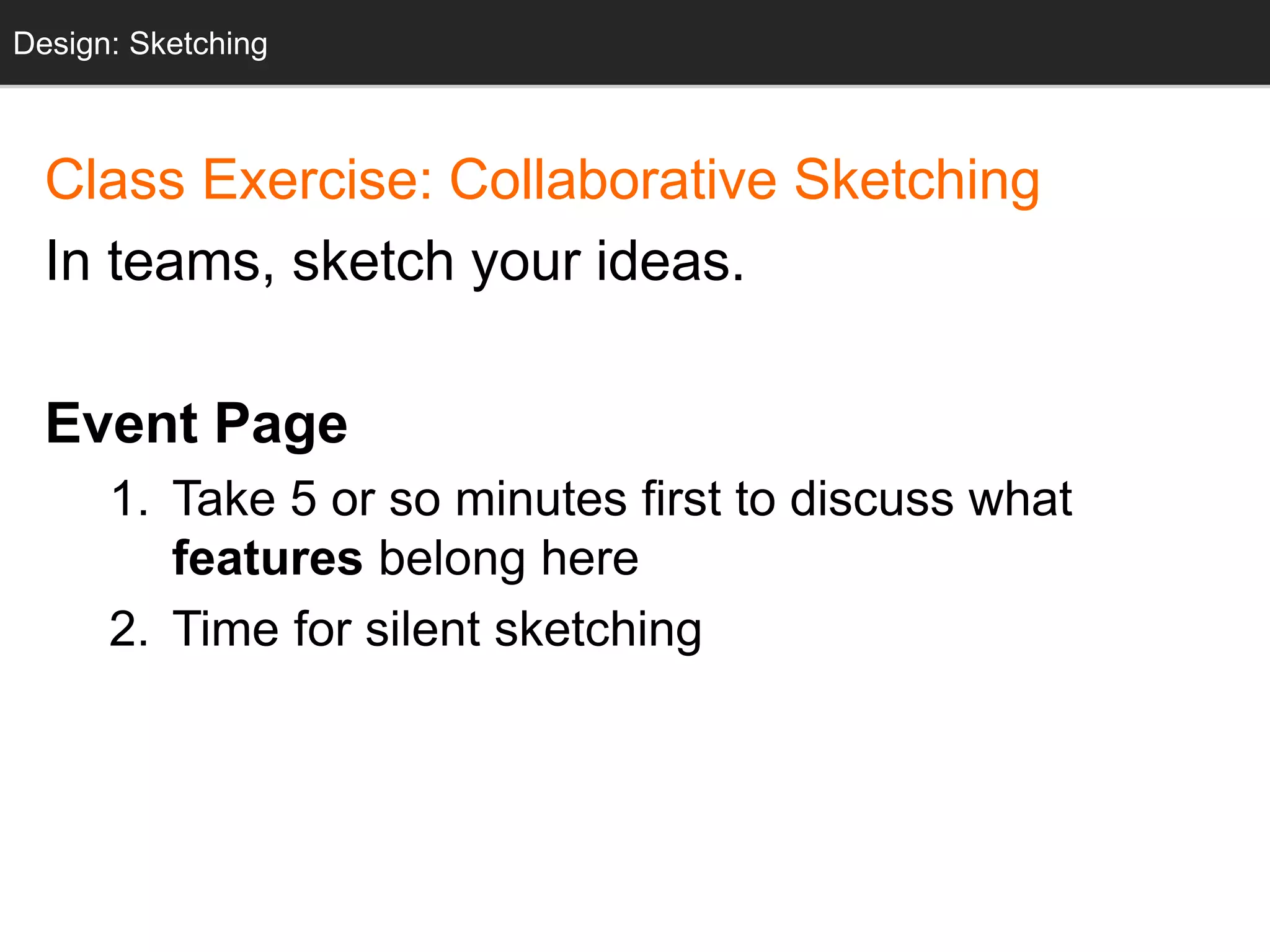

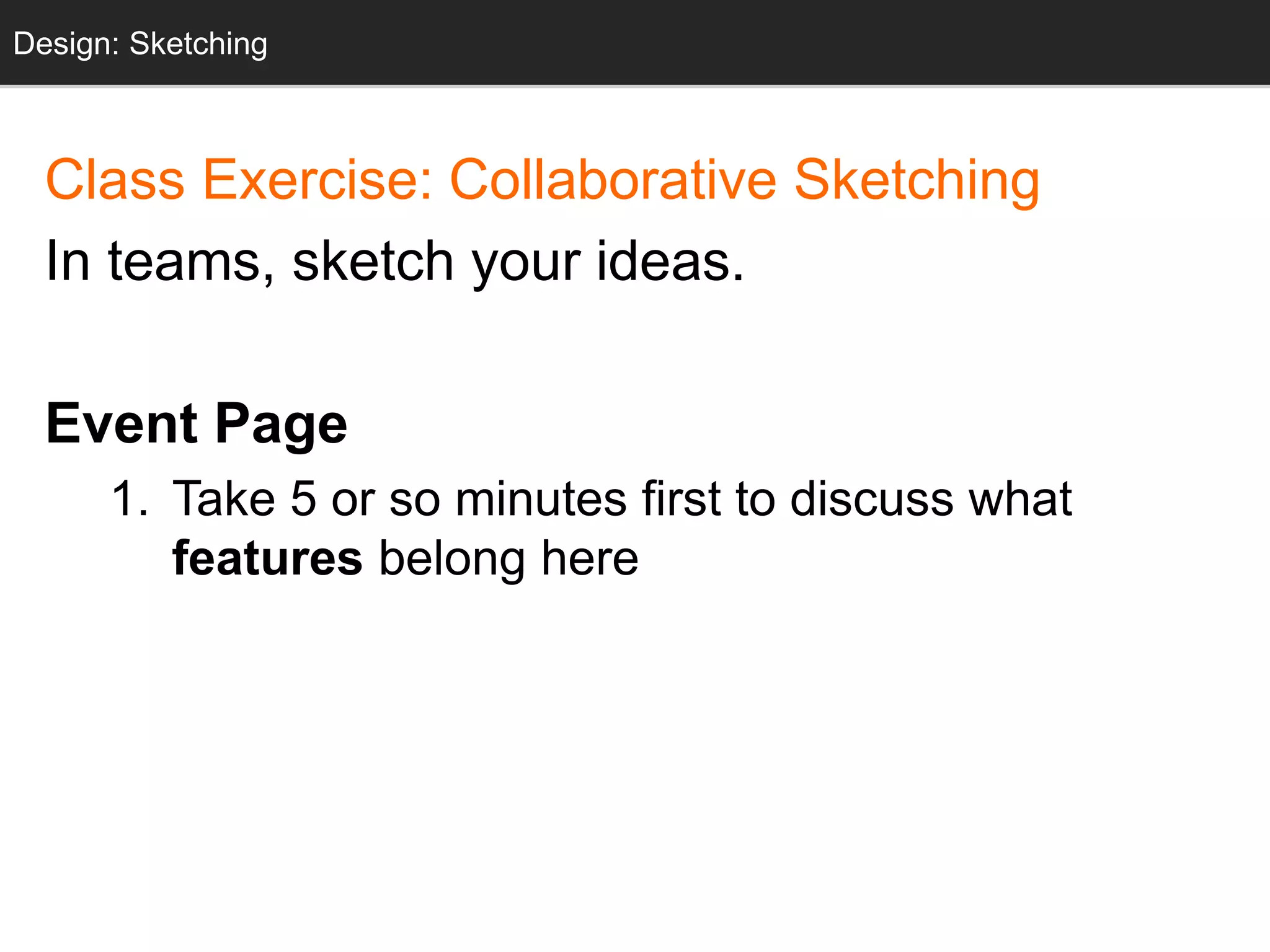

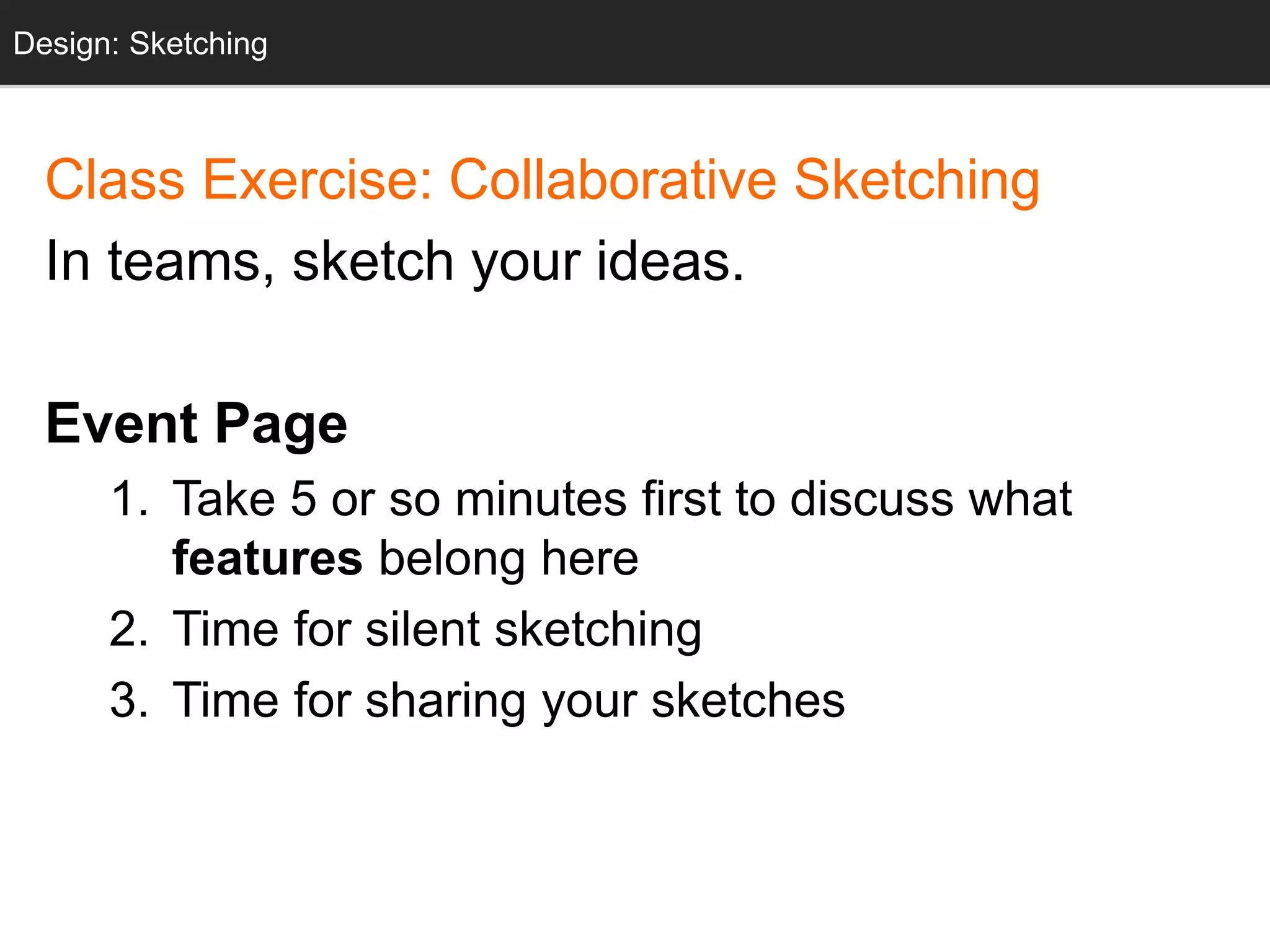

Class Exercise: Collaborative Sketching
In teams, sketch your ideas.
Event Page
1. Take 5 or so minutes first to discuss what
features belong here

Design: Sketching
Design: Sketching
Event Page
2. Time for silent sketching

Design: Sketching
Design: Sketching
Event Page
2. Time for silent sketching
3. Time for sharing your sketches

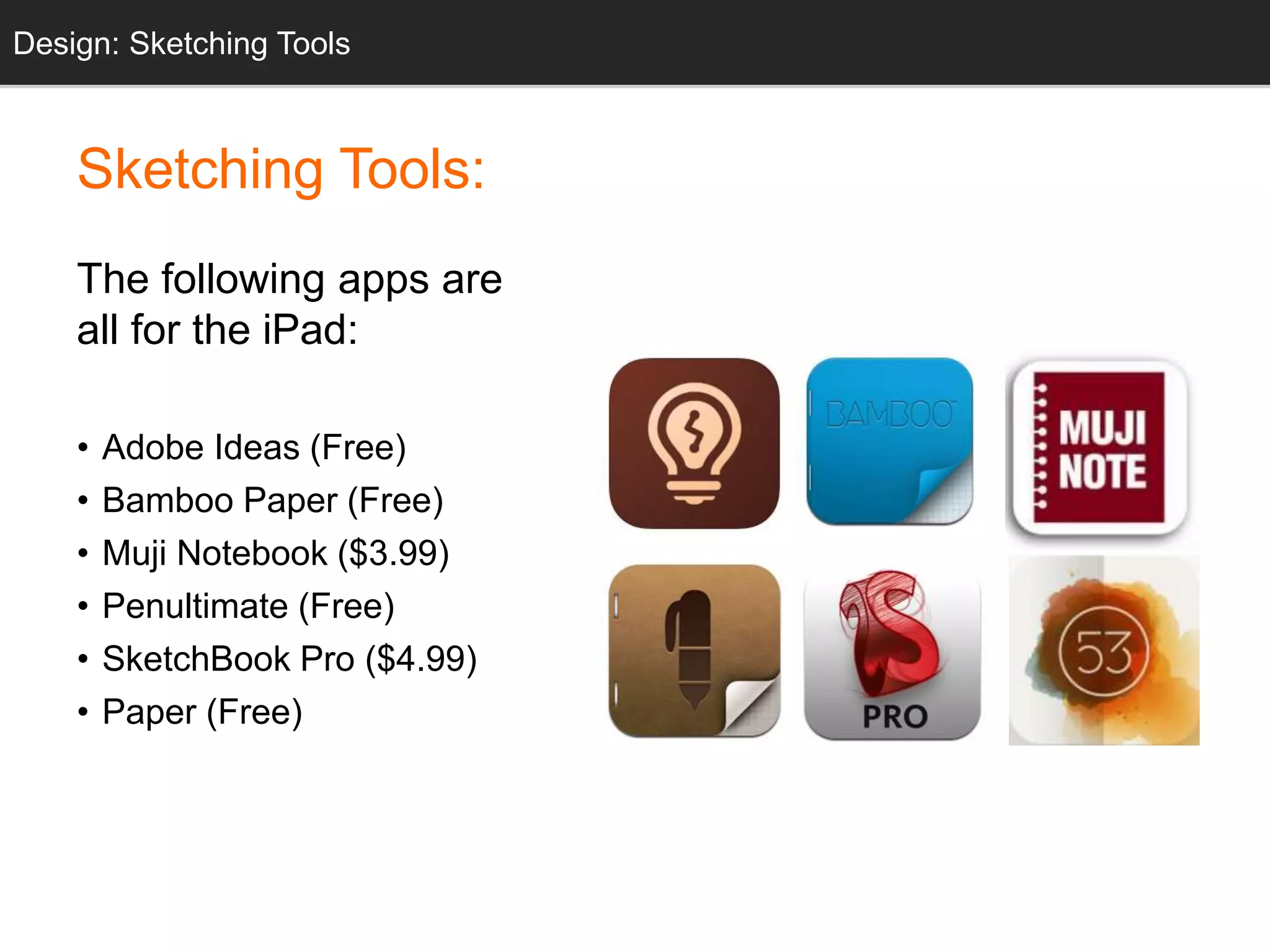

IDnefosign: Sketching Tools
Sketching Tools:
The following apps are
all for the iPad:
• Adobe Ideas (Free)
• Bamboo Paper (Free)
• Muji Notebook ($3.99)
• Penultimate (Free)
• SketchBook Pro ($4.99)
• Paper (Free)

Wireframes
photo & sculpture by
polly verity

Design: Wireframes
Wireframes

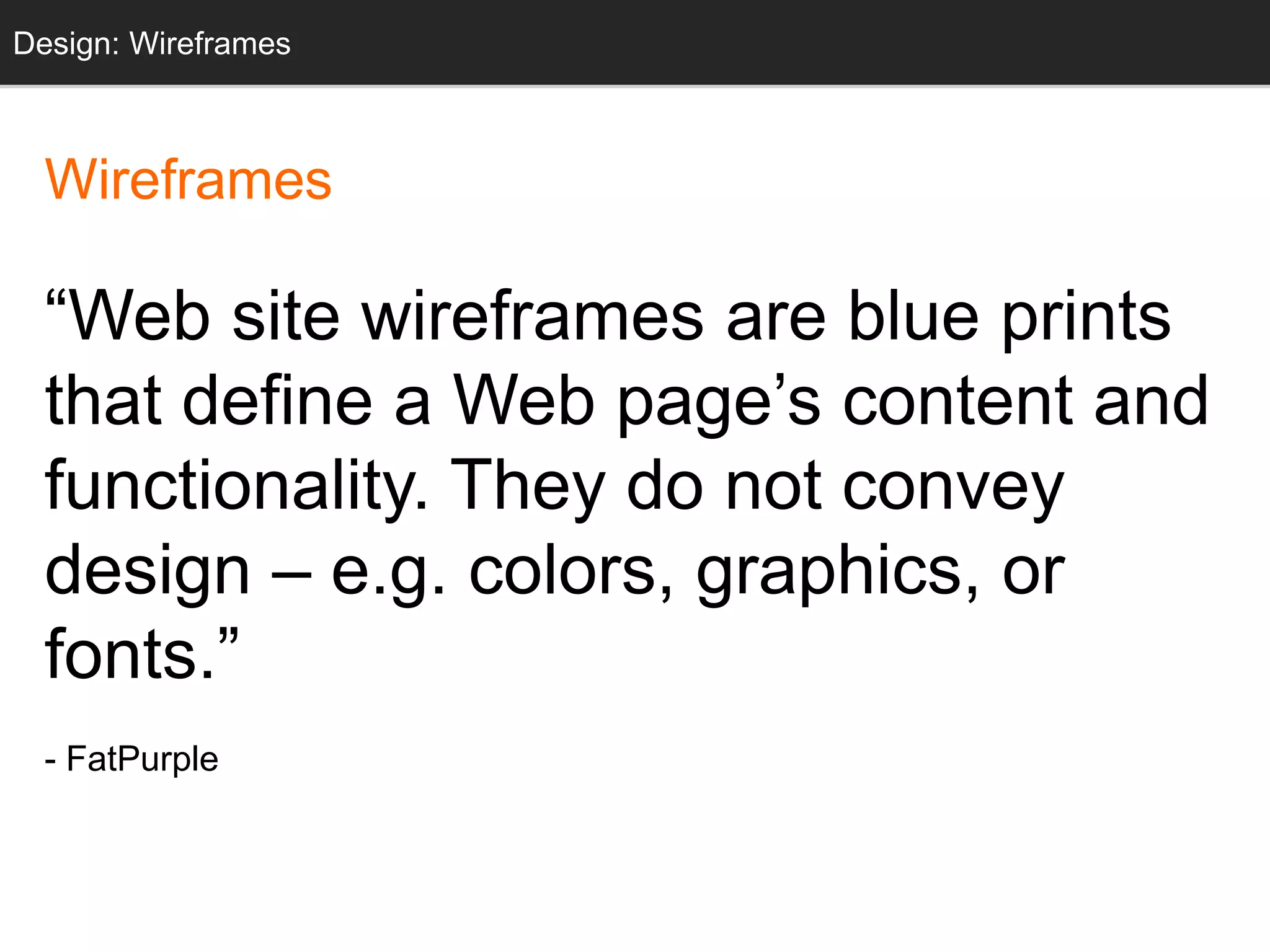

“Web site wireframes are blue prints
that define a Web page’s content and
functionality. They do not convey
design – e.g. colors, graphics, or
fonts.”
- FatPurple

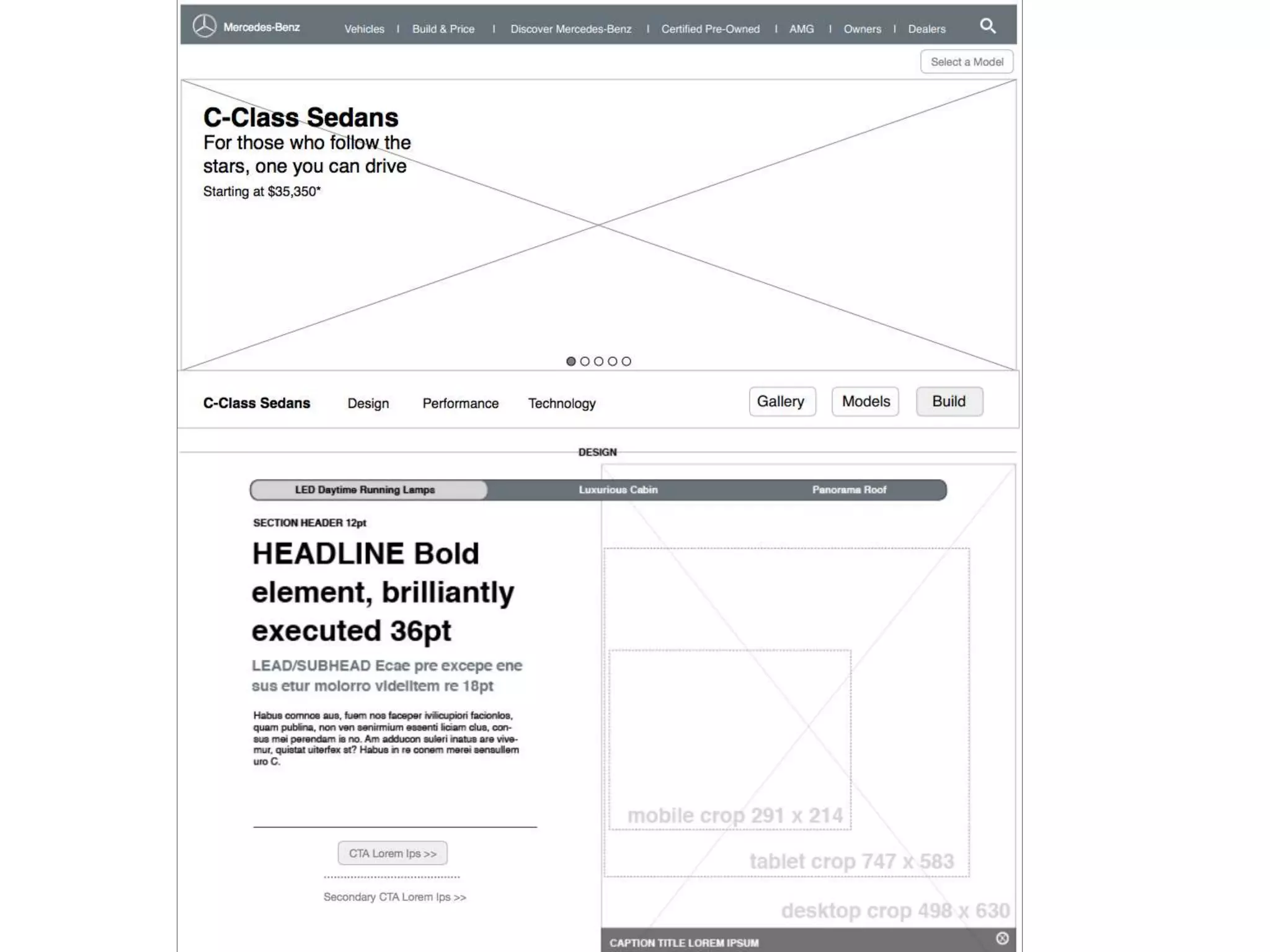

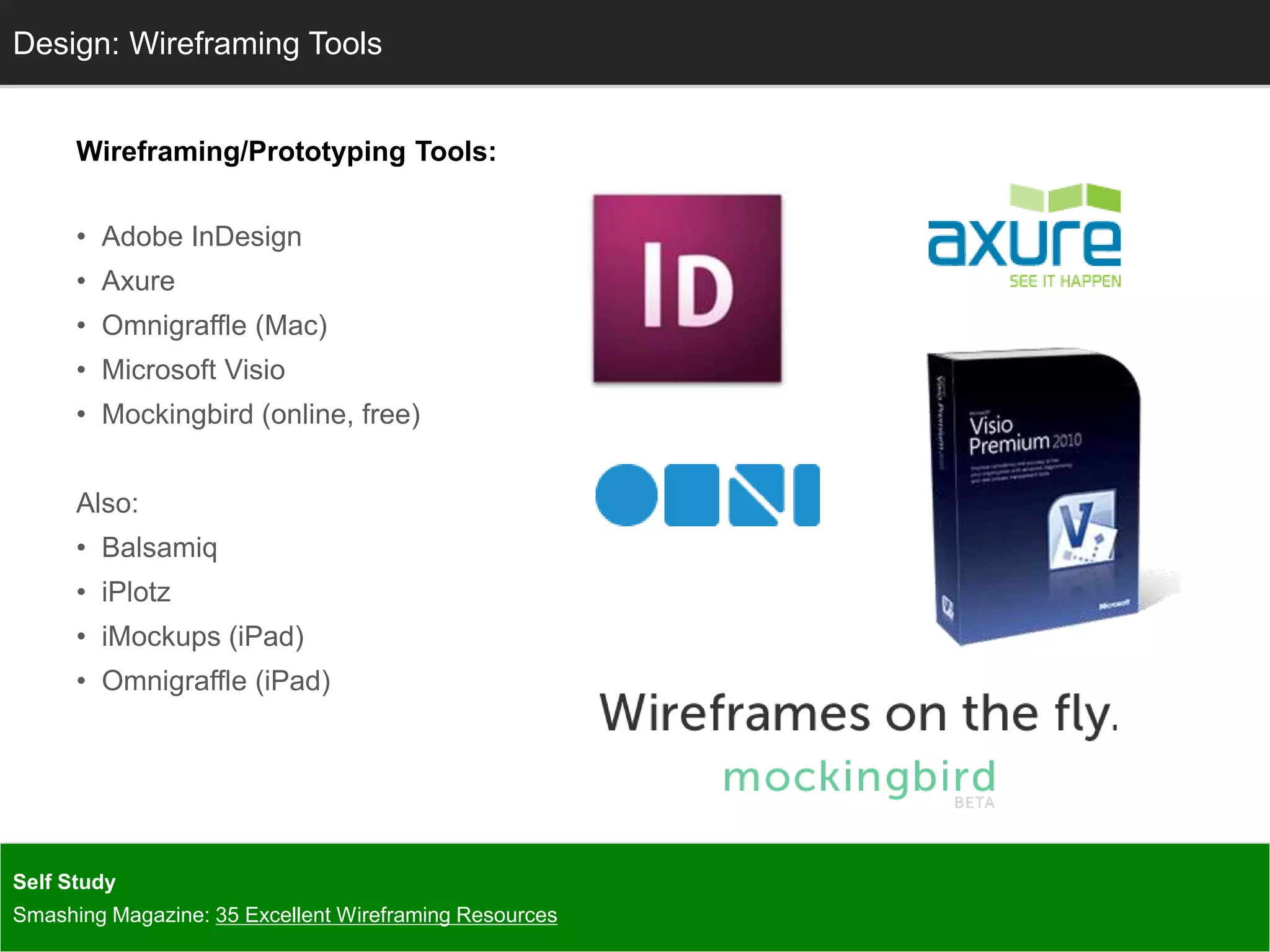

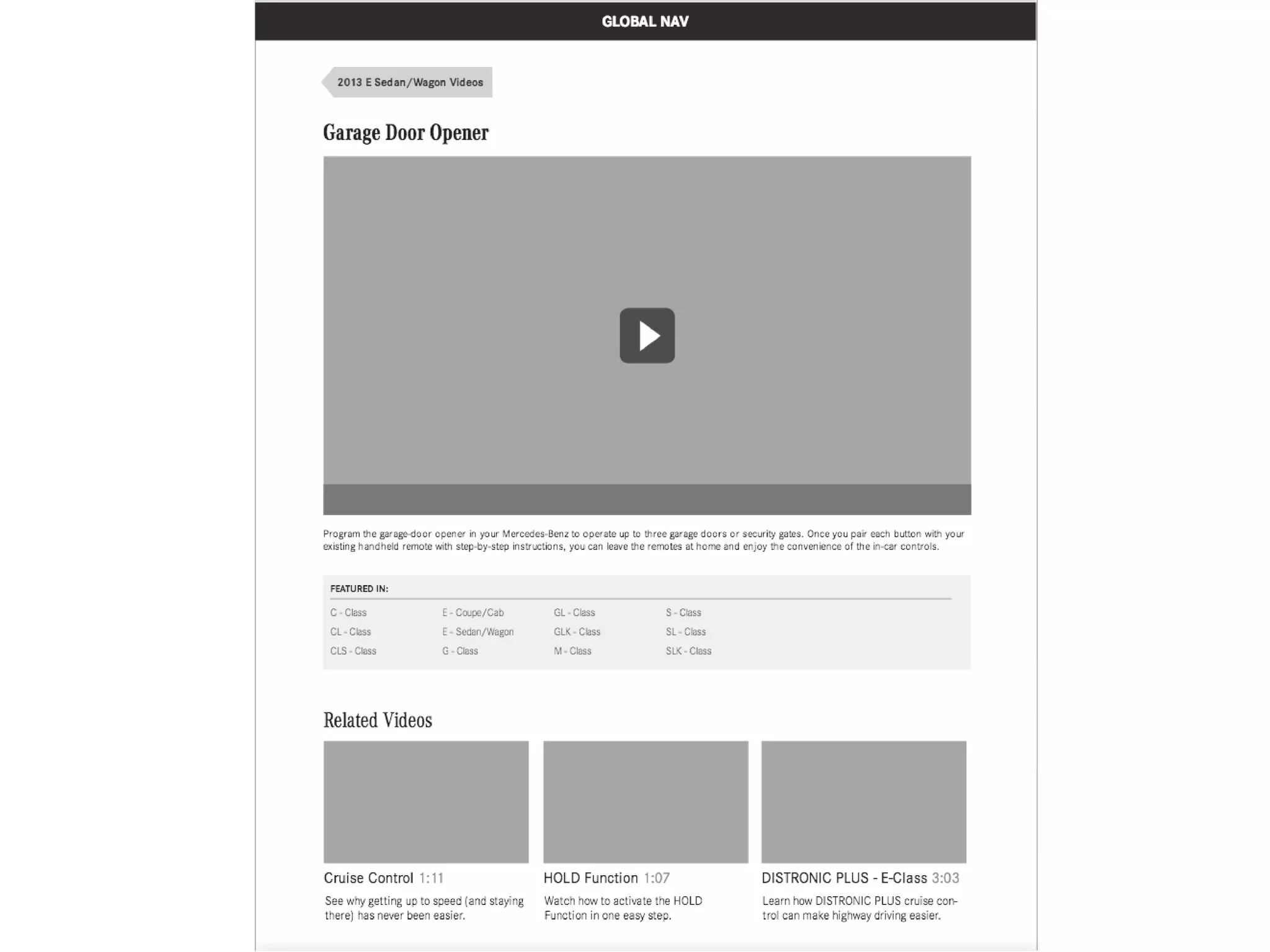

IDnefosign: Wireframing Tools
Wireframing/Prototyping Tools:
• Adobe InDesign
• Axure
• Omnigraffle (Mac)
• Microsoft Visio
• Mockingbird (online, free)
Also:
• Balsamiq
• iPlotz
• iMockups (iPad)
• Omnigraffle (iPad)
Self Study
Smashing Magazine: 35 Excellent Wireframing Resources

Design: Design: Responsive Sketching
Design
Responsive Web Design

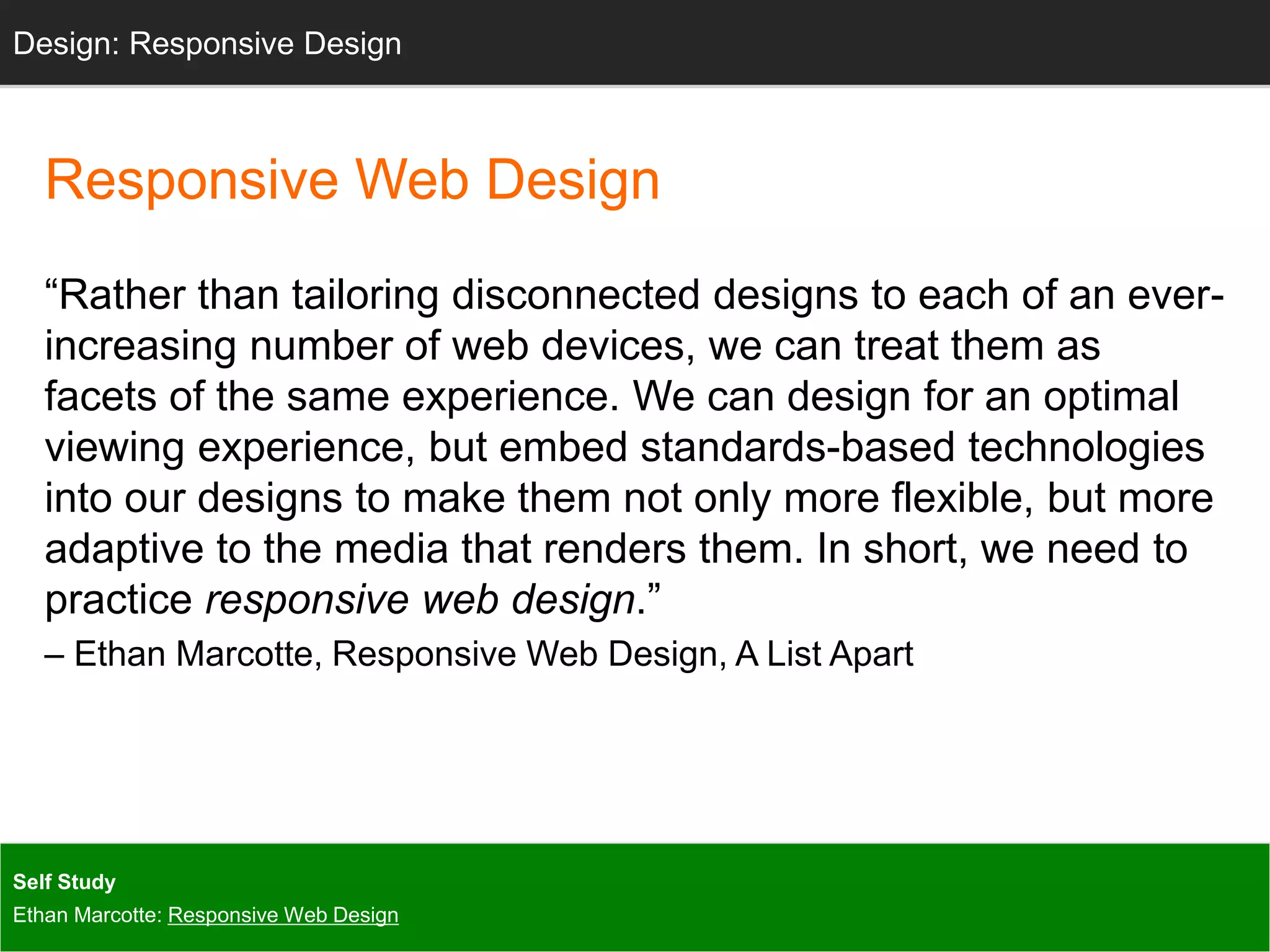

“Rather than tailoring disconnected designs to each of an ever-increasing
number of web devices, we can treat them as
facets of the same experience. We can design for an optimal
viewing experience, but embed standards-based technologies
into our designs to make them not only more flexible, but more
adaptive to the media that renders them. In short, we need to
practice responsive web design.”
– Ethan Marcotte, Responsive Web Design, A List Apart
Self Study
Ethan Marcotte: Responsive Web Design

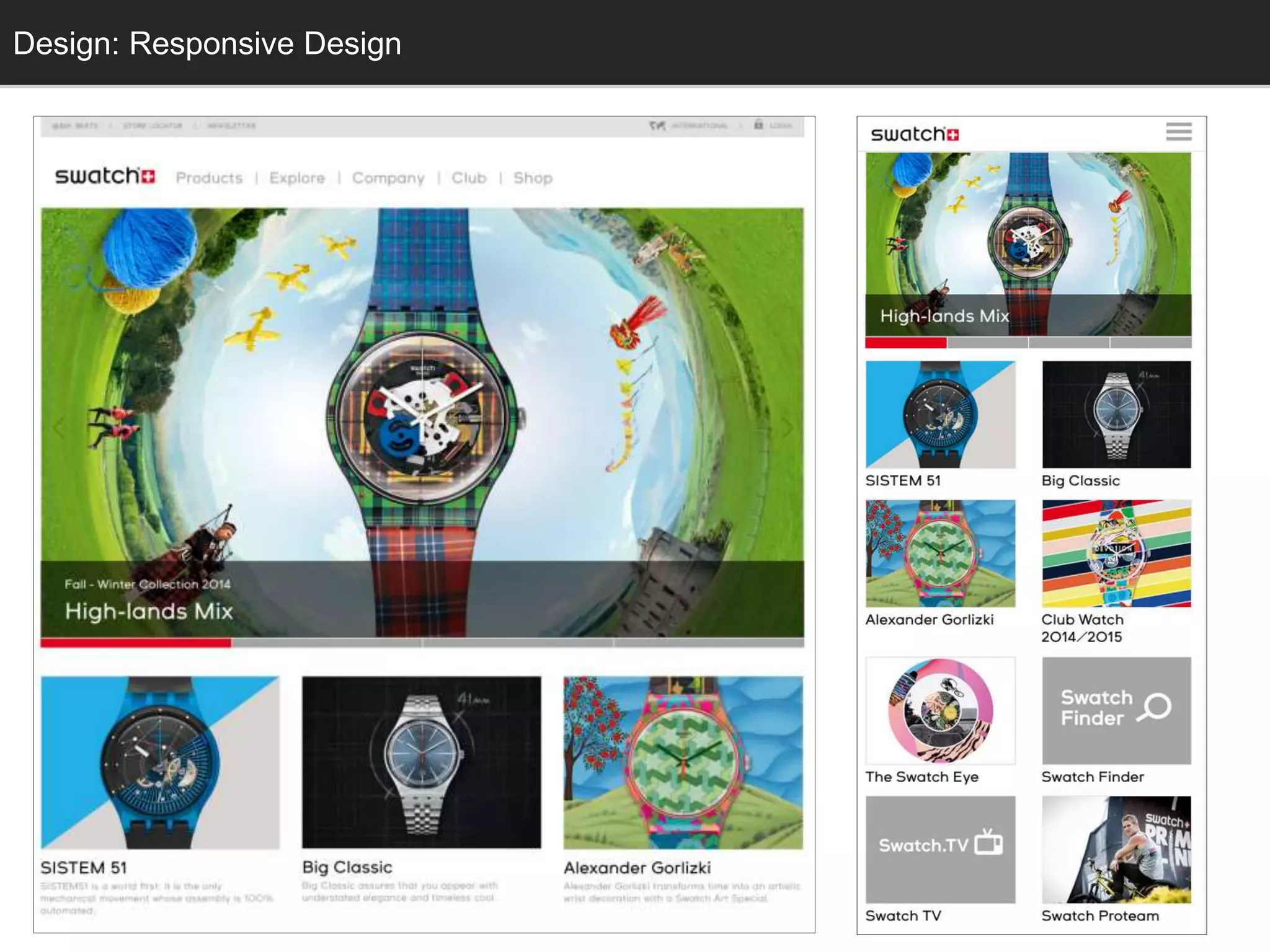

DeDseigsnig: nR: eSskpeotncshiivneg Design

DeDseigsnig: nR: eSskpeotncshiivneg Design

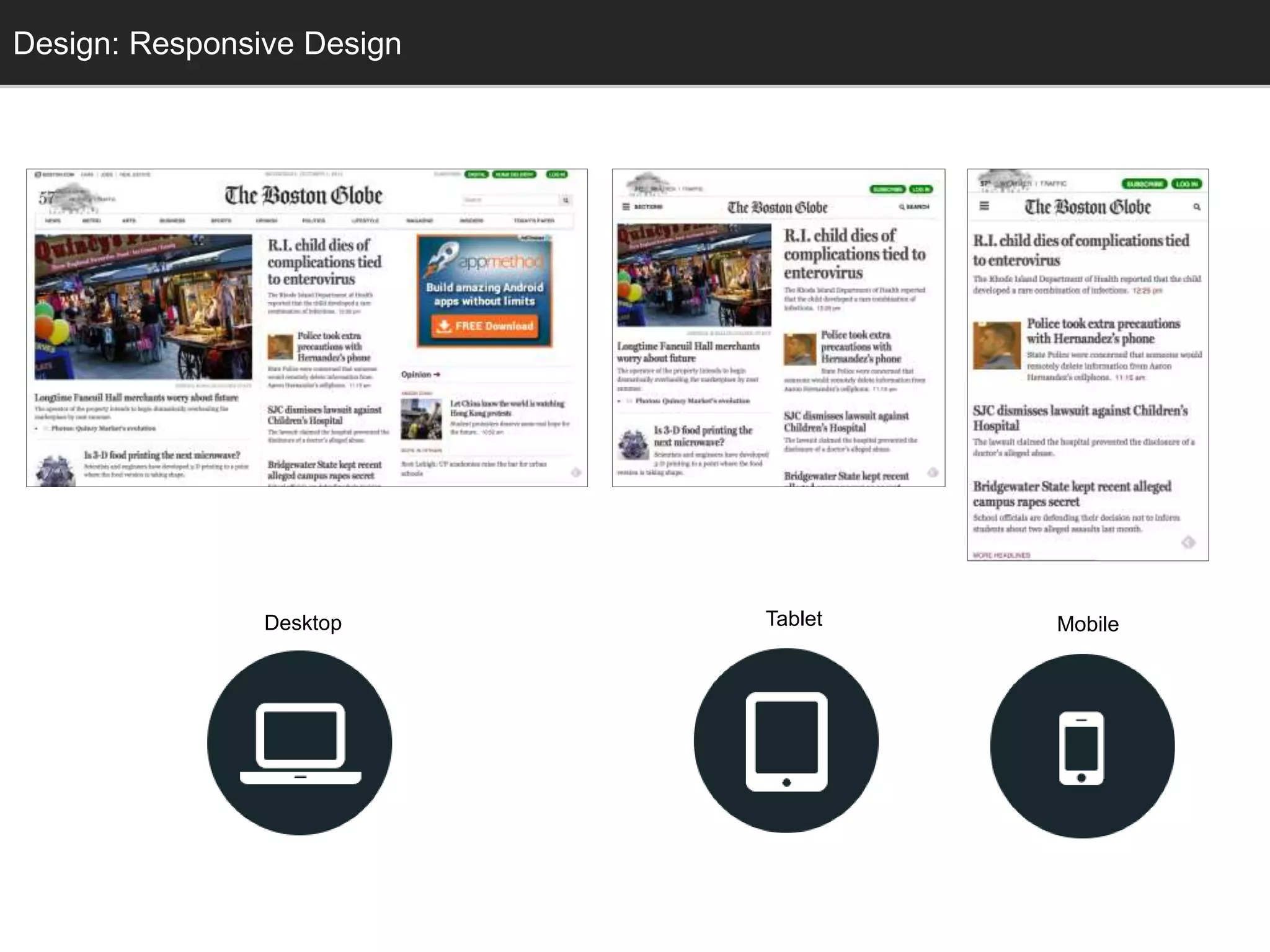

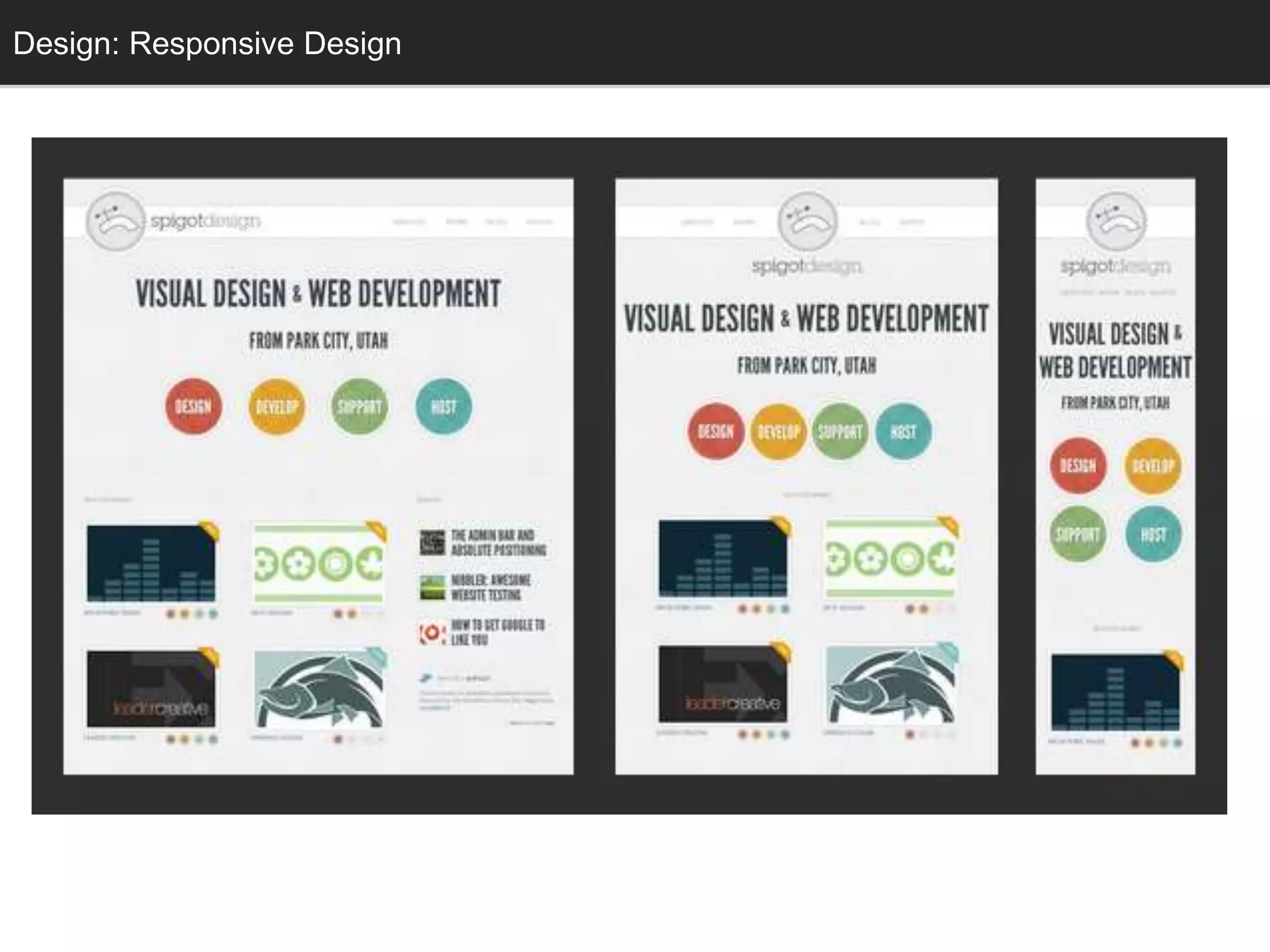

Desktop Tablet Mobile

Design: Design: Responsive Sketching
Design

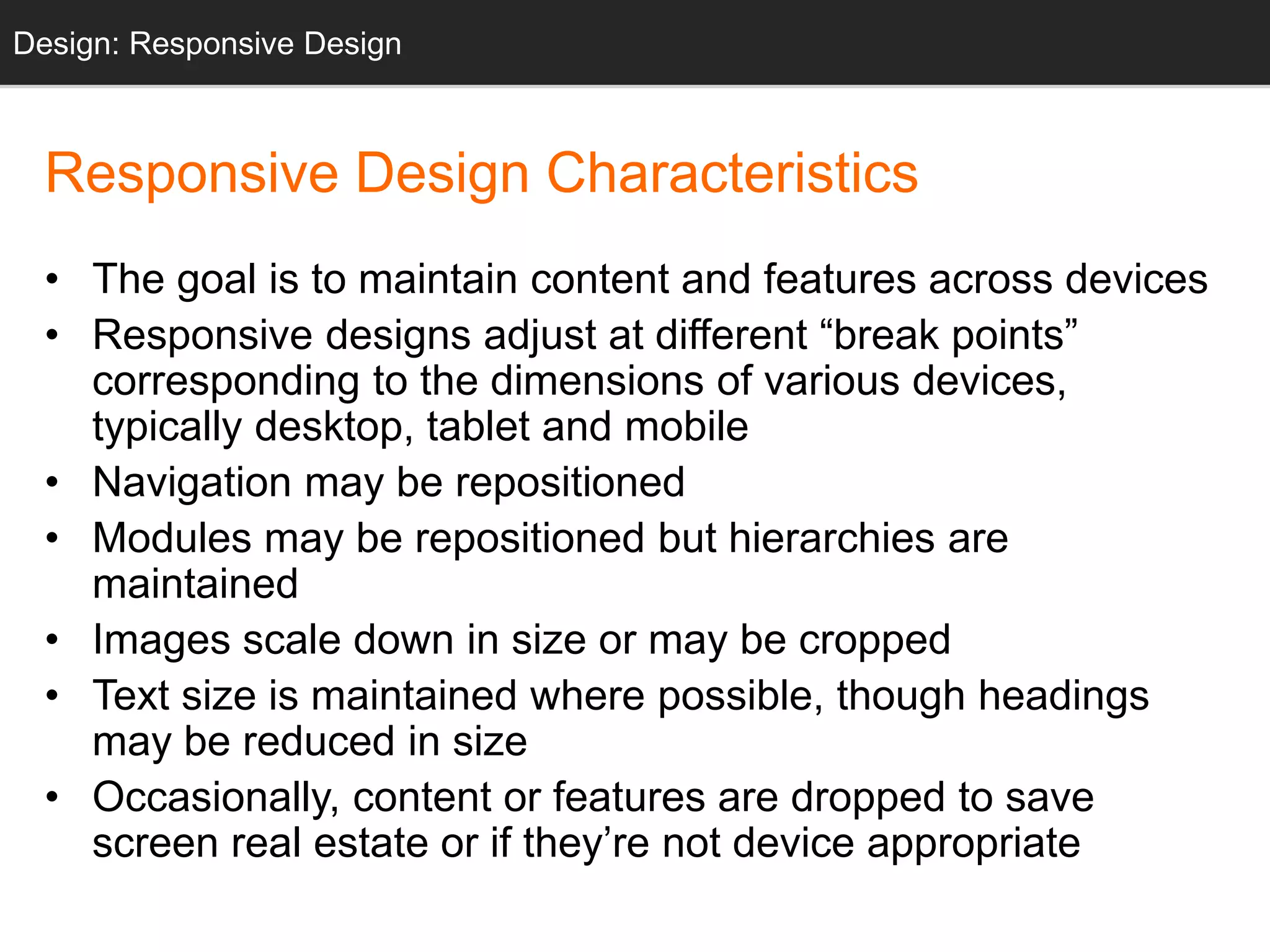

Responsive Design Characteristics
• The goal is to maintain content and features across devices
• Responsive designs adjust at different “break points”
corresponding to the dimensions of various devices,
typically desktop, tablet and mobile
• Navigation may be repositioned
• Modules may be repositioned but hierarchies are
maintained
• Images scale down in size or may be cropped
• Text size is maintained where possible, though headings
may be reduced in size
• Occasionally, content or features are dropped to save
screen real estate or if they’re not device appropriate

Design: Design: Final Sketching

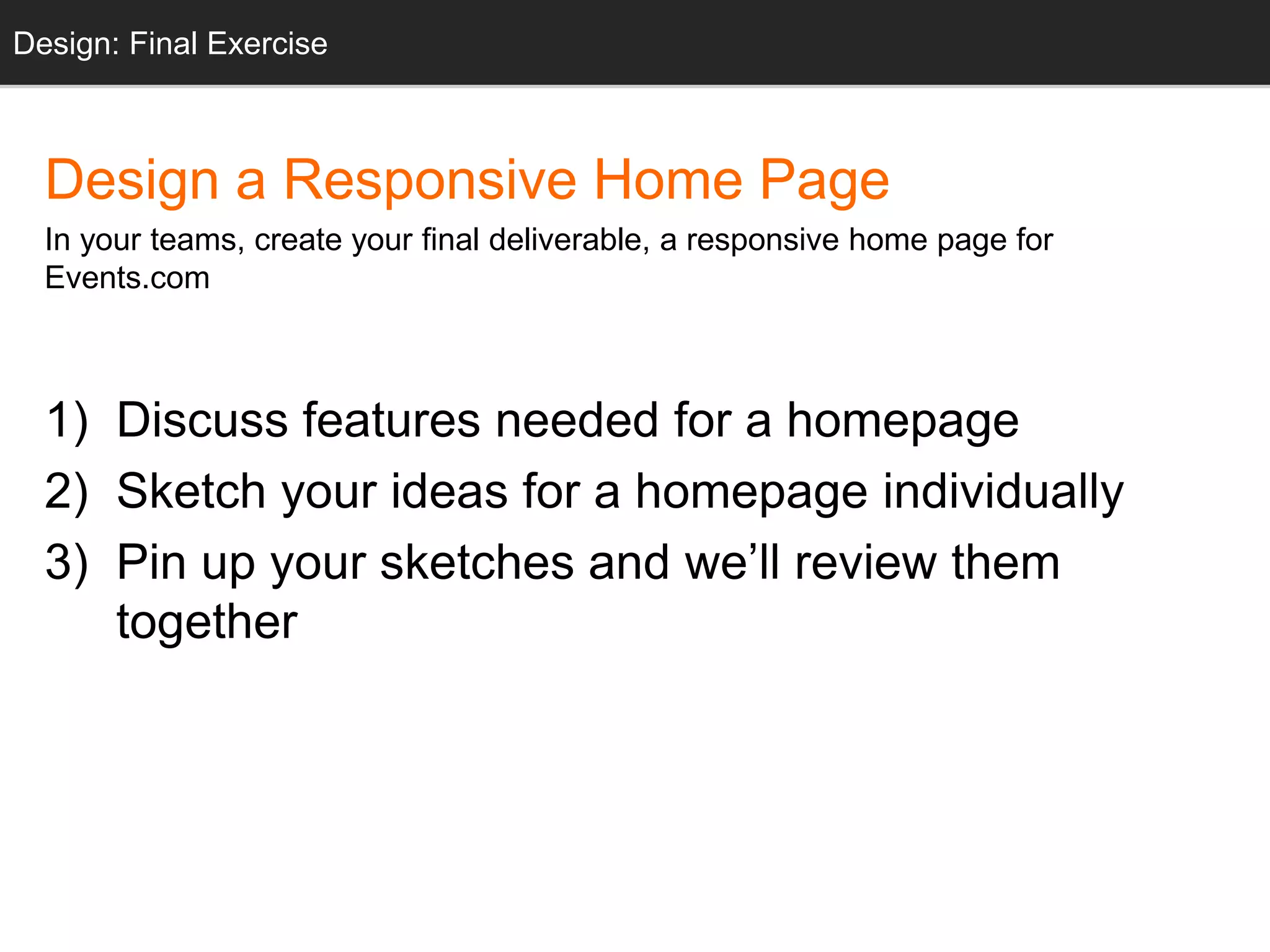

Exercise
Design a Responsive Home Page
In your teams, create your final deliverable, a responsive home page for
Events.com
1) Discuss features needed for a homepage
2) Sketch your ideas for a homepage individually
3) Pin up your sketches and we’ll review them
together

Design: Final Exercise
Don’t forget to keep your personas in mind

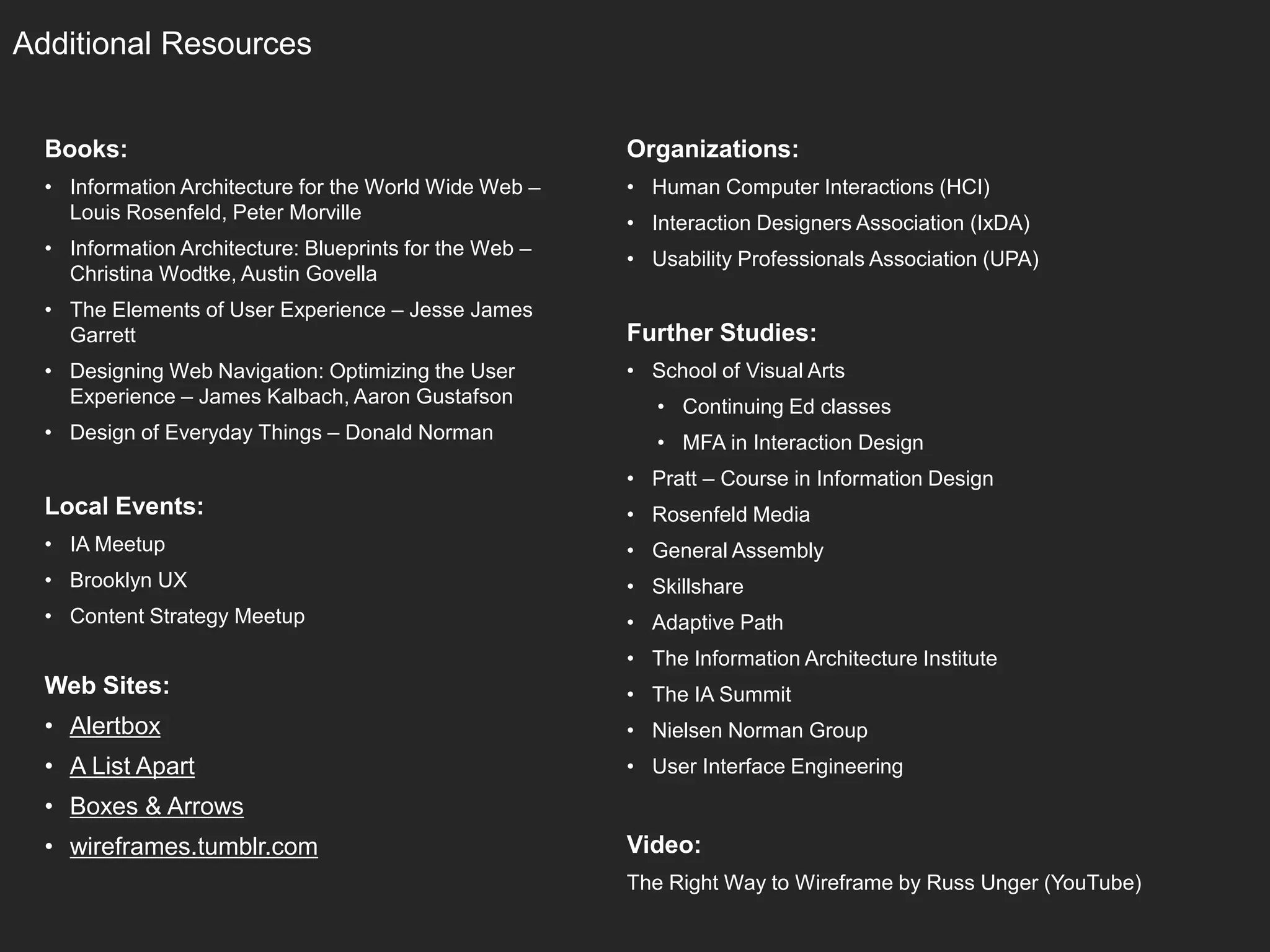

Additional Resources
Books:
• Information Architecture for the World Wide Web –
Louis Rosenfeld, Peter Morville
• Information Architecture: Blueprints for the Web –
Christina Wodtke, Austin Govella
• The Elements of User Experience – Jesse James
Garrett
• Designing Web Navigation: Optimizing the User
Experience – James Kalbach, Aaron Gustafson
• Design of Everyday Things – Donald Norman
Local Events:
• IA Meetup
• Brooklyn UX
• Content Strategy Meetup
Web Sites:
• Alertbox
• A List Apart
• Boxes & Arrows
• wireframes.tumblr.com
Organizations:
• Human Computer Interactions (HCI)
• Interaction Designers Association (IxDA)
• Usability Professionals Association (UPA)
Further Studies:
• School of Visual Arts
• Continuing Ed classes
• MFA in Interaction Design
• Pratt – Course in Information Design
• Rosenfeld Media
• General Assembly
• Skillshare
• Adaptive Path
• The Information Architecture Institute
• The IA Summit
• Nielsen Norman Group
• User Interface Engineering
Video:
The Right Way to Wireframe by Russ Unger (YouTube)

Slideshare address:
http://www.slideshare.net/stribs
My article on how to find an IA job:
http://blog.onwardsearch.com/2012/08/information-architecture-a-guerilla-guide-to-breaking-in/
@stribs

Design: Wireframes
Design: Sketching
Wireframe & Prototyping Tools

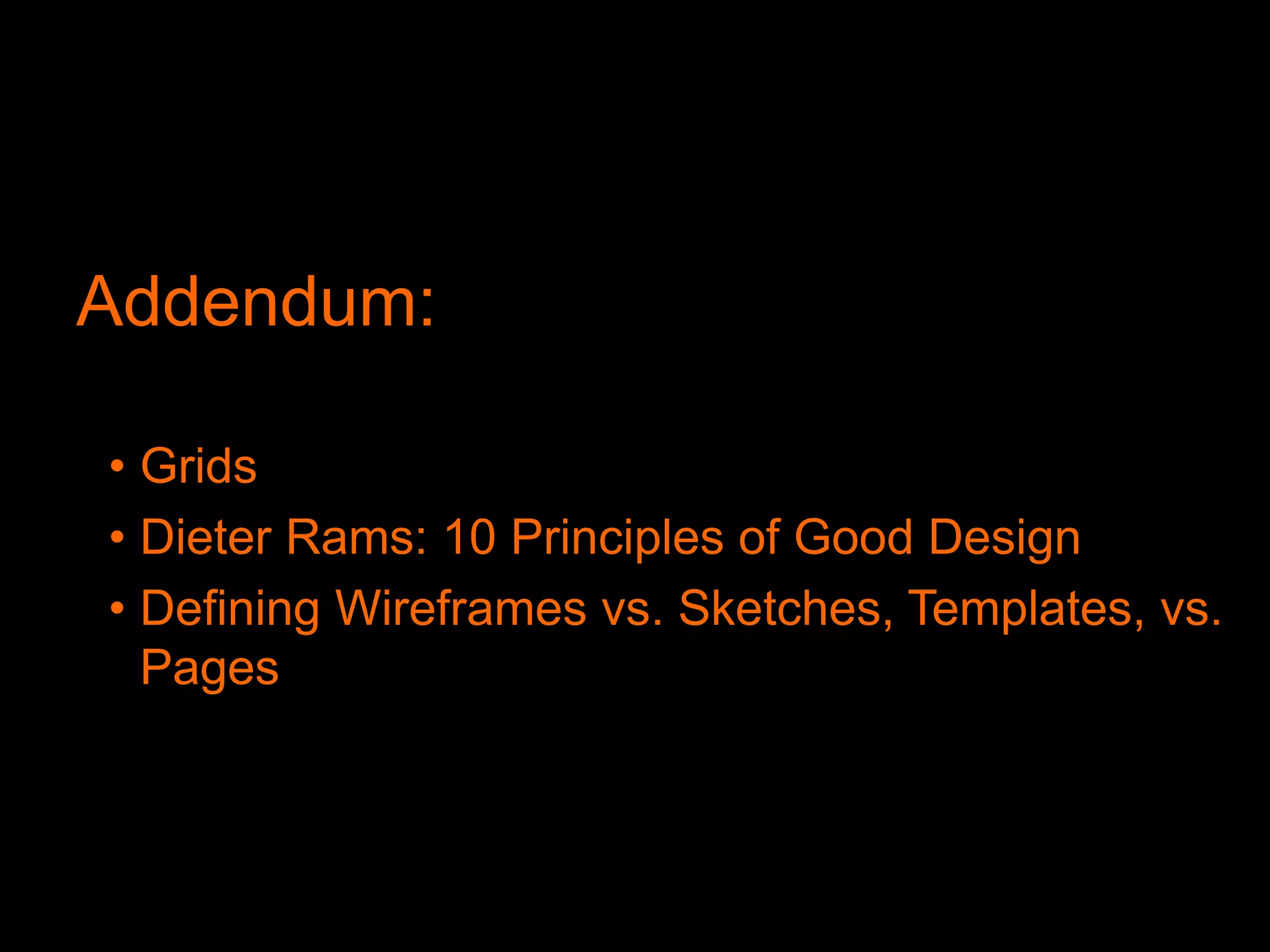

Addendum:
Axure
Dreamweaver
InDesign
Visio
• Grids
• Dieter Rams: 10 Principles of Good Design

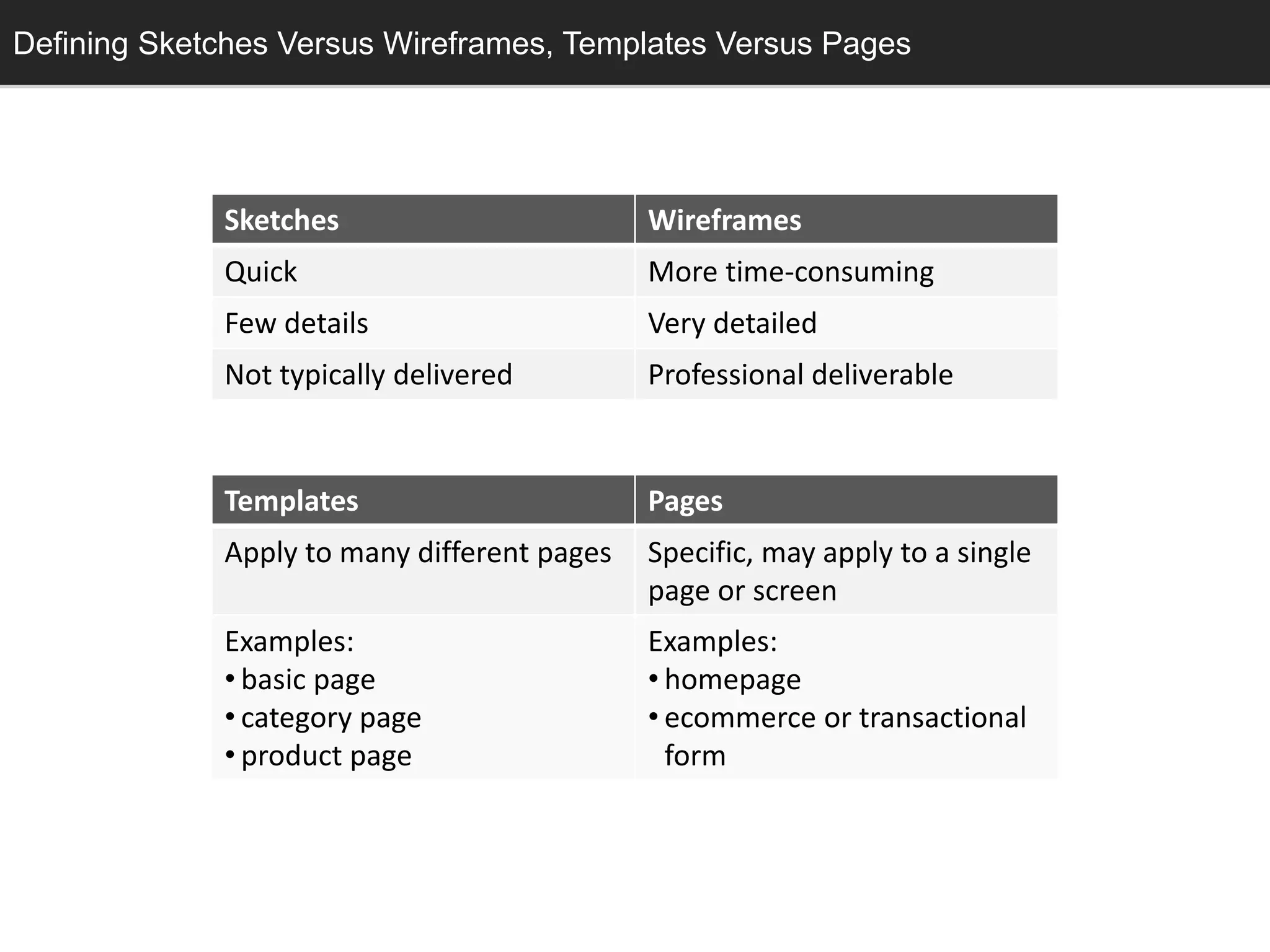

• Defining Wireframes vs. Sketches, Templates, vs.
Pages

Design: Grids

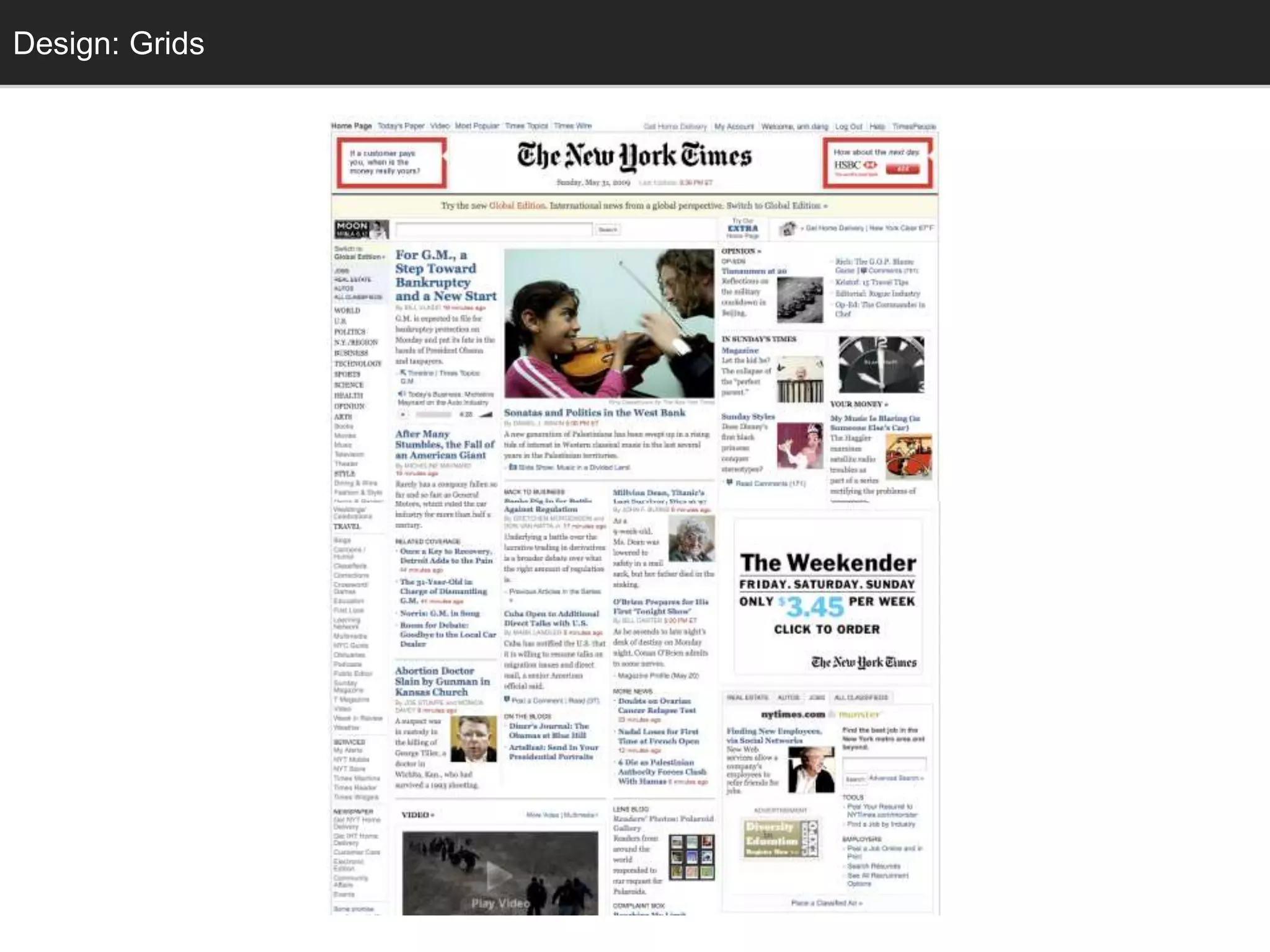

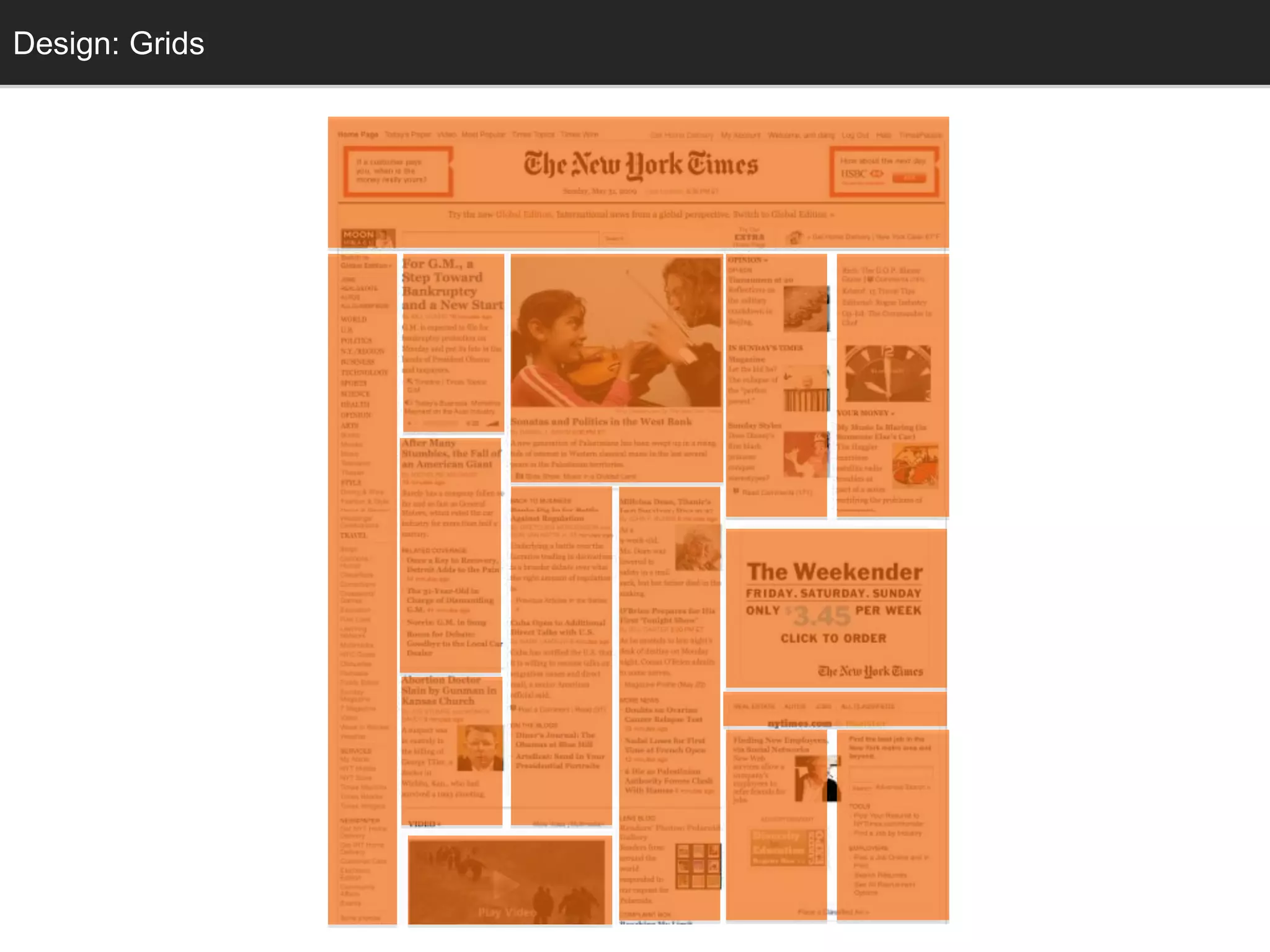

Grids

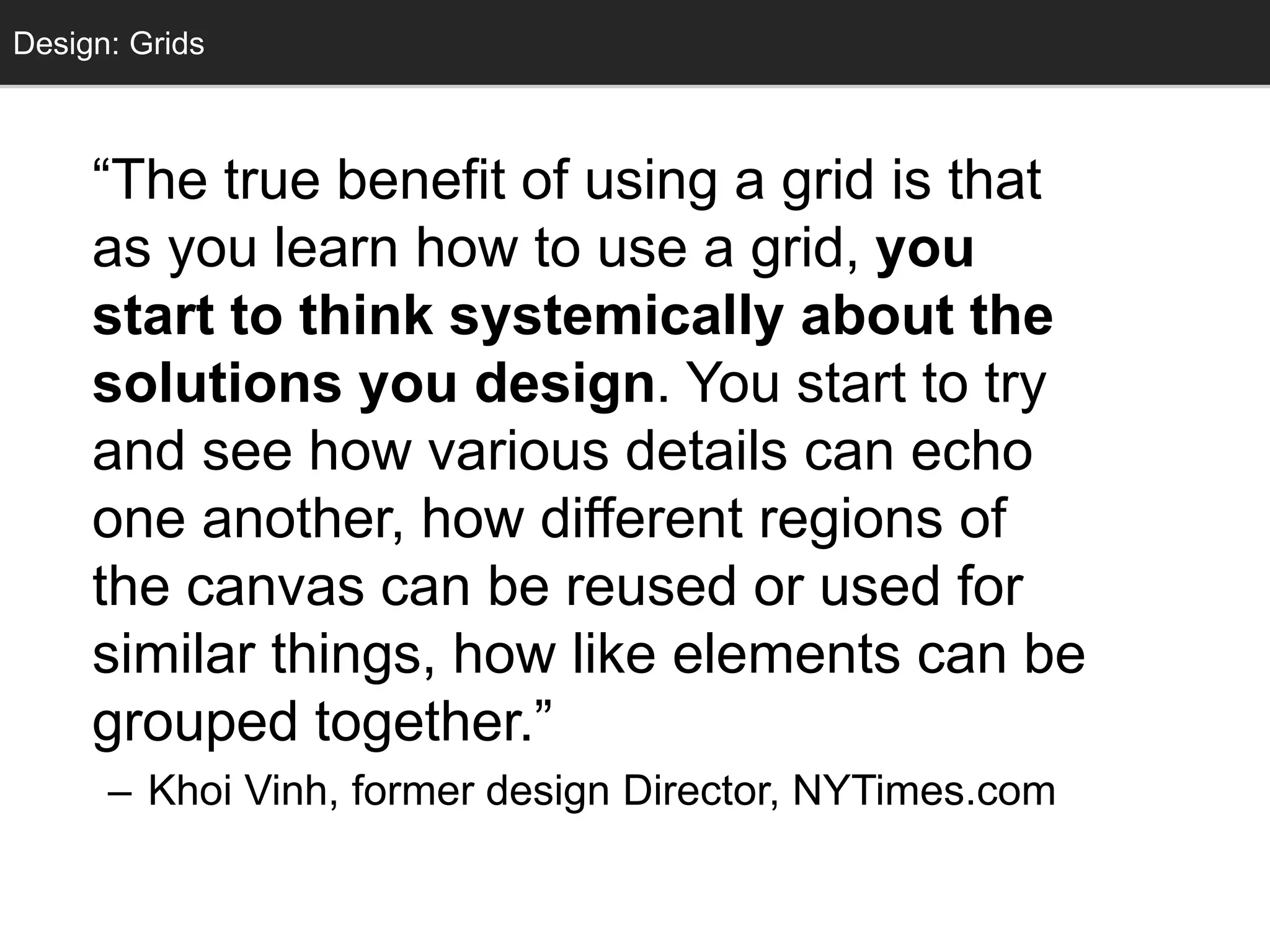

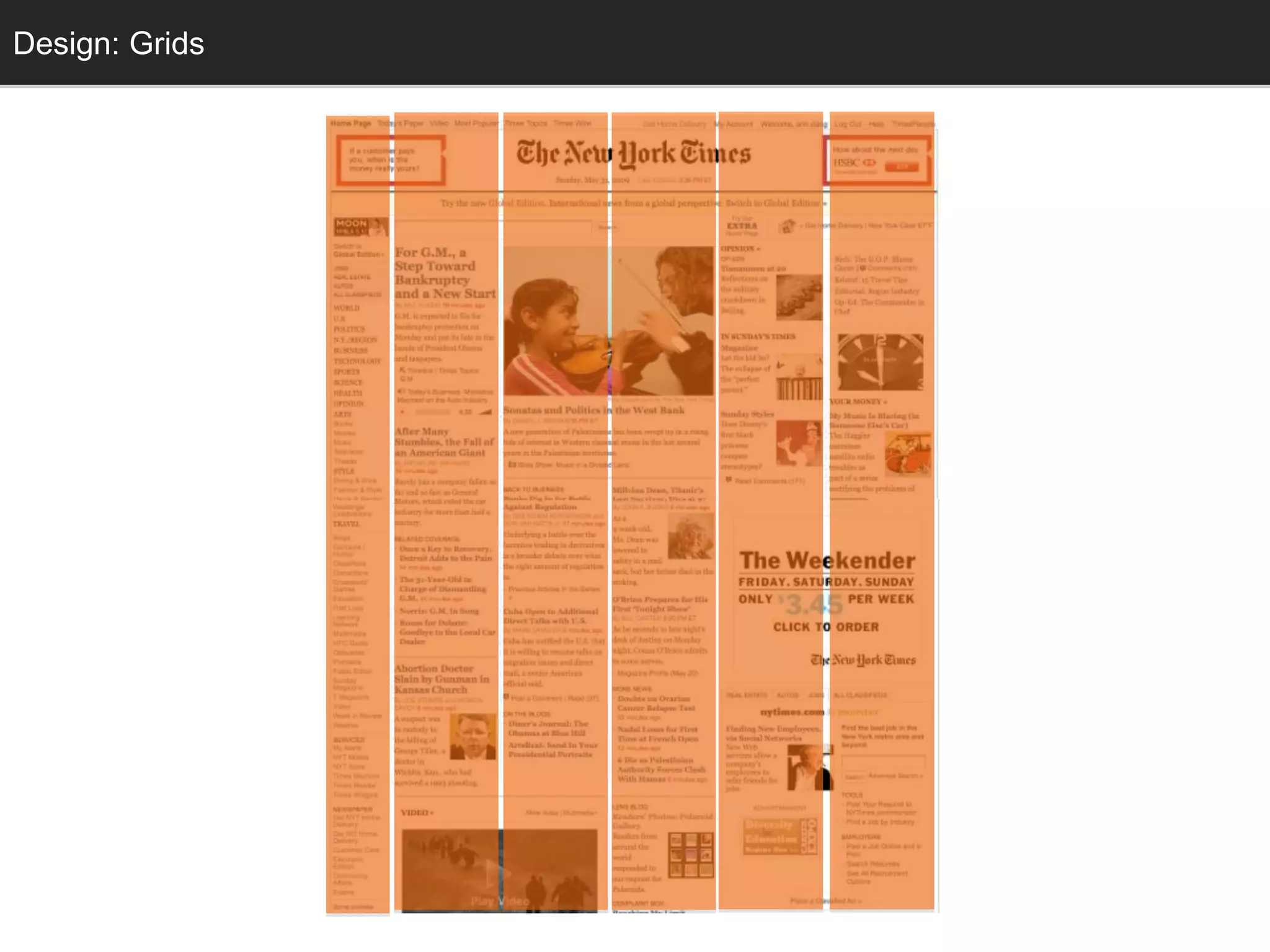

“The true benefit of using a grid is that
as you learn how to use a grid, you
start to think systemically about the
solutions you design. You start to try
and see how various details can echo
one another, how different regions of
the canvas can be reused or used for
similar things, how like elements can be
grouped together.”
– Khoi Vinh, former design Director, NYTimes.com

Design: Grids
Grids

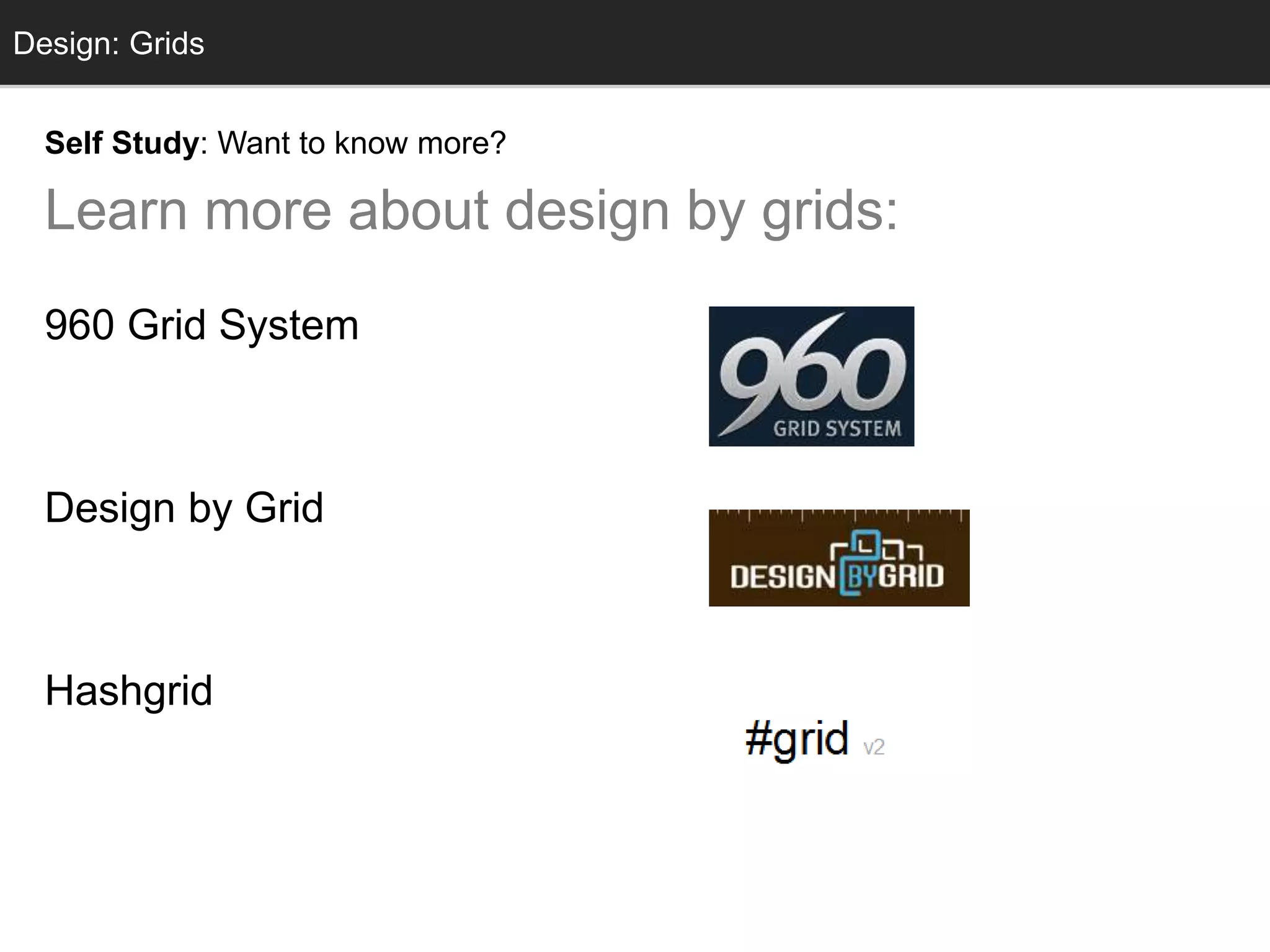

Self Study: Want to know more?
Learn more about design by grids:
960 Grid System
960.gs
Design by Grid
www.designbygrid.com
Hashgrid
www.hashgrid.com

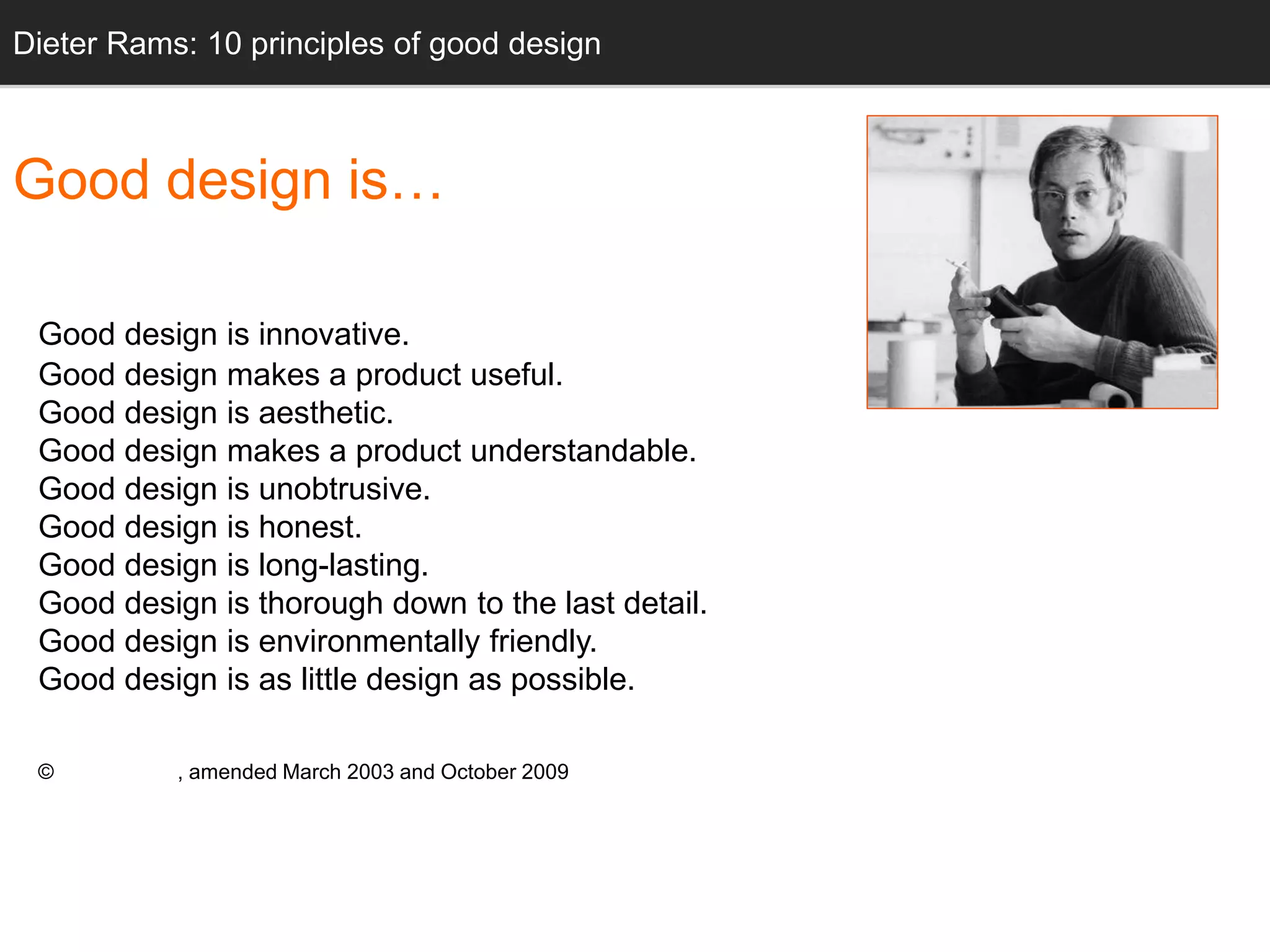

Dieter Rams: 10 principles of good design
Good design is…
Good design is innovative.
Good design makes a product useful.
Good design is aesthetic.
Good design makes a product understandable.
Good design is unobtrusive.
Good design is honest.
Good design is long-lasting.
Good design is thorough down to the last detail.
Good design is environmentally friendly.
Good design is as little design as possible.
© Dieter Rams, amended March 2003 and October 2009

DeDfiensiniggn S: kSektecthcehsin Vgersus Wireframes, Templates Versus Pages
Sketches Wireframes
Quick More time-consuming
Few details Very detailed
Not typically delivered Professional deliverable
Templates Pages
Apply to many different pages Specific, may apply to a single
page or screen
Examples:
• basic page
• category page
• product page
Examples:
• homepage
• ecommerce or transactional
form

Introduction to Information Architecture & Design - SVA Workshop 10/04/14

More Related Content

What's hot

Similar to Introduction to Information Architecture & Design - SVA Workshop 10/04/14

More from Robert Stribley

Recently uploaded

Introduction to Information Architecture & Design - SVA Workshop 10/04/14

Editor's Notes
