Abstract As part of the team delivering Snap, an open telemetry framework, I've run through dozens of use cases where gathering disparate metrics from services can roll up into meaningful diagrams for operations engineers and developers alike. We will use Snap's plugin model to collect, process and publish these measurements into meaningful graphs using open source tools. By joining this session, you can follow along and install industry-standard open source projects, deploy them and then use Snap to collect, process and visualize these metrics. Audience Anyone with an operations-background (or future ahead of them) that wants to see the breadth of available open source tooling around telemetry. This proposal is designed for the hands-on user, who is comfortable running containers or virtual machines locally. Experience Level Intermediate Benefits to the Ecosystem By joining this session, you can follow along and install industry-standard open source projects, deploy them and then use Snap to collect, process and visualize these metrics. This empowers users within the Linux ecosystem to see their knowledge as powerful when visualized next to other layers of the datacenter.

1. LinuxCon 2016
An introduction to datacenter
telemetry using open source tools
Matt Brender (@mjbrender)

2. Briefly, About Me
Am:
@mjbrender (everywhere)
Developer Advocate,
Orchestration Engineering
Pretty good at Open Source
practices
Was:
Storage array performance
VMware
NoSQL

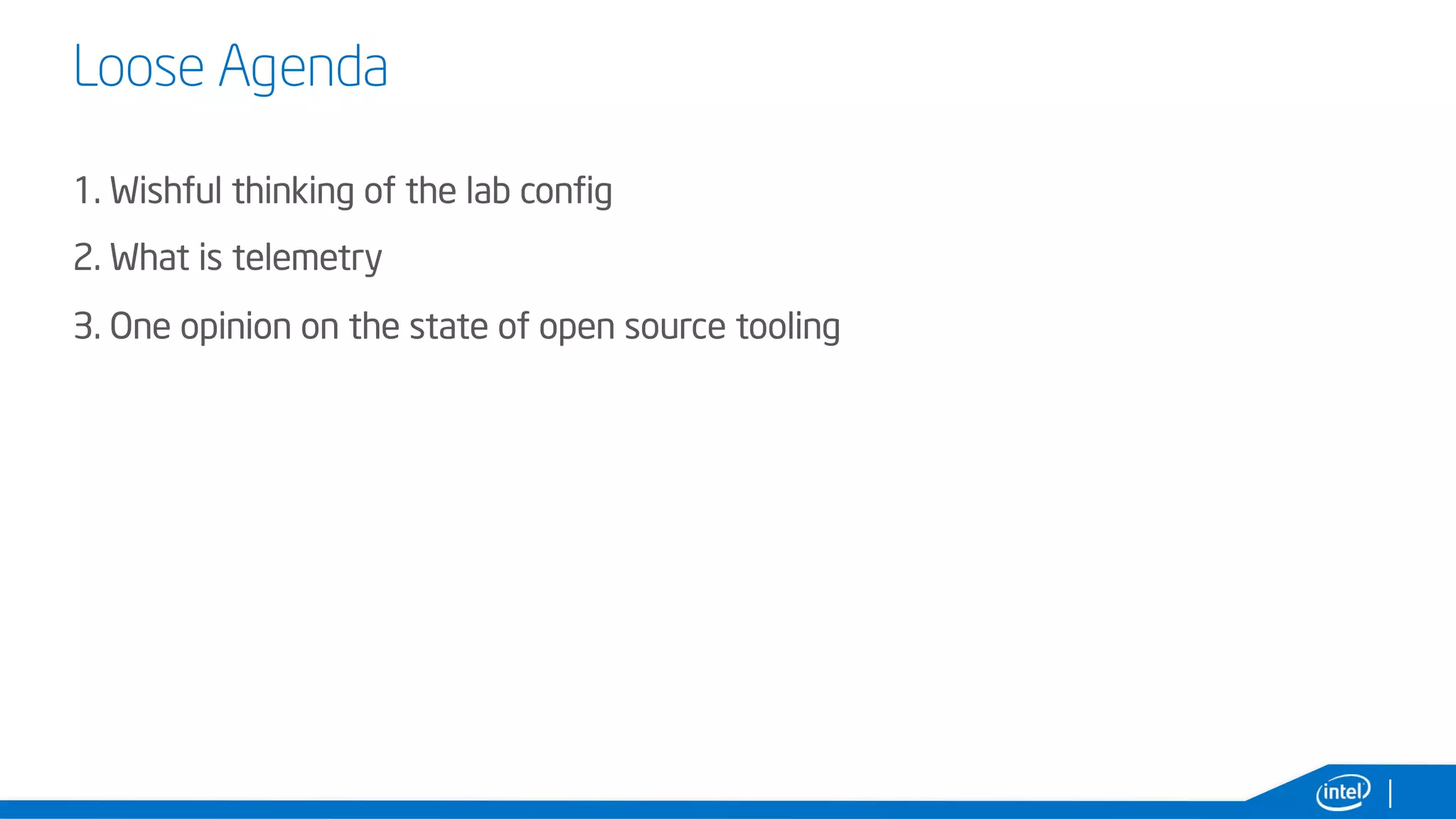

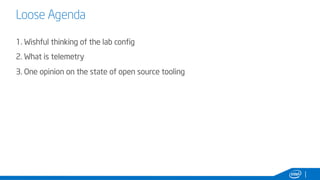

3. Loose Agenda
1. Wishful thinking of the lab config
2. What is telemetry
3. One opinion on the state of open source tooling

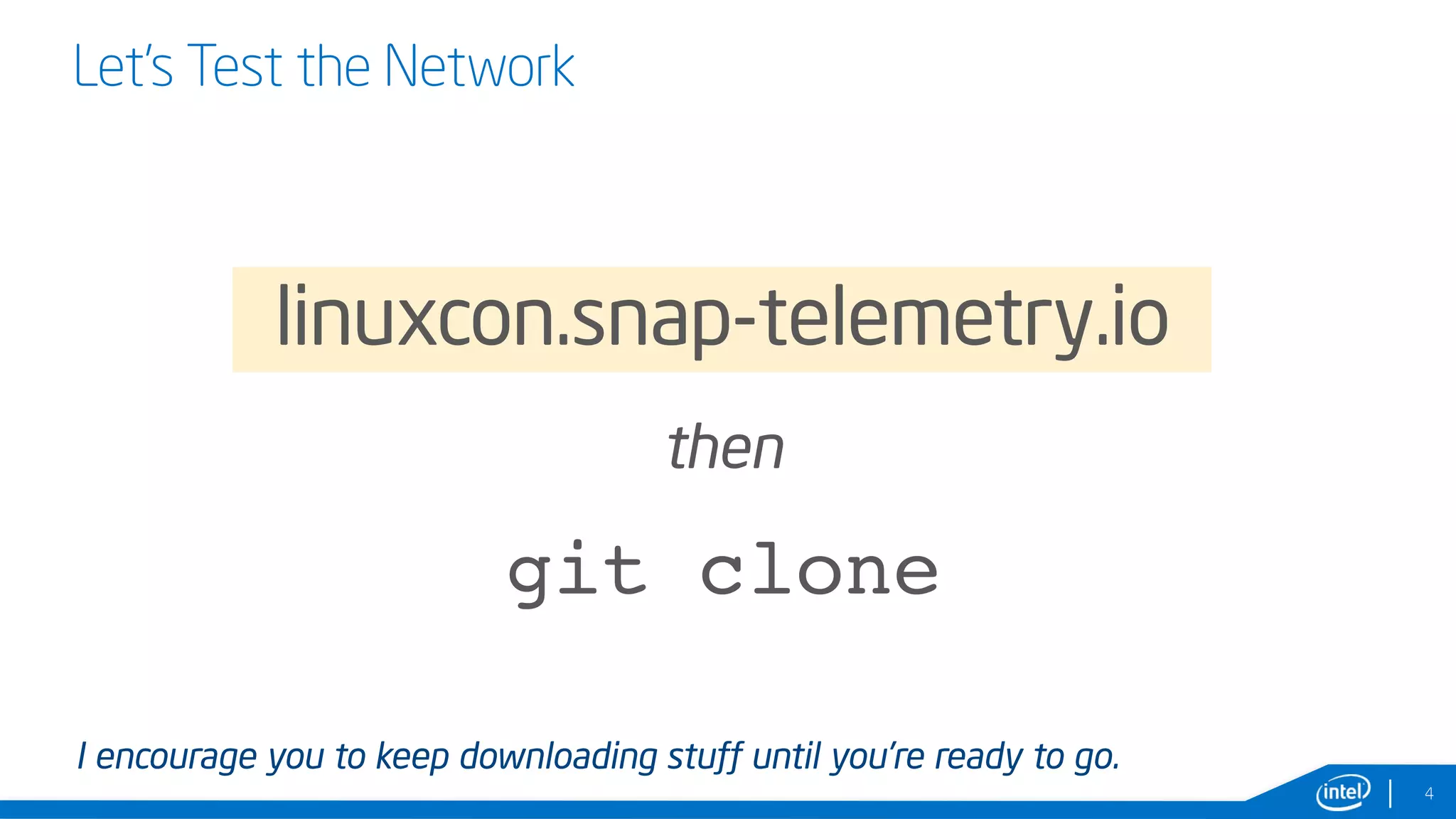

4. Let’s Test the Network
4
linuxcon.snap-telemetry.io
then
git clone
I encourage you to keep downloading stuff until you’re ready to go.

5. Lab Hopes
5

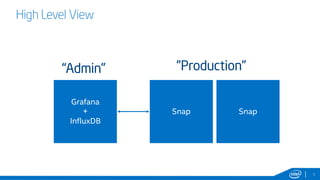

6. High Level View
6
Grafana
+
InfluxDB
Snap Snap
“Admin” ”Production”

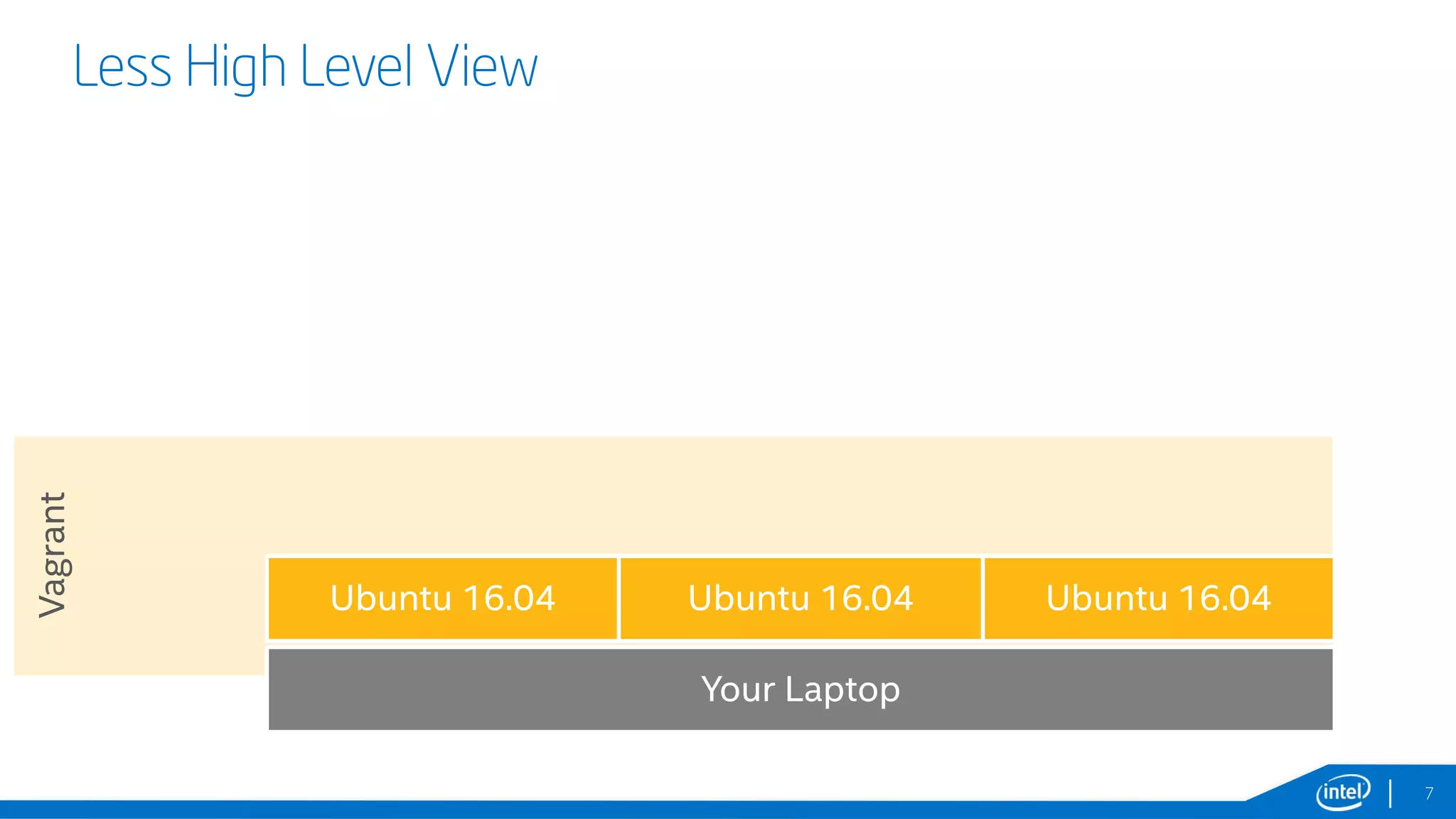

7. Less High Level View
7
Your Laptop
Ubuntu 16.04
Vagrant
Ubuntu 16.04Ubuntu 16.04

8. Less High Level View
8
Your Laptop
Ubuntu 16.04
Vagrant
Ansible
Ubuntu 16.04Ubuntu 16.04
SnapDocker Snap

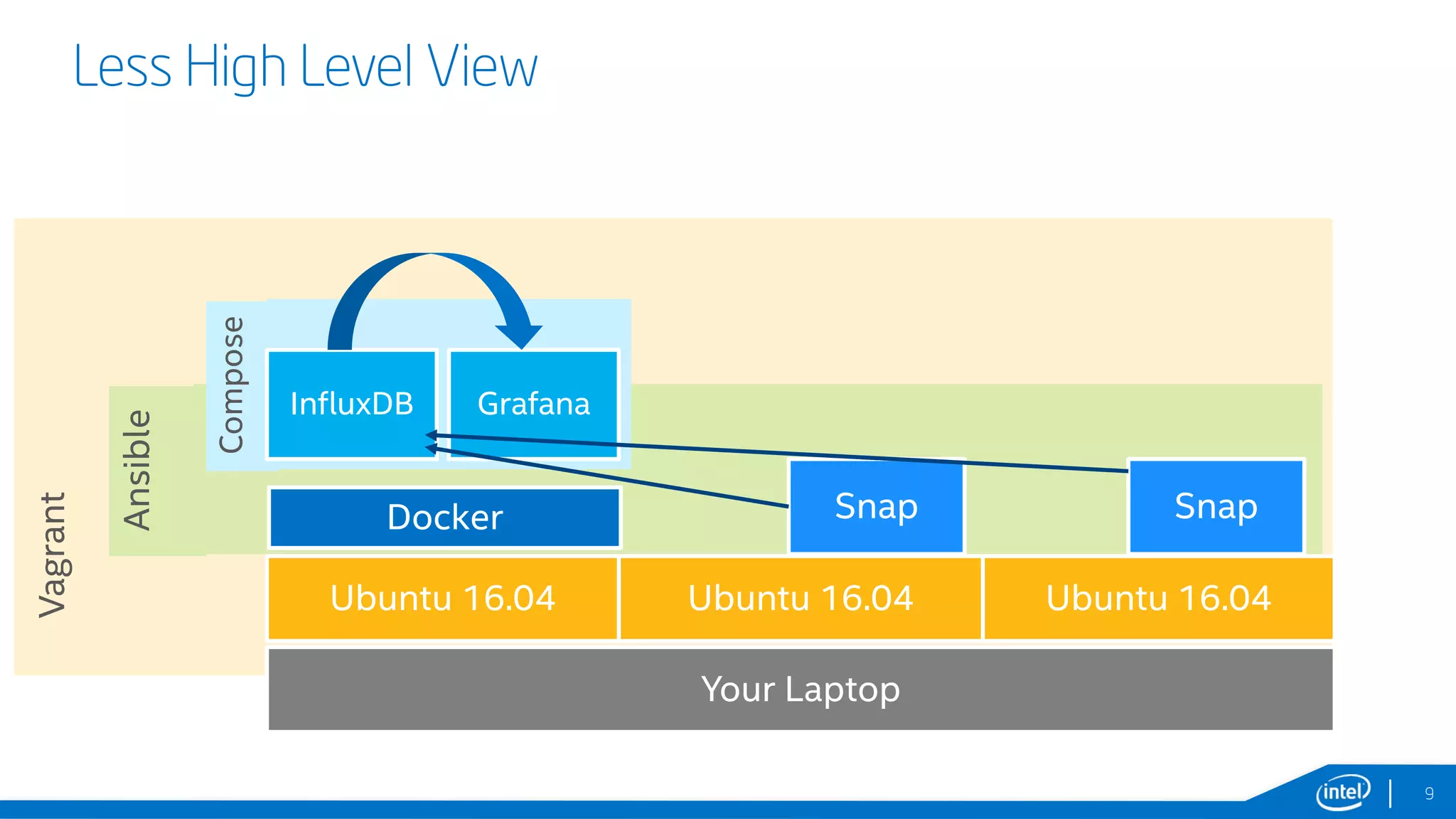

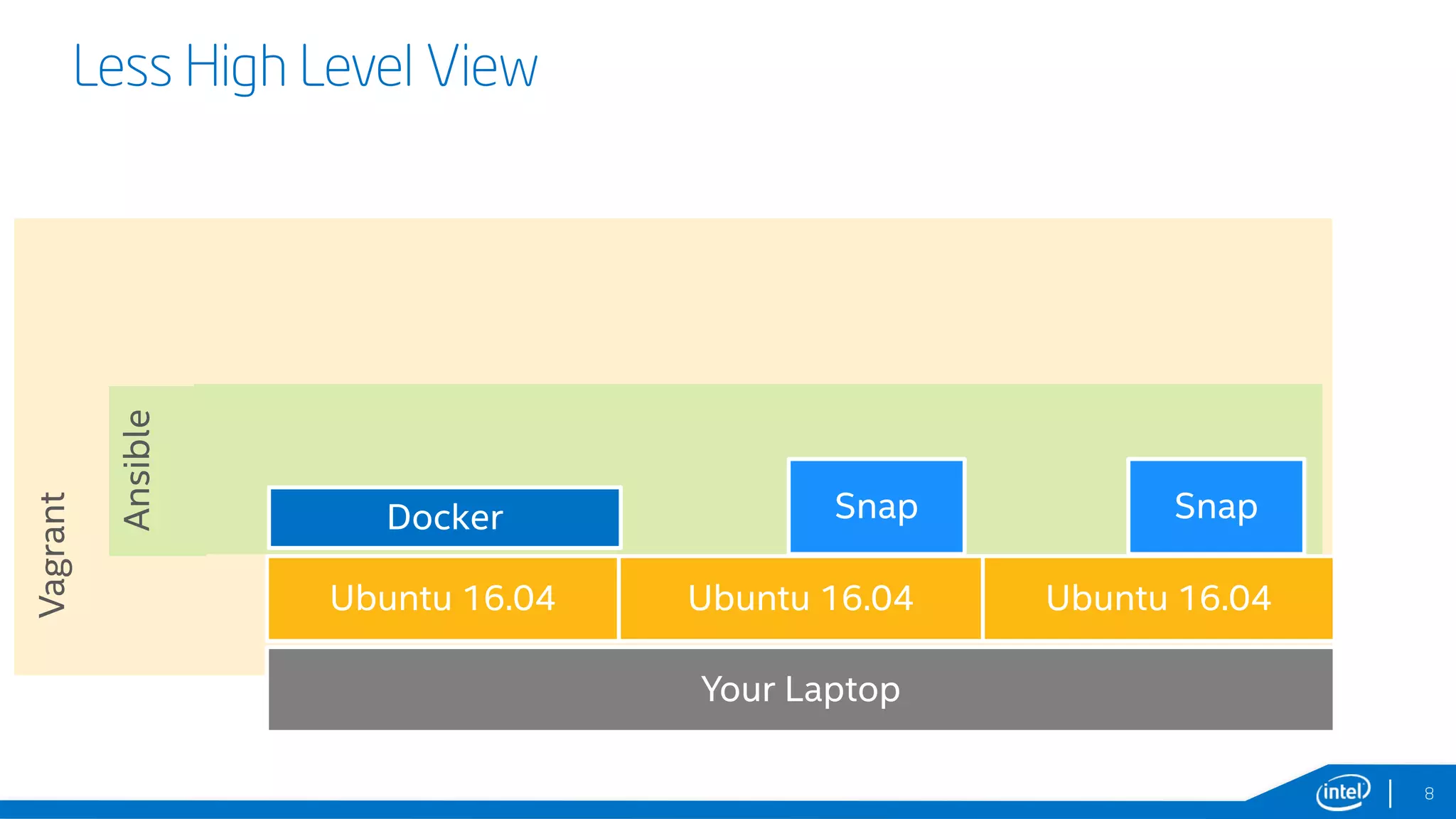

9. Less High Level View
9
Your Laptop
Ubuntu 16.04
Vagrant
Ansible
Ubuntu 16.04Ubuntu 16.04
SnapDocker Snap
Compose
InfluxDB Grafana

10. Why???
10

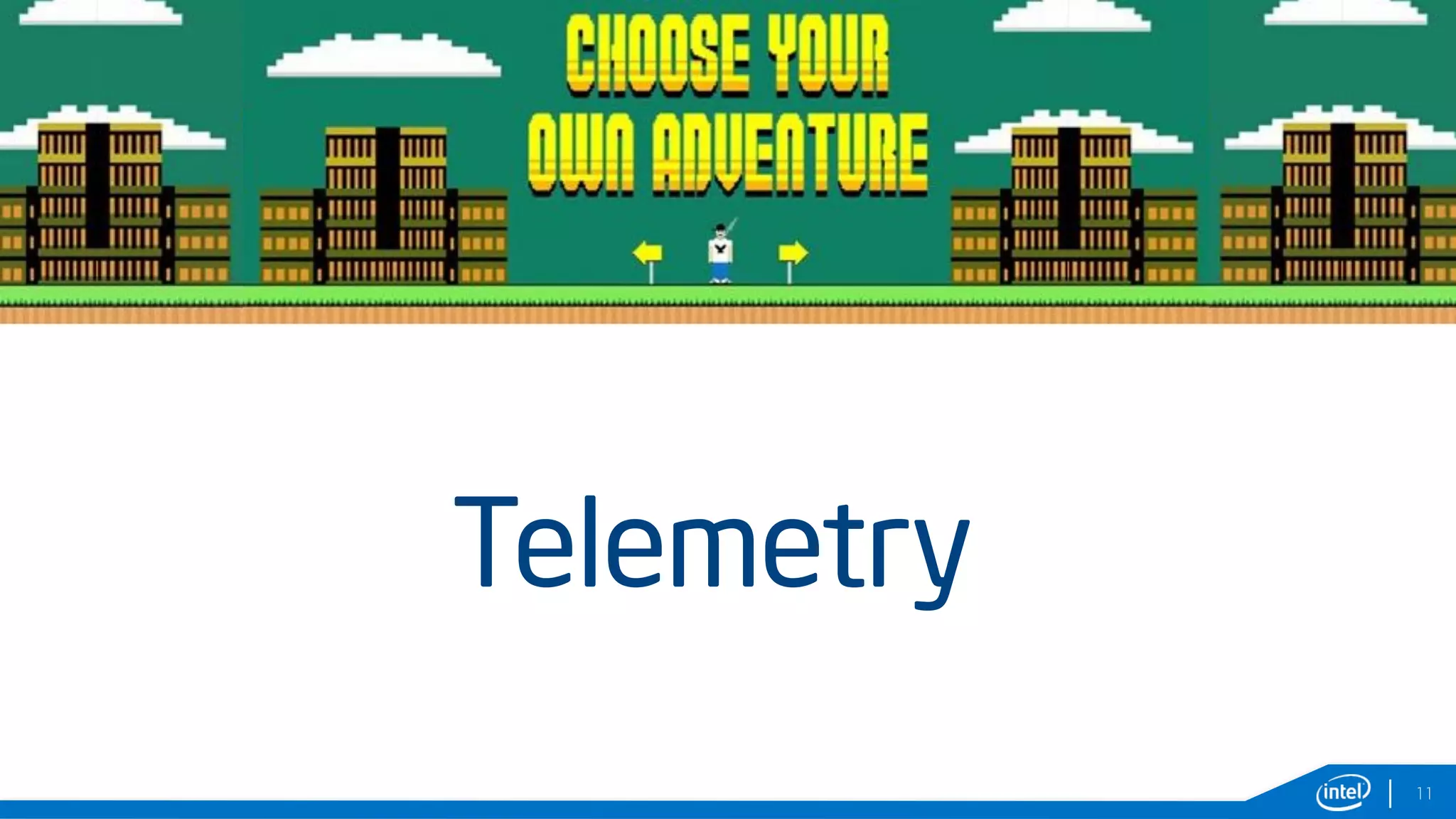

11. 11
Telemetry

12. 12
Snap
collectd
StatsD
telegraf
beats
Logstash
diamond
InfluxDB
OpenTSDB
KairosDB
Graphite
Prometheus
ElasticSearch
Bosun
Grafana
Sensu
Ganglia
RRDtool
Nagios
Facette
Vector (Netflix)

13. 13
what my friends think telemetry is what my parents think telemetry is
what society thinks telemetry is
what my boss thinks telemetry is what I think telemetry is what telemetry actually is

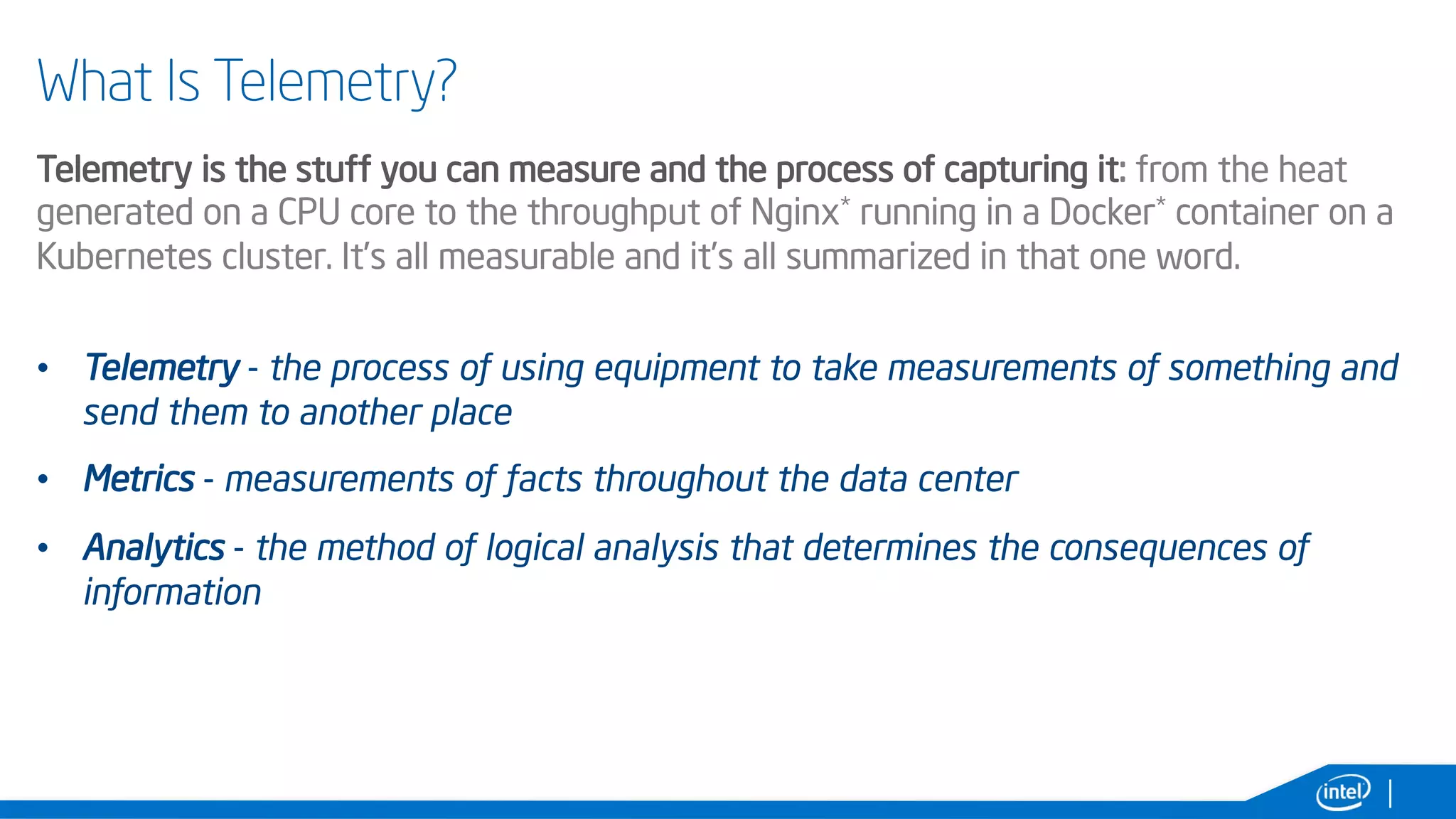

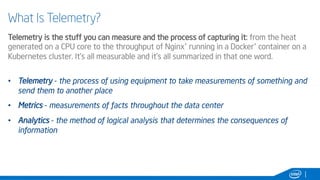

14. What Is Telemetry?
Telemetry is the stuff you can measure and the process of capturing it: from the heat
generated on a CPU core to the throughput of Nginx* running in a Docker* container on a
Kubernetes cluster. It’s all measurable and it’s all summarized in that one word.
• Telemetry - the process of using equipment to take measurements of something and
send them to another place
• Metrics - measurements of facts throughout the data center
• Analytics - the method of logical analysis that determines the consequences of
information

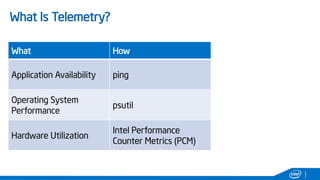

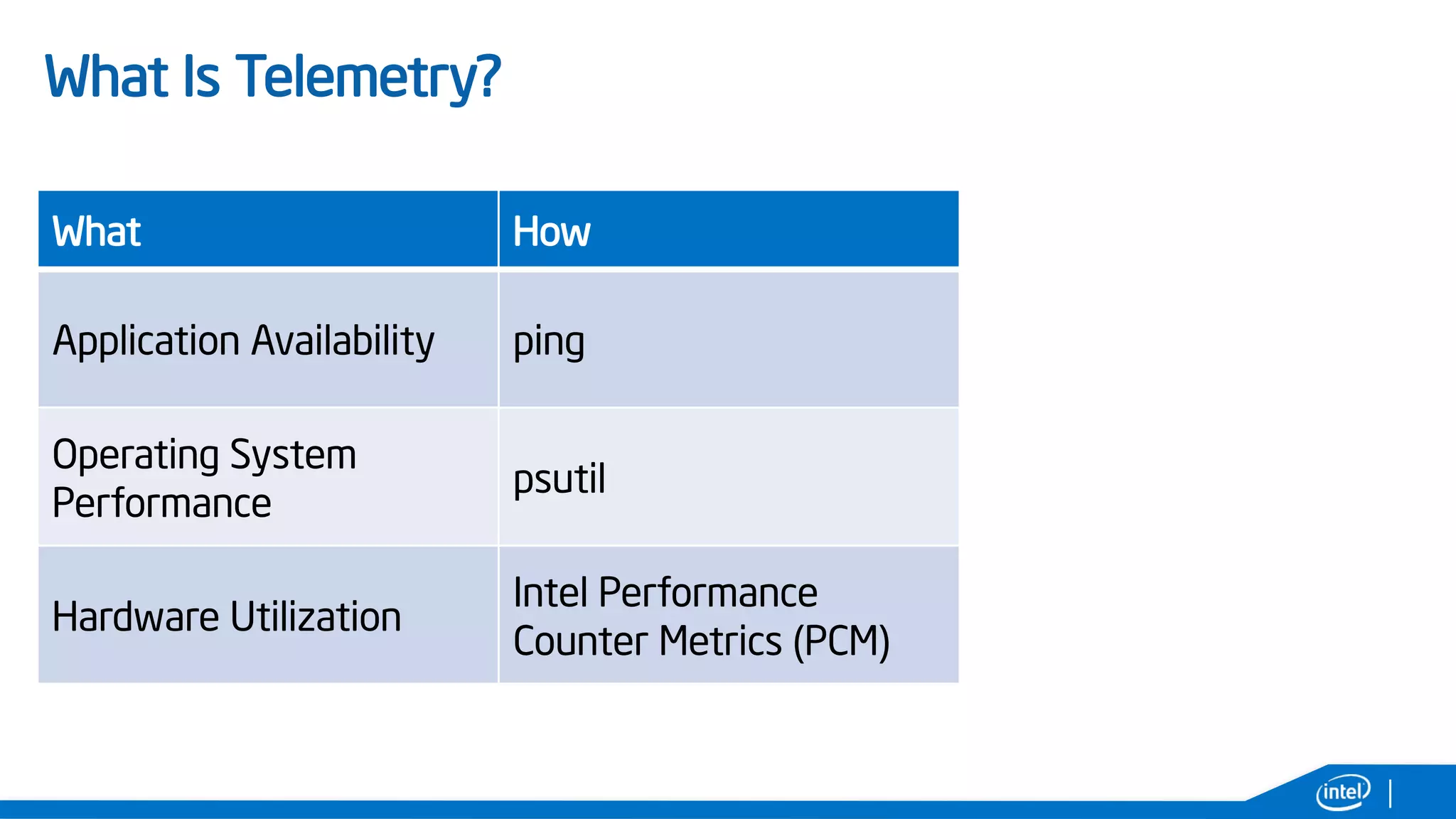

15. What Is Telemetry?
What How
Application Availability ping
Operating System
Performance
psutil
Hardware Utilization
Intel Performance
Counter Metrics (PCM)

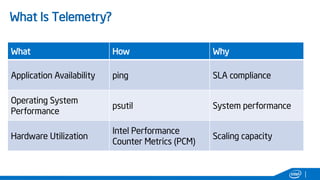

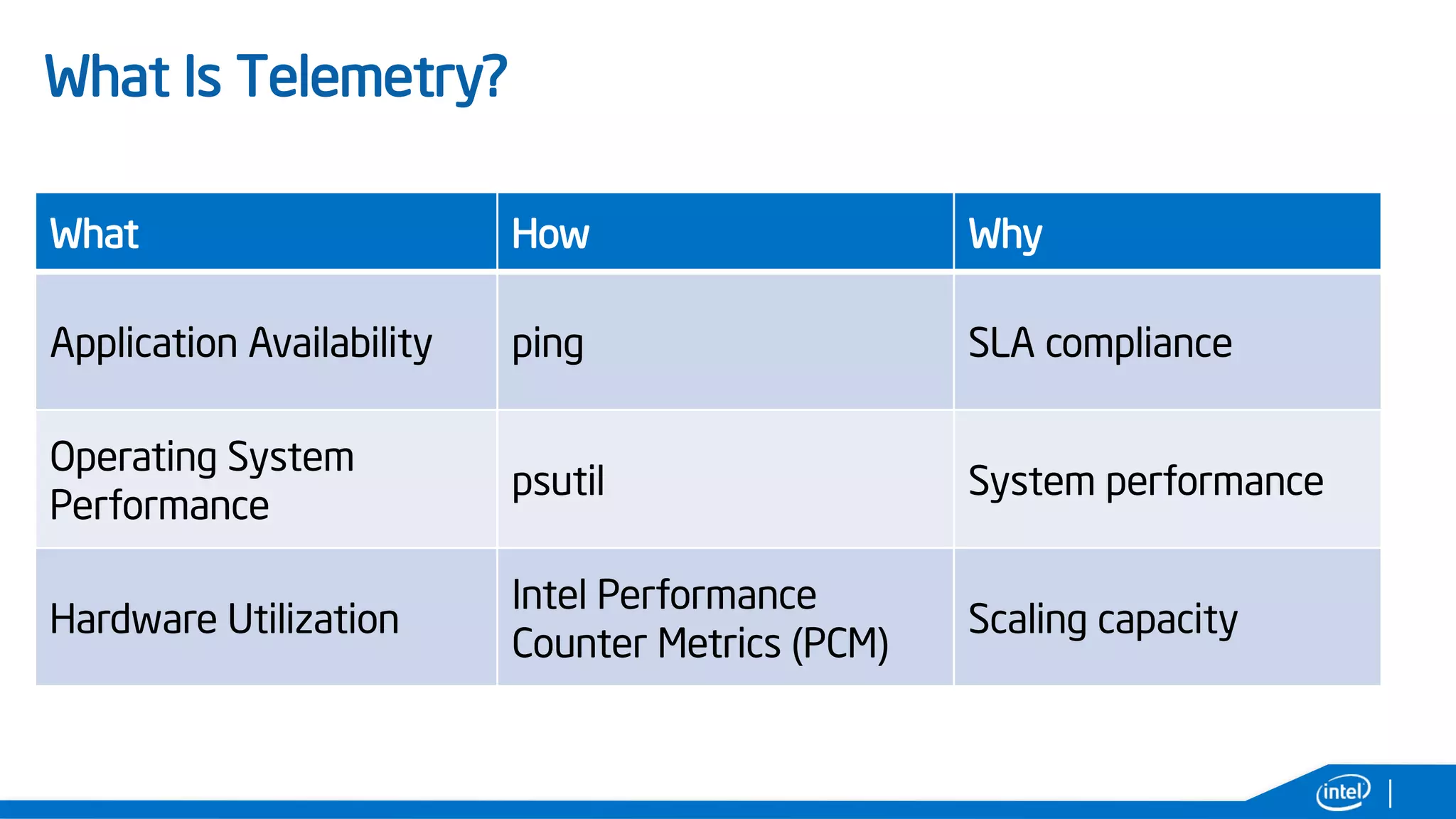

16. What Is Telemetry?
What How Why
Application Availability ping SLA compliance
Operating System
Performance
psutil System performance
Hardware Utilization
Intel Performance
Counter Metrics (PCM)
Scaling capacity

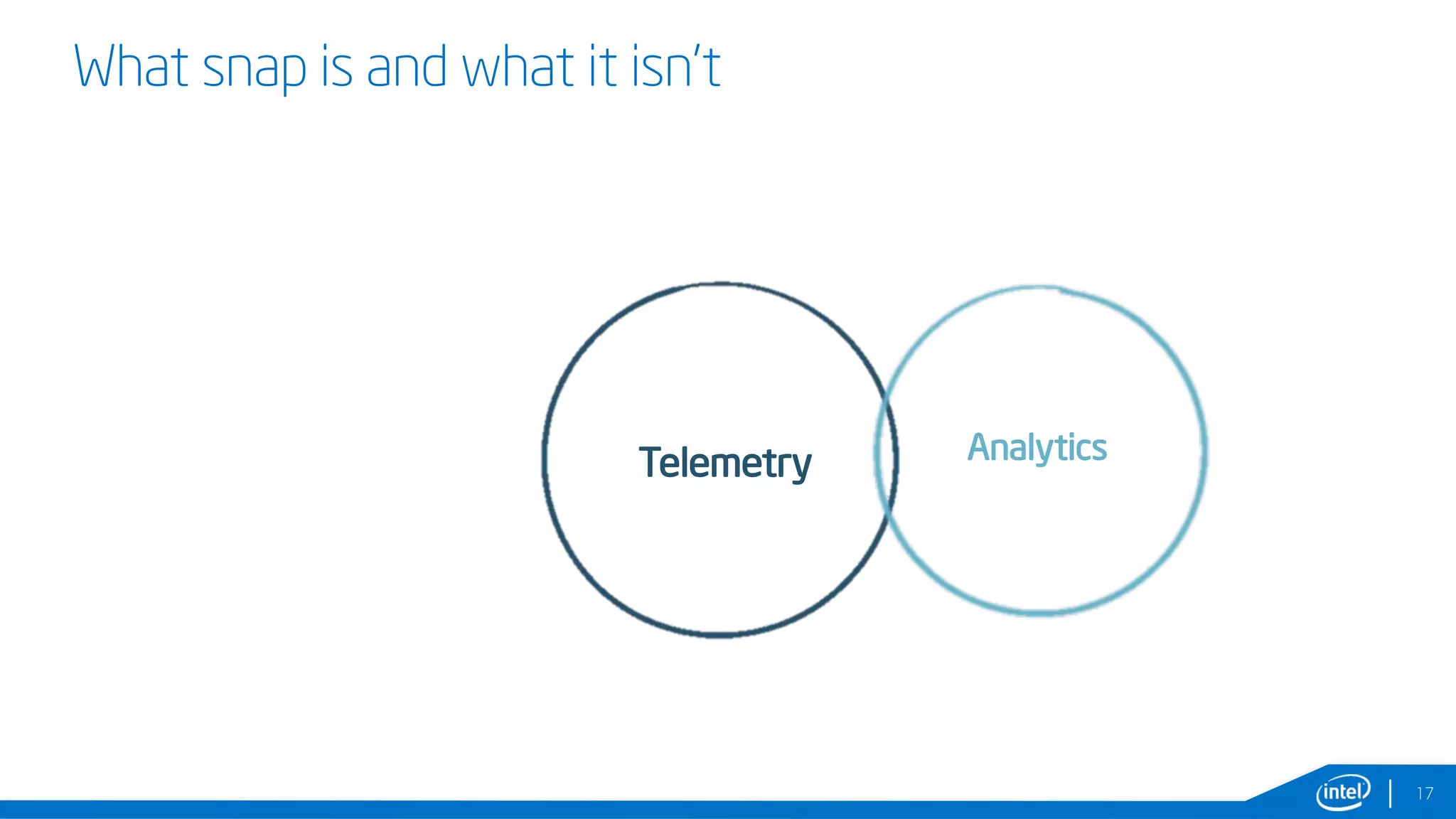

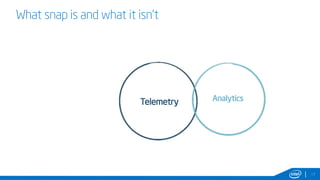

17. What snap is and what it isn’t
17
Telemetry Analytics

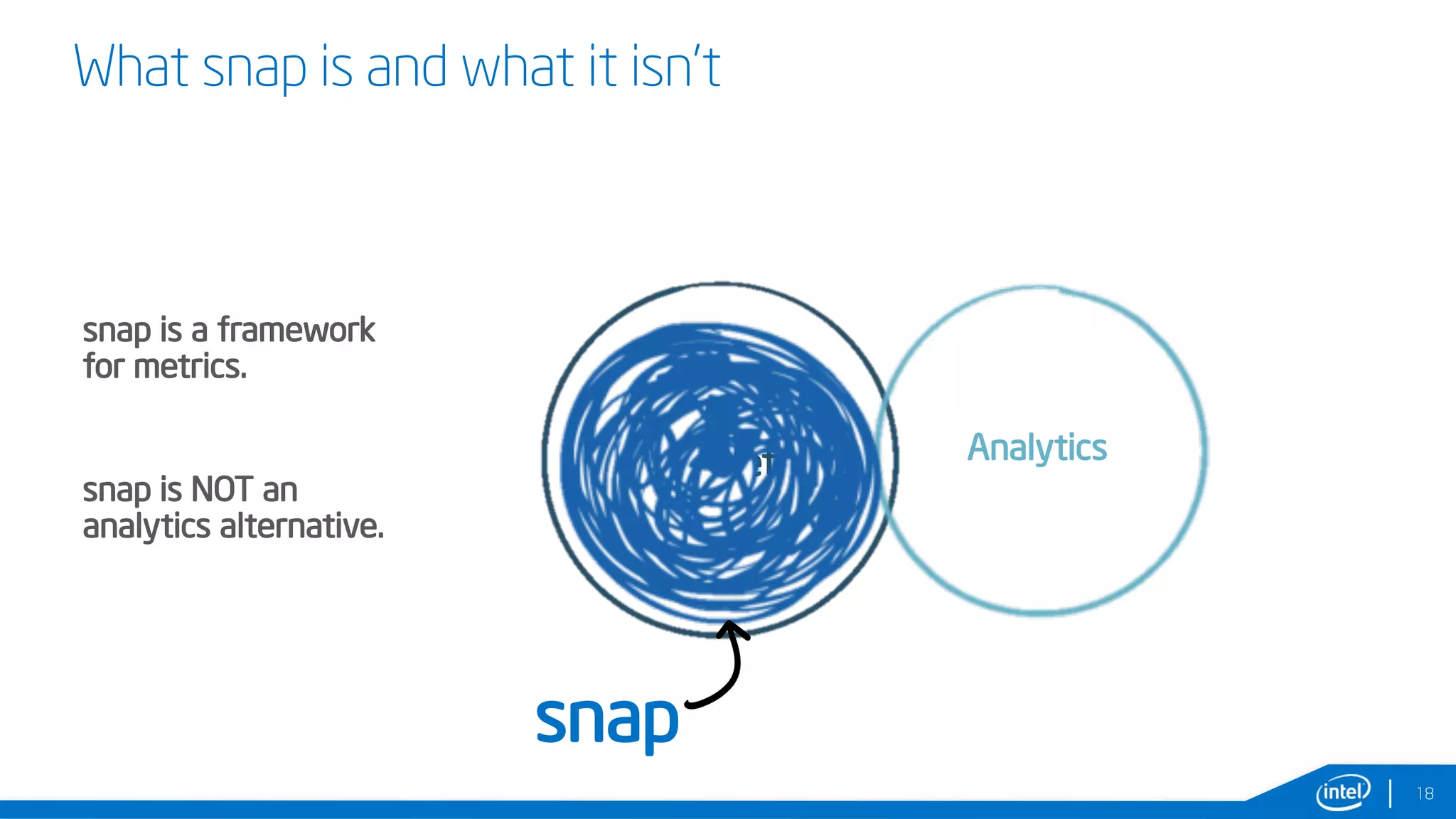

18. What snap is and what it isn’t
18
Telemetry Analytics
snap
snap is a framework
for metrics.
snap is NOT an
analytics alternative.

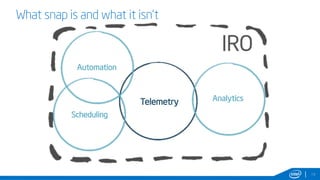

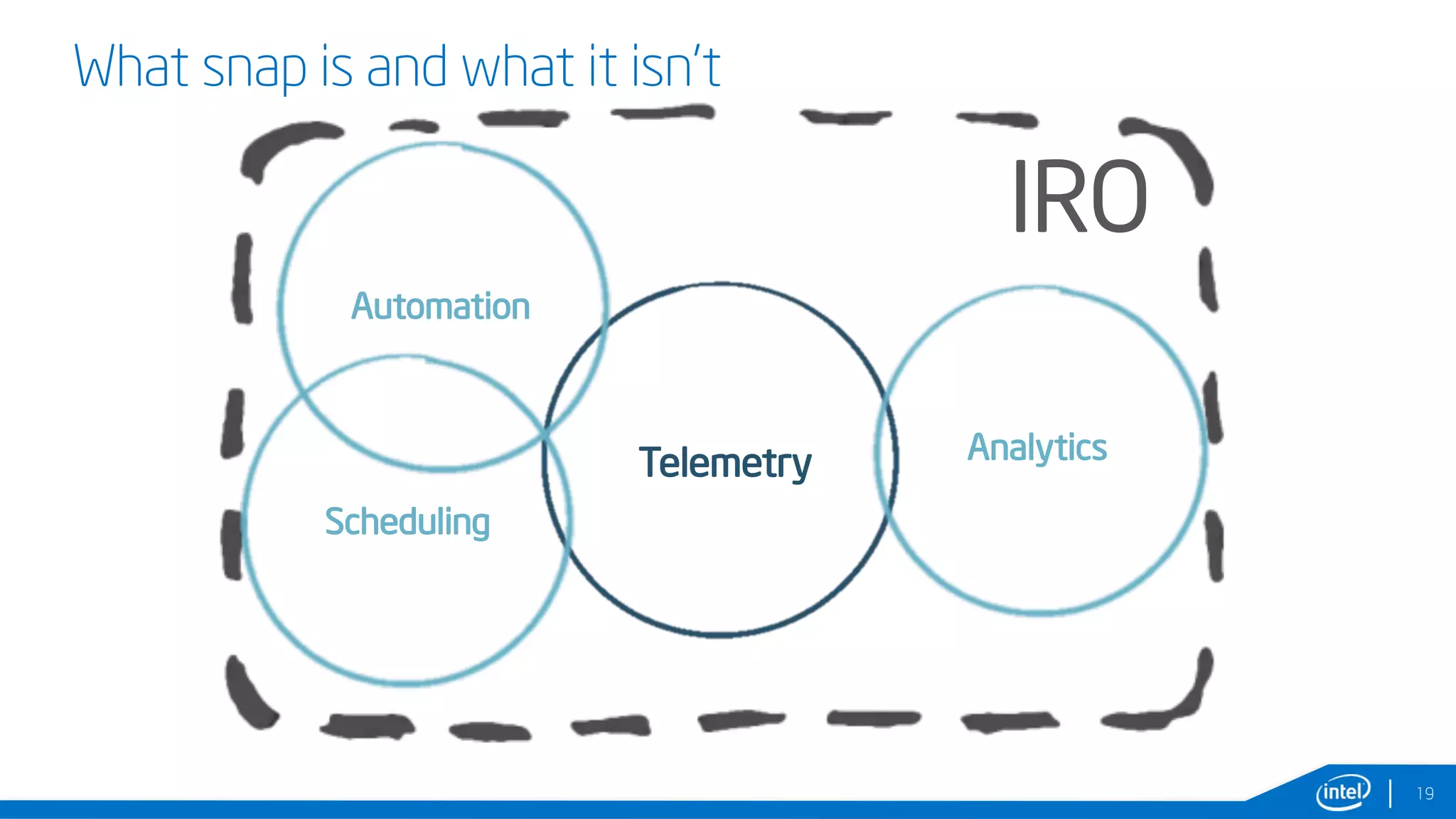

19. What snap is and what it isn’t
19
Telemetry Analytics
Automation
Scheduling
IRO

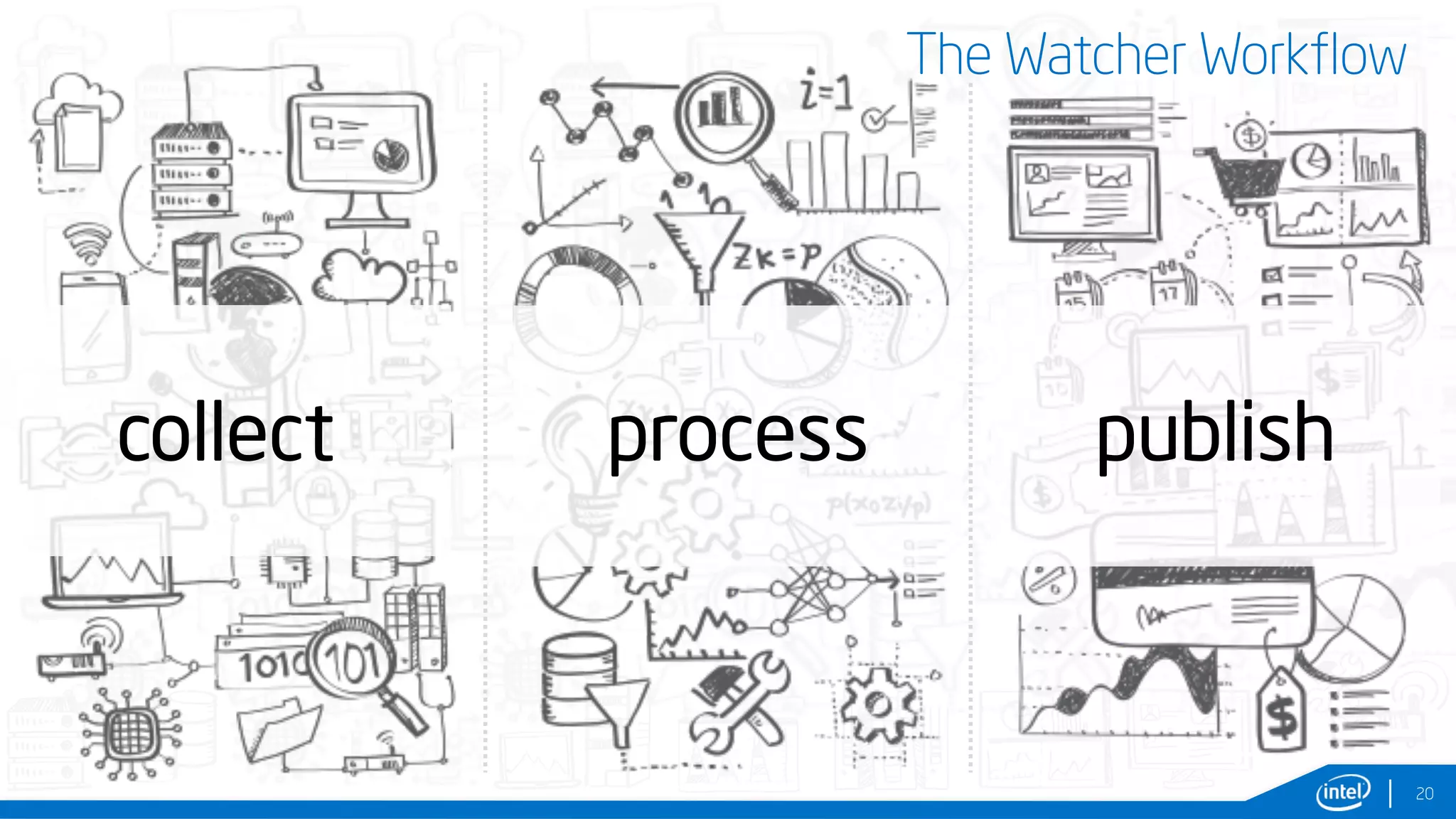

20. collect process publish
The Watcher Workflow
20

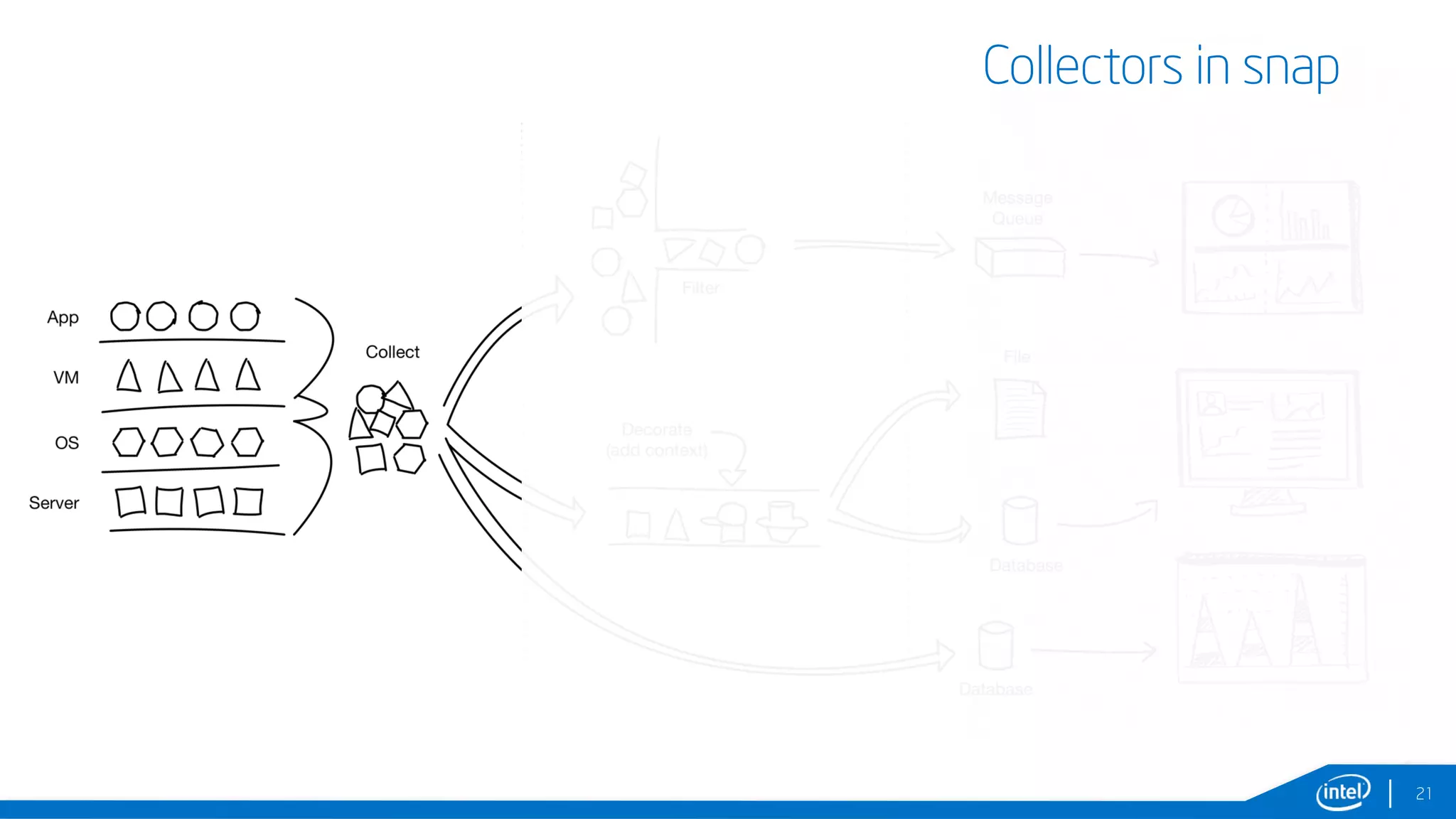

21. 21
Collectors in snap

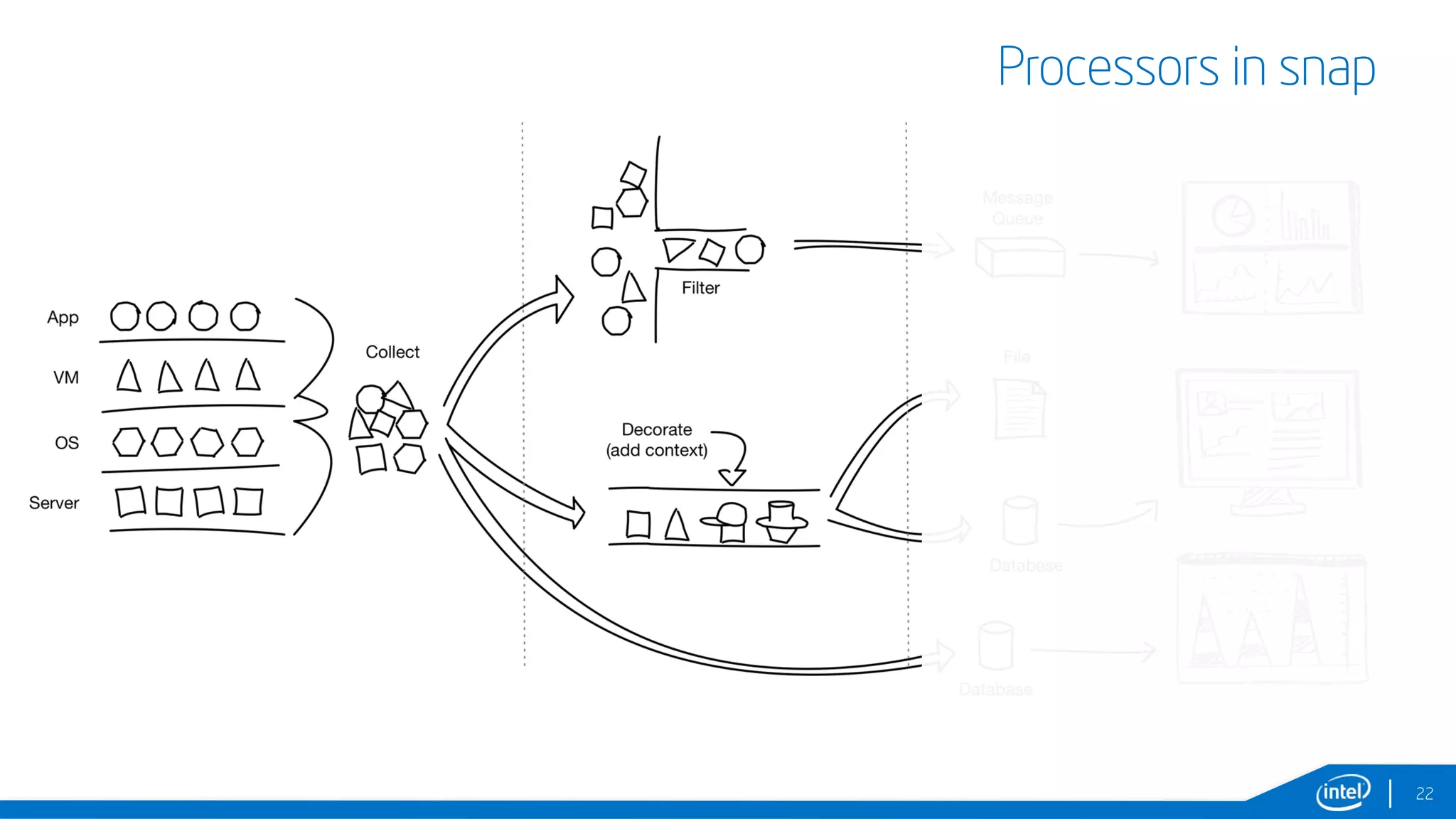

22. Processors in snap
22

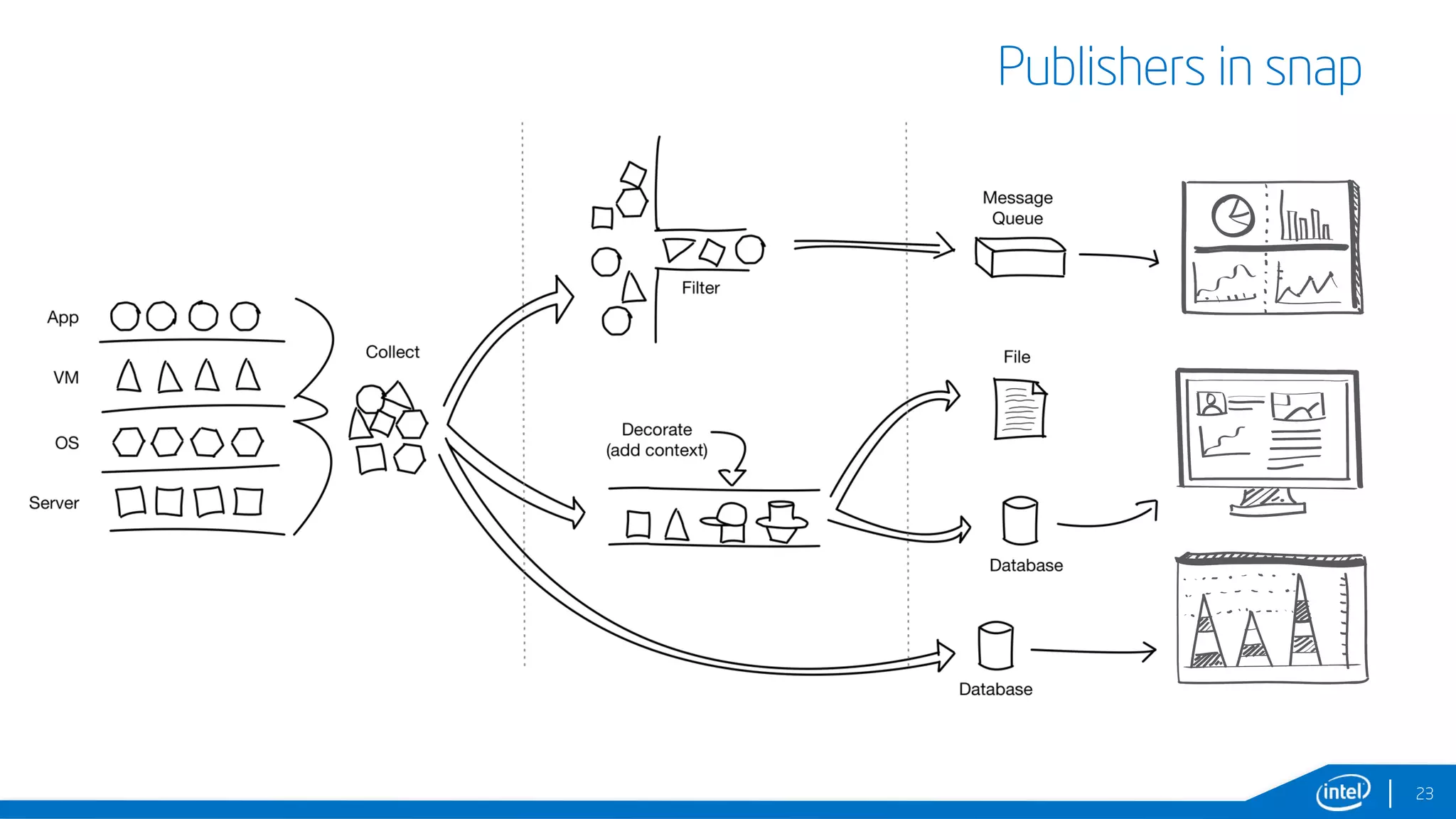

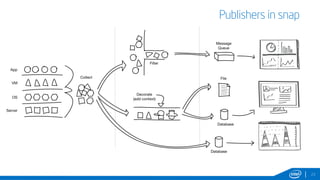

23. Publishers in snap
23

24. 24

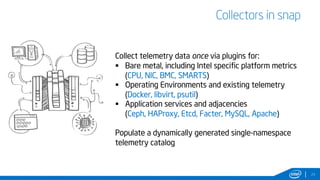

Collectors in snap
Collect telemetry data once via plugins for:
§ Bare metal, including Intel specific platform metrics
(CPU, NIC, BMC, SMARTS)
§ Operating Environments and existing telemetry
(Docker, libvirt, psutil)
§ Application services and adjacencies
(Ceph, HAProxy, Etcd, Facter, MySQL, Apache)
Populate a dynamically generated single-namespace
telemetry catalog

25. 25
Filter, alter or append metadata via plugins for:
§ Filtering (Moving Averages)
§ Normalization
§ Encryption for all or part of the data set
§ Injection of metadata
§ Tokens
§ Tenant IDs
Forking to one or more endpoints
Processors in snap

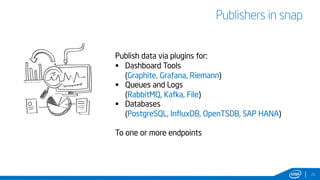

26. 26
Publish data via plugins for:
§ Dashboard Tools
(Graphite, Grafana, Riemann)
§ Queues and Logs
(RabbitMQ, Kafka, File)
§ Databases
(PostgreSQL, InfluxDB, OpenTSDB, SAP HANA)
To one or more endpoints
Publishers in snap

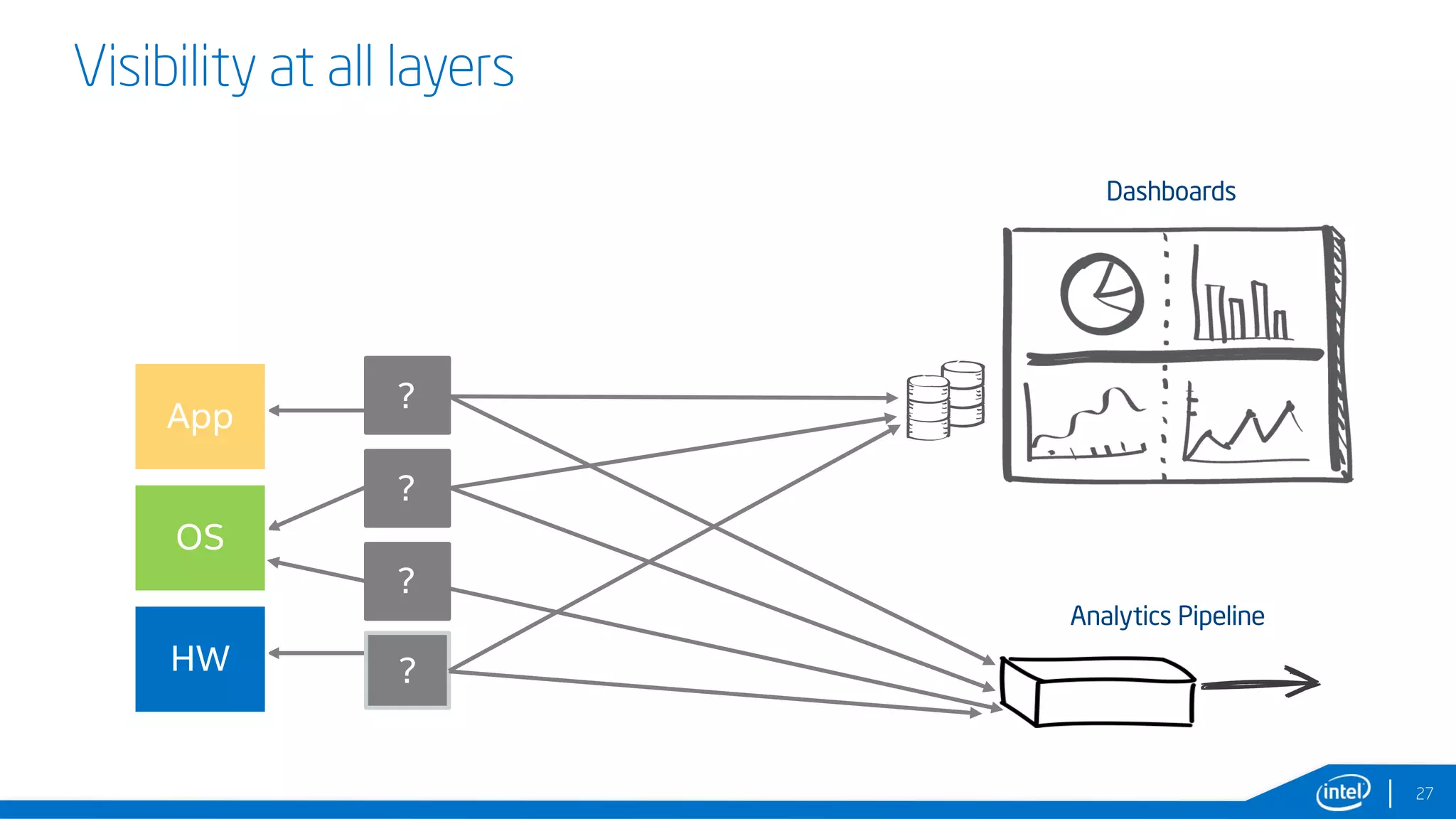

27. Visibility at all layers
27
App
OS
HW
?
?
?
?
Analytics Pipeline
Dashboards

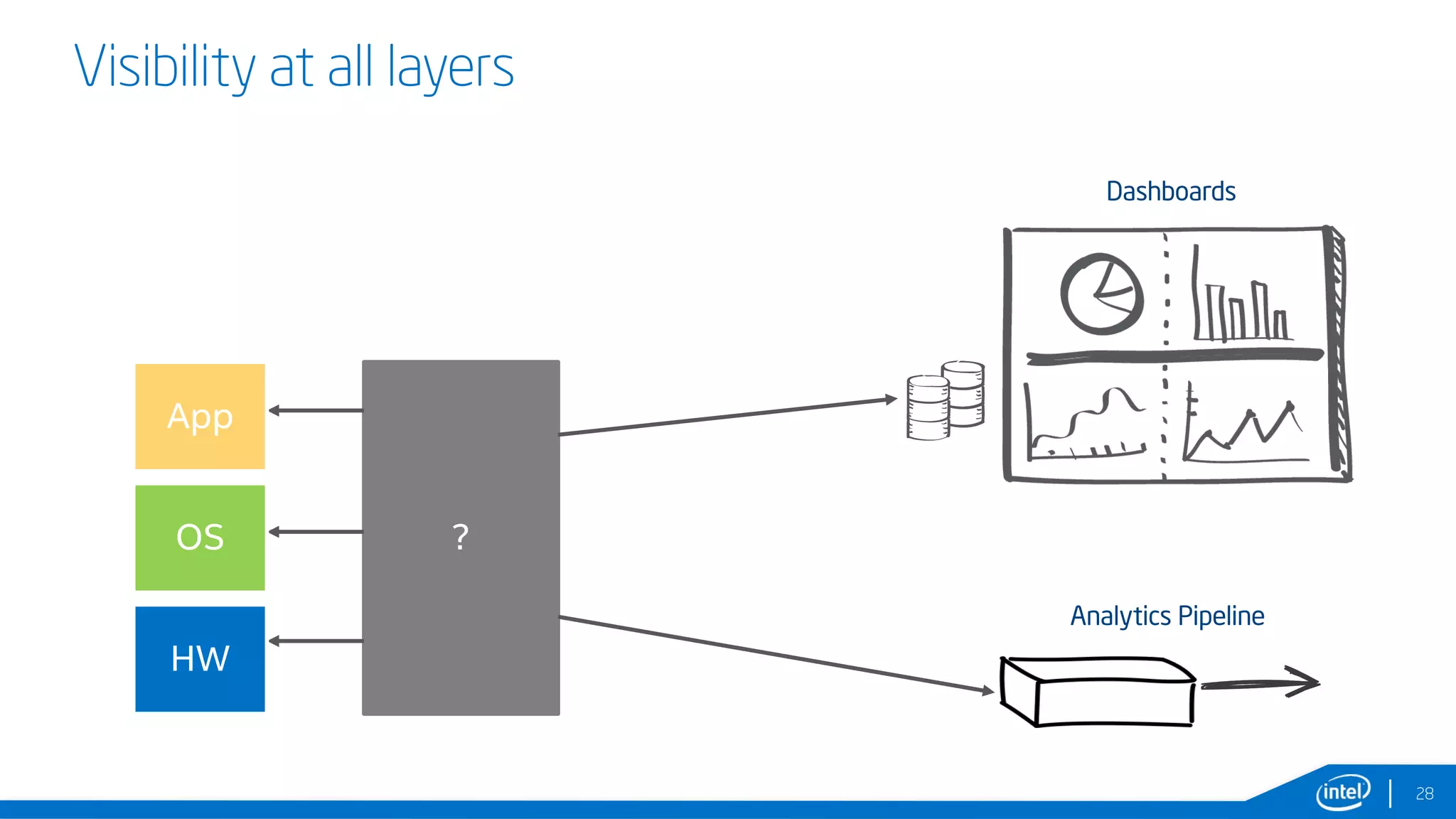

28. Visibility at all layers
28
?
App
OS
HW
Analytics Pipeline
Dashboards

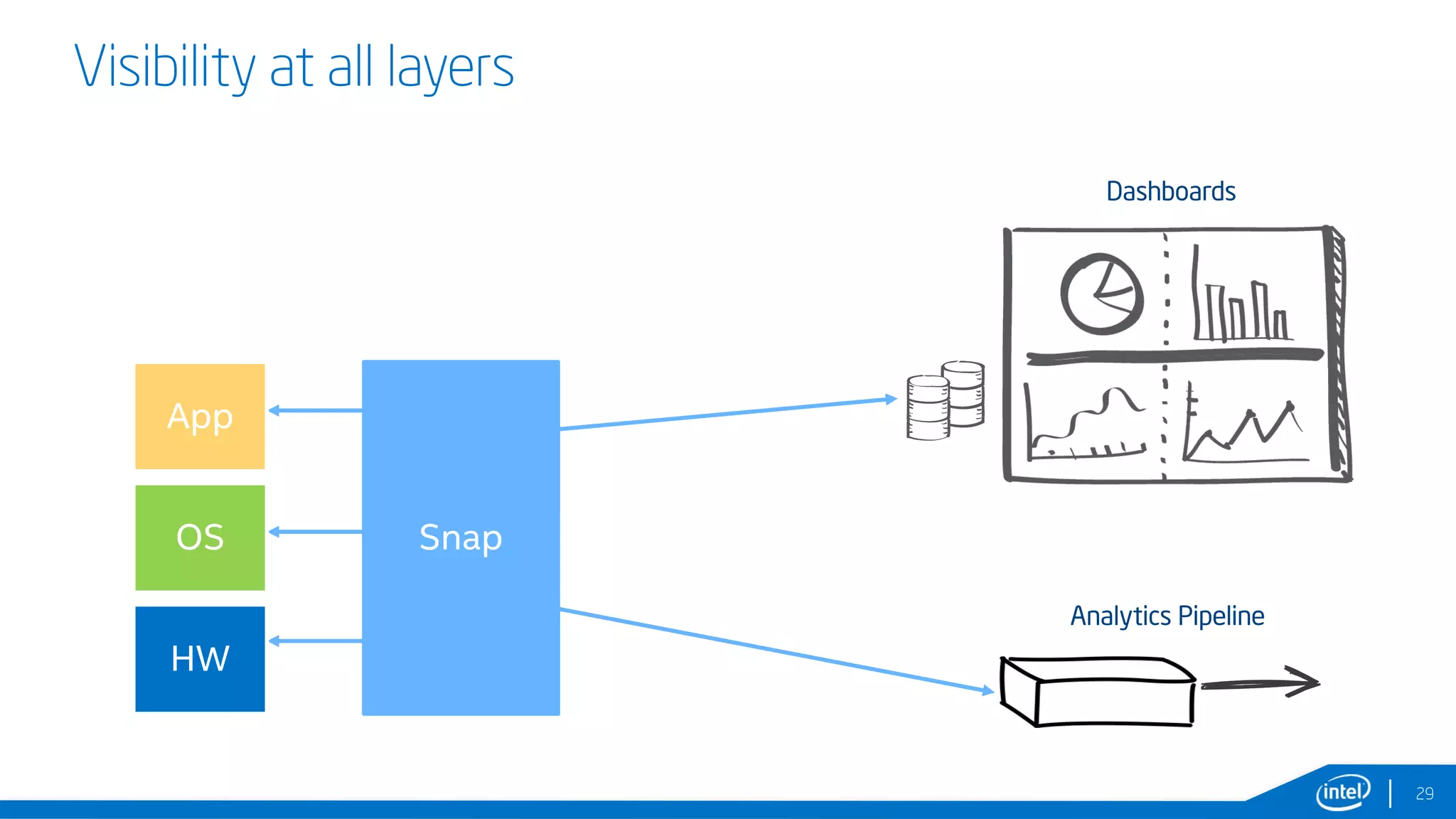

29. Visibility at all layers
29
Snap
App
OS
HW
Analytics Pipeline
Dashboards

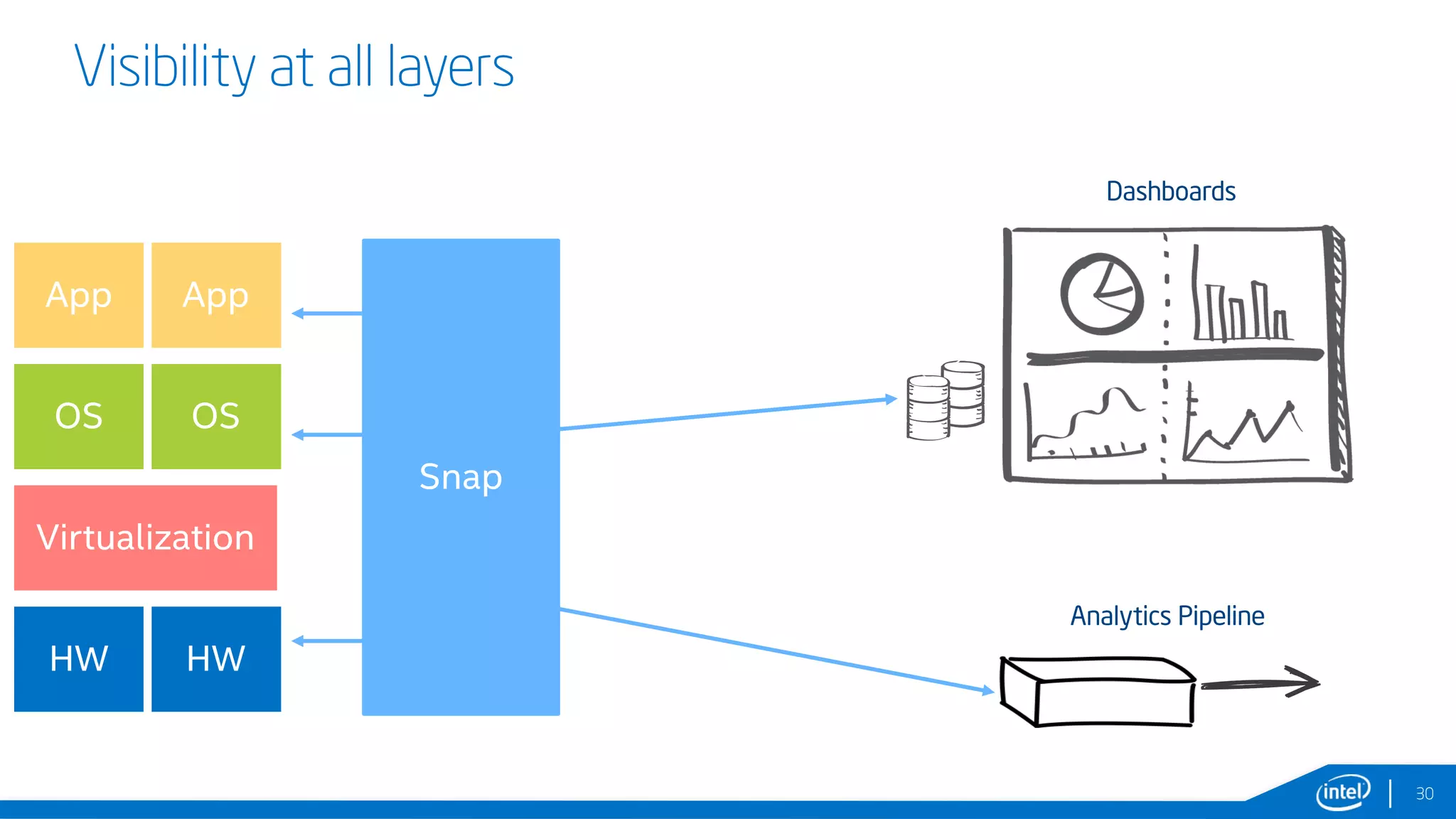

30. Visibility at all layers
30
OS
HW
Analytics Pipeline
Dashboards
App
OS
Virtualization
HW
App
Snap

31. Visibility at all layers
31
OS
HW
Analytics Pipeline
Dashboards
App
OS
Virtualization
HW
App
Snap

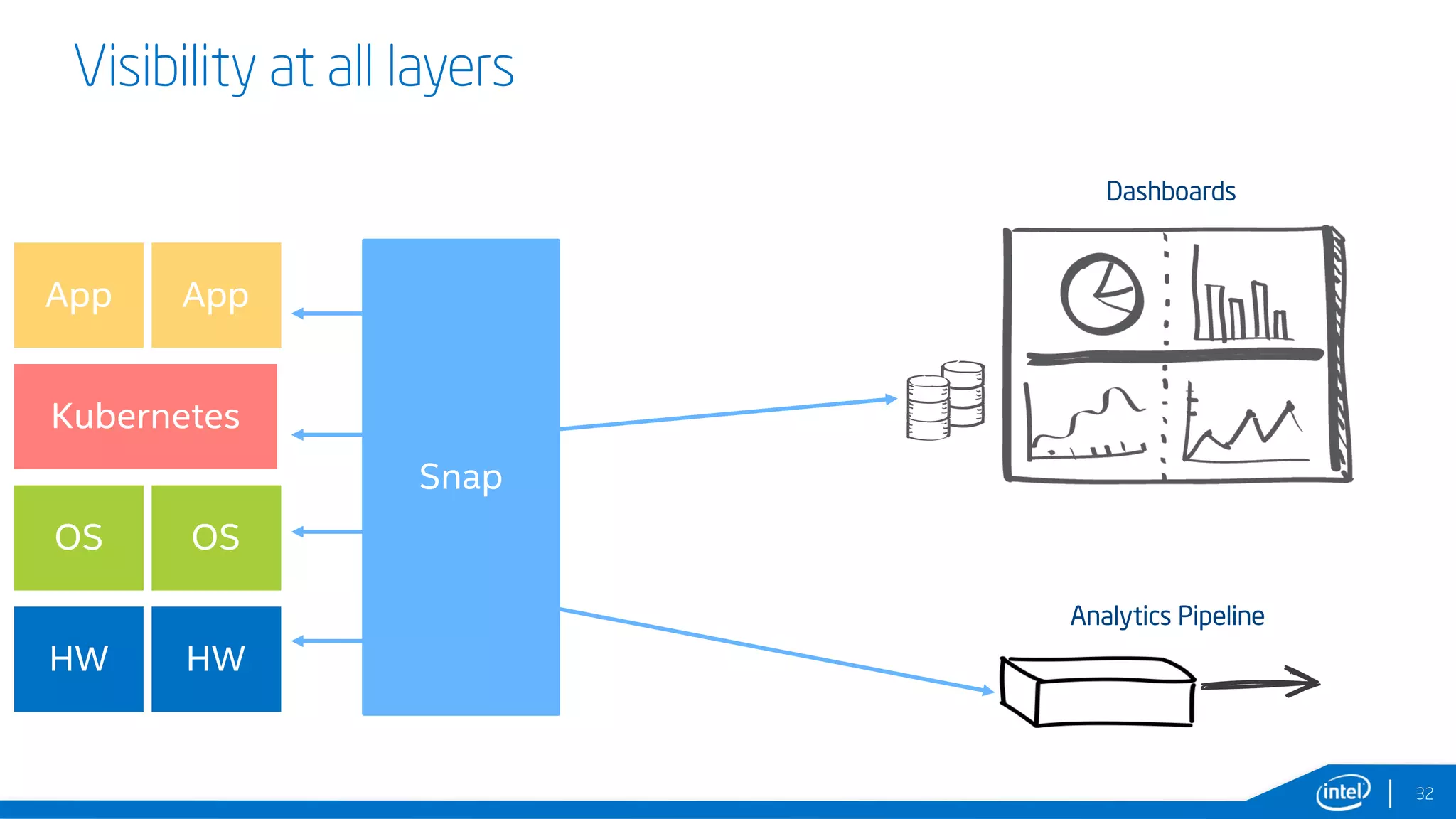

32. Visibility at all layers
32
OS
HW
Analytics Pipeline
Dashboards
App
OS
HW
App
Snap
Kubernetes

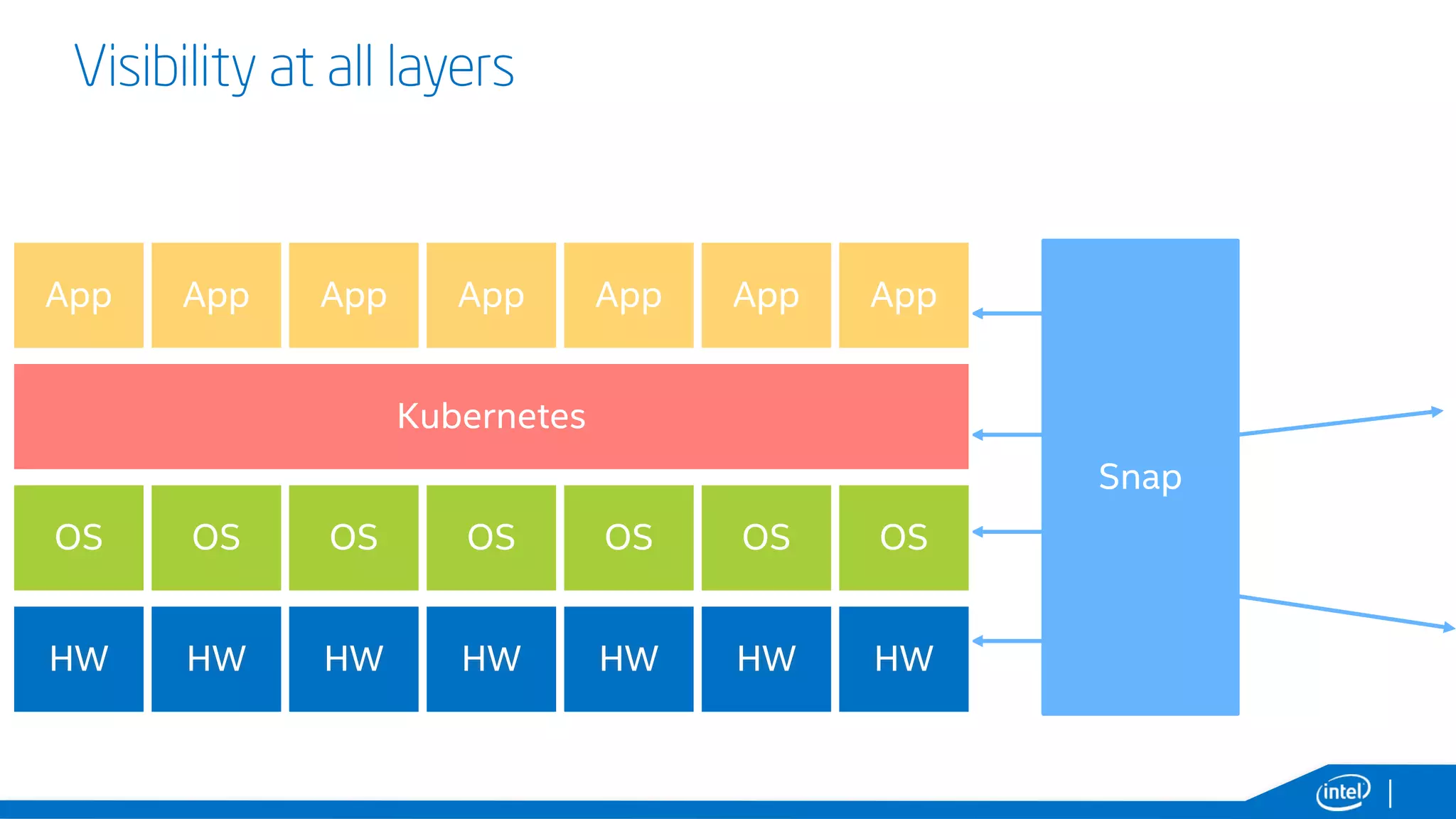

33. Visibility at all layers
OS
HW
App
Snap
Kubernetes
OS
HW
App
OS
HW
App
OS
HW
App
OS
HW
App
OS
HW
App
OS
HW
App

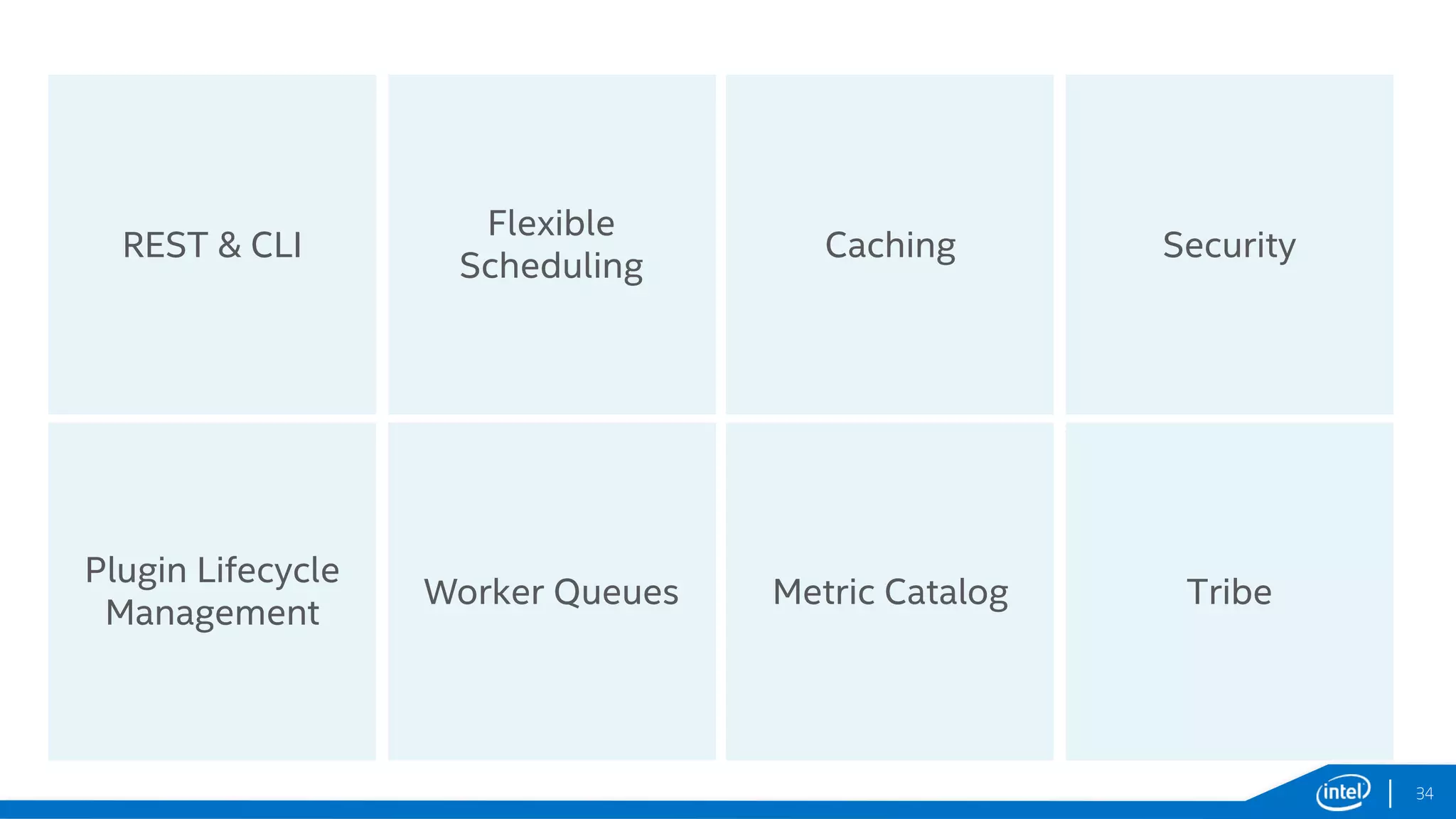

34. 34
REST & CLI
Flexible
Scheduling
Caching Security
Plugin Lifecycle
Management
Worker Queues Metric Catalog Tribe

35. Thought Leadership Ahead
35
Warning:

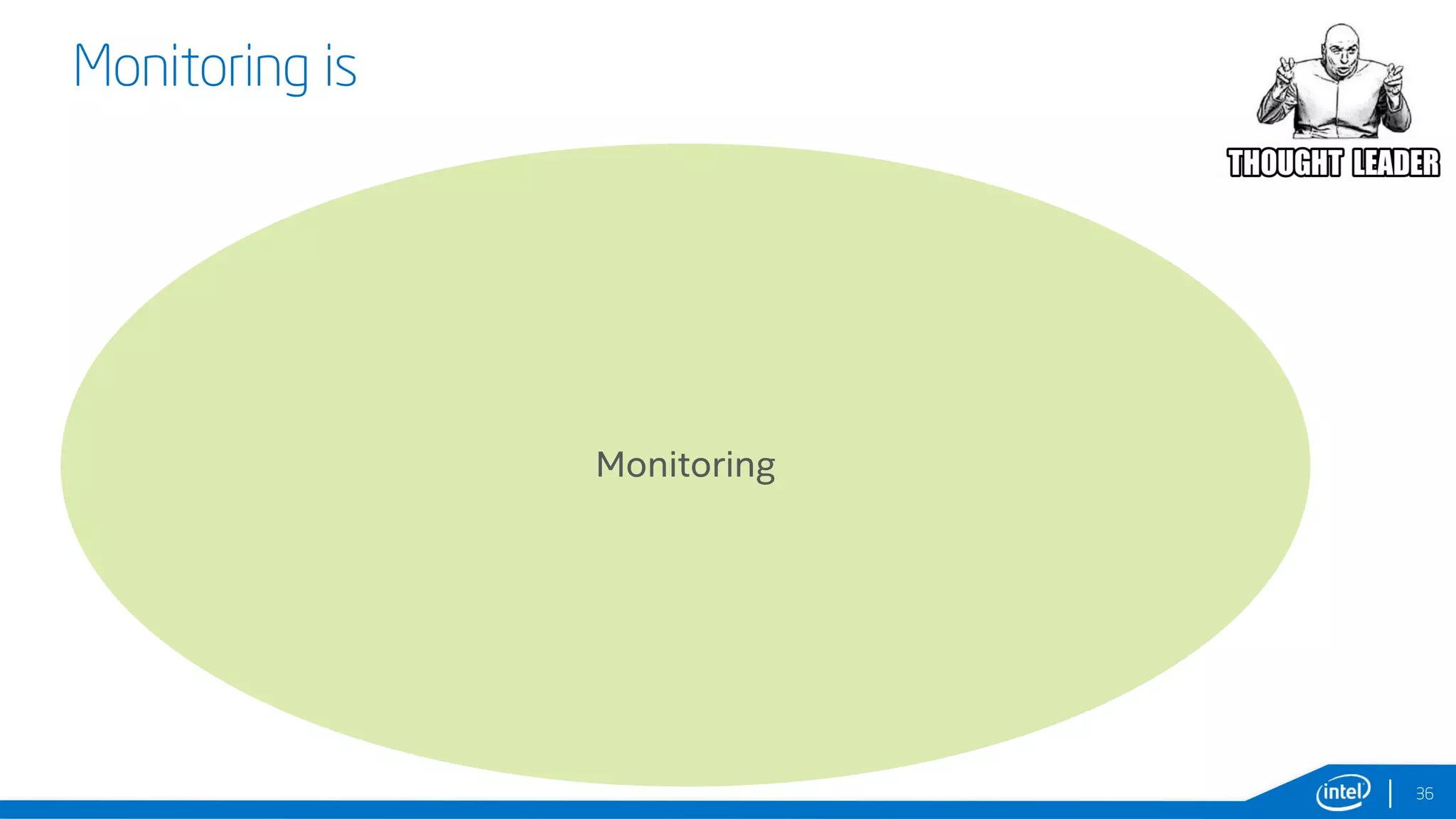

36. Monitoring is
36
Monitoring

37. 37
Monitoring
Telemetry
Alerts
Persistence
Learning
Visualization
Logging
Notifications
Monitoring is

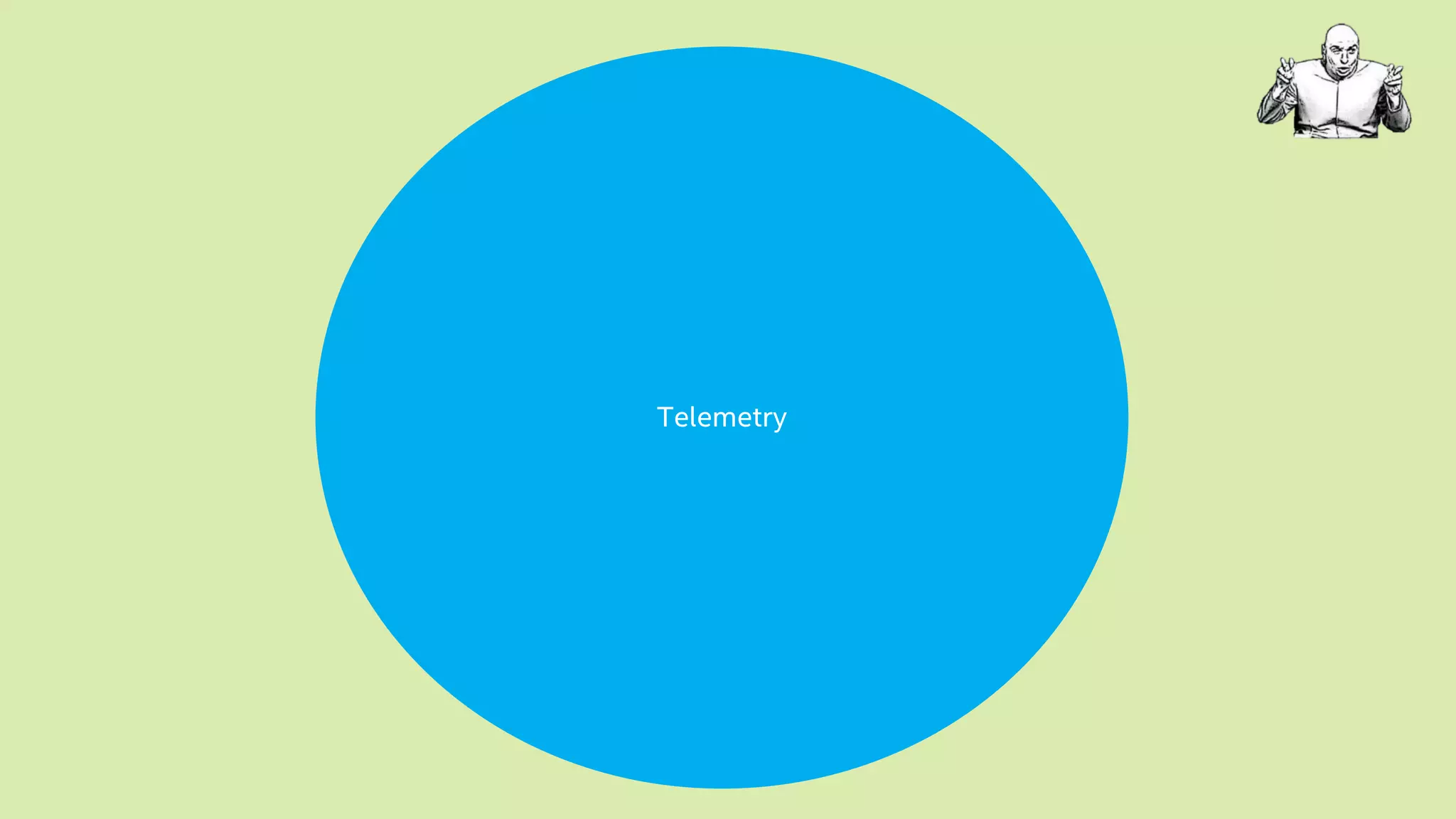

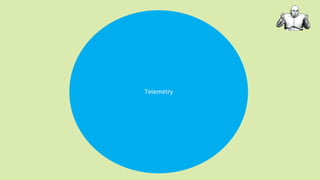

38. 38
Monitoring is
Telemetry

39. 39

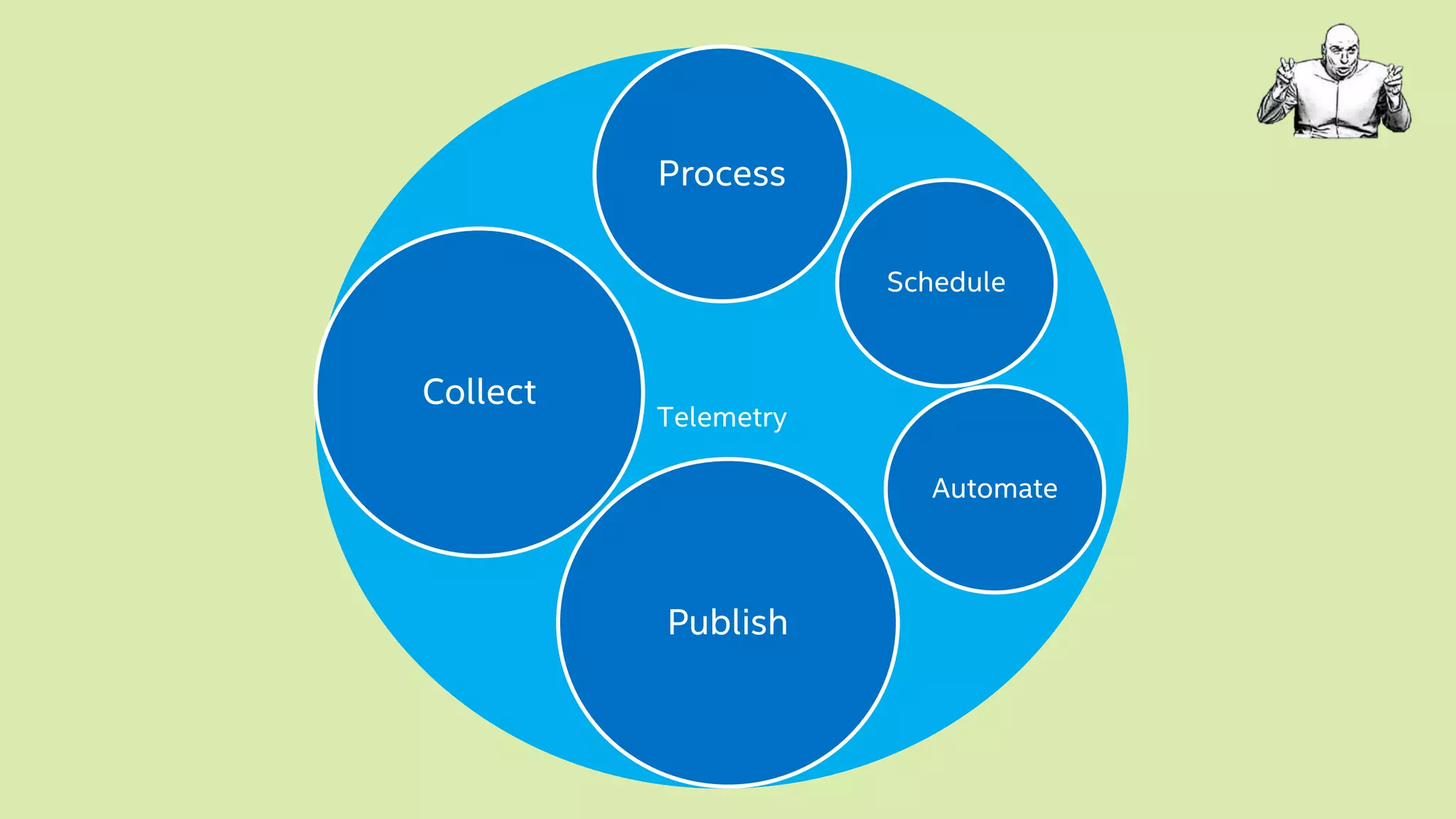

Monitoring is
Telemetry
Collect
Process
Publish
Schedule
Automate

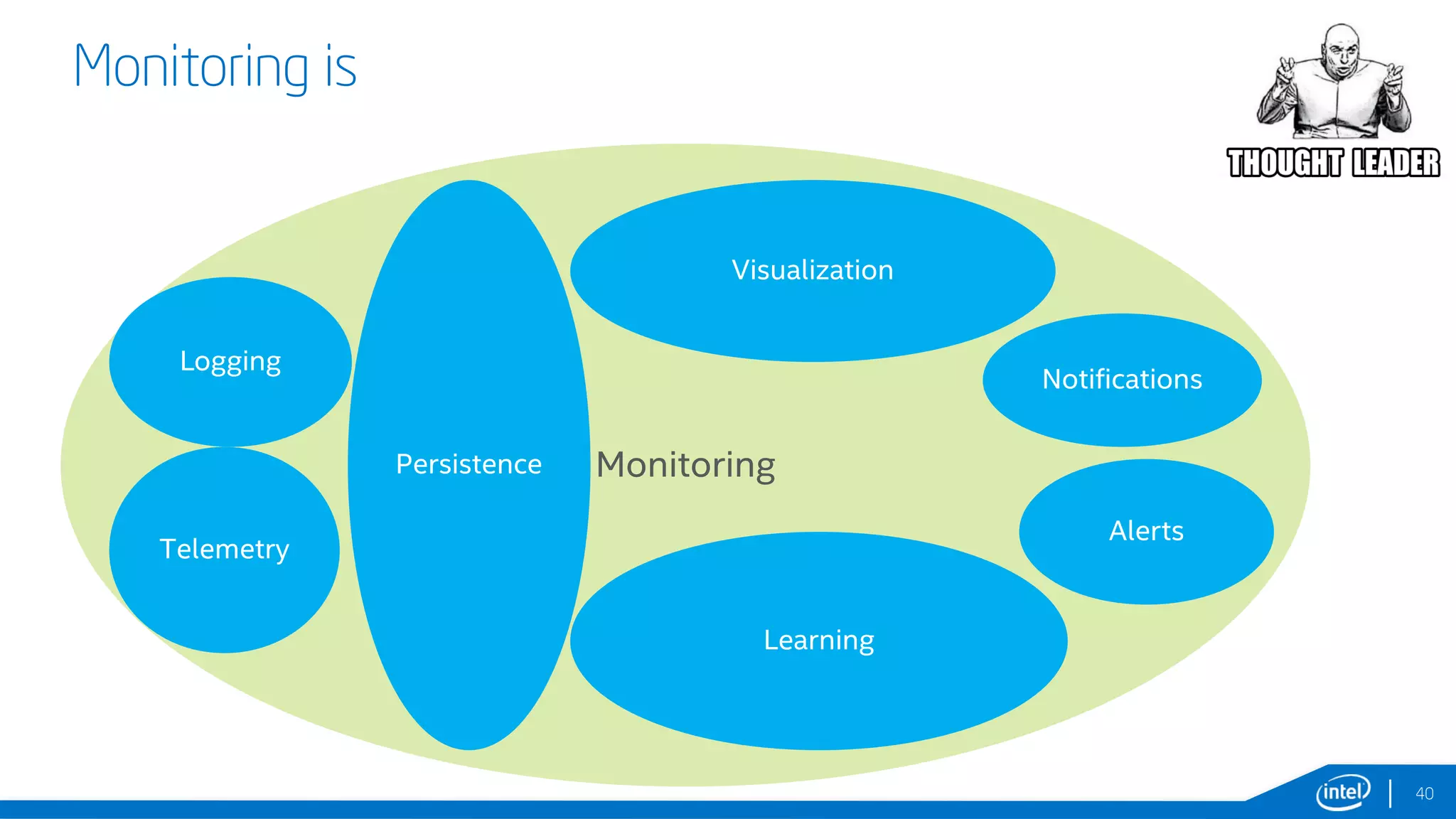

40. 40
Monitoring
Telemetry
Alerts
Persistence
Learning
Visualization
Logging
Notifications
Monitoring is

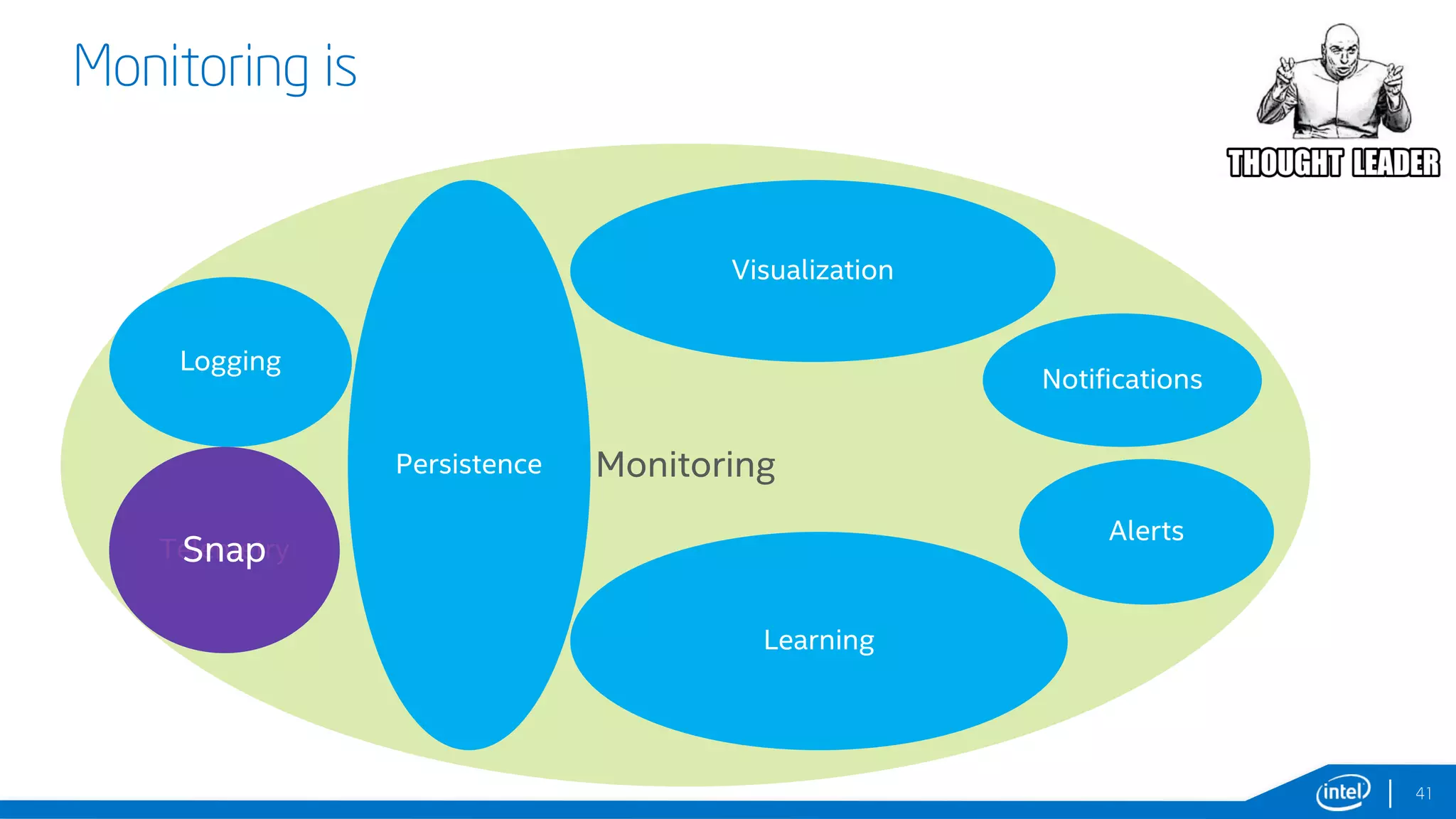

41. 41
Monitoring
Telemetry
Alerts
Persistence
Learning
Visualization
Logging
Notifications
Monitoring is
Snap

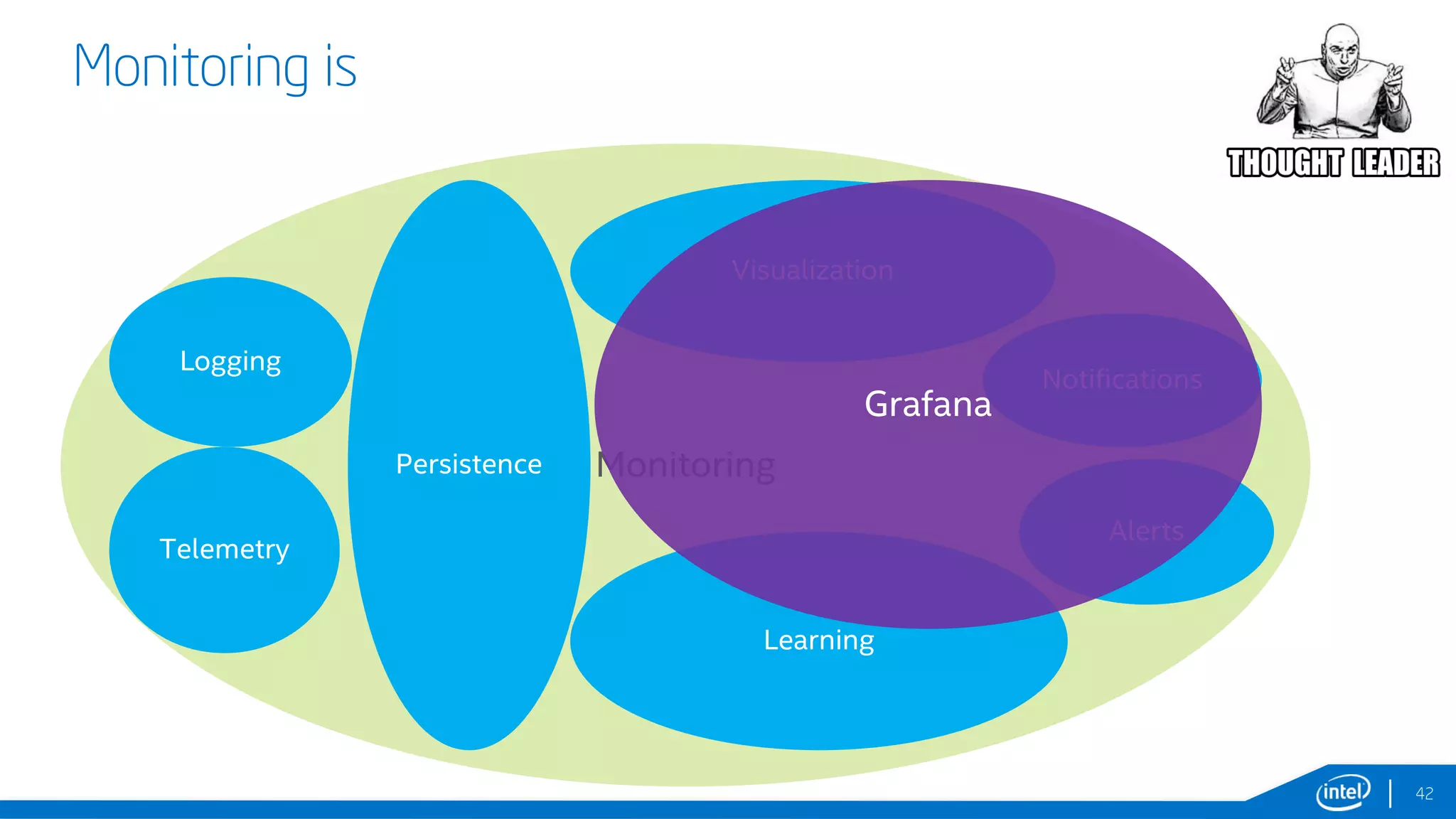

42. 42
Monitoring
Telemetry
Alerts
Persistence
Learning
Visualization
Logging
Notifications
Monitoring is
Grafana

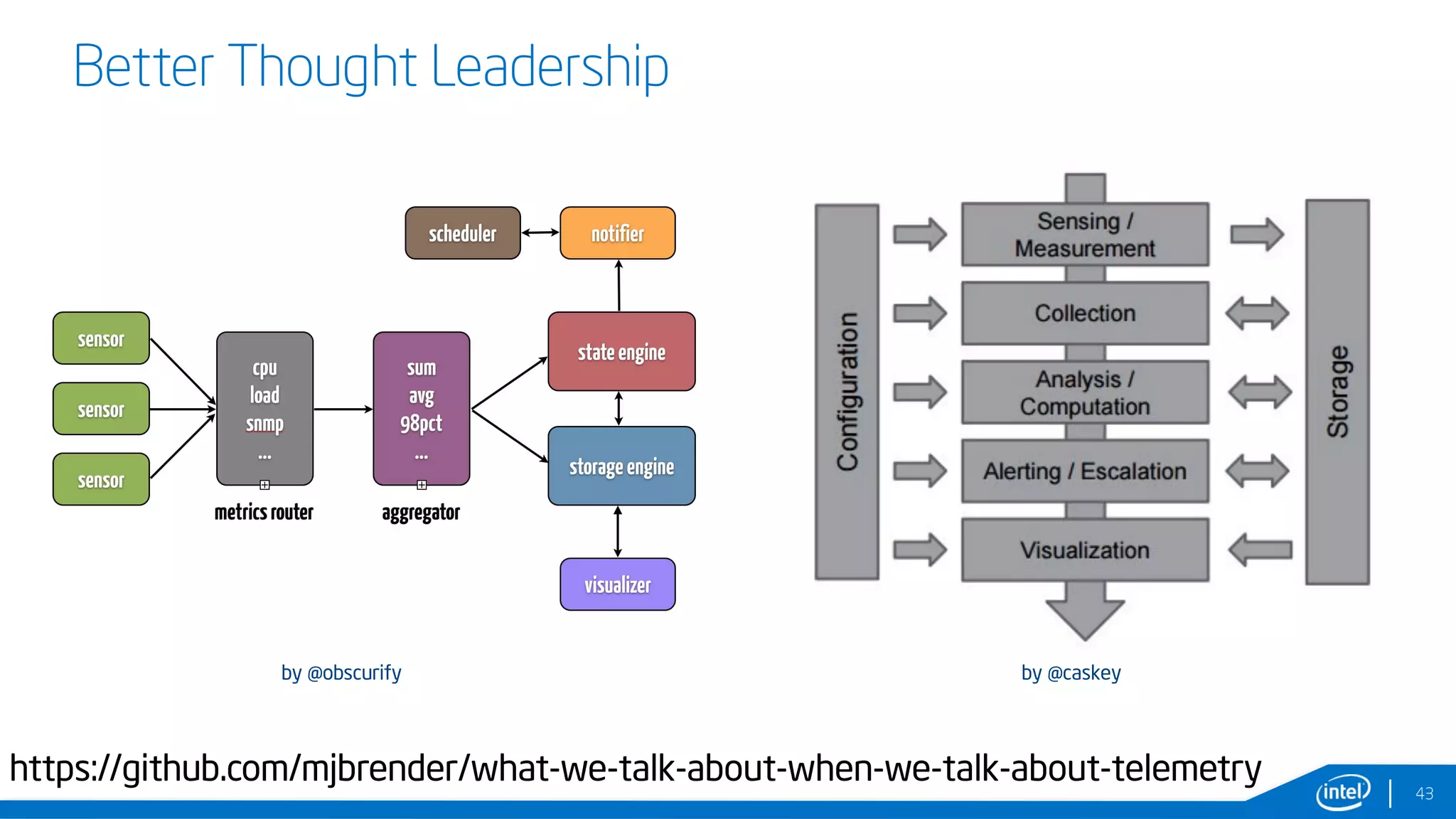

43. Better Thought Leadership
43
by @obscurify by @caskey
https://github.com/mjbrender/what-we-talk-about-when-we-talk-about-telemetry

44. Q&A
44

45. FAQ
45
Do I need telemetry?

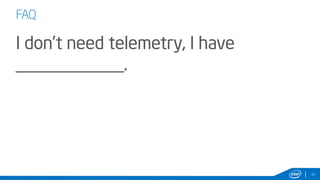

46. FAQ
46
I don’t need telemetry, I have
____________.

47. FAQ

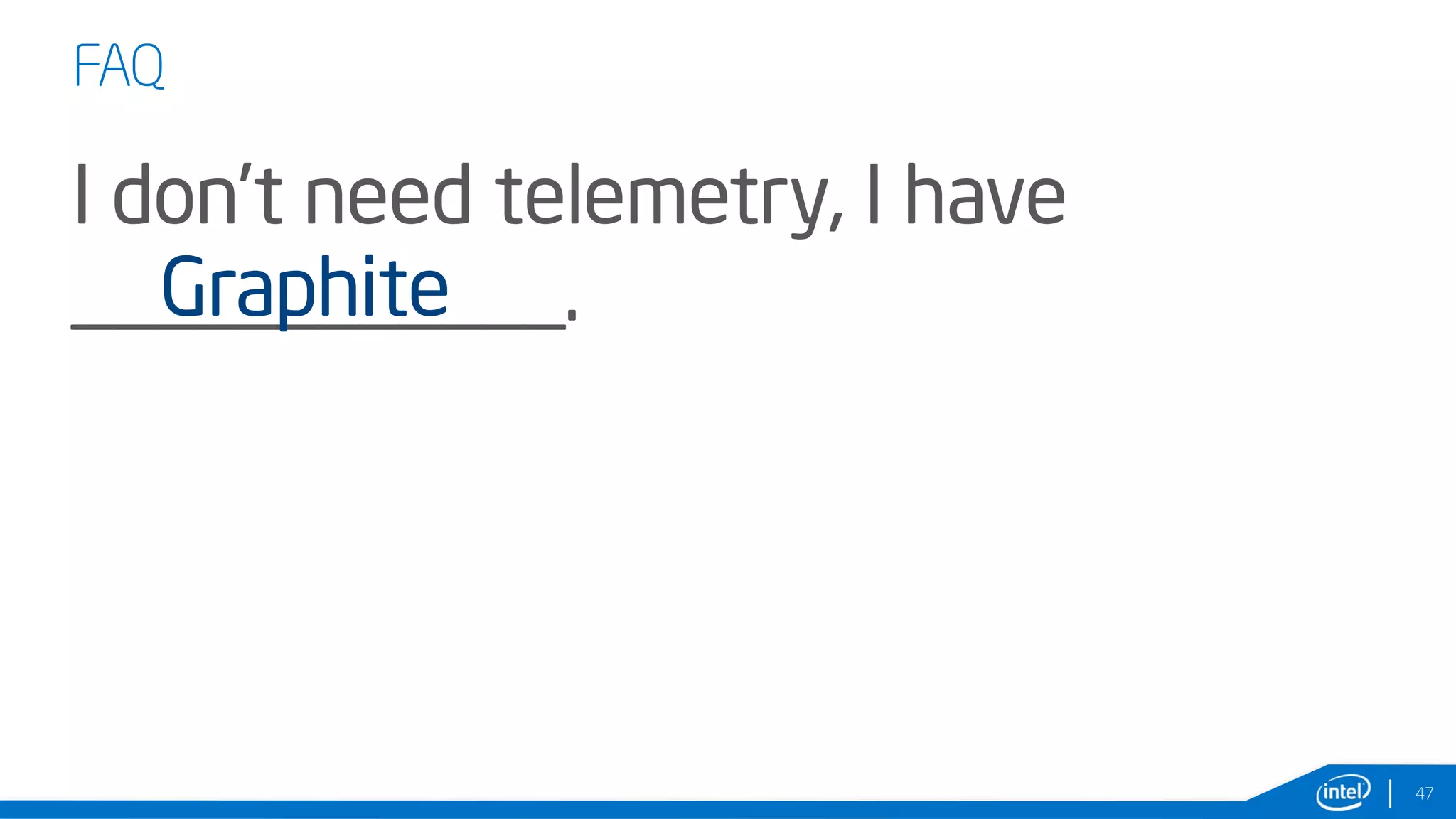

47
I don’t need telemetry, I have
____________.Graphite

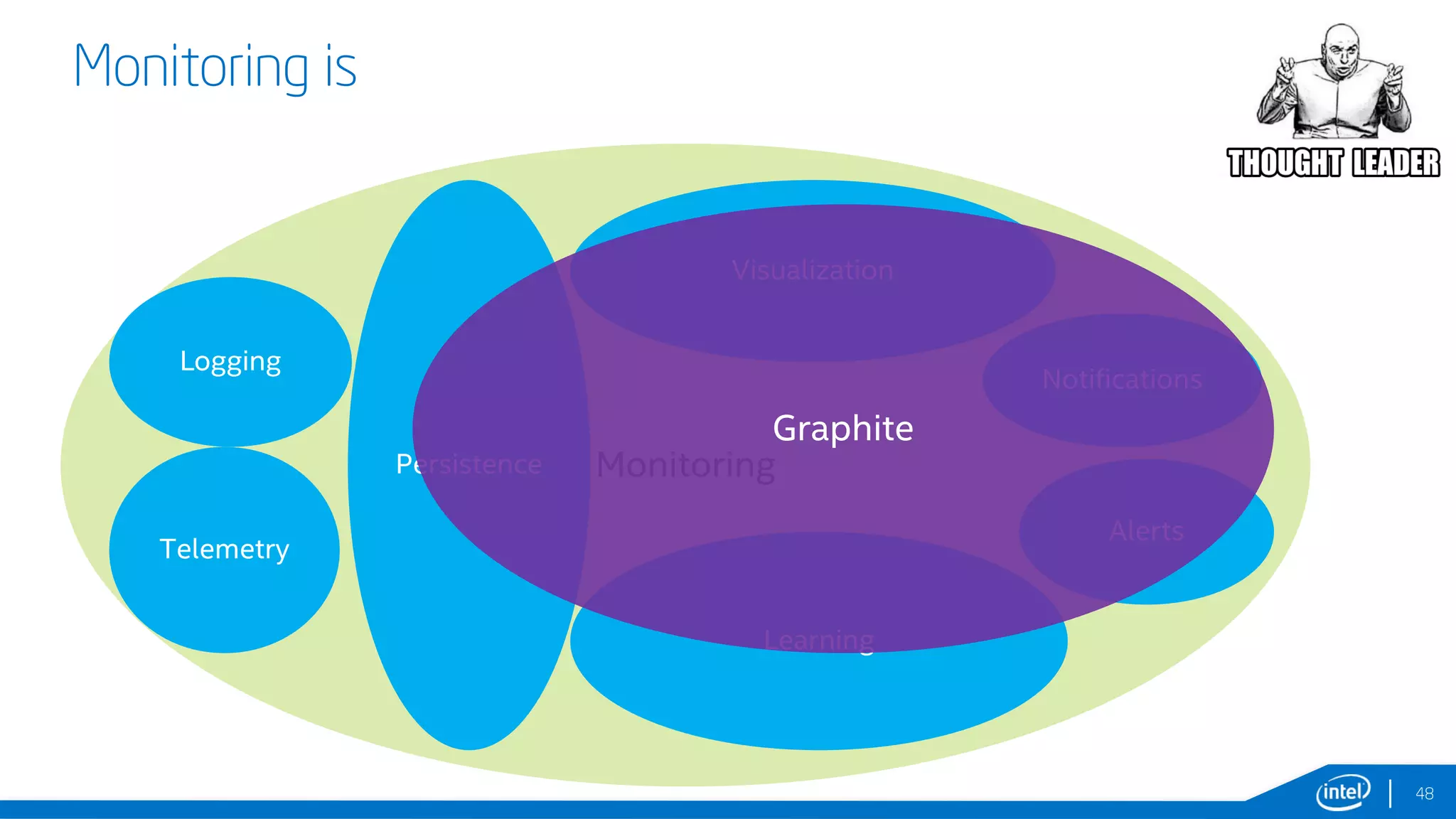

48. 48
Monitoring
Telemetry
Alerts
Persistence
Learning
Visualization
Logging
Notifications
Monitoring is
Graphite

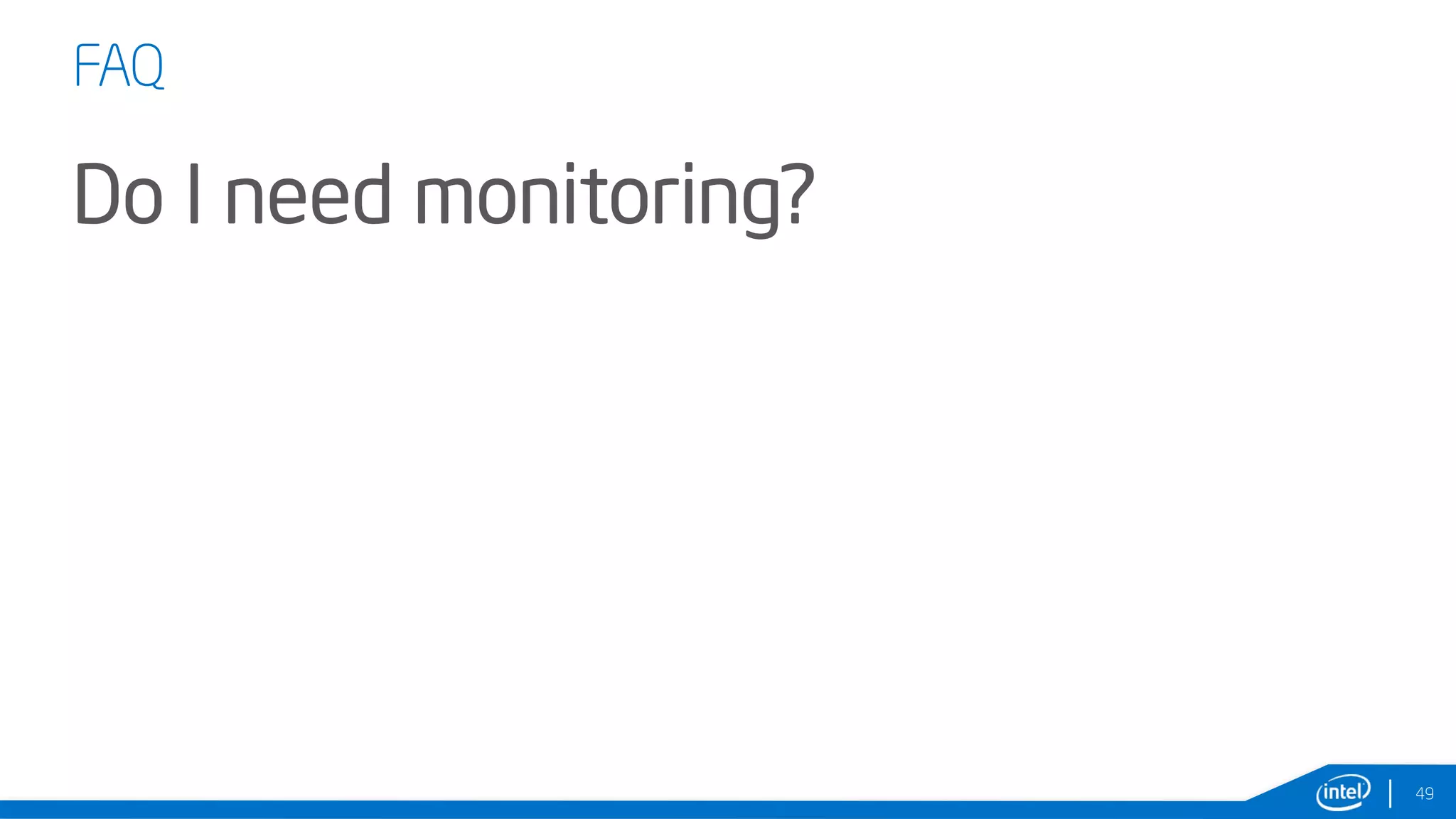

49. FAQ
49
Do I need monitoring?

50. FAQ

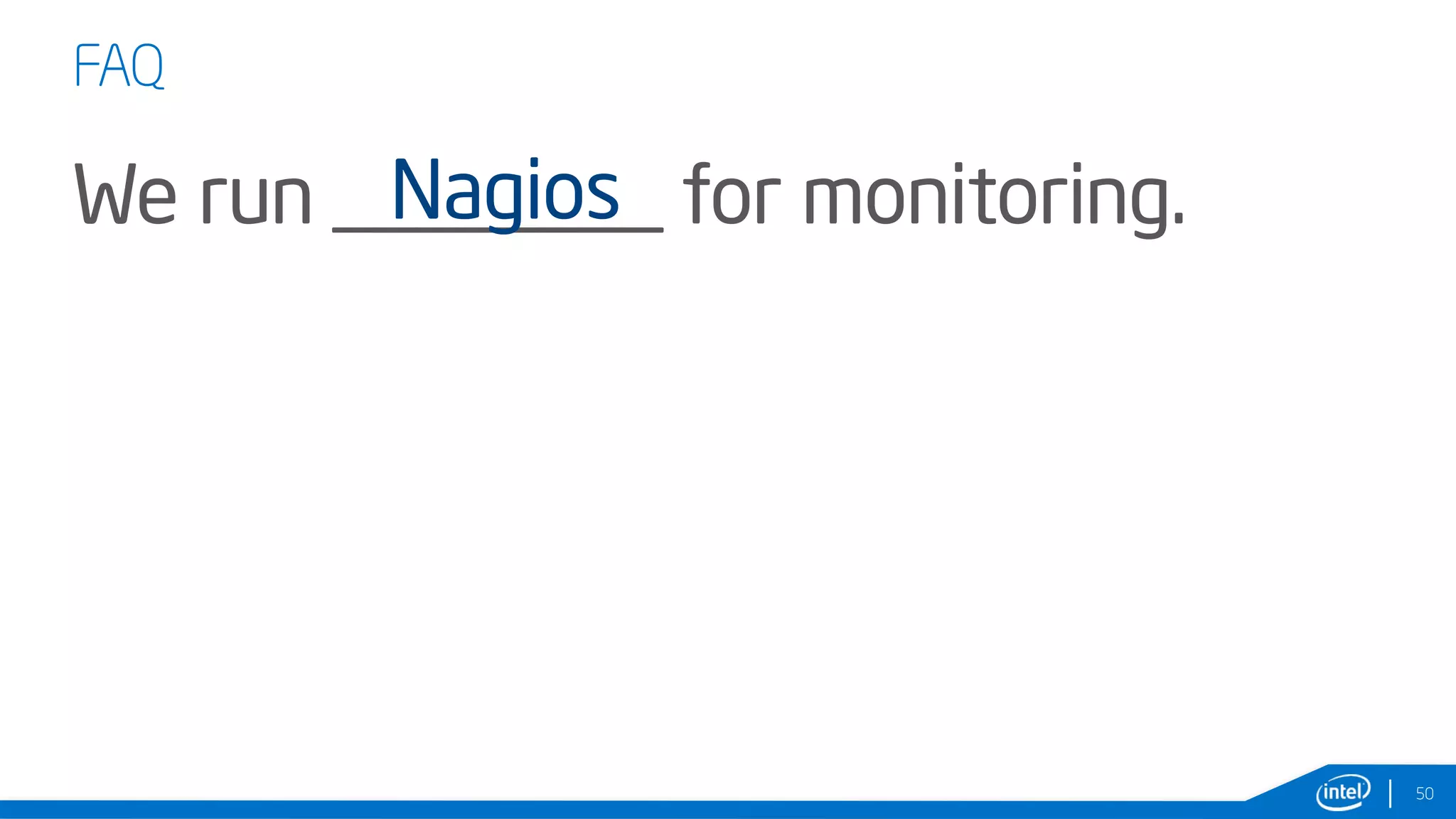

50
We run ________ for monitoring.Nagios

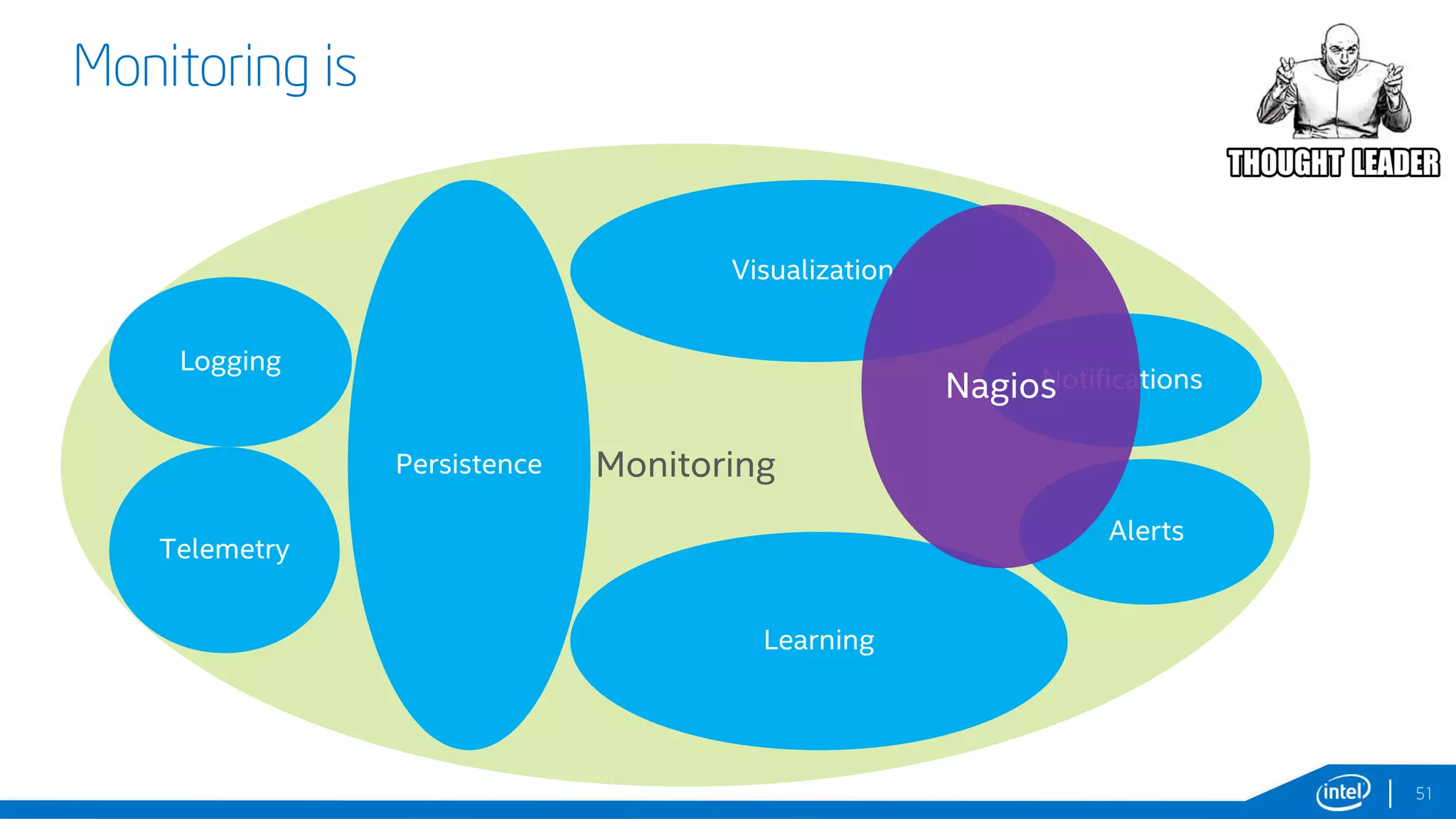

51. 51
Monitoring
Telemetry
Alerts
Persistence
Learning
Visualization
Logging
Notifications
Monitoring is
Nagios

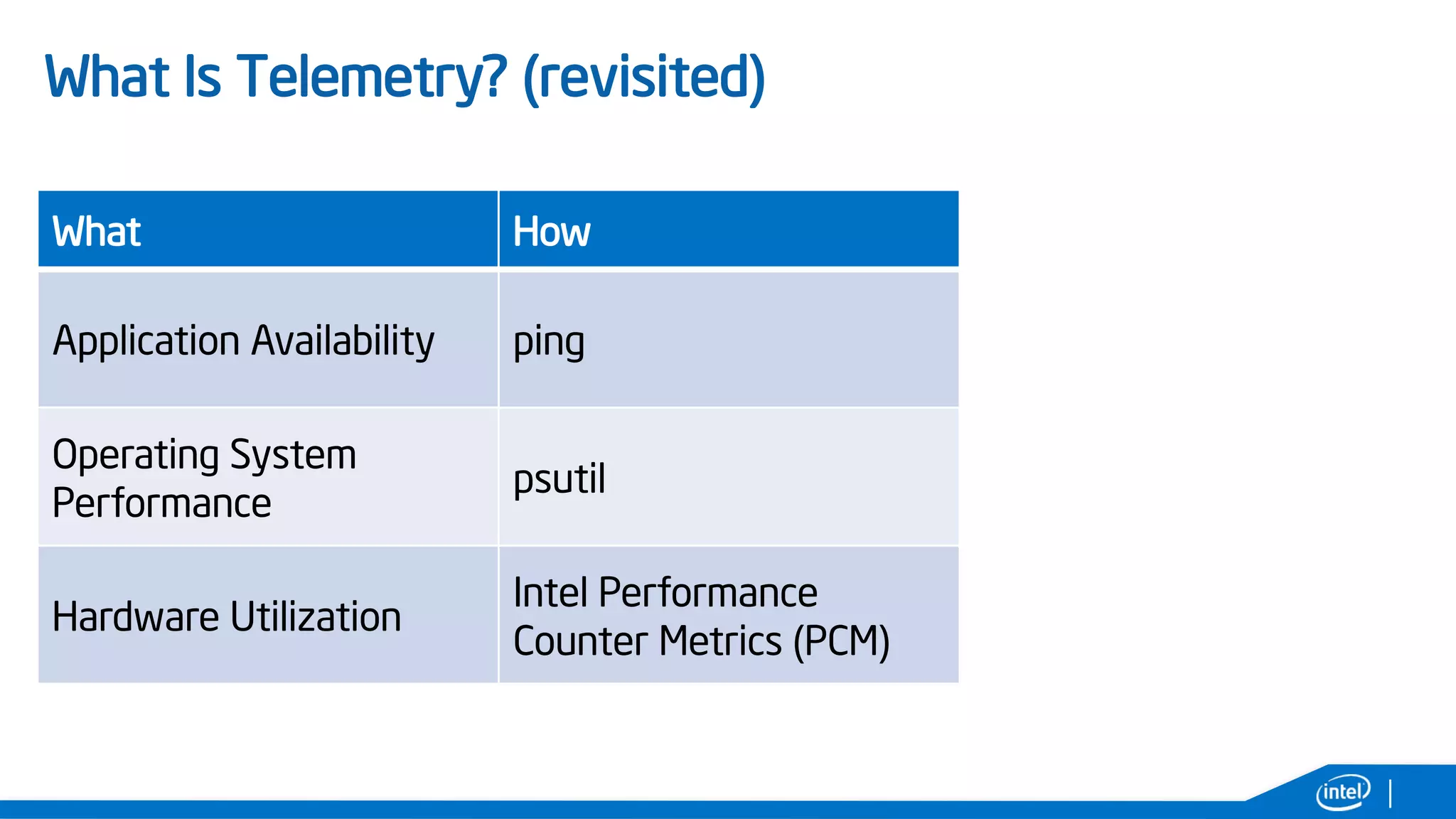

52. What Is Telemetry? (revisited)
What How
Application Availability ping
Operating System
Performance
psutil
Hardware Utilization
Intel Performance
Counter Metrics (PCM)

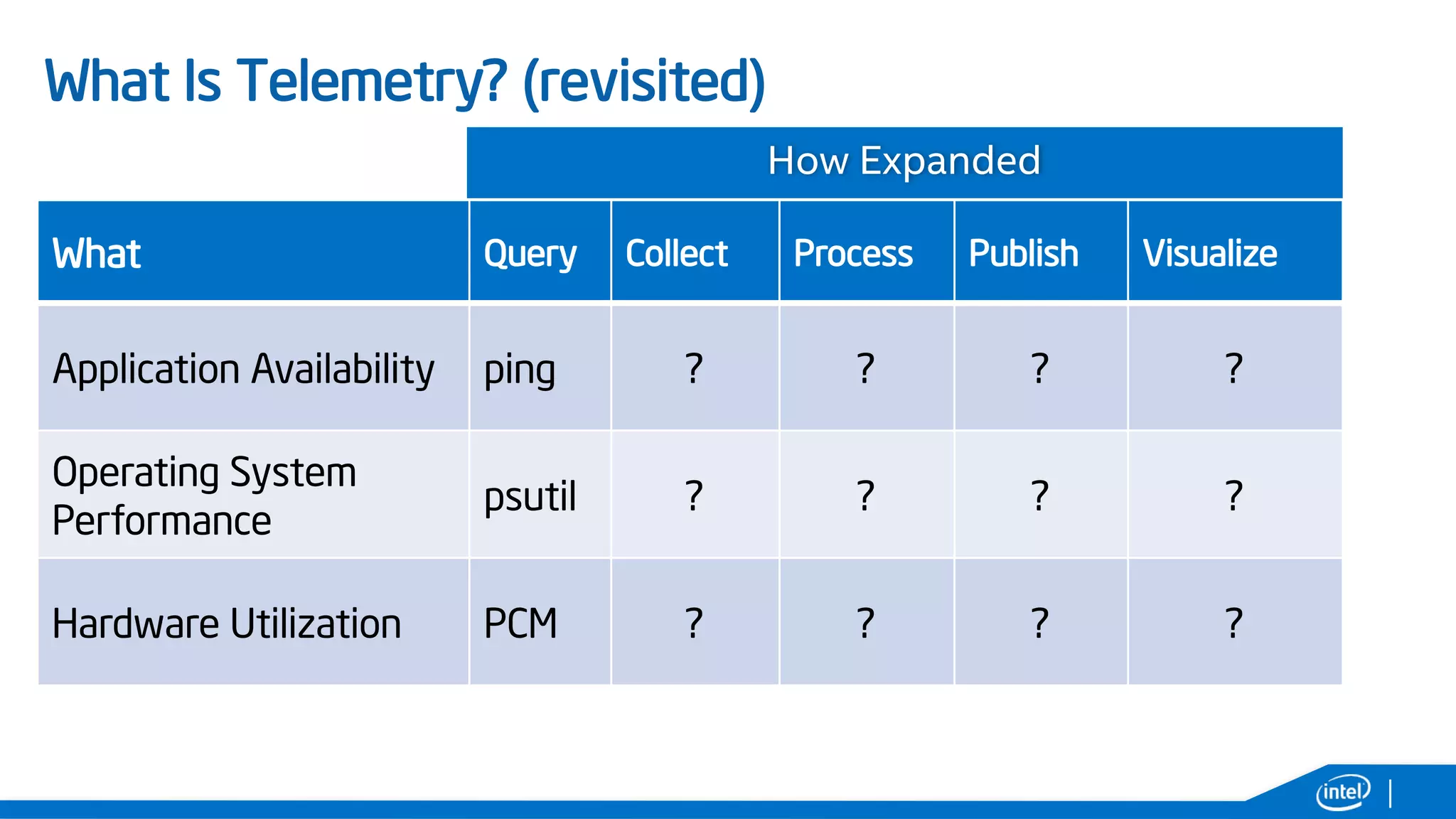

53. What Is Telemetry? (revisited)
What Query Collect Process Publish Visualize
Application Availability ping ? ? ? ?
Operating System
Performance
psutil ? ? ? ?
Hardware Utilization PCM ? ? ? ?
How Expanded

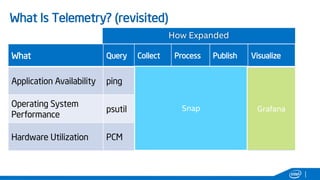

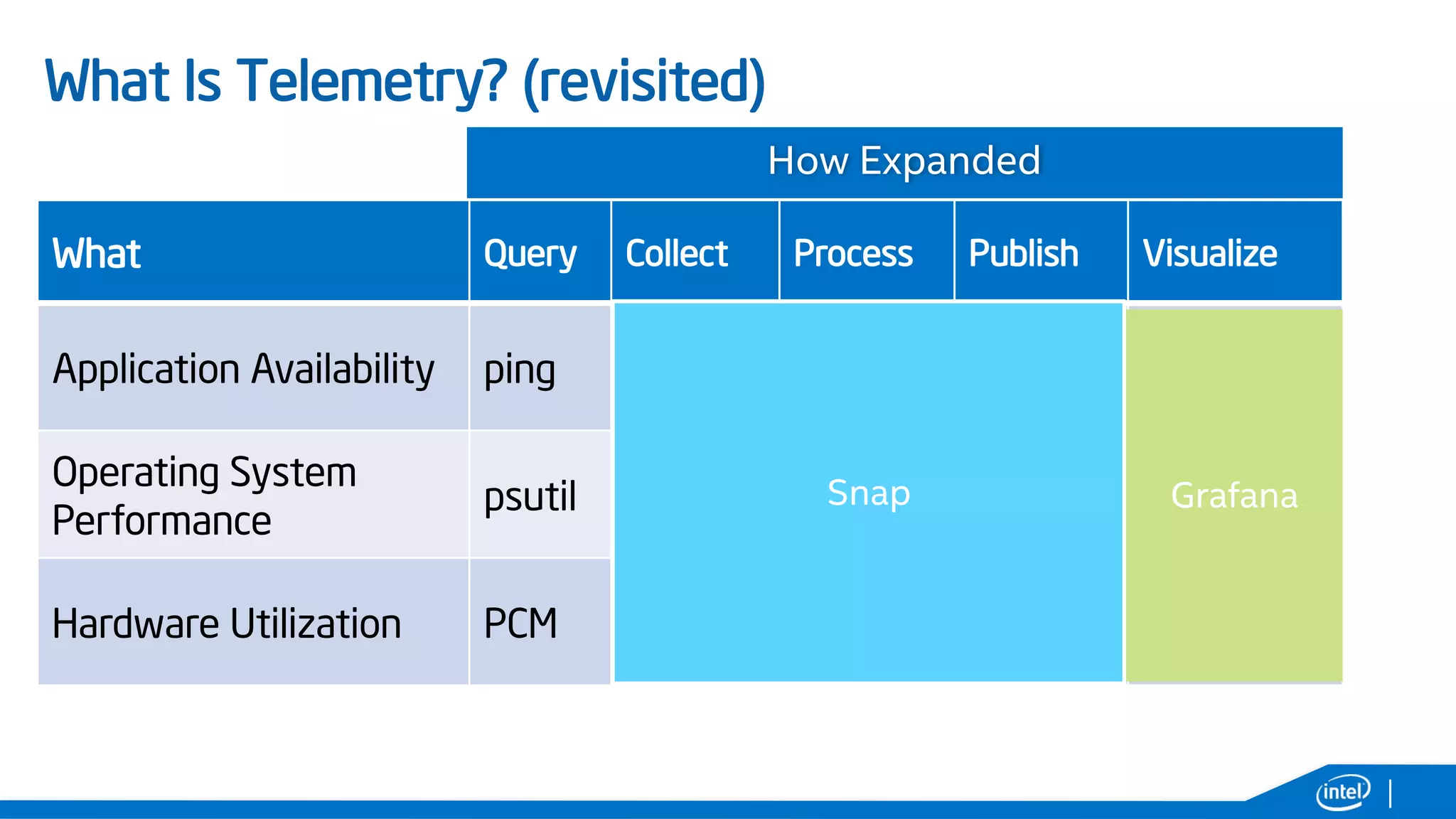

54. What Is Telemetry? (revisited)
What Query Collect Process Publish Visualize
Application Availability ping ? ? ? ?
Operating System
Performance
psutil ? ? ? ?
Hardware Utilization PCM ? ? ? ?
How Expanded
Snap Grafana

55. 55

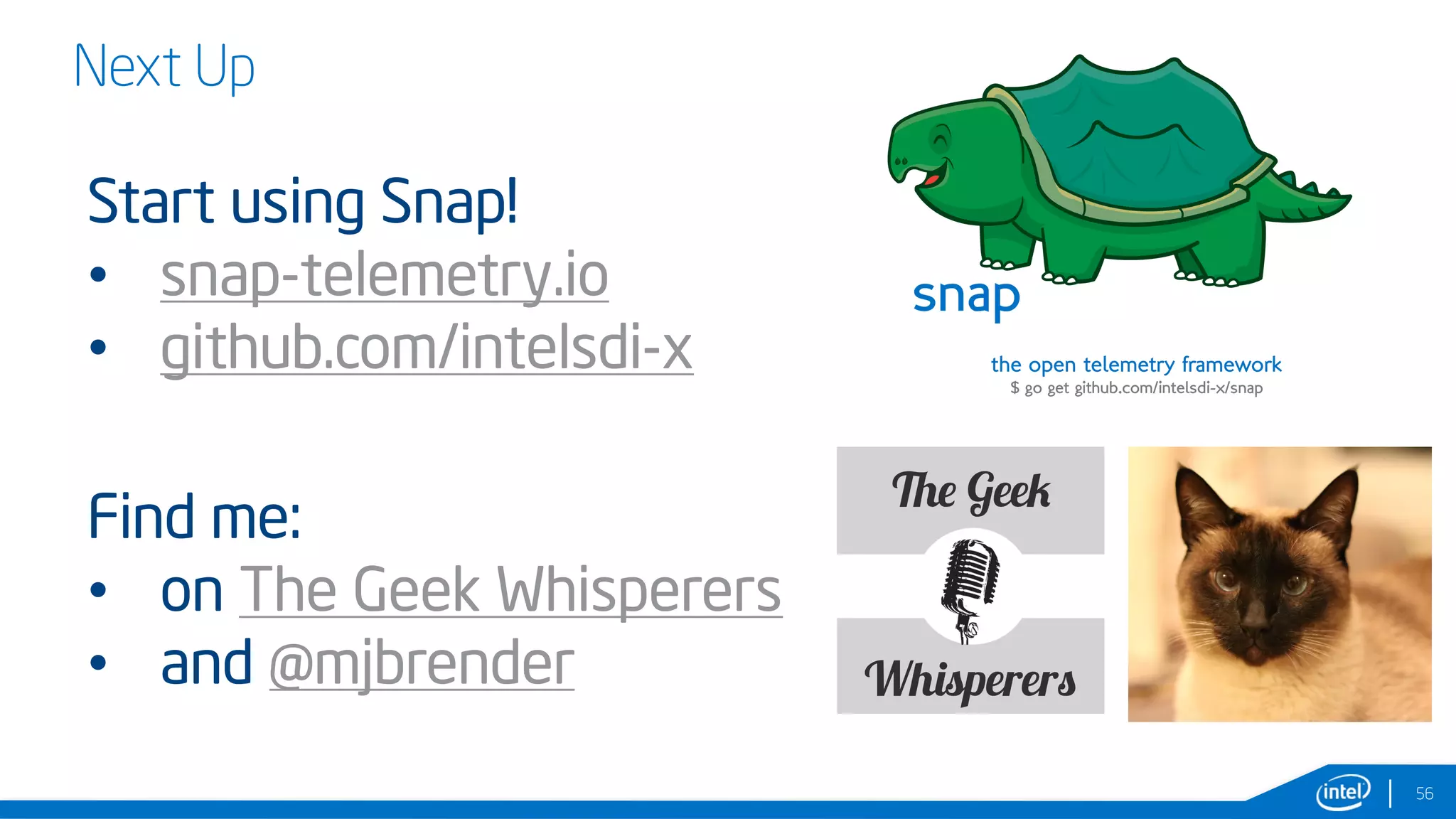

56. Next Up
56
Start using Snap!
• snap-telemetry.io
• github.com/intelsdi-x
Find me:
• on The Geek Whisperers
• and @mjbrender

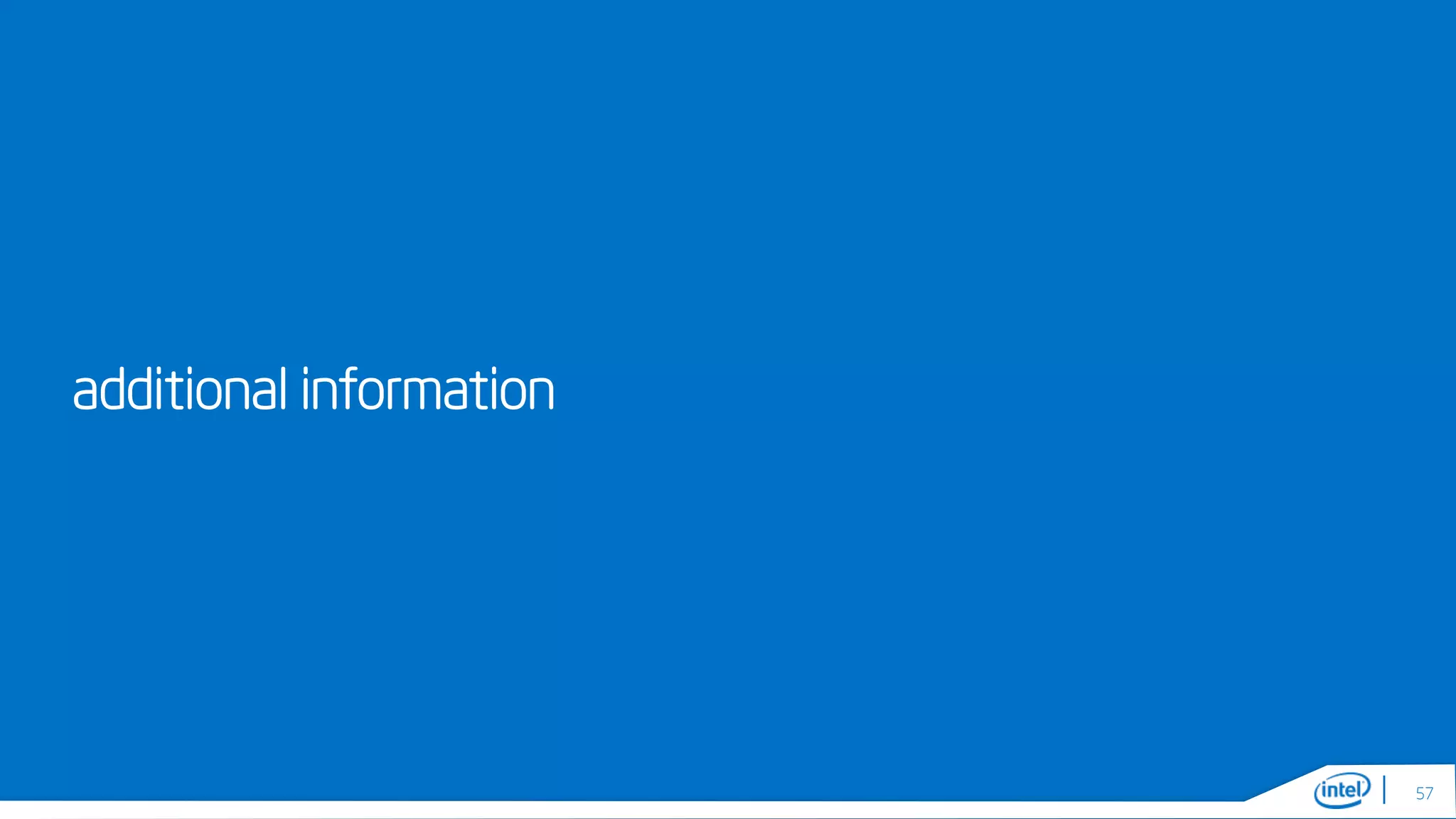

57. additional information
57

58. Everything is Challenging At Scale
58

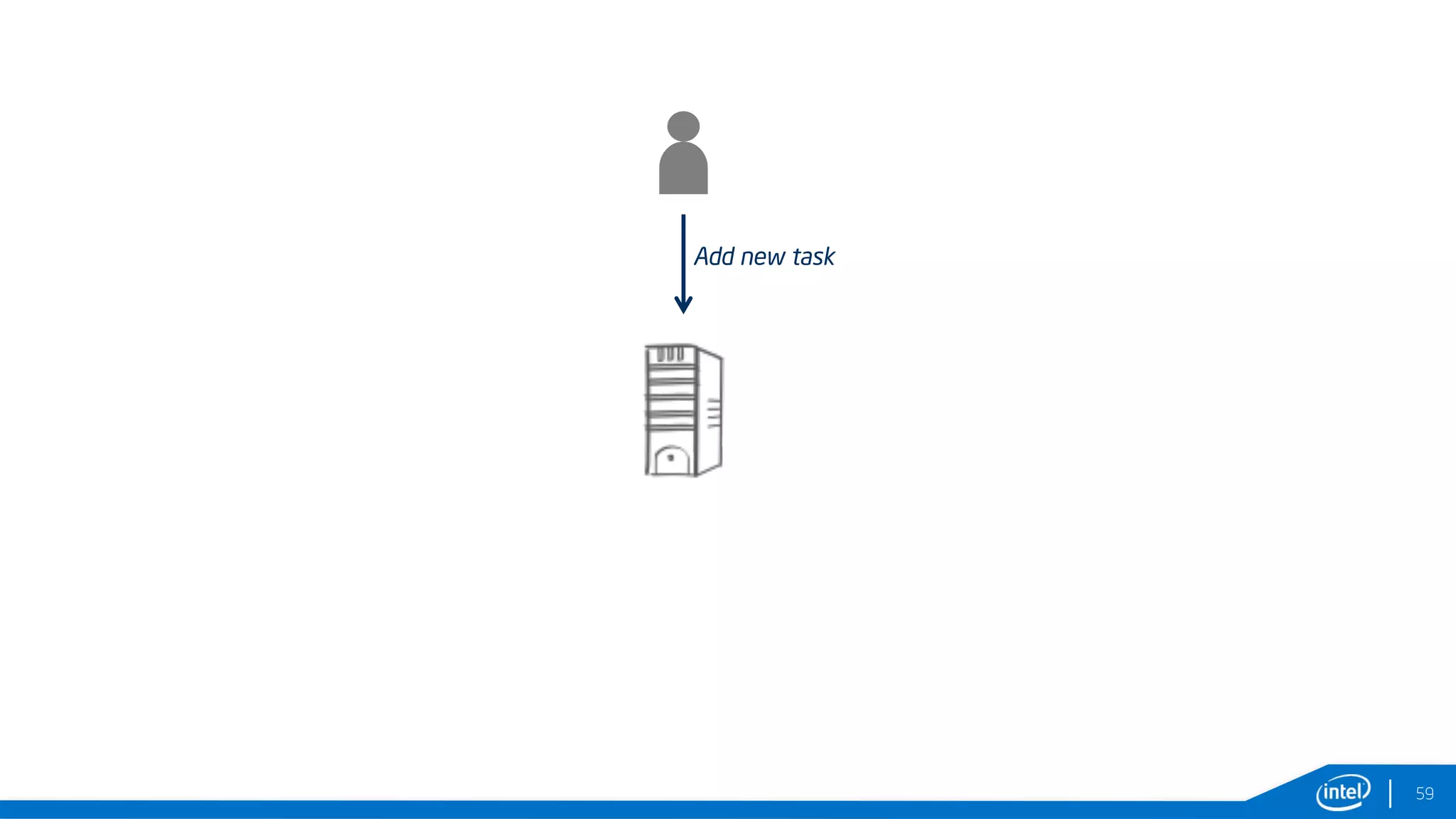

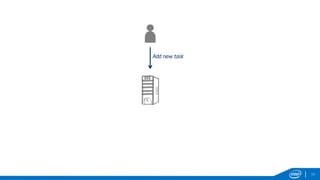

59. Add new task
59

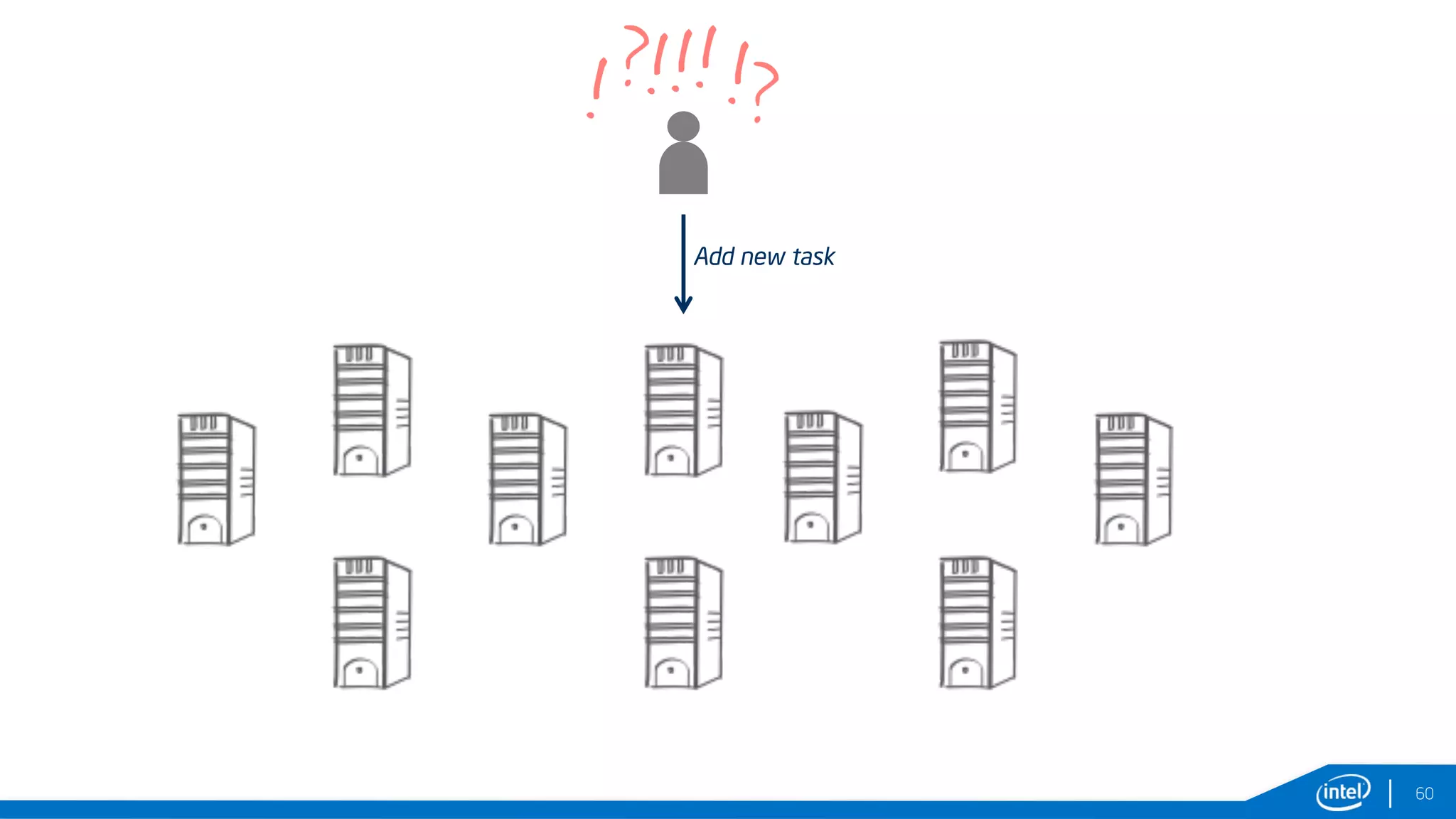

60. Add new task
60

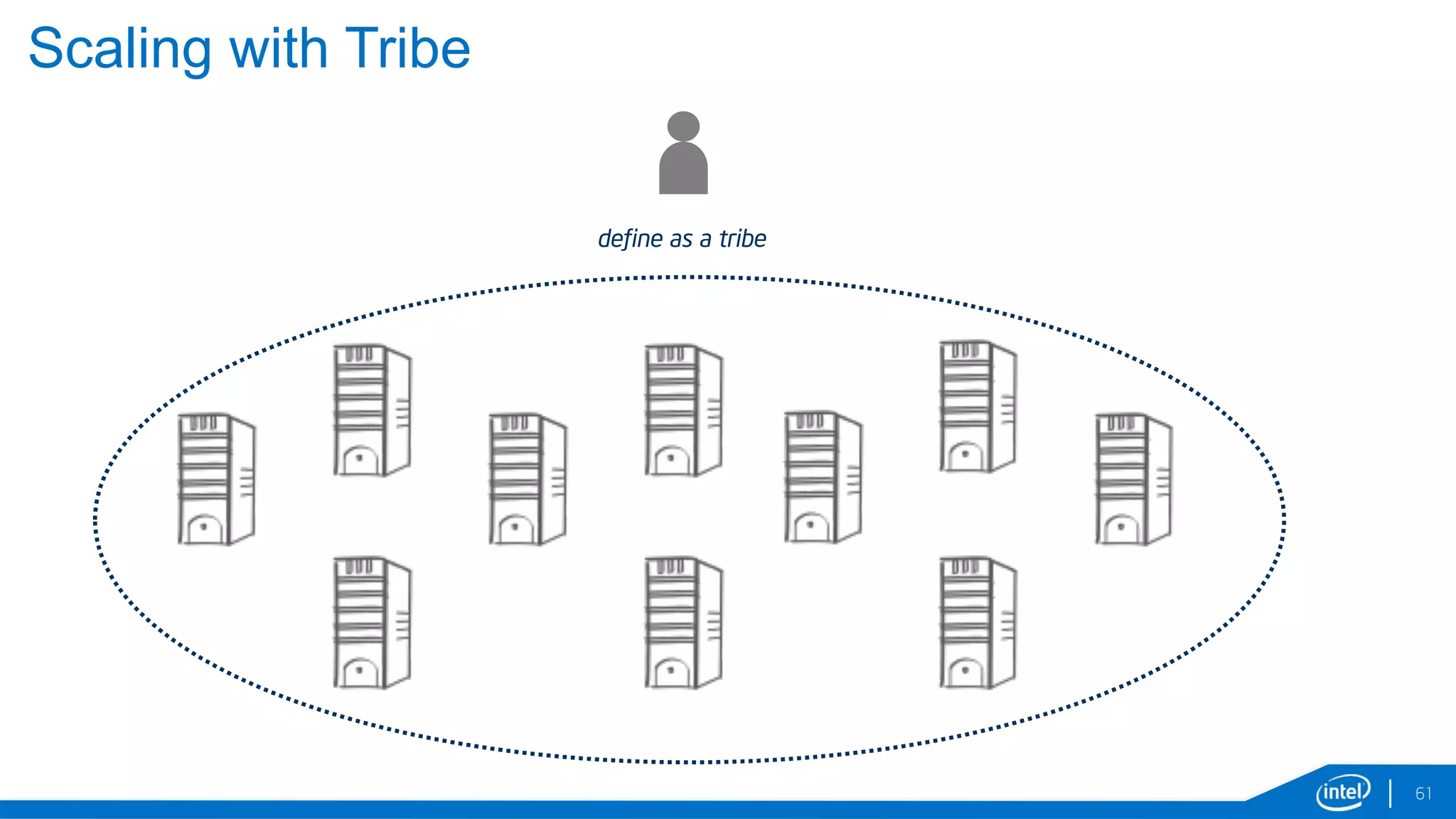

61. define as a tribe
Scaling with Tribe
61

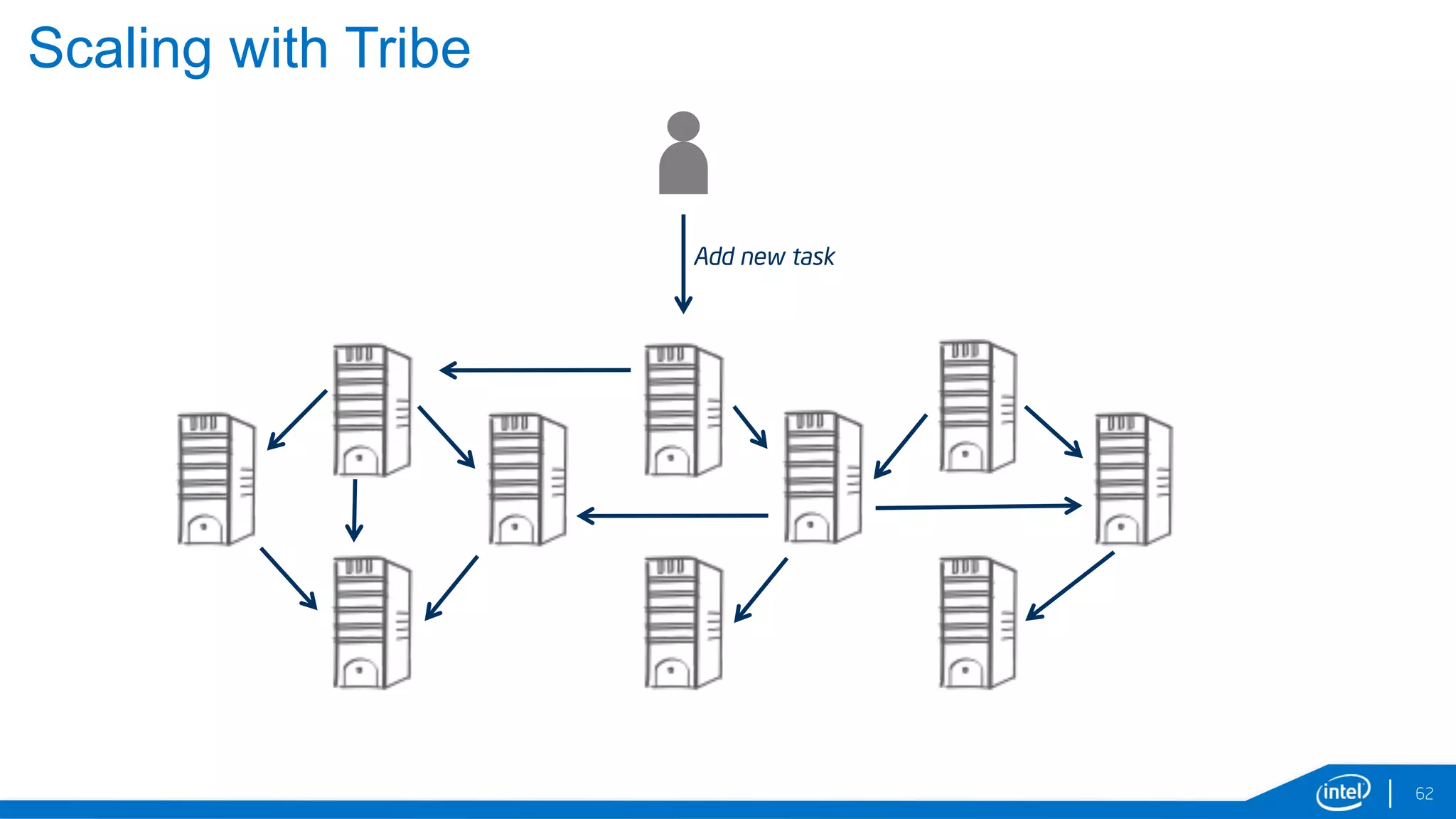

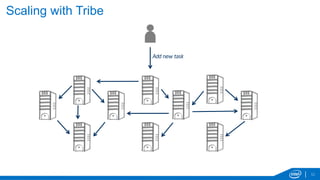

62. Scaling with Tribe
Add new task
62

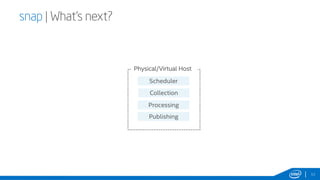

63. snap | What’s next?
Physical/Virtual Host
Scheduler
Processing
Publishing
Collection
63

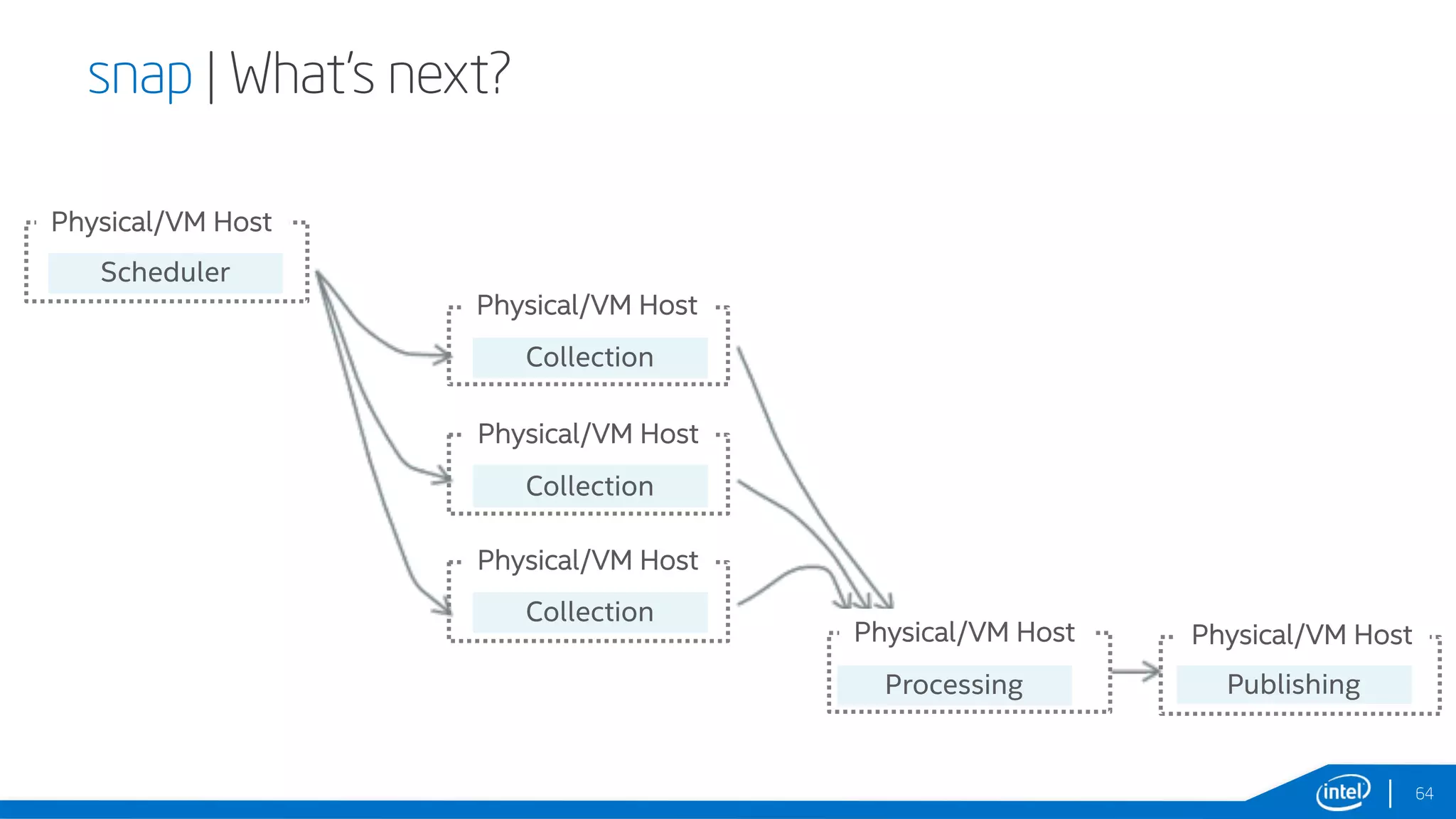

64. snap | What’s next?
64
Physical/VM Host
Physical/VM Host
Physical/VM Host
Physical/VM Host
Physical/VM Host Physical/VM Host
Collection
Collection
Collection
Scheduler
Processing Publishing

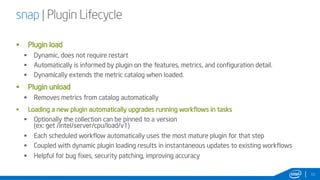

65. § Plugin load
§ Dynamic, does not require restart
§ Automatically is informed by plugin on the features, metrics, and configuration detail.
§ Dynamically extends the metric catalog when loaded.
§ Plugin unload
§ Removes metrics from catalog automatically
§ Loading a new plugin automatically upgrades running workflows in tasks
§ Optionally the collection can be pinned to a version
(ex: get /intel/server/cpu/load/v1)
§ Each scheduled workflow automatically uses the most mature plugin for that step
§ Coupled with dynamic plugin loading results in instantaneous updates to existing workflows
§ Helpful for bug fixes, security patching, improving accuracy
snap | Plugin Lifecycle
65

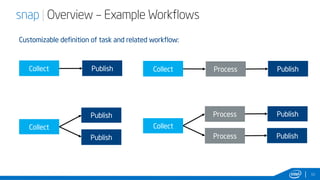

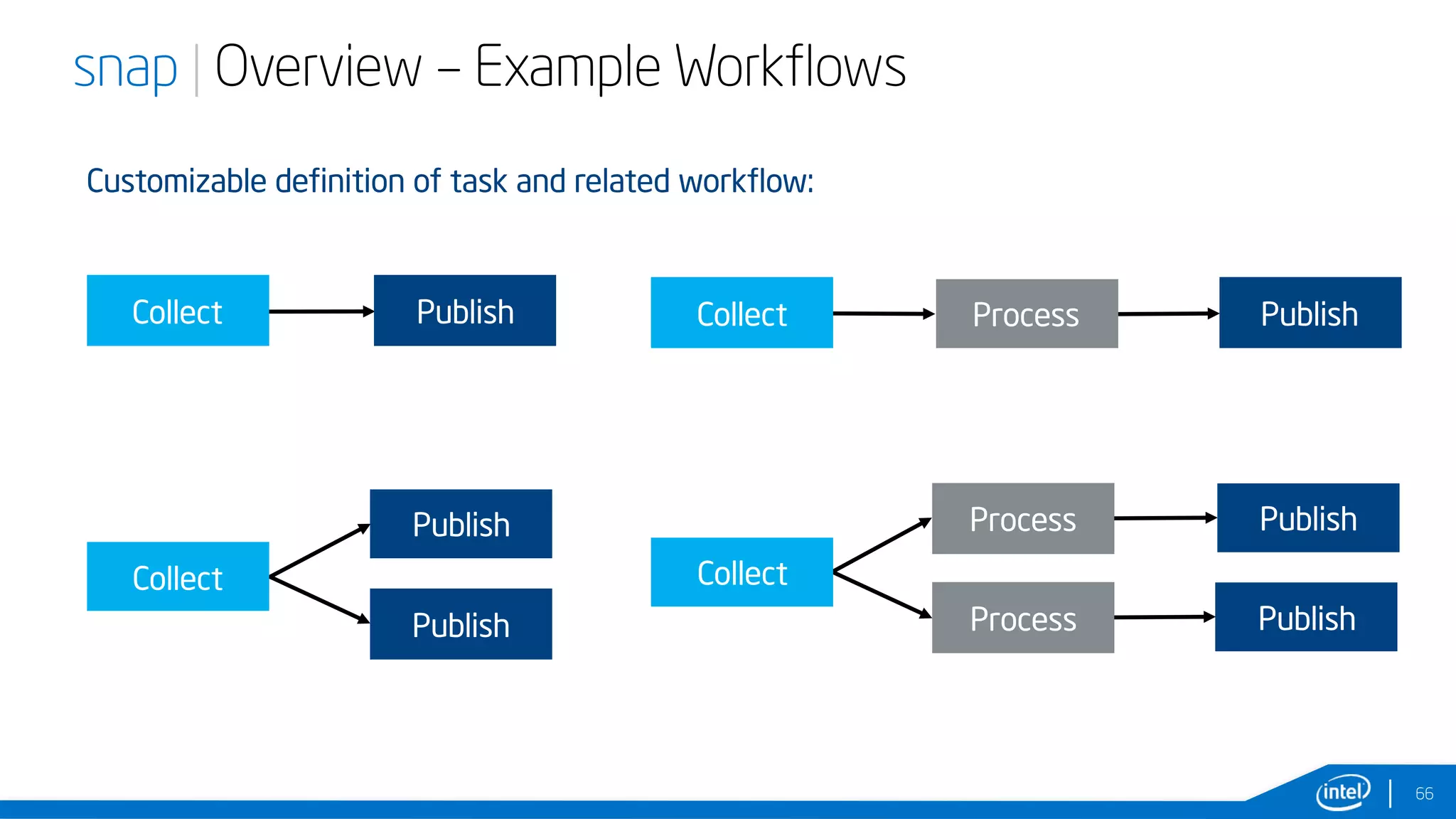

66. Customizable definition of task and related workflow:
Collect
Publish
Publish
Collect Publish ProcessCollect Publish
Collect
Process Publish
Process Publish
snap | Overview – Example Workflows
66

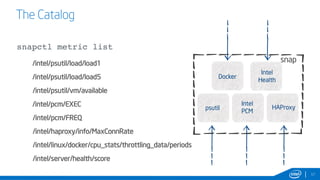

67. The Catalog
67
Intel
PCM
psutil HAProxy
/intel/psutil/load/load1
/intel/psutil/load/load5
/intel/psutil/vm/available
/intel/pcm/EXEC
/intel/pcm/FREQ
/intel/linux/docker/cpu_stats/throttling_data/periods
snapctl metric list
/intel/server/health/score
Docker
Intel
Health
/intel/haproxy/info/MaxConnRate
snap
