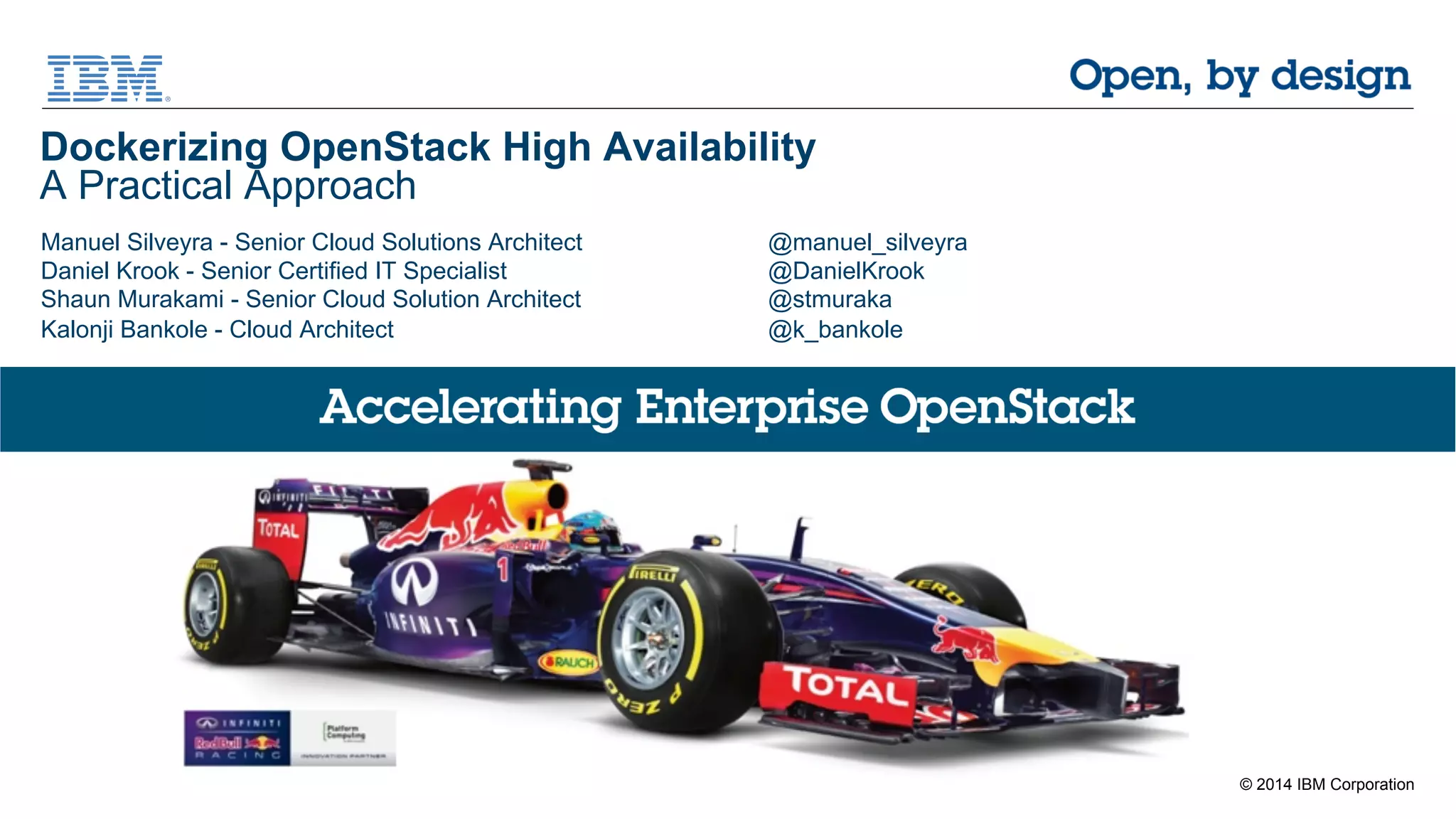

1. © 2014 IBM Corporation
Dockerizing OpenStack High Availability
A Practical Approach
Manuel Silveyra - Senior Cloud Solutions Architect @manuel_silveyra
Daniel Krook - Senior Certified IT Specialist @DanielKrook
Shaun Murakami - Senior Cloud Solution Architect @stmuraka
Kalonji Bankole - Cloud Architect @k_bankole

2. OpenStack Summit Atlanta May 2014
A Practical Approach to Deploying a Highly Available OpenStack
© 2014 IBM Corporation

3. OpenStack high availability challenges
• There were a lot of possible configuration options
• Active/Active
• Active/Standby
• Installing and configuring is complicated
• Keep track of configurations, ports, services, etc.
• Scaling increases complexity
• Distributing load has different requirements than availability
© 2014 IBM Corporation

4. © 2014 IBM Corporation
Our OpenStack HA architecture

5. That architecture leaves room for improvement
© 2014 IBM Corporation
• Existing challenges
• Many configuration options
• Installation is complex
• Scaling increases complexity
• Automation and visibility
• Deployment
• Patching
• Monitoring

6. Can Docker help?
• A technology that allows applications (and all related dependencies)
to be packaged in individual containers.
• Containers run as isolated userspace processes on the host OS.
• Containers share the Linux kernel.
Benefits include
• Service isolation
• Security
• Version control
• Portability
• Repeatable
• Rapid deployment
• Very lightweight (close to bare metal)
Bare metal Container Virtual machine
© 2014 IBM Corporation

7. Advantages of OpenStack on Docker
Faster scaling
• New Docker
containers start up in
seconds
Higher density
• Lower overhead
means more available
resources on the host
© 2014 IBM Corporation
Greater flexibility
• Docker standardizes
the packaging,
configuration, and
deployment of
services.
Which all add up to faster response to
changing business requirements for our
OpenStack deployments

8. © 2014 IBM Corporation
Before and after
Bare Metal Docker
Deployment Method Chef Cookbooks Custom Scripts
Deployment Preparation Days Hours
Deployment Time 15 Mins 5 Mins
Scale Time 7 Mins Seconds
Scaling Unit Bare Metal Node Service Containers

9. © 2014 IBM Corporation
Our newly Dockerized OpenStack

10. © 2014 IBM Corporation
Docker is a technology that...
Leverages Linux
containers
• Process isolation
• libcontainer (abstraction)
• cgroups (resource control)
• namespaces (isolation)
• Host kernel reuse
• eliminates redundancy
Simulates a VM
without overhead
• Faster lifecycle operations
• minimal operating system
• copy, start, stop, delete
• Better resource utilization
• smaller footprint for both
containers and images
Provides additional
benefits over VMs
• Versioning and layering
• promotes rapid
collaboration and reuse
• No hypervisor dependency
• highly portable
• high performance

11. © 2014 IBM Corporation
Understanding Docker concepts
Containers
• create, delete, start, stop,
restart, pause, resume, save
• inspect – view metadata
about a container
• logs – view stdout and stderr
from a container
Images
• create, delete, export, import
• history – show commands
used to make an image
• along with Dockerfiles, the
key persistent unit of Docker
Registries
• pull, push, tag, search
• central location for sharing
images
• contains community or trusted
images

12. Container
Container
Docker
Daemon Isolation
Host
© 2014 IBM Corporation
Docker
Client
Base OS/Kernel
Container
Docker
Registry
Expose select
ports on Host
Requires kernel
compatible
images
libcontainer /
LXC
App Client
Understanding Docker management

13. Docker managed container features
• Expose from the container
• Proxy through Network ports the host mapping
Environment variables • Pass in to set runtime configuration values
• Set DNS servers and search domains
Network configuration • Set modes: bridged, none, container, host
• Limit memory
© 2014 IBM Corporation
Resource constraints • Limit CPU
• Mount from host
Storage volumes • Share volumes between containers
Restart policy • Set to: on failure, never, always
Container privileges • Escalate container access to host resources

14. Bringing it all together: A simple workflow with Docker
© 2014 IBM Corporation
• Create and start a new container with docker run
Start Ubuntu and run
the bash shell
docker run –ti ubuntu bash
You're now in a new Ubuntu container running bash – experiment or iterate to develop and test apps and configuration.
• Create new container using a Dockerfile:
FROM ubuntu
RUN apt-get update && apt-get install -y openssh-server
EXPOSE 22
CMD ["/usr/sbin/sshd", "-D"]
docker build –t simple:sshd .
docker run -p 2222:22 simple:sshd
Now the SSH server is running in a container and ready to be used on port 2222
Start with Ubuntu base
Each RUN action
creates a new
filesystem layer
Only port 22 is
available from outside
container
Command to run when
container starts
Map port 22 on
container to 2222 on
host

15. Running highly available OpenStack services in Docker
© 2014 IBM Corporation

16. Running OpenStack services in Docker
© 2014 IBM Corporation
1. Build an image
2. Start a container instance
3. Update load balancer(s)
(repeat for all services)

17. OpenStack Dockerfile example (nova-api)
© 2014 IBM Corporation
# Create the base operating system layer
FROM ubuntu:trusty
MAINTAINER Shaun Murakami stmuraka@us.ibm.com
# Update base image
RUN apt-get -y update
RUN apt-get -y upgrade
# Install OpenStack components
RUN apt-get -y install python-software-properties python-mysqldb nova-api
# Prepare filesystem for OpenStack components
RUN chown -R nova:nova /etc/nova
&& chown -R root:root /etc/nova/root*
&& rm /var/lib/nova/nova.sqlite
&& cp /etc/nova/api-paste.ini /etc/nova/api-paste.ini.orig
&& echo "admin_token = oWKwDPaUWBNzif92" >> /etc/nova/api-paste.ini
&& cp /etc/nova/nova.conf /etc/nova/nova.conf.orig
# Import nova.conf from the host
ADD ./nova.conf /etc/nova/
# Customize container runtime
EXPOSE 8774 8775
CMD /usr/bin/python /usr/bin/nova-api --config-file /etc/nova/nova.conf --logfile /var/log/nova/api-`hostname`.log

18. © 2014 IBM Corporation
Create the Docker image
docker build –t nova:api .
Step 0 : FROM ubuntu:trusty
---> 6b4e8a7373fe
Step 1 : MAINTAINER Shaun Murakami <stmuraka@us.ibm.com>
---> Using cache
---> 96345089d832
Step 2 : RUN apt-get -y update
---> Running in fc22a3c8812b
Step 6 : ADD ./nova.conf /etc/nova/
---> ba53dd03fcf0
Removing intermediate container 910c4ff92b18
Step 7 : EXPOSE 8774 8775
---> Running in 5cc44c54c15d
---> a8840d052474
Removing intermediate container 5cc44c54c15d
Step 8 : CMD /usr/bin/python /usr/bin/nova-api --config-file /etc/nova/nova.conf --logfile /var/log/nova/api-
`hostname`.log
---> Running in e876b1085db9
---> a35112f528b0
Removing intermediate container e876b1085db9
Successfully built a35112f528b0
...

19. OpenStack services running in containers
docker run -d -P nova:api
© 2014 IBM Corporation

20. Sharing images using a shared private registry
1. docker tag nova:api 9.30.211.23:5000/nova:api
2. docker push 9.30.211.23:5000/nova
3. docker pull 9.30.211.23:5000/nova
© 2014 IBM Corporation

21. Scaling OpenStack services with Docker
© 2014 IBM Corporation
1. Share images in Docker registry
2. Start a container instance
3. Update load balancer(s)

22. 1. Docker random port generation makes service management difficult
• Fixed ports & script automation
2. Services that require multiple processes
• Supervisord to manage and run multiple processes
© 2014 IBM Corporation
Lessons learned
3. Layer limitations
• Combine commands in Dockerfile
4. Debugging isn’t easy (Docker ver. <1.3)
• Consolidated logging

23. Docker processes with consolidated logging
• Run command:
/usr/bin/python /usr/bin/nova-api
--config-file /etc/nova/nova.conf
--logfile /var/log/nova/api-`hostname`.log
• Export volume when starting:
-v /root/openstack_logs/nova:/var/log/nova
© 2014 IBM Corporation

24. OpenStack Docker container management options
© 2014 IBM Corporation

25. © 2014 IBM Corporation
Shipyard
• Written in Python
• Manages multiple Docker hosts
• Provides a customizable UI (Django)
• Utilizes Docker API to retrieve information
• Active community

26. © 2014 IBM Corporation
Summary
• Docker improves our highly available architecture in several areas without a major redesign
• Faster scaling
• Higher density
• Greater flexibility
• OpenStack services can be encapsulated very easily within Docker containers
• Easy to test iteratively
• Easy to declare in a Dockerfile
• Easy to run and scale
• Orchestration of a Docker based OpenStack cluster needs improvement
• Many fast moving options are available
• Customization of Shipyard worked best for us

27. IBM technical sessions at the Paris Summit
IBM Sessions on Monday, November 3rd
15:20
R.251 When Disaster Strikes the Cloud: Who, What, When, Where and How to recover Ronen Kat, Michael Factor, and Red Hat
11:40
A.Blue IPv6 Features in OpenStack Juno Xu Han Peng, Comcast, and Cisco
15:20
R252 Why is my Volume in 'ERROR' State!?! An Introduction to Troubleshooting Your Cinder Configuration Jay Bryant
16:20
A.Blue Group Based Policy Extension for Networking Mohammad Banikazemi, Cisco, Midokura, and One Convergence
IBM Sessions on Tuesday. November 4th
11:15
R252 The perfect match: Apache Spark meets Swift Gil Vernik, Michael Factor, and Databricks
15:40
R242 Docker Meets Swift: A Broadcaster's Experience Eran Rom, and RAI
16:40
Maillot User Group Panel: India, Japan, China Ying Chun Guo, Guang Ya Liu, Qiang Guo Tong
14:50
Passy A Practical Approach to Dockerizing OpenStack High Availability Manuel Silveyra, Shaun Murakami, Kalonji Bankole, Daniel Krook
IBM Sessions on Wednesday, November 5th
09:00
R241 Monasca DeepDive: Monitoring at scale Tong Li , Rob Basham, HP and Rackspace
09:00
R242 Beyond 86: Managing multi-platform environments with OpenStack Shaun Murakami, Philip Estes
09:50
R253 Troubleshooting Problems in Heat Deployments Fabio Oliveira, Ton Ngo, Priya Nagpurkar, Winnie Tsang
11:50
R251 Keystone to Keystone Federation Enhancements for Hybrid Cloud Enablement Steve Martinelli, Brad Topol, CERN, and Rackspace
17:50
R253 Practical advice on deployment and management of enterprise workloads Jarek Miszczyk, Venkata Jagana
© 2014 IBM Corporation

28. Learn more at these IBM sponsored sessions on Wednesday:
9:50 Room 243 Step on the Gas: See how Open Technologies are driving the future of the enterprise
11:50 Room 212/213 IBM and OpenStack: Collaborations beyond the code
1:50 Room 212/213 A Use Case Driven view of IBM’s OpenStack based Offerings
2:40 Room 212/213 IBM OpenStack Offerings in Action
© 2014 IBM Corporation
Stop by the IBM Booth (B4)
Demos, games and FREE tee
shirt.

29. © 2014 IBM Corporation
Legal Disclaimer
• © IBM Corporation 2011. All Rights Reserved.
• The information contained in this publication is provided for informational purposes only. While efforts were made to verify the completeness and accuracy of the information contained in this publication, it is provided AS IS without warranty of any
kind, express or implied. In addition, this information is based on IBM’s current product plans and strategy, which are subject to change by IBM without notice. IBM shall
not be responsible for any damages arising out of the use of, or otherwise related to, this publication or any other materials. Nothing contained in this publication is intended to, nor shall have the effect of, creating any warranties or representations
from IBM or its suppliers or licensors, or altering the terms and conditions of the applicable license agreement governing the use of IBM software.
• References in this presentation to IBM products, programs, or services do not imply that they will be available in all countries in which IBM operates. Product release dates and/or capabilities referenced in
this presentation may change at any time at IBM’s sole discretion based on market opportunities or other factors, and are not intended to be a commitment to future product or feature availability in any way.
Nothing contained in these materials is intended to, nor shall have the effect of, stating or implying that any activities undertaken by you will result in any specific sales, revenue growth or other results.
• If the text contains performance statistics or references to benchmarks, insert the following language; otherwise delete:
Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput or performance that any user will experience will vary depending upon many factors, including
considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the storage configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve results similar
to those stated here.
• If the text includes any customer examples, please confirm we have prior written approval from such customer and insert the following language; otherwise delete:
All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs and performance characteristics may vary by customer.
• Please review text for proper trademark attribution of IBM products. At first use, each product name must be the full name and include appropriate trademark symbols (e.g., IBM Lotus® Sametime® Unyte™). Subsequent references can drop
“IBM” but should include the proper branding (e.g., Lotus Sametime Gateway, or WebSphere Application Server). Please refer to http://www.ibm.com/legal/copytrade.shtml
for guidance on which trademarks require the ® or ™ symbol. Do not use abbreviations for IBM product names in your presentation. All product names must be used as adjectives rather than nouns. Please
list all of the trademarks that you use in your presentation as follows; delete any not included in your presentation. IBM, the IBM logo, Lotus, Lotus Notes, Notes, Domino, Quickr, Sametime, WebSphere, UC2, PartnerWorld and Lotusphere are
trademarks of International Business Machines Corporation in the United States, other countries, or both. Unyte is a trademark of WebDialogs, Inc., in the United States,
other countries, or both.
• If you reference Adobe® in the text, please mark the first use and include the following; otherwise delete:
Adobe, the Adobe logo, PostScript, and the PostScript logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States, and/or other countries.
• If you reference Java™ in the text, please mark the first use and include the following; otherwise delete:
Java and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the United States, other countries, or both.
• If you reference Microsoft® and/or Windows® in the text, please mark the first use and include the following, as applicable; otherwise delete:
Microsoft and Windows are trademarks of Microsoft Corporation in the United States, other countries, or both.
• If you reference Intel® and/or any of the following Intel products in the text, please mark the first use and include those that you use as follows; otherwise delete:
Intel, Intel Centrino, Celeron, Intel Xeon, Intel SpeedStep, Itanium, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
• If you reference UNIX® in the text, please mark the first use and include the following; otherwise delete:
UNIX is a registered trademark of The Open Group in the United States and other countries.
• If you reference Linux® in your presentation, please mark the first use and include the following; otherwise delete:
Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others.
• If the text/graphics include screenshots, no actual IBM employee names may be used (even your own), if your screenshots include fictitious company names (e.g., Renovations, Zeta Bank, Acme)
please update and insert the following; otherwise delete: All references to [insert fictitious company name] refer to a fictitious company and are used for illustration purposes only.
