Intel Cloud Builder : Siveo

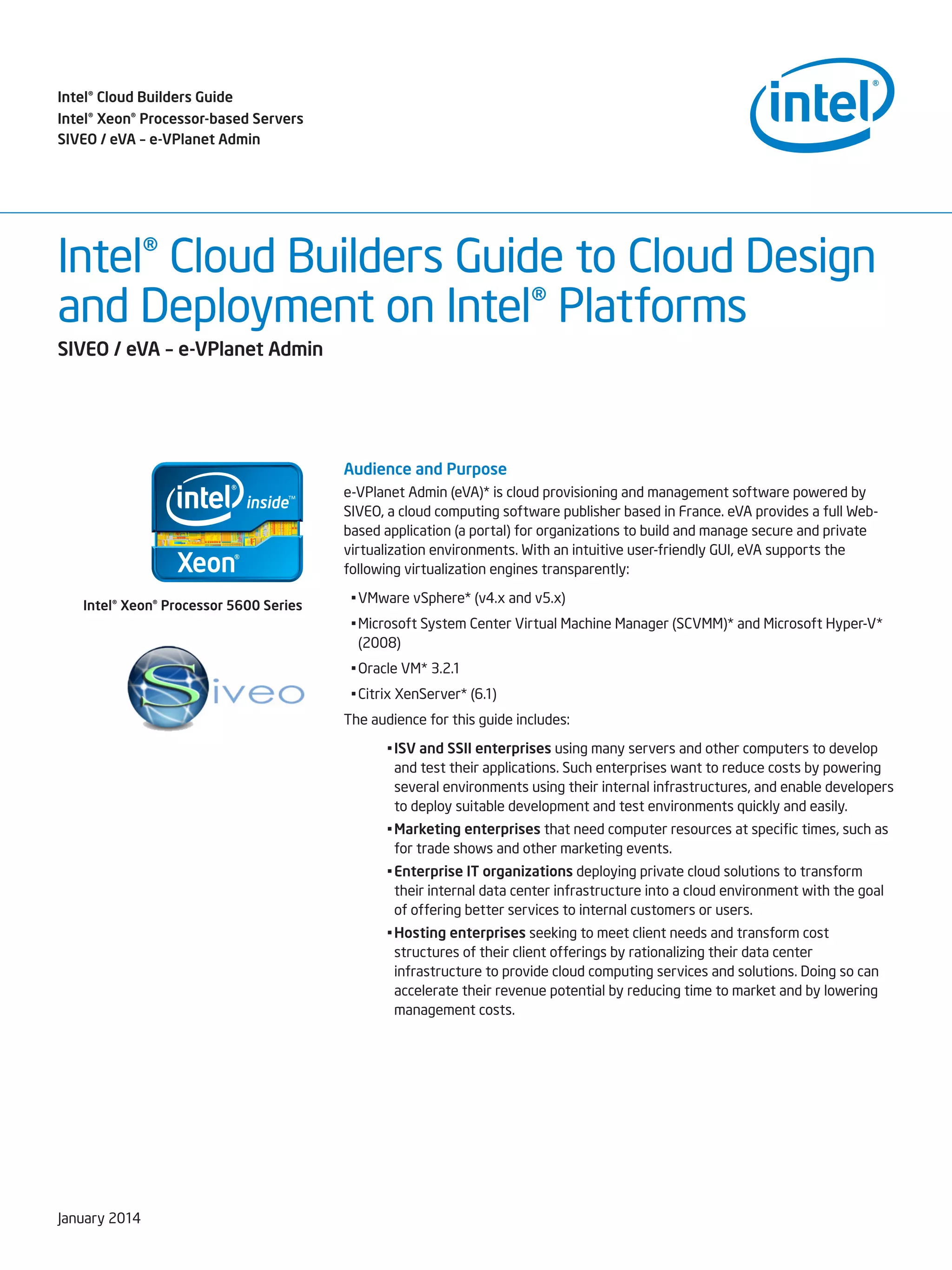

1. Intel® Cloud Builders Guide
Intel® Xeon® Processor-based Servers
SIVEO / eVA – e-VPlanet Admin
Intel® Cloud Builders Guide to Cloud Design
and Deployment on Intel® Platforms
SIVEO / eVA – e-VPlanet Admin
Audience and Purpose
e-VPlanet Admin (eVA)* is cloud provisioning and management software powered by
SIVEO, a cloud computing software publisher based in France. eVA provides a full Webbased application (a portal) for organizations to build and manage secure and private
virtualization environments. With an intuitive user-friendly GUI, eVA supports the
following virtualization engines transparently:
Intel® Xeon® Processor 5600 Series
• VMware vSphere* (v4.x and v5.x)
• Microsoft System Center Virtual Machine Manager (SCVMM)* and Microsoft Hyper-V*
(2008)
• Oracle VM* 3.2.1
• Citrix XenServer* (6.1)
The audience for this guide includes:
• ISV and SSII enterprises using many servers and other computers to develop
and test their applications. Such enterprises want to reduce costs by powering
several environments using their internal infrastructures, and enable developers
to deploy suitable development and test environments quickly and easily.
• Marketing enterprises that need computer resources at specific times, such as
for trade shows and other marketing events.
• Enterprise IT organizations deploying private cloud solutions to transform
their internal data center infrastructure into a cloud environment with the goal
of offering better services to internal customers or users.
• Hosting enterprises seeking to meet client needs and transform cost
structures of their client offerings by rationalizing their data center
infrastructure to provide cloud computing services and solutions. Doing so can
accelerate their revenue potential by reducing time to market and by lowering
management costs.
January 2014

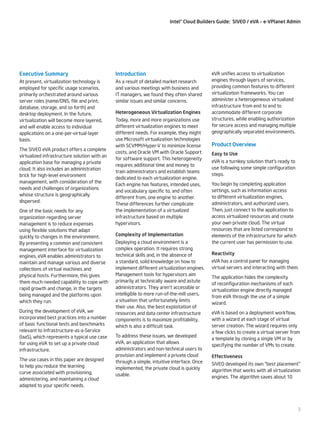

3. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
Executive Summary
Introduction
At present, virtualization technology is
employed for specific usage scenarios,
primarily orchestrated around various
server roles (name/DNS, file and print,
database, storage, and so forth) and
desktop deployment. In the future,
virtualization will become more layered,
and will enable access to individual
applications on a one-per-virtual-layer
basis.
As a result of detailed market research
and various meetings with business and
IT managers, we found they often shared
similar issues and similar concerns.
The SIVEO eVA product offers a complete
virtualized infrastructure solution with an
application base for managing a private
cloud. It also includes an administration
brick for high-level environment
management, with consideration of the
needs and challenges of organizations
whose structure is geographically
dispersed.
One of the basic needs for any
organization regarding server
management is to reduce expenses
using flexible solutions that adapt
quickly to changes in the environment.
By presenting a common and consistent
management interface for virtualization
engines, eVA enables administrators to
maintain and manage various and diverse
collections of virtual machines and
physical hosts. Furthermore, this gives
them much-needed capability to cope with
rapid growth and change, in the targets
being managed and the platforms upon
which they run.
During the development of eVA, we
incorporated best practices into a number
of basic functional tests and benchmarks
relevant to Infrastructure-as-a-Service
(IaaS), which represents a typical use case
for using eVA to set up a private cloud
infrastructure.
The use cases in this paper are designed
to help you reduce the learning
curve associated with provisioning,
administering, and maintaining a cloud
adapted to your specific needs.
Heterogeneous Virtualization Engines
Today, more and more organizations use
different virtualization engines to meet
different needs. For example, they might
use Microsoft virtualization technologies
with SCVMM/Hyper-V to minimize license
costs, and Oracle VM with Oracle Support
for software support. This heterogeneity
requires additional time and money to
train administrators and establish teams
dedicated to each virtualization engine.
Each engine has features, intended uses,
and vocabulary specific to, and often
different from, one engine to another.
These differences further complicate
the implementation of a virtualized
infrastructure based on multiple
hypervisors.
Complexity of Implementation
Deploying a cloud environment is a
complex operation. It requires strong
technical skills and, in the absence of
a standard, solid knowledge on how to
implement different virtualization engines.
Management tools for hypervisors aim
primarily at technically aware and astute
administrators. They aren’t accessible or
intelligible to more run-of-the-mill users,
a situation that unfortunately limits
their use. Also, the best exploitation of
resources and data center infrastructure
components is to maximize profitability,
which is also a difficult task.
To address these issues, we developed
eVA, an application that allows
administrators and non-technical users to
provision and implement a private cloud
through a simple, intuitive interface. Once
implemented, the private cloud is quickly
usable.
eVA unifies access to virtualization
engines through layers of services,
providing common features to different
virtualization frameworks. You can
administer a heterogeneous virtualized
infrastructure from end to end to
accommodate different corporate
structures, while enabling authorization
for secure access and managing multiple
geographically separated environments.
Product Overview
Easy to Use
eVA is a turnkey solution that’s ready to
use following some simple configuration
steps.
You begin by completing application
settings, such as information access
to different virtualization engines,
administrators, and authorized users.
Then, just connect to the application to
access virtualized resources and create
your own private cloud. The virtual
resources that are listed correspond to
elements of the infrastructure for which
the current user has permission to use.
Reactivity
eVA has a control panel for managing
virtual servers and interacting with them.
The application hides the complexity
of reconfiguration mechanisms of each
virtualization engine directly managed
from eVA through the use of a simple
wizard.
eVA is based on a deployment workflow,
with a wizard at each stage of virtual
server creation. The wizard requires only
a few clicks to create a virtual server from
a template by cloning a single VM or by
specifying the number of VMs to create.
Effectiveness
SIVEO developed its own “best placement”
algorithm that works with all virtualization
engines. The algorithm saves about 10
3
4. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
percent of available virtualized resources
compared to manual placement.
eVA allows the creation of sandboxes
and assigns visibility to some parts of
the virtual infrastructure exposed from
these sandboxes. This feature relies on
the Lightweight Directory Access Protocol
(LDAP) enterprise directory linked to the
virtualization engines managed by eVA.
eVA provides an additional layer of
abstraction to the various virtualization
engines, and provides a well-known
procedure to operators for provisioning
and managing virtual servers.
Rationalizing the provisioning process to
simple tasks reduces the risk of errors and
meets service level agreements (SLAs).
Security
The eVA provisioning interface meets the
security requirements of organizations.
The interface is accessible in secure mode
(https) and requires authentication of the
user.
Deployment
Server 1
eVA employs a form of role-based access
control to correlate user-requested
actions with identity information and
access rights or privileges. It is based
on the LDAP of the operator, with or
without integration of user accounts
and associated roles in case of shared
responsibility on the basis of provisioning.
By assigning registered accounts, this
type of authentication can trace actions
performed on virtual servers, which
facilitates monitoring of operations.
Essentially, you know who does what, and
when.
The following two sections are intended
to help IT organization set up a proof of
concept (POC) based on eVA to manage
and operate a private cloud.
In the Test Bed Overview section, we
describe eVA components, list the
available deployment models, recommend
which model to use, and describe the
equipment used in the test bed.
Server 2
Server 3
In the Technical Review section, we
provide detailed steps for setting up a
functional eVA POC:
• eVA installation
• eVA settings and configuration
• Virtualized environment settings
Finally, we describe the commands to
start and stop eVA components.
Test Bed Overview
eVA is a multi-tier application composed of
different modules:
• GUI: The Web interface application
• Core Application: The business layer
• Configuration Management Console:
The Web-based application used to
define and set data parameters for the
application
• Database: The application configuration
data and some user data
There are several possible deployment
models, depending on how the various
modules are assembled. Note that the
GUI and the Core Application have to be
installed on separate machines.
Server 4
Model
Normal
GUI
• Core Application
N/A
N/A
Database
N/A
Database
Configuration Management Console
• Configuration Management Console
• Database
Exploded
GUI
• Core Application
• Configuration Management Console
Full Exploded
GUI
• Core Application
Table 1. Supported deployment models
4

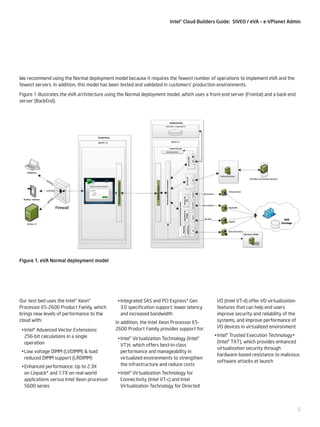

5. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
We recommend using the Normal deployment model because it requires the fewest number of operations to implement eVA and the
fewest servers. In addition, this model has been tested and validated in customers’ production environments.
Figure 1 illustrates the eVA architecture using the Normal deployment model, which uses a front-end server (Frontal) and a back-end
server (BackEnd).
Figure 1. eVA Normal deployment model
Our test bed uses the Intel® Xeon®
Processor E5-2600 Product Family, which
brings new levels of performance to the
cloud with:
• Intel® Advanced Vector Extensions:
256-bit calculations in a single
operation
• Low voltage DIMM (LVDIMM) & load
reduced DIMM support (LRDIMM)
• Enhanced performance: Up to 2.3X
on Linpack* and 1.7X on real-world
applications versus Intel Xeon processor
5600 series
• Integrated SAS and PCI Express* Gen
3.0 specification support: lower latency
and increased bandwidth
In addition, the Intel Xeon Processor E52600 Product Family provides support for:
• Intel® Virtualization Technology (Intel®
VT)◊, which offers best-in-class
performance and manageability in
virtualized environments to strengthen
the infrastructure and reduce costs
I/O (Intel VT-d) offer I/O virtualization
features that can help end users
improve security and reliability of the
systems, and improve performance of
I/O devices in virtualized environment
• Intel® Trusted Execution Technology+
(Intel® TXT), which provides enhanced
virtualization security through
hardware-based resistance to malicious
software attacks at launch
• Intel® Virtualization Technology for
Connectivity (Intel VT-c) and Intel
Virtualization Technology for Directed
5
6. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

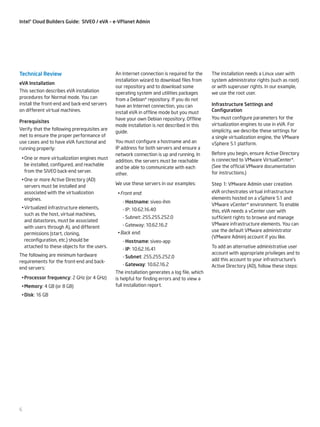

Technical Review
eVA Installation
This section describes eVA installation
procedures for Normal mode. You can
install the front-end and back-end servers
on different virtual machines.
Prerequisites
Verify that the following prerequisites are
met to ensure the proper performance of
use cases and to have eVA functional and
running properly:
• One or more virtualization engines must
be installed, configured, and reachable
from the SIVEO back-end server.
• One or more Active Directory (AD)
servers must be installed and
associated with the virtualization
engines.
• Virtualized infrastructure elements,
such as the host, virtual machines,
and datastores, must be associated
with users through A), and different
permissions (start, cloning,
reconfiguration, etc.) should be
attached to these objects for the users.
The following are minimum hardware
requirements for the front-end and backend servers:
• Processor frequency: 2 GHz (or 4 GHz)
• Memory: 4 GB (or 8 GB)
• Disk: 16 GB
6
An Internet connection is required for the
installation wizard to download files from
our repository and to download some
operating system and utilities packages
from a Debian* repository. If you do not
have an Internet connection, you can
install eVA in offline mode but you must
have your own Debian repository. Offline
mode installation is not described in this
guide.
You must configure a hostname and an
IP address for both servers and ensure a
network connection is up and running. In
addition, the servers must be reachable
and be able to communicate with each
other.
We use these servers in our examples:
• Front end:
--Hostname: siveo-ihm
--IP: 10.62.16.40
--Subnet: 255.255.252.0
--Gateway: 10.62.16.2
• Back end:
--Hostname: siveo-app
--IP: 10.62.16.41
--Subnet: 255.255.252.0
--Gateway: 10.62.16.2
The installation generates a log file, which
is helpful for finding errors and to view a
full installation report.
The installation needs a Linux user with
system administrator rights (such as root)
or with superuser rights. In our example,
we use the root user.
Infrastructure Settings and
Configuration
You must configure parameters for the
virtualization engines to use in eVA. For
simplicity, we describe these settings for
a single virtualization engine, the VMware
vSphere 5.1 platform.
Before you begin, ensure Active Directory
is connected to VMware VirtualCenter*.
(See the official VMware documentation
for instructions.)
Step 1: VMware Admin user creation
eVA orchestrates virtual infrastructure
elements hosted on a vSphere 5.1 and
VMware vCenter* environment. To enable
this, eVA needs a vCenter user with
sufficient rights to browse and manage
VMware infrastructure elements. You can
use the default VMware administrator
(VMware Admin) account if you like.
To add an alternative administrative user
account with appropriate privileges and to
add this account to your infrastructure’s
Active Directory (AD), follow these steps:
7. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

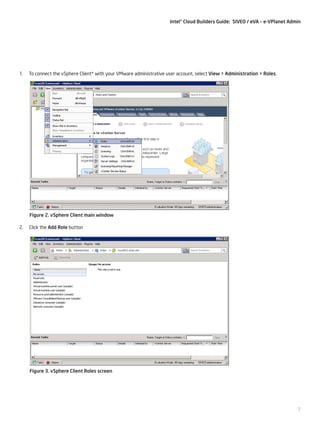

1.
To connect the vSphere Client* with your VMware administrative user account, select View > Administration > Roles.
Figure 2. vSphere Client main window
2.
Click the Add Role button
Figure 3. vSphere Client Roles screen
7
8. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
3.

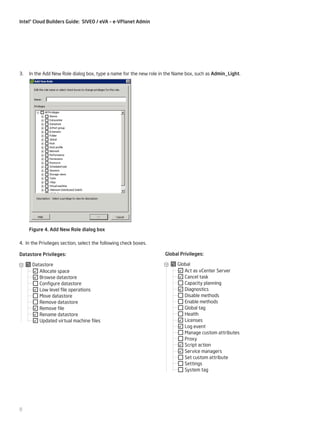

In the Add New Role dialog box, type a name for the new role in the Name box, such as Admin_Light.
Figure 4. Add New Role dialog box
4. In the Privileges section, select the following check boxes.
Datastore Privileges:
Datastore
Allocate space
Browse datastore
Configure datastore
Low level file operations
Move datastore
Remove datastore
Remove file
Rename datastore
Updated virtual machine files
8
Global Privileges:
Global
Act as vCenter Server
Cancel task
Capacity planning
Diagnostics
Disable methods
Enable methods
Global tag
Health
Licenses
Log event
Manage custom attributes
Proxy
Script action
Service managers
Set custom attribute
Settings
System tag
9. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

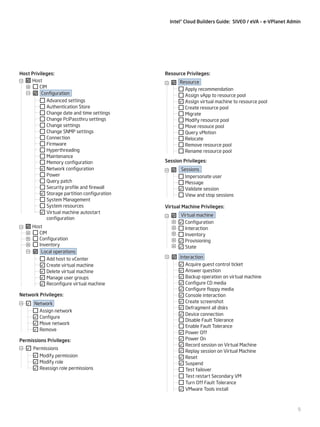

Host Privileges:
Host
CIM
Configuration
Advanced settings
Authentication Store
Change date and time settings
Change PciPassthru settings
Change settings
Change SNMP settings
Connection
Firmware
Hyperthreading
Maintenance
Memory configuration
Network configuration
Power
Query patch
Security profile and firewall
Storage partition configuration
System Management
System resources
Virtual machine autostart
configuration
Host
CIM
Configuration
Inventory
Local operations
Add host to vCenter
Create virtual machine
Delete virtual machine
Manage user groups
Reconfigure virtual machine
Network Privileges:
Network
Assign network
Configure
Move network
Remove
Permissions Privileges:
Permissions
Modify permission
Modify role
Reassign role permissions
Resource Privileges:
Resource
Apply recommendation
Assign vApp to resource pool
Assign virtual machine to resource pool
Create resource pool
Migrate
Modify resource pool
Move resouce pool
Query vMotion
Relocate
Remove resource pool
Rename resource pool
Session Privileges:
Sessions
Impersonate user
Message
Validate session
View and stop sessions
Virtual Machine Privileges:
Virtual machine
Configuration
Interaction
Inventory
Provisioning
State
Interaction
Acquire guest control ticket
Answer question
Backup operation on virtual machine
Configure CD media
Configure floppy media
Console interaction
Create screenshot
Defragment all disks
Device connection
Disable Fault Tolerance
Enable Fault Tolerance
Power Off
Power On
Record session on Virtual Machine
Replay session on Virtual Machine
Reset
Suspend
Test failover
Test restart Secondary VM
Turn Off Fault Tolerance
VMware Tools install
9
10. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

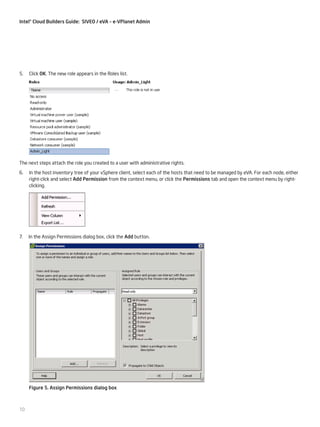

5.
Click OK. The new role appears in the Roles list.
The next steps attach the role you created to a user with administrative rights.
6.
In the host inventory tree of your vSphere client, select each of the hosts that need to be managed by eVA. For each node, either
right-click and select Add Permission from the context menu, or click the Permissions tab and open the context menu by rightclicking.
7.
In the Assign Permissions dialog box, click the Add button.
Figure 5. Assign Permissions dialog box
10
11. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
8.
In the Select Users and Groups dialog box, open the Domain list and select an AD domain, such as the SIVEO domain.
Figure 6. Select Users and Groups dialog box
9.
The users and groups in the selected domain appear in the Users and Groups list. Select a user, click the Add button, and click OK.
Figure 7. Selecting a user in the Select Users and Groups dialog box
11
12. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

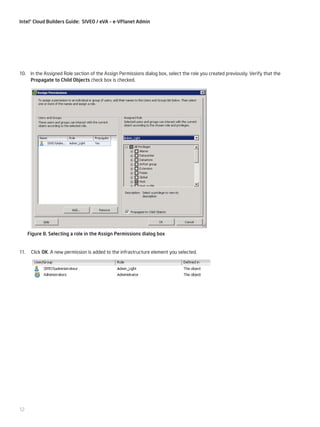

10. In the Assigned Role section of the Assign Permissions dialog box, select the role you created previously. Verify that the
Propagate to Child Objects check box is checked.
Figure 8. Selecting a role in the Assign Permissions dialog box
11.
12
Click OK. A new permission is added to the infrastructure element you selected.
13. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

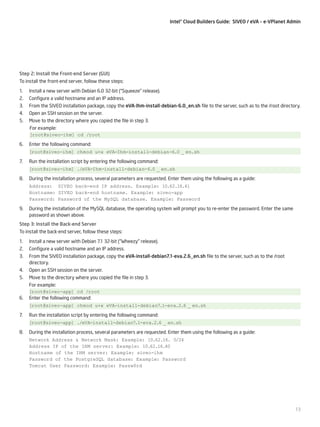

Step 2: Install the Front-end Server (GUI)
To install the front-end server, follow these steps:
1. Install a new server with Debian 6.0 32-bit (“Squeeze” release).
2. Configure a valid hostname and an IP address.
3. From the SIVEO installation package, copy the eVA-Ihm-install-debian-6.0_en.sh file to the server, such as to the /root directory.
4. Open an SSH session on the server.
5. Move to the directory where you copied the file in step 3.
For example:
[root@siveo-ihm] cd /root
6. Enter the following command:
[root@siveo-ihm] chmod u+x eVA-Ihm-install-debian-6.0 _ en.sh
7. Run the installation script by entering the following command:
[root@siveo-ihm] ./eVA-Ihm-install-debian-6.0 _ en.sh
8. During the installation process, several parameters are requested. Enter them using the following as a guide:
Address: SIVEO back-end IP address. Example: 10.62.16.41
Hostname: SIVEO back-end hostname. Example: siveo-app
Password: Password of the MySQL database. Example: Password
9. During the installation of the MySQL database, the operating system will prompt you to re-enter the password. Enter the same
password as shown above.
Step 3: Install the Back-end Server
To install the back-end server, follow these steps:
1. Install a new server with Debian 7.1 32-bit (“Wheezy” release).
2. Configure a valid hostname and an IP address.
3. From the SIVEO installation package, copy the eVA-install-debian7.1-eva.2.6_en.sh file to the server, such as to the /root
directory.
4. Open an SSH session on the server.
5. Move to the directory where you copied the file in step 3.
For example:
[root@siveo-app] cd /root
6. Enter the following command:
[root@siveo-app] chmod u+x eVA-install-debian7.1-eva.2.6 _ en.sh
7. Run the installation script by entering the following command:
[root@siveo-app] ./eVA-install-debian7.1-eva.2.6 _ en.sh
8. During the installation process, several parameters are requested. Enter them using the following as a guide:
Network Address & Network Mask: Example: 10.62.16. 0/24
Address IP of the IHM server: Example: 10.62.16.40
Hostname of the IHM server: Example: siveo-ihm
Password of the PostgreSQL database: Example: Password
Tomcat User Password: Example: Passw0rd
13
14. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

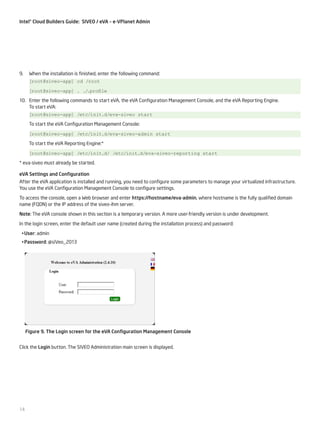

9. When the installation is finished, enter the following command:
[root@siveo-app] cd /root
[root@siveo-app] . ./
.profile
10. Enter the following commands to start eVA, the eVA Configuration Management Console, and the eVA Reporting Engine.
To start eVA:
[root@siveo-app] /etc/init.d/eva-siveo start
To start the eVA Configuration Management Console:
[root@siveo-app] /etc/init.d/eva-siveo-admin start
To start the eVA Reporting Engine:*
[root@siveo-app] /etc/init.d/ /etc/init.d/eva-siveo-reporting start
* eva-siveo must already be started.
eVA Settings and Configuration
After the eVA application is installed and running, you need to configure some parameters to manage your virtualized infrastructure.
You use the eVA Configuration Management Console to configure settings.
To access the console, open a Web browser and enter https://hostname/eva-admin, where hostname is the fully qualified domain
name (FQDN) or the IP address of the siveo-ihm server.
Note: The eVA console shown in this section is a temporary version. A more user-friendly version is under development.
In the login screen, enter the default user name (created during the installation process) and password:
• User: admin
• Password: @siVeo_2013
Figure 9. The Login screen for the eVA Configuration Management Console
Click the Login button. The SIVEO Administration main screen is displayed.
14
15. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

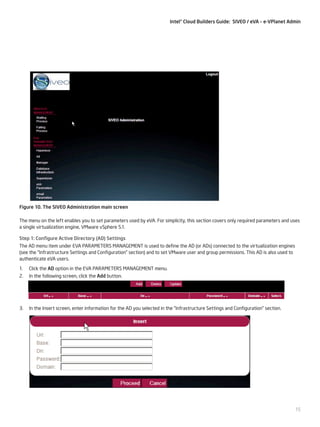

Figure 10. The SIVEO Administration main screen
The menu on the left enables you to set parameters used by eVA. For simplicity, this section covers only required parameters and uses
a single virtualization engine, VMware vSphere 5.1.
Step 1: Configure Active Directory (AD) Settings
The AD menu item under EVA PARAMETERS MANAGEMENT is used to define the AD (or ADs) connected to the virtualization engines
(see the “Infrastructure Settings and Configuration” section) and to set VMware user and group permissions. This AD is also used to
authenticate eVA users.
1. Click the AD option in the EVA PARAMETERS MANAGEMENT menu.
2. In the following screen, click the Add button.
3. In the Insert screen, enter information for the AD you selected in the “Infrastructure Settings and Configuration” section.
15
16. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

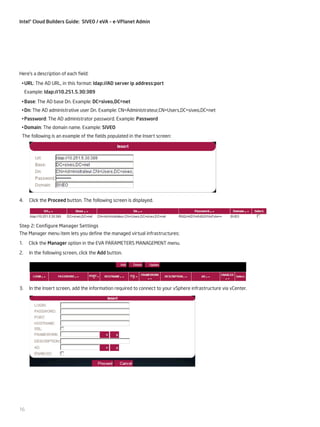

Here’s a description of each field:
• URL: The AD URL, in this format: ldap://AD server ip address:port
Example: ldap://10.251.5.30:389
• Base: The AD base Dn. Example: DC=siveo,DC=net
• Dn: The AD administrative user Dn. Example: CN=Administrateur,CN=Users,DC=siveo,DC=net
• Password: The AD administrator password. Example: Password
• Domain: The domain name. Example: SIVEO
The following is an example of the fields populated in the Insert screen:
4.
Click the Proceed button. The following screen is displayed.
Step 2: Configure Manager Settings
The Manager menu item lets you define the managed virtual infrastructures:
1.
Click the Manager option in the EVA PARAMETERS MANAGEMENT menu.
2.
In the following screen, click the Add button.
3.
In the Insert screen, add the information required to connect to your vSphere infrastructure via vCenter.
16
17. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

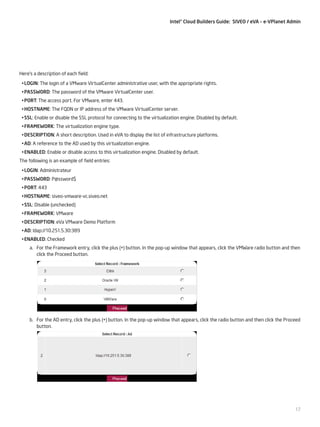

Here’s a description of each field:
• LOGIN: The login of a VMware VirtualCenter administrative user, with the appropriate rights.
• PASSWORD: The password of the VMware VirtualCenter user.
• PORT: The access port. For VMware, enter 443.
• HOSTNAME: The FQDN or IP address of the VMware VirtualCenter server.
• SSL: Enable or disable the SSL protocol for connecting to the virtualization engine. Disabled by default.
• FRAMEWORK: The virtualization engine type.
• DESCRIPTION: A short description. Used in eVA to display the list of infrastructure platforms.
• AD: A reference to the AD used by this virtualization engine.
• ENABLED: Enable or disable access to this virtualization engine. Disabled by default.
The following is an example of field entries:
• LOGIN: Administrateur
• PASSWORD: P@ssword$
• PORT: 443
• HOSTNAME: siveo-vmware-vc.siveo.net
• SSL: Disable (unchecked)
• FRAMEWORK: VMware
• DESCRIPTION: eVa VMware Demo Platform
• AD: ldap://10.251.5.30:389
• ENABLED: Checked
a. For the Framework entry, click the plus (+) button. In the pop-up window that appears, click the VMWare radio button and then
click the Proceed button.
b. For the AD entry, click the plus (+) button. In the pop-up window that appears, click the radio button and then click the Proceed
button.
17
18. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

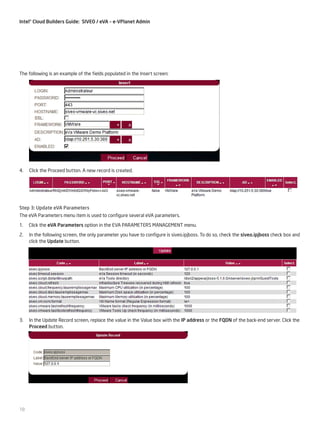

The following is an example of the fields populated in the Insert screen:
4.
Click the Proceed button. A new record is created.
Step 3: Update eVA Parameters
The eVA Parameters menu item is used to configure several eVA parameters.
1.
Click the eVA Parameters option in the EVA PARAMETERS MANAGEMENT menu.
2.
In the following screen, the only parameter you have to configure is siveo.ipjboss. To do so, check the siveo.ipjboss check box and
click the Update button.
3. In the Update Record screen, replace the value in the Value box with the IP address or the FQDN of the back-end server. Click the
Proceed button.
18
19. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
The resulting screen is displayed. In this example, we entered 10.62.16.41 as the IP address.
Use Cases
Use Case 1
Create an eVA Administrator
Purpose
Create an eVA Administrator account.
Initiation Criteria
eVA is installed and running, and all settings are configured.
Execution Steps
Open the eVA Administration Console.
Follow the instructions described below.
Expected Results
An eVA Administrator account is created.
You have to create an eVA Administrator account to access and use the eVA Administration Console. (You can define several
administrators.) eVA administrators have the right to manage (create, read, update, and delete) eVA users, and only those users are
allowed to connect to eVA.
To create an eVA Administrator account by designating an existing user as an administrator, follow these steps:
1. Open the eVA Administration Console. (Refer to the initial paragraphs of the “eVA Settings and Configuration” section for URL and
access credentials.)
2. In the USERS MANAGEMENT menu, click Administrators.
3. In the following screen, click the Add button.
4. In the Insert screen, click the plus (+) button.
19
20. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

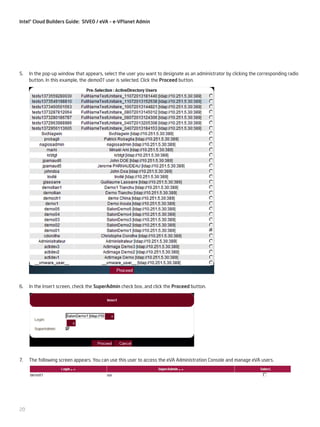

5. In the pop-up window that appears, select the user you want to designate as an administrator by clicking the corresponding radio
button. In this example, the demo01 user is selected. Click the Proceed button.
6. In the Insert screen, check the SuperAdmin check box, and click the Proceed button.
7. The following screen appears. You can use this user to access the eVA Administration Console and manage eVA users.
20
21. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

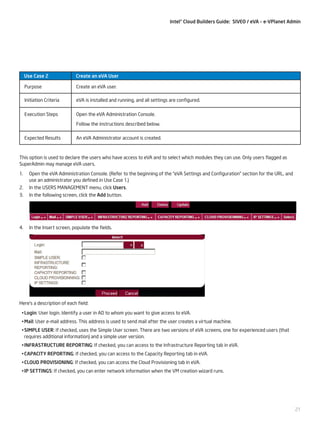

Use Case 2
Create an eVA User
Purpose
Create an eVA user.
Initiation Criteria
eVA is installed and running, and all settings are configured.
Execution Steps
Open the eVA Administration Console.
Follow the instructions described below.
Expected Results
An eVA Administrator account is created.
This option is used to declare the users who have access to eVA and to select which modules they can use. Only users flagged as
SuperAdmin may manage eVA users.
1. Open the eVA Administration Console. (Refer to the beginning of the “eVA Settings and Configuration” section for the URL, and
use an administrator you defined in Use Case 1.)
2. In the USERS MANAGEMENT menu, click Users.
3. In the following screen, click the Add button.
4. In the Insert screen, populate the fields.
Here’s a description of each field:
• Login: User login. Identify a user in AD to whom you want to give access to eVA.
• Mail: User e-mail address. This address is used to send mail after the user creates a virtual machine.
• SIMPLE USER: If checked, uses the Simple User screen. There are two versions of eVA screens, one for experienced users (that
requires additional information) and a simple user version.
• INFRASTRUCTURE REPORTING: If checked, you can access to the Infrastructure Reporting tab in eVA.
• CAPACITY REPORTING: If checked, you can access to the Capacity Reporting tab in eVA.
• CLOUD PROVISIONING: If checked, you can access the Cloud Provisioning tab in eVA.
• IP SETTINGS: If checked, you can enter network information when the VM creation wizard runs.
21
22. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

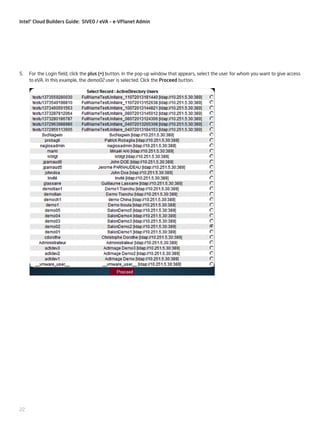

5. For the Login field, click the plus (+) button. In the pop-up window that appears, select the user for whom you want to give access
to eVA. In this example, the demo02 user is selected. Click the Proceed button.
22
23. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

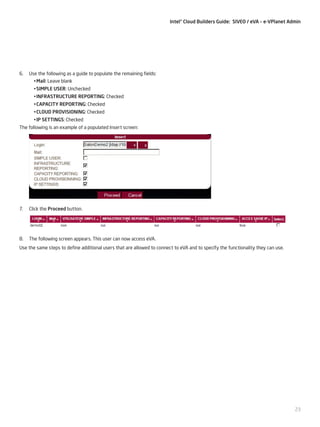

6. Use the following as a guide to populate the remaining fields:
• Mail: Leave blank
• SIMPLE USER: Unchecked
• INFRASTRUCTURE REPORTING: Checked
• CAPACITY REPORTING: Checked
• CLOUD PROVISIONING: Checked
• IP SETTINGS: Checked
The following is an example of a populated Insert screen:
7. Click the Proceed button.
8. The following screen appears. This user can now access eVA.
Use the same steps to define additional users that are allowed to connect to eVA and to specify the functionality they can use.
23
24. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

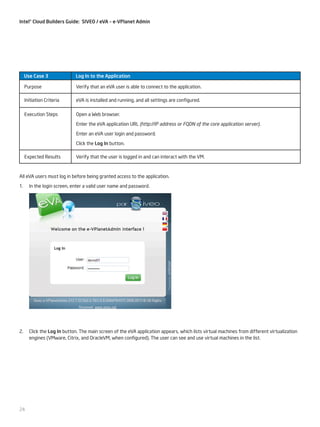

Use Case 3
Log In to the Application
Purpose
Verify that an eVA user is able to connect to the application.
Initiation Criteria
eVA is installed and running, and all settings are configured.
Execution Steps
Open a Web browser.
Enter the eVA application URL (http://IP address or FQDN of the core application server).
Enter an eVA user login and password.
Click the Log In button.
Expected Results
Verify that the user is logged in and can interact with the VM.
All eVA users must log in before being granted access to the application.
1. In the login screen, enter a valid user name and password.
2. Click the Log In button. The main screen of the eVA application appears, which lists virtual machines from different virtualization
engines (VMware, Citrix, and OracleVM, when configured). The user can see and use virtual machines in the list.
24
25. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

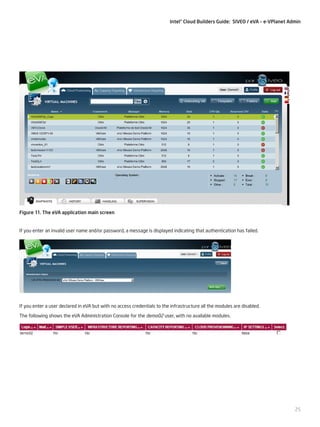

Figure 11. The eVA application main screen
If you enter an invalid user name and/or password, a message is displayed indicating that authentication has failed.
If you enter a user declared in eVA but with no access credentials to the infrastructure all the modules are disabled.
The following shows the eVA Administration Console for the demo02 user, with no available modules.
25
26. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
When user tries to log in, the following error message is displayed.
Use Case 4
Create a Virtual Machine from a Template
Purpose
Create a virtual machine from a template.
Initiation Criteria
eVA is installed and running, and all settings are configured. You are connected to eVA.
Execution Steps
Follow the steps described below.
Expected Results
The virtual machine is created according to your specifications.
After logging in to eVA as an administrator, click the Cloud Provisioning tab and then click the Add button. (The Add button is located
above the list of virtual machines, to the right.)
26
27. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
You can create a virtual machine from a template by using the VM creation wizard as follows:
1. Select the virtualization platform.
a. Choose which virtualization platform you want to use to create and deploy your virtual machine. Only those virtualization
platforms that have been configured in the eVA Administration Console appear in the list. (See the “eVA Settings and
Configuration” section, Step 2: Configure Manager Settings.)
Figure 12. Selecting a virtualization platform in eVA
b. Select the infrastructure virtualization platform on which you want create/deploy your virtual machine.
c. Click the Next step button. In this example, we selected the eVa VMware Demo Platform option, which is the virtualization
engine defined in the “eVA Settings and Configuration” section.
27
28. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

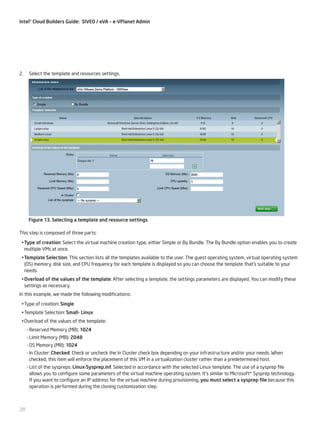

2. Select the template and resources settings.
Figure 13. Selecting a template and resource settings
This step is composed of three parts:
• Type of creation: Select the virtual machine creation type, either Simple or By Bundle. The By Bundle option enables you to create
multiple VMs at once.
• Template Selection: This section lists all the templates available to the user. The guest operating system, virtual operating system
(OS) memory, disk size, and CPU frequency for each template is displayed so you can choose the template that’s suitable to your
needs.
• Overload of the values of the template: After selecting a template, the settings parameters are displayed. You can modify these
settings as necessary.
In this example, we made the following modifications:
• Type of creation: Single
• Template Selection: Small- Linux
• Overload of the values of the template:
--Reserved Memory (MB): 1024
--Limit Memory (MB): 2048
--OS Memory (MB): 1024
--In Cluster: Checked. Check or uncheck the In Cluster check box depending on your infrastructure and/or your needs. When
checked, this item will enforce the placement of this VM in a virtualization cluster rather than a predetermined host.
--List of the syspreps: Linux-Sysprep.inf. Selected in accordance with the selected Linux template. The use of a sysprep file
allows you to configure some parameters of the virtual machine operating system. It’s similar to Microsoft* Sysprep technology.
If you want to configure an IP address for the virtual machine during provisioning, you must select a sysprep file because this
operation is performed during the cloning customization step.
28
29. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

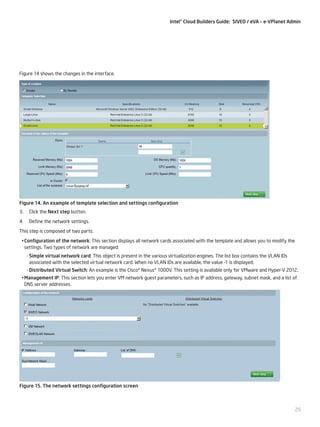

Figure 14 shows the changes in the interface.
Figure 14. An example of template selection and settings configuration
3.
Click the Next step button.
4.
Define the network settings.
This step is composed of two parts:
• Configuration of the network: This section displays all network cards associated with the template and allows you to modify the
settings. Two types of network are managed:
--Simple virtual network card: This object is present in the various virtualization engines. The list box contains the VLAN IDs
associated with the selected virtual network card. When no VLAN IDs are available, the value -1 is displayed.
--Distributed Virtual Switch: An example is the Cisco* Nexus* 1000V. This setting is available only for VMware and Hyper-V 2012.
• Management IP: This section lets you enter VM network guest parameters, such as IP address, gateway, subnet mask, and a list of
DNS server addresses.
Figure 15. The network settings configuration screen
29
30. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

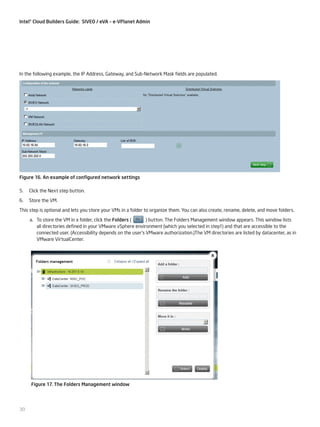

In the following example, the IP Address, Gateway, and Sub-Network Mask fields are populated.
Figure 16. An example of configured network settings
5.
Click the Next step button.
6.
Store the VM.
This step is optional and lets you store your VMs in a folder to organize them. You can also create, rename, delete, and move folders.
a. To store the VM in a folder, click the Folders (
) button. The Folders Management window appears. This window lists
all directories defined in your VMware vSphere environment (which you selected in step1) and that are accessible to the
connected user. (Accessibility depends on the user’s VMware authorization.)The VM directories are listed by datacenter, as in
VMware VirtualCenter.
Figure 17. The Folders Management window
30
31. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

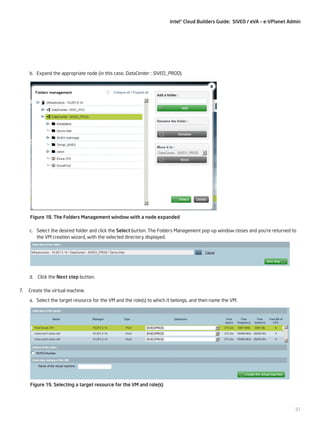

b. Expand the appropriate node (in this case, DataCenter : SIVEO_PROD).
Figure 18. The Folders Management window with a node expanded
c. Select the desired folder and click the Select button. The Folders Management pop-up window closes and you’re returned to
the VM creation wizard, with the selected directory displayed.
d. Click the Next step button.
7.
Create the virtual machine.
a. Select the target resource for the VM and the role(s) to which it belongs, and then name the VM.
Figure 19. Selecting a target resource for the VM and role(s)
31
32. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
Selection of the target: Depending on the choices you made for the VM resource parameters (CPU, Memory, Disk, and Network), eVA
computes the best target. The targets are calculated relative to the eVA best placement algorithm, regardless of the virtualization
engines created.
When several targets are possible, they are sorted in descending order, from highest amount of available resources to lowest. For each
target, the amount of free resources (disk, CPU frequency, memory, and number of vCPUs) are displayed.
The Datastore list includes all datastores in which the VM can be created, in descending order.
Choice of the roles: This section lists all AD groups to which the user belongs. By selecting a group, you allow the group’s users to use
and manipulate the virtual machine.
Naming of the VM: Enter the name of the VM to be created. The name is defined by a regular expression, which means you can define
the format of the virtual machine name for a specific nomenclature.
In this example, we made the following changes:
• Target: We chose the second target and the second datastore.
• Roles: We selected the SIVEOActidev role. All the AD users who belong to this role can use the VM.
• Virtual Machine Name: We chose TestIntel.
Figure 20 shows the changes in the interface.
Figure 20. An example of target resource settings
32
33. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
Figure 21 shows the entire virtual machine creation screen.
Figure 21. A fully populated eVA VIRTUAL MACHINES screen, in which a virtual machine is being created
33
34. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

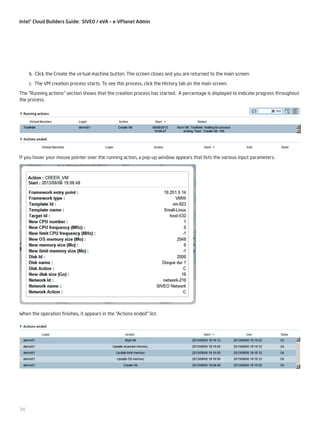

b. Click the Create the virtual machine button. The screen closes and you are returned to the main screen.
c. The VM creation process starts. To see this process, click the History tab on the main screen.
The “Running actions” section shows that the creation process has started. A percentage is displayed to indicate progress throughout
the process.
If you hover your mouse pointer over the running action, a pop-up window appears that lists the various input parameters.
When the operation finishes, it appears in the “Actions ended” list.
34
35. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
The newly created VM is selected on the main screen.
Click the
the VM.
button to view the Detail of the Virtual Machine screen, which displays parameters you selected during the creation of
35
36. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
The same virtual machine is also visible in VMware vCenter when accessed with the proper VMware administrative user account:
Figure 22. VMware vCenter screen. Properties of a virtual machine created in eVA.
Use Case 5
Stop a VM
Purpose
Verify that the user can stop a VM.
Initiation Criteria
The user has permission to view VMs and is authorized to stop them.
Execution Steps
Log in as an authorized user.
Select a started VM.
Click the Stop button.
Expected Results
The VM state changes and the VM stops.
You can stop a VM in one of two ways:
• Initiate a graceful shutdown via the guest operating system.
• If a graceful shutdown failed or is not possible, perform a hard stop.
36
37. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

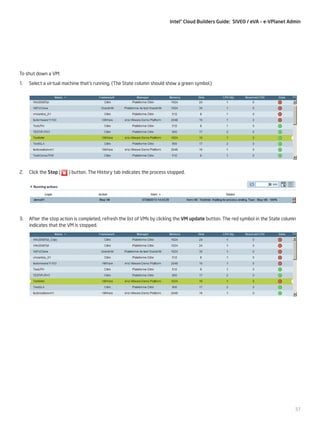

To shut down a VM:
1. Select a virtual machine that’s running. (The State column should show a green symbol.)
2. Click the Stop (
) button. The History tab indicates the process stopped.
3. After the stop action is completed, refresh the list of VMs by clicking the VM update button. The red symbol in the State column
indicates that the VM is stopped.
37
38. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
Use Case 6
Start a VM
Purpose
Verify that the user can interact with a VM and start it.
Initiation Criteria
The user has permission to view the VMs and is authorized to start them.
Execution Steps
Log in as an authorized user.
Select a stopped VM.
Click the Start button.
Expected Results
The VM state changes and the VM starts.
To start a VM:
1. Select a virtual machine that is stopped (TestIntel, for example).
2. Click the Start (
) button. The History tab indicates the starting process.
3. After the start operation is completed and the list of VMs refreshes, the State column indicates the VM is running.
38
39. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

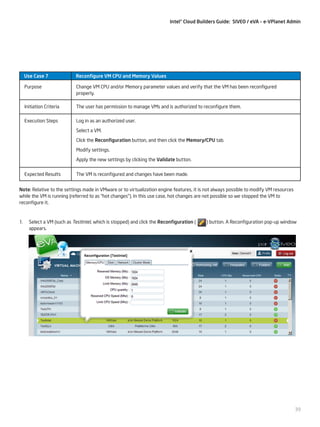

Use Case 7
Reconfigure VM CPU and Memory Values
Purpose
Change VM CPU and/or Memory parameter values and verify that the VM has been reconfigured
properly.
Initiation Criteria
The user has permission to manage VMs and is authorized to reconfigure them.
Execution Steps
Log in as an authorized user.
Select a VM.
Click the Reconfiguration button, and then click the Memory/CPU tab.
Modify settings.
Apply the new settings by clicking the Validate button.
Expected Results
The VM is reconfigured and changes have been made.
Note: Relative to the settings made in VMware or to virtualization engine features, it is not always possible to modify VM resources
while the VM is running (referred to as “hot changes”). In this use case, hot changes are not possible so we stopped the VM to
reconfigure it.
1. Select a VM (such as TestIntel, which is stopped) and click the Reconfiguration (
appears.
) button. A Reconfiguration pop-up window
39
40. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
2. Modify the settings as needed. For example, we made the following changes:
a. Limit Memory (MB): 2048 à 2096
• Reserved CPU Speed (MHz): 0 à 1500
• Limit CPU Speed (MHz): 2000
The following screen shows the changes in the interface.
3. Click the Validate button to apply your changes. After the reconfiguration is finished, the following screen verifies that your
changes are in effect.
40
41. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

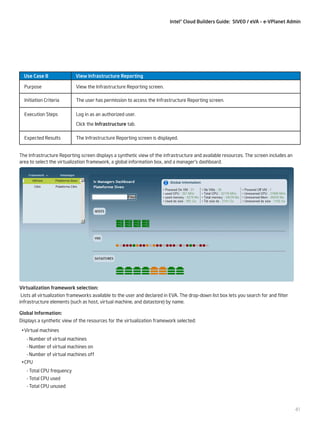

Use Case 8
View Infrastructure Reporting
Purpose
View the Infrastructure Reporting screen.
Initiation Criteria
The user has permission to access the Infrastructure Reporting screen.
Execution Steps
Log in as an authorized user.
Click the Infrastructure tab.
Expected Results
The Infrastructure Reporting screen is displayed.
The Infrastructure Reporting screen displays a synthetic view of the infrastructure and available resources. The screen includes an
area to select the virtualization framework, a global information box, and a manager’s dashboard.
Virtualization framework selection:
Lists all virtualization frameworks available to the user and declared in EVA. The drop-down list box lets you search for and filter
infrastructure elements (such as host, virtual machine, and datastore) by name.
Global Information:
Displays a synthetic view of the resources for the virtualization framework selected:
• Virtual machines
--Number of virtual machines
--Number of virtual machines on
--Number of virtual machines off
• CPU
--Total CPU frequency
--Total CPU used
--Total CPU unused
41
42. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
• Memory
--Total memory
--Total memory used
--Total memory unused
• Datastore
--Total disk capacity
--Total disk space used
--Total free disk space

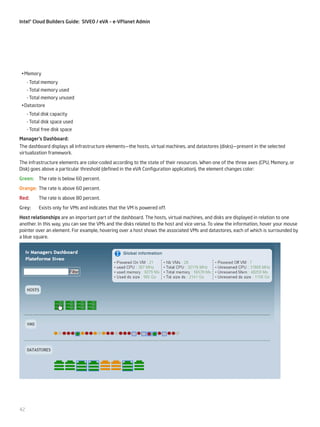

Manager’s Dashboard:
The dashboard displays all infrastructure elements—the hosts, virtual machines, and datastores (disks)—present in the selected
virtualization framework.
The infrastructure elements are color-coded according to the state of their resources. When one of the three axes (CPU, Memory, or
Disk) goes above a particular threshold (defined in the eVA Configuration application), the element changes color:
Green: The rate is below 60 percent.
Orange: The rate is above 60 percent.
Red:
The rate is above 80 percent.
Grey:
Exists only for VMs and indicates that the VM is powered off.
Host relationships are an important part of the dashboard. The hosts, virtual machines, and disks are displayed in relation to one
another. In this way, you can see the VMs and the disks related to the host and vice versa. To view the information, hover your mouse
pointer over an element. For example, hovering over a host shows the associated VMs and datastores, each of which is surrounded by
a blue square.
42
43. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

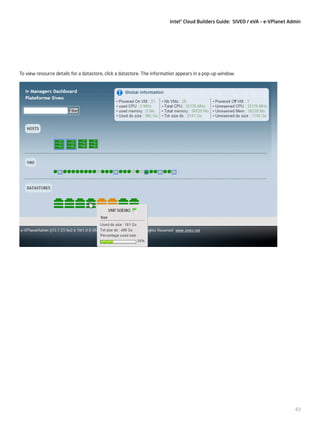

To view resource details for a datastore, click a datastore. The information appears in a pop-up window.
43
44. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

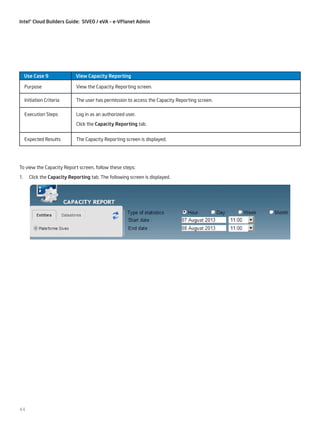

Use Case 9
View Capacity Reporting
Purpose
View the Capacity Reporting screen.
Initiation Criteria
The user has permission to access the Capacity Reporting screen.
Execution Steps
Log in as an authorized user.
Click the Capacity Reporting tab.
Expected Results
The Capacity Reporting screen is displayed.
To view the Capacity Report screen, follow these steps:
1. Click the Capacity Reporting tab. The following screen is displayed.
44
45. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
The screen is divided in two parts:
• Infrastructure list (left): The root nodes correspond to the virtualization engine visible to the user.
• Type of statistics (right): You can
Infrastructure list
Description of Elements
Collection of datacenters
Collection of hosts
VM (green flag indicates that resource usage is good)
VM (red flag indicates that resource usage is not good)
Resource pool
45
46. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

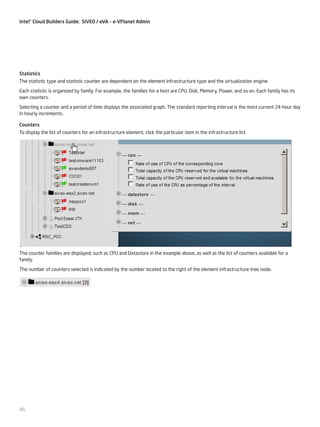

Statistics
The statistic type and statistic counter are dependent on the element infrastructure type and the virtualization engine.
Each statistic is organized by family. For example, the families for a host are CPU, Disk, Memory, Power, and so on. Each family has its
own counters.
Selecting a counter and a period of time displays the associated graph. The standard reporting interval is the most current 24-hour day
in hourly increments.
Counters
To display the list of counters for an infrastructure element, click the particular item in the infrastructure list.
The counter families are displayed, such as CPU and Datastore in the example above, as well as the list of counters available for a
family.
The number of counters selected is indicated by the number located to the right of the element infrastructure tree node.
46
47. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin
Graphs
After you select counters, the corresponding graphs are displayed. This example displays the Total CPU capacity reserved for VMs
(measured in MHz) of the host named siveo-esx1.siveo.net.
The graphs are interactive. Pointing your mouse on a graph displays a tooltip that indicates the date, interval measure, and the
statistic value.
You can display graphs for different infrastructure elements on the same page. You can also print and export graphs.
47
48. Intel® Cloud Builders Guide: SIVEO / eVA – e-VPlanet Admin

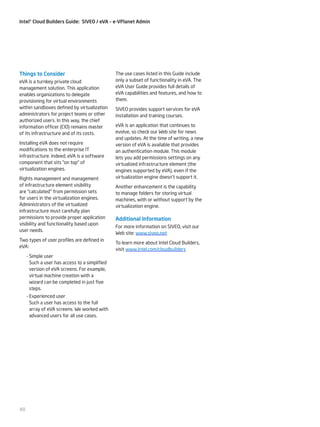

Things to Consider
eVA is a turnkey private cloud
management solution. This application
enables organizations to delegate
provisioning for virtual environments
within sandboxes defined by virtualization
administrators for project teams or other
authorized users. In this way, the chief
information officer (CIO) remains master
of its infrastructure and of its costs.
Installing eVA does not require
modifications to the enterprise IT
infrastructure. Indeed, eVA is a software
component that sits "on top" of
virtualization engines.
Rights management and management
of infrastructure element visibility
are "calculated" from permission sets
for users in the virtualization engines.
Administrators of the virtualized
infrastructure must carefully plan
permissions to provide proper application
visibility and functionality based upon
user needs.
Two types of user profiles are defined in
eVA:
--Simple user
Such a user has access to a simplified
version of eVA screens. For example,
virtual machine creation with a
wizard can be completed in just five
steps.
--Experienced user
Such a user has access to the full
array of eVA screens. We worked with
advanced users for all use cases.
48
The use cases listed in this Guide include
only a subset of functionality in eVA. The
eVA User Guide provides full details of
eVA capabilities and features, and how to
them.
SIVEO provides support services for eVA
installation and training courses.
eVA is an application that continues to
evolve, so check our Web site for news
and updates. At the time of writing, a new
version of eVA is available that provides
an authentication module. This module
lets you add permissions settings on any
virtualized infrastructure element (the
engines supported by eVA), even if the
virtualization engine doesn’t support it.
Another enhancement is the capability
to manage folders for storing virtual
machines, with or without support by the
virtualization engine.
Additional Information
For more information on SIVEO, visit our
Web site: www.siveo.net
To learn more about Intel Cloud Builders,
visit www.intel.com/cloudbuilders
