This document outlines the specifications and configuration for supplying, installing, and testing an integrated server with radius accounting capabilities. It includes hardware requirements of a dual core CPU, 2GB RAM, and 360GB hard drive. It then details the software including the Linux operating system, FreeRadius server, MySQL, and other applications. The document provides a standard configuration with IP addresses and hostnames for 7 virtual servers and specifies basic networking, VPN, Samba file sharing, and radius authentication functions. It also describes user management and traffic control features to be implemented.

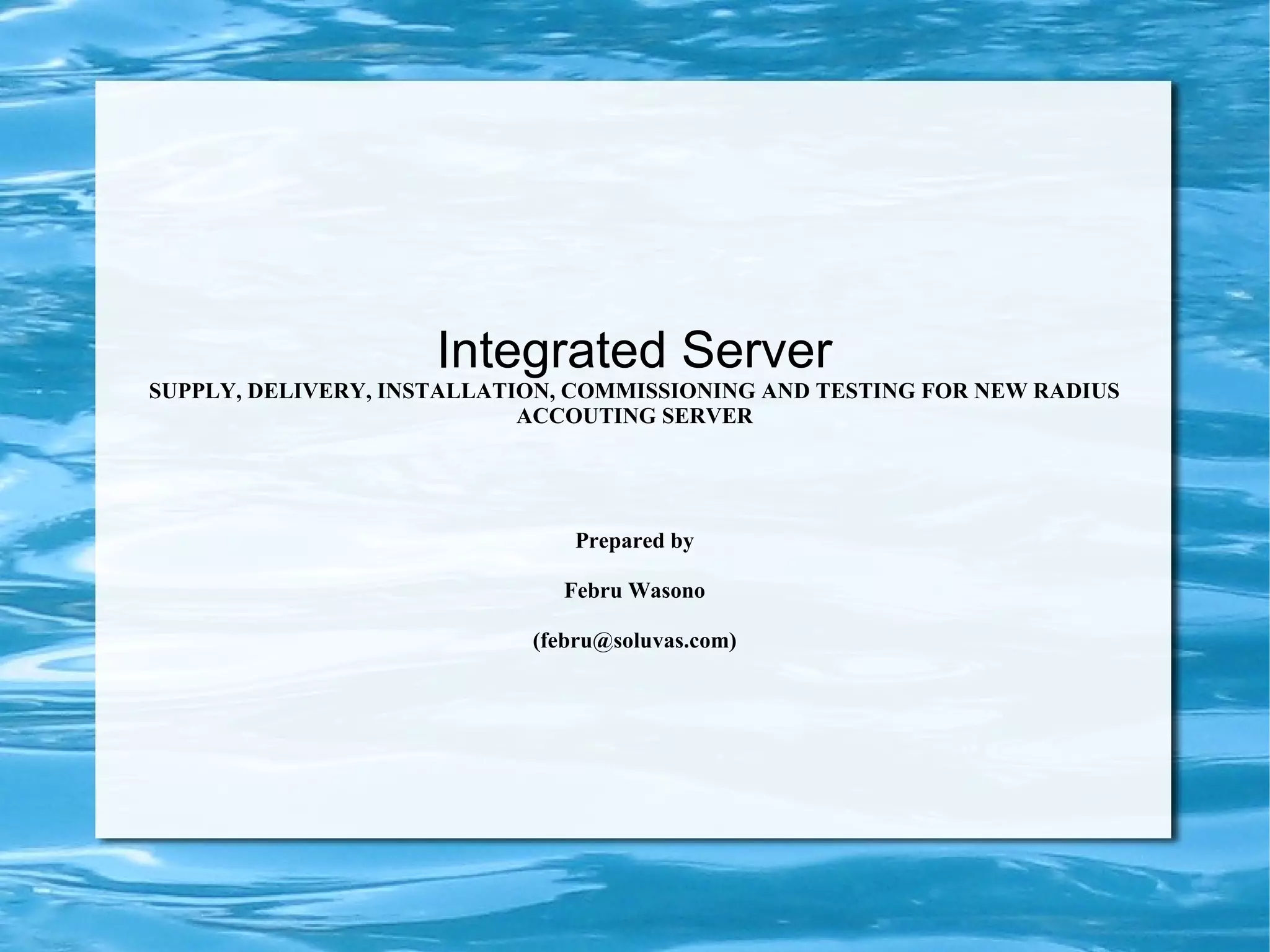

1. Integrated Server
SUPPLY, DELIVERY, INSTALLATION, COMMISSIONING AND TESTING FOR NEW RADIUS
ACCOUTING SERVER
Prepared by
Febru Wasono
(febru@soluvas.com)

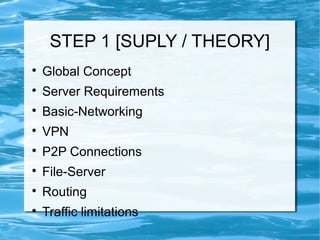

2. STEP 1 [SUPLY / THEORY]


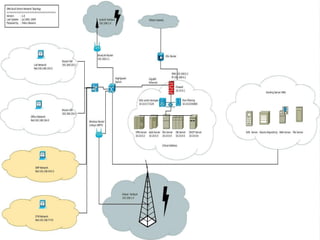

Global Concept

Server Requirements

Basic-Networking

VPN

P2P Connections

File-Server

Routing

Traffic limitations

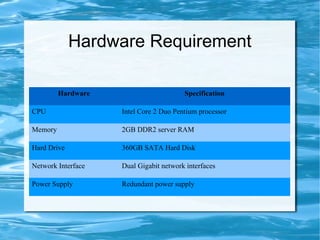

4. Hardware Requirement
Hardware Specification
CPU Intel Core 2 Duo Pentium processor
Memory 2GB DDR2 server RAM
Hard Drive 360GB SATA Hard Disk
Network Interface Dual Gigabit network interfaces
Power Supply Redundant power supply

5. Software Requirement
Application Specification
Operating System Linux Ubuntu 8.04 (Hardy Heron)
Radius Server Version 2.0
MySQL Version 5
Dolaradius Version 0.8.9
Samba Version 5
proFTP/TFTP

6. Standard Configuration
Index Description Value
1 Hostname Sma-server.com
IP / Subnet 10.10.0.1 / 255.255.255.0
Gateway 10.10.0.1
Workgroup Workgroup
Administrator User Role
Username Password
root “root”

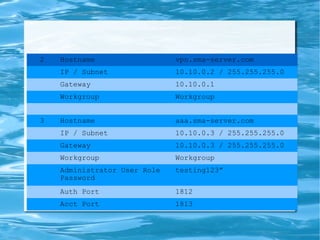

7. 2 Hostname vpn.sma-server.com
IP / Subnet 10.10.0.2 / 255.255.255.0
Gateway 10.10.0.1
Workgroup Workgroup
3 Hostname aaa.sma-server.com
IP / Subnet 10.10.0.3 / 255.255.255.0
Gateway 10.10.0.3 / 255.255.255.0
Workgroup Workgroup
Administrator User Role
Password
testing123”
Auth Port 1812
Acct Port 1813

8. 4 Hostname file.sma-server.com
IP / Subnet 10.10.0.4 / 255.255.255.0
Gateway 10.10.0.1
Workgroup Workgroup
5 Hostname dbs.sma-server.com
IP / Subnet 10.10.0.5 / 255.255.255.0
Gateway 10.10.0.1
Workgroup Workgroup
Administrator User Role
Username Password
root/“root” radius/”radius”

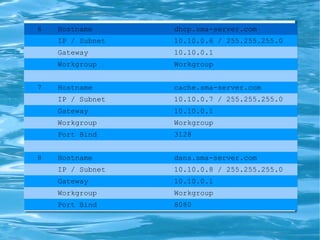

9. 6 Hostname dhcp.sma-server.com
IP / Subnet 10.10.0.6 / 255.255.255.0
Gateway 10.10.0.1
Workgroup Workgroup
7 Hostname cache.sma-server.com
IP / Subnet 10.10.0.7 / 255.255.255.0
Gateway 10.10.0.1
Workgroup Workgroup
Port Bind 3128
8 Hostname dans.sma-server.com
IP / Subnet 10.10.0.8 / 255.255.255.0
Gateway 10.10.0.1
Workgroup Workgroup
Port Bind 8080

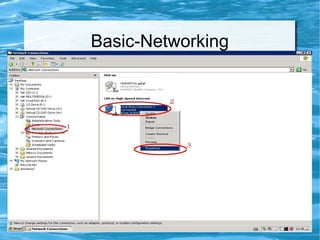

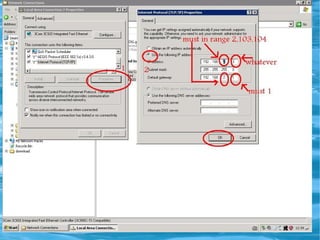

10. Basic-Networking

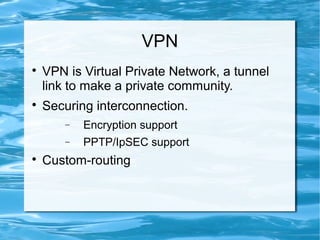

12. VPN

VPN is Virtual Private Network, a tunnel
link to make a private community.

Securing interconnection.
− Encryption support
− PPTP/IpSEC support

Custom-routing

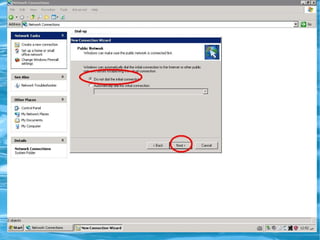

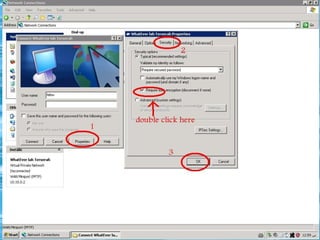

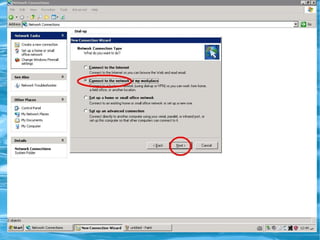

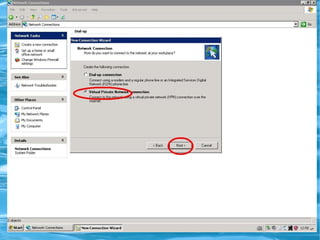

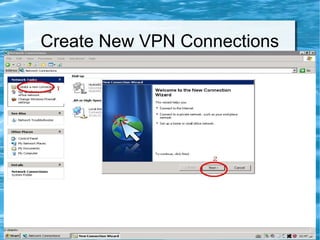

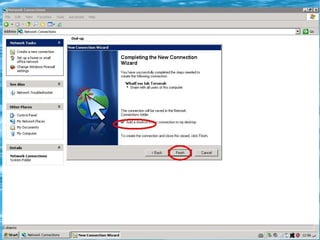

13. Create New VPN Connections

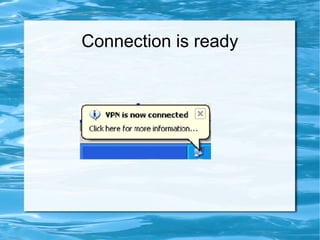

22. Connection is ready

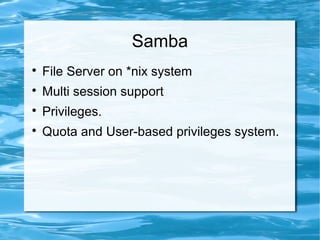

23. Samba

File Server on *nix system

Multi session support

Privileges.

Quota and User-based privileges system.

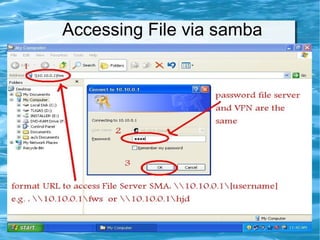

24. Accessing File via samba

25. Accessing File on Linux

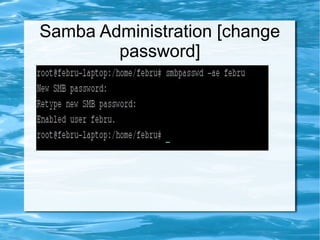

26. Samba Administration [change
password]

27. Radius

Radius is AAA server for general purposes
− Authentication : [user + password]
− Authorization : [Routing]
− Accounting : [time-based or package-
based]

FreeRadius, Daloradius, openRadius, etc

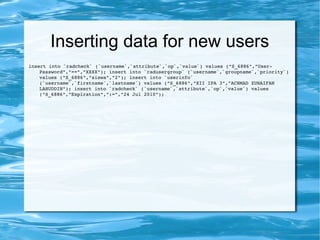

28. Inserting data for new users
insert into `radcheck` (`username`,`attribute`,`op`,`value`) values ("S_6886","User­
Password","==","XXXX"); insert into `radusergroup` (`username`,`groupname`,`priority`)
values ("S_6886","siswa","2"); insert into `userinfo`
(`username`,`firstname`,`lastname`) values ("S_6886","XII IPA 3","ACHMAD ZUNAIFAN
LAHUDDIN"); insert into `radcheck` (`username`,`attribute`,`op`,`value`) values
("S_6886","Expiration",":=","24 Jul 2010");

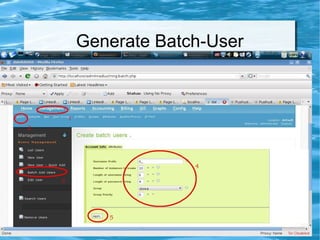

29. Generate Batch-User

30. Changing Password

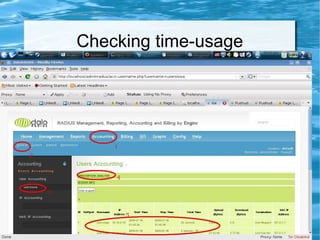

31. Checking time-usage

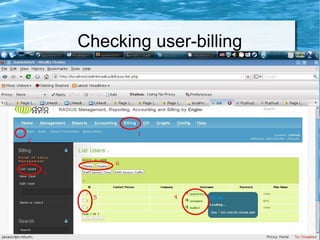

32. Checking user-billing

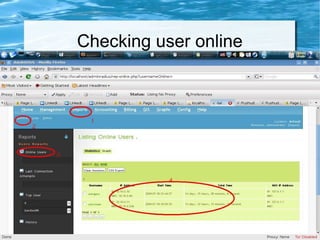

33. Checking user online

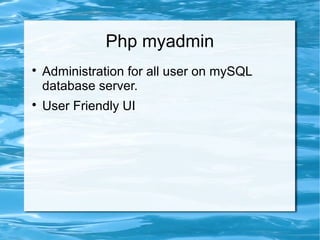

34. Php myadmin

Administration for all user on mySQL
database server.

User Friendly UI

35. Add-user traffic limitations

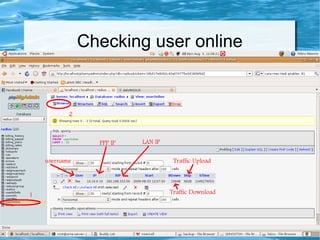

36. Checking user online

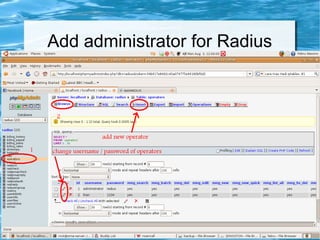

37. Add administrator for Radius

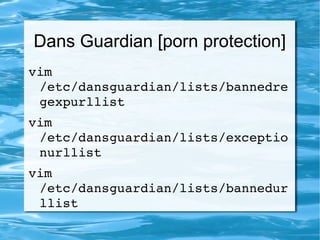

38. Dans Guardian [porn protection]
vim
/etc/dansguardian/lists/bannedre
gexpurllist
vim
/etc/dansguardian/lists/exceptio
nurllist
vim
/etc/dansguardian/lists/bannedur
llist

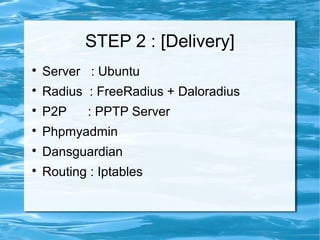

39. STEP 2 : [Delivery]

Server : Ubuntu

Radius : FreeRadius + Daloradius

P2P : PPTP Server

Phpmyadmin

Dansguardian

Routing : Iptables

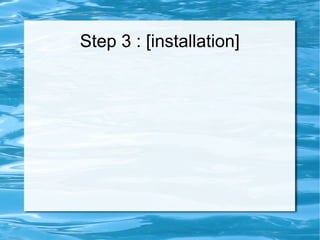

40. Step 3 : [installation]

41. Step 4 : Commissioning and
Testing

42. Step 5 : [administrating and
maintenance]
