Using cloud-native application services is easy, it “just works”. Many customers choose them without giving it a second thought. However, these app services vary from cloud to cloud, with differing levels of quality and numbers of features making visibility and control inconsistent across clouds. And then there is cost…it’s hard to know what your deployment is going to cost until after it’s been built. Often the services must be compiled in a piecemeal fashion and many products carry bloated code that increases costs. Finally, security is often an afterthought. Moreover, SecOps teams struggle to keep up with the breakneck app release cadence that has become typical. Often they are seen as DevOps viewing them as a major constraint on the ability to deliver software quickly. In this workshop, we showcase the NGINX solutions for cloud native Kubernetes that will allow you to: - Reduce tool sprawl and provide a standard set of services - Control costs with lightweight and easy solutions - Bring teams together with automation and self‑service capabilities

1. NGINX KIC in Cloud Native Kubernetes
From Network to Identity Layer
Koen Vanderpoorten
Solution Engineer BELUX

2. | ©2020 F5
2

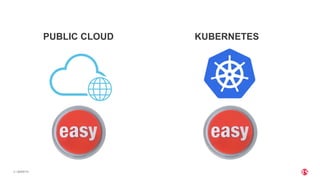

PUBLIC CLOUD KUBERNETES

3. | ©2020 F5
3
So everything is perfect…
…or is it not?

4. | ©2020 F5
4

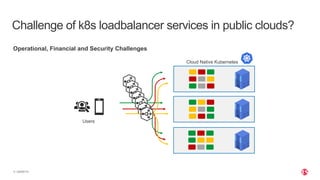

Challenge of k8s loadbalancer services in public clouds?
Users
Operational, Financial and Security Challenges
Cloud Native Kubernetes

5. | ©2020 F5
5
• Accepts traffic from outside the Kubernetes
platform, and load-balances it to pods
(containers) running inside the platform
• One single IP address and load balancer for
multiple applications, routing is based on URI’s
(L7 info)
• Monitors the pods running in Kubernetes, and
automatically updates the load balancing rules if,
for example, pods are added or removed from a
service
The Ingress Controller
Internal
Network
Users
Ingress
Controller
A specialized load balancer for Kubernetes environments:
Load
Balancer

6. | ©2020 F5
6
Ingress and Annotations – the pros and cons
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: webapp
annotations:
nginx.org/lb-method: "ip_hash"
nginx.org/ssl-services: "webapp"
nginx.org/proxy-connect-timeout: "10s"
nginx.org/proxy-read-timeout: "10s"
nginx.org/proxy-send-timeout: "10s"
nginx.org/rewrites: "serviceName=webapp rewrite=/v1"
nginx.com/jwt-key: "webapp-jwk"
nginx.com/jwt-realm: "Webb App"
nginx.com/jwt-token: "$cookie_auth_token"
nginx.com/jwt-login-url: "https://login.example.com""
spec:
rules:
- host: webapp.example.com
. . .
Implement features missing in Ingress spec
Lack validation
Not suited for granular configuration
Good Things:
Can quickly grow bigger than the spec
Bad Things:
Not portable

7. | ©2020 F5
7

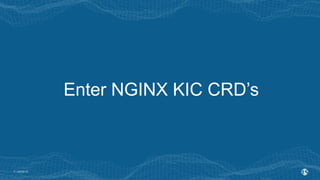

Enter NGINX KIC CRD’s

8. | ©2021 F5
8
Host
TLS
Upstreams
Routes
- Path
Action
Split
Match
Route
ErrorPage
pass
redirect
return
proxy
delegation
optional
Host
TLS
Upstreams
Routes
- Path
Action
Split
Match
Route
ErrorPage
pass
redirect
return
proxy
delegation
optional
NGINX Ingress Resources – Rich Capabilities
Host
TLS
Policies
Upstreams
Routes
- Path
Policies
Action
Split
Match
Route
ErrorPage
pass
redirect
return
proxy
delegation
VirtualServer
pass
redirect
return
proxy
pass
redirect
return
proxy
Host
Upstreams
Subroutes
- Path
Policies
Action
Split
Match
ErrorPage
pass
redirect
return
proxy
VirtualServerRoute
NGINX server configuration
NGINX http configuration
Server and HTTP snippets
NGINX location configuration
Location snippets
Policies
Access Control
Rate Limiting
Auth (JWT, OIDC)
MTLS (Ingress/Egress)
App Protect WAF

9. | ©2020 F5
9
Conditional Routing
Split Routing
Error Pages
Rate Limiting
Authentication
Web Application Firewall
NGINX Snippets
Multiple versions, multiple clients
A|B Testing for safe production deployment
Implement ‘Circuit Breakers’ to contain failures
Protect vulnerable apps, limit greedy clients
Offload identity checking from apps and centralize
Protect from known and unknown vulnerabilities
“to-the-metal” with NGINX configuration
Use Cases

10. | ©2021 F5
10
NGINX Ingress Resources – Distributed Configuration

11. | ©2021 F5
11

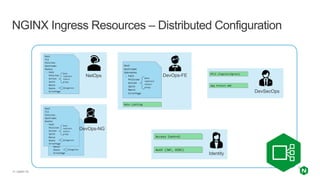

NGINX Ingress Resources – Distributed Configuration
NetOps DevOps-FE
DevOps-NG
Identity
DevSecOps

12. | ©2021 F5
12
NGINX
Ingress Controller

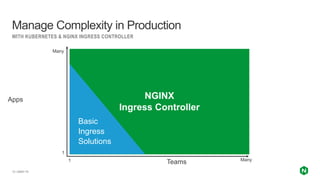

WITH KUBERNETES & NGINX INGRESS CONTROLLER
Manage Complexity in Production
Apps
Teams
Basic
Ingress
Solutions
1 Many
Many
1

13. | ©2020 F5
13
Why not use the Community version of NGINX Ingress Controller?
WAIT, THERE’S MORE THAN ONE?
Footprint
Latency
Timeouts
Security
Community: 500MB
NGINX Plus: 120MB
Community: Slowed by timeouts
NGINX Plus: Dynamically reconfigures
Community: 8809
NGINX Plus: 0
Community: OpenResty = CVE problems
NGINX Plus: Proactive CVE patching,
Integrated WAF &
service mesh
Driven by innovation at the
expense of feature stability
Driven by enterprise-ready stability
without compromising innovation

14. | ©2020 F5
14
2020 PERFORMANCE TEST RESULTS
Latency in a Dynamic Deployment

15. | ©2020 F5
15

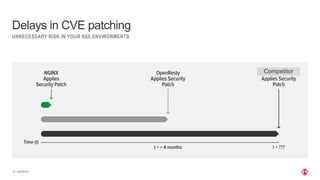

UNNECESSARY RISK IN YOUR K8S ENVIRONMENTS
Delays in CVE patching
Competitor

16. | ©2021 F5
16
THE COST OF ADDING SECURITY IS LOW COMPARED WITH ITS IMPACT
NGINX App Protect Performance
0
0,5
1
1,5
2
2,5
Throughput (MB/sec)
No Protection NGINX App Protect ModSec
0
2000
4000
6000
8000
10000
12000
14000
Requests/sec
No Protection NGINX App Protect ModSec
0
100
200
300
400
500
600
700
800
Latency (ms)
No Protection NGINX App Protect ModSec

17. | ©2021 F5
17

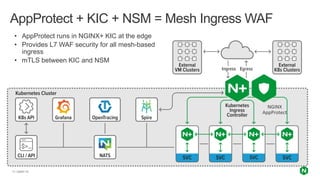

AppProtect + KIC + NSM = Mesh Ingress WAF
• AppProtect runs in NGINX+ KIC at the edge
• Provides L7 WAF security for all mesh-based
ingress
• mTLS between KIC and NSM
NGINX
AppProtect

18. | ©2021 F5
18
Mutual TLS
Instrumentation
Tracing
Rate Limiting
Traffic Splitting
Access Control
Egress Control
Secure traffic in a zero-trust network
Monitor performance, latency and availability
Debug transactions and locate faults
Protect vulnerable apps, limit greedy clients
Implement A|B, Canary and Blue-Green upgrades
Implement allow-lists to accurately govern traffic
Manage and broker traffic to external services
Spotlight on Service Mesh - Use Cases

19. | ©2021 F5
19

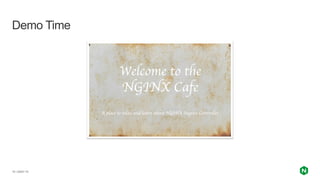

Demo Time
