Jonathan Weiss presented on infrastructure automation using the configuration management tool Chef. Chef uses Ruby scripts called cookbooks and recipes to configure and provision servers. It can configure multiple servers from a single definition file. Chef supports common infrastructure resources like packages, files, templates and services. It enforces best practices of infrastructure as code and makes deployment repeatable and automated through all environment stages.

1. Infrastructure Automation
with Chef
Jonathan Weiss
12.11.2010
1

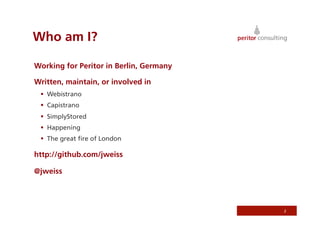

2. Who am I?
Working for Peritor in Berlin, Germany
Written, maintain, or involved in
 Webistrano
 Capistrano
 SimplyStored
 Happening
 The great fire of London
http://github.com/jweiss
@jweiss
2

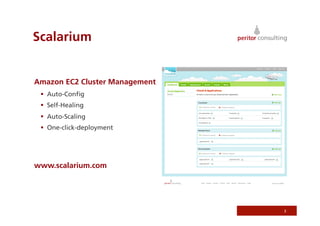

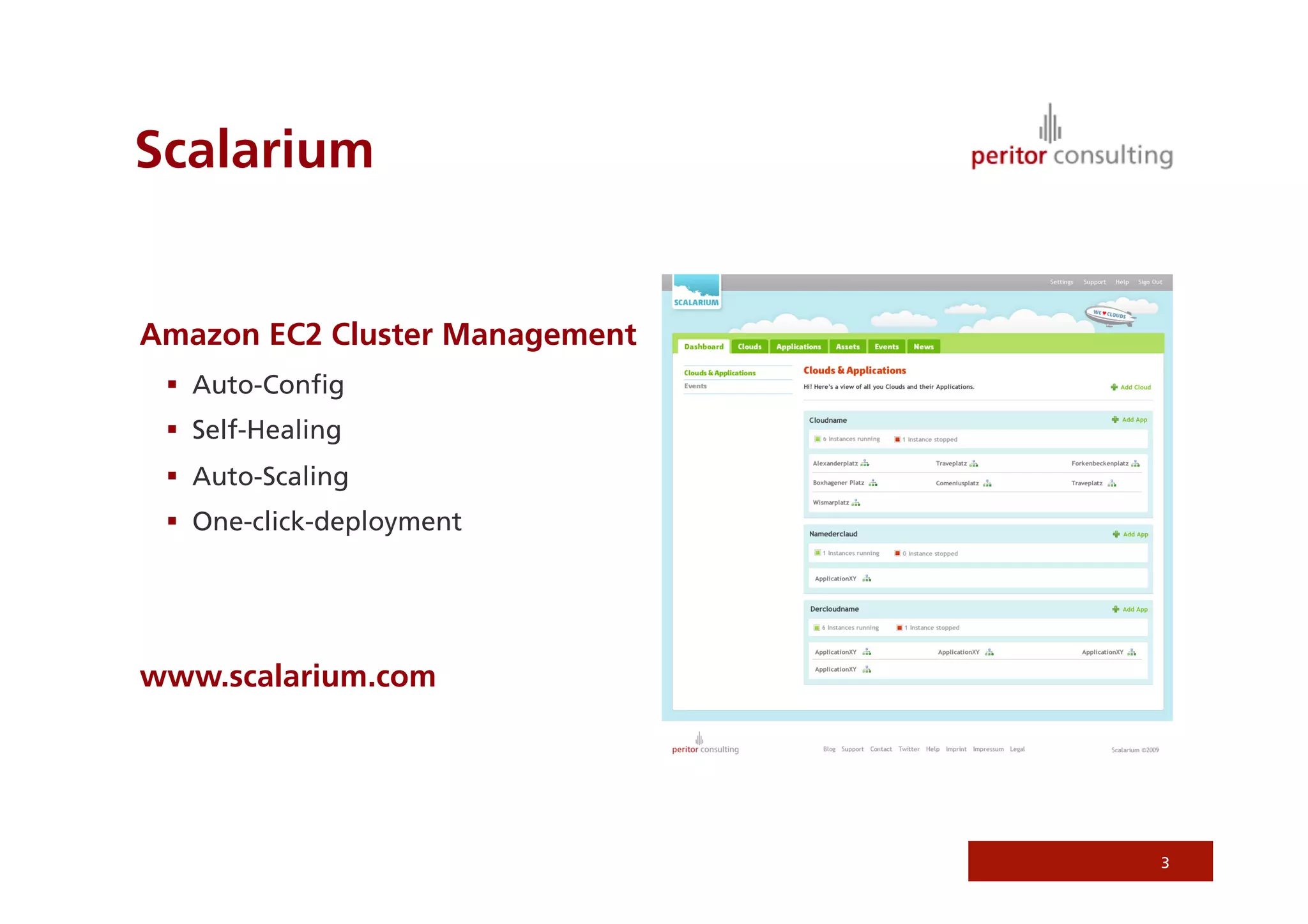

3. Scalarium
Amazon EC2 Cluster Management
 Auto-Config
 Self-Healing
 Auto-Scaling
 One-click-deployment
www.scalarium.com
3

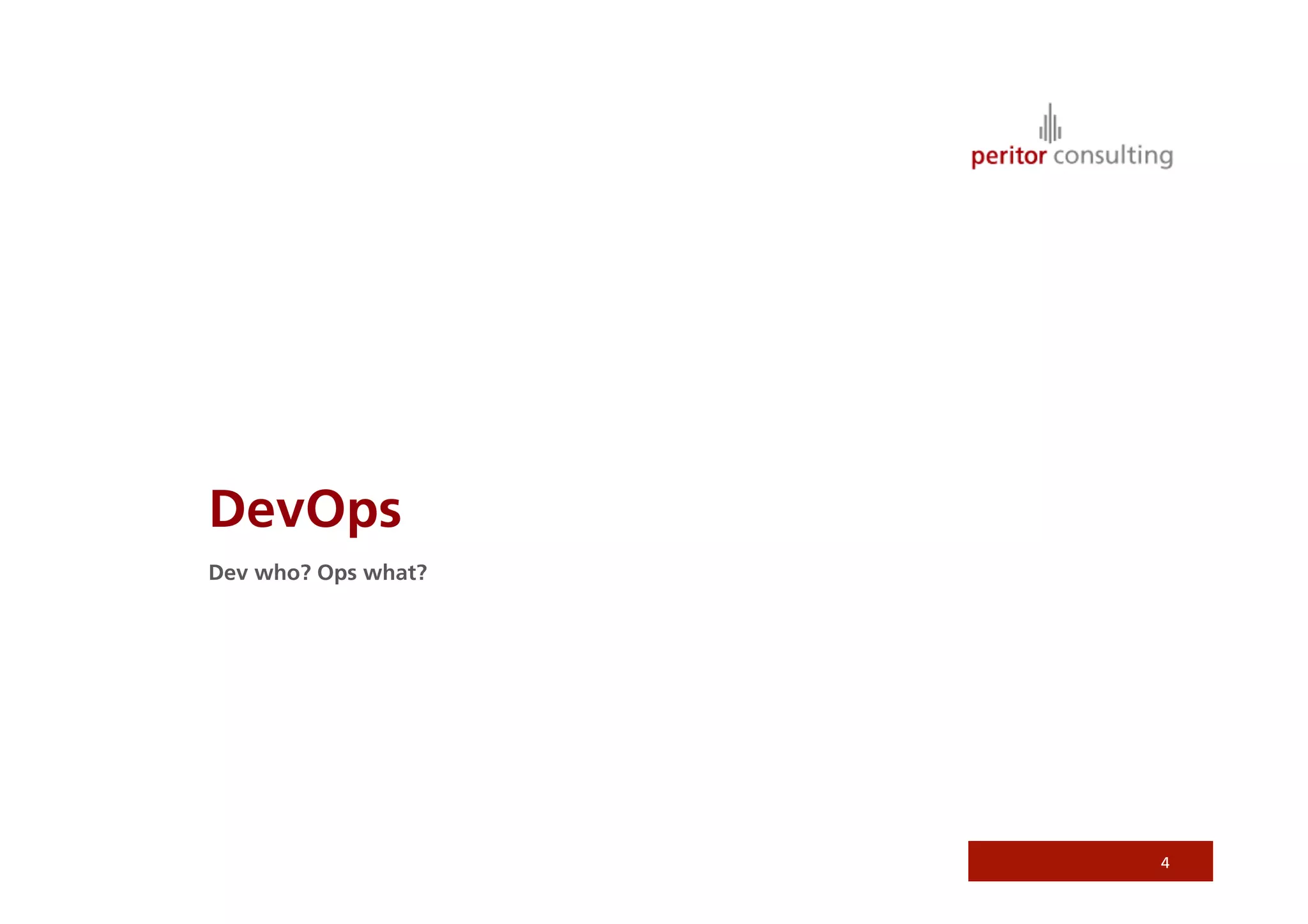

4. 4
DevOps
Dev who? Ops what?

5. Developers
5
It works on my
machine…
We need Node.js
in version x.y.z
BTW the
deployment is
due tomorrow
DEV

6. SysAdmin
We don’t
support that
version
The architecture
doesn’t match
our network,
deployment, or
security model
We weren’t consulted
about
security / monitoring /
backup / provisioning
OPS

7. The blame game
OPSDEV

8. WE SHOULD
TALK!
OPS
WE SHOULD
TALK!
DEV

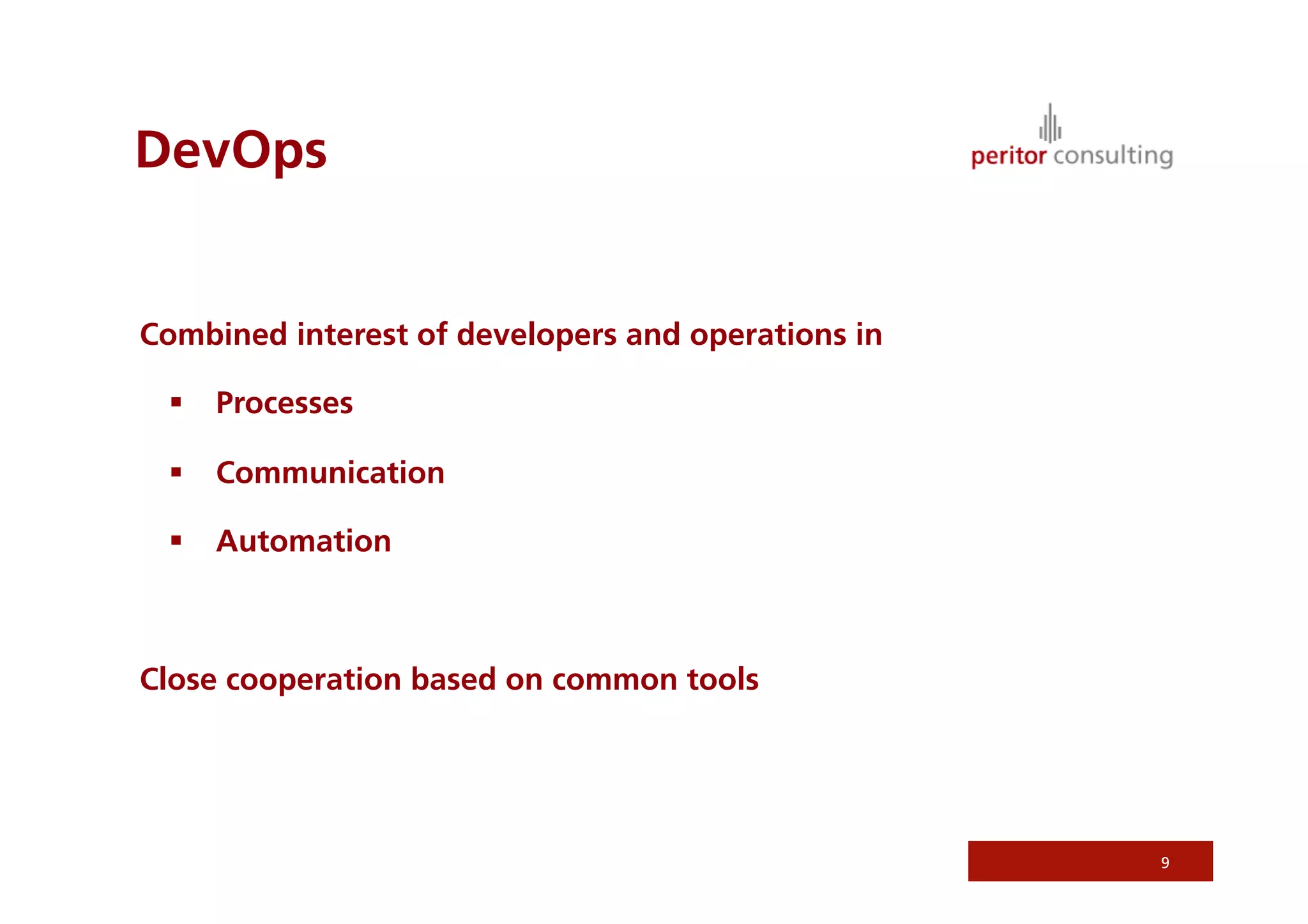

9. DevOps
Combined interest of developers and operations in
 Processes
 Communication
 Automation
Close cooperation based on common tools
9

10. Automation
• Infrastructure
• Provisioning
• Deployment
flickr.com/photos/torek/3788181603

11. Chef
Open Source Provisioning Tool
 Configures your servers
 Cookbooks recipes
 Ruby DSL
11

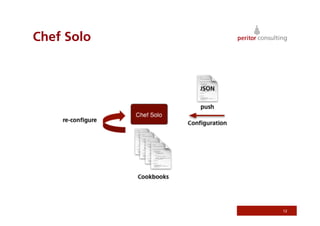

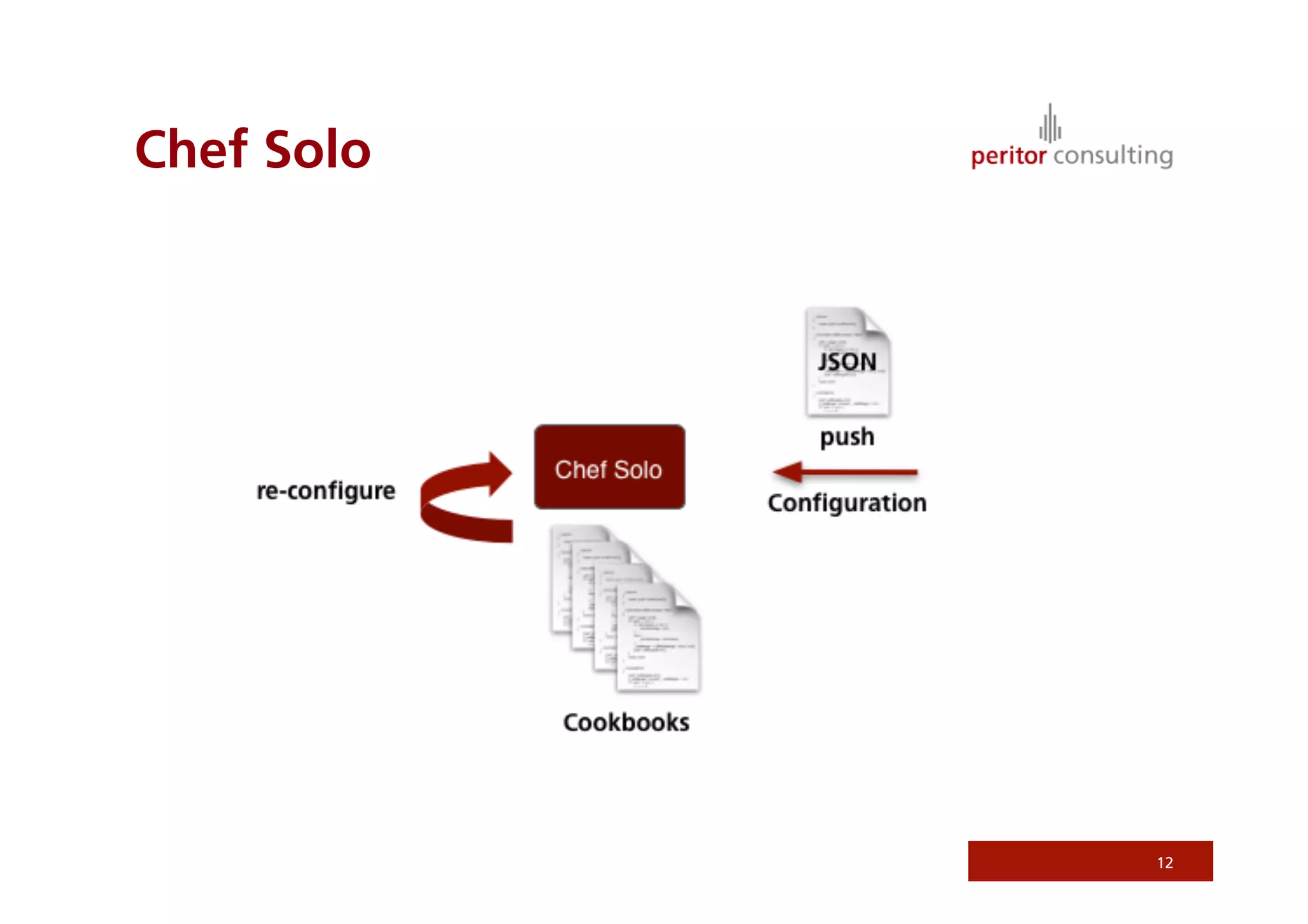

12. Chef Solo
12

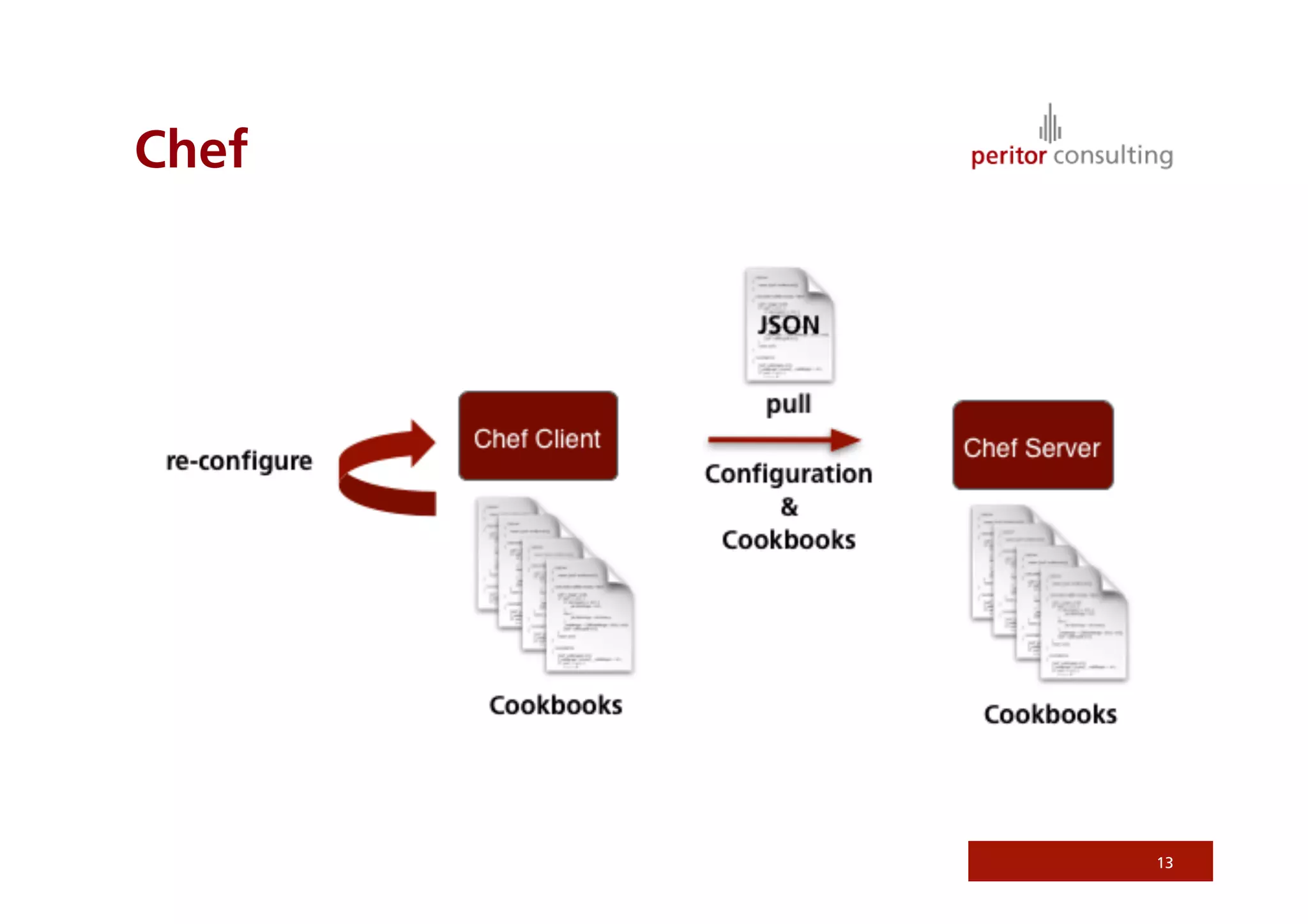

13. Chef
13

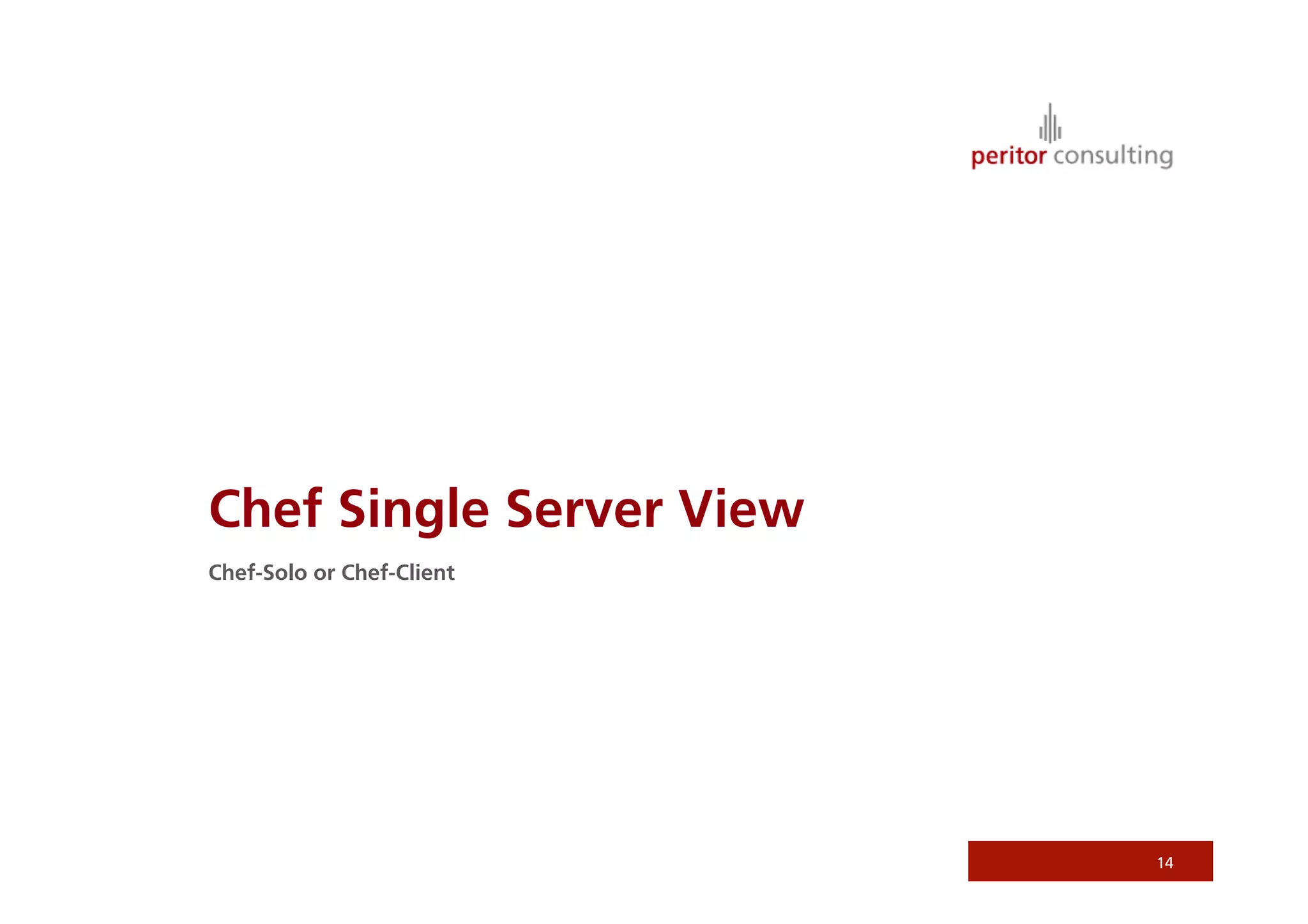

14. 14
Chef Single Server View
Chef-Solo or Chef-Client

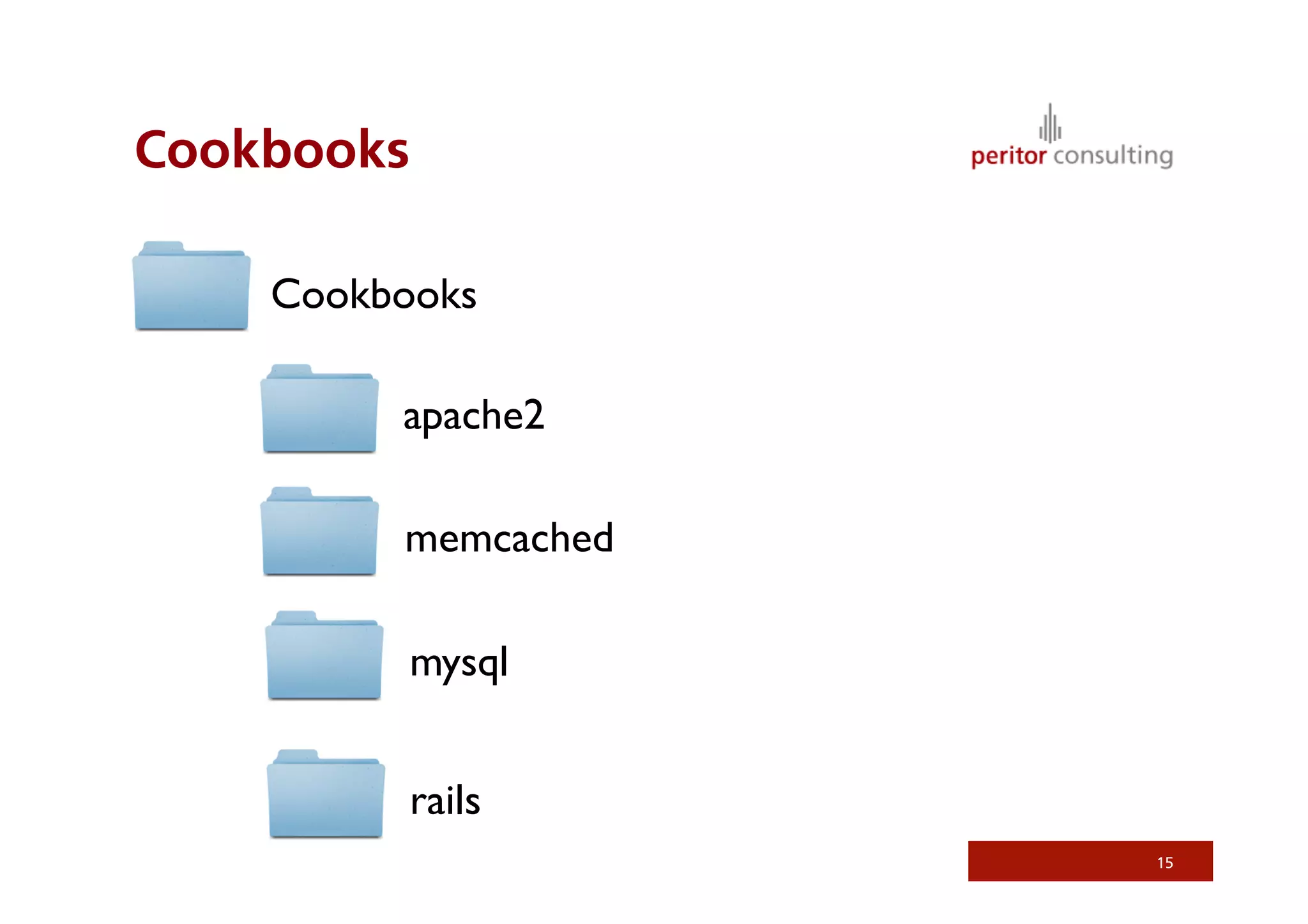

15. Cookbooks
15
Cookbooks
apache2
memcached
mysql
rails

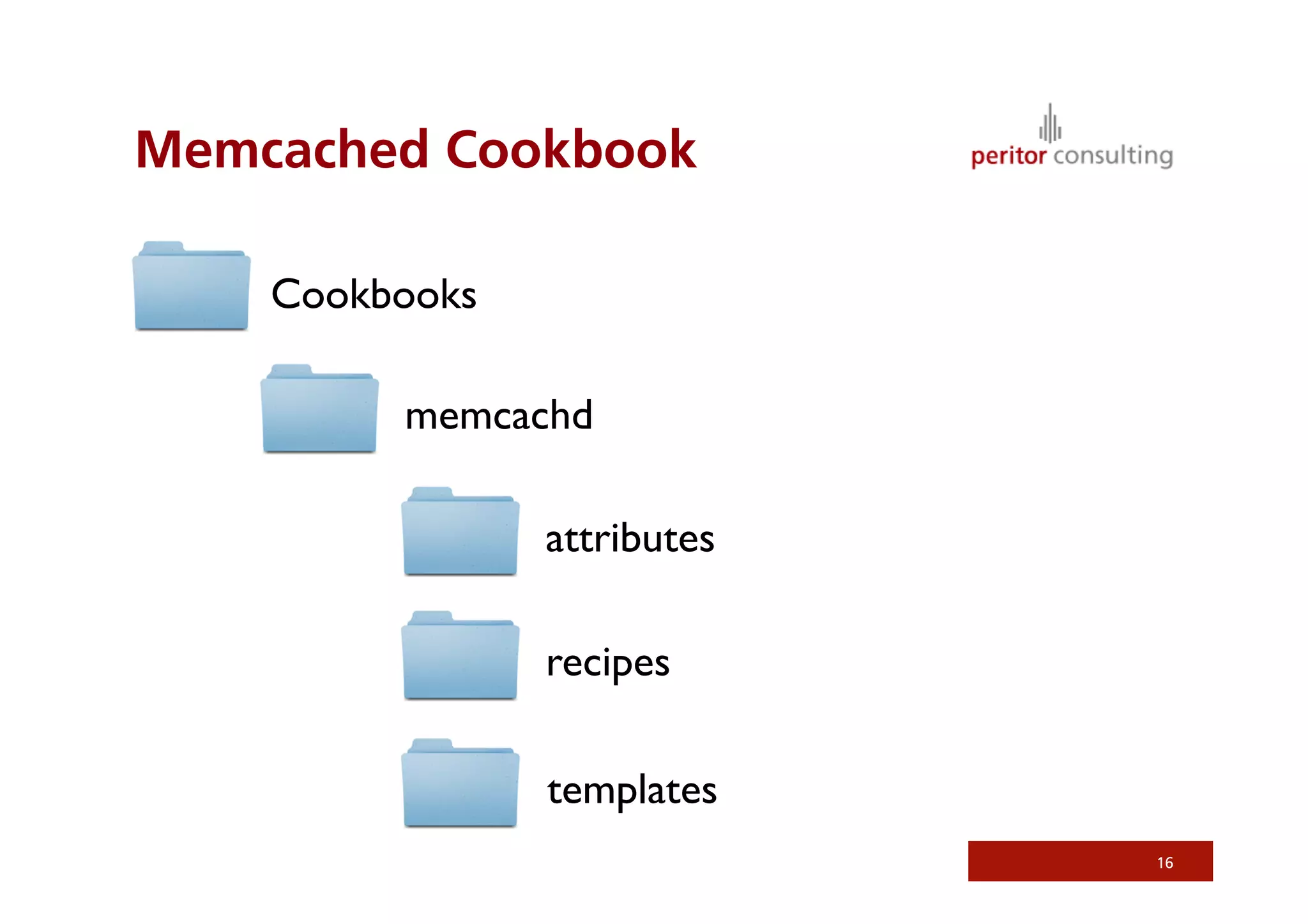

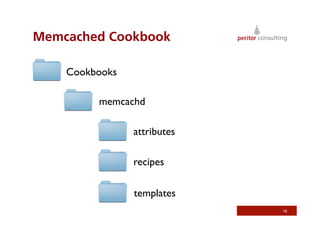

16. Memcached Cookbook
16
Cookbooks
memcachd
attributes
recipes
templates

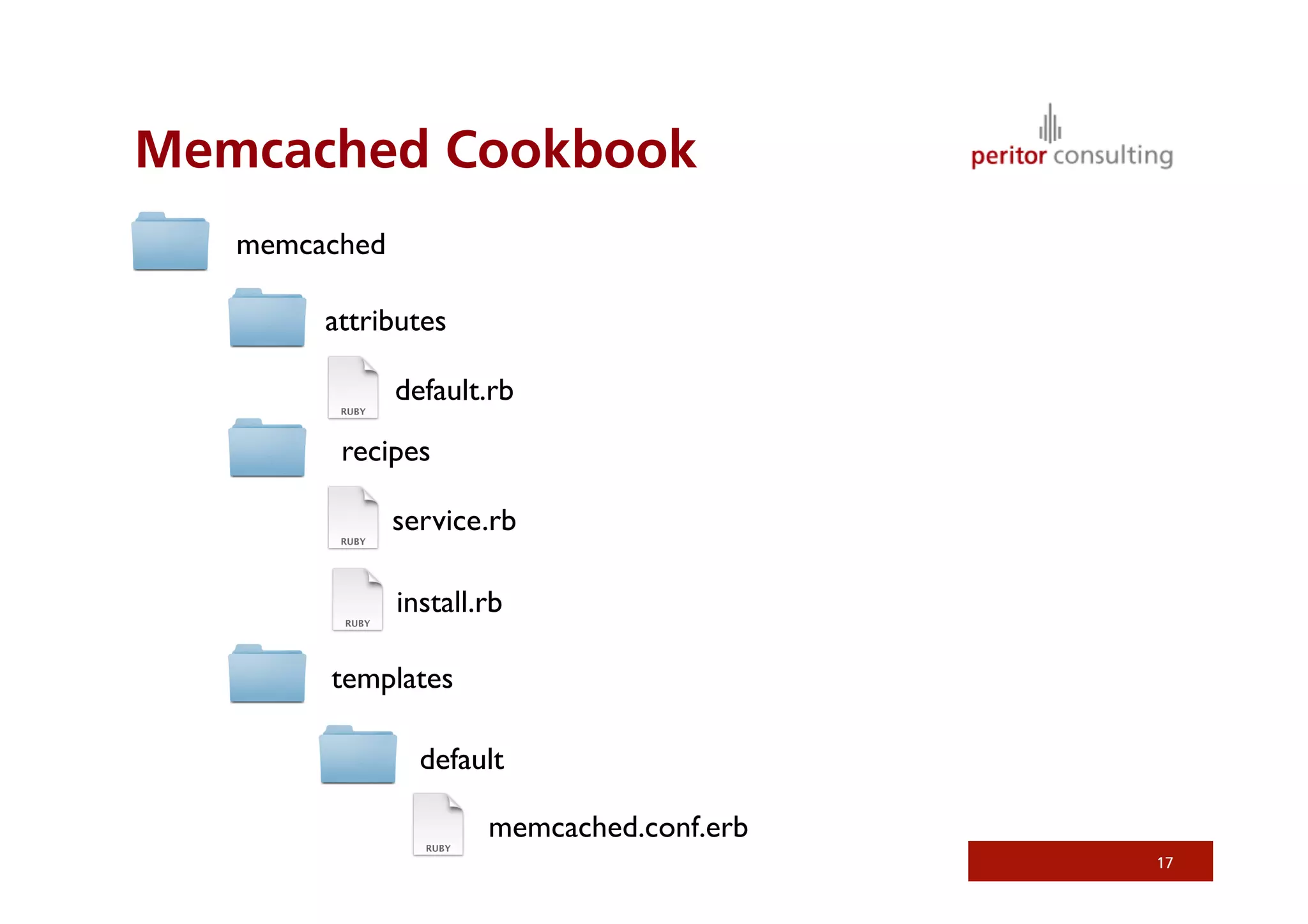

17. Memcached Cookbook
17
memcached
attributes
default.rb
recipes
service.rb
install.rb
templates
default
memcached.conf.erb

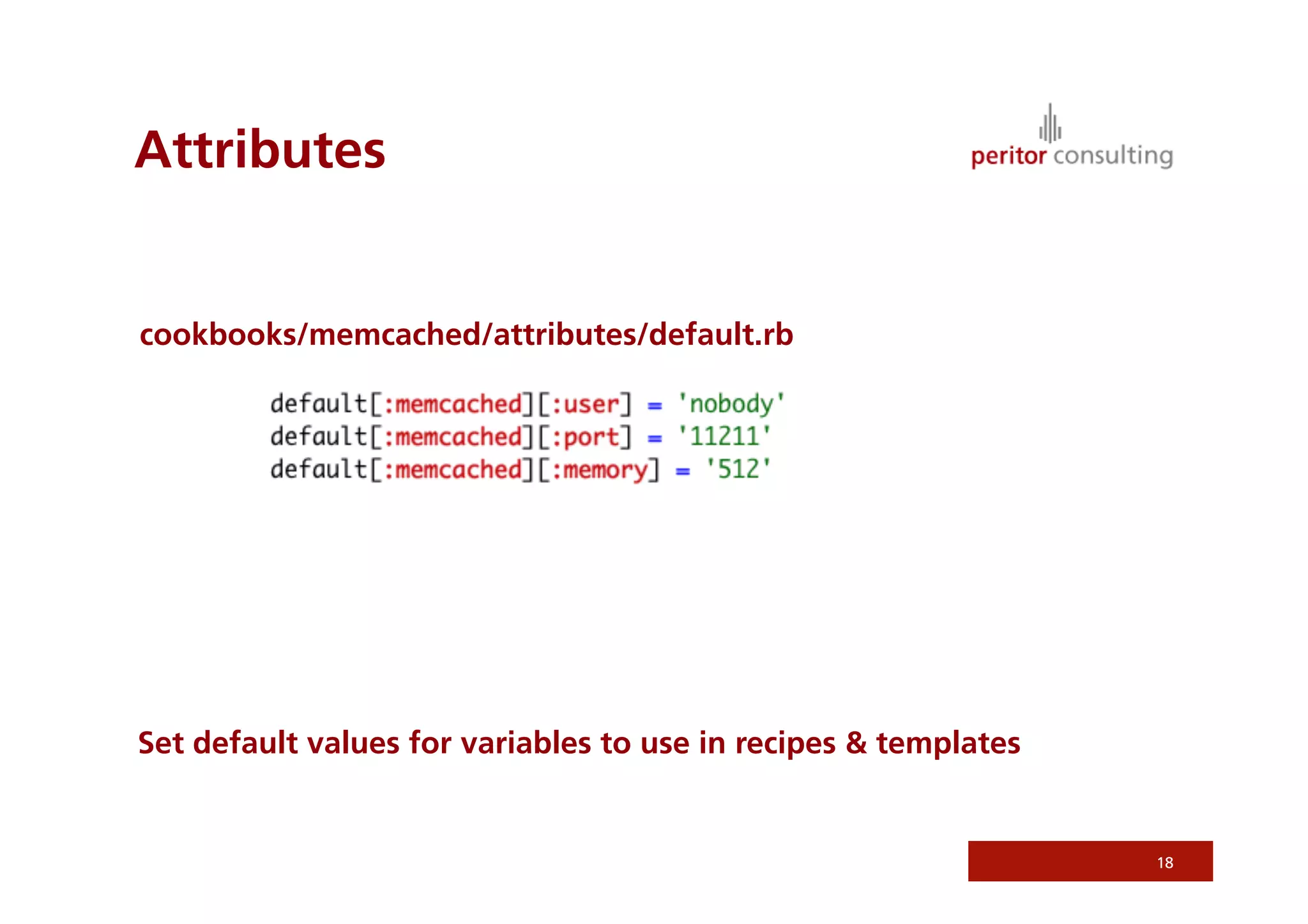

18. Attributes
18
cookbooks/memcached/attributes/default.rb
Set default values for variables to use in recipes templates

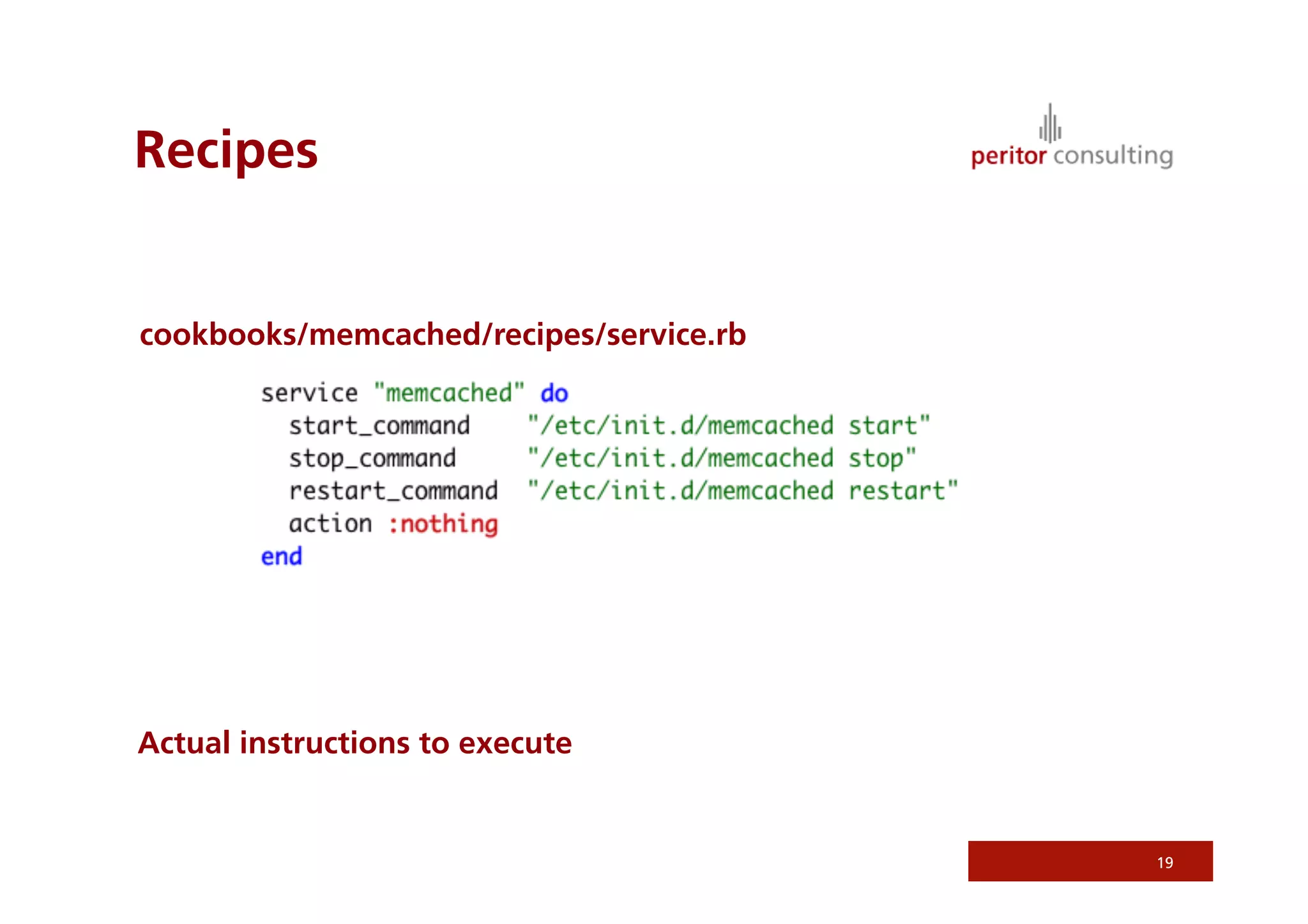

19. Recipes
19
cookbooks/memcached/recipes/service.rb
Actual instructions to execute

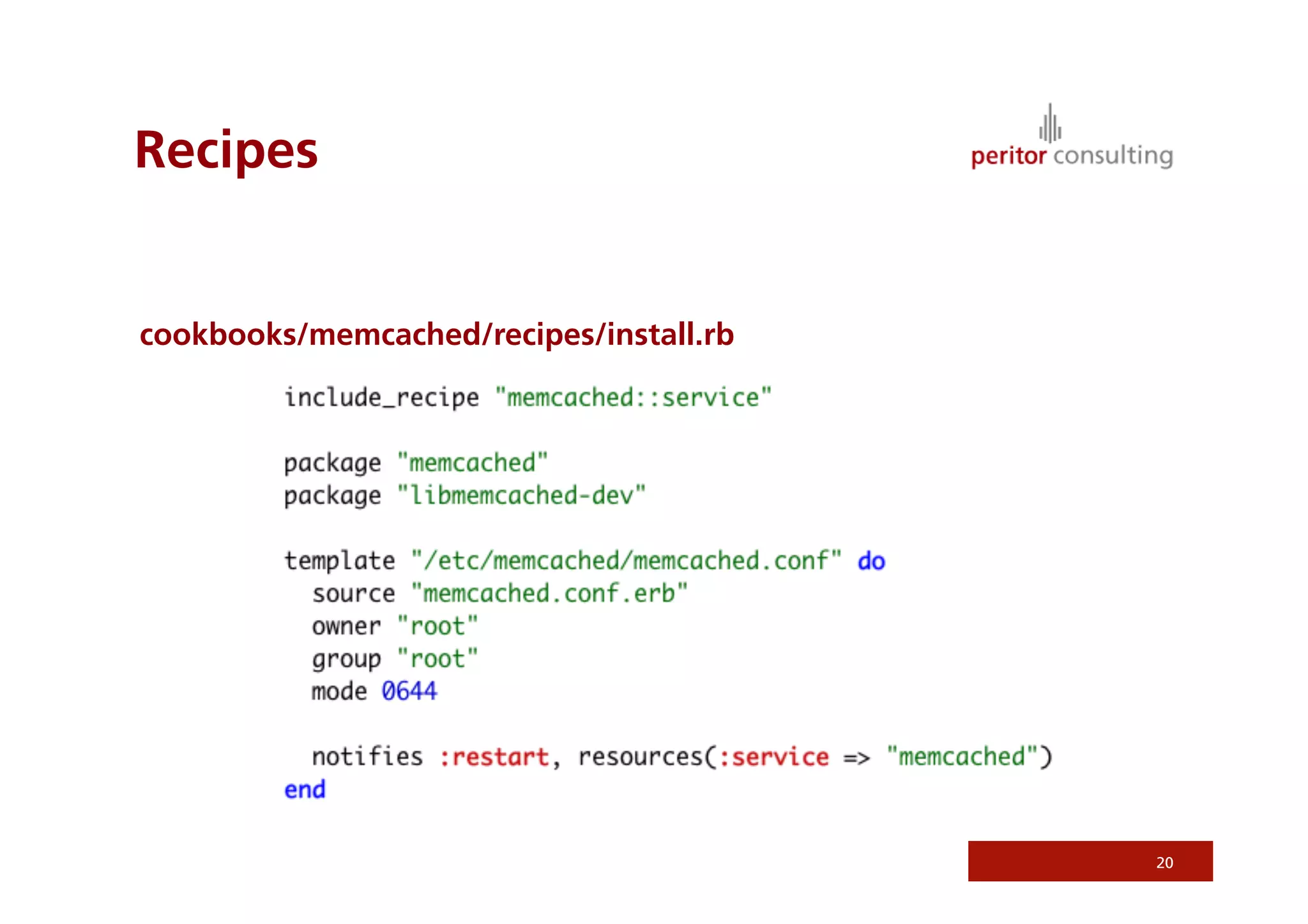

20. Recipes
20
cookbooks/memcached/recipes/install.rb

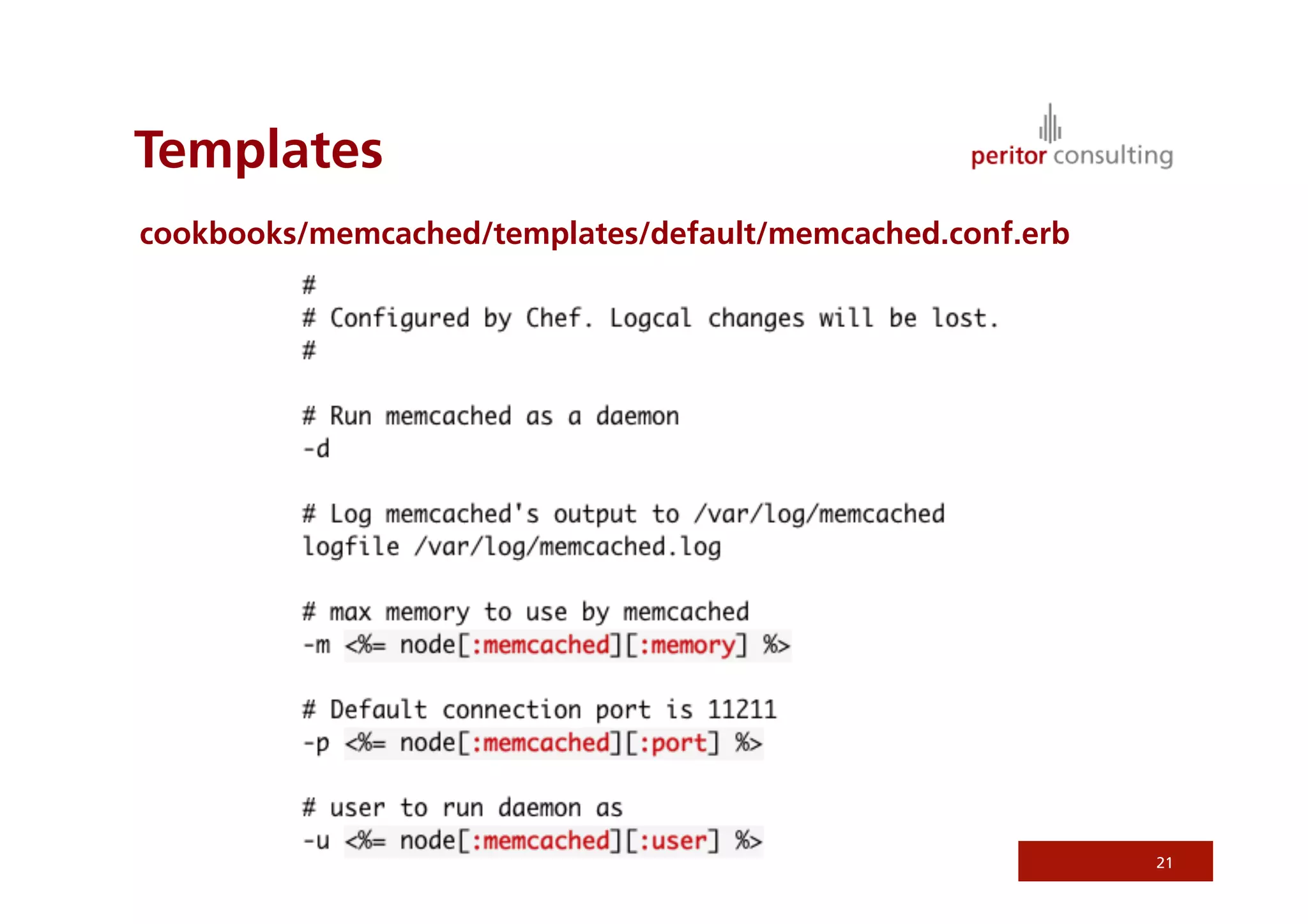

21. Templates
21
cookbooks/memcached/templates/default/memcached.conf.erb

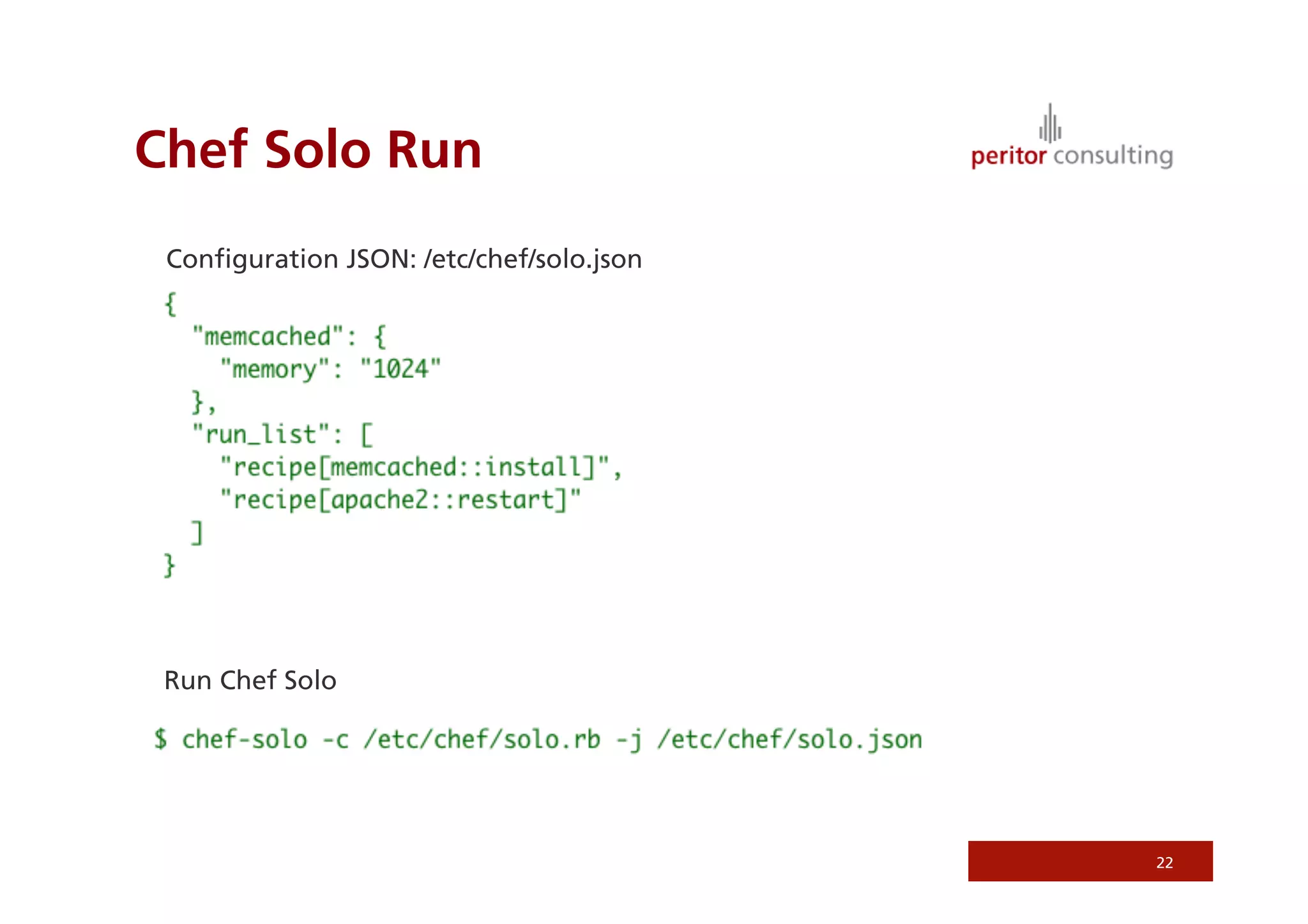

22. Chef Solo Run
22
Configuration JSON: /etc/chef/solo.json
Run Chef Solo

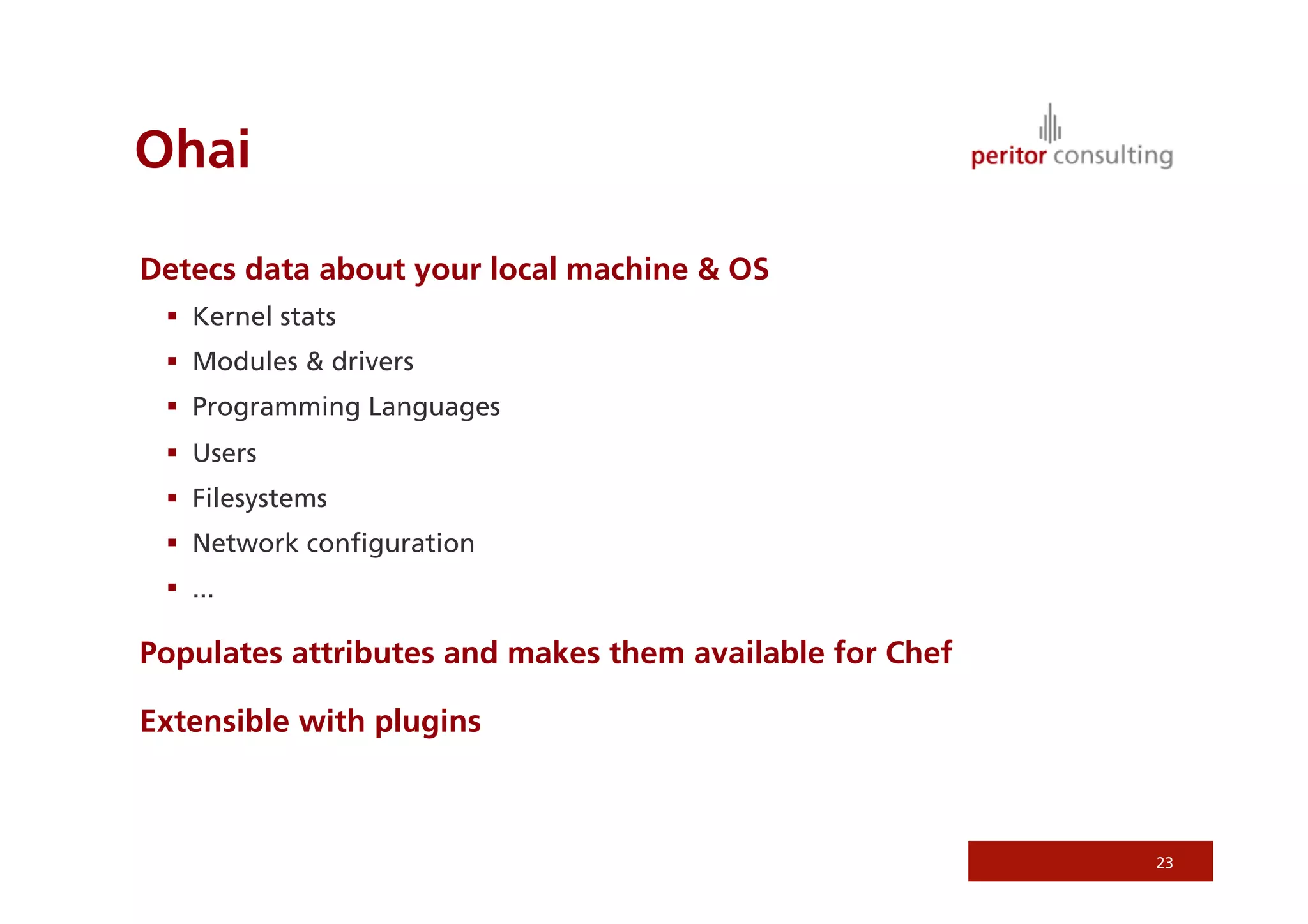

23. Ohai
Detecs data about your local machine OS
 Kernel stats
 Modules drivers
 Programming Languages
 Users
 Filesystems
 Network configuration
 ...
Populates attributes and makes them available for Chef
Extensible with plugins
23

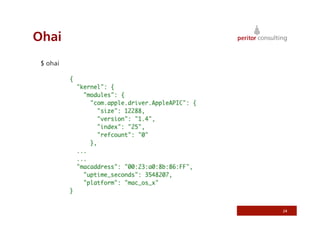

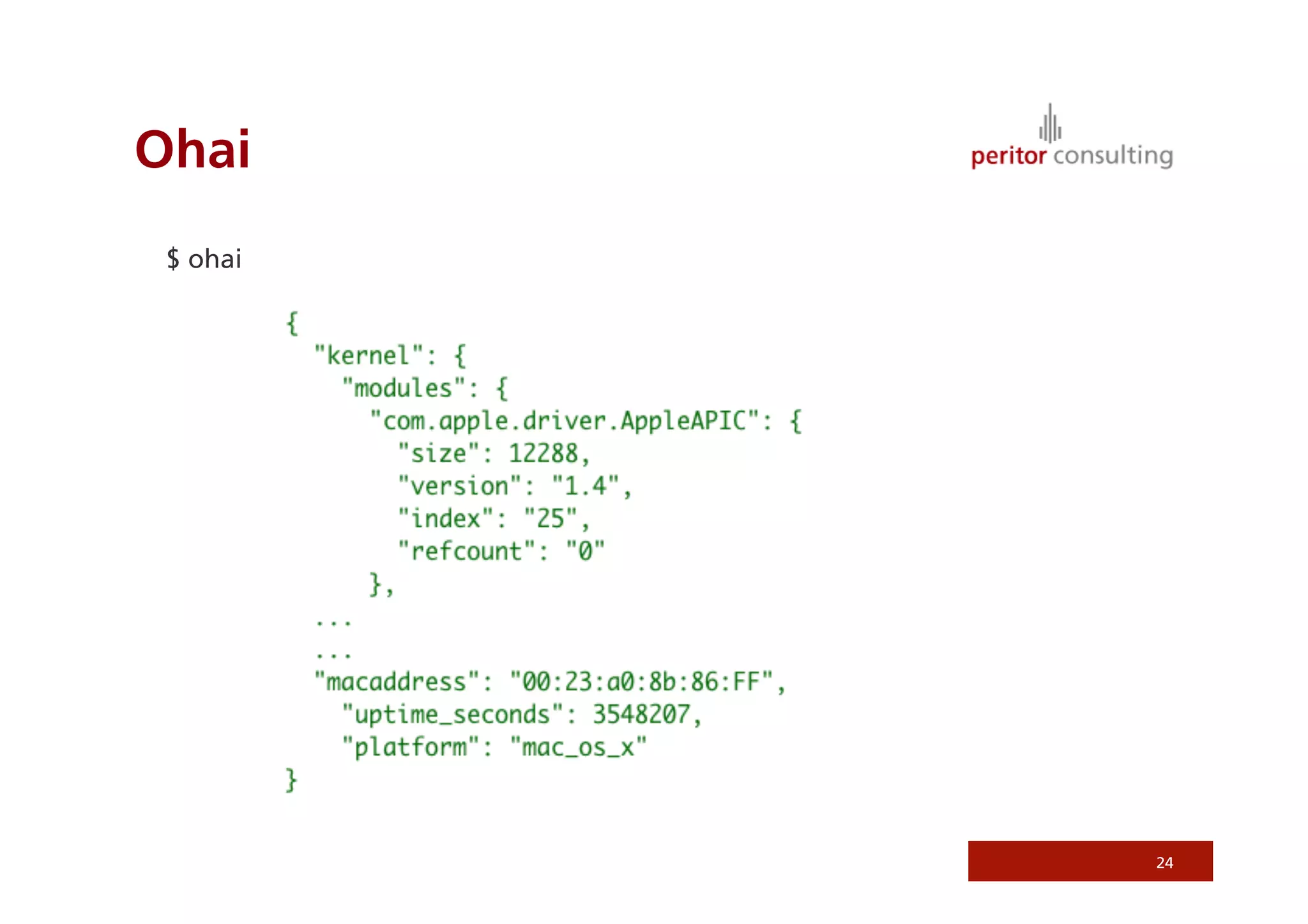

24. Ohai
24
$ ohai

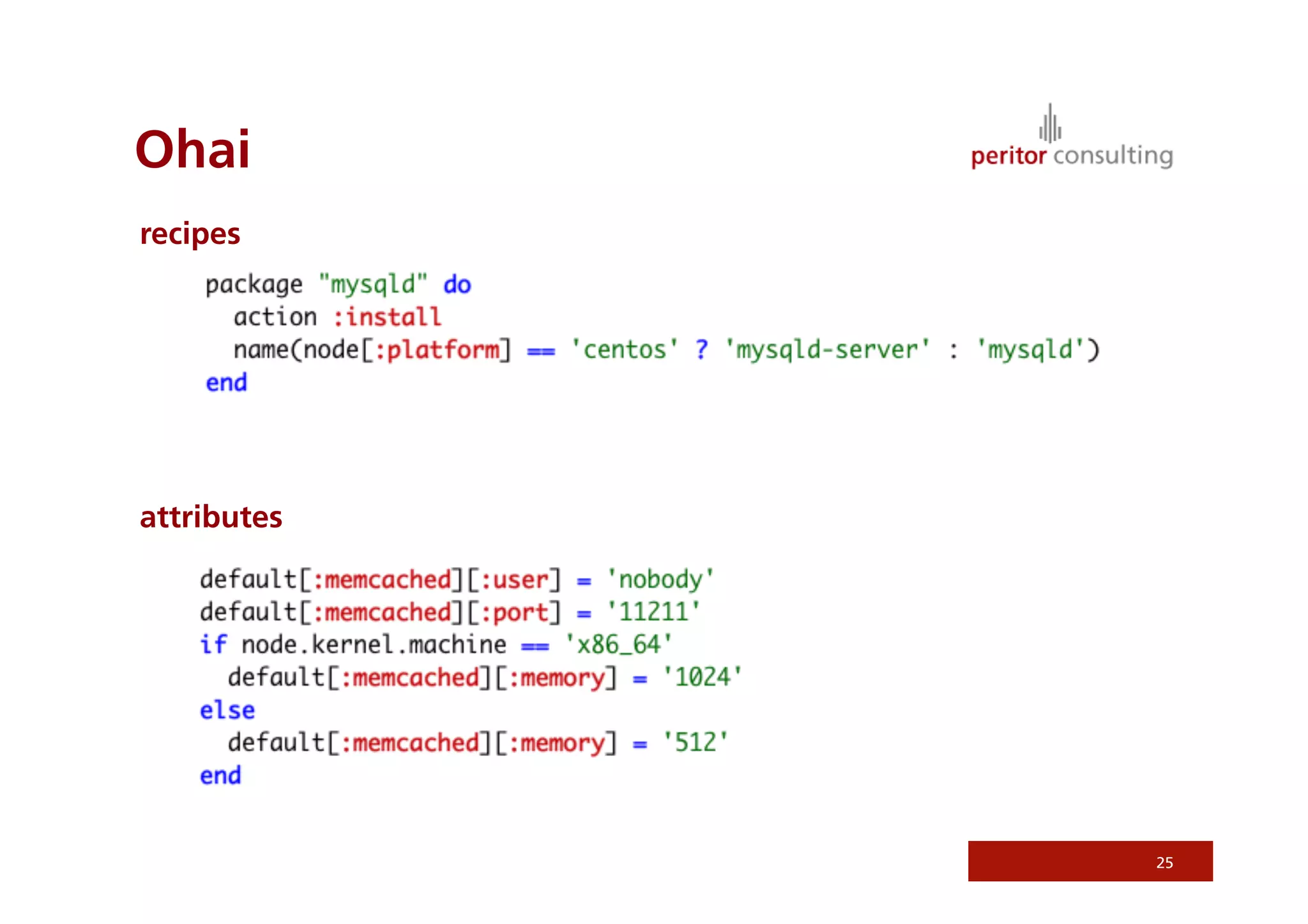

25. Ohai
25
recipes
attributes

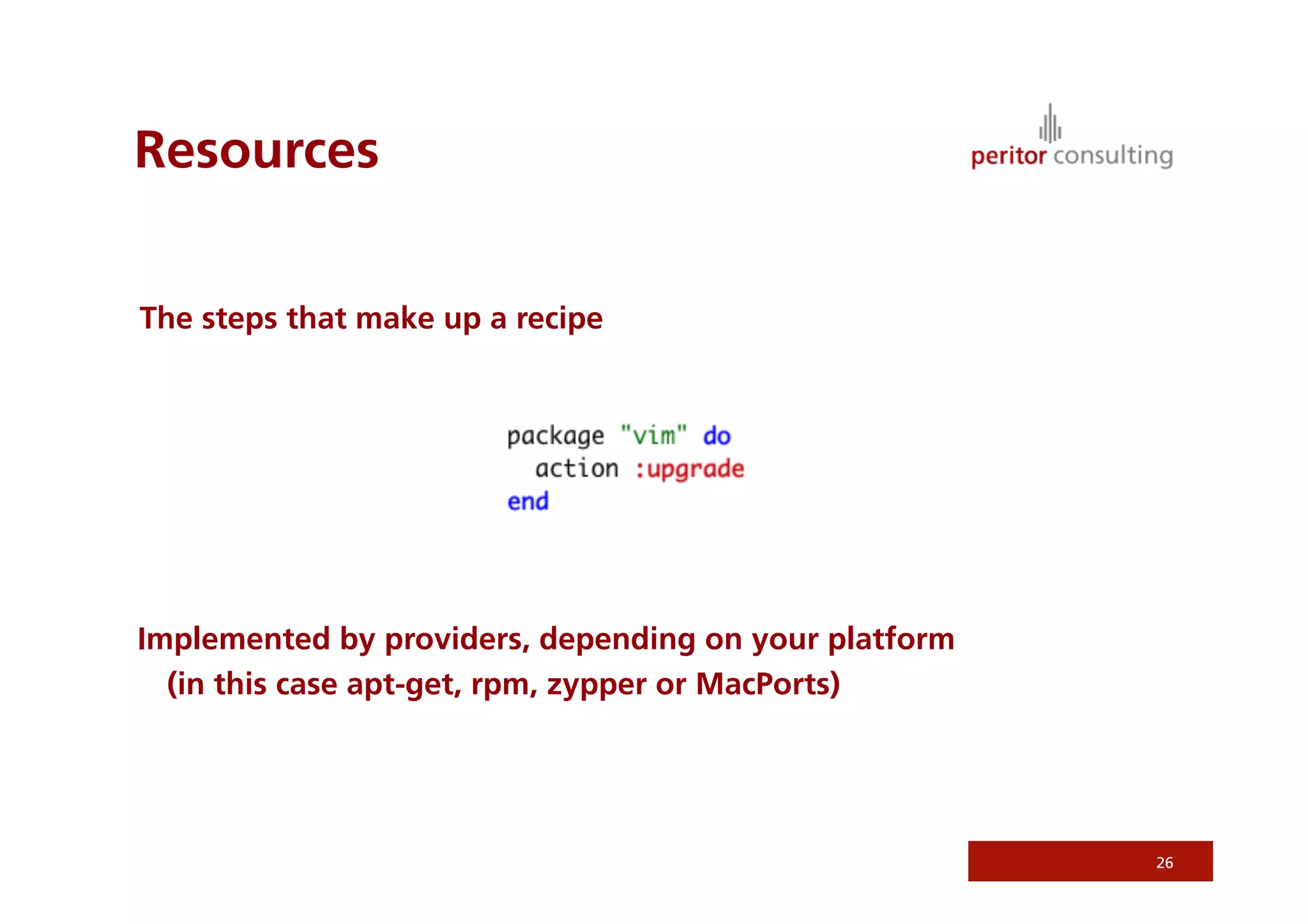

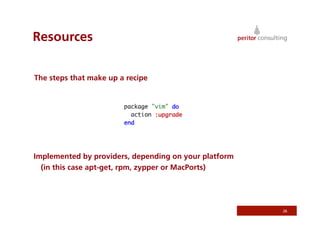

26. Resources
26
The steps that make up a recipe
Implemented by providers, depending on your platform
(in this case apt-get, rpm, zypper or MacPorts)

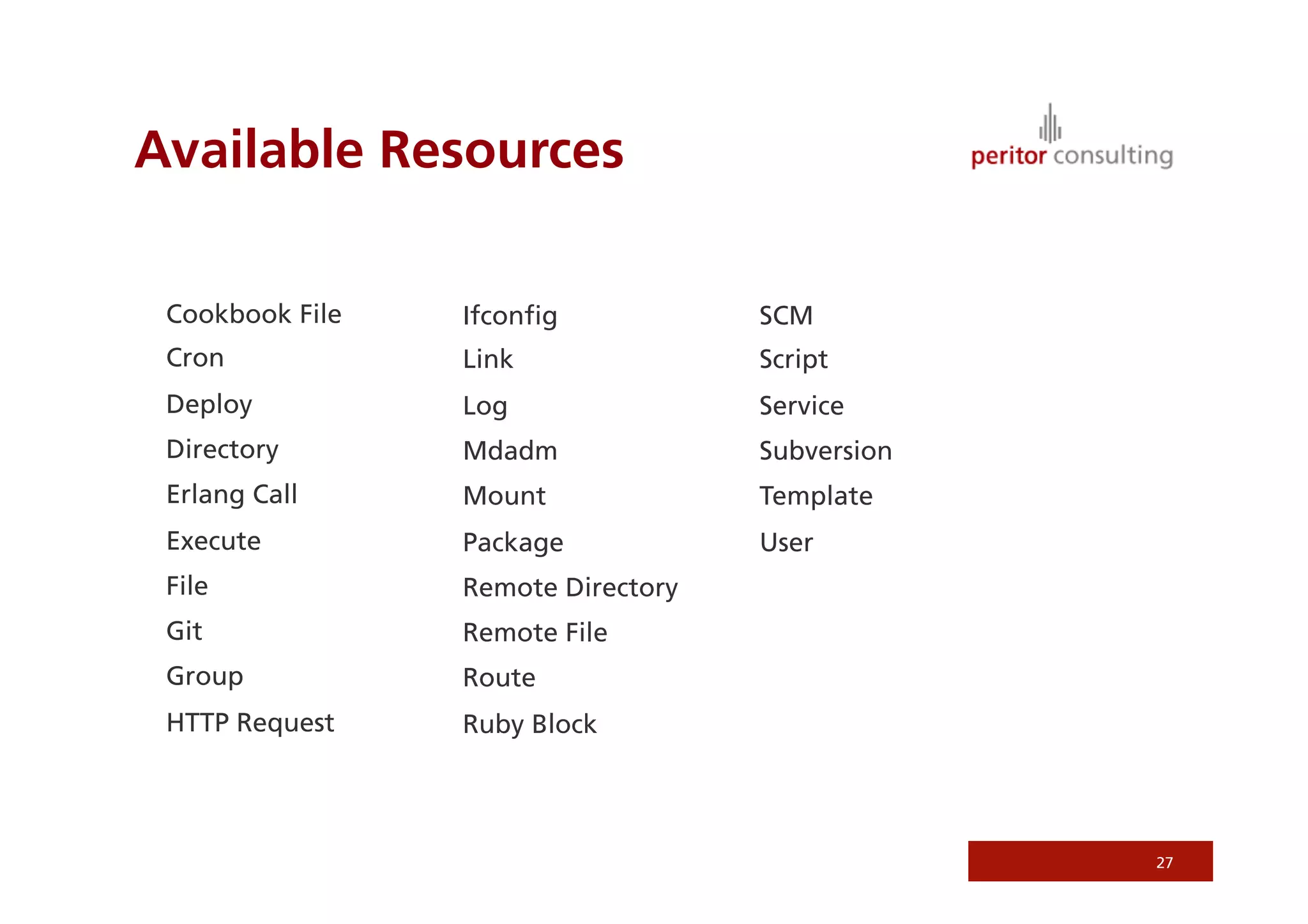

27. Available Resources
27
Cookbook File
Cron
Deploy
Directory
Erlang Call
Execute
File
Git
Group
HTTP Request
Ifconfig
Link
Log
Mdadm
Mount
Package
Remote Directory
Remote File
Route
Ruby Block
SCM
Script
Service
Subversion
Template
User

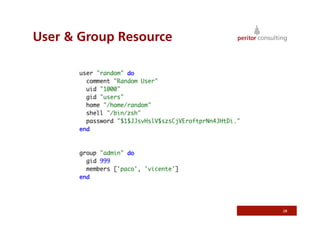

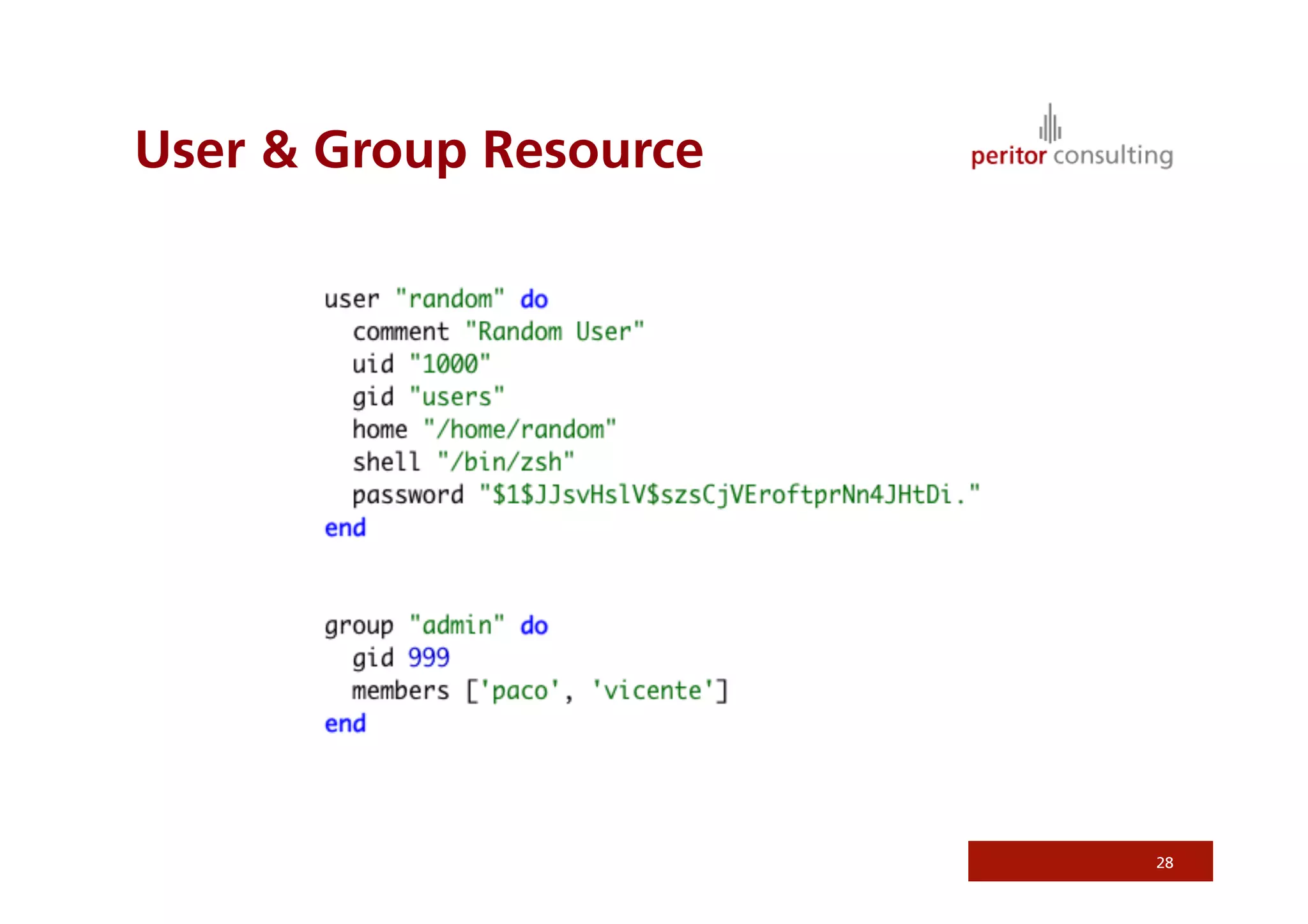

28. User Group Resource
28

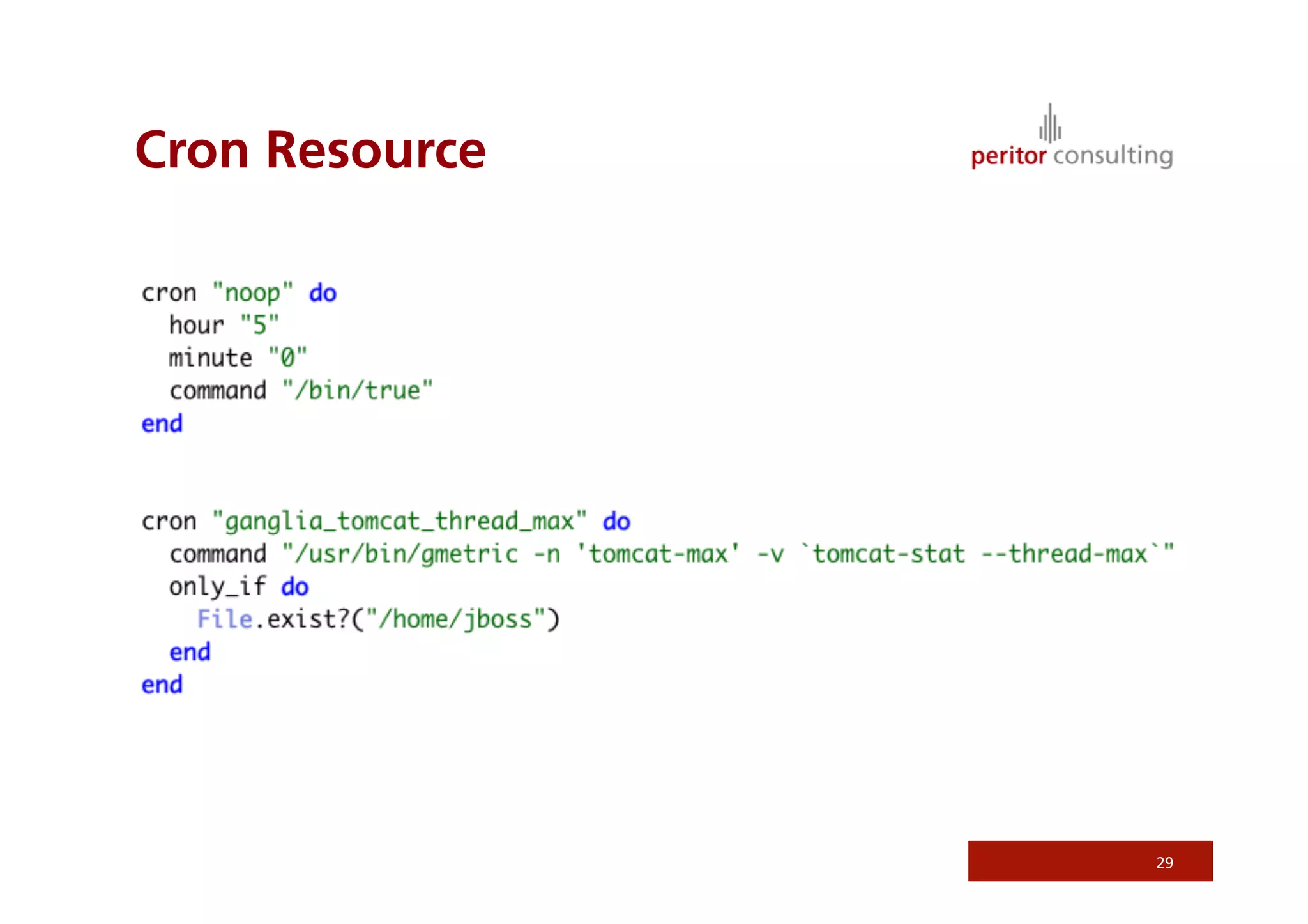

29. Cron Resource
29

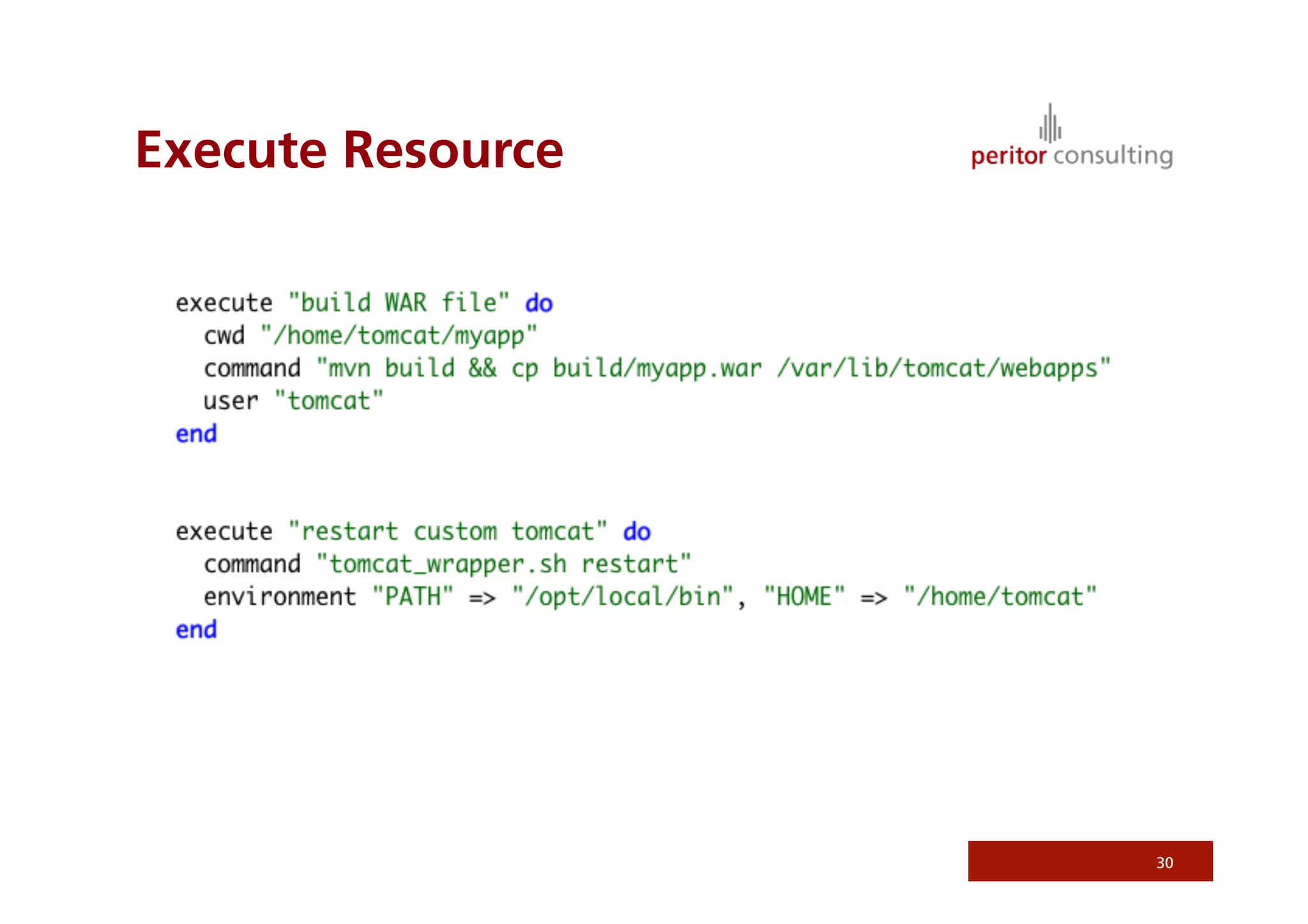

30. Execute Resource
30

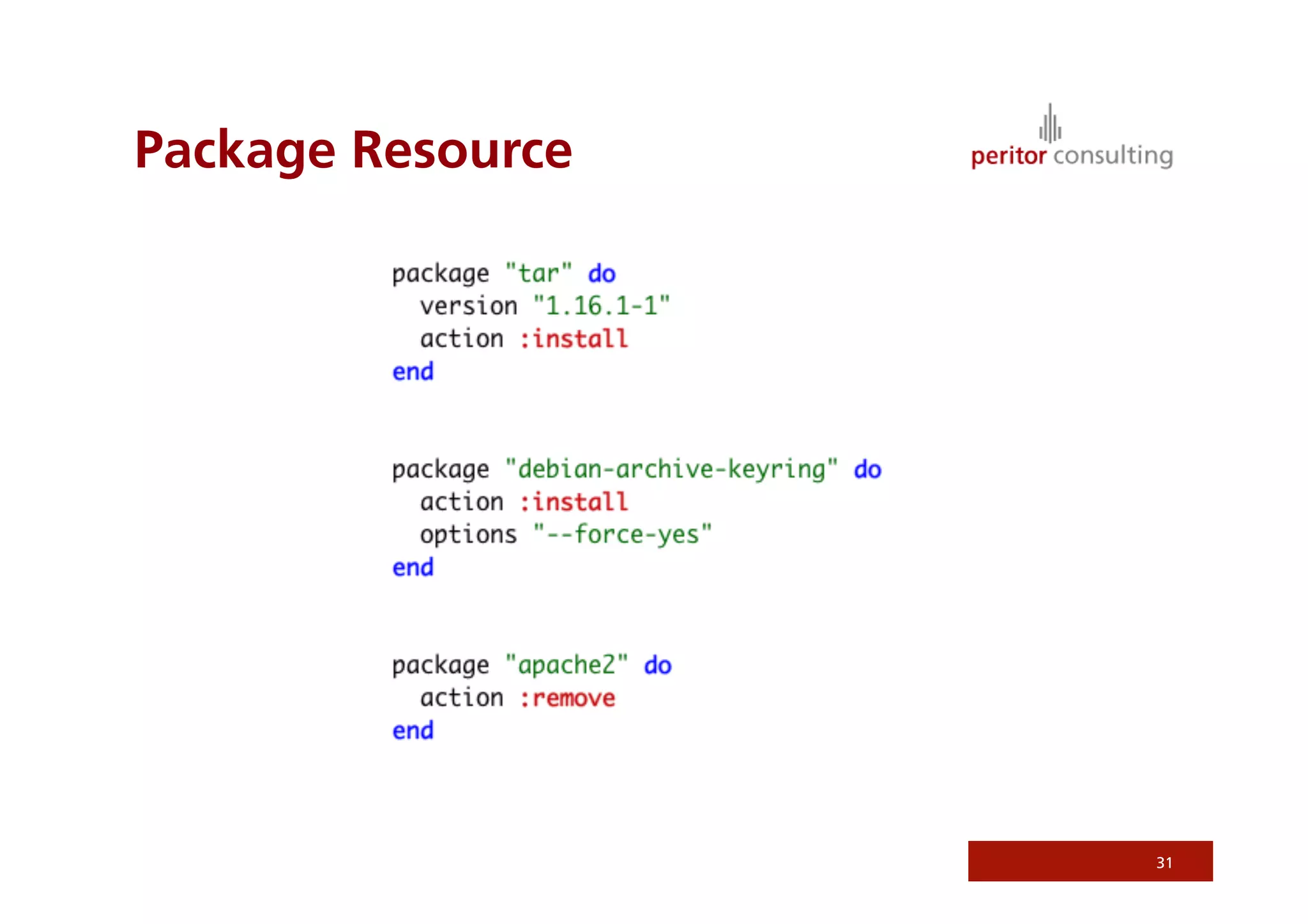

31. Package Resource
31

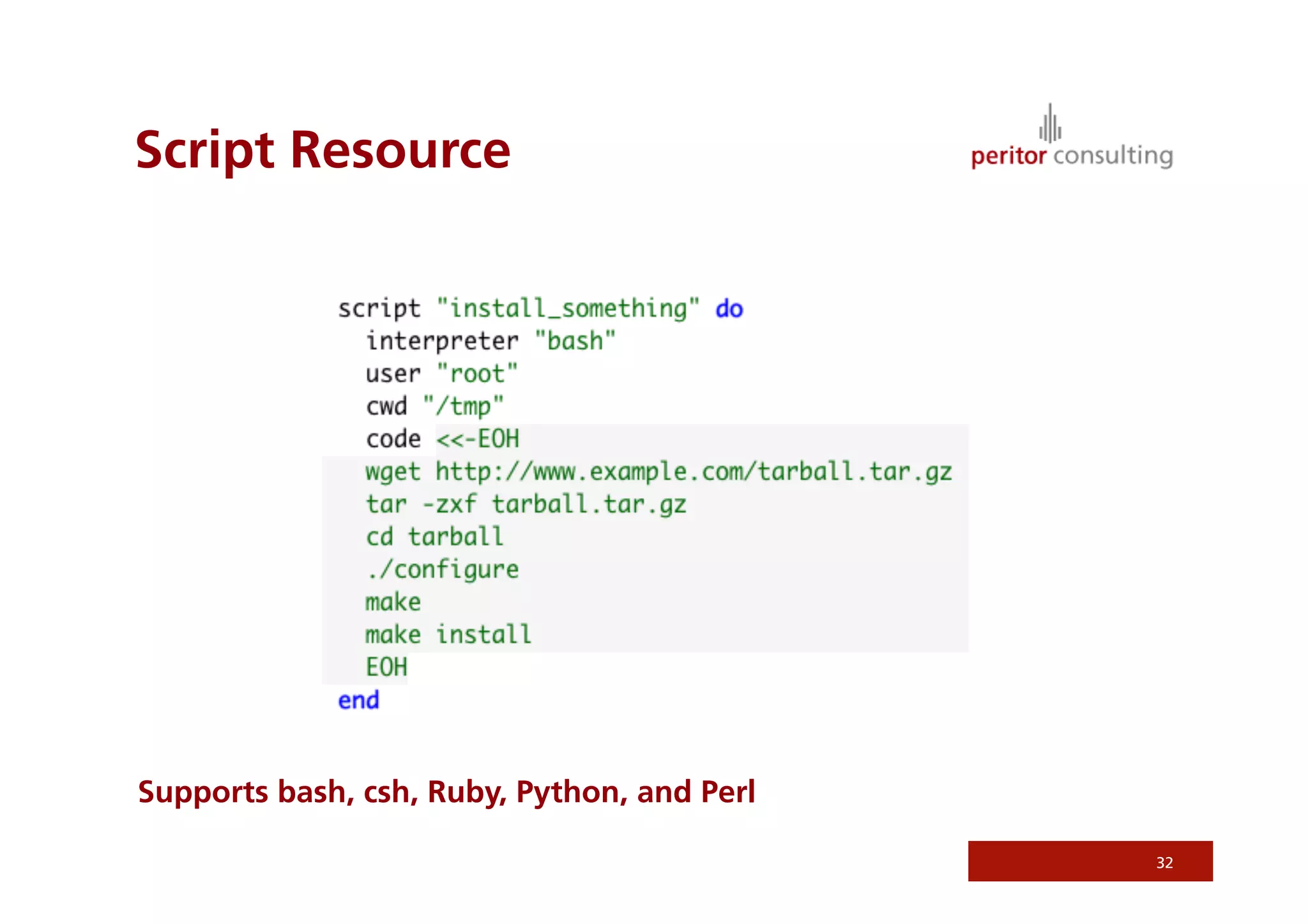

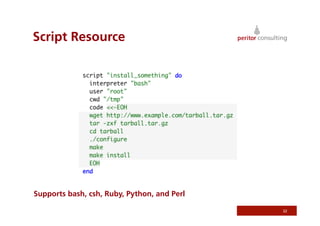

32. Script Resource
32
Supports bash, csh, Ruby, Python, and Perl

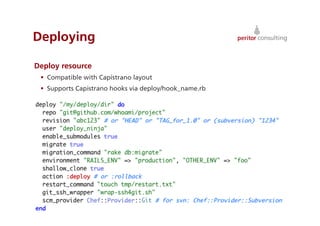

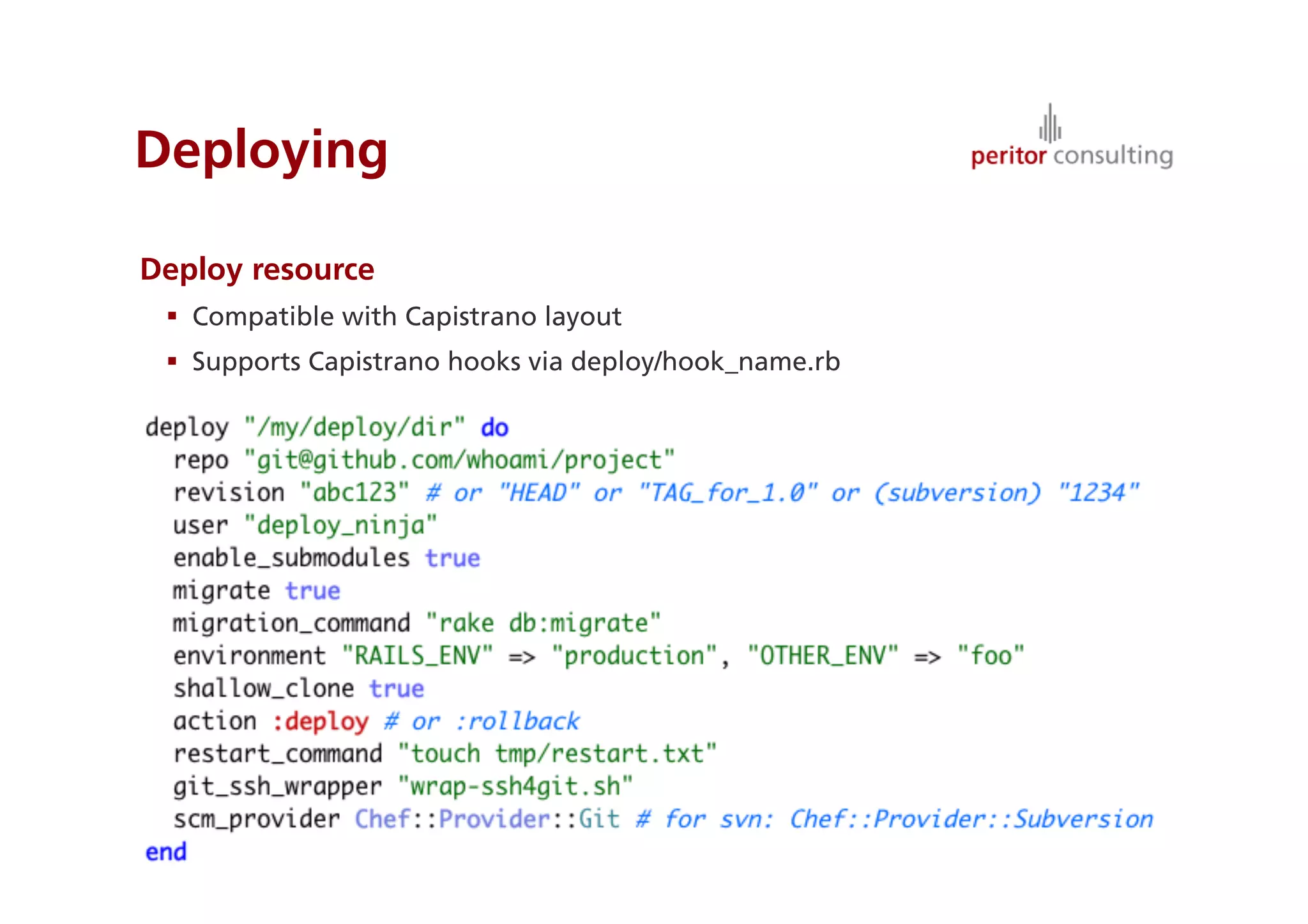

33. Deploying
Deploy resource
 Compatible with Capistrano layout
 Supports Capistrano hooks via deploy/hook_name.rb
33

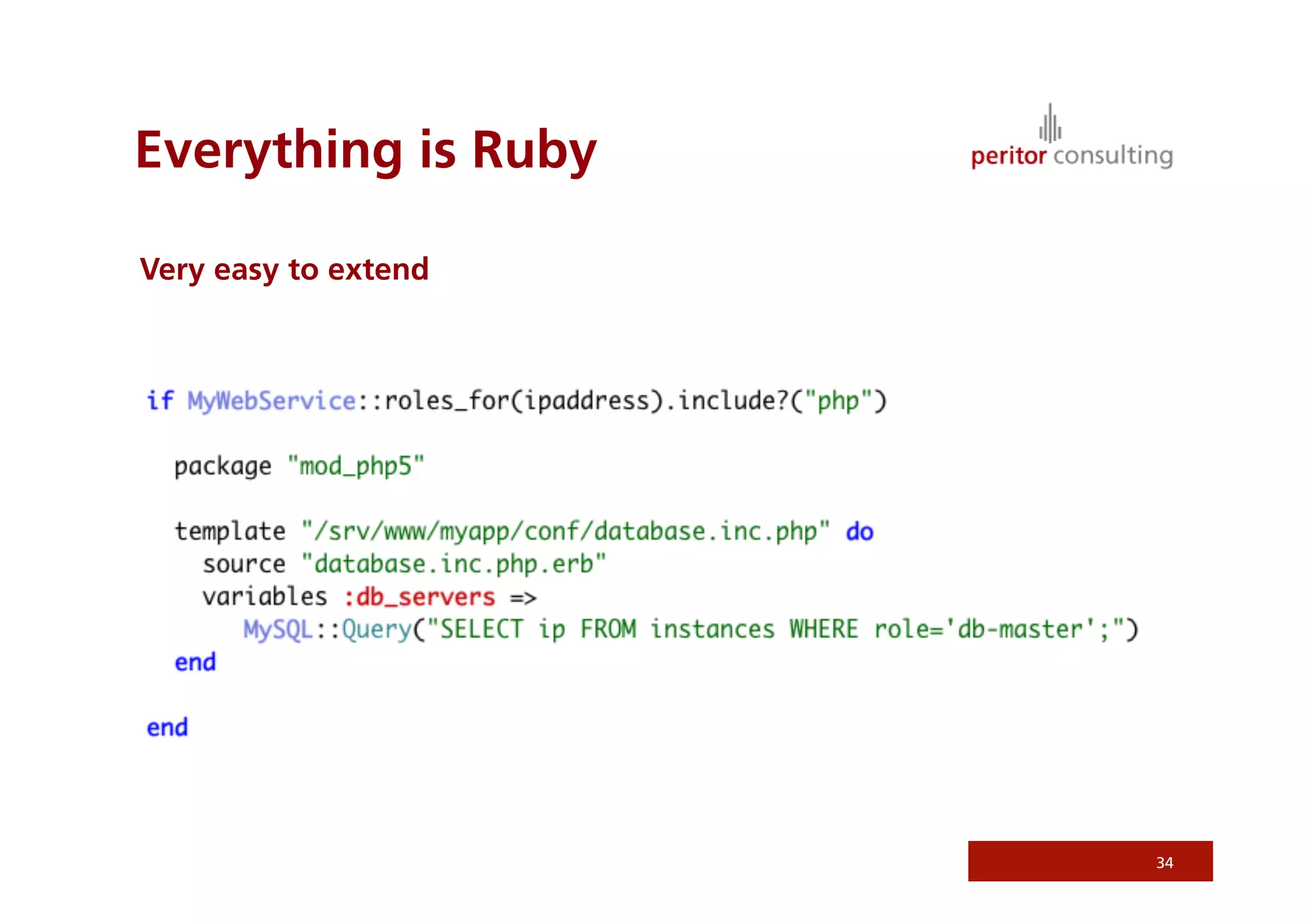

34. Everything is Ruby
Very easy to extend
34

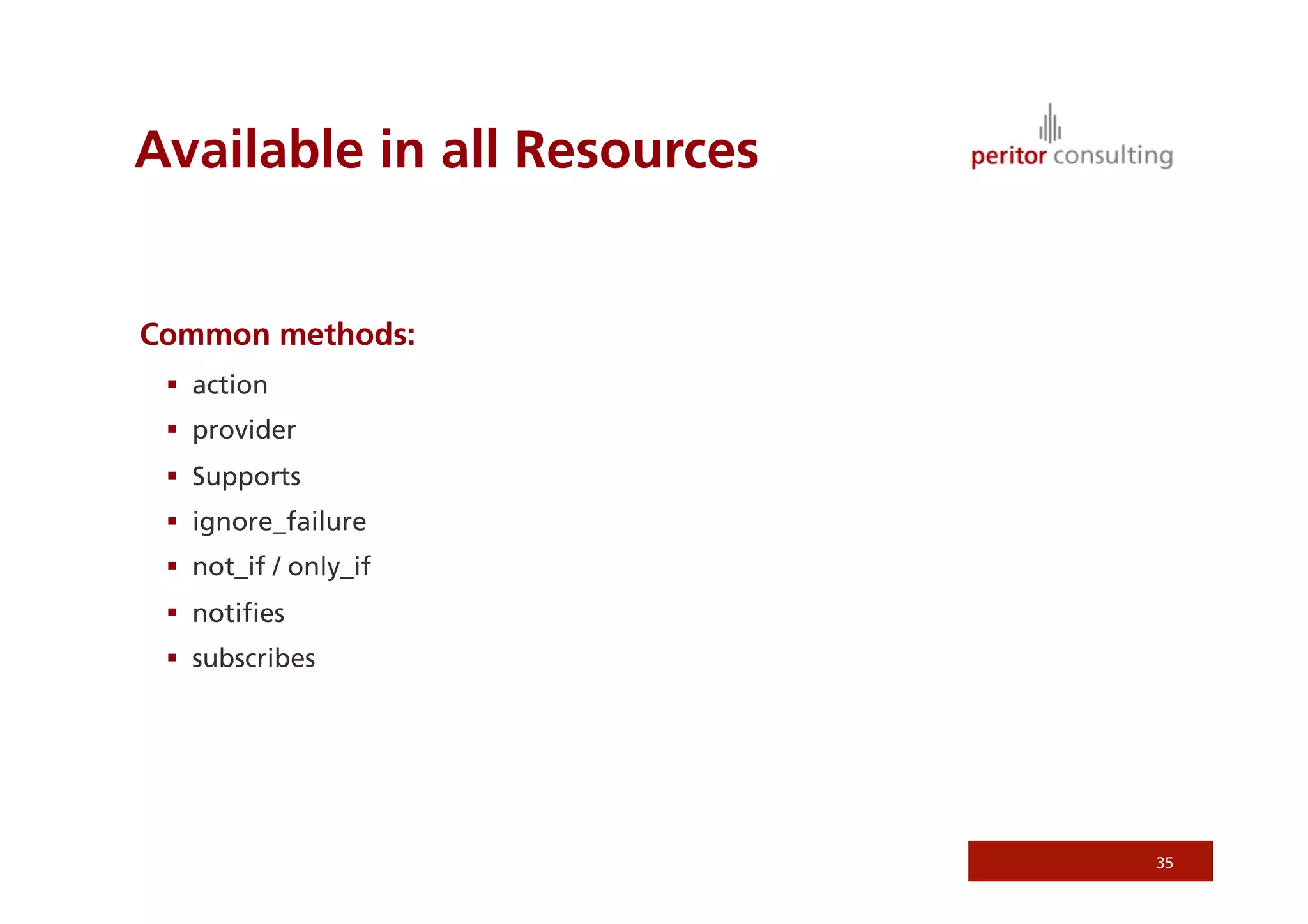

35. Available in all Resources
Common methods:
 action
 provider
 Supports
 ignore_failure
 not_if / only_if
 notifies
 subscribes
35

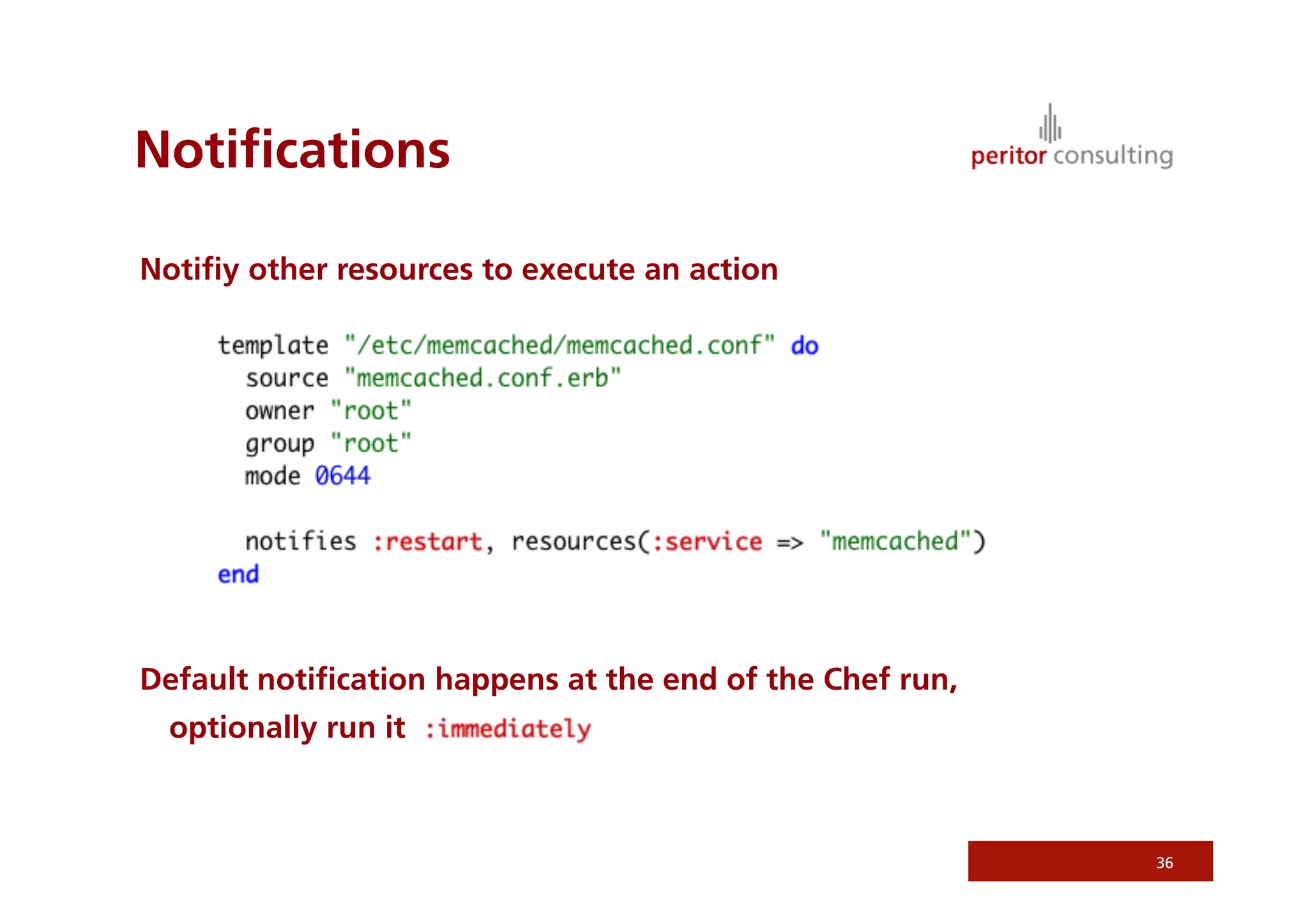

36. Notifications
Notifiy other resources to execute an action
Default notification happens at the end of the Chef run,
optionally run it
36

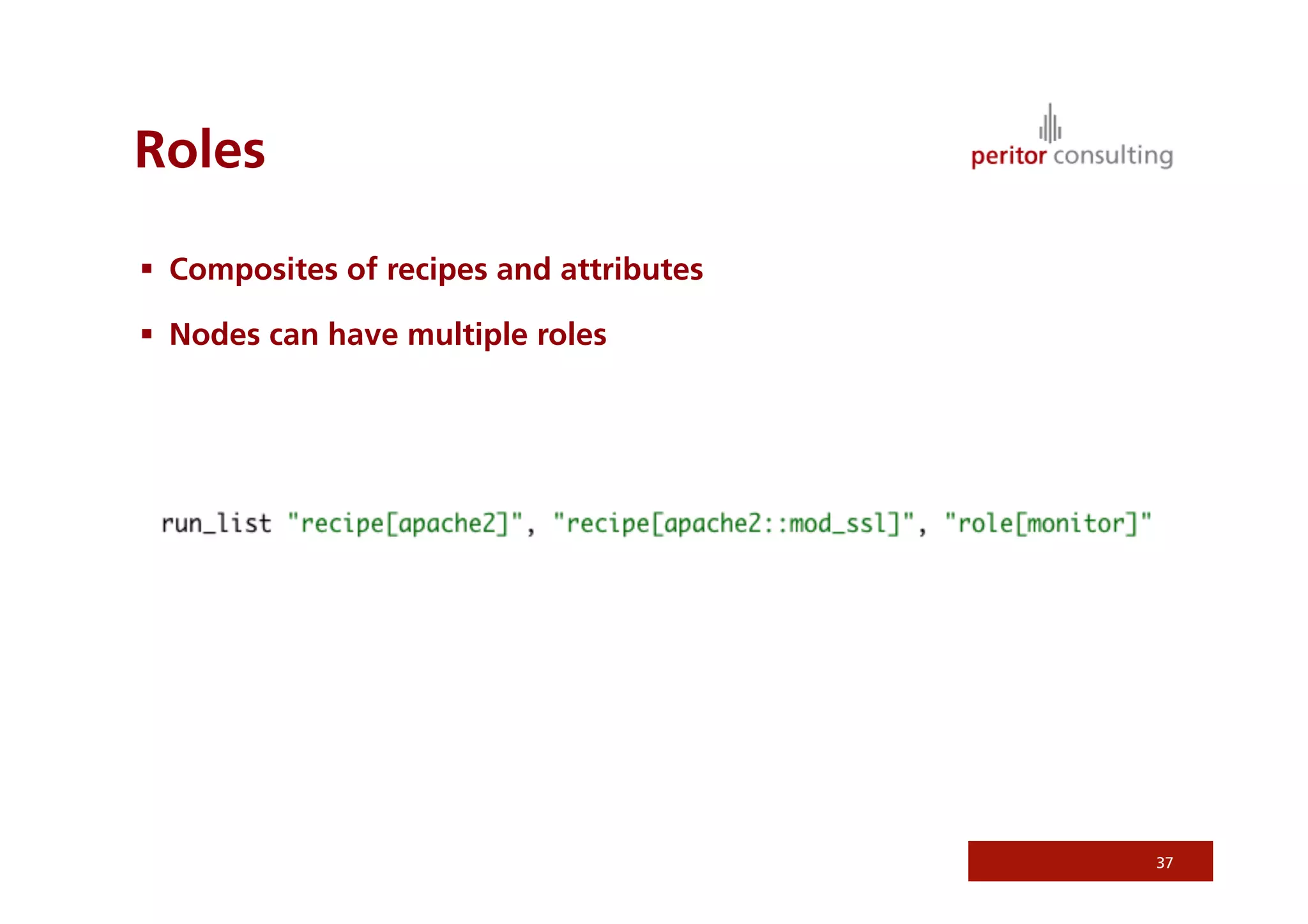

37. Roles
 Composites of recipes and attributes
 Nodes can have multiple roles
37

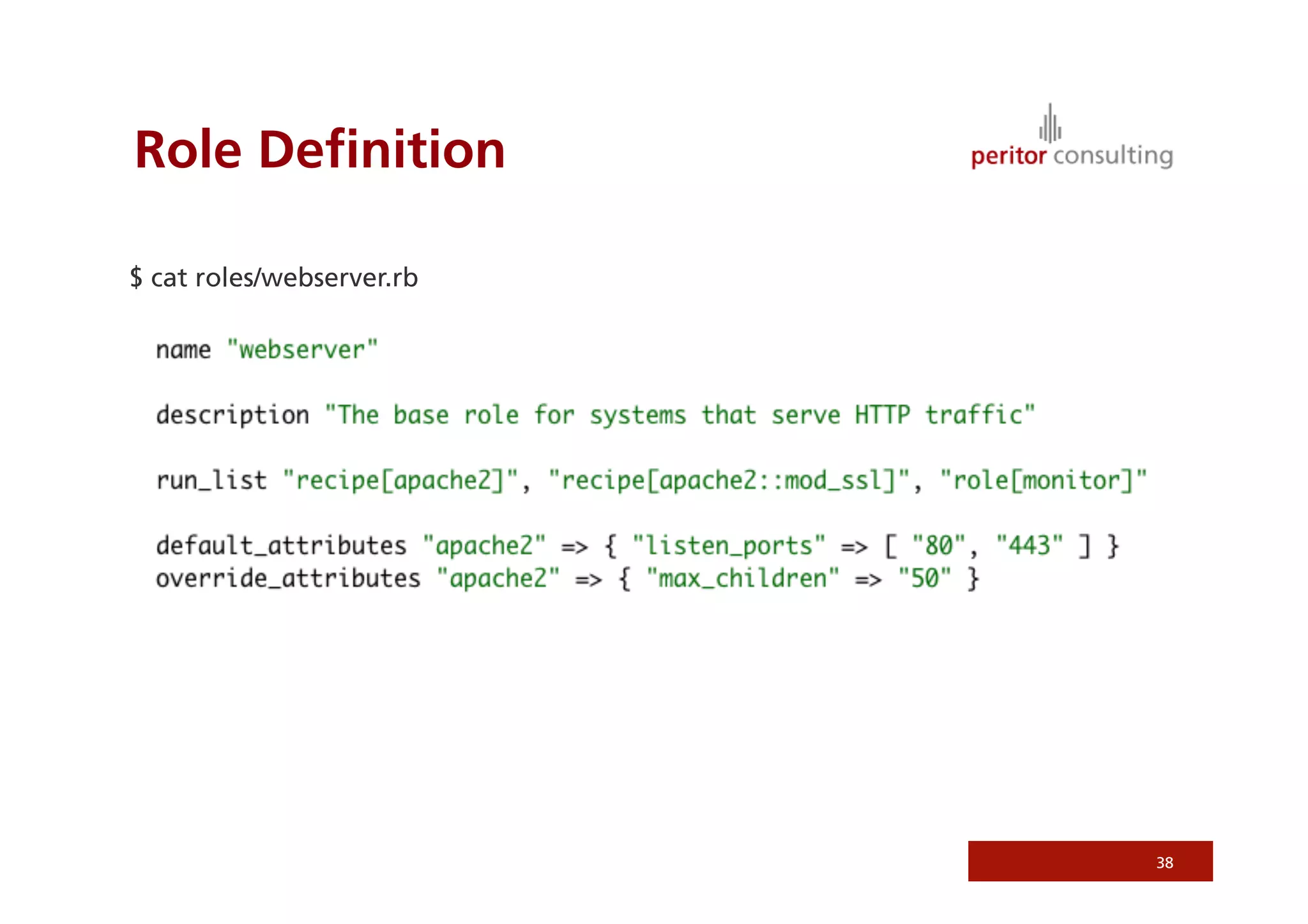

38. Role Definition
38
$ cat roles/webserver.rb

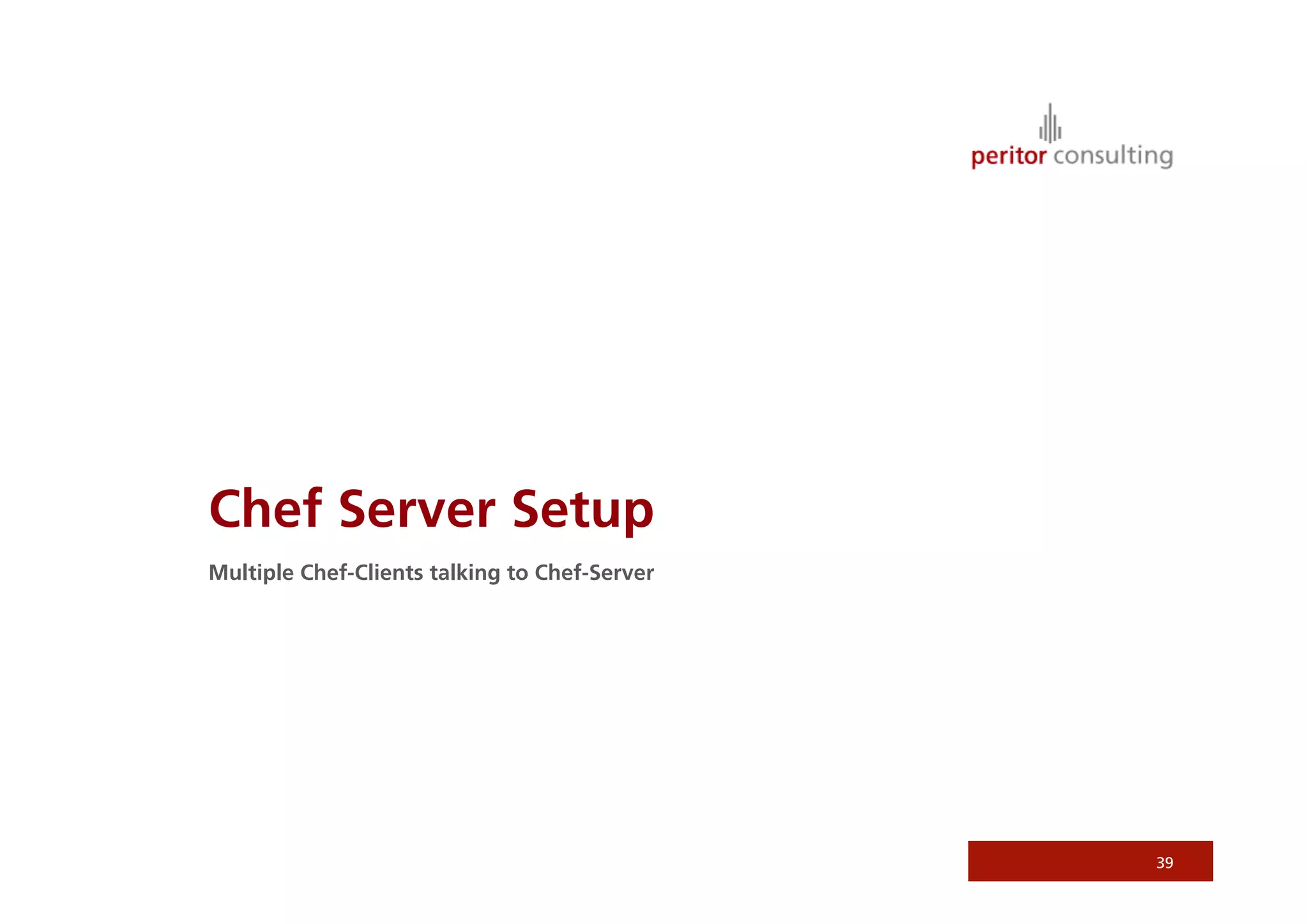

39. 39
Chef Server Setup
Multiple Chef-Clients talking to Chef-Server

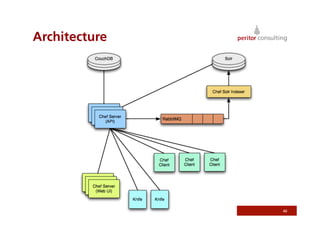

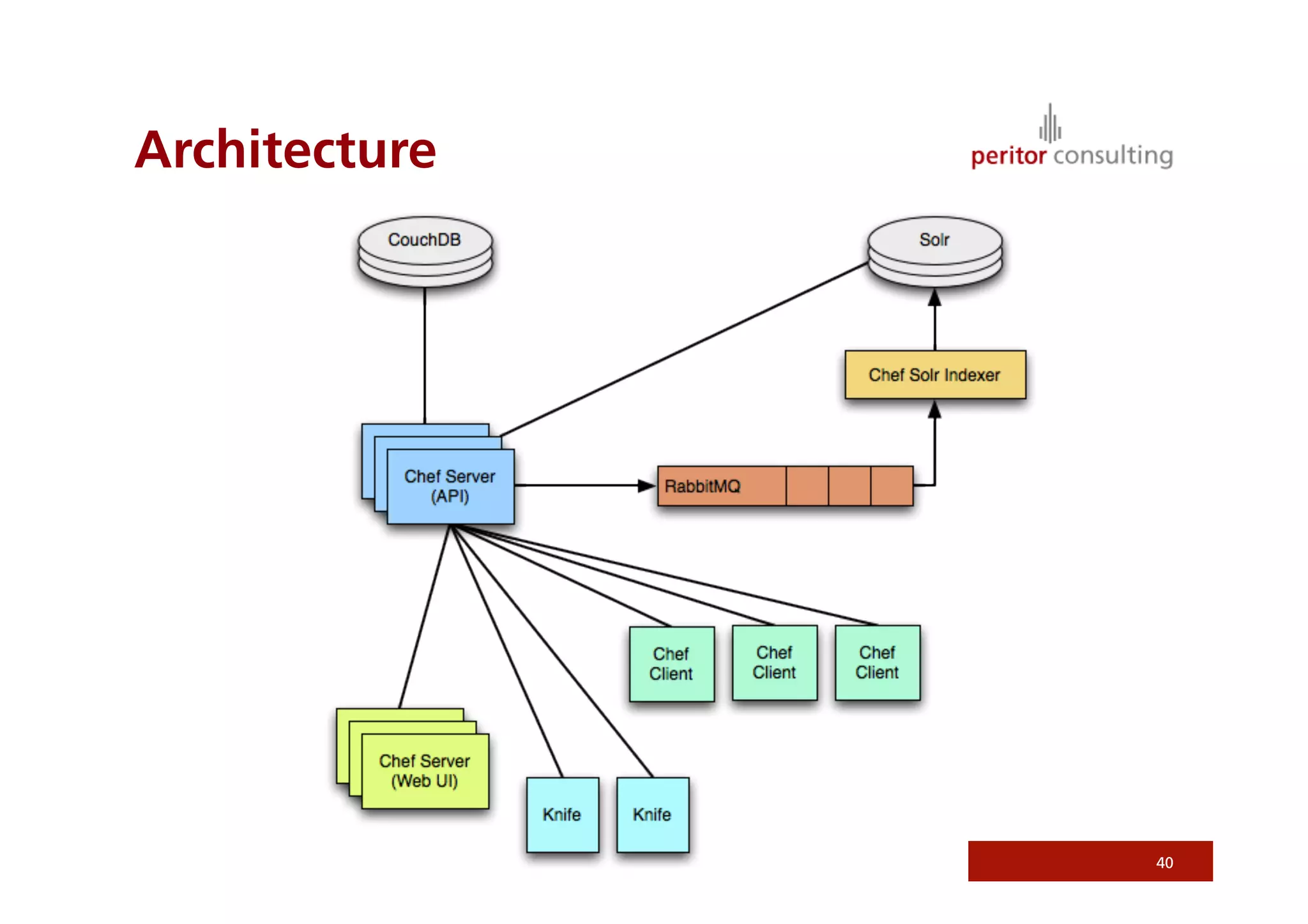

40. Architecture
40

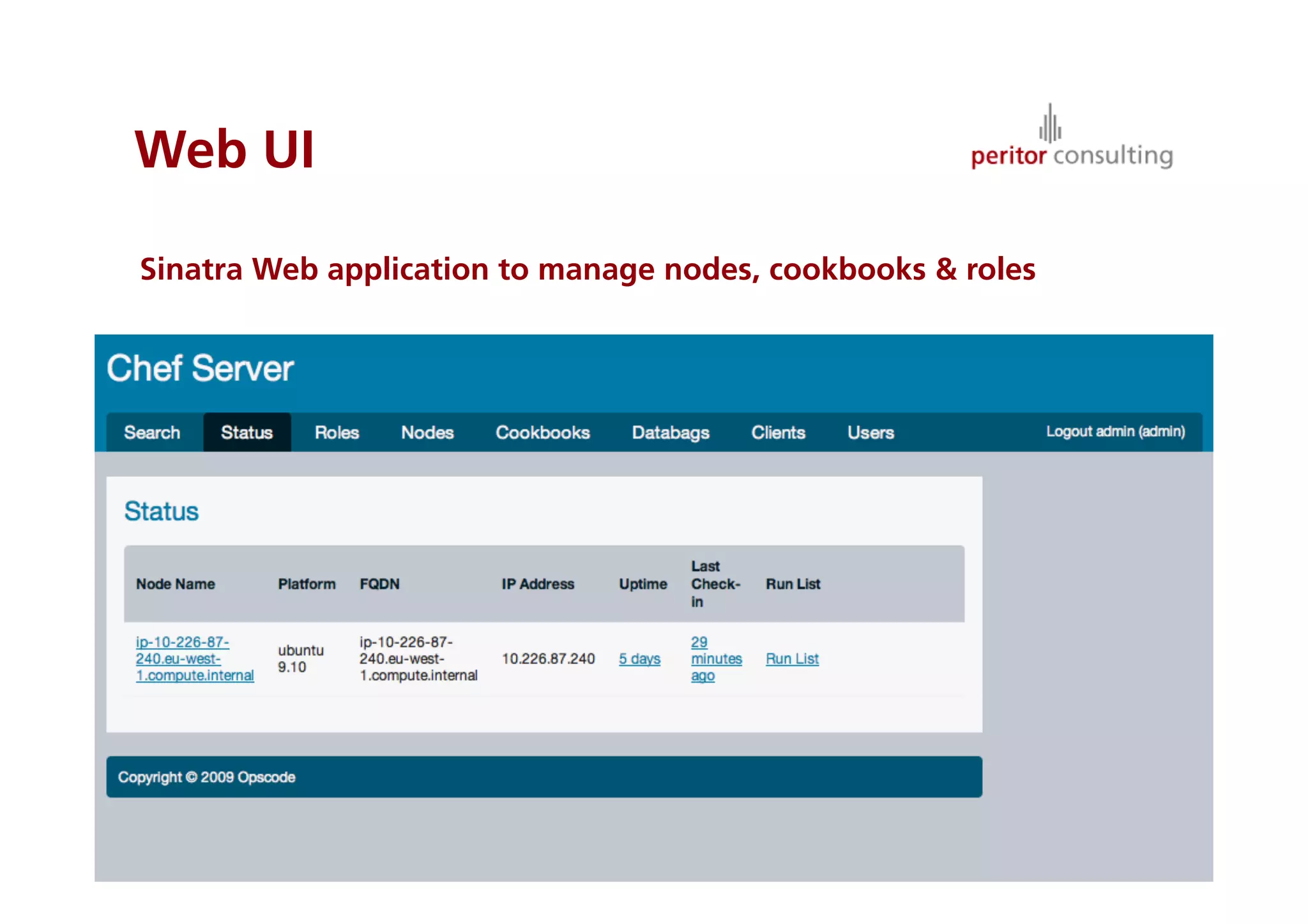

41. Web UI
Sinatra Web application to manage nodes, cookbooks roles
41

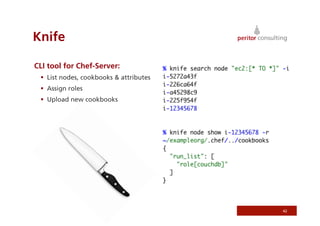

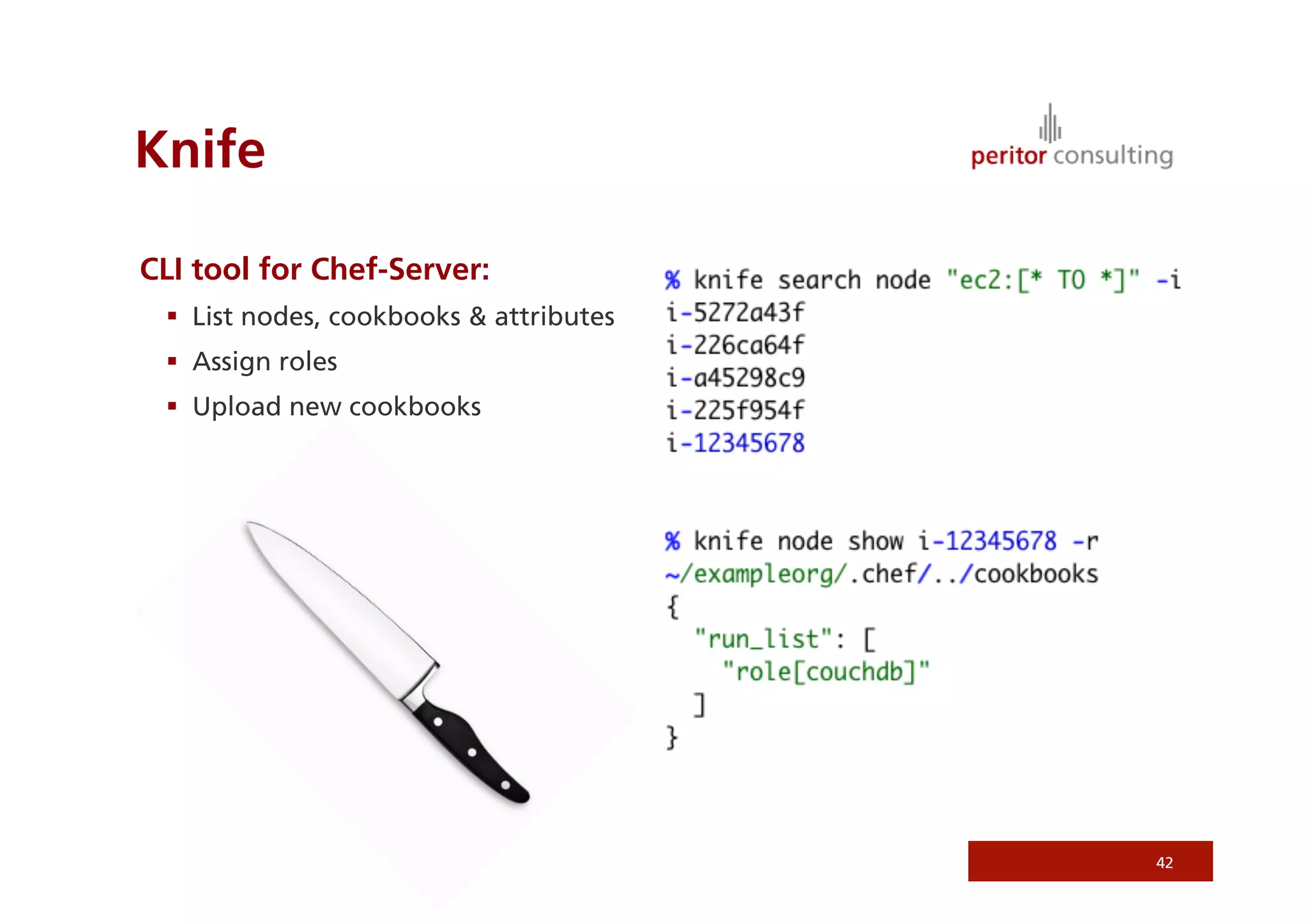

42. Knife
CLI tool for Chef-Server:
 List nodes, cookbooks attributes
 Assign roles
 Upload new cookbooks
42

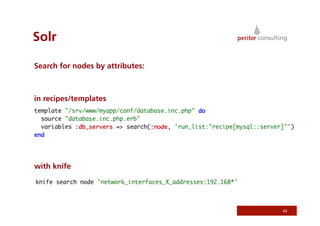

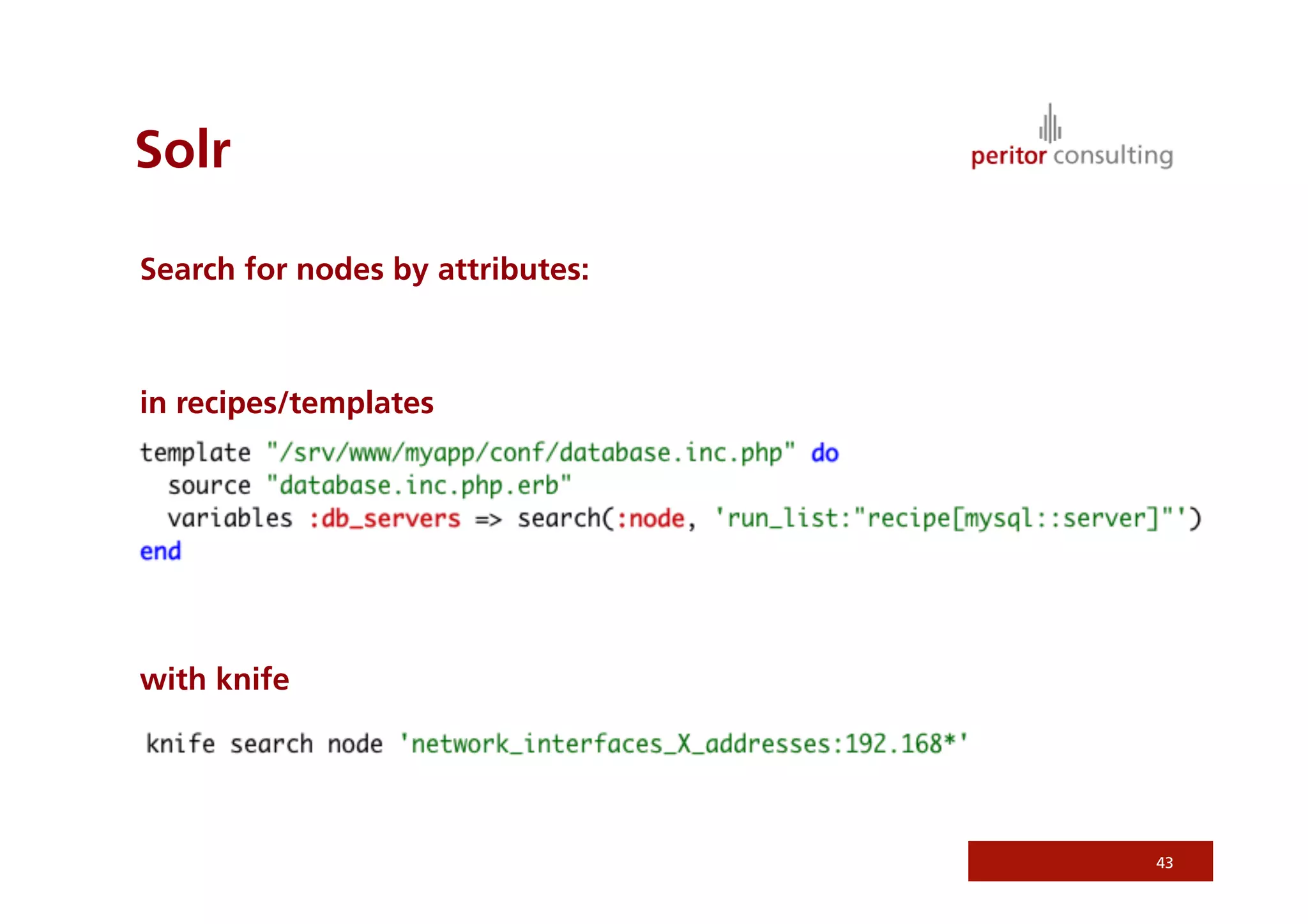

43. Solr
Search for nodes by attributes:
in recipes/templates
with knife
43

44. 44
Chef Annoyances
Things that could be nicer

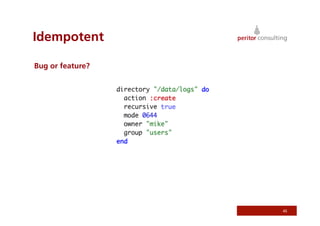

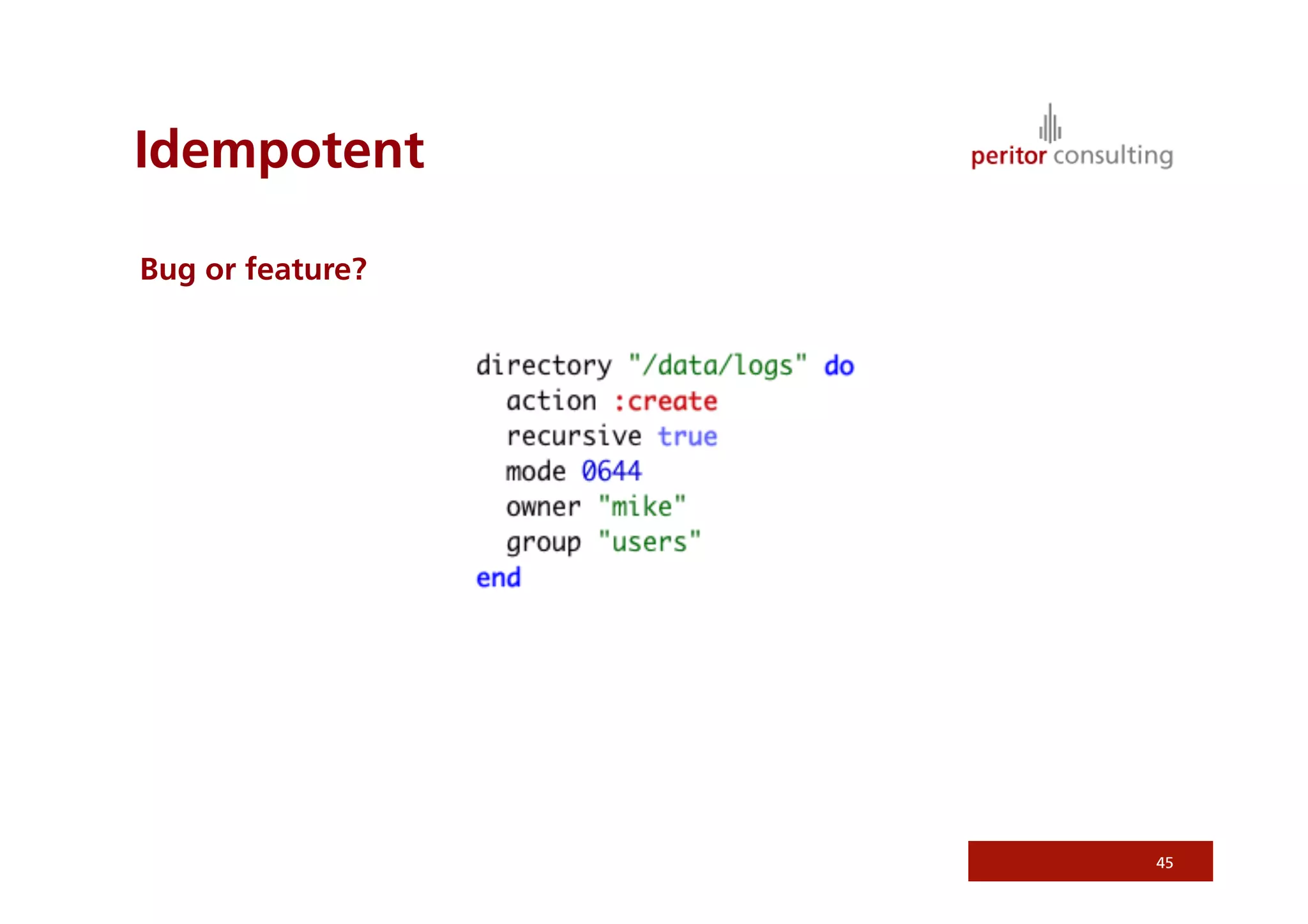

45. Idempotent
Bug or feature?
45

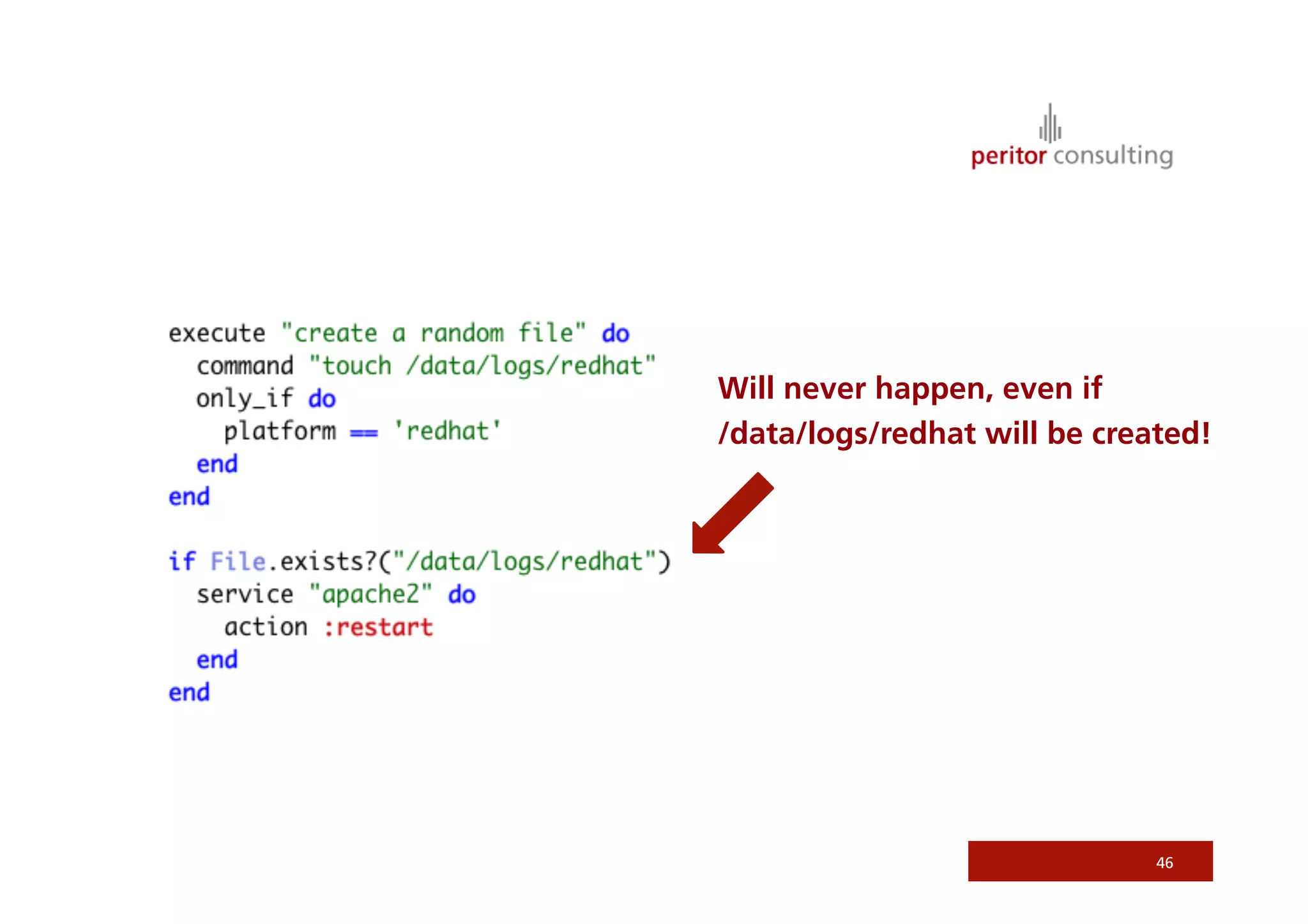

46. 46
Will never happen, even if
/data/logs/redhat will be created!

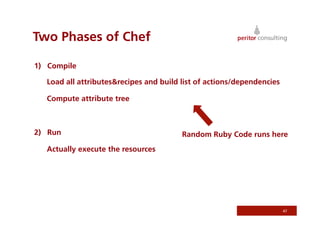

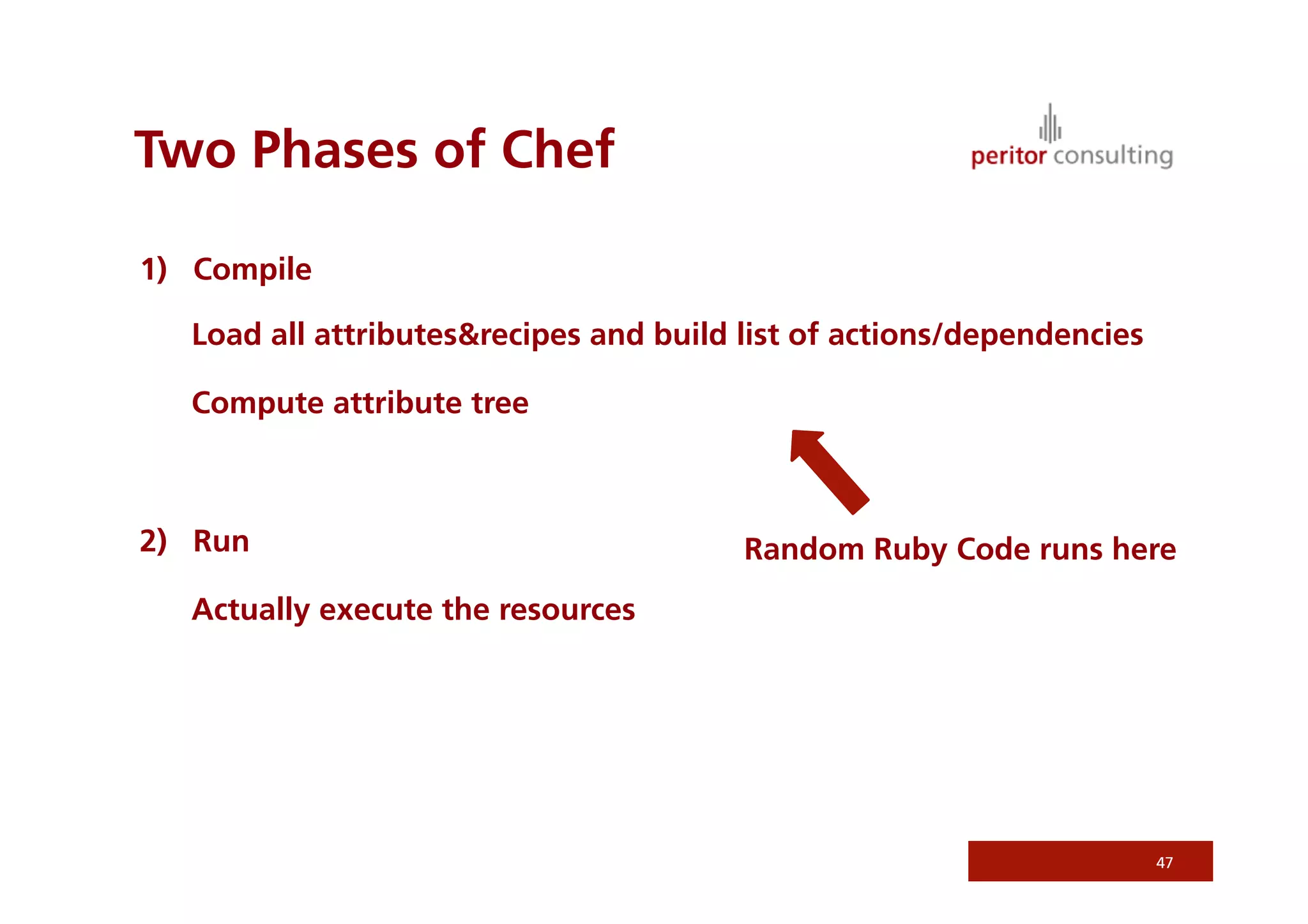

47. Two Phases of Chef
1) Compile
Load all attributesrecipes and build list of actions/dependencies
Compute attribute tree
2) Run
Actually execute the resources
47
Random Ruby Code runs here

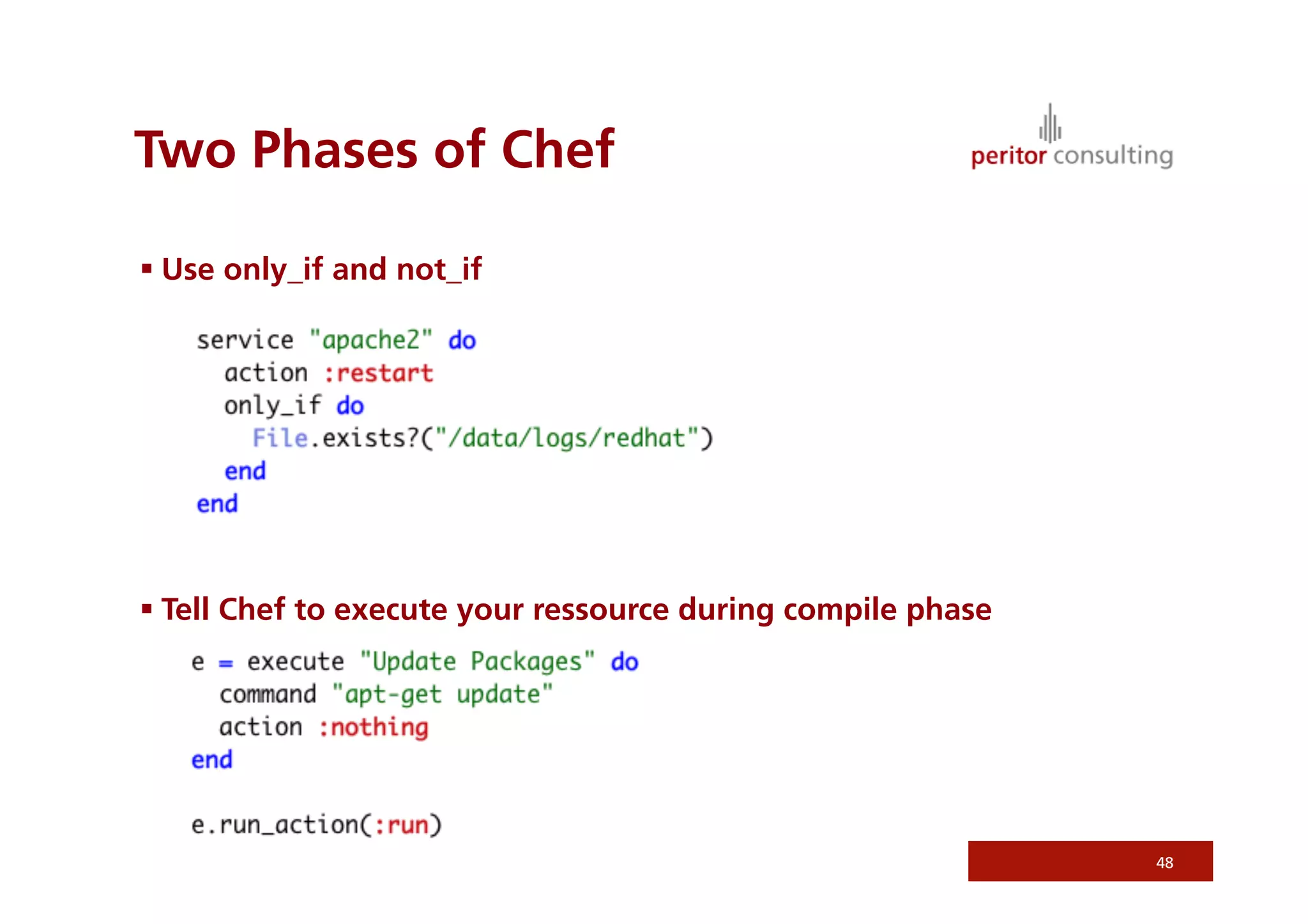

48. Two Phases of Chef
 Use only_if and not_if
 Tell Chef to execute your ressource during compile phase
48

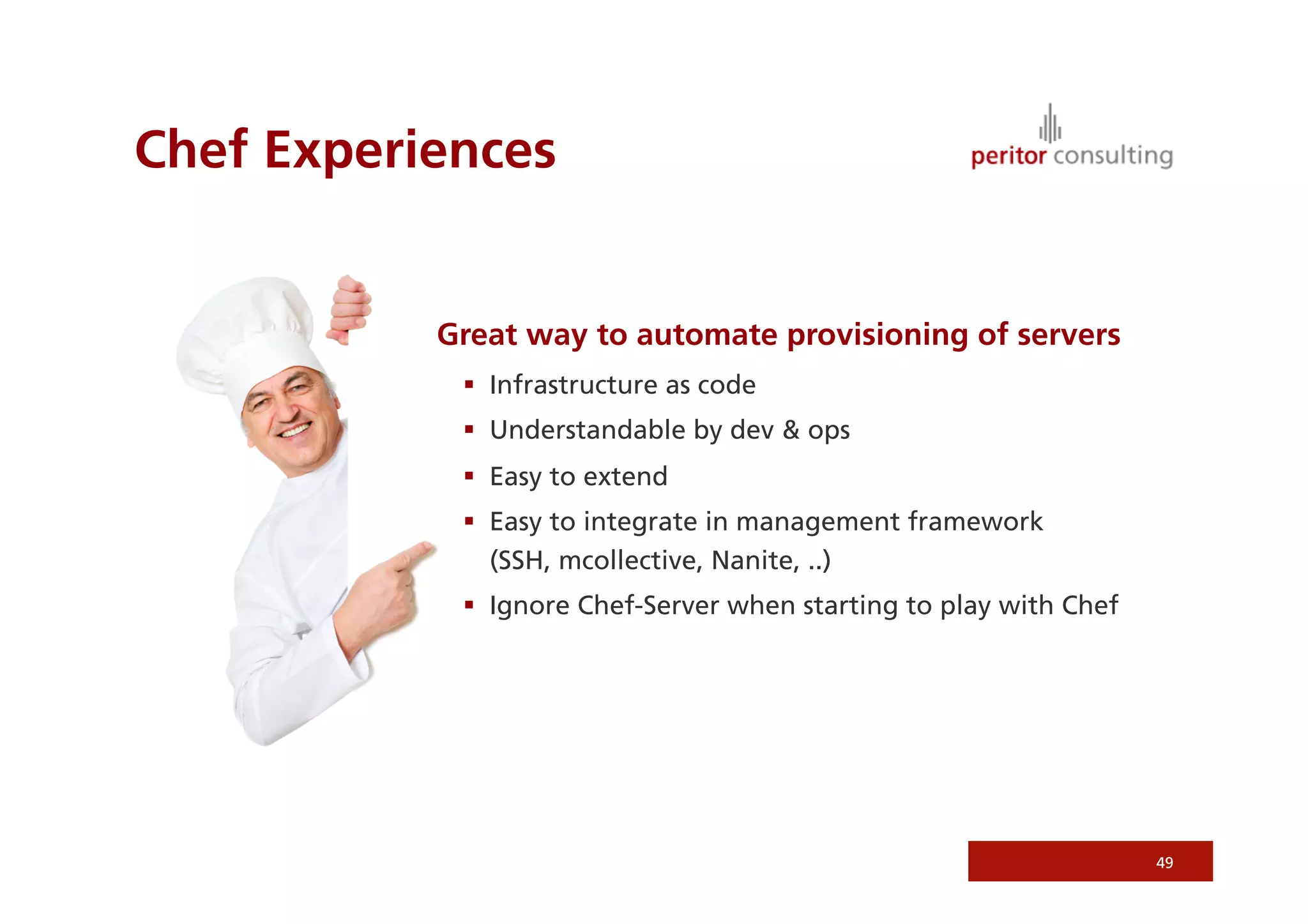

49. Chef Experiences
Great way to automate provisioning of servers
 Infrastructure as code
 Understandable by dev ops
 Easy to extend
 Easy to integrate in management framework
(SSH, mcollective, Nanite, ..)
 Ignore Chef-Server when starting to play with Chef
49

50. 50
DEV OPS
