The document discusses using Amazon EC2 for hosting applications. It covers key EC2 concepts like regions, availability zones, instance types, Elastic IP addresses, Elastic Block Storage, Elastic Load Balancing, and Relational Database Service. It provides guidance on choosing instance types, reserving instances, bootstrapping instances using images or scripts, and deploying applications with tools like Chef. The goal is to illustrate how to set up and flexibly scale an application on EC2 to support millions of daily users.

1. Amazon EC2 in der Praxis
Jonathan Weiss

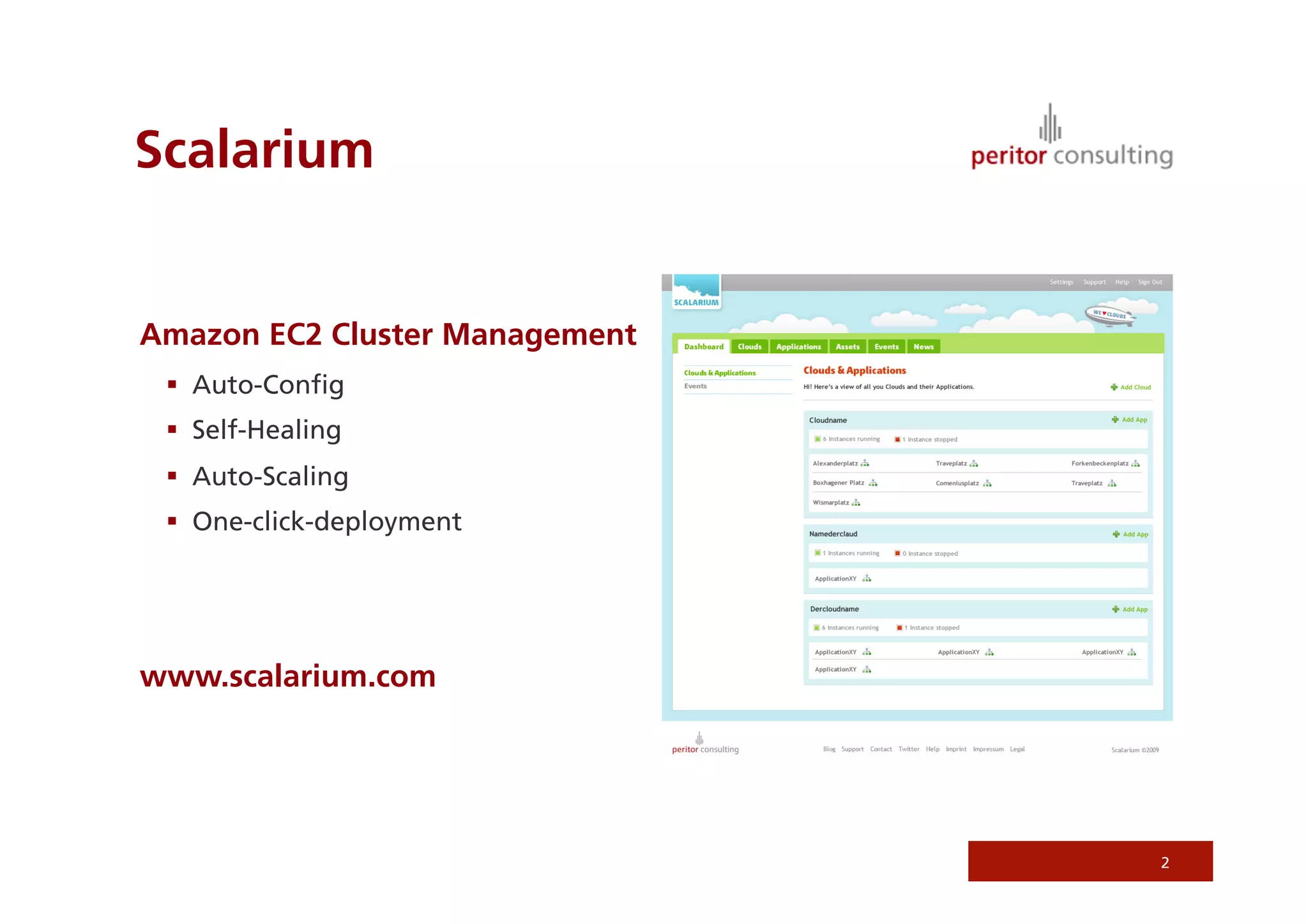

2. Scalarium
Amazon EC2 Cluster Management
 Auto-Config
 Self-Healing
 Auto-Scaling
 One-click-deployment
www.scalarium.com
2

3. 3

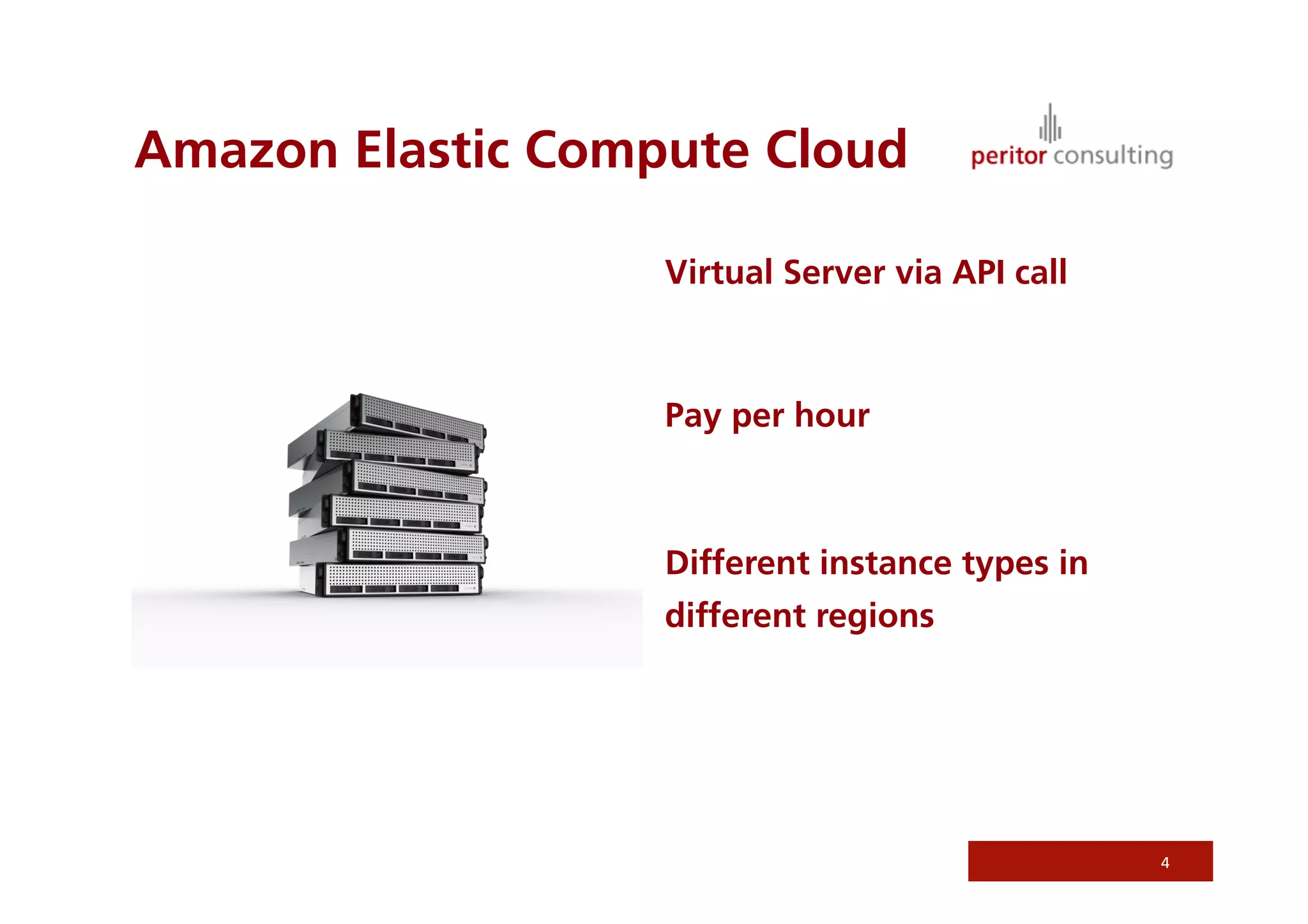

4. Amazon Elastic Compute Cloud
Virtual Server via API call
Pay per hour
Different instance types in
different regions
4

5. EC2 Features
Spot instances
Elastic IP
Elastic Load Balancing
CloudWatch
Auto Scaling
Virtual Private Cloud
Elastic Block Storage
5

6. Running on EC2
Setting up an app
6

7. Running on EC2
Steps to complete
 Choose region and availability zone
 Define architecture
 Choose instance types and AMI
 Boot & configure instances
 Deploy application
 …
 Profit
7

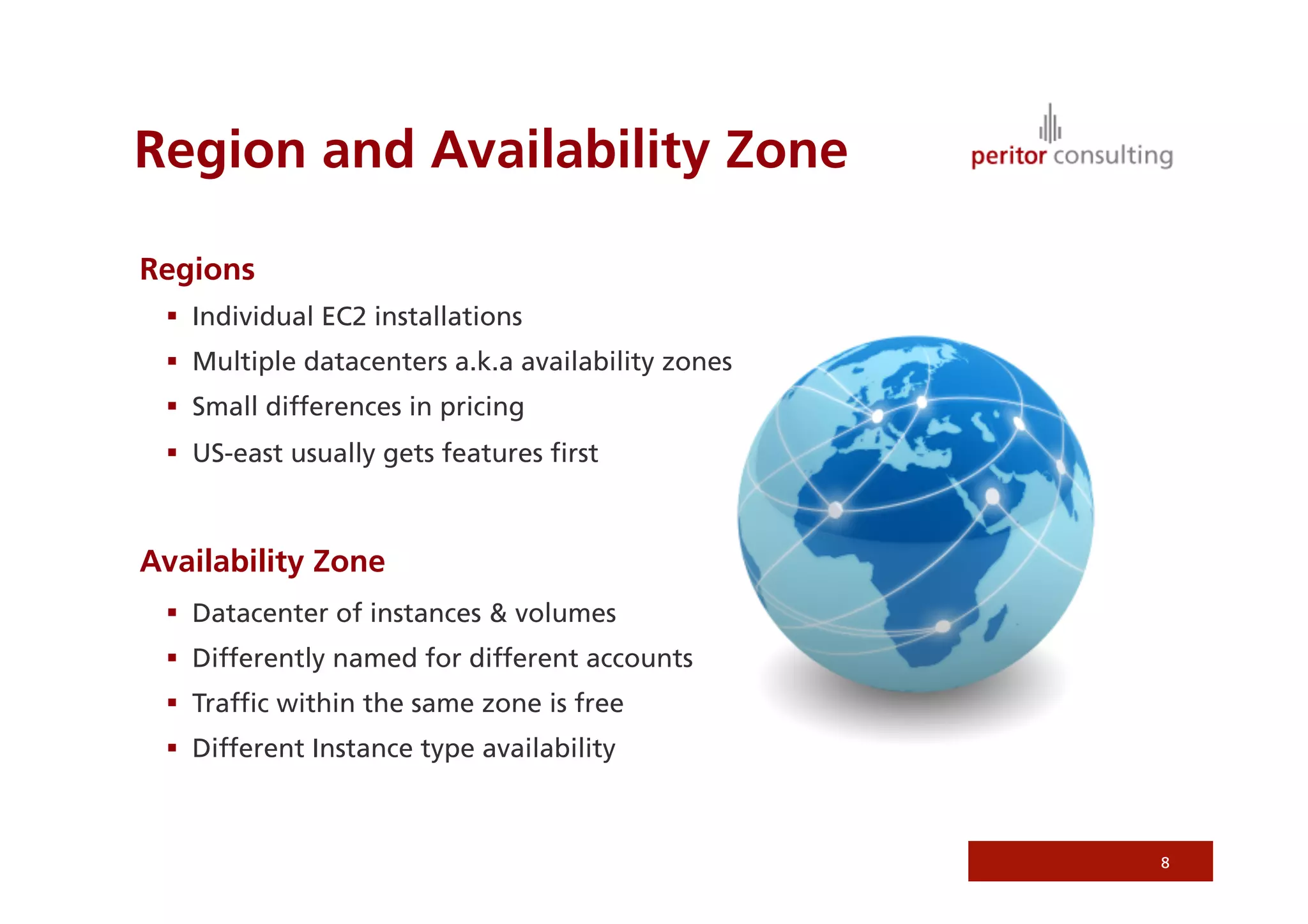

8. Region and Availability Zone
Regions
 Individual EC2 installations
 Multiple datacenters a.k.a availability zones
 Small differences in pricing
 US-east usually gets features first
Availability Zone
 Datacenter of instances & volumes
 Differently named for different accounts
 Traffic within the same zone is free
 Different Instance type availability
8

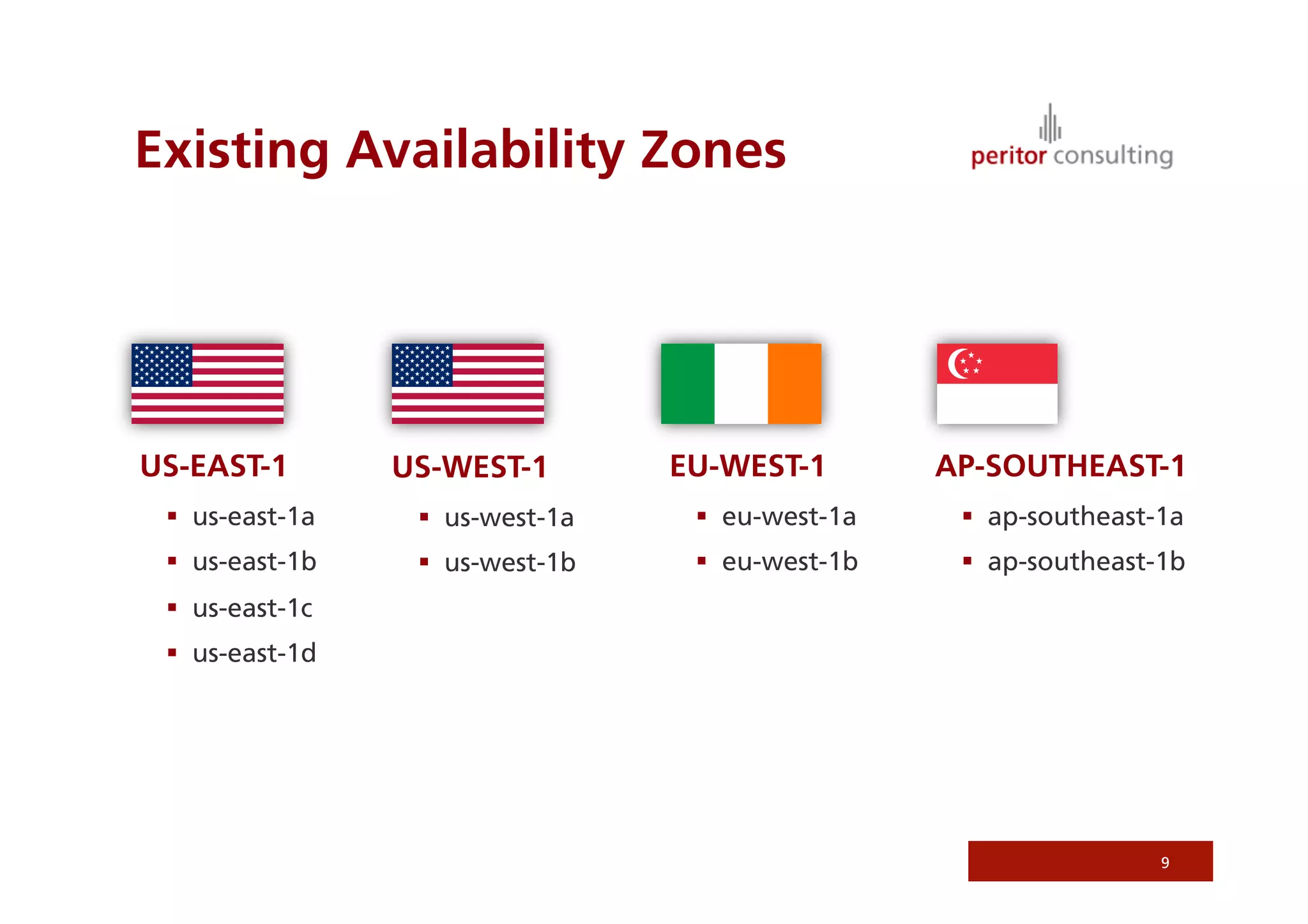

9. Existing Availability Zones
US-EAST-1 US-WEST-1 EU-WEST-1 AP-SOUTHEAST-1
 us-east-1a  us-west-1a  eu-west-1a  ap-southeast-1a
 us-east-1b  us-west-1b  eu-west-1b  ap-southeast-1b
 us-east-1c
 us-east-1d
9

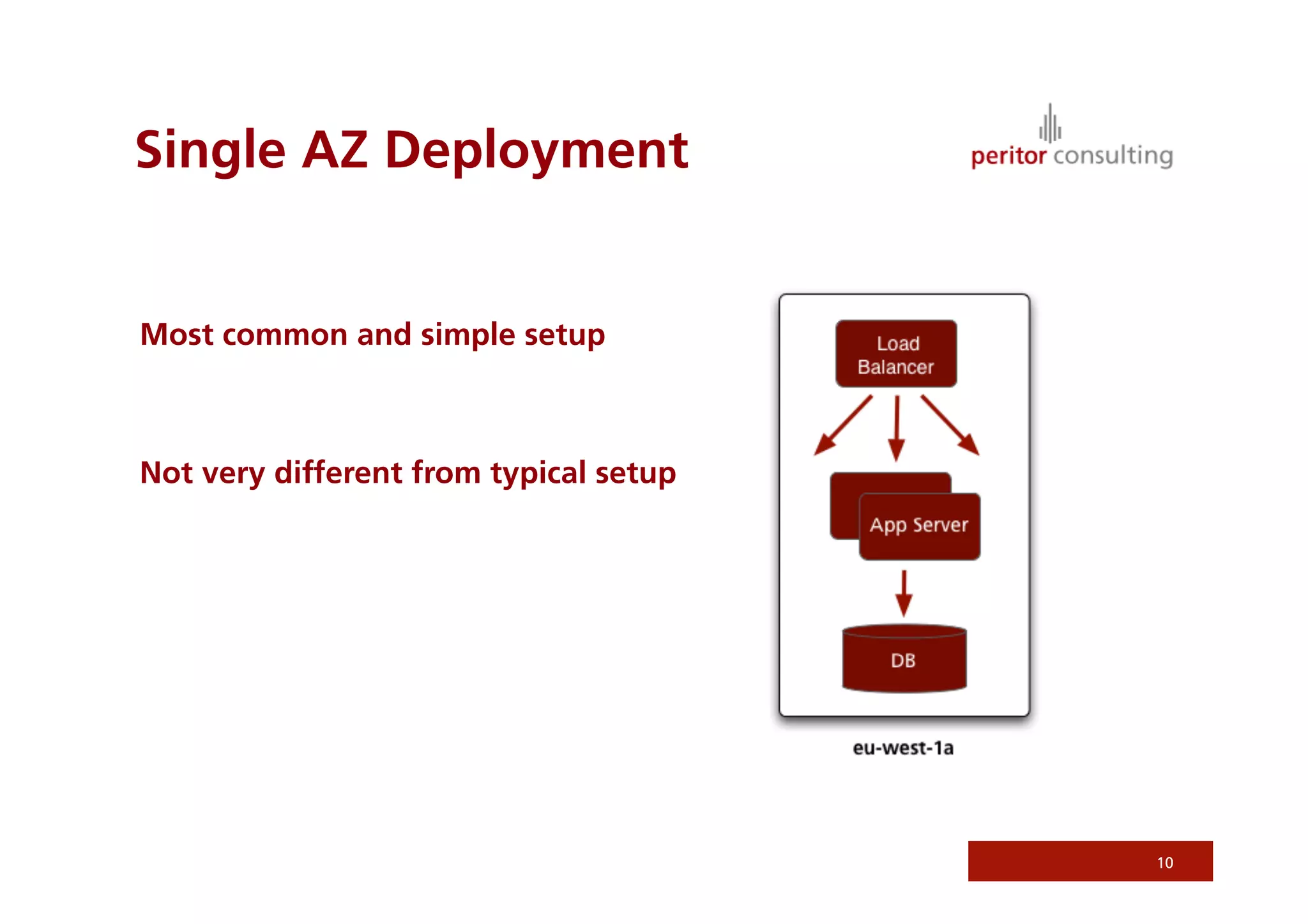

10. Single AZ Deployment
Most common and simple setup
Not very different from typical setup
10

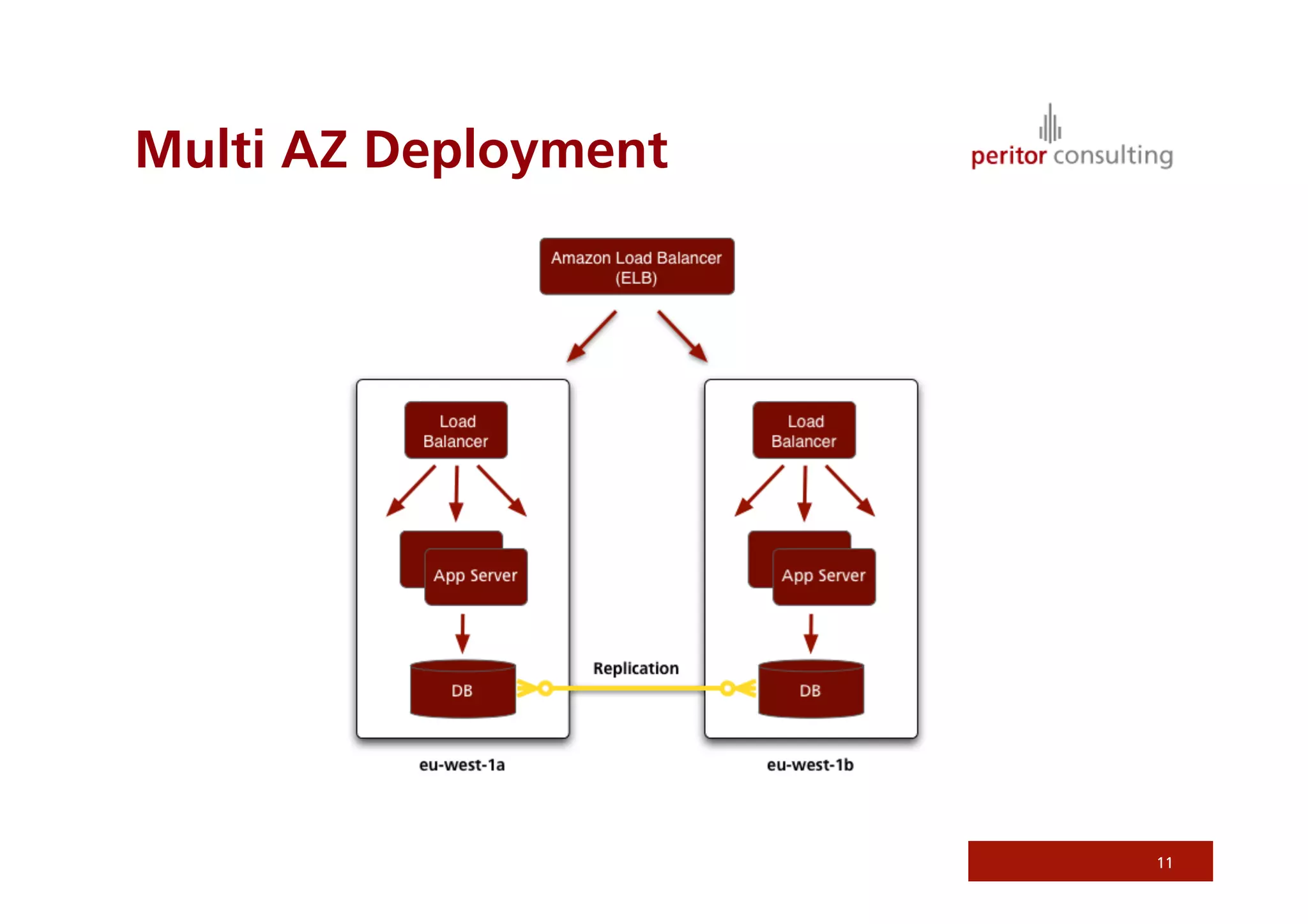

11. Multi AZ Deployment
11

12. Architecture
12

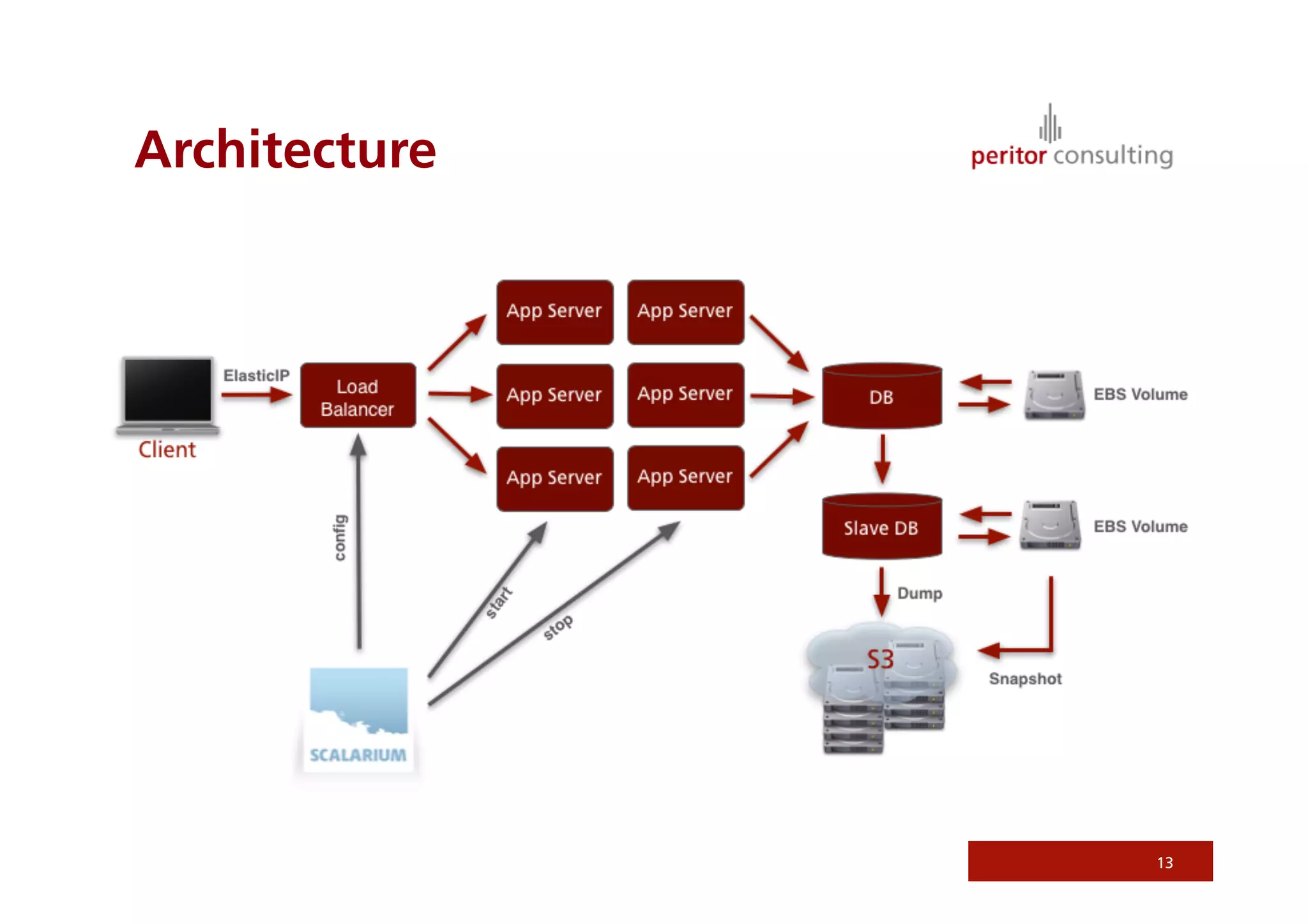

13. Architecture
13

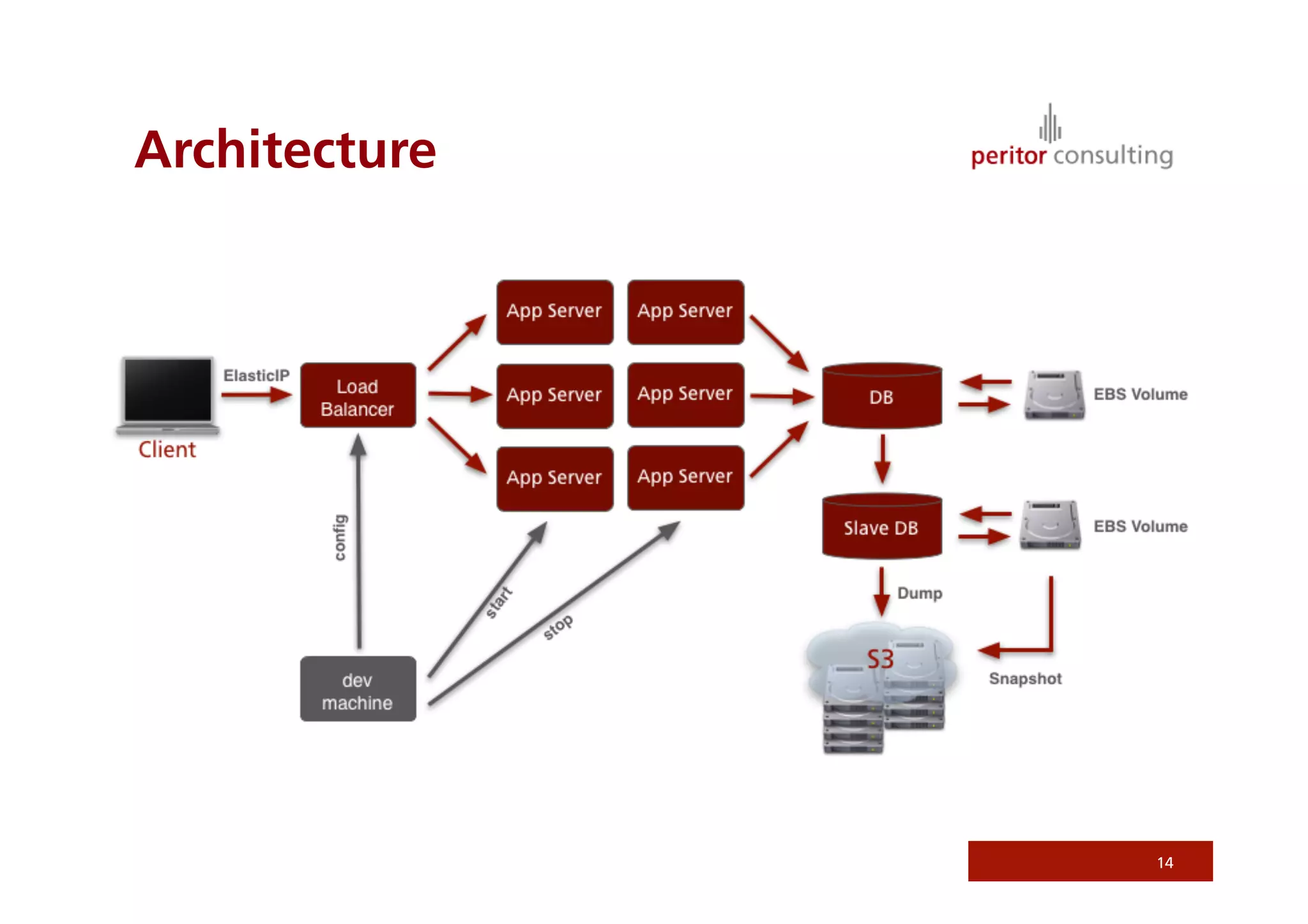

14. Architecture
14

15. Elastic IP
 Static, public IP in contrast to
instance IP
 Associate to any instance (~15s)
 Paying when not in use
 Use for DNS of load balancer
15

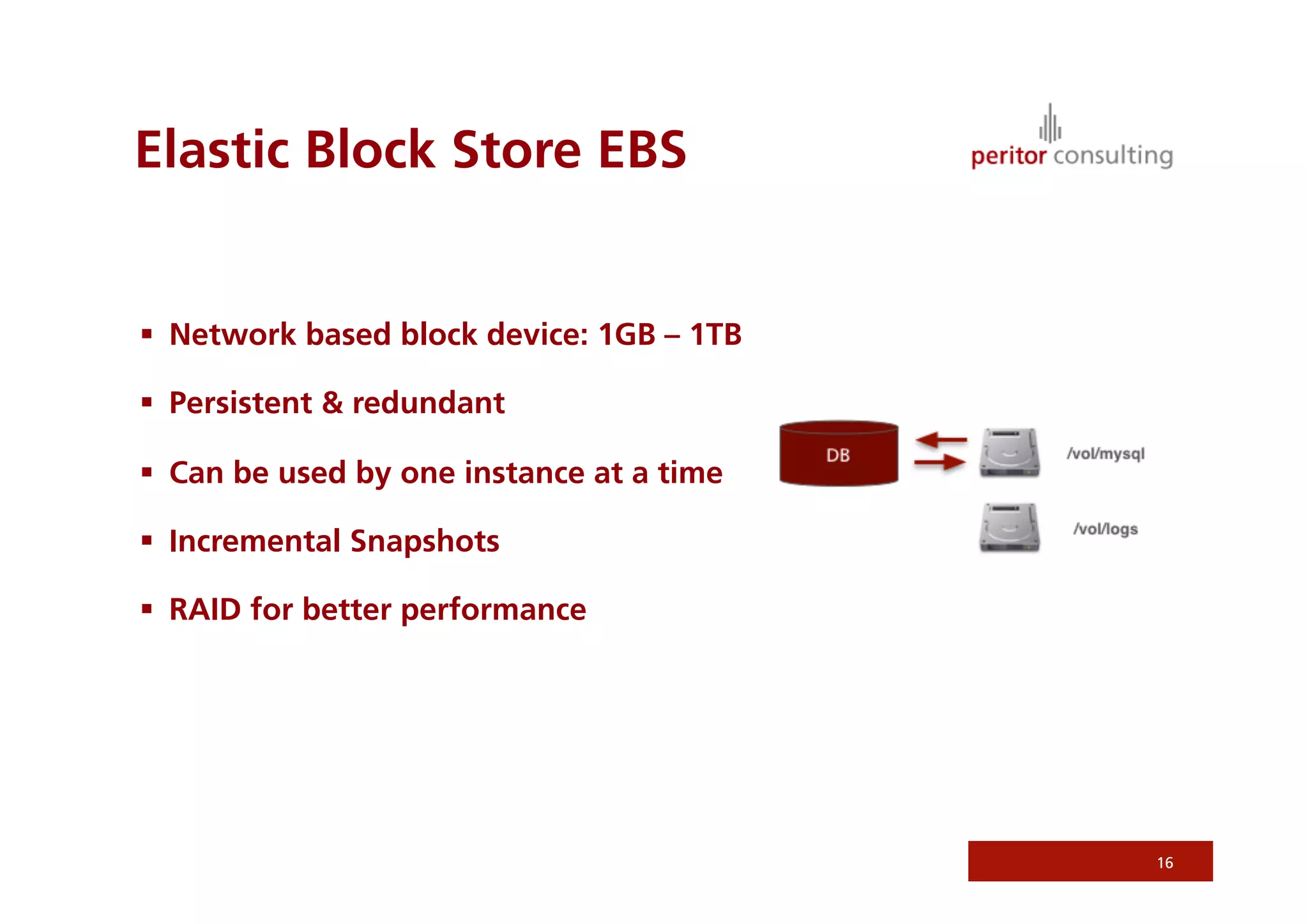

16. Elastic Block Store EBS
 Network based block device: 1GB – 1TB
 Persistent & redundant
 Can be used by one instance at a time
 Incremental Snapshots
 RAID for better performance
16

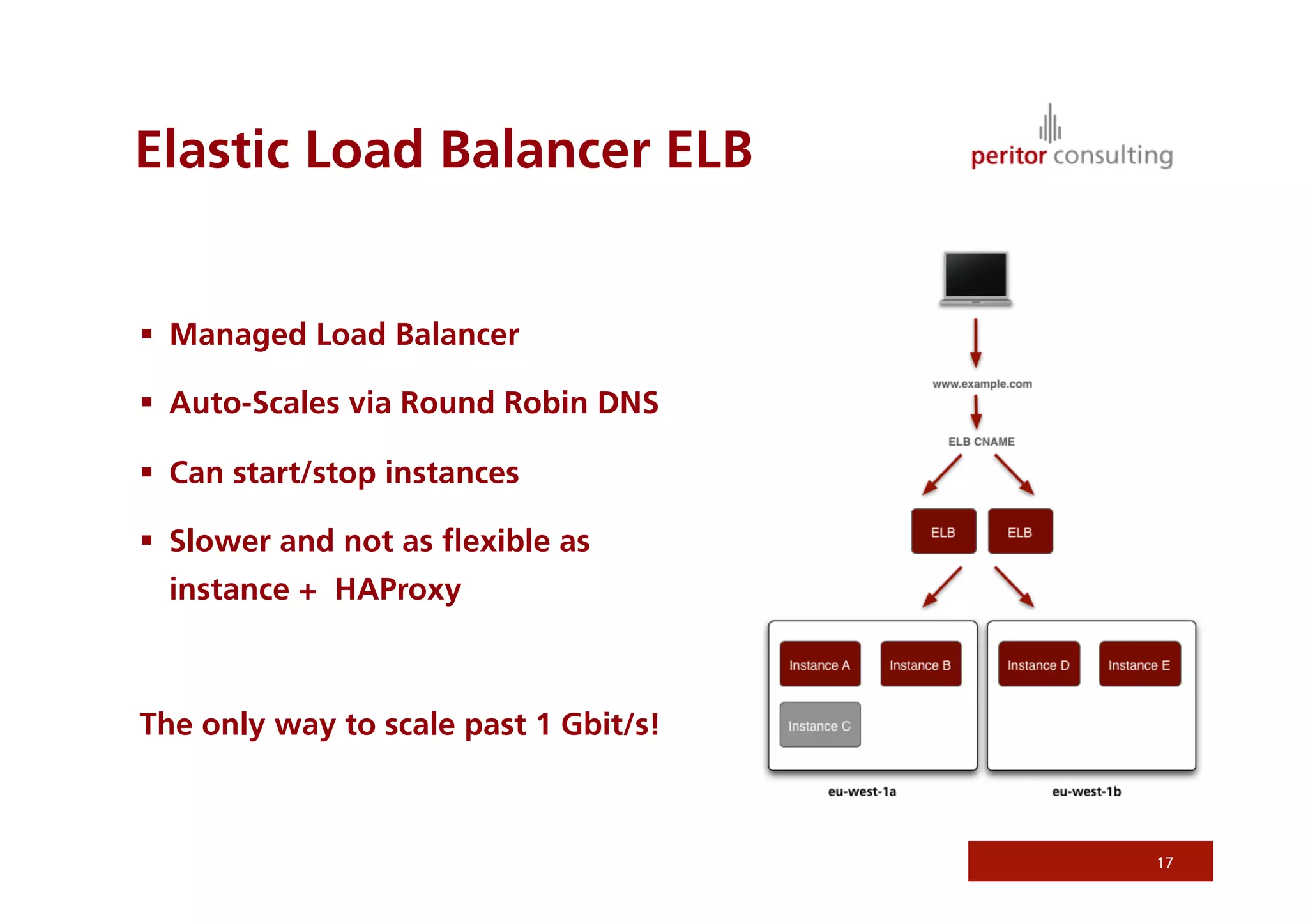

17. Elastic Load Balancer ELB
 Managed Load Balancer
 Auto-Scales via Round Robin DNS
 Can start/stop instances
 Slower and not as flexible as
instance + HAProxy
The only way to scale past 1 Gbit/s!
17

18. Relational Data Store RDS
 Managed MySQL instance
 Choose instance size,
pay ~ 30% premium
 Hot-Failover and read replication
available
 Define a 4h maintenance window
 Better performance than single EBS-
backed instance
18

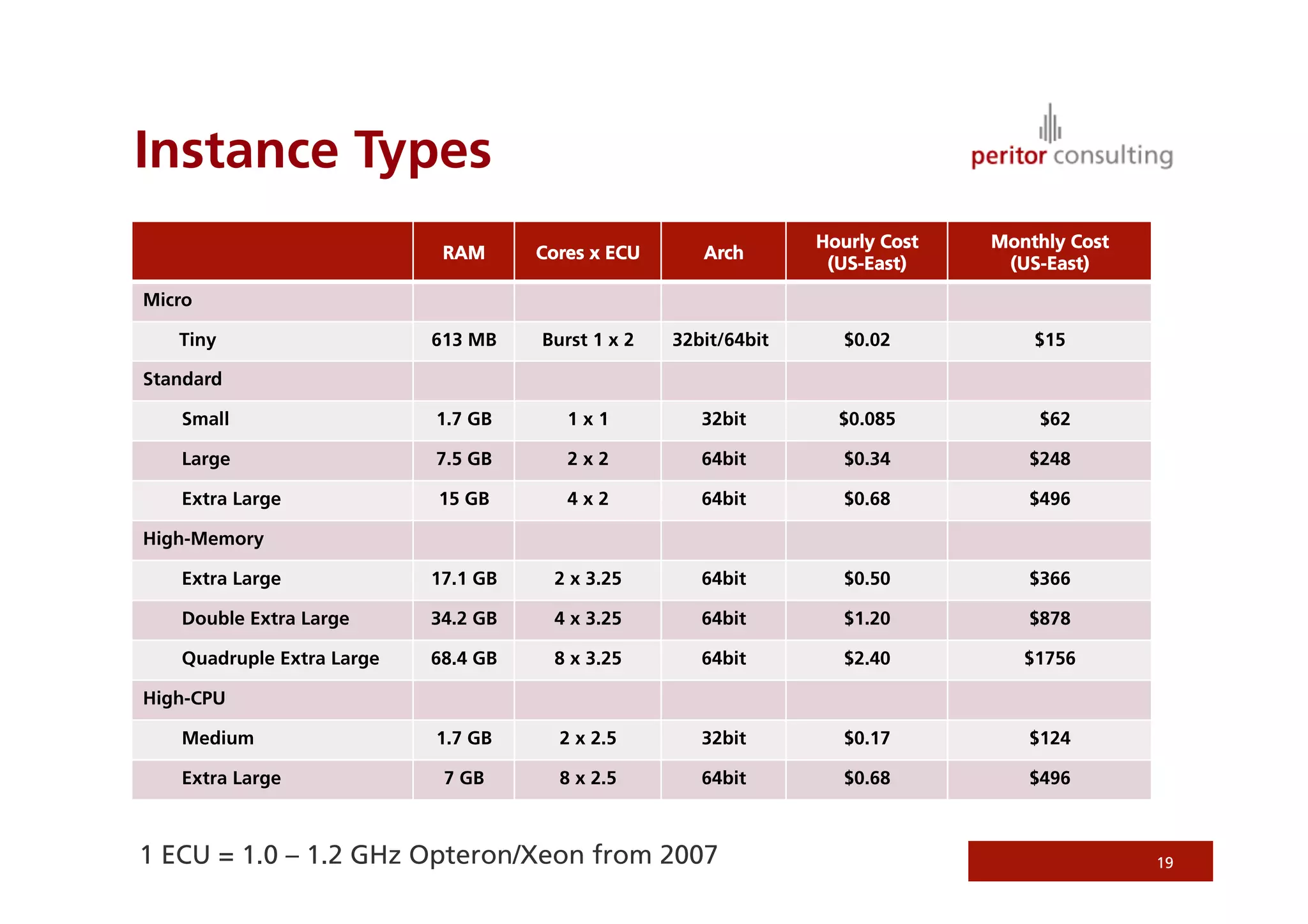

19. Instance Types
Hourly Cost Monthly Cost
RAM Cores x ECU Arch
(US-East) (US-East)
Micro
Tiny 613 MB Burst 1 x 2 32bit/64bit $0.02 $15
Standard
Small 1.7 GB 1x1 32bit $0.085 $62
Large 7.5 GB 2x2 64bit $0.34 $248
Extra Large 15 GB 4x2 64bit $0.68 $496
High-Memory
Extra Large 17.1 GB 2 x 3.25 64bit $0.50 $366
Double Extra Large 34.2 GB 4 x 3.25 64bit $1.20 $878
Quadruple Extra Large 68.4 GB 8 x 3.25 64bit $2.40 $1756
High-CPU
Medium 1.7 GB 2 x 2.5 32bit $0.17 $124
Extra Large 7 GB 8 x 2.5 64bit $0.68 $496
1 ECU = 1.0 – 1.2 GHz Opteron/Xeon from 2007 19

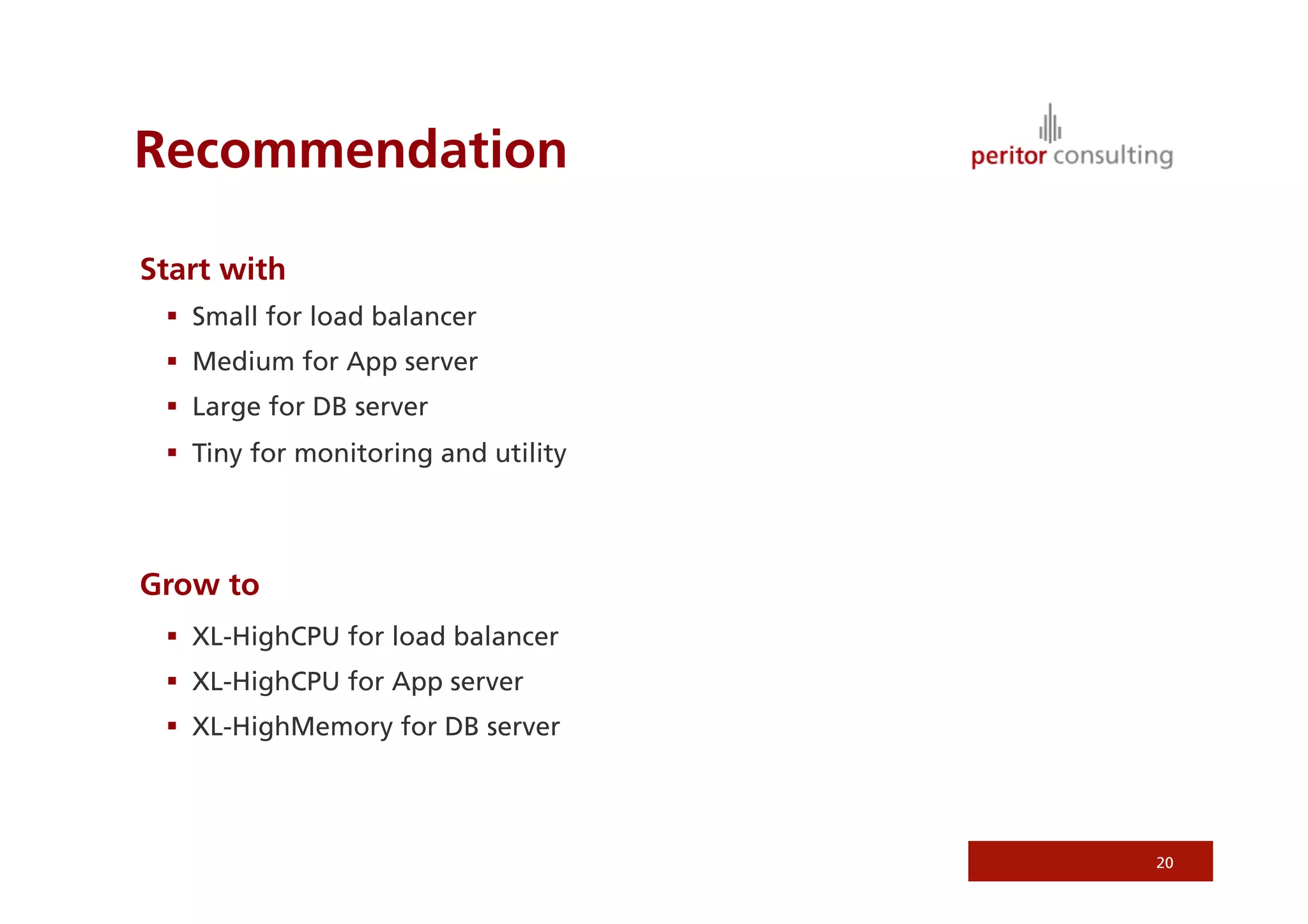

20. Recommendation
Start with
 Small for load balancer
 Medium for App server
 Large for DB server
 Tiny for monitoring and utility
Grow to
 XL-HighCPU for load balancer
 XL-HighCPU for App server
 XL-HighMemory for DB server
20

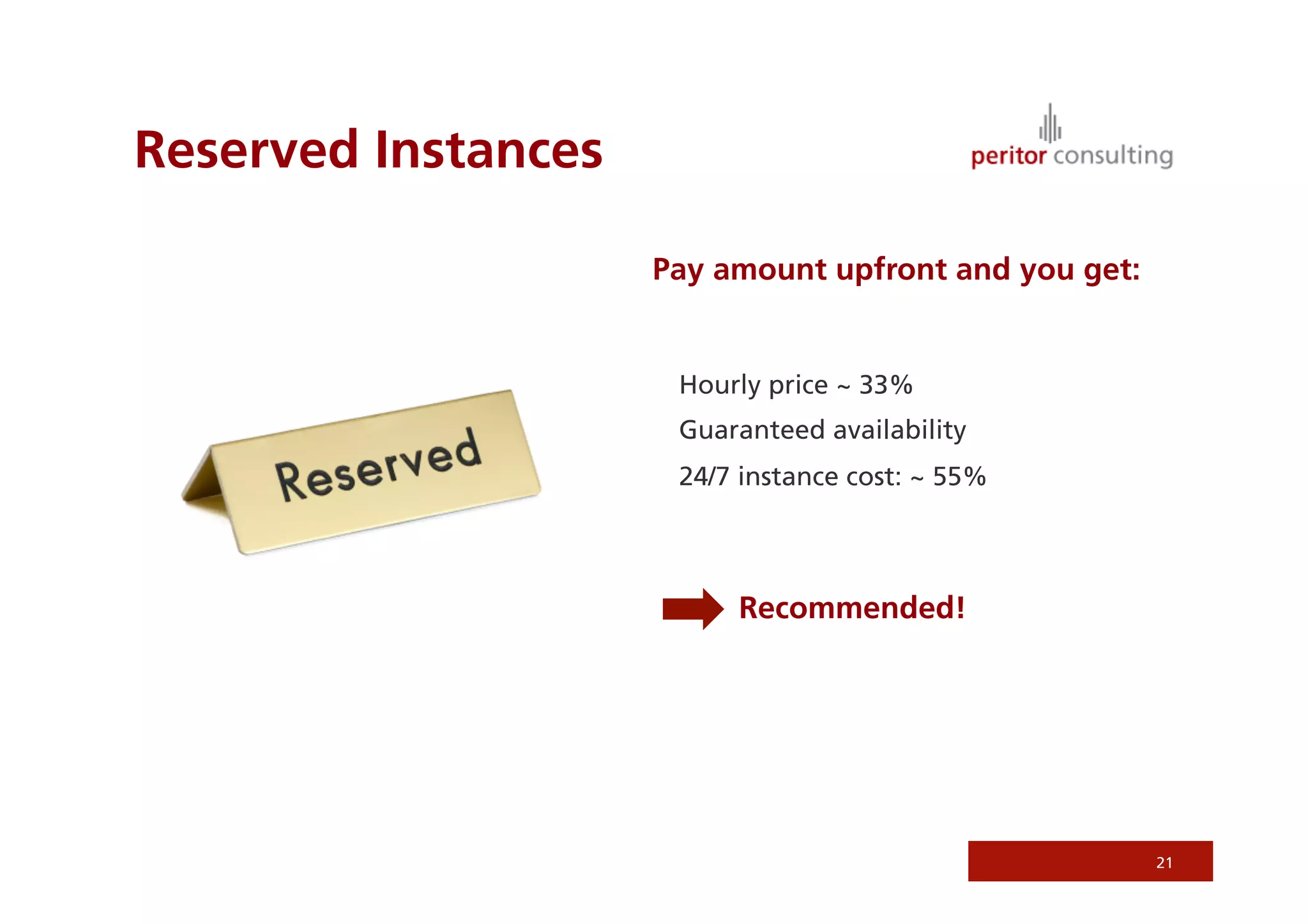

21. Reserved Instances
Pay amount upfront and you get:
Hourly price ~ 33%
Guaranteed availability
24/7 instance cost: ~ 55%
Recommended!
21

22. Running on EC2
Steps to complete
 Choose region and availability zone
 Define architecture
 Choose instance types
 Boot & configure instances
 Deploy application
 …
 Profit
22

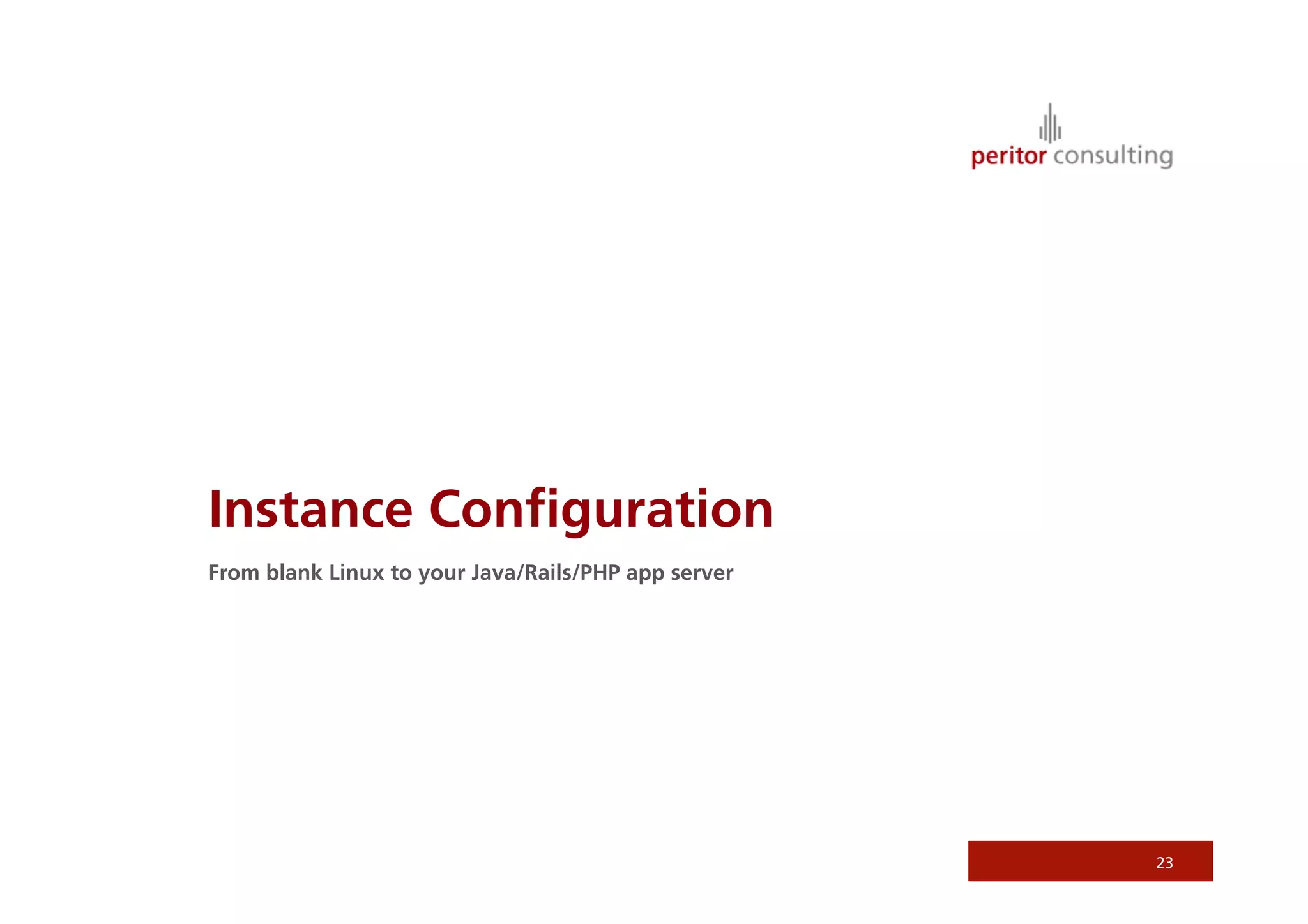

23. Instance Configuration
From blank Linux to your Java/Rails/PHP app server
23

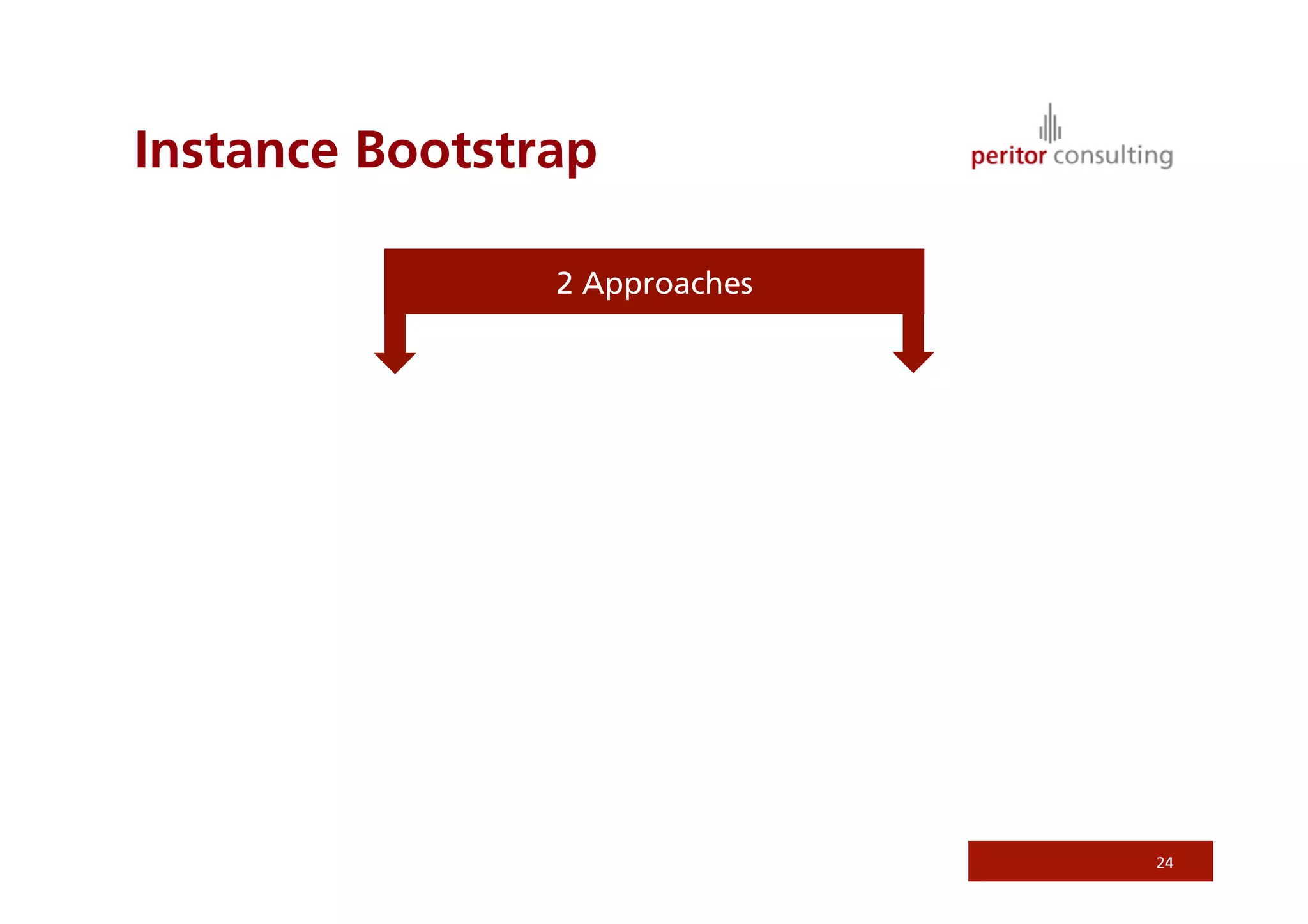

24. Instance Bootstrap
2 Approaches
24

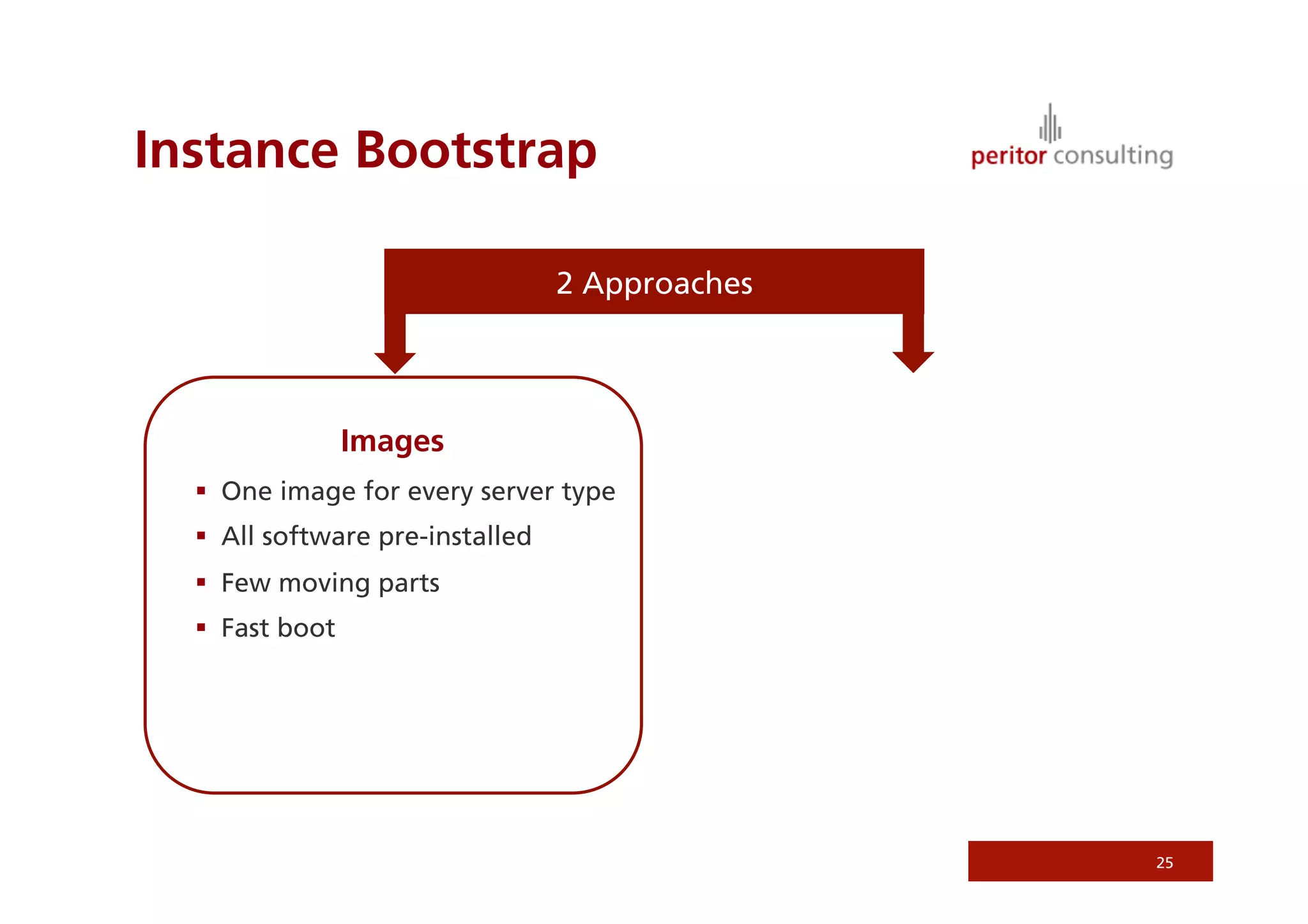

25. Instance Bootstrap
2 Approaches
Images
 One image for every server type
 All software pre-installed
 Few moving parts
 Fast boot
25

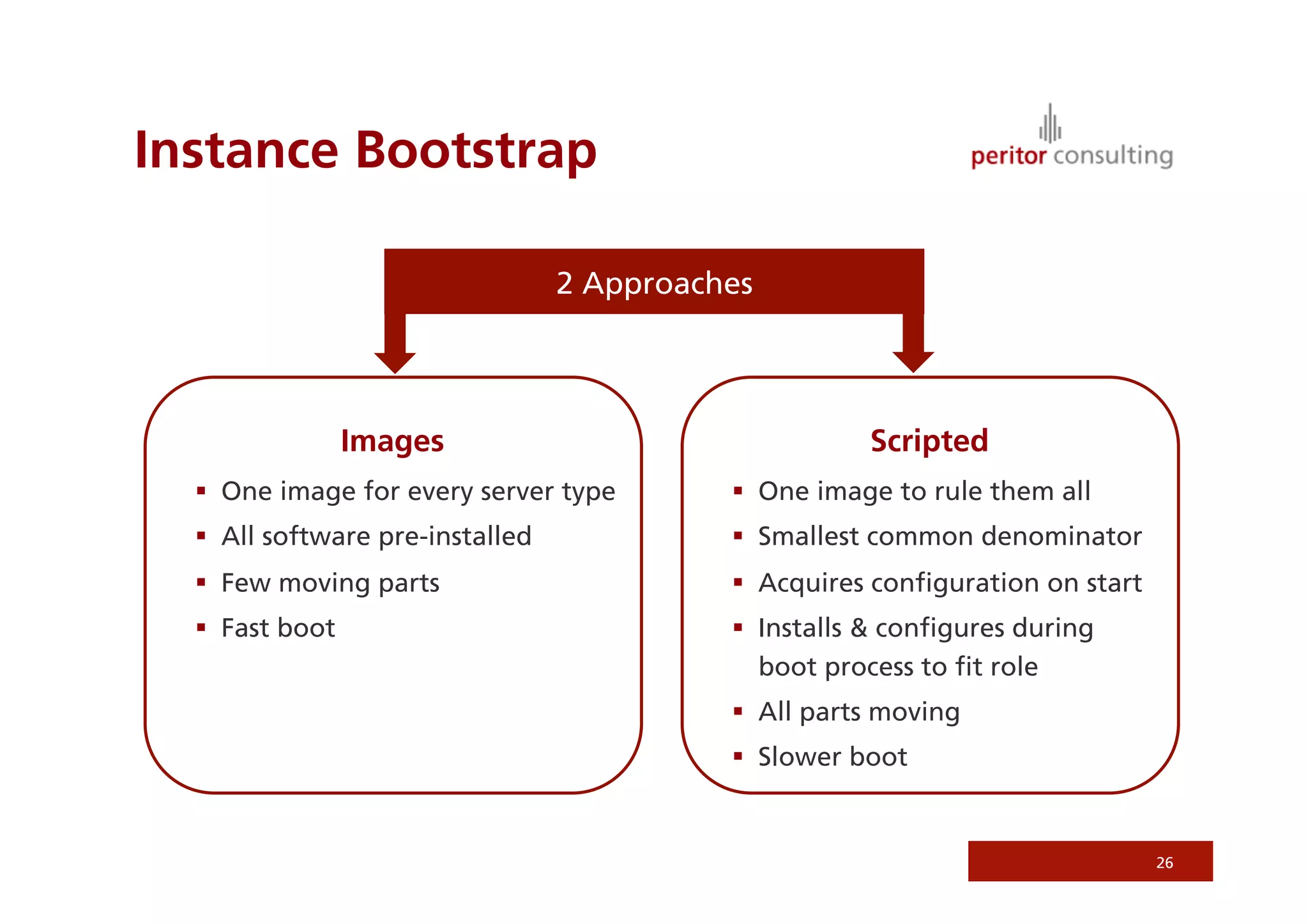

26. Instance Bootstrap
2 Approaches
Images Scripted
 One image for every server type  One image to rule them all
 All software pre-installed  Smallest common denominator
 Few moving parts  Acquires configuration on start
 Fast boot  Installs & configures during
boot process to fit role
 All parts moving
 Slower boot
26

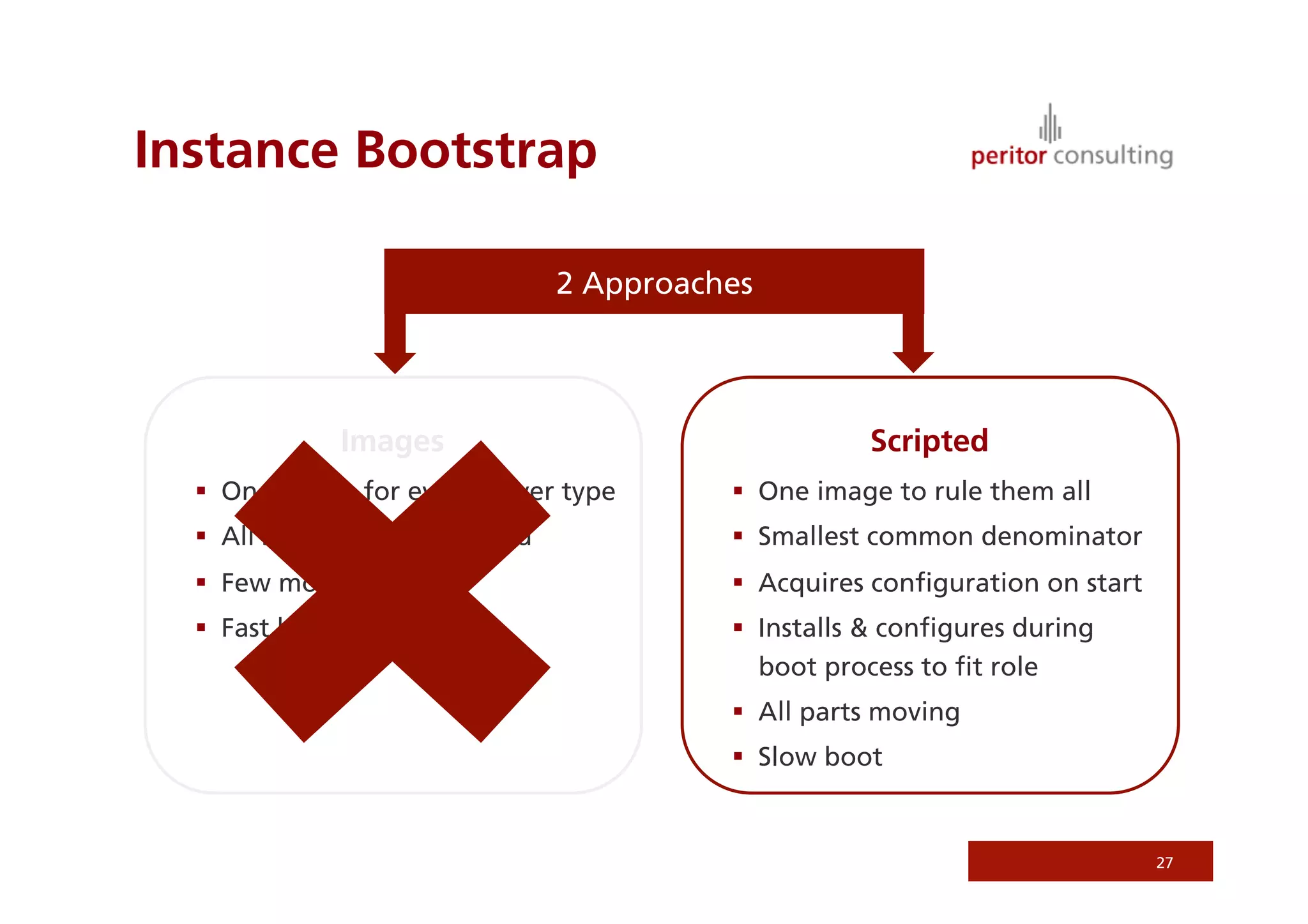

27. Instance Bootstrap
2 Approaches
Images Scripted
 One image for every server type  One image to rule them all
 All software pre-installed  Smallest common denominator
 Few moving parts  Acquires configuration on start
 Fast boot  Installs & configures during
boot process to fit role
 All parts moving
 Slow boot
27

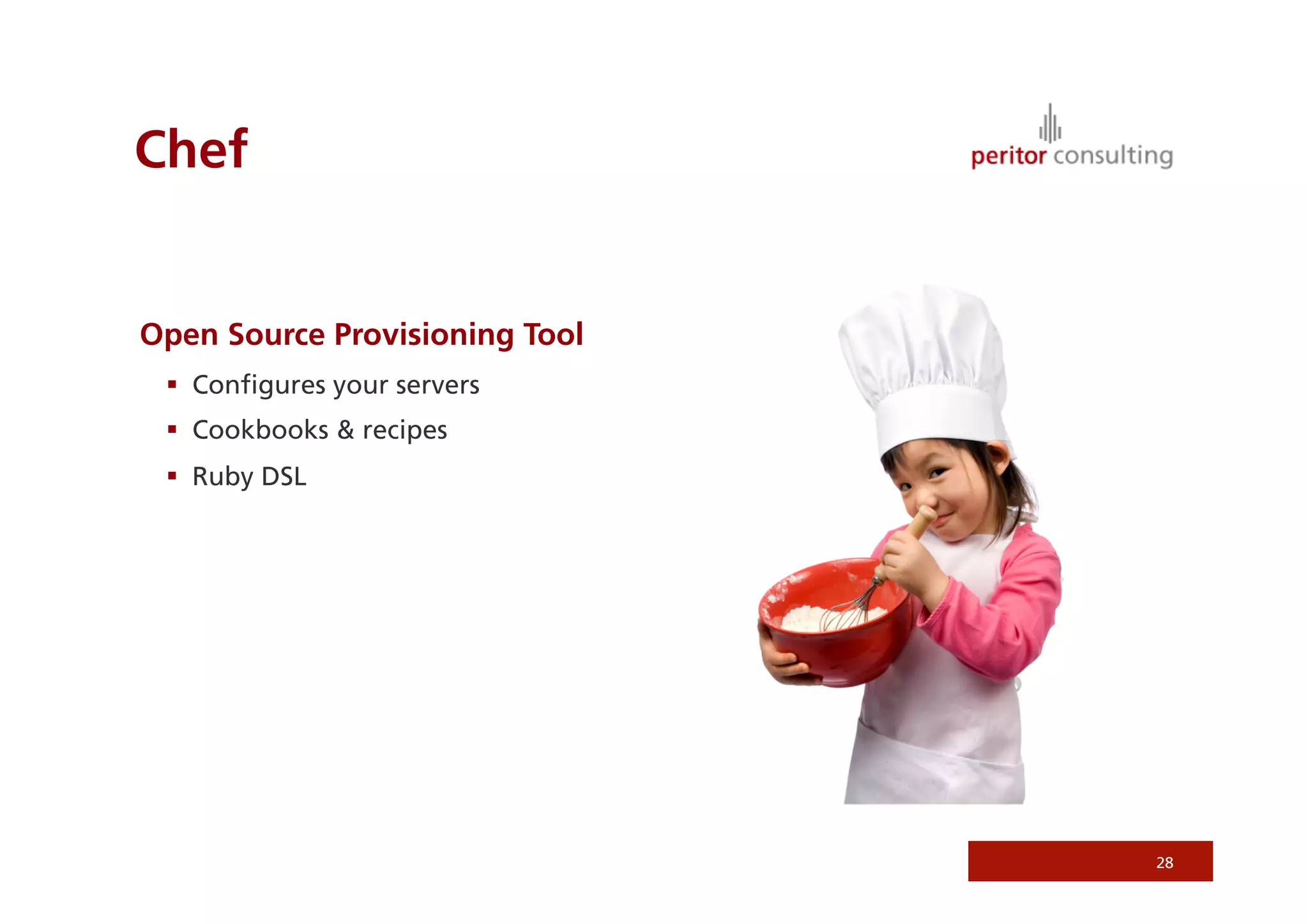

28. Chef
Open Source Provisioning Tool
 Configures your servers
 Cookbooks & recipes
 Ruby DSL
28

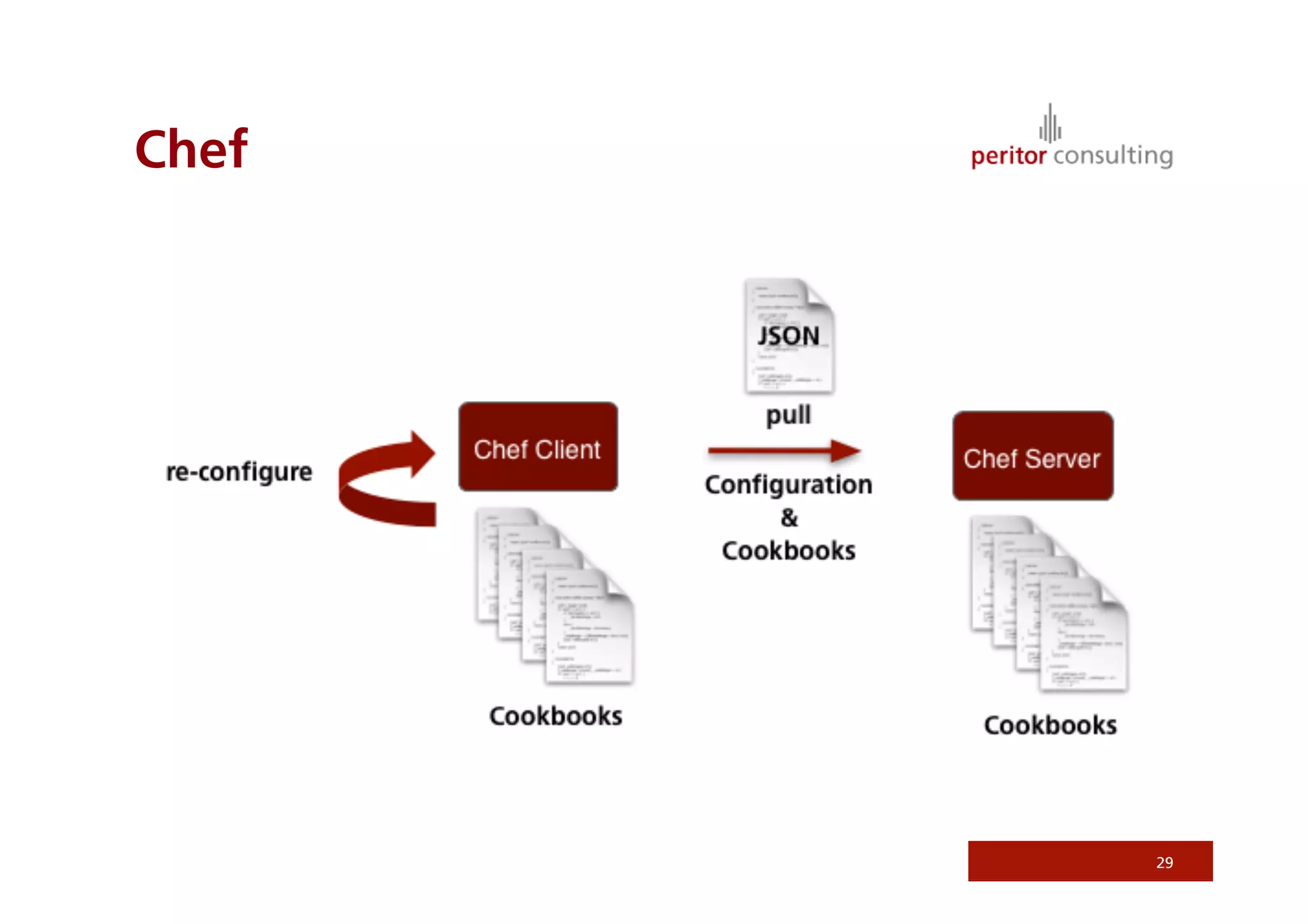

29. Chef
29

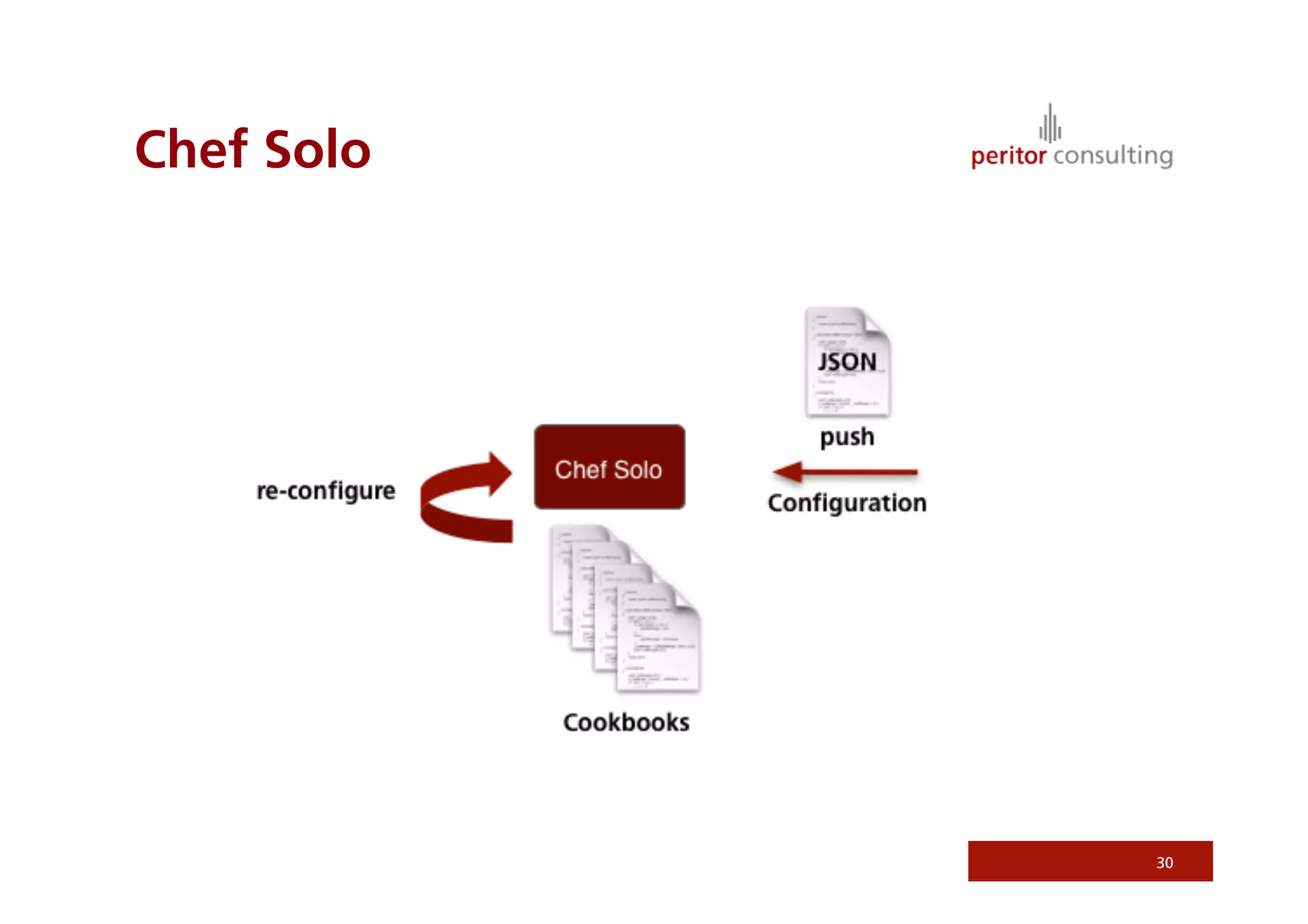

30. Chef Solo
30

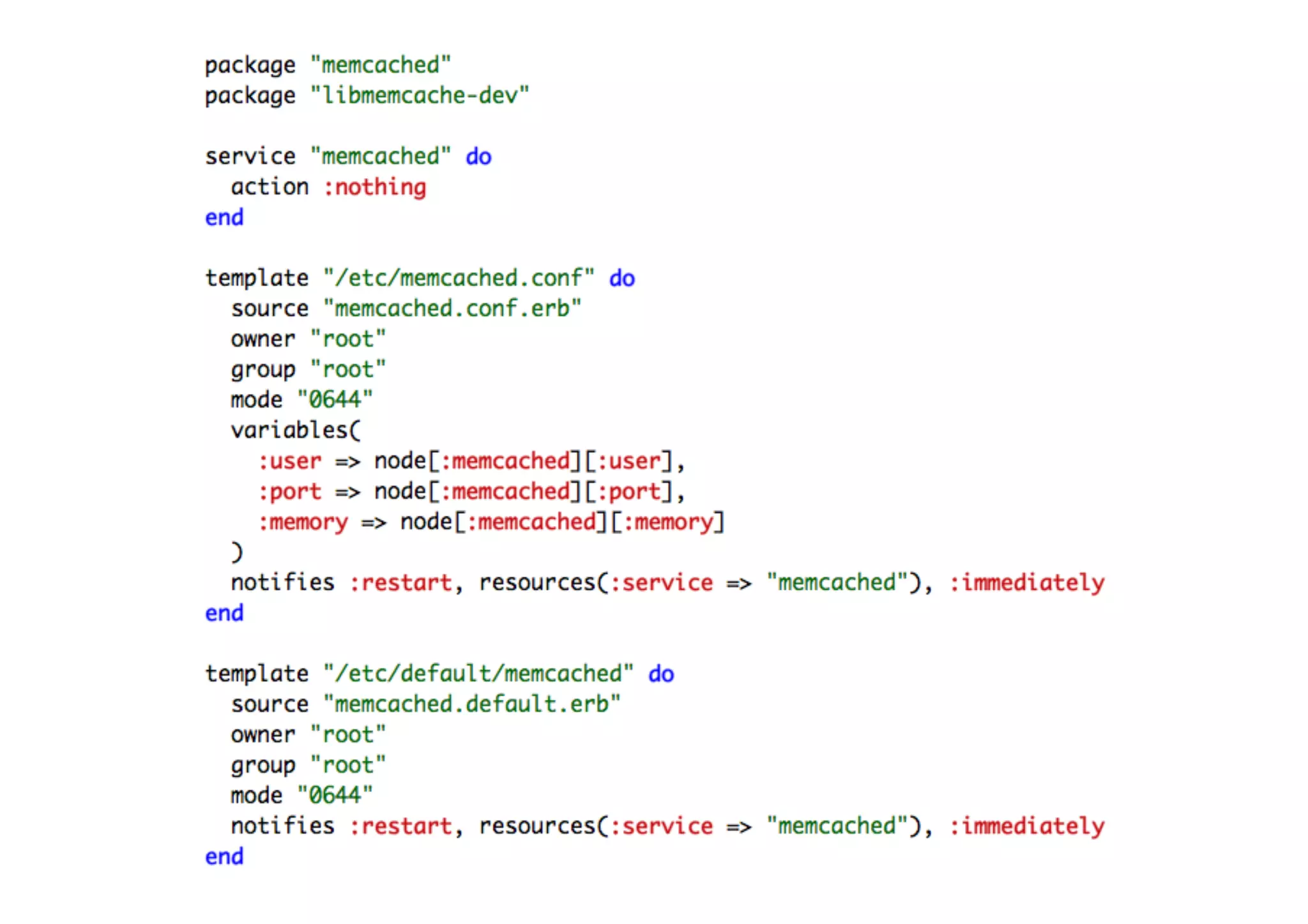

31. MemcachedSolo
31

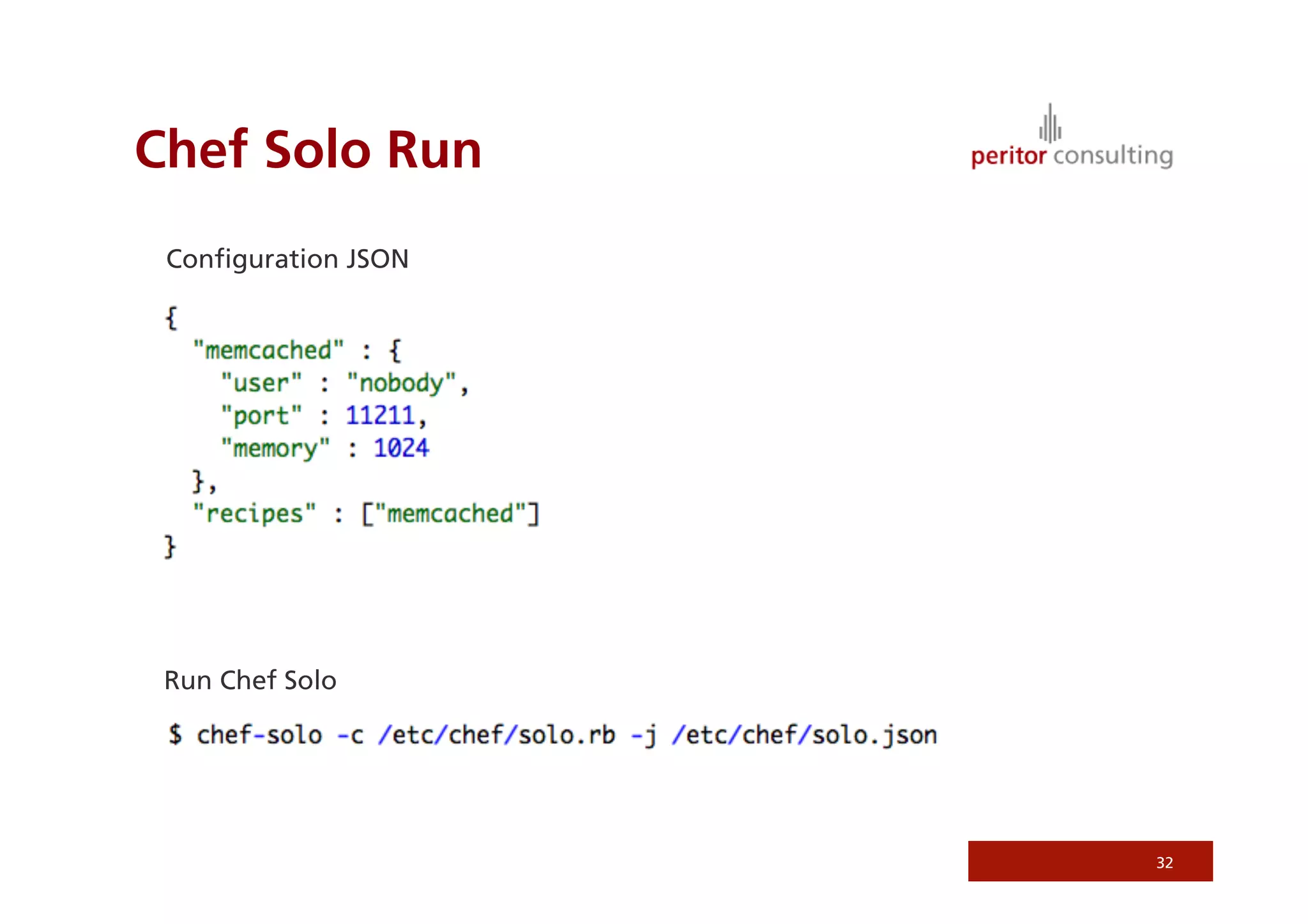

32. Chef Solo Run
Configuration JSON
Run Chef Solo
32

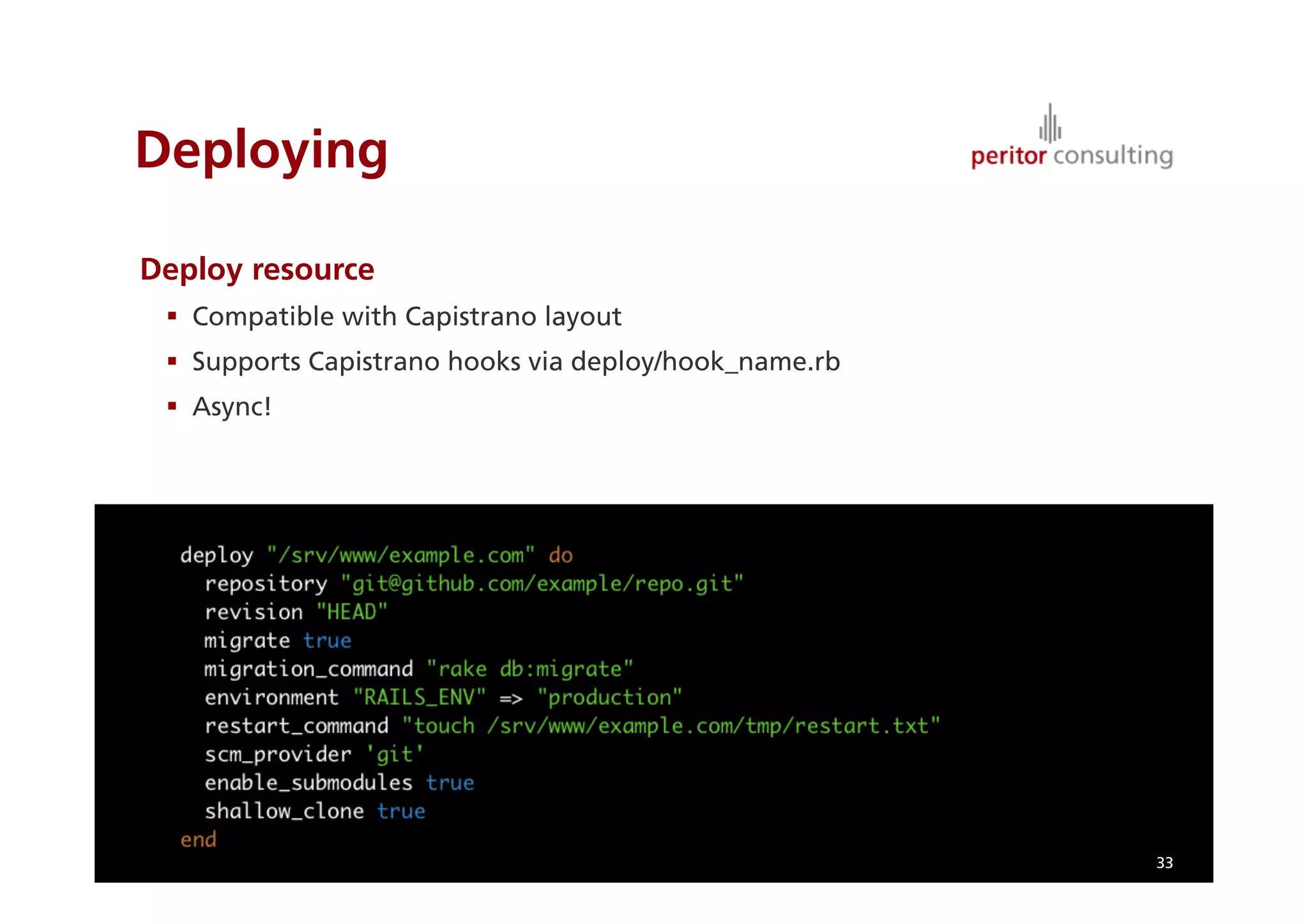

33. Deploying
Deploy resource
 Compatible with Capistrano layout
 Supports Capistrano hooks via deploy/hook_name.rb
 Async!
33

34. Chef Experiences
Great so far, but
 Not idempotent
 Unintuitive 2 phases
 Documentation could be better
 Example Cookbooks often so so
34

35. Running on EC2
Steps to complete
 Choose region and availability zone
 Define architecture
 Choose instance types
 Boot & configure instances
 Deploy application
 …
 Profit
35

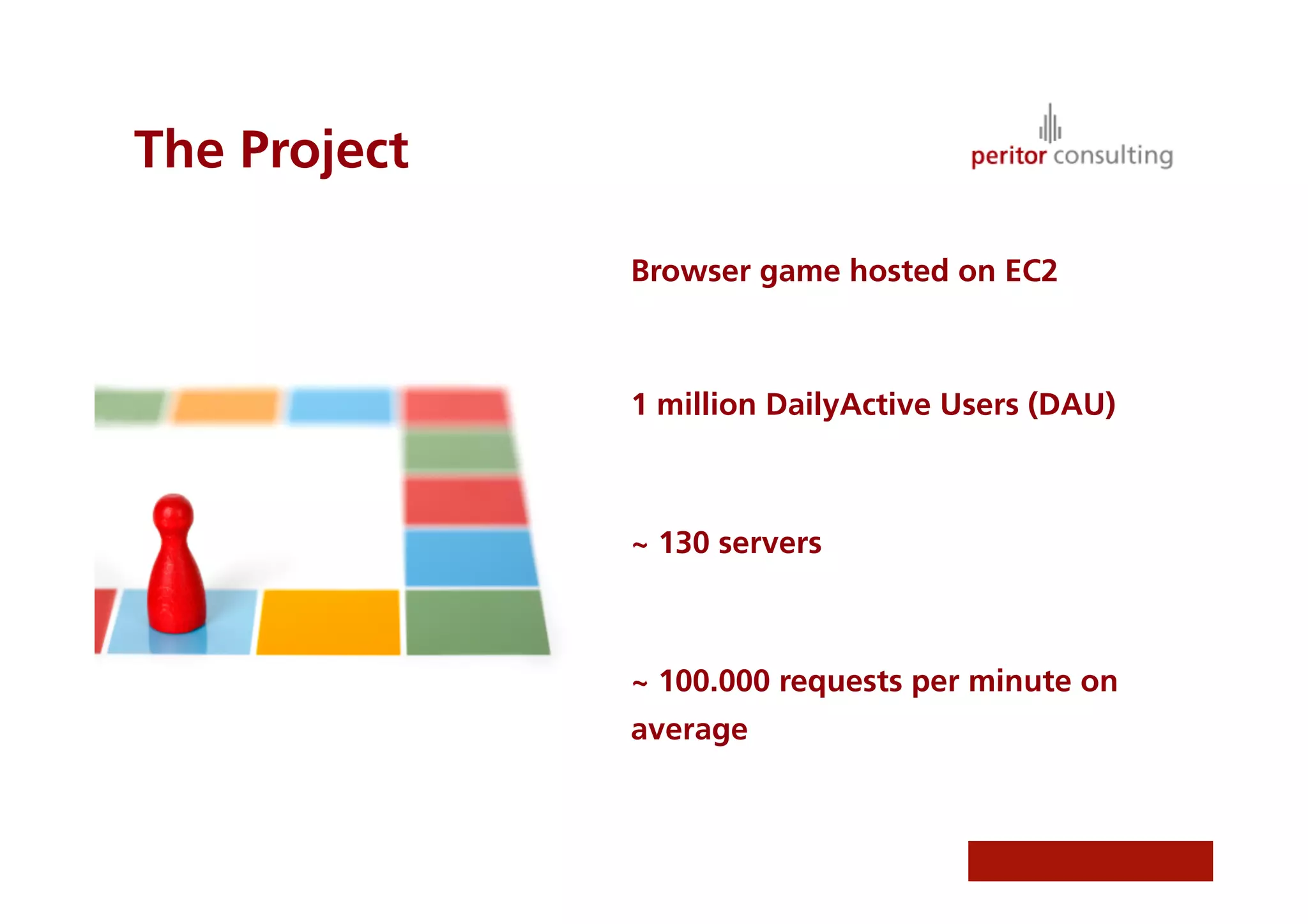

36. The Project
Browser game hosted on EC2
1 million DailyActive Users (DAU)
~ 130 servers
~ 100.000 requests per minute on
average

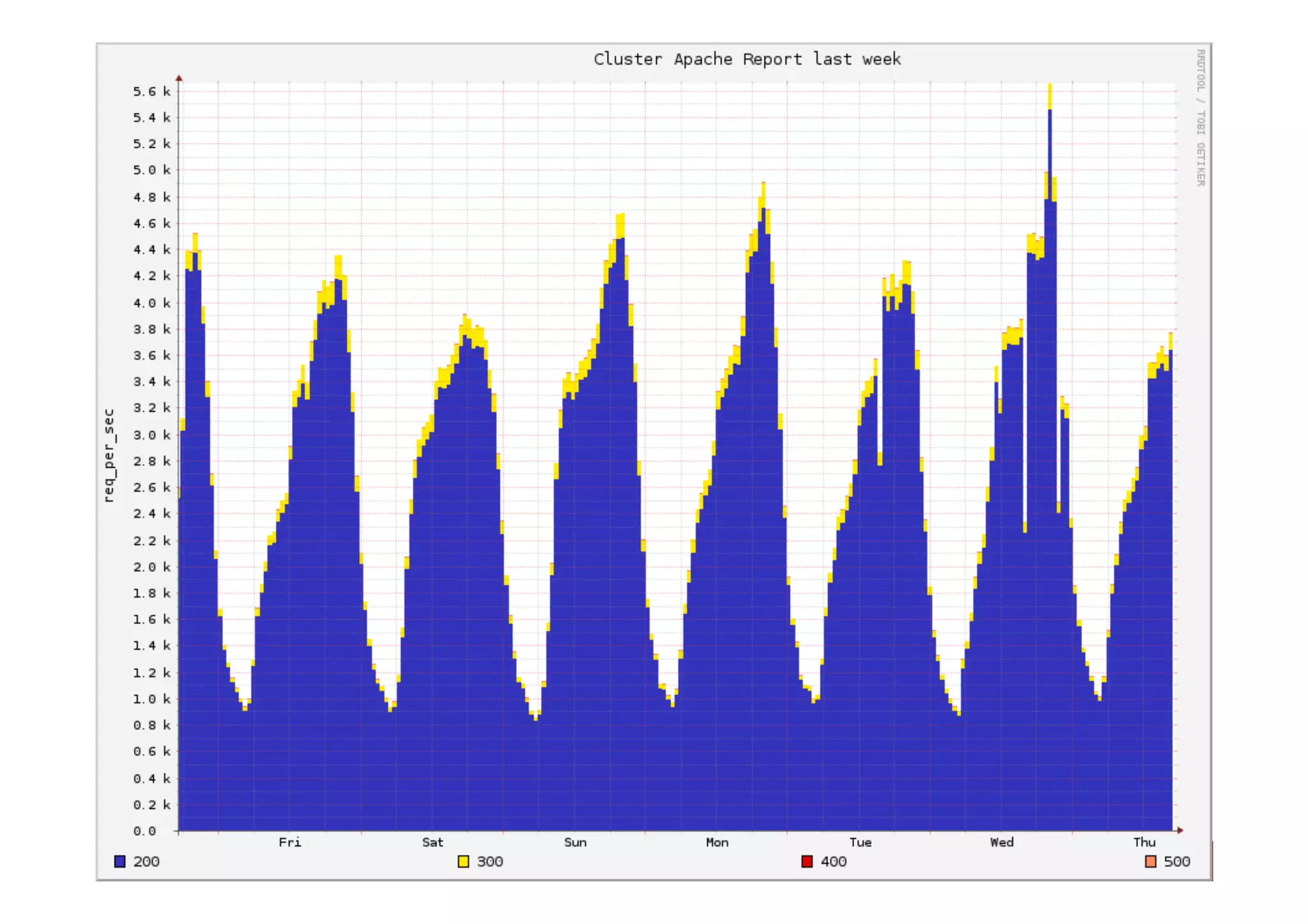

37. Flexibility and Scalability

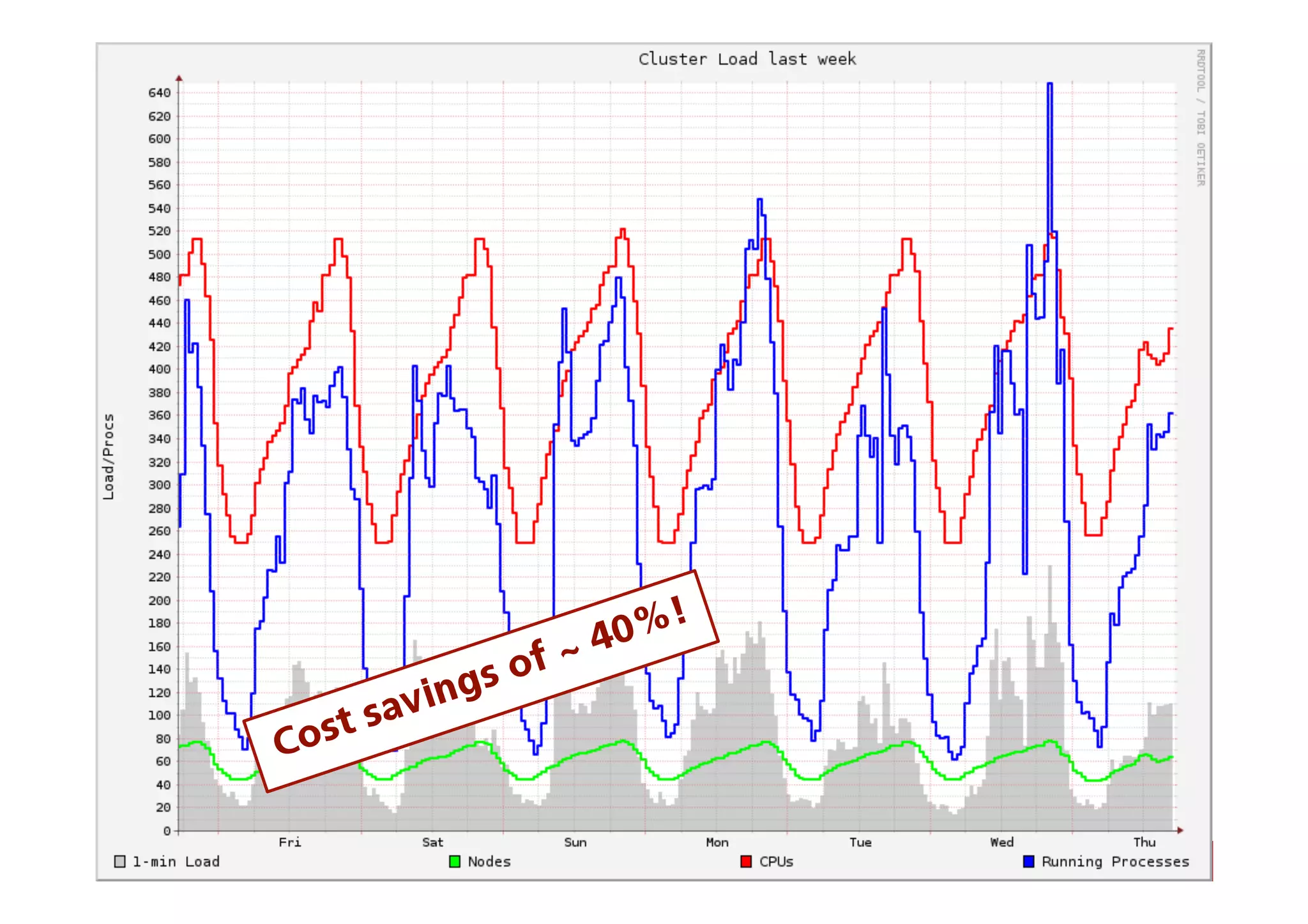

38. Flexibility and Scalability

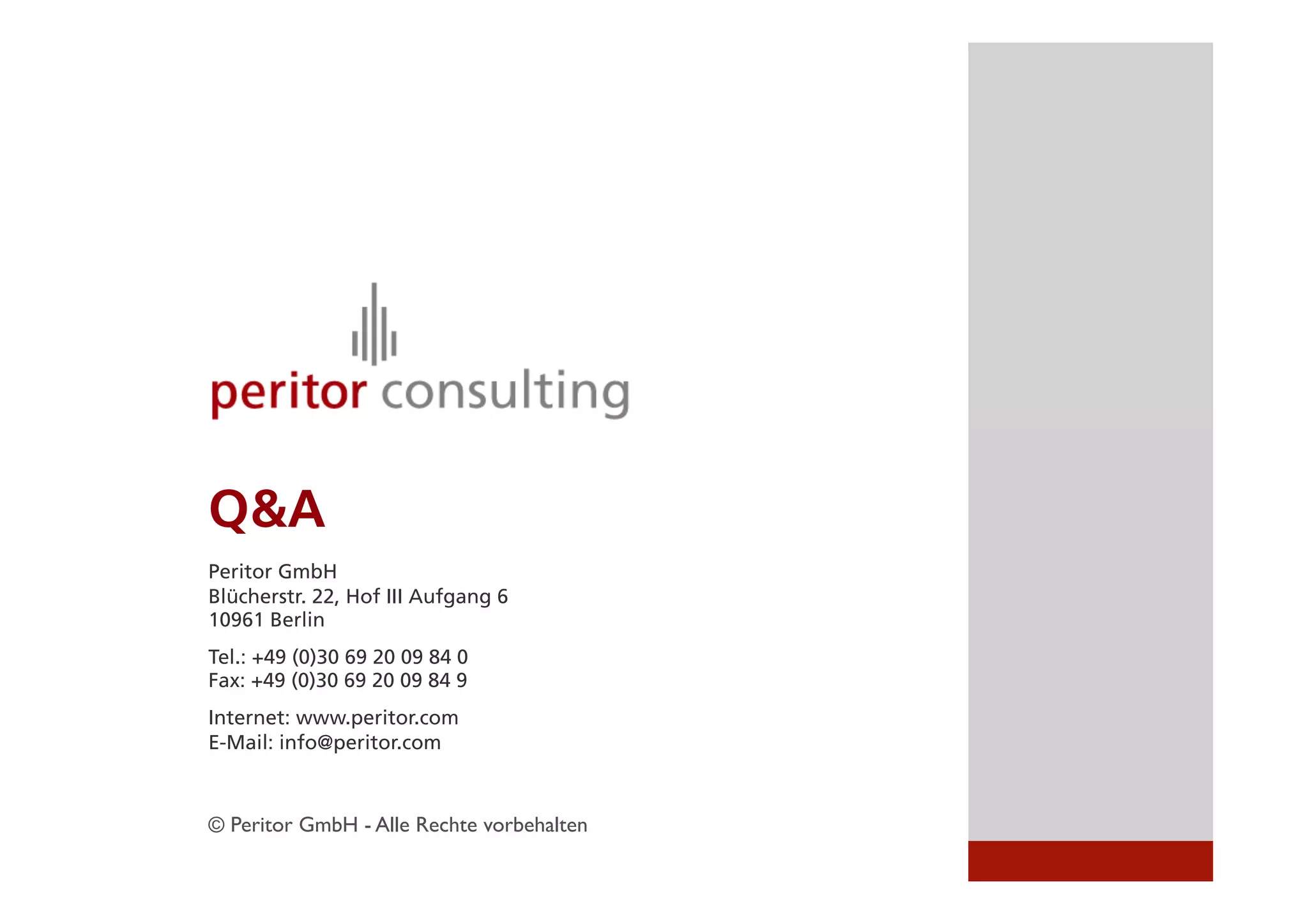

39. Q&A
Peritor GmbH
Blücherstr. 22, Hof III Aufgang 6
10961 Berlin
Tel.: +49 (0)30 69 20 09 84 0
Fax: +49 (0)30 69 20 09 84 9
Internet: www.peritor.com
E-Mail: info@peritor.com
© Peritor GmbH - Alle Rechte vorbehalten
