Dr. Wael Badawy is the founder of IntelliView Technologies, which develops video analytics software and hardware solutions. Over the past 10 years, IntelliView has evolved from research and development to sales and implementation of industrial-grade solutions in target markets. The company has received several awards for its innovative technology and commercialization success. IntelliView's video analytics software turns cameras into intelligent sensors for automated monitoring and detection in areas like oil and gas facilities, airports, and healthcare. The company provides solutions for issues like leak detection, security, and monitoring remote or unmanned areas.

1. Dr. Wael Badawy P.Eng.
IntelliView Technologies inc.
Calgary, AB

2. IntelliView - Evolution
• 10 years of IP, Technology development, Trials
and Market Awareness building
- market research
- customer needs identification
- many “first” installations
• Shift to Sales and Implementation of Industrial
Grade solutions in Target Segments

3. The Journey
• 1998 development of HASM a Ph.D. research at the U. of Louisiana
• 2000 Lab for Integrated Video Systems at the U. of Calgary.
• 2001 ASRA fund to commercialize video platform for right of the way
• 2003 U of Calgary Spin out.
• 2004 – 2008 pre commercialization product activities
• 2008 – 2010 early stage commercialization activities
• 2010 – 2013 focus and business growth

4. Awards
• 2013, Alberta Venture Magazine, recognized as a leader of one of the
25 most innovative organizations and which setup the standard of
innovation in Alberta.
• 2012, honored with the Manning Award by the Southern Alberta
Manning Chapter
• 2012, named as the Top 50 Fast Growing Canadian Companies
• 2011, Canadian Advanced Technology Alliance, the Celestica Award for
Technology Commercialization
• 2011, Finalist, PricewaterhouseCoopers Innovator of the Year
• 2010, Honored with the Standard Council of Canada, Award of
Excellence
• 2010, Finalist, Royal Bank of Canada, Business of the Year.
• 2009, honored and named as Microsoft’s Canadian Innovator Program.

5. What We Do
• Convert cameras into intelligent sensors that make
business decisions, using powerful decision-making
software (analytics)
• Analytics run on real time video to provide automated alerts.
• Delivers reliable detection in complex environments where noise
had previously limited application.
• Operates in remote, low bandwidth – Processes at edge.

6. What We offer
• Develop and Supply Video Analytic Systems
 Reliably detect and automatically report in real time.
 Powerful software, remotely deployable, efficiently networked.
 Effective storage/retrieval , system integration and OAM.
 New Installs and Intelligence upgrades to existing networks.
 High performance to cost ratio enabled by efficient code.
 Scalable enterprise architecture

7. Technology Overview
• IntelliView has developed new methods of detecting liquid spills
and leaks for Oil and Gas facilities. The solution is a combination of
patented software analytics, purpose built ruggedized hardware,
and video sensors.
• Camera images are sent to the DVR and processed by the chosen
analytic (leak, security…), which determines if user defined rules
are met.
• The system is fully automated, notifying personnel when an alarm
condition occurs as well as sending scheduled images or video as a
routine site check.
• A full suite of site security analytics can also be implemented on the
same platform, using additional sensors and/or access control.
• Remote communications are fully supported, with multiple
protocol, SCADA, and instrumentation ports to tie into on-site
process controls.

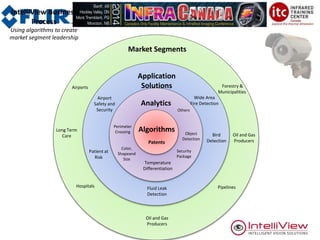

8. IntelliView Business
Process
Using algorithms to create
market segment leadership
Market Segments
Application
Solutions
Patents
Analytics
Algorithms
Patents
Oil and Gas
Producers
Pipelines
Airports
Hospitals
Long Term
Care
Forestry &
Municipalities
Airport
Safety and
Security
Patient at
Risk
Wide Area
Fire Detection
Bird
Detection
Fluid Leak
Detection
Object
Detection
Temperature
Differentiation
Perimeter
Crossing
Security
Package
Color,
Shapeand
Size
Others
Oil and Gas
Producers

9. Portfolio
• Leading edge innovator in video
analytics.
– 6 + 1 Patents issued
– 2 patents pending
– 17 total applications
• Recognized leader in Video
compression Technology - H.264
standard.
• 100’s of publications and papers on
video technology and object
extraction.
SFA:
Sequential
Frame
Analysis
Environmental
Filtering
Archiving and
Retrieval

10. System level

11. Typical Application Overview
Area to be monitored
Thermal or Color Camera SmrtDVR running Analytics
Video Signal
Communications – Cell
Modem
Outbound Alarms to any e-mail enabled
device, inbound monitoring by any Internet
Explorer device, globally
Cell Network

12.  Oil and Gas
 Construction Sites
 Financial Institutions
 Residential
 Retail
 Hazardous Environments
 Manufacturing Facilities
 Property Management
 Mining
 Transportation
 Law Enforcement
 Healthcare
 and others
Industry Sectors
Some of the industry sectors that are and can be addressed
include:

13. FACTs - Market drivers

15. Typical video analytics look for pixel changes in the thermal image to determine if there
is a leak. Over two years of development work focused specifically on leak
characteristics, installation environments, and customer feedback has shown this to be
too simplistic and results in high volumes of false alarms.
IntelliView Leak Detection analytics watch for specific characteristics, some of which
include:
– The leak must originate within the area of interest.
– The leak must be persistent within the time period.
– The leak must be within a certain diameter within the area of interest.
– Multiple leak origin points are valid only if within a certain time period/size/location.
– The leak must be a certain size.
– The leak must have a movement component.
These components combine within the analytic to discriminate between simple
“movement” and an actual leak.
The Leak Analytic, more than heat changes.

16. Leak Detection Example Clips
Diesel Leak at 50 feet
Propane Leak at 50 feet

17. Leak Detection Example Clips
Diesel Leak at 150 feet in heavy rain
Small Flange drip Leak at 50 feet

18. Typical Applications in Oil & Gas Environments
• Monitoring of remote or unmanned pump stations to detect liquid leaks
and for site security.
• Monitoring of above ground equipment such as valves, pig traps, or
unmanned batteries for detection of liquid leaks and for site security.
• Temporary monitoring of drilling rigs (oil or gas) that are unmanned during
break up for site security.
• Monitoring of critical sections of above ground pipeline such as river
crossings, near populated areas, or partially manned facilities requiring
immediate response.
• Flare and stack monitoring for safety and ERCB requirements.
• Integration with DeltaV process control for color and thermal imaging and
monitoring.
• Bird detection for all weather 24/7 prevention for tailings ponds.
• Perimeter security in large footprint facilities with or without fencing.

19. Where does the liquid leak detection analytic
work?
• Above ground oil production, processing & transport facilities
– Pump stations
– Headers / block valves
– Tank terminals
– River crossings
– SAGD production wellpads
– Conventional pump jacks
– Hot bitumen lines
– Bitumen treatment areas
– Tailings processing
Any above ground liquids processing area where the
liquid has a temperature that is different from its
surrounding environment.

20. Leak Detection - Analytics
• IntelliView’s patented analytics also incorporate
breakthrough technology to dramatically reduce
the false alarms which plague competitive video
based solutions.
• These new algorithms compensate for changes
in shadow, glare, and snow to reduce these
errors by over 95%.
• Additional user controls further reduce false
alarms including filtering target size, speed, and
direction.
Field application detection rates are
fully documented
• Hundreds of tests in both controlled conditions and at customer sites has
resulted in reliable, repeatable, and site functional solutions. Tight
integration and control of each system module maximizes overall system
capability.

21. Motion Inside
a Region
Perimeter
Crossing
Loitering
Object Left
Behind
Object Taken
Trip Wire One
Direction & Both
Directions
Security Analytics
Patented Standard Software

22. Security
Security
+ Leak
Outdoor Leak
Indoor Leak

23. Pump Station Leak Detection - Outdoor
• Thermal cameras monitor outdoor
headers and valves, detecting leaks
through differences in ambient
temperature and product temperature.
• Color cameras pair with the thermal
cameras to provide operators with
further detail to confirm alerts and
alarms.
Pump Station Monitoring
• At 25m the analytic can detect a leak the size of a sheet of paper,
whether it is spraying, dripping, or pooling. The analytic is capable of
detecting a leak using a temperature difference as little as 2o C.
• In actual application, simulated leaks have been routinely detected at
all temperatures, with a typical response of less than a minute when
configured for higher confidence levels.

24. Pump Station Leak Detection - Indoor
• Color cameras monitor indoor areas such as floors
and drains, detecting leaks through matching the
color of the product to a predefined color palette .
• Color Match Analytics require consistent lighting,
and can be configured to as close to the color
match needs to be to trigger.
• As the product moves into the area being
monitored, the analytic compares the color of the
leak against user defined parameters including
how close the color is to the target and how much
area is being covered. Once alarm conditions are
met, the system triggers the alarm.
Indoor Pump House Monitoring

25. Critical Oil & Gas Infrastructure Security
• Unmanned pump stations are susceptible
to undetected leaks as well as vandalism.
IntelliView’s SmrtDVR system can provide
fully automated monitoring to manage all
aspects of remote operational risks.
• Color and/or thermal cameras monitor
locations such as fences, gates, access
roads and yard spaces.
• Security analytics include line crossing,
movement in area, loitering and others.
• Access through gates and doors can also
be controlled.
• Unauthorized access triggers alarms and
sends an image immediately.
Gate, fence, road and yard monitoring

26. Typical Site Overview: Areas of Interest

27. Security Analytics example clips
Gate monitoring/vehicle entry
Gate monitoring/vehicle
exit

28. Trailer overview
• TrailerView - A self-contained industrial mobile video
solution providing 360 o day/night coverage .
• Uses fuel cell and solar technology for off-grid
applications (40+ days) or AC for powered
locations.
• 4 channel ruggedized DVR provides full analytic
capability.
• Deployable in 1-2 hours when on-site and
requires little or no maintenance.
• Typically deployed for temporary security at shut in rig sites and O&G sites under
construction, and monitored by a security company to prevent vandalism. Also
deployed to active sites under construction/modification to monitor for leaks in
new equipment or installations.

29. Remote site monitoring example

30. Challenges and Lessons learned

31. For Questions or Demonstrations
Prof. Wael Badawy
IntelliView Technologies Inc.
Email: badawy@IntelliView.ca
Telephone: 403-338-0001 x515
Website: www.intelliview.ca
