Implementing High Availability Caching with Memcached
The document outlines the creation of high availability (HA) services for a Memcached environment, detailing what Memcached is, its functionality, and how it improves performance for high-traffic web applications. It discusses various HA options, including clustering and replication, and introduces Gear6 as a provider of Memcached solutions. The presentation emphasizes the importance of maintaining operational continuity amidst increasing web traffic and database loads.
More Related Content
Similar to Implementing High Availability Caching with Memcached
Implementing High Availability Caching with Memcached
- 1. Creating High AvailabilityServices for Your Memcached Environment Presented by: Bill Takacs – Director, Product Management 25 August 2009

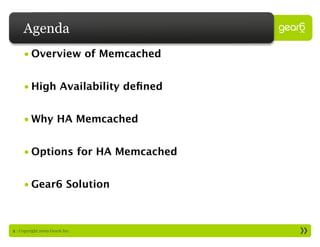

- 2. Agenda • Overview of Memcached • High Availability defined • Why HA Memcached • Options for HA Memcached • Gear6 Solution 2 : Copyright 2009 Gear6 Inc.

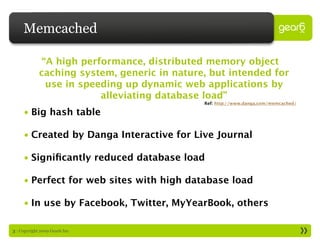

- 3. Memcached “A high performance, distributed memory object caching system, generic in nature, but intended for use in speeding up dynamic web applications by alleviating database load” Ref: http://www.danga.com/memcached/ • Big hash table • Created by Danga Interactive for Live Journal • Significantly reduced database load • Perfect for web sites with high database load • In use by Facebook, Twitter, MyYearBook, others 3 : Copyright 2009 Gear6 Inc.

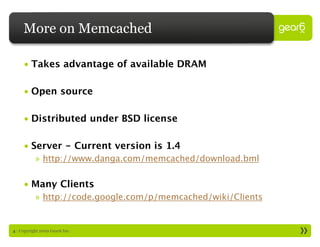

- 4. More on Memcached • Takes advantage of available DRAM • Open source • Distributed under BSD license • Server - Current version is 1.4 » http://www.danga.com/memcached/download.bml • Many Clients » http://code.google.com/p/memcached/wiki/Clients 4 : Copyright 2009 Gear6 Inc.
- 5. How Does MemcachedWork? • Client - Server • Hash Function • Memcached » Two stage » Key / value pair 5 : Copyright 2009 Gear6 Inc.

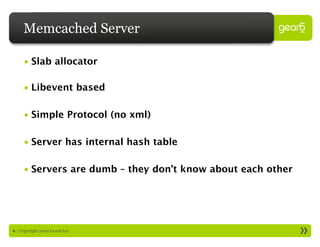

- 6. Memcached Server • Slab allocator • Libevent based • Simple Protocol (no xml) • Server has internal hash table • Servers are dumb – they don’t know about each other 6 : Copyright 2009 Gear6 Inc.
- 7. Memcached Server • Limits » Key size = (250 bytes) » 1MB Limit » 32bit/64bit (maximum size of process) • LRU » Least recently accessed items are cycled out » One LRU exists per “slab class” » LRU “evictions” need not be common • Threads? Yes 7 : Copyright 2009 Gear6 Inc.

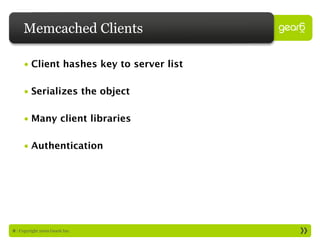

- 8. Memcached Clients • Client hashes key to server list • Serializes the object • Many client libraries • Authentication 8 : Copyright 2009 Gear6 Inc.

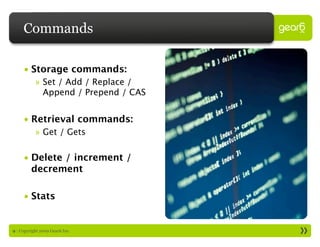

- 9. Commands • Storage commands: » Set / Add / Replace / Append / Prepend / CAS • Retrieval commands: » Get / Gets • Delete / increment / decrement • Stats 9 : Copyright 2009 Gear6 Inc.

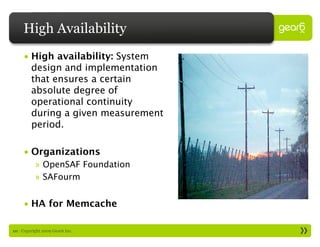

- 10. High Availability • High availability: System design and implementation that ensures a certain absolute degree of operational continuity during a given measurement period. • Organizations » OpenSAF Foundation » SAFourm • HA for Memcache 10 : Copyright 2009 Gear6 Inc.
- 11. Key Concepts • Clustering • Failover • Replication 11 : Copyright 2009 Gear6 Inc.

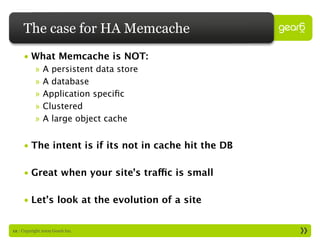

- 12. The case forHA Memcache • What Memcache is NOT: » A persistent data store » A database » Application specific » Clustered » A large object cache • The intent is if its not in cache hit the DB • Great when your site’s traffic is small • Let’s look at the evolution of a site 12 : Copyright 2009 Gear6 Inc.

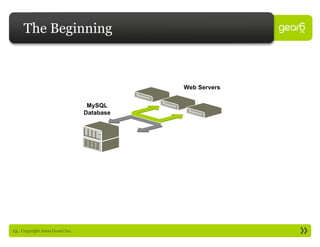

- 13. The Beginning Web Servers MySQL Database 13 : Copyright 2009 Gear6 Inc.

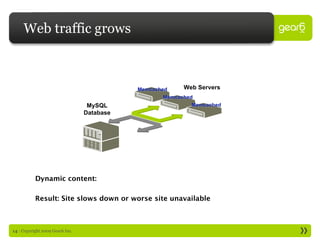

- 14. Web traffic grows Memcached Web Servers Memcached MySQL Memcached Database Dynamic content: Result: Site slows down or worse site unavailable 14 : Copyright 2009 Gear6 Inc.

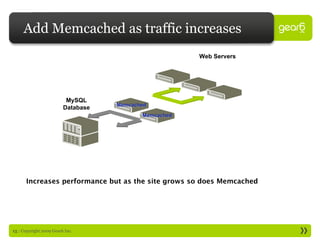

- 15. Add Memcached astraffic increases Web Servers MySQL Memcached Database Memcached Increases performance but as the site grows so does Memcached 15 : Copyright 2009 Gear6 Inc.

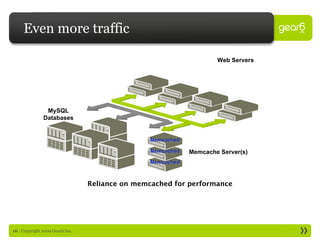

- 16. Even more traffic Web Servers MySQL Databases Memcached Memcached Memcache Server(s) Memcached Reliance on memcached for performance 16 : Copyright 2009 Gear6 Inc.

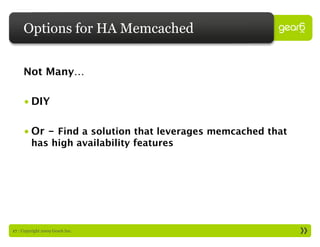

- 17. Options for HAMemcached Not Many… • DIY • Or - Find a solution that leverages memcached that has high availability features 17 : Copyright 2009 Gear6 Inc.

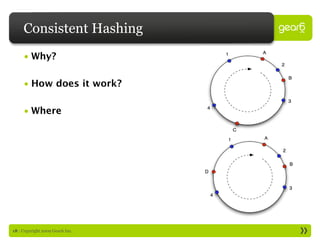

- 18. Consistent Hashing • Why? • How does it work? • Where 18 : Copyright 2009 Gear6 Inc.

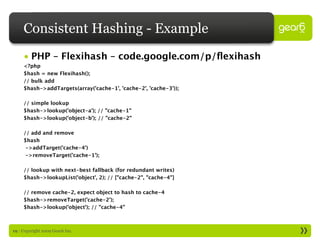

- 19. Consistent Hashing -Example • PHP – Flexihash – code.google.com/p/flexihash <?php $hash = new Flexihash(); // bulk add $hash->addTargets(array('cache-1', 'cache-2', 'cache-3')); // simple lookup $hash->lookup('object-a'); // "cache-1" $hash->lookup('object-b'); // "cache-2" // add and remove $hash ->addTarget('cache-4') ->removeTarget('cache-1'); // lookup with next-best fallback (for redundant writes) $hash->lookupList('object', 2); // ["cache-2", "cache-4"] // remove cache-2, expect object to hash to cache-4 $hash->removeTarget('cache-2'); $hash->lookup('object'); // "cache-4" 19 : Copyright 2009 Gear6 Inc.

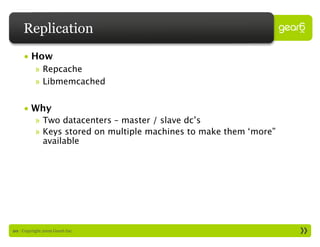

- 20. Replication • How » Repcache » Libmemcached • Why » Two datacenters – master / slave dc’s » Keys stored on multiple machines to make them ‘more” available 20 : Copyright 2009 Gear6 Inc.

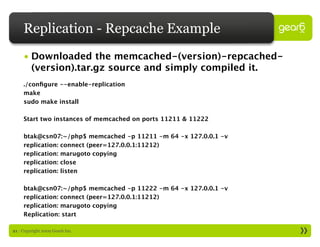

- 21. Replication - RepcacheExample • Downloaded the memcached-(version)-repcached- (version).tar.gz source and simply compiled it. ./configure --enable-replication make sudo make install Start two instances of memcached on ports 11211 & 11222 btak@csn07:~/php$ memcached -p 11211 -m 64 -x 127.0.0.1 -v replication: connect (peer=127.0.0.1:11212) replication: marugoto copying replication: close replication: listen btak@csn07:~/php$ memcached -p 11222 -m 64 -x 127.0.0.1 -v replication: connect (peer=127.0.0.1:11212) replication: marugoto copying Replication: start 21 : Copyright 2009 Gear6 Inc.
- 22. Replication – RepcacheExample Cont Now set and get a value on instance on Connect to port 11222 and try getting port 11211 this value btak@csn07:~$ telnet localhost 11211 btak@csn07:~$ telnet localhost 11222 Trying 127.0.0.1... • Trying 127.0.0.1... Connected to localhost. • Connected to localhost. Escape character is '^]'. • Escape character is '^]'. set hello 0 0 5 • get hello world • VALUE hello 0 5 STORED • world get hello • END VALUE hello 0 5 world END 22 : Copyright 2009 Gear6 Inc.
- 23. Replication – RepcacheExample Cont Suppose server on 11211 goes down Let’s see if its replicated on 11211 On port 11211 btak@csn07:~$ telnet localhost 11211 Killed Trying 127.0.0.1... btak@csn07:~/php$ memcached -11211 Connected to localhost. -m 64 -x 127.0.0.1 -v Escape character is '^]'. replication: connect get hello (peer=127.0.0.1:11222) VALUE hello 0 5 replication: marugoto copying world replication: start END get key On port 11222 VALUE key 0 5 <---snip myval replication: close END replication: listen replication: accept replication: marugoto start replication: marugoto 2 replication: marugoto owari <---snip--> 23 : Copyright 2009 Gear6 Inc.
- 24. Clustering • www.linux-ha.org • Provides high availability clustering solution • Can enable memcached cluster • Combine with consistent hashing 24 : Copyright 2009 Gear6 Inc.

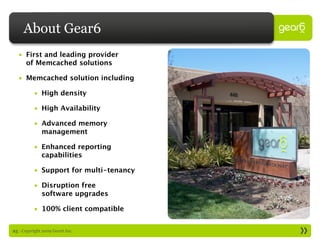

- 25. About Gear6 • First and leading provider of Memcached solutions • Memcached solution including • High density • High Availability • Advanced memory management • Enhanced reporting capabilities • Support for multi-tenancy • Disruption free software upgrades • 100% client compatible 25 : Copyright 2009 Gear6 Inc.

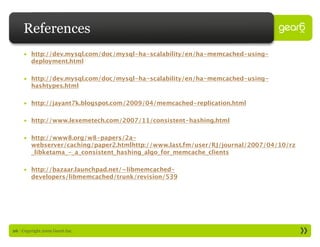

- 26. References • http://dev.mysql.com/doc/mysql-ha-scalability/en/ha-memcached-using- deployment.html • http://dev.mysql.com/doc/mysql-ha-scalability/en/ha-memcached-using- hashtypes.html • http://jayant7k.blogspot.com/2009/04/memcached-replication.html • http://www.lexemetech.com/2007/11/consistent-hashing.html • http://www8.org/w8-papers/2a- webserver/caching/paper2.htmlhttp://www.last.fm/user/RJ/journal/2007/04/10/rz _libketama_-_a_consistent_hashing_algo_for_memcache_clients • http://bazaar.launchpad.net/~libmemcached- developers/libmemcached/trunk/revision/539 26 : Copyright 2009 Gear6 Inc.

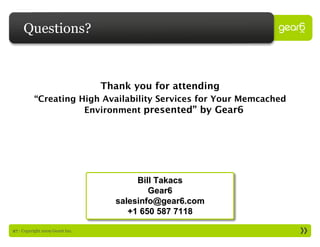

- 27. Questions? Thank you for attending “Creating High Availability Services for Your Memcached Environment presented” by Gear6 Bill Takacs Gear6 salesinfo@gear6.com +1 650 587 7118 27 : Copyright 2009 Gear6 Inc.
