2. IN-MEMORY CACHING
OBJECTS TECHNIQUES
Mauro Cassani,
PUG ROMA
30th May, 2017

3. ABOUT ME
Mauro Cassani
github.com/mauretto78

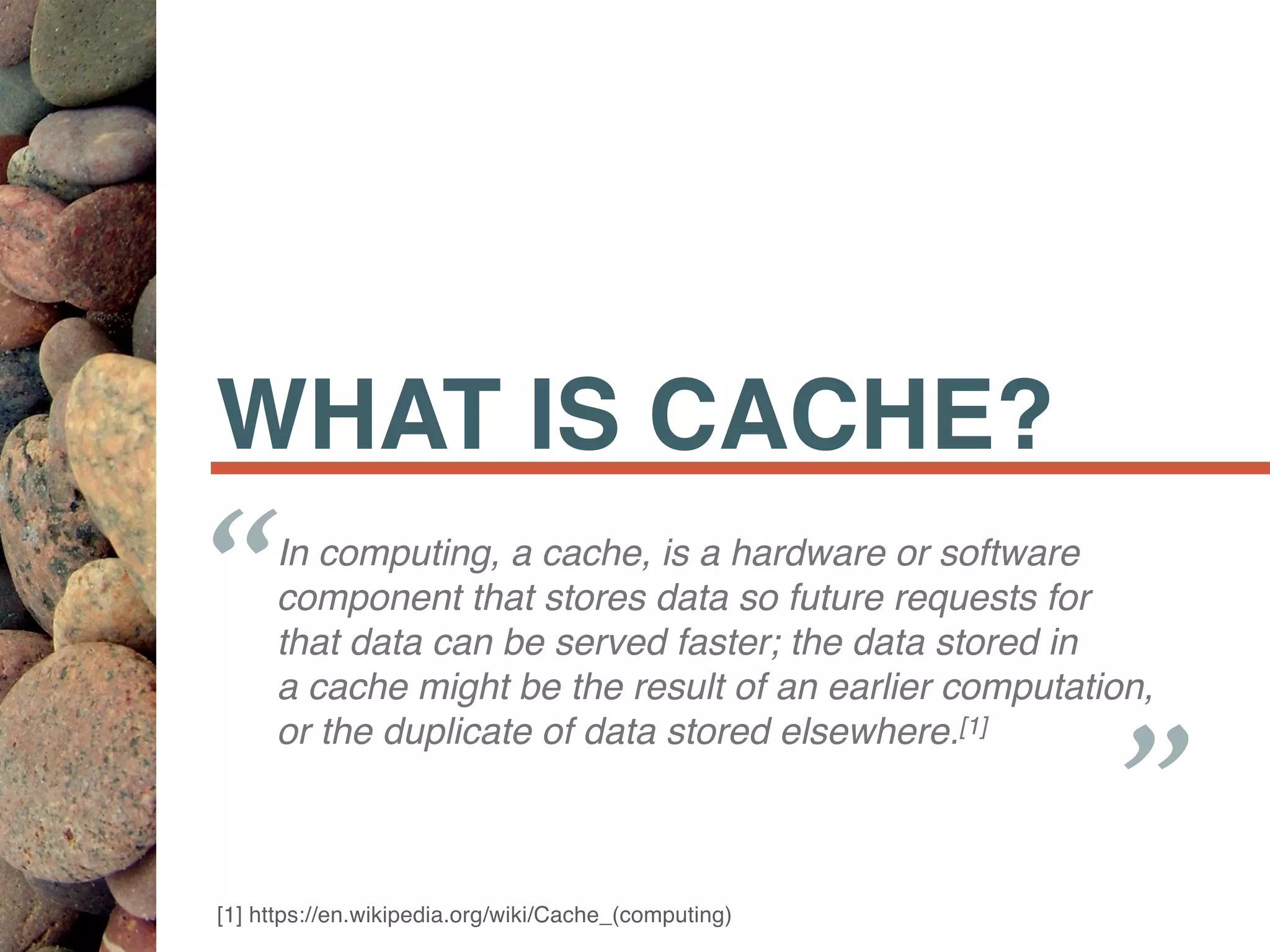

4. WHAT IS CACHE?
In computing, a cache, is a hardware or software
component that stores data so future requests for
that data can be served faster; the data stored in
a cache might be the result of an earlier computation,
or the duplicate of data stored elsewhere.[1]
“ “
[1] https://en.wikipedia.org/wiki/Cache_(computing)

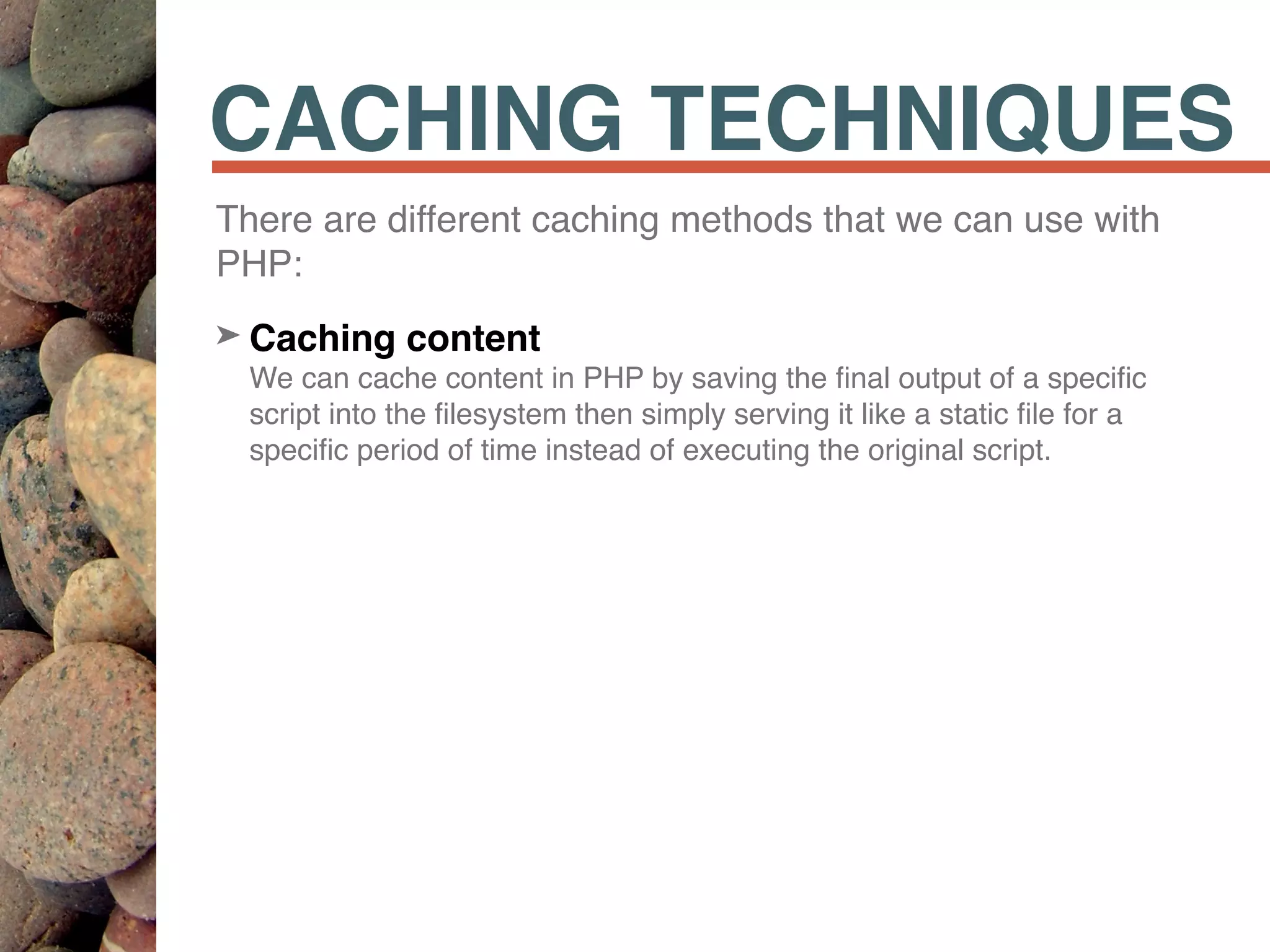

5. CACHING TECHNIQUES
There are different caching methods that we can use with
PHP:
➤ Caching content
We can cache content in PHP by saving the final output of a specific
script into the filesystem then simply serving it like a static file for a
specific period of time instead of executing the original script.

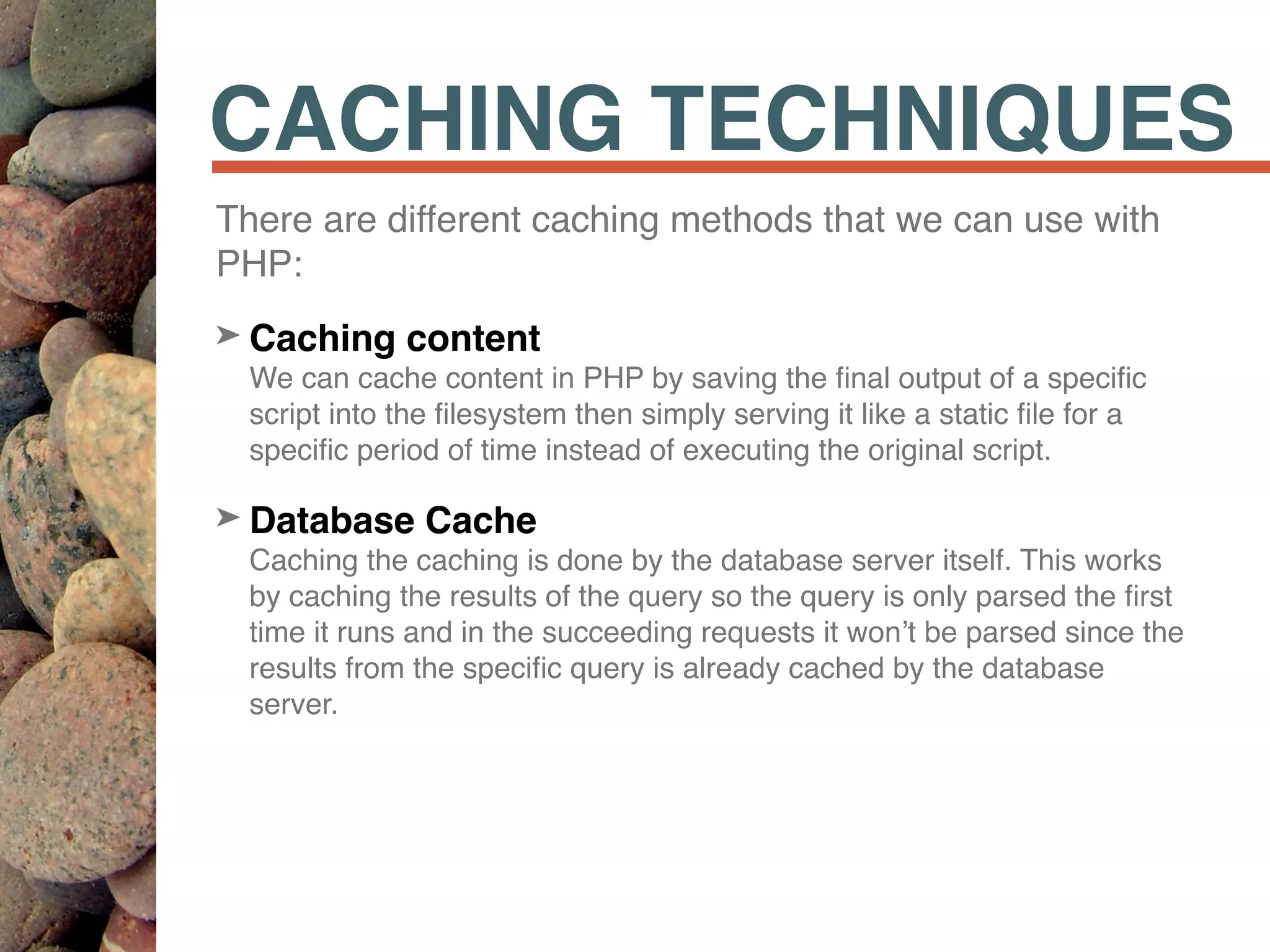

6. CACHING TECHNIQUES
There are different caching methods that we can use with
PHP:
➤ Caching content
We can cache content in PHP by saving the final output of a specific
script into the filesystem then simply serving it like a static file for a
specific period of time instead of executing the original script.
➤ Database Cache
Caching the caching is done by the database server itself. This works
by caching the results of the query so the query is only parsed the first
time it runs and in the succeeding requests it won’t be parsed since the
results from the specific query is already cached by the database
server.

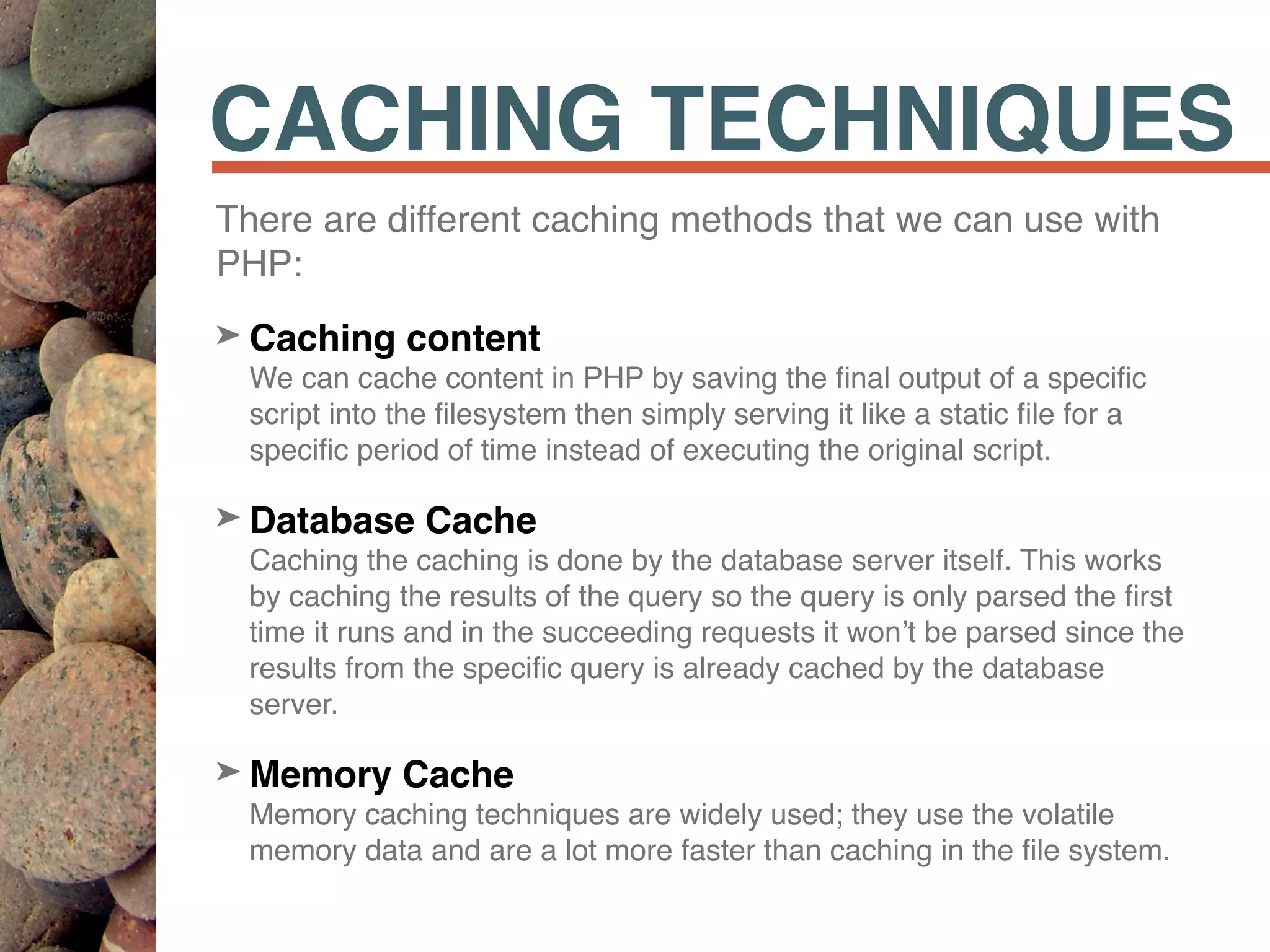

7. CACHING TECHNIQUES
There are different caching methods that we can use with
PHP:
➤ Caching content
We can cache content in PHP by saving the final output of a specific
script into the filesystem then simply serving it like a static file for a
specific period of time instead of executing the original script.
➤ Database Cache
Caching the caching is done by the database server itself. This works
by caching the results of the query so the query is only parsed the first
time it runs and in the succeeding requests it won’t be parsed since the
results from the specific query is already cached by the database
server.
➤ Memory Cache
Memory caching techniques are widely used; they use the volatile
memory data and are a lot more faster than caching in the file system.

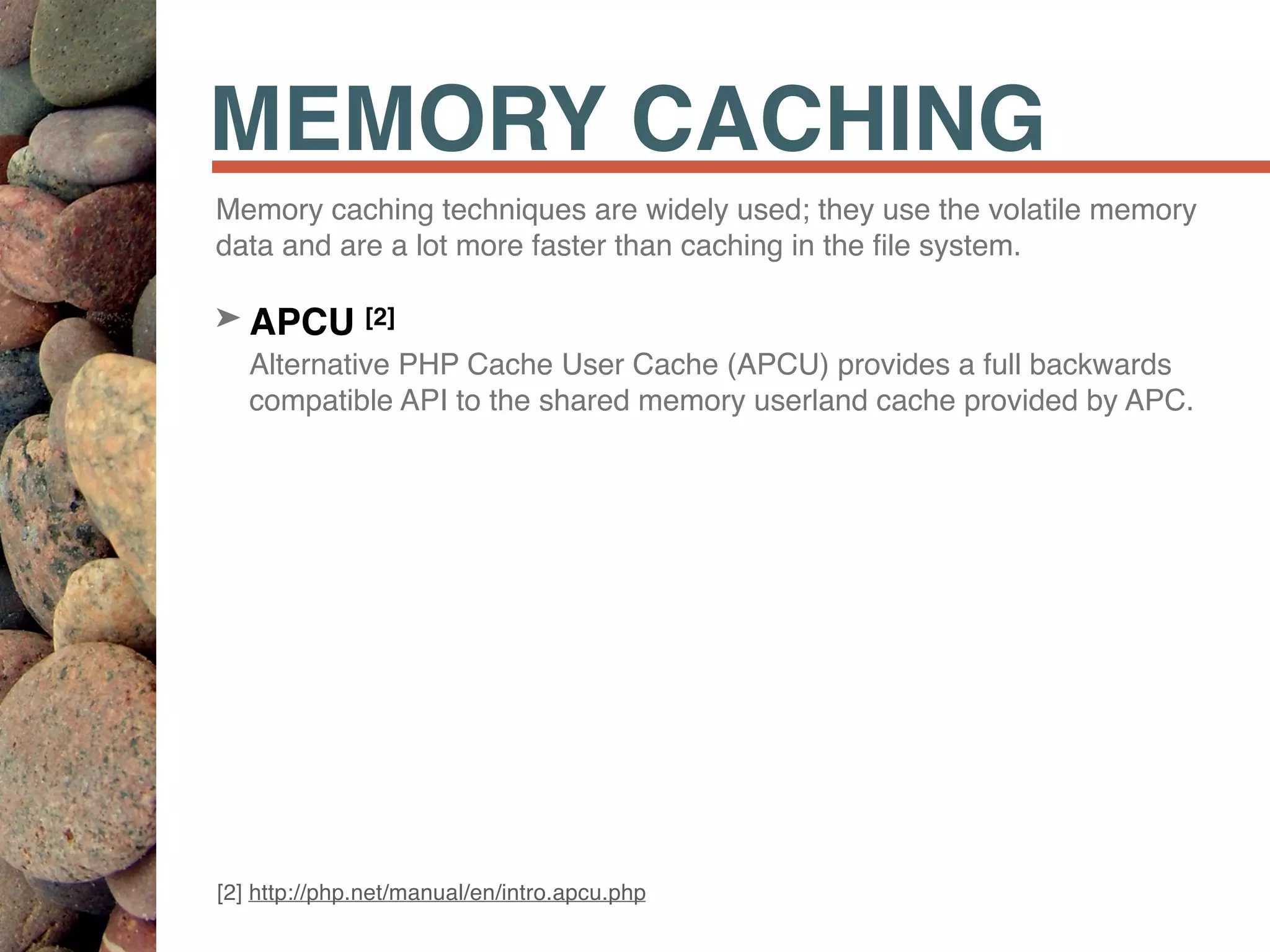

8. MEMORY CACHING
Memory caching techniques are widely used; they use the volatile memory
data and are a lot more faster than caching in the file system.
➤ APCU [2]
Alternative PHP Cache User Cache (APCU) provides a full backwards
compatible API to the shared memory userland cache provided by APC.
[2] http://php.net/manual/en/intro.apcu.php

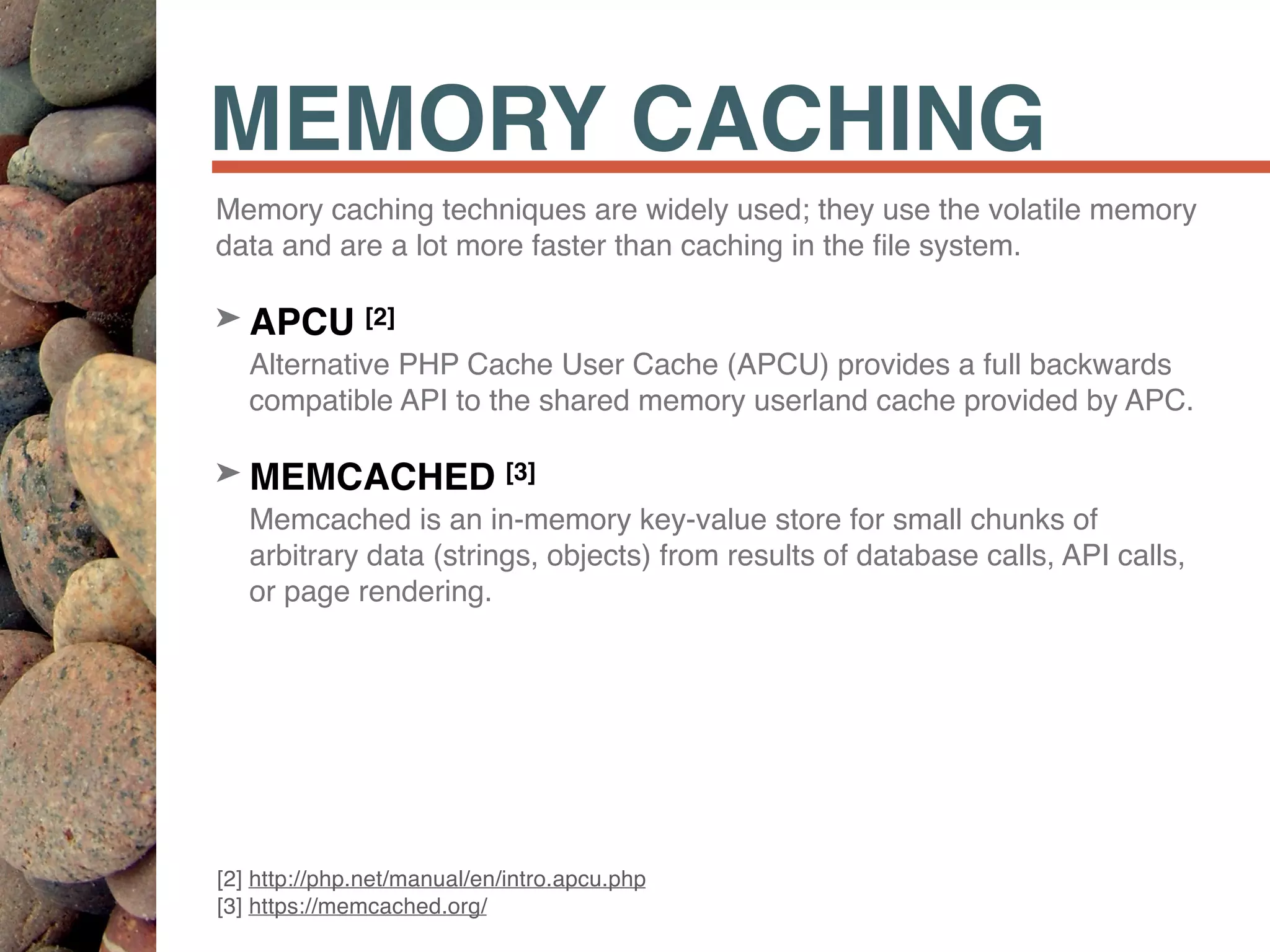

9. MEMORY CACHING
Memory caching techniques are widely used; they use the volatile memory
data and are a lot more faster than caching in the file system.
➤ APCU [2]
Alternative PHP Cache User Cache (APCU) provides a full backwards
compatible API to the shared memory userland cache provided by APC.
➤ MEMCACHED [3]
Memcached is an in-memory key-value store for small chunks of
arbitrary data (strings, objects) from results of database calls, API calls,
or page rendering.
[2] http://php.net/manual/en/intro.apcu.php
[3] https://memcached.org/

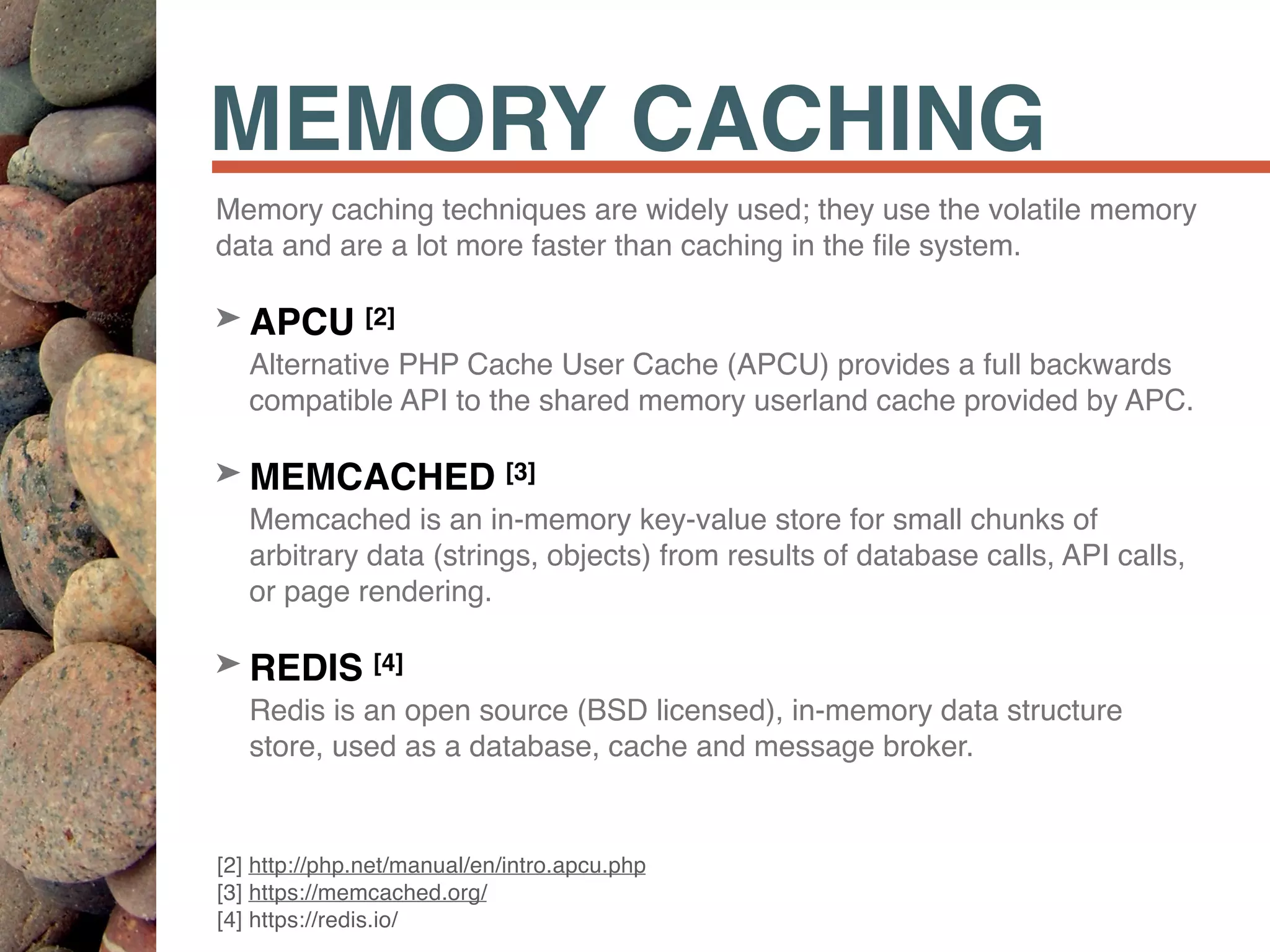

10. MEMORY CACHING
Memory caching techniques are widely used; they use the volatile memory
data and are a lot more faster than caching in the file system.
➤ APCU [2]
Alternative PHP Cache User Cache (APCU) provides a full backwards
compatible API to the shared memory userland cache provided by APC.
➤ MEMCACHED [3]
Memcached is an in-memory key-value store for small chunks of
arbitrary data (strings, objects) from results of database calls, API calls,
or page rendering.
➤ REDIS [4]
Redis is an open source (BSD licensed), in-memory data structure
store, used as a database, cache and message broker.
[2] http://php.net/manual/en/intro.apcu.php
[3] https://memcached.org/
[4] https://redis.io/

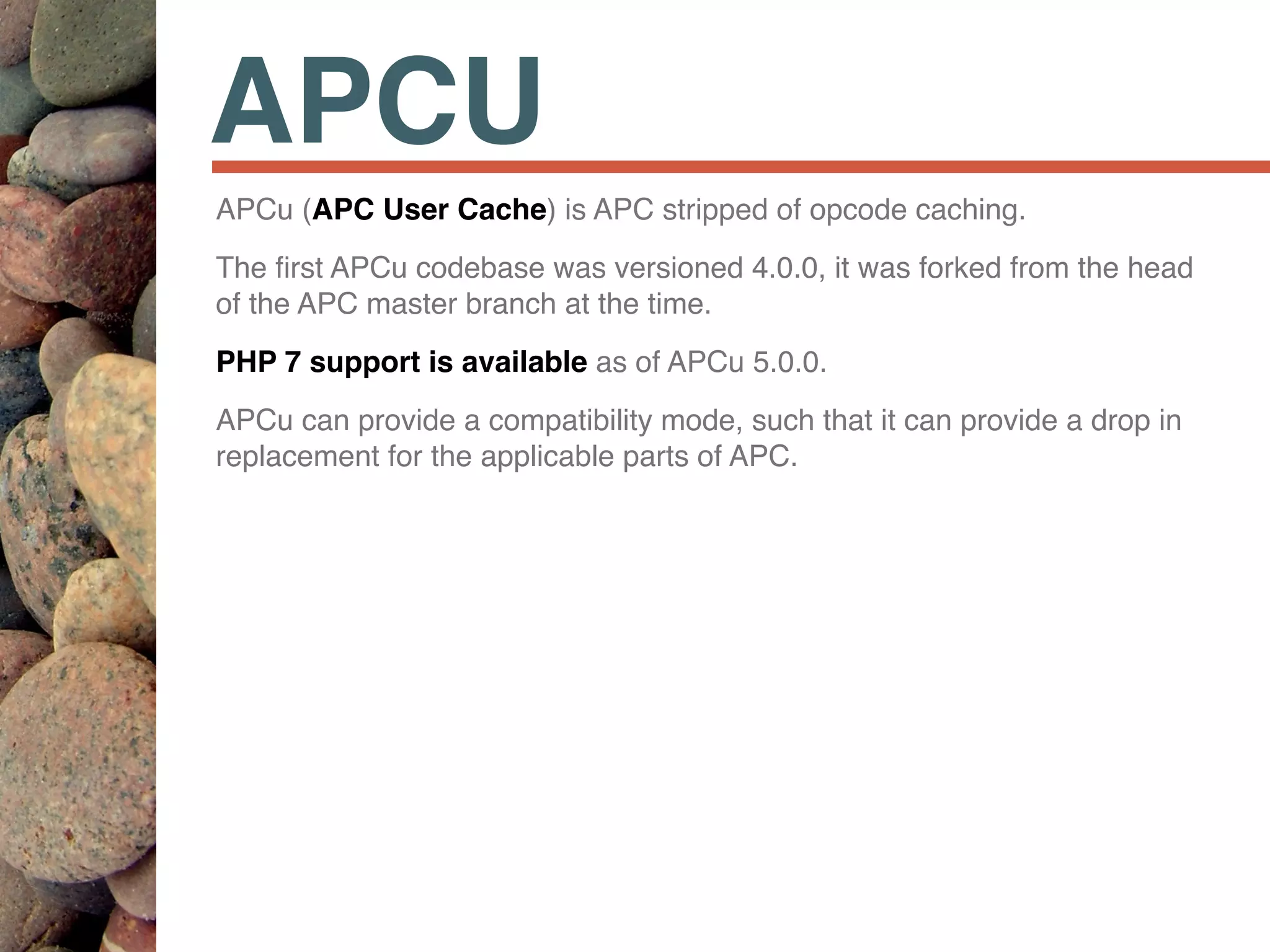

11. APCU
APCu (APC User Cache) is APC stripped of opcode caching.
The first APCu codebase was versioned 4.0.0, it was forked from the head
of the APC master branch at the time.
PHP 7 support is available as of APCu 5.0.0.
APCu can provide a compatibility mode, such that it can provide a drop in
replacement for the applicable parts of APC.

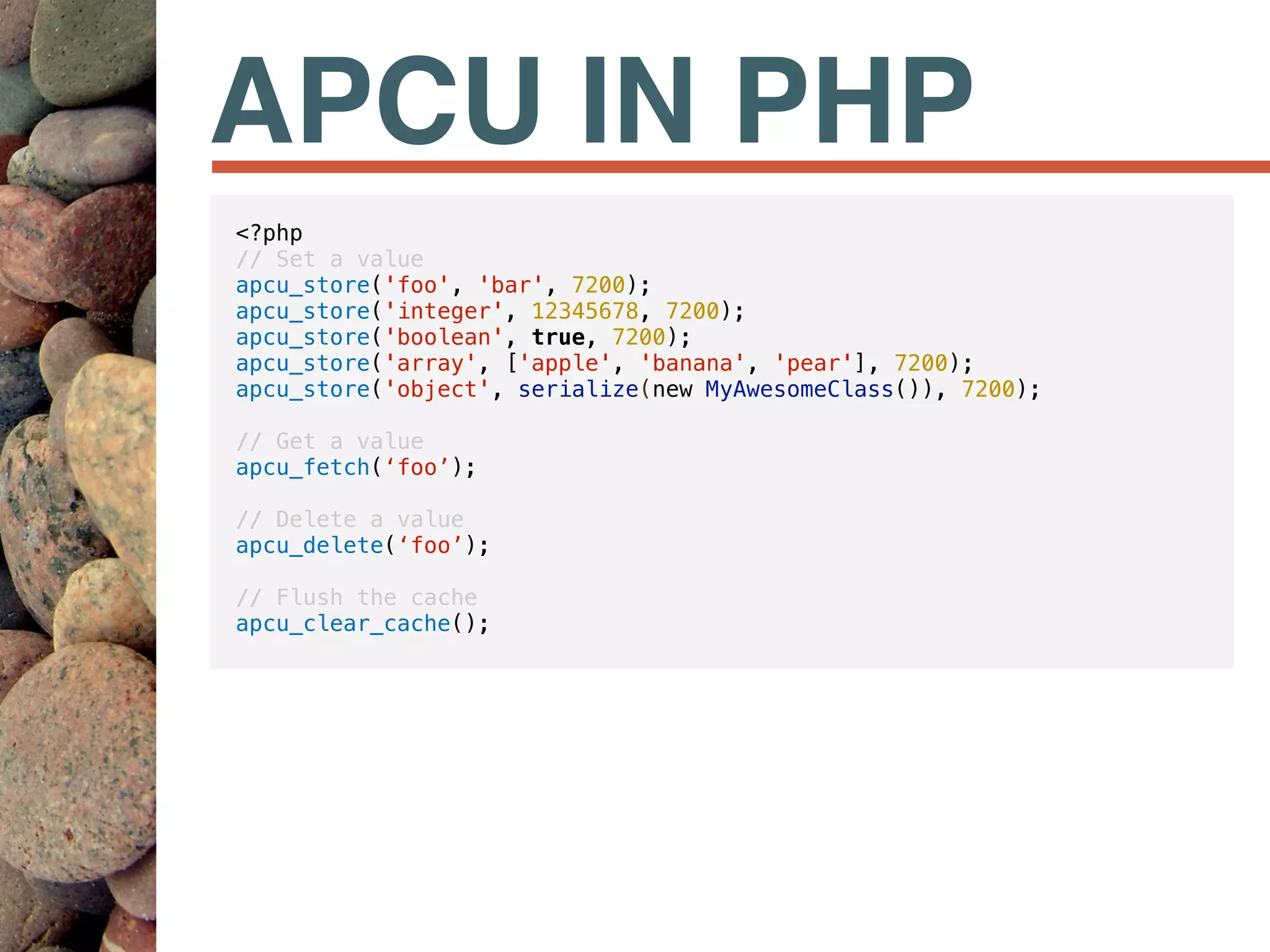

12. APCU IN PHP
<?php
// Set a value
apcu_store('foo', 'bar', 7200);
apcu_store('integer', 12345678, 7200);
apcu_store('boolean', true, 7200);
apcu_store('array', ['apple', 'banana', 'pear'], 7200);
apcu_store('object', serialize(new MyAwesomeClass()), 7200);
// Get a value
apcu_fetch(‘foo’);
// Delete a value
apcu_delete(‘foo’);
// Flush the cache
apcu_clear_cache();

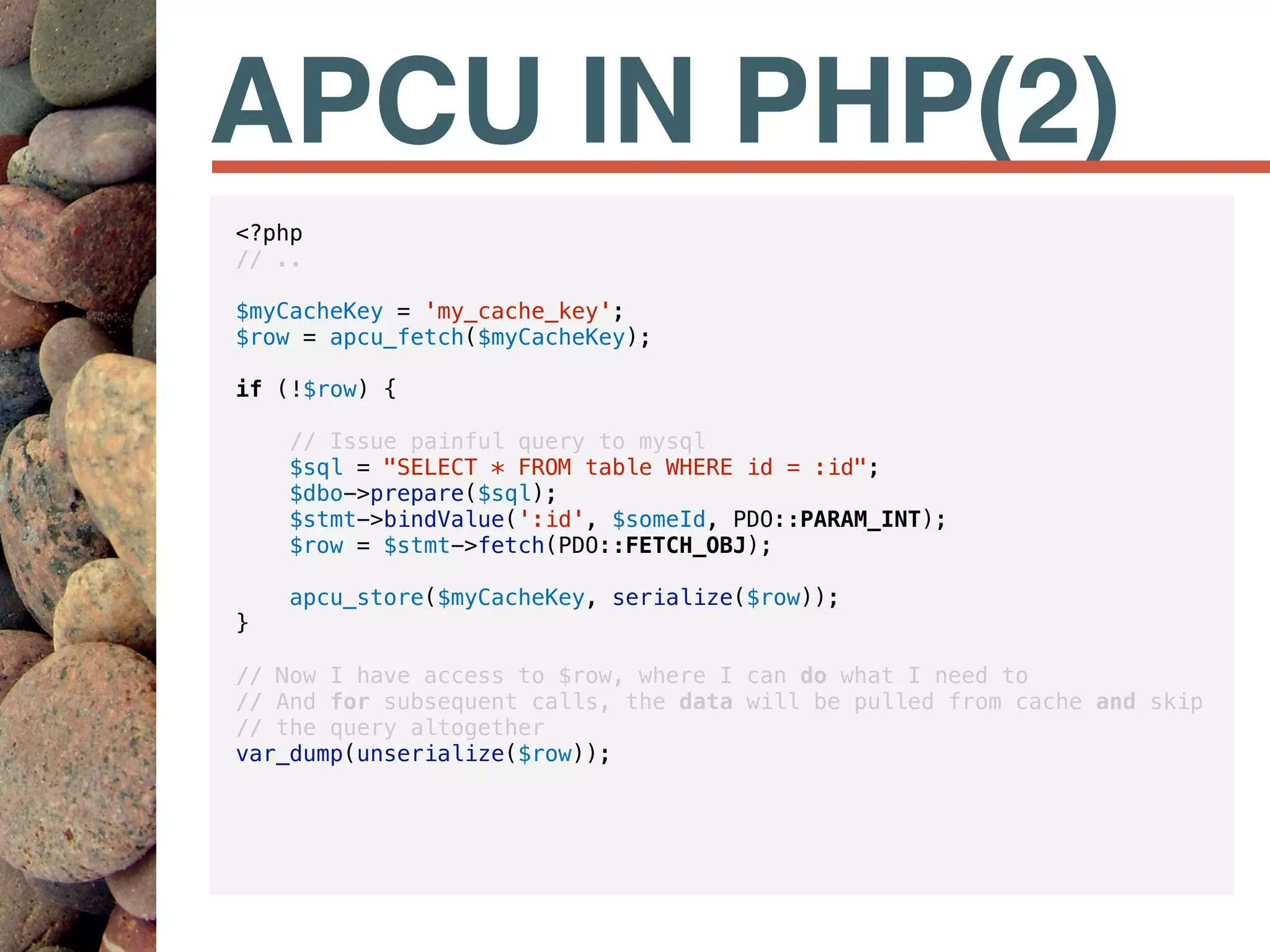

13. APCU IN PHP(2)
<?php
// ..
$myCacheKey = 'my_cache_key';
$row = apcu_fetch($myCacheKey);
if (!$row) {
// Issue painful query to mysql
$sql = "SELECT * FROM table WHERE id = :id";
$dbo->prepare($sql);
$stmt->bindValue(':id', $someId, PDO::PARAM_INT);
$row = $stmt->fetch(PDO::FETCH_OBJ);
apcu_store($myCacheKey, serialize($row));
}
// Now I have access to $row, where I can do what I need to
// And for subsequent calls, the data will be pulled from cache and skip
// the query altogether
var_dump(unserialize($row));

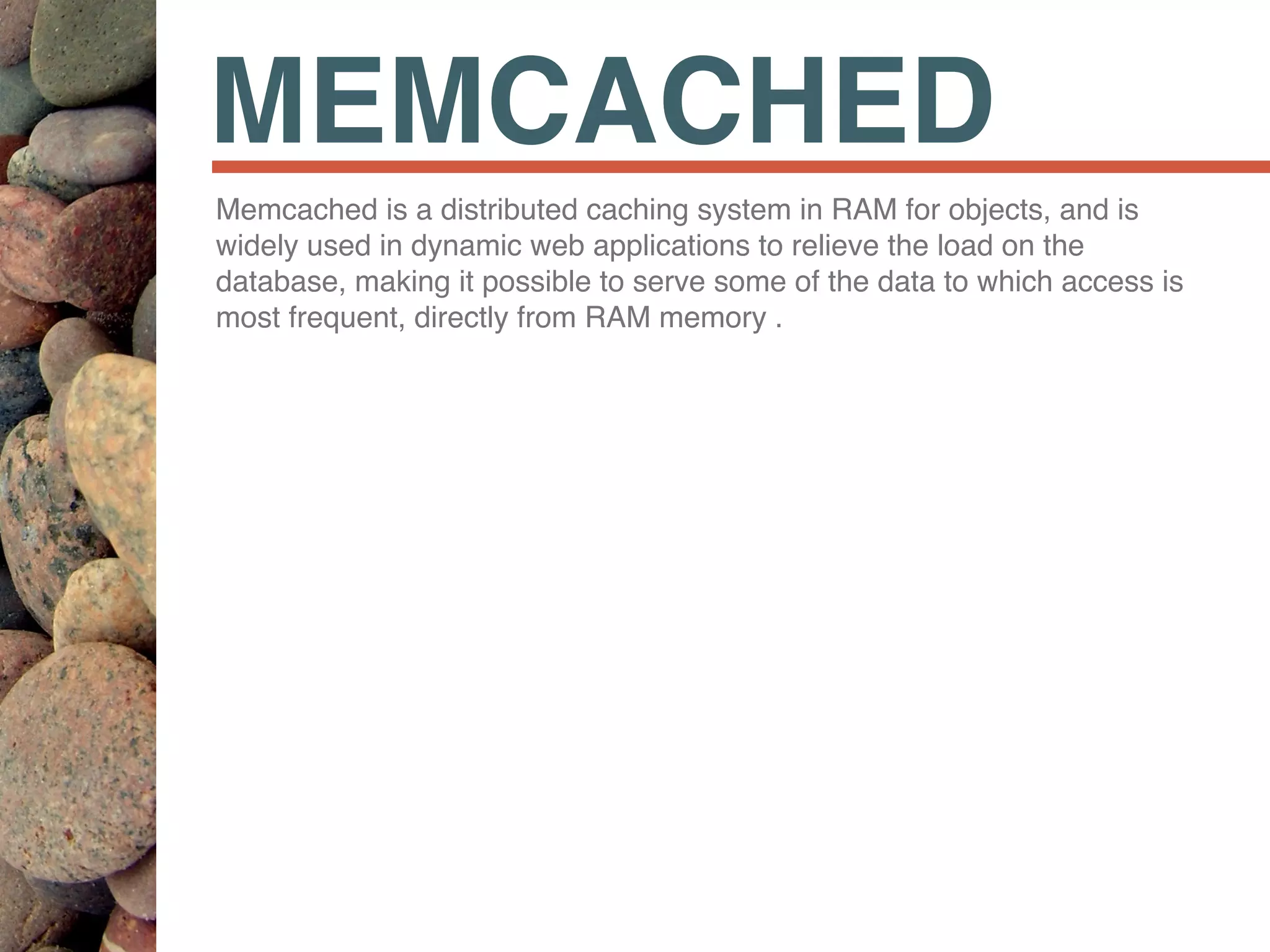

14. MEMCACHED
Memcached is a distributed caching system in RAM for objects, and is
widely used in dynamic web applications to relieve the load on the
database, making it possible to serve some of the data to which access is
most frequent, directly from RAM memory .

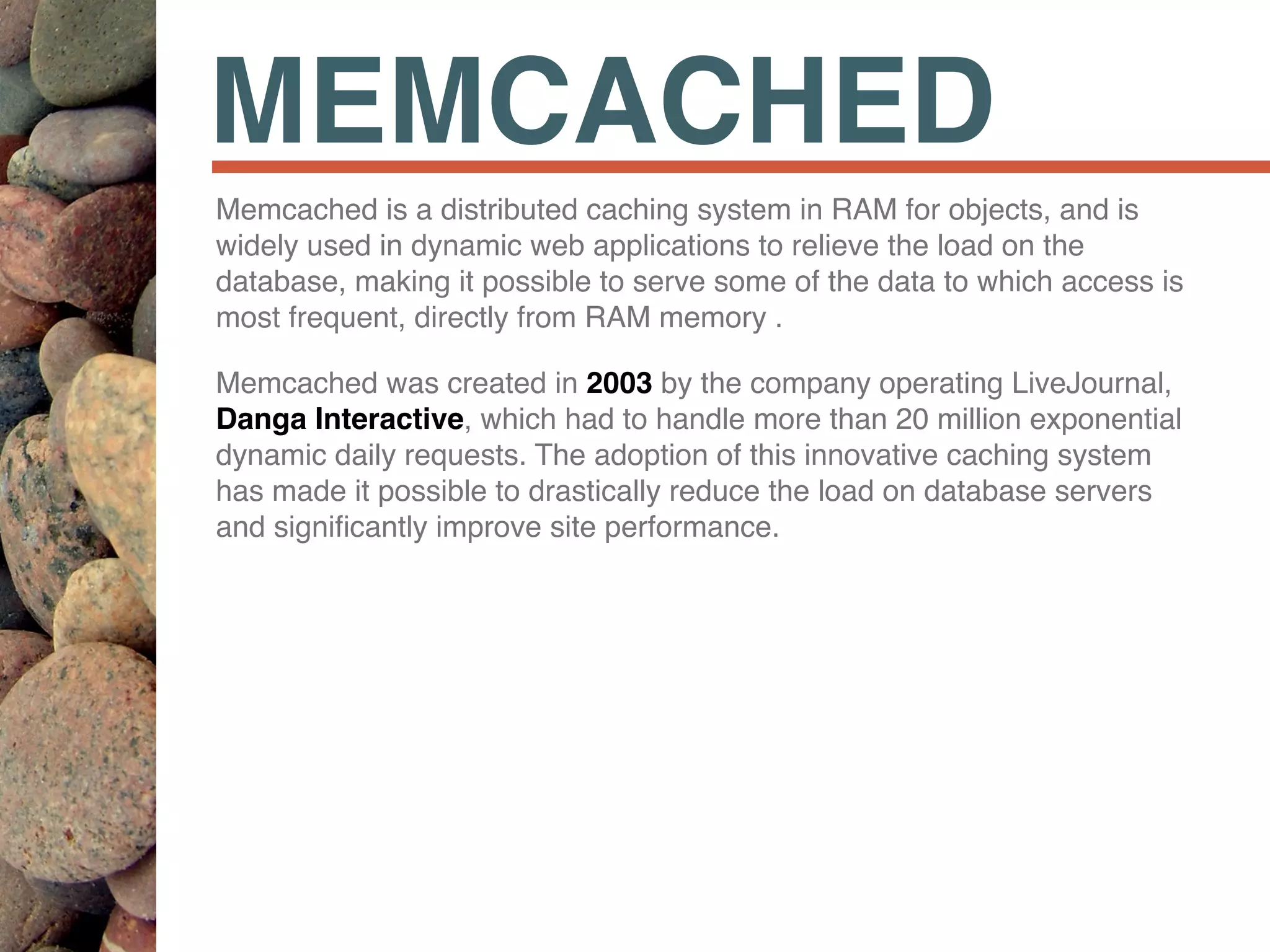

15. MEMCACHED
Memcached is a distributed caching system in RAM for objects, and is
widely used in dynamic web applications to relieve the load on the
database, making it possible to serve some of the data to which access is
most frequent, directly from RAM memory .
Memcached was created in 2003 by the company operating LiveJournal,
Danga Interactive, which had to handle more than 20 million exponential
dynamic daily requests. The adoption of this innovative caching system
has made it possible to drastically reduce the load on database servers
and significantly improve site performance.

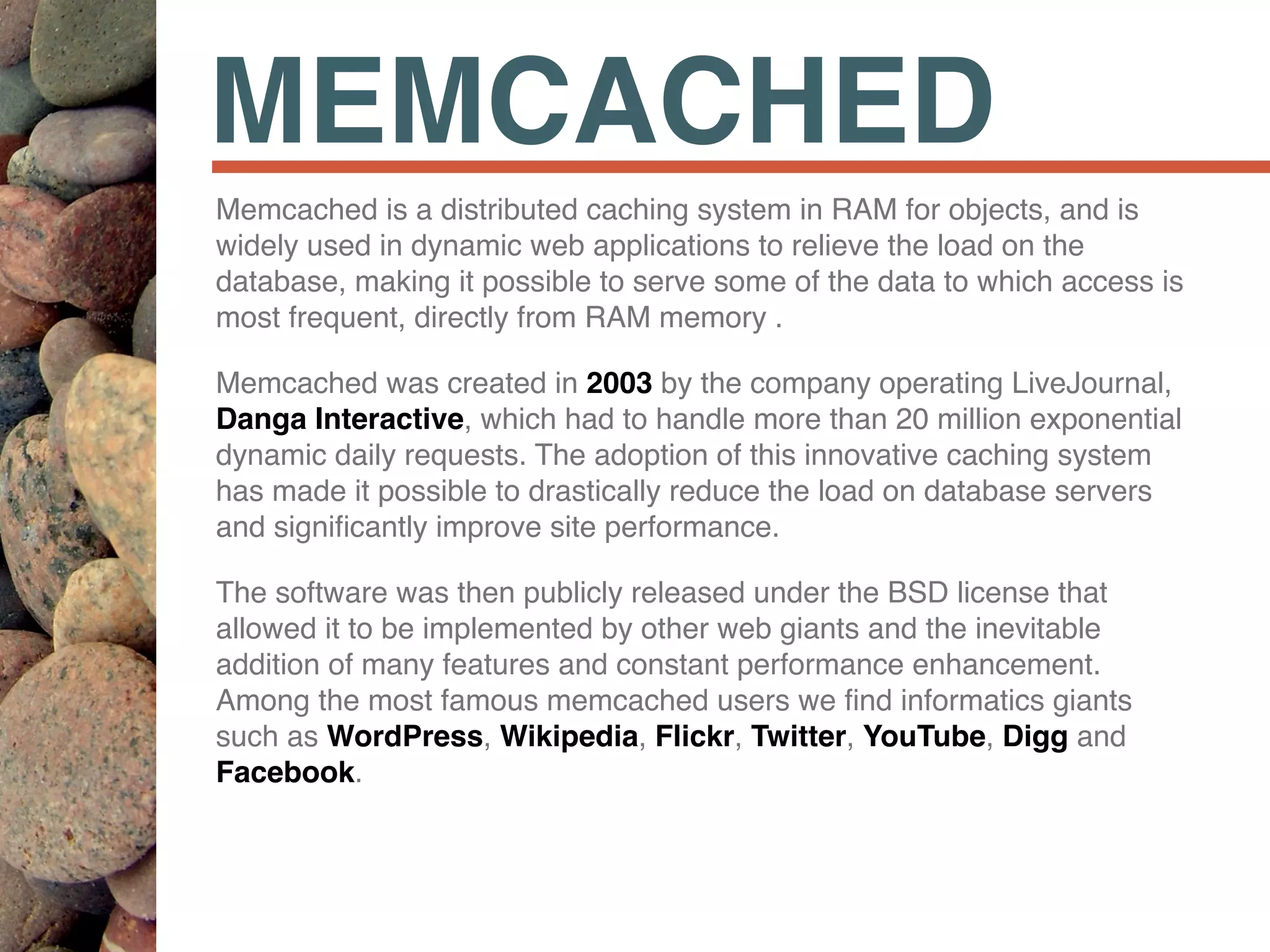

16. MEMCACHED
Memcached is a distributed caching system in RAM for objects, and is
widely used in dynamic web applications to relieve the load on the
database, making it possible to serve some of the data to which access is
most frequent, directly from RAM memory .
Memcached was created in 2003 by the company operating LiveJournal,
Danga Interactive, which had to handle more than 20 million exponential
dynamic daily requests. The adoption of this innovative caching system
has made it possible to drastically reduce the load on database servers
and significantly improve site performance.
The software was then publicly released under the BSD license that
allowed it to be implemented by other web giants and the inevitable
addition of many features and constant performance enhancement.
Among the most famous memcached users we find informatics giants
such as WordPress, Wikipedia, Flickr, Twitter, YouTube, Digg and
Facebook.

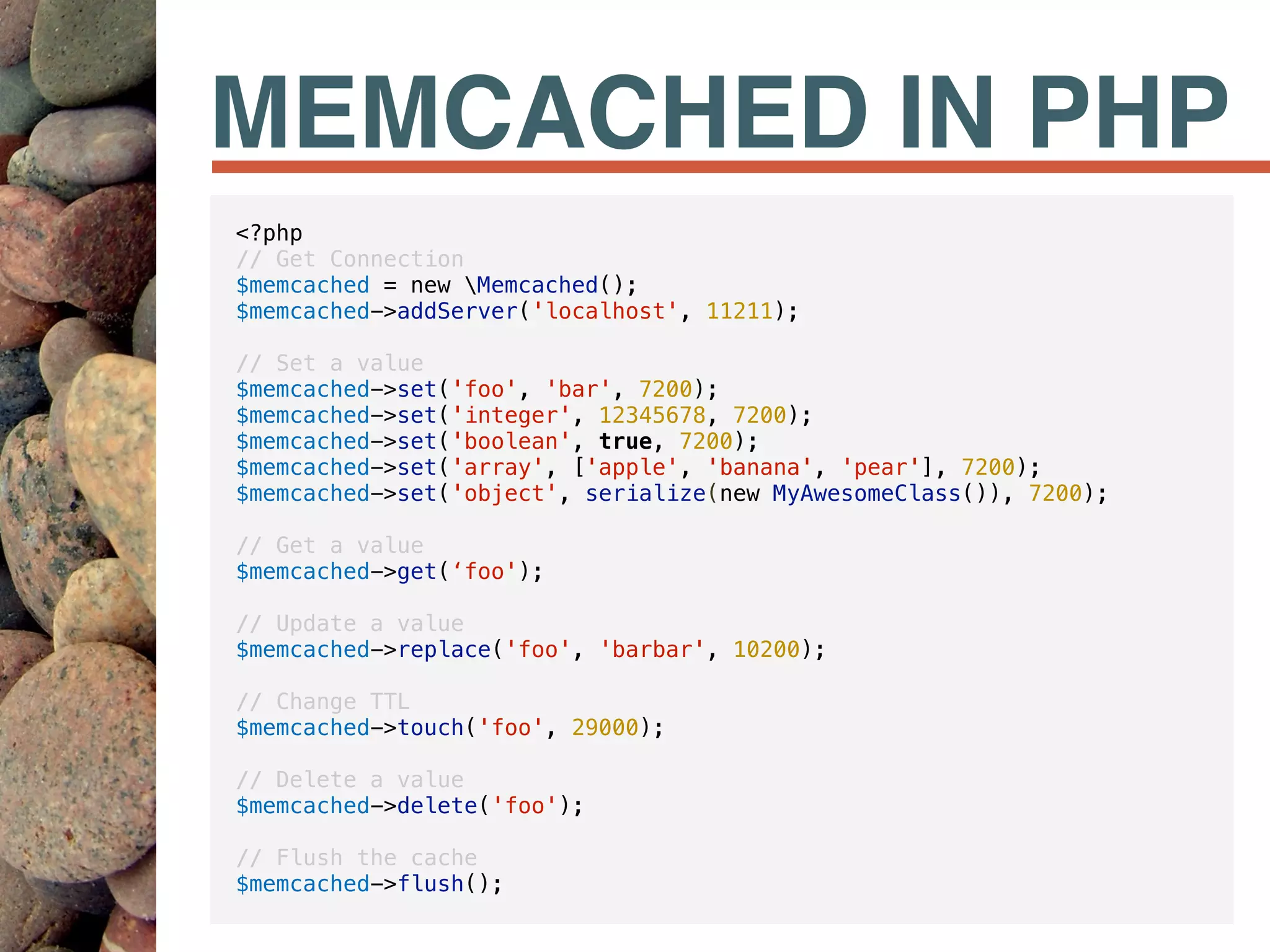

17. MEMCACHED IN PHP
<?php
// Get Connection
$memcached = new Memcached();
$memcached->addServer('localhost', 11211);
// Set a value
$memcached->set('foo', 'bar', 7200);
$memcached->set('integer', 12345678, 7200);
$memcached->set('boolean', true, 7200);
$memcached->set('array', ['apple', 'banana', 'pear'], 7200);
$memcached->set('object', serialize(new MyAwesomeClass()), 7200);
// Get a value
$memcached->get(‘foo');
// Update a value
$memcached->replace('foo', 'barbar', 10200);
// Change TTL
$memcached->touch('foo', 29000);
// Delete a value
$memcached->delete('foo');
// Flush the cache
$memcached->flush();

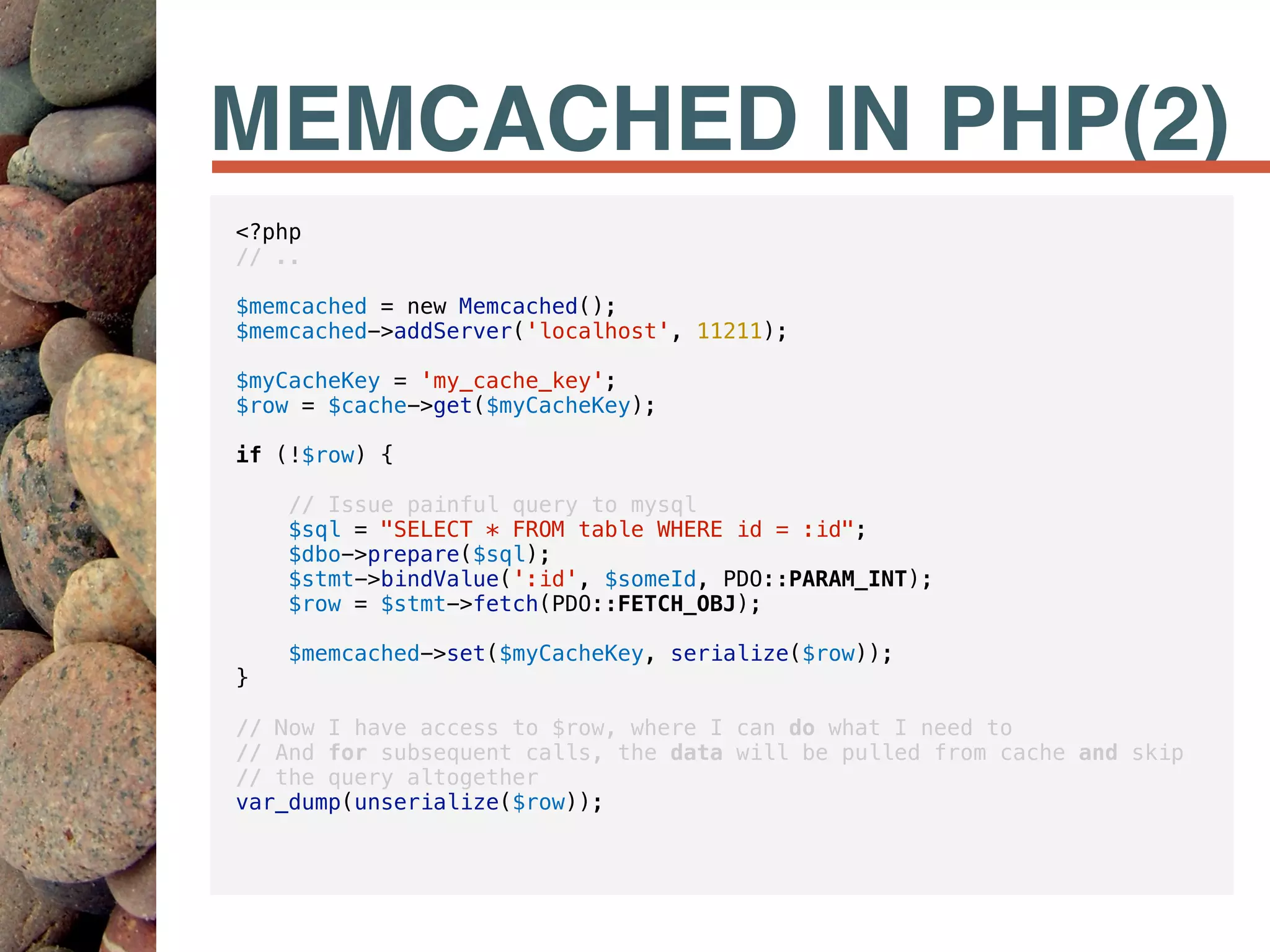

18. MEMCACHED IN PHP(2)
<?php
// ..
$memcached = new Memcached();
$memcached->addServer('localhost', 11211);
$myCacheKey = 'my_cache_key';
$row = $cache->get($myCacheKey);
if (!$row) {
// Issue painful query to mysql
$sql = "SELECT * FROM table WHERE id = :id";
$dbo->prepare($sql);
$stmt->bindValue(':id', $someId, PDO::PARAM_INT);
$row = $stmt->fetch(PDO::FETCH_OBJ);
$memcached->set($myCacheKey, serialize($row));
}
// Now I have access to $row, where I can do what I need to
// And for subsequent calls, the data will be pulled from cache and skip
// the query altogether
var_dump(unserialize($row));

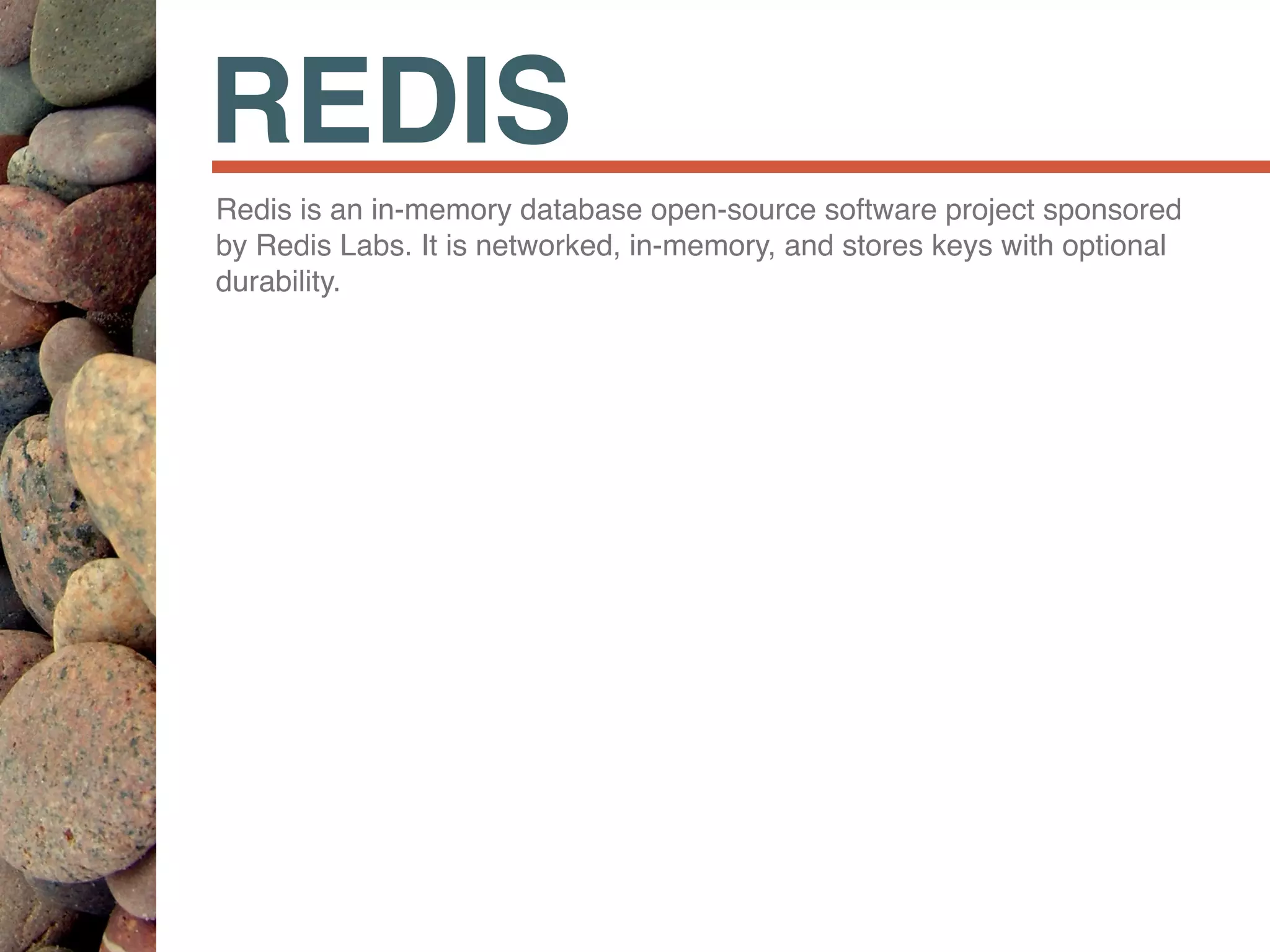

19. REDIS
Redis is an in-memory database open-source software project sponsored
by Redis Labs. It is networked, in-memory, and stores keys with optional
durability.

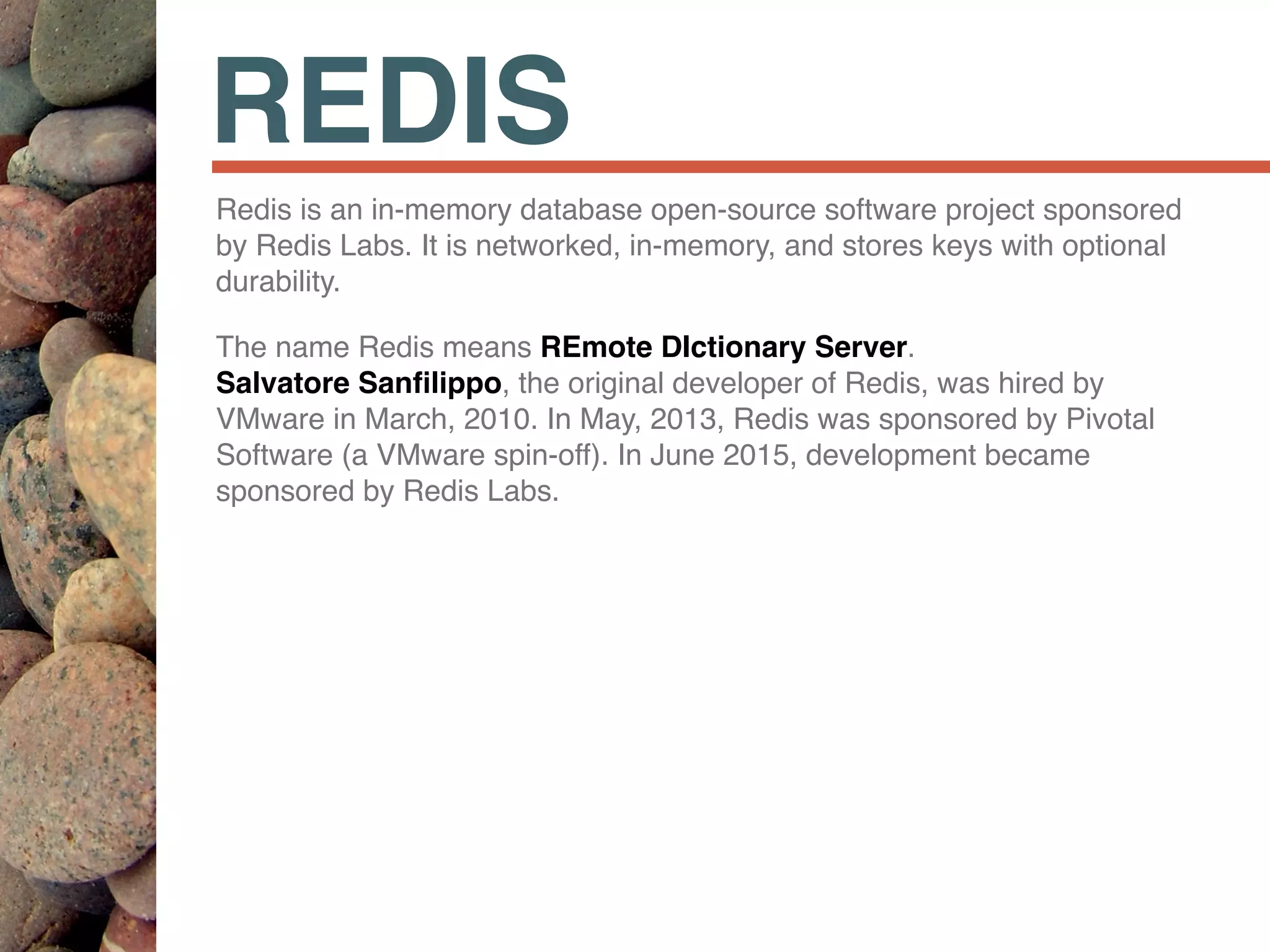

20. REDIS
Redis is an in-memory database open-source software project sponsored
by Redis Labs. It is networked, in-memory, and stores keys with optional
durability.
The name Redis means REmote DIctionary Server.
Salvatore Sanfilippo, the original developer of Redis, was hired by
VMware in March, 2010. In May, 2013, Redis was sponsored by Pivotal
Software (a VMware spin-off). In June 2015, development became
sponsored by Redis Labs.

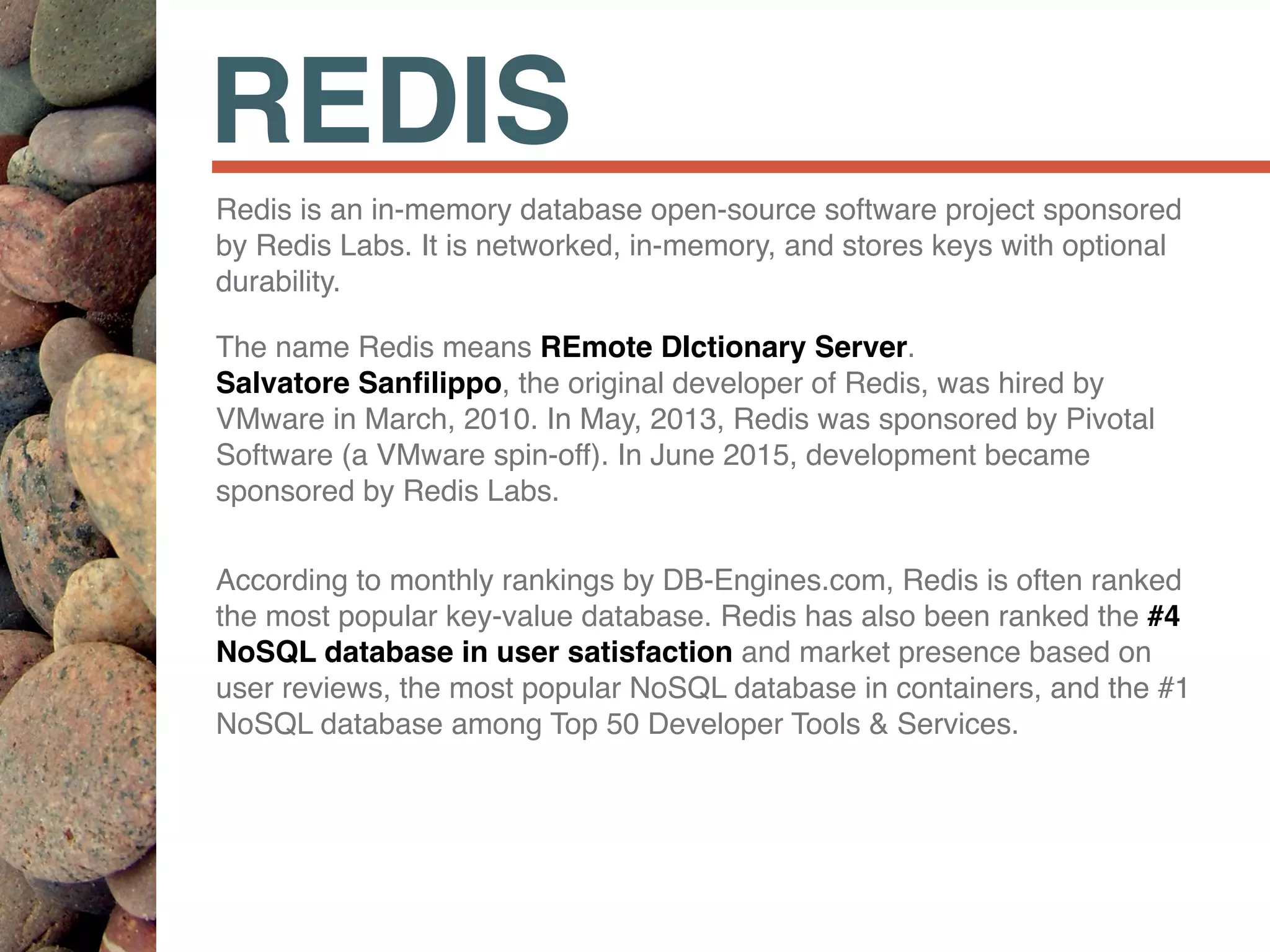

21. REDIS
Redis is an in-memory database open-source software project sponsored
by Redis Labs. It is networked, in-memory, and stores keys with optional
durability.
The name Redis means REmote DIctionary Server.
Salvatore Sanfilippo, the original developer of Redis, was hired by
VMware in March, 2010. In May, 2013, Redis was sponsored by Pivotal
Software (a VMware spin-off). In June 2015, development became
sponsored by Redis Labs.
According to monthly rankings by DB-Engines.com, Redis is often ranked
the most popular key-value database. Redis has also been ranked the #4
NoSQL database in user satisfaction and market presence based on
user reviews, the most popular NoSQL database in containers, and the #1
NoSQL database among Top 50 Developer Tools & Services.

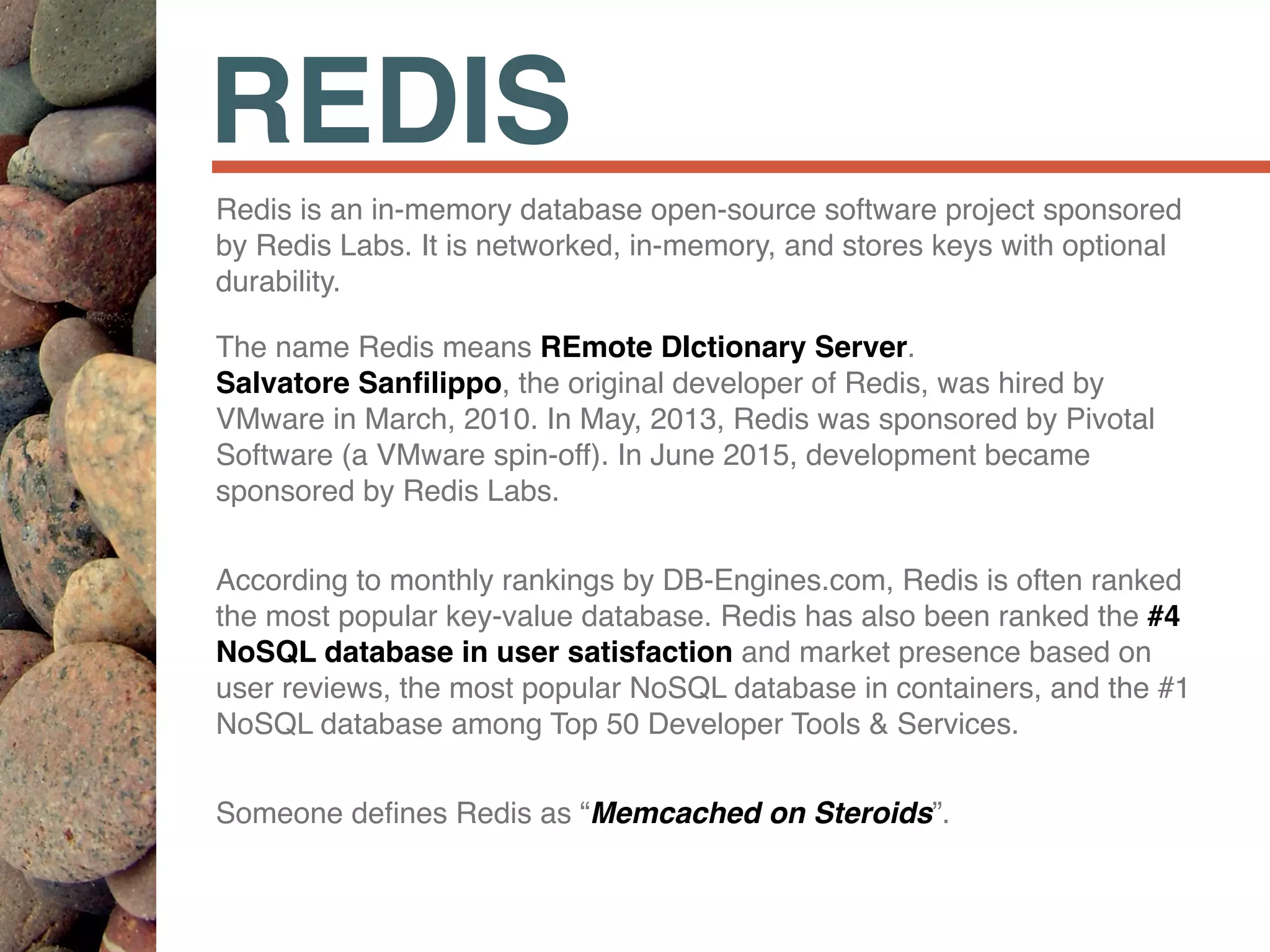

22. REDIS
Redis is an in-memory database open-source software project sponsored
by Redis Labs. It is networked, in-memory, and stores keys with optional
durability.
The name Redis means REmote DIctionary Server.
Salvatore Sanfilippo, the original developer of Redis, was hired by
VMware in March, 2010. In May, 2013, Redis was sponsored by Pivotal
Software (a VMware spin-off). In June 2015, development became
sponsored by Redis Labs.
According to monthly rankings by DB-Engines.com, Redis is often ranked
the most popular key-value database. Redis has also been ranked the #4
NoSQL database in user satisfaction and market presence based on
user reviews, the most popular NoSQL database in containers, and the #1
NoSQL database among Top 50 Developer Tools & Services.
Someone defines Redis as “Memcached on Steroids”.

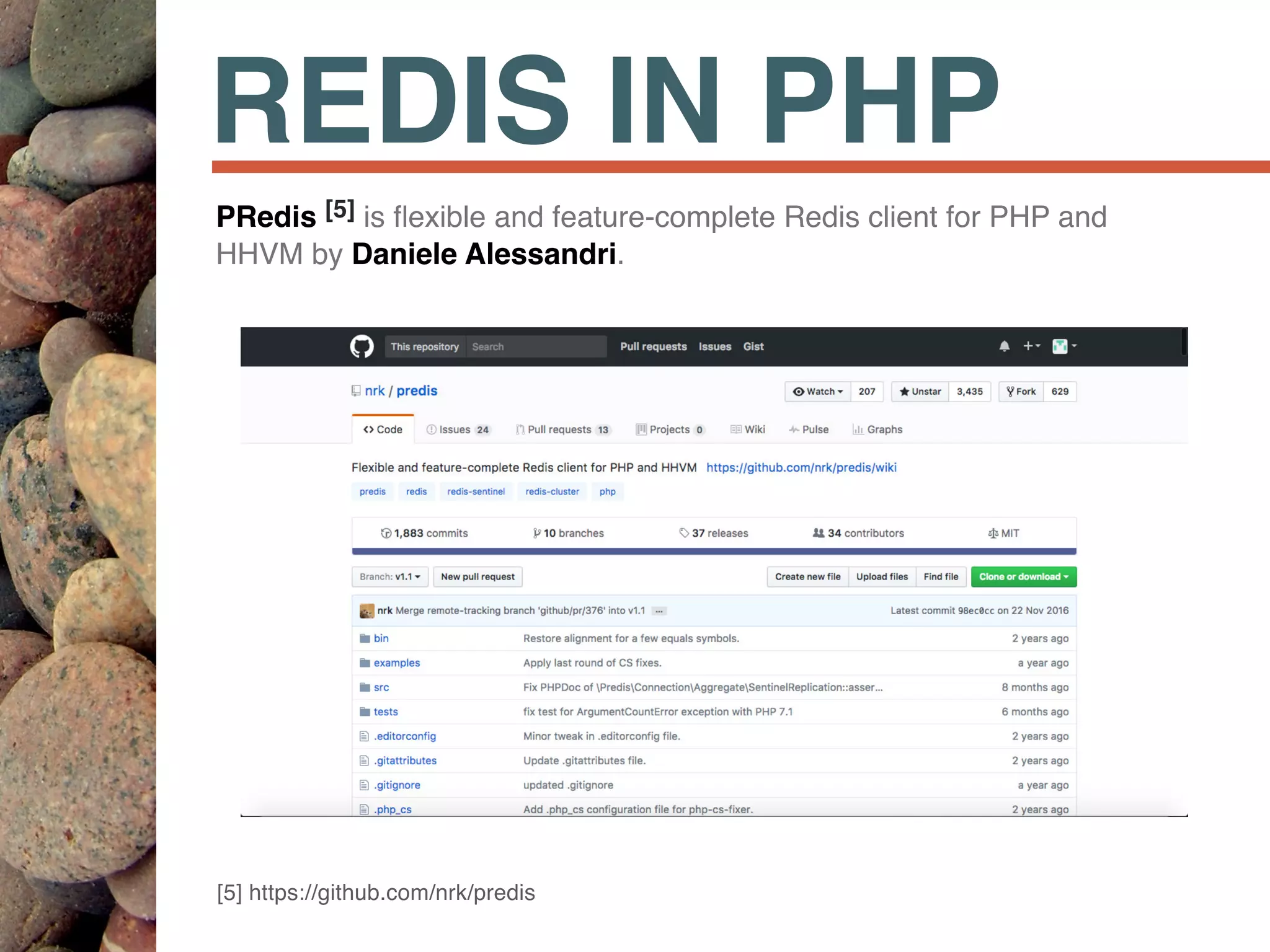

23. REDIS IN PHP
PRedis [5] is flexible and feature-complete Redis client for PHP and
HHVM by Daniele Alessandri.
[5] https://github.com/nrk/predis

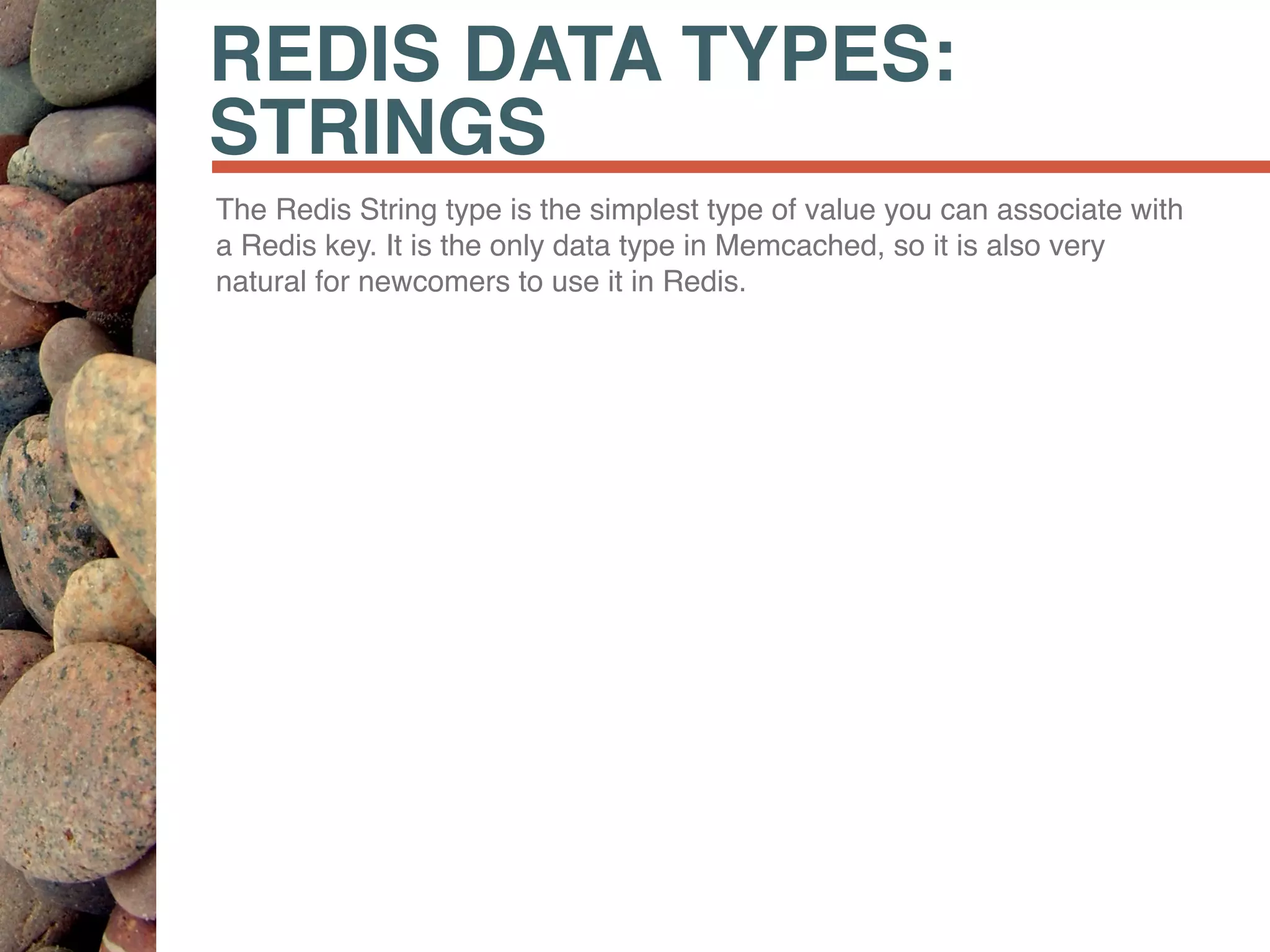

24. REDIS DATA TYPES:
STRINGS
The Redis String type is the simplest type of value you can associate with
a Redis key. It is the only data type in Memcached, so it is also very
natural for newcomers to use it in Redis.

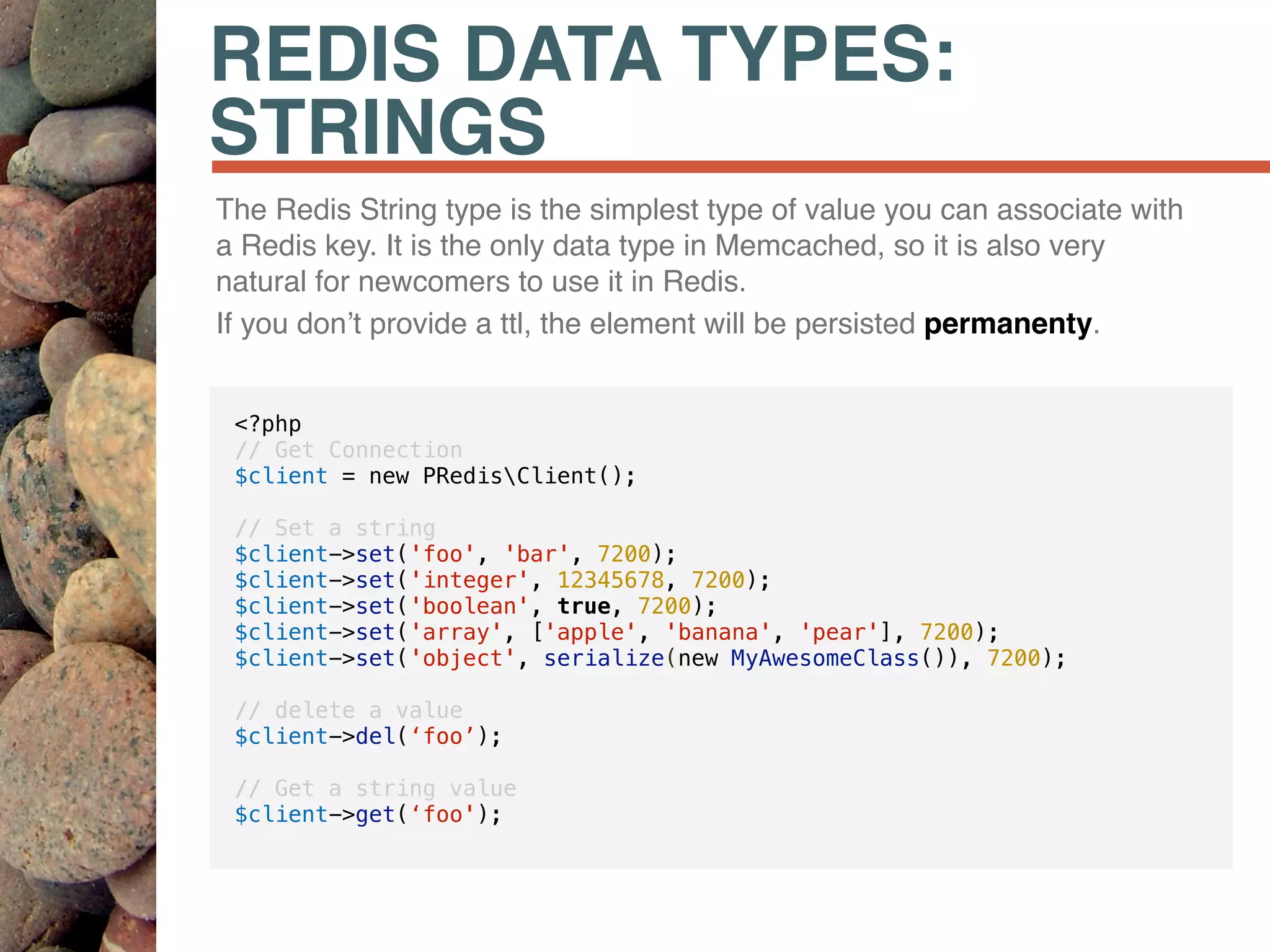

25. REDIS DATA TYPES:
STRINGS
The Redis String type is the simplest type of value you can associate with
a Redis key. It is the only data type in Memcached, so it is also very
natural for newcomers to use it in Redis.
If you don’t provide a ttl, the element will be persisted permanenty.
<?php
// Get Connection
$client = new PRedisClient();
// Set a string
$client->set('foo', 'bar', 7200);
$client->set('integer', 12345678, 7200);
$client->set('boolean', true, 7200);
$client->set('array', ['apple', 'banana', 'pear'], 7200);
$client->set('object', serialize(new MyAwesomeClass()), 7200);
// delete a value
$client->del(‘foo’);
// Get a string value
$client->get(‘foo');

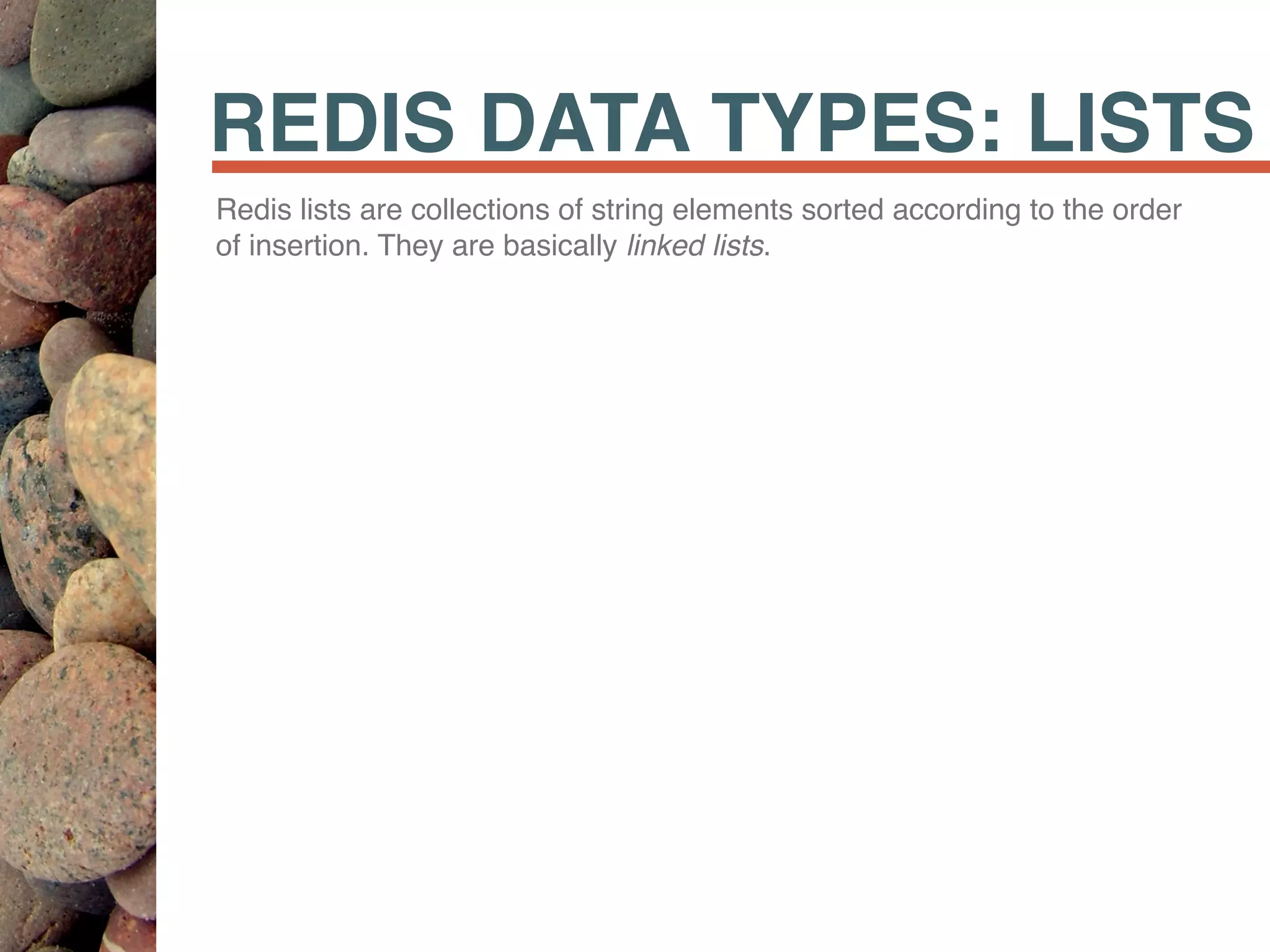

26. REDIS DATA TYPES: LISTS
Redis lists are collections of string elements sorted according to the order
of insertion. They are basically linked lists.

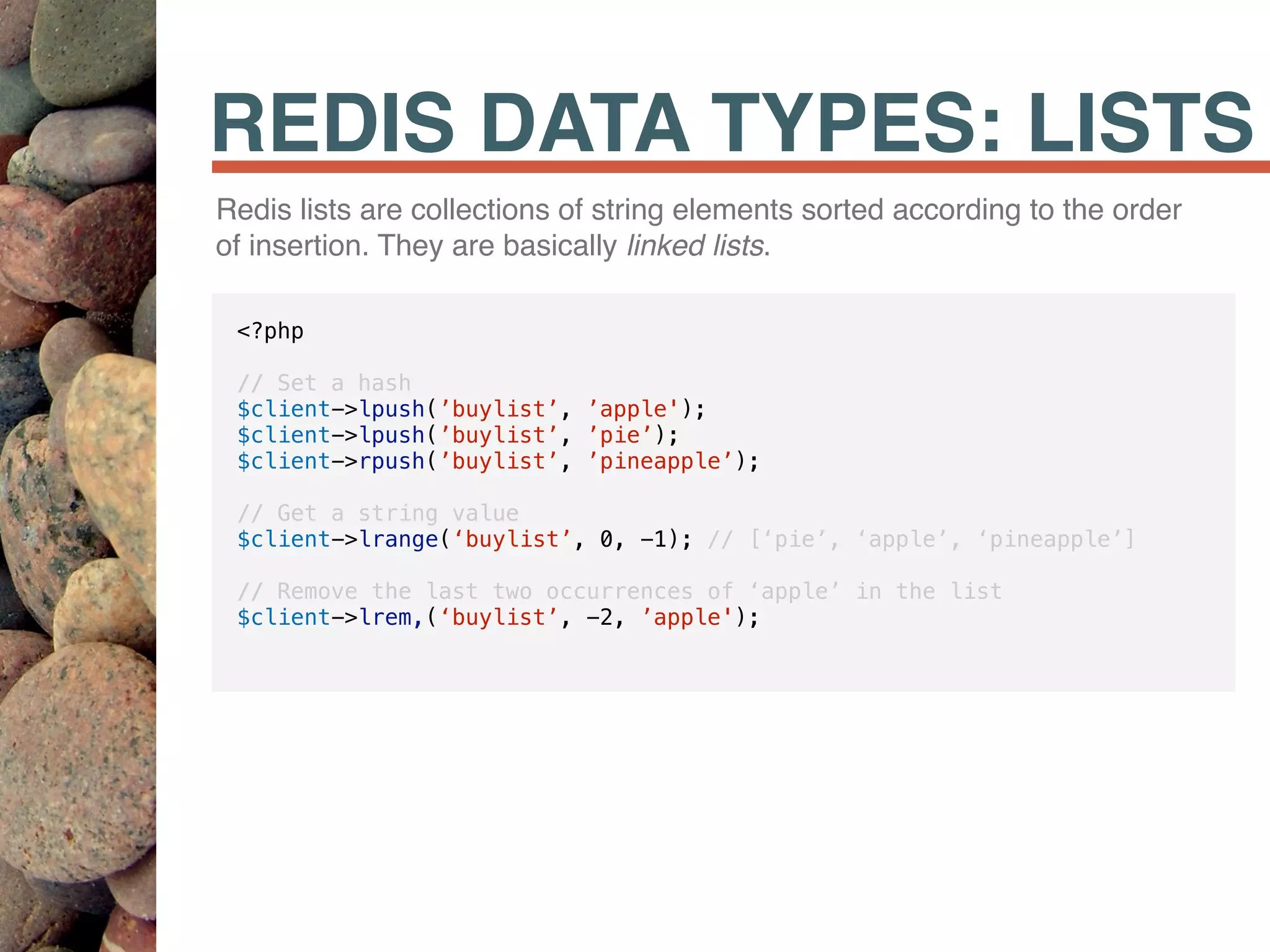

27. REDIS DATA TYPES: LISTS
Redis lists are collections of string elements sorted according to the order
of insertion. They are basically linked lists.
<?php
// Set a hash
$client->lpush(’buylist’, ’apple');
$client->lpush(’buylist’, ’pie’);
$client->rpush(’buylist’, ’pineapple’);
// Get a string value
$client->lrange(‘buylist’, 0, -1); // [‘pie’, ‘apple’, ‘pineapple’]
// Remove the last two occurrences of ‘apple’ in the list
$client->lrem,(‘buylist’, -2, ’apple');

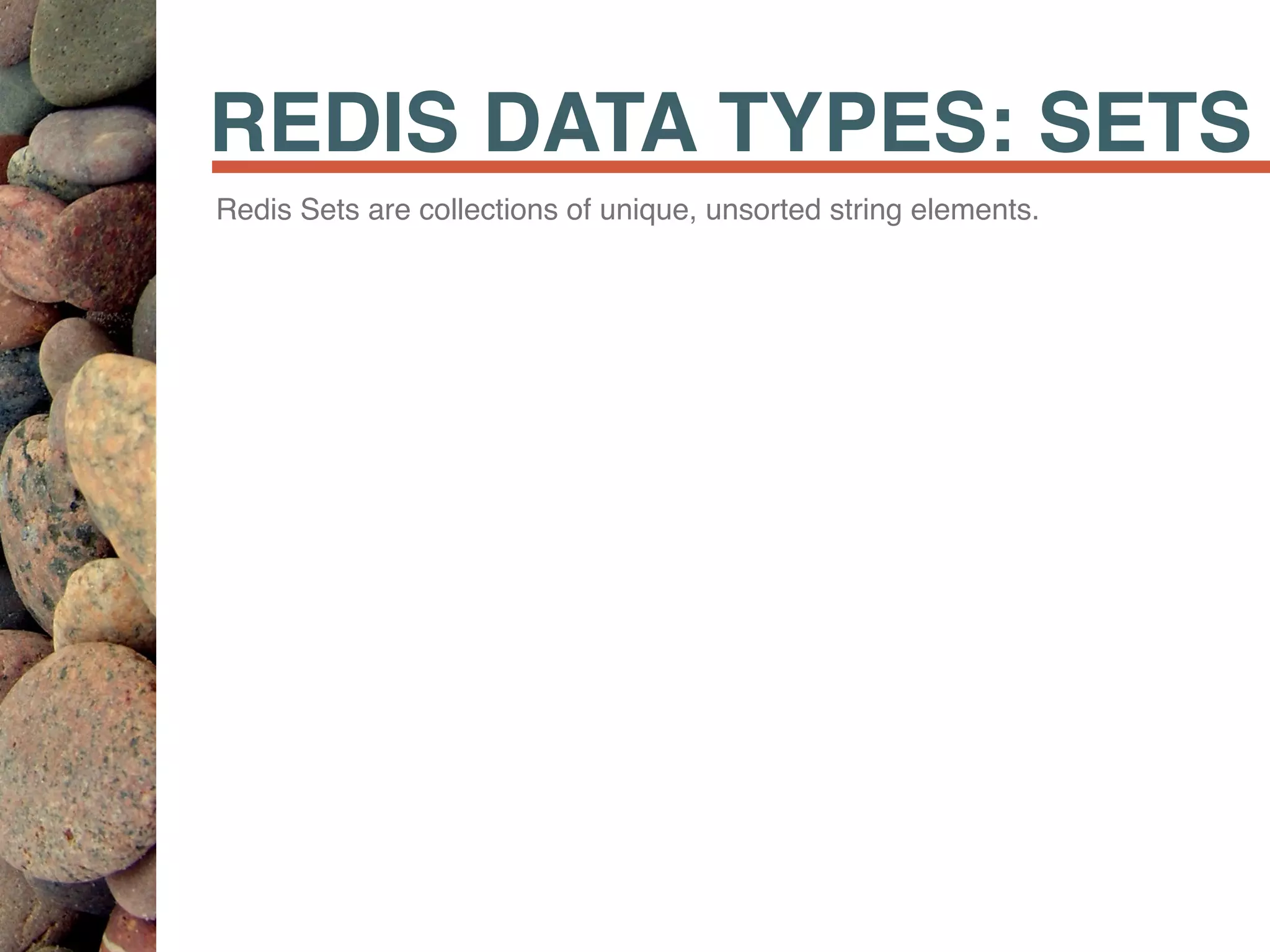

28. REDIS DATA TYPES: SETS
Redis Sets are collections of unique, unsorted string elements.

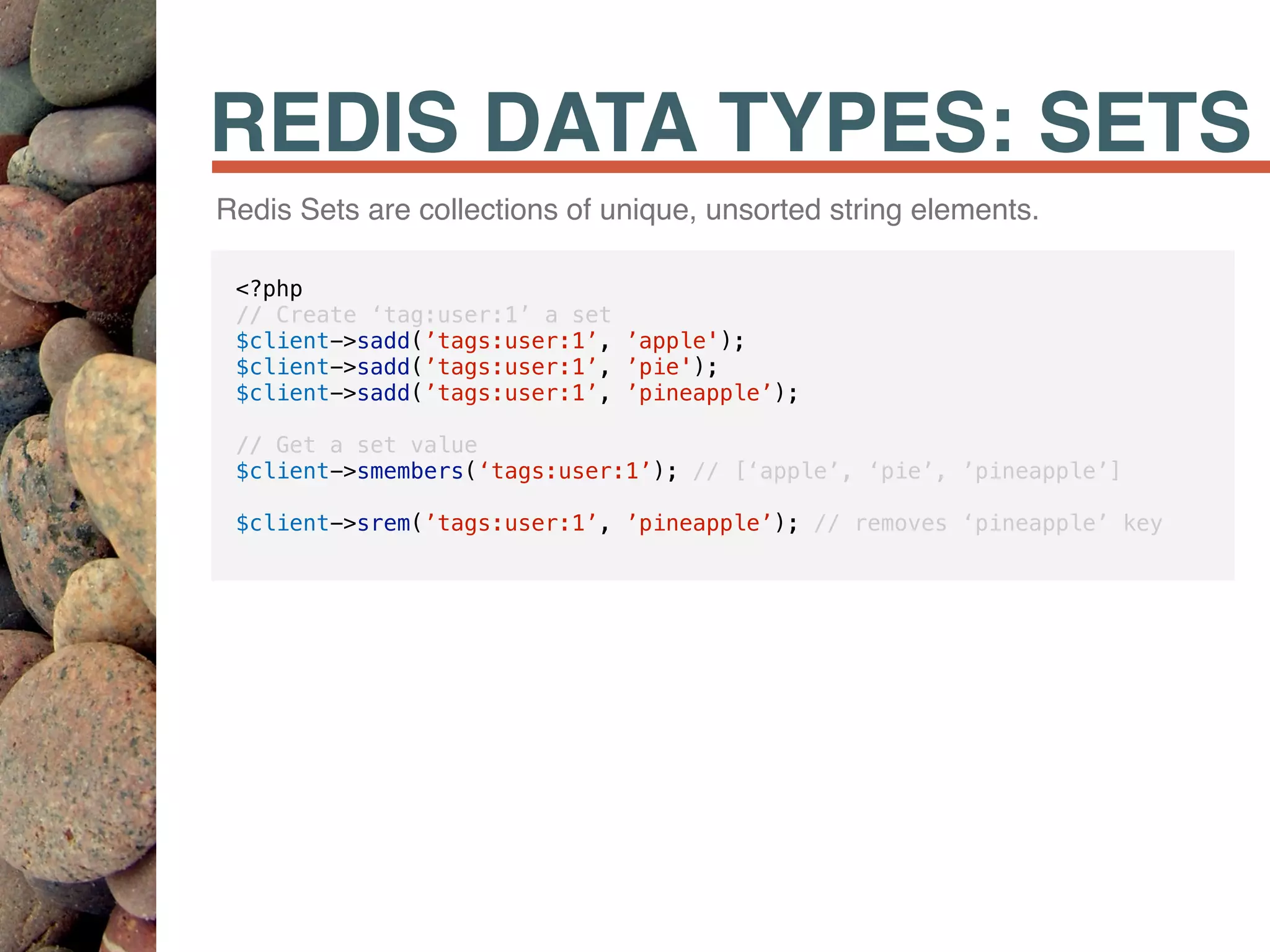

29. REDIS DATA TYPES: SETS
Redis Sets are collections of unique, unsorted string elements.
<?php
// Create ‘tag:user:1’ a set
$client->sadd(’tags:user:1’, ’apple');
$client->sadd(’tags:user:1’, ’pie');
$client->sadd(’tags:user:1’, ’pineapple’);
// Get a set value
$client->smembers(‘tags:user:1’); // [‘apple’, ‘pie’, ’pineapple’]
$client->srem(’tags:user:1’, ’pineapple’); // removes ‘pineapple’ key

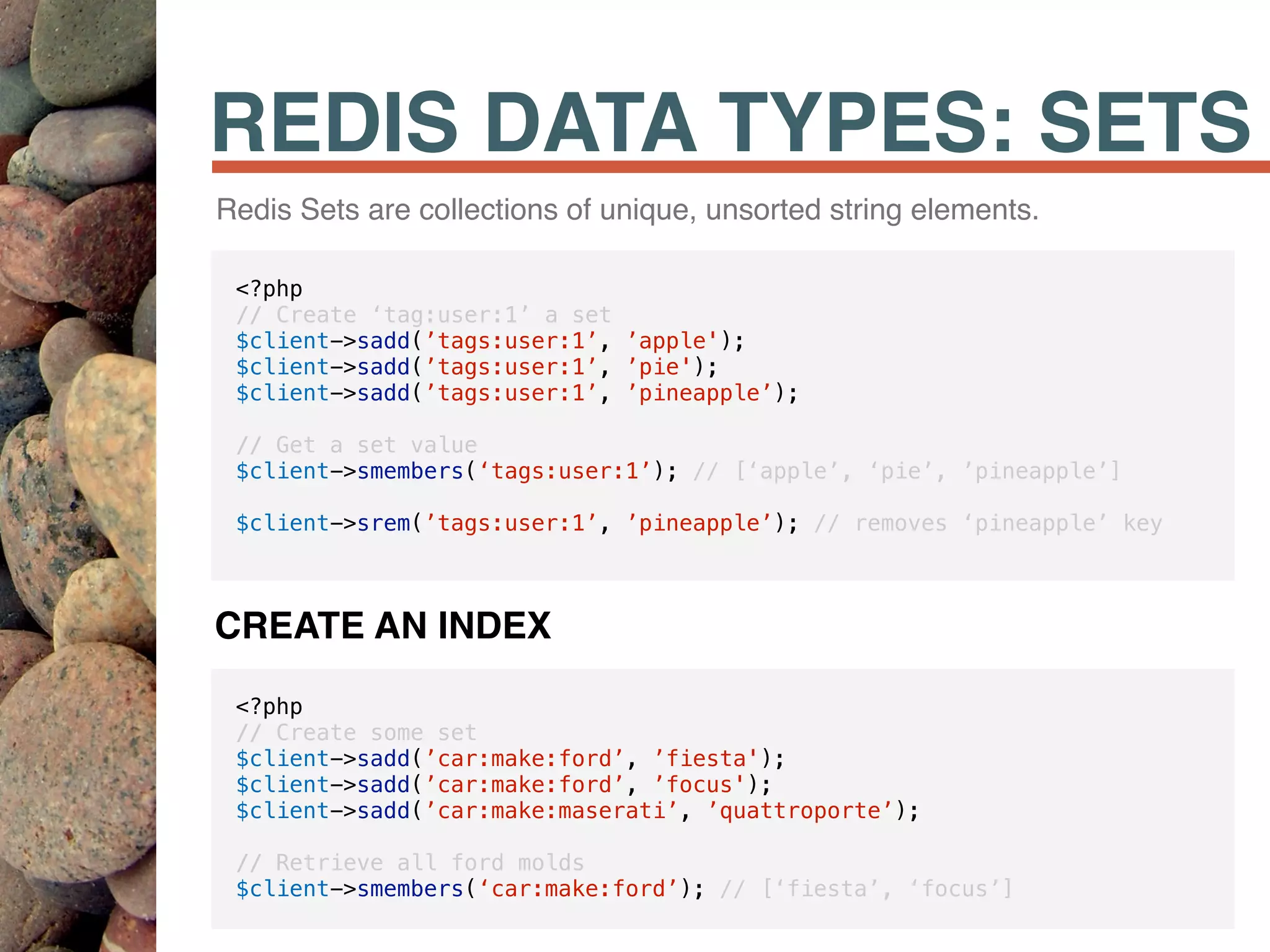

30. REDIS DATA TYPES: SETS
Redis Sets are collections of unique, unsorted string elements.
<?php
// Create ‘tag:user:1’ a set
$client->sadd(’tags:user:1’, ’apple');
$client->sadd(’tags:user:1’, ’pie');
$client->sadd(’tags:user:1’, ’pineapple’);
// Get a set value
$client->smembers(‘tags:user:1’); // [‘apple’, ‘pie’, ’pineapple’]
$client->srem(’tags:user:1’, ’pineapple’); // removes ‘pineapple’ key
<?php
// Create some set
$client->sadd(’car:make:ford’, ’fiesta');
$client->sadd(’car:make:ford’, ’focus');
$client->sadd(’car:make:maserati’, ’quattroporte’);
// Retrieve all ford molds
$client->smembers(‘car:make:ford’); // [‘fiesta’, ‘focus’]
CREATE AN INDEX

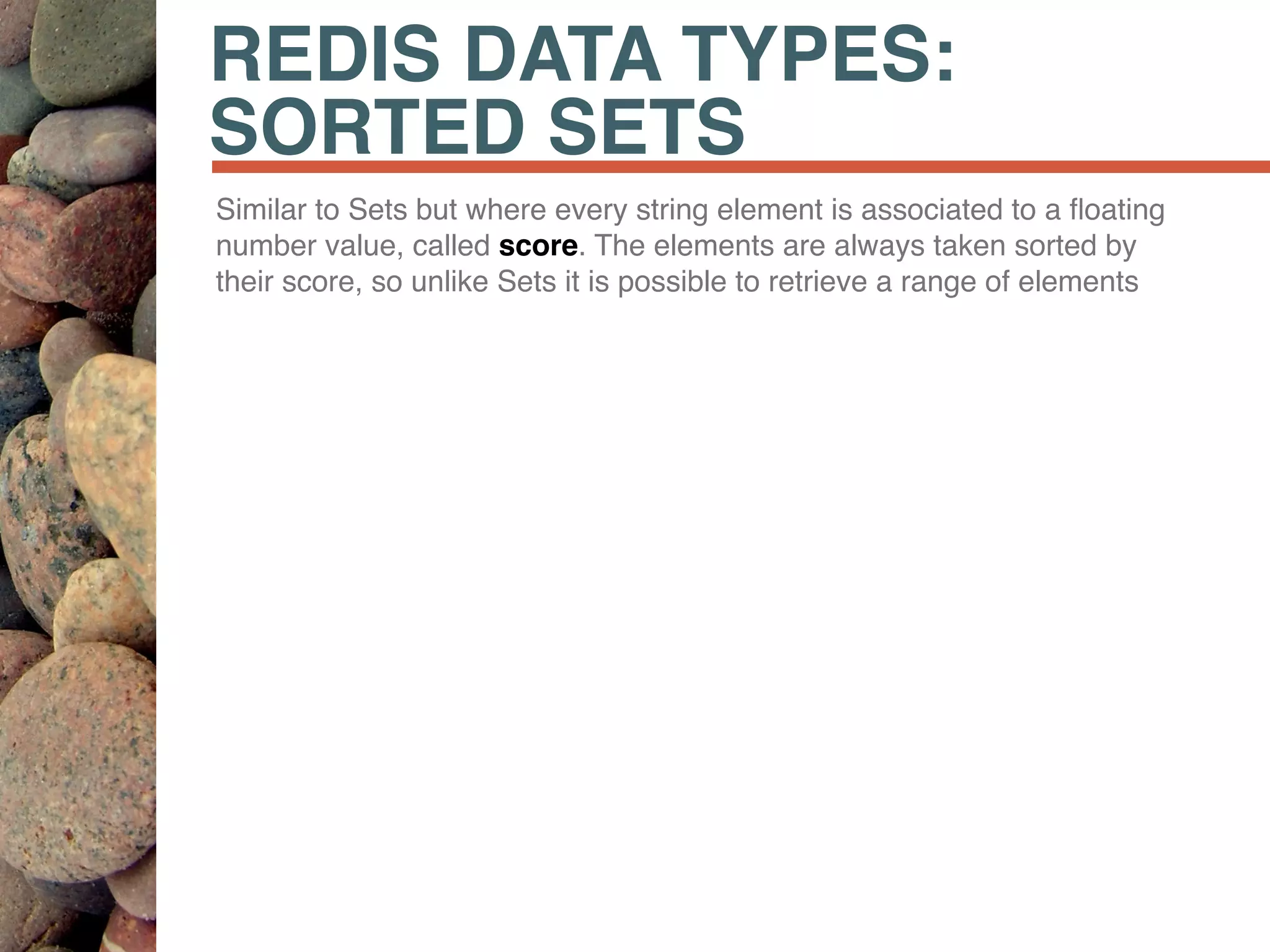

31. REDIS DATA TYPES:
SORTED SETS
Similar to Sets but where every string element is associated to a floating
number value, called score. The elements are always taken sorted by
their score, so unlike Sets it is possible to retrieve a range of elements

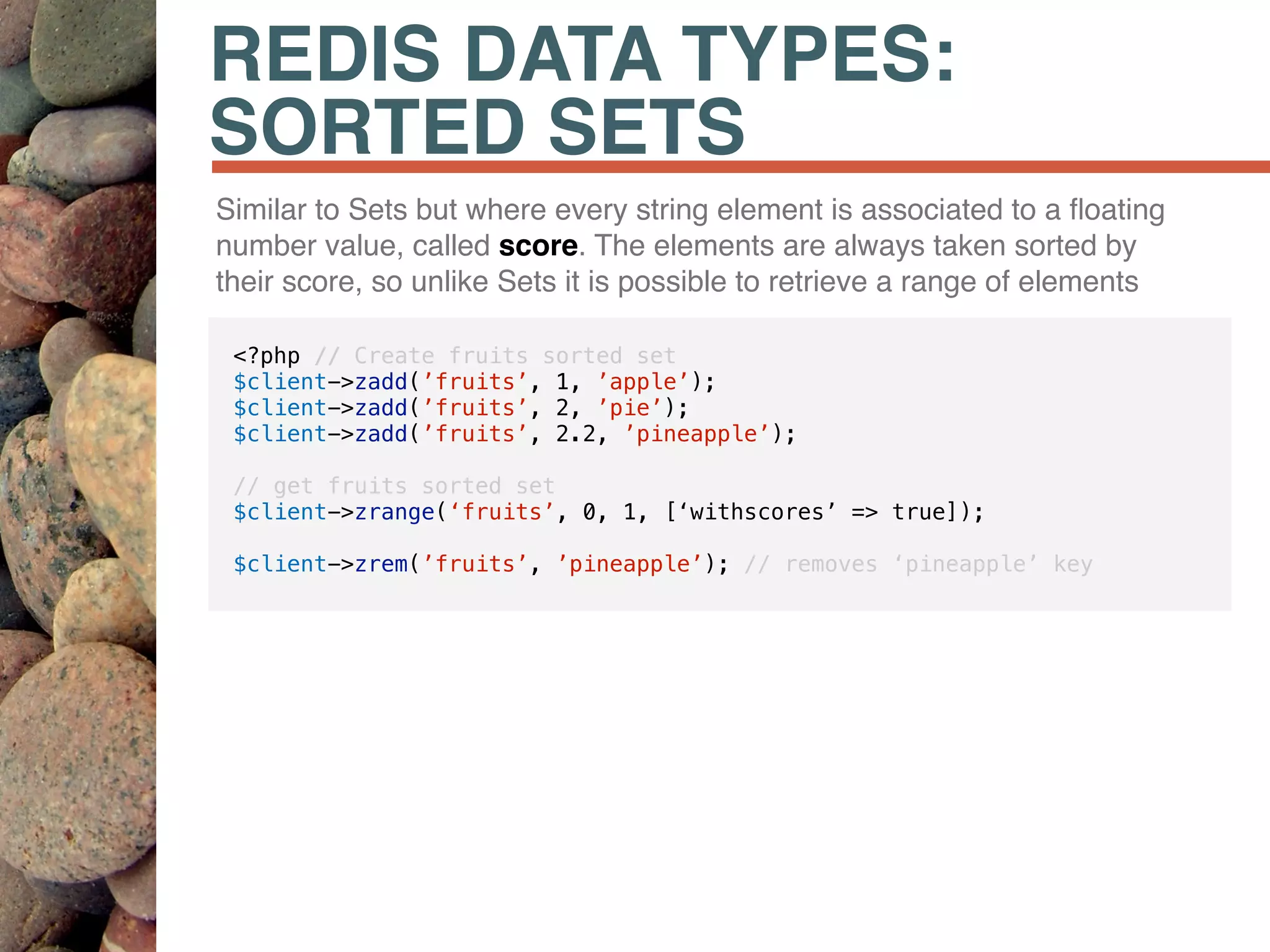

32. REDIS DATA TYPES:
SORTED SETS
Similar to Sets but where every string element is associated to a floating
number value, called score. The elements are always taken sorted by
their score, so unlike Sets it is possible to retrieve a range of elements
<?php // Create fruits sorted set
$client->zadd(’fruits’, 1, ’apple’);
$client->zadd(’fruits’, 2, ’pie’);
$client->zadd(’fruits’, 2.2, ’pineapple’);
// get fruits sorted set
$client->zrange(‘fruits’, 0, 1, [‘withscores’ => true]);
$client->zrem(’fruits’, ’pineapple’); // removes ‘pineapple’ key

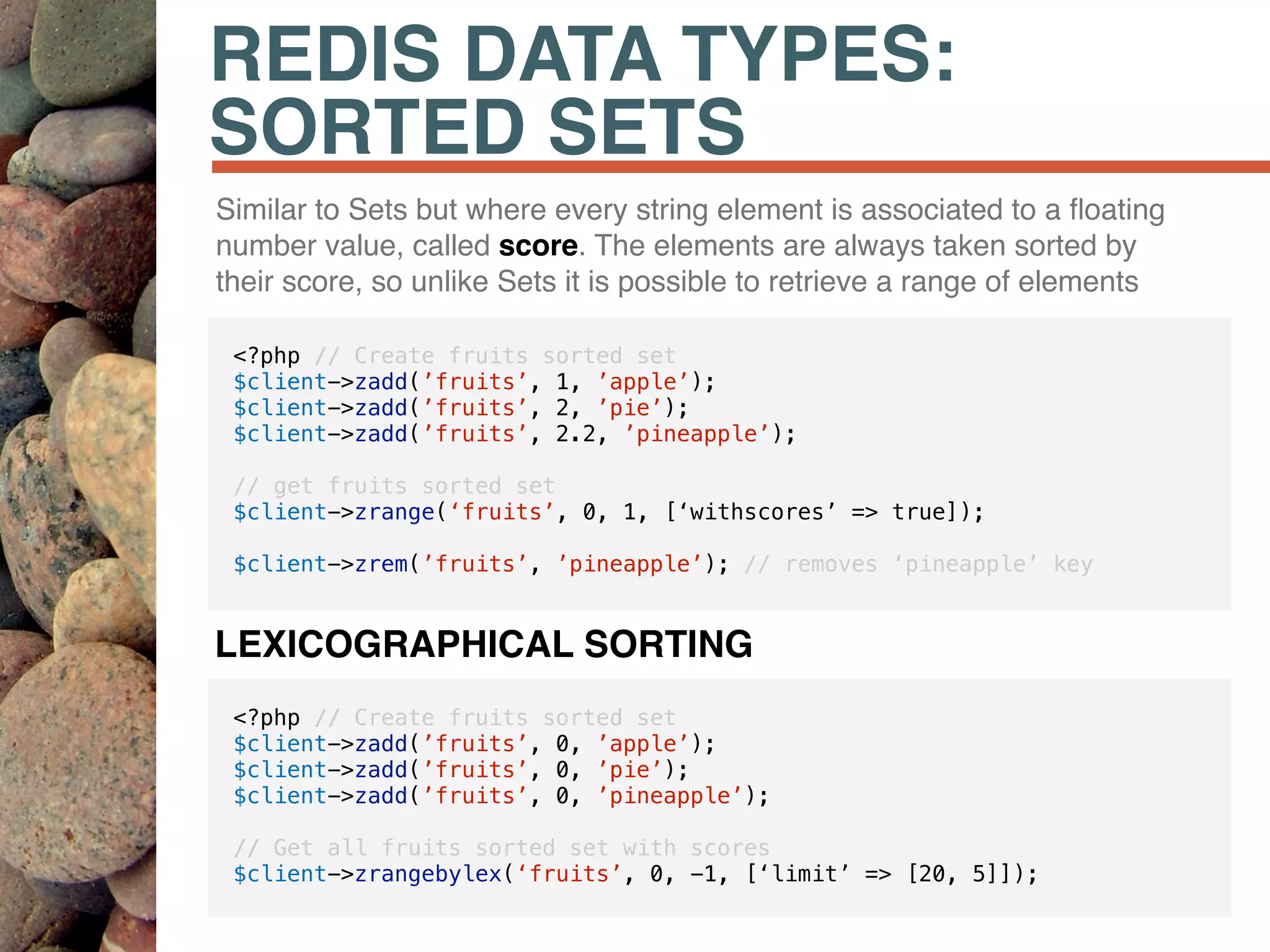

33. REDIS DATA TYPES:
SORTED SETS
Similar to Sets but where every string element is associated to a floating
number value, called score. The elements are always taken sorted by
their score, so unlike Sets it is possible to retrieve a range of elements
<?php // Create fruits sorted set
$client->zadd(’fruits’, 1, ’apple’);
$client->zadd(’fruits’, 2, ’pie’);
$client->zadd(’fruits’, 2.2, ’pineapple’);
// get fruits sorted set
$client->zrange(‘fruits’, 0, 1, [‘withscores’ => true]);
$client->zrem(’fruits’, ’pineapple’); // removes ‘pineapple’ key
<?php // Create fruits sorted set
$client->zadd(’fruits’, 0, ’apple’);
$client->zadd(’fruits’, 0, ’pie’);
$client->zadd(’fruits’, 0, ’pineapple’);
// Get all fruits sorted set with scores
$client->zrangebylex(‘fruits’, 0, -1, [‘limit’ => [20, 5]]);
LEXICOGRAPHICAL SORTING

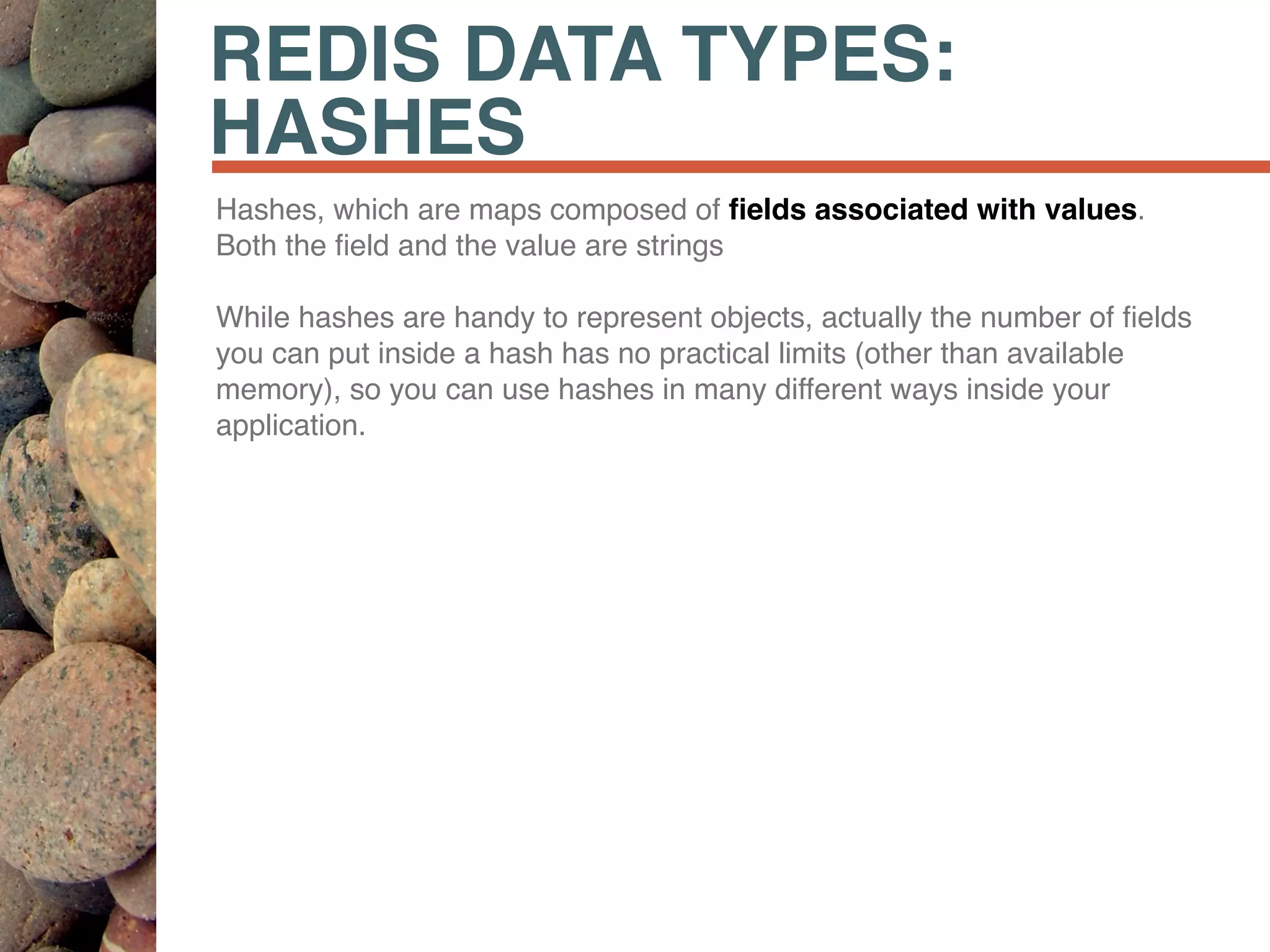

34. REDIS DATA TYPES:
HASHES
Hashes, which are maps composed of fields associated with values.
Both the field and the value are strings
While hashes are handy to represent objects, actually the number of fields
you can put inside a hash has no practical limits (other than available
memory), so you can use hashes in many different ways inside your
application.

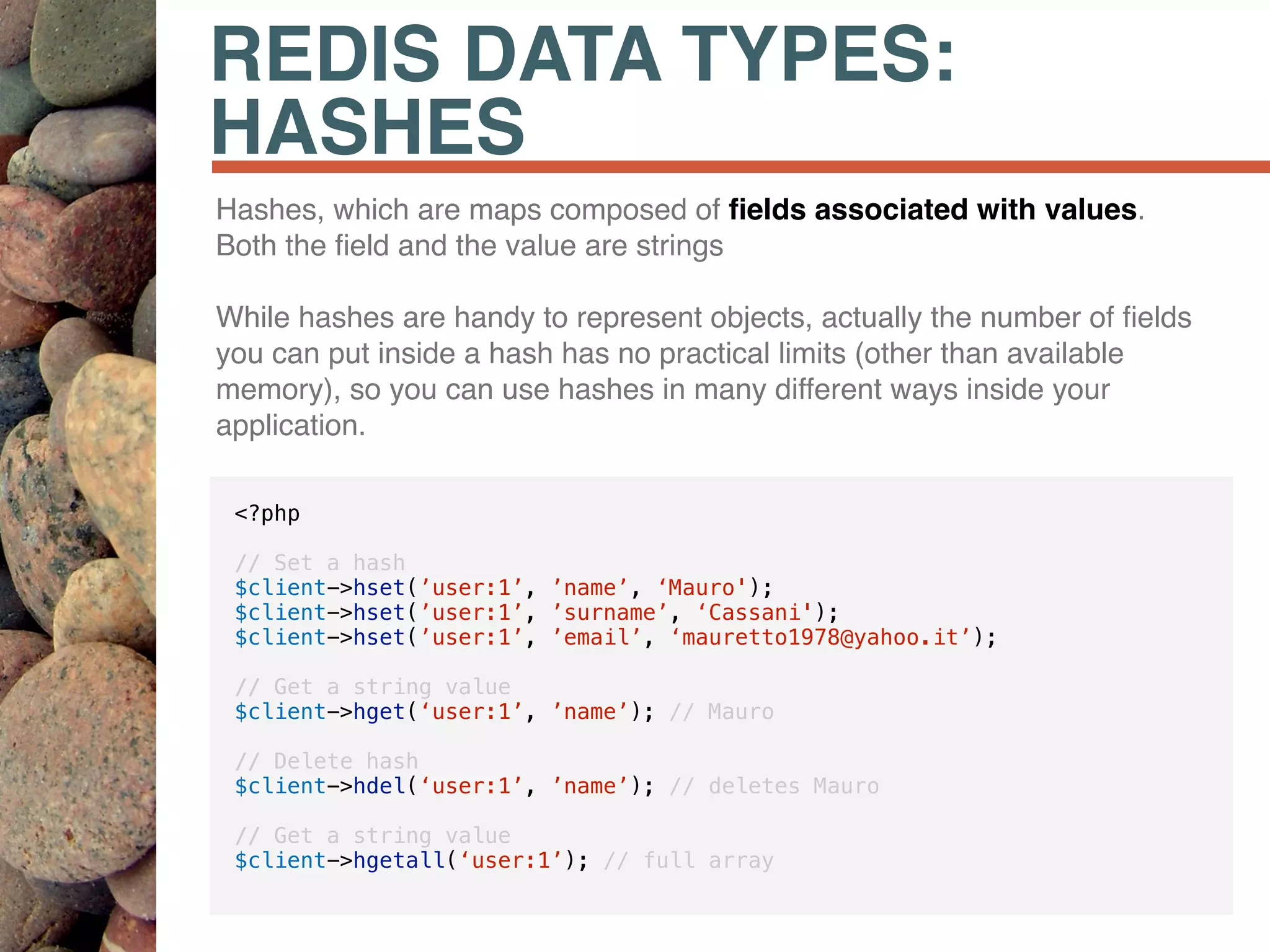

35. REDIS DATA TYPES:
HASHES
Hashes, which are maps composed of fields associated with values.
Both the field and the value are strings
While hashes are handy to represent objects, actually the number of fields
you can put inside a hash has no practical limits (other than available
memory), so you can use hashes in many different ways inside your
application.
<?php
// Set a hash
$client->hset(’user:1’, ’name’, ‘Mauro');
$client->hset(’user:1’, ’surname’, ‘Cassani');
$client->hset(’user:1’, ’email’, ‘mauretto1978@yahoo.it’);
// Get a string value
$client->hget(‘user:1’, ’name’); // Mauro
// Delete hash
$client->hdel(‘user:1’, ’name’); // deletes Mauro
// Get a string value
$client->hgetall(‘user:1’); // full array

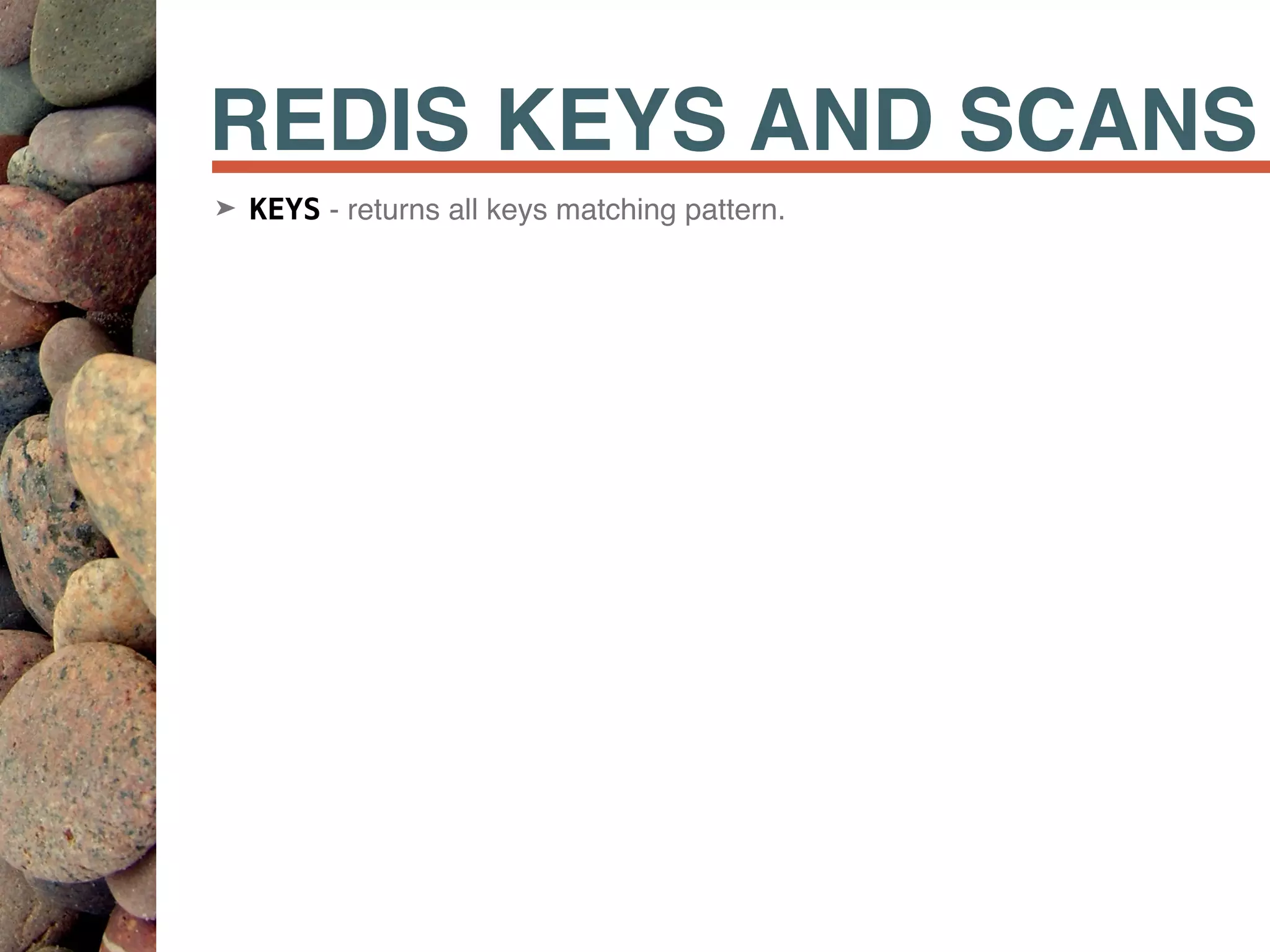

36. REDIS KEYS AND SCANS
➤ KEYS - returns all keys matching pattern.

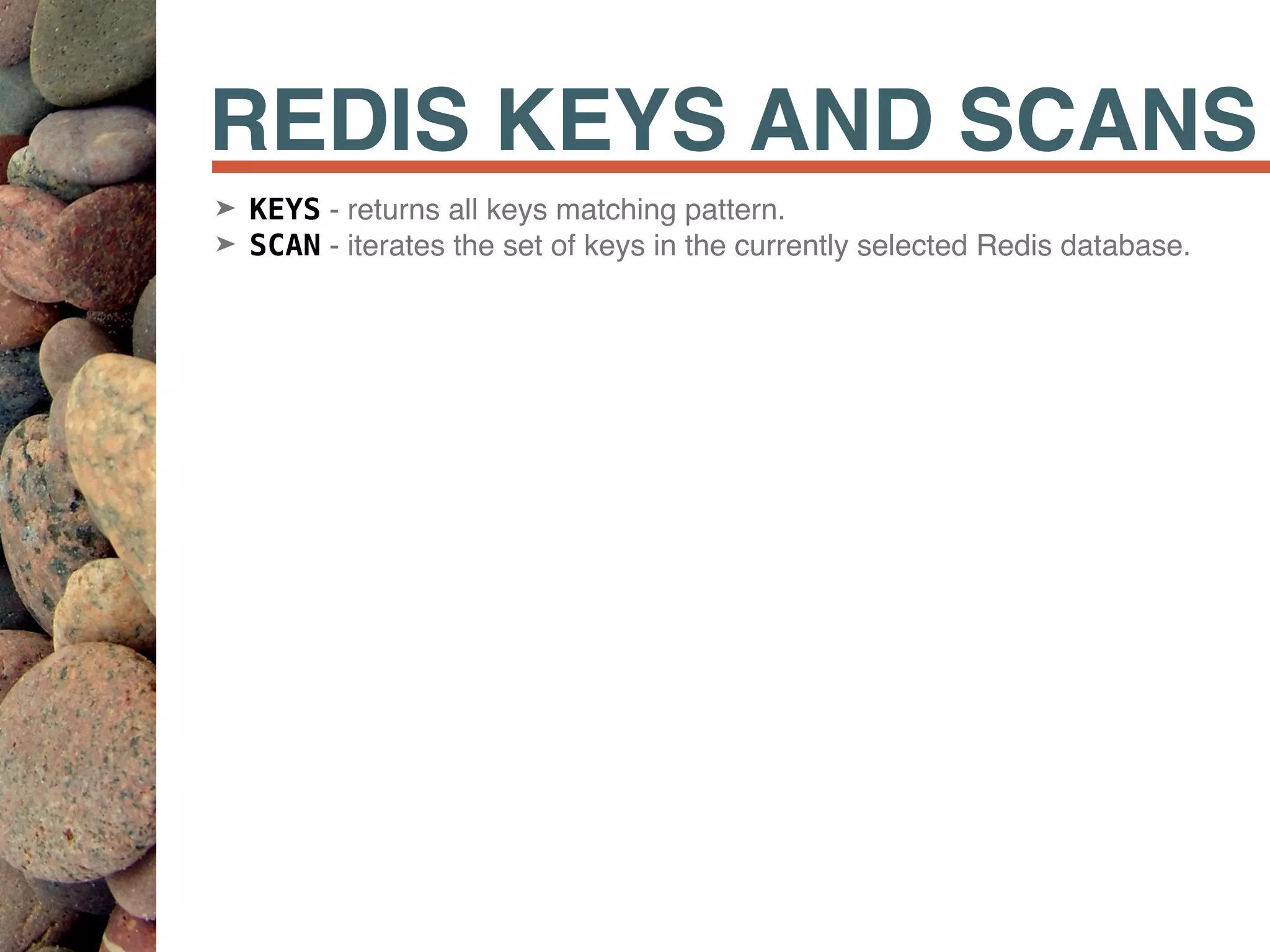

37. REDIS KEYS AND SCANS
➤ KEYS - returns all keys matching pattern.
➤ SCAN - iterates the set of keys in the currently selected Redis database.

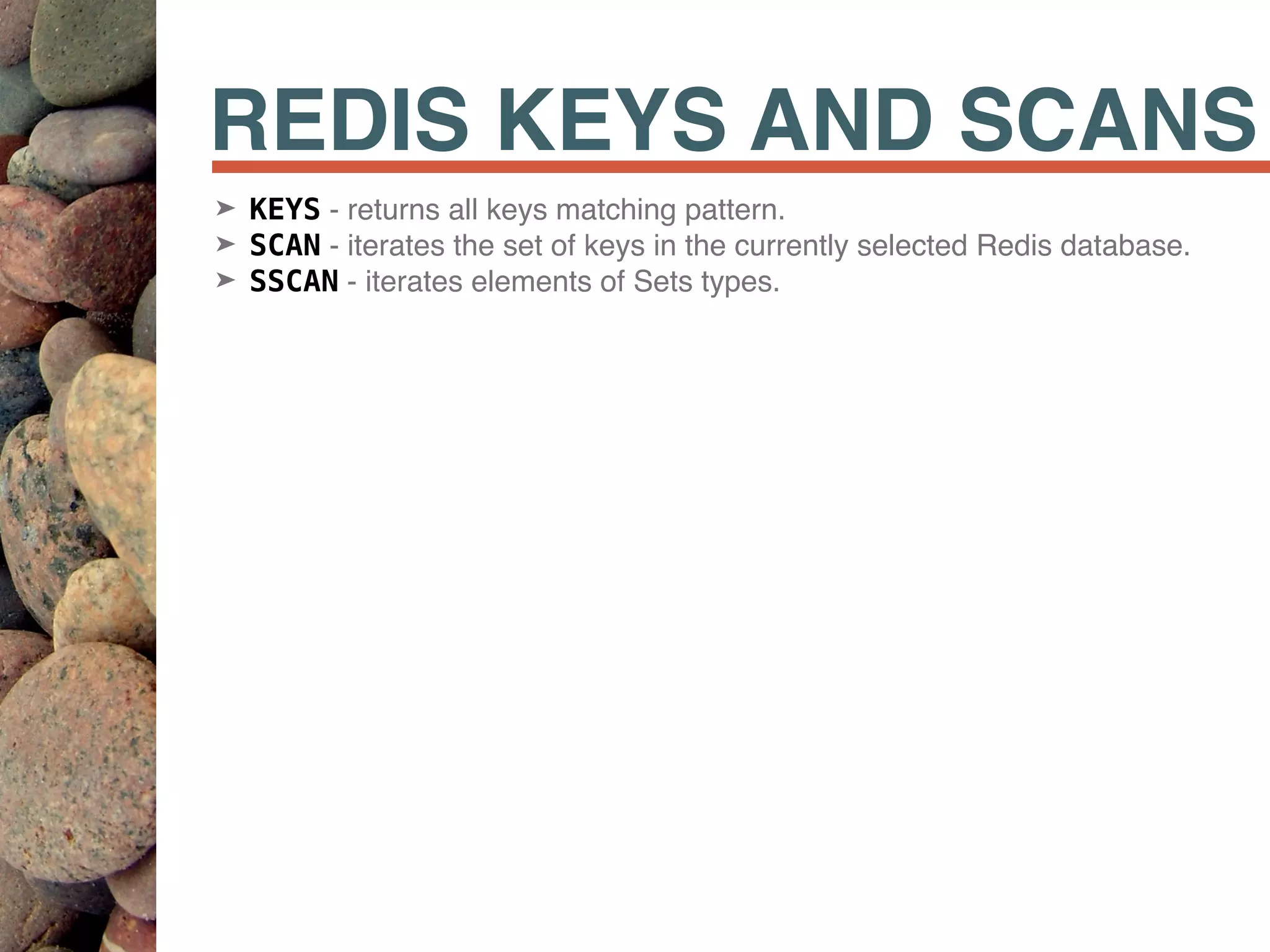

38. REDIS KEYS AND SCANS
➤ KEYS - returns all keys matching pattern.
➤ SCAN - iterates the set of keys in the currently selected Redis database.
➤ SSCAN - iterates elements of Sets types.

39. REDIS KEYS AND SCANS
➤ KEYS - returns all keys matching pattern.
➤ SCAN - iterates the set of keys in the currently selected Redis database.
➤ SSCAN - iterates elements of Sets types.
➤ HSCAN - iterates fields of Hash types and their associated values.

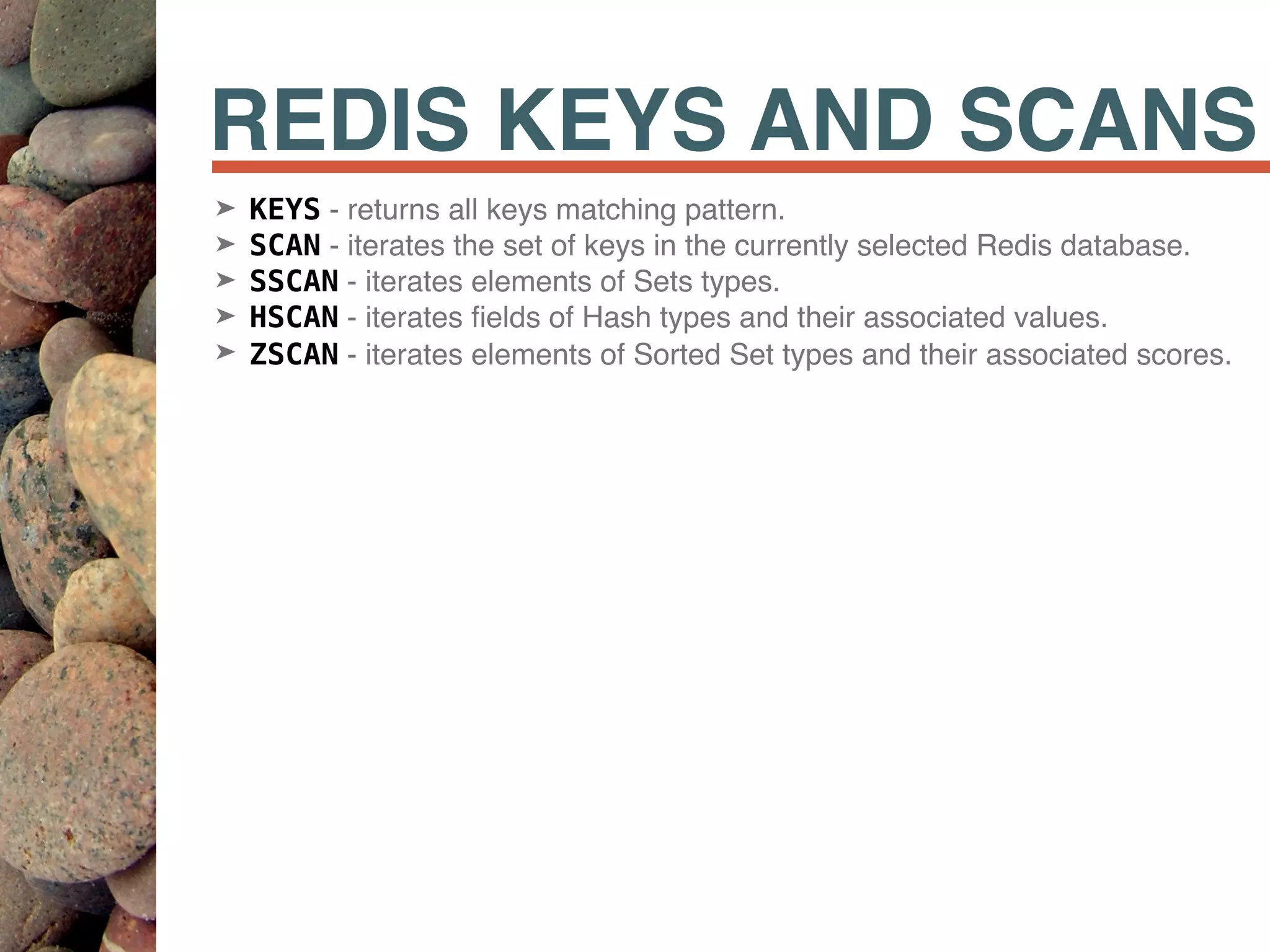

40. REDIS KEYS AND SCANS
➤ KEYS - returns all keys matching pattern.
➤ SCAN - iterates the set of keys in the currently selected Redis database.
➤ SSCAN - iterates elements of Sets types.
➤ HSCAN - iterates fields of Hash types and their associated values.
➤ ZSCAN - iterates elements of Sorted Set types and their associated scores.

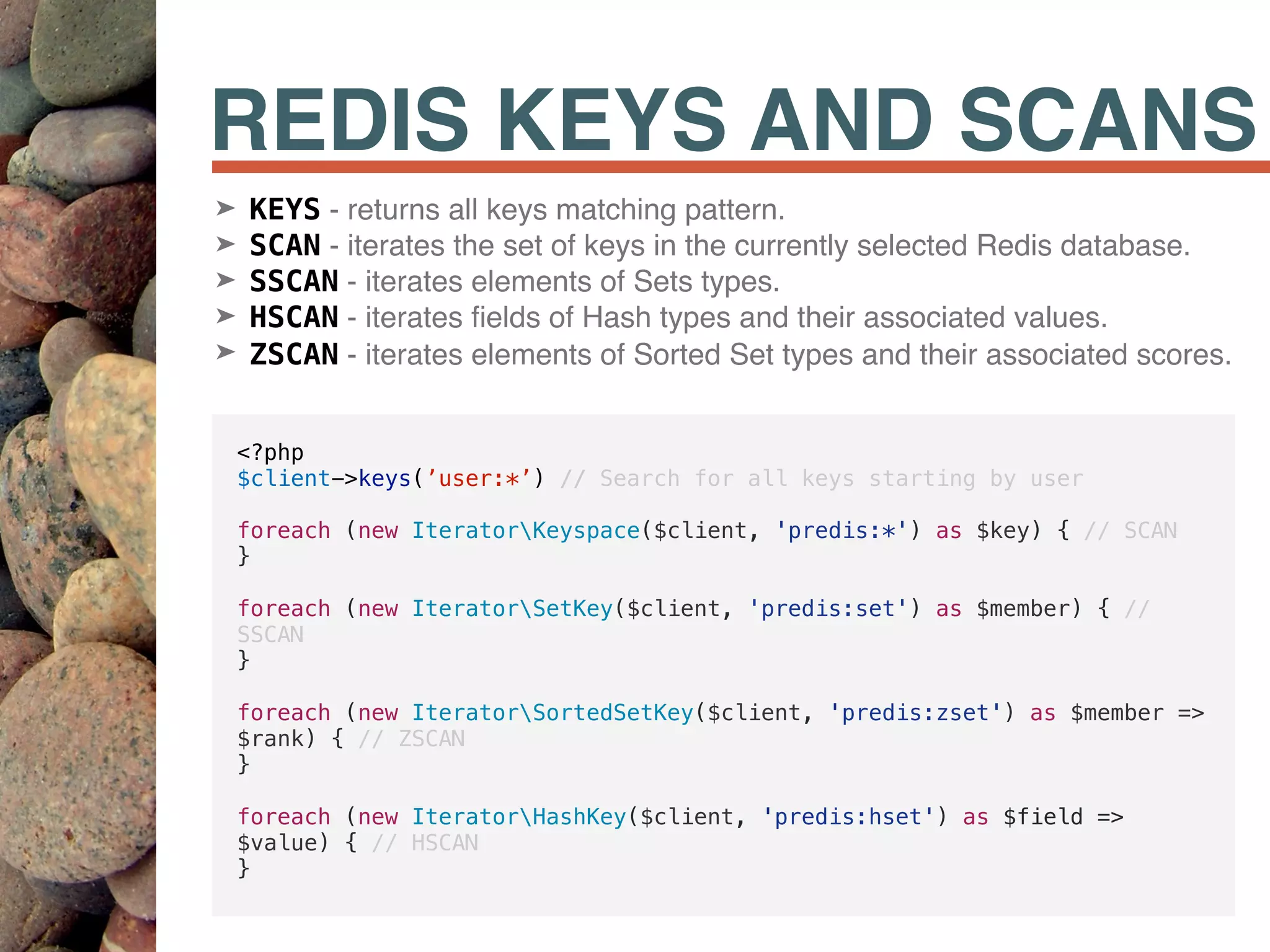

41. REDIS KEYS AND SCANS
<?php
$client->keys(’user:*’) // Search for all keys starting by user
foreach (new IteratorKeyspace($client, 'predis:*') as $key) { // SCAN
}
foreach (new IteratorSetKey($client, 'predis:set') as $member) { //
SSCAN
}
foreach (new IteratorSortedSetKey($client, 'predis:zset') as $member =>
$rank) { // ZSCAN
}
foreach (new IteratorHashKey($client, 'predis:hset') as $field =>
$value) { // HSCAN
}
➤ KEYS - returns all keys matching pattern.
➤ SCAN - iterates the set of keys in the currently selected Redis database.
➤ SSCAN - iterates elements of Sets types.
➤ HSCAN - iterates fields of Hash types and their associated values.
➤ ZSCAN - iterates elements of Sorted Set types and their associated scores.

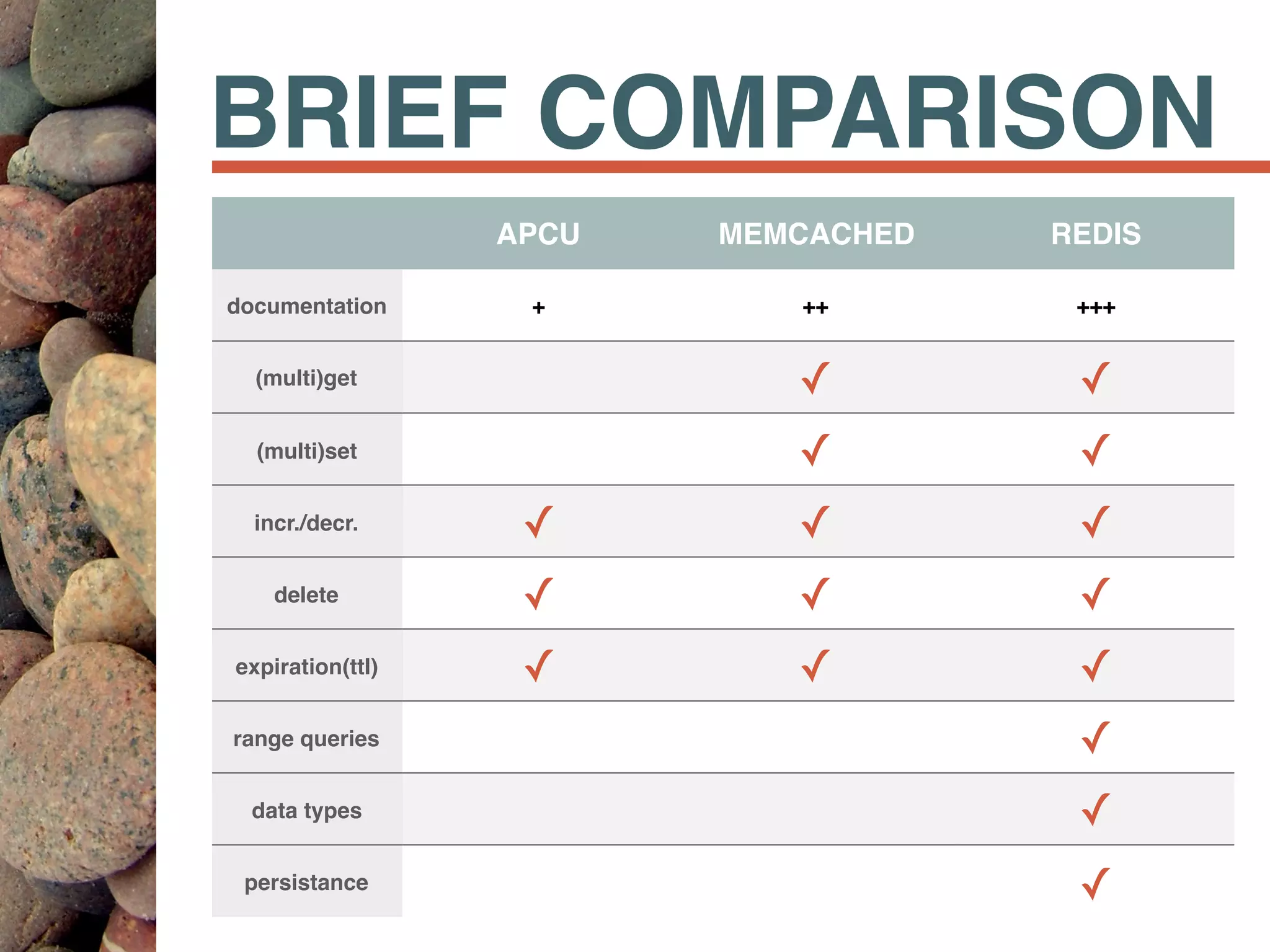

42. BRIEF COMPARISON
APCU MEMCACHED REDIS
documentation + ++ +++
(multi)get ✓ ✓
(multi)set ✓ ✓
incr./decr. ✓ ✓ ✓
delete ✓ ✓ ✓
expiration(ttl) ✓ ✓ ✓
range queries ✓
data types ✓
persistance ✓

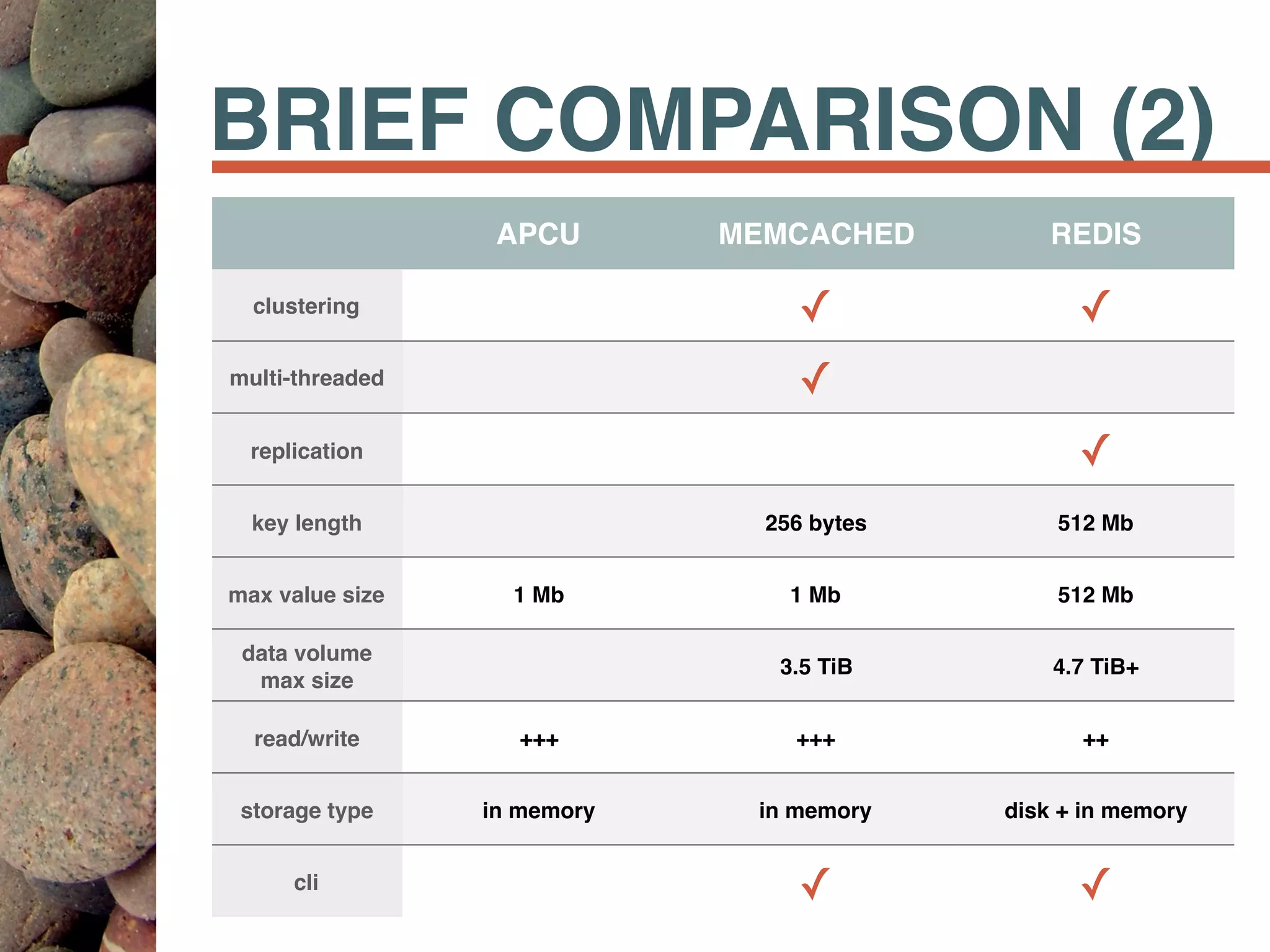

43. BRIEF COMPARISON (2)
APCU MEMCACHED REDIS
clustering ✓ ✓
multi-threaded ✓
replication ✓
key length 256 bytes 512 Mb
max value size 1 Mb 1 Mb 512 Mb
data volume
max size
3.5 TiB 4.7 TiB+
read/write +++ +++ ++
storage type in memory in memory disk + in memory
cli ✓ ✓

44. REAL WORLD USE CASE
Think on this:
➤ You have some lists coming from your database or your API;

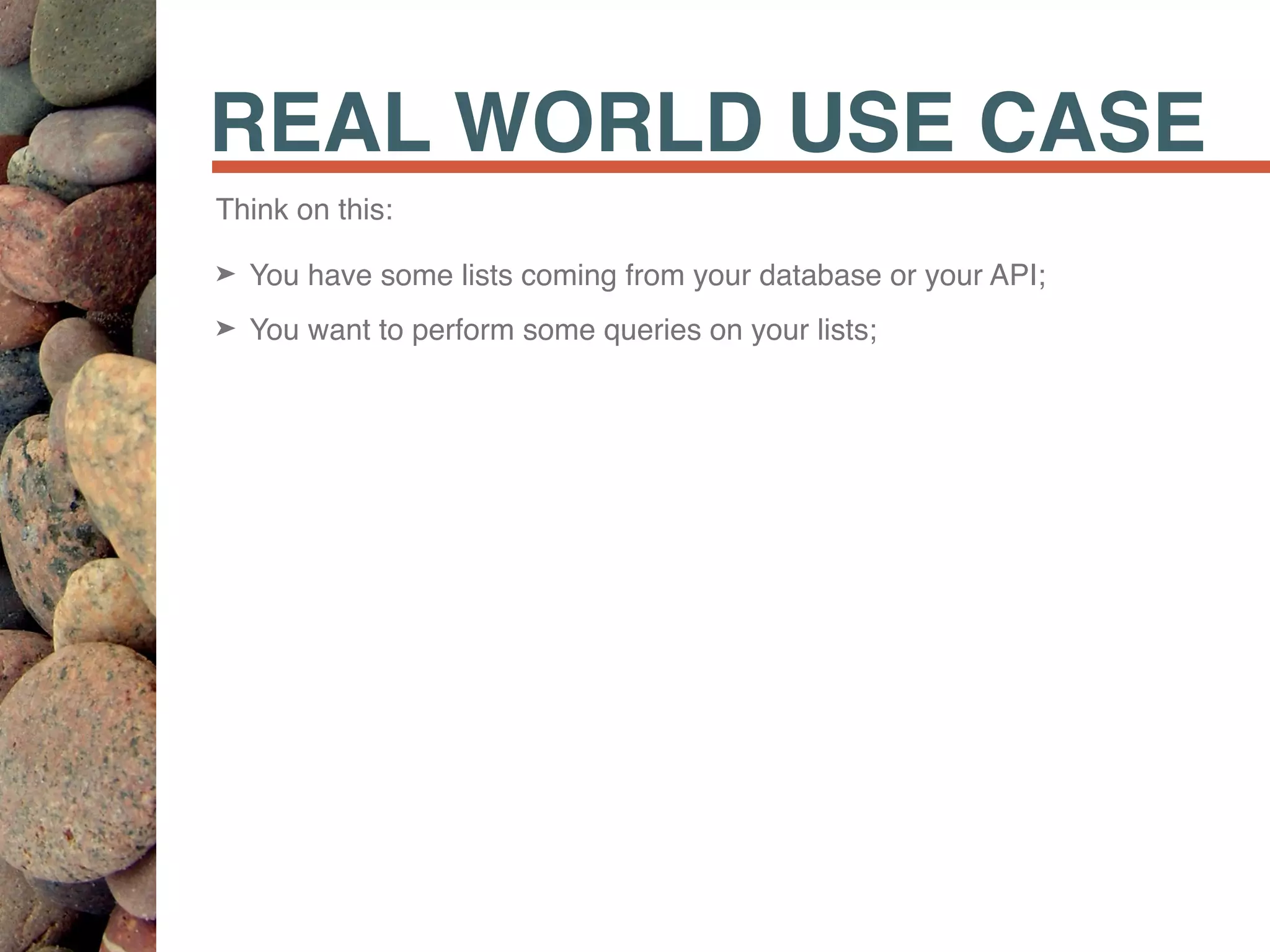

45. REAL WORLD USE CASE
Think on this:
➤ You have some lists coming from your database or your API;
➤ You want to perform some queries on your lists;

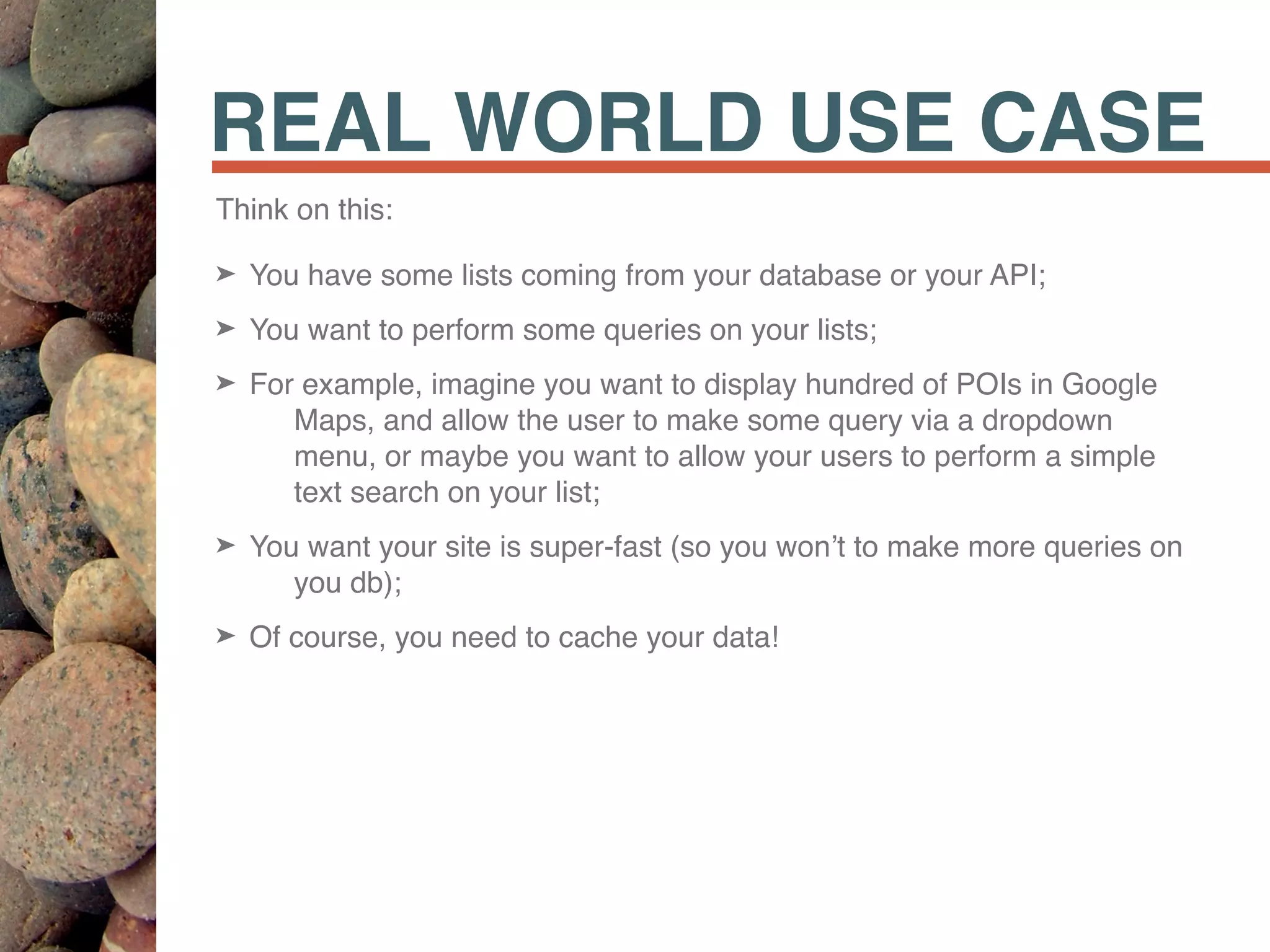

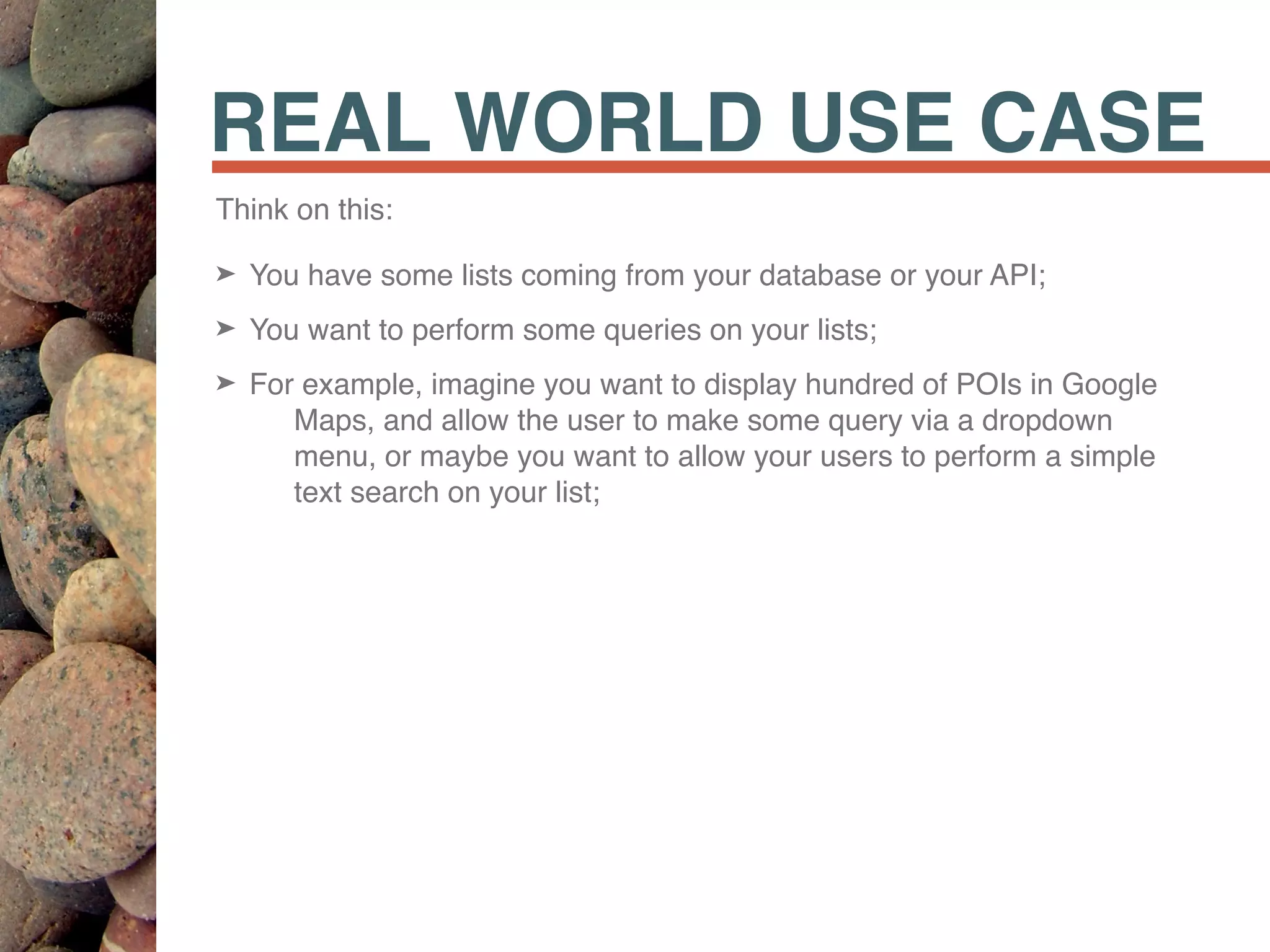

46. REAL WORLD USE CASE
Think on this:
➤ You have some lists coming from your database or your API;
➤ You want to perform some queries on your lists;
➤ For example, imagine you want to display hundred of POIs in Google
Maps, and allow the user to make some query via a dropdown
menu, or maybe you want to allow your users to perform a simple
text search on your list;

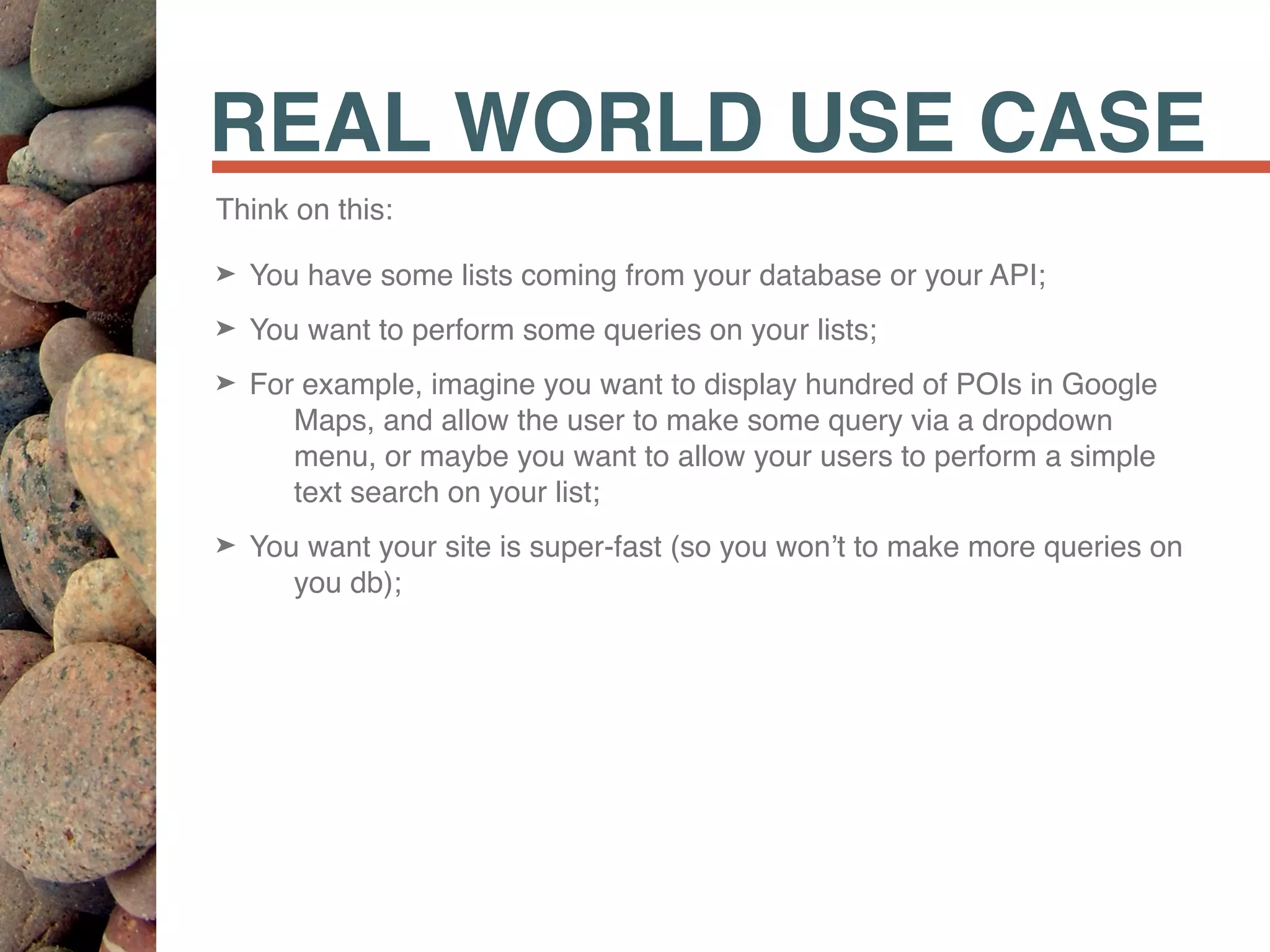

47. REAL WORLD USE CASE
Think on this:
➤ You have some lists coming from your database or your API;
➤ You want to perform some queries on your lists;
➤ For example, imagine you want to display hundred of POIs in Google
Maps, and allow the user to make some query via a dropdown
menu, or maybe you want to allow your users to perform a simple
text search on your list;
➤ You want your site is super-fast (so you won’t to make more queries on
you db);

48. REAL WORLD USE CASE
Think on this:
➤ You have some lists coming from your database or your API;
➤ You want to perform some queries on your lists;
➤ For example, imagine you want to display hundred of POIs in Google
Maps, and allow the user to make some query via a dropdown
menu, or maybe you want to allow your users to perform a simple
text search on your list;
➤ You want your site is super-fast (so you won’t to make more queries on
you db);
➤ Of course, you need to cache your data!

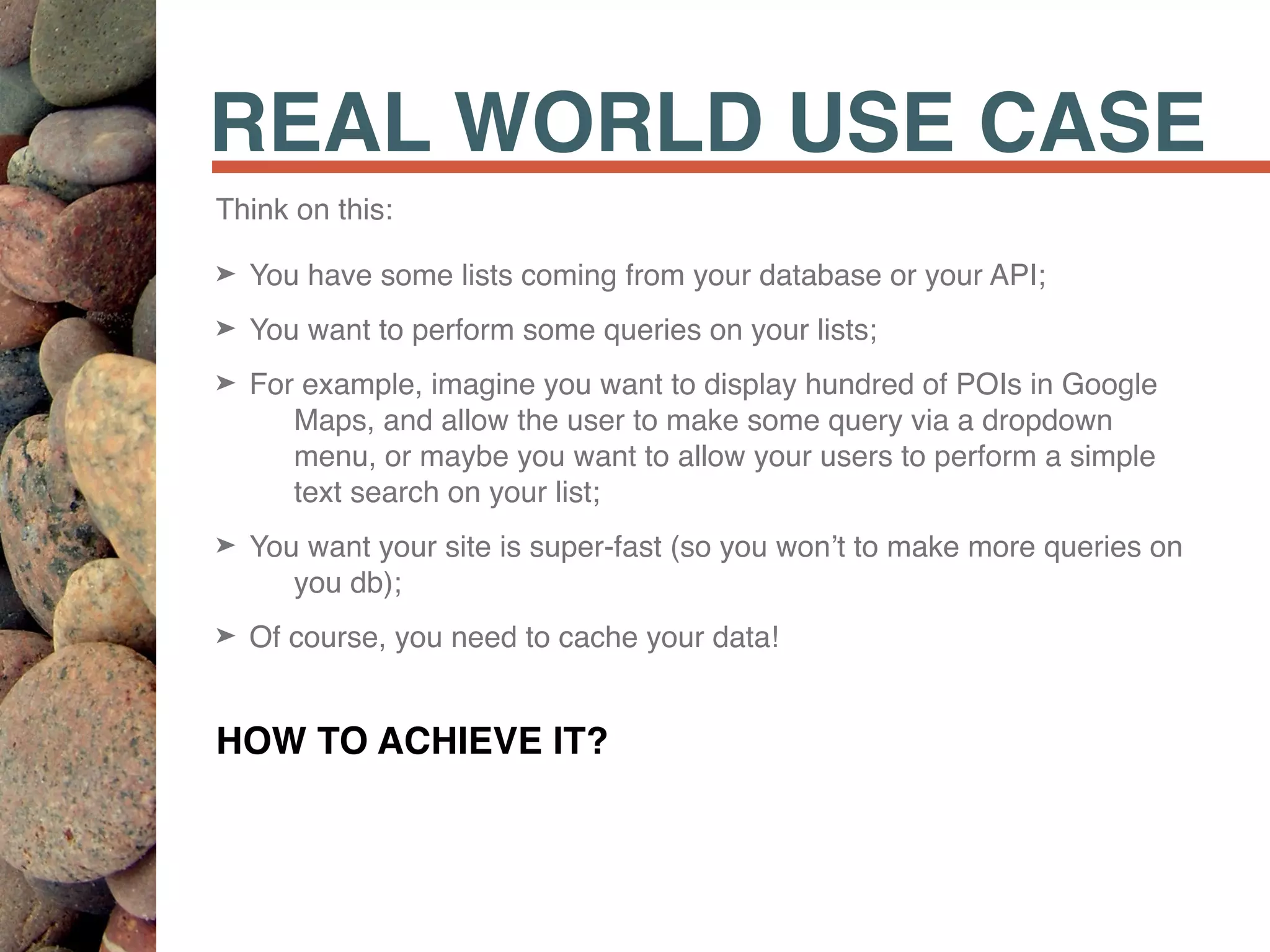

49. REAL WORLD USE CASE
Think on this:
➤ You have some lists coming from your database or your API;
➤ You want to perform some queries on your lists;
➤ For example, imagine you want to display hundred of POIs in Google
Maps, and allow the user to make some query via a dropdown
menu, or maybe you want to allow your users to perform a simple
text search on your list;
➤ You want your site is super-fast (so you won’t to make more queries on
you db);
➤ Of course, you need to cache your data!
HOW TO ACHIEVE IT?

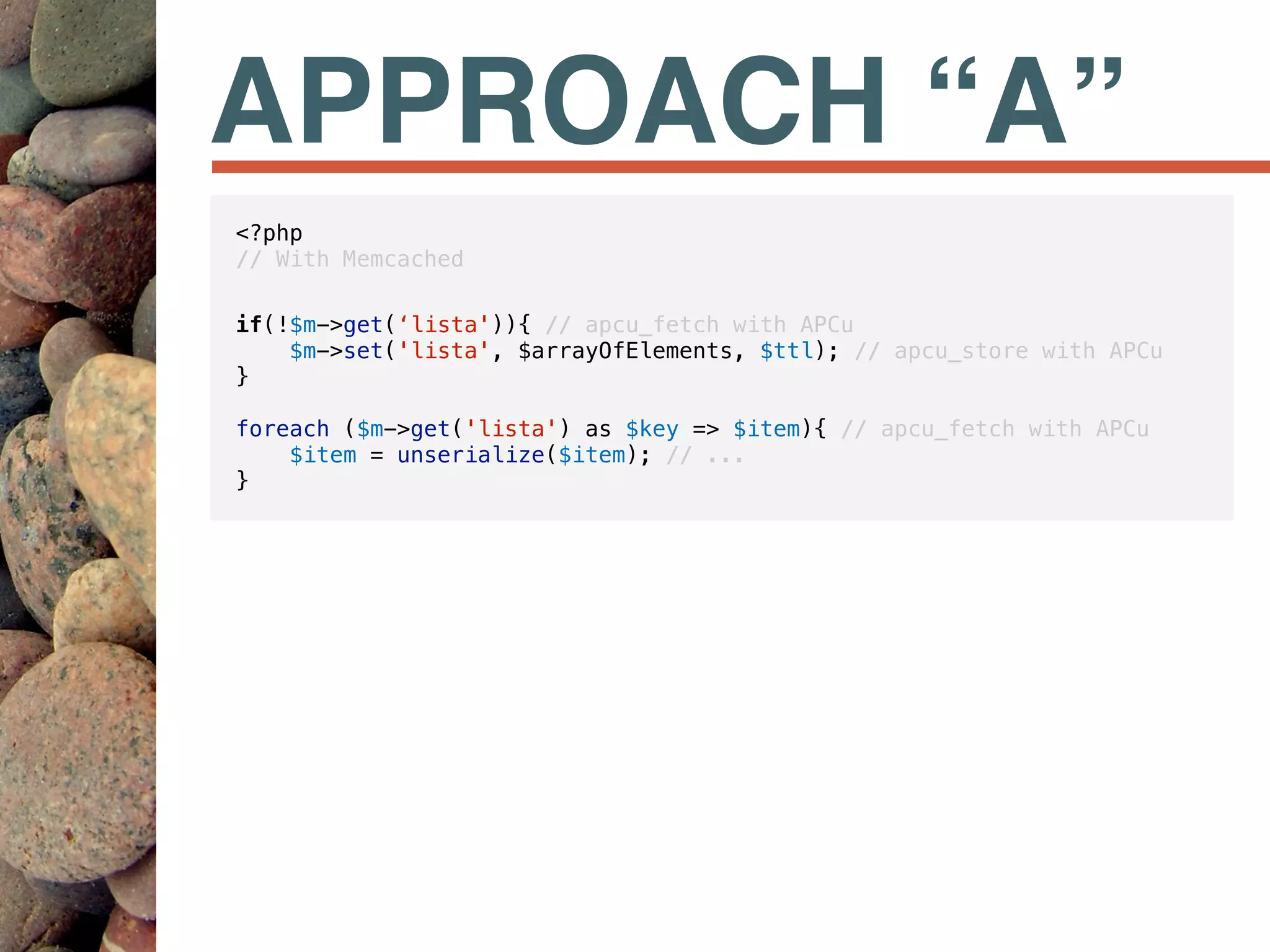

50. APPROACH “A”
<?php
// With Memcached
if(!$m->get(‘lista')){ // apcu_fetch with APCu
$m->set('lista', $arrayOfElements, $ttl); // apcu_store with APCu
}
foreach ($m->get('lista') as $key => $item){ // apcu_fetch with APCu
$item = unserialize($item); // ...
}

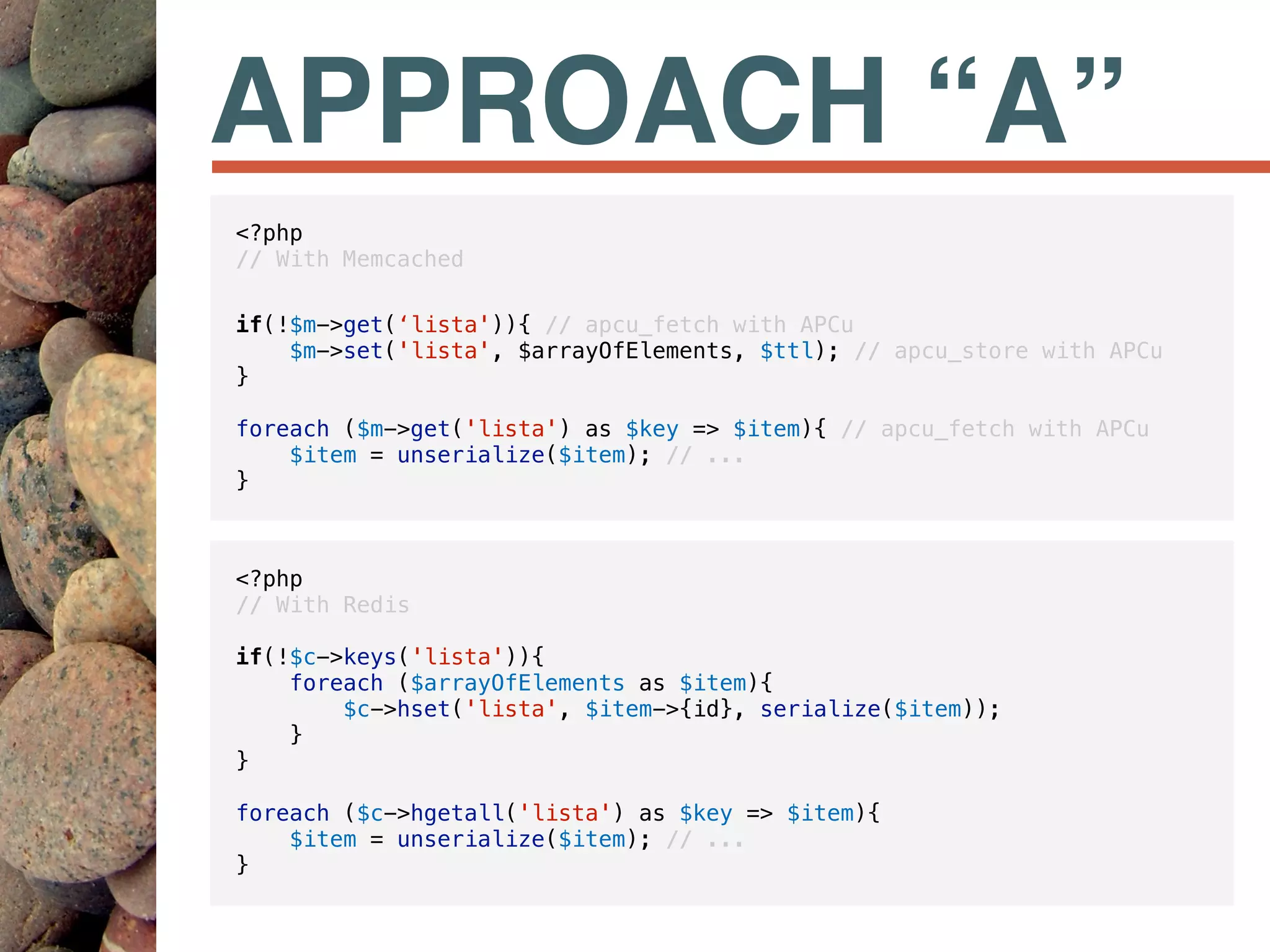

51. APPROACH “A”
<?php
// With Redis
if(!$c->keys('lista')){
foreach ($arrayOfElements as $item){
$c->hset('lista', $item->{id}, serialize($item));
}
}
foreach ($c->hgetall('lista') as $key => $item){
$item = unserialize($item); // ...
}
<?php
// With Memcached
if(!$m->get(‘lista')){ // apcu_fetch with APCu
$m->set('lista', $arrayOfElements, $ttl); // apcu_store with APCu
}
foreach ($m->get('lista') as $key => $item){ // apcu_fetch with APCu
$item = unserialize($item); // ...
}

52. APPROACH “B”
<?php // With Memcached
foreach ($originalArray as $element) {
$m->set('lista:'.$element->id, serialize($element), $ttl); // apcu_store
$arrayOfIdElements[(string) $element->id] = 'lista:'.$element->id;
}
$m->set('lista', $arrayOfIdElements, $ttl);
foreach ($m->get('lista') as $key){ // apcu_fetch with APCu
$item = $m->get($key); // ... // apcu_fetch with APCu
}

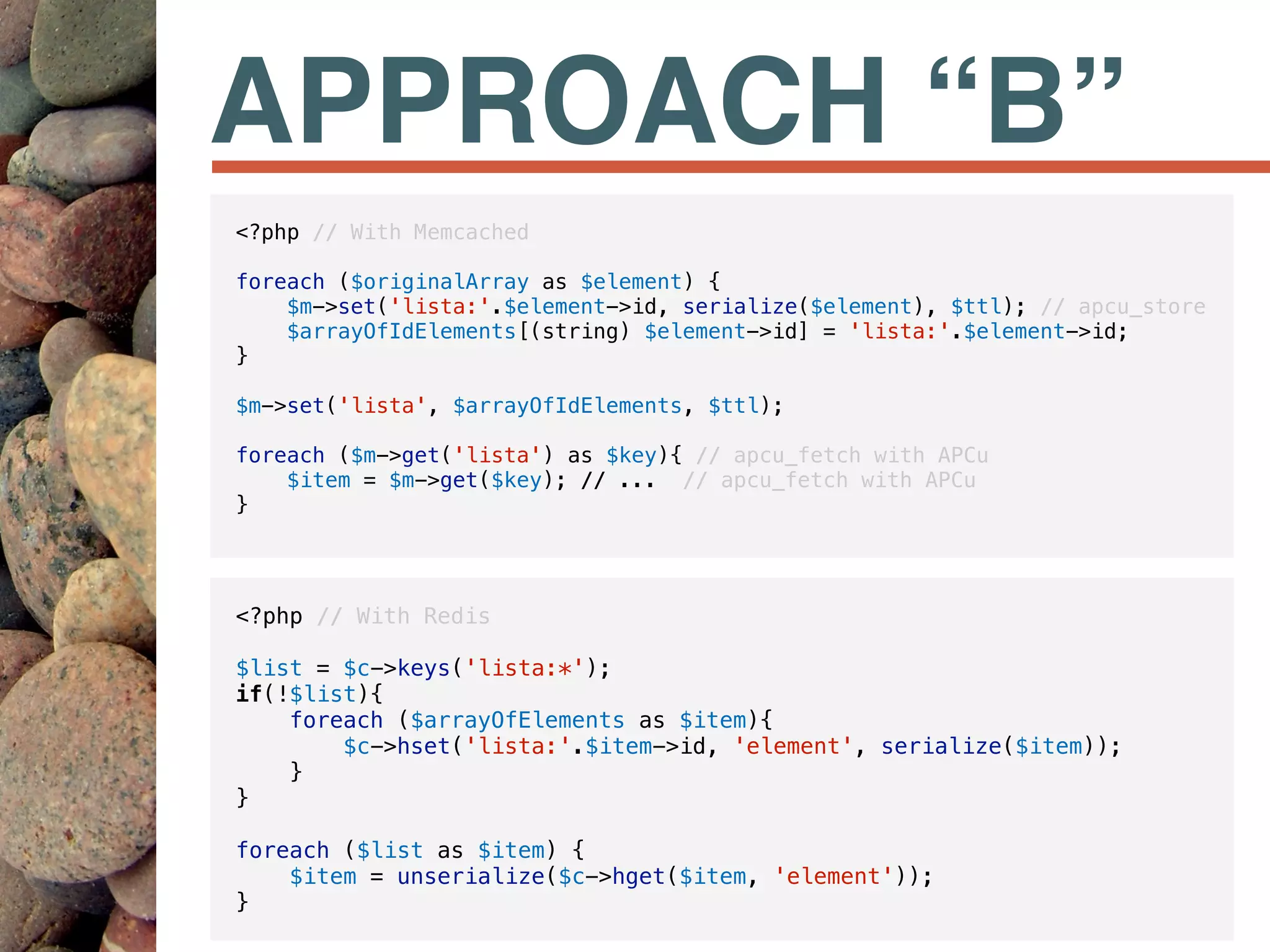

53. APPROACH “B”
<?php // With Redis
$list = $c->keys('lista:*');
if(!$list){
foreach ($arrayOfElements as $item){
$c->hset('lista:'.$item->id, 'element', serialize($item));
}
}
foreach ($list as $item) {
$item = unserialize($c->hget($item, 'element'));
}
<?php // With Memcached
foreach ($originalArray as $element) {
$m->set('lista:'.$element->id, serialize($element), $ttl); // apcu_store
$arrayOfIdElements[(string) $element->id] = 'lista:'.$element->id;
}
$m->set('lista', $arrayOfIdElements, $ttl);
foreach ($m->get('lista') as $key){ // apcu_fetch with APCu
$item = $m->get($key); // ... // apcu_fetch with APCu
}

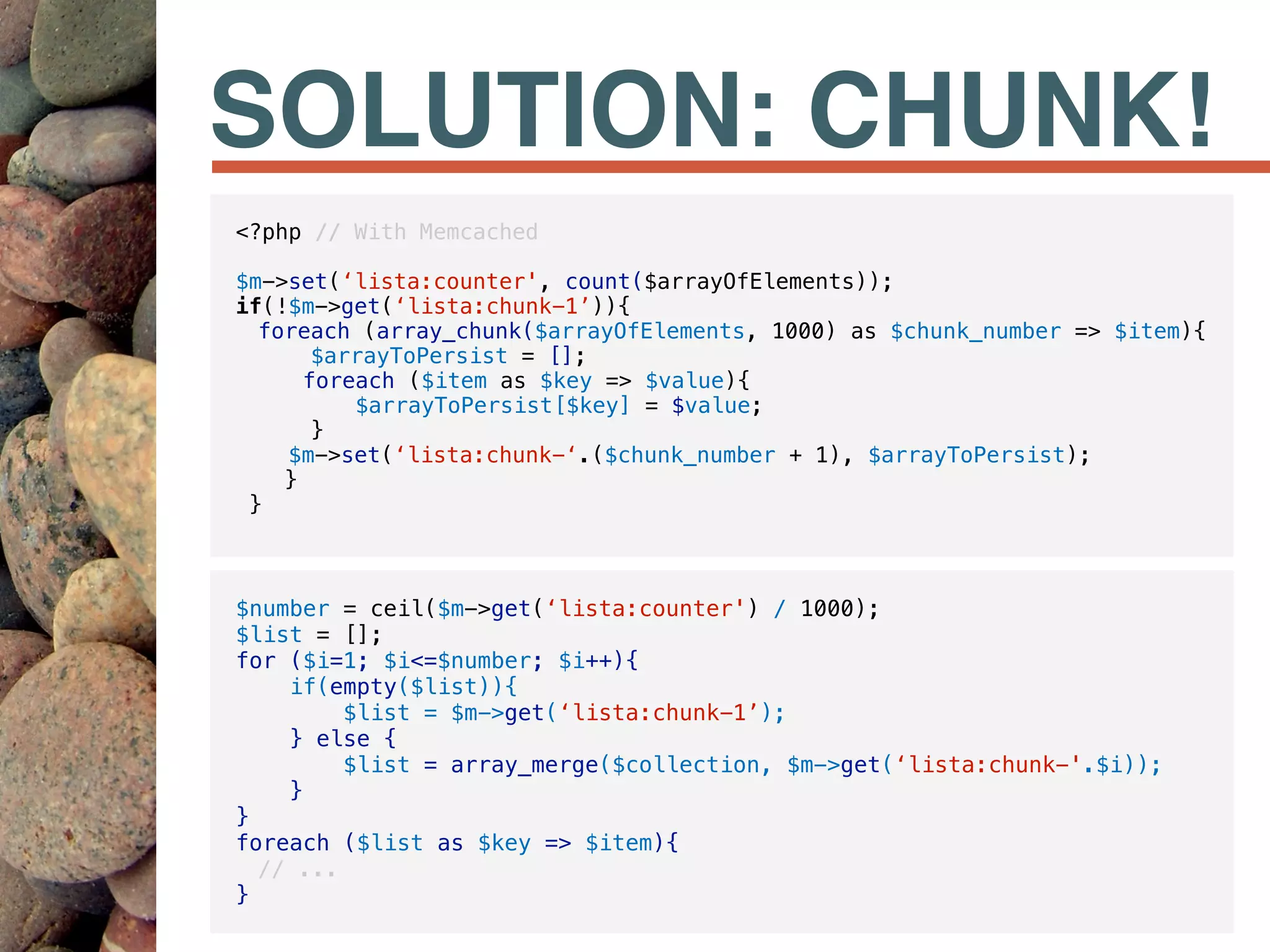

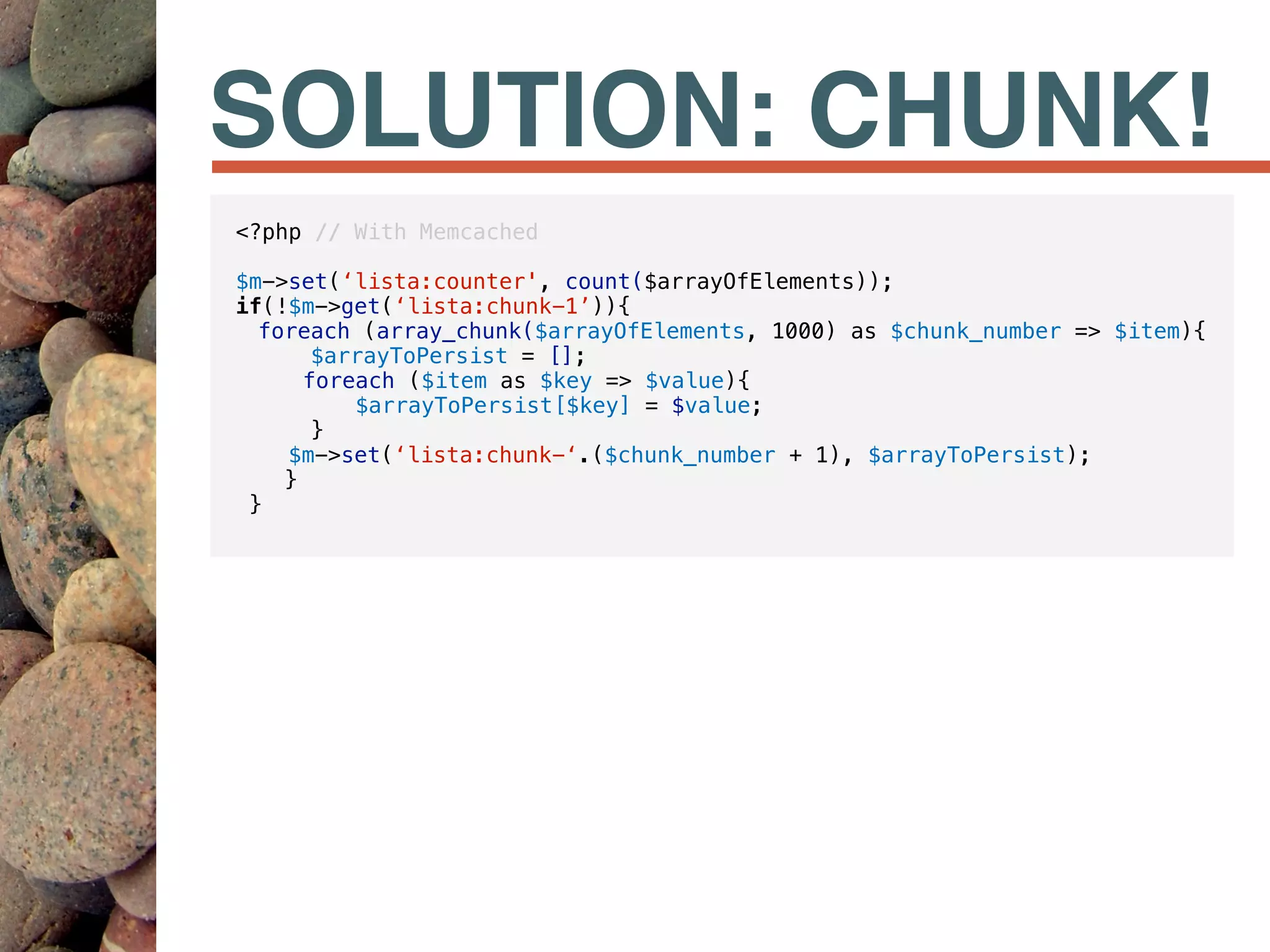

54. SOLUTION: CHUNK!
<?php // With Memcached
$m->set(‘lista:counter', count($arrayOfElements));
if(!$m->get(‘lista:chunk-1’)){
foreach (array_chunk($arrayOfElements, 1000) as $chunk_number => $item){
$arrayToPersist = [];
foreach ($item as $key => $value){
$arrayToPersist[$key] = $value;
}
$m->set(‘lista:chunk-‘.($chunk_number + 1), $arrayToPersist);
}
}

55. SOLUTION: CHUNK!
$number = ceil($m->get(‘lista:counter') / 1000);
$list = [];
for ($i=1; $i<=$number; $i++){
if(empty($list)){
$list = $m->get(‘lista:chunk-1’);
} else {
$list = array_merge($collection, $m->get(‘lista:chunk-'.$i));
}
}
foreach ($list as $key => $item){
// ...
}
<?php // With Memcached
$m->set(‘lista:counter', count($arrayOfElements));
if(!$m->get(‘lista:chunk-1’)){
foreach (array_chunk($arrayOfElements, 1000) as $chunk_number => $item){
$arrayToPersist = [];
foreach ($item as $key => $value){
$arrayToPersist[$key] = $value;
}
$m->set(‘lista:chunk-‘.($chunk_number + 1), $arrayToPersist);
}
}

56. SOLUTION: CHUNK! (2)
<?php // With Redis
$c->set(‘lista:counter', count($arrayOfElements));
if(!$c->hgetall(‘lista:chunk-1’)){
foreach (array_chunk($arrayOfElements, 1000) as $chunk_number =>
$item){
foreach ($item as $key => $value){
$c->hset(‘lista:chunk-‘.($chunk_number+1), $key, $value);
}
}

57. SOLUTION: CHUNK! (2)
<?php // With Redis
$c->set(‘lista:counter', count($arrayOfElements));
if(!$c->hgetall(‘lista:chunk-1’)){
foreach (array_chunk($arrayOfElements, 1000) as $chunk_number =>
$item){
foreach ($item as $key => $value){
$c->hset(‘lista:chunk-‘.($chunk_number+1), $key, $value);
}
}
$number = ceil($c->get(‘lista:counter') / 1000);
$list = [];
for ($i=1; $i<=$number; $i++){
if(empty($list)){
$list = $c->hgetall(‘lista:chunk-1');
} else {
$list = array_merge($collection, $c->hgetall(‘lista:chunk-'.
$i));
}
}
foreach ($list as $key => $item){
// ...
}

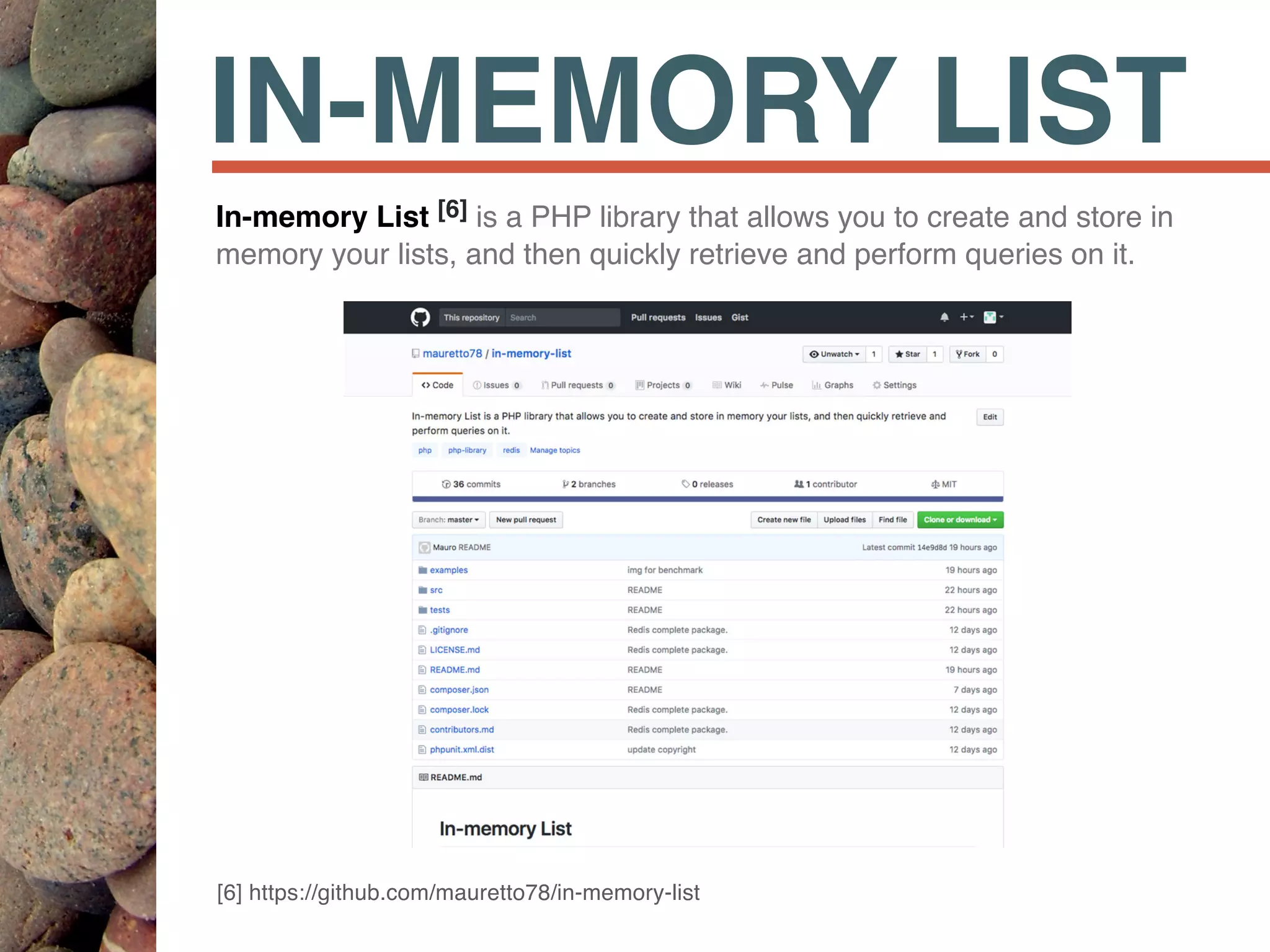

58. IN-MEMORY LIST
In-memory List [6] is a PHP library that allows you to create and store in
memory your lists, and then quickly retrieve and perform queries on it.
[6] https://github.com/mauretto78/in-memory-list

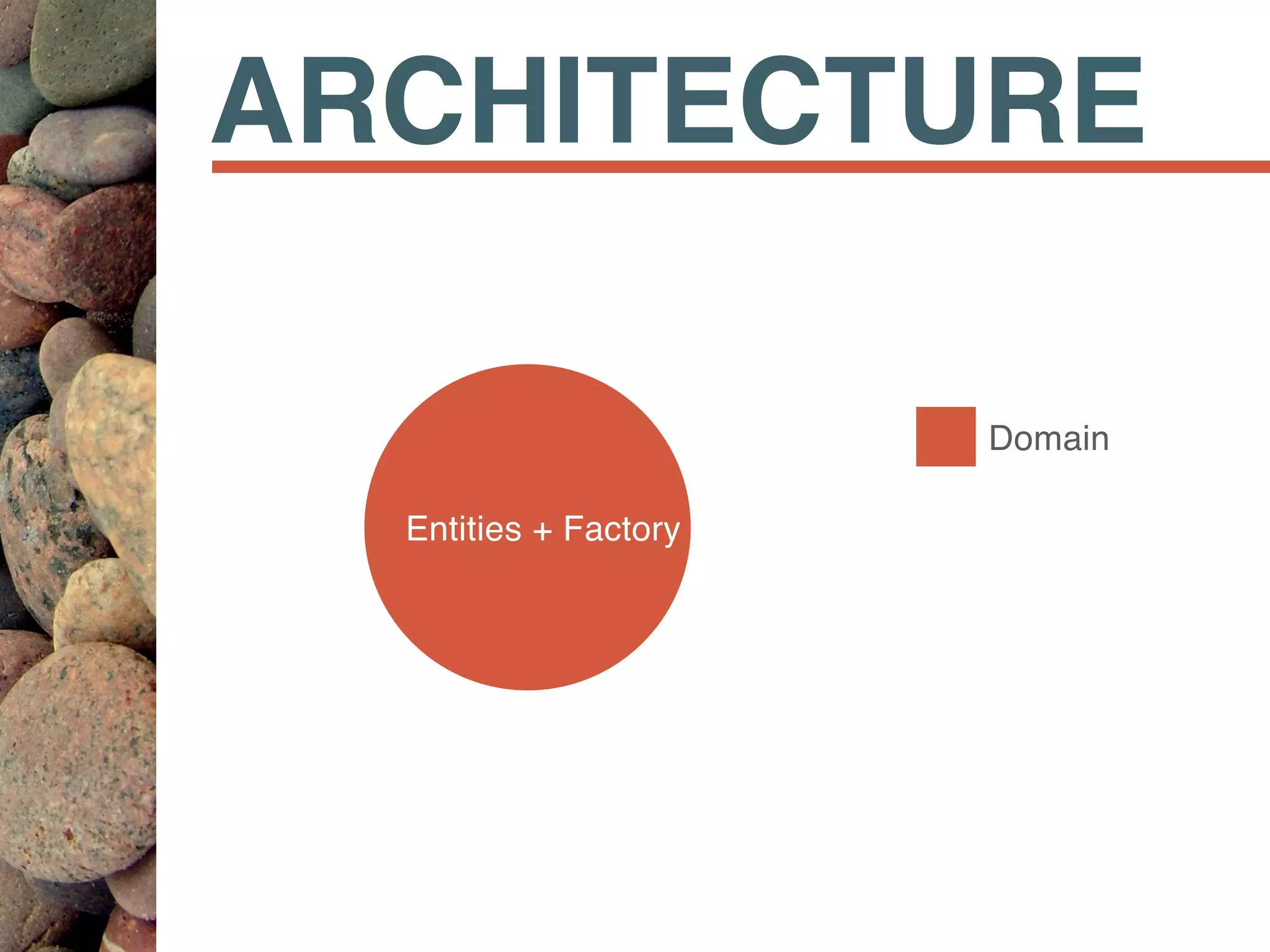

59. ARCHITECTURE
Domain
Entities + Factory
Client + QB

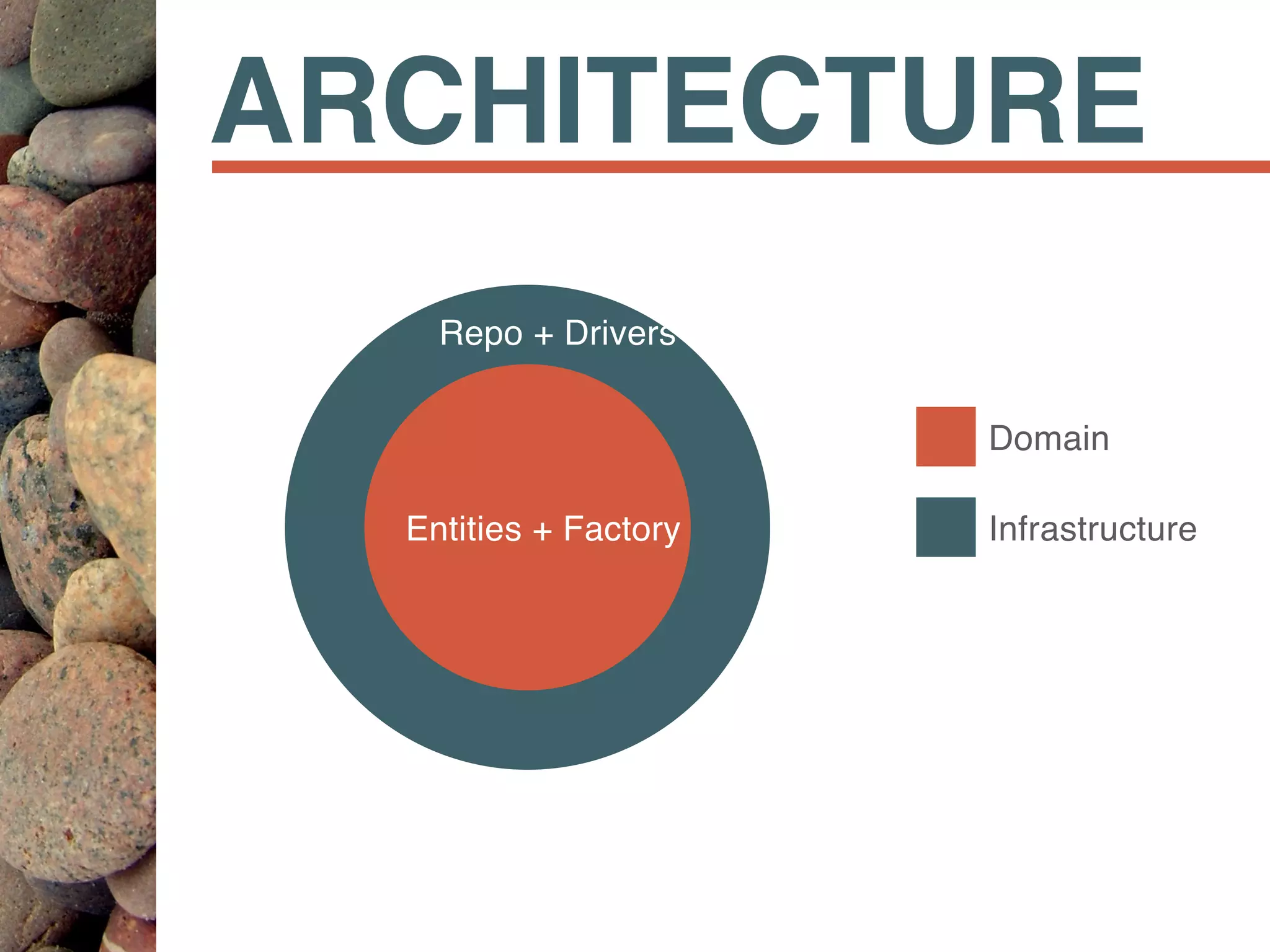

60. ARCHITECTURE
Domain
InfrastructureEntities + Factory
Client + QB
Repo + Drivers

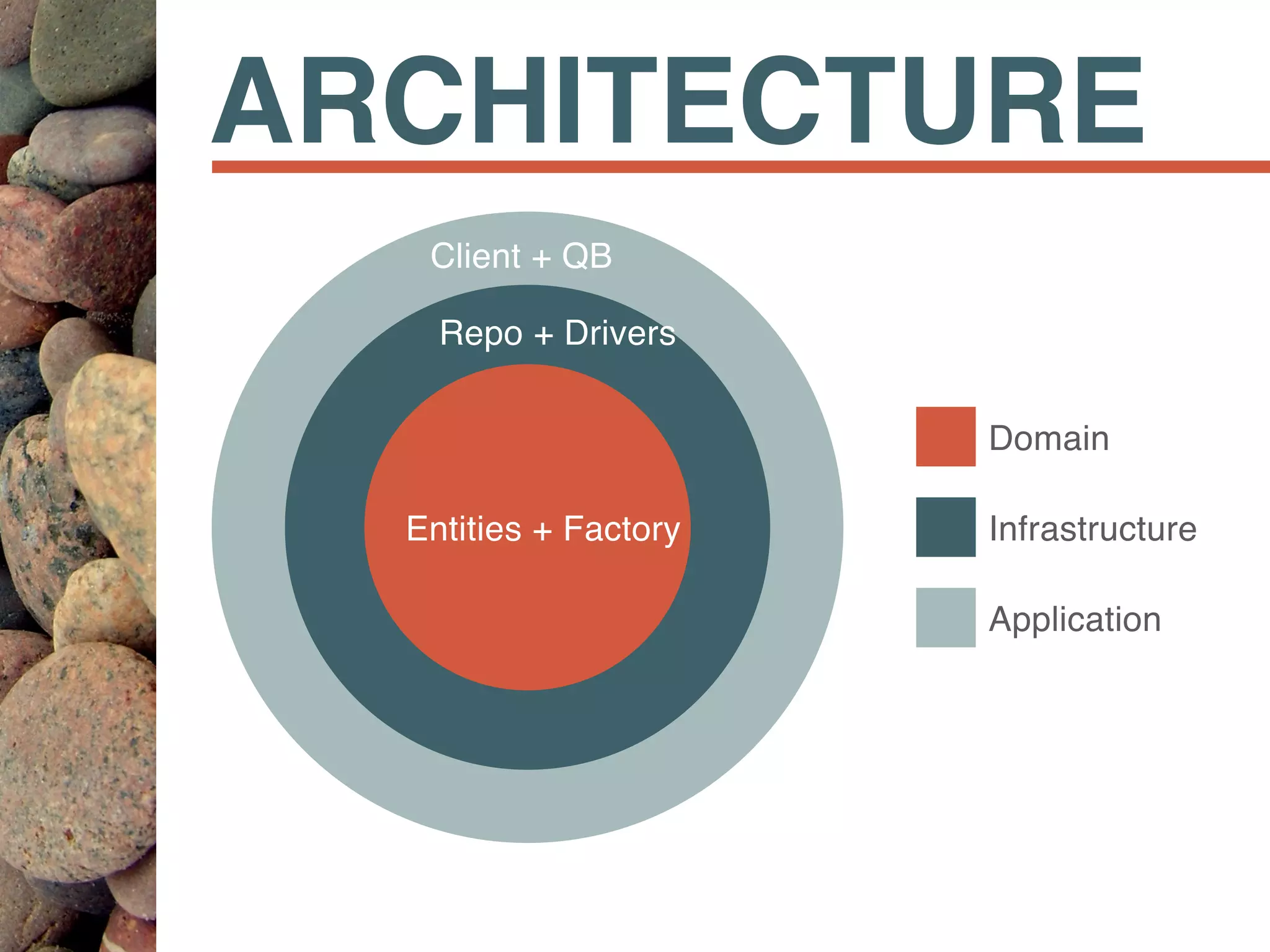

61. ARCHITECTURE
Domain
Infrastructure
Application
Entities + Factory
Client + QB
Repo + Drivers

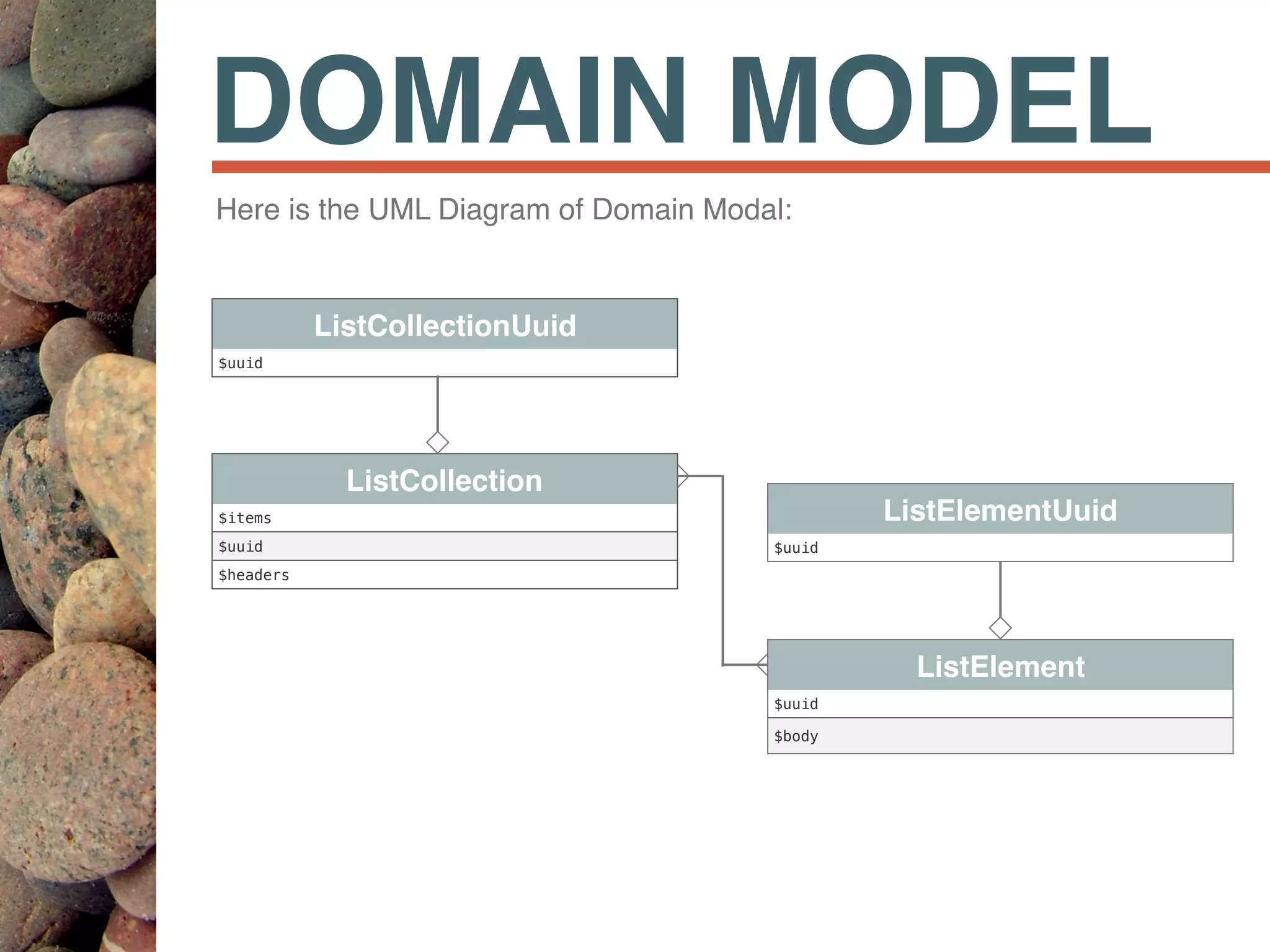

62. DOMAIN MODEL
ListCollection
$items
$uuid
$headers
ListCollectionUuid
$uuid
Here is the UML Diagram of Domain Modal:
ListElement
$uuid
$body
ListElementUuid
$uuid

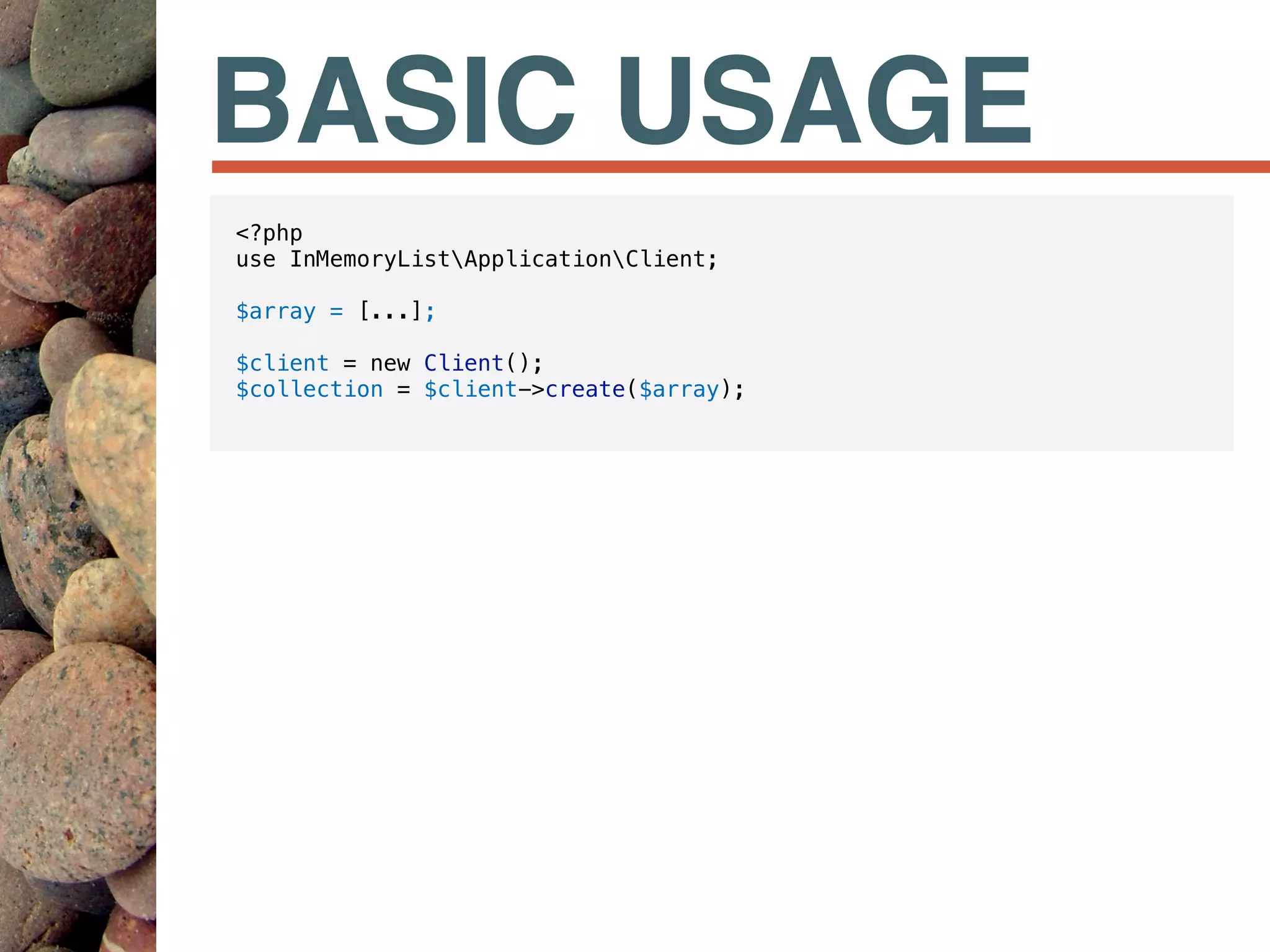

63. BASIC USAGE
<?php
use InMemoryListApplicationClient;
$array = [...];
$client = new Client();
$collection = $client->create($array);

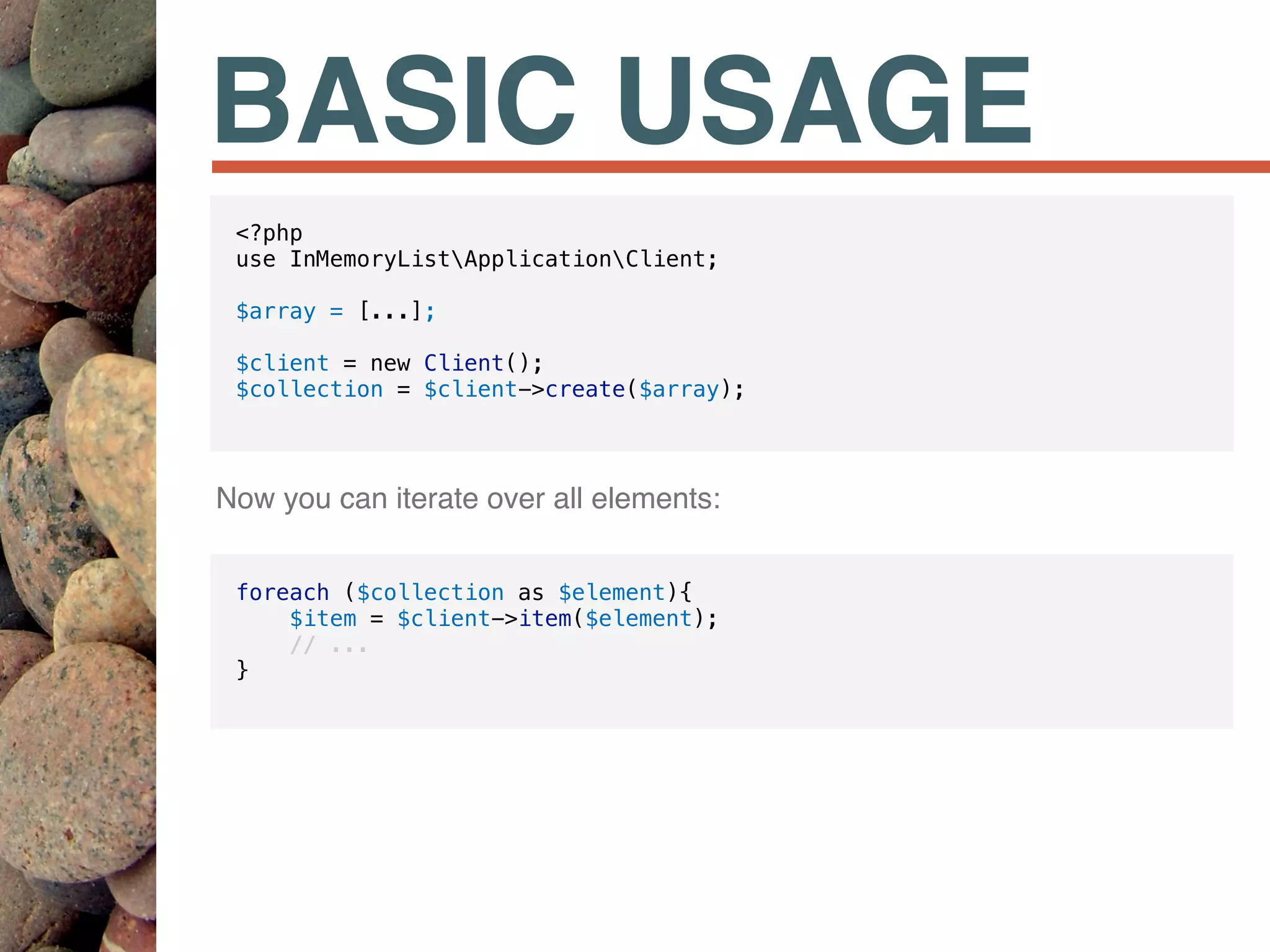

64. BASIC USAGE
<?php
use InMemoryListApplicationClient;
$array = [...];
$client = new Client();
$collection = $client->create($array);
foreach ($collection as $element){
$item = $client->item($element);
// ...
}
Now you can iterate over all elements:

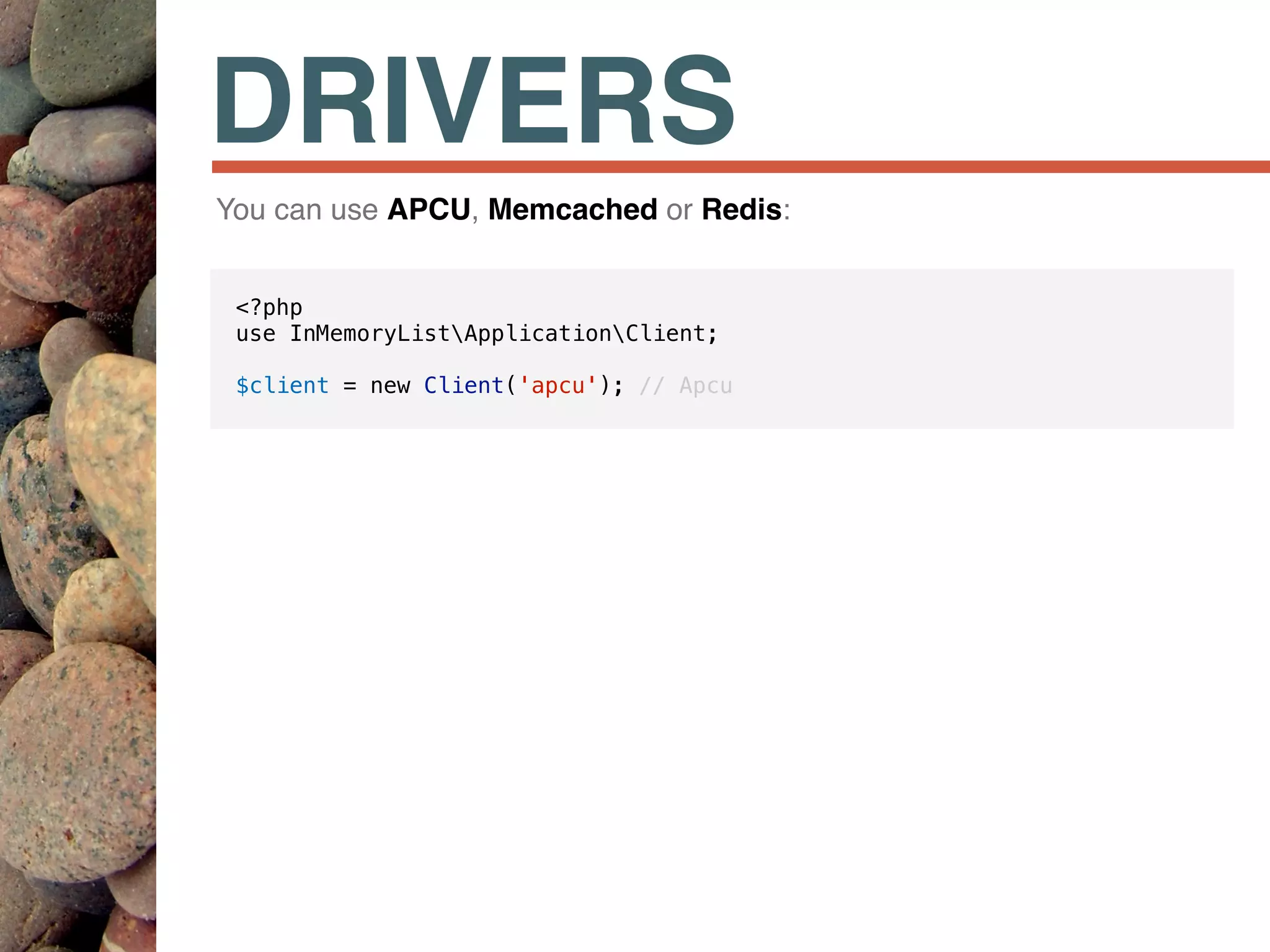

65. DRIVERS
<?php
use InMemoryListApplicationClient;
$client = new Client('apcu'); // Apcu
You can use APCU, Memcached or Redis:

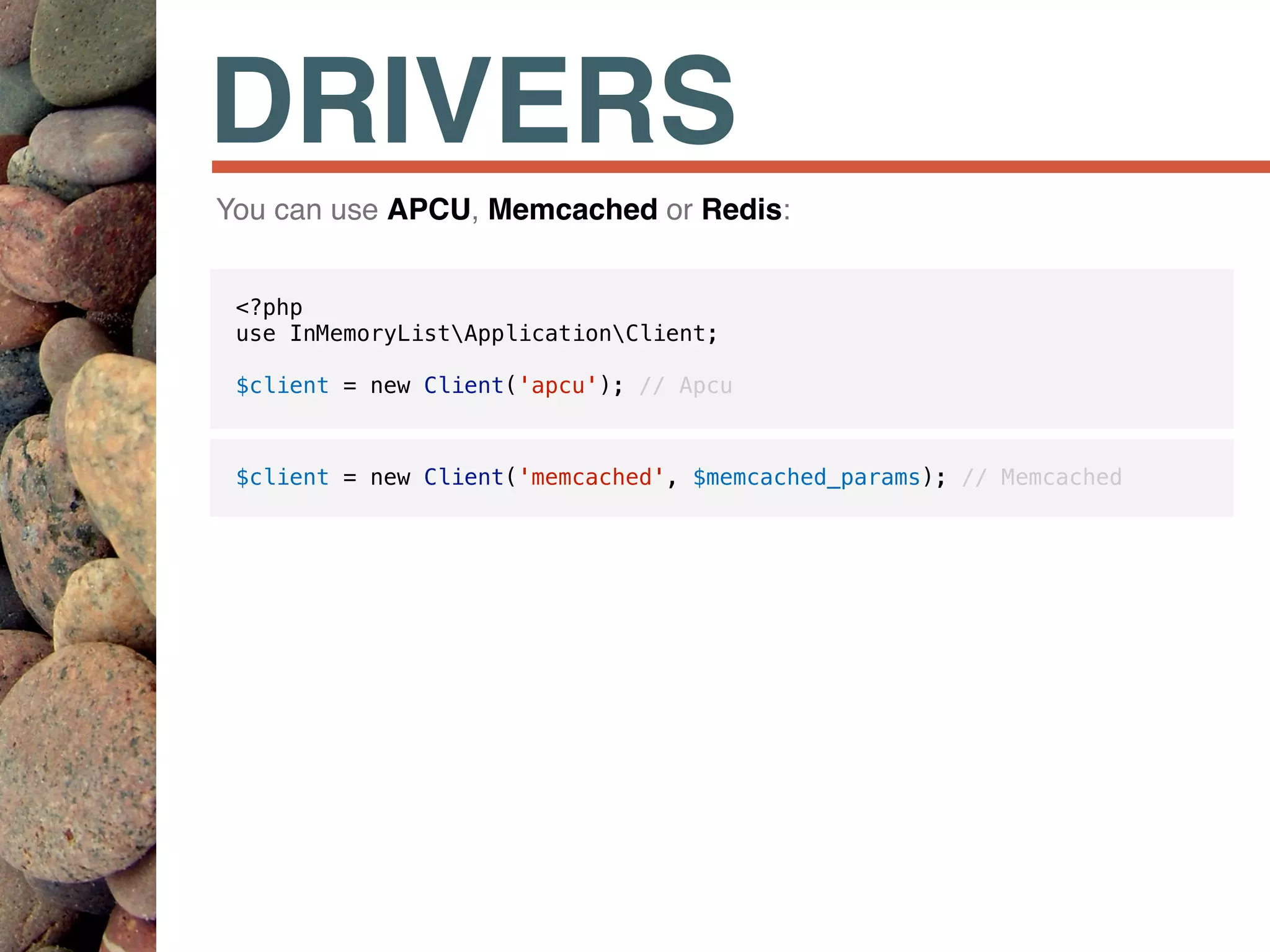

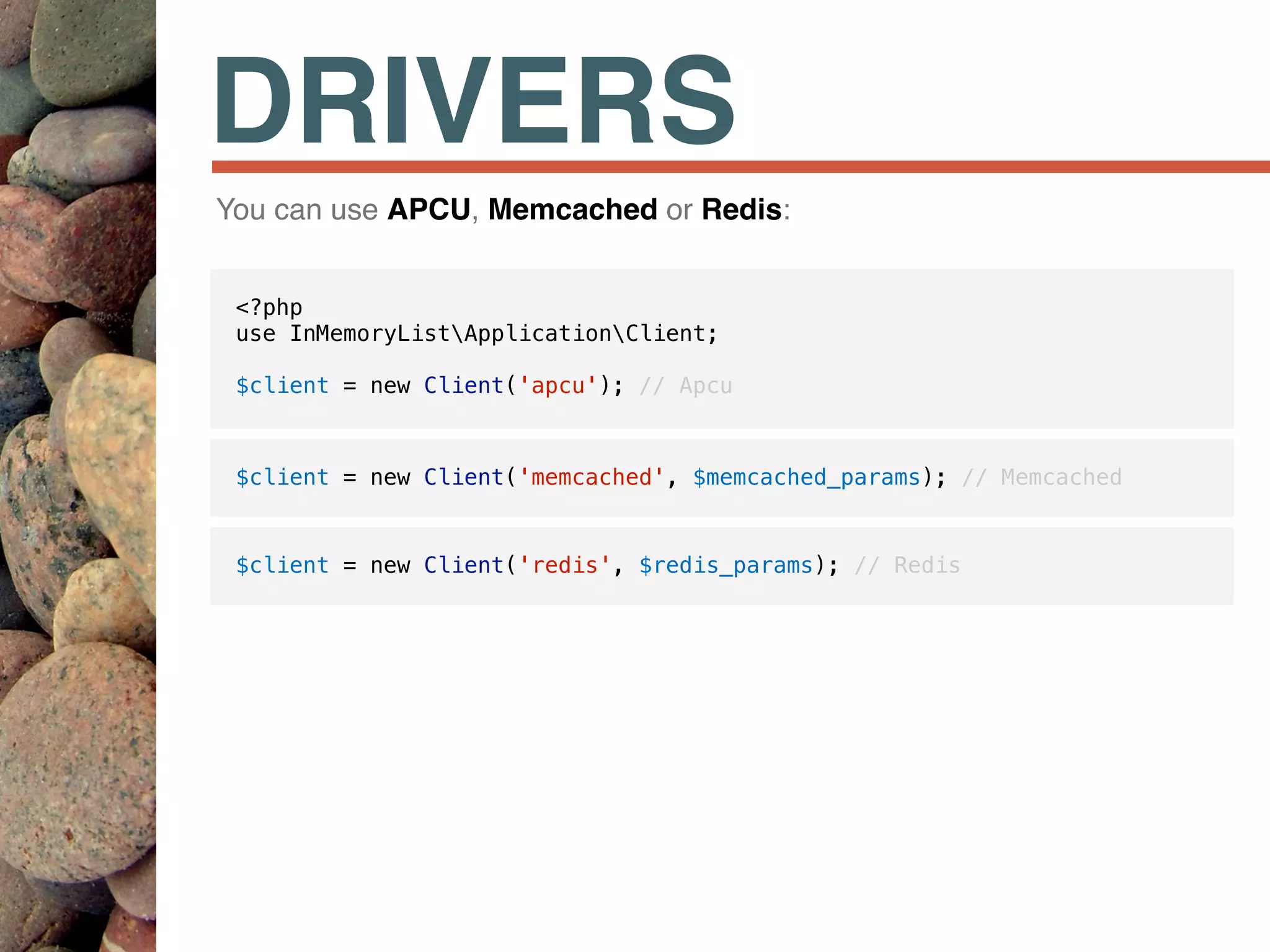

66. DRIVERS
<?php
use InMemoryListApplicationClient;
$client = new Client('apcu'); // Apcu
$client = new Client('memcached', $memcached_params); // Memcached
You can use APCU, Memcached or Redis:

67. DRIVERS
$client = new Client('redis', $redis_params); // Redis
<?php
use InMemoryListApplicationClient;
$client = new Client('apcu'); // Apcu
$client = new Client('memcached', $memcached_params); // Memcached
You can use APCU, Memcached or Redis:

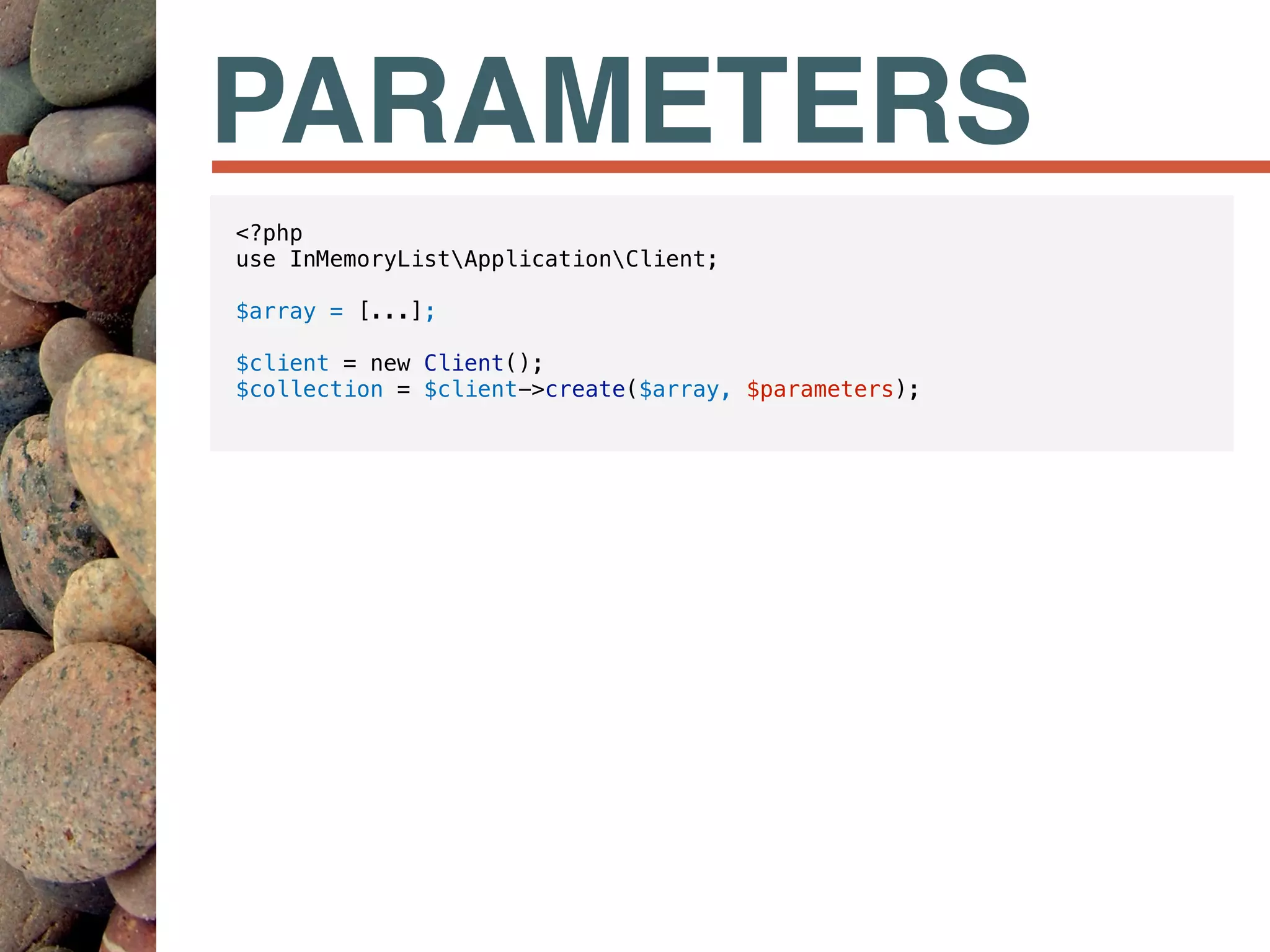

68. PARAMETERS
<?php
use InMemoryListApplicationClient;
$array = [...];
$client = new Client();
$collection = $client->create($array, $parameters);

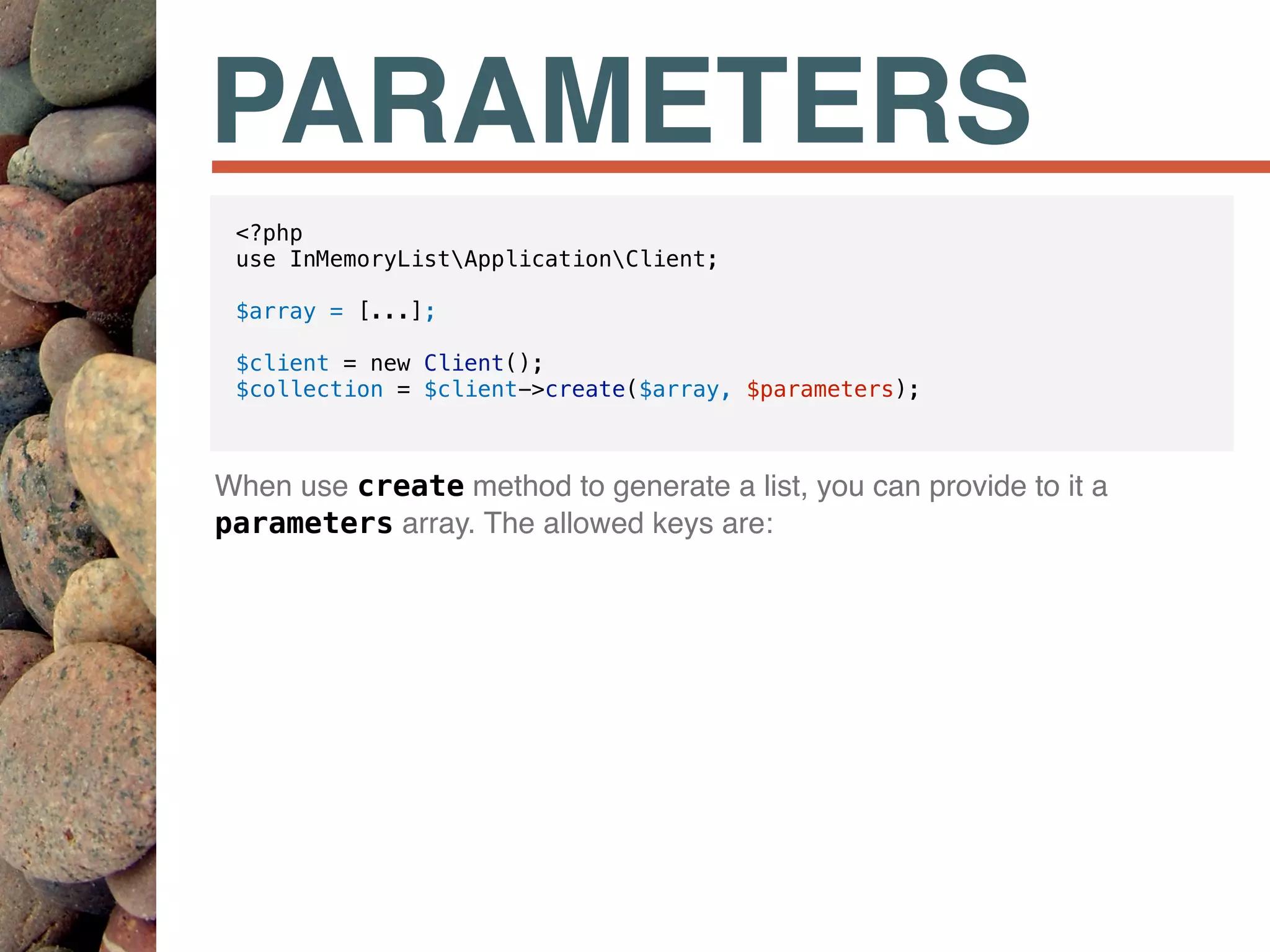

69. PARAMETERS
When use create method to generate a list, you can provide to it a
parameters array. The allowed keys are:
<?php
use InMemoryListApplicationClient;
$array = [...];
$client = new Client();
$collection = $client->create($array, $parameters);

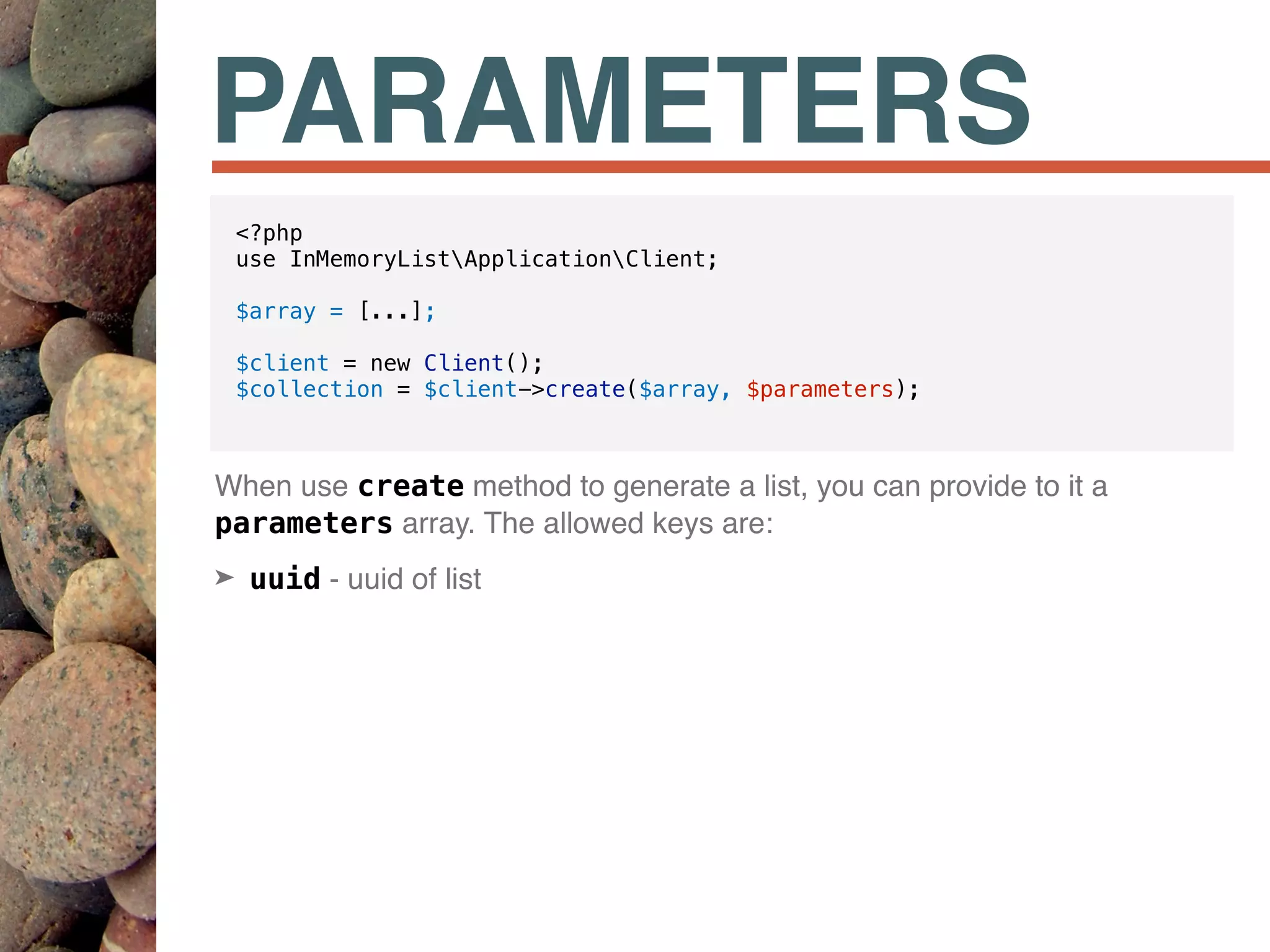

70. PARAMETERS
When use create method to generate a list, you can provide to it a
parameters array. The allowed keys are:
➤ uuid - uuid of list
<?php
use InMemoryListApplicationClient;
$array = [...];
$client = new Client();
$collection = $client->create($array, $parameters);

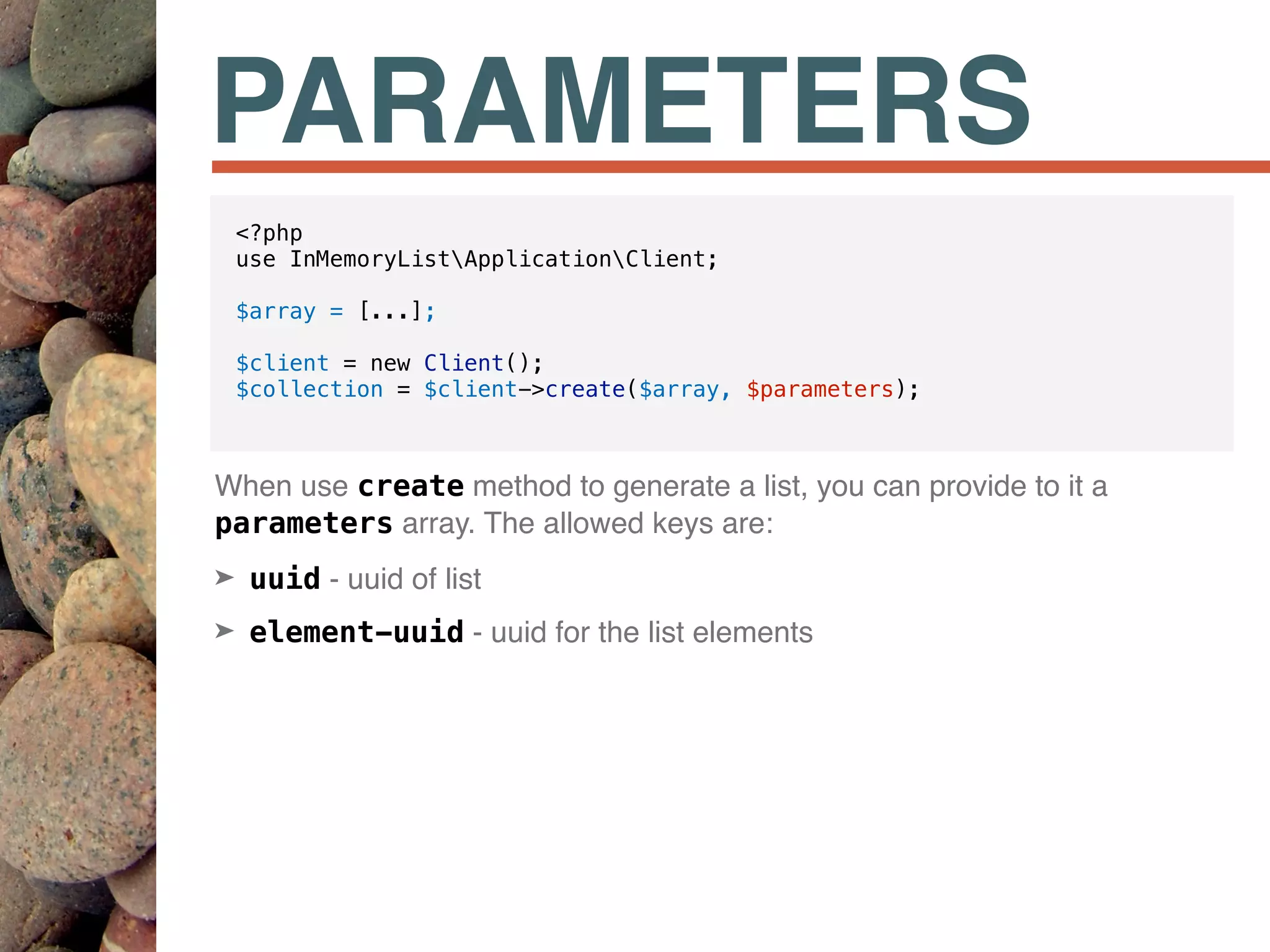

71. PARAMETERS
When use create method to generate a list, you can provide to it a
parameters array. The allowed keys are:
➤ uuid - uuid of list
➤ element-uuid - uuid for the list elements
<?php
use InMemoryListApplicationClient;
$array = [...];
$client = new Client();
$collection = $client->create($array, $parameters);

72. PARAMETERS
When use create method to generate a list, you can provide to it a
parameters array. The allowed keys are:
➤ uuid - uuid of list
➤ element-uuid - uuid for the list elements
➤ headers - headers array for the list
<?php
use InMemoryListApplicationClient;
$array = [...];
$client = new Client();
$collection = $client->create($array, $parameters);

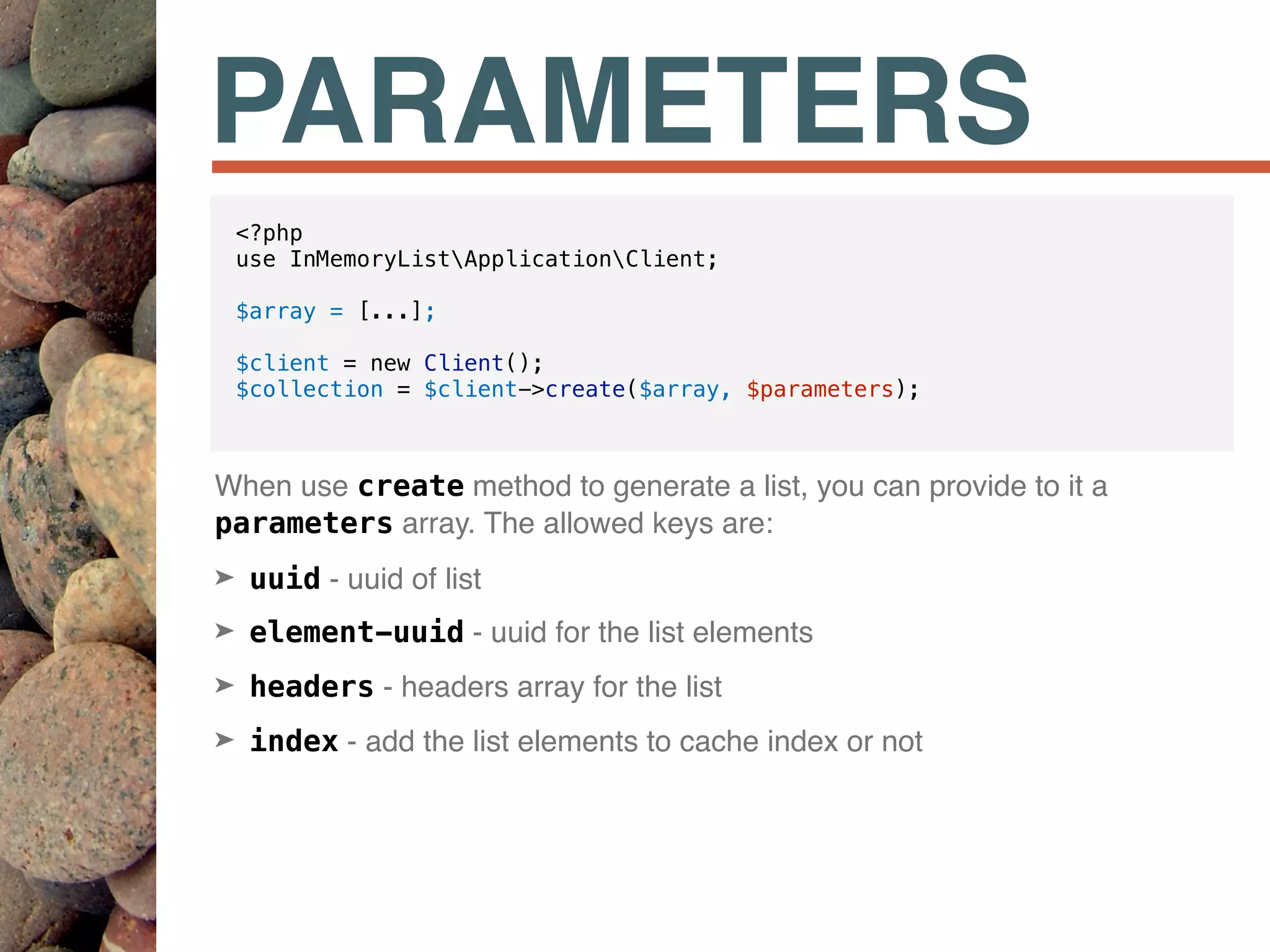

73. PARAMETERS
When use create method to generate a list, you can provide to it a
parameters array. The allowed keys are:
➤ uuid - uuid of list
➤ element-uuid - uuid for the list elements
➤ headers - headers array for the list
➤ index - add the list elements to cache index or not
<?php
use InMemoryListApplicationClient;
$array = [...];
$client = new Client();
$collection = $client->create($array, $parameters);

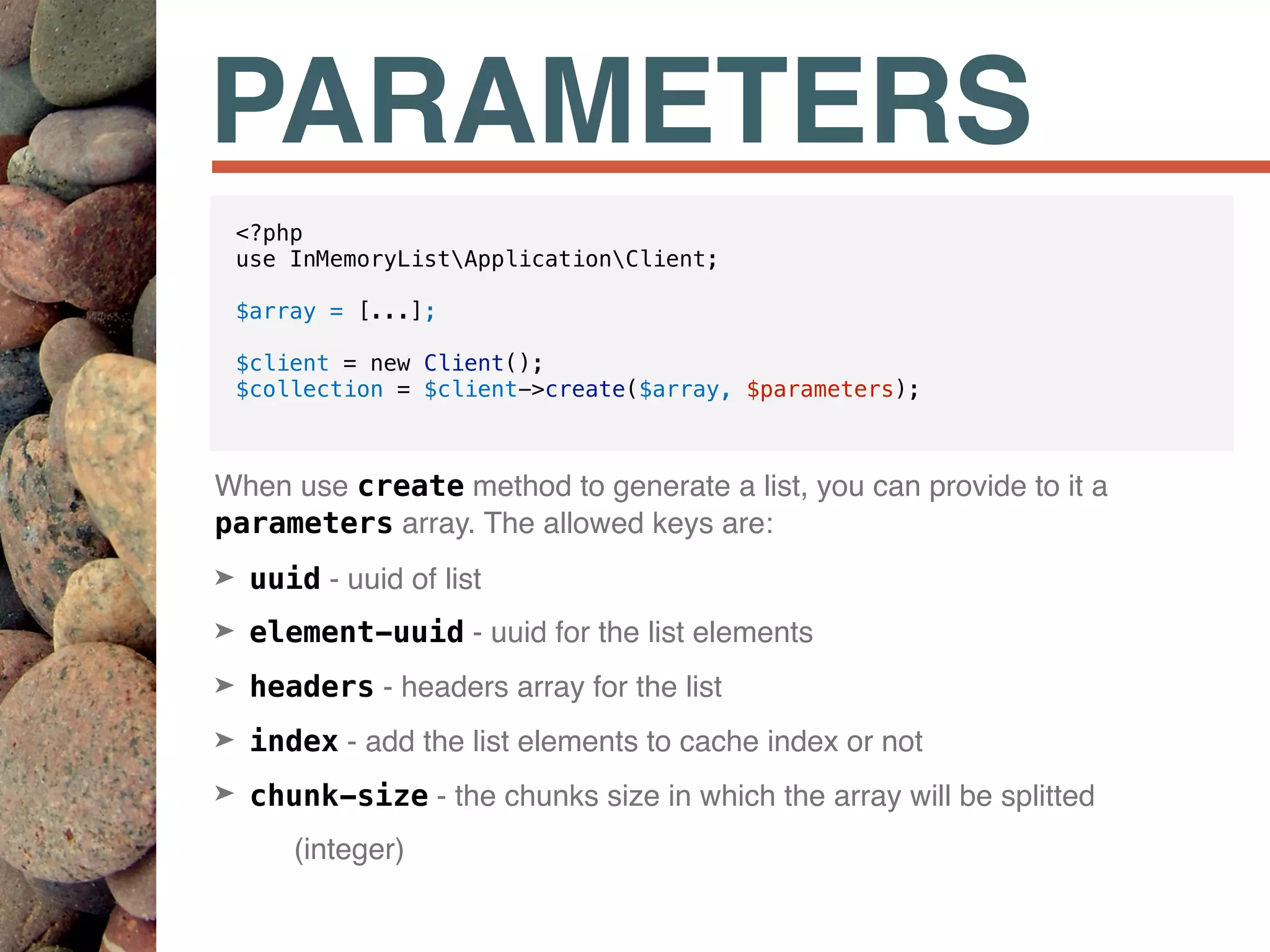

74. PARAMETERS
When use create method to generate a list, you can provide to it a
parameters array. The allowed keys are:
➤ uuid - uuid of list
➤ element-uuid - uuid for the list elements
➤ headers - headers array for the list
➤ index - add the list elements to cache index or not
➤ chunk-size - the chunks size in which the array will be splitted
(integer)
<?php
use InMemoryListApplicationClient;
$array = [...];
$client = new Client();
$collection = $client->create($array, $parameters);

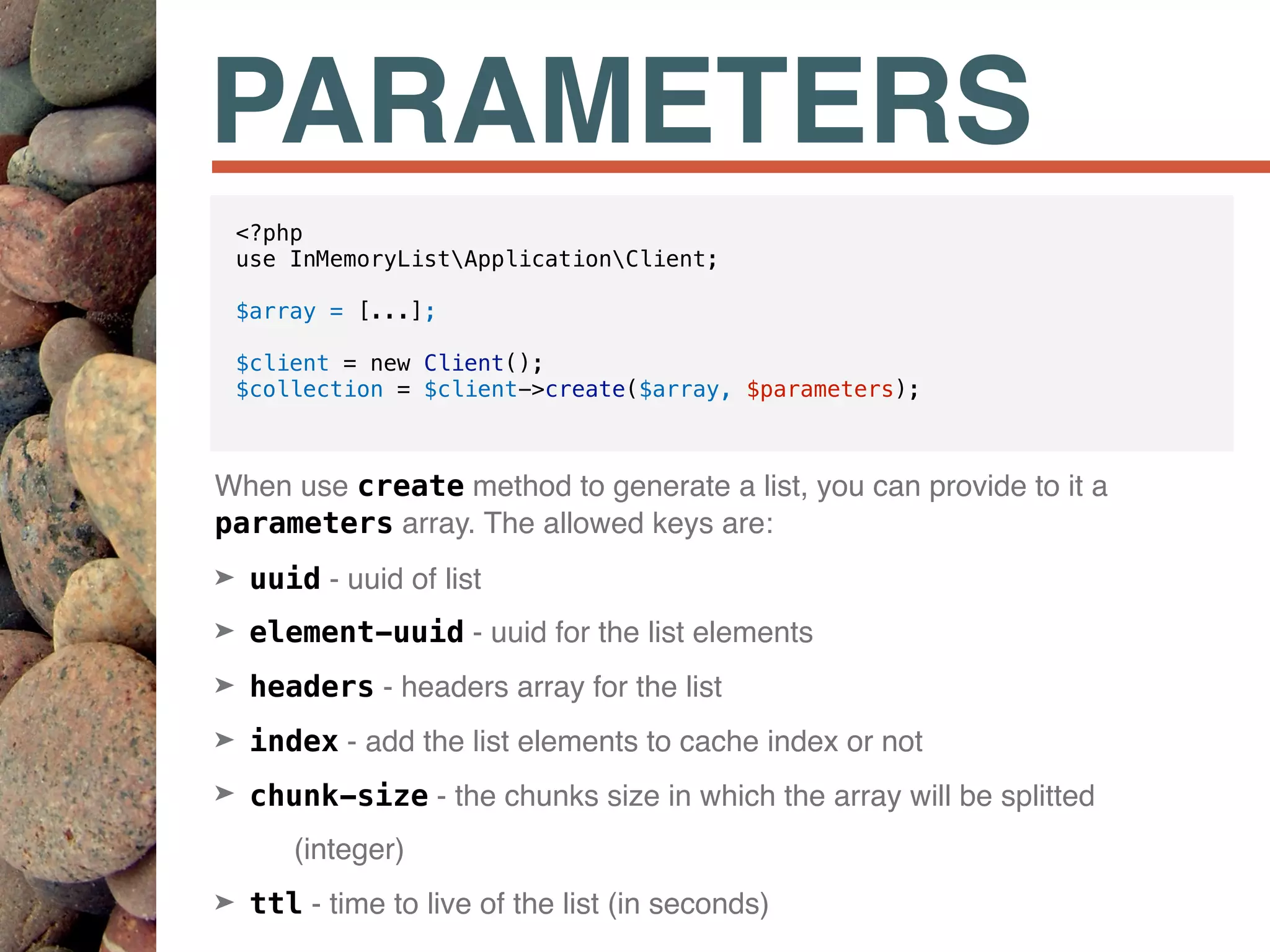

75. PARAMETERS
When use create method to generate a list, you can provide to it a
parameters array. The allowed keys are:
➤ uuid - uuid of list
➤ element-uuid - uuid for the list elements
➤ headers - headers array for the list
➤ index - add the list elements to cache index or not
➤ chunk-size - the chunks size in which the array will be splitted
(integer)
➤ ttl - time to live of the list (in seconds)
<?php
use InMemoryListApplicationClient;
$array = [...];
$client = new Client();
$collection = $client->create($array, $parameters);

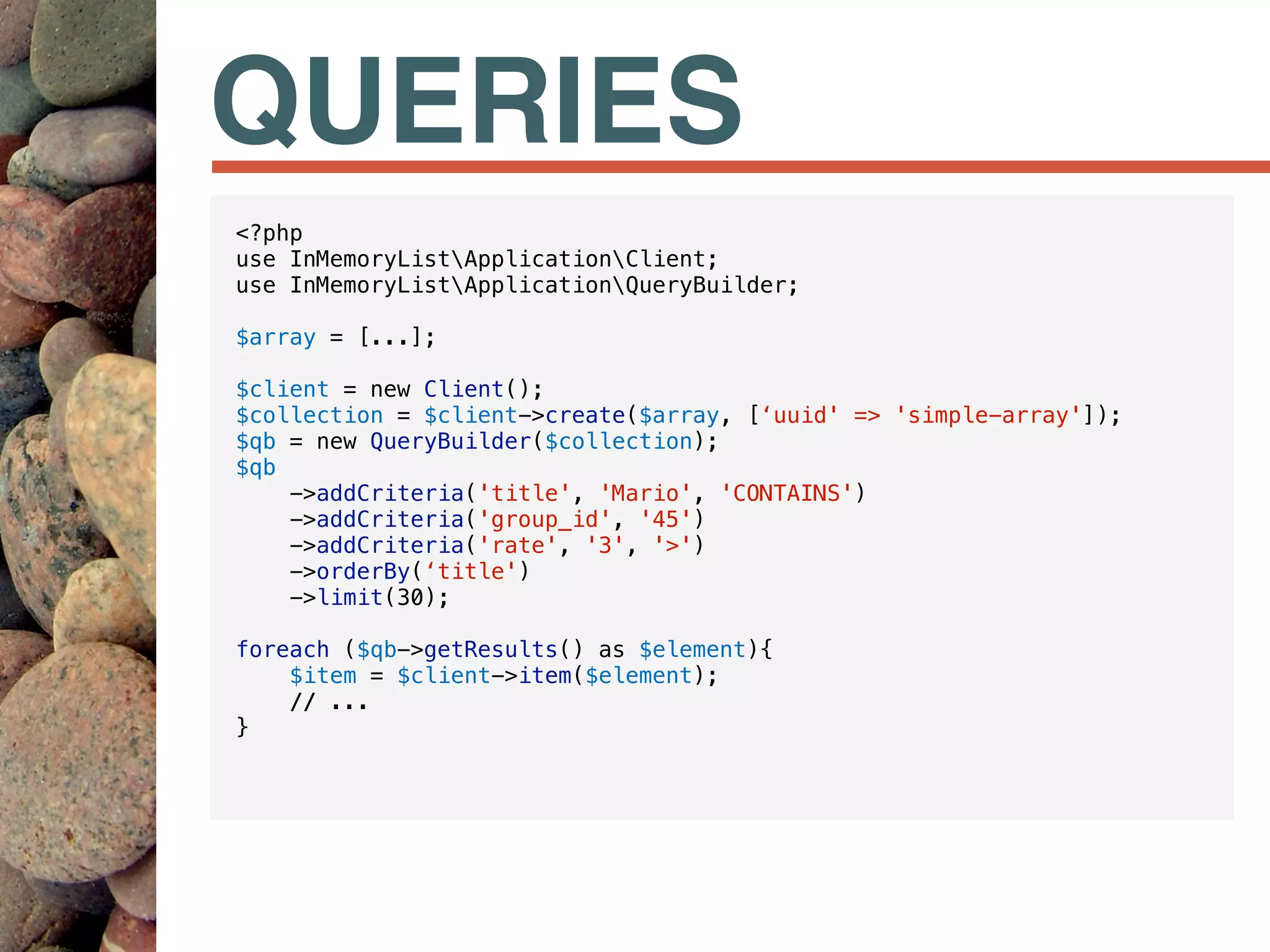

76. QUERIES
<?php
use InMemoryListApplicationClient;
use InMemoryListApplicationQueryBuilder;
$array = [...];
$client = new Client();
$collection = $client->create($array, [‘uuid' => 'simple-array']);
$qb = new QueryBuilder($collection);
$qb
->addCriteria('title', 'Mario', 'CONTAINS')
->addCriteria('group_id', '45')
->addCriteria('rate', '3', '>')
->orderBy(‘title')
->limit(30);
foreach ($qb->getResults() as $element){
$item = $client->item($element);
// ...
}

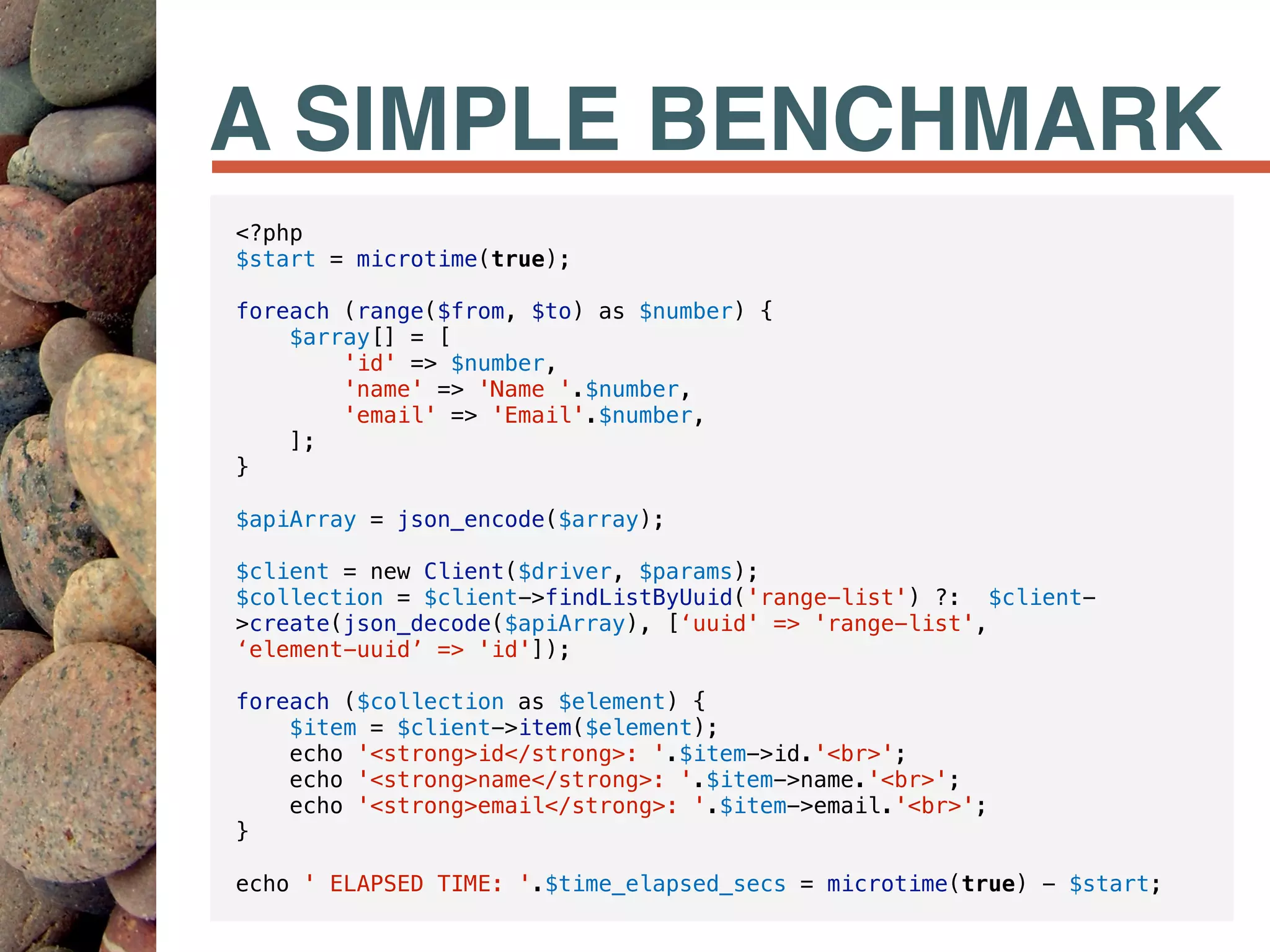

77. A SIMPLE BENCHMARK
<?php
$start = microtime(true);
foreach (range($from, $to) as $number) {
$array[] = [
'id' => $number,
'name' => 'Name '.$number,
'email' => 'Email'.$number,
];
}
$apiArray = json_encode($array);
$client = new Client($driver, $params);
$collection = $client->findListByUuid('range-list') ?: $client-
>create(json_decode($apiArray), [‘uuid' => 'range-list',
‘element-uuid’ => 'id']);
foreach ($collection as $element) {
$item = $client->item($element);
echo '<strong>id</strong>: '.$item->id.'<br>';
echo '<strong>name</strong>: '.$item->name.'<br>';
echo '<strong>email</strong>: '.$item->email.'<br>';
}
echo ' ELAPSED TIME: '.$time_elapsed_secs = microtime(true) - $start;

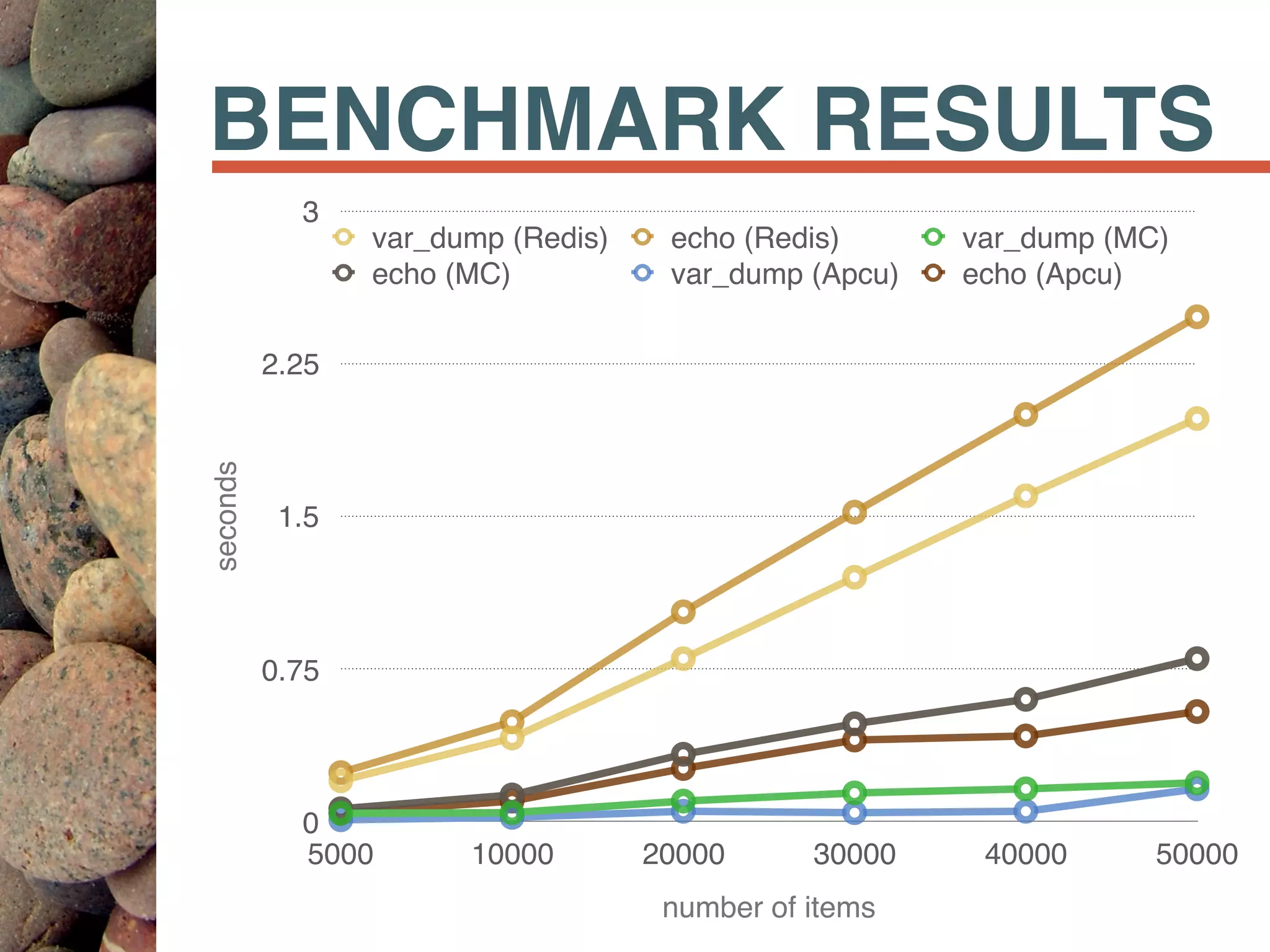

78. BENCHMARK RESULTS
seconds
0
0.75
1.5
2.25
3
number of items
5000 10000 20000 30000 40000 50000
var_dump (Redis) echo (Redis) var_dump (MC)
echo (MC) var_dump (Apcu) echo (Apcu)

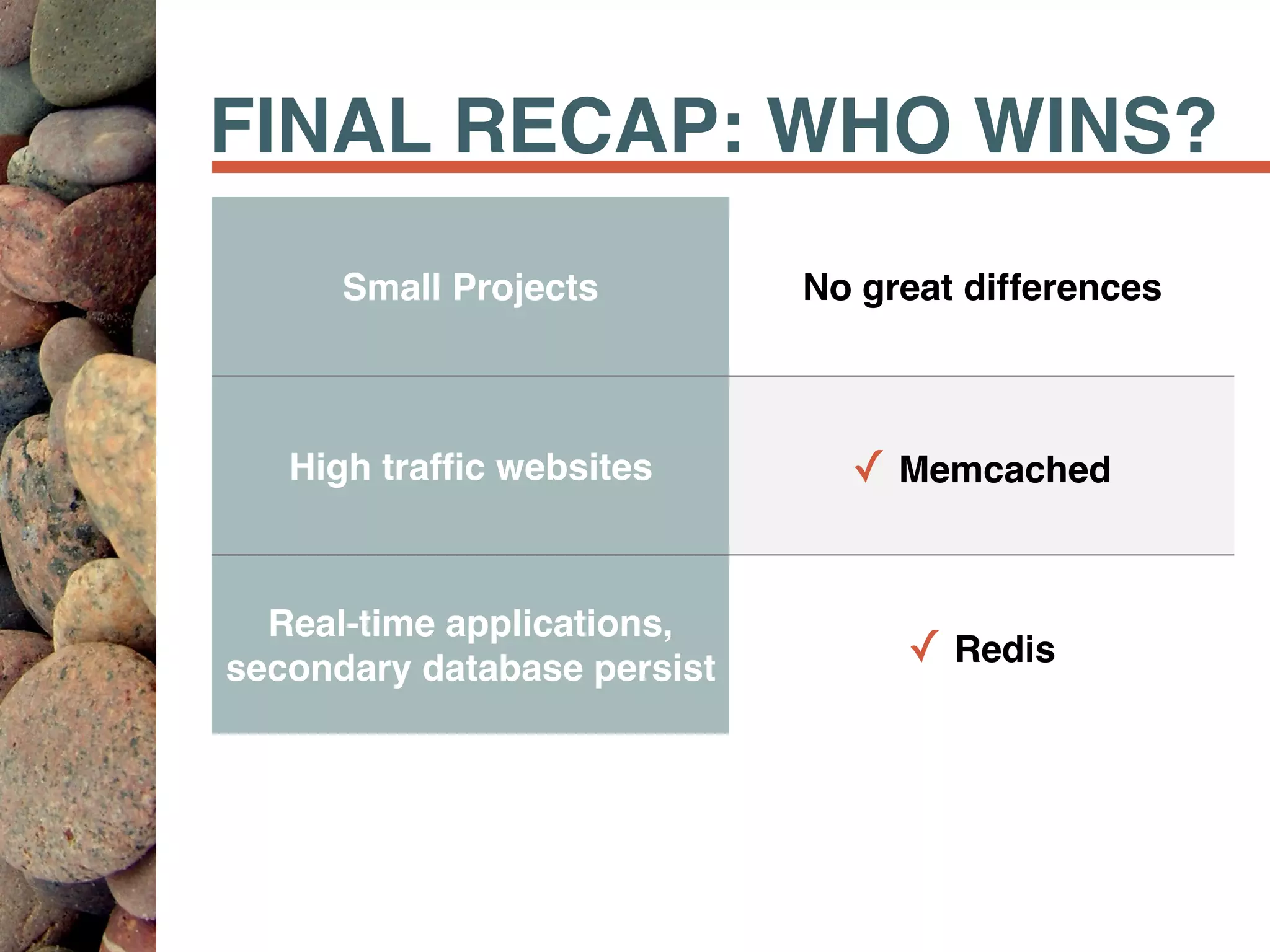

79. FINAL RECAP: WHO WINS?
Small Projects No great differences
High traffic websites ✓ Memcached
Real-time applications,
secondary database persist
✓ Redis

80. THANK YOU!
ANY QUESTIONS?
