HP CloudSystem is an integrated platform that enables enterprises and service providers to build and manage private, public, and hybrid cloud environments. It integrates system management, servers, storage, networking, and security to address challenges like speeding innovation and reducing time to revenue. Key components include Cloud Service Automation, Insight Orchestration, Server Automation, Network Automation, and SiteScope monitoring. The platform provides infrastructure, templates, and automation tools to deploy both internal and external cloud services.

1. HP Cloud Private CloudTraditional ITPublicCloudĽubošŠenkeryISS Product manager, Hewlett-Packard SlovakiaVIRTUAL INFO 2011

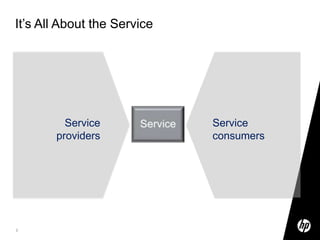

2. It’s All About the ServiceServiceService consumersService providers

3. Characteristics of Cloud ServicesService consumer requirementsService provider capabilitiesSelf service, on demand …Policy-driven, automated …Location independent availability …Metering, billing …Volume and economies of scale …Specialized offerings…Security for access and data …… Easy access… Service level agreement… Ubiquitous network access… Pay for what you use… Low up-front cost; Op-Ex… Clearly defined value… Vendor trust

4. GrenobleShanghaiPlanoWhat HP CLOUDSYSTEM is ?HP CloudSystem is the most complete integrated platform that enables enterprises and service providers to build and manage services across private, public and hybrid cloud environments. Based on proven, market leading HP Cloud Service Automation and Converged Infrastructure, HP CloudSystem integrates and automates system management, servers, storage, networking, and security to address the challenges clients face today: the need to speed innovation, accelerate business processes, and reduce time to revenue.

5. HP CloudSystem platform overviewAP4SaaSAggregation Platform for SaaSPublic Cloud for Service providersCSA Cloud Service AutomationOrchestrator : Operations OrchestrationServer Automation HP SANetwork Automation HP NAMonitoringHP SiteScopeBladeSystem MatrixConverged InfrastructureInsight OrchestrationVirtualization layer – VMware ESX / Hyper-VInsight Dynamics

6. HP BladeSystem Matrix: The foundation for your Private CloudMatrixService CatalogMatrixResource PoolHP-UXWindowsLinuxPersonalize your Cloud Billing/chargeback

7. Approval flows

8. Other processesHP Converged InfrastructureMatrixCloud APIsMatrixCloud APIsMatrixSelf Service PortalMatrixService DeliveryMatrixCapacity & Management

9. The converged infrastructure architectureInfrastructure operating environmentEnables shared-service managementFlexFabricWire-once, dynamic assembly, always predictableVirtual resource poolsAdaptive compute, memory, storage & network resourcesData center smart gridIntelligent energy management across systems and facilities

10. Common Modular Building BlocksSimplicity through standardizationCommonmanagementMatrix operating environment delivered by Insight DynamicsOnboard Administrator, iLO3CommonnetworkingHP ProcurveFlexFabricVirtual ConnectCommonenclosurec7000c3000Superdome 2enclosureCommon sparesCommonserverarchitectureProliant bladesIntegritybladesCell blades

11. Unified Blade Architecture from x86 to SuperdomeSimplify by consolidating applications on a common platformNew Integrity ServersIntegrity NonStopProLiantVirtualizedEnvironmentChassisBladesBladesAll managed under a single pane of glassCellBladeSuperdome 2c7000c30002s4s4s8s2sDouble-DenseProLiant BladesUp to 4,096 nodes2-64s Up to 1,500 nodesIntel and AMD x86Train once, certify once, deploy once

12. Server Blade AServer Blade BSpare Blade serverVirtual ConnectManager (VCM)MAC addresses

13. Network connections

14. FC WWNs

15. FC SAN connections

16. FC Boot parameters

17. Serial Number

18. UUIDHBA1HBA2NIC1NIC2NIC1NIC2NIC1NIC2HBA1HBA2Virtual ConnectEthernetVirtual ConnectFCSAN 1SAN 2LAN 2LAN 3LAN 4LAN 1Customer Data Center NetworksLooks just like standard server connections from external network and SAN switchesServer profile

19. New Virtual Connect FlexFabric Module and FlexFabric AdaptersAll the benefits of Flex-10

20. Plus, connects data, FC and iSCSI

21. Plus, works with existing network gearProLiant G7 bladeswith integratedFlexFabric adapterHP Virtual Connect FlexFabric 10Gb/24-port Module FlexFabric adapter mezzanine cards

22. Connect To Any Ethernet Or FC Networkno forklift upgrade neededIEEE standard EthernetINCITS T11 standard Fibre ChannelMDSProCurveProCurve Nexus, Catalyst Nexus, Catalyst

23. Wire Once Management with Virtual Connect FlexFabric ModulesVirtual Connect server connection profiles are assigned to BladeSystem enclosure bays rather than to individual servers, making the system more flexible and reliableWith VC 3.1x define FCoE or iSCSI Physical Function connectionsMAC addresses

24. Network connections

25. FC WWNs

26. Storage connections

27. Storage boot parameters

28. PXE boot parameters

29. Virtual Serial Number

30. Profile failover resourcesSERVERPROFILEWith VC 3.1x define FCoE or iSCSI boot from SAN

31. How do I buy BladeSystem Matrix?BladeSystem MatrixBladeSystem MatrixStarterkitEVA4400(optional)ExpansionkitExpansionkitExpansionkitExpansionkitExpansionkitExpansionkitExpansionkitExpansionkitStep 1: Buy a Starter kitStep 2: Add with Expansion kit507021-B21 535888-B21TB462A HA115A1-5NL HP factory/services install for you!Buy with HP Financial Services flexible financing solutions and pay as you grow options….

32. Starter & expansion kit components2112343515

33. HP BladeSystem Matrix 6.2 Product Structure newsBladeSystem Matrixwith VC Flex-10 & FCBladeSystem Matrix withInsight DynamicsVC Flex-10 & FCBladeSystem Matrix with Virtual Connect FlexFabricIncreased HW support 3 years, 24x 7, 4 hour responsesIncreased SW baseline support to 3 years, 24 x 7, support and updatesSupportMatrix OE for ProLiantandVirtual Connect Enterprise MgrHP-UX VSE-OEandVirtual Connect Enterprise MgrMatrix OE for ProLiantandVirtual Connect Enterprise MgrSoftwareBladesProLiant or Integrity blades Integrity or ProLiant blades ProLiant bladesAdditional Matrix product structure news:New default CMS option that provides greater flexibility

34. DL360 G7 rack server will be the new standard option for Matrix CMS

35. New Matrix Expansion Kit Integration Implementation Service

36. Enables smooth integration of expansion kit to existing Matrix environmentHP Restricted - HP & Partner Internal Use; Customer Viewable under NDA. Subject to change without notice.

37. Script 1’Private Cloud / Enterprise IT scenarioSelf service portalElasticity (add Disks / Servers)

38. Private Cloud / Enterprise IT scenarioSelf service portalElasticity (add Disks / Servers)

39. Demo flowBladeSystem MatrixStartAp4SaaSScript 1’Private Cloud : IO Self service portal Script 1Public Cloud for Service Provider :IO designer / CloudmapsCSAScript 2IAAS ManagementAutomationScript 3OrchestrationMonitoring

40. HP CloudSystem platform overviewAP4SaaSAggregation Platform for SaaSPublic Cloud for Service providersCSA Cloud Service AutomationOrchestrator : Operations OrchestrationServer Automation HP SANetwork Automation HP NAMonitoringHP SiteScopeBladeSystem MatrixConverged InfrastructureInsight OrchestrationVirtualization layer – VMware ESX / Hyper-VInsight Dynamics

41. Self service portal Cloud userOverview:Connect to the IO self service portal

42. Open templates

43. Select template

44. Add parameters

45. Enter a service name

46. Enter a hostname

47. Submit

48. Request has been submittedSelf service portal and elasticityService request parameters and next stepsCloud userMy Request

49. Check the on-going request progress
