HP CloudSystem Matrix is Infrastructure-as-a-Service (IaaS) for private and hybrid cloud environments, allowing users to provision infrastructure in minutes for physical and virtual. This offering includes a self-service infrastructure portal for quick auto-provisioning, along with built-in lifecycle management to optimize infrastructure, manage the resource pools, and help ensure uptime. Using included Cloud APIs, you can easily customize the operating environment to your specific requirements, enabling chargeback and billing integration, integration into approval processes, and other process automation tasks. Matrix is integrated by design with broad support of heterogeneous environments, and it offers cloud-bursting to a variety of public cloud providers including HP Cloud Services. The core elements of a CloudSystem Matrix solution are: - HP BladeSystem c7000 enclosures (1 or more) - HP Virtual Connect - HP Matrix Operating Environment - HP Implementation Service

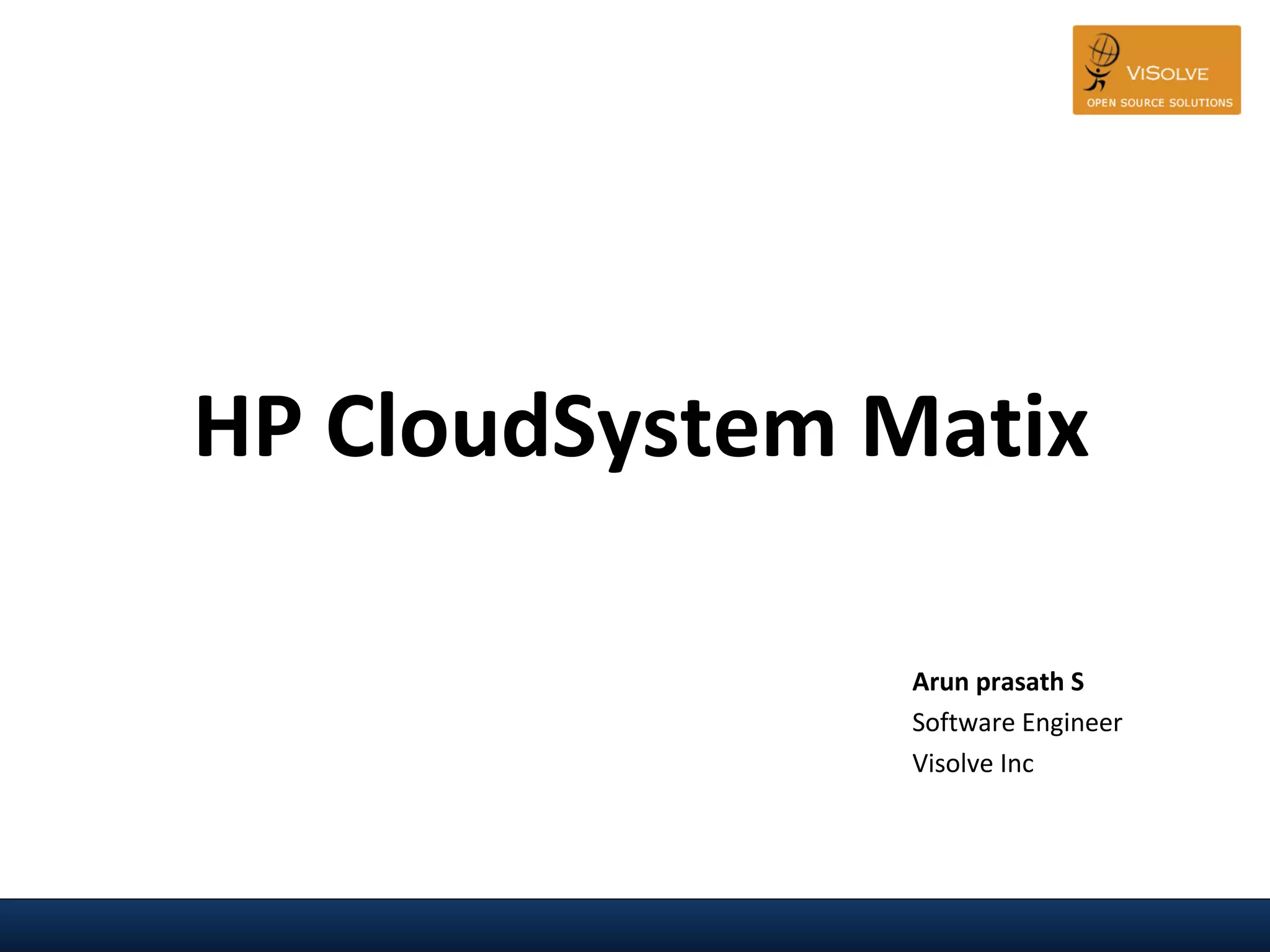

1. HP CloudSystem Matix
Arun prasath S
Software Engineer
Visolve Inc

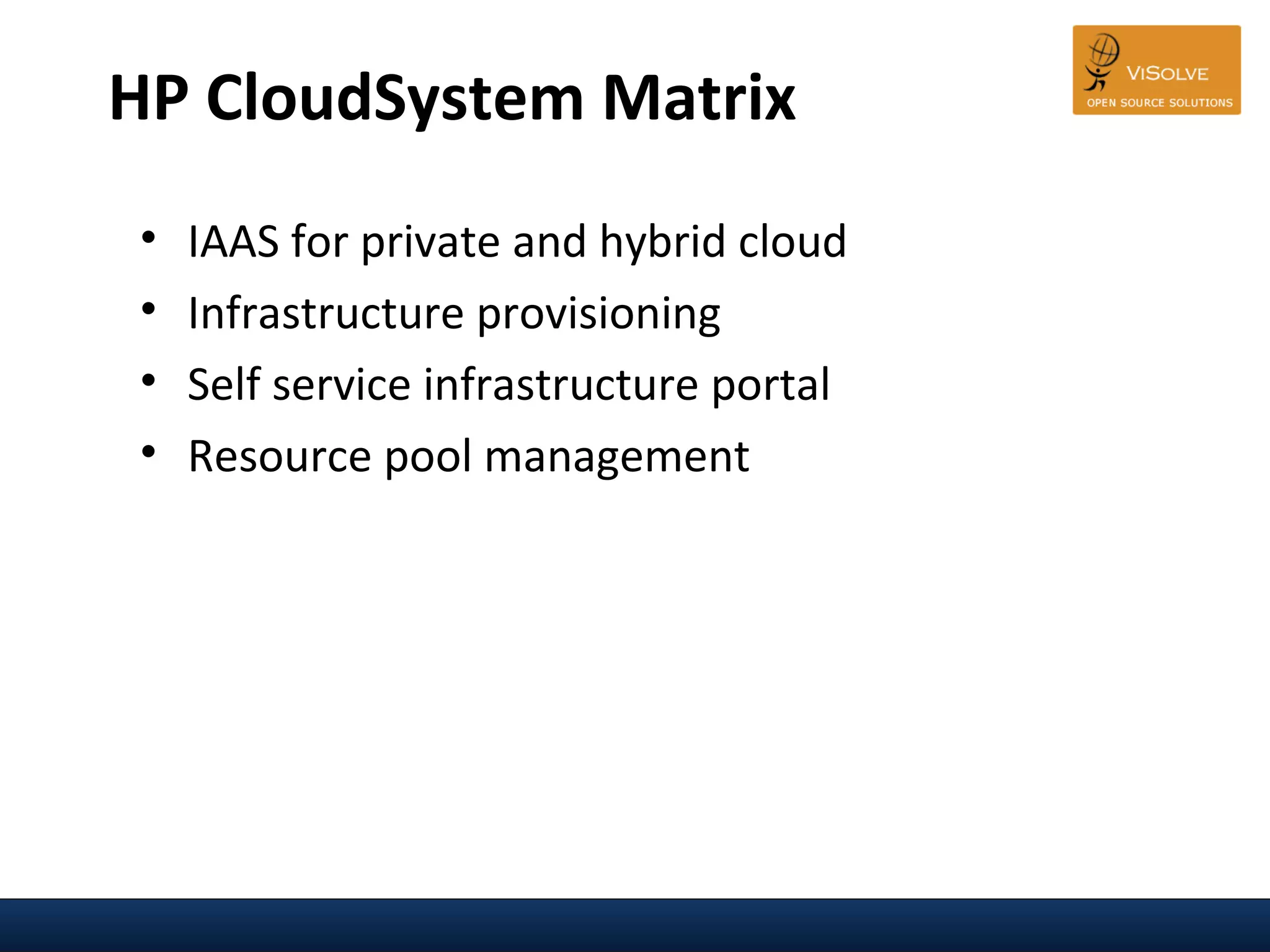

2. • IAAS for private and hybrid cloud
• Infrastructure provisioning
• Self service infrastructure portal
• Resource pool management
HP CloudSystem Matrix

3. Problems with existing Infrastructure ?
What difference does CloudSystem Matrix
make ?
Why CloudSystem Matrix ?

4. Customer requirement
I want a physical server with Ubuntu installed and 20GB storage with MySQL
installed on it, a Redhat virtual machine with 15 GB storage with ‘Wordpress’
installed. I want those machines connected via a Local network and also to
two external service provider network. I need it in 5 minutes.
Solution on next page !!!!

6. • HP BladeServers
• HP BladeSystem Enclosures
• HP Virtual Connect
• Storages
• HP Matrix Operating Environment / OneView
HP CloudSytem Matrix - Components

7. HP ProLiant
• Intel base processor
• x-86 architecture
• Complex instruction set computing (CISC)
• Register memory architecture
• Windows/Linux
HP Integrity
• ITANIUM base processor
• IA-64 architecture
• Reduced instruction set computing (RISC)
• Load/Store Architecture
• HPUX
HP Servers

8. ProLiant
• DL (Density Line)
• ML (Maximum Expansion Line)
• BL (Blades Line)
• SL (Scalable Line)
Integrity
• BL (Blades Line)
• SX (Superdome Blade)
Server types

9. BL870c BL890cBL460c BL660c BL860c
c7000
c3000
HP Enclosures

10. Problems without VC
Server 1
Server 2
Server 3
Server 4
LAN
SAN
NIC
HBA
HP Virtual Connect

11. With Virtual connect
Server 1
Server 2
Server 3
Server 4
LAN
SAN
NIC
HBA
V
I
R
T
U
A
L
C
O
N
E
N
C
T
HP Virtual Connect

12. • Virtual connect Interconnect modules
• Flex-10 and FlexFabric adapters
• Virtual connect manager
• Virtual connect enterprise manager
HP VC Flex-10 Enet module HP VC FlexFabric module
Virtual connect components

13. • Capacity – 2.4 PB
• Enclosure – 3PAR 40-drive chassis
• Interface
– 8 Gb/sec Fibre Channel (192) Ports
– 10 Gb/sec iSCSI (32) Ports
• RAID 0,1, RAID 5 and RAID MP
• Redundant power supplies, fans
Storage (HP 3PAR)

14. Data layers

15. • Cloud management software
• HP MOE Visualization
• HP MOE Logical server management
• Insight control server provisioning
• HP Capacity advisor
• HP MOE Infrastructure Orchestration
HP Matrix Operating Environment

16. HP CloudSystem Matrix –
Simple private cloud
LAN
Customer
CMS
OS / Hypervisor
VM VM VM
3PAR
Storage
SAN Switch
Uses
Self service portal
MOE Oneview
OS OS OS
Infrastructure
orchestration
VCEM
Resource pools
Insight control
Server provisioning
Virtual volumes

17. HP Oneview
• Single, integrated management environment
• Software-defined flexibility
• Open architecture and SDK for integration
with enterprise management tools and
applications
• Built based on REST API

18. HP Oneview - Features
• Converged Infrastructure Groups and Server Profiles
• Enclosure Groups and Logical Interconnect Groups
• Logical interconnects with enclosure-level stacking
• System Health monitoring
• Server provisioning
• Environmental management (i.e. power, thermal)
• Remote management
