1. Dell Fluid Data Management
vo virtuálnych prostrediach.
Marek Ištok
Solution Executive Dell Slovakia

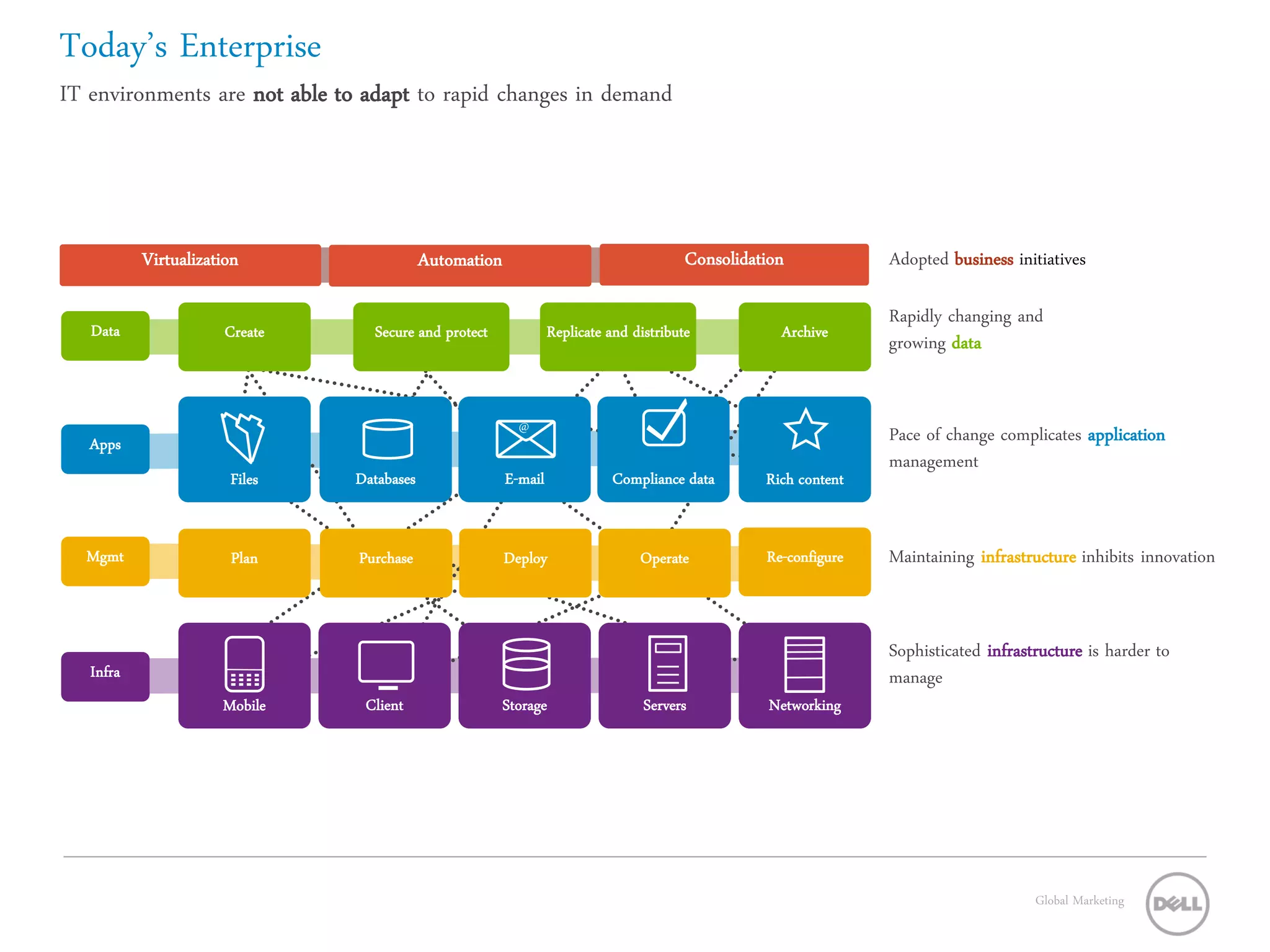

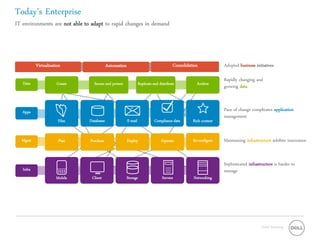

2. Today’s Enterprise
IT environments are not able to adapt to rapid changes in demand
Virtualization Automation Consolidation Adopted business initiatives
Rapidly changing and
Data Create Secure and protect Replicate and distribute Archive
growing data
@
Apps Pace of change complicates application
management
Files Databases E-mail Compliance data Rich content
Mgmt Plan Purchase Deploy Operate Re-configure Maintaining infrastructure inhibits innovation
Sophisticated infrastructure is harder to
Infra manage
Mobile Client Storage Servers Networking
Global Marketing

3. Where’s your pain?
How long can you manage data the same way?
3 Global Marketing

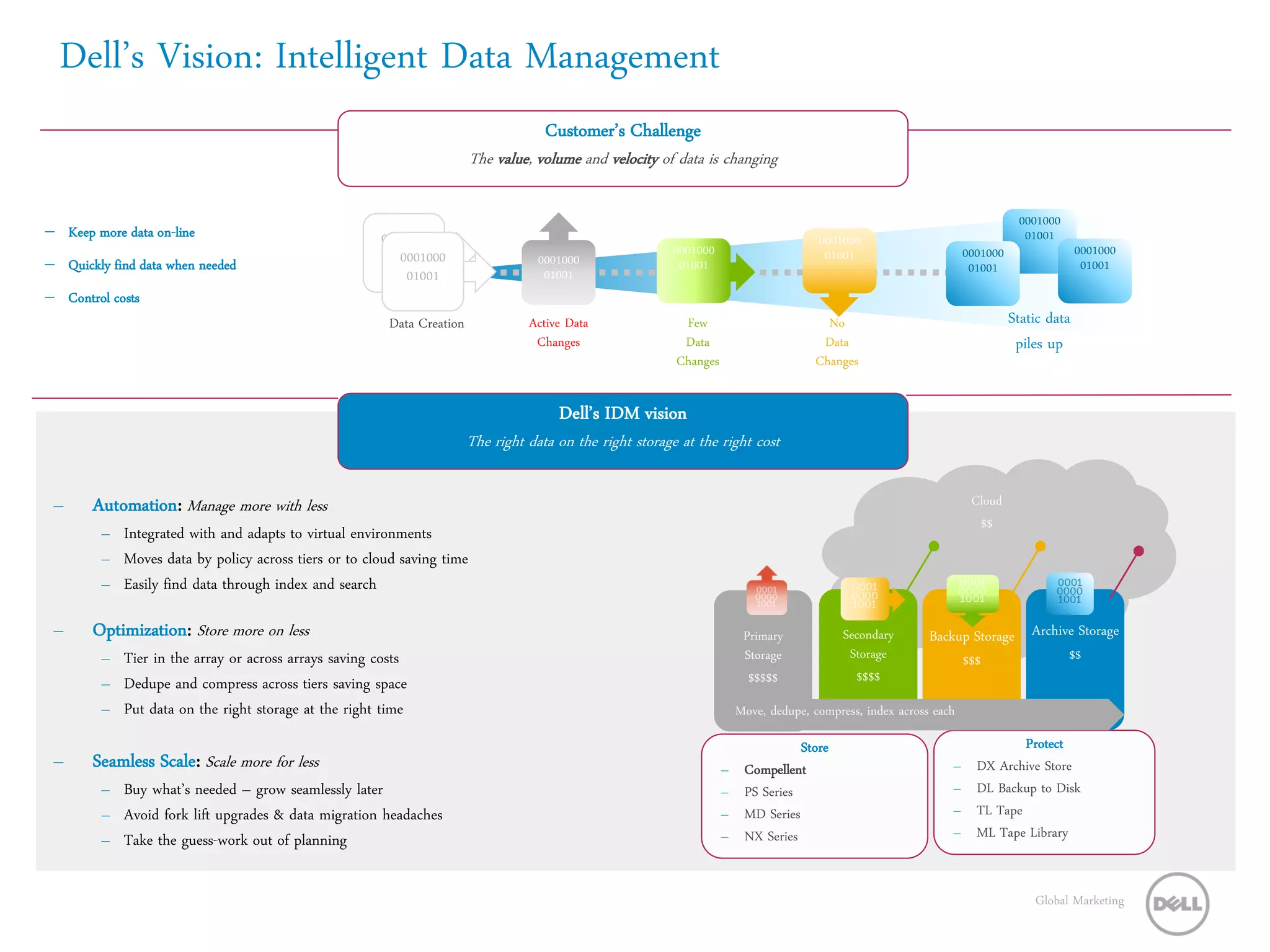

4. Dell’s Vision: Intelligent Data Management
Customer’s Challenge
The value, volume and velocity of data is changing
0001000
 Keep more data on-line 0001000 0001000 01001
01001
0001000 0001000 01001 0001000 0001000
 Quickly find data when needed 0001000
01001
01001 01001 01001
01001
 Control costs
Data Creation Active Data Few No Static data
Changes Data Data piles up
Changes Changes
Dell’s IDM vision
The right data on the right storage at the right cost
– Automation: Manage more with less Cloud
$$
– Integrated with and adapts to virtual environments
– Moves data by policy across tiers or to cloud saving time
– Easily find data through index and search
– Optimization: Store more on less Primary Secondary Backup Storage Archive Storage
– Tier in the array or across arrays saving costs Storage Storage $$$ $$
– Dedupe and compress across tiers saving space $$$$$ $$$$
– Put data on the right storage at the right time Move, dedupe, compress, index across each
Store Protect
– Seamless Scale: Scale more for less – Compellent – DX Archive Store
– Buy what’s needed – grow seamlessly later – PS Series – DL Backup to Disk
– Avoid fork lift upgrades & data migration headaches – MD Series – TL Tape
– Take the guess-work out of planning – NX Series – ML Tape Library
Global Marketing

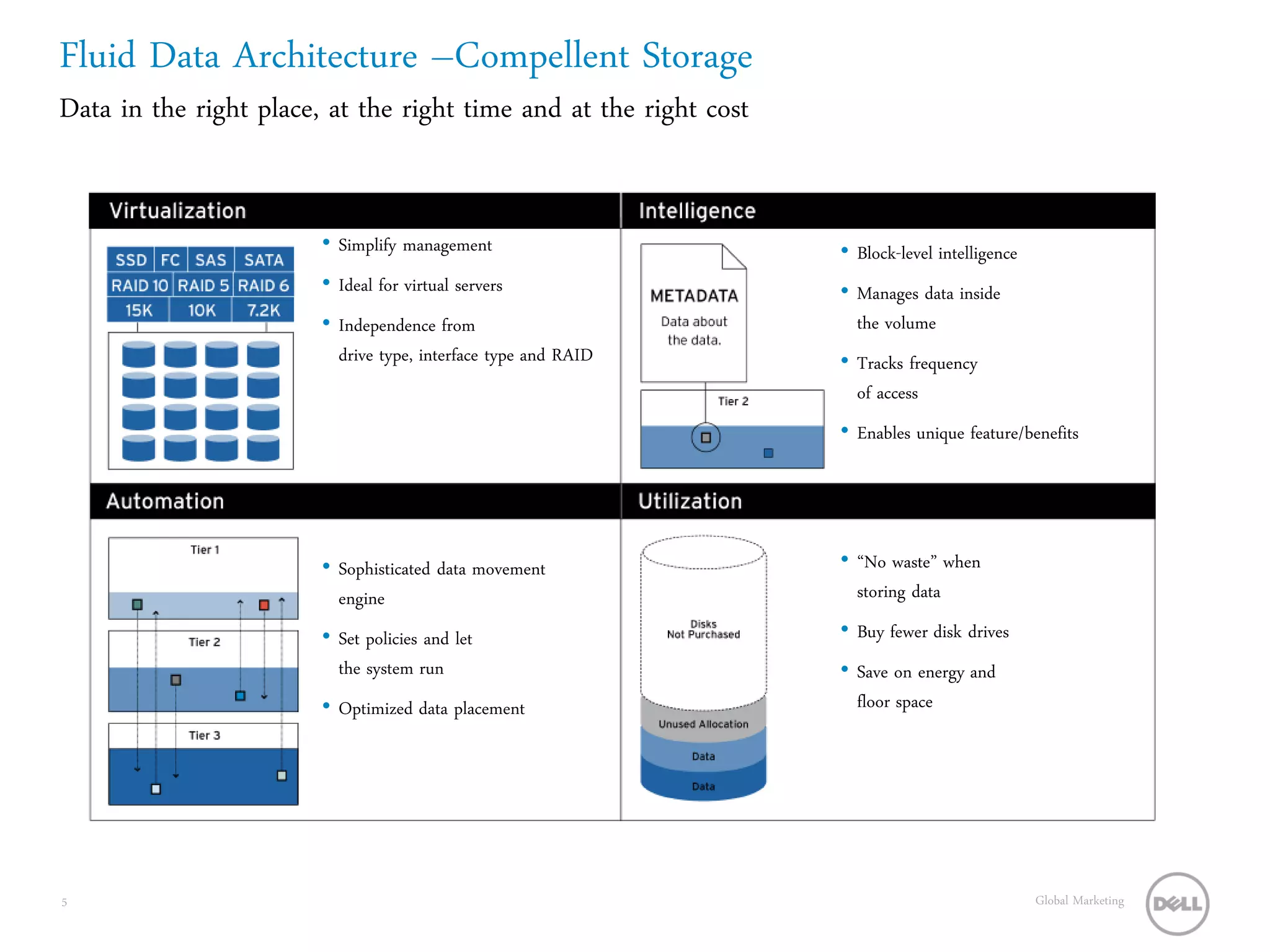

5. Fluid Data Architecture –Compellent Storage
Data in the right place, at the right time and at the right cost
• Simplify management • Block-level intelligence
• Ideal for virtual servers • Manages data inside
• Independence from the volume
drive type, interface type and RAID • Tracks frequency
of access
• Enables unique feature/benefits
• Sophisticated data movement • “No waste” when
engine storing data
• Set policies and let • Buy fewer disk drives
the system run • Save on energy and
• Optimized data placement floor space
5 Global Marketing

6. Storage Center Overview
Enterprise storage arrays with the future built in
Storage Center Software
• Advanced Thin Provisioning
• Automated Tiered Storage
• Intelligent Storage Automation
• True Storage Virtualization
• Continuous Snapshots
• Thin Replication
Storage Center Hardware
• Supports file and block (FC, iSCSI, NFS, CIFS)
• Scale up and out from TBs to PBs
NAS Connectivity Storage Controller
• Drives supported: FC, SATA, SAS, Solid State
• Clustered controllers – no single point of failure
• Enterprise-class switches
Disk Enclosures
6 Global Marketing

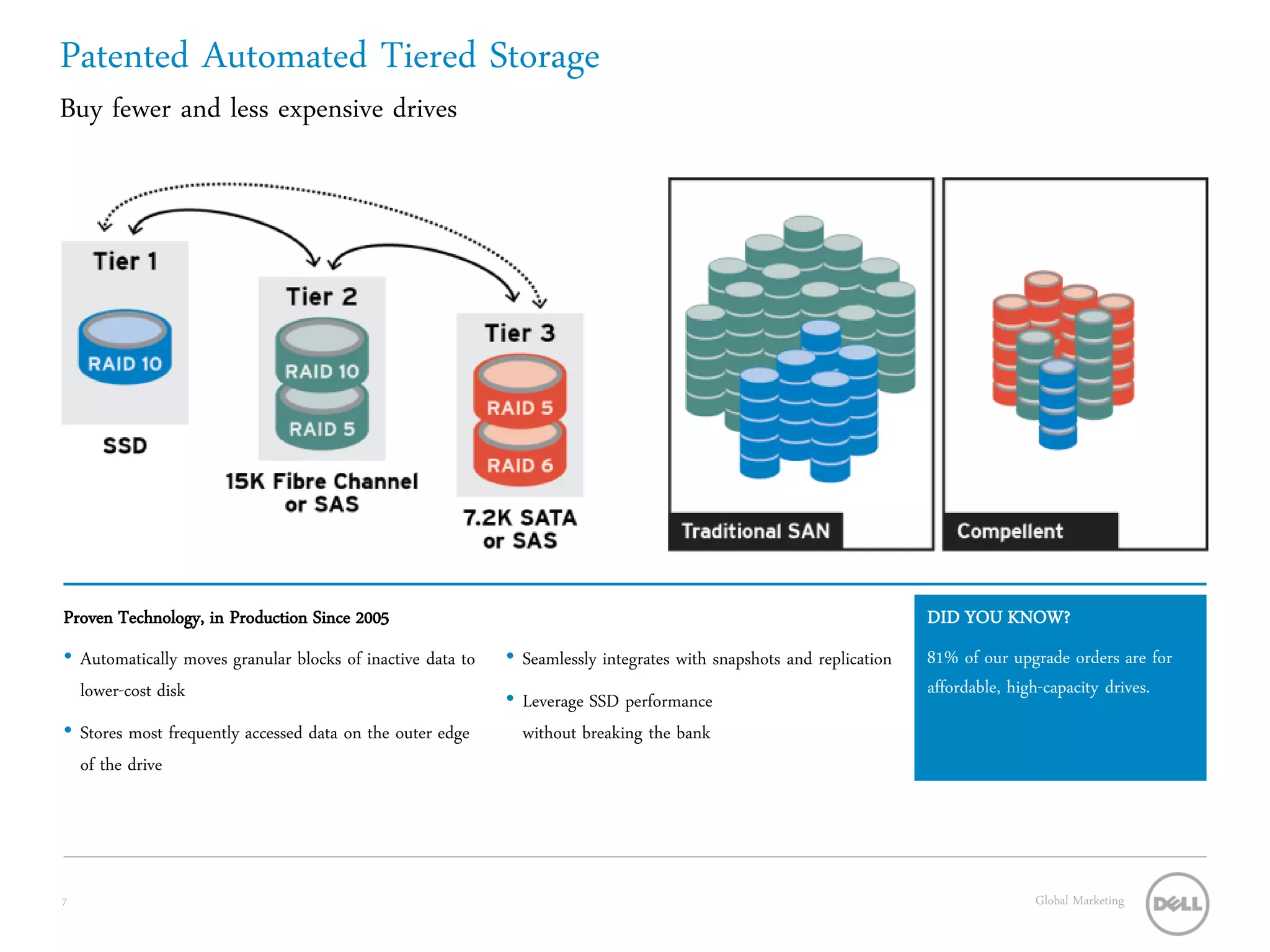

7. Patented Automated Tiered Storage
Buy fewer and less expensive drives
Proven Technology, in Production Since 2005 DID YOU KNOW?
• Automatically moves granular blocks of inactive data to • Seamlessly integrates with snapshots and replication 81% of our upgrade orders are for
lower-cost disk affordable, high-capacity drives.
• Leverage SSD performance
• Stores most frequently accessed data on the outer edge without breaking the bank
of the drive
7 Global Marketing

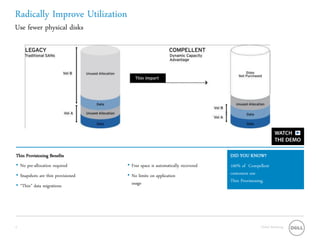

8. Radically Improve Utilization
Use fewer physical disks
Thin Provisioning Benefits DID YOU KNOW?
• No pre-allocation required • Free space is automatically recovered 100% of Compellent
• Snapshots are thin provisioned • No limits on application customers use
usage Thin Provisioning.
• “Thin” data migrations
8 Global Marketing

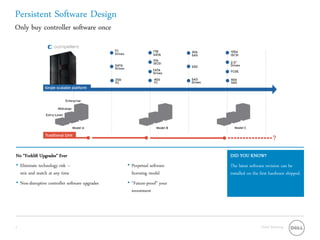

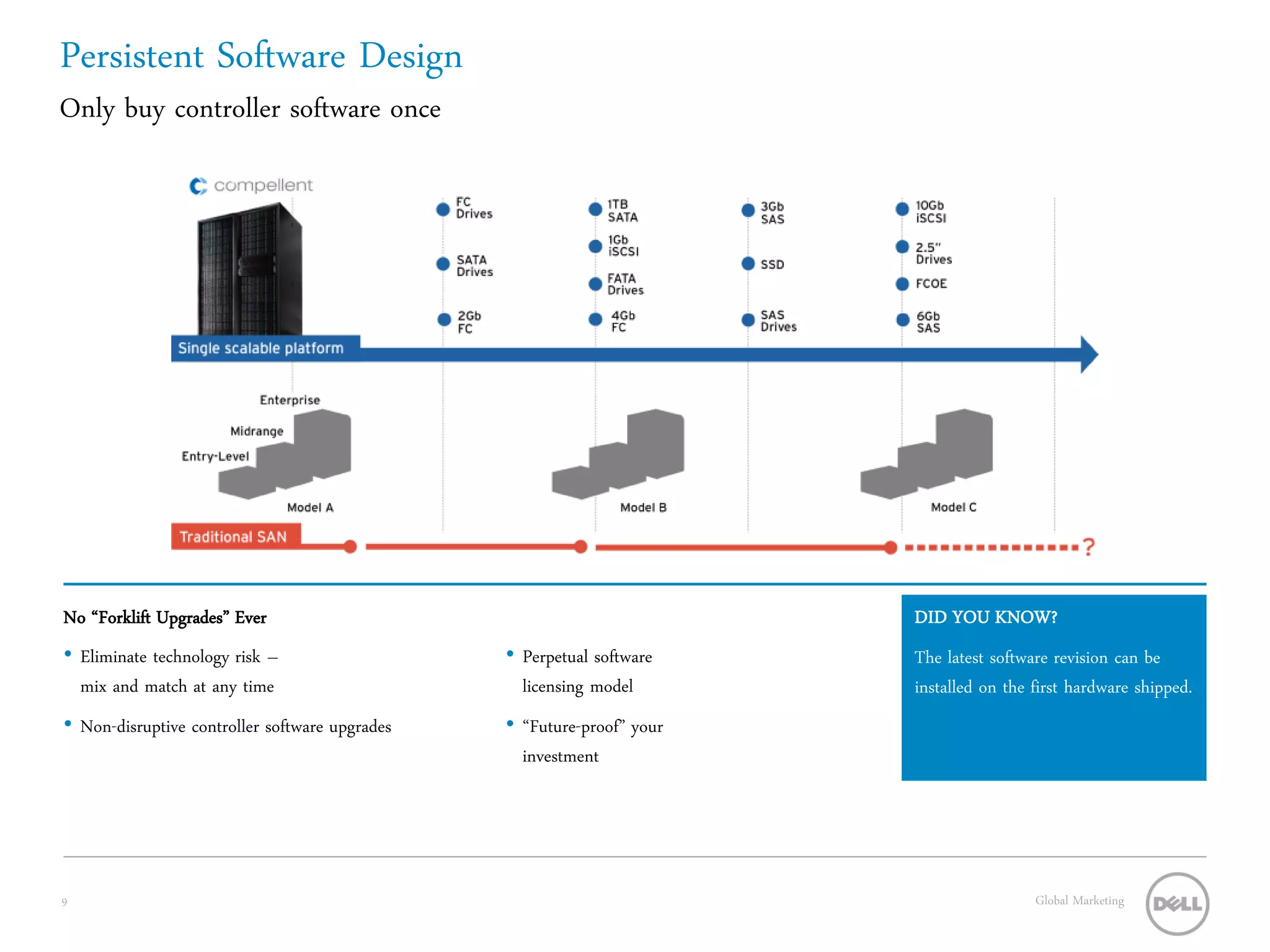

9. Persistent Software Design
Only buy controller software once
No “Forklift Upgrades” Ever DID YOU KNOW?
• Eliminate technology risk – • Perpetual software The latest software revision can be
mix and match at any time licensing model installed on the first hardware shipped.
• Non-disruptive controller software upgrades • “Future-proof” your
investment
9 Global Marketing

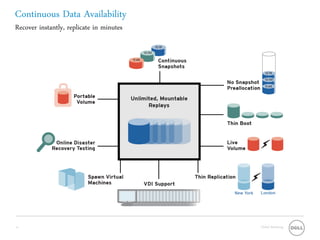

10. Continuous Data Availability
Recover instantly, replicate in minutes
10 Global Marketing

11. Continuous Snapshots
Eliminate Your Backup Window
Replay-Based Architecture Benefits DID YOU KNOW?
• Space efficient – freeze pointers • Delete any one, keep any one There are no limits
to the number
• No space pre-allocation • Integration with common applications
of snapshots.
• Replays automatically move down to lower cost disk • Ideal for test/dev, VMs, Boot from SAN,
Consistency Groups
11 Confidential Global Marketing

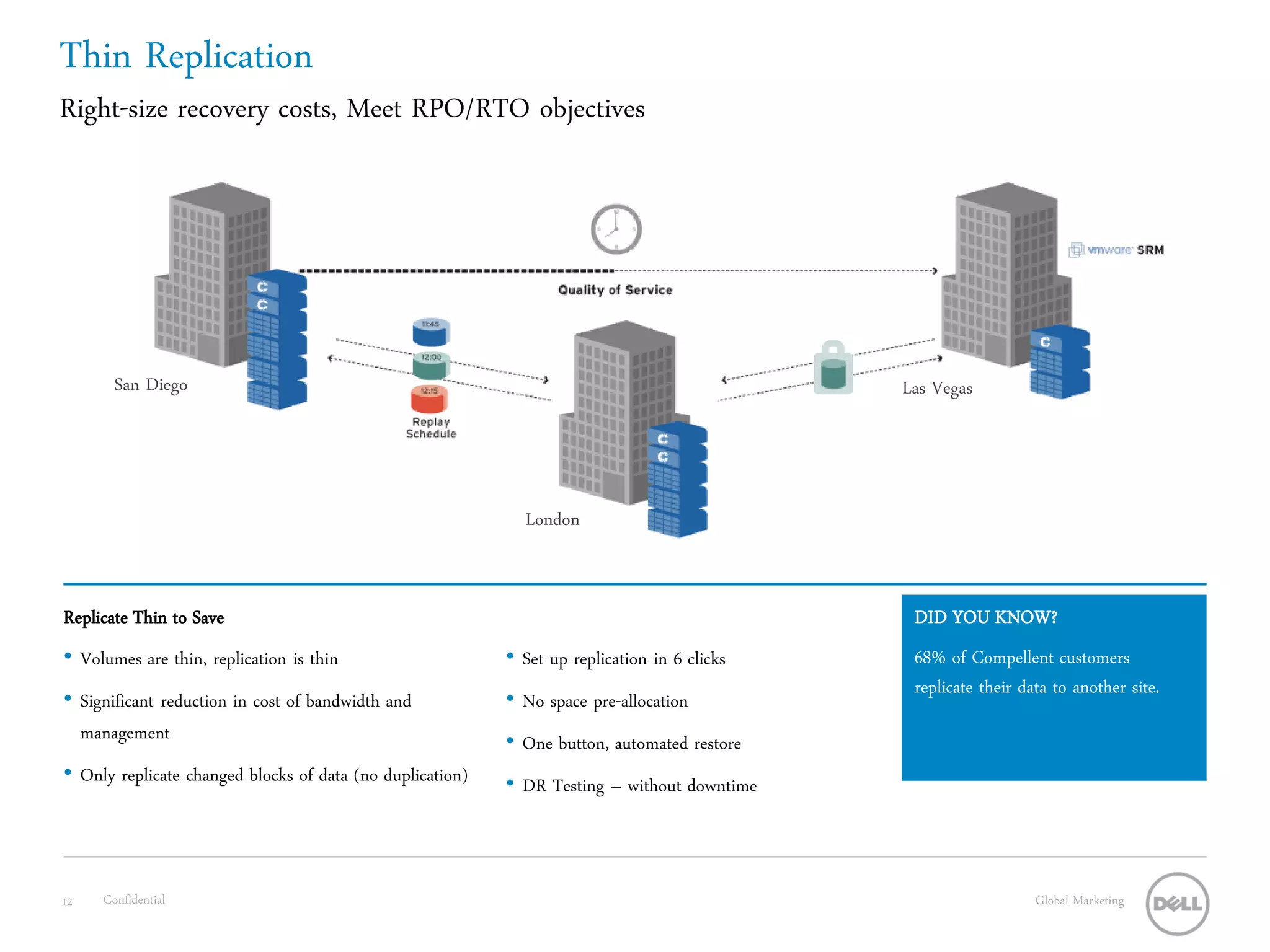

12. Thin Replication
Right-size recovery costs, Meet RPO/RTO objectives
San Diego Las Vegas
London
Replicate Thin to Save DID YOU KNOW?
• Volumes are thin, replication is thin • Set up replication in 6 clicks 68% of Compellent customers
replicate their data to another site.
• Significant reduction in cost of bandwidth and • No space pre-allocation
management • One button, automated restore
• Only replicate changed blocks of data (no duplication) • DR Testing – without downtime
12 Confidential Global Marketing

13. Live Volume
Right-size recovery costs, Meet RPO/RTO objectives
Dynamic Business Continuity DID YOU KNOW?
• Acts as a storage hypervisor, actively presents • Deliver storage agility, continuous data access and There is no limit to the number of
storage to two arrays at the same time high availability Live Volumes that can be created,
deleted or updated.
• Architect a grid of shared storage and manage as • Storage follows VM movement
one • Fully integrated, no appliances or server agents
13 Global Marketing

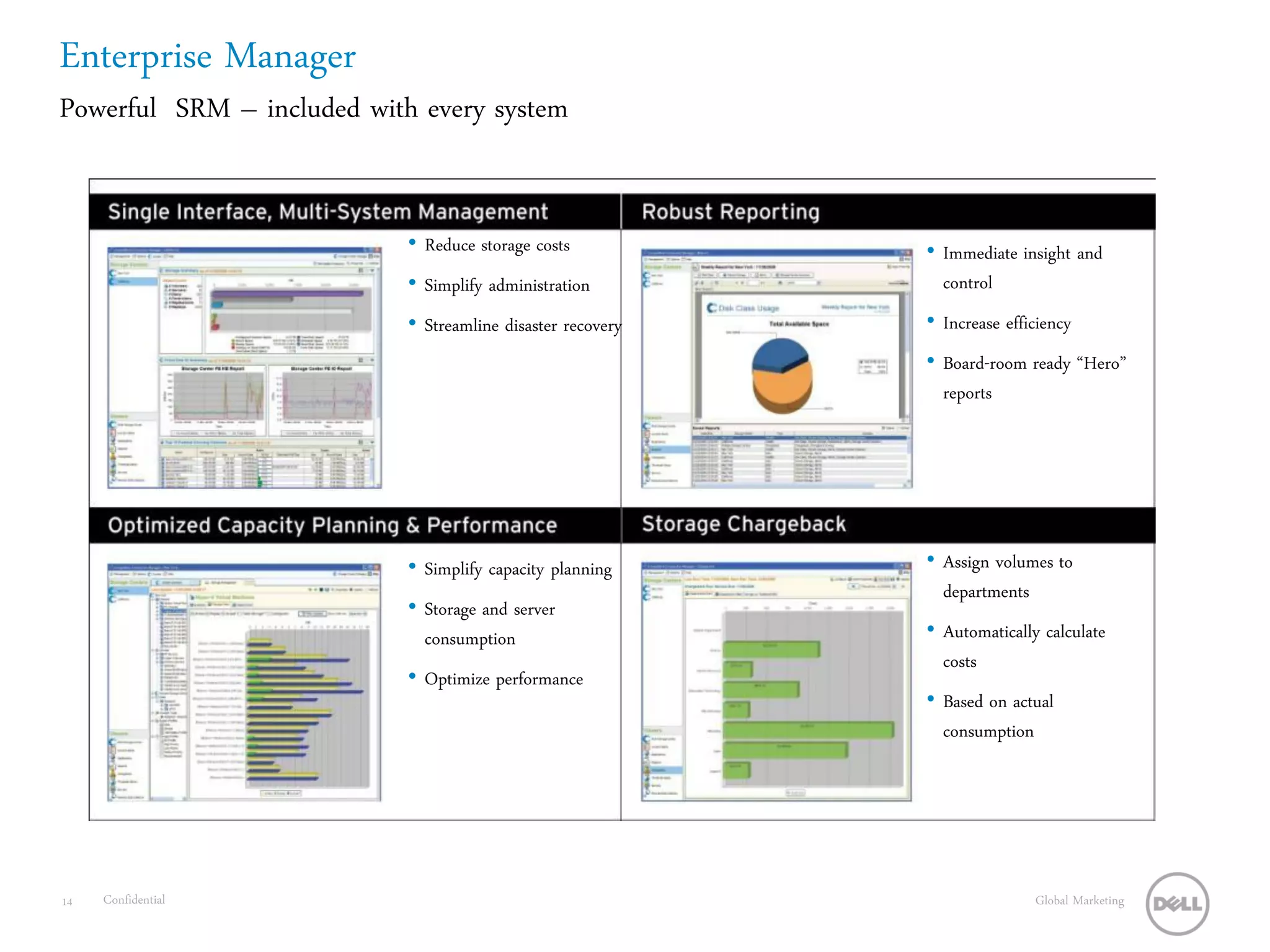

14. Enterprise Manager
Powerful SRM – included with every system
• Reduce storage costs • Immediate insight and
• Simplify administration control
• Streamline disaster recovery • Increase efficiency
• Board-room ready “Hero”
reports
• Simplify capacity planning • Assign volumes to
departments
• Storage and server
consumption • Automatically calculate
costs
• Optimize performance
• Based on actual
consumption
14 Confidential Global Marketing

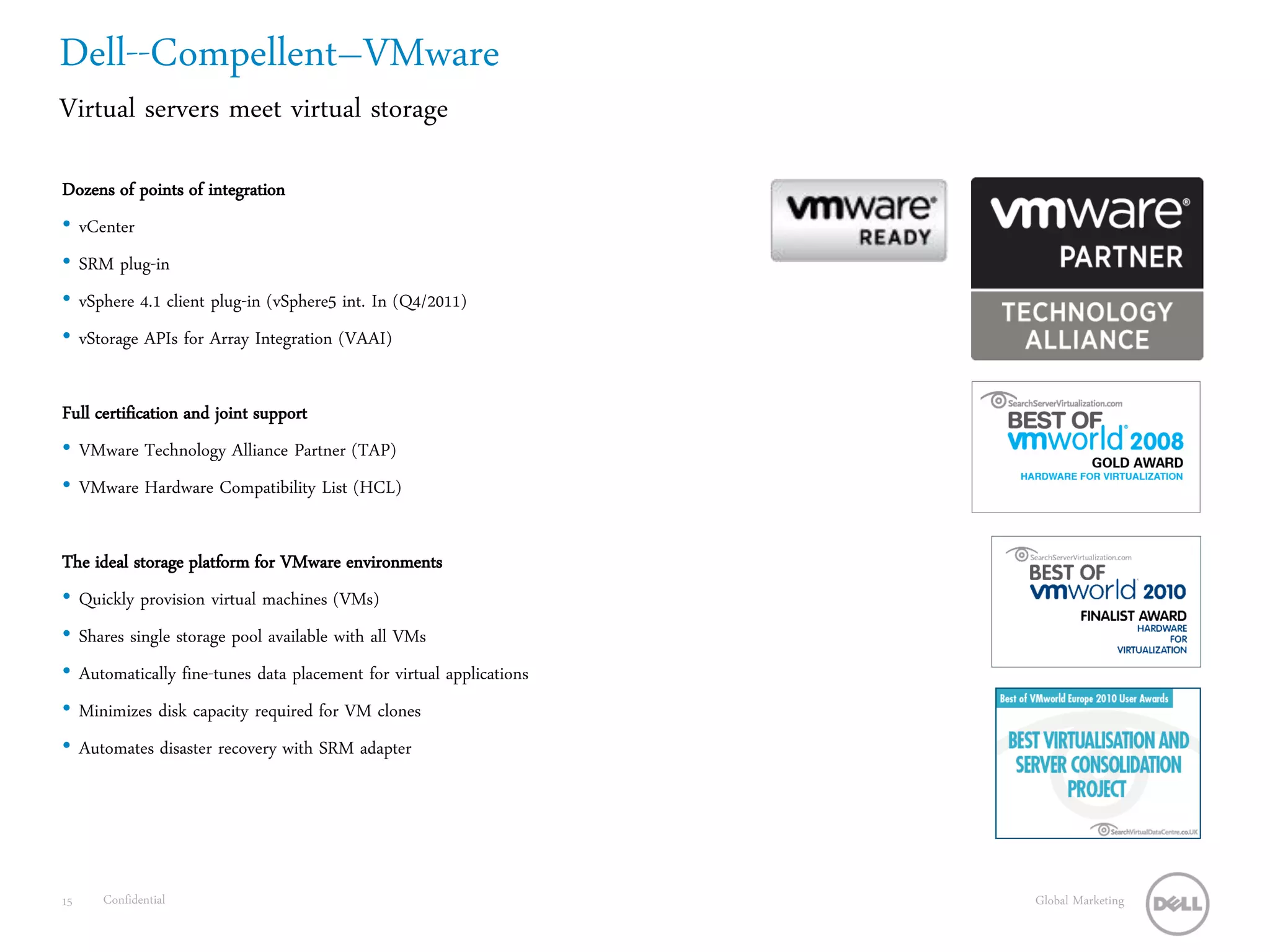

15. Dell--Compellent–VMware
Virtual servers meet virtual storage
Dozens of points of integration
• vCenter
• SRM plug-in
• vSphere 4.1 client plug-in (vSphere5 int. In (Q4/2011)
• vStorage APIs for Array Integration (VAAI)
Full certification and joint support
• VMware Technology Alliance Partner (TAP)
• VMware Hardware Compatibility List (HCL)
The ideal storage platform for VMware environments
• Quickly provision virtual machines (VMs)
• Shares single storage pool available with all VMs
• Automatically fine-tunes data placement for virtual applications
• Minimizes disk capacity required for VM clones
• Automates disaster recovery with SRM adapter
15 Confidential Global Marketing

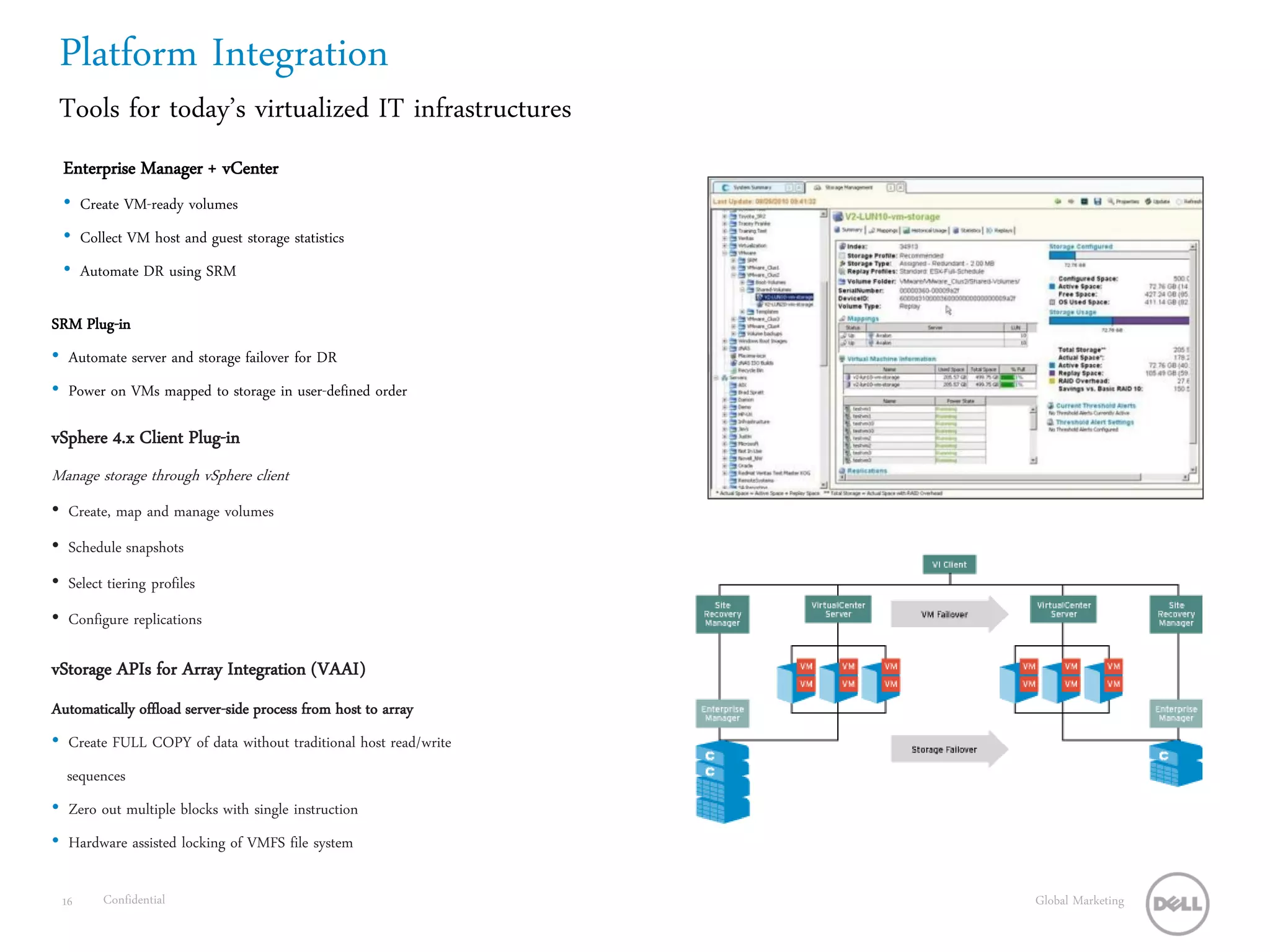

16. Platform Integration
Tools for today’s virtualized IT infrastructures
Enterprise Manager + vCenter
• Create VM-ready volumes
• Collect VM host and guest storage statistics
• Automate DR using SRM
SRM Plug-in
• Automate server and storage failover for DR
• Power on VMs mapped to storage in user-defined order
vSphere 4.x Client Plug-in
Manage storage through vSphere client
• Create, map and manage volumes
• Schedule snapshots
• Select tiering profiles
• Configure replications
vStorage APIs for Array Integration (VAAI)
Automatically offload server-side process from host to array
• Create FULL COPY of data without traditional host read/write
sequences
• Zero out multiple blocks with single instruction
• Hardware assisted locking of VMFS file system
16 Confidential Global Marketing

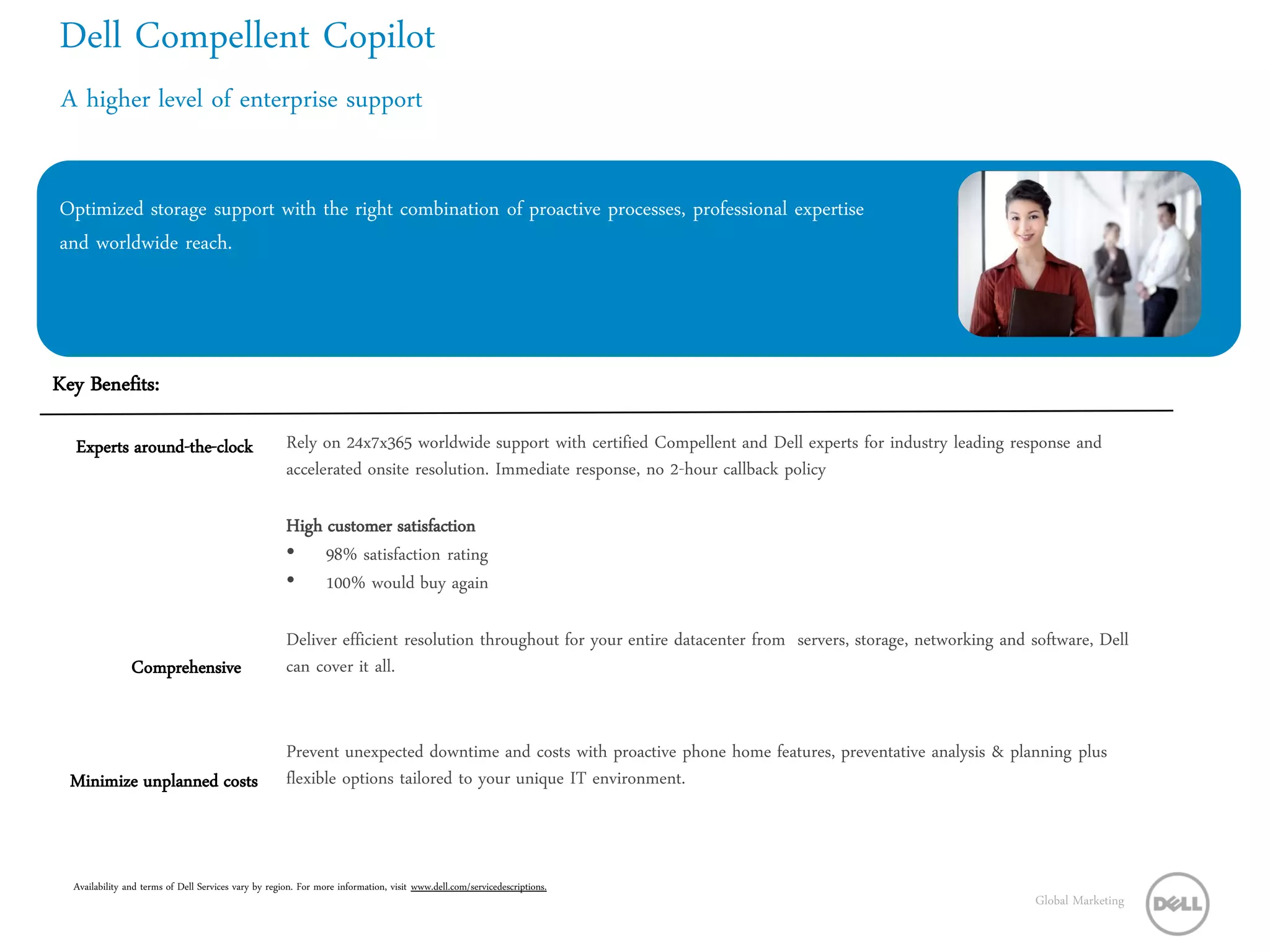

17. Dell Compellent Copilot
A higher level of enterprise support
Optimized storage support with the right combination of proactive processes, professional expertise
and worldwide reach.
Key Benefits:
Experts around-the-clock Rely on 24x7x365 worldwide support with certified Compellent and Dell experts for industry leading response and
accelerated onsite resolution. Immediate response, no 2-hour callback policy
High customer satisfaction
• 98% satisfaction rating
• 100% would buy again
Deliver efficient resolution throughout for your entire datacenter from servers, storage, networking and software, Dell
Comprehensive can cover it all.
Prevent unexpected downtime and costs with proactive phone home features, preventative analysis & planning plus
Minimize unplanned costs flexible options tailored to your unique IT environment.
Availability and terms of Dell Services vary by region. For more information, visit www.dell.com/servicedescriptions.
Global Marketing

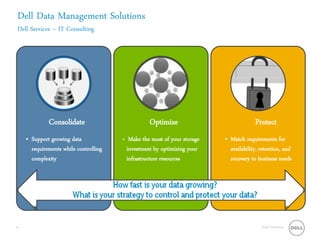

18. Dell Data Management Solutions
Dell Services – IT Consulting
Consolidate Optimize Protect
• Support growing data • Make the most of your storage • Match requirements for
requirements while controlling investment by optimizing your availability, retention, and
complexity infrastructure resources recovery to business needs
18 Global Marketing

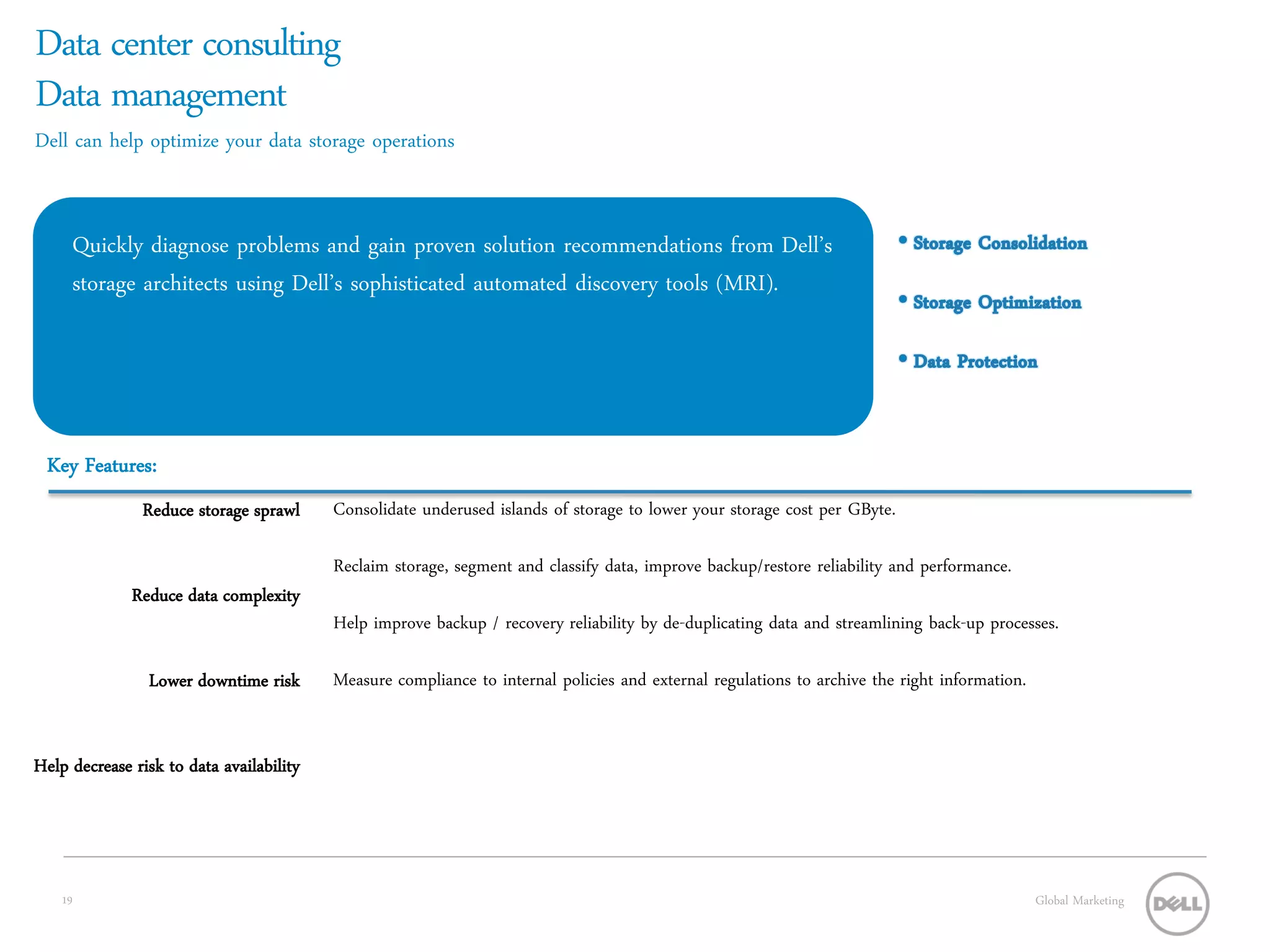

19. Data center consulting
Data management
Dell can help optimize your data storage operations
Quickly diagnose problems and gain proven solution recommendations from Dell’s
storage architects using Dell’s sophisticated automated discovery tools (MRI).
Key Features:
Reduce storage sprawl Consolidate underused islands of storage to lower your storage cost per GByte.
Reclaim storage, segment and classify data, improve backup/restore reliability and performance.
Reduce data complexity
Help improve backup / recovery reliability by de-duplicating data and streamlining back-up processes.
Lower downtime risk Measure compliance to internal policies and external regulations to archive the right information.
Help decrease risk to data availability
19 Global Marketing

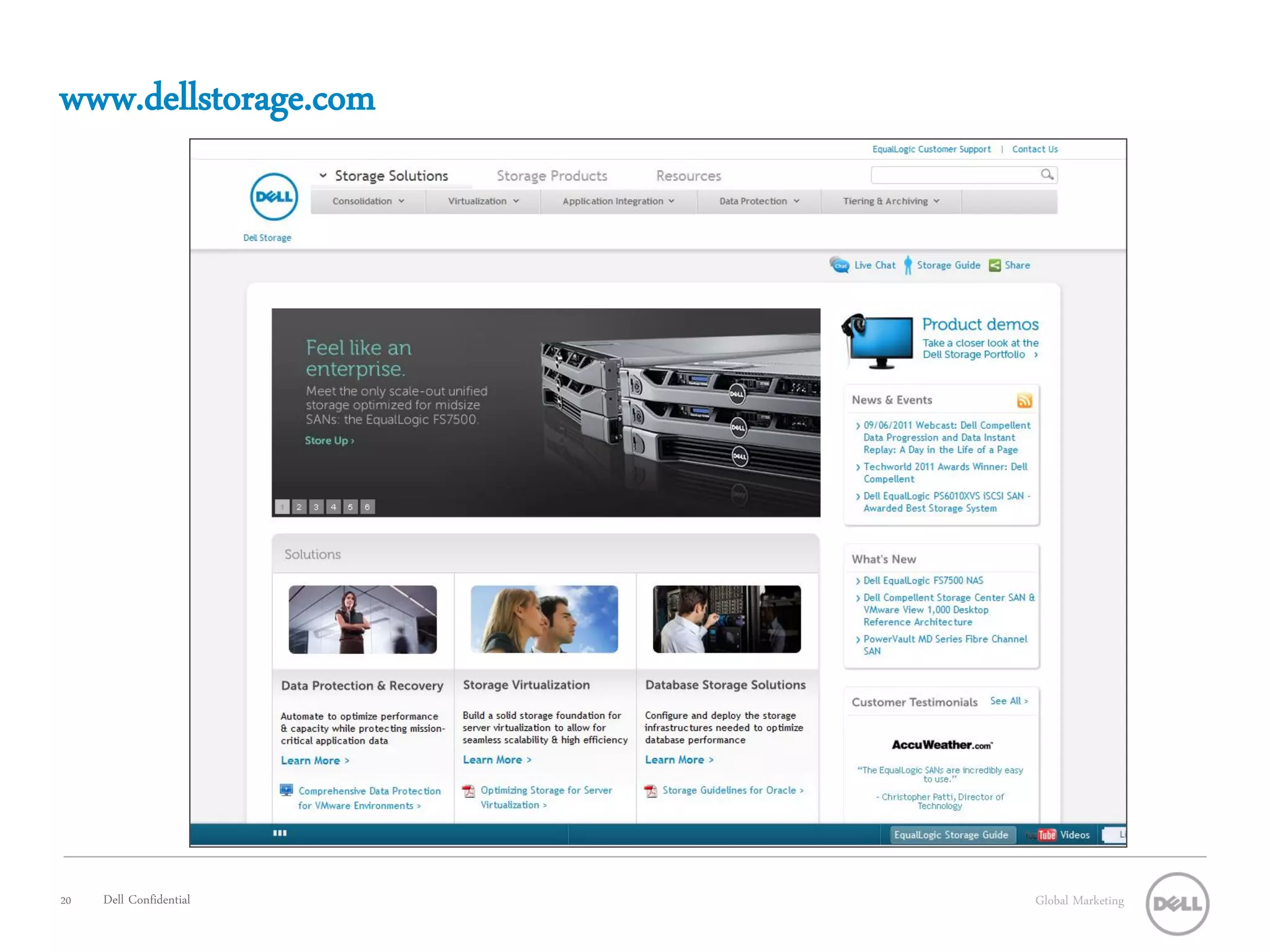

20. www.dellstorage.com
20 Dell Confidential Global Marketing

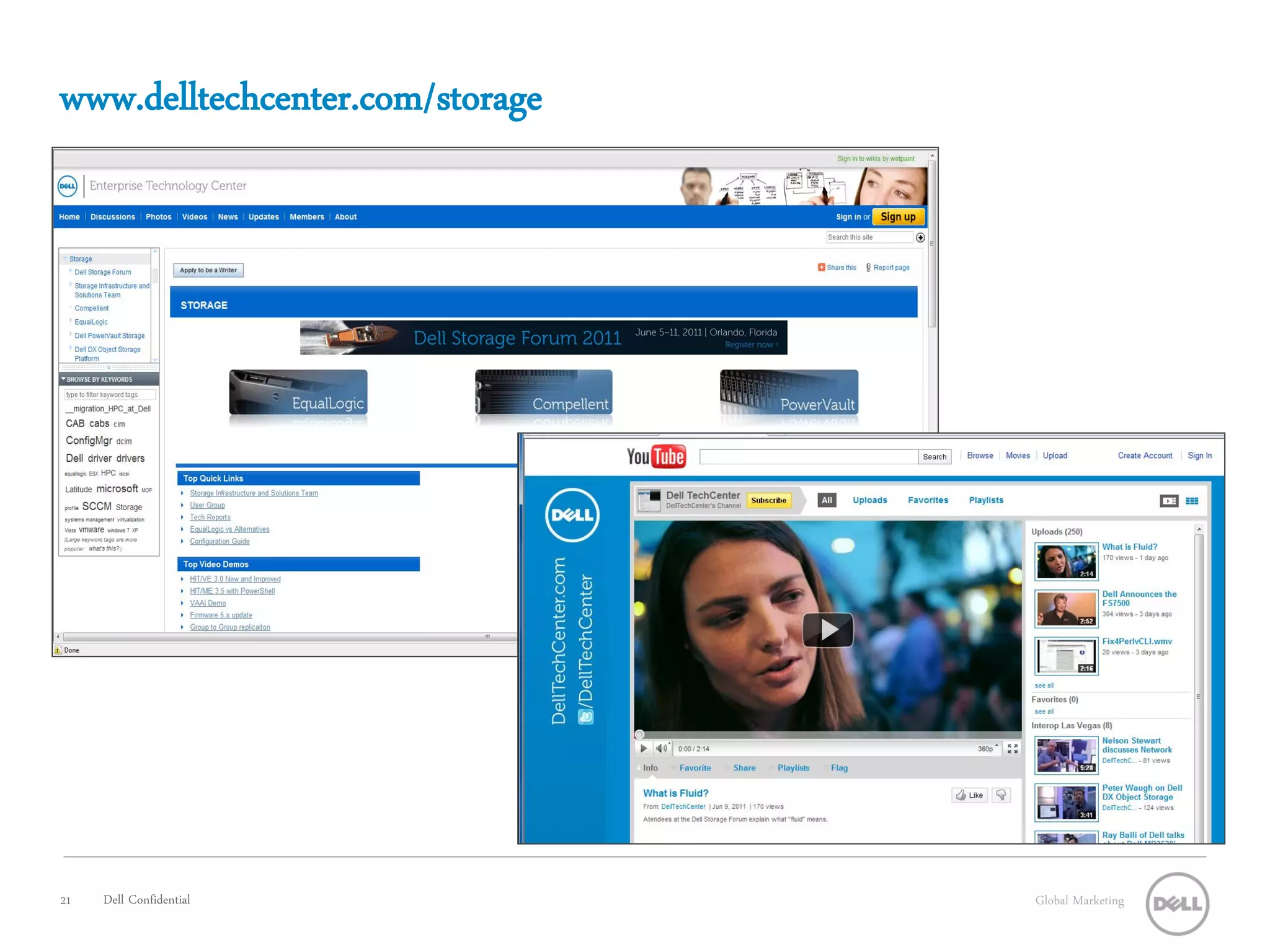

21. www.delltechcenter.com/storage
21 Dell Confidential Global Marketing
