Immobilization and positioning techniques are essential for accuracy in stereotactic radiosurgery (SRS) and stereotactic body radiotherapy (SBRT). There are invasive and non-invasive immobilization systems for the head and body that use customized masks, frames, or bite blocks. Repositioning is aided by various fiducial marker systems. Motion management techniques include gating using the active breathing coordinator or respiratory position management systems. Emerging real-time tumor tracking methods allow for continuous beam adjustment to target motion during treatment. Precise immobilization and motion management are needed to minimize positioning errors and ensure accurate dose delivery in SRS and SBRT.

1. IMMOBILIZATION TECHNIQUES
IN SRS AND SRT
Dr. Shreya Singh
JR-III
Department of Radiation Oncology
IMS, BHU

2. NEED FOR IMMOBILIZATION
TECHNIQUES IN SBRT AND SRS
• Accuracy is related to interfraction and intrafraction setup
error and organ motion
• In moving targets - large target motions due to the inherent
movement of patient physiologic or respiratory motion
• The magnitude of target motion is variable and unpredictable,
resulting in deviation in planned dose vs. delivered dose
• To attain higher degree of accuracy and precision in target
localization, positioning and delivery- “stereotactic approach” is
the ideal method.

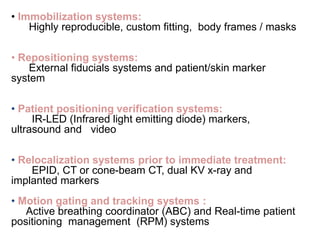

3. • Immobilization systems:
Highly reproducible, custom fitting, body frames / masks
• Repositioning systems:
External fiducials systems and patient/skin marker
system
• Patient positioning verification systems:
IR-LED (Infrared light emitting diode) markers,
ultrasound and video
• Relocalization systems prior to immediate treatment:
EPID, CT or cone-beam CT, dual KV x-ray and
implanted markers
• Motion gating and tracking systems :
Active breathing coordinator (ABC) and Real-time patient
positioning management (RPM) systems

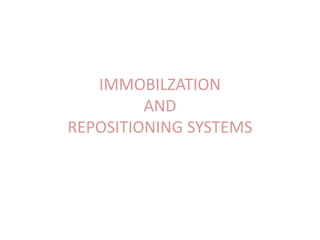

4. IMMOBILZATION
AND
REPOSITIONING SYSTEMS

5. Immobilization systems available for
SRS and SBRT
• Frame Immobilisation
 Invasive
 Non-invasive
• Frameless Immobilisation
Invasive frame
Non- Invasive frameFrameless

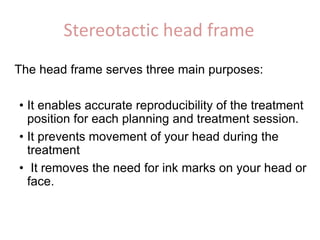

6. Stereotactic head frame
The head frame serves three main purposes:
• It enables accurate reproducibility of the treatment
position for each planning and treatment session.
• It prevents movement of your head during the
treatment
• It removes the need for ink marks on your head or
face.

7. Invasive Stereotactic head frame
• Leksell system
• BRW system
• CRW system
• TALON system

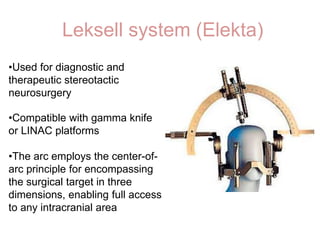

8. Leksell system (Elekta)
•Compatible with gamma knife
or LINAC platforms
•The arc employs the center-of-
arc principle for encompassing
the surgical target in three
dimensions, enabling full access
to any intracranial area
•Used for diagnostic and
therapeutic stereotactic
neurosurgery

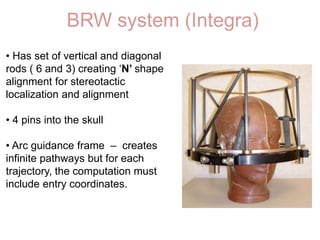

9. BRW system (Integra)
• Has set of vertical and diagonal
rods ( 6 and 3) creating ‘N’ shape
alignment for stereotactic
localization and alignment
• 4 pins into the skull
• Arc guidance frame – creates
infinite pathways but for each
trajectory, the computation must
include entry coordinates.

10. CRW system
•Simplified and improved form of BRW
• MRI compatible
•Its target-centered arc principle
means that all arc trajectories pass to
the target, thus obviating the need for
fixed entry point
•Frame is affixed to cranium via four
screws placed through graphite posts
(red arrows). Outer cage (blue arrow)
serves as a CT localizer for image
registration

11. TALON (Best Namos)
•Removable head frame system
for fractionated SRT
•Utilises two self-tapping titanium
screws inserted into patient’s
skull at vertex
•TALON assembly is then
attached to the screws on
treatment table
•Frame can be removed after
each fraction with two screws
remanining in the patient’s skull

12. Non-invasive Cranial Immobilization
•Elekta Extend Head frame
•BrainLab Mask System
•Stereoadapter 5000
•Gill-Thomas-Cosman (GTC) Relocatable Head
Ring (Integra)

13. Elekta Extend Head frame
• Relocatable, noninvasive cranial
immobilization device
• Dental imprint is obtained and
custom dental mold is placed in the
mouth with suction to the hard palate
which is attached to vacuum device
•The mouthpiece is then connected
to a carbon fiber frame that is
attached to the treatment couch,
immobilizing the patient

14. Non-invasive Cranial – Frame based
(BrainLab)
•Thermoplastic material custom
molded to patient’s head
•Attached to vertical posts on either
side of patie nt’s head
•Posts are attached to U-shaped
frame
•Frames attached to treatment
couch

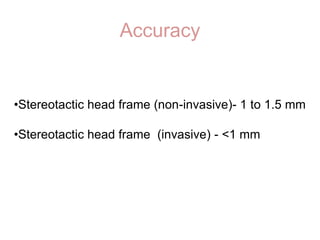

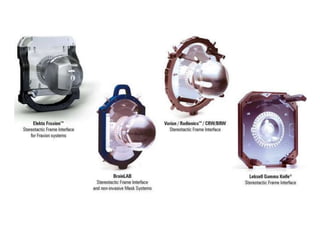

16. Accuracy
•Stereotactic head frame (non-invasive)- 1 to 1.5 mm
•Stereotactic head frame (invasive) - <1 mm

17. Stereotactic body frame
Body Fix – Elekta Body Pro-Lok – CIVCO
•Bionix Omni V SBRT positioning system

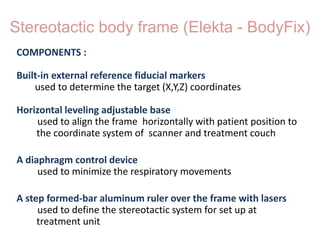

18. Stereotactic body frame (Elekta - BodyFix)
COMPONENTS :
Built-in external reference fiducial markers
used to determine the target (X,Y,Z) coordinates
Horizontal leveling adjustable base
used to align the frame horizontally with patient position to
the coordinate system of scanner and treatment couch
A diaphragm control device
used to minimize the respiratory movements
A step formed-bar aluminum ruler over the frame with lasers
used to define the stereotactic system for set up at
treatment unit

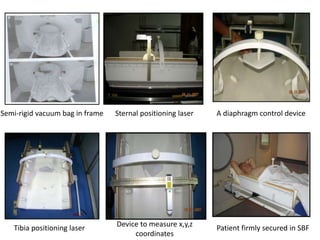

19. A diaphragm control deviceSemi-rigid vacuum bag in frame Sternal positioning laser
Tibia positioning laser Patient firmly secured in SBFDevice to measure x,y,z
coordinates

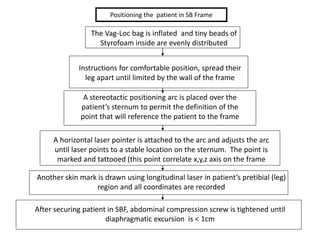

20. Positioning the patient in SB Frame
The Vag-Loc bag is inflated and tiny beads of
Styrofoam inside are evenly distributed
Instructions for comfortable position, spread their
leg apart until limited by the wall of the frame
A stereotactic positioning arc is placed over the
patient’s sternum to permit the definition of the
point that will reference the patient to the frame
A horizontal laser pointer is attached to the arc and adjusts the arc
until laser points to a stable location on the sternum. The point is
marked and tattooed (this point correlate x,y,z axis on the frame
Another skin mark is drawn using longitudinal laser in patient’s pretibial (leg)
region and all coordinates are recorded
After securing patient in SBF, abdominal compression screw is tightened until
diaphragmatic excursion is < 1cm

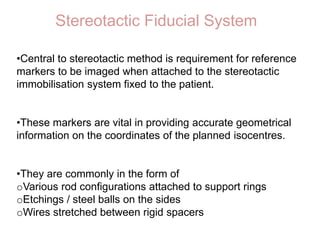

21. Stereotactic Fiducial System
•Central to stereotactic method is requirement for reference
markers to be imaged when attached to the stereotactic
immobilisation system fixed to the patient.
•These markers are vital in providing accurate geometrical
information on the coordinates of the planned isocentres.
•They are commonly in the form of
oVarious rod configurations attached to support rings
oEtchings / steel balls on the sides
oWires stretched between rigid spacers

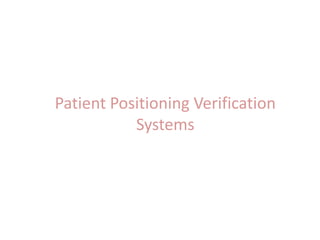

22. Patient Positioning Verification
Systems

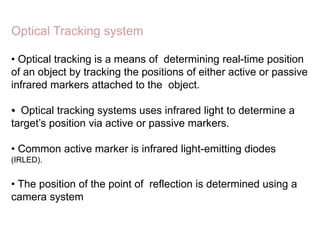

23. • Optical tracking is a means of determining real-time position
of an object by tracking the positions of either active or passive
infrared markers attached to the object.
• Optical tracking systems uses infrared light to determine a
target’s position via active or passive markers.
• Common active marker is infrared light-emitting diodes
(IRLED).
• The position of the point of reflection is determined using a
camera system
Optical Tracking system

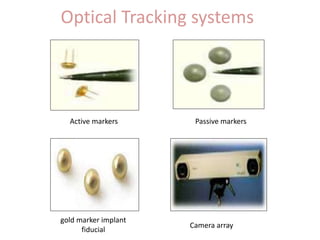

24. Optical Tracking systems
Active markers Passive markers
Camera array
gold marker implant
fiducial

25. Optical tracking technology in SBRT
Target (lesion)
Stereo cameras
y
z
x
center of rotation
a)
c)
b)
d)
The stereo cameras locate the exact
coordinates of passive or active IR marker in
treatment room
The marker is in the same location as it was
in fig a, but because of the patient is
rotated around the marker point, the lesion
has moved undetected by the cameras
An array of marker is used now, fixed to the
patient surface. The collection of points in the
array of markers is tracked
Using an array of markers allow the
rotational movement to be detected

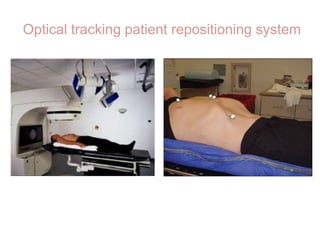

26. Optical tracking patient repositioning system

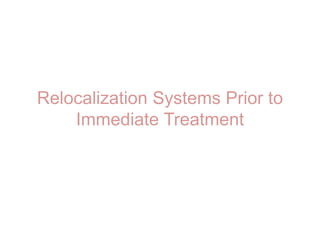

27. Relocalization Systems Prior to
Immediate Treatment

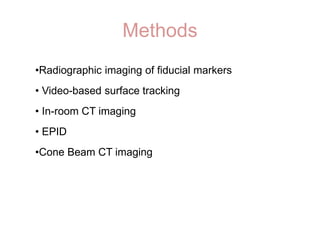

28. Methods
•Radiographic imaging of fiducial markers
• Video-based surface tracking
• In-room CT imaging
• EPID
•Cone Beam CT imaging

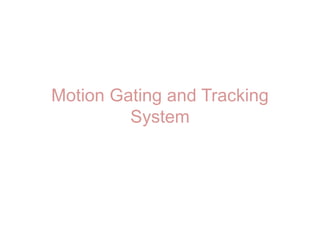

29. Motion Gating and Tracking
System

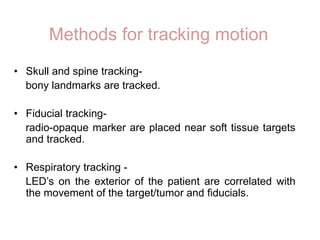

30. Methods for tracking motion
• Skull and spine tracking-
bony landmarks are tracked.
• Fiducial tracking-
radio-opaque marker are placed near soft tissue targets
and tracked.
• Respiratory tracking -
LED’s on the exterior of the patient are correlated with
the movement of the target/tumor and fiducials.

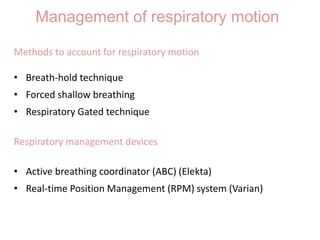

31. Management of respiratory motion
Methods to account for respiratory motion
• Breath-hold technique
• Forced shallow breathing
• Respiratory Gated technique
Respiratory management devices
• Active breathing coordinator (ABC) (Elekta)
• Real-time Position Management (RPM) system (Varian)

32. Abdominal Compression Device
•For forced shallow
breathing
•A plate compresses the
abdominal wall few
centimeters below the
xiphoid
•This plate is fixed to the
arch
•Arch is attached to the
body frame

33. RPM System (Varian)
• External gating system
• System consists of
Infra-red camera
Marker block containing 2 reflectors
• The marker block is placed on the patient’s
skin in the abdominal region
• Surrogate signal - abdominal surface cmotion
correlates to tumor motion
• The x-ray signal from the CT scanner
is recorded synchronously with the respiration
signal.
Real-time position
Management system (RPM)
Video Camera

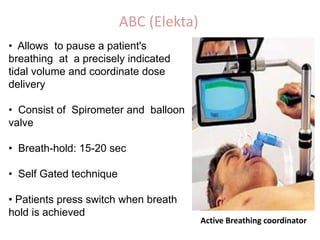

34. ABC (Elekta)
• Allows to pause a patient's
breathing at a precisely indicated
tidal volume and coordinate dose
delivery
• Consist of Spirometer and balloon
valve
• Breath-hold: 15-20 sec
• Self Gated technique
• Patients press switch when breath
hold is achieved
Active Breathing coordinator

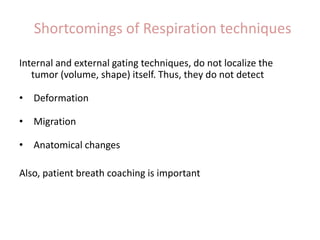

35. Shortcomings of Respiration techniques
Internal and external gating techniques, do not localize the
tumor (volume, shape) itself. Thus, they do not detect
• Deformation
• Migration
• Anatomical changes
Also, patient breath coaching is important

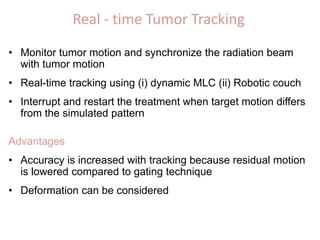

36. Real - time Tumor Tracking
• Monitor tumor motion and synchronize the radiation beam
with tumor motion
• Real-time tracking using (i) dynamic MLC (ii) Robotic couch
• Interrupt and restart the treatment when target motion differs
from the simulated pattern
Advantages
• Accuracy is increased with tracking because residual motion
is lowered compared to gating technique
• Deformation can be considered

37. Synchrony
The latest technology of image
guidance in Cyber Knife
• Uses a combination of surgically
placed internal fiducials, and light
emitting optical fibers (markers)
mounted on the patient skin.
• The light from the markers can be
tracked continuously using a
camera which are placed such that
their motion is correlated with the
motion of the tumor.

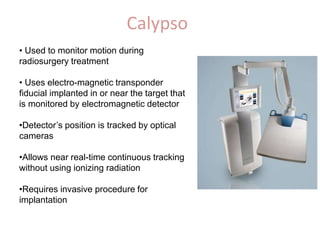

38. Calypso
• Used to monitor motion during
radiosurgery treatment
• Uses electro-magnetic transponder
fiducial implanted in or near the target that
is monitored by electromagnetic detector
•Detector’s position is tracked by optical
cameras
•Allows near real-time continuous tracking
without using ionizing radiation
•Requires invasive procedure for
implantation
