- 1. Beam direction Beam direction Practice& principles moderator - Mr. P. Goswami department of radiotherapy PGIMER, chandigarh
- 2. Definition Definition Whole plan ofthe treatment is worked out in advance of the actual treatment and certain devices are used to direct the beam towards the tumor
- 3. Why Beam direction? Why Beam direction ? Homogenous tumor low normal tissue dose dose better therapeutic ratio
- 4. Prerequisites for beamdirection Prerequisites for beam direction Patient factors: ◦ Early stage of disease ◦ Good general condition ◦ Good nutritional status ◦ Radical treatment intent (curative) Machine factors: ◦ Isocentric ◦ Non isocentric
- 5.
- 6. LOCALISATION LOCALISATION The targetvolume and critical normal tissues are delineated with respect to with respect to patient’s external surface contour. What to localize? ◦ Tumor ◦ Organ Methods? ◦ Clinical examination ◦ Imaging
- 7. Why Localize? Why Localize? Irradiate the tumor and spare the normal tissue. Allow calculations and beam balancing. Define radiation portals. Use the beam directing devices.
- 8. Clinical localization Clinical localization Advantages: ◦ Available everywhere. ◦ Cheapest and quickest(?). ◦ Needs little additional equipment. Disadvantages: ◦ Error prone in the wrong hands. ◦ Accessible areas required. ◦ Volumetric data not easily obtained. Clinical localization is mandatory despite advanced imaging – need to know what to image!
- 9. Imaging Localization Imaging Localization Imaging: ◦ X-rays: Plain Contrast Studies ◦ CT scans ◦ MRI scans ◦ USG scans ◦ PET scan ◦ Fusion imaging Type of study selected depends on: ◦ Precision desired. ◦ Cost considerations ◦ Time considerations ◦ Labour considerations
- 10. X rays X rays The most common and cheapest modality available. However 2-D data acquired only. Orthogonal films can be used with appropriate contrast enhancement for localization in 3 dimensions
- 11. X rays X rays Plain films: ◦ Head and neck region ◦ Cervix (radio-opaque markers) Contrast ◦ Esophagus ◦ Rectum ◦ Bladder ◦ Stomach
- 12. Estimation of depth Estimationof depth From data gained by localization studies: ◦ CT / MRI – Accurate data ◦ Lateral height method ◦ Tube shift method Depth estimation necessary for: ◦ Calculations ◦ Selection of beam energy
- 13. Lateral height method Lateralheight method d d H1 + H22 d = H1 H2
- 14. Tube shift method Tubeshift method Image shift and tube shift are interrelated WHEN the tube to target distance remains constant. Goal: To obtain a graph of different object heights against the tube shift. Serial measurements of image shift measured (for same tube to film distance) while varying the height of the markers above the table.
- 15. Tube shift principles Tubeshift principles Marker d2 y f S Tumor x1 x2 d1
- 16. Calculation Calculation d1 f y y d2 x1 x2 x1 S = d1 f – d1 S x2 S = d2 f– d2 y y = d2 – d1 = f x2 + S x2 - x1 + S x1 Tumor Marker
- 17. CT scans CT scans Provides electron density data which can be directly used by theTPS. Volumetric reconstruction possible. Good image resolution - better where bony anatomy is to be evaluated. The image is a gray scale representation of the CT numbers – related to the attenuation coefficients. Hounsfield units = (μtissue – μwater) x 1000/ (μwater) 253 265 235 125 125 112 56 450 156 135 158 247 269 300 65 36 123 598
- 18. CT scan perquisites CTscan perquisites Flat table top Large diameter scan aperture (≥ 70 cm). Positioning, leveling and immobilization done in the treatment position. Adequate internal contrast – external landmarks to be delineated too. Preferably images to be transferred electronically to preserve electron density data.
- 19. MRI scans MRI scans Advantages: ◦ Imaging in multiple planes without formatting. ◦ Greater tissue contrast – essential for proper target delineation in brain and head and neck ◦ No ionizing radiation involved. Disadvantages: ◦ Lower spatial resolution ◦ Longer scan times ◦ Inability to image calcification or bones.
- 20. Fusion Imaging Fusion Imaging Includes PET – CT imaging and Fusion MRI. Allows “biological modulation” of radiation therapy. Expensive : requires additional software Final clinical utility – still remains to be realized
- 21. POSITIONING POSITIONING Patient positioningis the most vital and often the most NEGLECTED NEGLECTED part of beam direction: Good patient position is ALWAYS: ◦ Stable. ◦ Comfortable. ◦ Minimizes movements. ◦ Reproducible.
- 22. Standard Positions Standard Positions Supine: ◦ MC used body position. ◦ Also most comfortable. ◦ Best and quickest for setup. ◦ Minimizes errors due to miscommunication. Prone: ◦ Best for treating posterior structures like spine ◦ In some obese patients setup improved as the back is flat and less mobile.
- 23. Positioning aids Positioning aids Help to maintain patients in non standard positions. These positions necessary to maximize therapeutic ratio. Accessories allow manipulation of the non rigid human body to allow a comfortable, reproducible and stable position.
- 24.
- 25. Breast Boards Breast Boards Disadvantages: ◦ Possibility of skin reactions in the infra mammary folds ◦ Access to CT scanners hampered Solutions: ◦ Thermoplastic brassieres. ◦ Breast rings. ◦ Prone treatment support. Allow comfortable arm up support brings arms ► out of the way of lateral beams. Positions patient so that the breast / sternum is horizontal avoiding ► angulation of the collimator. Pulls breast down into a better position by the pull of gravity.
- 26. Breast boards… Breast boards… ModernBreast Board Indexed Arm supports Indexed wrist support Head rest Carbon fiber tilt board Wedge to prevent sliding
- 27.
- 28.
- 29. Mould making :Contd.. Mould making : Contd..
- 30. Mould making :Contd.. Mould making : Contd..
- 31. Thermoplastics Thermoplastics Thermoplastics arelong polymers with few cross links. They also possess a “plastic memory” - tendency to revert to normal flat shape when reheated
- 32. Foam systems Foam systems Made of polyurethane Advantages: ◦ Ability to cut treatment portals into foam. ◦ Mark treatment fields on the foam. ◦ Rigid and holds shape. Disadvantages: ◦ Chance of spillage ◦ Environmental hazard during disposal
- 33. Vacuum bags Vacuum bags Consist of polystyrene beads that are locked in position with vacuum. Can be reused. However like former immobilization not perfect.
- 34. Bite Blocks Bite Blocks A simple yet elegant design to immobilize the head. A dental impression mouthpiece used. The impression is attached to the base plate and is indexed.
- 35. SRS devices SRS devices Sterotactic frames. Gill Thomas Cosman System. TALON® Systems – NOMOS corp.
- 36. Patient Contouring Patient Contouring Contour is the representation of external body outline. Methods: ◦ Plaster of Paris ◦ Lead wire ◦ Thermoplastic contouring material ◦ Flurographic method ◦ CT/MRI
- 37. RADIATION RADIATION FIELD Types: ◦Geometrical:Area DEFINED by the light beam at any given depth as projected from the point of origin of the beam. ◦ Physical:Area encompassed by the 50% isodose curve at the isocenter. In LINACs often defined at the 80% isodose.
- 38. Single Field Single Field Criteria for acceptability: 1. Dose distribution to be uniform (±5%) 2. Maximum dose to tissues in beam ≤ 110%. 3. Critical structures don’t receive dose exceeding their normal tolerance. Situations used: ◦ Skin tumors ◦ CSI ◦ Supraclavicular region ◦ Palliative treatments
- 39. 2 Field techniques 2Field techniques Can be : ◦ Parallel opposed ◦ Angled Perpendicular Oblique ◦ Wedged pair Advantages: ◦ Simplicity ◦ Reproducibility ◦ Less chance of geometrical miss ◦ Homogenous dose • Dose homogeneity depends on: • Patient thickness • Beam energy • Beam “flatness”
- 40. Disadvantage of 2field techniques -large amount of normal tissue gets radiation -if separation is more there is an arc like distribution so, in ca cx if separation is >16 cm four fields are used.
- 41. 3 field techniques 3field techniques Used in -deep seated tumors -to save vital structures Example -ca esophaghus -ca lung -ca UB -ca nasopharynx with ant extention -ca maxilla with ethmoidal extention
- 42. 4 field techniques 4field techniques Used in -ca cx -ca rectum
- 43. Multiple fields Multiple fields Used in 3DCRT & IMRT Used to obtain a “conformal” dose distribution in the modern radiotherapy techniques. Disadvantages: ◦ Integral dose increases ◦ Certain beam angles are prohibited due to proximity of critical structures. ◦ Setup accuracy better with parallel opposed arrangement.
- 44. Magna field Magna field Radical treatment of lymphoma(HD) Whole body irradiation Hemi body irradiation
- 45. DOSE DISTRIBUTION ANALYSIS Done manually or in the TPS. Manual distribution gives a hands on idea of what to expect with dose distributions. Inefficient and time consuming. Pros: ◦ Cheap ◦ Universally available ◦ Adequate for most clinical situations.
- 46. Calculations Calculations Techniques: ◦ SSDtechnique (PDD method) ◦ SAD technique ◦ Clarkson’s technique ◦ Computerized
- 47. PRESCRIPTION Mandatory statements: ◦ Doseto be delivered. ◦ Number of fractions ◦ Number of fractions per week
- 48. SSD technique SSD technique PDD is the ratio of the absorbed dose at any point at depth d to that at a reference depth d0. D0 is the position of the peak absorbed dose. Dmax is the peak absorbed dose at the central axis. Total Tumor dose Number of fields x Number of #s = T Incident dose = T x 100 PDD Time = ID Output
- 49. SAD Technique SAD Technique Uses doses normalized at isocenter for calculation. In this technique the impact of setup variations is minimized. Setup is easier but manual planning difficult. Time taken for treatment reduced.
- 50. SAD calculations SAD calculations TotalTumor dose Number of fields x Number of #s = T Inciden t dose = T x 100 TMR/ TAR Time = ID Output
- 51. SSD vs SADtechnique SSD vs SAD technique SSD treatments: ◦ Relatively less homogenous dose distribution ◦ Setup possible without requiring expensive aids e.g. Laser ◦ PDD charts can be used for simple dose calculations ◦ More skin reactions SAD treatments: ◦ Less number of MUs required ◦ Time taken is less ◦ Impact of setup inaccuracies is minimized in 2 field techniques ◦ Ease of setup reproducibility in multi field treatments.
- 52. TAR vs. SSD TARvs. SSD TAR = Tissue Air Ratio TAR introduced by Jones for rotation therapy. Allows calculation of dose at isocenter WITHOUT correcting for varying SSDs. TAR is the ratio of dose at a point in the phantom to the dose in free space at the same point (Dq /D0) Dq D0
- 53. TAR TAR TAR removesthe influence of SSD as it is a ratio of two doses at the SAME point. However like PDD the TAR also varies with: ◦ Energy ◦ Depth ◦ Field Size ◦ Field Shape
- 54. EXECUTION & VERIFICATION Can be done using: ◦ Portal Films ◦ Electronic Portal images ◦ Cone Beam CT mounted on treatment machines (IGRT). ◦ Seen during treatment -CCTV camera -lead glass -mirror -infrared camera (in imrt)
- 55. Port films Port films ◦Cheapest. ◦ Legal necessity(?) ◦ But have several disadvantages.
- 56. Port film disadvantages Portfilm disadvantages Factors leading to poor image contrast: ◦ High beam energy (> 10 MV) ◦ Large source size ( Cobalt) ◦ Large patient thickness (> 20 cm) Slow acquisition times. Image enhancement not possible. Storage problems.
- 57. Electronic Portal Imaging ElectronicPortal Imaging Video based EPIDS Fiber optic systems Matrix liquid ion chambers Solid state detectors Amorphous Si technology*
- 58. BEAM DIRECTION DEVICES BEAMDIRECTION DEVICES The main beam direction devices are: ◦ Collimators ◦ Front pointer / SSD indicator ◦ Back Pointer ◦ Pin and arc ◦ Isocentric mounting ◦ Lasers
- 59. Collimators Collimators Collimators providebeams of desired shape and size. Types: ◦ Fixed / Master collimator. ◦ Movable / Treatment collimator.
- 60. Fixed Collimators Fixed Collimators Protects the patient from bulk of the radiation. Dictates the maximum field size for the machine. Maximum beam size is when exposure at periphery is 50% of that of the center. In megavoltage radiotherapy beam angle used is 20°.
- 61. Master Collimator :Design Master Collimator : Design In megavoltage x ray machines beam energy is maximum in forward direction. • Beam energy is equal in telecurie sources so primary collimators are spherical.
- 62. Movable Collimators Movable Collimators Define the required field size and shape. Placed below the master collimators results in trimming of the penumbra. Types: ◦ Applicators ◦ Jaws / Movable diaphragms
- 63. Applicators: Design Applicators: Design MetalPlate with hole Lead Sheet Box Plastic Cap
- 64. Applicators Applicators Advantages: ◦ Indicatesize and shape of beam. ◦ Distance maintained. ◦ Direction shown. ◦ Plastic ends allow compression. ◦ Compression allows immobilization. ◦ Penumbra minimized. Disadvantages: ◦ Useful for low energy only. ◦ Separate sizes and shapes required. ◦ Costly. ◦ Shapes may change due frequent handling.
- 65. Jaws Jaws Handling ofheavy weight not required. Skin sparing effect retained. Jaws moved mechanically – accurately. Jaw border lies along the line radiating from focal spot
- 66. Jaws: Disadvantages Jaws: Disadvantages DisadvantagesRemedy Size and shape of field remain unknown Light beam shining through the jaws Patient to source distance unknown SSD indicator used. Compression not possible A Perspex box may be applied to the head
- 67. Front & backpointers Front & back pointers This method requires the identification & marking on the patient’s surface, of two points lying on a line passing through the tumor centre. Entry point- A Tumor centre- T Exit point- B
- 69. Front Pointer/ SSDindicator Front Pointer/ SSD indicator Detachable device to measure the SSD and align the beam axis. Designed so that it may be swung out of the beam path during treatment.
- 70. Back Pointer Back Pointer The pointer can be moved in the sleeve. A nipple is used to allow compression. The arrow lies along the central ray.
- 71. Sites used Sites used Front pointer and back pointer used in the following situations: ◦ Head and Neck ◦ Breast ◦ Brain tumors
- 72. Limitations Limitations Requires skinmarks – inherently unreliable. Back pointer is unreliable when compression is desired. Both front and back points must be accessible. Accurate localization of tumor center is mandatory.

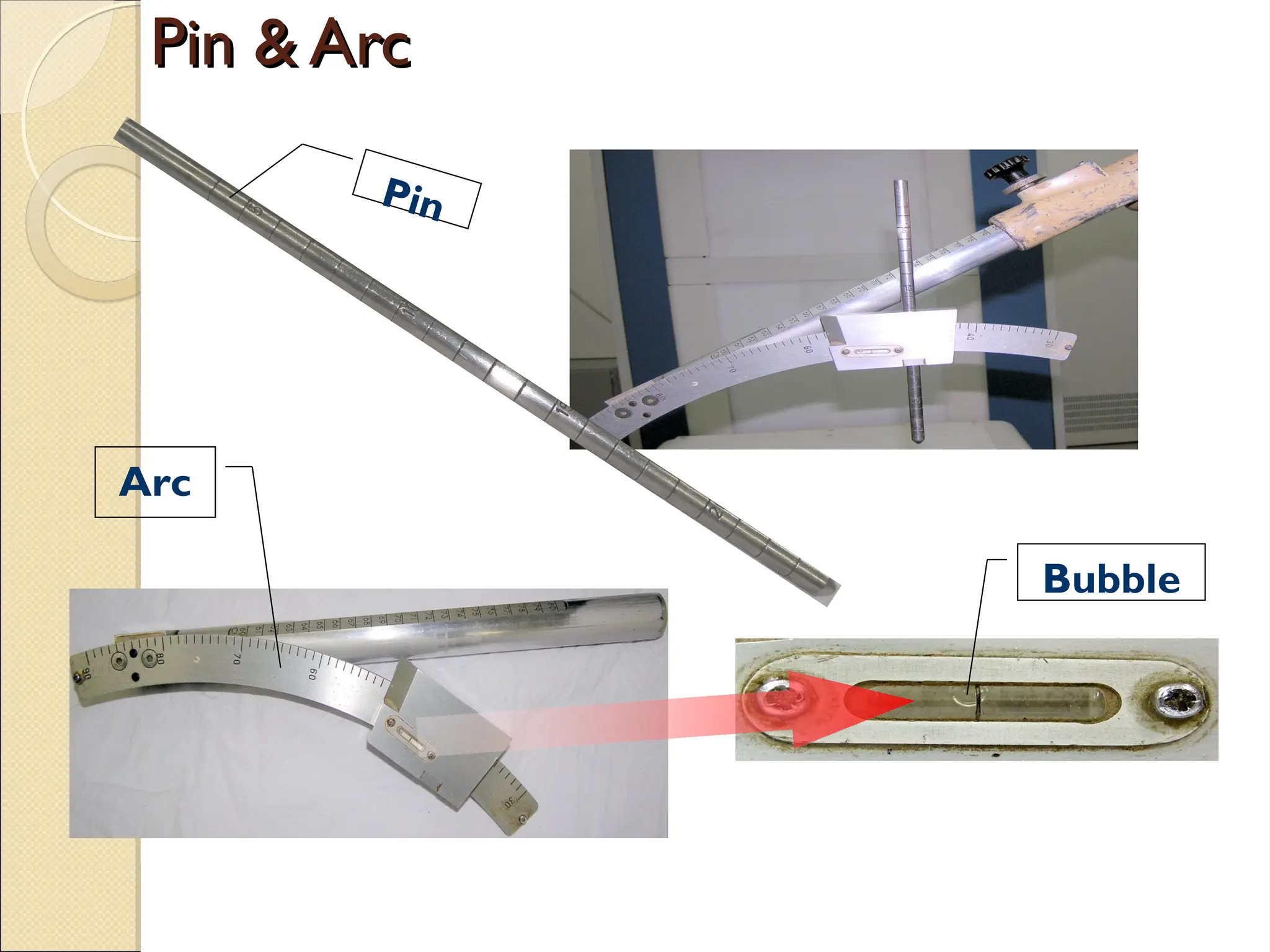

- 73. Pin & Arc Pin& Arc Pin Arc Bubble
- 74. Principle Principle Based onthe principle of parallelogram
- 75. How does itwork? How does it work? arrangement of pin & arc is such that when pin is at it’s lowest position, it’s lower end is on the central axis of beam & on centre of curvature of arc. Depth of the tumor is already known. Pin is withdrawn the reqd. distance & it’s lower end is brought in contact with the surface mark.
- 76. So longas the pin is vertical the rest of equipment & applicator will rotate about the centre of tumor and central ray will always pass through it Thus keeping the pin vertical & in contact with surface mark any particular angle can be selected The oblique distance can be read off the scale or bar by applying principle of parallelogram.
- 77. Advantages of Pin& Arc Advantages of Pin & Arc Allows Isocentric treatment of ◦ Deep tumors. ◦ Eccentric tumors. Can be used with compression e.g. in treating deep seated tumors. Can be used for manual verification of Isocentric placement of machines
- 78. Sites where used Siteswhere used Mostly in midline tumors situated at a depth ◦ Esophagus ◦ Cervix ◦ Bladder ◦ Rectum ◦ Vagina ◦ Lung sometimes

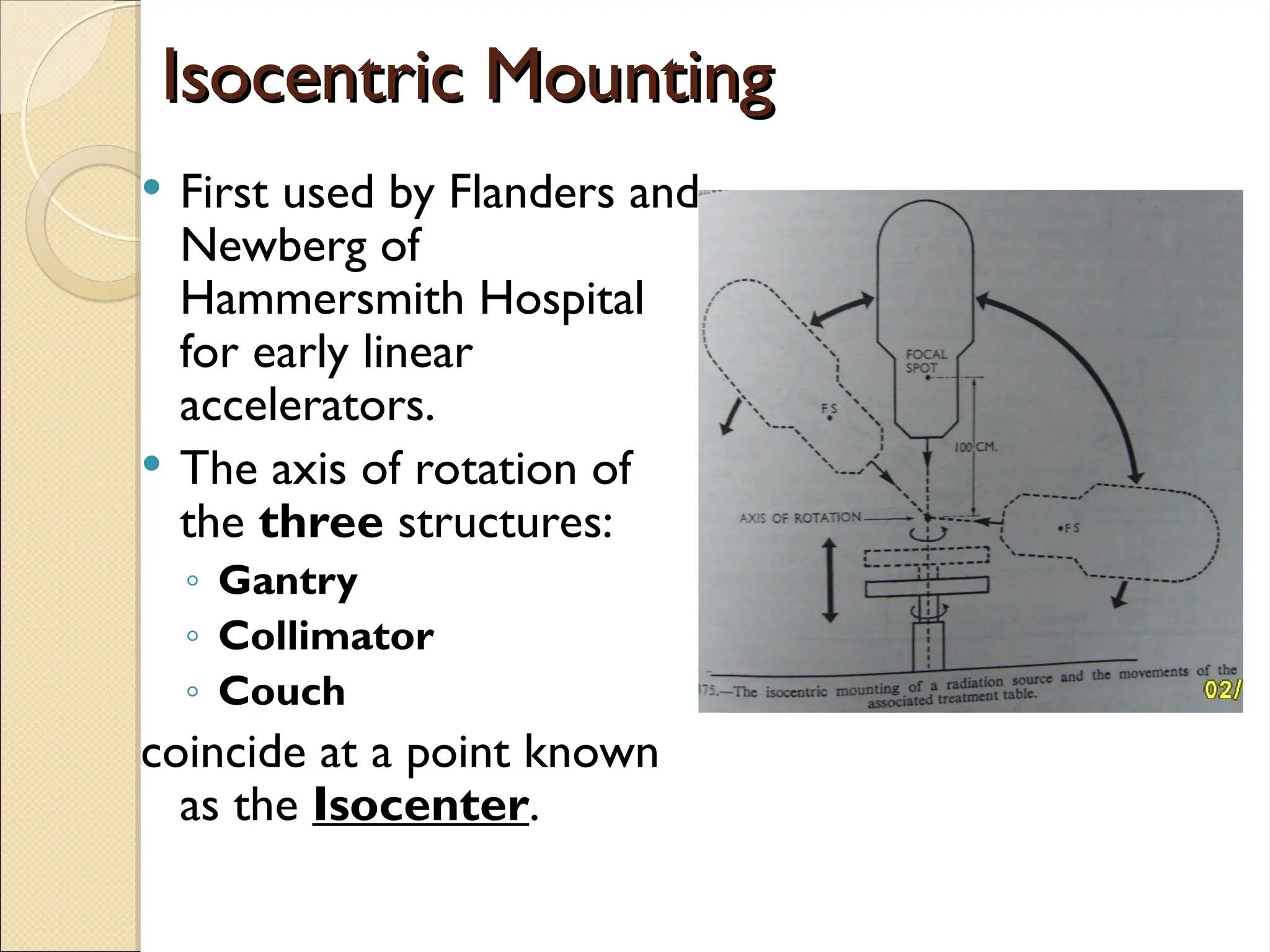

- 79. Isocentric Mounting Isocentric Mounting First used by Flanders and Newberg of Hammersmith Hospital for early linear accelerators. The axis of rotation of the three structures: ◦ Gantry ◦ Collimator ◦ Couch coincide at a point known as the Isocenter.
- 80. Why Isocentric Mounting? WhyIsocentric Mounting? Enhances accuracy. Allows faster setup and is more accurate than older non isocentrically mounted machines. Makes setup transfer easy from the simulator to the treatment machine.
- 81. Lasers Lasers LASER =Light Amplification Of stimulated Emission Of Radiation Typically 3 pairs are provided with the machine and intersect at the isocenter. Also define: ◦ Beam Entry ◦ Beam Exit
- 82. Lasers Lasers Other uses: ◦Checking the isocenter ◦ Reproducing the setup on the simulator at the treatment couch. Fallacies: ◦ Accurate setup depends on proper alignment of the lasers themselves ◦ Lasers known to move frequent adjustments needed.
- 83. Conclusion Conclusion Beam directiondevices & methods are important part of radiotherapy which aids in accurate treatment. To neglect the extra accuracy that can be gained by beam direction is to throw away much of the value of the powerful and expensive apparatus now in use in radiotherapy.
