1. 如何使用 iframe 製作一個易於更新及更安
全的前端套件
Kewang

2. Kewang
● 王慕羣 Kewang
● Java / JavaScript
● HBase / PostgreSQL / MongoDB / ElasticSearch
● Git / DevOps
●
熱愛開源
LinkedinLinkedin kewangtwkewangtw
SlideShareSlideShare kewangkewang
GmailGmail cpckewangcpckewang
FacebookFacebook Kewang 的資訊進化論Kewang 的資訊進化論
devopsday taipeidevopsday taipei '17'17
hadoopconhadoopcon '14 '15'14 '15
mopconmopcon '14'14
jcconfjcconf '16 '17 '18'16 '17 '18
modernwebmodernweb '18 '19 '20'18 '19 '20
GitHubGitHub kewangkewang
FunlidayFunliday kewangkewang
coscupcoscup '20'20

3. 3
六年前

4. 4

6. 6

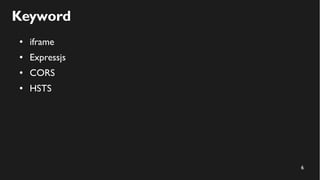

Keyword
● iframe
● Expressjs
● CORS
● HSTS

7. 7
這年頭，內容產出記得要附 reference

8. 8

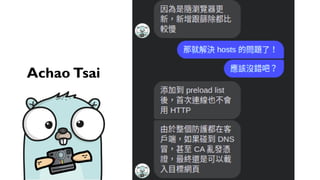

Achao Tsai

9. 9
回到正題

10. 10
先看看應用端

11. 11

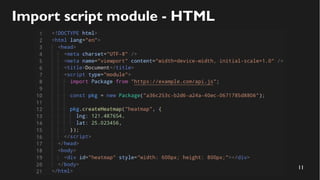

Import script module - HTML

12. 12
Import script module - HTML
引入外部 library

13. 13

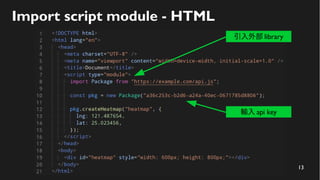

Import script module - HTML
引入外部 library
輸入 api key

14. 14

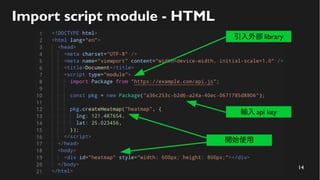

Import script module - HTML
引入外部 library
輸入 api key
開始使用

15. 15

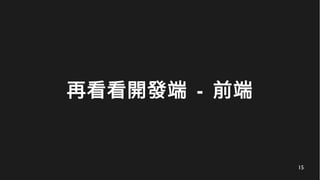

再看看開發端 - 前端

16. 16

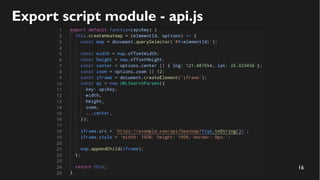

Export script module - api.js

17. 17
Export script module - api.js
constructor

18. 18

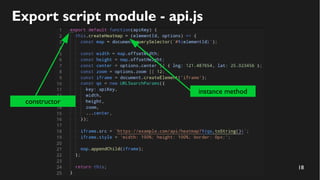

Export script module - api.js
constructor
instance method

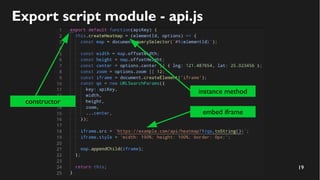

19. 19
Export script module - api.js
constructor
instance method
embed iframe

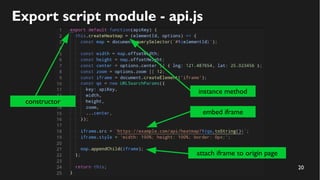

20. 20
Export script module - api.js
constructor
instance method
embed iframe
attach iframe to origin page

21. 21
module 講太少？

22. 22
去聽聽早上 Kuro 的 Vite

23. 23

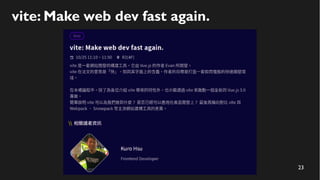

vite: Make web dev fast again.

24. 24
再看看開發端 - 後端

25. 25

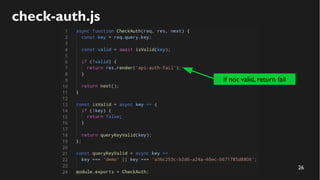

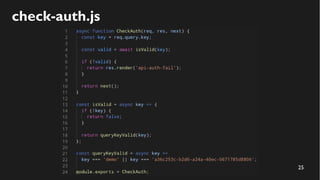

check-auth.js

26. 26
check-auth.js
if not valid, return fail

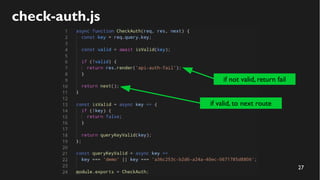

27. 27
check-auth.js
if not valid, return fail
if valid, to next route

28. 28

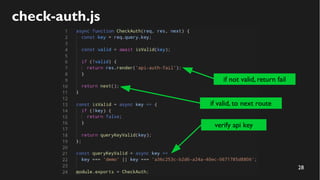

check-auth.js
verify api key
if not valid, return fail
if valid, to next route

29. 29
heatmap.js

30. 30

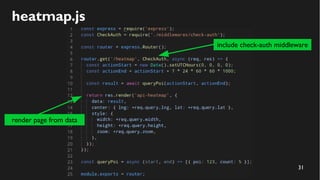

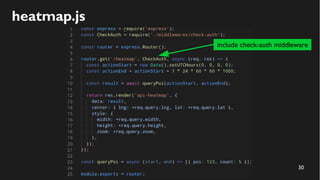

heatmap.js
include check-auth middleware

31. 31
heatmap.js
include check-auth middleware
render page from data

32. 32
heatmap.js
include check-auth middleware
query poi data
render page from data

33. 33

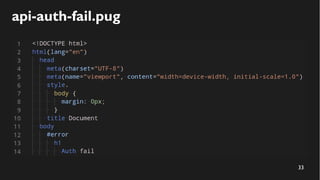

api-auth-fail.pug

34. 34

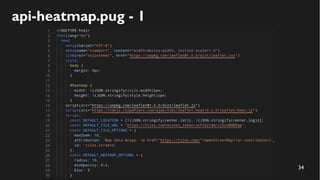

api-heatmap.pug - 1

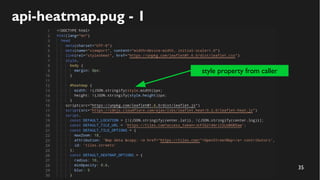

35. 35
api-heatmap.pug - 1
style property from caller

36. 36
api-heatmap.pug - 2

37. 37
api-heatmap.pug - 2
data from router

38. 38

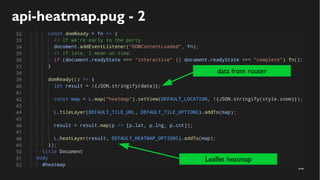

api-heatmap.pug - 2
data from router
Leaflet heatmap

39. 39

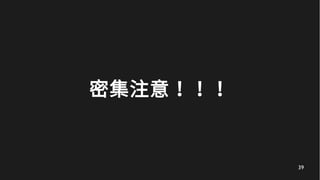

密集注意！！！

40. 40
結果 - Heatmap

41. 41

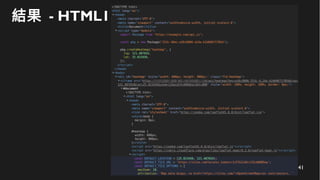

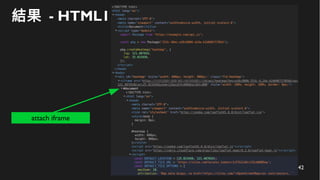

結果 - HTML1

42. 42
結果 - HTML1
attach iframe

43. 43

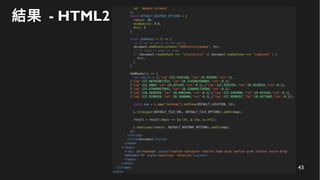

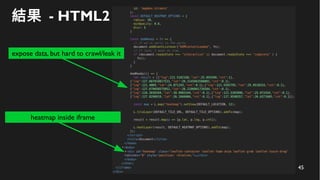

結果 - HTML2

44. 44
結果 - HTML2
expose data, but hard to crawl/leak it

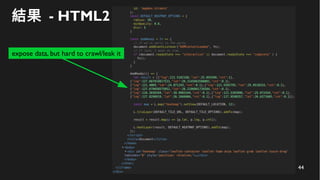

45. 45
結果 - HTML2
expose data, but hard to crawl/leak it
heatmap inside iframe

46. 46
但是！！！

47. 47

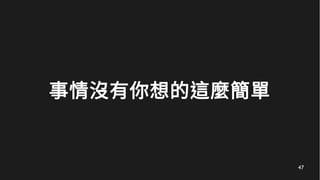

事情沒有你想的這麼簡單

48. 48
CORS

49. 49

50. 50
1. CORS

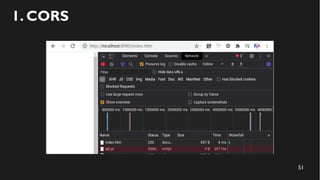

51. 51
1. CORS

52. 52
CORS 讓使用你 library 的網站無法連線

53. 53

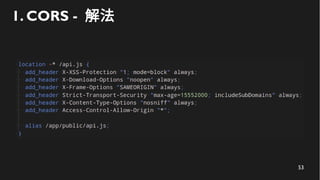

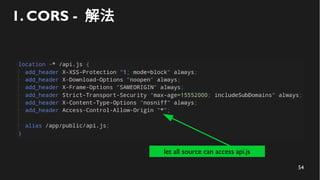

1. CORS - 解法

54. 54
1. CORS - 解法
let all source can access api.js

55. 55
api key 外流

56. 56

57. 57

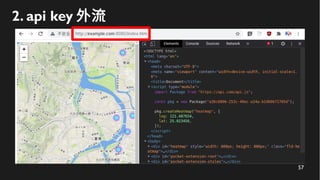

2. api key 外流

58. 58
2. api key 外流
同一把 api key

59. 59
2. api key 外流

60. 60
2. api key 外流
同一把 api key

61. 61
api key 外流影響到原始網站，花了一堆冤枉錢

62. 62
2. api key 外流 - 解法

63. 63

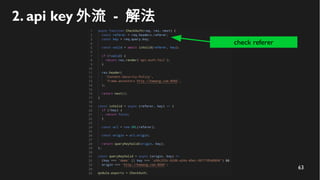

2. api key 外流 - 解法
check referer

64. 64

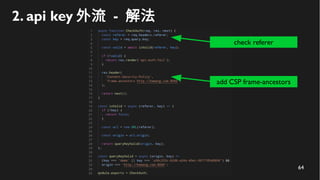

2. api key 外流 - 解法
add CSP frame-ancestors
check referer

65. 65

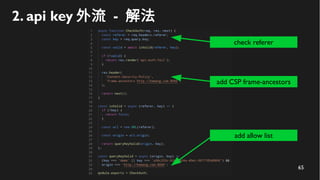

2. api key 外流 - 解法
add allow list
add CSP frame-ancestors
check referer

66. 66
2. api key 外流 - 解法

67. 67
HTTP 網域偽造

68. 68

69. 69

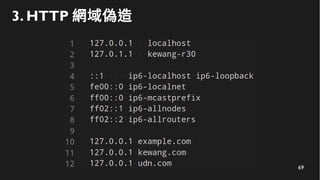

3. HTTP 網域偽造

70. 70

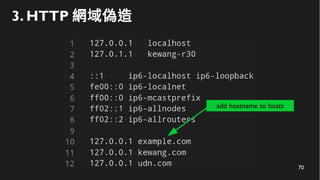

3. HTTP 網域偽造
add hostname to hosts

71. 71

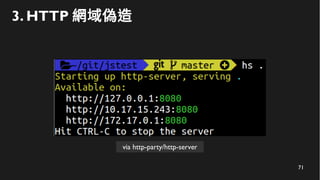

3. HTTP 網域偽造
via http-party/http-server

72. 72
3. HTTP 網域偽造
via http-party/http-server
run HTTP server

73. 73
3. HTTP 網域偽造

74. 74

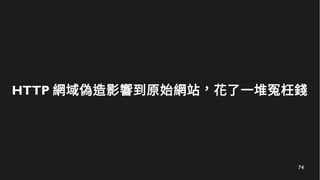

HTTP 網域偽造影響到原始網站，花了一堆冤枉錢

75. 75

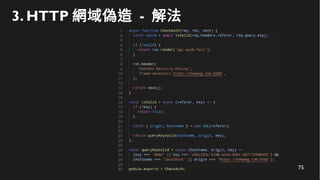

3. HTTP 網域偽造 - 解法

76. 76

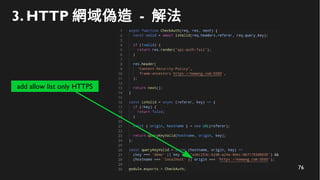

3. HTTP 網域偽造 - 解法
add allow list only HTTPS

77. 77
HTTPS 網域偽造

78. 78

79. 79
4. HTTPS 網域偽造

80. 80

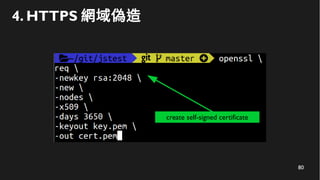

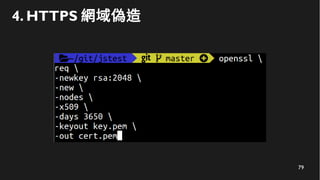

4. HTTPS 網域偽造
create self-signed certificate

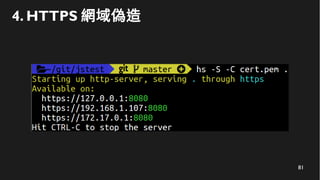

81. 81
4. HTTPS 網域偽造

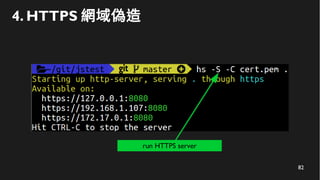

82. 82
4. HTTPS 網域偽造
run HTTPS server

83. 83

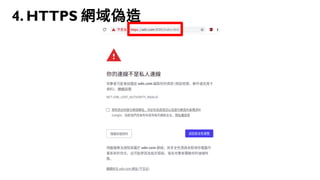

4. HTTPS 網域偽造

84. 84
4. HTTPS 網域偽造
ignore certificate check

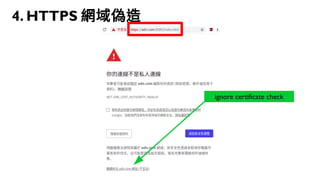

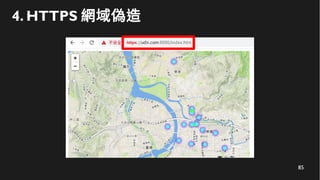

85. 85
4. HTTPS 網域偽造

86. 86
HTTPS 網域偽造影響到原始網站，花了一堆冤枉錢

87. 87
4. HTTPS 網域偽造 - 解法
browser server

88. 88

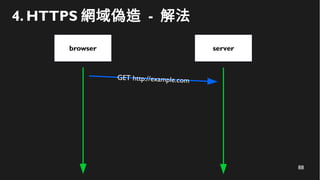

4. HTTPS 網域偽造 - 解法
browser
GET http://example.com
server

89. 89
4. HTTPS 網域偽造 - 解法
browser
redirect to https://example.com
GET http://example.com
server

90. 90

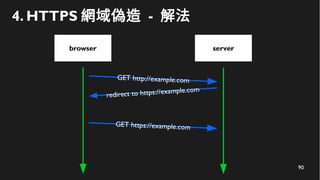

4. HTTPS 網域偽造 - 解法
browser
redirect to https://example.com
GET http://example.com
server
GET https://example.com

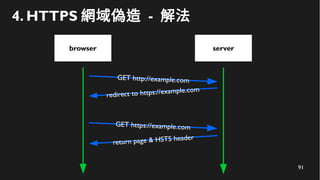

91. 91
4. HTTPS 網域偽造 - 解法
browser
redirect to https://example.com
GET http://example.com
server
GET https://example.com
return page & HSTS header

92. 92
4. HTTPS 網域偽造 - 解法

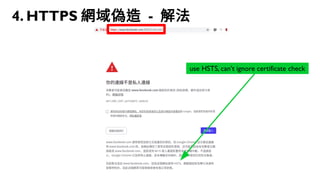

93. 93
4. HTTPS 網域偽造 - 解法
use HSTS, can’t ignore certificate check

94. 94

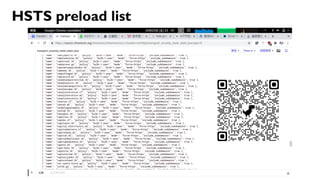

HSTS preload list

95. 95
HSTS preload list

96. 96
client
serverbrowser
Without HSTS preload list
hosts DNS

97. 97
client
server
1. query hostname
browser
Without HSTS preload list
hosts DNS

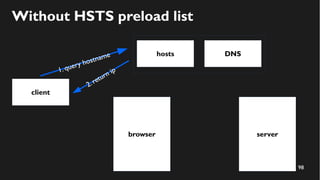

98. 98
client
server
1. query hostname
browser
Without HSTS preload list
hosts DNS
2.return ip

99. 99
client
server
1. query hostname
browser
3.GET
page
Without HSTS preload list
hosts DNS
2.return ip

100. 100
client
server
1. query hostname
browser
3.GET
page
Without HSTS preload list
hosts DNS
2.return ip
4. GET http

101. 101
client
server
1. query hostname
browser
3.GET
page
Without HSTS preload list
hosts DNS
2.return ip
4. GET http
5. redirect to https

102. 102
client
server
1. query hostname
browser
3.GET
page
Without HSTS preload list
hosts DNS
2.return ip
4. GET http
5. redirect to https
6. GET https

103. 103
client
server
1. query hostname
browser
3.GET
page
Without HSTS preload list
hosts DNS
2.return ip
4. GET http
5. redirect to https
6. GET https
7. return page & HSTS

104. 104
client
server
1. query hostname
browser
3.GET
page
Without HSTS preload list
hosts DNS
2.return ip
4. GET http
5. redirect to https
6. GET https
7. return page & HSTS
8. return page

105. 105
client
server
With HSTS preload list
hosts DNS
preload list
renderer

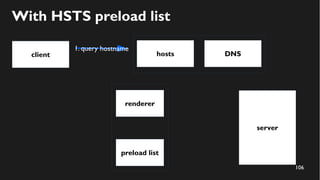

106. 106
client
server
1. query hostname
With HSTS preload list
hosts DNS
preload list
renderer

107. 107
client
server
1. query hostname
With HSTS preload list
hosts DNS
2. return ip
preload list
renderer

108. 108
client
server
1. query hostname
With HSTS preload list
hosts DNS
2. return ip
preload list
renderer
3.GET
page

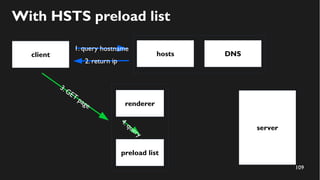

109. 109
client
server
1. query hostname
With HSTS preload list
hosts DNS
2. return ip
preload list
renderer
3.GET
page
4.query

110. 110
client
server
1. query hostname
With HSTS preload list
hosts DNS
2. return ip
preload list
renderer
3.GET
page
5.is HSTS
4.query

111. 111
client
server
1. query hostname
With HSTS preload list
hosts DNS
2. return ip
6. GET https
preload list
renderer
3.GET
page
5.is HSTS
4.query

112. 112
client
server
1. query hostname
With HSTS preload list
hosts DNS
2. return ip
6. GET https
7. return page & HSTS
preload list
renderer
3.GET
page
5.is HSTS
4.query

113. 113
client
server
1. query hostname
With HSTS preload list
hosts DNS
2. return ip
6. GET https
7. return page & HSTS
preload list
renderer
3.GET
page
5.is HSTS
8.return
page 4.query

114. 114
HSTS Preload List Submission

115. 115

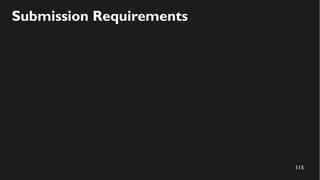

Submission Requirements

116. 116
Submission Requirements
● Serve a valid certificate.

117. 117

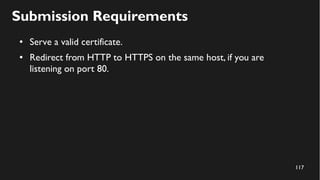

Submission Requirements
● Serve a valid certificate.
● Redirect from HTTP to HTTPS on the same host, if you are
listening on port 80.

118. 118
Submission Requirements
● Serve a valid certificate.
● Redirect from HTTP to HTTPS on the same host, if you are
listening on port 80.
● Serve all subdomains over HTTPS.

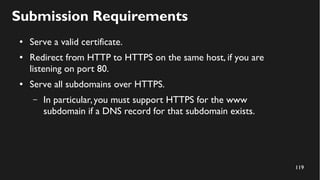

119. 119
Submission Requirements
● Serve a valid certificate.
● Redirect from HTTP to HTTPS on the same host, if you are
listening on port 80.
● Serve all subdomains over HTTPS.
– In particular,you must support HTTPS for the www
subdomain if a DNS record for that subdomain exists.

120. 120
Submission Requirements
● Serve a valid certificate.
● Redirect from HTTP to HTTPS on the same host, if you are
listening on port 80.
● Serve all subdomains over HTTPS.
– In particular,you must support HTTPS for the www
subdomain if a DNS record for that subdomain exists.
● Serve an HSTS header on the base domain for HTTPS requests:

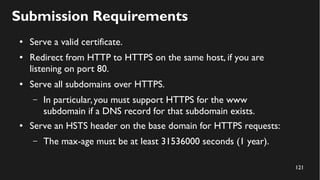

121. 121
Submission Requirements
● Serve a valid certificate.
● Redirect from HTTP to HTTPS on the same host, if you are
listening on port 80.
● Serve all subdomains over HTTPS.
– In particular,you must support HTTPS for the www
subdomain if a DNS record for that subdomain exists.
● Serve an HSTS header on the base domain for HTTPS requests:
– The max-age must be at least 31536000 seconds (1 year).

122. 122

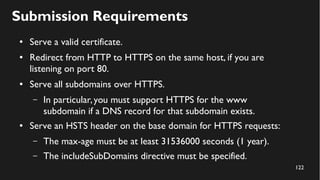

Submission Requirements
● Serve a valid certificate.
● Redirect from HTTP to HTTPS on the same host, if you are
listening on port 80.
● Serve all subdomains over HTTPS.
– In particular,you must support HTTPS for the www
subdomain if a DNS record for that subdomain exists.
● Serve an HSTS header on the base domain for HTTPS requests:
– The max-age must be at least 31536000 seconds (1 year).
– The includeSubDomains directive must be specified.

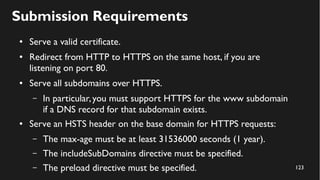

123. 123
Submission Requirements
● Serve a valid certificate.
● Redirect from HTTP to HTTPS on the same host, if you are
listening on port 80.
● Serve all subdomains over HTTPS.
– In particular,you must support HTTPS for the www subdomain
if a DNS record for that subdomain exists.
● Serve an HSTS header on the base domain for HTTPS requests:
– The max-age must be at least 31536000 seconds (1 year).
– The includeSubDomains directive must be specified.
– The preload directive must be specified.

124. 124

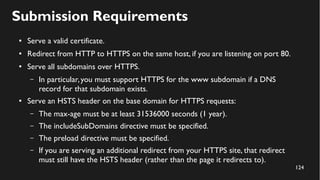

Submission Requirements
● Serve a valid certificate.
● Redirect from HTTP to HTTPS on the same host, if you are listening on port 80.
● Serve all subdomains over HTTPS.
– In particular,you must support HTTPS for the www subdomain if a DNS
record for that subdomain exists.
● Serve an HSTS header on the base domain for HTTPS requests:
– The max-age must be at least 31536000 seconds (1 year).
– The includeSubDomains directive must be specified.
– The preload directive must be specified.
– If you are serving an additional redirect from your HTTPS site, that redirect
must still have the HSTS header (rather than the page it redirects to).

125. 125
HSTS header

126. 126

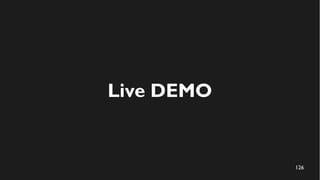

Live DEMO

127. 127

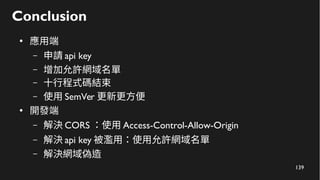

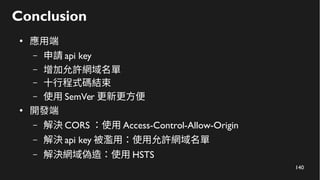

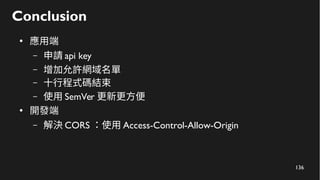

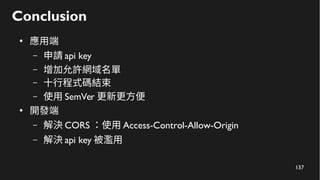

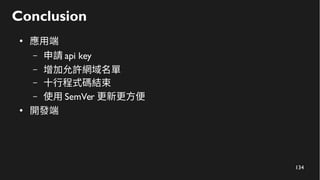

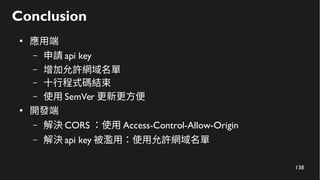

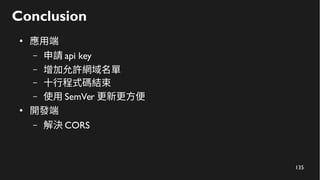

Conclusion

128. 128
Conclusion

129. 129
Conclusion
●
應用端

130. 130
Conclusion
●
應用端
– 申請 api key

131. 131
Conclusion
●
應用端
– 申請 api key
– 增加允許網域名單

132. 132
Conclusion
●
應用端
– 申請 api key
– 增加允許網域名單
– 十行程式碼結束

133. 133

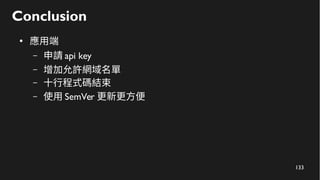

Conclusion
●
應用端
– 申請 api key
– 增加允許網域名單
– 十行程式碼結束
– 使用 SemVer 更新更方便

134. 134
Conclusion
●
應用端
– 申請 api key
– 增加允許網域名單
– 十行程式碼結束
– 使用 SemVer 更新更方便
●
開發端

135. 135
Conclusion
●
應用端
– 申請 api key
– 增加允許網域名單
– 十行程式碼結束
– 使用 SemVer 更新更方便
●
開發端
– 解決 CORS

136. 136
Conclusion
●
應用端
– 申請 api key
– 增加允許網域名單
– 十行程式碼結束
– 使用 SemVer 更新更方便
●
開發端
– 解決 CORS ：使用 Access-Control-Allow-Origin

137. 137
Conclusion
●
應用端
– 申請 api key
– 增加允許網域名單
– 十行程式碼結束
– 使用 SemVer 更新更方便
●
開發端
– 解決 CORS ：使用 Access-Control-Allow-Origin
– 解決 api key 被濫用

138. 138
Conclusion
●
應用端
– 申請 api key
– 增加允許網域名單
– 十行程式碼結束
– 使用 SemVer 更新更方便
●
開發端
– 解決 CORS ：使用 Access-Control-Allow-Origin
– 解決 api key 被濫用：使用允許網域名單

139. 139
Conclusion
●
應用端
– 申請 api key
– 增加允許網域名單
– 十行程式碼結束
– 使用 SemVer 更新更方便
●
開發端
– 解決 CORS ：使用 Access-Control-Allow-Origin
– 解決 api key 被濫用：使用允許網域名單
– 解決網域偽造

140. 140
Conclusion
●
應用端
– 申請 api key
– 增加允許網域名單
– 十行程式碼結束
– 使用 SemVer 更新更方便
●
開發端
– 解決 CORS ：使用 Access-Control-Allow-Origin
– 解決 api key 被濫用：使用允許網域名單
– 解決網域偽造：使用 HSTS

141. 141
One more thing

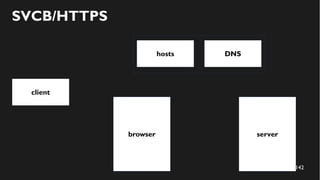

142. 142
client
serverbrowser
SVCB/HTTPS
hosts DNS

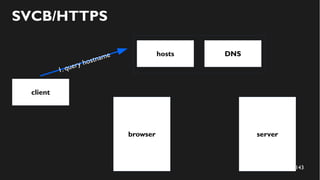

143. 143
client
server
1. query hostname
browser
SVCB/HTTPS
hosts DNS

144. 144
client
server
1. query hostname
browser
SVCB/HTTPS
hosts DNS
2. return ip & HTTPS

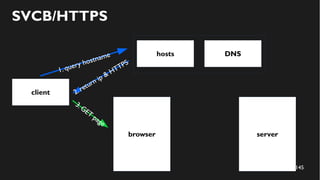

145. 145
client
server
1. query hostname
browser
3.GET
page
SVCB/HTTPS
hosts DNS
2. return ip & HTTPS

146. 146
client
server
1. query hostname
browser
3.GET
page
SVCB/HTTPS
hosts DNS
2. return ip & HTTPS
4. GET https

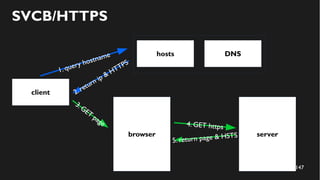

147. 147
client
server
1. query hostname
browser
3.GET
page
SVCB/HTTPS
hosts DNS
2. return ip & HTTPS
4. GET https
5. return page & HSTS

148. 148
client
server
1. query hostname
browser
3.GET
page
SVCB/HTTPS
hosts DNS
2. return ip & HTTPS
4. GET https
5. return page & HSTS
6. return page

149. 149

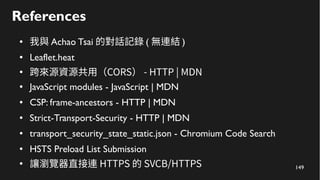

References
● 我與 Achao Tsai 的對話記錄 ( 無連結 )
● Leaflet.heat
●
跨來源資源共用（CORS） - HTTP | MDN
● JavaScript modules - JavaScript | MDN
● CSP: frame-ancestors - HTTP | MDN
● Strict-Transport-Security - HTTP | MDN
● transport_security_state_static.json - Chromium Code Search
● HSTS Preload List Submission
●
讓瀏覽器直接連 HTTPS 的 SVCB/HTTPS

150. 150
