1. HA Deployment Architecture with HAProxy
By
K Ganapathi, Technical Director, eProcurement Project(GePNIC)
National Informatics Centre
Chennai, India

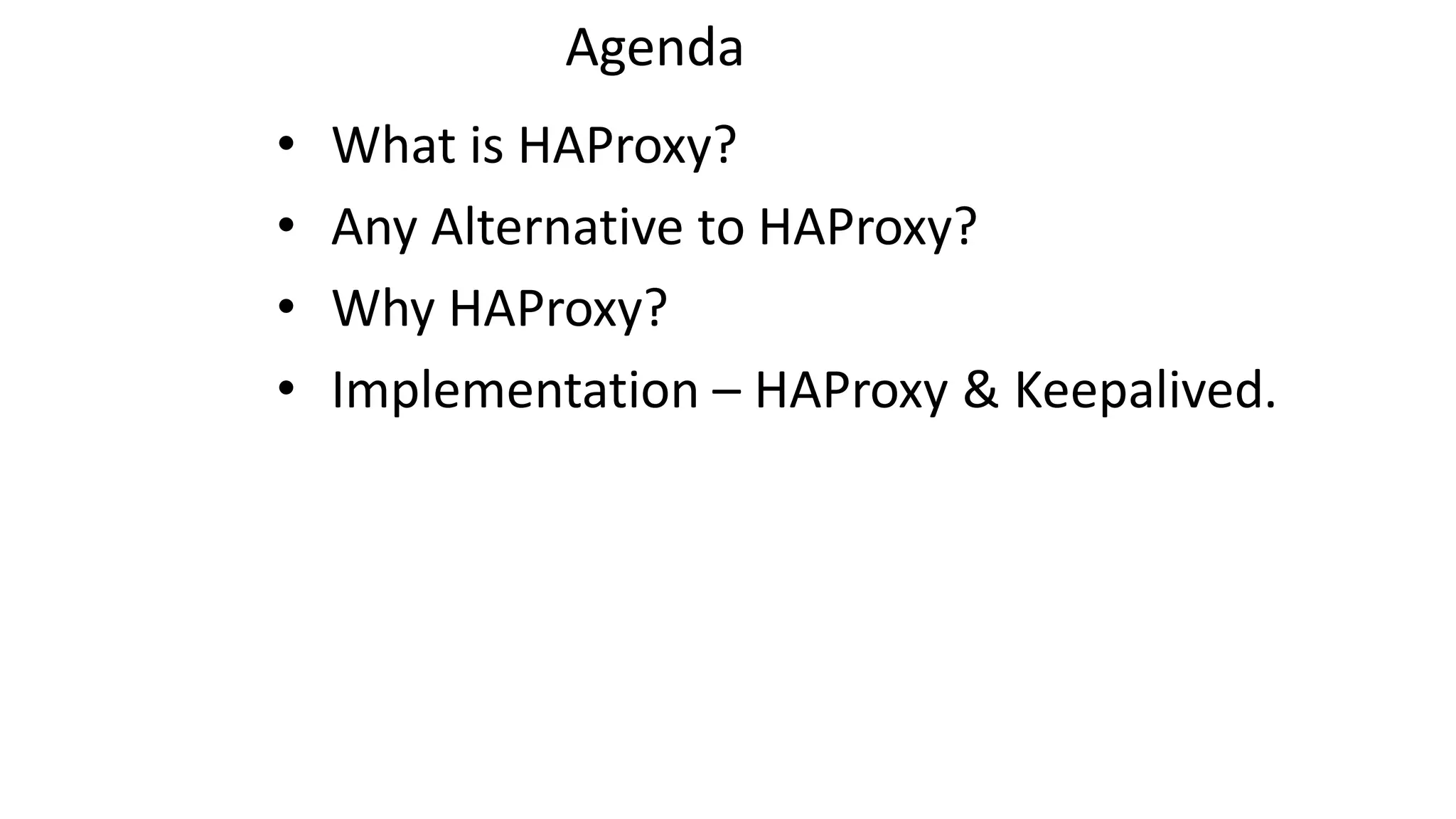

2. Agenda
• What is HAProxy?
• Any Alternative to HAProxy?
• Why HAProxy?
• Implementation – HAProxy & Keepalived.

3. The content of his presentation has been created in
such a way that even the participants who are part of
development team with no or less server
administration work can understand the concept of
High Availability, learn and implement two packages
HAProxy and Keepalived in their production
environment.

4. What is HAProxy?
• It is a open source, free, fast and easy to configure
solution for implementing
- High Availability
- High Performance-Scale out
- Load Balancing
- DDoS Prevention

5. Alternate to HAProxy?
• Nginx
• Linux Virtual Server – (LVS)
• AWS Elastic LB
• Varnish
• F5 ….

6. Alternate to HAProxy?
• Nginx - Can be used as both web server & load balancer (reverse proxy).
• Linux Virtual Server – (LVS) – Very fast, works as layer-4 LB, configuration is
not user friendly.
• AWS Elastic LB - for Amazon Cloud infrastructure users.
• Varnish - Not in much use and activities
• F5 - Hardware LB, costly solution compared to SW LB. Can be installed as
common data centre infrastructure and used by all the co-located
users.
....a long list

7. Why HAProxy?
• Used by Lot of Industry Majors like Twitter, AO Labs, Airbnb, Adobe
Advt. Cloud, Alibaba, Fedora, GitHub, Kernel.org ...
• Redhat-OpenShift & other Cloud Operators – RedHat openly declares
that it is using HAProxy in their Container and Cloud suits. Other
cloud players are also using HAProxy but don’t declare it in open.
• Any of our neighbours using it ? Yes! – Many of our internal project
teams are using HAProxy over years. Only thing is that there is no
knowledge sharing among the peer groups. In our eProcurement
project we are using it for more than a year now for three of our
portals with high concurrent connections.

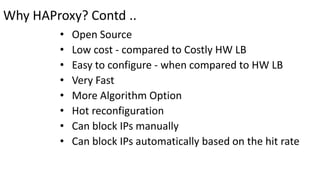

8. Why HAProxy? Contd ..
• Open Source
• Low cost - compared to Costly HW LB
• Easy to configure - when compared to HW LB
• Very Fast
• More Algorithm Option
• Hot reconfiguration
• Can block IPs manually
• Can block IPs automatically based on the hit rate

9. Implementation – Building a HA Web Server
10.248.2.1
Web Server
(Apache)
User
NAT
164.100.78.1
1. Deployment without High Availability

10. Implementation – Building a HA Web Server
10.248.2.1
Web Server
(Apache)
User
NAT
164.100.78.1
Stand By
Server
2. Manual Failover Arrangement
Same
Content

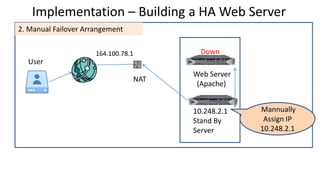

11. Implementation – Building a HA Web Server
Web Server
(Apache)
User
NAT
164.100.78.1
10.248.2.1
Stand By
Server
2. Manual Failover Arrangement
Down
Mannually
Assign IP
10.248.2.1

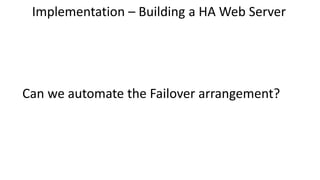

12. Can we automate the Failover arrangement?
Implementation – Building a HA Web Server

13. Implementation – Building a HA Web Server
10.248.2.2
Web Server
Master Node
User
NAT
164.100.78.1
s
3. Automate Failover Arrangement with Keepalived
Up
Keepalived
10.248.2.3
Web Server
Backup Node
Up
Floating IP
10.248.2.1
Keepalived is the router programme written in C.
It uses the Linux Kernel Virtual Server Module.
It has many uses. Here we use it for floating a IP
between two servers automatically based on
their health

14. Implementation – Building a HA Web Server
10.248.2.2
Web Server
Master Node
User
NAT
164.100.78.1
3. Automate Failover Arrangement with Keepalived
Down
10.248.2.3
Web Server
Backup Node
UpFloating IP
10.248.2.1
Keepalived
Floated the
IP to Backup
Node

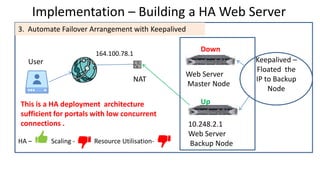

15. Implementation – Building a HA Web Server
Web Server
Master Node
User
NAT
164.100.78.1
Down
Keepalived –
Floated the
IP to Backup
Node
10.248.2.1
Web Server
Backup Node
Up
3. Automate Failover Arrangement with Keepalived
HA – Scaling - Resource Utilisation-
This is a HA deployment architecture
sufficient for portals with low concurrent
connections .

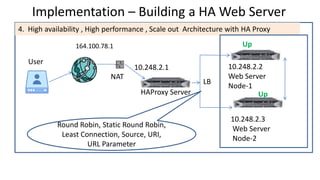

16. Implementation – Building a HA Web Server
10.248.2.2
Web Server
Node-1
User
NAT
164.100.78.1
4. High availability , High performance , Scale out Architecture with HA Proxy
Up
10.248.2.3
Web Server
Node-2
UpHAProxy Server
LB
10.248.2.1
Round Robin, Static Round Robin,
Least Connection, Source, URI,
URL Parameter

17. 10.248.2.2
Web Server
Node-1
User
NAT
164.100.78.1 Down
10.248.2.3
Web Server
Node-2
UpHAProxy Server
LB
10.248.2.1 X
Is this a True HA
Architecture?
Implementation – Building a HA Web Server

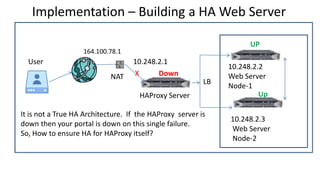

18. Implementation – Building a HA Web Server
10.248.2.2
Web Server
Node-1
User
NAT
164.100.78.1
UP
10.248.2.3
Web Server
Node-2
UpHAProxy Server
LB
10.248.2.1
DownX
It is not a True HA Architecture. If the HAProxy server is
down then your portal is down on this single failure.
So, How to ensure HA for HAProxy itself?

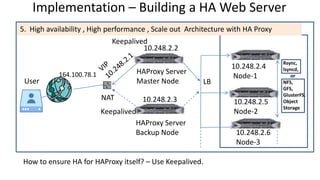

19. 10.248.2.4
Node-1
User
NAT
164.100.78.1
10.248.2.5
Node-2
HAProxy Server
Master Node LB
Implementation – Building a HA Web Server
HAProxy Server
Backup Node
Keepalived
Keepalived
5. High availability , High performance , Scale out Architecture with HA Proxy
10.248.2.6
Node-3
Rsync,
lsyncd,
or
NFS,
GFS,
GlusterFS,
Object
Storage
10.248.2.3
10.248.2.2
How to ensure HA for HAProxy itself? – Use Keepalived.

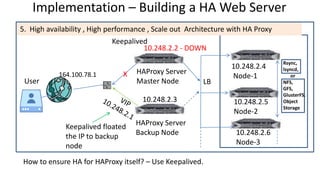

20. 10.248.2.4
Node-1
User
164.100.78.1
10.248.2.5
Node-2
HAProxy Server
Master Node LB
Implementation – Building a HA Web Server
HAProxy Server
Backup Node
Keepalived floated
the IP to backup
node
Keepalived
5. High availability , High performance , Scale out Architecture with HA Proxy
10.248.2.6
Node-3
Rsync,
lsyncd,
or
NFS,
GFS,
GlusterFS,
Object
Storage
10.248.2.3
10.248.2.2 - DOWN
How to ensure HA for HAProxy itself? – Use Keepalived.
X

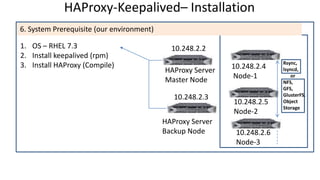

21. 10.248.2.4
Node-1
10.248.2.5
Node-2
HAProxy Server
Master Node
HAProxy-Keepalived– Installation
HAProxy Server
Backup Node
6. System Prerequisite (our environment)
10.248.2.6
Node-3
Rsync,
lsyncd,
or
NFS,
GFS,
GlusterFS,
Object
Storage
10.248.2.3
1. OS – RHEL 7.3
2. Install keepalived (rpm)
3. Install HAProxy (Compile)
10.248.2.2

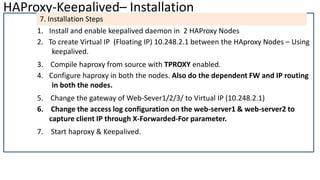

22. HAProxy-Keepalived– Installation
7. Installation Steps
1. Install and enable keepalived daemon in 2 HAProxy Nodes
2. To create Virtual IP (Floating IP) 10.248.2.1 between the HAproxy Nodes – Using
keepalived.
3. Compile haproxy from source with TPROXY enabled.
4. Configure haproxy in both the nodes. Also do the dependent FW and IP routing
in both the nodes.

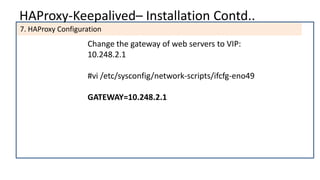

5. Change the gateway of Web-Sever1/2/3/ to Virtual IP (10.248.2.1)

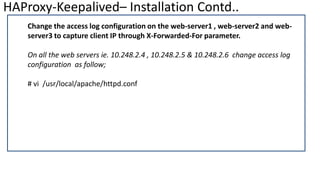

6. Change the access log configuration on the web-server1 & web-server2 to
capture client IP through X-Forwarded-For parameter.
7. Start haproxy & Keepalived.

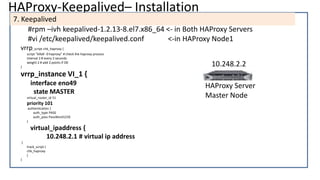

23. HAProxy-Keepalived– Installation
7. Keepalived
#rpm –ivh keepalived-1.2.13-8.el7.x86_64 <- in Both HAProxy Servers
#vi /etc/keepalived/keepalived.conf <-in HAProxy Node1
vrrp_script chk_haproxy {
script "killall -0 haproxy" # check the haproxy process
interval 2 # every 2 seconds
weight 2 # add 2 points if OK
}
vrrp_instance VI_1 {
interface eno49
state MASTER
virtual_router_id 51
priority 101
authentication {
auth_type PASS
auth_pass PassWord123$
}
virtual_ipaddress {
10.248.2.1 # virtual ip address
}
track_script {
chk_haproxy
}
}
HAProxy Server
Master Node
10.248.2.2

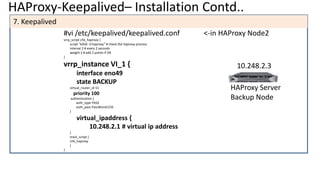

24. HAProxy-Keepalived– Installation Contd..
7. Keepalived
#vi /etc/keepalived/keepalived.conf <-in HAProxy Node2
vrrp_script chk_haproxy {
script "killall -0 haproxy" # check the haproxy process
interval 2 # every 2 seconds
weight 2 # add 2 points if OK
}
vrrp_instance VI_1 {
interface eno49
state BACKUP
virtual_router_id 51
priority 100
authentication {
auth_type PASS
auth_pass PassWord123$
}
virtual_ipaddress {
10.248.2.1 # virtual ip address
}
track_script {
chk_haproxy
}
}
HAProxy Server
Backup Node
10.248.2.3

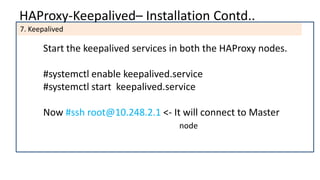

25. HAProxy-Keepalived– Installation Contd..
7. Keepalived
Start the keepalived services in both the HAProxy nodes.
#systemctl enable keepalived.service
#systemctl start keepalived.service
Now #ssh root@10.248.2.1 <- It will connect to Master
node

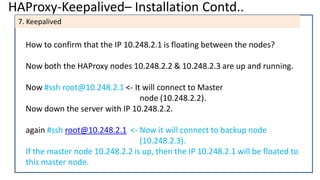

26. HAProxy-Keepalived– Installation Contd..
7. Keepalived
How to confirm that the IP 10.248.2.1 is floating between the nodes?
Now both the HAProxy nodes 10.248.2.2 & 10.248.2.3 are up and running.
Now #ssh root@10.248.2.1 <- It will connect to Master
node (10.248.2.2).
Now down the server with IP 10.248.2.2.
again #ssh root@10.248.2.1 <- Now it will connect to backup node
(10.248.2.3).
If the master node 10.248.2.2 is up, then the IP 10.248.2.1 will be floated to
this master node.

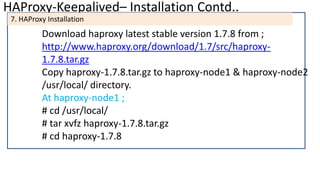

27. HAProxy-Keepalived– Installation Contd..
7. HAProxy Installation
Download haproxy latest stable version 1.7.8 from ;
http://www.haproxy.org/download/1.7/src/haproxy-
1.7.8.tar.gz
Copy haproxy-1.7.8.tar.gz to haproxy-node1 & haproxy-node2
/usr/local/ directory.
At haproxy-node1 ;
# cd /usr/local/
# tar xvfz haproxy-1.7.8.tar.gz
# cd haproxy-1.7.8

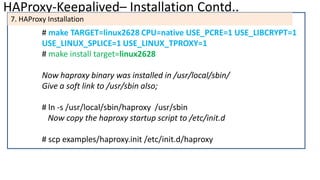

28. HAProxy-Keepalived– Installation Contd..
7. HAProxy Installation
# make TARGET=linux2628 CPU=native USE_PCRE=1 USE_LIBCRYPT=1
USE_LINUX_SPLICE=1 USE_LINUX_TPROXY=1
# make install target=linux2628
Now haproxy binary was installed in /usr/local/sbin/
Give a soft link to /usr/sbin also;
# ln -s /usr/local/sbin/haproxy /usr/sbin
Now copy the haproxy startup script to /etc/init.d
# scp examples/haproxy.init /etc/init.d/haproxy

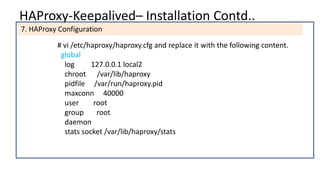

29. HAProxy-Keepalived– Installation Contd..
7. HAProxy Configuration
# vi /etc/haproxy/haproxy.cfg and replace it with the following content.
global
log 127.0.0.1 local2
chroot /var/lib/haproxy
pidfile /var/run/haproxy.pid
maxconn 40000
user root
group root
daemon
stats socket /var/lib/haproxy/stats

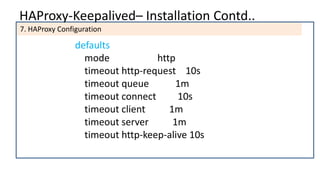

30. HAProxy-Keepalived– Installation Contd..
7. HAProxy Configuration
defaults
mode http
timeout http-request 10s
timeout queue 1m
timeout connect 10s
timeout client 1m
timeout server 1m
timeout http-keep-alive 10s

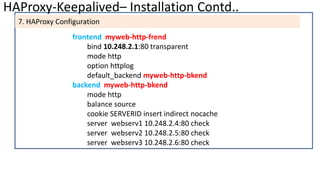

31. HAProxy-Keepalived– Installation Contd..
7. HAProxy Configuration
frontend myweb-http-frend
bind 10.248.2.1:80 transparent
mode http
option httplog
default_backend myweb-http-bkend
backend myweb-http-bkend
mode http
balance source
cookie SERVERID insert indirect nocache
server webserv1 10.248.2.4:80 check
server webserv2 10.248.2.5:80 check
server webserv3 10.248.2.6:80 check

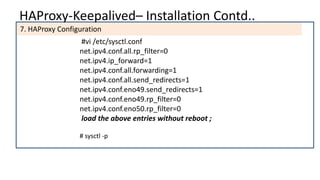

32. HAProxy-Keepalived– Installation Contd..
7. HAProxy Configuration
#vi /etc/sysctl.conf
net.ipv4.conf.all.rp_filter=0
net.ipv4.ip_forward=1
net.ipv4.conf.all.forwarding=1
net.ipv4.conf.all.send_redirects=1
net.ipv4.conf.eno49.send_redirects=1
net.ipv4.conf.eno49.rp_filter=0
net.ipv4.conf.eno50.rp_filter=0
load the above entries without reboot ;
# sysctl -p

33. HAProxy-Keepalived– Installation Contd..
7. HAProxy Configuration
Change the gateway of web servers to VIP:
10.248.2.1
#vi /etc/sysconfig/network-scripts/ifcfg-eno49
GATEWAY=10.248.2.1

34. HAProxy-Keepalived– Installation Contd..
Change the access log configuration on the web-server1 , web-server2 and web-
server3 to capture client IP through X-Forwarded-For parameter.
On all the web servers ie. 10.248.2.4 , 10.248.2.5 & 10.248.2.6 change access log
configuration as follow;
# vi /usr/local/apache/httpd.conf

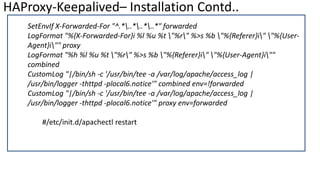

35. HAProxy-Keepalived– Installation Contd..
SetEnvIf X-Forwarded-For "^.*..*..*..*" forwarded
LogFormat "%{X-Forwarded-For}i %l %u %t "%r" %>s %b "%{Referer}i" "%{User-
Agent}i"" proxy
LogFormat "%h %l %u %t "%r" %>s %b "%{Referer}i" "%{User-Agent}i""
combined
CustomLog "|/bin/sh -c '/usr/bin/tee -a /var/log/apache/access_log |
/usr/bin/logger -thttpd -plocal6.notice'" combined env=!forwarded
CustomLog "|/bin/sh -c '/usr/bin/tee -a /var/log/apache/access_log |
/usr/bin/logger -thttpd -plocal6.notice'" proxy env=forwarded
#/etc/init.d/apachectl restart

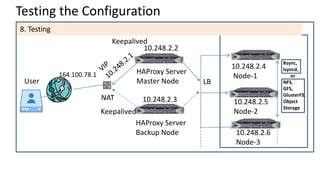

36. 10.248.2.4
Node-1
User
NAT
164.100.78.1
10.248.2.5
Node-2
HAProxy Server
Master Node LB
Testing the Configuration
HAProxy Server
Backup Node
Keepalived
Keepalived
8. Testing
10.248.2.6
Node-3
Rsync,
lsyncd,
or
NFS,
GFS,
GlusterFS,
Object
Storage
10.248.2.3
10.248.2.2

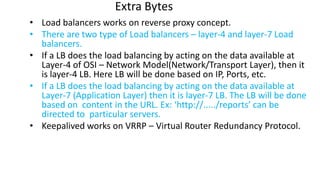

37. Extra Bytes
• Load balancers works on reverse proxy concept.
• There are two type of Load balancers – layer-4 and layer-7 Load
balancers.
• If a LB does the load balancing by acting on the data available at
Layer-4 of OSI – Network Model(Network/Transport Layer), then it
is layer-4 LB. Here LB will be done based on IP, Ports, etc.
• If a LB does the load balancing by acting on the data available at
Layer-7 (Application Layer) then it is layer-7 LB. The LB will be done
based on content in the URL. Ex: ‘http://...../reports’ can be
directed to particular servers.
• Keepalived works on VRRP – Virtual Router Redundancy Protocol.

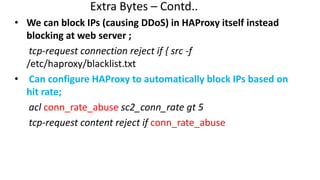

38. Extra Bytes – Contd..
• We can block IPs (causing DDoS) in HAProxy itself instead
blocking at web server ;
tcp-request connection reject if { src -f
/etc/haproxy/blacklist.txt
• Can configure HAProxy to automatically block IPs based on
hit rate;
acl conn_rate_abuse sc2_conn_rate gt 5
tcp-request content reject if conn_rate_abuse

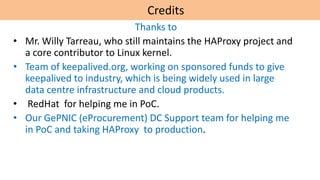

39. Credits
Thanks to
• Mr. Willy Tarreau, who still maintains the HAProxy project and
a core contributor to Linux kernel.
• Team of keepalived.org, working on sponsored funds to give
keepalived to industry, which is being widely used in large
data centre infrastructure and cloud products.
• RedHat for helping me in PoC.
• Our GePNIC (eProcurement) DC Support team for helping me
in PoC and taking HAProxy to production.

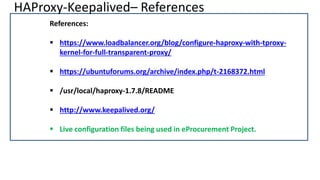

40. HAProxy-Keepalived– References
References:
 https://www.loadbalancer.org/blog/configure-haproxy-with-tproxy-
kernel-for-full-transparent-proxy/
 https://ubuntuforums.org/archive/index.php/t-2168372.html
 /usr/local/haproxy-1.7.8/README
 http://www.keepalived.org/
 Live configuration files being used in eProcurement Project.

41. Thank you ….
K Ganapathi
Technical Director
eProcurement Project(GePNIC)
National Informatics Centre
Chennai, India
kganapathi@nic.in
