Funliday 是一個極度依賴景點資料的網路服務，大家從十月開始在使用 Funliday 在「景點瀏覽」輸入城市，或者是移動地圖出現的推薦景點，應該都是極速出現，跟之前兩年的速度實在是相差甚遠。這中間的差異主要是調整了演算法、儲存資料以及索引，更重要的是不要求絕對即時，這樣子可以讓計算的時間加快了 350 倍以上，這場分享就是解釋 Funliday 是如何利用上面這些技術加快計算時間。 文字筆記：https://www.facebook.com/kewang.information/posts/2728954360714254 預計提到的內容包括：PostgreSQL、Redis、CDN

1. 大解密！用 PostgreSQL 提升 350 倍的
Funliday 推薦景點計算速度
Kewang

2. Kewang
● 王慕羣 Kewang
● Java / JavaScript
● HBase / PostgreSQL / MongoDB / ElasticSearch
● Git / DevOps
●
熱愛開源
LinkedinLinkedin kewangtwkewangtw
SlideShareSlideShare kewangkewang
GmailGmail cpckewangcpckewang
FacebookFacebook Kewang 的資訊進化論Kewang 的資訊進化論
devopsday taipeidevopsday taipei '17'17
hadoopconhadoopcon '14 '15'14 '15
jcconfjcconf '16 '17 '18'16 '17 '18
modernwebmodernweb '18 '19 '20'18 '19 '20
GitHubGitHub kewangkewang
FunlidayFunliday kewangkewang
coscupcoscup '20'20
mopconmopcon '14 '20'14 '20

4. 4
推薦景點

5. 5

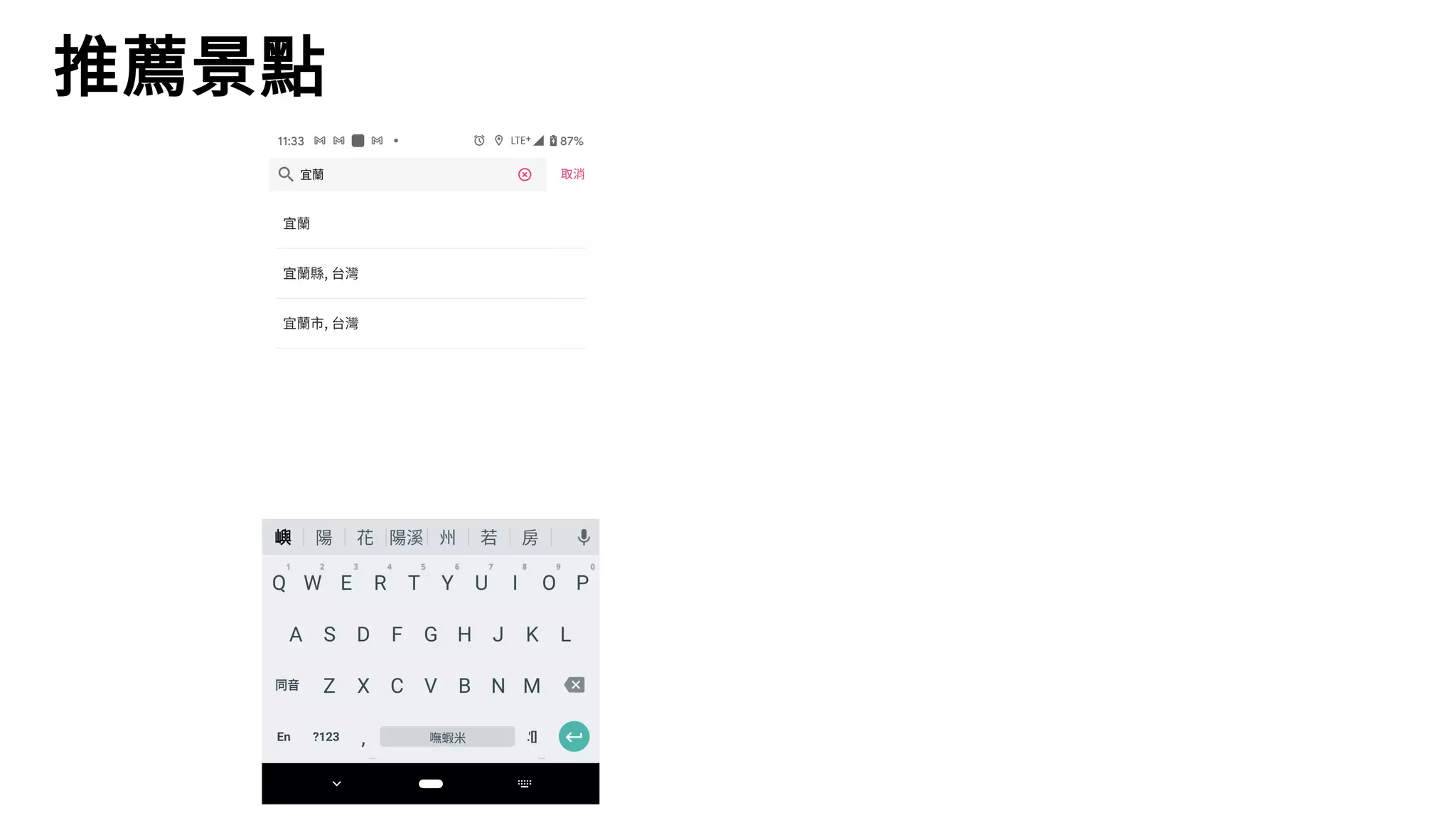

推薦景點

6. 6
推薦景點

7. 7

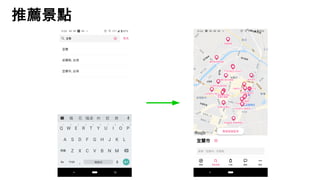

推薦景點

8. 8
技術演進

9. 9
V1 2019-02

10. 10
Summary V1 2019-02

11. 11
Summary
● GiST index
V1 2019-02

12. 12

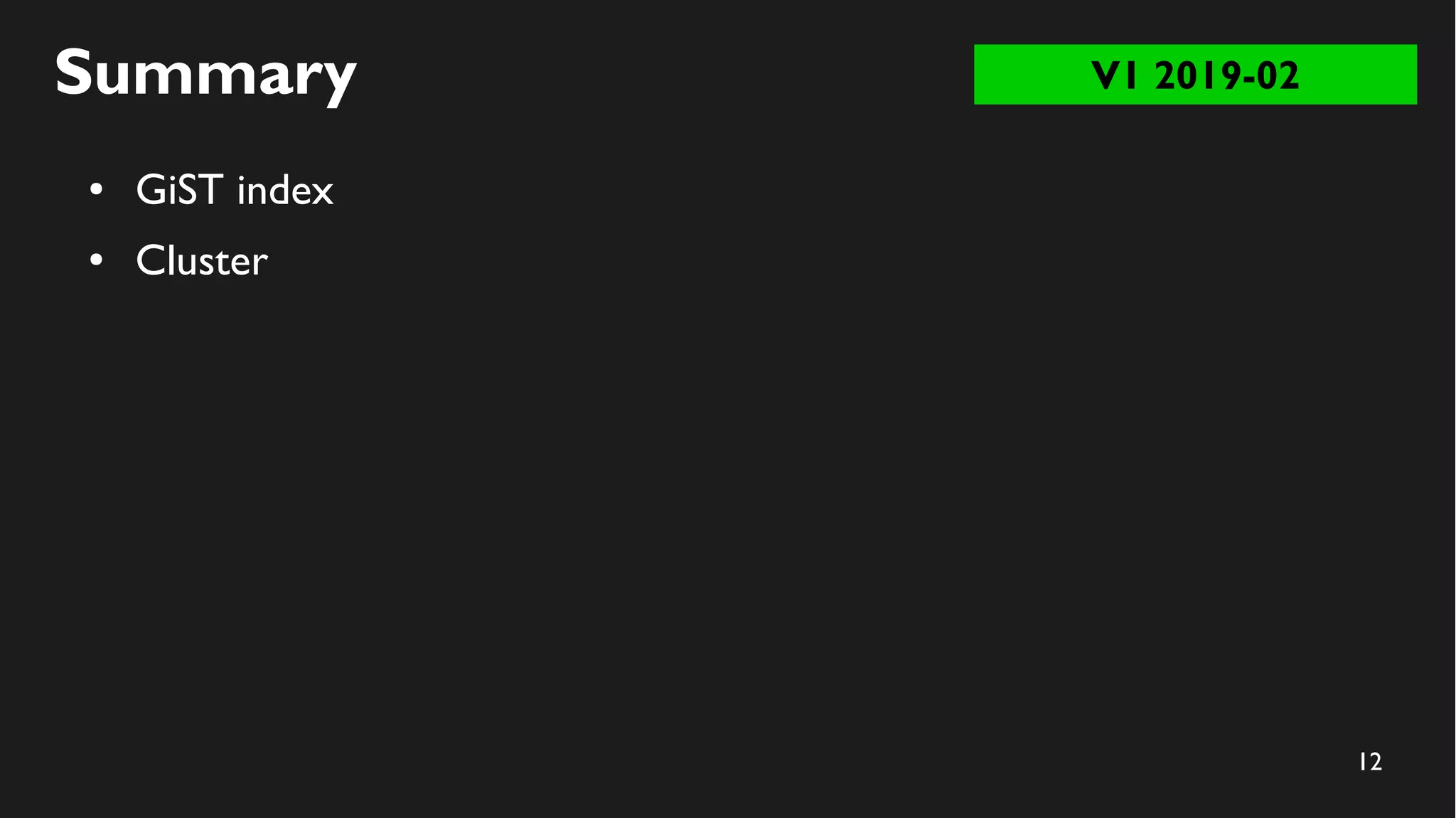

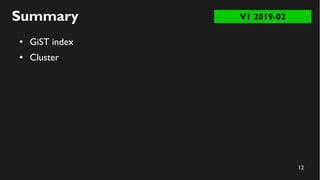

Summary
● GiST index
● Cluster
V1 2019-02

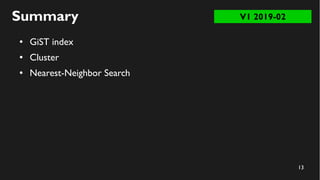

13. 13

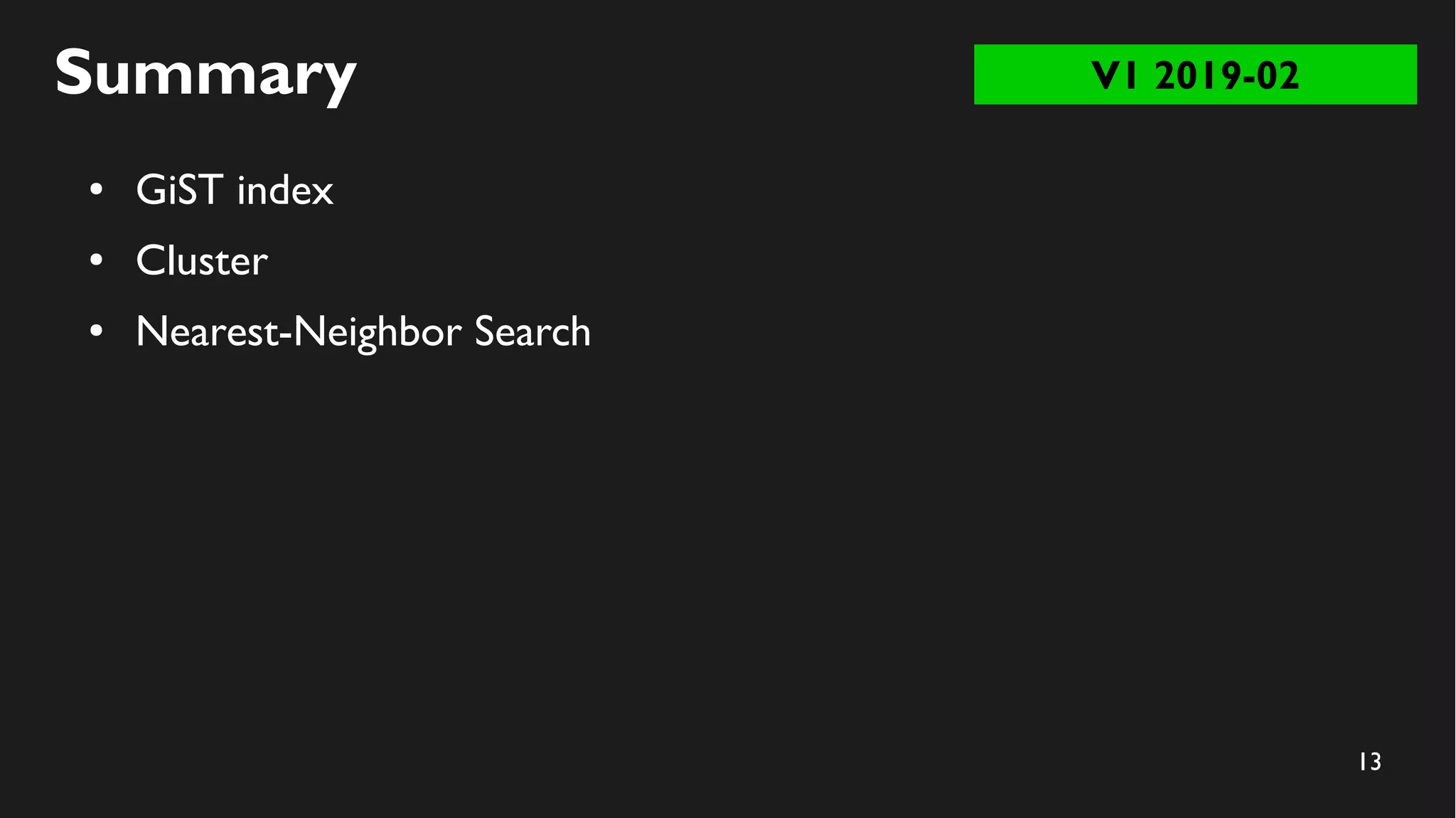

Summary
● GiST index
● Cluster
● Nearest-Neighbor Search
V1 2019-02

14. 14
Summary
● GiST index
● Cluster
● Nearest-Neighbor Search
● Advisory lock
V1 2019-02

15. 15

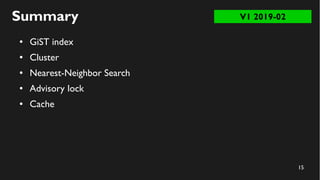

Summary
● GiST index
● Cluster
● Nearest-Neighbor Search
● Advisory lock
● Cache
V1 2019-02

16. 16
Sequence diagram

17. 17

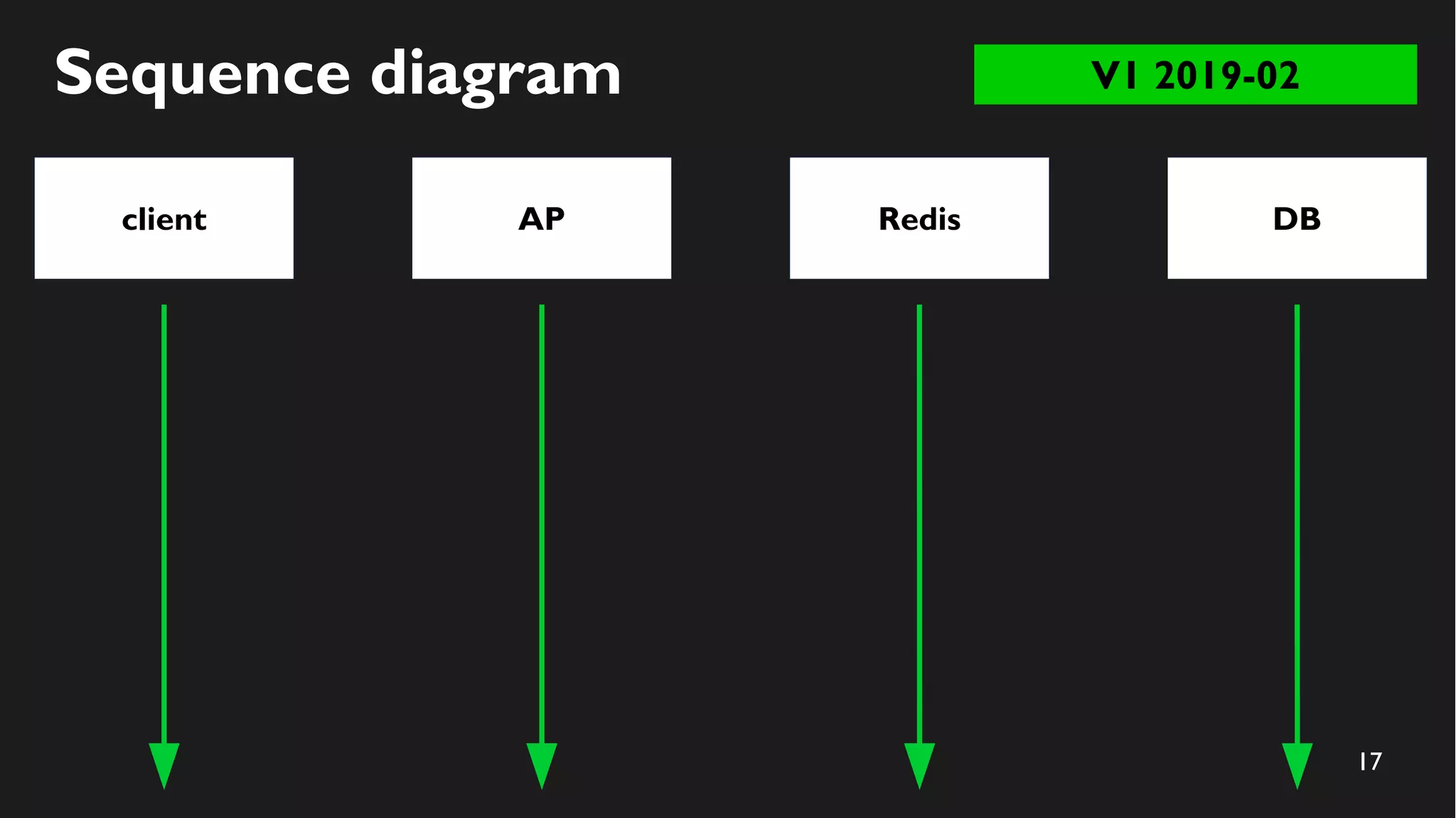

Sequence diagram V1 2019-02
client AP Redis DB

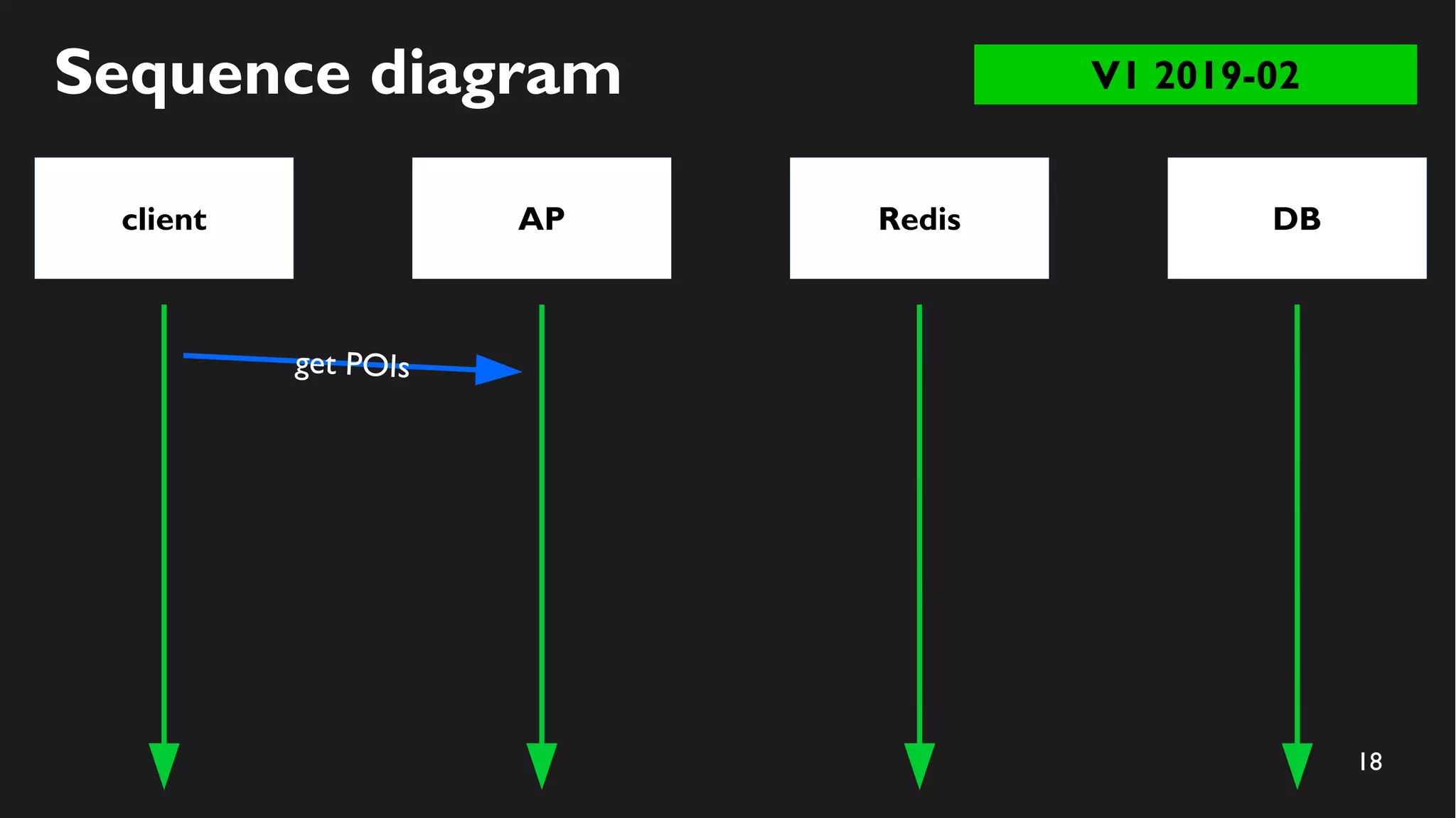

18. 18
Sequence diagram V1 2019-02
client AP Redis DB
get POIs

19. 19

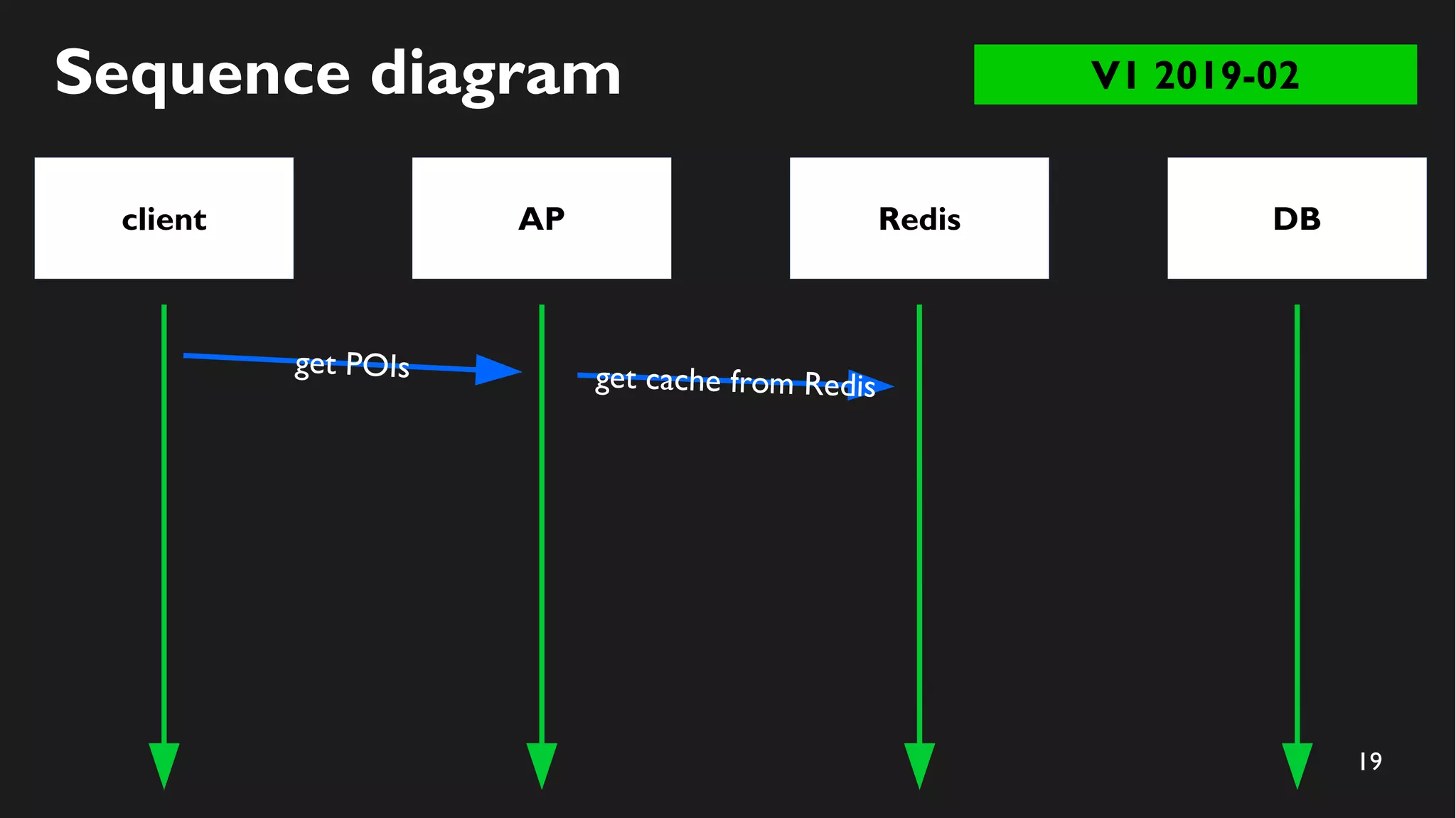

Sequence diagram V1 2019-02
client AP Redis DB
get POIs get cache from Redis

20. 20
Sequence diagram V1 2019-02
client AP Redis DB
get POIs get cache from Redis
return cache

21. 21
Sequence diagram V1 2019-02
client AP Redis DB
get POIs get cache from Redis
return cacheif hits, return POIs

22. 22
Sequence diagram V1 2019-02
client AP Redis DB
get POIs get cache from Redis
return cacheif hits, return POIs
if misses, calculate POIs from DB

23. 23

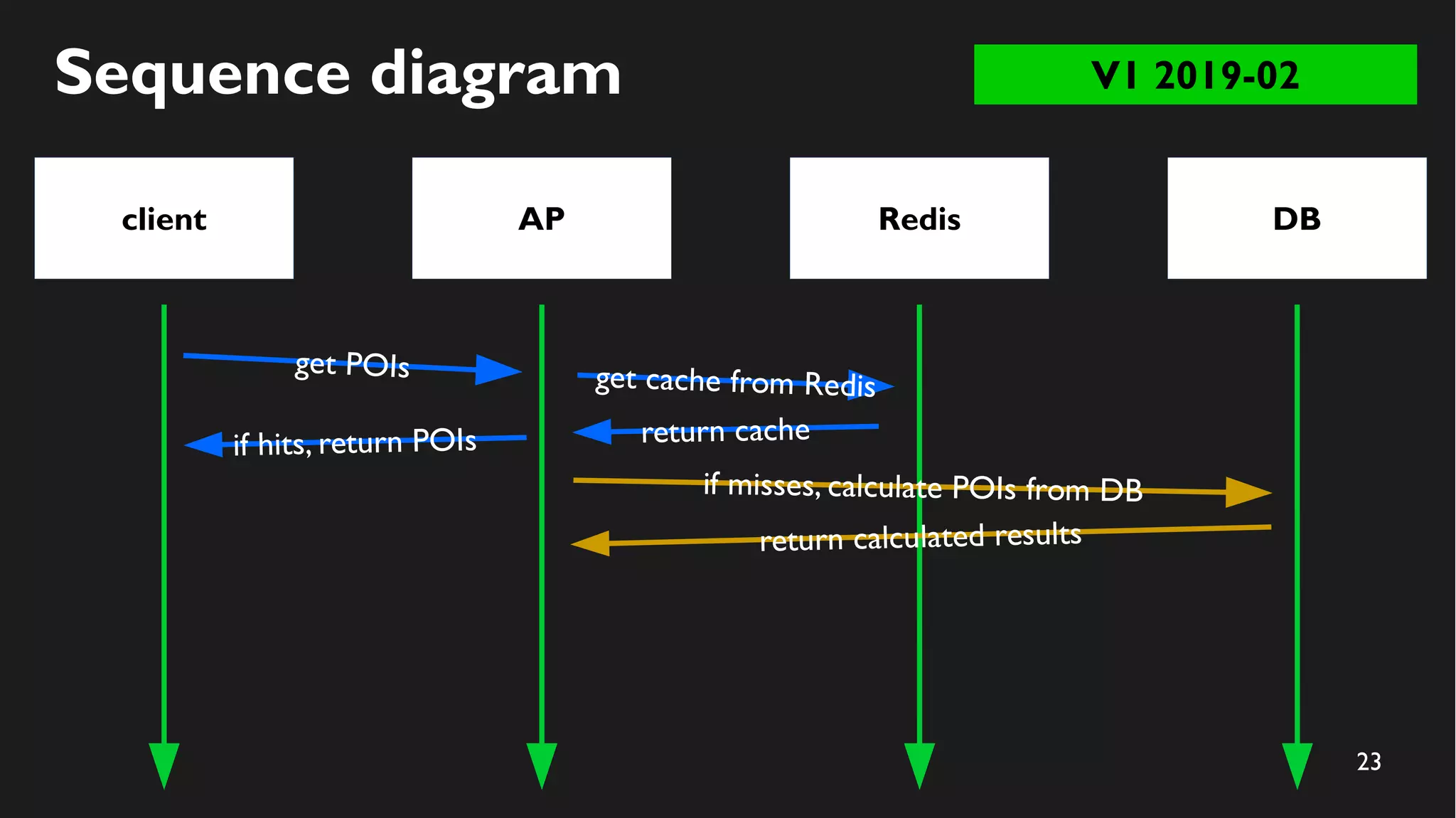

Sequence diagram V1 2019-02
client AP Redis DB
get POIs get cache from Redis
return cacheif hits, return POIs
if misses, calculate POIs from DB
return calculated results

24. 24

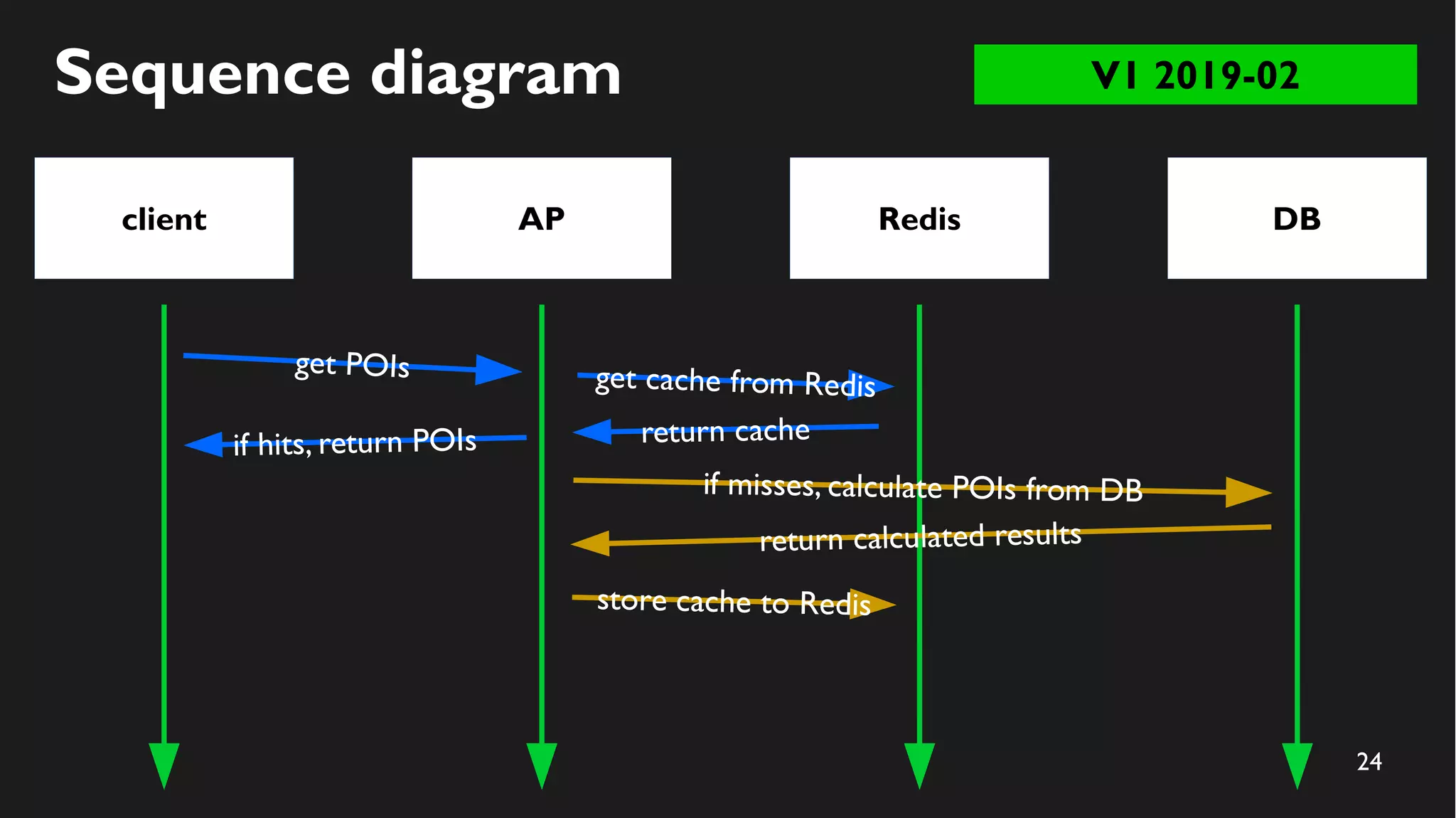

Sequence diagram V1 2019-02
client AP Redis DB
get POIs get cache from Redis
return cacheif hits, return POIs
if misses, calculate POIs from DB
return calculated results
store cache to Redis

25. 25
Sequence diagram V1 2019-02
client AP Redis DB
get POIs get cache from Redis
return cacheif hits, return POIs
if misses, calculate POIs from DB
return calculated results
store cache to Redis
store OK

26. 26

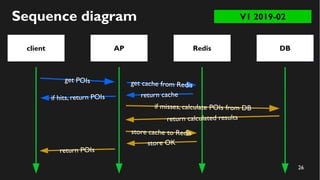

Sequence diagram V1 2019-02
client AP Redis DB
get POIs get cache from Redis
return cacheif hits, return POIs
if misses, calculate POIs from DB
return calculated results
store cache to Redis
store OK
return POIs

27. 27

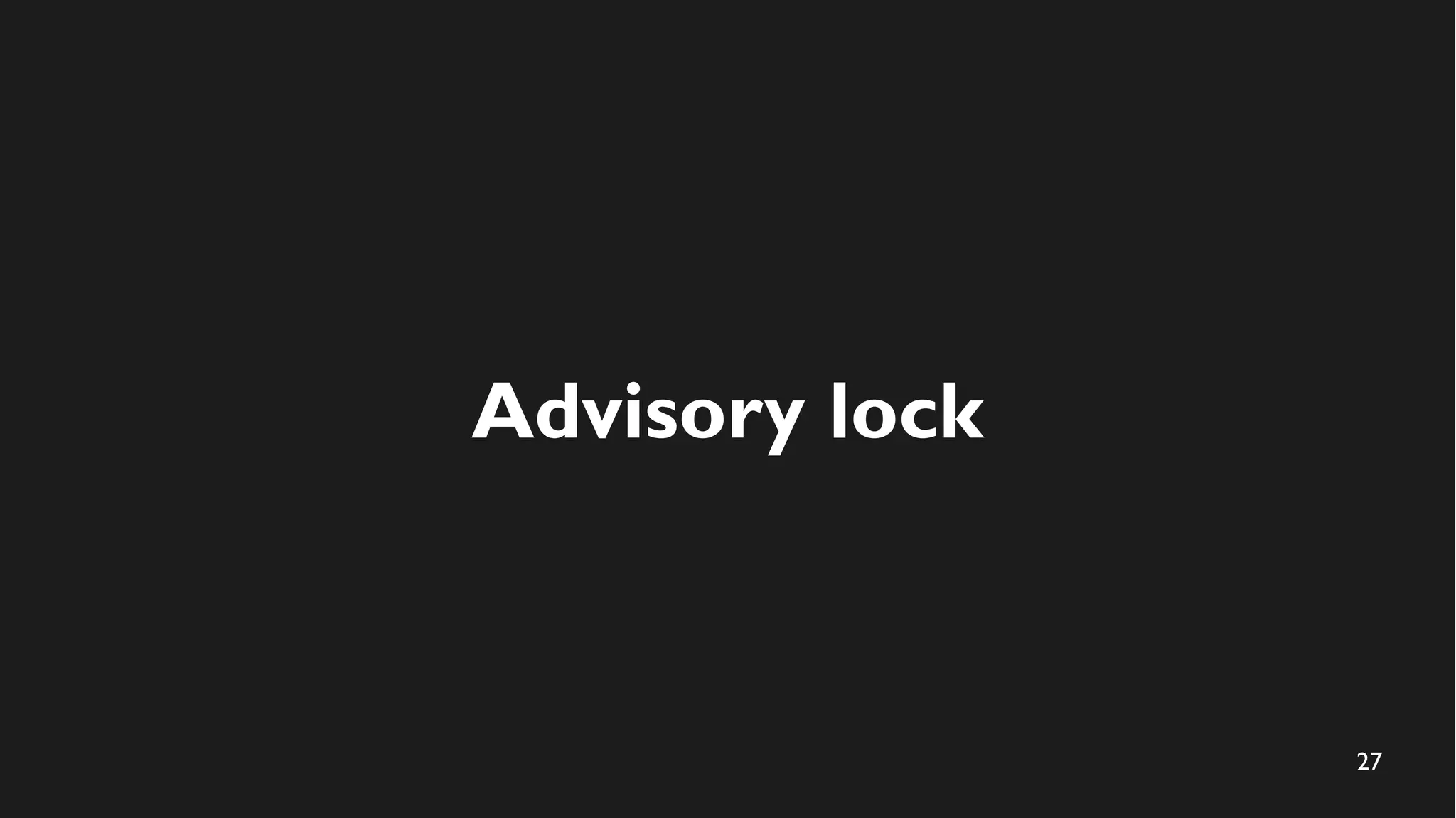

Advisory lock

28. 28
Advisory lock
client
V1 2019-02
server

29. 29
Advisory lock
client
req A (search Taipei city)
V1 2019-02
server
T

30. 30
Advisory lock
client
req A (search Taipei city)
req B (search Taipei city)
V1 2019-02
server
calculate
T
T+1

31. 31
Advisory lock
client
req A (search Taipei city)
res B (data processing...)
req B (search Taipei city)
V1 2019-02
server
calculate
T
T+1
T+3

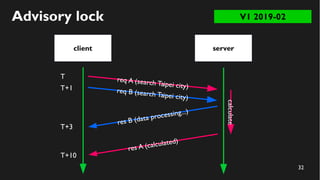

32. 32
Advisory lock
client
req A (search Taipei city)
res B (data processing...)
req B (search Taipei city)
res A (calculated)
V1 2019-02
server
calculate
T
T+1
T+3
T+10

33. 33
Table DDL

34. 34

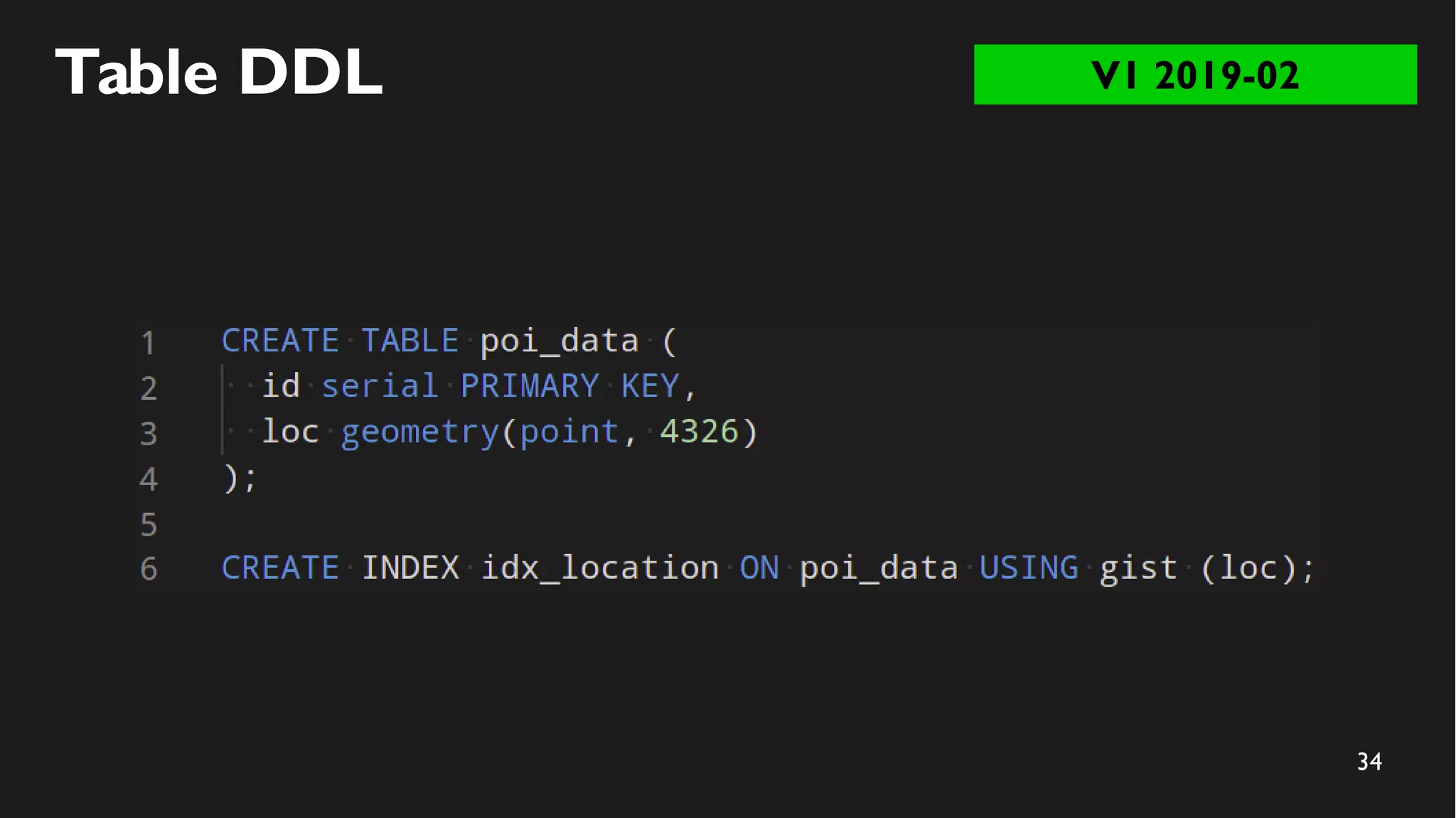

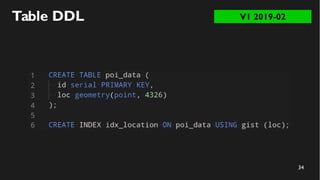

Table DDL V1 2019-02

35. 35

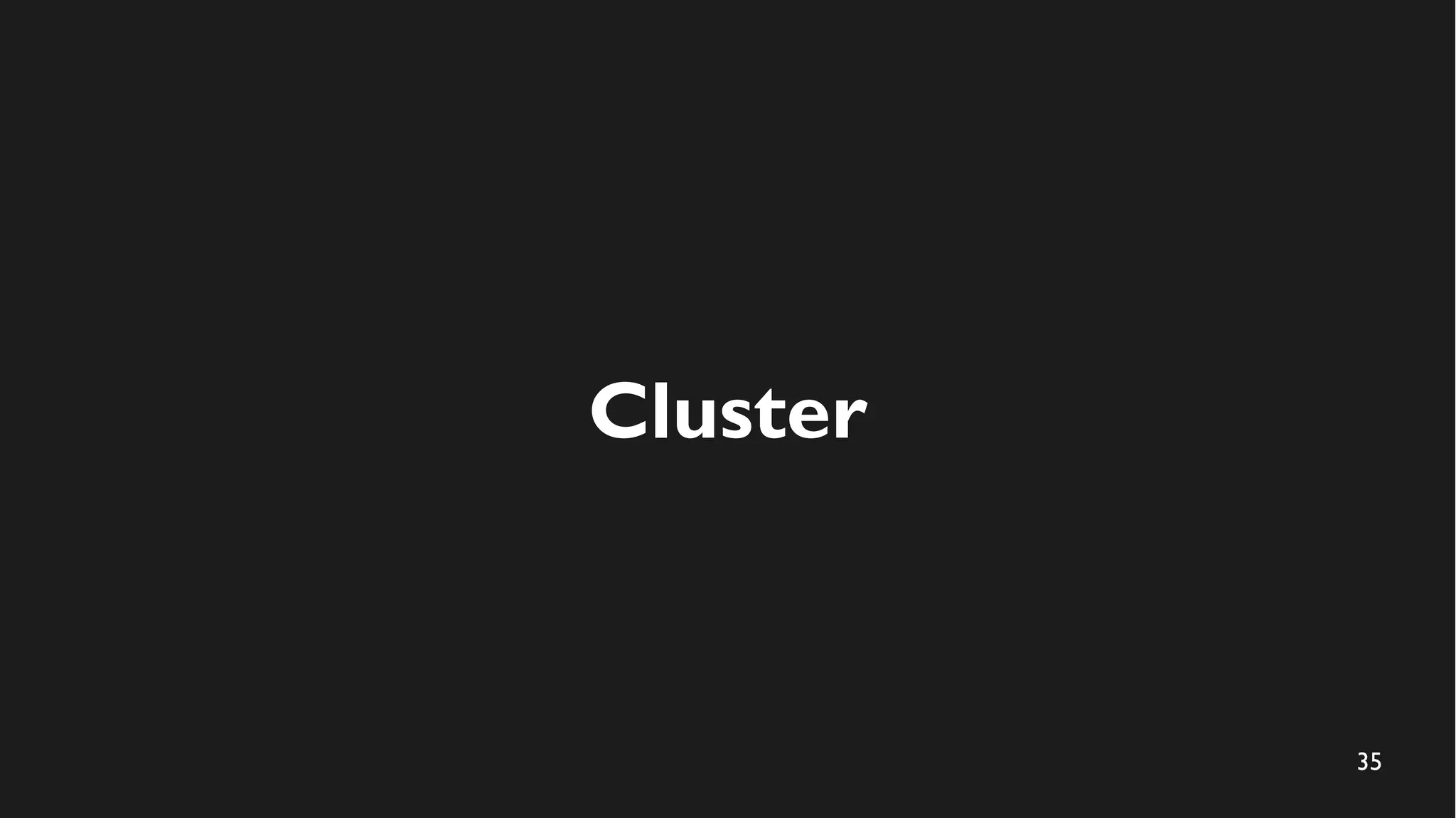

Cluster

36. 36

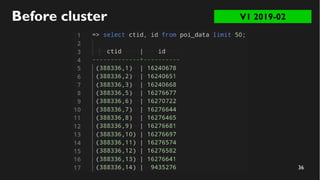

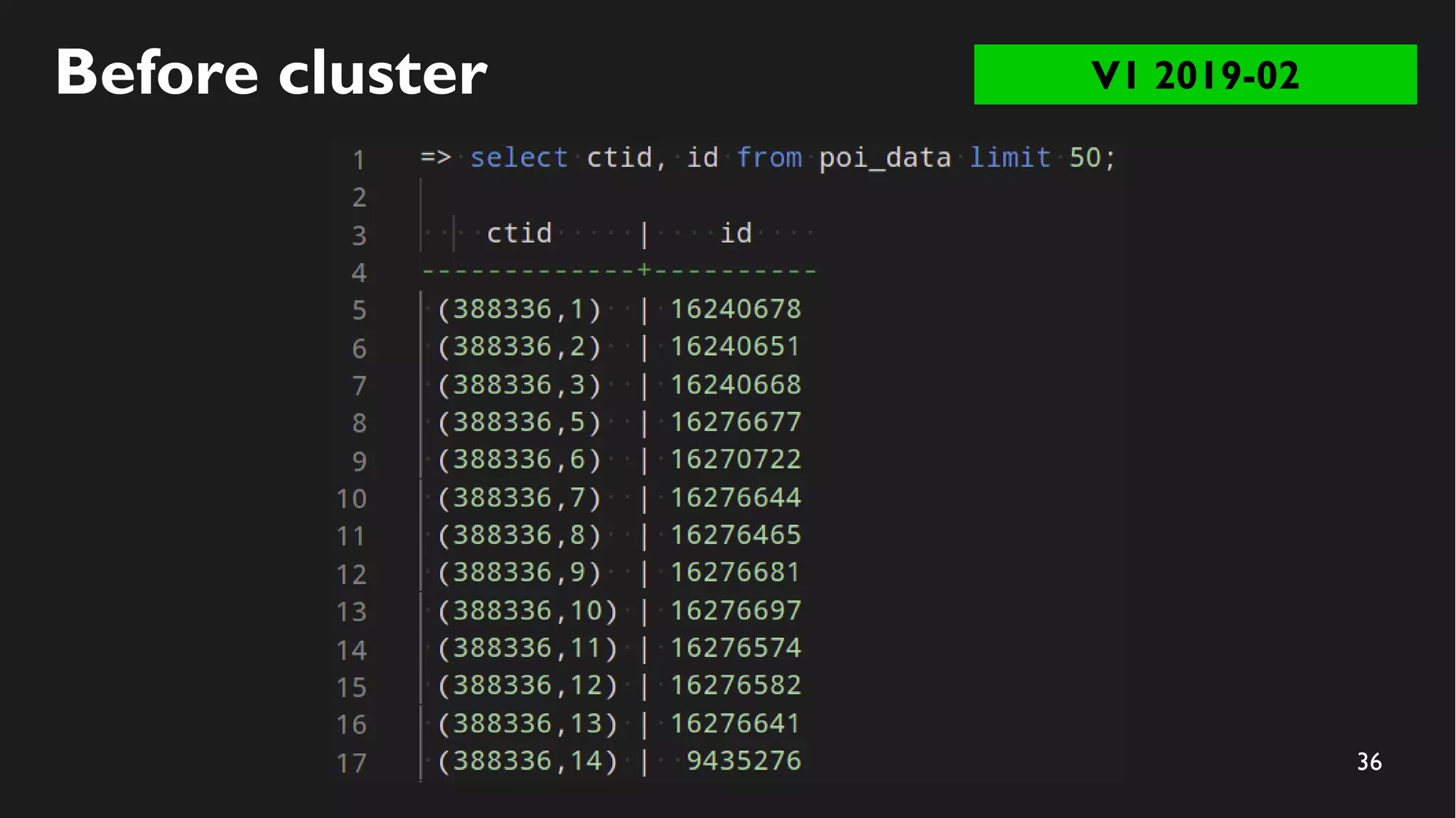

Before cluster V1 2019-02

37. 37

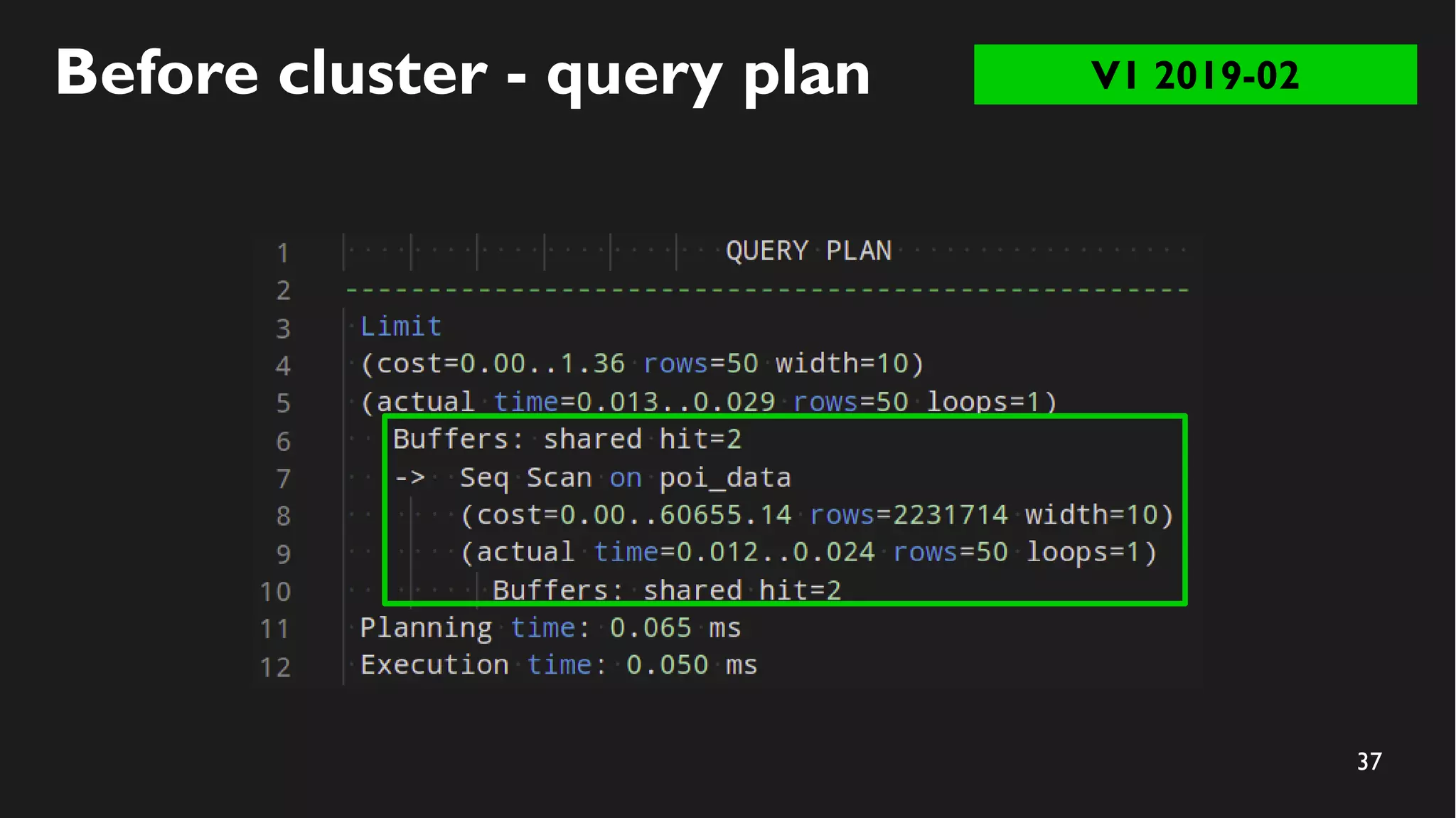

Before cluster - query plan V1 2019-02

38. 38

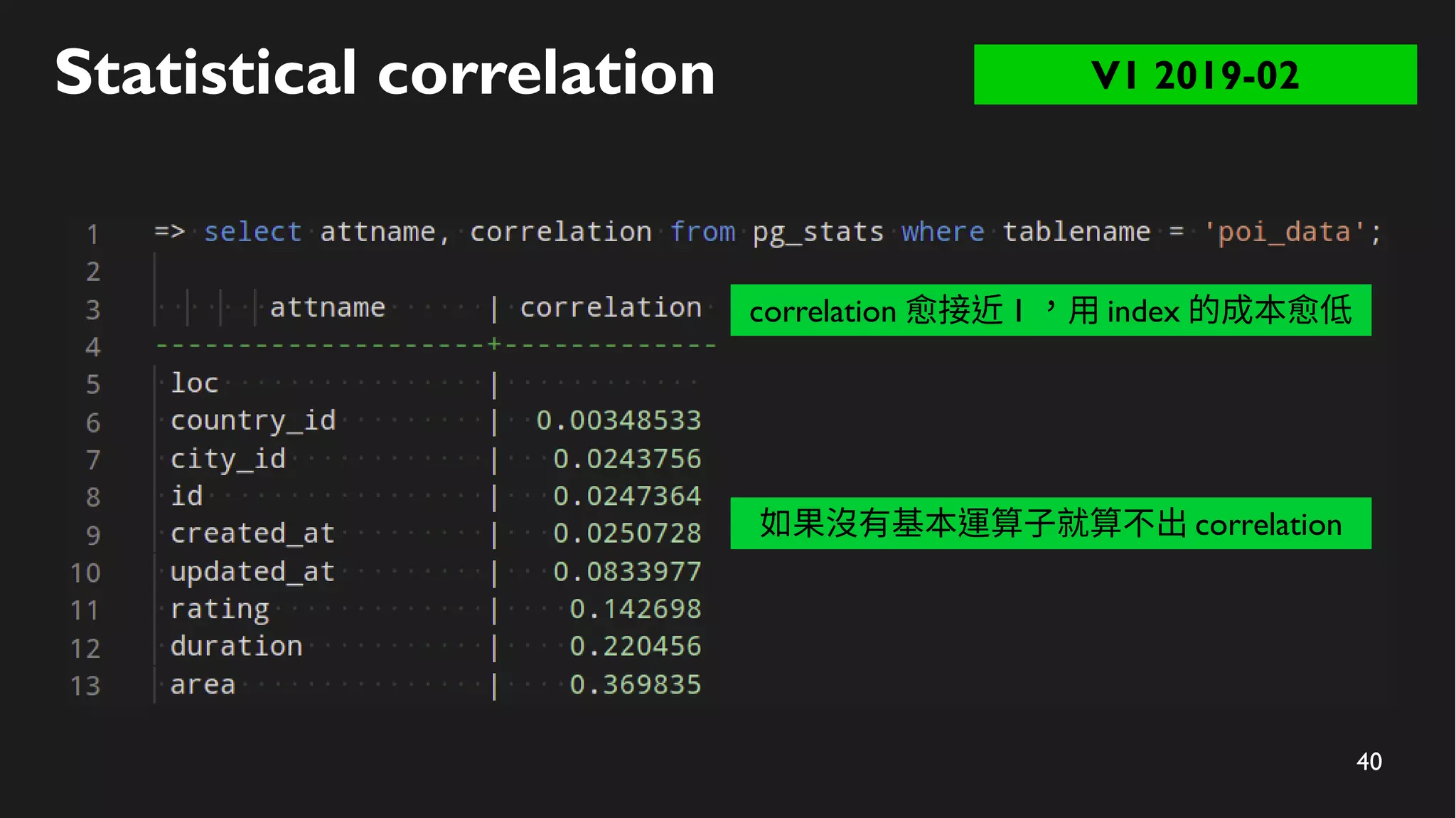

Statistical correlation V1 2019-02

39. 39
Statistical correlation V1 2019-02
correlation 愈接近 1 ，用 index 的成本愈低

40. 40
Statistical correlation V1 2019-02
correlation 愈接近 1 ，用 index 的成本愈低
如果沒有基本運算子就算不出 correlation

41. 41
Running cluster V1 2019-02

42. 42
Running cluster - lock V1 2019-02

43. 43

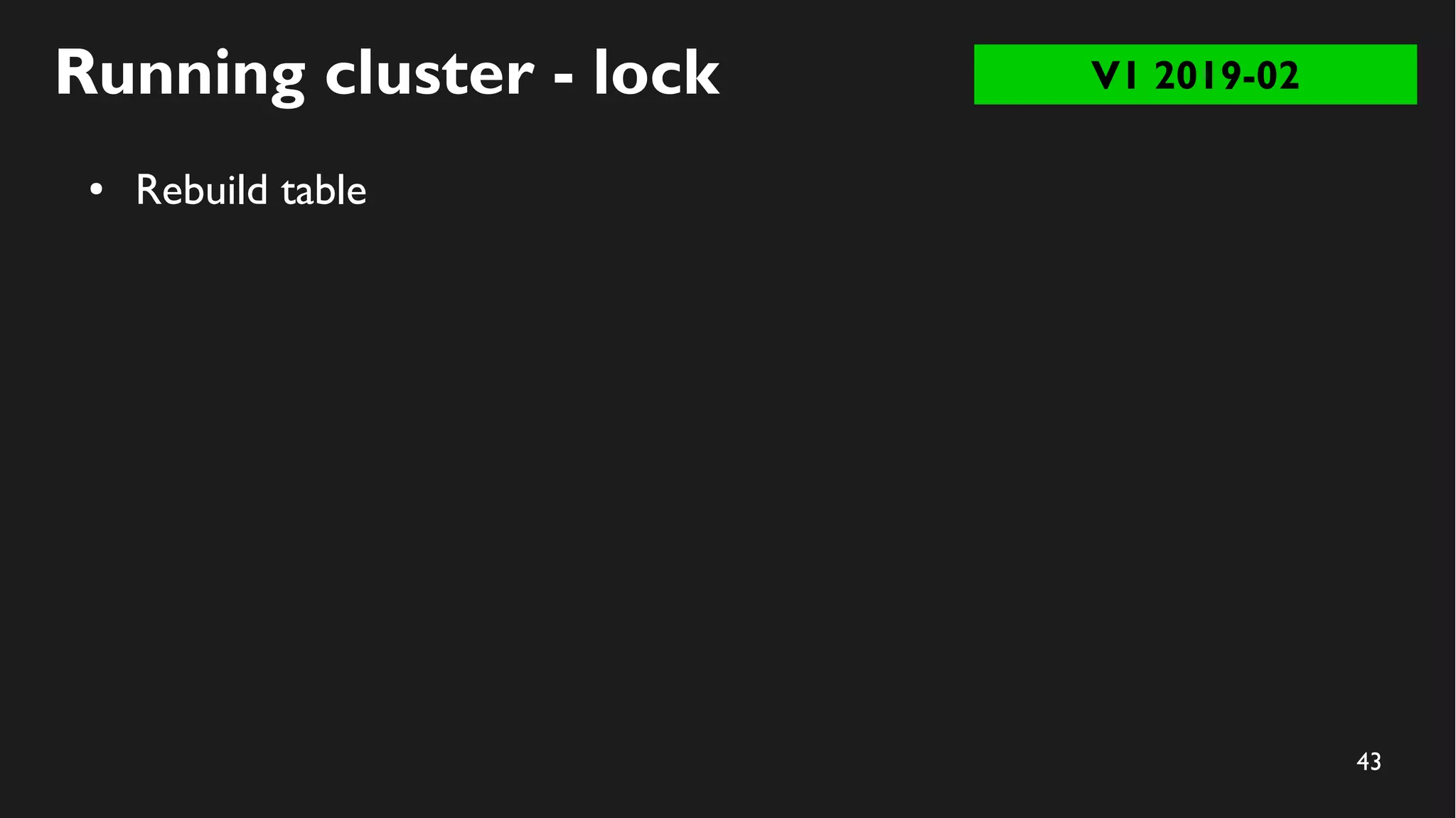

Running cluster - lock
● Rebuild table
V1 2019-02

44. 44

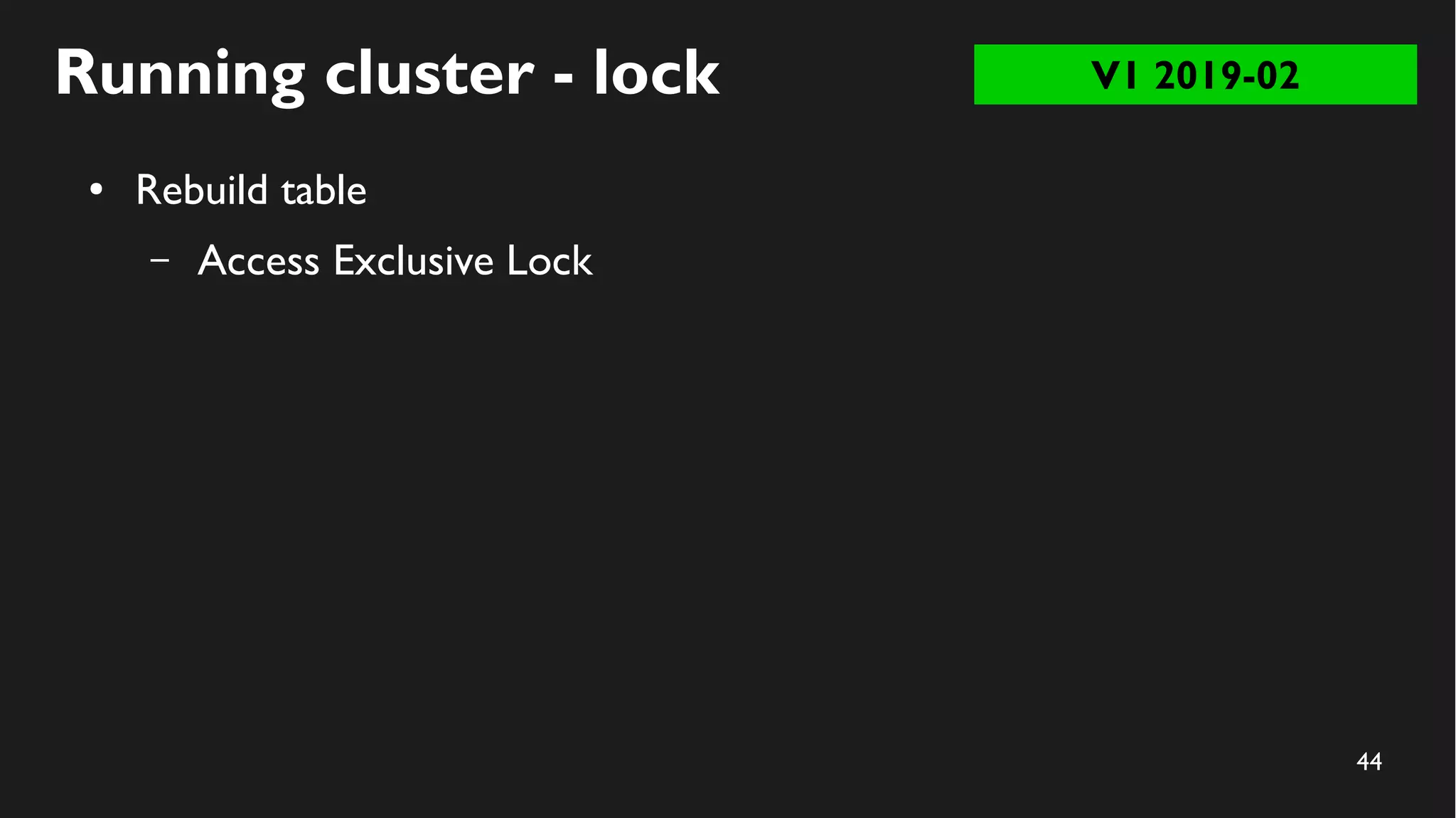

Running cluster - lock
● Rebuild table
– Access Exclusive Lock
V1 2019-02

45. 45
Running cluster - lock
● Rebuild table
– Access Exclusive Lock
● Rebuild index
V1 2019-02

46. 46

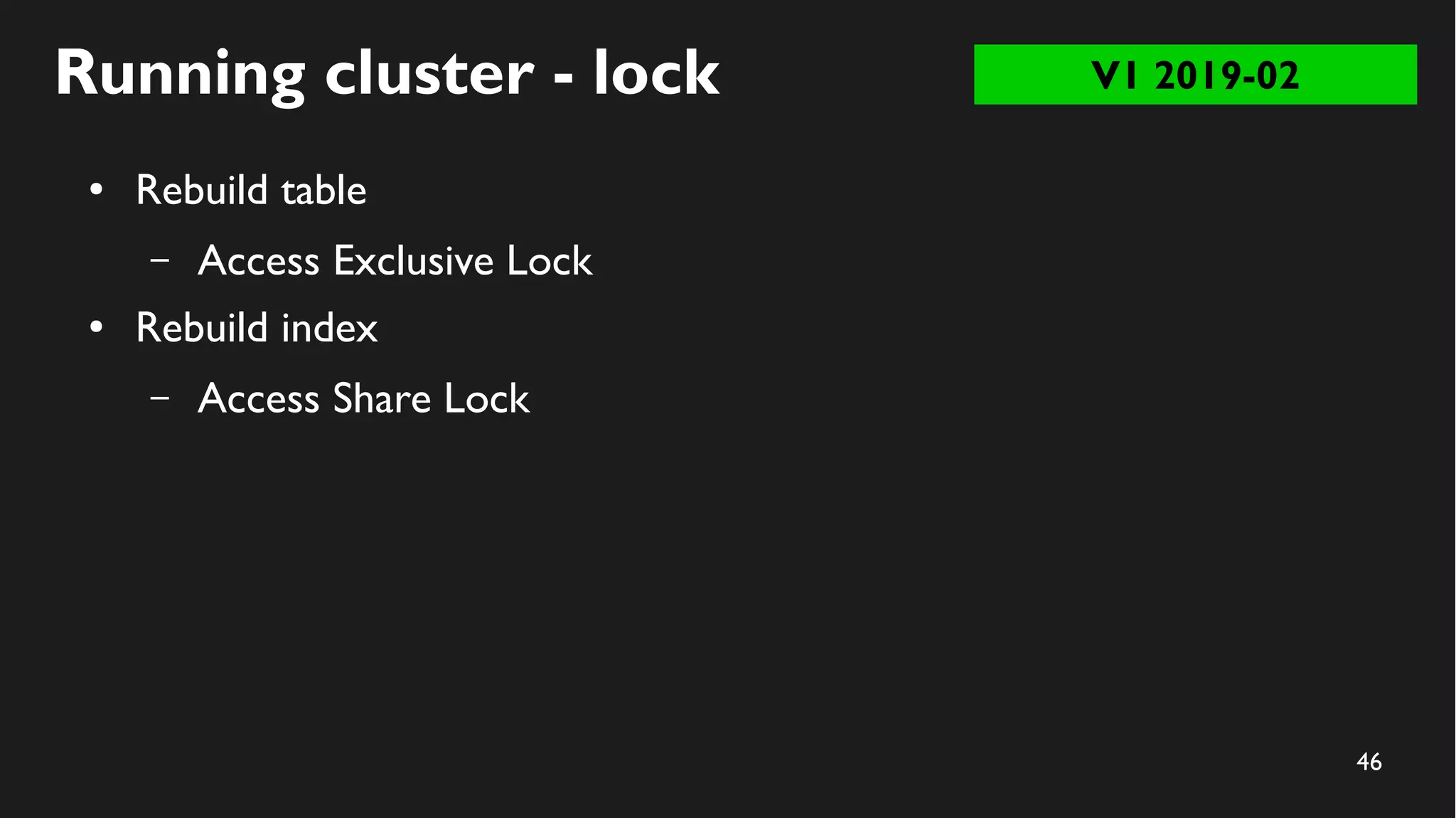

Running cluster - lock
● Rebuild table
– Access Exclusive Lock
● Rebuild index
– Access Share Lock
V1 2019-02

47. 47
Running cluster - lock
● Rebuild table
– Access Exclusive Lock
● Rebuild index
– Access Share Lock
– Access Exclusive Lock
V1 2019-02

48. 48

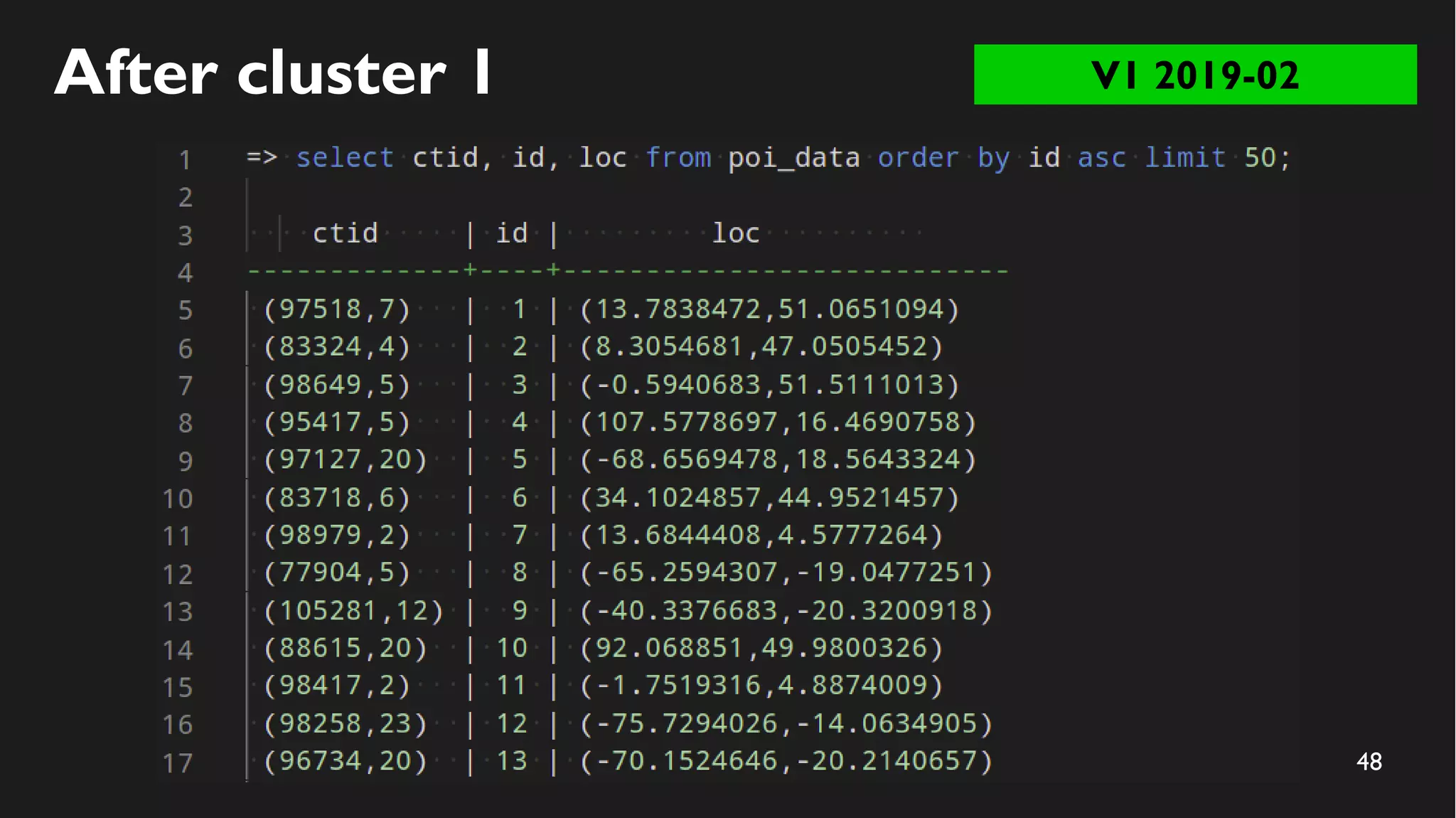

After cluster 1 V1 2019-02

49. 49

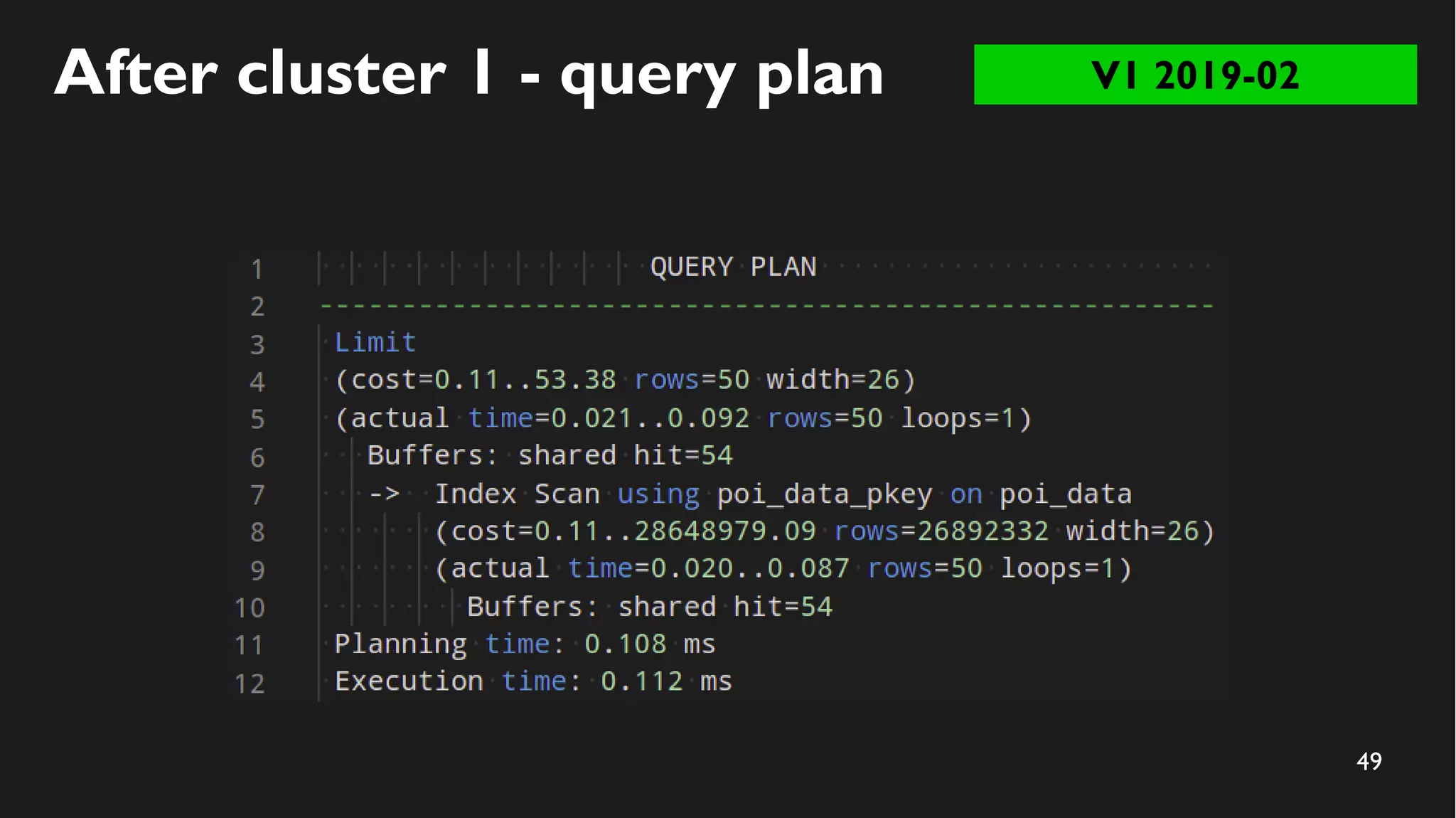

After cluster 1 - query plan V1 2019-02

50. 50
After cluster 1 - query plan V1 2019-02

51. 51

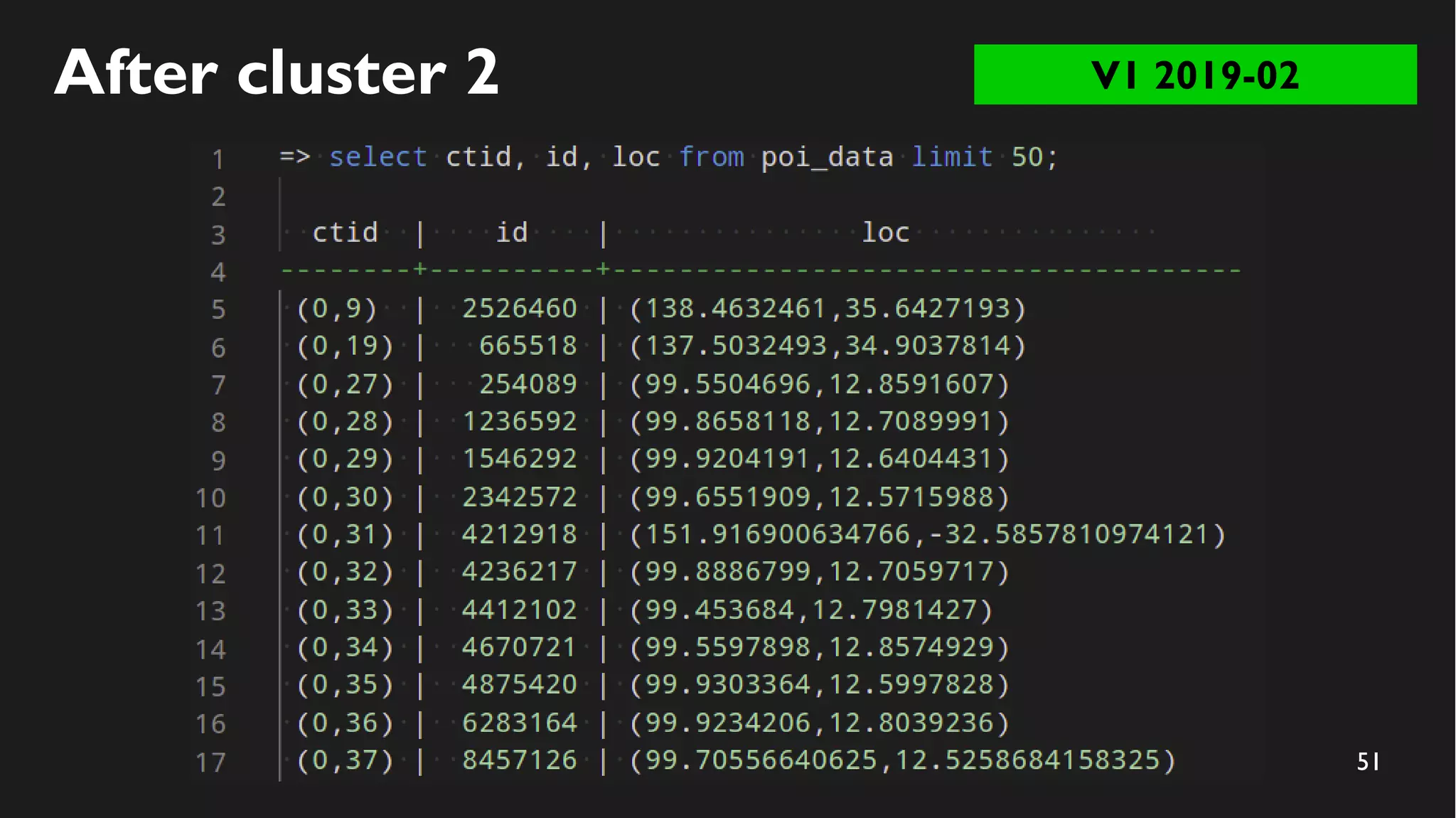

After cluster 2 V1 2019-02

52. 52
After cluster 2 - query plan V1 2019-02

53. 53
After cluster 2 - query plan V1 2019-02

54. 54
Nearest-Neighbor Search

55. 55

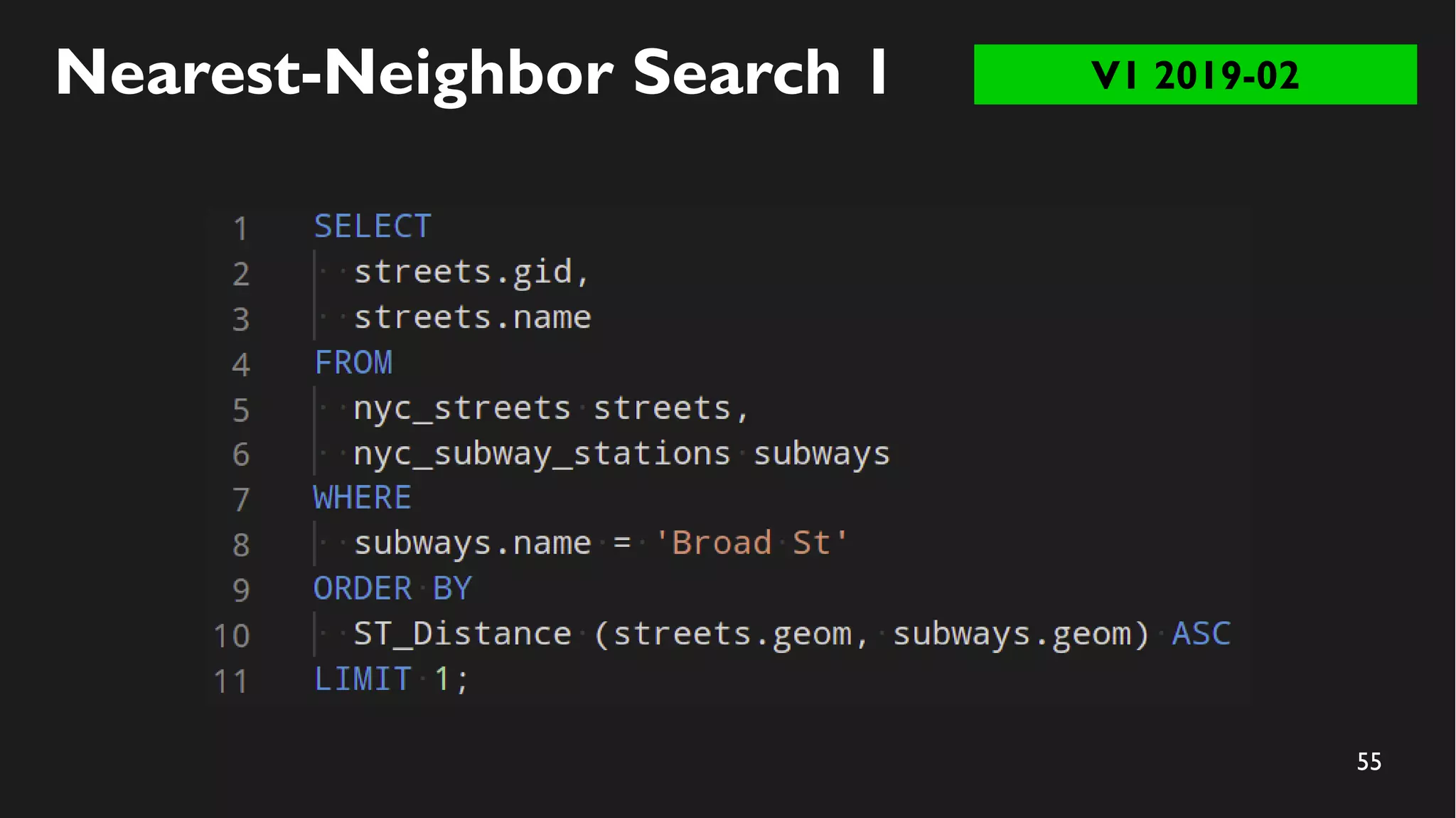

Nearest-Neighbor Search 1 V1 2019-02

56. 56
Nearest-Neighbor Search 1 V1 2019-02

57. 57
Nearest-Neighbor Search 1 V1 2019-02
full table scan because of ST_Distance

58. 58

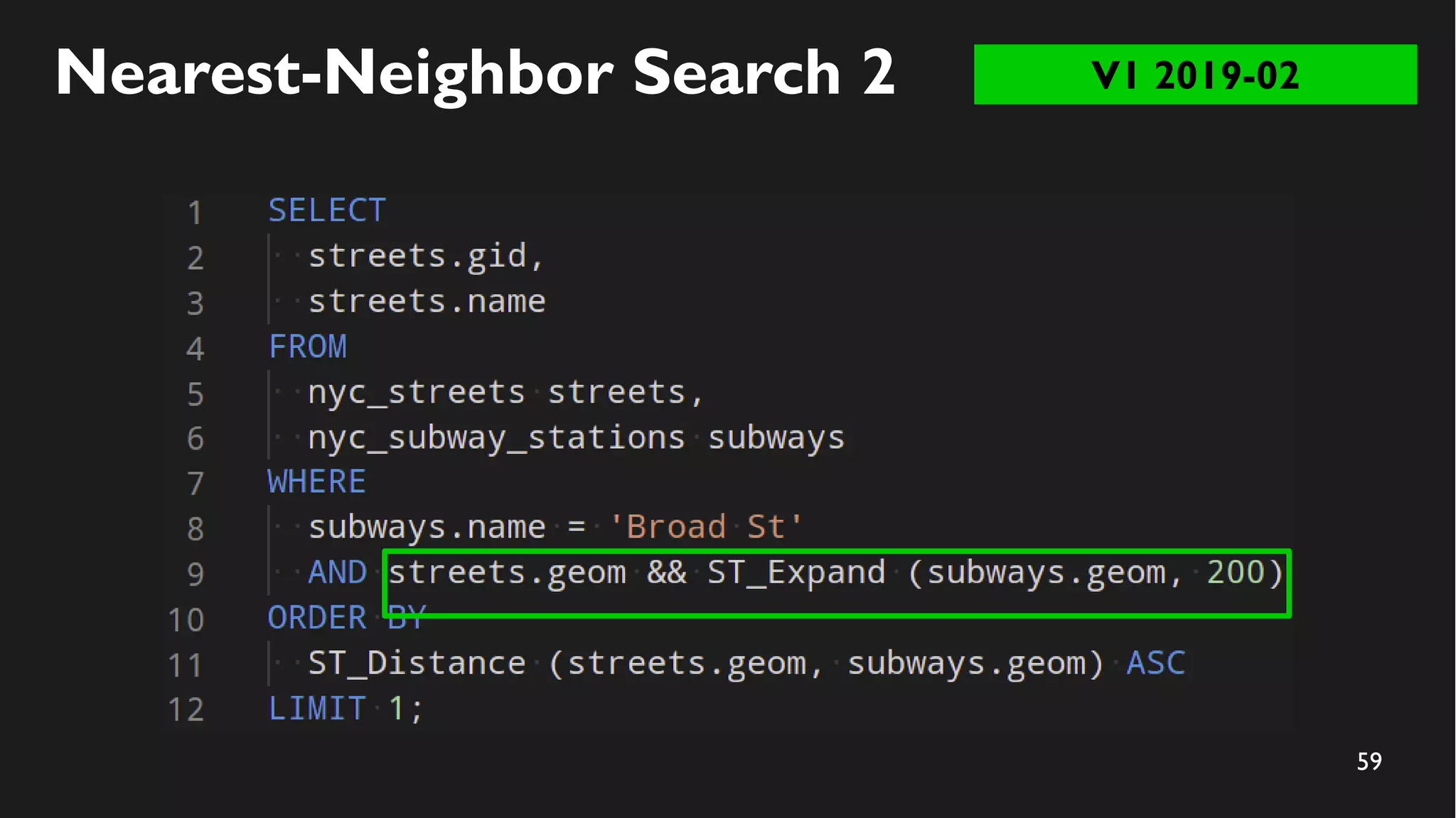

Nearest-Neighbor Search 2 V1 2019-02

59. 59
Nearest-Neighbor Search 2 V1 2019-02

60. 60
Nearest-Neighbor Search 2 V1 2019-02
speed up because of ST_Expand

61. 61
Nearest-Neighbor Search 3 V1 2019-02

62. 62

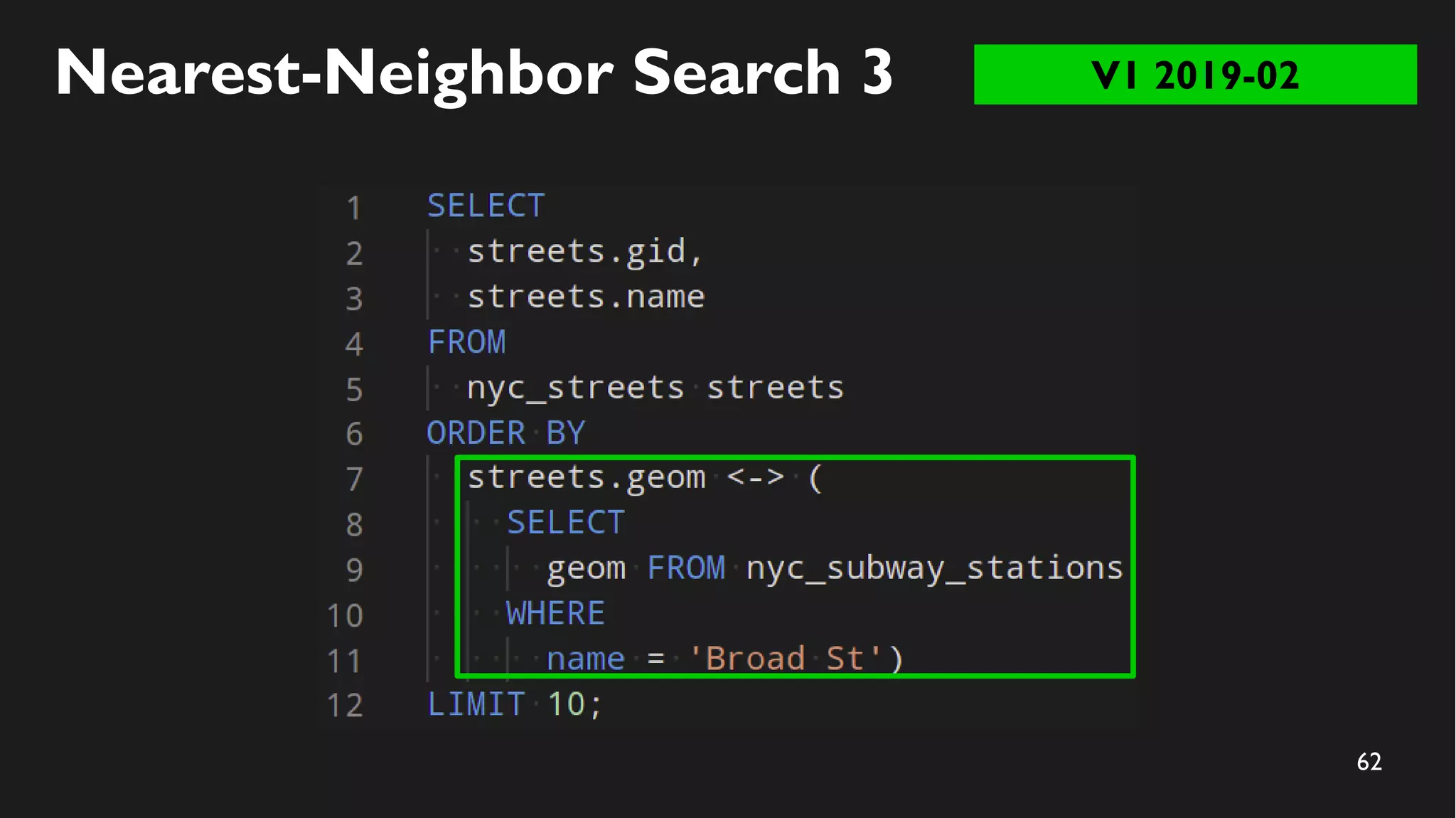

Nearest-Neighbor Search 3 V1 2019-02

63. 63
Nearest-Neighbor Search 3 V1 2019-02
<-> KNN

64. 64
V2 2019-09 late

65. 65
Summary V2 2019-09 late

66. 66

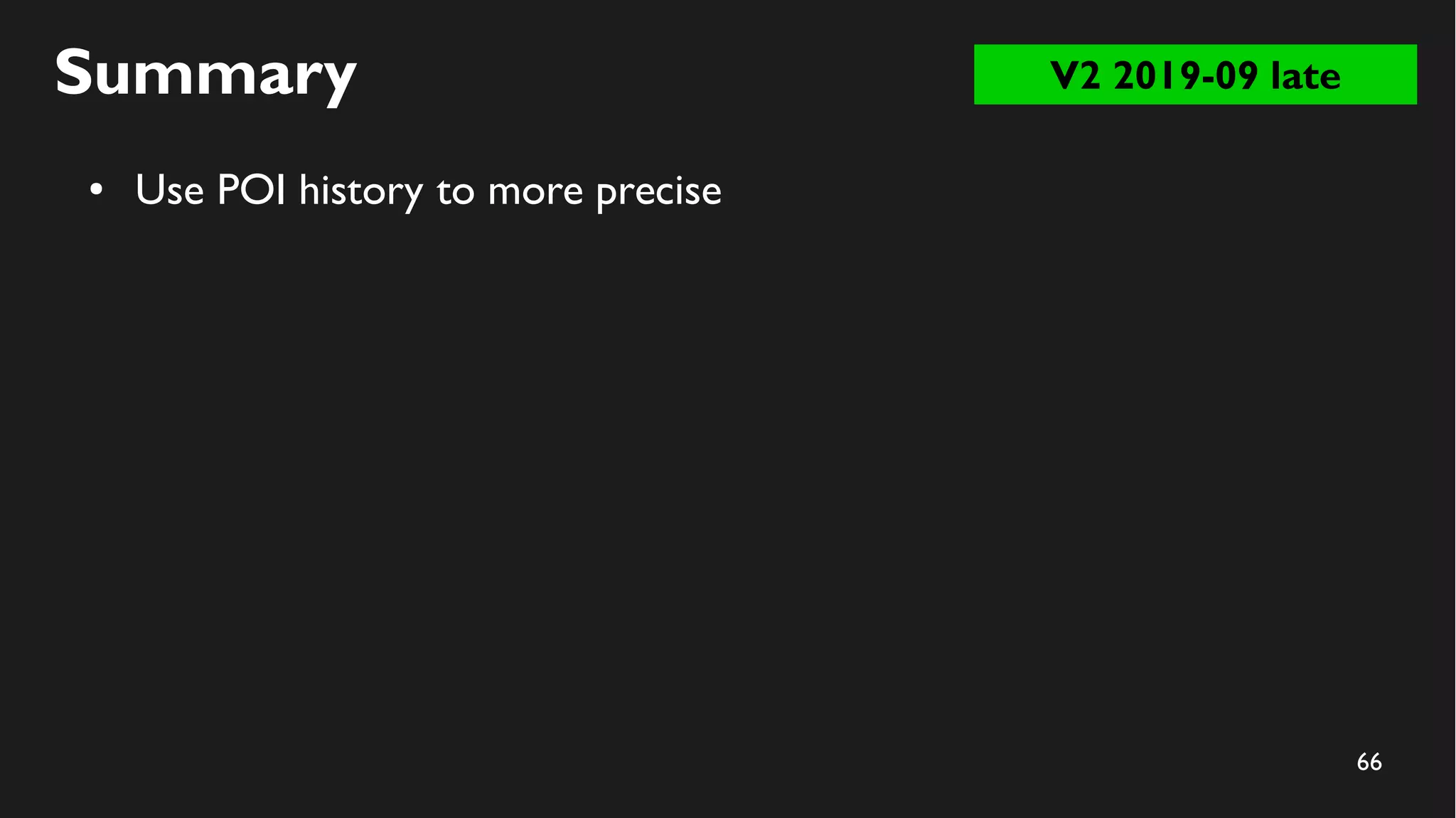

Summary
● Use POI history to more precise
V2 2019-09 late

67. 67
Summary
● Use POI history to more precise
● Remove duplicate POI from KNN and POI history via uniq
function
V2 2019-09 late

68. 68
V2.1 2020-06 late

69. 69
Summary V2.1 2020-06 late

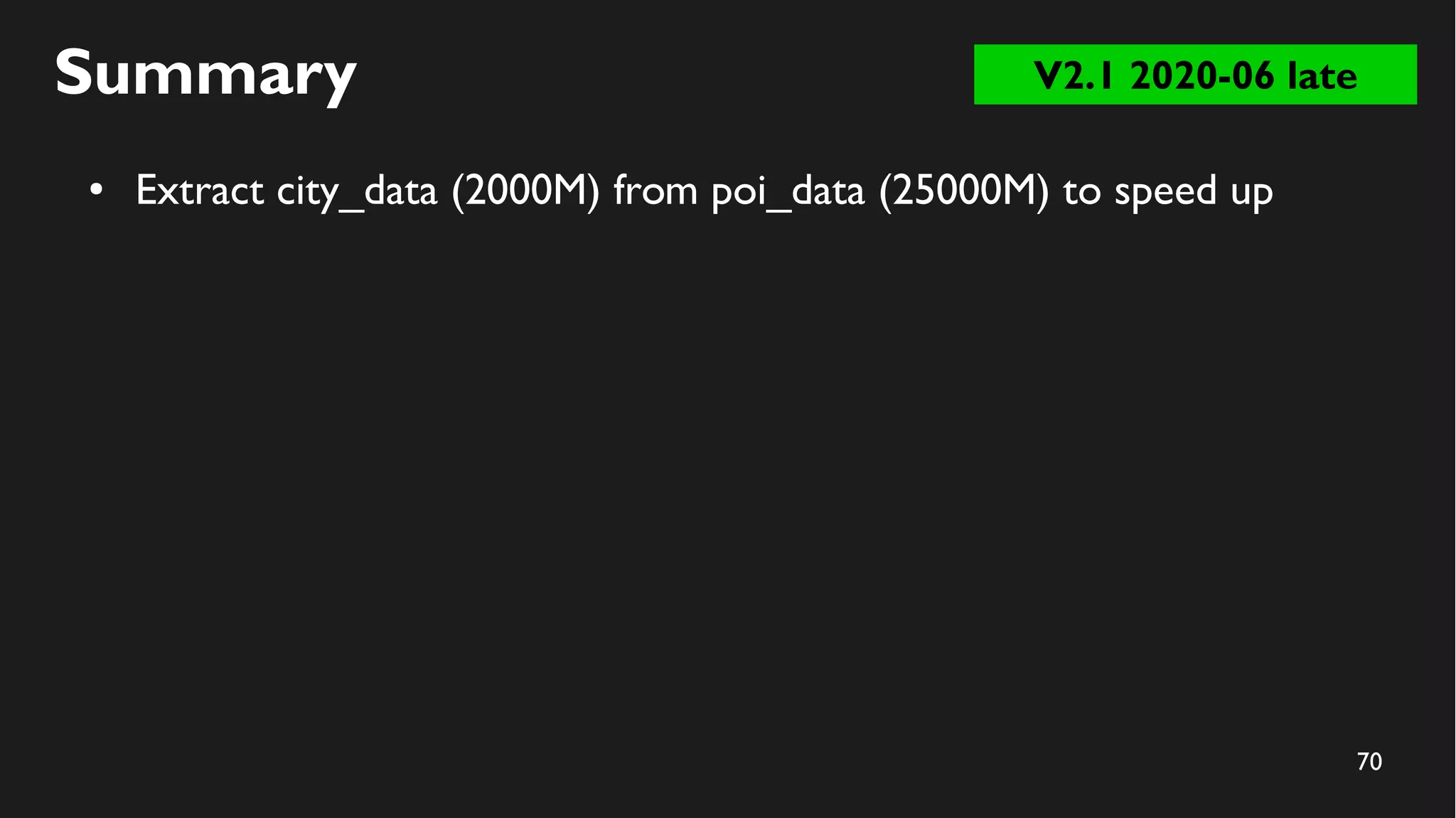

70. 70
Summary
● Extract city_data (2000M) from poi_data (25000M) to speed up
V2.1 2020-06 late

71. 71
V2.2 2020-07 late

72. 72

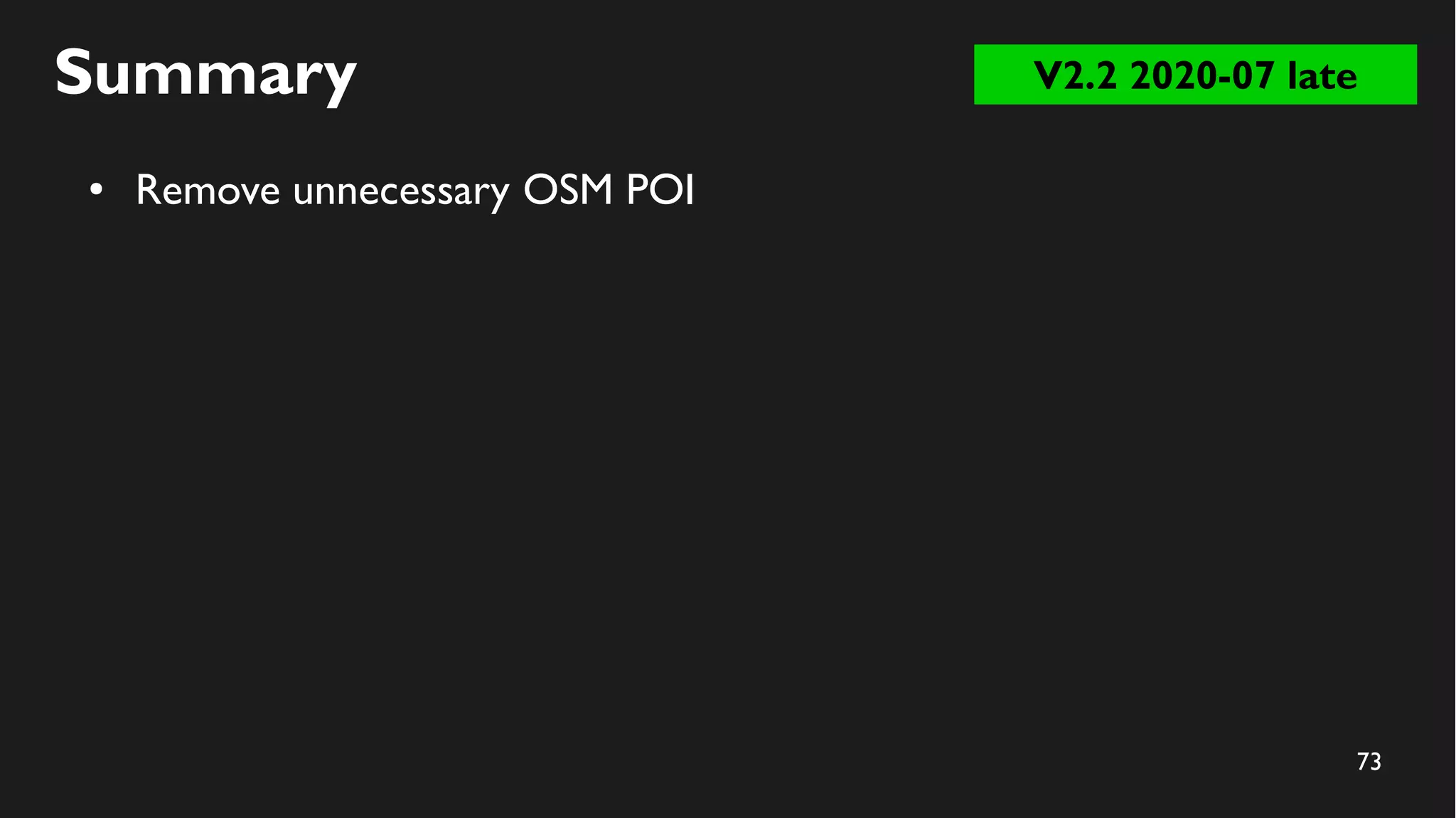

Summary V2.2 2020-07 late

73. 73
Summary
● Remove unnecessary OSM POI
V2.2 2020-07 late

74. 74
Summary
● Remove unnecessary OSM POI
– drinking_water
V2.2 2020-07 late

75. 75
Summary
● Remove unnecessary OSM POI
– drinking_water
– place_of_worship
V2.2 2020-07 late

76. 76
Summary
● Remove unnecessary OSM POI
– drinking_water
– place_of_worship
– basketball, football, volleyball
V2.2 2020-07 late

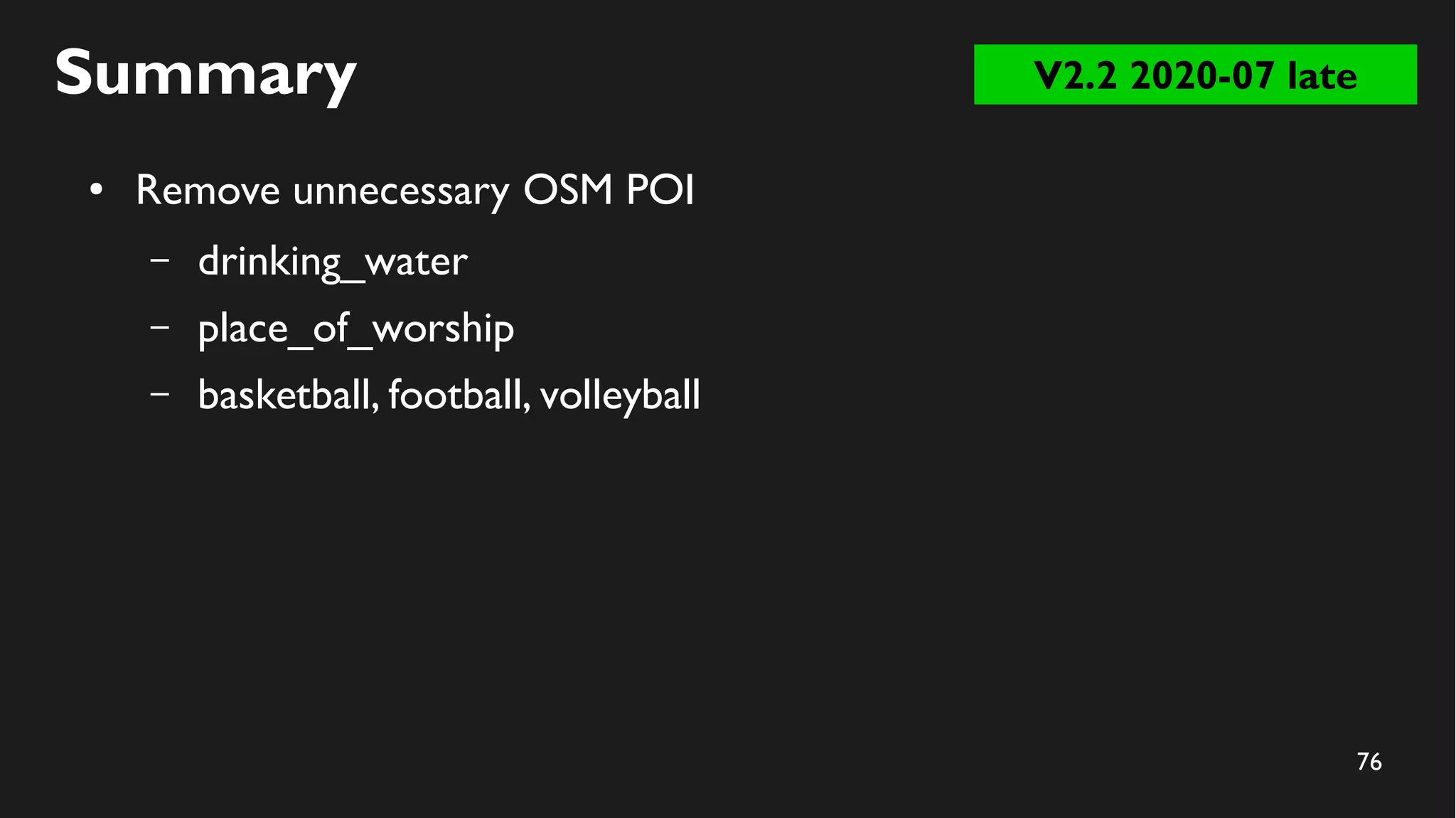

77. 77
Summary
● Remove unnecessary OSM POI
– drinking_water
– place_of_worship
– basketball, football, volleyball
– parking
V2.2 2020-07 late

78. 78
Summary
● Remove unnecessary OSM POI
– drinking_water
– place_of_worship
– basketball, football, volleyball
– parking
● Expired time
V2.2 2020-07 late

79. 79
Summary
● Remove unnecessary OSM POI
– drinking_water
– place_of_worship
– basketball, football, volleyball
– parking
● Expired time
– KNN cache has expired after 14d
V2.2 2020-07 late

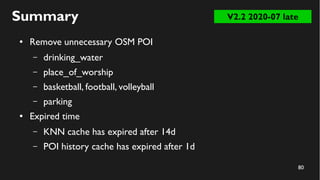

80. 80
Summary
● Remove unnecessary OSM POI
– drinking_water
– place_of_worship
– basketball, football, volleyball
– parking
● Expired time
– KNN cache has expired after 14d
– POI history cache has expired after 1d
V2.2 2020-07 late

81. 81
V3 2020-09-22 late

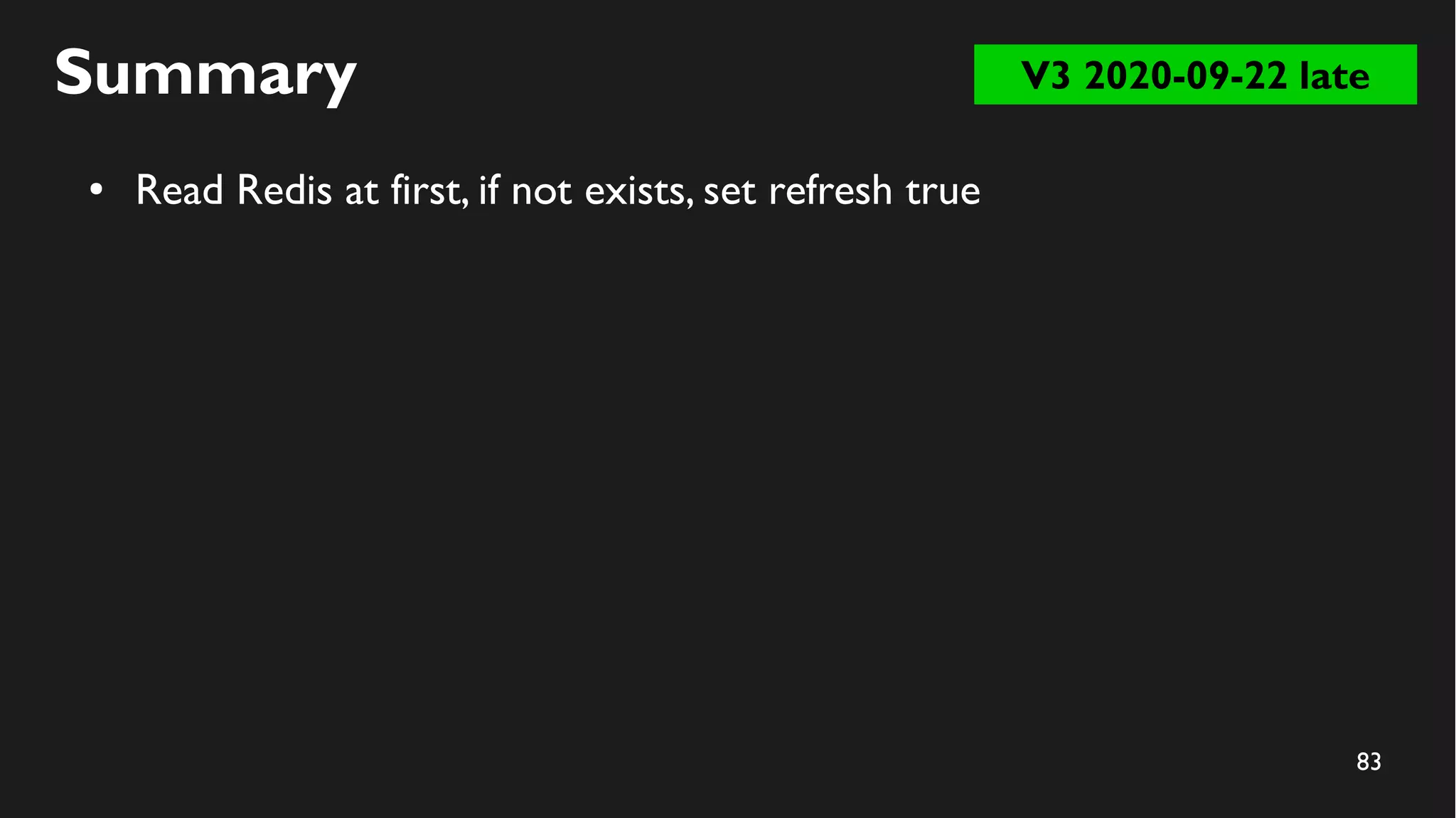

82. 82

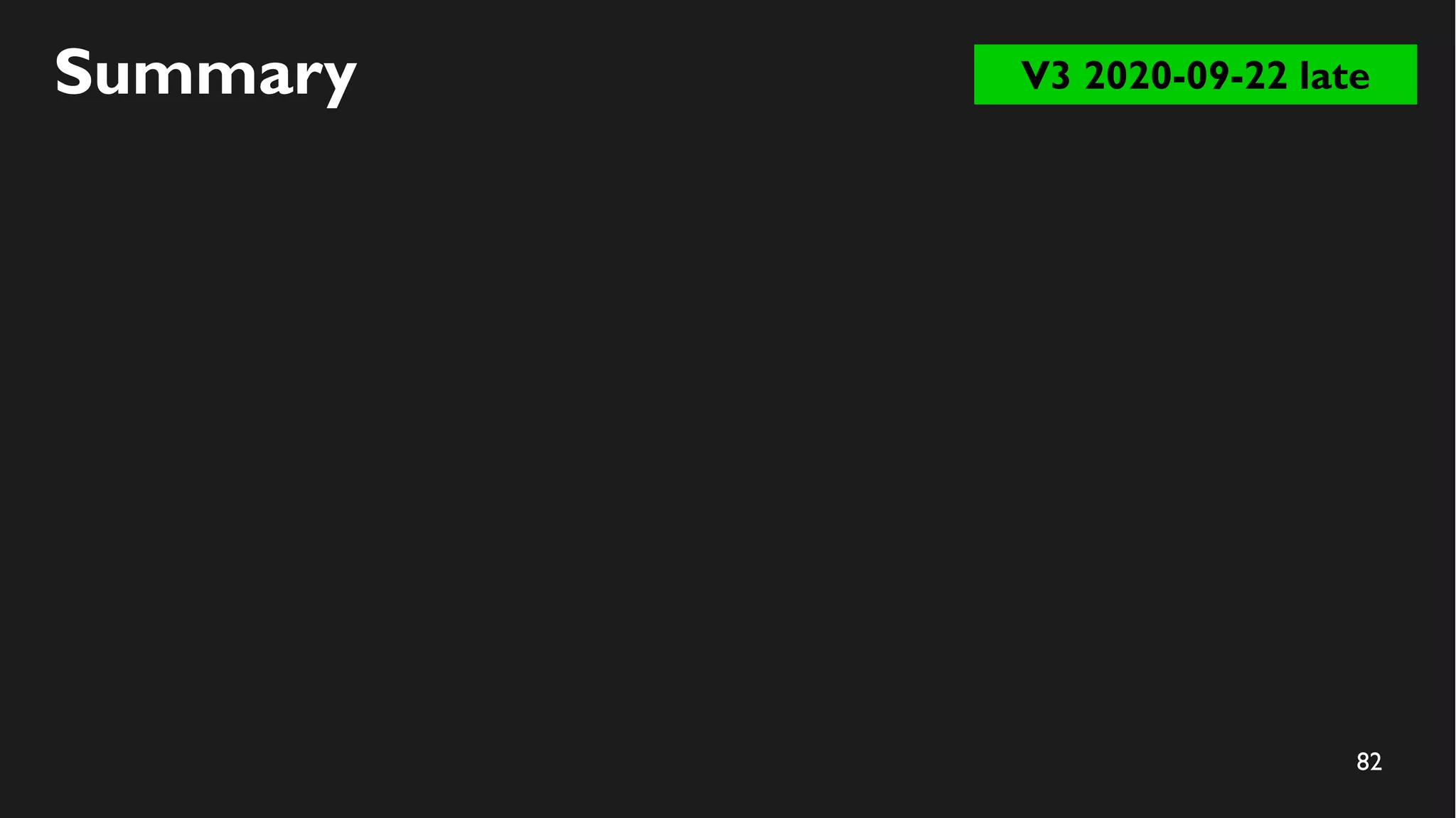

Summary V3 2020-09-22 late

83. 83
Summary
● Read Redis at first, if not exists, set refresh true
V3 2020-09-22 late

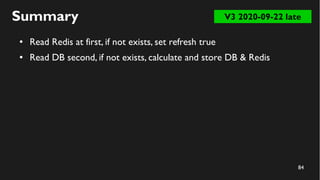

84. 84
Summary
● Read Redis at first, if not exists, set refresh true
● Read DB second, if not exists, calculate and store DB & Redis
V3 2020-09-22 late

85. 85

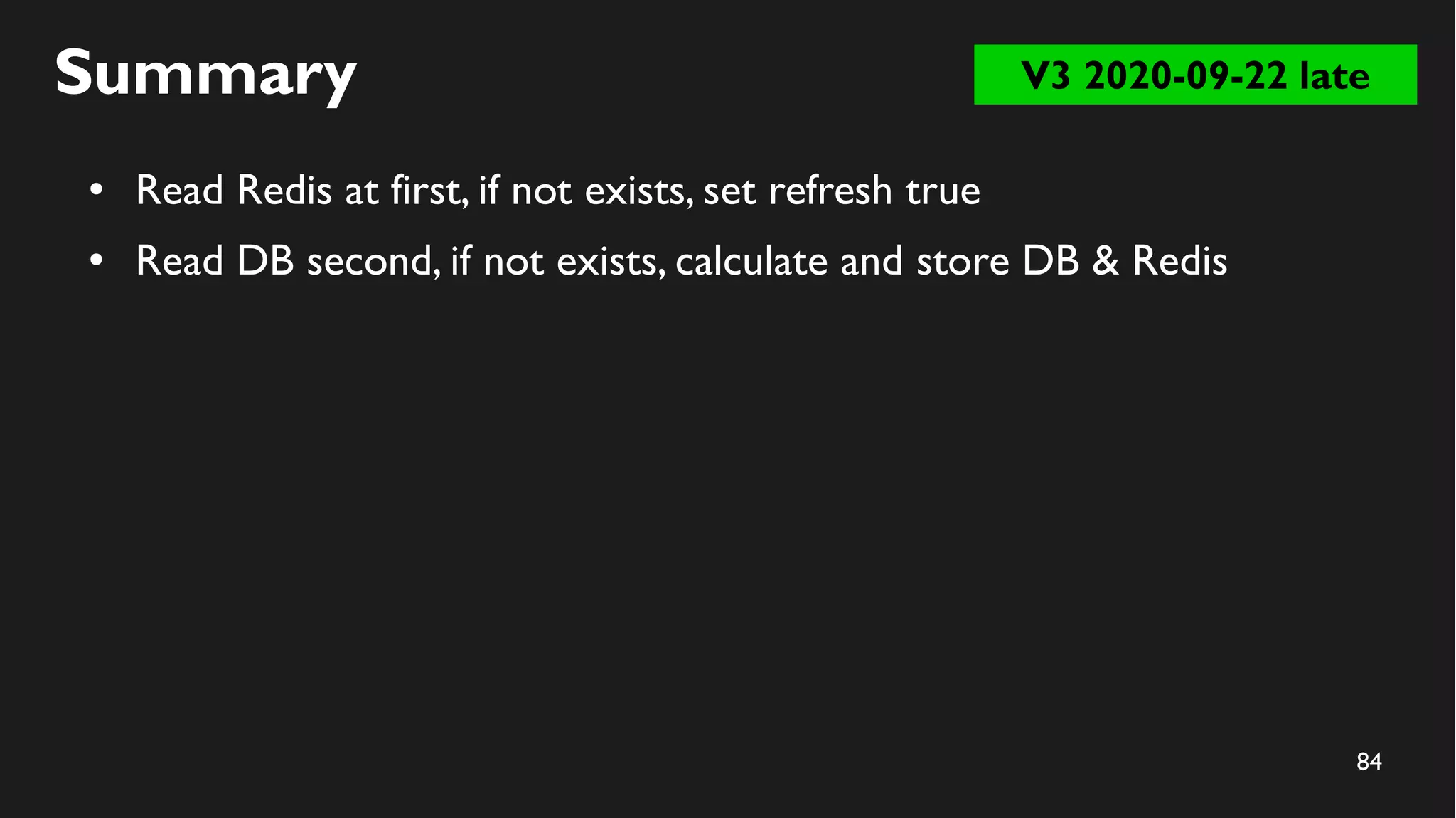

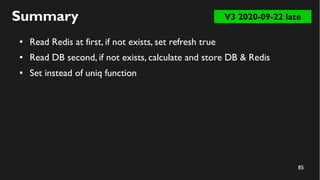

Summary
● Read Redis at first, if not exists, set refresh true
● Read DB second, if not exists, calculate and store DB & Redis
● Set instead of uniq function
V3 2020-09-22 late

86. 86
Summary
● Read Redis at first, if not exists, set refresh true
● Read DB second, if not exists, calculate and store DB & Redis
● Set instead of uniq function
● L2 & L3 cache
V3 2020-09-22 late

87. 87

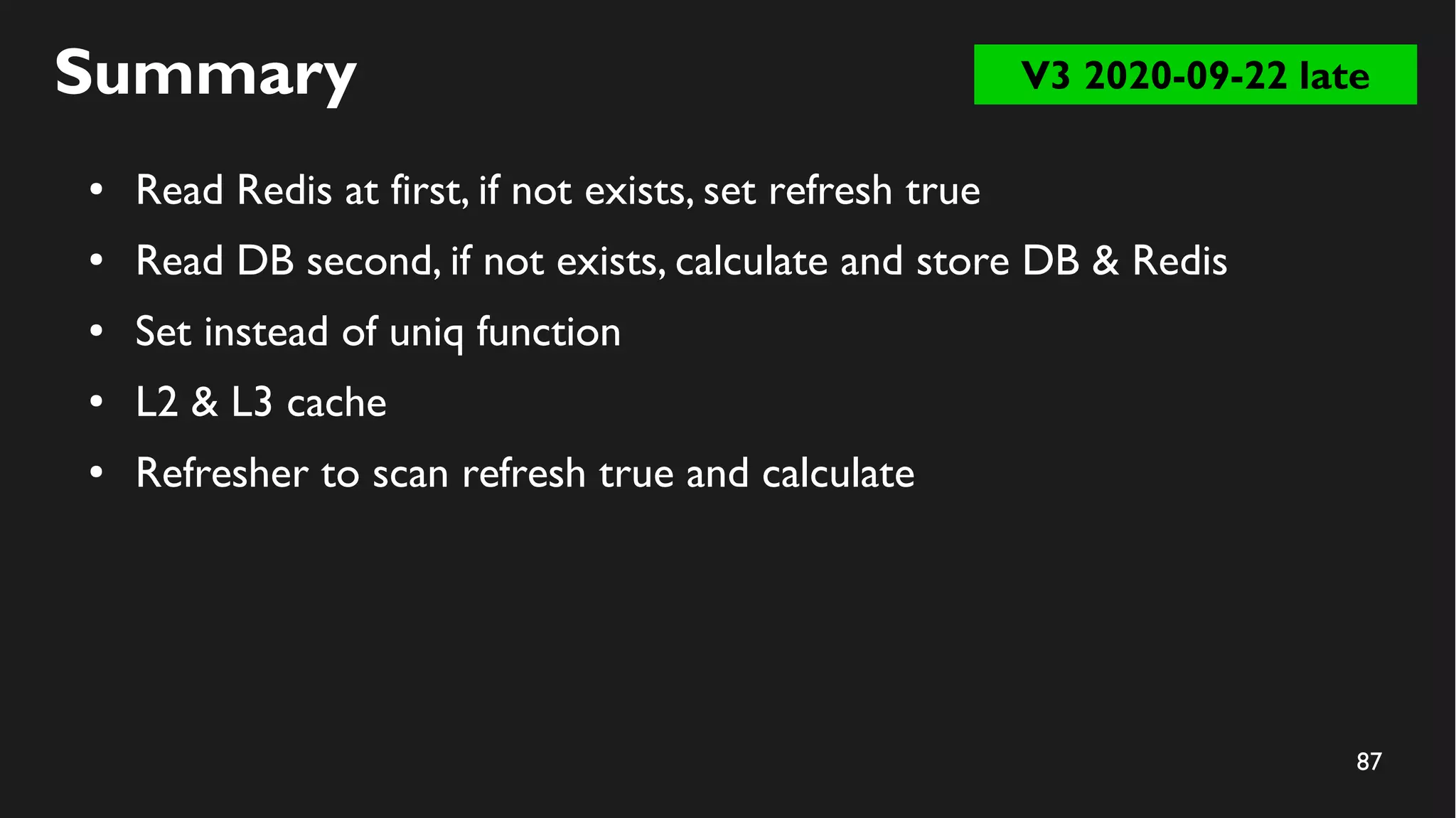

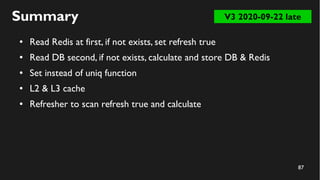

Summary
● Read Redis at first, if not exists, set refresh true
● Read DB second, if not exists, calculate and store DB & Redis
● Set instead of uniq function
● L2 & L3 cache
● Refresher to scan refresh true and calculate
V3 2020-09-22 late

88. 88

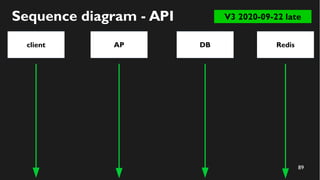

Sequence diagram - API

89. 89
Sequence diagram - API
client AP RedisDB
V3 2020-09-22 late

90. 90
Sequence diagram - API
client AP RedisDB
get POIs
V3 2020-09-22 late

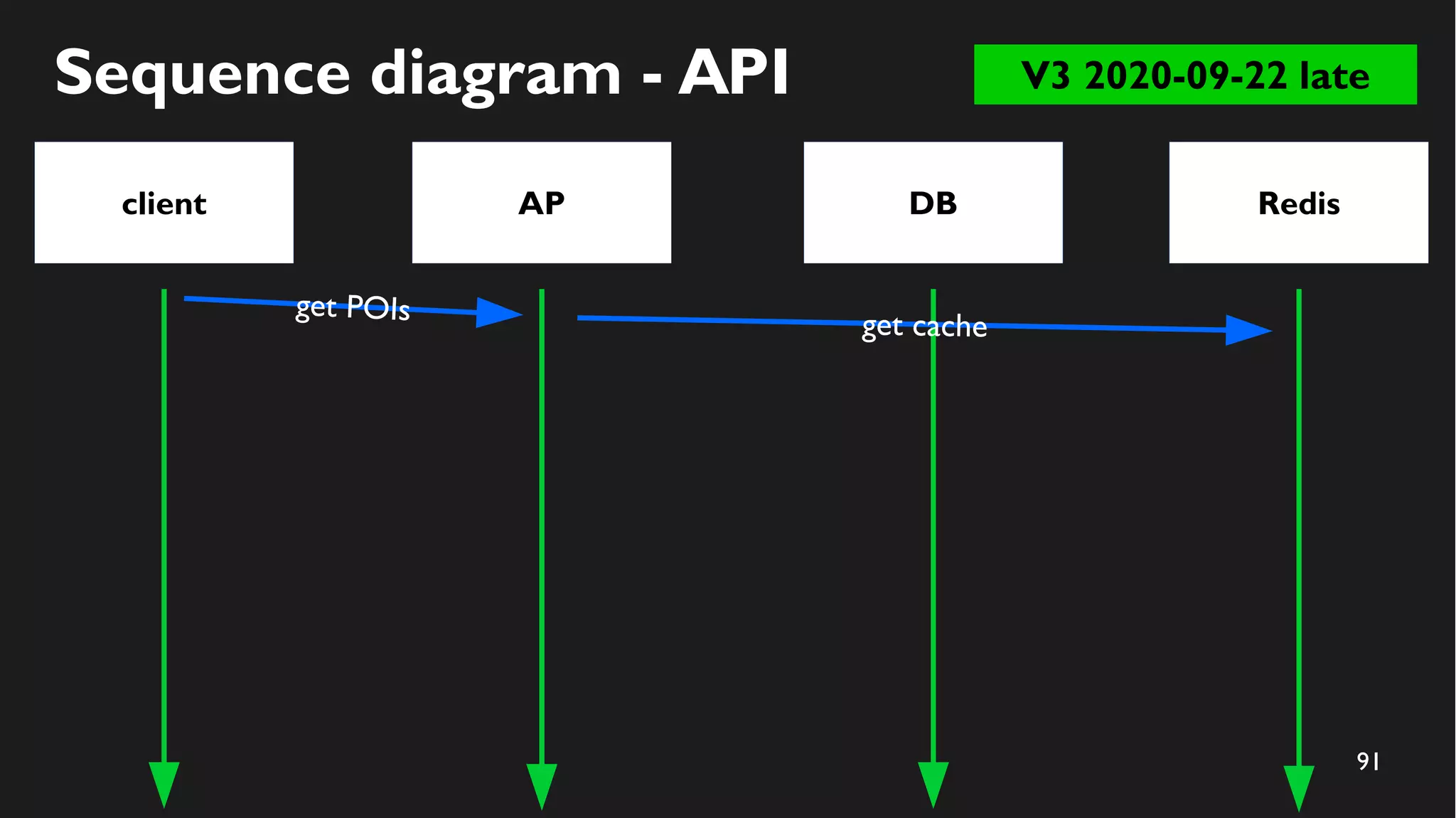

91. 91
Sequence diagram - API
client AP RedisDB
get POIs get cache
V3 2020-09-22 late

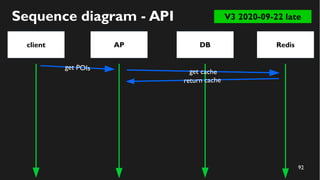

92. 92
Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
V3 2020-09-22 late

93. 93
Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
if hits, return POIs
V3 2020-09-22 late

94. 94

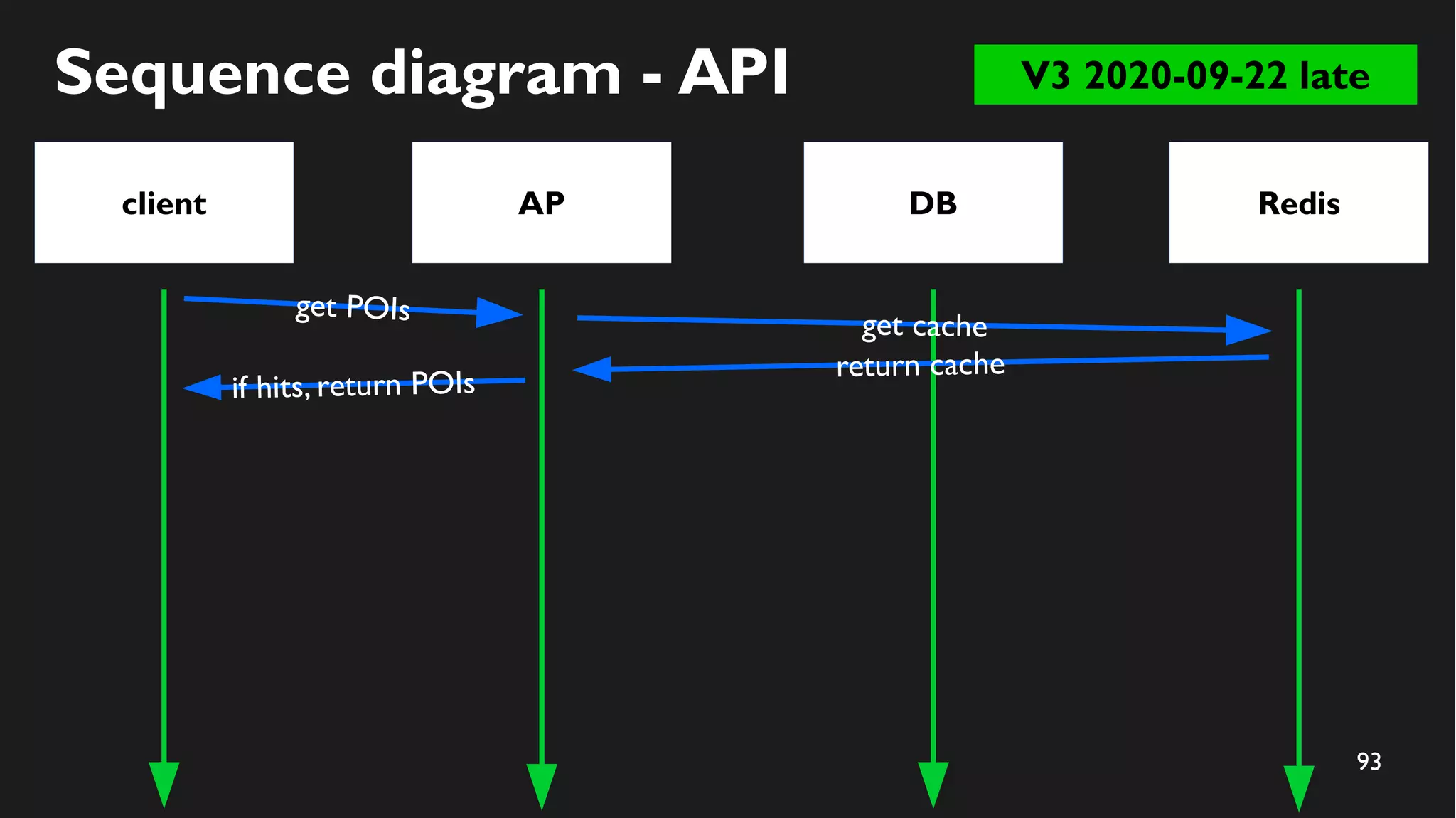

Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
if hits, return POIs
if misses, set refresh=true
V3 2020-09-22 late

95. 95
Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
if hits, return POIs
if misses, set refresh=true
set OK
V3 2020-09-22 late

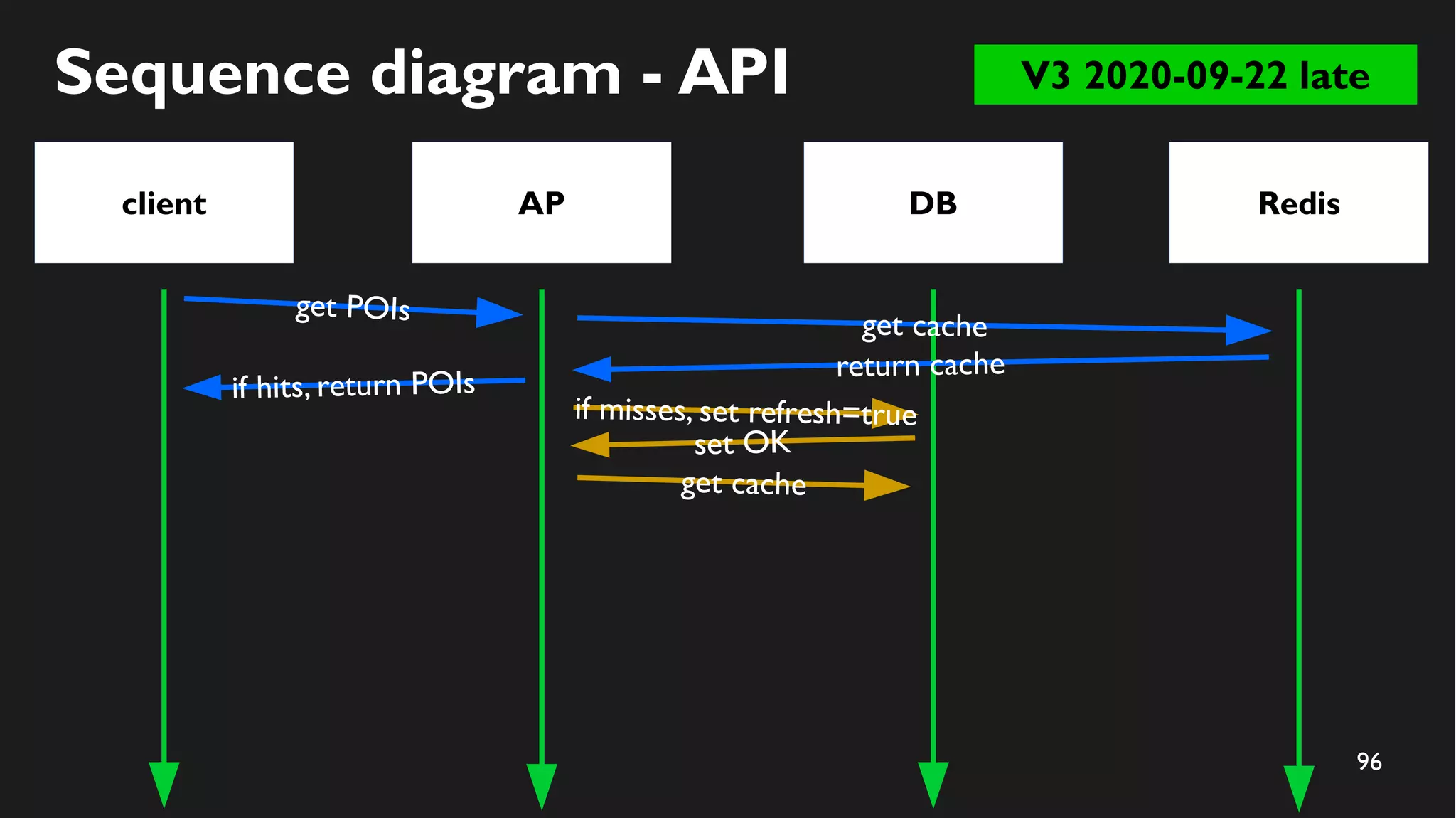

96. 96
Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
if hits, return POIs
if misses, set refresh=true
set OK
get cache
V3 2020-09-22 late

97. 97
Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
if hits, return POIs
if misses, set refresh=true
set OK
get cache
V3 2020-09-22 late
return cache

98. 98
Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
if hits, return POIs
if misses, set refresh=true
set OK
get cache
if hits, return POIs
V3 2020-09-22 late
return cache

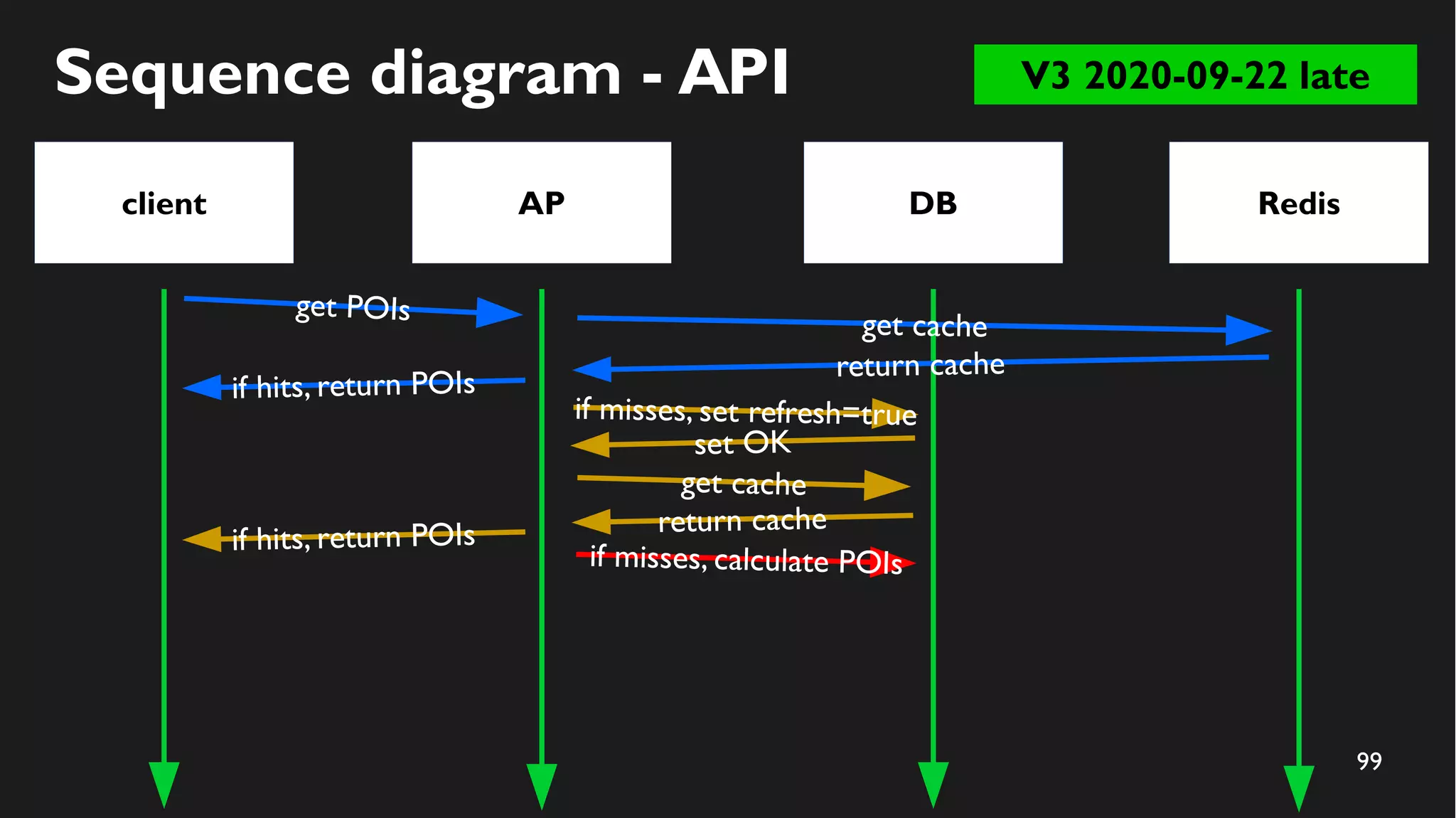

99. 99
Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
if hits, return POIs
if misses, set refresh=true
set OK
get cache
if hits, return POIs
V3 2020-09-22 late
if misses, calculate POIs
return cache

100. 100
Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
if hits, return POIs
if misses, set refresh=true
set OK
get cache
if hits, return POIs
V3 2020-09-22 late
if misses, calculate POIs
return cache
return POI IDs

101. 101
Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
if hits, return POIs
if misses, set refresh=true
set OK
get cache
if hits, return POIs
V3 2020-09-22 late
if misses, calculate POIs
return cache
return POI IDs
store cache

102. 102

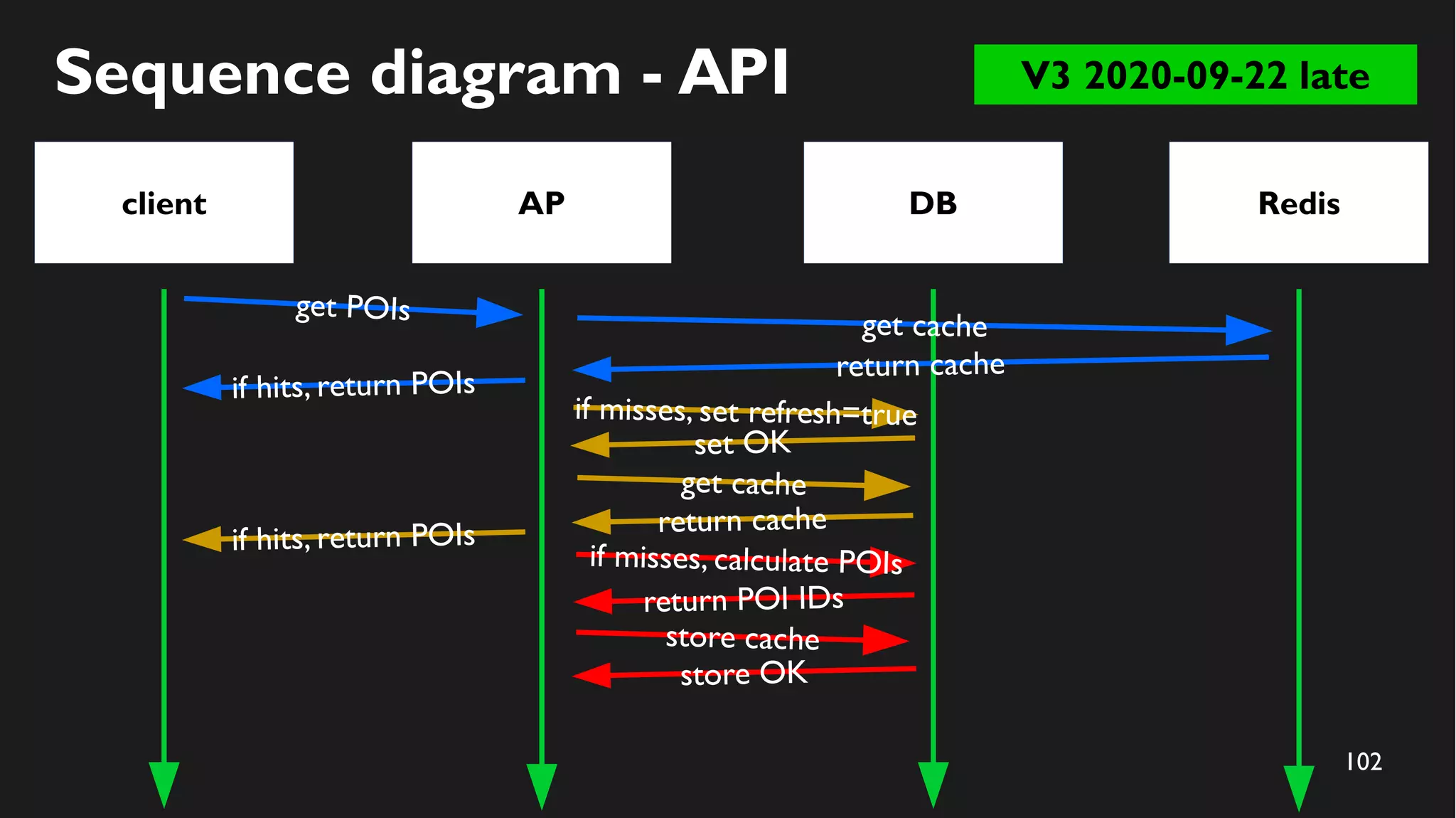

Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
if hits, return POIs
if misses, set refresh=true
set OK
get cache
if hits, return POIs
V3 2020-09-22 late
if misses, calculate POIs
return cache
return POI IDs
store cache
store OK

103. 103
Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
if hits, return POIs
if misses, set refresh=true
set OK
get cache
if hits, return POIs
V3 2020-09-22 late
if misses, calculate POIs
return cache
return POI IDs
store cache
store cache
store OK

104. 104

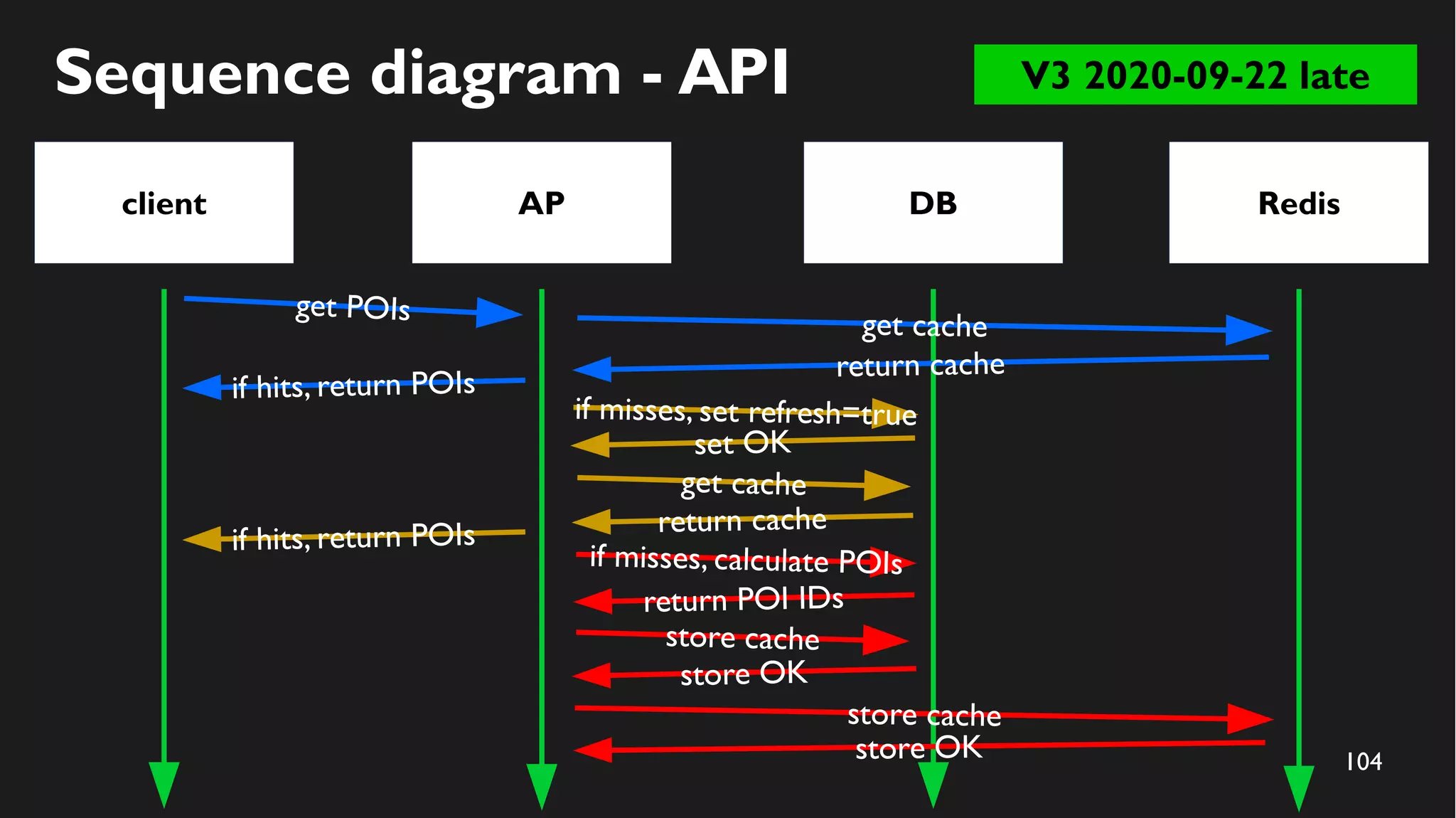

Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
if hits, return POIs
if misses, set refresh=true
set OK
get cache
if hits, return POIs
V3 2020-09-22 late
if misses, calculate POIs
return cache
return POI IDs
store cache
store cache
store OK
store OK

105. 105
Sequence diagram - API
client AP RedisDB
get POIs get cache
return cache
if hits, return POIs
if misses, set refresh=true
set OK
get cache
if hits, return POIs
V3 2020-09-22 late
if misses, calculate POIs
return cache
return POI IDs
store cache
store cache
return POIs
store OK
store OK

106. 106
Sequence diagram - refresher

107. 107
Sequence diagram - refresher
city IDs refresher RedisDB
V3 2020-09-22 late

108. 108

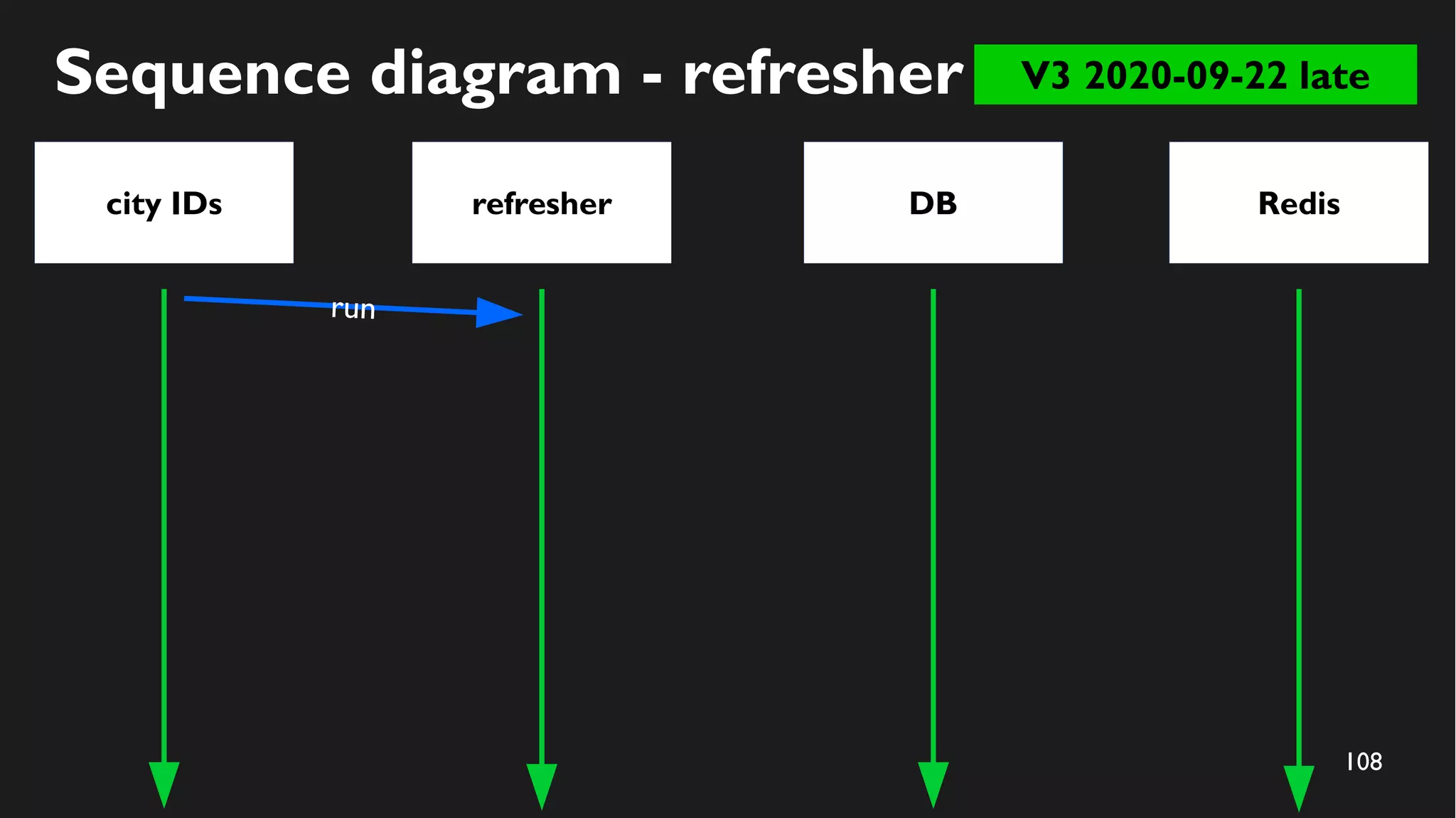

Sequence diagram - refresher
city IDs refresher RedisDB
run
V3 2020-09-22 late

109. 109
Sequence diagram - refresher
city IDs refresher RedisDB
run calculate POIs
V3 2020-09-22 late

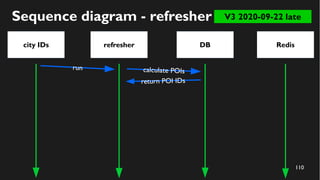

110. 110
Sequence diagram - refresher
city IDs refresher RedisDB
run calculate POIs
return POI IDs
V3 2020-09-22 late

111. 111
Sequence diagram - refresher
city IDs refresher RedisDB
run calculate POIs
return POI IDs
store cache
V3 2020-09-22 late

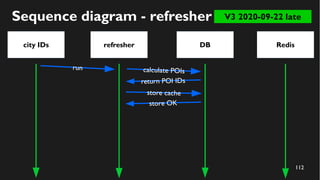

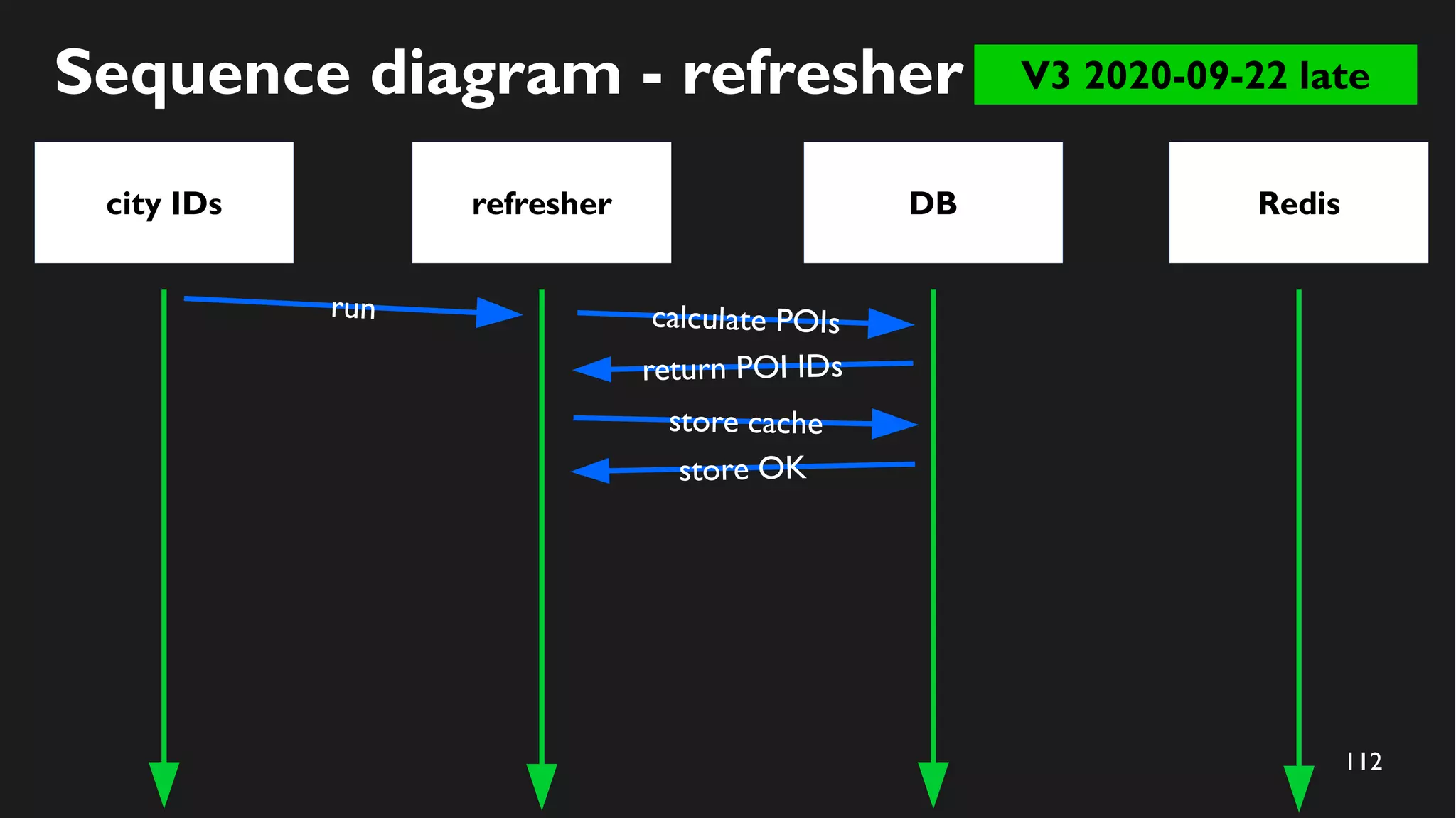

112. 112
Sequence diagram - refresher
city IDs refresher RedisDB
run calculate POIs
return POI IDs
store cache
store OK
V3 2020-09-22 late

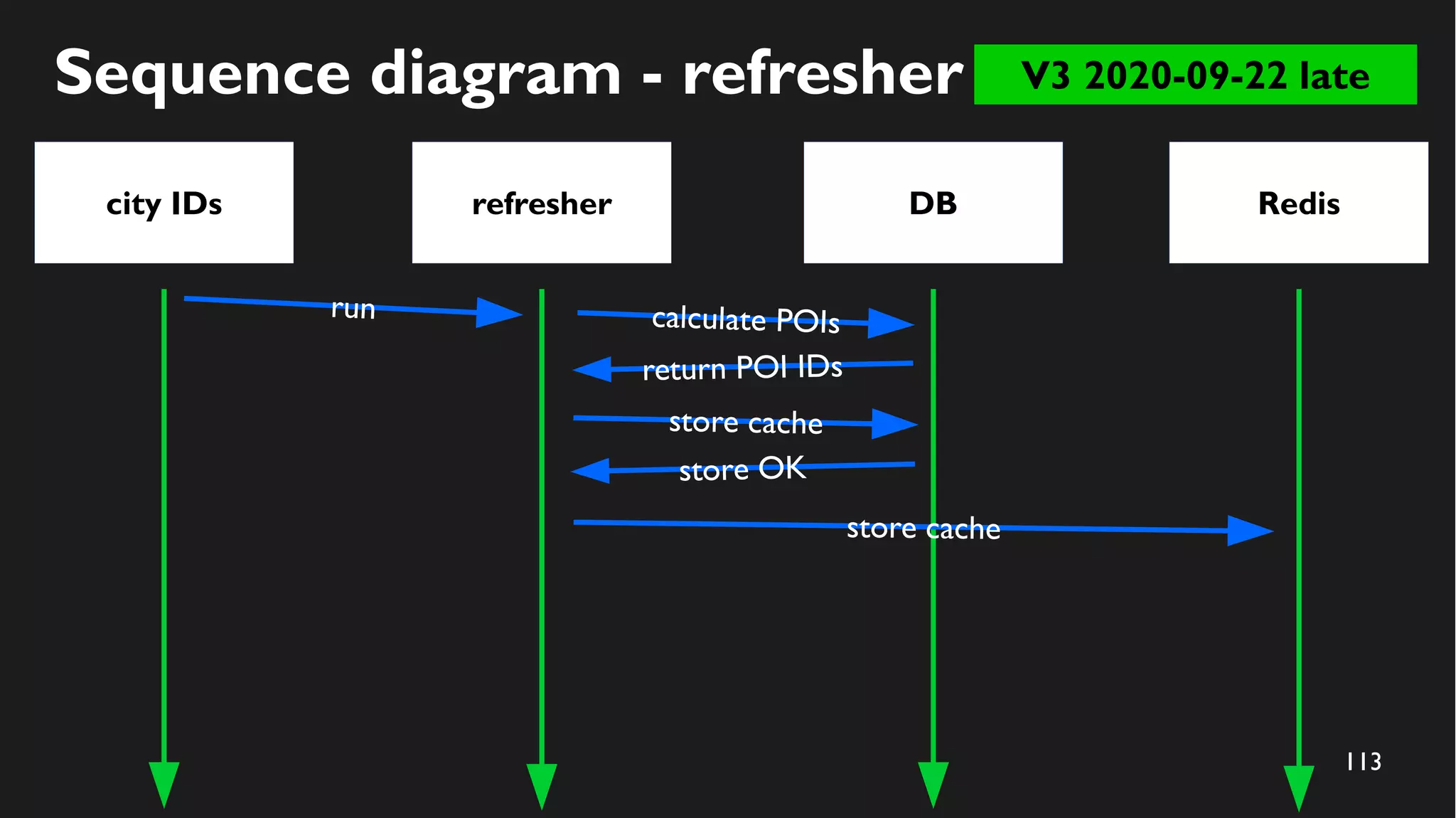

113. 113
Sequence diagram - refresher
city IDs refresher RedisDB
run calculate POIs
return POI IDs
store cache
store OK
V3 2020-09-22 late
store cache

114. 114
Sequence diagram - refresher
city IDs refresher RedisDB
run calculate POIs
return POI IDs
store cache
store OK
V3 2020-09-22 late
store cache
store OK

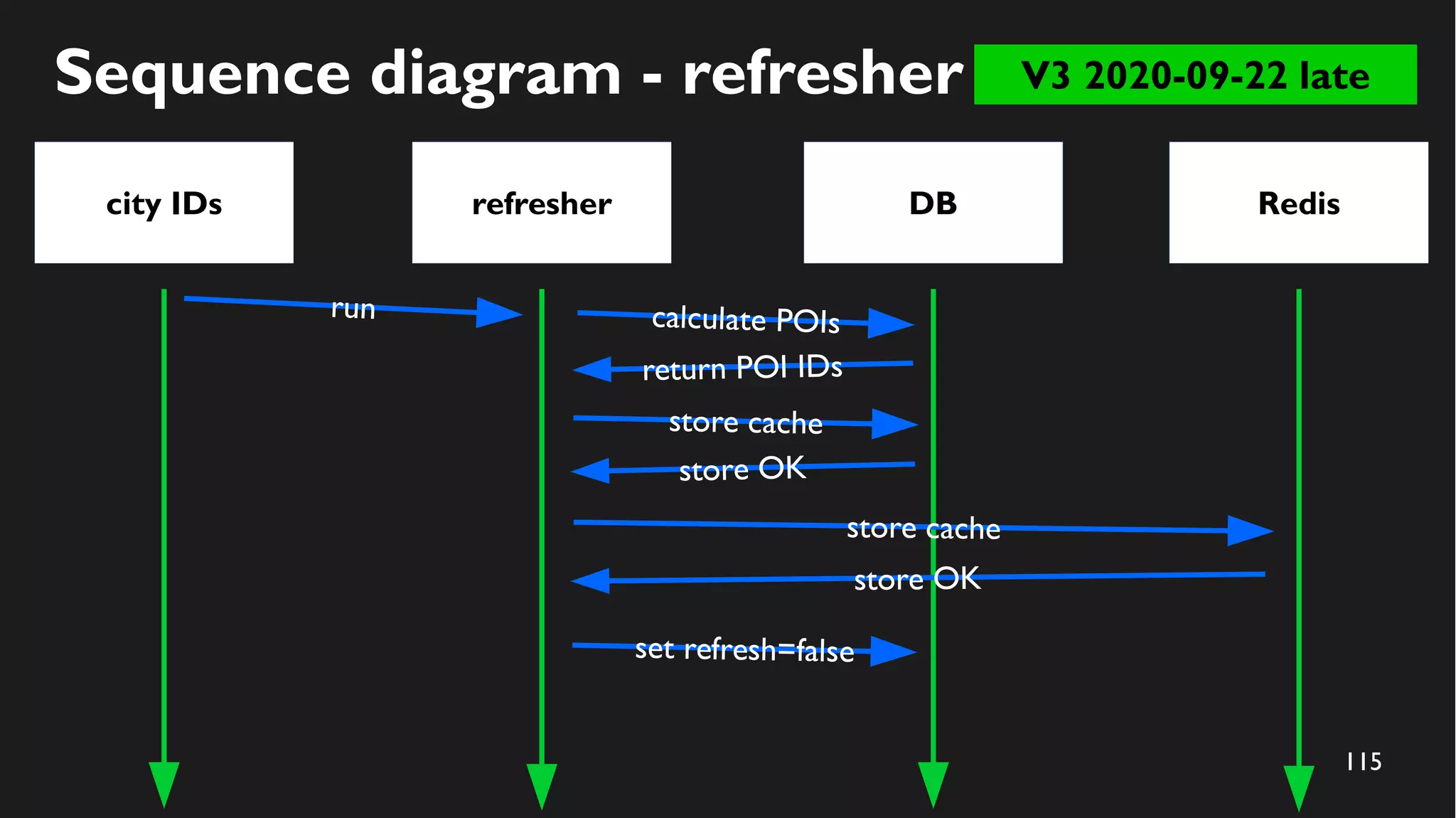

115. 115
Sequence diagram - refresher
city IDs refresher RedisDB
run calculate POIs
return POI IDs
store cache
store OK
V3 2020-09-22 late
store cache
store OK
set refresh=false

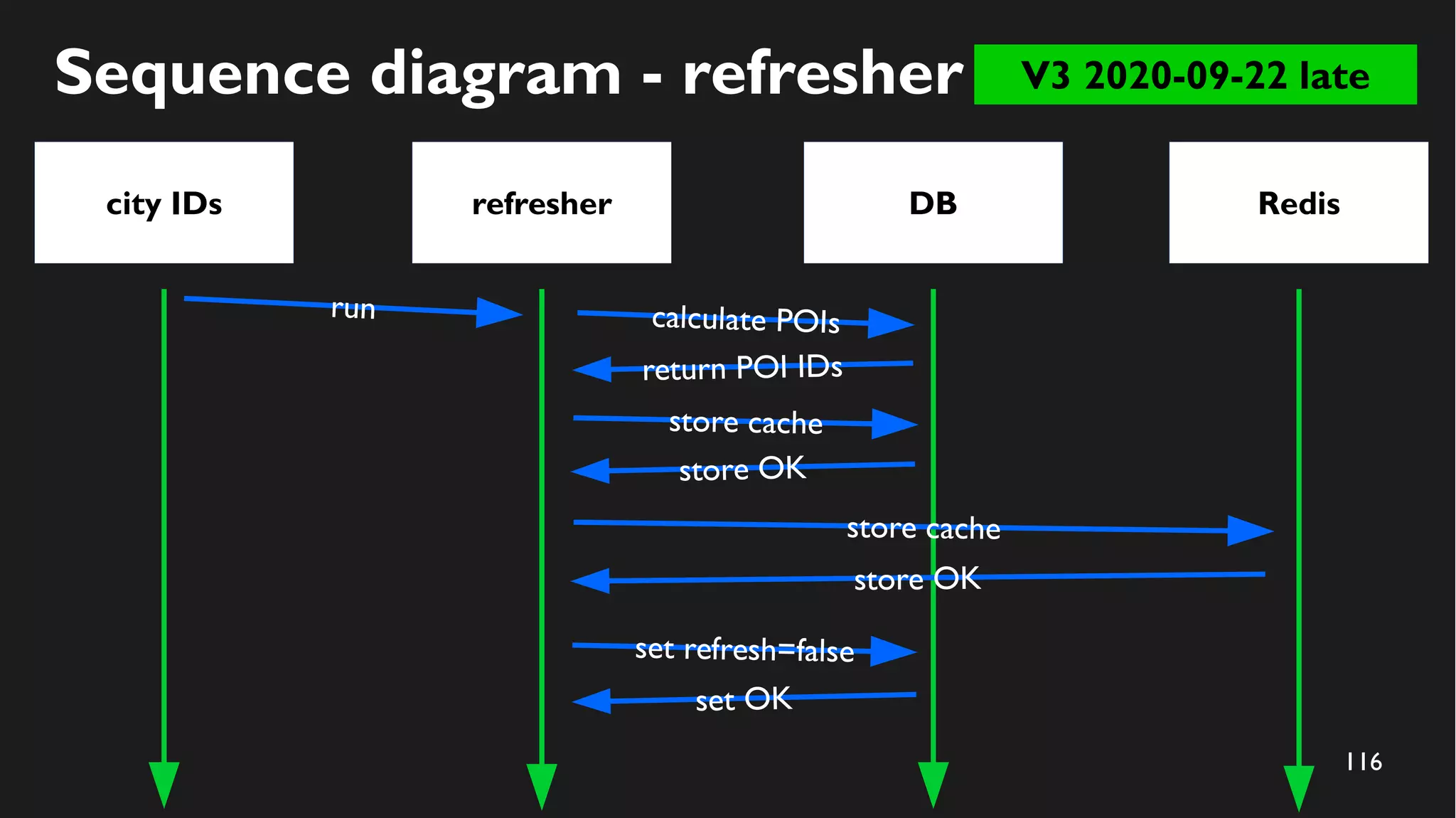

116. 116
Sequence diagram - refresher
city IDs refresher RedisDB
run calculate POIs
return POI IDs
store cache
store OK
V3 2020-09-22 late
store cache
store OK
set refresh=false
set OK

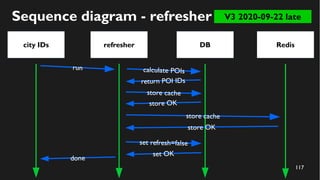

117. 117
Sequence diagram - refresher
city IDs refresher RedisDB
run calculate POIs
return POI IDs
store cache
store OK
done
V3 2020-09-22 late
store cache
store OK
set refresh=false
set OK

118. 118
V3.1 2020-09-23 early

119. 119
Summary V3.1 2020-09-23 early

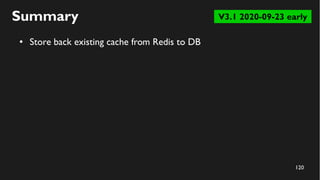

120. 120

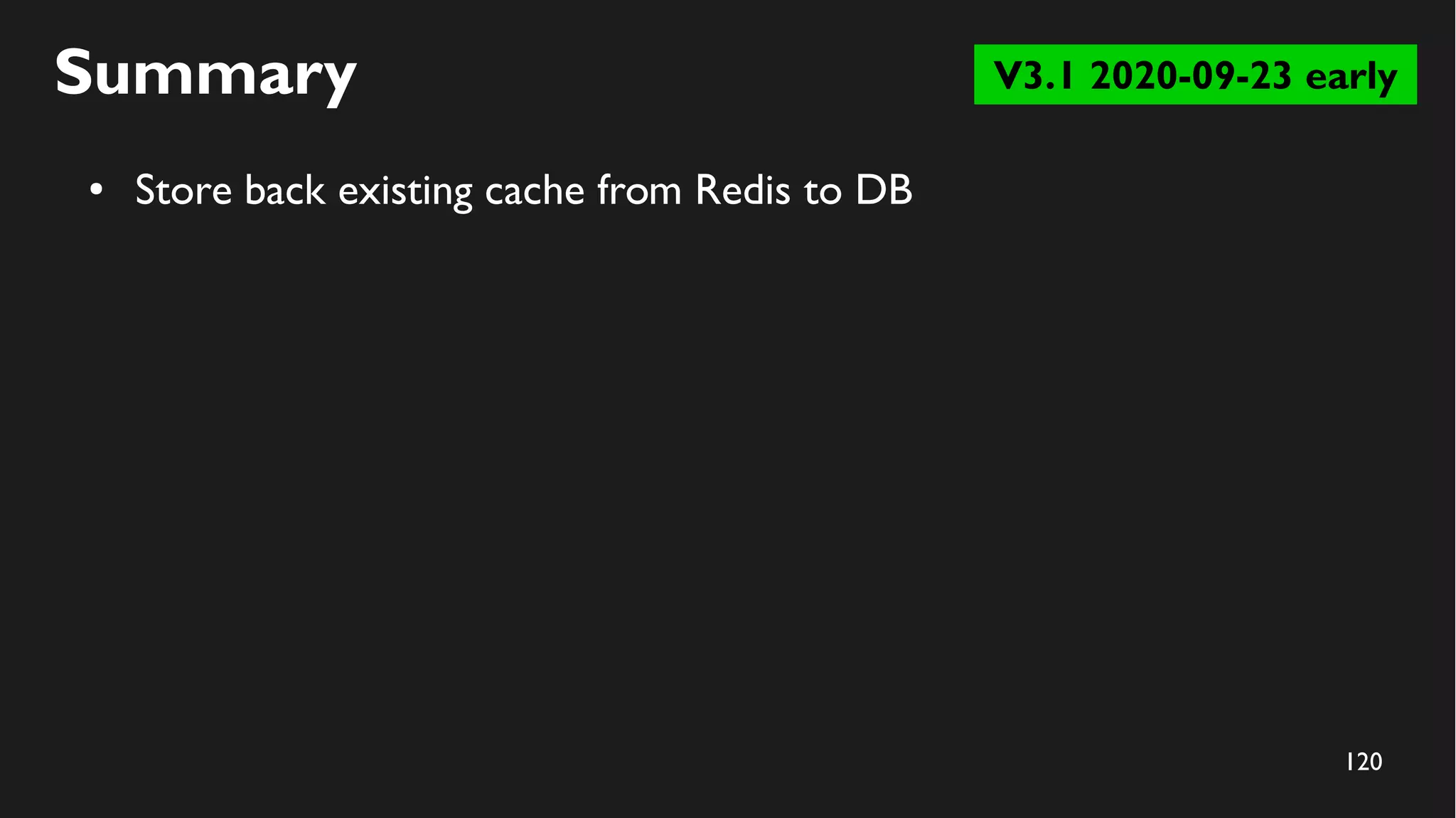

Summary
● Store back existing cache from Redis to DB
V3.1 2020-09-23 early

121. 121
Sequence diagram

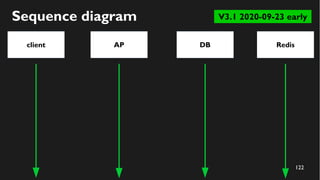

122. 122
Sequence diagram
client AP RedisDB
V3.1 2020-09-23 early

123. 123
Sequence diagram
client AP RedisDB
run
V3.1 2020-09-23 early

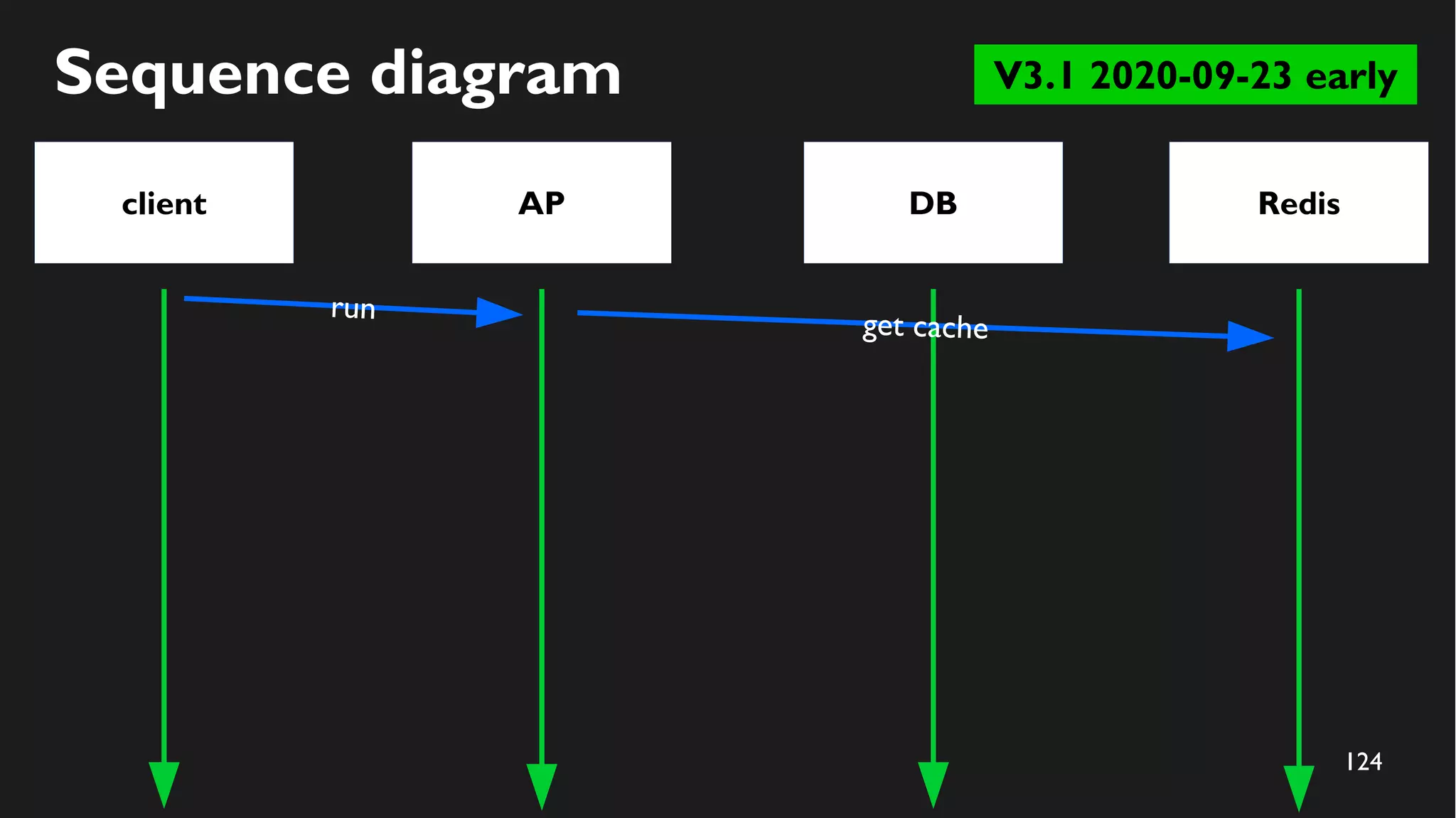

124. 124
Sequence diagram
client AP RedisDB
run get cache
V3.1 2020-09-23 early

125. 125
Sequence diagram
client AP RedisDB
run get cache
return cache
V3.1 2020-09-23 early

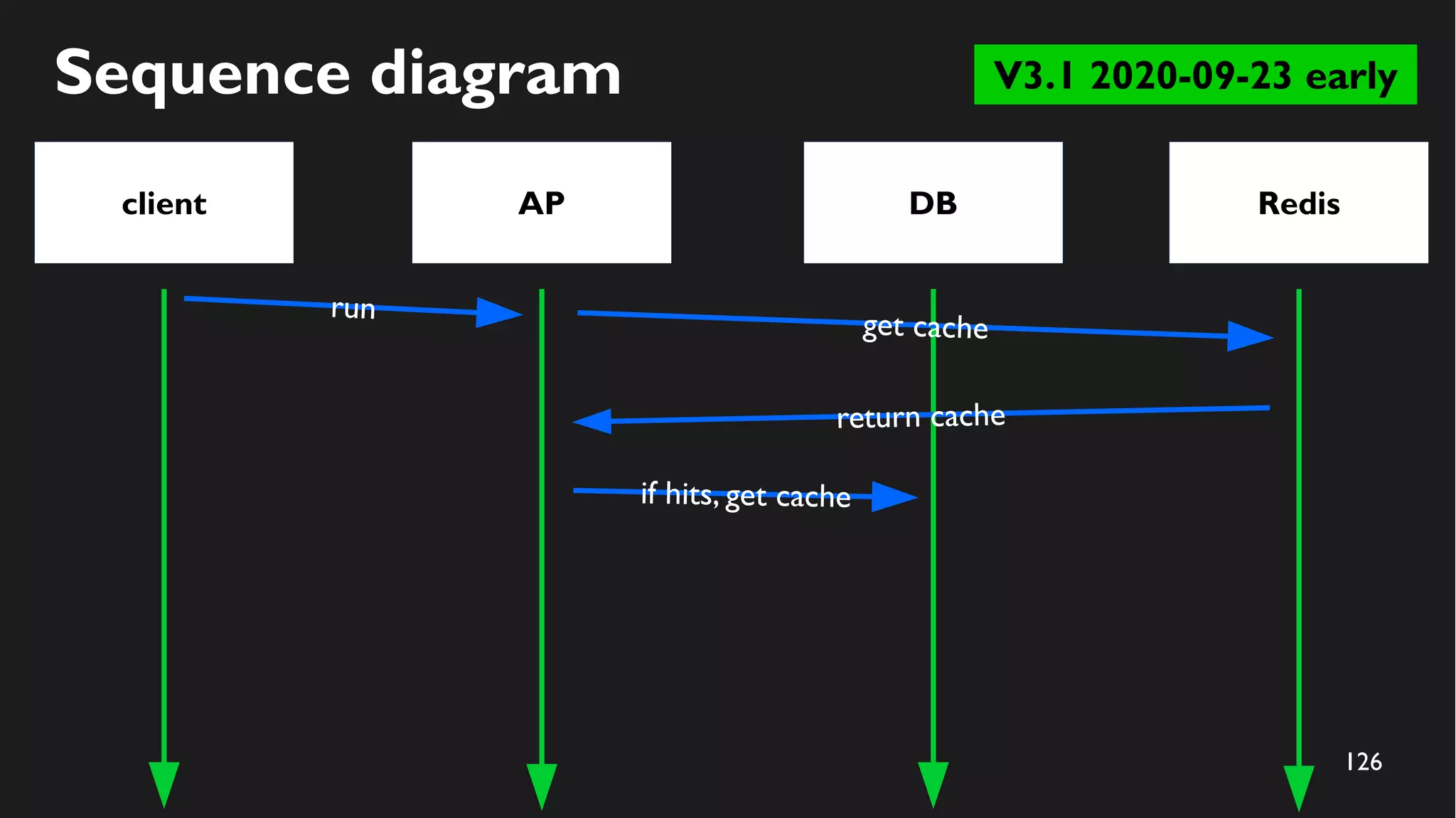

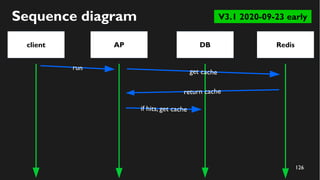

126. 126
Sequence diagram
client AP RedisDB
run get cache
return cache
if hits, get cache
V3.1 2020-09-23 early

127. 127
Sequence diagram
client AP RedisDB
run get cache
return cache
if hits, get cache
return cache
V3.1 2020-09-23 early

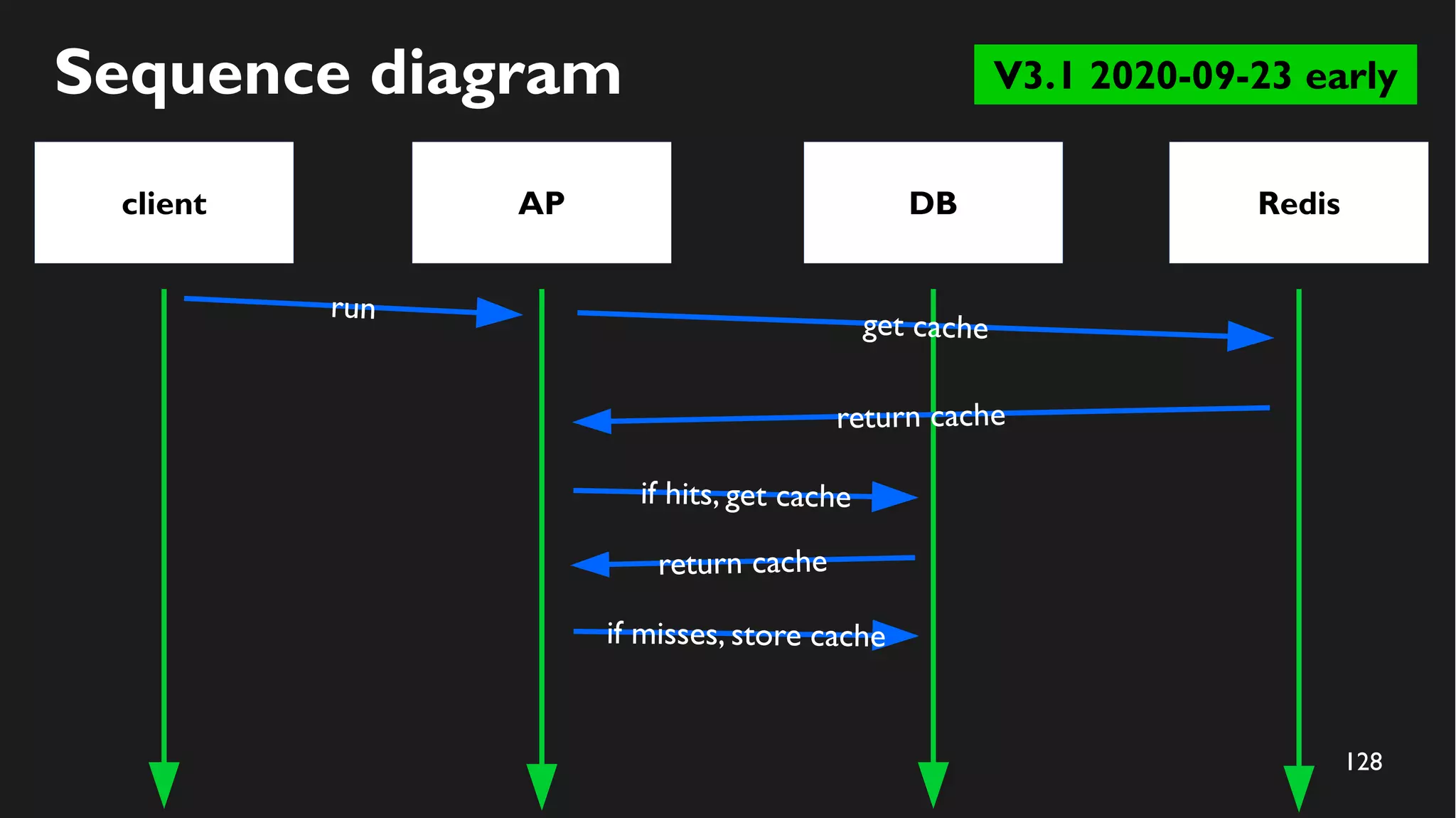

128. 128
Sequence diagram
client AP RedisDB
run get cache
return cache
if hits, get cache
return cache
if misses, store cache
V3.1 2020-09-23 early

129. 129

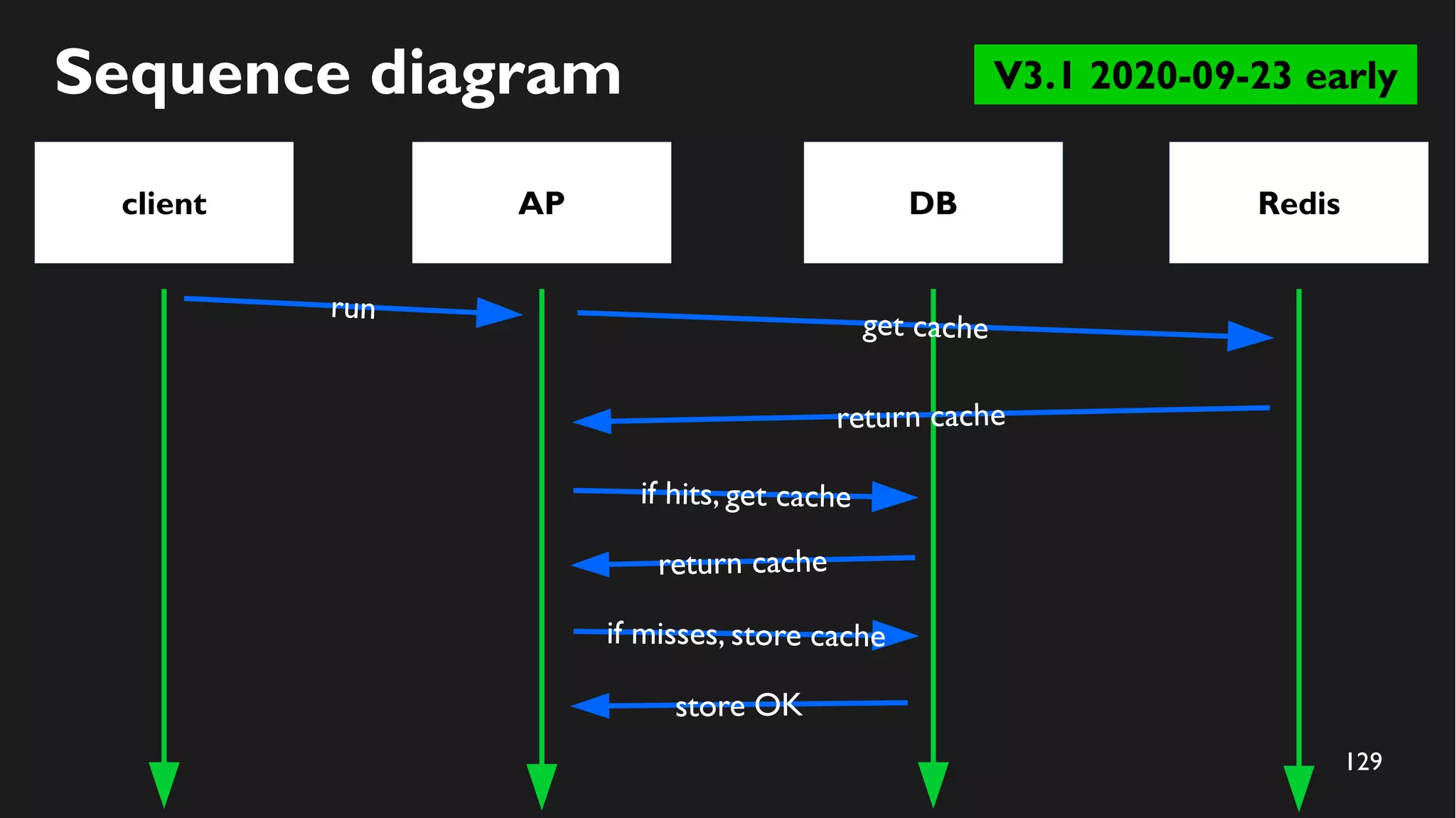

Sequence diagram
client AP RedisDB
run get cache
return cache
if hits, get cache
return cache
if misses, store cache
store OK
V3.1 2020-09-23 early

130. 130

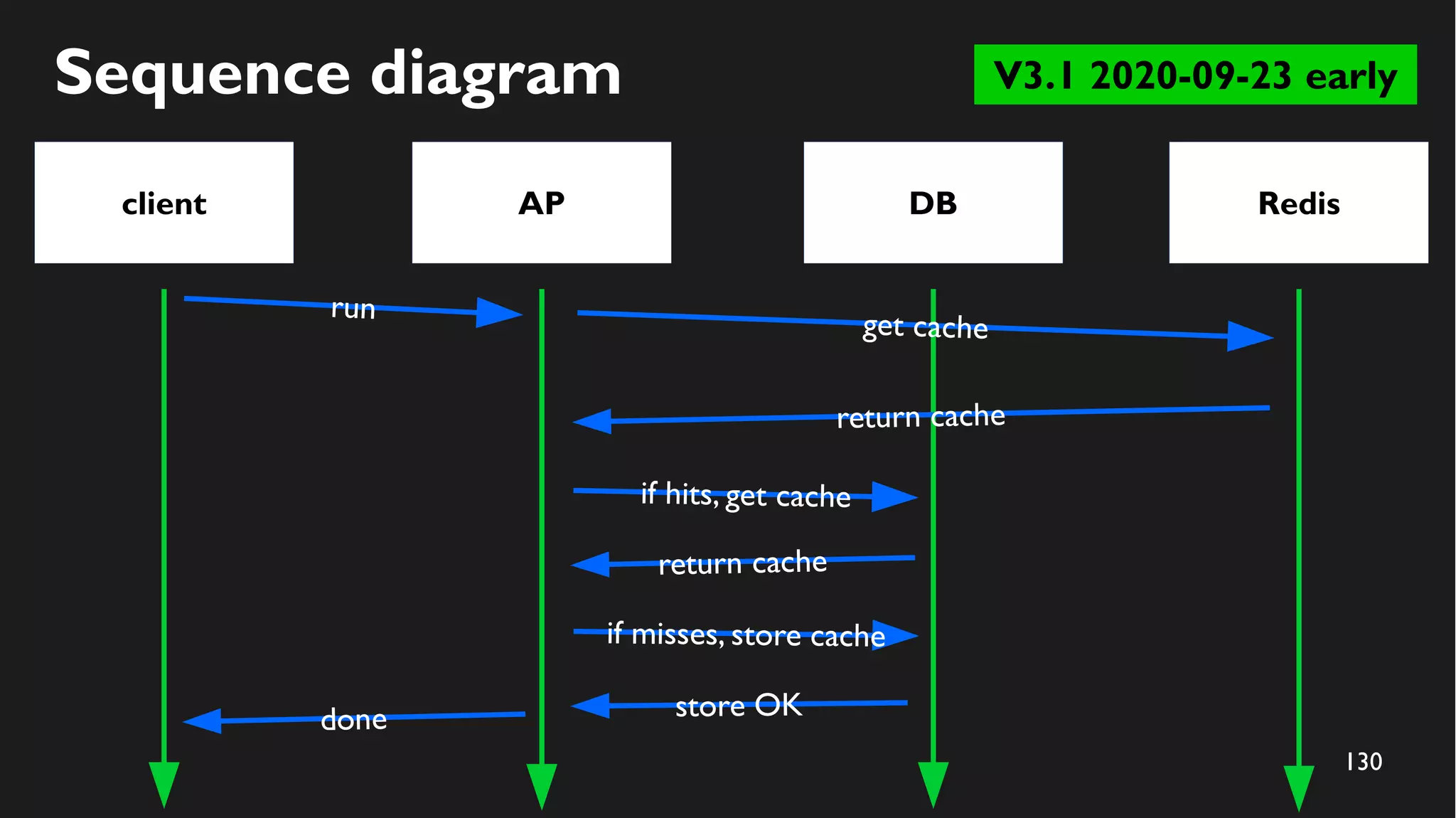

Sequence diagram
client AP RedisDB
run get cache
return cache
if hits, get cache
return cache
done
if misses, store cache
store OK
V3.1 2020-09-23 early

131. 131
V3.2 2020-09-23 mid

132. 132
Summary V3.2 2020-09-23 mid

133. 133
Summary
● POI history cache TTL from 1d to 14d
V3.2 2020-09-23 mid

134. 134
Summary
● POI history cache TTL from 1d to 14d
– Balance diversity
V3.2 2020-09-23 mid

135. 135
Summary
● POI history cache TTL from 1d to 14d
– Balance diversity
– Flatten burst activities
V3.2 2020-09-23 mid

136. 136

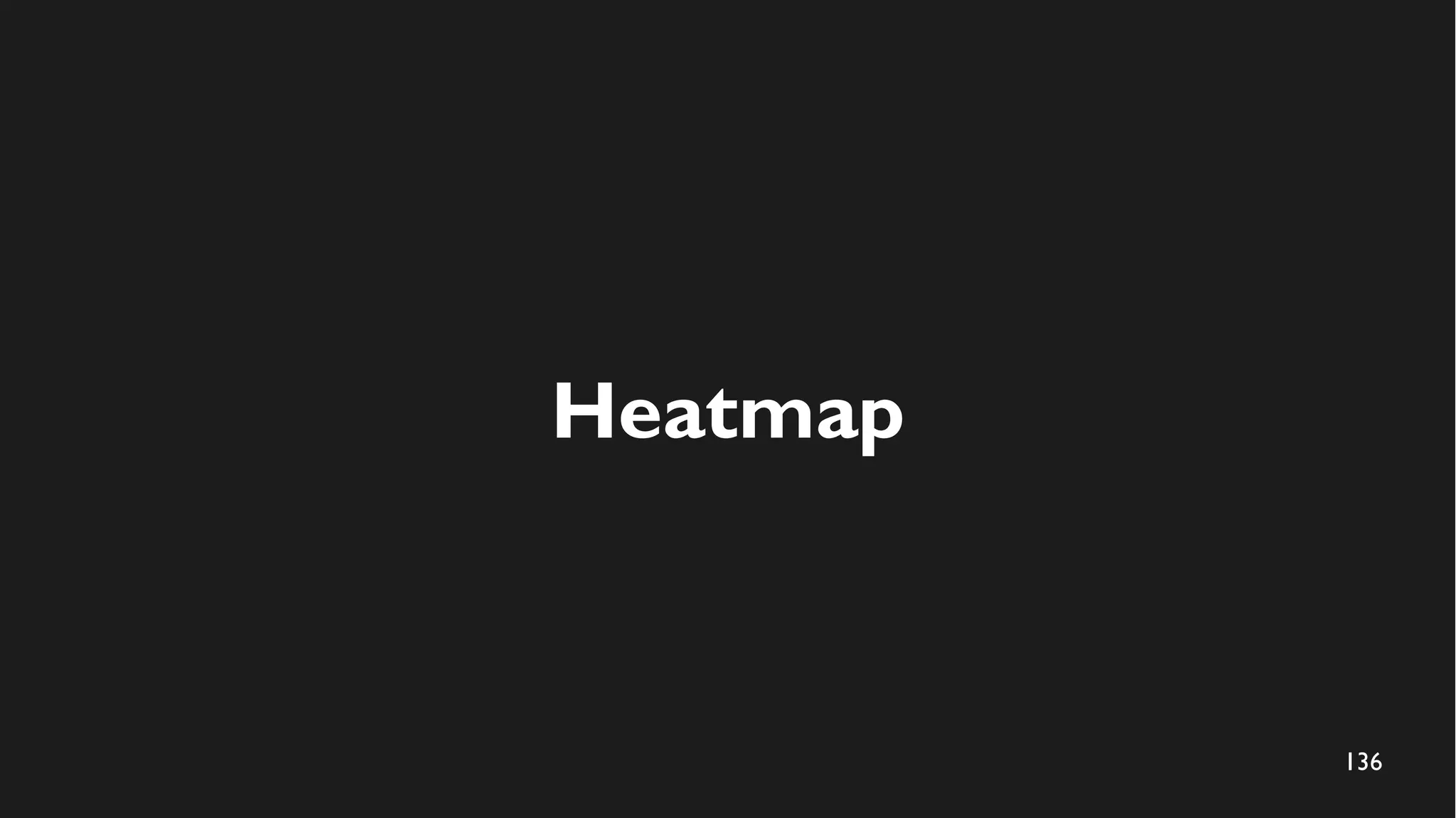

Heatmap

137. 137

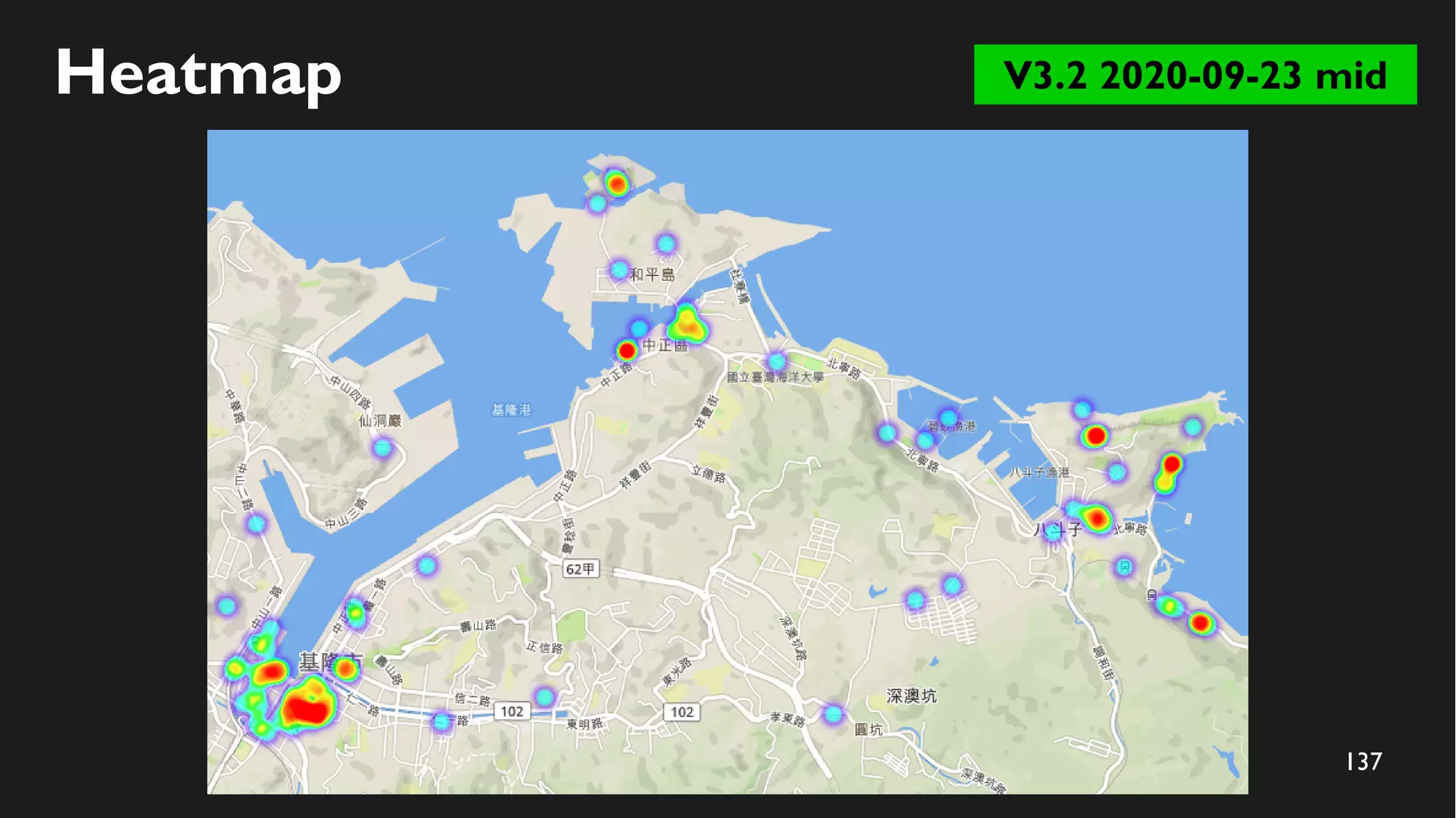

Heatmap V3.2 2020-09-23 mid

138. 138
V3.3 2020-09-24 early

139. 139
Summary V3.3 2020-09-24 early

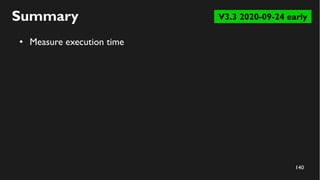

140. 140
Summary
● Measure execution time
V3.3 2020-09-24 early

141. 141

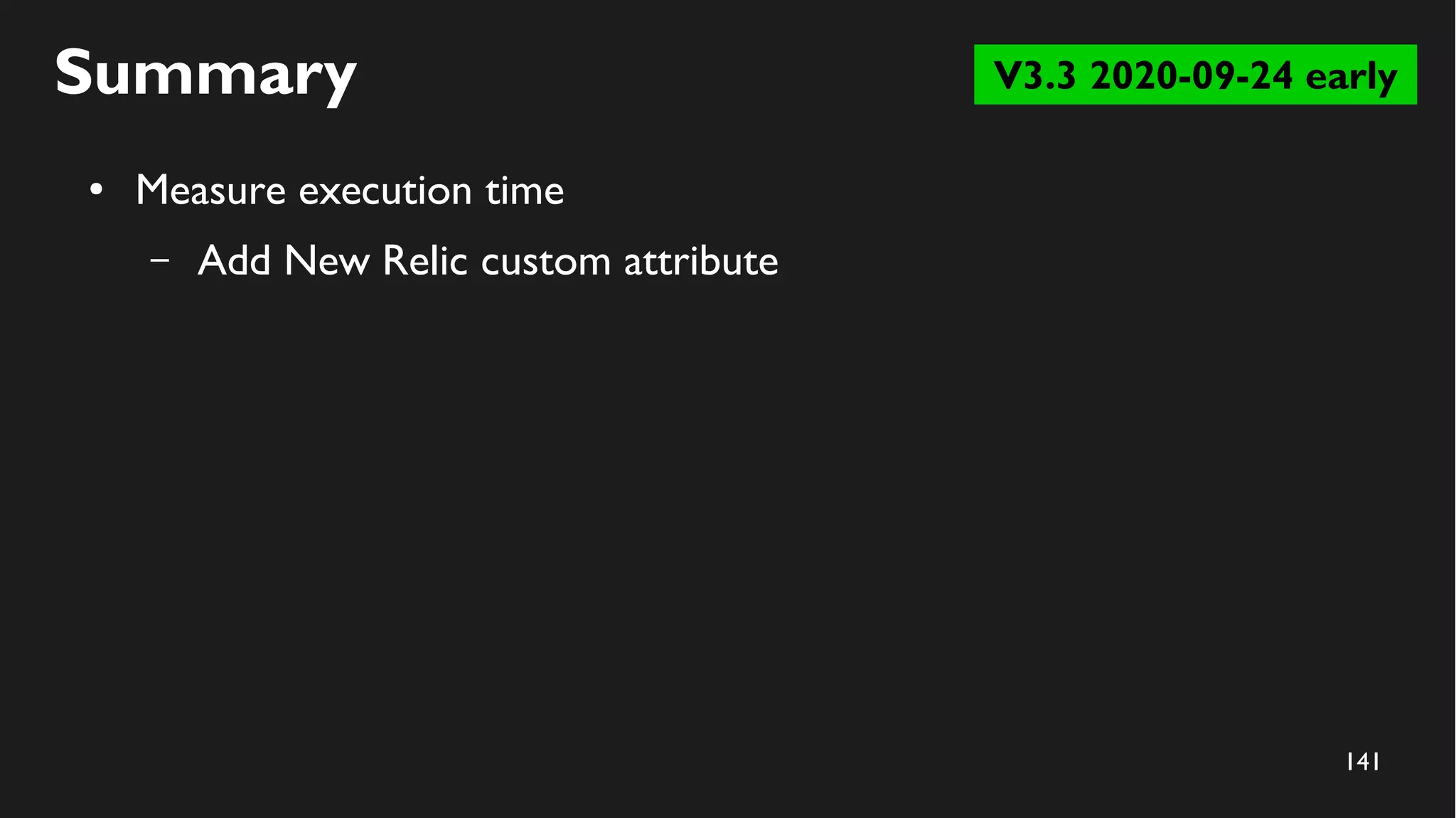

Summary
● Measure execution time
– Add New Relic custom attribute
V3.3 2020-09-24 early

142. 142
New Relic custom attributes

143. 143
New Relic custom attributes V3.3 2020-09-24 early

144. 144

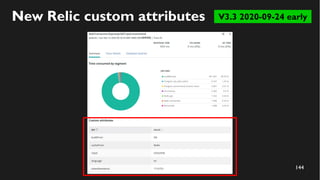

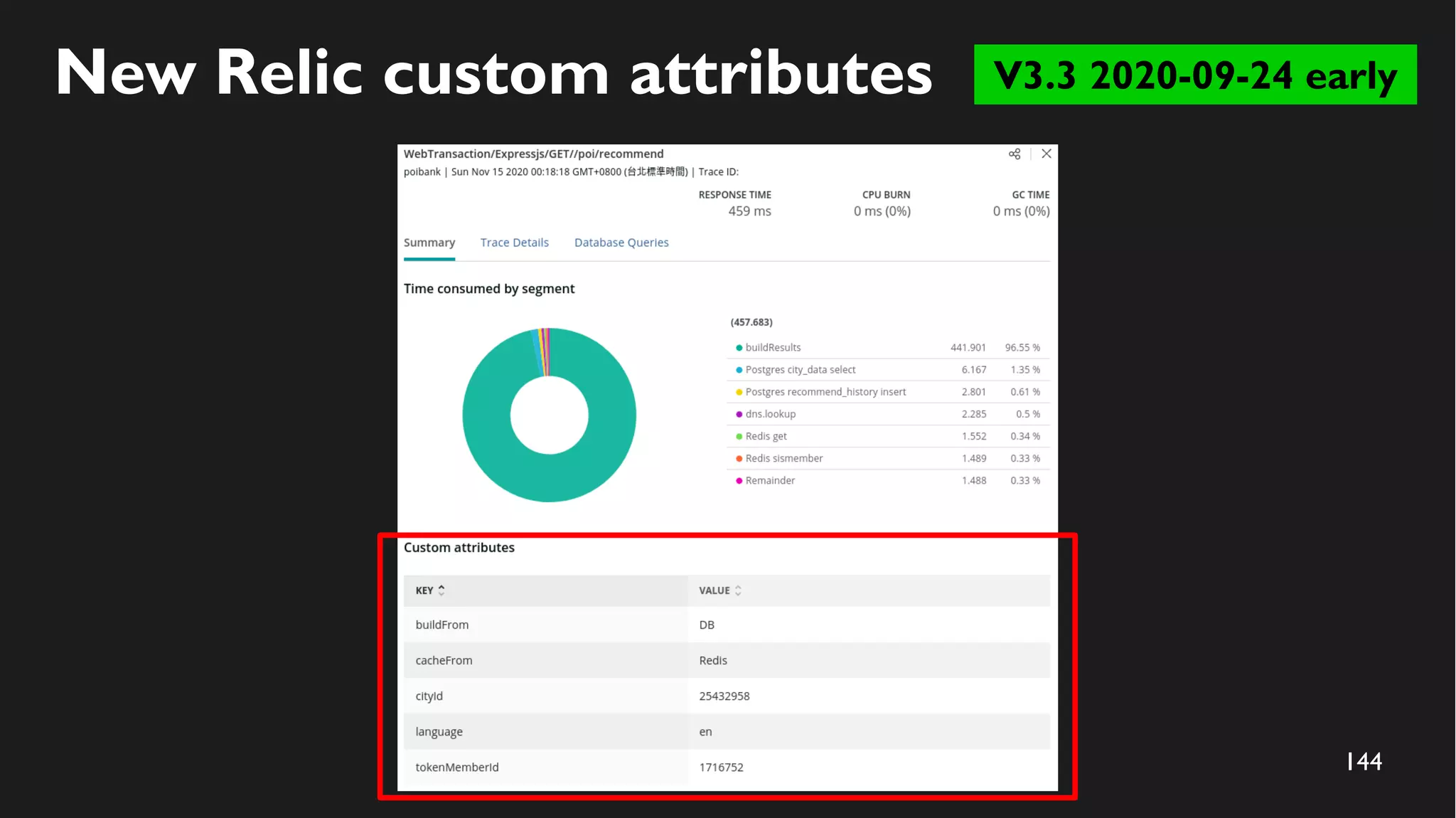

New Relic custom attributes V3.3 2020-09-24 early

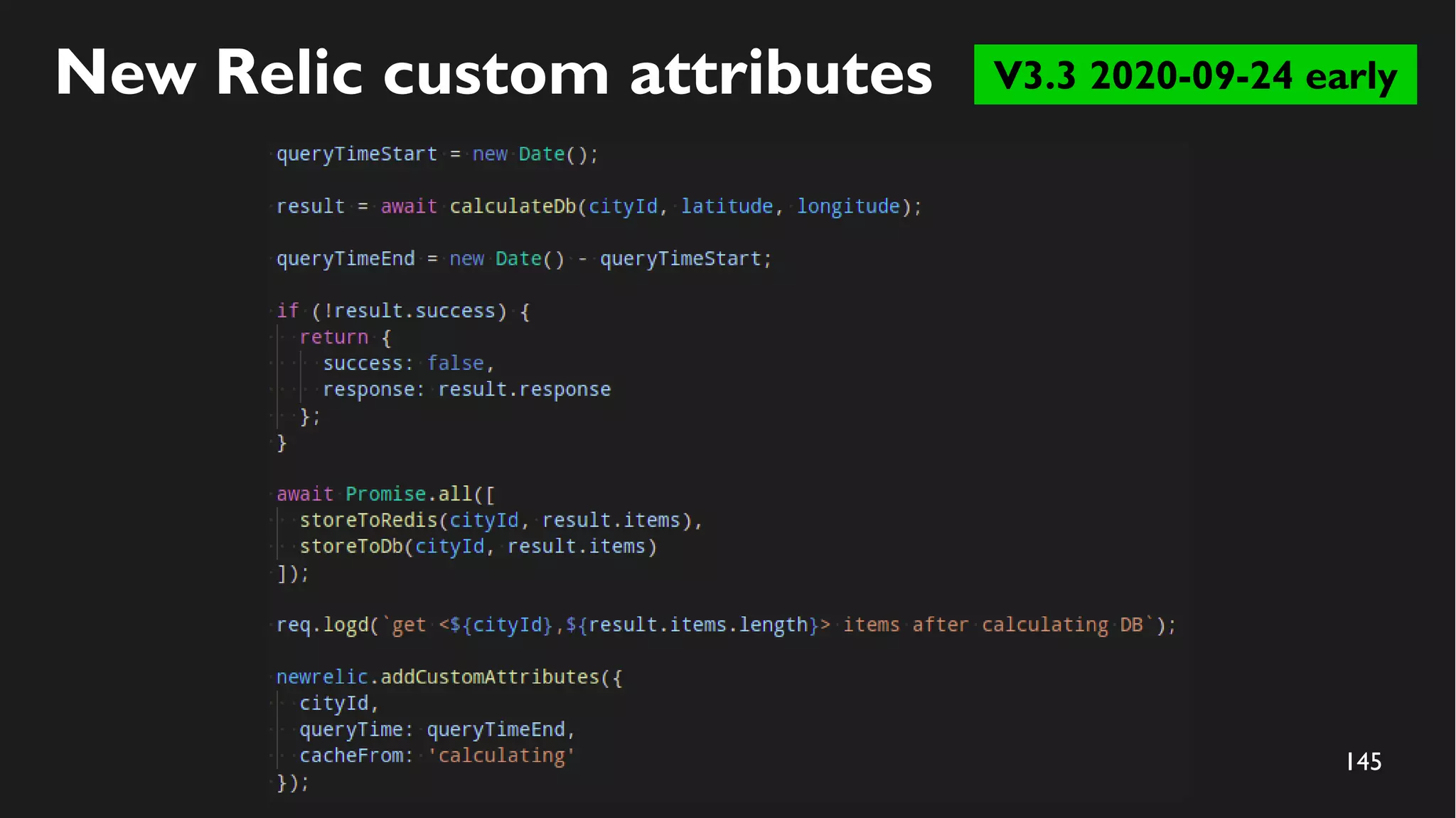

145. 145
New Relic custom attributes V3.3 2020-09-24 early

146. 146
V3.4 2020-09-24 mid

147. 147
Summary V3.4 2020-09-24 mid

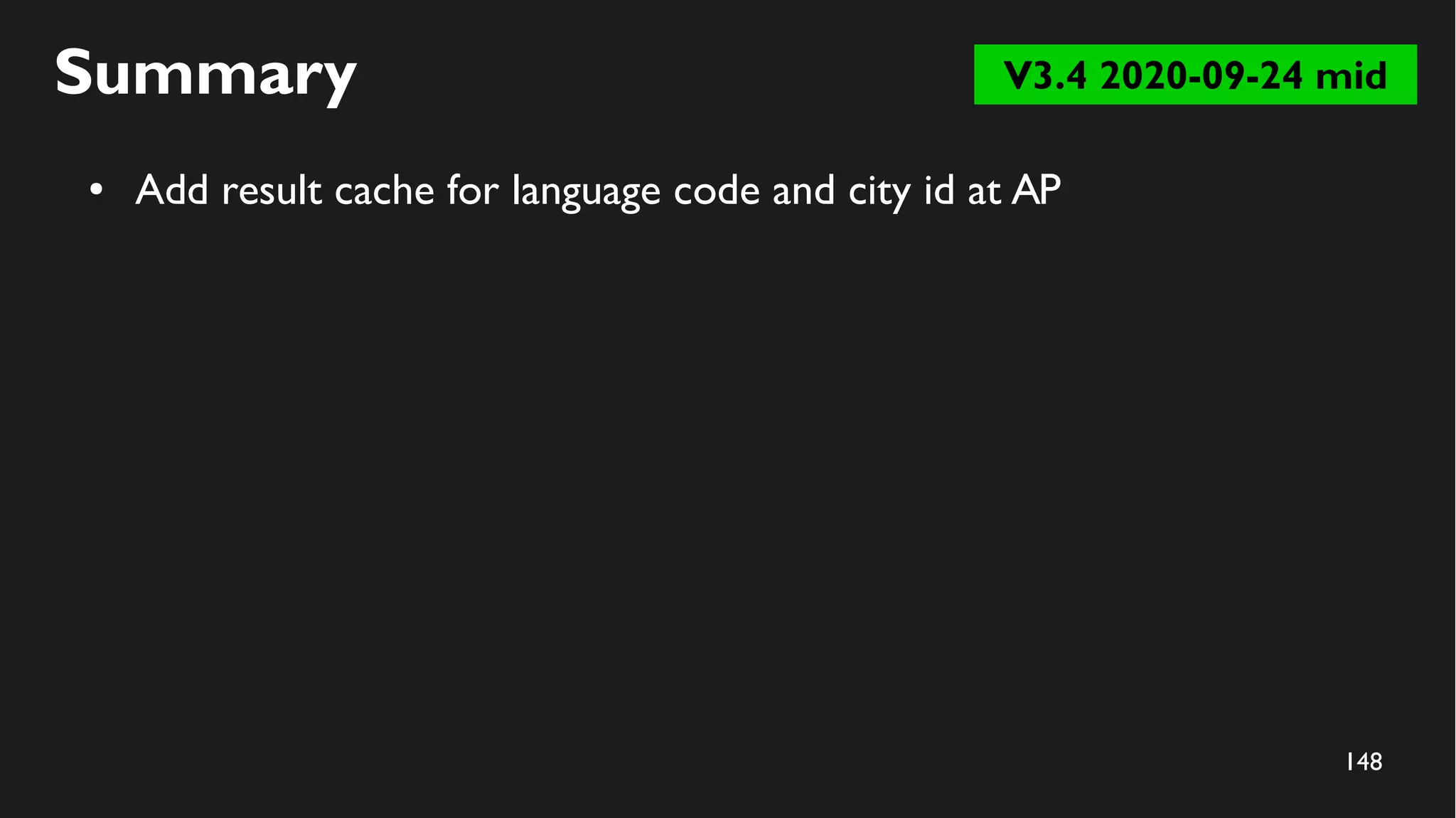

148. 148
Summary
● Add result cache for language code and city id at AP
V3.4 2020-09-24 mid

149. 149
Summary
● Add result cache for language code and city id at AP
● Measure execution time
V3.4 2020-09-24 mid

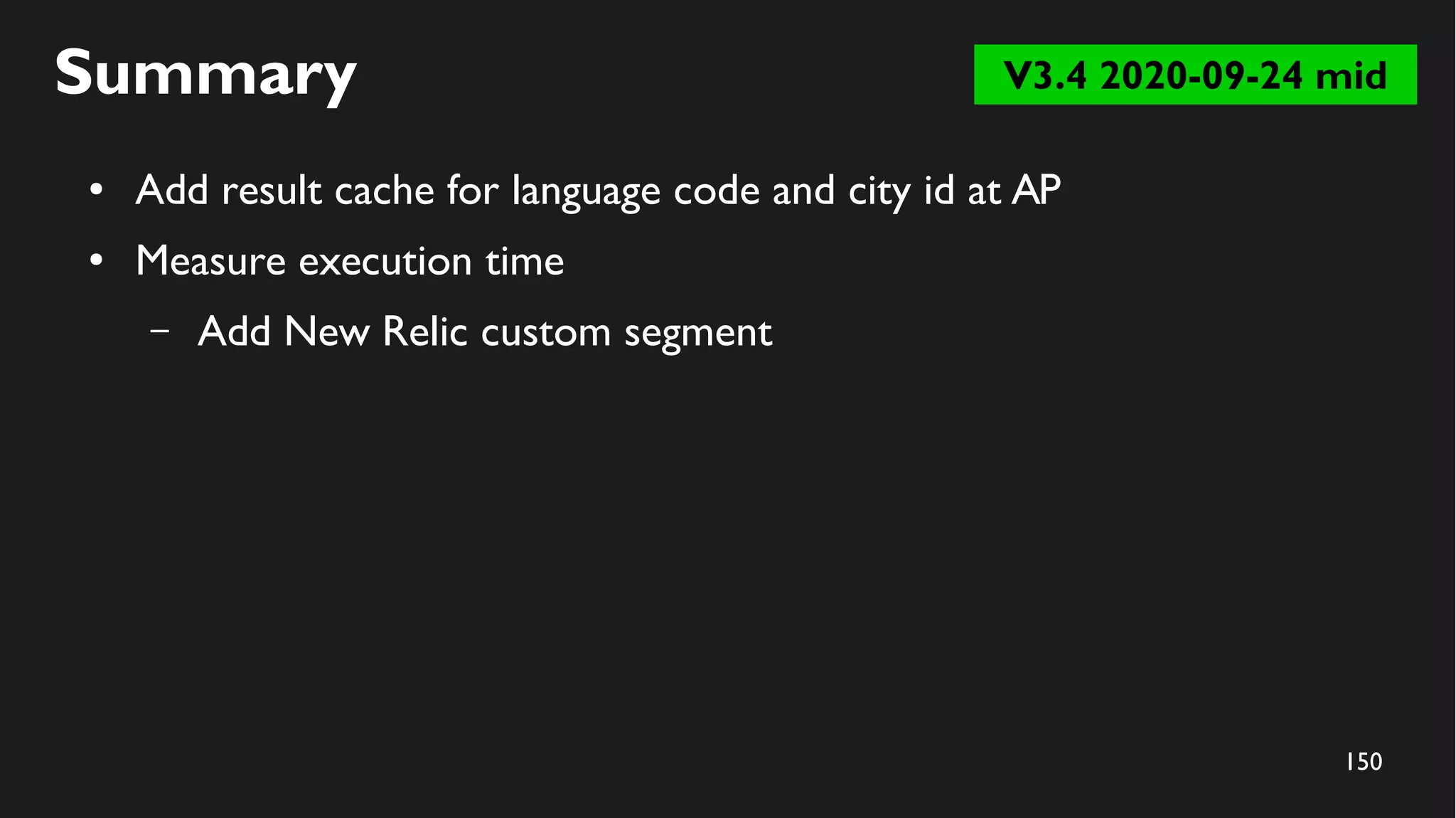

150. 150
Summary
● Add result cache for language code and city id at AP
● Measure execution time
– Add New Relic custom segment
V3.4 2020-09-24 mid

151. 151
Sequence diagram

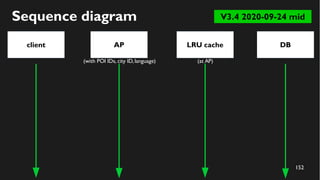

152. 152
Sequence diagram
client AP DBLRU cache
(with POI IDs, city ID,language)
V3.4 2020-09-24 mid
(at AP)

153. 153
Sequence diagram
client AP DBLRU cache
get results
(with POI IDs, city ID,language)
V3.4 2020-09-24 mid
(at AP)

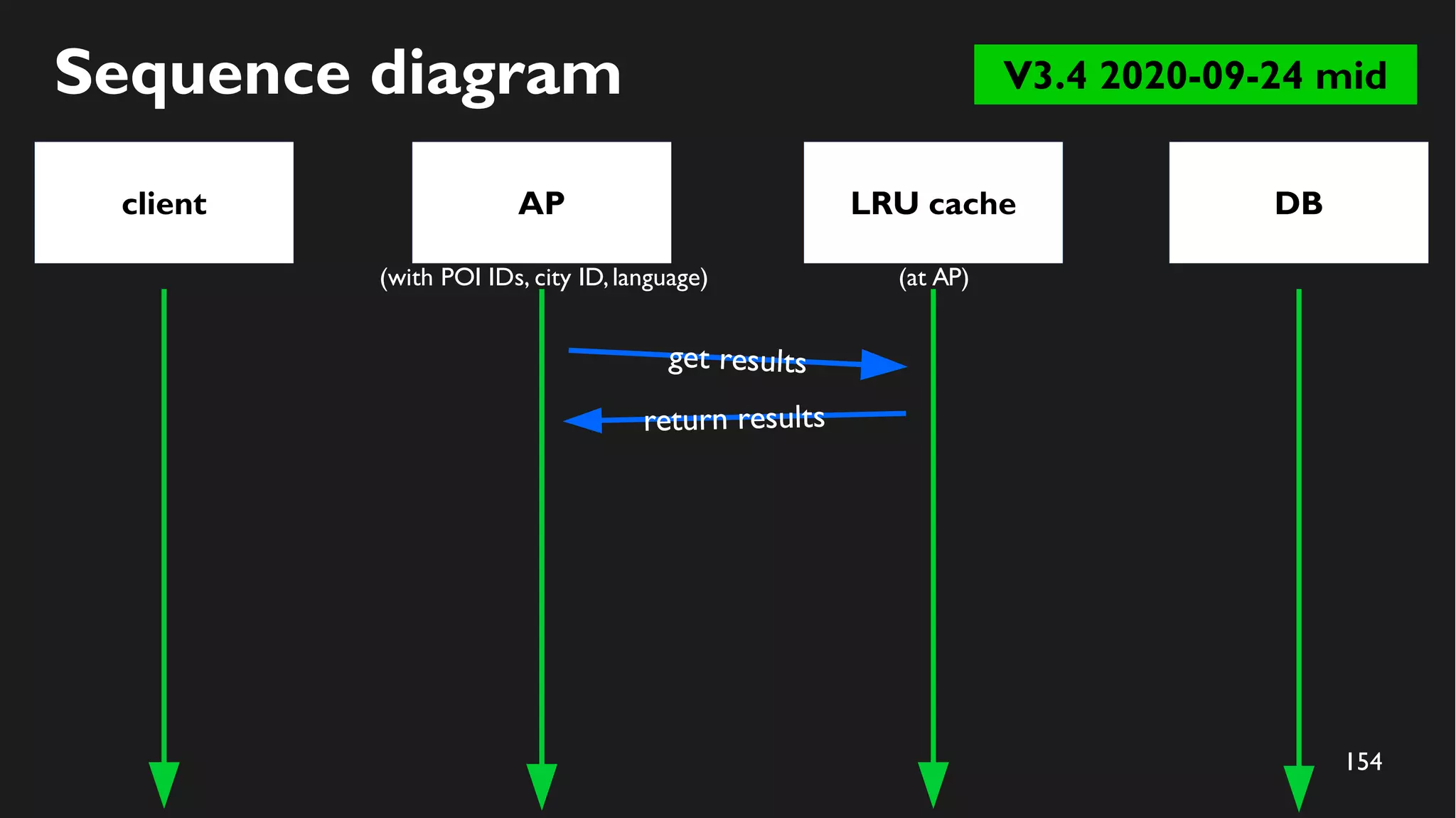

154. 154
Sequence diagram
client AP DBLRU cache
get results
(with POI IDs, city ID,language)
return results
V3.4 2020-09-24 mid
(at AP)

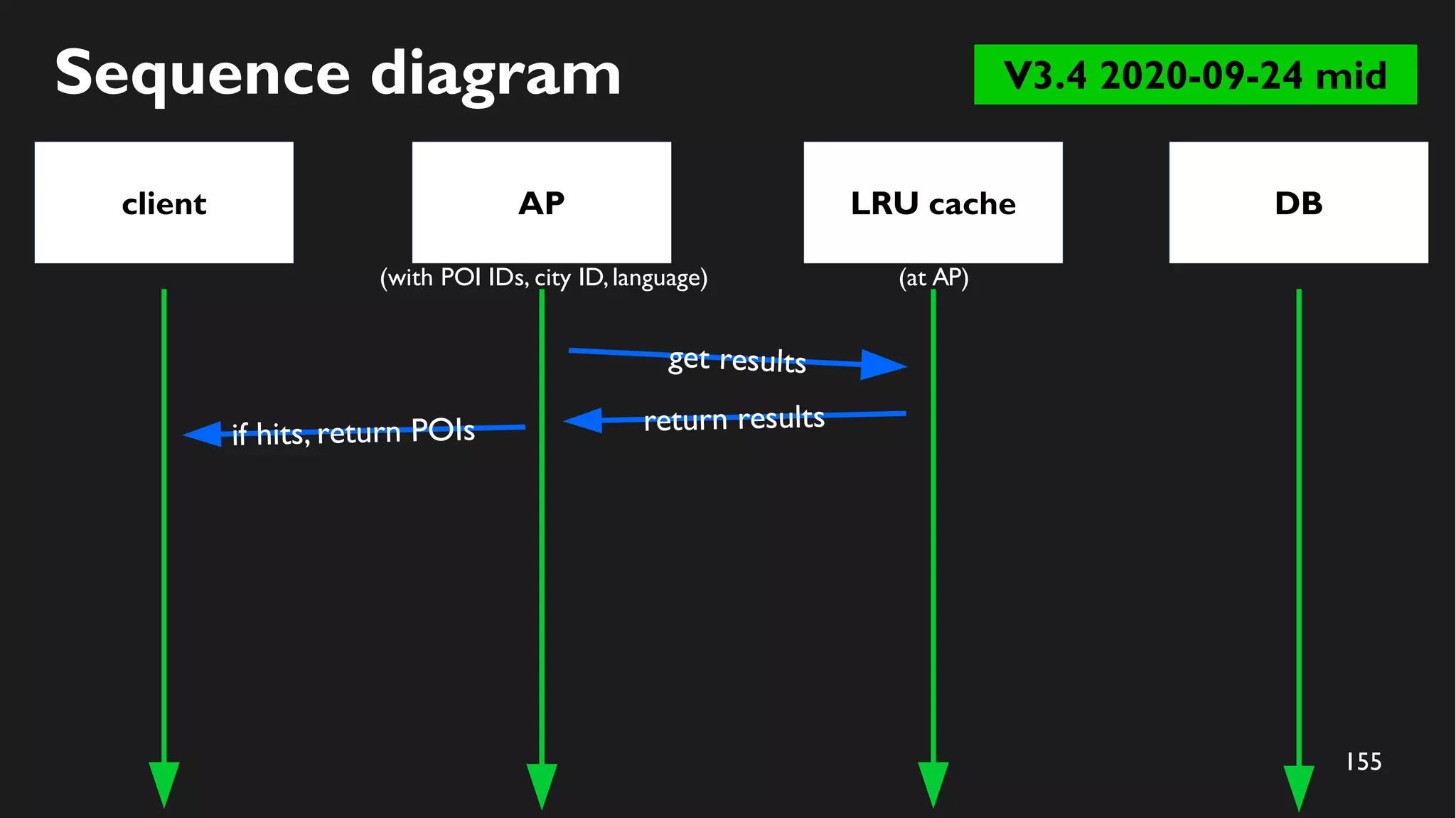

155. 155
Sequence diagram
client AP DBLRU cache
get results
if hits, return POIs
(with POI IDs, city ID,language)
return results
V3.4 2020-09-24 mid
(at AP)

156. 156

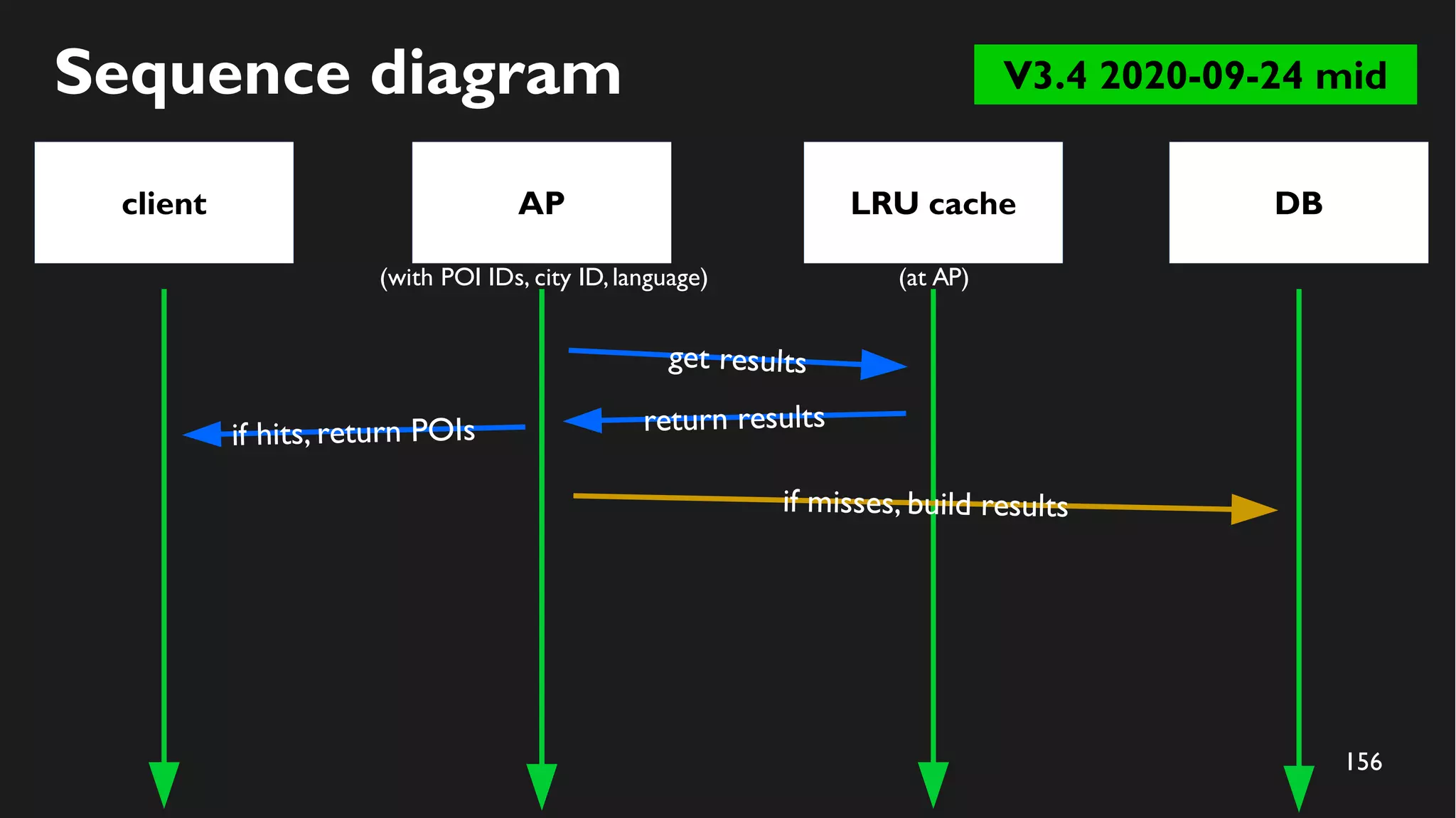

Sequence diagram
client AP DBLRU cache
get results
if hits, return POIs
if misses, build results
(with POI IDs, city ID,language)
return results
V3.4 2020-09-24 mid
(at AP)

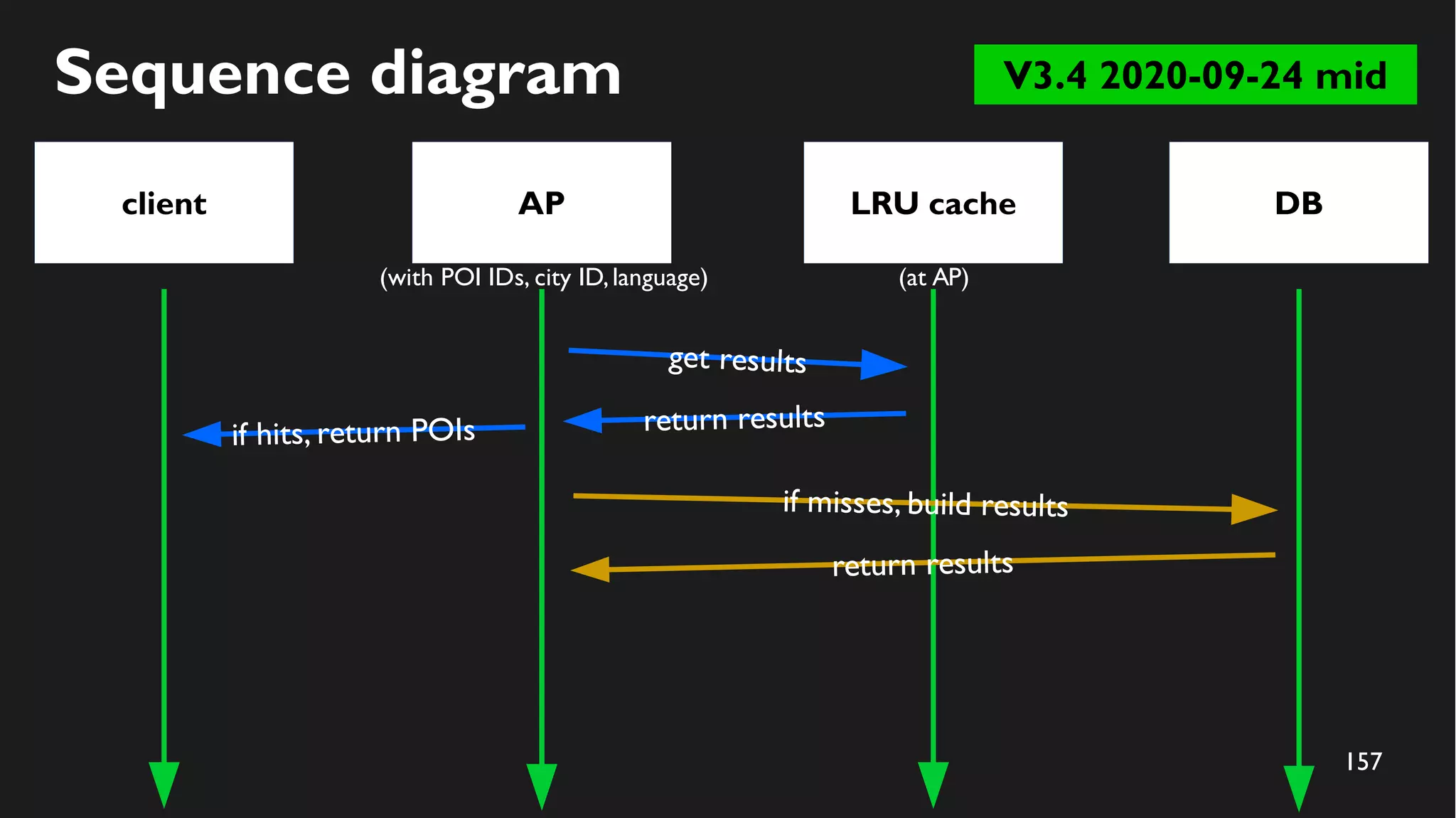

157. 157
Sequence diagram
client AP DBLRU cache
get results
if hits, return POIs
if misses, build results
return results
(with POI IDs, city ID,language)
return results
V3.4 2020-09-24 mid
(at AP)

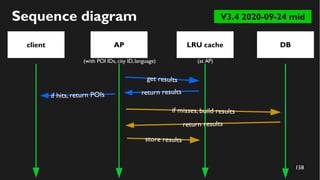

158. 158
Sequence diagram
client AP DBLRU cache
get results
if hits, return POIs
if misses, build results
return results
store results
(with POI IDs, city ID,language)
return results
V3.4 2020-09-24 mid
(at AP)

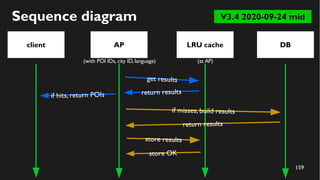

159. 159

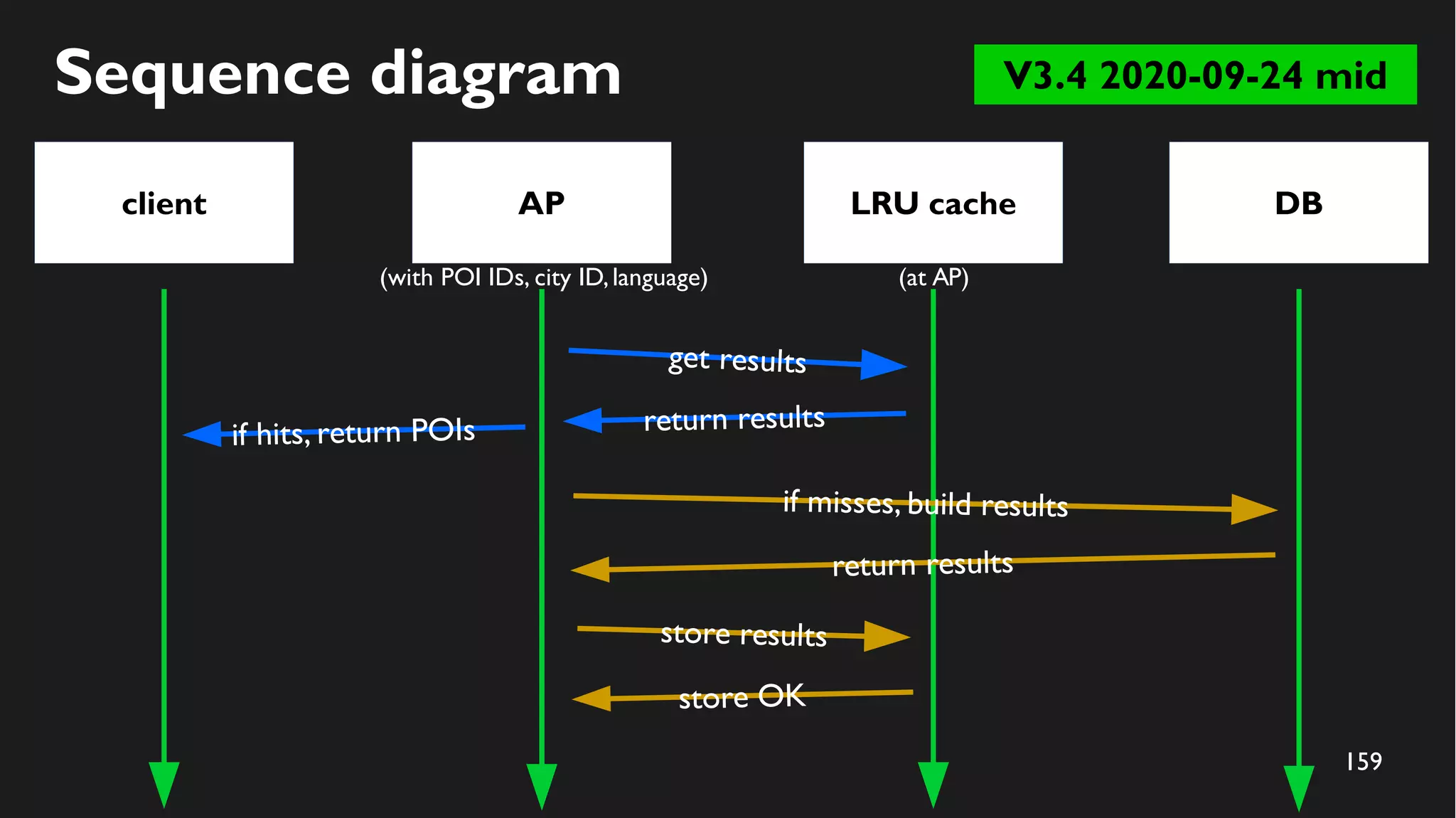

Sequence diagram
client AP DBLRU cache
get results
if hits, return POIs
if misses, build results
return results
store results
store OK
(with POI IDs, city ID,language)
return results
V3.4 2020-09-24 mid
(at AP)

160. 160
Sequence diagram
client AP DBLRU cache
get results
if hits, return POIs
if misses, build results
return results
store results
return POIs store OK
(with POI IDs, city ID,language)
return results
V3.4 2020-09-24 mid
(at AP)

161. 161
New Relic custom segments

162. 162

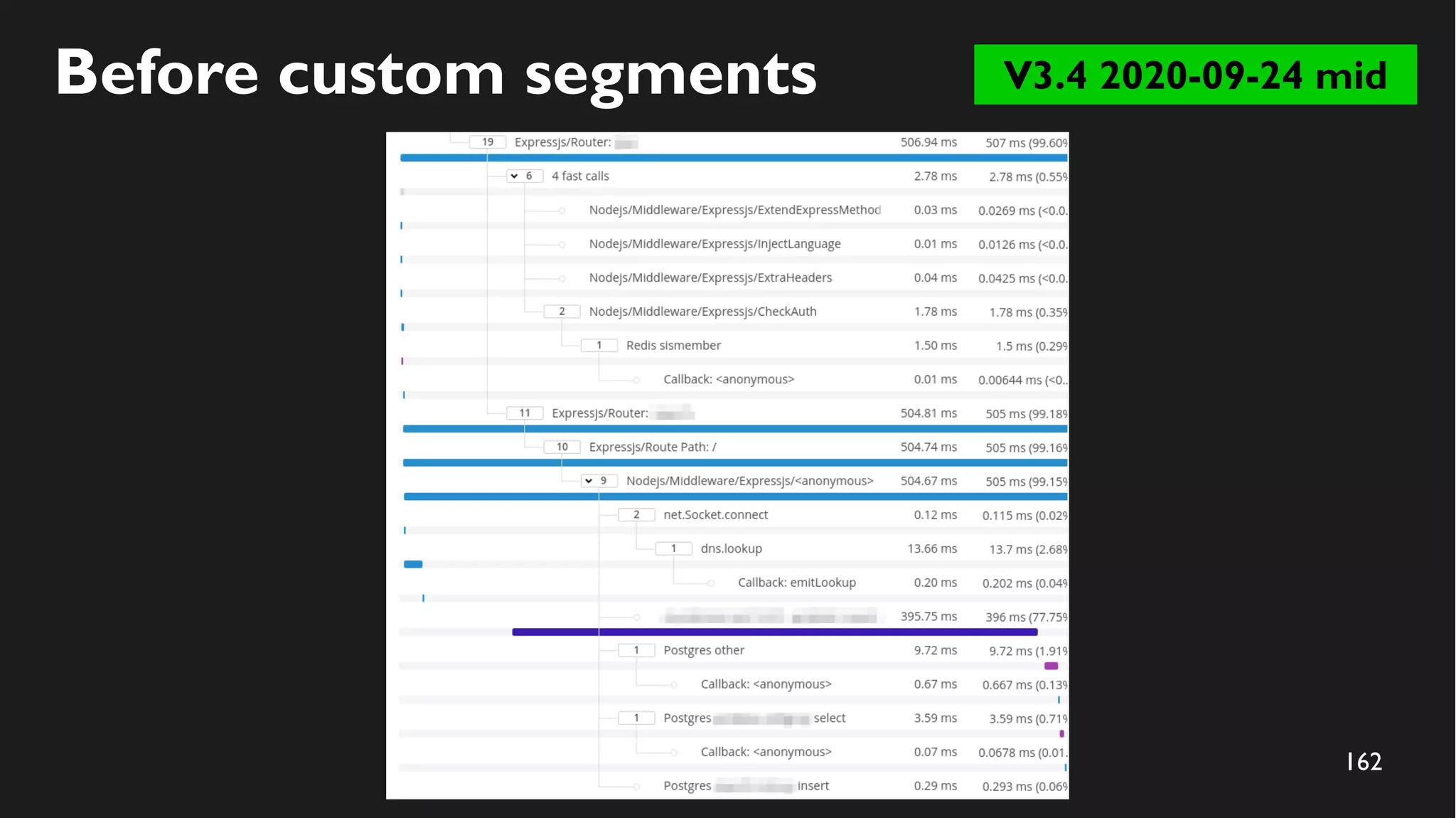

Before custom segments V3.4 2020-09-24 mid

163. 163
After custom segments V3.4 2020-09-24 mid

164. 164

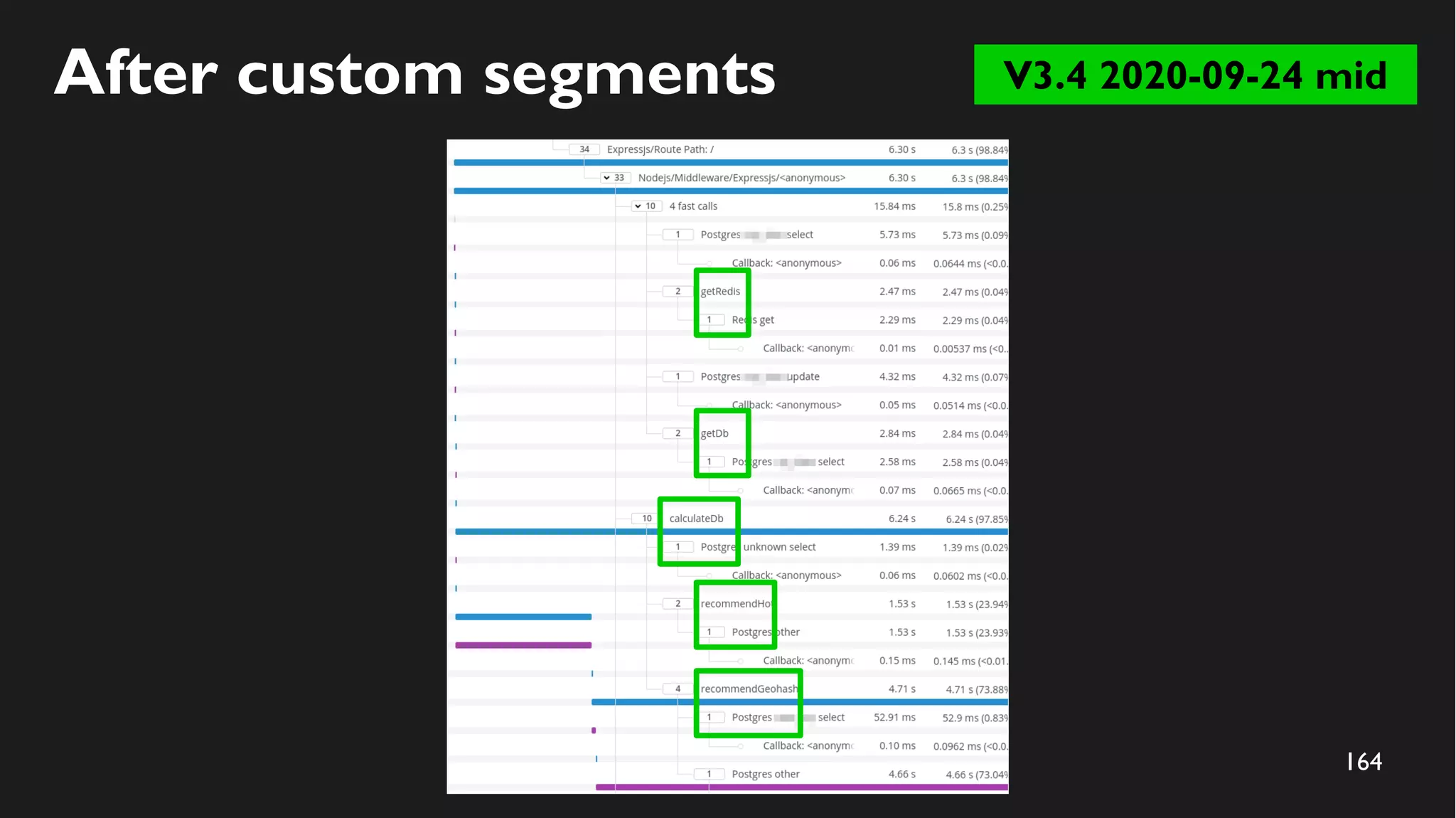

After custom segments V3.4 2020-09-24 mid

165. 165
V3.5 2020-09-24 late

166. 166
Summary V3.5 2020-09-24 late

167. 167
Summary
● Merge join: 70s
V3.5 2020-09-24 late

168. 168
Summary
● Merge join: 70s
– where and group together
V3.5 2020-09-24 late

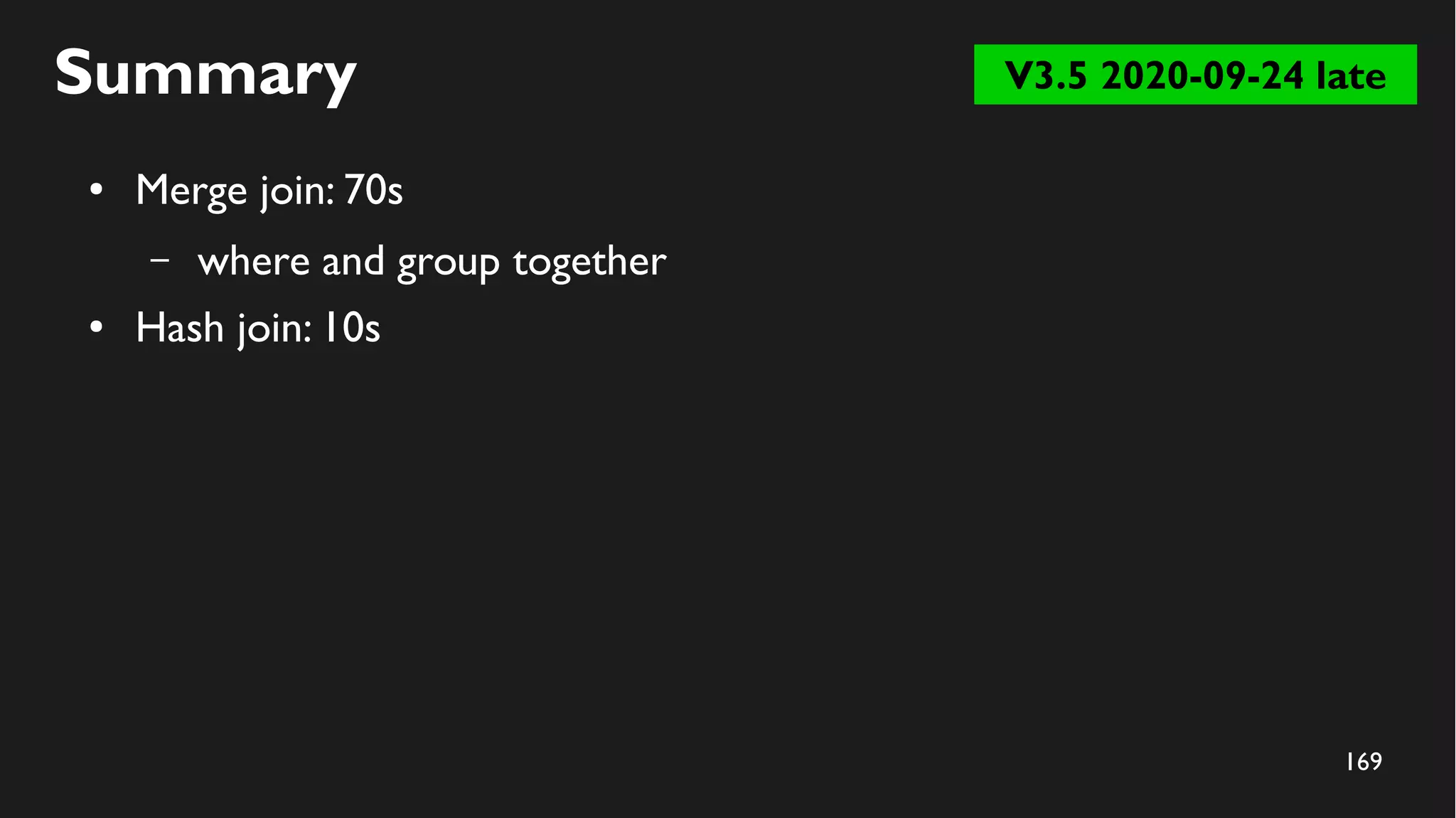

169. 169
Summary
● Merge join: 70s
– where and group together
● Hash join: 10s
V3.5 2020-09-24 late

170. 170
Summary
● Merge join: 70s
– where and group together
● Hash join: 10s
– where first then group
V3.5 2020-09-24 late

171. 171
Merge join

172. 172
Before optimization: 70s V3.5 2020-09-24 late

173. 173
Before optimization: 70s V3.5 2020-09-24 late

174. 174

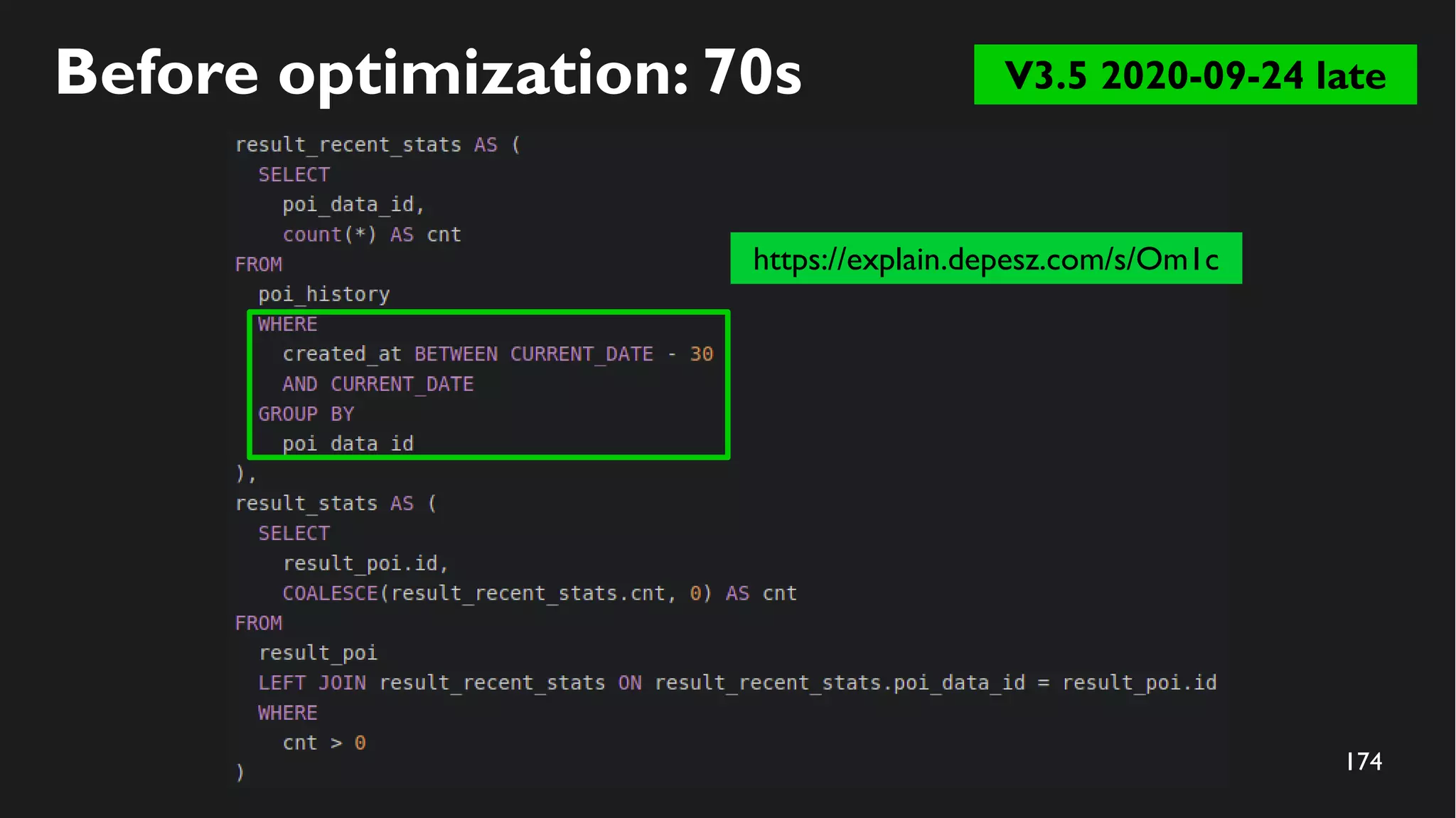

Before optimization: 70s V3.5 2020-09-24 late
https://explain.depesz.com/s/Om1c

175. 175

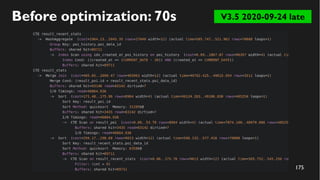

Before optimization: 70s V3.5 2020-09-24 late

176. 176

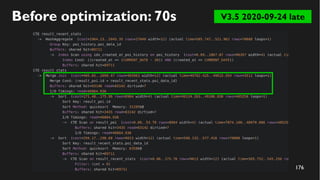

Before optimization: 70s V3.5 2020-09-24 late

177. 177
Hash join

178. 178
After optimization: 10s V3.5 2020-09-24 late

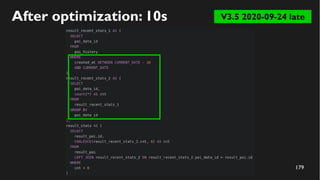

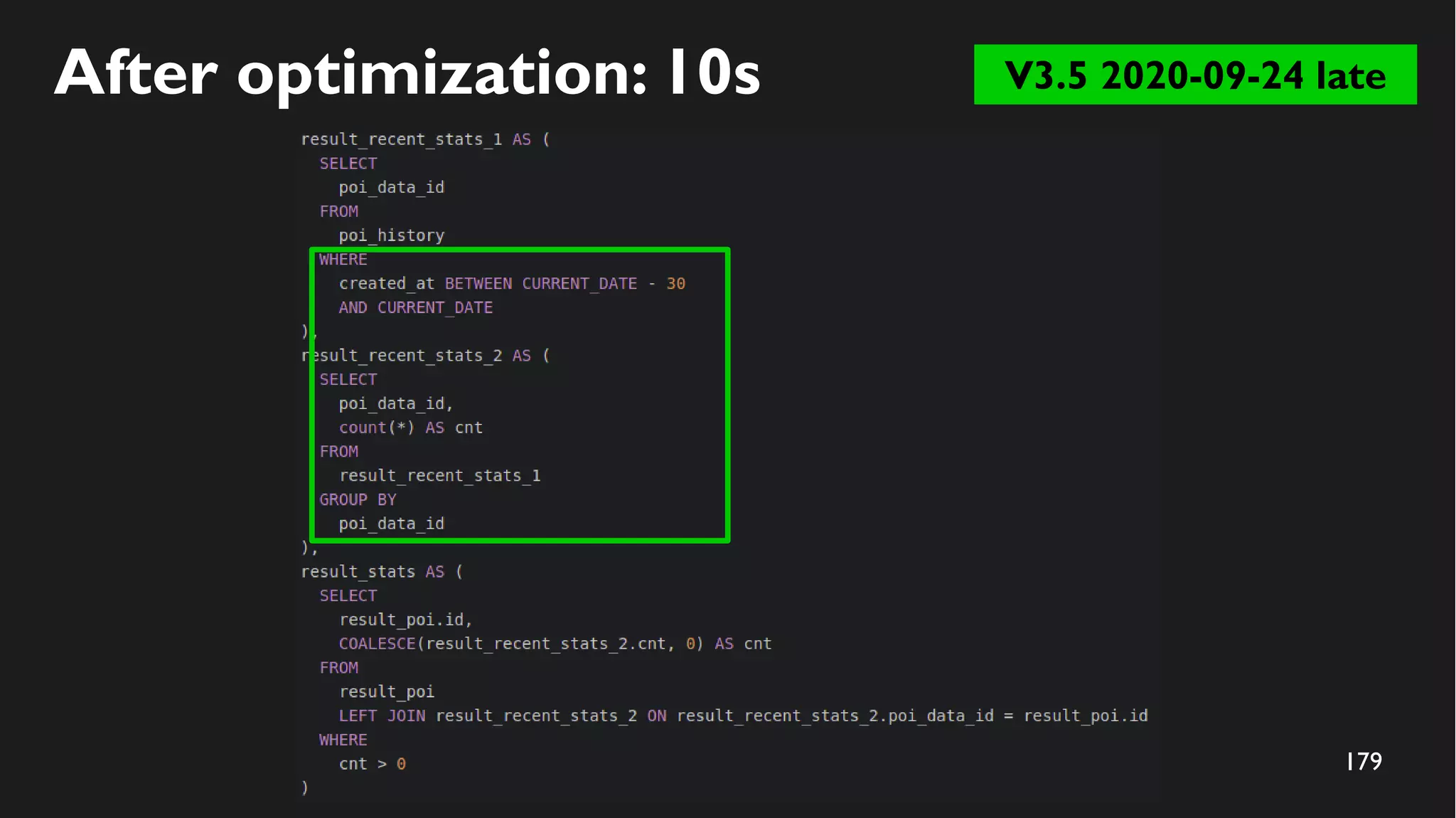

179. 179
After optimization: 10s V3.5 2020-09-24 late

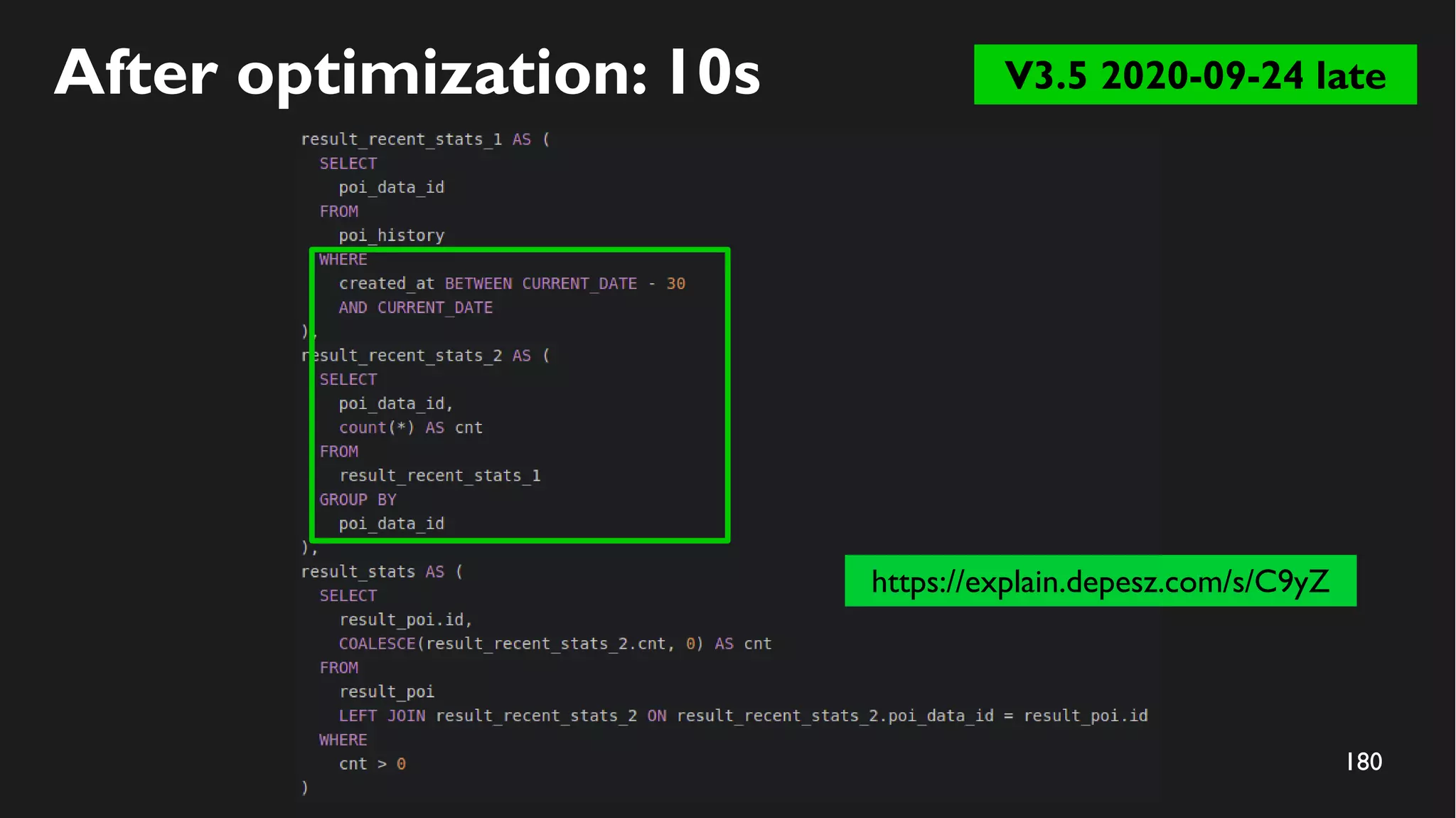

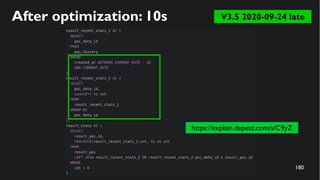

180. 180
After optimization: 10s V3.5 2020-09-24 late
https://explain.depesz.com/s/C9yZ

181. 181
After optimization: 10s V3.5 2020-09-24 late

182. 182

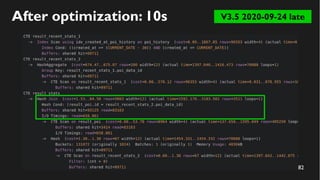

After optimization: 10s V3.5 2020-09-24 late

183. 183
V3.6 2020-09-25 early

184. 184
Summary V3.6 2020-09-25 early

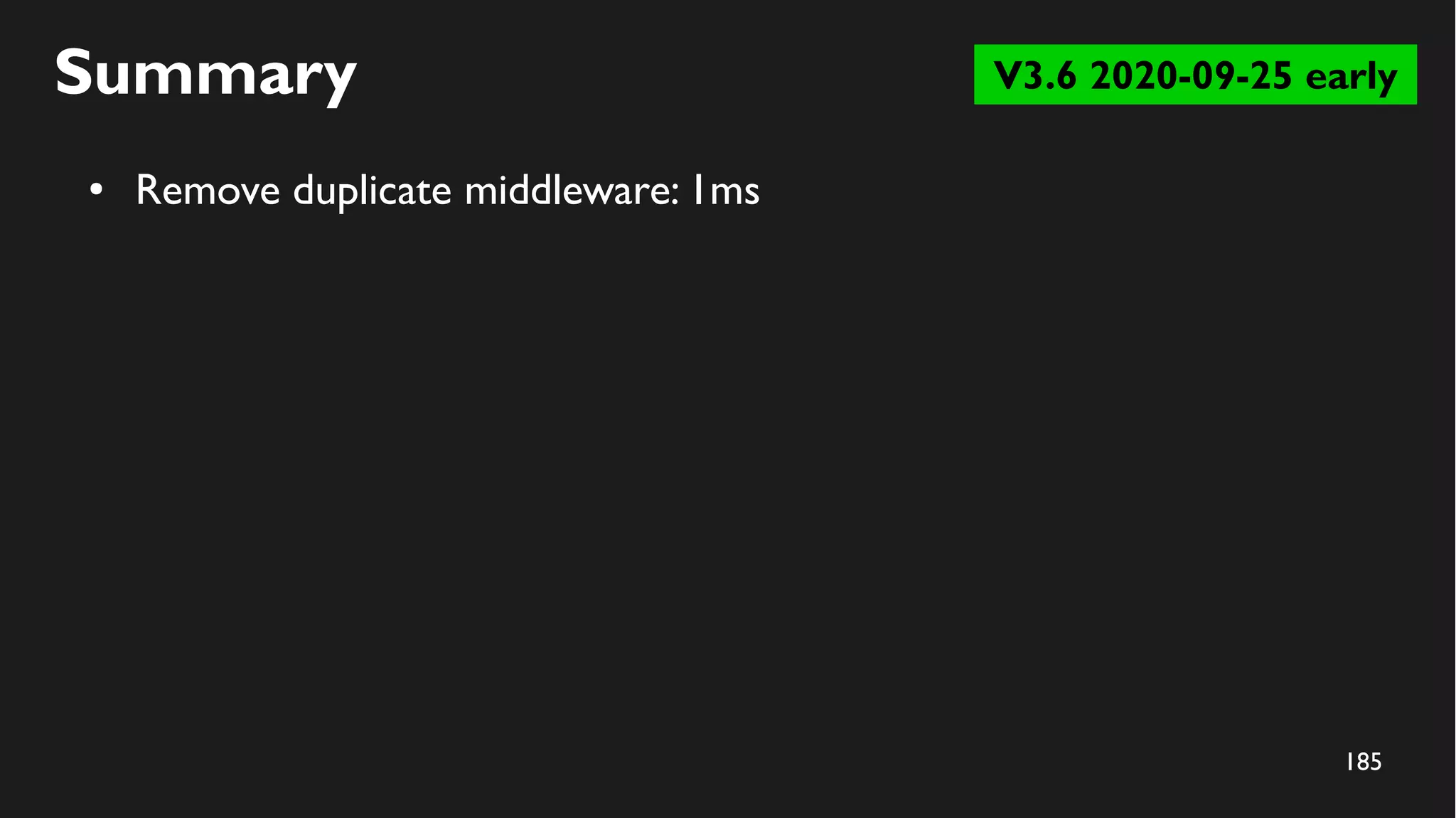

185. 185
Summary
● Remove duplicate middleware: 1ms
V3.6 2020-09-25 early

186. 186
V3.7 2020-09-27 early

187. 187
Summary V3.7 2020-09-27 early

188. 188

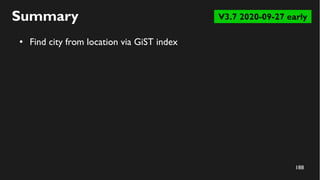

Summary
● Find city from location via GiST index
V3.7 2020-09-27 early

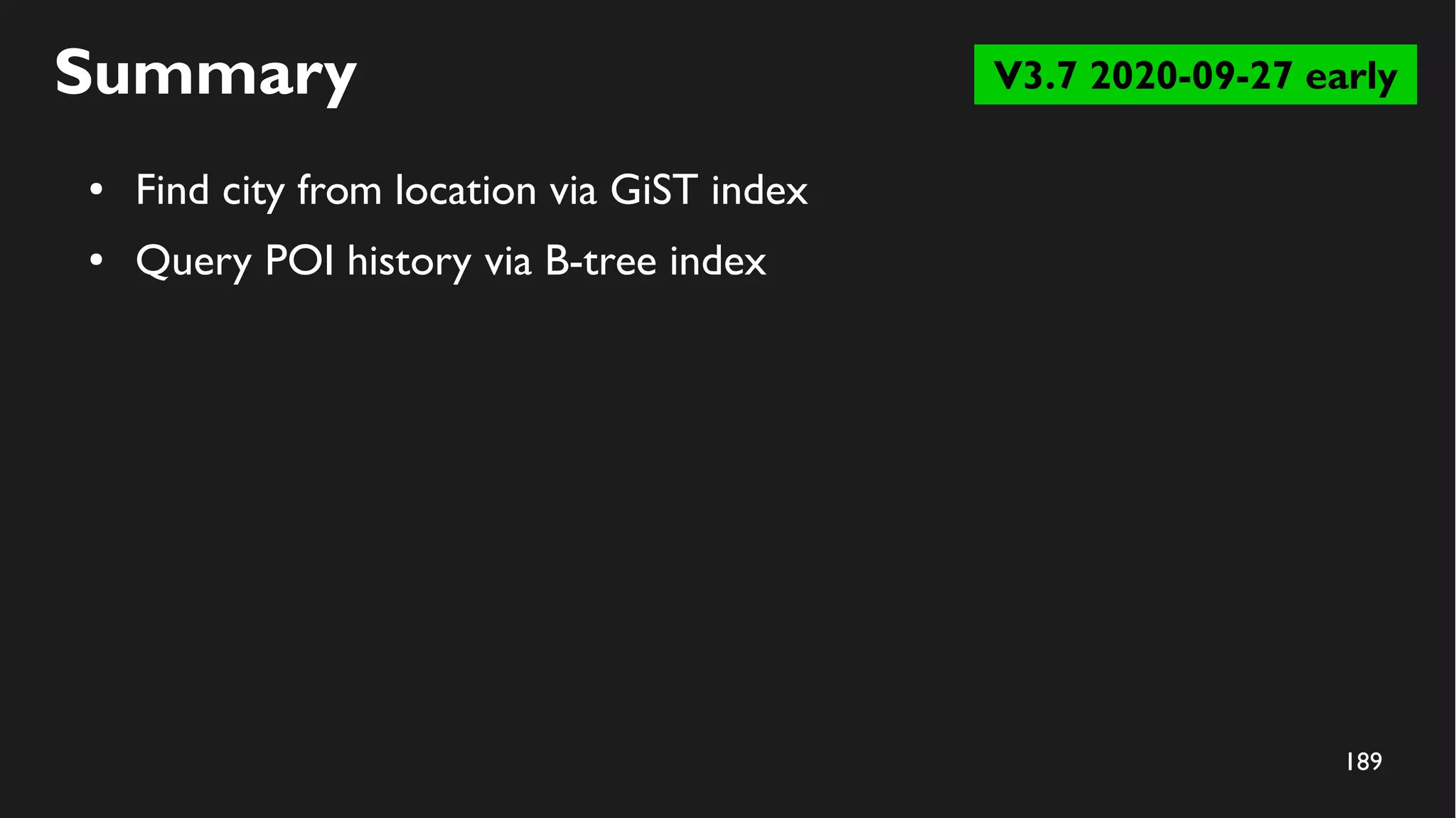

189. 189
Summary
● Find city from location via GiST index
● Query POI history via B-tree index
V3.7 2020-09-27 early

190. 190
GiST index

191. 191
Find city from location V3.7 2020-09-27 early

192. 192
Before optimization: 400ms V3.7 2020-09-27 early

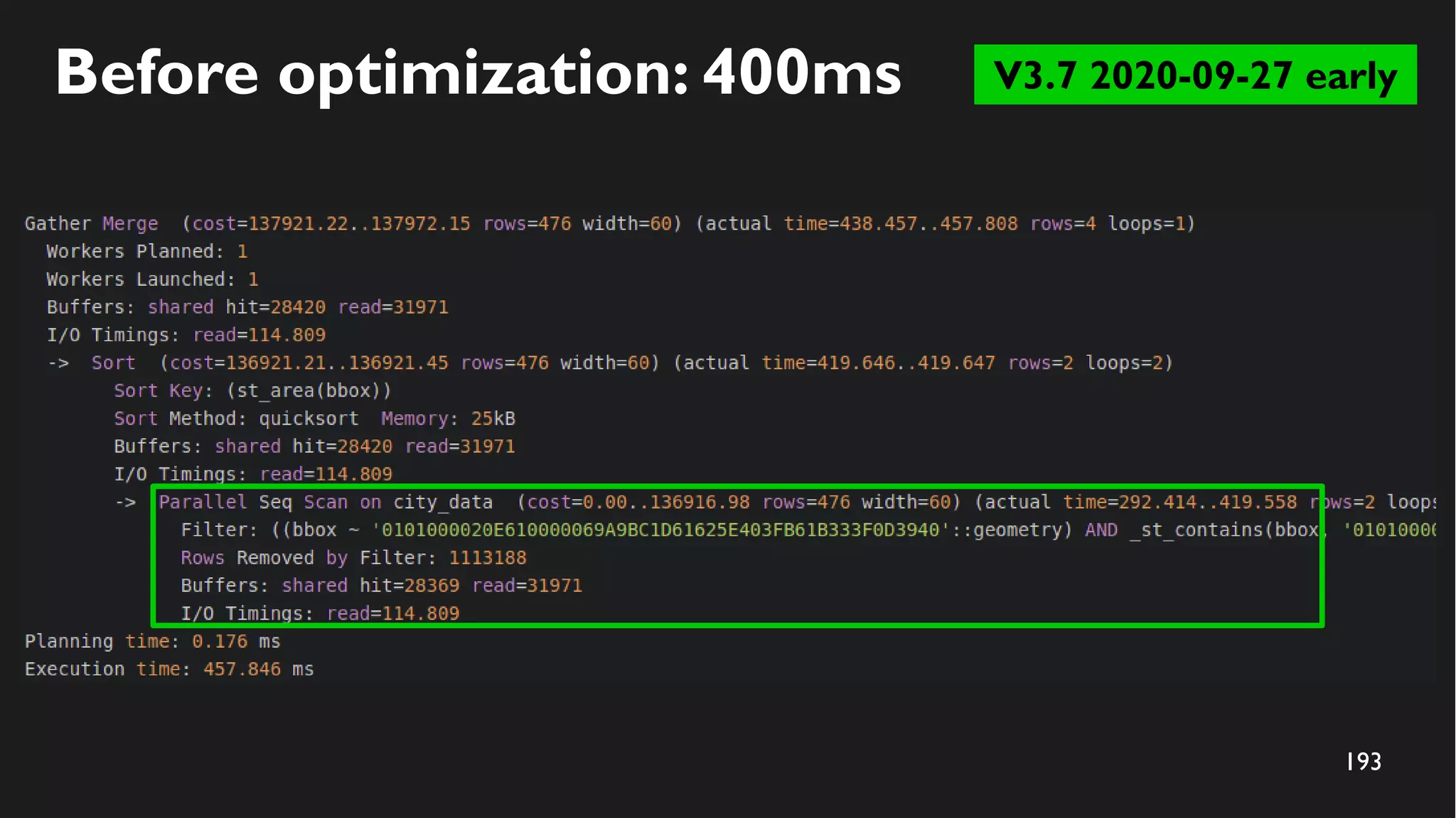

193. 193
Before optimization: 400ms V3.7 2020-09-27 early

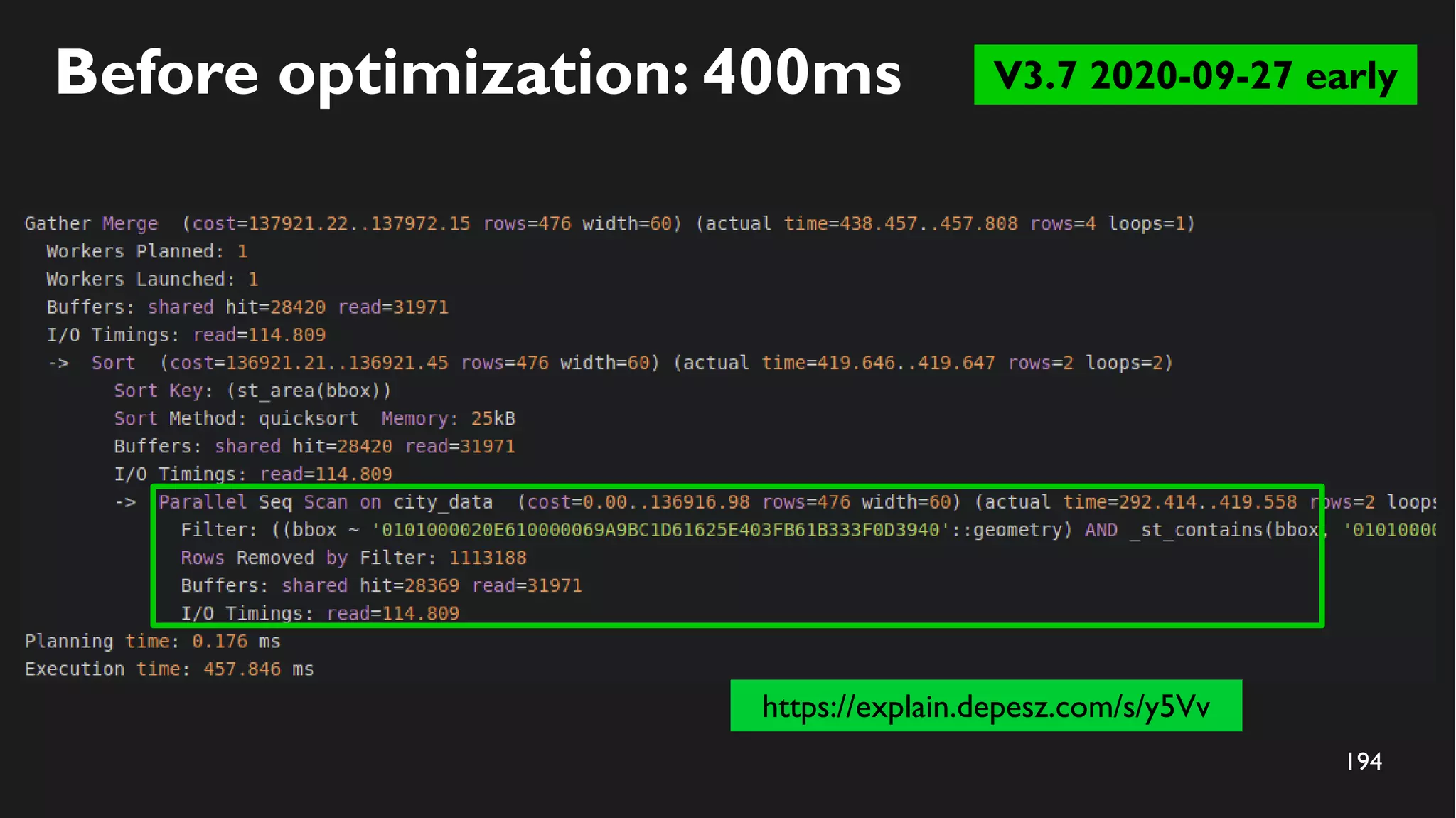

194. 194
Before optimization: 400ms V3.7 2020-09-27 early
https://explain.depesz.com/s/y5Vv

195. 195

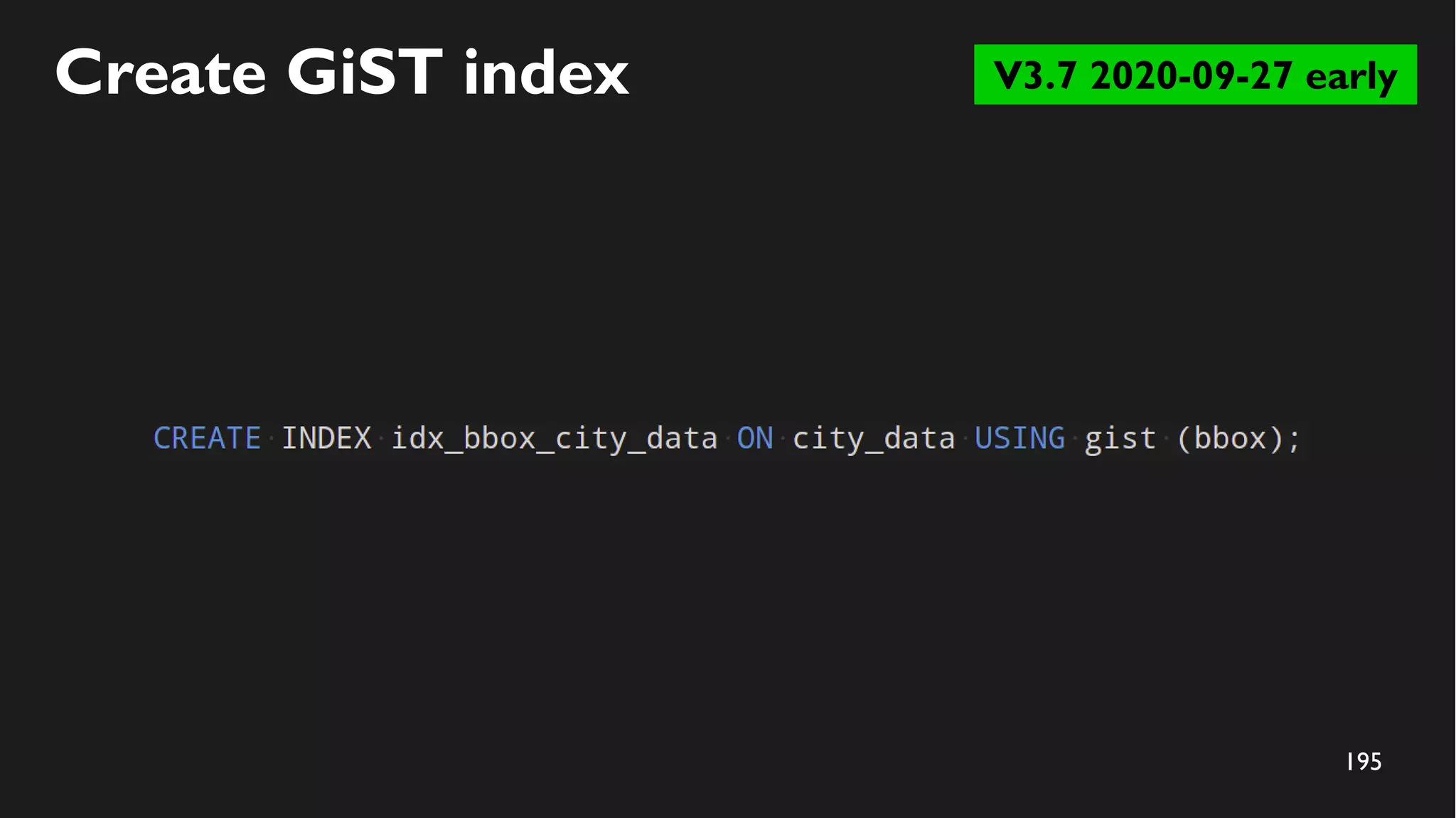

Create GiST index V3.7 2020-09-27 early

196. 196

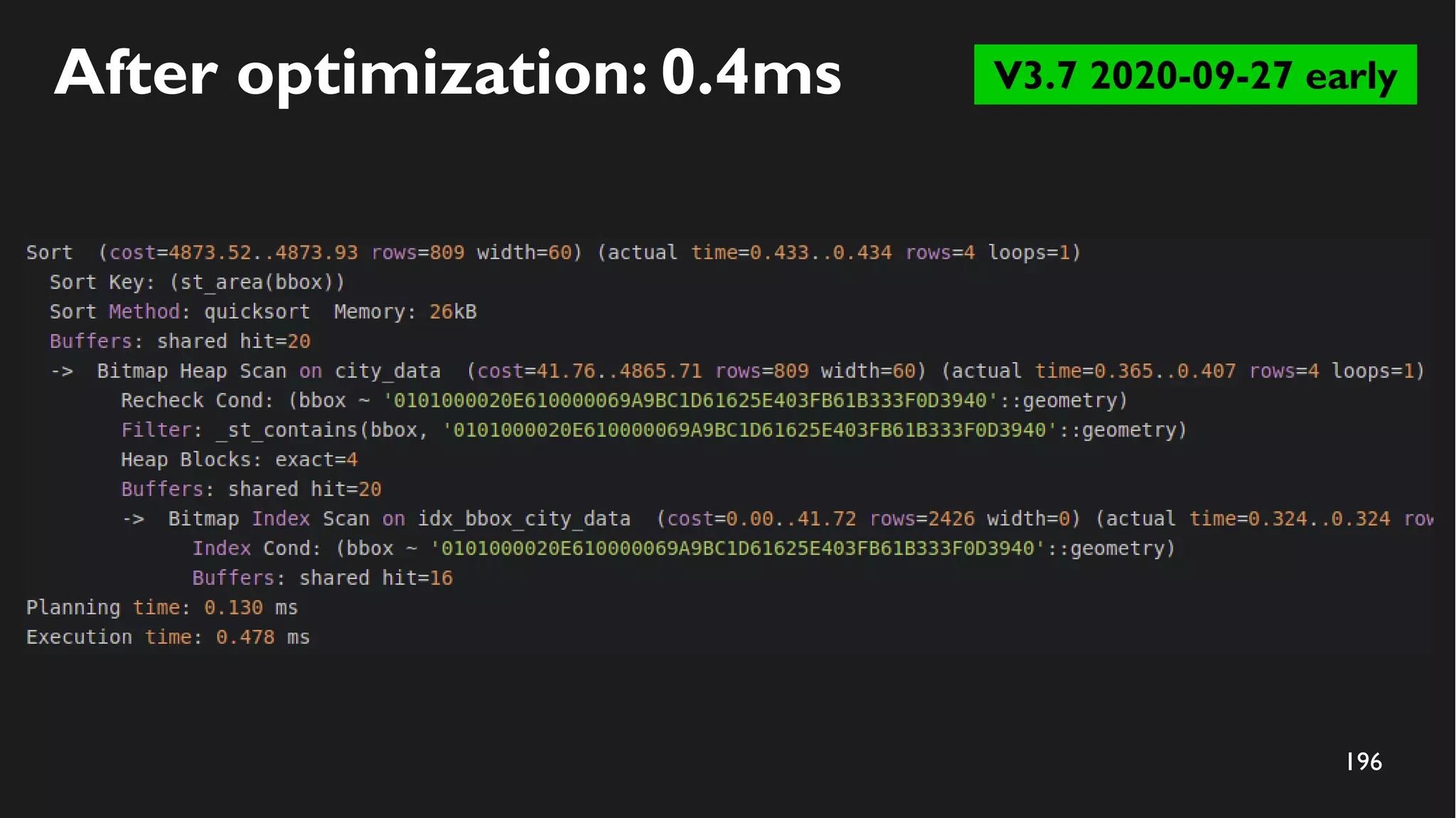

After optimization: 0.4ms V3.7 2020-09-27 early

197. 197

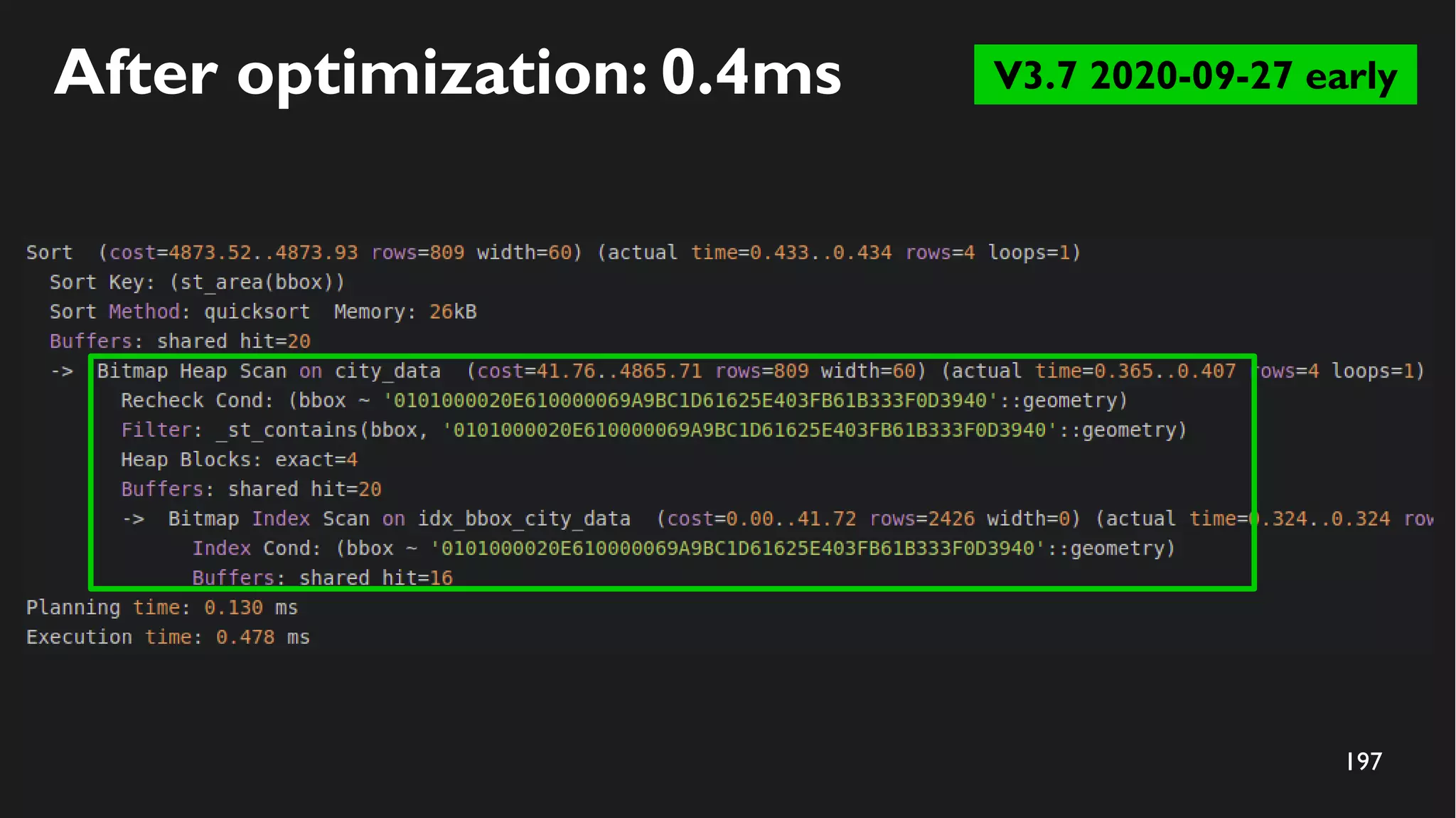

After optimization: 0.4ms V3.7 2020-09-27 early

198. 198

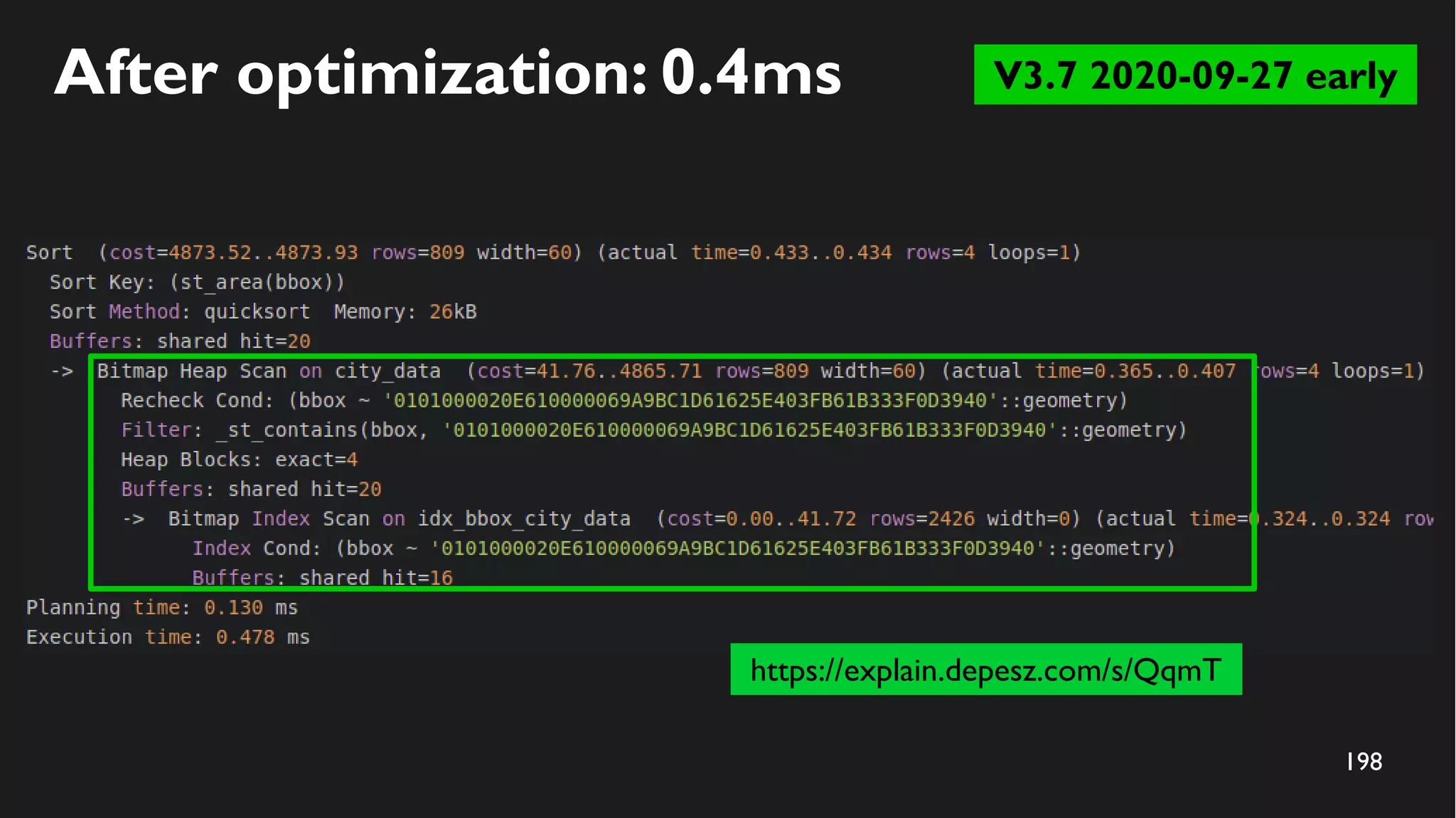

After optimization: 0.4ms V3.7 2020-09-27 early
https://explain.depesz.com/s/QqmT

199. 199
B-tree index

200. 200

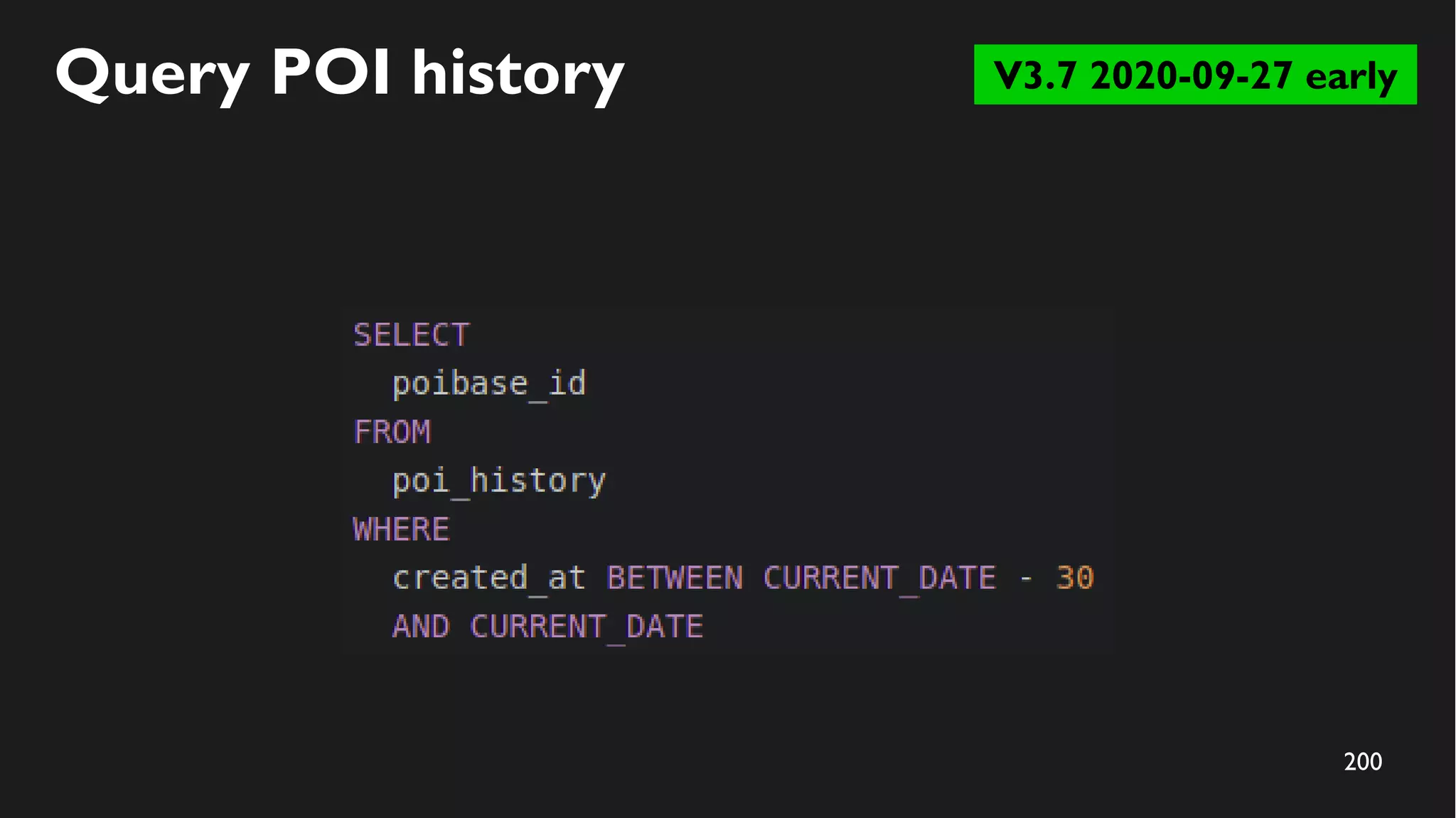

Query POI history V3.7 2020-09-27 early

201. 201

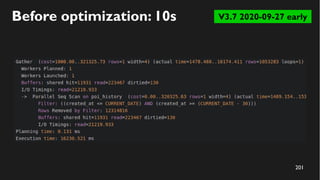

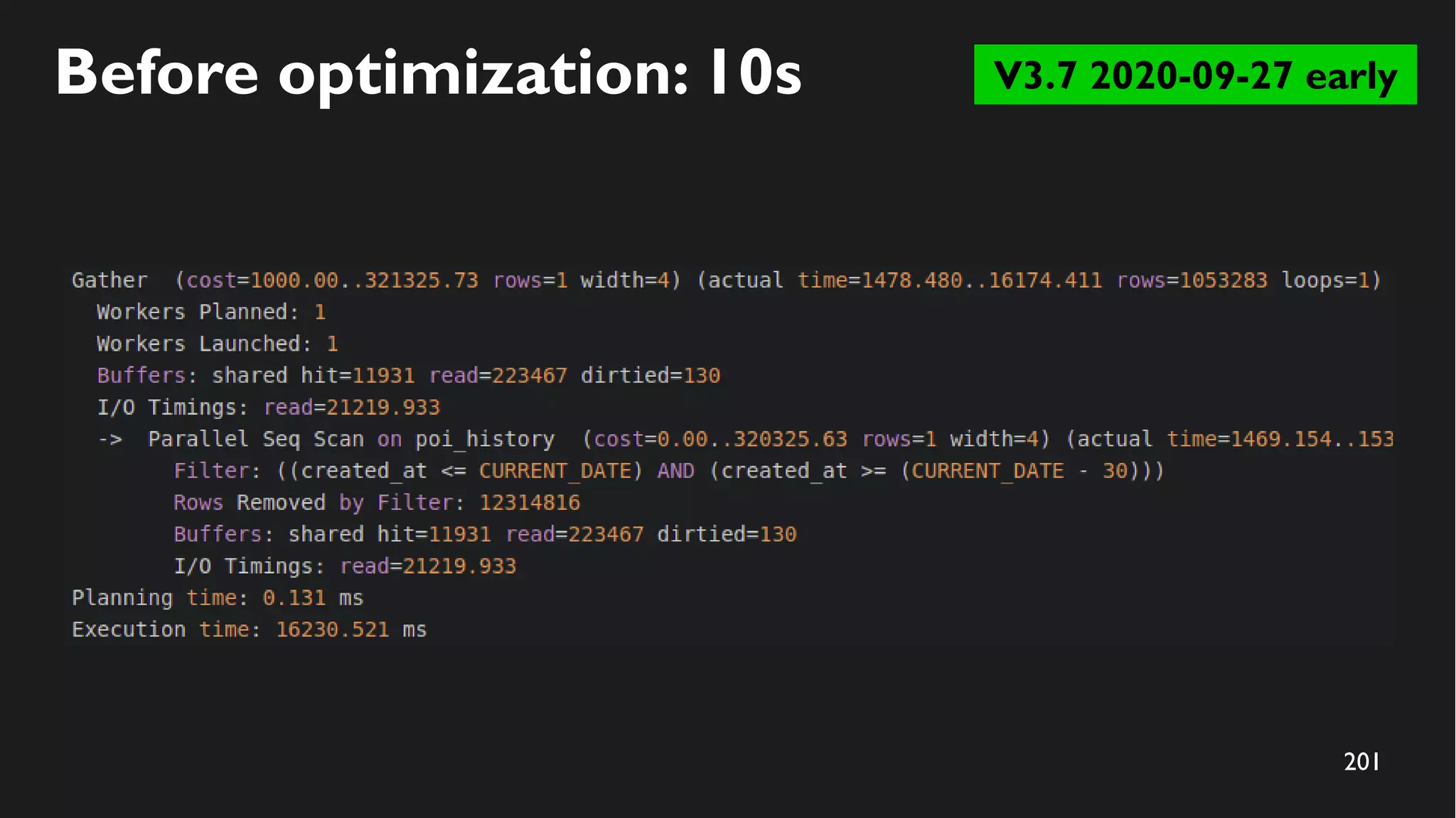

Before optimization: 10s V3.7 2020-09-27 early

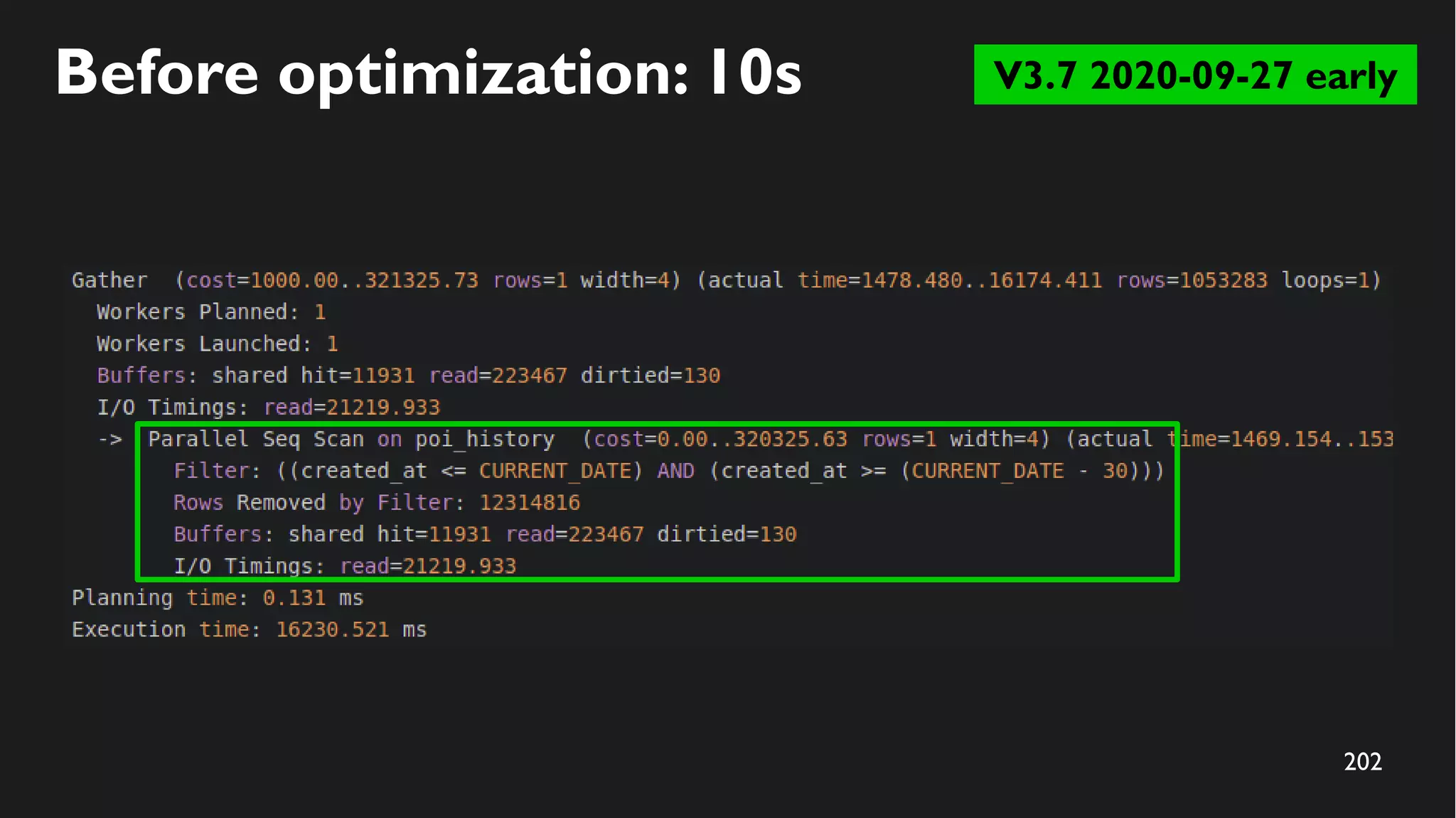

202. 202
Before optimization: 10s V3.7 2020-09-27 early

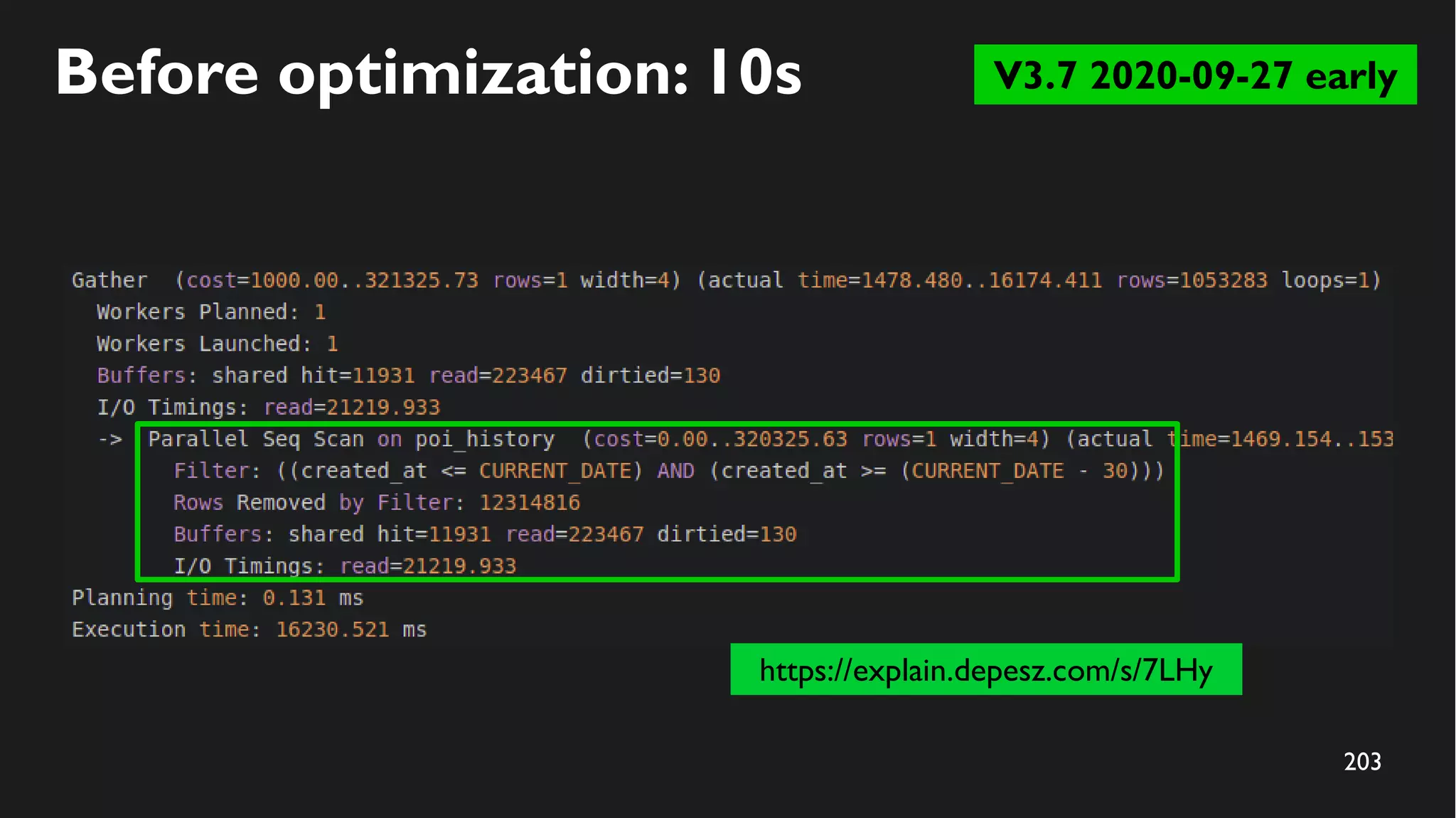

203. 203
Before optimization: 10s V3.7 2020-09-27 early
https://explain.depesz.com/s/7LHy

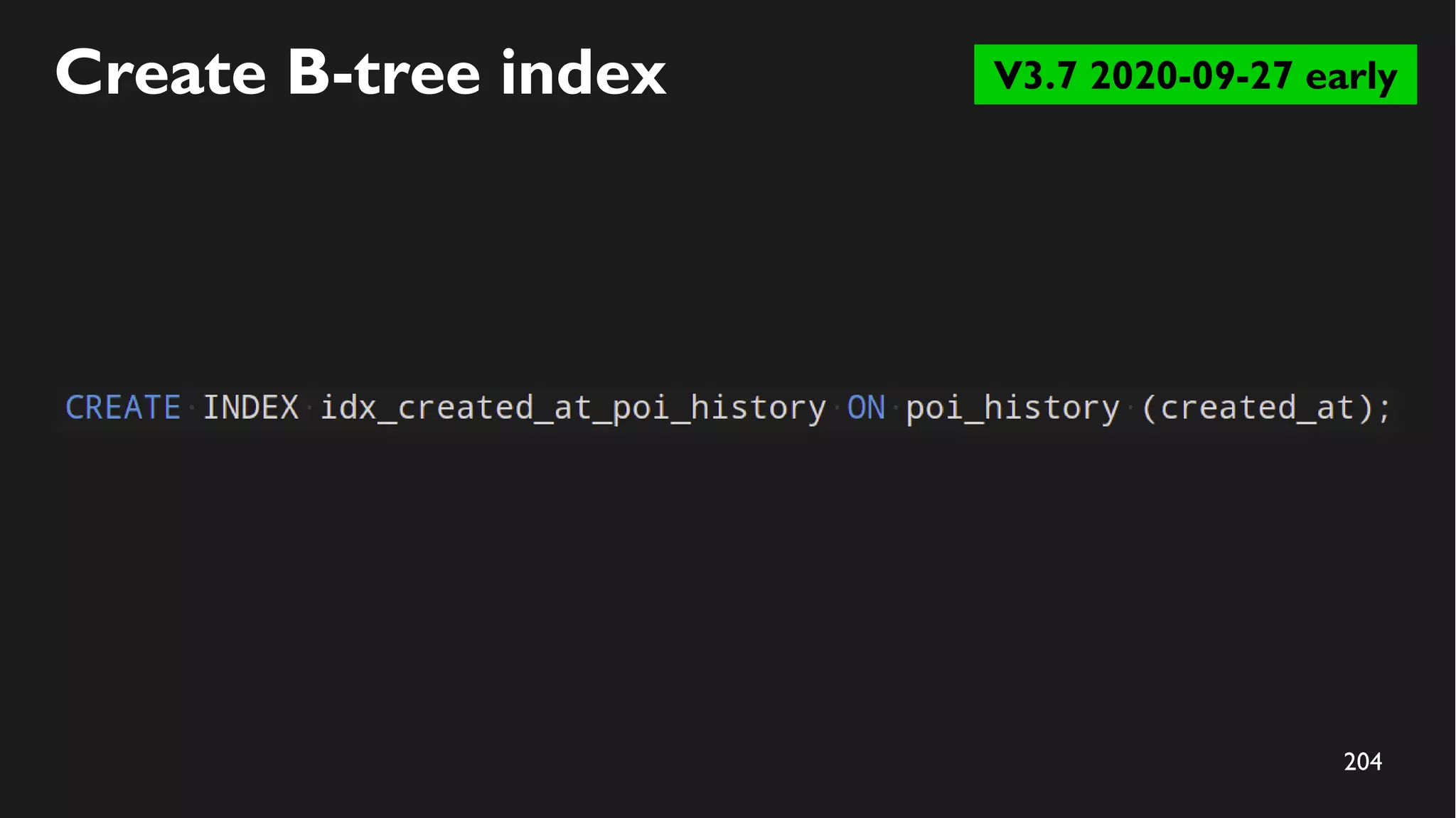

204. 204
Create B-tree index V3.7 2020-09-27 early

205. 205

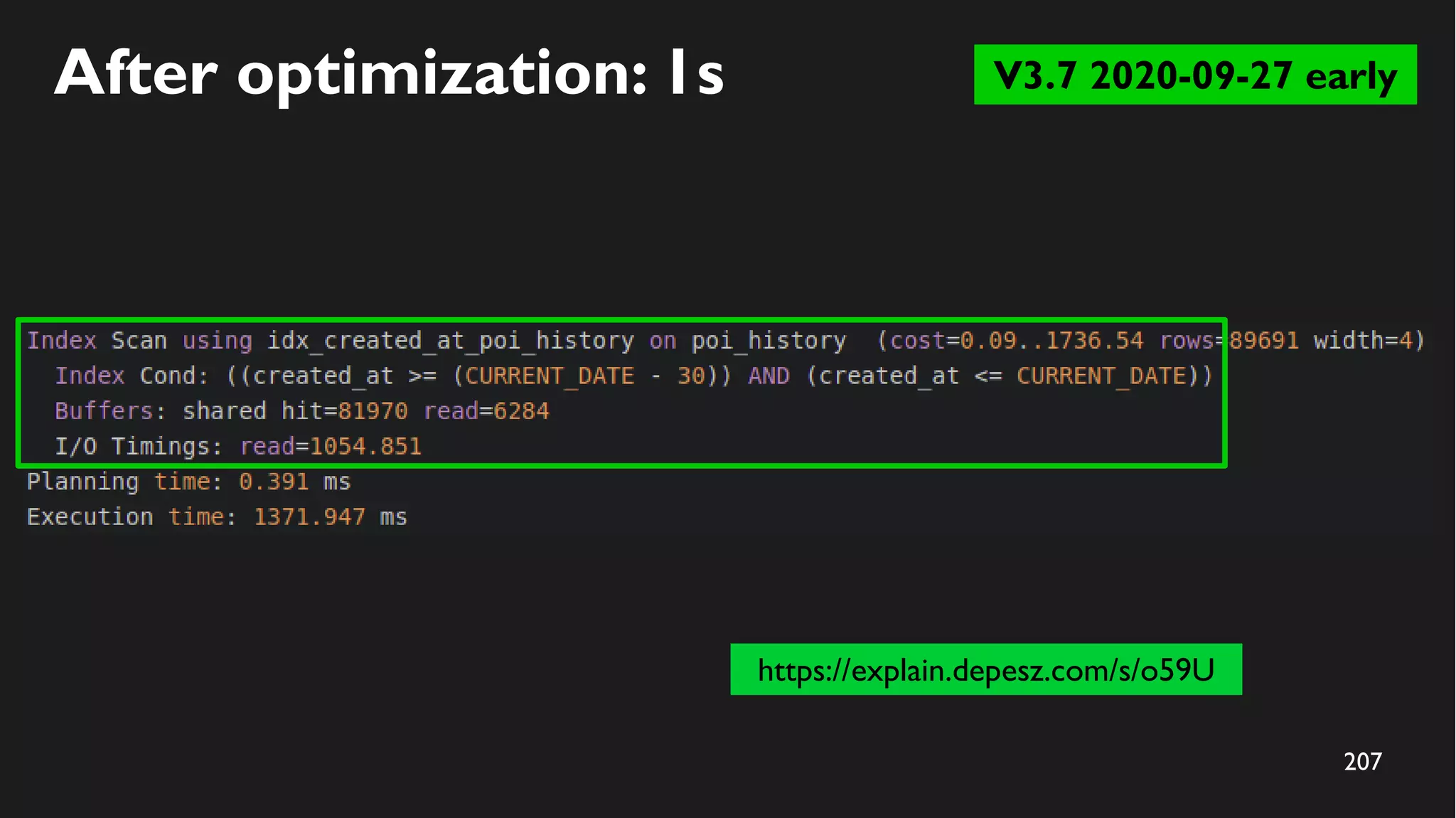

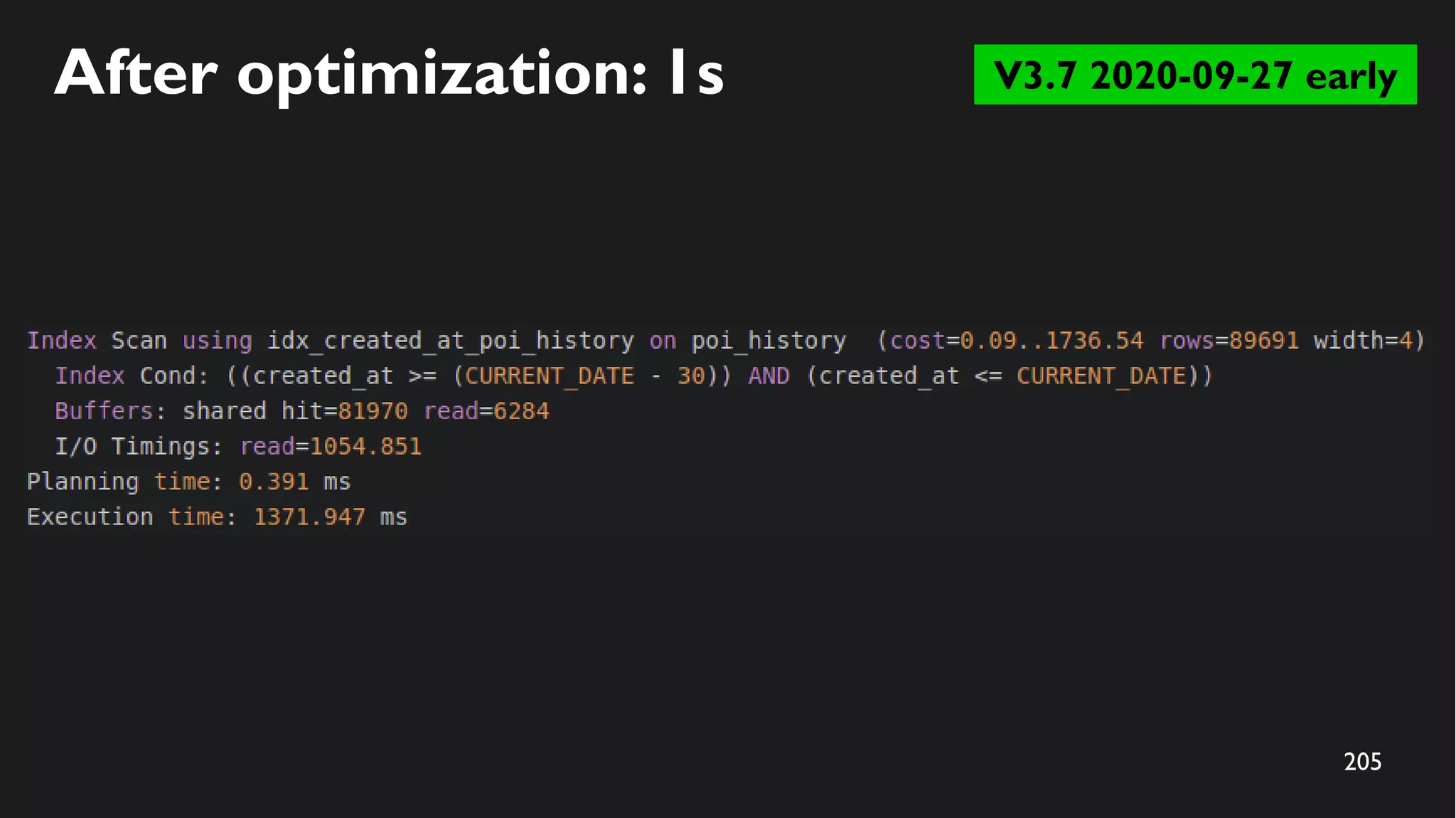

After optimization: 1s V3.7 2020-09-27 early

206. 206
After optimization: 1s V3.7 2020-09-27 early

207. 207
After optimization: 1s V3.7 2020-09-27 early
https://explain.depesz.com/s/o59U

208. 208

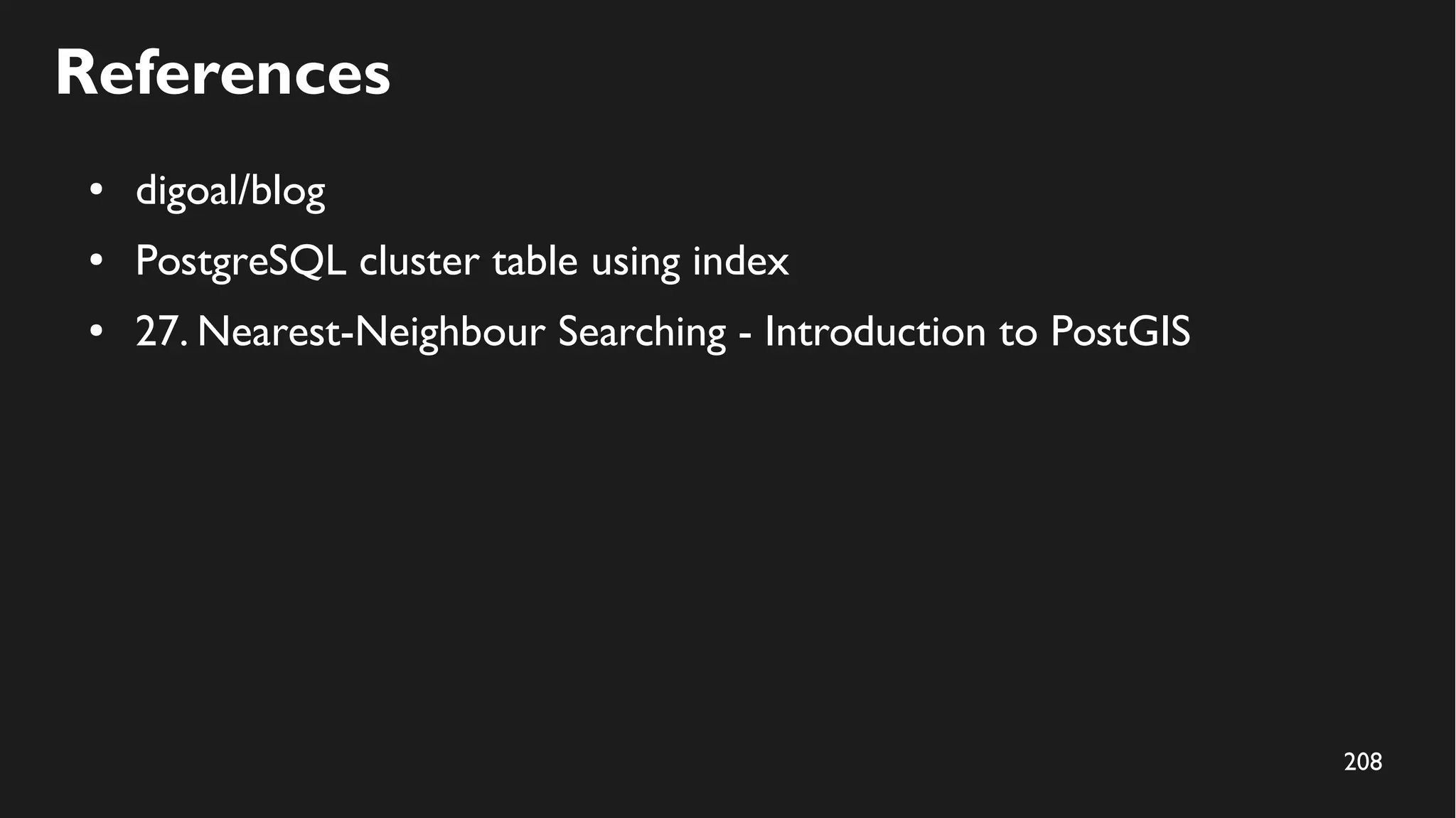

References
● digoal/blog
● PostgreSQL cluster table using index
● 27. Nearest-Neighbour Searching - Introduction to PostGIS

209. 209
