2. pppr - 解決 JavaScript
無法被搜尋引擎正確索引的問題

3. Kewang
● 王慕羣 Kewang
● Java / JavaScript
● HBase / PostgreSQL / MongoDB / ElasticSearch
● Git / DevOps
●
熱愛開源
LinkedinLinkedin kewangtwkewangtw
SlideShareSlideShare kewangkewang
GmailGmail cpckewangcpckewang
FacebookFacebook Kewang 的資訊進化論Kewang 的資訊進化論
devopsday taipeidevopsday taipei '17'17
hadoopconhadoopcon '14 '15'14 '15
mopconmopcon '14'14
jcconfjcconf '16 '17 '18'16 '17 '18
modernwebmodernweb '18 '19'18 '19
GitHubGitHub kewangkewang
FunlidayFunliday kewangkewang
coscupcoscup '20'20

5. 5

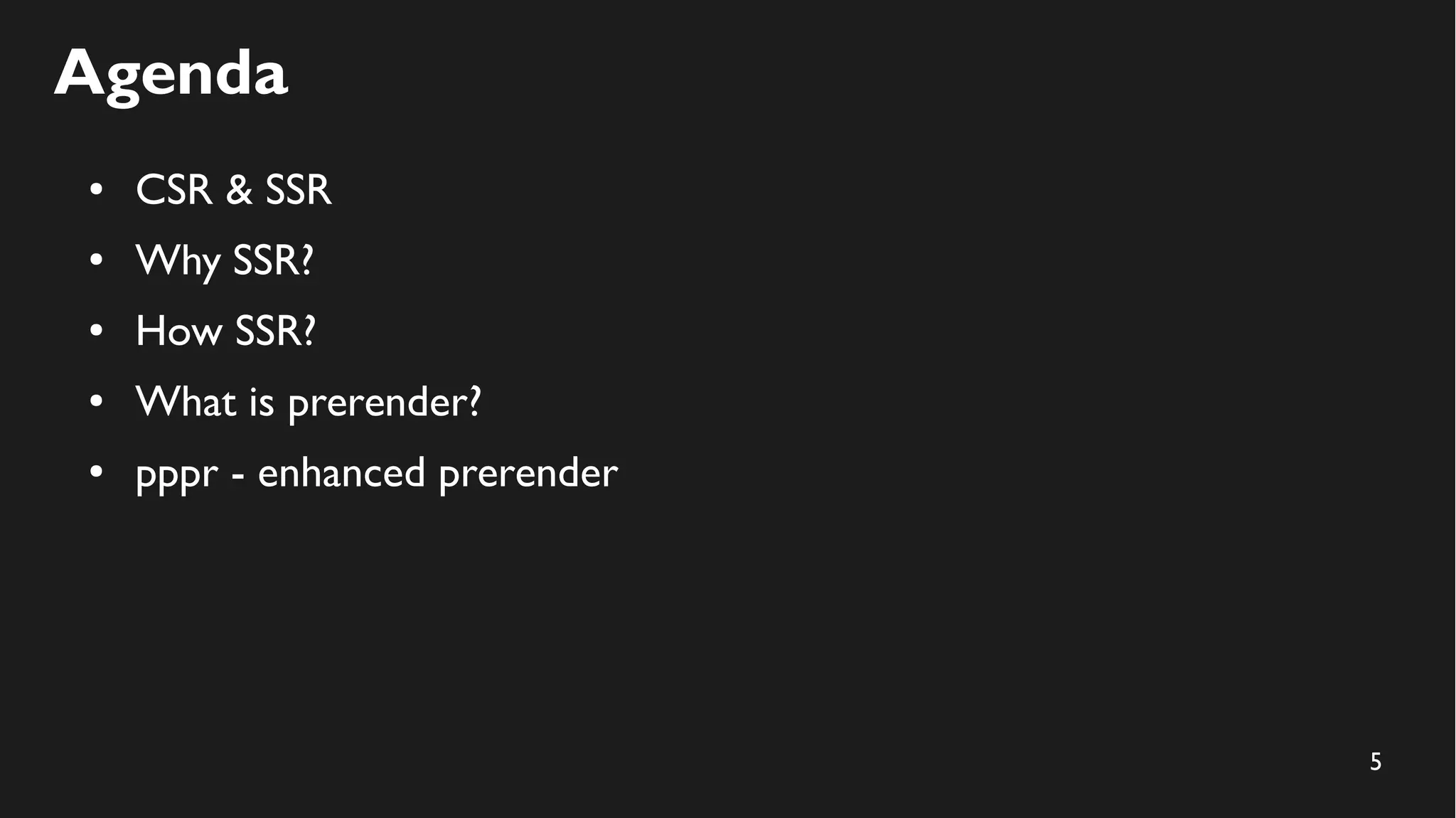

Agenda
● CSR & SSR
● Why SSR?
● How SSR?
● What is prerender?
● pppr - enhanced prerender

6. 6
CSR & SSR

7. 7
Rendered page

8. 8

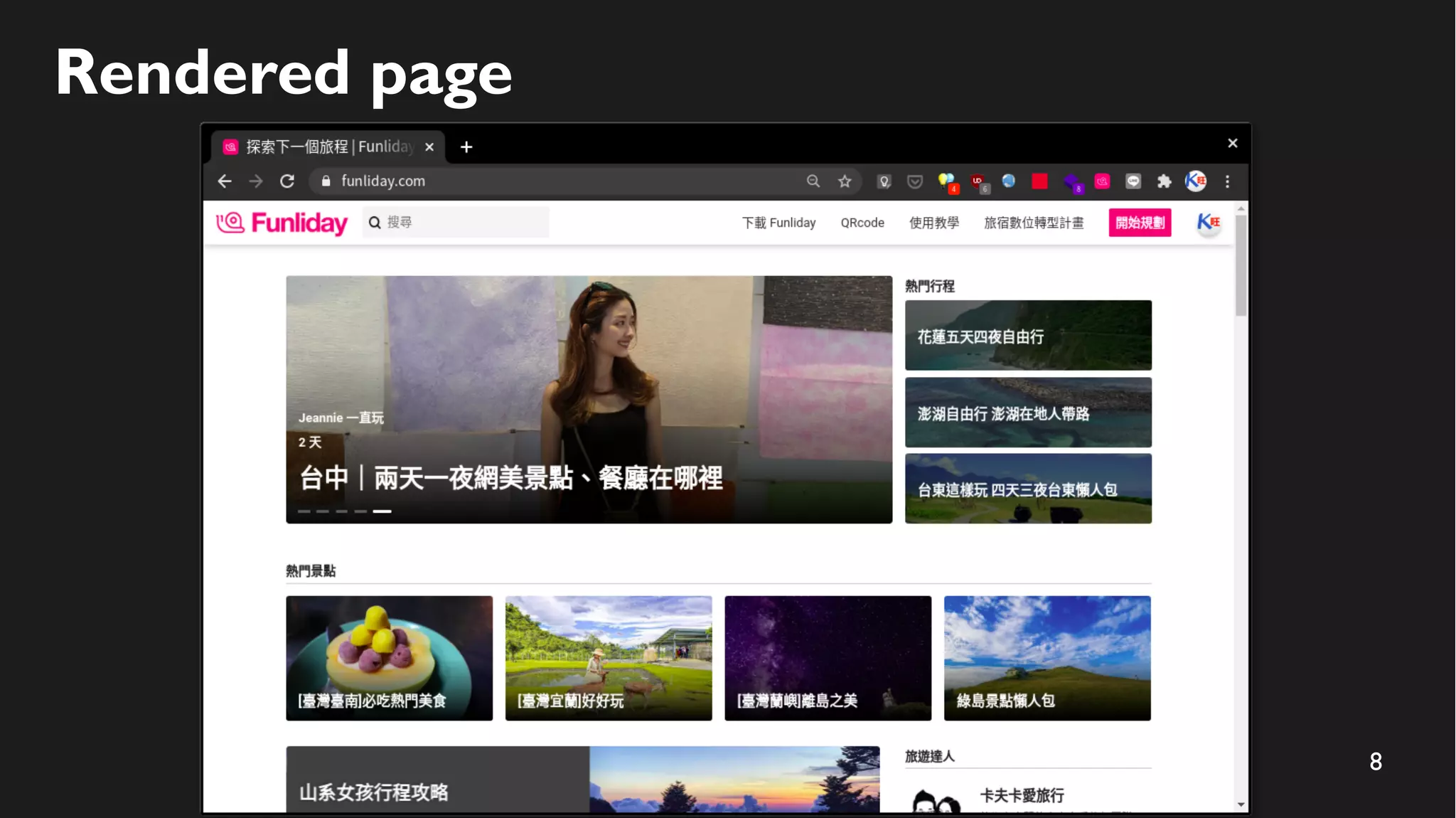

Rendered page

9. 9

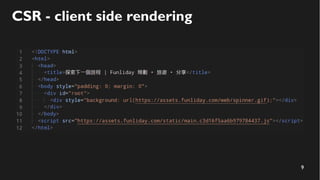

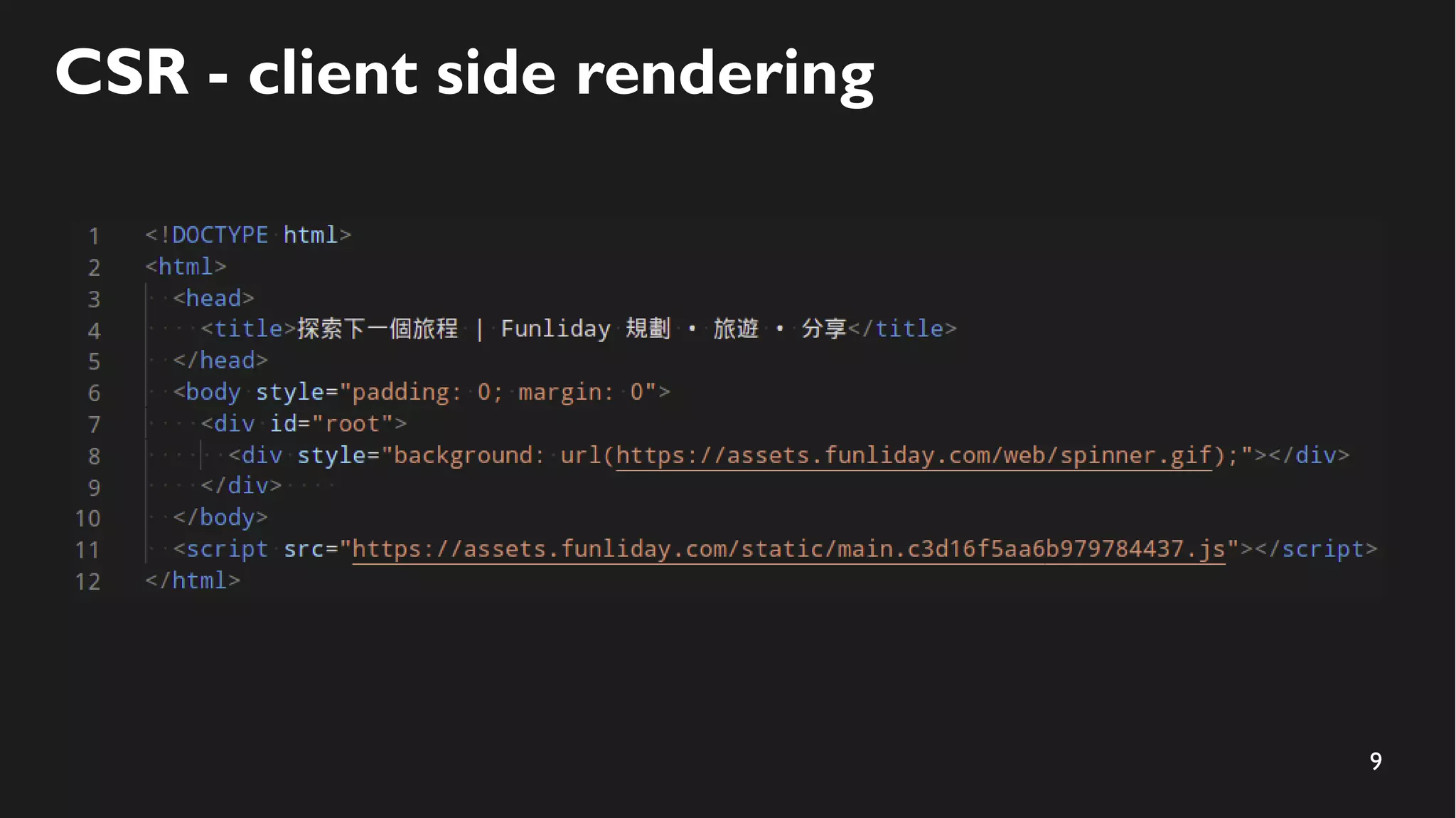

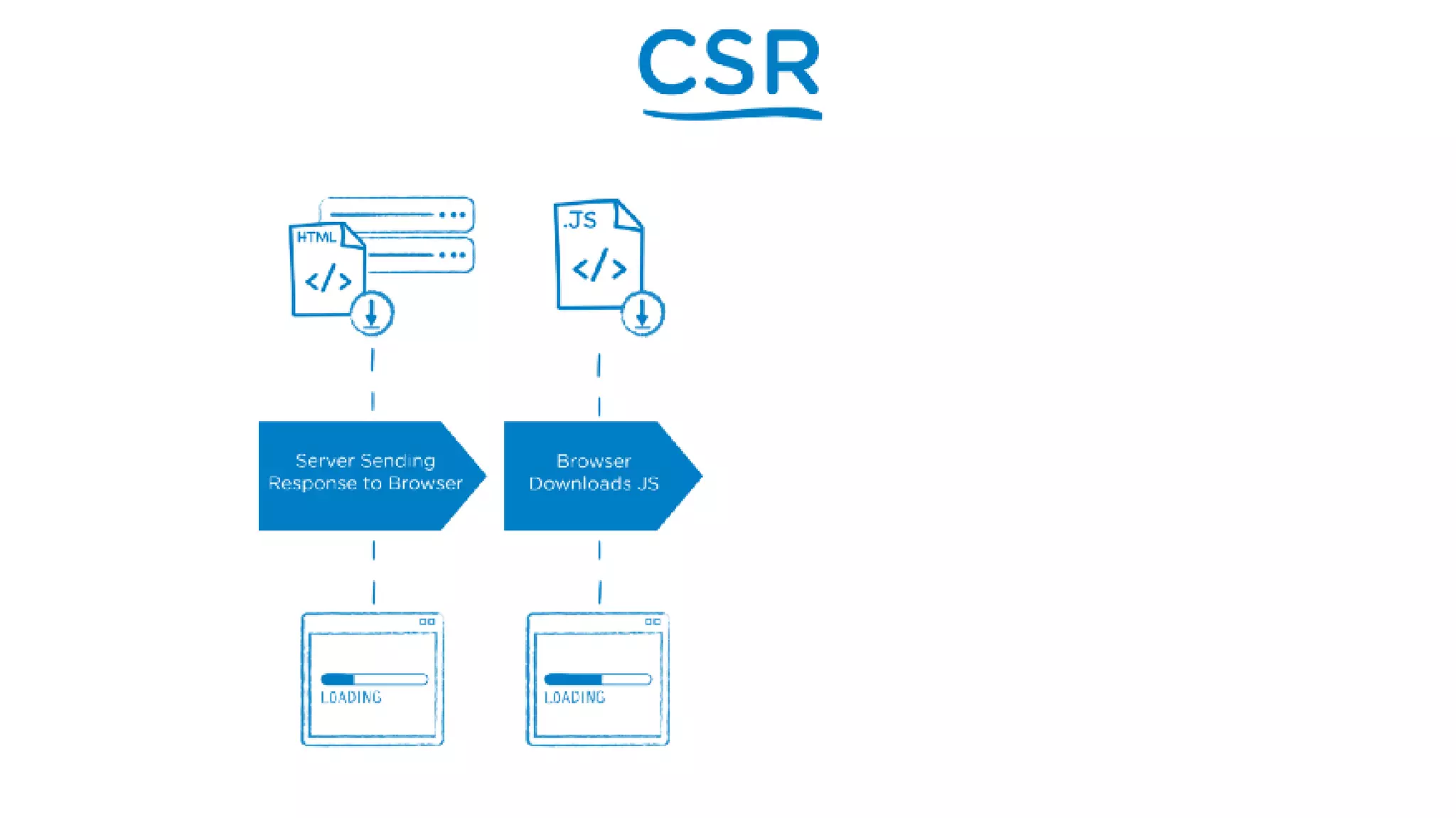

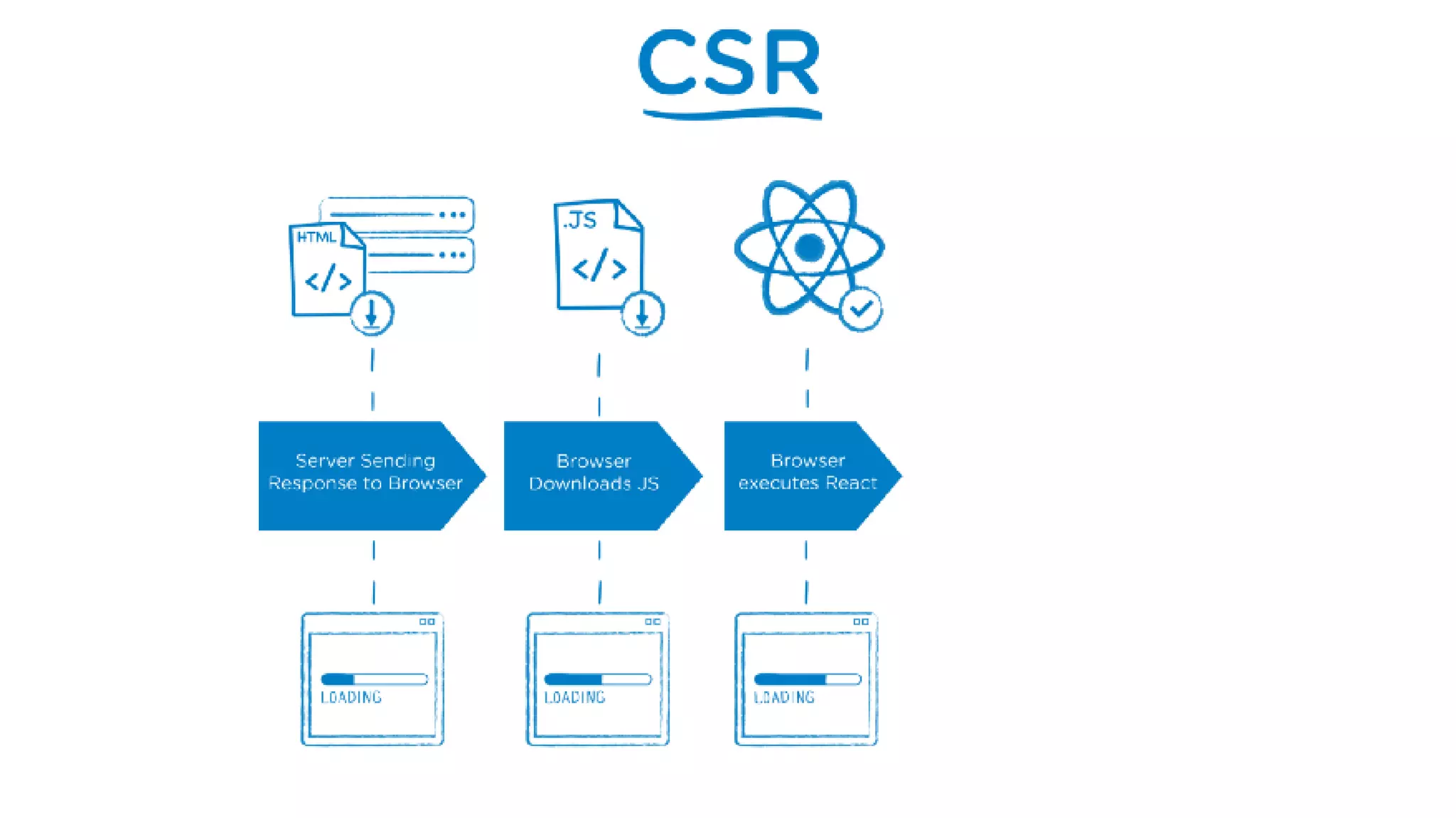

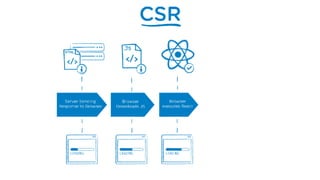

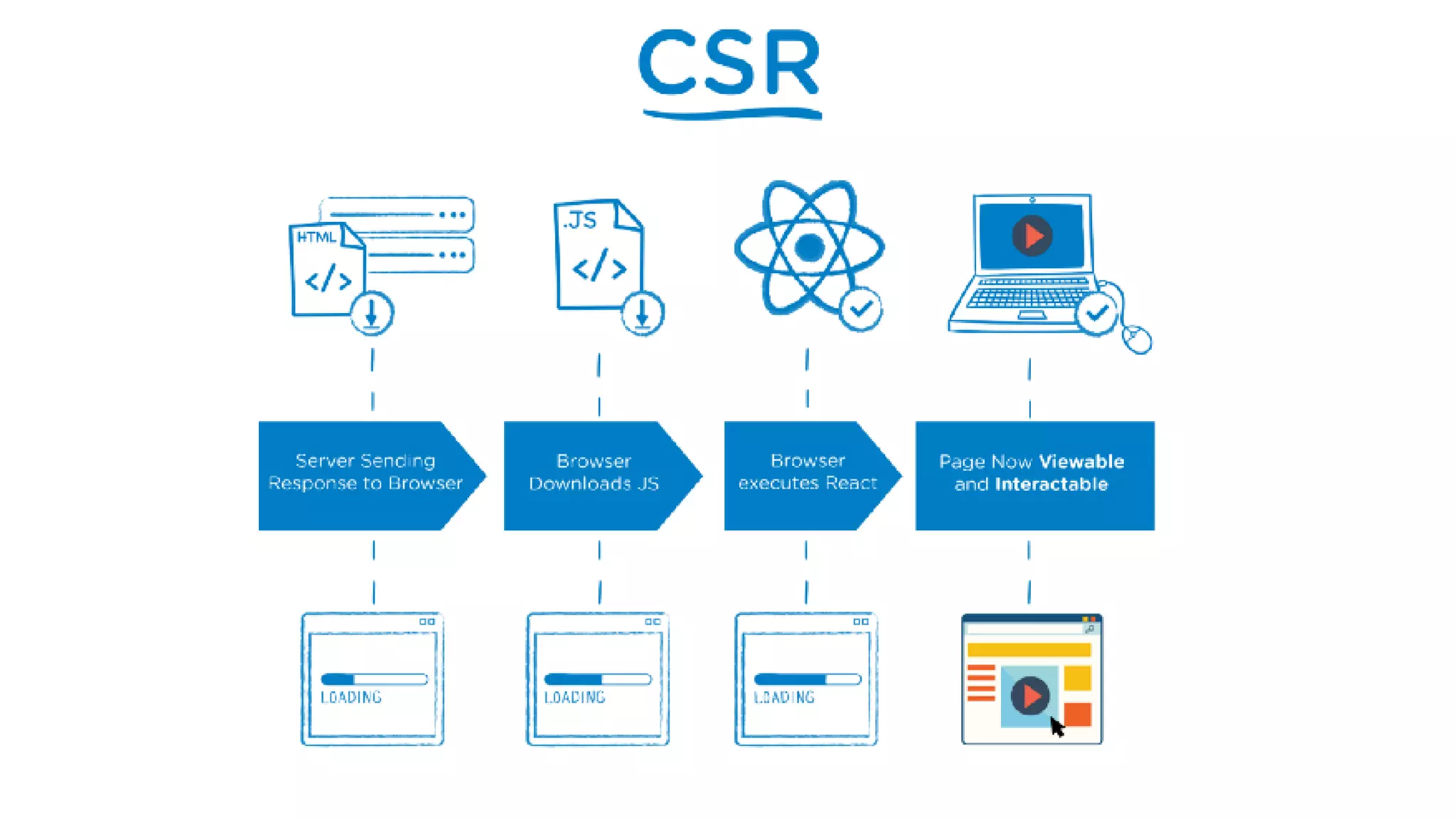

CSR - client side rendering

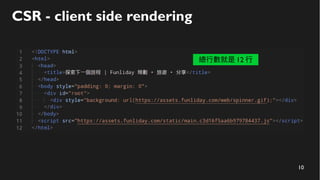

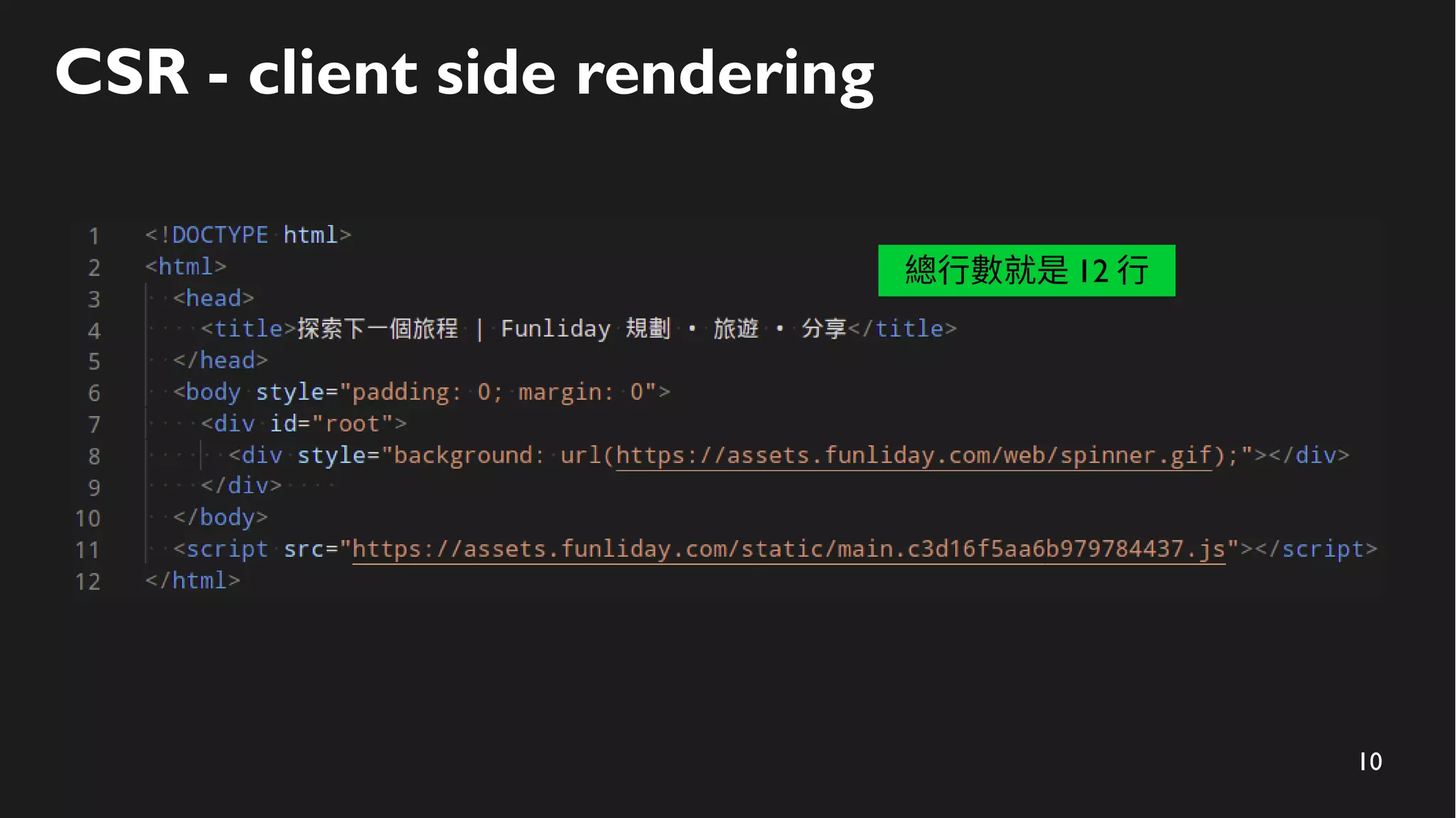

10. 10
CSR - client side rendering
總行數就是 12 行

11. 11

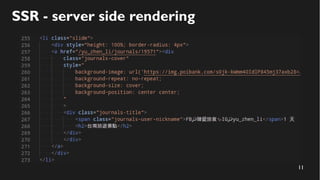

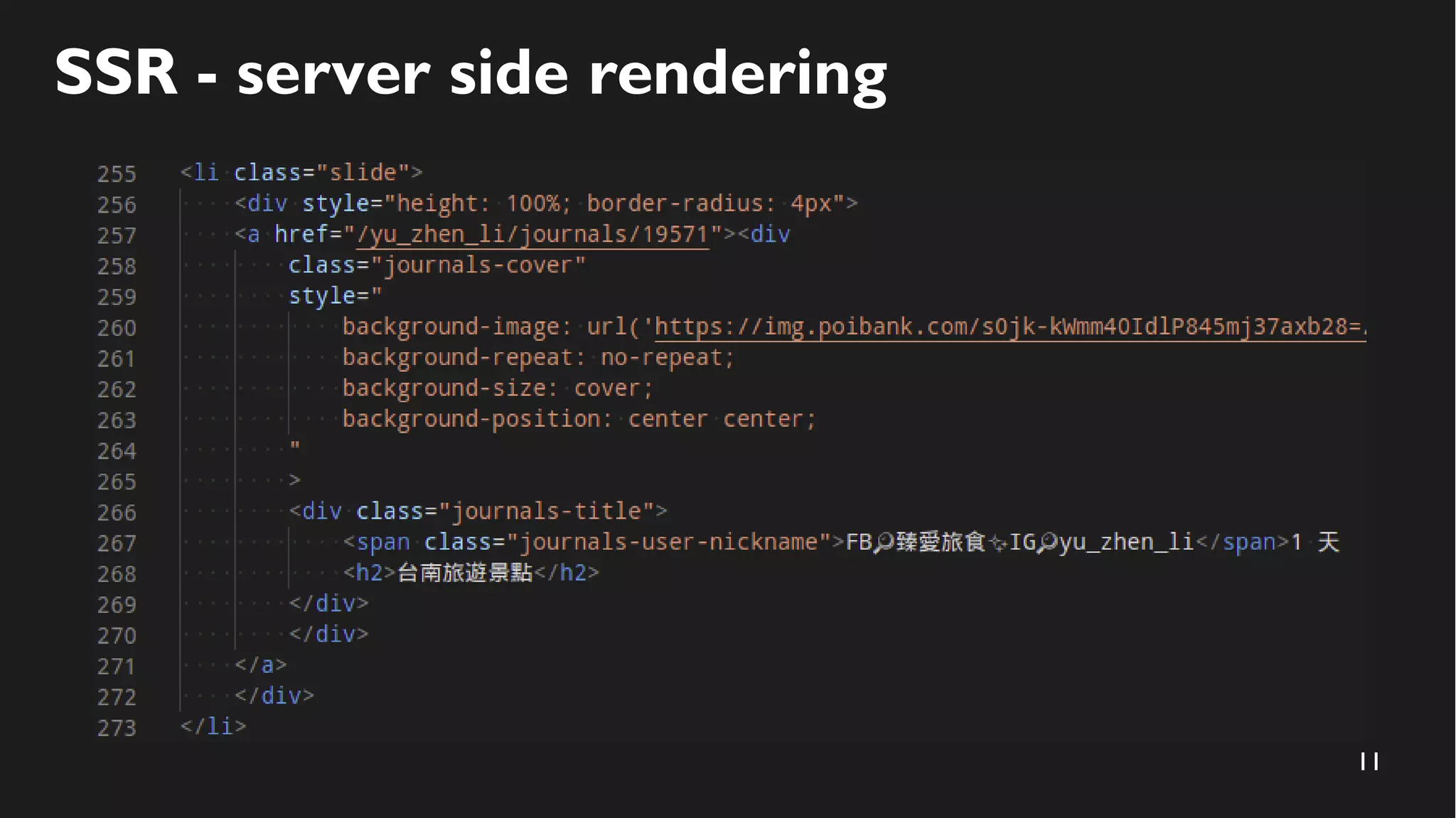

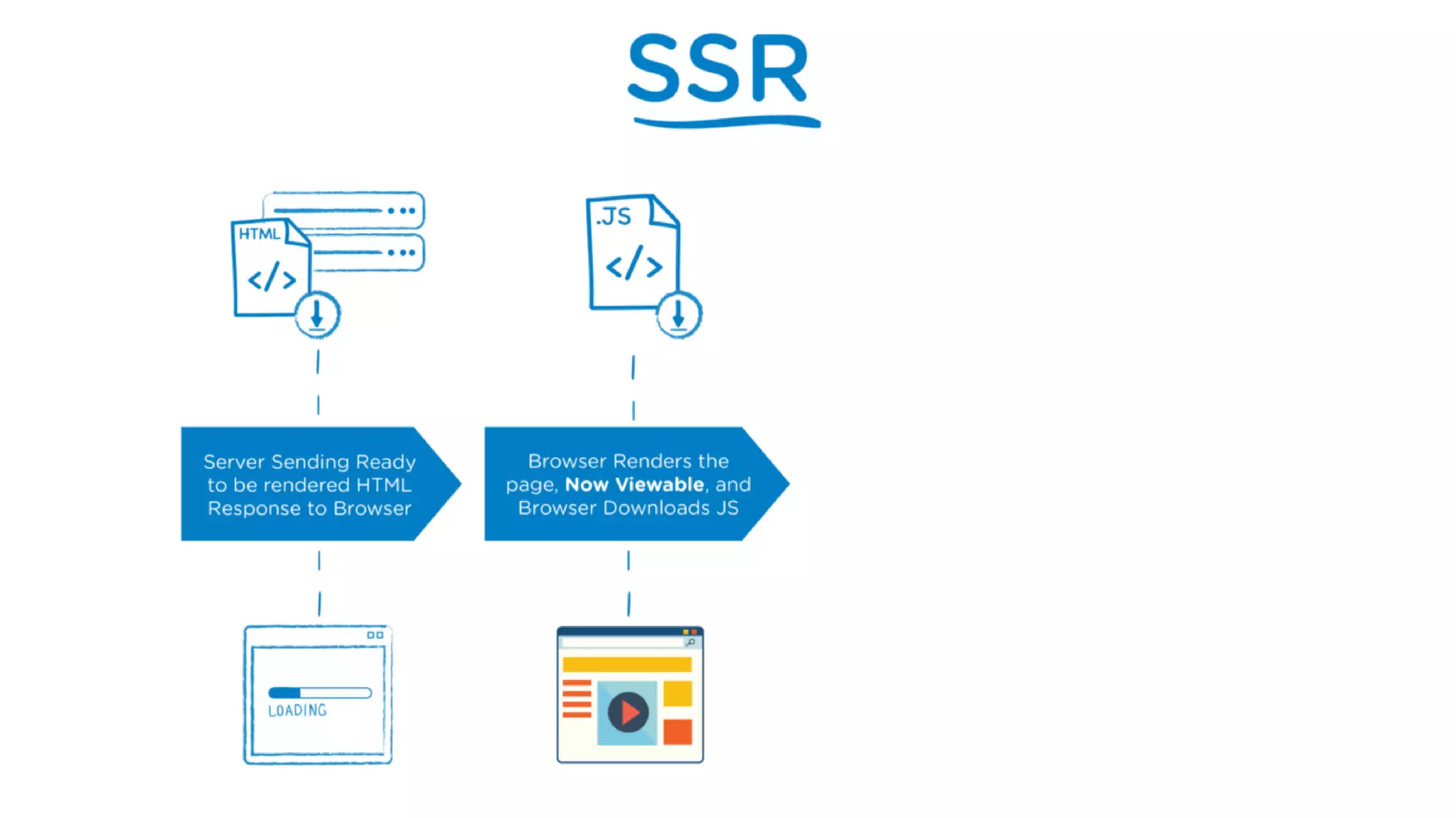

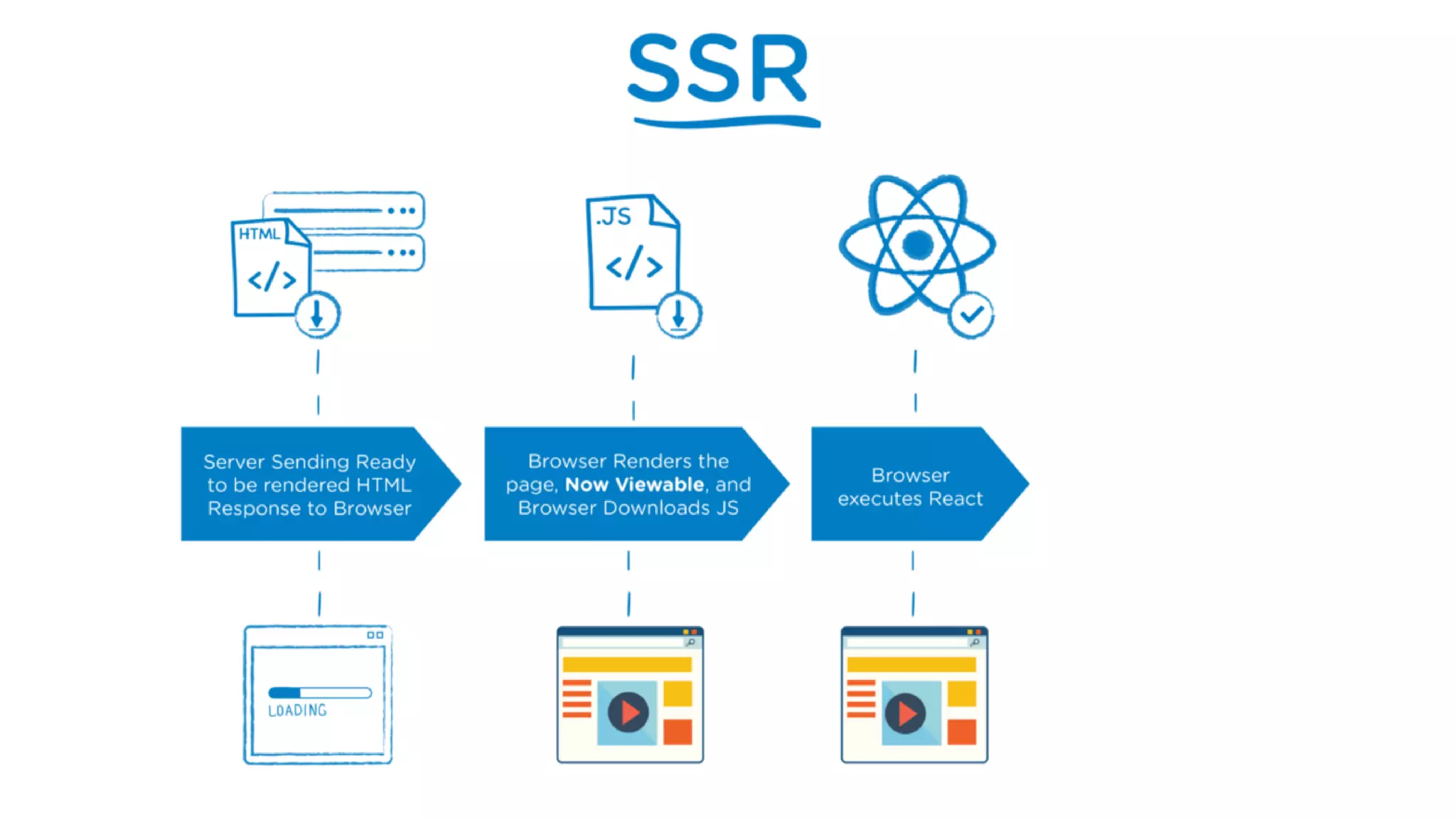

SSR - server side rendering

12. 12

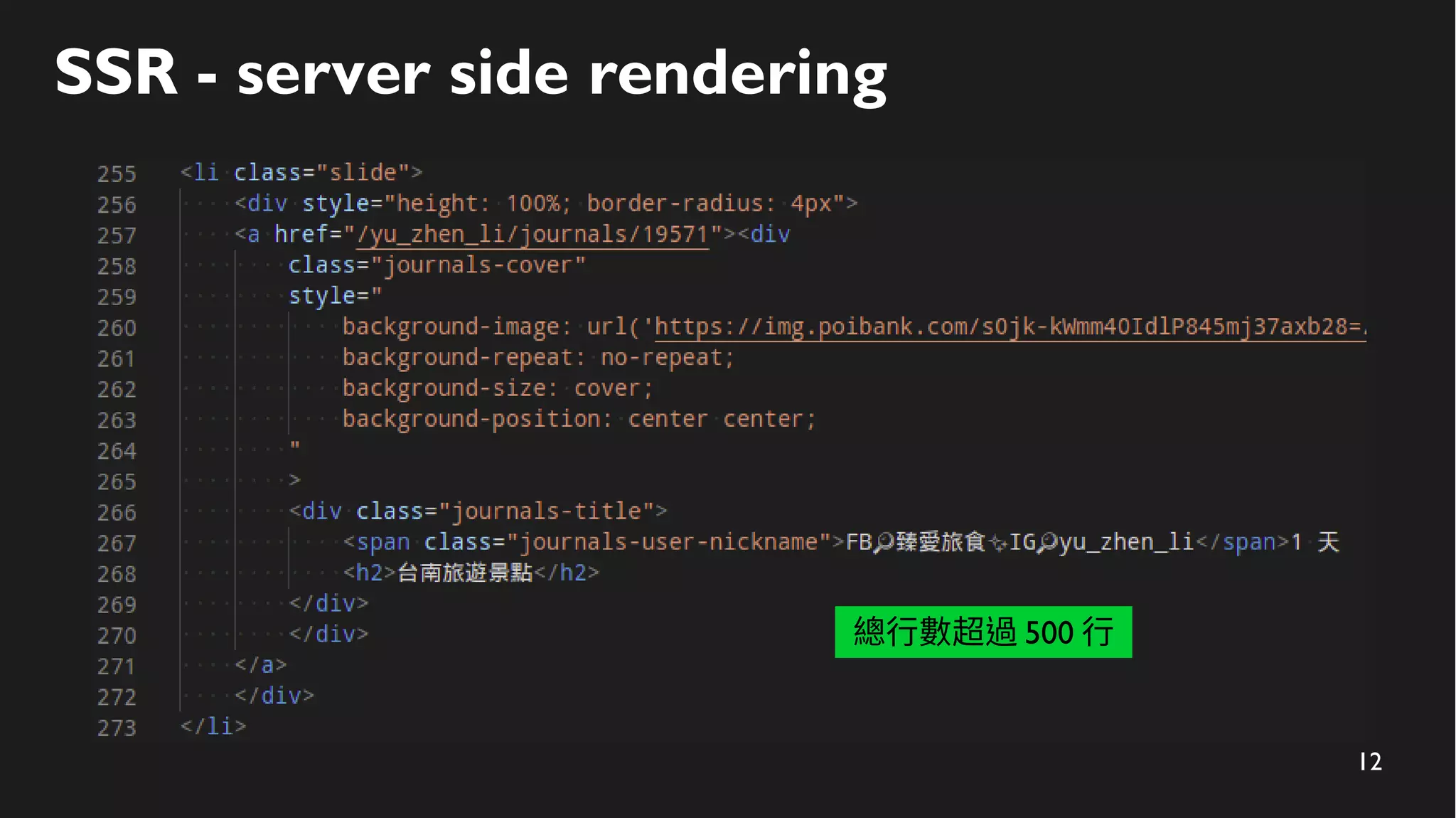

SSR - server side rendering
總行數超過 500 行

13. 13

14. 14

15. 15

16. 16

17. 17

18. 18

19. 19

20. 20

21. 21

22. 22

23. 23
Why SSR?

24. 24
Social media

25. 25
Social media

26. 26
Social media

27. 27
Meta tags

28. 28

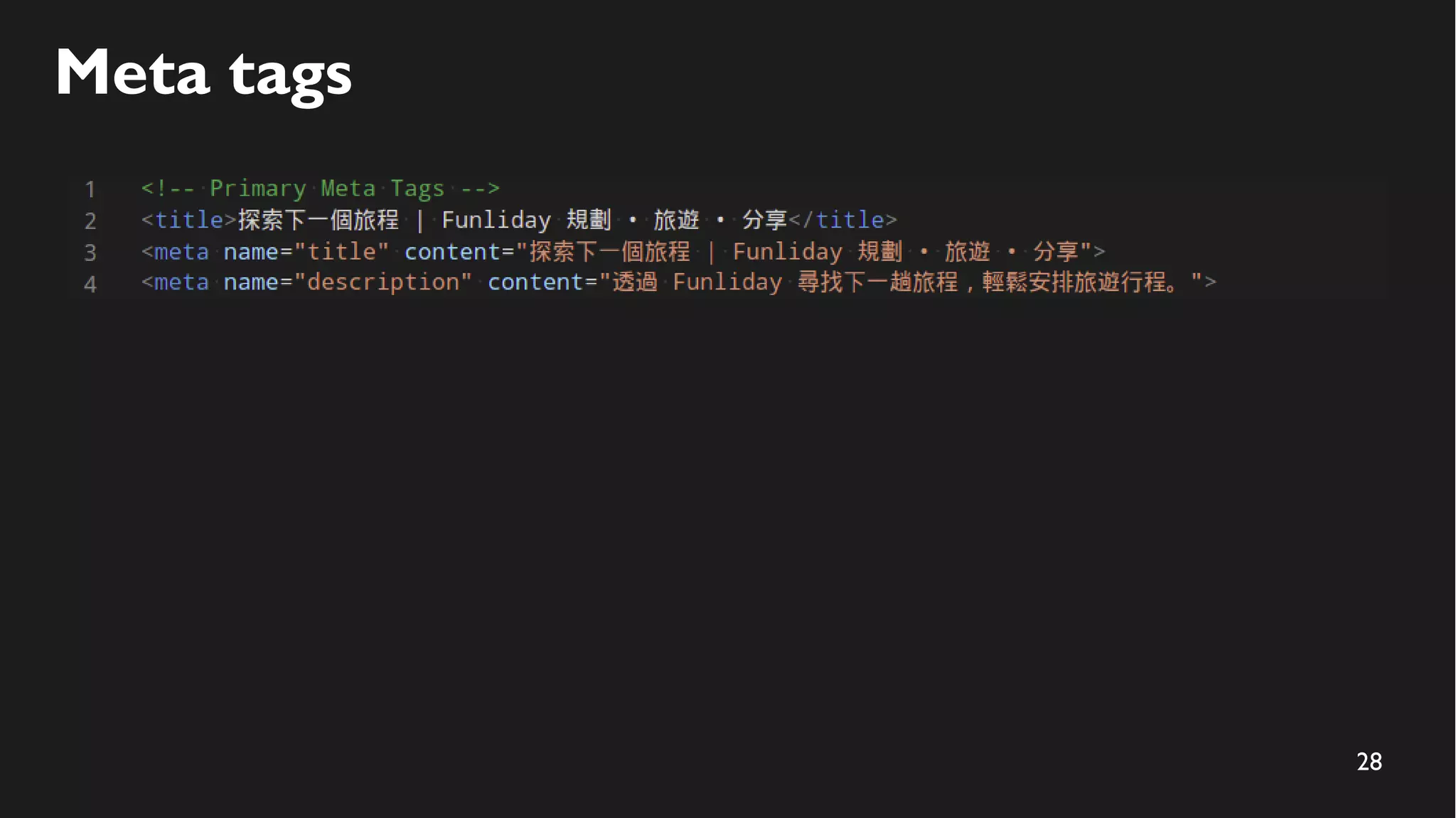

Meta tags

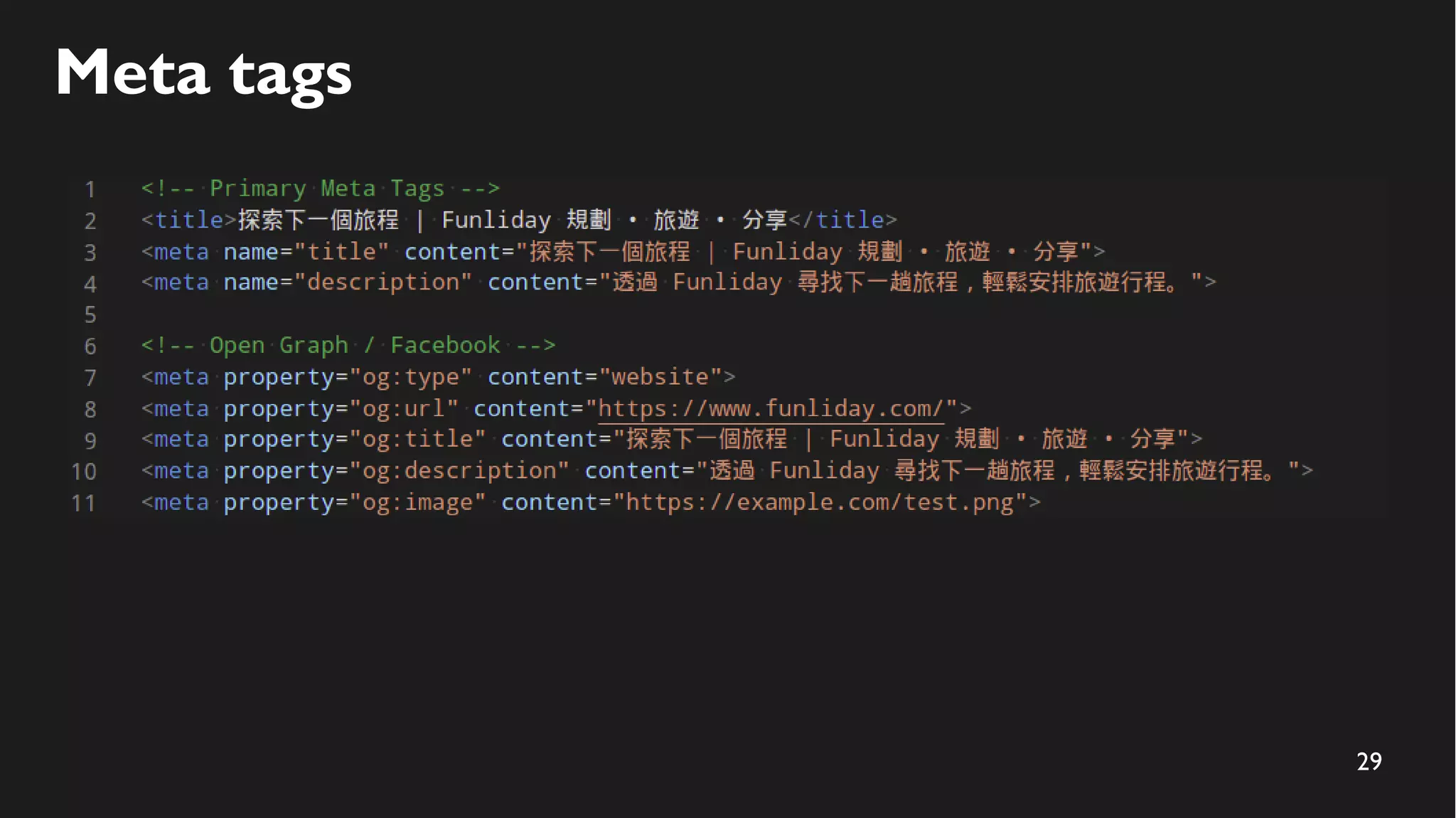

29. 29
Meta tags

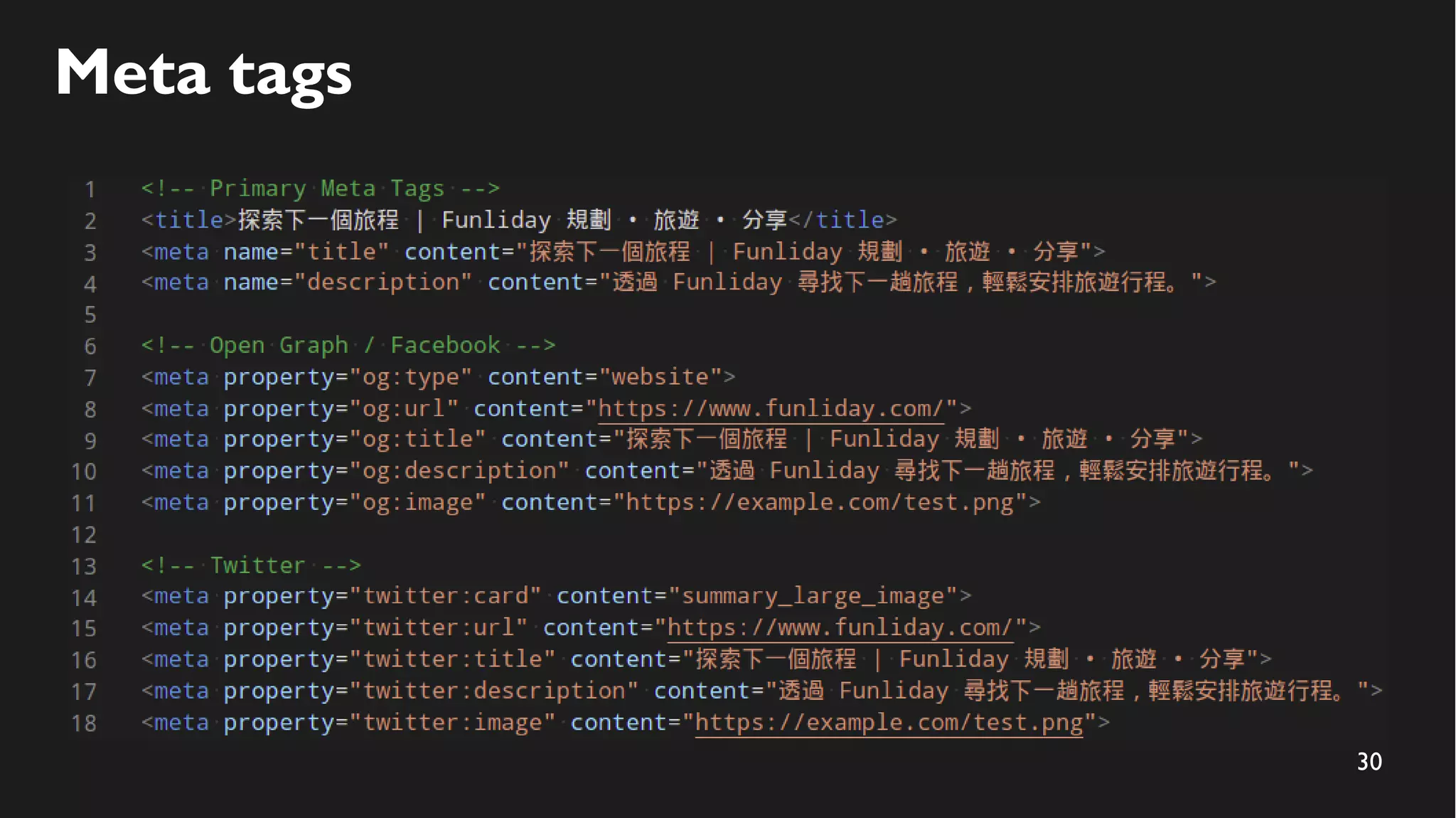

30. 30
Meta tags

31. 31
SEO

32. 32
SEO

33. 33
SERP - Search Engine Results Page

34. 34

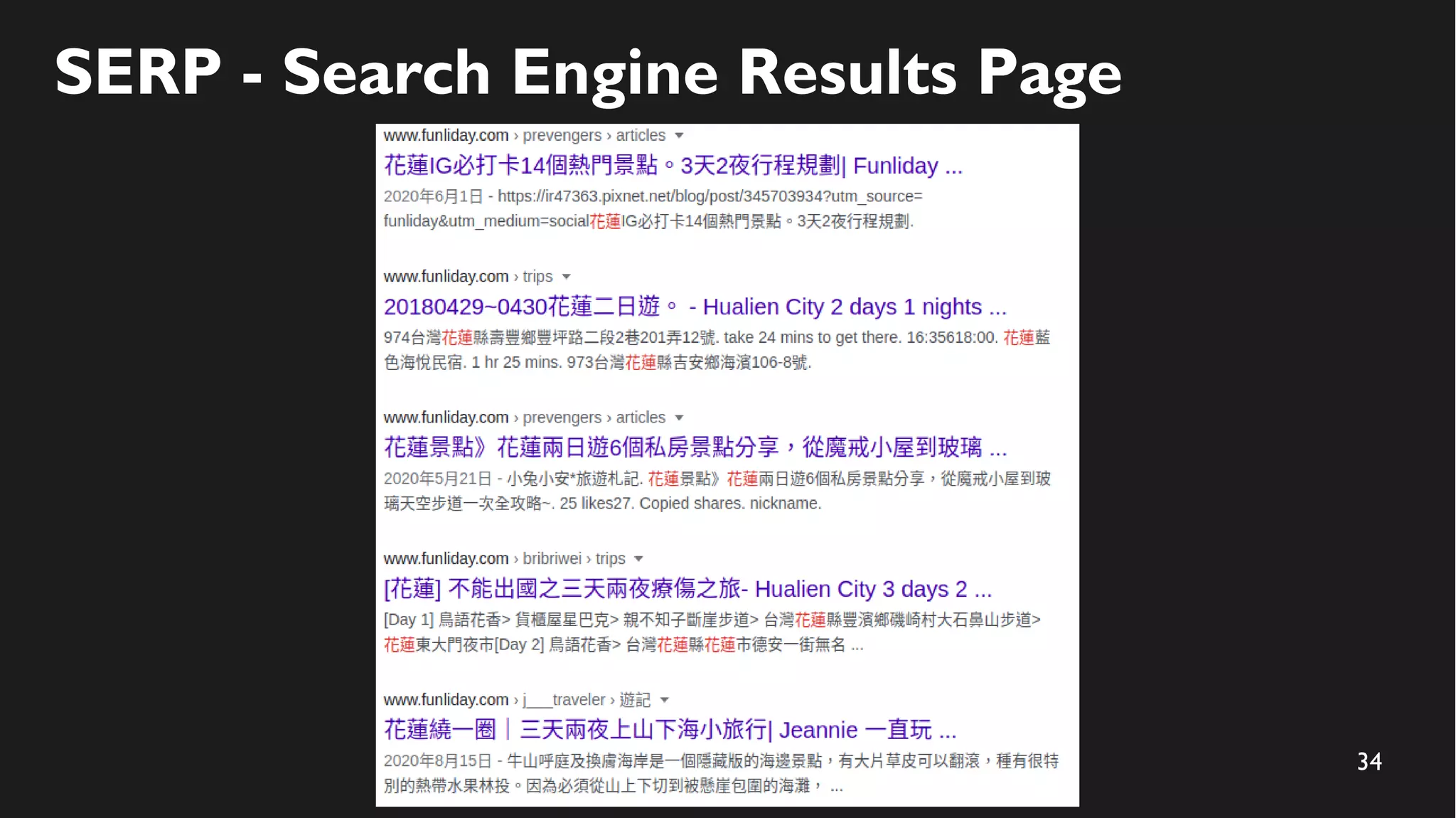

SERP - Search Engine Results Page

35. 35
How SSR?

36. 36

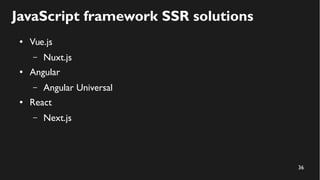

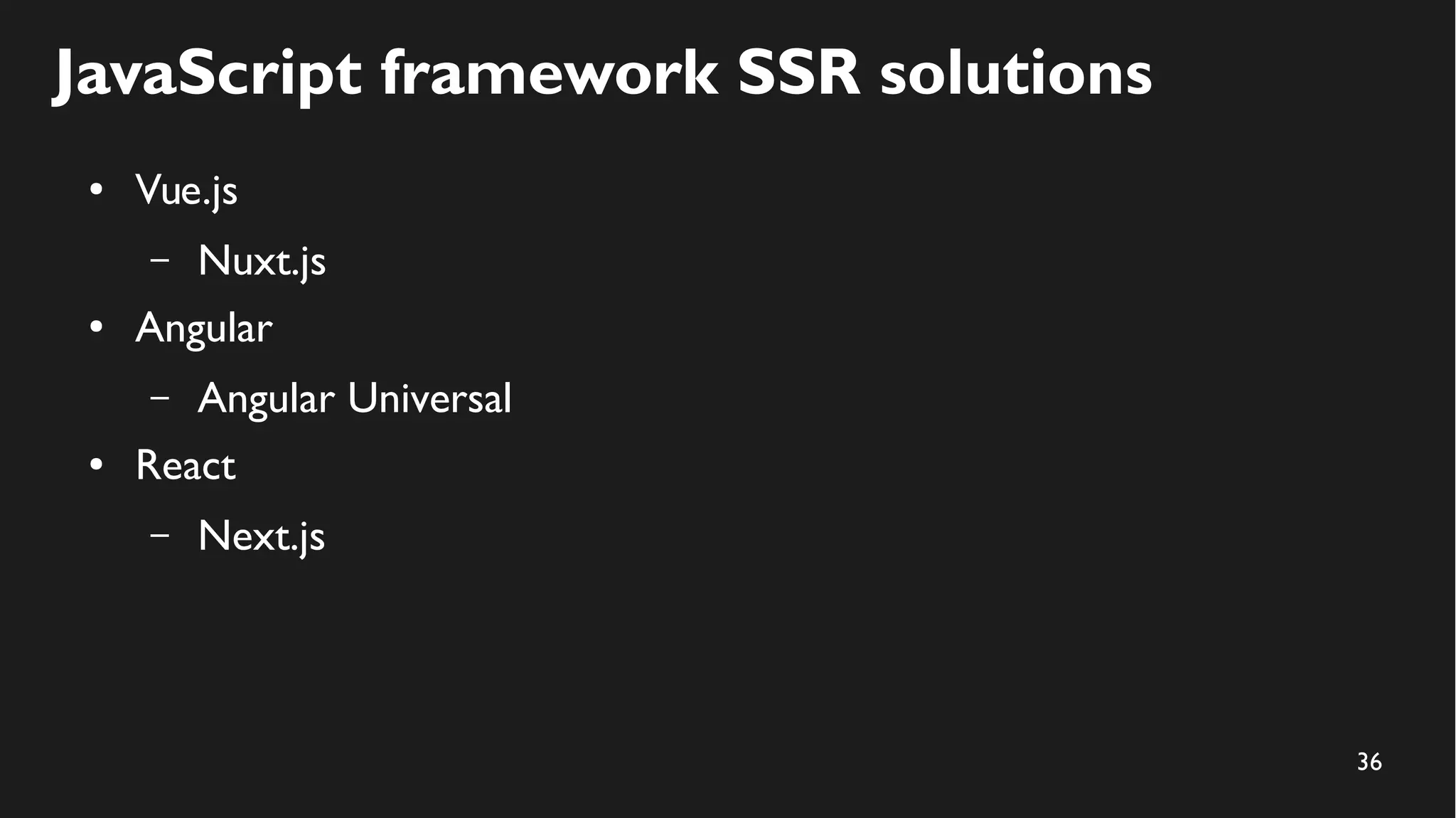

JavaScript framework SSR solutions
● Vue.js
– Nuxt.js
● Angular
– Angular Universal
● React
– Next.js

37. 37

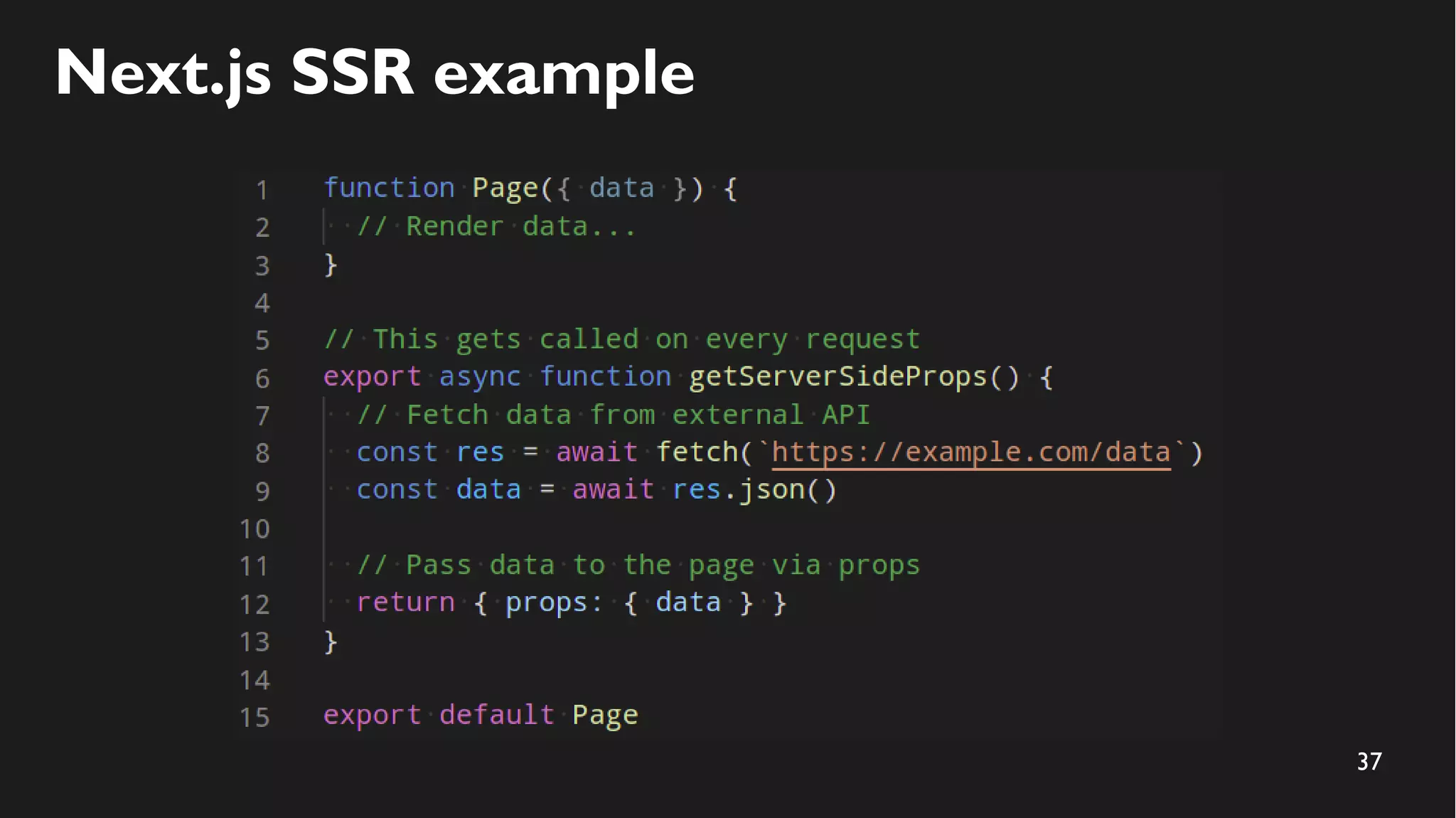

Next.js SSR example

38. 38

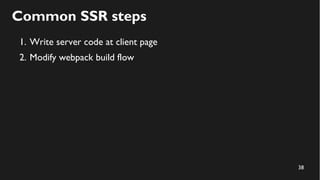

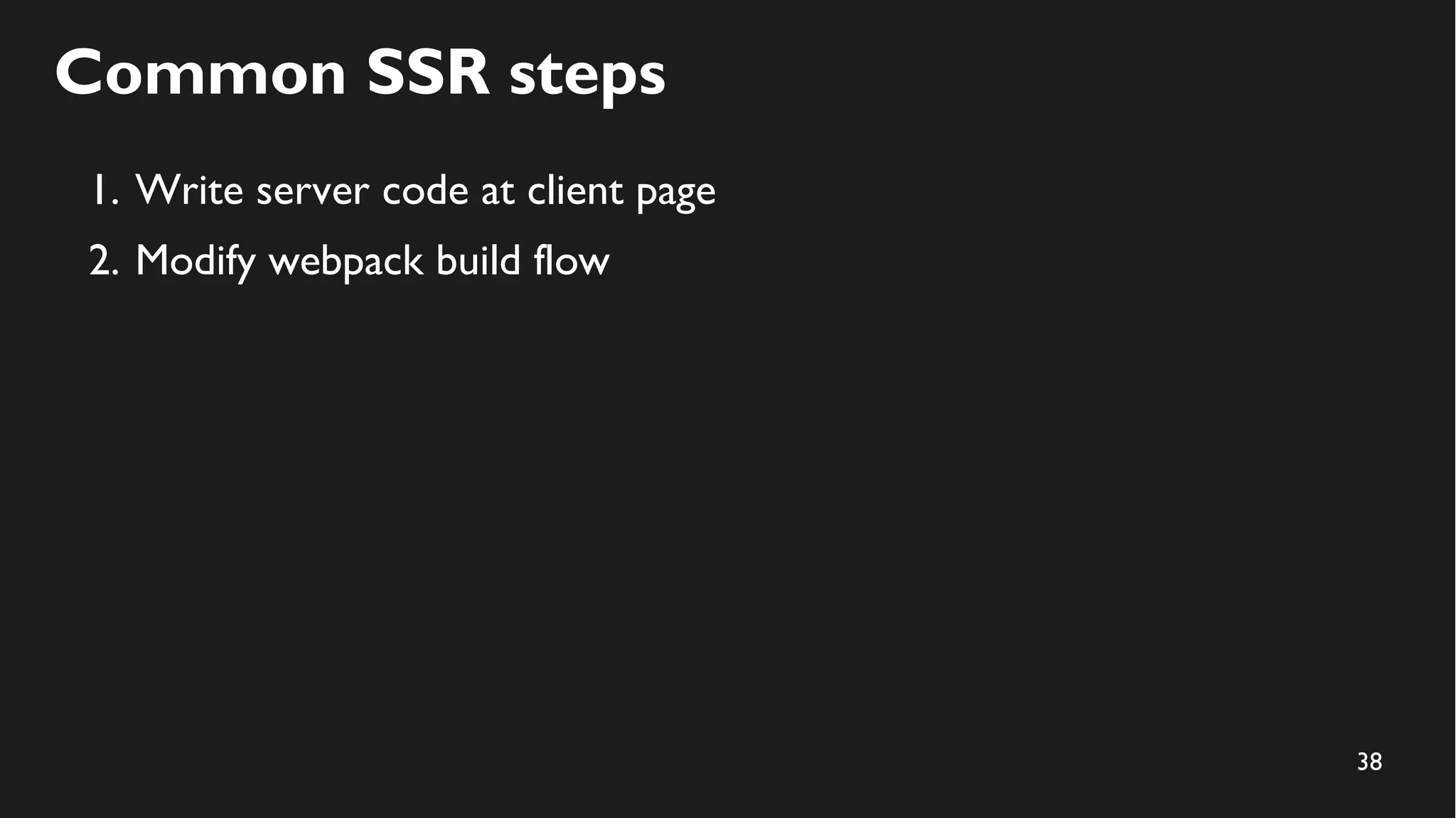

Common SSR steps
1. Write server code at client page
2. Modify webpack build flow

39. 39

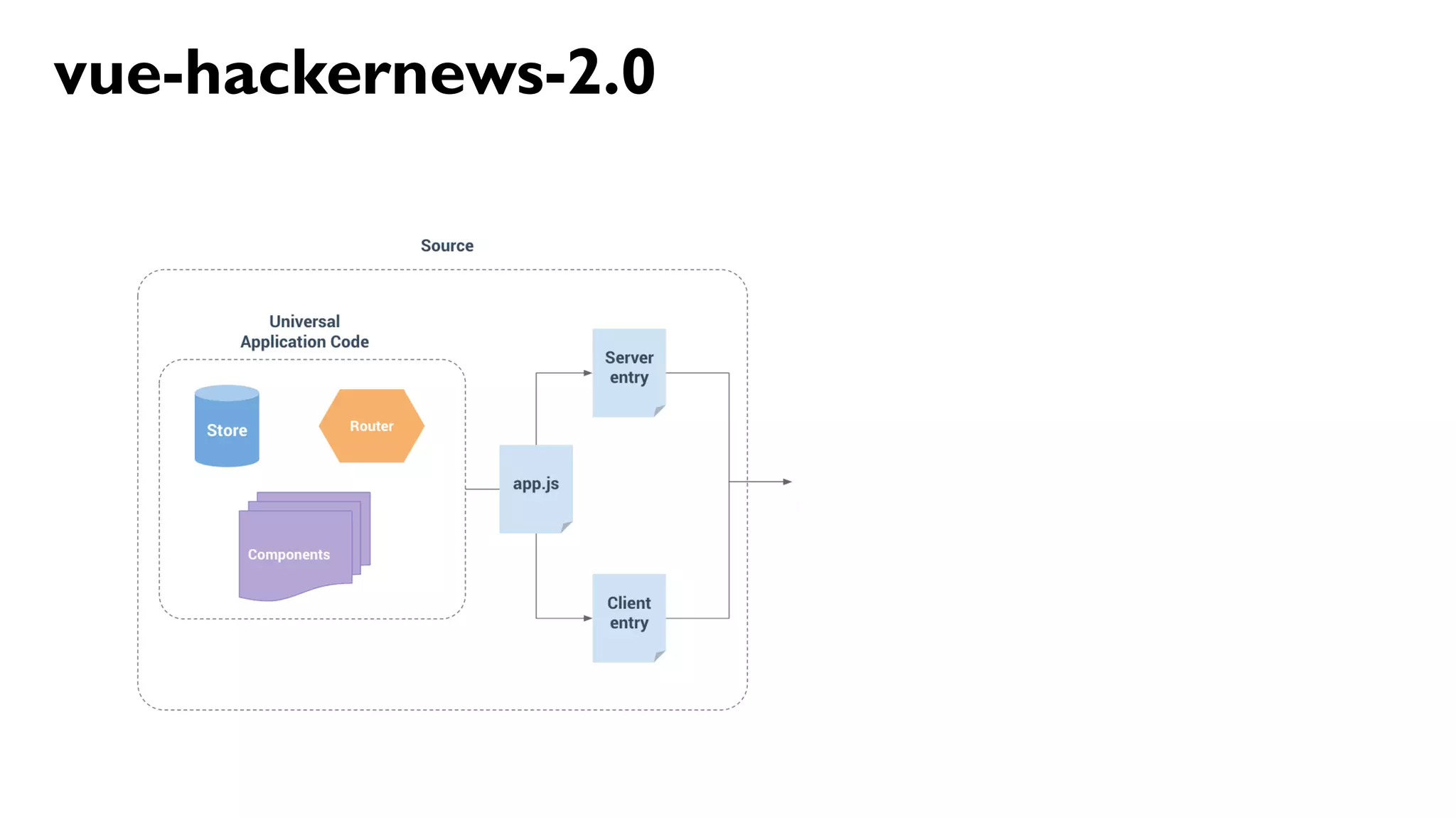

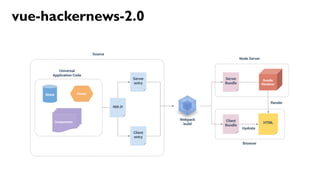

vue-hackernews-2.0

40. 40

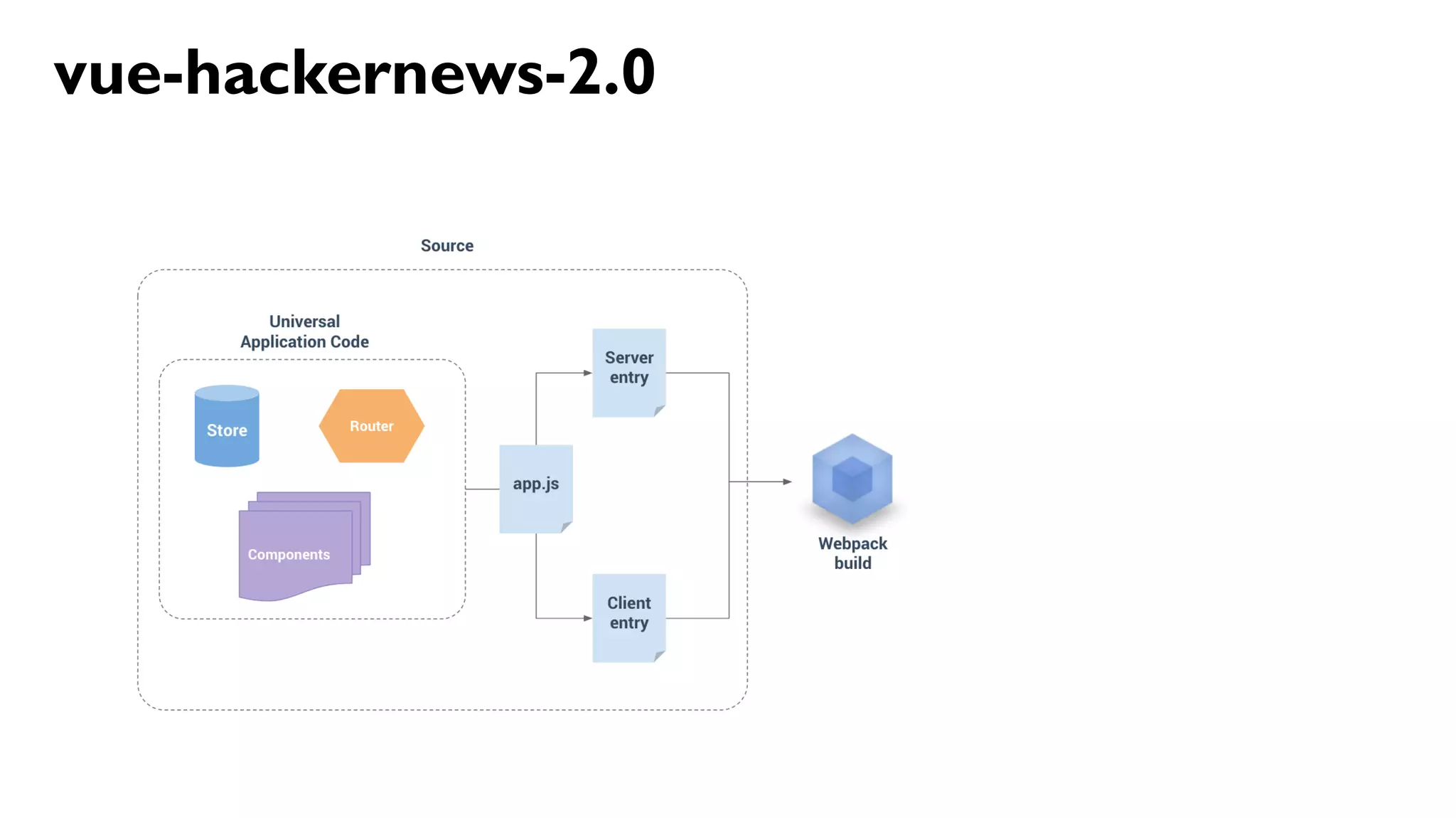

vue-hackernews-2.0

41. 41

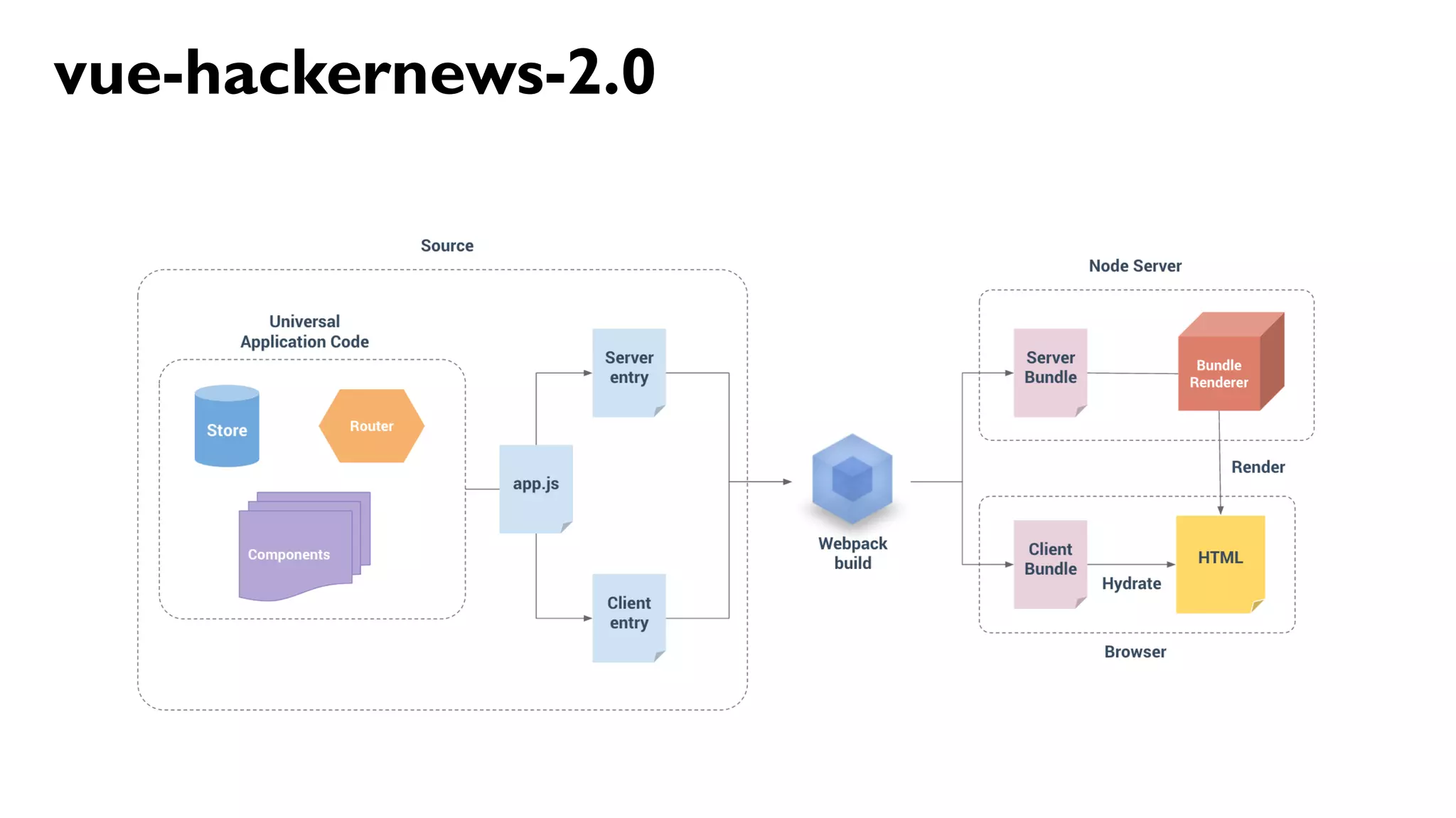

vue-hackernews-2.0

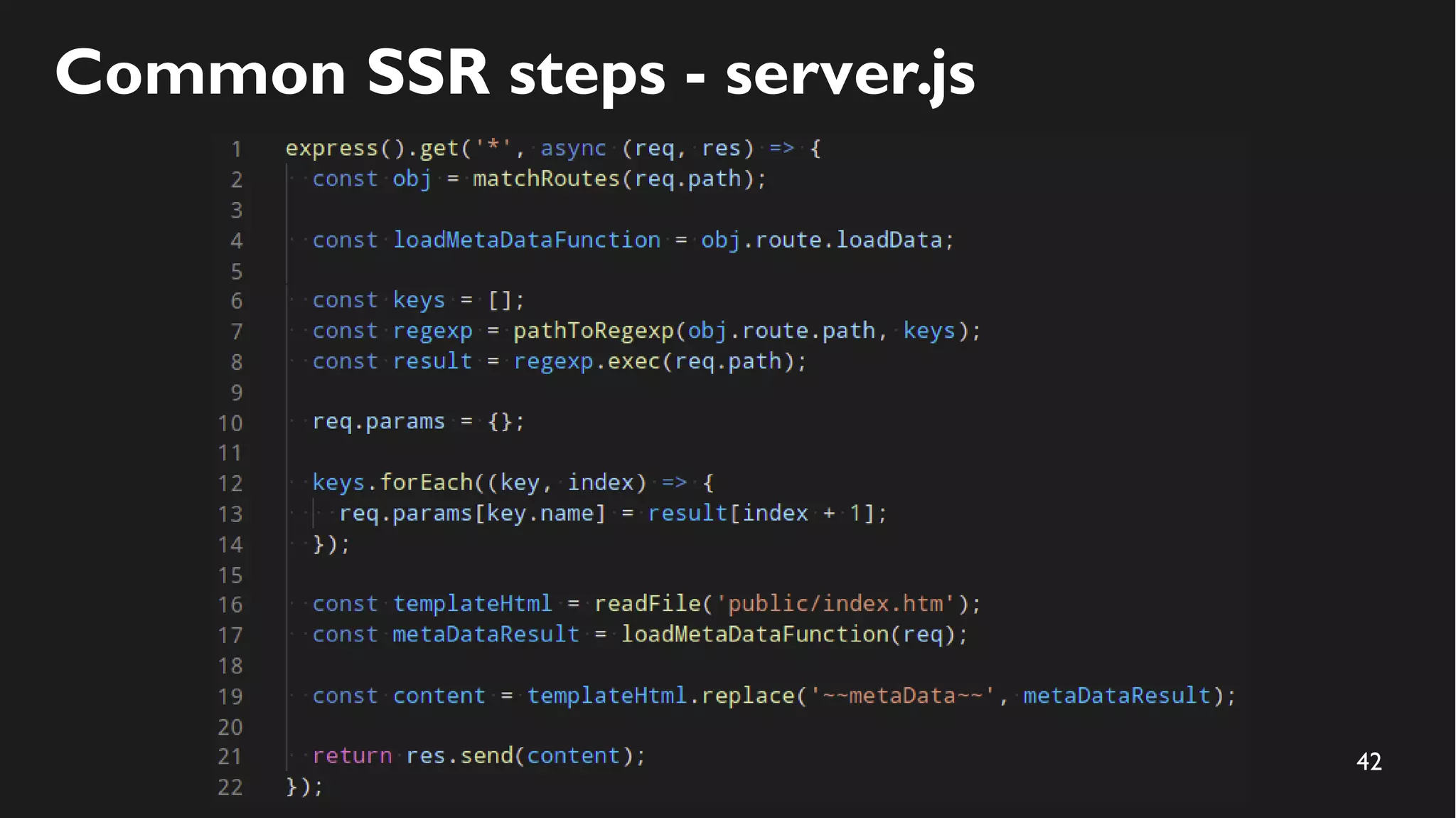

42. 42
Common SSR steps - server.js

43. 43
Common SSR steps - server.js
比對出合適的路由

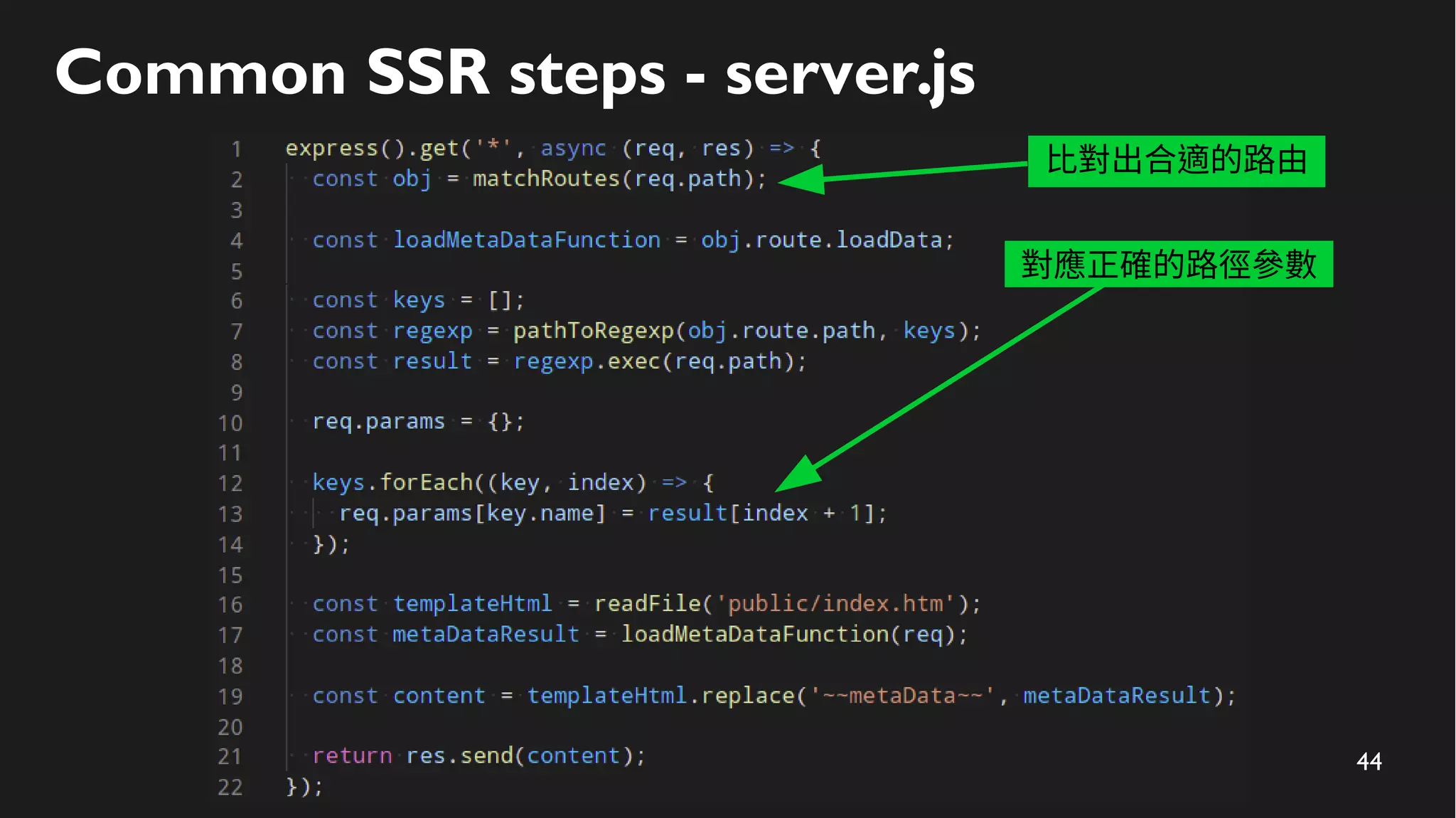

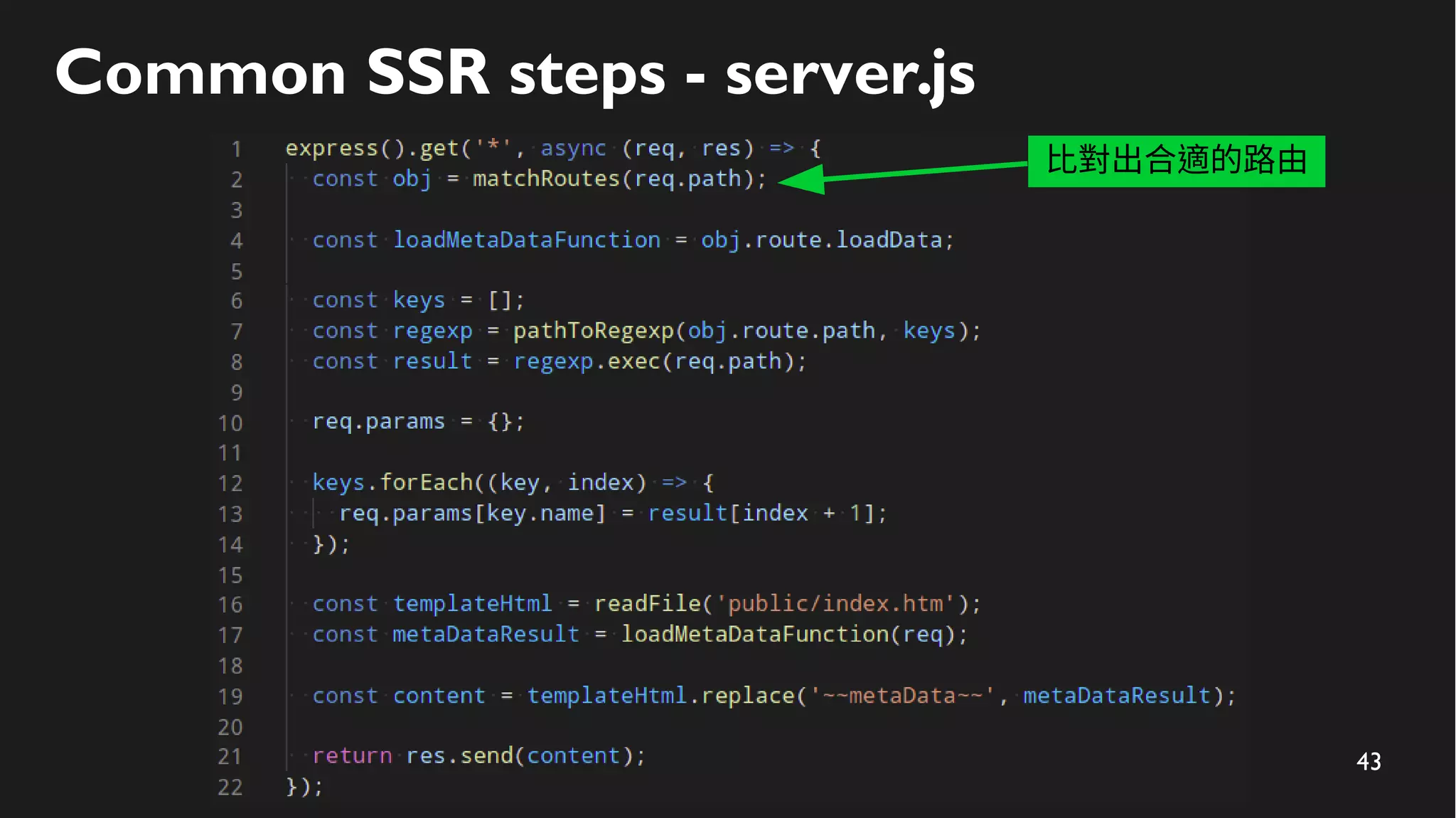

44. 44

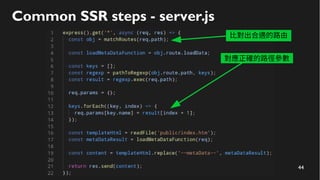

Common SSR steps - server.js
比對出合適的路由
對應正確的路徑參數

45. 45

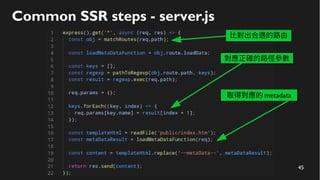

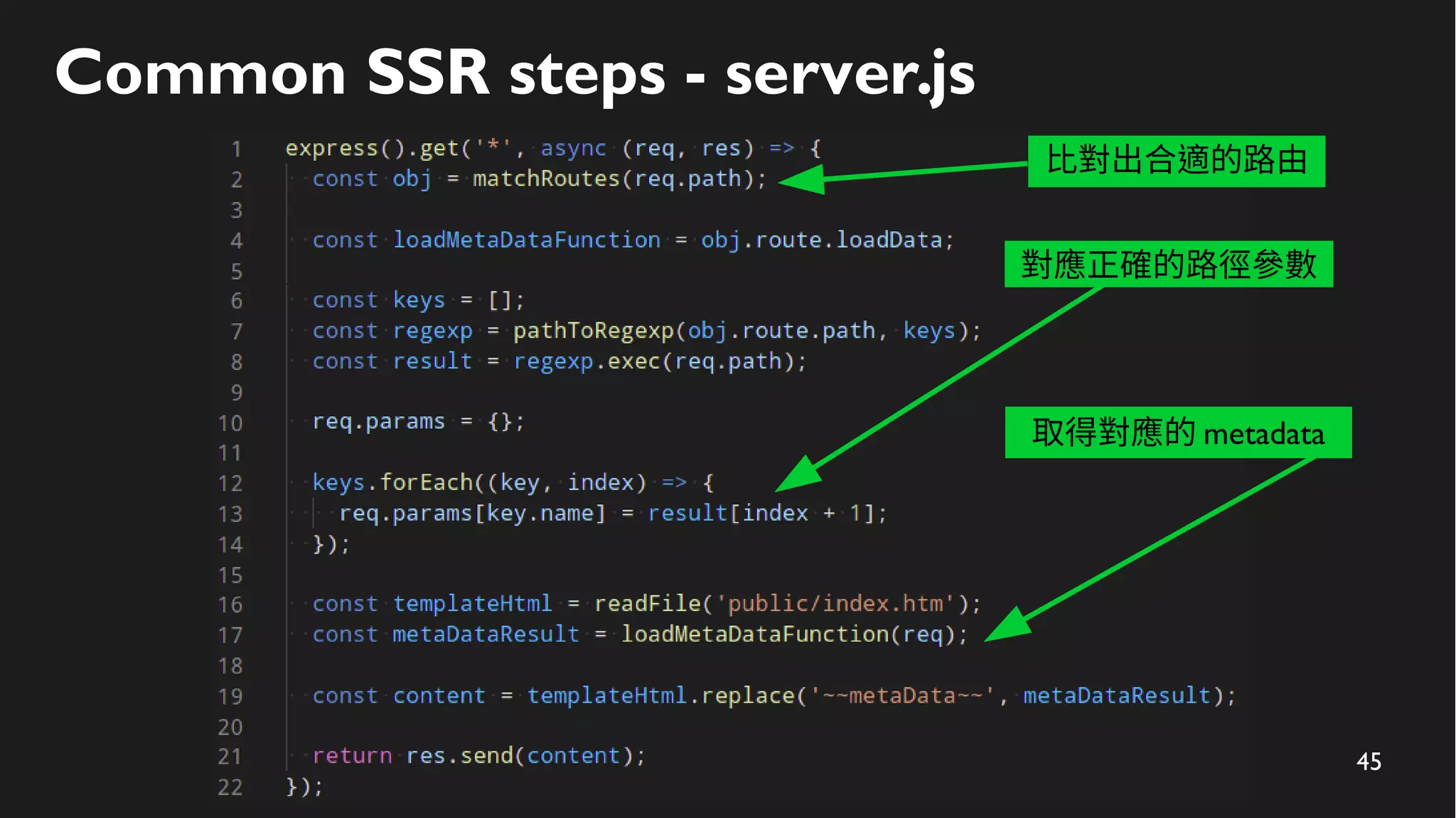

Common SSR steps - server.js
比對出合適的路由
對應正確的路徑參數
取得對應的 metadata

46. 46

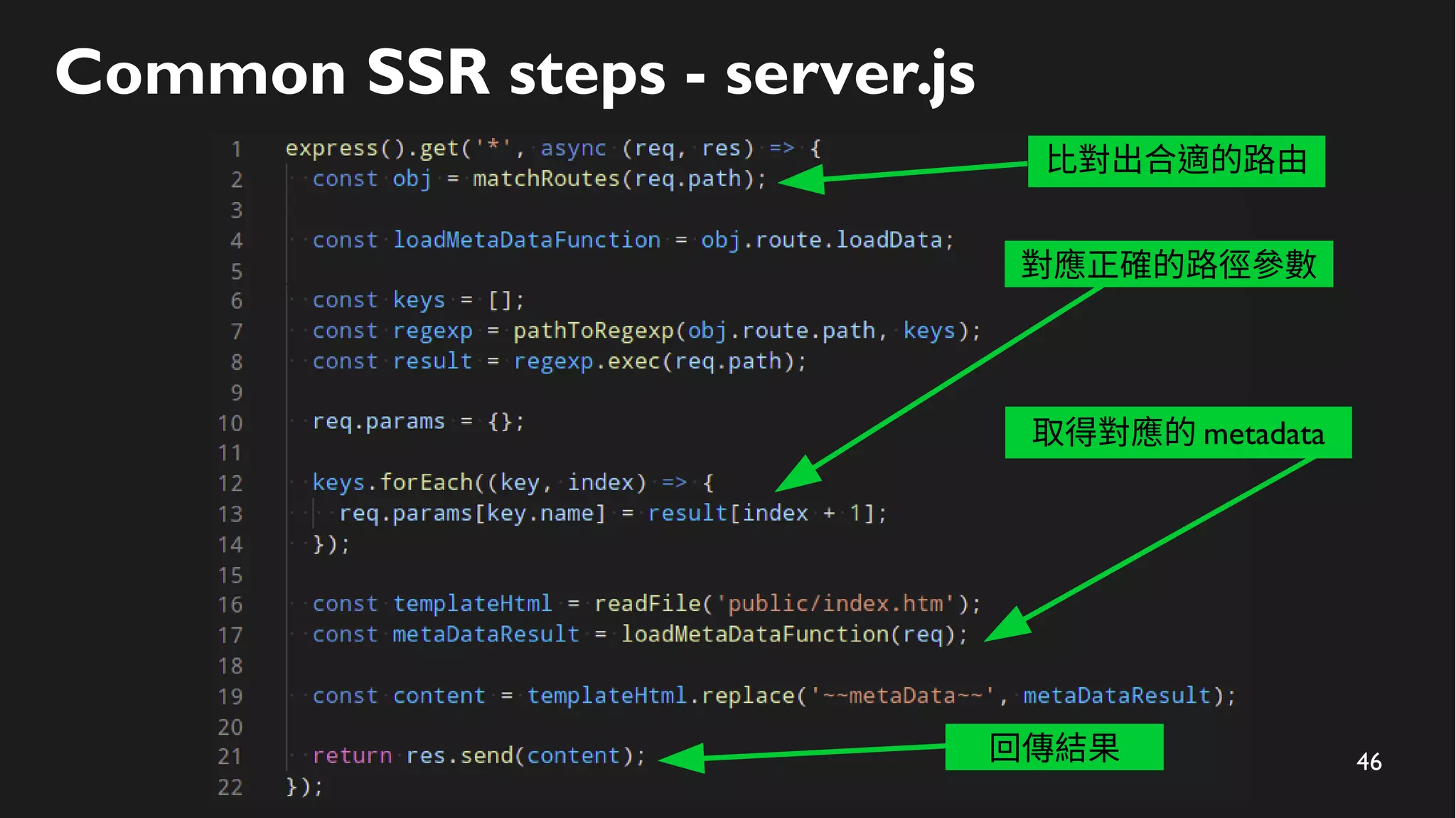

Common SSR steps - server.js
比對出合適的路由
對應正確的路徑參數
回傳結果
取得對應的 metadata

47. 47

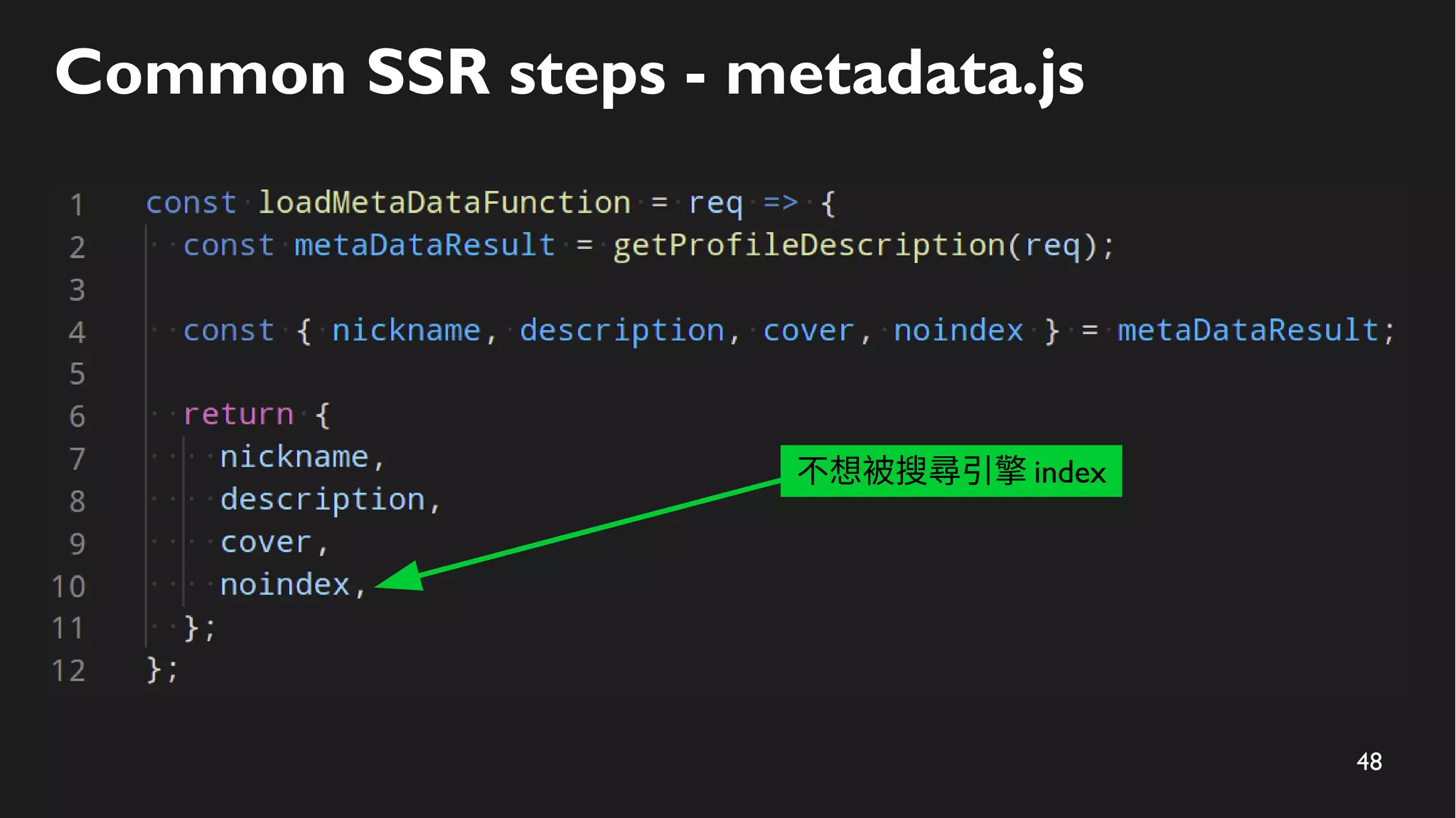

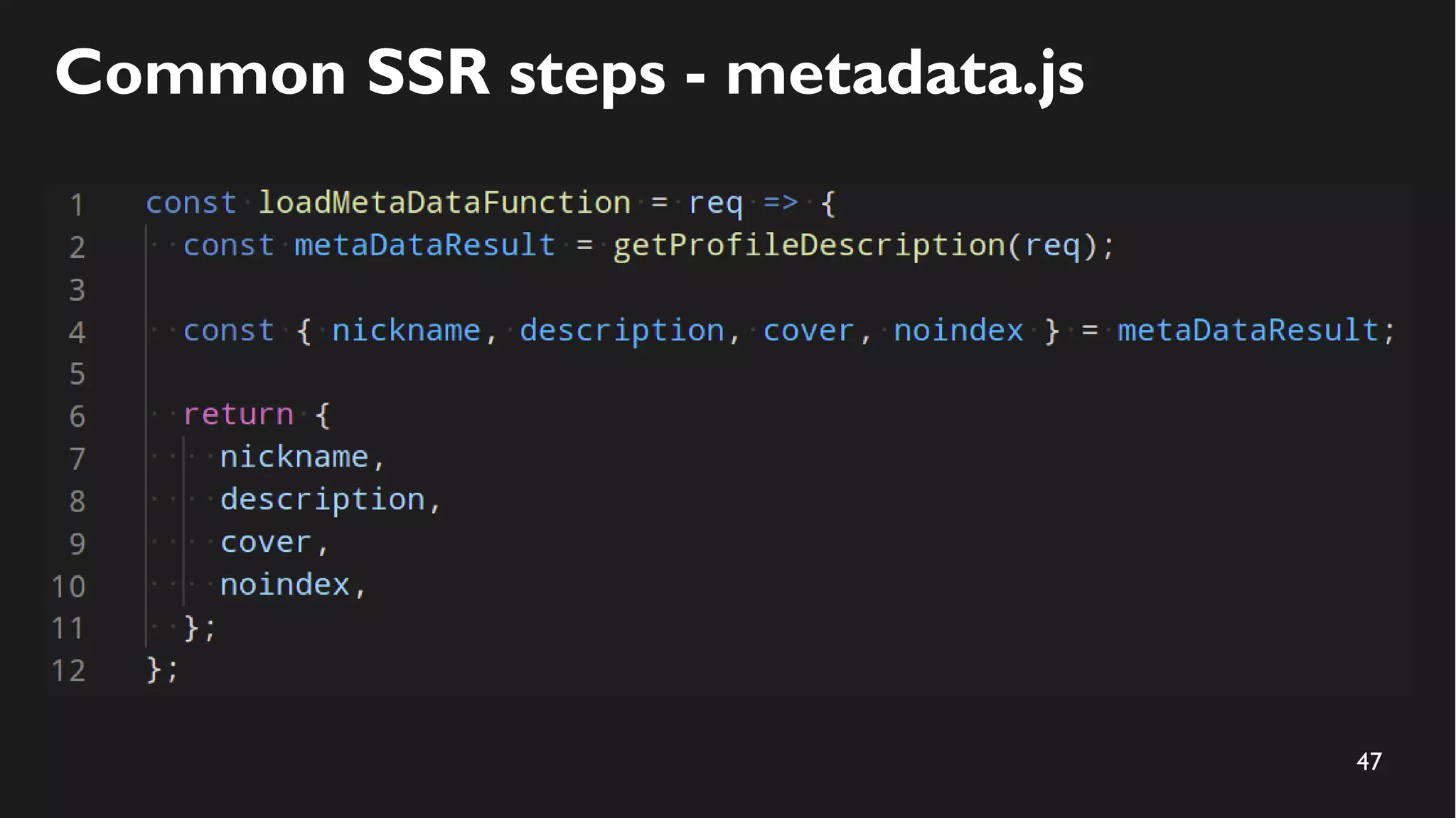

Common SSR steps - metadata.js

48. 48
Common SSR steps - metadata.js
不想被搜尋引擎 index

49. 49

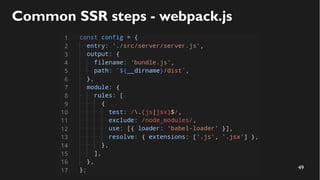

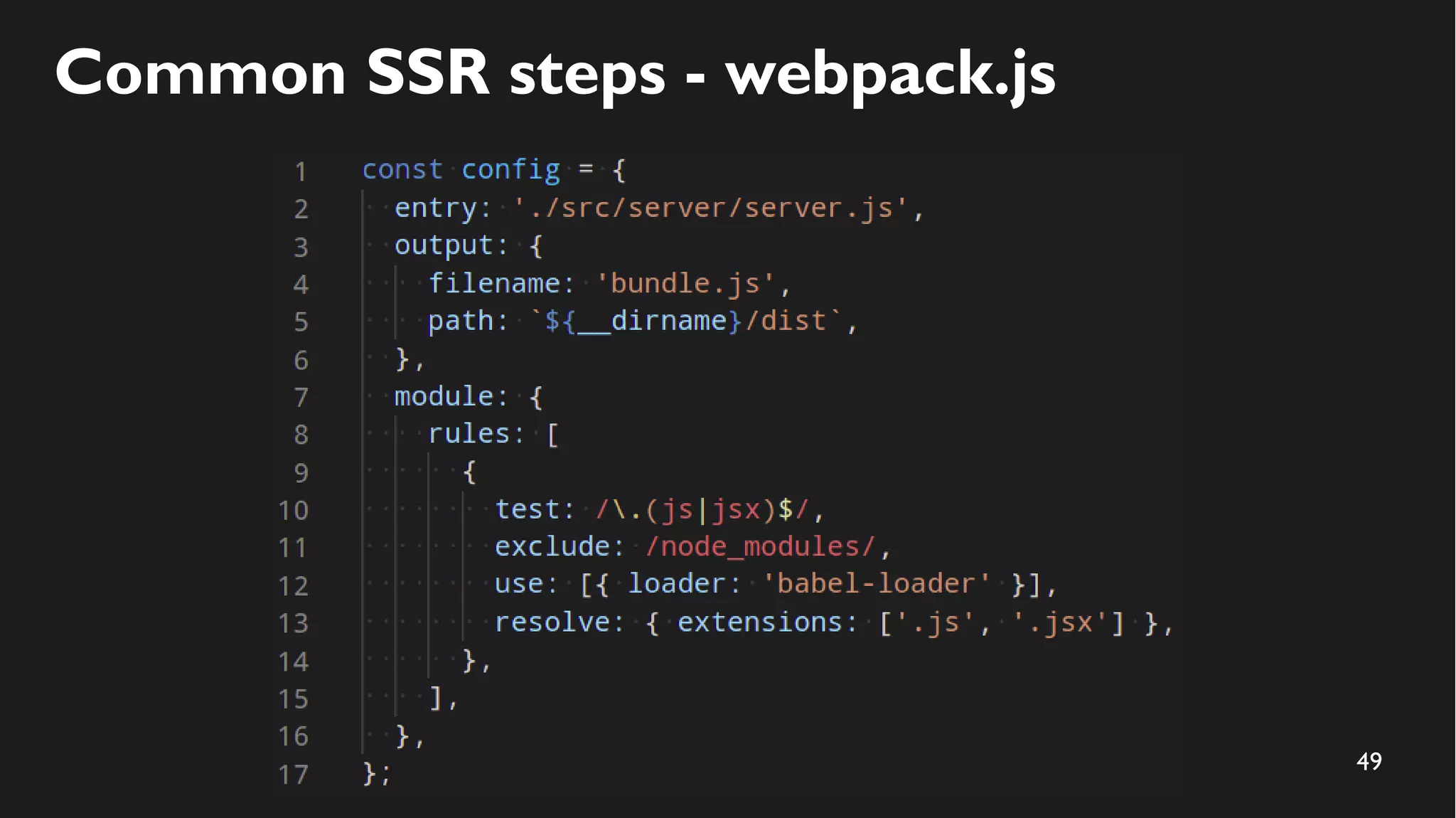

Common SSR steps - webpack.js

50. 50

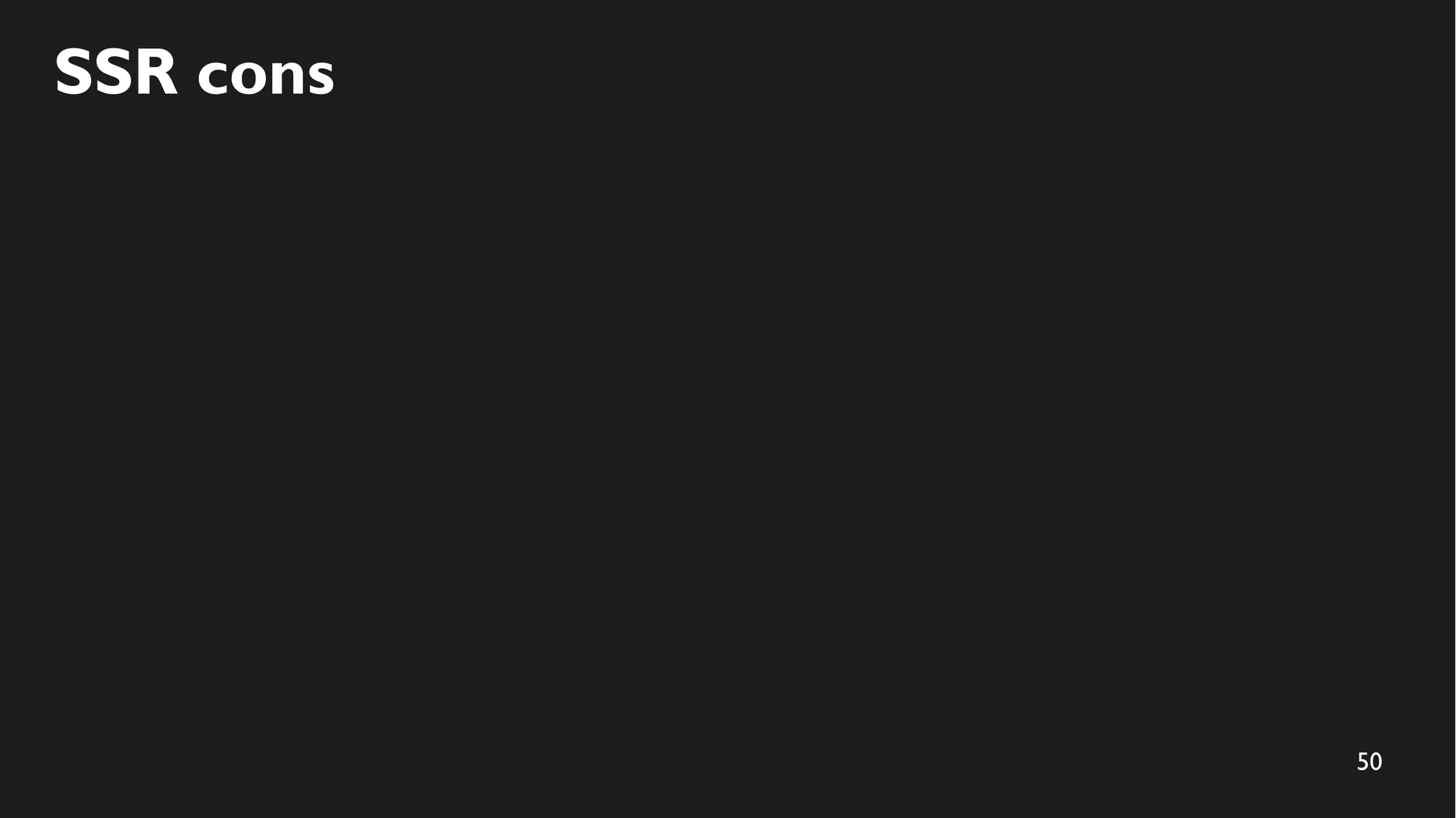

SSR cons

51. 51

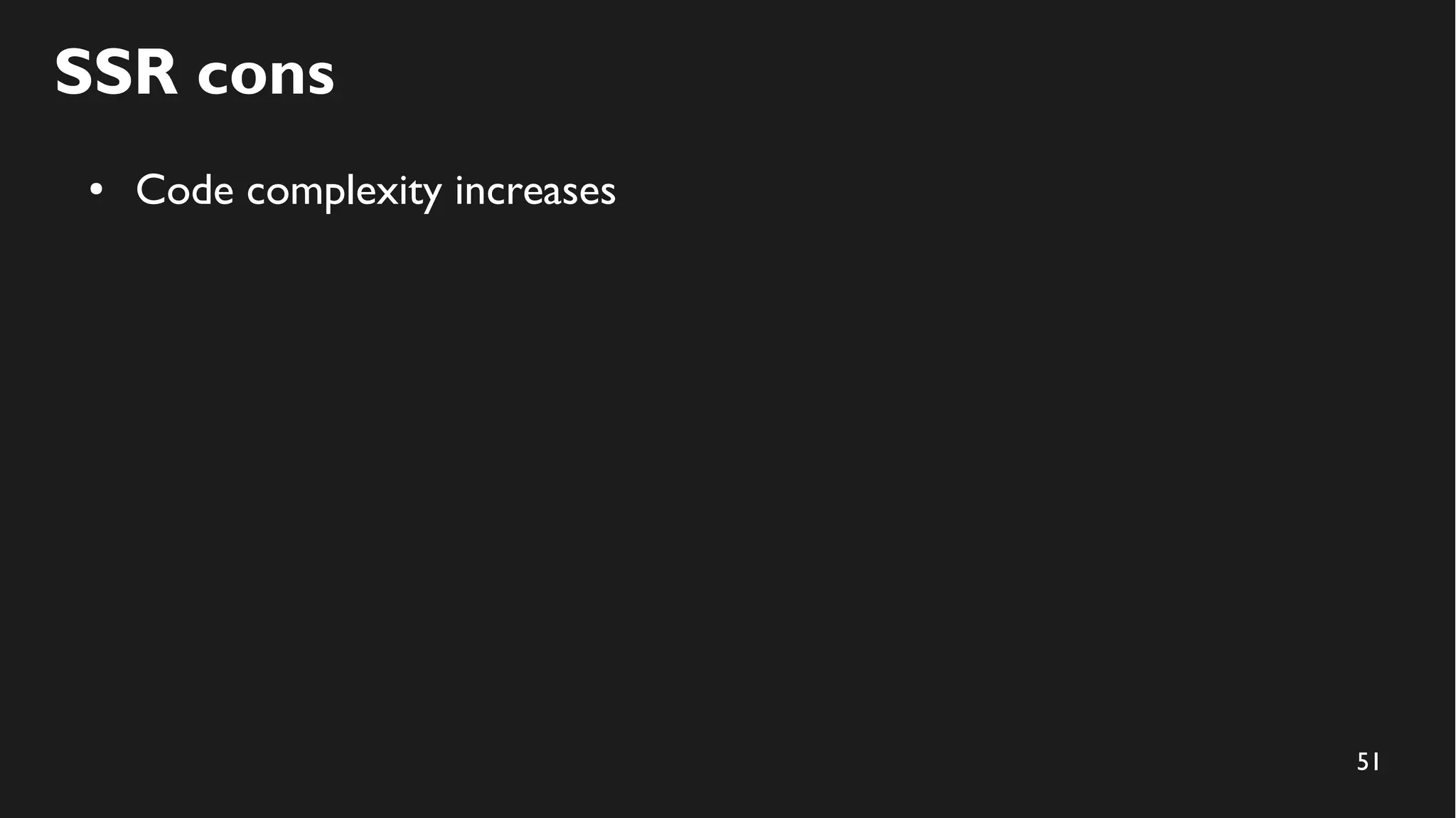

SSR cons
● Code complexity increases

52. 52

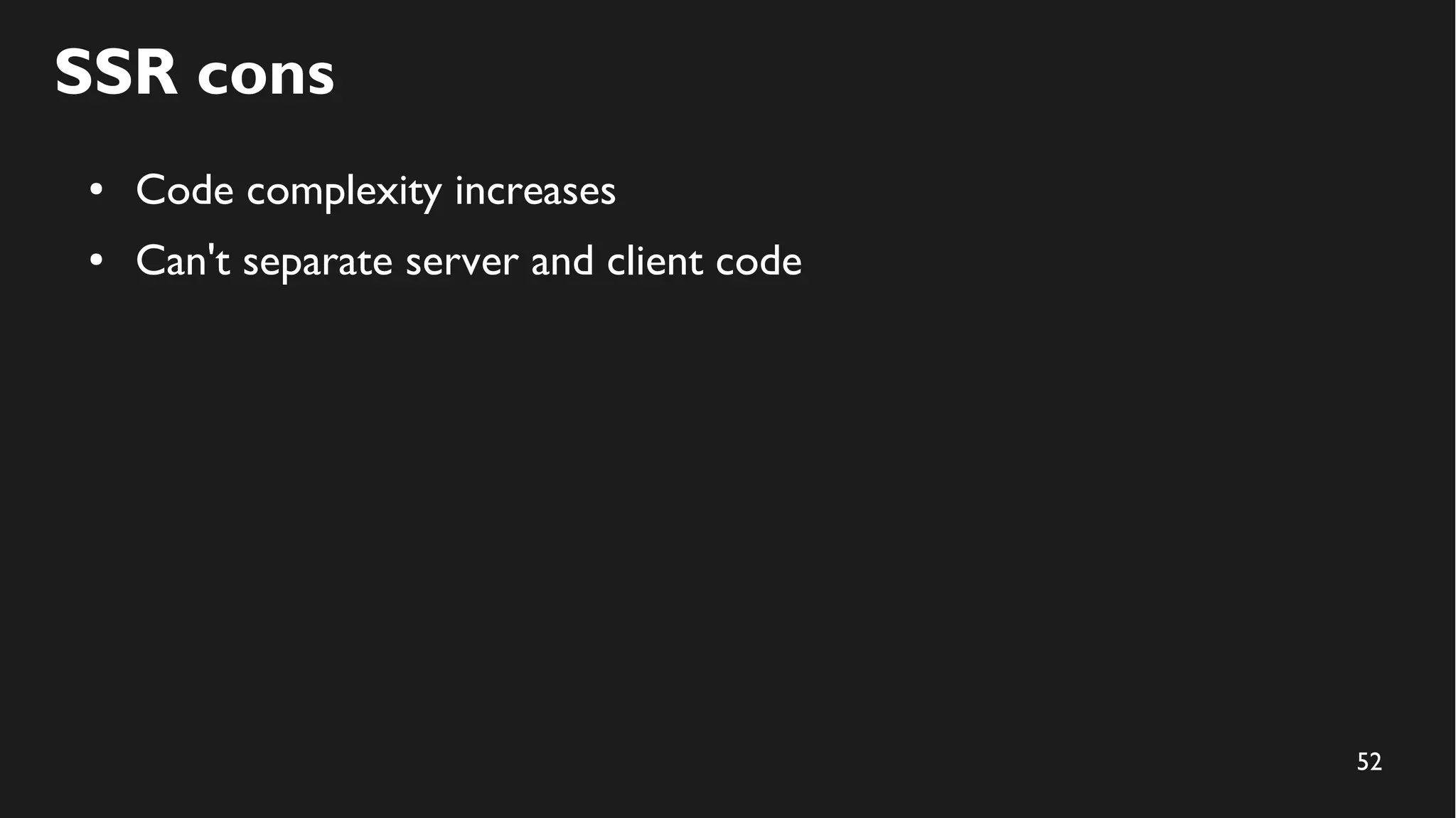

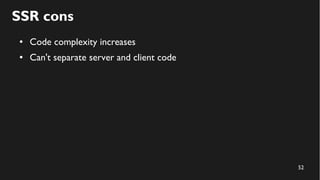

SSR cons
● Code complexity increases
● Can't separate server and client code

53. 53

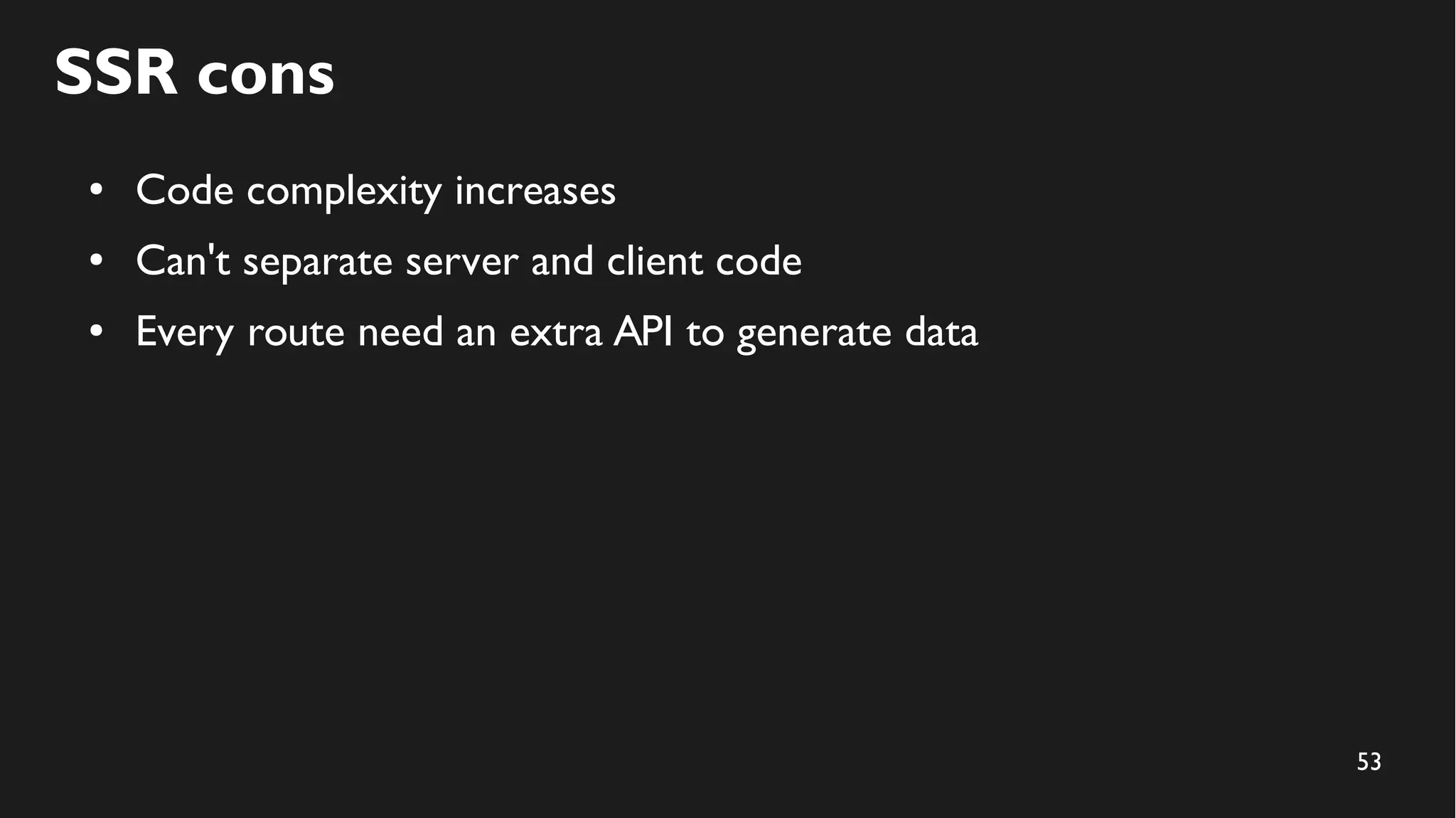

SSR cons
● Code complexity increases
● Can't separate server and client code
● Every route need an extra API to generate data

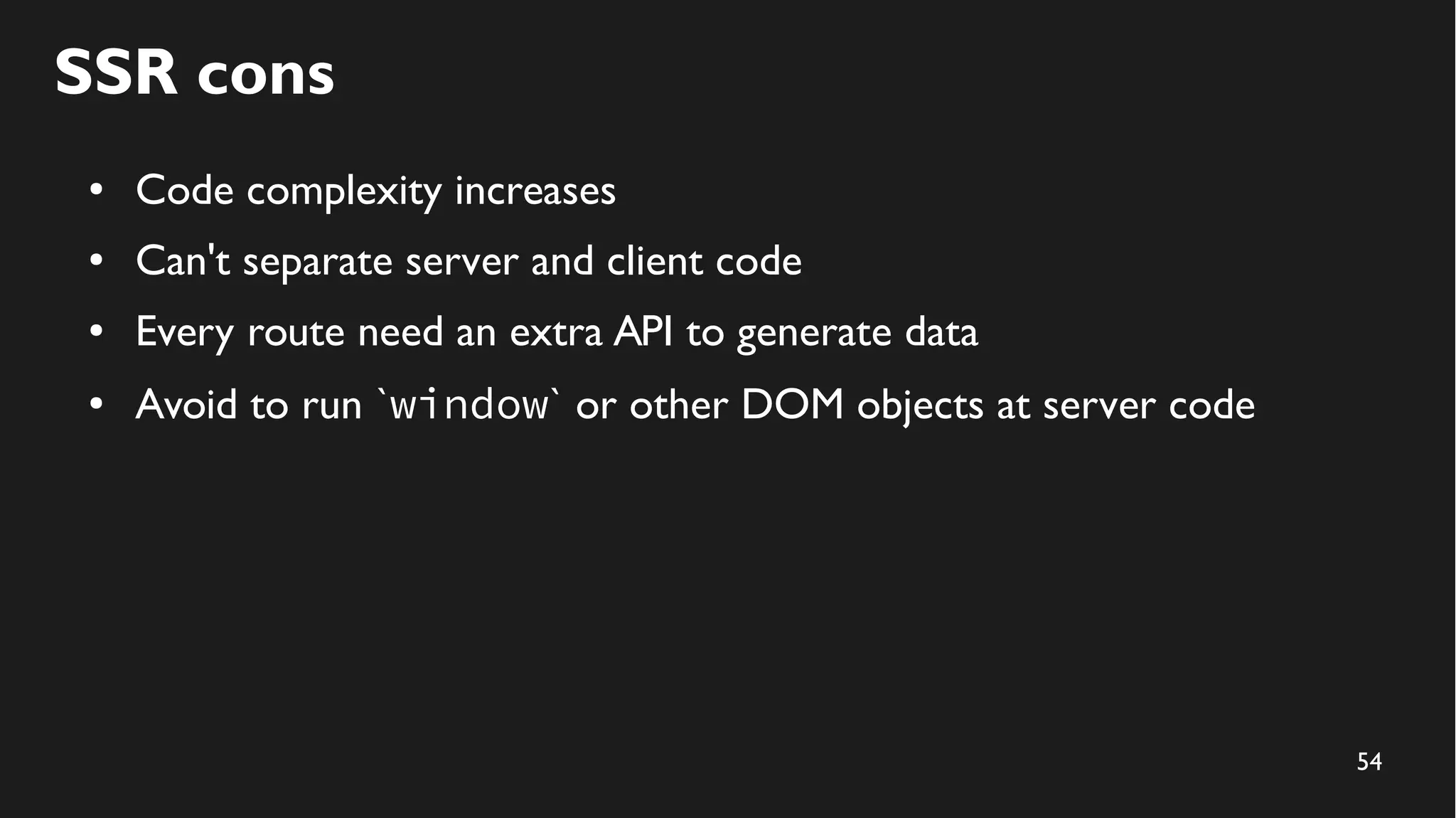

54. 54
SSR cons
● Code complexity increases
● Can't separate server and client code
● Every route need an extra API to generate data
● Avoid to run `window` or other DOM objects at server code

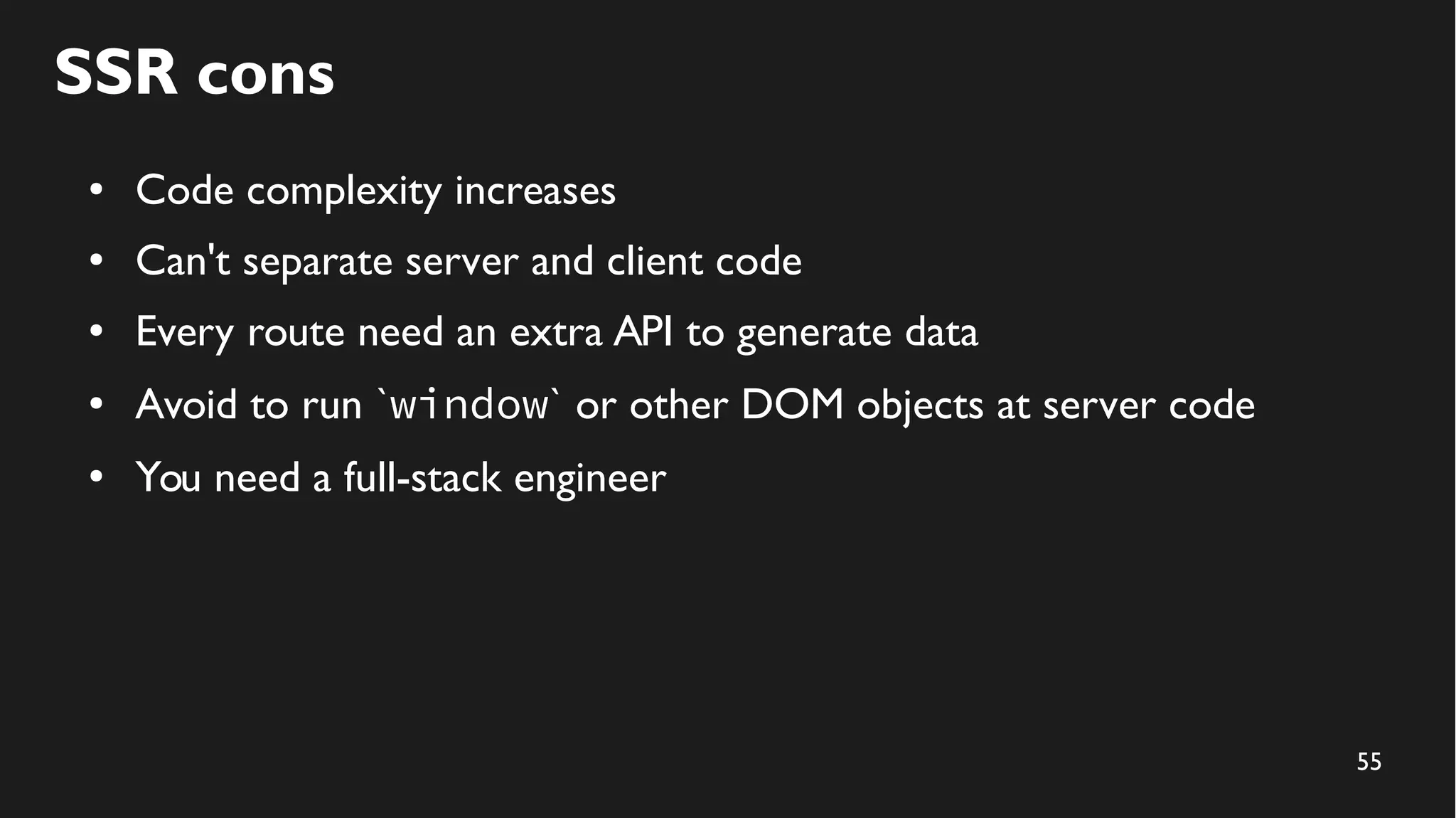

55. 55

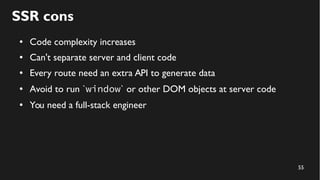

SSR cons
● Code complexity increases
● Can't separate server and client code
● Every route need an extra API to generate data
● Avoid to run `window` or other DOM objects at server code
● You need a full-stack engineer

56. 56

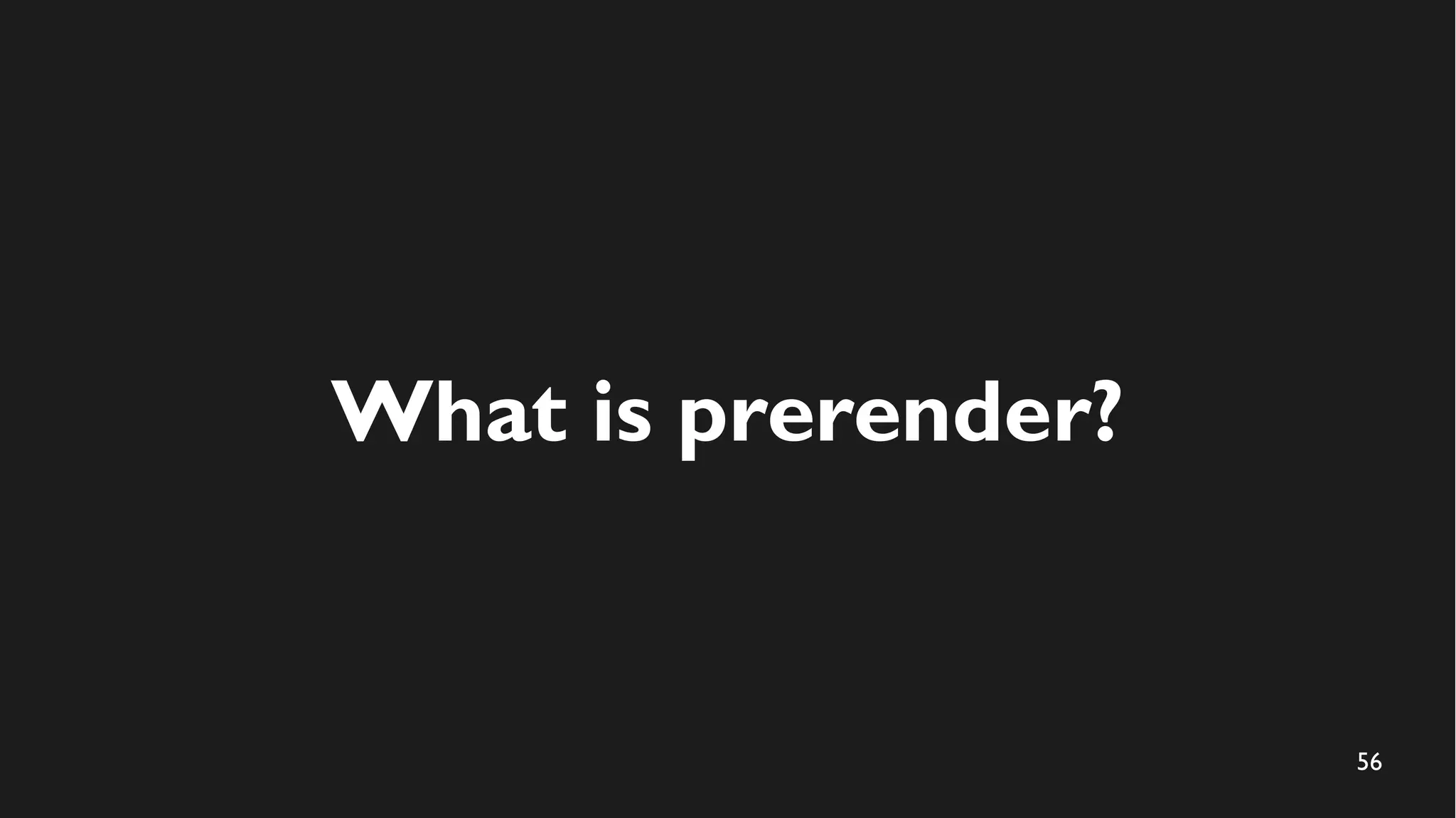

What is prerender?

57. 57

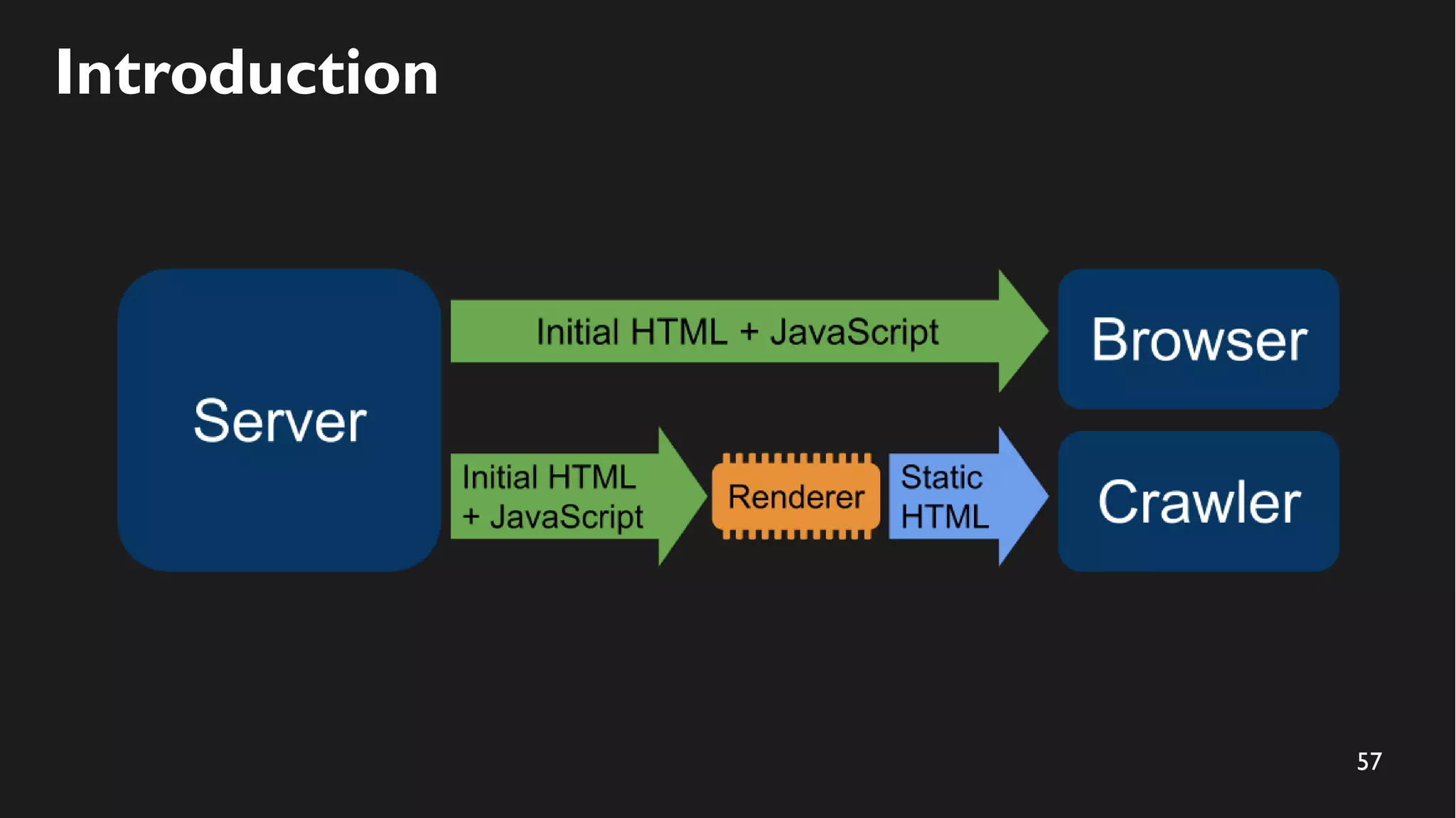

Introduction

58. 58
System diagram
client
CDN
puppeteerNginx
Web server

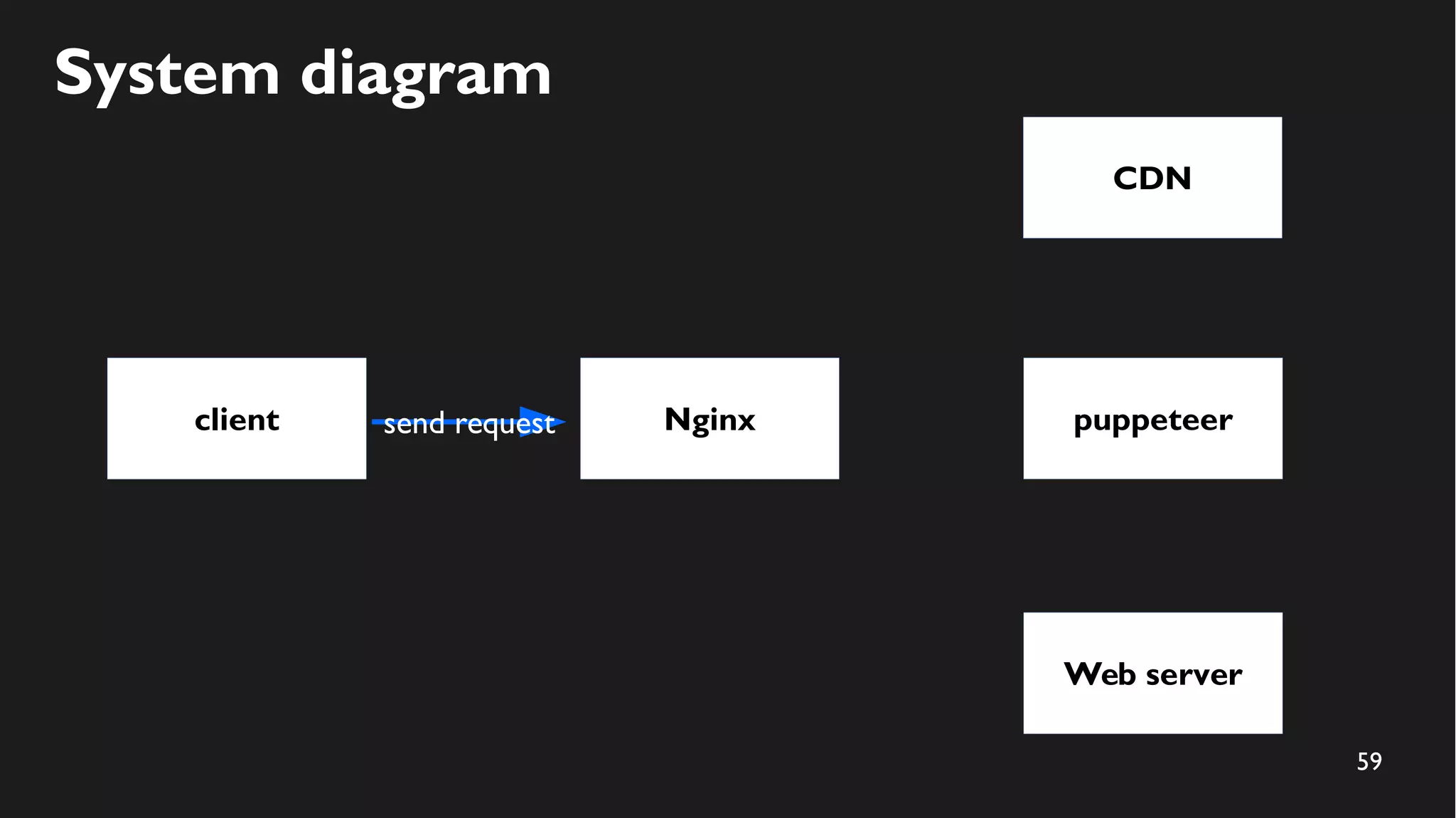

59. 59
System diagram
client
CDN
puppeteersend request Nginx
Web server

60. 60
System diagram
client
CDN
puppeteersend request Nginx
Web server
non-crawler

61. 61
System diagram
client
CDN
puppeteersend request Nginx
Web server
crawler
non-crawler

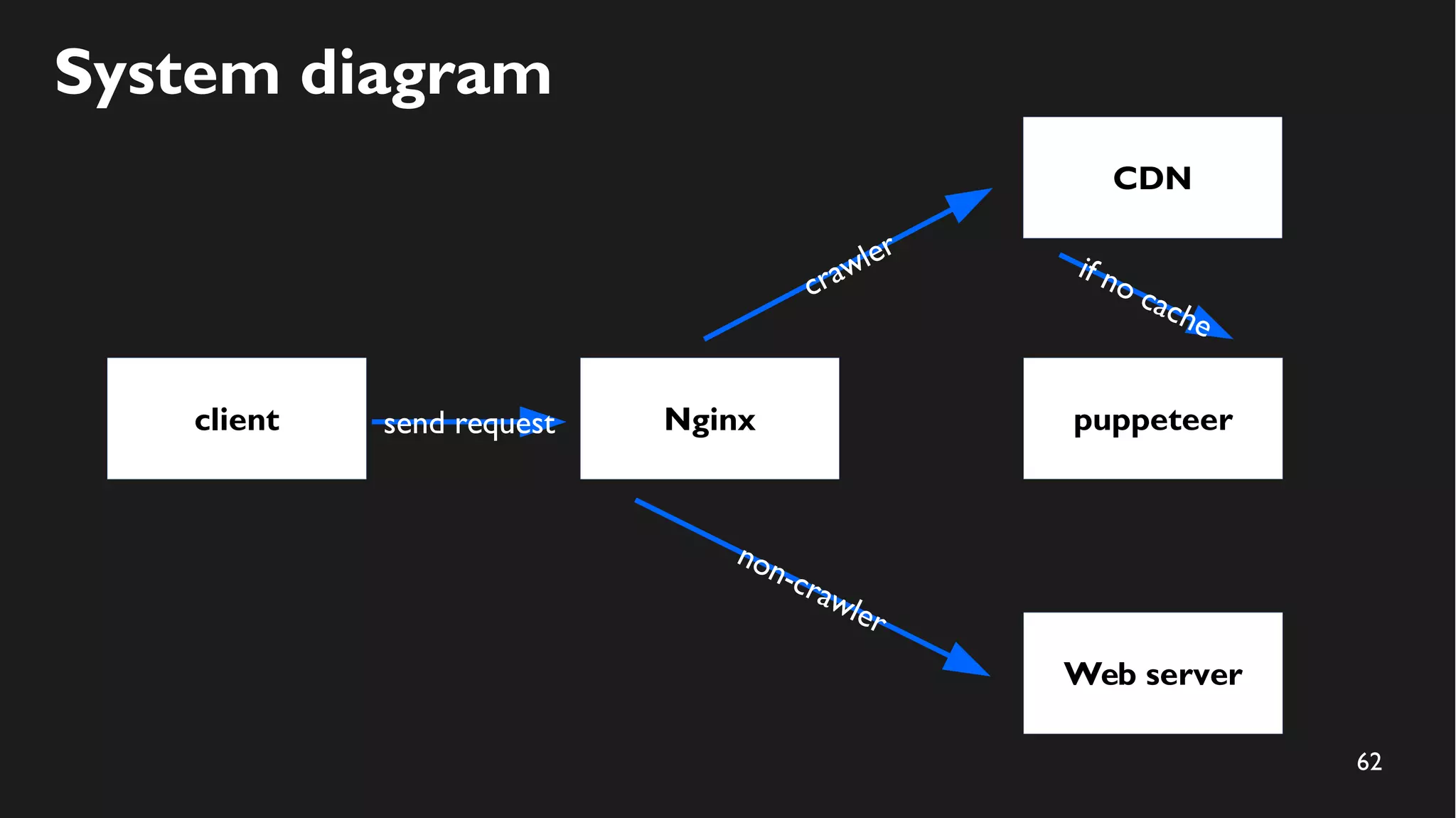

62. 62
System diagram
client
CDN
puppeteersend request Nginx
Web server
crawler
non-crawler
if no cache

63. 63

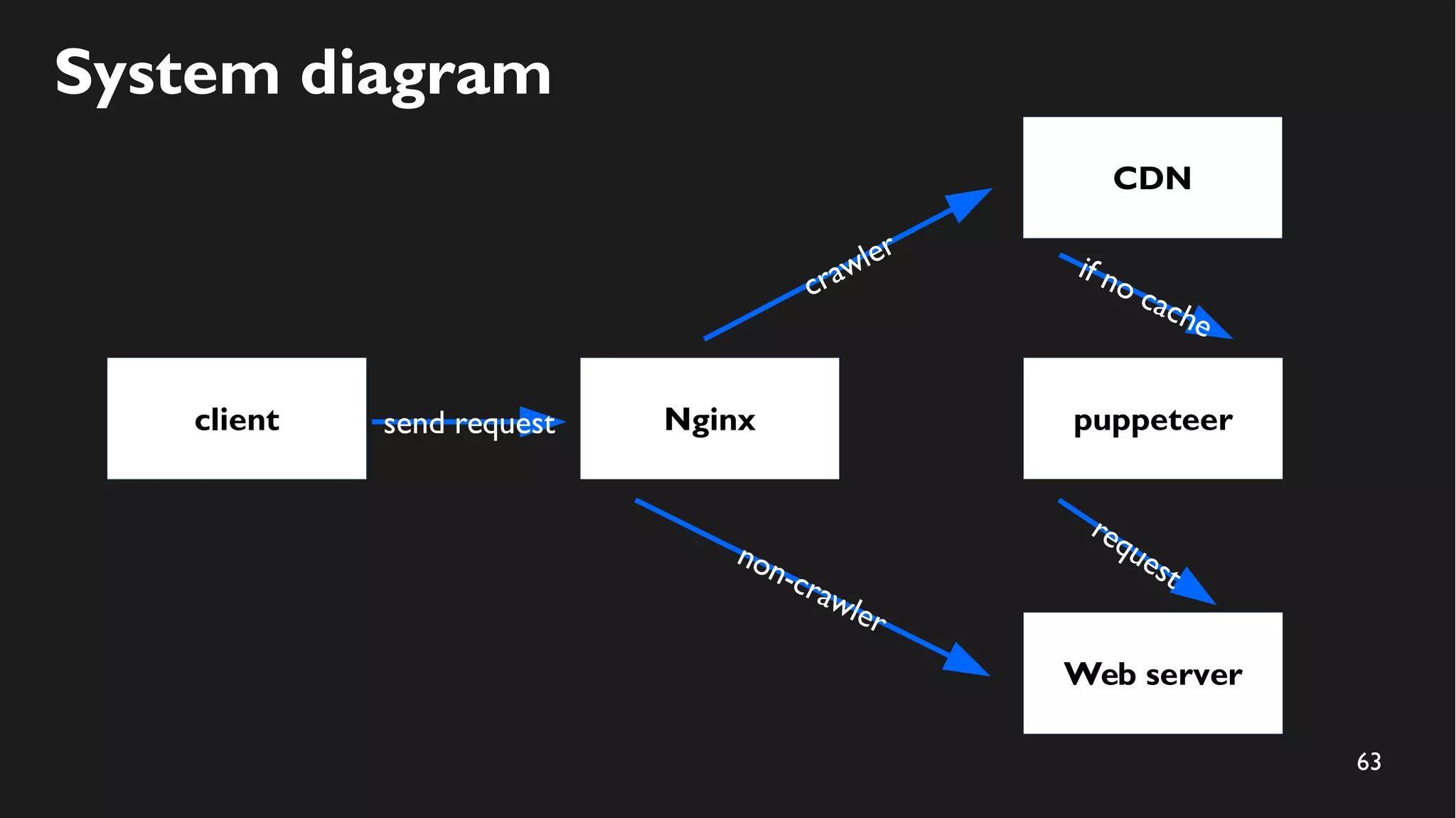

System diagram
client
CDN
puppeteersend request Nginx
Web server
crawler
non-crawler
if no cache
request

64. 64

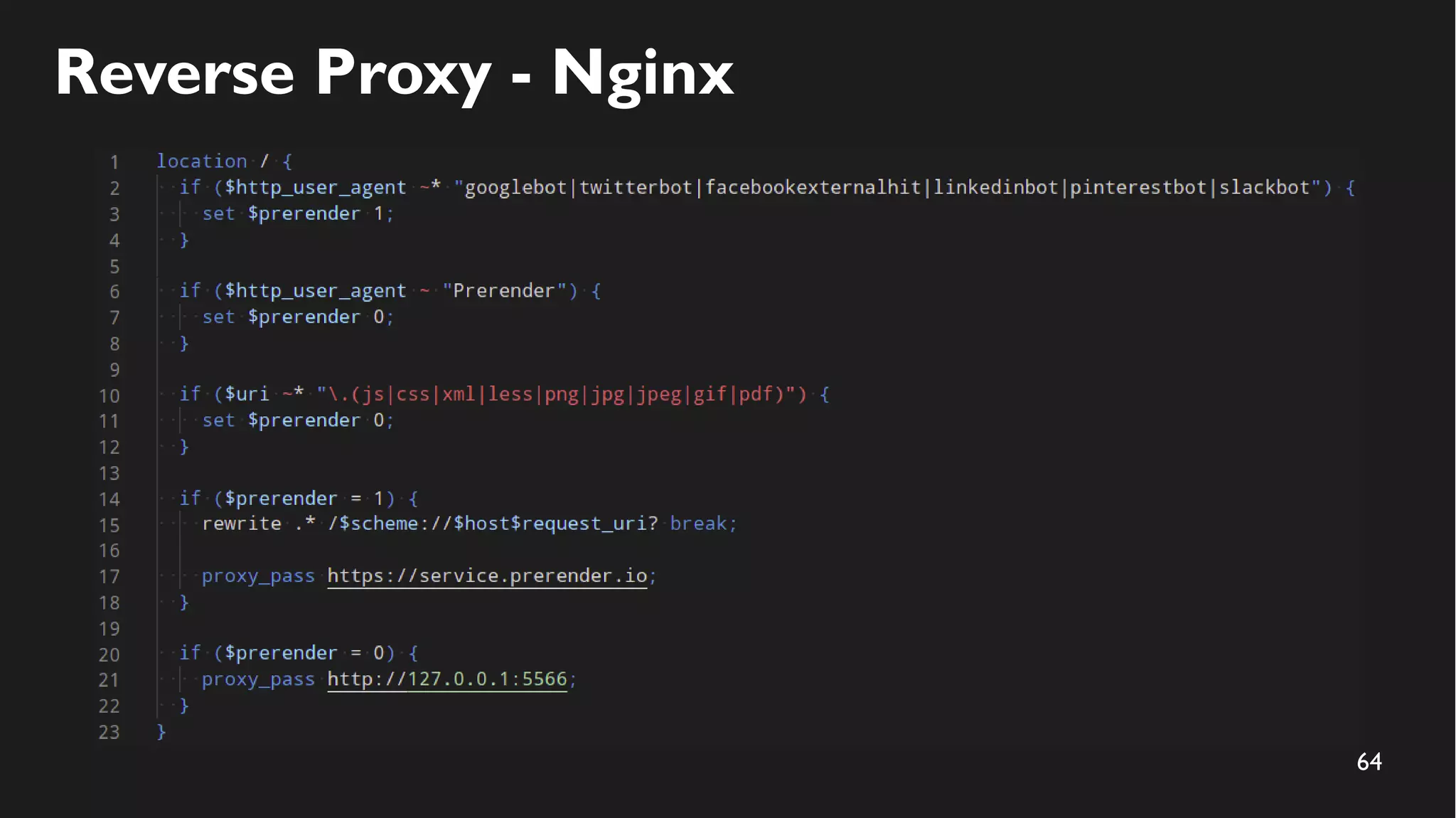

Reverse Proxy - Nginx

65. 65

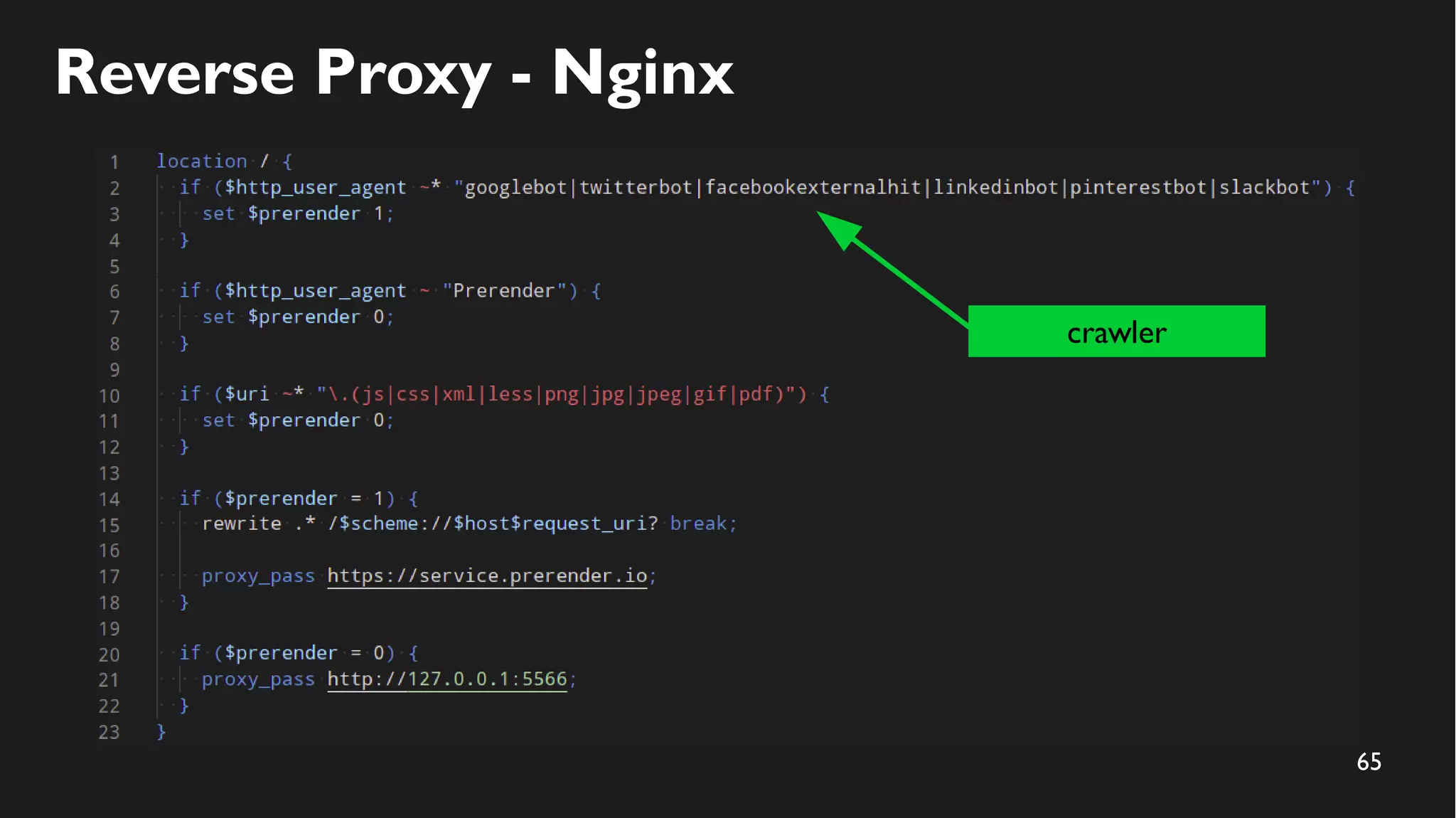

Reverse Proxy - Nginx
crawler

66. 66

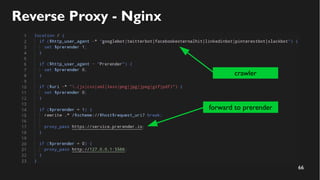

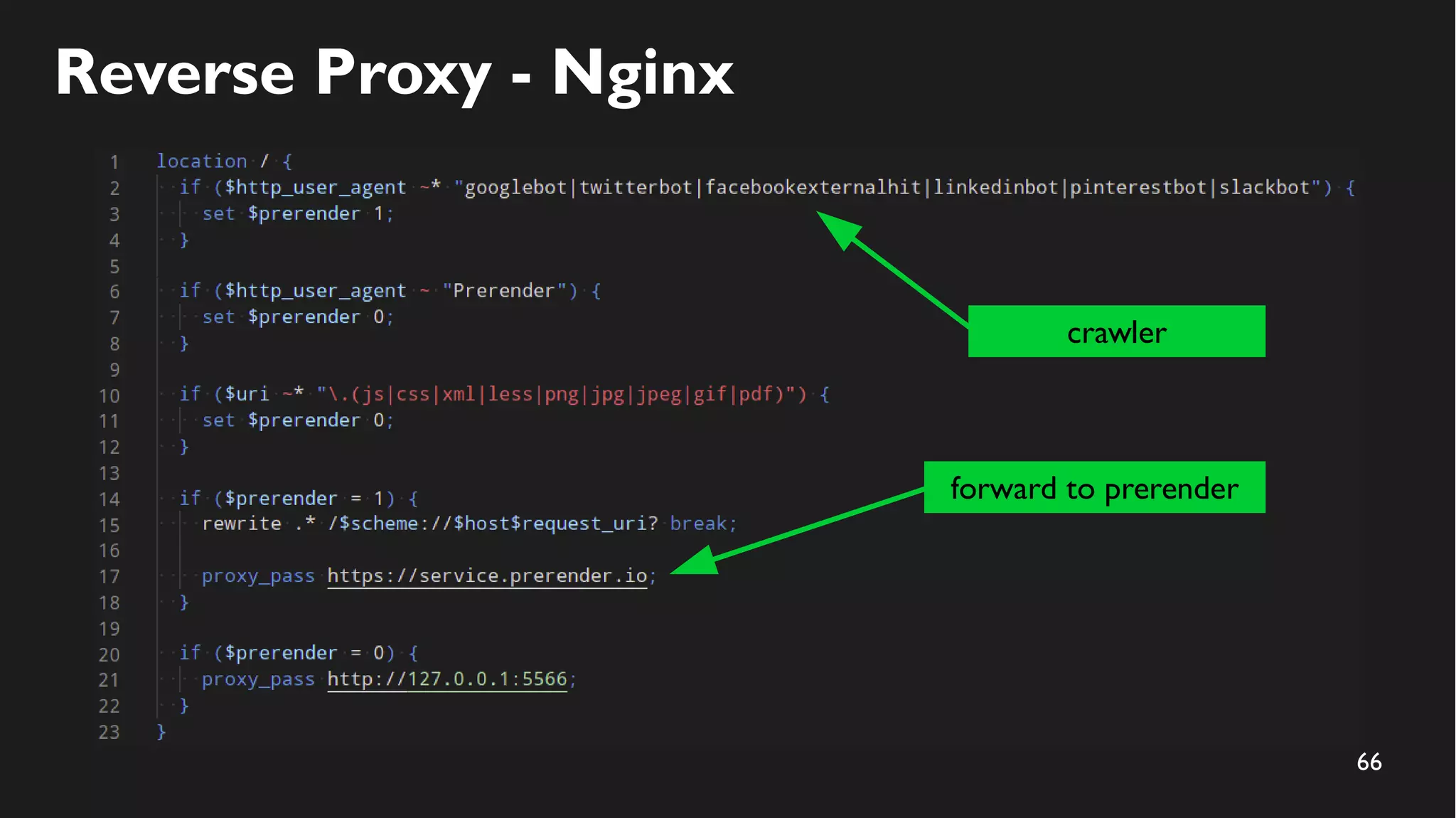

Reverse Proxy - Nginx
crawler
forward to prerender

67. 67

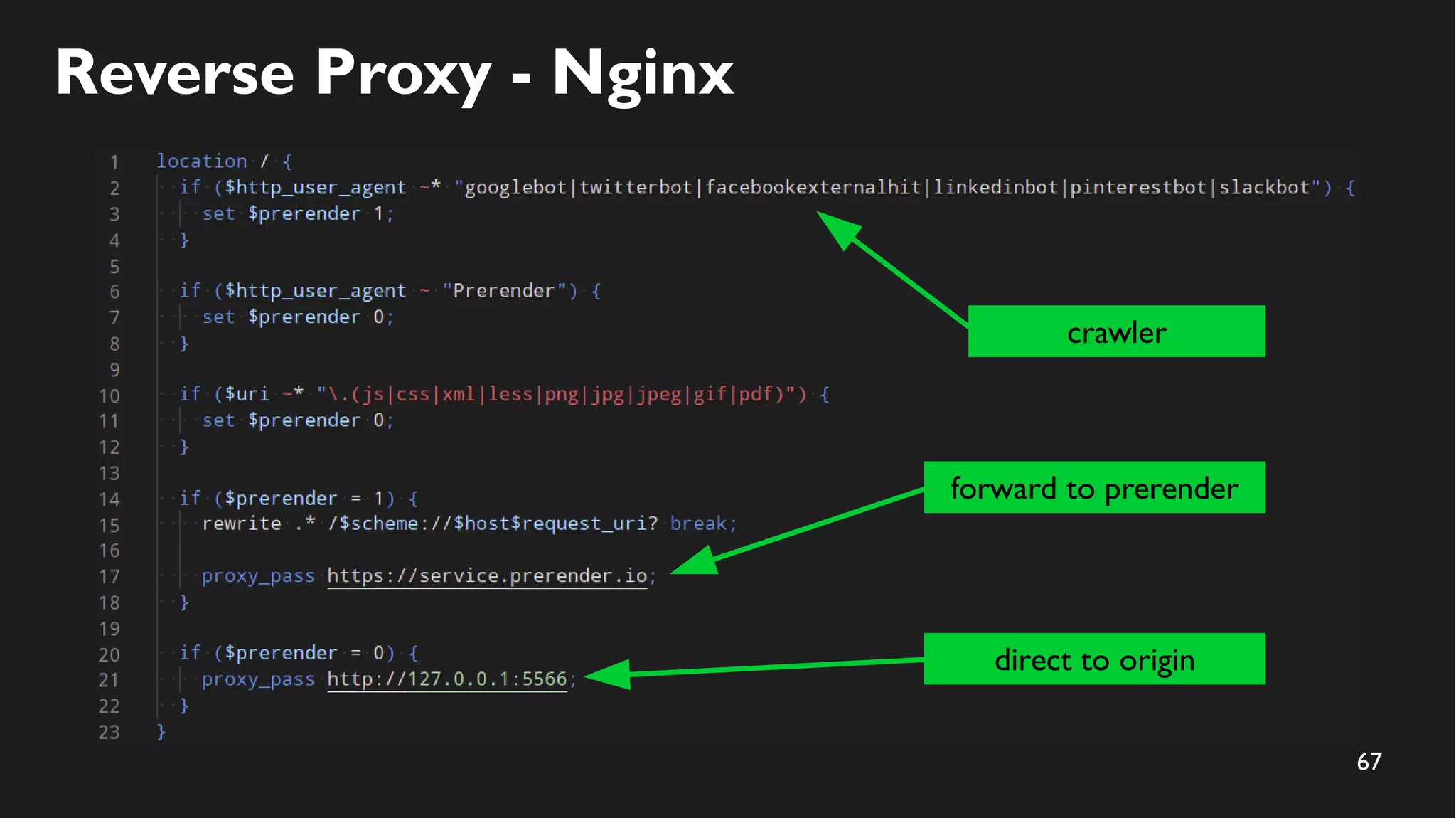

Reverse Proxy - Nginx
crawler
forward to prerender
direct to origin

68. 68

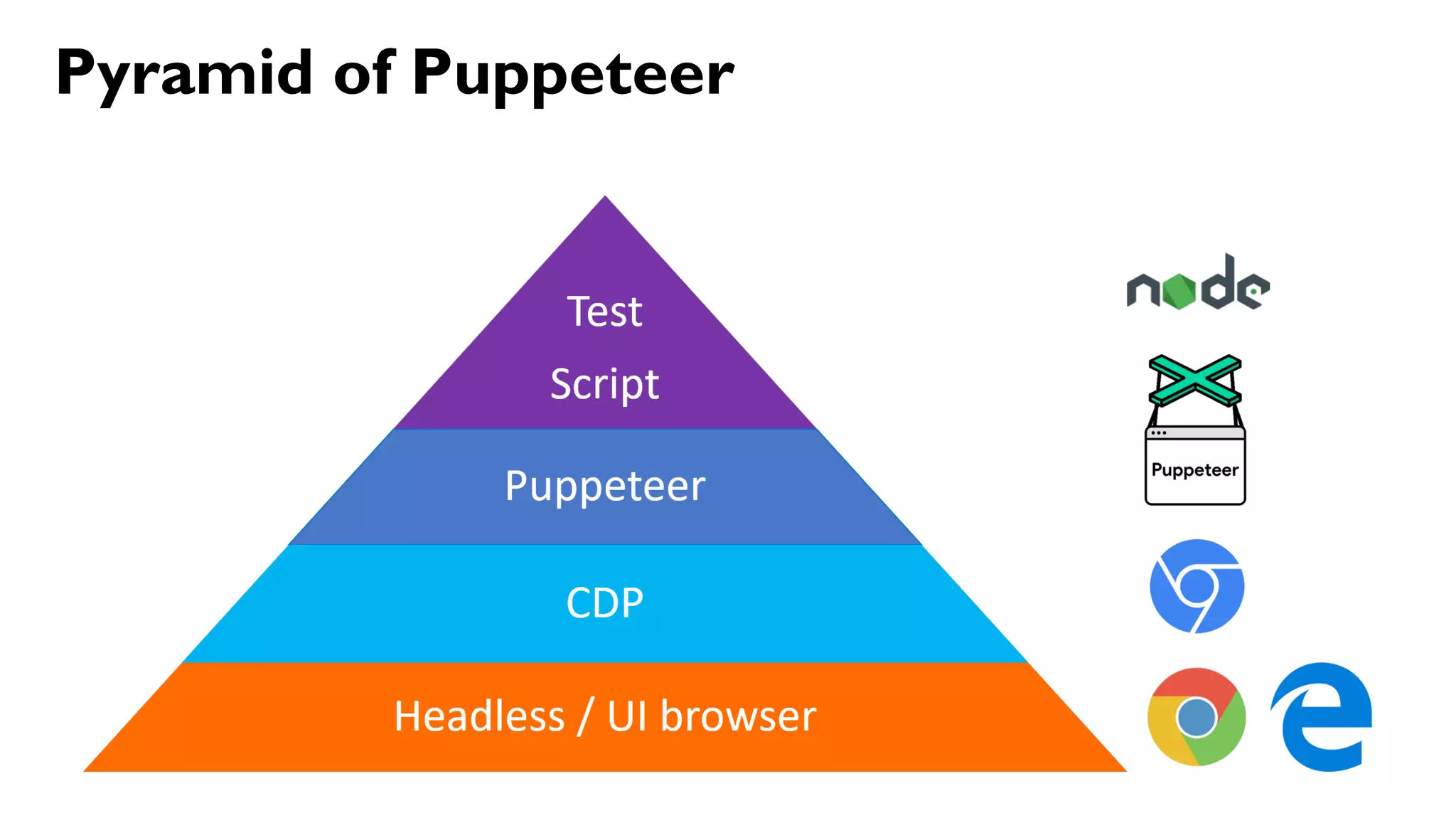

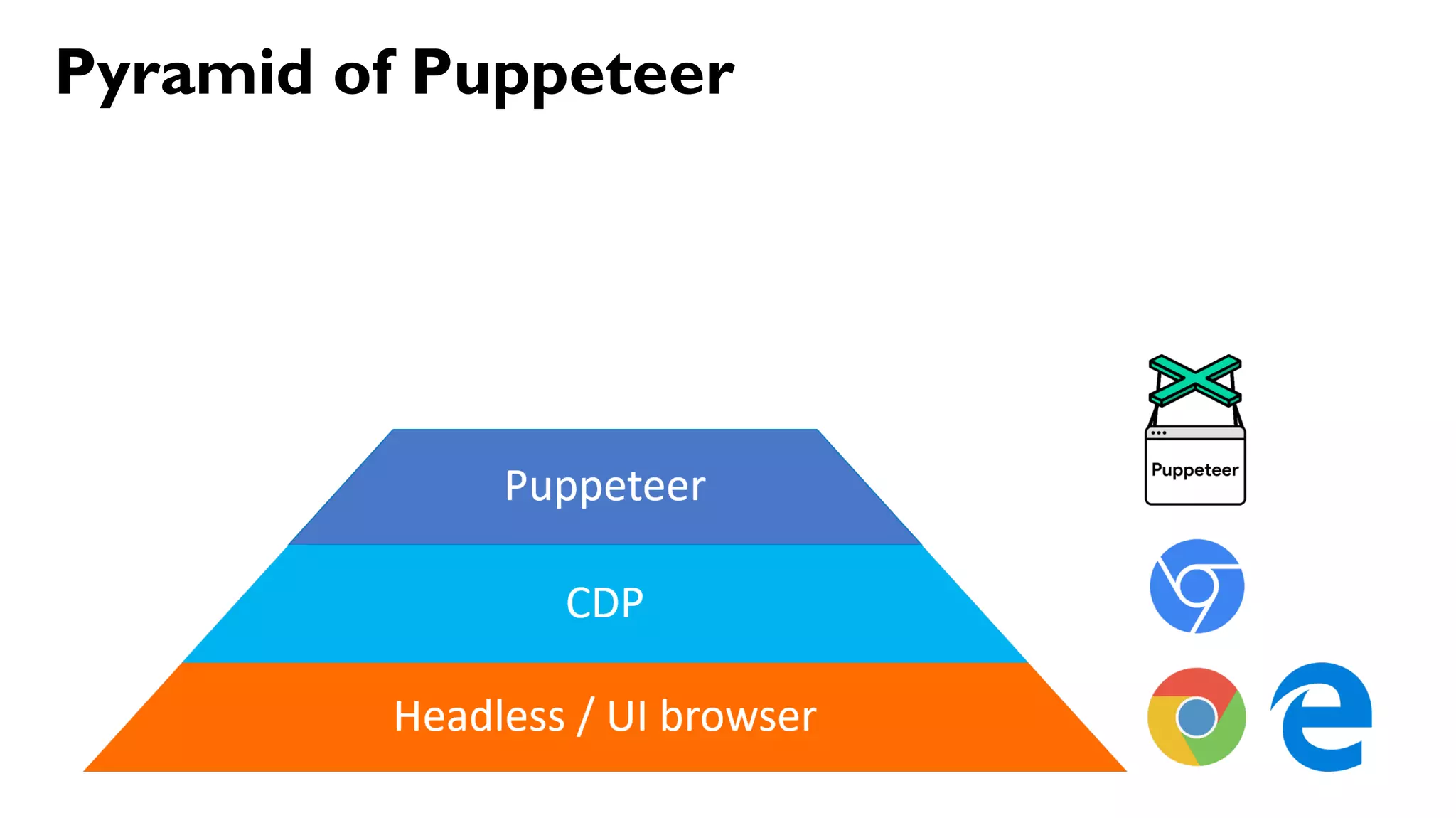

Pyramid of Puppeteer

69. 69

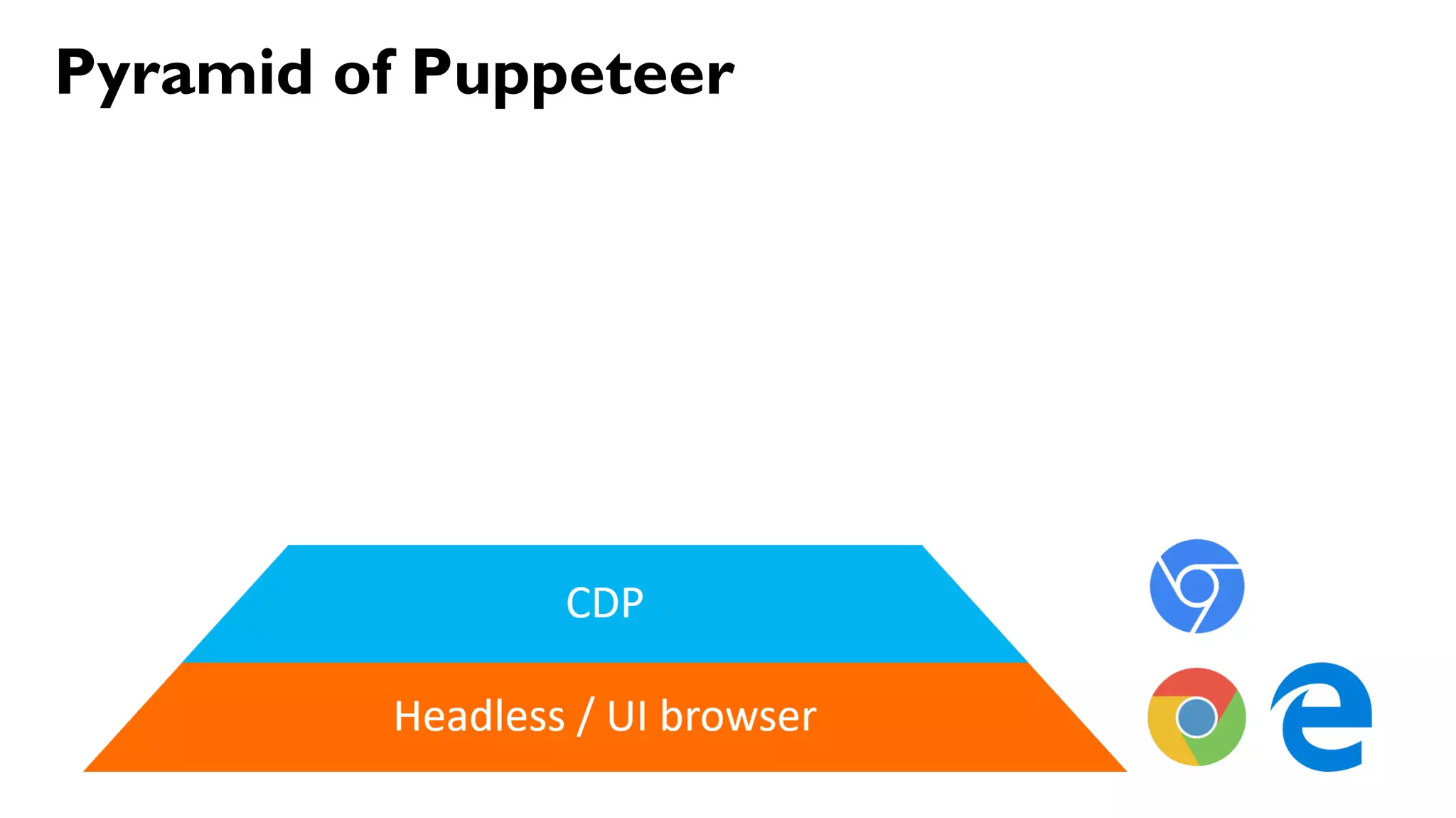

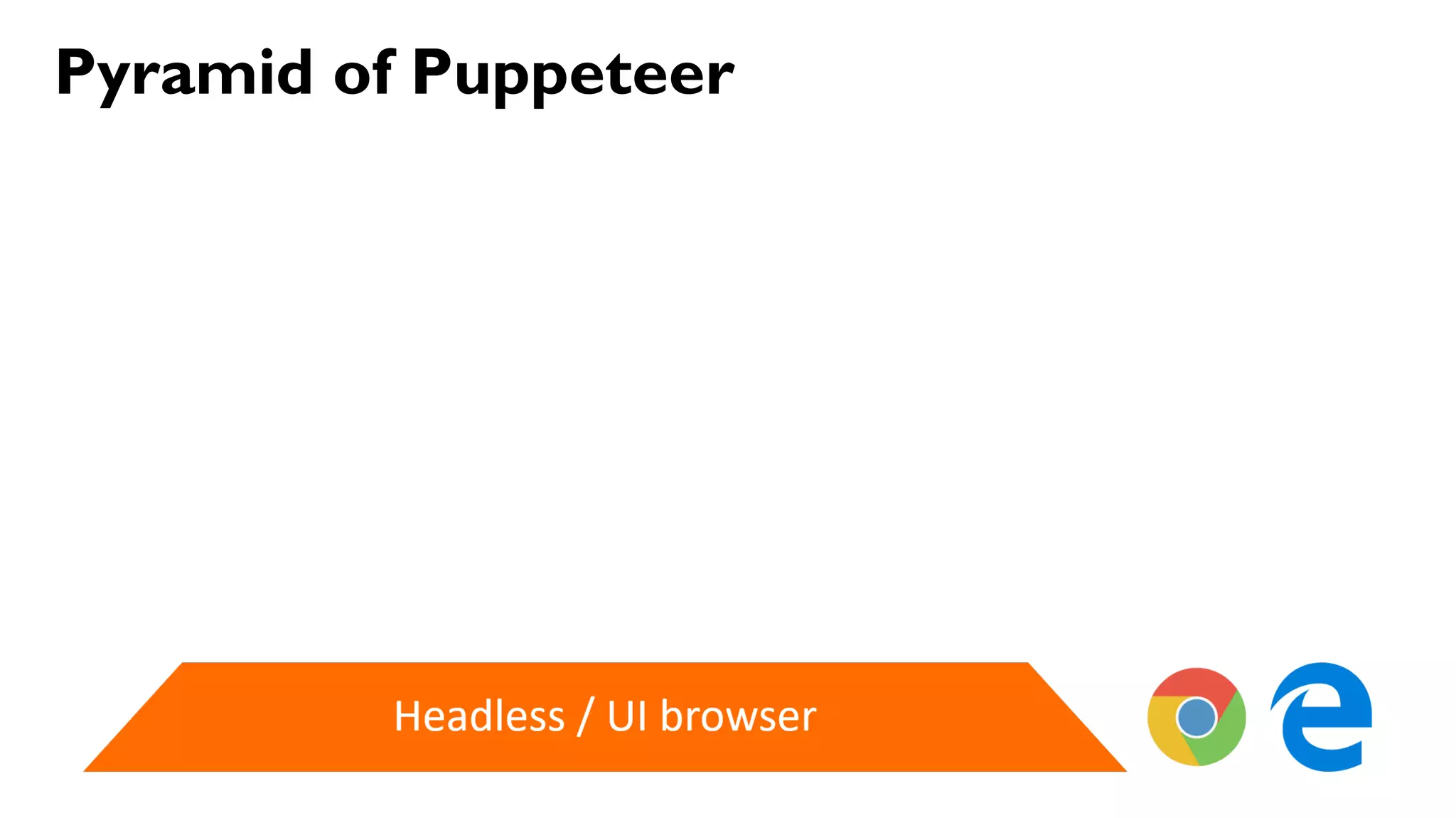

Pyramid of Puppeteer

70. 70
Pyramid of Puppeteer

71. 71
Pyramid of Puppeteer

72. 72
Pyramid of Puppeteer

73. 73
pppr - enhanced prerender

74. 74
pppr - enhanced prerender
https://github.com/funliday/pppr

75. 75
DEMO

76. 76

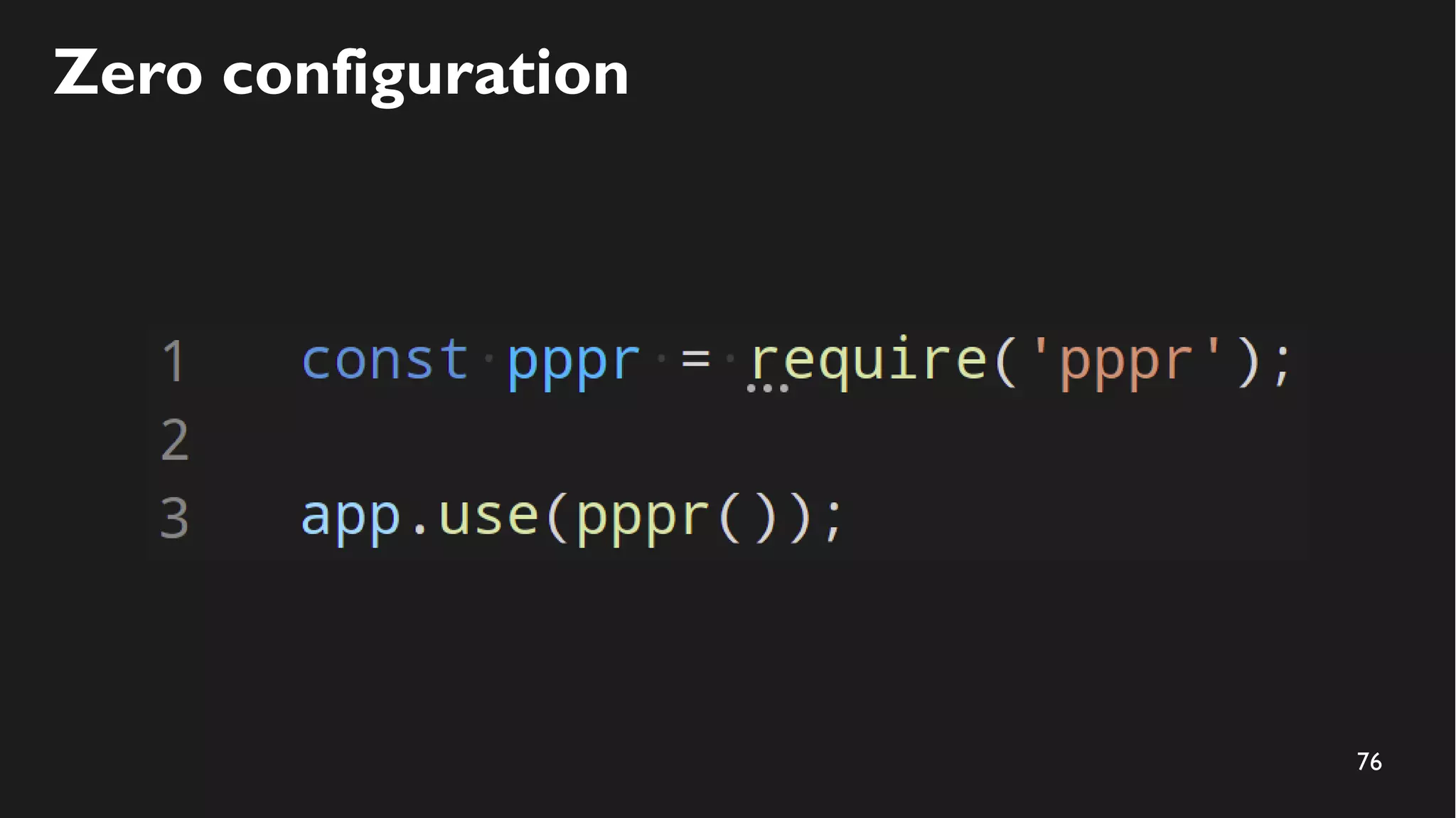

Zero configuration

77. 77

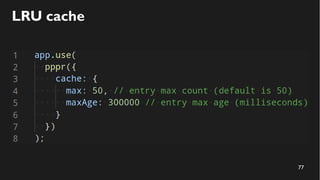

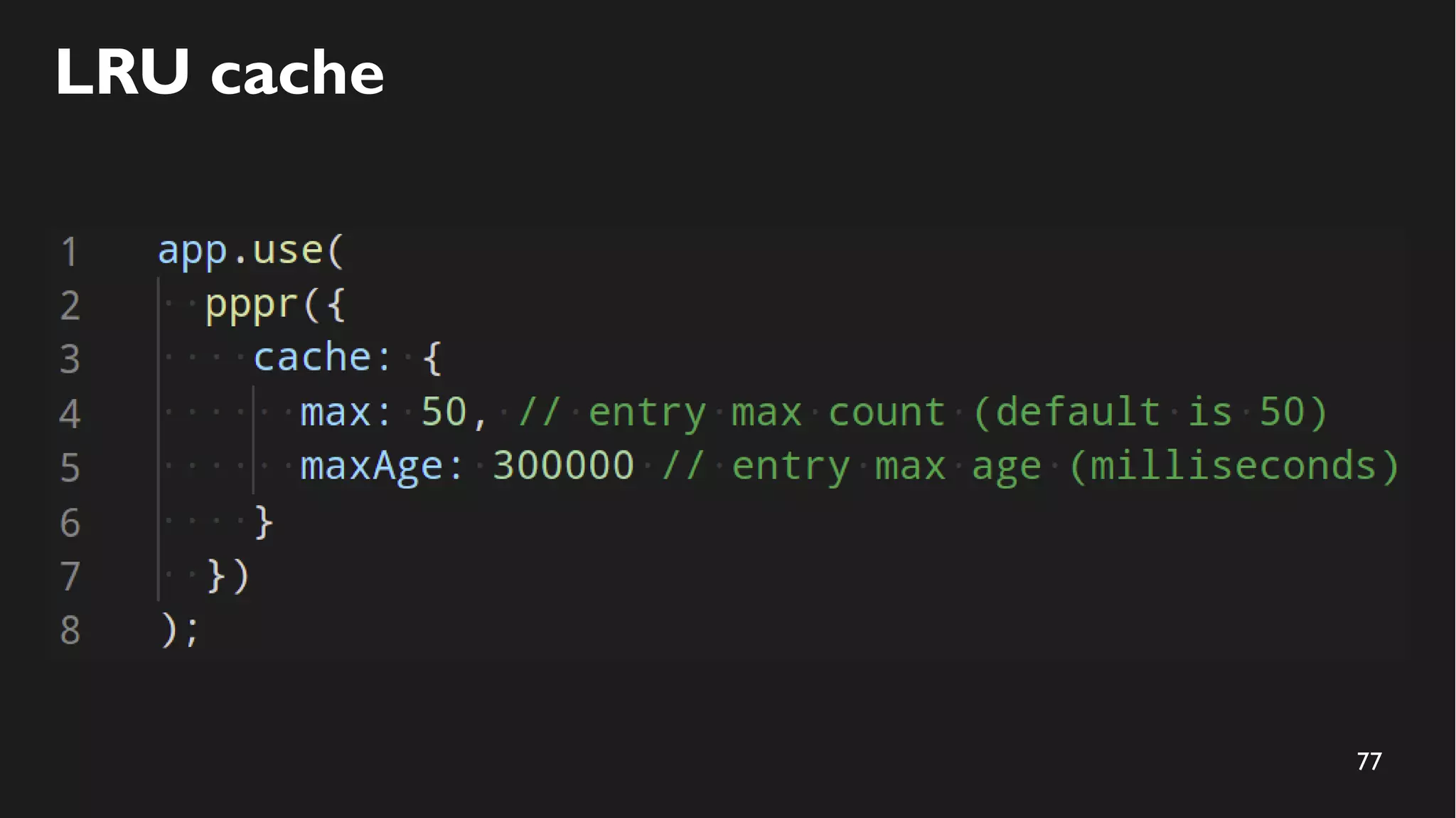

LRU cache

78. 78

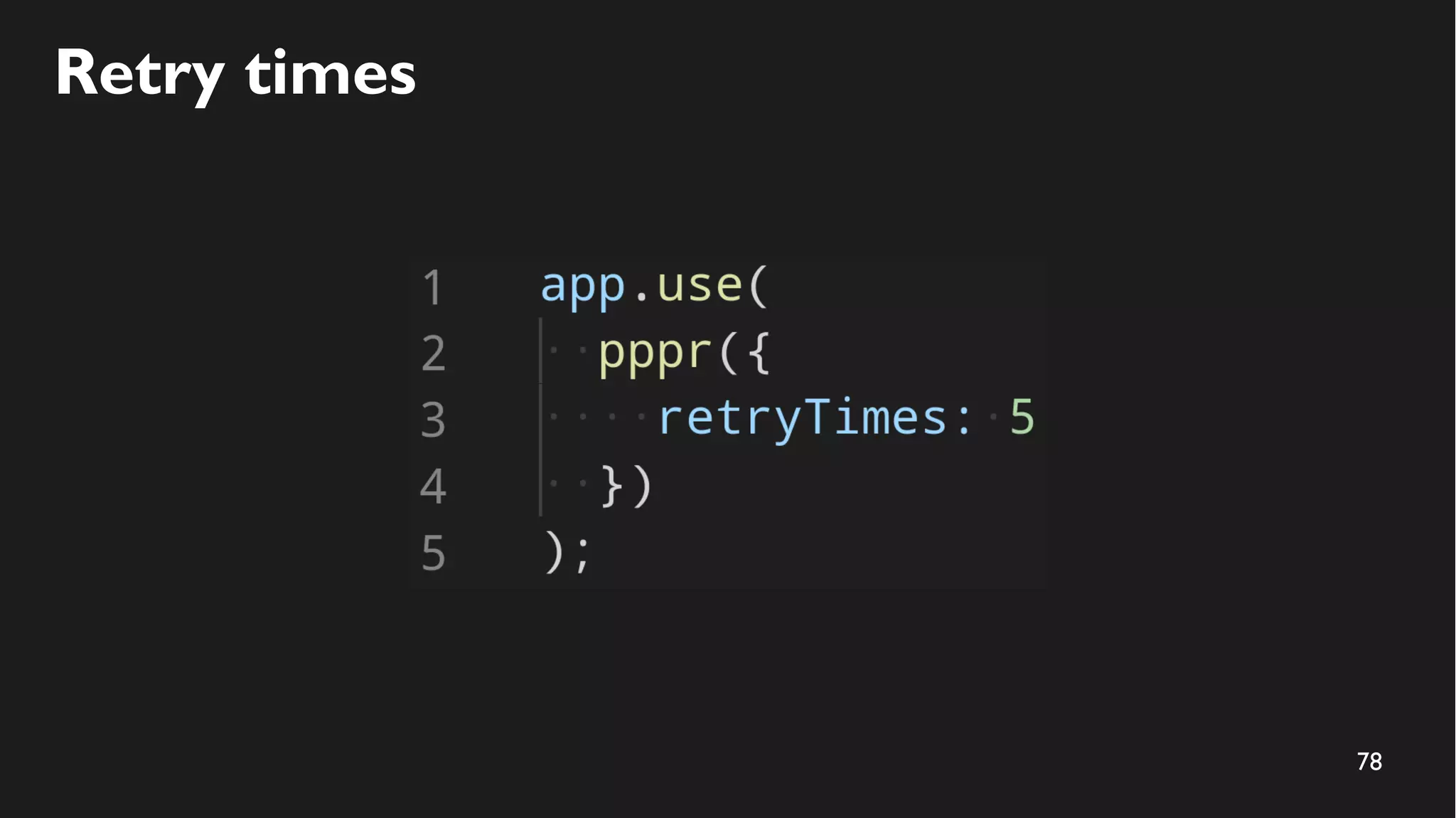

Retry times

79. 79

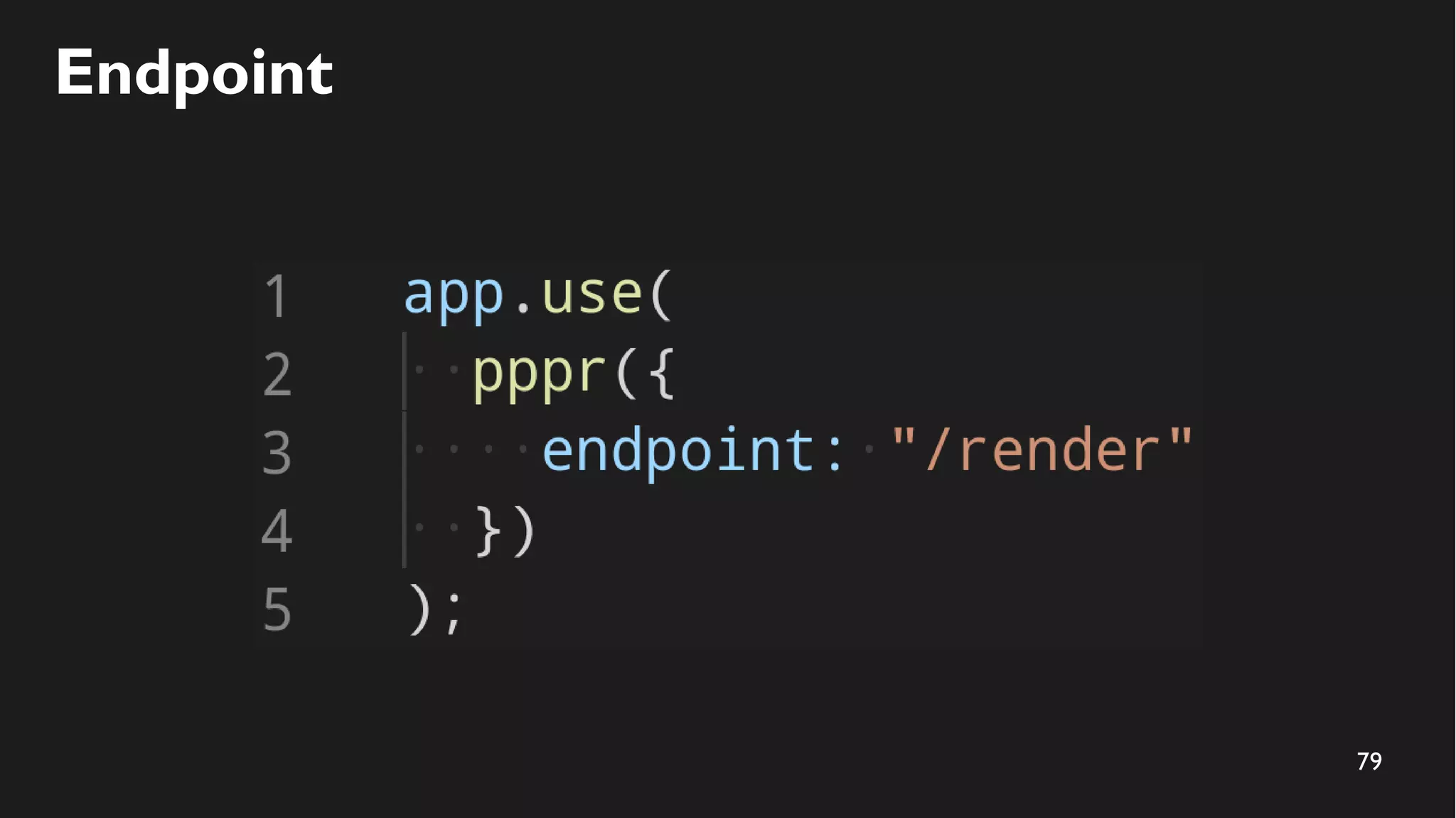

Endpoint

80. 80

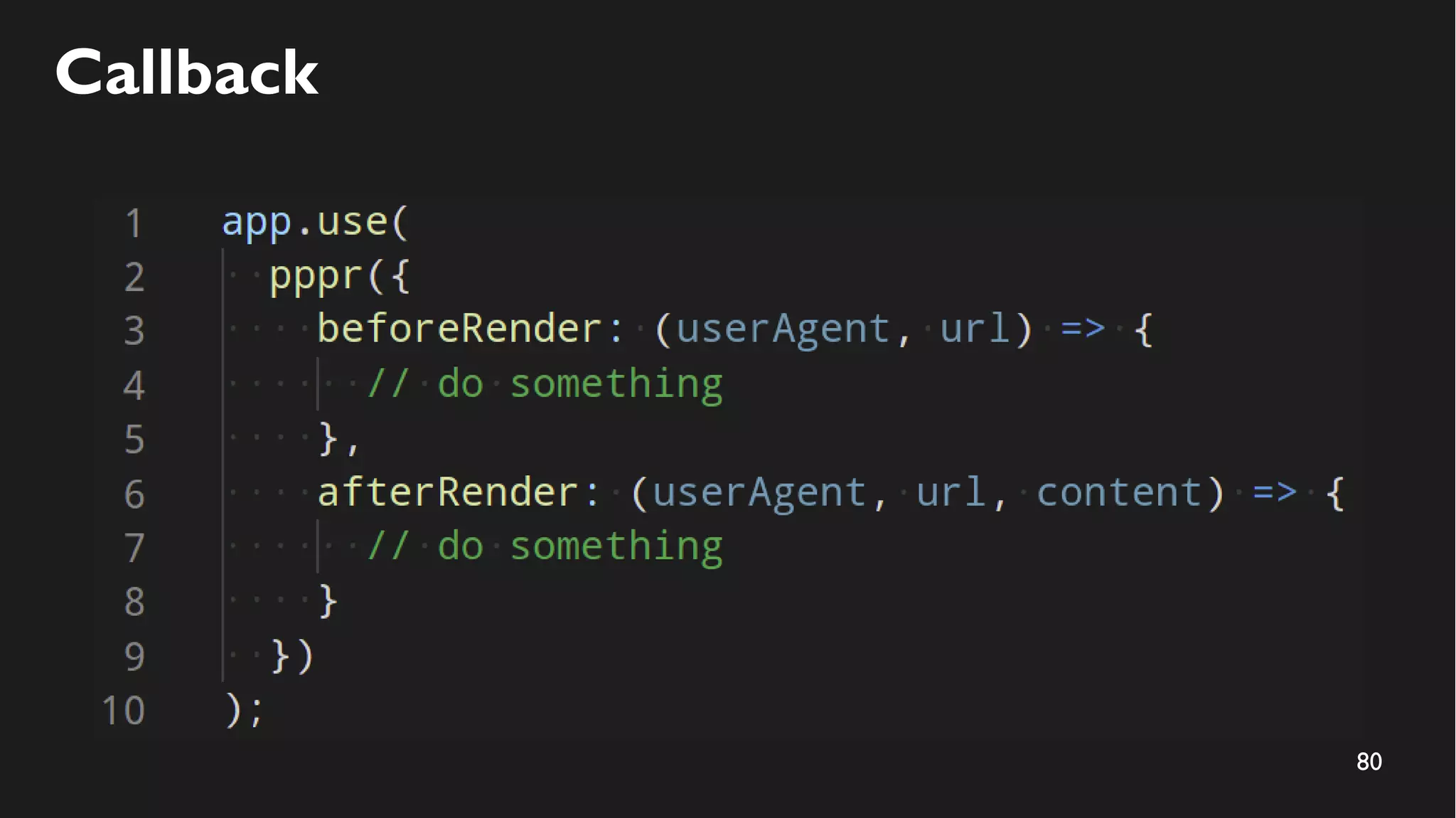

Callback

81. 81

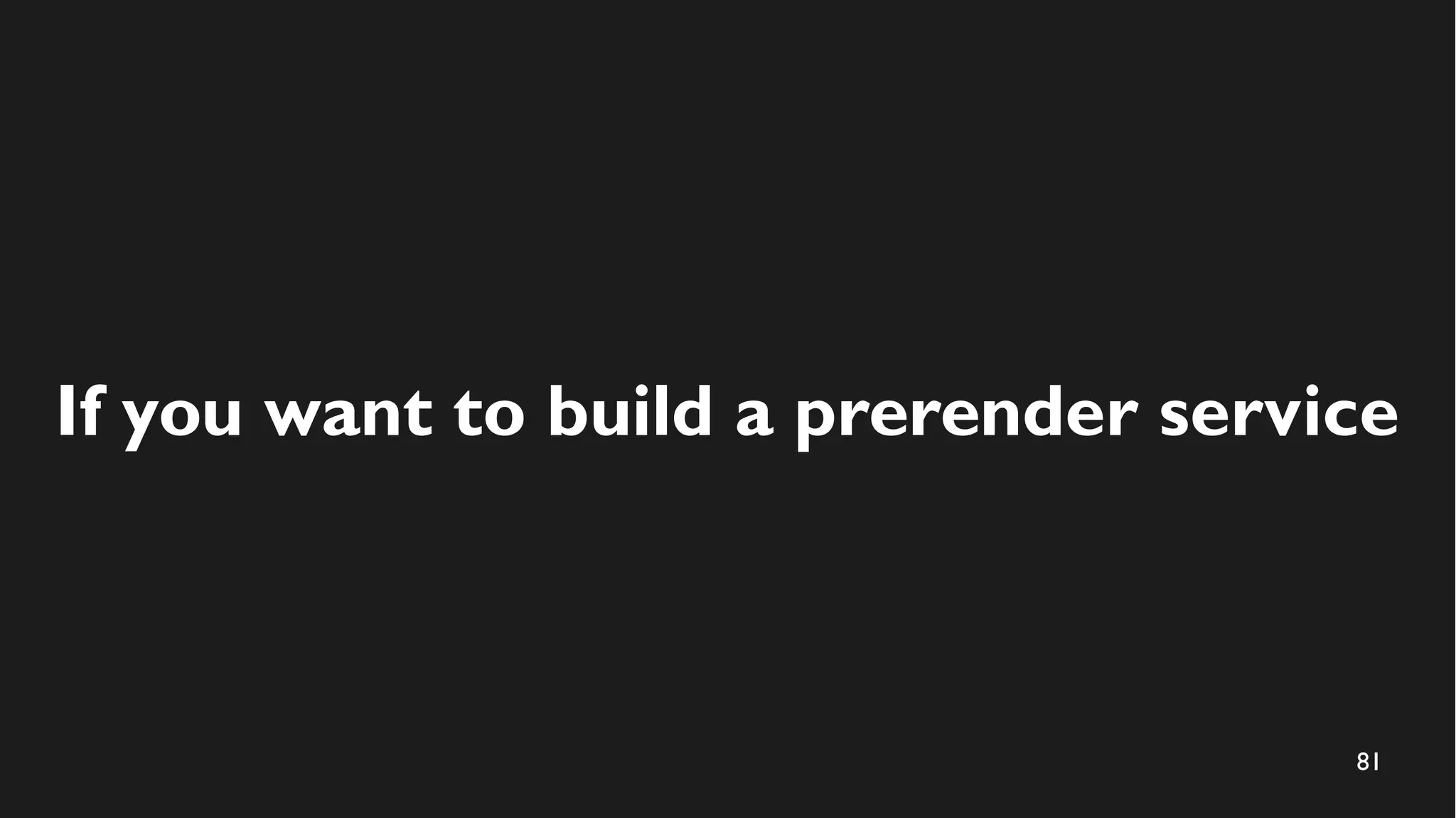

If you want to build a prerender service

82. 82
Without cache
expressjs
clientclientclientclientclient

83. 83

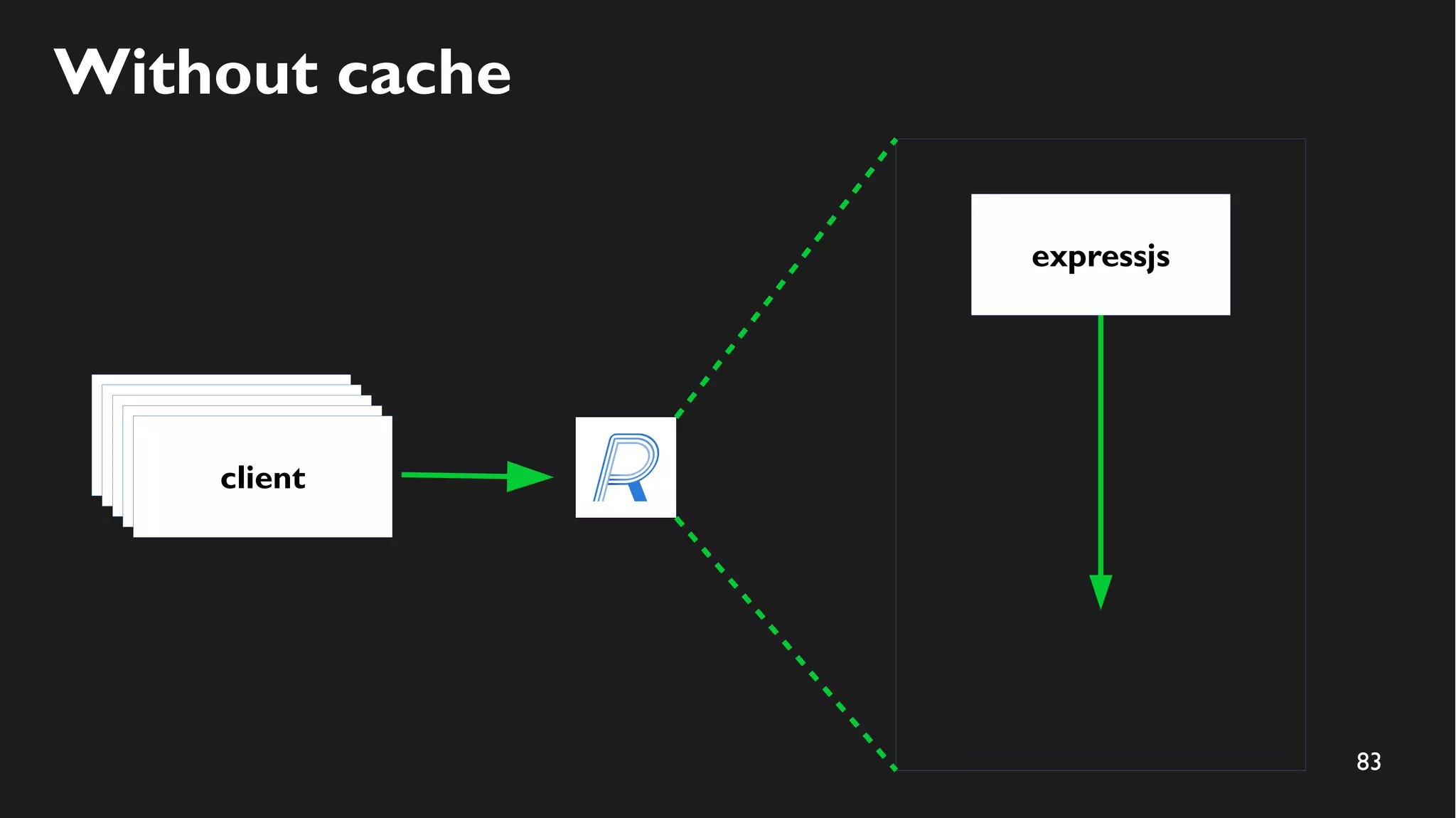

Without cache
expressjs
clientclientclientclientclient

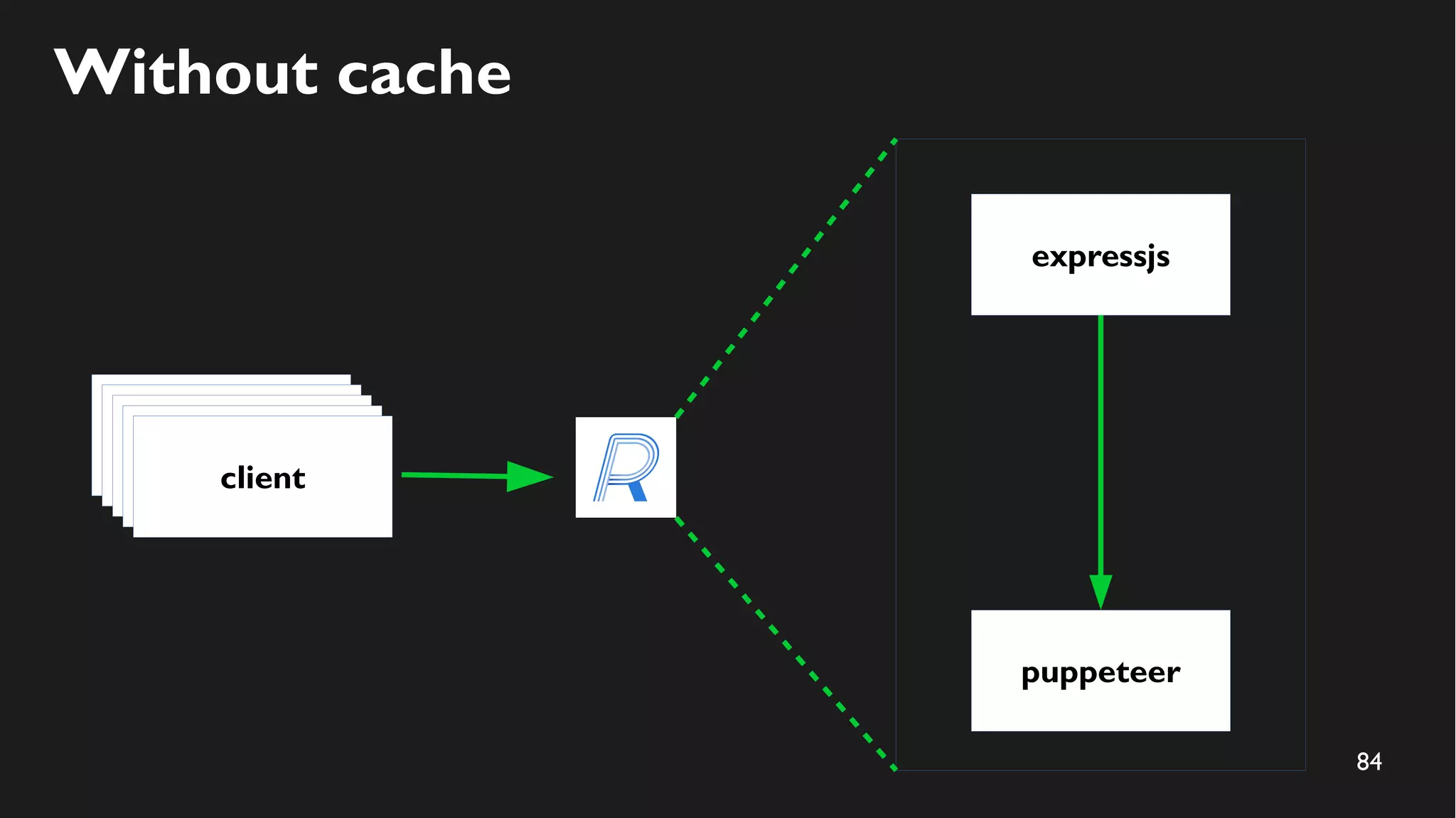

84. 84
Without cache
expressjs
puppeteer
clientclientclientclientclient

85. 85

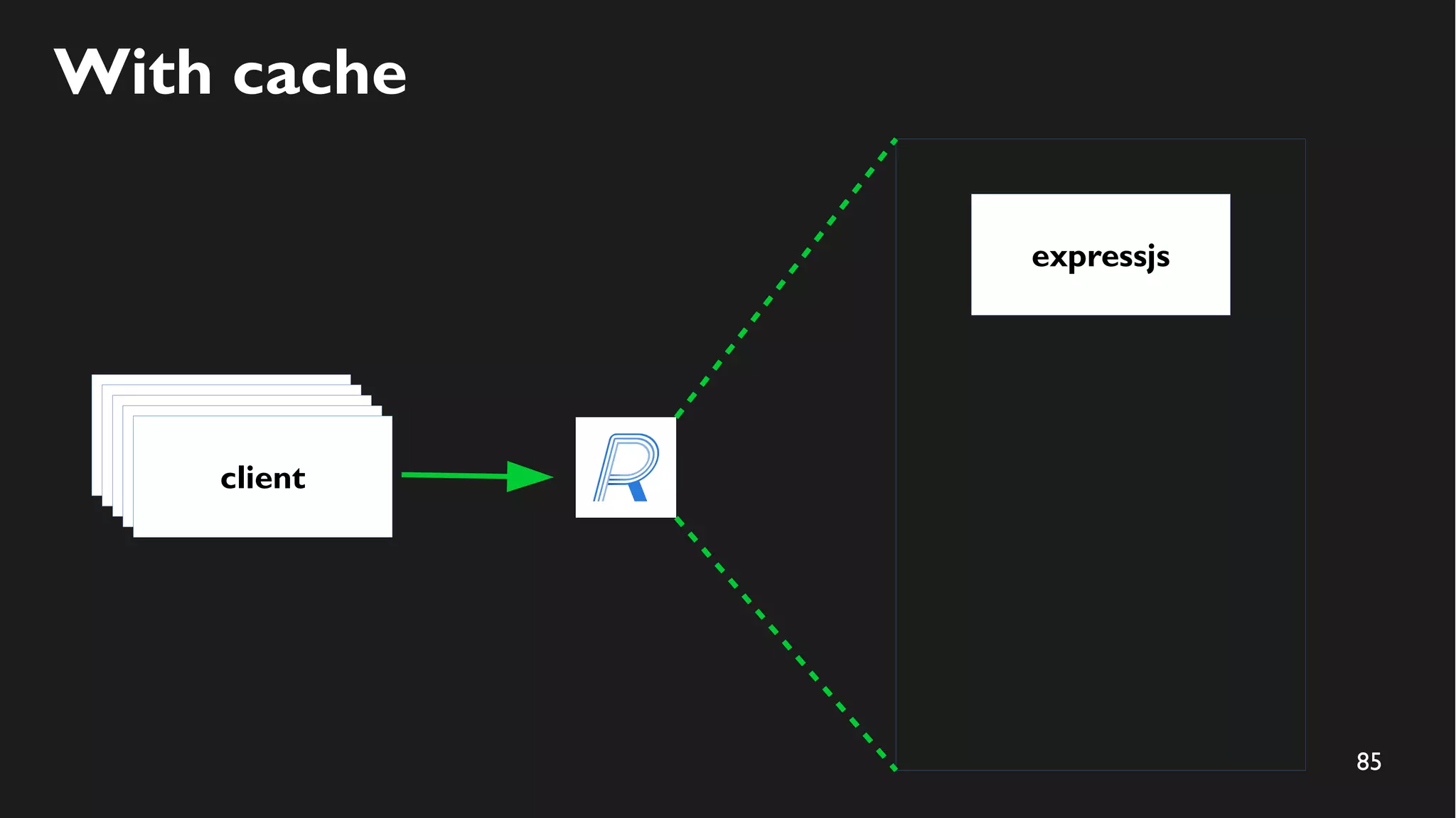

With cache
expressjs
clientclientclientclientclient

86. 86

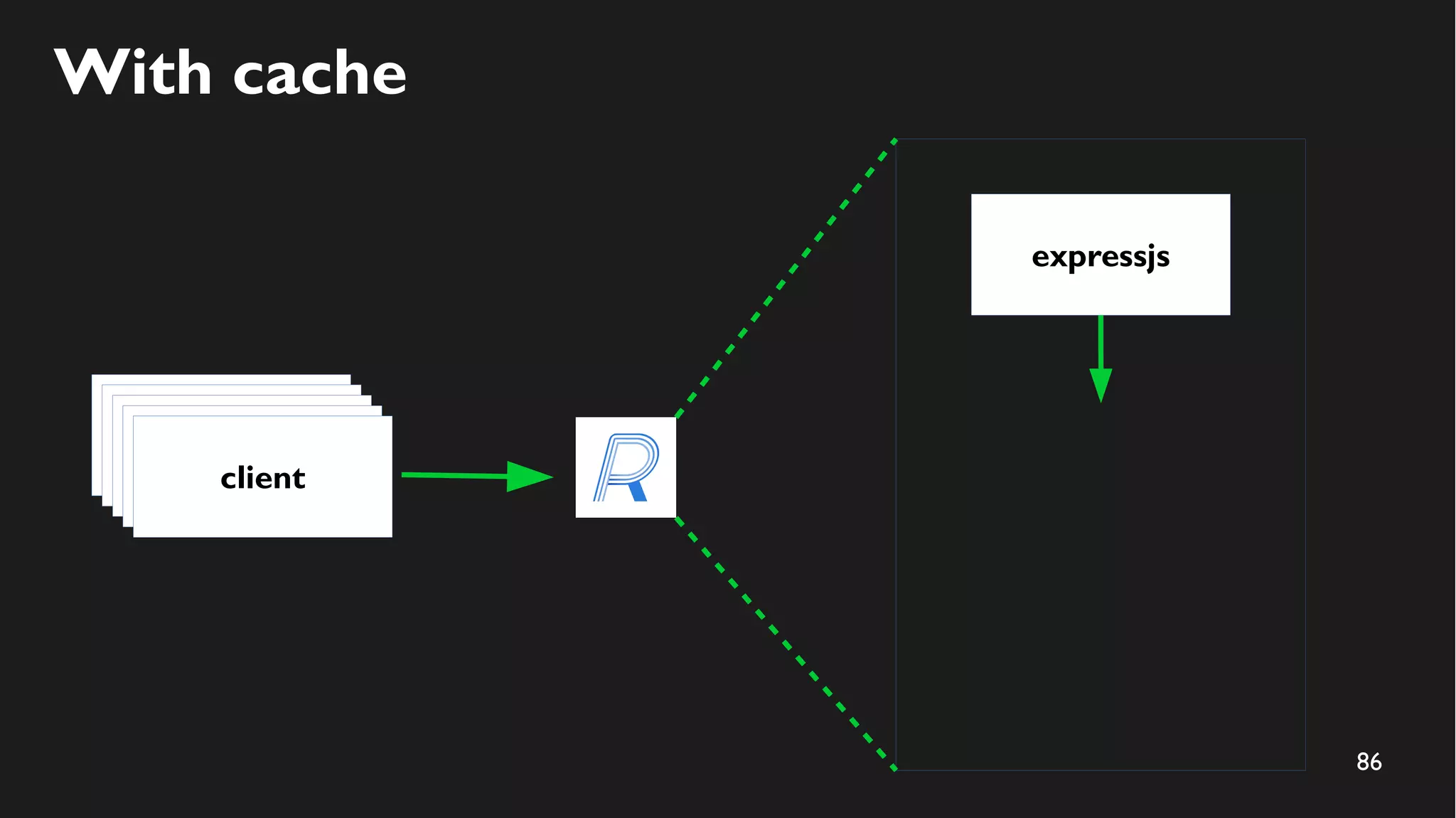

With cache
expressjs
clientclientclientclientclient

87. 87

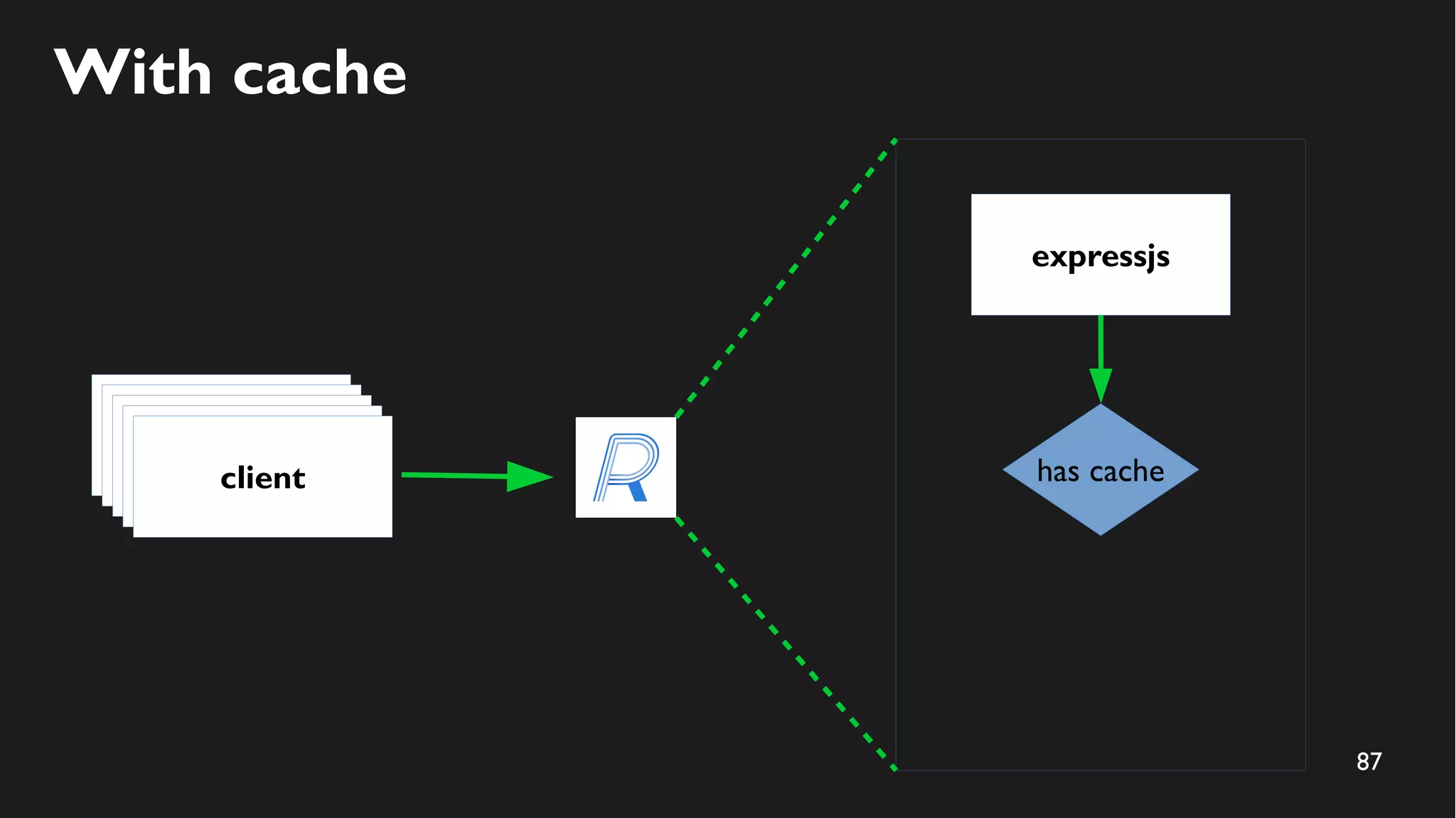

With cache
expressjs
has cache
clientclientclientclientclient

88. 88

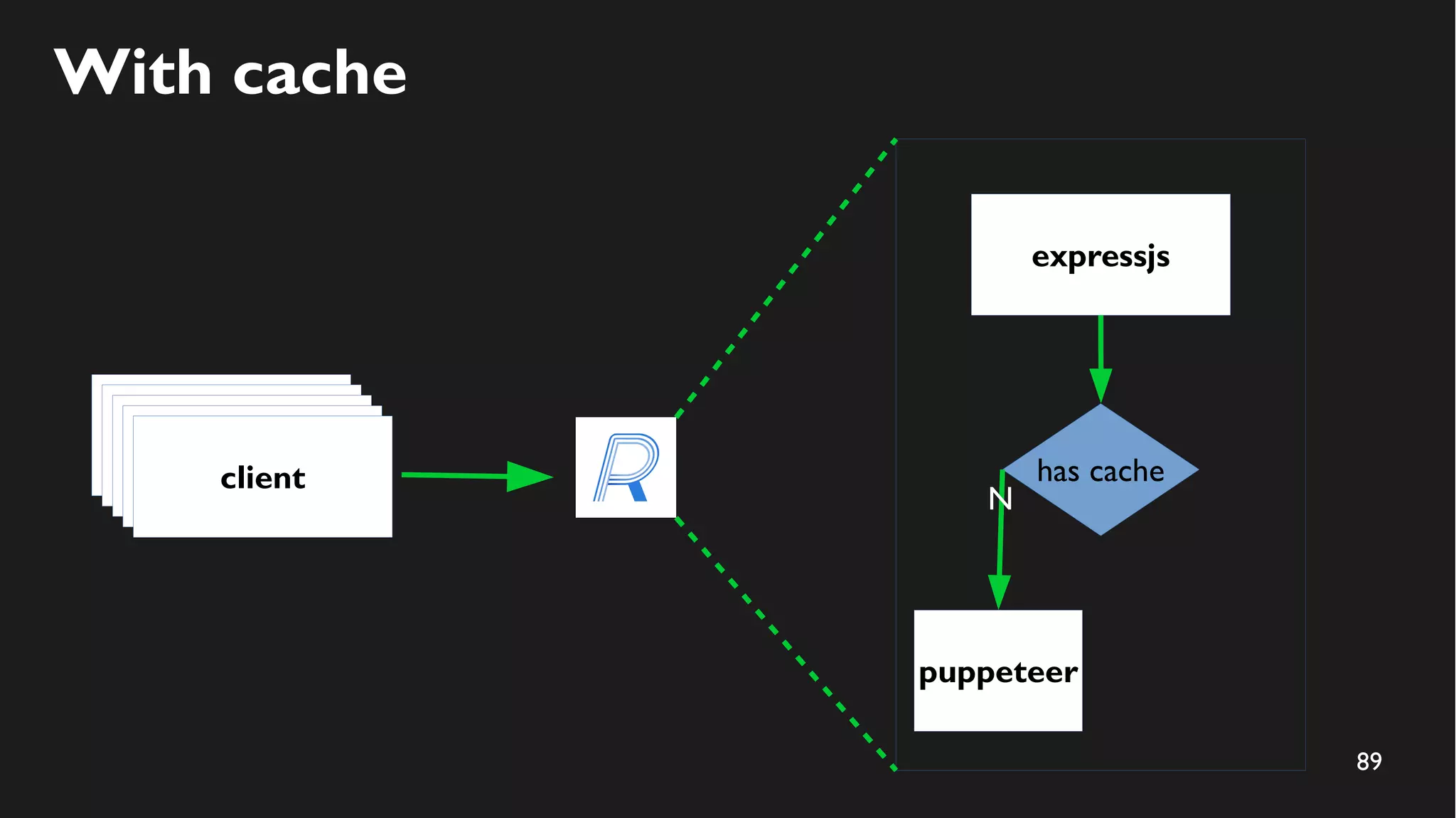

With cache
expressjs
has cache
N
clientclientclientclientclient

89. 89
With cache
expressjs
puppeteer
has cache
N
clientclientclientclientclient

90. 90

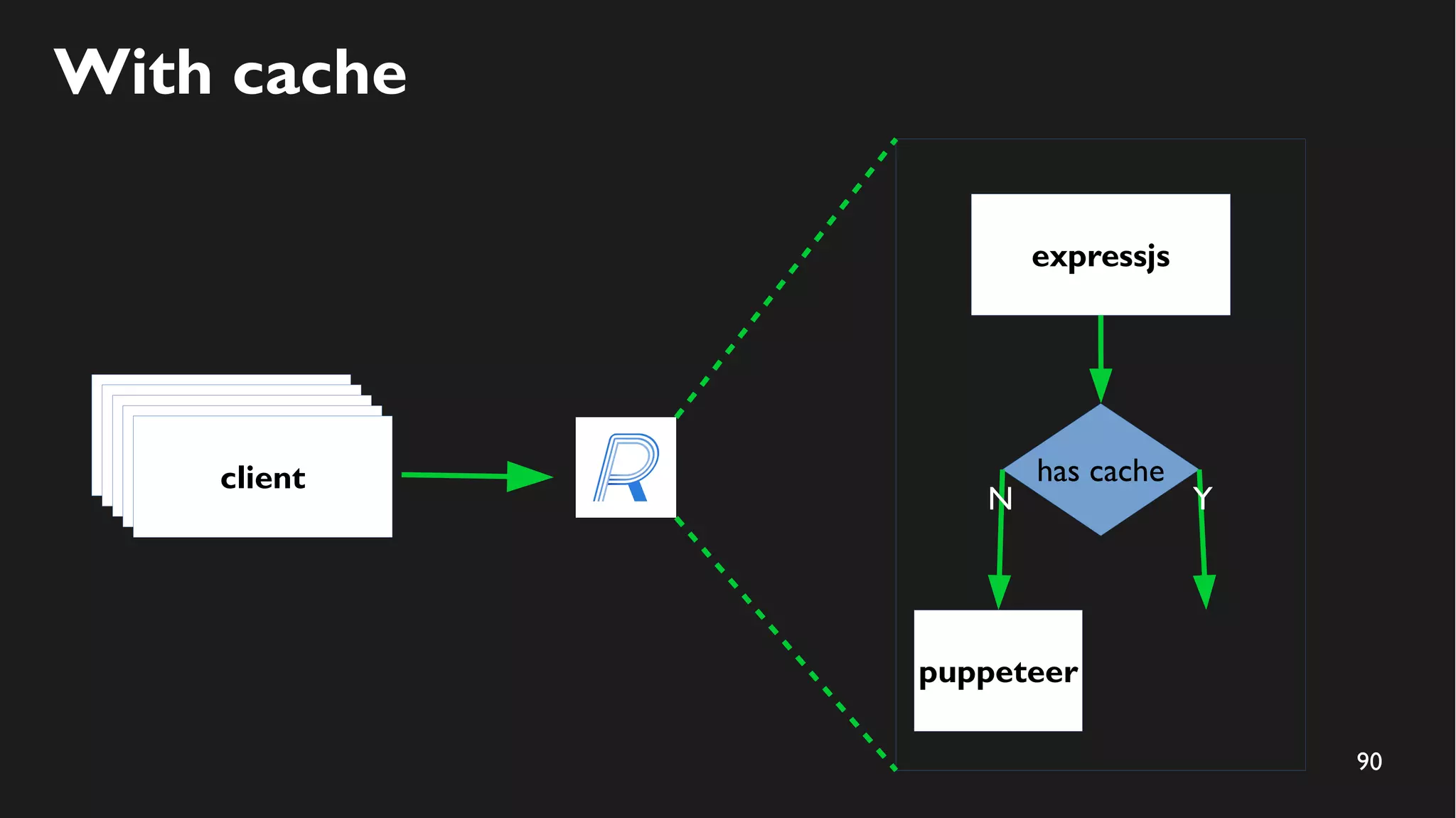

With cache
expressjs
puppeteer
has cache
N Y
clientclientclientclientclient

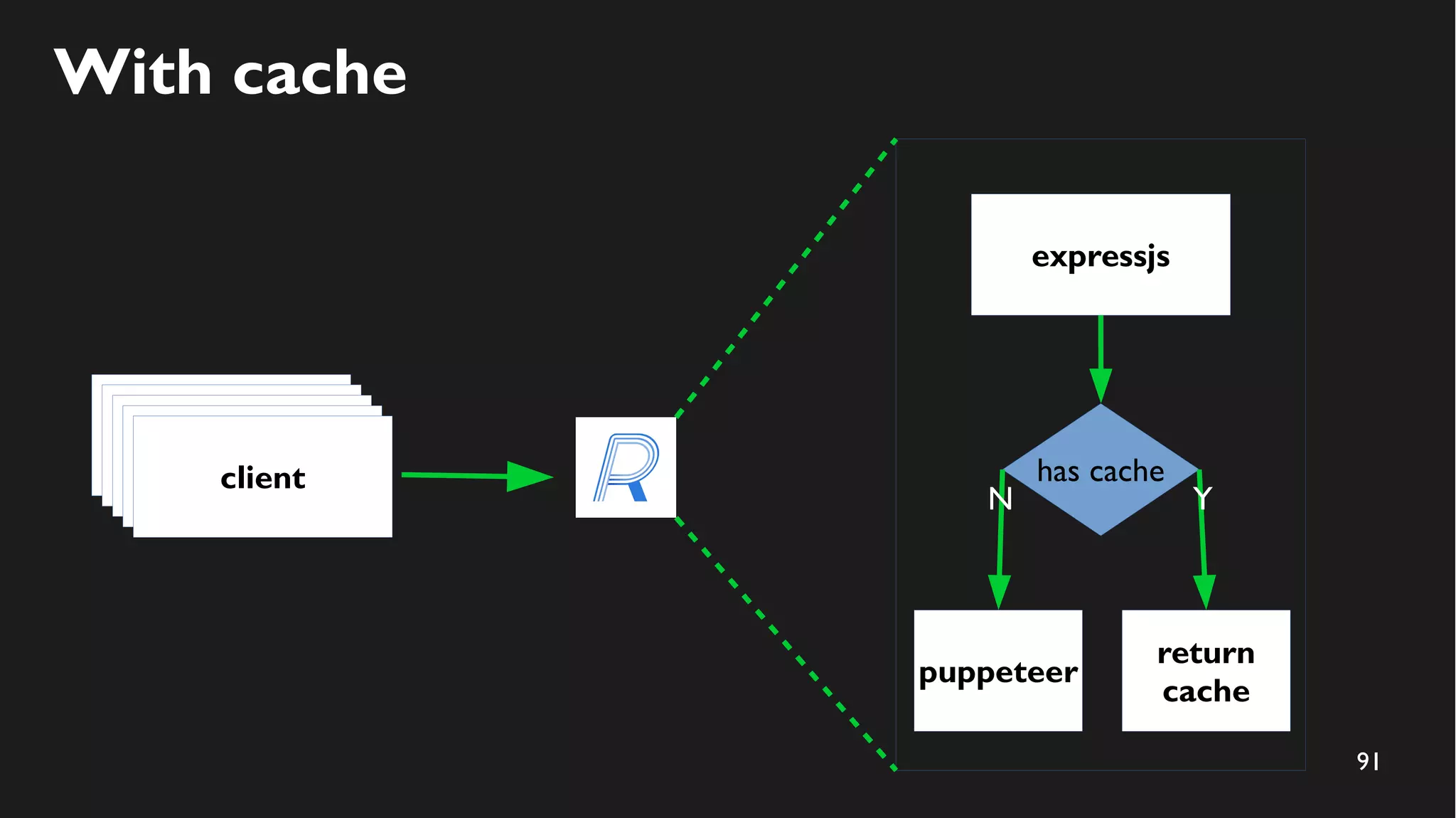

91. 91
With cache
expressjs
puppeteer
has cache
N
return
cache
Y
clientclientclientclientclient

92. 92
Without open new page per request
client

93. 93

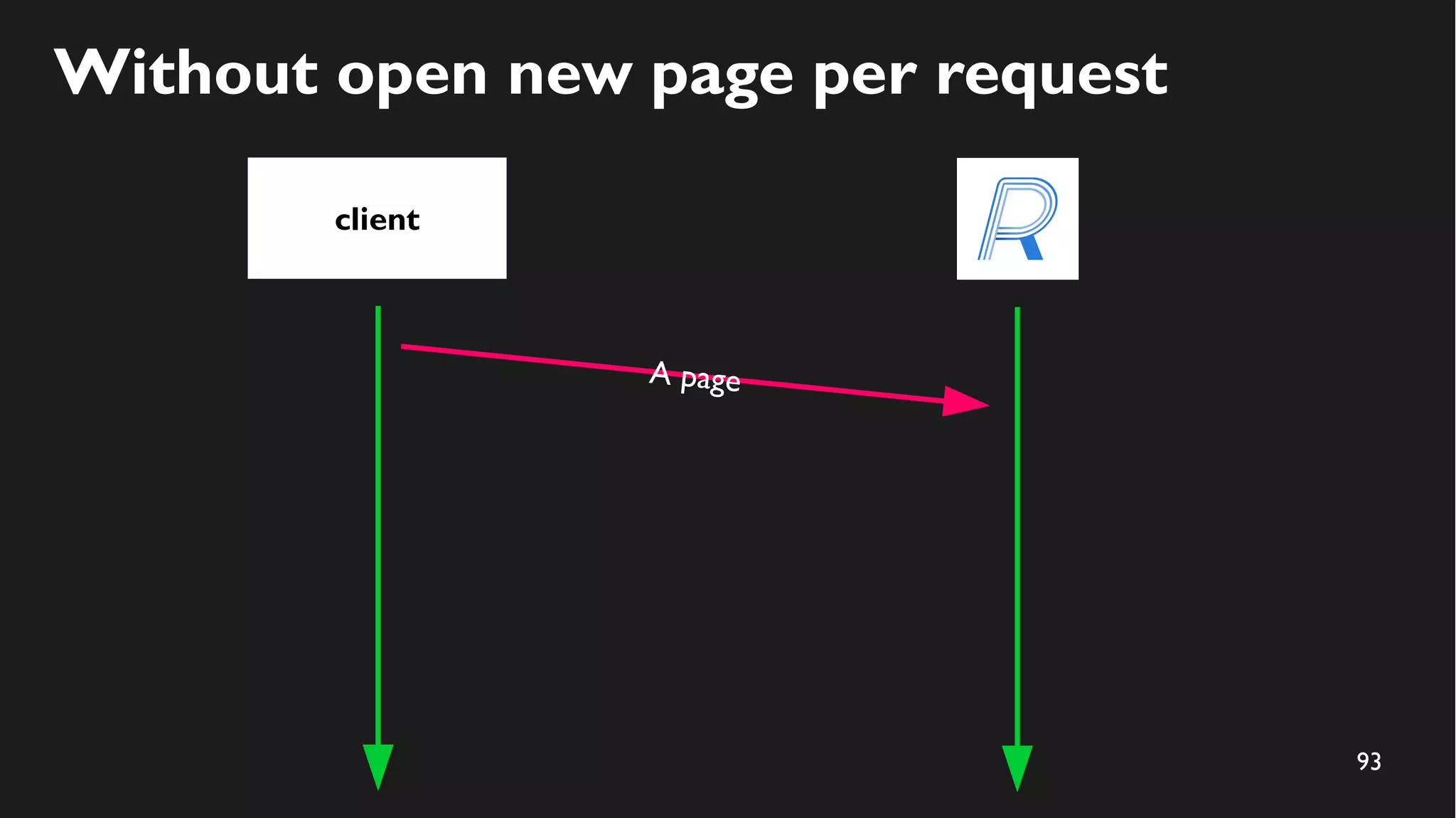

Without open new page per request
client
A page

94. 94
Without open new page per request
client
A page
B page

95. 95

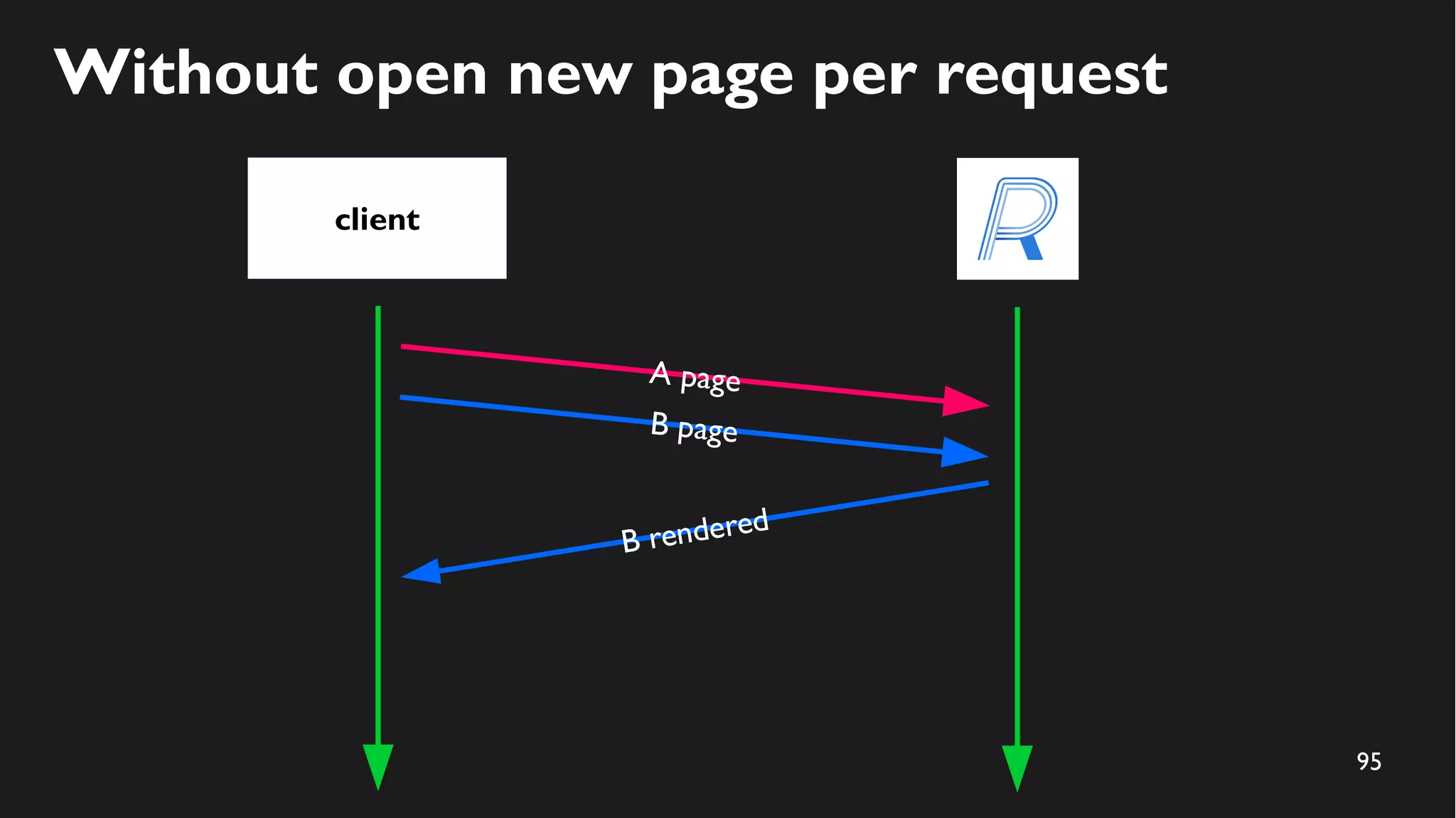

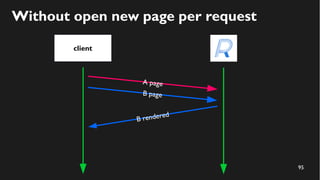

Without open new page per request
client
A page
B rendered
B page

96. 96
Without open new page per request
client
A page
B rendered
B page
A unexpected error

97. 97
With open new page per request
client

98. 98

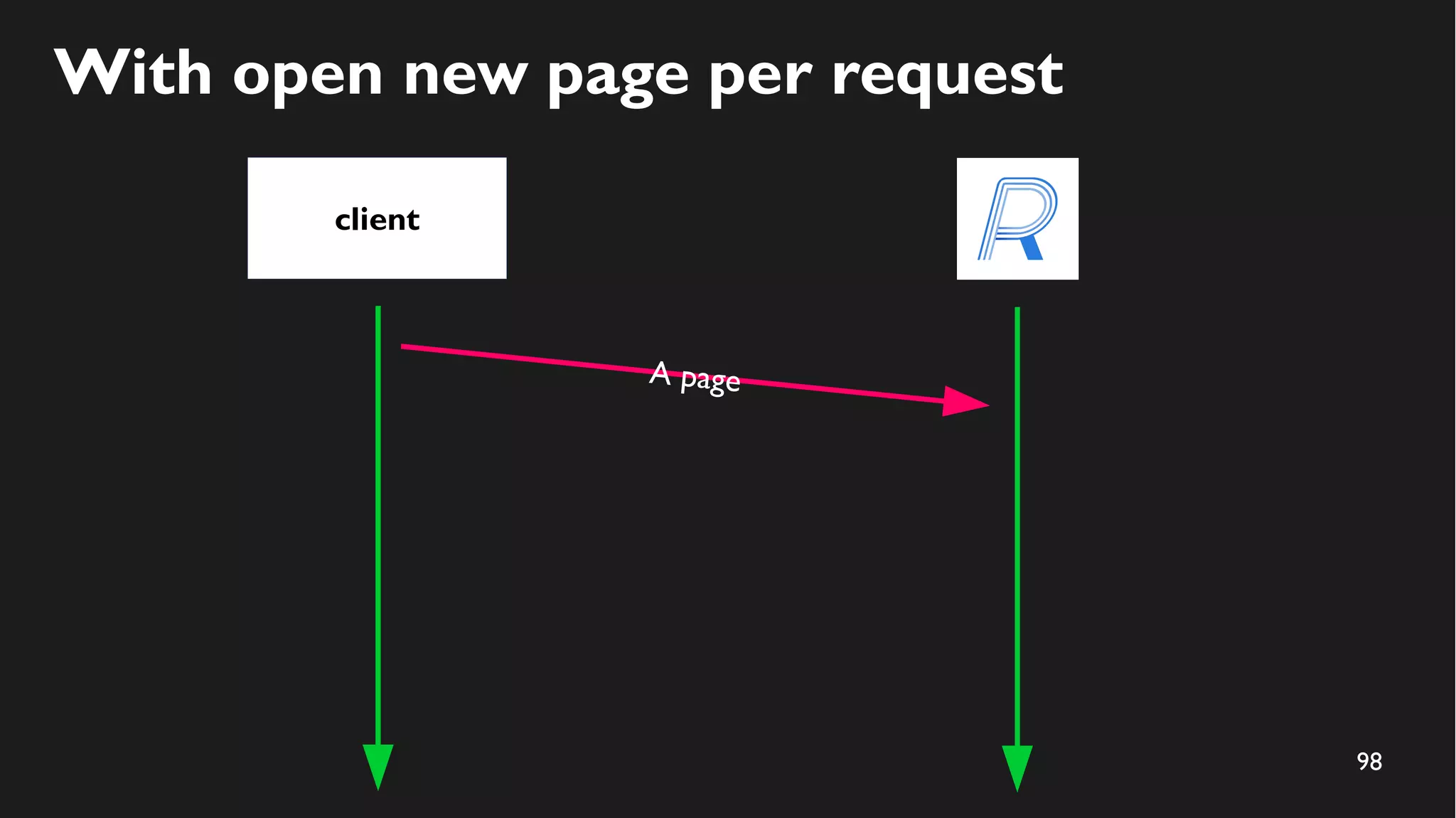

With open new page per request
client
A page

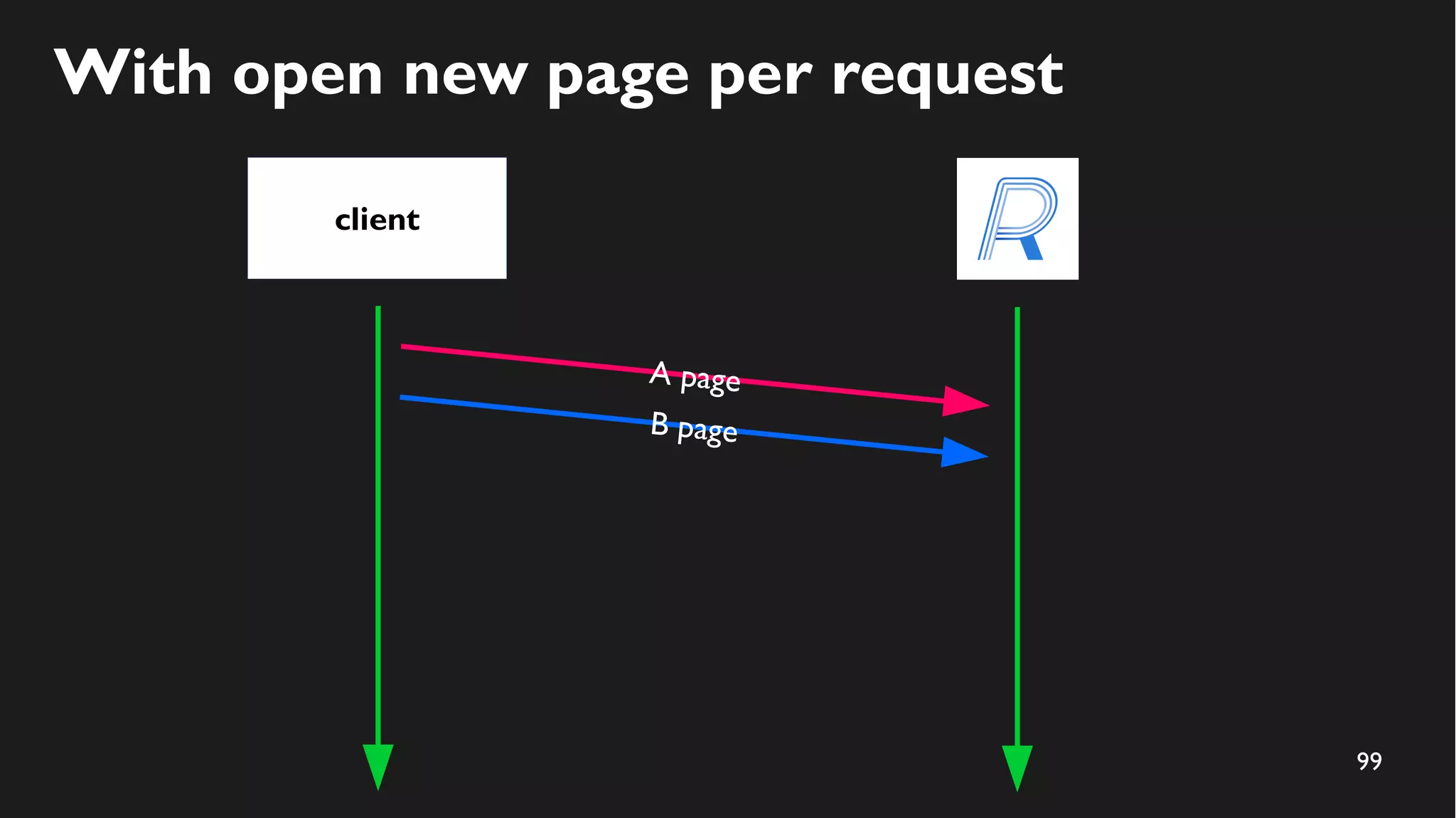

99. 99
With open new page per request
client
A page
B page

100. 100
With open new page per request
client
A page
B rendered
B page

101. 101
With open new page per request

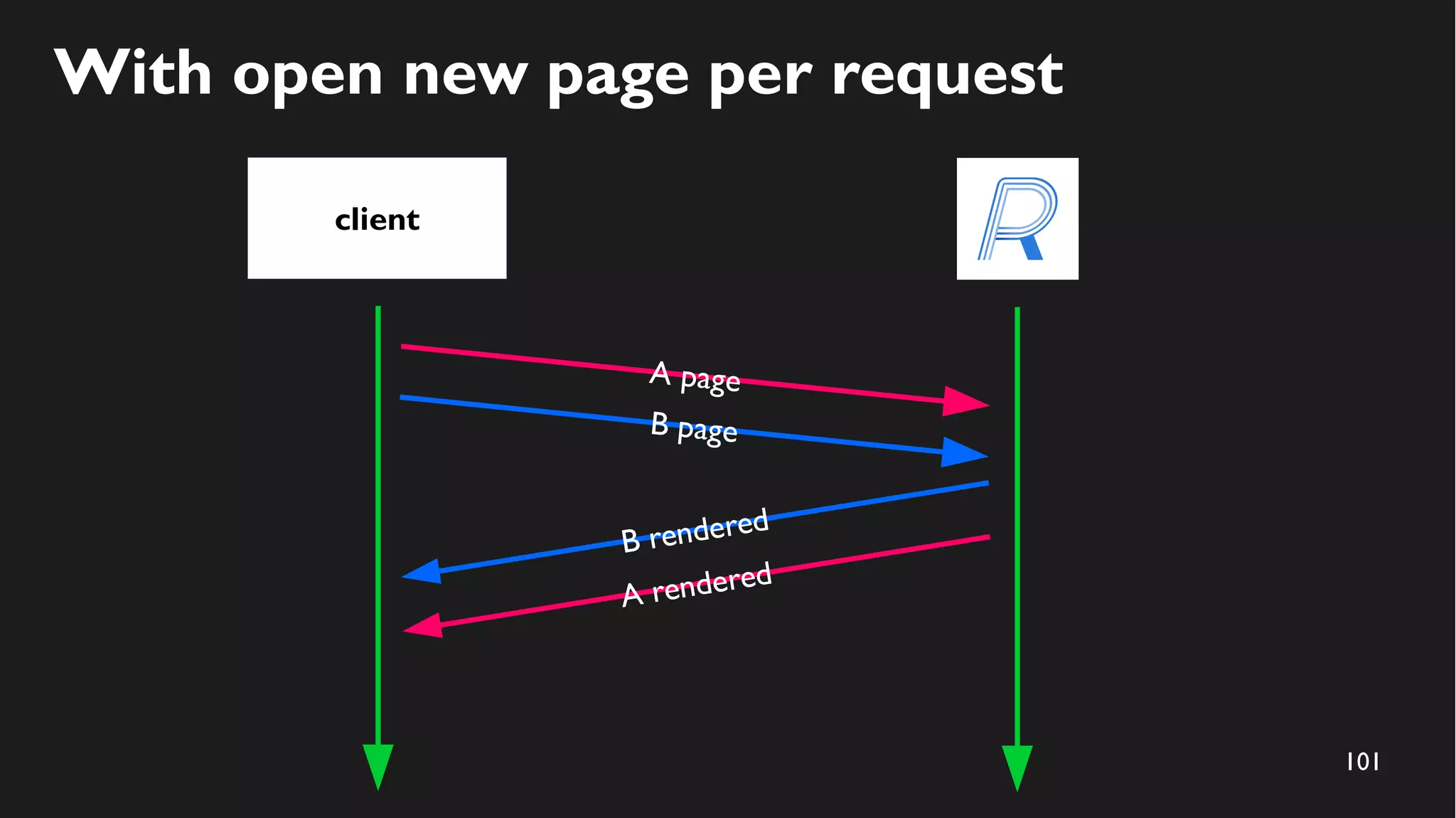

client
A page
B rendered
B page
A rendered

102. 102
Modify user agent

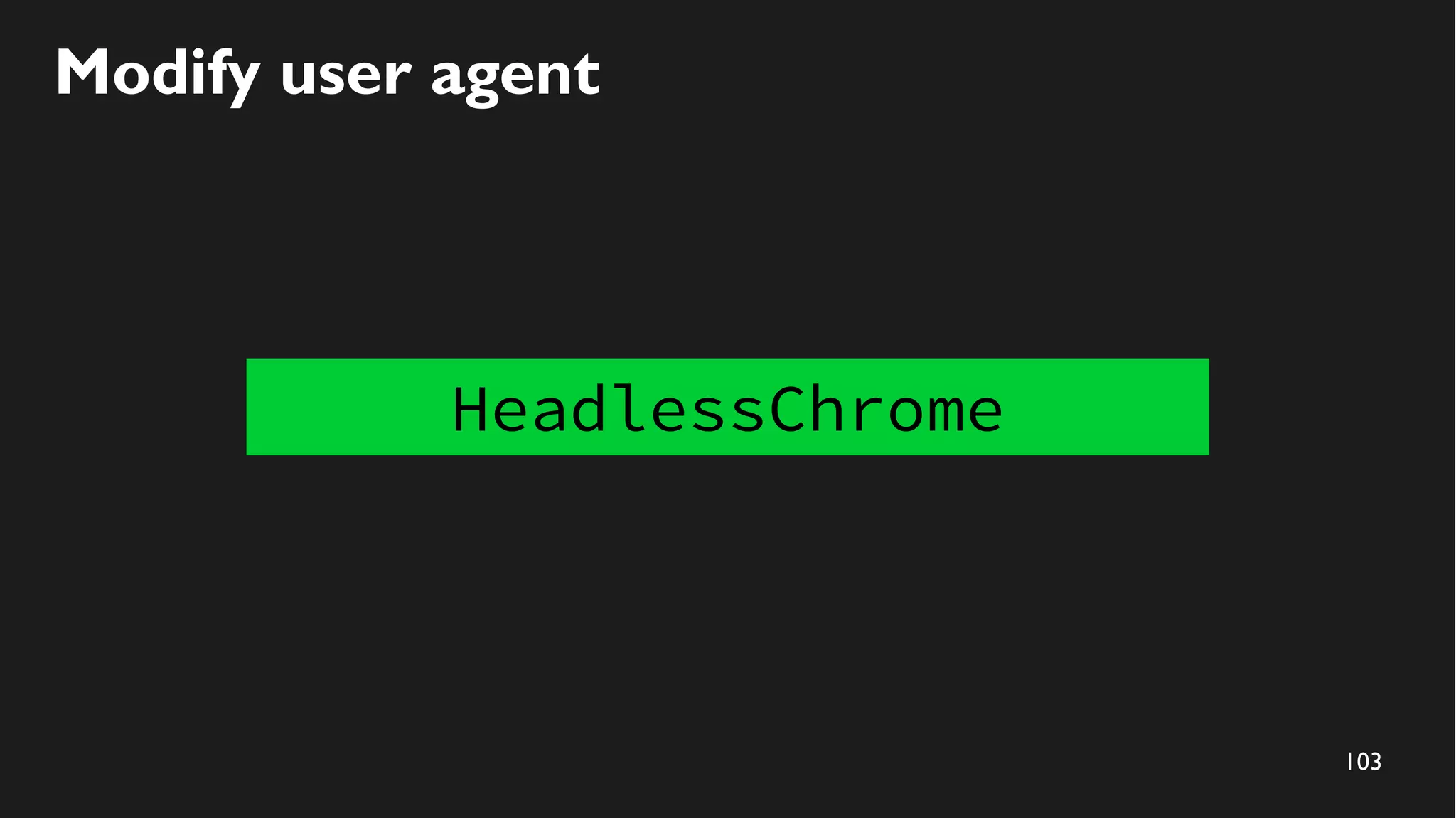

103. 103
Modify user agent
HeadlessChrome

104. 104

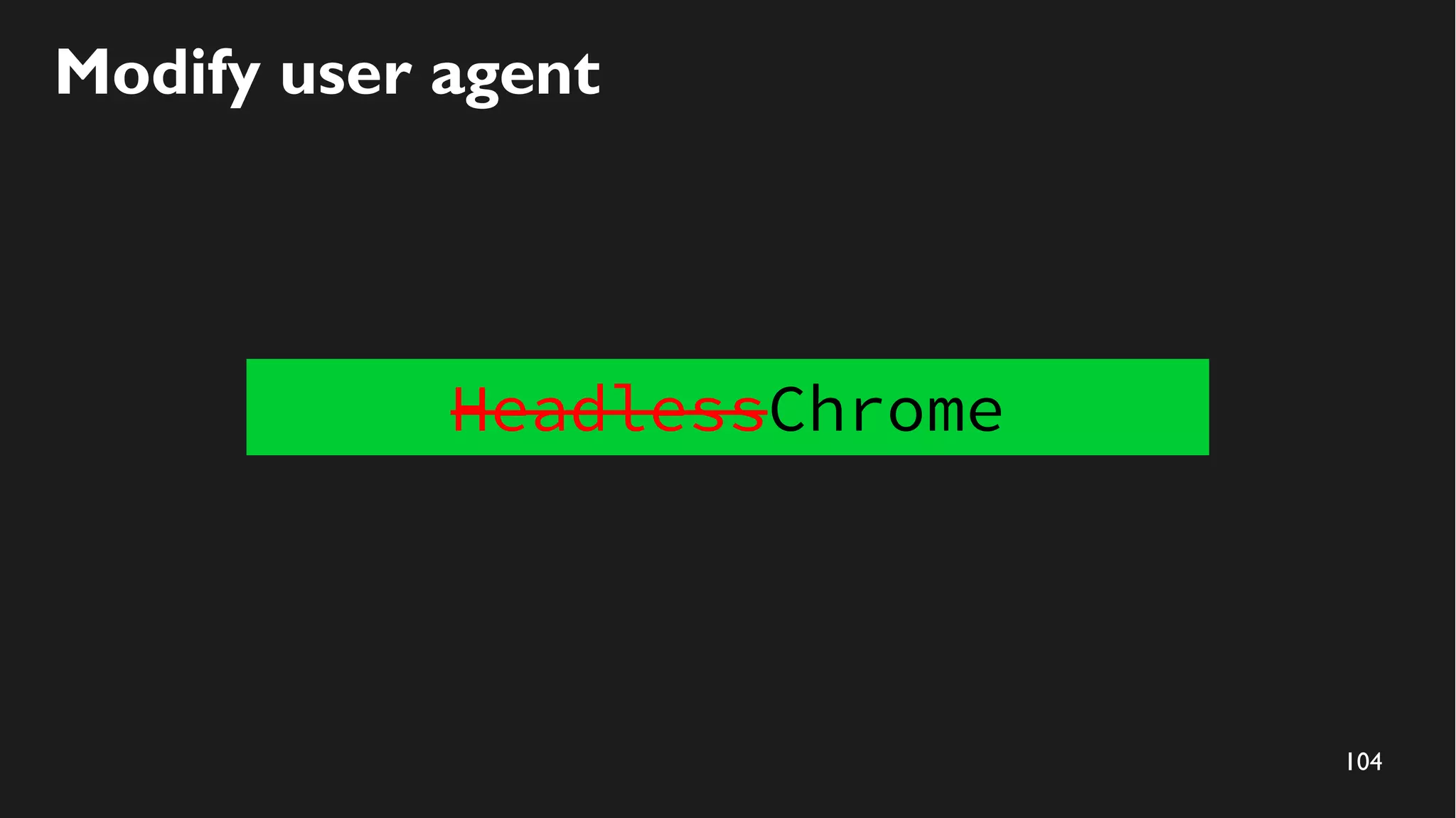

Modify user agent
HeadlessChrome

105. 105

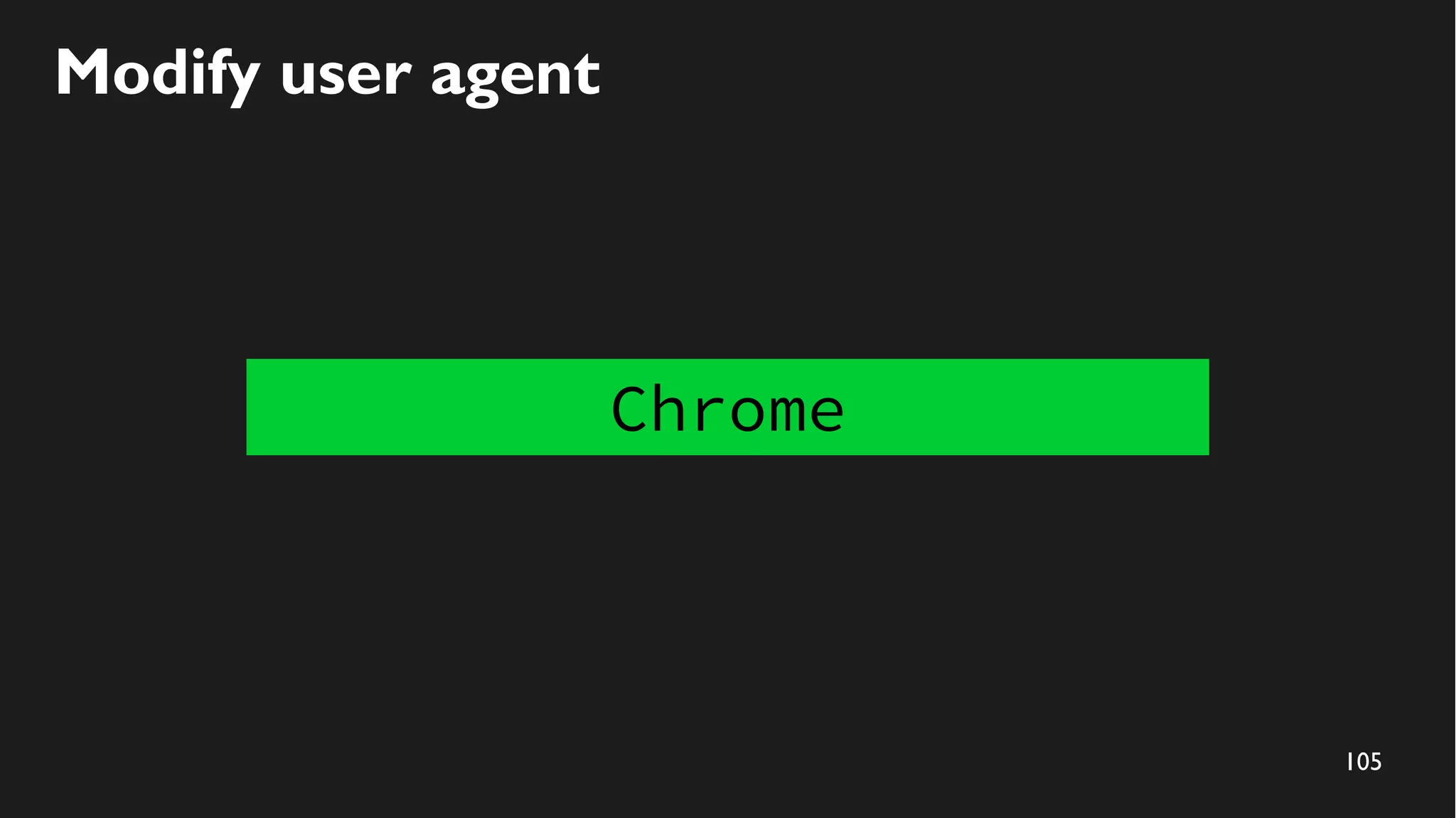

Modify user agent
Chrome

106. 106

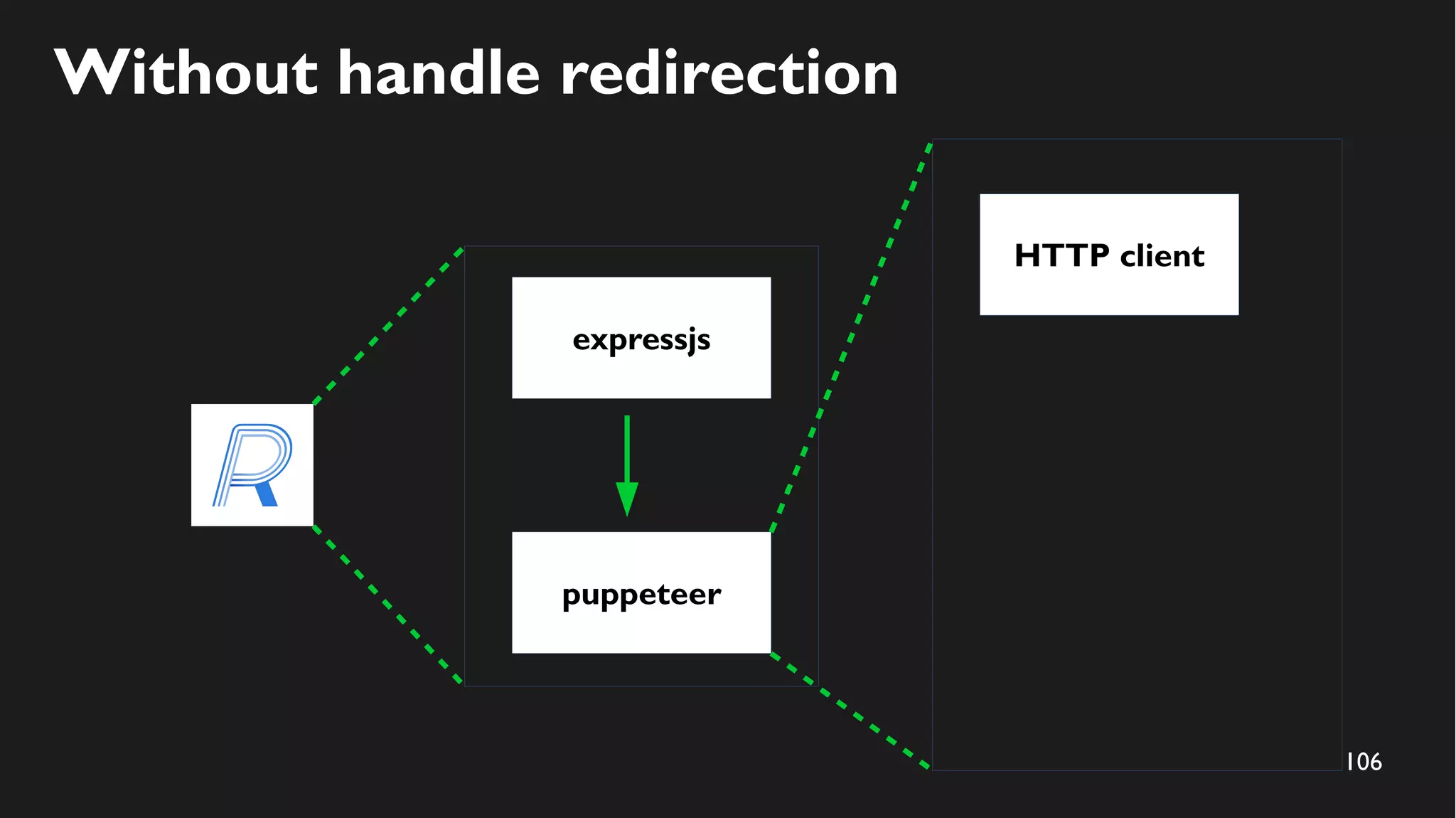

Without handle redirection
expressjs
puppeteer
HTTP client

107. 107

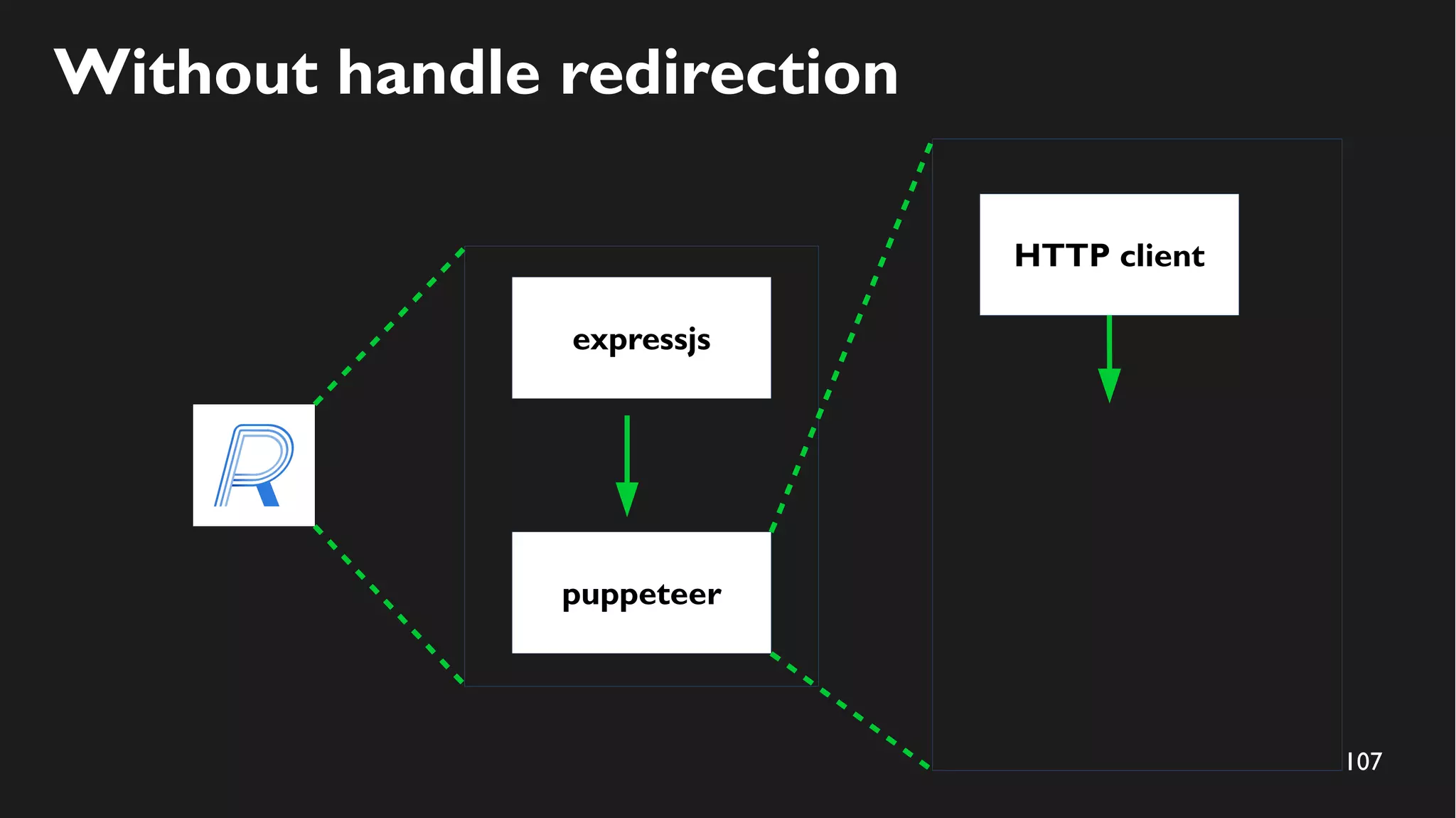

Without handle redirection
expressjs
puppeteer
HTTP client

108. 108
Without handle redirection
expressjs
puppeteer
HTTP client
status 30x

109. 109

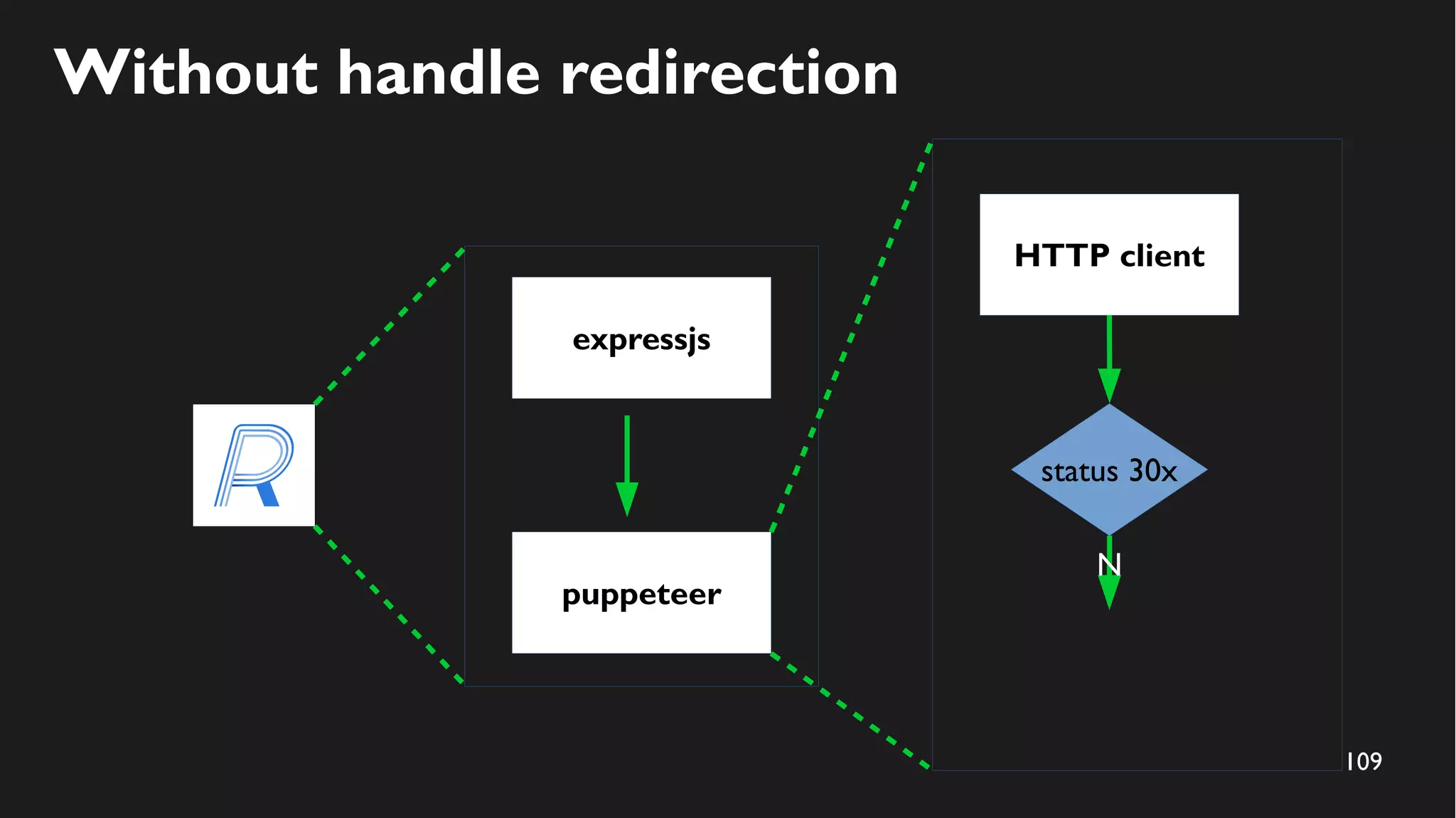

Without handle redirection
expressjs
puppeteer
HTTP client
status 30x
N

110. 110
Without handle redirection
expressjs
puppeteer
HTTP client
renderer
status 30x
N

111. 111

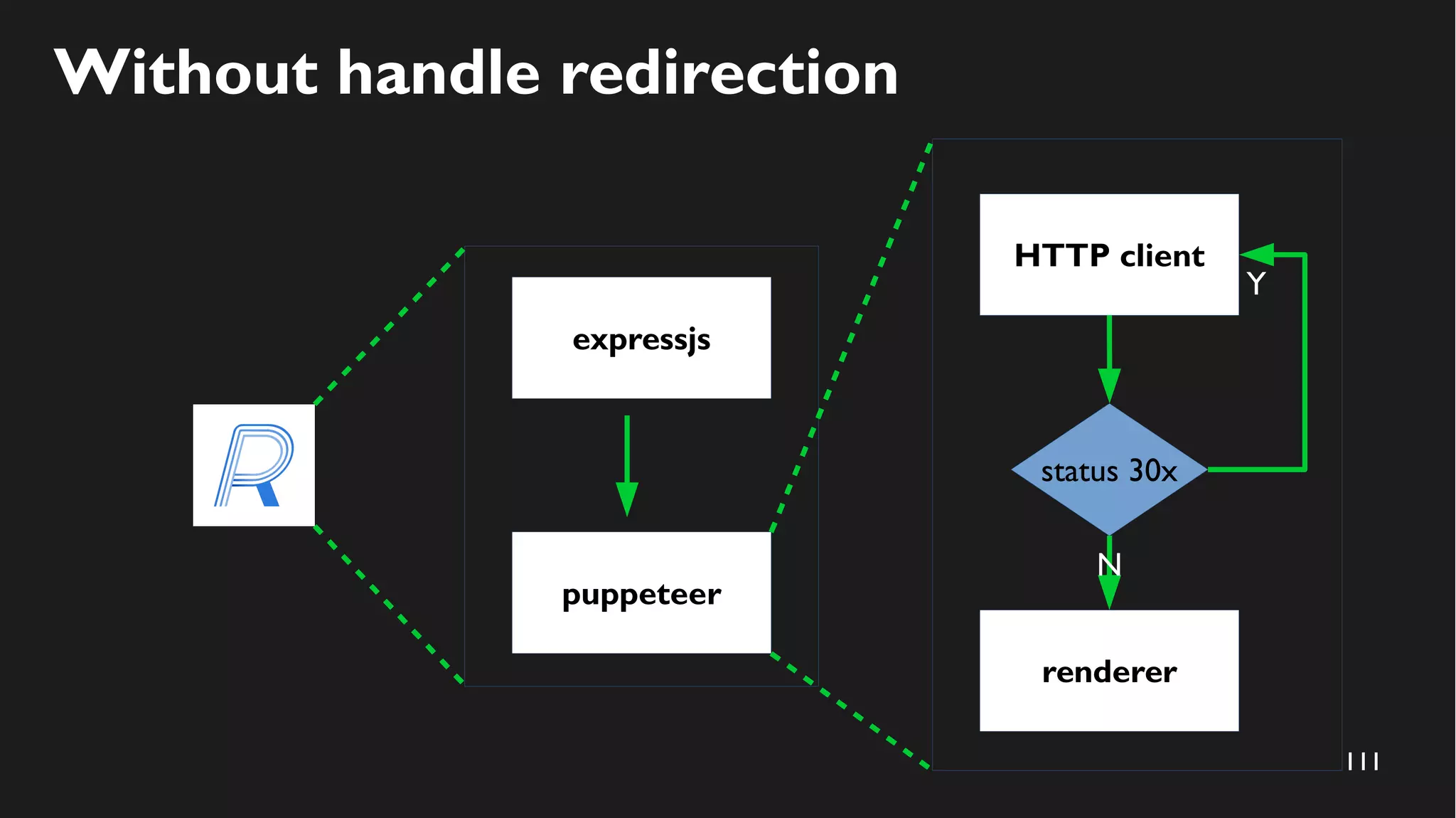

Without handle redirection
expressjs
puppeteer
HTTP client
renderer
status 30x
Y
N

112. 112

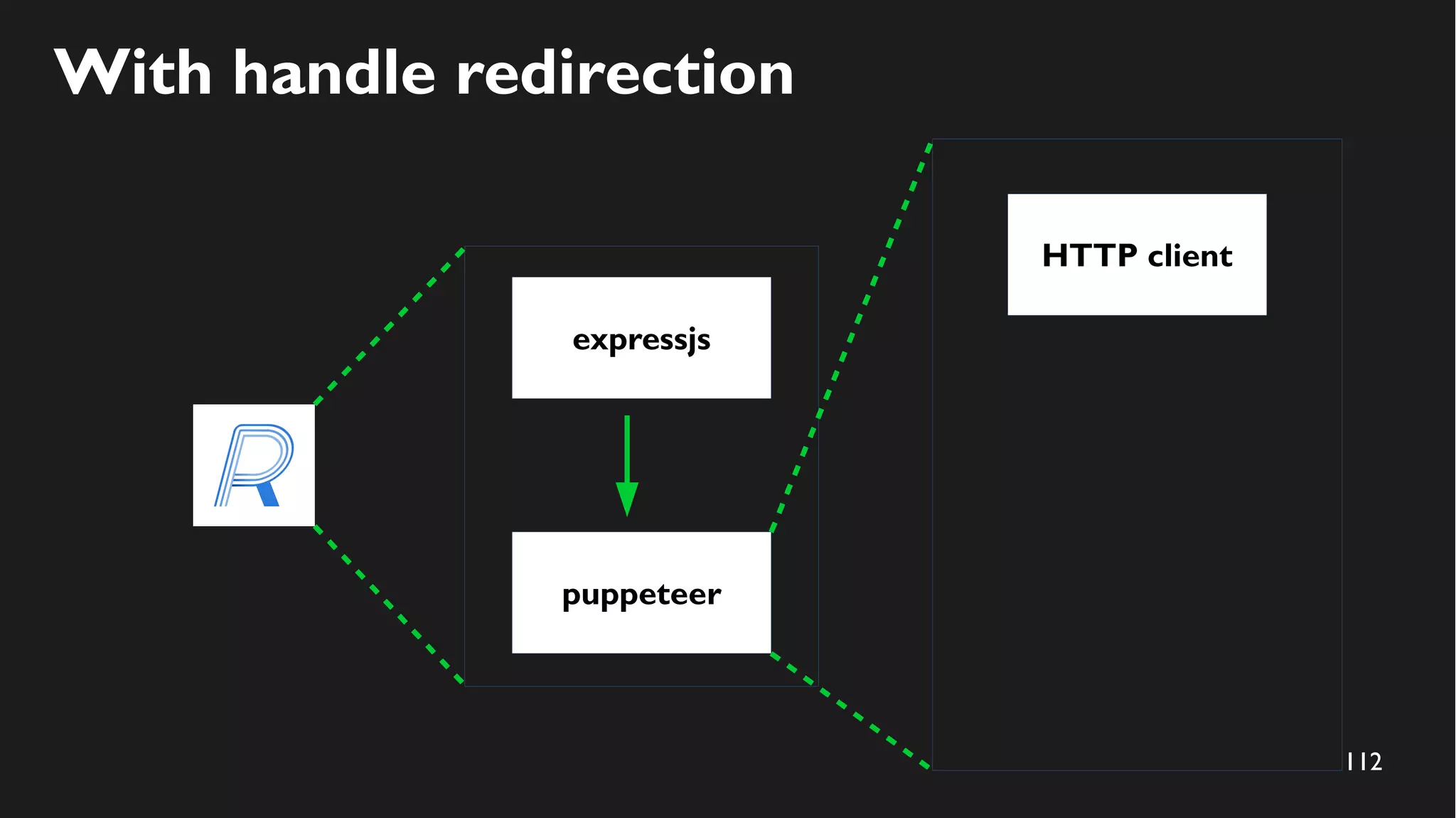

With handle redirection
expressjs
puppeteer
HTTP client

113. 113
With handle redirection
expressjs
puppeteer
HTTP client

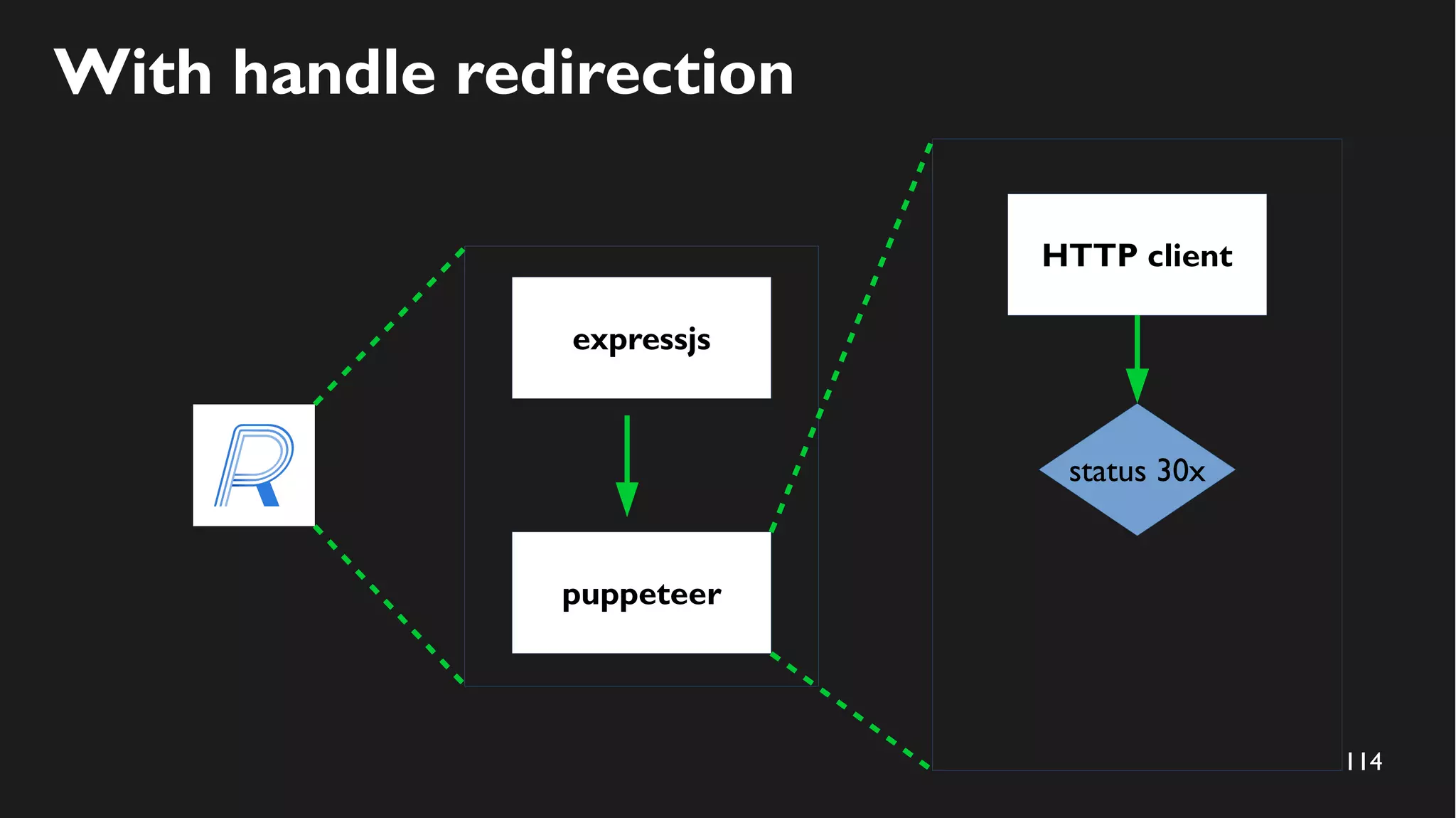

114. 114
With handle redirection
expressjs
puppeteer
HTTP client
status 30x

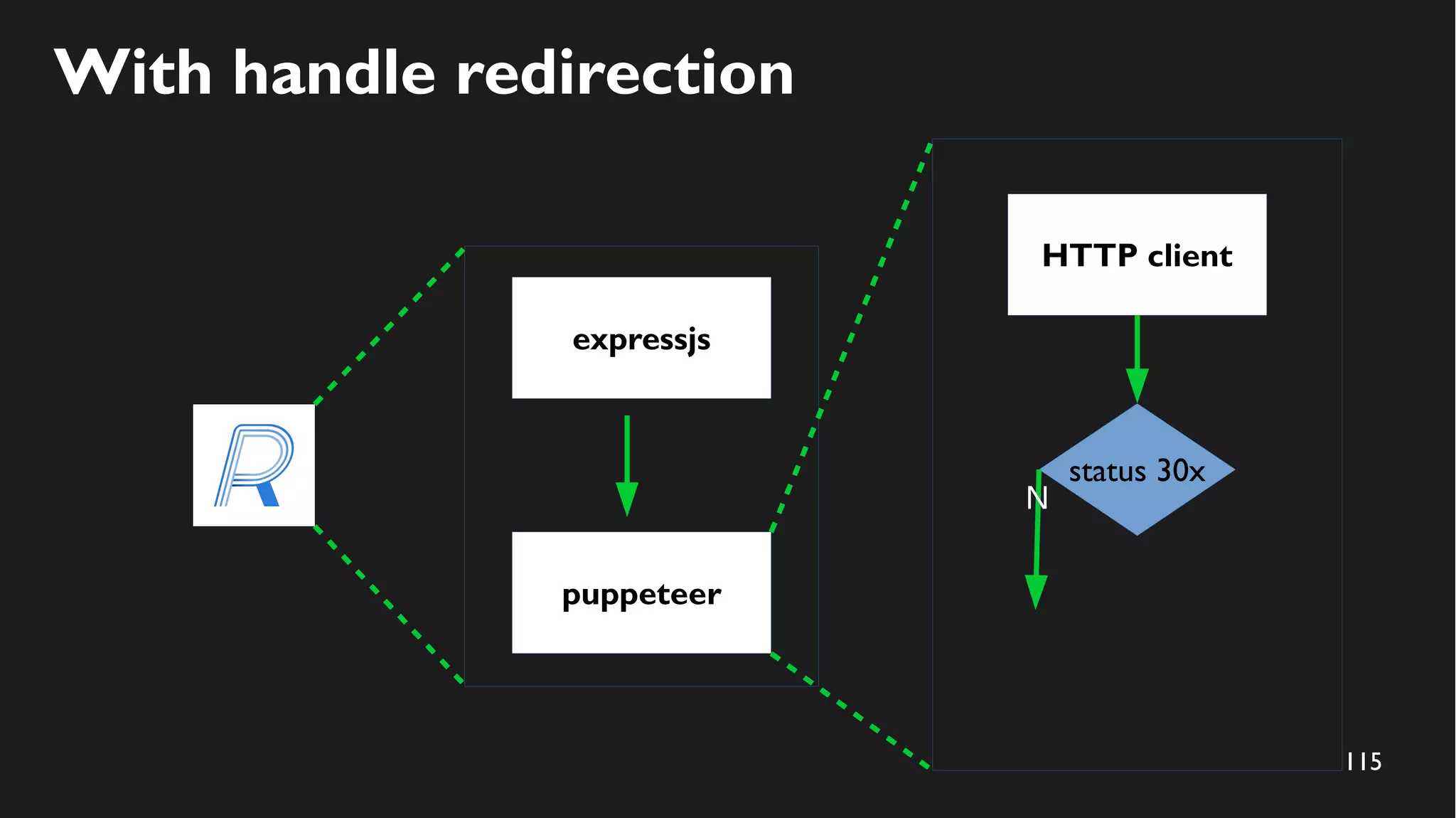

115. 115
With handle redirection
expressjs
puppeteer
HTTP client
status 30x
N

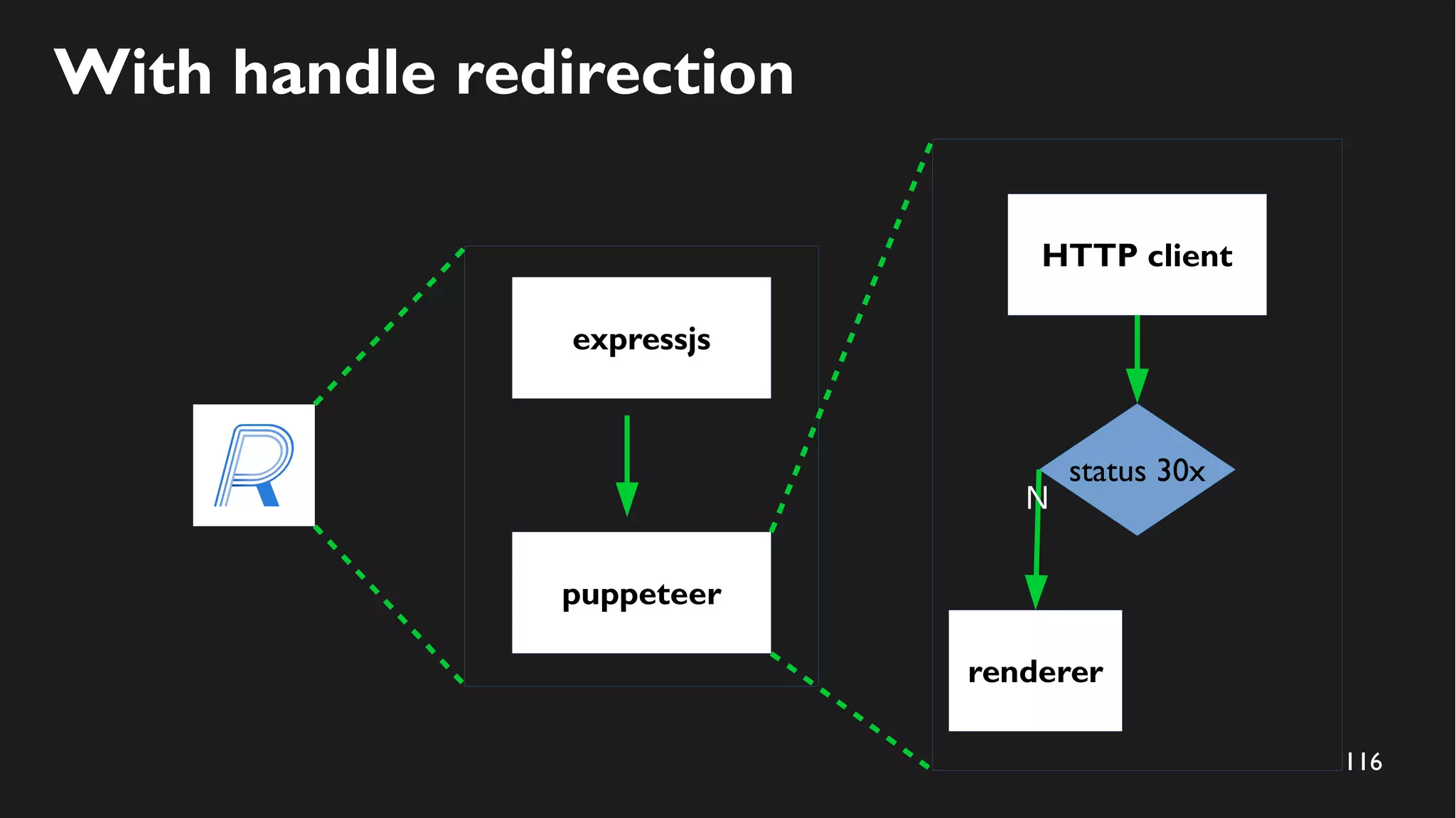

116. 116
With handle redirection
expressjs
puppeteer
HTTP client
renderer
status 30x
N

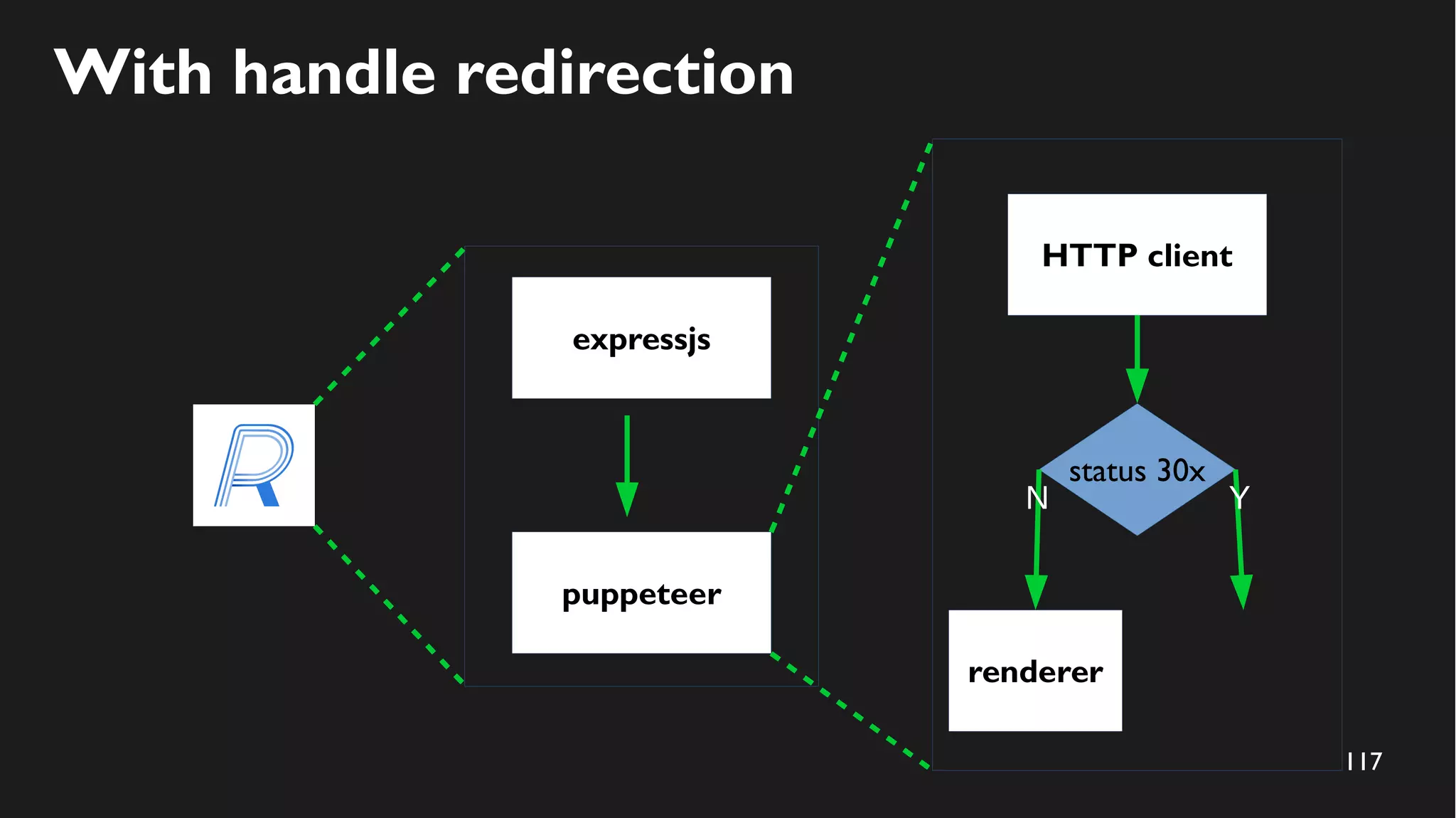

117. 117
With handle redirection
expressjs
puppeteer
HTTP client
renderer
status 30x
YN

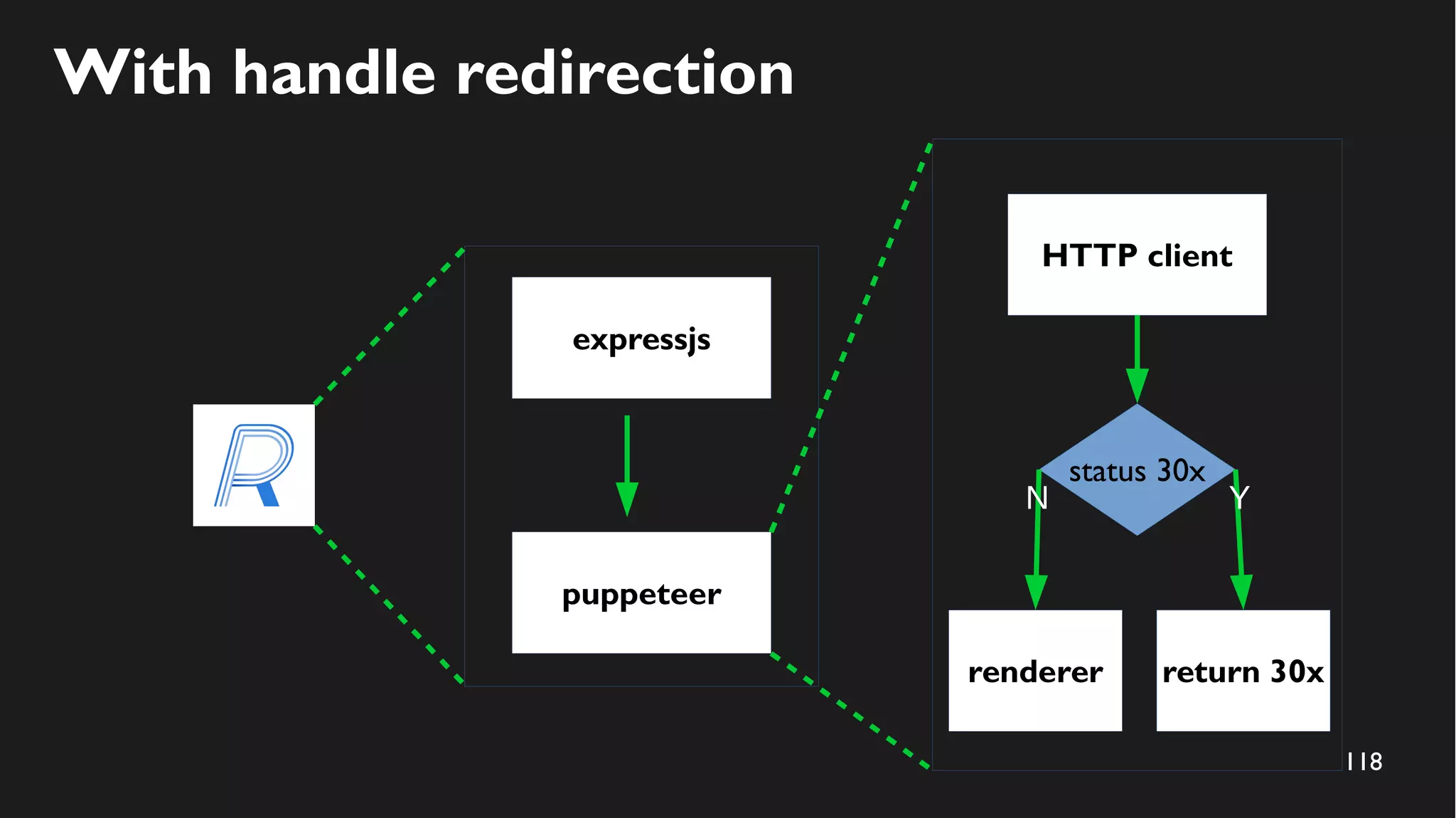

118. 118
With handle redirection
expressjs
puppeteer
HTTP client
renderer
status 30x
return 30x
YN

119. 119

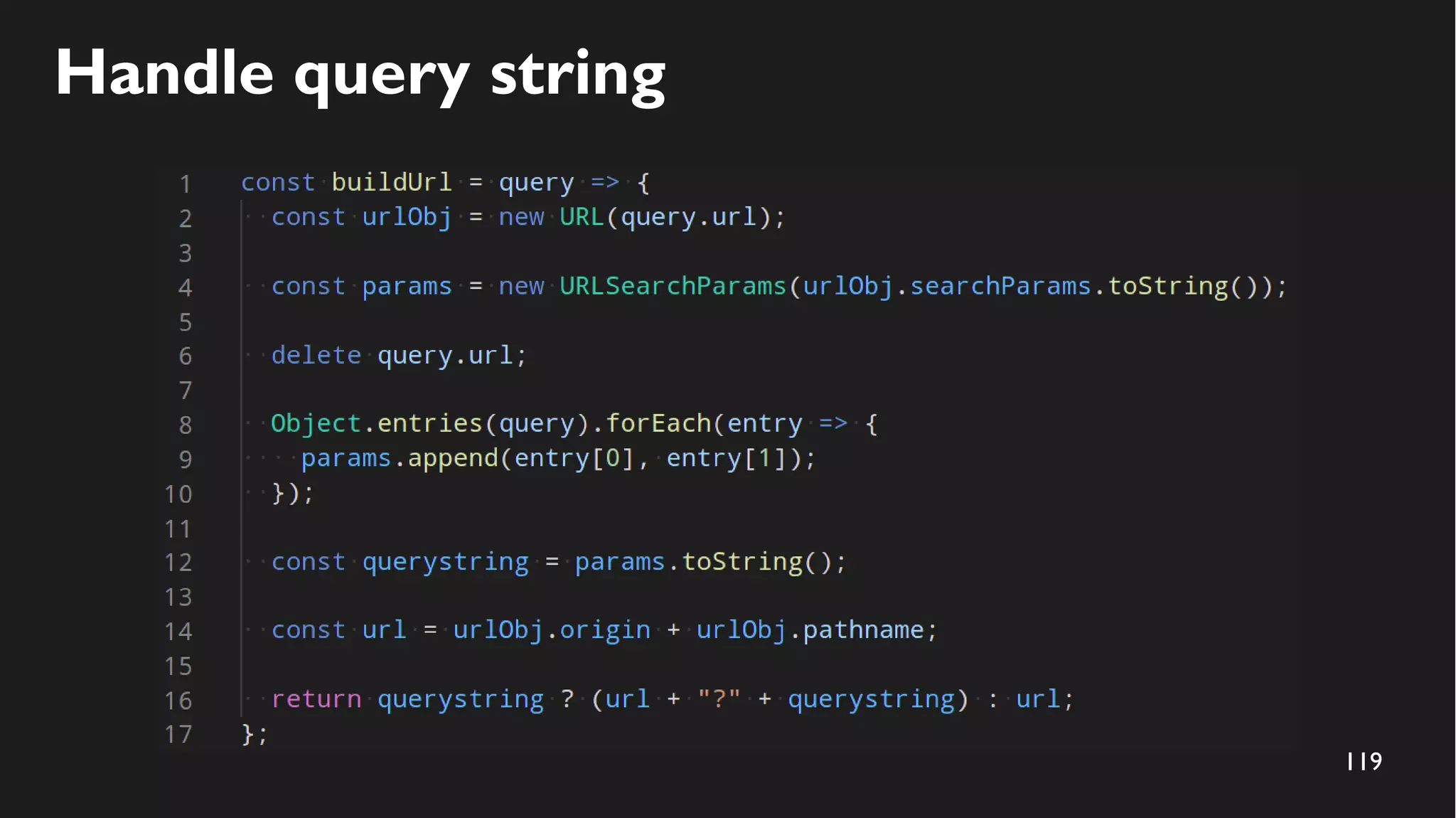

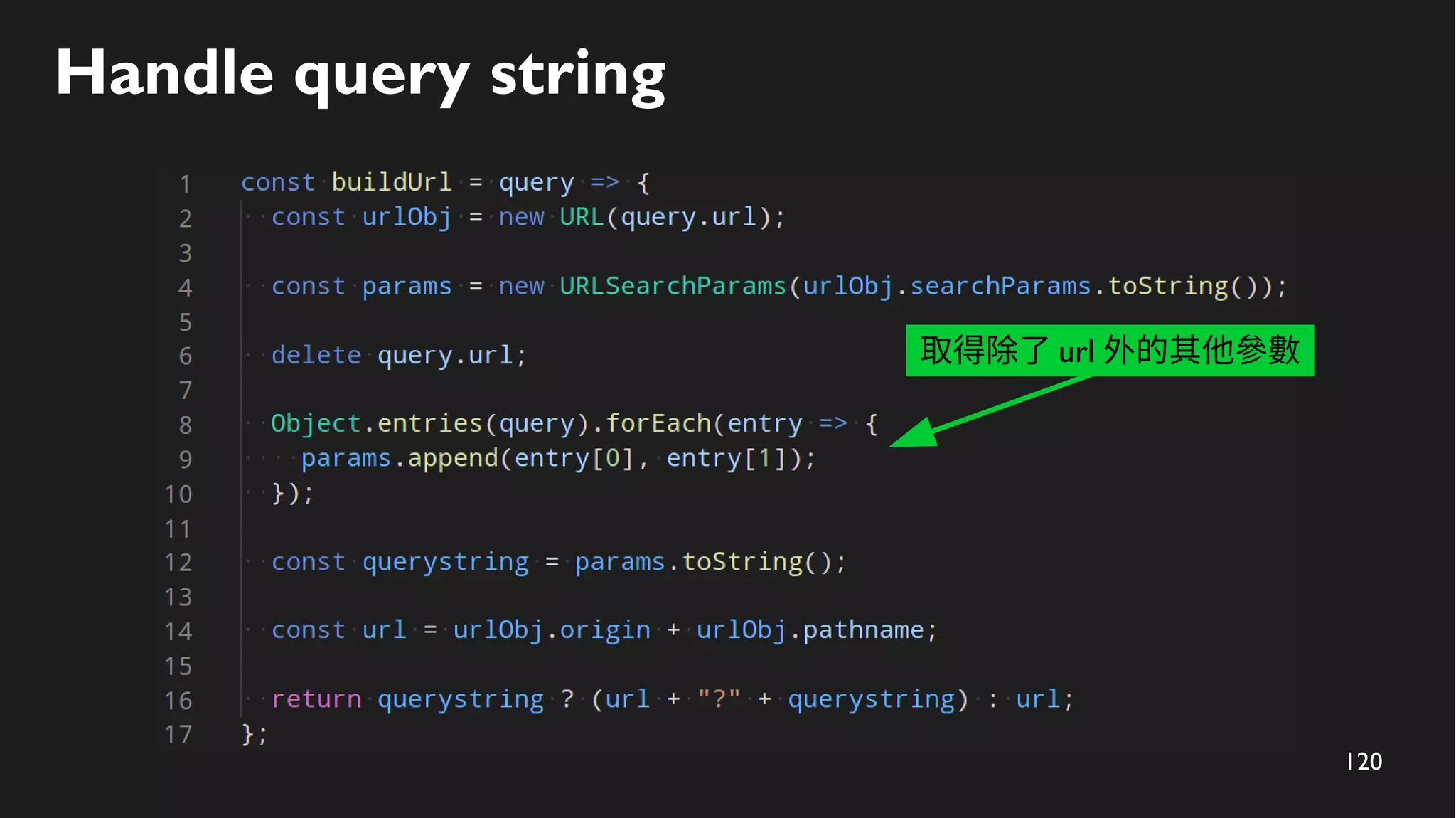

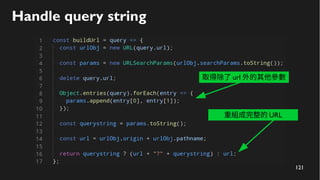

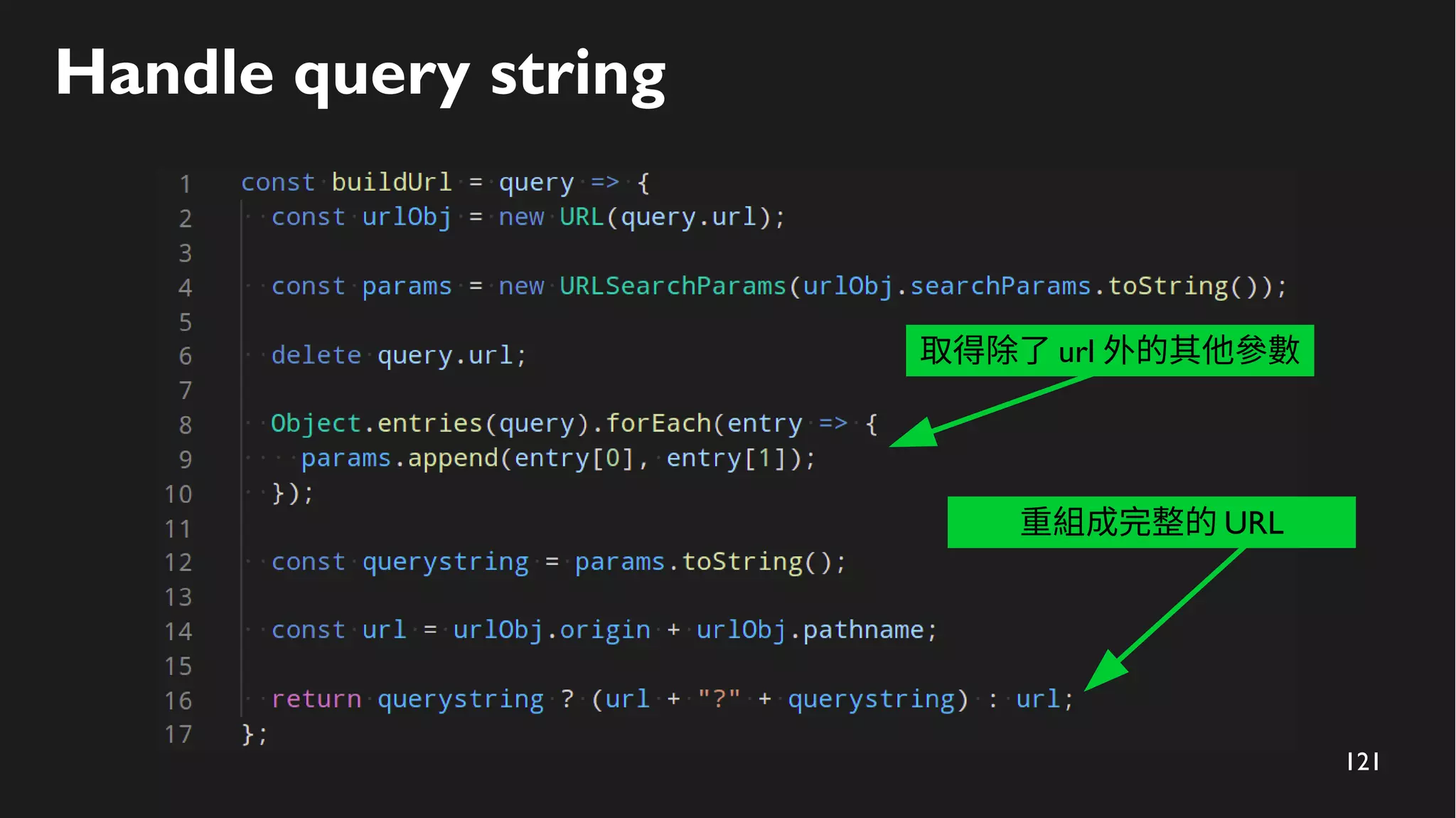

Handle query string

120. 120
Handle query string
取得除了 url 外的其他參數

121. 121
Handle query string
取得除了 url 外的其他參數
重組成完整的 URL

122. 122
Conclusion

123. 123
Conclusion

124. 124
Conclusion
● Client solution: SSR or Framework solution

125. 125

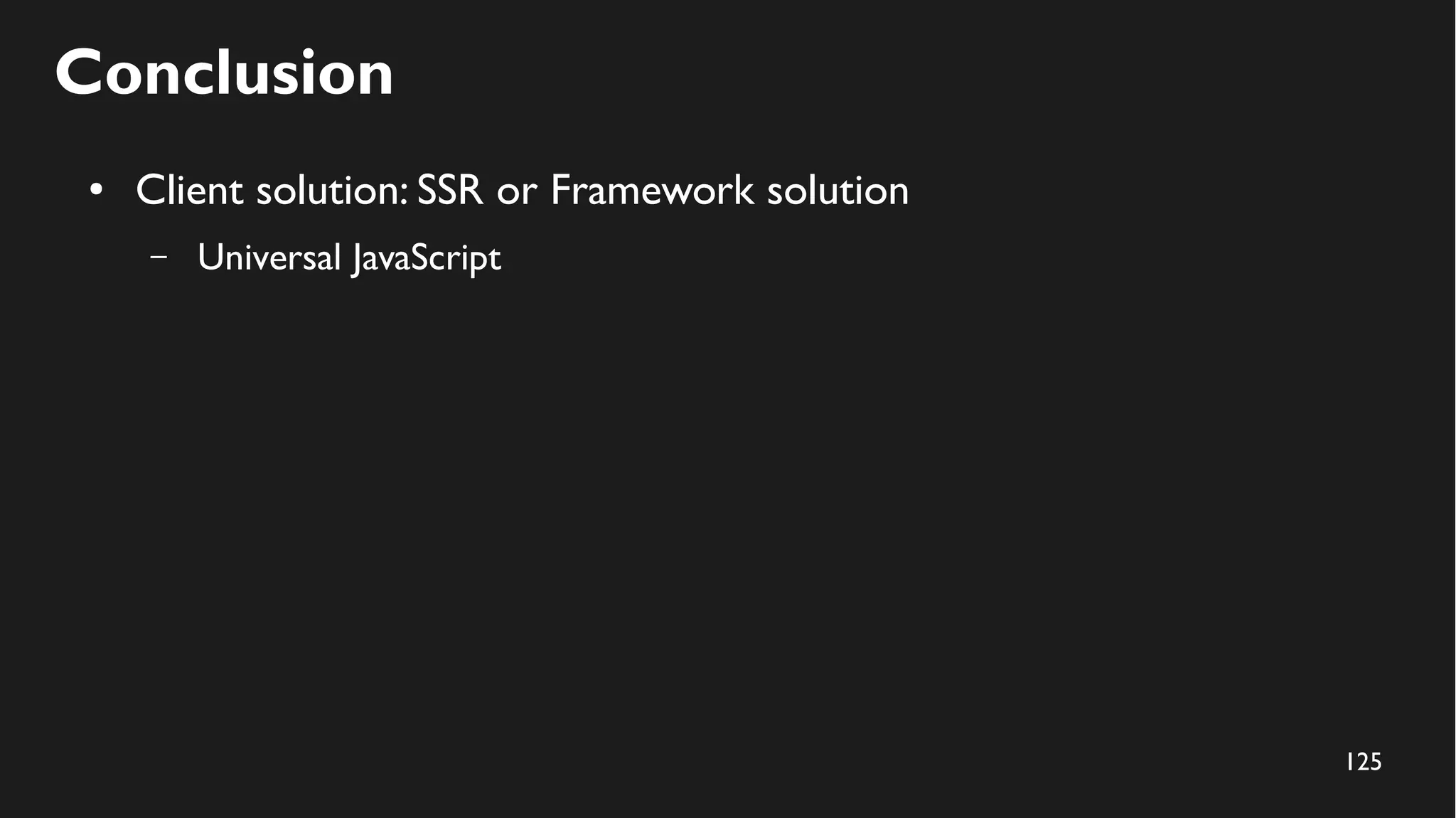

Conclusion
● Client solution: SSR or Framework solution
– Universal JavaScript

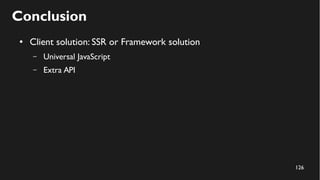

126. 126

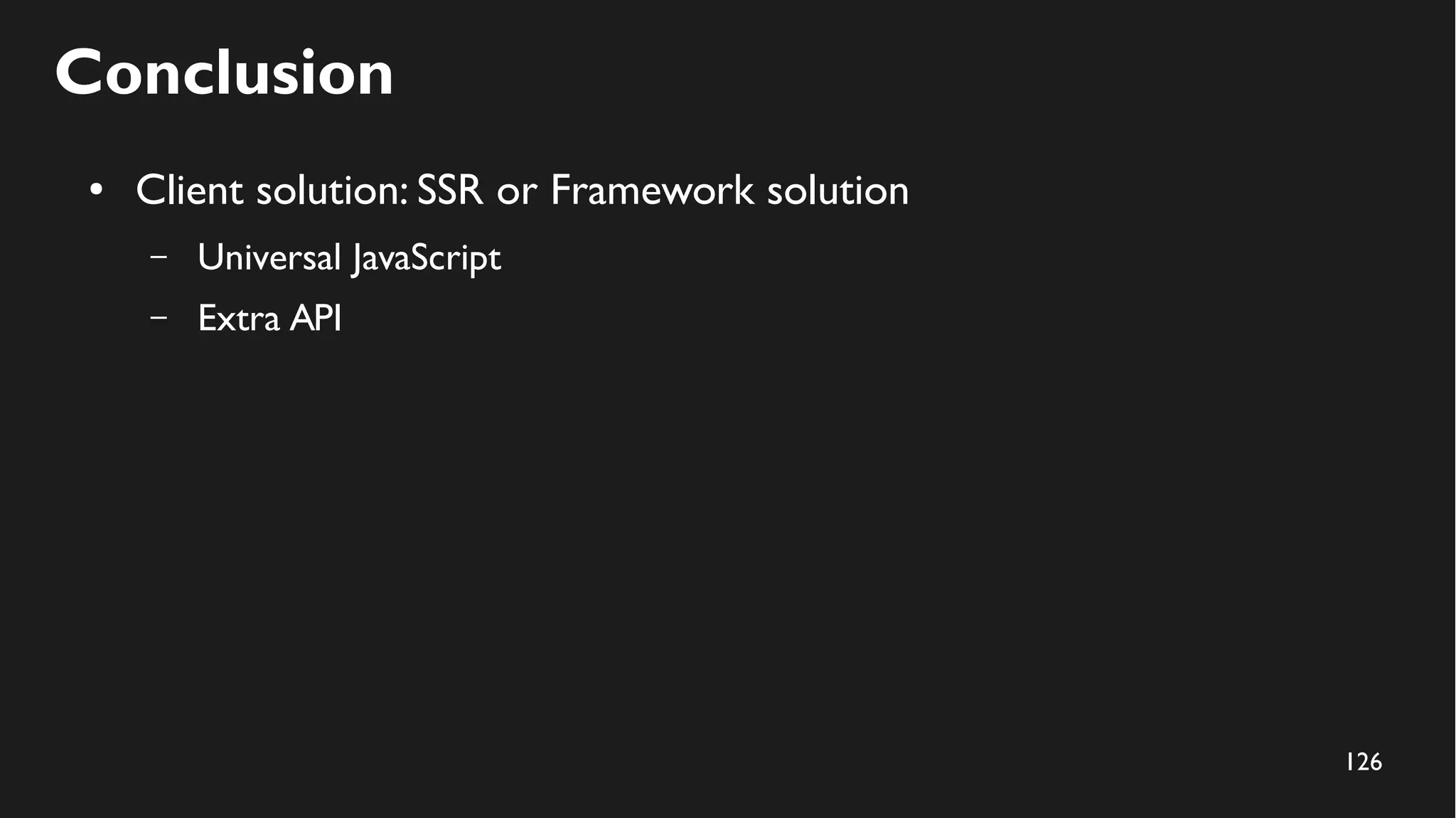

Conclusion
● Client solution: SSR or Framework solution
– Universal JavaScript
– Extra API

127. 127
Conclusion
● Client solution: SSR or Framework solution
– Universal JavaScript
– Extra API
– Mix server & client code at one page

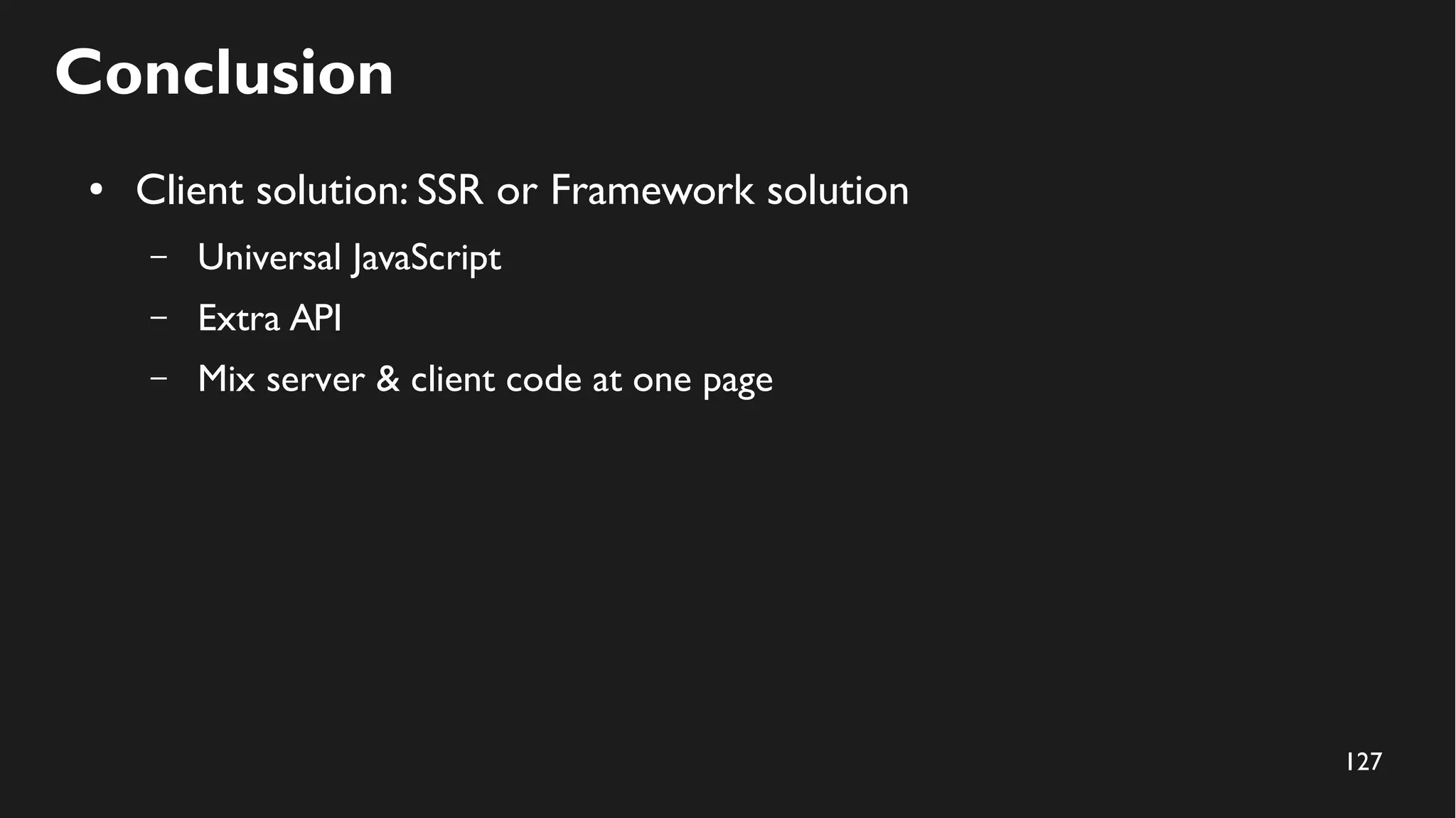

128. 128
Conclusion
● Client solution: SSR or Framework solution
– Universal JavaScript
– Extra API
– Mix server & client code at one page
– Cache API

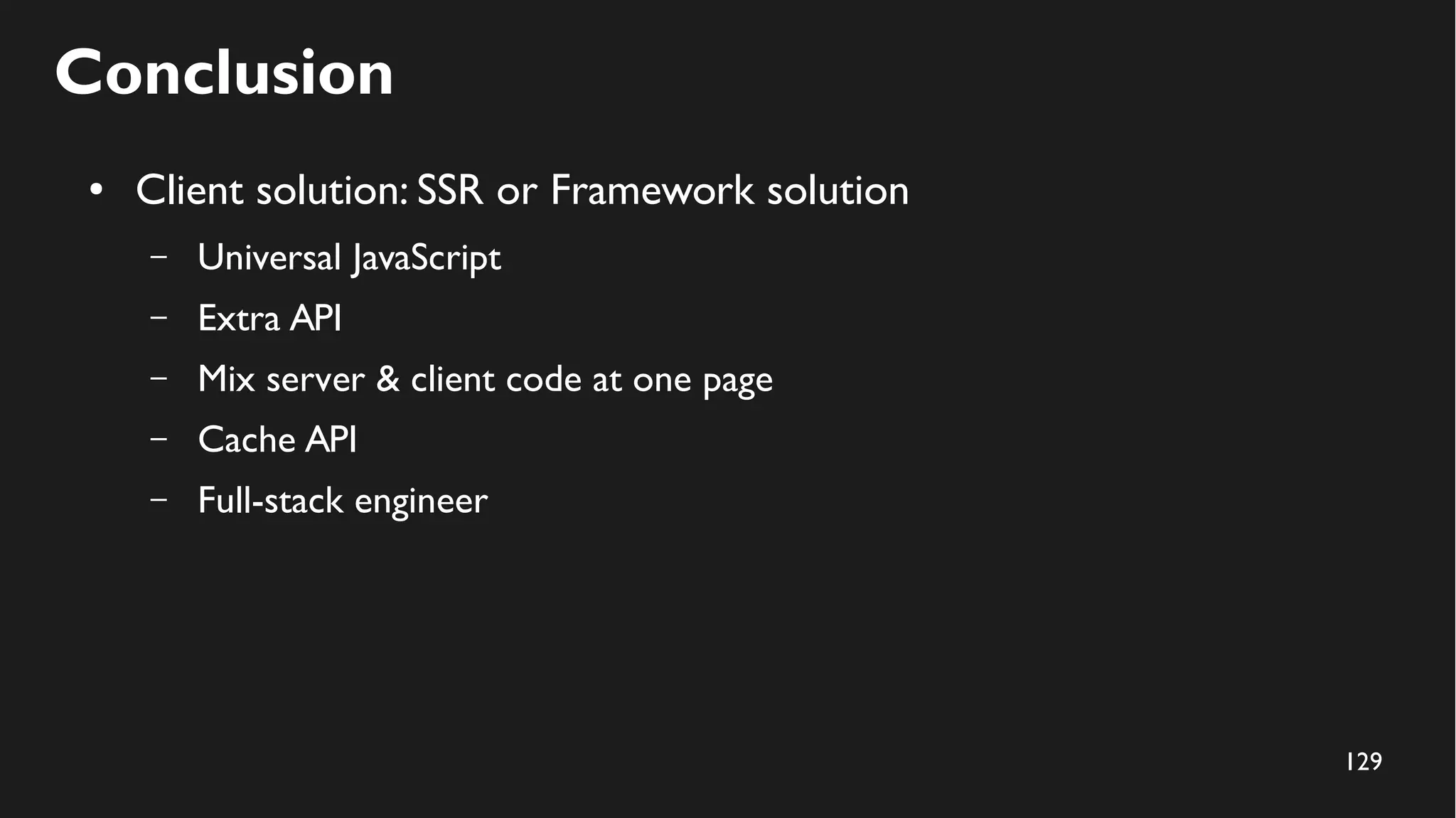

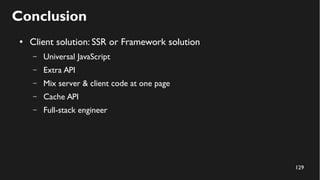

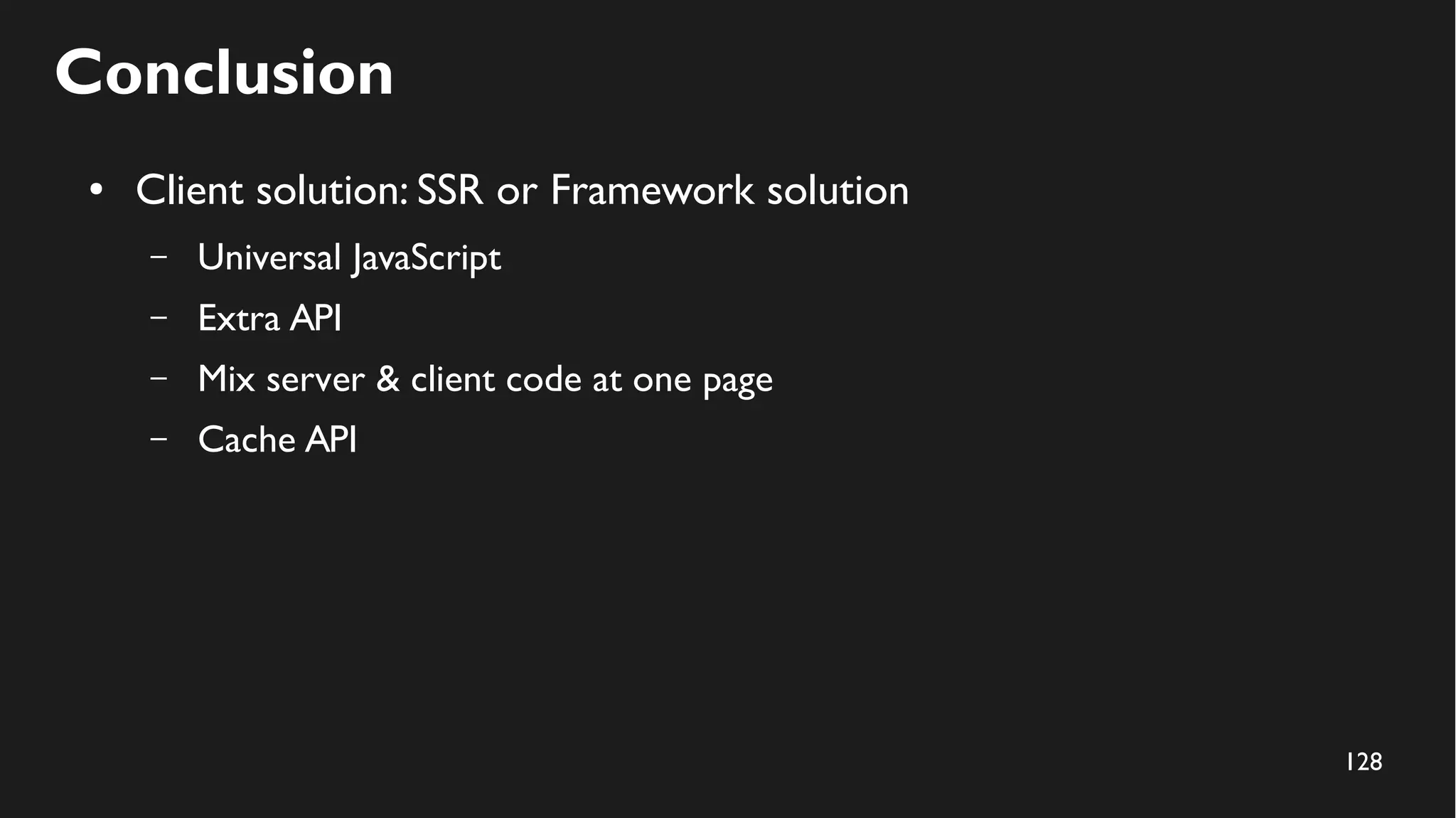

129. 129
Conclusion
● Client solution: SSR or Framework solution
– Universal JavaScript
– Extra API
– Mix server & client code at one page
– Cache API
– Full-stack engineer

130. 130

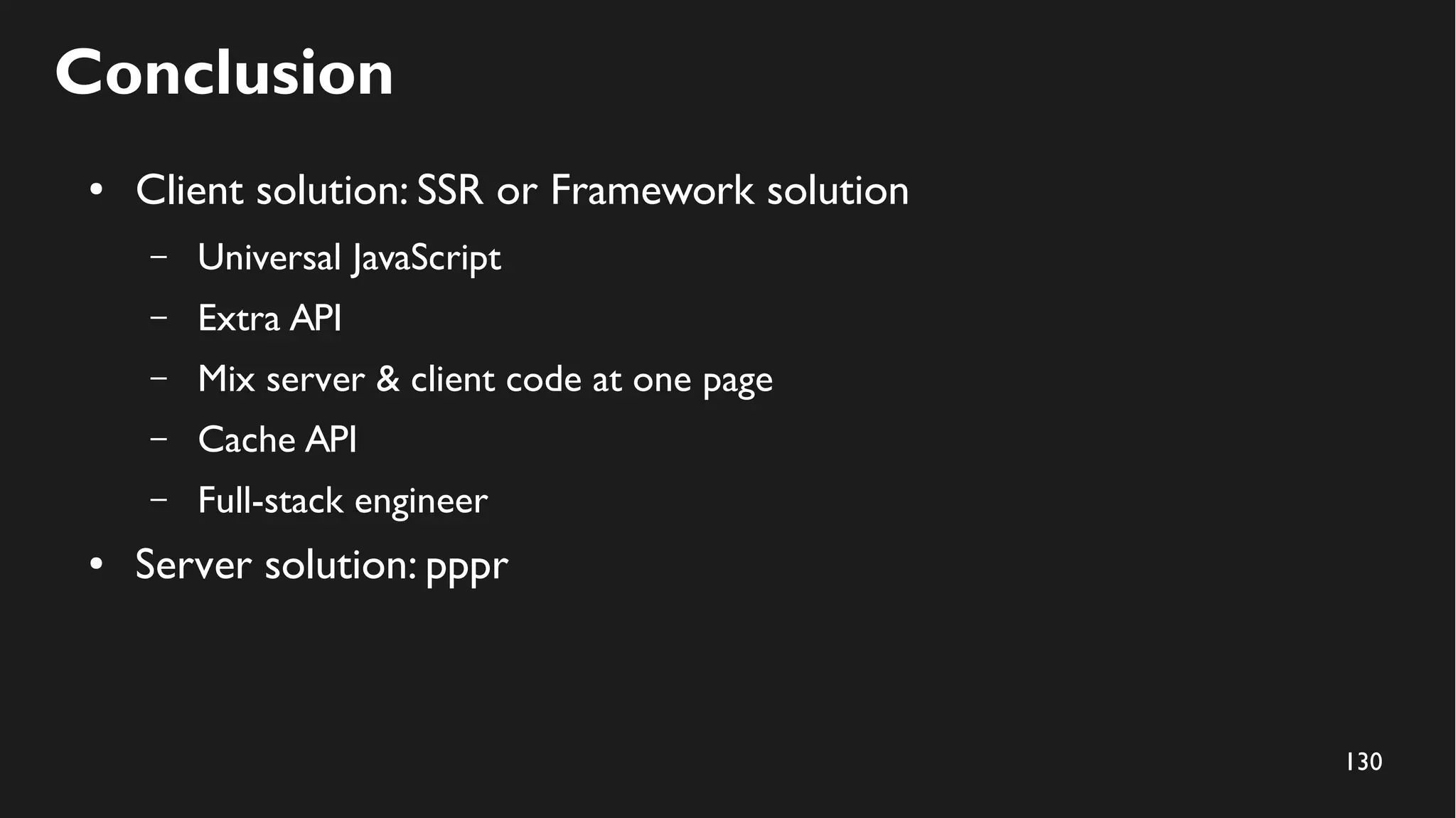

Conclusion
● Client solution: SSR or Framework solution
– Universal JavaScript
– Extra API
– Mix server & client code at one page
– Cache API
– Full-stack engineer
● Server solution: pppr

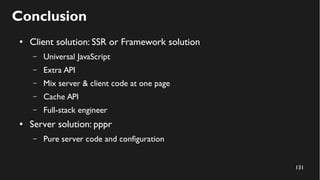

131. 131

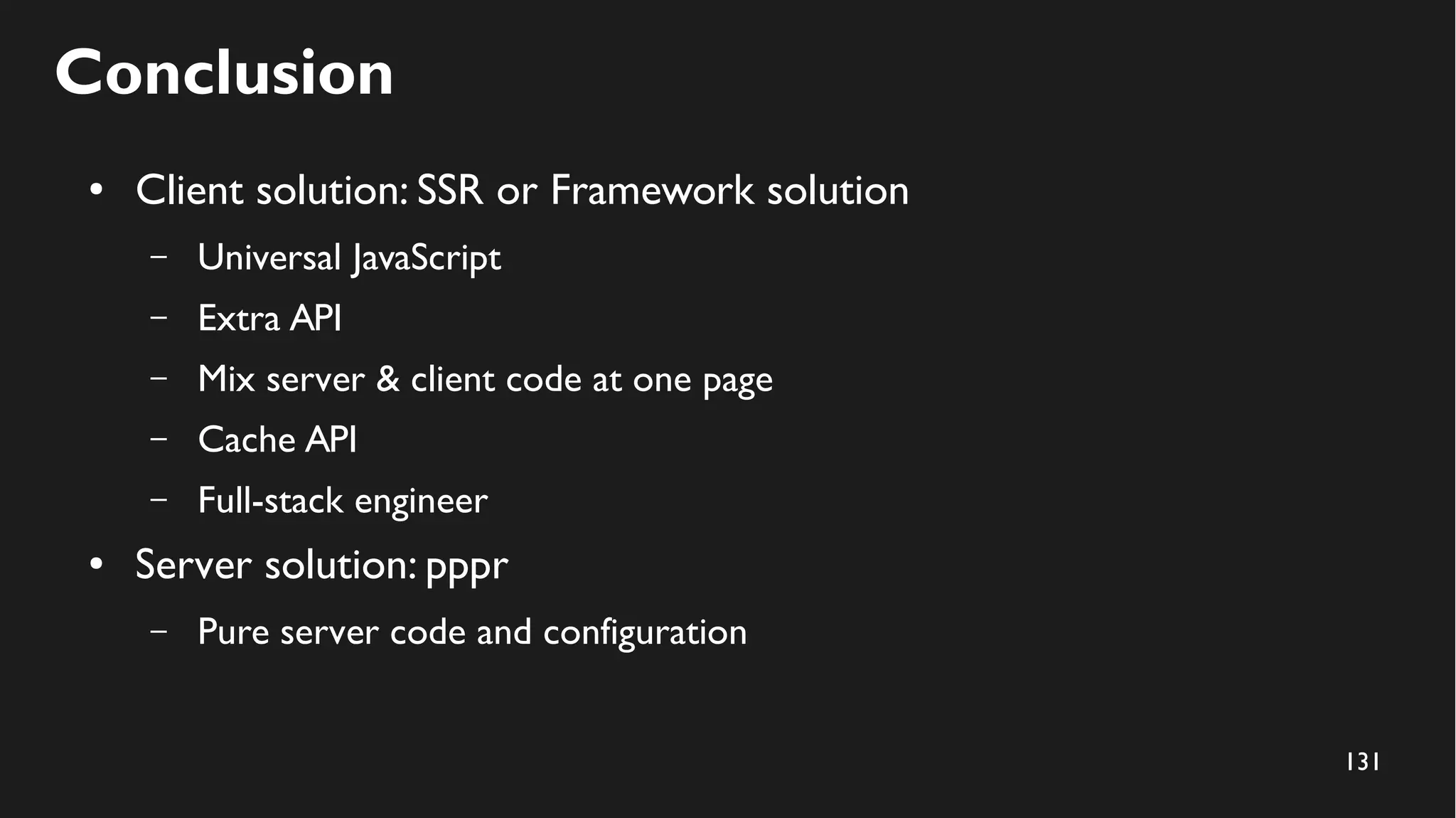

Conclusion
● Client solution: SSR or Framework solution
– Universal JavaScript
– Extra API
– Mix server & client code at one page
– Cache API
– Full-stack engineer
● Server solution: pppr
– Pure server code and configuration

132. 132

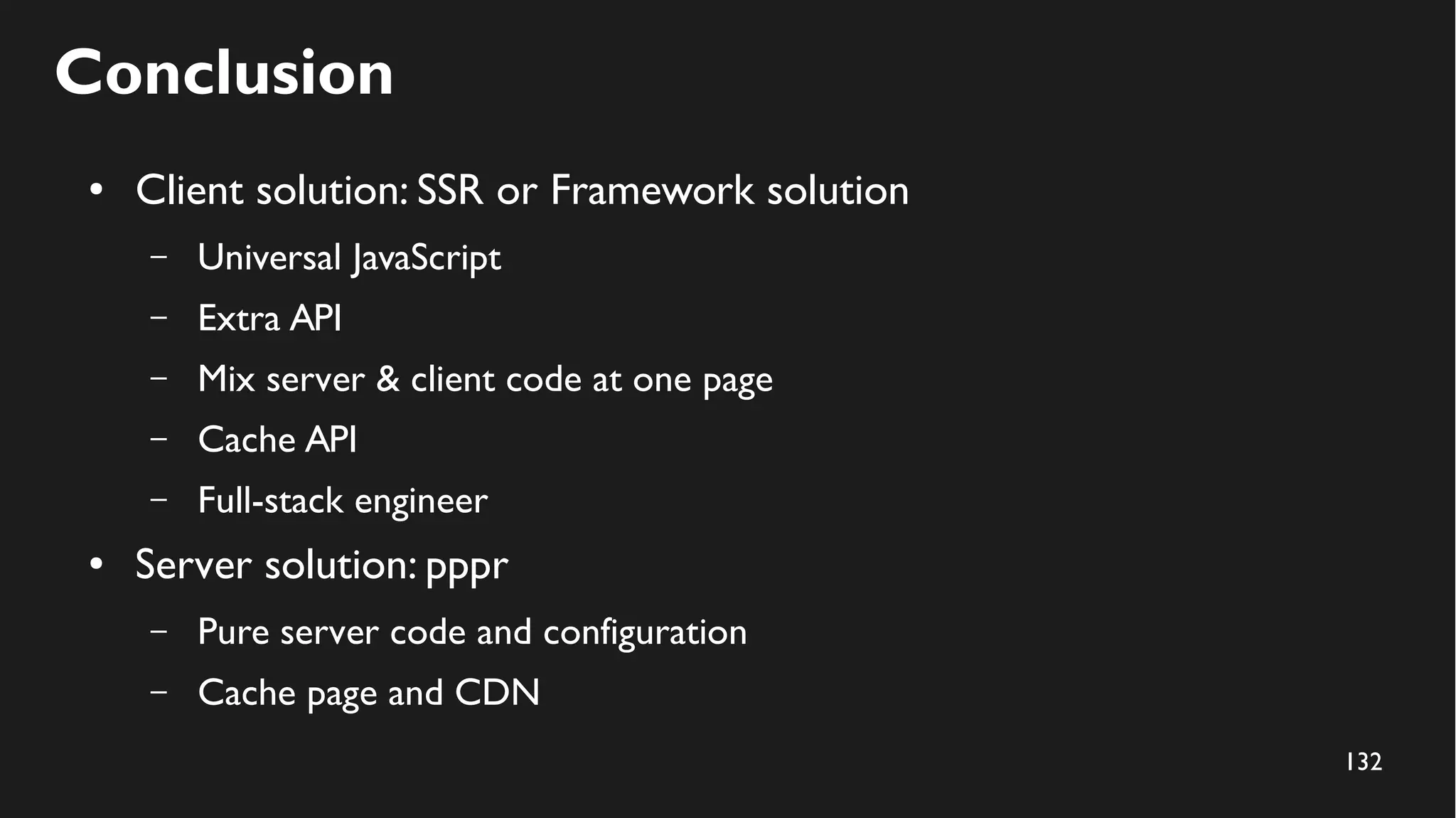

Conclusion
● Client solution: SSR or Framework solution
– Universal JavaScript
– Extra API
– Mix server & client code at one page
– Cache API
– Full-stack engineer
● Server solution: pppr
– Pure server code and configuration
– Cache page and CDN

133. 133

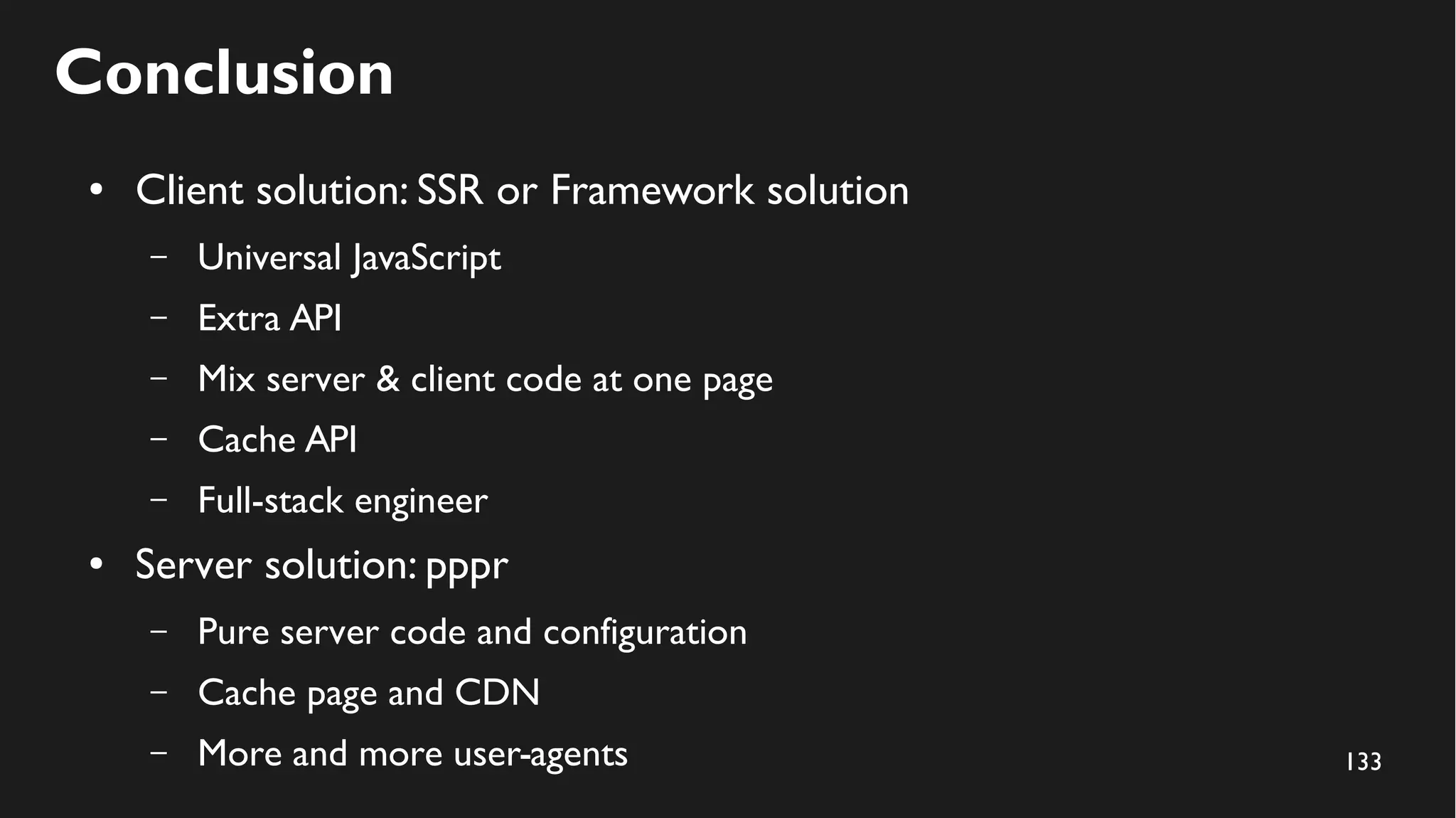

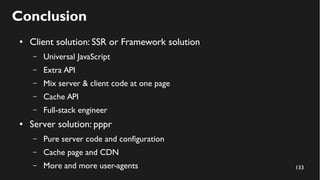

Conclusion
● Client solution: SSR or Framework solution
– Universal JavaScript
– Extra API
– Mix server & client code at one page
– Cache API
– Full-stack engineer
● Server solution: pppr
– Pure server code and configuration
– Cache page and CDN
– More and more user-agents

134. 134

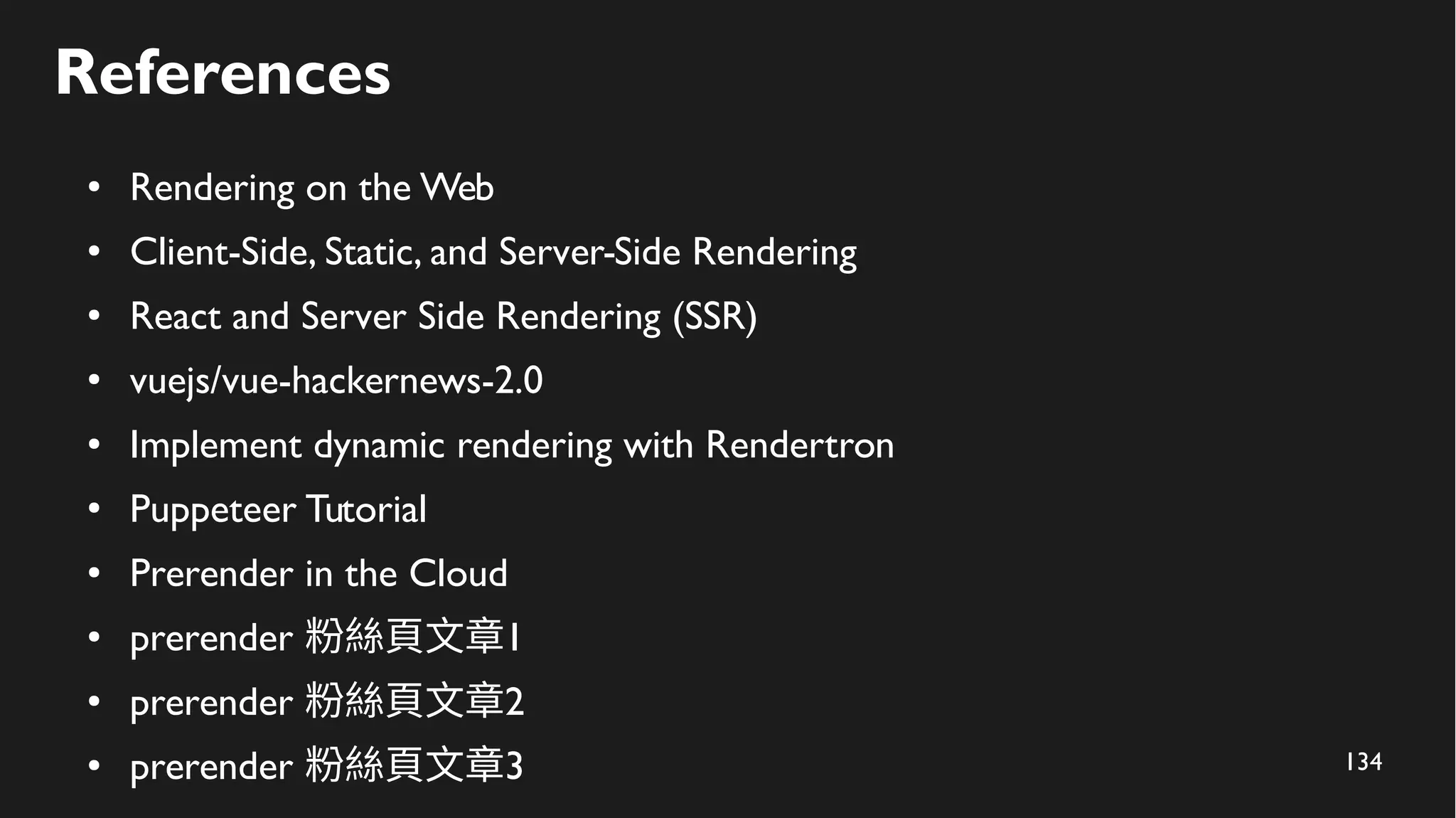

References
●
Rendering on the Web
●
Client-Side, Static, and Server-Side Rendering
●
React and Server Side Rendering (SSR)
●
vuejs/vue-hackernews-2.0
●
Implement dynamic rendering with Rendertron
●
Puppeteer Tutorial
●
Prerender in the Cloud
●
prerender 1粉絲頁文章
●
prerender 2粉絲頁文章
●
prerender 3粉絲頁文章
