1
CoAP, OMA LWM2M, and IPSO Smart
Objects
November13, 2014
Service and Application level Interoperability for IoT
2
IoT Standards That Build On Each Other
 CoAP and related standards from IETF
 REST API for constrained networks and devices
 HTTP Proxy provides abstraction through standard web APIs
 Core-link-format (RFC 6690) provides semantic descriptors in the form of web links
 Resource Directory provides an API for scalable discovery and linking using core link-format
mediatype
 OMA LWM2M is based on CoAP
 Provides a server profile for IoT middleware
 Defines a simple reusable object model
 Defines management objects and reuses REST API for onboarding and device life cycle
management
 IPSO Smart Objects are based on OMA LWM2M
 Defines application objects using the LWM2M Object Model
 Complex objects can be composed from simple objects
 Easy to add new resource and object types as needed
3
IoT Standards “Stack”
Application Software
IPSO Objects
OMA LWM2M
CoAP HTTP
6LowPAN IPV4/IPV6
MCU – 16KiB RAM MPU
802.15.4 WiFi, Ethernet
Hardware
HW Network
Routing
Application Protocol
API and Services
Data Models
Application
4

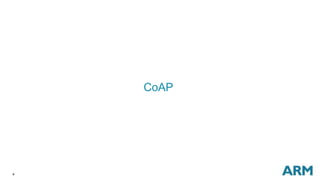

CoAP
5
Review - CoAP Protocol
 Makes each device a lightweight server
that exposes a REST API
 A CoAP endpoint can be both client and
server
 Roles can be reversed and the sensor, as
a client, can also interact with a REST API
at another endpoint or server node
 Peer to Peer interaction is based on a
duplex client-server pattern
6

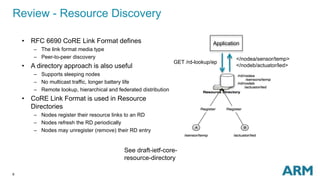

Review - Resource Discovery
See draft-ietf-core-
resource-directory
• RFC 6690 CoRE Link Format defines
– The link format media type
– Peer-to-peer discovery
• A directory approach is also useful
– Supports sleeping nodes
– No multicast traffic, longer battery life
– Remote lookup, hierarchical and federated distribution
• CoRE Link Format is used in Resource
Directories
– Nodes register their resource links to an RD
– Nodes refresh the RD periodically
– Nodes may unregister (remove) their RD entry
Application
GET /rd-lookup/ep
</nodea/sensor/temp>
</nodeb/actuator/led>
7
Resource Discovery Example Flow
See draft-ietf-core-resource-directory
core.rd
service
REGISTRATION
POST /rd?ep=“235598376”&lt=19999
</3303/0/5700>;rt=“urn:X-ipso:temp-C”
Endpoint
2.01 Created Location:/rd/235598376
DISCOVERY
GET /rd-lookup?ep&rt=“urn:X-ipso:temp-C”
2.05 Content
</235598376/3303/0/5700>;rt=“urn:X-ipso:temp-C”
Endpoint
8

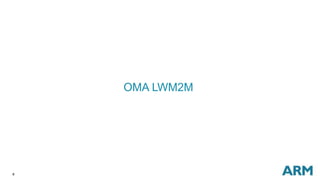

OMA LWM2M
9

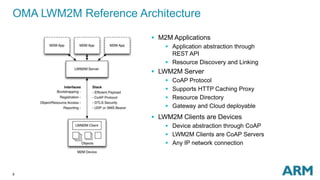

OMA LWM2M Reference Architecture
 M2M Applications
 Application abstraction through
REST API
 Resource Discovery and Linking
 LWM2M Clients are Devices
 Device abstraction through CoAP
 LWM2M Clients are CoAP Servers
 Any IP network connection
 LWM2M Server
 CoAP Protocol
 Supports HTTP Caching Proxy
 Resource Directory
 Gateway and Cloud deployable
10

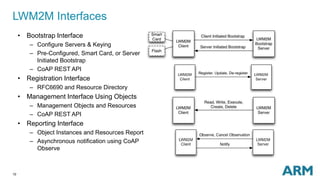

LWM2M Interfaces
• Bootstrap Interface
– Configure Servers & Keying
– Pre-Configured, Smart Card, or Server
Initiated Bootstrap
– CoAP REST API
• Registration Interface
– RFC6690 and Resource Directory
• Management Interface Using Objects
– Management Objects and Resources
– CoAP REST API
• Reporting Interface
– Object Instances and Resources Report
– Asynchronous notification using CoAP
Observe
11

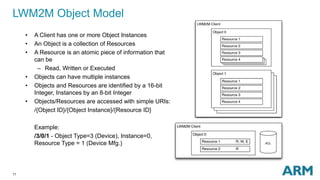

LWM2M Object Model
• A Client has one or more Object Instances
• An Object is a collection of Resources
• A Resource is an atomic piece of information that
can be
– Read, Written or Executed
• Objects can have multiple instances
• Objects and Resources are identified by a 16-bit
Integer, Instances by an 8-bit Integer
• Objects/Resources are accessed with simple URIs:
/{Object ID}/{Object Instance}/{Resource ID}
Example:
/3/0/1 - Object Type=3 (Device), Instance=0,
Resource Type = 1 (Device Mfg.)
12

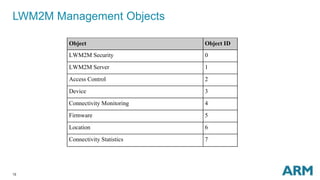

LWM2M Management Objects
Object Object ID
LWM2M Security 0
LWM2M Server 1
Access Control 2
Device 3
Connectivity Monitoring 4
Firmware 5
Location 6
Connectivity Statistics 7
13

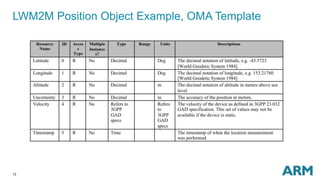

LWM2M Position Object Example, OMA Template
14

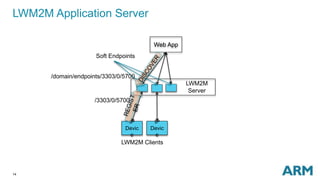

LWM2M Application Server
Web App
LWM2M
Server
Soft Endpoints
IP
Devic
e
IP
Devic
e
LWM2M Clients
/3303/0/5700
/domain/endpoints/3303/0/5700
15

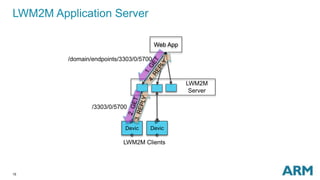

LWM2M Application Server
Web App
LWM2M
Server
IP
Devic
e
IP
Devic
e
LWM2M Clients
/domain/endpoints/3303/0/5700
/3303/0/5700
16

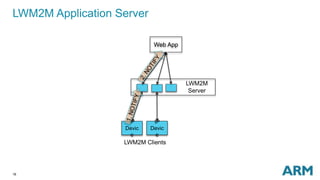

LWM2M Application Server
Web App
LWM2M
Server
IP
Devic
e
IP
Devic
e
LWM2M Clients
17

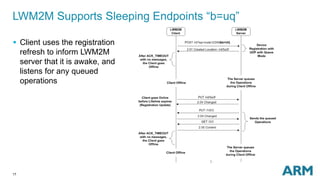

LWM2M Supports Sleeping Endpoints “b=uq”
 Client uses the registration
refresh to inform LWM2M
server that it is awake, and
listens for any queued
operations
18

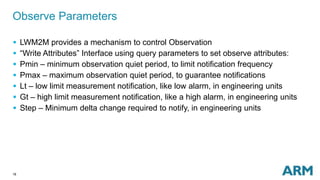

Observe Parameters
 LWM2M provides a mechanism to control Observation
 “Write Attributes” Interface using query parameters to set observe attributes:
 Pmin – minimum observation quiet period, to limit notification frequency
 Pmax – maximum observation quiet period, to guarantee notifications
 Lt – low limit measurement notification, like low alarm, in engineering units
 Gt – high limit measurement notification, like a high alarm, in engineering units
 Step – Minimum delta change required to notify, in engineering units
19

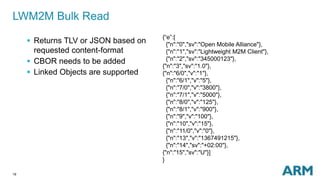

LWM2M Bulk Read
 Returns TLV or JSON based on
requested content-format
 CBOR needs to be added
 Linked Objects are supported
{“e”:[
{"n":"0","sv":"Open Mobile Alliance"},
{"n":"1","sv":"Lightweight M2M Client"},
{"n":"2","sv":"345000123"},
{"n":"3","sv":"1.0"},
{"n":"6/0","v":"1"},
{"n":"6/1","v":"5"},
{"n":"7/0","v":"3800"},
{"n":"7/1","v":"5000"},
{"n":"8/0","v":"125"},
{"n":"8/1","v":"900"},
{"n":"9","v":"100"},
{"n":"10","v":"15"},
{"n":"11/0","v":"0"},
{"n":"13","v":"1367491215"},
{"n":"14","sv":"+02:00"},
{"n":"15","sv":"U"}]
}
20

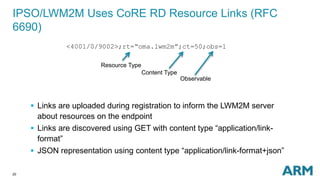

IPSO/LWM2M Uses CoRE RD Resource Links (RFC
6690)
 Links are uploaded during registration to inform the LWM2M server
about resources on the endpoint
 Links are discovered using GET with content type “application/link-
format”
 JSON representation using content type “application/link-format+json”
<4001/0/9002>;rt=“oma.lwm2m”;ct=50;obs=1
Resource Type
Content Type
Observable
21

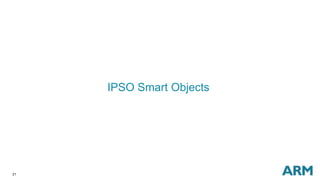

IPSO Smart Objects
22
Smart Objects Use the LWM2M Object Model
 REST API with a URI template
 Objects
 Object Instances
 Resources
 (Resource Instances)
 Reusable resource and object
IDs
 Common definitions for concepts
 Map to semantic terms e.g.
temperature, currentValue
 IDs are registered with the OMNA
 Can be embedded in a path
hierarchy on the server
 /home/weather/3303/0/5700
3303/0/5700
Object ID, defines object type
Object Instance, one or more
Resource ID, defines resource
type
23

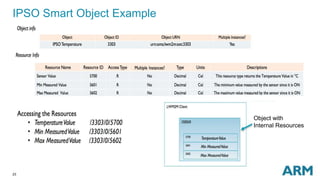

IPSO Smart Object Example
Object with
Internal Resources
24
IPSO Smart Object Starter Pack
25

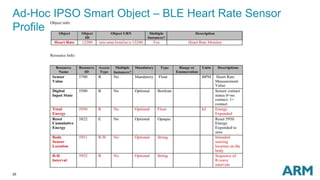

Ad-Hoc IPSO Smart Object – BLE Heart Rate Sensor
Profile
26

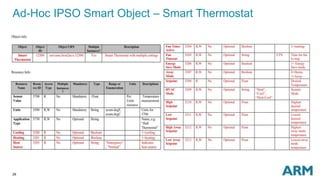

Ad-Hoc IPSO Smart Object – Smart Thermostat
27

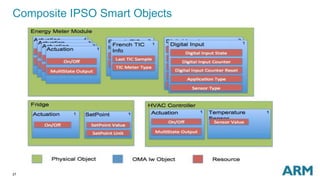

Composite IPSO Smart Objects
28

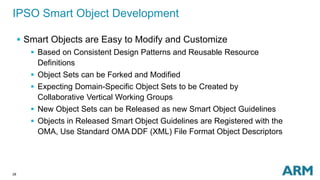

IPSO Smart Object Development
 Smart Objects are Easy to Modify and Customize
 Based on Consistent Design Patterns and Reusable Resource
Definitions
 Object Sets can be Forked and Modified
 Expecting Domain-Specific Object Sets to be Created by
Collaborative Vertical Working Groups
 New Object Sets can be Released as new Smart Object Guidelines
 Objects in Released Smart Object Guidelines are Registered with the
OMA, Use Standard OMA DDF (XML) File Format Object Descriptors
29

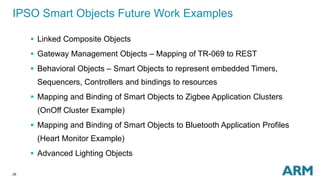

IPSO Smart Objects Future Work Examples
 Linked Composite Objects
 Gateway Management Objects – Mapping of TR-069 to REST
 Behavioral Objects – Smart Objects to represent embedded Timers,
Sequencers, Controllers and bindings to resources
 Mapping and Binding of Smart Objects to Zigbee Application Clusters
(OnOff Cluster Example)
 Mapping and Binding of Smart Objects to Bluetooth Application Profiles
(Heart Monitor Example)
 Advanced Lighting Objects
30

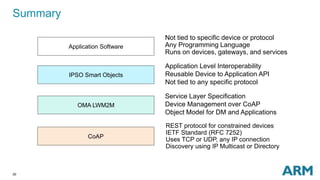

Summary
Application Software
IPSO Smart Objects
OMA LWM2M
CoAP
REST protocol for constrained devices
IETF Standard (RFC 7252)
Uses TCP or UDP, any IP connection
Discovery using IP Multicast or Directory
Service Layer Specification
Device Management over CoAP
Object Model for DM and Applications
Application Level Interoperability
Reusable Device to Application API
Not tied to any specific protocol
Not tied to specific device or protocol
Any Programming Language
Runs on devices, gateways, and services
31

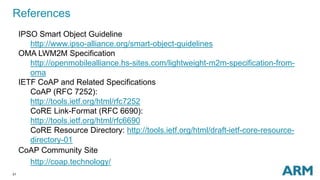

References
IPSO Smart Object Guideline
http://www.ipso-alliance.org/smart-object-guidelines
OMA LWM2M Specification
http://openmobilealliance.hs-sites.com/lightweight-m2m-specification-from-
oma
IETF CoAP and Related Specifications
CoAP (RFC 7252):
http://tools.ietf.org/html/rfc7252
CoRE Link-Format (RFC 6690):
http://tools.ietf.org/html/rfc6690
CoRE Resource Directory: http://tools.ietf.org/html/draft-ietf-core-resource-
directory-01
CoAP Community Site
http://coap.technology/

More Related Content

What's hot

Manage all the things, small and big, with open source LwM2M implementations ...
Manage all the things, small and big, with open source LwM2M implementations ...Manage all the things, small and big, with open source LwM2M implementations ...
Manage all the things, small and big, with open source LwM2M implementations ...Benjamin Cabé

Introduction to OMA LightweightM2M by OMA Device Management Chairman (IoT Wor...
Introduction to OMA LightweightM2M by OMA Device Management Chairman (IoT Wor...Introduction to OMA LightweightM2M by OMA Device Management Chairman (IoT Wor...
Introduction to OMA LightweightM2M by OMA Device Management Chairman (IoT Wor...Open Mobile Alliance

IoT Seminar (Jan. 2016) - (1) dr omar elloumi - onem2m interworking and seman...
IoT Seminar (Jan. 2016) - (1) dr omar elloumi - onem2m interworking and seman...IoT Seminar (Jan. 2016) - (1) dr omar elloumi - onem2m interworking and seman...
IoT Seminar (Jan. 2016) - (1) dr omar elloumi - onem2m interworking and seman...Open Mobile Alliance

MQTT - MQ Telemetry Transport for Message Queueing
MQTT - MQ Telemetry Transport for Message QueueingMQTT - MQ Telemetry Transport for Message Queueing
MQTT - MQ Telemetry Transport for Message QueueingPeter R. Egli

M2M Protocols for Constrained Environments in the Context of IoT: A Compariso...
M2M Protocols for Constrained Environments in the Context of IoT: A Compariso...M2M Protocols for Constrained Environments in the Context of IoT: A Compariso...
M2M Protocols for Constrained Environments in the Context of IoT: A Compariso...Edielson P. Frigieri

Protocols for internet of things
Protocols for internet of thingsProtocols for internet of things
Protocols for internet of thingsCharles Gibbons

CoAP for the Web of Things: From Tiny Resource-constrained Devices to the W...
CoAP for the Web of Things: From Tiny Resource-constrained Devices to the W...CoAP for the Web of Things: From Tiny Resource-constrained Devices to the W...
CoAP for the Web of Things: From Tiny Resource-constrained Devices to the W...Matthias Kovatsch

Movimento Management Protocols
Movimento Management ProtocolsMovimento Management Protocols
Movimento Management ProtocolsLeo Dumov

IoT Communication Protocols
IoT Communication ProtocolsIoT Communication Protocols
IoT Communication ProtocolsPradeep Kumar TS

Introduction to CoAP
Introduction to CoAPIntroduction to CoAP
Introduction to CoAPEMQ

Android Implementation using MQTT Protocol
Android Implementation using MQTT ProtocolAndroid Implementation using MQTT Protocol
Android Implementation using MQTT ProtocolFatih Özlü

oneM2M - taking a look inside
oneM2M -  taking a look insideoneM2M -  taking a look inside
oneM2M - taking a look insideoneM2M

IoT Communication Protocols, Socket Programming with Python, MQTT & HTTP
IoT Communication Protocols, Socket Programming with Python, MQTT & HTTPIoT Communication Protocols, Socket Programming with Python, MQTT & HTTP
IoT Communication Protocols, Socket Programming with Python, MQTT & HTTPAnshu Pandey

IBM MQ V8 Security: Latest Features Deep-Dive
IBM MQ V8 Security: Latest Features Deep-DiveIBM MQ V8 Security: Latest Features Deep-Dive
IBM MQ V8 Security: Latest Features Deep-DiveMorag Hughson

Networking Brush Up for Amazon AWS Administrators
Networking Brush Up for Amazon AWS AdministratorsNetworking Brush Up for Amazon AWS Administrators
Networking Brush Up for Amazon AWS AdministratorsAniekan Akpaffiong


What's hot (17)

Manage all the things, small and big, with open source LwM2M implementations ...
Manage all the things, small and big, with open source LwM2M implementations ...Manage all the things, small and big, with open source LwM2M implementations ...
Manage all the things, small and big, with open source LwM2M implementations ...

Introduction to OMA LightweightM2M by OMA Device Management Chairman (IoT Wor...
Introduction to OMA LightweightM2M by OMA Device Management Chairman (IoT Wor...Introduction to OMA LightweightM2M by OMA Device Management Chairman (IoT Wor...
Introduction to OMA LightweightM2M by OMA Device Management Chairman (IoT Wor...

IoT Seminar (Jan. 2016) - (1) dr omar elloumi - onem2m interworking and seman...
IoT Seminar (Jan. 2016) - (1) dr omar elloumi - onem2m interworking and seman...IoT Seminar (Jan. 2016) - (1) dr omar elloumi - onem2m interworking and seman...
IoT Seminar (Jan. 2016) - (1) dr omar elloumi - onem2m interworking and seman...

MQTT and CoAP
MQTT and CoAPMQTT and CoAP
MQTT and CoAP

MQTT - MQ Telemetry Transport for Message Queueing
MQTT - MQ Telemetry Transport for Message QueueingMQTT - MQ Telemetry Transport for Message Queueing
MQTT - MQ Telemetry Transport for Message Queueing

M2M Protocols for Constrained Environments in the Context of IoT: A Compariso...
M2M Protocols for Constrained Environments in the Context of IoT: A Compariso...M2M Protocols for Constrained Environments in the Context of IoT: A Compariso...
M2M Protocols for Constrained Environments in the Context of IoT: A Compariso...

Protocols for internet of things
Protocols for internet of thingsProtocols for internet of things
Protocols for internet of things

CoAP for the Web of Things: From Tiny Resource-constrained Devices to the W...
CoAP for the Web of Things: From Tiny Resource-constrained Devices to the W...CoAP for the Web of Things: From Tiny Resource-constrained Devices to the W...
CoAP for the Web of Things: From Tiny Resource-constrained Devices to the W...

Iot protocols seminar
Iot protocols seminarIot protocols seminar
Iot protocols seminar

Movimento Management Protocols
Movimento Management ProtocolsMovimento Management Protocols
Movimento Management Protocols

IoT Communication Protocols
IoT Communication ProtocolsIoT Communication Protocols
IoT Communication Protocols

Introduction to CoAP
Introduction to CoAPIntroduction to CoAP
Introduction to CoAP

Android Implementation using MQTT Protocol
Android Implementation using MQTT ProtocolAndroid Implementation using MQTT Protocol
Android Implementation using MQTT Protocol

oneM2M - taking a look inside
oneM2M -  taking a look insideoneM2M -  taking a look inside
oneM2M - taking a look inside

IoT Communication Protocols, Socket Programming with Python, MQTT & HTTP
IoT Communication Protocols, Socket Programming with Python, MQTT & HTTPIoT Communication Protocols, Socket Programming with Python, MQTT & HTTP
IoT Communication Protocols, Socket Programming with Python, MQTT & HTTP

IBM MQ V8 Security: Latest Features Deep-Dive
IBM MQ V8 Security: Latest Features Deep-DiveIBM MQ V8 Security: Latest Features Deep-Dive
IBM MQ V8 Security: Latest Features Deep-Dive

Networking Brush Up for Amazon AWS Administrators
Networking Brush Up for Amazon AWS AdministratorsNetworking Brush Up for Amazon AWS Administrators
Networking Brush Up for Amazon AWS Administrators


Viewers also liked

The Network Effect - Open Source and the Internet Of Things - Helsinki 2013 K...
The Network Effect - Open Source and the Internet Of Things - Helsinki 2013 K...The Network Effect - Open Source and the Internet Of Things - Helsinki 2013 K...
The Network Effect - Open Source and the Internet Of Things - Helsinki 2013 K...Michael Koster

Restful Asynchronous Notification
Restful Asynchronous NotificationRestful Asynchronous Notification
Restful Asynchronous NotificationMichael Koster

Tools for the Open Source Internet Of Things
Tools for the Open Source Internet Of ThingsTools for the Open Source Internet Of Things
Tools for the Open Source Internet Of ThingsMichael Koster

IoT Toolkit and the Smart Object API - Architecture for Interoperability
IoT Toolkit and the Smart Object API - Architecture for InteroperabilityIoT Toolkit and the Smart Object API - Architecture for Interoperability
IoT Toolkit and the Smart Object API - Architecture for InteroperabilityMichael Koster

MQTT-REST Bridge using the Smart Object API
MQTT-REST Bridge using the Smart Object APIMQTT-REST Bridge using the Smart Object API
MQTT-REST Bridge using the Smart Object APIMichael Koster

Open Standards for IoT- GSC Workshop on IoT Atlanta 2013
Open Standards for IoT- GSC Workshop on IoT Atlanta 2013Open Standards for IoT- GSC Workshop on IoT Atlanta 2013
Open Standards for IoT- GSC Workshop on IoT Atlanta 2013Michael Koster

IoT Toolkit and Smart Object API Tutorial Introduction
IoT Toolkit and Smart Object API Tutorial IntroductionIoT Toolkit and Smart Object API Tutorial Introduction
IoT Toolkit and Smart Object API Tutorial IntroductionMichael Koster

Hypermedia System Architecture for a Web of Things
Hypermedia System Architecture for a Web of ThingsHypermedia System Architecture for a Web of Things
Hypermedia System Architecture for a Web of ThingsMichael Koster

REST APIs for the Internet of Things
REST APIs for the Internet of ThingsREST APIs for the Internet of Things
REST APIs for the Internet of ThingsMichael Koster

MQTT - REST Bridge using the Smart Object API
MQTT - REST Bridge using the Smart Object APIMQTT - REST Bridge using the Smart Object API
MQTT - REST Bridge using the Smart Object APIMichael Koster

A Modular Open Source Platform for Web Scale IoT Interoperability
A Modular Open Source Platform for Web Scale IoT InteroperabilityA Modular Open Source Platform for Web Scale IoT Interoperability
A Modular Open Source Platform for Web Scale IoT InteroperabilityMichael Koster

Personal Agency on the IoT
Personal Agency on the IoTPersonal Agency on the IoT
Personal Agency on the IoTMichael Koster

Open Horizontal Platform - Web Scale Interoperability for IoT - CCNA 2013
Open Horizontal Platform - Web Scale Interoperability for IoT - CCNA 2013Open Horizontal Platform - Web Scale Interoperability for IoT - CCNA 2013
Open Horizontal Platform - Web Scale Interoperability for IoT - CCNA 2013Michael Koster

Research Topics in Machine Hypermedia
Research Topics in Machine HypermediaResearch Topics in Machine Hypermedia
Research Topics in Machine HypermediaMichael Koster

Ietf91 ad hoc-coap-lwm2m-ipso
Ietf91 ad hoc-coap-lwm2m-ipsoIetf91 ad hoc-coap-lwm2m-ipso
Ietf91 ad hoc-coap-lwm2m-ipsoMichael Koster

M2M Protocol Interoperability using IoT Toolkit
M2M Protocol Interoperability using IoT ToolkitM2M Protocol Interoperability using IoT Toolkit
M2M Protocol Interoperability using IoT ToolkitMichael Koster


Viewers also liked (18)

The Network Effect - Open Source and the Internet Of Things - Helsinki 2013 K...
The Network Effect - Open Source and the Internet Of Things - Helsinki 2013 K...The Network Effect - Open Source and the Internet Of Things - Helsinki 2013 K...
The Network Effect - Open Source and the Internet Of Things - Helsinki 2013 K...

Restful Asynchronous Notification
Restful Asynchronous NotificationRestful Asynchronous Notification
Restful Asynchronous Notification

Tools for the Open Source Internet Of Things
Tools for the Open Source Internet Of ThingsTools for the Open Source Internet Of Things
Tools for the Open Source Internet Of Things

IoT Toolkit and the Smart Object API - Architecture for Interoperability
IoT Toolkit and the Smart Object API - Architecture for InteroperabilityIoT Toolkit and the Smart Object API - Architecture for Interoperability
IoT Toolkit and the Smart Object API - Architecture for Interoperability

MQTT-REST Bridge using the Smart Object API
MQTT-REST Bridge using the Smart Object APIMQTT-REST Bridge using the Smart Object API
MQTT-REST Bridge using the Smart Object API

Open Standards for IoT- GSC Workshop on IoT Atlanta 2013
Open Standards for IoT- GSC Workshop on IoT Atlanta 2013Open Standards for IoT- GSC Workshop on IoT Atlanta 2013
Open Standards for IoT- GSC Workshop on IoT Atlanta 2013

Design patternsforiot
Design patternsforiotDesign patternsforiot
Design patternsforiot

IoT Toolkit and Smart Object API Tutorial Introduction
IoT Toolkit and Smart Object API Tutorial IntroductionIoT Toolkit and Smart Object API Tutorial Introduction
IoT Toolkit and Smart Object API Tutorial Introduction

Hypermedia System Architecture for a Web of Things
Hypermedia System Architecture for a Web of ThingsHypermedia System Architecture for a Web of Things
Hypermedia System Architecture for a Web of Things

REST APIs for the Internet of Things
REST APIs for the Internet of ThingsREST APIs for the Internet of Things
REST APIs for the Internet of Things

MQTT - REST Bridge using the Smart Object API
MQTT - REST Bridge using the Smart Object APIMQTT - REST Bridge using the Smart Object API
MQTT - REST Bridge using the Smart Object API

A Modular Open Source Platform for Web Scale IoT Interoperability
A Modular Open Source Platform for Web Scale IoT InteroperabilityA Modular Open Source Platform for Web Scale IoT Interoperability
A Modular Open Source Platform for Web Scale IoT Interoperability

Personal Agency on the IoT
Personal Agency on the IoTPersonal Agency on the IoT
Personal Agency on the IoT

Open Horizontal Platform - Web Scale Interoperability for IoT - CCNA 2013
Open Horizontal Platform - Web Scale Interoperability for IoT - CCNA 2013Open Horizontal Platform - Web Scale Interoperability for IoT - CCNA 2013
Open Horizontal Platform - Web Scale Interoperability for IoT - CCNA 2013

Research Topics in Machine Hypermedia
Research Topics in Machine HypermediaResearch Topics in Machine Hypermedia
Research Topics in Machine Hypermedia

RESTful Notification
RESTful NotificationRESTful Notification
RESTful Notification

Ietf91 ad hoc-coap-lwm2m-ipso
Ietf91 ad hoc-coap-lwm2m-ipsoIetf91 ad hoc-coap-lwm2m-ipso
Ietf91 ad hoc-coap-lwm2m-ipso

M2M Protocol Interoperability using IoT Toolkit
M2M Protocol Interoperability using IoT ToolkitM2M Protocol Interoperability using IoT Toolkit
M2M Protocol Interoperability using IoT Toolkit


Similar to Ietf91 ad hoc-coap-lwm2m-ipso

Ietf91 ad hoc-coap-lwm2m-ipso
Ietf91 ad hoc-coap-lwm2m-ipsoIetf91 ad hoc-coap-lwm2m-ipso
Ietf91 ad hoc-coap-lwm2m-ipsoMichael Koster

Ipso smart object seminar
Ipso smart object seminarIpso smart object seminar
Ipso smart object seminarMichael Koster

IP based standards for IoT
IP based standards for IoTIP based standards for IoT
IP based standards for IoTMichael Koster

OMA LWM2M Tutorial by ARM to IETF ACE
OMA LWM2M Tutorial by ARM to IETF ACEOMA LWM2M Tutorial by ARM to IETF ACE
OMA LWM2M Tutorial by ARM to IETF ACEOpen Mobile Alliance

Web of Things to the edge
Web of Things to the edgeWeb of Things to the edge
Web of Things to the edgeMichael Koster

Open Networking through Programmability
Open Networking through ProgrammabilityOpen Networking through Programmability
Open Networking through ProgrammabilityTal Lavian Ph.D.

Hypermedia for Machine APIs
Hypermedia for Machine APIsHypermedia for Machine APIs
Hypermedia for Machine APIsMichael Koster

Software Innovations and Control Plane Evolution in the new SDN Transport Arc...
Software Innovations and Control Plane Evolution in the new SDN Transport Arc...Software Innovations and Control Plane Evolution in the new SDN Transport Arc...
Software Innovations and Control Plane Evolution in the new SDN Transport Arc...Cisco Canada

LWM2M Introduction - Edinburgh 2016 Workshop with ARM
LWM2M Introduction - Edinburgh 2016 Workshop with ARMLWM2M Introduction - Edinburgh 2016 Workshop with ARM
LWM2M Introduction - Edinburgh 2016 Workshop with ARMOpen Mobile Alliance

Addressing Network Operator Challenges in YANG push Data Mesh Integration
Addressing Network Operator Challenges in YANG push Data Mesh IntegrationAddressing Network Operator Challenges in YANG push Data Mesh Integration
Addressing Network Operator Challenges in YANG push Data Mesh IntegrationThomasGraf42

Key Open Standards for inter-operable IoT systems
Key Open Standards for inter-operable IoT systemsKey Open Standards for inter-operable IoT systems
Key Open Standards for inter-operable IoT systemsPratul Sharma

Summit 16: How to Compose a New OPNFV Solution Stack?
Summit 16: How to Compose a New OPNFV Solution Stack?Summit 16: How to Compose a New OPNFV Solution Stack?
Summit 16: How to Compose a New OPNFV Solution Stack?OPNFV

IoT Toolkit and the Smart Object API - Architecture for Interoperability
IoT Toolkit and the Smart Object API - Architecture for InteroperabilityIoT Toolkit and the Smart Object API - Architecture for Interoperability
IoT Toolkit and the Smart Object API - Architecture for InteroperabilityMichael Koster

Iot Toolkit and the Smart Object API - Architecture for Interoperability
Iot Toolkit and the Smart Object API - Architecture for InteroperabilityIot Toolkit and the Smart Object API - Architecture for Interoperability
Iot Toolkit and the Smart Object API - Architecture for InteroperabilityMichael Koster

IoT Seminar (Oct. 2016) Jong Young Lee - MDS Technology
IoT Seminar (Oct. 2016) Jong Young Lee - MDS TechnologyIoT Seminar (Oct. 2016) Jong Young Lee - MDS Technology
IoT Seminar (Oct. 2016) Jong Young Lee - MDS TechnologyOpen Mobile Alliance

Disadvantages Of Robotium
Disadvantages Of RobotiumDisadvantages Of Robotium
Disadvantages Of RobotiumSusan Tullis


Similar to Ietf91 ad hoc-coap-lwm2m-ipso (20)

Ietf91 ad hoc-coap-lwm2m-ipso
Ietf91 ad hoc-coap-lwm2m-ipsoIetf91 ad hoc-coap-lwm2m-ipso
Ietf91 ad hoc-coap-lwm2m-ipso

Ipso smart object seminar
Ipso smart object seminarIpso smart object seminar
Ipso smart object seminar

Ipso eclipse-summary
Ipso eclipse-summaryIpso eclipse-summary
Ipso eclipse-summary

Embedded to connected
Embedded to connectedEmbedded to connected
Embedded to connected

IP based standards for IoT
IP based standards for IoTIP based standards for IoT
IP based standards for IoT

OMA LWM2M Tutorial by ARM to IETF ACE
OMA LWM2M Tutorial by ARM to IETF ACEOMA LWM2M Tutorial by ARM to IETF ACE
OMA LWM2M Tutorial by ARM to IETF ACE

Web of Things to the edge
Web of Things to the edgeWeb of Things to the edge
Web of Things to the edge

Open Networking through Programmability
Open Networking through ProgrammabilityOpen Networking through Programmability
Open Networking through Programmability

Hypermedia for Machine APIs
Hypermedia for Machine APIsHypermedia for Machine APIs
Hypermedia for Machine APIs

Software Innovations and Control Plane Evolution in the new SDN Transport Arc...
Software Innovations and Control Plane Evolution in the new SDN Transport Arc...Software Innovations and Control Plane Evolution in the new SDN Transport Arc...
Software Innovations and Control Plane Evolution in the new SDN Transport Arc...

LWM2M Introduction - Edinburgh 2016 Workshop with ARM
LWM2M Introduction - Edinburgh 2016 Workshop with ARMLWM2M Introduction - Edinburgh 2016 Workshop with ARM
LWM2M Introduction - Edinburgh 2016 Workshop with ARM

Addressing Network Operator Challenges in YANG push Data Mesh Integration
Addressing Network Operator Challenges in YANG push Data Mesh IntegrationAddressing Network Operator Challenges in YANG push Data Mesh Integration
Addressing Network Operator Challenges in YANG push Data Mesh Integration

Key Open Standards for inter-operable IoT systems
Key Open Standards for inter-operable IoT systemsKey Open Standards for inter-operable IoT systems
Key Open Standards for inter-operable IoT systems

OMA Lightweight M2M
OMA Lightweight M2M OMA Lightweight M2M
OMA Lightweight M2M

Summit 16: How to Compose a New OPNFV Solution Stack?
Summit 16: How to Compose a New OPNFV Solution Stack?Summit 16: How to Compose a New OPNFV Solution Stack?
Summit 16: How to Compose a New OPNFV Solution Stack?

IoT Toolkit and the Smart Object API - Architecture for Interoperability
IoT Toolkit and the Smart Object API - Architecture for InteroperabilityIoT Toolkit and the Smart Object API - Architecture for Interoperability
IoT Toolkit and the Smart Object API - Architecture for Interoperability

Iot Toolkit and the Smart Object API - Architecture for Interoperability
Iot Toolkit and the Smart Object API - Architecture for InteroperabilityIot Toolkit and the Smart Object API - Architecture for Interoperability
Iot Toolkit and the Smart Object API - Architecture for Interoperability

Cisco project ideas
Cisco   project ideasCisco   project ideas
Cisco project ideas

IoT Seminar (Oct. 2016) Jong Young Lee - MDS Technology
IoT Seminar (Oct. 2016) Jong Young Lee - MDS TechnologyIoT Seminar (Oct. 2016) Jong Young Lee - MDS Technology
IoT Seminar (Oct. 2016) Jong Young Lee - MDS Technology

Disadvantages Of Robotium
Disadvantages Of RobotiumDisadvantages Of Robotium
Disadvantages Of Robotium


Recently uploaded

Company Snapshot Theme for Business by Slidesgo.pptx
Company Snapshot Theme for Business by Slidesgo.pptxCompany Snapshot Theme for Business by Slidesgo.pptx
Company Snapshot Theme for Business by Slidesgo.pptxMario

Summary ID-IGF 2016 National Dialogue - English (tata kelola internet / int...
Summary  ID-IGF 2016 National Dialogue  - English (tata kelola internet / int...Summary  ID-IGF 2016 National Dialogue  - English (tata kelola internet / int...
Summary ID-IGF 2016 National Dialogue - English (tata kelola internet / int...ICT Watch - Indonesia

IP addressing and IPv6, presented by Paul Wilson at IETF 119
IP addressing and IPv6, presented by Paul Wilson at IETF 119IP addressing and IPv6, presented by Paul Wilson at IETF 119
IP addressing and IPv6, presented by Paul Wilson at IETF 119APNIC

办理澳洲USYD文凭证书学历认证【Q微/1954292140】办理悉尼大学毕业证书真实成绩单GPA修改/办理澳洲大学文凭证书Offer录取通知书/在读证明...
办理澳洲USYD文凭证书学历认证【Q微/1954292140】办理悉尼大学毕业证书真实成绩单GPA修改/办理澳洲大学文凭证书Offer录取通知书/在读证明...办理澳洲USYD文凭证书学历认证【Q微/1954292140】办理悉尼大学毕业证书真实成绩单GPA修改/办理澳洲大学文凭证书Offer录取通知书/在读证明...
办理澳洲USYD文凭证书学历认证【Q微/1954292140】办理悉尼大学毕业证书真实成绩单GPA修改/办理澳洲大学文凭证书Offer录取通知书/在读证明...vmzoxnx5

TRENDS Enabling and inhibiting dimensions.pptx
TRENDS Enabling and inhibiting dimensions.pptxTRENDS Enabling and inhibiting dimensions.pptx
TRENDS Enabling and inhibiting dimensions.pptxAndrieCagasanAkio

Summary IGF 2013 Bali - English (tata kelola internet / internet governance)
Summary  IGF 2013 Bali - English (tata kelola internet / internet governance)Summary  IGF 2013 Bali - English (tata kelola internet / internet governance)
Summary IGF 2013 Bali - English (tata kelola internet / internet governance)ICT Watch - Indonesia

Cybersecurity Threats and Cybersecurity Best Practices
Cybersecurity Threats and Cybersecurity Best PracticesCybersecurity Threats and Cybersecurity Best Practices
Cybersecurity Threats and Cybersecurity Best PracticesLumiverse Solutions Pvt Ltd

How to login to Router net ORBI LOGIN...
How to login to Router net ORBI LOGIN...How to login to Router net ORBI LOGIN...
How to login to Router net ORBI LOGIN...rrouter90

Unidad 4 – Redes de ordenadores (en inglés).pptx
Unidad 4 – Redes de ordenadores (en inglés).pptxUnidad 4 – Redes de ordenadores (en inglés).pptx
Unidad 4 – Redes de ordenadores (en inglés).pptxmibuzondetrabajo


Recently uploaded (9)

Company Snapshot Theme for Business by Slidesgo.pptx
Company Snapshot Theme for Business by Slidesgo.pptxCompany Snapshot Theme for Business by Slidesgo.pptx
Company Snapshot Theme for Business by Slidesgo.pptx

Summary ID-IGF 2016 National Dialogue - English (tata kelola internet / int...
Summary  ID-IGF 2016 National Dialogue  - English (tata kelola internet / int...Summary  ID-IGF 2016 National Dialogue  - English (tata kelola internet / int...
Summary ID-IGF 2016 National Dialogue - English (tata kelola internet / int...

IP addressing and IPv6, presented by Paul Wilson at IETF 119
IP addressing and IPv6, presented by Paul Wilson at IETF 119IP addressing and IPv6, presented by Paul Wilson at IETF 119
IP addressing and IPv6, presented by Paul Wilson at IETF 119

办理澳洲USYD文凭证书学历认证【Q微/1954292140】办理悉尼大学毕业证书真实成绩单GPA修改/办理澳洲大学文凭证书Offer录取通知书/在读证明...
办理澳洲USYD文凭证书学历认证【Q微/1954292140】办理悉尼大学毕业证书真实成绩单GPA修改/办理澳洲大学文凭证书Offer录取通知书/在读证明...办理澳洲USYD文凭证书学历认证【Q微/1954292140】办理悉尼大学毕业证书真实成绩单GPA修改/办理澳洲大学文凭证书Offer录取通知书/在读证明...
办理澳洲USYD文凭证书学历认证【Q微/1954292140】办理悉尼大学毕业证书真实成绩单GPA修改/办理澳洲大学文凭证书Offer录取通知书/在读证明...

TRENDS Enabling and inhibiting dimensions.pptx
TRENDS Enabling and inhibiting dimensions.pptxTRENDS Enabling and inhibiting dimensions.pptx
TRENDS Enabling and inhibiting dimensions.pptx

Summary IGF 2013 Bali - English (tata kelola internet / internet governance)
Summary  IGF 2013 Bali - English (tata kelola internet / internet governance)Summary  IGF 2013 Bali - English (tata kelola internet / internet governance)
Summary IGF 2013 Bali - English (tata kelola internet / internet governance)

Cybersecurity Threats and Cybersecurity Best Practices
Cybersecurity Threats and Cybersecurity Best PracticesCybersecurity Threats and Cybersecurity Best Practices
Cybersecurity Threats and Cybersecurity Best Practices

How to login to Router net ORBI LOGIN...
How to login to Router net ORBI LOGIN...How to login to Router net ORBI LOGIN...
How to login to Router net ORBI LOGIN...

Unidad 4 – Redes de ordenadores (en inglés).pptx
Unidad 4 – Redes de ordenadores (en inglés).pptxUnidad 4 – Redes de ordenadores (en inglés).pptx
Unidad 4 – Redes de ordenadores (en inglés).pptx


Ietf91 ad hoc-coap-lwm2m-ipso

  • 1. 1 CoAP, OMA LWM2M, and IPSO Smart Objects November13, 2014 Service and Application level Interoperability for IoT
  • 2. 2 IoT Standards That Build On Each Other  CoAP and related standards from IETF  REST API for constrained networks and devices  HTTP Proxy provides abstraction through standard web APIs  Core-link-format (RFC 6690) provides semantic descriptors in the form of web links  Resource Directory provides an API for scalable discovery and linking using core link-format mediatype  OMA LWM2M is based on CoAP  Provides a server profile for IoT middleware  Defines a simple reusable object model  Defines management objects and reuses REST API for onboarding and device life cycle management  IPSO Smart Objects are based on OMA LWM2M  Defines application objects using the LWM2M Object Model  Complex objects can be composed from simple objects  Easy to add new resource and object types as needed
  • 3. 3 IoT Standards “Stack” Application Software IPSO Objects OMA LWM2M CoAP HTTP 6LowPAN IPV4/IPV6 MCU – 16KiB RAM MPU 802.15.4 WiFi, Ethernet Hardware HW Network Routing Application Protocol API and Services Data Models Application
  • 5. 5 Review - CoAP Protocol  Makes each device a lightweight server that exposes a REST API  A CoAP endpoint can be both client and server  Roles can be reversed and the sensor, as a client, can also interact with a REST API at another endpoint or server node  Peer to Peer interaction is based on a duplex client-server pattern
  • 6. 6 Review - Resource Discovery See draft-ietf-core- resource-directory • RFC 6690 CoRE Link Format defines – The link format media type – Peer-to-peer discovery • A directory approach is also useful – Supports sleeping nodes – No multicast traffic, longer battery life – Remote lookup, hierarchical and federated distribution • CoRE Link Format is used in Resource Directories – Nodes register their resource links to an RD – Nodes refresh the RD periodically – Nodes may unregister (remove) their RD entry Application GET /rd-lookup/ep </nodea/sensor/temp> </nodeb/actuator/led>
  • 7. 7 Resource Discovery Example Flow See draft-ietf-core-resource-directory core.rd service REGISTRATION POST /rd?ep=“235598376”&lt=19999 </3303/0/5700>;rt=“urn:X-ipso:temp-C” Endpoint 2.01 Created Location:/rd/235598376 DISCOVERY GET /rd-lookup?ep&rt=“urn:X-ipso:temp-C” 2.05 Content </235598376/3303/0/5700>;rt=“urn:X-ipso:temp-C” Endpoint
  • 9. 9 OMA LWM2M Reference Architecture  M2M Applications  Application abstraction through REST API  Resource Discovery and Linking  LWM2M Clients are Devices  Device abstraction through CoAP  LWM2M Clients are CoAP Servers  Any IP network connection  LWM2M Server  CoAP Protocol  Supports HTTP Caching Proxy  Resource Directory  Gateway and Cloud deployable
  • 10. 10 LWM2M Interfaces • Bootstrap Interface – Configure Servers & Keying – Pre-Configured, Smart Card, or Server Initiated Bootstrap – CoAP REST API • Registration Interface – RFC6690 and Resource Directory • Management Interface Using Objects – Management Objects and Resources – CoAP REST API • Reporting Interface – Object Instances and Resources Report – Asynchronous notification using CoAP Observe
  • 11. 11 LWM2M Object Model • A Client has one or more Object Instances • An Object is a collection of Resources • A Resource is an atomic piece of information that can be – Read, Written or Executed • Objects can have multiple instances • Objects and Resources are identified by a 16-bit Integer, Instances by an 8-bit Integer • Objects/Resources are accessed with simple URIs: /{Object ID}/{Object Instance}/{Resource ID} Example: /3/0/1 - Object Type=3 (Device), Instance=0, Resource Type = 1 (Device Mfg.)
  • 12. 12 LWM2M Management Objects Object Object ID LWM2M Security 0 LWM2M Server 1 Access Control 2 Device 3 Connectivity Monitoring 4 Firmware 5 Location 6 Connectivity Statistics 7
  • 13. 13 LWM2M Position Object Example, OMA Template
  • 14. 14 LWM2M Application Server Web App LWM2M Server Soft Endpoints IP Devic e IP Devic e LWM2M Clients /3303/0/5700 /domain/endpoints/3303/0/5700
  • 15. 15 LWM2M Application Server Web App LWM2M Server IP Devic e IP Devic e LWM2M Clients /domain/endpoints/3303/0/5700 /3303/0/5700
  • 16. 16 LWM2M Application Server Web App LWM2M Server IP Devic e IP Devic e LWM2M Clients
  • 17. 17 LWM2M Supports Sleeping Endpoints “b=uq”  Client uses the registration refresh to inform LWM2M server that it is awake, and listens for any queued operations
  • 18. 18 Observe Parameters  LWM2M provides a mechanism to control Observation  “Write Attributes” Interface using query parameters to set observe attributes:  Pmin – minimum observation quiet period, to limit notification frequency  Pmax – maximum observation quiet period, to guarantee notifications  Lt – low limit measurement notification, like low alarm, in engineering units  Gt – high limit measurement notification, like a high alarm, in engineering units  Step – Minimum delta change required to notify, in engineering units
  • 19. 19 LWM2M Bulk Read  Returns TLV or JSON based on requested content-format  CBOR needs to be added  Linked Objects are supported {“e”:[ {"n":"0","sv":"Open Mobile Alliance"}, {"n":"1","sv":"Lightweight M2M Client"}, {"n":"2","sv":"345000123"}, {"n":"3","sv":"1.0"}, {"n":"6/0","v":"1"}, {"n":"6/1","v":"5"}, {"n":"7/0","v":"3800"}, {"n":"7/1","v":"5000"}, {"n":"8/0","v":"125"}, {"n":"8/1","v":"900"}, {"n":"9","v":"100"}, {"n":"10","v":"15"}, {"n":"11/0","v":"0"}, {"n":"13","v":"1367491215"}, {"n":"14","sv":"+02:00"}, {"n":"15","sv":"U"}] }
  • 20. 20 IPSO/LWM2M Uses CoRE RD Resource Links (RFC 6690)  Links are uploaded during registration to inform the LWM2M server about resources on the endpoint  Links are discovered using GET with content type “application/link- format”  JSON representation using content type “application/link-format+json” <4001/0/9002>;rt=“oma.lwm2m”;ct=50;obs=1 Resource Type Content Type Observable
  • 22. 22 Smart Objects Use the LWM2M Object Model  REST API with a URI template  Objects  Object Instances  Resources  (Resource Instances)  Reusable resource and object IDs  Common definitions for concepts  Map to semantic terms e.g. temperature, currentValue  IDs are registered with the OMNA  Can be embedded in a path hierarchy on the server  /home/weather/3303/0/5700 3303/0/5700 Object ID, defines object type Object Instance, one or more Resource ID, defines resource type
  • 23. 23 IPSO Smart Object Example Object with Internal Resources
  • 24. 24 IPSO Smart Object Starter Pack
  • 25. 25 Ad-Hoc IPSO Smart Object – BLE Heart Rate Sensor Profile
  • 26. 26 Ad-Hoc IPSO Smart Object – Smart Thermostat
  • 28. 28 IPSO Smart Object Development  Smart Objects are Easy to Modify and Customize  Based on Consistent Design Patterns and Reusable Resource Definitions  Object Sets can be Forked and Modified  Expecting Domain-Specific Object Sets to be Created by Collaborative Vertical Working Groups  New Object Sets can be Released as new Smart Object Guidelines  Objects in Released Smart Object Guidelines are Registered with the OMA, Use Standard OMA DDF (XML) File Format Object Descriptors
  • 29. 29 IPSO Smart Objects Future Work Examples  Linked Composite Objects  Gateway Management Objects – Mapping of TR-069 to REST  Behavioral Objects – Smart Objects to represent embedded Timers, Sequencers, Controllers and bindings to resources  Mapping and Binding of Smart Objects to Zigbee Application Clusters (OnOff Cluster Example)  Mapping and Binding of Smart Objects to Bluetooth Application Profiles (Heart Monitor Example)  Advanced Lighting Objects
  • 30. 30 Summary Application Software IPSO Smart Objects OMA LWM2M CoAP REST protocol for constrained devices IETF Standard (RFC 7252) Uses TCP or UDP, any IP connection Discovery using IP Multicast or Directory Service Layer Specification Device Management over CoAP Object Model for DM and Applications Application Level Interoperability Reusable Device to Application API Not tied to any specific protocol Not tied to specific device or protocol Any Programming Language Runs on devices, gateways, and services
  • 31. 31 References IPSO Smart Object Guideline http://www.ipso-alliance.org/smart-object-guidelines OMA LWM2M Specification http://openmobilealliance.hs-sites.com/lightweight-m2m-specification-from- oma IETF CoAP and Related Specifications CoAP (RFC 7252): http://tools.ietf.org/html/rfc7252 CoRE Link-Format (RFC 6690): http://tools.ietf.org/html/rfc6690 CoRE Resource Directory: http://tools.ietf.org/html/draft-ietf-core-resource- directory-01 CoAP Community Site http://coap.technology/
