1. 1
IPSO Smart Objects
for IoT
January 28, 2015

2. 2
IPSO Smart Objects
 Developed by the IP for Smart Objects Alliance (IPSO)
 Semantic Interoperability across IoT devices and applications
 Based on LWM2M object model
 Reusable object IDs and resource IDs
 Usable on many different transport protocols (CoAP, HTTP,
MQTT) which can support LWM2M addressing, data types,
and content formats
 Basic Starter Pack for simple objects was published in 2014
 Basic Objects represent simple sensors and actuators
 Extensions in progress to broaden the use case applicability

3. 3
Web to the Edge - Internet Standards for IoT
Application Software
IPSO Objects
OMA LWM2M
CoAP HTTP
6LowPAN IPV4/IPV6
MCU – 16KiB RAM MPU
802.15.4 WiFi, Ethernet
Hardware
HW Network
Routing
Application Protocol
API and Services
Data Models
Application
Web Server

4. 4
IPSO Smart Objects use the LWM2M Object Model
 Reusable resource and object IDs
 Common definitions for concepts
across diverse applications
 Map to semantic terms e.g.
temperature, currentValue
 IDs are registered with the OMNA
 Usable across different transport
protocols which can support:
 URI Addressing
 Data Types
 Content Formats
 Operations (Read, Write, Execute)
 Some protocols may allow a subset e.g
MQTT can do Actuation and Notification
3303/0/5700
Object ID, defines object type
Object Instance, one or more
Resource ID, defines resource
type

5. 5

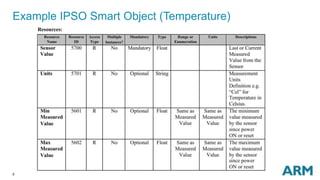

Example IPSO Smart Object (Temperature)

6. 6
Example IPSO Smart Object (Temperature) ..continued

7. 7

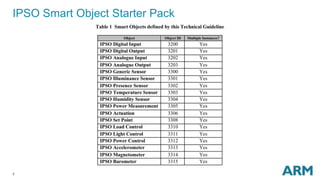

IPSO Smart Object Starter Pack

8. 8

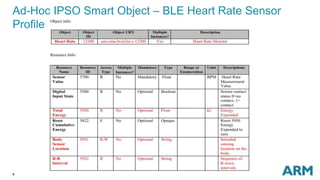

Ad-Hoc IPSO Smart Object – BLE Heart Rate Sensor
Profile

9. 9
Ad-Hoc IPSO Smart Object – Smart Thermostat

10. 10

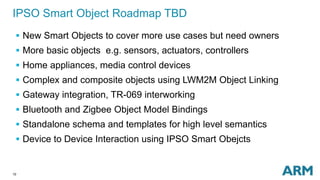

IPSO Smart Object Roadmap TBD
 New Smart Objects to cover more use cases but need owners
 More basic objects e.g. sensors, actuators, controllers
 Home appliances, media control devices
 Complex and composite objects using LWM2M Object Linking
 Gateway integration, TR-069 interworking
 Bluetooth and Zigbee Object Model Bindings
 Standalone schema and templates for high level semantics
 Device to Device Interaction using IPSO Smart Obejcts

11. 11

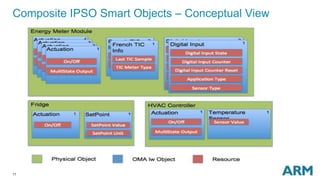

Composite IPSO Smart Objects – Conceptual View

12. 12

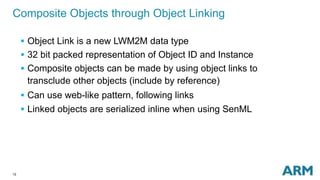

Composite Objects through Object Linking
 Object Link is a new LWM2M data type
 32 bit packed representation of Object ID and Instance
 Composite objects can be made by using object links to
transclude other objects (include by reference)
 Can use web-like pattern, following links
 Linked objects are serialized inline when using SenML

13. 13
Example Composite Object using Links
3308/0
3306/0
Thermostat
8300 – IPSO Thermostat
3303/0 - IPSO Temperature
3308 – IPSO Setpoint
3306 – IPSO Actuation
Input link (7100)
Setpoint link (7101)
Output link (7102)
Application Type (5750)
3303/0

14. 14

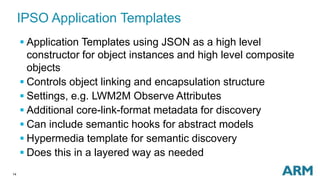

IPSO Application Templates
 Application Templates using JSON as a high level
constructor for object instances and high level composite
objects
 Controls object linking and encapsulation structure
 Settings, e.g. LWM2M Observe Attributes
 Additional core-link-format metadata for discovery
 Can include semantic hooks for abstract models
 Hypermedia template for semantic discovery
 Does this in a layered way as needed

15. 15

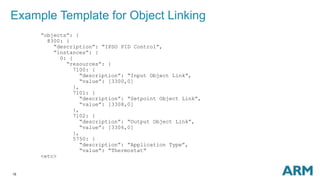

Example Template for Object Linking
“objects”: {
8300: {
“description”: “IPSO PID Control”,
“instances”: {
0: {
“resources”: {
7100: {
“description”: “Input Object Link”,
“value”: [3300,0]
},
7101: {
“description”: “Setpoint Object Link”,
“value”: [3308,0]
},
7102: {
“description”: “Output Object Link”,
“value”: [3306,0]
},
5750: {
“description”: ”Application Type”,
“value”: “Thermostat”
<etc>

16. 16
objects: {
3303: {
“description”: ”ipso temperature sensor”,
“lwm2m-attributes”: {“pmin”: 60, “pmax”: 300, “max-age”: 360},
“core-link-attributes”: {“rt”: [”oma.lwm2m”, “urn:X-ipso:temperature”]},
“instances”: {
0:{
“lwm2m-attributes”: {},
“core-link-attributes”: {“rt”: ”urn:oma:lwm2m:ext:3303”},
“resources”: {
5700:{
“description”: ”Current Measured Value”
“lwm2m-attributes”: {“pmin”: 10,”step”: 0.5},
“core-link-attributes”: {“rt”: ”ucum:temperature”, ”obs”, “ct”: 50}
},
5701: {
“description”: ”units”,
”value”: ”ucum:Cel”,
“operations”: [“r”]
},
5601: {“description”: ”Min Measured Value”, ”value”: 100},
5602: {“description”: ”Max Measured Value”, ”value”: 0},
5603: {“description”: ”Min Range Value”, ”value”: 0},
5604: {“description”: ”Max Range Value”, ”value”: 100},
5605: {“description”: ”Reset Min/Max”}
}

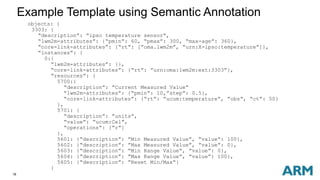

Example Template using Semantic Annotation

17. 17

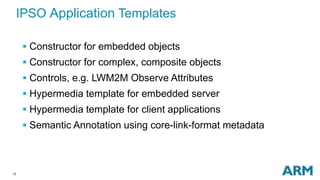

IPSO Application Templates
 Constructor for embedded objects
 Constructor for complex, composite objects
 Controls, e.g. LWM2M Observe Attributes
 Hypermedia template for embedded server
 Hypermedia template for client applications
 Semantic Annotation using core-link-format metadata

18. 18

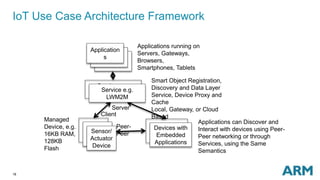

IoT Use Case Architecture Framework
Application
Service e.g.
LWM2M
Application
Application
s
Client
Server
Peer-
Peer
Managed
Device, e.g.
16KB RAM,
128KB
Flash
Smart Object Registration,
Discovery and Data Layer
Service, Device Proxy and
Cache
Local, Gateway, or Cloud
Based
Applications can Discover and
Interact with devices using Peer-
Peer networking or through
Services, using the Same
Semantics
Applications running on
Servers, Gateways,
Browsers,
Smartphones, Tablets
Sensor/
Actuator
Device
Devices with
Embedded
Applications
Service e.g.
LWM2M

19. 19

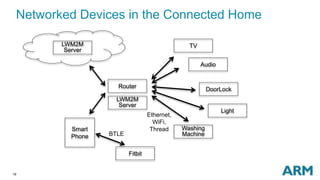

Networked Devices in the Connected Home
TV
Audio
DoorLock
Light
Washing
Machine
Router
LWM2M
Server
Smart
Phone
Ethernet,
WiFi,
Thread
Fitbit
BTLE
LWM2M
Server

20. 20

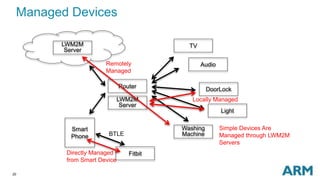

Managed Devices
TV
Audio
DoorLock
Light
Washing
Machine
Router
LWM2M
Server
Smart
Phone
Fitbit
BTLE
Simple Devices Are
Managed through LWM2M
Servers
LWM2M
Server
Locally Managed
Remotely
Managed
Directly Managed
from Smart Device

21. 21

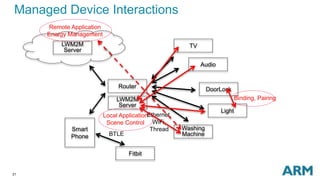

Managed Device Interactions
TV
Audio
DoorLock
Light
Washing
Machine
Router
LWM2M
Server
Smart
Phone
Ethernet,
WiFi,
Thread
Fitbit
BTLE
LWM2M
Server
Local Application
Scene Control
Binding, Pairing
Remote Application
Energy Management

22. 22

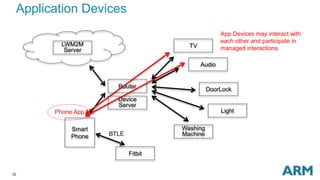

Application Devices
TV
Audio
DoorLock
Light
Washing
Machine
Router
Device
Server
Smart
Phone
Fitbit
BTLE
App Devices may interact with
each other and participate in
managed interactions
LWM2M
Server
Phone App

23. 23

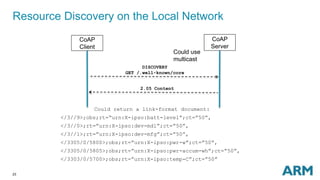

Resource Discovery on the Local Network
Could return a link-format document:
</3//9>;obs;rt=“urn:X-ipso:batt-level”;ct=”50”,
</3//0>;rt=”urn:X-ipso:dev-mdl”;ct=”50”,
</3//1>;rt=”urn:X-ipso:dev-mfg”;ct=”50”,
</3305/0/5800>;obs;rt=”urn:X-ipso:pwr-w”;ct=”50”,
</3305/0/5805>;obs;rt=”urn:X-ipso:pwr-accum-wh”;ct=”50”,
</3303/0/5700>;obs;rt=”urn:X-ipso:temp-C”;ct=”50”
CoAP
Server
CoAP
Client
DISCOVERY
GET /.well-known/core
2.05 Content
Could use
multicast

24. 24

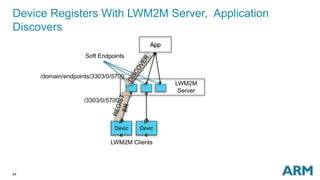

Device Registers With LWM2M Server, Application
Discovers
App
LWM2M
Server
Soft Endpoints
IP
Devic
e
IP
Devic
e
LWM2M Clients
/3303/0/5700
/domain/endpoints/3303/0/5700

25. 25

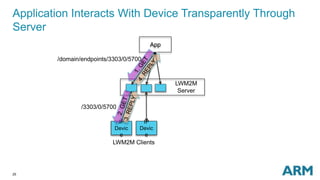

Application Interacts With Device Transparently Through
Server
App
LWM2M
Server
IP
Devic
e
IP
Devic
e
LWM2M Clients
/domain/endpoints/3303/0/5700
/3303/0/5700

26. 26

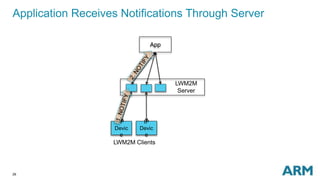

Application Receives Notifications Through Server
App
LWM2M
Server
IP
Devic
e
IP
Devic
e
LWM2M Clients

27. 27

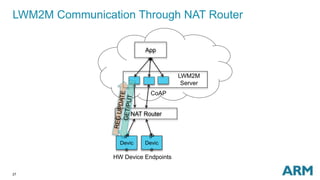

LWM2M Communication Through NAT Router
App
LWM2M
Server
CoAP
IP
Devic
e
IP
Devic
e
HW Device Endpoints
NAT Router
