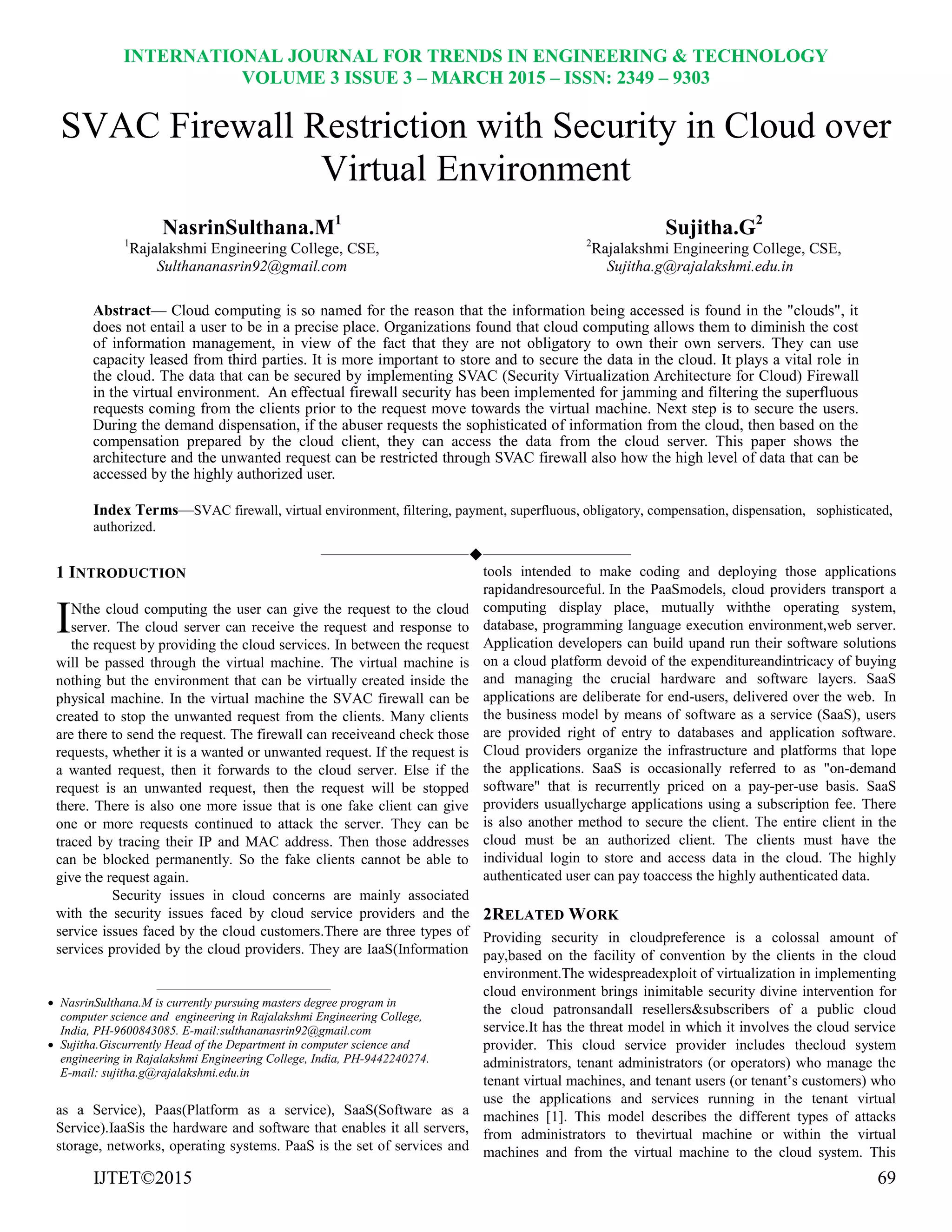

SVAC Firewall Restriction with Security in Cloud over
Virtual Environment
NasrinSulthana.M1
1
Rajalakshmi Engineering College, CSE,
Sulthananasrin92@gmail.com
Sujitha.G2
2
Rajalakshmi Engineering College, CSE,
Sujitha.g@rajalakshmi.edu.in
Abstract— Cloud computing is so named for the reason that the information being accessed is found in the "clouds", it
does not entail a user to be in a precise place. Organizations found that cloud computing allows them to diminish the cost
of information management, in view of the fact that they are not obligatory to own their own servers. They can use
capacity leased from third parties. It is more important to store and to secure the data in the cloud. It plays a vital role in
the cloud. The data that can be secured by implementing SVAC (Security Virtualization Architecture for Cloud) Firewall
in the virtual environment. An effectual firewall security has been implemented for jamming and filtering the superfluous
requests coming from the clients prior to the request move towards the virtual machine. Next step is to secure the users.
During the demand dispensation, if the abuser requests the sophisticated of information from the cloud, then based on the
compensation prepared by the cloud client, they can access the data from the cloud server. This paper shows the
architecture and the unwanted request can be restricted through SVAC firewall also how the high level of data that can be
accessed by the highly authorized user.
Index Terms—SVAC firewall, virtual environment, filtering, payment, superfluous, obligatory, compensation, dispensation, sophisticated,
authorized.
————————————————————
1 INTRODUCTION
Nthe cloud computing the user can give the request to the cloud
server. The cloud server can receive the request and response to
the request by providing the cloud services. In between the request
will be passed through the virtual machine. The virtual machine is
nothing but the environment that can be virtually created inside the
physical machine. In the virtual machine the SVAC firewall can be
created to stop the unwanted request from the clients. Many clients
are there to send the request. The firewall can receiveand check those
requests, whether it is a wanted or unwanted request. If the request is
a wanted request, then it forwards to the cloud server. Else if the
request is an unwanted request, then the request will be stopped
there. There is also one more issue that is one fake client can give
one or more requests continued to attack the server. They can be
traced by tracing their IP and MAC address. Then those addresses
can be blocked permanently. So the fake clients cannot be able to
give the request again.
Security issues in cloud concerns are mainly associated
with the security issues faced by cloud service providers and the
service issues faced by the cloud customers.There are three types of
services provided by the cloud providers. They are IaaS(Information
as a Service), Paas(Platform as a service), SaaS(Software as a
Service).IaaSis the hardware and software that enables it all servers,
storage, networks, operating systems. PaaS is the set of services and
tools intended to make coding and deploying those applications
rapidandresourceful. In the PaaSmodels, cloud providers transport a
computing display place, mutually withthe operating system,
database, programming language execution environment,web server.
Application developers can build upand run their software solutions
on a cloud platform devoid of the expenditureandintricacy of buying
and managing the crucial hardware and software layers. SaaS
applications are deliberate for end-users, delivered over the web. In
the business model by means of software as a service (SaaS), users
are provided right of entry to databases and application software.
Cloud providers organize the infrastructure and platforms that lope
the applications. SaaS is occasionally referred to as "on-demand
software" that is recurrently priced on a pay-per-use basis. SaaS
providers usuallycharge applications using a subscription fee. There
is also another method to secure the client. The entire client in the
cloud must be an authorized client. The clients must have the
individual login to store and access data in the cloud. The highly
authenticated user can pay toaccess the highly authenticated data.
2RELATED WORK
Providing security in cloudpreference is a colossal amount of
pay,based on the facility of convention by the clients in the cloud
environment.The widespreadexploit of virtualization in implementing
cloud environment brings inimitable security divine intervention for
the cloud patronsandall resellers&subscribers of a public cloud
service.It has the threat model in which it involves the cloud service
provider. This cloud service provider includes thecloud system
administrators, tenant administrators (or operators) who manage the
tenant virtual machines, and tenant users (or tenant’s customers) who
use the applications and services running in the tenant virtual
machines [1]. This model describes the different types of attacks
from administrators to thevirtual machine or within the virtual
machines and from the virtual machine to the cloud system. This
I
————————————————
 NasrinSulthana.M is currently pursuing masters degree program in
computer science and engineering in Rajalakshmi Engineering College,
India, PH-9600843085. E-mail:sulthananasrin92@gmail.com
 Sujitha.Giscurrently Head of the Department in computer science and
engineering in Rajalakshmi Engineering College, India, PH-9442240274.
E-mail: sujitha.g@rajalakshmi.edu.in

2. INTERNATIONAL JOURNAL FOR TRENDS IN ENGINEERING & TECHNOLOGY
VOLUME 3 ISSUE 3 – MARCH 2015 – ISSN: 2349 – 9303
IJTET©2015 70
threat model also detects the attack from the cloud to the internet and
vice versa.
The cloud system which consists of cloud system administrators
and the VMM platform with its privileged domain and hardware.
Then thereis also the cloud cluster domainthat comprising cloud
system domainsthat constitute the cloud infrastructure. VMM is the
Virtual Machine Monitor which is also called as hypervisor. It is a
program that allows multiple operating systems to share a single
hardware host. That means a virtual machine that can be created in
the physical machine. The abundant homomorphic encryption
method allows one to appraise circuits in excess of encrypted data
devoid of that can be able to decrypt. The solution can be produced in
three steps. They are arbitrary circuits, own decryption circuit
andbootstrappable. The public key encryption scheme has four
algorithms keygen, encrypt, decrypt, evaluate. There are three types
of encryption techniques. They are homomorphic encryption, fully
homomorphic encryption and leveled fully homomorphic encryption
[2]. The goal of the VM introspection is to enable the observations of
a VM’s stateand events from outside the VM.
DKSM (Direct Kernel Structure Manipulation) is a type of attack
that can change the syntax and semantics of kernel data structures in
a running guest. The outside observations can have the same
semantic view of the system stateand events if they were seen from
inside the VM. It increases the fault tolerance. This will propose to
observe the virtual machine state and the clients [3].The virtual
machines have been protected through PSVM security model. PSVM
is nothing but a Privilege Separation Virtual Machine. Split up into
two parts. Operations about the user privacy. Managing the user
privacy. Propose a novel method to execute the security of the virtual
machine with the help of firewall to overcome the attackers that can
easily attack the entire data system [4].
SSC (Self Service Cloud Computing) is a new-fangled cloud
computing mould that improves the client sanctuary. It also provides
clients, the suppleness to installfortunate services on their own
VM’s.It uses the VMM that includes large and complex
administrative domain. The client is inflexible to control over their
own virtual machines [5]. Cloud computing resources are handled
through control interfaces. It is done through these interfaces, that the
new machines can be added existing one can be modified and
updated. It only detects the classical attacks from the client. These
can be overcome by Instead of control interface here we will use the
―VM‖ as an interface. It controls all the requests from the client.[6].
There are two types of attackerdetection techniques are used. One is
the Service Provider Attack Detection (SPAD). Another method is
Tenant Specific Attack Detection (TSAD). The attacks are also
detected from the Tenant domain also from the cloud service
provider. Unauthorized user can able to access cloud data, which is
the major drawback. High payable cloud charges to access the data
from the cloud.This system uses the adaptive security algorithm.
Adaptive Security Algorithm (ASA) is the foundation on which the
Firewall is built. It defines and examines the traffic ephemeralin the
course of it and applies assorted rules to it. The
indispensableperception behind ASA is to maintain track of the
assortment of requests being sent to cloud server.Based on the
information togetherconcerning the cloud request, ASA allows
packets to come rear into the confidential network during the
firewall. All additional traffic intended for the private network
andupcoming to the firewall is blocked.
3 PROPOSED SYSTEM
In the proposed system, there is a cloud which stores all the types of
data such as texts, videos, music, files, and all the multimedia data.
Some of the data are very confidential which are also stored in the
cloud itself. There are so many clients to access the data from the
cloud. They can access it only through the virtual machine by
sending the request. The virtual machine sends the requests to the
cloud server, retrieve the information and pass it to the client.
Likewise all the users can send the request. There is a type of attack
in which the fake user can send the fake request to the server. In
order to block the fake request SVAC Firewall is created inside the
virtual machine. SVAC firewall is nothing but a firewall whichis a
set of interrelated programs, placed at a network gateway server that
protects the resources of a private network from users from other
networks. It verifies first the request will be a wanted request or
unwanted request.
If it is a wanted request thenit will be granted from the client to
the cloud server. If the request is an unwanted request then those
requests will be dropped in this virtual machine itself. It is not raised
to the cloud server. If an attacker wants to attack the virtual machine
then it becomes a major drawback. At this time the firewall detects
the MAC and IP address of the system where the continuous request
will be received. After finding the addresses then such system will be
blocked. So such type of user cannot able to raise the fake requests
again and again. There is a one more system to secure the user. Only
high authenticated user can pay more and can access the highly
confidential data. The following figure shows the architecture of the
SVAC firewall restriction.
Figure 1 shows client system sends the request through the
firewall to the virtual machine the unwanted requests will be stopped
Fig 1. Architecture of the SVAC Firewall Restriction

3. INTERNATIONAL JOURNAL FOR TRENDS IN ENGINEERING & TECHNOLOGY
VOLUME 3 ISSUE 3 – MARCH 2015 – ISSN: 2349 – 9303
IJTET©2015 71
there in the firewall. Other requests will be forwarded to the virtual
machine and those will be raised to the cloud server. If any of the
requesting high level data means then they will pay more and access
the data from the cloud.
Figure 2 shows that the request will be raised to the firewall. The
firewall verifies the request. If the request will be a wanted request
then it sends the request to the virtual machine and then to the cloud
server.
If the unauthorized person sends the unwanted request then it will
be stopped by the firewall. The system information such as MAC
address and IP address will be traced also they can be blocked
permanently. The high authenticated user can pay more and access
the high level of data from the cloud server.
3.1 SVAC Firewall Restriction Algorithm:
1. The SVAC Firewall Restriction Algorithm tends to validate
the request over theprivate cloud network.
2. Outgoing requests from trusted hosts to cloud server is
verified by the SVAC Algorithm.
3. Filtering to be done at virtual operating systems firewall
protection is done based on SVAC firewall restriction
algorithm.
4 MODULES
1. Firewall rule execution
2. Virtualized firewall creation
3. Data access module
4. Cost computation module
5. Blocked user access module
6. MAC privilege module
7. System Information module
8. Performance evolution module
4.1 Firewall Rule Creation
In this module, a Firewall is a system designed to prevent
unauthorized access to or from a private network (especially
Intranets).Create a firewall rule that permits the ping command first
and customize the icmpv type.Using this rule to deploy all windows
server and create a specific filter.Using this rule to verify the remote
servers and work stations along with ping configuration.
4.2 Virtualized Firewall Creation
In this module, a firewall product is required to support virtual
devices in most of its firewall features.In network configured zones,
not obligatory to configure security policy for every interface in a
firewall network.Build resource based packet filtering inside same
virtual device to remove zones in a network. RBPF in different
virtual devices are also accepted.
4.3Data Access Module
If the IP address of demand is inside one of the ranges particular in
server stage firewall policy, the association is approved to SQL
Database server has a harmonizing database-level statute.If the IP
address demand is not inside the ranges precise in server level
firewall rules mean, connection failed otherwise database firewall
rules are checked.The connection established only when the client
passes through firewall in SQL database.
4.4Cost Computation Module
Flexible cloud hosting services, reliable and secure information all
those involved in cost computation.It produces very low rate for the
compute capacity is actually consuming and produce high
performance over data.Having route access to each one and interact
among machine, retaining data based on boot partition furthermore
added an advantage.
4.5 Blocked User Module
Firewall that allows to block programs from being accessed by other
people on the internet or network. It helps to keep computer
secure.Testing a blocking rule, this rule used to test the website and
block the website by network administrator.To create a content filter
to block user access in group of websites in a
network.Troubleshooting the block page to avoid unauthorized
person using a network.
4.6MAC Privilege Module
Mac address is a unique address assigned to almost all networking
hardware’s (ex: mobile phones).Creating firewall rules based on Mac
address this also very effective while accessing system from cloud
server.It addresses filters to prevent devices from sending outgoing
TCP/UDP traffic to the WAN.
4.7System Information Module
Mostly to check whether the person is authenticated user or
unauthenticated user in a database while access the information in
cloud server.Authenticated user information is stored in database this
Fig 2. Flow of request from client to cloud server

4. INTERNATIONAL JOURNAL FOR TRENDS IN ENGINEERING & TECHNOLOGY
VOLUME 3 ISSUE 3 – MARCH 2015 – ISSN: 2349 – 9303
IJTET©2015 72
helps to make a user to access the cloud server. The system
information (IP address, Mac address) are also checked in a database
to allow the user to make use of the system.
4.8 Performance Evolution Module
Adoption of cloud, virtualization and mobility providing more
vulnerabilities than ever for hackers to exploit. Now a day, Firewall
performance based on shares and information about applications,
attack signatures and address is amplified. Firewall needs to manage
flows between tiers of virtualized servers to increase the performance
in a line-server.
Figure 3 shows the observations between the process that
are executed by the kernel mind denoted in minutes per second and
the process that are executed in the user time denoted in minutes per
second. The performance is compared for both the kernel mind and
the user time. The process in the user time is always greater than the
process by the kernel mind.
Figure 4 indicates the execution details. It is based on total
read, total write, total error and total correction. Initially the read
process is very high and it is gradually decreases. After write process
the error will be minimized and the appropriate correction actions
will be taken. The corrections will be made more than the errors.
5 CONCLUSION
In this paper we proposed the security architecture having SVAC
firewall to stop the unwanted request from the fake user and it also
block the attackers who sends more fake request continuously to the
cloud server by tracing the MAC address and IP address from the
system information. This proposed system also leads security to the
individual user by providing high authorization to access the data
from the cloud server. The highly authorized user can pay more to
access more confidential data from the cloud.
6 REFERENCE
[1]. Vijay Varadharajan, Senior Member, IEEE,andUdayaTupakula,
Member, IEEE, ―Security as a Service Model for Cloud
Environment,‖IEEE transactions on network and service management,
vol. 11, no. 1, march 2014.
[2]. C. Gentry, ―Fully homomorphic encryption using ideal lattices,‖ in
Proc. 2009ACM Symp. Theory Comput.
[3].S. Bahram, et al., ―DKSM: subverting virtual machine introspection
for fun and profit,‖ in Proc. 2010 IEEE Symp. Reliable Distrib. Syst.
[4].C. Yu, et al., ―Protecting the security and privacy of the virtual
machine through privilege separation,‖ in Proc. 2013 Int. Conf. Comput.
Sci. Electron. Eng.
[5]. S. Butt, et al., ―Self-service cloud computing,‖ in Proc. 2012 ACM
Comput. Commun Security Conf.
Fig 3. Observation between Process kernel mind in M/Sec and
Process user time in M/Sec
Fig 4. Execution details for the virtual machine based on total read,
total write, toatal error and total corrections

5. INTERNATIONAL JOURNAL FOR TRENDS IN ENGINEERING & TECHNOLOGY
VOLUME 3 ISSUE 3 – MARCH 2015 – ISSN: 2349 – 9303
IJTET©2015 73
[6]. J. Somorovsky, et al., ―All your clouds belong to us—security
analysis of cloud management interfaces,‖ in 2011 ACM Comput.
Commun. Security Conf.
[7]. V. Varadarajan, et al., ―Resource-freeing attacks: improve your
cloudperformance (at your neighbor’s expense),‖ in Proc. 2012 ACM
Comput.Commun. Security Conf.
[8]. T. C. Chieu, et al., ―Dynamic scaling of web applications in a
virtualized cloud computing environment,‖ in Proc. 2009 IEEE Int. Conf.
e-Business Eng.
[9]. J.H. An, Y. Dodis, and T. Rabin. On the security of jointsignature
and encryption.Eurocrypt ’02, pp. 83–107.
[10]. R. Rivest, A. Shamir, and L. Adleman. A method for obtaining
digital signatures and public-key cryptosystems. In Comm. of the ACM,
21:2, pages 120–126, 1978.
[11]. P. C. van Oorschot, A. Somayaji, andG.Wurster. Hardware-
Assisted Circumvention of Self-Hashing Software Tamper Resistance.
IEEE Trans. Dependable Secur. Comput., 2(2):82–92, 2005.
[12]. Hidekazu Tadokoro, Kenichi Kourai, Shigeru Chiba. Preventing
Information Leakage from Virtual Machines’ Memory in IaaS Clouds.
IPSJ Transactions on Advanced Computing Systems Vol.5 No.4 101–
111.2012.
[13]. Chunxiao Li, AnandRaghunathan, Niraj K. Jha. Secure
VirtualMachine Execution under an Untrusted Management OS [C].
2010IEEE 3rd International Conference on Cloud Computing,2011
[14]. B. Payne, M. Carbone, M. Sharif, and W. Lee. Lares: An
architecturefor secure active monitoring using virtualization. In IEEE
Symposiumon Security & Privacy, 2008.
[15]. M. Christodorescu, R. Sailer, D. Schales, D. Sgandurra, and D.
Zamboni.Cloud Security Is Not (Just) Virtualization Security. In
ACMCloud Computing Security Workshop, 2009.
[16.] F. Zhang, J. Chen, H. Chen, and B. Zang. CloudVisor:
RetrofittingProtection of Virtual Machines in Multi-tenant Cloud with
NestedVirtualization. In ACM SOSP, 2011.
[17]. Gajek, S., Jensen, M., Liao, L., andSchwenk, J.
Analysis of signature wrapping attacks and countermeasures. In ICWS
(2009), IEEE, pp. 575-582.
[18]. Ristenpart, T., Tromer, E., Shacham, H., and Savage, S. Hey, you,
get o_ of my cloud: exploring
information leakage in third-party compute clouds. In
CCS '09: Proceedings of the 16th ACM conference on Computer and
communications security (New York, NY, USA, 2009), ACM, pp. 199-
212.
