1) The document discusses IBM's enterprise Java application platform and trends in enterprise Java applications. 2) It describes how IBM's platform supports technologies like SOA, Web 2.0 and cloud computing to help enterprises meet trends toward faster time to value, business agility, efficiency and higher performance. 3) The platform provides services for business, interaction, process, information and management that can be used to build scalable and secure enterprise applications.

1. Java在企业级开发中的应用
Xin Sheng Mao / 毛新生
CTO, 新 兴技 术学院
IBM 中国 开发中心
maoxs@us.ibm.com
1

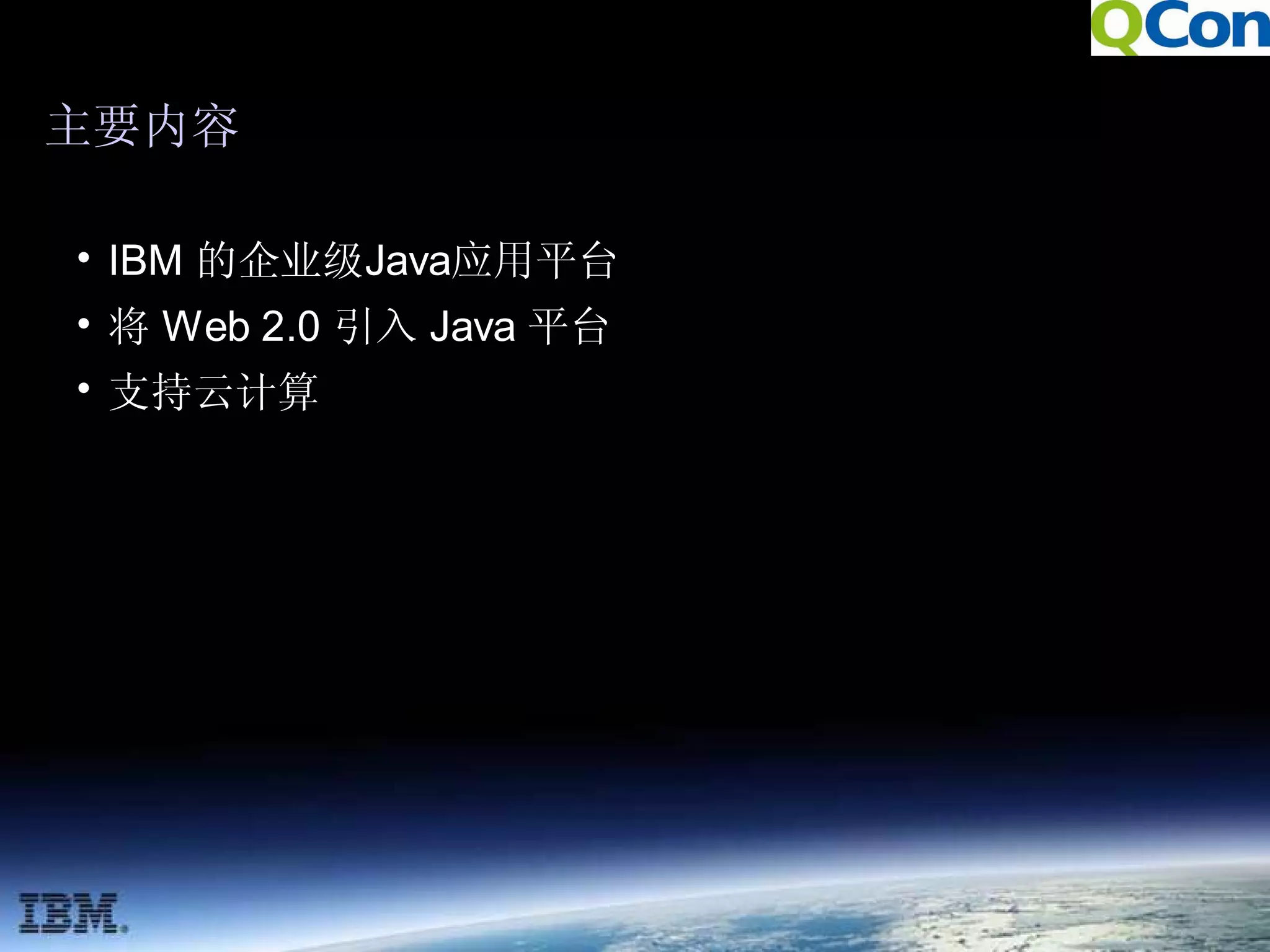

2. 主要内容
• IBM 的企业级Java应用平台
• 将 Web 2.0 引入 Java 平台
• 支持云计算

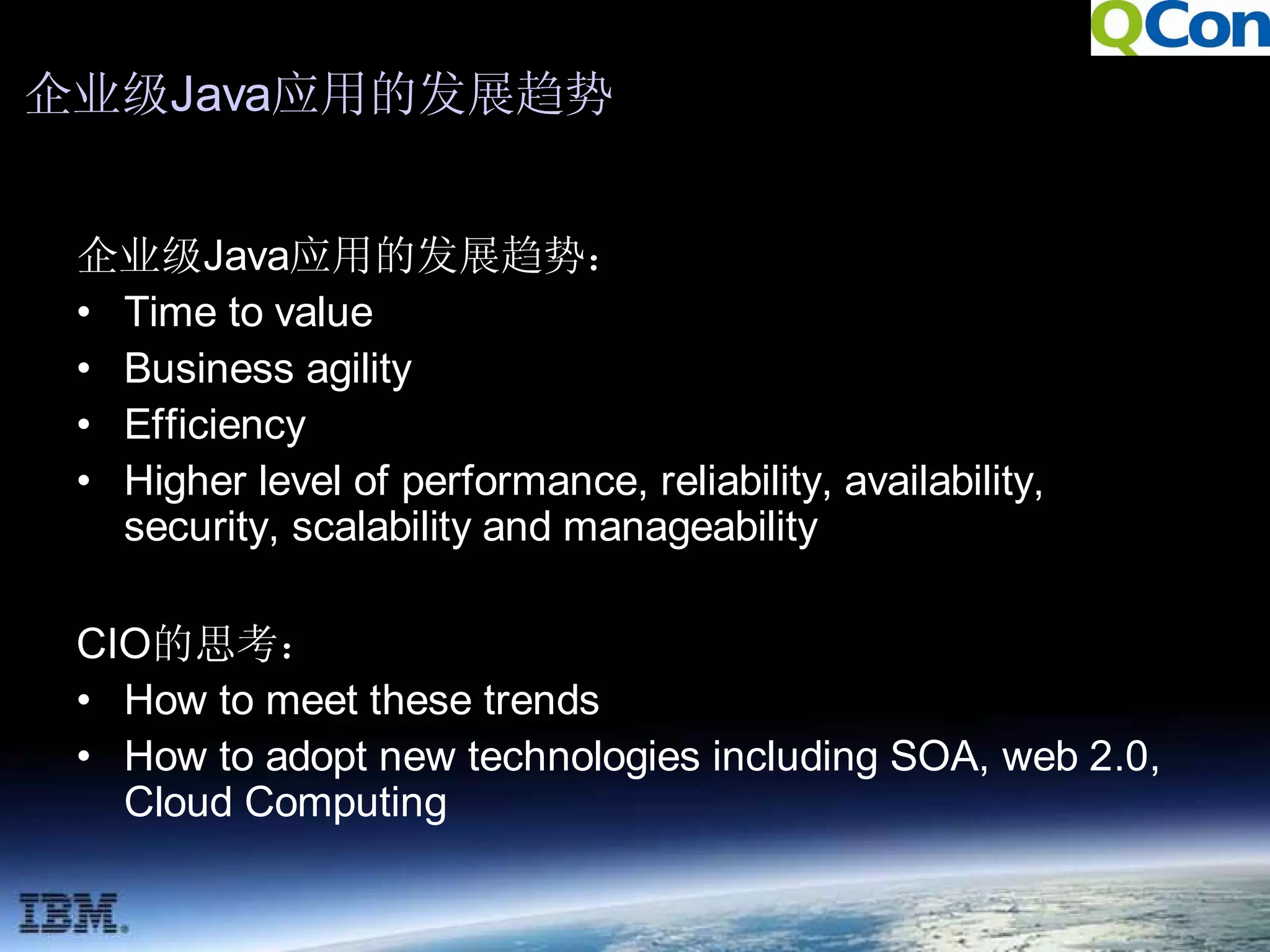

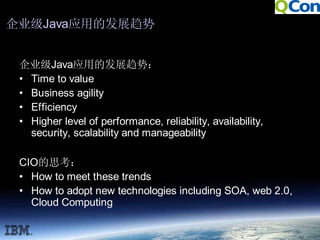

3. 企业级Java应用的发展趋势
企业级Java应用的发展趋势：
• Time to value
• Business agility
• Efficiency
• Higher level of performance, reliability, availability,
security, scalability and manageability
CIO的思考：
• How to meet these trends
• How to adopt new technologies including SOA, web 2.0,
Cloud Computing

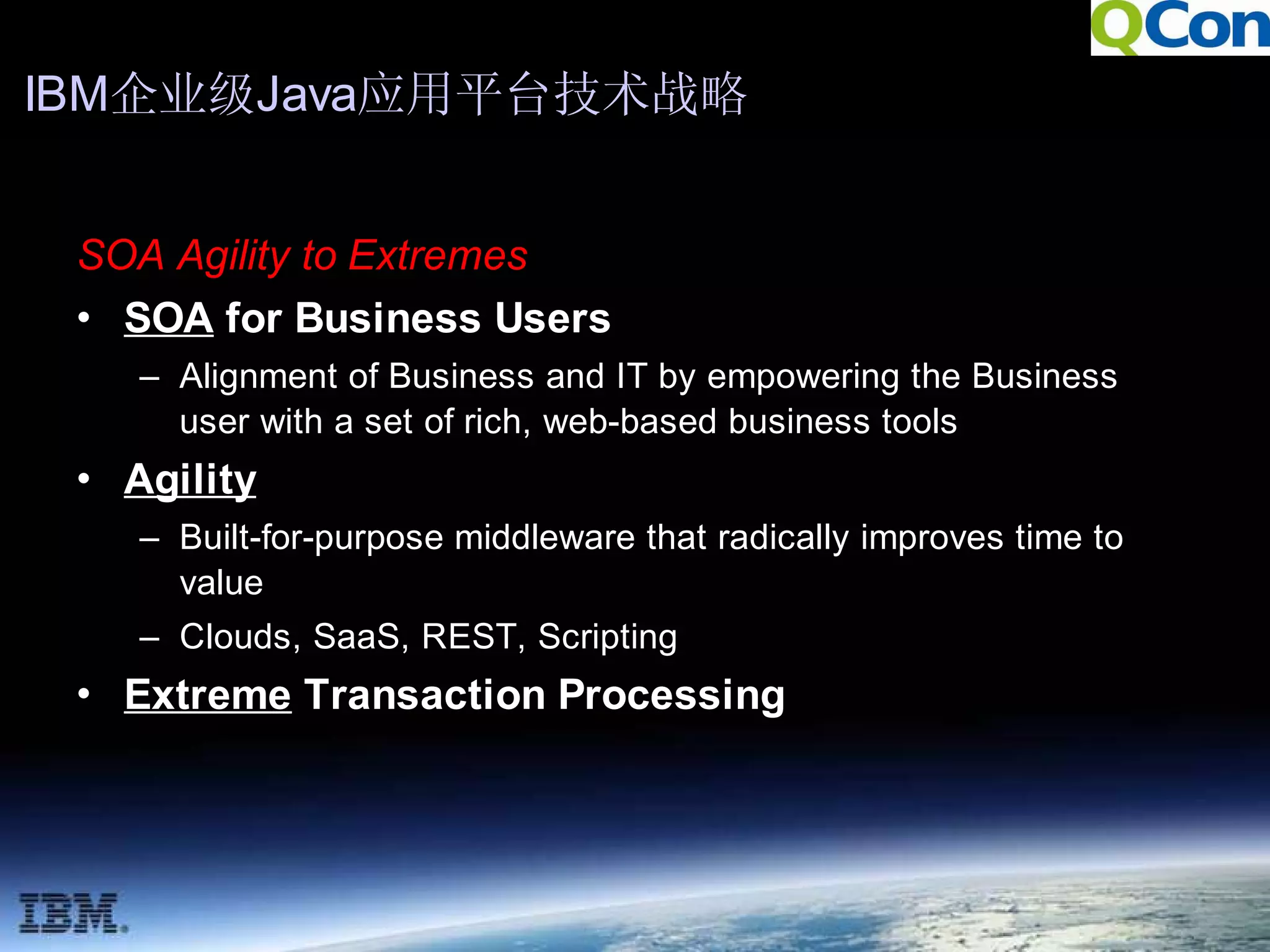

4. IBM企业级Java应用平台技术战略
SOA Agility to Extremes
• SOA for Business Users
– Alignment of Business and IT by empowering the Business
user with a set of rich, web-based business tools
• Agility
– Built-for-purpose middleware that radically improves time to
value
– Clouds, SaaS, REST, Scripting
• Extreme Transaction Processing

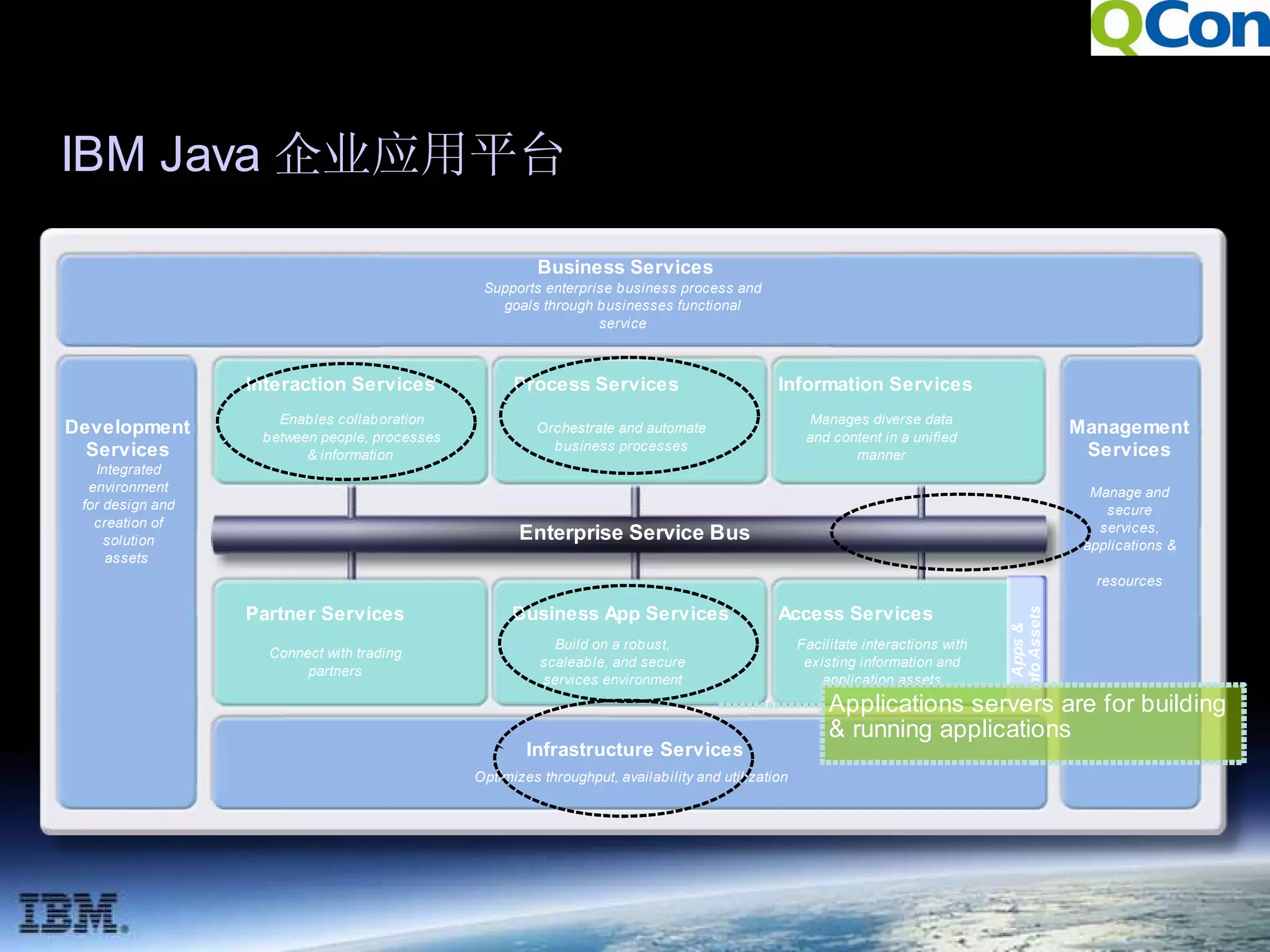

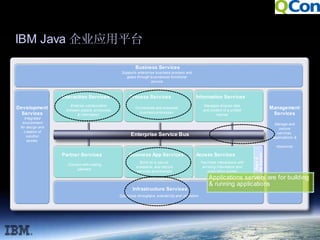

5. IBM Java 企业应用平台
Business Services
Supports enterprise business process and
goals through businesses functional
service
Interaction Services Process Services Information Services
Enables collaboration Manages diverse data
Development between people, processes
Orchestrate and automate
and content in a unified
Management
Services business processes Services
& information manner
Integrated
environment Manage and
for design and secure
creation of services,
solution Enterprise Service Bus applications &
assets
resources
Partner Services Business App Services Access Services
Info Assets
Apps &
Build on a robust, Facilitate interactions with
Connect with trading
scaleable, and secure existing information and
partners
services environment application assets
Applications servers are for building
& running applications
Infrastructure Services
Optimizes throughput, availability and utilization

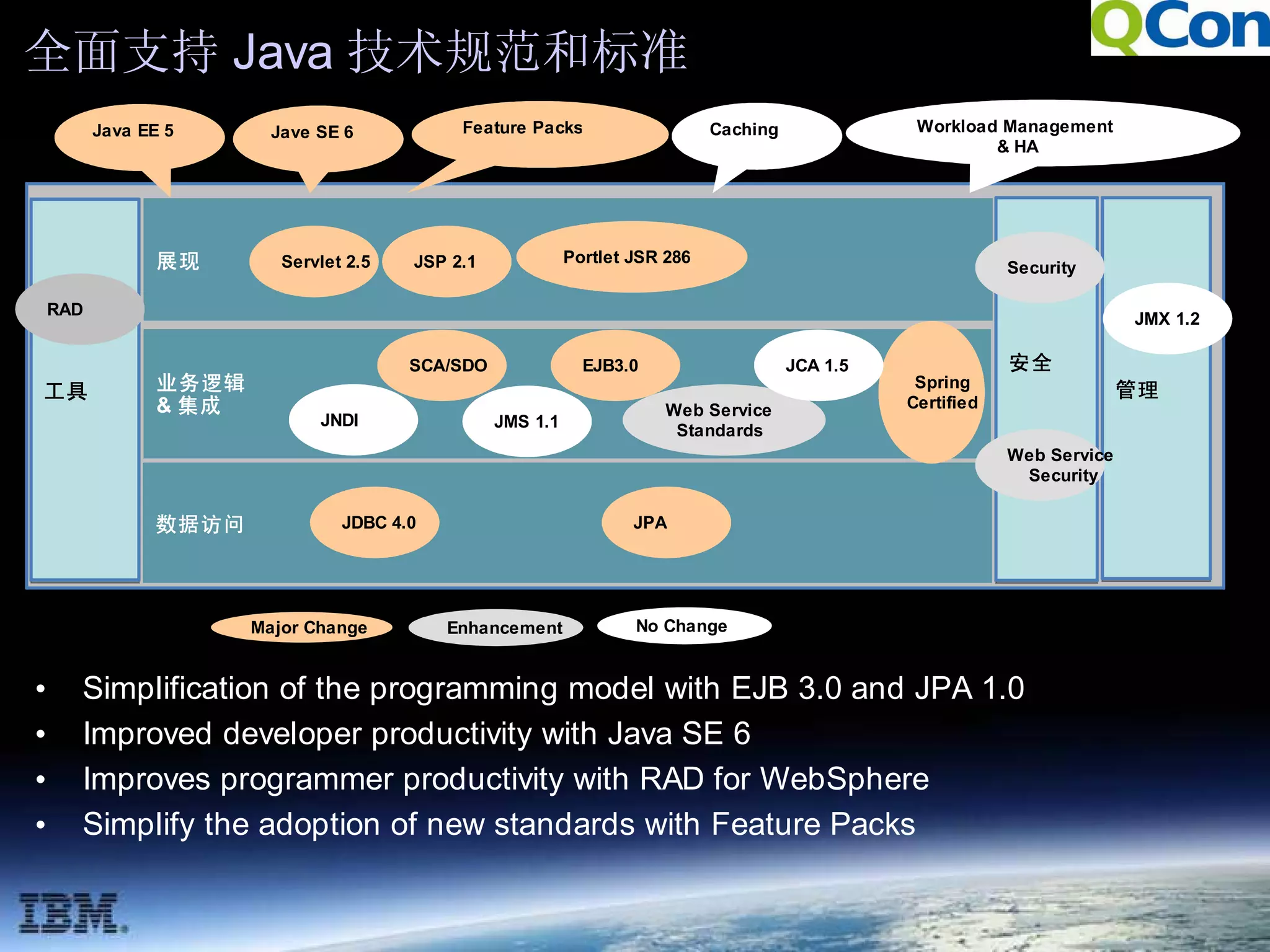

6. 全面支持 Java 技术规范和标准
Java EE 5 Jave SE 6 Feature Packs Caching Workload Management
& HA
展现 Servlet 2.5 JSP 2.1 Portlet JSR 286
Security
RAD
JMX 1.2
SCA/SDO EJB3.0 JCA 1.5 安全
工具 业务逻辑 Spring 管理
& 集成 Web Service Certified
JNDI JMS 1.1
Standards
Web Service
Security
数据访问 JDBC 4.0 JPA
Major Change Enhancement No Change
• Simplification of the programming model with EJB 3.0 and JPA 1.0
• Improved developer productivity with Java SE 6
• Improves programmer productivity with RAD for WebSphere
• Simplify the adoption of new standards with Feature Packs

7. 构建高性能、可扩展的企业应用

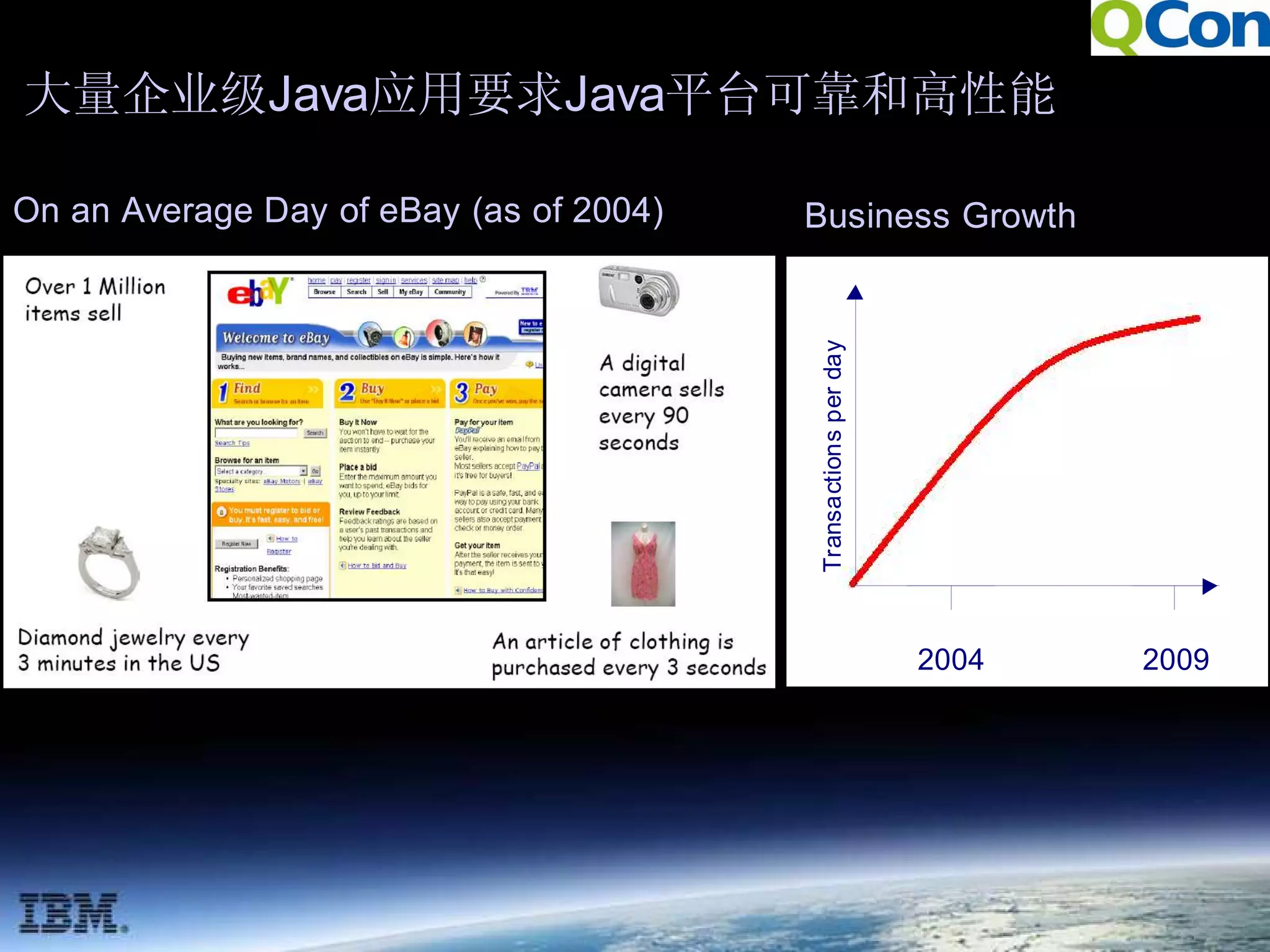

8. 大量企业级Java应用要求Java平台可靠和高性能
On an Average Day of eBay (as of 2004) Business Growth
Transactions per day
2004 2009

9. 大量企业级Java应用要求Java平台可靠和高性能
（续）

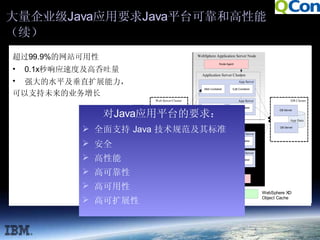

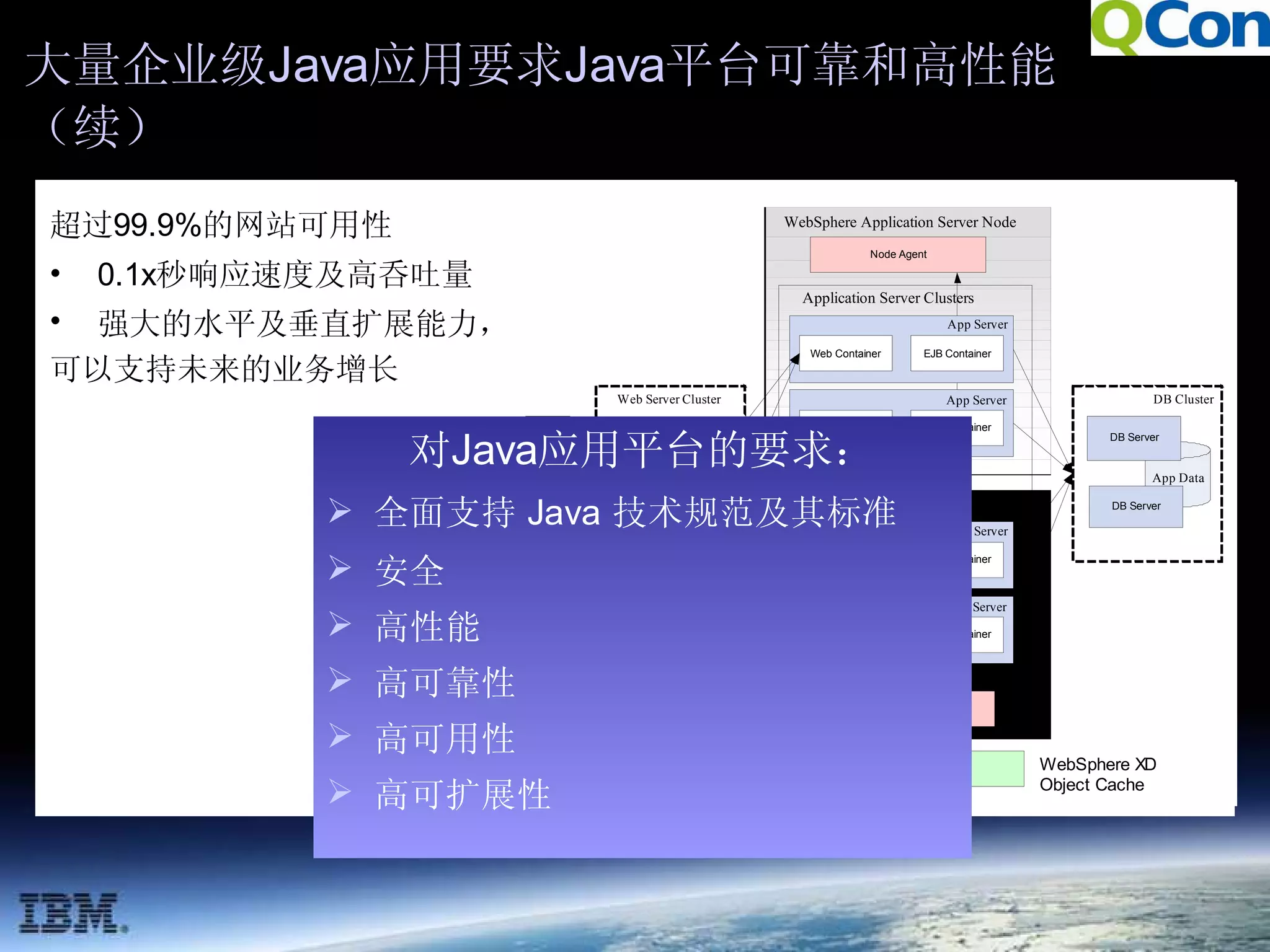

超过99.9%的网站可用性 WebSphere Application Server Node
Node Agent
• 0.1x秒响应速度及高呑吐量
Application Server Clusters
• 强大的水平及垂直扩展能力， App Server
Web Container EJB Container
可以支持未来的业务增长
Web Server Cluster App Server DB Cluster
Web Container EJB Container
对Java应用平台的要求：
DB Server
IBM HTTP
Server
Load App Data
Balancer
 全面支持 Java 技术规范及其标准 Server Node
WebSphere Application
App Server
DB Server
IBM HTTP
Server
 安全 Load
Balancer
Web Container EJB Container
Backup
App Server
 高性能 Web Container EJB Container
 高可靠性
Node Agent
 高可用性
Deployment Manager WebSphere XD
 高可扩展性 Object Cache

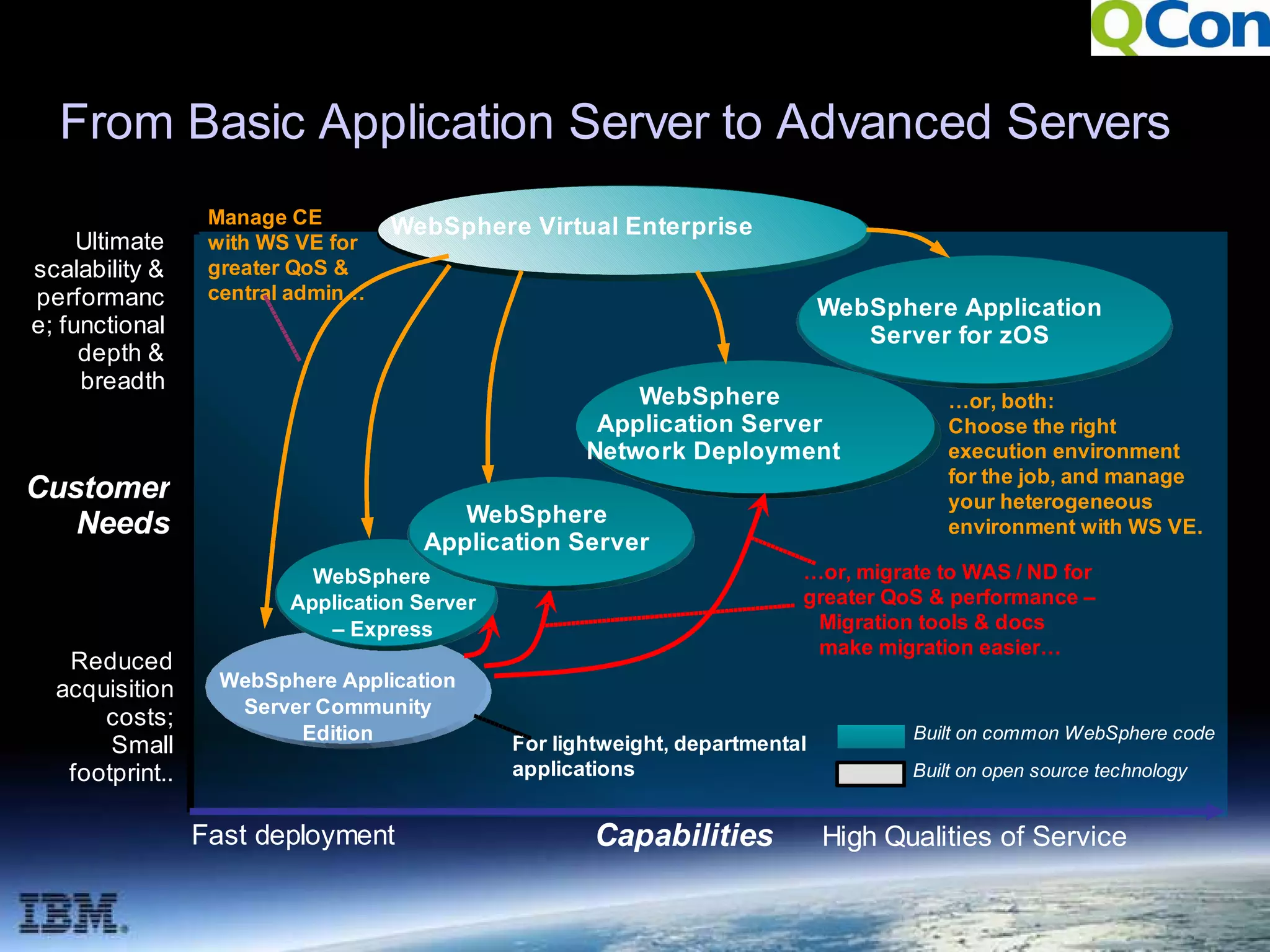

10. From Basic Application Server to Advanced Servers
Manage CE WebSphere Virtual Enterprise
Ultimate with WS VE for
scalability & greater QoS &
performanc central admin…
WebSphere Application
e; functional Server for zOS
depth &
breadth
WebSphere …or, both:
Application Server Choose the right
Network Deployment execution environment
for the job, and manage
Customer your heterogeneous
Needs WebSphere environment with WS VE.
Application Server
WebSphere …or, migrate to WAS / ND for
Application Server greater QoS & performance –
– Express Migration tools & docs
make migration easier…
Reduced
acquisition WebSphere Application
Server Community
costs;
Edition Built on common WebSphere code
Small For lightweight, departmental
footprint.. applications Built on open source technology
Fast deployment Capabilities High Qualities of Service

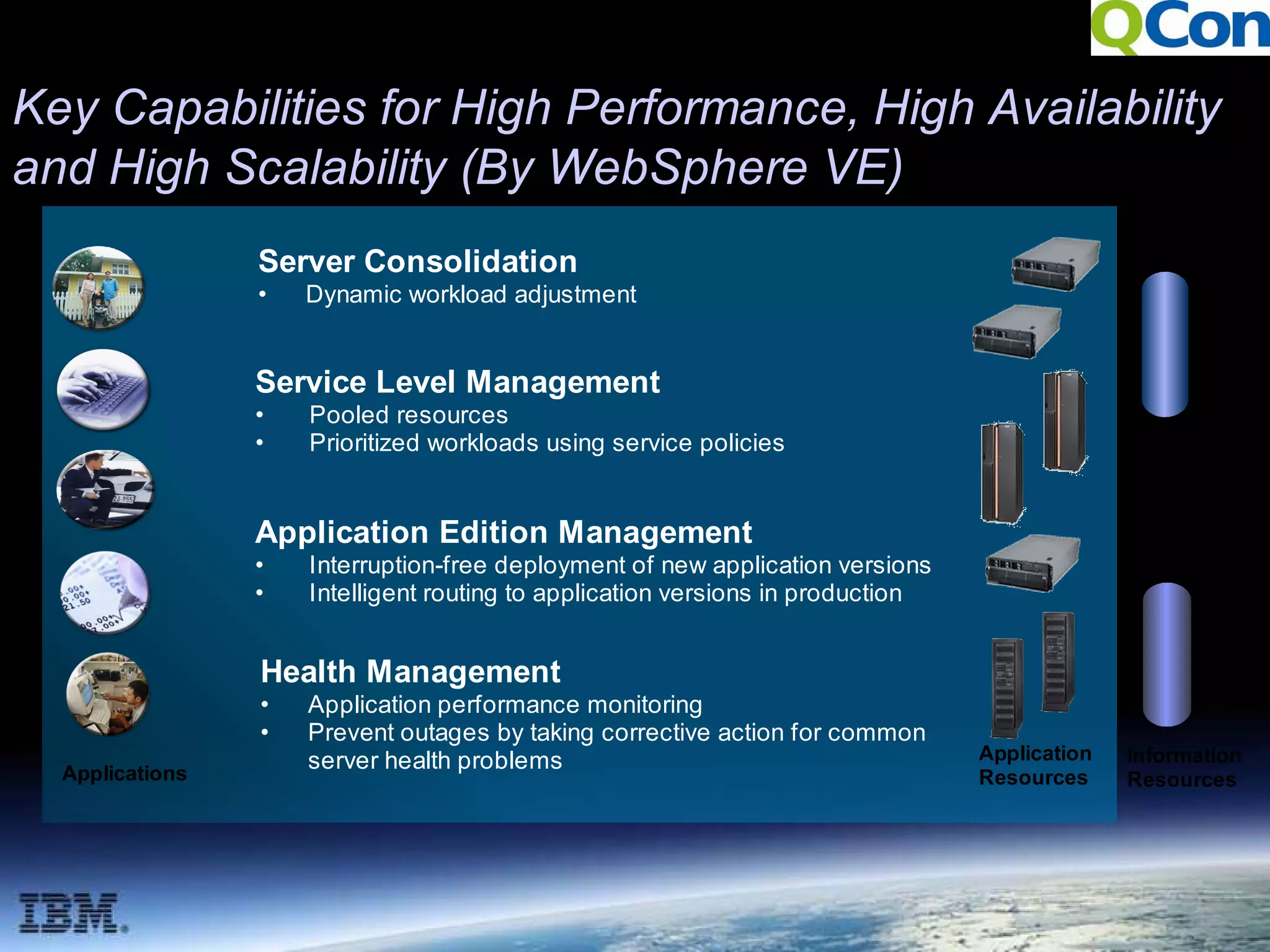

11. Key Capabilities for High Performance, High Availability
and High Scalability (By WebSphere VE)

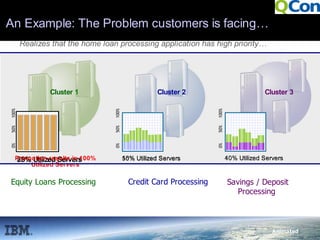

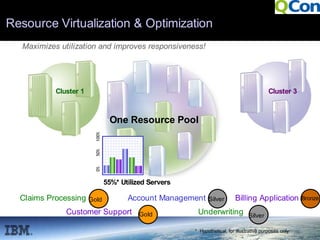

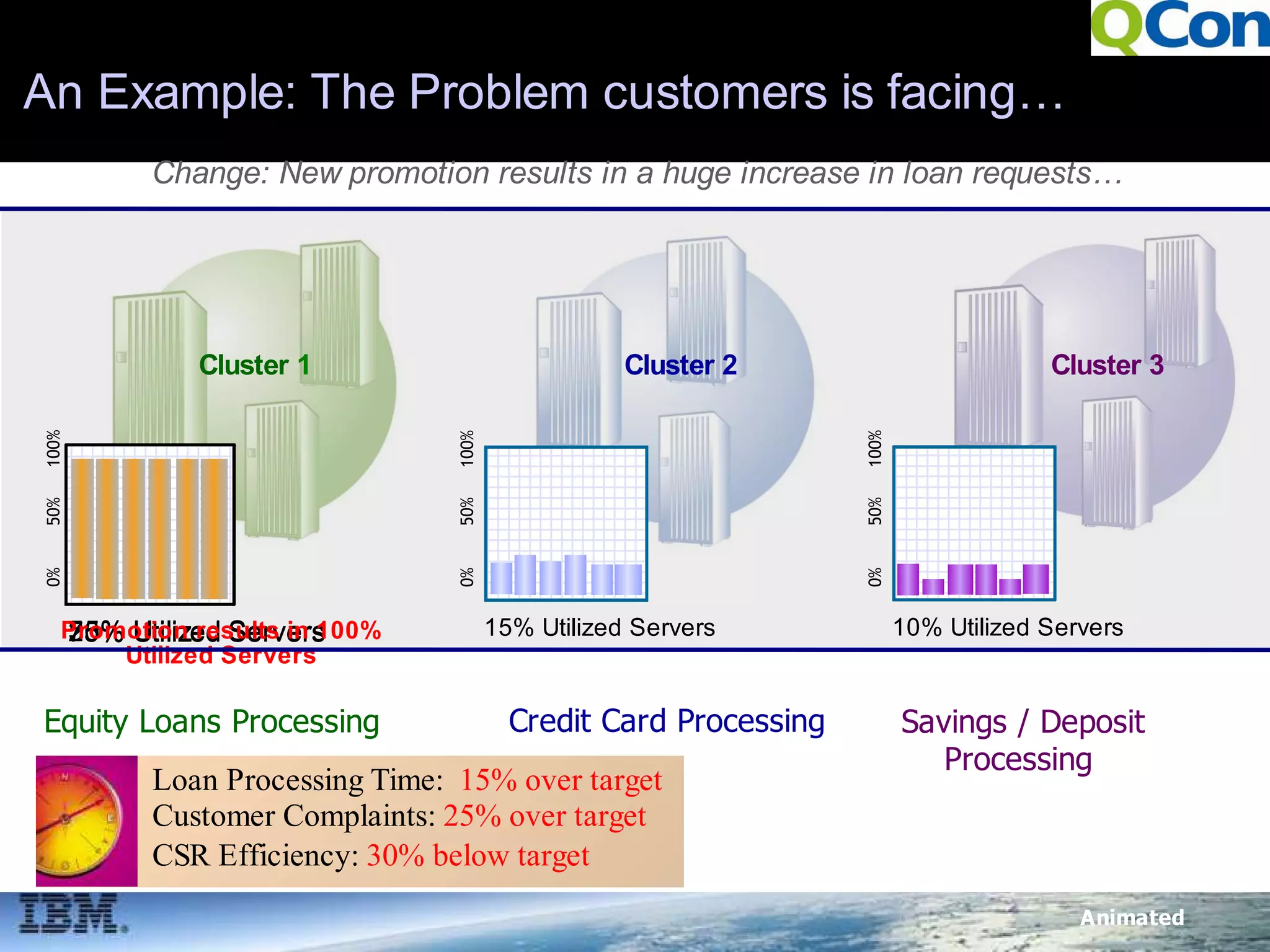

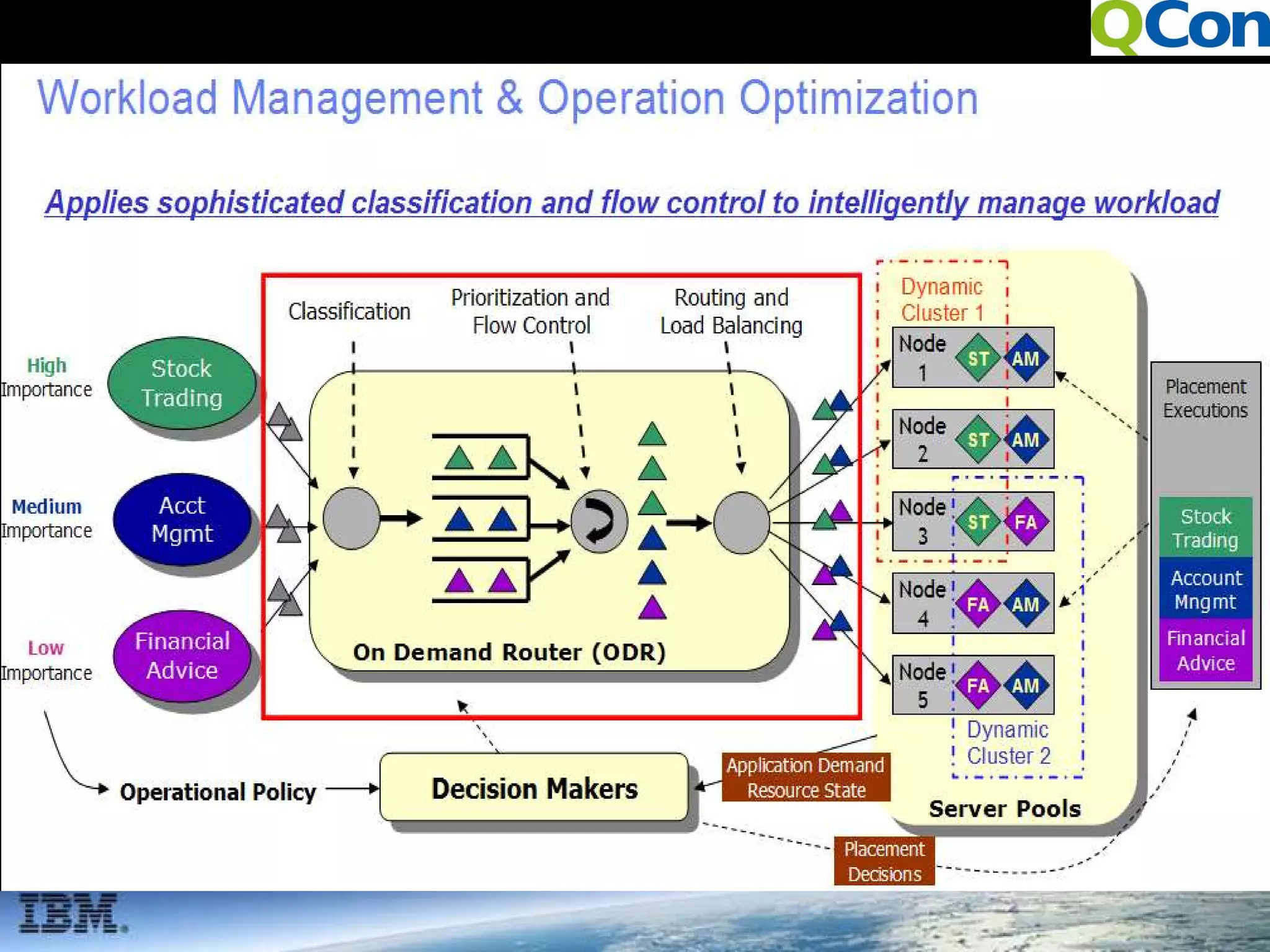

Server Consolidation
• Dynamic workload adjustment
Service Level Management
• Pooled resources
• Prioritized workloads using service policies
Application Edition Management
• Interruption-free deployment of new application versions
• Intelligent routing to application versions in production
Health Management
• Application performance monitoring
• Prevent outages by taking corrective action for common
server health problems Application Information
Applications Resources Resources

13. 通过 SOA 支持业务敏捷性

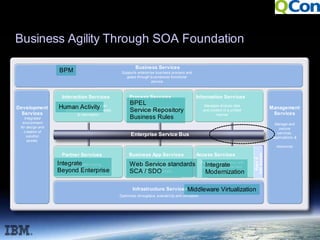

14. Business Agility Through SOA Foundation
Business Services
BPM Supports enterprise business process and
goals through businesses functional
service
Interaction Services Process Services Information Services
BPEL
Development Human Activity
Enables collaboration
Orchestrate and automate
Manages diverse data
Management
Services
between people, processes Service Repository
business processes
and content in a unified
Services
& information manner
Integrated Business Rules
environment Manage and
for design and secure
creation of services,
solution Enterprise Service Bus applications &
assets
resources
Partner Services Business App Services Access Services
Info Assets
Apps &
Integrate with trading
Connect
Build on a robust,
Web Service standards
scaleable, and secure
Facilitate interactions with
Integrate
existing information and
Beyondpartners
Enterprise SCA / SDO
services environment Modernization
application assets
Infrastructure ServicesMiddleware Virtualization
Optimizes throughput, availability and utilization

15. SOA Foundation：Runtime, Tools and Methodology
Rational Application Developer (RAD) WebSphere Enterprise Service Bus (WESB)
WebSphere Integration Developer (WID) WebSphere Message Broker
Rational Testing Suite DataPower XS40
WebSphere Adapters
ITCAM for SOA
ITCAM for WebSphere
Tivoli Access Manager (TAM)
Tivoli Federated Identity Manager (TFIM)
OMEGAMON
WebSphere Business Modeler
Rational Software Architect (RSA)
WebSphere Service Registry and Repository (WSRR)
Rational RequisitePro Rational Asset Manager (RAM)
WebSphere Studio Asset Analyzer (WSAA) RUP for SOA (inside Rational Method Composer)
Industry Models: eTOM, IAA, IFW SIMM**
SOMA-ME*** CBM**
SOMA**
WHITE = IBM Products GS Method**
** Yellow = Methods used by Services
*** Red = Tools used by Services

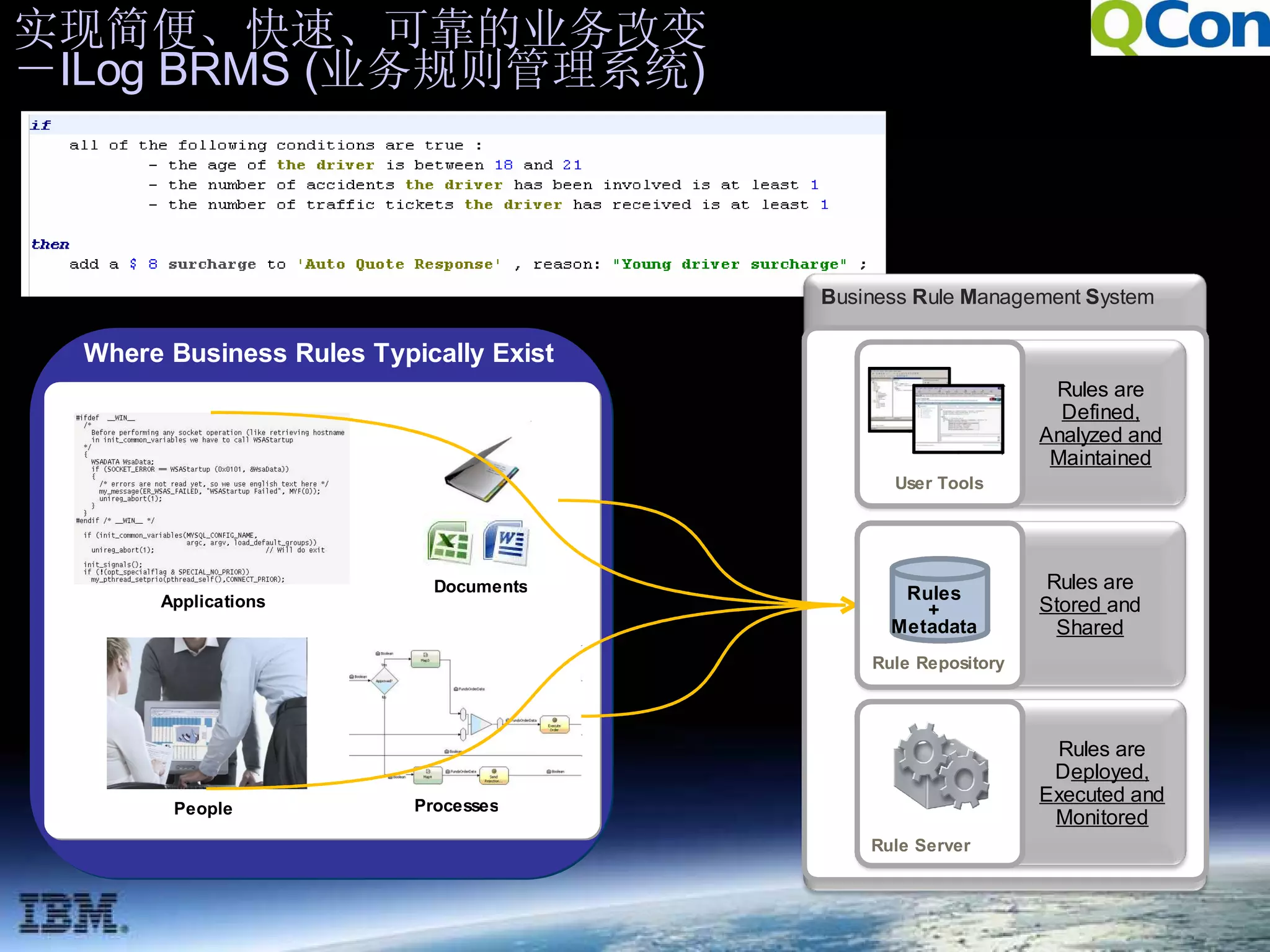

16. 实现简便、快速、可靠的业务改变
－ILog BRMS (业务规则管理系统)
Business Rule Management System
Where Business Rules Typically Exist
Rules are
Defined,
Analyzed and
Maintained
User Tools
Documents Rules are
Applications Rules
+ Stored and
Metadata Shared
Rule Repository
Rules are
Deployed,
Processes
Executed and
People
Monitored
Rule Server

17. North AP Business Partner Technical Strategy and Enablement

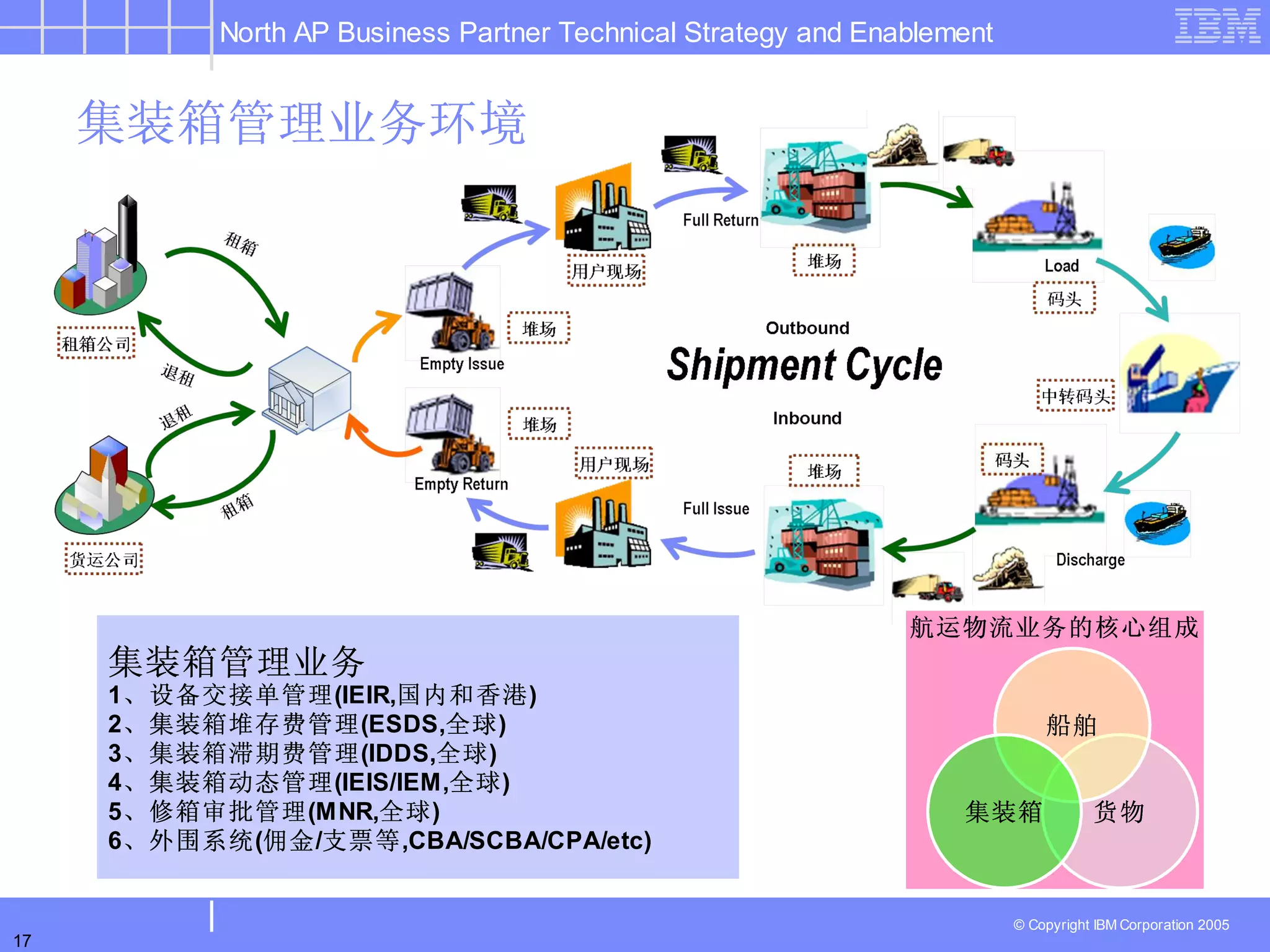

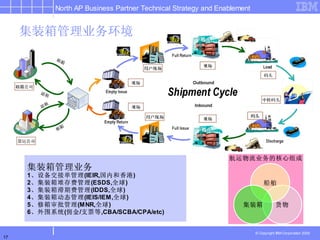

集装 箱管 理业 务环境
航运物流业务的核心组成
集装箱管理业务
1、 设 备 交 接 单 管 理 (IEIR,国 内 和 香 港 )
、 国
2、 集 装 箱 堆 存 费 管 理 (ESDS,全 球 )
、 全 船舶
3、 集 装 箱 滞 期 费 管 理 (IDDS,全 球 )
、 全
4、 集 装 箱 动 态 管 理 (IEIS/IEM,全 球 )
、 全
5、 修 箱 审 批 管 理 (MNR,全 球 )
、 全 集装箱 货物
6、 外 围 系 统 (佣 金 /支 票 等 ,CBA/SCBA/CPA/etc)
、 佣 支
© Copyright IBM Corporation 2005
17

18. North AP Business Partner Technical Strategy and Enablement

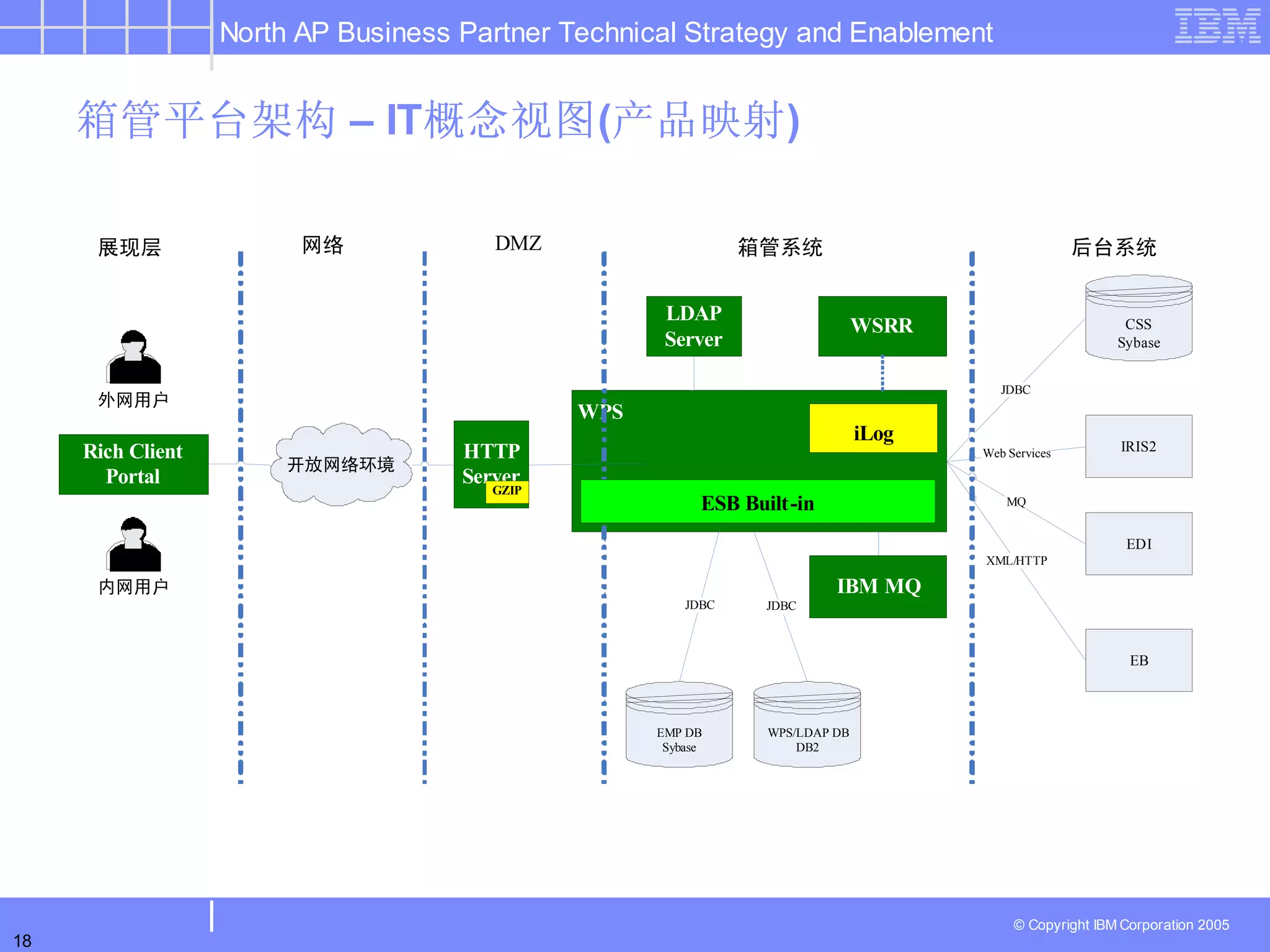

箱管平 台 架构 – IT概 念 视图 (产 品 映射)
概 产
展现层 网络 DMZ 箱管系统 后台系统
LDAP
WSRR CSS
Server Sybase
JDBC
外网用户
WPS
iLog
Rich Client HTTP Web Services IRIS2
开放网络环境
Portal Server
GZIP
ESB Built-in MQ
EDI
XML/HTTP
内网用户 IBM MQ
JDBC JDBC
EB
EMP DB WPS/LDAP DB
Sybase DB2
© Copyright IBM Corporation 2005
18

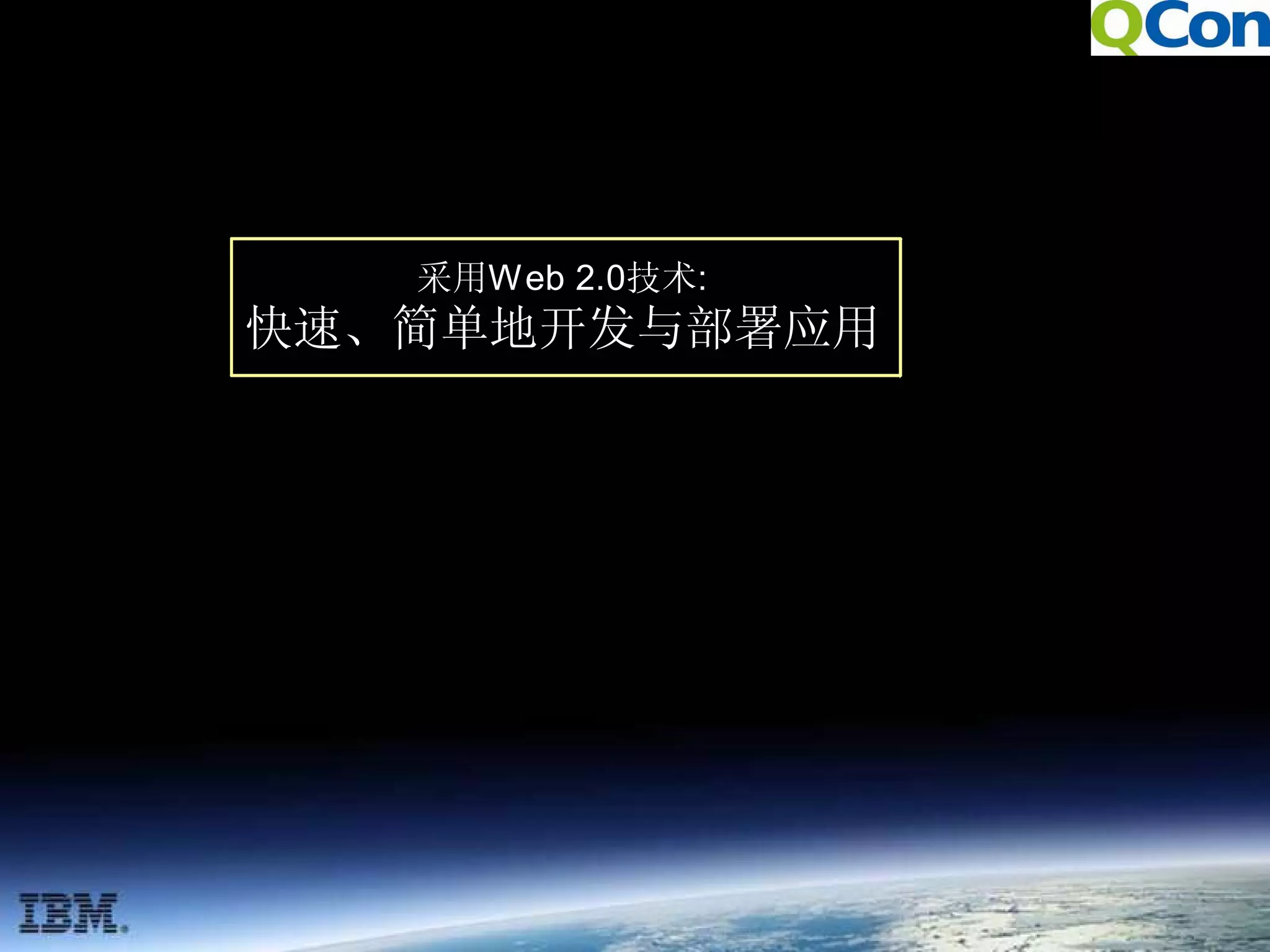

19. 采用W eb 2.0技术:
快速、简单地开发与部署应用

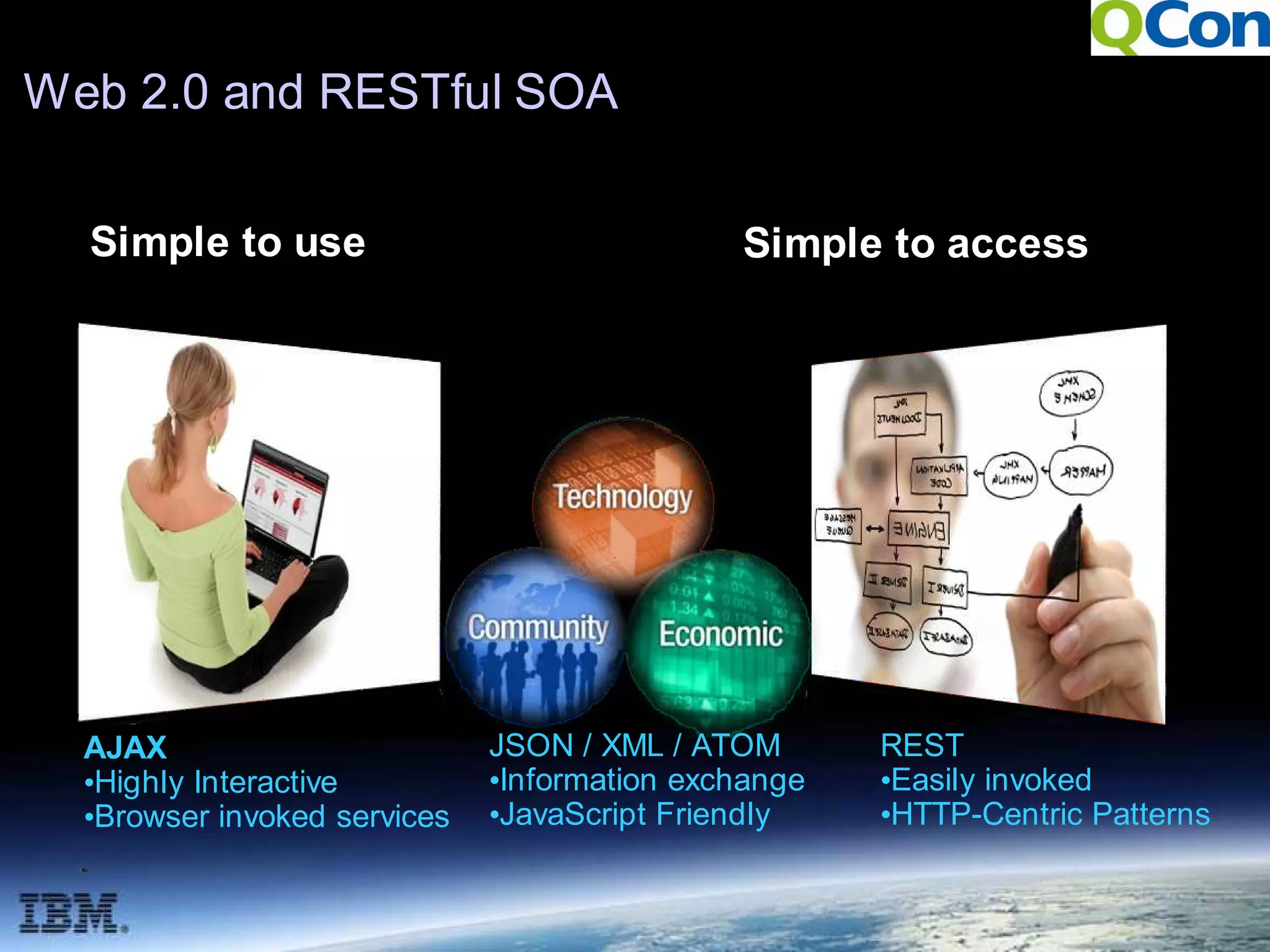

20. Web 2.0 and RESTful SOA
Simple to use Simple to access
AJAX JSON / XML / ATOM REST
•Highly Interactive •Information exchange •Easily invoked
•Browser invoked services •JavaScript Friendly •HTTP-Centric Patterns

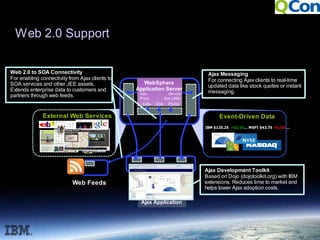

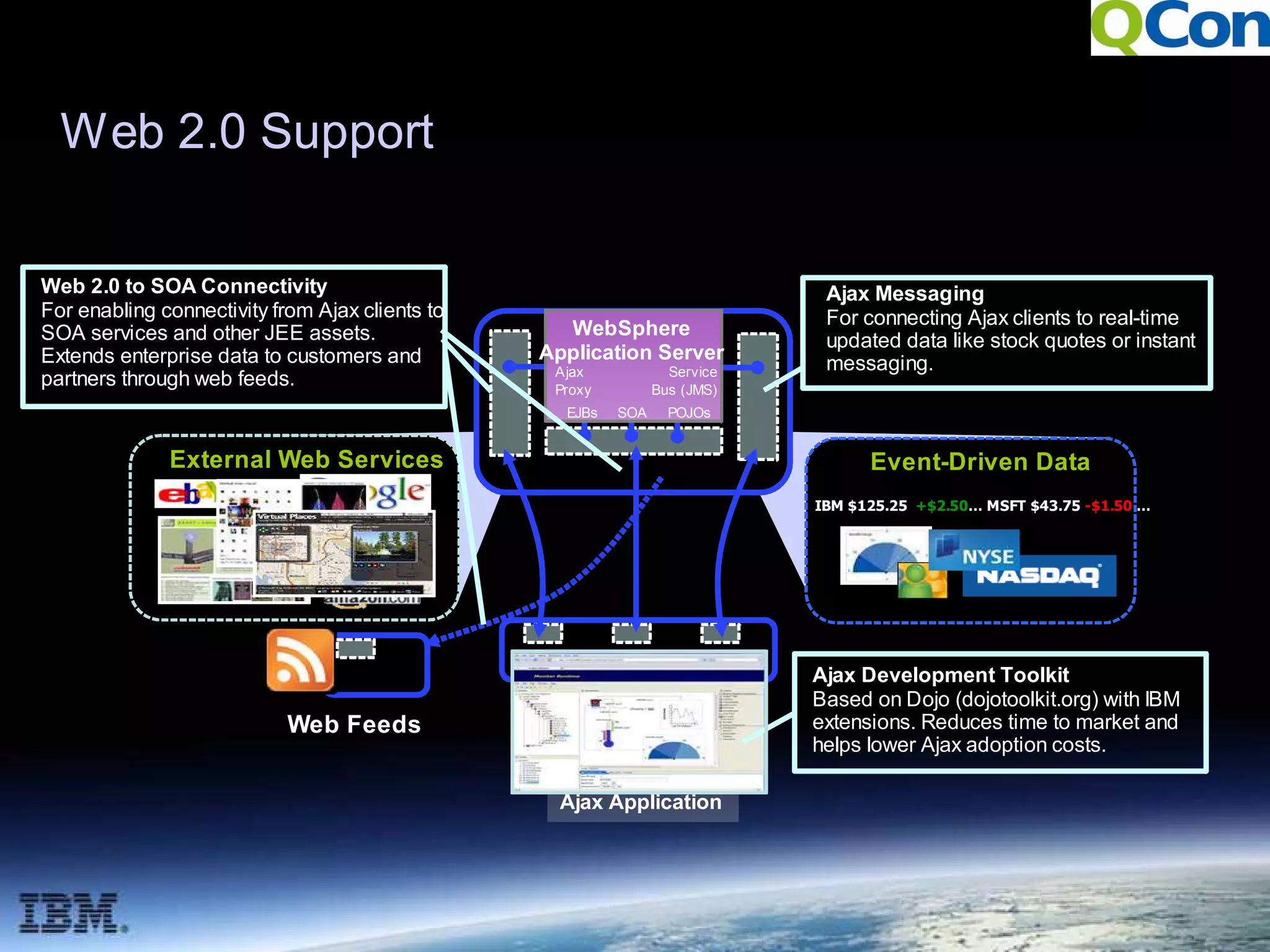

21. Web 2.0 Support
Web 2.0 to SOA Connectivity Ajax Messaging
For enabling connectivity from Ajax clients to For connecting Ajax clients to real-time
SOA services and other JEE assets. WebSphere
updated data like stock quotes or instant
Extends enterprise data to customers and Application Server
Ajax Service messaging.
partners through web feeds. Proxy Bus (JMS)
EJBs SOA POJOs
External Web Services Event-Driven Data
IBM $125.25 +$2.50… MSFT $43.75 -$1.50 …
Ajax Development Toolkit
Based on Dojo (dojotoolkit.org) with IBM
Web Feeds extensions. Reduces time to market and
helps lower Ajax adoption costs.
Ajax Application

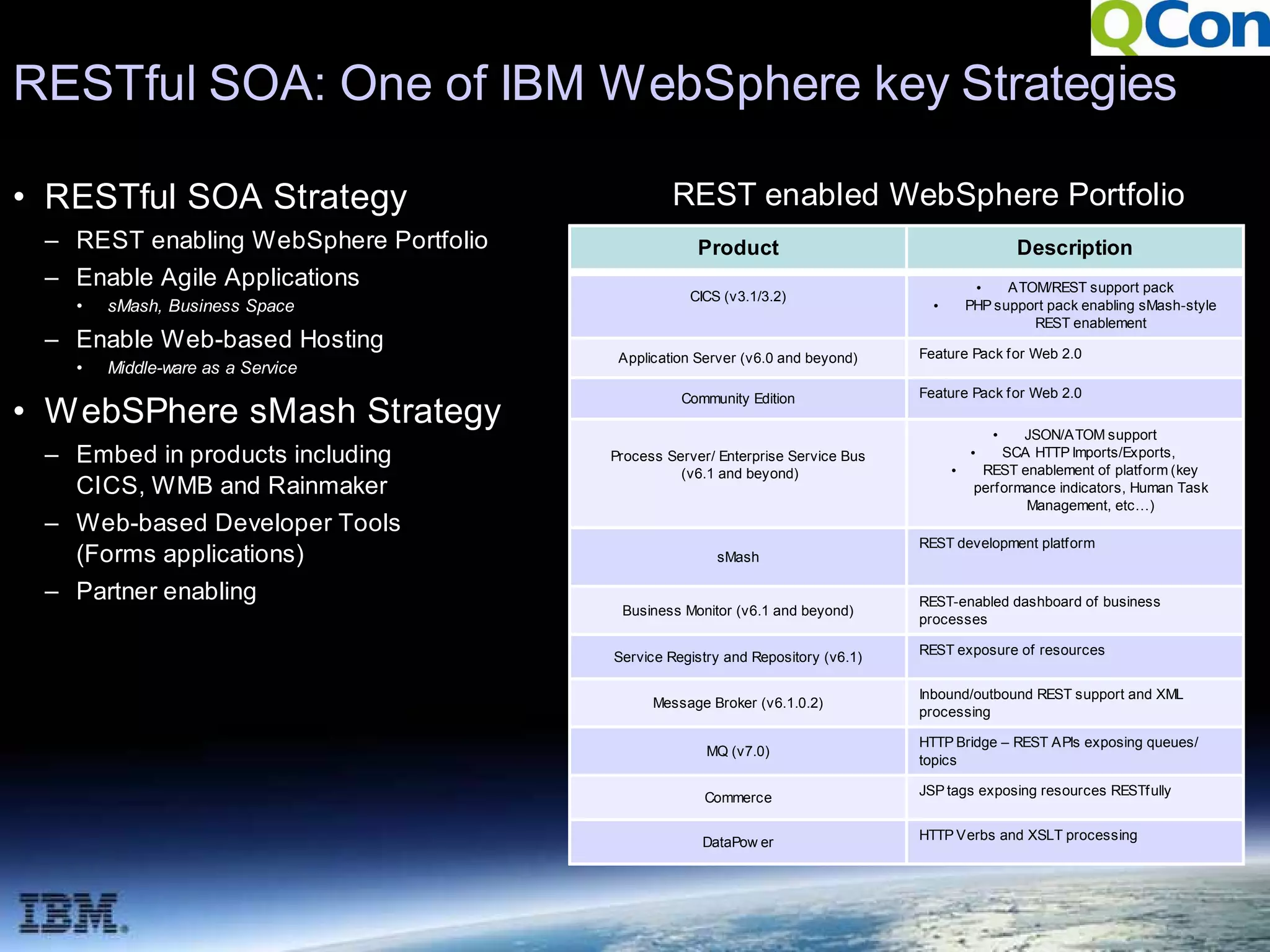

22. RESTful SOA: One of IBM WebSphere key Strategies
• RESTful SOA Strategy REST enabled WebSphere Portfolio
– REST enabling WebSphere Portfolio Product Description
– Enable Agile Applications • ATOM/REST support pack
CICS (v3.1/3.2)
• sMash, Business Space • PHP support pack enabling sMash-style
REST enablement
– Enable Web-based Hosting Feature Pack for Web 2.0
Application Server (v6.0 and beyond)
• Middle-ware as a Service
Community Edition Feature Pack for Web 2.0
• W ebSPhere sMash Strategy • JSON/ATOM support
– Embed in products including Process Server/ Enterprise Service Bus • SCA HTTP Imports/Exports,
(v6.1 and beyond) • REST enablement of platform (key
CICS, WMB and Rainmaker performance indicators, Human Task
Management, etc…)
– Web-based Developer Tools
REST development platform
(Forms applications) sMash
– Partner enabling REST-enabled dashboard of business
Business Monitor (v6.1 and beyond)
processes
Service Registry and Repository (v6.1) REST exposure of resources
Inbound/outbound REST support and XML
Message Broker (v6.1.0.2)
processing
HTTP Bridge – REST APIs exposing queues/
MQ (v7.0)
topics
Commerce JSP tags exposing resources RESTf ully
DataPow er HTTP Verbs and XSLT processing

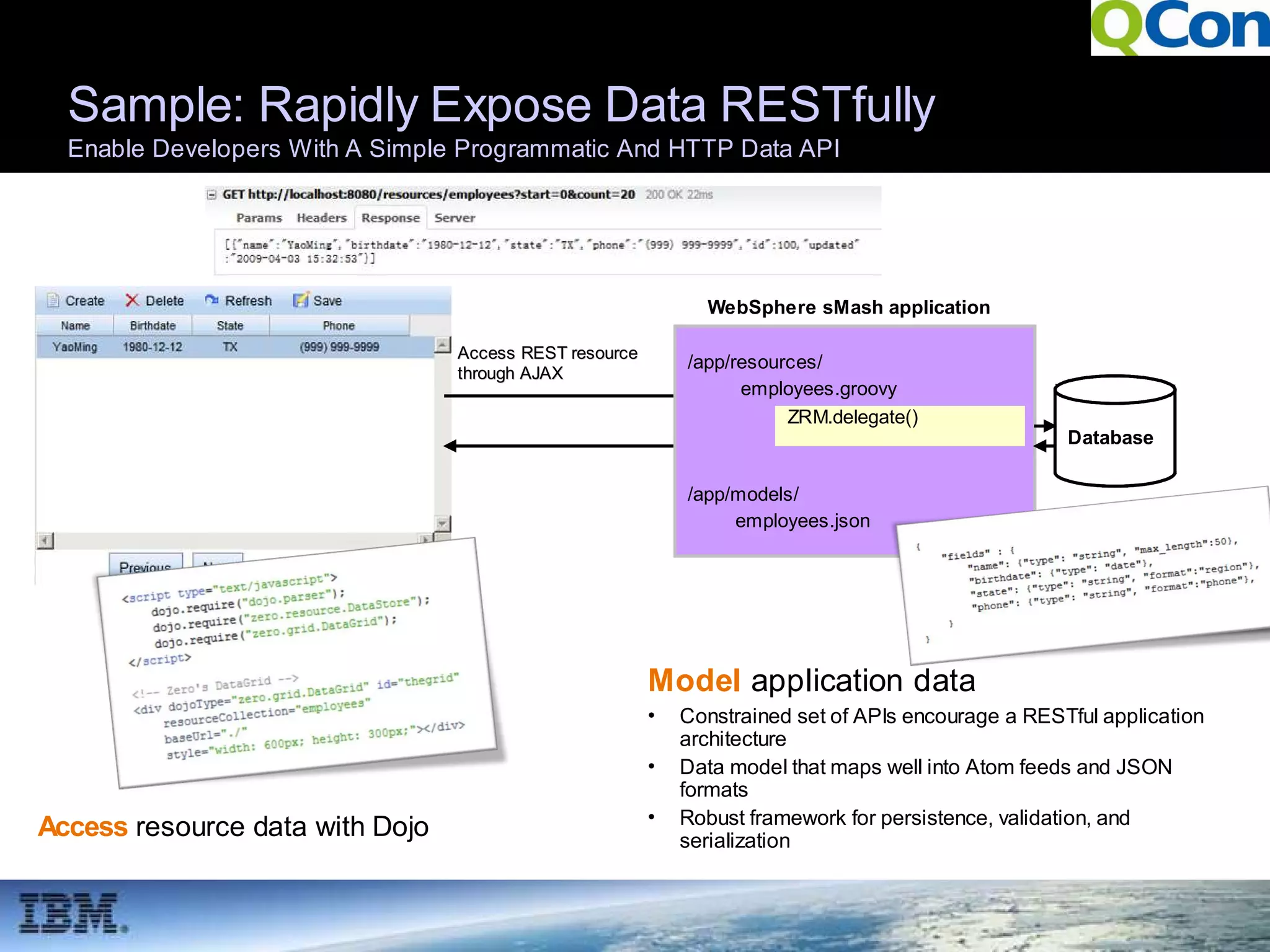

23. Sample: Rapidly Expose Data RESTfully
Enable Developers With A Simple Programmatic And HTTP Data API
WebSphere sMash application
Access REST resource
/app/resources/
through AJAX
employees.groovy
ZRM.delegate()
Database
/app/models/
employees.json
Model application data
• Constrained set of APIs encourage a RESTful application
architecture
• Data model that maps well into Atom feeds and JSON
formats
• Robust framework for persistence, validation, and
Access resource data with Dojo serialization

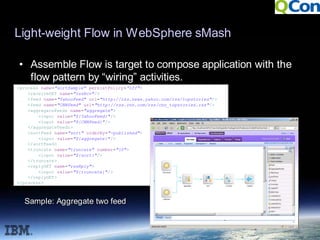

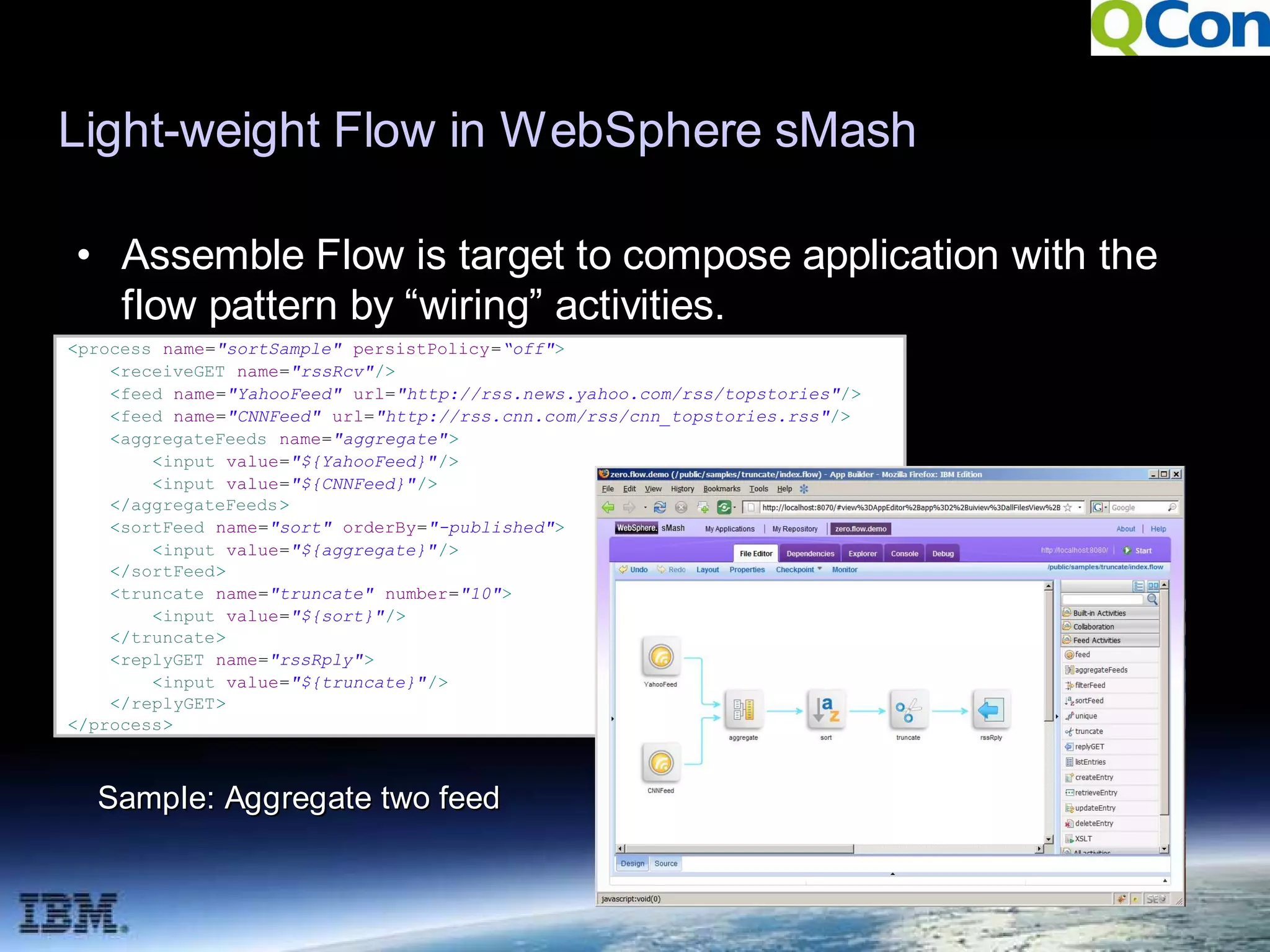

24. Light-weight Flow in WebSphere sMash
• Assemble Flow is target to compose application with the
flow pattern by “wiring” activities.
<process name="sortSample" persistPolicy=“off">
• <receiveGET name="rssRcv"/> model and engine
Light-weight flow
<feed name="YahooFeed" url="http://rss.news.yahoo.com/rss/topstories"/>
<feed name="CNNFeed" url="http://rss.cnn.com/rss/cnn_topstories.rss"/>
<aggregateFeeds name="aggregate">
<input value="${YahooFeed}"/>
<input value="${CNNFeed}"/>
</aggregateFeeds>
<sortFeed name="sort" orderBy="-published">
<input value="${aggregate}"/>
</sortFeed>
<truncate name="truncate" number="10">
<input value="${sort}"/>
</truncate>
<replyGET name="rssRply">
<input value="${truncate}"/>
</replyGET>
</process>
Sample: Aggregate two feed

25. 挑战：降低IT成本、变化的工作负载、高可
用、高扩展能力、高性能
虚拟化与自动化
企业的云计算

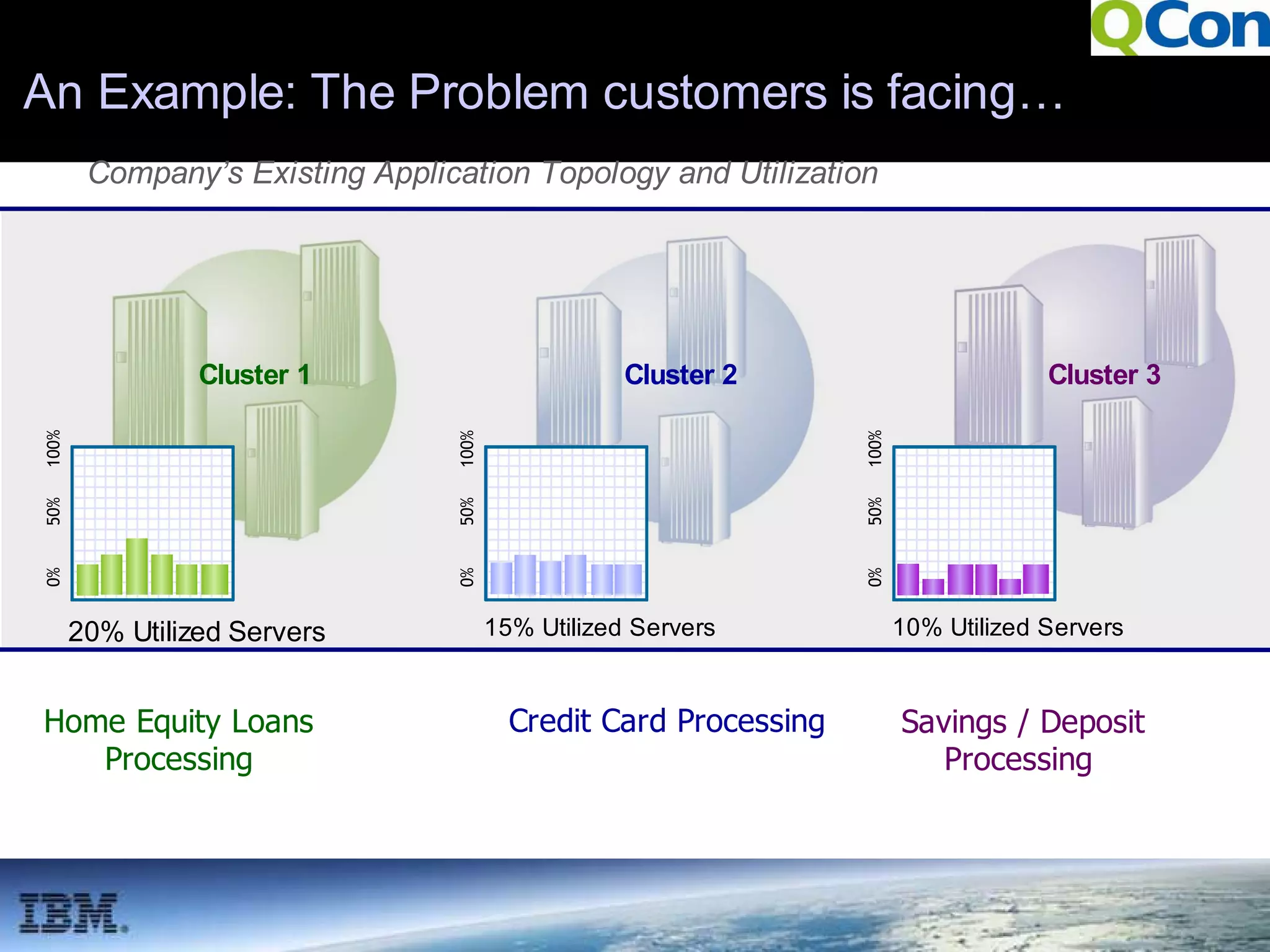

26. An Example: The Problem customers is facing…
Company’s Existing Application Topology and Utilization
Cluster 1 Cluster 2 Cluster 3
100%
100%
100%
50%
50%
50%
0%
0%
0%
20% Utilized Servers 15% Utilized Servers 10% Utilized Servers
Home Equity Loans Credit Card Processing Savings / Deposit
Processing Processing

27. An Example: The Problem customers is facing…
Change: New promotion results in a huge increase in loan requests…
Cluster 1 Cluster 2 Cluster 3
100%
100%
100%
50%
50%
50%
0%
0%
0%
55%
75% Utilized Servers
20%
Promotion results in 100% 15% Utilized Servers 10% Utilized Servers
Utilized Servers
Equity Loans Processing Credit Card Processing Savings / Deposit
Processing
Loan Processing Time: 15% over target
Customer Complaints: 25% over target
CSR Efficiency: 30% below target
Animated

28. An Example: The Problem customers is facing…
Realizes that the home loan processing application has high priority…
Cluster 1 Cluster 2 Cluster 3
100%
100%
100%
50%
50%
50%
0%
0%
0%
Promotion results in 100%
55% Utilized Servers
20%
75% 15% Utilized Servers
50% 40% Utilized Servers
10%
Utilized Servers
Equity Loans Processing Credit Card Processing Savings / Deposit
Processing
Animated

29. Resource Virtualization & Optimization
Maximizes utilization and improves responsiveness!
Cluster 1 Cluster 2 Cluster 3
One Resource Pool
100%
50%
0%
55%* Utilized Servers
Claims Processing Gold Account Management Silver Billing Application Bronze
Customer Support Gold Underwriting Silver
* Hypothetical, for illustrative purposes only

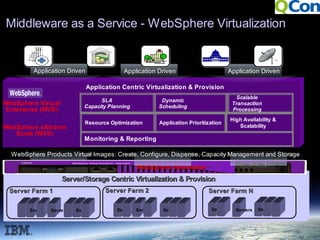

30. Middleware as a Service - WebSphere Virtualization
Application Driven Application Driven Application Driven
Application Centric Virtualization & Provision
Scalable
SLA Dynamic
WebSphere Virtual Capacity Planning Scheduling
Transaction
Enterprise (WVE) Processing
High Availability &
Resource Optimization Application Prioritization
WebSphere eXtreme Scalability
Scale (WXS)
Monitoring & Reporting
WebSphere Products Virtual Images: Create, Configure, Dispense, Capacity Management and Storage
WebSphere Rainmaker
Server/Storage Centric Virtualization & Provision
Server Farm 1 Server Farm 2 Server Farm N
Servers Servers Servers Servers Servers Servers Servers Servers Servers

31. WebSphere Virtual Enterprise 应用案例 - OsakaGas
S e c u ri y S y ste m fo r O G & O G G ro u p
t ste W E B S e rve rs W e b A ppli ati n S e rve rs
c o
ppli ati
Solution: D atabase N ode #1
1. Add WVE between Web
O G -TAM
for I -C ard
C
W A S Servers
W AS 4 C l
uster
Server and WAS D atabase Server #1
2. Health Control
Results: JVM
JV M
U sers w i I -C ard
th C
Pain Points:
O G -TAM
JV M
3. Operational Reporting
•200 Enterprise Apps well controlled in
•Many Apps in a few JVMs
D atabase Server #2
Shared Common APervers
•Runtime Visualization W eb S
Servers P ortalServers
（ A S5）
W
for O G /O G G
G eneralU sers
•Autonomic Control visualize/understand each
•Cannot
Shared A P Servers
•No Change Apps behavior
to Existing Systems
S e c u ri y S ys te m fo r S e rv i e C h ai
t yst c n
W AS6 C luster C TG
JV MM JV M M
JV JVM ・・
・ A P -1 D B Server
JVM JV
•Higher Availability Achieved SC -TA M W eb
•Not all Apps are well-behaved
Servers
for S C
Stagi A P Servers
ng D atabase N ode #2
W AS6 C l
uster
C TG
In te rn e t U s e rs
JV MJVM JV MJV M
JV M JVM ・・
・
W eb
Servers
for Internet
A P -1 Server
JV M M ai
nfram e

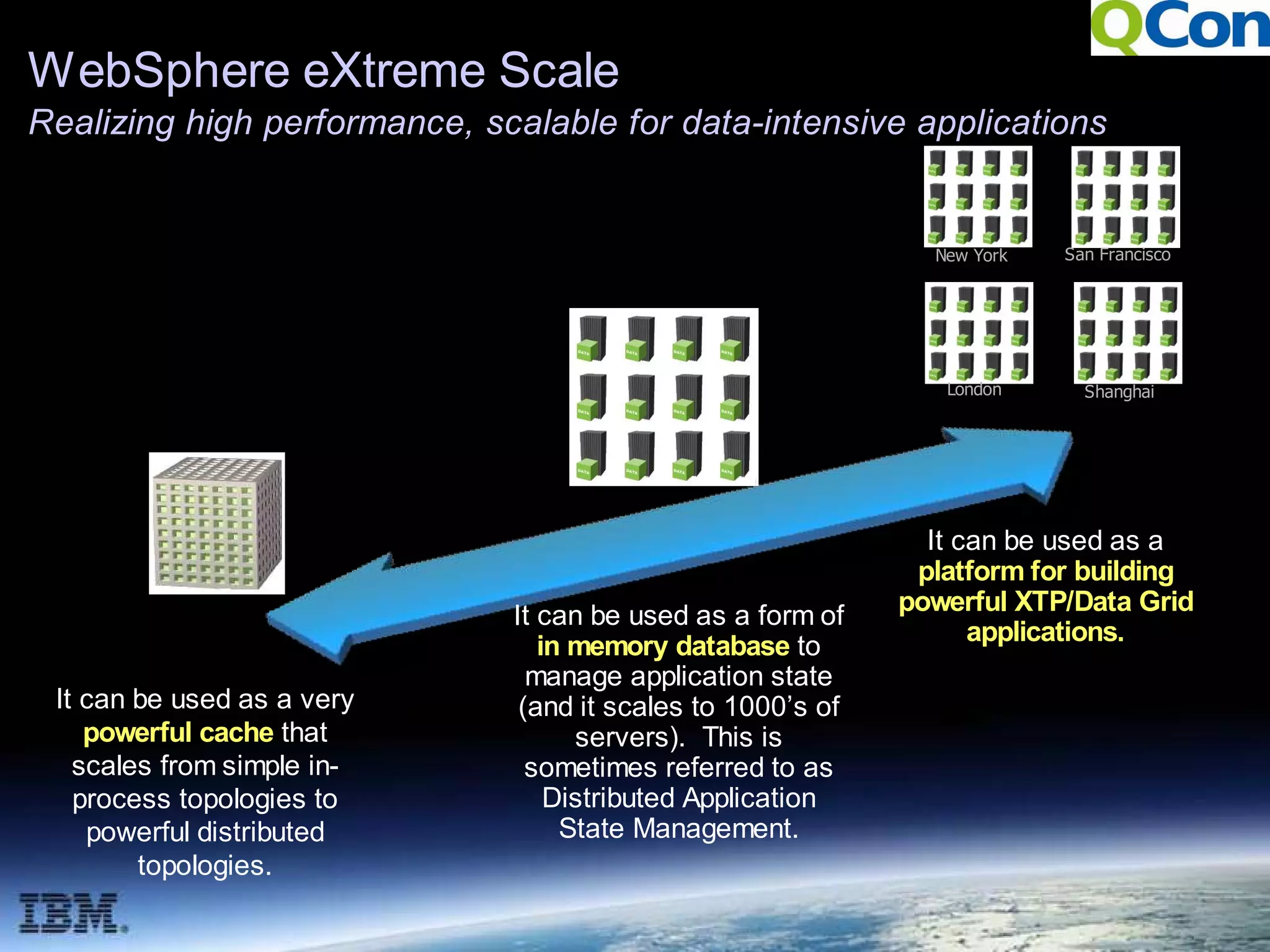

32. WebSphere eXtreme Scale
Realizing high performance, scalable for data-intensive applications
New York San Francisco
London Shanghai
It can be used as a
platform for building
It can be used as a form of powerful XTP/Data Grid
applications.
in memory database to
manage application state
It can be used as a very (and it scales to 1000’s of
powerful cache that servers). This is
scales from simple in- sometimes referred to as
process topologies to Distributed Application
powerful distributed State Management.
topologies.

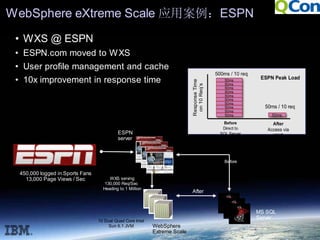

33. WebSphere eXtreme Scale 应用案例：ESPN
• WXS @ ESPN
• ESPN.com moved to W XS
• User profile management and cache
• 10x improvement in response time
ESPN
server
Before
450,000 logged in Sports Fans
13,000 Page Views / Sec WXS serving
130,000 Req/Sec
Heading to 1 Million
After
MS SQL
Server
10 Dual Quad Core Intel
Sun 6.1 JVM WebSphere
Extreme Scale

34. The Next
An engine with overall and major tune-up
• Utilizing OSGi technologies, build compose-able
Application Server
• Purpose-built servers (e.g. Web)
• Yielding: Right sized; memory, footprint, admin,
maintenance

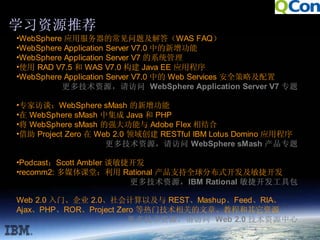

35. 学习资源推荐
•WebSphere 应用服务器的常见问题及解答（WAS FAQ）
•WebSphere Application Server V7.0 中的新增功能
•WebSphere Application Server V7 的系统管理
•使用 RAD V7.5 和 WAS V7.0 构建 Java EE 应用程序
•WebSphere Application Server V7.0 中的 Web Services 安全策略及配置
更 多 技 术 资 源 ， 请 访 问 WebSphere Application Server V7 专 题
•专家访谈：WebSphere sMash 的新增功能
•在 WebSphere sMash 中集成 Java 和 PHP
•将 WebSphere sMash 的强大功能与 Adobe Flex 相结合
•借助 Project Zero 在 Web 2.0 领域创建 RESTful IBM Lotus Domino 应用程序
更 多 技 术 资 源 ， 请 访 问 WebSphere sMash 产 品 专 题
•Podcast：Scott Ambler 谈敏捷开发
•recomm2: 多媒体课堂：利用 Rational 产品支持全球分布式开发及敏捷开发
更 多 技 术 资 源 ， IBM Rational 敏 捷 开 发 工 具 包
Web 2.0 入门、企业 2.0、社会计算以及与 REST、Mashup、Feed、RIA、
Ajax、PHP、ROR、Project Zero 等热门技术相关的文章、教程和其它资源
更 多 技 术 资 源 ， 请 访 问 Web 2.0 技 术 资 源 中 心

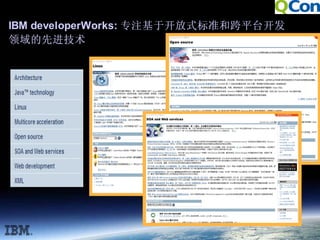

36. IBM developerWorks: 专注基 于开放 式标 准和跨 平台开 发
领域的先进技术
