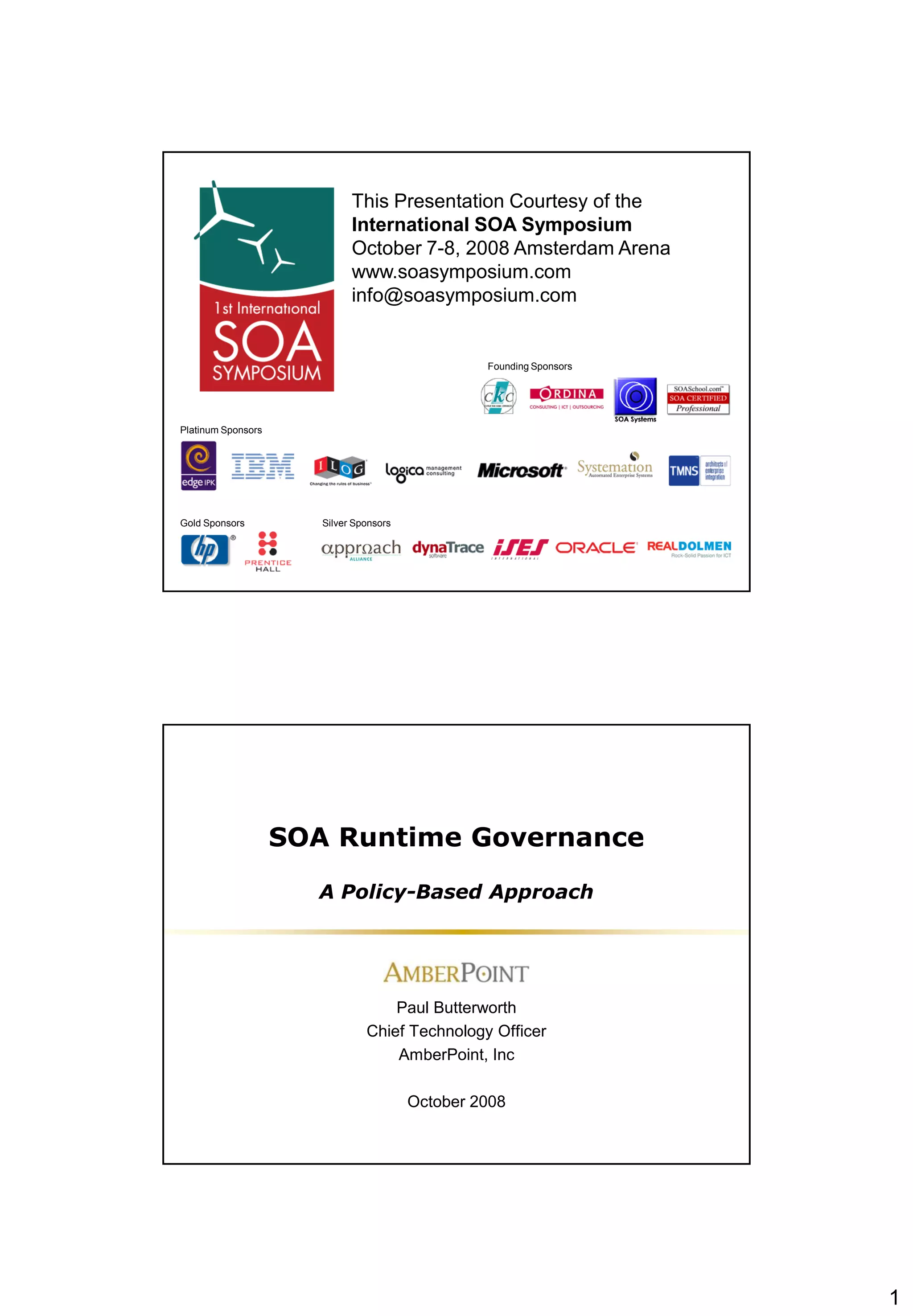

1. This Presentation Courtesy of the
International SOA Symposium
October 7-8, 2008 Amsterdam Arena
www.soasymposium.com
info@soasymposium.com
Founding Sponsors
Platinum Sponsors
Gold Sponsors Silver Sponsors
SOA Runtime Governance
A Policy-Based Approach
Paul Butterworth
Chief Technology Officer
AmberPoint, Inc
October 2008
1

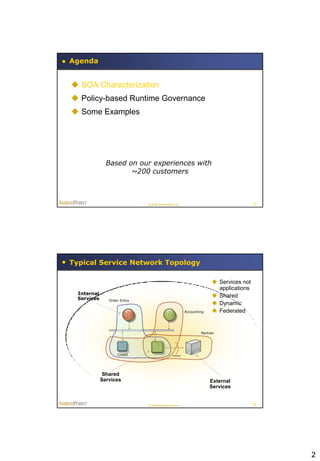

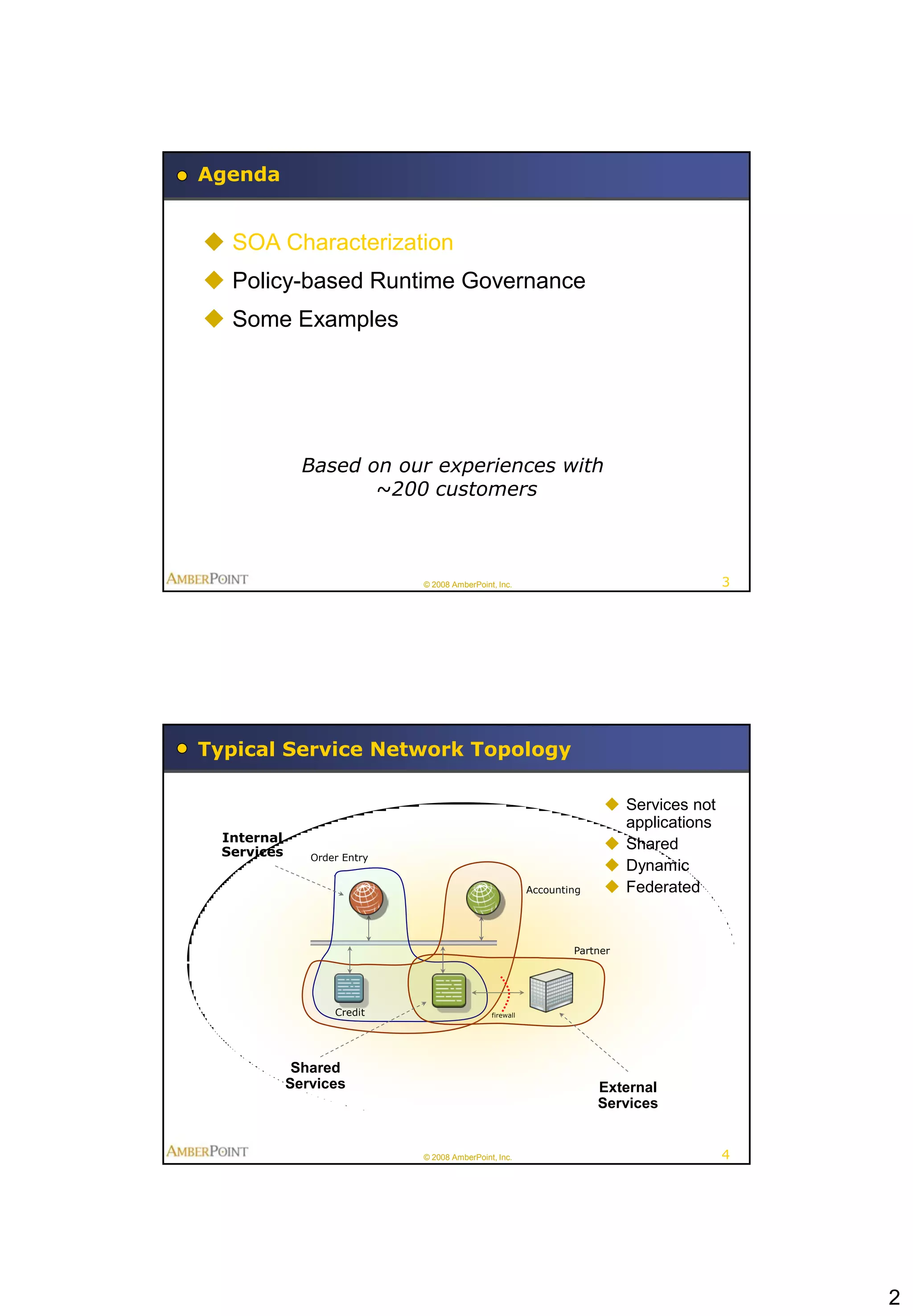

2. Agenda
 SOA Characterization
 Policy-based Runtime Governance
 Some Examples
Based on our experiences with
~200 customers
© 2008 AmberPoint, Inc. 3
Typical Service Network Topology
 Services not
applications
Internal
Services
 Shared
Order Entry
 Dynamic
Accounting  Federated
Partner
Credit firewall
Shared
Services External
Services
© 2008 AmberPoint, Inc. 4
2

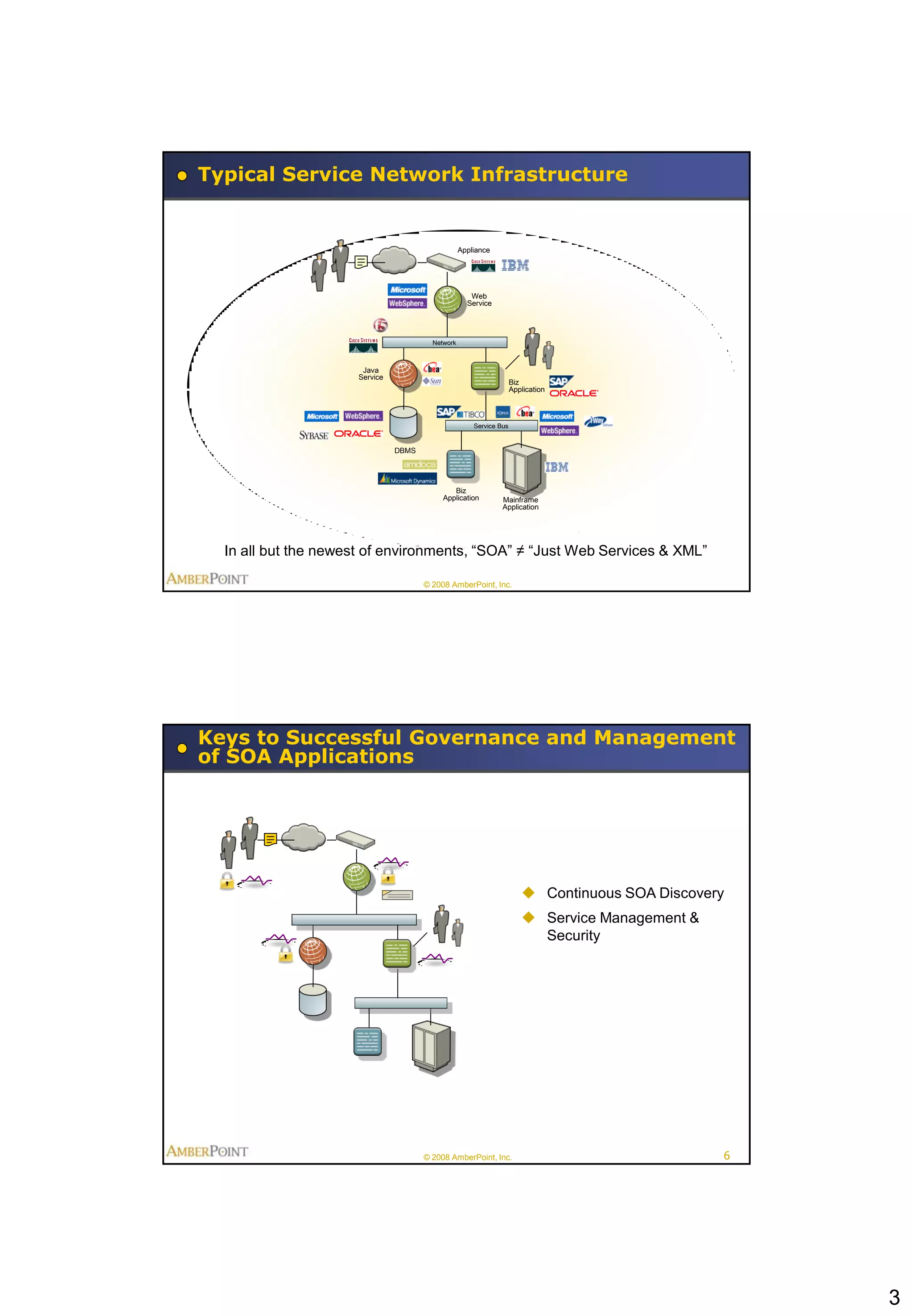

3. Typical Service Network Infrastructure
Appliance
Web
Service
Network
Java
Service
Biz
Application
Service Bus
DBMS
Biz
Application Mainframe
Application
In all but the newest of environments, “SOA” ≠ “Just Web Services & XML”
© 2008 AmberPoint, Inc.
Keys to Successful Governance and Management
of SOA Applications
 Continuous SOA Discovery
 Service Management &
Security
© 2008 AmberPoint, Inc. 6
3

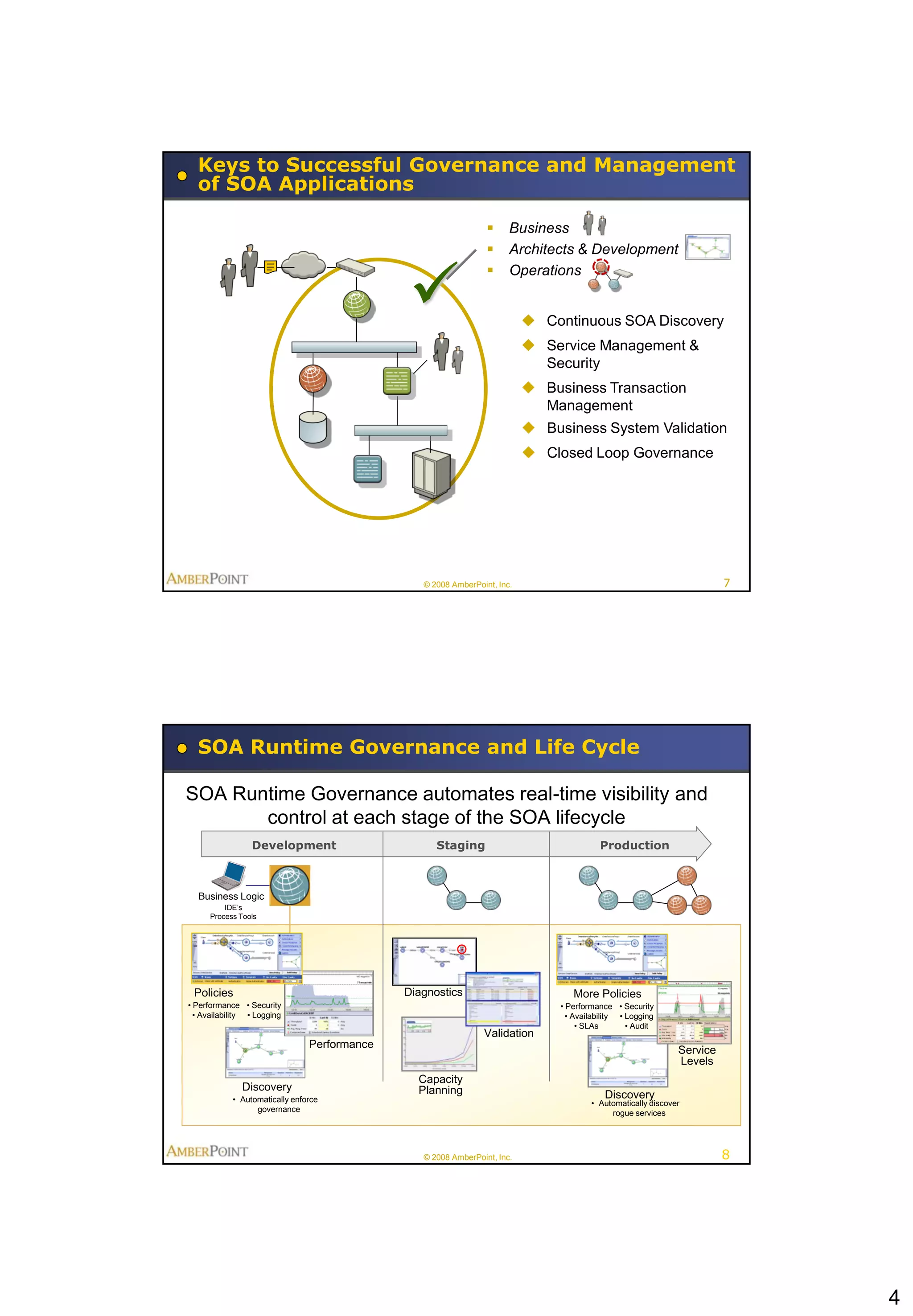

4. Keys to Successful Governance and Management
of SOA Applications
 Business
 Architects & Development

 Operations
 Continuous SOA Discovery
 Service Management &
Security
 Business Transaction
Management
 Business System Validation
 Closed Loop Governance
© 2008 AmberPoint, Inc. 7
SOA Runtime Governance and Life Cycle
SOA Runtime Governance automates real-time visibility and
control at each stage of the SOA lifecycle
Development Staging Production
Business Logic
IDE’s
Process Tools
Policies Diagnostics More Policies
• Performance • Security • Performance • Security
• Availability • Logging • Availability • Logging
• SLAs • Audit
Validation
Performance
Service
Levels
Capacity
Discovery Planning
• Automatically enforce Discovery
• Automatically discover
governance rogue services
© 2008 AmberPoint, Inc. 8
4

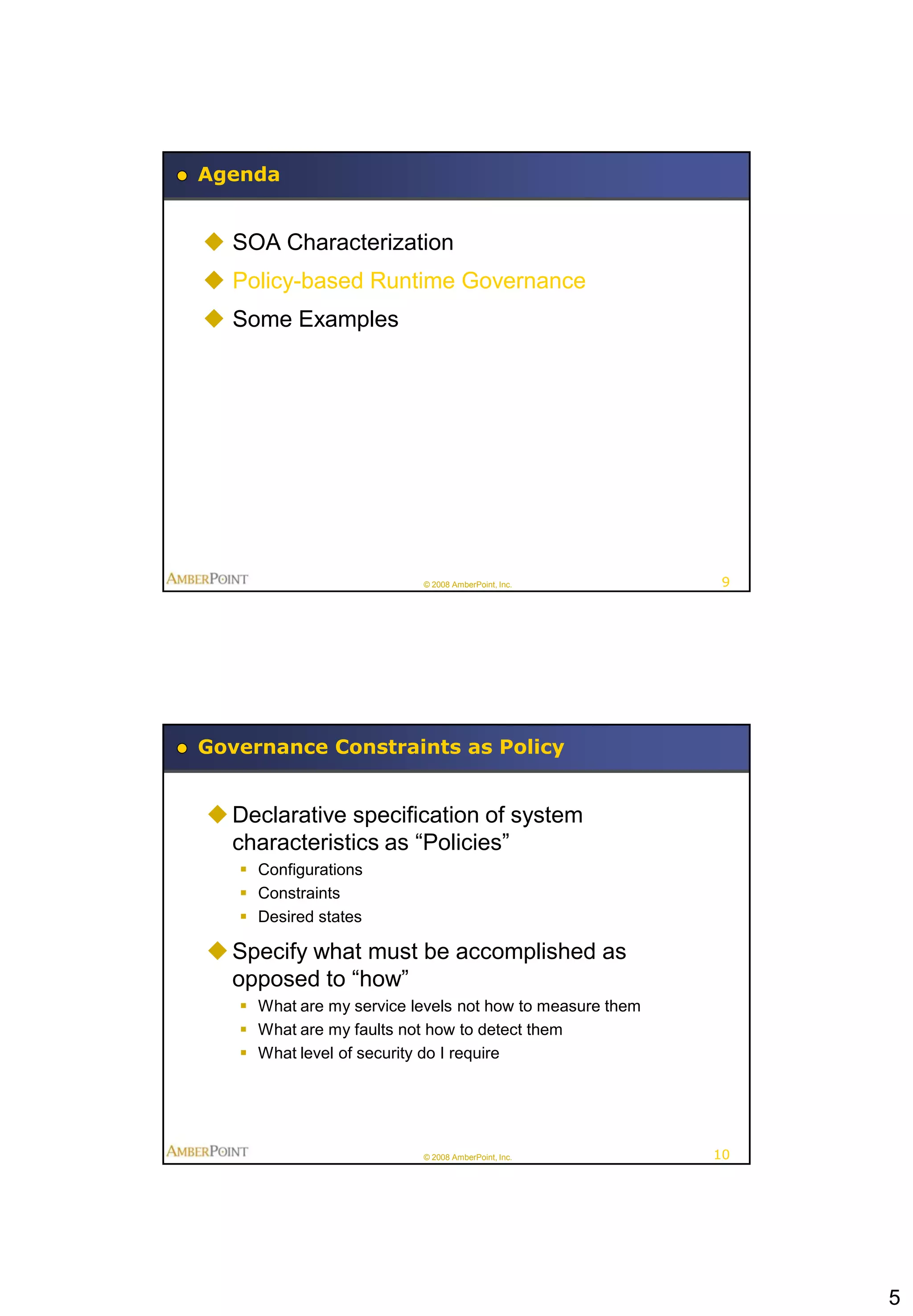

5. Agenda
 SOA Characterization
 Policy-based Runtime Governance
 Some Examples
© 2008 AmberPoint, Inc. 9
Governance Constraints as Policy
 Declarative specification of system
characteristics as “Policies”
 Configurations
 Constraints
 Desired states
 Specify what must be accomplished as
opposed to “how”
 What are my service levels not how to measure them
 What are my faults not how to detect them
 What level of security do I require
© 2008 AmberPoint, Inc. 10
5

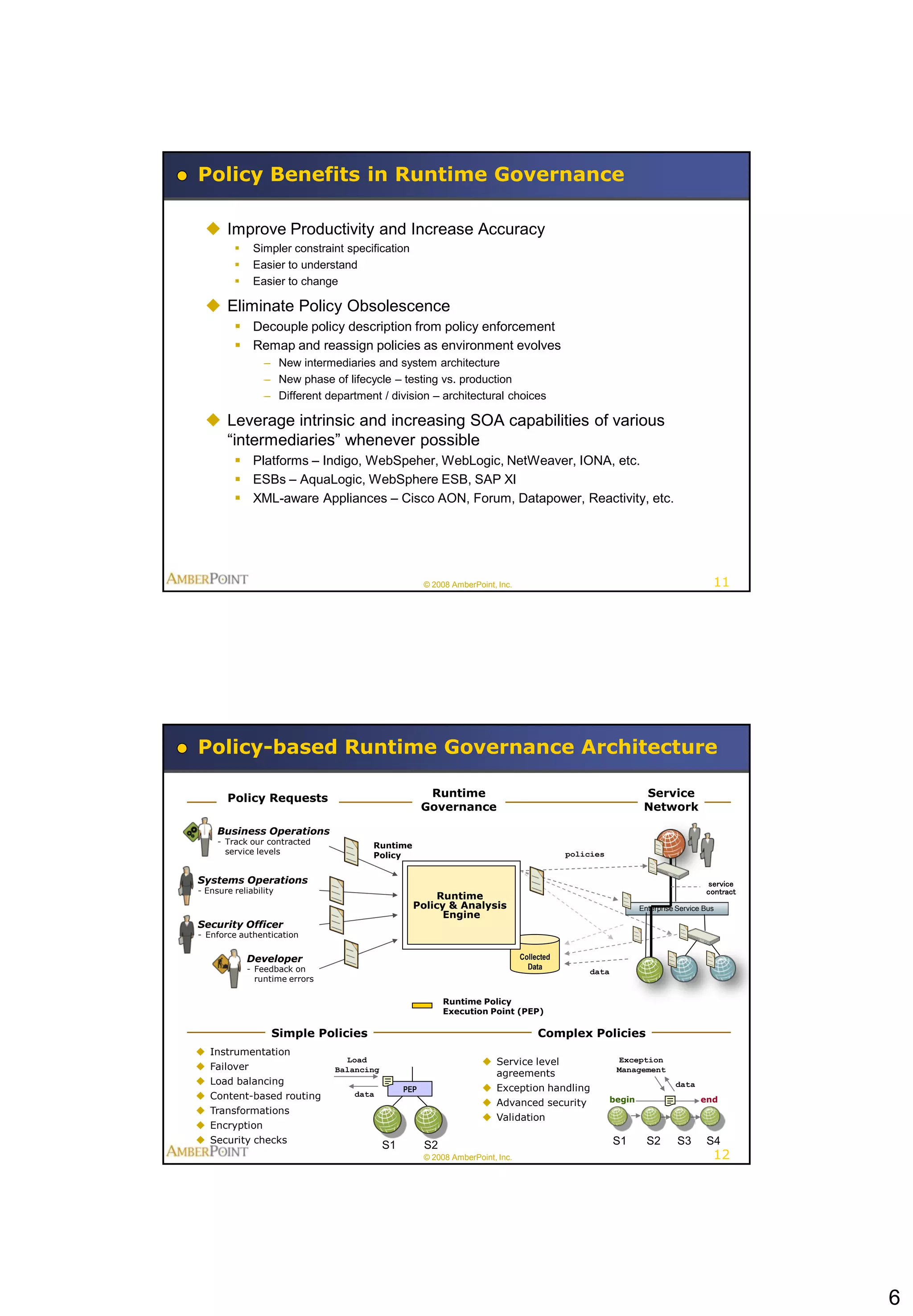

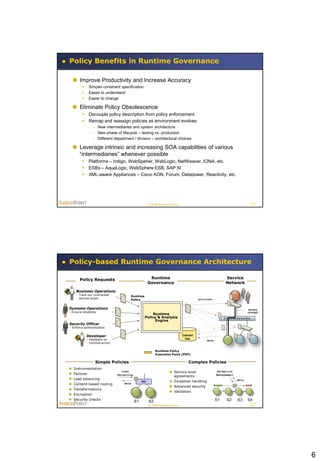

6. Policy Benefits in Runtime Governance
 Improve Productivity and Increase Accuracy
 Simpler constraint specification
 Easier to understand
 Easier to change
 Eliminate Policy Obsolescence
 Decouple policy description from policy enforcement
 Remap and reassign policies as environment evolves
– New intermediaries and system architecture
– New phase of lifecycle – testing vs. production
– Different department / division – architectural choices
 Leverage intrinsic and increasing SOA capabilities of various
“intermediaries” whenever possible
 Platforms – Indigo, WebSpeher, WebLogic, NetWeaver, IONA, etc.
 ESBs – AquaLogic, WebSphere ESB, SAP XI
 XML-aware Appliances – Cisco AON, Forum, Datapower, Reactivity, etc.
© 2008 AmberPoint, Inc. 11
Policy-based Runtime Governance Architecture
Policy Requests Runtime Service
Governance Network
Business Operations
- Track our contracted Runtime
service levels Policy policies
Systems Operations service
- Ensure reliability contract
Runtime
Policy & Analysis Enterprise Service Bus
Engine
Security Officer
- Enforce authentication
Developer Collected
- Feedback on Data
data
runtime errors
Runtime Policy
Execution Point (PEP)
Simple Policies Complex Policies
 Instrumentation
Load  Service level Exception
 Failover Balancing Management
agreements
 Load balancing data
PEP  Exception handling
 Content-based routing data
begin end
 Advanced security
 Transformations
 Validation
 Encryption
 Security checks S1 S2 S3 S4
S1 S2
© 2008 AmberPoint, Inc. 12
6

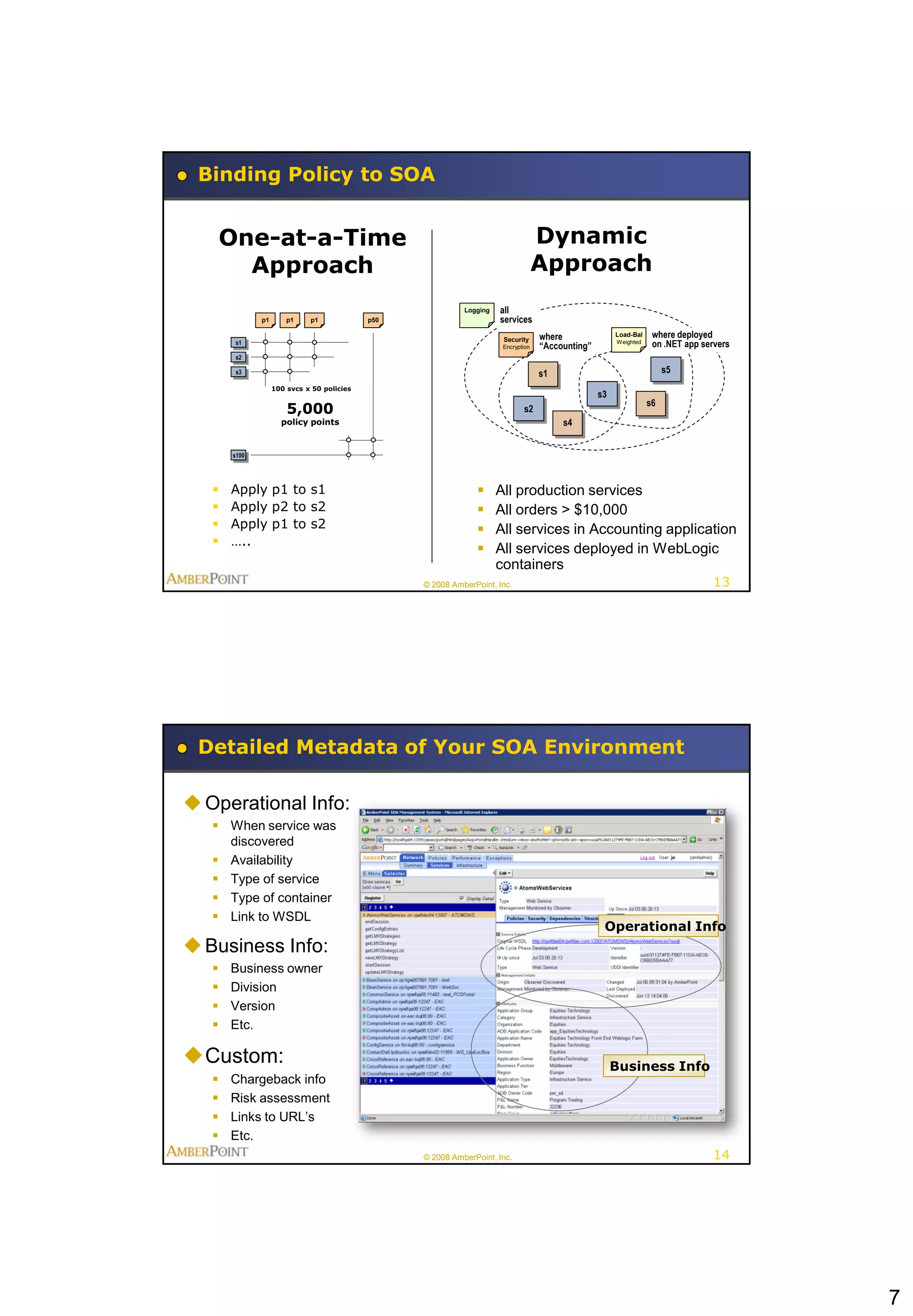

7. Binding Policy to SOA
One-at-a-Time Dynamic
Approach Approach
Logging all
p1 p1 p1 p50 services
Security where Load-Bal where deployed
s1
Encryption “Accounting”
Weighted
on .NET app servers
s2
s3 s1 s5
100 svcs x 50 policies
s3
s6
5,000 s2
policy points s4
s100
 Apply p1 to s1  All production services
 Apply p2 to s2  All orders > $10,000
 Apply p1 to s2  All services in Accounting application
 …..
 All services deployed in WebLogic
containers
© 2008 AmberPoint, Inc. 13
Detailed Metadata of Your SOA Environment
 Operational Info:
 When service was
discovered
 Availability
 Type of service
 Type of container
 Link to WSDL
Operational Info
 Business Info:
 Business owner
 Division
 Version
 Etc.
Custom: Business Info
 Chargeback info
 Risk assessment
 Links to URL‟s
 Etc.
© 2008 AmberPoint, Inc. 14
7

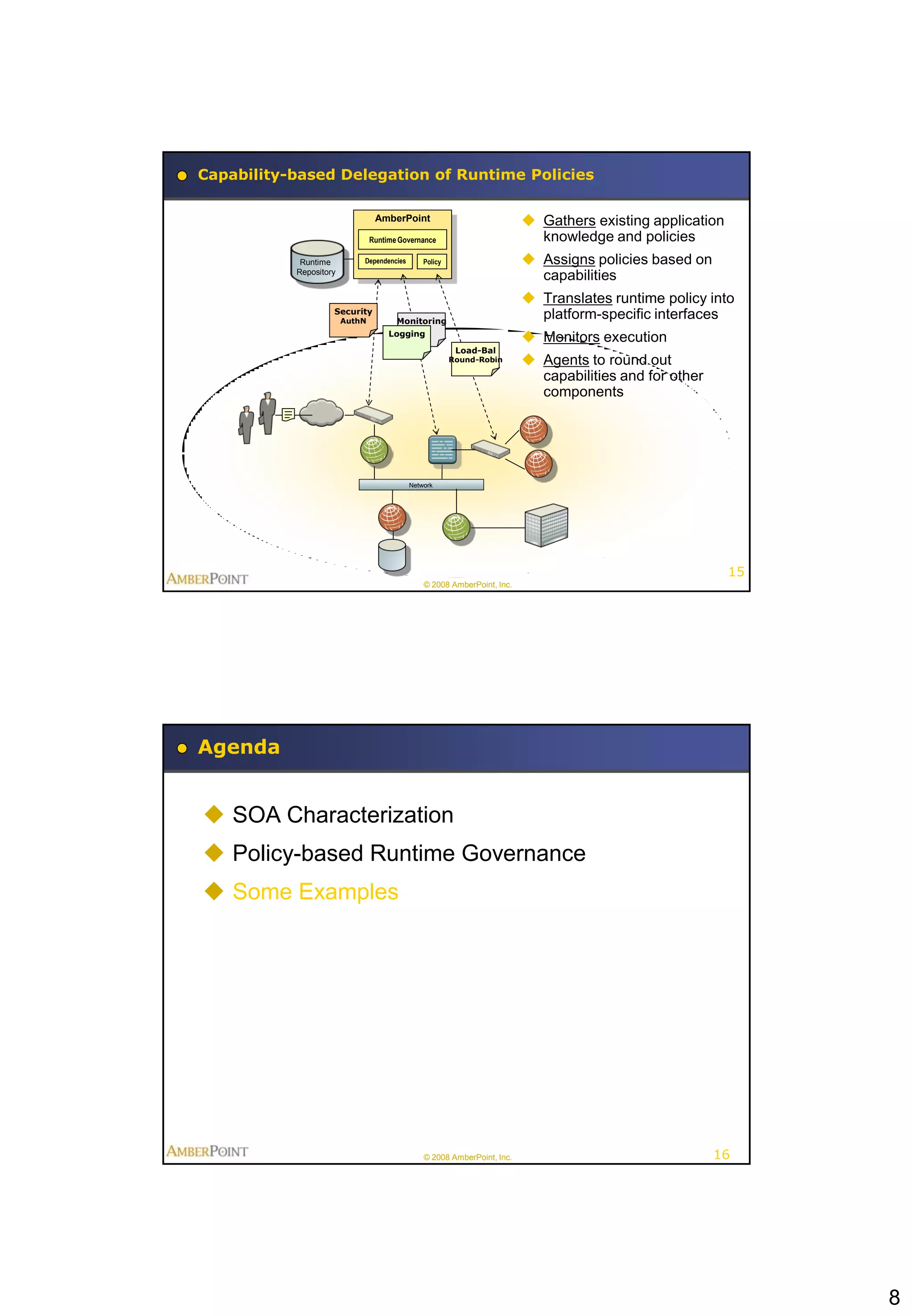

8. Capability-based Delegation of Runtime Policies
AmberPoint  Gathers existing application
Runtime Governance knowledge and policies
Runtime Dependencies Policy  Assigns policies based on
Repository
capabilities
 Translates runtime policy into
Security
AuthN Monitoring
platform-specific interfaces
Logging
 Monitors execution
Load-Bal
Round-Robin  Agents to round out
capabilities and for other
components
Network
15
© 2008 AmberPoint, Inc.
Agenda
 SOA Characterization
 Policy-based Runtime Governance
 Some Examples
© 2008 AmberPoint, Inc. 16
8

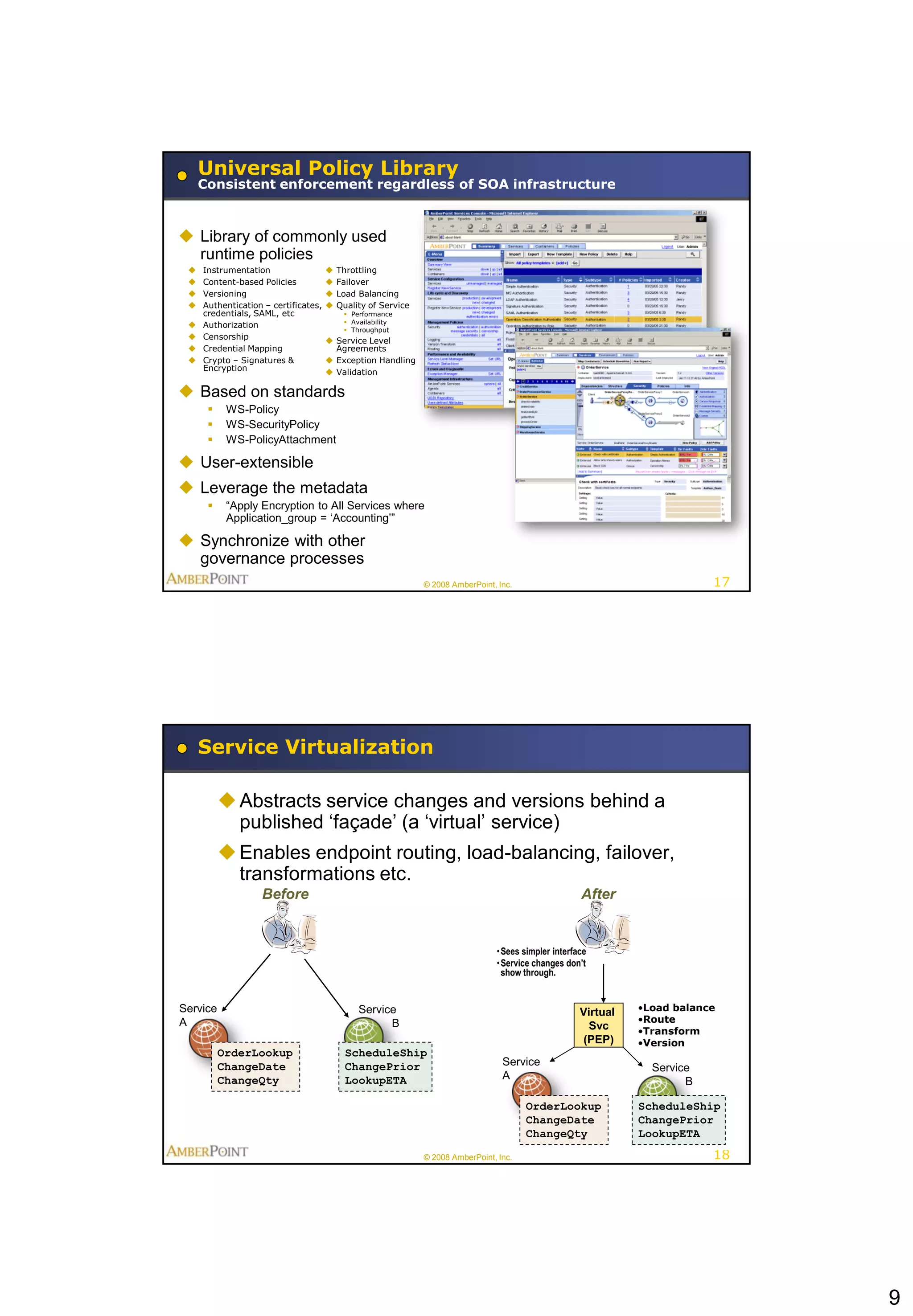

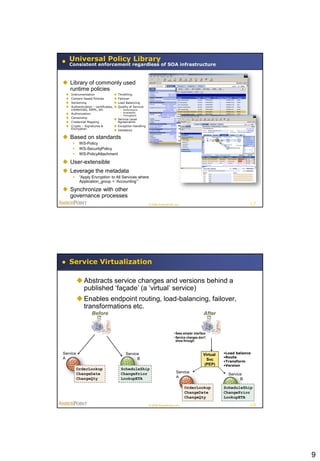

9. Universal Policy Library
Consistent enforcement regardless of SOA infrastructure
 Library of commonly used
runtime policies
 Instrumentation  Throttling
 Content-based Policies  Failover
 Versioning  Load Balancing
 Authentication – certificates,  Quality of Service
credentials, SAML, etc  Performance
 Availability
 Authorization
 Throughput
 Censorship  Service Level
 Credential Mapping Agreements
 Crypto – Signatures &  Exception Handling
Encryption  Validation
 Based on standards
 WS-Policy
 WS-SecurityPolicy
 WS-PolicyAttachment
 User-extensible
 Leverage the metadata
 “Apply Encryption to All Services where
Application_group = „Accounting‟”
 Synchronize with other
governance processes
© 2008 AmberPoint, Inc. 17
Service Virtualization
 Abstracts service changes and versions behind a
published „façade‟ (a „virtual‟ service)
 Enables endpoint routing, load-balancing, failover,
transformations etc.
Before After
• Sees simpler interface
• Service changes don’t
show through.
Service Service Virtual •Load balance
A B •Route
Svc •Transform
(PEP) •Version
OrderLookup ScheduleShip
ChangeDate ChangePrior Service
Service
ChangeQty LookupETA A
B
OrderLookup ScheduleShip
ChangeDate ChangePrior
ChangeQty LookupETA
© 2008 AmberPoint, Inc. 18
9

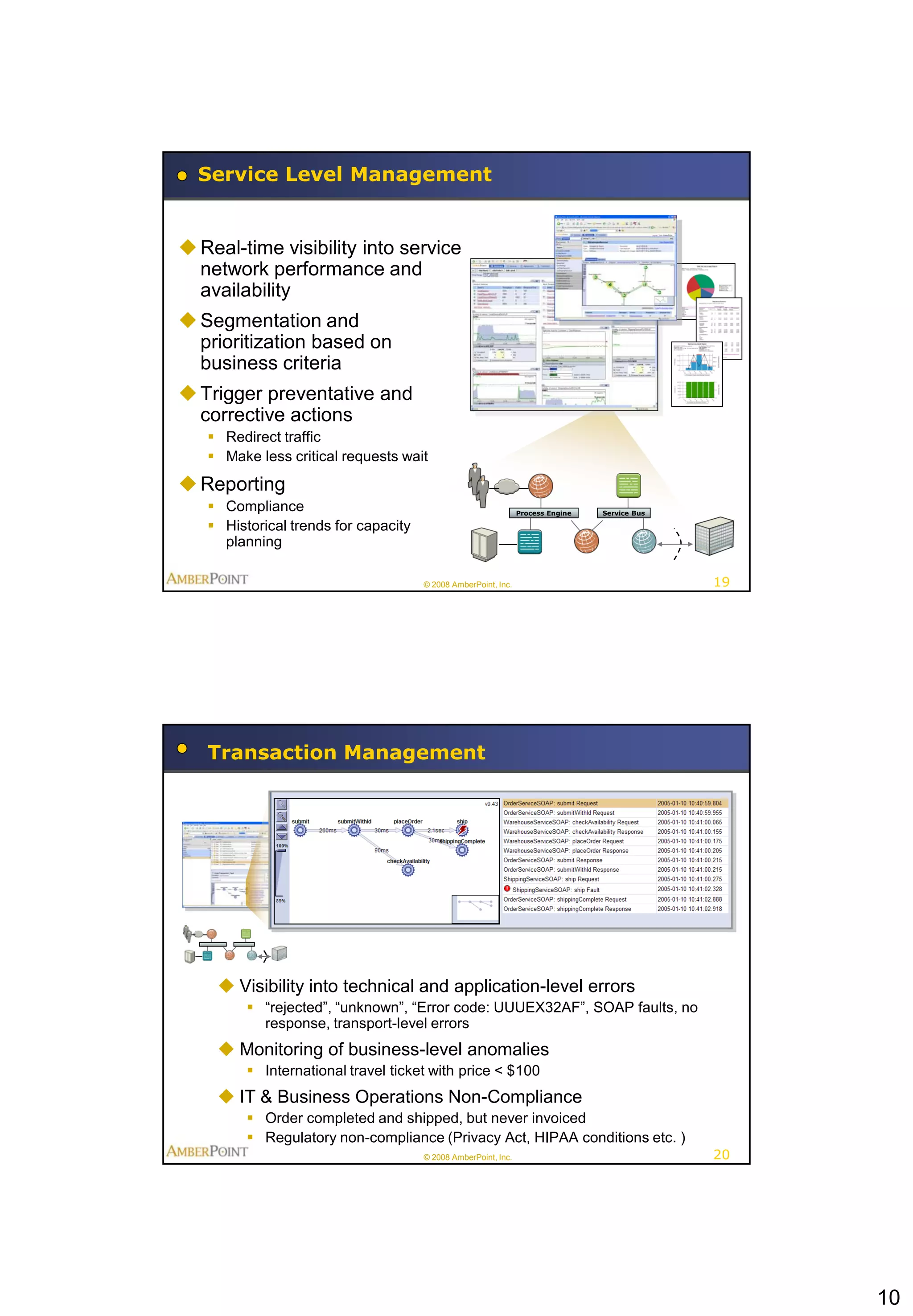

10. Service Level Management
 Real-time visibility into service
network performance and
availability
 Segmentation and
prioritization based on
business criteria
 Trigger preventative and
corrective actions
 Redirect traffic
 Make less critical requests wait
 Reporting
 Compliance Process Engine Service Bus
 Historical trends for capacity
planning
© 2008 AmberPoint, Inc. 19
Transaction Management
 Visibility into technical and application-level errors
 “rejected”, “unknown”, “Error code: UUUEX32AF”, SOAP faults, no
response, transport-level errors
 Monitoring of business-level anomalies
 International travel ticket with price < $100
 IT & Business Operations Non-Compliance
 Order completed and shipped, but never invoiced
 Regulatory non-compliance (Privacy Act, HIPAA conditions etc. )
© 2008 AmberPoint, Inc. 20
10

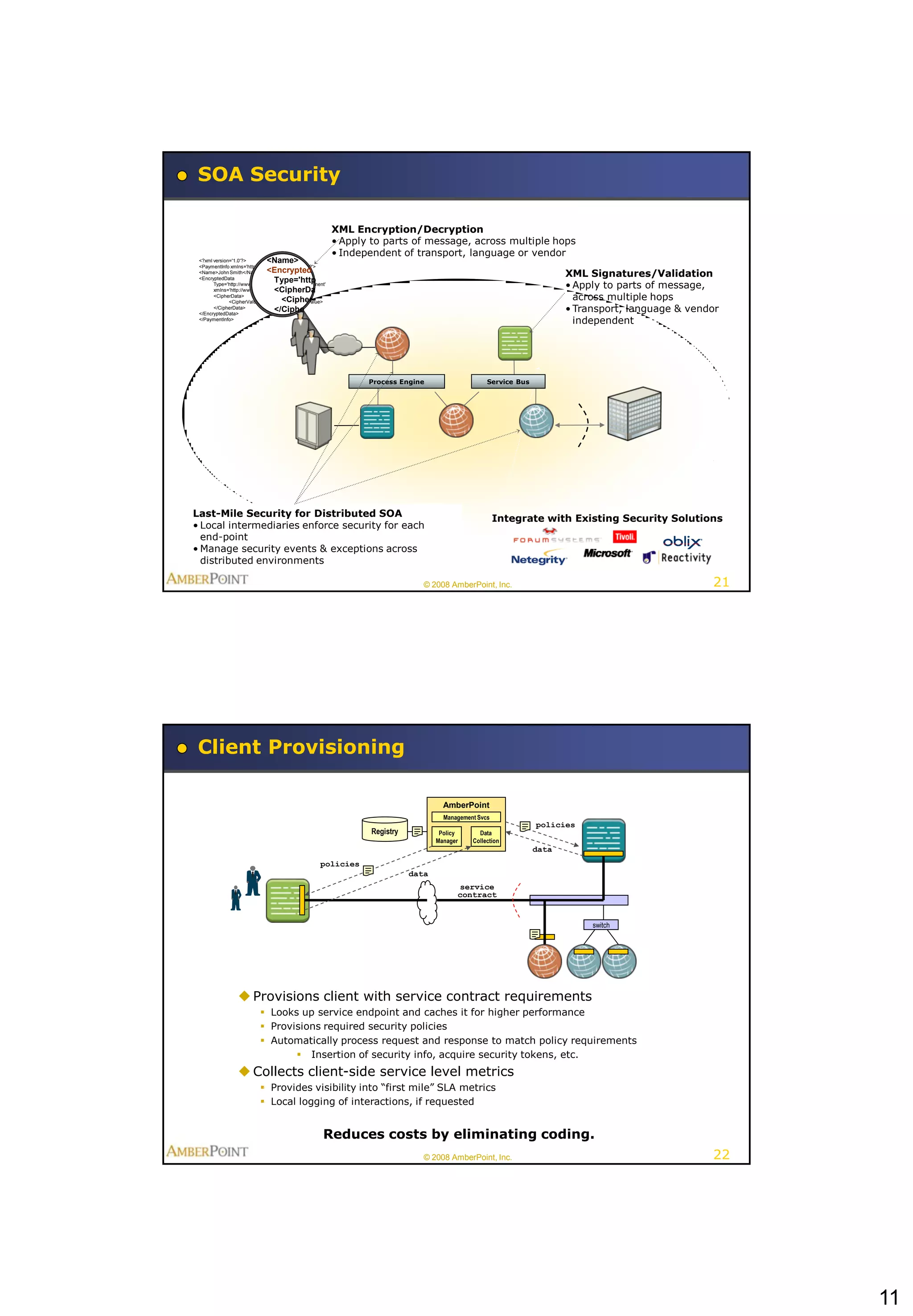

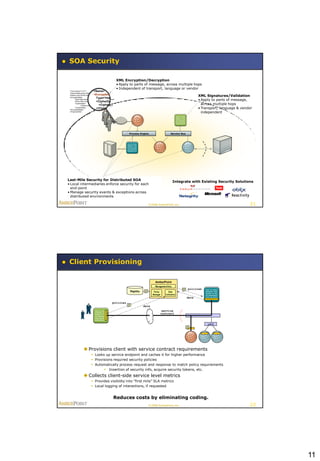

11. SOA Security
XML Encryption/Decryption
• Apply to parts of message, across multiple hops
• Independent of transport, language or vendor
<?xml version='1.0'?> env:Fault >
<Name>
<PaymentInfo xmlns='http://example.org/paymentv2'>
Unknown Servic
<Encrypted
<Name>John Smith</Name>
<EncryptedData "urn:ups -shipping
XML Signatures/Validation
Type='http
Type='http://www.w3.org/2001/04/xmlenc#Element'
Service Down
<CipherDa
xmlns='http://www.w3.org/2001/04/xmlenc#'>
• Apply to parts of message,
<CipherData>
server:8192/e
<Cipher
<CipherValue>A23B45C56</CipherValue>
across multiple hops
</CipherData>
</EncryptedData>
/soapenv :
</Ciphe • Transport, language & vendor
</PaymentInfo>
independent
Process Engine Service Bus
Last-Mile Security for Distributed SOA Integrate with Existing Security Solutions
• Local intermediaries enforce security for each
end-point
• Manage security events & exceptions across
distributed environments
© 2008 AmberPoint, Inc. 21
Client Provisioning
AmberPoint
Management Svcs
policies
Registry Policy Data
Manager Collection
data
policies
data
service
contract
switch
 Provisions client with service contract requirements
 Looks up service endpoint and caches it for higher performance
 Provisions required security policies
 Automatically process request and response to match policy requirements
 Insertion of security info, acquire security tokens, etc.
 Collects client-side service level metrics
 Provides visibility into “first mile” SLA metrics
 Local logging of interactions, if requested
Reduces costs by eliminating coding.
© 2008 AmberPoint, Inc. 22
11

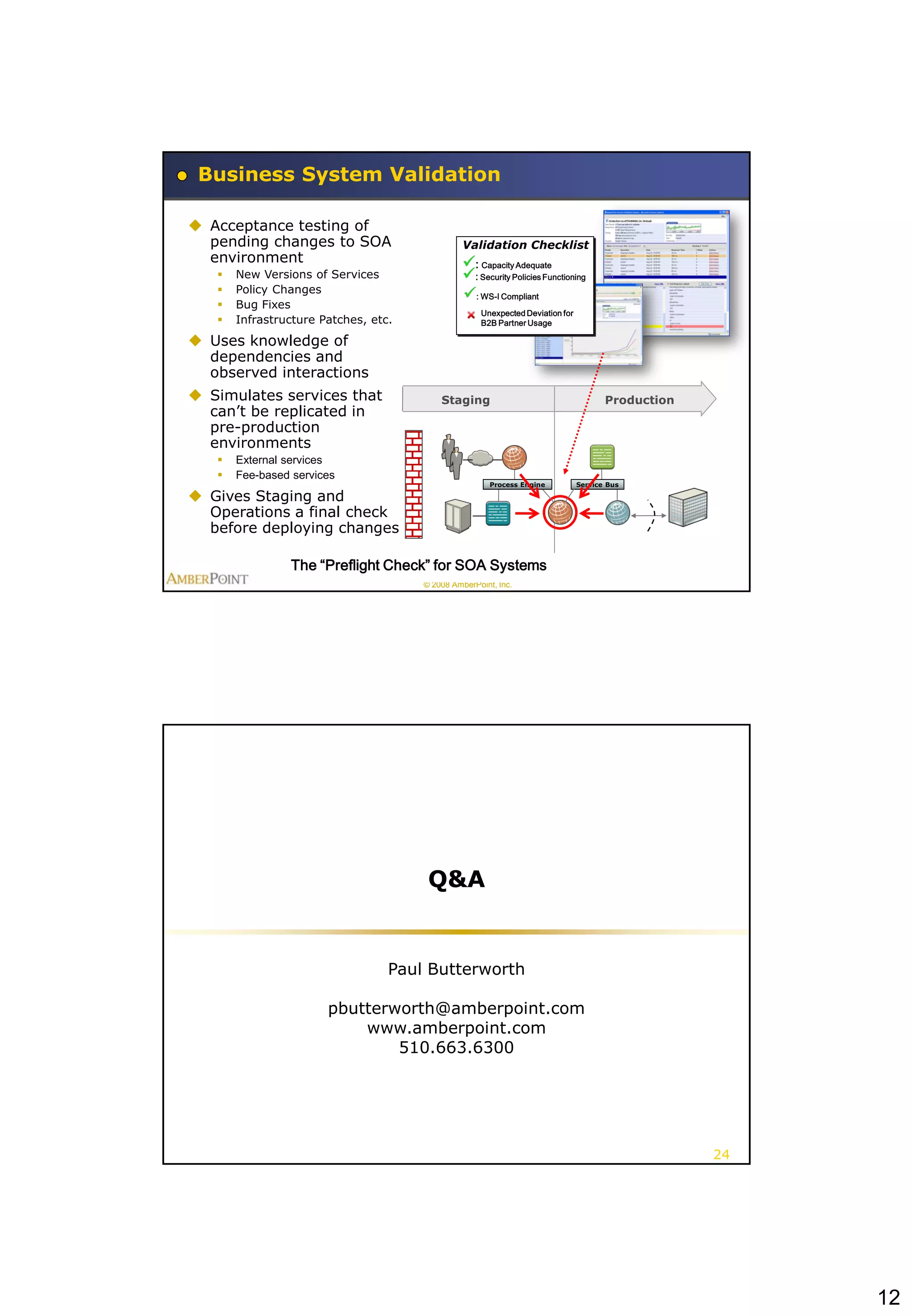

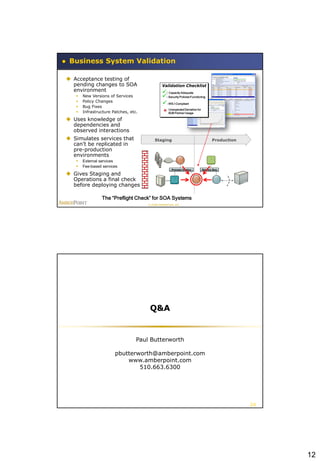

12. Business System Validation
 Acceptance testing of
pending changes to SOA Validation Checklist
environment : Capacity Adequate
 New Versions of Services : Security Policies Functioning
 Policy Changes
: WS-I Compliant
 Bug Fixes
Unexpected Deviation for
 Infrastructure Patches, etc. B2B Partner Usage
 Uses knowledge of
dependencies and
observed interactions
 Simulates services that
Development Staging Production
can’t be replicated in
pre-production
environments
 External services
 Fee-based services
Process Engine Service Bus
 Gives Staging and
Operations a final check
before deploying changes
The “Preflight Check” for SOA Systems
© 2008 AmberPoint, Inc.
Q&A
Paul Butterworth
pbutterworth@amberpoint.com
www.amberpoint.com
510.663.6300
24
12
