1. Knowledge Transfer
ESB Overview
Bahaa Farouk
Senior Software Developer

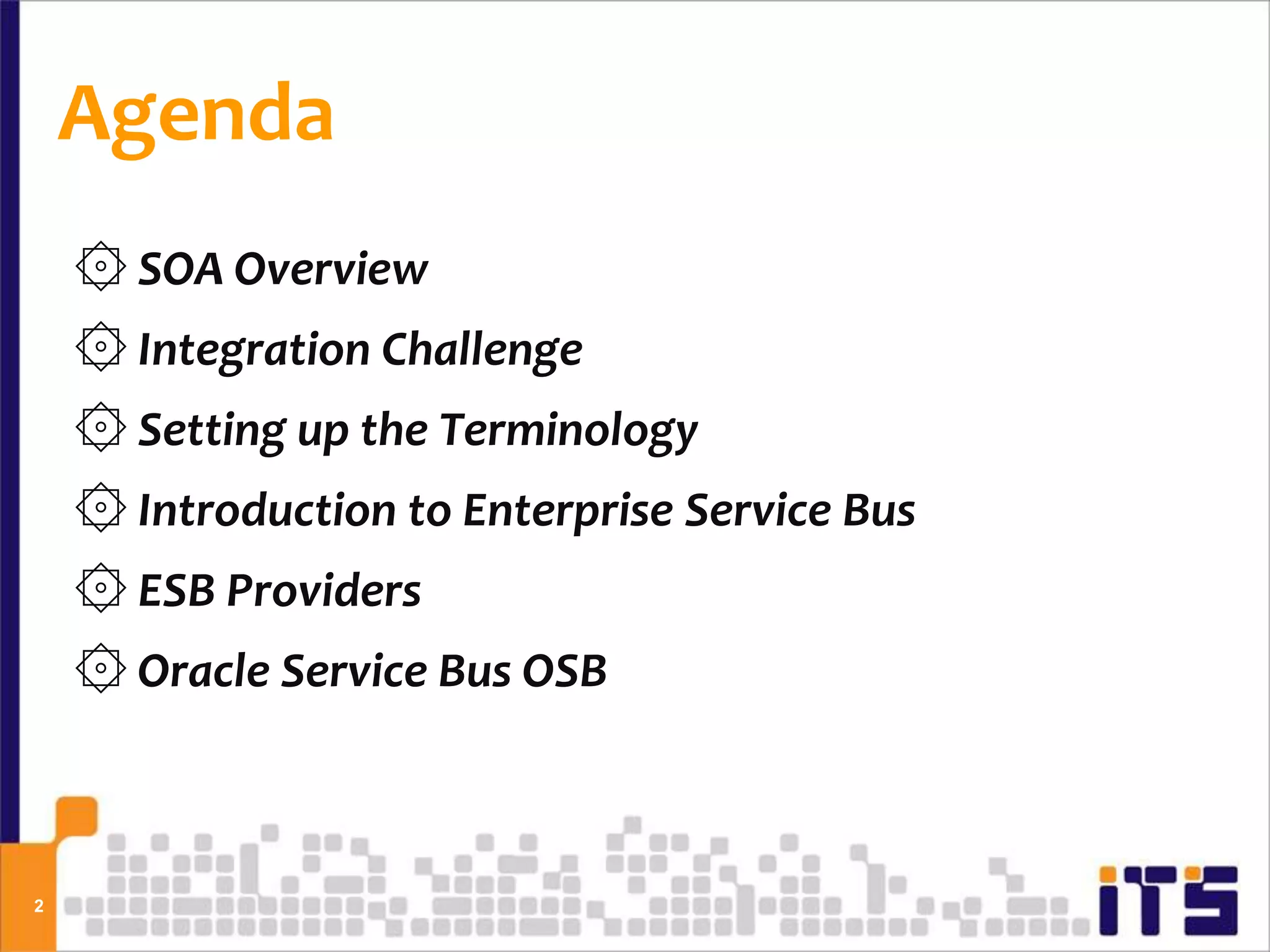

2. Agenda
۞ SOA Overview
۞ Integration Challenge
۞ Setting up the Terminology
۞ Introduction to Enterprise Service Bus
۞ ESB Providers
۞ Oracle Service Bus OSB
2

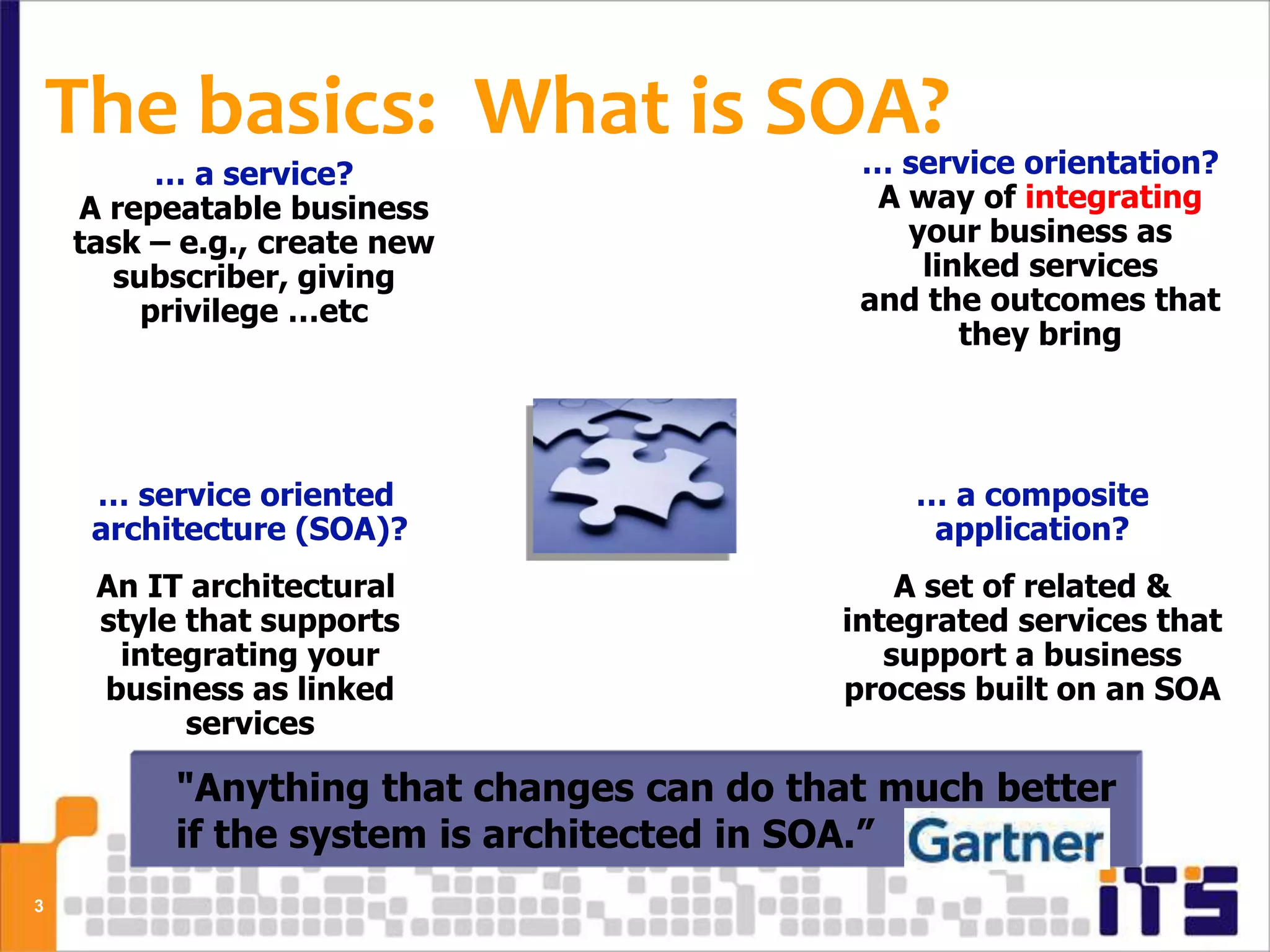

3. The basics: What is SOA? … service orientation?
… a service?
A repeatable business A way of integrating
task – e.g., create new your business as
subscriber, giving linked services
privilege …etc and the outcomes that
they bring
… service oriented … a composite
architecture (SOA)? application?
An IT architectural A set of related &
style that supports integrated services that
integrating your support a business
business as linked process built on an SOA
services
"Anything that changes can do that much better
if the system is architected in SOA.”
3

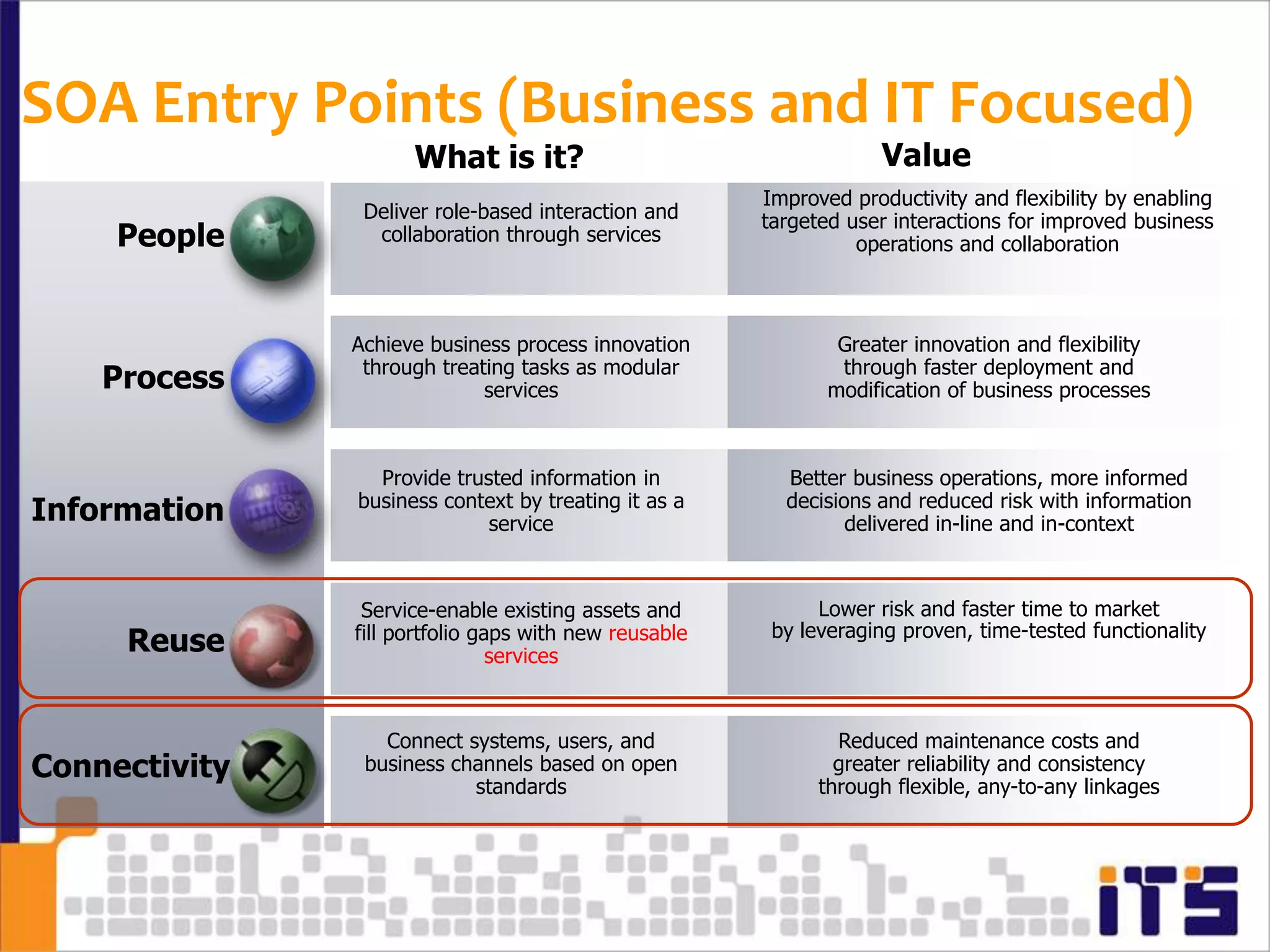

4. SOA Entry Points (Business and IT Focused)
What is it? Value
Improved productivity and flexibility by enabling
Deliver role-based interaction and targeted user interactions for improved business
People collaboration through services operations and collaboration
Achieve business process innovation Greater innovation and flexibility
through treating tasks as modular through faster deployment and
Process services modification of business processes
Provide trusted information in Better business operations, more informed
business context by treating it as a decisions and reduced risk with information
Information service delivered in-line and in-context
Service-enable existing assets and Lower risk and faster time to market
fill portfolio gaps with new reusable by leveraging proven, time-tested functionality
Reuse services
Connect systems, users, and Reduced maintenance costs and
Connectivity business channels based on open greater reliability and consistency
standards through flexible, any-to-any linkages

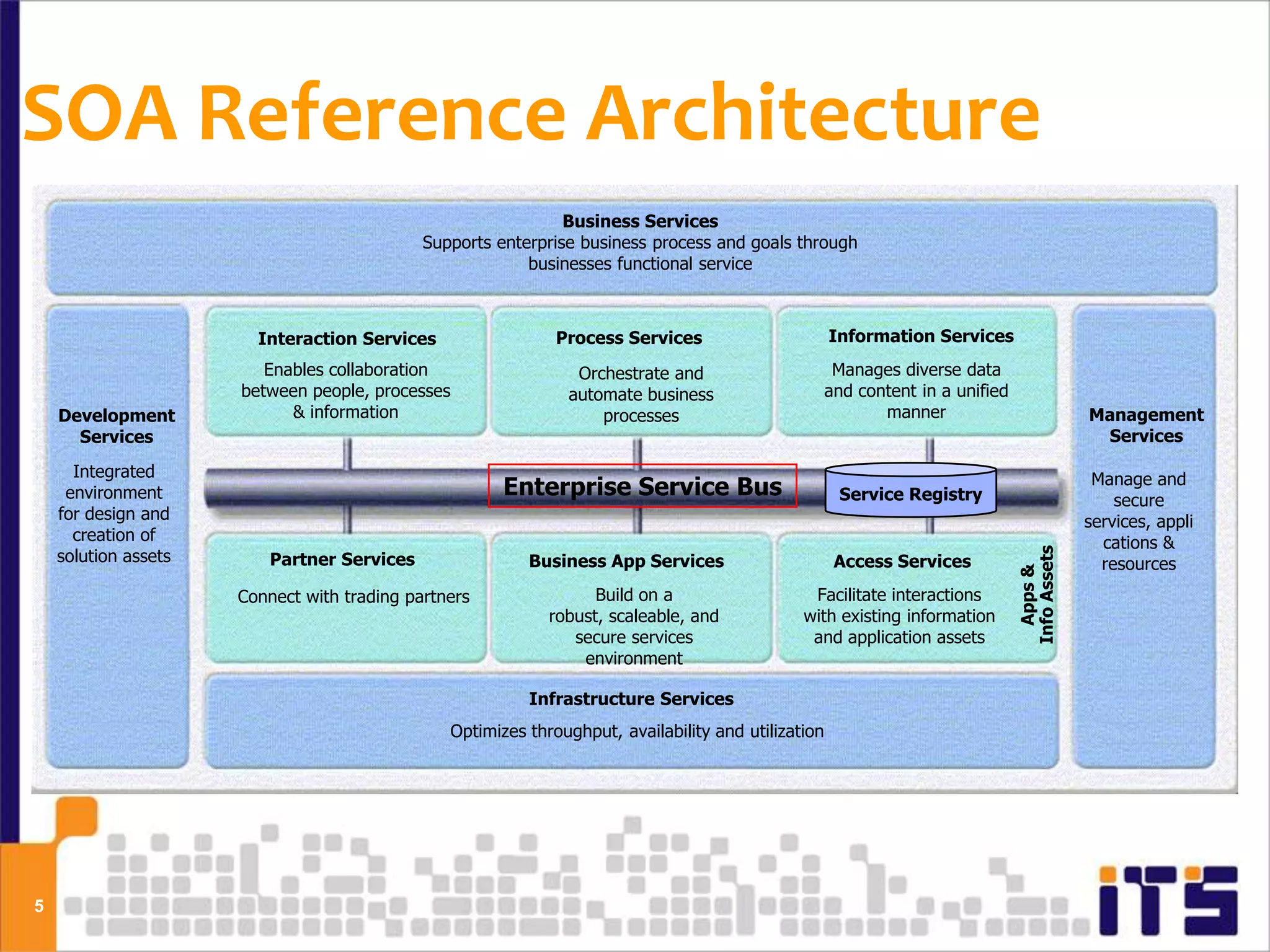

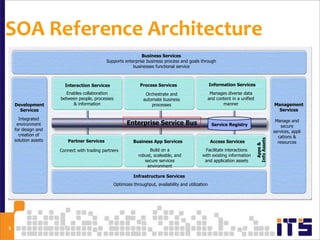

5. SOA Reference Architecture
Business Services
Supports enterprise business process and goals through
businesses functional service
Interaction Services Process Services Information Services
Enables collaboration Orchestrate and Manages diverse data
between people, processes automate business and content in a unified
Development & information processes manner Management
Services Services
Integrated Manage and
environment Enterprise Service Bus Service Registry secure
for design and services, appli
creation of cations &
solution assets
Info Assets
Partner Services Business App Services Access Services resources
Apps &
Connect with trading partners Build on a Facilitate interactions
robust, scaleable, and with existing information
secure services and application assets
environment
Infrastructure Services
Optimizes throughput, availability and utilization
5
5

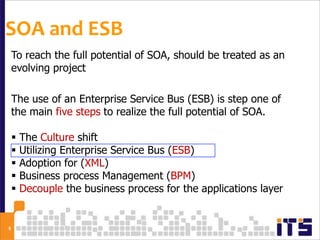

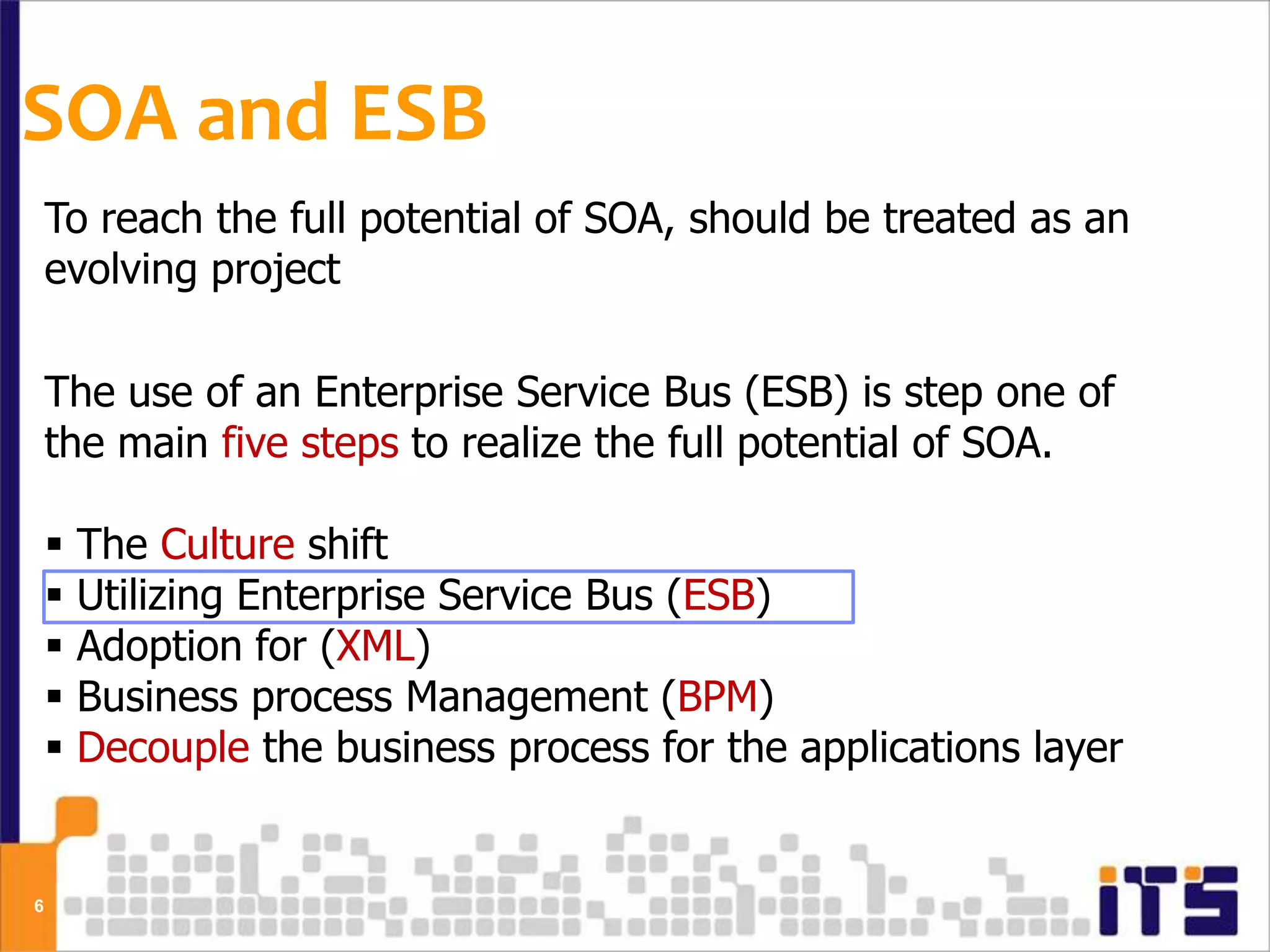

6. SOA and ESB
To reach the full potential of SOA, should be treated as an
evolving project
The use of an Enterprise Service Bus (ESB) is step one of
the main five steps to realize the full potential of SOA.
 The Culture shift
 Utilizing Enterprise Service Bus (ESB)
 Adoption for (XML)
 Business process Management (BPM)
 Decouple the business process for the applications layer
6

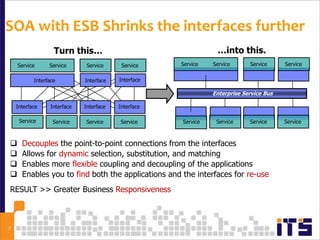

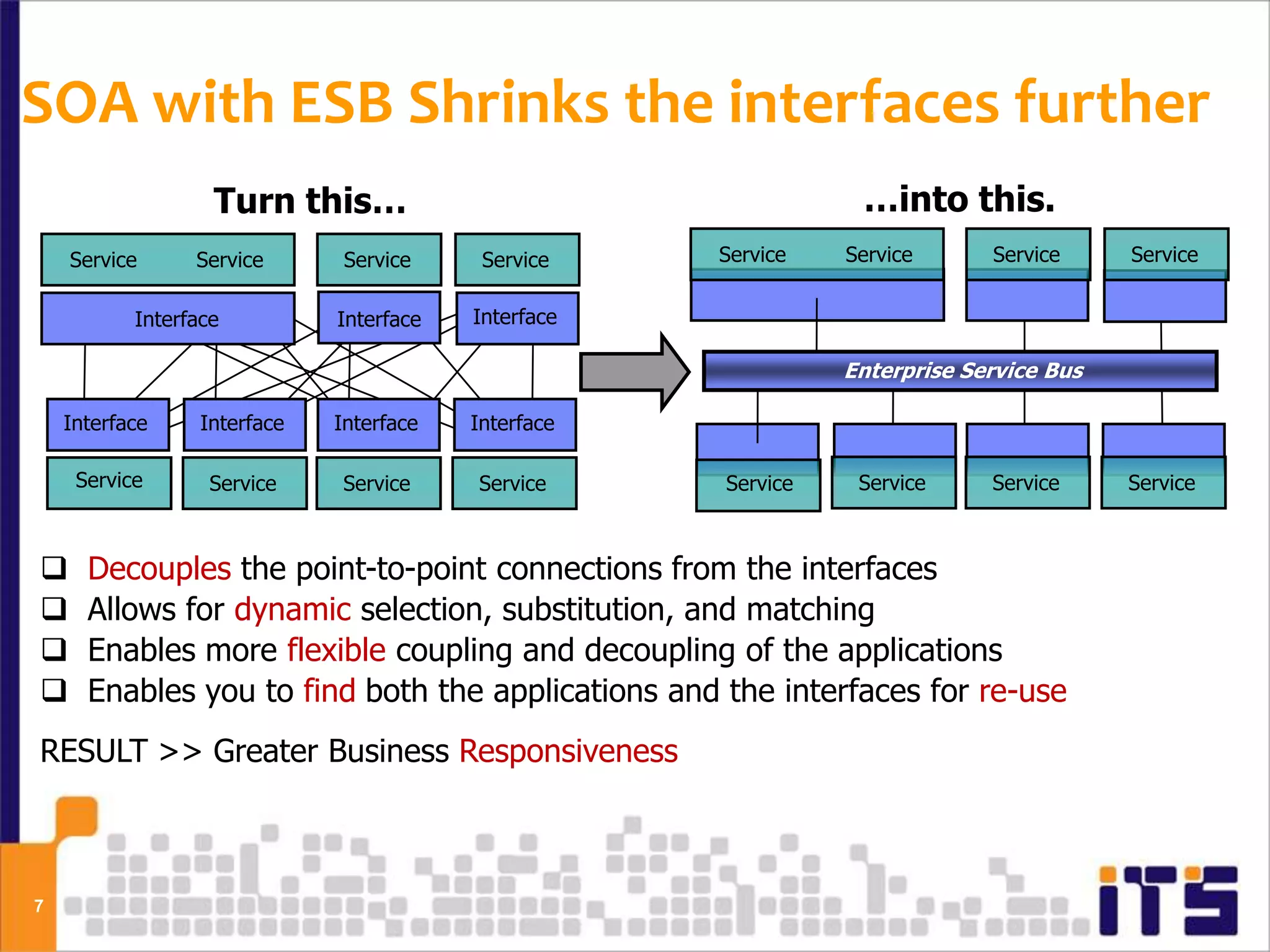

7. SOA with ESB Shrinks the interfaces further
Turn this… …into this.
Service Service Service Service Service Service Service Service
Interface Interface Interface
Enterprise Service Bus
Interface Interface Interface Interface
Service Service Service Service Service Service Service Service
 Decouples the point-to-point connections from the interfaces
 Allows for dynamic selection, substitution, and matching
 Enables more flexible coupling and decoupling of the applications
 Enables you to find both the applications and the interfaces for re-use
RESULT >> Greater Business Responsiveness
7

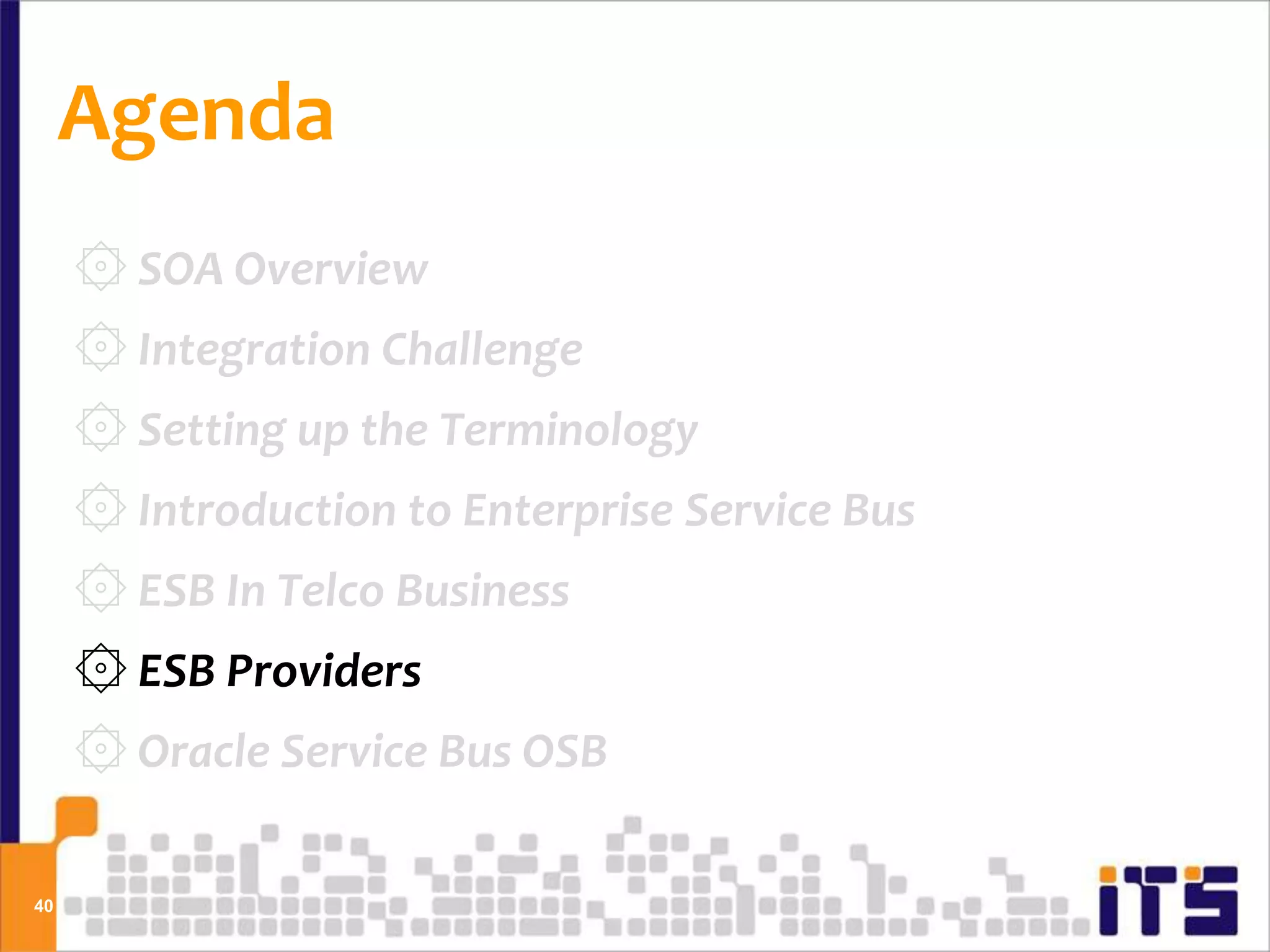

8. Agenda
۞ SOA Overview
۞ Integration Challenge
۞ Setting up the Terminology
۞ Introduction to Enterprise Service Bus
۞ ESB Providers
۞ Oracle Service Bus OSB
8

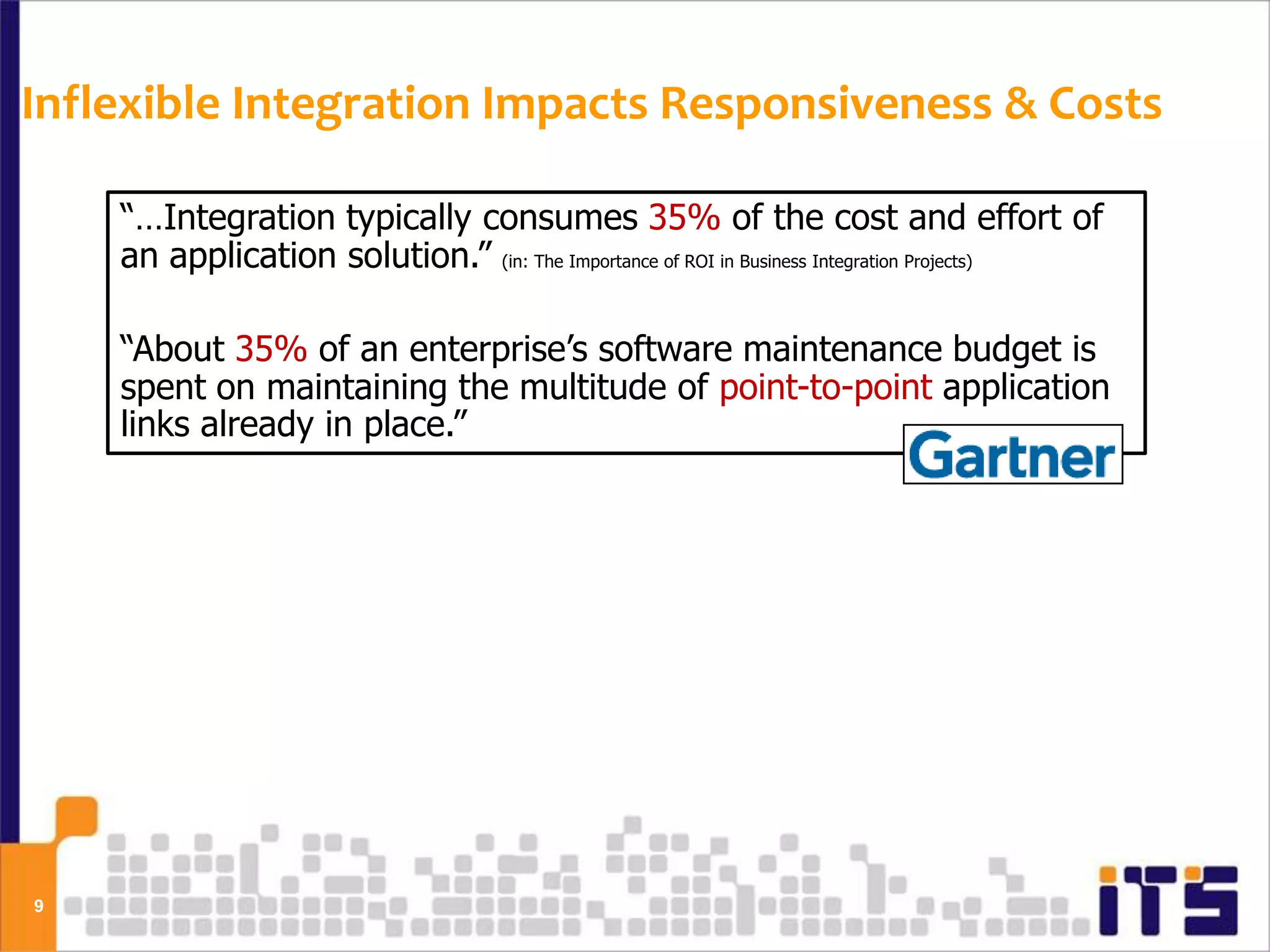

9. Inflexible Integration Impacts Responsiveness & Costs
“…Integration typically consumes 35% of the cost and effort of
an application solution.” (in: The Importance of ROI in Business Integration Projects)
“About 35% of an enterprise’s software maintenance budget is
spent on maintaining the multitude of point-to-point application
links already in place.”
9

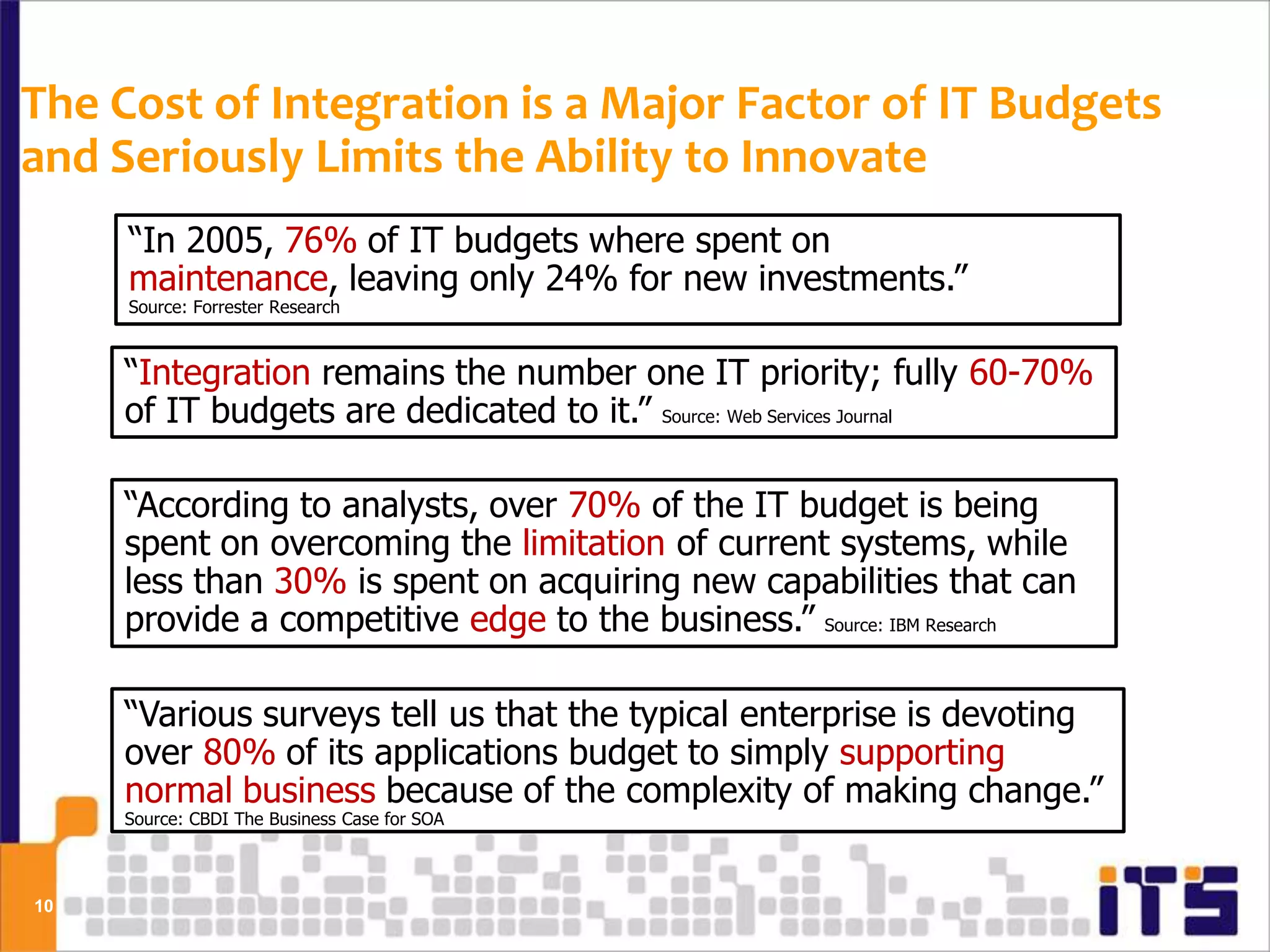

10. The Cost of Integration is a Major Factor of IT Budgets
and Seriously Limits the Ability to Innovate
“In 2005, 76% of IT budgets where spent on
maintenance, leaving only 24% for new investments.”
Source: Forrester Research
“Integration remains the number one IT priority; fully 60-70%
of IT budgets are dedicated to it.” Source: Web Services Journal
“According to analysts, over 70% of the IT budget is being
spent on overcoming the limitation of current systems, while
less than 30% is spent on acquiring new capabilities that can
provide a competitive edge to the business.” Source: IBM Research
“Various surveys tell us that the typical enterprise is devoting
over 80% of its applications budget to simply supporting
normal business because of the complexity of making change.”
Source: CBDI The Business Case for SOA
10

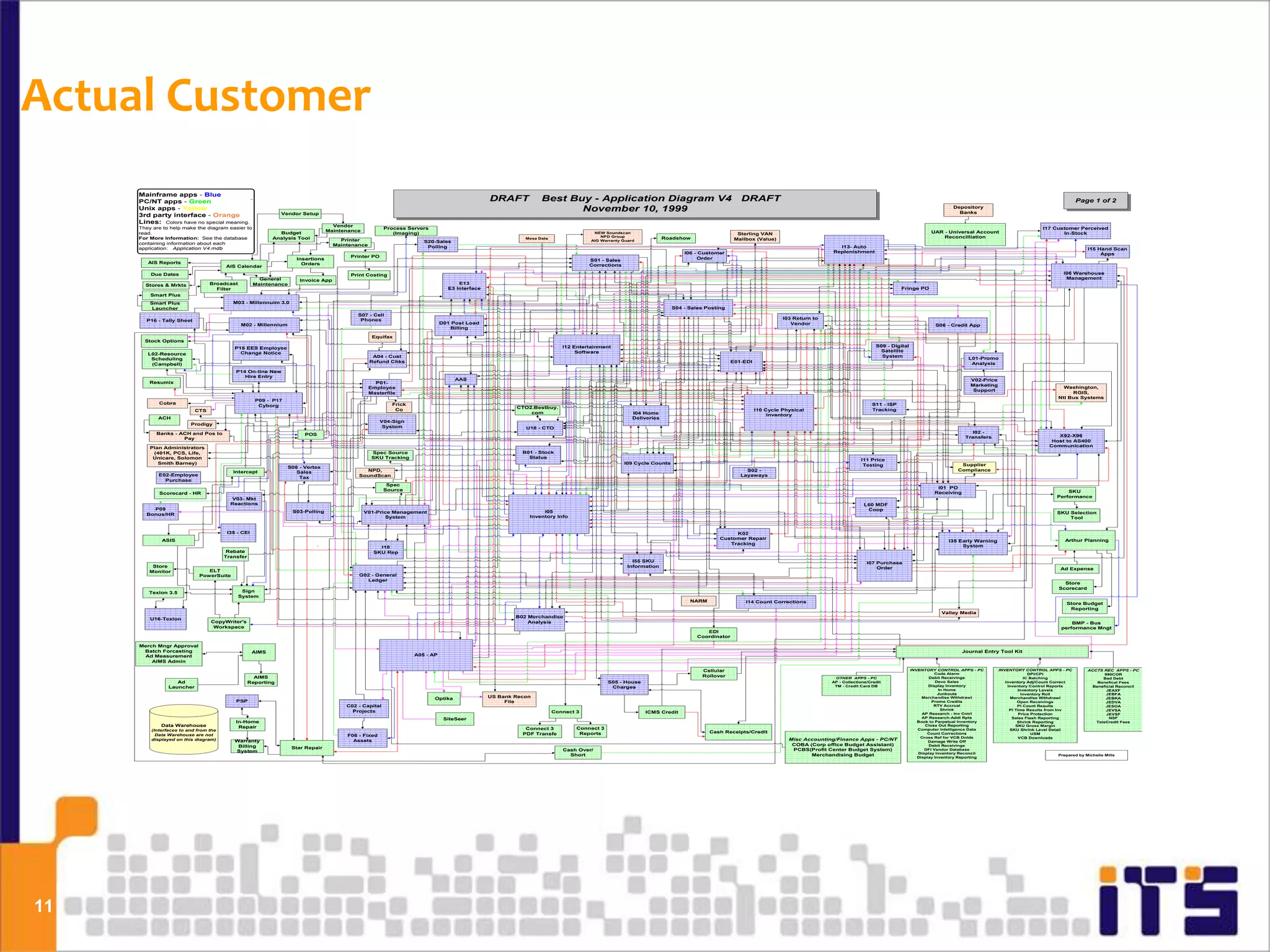

11. Actual Customer
Mainframe apps - Blue
PC/NT apps - Green DRAFT Best Buy - Application Diagram V4 DRAFT Page 1 of 2
Unix apps - Yellow
Vendor Setup
November 10, 1999 Depository
Banks
3rd party interface - Orange
Lines: Colors have no special meaning.
Vendor
They are to help make the diagram easier to Process Servers I17 Customer Perceived
Budget Maintenance UAR - Universal Account
read. (Imaging) NEW Soundscan Sterling VAN In-Stock
For More Information: See the database Analysis Tool Mesa Data
NPD Group
Roadshow Mailbox (Value) Reconcilliation
Printer S20-Sales AIG Warranty Guard
containing information about each Maintenance
application: Application V4.mdb Polling I13- Auto I15 Hand Scan
I06 - Customer Replenishment Apps
Printer PO Order
Insertions S01 - Sales
AIS Reports Orders
AIS Calendar Corrections
Due Dates Print Costing I06 Warehouse
General Invoice App Management
Stores & Mrkts Broadcast Maintenance E13
Filter E3 Interface Fringe PO
Smart Plus
Smart Plus M03 - Millennuim 3.0
Launcher S04 - Sales Posting
S07 - Cell
P16 - Tally Sheet Phones I03 Return to
M02 - Millennium D01 Post Load Vendor S06 - Credit App
Billing
Equifax
Stock Options
I12 Entertainment S09 - Digital
P15 EES Employee
Software Satellite
L02-Resource Change Notice
A04 - Cust System
Scheduling L01-Promo
Refund Chks E01-EDI 1
Analysis
(Campbell)
P14 On-line New
Hire Entry
AAS V02-Price
Resumix P01-
Marketing
Employee Washington,
Support
Masterfile RGIS,
Ntl Bus Systems
P09 - P17
Cobra Frick S11 - ISP
Cyborg CTO2.Bestbuy.
CTS Co I10 Cycle Physical Tracking
com I04 Home Inventory
ACH Deliveries
V04-Sign
Prodigy
System U18 - CTO
Banks - ACH and Pos to I02 -
POS X92-X96
Pay Transfers
Host to AS400
Plan Administrators Communication
(401K, PCS, Life, Spec Source B01 - Stock
Unicare, Solomon SKU Tracking Status
I11 Price
Smith Barney) I09 Cycle Counts Testing Supplier
S08 - Vertex
Intercept NPD, S02 - Compliance
Sales
E02-Employee SoundScan Layaways
Tax
Purchase
Spec
I01 PO
Source SKU
Scorecard - HR Receiving
V03- Mkt Performance
Reactions L60 MDF
P09 Coop
S03-Polling V01-Price Management I05 SKU Selection
Bonus/HR
System Inventory Info Tool
I35 - CEI K02
ASIS Customer Repair Arthur Planning
I35 Early Warning
Tracking
I18 System
Rebate SKU Rep
Transfer
I55 SKU I07 Purchase
Store Information Order
ELT Ad Expense
Monitor
PowerSuite G02 - General
Ledger
Store
Scorecard
Texlon 3.5 Sign
System
NARM I14 Count Corrections Store Budget
Reporting
Valley Media
U16-Texlon B02 Merchandise
CopyWriter's Analysis BMP - Bus
Workspace performance Mngt
EDI
Coordinator
Merch Mngr Approval
Batch Forcasting AIMS Journal Entry Tool Kit
Ad Measurement A05 - AP
AIMS Admin
Cellular INVENTORY CONTROL APPS - PC INVENTORY CONTROL APPS - PC ACCTS REC APPS - PC
Code Alarm DPI/CPI 990COR
AIMS Rollover OTHER APPS - PC Debit Receivings IC Batching Bad Debt
Ad Reporting S05 - House AP - Collections/Credit Devo Sales Inventory Adj/Count Correct Benefical Fees
Launcher Charges TM - Credit Card DB Display Inventory Inventory Control Reports Beneficial Reconcil
In Home Inventory Levels JEAXF
Junkouts Inventory Roll JEBFA
Optika US Bank Recon Merchandise Withdrawl Merchandise Withdrawl JEBKA
PSP File Promo Credits Open Receivings JEDVA
C02 - Capital RTV Accrual PI Count Results JESOA
Shrink PI Time Results from Inv JEVSA
Projects Connect 3 ICMS Credit AP Research - Inv Cntrl Price Protection JEVSF
SiteSeer AP Research-Addl Rpts Sales Flash Reporting NSF
In-Home Book to Perpetual Inventory Shrink Reporting TeleCredit Fees
Data Warehouse Repair Close Out Reporting SKU Gross Margin
(Interfaces to and from the Connect 3 Connect 3 Computer Intelligence Data SKU Shrink Level Detail
PDF Transfe Reports Cash Receipts/Credit Count Corrections USM
Data Warehouse are not F06 - Fixed Cross Ref for VCB Dnlds VCB Downloads
displayed on this diagram) Warranty Assets Misc Accounting/Finance Apps - PC/NT Damage Write Off
Billing COBA (Corp office Budget Assistant) Debit Receivings
Star Repair Cash Over/ PCBS(Profit Center Budget System) DFI Vendor Database
System Display Inventory Reconcil
Short Merchandising Budget Prepared by Michelle Mills
Display Inventory Reporting
11

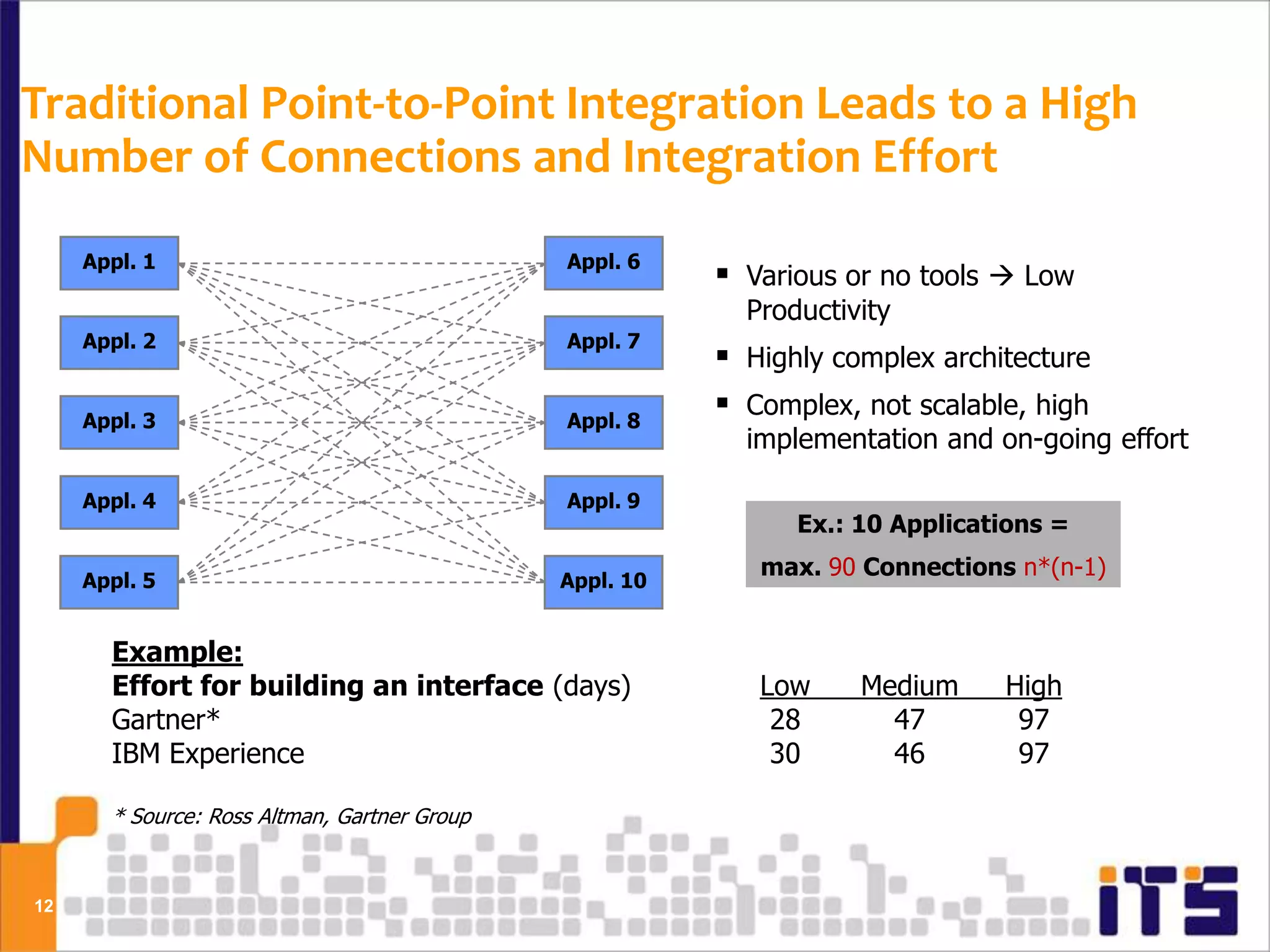

12. Traditional Point-to-Point Integration Leads to a High
Number of Connections and Integration Effort
Appl. 1 Appl. 6
 Various or no tools  Low
Productivity
Appl. 2 Appl. 7
 Highly complex architecture
Appl. 3 Appl. 8
 Complex, not scalable, high
implementation and on-going effort
Appl. 4 Appl. 9
Ex.: 10 Applications =
max. 90 Connections n*(n-1)
Appl. 5 Appl. 10
Example:
Effort for building an interface (days) Low Medium High
Gartner* 28 47 97
IBM Experience 30 46 97
* Source: Ross Altman, Gartner Group
12

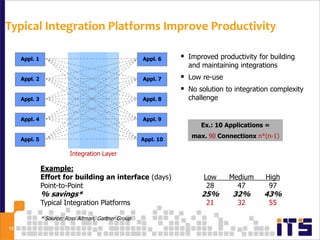

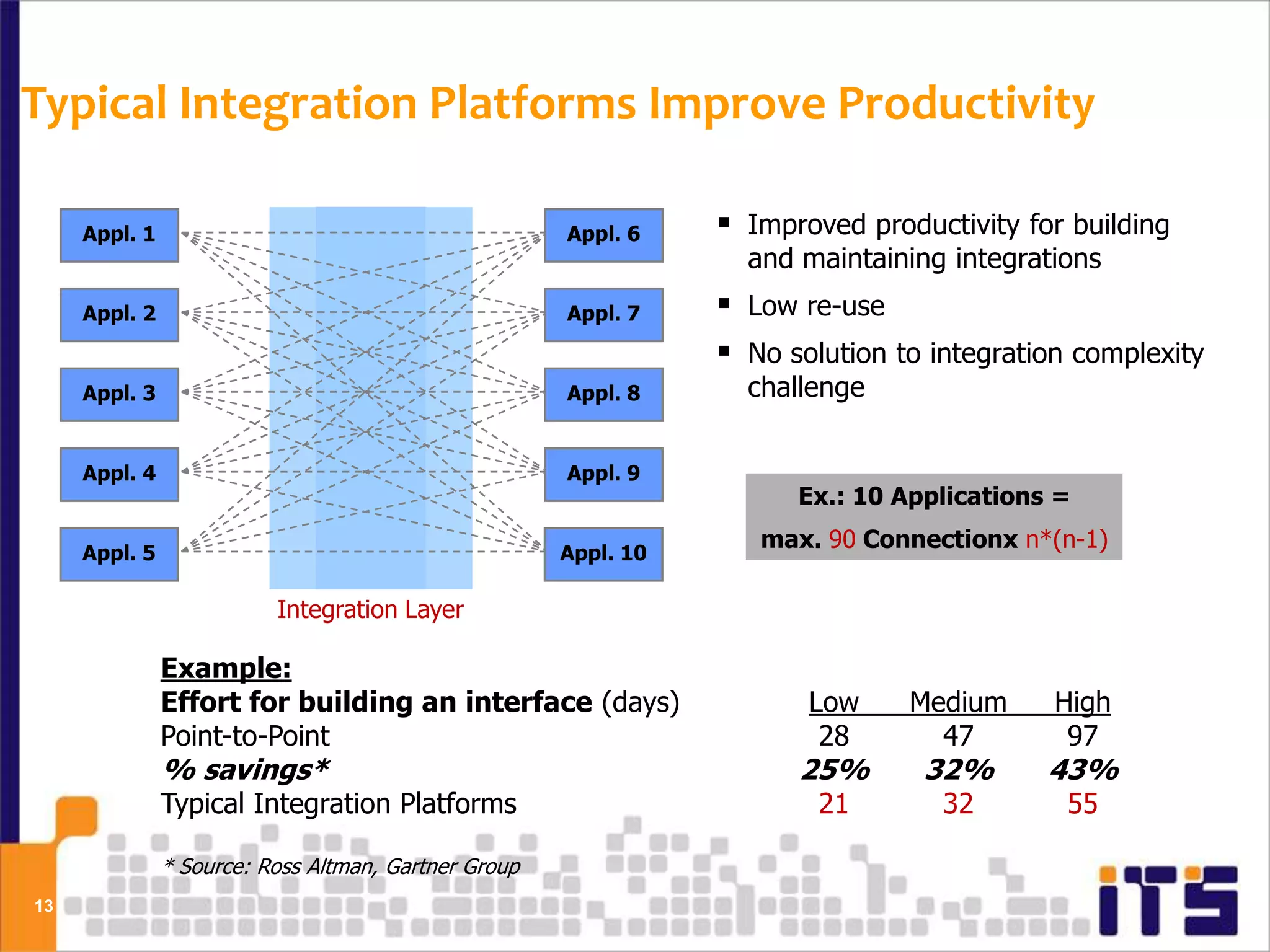

13. Typical Integration Platforms Improve Productivity
Appl. 1 Appl. 6  Improved productivity for building
and maintaining integrations
Appl. 2 Appl. 7  Low re-use
 No solution to integration complexity
Appl. 3 Appl. 8 challenge
Appl. 4 Appl. 9
Ex.: 10 Applications =
max. 90 Connectionx n*(n-1)
Appl. 5 Appl. 10
Integration Layer
Example:
Effort for building an interface (days) Low Medium High
Point-to-Point 28 47 97
% savings* 25% 32% 43%
Typical Integration Platforms 21 32 55
* Source: Ross Altman, Gartner Group
13

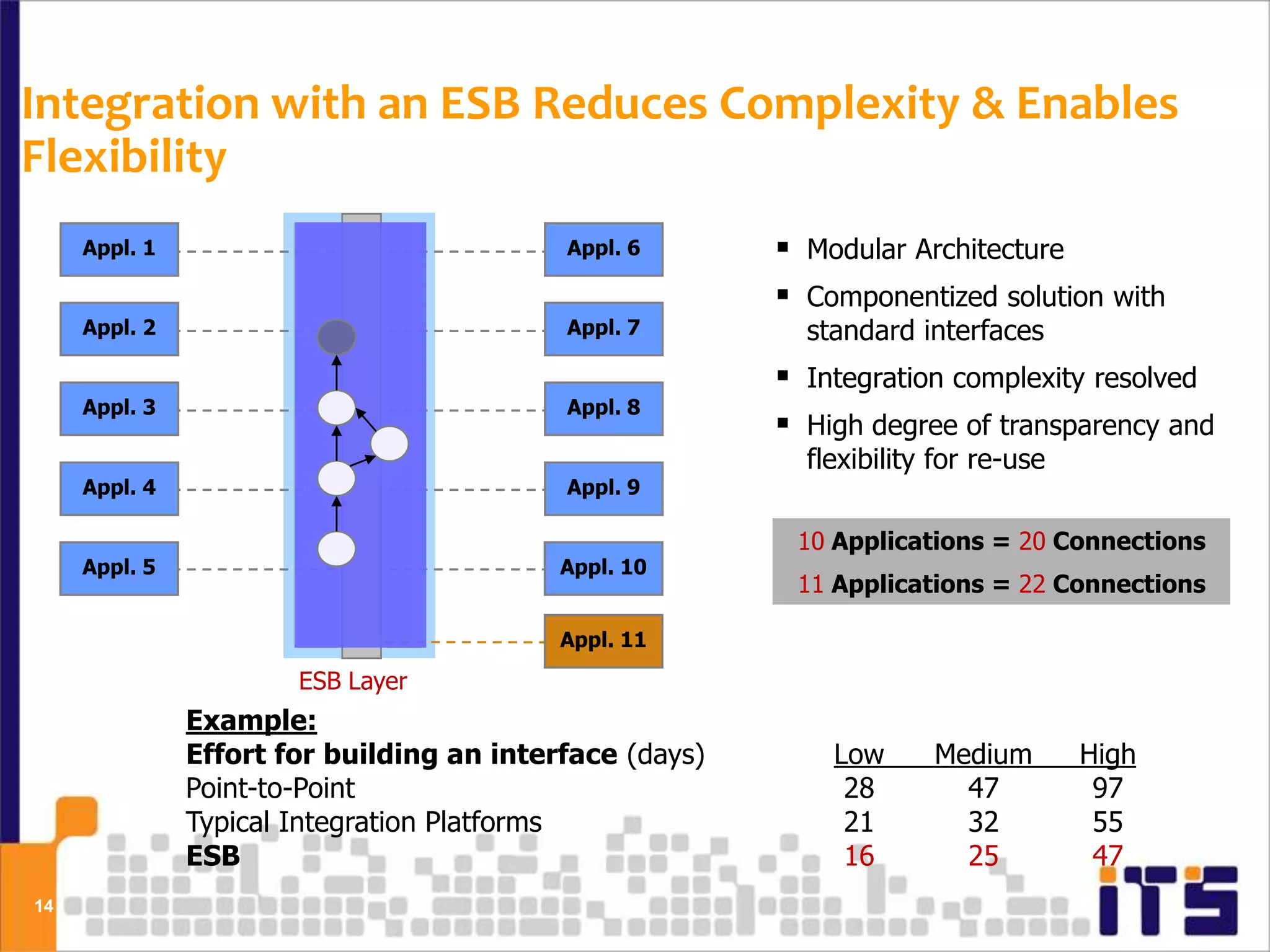

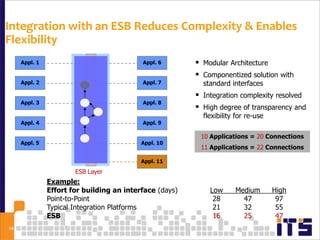

14. Integration with an ESB Reduces Complexity & Enables
Flexibility
Appl. 1 Appl. 6  Modular Architecture
 Componentized solution with
Appl. 2 Appl. 7 standard interfaces
 Integration complexity resolved
Appl. 3 Appl. 8
 High degree of transparency and
flexibility for re-use
Appl. 4 Appl. 9
10 Applications = 20 Connections
Appl. 5 Appl. 10
11 Applications = 22 Connections
Appl. 11
ESB Layer
Example:
Effort for building an interface (days) Low Medium High
Point-to-Point 28 47 97
Typical Integration Platforms 21 32 55
ESB 16 25 47
14

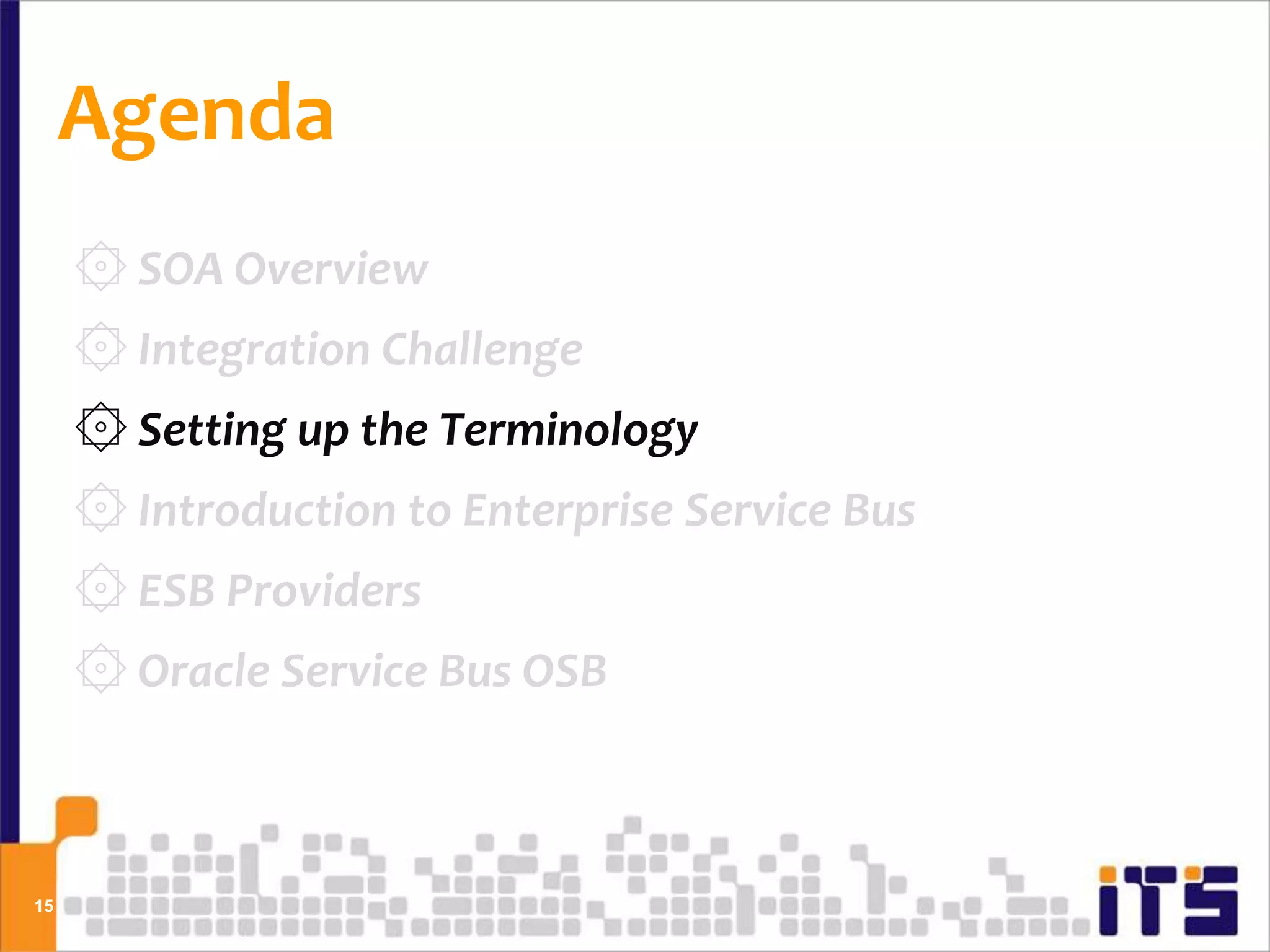

15. Agenda
۞ SOA Overview
۞ Integration Challenge
۞ Setting up the Terminology
۞ Introduction to Enterprise Service Bus
۞ ESB Providers
۞ Oracle Service Bus OSB
15

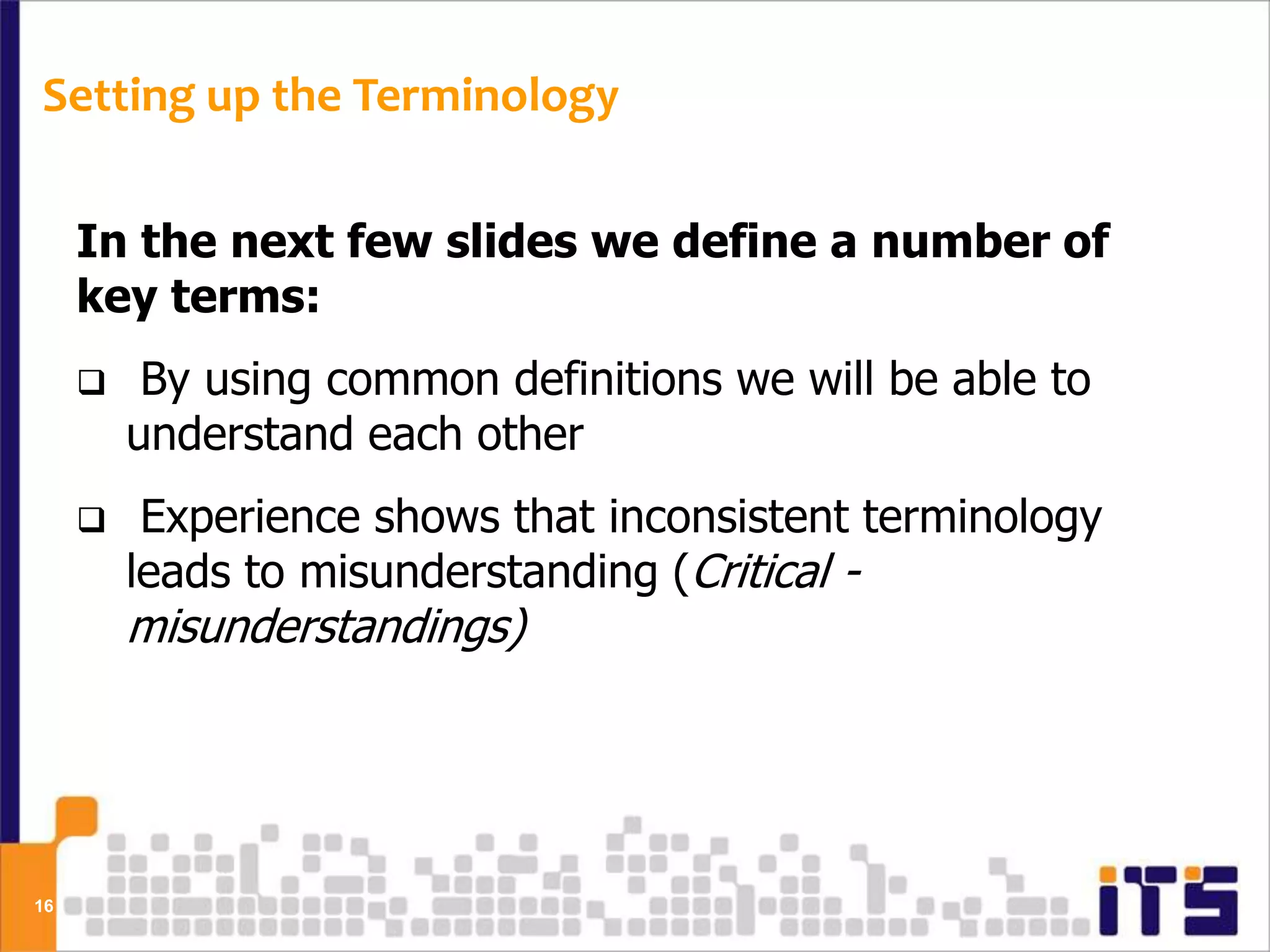

16. Setting up the Terminology
In the next few slides we define a number of
key terms:
 By using common definitions we will be able to
understand each other
 Experience shows that inconsistent terminology
leads to misunderstanding (Critical -
misunderstandings)
16

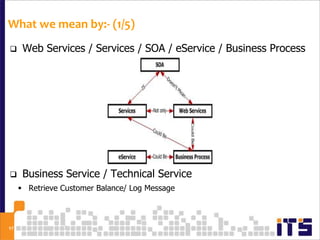

17. What we mean by:- (1/5)
 Web Services / Services / SOA / eService / Business Process
 Business Service / Technical Service
 Retrieve Customer Balance/ Log Message
17

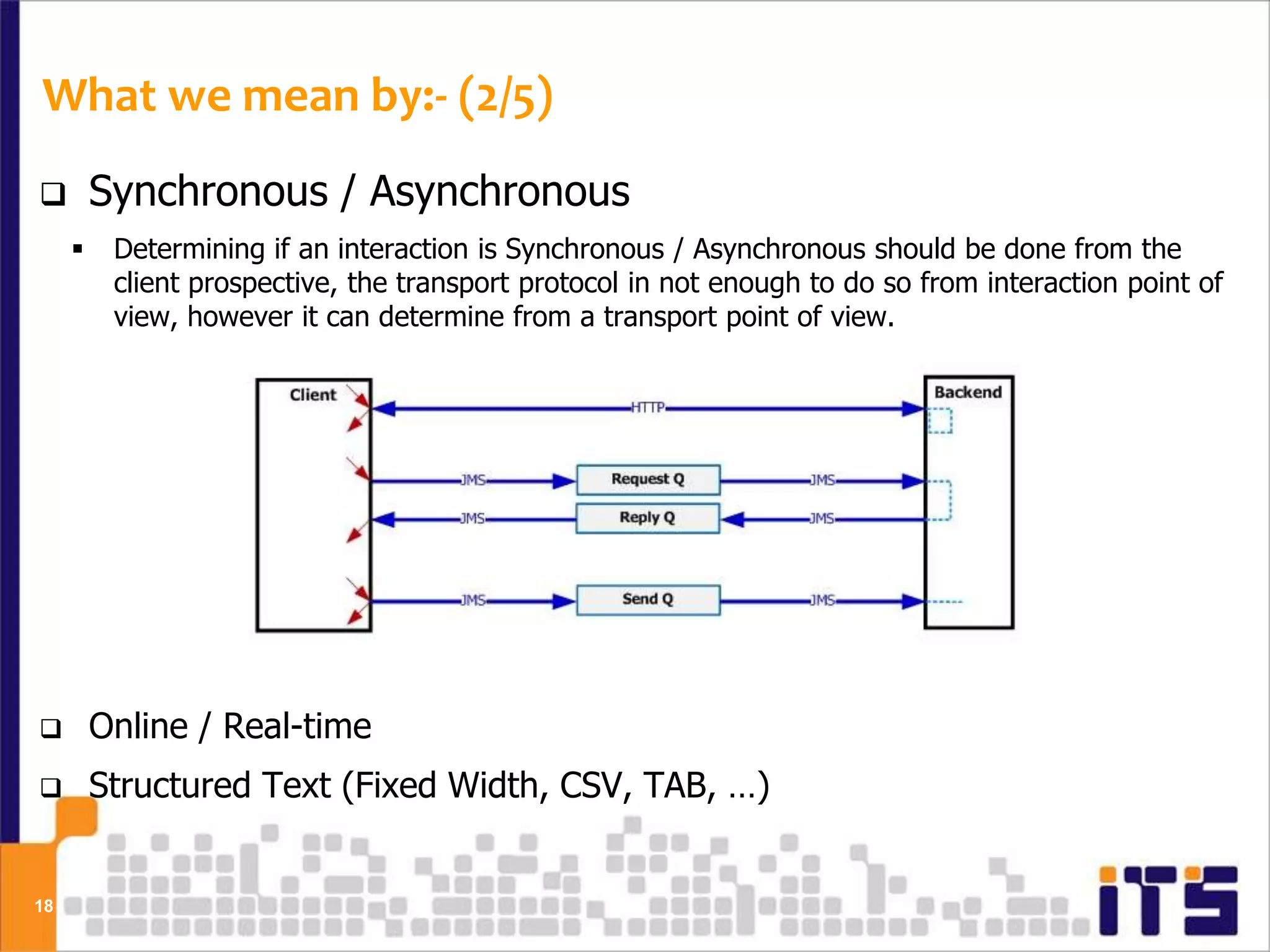

18. What we mean by:- (2/5)
 Synchronous / Asynchronous
 Determining if an interaction is Synchronous / Asynchronous should be done from the
client prospective, the transport protocol in not enough to do so from interaction point of
view, however it can determine from a transport point of view.
 Online / Real-time
 Structured Text (Fixed Width, CSV, TAB, …)
18

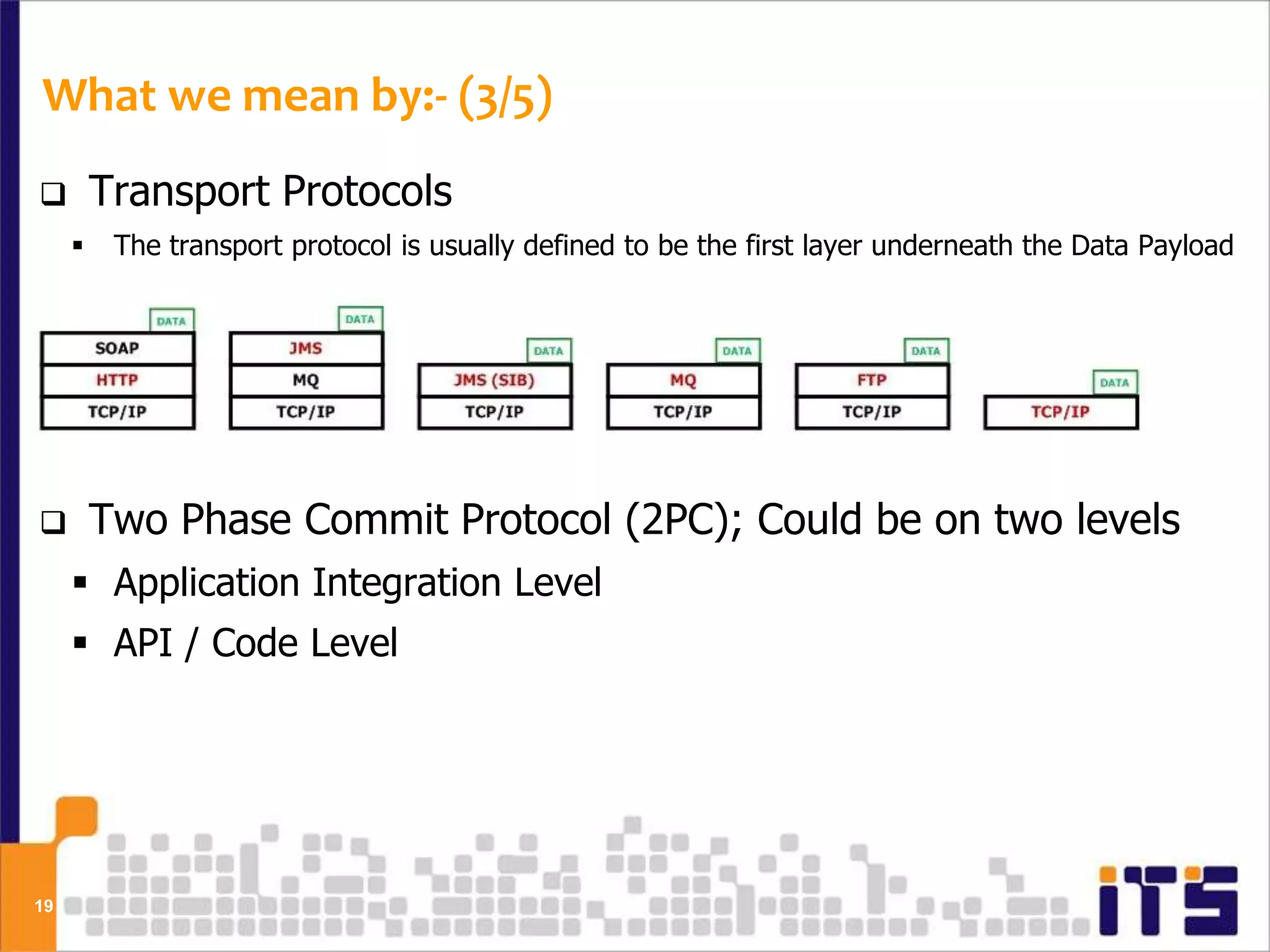

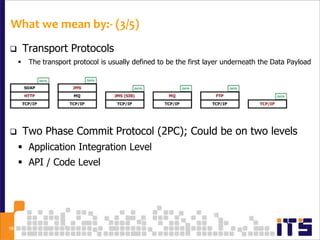

19. What we mean by:- (3/5)
 Transport Protocols
 The transport protocol is usually defined to be the first layer underneath the Data Payload
 Two Phase Commit Protocol (2PC); Could be on two levels
 Application Integration Level
 API / Code Level
19

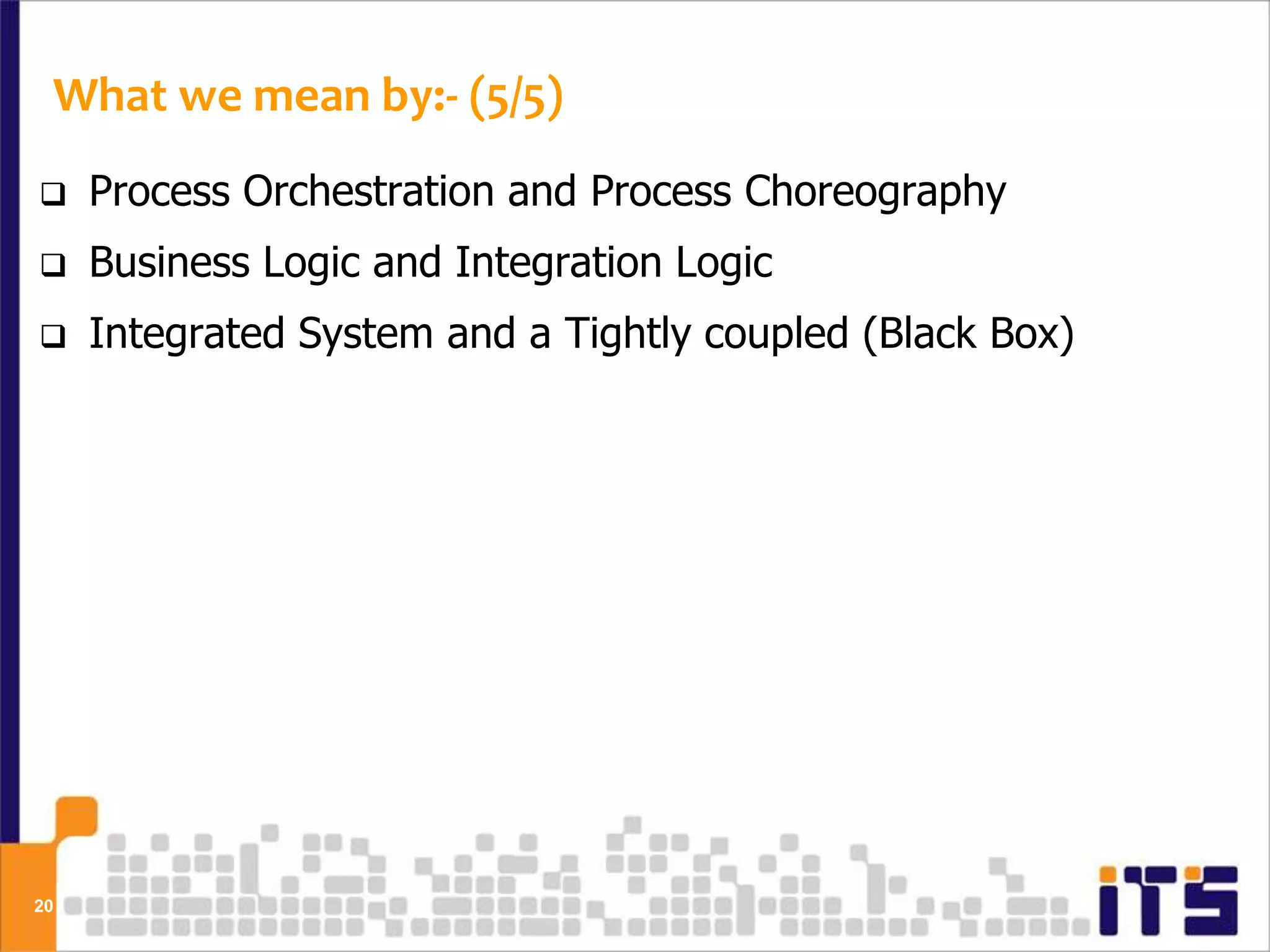

20. What we mean by:- (5/5)
 Process Orchestration and Process Choreography
 Business Logic and Integration Logic
 Integrated System and a Tightly coupled (Black Box)
20

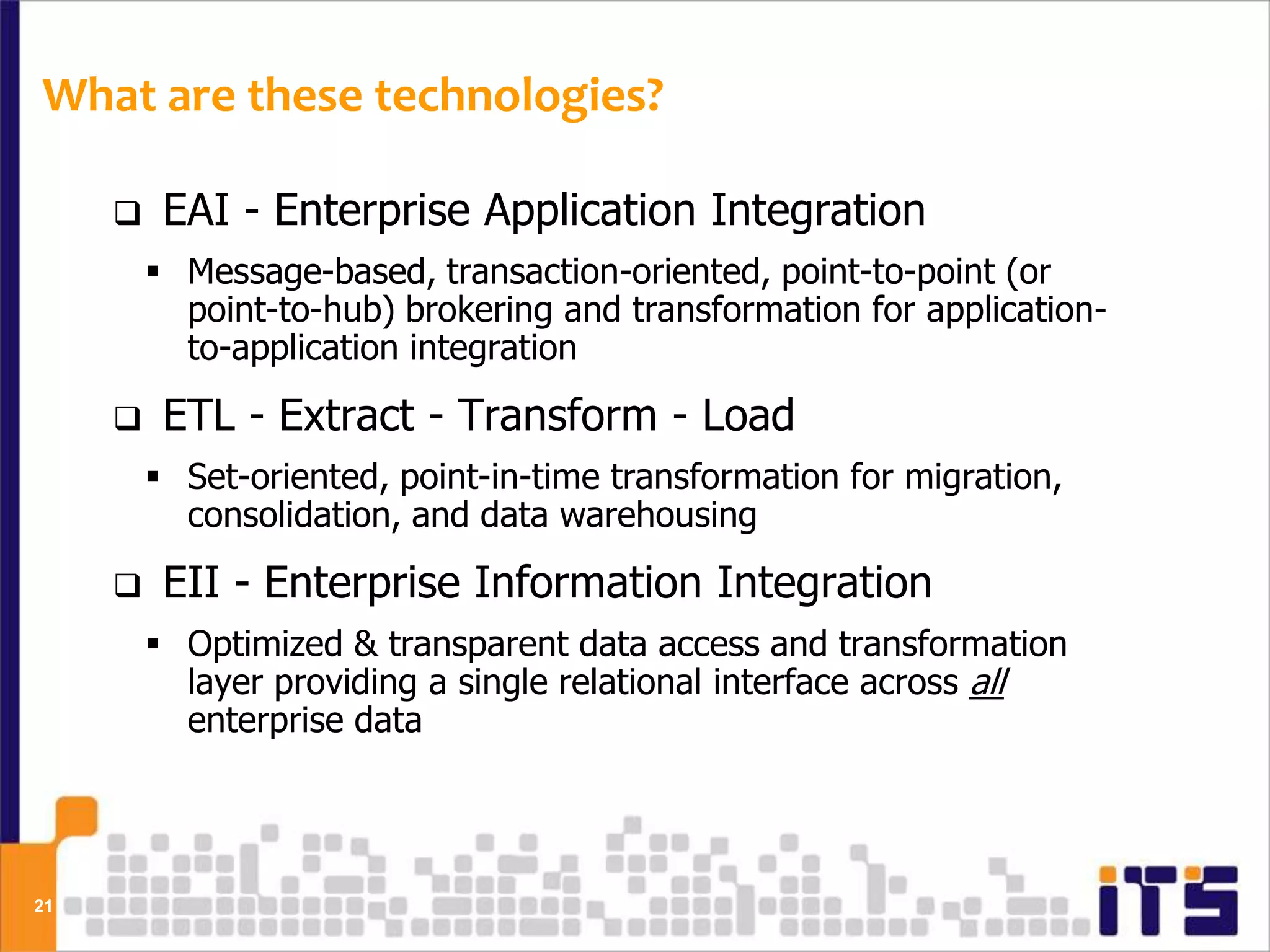

21. What are these technologies?
 EAI - Enterprise Application Integration
 Message-based, transaction-oriented, point-to-point (or
point-to-hub) brokering and transformation for application-
to-application integration
 ETL - Extract - Transform - Load
 Set-oriented, point-in-time transformation for migration,
consolidation, and data warehousing
 EII - Enterprise Information Integration
 Optimized & transparent data access and transformation
layer providing a single relational interface across all
enterprise data
21

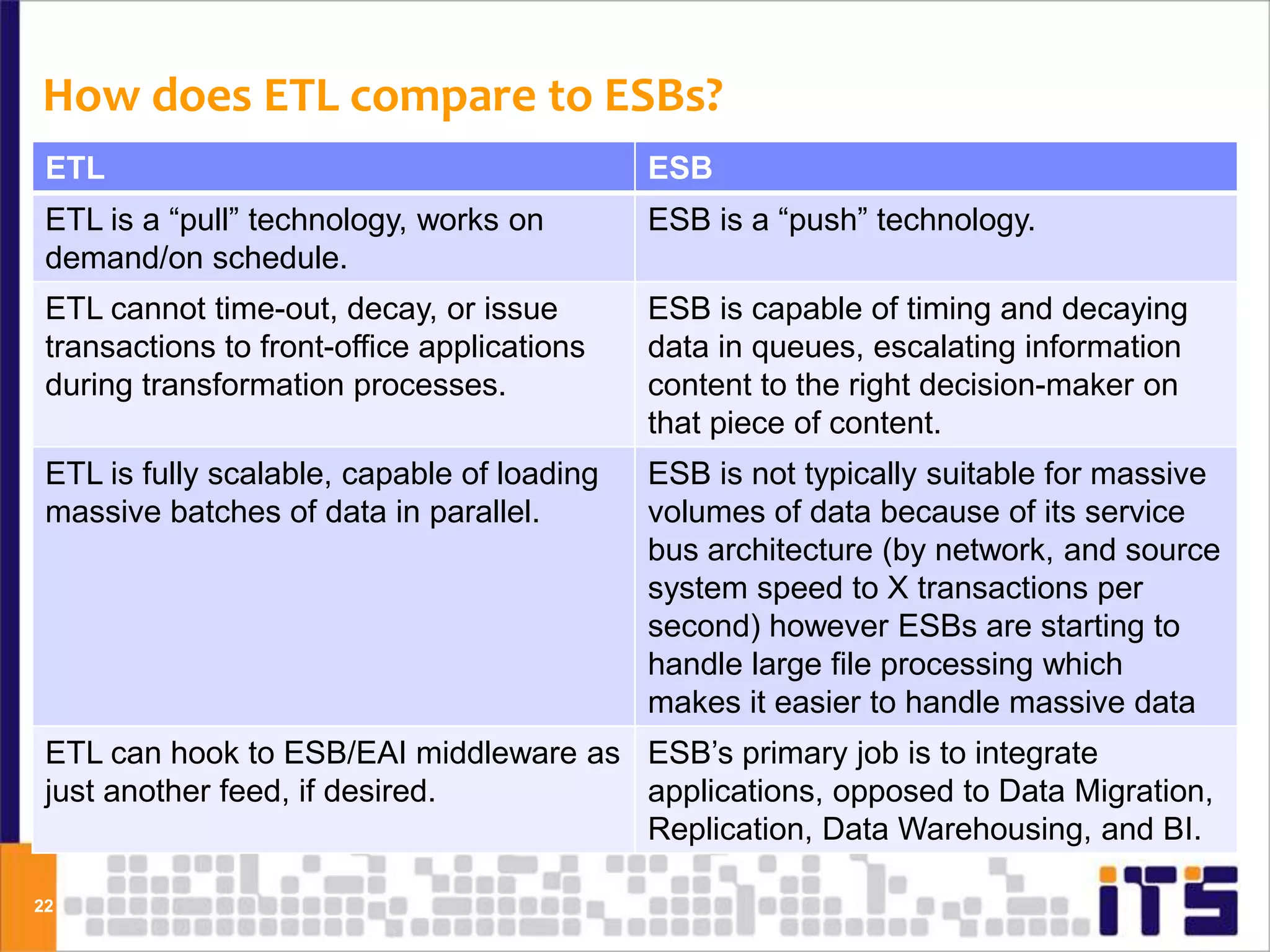

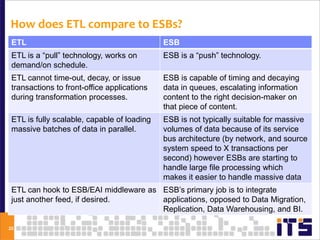

22. How does ETL compare to ESBs?
ETL ESB
ETL is a “pull” technology, works on ESB is a “push” technology.
demand/on schedule.
ETL cannot time-out, decay, or issue ESB is capable of timing and decaying
transactions to front-office applications data in queues, escalating information
during transformation processes. content to the right decision-maker on
that piece of content.
ETL is fully scalable, capable of loading ESB is not typically suitable for massive
massive batches of data in parallel. volumes of data because of its service
bus architecture (by network, and source
system speed to X transactions per
second) however ESBs are starting to
handle large file processing which
makes it easier to handle massive data
ETL can hook to ESB/EAI middleware as ESB’s primary job is to integrate
just another feed, if desired. applications, opposed to Data Migration,
Replication, Data Warehousing, and BI.
22

23. Agenda
۞ SOA Overview
۞ Integration Challenge
۞ Setting up the Terminology
۞ Introduction to Enterprise Service Bus
۞ ESB Providers
۞ Oracle Service Bus OSB
23

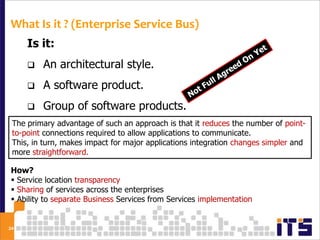

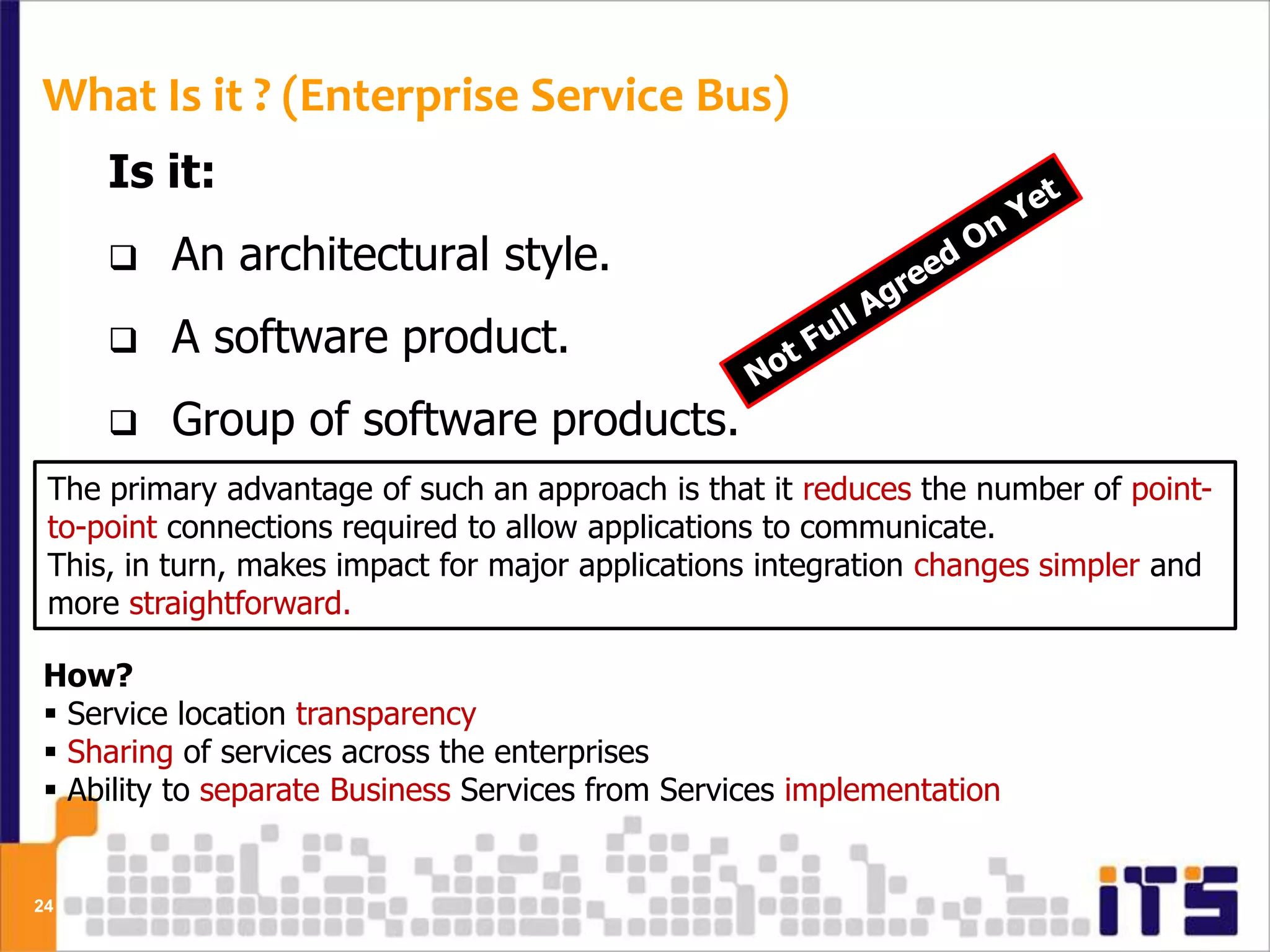

24. What Is it ? (Enterprise Service Bus)
Is it:
 An architectural style.
 A software product.
 Group of software products.
The primary advantage of such an approach is that it reduces the number of point-
 A Hardware Product.
to-point connections required to allow applications to communicate.
This, in turn, makes impact for major applications integration changes simpler and
more straightforward.
How?
 Service location transparency
 Sharing of services across the enterprises
 Ability to separate Business Services from Services implementation
24

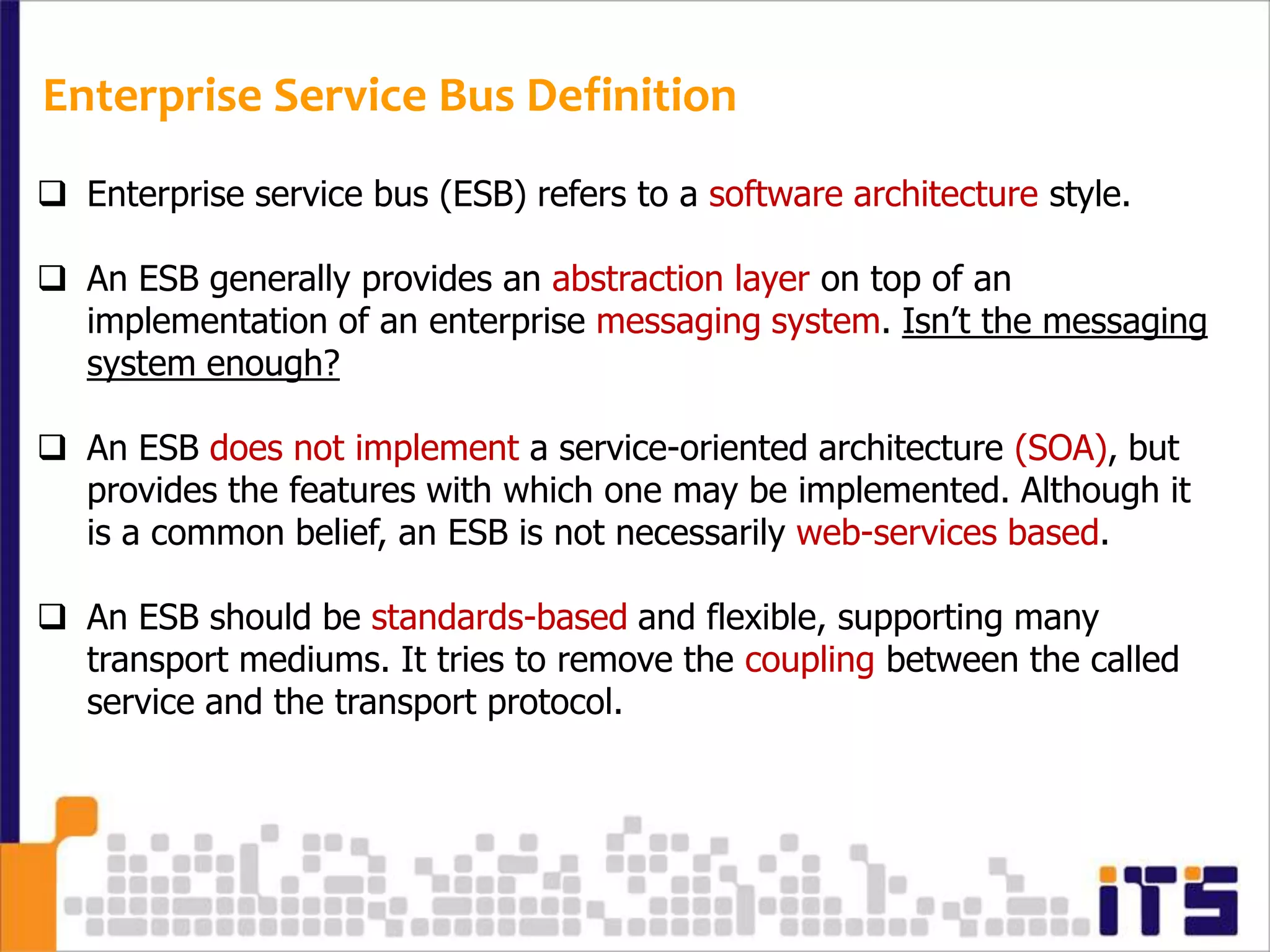

25. Enterprise Service Bus Definition
 Enterprise service bus (ESB) refers to a software architecture style.
 An ESB generally provides an abstraction layer on top of an
implementation of an enterprise messaging system. Isn’t the messaging
system enough?
 An ESB does not implement a service-oriented architecture (SOA), but
provides the features with which one may be implemented. Although it
is a common belief, an ESB is not necessarily web-services based.
 An ESB should be standards-based and flexible, supporting many
transport mediums. It tries to remove the coupling between the called
service and the transport protocol.

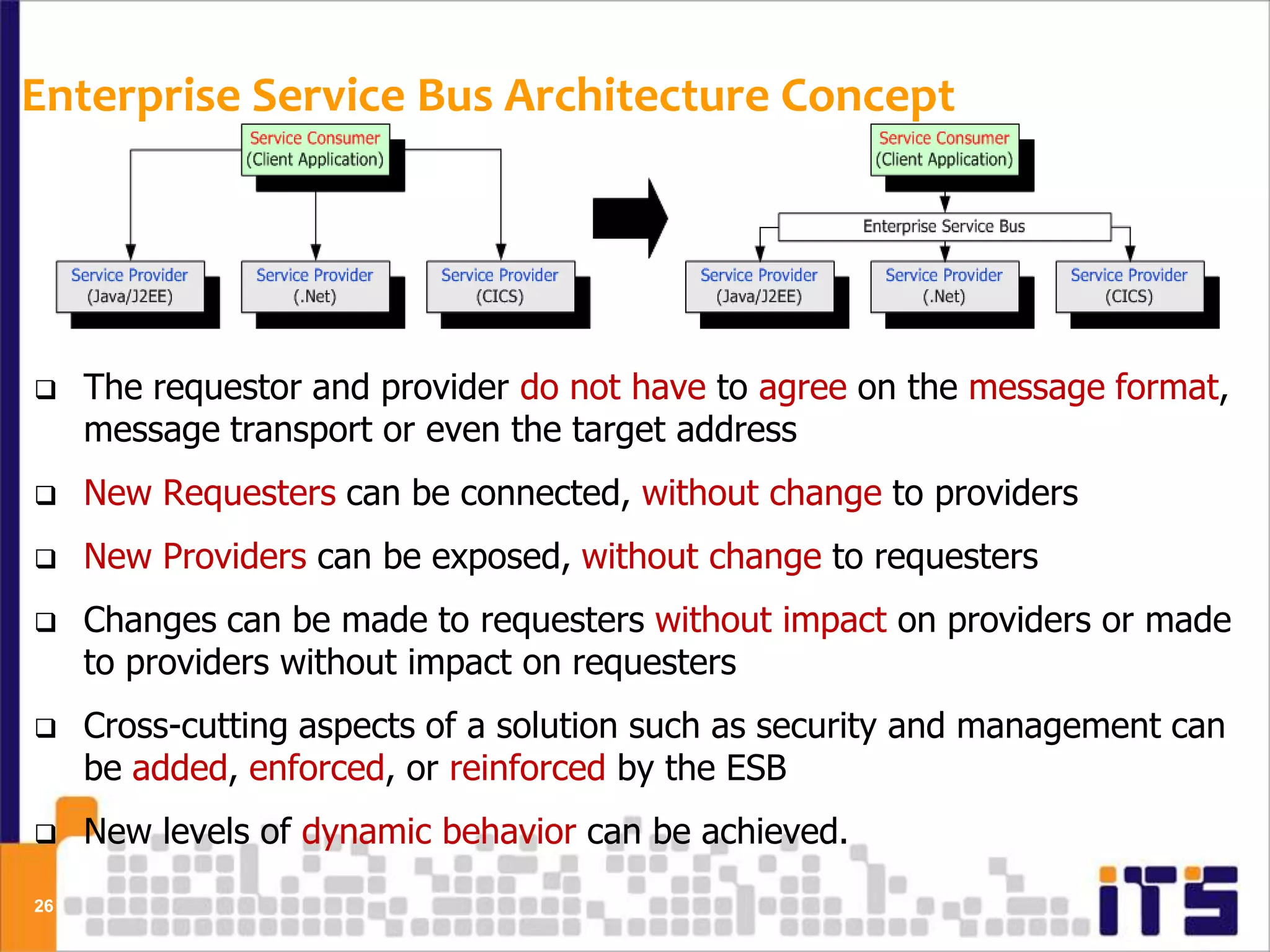

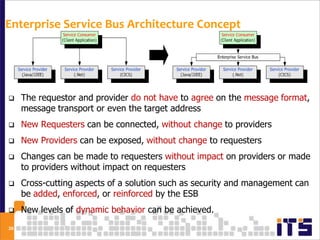

26. Enterprise Service Bus Architecture Concept
 The requestor and provider do not have to agree on the message format,
message transport or even the target address
 New Requesters can be connected, without change to providers
 New Providers can be exposed, without change to requesters
 Changes can be made to requesters without impact on providers or made
to providers without impact on requesters
 Cross-cutting aspects of a solution such as security and management can
be added, enforced, or reinforced by the ESB
 New levels of dynamic behavior can be achieved.
26

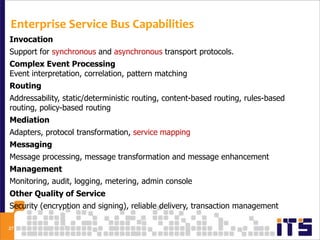

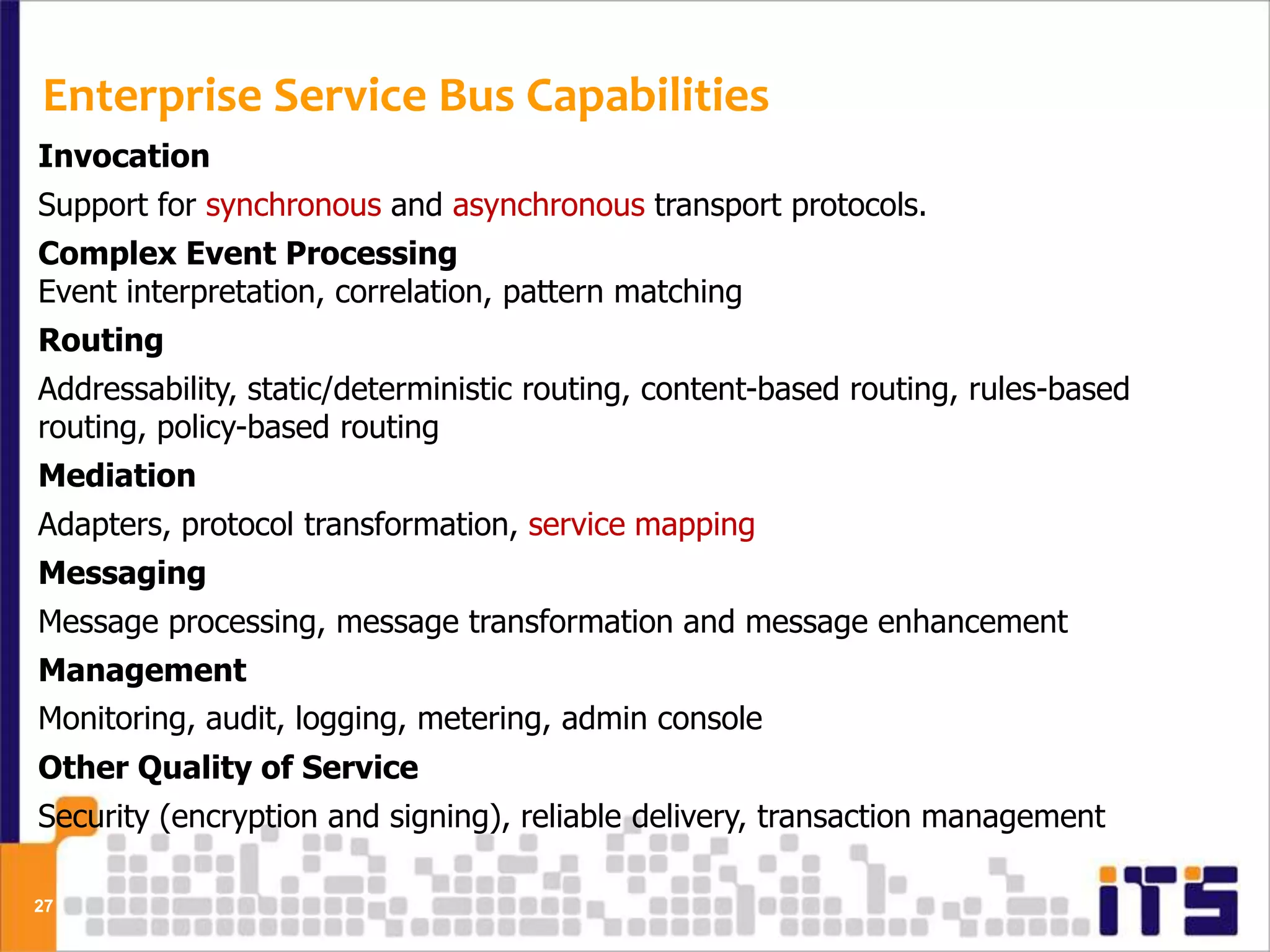

27. Enterprise Service Bus Capabilities
Invocation
Support for synchronous and asynchronous transport protocols.
Complex Event Processing
Event interpretation, correlation, pattern matching
Routing
Addressability, static/deterministic routing, content-based routing, rules-based
routing, policy-based routing
Mediation
Adapters, protocol transformation, service mapping
Messaging
Message processing, message transformation and message enhancement
Management
Monitoring, audit, logging, metering, admin console
Other Quality of Service
Security (encryption and signing), reliable delivery, transaction management
27

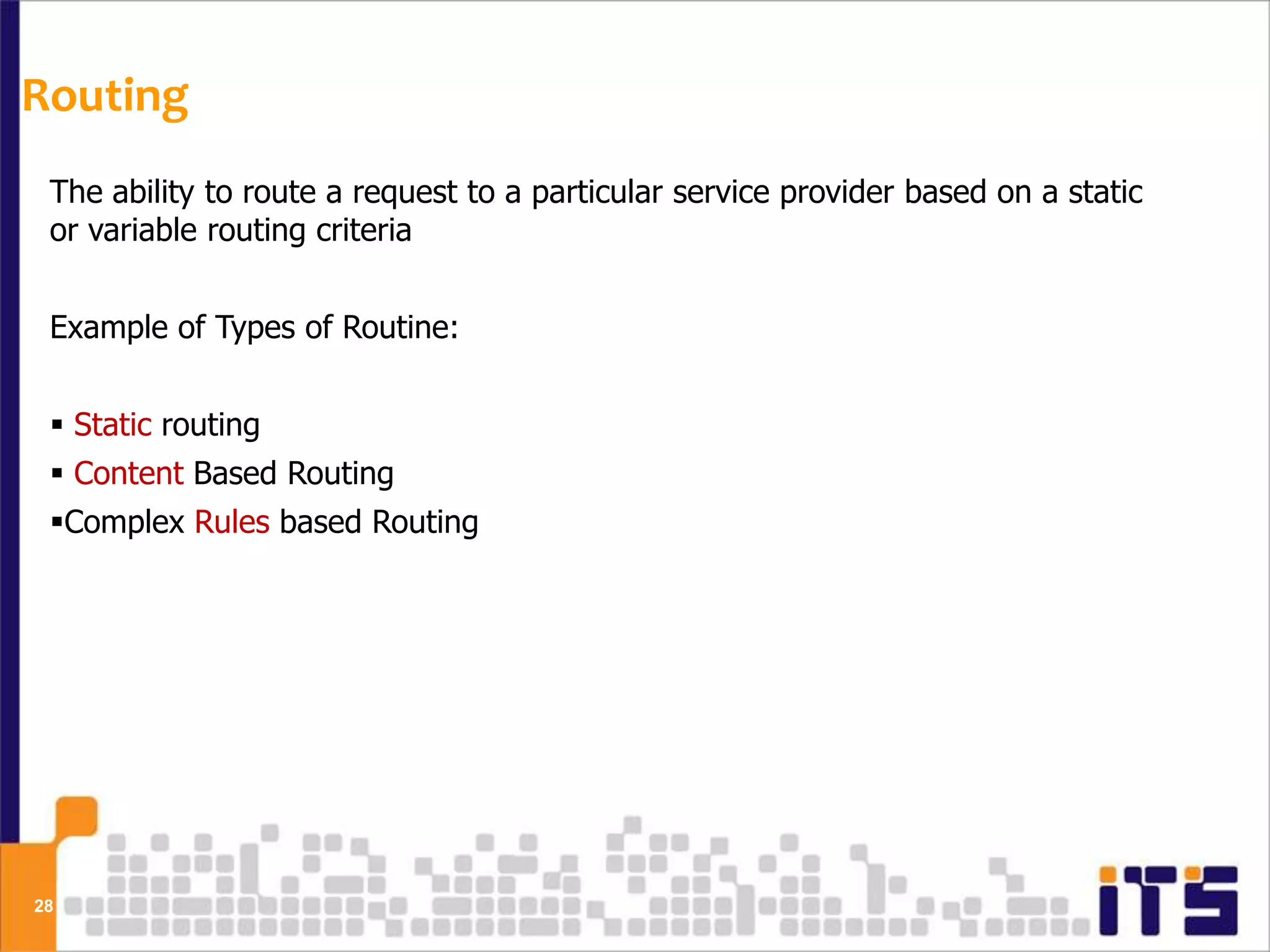

28. Routing
The ability to route a request to a particular service provider based on a static
or variable routing criteria
Example of Types of Routine:
 Static routing
 Content Based Routing
Complex Rules based Routing
28

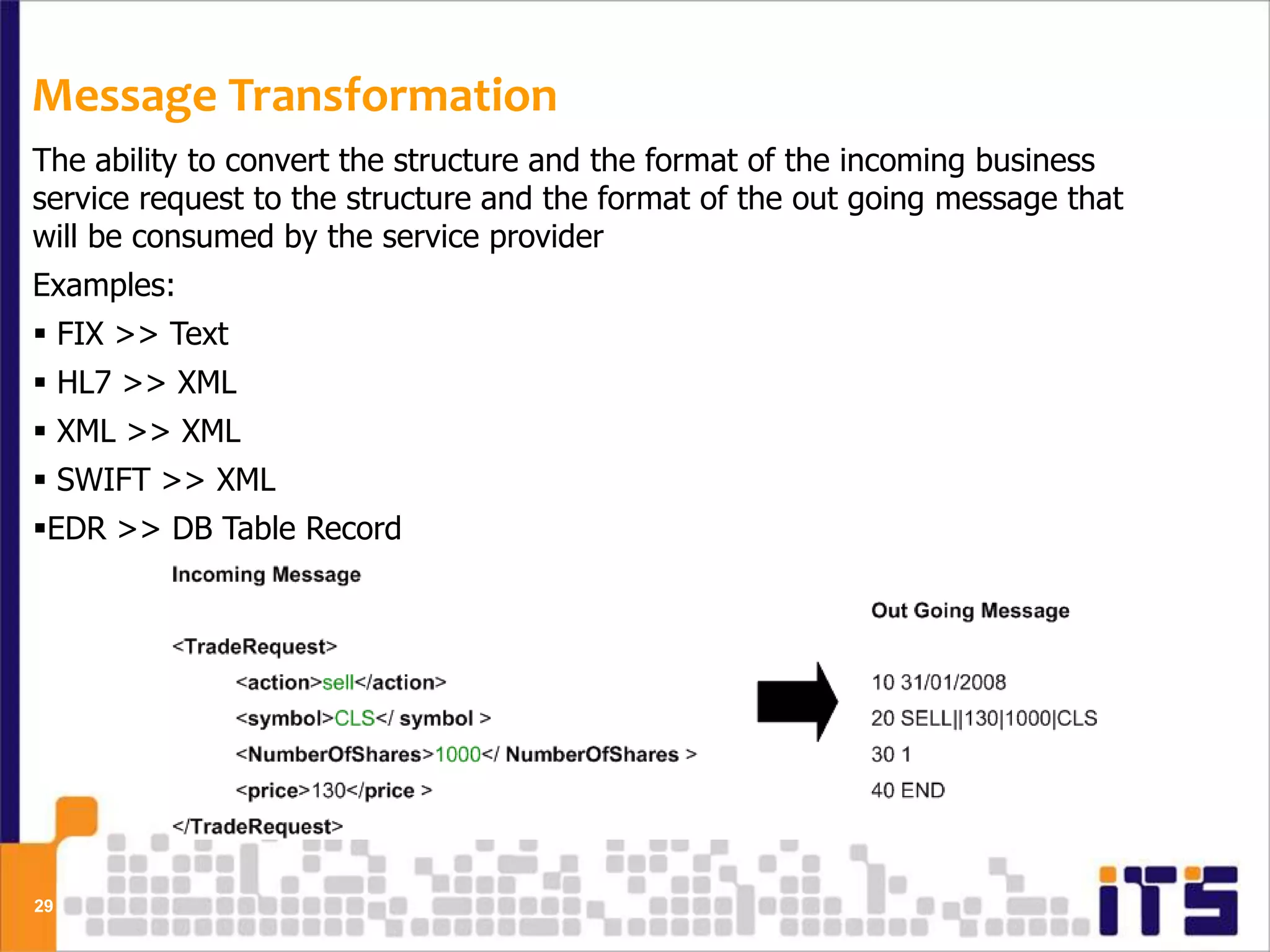

29. Message Transformation
The ability to convert the structure and the format of the incoming business
service request to the structure and the format of the out going message that
will be consumed by the service provider
Examples:
 FIX >> Text
 HL7 >> XML
 XML >> XML
 SWIFT >> XML
EDR >> DB Table Record
29

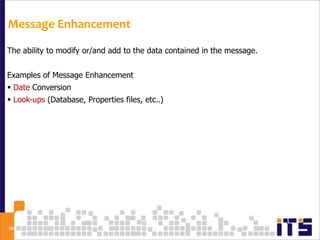

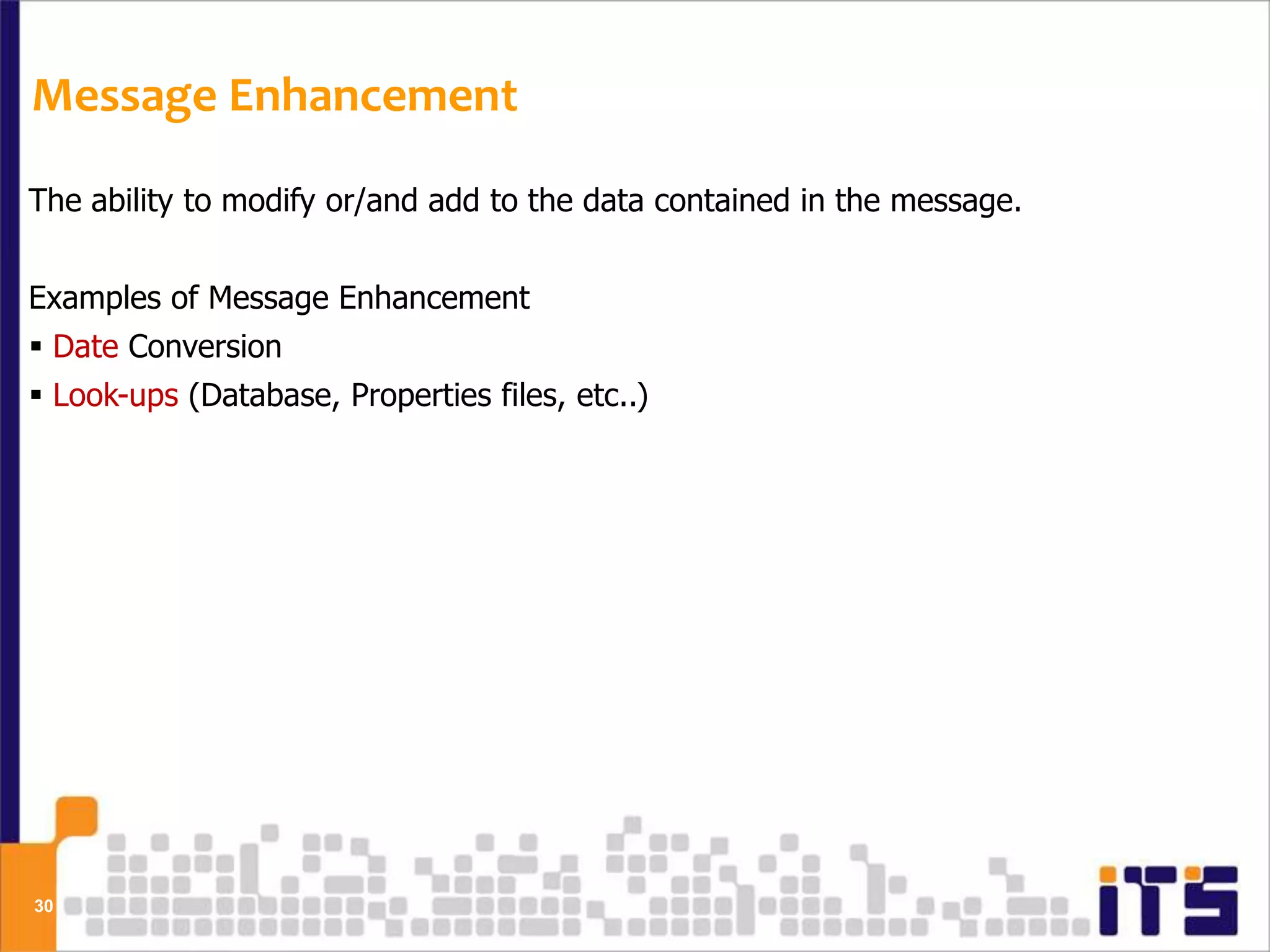

30. Message Enhancement
The ability to modify or/and add to the data contained in the message.
Examples of Message Enhancement
 Date Conversion
 Look-ups (Database, Properties files, etc..)
30

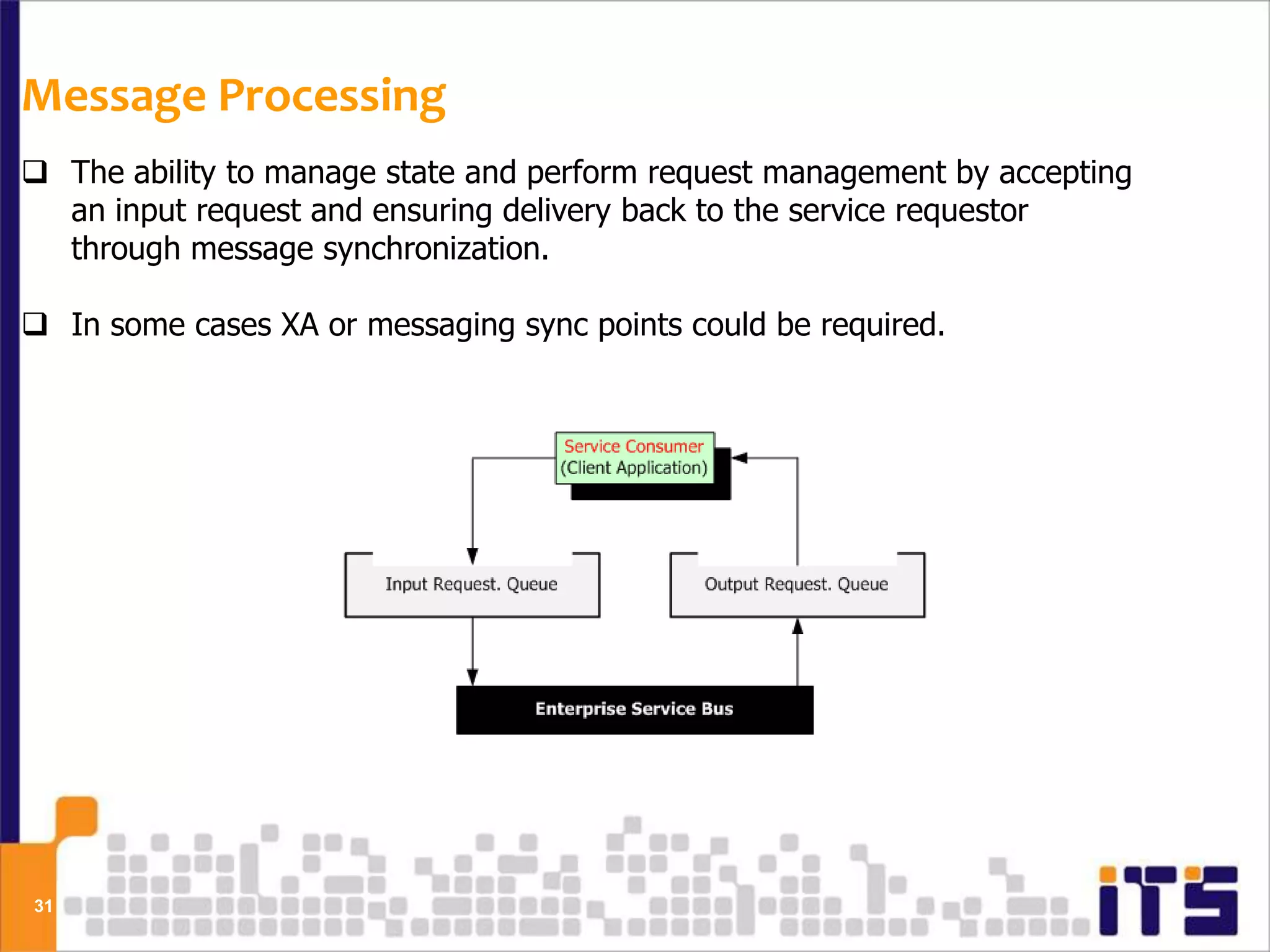

31. Message Processing
 The ability to manage state and perform request management by accepting
an input request and ensuring delivery back to the service requestor
through message synchronization.
 In some cases XA or messaging sync points could be required.
31

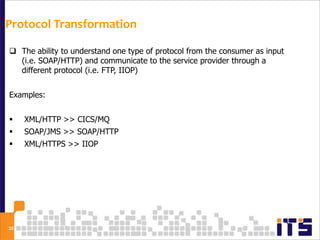

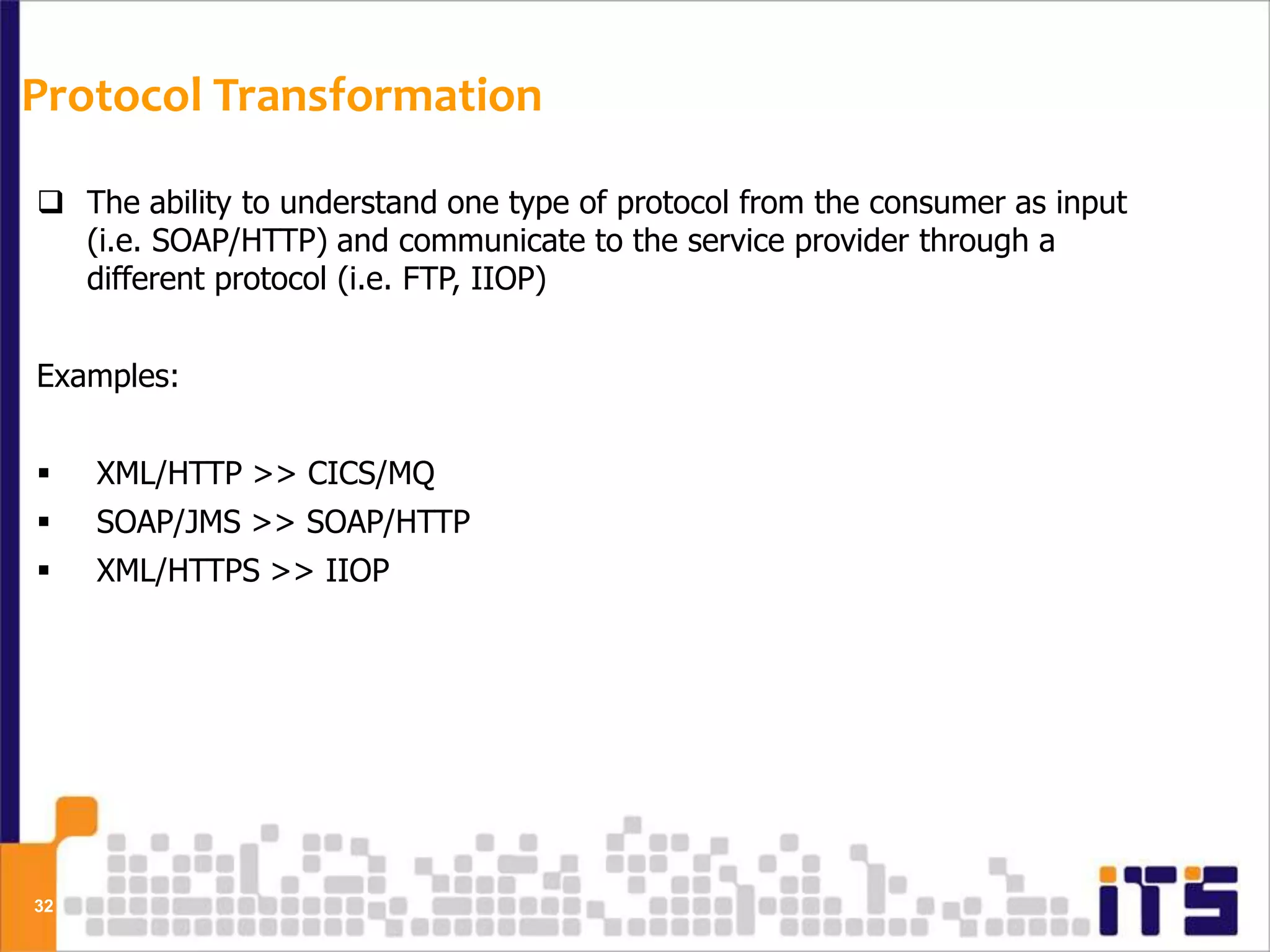

32. Protocol Transformation
 The ability to understand one type of protocol from the consumer as input
(i.e. SOAP/HTTP) and communicate to the service provider through a
different protocol (i.e. FTP, IIOP)
Examples:
 XML/HTTP >> CICS/MQ
 SOAP/JMS >> SOAP/HTTP
 XML/HTTPS >> IIOP
32

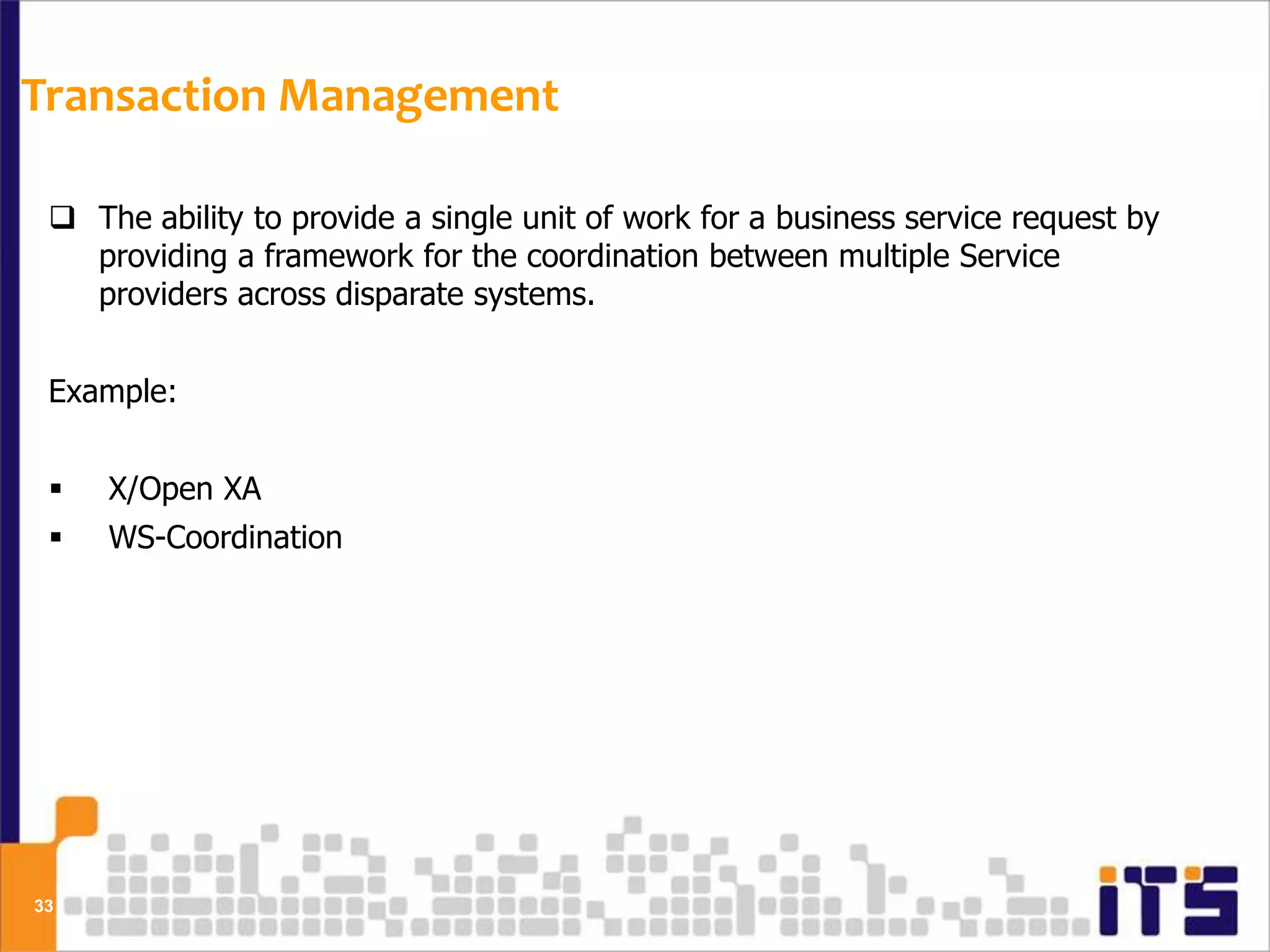

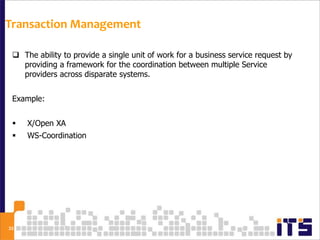

33. Transaction Management
 The ability to provide a single unit of work for a business service request by
providing a framework for the coordination between multiple Service
providers across disparate systems.
Example:
 X/Open XA
 WS-Coordination
33

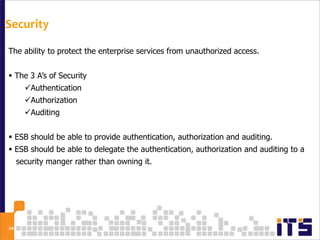

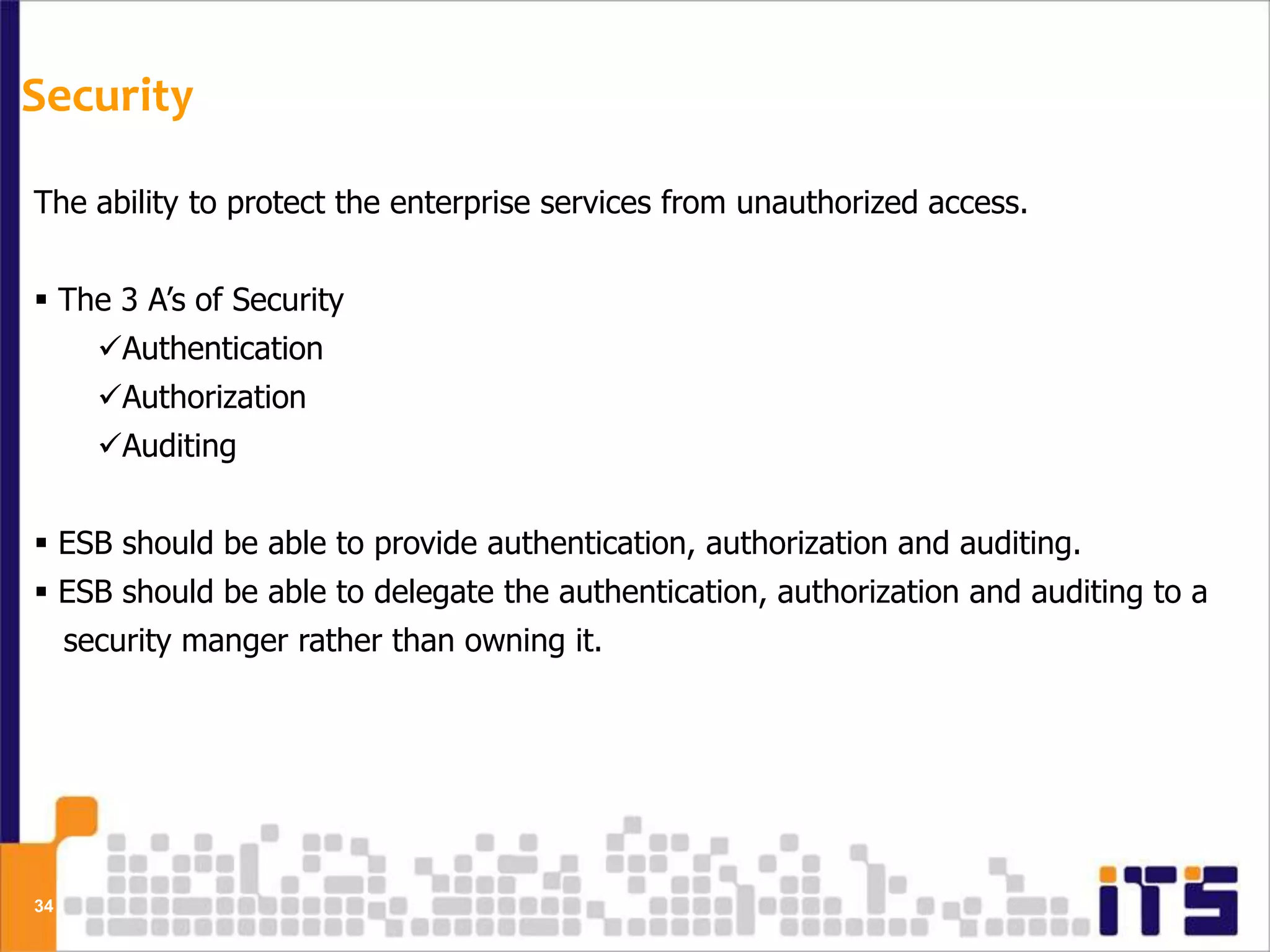

34. Security
The ability to protect the enterprise services from unauthorized access.
 The 3 A’s of Security
Authentication
Authorization
Auditing
 ESB should be able to provide authentication, authorization and auditing.
 ESB should be able to delegate the authentication, authorization and auditing to a
security manger rather than owning it.
34

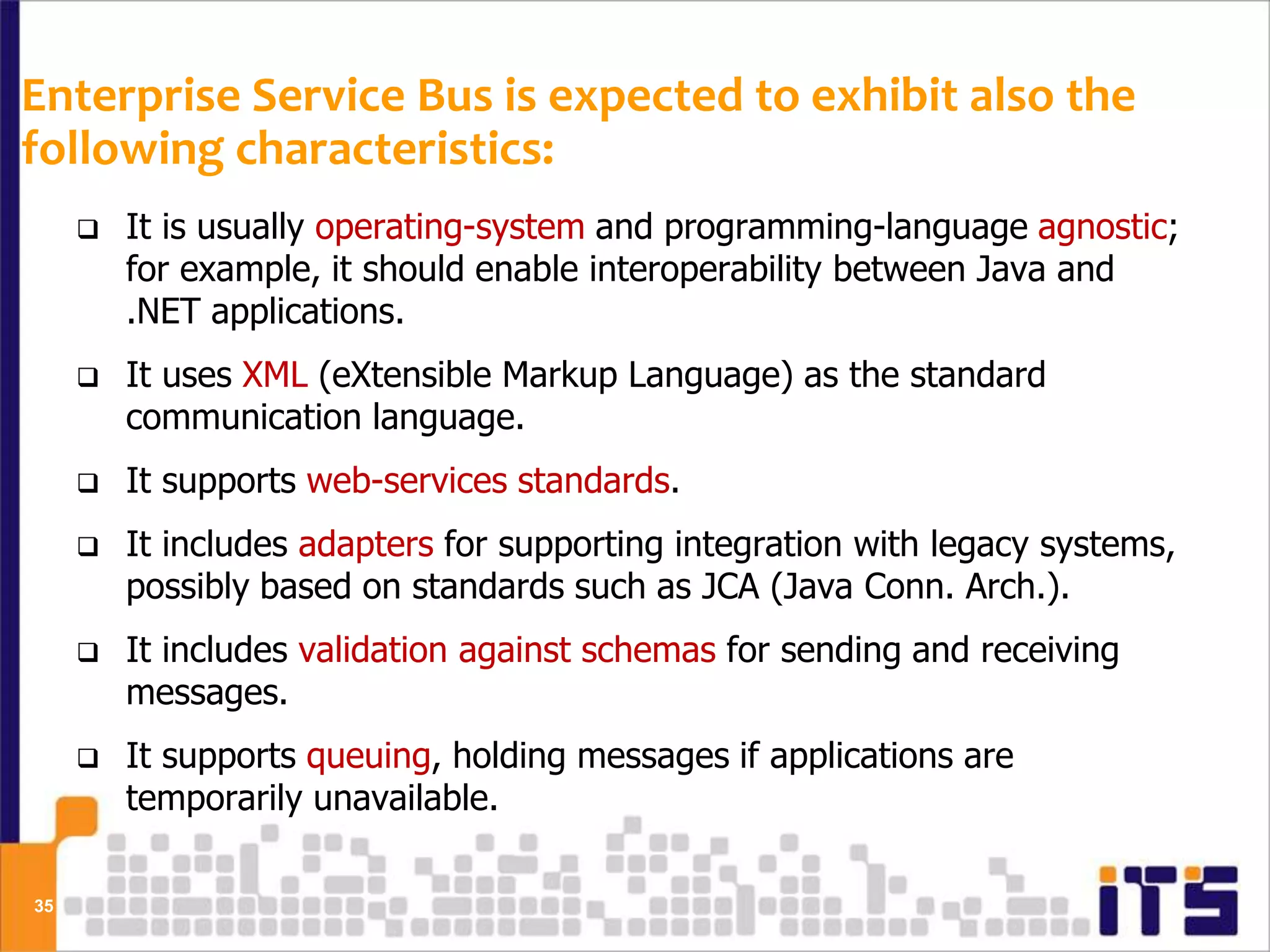

35. Enterprise Service Bus is expected to exhibit also the
following characteristics:
 It is usually operating-system and programming-language agnostic;
for example, it should enable interoperability between Java and
.NET applications.
 It uses XML (eXtensible Markup Language) as the standard
communication language.
 It supports web-services standards.
 It includes adapters for supporting integration with legacy systems,
possibly based on standards such as JCA (Java Conn. Arch.).
 It includes validation against schemas for sending and receiving
messages.
 It supports queuing, holding messages if applications are
temporarily unavailable.
35

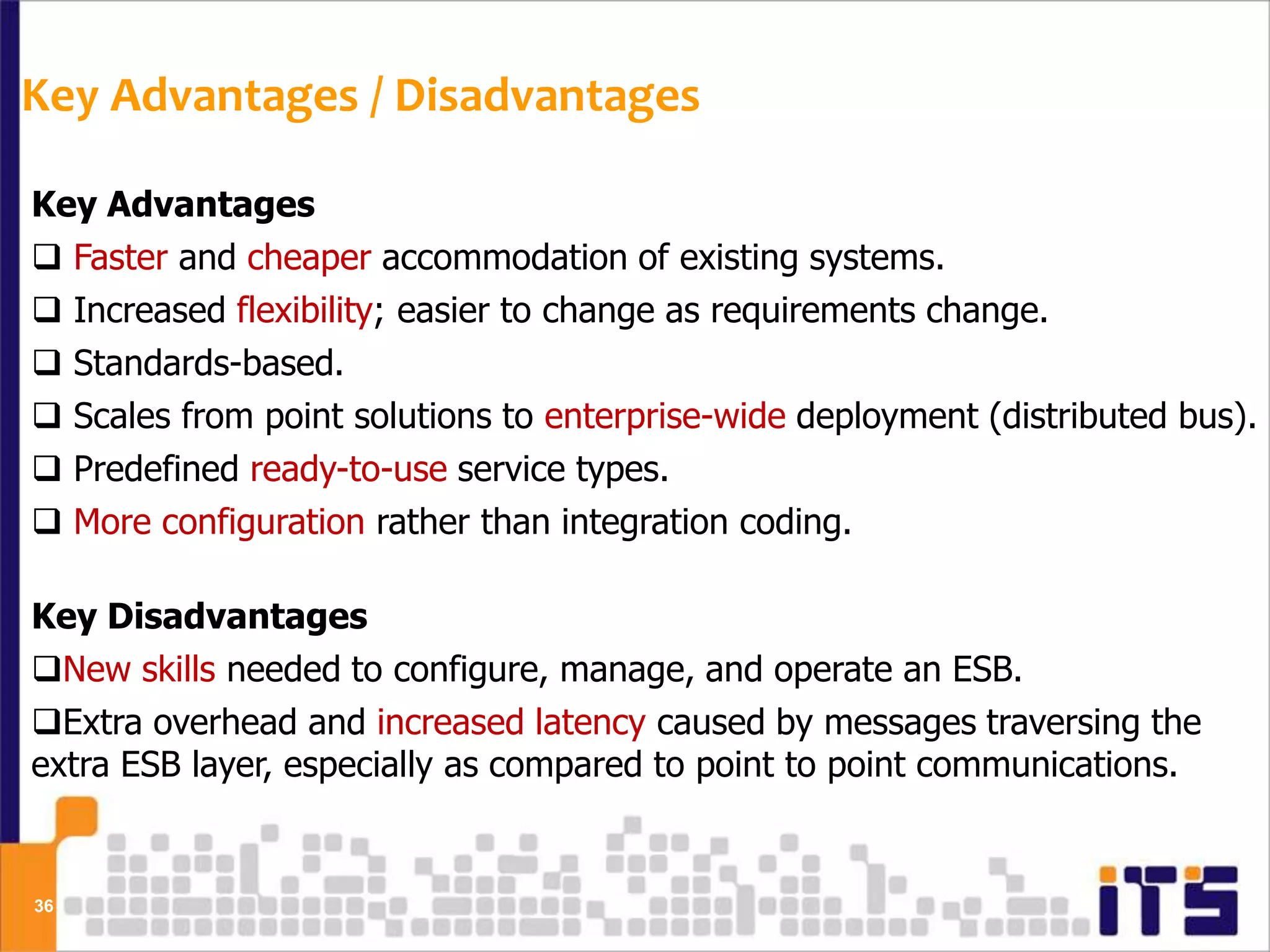

36. Key Advantages / Disadvantages
Key Advantages
 Faster and cheaper accommodation of existing systems.
 Increased flexibility; easier to change as requirements change.
 Standards-based.
 Scales from point solutions to enterprise-wide deployment (distributed bus).
 Predefined ready-to-use service types.
 More configuration rather than integration coding.
Key Disadvantages
New skills needed to configure, manage, and operate an ESB.
Extra overhead and increased latency caused by messages traversing the
extra ESB layer, especially as compared to point to point communications.
36

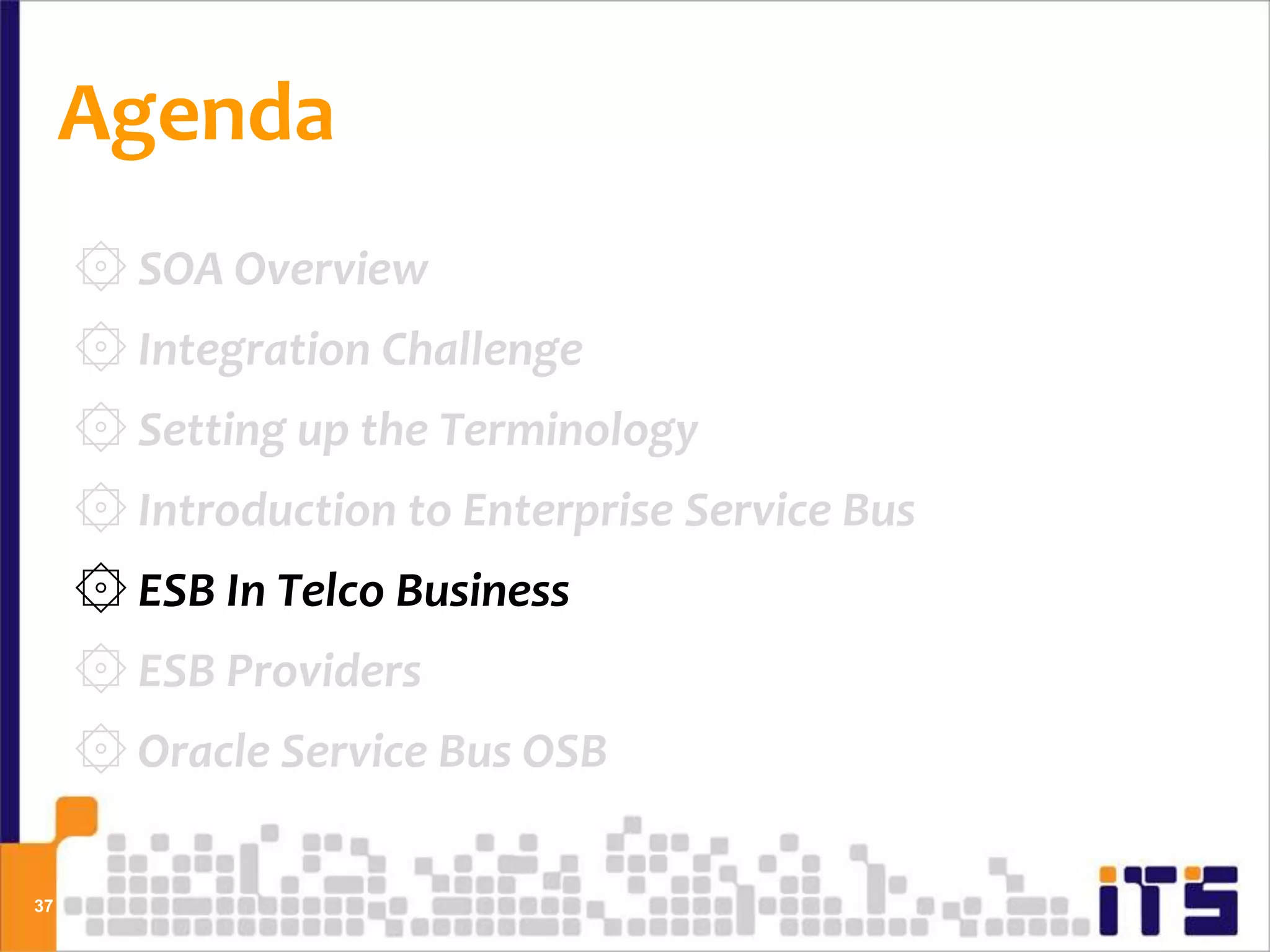

37. Agenda
۞ SOA Overview
۞ Integration Challenge
۞ Setting up the Terminology
۞ Introduction to Enterprise Service Bus
۞ ESB In Telco Business
۞ ESB Providers
۞ Oracle Service Bus OSB
37

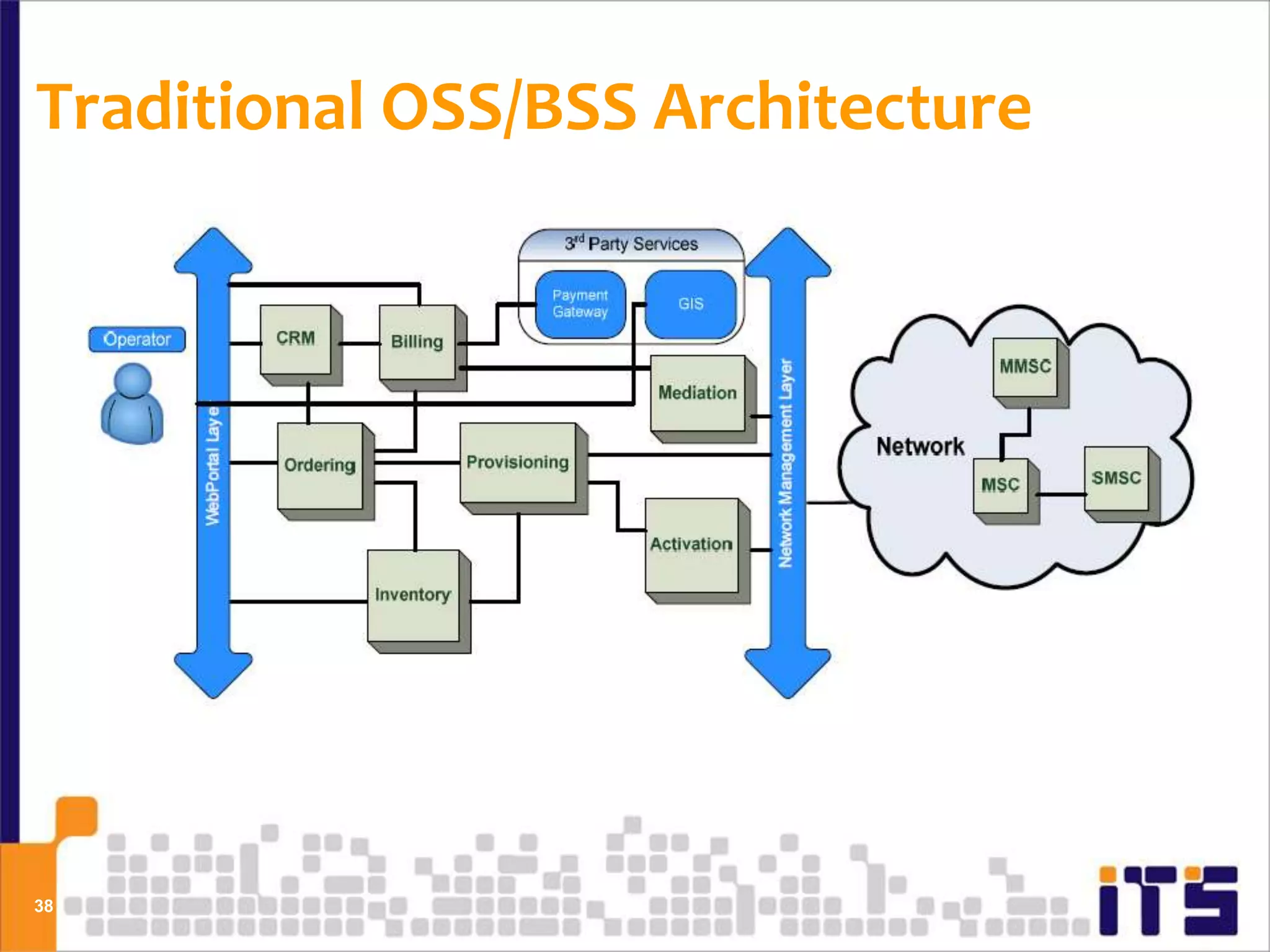

38. Traditional OSS/BSS Architecture
38

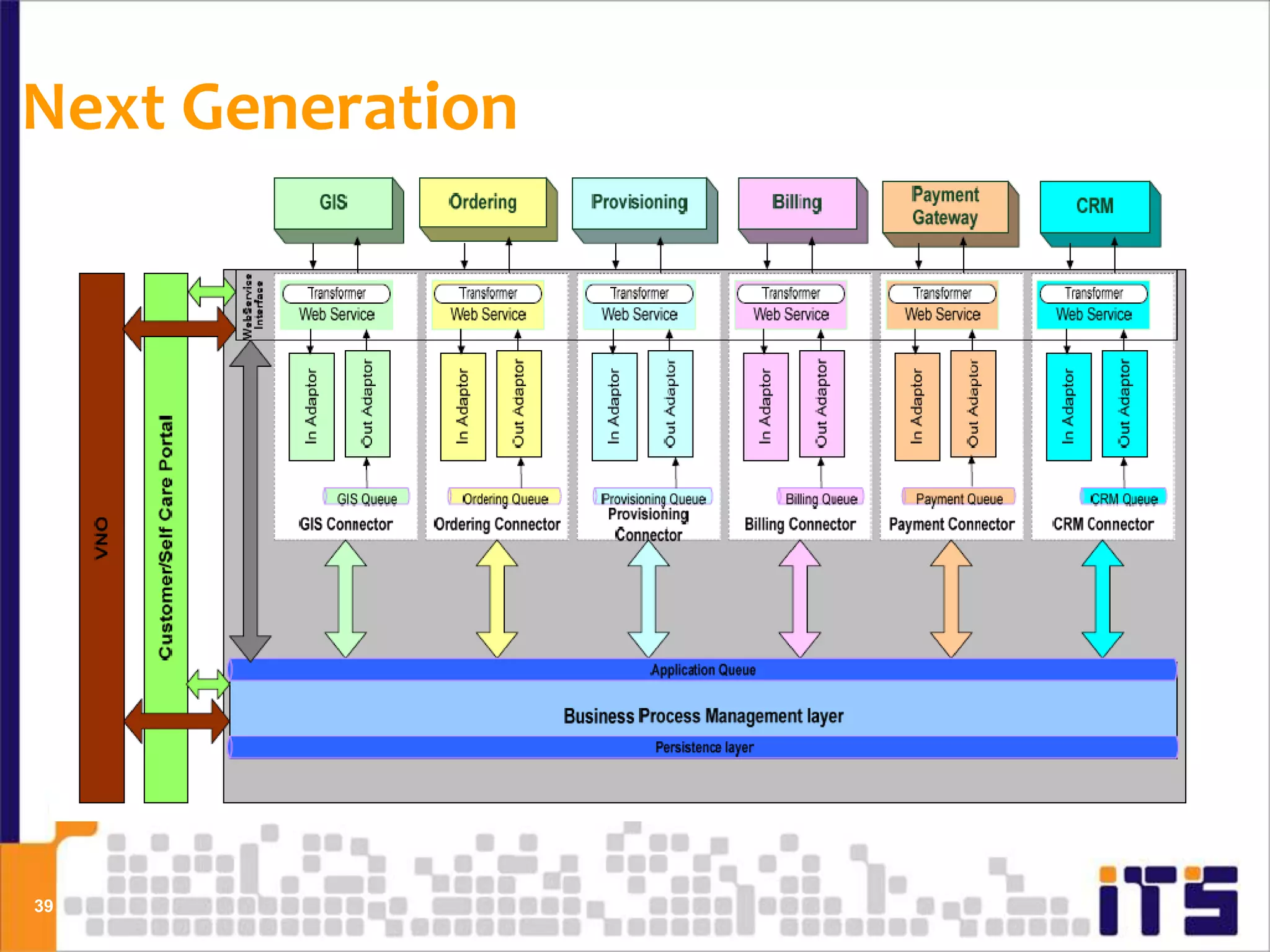

39. Next Generation
39

40. Agenda
۞ SOA Overview
۞ Integration Challenge
۞ Setting up the Terminology
۞ Introduction to Enterprise Service Bus
۞ ESB In Telco Business
۞ ESB Providers
۞ Oracle Service Bus OSB
40

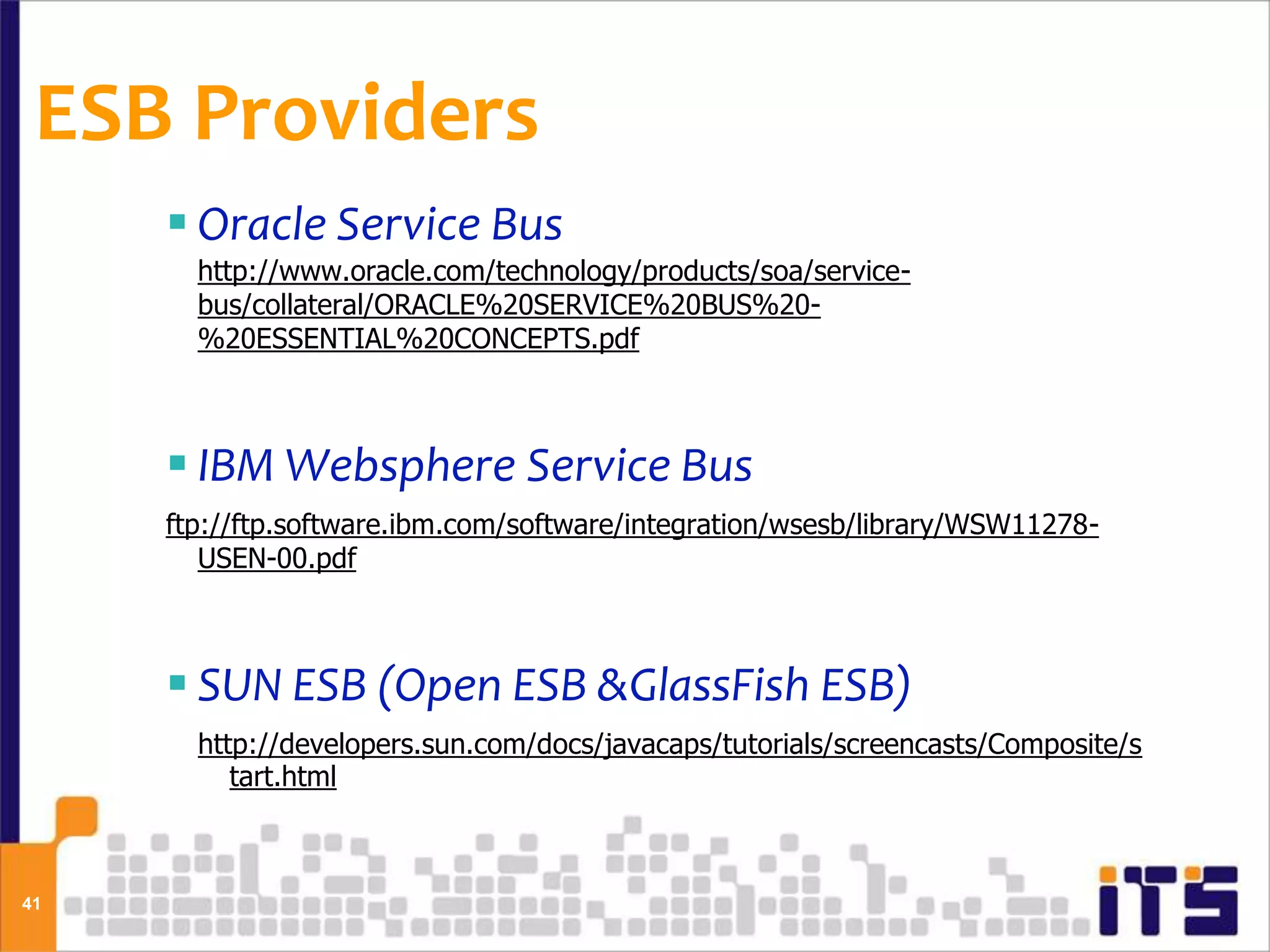

41. ESB Providers
 Oracle Service Bus
http://www.oracle.com/technology/products/soa/service-
bus/collateral/ORACLE%20SERVICE%20BUS%20-
%20ESSENTIAL%20CONCEPTS.pdf
 IBM Websphere Service Bus
ftp://ftp.software.ibm.com/software/integration/wsesb/library/WSW11278-
USEN-00.pdf
 SUN ESB (Open ESB &GlassFish ESB)
http://developers.sun.com/docs/javacaps/tutorials/screencasts/Composite/s
tart.html
41

42. Oracle Service Bus OSB
42

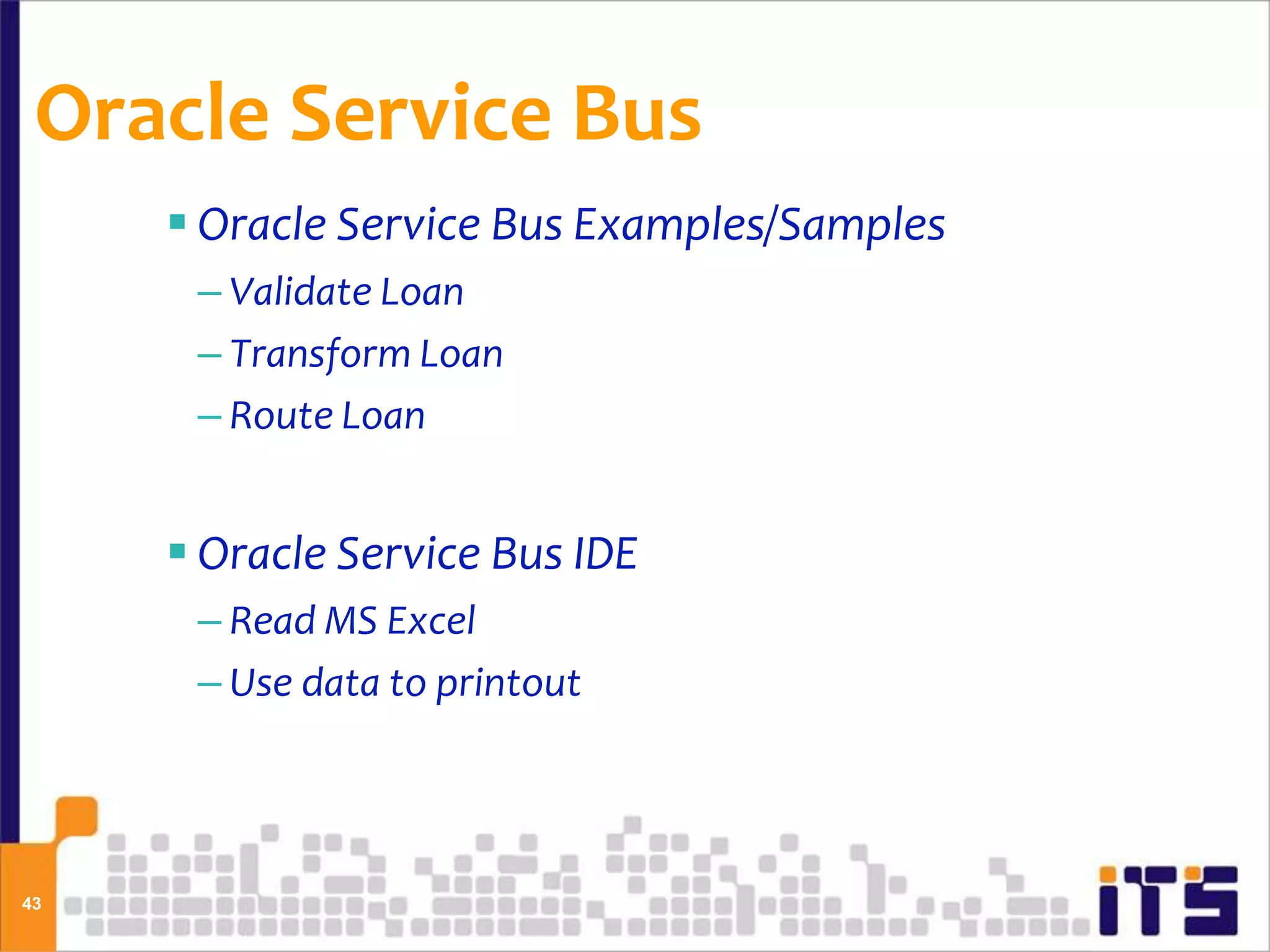

43. Oracle Service Bus
 Oracle Service Bus Examples/Samples
– Validate Loan
– Transform Loan
– Route Loan
 Oracle Service Bus IDE
– Read MS Excel
– Use data to printout
43

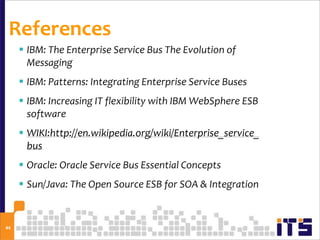

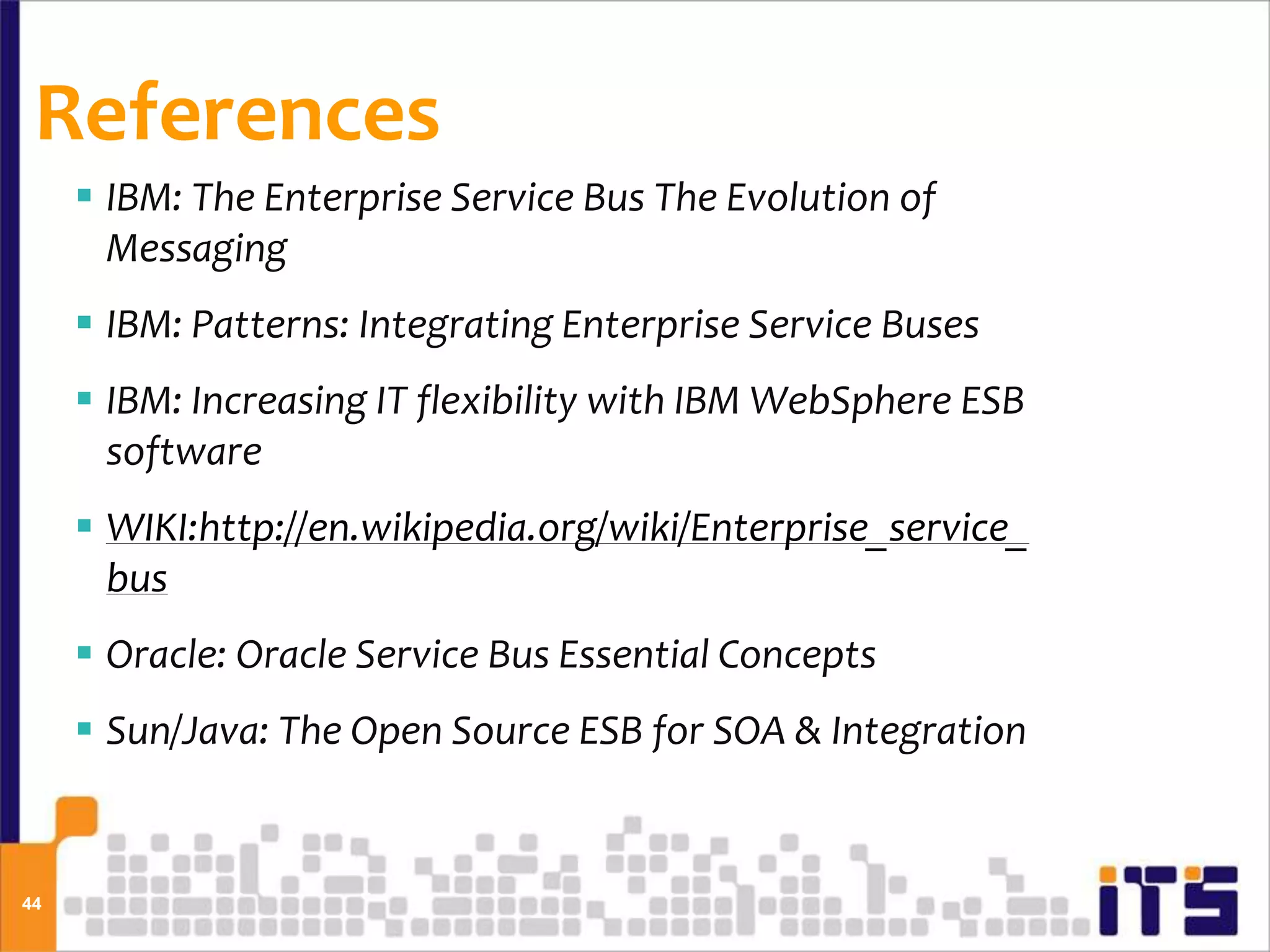

44. References
 IBM: The Enterprise Service Bus The Evolution of
Messaging
 IBM: Patterns: Integrating Enterprise Service Buses
 IBM: Increasing IT flexibility with IBM WebSphere ESB
software
 WIKI:http://en.wikipedia.org/wiki/Enterprise_service_
bus
 Oracle: Oracle Service Bus Essential Concepts
 Sun/Java: The Open Source ESB for SOA & Integration
44

45. Discussion
45

46. 46
