This document discusses several common hydrometeorological instruments:
1. Anemometers, which measure wind speed and direction. Common types are cup anemometers, windmill anemometers, and ultrasonic anemometers.
2. Barometers, which measure atmospheric pressure and can indicate changes in weather patterns.
3. Hygrometers, which detect and measure humidity through various operating principles like hair tension or capacitive sensors.
4. Rain gauges, which measure precipitation. Common types are non-recording gauges and recording gauges like weighing bucket, tipping bucket, or floating/natural syphon gauges.
This presentation is all about how human behavior affects our environment,either positively or negatively. This also includes different thories about human person in the environment.
*The said words are not mine, credits to the owners
Ma. Kathrina G. Salud
Joevilyn M. Dulay
Jericho Abadilla
Carlos Bayan
Marlon Buhain
John Henry Clerigo
Gerald Condrillon
James Patrick Condrillon
Jervee Dela Crus
Ricardo Esteban
John Rey Labid
Mico Ricafrente
Neil Santos
John Michael Sunga
Cathleen Dale Bacolod
Mary Gane Bella
Emaila Cuano
Arriza Maw Datu
Precious Datugan
Myka Del Mundo
Pamela Estores
Camille Francisco
Lyra Mancilla
Rain Silao
Gigi Ubana
Introduction to the Philosophy of the Human Person - Introduction to PhilosophyJuan Miguel Palero
This is a powerpoint presentation that discusses about one of the core subjects in the k-12 curriculum of the Senior High School: Introduction to the Philosophy of the Human Person. On this presentation, it discusses about the definition, history and nature of the philosophy.
This presentation is all about how human behavior affects our environment,either positively or negatively. This also includes different thories about human person in the environment.
*The said words are not mine, credits to the owners
Ma. Kathrina G. Salud
Joevilyn M. Dulay
Jericho Abadilla
Carlos Bayan
Marlon Buhain
John Henry Clerigo
Gerald Condrillon
James Patrick Condrillon
Jervee Dela Crus
Ricardo Esteban
John Rey Labid
Mico Ricafrente
Neil Santos
John Michael Sunga
Cathleen Dale Bacolod
Mary Gane Bella
Emaila Cuano
Arriza Maw Datu
Precious Datugan
Myka Del Mundo
Pamela Estores
Camille Francisco
Lyra Mancilla
Rain Silao
Gigi Ubana
Introduction to the Philosophy of the Human Person - Introduction to PhilosophyJuan Miguel Palero
This is a powerpoint presentation that discusses about one of the core subjects in the k-12 curriculum of the Senior High School: Introduction to the Philosophy of the Human Person. On this presentation, it discusses about the definition, history and nature of the philosophy.
PHILOSOPHY OF THE HUMAN PERSON - INTERSUBJECTIVITYAntonio Delgado
It is the condition of man, a subject, among other men, who are also subjects. It refers to the shared awareness and understanding among persons. It is made possible by the awareness of the self and the other.
In these slides, we discuss about the devices which are used to measure climate.
I hope you like my previous slides.
Jazak Allah Khair.
Assalam U Alikum.
Talking about Velocity anemometer (cup/vane/ultrasonic anemometer) there is power point representation for this doc,under the name of " temperature sensor/ anemometer"
PHILOSOPHY OF THE HUMAN PERSON - INTERSUBJECTIVITYAntonio Delgado
It is the condition of man, a subject, among other men, who are also subjects. It refers to the shared awareness and understanding among persons. It is made possible by the awareness of the self and the other.
In these slides, we discuss about the devices which are used to measure climate.
I hope you like my previous slides.
Jazak Allah Khair.
Assalam U Alikum.
Talking about Velocity anemometer (cup/vane/ultrasonic anemometer) there is power point representation for this doc,under the name of " temperature sensor/ anemometer"
It is he best project to give an idea for the school project on meteorological Instruments. it gives info of few commonly used instruments which play a great role in day to day life and much more......
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.

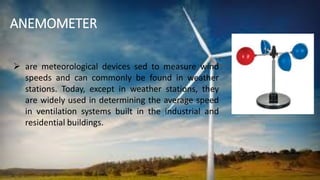

3. ANEMOMETER
are meteorological devices sed to measure wind
speeds and can commonly be found in weather
stations. Today, except in weather stations, they
are widely used in determining the average speed
in ventilation systems built in the industrial and
residential buildings.
4. ANEMOMETER
1. Cup Anemometers
TYPES OF ANEMOMETER
Also known as rotational anemometers cup
anemometers
simplest types of anemometers and have been
around for a very long time.
As wind presses against these
cups, the arms at the top
rotate around the central pole.

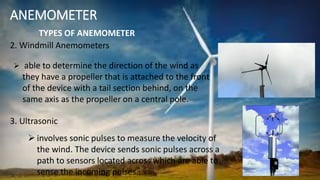

5. ANEMOMETER
2. Windmill Anemometers
TYPES OF ANEMOMETER
able to determine the direction of the wind as
they have a propeller that is attached to the front
of the device with a tail section behind, on the
same axis as the propeller on a central pole.
involves sonic pulses to measure the velocity of
the wind. The device sends sonic pulses across a
path to sensors located across which are able to
sense the incoming pulses..
3. Ultrasonic
6. BAROMETER
measures atmospheric pressure. Changes
in atmospheric pressure are most often
caused by the rise of warm air and the
descent of cold air
Barometric pressure changes with local
weather. Rising pressure means fair weather
while falling pressure means poor weather.
7. HYGROMETER
Hygrometer is a device used for detecting and
measuring humidity. There are several types of
hygrometers (coil, hair tension, capacitive, resistive
and others), whose operation is based on different
principles.
8. Rain Gauge
A rain gauge is an instrument for measuring the
precipitation that has fallen in a given time interval.
The rain gauge is part of every weather station. It is
used in meteorology as an additional tool of the
weather forecast and the climatology for the purpose
of long-term statistics of precipitation.
The amounts of rain accumulated in the gauge are
read either manually or by automatic weather station
(AWS).
9. Types of Rain Gauge
1. Non-Recording Type Rain Gauge
Non-recording type rain gauge is most common type of rain gauge used by
meteorological department. It consists of a cylindrical vessel 127mm in diameter with a
base enlarged to 210mm diameter.
At its top section, funnel is provided with circular brass rim which is 127mm exactly so
that it can fit into vessel well. This funnel shank is inserted in the neck of a receiving
bottle which is 75 to 100mm high from the base section and thinner than the cylinder,
placed into it to receive rainfall.
10. Types of Rain Gauge
1. Recording Type Rain Gauge
There are three types of recording rain gauges
a) Weighing bucket type
b) Tipping bucket type
c) Floating or natural syphon type rain gauge
11. Types of Rain Gauge
1. Recording Type Rain Gauge
There are three types of recording rain gauges
a) Weighing bucket type
b) Tipping bucket type
c) Floating or natural syphon type rain gauge
