1. Huffman Tree Coding
Greedy Technique
1
Dr. P. Subathra
Prof/ IT
KAMARAJ College of Engg. & Tech
(AUTONOMOUS)
Madurai

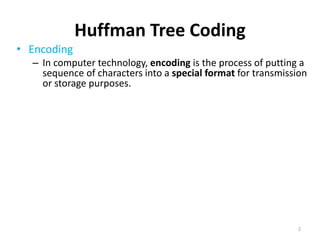

2. Huffman Tree Coding
• Encoding
– In computer technology, encoding is the process of putting a
sequence of characters into a special format for transmission
or storage purposes.
• Code Word
– The special format that represents each character is called as
the code word
• Fixed Length Encoding
– fixed-length encoding that assigns to each symbol a bit string
of the same length m
– Eg. ASCII codes
• Variable Length Encoding
– Variable-length encoding, which assigns codewords of
different lengths to different symbols
2

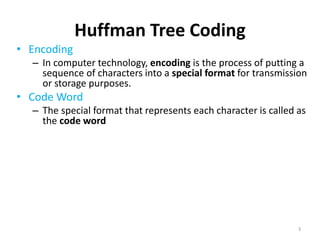

3. Huffman Tree Coding
• Encoding
– In computer technology, encoding is the process of putting a
sequence of characters into a special format for transmission
or storage purposes.
• Code Word
– The special format that represents each character is called as
the code word
• Fixed Length Encoding
– fixed-length encoding that assigns to each symbol a bit string
of the same length m
– Eg. ASCII codes
• Variable Length Encoding
– Variable-length encoding, which assigns codewords of
different lengths to different symbols
3

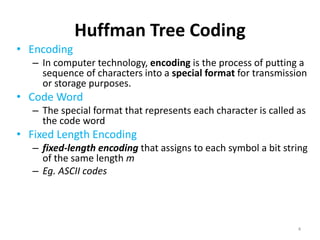

4. Huffman Tree Coding
• Encoding
– In computer technology, encoding is the process of putting a
sequence of characters into a special format for transmission
or storage purposes.
• Code Word
– The special format that represents each character is called as
the code word
• Fixed Length Encoding
– fixed-length encoding that assigns to each symbol a bit string
of the same length m
– Eg. ASCII codes
• Variable Length Encoding
– Variable-length encoding, which assigns codewords of
different lengths to different symbols
4

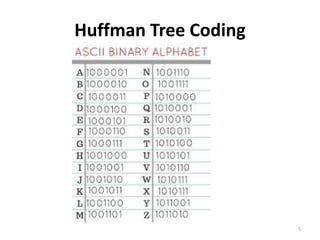

5. Huffman Tree Coding
5

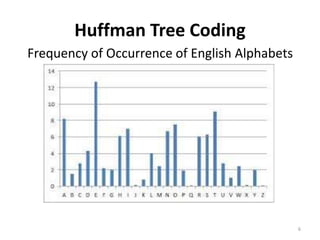

6. Huffman Tree Coding
Frequency of Occurrence of English Alphabets
6

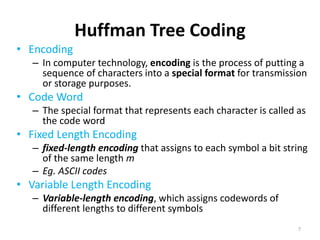

7. Huffman Tree Coding
• Encoding
– In computer technology, encoding is the process of putting a
sequence of characters into a special format for transmission
or storage purposes.
• Code Word
– The special format that represents each character is called as
the code word
• Fixed Length Encoding
– fixed-length encoding that assigns to each symbol a bit string
of the same length m
– Eg. ASCII codes
• Variable Length Encoding
– Variable-length encoding, which assigns codewords of
different lengths to different symbols
7

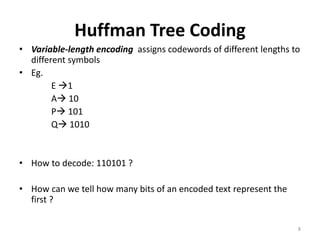

8. Huffman Tree Coding
• Variable-length encoding assigns codewords of different lengths to
different symbols
• Eg.
E 1
A 10
P 101
Q 1010
• How to decode: 110101 ?
• How can we tell how many bits of an encoded text represent the
first ?
8

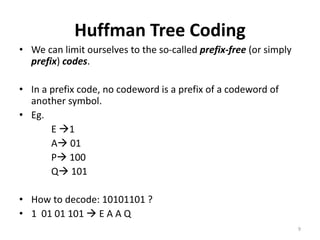

9. Huffman Tree Coding
• We can limit ourselves to the so-called prefix-free (or simply
prefix) codes.
• In a prefix code, no codeword is a prefix of a codeword of
another symbol.
• Eg.
E 1
A 01
P 100
Q 101
• How to decode: 10101101 ?
• 1 01 01 101  E A A Q
9

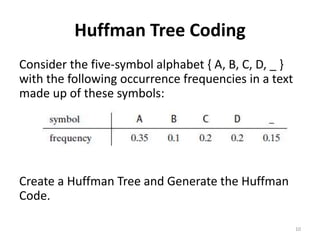

10. Huffman Tree Coding
Consider the five-symbol alphabet { A, B, C, D, _ }
with the following occurrence frequencies in a text
made up of these symbols:
Create a Huffman Tree and Generate the Huffman
Code.
10

11. Huffman Tree Coding
11

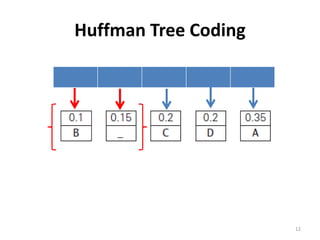

12. Huffman Tree Coding
12

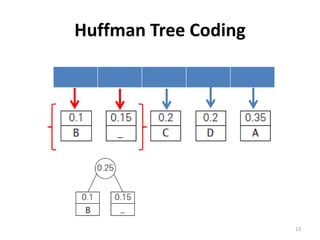

13. Huffman Tree Coding
13

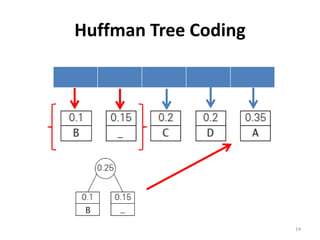

14. Huffman Tree Coding
14

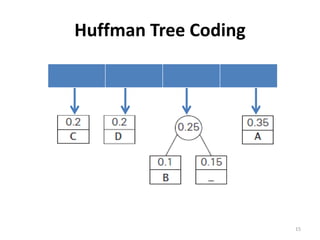

15. Huffman Tree Coding
15

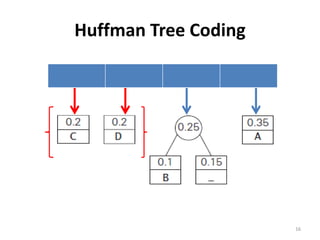

16. Huffman Tree Coding
16

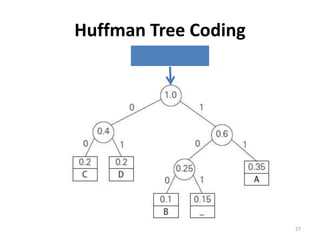

17. Huffman Tree Coding
17

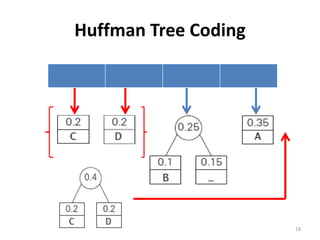

18. Huffman Tree Coding
18

19. Huffman Tree Coding
19

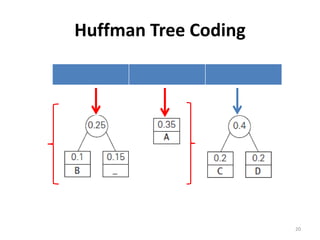

20. Huffman Tree Coding
20

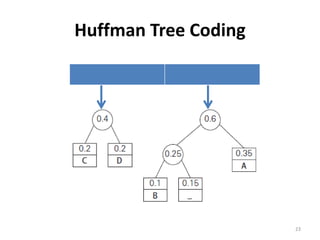

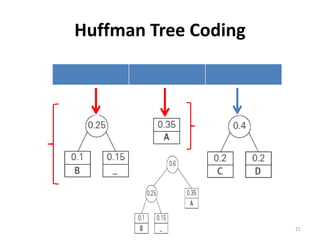

21. Huffman Tree Coding
21

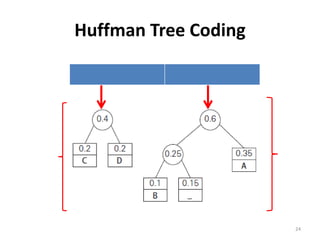

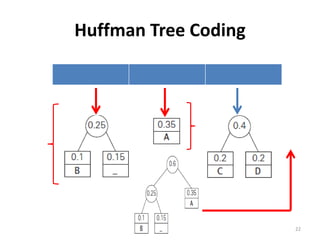

22. Huffman Tree Coding
22

23. Huffman Tree Coding
23

24. Huffman Tree Coding
24

25. Huffman Tree Coding
25

26. Huffman Tree Coding
26

27. Huffman Tree Coding
27

28. Huffman Tree Coding
28
Character Code
A
B
C
D
-

29. Huffman Tree Coding
29
Character Code
A 11
B
C
D
-

30. Huffman Tree Coding
30
Character Code
A 11
B 100
C
D
-

31. Huffman Tree Coding
31
Character Code
A 11
B 100
C 00
D
-

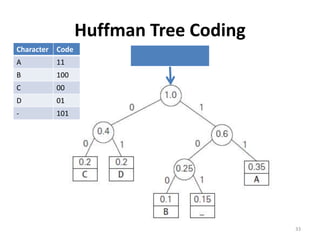

32. Huffman Tree Coding
32
Character Code
A 11
B 100
C 00
D 01
-

33. Huffman Tree Coding
33
Character Code
A 11
B 100
C 00
D 01
- 101

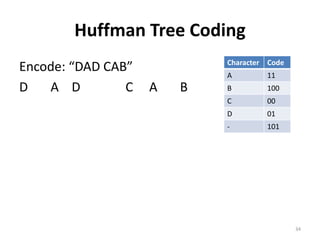

34. Huffman Tree Coding
Encode: “DAD CAB”
D A D C A B
34
Character Code
A 11
B 100
C 00
D 01
- 101

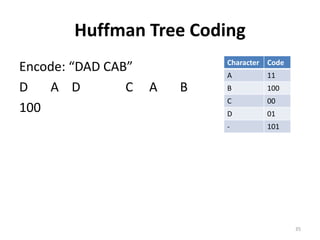

35. Huffman Tree Coding
Encode: “DAD CAB”
D A D C A B
100
35
Character Code
A 11
B 100
C 00
D 01
- 101

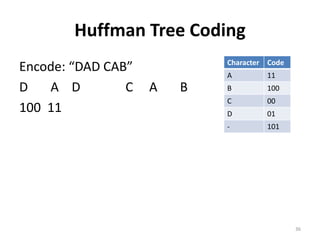

36. Huffman Tree Coding
Encode: “DAD CAB”
D A D C A B
100 11
36
Character Code
A 11
B 100
C 00
D 01
- 101

37. Huffman Tree Coding
Encode: “DAD CAB”
D A D C A B
100 11 01
37
Character Code
A 11
B 100
C 00
D 01
- 101

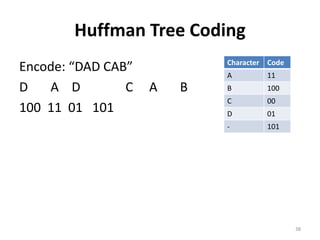

38. Huffman Tree Coding
Encode: “DAD CAB”
D A D C A B
100 11 01 101
38
Character Code
A 11
B 100
C 00
D 01
- 101

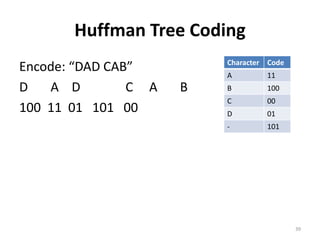

39. Huffman Tree Coding
Encode: “DAD CAB”
D A D C A B
100 11 01 101 00
39
Character Code
A 11
B 100
C 00
D 01
- 101

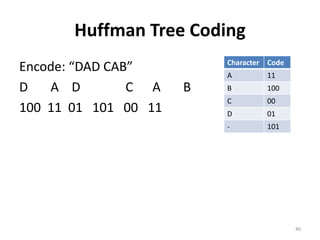

40. Huffman Tree Coding
Encode: “DAD CAB”
D A D C A B
100 11 01 101 00 11
40
Character Code
A 11
B 100
C 00
D 01
- 101

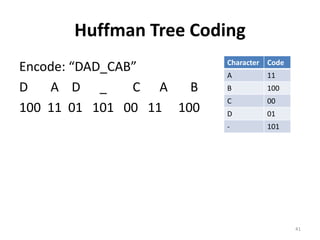

41. Huffman Tree Coding
Encode: “DAD_CAB”
D A D _ C A B
100 11 01 101 00 11 100
41
Character Code
A 11
B 100
C 00
D 01
- 101

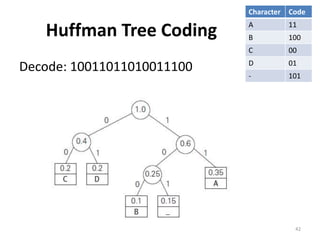

42. Huffman Tree Coding
Decode: 10011011010011100
42
Character Code
A 11
B 100
C 00
D 01
- 101

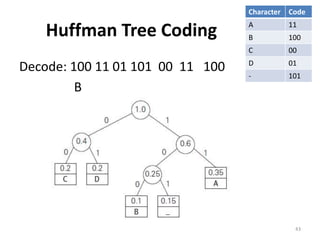

43. Huffman Tree Coding
Decode: 100 11 01 101 00 11 100
B
43
Character Code
A 11
B 100
C 00
D 01
- 101

44. Huffman Tree Coding
Decode: 100 11 01 101 00 11 100
B A
44
Character Code
A 11
B 100
C 00
D 01
- 101

45. Huffman Tree Coding
Decode: 100 11 01 101 00 11 100
B A D
45
Character Code
A 11
B 100
C 00
D 01
- 101

46. Huffman Tree Coding
Decode: 100 11 01 101 00 11 100
B A D _
46
Character Code
A 11
B 100
C 00
D 01
- 101

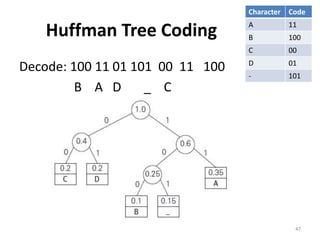

47. Huffman Tree Coding
Decode: 100 11 01 101 00 11 100
B A D _ C
47
Character Code
A 11
B 100
C 00
D 01
- 101

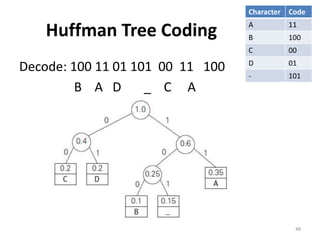

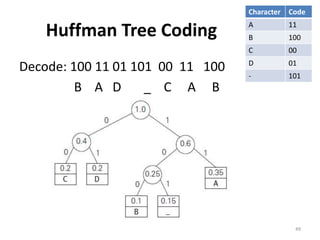

48. Huffman Tree Coding
Decode: 100 11 01 101 00 11 100
B A D _ C A
48
Character Code
A 11
B 100
C 00
D 01
- 101

49. Huffman Tree Coding
Decode: 100 11 01 101 00 11 100
B A D _ C A B
49
Character Code
A 11
B 100
C 00
D 01
- 101

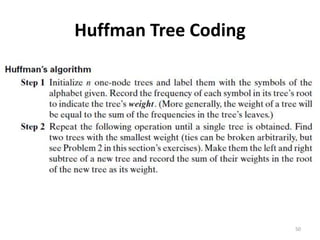

50. Huffman Tree Coding
50
