1. An ABNF PrimerConcepts, structure, syntax

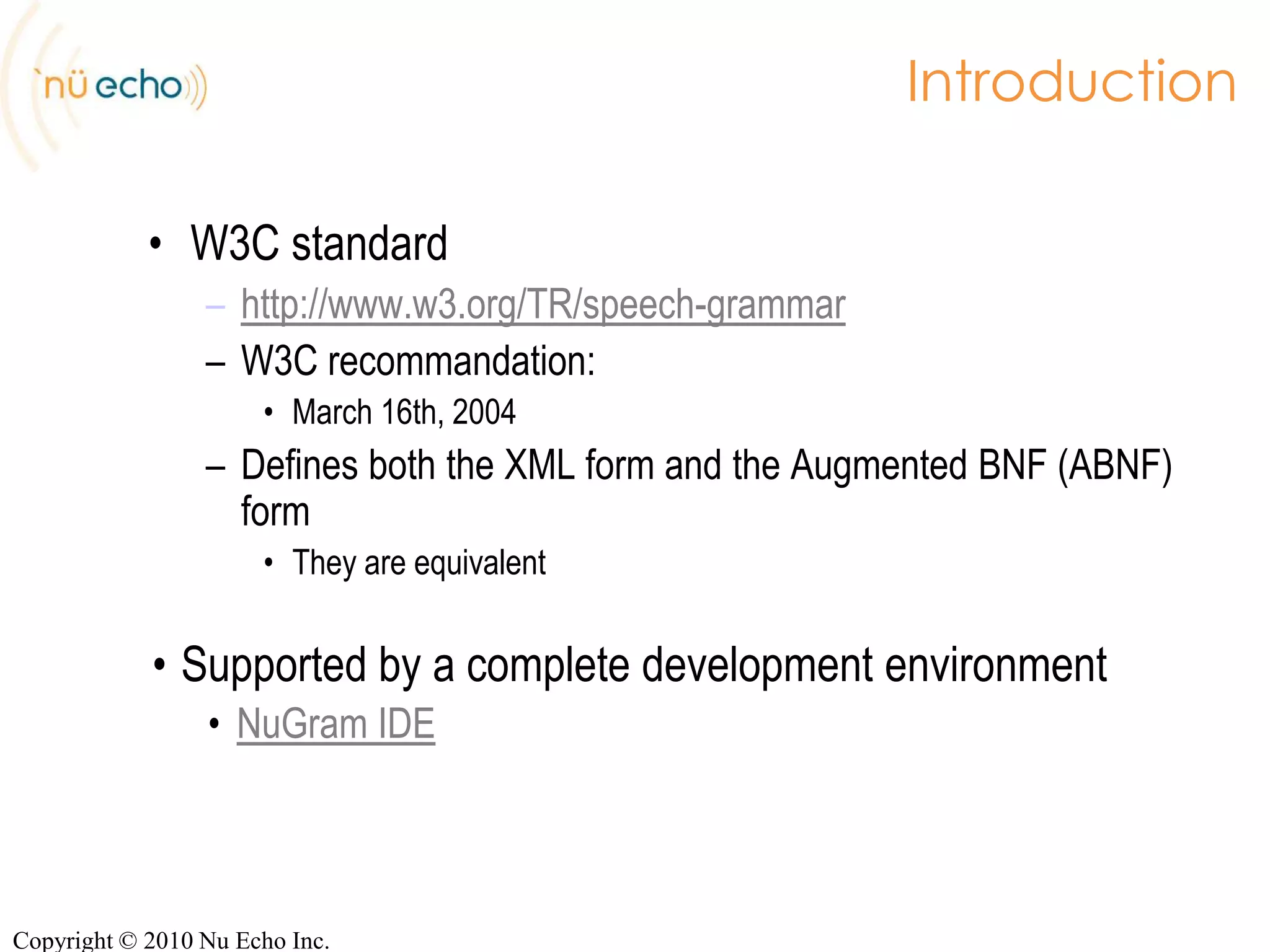

2. IntroductionW3C standard

3. http://www.w3.org/TR/speech-grammar

4. W3C recommandation:

5. March 16th, 2004

6. Defines both the XML form and the Augmented BNF (ABNF) form

7. They are equivalent

8. Supported by a complete development environment

9. NuGram IDECopyright © 2010 Nu Echo Inc.

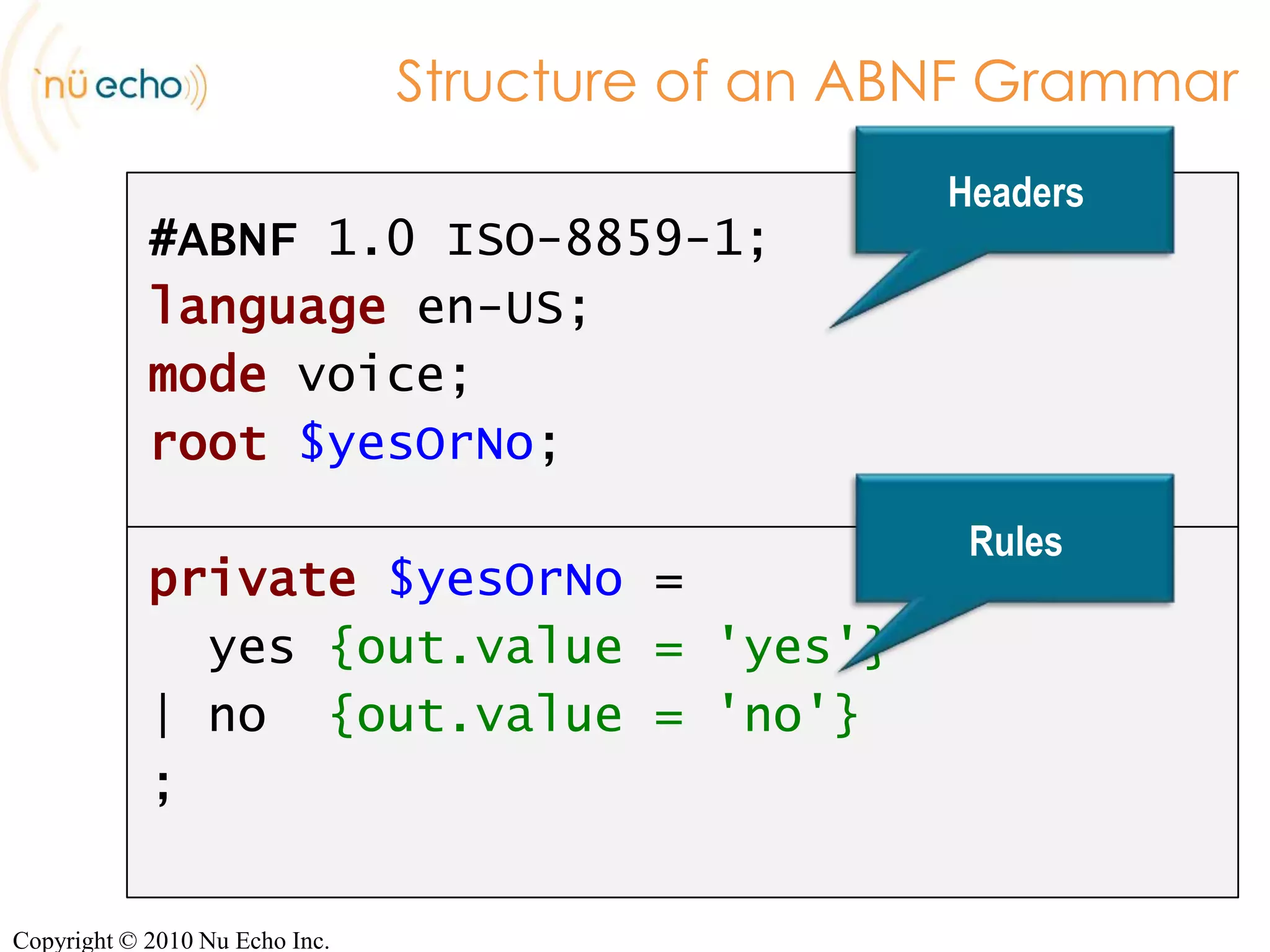

10. Structure of an ABNF GrammarHeaders#ABNF 1.0 ISO-8859-1;language en-US;mode voice;root$yesOrNo;private$yesOrNo = yes {out.value = 'yes'}| no {out.value = 'no'};RulesCopyright © 2010 Nu Echo Inc.

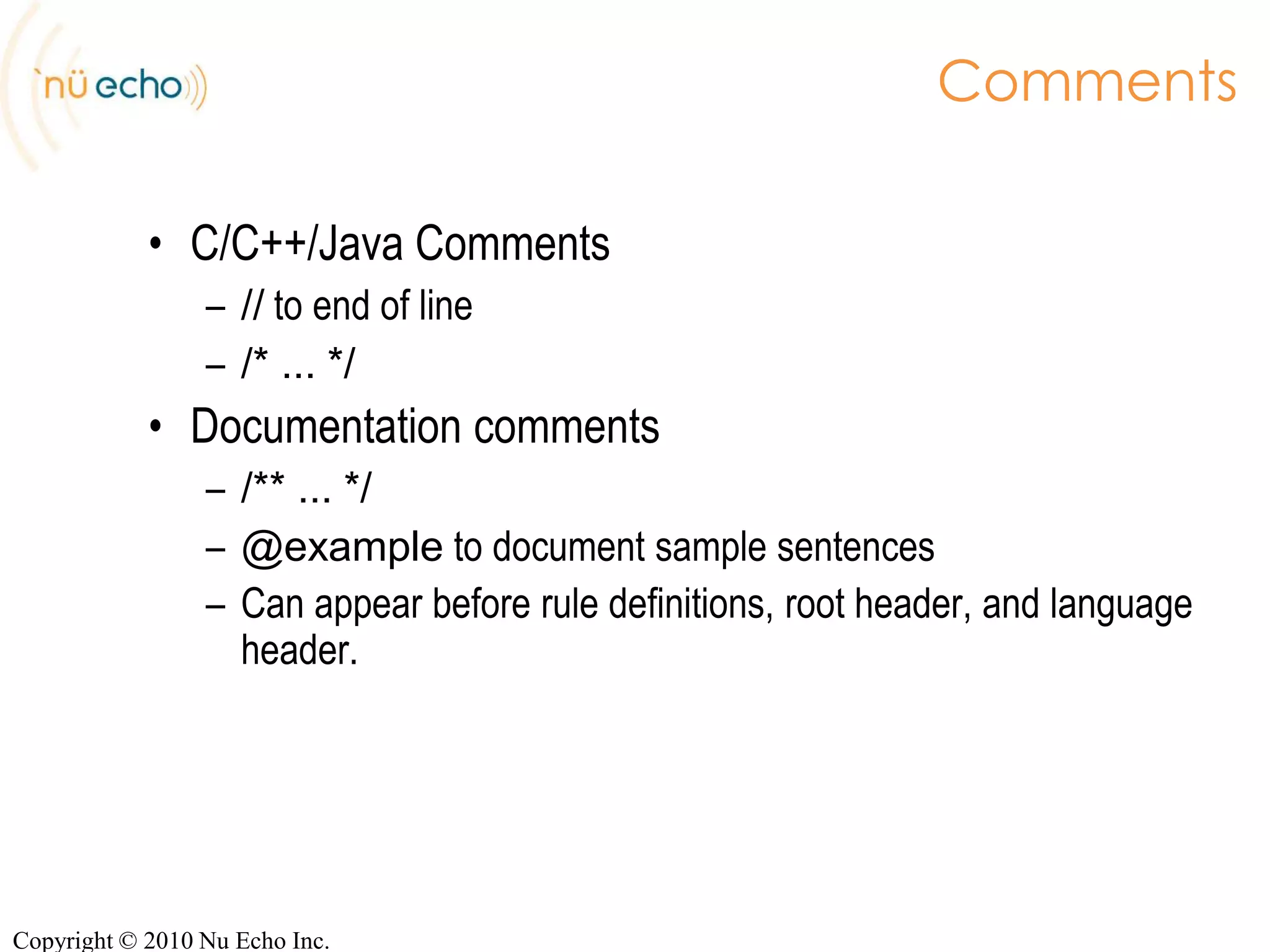

11. CommentsC/C++/Java Comments

12. // to end of line

13. /* ... */

14. Documentation comments

15. /** ... */

16. @example to document sample sentences

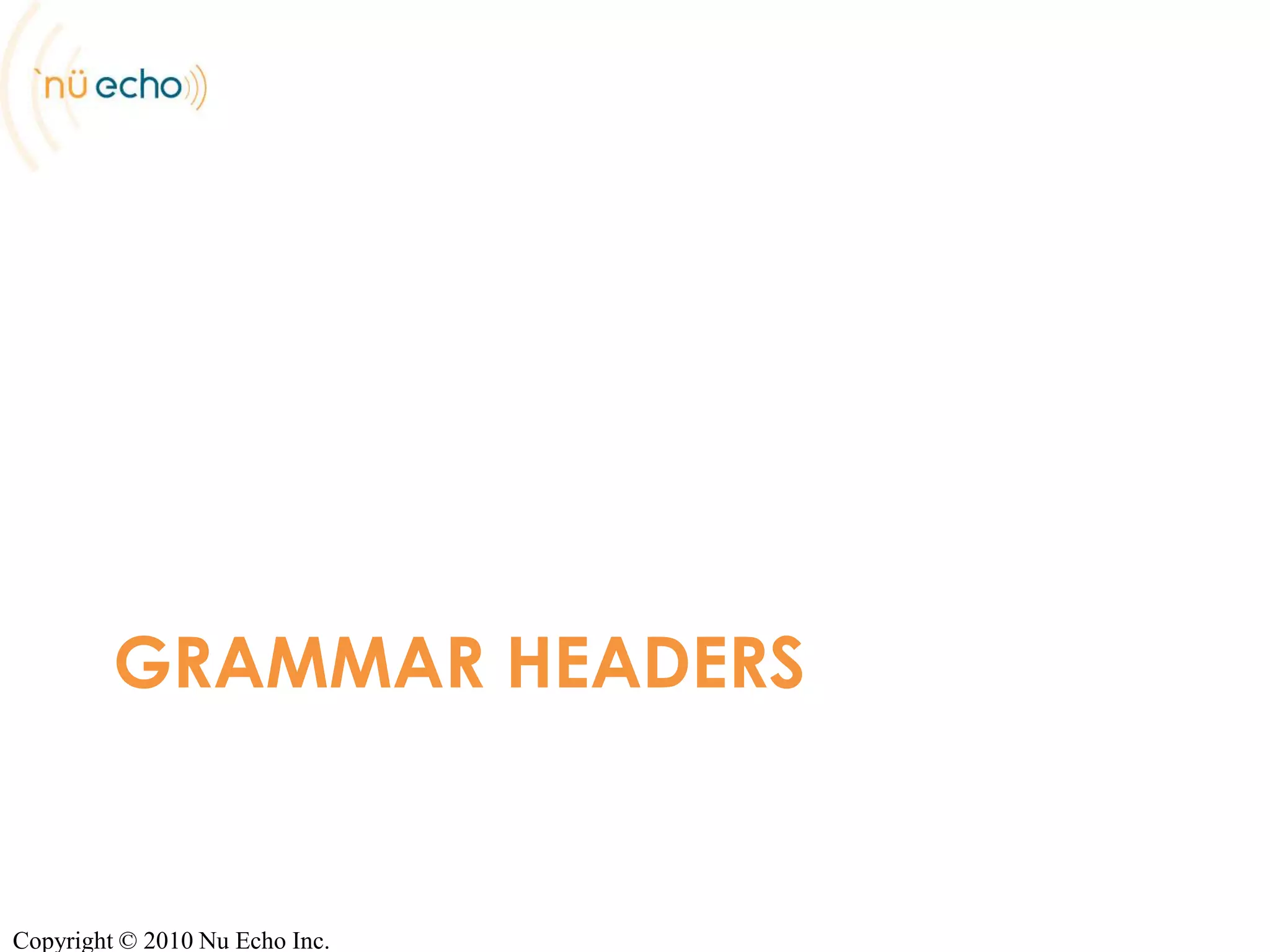

17. Can appear before rule definitions, root header, and language header.Copyright © 2010 Nu Echo Inc.

18. Grammar headersCopyright © 2010 Nu Echo Inc.

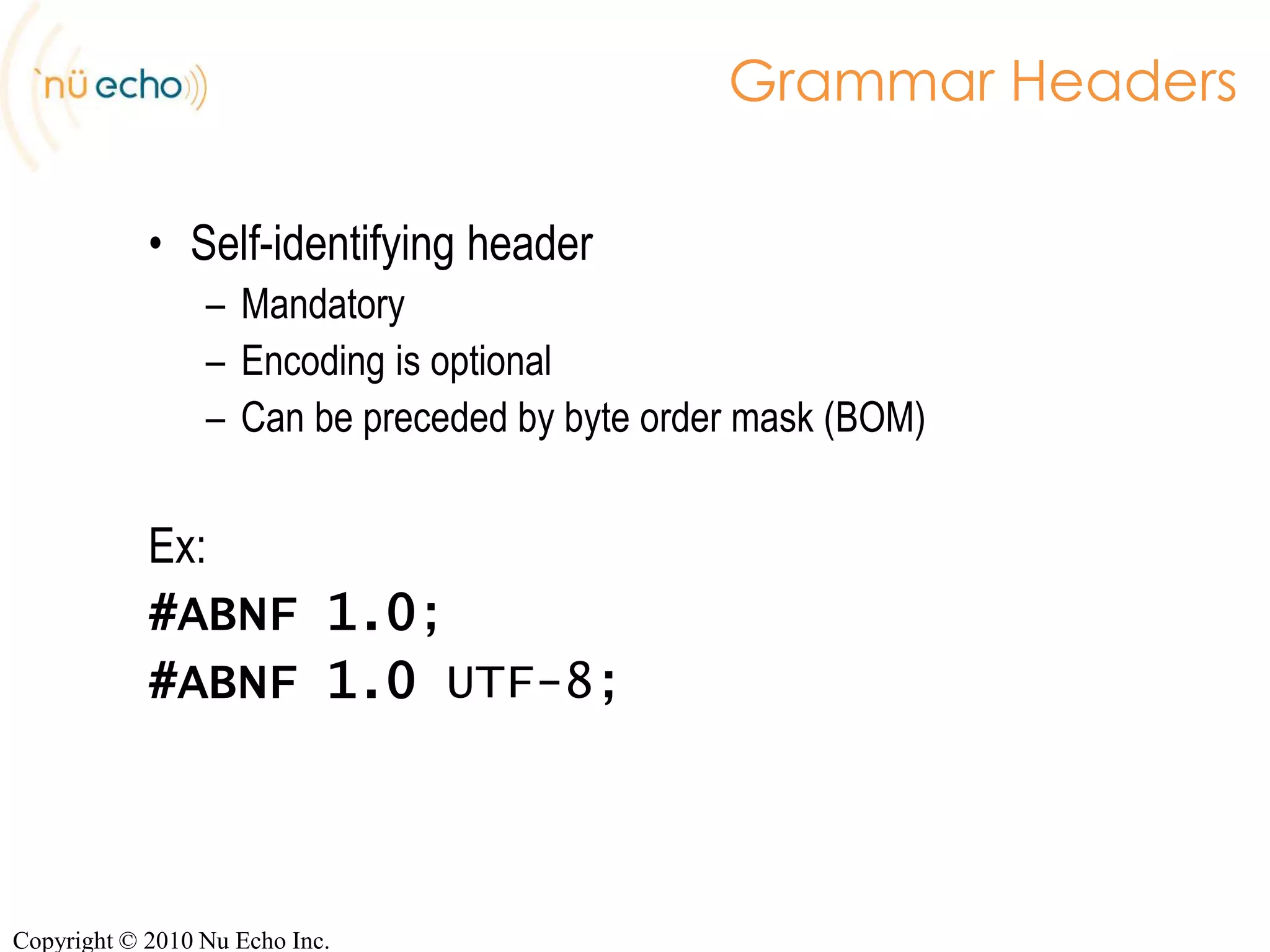

19. Grammar HeadersSelf-identifying header

20. Mandatory

21. Encoding is optional

22. Can be preceded by byte order mask (BOM)‏Ex:#ABNF 1.0;#ABNF 1.0 UTF-8;Copyright © 2010 Nu Echo Inc.

23. Grammar HeadersLanguage

24. Identifies the language of the document

25. Required for voice grammars

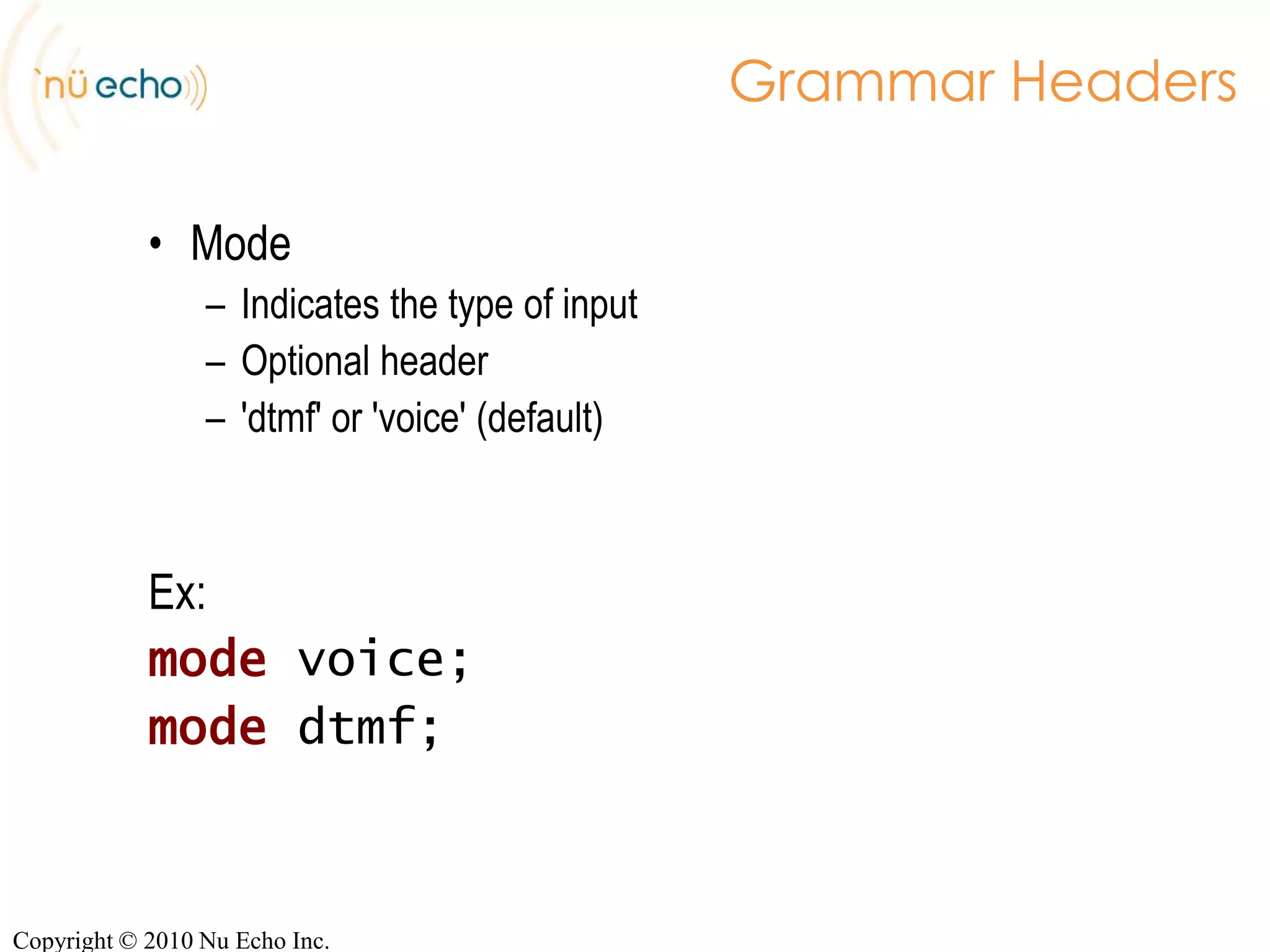

26. Languages codes defined by RFC 3066Ex:language en;language fr-CA;Copyright © 2010 Nu Echo Inc.

27. Grammar HeadersMode

28. Indicates the type of input

29. Optional header

30. 'dtmf' or 'voice' (default)Ex:mode voice;mode dtmf;Copyright © 2010 Nu Echo Inc.

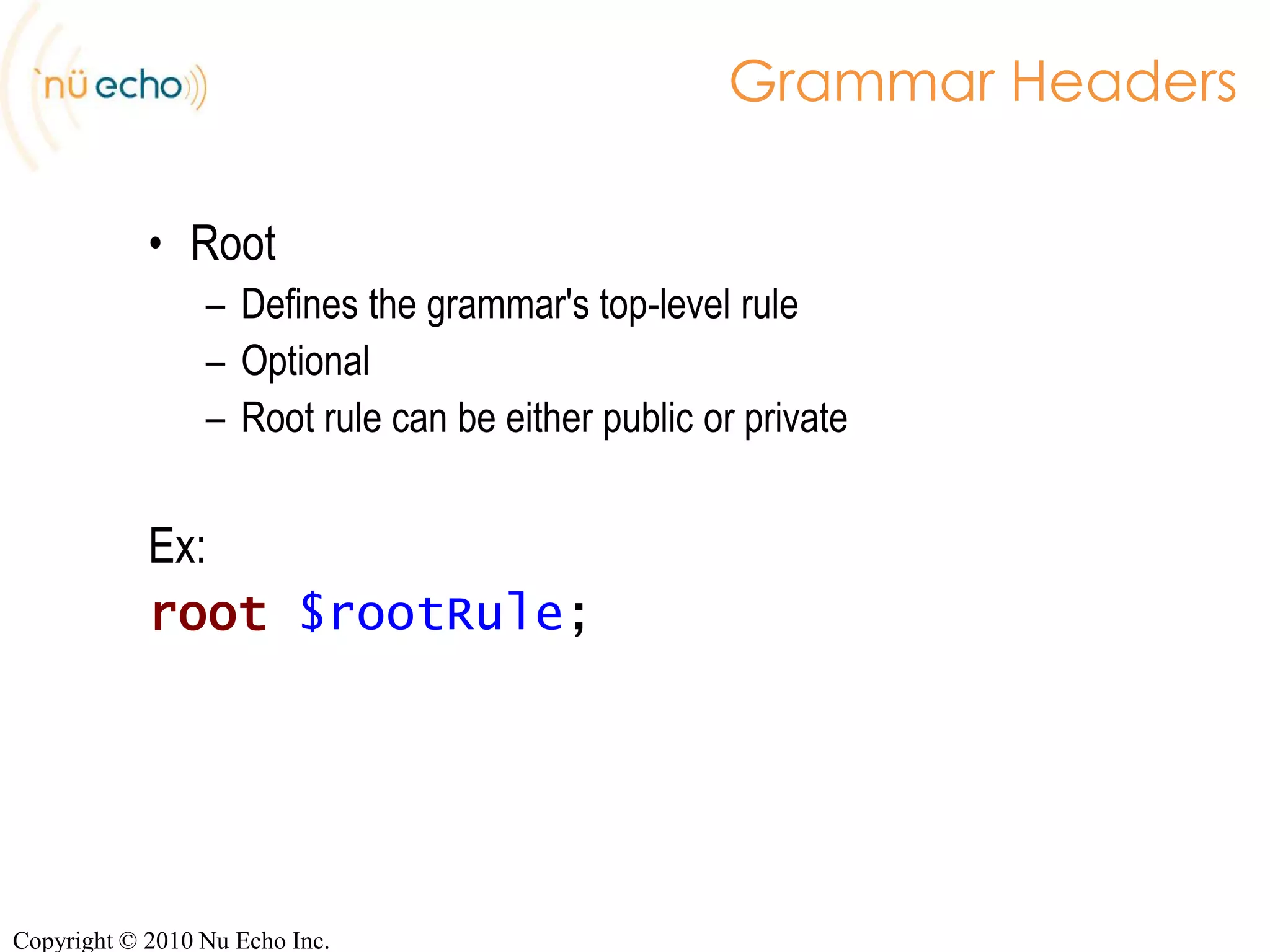

31. Grammar HeadersRoot

32. Defines the grammar's top-level rule

33. Optional

34. Root rule can be either public or privateEx:root$rootRule;Copyright © 2010 Nu Echo Inc.

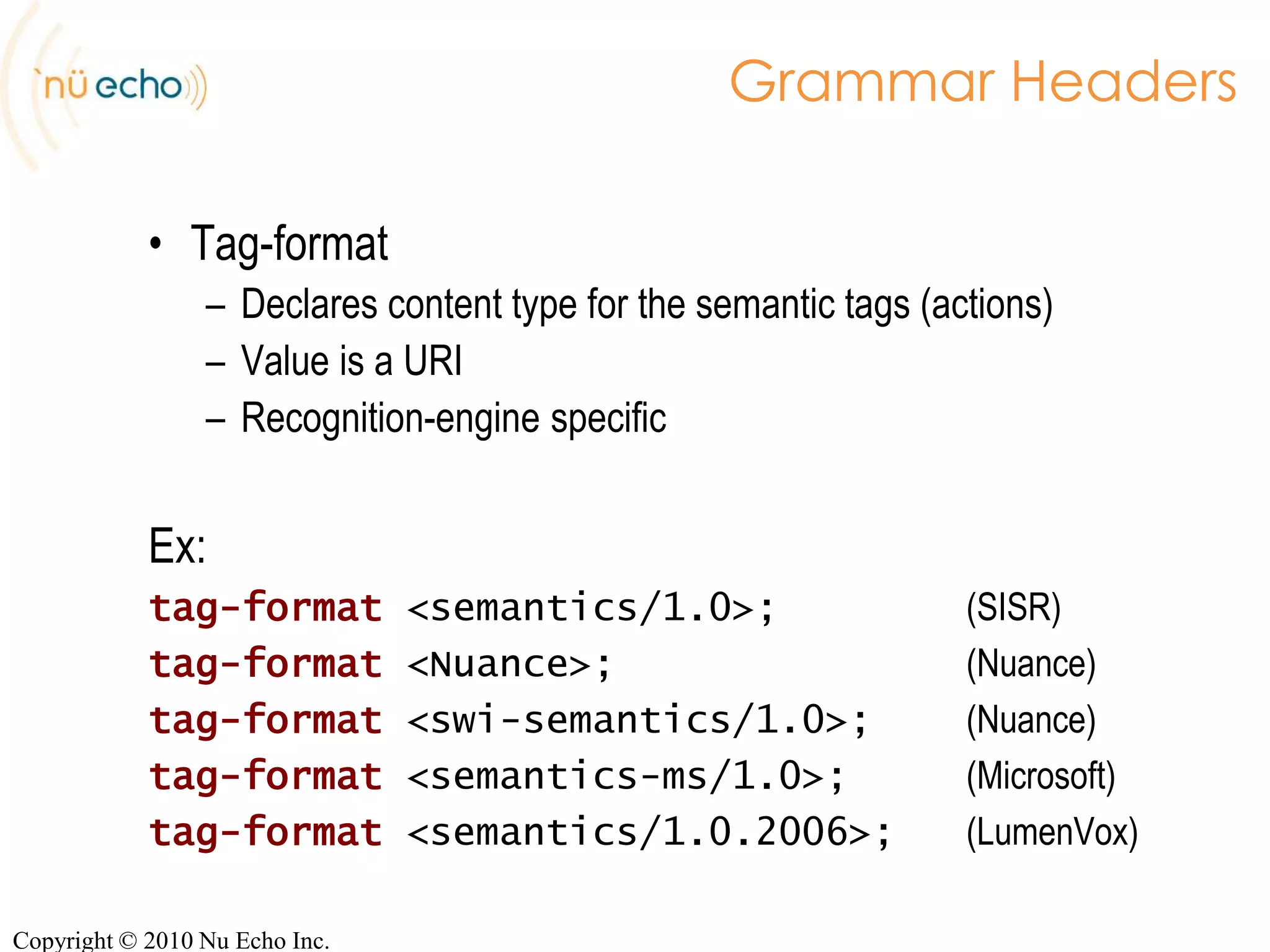

35. Grammar HeadersTag-format

36. Declares content type for the semantic tags (actions)‏

37. Value is a URI

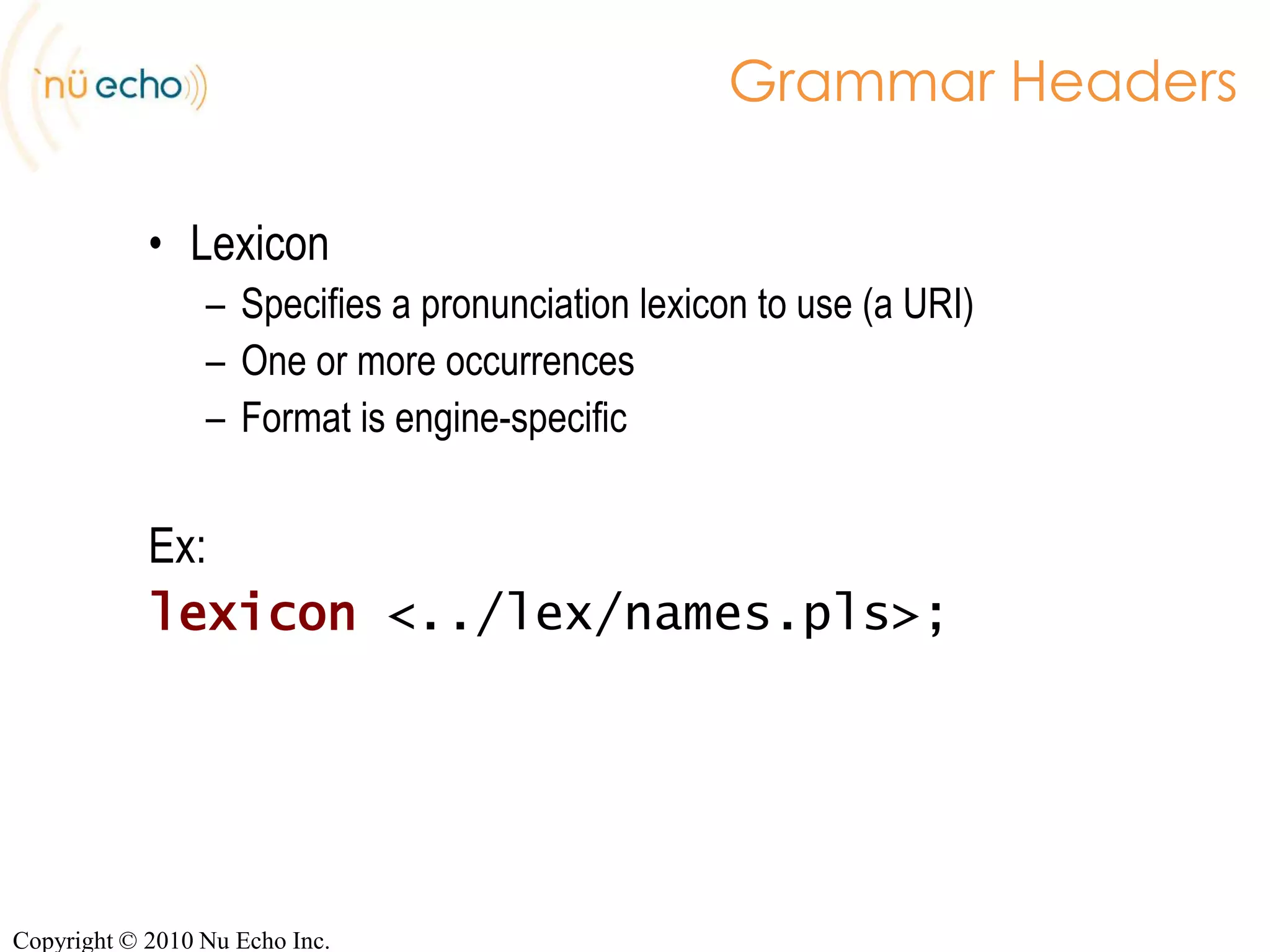

38. Recognition-engine specificEx:tag-format <semantics/1.0>; (SISR)tag-format <Nuance>; (Nuance)tag-format <swi-semantics/1.0>; (Nuance)tag-format <semantics-ms/1.0>; (Microsoft)tag-format <semantics/1.0.2006>; (LumenVox)Copyright © 2010 Nu Echo Inc.

39. Grammar HeadersLexicon

40. Specifies a pronunciation lexicon to use (a URI)‏

41. One or more occurrences

42. Format is engine-specificEx:lexicon <../lex/names.pls>;Copyright © 2010 Nu Echo Inc.

43. Grammar HeadersBase URI

44. Base URI for all relative URIs in the document

45. Optional

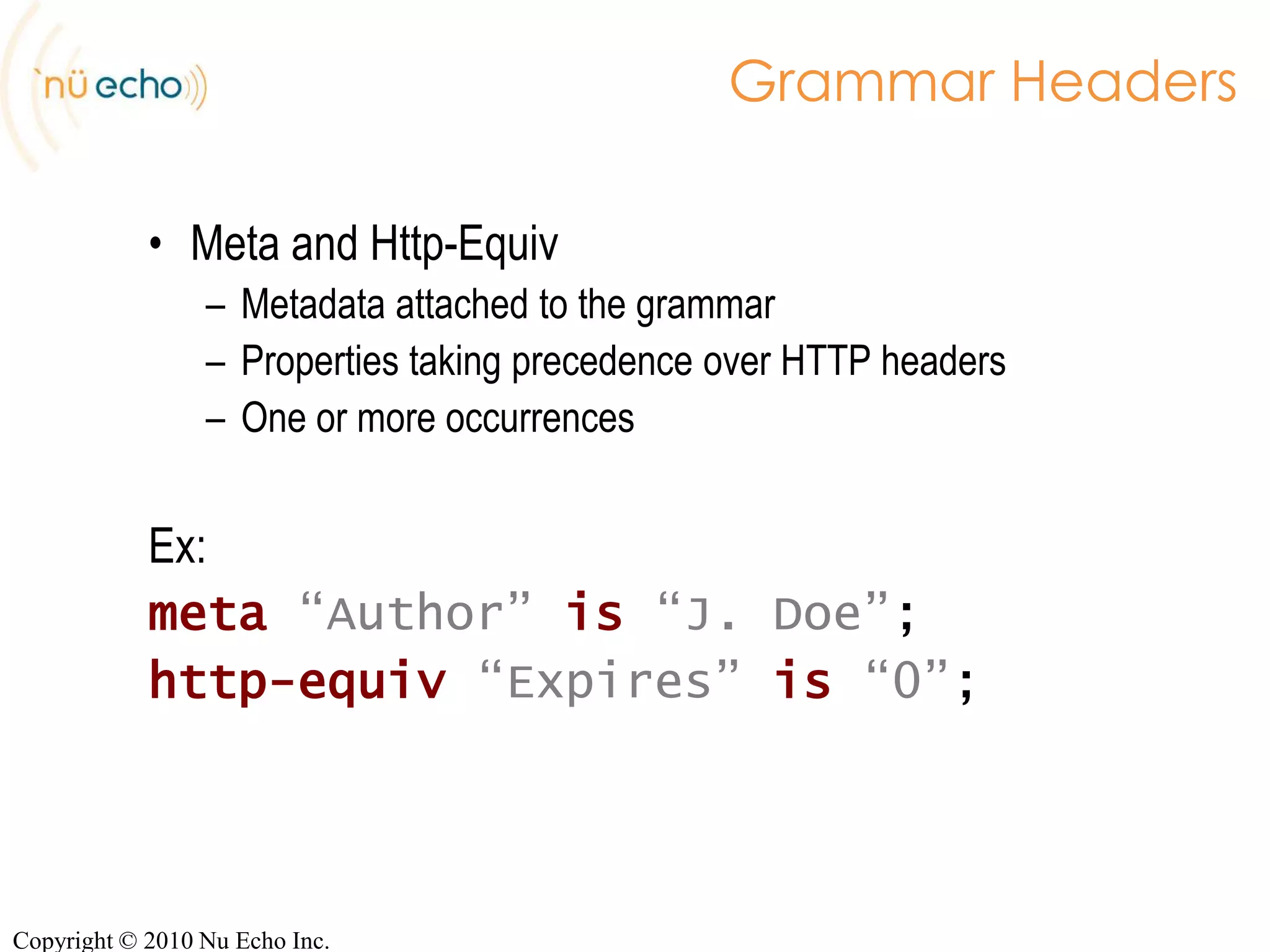

46. Has precedence over the meta headerEx:base <http://localhost:8080/>;Copyright © 2010 Nu Echo Inc.

47. Grammar HeadersMeta and Http-Equiv

48. Metadata attached to the grammar

49. Properties taking precedence over HTTP headers

50. One or more occurrencesEx:meta“Author”is“J. Doe”;http-equiv“Expires”is“0”;Copyright © 2010 Nu Echo Inc.

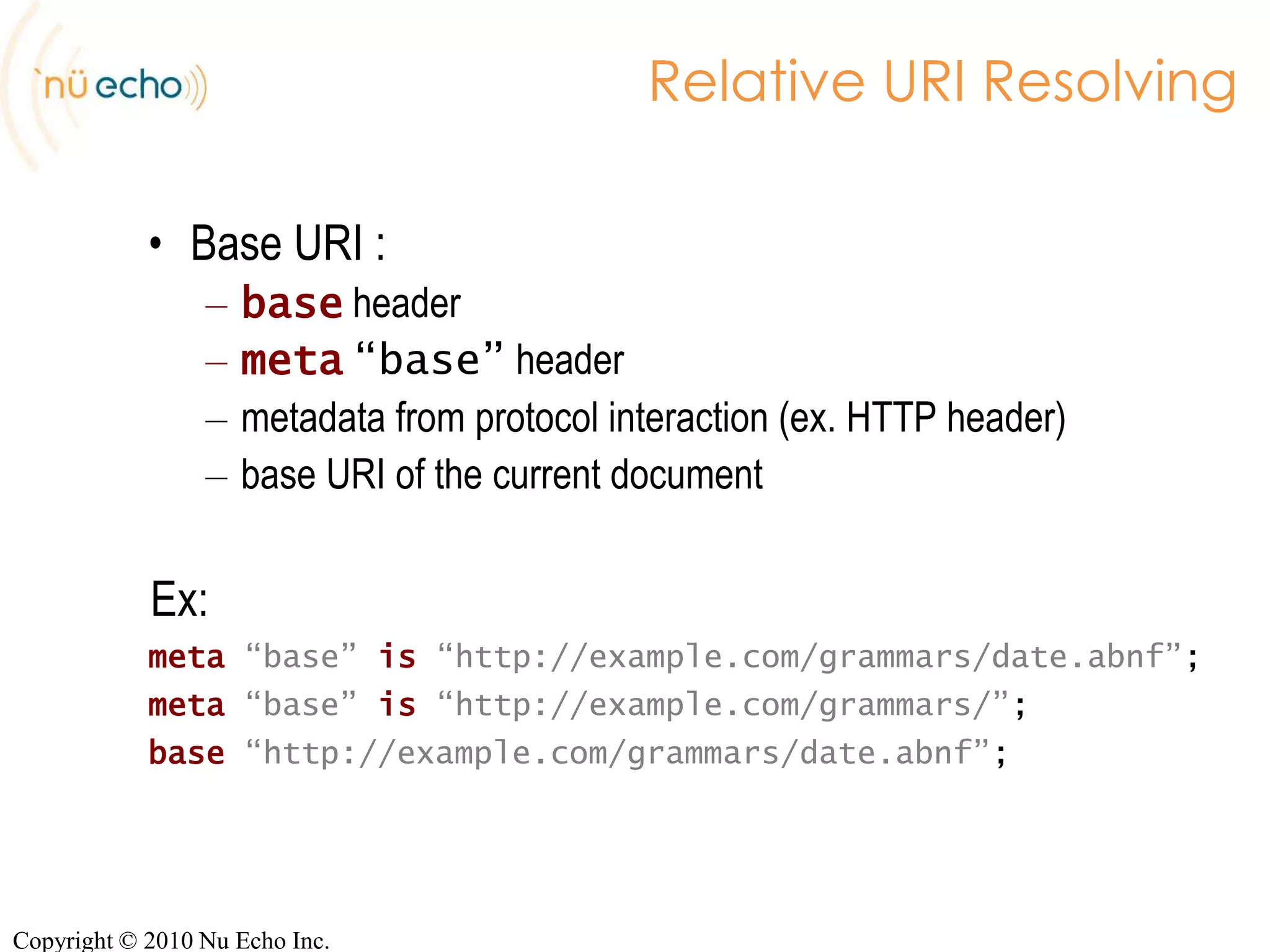

51. Relative URI ResolvingBase URI :

52. base header

53. meta“base” header

54. metadata from protocol interaction (ex. HTTP header)‏

55. base URI of the current documentEx:meta“base”is“http://example.com/grammars/date.abnf”;meta“base”is“http://example.com/grammars/”;base “http://example.com/grammars/date.abnf”;Copyright © 2010 Nu Echo Inc.

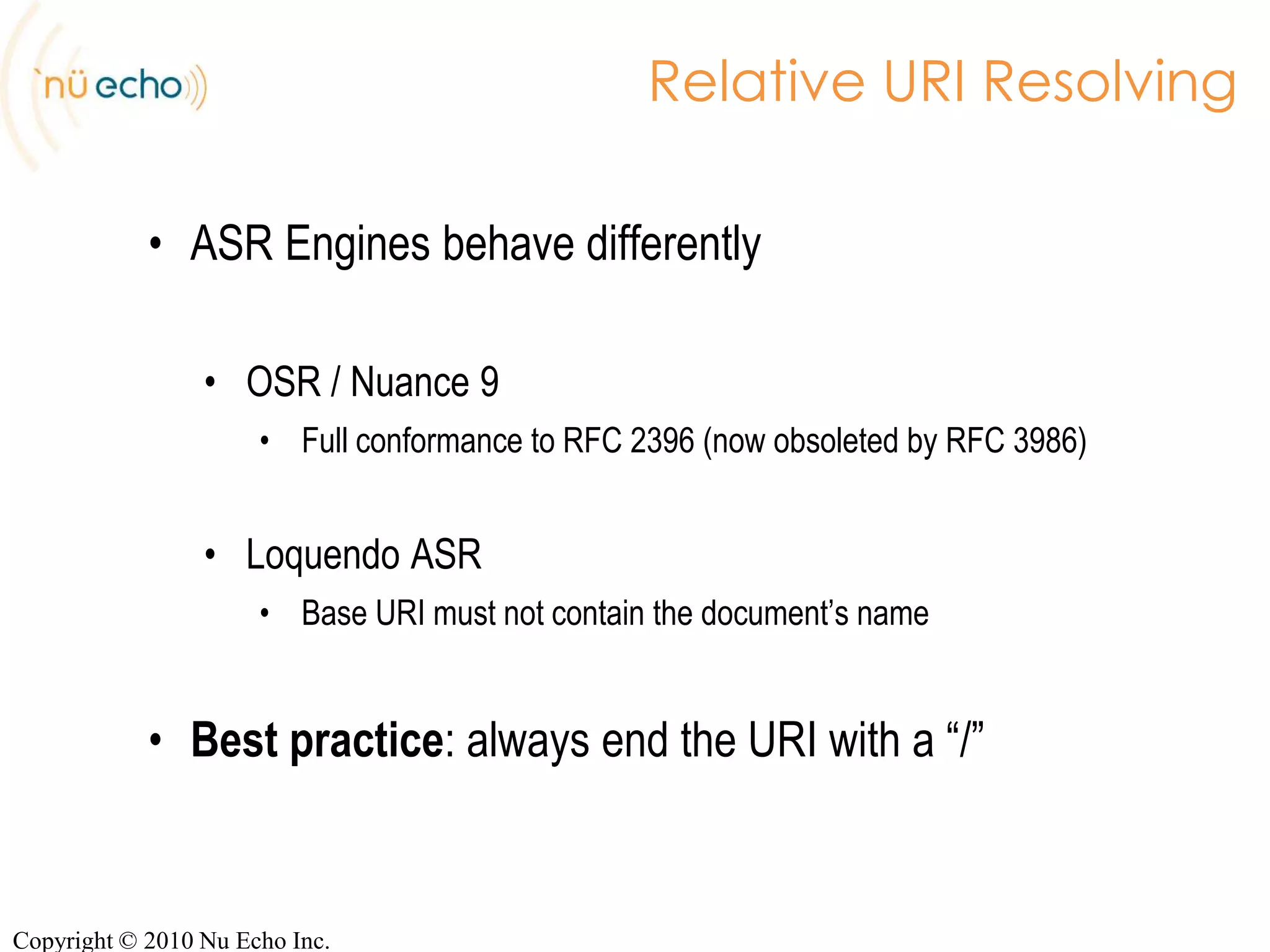

56. Relative URI ResolvingASR Engines behave differently

57. OSR / Nuance 9

58. Full conformance to RFC 2396 (now obsoleted by RFC 3986)

59. Loquendo ASR

60. Base URI must not contain the document’s name

61. Best practice: always end the URI with a “/”Copyright © 2010 Nu Echo Inc.

62. Grammar rulesCopyright © 2010 Nu Echo Inc.

63. Grammar RulesA rule is an association between a name and an expansion

64. Rule names are unique in a grammar

65. Rules can be either public or private

66. A public rule is visible outside the scope of the grammar document

67. A rule is private by default

68. An expansion describes a set of word sequences (sentences)‏Copyright © 2010 Nu Echo Inc.

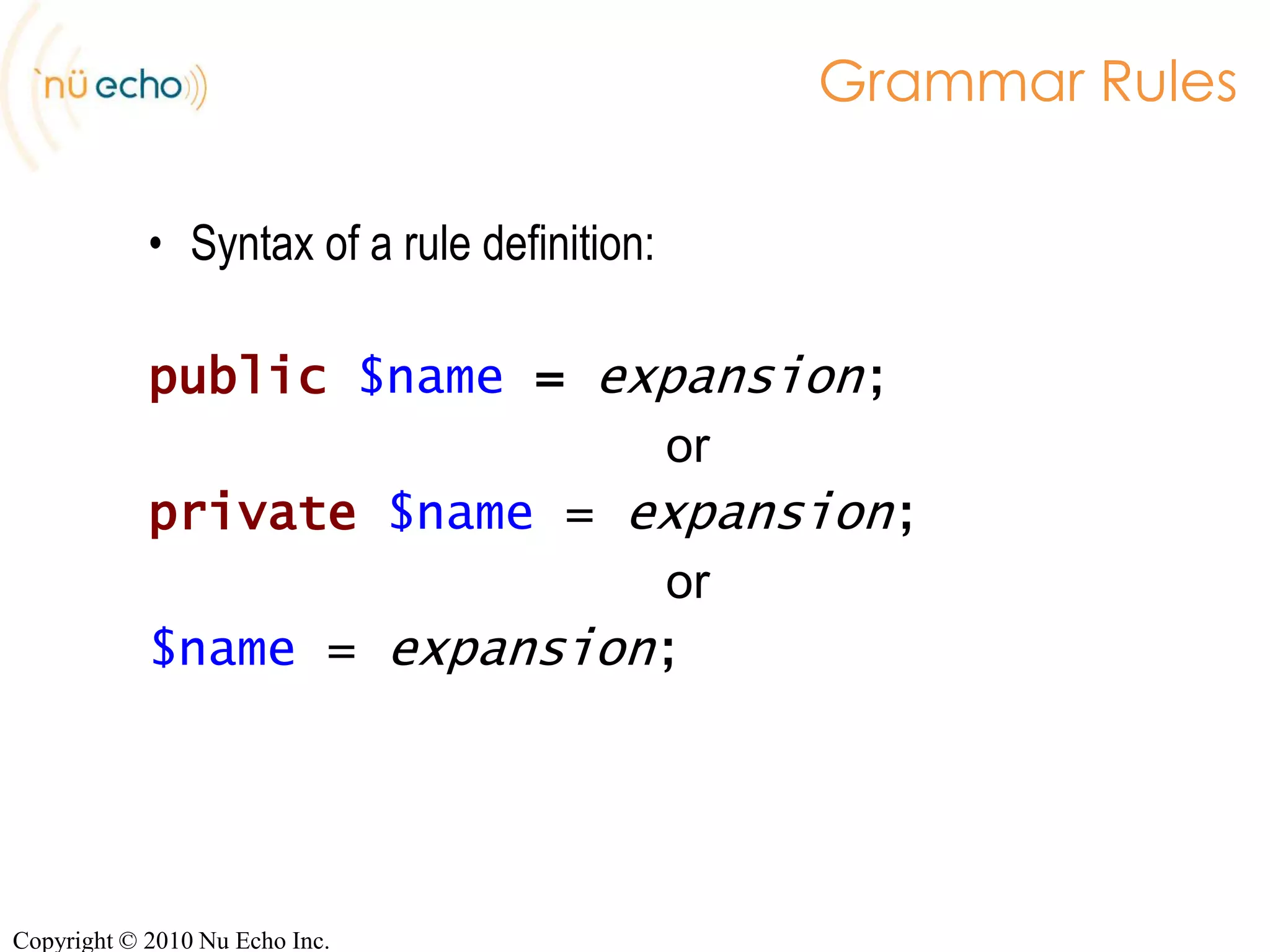

69. Grammar RulesSyntax of a rule definition:public$name=expansion;orprivate$name = expansion;or$name = expansion;Copyright © 2010 Nu Echo Inc.

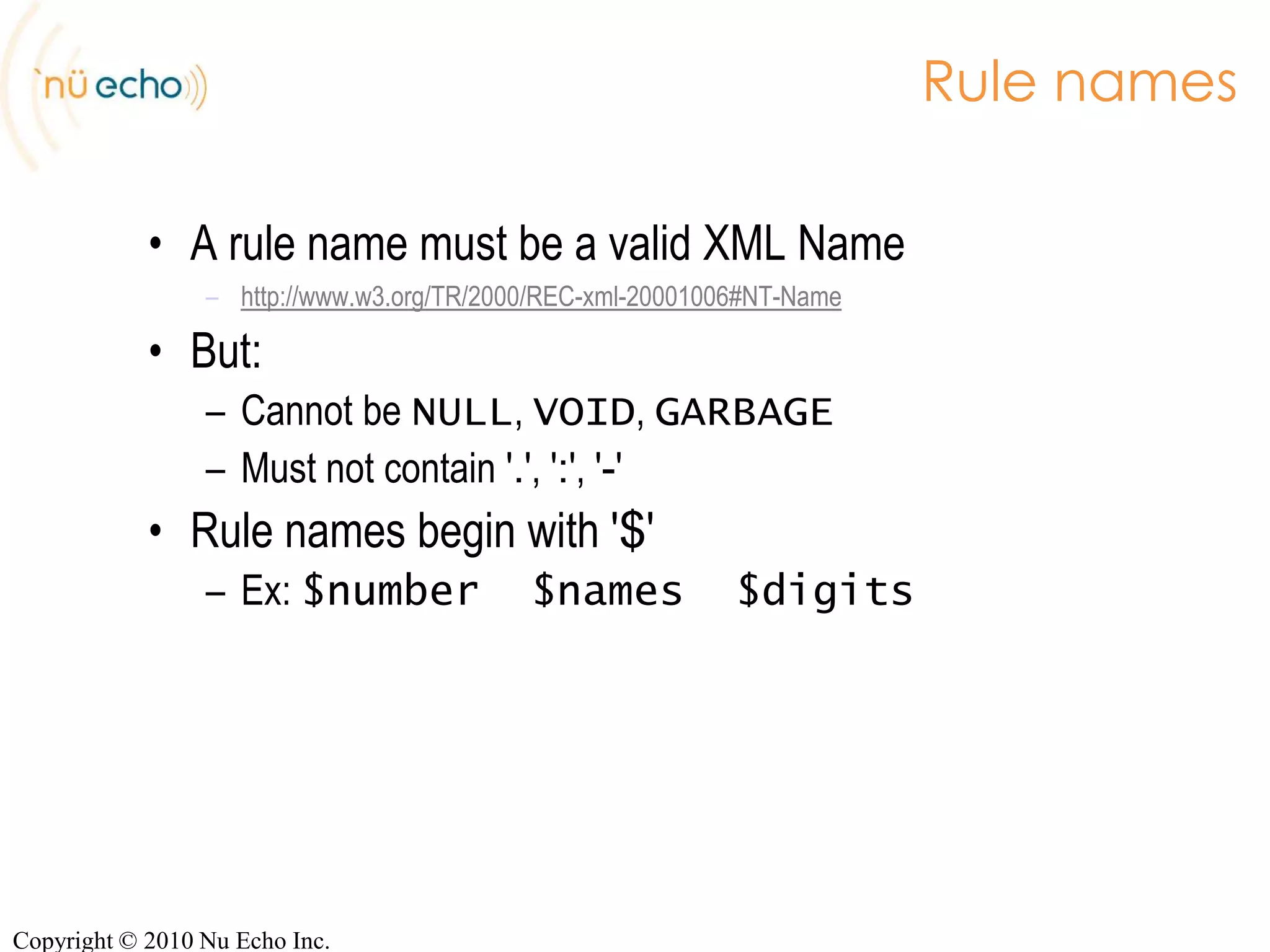

70. Rule namesA rule name must be a valid XML Name

71. http://www.w3.org/TR/2000/REC-xml-20001006#NT-Name

72. But:

73. Cannot be NULL, VOID, GARBAGE

74. Must not contain '.', ':', '-'

75. Rule names begin with '$'

76. Ex: $number $names $digitsCopyright © 2010 Nu Echo Inc.

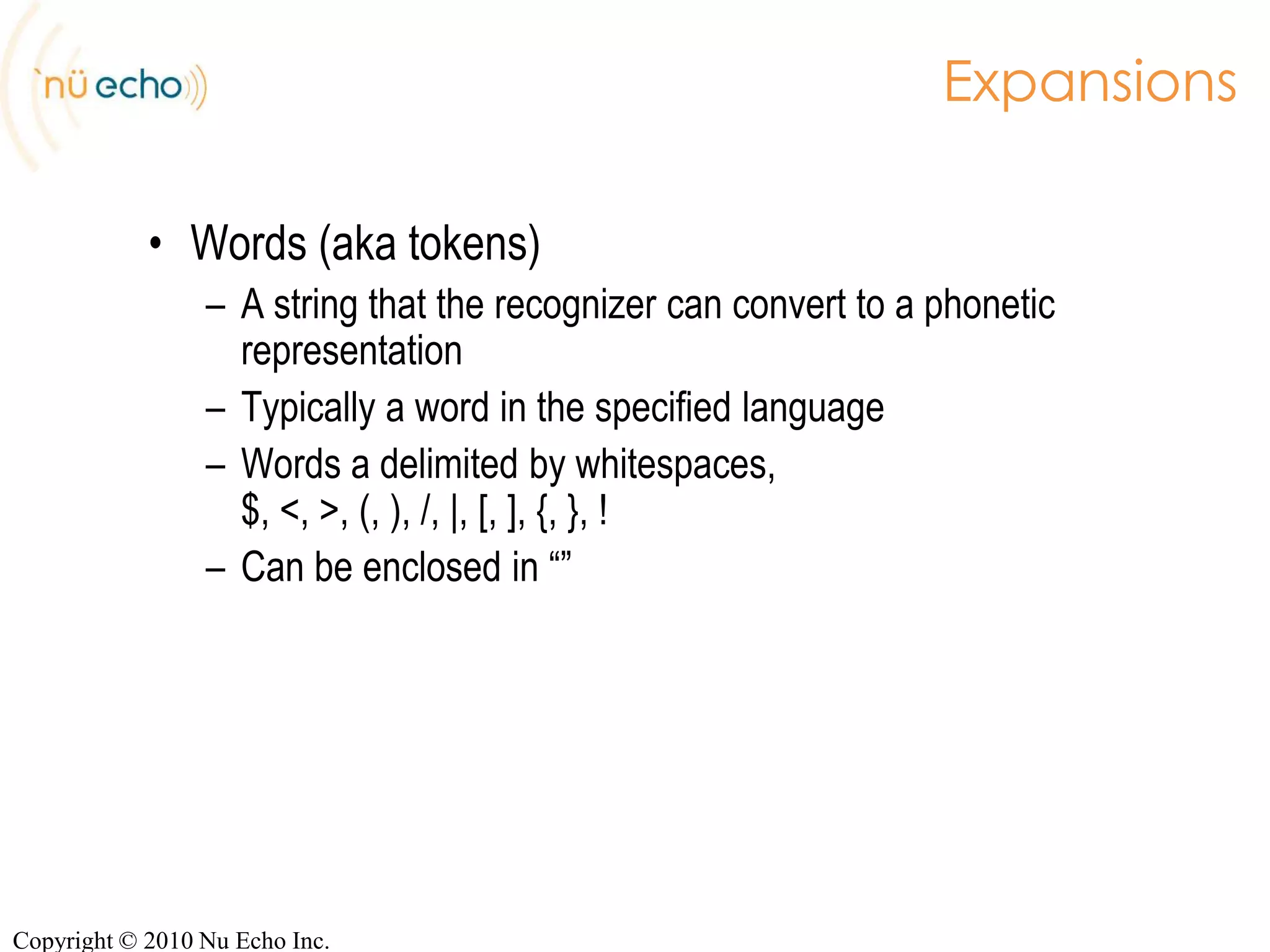

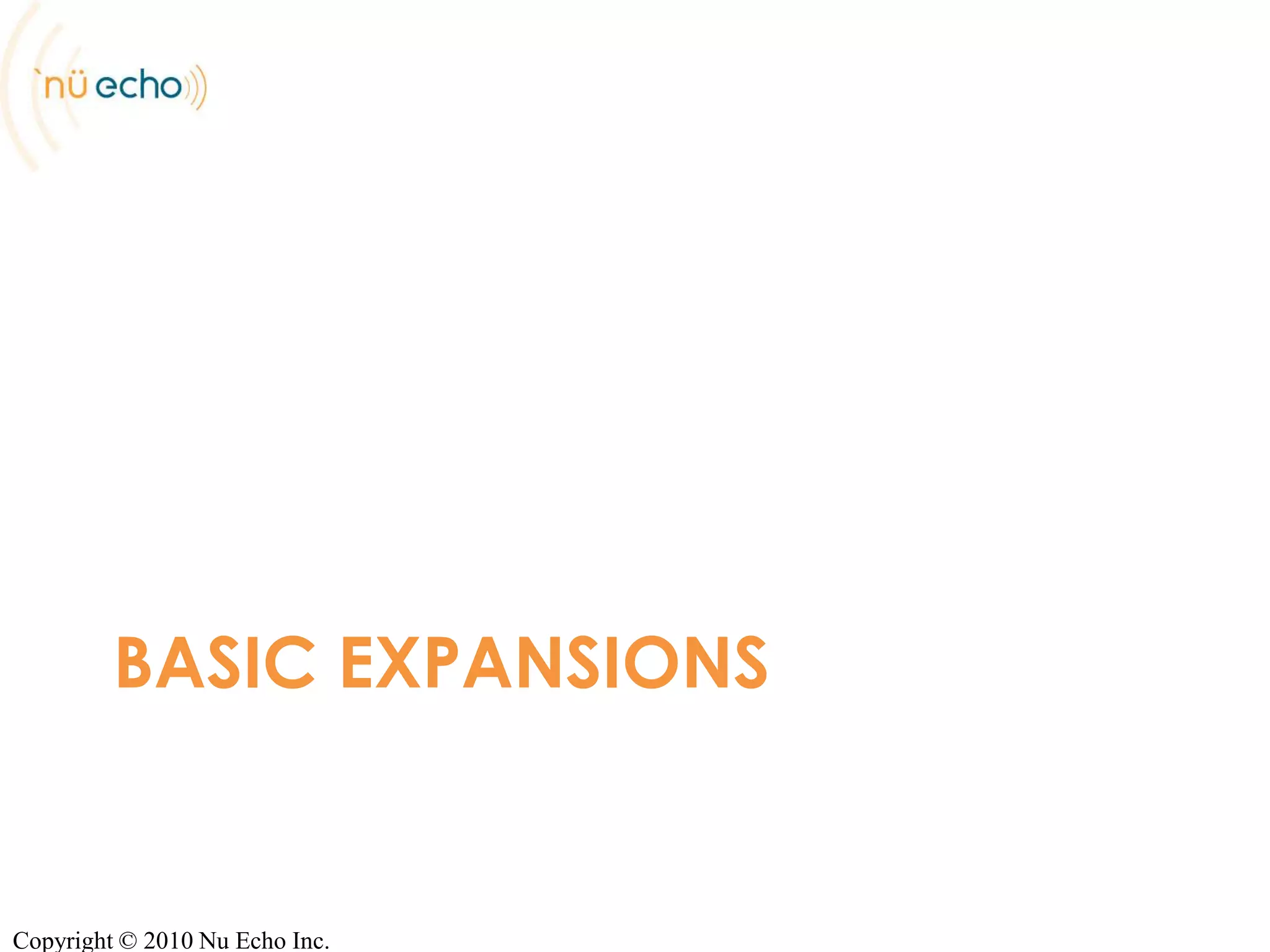

77. Basic ExpansionsCopyright © 2010 Nu Echo Inc.

78. ExpansionsWords (aka tokens)‏

79. A string that the recognizer can convert to a phonetic representation

80. Typically a word in the specified language

81. Words are delimited by whitespaces, and$, <, >, (, ), /, |, [, ], {, }, !

82. Can be enclosed in “”Copyright © 2010 Nu Echo Inc.

83. ExpansionsWords (cont'd)‏

84. Examples:

85. hello

86. Montréal

87. trente-deux

88. “San Francisco”Copyright © 2010 Nu Echo Inc.

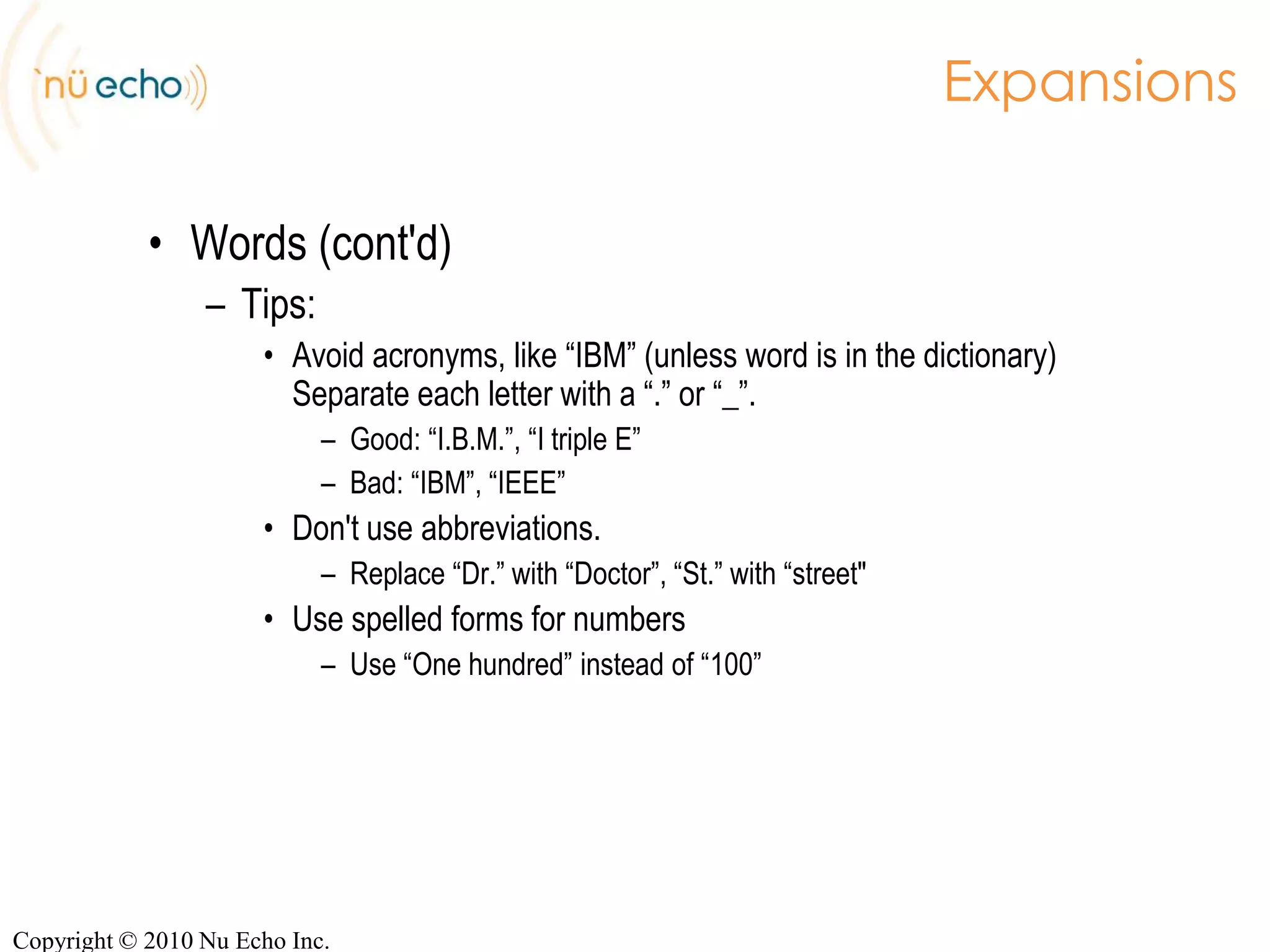

89. ExpansionsWords (cont'd)‏

90. Tips:

91. Avoid acronyms, like “IBM” (unless word is in the dictionary)Separate each letter with a “.” or “_”.

92. Good: “I.B.M.”, “I triple E”

93. Bad: “IBM”, “IEEE”

94. Don't use abbreviations.

95. Replace “Dr.” with “Doctor”, “St.” with “street"

96. Use spelled forms for numbers

97. Use “One hundred” instead of “100”Copyright © 2010 Nu Echo Inc.

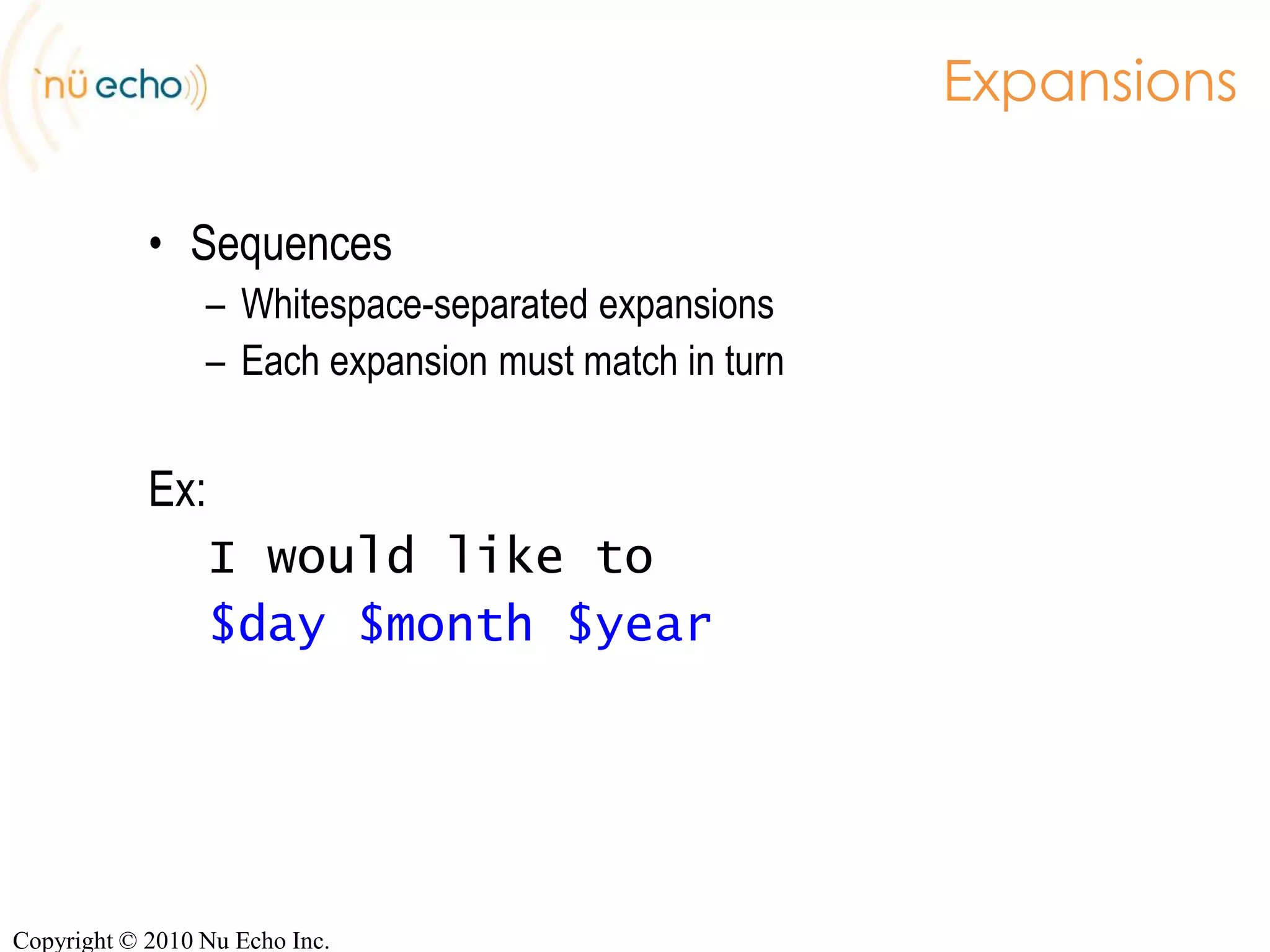

98. ExpansionsSequences

99. Whitespace-separated expansions

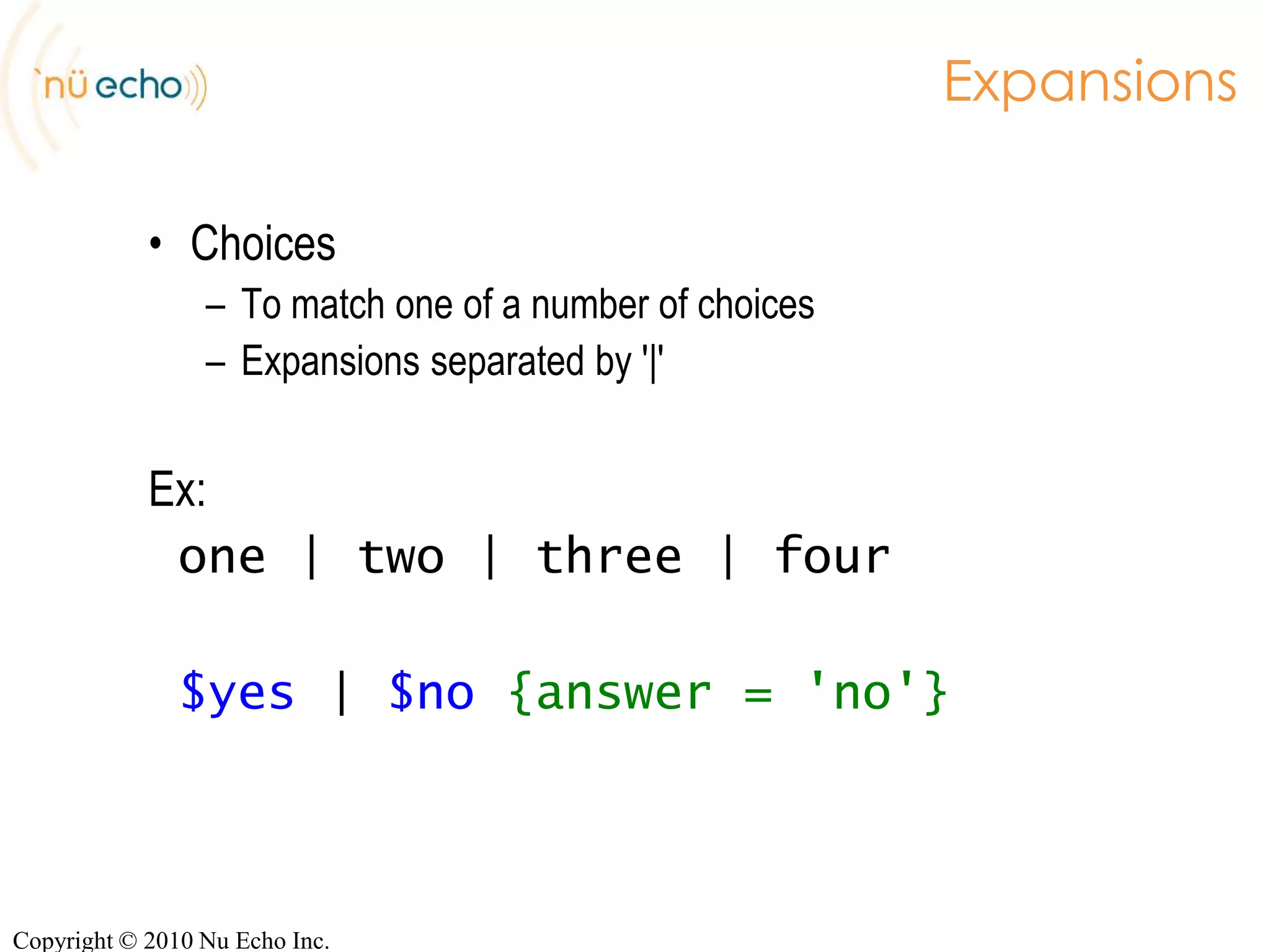

100. Each expansion must match in turnEx: I would like to$day $month $yearCopyright © 2010 Nu Echo Inc.

101. ExpansionsChoices

102. To match one of a number of choices

103. Expansions separated by '|'Ex: one | two | three | four $yes | $no{answer = 'no'}Copyright © 2010 Nu Echo Inc.

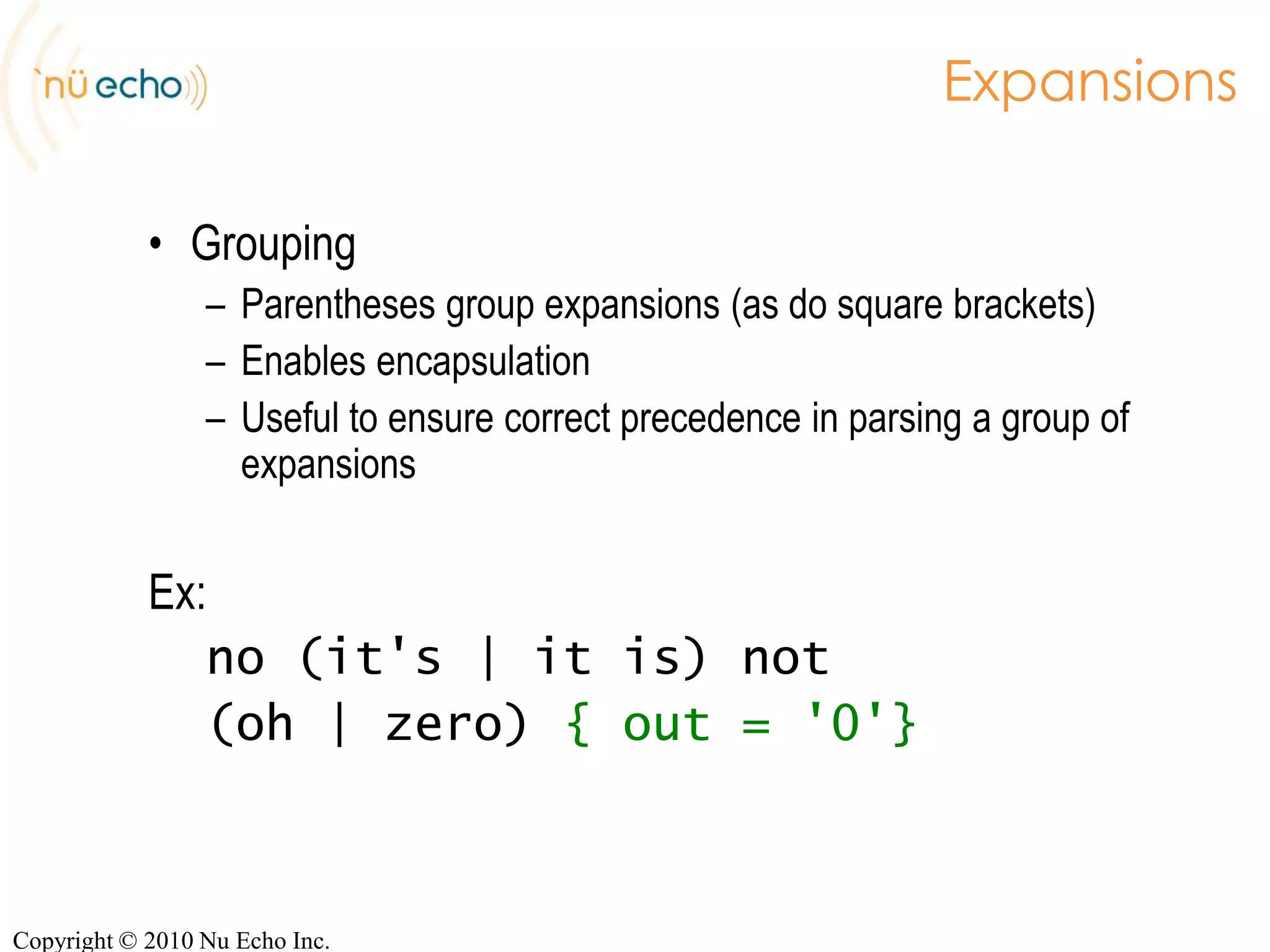

104. ExpansionsGrouping

105. Parentheses group expansions (as do square brackets)

106. Enables encapsulation

107. Useful to ensure correct precedence in parsing a group of expansionsEx:no (it's | it is) not(oh | zero) { out = '0'}Copyright © 2010 Nu Echo Inc.

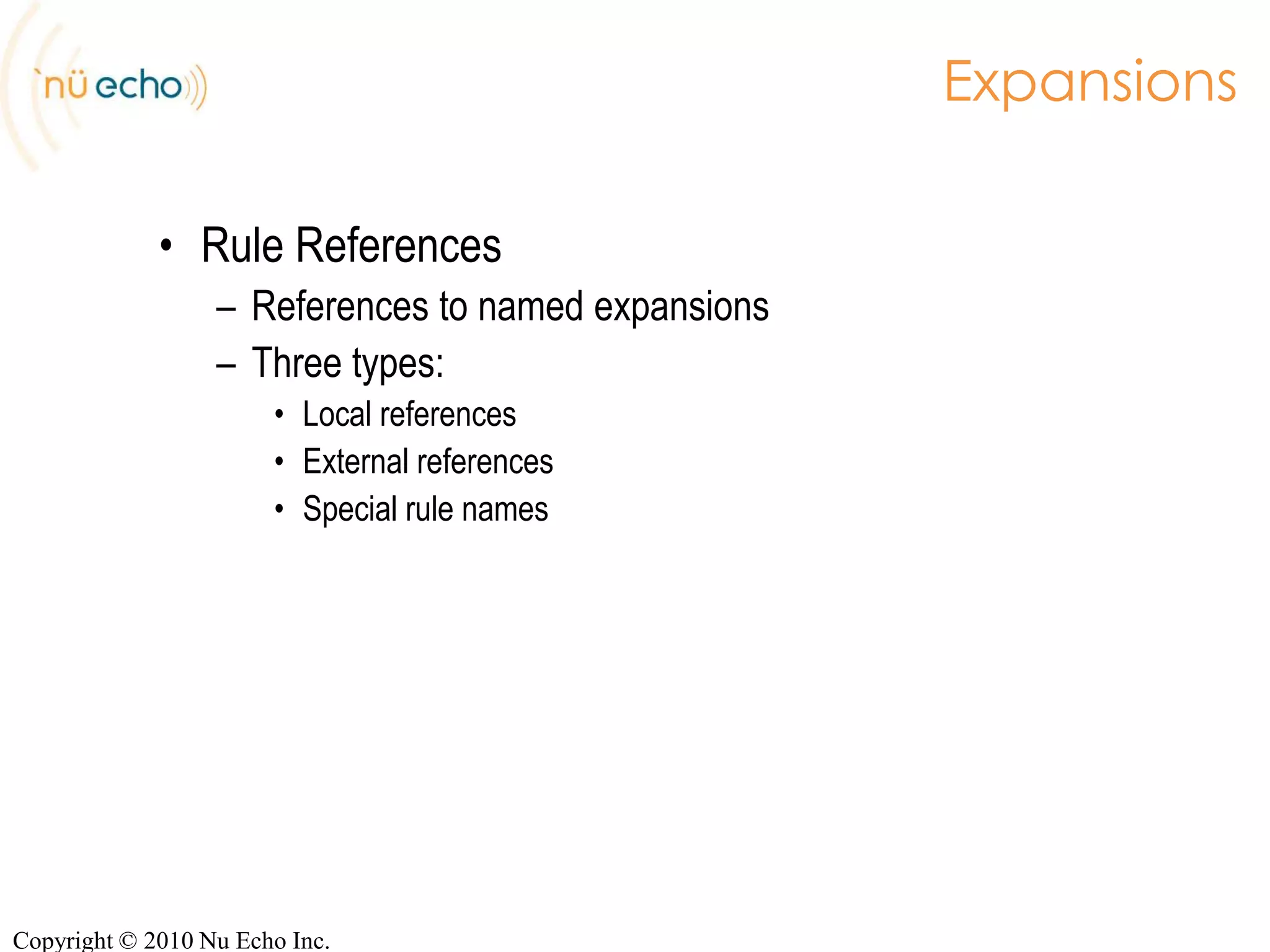

108. ExpansionsRule References

109. References to named expansions

110. Three types:

111. Local references

112. External references

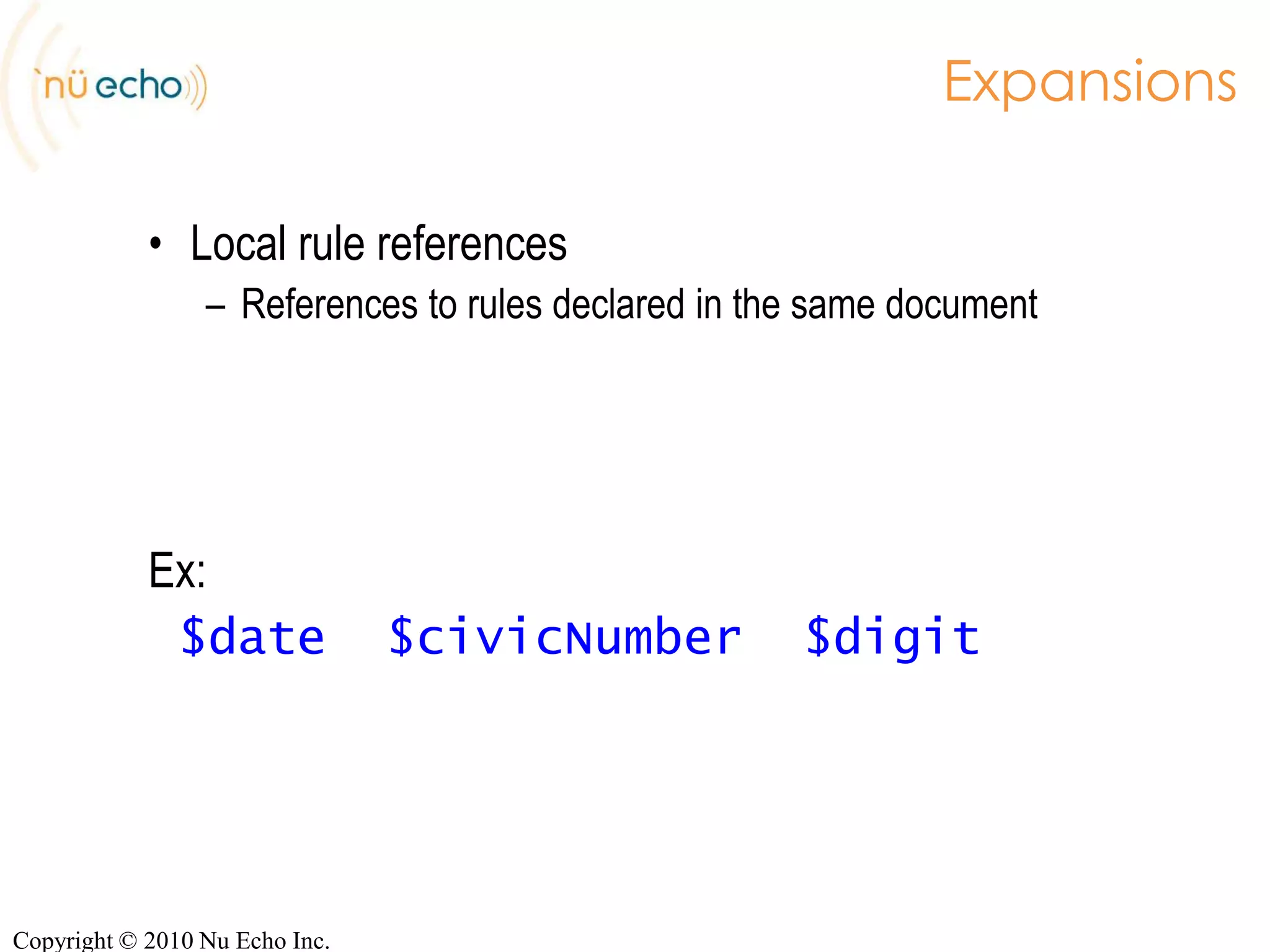

113. Special rule namesCopyright © 2010 Nu Echo Inc.

114. ExpansionsLocal rule references

115. References to rules declared in the same documentEx:$date $civicNumber $digitCopyright © 2010 Nu Echo Inc.

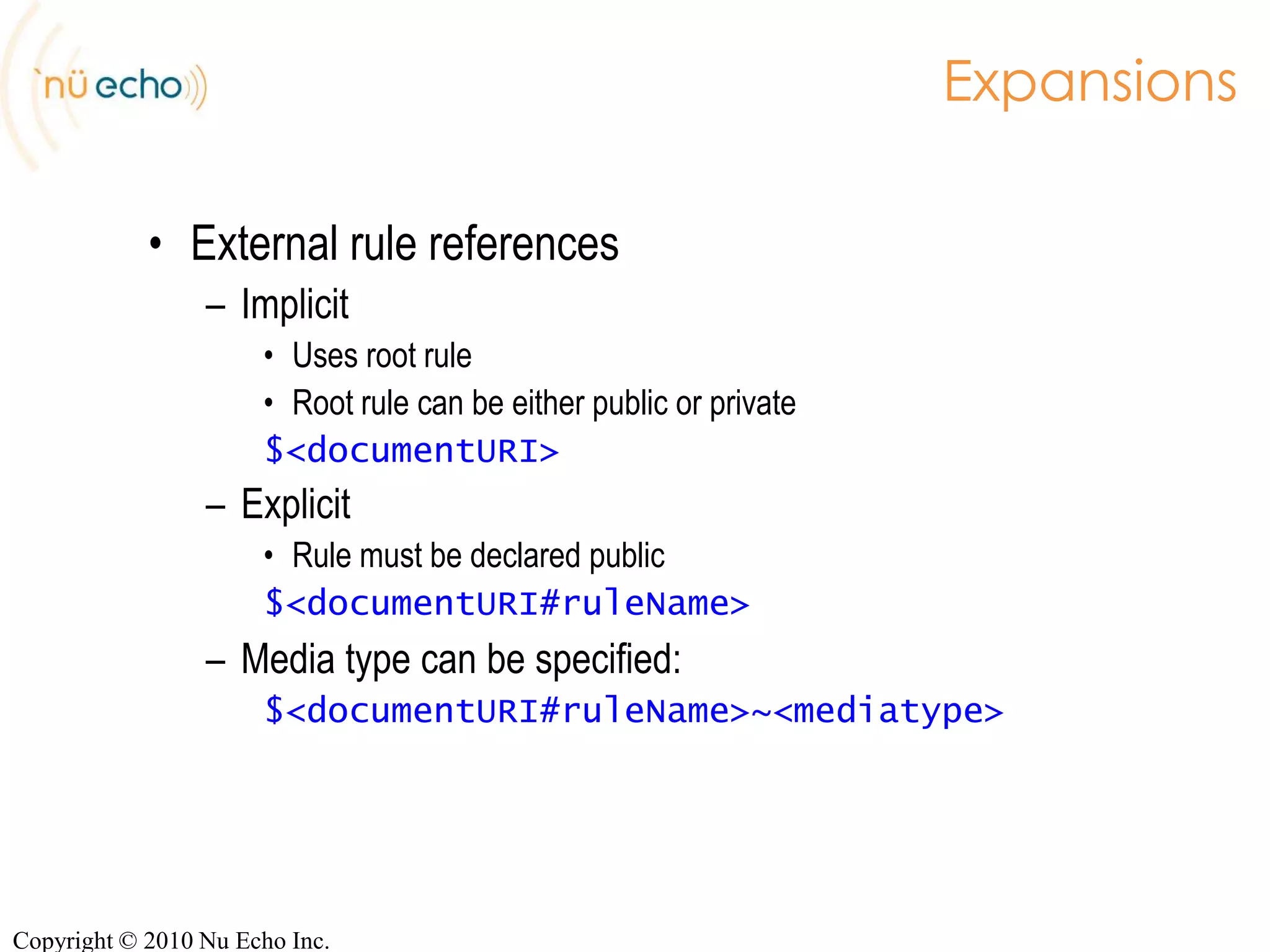

116. ExpansionsExternal rule references

117. Implicit

118. Uses root rule

119. Root rule can be either public or private$<documentURI>Explicit

120. Rule must be declared public$<documentURI#ruleName>Media type can be specified:$<documentURI#ruleName>~<mediatype>Copyright © 2010 Nu Echo Inc.

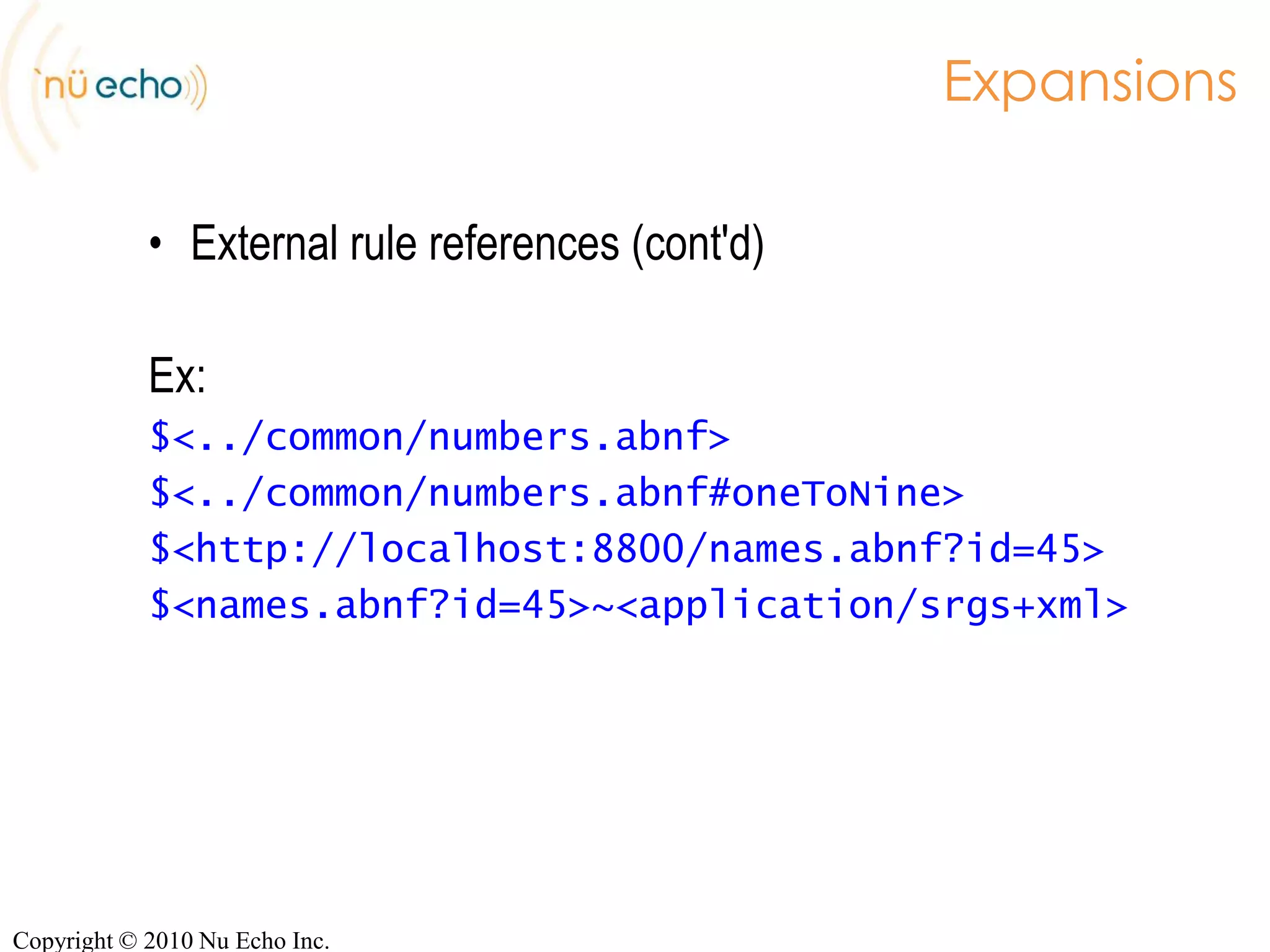

121. ExpansionsExternal rule references (cont'd)‏Ex:$<../common/numbers.abnf>$<../common/numbers.abnf#oneToNine>$<http://localhost:8800/names.abnf?id=45>$<names.abnf?id=45>~<application/srgs+xml>Copyright © 2010 Nu Echo Inc.

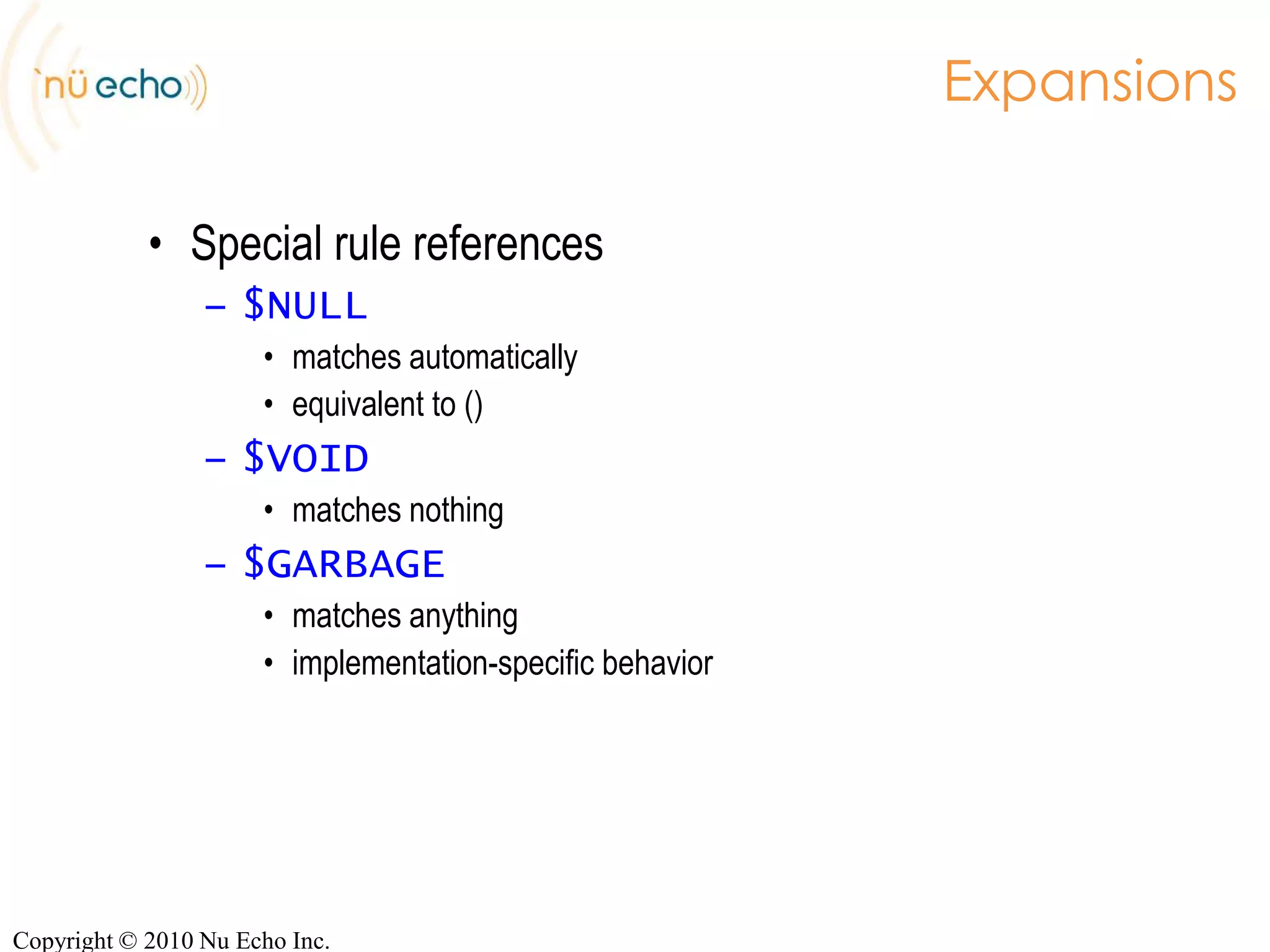

122. ExpansionsSpecial rule references

123. $NULL

124. matches automatically

125. equivalent to ()‏

126. $VOID

127. matches nothing

128. $GARBAGE

129. matches anything

130. implementation-specific behaviorCopyright © 2010 Nu Echo Inc.

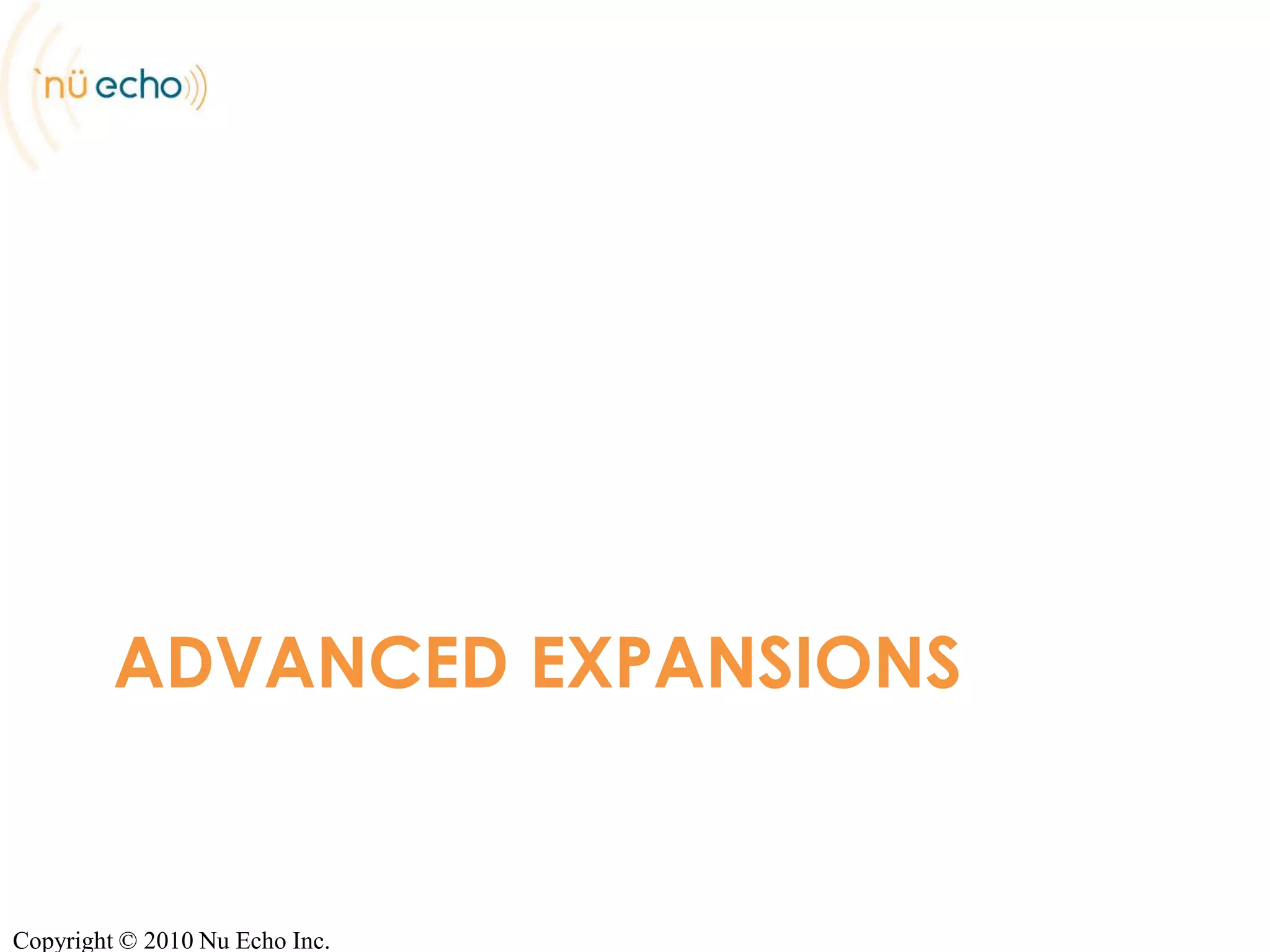

131. Advanced expansionsCopyright © 2010 Nu Echo Inc.

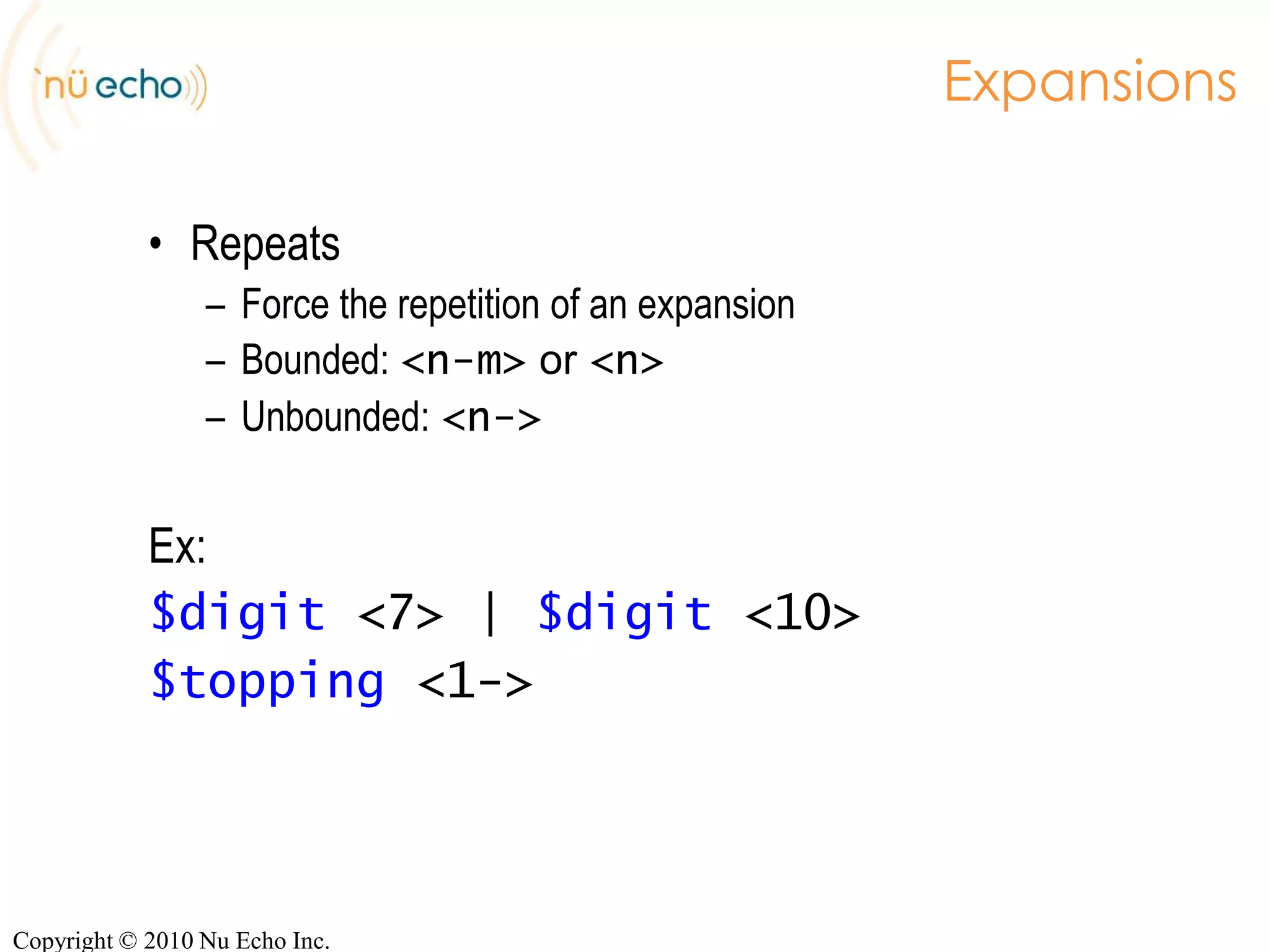

132. ExpansionsRepeats

133. Force the repetition of an expansion

134. Bounded: <n-m> or <n>

135. Unbounded: <n->Ex:$digit <7> | $digit <10>$topping <1->Copyright © 2010 Nu Echo Inc.

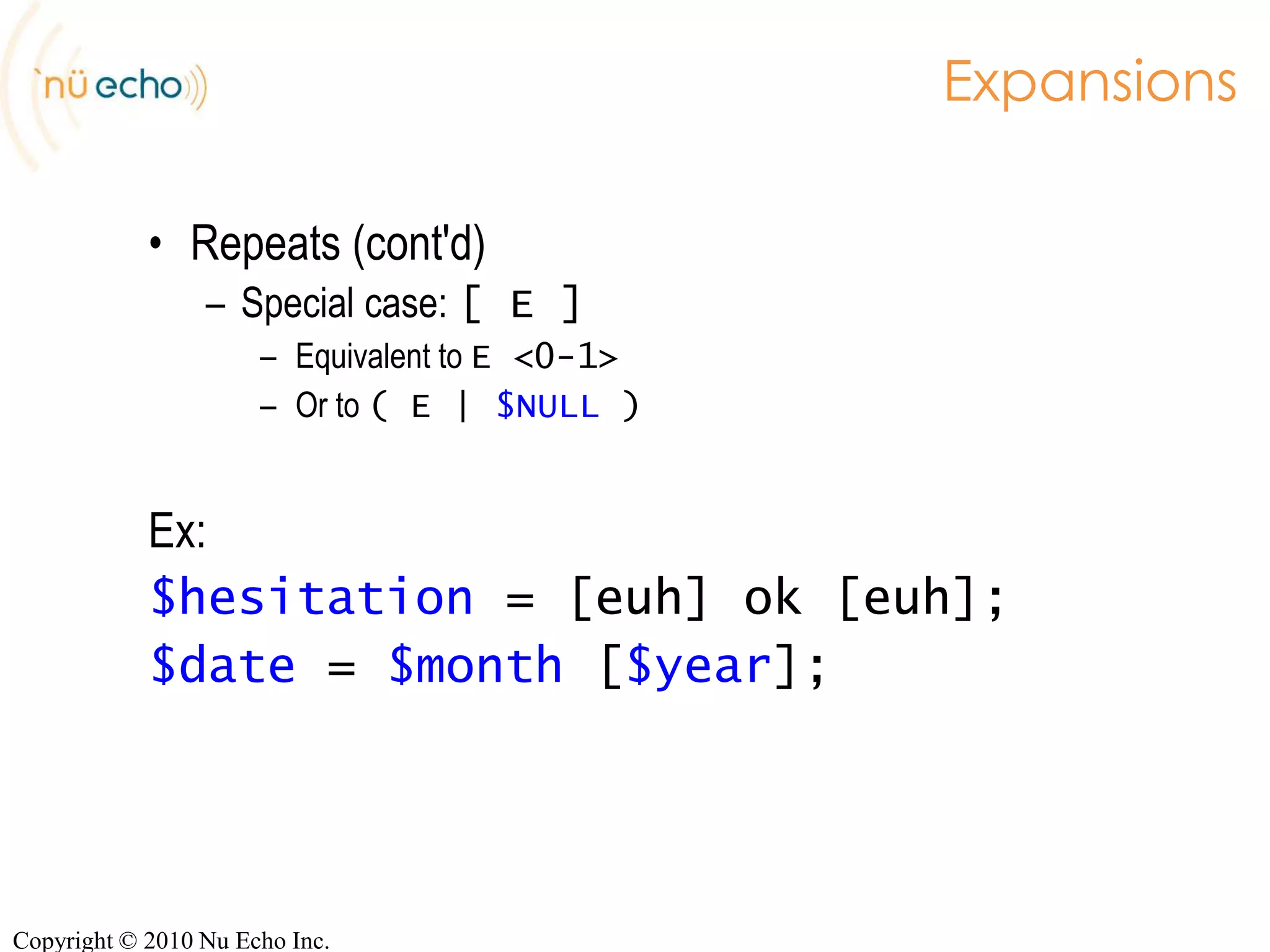

136. ExpansionsRepeats (cont'd)‏

137. Special case: [ E ]

138. Equivalent to E <0-1>

139. Or to ( E | $NULL )‏Ex:$hesitation = [euh] ok [euh];$date = $month [$year];Copyright © 2010 Nu Echo Inc.

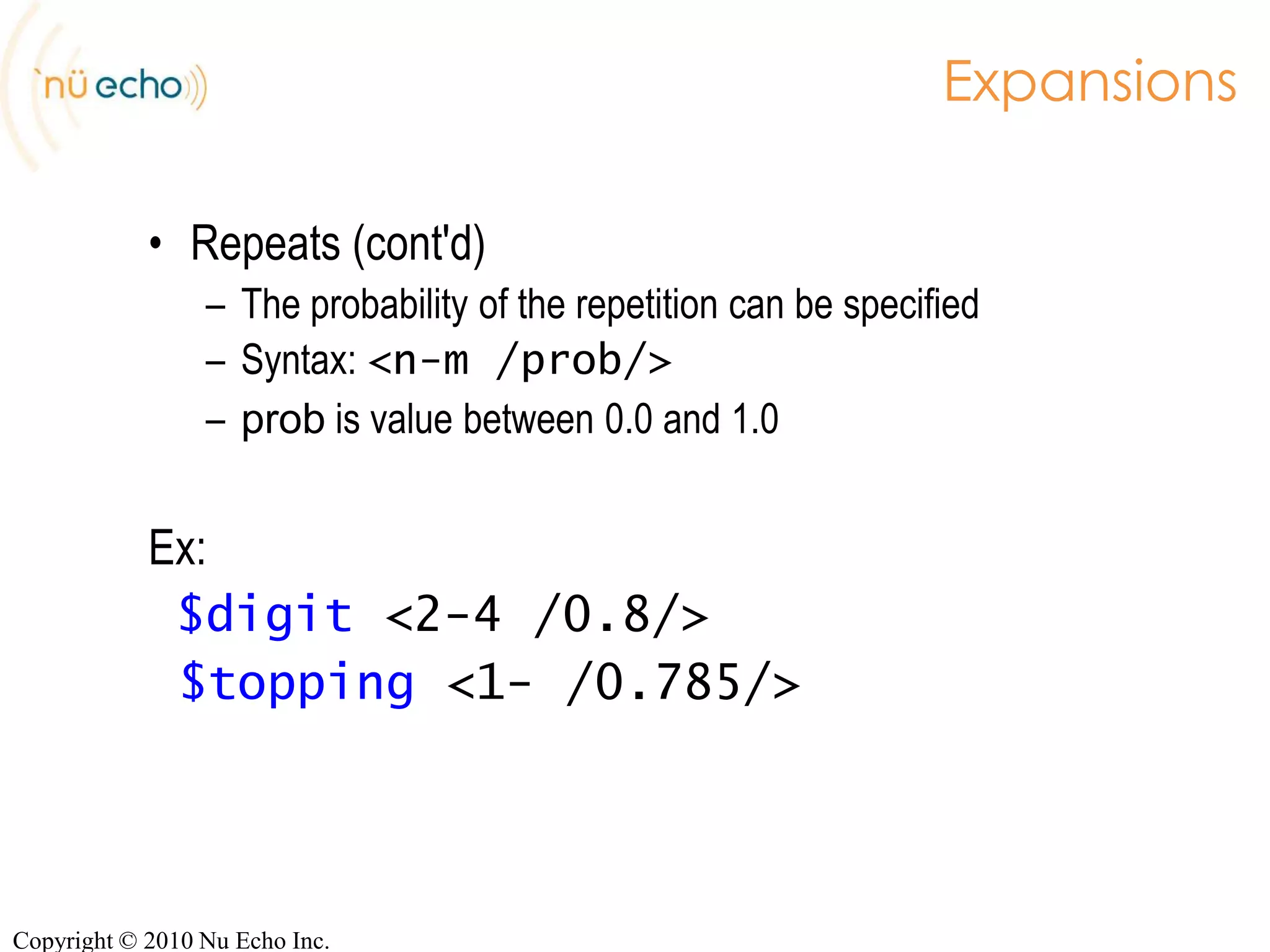

140. ExpansionsRepeats (cont'd)‏

141. The probability of the repetition can be specified

142. Syntax: <n-m /prob/>

143. prob is value between 0.0 and 1.0Ex:$digit <2-4 /0.8/>$topping <1- /0.785/>Copyright © 2010 Nu Echo Inc.

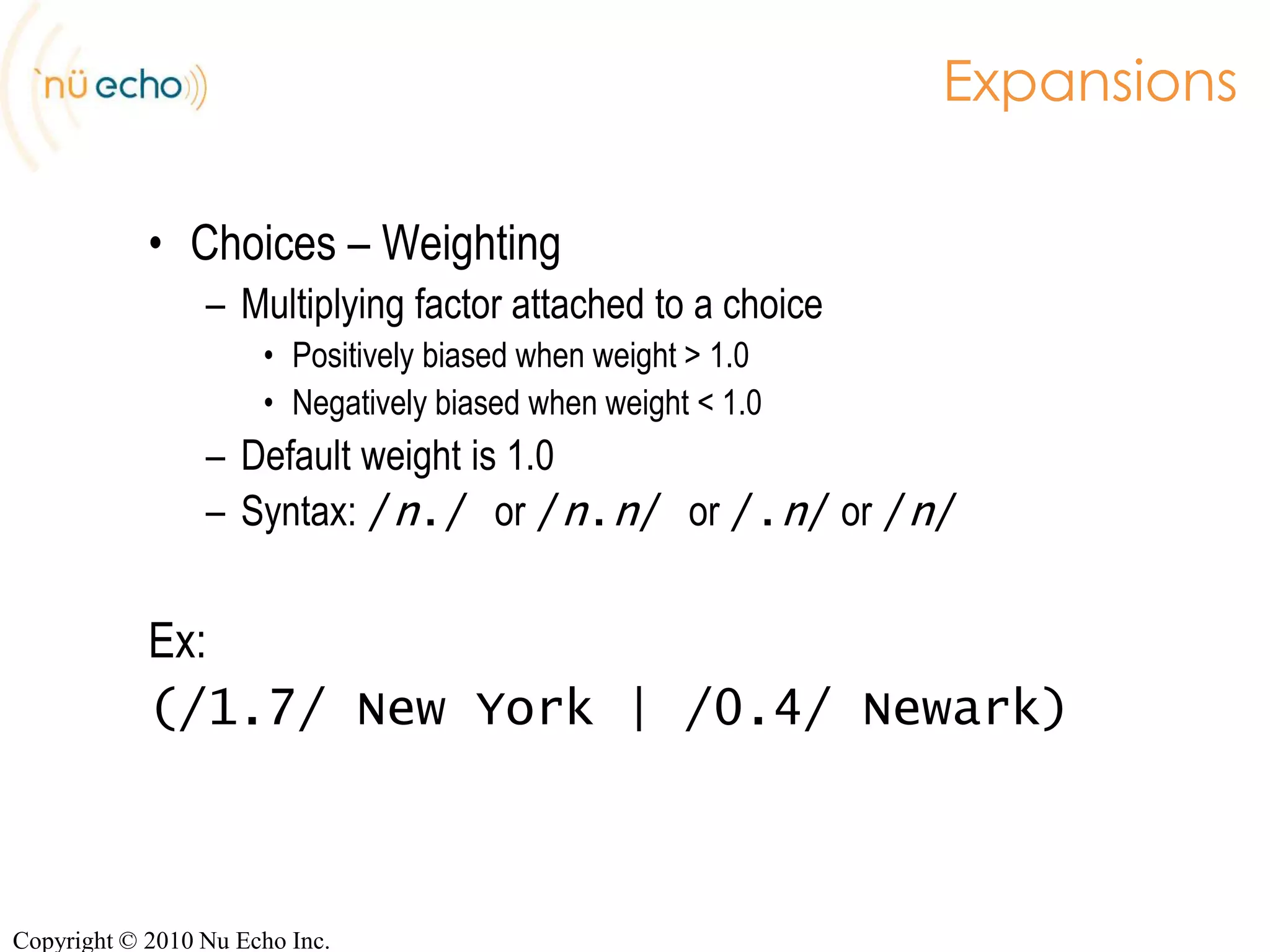

144. ExpansionsChoices – Weighting‏

145. Multiplying factor attached to a choice

146. Positively biased when weight > 1.0

147. Negatively biased when weight < 1.0

148. Default weight is 1.0

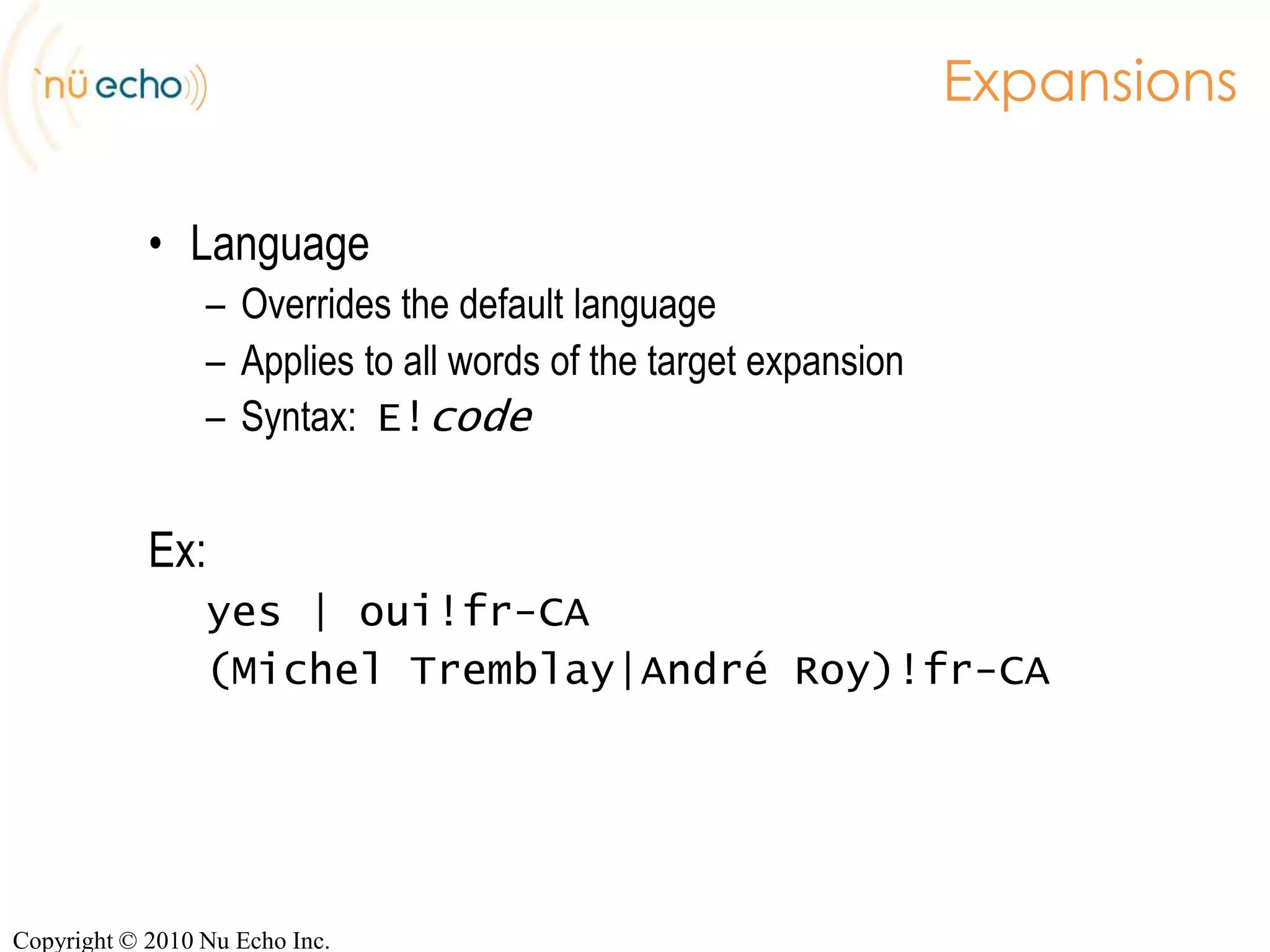

149. Syntax: /n./ or /n.n/ or /.n/ or /n/Ex:(/1.7/ New York | /0.4/ Newark)‏Copyright © 2010 Nu Echo Inc.

150. ExpansionsLanguage

151. Overrides the default language

152. Applies to all words of the target expansion

153. Syntax: E!codeEx:yes | oui!fr-CA(Michel Tremblay|André Roy)!fr-CACopyright © 2010 Nu Echo Inc.

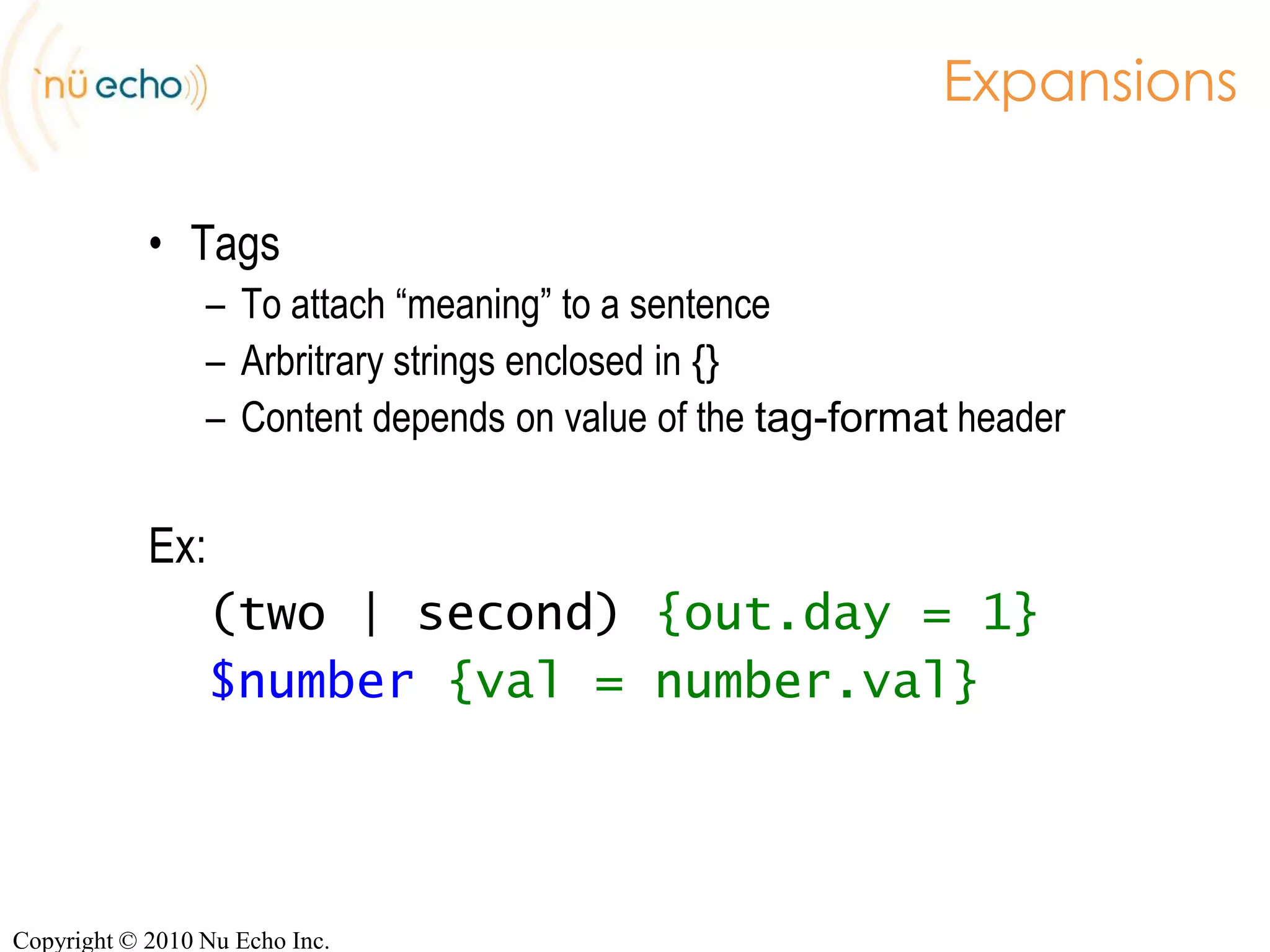

154. ExpansionsTags

155. To attach “meaning” to a sentence

156. Arbritrary strings enclosed in {}

157. Content depends on value of the tag-format headerEx: (two | second) {out.day = 1}$number{val = number.val}Copyright © 2010 Nu Echo Inc.

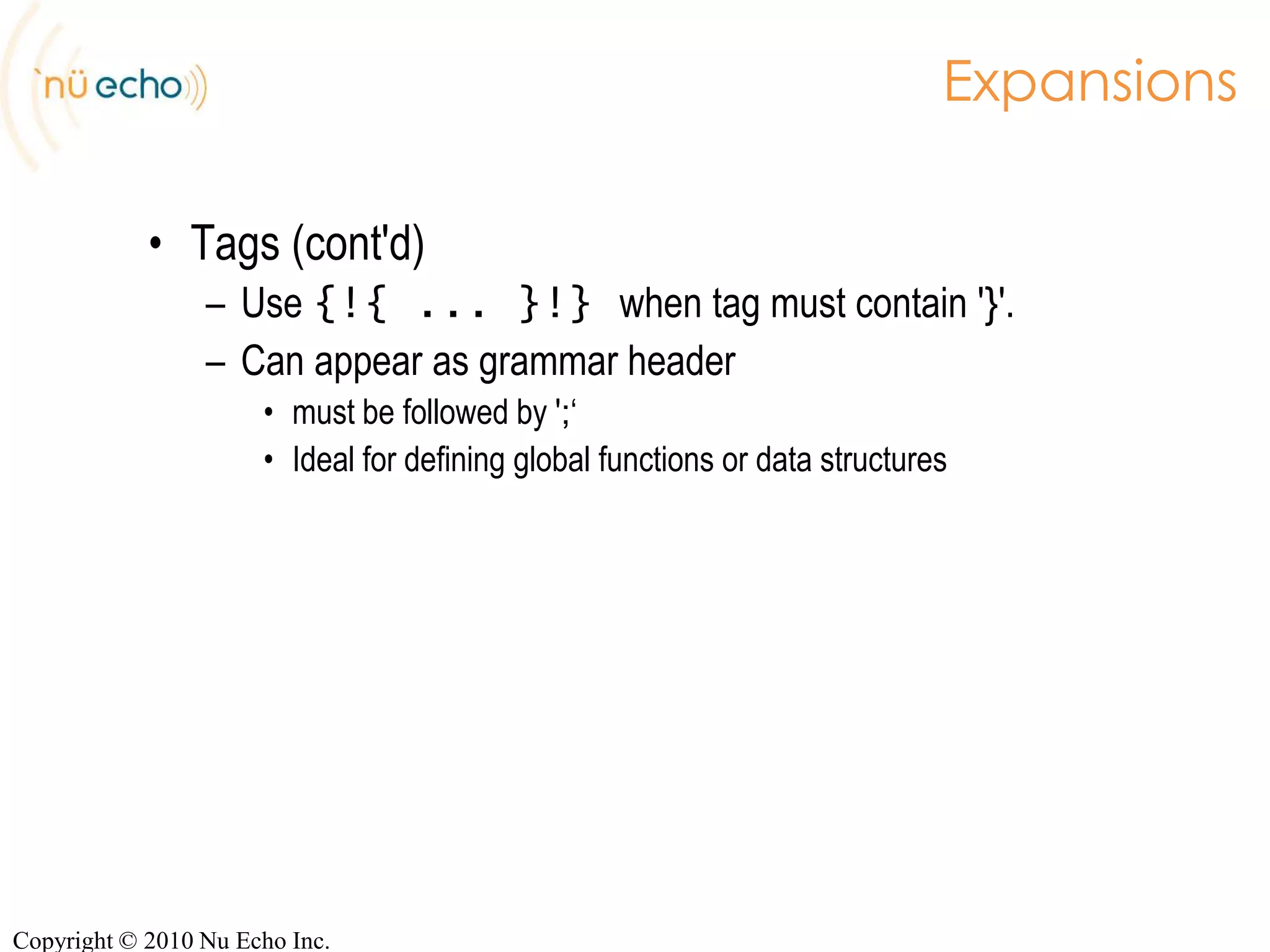

158. ExpansionsTags (cont'd)‏

159. Use {!{ ... }!} when tag must contain '}'.

160. Can appear as grammar header

161. must be followed by ';‘

162. Ideal for defining global functions or data structuresCopyright © 2010 Nu Echo Inc.

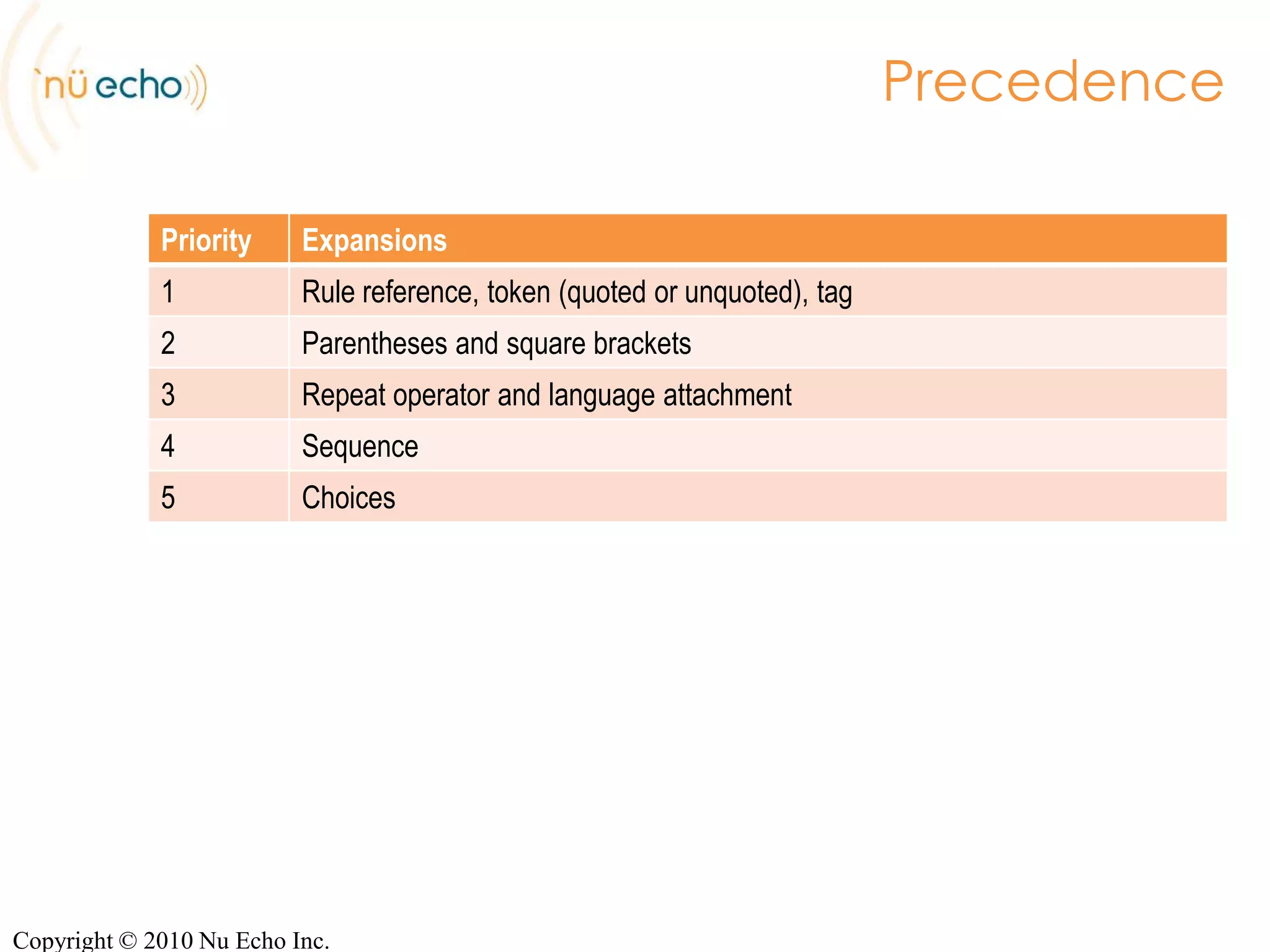

163. PrecedenceCopyright © 2010 Nu Echo Inc.
