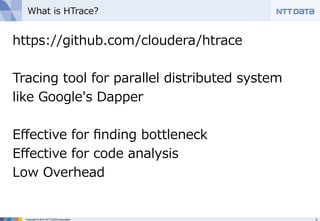

2. What is HTrace?
https://github.com/cloudera/htrace
Tracing tool for parallel distributed system
like Google's Dapper
Effective for finding bottleneck
Effective for code analysis
Low Overhead
Copyright © 2014 NTT DATA Corporation 2

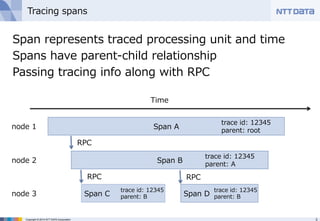

3. Tracing spans
Span represents traced processing unit and time
Spans have parent-‐‑‒child relationship
Passing tracing info along with RPC
Time
Span Atrace id: 12345
node 1parent: root
Span Btrace id: 12345
RPC
node 2parent: A
RPCRPC
Span Ctrace id: 12345Span D
node 3parent: B
parent: B
trace id: 12345
Copyright © 2014 NTT DATA Corporation 3

4. Starting root span
org.htrace.Trace#startSpan create span
new trace ID is assigned when root span starts
FsShell shell = new FsShell();!
conf.setQuietMode(false);!
shell.setConf(conf);!
int res = 0;!
SpanReceiverHost.getInstance(new HdfsConfiguration());!
TraceScope ts = null;!
try {!
ts = Trace.startSpan(FsShell, Sampler.ALWAYS);!
res = ToolRunner.run(shell, argv);!
} finally {!
shell.close();!
if (ts != null) ts.close();!
}
Copyright © 2014 NTT DATA Corporation 4

5. Starting passive span
Starting child span only when there is parent
For server-‐‑‒side custom tracing span
if (Trace.isTracing()) {!
traceScope = Trace.startSpan(method.getName());!
}
Copyright © 2014 NTT DATA Corporation 5

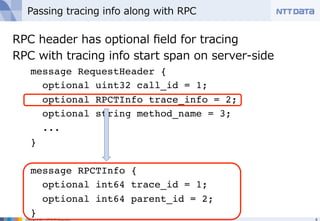

6. Passing tracing info along with RPC
RPC header has optional field for tracing
RPC with tracing info start span on server-‐‑‒side
message RequestHeader {!
optional uint32 call_id = 1;!
optional RPCTInfo trace_info = 2;!
optional string method_name = 3;!
...!
}!
!
message RPCTInfo {!
optional int64 trace_id = 1;!
optional int64 parent_id = 2;!
}!
Copyright © 2014 NTT DATA Corporation 6

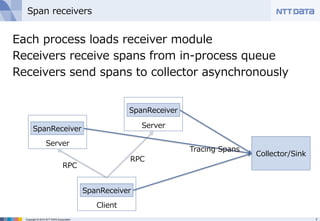

7. Span receivers
Each process loads receiver module
Receivers receive spans from in-‐‑‒process queue
Receivers send spans to collector asynchronously
SpanReceiver
Server
SpanReceiver
RPC
SpanReceiver
Client
Server
Collector/Sink
RPC
Tracing Spans
Copyright © 2014 NTT DATA Corporation 7

8. Passing tracing info between threads
Ongoing tracing span is stored in ThreadLocal
You need to pass tracing info between threads
if (header.hasTraceInfo()) {!
// If the incoming RPC included tracing info, always continue the trace TraceInfo parentSpan = new TraceInfo(header.getTraceInfo().getTraceId(),!
header.getTraceInfo().getParentId());!
traceSpan = Trace.startSpan(rpcRequest.toString(), parentSpan).detach();!
}!
Call call = new Call(header.getCallId(), header.getRetryCount(),!
rpcRequest, this, ProtoUtil.convert(header.getRpcKind()),!
header.getClientId().toByteArray(), traceSpan);!
!
...!
!
if (call.traceSpan != null) {!
traceScope = Trace.continueSpan(call.traceSpan);!
}!
Copyright © 2014 NTT DATA Corporation 8

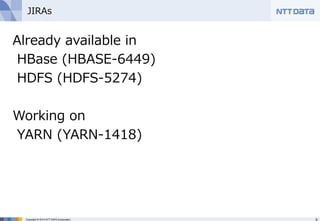

9. JIRAs
Already available in
HBase (HBASE-‐‑‒6449)
HDFS (HDFS-‐‑‒5274)
Working on
YARN (YARN-‐‑‒1418)
Copyright © 2014 NTT DATA Corporation 9

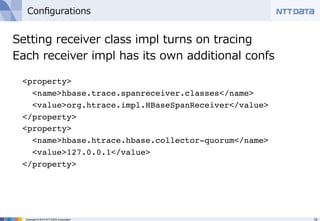

10. Configurations
Setting receiver class impl turns on tracing
Each receiver impl has its own additional confs
!
property!
namehbase.trace.spanreceiver.classes/name!
valueorg.htrace.impl.HBaseSpanReceiver/value!
/property !
property!
namehbase.htrace.hbase.collector-quorum/name!
value127.0.0.1/value!
/property
Copyright © 2014 NTT DATA Corporation 10

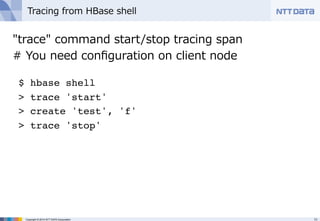

11. Tracing from HBase shell
trace command start/stop tracing span
# You need configuration on client node
!
$ hbase shell!
trace 'start'!
create 'test', 'f'!
trace 'stop'
Copyright © 2014 NTT DATA Corporation 11

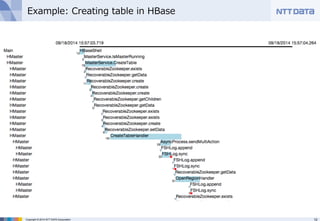

12. Example: Creating table in HBase
Copyright © 2014 NTT DATA Corporation 12

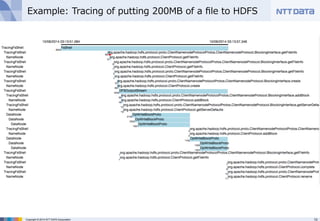

13. Example: Tracing of putting 200MB of a file to HDFS
Copyright © 2014 NTT DATA Corporation 13

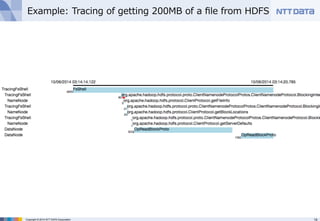

14. Example: Tracing of getting 200MB of a file from HDFS
Copyright © 2014 NTT DATA Corporation 14

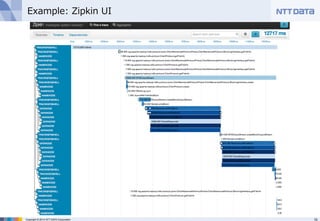

15. Example: Zipkin UI
Copyright © 2014 NTT DATA Corporation 15

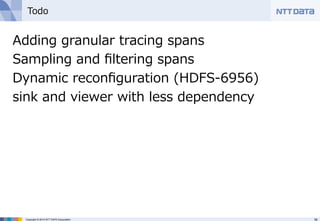

16. Todo
Adding granular tracing spans
Sampling and filtering spans
Dynamic reconfiguration (HDFS-‐‑‒6956)
sink and viewer with less dependency
Copyright © 2014 NTT DATA Corporation 16
