  Copyright © 2016NTT DATA Corporation December 2, 2016 NTT Data Corporation Ayumi Ishii Application of PostgreSQL to large social infrastructure PGCONF.ASIA 2016
• 2.
  Copyright © 2016NTT DATA Corporation 2 How to use PostgreSQL in social infrastructure
• 3.

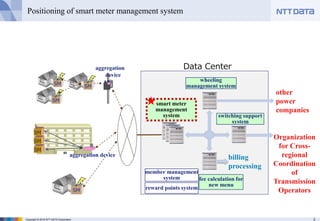

  3Copyright © 2016NTT DATA Corporation Positioning of smart meter management system aggregation device SM SM SM smart meter management system SM Data Center SM SM SM aggregation device wheeling management system fee calculation for new menu other power companies billing processing member management system reward points system switching support system Organization for Cross- regional Coordination of Transmission Operators ★
• 4.

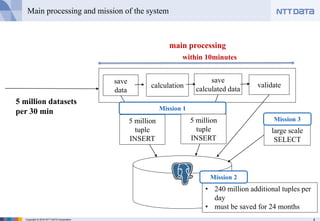

  4Copyright © 2016NTT DATA Corporation Main processing and mission of the system main processing 5 million datasets per 30 min validate save data save calculated datacalculation within 10minutes • 240 million additional tuples per day • must be saved for 24 months 5 million tuple INSERT Mission 1 Mission 2 large scale SELECT Mission 35 million tuple INSERT
• 5.
  5Copyright © 2016NTT DATA Corporation Mission 1. Load 10 million datasets within 10 minutes ! 2. Must save data for 24 months ! 3. Stabilize large scale SELECT performance !
• 6.

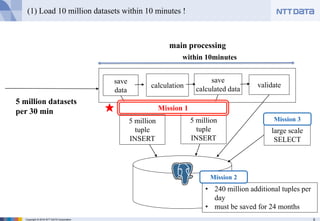

  6Copyright © 2016NTT DATA Corporation (1) Load 10 million datasets within 10 minutes ! ★ main processing 5 million datasets per 30 min validate save data save calculated datacalculation within 10minutes • 240 million additional tuples per day • must be saved for 24 months 5 million tuple INSERT Mission 2 large scale SELECT Mission 35 million tuple INSERT Mission 1
• 7.
  7Copyright © 2016NTT DATA Corporation Data model data : [Device ID] [Date] [Electricity Usage] ex) ID: 1 used 500 at 1:00 August 1st. Method 1 ：UPDATE model UPDATE new data for each device, daily Device ID Day 0:00 0:30 1:00 1:30 … 1 8/1 100 300 500 2 8/1 200 400 Frequent UPADATEs are unfavorable for PostgreSQL in terms of performance
• 8.
  8Copyright © 2016NTT DATA Corporation Data model Device ID Date Value 1 8/1 0:00 100 1 8/1 0:30 300 1 8/1 1:00 500 … … … ○ performance × data size Method 2 : INSERT model INSERT new data for each device, every 30 mins Method 1 ：UPDATE model Device ID Day 0:00 0:30 1:00 1:30 … 1 8/1 100 300 500 2 8/1 200 400
• 9.

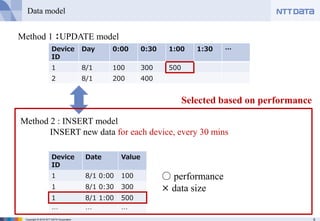

  9Copyright © 2016NTT DATA Corporation Data model Device ID Date Value 1 8/1 0:00 100 1 8/1 0:30 300 1 8/1 1:00 500 … … … ○ performance × data size Method 2 : INSERT model INSERT new data for each device, every 30 mins Method 1 ：UPDATE model Device ID Day 0:00 0:30 1:00 1:30 … 1 8/1 100 300 500 2 8/1 200 400 Selected based on performance
• 10.
  10Copyright © 2016NTT DATA Corporation Performance factors number of tuples in one transaction ? multiplicity？ parameters? data type？ restrictions? index? version? pre research regarding performance factors how to load to partition table？
• 11.
  11Copyright © 2016NTT DATA Corporation Performance factors number of tuples in one transaction 10000multiplicity 8 parameter wal_bugffers=1GB data type minimumrestriction minimum index minimum version 9.4 direct load to partition child table DB design performance tuning
• 12.
  12Copyright © 2016NTT DATA Corporation Performance factors number of tuples in one transaction 10000multiplicity 8 parameter wal_bugffers=1GB data type minimumrestriction minimum index minimum version 9.4 direct load to partition child table
• 13.
  13Copyright © 2016NTT DATA Corporation Bottleneck Analysis with perf 19.83% postgres postgres [.] XLogInsert ★ 6.45% postgres postgres [.] LWLockRelease 4.41% postgres postgres [.] PinBuffer 3.03% postgres postgres [.] LWLockAcquire WAL is the bottleneck ！ perf WAL WAL file Disk I/O memory WAL buffer write ・commit ・buffer is full
• 14.
  14Copyright © 2016NTT DATA Corporation wal_buffers parameter “The auto-tuning selected by the default setting of -1 should give reasonable results in most cases.” by PostgreSQL Document
• 15.
  15Copyright © 2016NTT DATA Corporation wal_buffers ※INSERT only （except SELECT） 0:00:00 0:01:00 0:02:00 0:03:00 0:04:00 0:05:00 0:06:00 0:07:00 0:08:00 0:09:00 16MB 1GB Time Impact of WAL_buffers
• 16.
  16Copyright © 2016NTT DATA Corporation PostgreSQL version ・WAL performance improved ・JSONB ・GIN performance improved ・CONCURRENTLY option 9.3 9.4
• 17.
  17Copyright © 2016NTT DATA Corporation Version up • We had originally planned to use 9.3, but changed to 9.4. 0:00:00 0:01:00 0:02:00 0:03:00 0:04:00 0:05:00 0:06:00 0:07:00 0:08:00 9.3 9.4 time impact of version up ※INSERT only （except SELECT）
• 18.
  18Copyright © 2016NTT DATA Corporation 0:07:57 0:06:59 0:05:49 0:03:29 0:03:29 0:03:29 0:00:00 0:02:00 0:04:00 0:06:00 0:08:00 0:10:00 0:12:01 9.3, 16MB 9.3, 1GB 9.4, 1GB time Result target accomplished!! other processes are already tuned. ■INSERT ■others
• 19.

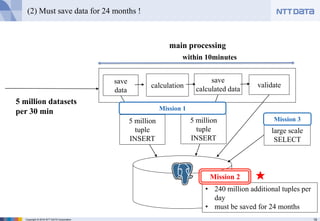

  19Copyright © 2016NTT DATA Corporation (2) Must save data for 24 months ! ★ main processing 5 million datasets per 30 min validate save data save calculated datacalculation within 10minutes • 240 million additional tuples per day • must be saved for 24 months 5 million tuple INSERT large scale SELECT Mission 35 million tuple INSERT Mission 1 Mission 2
• 20.
  108TB
• 21.
  21Copyright © 2016NTT DATA Corporation Reduce data size by selecting the best data type • Integer  Use the smallest data type that can cover the range and precision • Boolean  Use BOOLEAN instead of CHAR(1) Type precision Size SMALLINT 4 digit 2 byte INTEGER 9 digit 4 byte BIGINT 18 digit 8 byte NUMERIC 1000 digit 3 or 6 or 8 + ceiling(digit / 4) * 2 Type available data Size CHAR(1) string (length is 1) 5 byte BOOLEAN true or false 1 byte
• 22.
  22Copyright © 2016NTT DATA Corporation Reduce the data size by changing column order • alignment • PostgreSQL does not store data across the alignment 1 2 3 4 5 6 7 8 column_1(4byte) ***PADDING*** column_2(8byte) 8 byte
• 23.

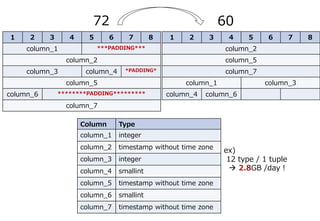

  Column Type column_1 integer column_2timestamp without time zone column_3 integer column_4 smallint column_5 timestamp without time zone column_6 smallint column_7 timestamp without time zone 1 2 3 4 5 6 7 8 column_1 ***PADDING*** column_2 column_3 column_4 *PADDING* column_5 column_6 ********PADDING********* column_7 1 2 3 4 5 6 7 8 column_2 column_5 column_7 column_1 column_3 column_4 column_6 72 60 ex) 12 type / 1 tuple  2.8GB /day！
• 24.
  24Copyright © 2016NTT DATA Corporation Change data model num data select frequency update frequency policy model 1 1st day ～65th day high high performance is the priority INSERT 2 66th day ～24 months low low data size is the priority UPDATE We adopted INSERT model considering the performance • However, data size is large making it difficult to store long term convert model for old data
• 25.

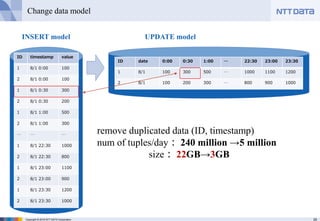

  25Copyright © 2016NTT DATA Corporation Change data model ID date 0:00 0:30 1:00 … 22:30 23:00 23:30 1 8/1 100 300 500 … 1000 1100 1200 2 8/1 100 200 300 … 800 900 1000 ID timestamp value 1 8/1 0:00 100 2 8/1 0:00 100 1 8/1 0:30 300 2 8/1 0:30 200 1 8/1 1:00 500 2 8/1 1:00 300 … … … 1 8/1 22:30 1000 2 8/1 22:30 800 1 8/1 23:00 1100 2 8/1 23:00 900 1 8/1 23:30 1200 2 8/1 23:30 1000 INSERT model UPDATE model remove duplicated data (ID, timestamp) num of tuples/day： 240 million →5 million size： 22GB→3GB
• 26.
  26Copyright © 2016NTT DATA Corporation result 108 11 0 20 40 60 80 100 120 datasize（TB) reduce data size before after
• 27.

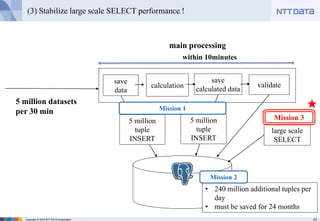

  27Copyright © 2016NTT DATA Corporation (3) Stabilize large scale SELECT performance ! ★ main processing 5 million datasets per 30 min validate save data save calculated datacalculation within 10minutes • 240 million additional tuples per day • must be saved for 24 months 5 million tuple INSERT large scale SELECT 5 million tuple INSERT Mission 1 Mission 2 Mission 3
• 28.

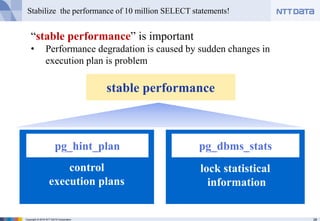

  28Copyright © 2016NTT DATA Corporation Stabilize the performance of 10 million SELECT statements! “stable performance” is important • Performance degradation is caused by sudden changes in execution plan is problem control execution plans pg_hint_plan lock statistical information pg_dbms_stats stable performance
• 29.

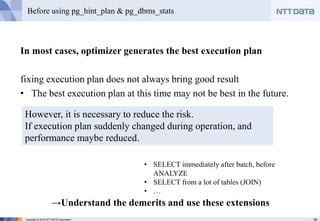

  29Copyright © 2016NTT DATA Corporation Before using pg_hint_plan & pg_dbms_stats In most cases, optimizer generates the best execution plan fixing execution plan does not always bring good result • The best execution plan at this time may not be best in the future. However, it is necessary to reduce the risk. If execution plan suddenly changed during operation, and performance maybe reduced. →Understand the demerits and use these extensions • SELECT immediately after batch, before ANALYZE • SELECT from a lot of tables (JOIN) • …
• 30.
  30Copyright © 2016NTT DATA Corporation pg_dbms_stats Planner pg_dbms_stats PostgreSQL Original statistics Plan generate Lock “Locked” statistics
• 31.
  31Copyright © 2016NTT DATA Corporation pg_dbms_stats in this system usage data day table locked statistics day table locked statistics day table locked statistics day partition set locked statistics with new table COPY some statistics are different depending on each child table We can certainly get best plan even without using ANALYZE. • table’s OID, table name • partition key, date
• 32.
  32Copyright © 2016NTT DATA Corporation Replacing statistics that should be changed according to table • Create assumed dummy data • ANALYZE dummy data Column statistic partition key Most Common Value Date Histogram Ex) “ 8/1 0:00” , “8/1 0:30”, “8/1 1:00” 48 pattern per day. Uniform distribution.
• 33.
  33Copyright © 2016NTT DATA Corporation 1. Load 10 million datasets within 10 minutes ! 2. Must save data for 24 months ! 3. Stabilize large scale SELECT performance ! Mission COMPLETE
• 34.
  34Copyright © 2016NTT DATA Corporation conclusion The 20th anniversary of PostgreSQL PostgreSQL finally evolved to be adopted in large scale social infrastructure. Both PostgreSQL technical knowledge and business application knowledge are necessary to be successful in difficult and large scale projects. Pre research and know-how are important to get the full out of PostgreSQL.
